Marshall Radio Telemetry PLD-010-001 Personal Locating Device User Manual PLD 010
Marshall Radio Telemetry, Inc. Personal Locating Device PLD 010
User Manual
© 2011 Marshall Radio Telemetry, Inc. Rev. 2011-Oct.-10
PLD-010
Personal Locating Device
User Manual
The PLD-010 is a Personal Locating Device worn on the wrist and used to locate persons with
disabilities (such as Alzheimer’s or Autism) that may wander or become lost. The device enables to
tracking and locating of the patient by trained personnel.

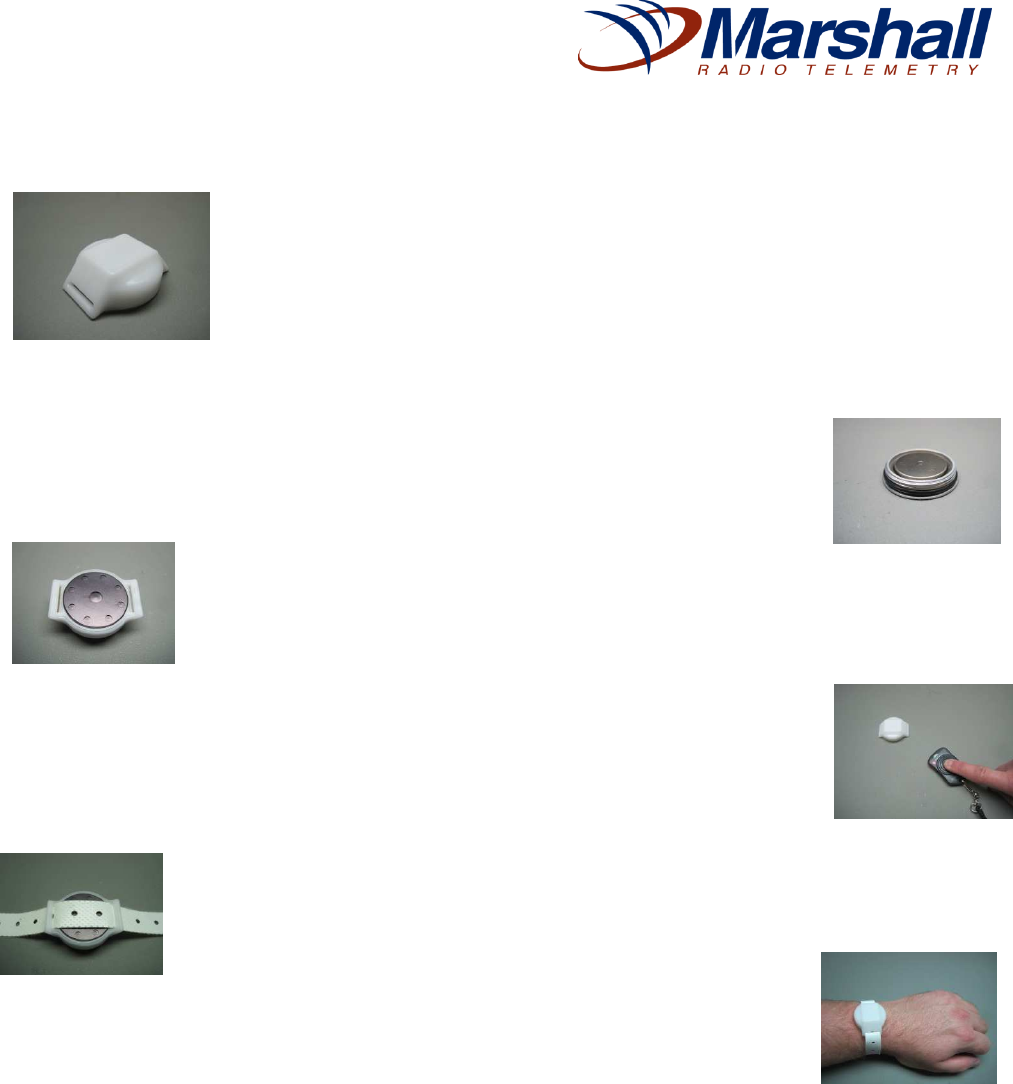

Installation Instructions:
Install Battery with + side into the battery lid. At this point, it is advisable to also
inspect the condition of the O-ring on the lid. If the O-ring is cracked, torn, or
otherwise damaged, replace O-ring before installing the battery.
Thread lid (with battery installed) into bottom of transmitter body. Tighten with
provided tool. PLD-010 will begin transmitting as soon as battery is installed.
With the battery installed. Test that the device is transmitting by listening to it
on a receiver, or by using a transmitter tester. Note: Checking that the device
is transmitting should be done on a daily basis by a trained care giver.
Install medical bracelet through the slots on the PLD’s body.
Install device onto wrist. Either left or right arm may be used. Battery should
be replaced every 30 days.
Battery:
The PLD-010 is powered by a CR2450 Lithium battery. Battery life is 30+ days with a new battery installed.
Transmitting Range
The PLD-010 is a LPRS transmitting device. Typical range is 2 miles in a ground search, or 10+ miles when searching while airborne
(from Helicopter or Airplane). Actual range may vary depending on many factors such as height of transmitter, height of receiver, type
of terrain and obstructions, and radio noise or interference. Higher ground always gives better range.
© 2011 Marshall Radio Telemetry, Inc. Rev. 2011-Oct.-10
Regulatory Statements
For Users in the United States
This Device may not interfere with TV reception or Federal Government radar
This device complies with part 15 of the FCC Rules. Operation is subject to the following 2
conditions
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
For users in Canada
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
The user/purchaser of this device should take note that as digital TV broadcasting stations are introduced in the geographical area, the
medical telemetry links may have to be shifted to operate in other (unused) TV channels. The user/purchaser should ensure that the radio
device can adapt to this mode of operation.
L’utilisateur/consommateur de cet appareil doit prendre note qu’au fur et à mesure que les stations de radiodiffusion de la télévision
numérique sont déployées dans la region géographique, les liaisons de télémesure médicale peuvent être appelées à se déplacer pour
fonctionner sur d’autres canaux TV (inutilisés). L’utilisateur/consommateur devrait donc s’assurer que son dispositif radio peut s’adapter
à ce mode d’exploitation.
If TV channel 13 is used in the area, the installer shall reduce or adjust the radio frequency radiated power so that nearby TV channel 13
receivers do not receive radio interference from the system installed. Suggestions: A test with a TV receiver equipped with a “rabbit-ear
antenna” and tuned to channel 13 should be conducted at the perimeter of the user’s intended coverage area and should not overlap other
users’ areas without the latter’s consent. If this does not solve the problem, a channel near the 217 MHz edge and not near 216 MHz
should be tried.
Si le canal TV 13 est utilisé dans ce secteur, l’installateur doit réduire ou régler la puissance d’émission RF de façon que les récepteurs du
canal TV 13 avoisinants ne subissent pas le brouillage en provenance du système nouvellement installé. Suggestions : Un essai d’un
récepteur TV muni d’une antenne « en oreilles de lapin » réglée sur le canal 13 devrait être conduit sur le périmètre de la zone de
couverture prévue par l’utilisateur et ne devrait pas chevaucher la zone de couverture des autres utilisateurs sans leur accord. Si cela ne
règle pas le problème, un canal à proximité de la bordure de bande 217 MHz et donc éloigné de 216 MHz devrait être essayé.
© 2011 Marshall Radio Telemetry, Inc. Rev. 2011-Oct.-10
MARSHALL RADIO TELEMETRY
896 West 100 North, North Salt Lake, UT 84054, USA
Toll Free (800) 729-7123 International 1-801-936-9000
www.marshallradio.com
