Marson Technology Co MR11A7 Mobile UHF Reader User Manual MR11A7 QG rev Cert v4

Marson Technology Co Ltd Mobile UHF Reader MR11A7 QG rev Cert v4

Users Manual

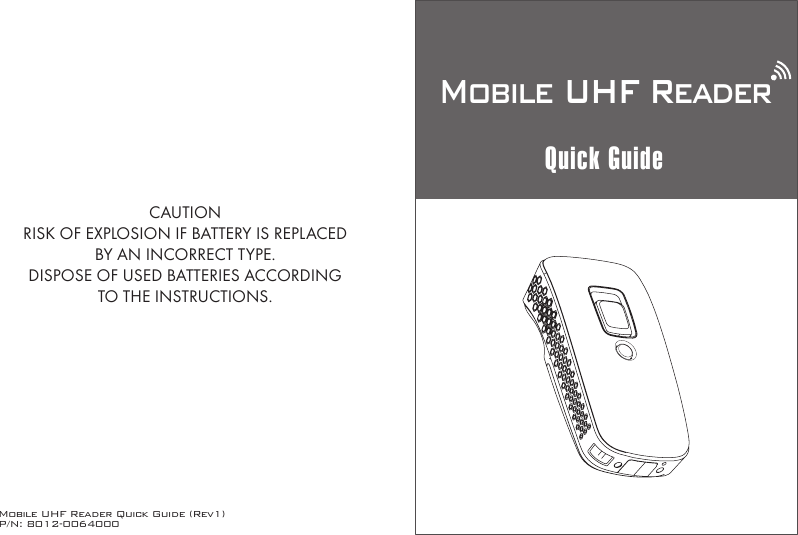

Mobile UHF Reader Quick Guide (Rev1)P/N: 8012-0064000Mobile UHF ReaderQuick GuideCAUTIONRISK OF EXPLOSION IF BATTERY IS REPLACEDBY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES ACCORDINGTO THE INSTRUCTIONS.

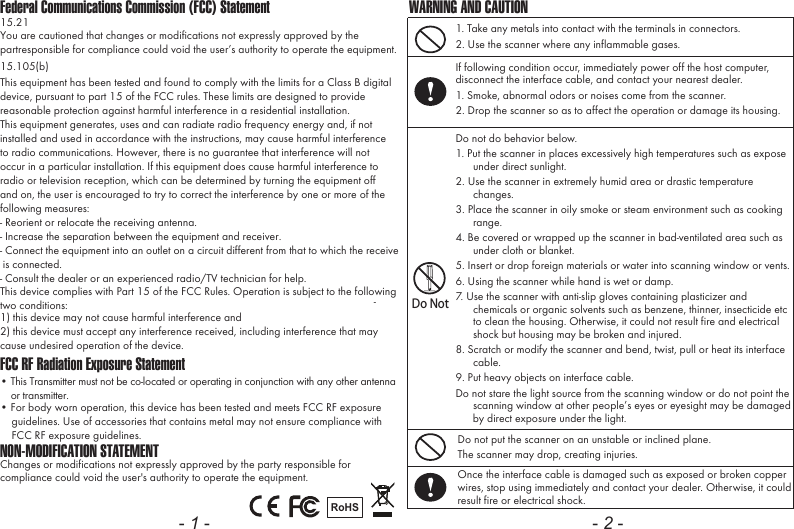

Federal Communications Commission (FCC) StatementFCC RF Radiation Exposure Statement15.21You are cautioned that changes or modifications not expressly approved by thepartresponsible for compliance could void the user’s authority to operate the equipment. 15.105(b)This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to part 15 of the FCC rules. These limits are designed to providereasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may cause harmful interferenceto radio communications. However, there is no guarantee that interference will notoccur in a particular installation. If this equipment does cause harmful interference toradio or television reception, which can be determined by turning the equipment offand on, the user is encouraged to try to correct the interference by one or more of thefollowing measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receive is connected.- Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules. Operation is subject to the followingtwo conditions:1) this device may not cause harmful interference and2) this device must accept any interference received, including interference that maycause undesired operation of the device. • This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.• For body worn operation, this device has been tested and meets FCC RF exposure guidelines. Use of accessories that contains metal may not ensure compliance with FCC RF exposure guidelines.-NON-MODIFICATION STATEMENTChanges or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.RoHS- 1 -1. Take any metals into contact with the terminals in connectors.2. Use the scanner where any inflammable gases.If following condition occur, immediately power off the host computer, disconnect the interface cable, and contact your nearest dealer.1. Smoke, abnormal odors or noises come from the scanner.2. Drop the scanner so as to affect the operation or damage its housing.Do NotDo not do behavior below.1. Put the scanner in places excessively high temperatures such as expose under direct sunlight.2. Use the scanner in extremely humid area or drastic temperature changes.3. Place the scanner in oily smoke or steam environment such as cooking range.4. Be covered or wrapped up the scanner in bad-ventilated area such as under cloth or blanket.5. Insert or drop foreign materials or water into scanning window or vents.6. Using the scanner while hand is wet or damp.7. Use the scanner with anti-slip gloves containing plasticizer and chemicals or organic solvents such as benzene, thinner, insecticide etc to clean the housing. Otherwise, it could not result fire and electrical shock but housing may be broken and injured.8. Scratch or modify the scanner and bend, twist, pull or heat its interface cable.9. Put heavy objects on interface cable.Do not stare the light source from the scanning window or do not point the scanning window at other people’s eyes or eyesight may be damaged by direct exposure under the light.Do not put the scanner on an unstable or inclined plane.The scanner may drop, creating injuries.Once the interface cable is damaged such as exposed or broken copper wires, stop using immediately and contact your dealer. Otherwise, it could result fire or electrical shock.WARNING AND CAUTION- 2 -

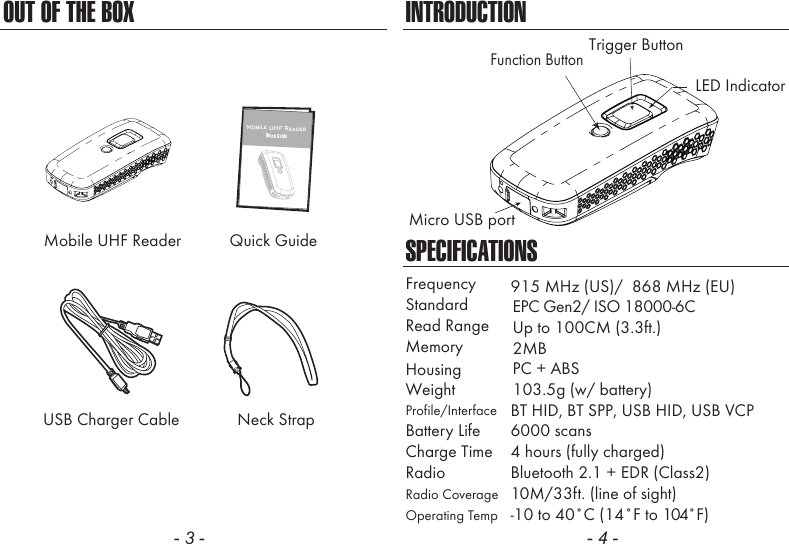

OUT OF THE BOX- 3 -INTRODUCTIONSPECIFICATIONSFrequencyStandardMemoryHousingProfile/InterfaceWeight 103.5g (w/ battery)BT HID, BT SPP, USB HID, USB VCPPC + ABS2MBRead Range Up to 100CM (3.3ft.)915 MHz (US)/ 868 MHz (EU)EPC Gen2/ ISO 18000-6CBattery Life 6000 scans10M/33ft. (line of sight)4 hours (fully charged)Radio Bluetooth 2.1 + EDR (Class2)Charge TimeRadio CoverageOperating Temp -10 to 40˚C (14˚F to 104˚F)- 4 -Neck StrapUSB Charger CableMobile UHF Reader Quick Guide12 Mobile UHF ReaderQuick GuideLED IndicatorMicro USB portTrigger ButtonFunction Button

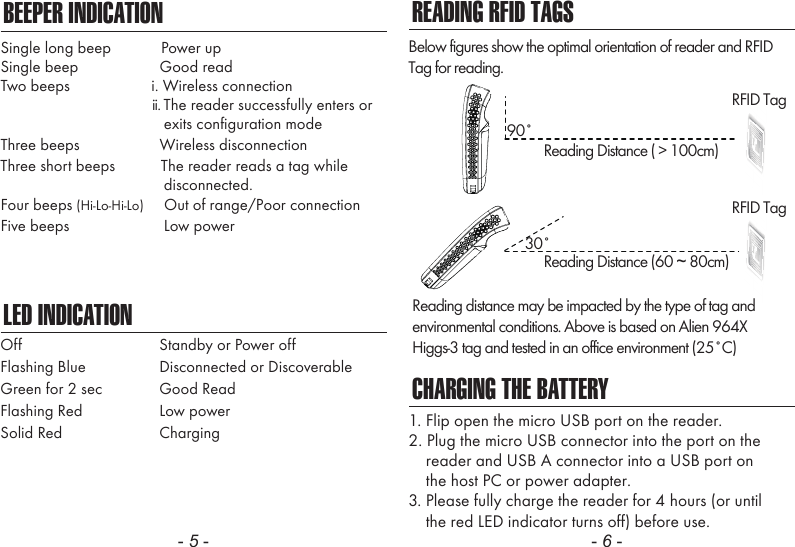

CHARGING THE BATTERYREADING RFID TAGS1. Flip open the micro USB port on the reader.Reading distance may be impacted by the type of tag andenvironmental conditions. Above is based on Alien 964XHiggs-3 tag and tested in an office environment (25˚C)Below figures show the optimal orientation of reader and RFIDTag for reading.Reading Distance ( > 100cm)Reading Distance (60 ~ 80cm)30˚90˚3. Please fully charge the reader for 4 hours (or until the red LED indicator turns off) before use.2. Plug the micro USB connector into the port on the reader and USB A connector into a USB port on the host PC or power adapter.- 5 - - 6 -BEEPER INDICATIONLED INDICATIONSingle long beep Power upSingle beep Good readTwo beeps i. Wireless connection ii. The reader successfully enters or exits configuration modeFour beeps (Hi-Lo-Hi-Lo) Out of range/Poor connectionFive beeps Low powerThree beeps Wireless disconnectionThree short beeps The reader reads a tag while disconnected.OffFlashing BlueGreen for 2 secFlashing RedSolid RedStandby or Power offDisconnected or DiscoverableGood ReadLow powerChargingRFID TagRFID Tag

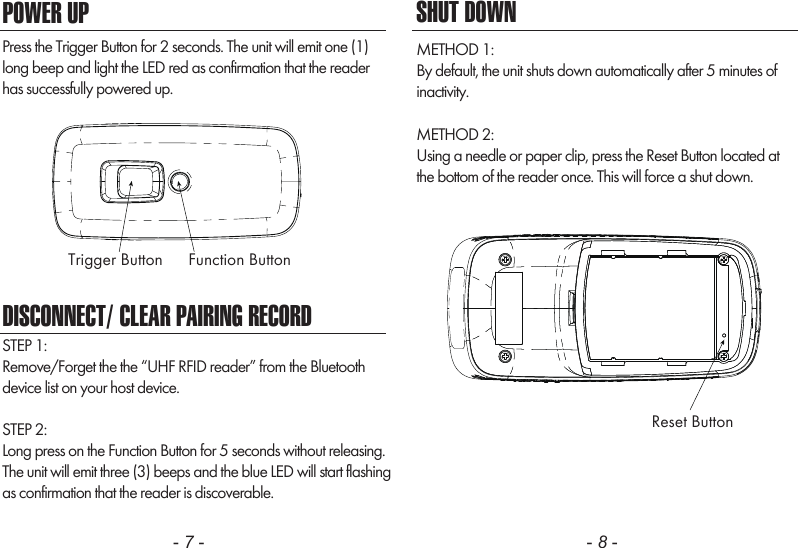

- 7 - - 8 -SHUT DOWNMETHOD 1:By default, the unit shuts down automatically after 5 minutes ofinactivity.METHOD 2:Using a needle or paper clip, press the Reset Button located atthe bottom of the reader once. This will force a shut down. POWER UPPress the Trigger Button for 2 seconds. The unit will emit one (1)long beep and light the LED red as confirmation that the readerhas successfully powered up.DISCONNECT/ CLEAR PAIRING RECORDSTEP 1: Remove/Forget the the “UHF RFID reader” from the Bluetooth device list on your host device.STEP 2:Long press on the Function Button for 5 seconds without releasing.The unit will emit three (3) beeps and the blue LED will start flashingas confirmation that the reader is discoverable.Trigger Button Function ButtonReset Button

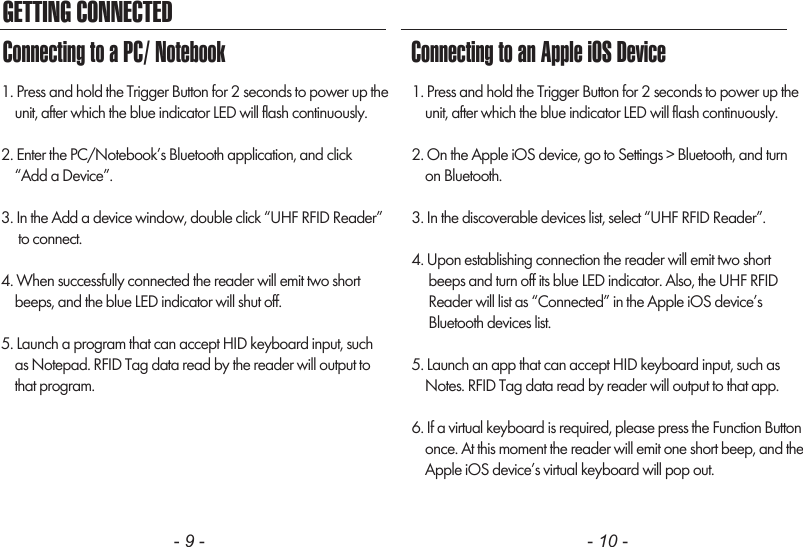

GETTING CONNECTED- 9 - - 10 -1. Press and hold the Trigger Button for 2 seconds to power up the unit, after which the blue indicator LED will flash continuously.2. Enter the PC/Notebook’s Bluetooth application, and click “Add a Device”.3. In the Add a device window, double click “UHF RFID Reader” to connect.4. When successfully connected the reader will emit two short beeps, and the blue LED indicator will shut off.5. Launch a program that can accept HID keyboard input, such as Notepad. RFID Tag data read by the reader will output to that program.1. Press and hold the Trigger Button for 2 seconds to power up the unit, after which the blue indicator LED will flash continuously.2. On the Apple iOS device, go to Settings > Bluetooth, and turn on Bluetooth.3. In the discoverable devices list, select “UHF RFID Reader”.4. Upon establishing connection the reader will emit two short beeps and turn off its blue LED indicator. Also, the UHF RFID Reader will list as “Connected” in the Apple iOS device’s Bluetooth devices list.5. Launch an app that can accept HID keyboard input, such as Notes. RFID Tag data read by reader will output to that app.6. If a virtual keyboard is required, please press the Function Button once. At this moment the reader will emit one short beep, and the Apple iOS device’s virtual keyboard will pop out.Connecting to a PC/ Notebook Connecting to an Apple iOS Device

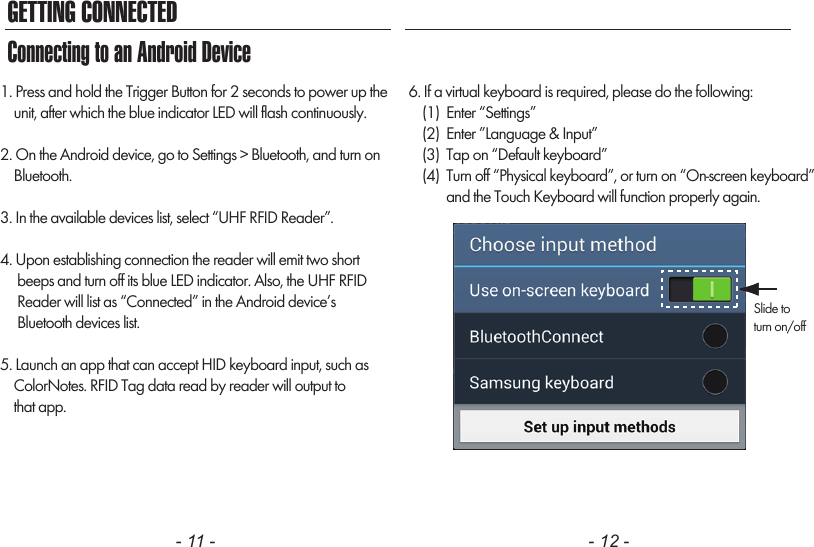

GETTING CONNECTED- 11 - - 12 -1. Press and hold the Trigger Button for 2 seconds to power up the unit, after which the blue indicator LED will flash continuously.2. On the Android device, go to Settings > Bluetooth, and turn on Bluetooth.3. In the available devices list, select “UHF RFID Reader”.4. Upon establishing connection the reader will emit two short beeps and turn off its blue LED indicator. Also, the UHF RFID Reader will list as “Connected” in the Android device’s Bluetooth devices list.5. Launch an app that can accept HID keyboard input, such as ColorNotes. RFID Tag data read by reader will output to that app.6. If a virtual keyboard is required, please do the following: (1) Enter “Settings” (2) Enter ”Language & Input” (3) Tap on “Default keyboard” (4) Turn off “Physical keyboard”, or turn on “On-screen keyboard” and the Touch Keyboard will function properly again.Connecting to an Android DeviceSlide toturn on/off

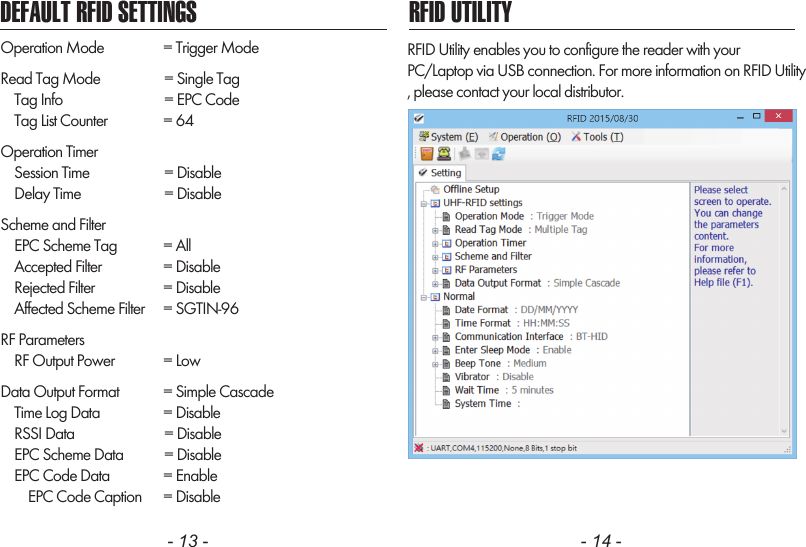

- 13 - - 14 -DEFAULT RFID SETTINGS RFID UTILITYOperation Mode = Trigger ModeRead Tag Mode = Single Tag Tag Info = EPC Code Tag List Counter = 64Operation Timer Session Time = Disable Delay Time = DisableScheme and Filter EPC Scheme Tag = All Accepted Filter = Disable Rejected Filter = Disable Affected Scheme Filter = SGTIN-96RF Parameters RF Output Power = LowData Output Format = Simple Cascade Time Log Data = Disable RSSI Data = Disable EPC Scheme Data = Disable EPC Code Data = Enable EPC Code Caption = DisableRFID Utility enables you to configure the reader with yourPC/Laptop via USB connection. For more information on RFID Utility, please contact your local distributor.
