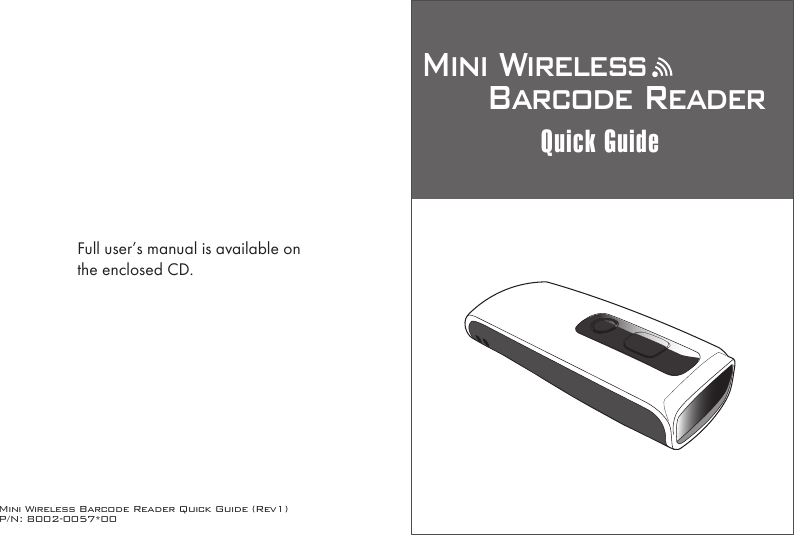

Mini Wireless Barcode Reader Quick Guide (Rev1)P/N: 8002-0057*00Mini Wireless Barcode ReaderQuick GuideFull user’s manual is available onthe enclosed CD.

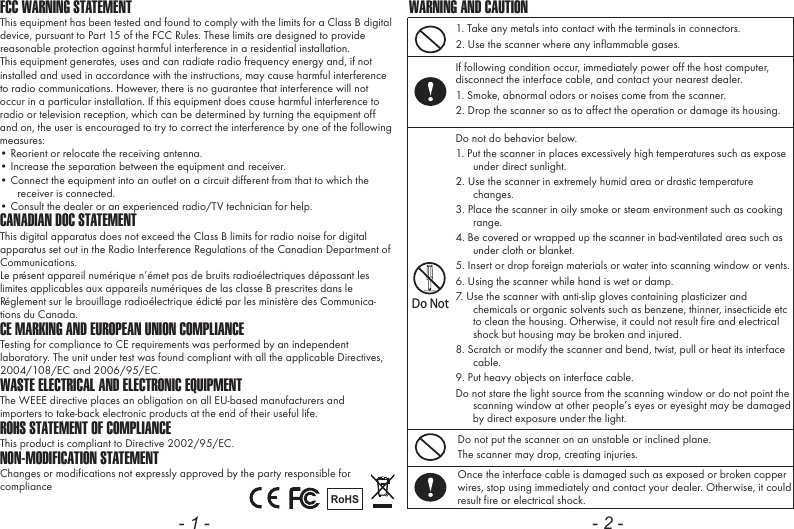

FCC WARNING STATEMENTThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.CANADIAN DOC STATEMENTThis digital apparatus does not exceed the Class B limits for radio noise for digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de las classe B prescrites dans le Réglement sur le brouillage radioélectrique édicté par les ministère des Communica-tions du Canada.CE MARKING AND EUROPEAN UNION COMPLIANCE Testing for compliance to CE requirements was performed by an independent laboratory. The unit under test was found compliant with all the applicable Directives, 2004/108/EC and 2006/95/EC.WASTE ELECTRICAL AND ELECTRONIC EQUIPMENTThe WEEE directive places an obligation on all EU-based manufacturers andimporters to take-back electronic products at the end of their useful life. ROHS STATEMENT OF COMPLIANCEThis product is compliant to Directive 2002/95/EC.NON-MODIFICATION STATEMENTChanges or modifications not expressly approved by the party responsible for compliance RoHS- 1 -1. Take any metals into contact with the terminals in connectors.2. Use the scanner where any inflammable gases.If following condition occur, immediately power off the host computer, disconnect the interface cable, and contact your nearest dealer.1. Smoke, abnormal odors or noises come from the scanner.2. Drop the scanner so as to affect the operation or damage its housing.Do NotDo not do behavior below.1. Put the scanner in places excessively high temperatures such as expose under direct sunlight.2. Use the scanner in extremely humid area or drastic temperature changes.3. Place the scanner in oily smoke or steam environment such as cooking range.4. Be covered or wrapped up the scanner in bad-ventilated area such as under cloth or blanket.5. Insert or drop foreign materials or water into scanning window or vents.6. Using the scanner while hand is wet or damp.7. Use the scanner with anti-slip gloves containing plasticizer and chemicals or organic solvents such as benzene, thinner, insecticide etc to clean the housing. Otherwise, it could not result fire and electrical shock but housing may be broken and injured.8. Scratch or modify the scanner and bend, twist, pull or heat its interface cable.9. Put heavy objects on interface cable.Do not stare the light source from the scanning window or do not point the scanning window at other people’s eyes or eyesight may be damaged by direct exposure under the light.Do not put the scanner on an unstable or inclined plane.The scanner may drop, creating injuries.Once the interface cable is damaged such as exposed or broken copper wires, stop using immediately and contact your dealer. Otherwise, it could result fire or electrical shock.WARNING AND CAUTION- 2 -

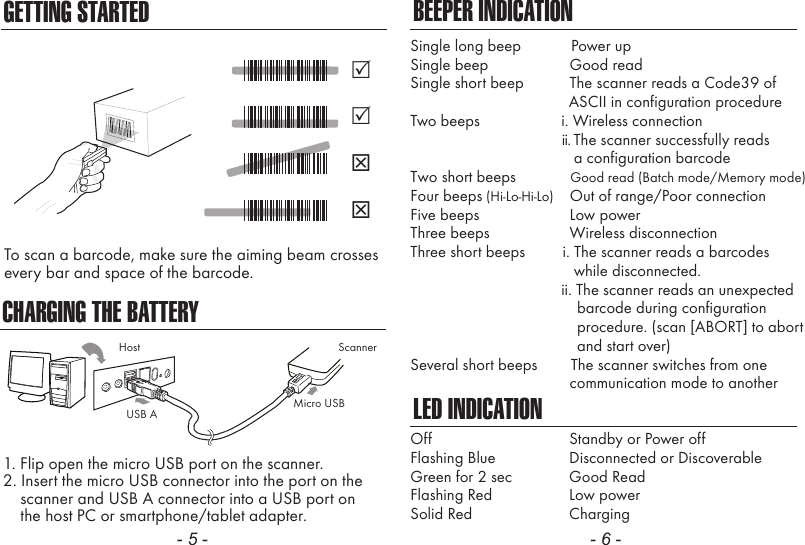

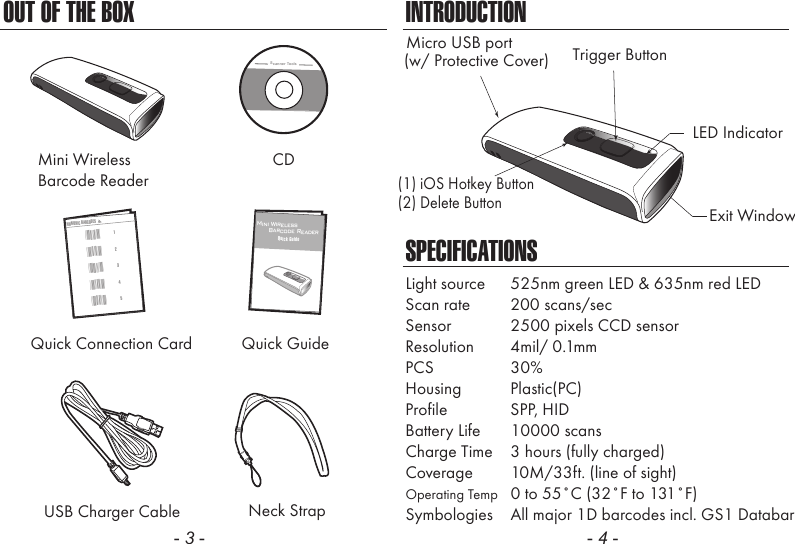

CHARGING THE BATTERY1. Flip open the micro USB port on the scanner.2. Insert the micro USB connector into the port on the scanner and USB A connector into a USB port on the host PC or smartphone/tablet adapter.- 5 - - 6 -BEEPER INDICATIONLED INDICATIONSingle long beep Power upSingle beep Good readSingle short beep The scanner reads a Code39 of ASCII in configuration procedureTwo beeps i. Wireless connection ii. The scanner successfully reads a configuration barcodeTwo short beeps Good read (Batch mode/Memory mode)Four beeps (Hi-Lo-Hi-Lo) Out of range/Poor connectionFive beeps Low powerThree beeps Wireless disconnectionThree short beeps i. The scanner reads a barcodes while disconnected. ii. The scanner reads an unexpected barcode during configuration procedure. (scan [ABORT] to abort and start over)Several short beeps The scanner switches from one communication mode to anotherOffFlashing BlueGreen for 2 secFlashing RedSolid RedStandby or Power offDisconnected or DiscoverableGood ReadLow powerChargingScannerMicro USBUSB AHostGETTING STARTEDTo scan a barcode, make sure the aiming beam crossesevery bar and space of the barcode.

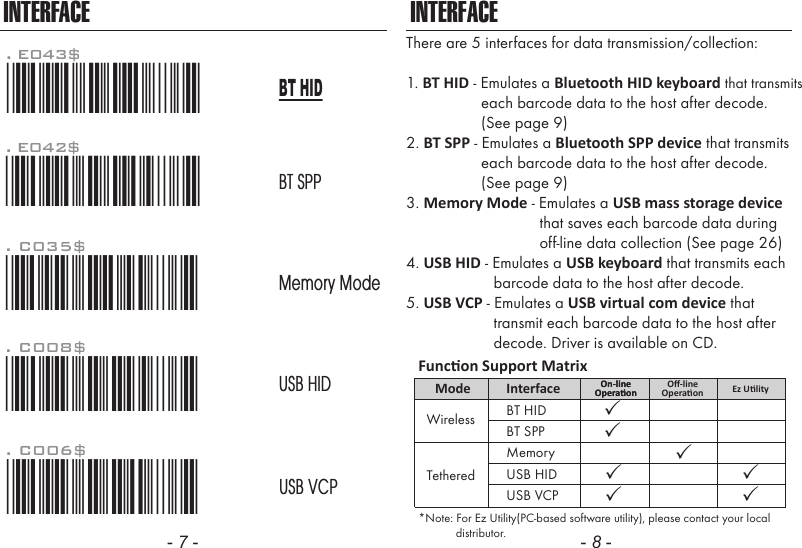

- 7 - - 8 -INTERFACEThere are 5 interfaces for data transmission/collection:1. BT HID - Emulates a Bluetooth HID keyboard that transmits each barcode data to the host after decode. (See page 9)2. BT SPP - Emulates a Bluetooth SPP device that transmits each barcode data to the host after decode. (See page 9)3. Memory Mode - Emulates a USB mass storage device that saves each barcode data during off-line data collection (See page 26)4. USB HID - Emulates a USB keyboard that transmits each barcode data to the host after decode.5. USB VCP - Emulates a USB virtual com device that transmit each barcode data to the host after decode. Driver is available on CD.INTERFACE. C006$*.C006$*USB VCP. C008$*.c008$*USB HIDMemory ModeBT SPP. C035$*.c035$*BT HID*Note: For Ez Utility(PC-based software utility), please contact your local distributor.Funcon Support MatrixMode Interface On-lineOperaonOn-lineOperaon Ez UlityUSB HIDUSB VCPBT HIDWirelessTetheredBT SPPMemoryOﬀ-lineOperaon. E042$*.E042$*. E043$*.E043$*

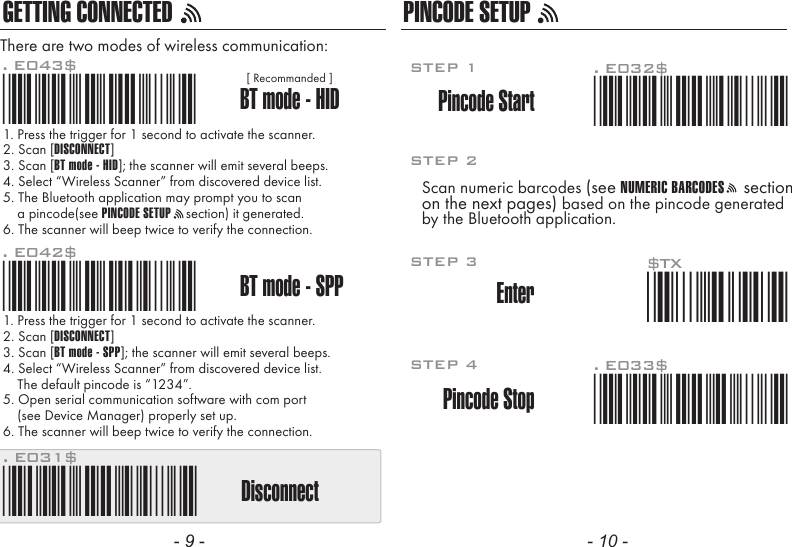

GETTING CONNECTED PINCODE SETUP1. Press the trigger for 1 second to activate the scanner.2. Scan [DISCONNECT]3. Scan [BT mode - SPP]; the scanner will emit several beeps.4. Select “Wireless Scanner” from discovered device list. The default pincode is “1234”.5. Open serial communication software with com port (see Device Manager) properly set up.6. The scanner will beep twice to verify the connection.There are two modes of wireless communication:. E042$BT mode - SPPPincode Start*.E042$*. E032$*.E032$*. E033$*.E033$*. E043$BT mode - HID*.E043$*Disconnect. E031$*.E031$**$TX*$TX1. Press the trigger for 1 second to activate the scanner.2. Scan [DISCONNECT]3. Scan [BT mode - HID]; the scanner will emit several beeps.4. Select “Wireless Scanner” from discovered device list.5. The Bluetooth application may prompt you to scan a pincode(see PINCODE SETUP section) it generated.6. The scanner will beep twice to verify the connection.Scan numeric barcodes (see NUMERIC BARCODES sectionon the next pages) based on the pincode generatedby the Bluetooth application.STEP 1Pincode StopEnterSTEP 4STEP 3STEP 2[ Recommanded ]- 9 - - 10 -

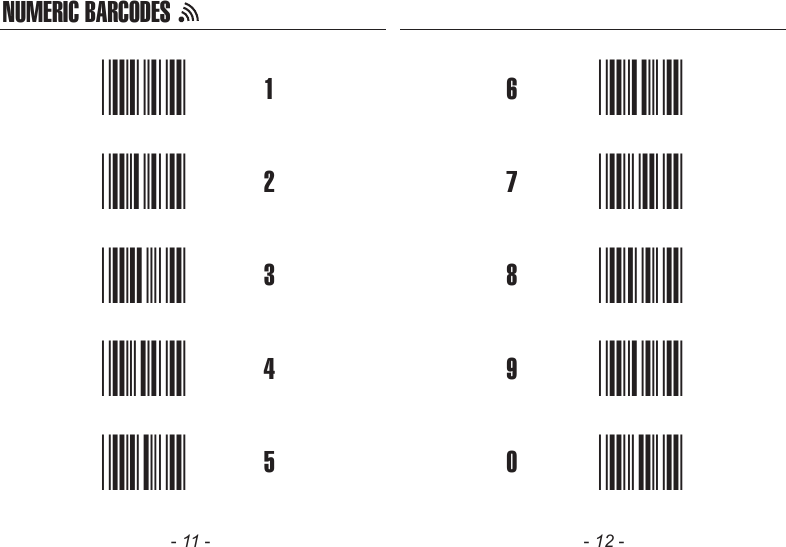

NUMERIC BARCODES1*1*2*2*3*3*4*4*5*5*6*6*7*7*8*8*9*9*0*0*- 11 - - 12 -

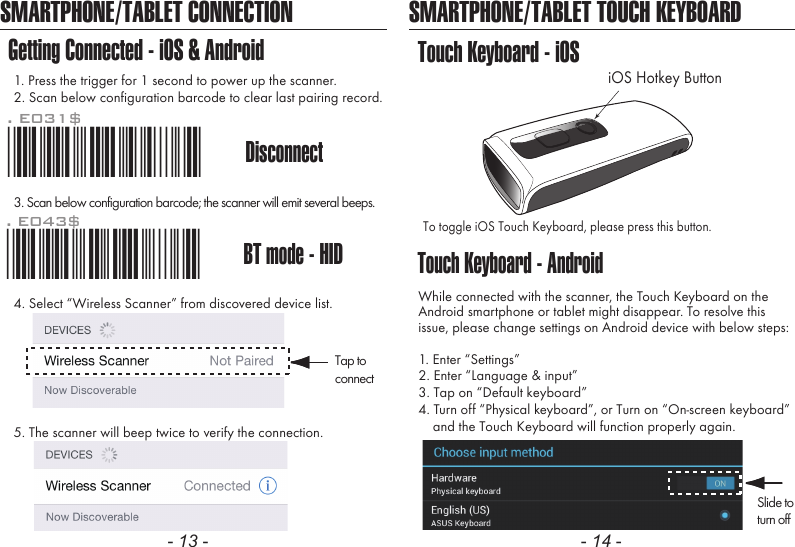

- 13 - - 14 -SMARTPHONE/TABLET CONNECTIONGetting Connected - iOS & Android1. Press the trigger for 1 second to power up the scanner.2. Scan below configuration barcode to clear last pairing record.3. Scan below configuration barcode; the scanner will emit several beeps.SMARTPHONE/TABLET TOUCH KEYBOARDTouch Keyboard - AndroidTouch Keyboard - iOSTo toggle iOS Touch Keyboard, please press this button.While connected with the scanner, the Touch Keyboard on theAndroid smartphone or tablet might disappear. To resolve thisissue, please change settings on Android device with below steps:1. Enter “Settings”2. Enter “Language & input”3. Tap on “Default keyboard”4. Turn off “Physical keyboard”, or Turn on “On-screen keyboard” and the Touch Keyboard will function properly again.iOS Hotkey Button. E043$BT mode - HID*.E043$*4. Select “Wireless Scanner” from discovered device list.5. The scanner will beep twice to verify the connection.Disconnect. E031$*.E031$*Tap toconnectSlide toturn off

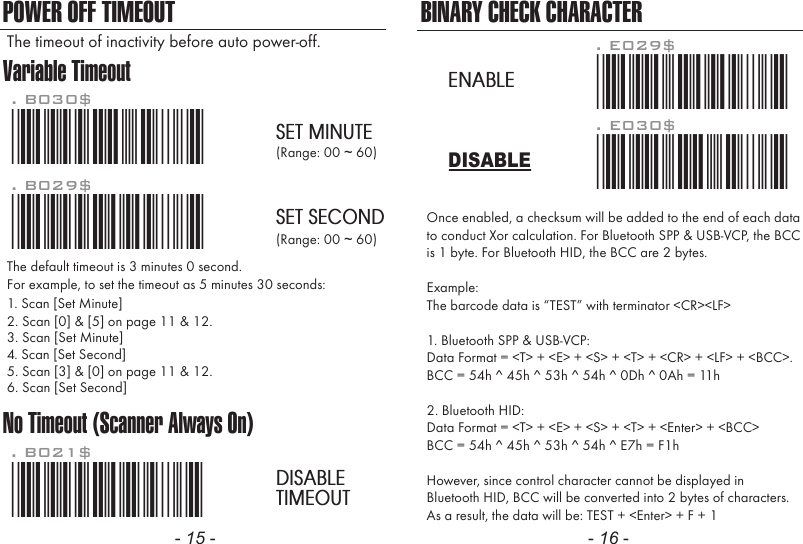

Variable TimeoutNo Timeout (Scanner Always On)POWER OFF TIMEOUT*.B030$*. B030$SET MINUTE*.B029$*. B029$SET SECOND*.B021$*. B021$DISABLETIMEOUTThe default timeout is 3 minutes 0 second.For example, to set the timeout as 5 minutes 30 seconds:1. Scan [Set Minute]2. Scan [0] & [5] on page 11 & 12.(Range: 00 ~ 60)(Range: 00 ~ 60)3. Scan [Set Minute]4. Scan [Set Second]5. Scan [3] & [0] on page 11 & 12.6. Scan [Set Second]The timeout of inactivity before auto power-off.- 15 - - 16 -Once enabled, a checksum will be added to the end of each datato conduct Xor calculation. For Bluetooth SPP & USB-VCP, the BCCis 1 byte. For Bluetooth HID, the BCC are 2 bytes.Example:The barcode data is “TEST” with terminator <CR><LF> 1. Bluetooth SPP & USB-VCP:Data Format = <T> + <E> + <S> + <T> + <CR> + <LF> + <BCC>.BCC = 54h ^ 45h ^ 53h ^ 54h ^ 0Dh ^ 0Ah = 11h2. Bluetooth HID:Data Format = <T> + <E> + <S> + <T> + <Enter> + <BCC>BCC = 54h ^ 45h ^ 53h ^ 54h ^ E7h = F1hHowever, since control character cannot be displayed inBluetooth HID, BCC will be converted into 2 bytes of characters.As a result, the data will be: TEST + <Enter> + F + 1BINARY CHECK CHARACTER. E030$*.e030$*. E029$*.e029$*DISABLEENABLE

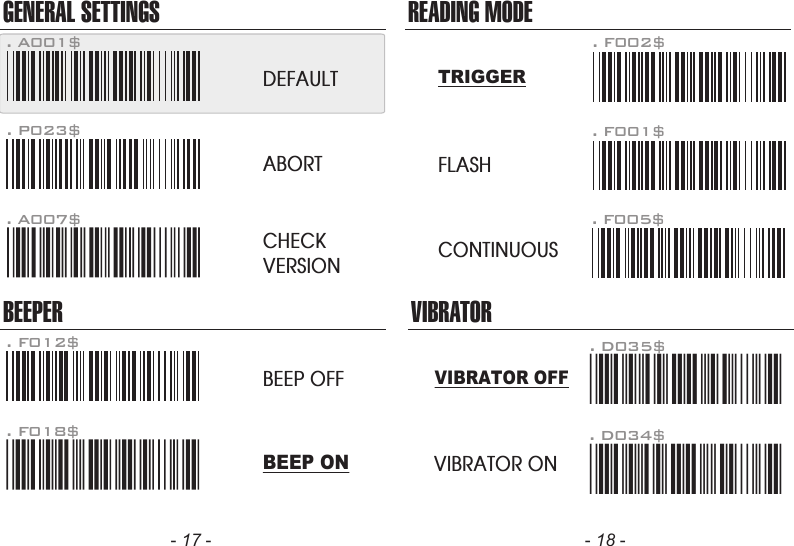

GENERAL SETTINGSBEEPER. P023$. A007$. F012$ABORTCHECKVERSIONBEEP OFF. F018$READING MODE. F002$TRIGGERFLASHCONTINUOUS. F001$. F005$. A001$DEFAULTBEEP ONVIBRATOR. D035$*.D035$*VIBRATOR ON. D034$*.D034$*VIBRATOR OFF- 17 - - 18 -

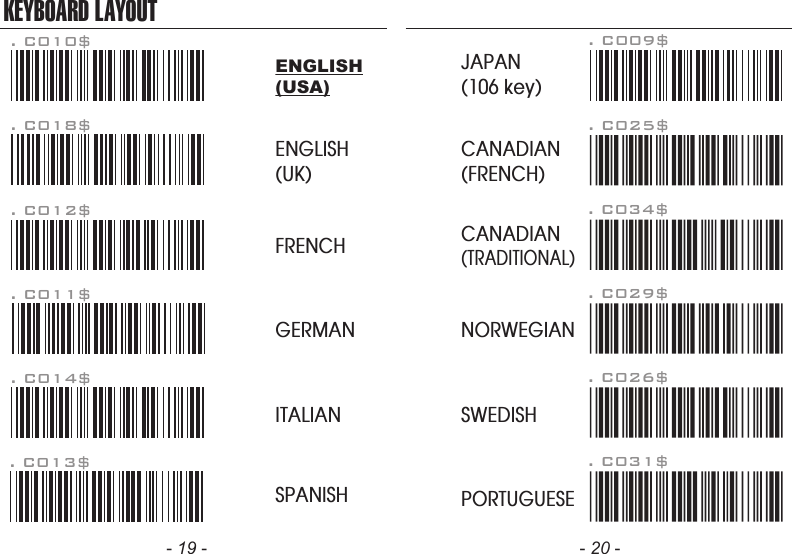

KEYBOARD LAYOUT. C010$ENGLISH(USA). C018$ENGLISH(UK). C011$GERMAN. C012$FRENCH. C013$SPANISH. C014$ITALIAN. C009$JAPAN(106 key)CANADIAN(TRADITIONAL). C034$NORWEGIAN. C029$SWEDISH. C026$PORTUGUESE. C031$CANADIAN(FRENCH). C025$- 19 - - 20 -

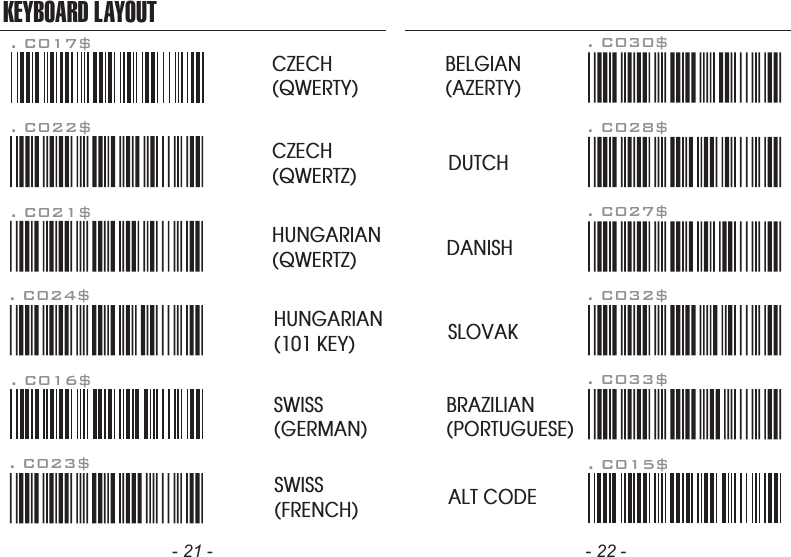

HUNGARIAN(101 KEY)BRAZILIAN(PORTUGUESE)SLOVAKSWISS(FRENCH)DUTCHDANISHBELGIAN(AZERTY). C016$SWISS(GERMAN)KEYBOARD LAYOUT. C017$CZECH(QWERTY). C022$CZECH(QWERTZ)HUNGARIAN(QWERTZ). C021$. C015$ALT CODE. C024$. C023$. C033$. C032$. C027$. C028$. C030$- 21 - - 22 -

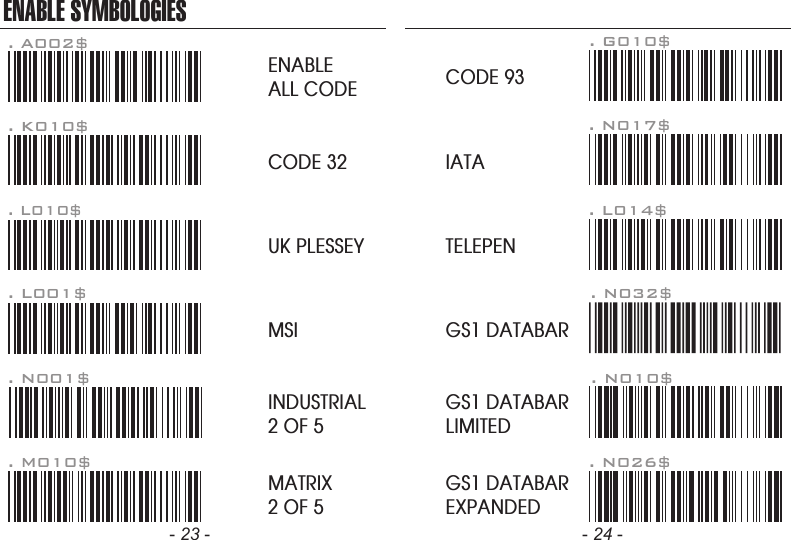

ENABLE SYMBOLOGIESENABLEALL CODE. A002$. K010$CODE 32. L010$. N001$. M010$. L001$UK PLESSEYMSIINDUSTRIAL2 OF 5MATRIX2 OF 5CODE 93. L014$. G010$. N017$. N032$. N010$. N026$IATATELEPENGS1 DATABARGS1 DATABARLIMITEDGS1 DATABAREXPANDED- 23 - - 24 -

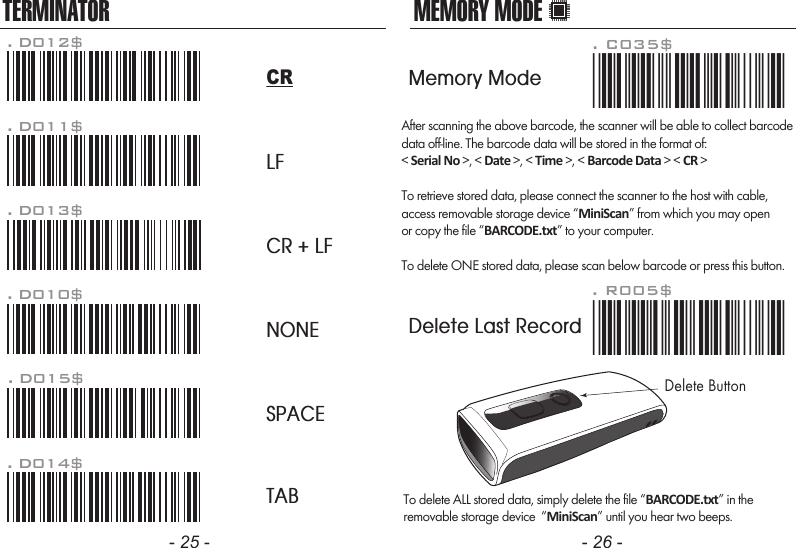

After scanning the above barcode, the scanner will be able to collect barcodedata off-line. The barcode data will be stored in the format of:< Serial No >, < Date >, < Time >, < Barcode Data > < CR >To retrieve stored data, please connect the scanner to the host with cable, access removable storage device “MiniScan” from which you may openor copy the file “BARCODE.txt” to your computer.To delete ONE stored data, please scan below barcode or press this button.To delete ALL stored data, simply delete the file “BARCODE.txt” in theremovable storage device “MiniScan” until you hear two beeps.. R005$*.R005$*MEMORY MODE- 25 - - 26 -TERMINATORLFCR + LFNONESPACETAB. D012$CR. D011$. D013$. D010$. D015$. D014$. C035$*.c035$*Memory ModeDelete Last RecordDelete Button

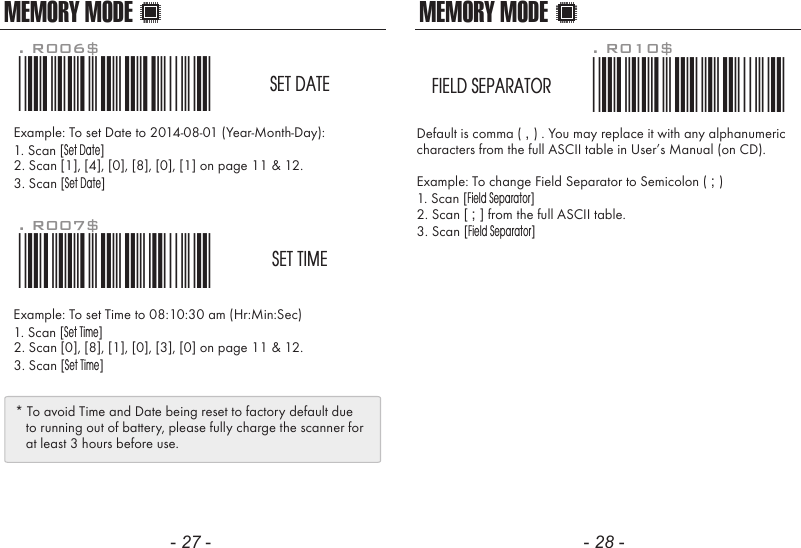

MEMORY MODEDefault is comma ( , ) . You may replace it with any alphanumericcharacters from the full ASCII table in User’s Manual (on CD).Example: To change Field Separator to Semicolon ( ; )1. Scan [Field Separator]2. Scan [ ; ] from the full ASCII table.3. Scan [Field Separator]. R010$*.R010$*FIELD SEPARATORMEMORY MODEExample: To set Date to 2014-08-01 (Year-Month-Day):1. Scan [Set Date]2. Scan [1], [4], [0], [8], [0], [1] on page 11 & 12.3. Scan [Set Date]Example: To set Time to 08:10:30 am (Hr:Min:Sec)1. Scan [Set Time]2. Scan [0], [8], [1], [0], [3], [0] on page 11 & 12.3. Scan [Set Time]. R006$*.R006$*SET DATE. R007$*.R007$*SET TIME* To avoid Time and Date being reset to factory default due to running out of battery, please fully charge the scanner for at least 3 hours before use.- 27 - - 28 -

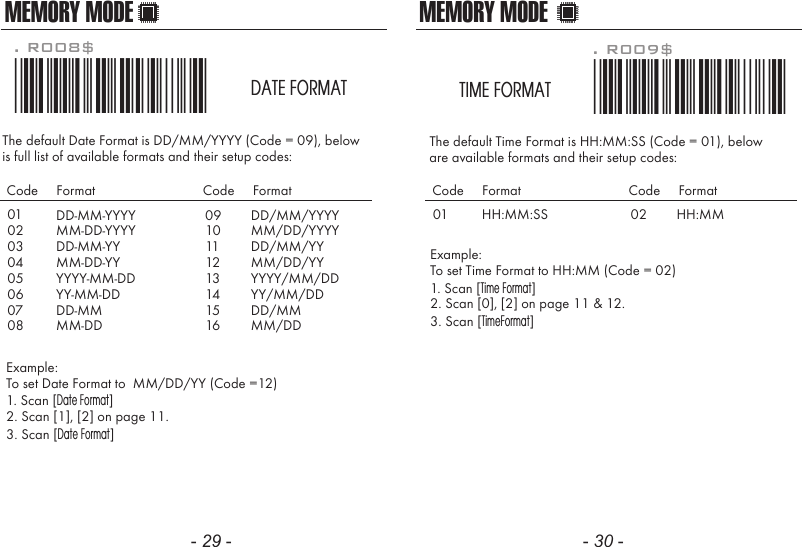

The default Date Format is DD/MM/YYYY (Code = 09), belowis full list of available formats and their setup codes: Example: To set Date Format to MM/DD/YY (Code =12)1. Scan [Date Format]2. Scan [1], [2] on page 11.3. Scan [Date Format]. R008$*.R008$*DATE FORMATMEMORY MODE0102030405060708DD-MM-YYYYMM-DD-YYYYDD-MM-YYMM-DD-YYYYYY-MM-DDYY-MM-DDDD-MMMM-DDCode Format Code Format0910111213141516DD/MM/YYYYMM/DD/YYYYDD/MM/YYMM/DD/YYYYYY/MM/DDYY/MM/DDDD/MMMM/DDThe default Time Format is HH:MM:SS (Code = 01), below are available formats and their setup codes:Example: To set Time Format to HH:MM (Code = 02)1. Scan [Time Format]2. Scan [0], [2] on page 11 & 12.3. Scan [TimeFormat]. R009$*.R009$*TIME FORMATMEMORY MODE01 HH:MM:SSCode Format Code Format02 HH:MM- 29 - - 30 -

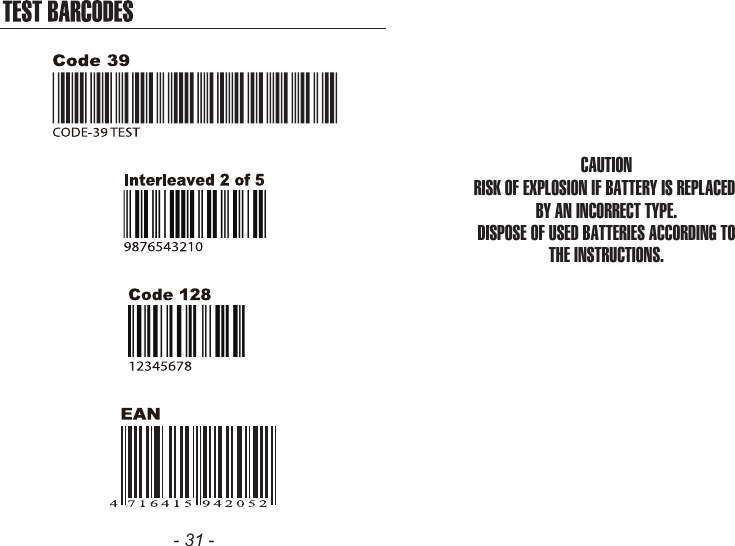

- 31 -CAUTIONRISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES ACCORDING TOTHE INSTRUCTIONS.
