Martec Access WMTX Remote Control Door Opener Transmitter User Manual
Martec Access Products Inc Remote Control Door Opener Transmitter
user manual
535T
Open, Close & Stop Transmitter to Control 27 Doors. Match
dipswitches 1 thru 5 on both transmitter and receiver. Set the 6th,
7th, & 8th dipswitch in open/close/stop receiver accordingly.
Receiver Dial Setting
1-9 Dial Setting
ABC 6th Dipswitch
on Receiver 7th Dipswitch
on Receiver 8th dipswitch
on Receiver
Door 1 1 A “+” “+” “+”
Door 2 2 A “+” “+” “O”
Door 3 3 A “+” “+” “—”
Door 4 4 A “+” “O” “+”
Door 5 5 A “+” “O” “O”
Door 6 6 A “+” “O” “—”
Door 7 7 A “+” “—” “+”
Door 8 8 A “+” “—” “O”
Door 9 9 A “+” “—” “—”
Door 10 1 B “O” “+” “+”
Door 11 2 B “O” “+” “O”
Door 12 3 B “O” “+” “—”
Door 13 4 B “O” “O” “+”
Door 14 5 B “O” “O” “O”
Door 15 6 B “O” “O” “—”
Door 16 7 B “O” “—” “+”
Door 17 8 B “O” “—” “O”
Door 18 9 B “O” “—” “—”
Door 19 1 C “—” “+” “+“
Door 20 2 C “—” “+” “O”
Door 21 3 C “—” “+” “—”
Door 22 4 C “—” “O” “+”
Door 23 5 C “—” “O” “O”
Door 24 6 C “—” “O” “—”
Door 25 7 C “—” “—” “+”
Door 26 8 C “—” “—” “O”
Door 27 9 C “—” “—” “—”
Open
Stop
Close
“Changes or modifications not expressively approved by the
party responsible for compliance could void the user’s authority
to operate the equipment”
5966-045_B 535T Instruction Sheet
639T
Open, Close & Stop Transmitter to Control 9 Doors.
Match dipswitches 1 thru 6 on both transmitter and receiver.
Set the 7th and 8th dipswitch in open/close/stop receivers
accordingly.
Open
Close
Stop
Receiver Dial Setting 7th Dipswitch
on Receiver 8th dipswitch
on Receiver
Door 1 1 “+” “+”
Door 2 2 “+” “O”
Door 3 3 “+” “—”
Door 4 4 “O” “+”
Door 5 5 “O” “O”
Door 6 6 “O” “—”
Door 7 7 “—” “+”
Door 8 8 “—” “O”
Door 9 9 “—” “—”
“Changes or modifications not expressively approved by the party responsible for compliance could
void the user’s authority to operate the equipment”
5966-054_B 639T Instruction Sheet

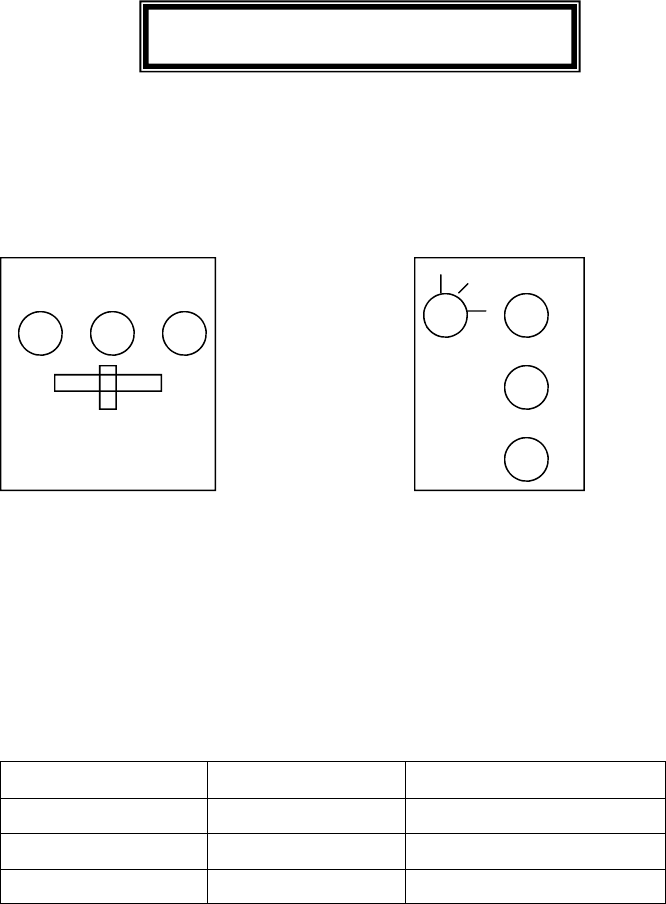

8833CT-O/C/S & 733T
Open, Close & Stop Transmitter to Control 3 Doors.
Match dipswitches 1, 2, 3, 4, 5, 7 & 8 on both transmitter and
receiver. Set the 6th dipswitch in open/close/stop receivers
accordingly.
8833CT-O/C/S
Open Close Stop Open
Close
Stop
733T
A B C
Receiver Slide Switch 6th Dipswitch Receiver
Door 1 A “+”
Door 2 B “O”
Door 3 C “—”
“Changes or modifications not expressively approved by the party responsible for compliance could
void the user’s authority to operate the equipment”
5966-055_B 8833CT-OCS, 733T Instruction Sheet

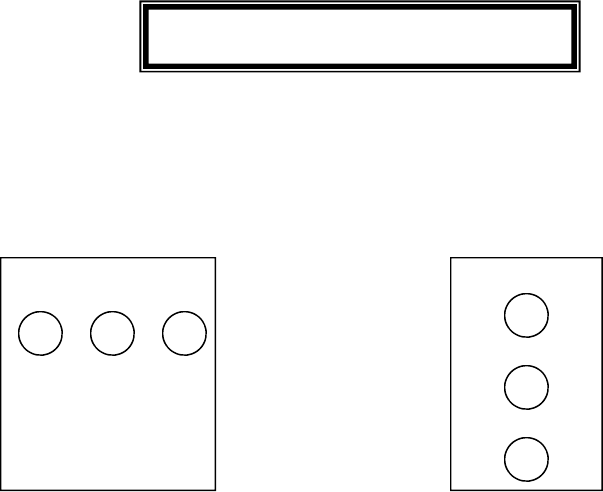

8833T-O/C/S & 831T
Open, Close & Stop Transmitter to Control 1 Door.
Match dipswitches on both transmitter and open/close/stop
receiver.
8833T-O/C/S
Open Close Stop Open
Close
Stop
831T
“Changes or modifications not expressively approved by the party responsible for compliance could
void the user’s authority to operate the equipment”
5966-056_B 8833T- OCS, 831T Instruction Sheet
