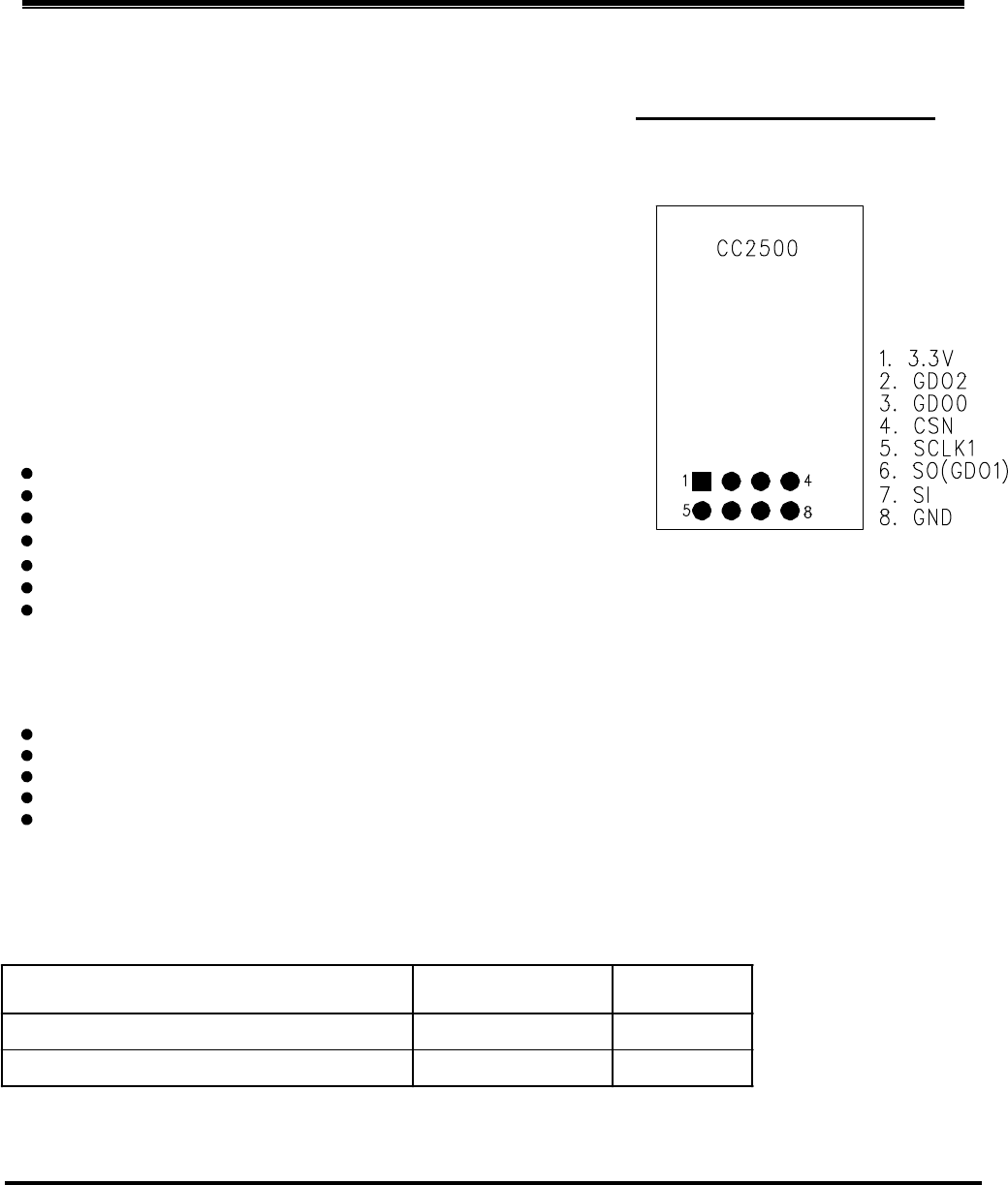

Mascot Electric CC-2500 2.4GHz RF Module User Manual CC2500 MO
Mascot Electric Co., Ltd. 2.4GHz RF Module CC2500 MO
User Manual
MO-CC2500
2.4GHz
FSK/MSK/ASK/OOK TRANSCEIVER MODULE
2.4GHz FSK/MSK T
R
ANSCEIVE
R
Description
MO-CC2500 is a FSK /MSK Transceiver module. It provide extensive
hardware support for packet handling ,data buffering ,burst transmissions ,
clear channel assessment, link quality indication and wake on radio .
It ‘s data stream can be Manchester coded by the modulator and decoded
by the demodulator .It has a high performance and easily to design your
product. It can be used in 2400-2483.5MHz ISM/SRD band systems,
Consumer Electronics, Wireless game controllers, Wireless audio wireless
vKB/Mouse
a
n
d other
s
w
i
r
el
e
ss
s
y
stems.
The Module’s frequency ,Output power ,
S
ensi
t
ivi
t
y could be
p
rogramming .And have a Digital RSSI function could be used
.
Features
Low current consumption.
Easy for application.
Efficient SPI interface
Operating temperature range : ﹣40℃～＋85℃
Operating voltage :1.8~ 3.6 Volts. Available
frequency at : 2.4-2.483GHz Programmable
output power and hi sensitivity
Applications
2400-2483.5MHz ISM/SRD band systems
Consumer Electronics
Wireless game controllers
Wireless audio
Wireless keyboard and mouse

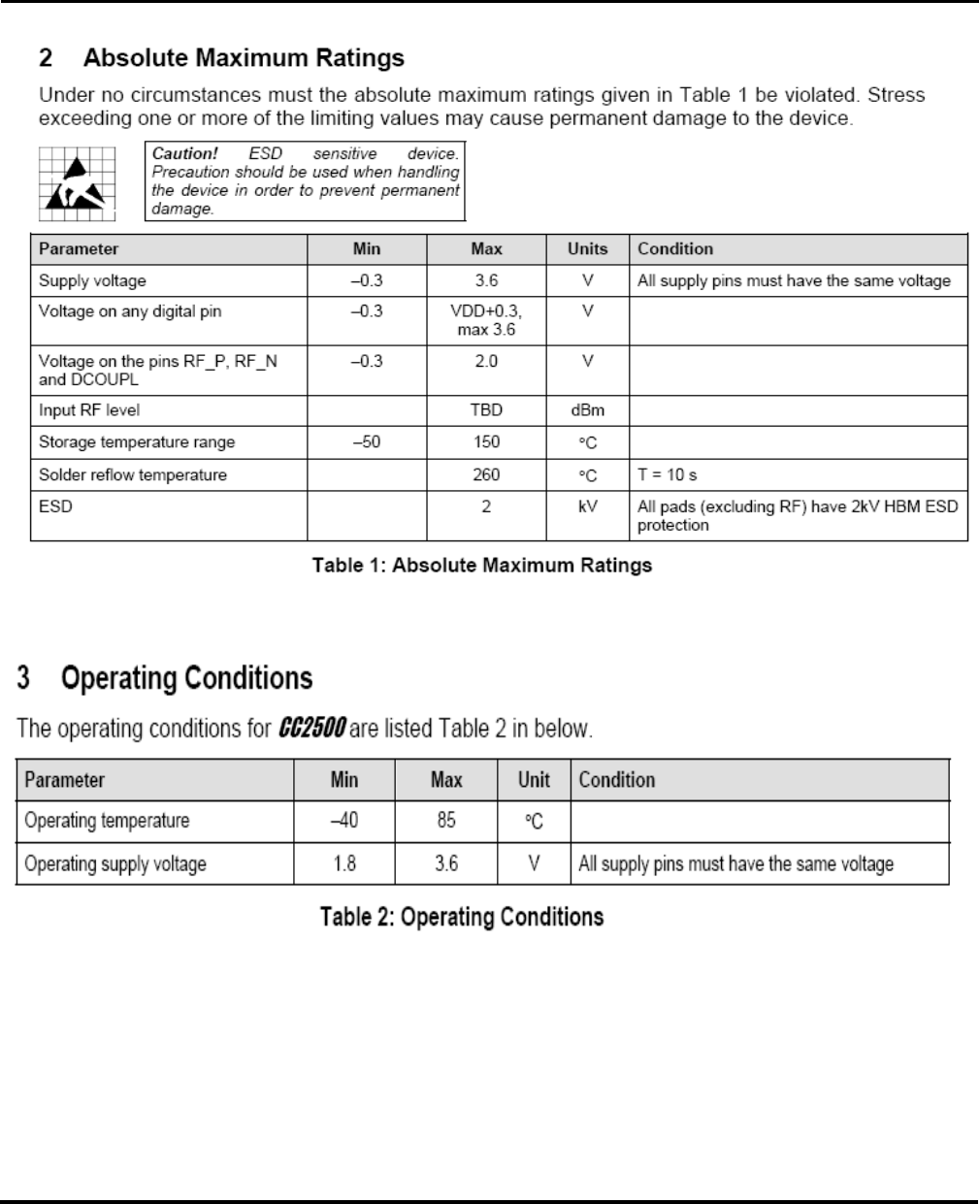

Absolute Maximum Ratings
-
1
-
Parameter Rating Units
Supply Voltage
3
VDC
Operating Temperature -40 to +85
℃
MO-CC2500
Pin Descriptions
-
2
-
Pin No Pin Name Pin Type Description
1
VCC
Power
1.8V-3.6V digital power supply for digital I/O’s and for
the digital core voltage regulator
2
SI
Digital Input
Serial configuration interface, data input
3 SCLK Digital Input Serial configuration interface, clock input
4
SO
Digital Output
Serial configuration interface, data output.
Optional general output pin when CSn is high
5
GDO2
Digital Output
Digital output pin for general use:
• Test signals
• FIFO status signals
• Clear Channel Indicator
• Clock output, down-divided from
• Serial output RX data
6 GND Ground GND
7
GDO0
Digital I/O
Digital output pin for general use:
• Test signals
• FIFO status signals
• Clear Channel Indicator
• Clock output, down-divided from XOSC
• Serial output RX data
• Serial input TX data
Also used as analog test I/O for prototype/production
testing
8 CSn Digital Input Serial configuration interface, chip select

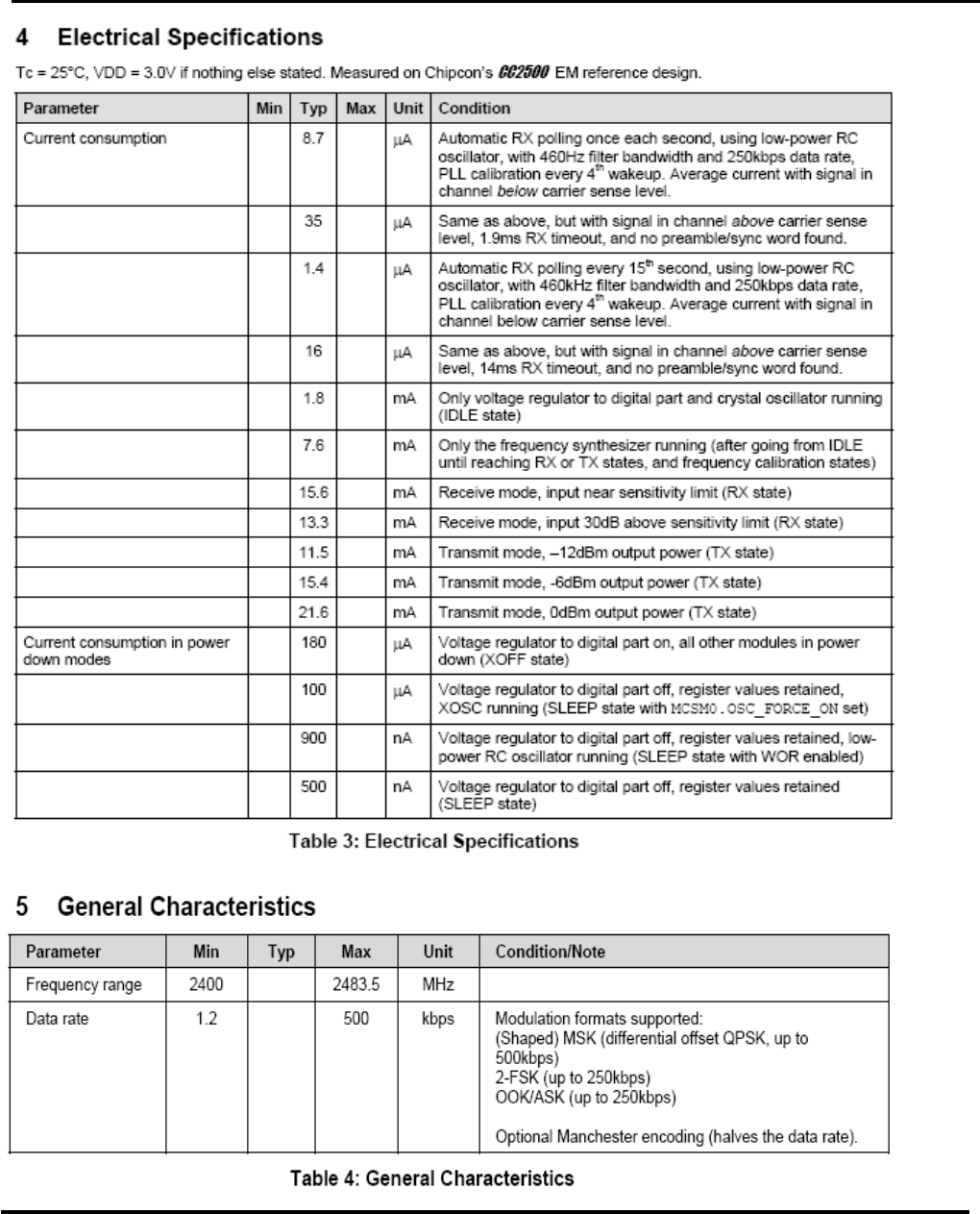

MO-CC2500
-
3
-
MO-CC2500
-
4
-
MO-CC2500

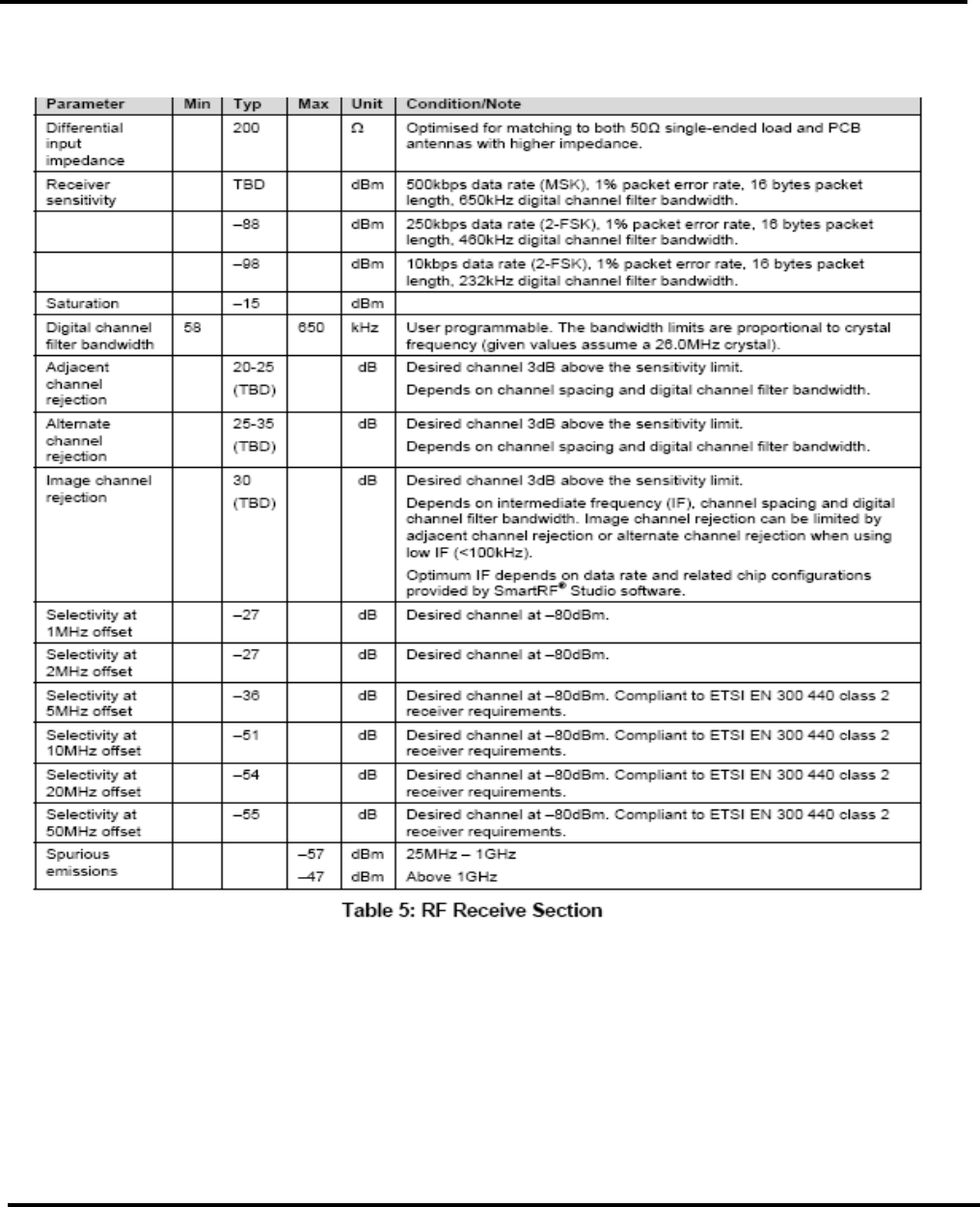

RF Receive section
-
5
-

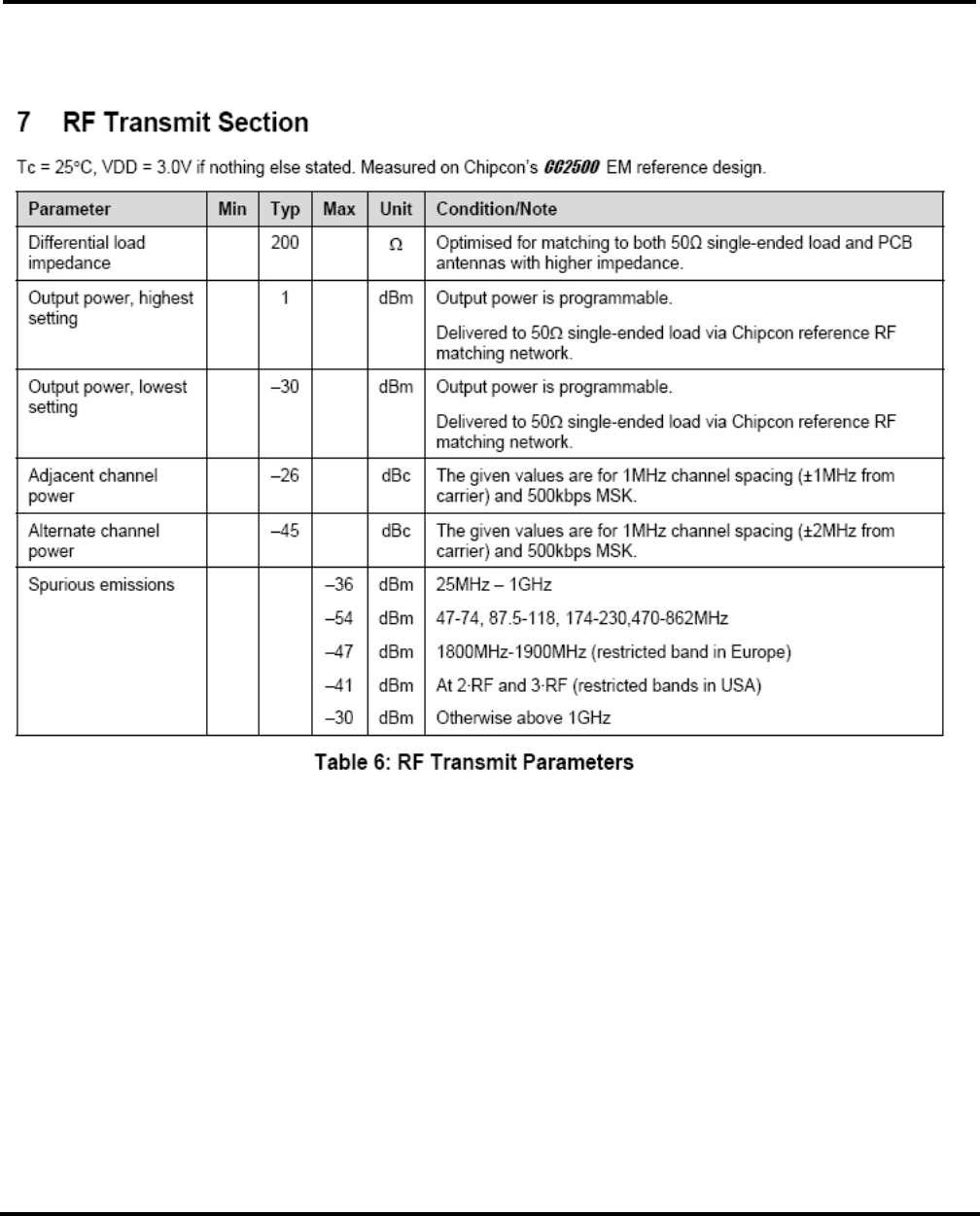

MO-CC2500
-
6
-
Notice: The user should not modify or change this equipment without written
approval form Mascot Electric Co., Ltd. Modification could void authority to use
this equipment.
Label for end product must include “Contains FCC ID: JEBCC-2500” or “A RF
transmitter inside, FCC ID: JEBCC-2500”.
FCC ID Label Graph:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Note:
If the product is too small to make so many text labels, only need to indicate
the FCC ID number on the label, but the above text will be printed in the
manual or packaging box.
IMPORTANT NOTE: To comply with the FCC RF exposure compliance
requirements, no change to the antenna or the device is permitted. Any
change to the antenna or the device could result in the device exceeding the
RF exposure requirements and void user’s authority to operate the device.
FCC ID: JEBCC-2500
Model: CC2500
