1. Introduction
Thank you for purchasing our product. This PLL synthesized wireless microphone system
operates in UHF band frequency with 15 or 16 selectable channels. Please read this
instruction manual carefully before operating the system. This manual covers the function
and operation of the wireless microphone system.
2. Safety
Do not spill liquid on the appliance and do not drop it on a hard concrete floor.
Do not place the appliance near heat sources such as radiators, amplifier, or etc.
Do not expose it to direct sunlight, extremely dust, excessive moisture, or vibration.
Take out the battery from transmitter, if the appliance has been not used for a longer
period. This will avoid the damage resulting from a defective leaking battery.
3. Environment
Do not throw used batteries into a fire or garbage bin with domestic rubbish. Be sure to
dispose of used batteries in accordance with local waste disposal rules.
When disposing the equipment, remove the batteries, separate the case, circuit boards,
and cables, and dispose of all components in accordance with local waste disposal rules.
4. Wireless Note
Before setting up, make sure that the transmitter and receiver are tuned to the same
frequency.
Do not use two transmitters in the same frequency.
Use good quality batteries to avoid the damage resulting from a defective leaking battery.
Turn the MIC/LINE switch on the rear of receiver to adjust receiver output level to match
input level requirements of an audio mixer or amplifier.
While checking sound, move the transmitter around the area where you use the system to
look for dead spots. If you find any dead spot, change the receiver position. If it does
not work, avoid such places.
To avoid interference, do not put the receiver too near metal object and avoid obstructions
between transmitter and receiver.
Avoid the interference from TV, radio, other wireless appliances and etc.
9. System Feature
Operating in UHF band frequency with synthesizer controlled.
The wireless microphone system with 16 selectable frequencies via Phase Locked Loop (PLL)
circuitry makes it easy to choose non-interfered channels.
Diversity with two antennas to ensure the reception quality.
Super high sensitivity, extremely low noise transmission and reception.
SMT assembled PCB module ensures the quality and stability.
10. System Specification
Receiver
Carrier Frequency Range : UHF band
Frequency Stability : ±0.005%
Receiving Sensitivity : At 8 dBμV over 80dB S/N ratio
Image and Spurious Rejection : 80 dB minimum
Selectivity : ＞50dB
Modulation Mode : FM
IF Frequency : 1st: 56MHz; 2nd: 10.7MHz
Tone Signal : 32.768KHz
S/N ratio : ＞94dB, at 48KHz deviation and 60dBµV antenna input
AF Response : 80Hz to 12KHz (±3dB)
T.H.D. : Less than1.0% (at 1KHz)
Power Supply : DC 12V ~ 18V
Audio Output
: Balanced and unbalanced outputs for Single channel /
Switching diversity
(Mic.=-20dB / Line = 0dB)
Current consumption : 150mA (Max.) A
Handheld/Bodypack Transmitter
Carrier Frequency Range : UHF band
RF Power Output : 10mW (max.)
Oscillation Mode : PLL synthesized, 16Channel selectable
Frequency Stability : ±0.005%
Maximum Deviation : ±48KHz with limiting compressor
Spurious Emission : ＞60dB below carrier frequency
T.H.D. : ＜1% (at 1KHz)
Microphone Capsule : Handheld: uni-directional dynamic or uni-directional
electret condenser unit
Lavalier: uni-directional electret condenser unit
Tone Signal : 32.768KHz
Battery : DC3V (2 x 1.5V AA size batteries ) or
DC 2.4V ( 2 x 1.2V AA size rechargeable batteries)
Current consumption : 110mA at 3V
DESIGN AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
PWR AF A DIVERSITY B
AUDIO OUTPUT
BALANCED
UNBALANCED
LINE CHANNEL
MIC SQ 12V 500mA
DC INPUT
PRODUCT DESCRIPTION WIRELESS
2
WIRELESS TROUBLE SHOOTING
11
7.6 Setting up the bodypack transmitter
A. Connecting a microphone
Open the battery cover. Push the MIC/LINE switch to “MIC” and use the supplied screw-
driver to adjust the GAIN at appropriate position.
Plug the mini XLR connector of the microphone cable into the audio input connector on
the bodypack transmitter.
Switch the transmitter and hi-fi appliance (amplifier, tape deck etc.) power on.
Adjust the channel setting of the transmitter according to receiver’s channel setting.
Test the microphone and adjust the levels on your audio mixer or amplifier.
B. Connecting an instrument
Open the battery cover. Push the MIC/LINE switch to “LINE” and use the supplied
screwdriver to adjust the GAIN at appropriate position.
Plug the 6.3ϕ phone plug of the optional guitar cable to the output jack on the instrument
and the mini XLR into audio input connector on the bodypack transmitter.
Switch the transmitter and hi-fi appliance (amplifier, tape deck etc.) power on.
Adjust the channel setting of the transmitter according to receiver’s channel setting.
Play the instrument for testing and adjust the levels on your audio mixer or amplifier.
8. Troubleshooting
Problem Solution
No sound Check the power supply of the microphone and receiver.
Check that the transmitter and receiver are tuned to the same
frequency.
Check whether the hi-fi appliance is switched on and the receiver
output is connected to audio mixer or amplifier input.
Check whether transmitter is too far away from receiver or
SQUELCH control set too high.
Check whether receiver is located too near metal object or there
are obstructions between transmitter and receiver.
Sound interference Check the antenna location.
When using 2 or above microphone sets simultaneously, make
sure that the chosen frequencies are not interfered.
Check whether the interference comes from other wireless
microphones, TV, radio and etc.
Distortion Check the receiver volume level is set too high or too low.
Check whether the interference comes from other wireless
microphones TV radio and etc
5. Product Description
5.1 Receivers
The receivers are used with our 15 or 16-channel selectable channels transmitters. (The
number of frequency channels depends on local regulations.) The receiver operates in UHF
band frequency with PLL synthesized control. Powered by 12V DC.

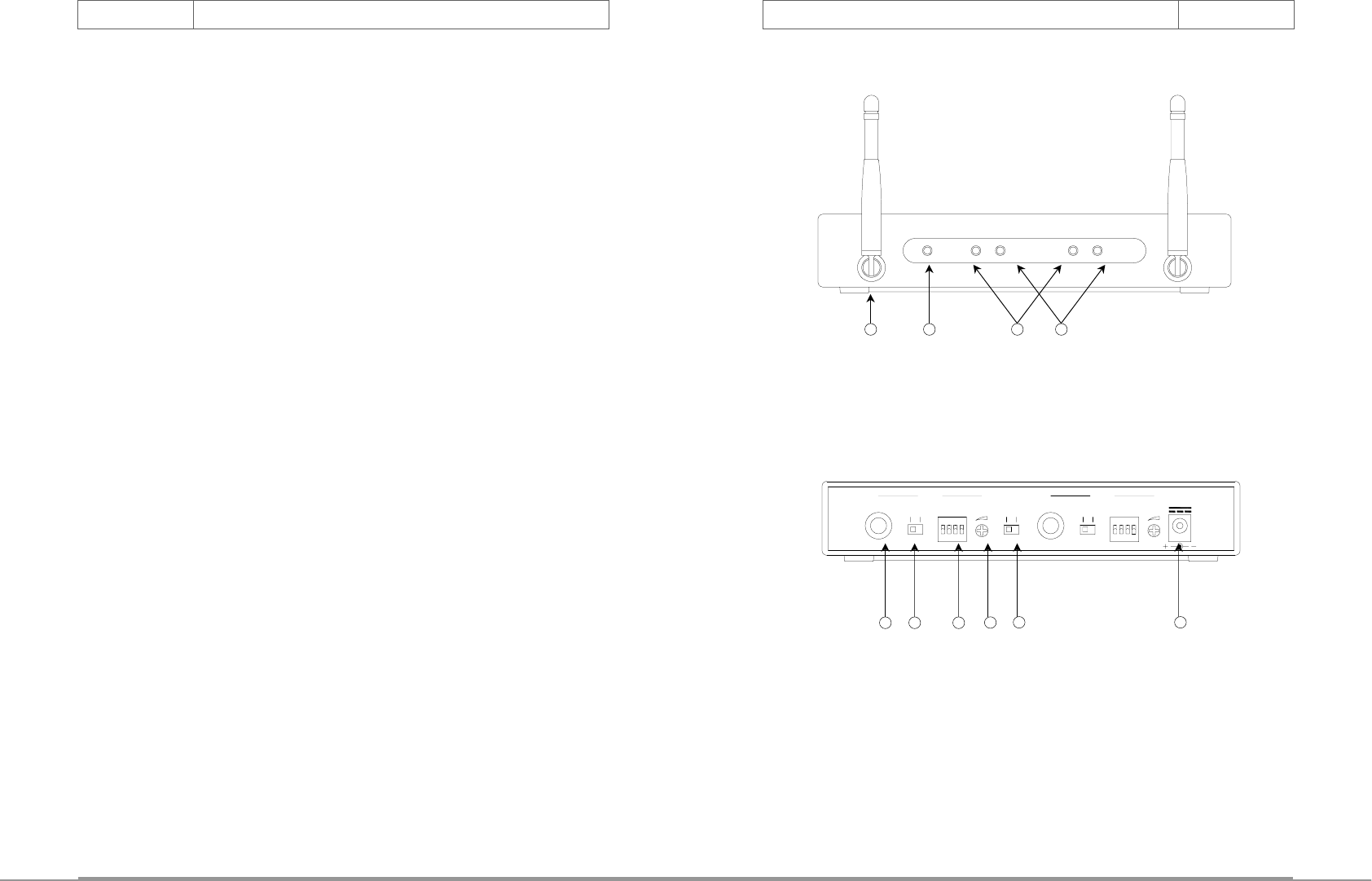

5.1.1 Single Channel, Mini Case
Switching Diversity, Front Fixed Antenna
3
1 2 4
6 7 8 9 10 12
RFAF
PWR
MIC
AF OUT
LINE CHANNEL SQ
DC INPUT
12V 500mA
WIRELESS PRODUCT DESCRIPTION
3 10
SETTING UP WIRELESS

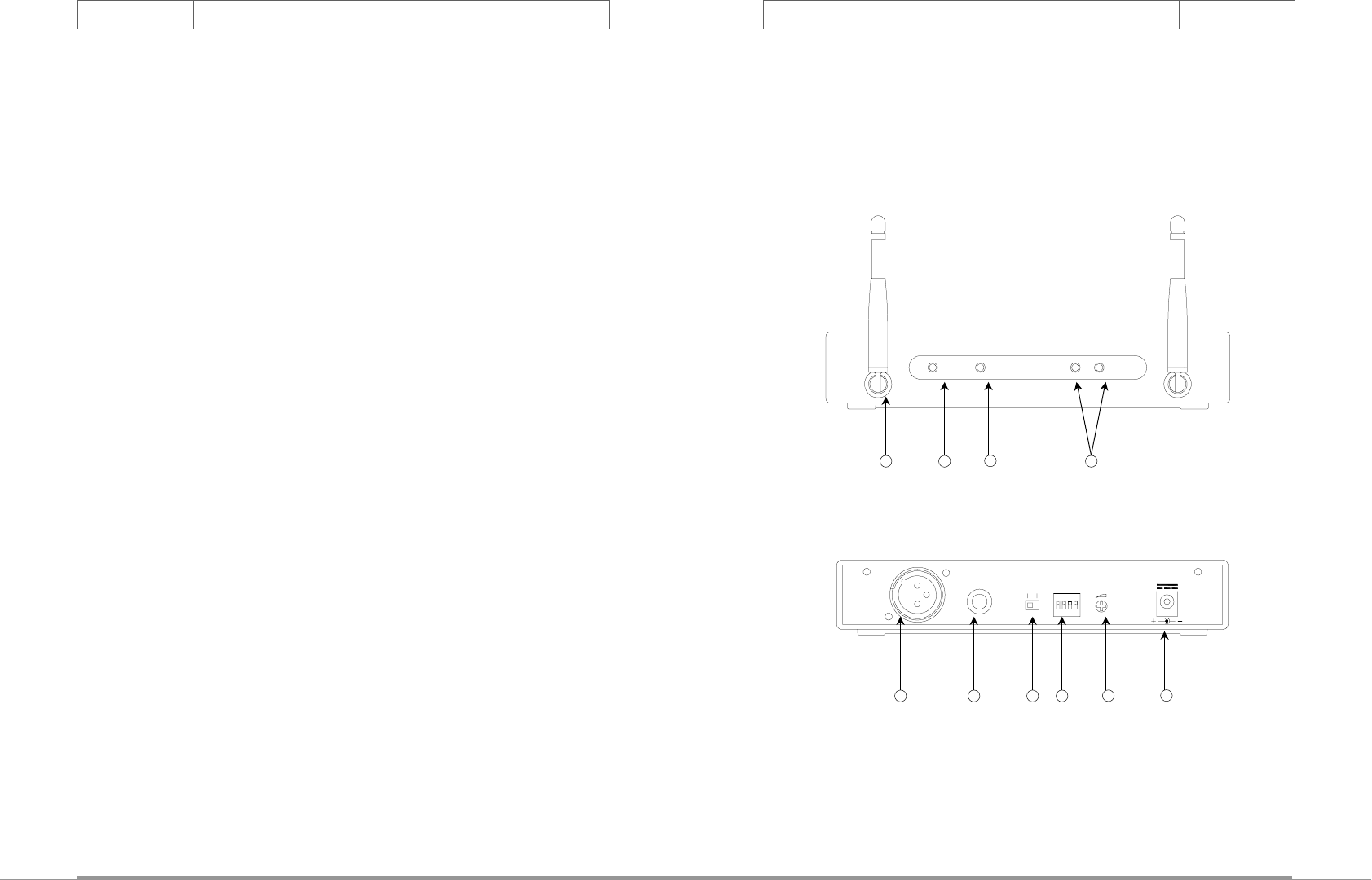

5.1.2 Single Channel, Mini Case
Non Diversity, Front Fixed Antenna
1
7.3 Setting up channel on receiver
Notice: Do not put two or more transmitters operating nearby when setting up the frequency
channel. Please keep transmitter at least one meter away from receiver.
Use the AC adaptor to connect the DC input connector for on the receiver and check the
frequency.
The power LED lights when the receiver is ready to operate
Adjust dip switch to set the channel
If user need to set up a multi-receiver system, please keep your previous
receiver-microphone pair power on. Then go on to next set up procedure.
Make sure the receiver channel is same as the transmitter channel
7.4 Inserting batteries into the handheld / bodypack transmitter
Push to open the battery cover and insert batteries into the battery compartment
conforming to the polarity (+)(-) marks. The transmitter can not work with incorrectly
inserted batteries.
When push the ON/OFF switch to “ON” to switch the power on, the LED will flash
momentarily.
If the battery has sufficient power, the LED flashes once. If the LED stays on, it indicates
that the battery has insufficient power and should be changed soon. If the status LED
fails to flash, the battery is either dead or not positioned correctly, and you should correct
the positioning or change the battery.
Push back the battery cover to click it shut.
7.5 Setting up the handheld transmitter
Use the AC adaptor to connect the DC input connector for on the receiver and check the
frequency.
Switch the transmitter and hi-fi appliance (amplifier, tape deck etc.) power on.
Adjust the channel setting of the transmitter according to receiver’s channel setting
Test the microphone and adjust the levels on your audio mixer or amplifier.
2 3 5
7 8 9 10 12
LINE
AF OUT CHANNEL
MIC 2
MIC SQ MIXING
ON OFF
AF OUT
MIC 1
LINE MIC CHANNEL
DC INPUT
12V 500mA
SQ
PWR AF RF AF RF
WIRELESS SETTING UP
9 4
PRODUCT DESCRIPTION WIRELESS

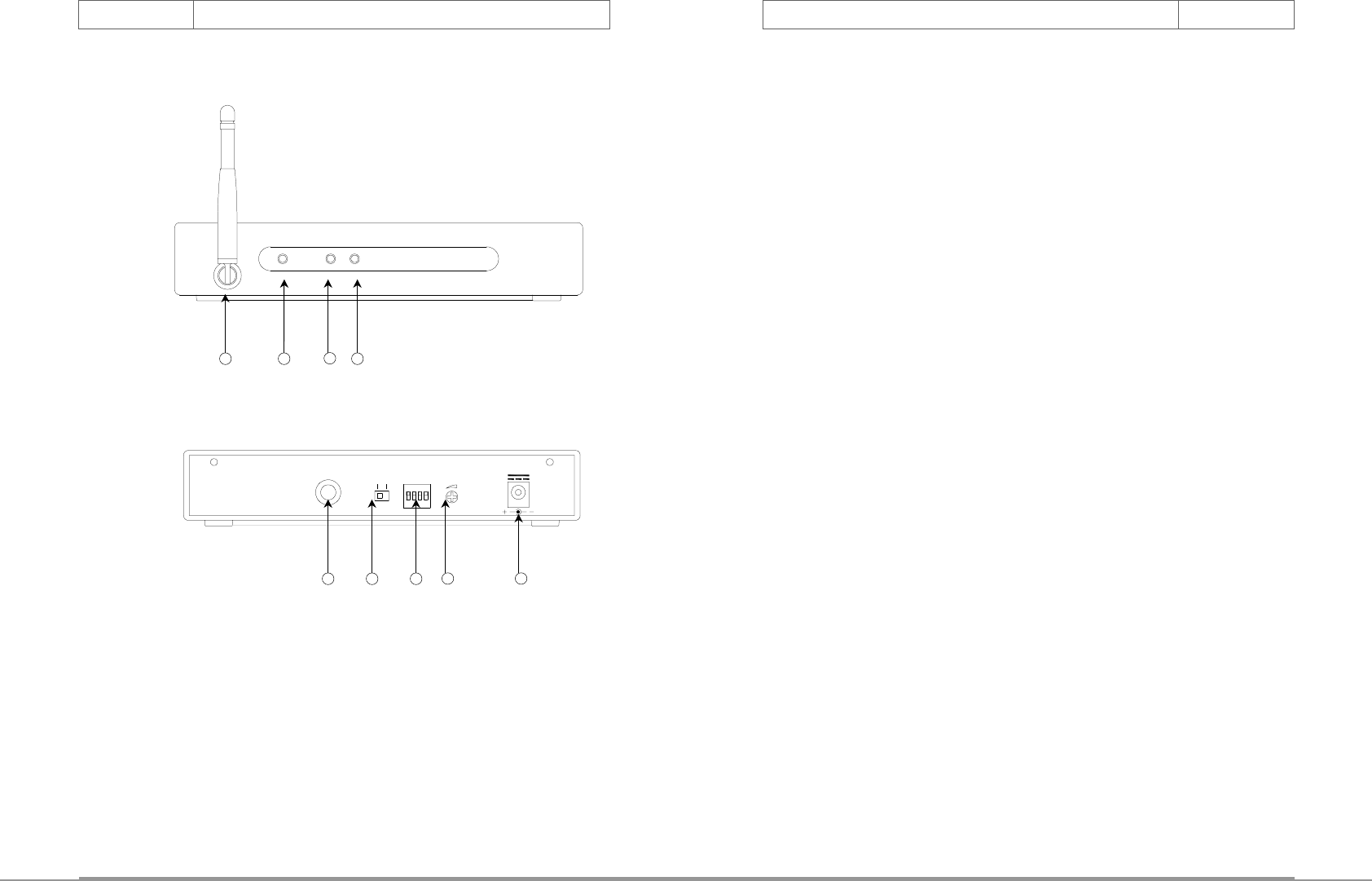

5.1.3 Dual Channel, Mini Case
Non Diversity, Front Fixed Antenna
7. Setting Up
NOTICE: Prior to setting up, please check that the transmitter and receiver are tuned to
the same frequency. Two or more transmitters operating in the same
frequency can not be used at the same time and area. So for each extra
transmitter, please select a different frequency which can be used
simultaneously at local area.
7.1 Connecting the receiver to power
Check that the voltage of the supplied AC adapter conforms to the voltage available
(AC110 or 220) in local area. Using the wrong AC adapter may cause irreparable
damage to the unit.
Plug the feeder cable of the supplied AC adapter into DC IN socket on the receiver.
Then plug the AC adapter into a power outlet.
7.2 Connecting the receiver to an audio mixer or an amplifier
In order to make sure the sound quality and avoid distortion, please adjust the MIC/LINE
switch according to following instructions.
When using a standard audio cable with XLR or 6.3ϕ phone plugs to plug into the MIC IN
on the audio mixer or on the amplifier, please select the MIC/LINE switch to “MIC”
position, the output level for unbalanced output is about at 100mV.
When using a standard audio cable with XLR or 6.3ϕ phone plugs to plug into the LINE
IN on the mixer, please select the MIC/LINE switch to “LINE” position, the output level fo
r
unbalanced output is about at 1V.
For RS-80:
When select the MIC/LINE switch to “MIC”, please use a standard 6.3ϕ plug cable to
connect the UNBALANCED connector on the receiver rear panel to an unbalanced
MIC. input on the audio mixer or on the amplifier,
When select the MIC/LINE switch to “MIC”, please use a standard 3-pin XLR cable to
connect the BALANCED connector on the receiver rear panel to an balanced MIC.
input on the audio mixer or on the amplifier.
When select the MIC/LINE switch to “LINE”, please use a standard 6.3ϕ plug cable to
connect the UNBALANCED connector on the receiver rear panel to an unbalanced
line input on the audio mixer or on the amplifier.
When select the MIC/LINE switch to “LINE”, please use a standard 3-pin XLR cable to
connect the BALANCED connector on the receiver rear panel to an balanced line
input on the audio mixer or on the amplifier.
For RS-60 / RS-120:
When select the MIC/LINE switch to “MIC”, please use a standard 6.3ϕ plug cable to
connect the UNBALANCED connector on the receiver rear panel to an unbalanced
MIC. input on the audio mixer or on the amplifier,
When select the MIC/LINE switch to “LINE”, please use a standard 6.3ϕ plug cable to
connect the UNBALANCED connector on the receiver rear panel to an unbalanced
line input on the audio mixer or on the amplifier.
Never use the balanced and unbalanced audio outputs at the same time! This may
cause signal loss or increased noise.
12
8 9 10
7 11
1 2 3 5
1 2 3 4 5
BALANCED
UNBALANCED
AUDIO OUTPUT
LINE
8/96/7 10/11 L OUTPUT R
CHANNEL
MIC SQ
DC INPUT
12V 500mA
AC/DC ADAP TER
5 8
1. Antenna: Fixed-length UHF antenna permanently mounted either on the front panel..
2. Power Indicator: The indicator LED lights when the receiver is ready to operate.
3. AF Indicator: The indicator glows to indicate that audio signal has been received.
4. Diversity A. B Indicator: This LED lights to show that antenna has received the RF
Signal.
5. RF Indicator: This LED lights to indicate that signal is being received
6. Balanced Output: 3-pin XLR connector provides balanced low-impedance output
7. Unbalanced Output: Unbalanced 6.3mm mono jack audio output for connecting to,
e.g., a guitar amplifier.
8. Mic/Line Switch: Select output of XLR balanced connector or 6.3ϕ unbalanced phone
jack. It can be set for microphone (-20dB) or line-level (0dB).
9. Channel Selector: 16 different selectable frequencies as below
CH 1 CH 2 CH 3 CH 4
CH 5 CH 6 CH 7 CH 8
CH 9 CH 10 CH 11 CH 12
CH 13 CH 14 CH 15 CH 16
10. Squelch Adj. : The squelch adjusts the output level to prevent from the external noise.
Setting the squelch too high will reduce the range of the system. Set the squelch to
minimum before turning the receiver on.
11. Mixing Switch: When the MIXING switch is in the OFF position, the XLR output for
channels 1 and 2 are separated. When the MIXING switch is in the ON position, the XLR
output for channels 1 and 2 are mixed, so that both XLR outputs have conbined signal
from both channel 1 and channel 2.
12. DC IN: DC input connector for the supplied AC adapter.
WIRELESS PRODUCT DESCRIPTION BASIC CONNECTIONS WIRELESS

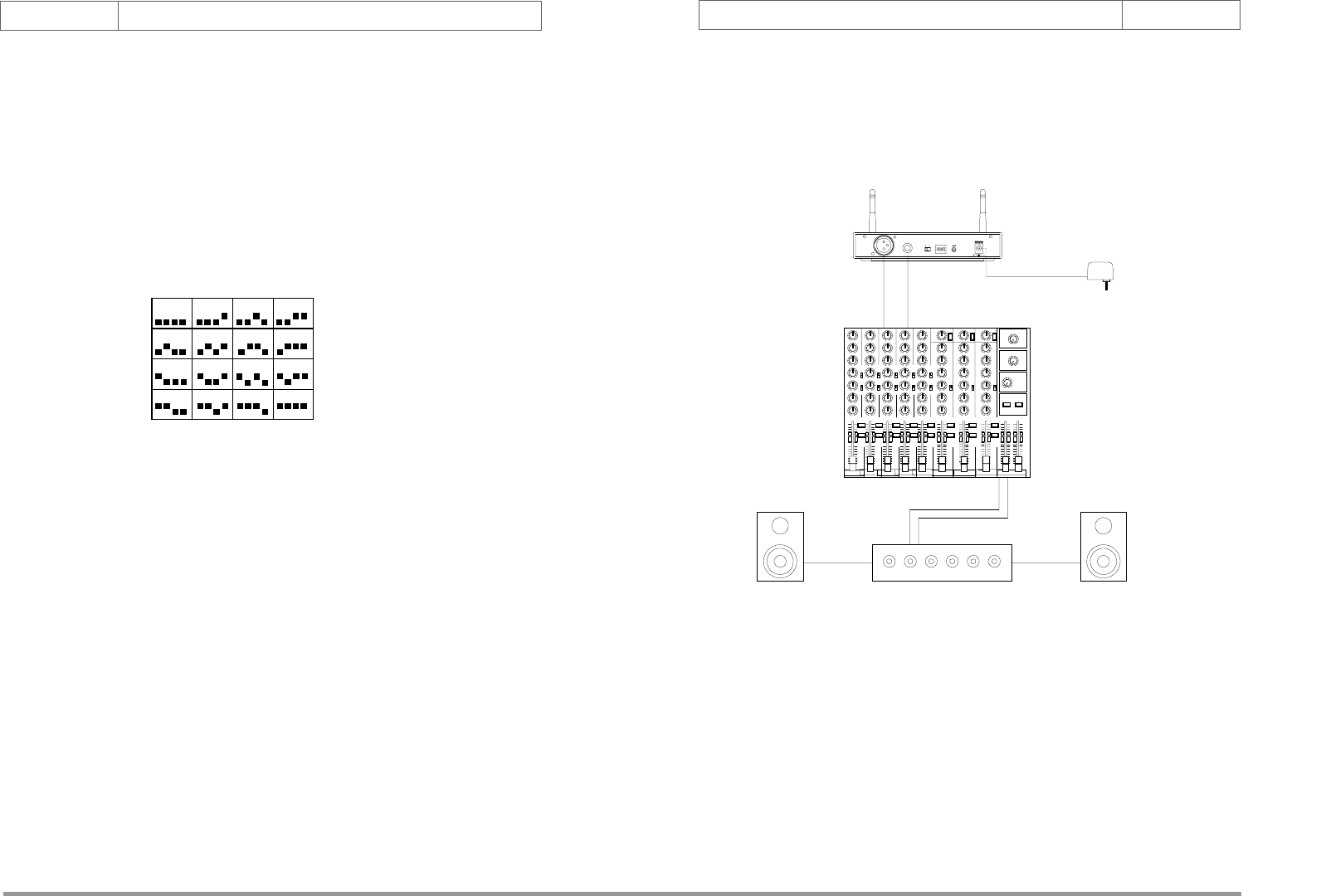

6. Basic Connections
Connect the receiver output to the audio mixer or amplifier input, using a standard audio
cable with 6.3ϕ phone plugs. Never use the balanced and unbalanced audio outputs at
the same time! This may cause signal loss or increased noise.
AUDIO MIXER
AMPLIFIER LOUDSPEAKER
LOUDSPEAKER
WIRELESS BASIC CONNECTIONS
6
PRODUCT DESCRIPTION WIRELESS
7

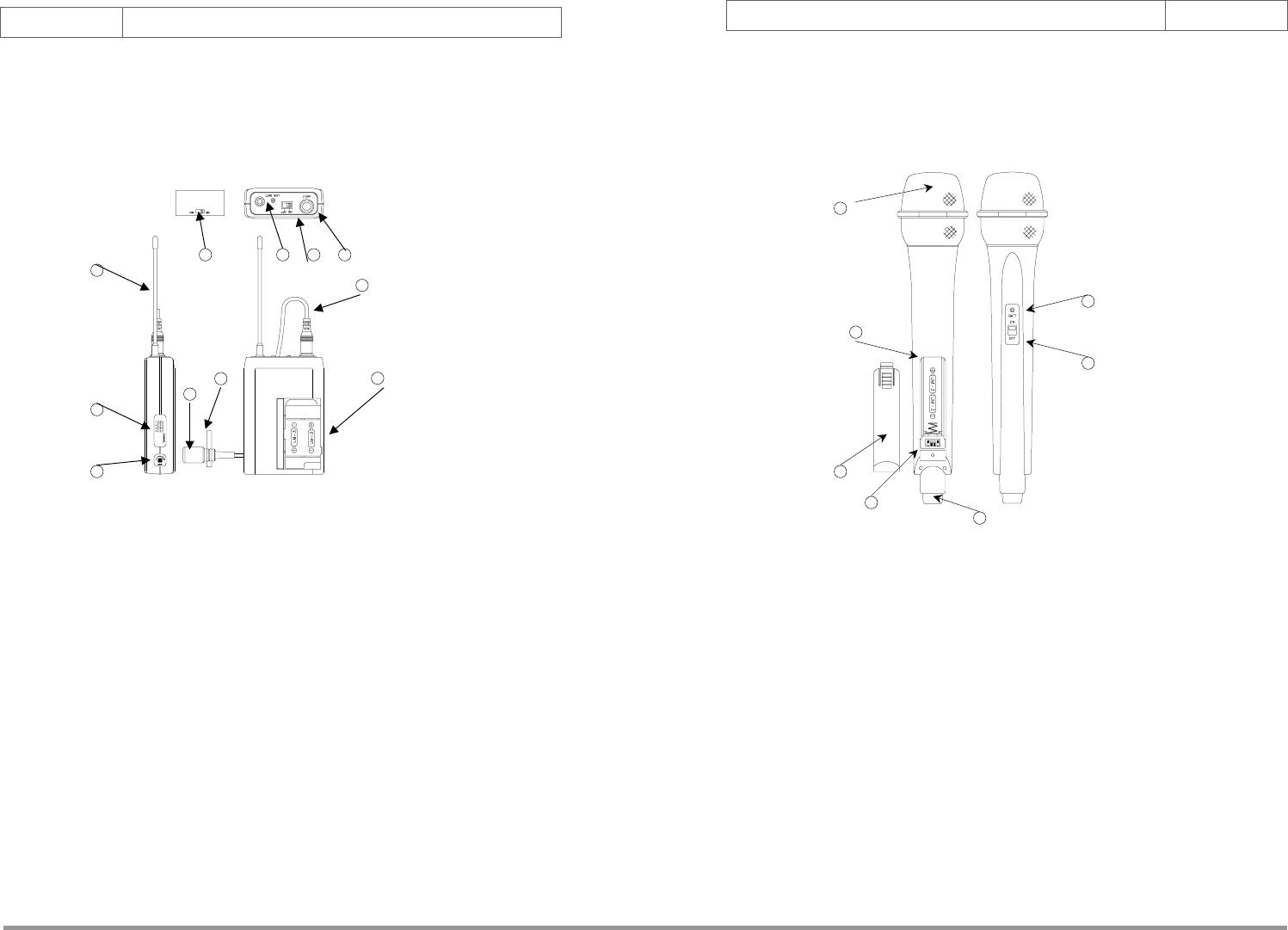

5.3 Bodypack Transmitter
The bodypack transmitter operates in UHF band frequency with PLL synthesized control.
UHF 16 preprogrammed selectable frequencies to avoid interference. Uni-directional
condenser cartridges with different characters for various choices. Use 1.5V x 2 AA size
dry or rechargeable batteries for low operating cost.
1. Mini XLR /3.5ϕ connector: The included electret lapel microphone is
inserted into the connector on transmitter.
2. On/Off Switch: Turns transmitter power on and off.
3. Low Battery LED: LED indicates battery life status. Switching the power to
"ON", the LED flashing once indicates that the transmitter has sufficient power.
If the LED stayed on, it indicates that the battery has insufficient power and
should be changed soon. If the status LED fails to flash, the battery is either
dead or not positioned correctly, and you should correct the positioning or
change the battery.
4. Mic/Line Selector (optional for use with mini XLR connector) : The
switch sets the audio input either to microphone level or line level.
5. Antenna: Permanently connected, helical antenna.
6. Channel Selector: Changes transmitter Channel setting.
7. Gain: The rotary control adjusts the sensitivity of the transmitter’s audio to
the level of the connected lapel microphone or instrument.
8. Mic Unit: The uni-directional electret condenser unit features the wide
frequency response for warm, rich bass and clear sound.
9. Tie Clip: To clip on the tie or lapel for free-movement.
10. Cable: With mini XLR jack or 3.5ϕ screw type plug cable to connect the
transmitter.
11. Battery Compartment: Insert two AA batteries into the compartment and
make sure that the polarity of batteries is correct.
1 2 3 4
5
6
7
8
9 11
5.2 Handheld Microphone
The handheld microphone operates in UHF band frequency with PLL synthesized control.
UHF 16 preprogrammed selectable frequencies to avoid interference. Uni-directional
dynamic or uni-directional condenser capsules with different characters for various choices.
Use 2 x DC1.5V AA size dry or rechargeable batteries for low operating cost.
1
2
3
4
5
7
6
1.Grille: Protects the microphone capsule and helps reduce breath sounds and wind noise.
The grille for the various microphone capsules differ in appearance.
1. Low Battery LED: LED indicates battery life status. Switching the power to "ON", the
LED flashing once indicates that the transmitter has sufficient power. If the LED stays on, it
indicates that the battery has insufficient power and should be changed soon. If the status
LED fails to flash, the battery is either dead or not positioned correctly, and you should correc
t
the positioning or change the battery.
2. On/off Switch: Turns transmitter power on and off.
3. Battery Compartment: Insert two AA dry or rechargeable batteries into the compartment
and make sure that the polarity of batteries is correct.
4. Channel Selector: Changes transmitter Channel setting..
5. Battery Cover: Unscrew to expose battery compartment and Channel selector.
6. Antenna: Built-in high gain helical antenna
10
