Mascot Electric QF-16 Wireless Handheld Transmitter Microphone User Manual QS QF 16
Mascot Electric Co., Ltd. Wireless Handheld Transmitter Microphone QS QF 16
Users Manual
HIGH BAND
WIRELESS
MICROPHONE
SYSTEM
440-1080-0
USER’S MANUAL
12
NOTE WIRELESS
WIRELESS MICROPHONE SYSTEM
1. Introduction …………………………………………………………….….….…….……….…… 1
2. Safety ………………………………………………………………………………….………….………
1
3. Environment ………………………………………………………………………………………...
1
4. Wireless Note….………………………………………….………………………………..……...
1
5. Product Description …………….…………………..……………………..…….………..…
5.1 Receivers

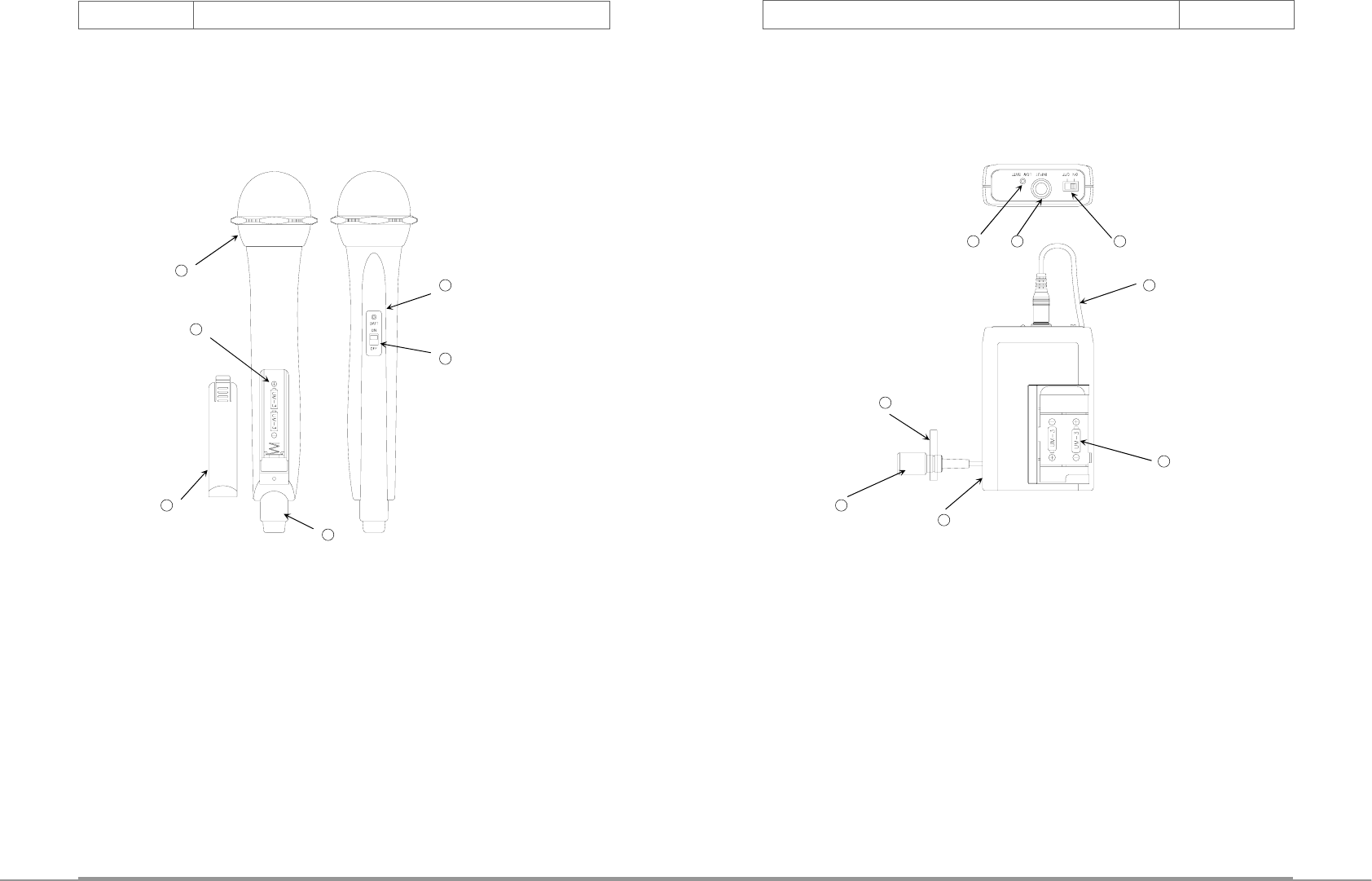

5.2 Handheld Transmitter Microphone
5.3 Bodypack Transmitter
2
6. Basic Connections……………….…………………..……….…..……………….………..… 7
7. Setting Up ………………………………………………….…………………………………...……
7.1 Connecting the receiver to power
7.2 Connecting the receiver to an audio mixer or an amplifier
7.3 Inserting batteries into the handheld / bodypack transmitter
7.4 Setting up the handheld microphone transmitter
7.5 Setting up the bodypack transmitter
8
8. Troubleshooting ………………………….……………………………..………….…….…… 9
9. System Feature……………………………………………………………….…………………...
10
10. System Specification…………………………………………………………………..……….
10
Table of Contents
Page
WIRELESS NOTE
11
10
FEATURES & SPECIFICATIONS WIRELESS
WIRELESS WIRELESS NOTE
FCC Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1)This device may not cause harmful interference and (2) This device must
accept any interference received, including interference that may cause undesired operation
Notice: The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no
change to the antenna or the device is permitted. Any change to the antenna or the device
could result in the device exceeding the RF exposure requirements and void user’s authority
to operate the device.
1. Introduction
Thank you for purchasing our product. This wireless microphone system operates in VHF
band frequency with crystal controlled. Please read this instruction manual carefully before
operating the system. This manual covers the function and operation of the wireless
microphone system.
2. Safety
Do not spill liquid on the appliance and do not drop it on a hard concrete floor.
Do not place the appliance near heat sources such as radiators, amplifier, or etc. Do
not expose it to direct sunlight, extremely dust, excessive moisture, or vibration.
Take out the battery from transmitter, if the appliance has been not used for a longer
period. This will avoid the damage resulting from a defective leaking battery
3. Environment
Do not throw used batteries into a fire or garbage bin with domestic rubbish. Be sure to
dispose of used batteries in accordance with local waste disposal rules.
When disposing the equipment, remove the batteries, separate the case, circuit boards,
and cables, and dispose of all components in accordance with local waste disposal rules.
4. Wireless Note
Before setting up, make sure that the transmitter and receiver are tuned to the same
frequency.
Do not use two transmitters in the same frequency.
Use good quality batteries to avoid the damage resulting from a defective leaking battery.
Turn the volume control on the receiver to adjust receiver output level to match input
level requirements of an audio mixer or amplifier.
While checking sound, move the transmitter around the area where you use the system
to look for dead spots. If you find any dead spot, change the receiver position. If it
does not work, avoid such places.
To avoid interference, do not put the receiver too near metal object and avoid
obstructions between transmitter and receiver.
Avoid the interference from TV, radio, other wireless appliances and etc.
1
9. System Feature
Operating in VHF band frequency with quartz-locked controlled.
Squelch circuit design for external noise-free reception.
High quality design: audio frequency response 80Hz ~12 KHz, S/N ratio more than
100dB and T.H.D. less than 1%.
Effective range between receiver and microphone can reach over 30 meters (sight in
line).
Transmitter uses 2 x 1.5V AA size batteries for low operating cost.
10. System Specification
Receiver
Carrier Frequency Range : VHF 150~260MHz
Frequency Stability : ±0.005% with quartz-locked control
S/N Ratio : ＞ 94dB, at RF=1mV
Image and Spurious Rejection : 80 dB minimum.
Receiving Sensitivity : at 10 dBμV over 80 dB S/N ratio.
Selectivity : ＞50dB
Dynamic Range : ＞96dB
Modulation Mode : FM.
IF Frequency : 10.7MHz
AF Response : 80Hz~12KHz (±3dB)
T.H.D. : ＜1% (at 1KHz)
Audio Output : Unbalanced output
Power Supply : DC 12V
Handheld / Bodypack Transmitter
Carrier Frequency Range : VHF 150~260MHz
RF Power Output : 10mW (max.)
Frequency Stability : ±0.005% with quartz-locked control
Maximum Deviation : ±15KHz
T.H.D. : ＜1% (at 1KHz)
Microphone Capsule : Handheld: uni-directional dynamic
or uni-directional electret condenser unit
Lavalier: uni-directional electret condenser unit
Operating voltage : 2 x 1.5V AA size batteries
Current consumption : 35mA ± 5mA at 2.4V
PWR AF RF
PWR AF A DIVERSITY B
AF OUT
LINE MIC SQ
DC INPUT
12V 500mA
AF OUT
LINE MIC SQ
DC INPUT
12V 500mA
WIRELESS TROUBLESHOOTING
9
WIRELESS NOTE WIRELESS
5. Product Description
5.1 Receiver
These are the stationary receivers for use with our VHF transmitters (DC3V operating
voltage). The receiver operates in VHF band frequency with quartz locked controlled.
Powered by 12V DC.
5.1.2 Single Channel, Diversity
5.1.1 Single Channel, Non-Diversity
2
1
6 8 7 2 3
8
4
7 6 2 3 5
10
10
1 1
5
7.5 Setting up the bodypack transmitter
7.5.1 Connecting a microphone
Use the supplied screwdriver to adjust the GAIN at appropriate position.
Plug the 3.5 Ø plug of the microphone cable into the audio input jack on the bodypack
transmitter.
Switch the transmitter and hi-fi appliance (amplifier, tape deck etc.) power on.
Test the microphone and adjust the levels on your audio mixer or amplifier.
7.5.2 Connecting an instrument
Use the supplied screwdriver to adjust the GAIN at appropriate position.
Plug the 6.3ϕ phone plug of the optional guitar cable to the output jack on the instrument
and the 3.5 Ø plug into audio input connector on the bodypack transmitter.
Switch the transmitter and hi-fi appliance (amplifier, tape deck etc.) power on.
Play the instrument for testing and adjust the levels on your audio mixer or amplifier.
8. Troubleshooting
Before checking sound, move the transmitter around the area where you use the system
to look for dead spots. If you find any dead spot, change the receiver position. If it
does not work, avoid such places.
If undesirable noise occurs, adjust the SQUELCH control on receiver in clockwise to
suppress it. The higher squelch control, the lower the sensitivity of the receiver and
decrease the service area of the system.
Problem Solution
No sound Check the power supply of the microphone and receiver.
Check that the transmitter and receiver are using same
frequency.
Check whether the hi-fi appliance is switched on and the receiver
output is connected to audio mixer or amplifier input.
Check whether transmitter is too far away from receiver or
SQUELCH control set too high.
Check whether receiver is located too near metal object or there
are obstructions between transmitter and receiver.
Sound interference Check the antenna location.
When using 2 or above microphone sets simultaneously, make
sure that the chosen frequencies are not interfered.
Check whether the interference comes from other wireless
microphones, TV, radio and etc.
Distortion Check the gain control (Mic Adj.) for bodypack transmitter is set
too high or too low.
Check whether the interference comes from other wireless
microphones, TV, radio and etc.
RF
PWR AF AF RF
AF OUT
LINE
MIXING
ON
MIC
MIC 2
SQ AF OUT
OFF LINE
12V 500mA
DC INPUT
MIC 1
MIC SQ
SETTING UP WIRELESS
3 8
WIRELESS PRODUCT DESCRIPTION
5.1.3 Dual Channel, Non-diversity

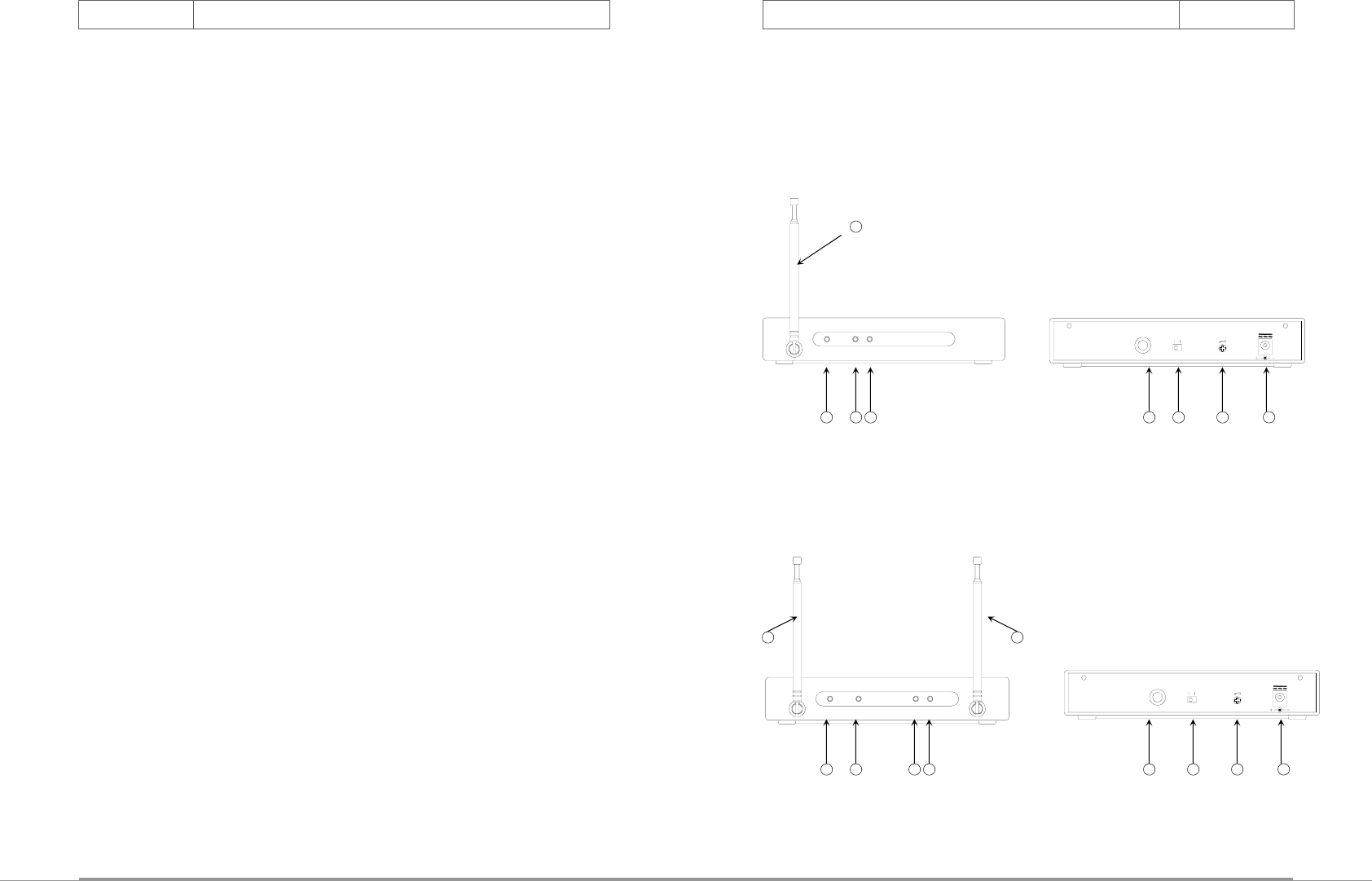

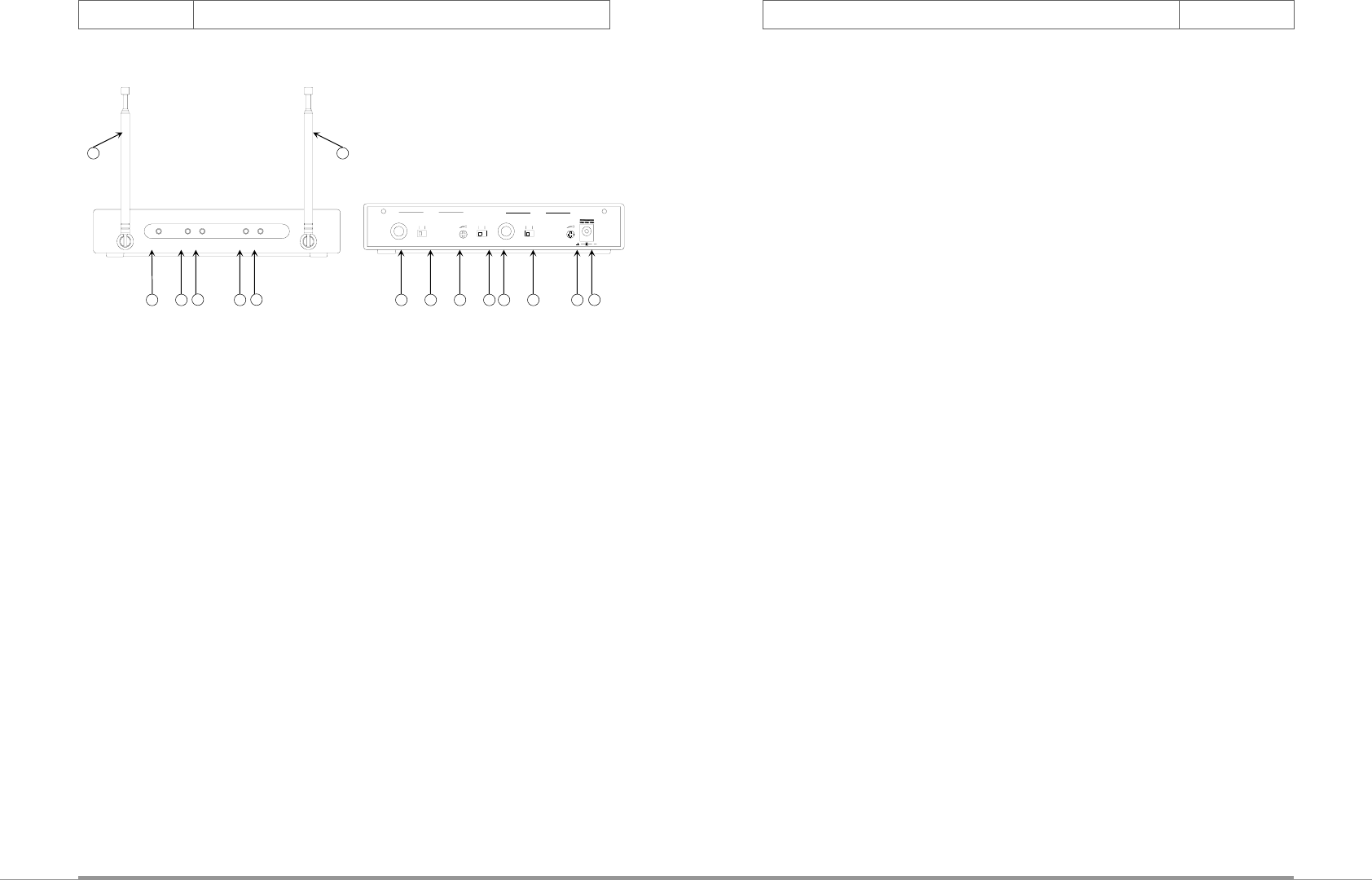

1. Antenna: Fixed-length antenna permanently mounted either on the front panel..
2. Power Indicator: The indicator LED lights when the receiver is ready to operate.
3. AF Indicator: The indicator glows to indicate that audio signal has been received.
4. RF Indicator: This LED lights to indicate that signal is being received.
5. Diversity A. B Indicator: This LED lights to show that antenna has received the RF
Signal.
6. AF Output: Unbalanced 6.3mm mono jack audio output for connecting to, e.g., a guitar
amplifier.
7. Mic/Line Switch: Select AF output level for Mic (-20dB) or Line (0dB).
8. Squelch Adj. : The squelch adjusts the output level to prevent from the external noise.
Setting the squelch too high will reduce the range of the system. Set the squelch to
minimum before turning the receiver on.
9. Mixing Switch: When the MIXING switch is in the OFF position, the AF output for
channels 1 and 2 are separated. When the MIXING switch is in the ON position, the AF
output for channels 1 and 2 are mixed, so that both AF outputs have combined signal from
both channel 1 and channel 2.
10. DC Jack: DC input connector for the supplied AC adapter.
1
6
4 10
7 6 2 3 8
1
4
3 7 8 9
7. Setting Up
NOTICE: Prior to setting up, check that the transmitter and receiver are using the same
frequency. Two or above transmitters operating in the same frequency can
not be used at the same time and area, so please select the different
frequencies which can be used simultaneously at local area.
7.1 Connecting the receiver to power
Point the antennas upward.
Check that the voltage of the supplied AC adapter conforms the output DC 12V in local
area. Using the wrong AC adapter may cause irreparable damage to the unit.
Plug the feeder cable of the supplied AC adapter into DC IN socket on the receiver.
Then plug the AC adapter into a power outlet.
7.2 Connecting the receiver to an audio mixer or an amplifier
In order to make sure the sound quality and avoid distortion, please adjust the MIC/LINE
switch according to following instructions.
When using a standard audio cable with XLR or 6.3ϕ phone plugs to plug into the MIC
IN on the audio mixer or on the amplifier, please select the MIC/LINE switch to “MIC”
position, the output level for unbalanced output is about at 100mV.
When using a standard audio cable with XLR or 6.3ϕ phone plugs to plug into the LINE
IN on the mixer, please select the MIC/LINE switch to “LINE” position, the output level
for unbalanced output is about at 1V.
7.3 Inserting batteries into the handheld microphone / bodypack transmitter
Push to open the battery cover and insert batteries into the battery compartment
conforming to the polarity (+)(-) marks. The transmitter can not work with incorrectly
inserted batteries.
When push the ON/OFF switch to “ON” to switch the power on, the LED will flash
momentarily.
If the battery has sufficient power, the LED flashes once. If the LED stays on, it
indicates that the battery has insufficient power and should be changed soon. If the
status LED fails to flash, the battery is either dead or not positioned correctly, and you
should correct the positioning or change the battery.
Push back the battery cover to click it shut.
7.4 Setting up the handheld microphone transmitter
Check the transmitter and receiver are using the same frequency.
Switch the receiver power on, select the AF output level on Mic (-20dB) or Line (0dB)
position.
Switch the transmitter and hi-fi appliance (amplifier, tape deck etc.) power on.
Test the microphone and adjust the levels on your audio mixer or amplifier.
AF OUT
LINE MIC SQ 12V 500mA
DC INPUT
WIRELESS PRODUCT DESCRIPTION
7 4
PRODUCT DESCRIPTION WIRELESS
Rack Mounting
To combine two receivers in a 19” standard rack by using metal racks
AUDIO MIXER
AMPLIFIER LOUDSPEAKER
LOUDSPEAKER
6. Basic Connections

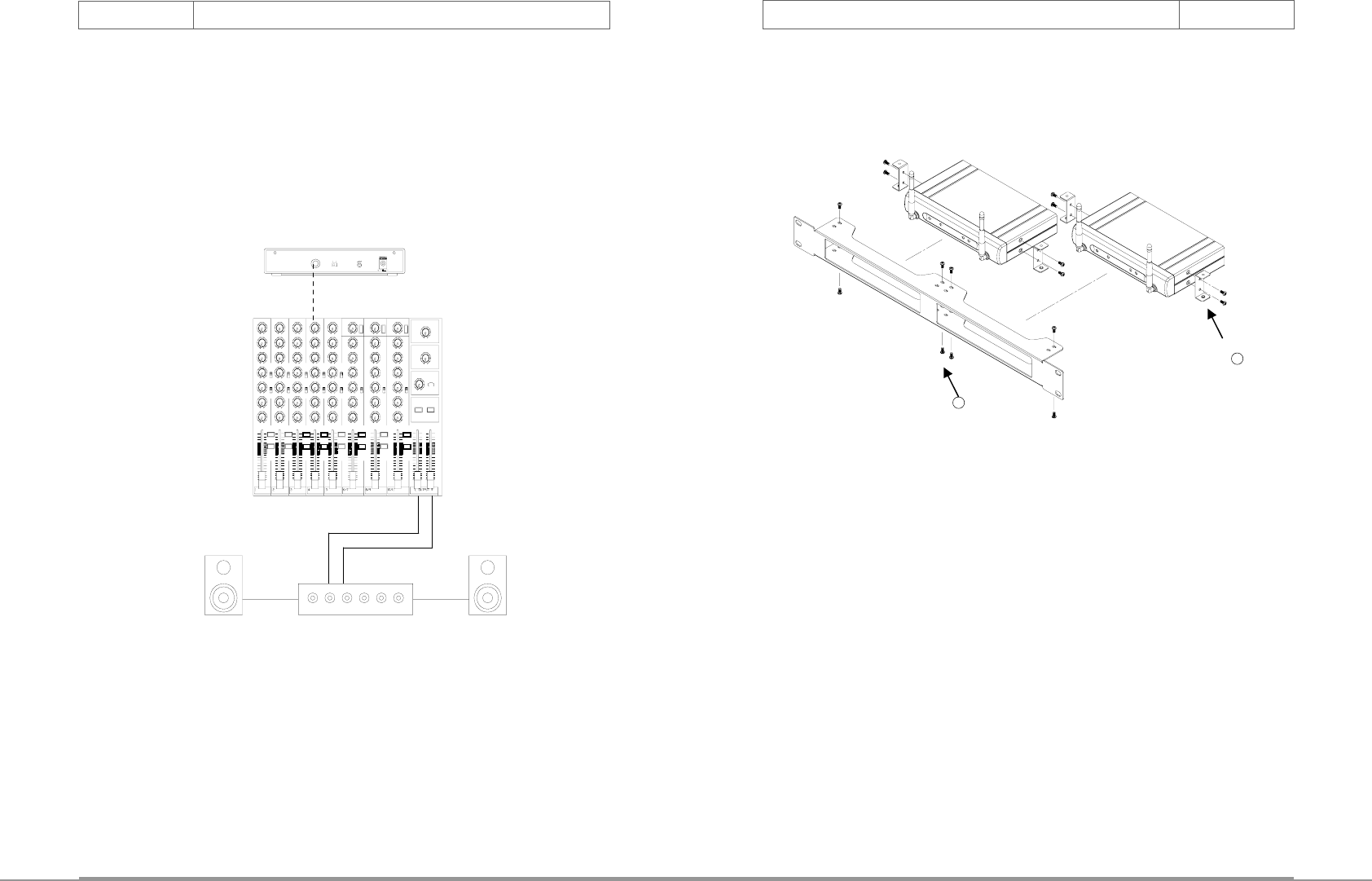

Connect the receiver output to the mixer or amplifier input, using a standard audio cable with
a 6.3ϕ phone plug.
1. Install 2 pieces ear short racks on both side sides of receiver.
2. Install the receiver on the 19” metal rack mount by screwing the ear short racks.
1
2
WIRELESS PRODUCT DESCRIPTION
5 6
PRODUCT DESCRIPTION WIRELESS
1
1

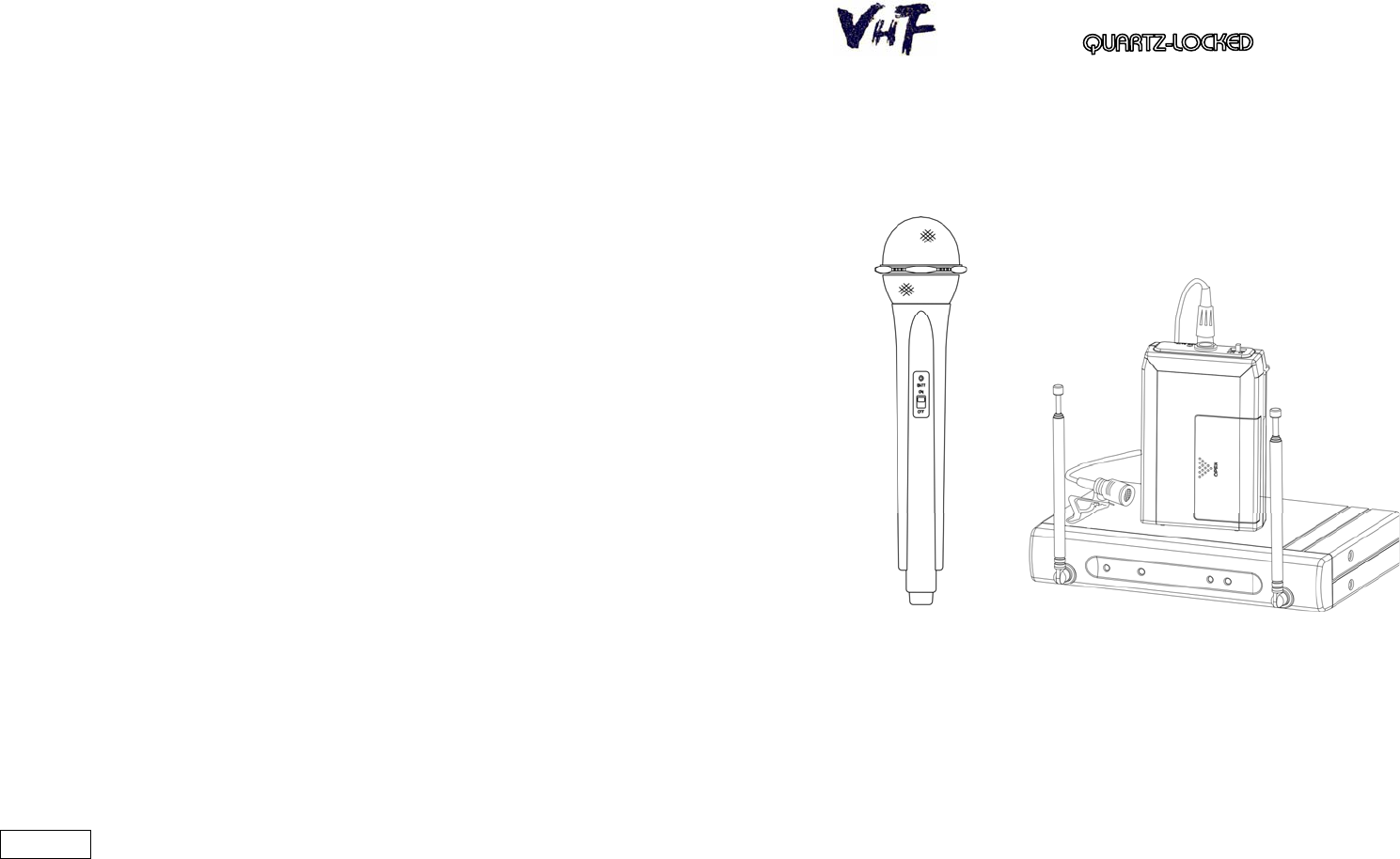

5.2 Handheld Microphone
The handheld microphone operates in VHF high band frequency range 150~260MHz
with quartz-locked control and integrated antenna design. Uni-directional dynamic or
uni-directional electret condenser cartridge differ various characters for choices. Use
2 x 1.5V AA size batteries for low operating cost.
1. Grille: Protects the microphone cartridge and helps reduce breath sounds and wind
noise. The grille for the various microphone cartridges different in appearance.
2. Low Battery LED: LED indicates battery status. Switching the power to "ON", the LED
flashing once indicates that the transmitter has sufficient power. If the LED stays on, it
indicates that the battery has insufficient power and should be changed soon. If the
status LED fails to flash, the battery is either dead or not positioned correctly, and you
should correct the positioning or change the battery.
3. On/off Switch: Turns transmitter power on and off.
4. Battery Compartment: Insert two DC1.5V AA batteries into the compartment and make
sure that the polarity of batteries is correct
5. Battery Cover: Push to expose battery compartment.
6. Antenna: Built-in high gain helical antenna.
5.3 Bodypack Transmitter
The bodypack transmitter operates in VHF high band frequency range 150~260MHz with
quartz-locked control. Uni-directional condenser cartridges with different characters for
various choices. Use 1.5V x 2 AA size batteries for low operating cost.
1. On/Off Switch: Turns transmitter power on and off.
2. 3.5ϕ connector: The included electret lapel microphone is inserted into the
connector on transmitter.
3. Low Battery LED: LED indicates battery status. Switching the power to "ON", the
LED flashing once indicates that the transmitter has sufficient power. If the LED stays
on, it indicates that the battery has insufficient power and should be changed soon. If
the status LED fails to flash, the battery is either dead or not positioned correctly, and
you should correct the positioning or change the battery.
4. Mic Unit: The uni-directional electret condenser unit features the wide frequency
response for warm, rich bass and clear sound.
5. Tie Clip: To clip on the tie or lapel for free-movement.
6. Cable: With 3.5ϕ screw type plug cable to connect the transmitter. This cable is
also regard as transmission antenna, so please extend it as straight as possible.
7. Gain: The rotary control adjusts the sensitivity of the transmitter’s audio to the level of
the connected lapel microphone or instrument.
8. Battery Compartment: Insert two AA batteries into the compartment and make sure
that the polarity of batteries is correct.
5
2
3
1
4
6
1 2 3
4
6
5
7
8
