1. OBJECTIVE
This document describes the requirements to use Masimo Wifi Module I Limited Modular Certification within Masimo
Instrument products.
2. BACKGROUND
The Masimo Wifi Module I (24412) is a dual band Wifi/Bluetooth module with and SDIO interface for Wifi and UART
interface for Bluetooth. 24412 has been Limited Modular certified which will allow for a reduction in test expenditures
and time for transmitter type testing for Instruments that employ it as a Wifi/BlueTooth interface.
3. REFERENCE
24412 Masimo Wifi Module I Board Assembly, RoHS
18046 Antenna, 50 ohms, 2.4, 4.9, 5.2, 5.8 GHz, RoHS
(EtherTronics Pressta 9000129 antennae)
4. RESPONSIBILITY
Engineering is responsible for establishing and maintaining this document.
5. MATERIALS AND EQUIPMENT
None
USER MANUAL UM-10171
Masimo Wifi Module I Revision A
CO-023939
CONFIDENTIAL AND PROPRIETARY Page 2 of 5
© 2016 Masimo Corporation (Unpublished) FRM-1646 Rev. A
All Rights Reserved DRO-12556
6. REQUIREMENTS FOR USE
To use the 24412 Limited Modular Certification, the product must use the antennae 18046 that the certification was
issued with. The product label must use the following identifiers containing MWM1 (em, double-u, em, one):
FCC ID:VFK-MWM1 Model – [device model such as Rad9]
IC:7362A-MWM1 IC Model:MWM1
The product manual must include the following ID’s and Wireless specifications as well:
Wireless Radio
FCC ID:VFK-MWM1 Model – [device model]
IC:7362A- MWM1 IC Model: MWM1
Wireless Specifications
Communication (Wi-Fi)
Type WLAN Radio: IEEE 802.11 a/b/g
Frequency
802.11a: 5180-5240 MHz, 5745-5825 MHz
802.11b/g: 2412-2462 MHz
Max Peak Output Power WLAN 17 dBm
Classification of Output Power
Rating Conducted
Output Power Type Fixed at the Factory
Modulation Types OFDM, BPSK, CCK
Modulation Signals Analog and Digital
Available Data Rates
802.11a - 6, 9, 12, 18, 24, 36, 48, 54 Mbps.
802.11b - 1, 2, 5.5, 11 Mbps.
802.11g - 6, 9, 12, 18, 24, 36, 48, 54 Mbps.
Communication (Bluetooth)
Type Bluetooth
Frequency 2402-2480 MHz
USER MANUAL UM-10171
Masimo Wifi Module I Revision A
CO-023939
CONFIDENTIAL AND PROPRIETARY Page 3 of 5
© 2016 Masimo Corporation (Unpublished) FRM-1646 Rev. A
All Rights Reserved DRO-12556
Communication (Wi-Fi)
Max Peak Output Power Bluetooth 1.3 dBm
Classification of Output Power
Rating Conducted
Output Power Type Fixed at the Factory
Modulation Types DH5
Modulation Signals Analog and Digital
Available Data Rates Bluetooth 1 Mbps
Security and Authentication
Encryption 64/128-bit WEP, Dynamic WEP, WPA-TKIP, WPA2-AES
Authentication Open System, Shared Key, Pre-Shared Key (PSK), 802.1X: LEAP, PEAP< TTLS, TLS, EAP-FAST
Radio Compliance
USA FCC ID: VKF- MWM1
Model - [device model]
Canada IC:7362A- MWM1
IC Model: MWM1
RSS-210
Europe
EN 300 328
EN 301 893
EN 301 489-1
EN 301 489-17
R & TTE Directive
USER MANUAL UM-10171
Masimo Wifi Module I Revision A
CO-023939
CONFIDENTIAL AND PROPRIETARY Page 4 of 5
© 2016 Masimo Corporation (Unpublished) FRM-1646 Rev. A
All Rights Reserved DRO-12556

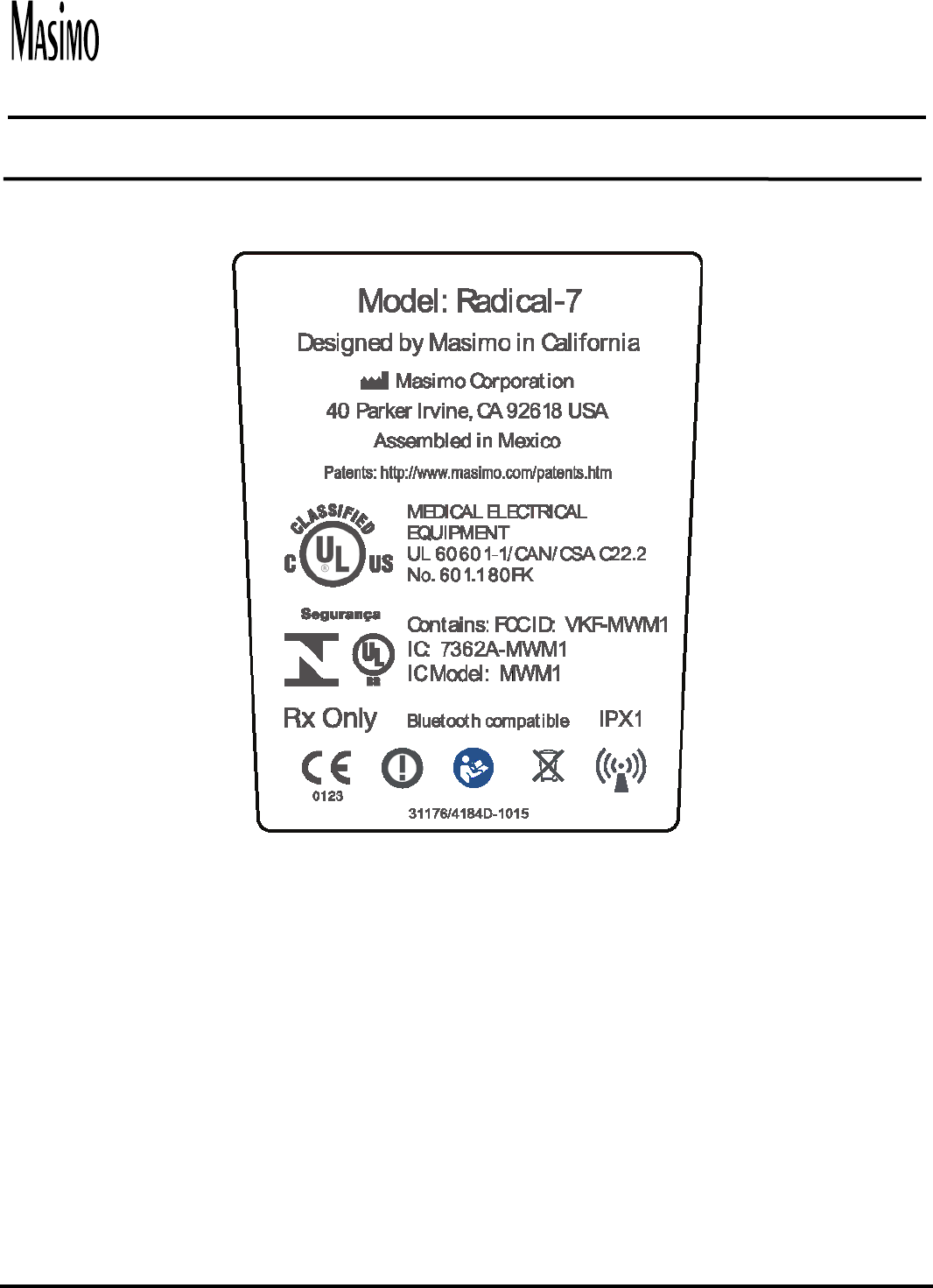

Figure 1. Sample label depicting MWM1 ID.
USER MANUAL UM-10171
Masimo Wifi Module I Revision A
CO-023939
CONFIDENTIAL AND PROPRIETARY Page 5 of 5
© 2016 Masimo Corporation (Unpublished) FRM-1646 Rev. A
All Rights Reserved DRO-12556
The product manual must include the following text:
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
In accordance with international telecommunication requirements, the frequency band of
2.4 GHz and 5.15 to 5.25 Ghz is only for indoor usage to reduce potential for harmful
interference to co-channel mobile satellite systems.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
In order to maintain compliance with FCC regulations, shielded cables must be used
with this equipment. Operation with non-approved equipment or unshielded cables is
likely to result in interference to radio and TV reception. The user is cautioned that
changes and modifications made to the equipment without the approval of manufacturer
could void the user's authority to operate this equipment.
To satisfy RF exposure requirements, this device and its antenna must operate with a
separation distance of at least 20 cm from all persons and must not be co-located or
operating in conjunction with any other antenna or transmitter.
This Class B digital apparatus complies with Canadian ICES-003.
