Shenzhen Master Electronic Technology Co., Ltd. 303J, 3/F, B Building, Times Plaza, Center City of Longcheng Street, Longgang District, Shenzhen City, Guangdong Province, P.R.China Instruction of ZELOTES (In English) 2400DPI Wireless Gaming Mouse 1. This mouse is intelligent connectivity, no need to code, plug & play (No need CD driver) 2. No Marco Function. (no programmed button) 3. There are 4 levels of DPI, 600 -1000 -1600 -2400, default is 1000. 4. Two different polling rates of 250Hz and 500Hz for you to choose. 1. Packing List/Product Presentation Packing List: Mouse x 1 Instruction x 1 Basic Parameters: Data transmission: 1Mbps Frequency: 2405MHZ-2476MHZ Channel: 32 Engine: Optical Distance: 30m Voltage: 3V Key life: About 5 millions Size: 130x86x39mm Weight: 110±5g Step current: Working current = 10mA Standby current = 1.3mA

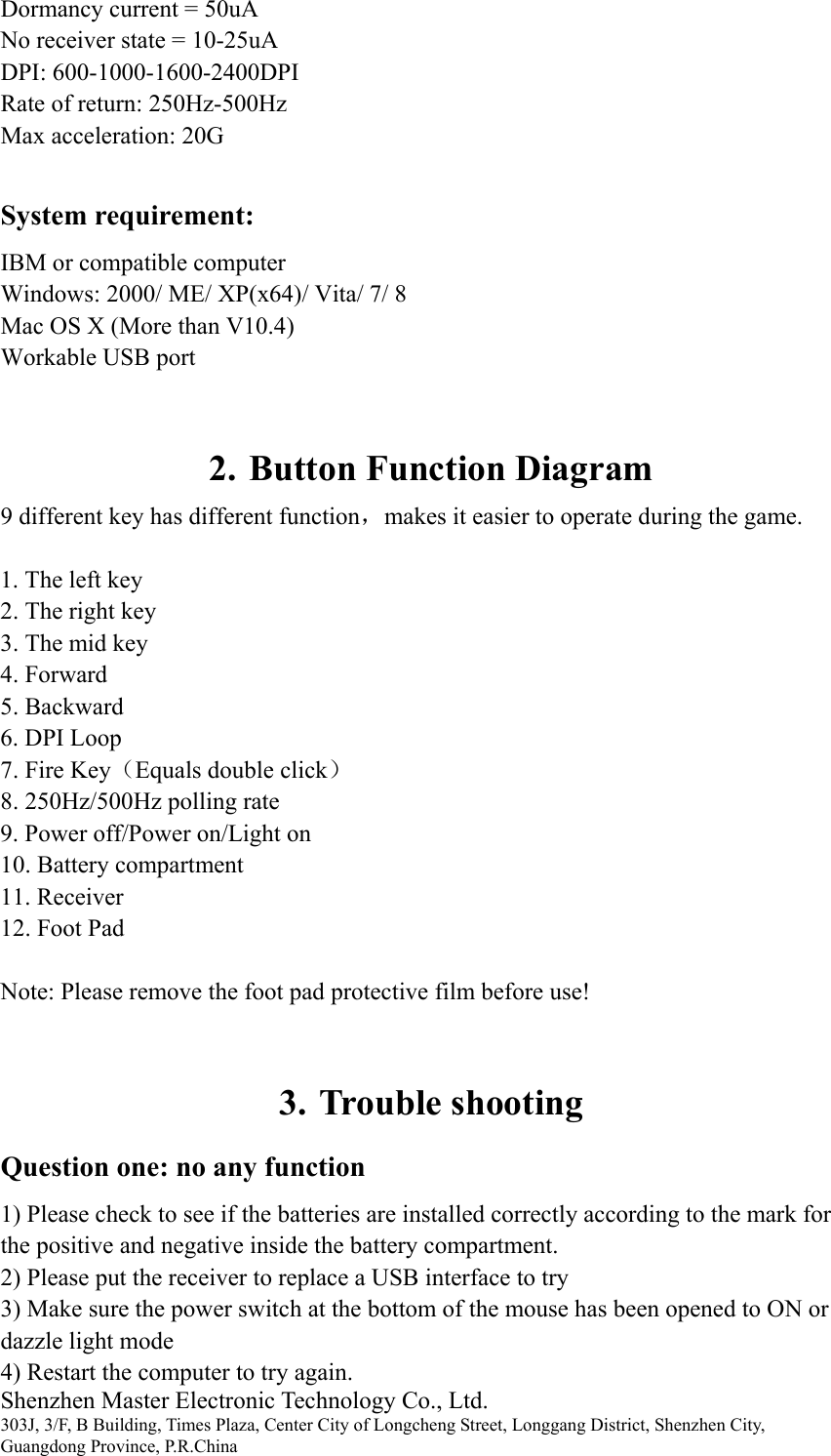

Shenzhen Master Electronic Technology Co., Ltd. 303J, 3/F, B Building, Times Plaza, Center City of Longcheng Street, Longgang District, Shenzhen City, Guangdong Province, P.R.China Dormancy current = 50uA No receiver state = 10-25uA DPI: 600-1000-1600-2400DPI Rate of return: 250Hz-500Hz Max acceleration: 20G System requirement: IBM or compatible computer Windows: 2000/ ME/ XP(x64)/ Vita/ 7/ 8 Mac OS X (More than V10.4) Workable USB port 2. Button Function Diagram 9 different key has different function，makes it easier to operate during the game. 1. The left key 2. The right key 3. The mid key 4. Forward 5. Backward 6. DPI Loop 7. Fire Key（Equals double click） 8. 250Hz/500Hz polling rate 9. Power off/Power on/Light on 10. Battery compartment 11. Receiver 12. Foot Pad Note: Please remove the foot pad protective film before use! 3. Trouble shooting Question one: no any function 1) Please check to see if the batteries are installed correctly according to the mark for the positive and negative inside the battery compartment. 2) Please put the receiver to replace a USB interface to try 3) Make sure the power switch at the bottom of the mouse has been opened to ON or dazzle light mode 4) Restart the computer to try again.

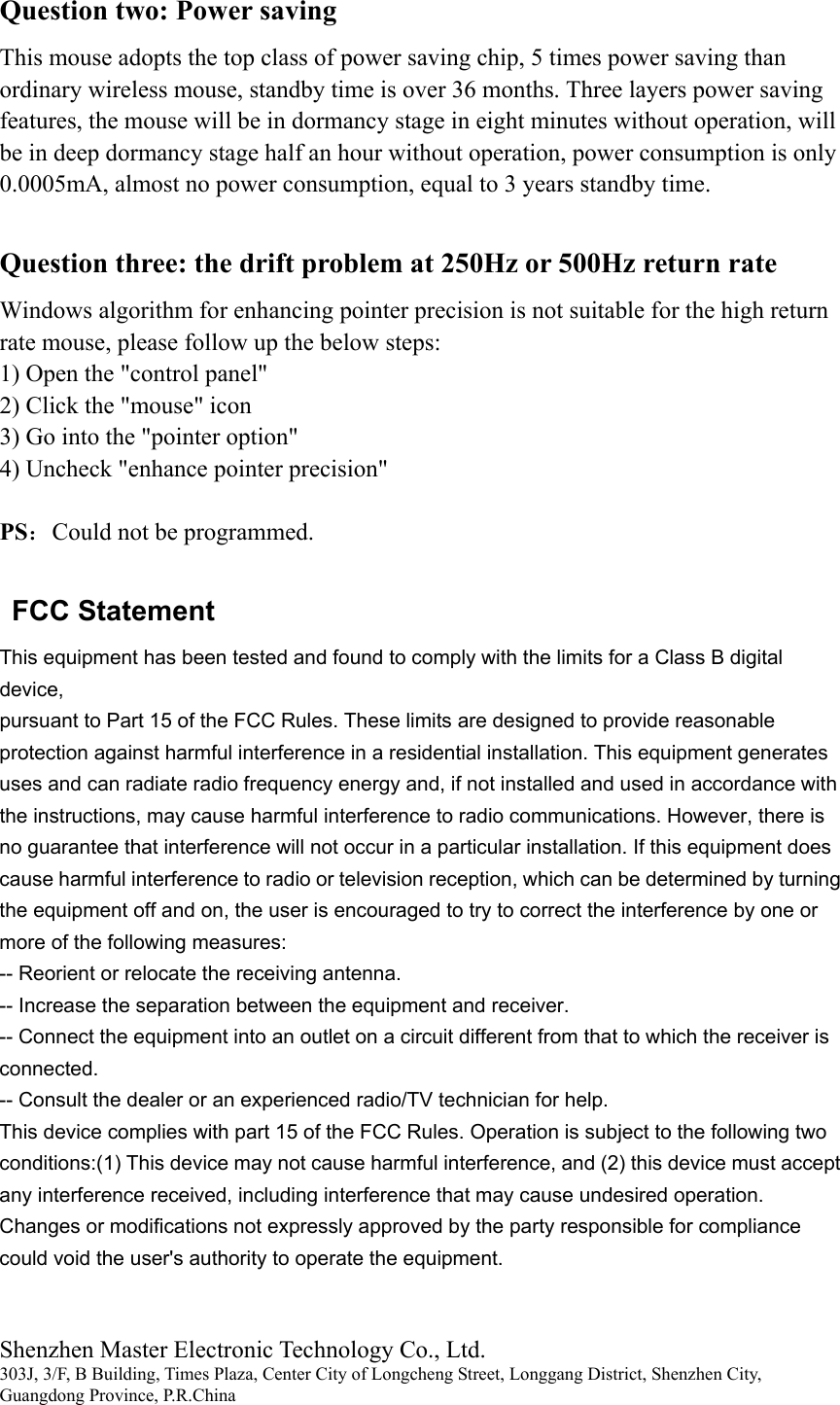

Shenzhen Master Electronic Technology Co., Ltd. 303J, 3/F, B Building, Times Plaza, Center City of Longcheng Street, Longgang District, Shenzhen City, Guangdong Province, P.R.China Question two: Power saving This mouse adopts the top class of power saving chip, 5 times power saving than ordinary wireless mouse, standby time is over 36 months. Three layers power saving features, the mouse will be in dormancy stage in eight minutes without operation, will be in deep dormancy stage half an hour without operation, power consumption is only 0.0005mA, almost no power consumption, equal to 3 years standby time. Question three: the drift problem at 250Hz or 500Hz return rate Windows algorithm for enhancing pointer precision is not suitable for the high return rate mouse, please follow up the below steps: 1) Open the "control panel" 2) Click the "mouse" icon 3) Go into the "pointer option" 4) Uncheck "enhance pointer precision" PS：Could not be programmed. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
