Questions, problems, missing parts? Before returning to your retailer, call our

customer service department at 1-800-963-0211, 8 a.m. - 6 p.m., EST, Monday -

Thursday, 8 a.m. - 5 p.m., EST, Friday.

WARNING

Improper installation,

adjustment, alteration, service

or maintenance can cause injury

or property damage.

Read this instruction manual

thoroughly before installing or

servicing this equipment.

DANGER

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flames.

3. Open the lid.

4. If the odor continues, keep

away from the appliance and

immediately call your gas

supplier or fire department.

WARNING

For Outdoor Use Only

ITEM #0097709

4-BURNER GAS GRILL

MODEL #1010037

WARNING

1, Do not store or use gasoline

or other flammable liquids or

vapors in the vicinity of this or

any other appliance.

2, An LP tank not connected for

use should not be stored in the

vicinity of this or any other

appliance.

ATTACH YOUR RECEIPT HERE

Serial Number________________ Purchase Date_________________

Master Forge & M Design® is a

registered trademark of LF, LLC.

TABLE OF CONTENTS

Safety Information………………………………………………………………………………….3

Package Contents……………………………..…………………….…….……………………....5

Hardware Contents………………………………….……………………….…………..…….…..7

Preparation………………….…….………………………….………………….………...….….….7

Assembly Instructions……………………..………………………….……………….……..……8

Installation Instructions…………………………………………………………………………...17

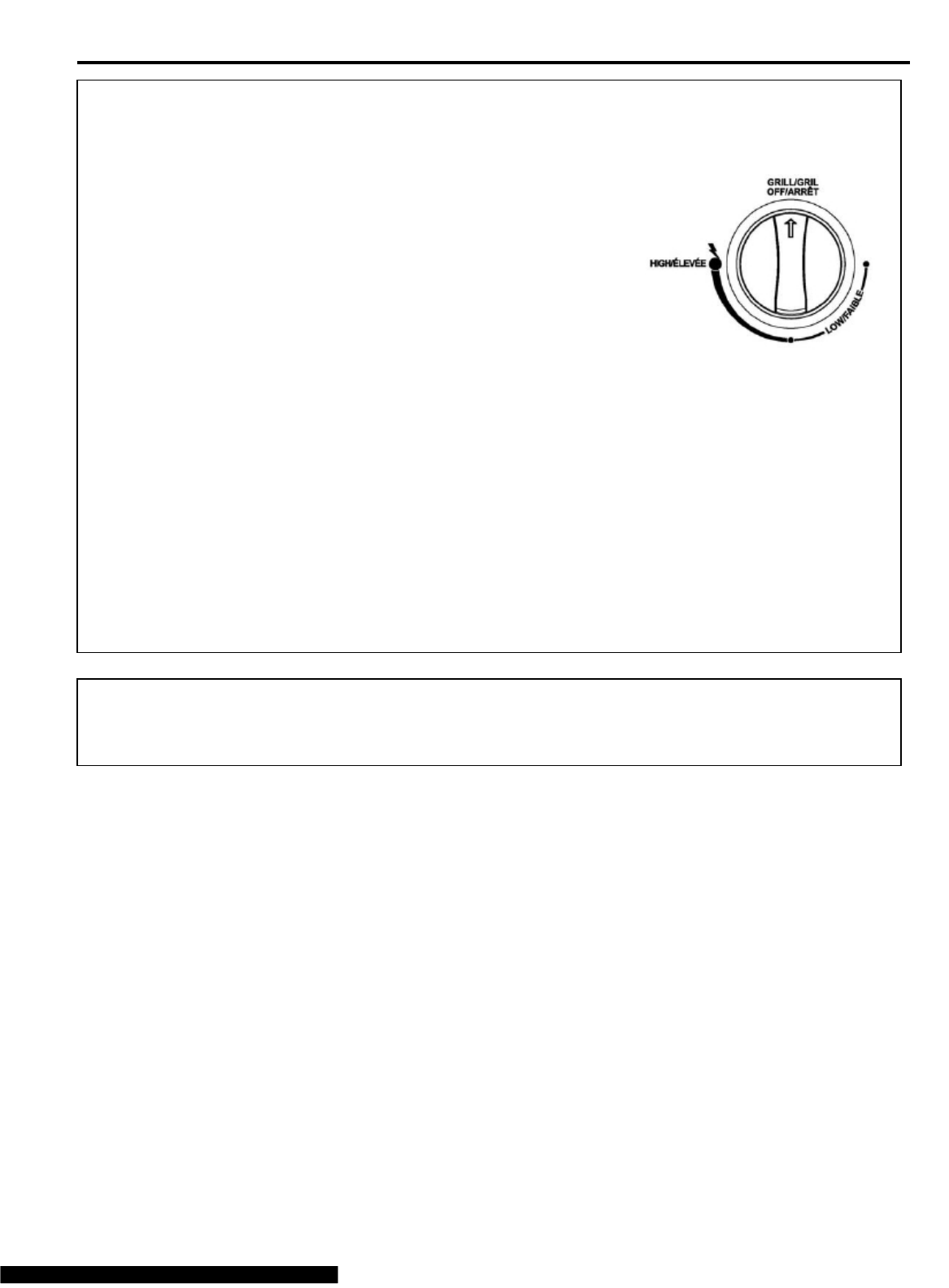

Operating Instructions…………………………………………………………………………… 21

Care and Maintenance…………………………………………………………………………….24

Troubleshooting . ………………………………………………………………………………….30

Warranty………………………………………………………………………………………….…..32

Replacing Main Burner…………………………………………………………………………….33

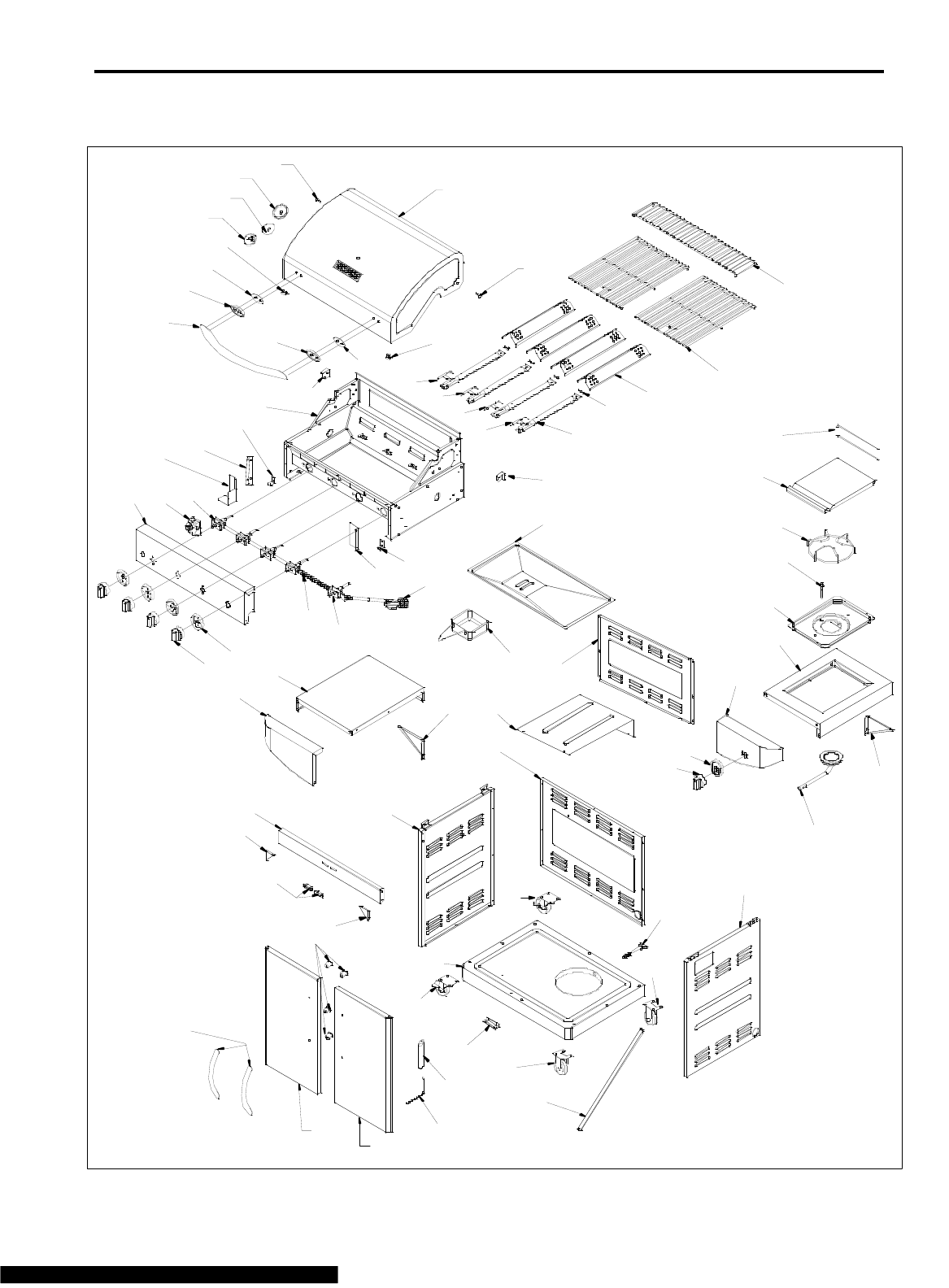

Exploded View ……………………………………………………………………………….……34

Replacement Parts List………………………………………………………………………… 35

Converting to Natural Gas Kit #0050772……………………… ………………………….…... 37

18 in.

12.2 in.

8 in.

13.9 in.

Please read and understand this entire manual before attempting to assemble, operate

or install the product. If you have any questions regarding the product, please call

customer service at 1-800-963-0211 Monday through Thursday from 8:00 a.m. to 6:00 p.m.

EST, Friday from 8:00 a.m. to 5:00 p.m. EST.

1. The installation of this appliance must conform with local codes or, in the absence of local

codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Natural Gas and

Propane Installation Code, CSA/CGA-B149.1.

2. This grill is intended for use outdoors and should not be used in a building, garage or any

other enclosed or covered area.

3. This outdoor grill is not intended for installation in or on recreation vehicles and/or boats.

4. A minimum clearance of 48 in. from combustible constructions to the sides of the grill

and 48 in. from the back of the grill to combustible constructions must be maintained.

This outdoor cooking gas appliance must not be placed under overhead combustible

construction.

5. The use of an electrical source requires that when installed, the grill must be electrically

grounded in accordance with local codes or, in the absence of local codes, with

ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1. Keep electrical supply cords

and the fuel supply hose away from heated surfaces.

6. Inspect the hoses before each use for excessive abrasion or wear, or cuts that may affect

safe operation of the grill. If there is evidence of excessive abrasion or wear, or the hose is

cut, it must be replaced prior to the grill being put into operation. The replacement hose

assembly must be those specified by the manufacturer.

7. Keep your grill in an area clear and free from combustible materials, gasoline and other

flammable vapors and liquids.

8. DO NOT obstruct the flow of combustion and ventilation air to this appliance.

9. Keep the ventilation openings of the tank enclosure free and clear from debris.

10. Check all gas connections for leaks with a soapy water solution and brush. Never use an

open flame to check for leaks.

11. Never use charcoal in the grill.

12. Never use the grill in windy areas.

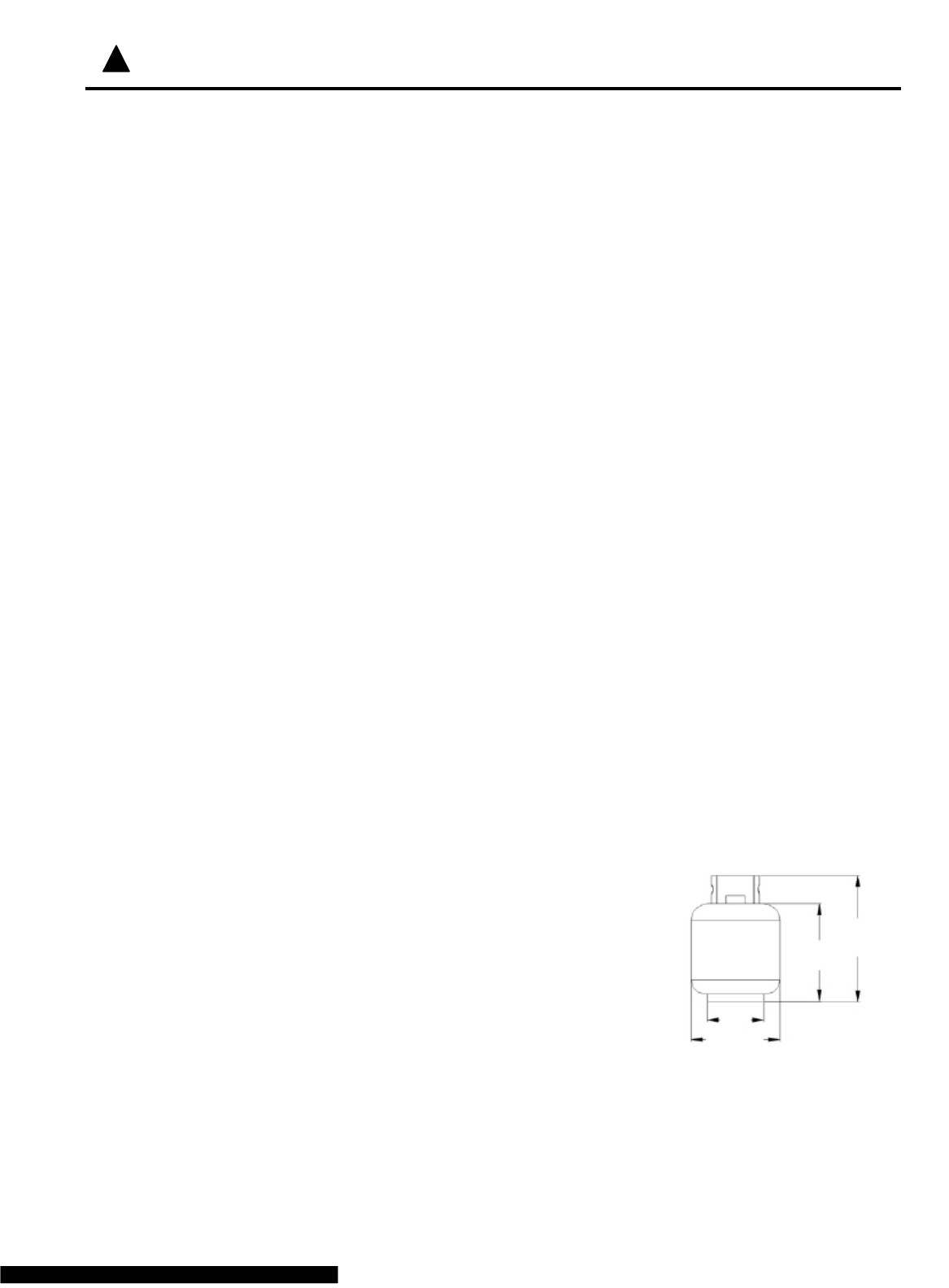

13. Only a 20 lb. LP-gas cylinder is allowed. The cylinder must be

constructed and marked in accordance with the Specifications for

LP Gas Cylinders of the U.S. Department of Transportation

(D.O.T.) or the National Standard of Canada, CAN/CSA-B339,

Cylinders, Spheres and Tubes for Transportation of Dangerous

Goods; and Commission. A 20 lb. LP-gas cylinder dimensions

are:

14. Never use the grill without the drip tray installed and hung under the burner box. Without

the drip tray, hot grease and debris could leak downward and produce a fire hazard.

15. Use only the gas pressure regulator supplied with this appliance. This regulator is set for

an outlet pressure of 11.0 wc.

16. The cylinder used must include a collar to protect the cylinder valve.

!SAFETY INFORMATION

SAFETY INFORMATION

17. Do not store a spare LP-gas cylinder under or near this appliance.

18. Never fill the cylinder beyond 80 percent full.

19. If the information in “17” and “18” is not followed exactly, a fire causing death or serious

injury may occur.

20. The natural gas grill and its individual shutoff valve must be disconnected from the gas

supply piping system during any pressure testing of that system at test pressures in

excess of 0.5 PSI (3.5 KPa).

21. The outdoor cooking gas appliance must be isolated from the gas supply piping system by

closing its individual manual shutoff valve during any pressure testing of the gas supply

system at test pressures equal to or less than 0.5 PSI (3.5 KPa).

22. CALIFORNIA PROPOSITION 65 WARNING: The burning of gas cooking fuel generates

some byproducts which are on the list of substances known by the state of California to

cause cancer, reproductive harm, or other birth defects. To reduce exposure to these

substances, always operate this unit according to the use and care manual, ensuring you

provide good ventilation when cooking with gas.

IMPORTANT: We urge you to read this manual carefully and follow the

recommendations enclosed. This will ensure you receive the most enjoyable and

trouble-free operation of your new gas grill. We also advise you retain this manual for

future reference.

WARNING: Your grill has been designed to operate using only the gas specified by

the manufacturer on the rating plate. Do not attempt to operate your grill on other

gases. Failure to follow this warning could lead to a fire hazard and bodily harm and will

void your warranty.

WARNING: Make certain your LP (propane) tank is filled by a reputable propane dealer.

An incorrectly filled or an overfilled LP tank can be dangerous. The overfilled condition

combined with the warming of the LP tank (a hot summer day, tank left in the sun, etc.)

can cause LP gas to be released by the pressure relief valve on the tank since the

temperature increase causes the propane to expand. LP gas released from the tank is

flammable and can be explosive. Refer to your owner’s manual for more information

concerning filling your LP tank.

VWX

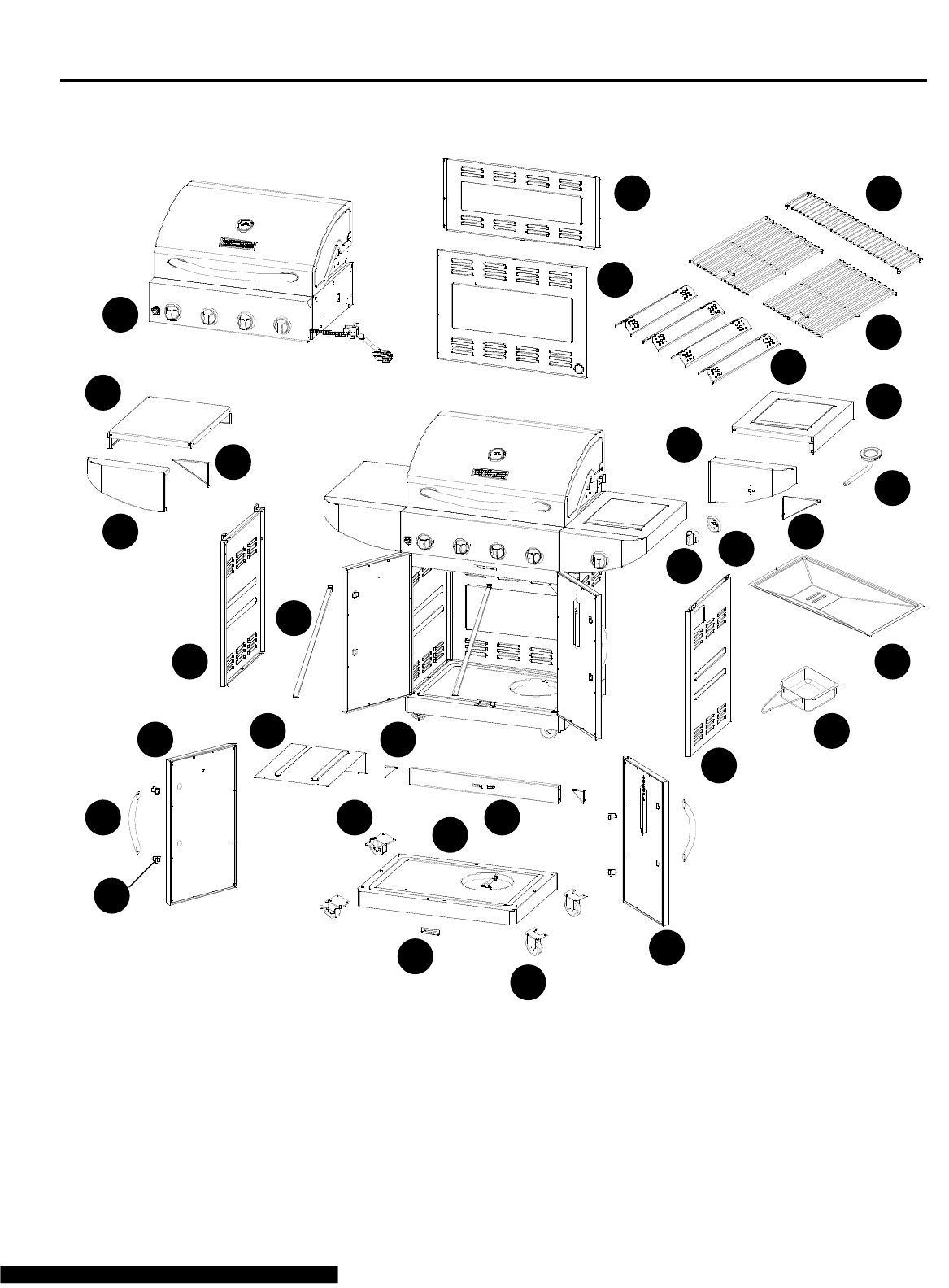

PACKAGE CONTENTS

1Side burnerE11LP tank barrier barO

1Left side cart panelP

1Grease trayD11Left shelf frontN

1Grease cupC11Left shelf bracketM

1Right side cart panelB11Left shelfL

1Right cart doorA11Grill headK

2Straight casterZ1Back grill head coverJ

1Door catch plateY1Cart back panelI

1Cart support beamX1Control knobH

1Cart baseW1BezelG

2Locking casterV1Right shelf bracketF

2Cart support bracketU1Right shelf frontE

1Cart heat shieldT1Right shelfD

4Door handle grommetS4Flame tamerC

2Door handleR2Cooking grateB

1Left cart doorQ1Warming rackA

QuantityDescriptionPartQuantityDescriptionPart

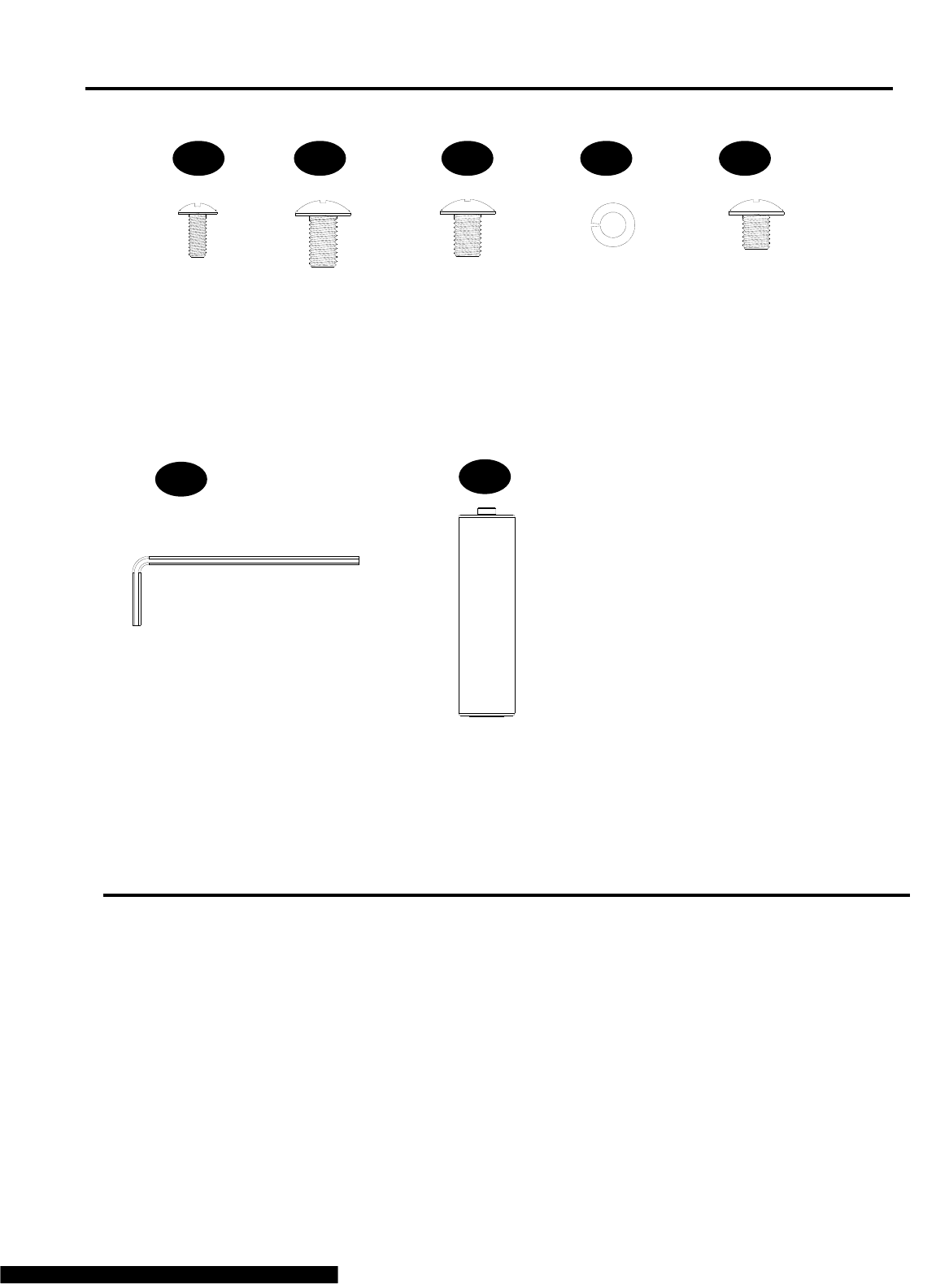

HARDWARE CONTENTS

1/4-20 x 1/2 in.

Screw

Qty. 26

1/4-20 x 3/8 in.

Screw

Qty. 23

5/32-32 x 3/8 in.

Screw

Qty.16

1/4-20 Lock

Washer

Qty. 22

1/4-20 x 5/16 in.

Screw

Qty.10

Before beginning assembly of product, make sure all parts are present. Compare

parts with package contents list and hardware contents list. If any part is

missing or damaged, do not attempt to assemble the product.

Estimated Assembly Time: 40 minutes by two people

Tools Required for Assembly: Phillips Screwdriver (not included).

PREPARATION

AA Battery

Allen Wrench

AA BB CC DD EE

FF GG

ASSEMBLY INSTRUCTIONS

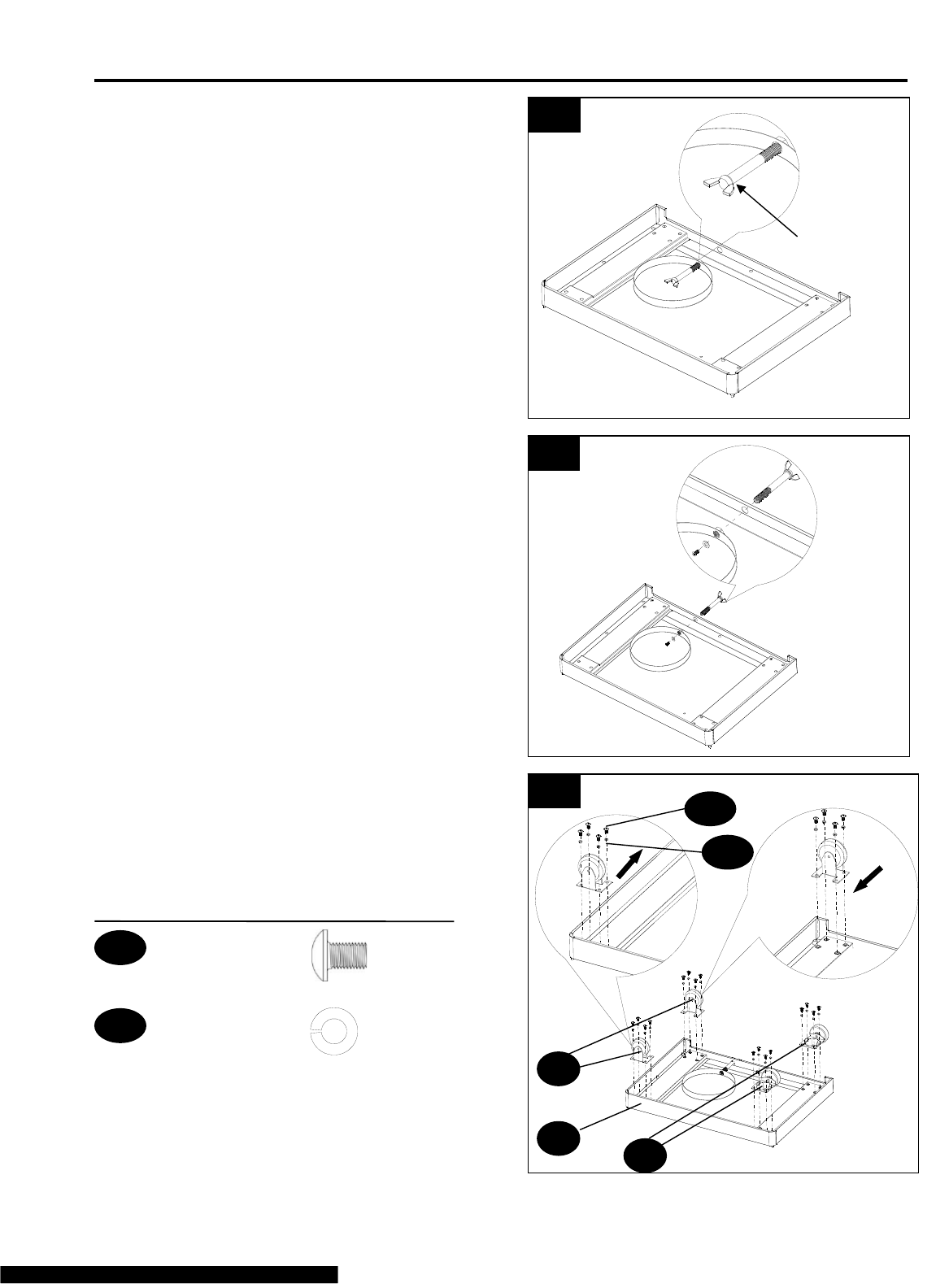

1. Fix the tank tray bolt

1/4-20 x 1/2 in.

Screw x 16

1/4-20 lock

Washer x 16

Tank tray bolt

Remove the LP tank bolt on the cart base (W) as

shown in Fig. 1A and then reinstall as shown in

Fig. 1B.

Note: For all of the following steps, do not

tighten any screws completely until all

screws for that step have been installed.

Once all screws have been installed, then

tighten them securely.

2. Install casters

a) With the cart base (W) laying as shown in Fig. 2,

attach the 2 straight casters (Z) as shown to the left

side of the cart base (W) using 8 1/4-20 x 1/2 in.

screws (BB) and 8 1/4-20 lock washers (DD). Install

all screws first and then tighten.

b) Attach the 2 locking casters (V) to the right side

of the cart base (W) using 8 1/4-20 x 1/2 in. screws

(BB) and 8 1/4-20 lock washers (DD). Install all

screws loosely first and then tighten.

Hardware Used

Note: For ease of assembly, lock the 2

locking casters (V) prior to proceeding to

the next steps.

ASSEMBLY INSTRUCTIONS

x 7

1/4-20 x 3/8 in.

Screw

Hardware Used

x 2

5/32-32 x 3/8 in.

Screw

1/4-20 x 3/8 in.

Screw x 6

CC W

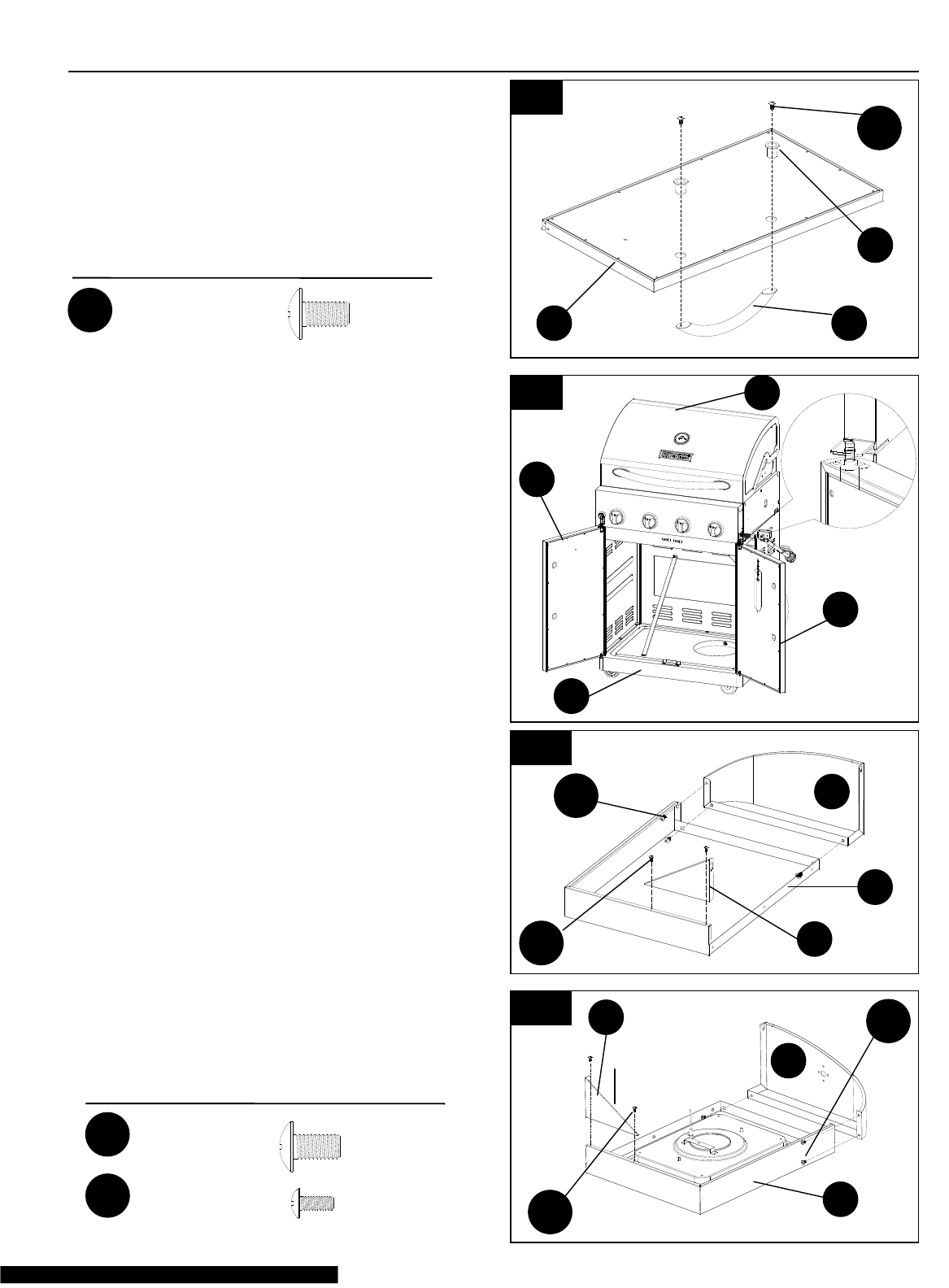

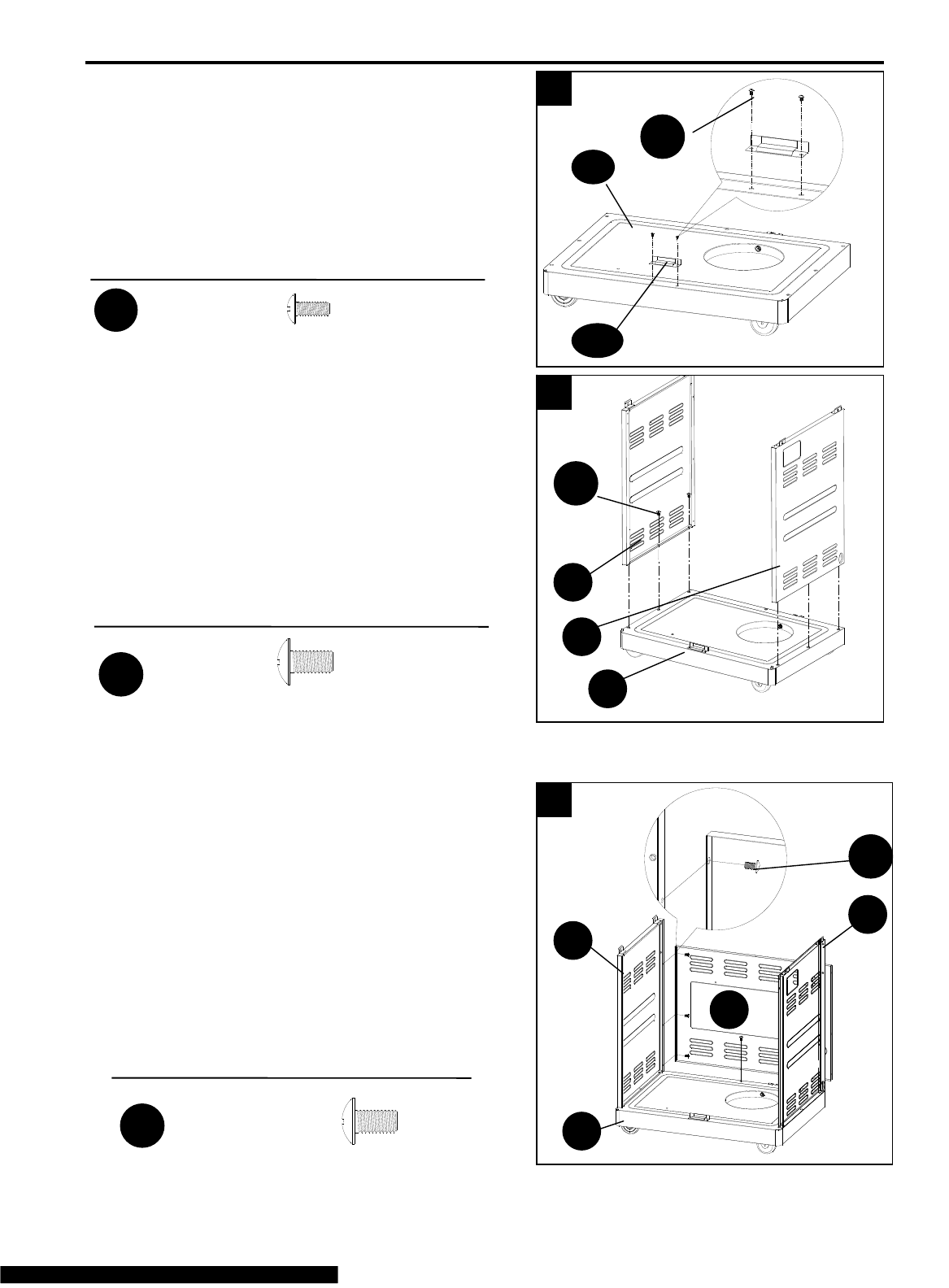

3. Attach door catch plate

Turn the cart base (W) assembly right side up as

shown in Fig. 3.

Attach door catch plate (Y) to cart base (W)

using 2 5/32-32 x 3/8 in. screws (AA).

Hardware Used

4. Install cart side panels

Attach left cart side panel (P) to cart base (W)

using 3 1/4-20 x 3/8 in. screws (CC).

Attach right cart side panel (B1) to cart base

(W) using 3 1/4-20 x 3/8 in. screws (CC) as

shown in Fig. 4.

5. Install cart back panel

Attach cart back panel (I) to cart base (W) using

1 1/4-20 x 3/8 in. screw (CC).

Fasten cart back panel (I) to the left side cart panel

(P) and right side cart panel (B1) using 6 1/4-20 x 3/8

in. screws (CC) as shown is Fig. 5.

Install the top screw first when assembling and

install all screws loosely first and then tighten.

ASSEMBLY INSTRUCTIONS

Hardware Used

x 2

5/32-32 x 3/8 in.

Screw

Hardware Used

x 4

5/32-32 x 3/8 in.

Screw

Hardware Used

1/4-20 x 3/8 in.

Screw x 4

UAA

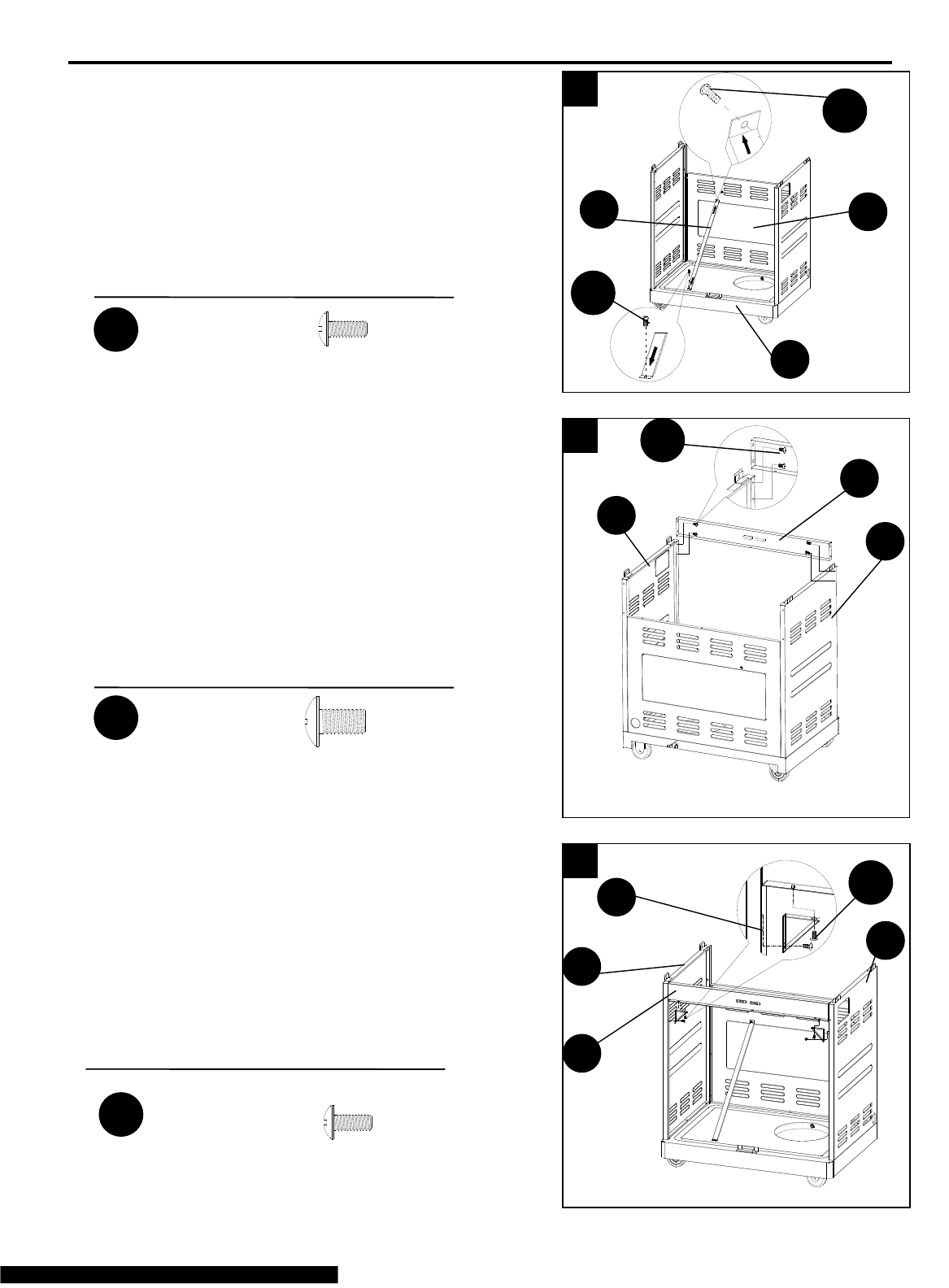

6. Install LP tank barrier bar

Attach the LP tank barrier bar (O) as the arrows indicate

to the cart back panel (I) and the cart base (W) using

2 5/32-32 x 3/8 in. screws (AA) as shown in Fig. 6. The right

install direction should be same as the indicate.

7. Install cart support beam

Attach the cart support beam (X) to the left and

right side cart panels (P and B1) using 4 1/4-20 x 3/8 in.

screws (CC) as shown in Fig. 7.

Make sure the magnets on the cart support beam (X)

face outward and the holes face downward

when assembling.

8. Install cart support brackets

Attach the cart support brackets (U) to the cart

support beam (X) and to the left and right side

cart panels (P and B1) using 4 5/32-32 x 3/8in. screws

(AA) as shown in Fig. 8.

Install all screws loosely first and then tighten.

ASSEMBLY INSTRUCTIONS

1/4-20 x 1/2 in.

Screw x 4

Hardware Used

x 4

5/32-32 x 3/8 in.

Screw

Hardware Used

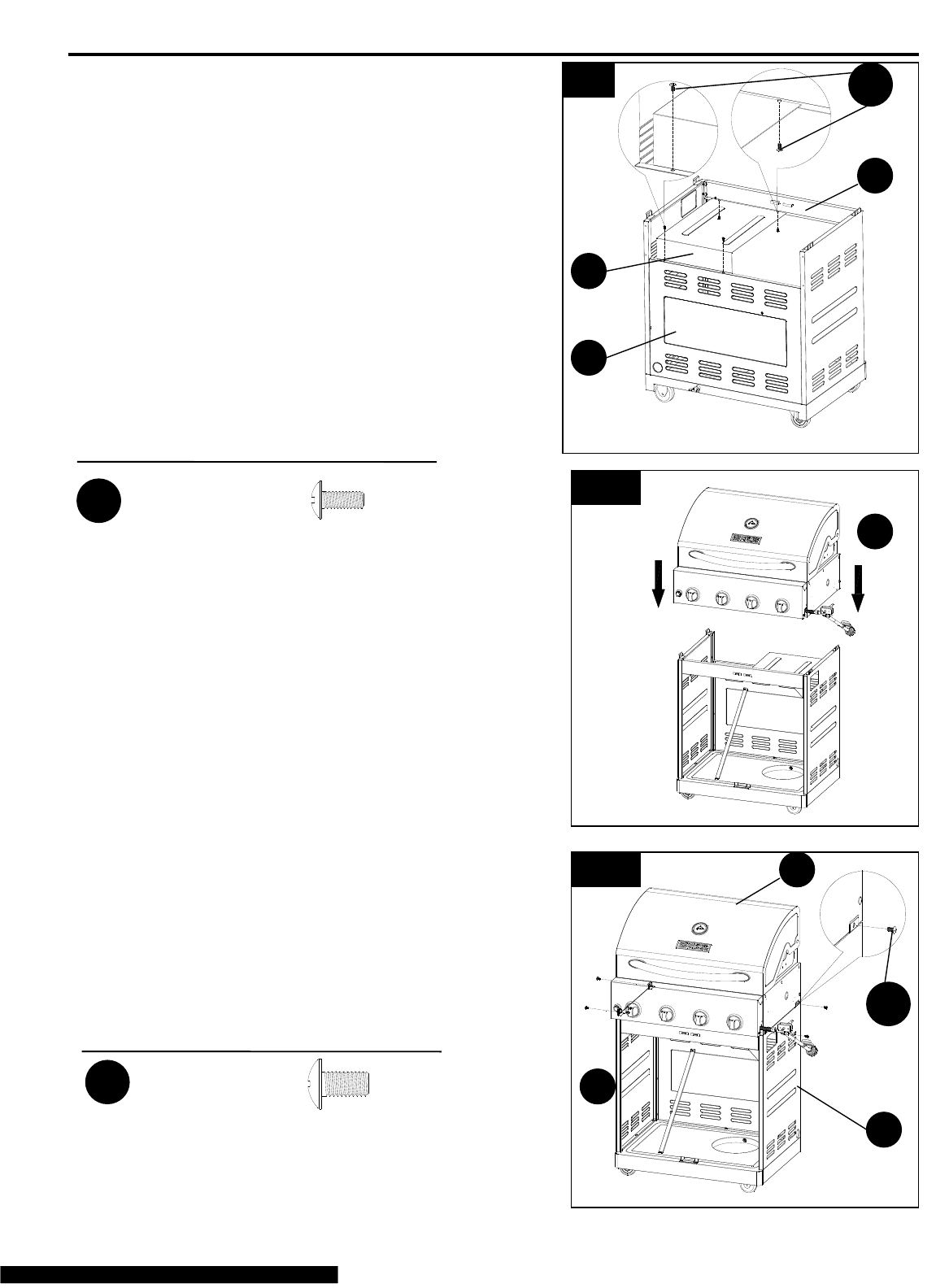

9. Install cart heat shield

Attach the cart heat shield (T) to the cart back

panel (I) using 2 5/32-32 x 3/8 in. screws (AA).

Note that the heat shield installs under the lip of the

cart back panel (I) as shown in Fig 9A.

Next attach the cart heat shield (T) to the cart support

beam (X) using 2 5/32-32 x 3/8 in. screws (AA) as shown

in Fig. 9B.

Note that the cart heat shield (T) installs on top of the

lip of the cart support beam (X).

A. B.

10. Install grill head to cart

Caution grill head is heavy. To avoid injury, obtain

the help of an assistant for this step.

With the assistance of a helper, remove the grill head

(K) from the packaging and place on top of the grill

cart as shown in Fig. 10A.

Attach the grill head (K) to the left and right side

cart panels (P and B1) using 4 1/4-20 x 1/2 in. screws

(BB) as shown in Fig. 10B.

10A

10B K

ASSEMBLY INSTRUCTIONS

x 6

1/4-20 x 3/8 in.

Screw

KB1

Hardware Used

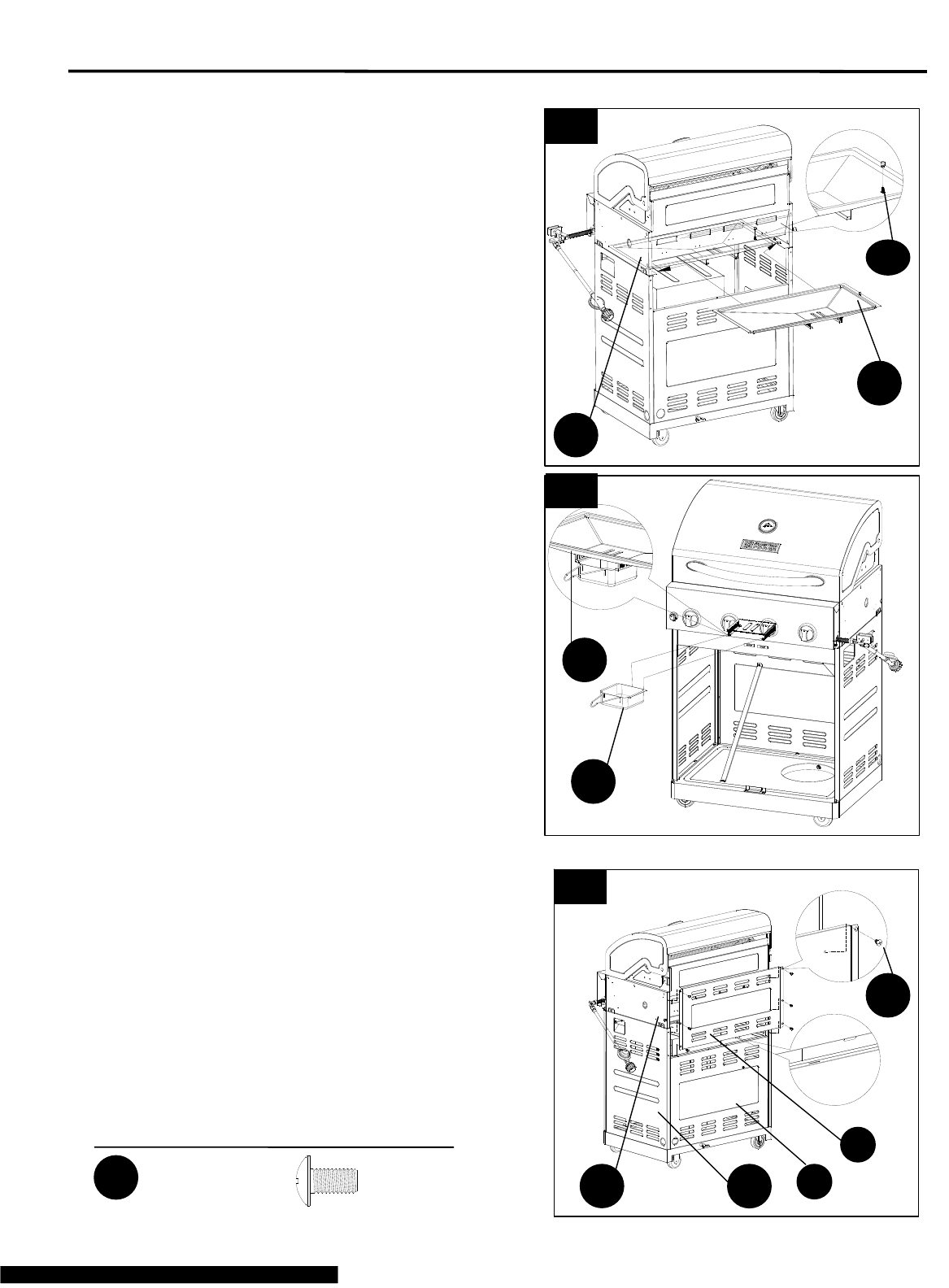

11. Install grease tray

Remove the pre-installed screw from the right of the

greasy tray (D1).

From the back of the grill, slide the grease tray (D1)

onto the ledges on the left and right sides of the grill

head as shown in Fig. 11.

There are stops built into the ledges to hold the

grease tray in place. Make sure the grease tray is

slid all the way in and is resting securely between

these stops.

From the front of the grill, reinstall the screw into the

grease tray through the supporting ledge. This will

prevent the grease tray from shifting during transport.

The correct direction is shown in the picture.

12. Install grease cup

Insert the grease cup (C1) onto the ledges of

the grease tray (D1) underneath the grill head as shown

in Fig. 12.

The handle of the grease cup needs to be tilted

down slightly in order for it to slide into the grease

tray ledges.

13. Install back grill head cover

Put the back grill head cover (J) into the hole on the back

panel (I) first.

Then attach the back grill head cover (J) as

shown in Fig. 13 using 6 1/4-20 x 3/8 in. screws (CC).

Install all screws loosely first and then tighten.

1/4-20 x 5/16 in.

Screw x 4

1/4-20 x 5/16 in.

Screw x 6

5/32-32 x 3/8 in.

Screw x 4

Hardware Used

Hardware Used:

ASSEMBLY INSTRUCTIONS

14. Install door handles

Attach door handle (R) to the left cart door

(Q) using 2 door handle grommets (S) and

2 1/4-20 x 1/4 in. screws (EE) as shown in Fig. 14.

Repeat installation for right cart door (A1).

15. Install cart doors

Attach right cart door (A1) by first placing the

hole in the bottom of the door onto the pivot in the

right side of the cart base (W).

Then depress the spring pin on top of the door and

insert it into the top pivot bracket in the grill head (K)

as shown in Fig. 15.

Repeat these steps to attach left cart door (Q).

16. Assemble side shelves

Attach the left shelf front (N) to the left shelf

(L) using 3 1/4-20 x 1/4 in. screws (EE).

Then attach the left shelf bracket (M) using

2 5/32-32 x 3/8 in. screws (AA) as shown in

Fig. 16A.

Install all screws loosely first and then tighten.

Attach the right shelf front (E) to the right shelf

(D) using 3 1/4-20 x 1/4 in. screws (EE).

Then attach the right shelf bracket (F) using

2 5/32-32 x 3/8 in. screws (AA) as shown in Fig. 16B.

Note: Be sure to remove the side burner grate

before assembling the right side shelf.

Install all screws loosely first and then tighten.

16A

16B

x 6

CC 1/4-20 x 1/2 in.

Screw

BB DD

ASSEMBLY INSTRUCTIONS

Hardware Used:

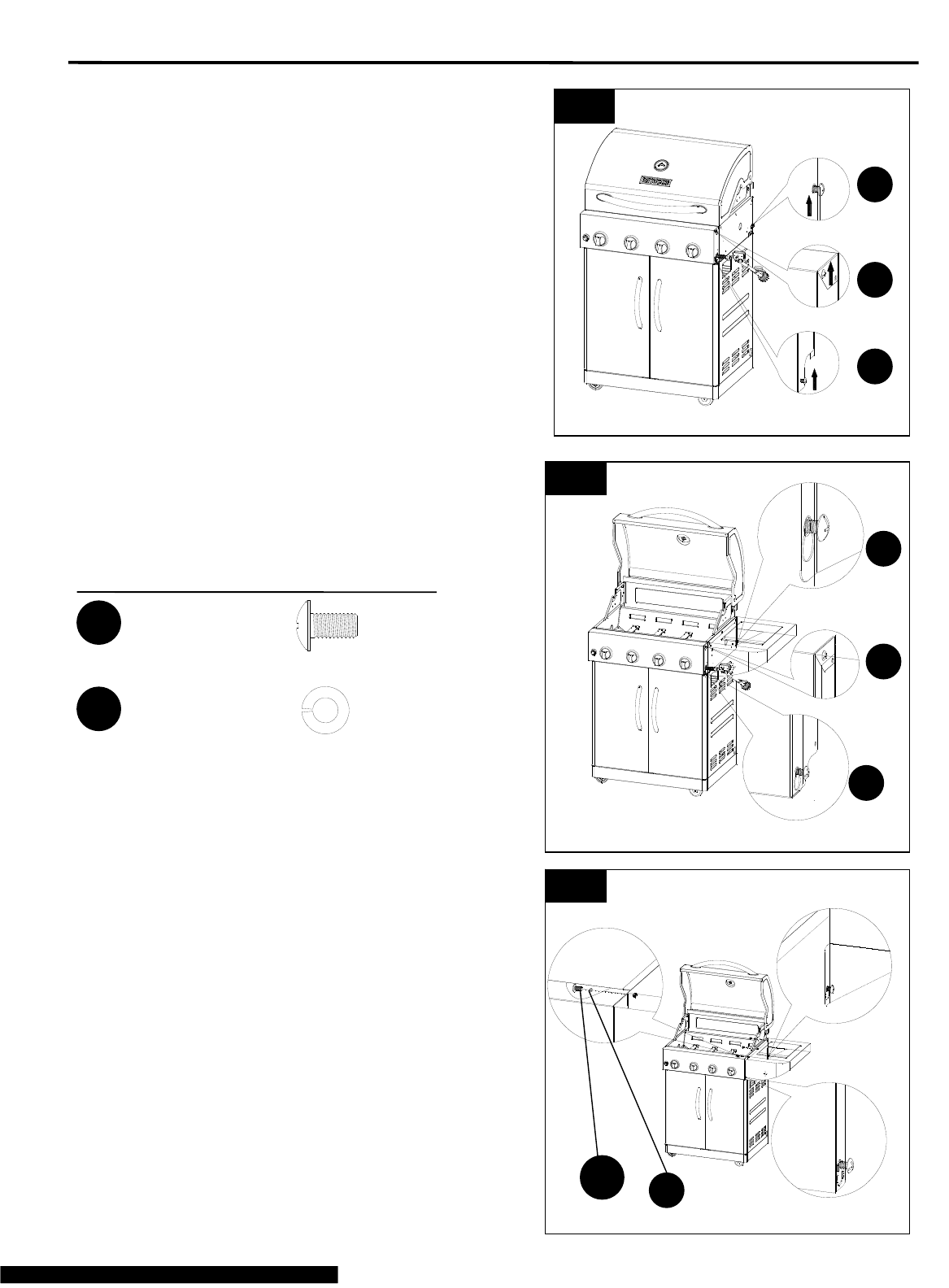

17. Install side shelves

Starting with the right side, loosen the 2 pre-installed

screws marked “a” and “c” and then completely remove

screw “b” as shown in Fig. 17A.

Using the shelf keyhole slots, slide the right shelf onto

the 2 loosened screws as shown in Fig. 17B.

Open the grill hood and from inside the grill attach the

right side shelf using 3 1/4-20 x 1/2 in. screws (BB) and

lock washers (DD) as shown in Fig. 17C.

Reinstall the previously removed screw “b” as shown in

Fig.17B.

Install all shelf screws loosely first and then tighten

all 6 shelf screws shown in Fig. 17B & 17C.

Repeat steps above to install the left shelf.

17A

17B

17C

1/4-20 lock

Washer x 6

ASSEMBLY INSTRUCTIONS

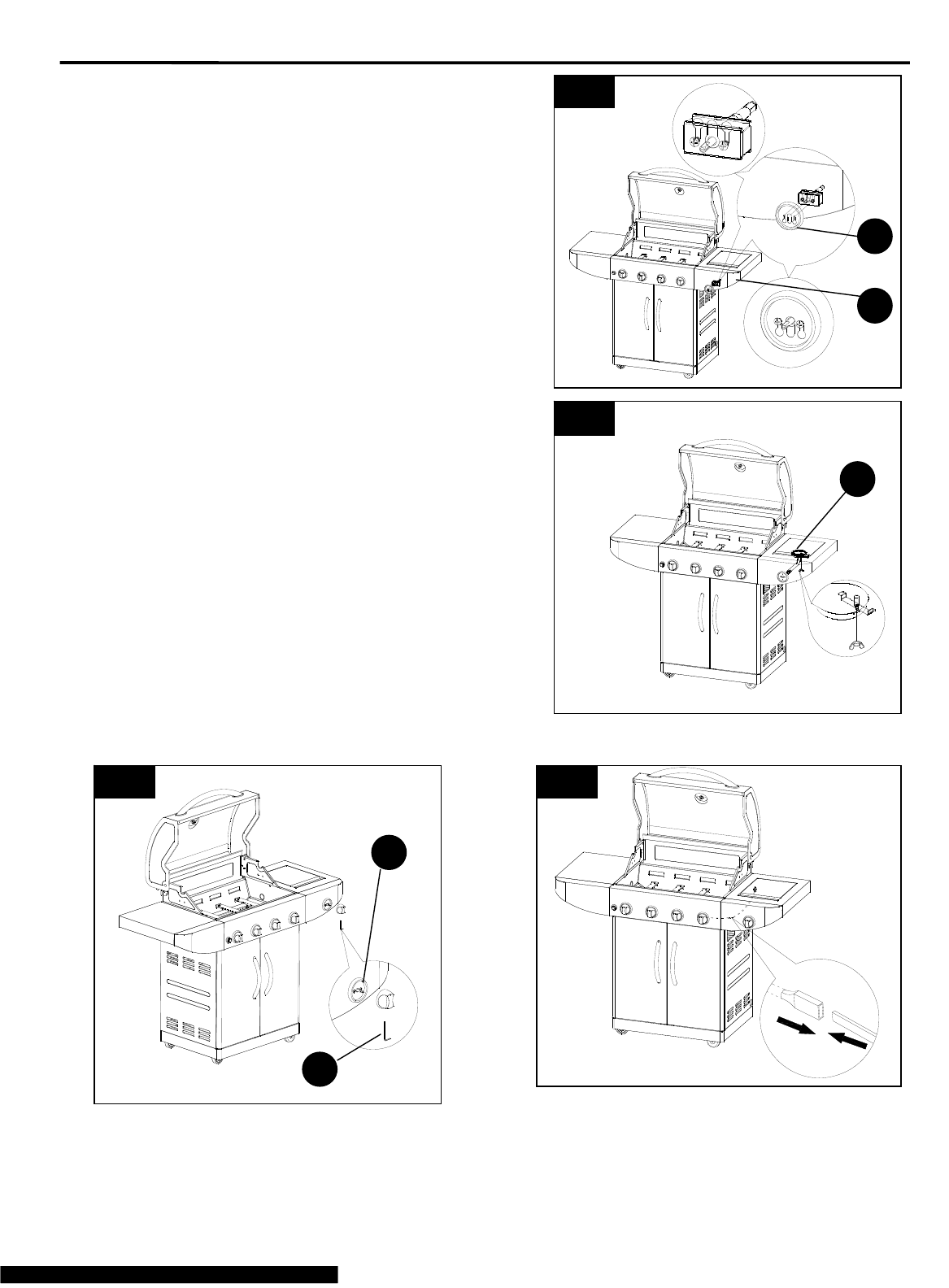

18. Install side burner valve

a) Loosen but do not remove the two pre-installed

screws from the side burner valve as shown in Fig. 18A.

b) Insert the side burner valve screws through the

keyhole slots in the front of the side burner shelf and

then slide the valve upward so the screws rest in the

small section of the keyhole slots.

c) Place the control knob bezel (G) keyhole slots over the

side burner valve screws. Let the bezel (G) slide down so

that the screws rest in the small section of the keyhole

slots and then tighten the screws. Refer to Fig. 18A.

d) Remove the side burner cooking grate and then

remove the wing nut that attaches the side burner (E1).

Insert the side burner tube over the side burner valve

orifice and then reattach the side burner wing nut as

shown in Fig.18B.

e) Push the control knob (H) onto the side burner

control valve stem and then secure using the Allen wrench

(FF) as shown in Fig. 18C.

f) Reinstall side burner (E1) and side burner grate.

g) Attach electronic ignition wire to the side burner

electrode located under the side shelf as shown

in Fig. 18D.

18A

18B

18C

18D

ASSEMBLY INSTRUCTIONS

IMPORTANT

CHECK FOR SPARKS

After assembly of the grill is complete, test the ignition system with the GAS OFF.

Check for sparks when using the ignition system.

Be sure the GAS IS OFF when you push the electrical igniter. This will help assure a

trouble-free ignition when you turn on the gas.

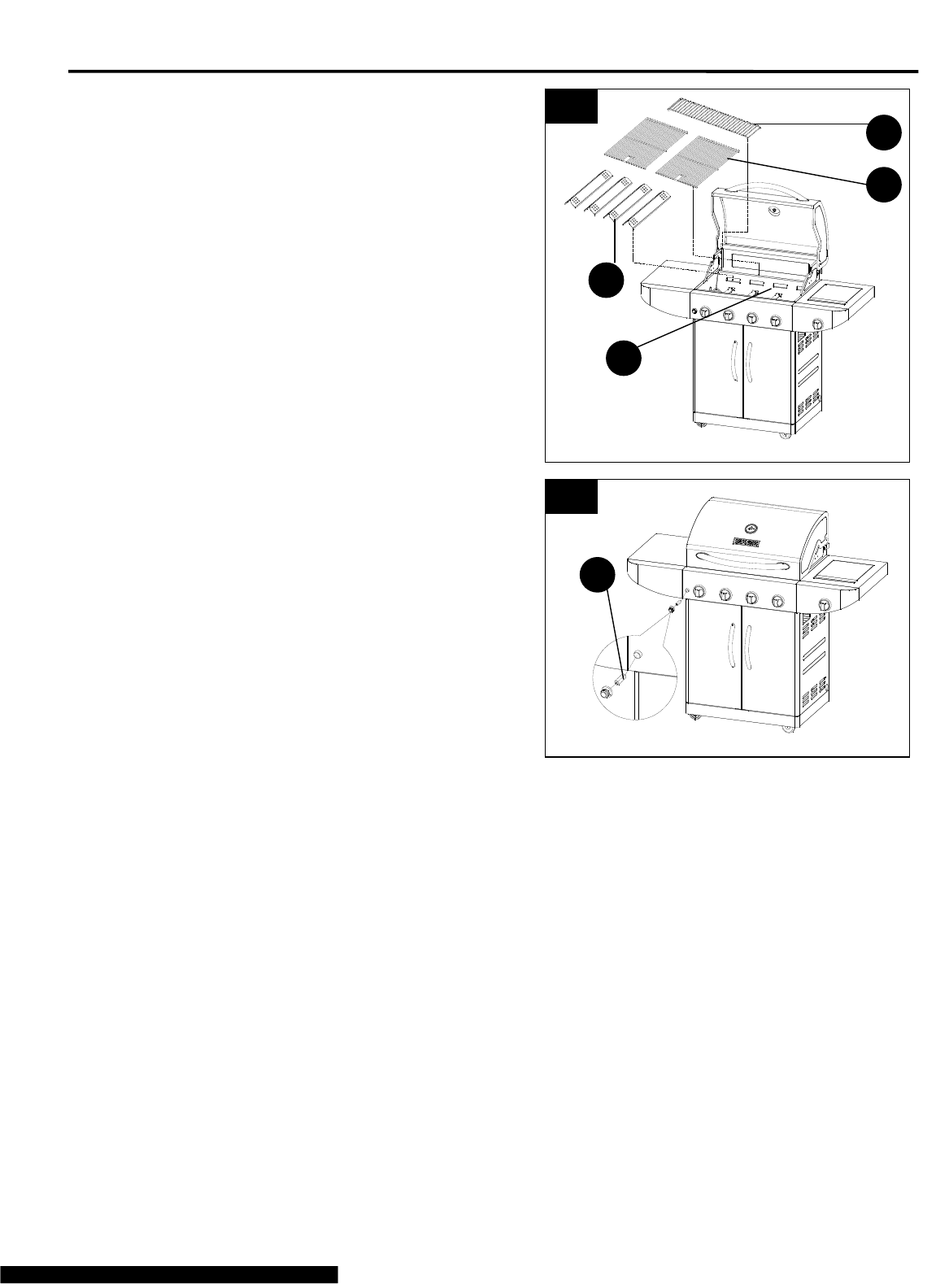

19. Install cooking components

Install 4 flame tamers (C) into grill head (K) directly

over the main burners. The flame tamers rest in notches

built into the inside of the grill head (K).

Place cooking grates (B) into the grill head (K) on the

ledges above the flame tamers.

Insert legs of warming rack (A) into the 4 holes in

top of the grill head (K) side panels as shown in Fig. 19.

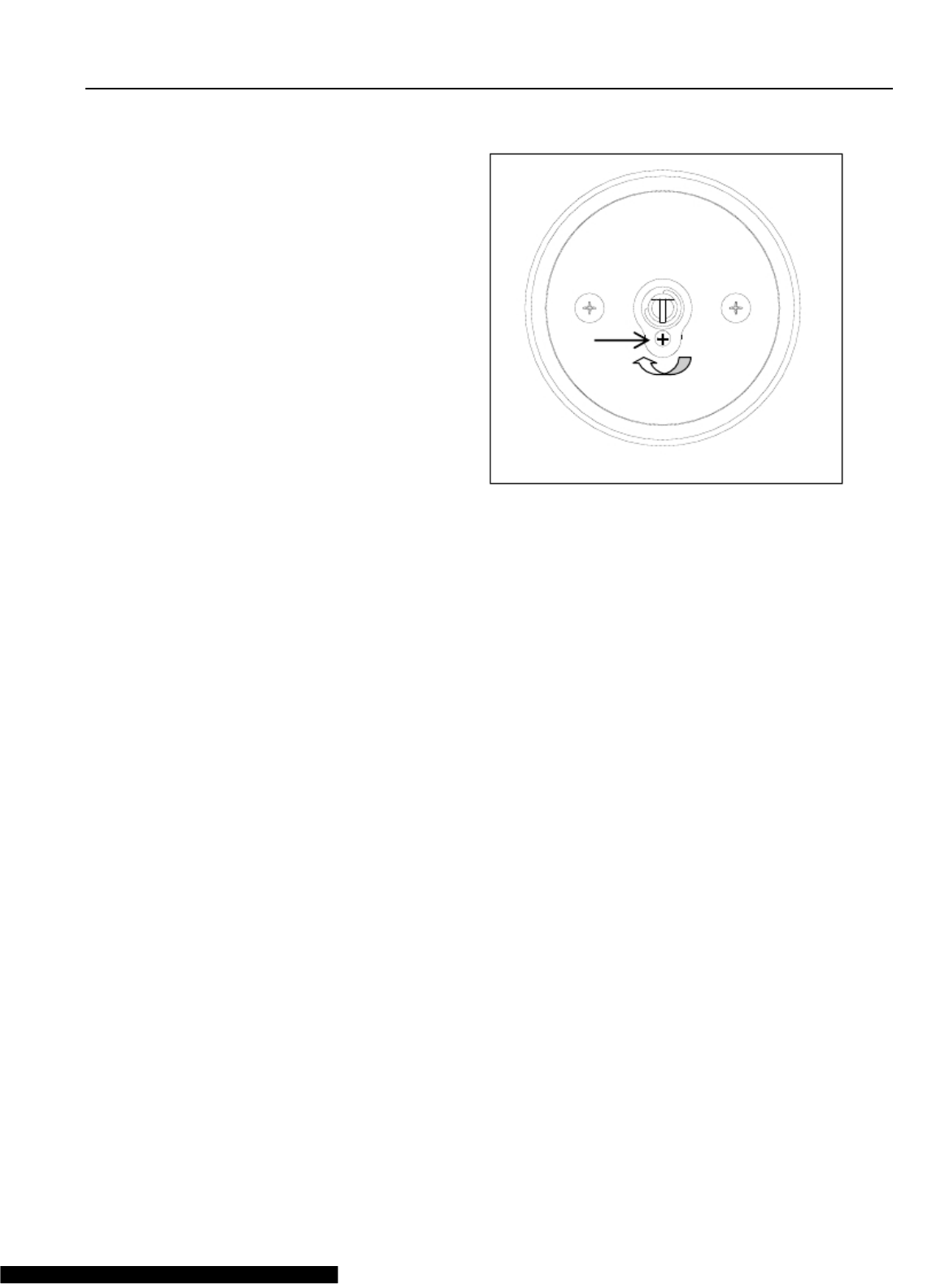

20. Install battery

Unscrew the electronic igniter battery cap as shown

in Fig. 20.

Install AA battery (GG) with positive terminal

facing outward.

Note: The positive electrode is outside.

Reinstall electronic igniter battery cap.

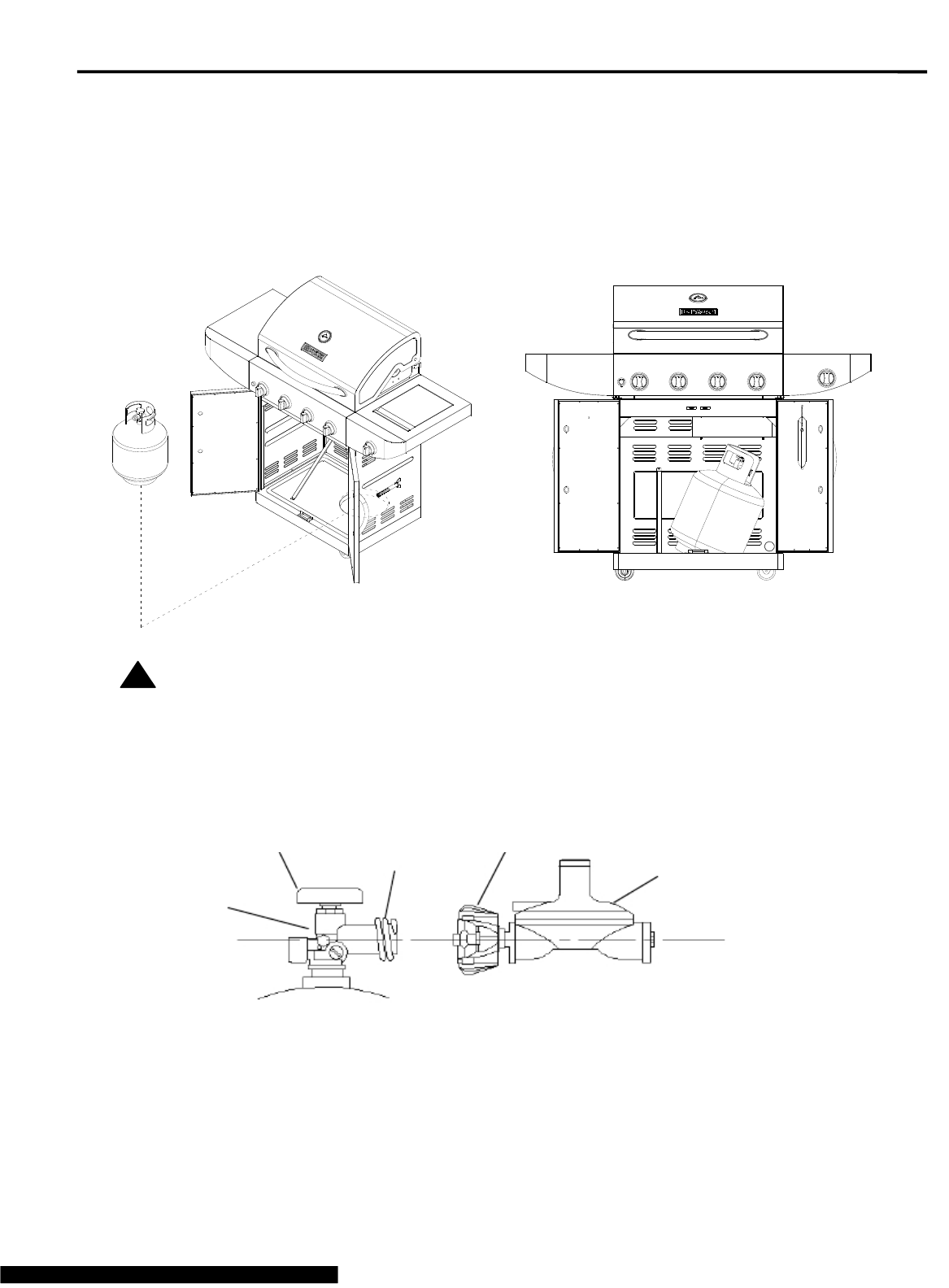

For Portable LP-Gas Connection

From front of the cart, place foot ring of 20 lb. tank into the hole in bottom panel. Make sure the tank

valve is in OFF position. Use the tank bolt to secure the tank in a fixed position. Before installing

your gas tank, lift up the safety tank ring (as shown in Fig. 21). Use only 20 lb. gas tank

(See LP Gas Safety Requirements on page 25 for additional information). It is

unsafe to operate the grill if the gas tank is not vertical, as seen in Fig. 22.

Fig. 21 Fig. 22

1.Make certain the tank valve and all the appliance valves are in the “OFF” position.

Hand Wheel

Type I

Valve

Fig. 23

The propane tank valve connection supplied with this grill incorporates four important safe

guards: Hand Assembly, Hand Disassembly, Excess Flow Control and Temperature-Activated

Shut-Off.

a. Hand Assembly:

External

Thread

WARNING: The Type I connective coupling (see Fig. 23) supplied with your grill must

not be replaced with a different type of grill/tank connection system. Removal will

result in loss of warranty, gas leakage, fire and severe bodily harm.

Thermally Sensitive

Nut Propane

Regulator

INSTALLATION INSTRUCTIONS

2. When connecting the regulator/burner valve assembly to the tank valve, turn the large

plastic nut clockwise until it stops.

3. Gas will not flow unless the plastic nut is completely connected.

4. HAND TIGHTEN ONLY.

b. Hand Disassembly:

1. Make certain the tank valve and all the appliance valves are in the “OFF” position.

2. Turn the large plastic nut counterclockwise until it is disassembled.

3. HAND LOOSEN ONLY.

c. Excess Flow Control

The propane regulator assembly incorporates an excess flow device designed to supply the

grill with sufficient gas flow under normal conditions yet control excess gas flow.

Rapid changes in pressure can trigger the excess flow device providing a low flame and low

temperature. If the tank valve is turned open to allow gas flow while a burner valve is open,

the surge of pressure will cause the device to activate. The device will remain closed until the

pressure is equalized. This should occur within 5 seconds.

To ensure this does not cause difficulty in lighting the grill, follow these instructions:

1. Make sure all burner valves are “OFF”.

2. Open the tank valve and wait 5 seconds.

d. Temperature-Activated Shut-Off

The large plastic nut on the regulator assembly is designed in coordination with a check valve

in the tank valve to shut off the flow of gas when exposed to temperatures between

240-300℉. In the event of a fire or hose break, one of the safeguards will function to control

or stop the flow of gas from the propane tank. Never attempt to use damaged equipment.

IMPORTANT: Before using a fresh tank of gas, please check leakage around the

connections according to section “Checking Gas Leaks” on page 23 and make sure

there is no leakage or vapor accumulation in the cabinet. Make sure all openings

around side walls are not blocked.

IMPORTANT: Place dust cap on cylinder valve outlet whenever the cylinder is not in

use. Only install the type of dust cap on the cylinder valve outlet that is provided with

the cylinder valve. Other types of caps or plugs may result in leakage of propane.

Gas Requirements

The grill is set and tested at the factory for use with LP gas only. However, this grill is

natural gas convertible and can be used at the same rating. The rating plate is located on the

inside panel of the left door.

INSTALLATION INSTRUCTIONS

LP Gas

If your grill is for LP gas, the regulator supplied is set for 11 in. water column (WC) and is for

use with LP gas only. The factory-supplied regulator and hose must be used with a 20 lb. LP

gas tank.

Convert to Natural Gas

Your grill is natural gas convertible. NG kit sold separately (Item #0050772).

Please refer to page 37 to convert your grill to natural gas.

After the grill is converted to natural gas, the working pressure for natural gas is 7 in. water

column (WC). Gas pressure is affected by gas line size and the length of gas line run from

house. Follow the recommendations in the chart below.

3/4 in. DIAMore than 101 ft.

2/3 in. of run 3/4 in.

1/3 in. of run 1/2 in.

51-100 ft.

1/2 in. DIA26-50 ft.

3/8 in. DIAUp to 25 ft.

Tubing SizeDistance

From House to Grill

LP GAS System

Contact your gas supplier for a special regulator for bulk gas that fuels other

appliances

Gas Consumption

13,500 x 1Side Burner

12,000 x 4Main Burners

BTU/HRBurner Type

Total gas consumption of this grill with the burner(s) on “HIGH”:

Locating the Grill

This gas appliance is designed and certified for outdoor use only. Do not operate the grill

inside a building, garage, recreation vehicle, screened porch or any enclosed area. Keep the

grill away from windy areas but keep the grill in a well-ventilated area. Do not obstruct the

flow of combustion and ventilation air around the grill.

▲Warning: Do not place the grill under overhead, unprotected combustible surfaces.

Clearance to Combustible Construction

A minimum clearance of 24 in. from the sides of the grill and a minimum clearance of 48 in.

from the back of the grill to adjacent vertical combustible constructions must be maintained.

Reminder: The default hose size is 1/2 in. in DIA, 10 ft. long. Refer to the form below.

INSTALLATION INSTRUCTIONS

However, the manufacturer strongly suggests a 6 ft. clearance of the grill to combustible

constructions.

Clearance to Noncombustible Construction

A minimum clearance of 48 in. from the back of the grill above the cooking surface to

noncombustible constructions is required to allow the grill hood to open completely. A

minimum of 48 in. clearance to the sides of the grill above the cooking surface to

noncombustible constructions is recommended. The grill can be installed directly next to

noncombustible construction below the cooking surface.

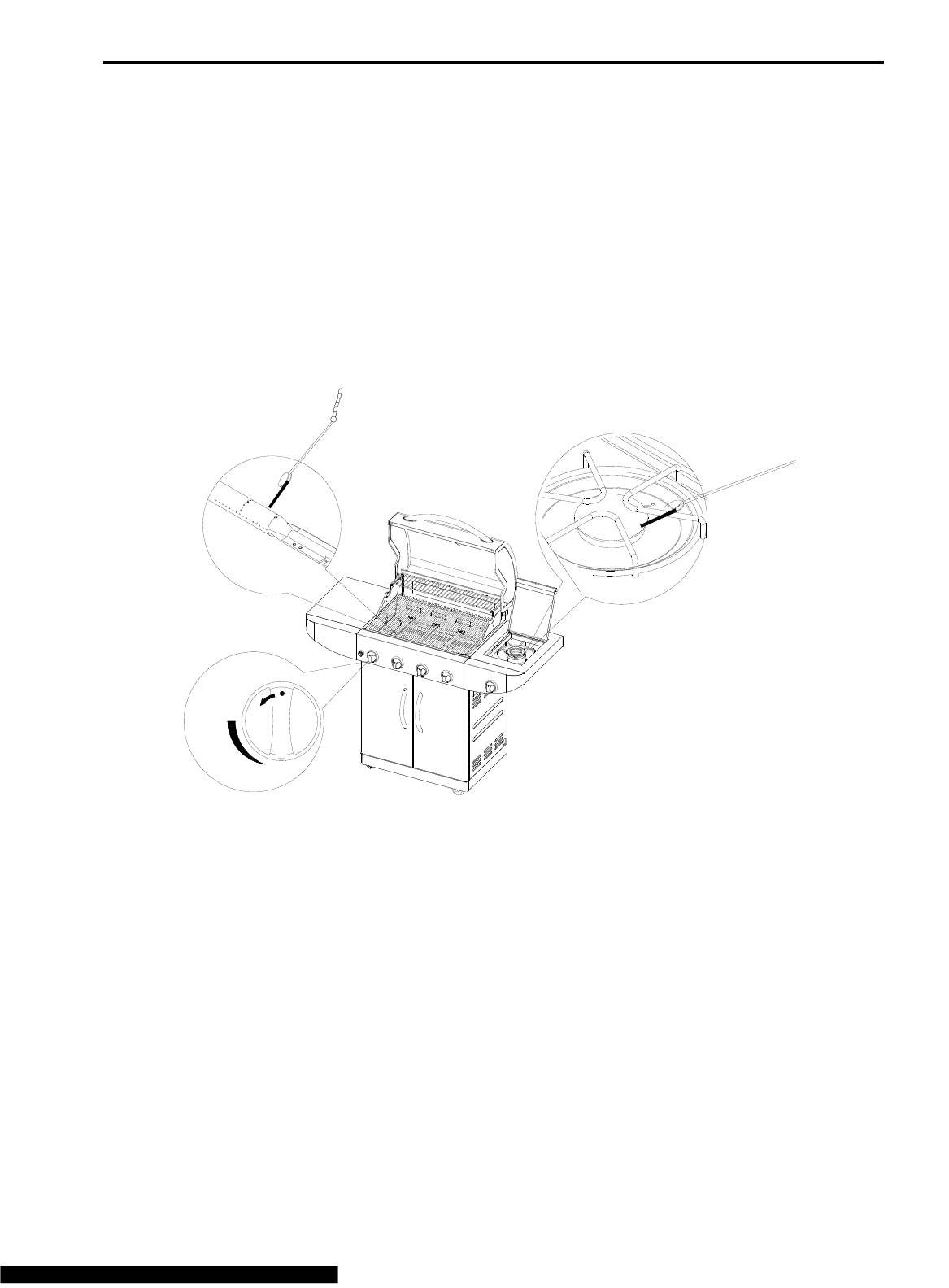

OPERATING INSTRUCTIONS

Grill Lighting Instructions

To Light the Main Burners and the Side Burner

1. Make sure the control knobs are in the “OFF” position.

2. Open the grill hood.

3. Check the ignition pin position and distance between the pin

and the burner.

4. Make sure the drip tray is installed.

5. Open the LPG tank or natural gas valve.

6. Light each burner separately. Turning on two burner valves

together could trip the flow limiting device in the tank

connection (LP grills only).

7. Push the control knob in and turn the knob to the left to “HIGH” position.

8. Push and turn burner control knob to “HIGH” and immediately press and hold

electronic igniter.

9. If the burner does not ignite within 5 seconds, immediately turn the control knob

back to the “OFF” position. Wait 5 minutes and repeat step 7 two or three times.

10. If the burner still does not ignite, TURN OFF THE GAS. WAIT 5 MINUITES for

excess gas to dissipate.

11. If the burner still can’t be lit, refer to the Troubleshooting section.

Replacing the Battery

1. Unscrew the electrical ignition button and remove the old battery.

2. Replace with a new AA battery.

▲WARNING:

1. Make sure the hood is completely open each time you attempt to light the grill.

Failure to open the hood could lead to delayed ignition resulting in bodily harm.

2. This grill is equipped with a flame observation hole in the side panel.

CAUTION: It is important to inspect the full length of the gas line hose. If it is evident

there is excessive abrasion or wear, or the hose is cut, the hose must be replaced prior

to the appliance being used.

If required, check your parts list for the proper replacement hose assembly. It will be

necessary to open the bottom door to fully inspect the hose.

Note: The negative (-) side of the battery goes in first. Please refer to the mark on

the side of the cap.

OPERATING INSTRUCTIONS

Match Lighting Instructions

IMPORTANT: The hood must be open when match lighting any burner.

1. Turn on gas supply.

a. If portable, at the LP cylinder valve.

b. If permanent gas supply, at the manual gas shutoff valve.

2. Locate the flame observation holes on each side.

3. Open the right door to access the match clip with chain.

4. Attach either the match or paper to the clip (Fig. 24), light the match and insert it close to

the ports of the burner, and push and turn the depressed knob to the left to “HIGH” position.

Fig. 24 Match/Paper Lighting Illustration

5. The center burner (if needed) can be lit from center grid by inserting the match clip into the

front side of flame tamer. Light this burner before igniting both outside burners.

6. Depress burner valve for that burner and turn to “HIGH”.

7. Observe that the burner has ignited. Remove the match and extinguish.

8. Repeat steps 2 - 6 for the next burner.

Breaking in Your Grill

When firing your grill for the first time, it is advisable to run the main burner(s) on “HIGH” for

20 minutes with the hood down and then turn the main burners off. This tempers the grill.

IGNITE / High

OFF

LOW

OPERATING INSTRUCTIONS

Preheating Grill

It is extremely important that your grill be up to temperature before you begin using it. After

lighting, close the hood and preheat the grill on “HIGH” for 15 minutes. This preheating will

ensure that the cooking grid and grate are hot enough for proper grilling.

CAUTION: Do not cover the grids during the preheating period.

WARNING: Never leave a grill unattended to guard against possible grease fires

getting out of control. Grease fires can be severe and cause grill damage, property

damage and bodily harm.

Open or closed hood for Grilling

Cooking with the lid open or closed is a matter of personal preference. Cooking with the lid

closed is recommended if you enjoy cooking at maximum “searing” temperatures. This

method will also produce more “flare up,” speed the cooking procedure and will give you a

more robust, smoky, outdoor flavor. If you prefer cooking slower with less flare up, we suggest

the lid-open method.

We recommend always cooking with the lid CLOSED if you are in a windy area or colder

climate. Your grill has been designed and constructed to give you maximum flexibility

and cooking performance. Be creative. Try different cooking methods on your grill to

determine which suits your needs best. There is no right or wrong way to cook, just different

cooking styles. Get creative and enjoy!

Checking Gas Leaks

Before operating your grill, after refueling, check carefully to be certain that all connections

are tight and there are no gas leaks.

1. Make 2-3 ounces of leak solution by mixing liquid dishwashing soap with water.

2. Make certain all control knobs are in the “OFF” position.

3. Brush small amounts of the leak solution on all the fittings and turn the gas on.

4. If bubbles appear, there is a leak. Proceed to step 5.

5. Turn the gas off and tighten all connections.

6. Go back to step 1 to retest the fittings.

7. If bubbles continue to appear, turn the gas off. Contact customer service.

▲WARNING

Never use a match or open flame for leak detection. Use of an open flame

could result in a fire, explosion and bodily harm.

IMPORTANT: When connecting or replacing any gas pipe or fittings, all joints must be

sealed with approved leak-proof sealing compound or plumber's tape.

Visually check the burner flames prior to each

use. The flames should appear blue. If they do

not, refer to the section on cleaning burner tubes

and ports.

Before cooking on your grill the first time, wash

cooking grids and cooking rack with warm, soapy

water. Rinse and dry thoroughly. Season with

cooking oil regularly. After cooking is completed,

turn grill to HIGH setting for 3 to 5 minutes to

burn off excess grease or food residue.

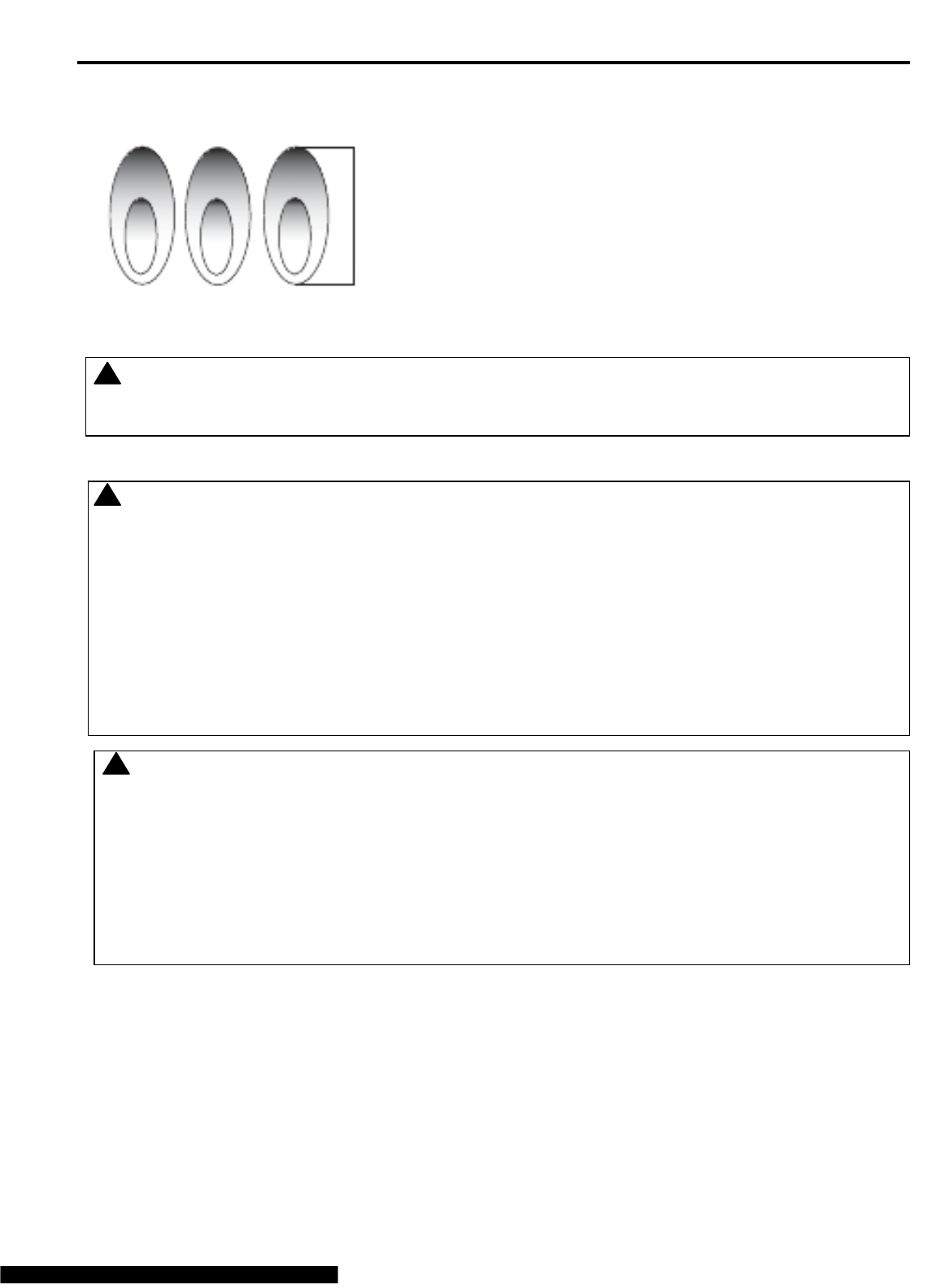

Burner Flame Check

CARE AND MAINTENANCE

WARNING

Check and clean burner/venturi tubes for insects and insect nests. A clogged tube can

lead to a fire beneath the grill.

WARNING

The LP gas supply cylinder(s) to be used must be:

(a) Constructed and marked in accordance with the Specifications for LP-Gas Cylinders

of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada,

CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods;

and Commission

(b) Provided with a listed overfilling prevention device.

cooking appliances.

WARNING: Please remember this is an outdoor gas grill. Many areas of the grill

generate extreme heat. We have taken every precaution to protect you from the contact

areas. However, it is impossible to isolate all high-temperature areas. Therefore, use

good judgment and a certain degree of caution when grilling on this product. We

suggest a covered, protected hand during operation of grill. Do not move your grill

when it is in operation or hot to the touch. Wait until your unit is turned off and

properly cooled down before moving it. Failure to follow this warning could result in

personal injury.

Post Heating

To keep the grates free of charred food remains, run the grill on “HIGH” for 15 minutes after

cooking is complete and food has been removed.

CAUTION: Do not cover the grill during the post heating period.

After post heating your grill, turn the control knobs to the “OFF” position.

Propane Tank Shut-Off

After the burner box cools down, the propane tank valve should also be closed. If you do not

want to wait for the burner box to cool, use a covered hand to turn off the propane tank valve.

1 in. (2.5 cm)

CARE AND MAINTENANCE

WARNING

Do not attempt to turn off the LP tank valve without first covering your hand

with a protective mitt or allowing the grill to cool down. Failure to follow this warning

could result in a severe burn.

LP Gas Safety Requirements

For LP gas grills, the LP gas supply tank to be used must be: Constructed and marked in

accordance with the Specifications for LP Gas Tanks of the U.S. Department of

Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339 Cylinders,

Spheres and Tubes for Transportation of Dangerous Goods; and Commission, as applicable;

and Provided with a listed Overfill Prevention Device (OPD).

The tank should be 12 in. in diameter and 18-1/2 in. tall and be equipped with a

Type-I fitting.

The tank supply system must be arranged for vapor withdrawal.

The tank used must include a collar to protect the cylinder valve.

Do not operate the gas grill indoors or in any enclosed area. If the gas grill is not in use, the

gas must be turned off at the supply tank. If the grill is to be stored indoors, disconnect the

gas supply tank and store the tank in an upright position in a cool, well-ventilated outdoor

location away from your grill or any other heat source.

When checking for gas leaks, do not use an open flame. Use a soapy water solution and

apply it to the pipe joints and fittings with a brush and check for bubbles. Check flexible hoses

for cuts and wear that may affect the safe operation of the grill. Only the factory supplied hose

and regulator must be used. Use only replacement regulator and hose assemblies specified

by manufacturer.

LP tank should be securely locked by the patented safety tank ring at all times. An unlocked

tank may fall or tilt which can cause injury or property damage. It is recommended to lock the

tank all the time.

After positioning the tank in the opening, lower the safety

tank ring to lock the tank. Use only 20 lb. gas tank.

WARNING

The pressure regulator and hose assembly supplied with the outdoor cooking gas

appliance must be used. Replacement pressure regulators and hose assemblies must

be those specified by the outdoor cooking gas appliance manufacturer.

CARE AND MAINTENANCE

Handling the Liquid Propane Tank Safely

Remember to handle your portable liquid propane tank carefully when you take it to your

dealer for a refill. Avoid dropping it or bumping it against sharp objects. Liquid propane tanks

are sturdily constructed, but a series of hard jolts could damage the container.

When transporting the tank to your local propane gas dealer, make sure the valve is closed

tightly and the protective cover is in place. Position the tank securely in an upright position so

it will not roll around your vehicle.

If you plan to make stops for shopping or errands, have your liquid propane tank filled at the

last stop before going home. Again, make certain the refilled tank is secure and in an upright

position. When you return home, remove the refilled tank from your vehicle. Never leave a

portable liquid propane tank inside a vehicle that may become overheated by the sun.

Your local liquid propane gas dealer will gladly offer you additional safety tips.

Storing the Liquid Propane Tank Safely

Do not store portable liquid propane tanks (whether full or empty) inside your home, the living

area of an R.V., a garage, basement or workshop. It is unlikely that liquid propane will leak from

the tanks. If it should leak, the fuel could be exposed to sparks from automobiles, power tools or

other appliances. When storing or transporting your LP tank, it must remain in an upright position.

Never lay your LP tank down on its side whether it is full or empty. Never store a spare tank

under or near your grill.

CAUTION: Never transport or move your grill or grill tank without first closing the

manual valve on your liquid propane gas tank.

The best place to store a liquid propane tank is in a shady or protected spot outdoors, behind

your home or garage, or on a screened porch but where it is out of reach of children. Liquid

propane will not evaporate. It is in a strong, closed container. It will not lose any of its

clean-burning heat content, even if left outside year-round.

CARE AND MAINTENANCE

WARNING: When not connected to your grill, the LP gas tank must be stored in an

upright position in a cool, shady, well-ventilated, outdoor location away from your grill

or any other heat source. Failure to follow this warning could lead to tank valve

damage, fire hazard and personal injury.

Refilling a Propane Tank

It is extremely important that your LP tank be filled properly when you take it to be refilled. Be

sure to use a reputable LP dealer and observe how the tank is filled and at what capacity. An

overfilled LP tank can be dangerous.

The proper way to fill a tank is by weight. The empty tank should be placed on a scale. The

scale weights should be readjusted to a weight that would allow up to 80% of the total weight.

The filling operation must end once the tank is filled to 80% of its total capacity. If the tank is

not completely empty, the scale readjustment must be changed to consider the propane (LP)

already in the tank.

WARNING: An LP (propane) tank is overfilled if it contains more than 80% of its total

capacity of propane (LP).

An incorrectly filled or an overfilled LP (propane) tank can be dangerous. If a tank is overfilled

and the weather causes the warming of the LP tank, (a hot day, tank left in sun or stored

indoors) internal pressure is created due to expansion of the propane which in turn may

cause the LP gas to be released through the pressure relief valve on the tank. The pressure

relief valve is a safety device required on 20 lb. propane tanks by the Department of

Transportation or the National Standard of Canada, CAN/CSA-B339 Cylinders, Spheres and

Tubes for Transportation of Dangerous Goods; and Commission, as applicable, to prevent a

catastrophic tank failure due to excessive pressure. LP gas released from the tank is

flammable and can be explosive.

IMPORTANT: When connecting or replacing gas pipe or fittings, all joints must be

sealed with approved leak-proof sealing compound or plumber's tape. After making

connections, check all joints for leaks using a soapy water solution and a brush.

WARNING: Never use an open flame to test for gas leaks. Use of an open flame could

result in a fire, explosion and bodily harm.

Stainless Steel

This gas grill is made of stainless steel. Stainless steel is non-rusting in certain conditions;

therefore, a cover and stainless steel cleaner should be used when the grill is not in use.

Wipe with stainless steel cleaner on all non-cooking surfaces once a month.

Never clean the stainless steel when it is hot.

After initial grilling, certain areas of the grill (i.e. the vents, hood and burner box) may discolor.

This is a normal discoloration caused by the intense heat from the burners.

CARE AND MAINTENANCE

Specks of grease can gather on the surface of the stainless steel and get baked-on. These

can usually be removed with warm soapy water or a stainless steel cleaner. As a last resort a

mild abrasive pad could be used with a stainless cleaner. Use light pressure on the pad and

always scrub in the direction of the grain. There are many products that will help clean and protect

on all non-cooking surfaces.

Do not use steel wool to clean the grill.

Do not use abrasive cleaners on the polished surface. Use caution when cleaning. Metal

polish or a mild chrome cleaner can be used to bring back luster and highlights. Naval Jelly

can be used to remove rust stains that occur from outside sources. Follow the Naval Jelly

instructions carefully.

To touch up minor scratches in the stainless steel, sand the affected surface lightly with 160

dry grit emery sand paper in the direction of the grain.

Drip Tray

The drip tray collects excessive grease runoff and fallen food particles.

Allow the tray and its contents to cool before cleaning. Loosen the back grill head cover (J) and

slide out the drip tray and then wipe it clean.

Make sure the tray is installed before using the grill.

It is highly recommended that you check the tray regularly to avoid any possibility of a grease

fire; however, most of the drippings will vaporize back into the cooked item giving you an

outdoor grilled flavor.

Helpful Care and Maintenance Hints

Before grilling, pre-heat grill for 15 minutes on "HIGH" with hood down. To avoid uncontrolled

flare-ups or grease fires, grill meats with hood open. Close hood if meats are thick or weather

is cold, or if you are using a rotisserie or indirect cooking.

Always protect your hand with a pot mitten or cooking glove when coming into contact with a

hot surface.

Hood up when grilling meats, especially chicken. Hood down when indirect or rotisserie

cooking.

NEVER leave your grill unattended while cooking.

After use, close hood, turn burners to “HIGH” for 15 min. for self-cleaning grease burn off.

Interior grill cleaning products120 daysBurner box interior

Wire brush90 daysBurners

Wire brush30 daysBurner heat tents

Scrub pad soapy water/

Dishwasher safe

15 daysPorcelain grates

Wire brush/Dishwasher safe15 daysStainless grates

Burn off and wipeAfter each useAll grates

Stainless cleanerTwice yearlyStainless surface

Car waxTwice yearlyPainted surface

Cleaning MethodFrequency Based on Normal UseGrill Item

CARE AND MAINTENANCE

Care and Maintenance Time Table Chart

Gauging amount of LPG fuel

To gauge the amount of propane fuel in your gas tank, the grill must be in operation. Place

your hand at the top of the tank and slowly move down the side until the tank feels cool to the

touch. This will indicate the approximate amount of propane gas in your tank; if 3/4 empty,

refill.

Do not use charcoal briquettes or any flammable material with your grill. Use of such

material will void your warranty and may lead to a fire, explosion and bodily harm.

Many solutions given here can make your grilling experience safer and more enjoyable. You

can also call the customer service department at 1-800-963-0211, 8 a.m. - 6 p.m., EST, Monday -

Thursday, 8 a.m. - 5 p.m., EST, Friday.

1. Refill the LP tank.

2. Install the burner correctly.

3. Check the gas supply hose and make

sure there are no leaks and no knots.

1. LP tank is empty.

2. Burner is not aligned with

the control valve.

3. Gas supply is not sufficient.

Burner blows out.

1. Grill fatty meats when the grids are

cold while the knobs are on the “LOW”

setting. Move the meats to the

warming rack if flare up continues

until flame settles down.

2. Before you are ready to grill, turn

the knobs to the “OFF”.

3. Never spray water on gas flames.

4. Hood up when grilling.

1. Grilling fatty meats.

2. Knobs on “HIGH”.

3. Spray water on gas flames.

4. Hood closed when grilling.

Excessive flare-up.

1. Reconnect the ignition wire to the

electrical igniter/valve.

2. Loosen the ignition pin and adjust the

distance, then fasten it again.

3. Call customer service for a

replacement ignition wire.

4. Install a new AA battery.

5. Change the battery polarity.

6. Reinstall the electrode.

7. Turn on the regulator valve.

1. The ignition wire came off

the electrical igniter/valve.

2. The distance between the

ignition pin and the burner

is greater than 5/32 in.-3/16

in. (side burner).

3. The ignition wire is broken.

4. The battery has died.

5. The battery is in the wrong

polarity.

6. The electrode tip does not

produce sparks at the

burner port.

7. No gas supplied.

Grill or side cooker

will not light.

CORRECTIVE ACTIONPOSSIBLE CAUSEPROBLEM

TROUBLESHOOTING

Check your gas line and make

corrections by following the chart

below.

From House to Grill

Distance Tubing Size

Up to 25 ft. 3/8 in. diameter

26 ft.-50 ft. 1/2 in. diameter

2/3 in. of run 3/4 in.

51 ft.-100 ft. 1/3 in. of run 1/2 in.

Gas pressure is significantly

affected by gas line and

length of gas line from house

gas line.

Low heat,

natural gas.

Please follow these instructions:

1. Make sure all burners are “OFF”.

2. Open the tank valve and wait 5

minutes.

3. Light the burner one at a time

following the lighting instructions

listed on the door liner and

Page 22.

The propane regulator

assembly incorporates an

excess flow device designed

to supply the grill with

sufficient gas flow. Rapid

changes in pressure can

trigger the excess flow

device, providing a low flame

and low temperature.

Low heat,

LP gas.

1. This model is set for 7 in. natural

gas usage. Please check your

natural gas supply system to have

correct gas pressure.

Regulator is not needed for NG

model.

Check the orifice if you installed NG

nozzles. 0050772 conversion kit

provides the following nozzles:

2. Clear ports of any obstructions.

3. Refill the LP tank.

1. Low heat is found in natural

gas models.

2. Ports are blocked.

3. LP tank has run out.

Low heat with the

knob in “HIGH”

position.

CORRECTIVE ACTIONPOSSIBLE CAUSEPROBLEM

ø 1.44 mm

Side Burner

ø 1.44 mm

Main Burner

Orifice SizeBurner

TROUBLESHOOTING

WARRANTY

Proof of purchase is required to access this warranty program, which is in effect from the

date of purchase. Customers will be subject to parts, shipping, and handling fees if unable to

provide proof of the purchase or after the warranty has expired.

If you have any questions or problems, you can call our customer service department at

1-800-963-0211, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.

Limited Warranty

5-Year Warranty on stainless steel burners.

1-Year Warranty on all parts affecting the operation of the gas grill due to damage.

Warranty Provisions:

This warranty is non-transferable and does not cover failures due to misuse or improper

installation or maintenance.

This warranty is for replacement of defective parts only. We are not responsible for incidental

or consequential damages or labor costs.

This warranty does not cover corrosion or discoloration after the grill is used, or lack of

maintenance, hostile environment, accidents, alterations, abuse or neglect.

This warranty does not cover damage caused by heat, abrasive and chemical cleaners, or

any damage to other components used in the installation or operation of the gas grill.

Some states do not allow the limitation or exclusion of incidental or consequential

damages, so the above limitations or exclusions may not apply to you. This warranty

gives you specific legal rights, and you may also have other rights that vary from state

to state.

2“Cotter” Pin

Fixed Screws

How to replace the main burner

1. Open the grill hood and remove the warming

rack (A), cooking grates (B) and flame

tamers (C) as shown in Fig. 1.

2. Remove the cotter pin from the main burner,

as shown in Fig. 2.

3. Remove the two screws that attach the main

burner electrode & wire to the main burner.

4. Remove and discard the old main burner and

replace it with the new one.

Note: When reinstalling the main burner make

sure the main valve stem is inserted into main

burner tube opening.

5. Reinstall the cotter pin and the two screws that

attach the main burner electrode & wire.

6. Reinstall the warming rack, flame tamers and

cooking grates.

How to replace the electronic ignition and main

burner electrode wire :

1. Open the grill hood and remove the warming

rack (A), cooking grates (B) and flame tamers (C)

as shown in Fig.1.

2. Remove the two screws that attach the main

burner electrode & wire to the main burner as

shown in Fig. 2.

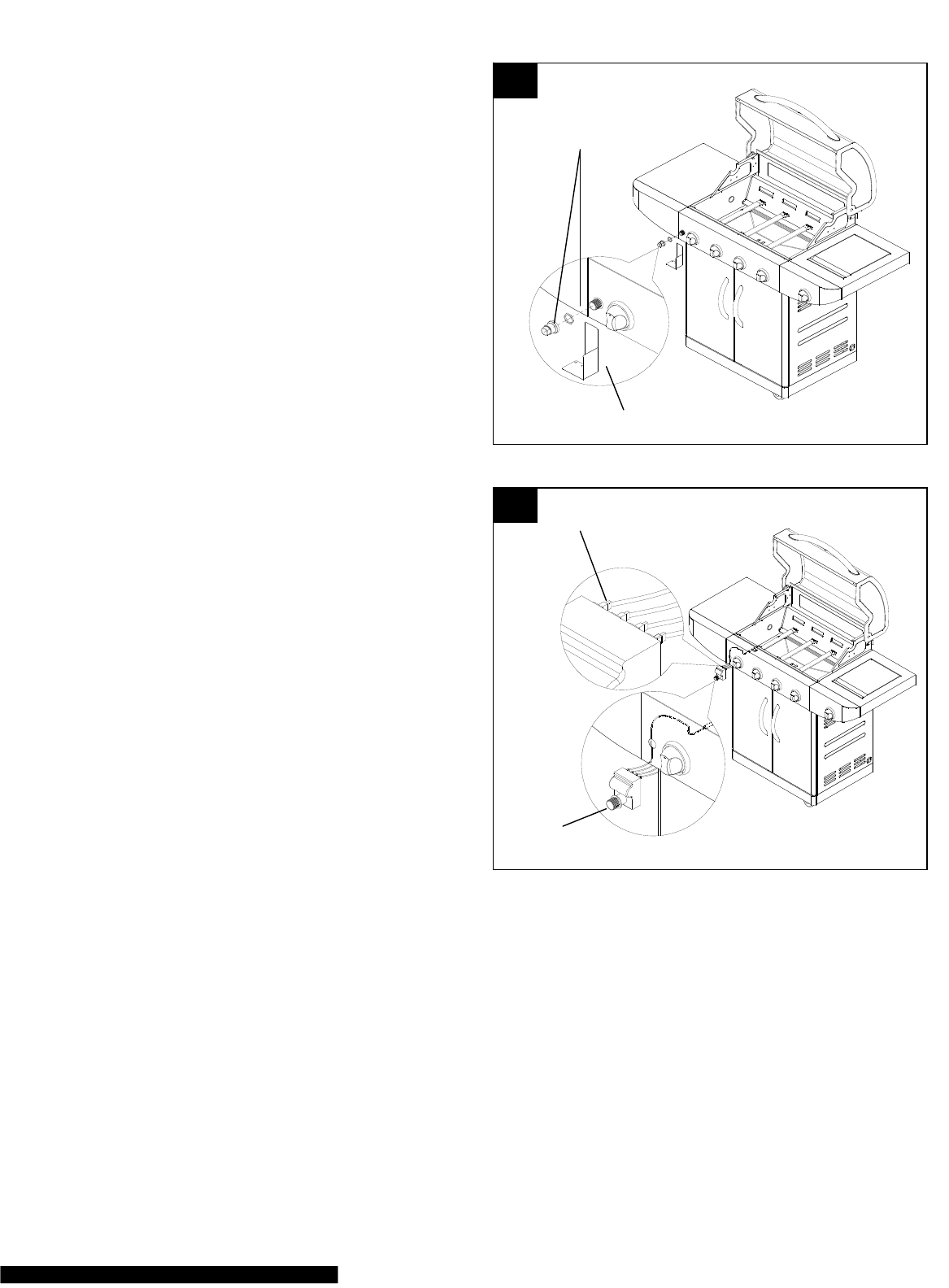

3. From underneath the grill just above the left side

cart door, remove the two screws holding the

ignition heat shield in place. Remove the heat

shield through the opening just above the door. Fig.

4. Unscrew the push button igniter button and lock

nut and then remove the push button igniter

through the same opening. Unplug the main burner

electrode wire that you are replacing from the back

of the push button igniter and then remove the

electrode and wire from the grill. Fig. 03.

REPLACING MAIN BURNER

Fixed Screws

Ignition heat shield

Push button igniter lock

nut and push button

igniter

Ignition wire

5. Feed the new main burner electrode

wire through the hole on the inside of the

grill and then reinstall the main burner

electrode with the two screws previously

removed. Fig. 04.

6. Plug the wire into the back of the push

button igniter where the previous wire was

removed. Fig. 5.

7. Reinstall the push button igniter lock

nut and push button, and then reinstall the

ignition heat shield with the two screws

previously removed.

8. Replace the flame tamers, cooking

grates and warming rack.

For replacement parts, call our customer service department at 1-800-963-0211, 8 a.m.

– 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.

51A

20A

21A

19 20

18 16

14A

08 06

14B

EXPLODED VIEW

REPLACEMENT PARTS LIST

1Door Catch Plate451Side Burner Bezel20A

1Left Cart Door1Ignition Heat Shield14B

1Right Side Cart Panel481LP Hose & Regulator23

1LP Tank Bolt471

Side Burner Gas Manifold

Assembly

1Cart Base461Gas Hose21A

2Locking Caster444Bezel20

2Straight Caster435Control Knob19

1LP Tank Barrier Bar421Control Panel18

1Match Light Holder411Electronic Igniter17

1Match Light Tool401

Main Gas Manifold

Assembly

1Right Cart Door391Control Panel Bracket,Right15

2Door Handle381Control Panel Bracket, Left14A

4Door Handle Grommet372Door Top Pivot Bracket13

2Door Magnet361Grill Firebox12

2Cart Support Bracket351Hood Bracket, Right11

1Cart Support Beam341Hood Bracket, Left10

1Left Side Cart Panel331Hood Handle9

1Left Shelf Front322Hood Handle Bezel8

1Left Shelf312

Hood Handle Bezel Heat

Insulating Spacer

1Left Shelf Bracket302Hood Bumper6

1Cart Back Panel291Temperature Gauge 5

1Cart Heat Shield281

Temperature Gauge Heat

Insulating Spacer

1Back Grill Head Cover271Temperature Gauge Bezel3

1Grease Cup262Hood Hinge Screw2

1Grease Tray241Grill Hood1

QTY.DESCRIPTIONPARTQTY.DESCRIPTIONPART

REPLACEMENT PARTS LIST

1FF-Allen Wrench741

Main Burner Electrode &

Wire B

10EE-1/4-20 x 5/16 in. Screw731

Main Burner Electrode &

Wire C

22DD-1/4-20 Lock Washer721

Main Burner Electrode &

Wire D

23CC-1/4-20 x 3/8 in. Screw714Main Burner58

26BB-1/4-20 x 1/2 in. Screw702Side Burner Lid Hinge57

16AA-5/32-32 x 3/8 in. Screw691Side Burner Lid56

1Hardware Pack681Side Burner Grate55

1Instruction Manual671Side Burner Igniter54

1Warming Rack661Side Burner Pan53

2Cooking Grate651Right Shelf52

4Flame Tamer641Right Shelf Front51A

8Cotter Pin631Right Shelf Bracket50

Main Burner Electrode &

Wire A

621Side Burner49

QTY.DESCRIPTIONPARTQTY.DESCRIPTIONPART

CONVERTING TO NATURAL GAS KIT #0050772

Should you decide to convert your gas grill Item #0097709 Model 1010037 from propane to

natural gas, use conversion kit item #0050772.

Your #0050772 kit will contain 4 -1.44 main burner orifices. Install all of them following your

kit instructions. Install 1-1.44 orifices into your side burner valve. Discard the rest.

#0050772 kit will contain the following orifices for your selection:

CSAN/AN/AN/AN/AN/A5N/A

1010037,

0097709

N/A

3218LT,

0006554

ULN/A1N/A1N/AN/A5

3218LT,

0221886

3218LT-KIT

L3218-1,

0314075

ULN/A1N/A1N/A5N/A

L3218,

0314075

L3218-1-KIT

ULN/AN/AN/AN/AN/A14

2518-3,

0221885

2518-3-KIT

ULN/AN/A1N/AN/AN/A4

P3018,

0314073

P3018-KIT

UL1N/AN/AN/A1N/A3

SH3118B,

0314076

SH3118B-KIT

UL1111155Qty.

Certified

Side

burner

Φ1.32

Rotis

burner

Φ1.40

Rotis

burner

Φ1.25

Searing/Panini

Φ1.37(In Side

shelf)

Sear

burner

Φ1.46

(In

Fire

Box)

Main

burner

/Side

burner

Φ1.44

Main

burner

Φ1.37

Model #,

Item #

NG KIT

Model#

CONVERTING TO NATURAL GAS KIT #0050772

CAUTION:

If low flames or burner problems are observed after converting from LPG to NG, the natural

gas lines may not be large enough. Refer to the “From House to Grill” chart on page 19 for

natural gas supply line specifications. Please contact a plumber to assure proper pressure

at 7 in. water column.

Do not return your grill to the store.

Take the knobs off valve stems and adjust the

screws as shown using the slotted

screwdriver. Turn the screw clockwise until it

stops.

Make sure to completely tighten the

screws. Failure to tighten the screws will

result in the low heat setting working

improperly.

Printed in China

Master Forge 1010037 Owners Manual ManualsLib Makes It Easy To Find Manuals Online!

Navigation menu

Versions of this User Manual:

Views

Navigation
