Matias ONEKEYBOARD MATIAS ONEKEYBOARD User Manual USERS MANUAL
Matias Corporation MATIAS ONEKEYBOARD USERS MANUAL
Matias >
USERS MANUAL
Matias One Keyboard for iPhone & Mac
Setup Instructions
System Requirements
Mac with available USB port
iPhone 3GS or newer, iPod touch 3rd generation (2009) or newer
Plug the One Keyboard
into your Mac
Press the
iPhone button
It should start flashing
blue
If it's not flashing, then
hold it down for a few
seconds until it starts
flashing
Open the Settings app on
your iPhone or
iPod touch

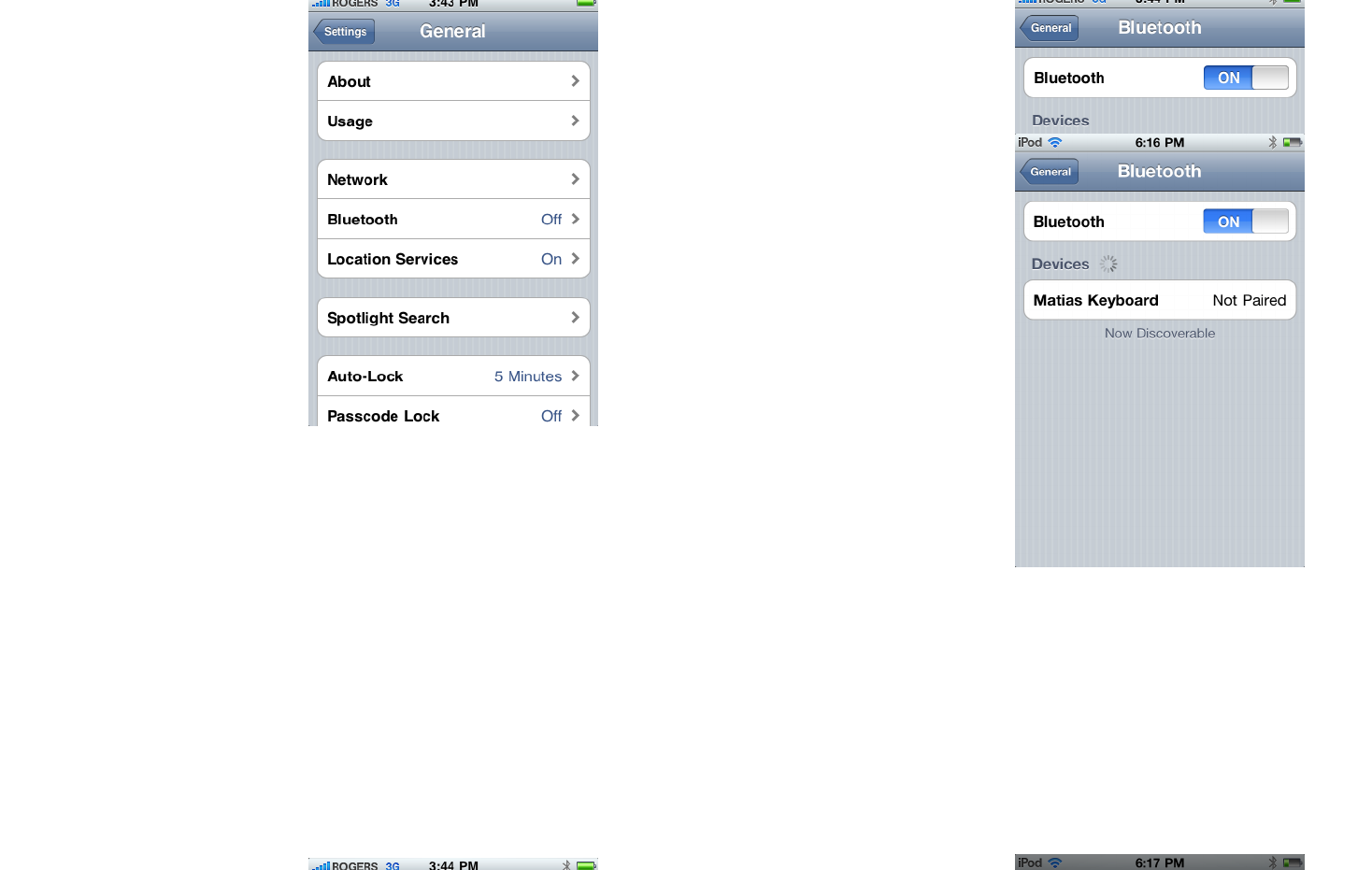

Tap on General
Tap on Bluetooth
If Bluetooth is off, tap the
OFF button to turn it ON
Bluetooth will begin
searching for devices
When the keyboard
appears, tap on
Not Paired

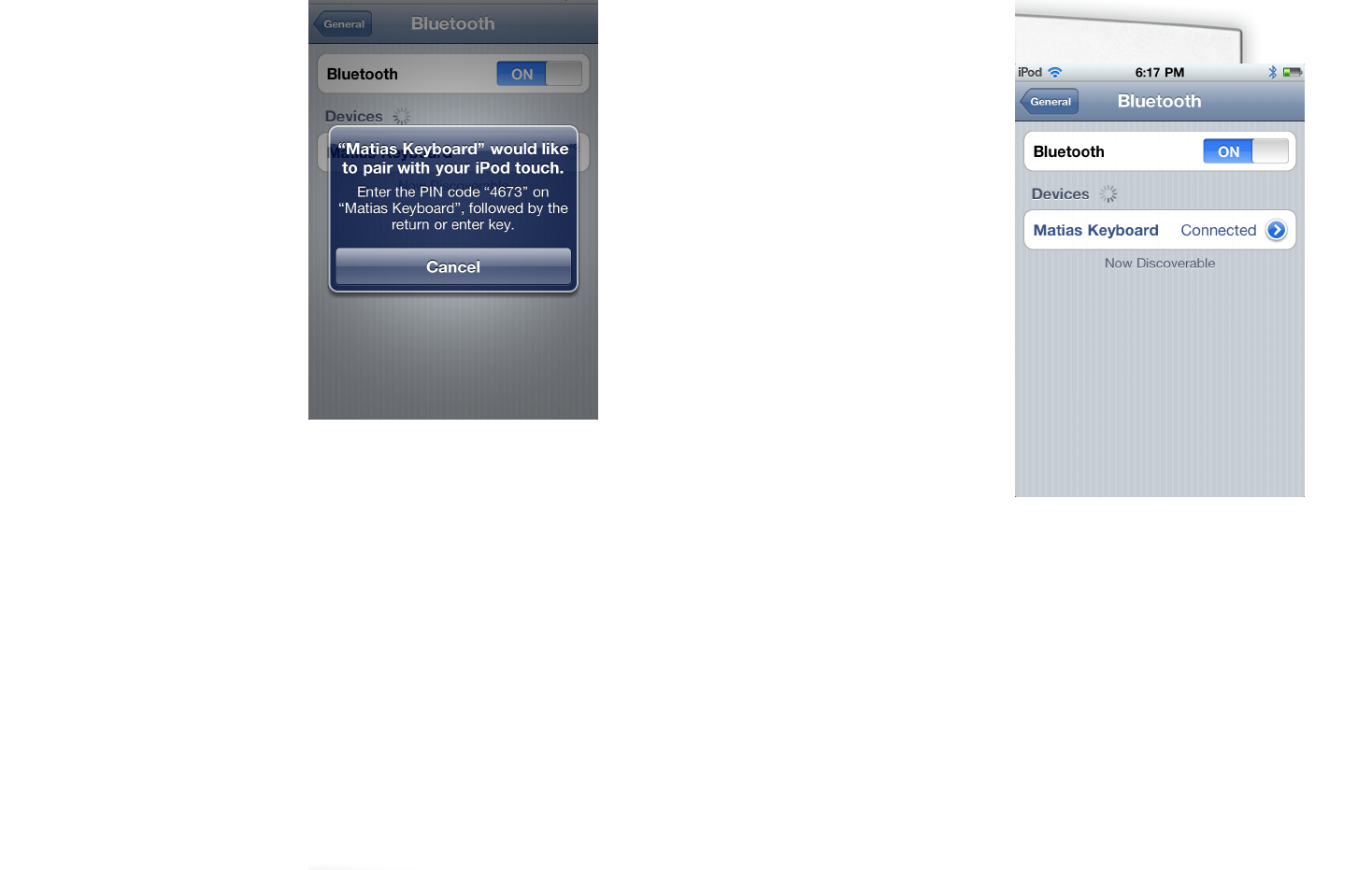

A message telling you the
passkey will appear
Type the passkey on the
numberpad
Then press the Enter key
The keyboard is now
connected and ready to
be used
To switch between
iPhone & Mac,
press the
iPhone button
on the keyboard
The button glows blue
when connected to
your iPhone
The button is white when
connected to your Mac
REMEMBER...
Bluetooth keyboards
prevent the onscreen
keyboard from appearing
There two ways to make it
reappear...
1) Press F5 on the
One Keyboard
2) Or, turn off Bluetooth
APPENDIX
FCC Warning Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
－Reorient or relocate the receiving antenna.
－Increase the separation between the equipment and receiver.
－Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
－Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Prohibition of Co-location
This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter
Safety Information
To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and
operated with minimum distance 2.5cm between the radiator and your body. Use on the supplied
antenna. Use on the supplied antenna. Unauthorized antenna, modification, or attachments
could damage the transmitter and may violate FCC regulations.
APPENDIX
Declaration of Conformity for R&TTE directive 1999/5/EC
Essential requirements – Article 3
Protection requirements for health and safety – Article 3.1a
Testing for electric safety according to , EN50392 and EN 60950-1 has been conducted. These are
considered relevant and sufficient.
Protection requirements for electromagnetic compatibility – Article 3.1b
Testing for electromagnetic compatibility according to EN 301 489-1 and EN 301 489-17 has been
conducted. These are considered relevant and sufficient.
Effective use of the radio spectrum – Article 3.2
Testing for radio test suites according to EN 300 328 has been conducted. These are considered
relevant and sufficient.
CE Mark Warning
This is a Class B product, in a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
