Matrix Product Development WYZEAPOLLO Low power temperature probe sensor User Manual Wyze temp Apollo
Matrix Product Development, Inc. Low power temperature probe sensor Wyze temp Apollo
User Manual
WYZE TEMP APOLLO
User’s Guide
Abstract
Date: 10/27/15
Revision: 1.0.0
Author: dpulvermacher Page | 2
1. Quick Start Guide.................................................................................................................................. 3
1.1 Supply Checklist ............................................................................................................................. 3
1.2 Base ................................................................................................................................................. 3
1.3 Probe ............................................................................................................................................... 3
1.4 pgLogger ......................................................................................................................................... 4
2. Wyze Temp Apollo Probe ..................................................................................................................... 5
2.1 Temperature Sensor ......................................................................................................................... 5
3. Wyze Temp PLUS Base ........................................................................................................................ 6
3.1 Ethernet Interface ............................................................................................................................ 6
3.1.1 Direct Connection .................................................................................................................... 6
3.1.2 Network Connection ................................................................................................................ 6
3.2 Modbus Interface ............................................................................................................................ 6
5. Troubleshooting .................................................................................................................................... 7
6. Document Change Log ......................................................................................................................... 8
Date: 10/27/15
Revision: 1.0.0
Author: dpulvermacher Page | 3
1. Quick Start Guide
The purpose of this section is to guide a user through setting up a Wyze Temp Apollo system
out of the box. It will walk a user through the process of connecting a base directly to a windows
computer via Ethernet ports to receive probe data in the pgLogger program provided with the Wyze
Temp Apollo system. More detailed setup instructions can be found in this document for more
advanced configurations and process integration.
1.1 Supply Checklist
The following items are necessary to complete this quick start guide:
1. Wyze Temp PLUS Base
- 24V, 1A Power Supply, TP1198
- Antenna, Either TP1165 or TP1200
2. Wyze Temp Apollo Probe
3. Ethernet cable
4. pgLogger PC Application
1.2 Base
A Wyze Temp PLUS Base unit is powered by a standard wall socket using the included power
supply. Connect the power supply to the exposed green connector on the base and plug it into the wall.
The base has a status LED immediately next to the power connection. This light will initially be off,
then it will turn on. When the LED turns back off, the base is completely powered and functional.
While waiting for the LED to indicate the base is ready, connect the antenna to the antenna connector,
and use the crossover cable to connect the Ethernet port on the base to the Ethernet port on the
windows computer to be used.
When all connections have been made and the LED has indicated that the program is running,
the base is operating. Changes can be made using the web browser interface by entering the appropriate
address into the URL bar. The address will have the following format if it is the first connected base (or
only connected base):
wyzepi.local:8080/WyzePiWeb/
From here it is possible to change base settings, add or remove tags from the list of tags it will
respond to, blink the LED on the base, etc. For now nothing needs to be changed as long as the probe
being used is in the list (this can be verified by following the “Tags” link in the banner). If the probe
needs to be added then enter its number in the top field under “Tag and Type” and select the probe type
from the drop down box under “Type”. Finally, click the “Add” button.
1.3 Probe
Wyze Temp Apollo is shipped in an operational state—there is no need for a user to wake it up
or put it to sleep. The Apollo probe will flash a green LED once every 10 seconds for the duration of
the time that the probe is running. Once a user enters the individual Apollo probe serial number into
the Base’s database, temperature data will begin to be logged.
Date: 10/27/15
Revision: 1.0.0
Author: dpulvermacher Page | 4
1.4 pgLogger
If a base and probe are setup and communicating, launch pgLogger on a windows computer

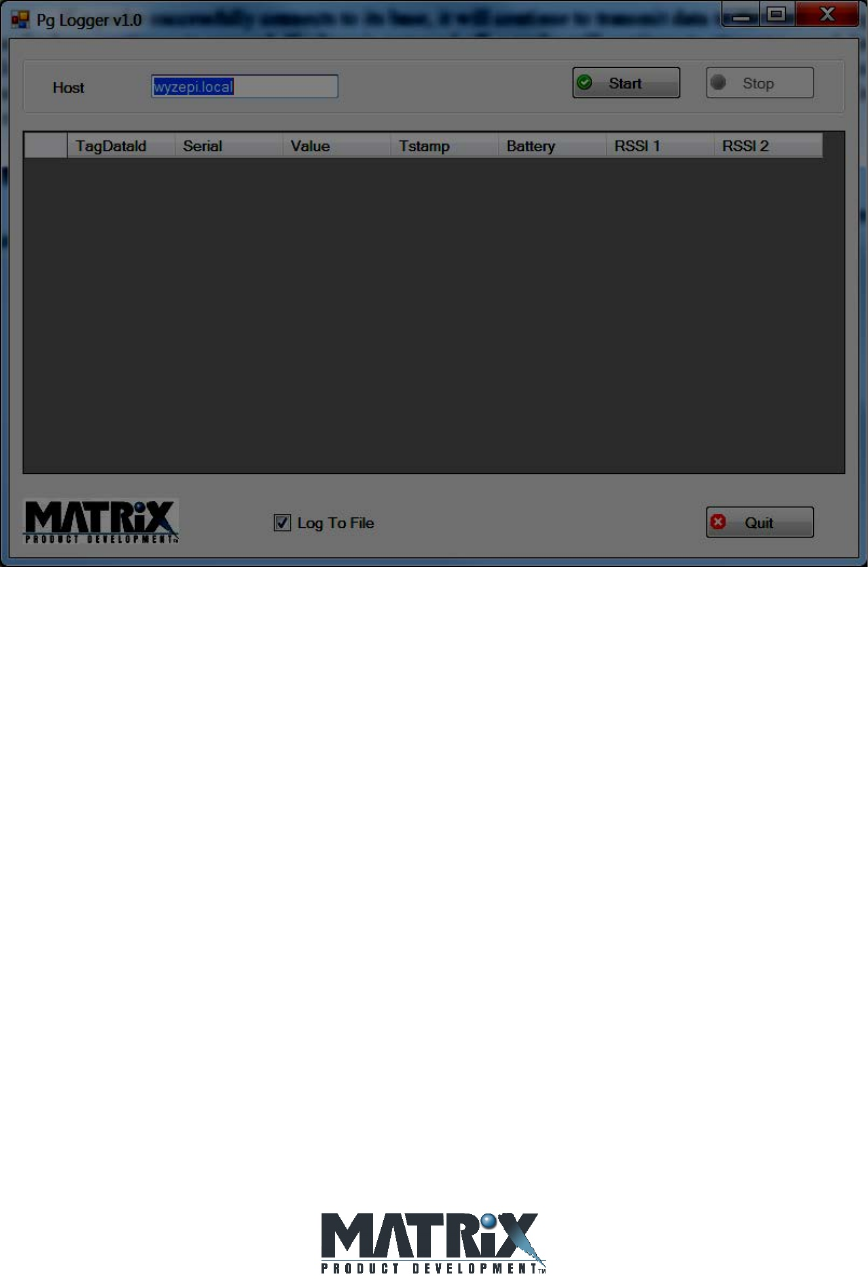

connected to the network. The window should look like this:
In the field labeled “Host” enter the base name (for the purpose of this guide, since only one base is
connected, wyzepi.local is correct). Click the start button, and data should populate screen. If the “Log
To File” box is checked, the data log can be found in this directory in windows explorer:
C:\ProgramData\pglogger
“ProgramData” is hidden as a default setting in windows computers, but it can still be entered by typing
the correct name in the windows explorer bar. Data logs are stored as “.txt” files and have the date the
log file was created in the name.
To stop logging data, the stop button can be clicked. The “Quit” button will close the pgLogger window
altogether.
Date: 10/27/15
Revision: 1.0.0
Author: dpulvermacher Page | 5
2. Wyze Temp Apollo Probe
The Wyze Temp Apollo probe is capable of making wireless, real-time temperature
measurements intended to streamline the large scale cooking process to help minimize loss and perfect
cooking cycles. All Wyze Temp Apollo products are FCC certified at 433MHz.
2.1 Temperature Sensor
Date: 10/27/15
Revision: 1.0.0
Author: dpulvermacher Page | 6
3. Wyze Temp PLUS Base
The Wyze Temp PLUS Base is able to communicate with all Wyze Temp PLUS probes and log
the data to a postgreSQL open source database format. The base unit also has MODBUS-Over-Ethernet
(MODBUS TCP) capabilities. The dual interface design allows the Wyze Temp PLUS system to be
quickly integrated into an industrial system.
3.1 Ethernet Interface
3.1.1 Direct Connection
3.1.2 Network Connection
3.2 Modbus Interface
Date: 10/27/15
Revision: 1.0.0
Author: dpulvermacher Page | 7
5. Troubleshooting
Date: 10/27/15
Revision: 1.0.0
Author: dpulvermacher Page | 8
6. Document Change Log
Date
Version
Notes
27 October 2015
1.0.0
Initial Draft. Outline Determined and Quick Start section filled in.
User Manual appendix: Radio Compliance Statements FCC and IC
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause undesired
operation
Warning: Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
