Mattel Asia Pacific Sourcing B5117-04A4T Roll Cage User Manual B5115 0920 1L US
Mattel asia Pacific Sourcing Ltd. Roll Cage B5115 0920 1L US
USERS MANUAL
TYCO R/C SUPPORT
Questions or problems with your product?
DON’T RETURN IT TO THE STORE!
Just call us for help.
U.S. consumers may also register their products at this number.
1 888 557-TYCO (8926)
®
tycorc.com
B5115-0920
Vehicle
This manual contains important information about the use and maintenance of your vehicle. The included DRIVER’S
GUIDE tells you how to drive your vehicle…and how to do the wildest stunts ever!
Keep these instructions for future reference: they contain important information.
IMPORTANT: Please read all “Consumer Information” (last page) before operating your vehicle.

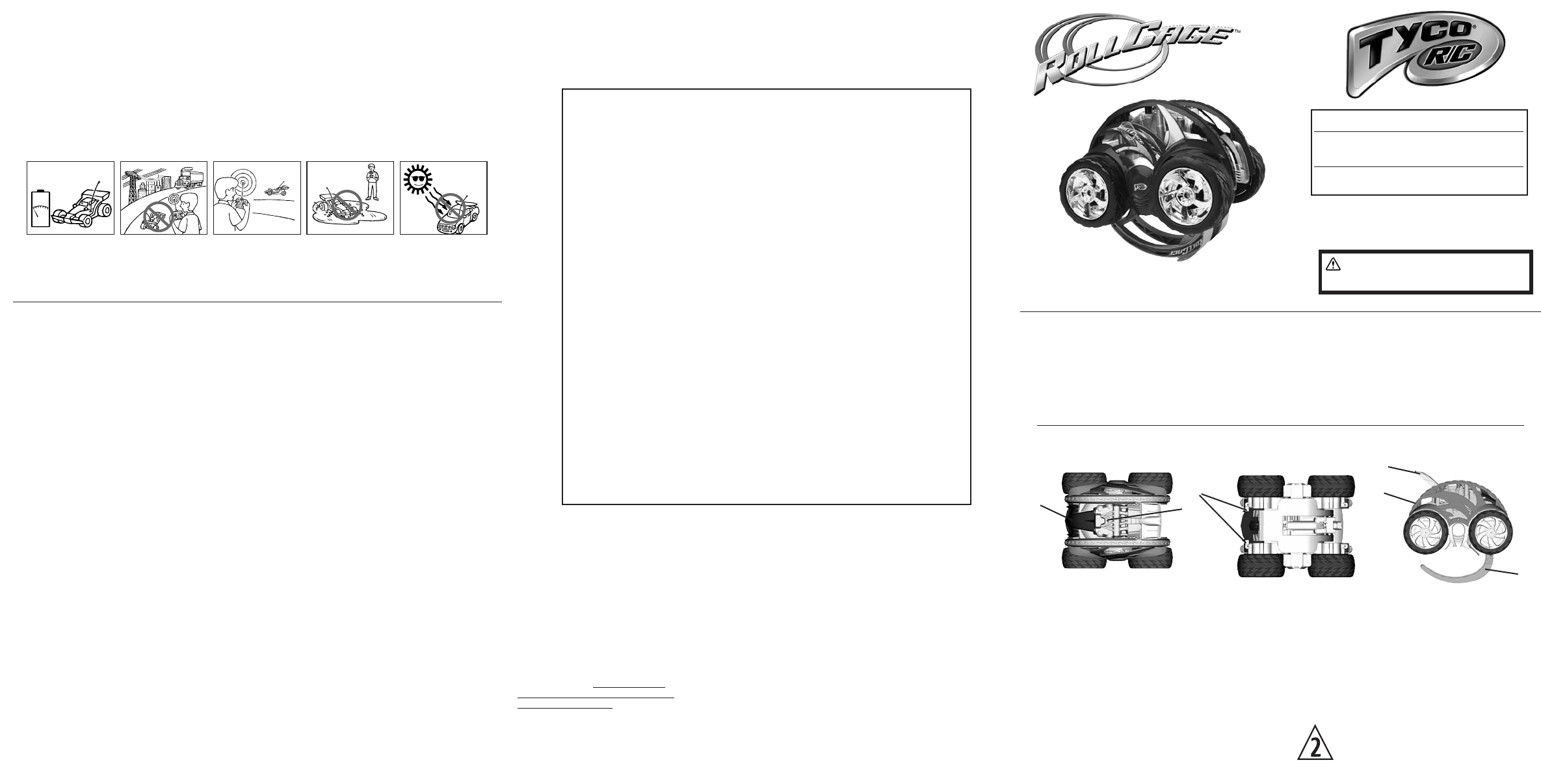

CONTENTS/FEATURES
USER’S MANUAL
qt
r
y
w
q
= Front = Rear
qWhen your vehicle starts to lose power, it may lose functions or performance. It's time for a recharge. For best
stunt performance, always start with a fully-charged battery. Your vehicle's running time may change depending
on your driving style.
wRadio interference can make your vehicle run badly. Interference can be caused by other R/C vehicles running on
the same frequency; electrical wires; large buildings; CB radios; or other wireless gear. Try to stay away from
these!
ePoint your transmitter antenna up - not down toward your vehicle. If your vehicle gets too far away, it won't work
properly.
rDon’t drive your vehicle in sand or through water or snow. If your vehicle does get wet, wipe with a towel and
allow to dry completely.
tDon’t store your vehicle near heat or in direct sunlight. Always turn switches OFF and remove all batteries for
storage. We recommend that you store your vehicle with the super stunt arm retracted.
BATTERY SAFETY INFORMATION
In exceptional circumstances batteries may leak fluids that can cause a chemical burn injury or ruin your toy
(product). To avoid battery leakage:
• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are to be removed from the toy before being charged (if designed to be removable).
• Rechargeable batteries are only to be charged under adult supervision (if designed to be removable).
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.
• Do not mix old and new batteries.
• Only batteries of the same or equivalent type as recommended are to be used.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the toy.
• The supply terminals are not to be short-circuited.
• Dispose of battery(ies) safely.
• Do not dispose of this toy in a fire. The batteries inside may explode or leak.
Battery Performance Note:
For best performance use regular or high-performance alkaline batteries (where disposable batteries are called for).
If your vehicle is supplied with standard (carbon-zinc) batteries for initial use and/or demonstration purposes, we
recommend replacing them with alkaline batteries when necessary. Battery life may vary depending on battery
brand.
SAFETY TIPS
• NEVER drive your vehicle on streets! They’re for real cars!
• DO NOT pick up vehicle while in motion.
• Keep fingers, hair and loose clothing away from the tires and the wheel hubs while the vehicle is switched ON.
XCAUTION: To prevent entanglement, keep hair away from wheels.
• Adult supervision is recommended when this vehicle is being operated.
• To avoid accidental operation, remove all batteries when not in use. Always turn the vehicle OFF before removing
batteries.
ìCONSUMER INFORMATION
Note to Adults: To ensure that the child’s play is both safe and fun, please review all operating instructions and
safety rules with your child.
QUICK TIPS
©2004 Mattel, Inc., Mt. Laurel, NJ
08054 U.S.A. PRINTED IN CHINA. All
Rights Reserved. MATTEL, TYCO and
associated trademarks and trade
dress are owned by Mattel, Inc.
Retain this address for future
reference: Mattel U.K. Ltd., Vanwall
Business Park, Maidenhead SL6 4UB.
Helpline 01628 500303. Mattel
Australia Pty Ltd., Richmond, Victoria
3121 - Consumer Advisory Service:
1300 135 312. Mattel East Asia Ltd,
Room 1106, South Tower, World
Finance Centre, Harbour City,
Tsimshatsui, HK, China. Diimport &
Diedarkan Oleh: Mattel SEA Ptd Ltd.
(993532-P) Lot 13.5, Menara Lien Hoe,
Persiaran Tropicana Golf Country
Resort, 47410 PJ. Tel: 03-78803817,
Fax: 03-78803867.
COMPLIANCE WITH FCC
REGULATIONS (VALID IN U.S. ONLY))
This device complies with part 15 of
the FCC Rules. Operation is subject to
the following two conditions: (1) This
device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may
cause undesired operation.
This device generates and uses radio
frequency energy and if not used
properly may cause interference to
radio and television reception. It has
been tested and found to comply with
the limits set by the FCC which are
designed to provide reasonable
protection against such interference.
NOTE: Changes or modifications not
expressively approved by the
manufacturer responsible for
compliance could void the user’s
authority to operate the equipment.
90-DAY LIMITED WARRANTY – TYCO® R/C PRODUCTS
Mattel, Inc. warrants to the original consumer purchaser that this product will
be free of defects in material and workmanship for ninety (90) days (unless
specified in alternate warranties) from the date of purchase. Mattel will
replace the product in the event of such a defect within the warranty period.
In the event of a defect covered under this warranty, first call the toll-free
number listed below. Many problems can be solved in this manner. If
necessary, you will be instructed to return the product, postage prepaid and
insured, to the address below. Enclose your name, address, dated sales
receipt, and a brief explanation of the defect. Replacement and return
shipment will be free of charge.
This warranty does not cover damage resulting from unauthorized
modification, accident, misuse or abuse. If the product is returned without a
dated sales receipt the product may be excluded from coverage under this
warranty.
Mattel’s liability for defects in material and workmanship under this warranty
shall be limited to replacement, and in no event shall we be responsible for
incidental, consequential, or contingent damages (except in those states that
do not allow this exclusion or limitation). This warranty is exclusive, and is
made in lieu of any express or implied warranty. Valid only in U.S.A. This
warranty gives you specific legal rights and you may have other rights, which
vary from state to state. Some states do not allow the exclusion of incidental
or consequential damages, so the above exclusions or limitations may not
apply to you.
TOLL-FREE NUMBER: 1-888-557-TYCO (8926) (valid only in U.S.A.)Hours: 8:00
A.M. - 5:00 P.M. Eastern Time; Monday - Friday. Expect some delay in January
following the holiday season. Please be patient and keep trying the toll-free
number.ADDRESS FOR RETURNS: CONSUMER RELATIONS, 636 GIRARD
AVENUE, EAST AURORA, NY 14052
e

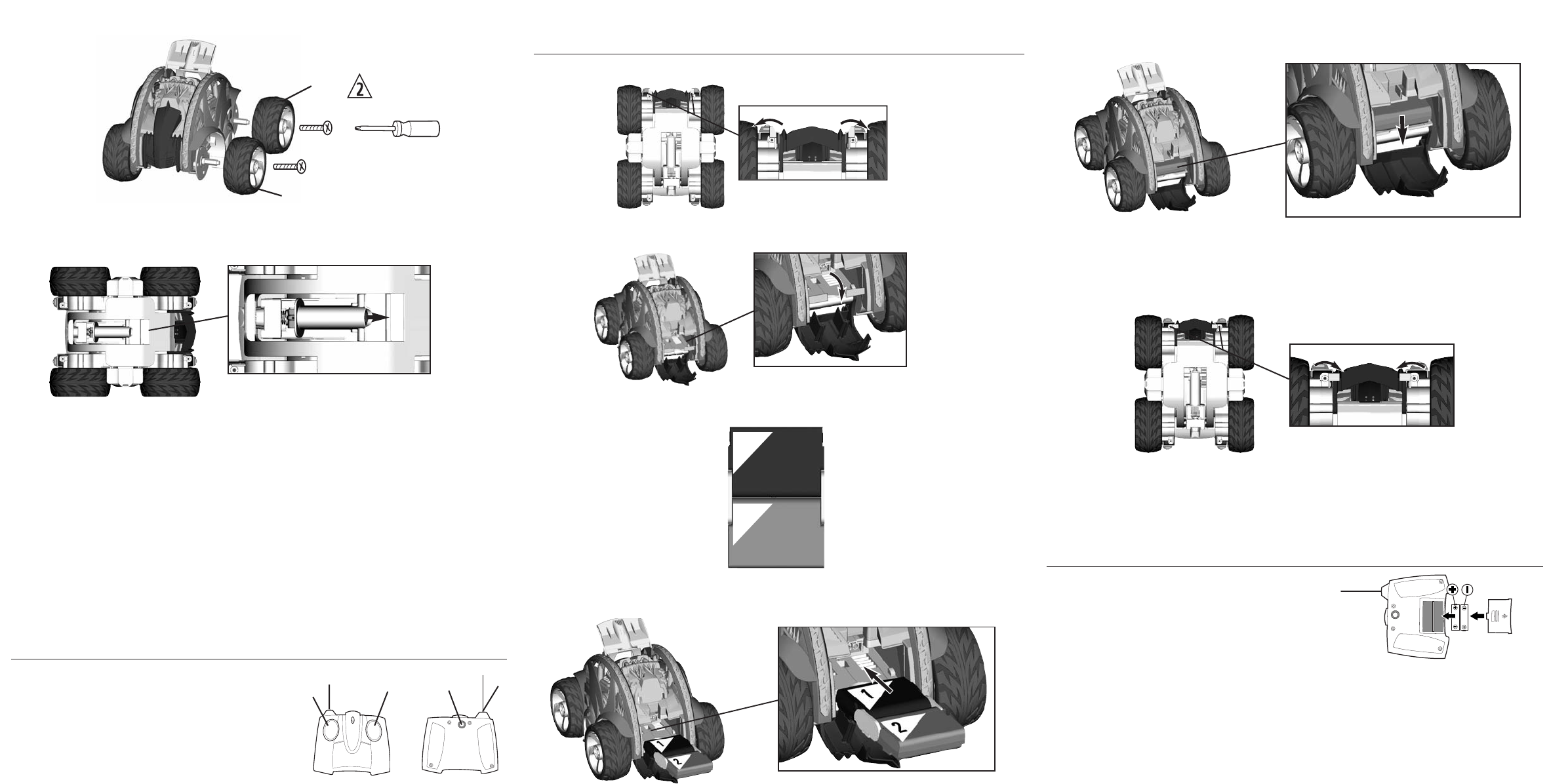

NOTE: When you take your vehicle out of the box, you will need to perform a few simple steps to get it ready for action:
1. Attach 1 front wheel and 1 back wheel. This is a simple, one-time process. Each wheel is marked with its own symbol
for easy identification, and the chassis is marked with a corresponding symbol.
(Shown with all 4 wheels attached – please see Note below)
qBattery door
wLED Indicator
eBattery door latches (x2) rRear wing
tON/OFF switch
ySuper stunt arm
CAUTION:
Surfaces may become hot and cause burns if
electronics get wet. Do not operate vehicle through water or snow.
Transmitter
qDriving controls
wStunt button
eAntenna
NOTE: Your transmitter is equipped with a special automatic ON
battery-saving feature. Just turn your vehicle ON. Then activate
the transmitter controls and you will be able to run and control
your vehicle.
BATTERY INSTALLATION
Vehicle
Transmitter
PROTECTION SYSTEMS
Your vehicle is equipped with advanced systems to
protect its electronic components.
SMART CIRCUITRY
Special “Smart Circuitry” is designed to cut your
vehicle’s power in the event it stalls or gets stuck. This
does not indicate a problem with the vehicle! Simply
release the transmitter controls for a few seconds, then
resume normal operation.
LED INDICATOR
The LED indicator can give you important information
about your vehicle’s status. In normal operation, the LED
is OFF.
• If the LED indicator comes on and glows steadily
(typically under extreme operating conditions), the
vehicle will stop running temporarily. This does not
indicate a problem with the vehicle! Simply release the
transmitter controls and wait until the LED indicator
goes off (this could take a couple of minutes). Don’t
remove or touch the vehicle battery while the LED
indicator is glowing steadily – the battery may be warm
to the touch.
• If the LED indicator comes on and flashes, you need to
recharge your vehicle’s battery. Simply turn the vehicle
switch OFF, remove the battery and recharge it. (You
may want to consider purchasing a spare battery for
non-stop driving action.)
1. To install the transmitter batteries, open battery door as
shown.
2. Install two LR6 (AA) batteries with polarity (+/-) as shown
inside battery compartment.
3. Close battery door.
BATTERY CHARGING/CARE
For detailed information regarding NiMH vehicle battery charging and safety, please follow the specific instructions
that came with your battery pack and charger.
2 x 1.5V d.c.
7.2V d.c.
1
2
q
qe
w
1. Rotate the 2 latches outward, as shown, to unlock the battery door.
2. Make sure the TMH® FlexPak® battery pack is fully flat, so that the labels marked 1 and 2 are facing up, as
shown.
3. Swing the battery door up and push to close. Rotate the 2 latches inward, as shown, to lock the battery door.
NOTE: The super stunt arm must be in the retracted position in order to access the vehicle’s battery compartment.
Swing the battery door down.
Insert the battery pack into the battery compartment as shown and slide it all the way into the battery compartment.
Press down to snap the battery pack into place.
First, match the symbol on the inside of the tire to the corresponding symbol on the chassis, as shown. Then slide
each wheel onto the axle and tighten the screw as shown (screwdriver not included).
Rear
Front
2. Snap the shock absorber onto the super stunt arm as shown. Carefully align the shock absorber with the steel bar,
and push to snap it into place.
NOTE: If the super stunt arm ever gets stuck in the extended position, simply turn the vehicle’s power switch OFF and
pull the arm away from the vehicle body until it unsnaps from the shock absorber. Before operating the vehicle
again, reattach the shock absorber as described in Number 2.
q
