User Manual
INSTRUCTION SHEET
SPECIFICATIONS
Toy:
Toy No.:
Part No.:
Trim Size:
Folded Size:
Type of Fold:
# colors:
Colors:
Paper Stock:
Paper Weight:
EDM No.:
Zip 'n Zoom Shann 49MHz
55647
0920 G1
16.5" W x 8.5" H
5.5" W x 8.5" H
3-Panel
One
Black
White Offset
70 lb.
™
55647-0920 G1
This product is not recommended for use on loose dirt or rough,
bumpy or wet surfaces. Do not immerse in water.
Keep these instructions for future reference as they contain important information.
© 2002 Mattel, Inc., El Segundo, CA 90245 U.S.A. All Rights Reserved.
Mattel U.K. Ltd., Vanwall Business Park, Maidenhead SL6 4UB. Helpline 01628500303.
Mattel Australia Pty., Ltd., Richmond, Victoria. 3121.Consumer Advisory Service - 1300 135 312.
Mattel East Asia Ltd, World Finance Centre, Harbour City, Tsimshatsui, HK, China.
CONTENTS:
Instructions
Ages 6+
49MHz
BATTERY SAFETY INFORMATION:
1. Non-rechargeable batteries are not to be recharged.
2. Rechargeable batteries are to be removed from the toy before being charged.
3. Rechargeable batteries are only to be charged under adult supervision.
4. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.
5. Do not mix old and new batteries
6. Only batteries of the same or equivalent type as recommended are to be used.
7. Batteries are to be inserted with the correct polarity.
8. Exhausted batteries are to be removed from the toy.
9. The supply terminals are not to be short-circuited.
10. Dispose of batteries safely.
11. Do not dispose of in fire as batteries may explode or leak.
12. Products with non-replaceable batteries are not to be disposed of in a fire as the batteries inside may explode or leak.
1. 2.
BENT OR DIRTY CONTACTS MAY
RESULT IN LOSS OF POWER.
GENTLY BEND BACK METAL
CONTACT IF BATTERY DOES NOT
FIT CORRECTLY.
Install Batteries
1. Controller requires 1 “9-Volt” alkaline battery
(not included)
.
2. Scooter requires 4 “AA” alkaline batteries
(not included)
.
Unscrew battery compartment door with Phillips head
screwdriver (not included), and lift off. Insert batteries and replace door.
Get Ready!
Remove twist ties
under scooter.
Apply stickers
to scooter
wherever
you like!
ON / OFF SWITCH

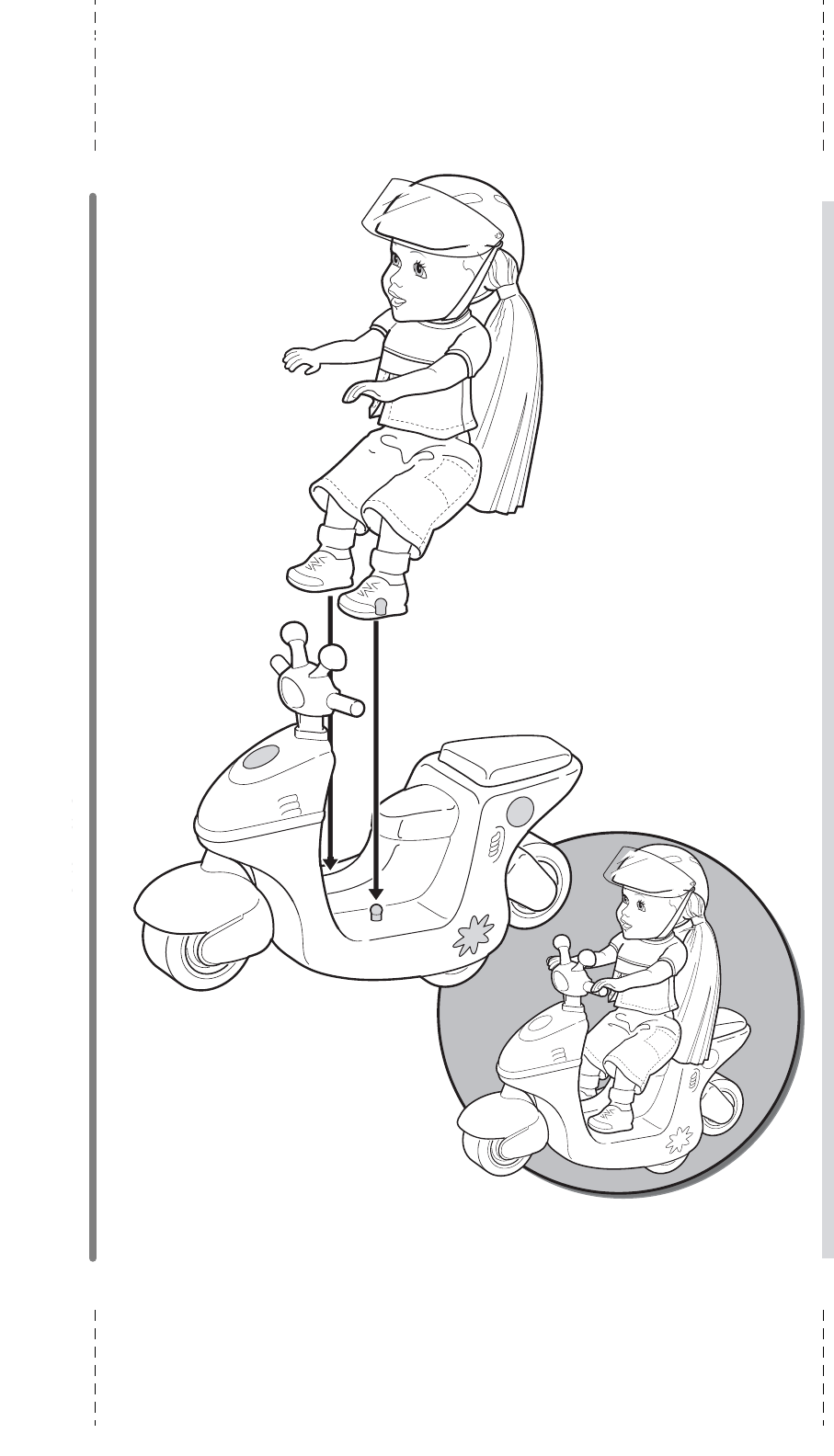

Attach Doll
to Scooter
If doll detaches from scooter,
reattach as shown.

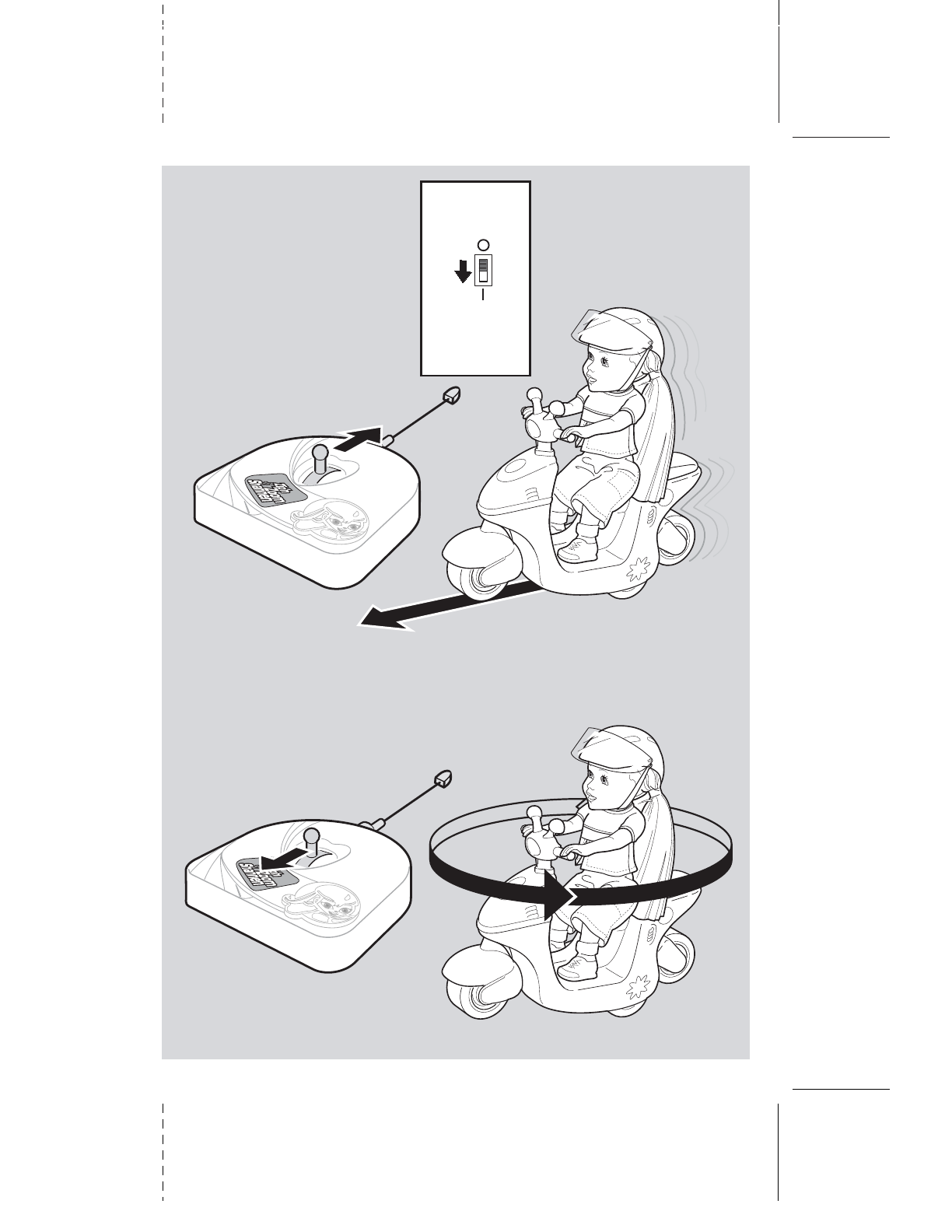

Your Scooter
Moves 2 Ways!
ROTATE
360°
Pull joystick backwards to
rotate scooter counter-clockwise.
2.
1.
FORWARD
To set toy in motion,
push joystick forward.
FIRST, turn switch
(under scooter) to
"I" position (ON).
ALWAYS switch to
"O" position (OFF)
when finished
playing.
OFF
ON
QUICK TIPS
1. When the scooter does not respond, slows down, or loses range, change the batteries.
Your vehicle’s running time may change depending on your driving style.
2. Radio interference can make your vehicle run badly. Interference can be caused by other R/C
vehicles running on the same frequency; electrical wires; large buildings; or CB radios. Try
to stay away from these!
3. Operating multiple vehicles with the same frequency in close proximity will cause
interference and poor performance. Zip ’n Zoom Shannen™ Doll is available in 2 different
frequencies. Each sold separately and subject to availability. Use 2 different frequencies
(27 MHz and 49 MHz) for racing 2 scooters.
4. Point your transmitter up – not down toward your vehicle. If your vehicle gets too far away,
it won’t work properly.
5. Don’t drive your vehicle in sand, over bumpy/rough surfaces, or through water or snow. If
your vehicle does get wet, wipe with a towel and allow to dry completely.
6. Always turn switches OFF and remove all batteries for storage.
7. If transmitter is accidentally dropped in the water, remove batteries and allow transmitter to
air dry. Replace with fresh batteries before operation.
ON/OFF
• Switch to "O" position (OFF)
when finished with play.
• Switch to "I" position (ON)
to resume play.
SAFETY PRECAUTIONS
Adults, this toy is recommended for children 6 years of age
and older. To ensure that the child’s play is both safe and fun,
please review the operating instructions and these general
rules with the child.
!
CAUTION:
To prevent entanglement,
keep hair away from wheels.
• DO NOT pick up vehicle while in motion.
• Keep fingers, hair and loose clothing
away from the tires and the wheel hubs
while the vehicle is switched ON.
• Adult supervision is recommended
during operation of this vehicle.
• To avoid accidental operation, remove
batteries when not in use.
• Play safely! DO NOT operate your
scooter in the streets!
COMPLIANCE WITH FCC REGULATIONS
THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
Mattel Inc., 333 Continental Blvd., El Segundo, CA, (310) 252-2400
CAUTION:
Changes or modifications not expressively approved by the manufacturer responsible for
compliance could void the user’s authority to operate the equipment.
Radio-controlled toy from up to 30 feet (9 m) away. This product operates at a frequency of 49 MHz.
!
90-DAY LIMITED WARRANTY TYCO® R/C PRODUCTS
Mattel, Inc. warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for ninety
(90) days (unless specified in alternate warranties) from the date of purchase. Mattel will repair or replace the product, at our sole option,
in the event of such a defect within the warranty period. In the event of a defect covered under this warranty, first call the toll-free number
listed below. Many problems can be solved in this manner. If necessary, you will be instructed to return the product, postage prepaid and
insured, to the address below. Enclose your name, address, dated sales receipt, and a brief explanation of the defect. Repair or
replacement, and return shipment, will be free of charge. Please return only the defective part or unit, packed securely. This warranty does
not cover damage resulting from unauthorized modification, accident, misuse or abuse. If the product is returned without a dated sales
receipt the product may be excluded from coverage under this warranty. Mattel’s liability for defects in material and workmanship under
this warranty shall be limited to repair or replacement, at our sole option, and in no event shall we be responsible for incidental,
consequential, or contingent damages (except in those states that do not allow this exclusion or limitation). This warranty is exclusive, and
is made in lieu of any express or implied warranty. Valid only in U.S.A. This warranty gives you specific legal rights and you may have
other rights, which vary from state to state. Some states do not allow the exclusion of incidental or consequential damages, so the above
exclusions or limitations may not apply to you.
TOLL-FREE NUMBER: 1-888-557-TYCO (8926) (valid only in U.S.A.) Hours: 8:00 A.M. - 5:00 P.M. Eastern Time; Monday - Friday.
Expect some delay in January following the holiday season. Please be patient and keep trying the toll-free number.
ADDRESS FOR RETURNS:
CONSUMER RELATIONS
636 GIRARD AVENUE
EAST AURORA, NY 14052
CONSUMER INFORMATION
1
(800) 524-TOYS
WE ARE DEDICATED TO QUALITY PRODUCTS.
MATTY MATTEL™ toys
YOU CAN TELL IT’S MATTEL!™ CALL us
toll-free or write with any comments or
questions about our products or service.
Monday-Friday 8:00 a.m.-6:00 p.m.
Eastern Time. Outside U.S.A., see
telephone directory for Mattel listing.
Consumer Relations, Mattel, Inc.
333 Continental Blvd.
El Segundo, CA 90245 USA
