User Manual

Digi International Inc.

11001 Bren Road East

Minnetonka, MN 55343

877 912-3444 or 952 912-3444

http://www.digi.com

XBee®/XBee-PRO® RF Modules

RF Module Operation

RF Module Configuration

Appendices

Product Manual v1.xEx - 802.15.4 Protocol

For RF Module Part Numbers: XB24-A...-001, XBP24-A...-001

IEEE® 802.15.4 RF Modules by Digi International

90000982_E

7/27/2011

DRAFT

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[7/27/2011]

©2011DigiInternational,Inc. ii

Thecontentsofthismanualmaynotbetransmittedorreproducedinanyformor

byanymeanswithoutthewrittenpermissionofDigi,Inc.

XBee®andXBee‐PRO®areregisteredtrademarksofDigi,Inc.

Technical Support: Phone: (866) 765-9885 toll-free U.S.A. & Canada

(801) 765-9885 Worldwide

8:00 am - 5:00 pm [U.S. Mountain Time]

Live Chat: www.digi.com

Online Support: http://www.digi.com/support/eservice/login.jsp

Email: rf-experts@digi.com

Contents

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternational,Inc. iii

1. XBee®/XBee-PRO® RF Modules 4

Key Features 4

Worldwide Acceptance 4

Specifications 5

Mechanical Drawings 6

Mounting Considerations 6

Pin Signals 7

Design Notes 7

Power Supply Design 7

Recommended Pin Connections 8

Board Layout 8

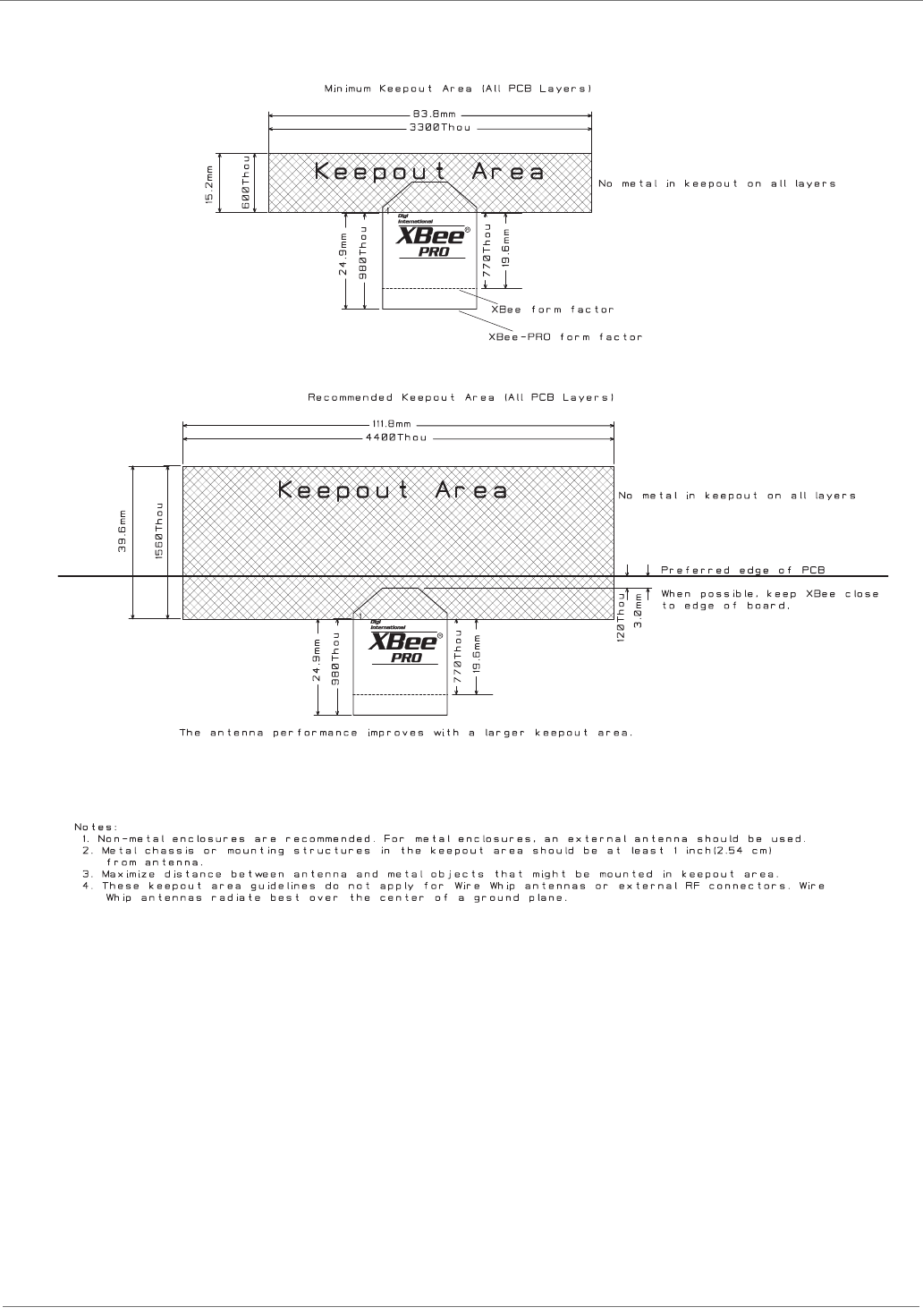

Antenna Performance 8

Electrical Characteristics 10

2. RF Module Operation 11

Serial Communications 11

UART Data Flow 11

Transparent Operation 12

API Operation 12

Flow Control 13

ADC and Digital I/O Line Support 14

I/O Data Format 14

API Support 15

Sleep Support 15

DIO Pin Change Detect 15

Sample Rate (Interval) 15

I/O Line Passing 16

Configuration Example 16

XBee®/XBee-PRO® Networks 17

Peer-to-Peer 17

NonBeacon (w/ Coordinator) 17

Association 18

XBee®/XBee-PRO® Addressing 21

Unicast Mode 21

Broadcast Mode 21

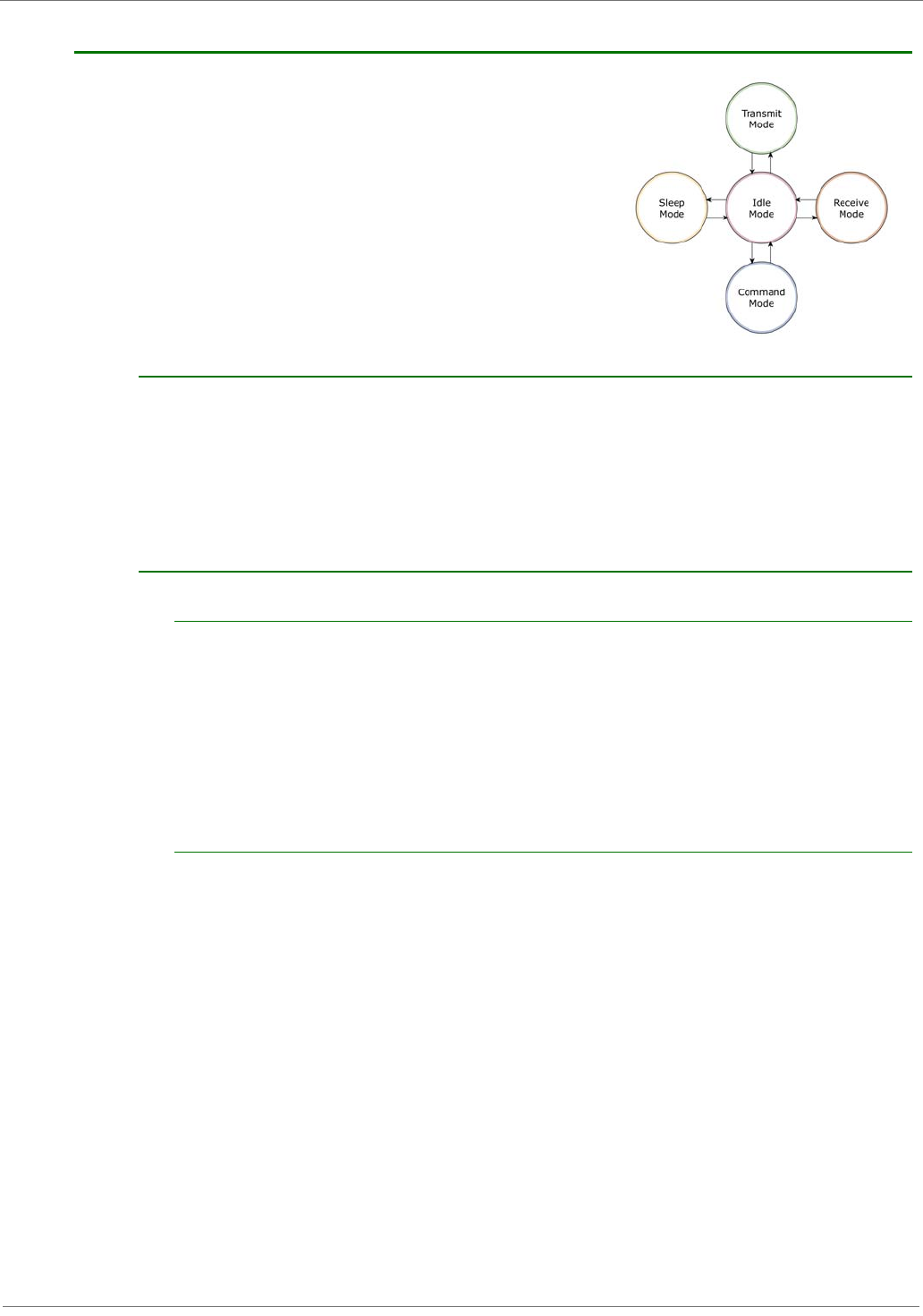

Modes of Operation 22

Idle Mode 22

Transmit/Receive Modes 22

Sleep Mode 24

Command Mode 26

3. RF Module Configuration 27

Programming the RF Module 27

Programming Examples 27

Remote Configuration Commands 28

Sending a Remote Command 28

Applying Changes on Remote 28

Remote Command Responses 28

Command Reference Tables 28

Command Descriptions 36

API Operation 56

API Frame Specifications 56

API Types 57

Appendix A: Agency Certifications 63

United States (FCC) 63

OEM Labeling Requirements 63

FCC Notices 63

FCC-Approved Antennas (2.4 GHz) 64

Approved Antennas 66

Canada (IC) 67

Labeling Requirements 67

Japan 67

Labeling Requirements 67

Appendix B: Additional Information 68

1-Year Warranty 68

©2011DigiInternationalInc. 4

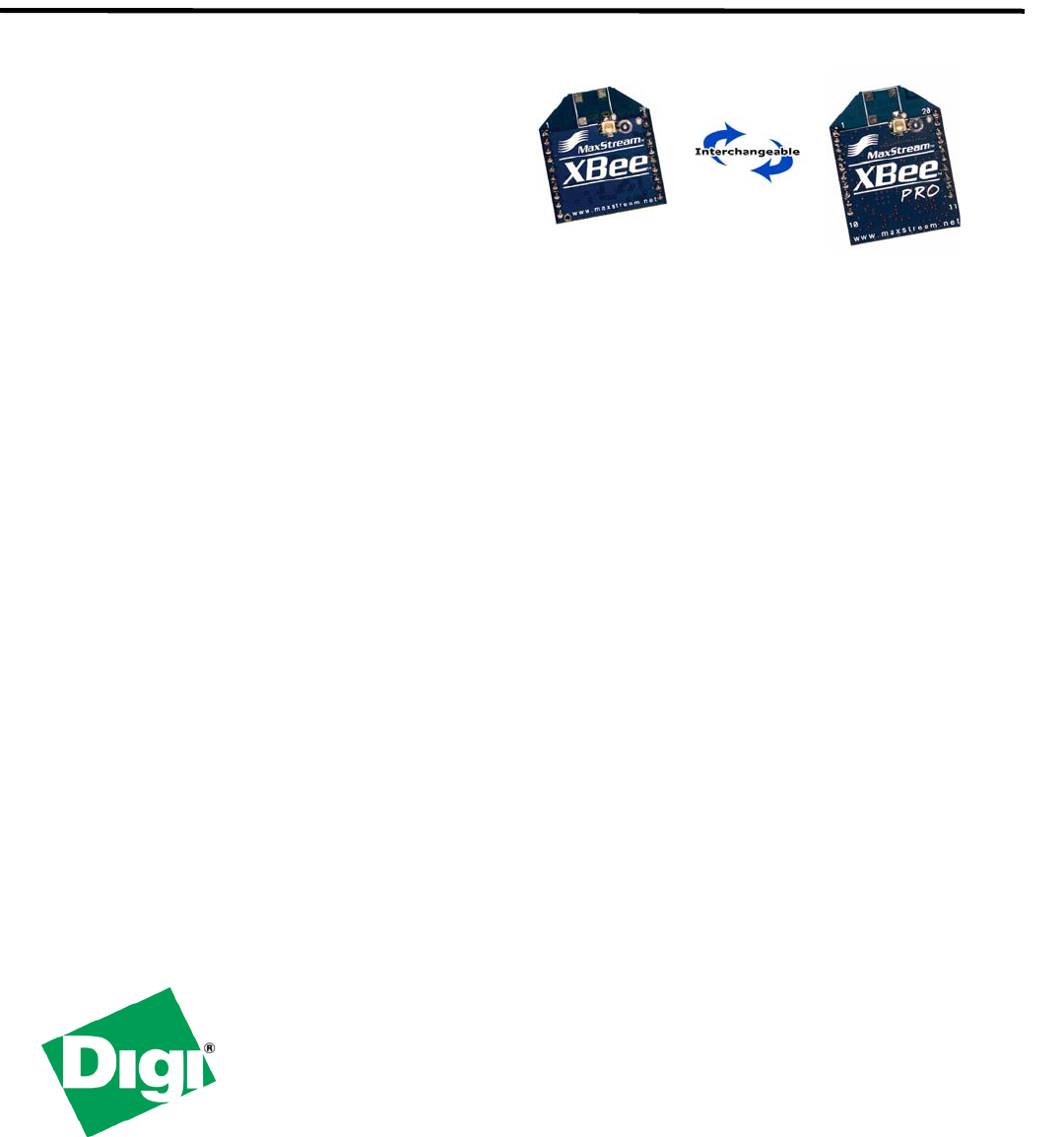

1.XBee®/XBee‐PRO®RFModules

The XBee and XBee-PRO RF Modules were engineered to

meet IEEE 802.15.4 standards and support the unique

needs of low-cost, low-power wireless sensor networks.

The modules require minimal power and provide reliable

delivery of data between devices.

The modules operate within the ISM 2.4 GHz frequency

band and are pin-for-pin compatible with each other.

Key Features

Worldwide Acceptance

FCC Approval (USA) Refer to Appendix A [p63] for FCC Requirements.

Systems that contain XBee®/XBee-PRO® RF Modules inherit Digi Certifications.

ISM (Industrial, Scientific & Medical) 2.4 GHz frequency band

Manufactured under ISO 9001:2000 registered standards

XBee®/XBee-PRO® RF Modules are optimized for use in the United States, Canada,

Australia, Japan, and Europe. Contact Digi for complete list of government agency

approvals.

Long Range Data Integrity

XBee

• Indoor/Urban: up to 100’ (30 m)

• Outdoor line-of-sight: up to 300’ (90 m)

• Transmit Power: 1 mW (0 dBm)

• Receiver Sensitivity: -92 dBm

XBee-PRO

• Indoor/Urban: up to 300’ (90 m), 200' (60 m) for

International variant

• Outdoor line-of-sight: up to 1 mile (1600 m), 2500'

(750 m) for International variant

• Transmit Power: 63mW (18dBm), 10mW (10dBm)

for International variant

• Receiver Sensitivity: -100 dBm

RF Data Rate: 250,000 bps

Advanced Networking & Security

Retries and Acknowledgements

DSSS (Direct Sequence Spread Spectrum)

Each direct sequence channels has over

65,000 unique network addresses available

Source/Destination Addressing

Unicast & Broadcast Communications

Point-to-point, point-to-multipoint 

and peer-to-peer topologies supported

Coordinator/End Device operations

Transparent and API Operations

128-bit Encryption

Low Power

XBee

• TX Peak Current: 45 mA (@3.3 V)

• RX Current: 50 mA (@3.3 V)

• Power-down Current: < 10 µA

XBee-PRO

• TX Peak Current: 250mA (150mA for interna-

tional variant)

• TX Peak Current (RPSMA module only):

340mA (180mA for international variant)

• RX Current: 55 mA (@3.3 V)

• Power-down Current: < 10 µA

ADC and I/O line support

Analog-to-digital conversion, Digital I/O

I/O Line Passing

Easy-to-Use

No configuration necessary for out-of box

RF communications

Free X-CTU Software

(Testing and configuration software)

AT and API Command Modes for 

configuring module parameters

Extensive command set

Small form factor

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 5

Specifications

*SeeAppendixAforregion‐specificcertificationrequirements.

Antenna Options: The ranges specified are typical when using the integrated Whip (1.5 dBi) and Dipole (2.1 dBi) anten-

nas. The Embedded PCB antenna option provides advantages in its form factor; however, it typically yields shorter range

than the Whip and Dipole antenna options when transmitting outdoors.For more information, refer to the "XBee Anten-

nas" Knowledgebase Article located on Digi's Support Web site

Table1‐01. SpecificationsoftheXBee®/XBee‐PRO®RFModules

Specification XBee XBee-PRO

Performance

Indoor/Urban Range Up to 100 ft (30 m) Up to 300 ft. (90 m), up to 200 ft (60 m) International

variant

Outdoor RF line-of-sight Range Up to 300 ft (90 m) Up to 1 mile (1600 m), up to 2500 ft (750 m)

international variant

Transmit Power Output

(software selectable) 1mW (0 dBm) 63mW (18dBm)*

10mW (10 dBm) for International variant

RF Data Rate 250,000 bps 250,000 bps

Serial Interface Data Rate

(software selectable)

1200 bps - 250 kbps

(non-standard baud rates also supported)

1200 bps - 250 kbps

(non-standard baud rates also supported)

Receiver Sensitivity -92 dBm (1% packet error rate) -100 dBm (1% packet error rate)

Power Requirements

Supply Voltage 2.8 – 3.4 V 2.8 – 3.4 V

Transmit Current (typical) 45mA (@ 3.3 V) 250mA (@3.3 V) (150mA for international variant)

RPSMA module only: 340mA (@3.3 V) (180mA for

international variant)

Idle / Receive Current (typical) 50mA (@ 3.3 V) 55mA (@ 3.3 V)

Power-down Current < 10 µA < 10 µA

General

Operating Frequency ISM 2.4 GHz ISM 2.4 GHz

Dimensions 0.960” x 1.087” (2.438cm x 2.761cm) 0.960” x 1.297” (2.438cm x 3.294cm)

Operating Temperature -40 to 85º C (industrial) -40 to 85º C (industrial)

Antenna Options Integrated Whip Antenna, EmbeddedPCB Antenna,

U.FL Connector, RPSMA connector Integrated Whip Antenna, Embedded PCB Antenna,

U.FL Connector, RPSMA connector

Networking & Security

Supported Network Topologies Point-to-point, Point-to-multipoint & Peer-to-peer

Number of Channels

(software selectable) 16 Direct Sequence Channels 12 Direct Sequence Channels

Addressing Options PAN ID, Channel and Addresses PAN ID, Channel and Addresses

Agency Approvals

United States (FCC Part 15.247) OUR-XBEE OUR-XBEEPRO

Industry Canada (IC) 4214A XBEE 4214A XBEEPRO

Europe (CE) ETSI ETSI (Max. 10 dBm transmit power output)*

Japan R201WW07215214 R201WW08215111 (Max. 10 dBm transmit power

output)*

Australia C-Tick C-Tick

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 6

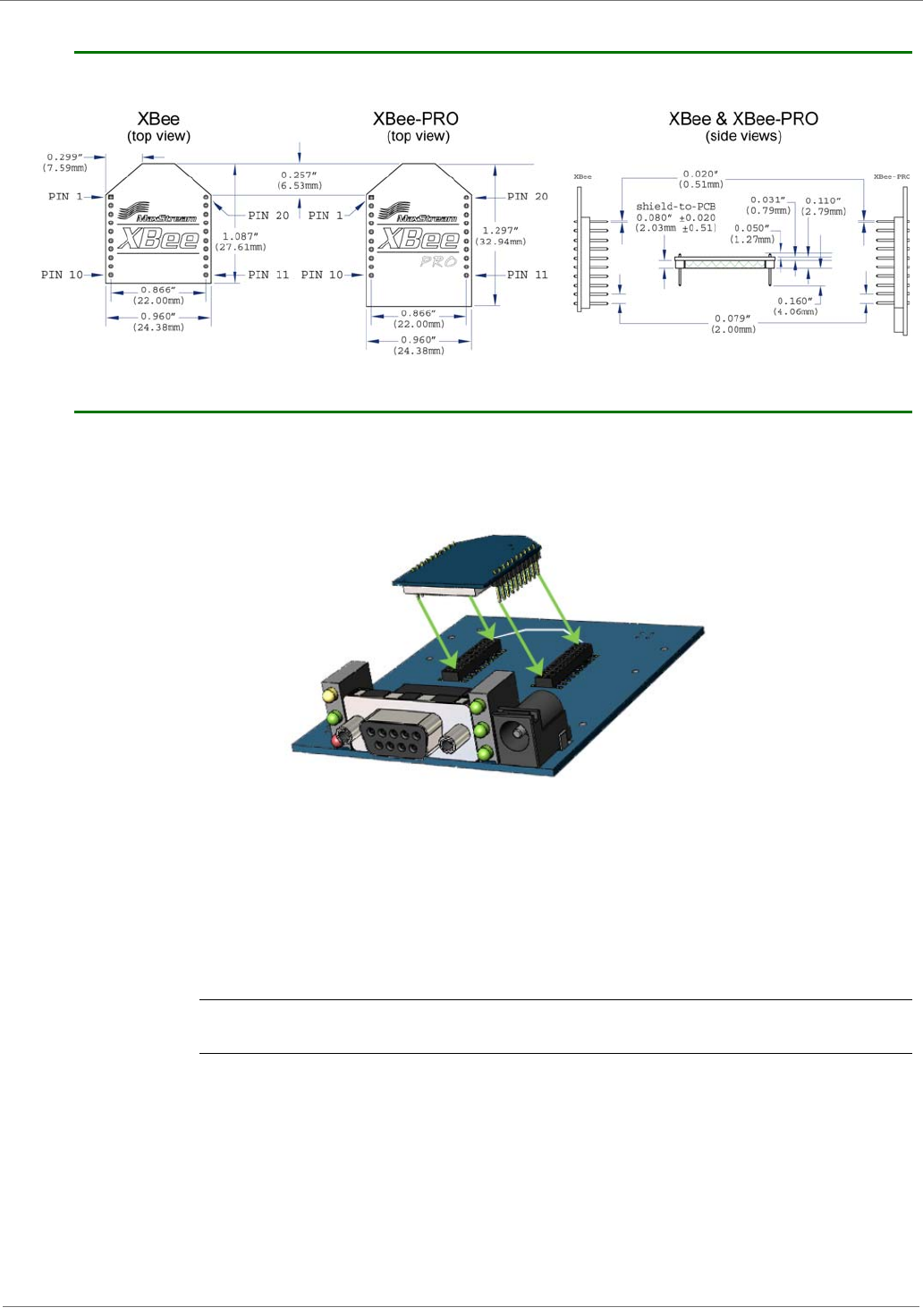

Mechanical Drawings

Figure1‐01. MechanicaldrawingsoftheXBee®/XBee‐PRO®RFModules(antennaoptionsnotshown)

TheXBeeandXBee‐PRORFModulesarepin‐for‐pincompatible.

Mounting Considerations

The XBee®/XBee-PRO® RF Module was designed to mount into a receptacle (socket) and there-

fore does not require any soldering when mounting it to a board. The XBee Development Kits con-

tain RS-232 and USB interface boards which use two 20-pin receptacles to receive modules.

Figure1‐02. XBeeModuleMountingtoanRS‐232InterfaceBoard.

The receptacles used on Digi development boards are manufactured by Century Interconnect.

Several other manufacturers provide comparable mounting solutions; however, Digi currently uses

the following receptacles:

• Through-hole single-row receptacles - 

Samtec P/N: MMS-110-01-L-SV (or equivalent)

• Surface-mount double-row receptacles - 

Century Interconnect P/N: CPRMSL20-D-0-1 (or equivalent)

• Surface-mount single-row receptacles - 

Samtec P/N: SMM-110-02-SM-S

Digi also recommends printing an outline of the module on the board to indicate the orientation the

module should be mounted.

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 7

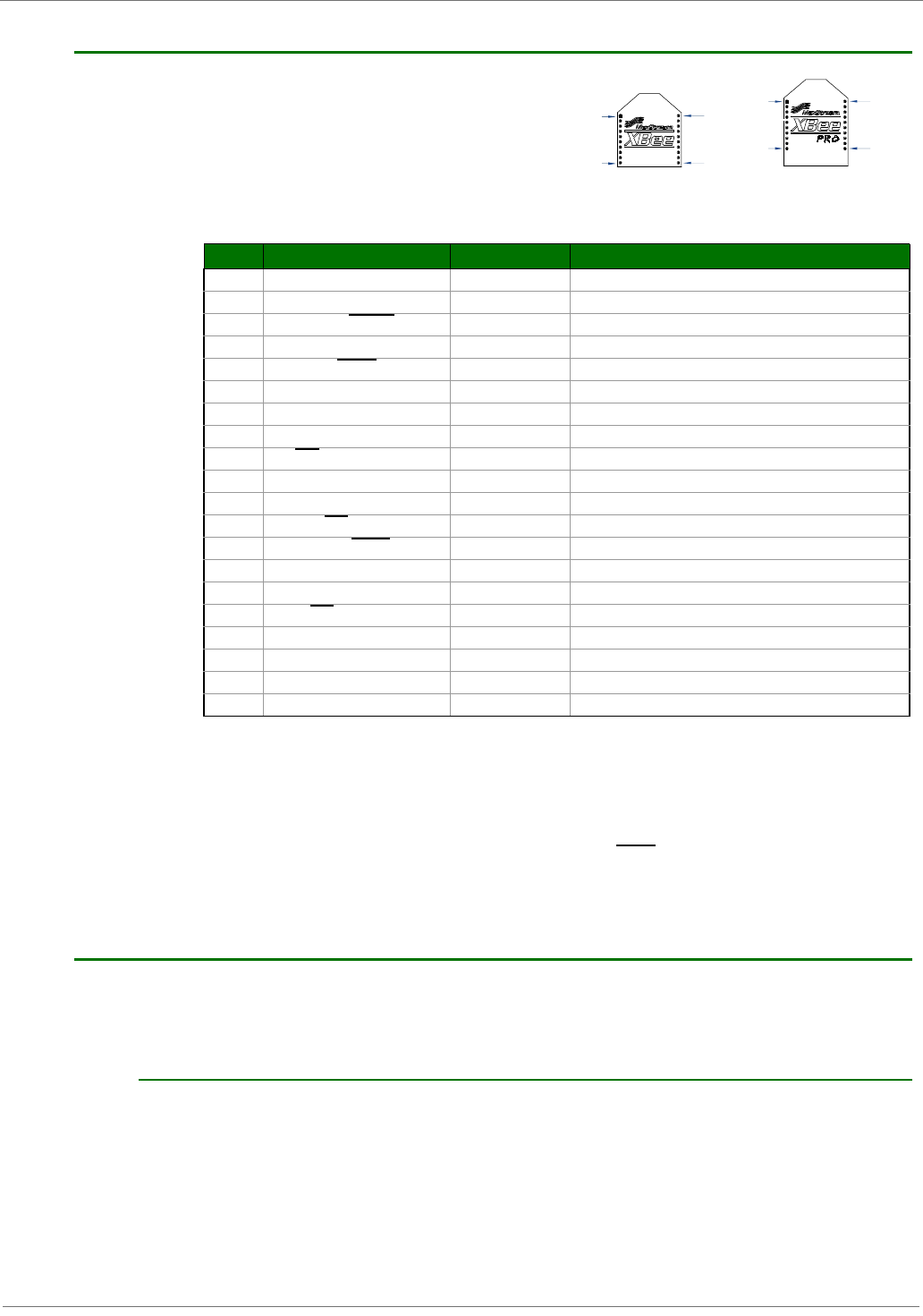

Pin Signals

Figure1‐03. XBee®/XBee‐PRO®RFModulePin

Numbers

(topsidesshown‐shieldsonbottom)

*Functionisnotsupportedatthetimeofthisrelease

Notes:

• Minimum connections: VCC, GND, DOUT & DIN

• Minimum connections for updating firmware: VCC, GND, DIN, DOUT, RTS & DTR

• Signal Direction is specified with respect to the module

• Module includes a 50k pull-up resistor attached to RESET

• Several of the input pull-ups can be configured using the PR command

• Unused pins should be left disconnected

Design Notes

The XBee modules do not specifically require any external circuitry or specific connections for

proper operation. However, there are some general design guidelines that are recommended for

help in troubleshooting and building a robust design.

Power Supply Design

Poor power supply can lead to poor radio performance, especially if the supply voltage is not kept

within tolerance or is excessively noisy. To help reduce noise, we recommend placing a 1.0 µF and

8.2 pF capacitor as near as possible to pin 1 on the XBee. If using a switching regulator for the

power supply, switching frequencies above 500 kHz are preferred. Power supply ripple should be

limited to a maximum 100 mV peak to peak.

Table1‐02. PinAssignmentsfortheXBeeandXBee‐PROModules

(Low‐assertedsignalsaredistinguishedwithahorizontallineabovesignalname.)

Pin # Name Direction Description

1 VCC - Power supply

2 DOUT Output UART Data Out

3 DIN / CONFIG Input UART Data In

4 DO8* Output Digital Output 8

5RESET Input Module Reset (reset pulse must be at least 200 ns)

6 PWM0 / RSSI Output PWM Output 0 / RX Signal Strength Indicator

7 PWM1 Output PWM Output 1

8 [reserved] - Do not connect

9DTR

/ SLEEP_RQ / DI8 Input Pin Sleep Control Line or Digital Input 8

10 GND - Ground

11 AD4 / DIO4 Either Analog Input 4 or Digital I/O 4

12 CTS / DIO7 Either Clear-to-Send Flow Control or Digital I/O 7

13 ON / SLEEP Output Module Status Indicator

14 VREF Input Voltage Reference for A/D Inputs

15 Associate / AD5 / DIO5 Either Associated Indicator, Analog Input 5 or Digital I/O 5

16 RTS / AD6 / DIO6 Either Request-to-Send Flow Control, Analog Input 6 or Digital I/O 6

17 AD3 / DIO3 Either Analog Input 3 or Digital I/O 3

18 AD2 / DIO2 Either Analog Input 2 or Digital I/O 2

19 AD1 / DIO1 Either Analog Input 1 or Digital I/O 1

20 AD0 / DIO0 Either Analog Input 0 or Digital I/O 0

Pin 1

Pin 10

Pin 1

Pin 10

Pin 20

Pin 11

Pin 20

Pin 11

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 8

Recommended Pin Connections

The only required pin connections are VCC, GND, DOUT and DIN. To support serial firmware

updates, VCC, GND, DOUT, DIN, RTS, and DTR should be connected.

All unused pins should be left disconnected. All inputs on the radio can be pulled high with internal

pull-up resistors using the PR software command. No specific treatment is needed for unused out-

puts.

Other pins may be connected to external circuitry for convenience of operation including the Asso-

ciate LED pin (pin 15) and the commissioning button pin (pin 20). The Associate LED will flash dif-

ferently depending on the state of the module, and a pushbutton attached to pin 20 can enable

various deployment and troubleshooting functions without having to send UART commands.

If analog sampling is desired, VRef (pin 14) should be attached to a voltage reference.

Board Layout

XBee modules are designed to be self sufficient and have minimal sensitivity to nearby processors,

crystals or other PCB components. As with all PCB designs, Power and Ground traces should be

thicker than signal traces and able to comfortably support the maximum current specifications. No

other special PCB design considerations are required for integrating XBee radios except in the

antenna section.

Antenna Performance

Antenna location is an important consideration for optimal performance. In general, antennas radi-

ate and receive best perpendicular to the direction they point. Thus a vertical antenna's radiation

pattern is strongest across the horizon. Metal objects near the antenna may impede the radiation

pattern. Metal objects between the transmitter and receiver can block the radiation path or reduce

the transmission distance, so antennas should be positioned away from them when possible. Some

objects that are often overlooked are metal poles, metal studs or beams in structures, concrete (it

is usually reinforced with metal rods), vehicles, elevators, ventilation ducts, refrigerators, micro-

wave ovens, batteries, and tall electrolytic capacitors. If the XBee is to be placed inside a metal

enclosure, an external antenna should be used.

XBee units with the Embedded PCB Antenna should not be placed inside a metal enclosure or have

any ground planes or metal objects above or below the antenna. For best results, place the XBee

at the edge of the host PCB on which it is mounted. Ensure that the ground, power and signal

planes are vacant immediately below the antenna section. Digi recommends allowing a "keepout"

area, which is shown in detail on the next page.

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 9

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 10

Electrical Characteristics

Table1‐03. DCCharacteristics(VCC=2.8‐3.4VDC)

Symbol Characteristic Condition Min Typical Max Unit

VIL Input Low Voltage All Digital Inputs - - 0.35 * VCC V

VIH Input High Voltage All Digital Inputs 0.7 * VCC - - V

VOL Output Low Voltage IOL = 2 mA, VCC >= 2.7 V --0.5V

VOH Output High Voltage IOH = -2 mA, VCC >= 2.7 V VCC - 0.5 - - V

IIIN Input Leakage Current VIN = VCC or GND, all inputs, per pin - 0.025 1 µA

IIOZ High Impedance Leakage Current VIN = VCC or GND, all I/O High-Z, per pin - 0.025 1 µA

TX Transmit Current VCC = 3.3 V - 45

(XBee)

215, 140

(PRO,

Int) -mA

RX Receive Current VCC = 3.3 V - 50

(XBee) 55

(PRO) -mA

PWR-DWN Power-down Current SM parameter = 1 - < 10 - µA

Table1‐04. ADCCharacteristics(Operating)

Symbol Characteristic Condition Min Typical Max Unit

VREFH VREF - Analog-to-Digital converter

reference range 2.08 - VDDAD* V

IREF VREF - Reference Supply Current Enabled - 200 - µA

Disabled or Sleep Mode - < 0.01 0.02 µA

VINDC Analog Input Voltage1

1. Maximumelectricaloperatingrange,notvalidconversionrange.

*VDDADisconnectedtoVCC.

VSSAD - 0.3 -VDDAD + 0.3 V

Table1‐05. ADCTiming/PerformanceCharacteristics1

1. AllACCURACYnumbersarebasedonprocessorandsystembeinginWAITstate(verylittleactivityandnoIOswitching)

andthatadequatelow‐passfilteringispresentonanaloginputpins(filterwith0.01μFto0.1μFcapacitorbetweenanalog

inputandVREFL).Failuretoobservetheseguidelinesmayresultinsystemormicrocontrollernoisecausingaccuracyerrors

whichwillvarybasedonboardlayoutandthetypeandmagnitudeoftheactivity.

Datatransmissionandreceptionduringdataconversionmaycausesomedegradationofthesespecifications,dependingon

thenumberandtimingofpackets.ItisadvisabletotesttheADCsinyourinstallationifbestaccuracyisrequired.

Symbol Characteristic Condition Min Typical Max Unit

RAS Source Impedance at Input2

2. RASistherealportionoftheimpedanceofthenetworkdrivingtheanaloginputpin.Valuesgreaterthanthisamountmay

notfullychargetheinputcircuitryoftheATDresultinginaccuracyerror.

--10 k

VAIN Analog Input Voltage3

3. AnaloginputmustbebetweenVREFLandVREFHforvalidconversion.ValuesgreaterthanVREFHwillconvertto$3FF.

VREFL VREFH V

RES Ideal Resolution (1 LSB)4

4. Theresolutionistheidealstepsizeor1LSB=(VREFH–VREFL)/1024

2.08V < VDDAD < 3.6V 2.031 - 3.516 mV

DNL Differential Non-linearity5

5. Differentialnon‐linearityisthedifferencebetweenthecurrentcodewidthandtheidealcodewidth(1LSB).Thecurrent

codewidthisthedifferenceinthetransitionvoltagestoandfromthecurrentcode.

- ±0.5 ±1.0 LSB

INL Integral Non-linearity6

6. Integralnon‐linearityisthedifferencebetweenthetransitionvoltagetothecurrentcodeandtheadjustedidealtransition

voltageforthecurrentcode.Theadjustedidealtransitionvoltageis(CurrentCode–1/2)*(1/((VREFH+EFS)–(VREFL+EZS))).

- ±0.5 ±1.0 LSB

EZS Zero-scale Error7

7. Zero‐scaleerroristhedifferencebetweenthetransitiontothefirstvalidcodeandtheidealtransitiontothatcode.The

Idealtransitionvoltagetoagivencodeis(Code–1/2)*(1/(VREFH–VREFL)).

- ±0.4 ±1.0 LSB

FFS Full-scale Error8

8. Full‐scaleerroristhedifferencebetweenthetransitiontothelastvalidcodeandtheidealtransitiontothatcode.Theideal

transitionvoltagetoagivencodeis(Code–1/2)*(1/(VREFH–VREFL)).

- ±0.4 ±1.0 LSB

EIL Input Leakage Error9

9. Inputleakageerroriserrorduetoinputleakageacrosstherealportionoftheimpedanceofthenetworkdrivingtheanalog

pin.Reducingtheimpedanceofthenetworkreducesthiserror.

- ±0.05 ±5.0 LSB

ETU Total Unadjusted Error10

10.Totalunadjustederroristhedifferencebetweenthetransitionvoltagetothecurrentcodeandtheidealstraight‐linetrans‐

ferfunction.Thismeasureoferrorincludesinherentquantizationerror(1/2LSB)andcircuiterror(differential,integral,zero‐

scale,andfull‐scale)error.ThespecifiedvalueofETUassumeszeroEIL(noleakageorzerorealsourceimpedance).

- ±1.1 ±2.5 LSB

©2011DigiInternationalInc. 11

2.RFModuleOperation

Serial Communications

The XBee®/XBee-PRO® RF Modules interface to a host device through a logic-level asynchronous

serial port. Through its serial port, the module can communicate with any logic and voltage com-

patible UART; or through a level translator to any serial device (For example: Through a Digi pro-

prietary RS-232 or USB interface board).

UART Data Flow

Devices that have a UART interface can connect directly to the pins of the RF module as shown in

the figure below.

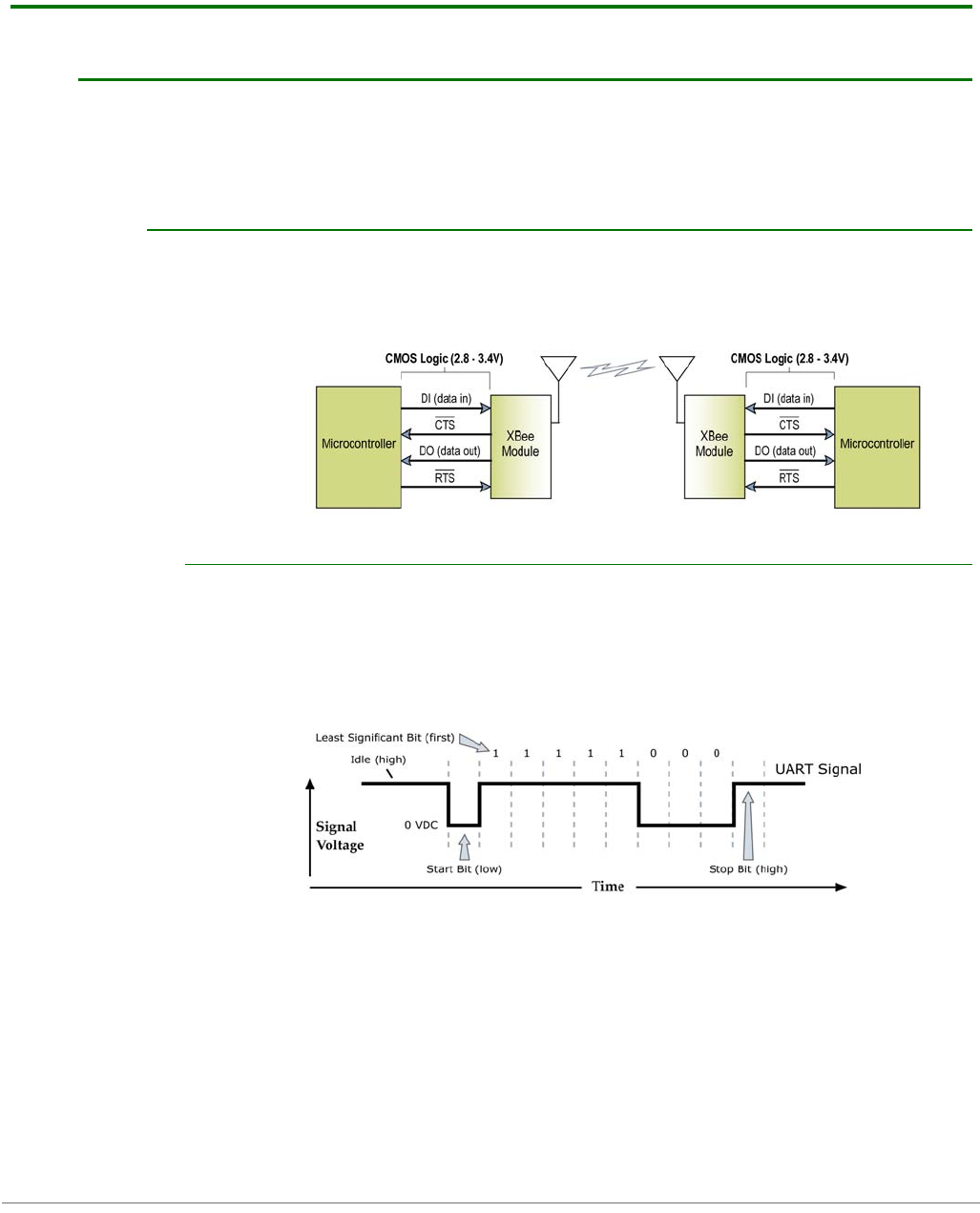

Figure2‐01. SystemDataFlowDiagraminaUART‐interfacedenvironment

(Low‐assertedsignalsdistinguishedwithhorizontallineoversignalname.)

Serial Data

Data enters the module UART through the DI pin (pin 3) as an asynchronous serial signal. The sig-

nal should idle high when no data is being transmitted.

Each data byte consists of a start bit (low), 8 data bits (least significant bit first) and a stop bit

(high). The following figure illustrates the serial bit pattern of data passing through the module.

Figure2‐02. UARTdatapacket0x1F(decimalnumberʺ31ʺ)astransmittedthroughtheRFmodule

ExampleDataFormatis8‐N‐1(bits‐parity‐#ofstopbits)

Serial communications depend on the two UARTs (the microcontroller's and the RF module's) to be

configured with compatible settings (baud rate, parity, start bits, stop bits, data bits).

The UART baud rate and parity settings on the XBee module can be configured with the BD and NB

commands, respectively. See the command table in Chapter 3 for details.

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 12

Transparent Operation

By default, XBee®/XBee-PRO® RF Modules operate in Transparent Mode. When operating in this

mode, the modules act as a serial line replacement - all UART data received through the DI pin is

queued up for RF transmission. When RF data is received, the data is sent out the DO pin.

Serial-to-RF Packetization

Data is buffered in the DI buffer until one of the following causes the data to be packetized and

transmitted:

If the module cannot immediately transmit (for instance, if it is already receiving RF data), the

serial data is stored in the DI Buffer. The data is packetized and sent at any RO timeout or when

100 bytes (maximum packet size) are received.

If the DI buffer becomes full, hardware or software flow control must be implemented in order to

prevent overflow (loss of data between the host and module).

API Operation

API (Application Programming Interface) Operation is an alternative to the default Transparent

Operation. The frame-based API extends the level to which a host application can interact with the

networking capabilities of the module.

When in API mode, all data entering and leaving the module is contained in frames that define

operations or events within the module.

Transmit Data Frames (received through the DI pin (pin 3)) include:

• RF Transmit Data Frame

• Command Frame (equivalent to AT commands)

Receive Data Frames (sent out the DO pin (pin 2)) include:

• RF-received data frame

• Command response

• Event notifications such as reset, associate, disassociate, etc.

The API provides alternative means of configuring modules and routing data at the host applica-

tion layer. A host application can send data frames to the module that contain address and payload

information instead of using command mode to modify addresses. The module will send data

frames to the application containing status packets; as well as source, RSSI and payload informa-

tion from received data packets.

The API operation option facilitates many operations such as the examples cited below:

To implement API operations, refer to API sections [p56].

1. No serial characters are received for the amount of time determined by the RO (Packetiza-

tion Timeout) parameter. If RO = 0, packetization begins when a character is received.

2. The maximum number of characters that will fit in an RF packet (100) is received.

3. The Command Mode Sequence (GT + CC + GT) is received. Any character buffered in the

DI buffer before the sequence is transmitted.

-> Transmitting data to multiple destinations without entering Command Mode

-> Receive success/failure status of each transmitted RF packet

-> Identify the source address of each received packet

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 13

Flow Control

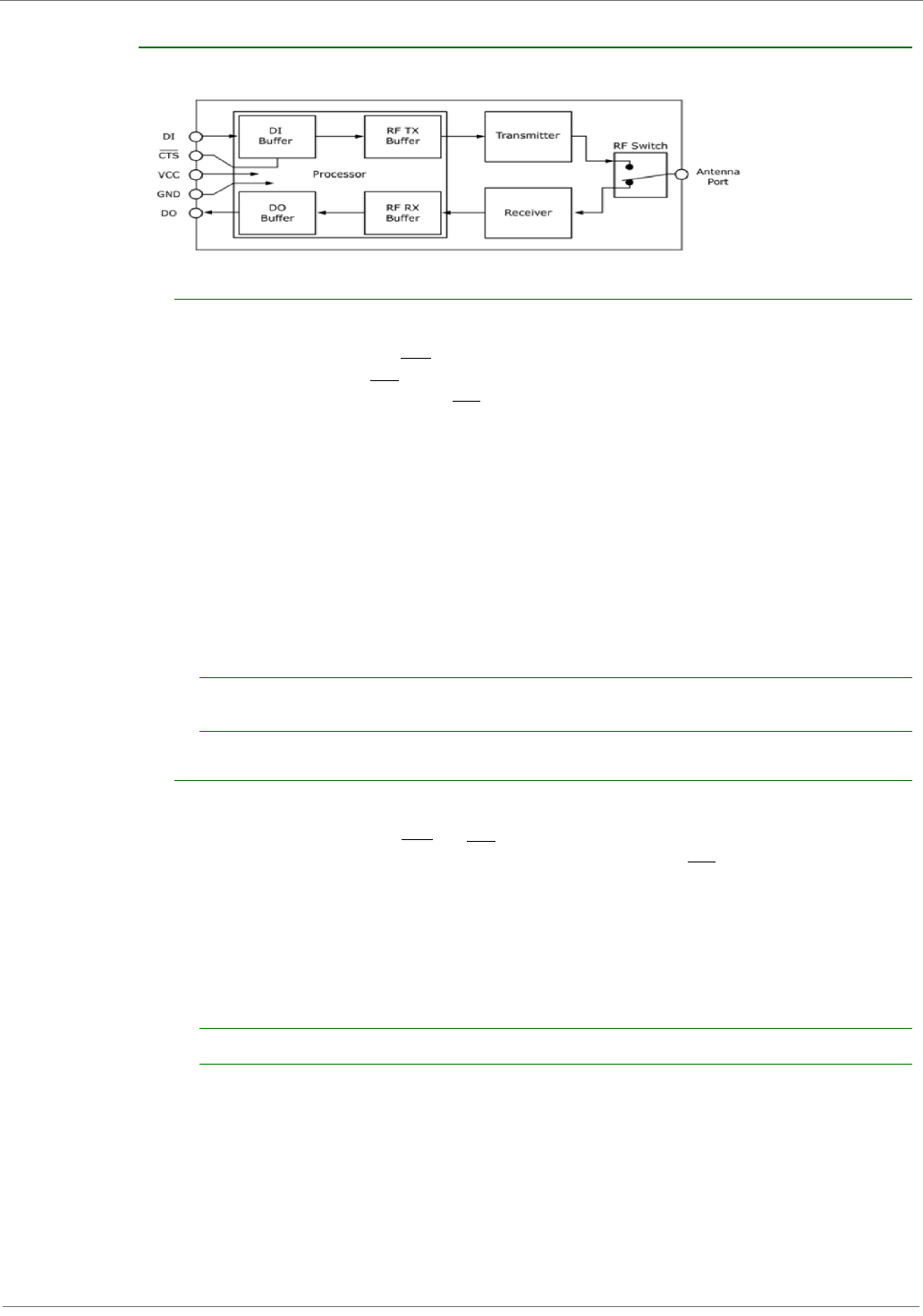

Figure2‐03. InternalDataFlowDiagram

DI (Data In) Buffer

When serial data enters the RF module through the DI pin (pin 3), the data is stored in the DI Buf-

fer until it can be processed.

Hardware Flow Control (CTS). When the DI buffer is 17 bytes away from being full; by default,

the module de-asserts CTS (high) to signal to the host device to stop sending data [refer to D7

(DIO7 Configuration) parameter]. CTS is re-asserted after the DI Buffer has 34 bytes of memory

available.

How to eliminate the need for flow control:

Case in which the DI Buffer may become full and possibly overflow:

Refer to the RO (Packetization Timeout), BD (Interface Data Rate) and D7 (DIO7 Configuration) com-

mand descriptions for more information.

DO (Data Out) Buffer

When RF data is received, the data enters the DO buffer and is sent out the serial port to a host

device. Once the DO Buffer reaches capacity, any additional incoming RF data is lost.

Hardware Flow Control (RTS). If RTS is enabled for flow control (D6 (DIO6 Configuration)

Parameter = 1), data will not be sent out the DO Buffer as long as RTS (pin 16) is de-asserted.

Two cases in which the DO Buffer may become full and possibly overflow:

Refer to the D6 (DIO6 Configuration) command description for more information.

1. Send messages that are smaller than the DI buffer size (202 bytes).

2. Interface at a lower baud rate [BD (Interface Data Rate) parameter] than the throughput

data rate.

If the module is receiving a continuous stream of RF data, any serial data that arrives on the DI

pin is placed in the DI Buffer. The data in the DI buffer will be transmitted over-the-air when the

module is no longer receiving RF data in the network.

1. If the RF data rate is set higher than the interface data rate of the module, the module will

receive data from the transmitting module faster than it can send the data to the host.

2. If the host does not allow the module to transmit data out from the DO buffer because of

being held off by hardware or software flow control.

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 14

ADC and Digital I/O Line Support

The XBee®/XBee-PRO® RF Modules support ADC (Analog-to-digital conversion) and digital I/O

line passing. The following pins support multiple functions:

To enable ADC and DIO pin functions:

I/O Data Format

I/O data begins with a header. The first byte of the header defines the number of samples forth-

coming. The last 2 bytes of the header (Channel Indicator) define which inputs are active. Each bit

represents either a DIO line or ADC channel.

Figure2‐04. Header

Sample data follows the header and the channel indicator frame is used to determine how to read

the sample data. If any of the DIO lines are enabled, the first 2 bytes are the DIO sample. The

ADC data follows. ADC channel data is represented as an unsigned 10-bit value right-justified on a

16- bit boundary.

Figure2‐05. SampleData

Table2‐01. Pinfunctionsandtheirassociatedpinnumbersandcommands

AD=Analog‐to‐DigitalConverter,DIO=DigitalInput/Output

Pinfunctionsnotapplicabletothissectionaredenotedwithin(parenthesis).

Pin Function Pin# AT Command

AD0 / DIO0 20 D0

AD1 / DIO1 19 D1

AD2 / DIO2 18 D2

AD3 / DIO3 / (COORD_SEL) 17 D3

AD4 / DIO4 11 D4

AD5 / DIO5 / (ASSOCIATE) 15 D5

DIO6 / (RTS) 16 D6

DIO7 / (CTS) 12 D7

DI8 / (DTR) / (Sleep_RQ) 9 D8

For ADC Support: Set ATDn = 2

For Digital Input support: Set ATDn = 3

For Digital Output Low support: Set ATDn = 4

For Digital Output High support: Set ATDn = 5

Header

Bit set to ‘1’ if channel is active

Bytes 2 - 3 (Channel Indicator)

na D8A0A1A2A3A4A5 D7 D0D1D2D3D4D5D6

Byte 1

Total number of samples

bit 15 bit 0

Sample Data

DIO Line Data is first (if enabled) ADC Line Data

ADCn MSB ADCn LSB7 0123456X 8XXXXXX

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 15

API Support

I/O data is sent out the UART using an API frame. All other data can be sent and received using

Transparent Operation [refer to p12] or API framing if API mode is enabled (AP > 0).

API Operations support two RX (Receive) frame identifiers for I/O data (set 16-bit address to

0xFFFE and the module will do 64-bit addressing):

• 0x82 for RX (Receive) Packet: 64-bit address I/O

• 0x83 for RX (Receive) Packet: 16-bit address I/O

The API command header is the same as shown in the “RX (Receive) Packet: 64-bit Address” and

“RX (Receive) Packet: 64-bit Address” API types [refer to p61]. RX data follows the format

described in the I/O Data Format section [p14].

Applicable Commands: AP (API Enable)

Sleep Support

Automatic wakeup sampling can be suppressed by setting SO bit 1.When an RF module wakes, it

will always do a sample based on any active ADC or DIO lines. This allows sampling based on the

sleep cycle whether it be Cyclic Sleep (SM parameter = 4 or 5) or Pin Sleep (SM = 1 or 2). To

gather more samples when awake, set the IR (Sample Rate) parameter.

For Cyclic Sleep modes: If the IR parameter is set, the module will stay awake until the IT (Sam-

ples before TX) parameter is met. The module will stay awake for ST (Time before Sleep) time.

Applicable Commands: IR (Sample Rate), IT (Samples before TX), SM (Sleep Mode), IC (DIO

Change Detect), SO (Sleep Options)

DIO Pin Change Detect

When “DIO Change Detect” is enabled (using the IC command), DIO lines 0-7 are monitored.

When a change is detected on a DIO line, the following will occur:

Note: Change detect will not affect Pin Sleep wake-up. The D8 pin (DTR/Sleep_RQ/DI8) is the only

line that will wake a module from Pin Sleep. If not all samples are collected, the module will still

enter Sleep Mode after a change detect packet is sent.

Applicable Commands: IC (DIO Change Detect), IT (Samples before TX)

NOTE: Change detect is only supported when the Dx (DIOx Configuration) parameter equals 3,4 or 5.

Sample Rate (Interval)

The Sample Rate (Interval) feature allows enabled ADC and DIO pins to be read periodically on

modules that are not configured to operate in Sleep Mode. When one of the Sleep Modes is

enabled and the IR (Sample Rate) parameter is set, the module will stay awake until IT (Samples

before TX) samples have been collected.

Once a particular pin is enabled, the appropriate sample rate must be chosen. The maximum sam-

ple rate that can be achieved while using one A/D line is 1 sample/ms or 1 KHz (Note that the

modem will not be able to keep up with transmission when IR & IT are equal to “1” and that con-

figuring the modem to sample at rates greater than once every 20ms is not recommended).

Applicable Commands: IR (Sample Rate), IT (Samples before TX), SM (Sleep Mode)

1. An RF packet is sent with the updated DIO pin levels. This packet will not contain any ADC

samples.

2. Any queued samples are transmitted before the change detect data. This may result in

receiving a packet with less than IT (Samples before TX) samples.

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 16

I/O Line Passing

Virtual wires can be set up between XBee®/XBee-PRO® Modules. When an RF data packet is

received that contains I/O data, the receiving module can be setup to update any enabled outputs

(PWM and DIO) based on the data it receives.

Note that I/O lines are mapped in pairs. For example: AD0 can only update PWM0 and DI5 can

only update DO5. The default setup is for outputs not to be updated, which results in the I/O data

being sent out the UART (refer to the IU (Enable I/O Output) command). To enable the outputs to

be updated, the IA (I/O Input Address) parameter must be setup with the address of the module

that has the appropriate inputs enabled. This effectively binds the outputs to a particular module’s

input. This does not affect the ability of the module to receive I/O line data from other modules -

only its ability to update enabled outputs. The IA parameter can also be setup to accept I/O data

for output changes from any module by setting the IA parameter to 0xFFFF.

When outputs are changed from their non-active state, the module can be setup to return the out-

put level to it non-active state. The timers are set using the Tn (Dn Output Timer) and PT (PWM

Output Timeout) commands. The timers are reset every time a valid I/O packet (passed IA check)

is received. The IC (Change Detect) and IR (Sample Rate) parameters can be setup to keep the

output set to their active output if the system needs more time than the timers can handle.

Note: DI8 cannot be used for I/O line passing.

Applicable Commands: IA (I/O Input Address), Tn (Dn Output Timeout), P0 (PWM0 Configura-

tion), P1 (PWM1 Configuration), M0 (PWM0 Output Level), M1 (PWM1 Output Level), PT (PWM

Output Timeout), RP (RSSSI PWM Timer)

Configuration Example

As an example for a simple A/D link, a pair of RF modules could be set as follows:

These settings configure the remote module to sample AD0 and AD1 once each every 20 ms. It

then buffers 5 samples each before sending them back to the base module. The base should then

receive a 32-Byte transmission (20 Bytes data and 12 Bytes framing) every 100 ms.

Remote Configuration

DL = 0x1234

MY = 0x5678

D0 = 2

D1 = 2

IR = 0x14

IT = 5

Base Configuration

DL = 0x5678

MY = 0x1234

P0 = 2

P1 = 2

IU = 1

IA = 0x5678 (or 0xFFFF)

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 17

XBee®/XBee-PRO® Networks

The following terms will be used to explicate the network operations:

Peer-to-Peer

By default, XBee®/XBee-PRO RF Modules are configured to operate within a Peer-to-Peer network

topology and therefore are not dependent upon Master/Slave relationships. NonBeacon systems

operate within a Peer-to-Peer network topology and therefore are not dependent upon Master/

Slave relationships. This means that modules remain synchronized without use of master/server

configurations and each module in the network shares both roles of master and slave. Digi's peer-

to-peer architecture features fast synchronization times and fast cold start times. This default con-

figuration accommodates a wide range of RF data applications.

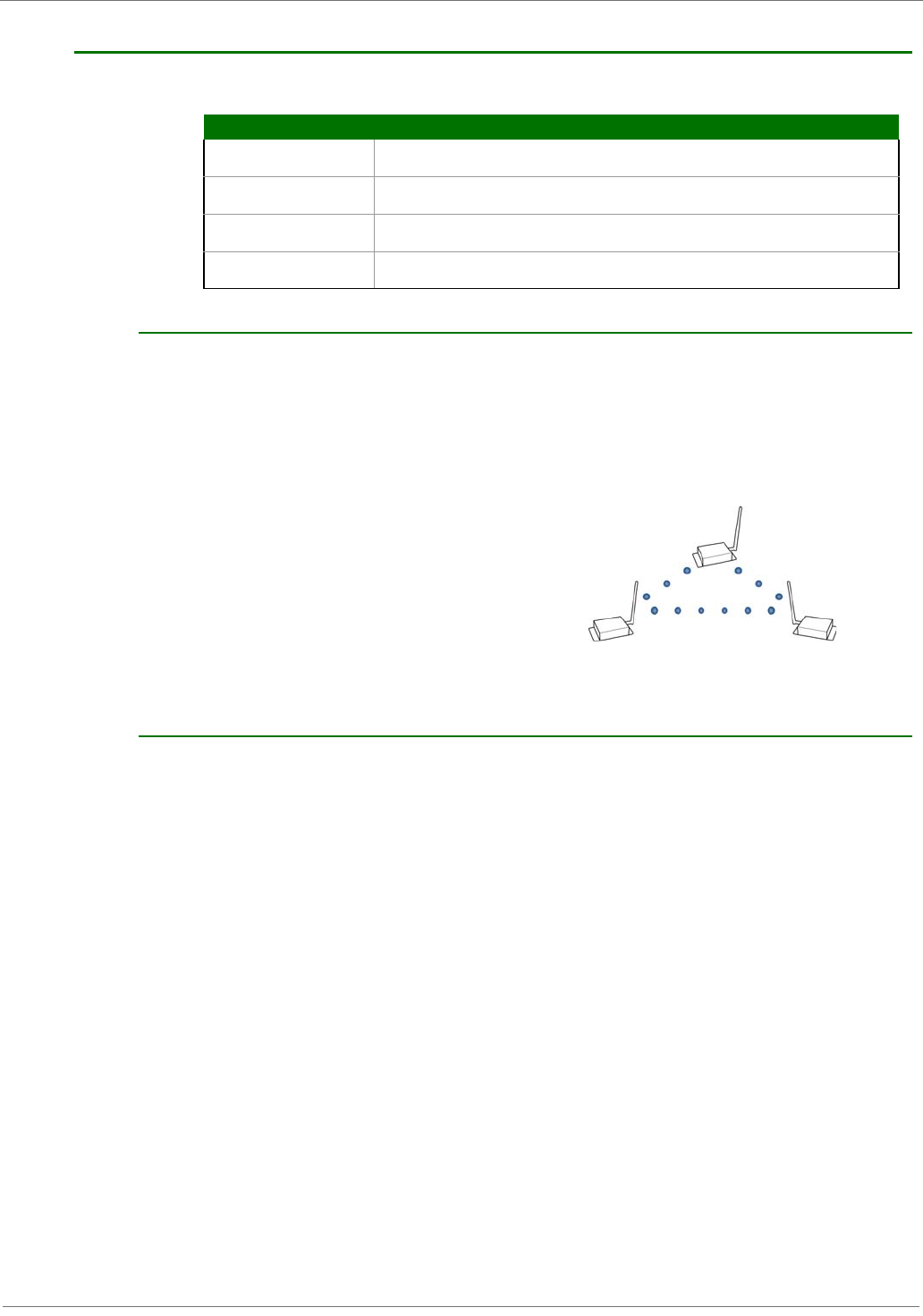

Figure2‐06. Peer‐to‐PeerArchitecture

A peer-to-peer network can be established by

configuring each module to operate as an End Device (CE = 0), disabling End Device Association

on all modules (A1 = 0) and setting ID and CH parameters to be identical across the network.

NonBeacon (w/ Coordinator)

A device is configured as a Coordinator by setting the CE (Coordinator Enable) parameter to “1”.

Coordinator power-up is governed by the A2 (Coordinator Association) parameter.

In a Coordinator system, the Coordinator can be configured to use direct or indirect transmissions.

If the SP (Cyclic Sleep Period) parameter is set to “0”, the Coordinator will send data immediately.

Otherwise, the SP parameter determines the length of time the Coordinator will retain the data

before discarding it. Generally, SP (Cyclic Sleep Period) and ST (Time before Sleep) parameters

should be set to match the SP and ST settings of the End Devices.

Table 2‐02. Termsanddefinitions

Term Definition

PAN Personal Area Network - A data communication network that includes one or more End Devices and

optionally a Coordinator.

Coordinator A Full-function device (FFD) that provides network synchronization by polling nodes [NonBeacon

(w/ Coordinator) networks only]

End Device When in the same network as a Coordinator - RF modules that rely on a Coordinator for

synchronization and can be put into states of sleep for low-power applications.

Association The establishment of membership between End Devices and a Coordinator. Association is only

applicable in NonBeacon (w/Coordinator) networks.

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 18

Association

Association is the establishment of membership between End Devices and a Coordinator. The

establishment of membership is useful in scenarios that require a central unit (Coordinator) to

relay messages to or gather data from several remote units (End Devices), assign channels or

assign PAN IDs.

An RF data network that consists of one Coordinator and one or more End Devices forms a PAN

(Personal Area Network). Each device in a PAN has a PAN Identifier [ID (PAN ID) parameter]. PAN

IDs must be unique to prevent miscommunication between PANs. The Coordinator PAN ID is set

using the ID (PAN ID) and A2 (Coordinator Association) commands.

An End Device can associate to a Coordinator without knowing the address, PAN ID or channel of

the Coordinator. The A1 (End Device Association) parameter bit fields determine the flexibility of

an End Device during association. The A1 parameter can be used for an End Device to dynamically

set its destination address, PAN ID and/or channel.

Coordinator / End Device Setup and Operation

To configure a module to operate as a Coordinator, set the CE (Coordinator Enable) parameter to

‘1’. Set the CE parameter of End Devices to ‘0’ (default). Coordinator and End Devices should con-

tain matching firmware versions.

NonBeacon (w/ Coordinator) Systems

The Coordinator can be configured to use direct or indirect transmissions. If the SP (Cyclic Sleep

Period) parameter is set to ‘0’, the Coordinator will send data immediately. Otherwise, the SP

parameter determines the length of time the Coordinator will retain the data before discarding it.

Generally, SP (Cyclic Sleep Period) and ST (Time before Sleep) parameters should be set to match

the SP and ST settings of the End Devices.

Coordinator Start-up

Coordinator power-up is governed by the A2 (Coordinator Association) command. On power-up,

the Coordinator undergoes the following sequence of events:

1. Check A2 parameter- Reassign_PANID Flag

Set (bit 0 = 1) - The Coordinator issues an Active Scan. The Active Scan selects one channel

and transmits a request to the broadcast address (0xFFFF) and broadcast PAN ID (0xFFFF). It

then listens on that channel for beacons from any Coordinator operating on that channel. The

listen time on each channel is determined by the SD (Scan Duration) parameter value.

Once the time expires on that channel, the Active Scan selects another channel and again

transmits the BeaconRequest as before. This process continues until all channels have been

scanned, or until 5 PANs have been discovered. When the Active Scan is complete, the results

include a list of PAN IDs and Channels that are being used by other PANs. This list is used to

assign an unique PAN ID to the new Coordinator. The ID parameter will be retained if it is not

found in the Active Scan results. Otherwise, the ID (PAN ID) parameter setting will be updated

to a PAN ID that was not detected.

Not Set (bit 0 = 0) - The Coordinator retains its ID setting. No Active Scan is performed.

For example: If the PAN ID of a Coordinator is known, but the operating channel is not; the A1

command on the End Device should be set to enable the ‘Auto_Associate’ and

‘Reassign_Channel’ bits. Additionally, the ID parameter should be set to match the PAN ID of

the associated Coordinator.

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 19

2. Check A2 parameter - Reassign_Channel Flag (bit 1)

Set (bit 1 = 1) - The Coordinator issues an Energy Scan. The Energy Scan selects one channel

and scans for energy on that channel. The duration of the scan is specified by the SD (Scan

Duration) parameter. Once the scan is completed on a channel, the Energy Scan selects the

next channel and begins a new scan on that channel. This process continues until all channels

have been scanned.

When the Energy Scan is complete, the results include the maximal energy values detected on

each channel. This list is used to determine a channel where the least energy was detected. If

an Active Scan was performed (Reassign_PANID Flag set), the channels used by the detected

PANs are eliminated as possible channels. Thus, the results of the Energy Scan and the Active

Scan (if performed) are used to find the best channel (channel with the least energy that is not

used by any detected PAN). Once the best channel has been selected, the CH (Channel) param-

eter value is updated to that channel.

Not Set (bit 1 = 0) - The Coordinator retains its CH setting. An Energy Scan is not performed.

3. Start Coordinator

The Coordinator starts on the specified channel (CH parameter) and PAN ID (ID parameter).

Note, these may be selected in steps 1 and/or 2 above. The Coordinator will only allow End

Devices to associate to it if the A2 parameter “AllowAssociation” flag is set. Once the Coordina-

tor has successfully started, the Associate LED will blink 1 time per second. (The LED is solid if

the Coordinator has not started.)

4. Coordinator Modifications

Once a Coordinator has started: 

Modifying the A2 (Reassign_Channel or Reassign_PANID bits), ID, CH or MY parameters will

cause the Coordinator’s MAC to reset (The Coordinator RF module (including volatile RAM) is

not reset). Changing the A2 AllowAssociation bit will not reset the Coordinator’s MAC. In a non-

beaconing system, End Devices that associated to the Coordinator prior to a MAC reset will have

knowledge of the new settings on the Coordinator. Thus, if the Coordinator were to change its

ID, CH or MY settings, the End Devices would no longer be able to communicate with the non-

beacon Coordinator. Once a Coordinator has started, the ID, CH, MY or A2 (Reassign_Channel

or Reassign_PANID bits) should not be changed.

End Device Start-up

End Device power-up is governed by the A1 (End Device Association) command. On power-up, the

End Device undergoes the following sequence of events:

1. Check A1 parameter - AutoAssociate Bit

Set (bit 2 = 1) - End Device will attempt to associate to a Coordinator. (refer to steps 2-3).

Not Set (bit 2 = 0) - End Device will not attempt to associate to a Coordinator. The End Device

will operate as specified by its ID, CH and MY parameters. Association is considered complete

and the Associate LED will blink quickly (5 times per second). When the AutoAssociate bit is not

set, the remaining steps (2-3) do not apply.

2. Discover Coordinator (if Auto-Associate Bit Set)

The End Device issues an Active Scan. The Active Scan selects one channel and transmits a

BeaconRequest command to the broadcast address (0xFFFF) and broadcast PAN ID (0xFFFF). It

then listens on that channel for beacons from any Coordinator operating on that channel. The

listen time on each channel is determined by the SD parameter.

Once the time expires on that channel, the Active Scan selects another channel and again

transmits the BeaconRequest command as before. This process continues until all channels

have been scanned, or until 5 PANs have been discovered. When the Active Scan is complete,

the results include a list of PAN IDs and Channels that are being used by detected PANs.

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 20

The End Device selects a Coordinator to associate with according to the A1 parameter

“Reassign_PANID” and “Reassign_Channel” flags:

Reassign_PANID Bit Set (bit 0 = 1)- End Device can associate with a PAN with any ID value.

Reassign_PANID Bit Not Set (bit 0 = 0) - End Device will only associate with a PAN whose

ID setting matches the ID setting of the End Device.

Reassign_Channel Bit Set (bit 1 = 1) - End Device can associate with a PAN with any CH

value.

Reassign_Channel Bit Not Set (bit 1 = 0)- End Device will only associate with a PAN whose

CH setting matches the CH setting of the End Device.

After applying these filters to the discovered Coordinators, if multiple candidate PANs exist, the

End Device will select the PAN whose transmission link quality is the strongest. If no valid Coor-

dinator is found, the End Device will either go to sleep (as dictated by its SM (Sleep Mode)

parameter) or retry Association.

Note - An End Device will also disqualify Coordinators if they are not allowing association (A2 -

AllowAssociation bit); or, if the Coordinator is not using the same NonBeacon scheme as the

End Device. (They must both be programmed with NonBeacon code.)

3. Associate to Valid Coordinator

Once a valid Coordinator is found (step 2), the End Device sends an AssociationRequest mes-

sage to the Coordinator. It then waits for an AssociationConfirmation to be sent from the Coor-

dinator. Once the Confirmation is received, the End Device is Associated and the Associate LED

will blink rapidly (2 times per second). The LED is solid if the End Device has not associated.

4. End Device Changes once an End Device has associated

Changing A1, ID or CH parameters will cause the End Device to disassociate and restart the

Association procedure.

If the End Device fails to associate, the AI command can give some indication of the failure.

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 21

XBee®/XBee-PRO® Addressing

Every RF data packet sent over-the-air contains a Source Address and Destination Address field in

its header. The RF module conforms to the 802.15.4 specification and supports both short 16-bit

addresses and long 64-bit addresses. A unique 64-bit IEEE source address is assigned at the fac-

tory and can be read with the SL (Serial Number Low) and SH (Serial Number High) commands.

Short addressing must be configured manually. A module will use its unique 64-bit address as its

Source Address if its MY (16-bit Source Address) value is “0xFFFF” or “0xFFFE”.

To send a packet to a specific module using 64-bit addressing: Set the Destination Address (DL +

DH) of the sender to match the Source Address (SL + SH) of the intended destination module.

To send a packet to a specific module using 16-bit addressing: Set DL (Destination Address Low)

parameter to equal the MY parameter of the intended destination module and set the DH (Destina-

tion Address High) parameter to '0'.

Unicast Mode

By default, the RF module operates in Unicast Mode. Unicast Mode is the only mode that supports

retries. While in this mode, receiving modules send an ACK (acknowledgement) of RF packet

reception to the transmitter. If the transmitting module does not receive the ACK, it will re-send

the packet up to three times or until the ACK is received.

Short 16-bit addresses. The module can be configured to use short 16-bit addresses as the

Source Address by setting (MY < 0xFFFE). Setting the DH parameter (DH = 0) will configure the

Destination Address to be a short 16-bit address (if DL < 0xFFFE). For two modules to communi-

cate using short addressing, the Destination Address of the transmitter module must match the

MY parameter of the receiver.

The following table shows a sample network configuration that would enable Unicast Mode com-

munications using short 16-bit addresses.

Long 64-bit addresses. The RF module’s serial number (SL parameter concatenated to the SH

parameter) can be used as a 64-bit source address when the MY (16-bit Source Address) parame-

ter is disabled. When the MY parameter is disabled (MY = 0xFFFF or 0xFFFE), the module’s source

address is set to the 64-bit IEEE address stored in the SH and SL parameters.

When an End Device associates to a Coordinator, its MY parameter is set to 0xFFFE to enable 64-

bit addressing. The 64-bit address of the module is stored as SH and SL parameters. To send a

packet to a specific module, the Destination Address (DL + DH) on the sender must match the

Source Address (SL + SH) of the desired receiver.

Broadcast Mode

Any RF module within range will accept a packet that contains a broadcast address. When config-

ured to operate in Broadcast Mode, receiving modules do not send ACKs (Acknowledgements) and

transmitting modules do not automatically re-sent packets as is the case in Unicast Mode.

To send a broadcast packet to all modules regardless of 16-bit or 64-bit addressing, set the desti-

nation addresses of all the modules as shown below.

Sample Network Configuration (All modules in the network):

• DL (Destination Low Address) = 0x0000FFFF

IfRRissetto0,onlyonepacketisbroadcast.IfRR>0,(RR+2)packetsaresentineachbroadcast.Noacknowl‐

edgementsarereturned.SeealsotheRRcommanddescription.

• DH (Destination High Address) = 0x00000000 (default value)

NOTE:Whenprogrammingthemodule,parametersareenteredinhexadecimalnotation(withoutthe“0x”pre‐

fix).Leadingzeroesmaybeomitted.

Table 2‐03. SampleUnicastNetworkConfiguration(using16‐bitaddressing)

Parameter RF Module 1 RF Module 2

MY (Source Address) 0x01 0x02

DH (Destination Address High) 0 0

DL (Destination Address Low) 0x02 0x01

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 22

Modes of Operation

XBee®/XBee-PRO® RF Modules operate in five modes.

Figure2‐07. ModesofOperation

Idle Mode

When not receiving or transmitting data, the RF module is in Idle Mode. The module shifts into the

other modes of operation under the following conditions:

• Transmit Mode (Serial data is received in the DI Buffer)

• Receive Mode (Valid RF data is received through the antenna)

• Sleep Mode (Sleep Mode condition is met)

• Command Mode (Command Mode Sequence is issued)

Transmit/Receive Modes

RF Data Packets

Each transmitted data packet contains a Source Address and Destination Address field. The Source

Address matches the address of the transmitting module as specified by the MY (Source Address)

parameter (if MY >= 0xFFFE), the SH (Serial Number High) parameter or the SL (Serial Number

Low) parameter. The <Destination Address> field is created from the DH (Destination Address

High) and DL (Destination Address Low) parameter values. The Source Address and/or Destination

Address fields will either contain a 16-bit short or long 64-bit long address.

The RF data packet structure follows the 802.15.4 specification.

[Refer to the XBee/XBee-PRO Addressing section for more information]

Direct and Indirect Transmission

There are two methods to transmit data:

• Direct Transmission - data is transmitted immediately to the Destination Address

• Indirect Transmission - A packet is retained for a period of time and is only transmitted after

the destination module (Source Address = Destination Address) requests the data.

Indirect Transmissions can only occur on a Coordinator. Thus, if all nodes in a network are End

Devices, only Direct Transmissions will occur. Indirect Transmissions are useful to ensure packet

delivery to a sleeping node. The Coordinator currently is able to retain up to 2 indirect messages.

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 23

Direct Transmission

A Coordinator can be configured to use only Direct Transmission by setting the SP (Cyclic Sleep

Period) parameter to "0". Also, a Coordinator using indirect transmissions will revert to direct

transmission if it knows the destination module is awake.

To enable this behavior, the ST (Time before Sleep) value of the Coordinator must be set to match

the ST value of the End Device. Once the End Device either transmits data to the Coordinator or

polls the Coordinator for data, the Coordinator will use direct transmission for all subsequent data

transmissions to that module address until ST time occurs with no activity (at which point it will

revert to using indirect transmissions for that module address). "No activity" means no transmis-

sion or reception of messages with a specific address. Global messages will not reset the ST timer.

Indirect Transmission

To configure Indirect Transmissions in a PAN (Personal Area Network), the SP (Cyclic Sleep Period)

parameter value on the Coordinator must be set to match the longest sleep value of any End

Device. The sleep period value on the Coordinator determines how long (time or number of bea-

cons) the Coordinator will retain an indirect message before discarding it.

An End Device must poll the Coordinator once it wakes from Sleep to determine if the Coordinator

has an indirect message for it. For Cyclic Sleep Modes, this is done automatically every time the

module wakes (after SP time). For Pin Sleep Modes, the A1 (End Device Association) parameter

value must be set to enable Coordinator polling on pin wake-up. Alternatively, an End Device can

use the FP (Force Poll) command to poll the Coordinator as needed.

CCA (Clear Channel Assessment)

Prior to transmitting a packet, a CCA (Clear Channel Assessment) is performed on the channel to

determine if the channel is available for transmission. The detected energy on the channel is com-

pared with the CA (Clear Channel Assessment) parameter value. If the detected energy exceeds

the CA parameter value, the packet is not transmitted.

Also, a delay is inserted before a transmission takes place. This delay is able to be set using the RN

(Backoff Exponent) parameter. If RN is set to “0”, then there is no delay before the first CCA is per-

formed. The RN parameter value is the equivalent of the “minBE” parameter in the 802.15.4 spec-

ification. The transmit sequence follows the 802.15.4 specification.

By default, the MM (MAC Mode) parameter = 0. On a CCA failure, the module will attempt to re-

send the packet up to two additional times.

When in Unicast packets with RR (Retries) = 0, the module will execute two CCA retries. Broadcast

packets always get two CCA retries.

Acknowledgement

If the transmission is not a broadcast message, the module will expect to receive an acknowledge-

ment from the destination node. If an acknowledgement is not received, the packet will be resent

up to 3 more times. If the acknowledgement is not received after all transmissions, an ACK failure

is recorded.

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 24

Sleep Mode

Sleep Modes enable the RF module to enter states of low-power consumption when not in use. In

order to enter Sleep Mode, one of the following conditions must be met (in addition to the module

having a non-zero SM parameter value):

• Sleep_RQ (pin 9) is asserted and the module is in a pin sleep mode (SM = 1, 2, or 5)

• The module is idle (no data transmission or reception) for the amount of time defined by the

ST (Time before Sleep) parameter. [NOTE: ST is only active when SM = 4-5.]

The SM command is central to setting Sleep Mode configurations. By default, Sleep Modes are dis-

abled (SM = 0) and the module remains in Idle/Receive Mode. When in this state, the module is

constantly ready to respond to serial or RF activity.

Pin/Host-controlled Sleep Modes

The transient current when waking from pin sleep (SM = 1 or 2) does not exceed the idle current

of the module. The current ramps up exponentially to its idle current.

Pin Hibernate (SM = 1)

• Pin/Host-controlled

• Typical power-down current: < 10 µA (@3.0 VCC)

• Typical wake-up time: 10.2 msec

Pin Hibernate Mode minimizes quiescent power (power consumed when in a state of rest or inac-

tivity). This mode is voltage level-activated; when Sleep_RQ (pin 9) is asserted, the module will

finish any transmit, receive or association activities, enter Idle Mode, and then enter a state of

sleep. The module will not respond to either serial or RF activity while in pin sleep.

To wake a sleeping module operating in Pin Hibernate Mode, de-assert Sleep_RQ (pin 9). The

module will wake when Sleep_RQ is de-asserted and is ready to transmit or receive when the CTS

line is low. When waking the module, the pin must be de-asserted at least two 'byte times' after

CTS goes low. This assures that there is time for the data to enter the DI buffer.

Pin Doze (SM = 2)

• Pin/Host-controlled

• Typical power-down current: < 50 µA

• Typical wake-up time: 2.6 msec

Pin Doze Mode functions as does Pin Hibernate Mode; however, Pin Doze features faster wake-up

time and higher power consumption.

To wake a sleeping module operating in Pin Doze Mode, de-assert Sleep_RQ (pin 9). The module

will wake when Sleep_RQ is de-asserted and is ready to transmit or receive when the CTS line is

Table 2‐04. SleepModeConfigurations

Sleep Mode

Setting Transition into

Sleep Mode Transition out of

Sleep Mode (wake) Characteristics Related

Commands Power

Consumption

Pin Hibernate

(SM = 1) Assert (high) Sleep_RQ

(pin 9) De-assert (low) Sleep_RQ Pin/Host-controlled /

NonBeacon systems

only / Lowest Power (SM) < 10 µA (@3.0

VCC)

Pin Doze

(SM = 2) Assert (high) Sleep_RQ

(pin 9) De-assert (low) Sleep_RQ Pin/Host-controlled /

NonBeacon systems

only / Fastest wake-up (SM) < 50 µA

Cyclic Sleep

(SM = 4)

Automatic transition to

Sleep Mode as defined by

the SM (Sleep Mode) and

ST (Time before Sleep)

parameters.

Transition occurs after the

cyclic sleep time interval

elapses. The time interval

is defined by the SP

(Cyclic Sleep Period)

parameter.

RF module wakes in

pre-determined time

intervals to detect if RF

data is present / When

SM = 5

(SM), SP, ST < 50 µA

when sleeping

Cyclic Sleep

(SM = 5)

Automatic transition to

Sleep Mode as defined by

the SM (Sleep Mode) and

ST (Time before Sleep)

parameters or on a falling

edge transition of the

SLEEP_RQ pin.

Transition occurs after the

cyclic sleep time interval

elapses. The time interval

is defined by the SP

(Cyclic Sleep Period)

parameter.

RF module wakes in

pre-determined time

intervals to detect if RF

data is present. Module

also wakes on a falling

edge of SLEEP_RQ

(SM), SP, ST < 50 µA

when sleeping

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 25

low. When waking the module, the pin must be de-asserted at least two 'byte times' after CTS

goes low. This assures that there is time for the data to enter the DI buffer.

Cyclic Sleep Modes

Cyclic Sleep Remote (SM = 4)

• Typical Power-down Current: < 50 µA (when asleep)

• Typical wake-up time: 2.6 msec

The Cyclic Sleep Modes allow modules to periodically check for RF data. When the SM parameter is

set to ‘4’, the module is configured to sleep, then wakes once a cycle to check for data from a

module configured as a Cyclic Sleep Coordinator (SM = 0, CE = 1). The Cyclic Sleep Remote sends

a poll request to the coordinator at a specific interval set by the SP (Cyclic Sleep Period) parame-

ter. The coordinator will transmit any queued data addressed to that specific remote upon receiv-

ing the poll request.

If no data is queued for the remote, the coordinator will not transmit and the remote will return to

sleep for another cycle. If queued data is transmitted back to the remote, it will stay awake to

allow for back and forth communication until the ST (Time before Sleep) timer expires.

Also note that CTS will go low each time the remote wakes, allowing for communication initiated

by the remote host if desired.

Cyclic Sleep Remote with Pin Wake-up (SM = 5)

Use this mode to wake a sleeping remote module through either the RF interface or by the de-

assertion of Sleep_RQ for event-driven communications. The cyclic sleep mode works as described

above (Cyclic Sleep Remote) with the addition of a pin-controlled wake-up at the remote module.

The Sleep_RQ pin is edge-triggered, not level-triggered. The module will wake when a low is

detected then set CTS low as soon as it is ready to transmit or receive.

Any activity will reset the ST (Time before Sleep) timer so the module will go back to sleep only

after there is no activity for the duration of the timer. Once the module wakes (pin-controlled), fur-

ther pin activity is ignored. The module transitions back into sleep according to the ST time

regardless of the state of the pin.

[Cyclic Sleep Coordinator (SM = 6)]

• Typical current = Receive current

• Always awake

NOTE: The SM=6 parameter value exists solely for backwards compatibility with firmware version

1.x60. If backwards compatibility with the older firmware version is not required, always use the CE

(Coordinator Enable) command to configure a module as a Coordinator.

This mode configures a module to wake cyclic sleeping remotes through RF interfacing. The Coor-

dinator will accept a message addressed to a specific remote 16 or 64-bit address and hold it in a

buffer until the remote wakes and sends a poll request. Messages not sent directly (buffered and

requested) are called "Indirect messages". The Coordinator only queues one indirect message at a

time. The Coordinator will hold the indirect message for a period 2.5 times the sleeping period

indicated by the SP (Cyclic Sleep Period) parameter. The Coordinator's SP parameter should be set

to match the value used by the remotes.

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 26

Command Mode

To modify or read RF Module parameters, the module must first enter into Command Mode - a

state in which incoming characters are interpreted as commands. Two Command Mode options are

supported: AT Command Mode [refer to section below] and API Command Mode [p56].

AT Command Mode

To Enter AT Command Mode:

Default AT Command Mode Sequence (for transition to Command Mode):

• No characters sent for one second [GT (Guard Times) parameter = 0x3E8]

• Input three plus characters (“+++”) within one second [CC (Command Sequence Character)

parameter = 0x2B.]

• No characters sent for one second [GT (Guard Times) parameter = 0x3E8]

All of the parameter values in the sequence can be modified to reflect user preferences.

NOTE: Failure to enter AT Command Mode is most commonly due to baud rate mismatch. Ensure the

‘Baud’ setting on the “PC Settings” tab matches the interface data rate of the RF module. By default,

the BD parameter = 3 (9600 bps).

To Send AT Commands:

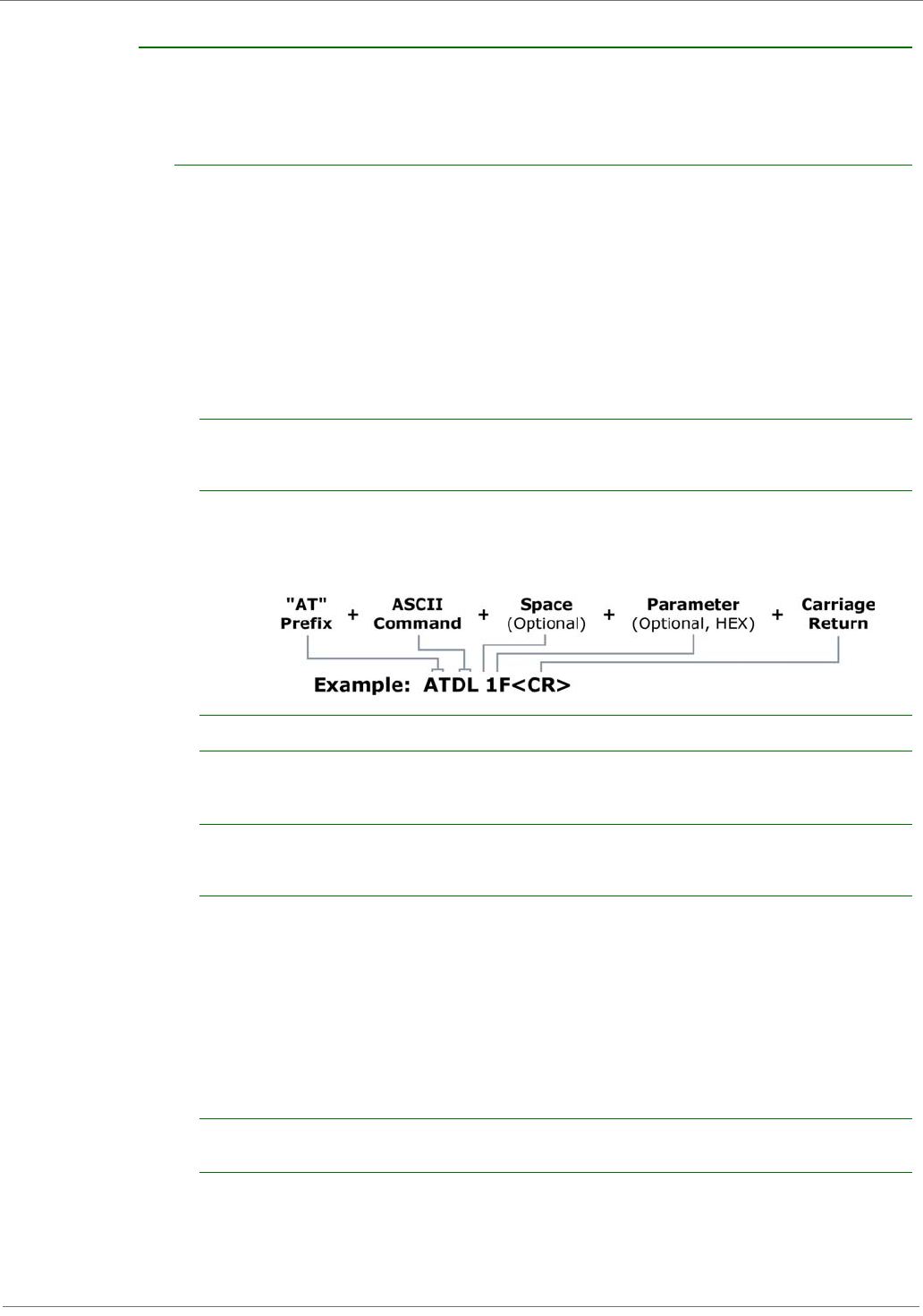

Figure2‐08.SyntaxforsendingATCommands

To read a parameter value stored in the RF module’s register, omit the parameter field.

The preceding example would change the RF module Destination Address (Low) to “0x1F”. To store

the new value to non-volatile (long term) memory, subsequently send the WR (Write) command.

For modified parameter values to persist in the module’s registry after a reset, changes must be saved

to non-volatile memory using the WR (Write) Command. Otherwise, parameters are restored to previ-

ously saved values after the module is reset.

System Response. When a command is sent to the module, the module will parse and execute

the command. Upon successful execution of a command, the module returns an “OK” message. If

execution of a command results in an error, the module returns an “ERROR” message.

To Exit AT Command Mode:

For an example of programming the RF module using AT Commands and descriptions of each config-

urable parameter, refer to the RF Module Configuration chapter [p27].

Send the 3-character command sequence “+++” and observe guard times before and after the

command characters. [Refer to the “Default AT Command Mode Sequence” below.]

Send AT commands and parameters using the syntax shown below.

1. Send the ATCN (Exit Command Mode) command (followed by a carriage return).

[OR]

2. If no valid AT Commands are received within the time specified by CT (Command Mode

Timeout) Command, the RF module automatically returns to Idle Mode.

©2011DigiInternationalInc. 27

3.RFModuleConfiguration

Programming the RF Module

Refer to the Command Mode section [p26] for more information about entering Command Mode,

sending AT commands and exiting Command Mode. For information regarding module program-

ming using API Mode, refer to the API Operation sections [p56].

Programming Examples

Setup

Sample Configuration: Modify RF Module Destination Address

Sample Configuration: Restore RF Module Defaults

The programming examples in this section require the installation of Digi's X-CTU Software and

a serial connection to a PC. (Digi stocks RS-232 and USB boards to facilitate interfacing with a

PC.)

1. Install Digi's X-CTU Software to a PC by double-clicking the "setup_X-CTU.exe" file. (The file

is located on the Digi CD and www.digi.com/xctu.)

2. Mount the RF module to an interface board, then connect the module assembly to a PC.

3. Launch the X-CTU Software and select the 'PC Settings' tab. Verify the baud and parity set-

tings of the Com Port match those of the RF module.

NOTE: Failure to enter AT Command Mode is most commonly due to baud rate mismatch.

Ensure the ‘Baud’ setting on the ‘PC Settings’ tab matches the interface data rate of the RF mod-

ule. By default, the BD parameter = 3 (which corresponds to 9600 bps).

Example: Utilize the X-CTU “Terminal” tab to change the RF module's DL (Destination Address

Low) parameter and save the new address to non-volatile memory.

After establishing a serial connection between the RF module and a PC [refer to the 'Setup' sec-

tion above], select the “Terminal” tab of the X-CTU Software and enter the following command

lines (‘CR’ stands for carriage return):

Method 1 (One line per command)

Send AT Command

+++

ATDL <Enter>

ATDL1A0D <Enter>

ATWR <Enter>

ATCN <Enter>

System Response

OK <CR> (Enter into Command Mode)

{current value} <CR> (Read Destination Address Low)

OK <CR> (Modify Destination Address Low)

OK <CR> (Write to non-volatile memory)

OK <CR> (Exit Command Mode)

Method 2 (Multiple commands on one line)

Send AT Command

+++

ATDL <Enter>

ATDL1A0D,WR,CN <Enter>

System Response

OK <CR> (Enter into Command Mode)

{current value} <CR> (Read Destination Address Low)

OK<CR> OK<CR> OK<CR>

Example: Utilize the X-CTU “Modem Configuration” tab to restore default parameter values.

After establishing a connection between the module and a PC [refer to the 'Setup' section

above], select the “Modem Configuration” tab of the X-CTU Software.

1. Select the 'Read' button.

2. Select the 'Restore' button.

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 28

Remote Configuration Commands

The API firmware has provisions to send configuration commands to remote devices using the

Remote Command Request API frame (see API Operation). This API frame can be used to send

commands to a remote module to read or set command parameters.

The API firmware has provisions to send configuration commands (set or read) to a remote mod-

ule using the Remote Command Request API frame (see API Operations). Remote commands can

be issued to read or set command parameters on a remote device.

Sending a Remote Command

To send a remote command, the Remote Command Request frame should be populated with val-

ues for the 64 bit and 16 bit addresses. If 64 bit addressing is desired then the 16 bit address field

should be filled with 0xFFFE. If any value other than 0xFFFE is used in the 16 bit address field then

the 64 bit address field will be ignored and 16 bit addressing will be used. If a command response

is desired, the Frame ID should be set to a non-zero value.

Applying Changes on Remote

When remote commands are used to change command parameter settings on a remote device,

parameter changes do not take effect until the changes are applied. For example, changing the BD

parameter will not change the actual serial interface rate on the remote until the changes are

applied. Changes can be applied using remote commands in one of three ways:

Set the apply changes option bit in the API frame

Issue an AC command to the remote device

Issue a WR + FR command to the remote device to save changes and reset the device.

Remote Command Responses

If the remote device receives a remote command request transmission, and the API frame ID is

non-zero, the remote will send a remote command response transmission back to the device that

sent the remote command. When a remote command response transmission is received, a device

sends a remote command response API frame out its UART. The remote command response indi-

cates the status of the command (success, or reason for failure), and in the case of a command

query, it will include the register value.

The device that sends a remote command will not receive a remote command response frame if:

The destination device could not be reached

The frame ID in the remote command request is set to 0.

Command Reference Tables

XBee®/XBee-PRO® RF Modules expect numerical values in hexadecimal. Hexadecimal values are

designated by a “0x” prefix. Decimal equivalents are designated by a “d” suffix. Commands are

contained within the following command categories (listed in the order that their tables appear):

•Special

• Networking & Security

• RF Interfacing

• Sleep (Low Power)

• Serial Interfacing

•I/O Settings

•Diagnostics

• AT Command Options

All modules within a PAN should operate using the same firmware version.

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 29

Special

*Firmwareversioninwhichthecommandwasfirstintroduced(firmwareversionsarenumberedinhexadecimalnotation.)

Networking & Security

Tabl e3‐01. XBee‐PROCommands‐Special

AT

Command Command

Category Name and Description Parameter Range Default

WR Special

Write. Write parameter values to non-volatile memory so that parameter modifications

persist through subsequent power-up or reset.

Note: Once WR is issued, no additional characters should be sent to the module until

after the response "OK\r" is received.

RE Special Restore Defaults. Restore module parameters to factory defaults. - -

FR ( v1.x80*) Special Software Reset. Responds immediately with an OK then performs a hard reset

~100ms later. --

Tabl e3‐02. XBee®/XBee‐PRO®Commands‐Networking&Security(Sub‐categoriesdesignatedwithin{brackets})

AT

Command Command

Category Name and Description Parameter Range Default

CH Networking

{Addressing} Channel. Set/Read the channel number used for transmitting and receiving data

between RF modules (uses 802.15.4 protocol channel numbers). 0x0B - 0x1A (XBee)

0x0C - 0x17 (XBee-PRO) 0x0C (12d)

ID Networking

{Addressing} PAN ID. Set/Read the PAN (Personal Area Network) ID.

Use 0xFFFF to broadcast messages to all PANs. 0 - 0xFFFF 0x3332

(13106d)

DH Networking

{Addressing}

Destination Address High. Set/Read the upper 32 bits of the 64-bit destination

address. When combined with DL, it defines the destination address used for

transmission. To transmit using a 16-bit address, set DH parameter to zero and DL less

than 0xFFFF. 0x000000000000FFFF is the broadcast address for the PAN.

0 - 0xFFFFFFFF 0

DL Networking

{Addressing}

Destination Address Low. Set/Read the lower 32 bits of the 64-bit destination

address. When combined with DH, DL defines the destination address used for

transmission. To transmit using a 16-bit address, set DH parameter to zero and DL less

than 0xFFFF. 0x000000000000FFFF is the broadcast address for the PAN.

0 - 0xFFFFFFFF 0

MY Networking

{Addressing}

16-bit Source Address. Set/Read the RF module 16-bit source address. Set MY =

0xFFFF to disable reception of packets with 16-bit addresses. 64-bit source address

(serial number) and broadcast address (0x000000000000FFFF) is always enabled. 0 - 0xFFFF 0

SH Networking

{Addressing} Serial Number High. Read high 32 bits of the RF module's unique IEEE 64-bit

address. 64-bit source address is always enabled. 0 - 0xFFFFFFFF [read-only] Factory-set

SL Networking

{Addressing} Serial Number Low. Read low 32 bits of the RF module's unique IEEE 64-bit address.

64-bit source address is always enabled. 0 - 0xFFFFFFFF [read-only] Factory-set

RR ( v1.xA0*) Networking

{Addressing}

XBee Retries. Set/Read the maximum number of retries the module will execute in

addition to the 3 retries provided by the 802.15.4 MAC. For each XBee retry, the

802.15.4 MAC can execute up to 3 retries. 0 - 6 0

RN Networking

{Addressing}

Random Delay Slots. Set/Read the minimum value of the back-off exponent in the

CSMA-CA algorithm that is used for collision avoidance. If RN = 0, collision avoidance

is disabled during the first iteration of the algorithm (802.15.4 - macMinBE). 0 - 3 [exponent] 0

MM ( v1.x80*) Networking

{Addressing}

MAC Mode. MAC Mode. Set/Read MAC Mode value. MAC Mode enables/disables the

use of a Digi header in the 802.15.4 RF packet. When Modes 1 or 3 are enabled

(MM=1,3), duplicate packet detection is enabled as well as certain AT commands.

Please see the detailed MM description on page 47 for additional information.

0 - 3

0 = Digi Mode

1 = 802.15.4 (no ACKs)

2 = 802.15.4 (with ACKs)

3 = Digi Mode (no ACKs)

NI ( v1.x80*) Networking

{Identification}

Node Identifier. Stores a string identifier. The register only accepts printable ASCII

data. A string can not start with a space. Carriage return ends command. Command will

automatically end when maximum bytes for the string have been entered. This string is

returned as part of the ND (Node Discover) command. This identifier is also used with

the DN (Destination Node) command.

20-character ASCII string -

ND ( v1.x80*) Networking

{Identification}

Node Discover. Discovers and reports all RF modules found. The following information

is reported for each module discovered (the example cites use of Transparent operation

(AT command format) - refer to the long ND command description regarding differences

between Transparent and API operation).

MY<CR>

SH<CR>

SL<CR>

DB<CR>

NI<CR><CR>

The amount of time the module allows for responses is determined by the NT

parameter. In Transparent operation, command completion is designated by a <CR>

(carriage return). ND also accepts a Node Identifier as a parameter. In this case, only a

module matching the supplied identifier will respond. If ND self-response is enabled

(NO=1) the module initiating the node discover will also output a response for itself.

optional 20-character NI value

NT ( v1.xA0*) Networking

{Identification} Node Discover Time. Set/Read the amount of time a node will wait for responses from

other nodes when using the ND (Node Discover) command. 0x01 - 0xFC [x 100 ms] 0x19

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 30

NO (v1xC5) Networking

{Identification} Node Discover Options. Enables node discover self-response on the module. 0-1 0

DN ( v1.x80*) Networking

{Identification}

Destination Node. Resolves an NI (Node Identifier) string to a physical address. The

following events occur upon successful command execution:

1. DL and DH are set to the address of the module with the matching Node Identifier.

2. “OK” is returned.

3. RF module automatically exits AT Command Mode

If there is no response from a module within 200 msec or a parameter is not specified

(left blank), the command is terminated and an “ERROR” message is returned.

20-character ASCII string -

CE ( v1.x80*) Networking

{Association} Coordinator Enable. Set/Read the coordinator setting. 0 - 1

0 = End Device

1 = Coordinator 0

SC ( v1.x80*) Networking

{Association}

Scan Channels. Set/Read list of channels to scan for all Active and Energy Scans as a

bitfield. This affects scans initiated in command mode (AS, ED) and during End Device

Association and Coordinator startup:

bit 0 - 0x0B bit 4 - 0x0F bit 8 - 0x13 bit12 - 0x17 

bit 1 - 0x0C bit 5 - 0x10 bit 9 - 0x14 bit13 - 0x18

bit 2 - 0x0D bit 6 - 0x11 bit 10 - 0x15 bit14 - 0x19

bit 3 - 0x0E bit 7 - 0x12 bit 11 - 0x16 bit 15 - 0x1A

0 - 0xFFFF [bitfield]

(bits 0, 14, 15 not allowed on

the XBee-PRO)

0x1FFE

(all XBee-

PRO

Channels)

SD ( v1.x80*) Networking

{Association}

Scan Duration. Set/Read the scan duration exponent.

End Device - Duration of Active Scan during Association.

Coordinator - If ‘ReassignPANID’ option is set on Coordinator [refer to A2 parameter],

SD determines the length of time the Coordinator will scan channels to locate existing

PANs. If ‘ReassignChannel’ option is set, SD determines how long the Coordinator will

perform an Energy Scan to determine which channel it will operate on.

‘Scan Time’ is measured as (# of channels to scan] * (2 ^ SD) * 15.36ms). The number

of channels to scan is set by the SC command. The XBee can scan up to 16 channels

(SC = 0xFFFF). The XBee PRO can scan up to 13 channels (SC = 0x3FFE).

Example: The values below show results for a 13 channel scan:

If SD = 0, time = 0.18 sec SD = 8, time = 47.19 sec

SD = 2, time = 0.74 sec SD = 10, time = 3.15 min

SD = 4, time = 2.95 sec SD = 12, time = 12.58 min

SD = 6, time = 11.80 sec SD = 14, time = 50.33 min

0-0x0F [exponent] 4

A1 ( v1.x80*) Networking

{Association}

End Device Association. Set/Read End Device association options. 

bit 0 - ReassignPanID

0 - Will only associate with Coordinator operating on PAN ID that matches module ID

1 - May associate with Coordinator operating on any PAN ID

bit 1 - ReassignChannel

0 - Will only associate with Coordinator operating on matching CH Channel setting

1 - May associate with Coordinator operating on any Channel

bit 2 - AutoAssociate

0 - Device will not attempt Association

1 - Device attempts Association until success

Note: This bit is used only for Non-Beacon systems. End Devices in Beacon-enabled

system must always associate to a Coordinator

bit 3 - PollCoordOnPinWake

0 - Pin Wake will not poll the Coordinator for indirect (pending) data 

1 - Pin Wake will send Poll Request to Coordinator to extract any pending data

bits 4 - 7 are reserved

0 - 0x0F [bitfield] 0

A2 ( v1.x80*) Networking

{Association}

Coordinator Association. Set/Read Coordinator association options.

bit 0 - ReassignPanID

0 - Coordinator will not perform Active Scan to locate available PAN ID. It will operate 

on ID (PAN ID).

1 - Coordinator will perform Active Scan to determine an available ID (PAN ID). If a

PAN ID conflict is found, the ID parameter will change.

bit 1 - ReassignChannel -

0 - Coordinator will not perform Energy Scan to determine free channel. It will operate

on the channel determined by the CH parameter. 

1 - Coordinator will perform Energy Scan to find a free channel, then operate on that 

channel.

bit 2 - AllowAssociation -

0 - Coordinator will not allow any devices to associate to it. 

1 - Coordinator will allow devices to associate to it.

bits 3 - 7 are reserved

0 - 7 [bitfield] 0

Tabl e3‐02. XBee®/XBee‐PRO®Commands‐Networking&Security(Sub‐categoriesdesignatedwithin{brackets})

AT

Command Command

Category Name and Description Parameter Range Default

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 31

*Firmwareversioninwhichthecommandwasfirstintroduced(firmwareversionsarenumberedinhexadecimalnotation.)

AI ( v1.x80*) Networking

{Association}

Association Indication. Read errors with the last association request:

0x00 - Successful Completion - Coordinator successfully started or End Device

association complete

0x01 - Active Scan Timeout 

0x02 - Active Scan found no PANs 

0x03 - Active Scan found PAN, but the CoordinatorAllowAssociation bit is not set

0x04 - Active Scan found PAN, but Coordinator and End Device are not 

configured to support beacons 

0x05 - Active Scan found PAN, but the Coordinator ID parameter does not match

the ID parameter of the End Device

0x06 - Active Scan found PAN, but the Coordinator CH parameter does not match the 

CH parameter of the End Device

0x07 - Energy Scan Timeout

0x08 - Coordinator start request failed

0x09 - Coordinator could not start due to invalid parameter

0x0A - Coordinator Realignment is in progress

0x0B - Association Request not sent

0x0C - Association Request timed out - no reply was received

0x0D - Association Request had an Invalid Parameter

0x0E - Association Request Channel Access Failure. Request was not transmitted - 

CCA failure

0x0F - Remote Coordinator did not send an ACK after Association Request was sent

0x10 - Remote Coordinator did not reply to the Association Request, but an ACK was 

received after sending the request

0x11 - [reserved]

0x12 - Sync-Loss - Lost synchronization with a Beaconing Coordinator

0x13 - Disassociated - No longer associated to Coordinator

0xFF - RF Module is attempting to associate

0 - 0x13 [read-only] -

DA ( v1.x80*) Networking

{Association} Force Disassociation. End Device will immediately disassociate from a Coordinator (if

associated) and reattempt to associate. --

FP ( v1.x80*) Networking

{Association} Force Poll. Request indirect messages being held by a coordinator. - -

AS ( v1.x80*) Networking

{Association}

Active Scan. Send Beacon Request to Broadcast Address (0xFFFF) and Broadcast

PAN (0xFFFF) on every channel. The parameter determines the time the radio will

listen for Beacons on each channel. A PanDescriptor is created and returned for every

Beacon received from the scan. Each PanDescriptor contains the following information:

CoordAddress (SH, SL)<CR> 

CoordPanID (ID)<CR>

CoordAddrMode <CR>

0x02 = 16-bit Short Address 

0x03 = 64-bit Long Address 

Channel (CH parameter) <CR> 

SecurityUse<CR> 

ACLEntry<CR> 

SecurityFailure<CR> 

SuperFrameSpec<CR> (2 bytes):

bit 15 - Association Permitted (MSB) 

bit 14 - PAN Coordinator 

bit 13 - Reserved 

bit 12 - Battery Life Extension

bits 8-11 - Final CAP Slot 

bits 4-7 - Superframe Order 

bits 0-3 - Beacon Order 

GtsPermit<CR> 

RSSI<CR> (RSSI is returned as -dBm)

TimeStamp<CR> (3 bytes) 

<CR>

A carriage return <CR> is sent at the end of the AS command. The Active Scan is

capable of returning up to 5 PanDescriptors in a scan. The actual scan time on each

channel is measured as Time = [(2 ^SD PARAM) * 15.36] ms. Note the total scan time is

this time multiplied by the number of channels to be scanned (16 for the XBee and 13

for the XBee-PRO). Also refer to SD command description.

0 - 6 -

ED ( v1.x80*) Networking

{Association}

Energy Scan. Send an Energy Detect Scan. This parameter determines the length of

scan on each channel. The maximal energy on each channel is returned & each value

is followed by a carriage return. An additional carriage return is sent at the end of the

command. The values returned represent the detected energy level in units of -dBm.

The actual scan time on each channel is measured as Time = [(2 ^ED) * 15.36] ms.

Note the total scan time is this time multiplied by the number of channels to be scanned

(refer to SD parameter).

0 - 6 -

EE ( v1.xA0*) Networking

{Security} AES Encryption Enable. Disable/Enable 128-bit AES encryption support. Use in

conjunction with the KY command. 0 - 1 0 (disabled)

KY ( v1.xA0*) Networking

{Security} AES Encryption Key. Set the 128-bit AES (Advanced Encryption Standard) key for

encrypting/decrypting data. The KY register cannot be read. 0 - (any 16-Byte value) -

Tabl e3‐02. XBee®/XBee‐PRO®Commands‐Networking&Security(Sub‐categoriesdesignatedwithin{brackets})

AT

Command Command

Category Name and Description Parameter Range Default

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 32

RF Interfacing

*Firmwareversioninwhichthecommandwasfirstintroduced(firmwareversionsarenumberedinhexadecimalnotation.)

Sleep (Low Power)

Tabl e3‐03. XBee/XBee‐PROCommands‐RFInterfacing

AT

Command Command

Category Name and Description Parameter Range Default

PL RF Interfacing Power Level. Select/Read the power level at which the RF module transmits conducted

power.

0 - 4 (XBee / XBee-PRO)

0 = -10 / 10 dBm

1 = -6 / 12 dBm

2 = -4 / 14 dBm

3 = -2 / 16 dBm

4 = 0 / 18 dBm

XBee-PRO International

variant:

PL=4: 10 dBm

PL=3: 8 dBm

PL=2: 2 dBm

PL=1: -3 dBm

PL=0: -3 dBm

CA (v1.x80*) RF Interfacing CCA Threshold. Set/read the CCA (Clear Channel Assessment) threshold. Prior to

transmitting a packet, a CCA is performed to detect energy on the channel. If the

detected energy is above the CCA Threshold, the module will not transmit the packet. 0x24 - 0x50 [-dBm] 0x2C

(-44d dBm)

Tabl e3‐04. XBee®/XBee‐PRO®Commands‐Sleep(LowPower)

AT

Command Command

Category Name and Description Parameter Range Default

SM Sleep

(Low Power) Sleep Mode. Set/Read Sleep Mode configurations.

0 - 5

0 = No Sleep

1 = Pin Hibernate

2 = Pin Doze

3 = Reserved

4 = Cyclic sleep remote

5 = Cyclic sleep remote 

w/ pin wake-up

6 = [Sleep Coordinator] for 

backwards compatibility 

w/ v1.x6 only; otherwise,

use CE command.

SO Sleep (Low

Power)

Sleep Options Set/Read the sleep mode options.

Bit 0 - Poll wakeup disable

0 - Normal operations. A module configured for cyclic sleep will poll for data on waking.

1 - Disable wakeup poll. A module configured for cyclic sleep will not poll for data on

waking.

Bit 1 - ADC/DIO wakeup sampling disable.

0 - Normal operations. A module configured in a sleep mode with ADC/DIO sampling

enabled will automatically perform a sampling on wakeup.

1 - Suppress sample on wakeup. A module configured in a sleep mode with ADC/DIO

sampling enabled will not automatically sample on wakeup.

0-4 0

ST Sleep

(Low Power)

Time before Sleep. <NonBeacon firmware> Set/Read time period of inactivity (no

serial or RF data is sent or received) before activating Sleep Mode. ST parameter is

only valid with Cyclic Sleep settings (SM = 4 - 5).

Coordinator and End Device ST values must be equal.

Also note, the GT parameter value must always be less than the ST value. (If GT > ST,

the configuration will render the module unable to enter into command mode.) If the ST

parameter is modified, also modify the GT parameter accordingly.

1 - 0xFFFF [x 1 ms] 0x1388

(5000d)

SP Sleep

(Low Power)

Cyclic Sleep Period. <NonBeacon firmware> Set/Read sleep period for cyclic sleeping

remotes. Coordinator and End Device SP values should always be equal. To send

Direct Messages, set SP = 0.

End Device - SP determines the sleep period for cyclic sleeping remotes. Maximum

sleep period is 268 seconds (0x68B0).

Coordinator - If non-zero, SP determines the time to hold an indirect message before

discarding it. A Coordinator will discard indirect messages after a period of (2.5 * SP).

0 - 0x68B0 [x 10 ms] 0

DP (1.x80*) Sleep

(Low Power)

Disassociated Cyclic Sleep Period. <NonBeacon firmware> 

End Device - Set/Read time period of sleep for cyclic sleeping remotes that are

configured for Association but are not associated to a Coordinator. (i.e. If a device is

configured to associate, configured as a Cyclic Sleep remote, but does not find a

Coordinator, it will sleep for DP time before reattempting association.) Maximum sleep

period is 268 seconds (0x68B0). DP should be > 0 for NonBeacon systems.

1 - 0x68B0 [x 10 ms] 0x3E8

(1000d)

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 33

*Firmwareversioninwhichthecommandwasfirstintroduced(firmwareversionsarenumberedinhexadecimalnotation.)

Serial Interfacing

*Firmwareversioninwhichthecommandwasfirstintroduced(firmwareversionsarenumberedinhexadecimalnotation.)

I/O Settings

Tabl e3‐05. XBee‐PROCommands‐SerialInterfacing

AT

Command Command

Category Name and Description Parameter Range Default

BD Serial 

Interfacing

Interface Data Rate. Set/Read the serial interface data rate for communications

between the RF module serial port and host.

Request non-standard baud rates with values above 0x80 using a terminal window.

Read the BD register to find actual baud rate achieved.

0 - 7 (standard baud rates)

0 = 1200 bps

1 = 2400

2 = 4800

3 = 9600

4 = 19200

5 = 38400

6 = 57600

7 = 115200

0x80 - 0x3D090 

(non-standard baud rates up to

250 Kbps)

RO Serial 

Interfacing

Packetization Timeout. Set/Read number of character times of inter-character delay

required before transmission. Set to zero to transmit characters as they arrive instead of

buffering them into one RF packet. 0 - 0xFF [x character times] 3

AP (v1.x80*) Serial 

Interfacing API Enable. Disable/Enable API Mode.

0 - 2

0 =Disabled

1 = API enabled

2 = API enabled (w/escaped

control characters)

NB Serial

Interfacing Parity. Set/Read parity settings.

0 - 4

0 = 8-bit no parity

1 = 8-bit even

2 = 8-bit odd

3 = 8-bit mark

4 = 8-bit space

PR (v1.x80*) Serial 

Interfacing

Pull-up Resistor Enable. Set/Read bitfield to configure internal pull-up resistor status

for I/O lines

Bitfield Map:

bit 0 - AD4/DIO4 (pin11)

bit 1 - AD3 / DIO3 (pin17)

bit 2 - AD2/DIO2 (pin18)

bit 3 - AD1/DIO1 (pin19)

bit 4 - AD0 / DIO0 (pin20)

bit 5 - RTS / AD6 / DIO6 (pin16)

bit 6 - DTR / SLEEP_RQ / DI8 (pin9)

bit 7 - DIN/CONFIG (pin3)

Bit set to “1” specifies pull-up enabled; “0” specifies no pull-up

0 - 0xFF 0xFF

Tabl e3‐06. XBee‐PROCommands‐I/OSettings(sub‐categorydesignatedwithin{brackets})

AT

Command Command

Category Name and Description Parameter Range Default

D8 I/O Settings DI8 Configuration. Select/Read options for the DI8 line (pin 9) of the RF module.

0 - 1

0 = Disabled

3 = DI 

(1,2,4 & 5 n/a)

D7 (v1.x80*) I/O Settings DIO7 Configuration. Select/Read settings for the DIO7 line (pin 12) of the RF module.

Options include CTS flow control and I/O line settings.

0 - 1

0 = Disabled

1 = CTS Flow Control

2 = (n/a)

3 = DI

4 = DO low

5 = DO high

6 = RS485 Tx Enable Low

7 = RS485 Tx Enable High

D6 (v1.x80*) I/O Settings DIO6 Configuration. Select/Read settings for the DIO6 line (pin 16) of the RF module.

Options include RTS flow control and I/O line settings.

0 - 1

0 = Disabled 

1 = RTS flow control

2 = (n/a)

3 = DI 

4 = DO low 

5 = DO high

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 34

*Firmwareversioninwhichthecommandwasfirstintroduced(firmwareversionsarenumberedinhexadecimalnotation.)

D5 (v1.x80*) I/O Settings DIO5 Configuration. Configure settings for the DIO5 line (pin 15) of the RF module.

Options include Associated LED indicator (blinks when associated) and I/O line

settings.

0 - 1

0 = Disabled 

1 = Associated indicator 

2 = ADC

3 = DI

4 = DO low 

5 = DO high

D0 - D4

(v1.xA0*) I/O Settings (DIO4 -DIO4) Configuration. Select/Read settings for the following lines: AD0/DIO0

(pin 20), AD1/DIO1 (pin 19), AD2/DIO2 (pin 18), AD3/DIO3 (pin 17), AD4/DIO4 (pin 11).

Options include: Analog-to-digital converter, Digital Input and Digital Output.

0 - 1

0 = Disabled 

1 = (n/a) 

2 = ADC 

3 = DI

4 = DO low 

5 = DO high

IU (v1.xA0*) I/O Settings I/O Output Enable. Disables/Enables I/O data received to be sent out UART. The data

is sent using an API frame regardless of the current AP parameter value.

0 - 1

0 = Disabled

1 = Enabled 1

IT (v1.xA0*) I/O Settings Samples before TX. Set/Read the number of samples to collect before transmitting

data. Maximum number of samples is dependent upon the number of enabled inputs. 1 - 0xFF 1

IS (v1.xA0*) I/O Settings Force Sample. Force a read of all enabled inputs (DI or ADC). Data is returned through

the UART. If no inputs are defined (DI or ADC), this command will return error.

8-bit bitmap (each bit

represents the level of an I/O

line setup as an output) -

IO (v1.xA0*) I/O Settings Digital Output Level. Set digital output level to allow DIO lines that are setup as

outputs to be changed through Command Mode. --

IC (v1.xA0*) I/O Settings DIO Change Detect. Set/Read bitfield values for change detect monitoring. Each bit

enables monitoring of DIO0 - DIO7 for changes. If detected, data is transmitted with

DIO data only. Any samples queued waiting for transmission will be sent first. 0 - 0xFF [bitfield] 0 (disabled)

IR (v1.xA0*) I/O Settings Sample Rate. Set/Read sample rate. When set, this parameter causes the module to

sample all enabled inputs at a specified interval. 0 - 0xFFFF [x 1 msec] 0

IA (v1.xA0*) I/O Settings {I/O

Line Passing}

I/O Input Address. Set/Read addresses of module to which outputs are bound. Setting

all bytes to 0xFF will not allow any received I/O packet to change outputs. Setting

address to 0xFFFF will allow any received I/O packet to change outputs. 0 - 0xFFFFFFFFFFFFFFFF 0xFFFFFFF

FFFFFFFFF

T0 - T7

(v1.xA0*) I/O Settings {I/O

Line Passing}

(D0 - D7) Output Timeout. Set/Read Output timeout values for lines that correspond

with the D0 - D7 parameters. When output is set (due to I/O line passing) to a non-

default level, a timer is started which when expired will set the output to it default level.

The timer is reset when a valid I/O packet is received.

0 - 0xFF [x 100 ms] 0xFF

P0 I/O Settings {I/O

Line Passing} PWM0 Configuration. Select/Read function for PWM0 pin.

0 - 2

0 = Disabled 

1 = RSSI 

2 = PWM Output

P1 (v1.xA0*) I/O Settings {I/O

Line Passing} PWM1 Configuration. Select/Read function for PWM1 pin.

0 - 2

0 = Disabled 

1 = RSSI 

2 = PWM Output

M0 (v1.xA0*) I/O Settings {I/O

Line Passing} PWM0 Output Level. Set/Read the PWM0 output level. 0 - 0x03FF -

M1 (v1.xA0*) I/O Settings {I/O

Line Passing} PWM1 Output Level. Set/Read the PWM1 output level. 0 - 0x03FF -

PT (v1.xA0*) I/O Settings {I/O

Line Passing}

PWM Output Timeout. Set/Read output timeout value for both PWM outputs. When

PWM is set to a non-zero value: Due to I/O line passing, a time is started which when

expired will set the PWM output to zero. The timer is reset when a valid I/O packet is

received.]

0 - 0xFF [x 100 ms] 0xFF

RP I/O Settings {I/O

Line Passing}

RSSI PWM Timer. Set/Read PWM timer register. Set the duration of PWM (pulse width

modulation) signal output on the RSSI pin. The signal duty cycle is updated with each

received packet and is shut off when the timer expires.] 0 - 0xFF [x 100 ms] 0x28 (40d)

Tabl e3‐06. XBee‐PROCommands‐I/OSettings(sub‐categorydesignatedwithin{brackets})

AT

Command Command

Category Name and Description Parameter Range Default

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 35

Diagnostics

*Firmwareversioninwhichthecommandwasfirstintroduced(firmwareversionsarenumberedinhexadecimalnotation.)

AT Command Options

*Firmwareversioninwhichthecommandwasfirstintroduced(firmwareversionsarenumberedinhexadecimalnotation.)

Tabl e3‐07. XBee®/XBee‐PRO®Commands‐Diagnostics

AT

Command Command

Category Name and Description Parameter Range Default

VR Diagnostics Firmware Version. Read firmware version of the RF module. 0 - 0xFFFF [read-only] Factory-set

VL (v1.x80*) Diagnostics Firmware Version - Verbose. Read detailed version information (including application

build date, MAC, PHY and bootloader versions). The VL command has been

deprecated in version 10C9. It is not supported in firmware versions after 10C8 --

HV (v1.x80*) Diagnostics Hardware Version. Read hardware version of the RF module. 0 - 0xFFFF [read-only] Factory-set

DB Diagnostics Received Signal Strength. Read signal level [in dB] of last good packet received

(RSSI). Absolute value is reported. (For example: 0x58 = -88 dBm) Reported value is

accurate between -40 dBm and RX sensitivity.

0x17-0x5C (XBee)

0x24-0x64 (XBee-PRO) 

[read-only] -

EC (v1.x80*) Diagnostics

CCA Failures. Reset/Read count of CCA (Clear Channel Assessment) failures. This

parameter value increments when the module does not transmit a packet because it

detected energy above the CCA threshold level set with CA command. This count

saturates at its maximum value. Set count to “0” to reset count.

0 - 0xFFFF -

EA (v1.x80*) Diagnostics

ACK Failures. Reset/Read count of acknowledgment failures. This parameter value

increments when the module expires its transmission retries without receiving an ACK

on a packet transmission. This count saturates at its maximum value. Set the parameter

to “0” to reset count.

0 - 0xFFFF -

ED (v1.x80*) Diagnostics

Energy Scan. Send ‘Energy Detect Scan’. ED parameter determines the length of scan

on each channel. The maximal energy on each channel is returned and each value is

followed by a carriage return. Values returned represent detected energy levels in units

of -dBm. Actual scan time on each channel is measured as Time = [(2 ^ SD) * 15.36]

ms. Total scan time is this time multiplied by the number of channels to be scanned.

0 - 6 -

Tabl e3‐08. XBee®/XBee‐PRO®Commands‐ATCommandOptions

AT

Command Command

Category Name and Description Parameter Range Default

CT AT Command

Mode Options

Command Mode Timeout. Set/Read the period of inactivity (no valid commands

received) after which the RF module automatically exits AT Command Mode and

returns to Idle Mode. 2 - 0xFFFF [x 100 ms] 0x64 (100d)

CN AT Command

Mode Options Exit Command Mode. Explicitly exit the module from AT Command Mode. -- --

AC (v1.xA0*) AT Command

Mode Options Apply Changes. Explicitly apply changes to queued parameter value(s) and re-

initialize module. -- --

GT AT Command

Mode Options

Guard Times. Set required period of silence before and after the Command Sequence

Characters of the AT Command Mode Sequence (GT+ CC + GT). The period of silence

is used to prevent inadvertent entrance into AT Command Mode. 2 - 0x0CE4 [x 1 ms] 0x3E8

(1000d)

CC AT Command

Mode Options

Command Sequence Character. Set/Read the ASCII character value to be used

between Guard Times of the AT Command Mode Sequence (GT+CC+GT). The AT

Command Mode Sequence enters the RF module into AT Command Mode. 0 - 0xFF 0x2B 

(‘+’ ASCII)

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 36

Command Descriptions

Command descriptions in this section are listed alphabetically. Command categories are desig-

nated within "< >" symbols that follow each command title. XBee®/XBee-PRO® RF Modules

expect parameter values in hexadecimal (designated by the "0x" prefix).

All modules operating within the same network should contain the same firmware version.

A1 (End Device Association) Command

<Networking {Association}> The A1 command is

used to set and read association options for an

End Device.

Use the table below to determine End Device

behavior in relation to the A1 parameter.

A2 (Coordinator Association) Command

<Networking {Association}> The A2 command is

used to set and read association options of the

Coordinator.

Use the table below to determine Coordinator

behavior in relation to the A2 parameter.

Thebinaryequivalentofthedefaultvalue(0x06)is00000110.‘Bit0’isthelastdigitofthesequence.

Bit number End Device Association Option

0 - ReassignPanID 0 - Will only associate with Coordinator operating on PAN ID that matches Node Identifier

1 - May associate with Coordinator operating on any PAN ID

1 - ReassignChannel 0 - Will only associate with Coordinator operating on Channel that matches CH setting

1 - May associate with Coordinator operating on any Channel

2 - AutoAssociate

0 - Device will not attempt Association

1 - Device attempts Association until success

Note: This bit is used only for Non-Beacon systems. End Devices in a Beaconing system must

always associate to a Coordinator

3 - PollCoordOnPinWake 0 - Pin Wake will not poll the Coordinator for pending (indirect) Data

1 - Pin Wake will send Poll Request to Coordinator to extract any pending data

4 - 7 [reserved]

Bit number End Device Association Option

0 - ReassignPanID

0 - Coordinator will not perform Active Scan to locate available PAN ID. It will operate on ID

(PAN ID).

1 - Coordinator will perform Active Scan to determine an available ID (PAN ID). If a PAN ID

conflict is found, the ID parameter will change.

1 - ReassignChannel

0 - Coordinator will not perform Energy Scan to determine free channel. It will operate on the

channel determined by the CH parameter.

1 - Coordinator will perform Energy Scan to find a free channel, then operate on that channel.

2 - AllowAssociate 0 - Coordinator will not allow any devices to associate to it.

1 - Coordinator will allow devices to associate to it.

3 - 7 [reserved]

AT Command: ATA1

Parameter Range: 0 - 0x0F [bitfield]

Default Parameter Value: 0

Related Commands: ID (PAN ID), NI (Node

Identifier), CH (Channel), CE (Coordinator

Enable), A2 (Coordinator Association)

Minimum Firmware Version Required: v1.x80

AT Command: ATA2

Parameter Range: 0 - 7 [bitfield]

Default Parameter Value: 0

Related Commands: ID (PAN ID), NI (Node

Identifier), CH (Channel), CE (Coordinator

Enable), A1 (End Device Association), AS

Active Scan), ED (Energy Scan)

Minimum Firmware Version Required: v1.x80

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 37

AC (Apply Changes) Command

<AT Command Mode Options> The AC command

is used to explicitly apply changes to module

parameter values. ‘Applying changes’ means that

the module is re-initialized based on changes

made to its parameter values. Once changes are applied, the module immediately operates

according to the new parameter values.

This behavior is in contrast to issuing the WR (Write) command. The WR command saves parame-

ter values to non-volatile memory, but the module still operates according to previously saved val-

ues until the module is re-booted or the CN (Exit AT Command Mode) command is issued.

Refer to the “AT Command - Queue Parameter Value” API type for more information.

AI (Association Indication) Command

<Networking {Association}> The AI command is

used to indicate occurrences of errors during the

last association request.

Use the table below to determine meaning of the

returned values.

Returned Value (Hex) Association Indication

0x00 Successful Completion - Coordinator successfully started or End Device association complete

0x01 Active Scan Timeout

0x02 Active Scan found no PANs

0x03 Active Scan found PAN, but the Coordinator Allow Association bit is not set

0x04 Active Scan found PAN, but Coordinator and End Device are not configured to support beacons

0x05 Active Scan found PAN, but Coordinator ID (PAN ID) value does not match the ID of the End Device

0x06 Active Scan found PAN, but Coordinator CH (Channel) value does not match the CH of the End Device

0x07 Energy Scan Timeout

0x08 Coordinator start request failed

0x09 Coordinator could not start due to Invalid Parameter

0x0A Coordinator Realignment is in progress

0x0B Association Request not sent

0x0C Association Request timed out - no reply was received

0x0D Association Request had an Invalid Parameter

0x0E Association Request Channel Access Failure - Request was not transmitted - CCA failure

0x0F Remote Coordinator did not send an ACK after Association Request was sent

0x10 Remote Coordinator did not reply to the Association Request, but an ACK was received 

after sending the request

0x11 [reserved]

0x12 Sync-Loss - Lost synchronization with a Beaconing Coordinator

0x13 Disassociated - No longer associated to Coordinator

0xFF RF Module is attempting to associate

AT Command: ATAC

Minimum Firmware Version Required: v1.xA0

AT Command: ATAI

Parameter Range: 0 - 0x13 [read-only]

Related Commands: AS (Active Scan), ID (PAN

ID), CH (Channel), ED (Energy Scan), A1 (End

Device Association), A2 (Coordinator

Association), CE (Coordinator Enable)

Minimum Firmware Version Required: v1.x80

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 38

AP (API Enable) Command

<Serial Interfacing> The AP command is used to

enable the RF module to operate using a frame-

based API instead of using the default Transpar-

ent (UART) mode.

Refer to the API Operation section when API operation is enabled (AP = 1 or 2).

AS (Active Scan) Command

<Network {Association}> The AS command is

used to send a Beacon Request to a Broadcast

(0xFFFF) and Broadcast PAN (0xFFFF) on every

channel. The parameter determines the amount

of time the RF module will listen for Beacons on

each channel. A ‘PanDescriptor’ is created and

returned for every Beacon received from the

scan. Each PanDescriptor contains the following

information:

CoordAddress (SH + SL parameters)<CR> (NOTE: If MY on the coordinator is set less than

0xFFFF, the MY value is displayed)

CoordPanID (ID parameter)<CR>

CoordAddrMode <CR>

0x02 = 16-bit Short Address 

0x03 = 64-bit Long Address 

Channel (CH parameter) <CR> 

SecurityUse<CR> 

ACLEntry<CR> 

SecurityFailure<CR> 

SuperFrameSpec<CR> (2 bytes):

bit 15 - Association Permitted (MSB) 

bit 14 - PAN Coordinator 

bit 13 - Reserved 

bit 12 - Battery Life Extension

bits 8-11 - Final CAP Slot 

bits 4-7 - Superframe Order 

bits 0-3 - Beacon Order 

GtsPermit<CR> 

RSSI<CR> (- RSSI is returned as -dBm) 

TimeStamp<CR> (3 bytes) 

<CR> (A carriage return <CR> is sent at the end of the AS command.

The Active Scan is capable of returning up to 5 PanDescriptors in a scan. The actual scan time on

each channel is measured as Time = [(2 ^ (SD Parameter)) * 15.36] ms. Total scan time is this

time multiplied by the number of channels to be scanned (16 for the XBee, 12 for the XBee-PRO).

AT Command: ATAP

Parameter Range:0 - 2

Parameter Configuration

0Disabled

(Transparent operation)

1 API enabled

2API enabled

(with escaped characters)

Default Parameter Value:0

Minimum Firmware Version Required: v1.x80

AT Command: ATAS

Parameter Range: 0 - 6

Related Command: SD (Scan Duration), DL

(Destination Low Address), DH (Destination

High Address), ID (PAN ID), CH (Channel)

Minimum Firmware Version Required: v1.x80

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 39

NOTE: Refer the scan table in the SD description to determine scan times. If using API Mode, no

<CR>’s are returned in the response. Refer to the API Mode Operation section.

BD (Interface Data Rate) Command

<Serial Interfacing> The BD command is used to

set and read the serial interface data rate used

between the RF module and host. This parameter

determines the rate at which serial data is sent to

the module from the host. Modified interface data

rates do not take effect until the CN (Exit AT Com-

mand Mode) command is issued and the system

returns the 'OK' response.

When parameters 0-7 are sent to the module, the

respective interface data rates are used (as

shown in the table on the right).

The RF data rate is not affected by the BD param-

eter. If the interface data rate is set higher than

the RF data rate, a flow control configuration may

need to be implemented.

Non-standard Interface Data Rates: 

Any value above 0x07 will be interpreted as an actual baud rate. When a value above 0x07 is sent,

the closest interface data rate represented by the number is stored in the BD register. For exam-

ple, a rate of 19200 bps can be set by sending the following command line "ATBD4B00". NOTE:

When using Digi’s X-CTU Software, non-standard interface data rates can only be set and read

using the X-CTU ‘Terminal’ tab. Non-standard rates are not accessible through the ‘Modem Config-

uration’ tab.

When the BD command is sent with a non-standard interface data rate, the UART will adjust to

accommodate the requested interface rate. In most cases, the clock resolution will cause the

stored BD parameter to vary from the parameter that was sent (refer to the table below). Reading

the BD command (send "ATBD" command without an associated parameter value) will return the

value actually stored in the module’s BD register.

* The 115,200 baud rate setting is actually at 111,111 baud (-3.5% target UART speed).

CA (CCA Threshold) Command

<RF Interfacing> CA command is used to set and

read CCA (Clear Channel Assessment) thresholds.

Prior to transmitting a packet, a CCA is performed

to detect energy on the transmit channel. If the

detected energy is above the CCA Threshold, the

RF module will not transmit the packet.

ParametersSentVer sus ParametersStored

BD Parameter Sent (HEX) Interface Data Rate (bps) BD Parameter Stored (HEX)

0 1200 0

4 19,200 4

7 115,200* 7

12C 300 12B

1C200 115,200 1B207

AT Command: ATBD

Parameter Range:0 - 7 (standard rates)

0x80-0x3D090 (non-standard rates up to

250 Kbps)

Parameter Configuration (bps)

01200

12400

24800

39600

4 19200

5 38400

6 57600

7 115200

Default Parameter Value:3

AT Command: ATCA

Parameter Range: 0 - 0x50 [-dBm]

Default Parameter Value: 0x2C 

(-44 decimal dBm)

Minimum Firmware Version Required: v1.x80

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 40

CC (Command Sequence Character) Command

<AT Command Mode Options> The CC command

is used to set and read the ASCII character used

between guard times of the AT Command Mode

Sequence (GT + CC + GT). This sequence enters

the RF module into AT Command Mode so that

data entering the module from the host is recog-

nized as commands instead of payload.

The AT Command Sequence is explained further in the AT Command Mode section.

CE (Coordinator Enable) Command

<Networking {Association} The CE command is

used to set and read the behavior (End Device vs.

Coordinator) of the RF module.

CH (Channel) Command

<Networking {Addressing}> The CH command is

used to set/read the operating channel on which

RF connections are made between RF modules.

The channel is one of three addressing options

available to the module. The other options are the

PAN ID (ID command) and destination addresses

(DL & DH commands).

In order for modules to communicate with each

other, the modules must share the same channel number. Different channels can be used to pre-

vent modules in one network from listening to transmissions of another. Adjacent channel rejec-

tion is 23 dB.

The module uses channel numbers of the 802.15.4 standard.

Center Frequency = 2.405 + (CH - 11d) * 5 MHz (d = decimal)

Refer to the XBee/XBee-PRO Addressing section for more information.

CN (Exit Command Mode) Command

<AT Command Mode Options> The CN command

is used to explicitly exit the RF module from AT

Command Mode.

CT (Command Mode Timeout) Command

<AT Command Mode Options> The CT command

is used to set and read the amount of inactive

time that elapses before the RF module automati-

cally exits from AT Command Mode and returns to

Idle Mode.

Use the CN (Exit Command Mode) command to

exit AT Command Mode manually.

AT Command: ATCC

Parameter Range: 0 - 0xFF

Default Parameter Value: 0x2B (ASCII “+”)

Related Command: GT (Guard Times)

AT Command: ATCE

Parameter Range:0 - 1

Parameter Configuration

0End Device

1 Coordinator

Default Parameter Value:0

Minimum Firmware Version Required: v1.x80

AT Command: ATCH

Parameter Range: 0x0B - 0x1A (XBee)

0x0C - 0x17 (XBee-PRO)

Default Parameter Value: 0x0C (12 decimal)

Related Commands: ID (PAN ID), DL

(Destination Address Low, DH (Destination

Address High)

AT Command: ATCN

AT Command: ATCT

Parameter Range:2 - 0xFFFF

[x 100 milliseconds]

Default Parameter Value: 0x64 (100 decimal

(which equals 10 decimal seconds))

Number of bytes returned: 2

Related Command: CN (Exit Command Mode)

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 41

D0 - D4 (DIOn Configuration) Commands

<I/O Settings> The D0, D1, D2, D3 and D4 com-

mands are used to select/read the behavior of

their respective AD/DIO lines (pins 20, 19, 18, 17

and 11 respectively).

Options include:

• Analog-to-digital converter

• Digital input

•Digital output

D5 (DIO5 Configuration) Command

<I/O Settings> The D5 command is used to

select/read the behavior of the DIO5 line (pin 15).

Options include:

• Associated Indicator (LED blinks when the

module is associated)

• Analog-to-digital converter

• Digital input

•Digital output

D6 (DIO6 Configuration) Command

<I/O Settings> The D6 command is used to

select/read the behavior of the DIO6 line (pin 16).

Options include:

• RTS flow control

• Analog-to-digital converter

• Digital input

•Digital output

AT Commands: 

ATD0, ATD1, ATD2, ATD3, ATD4

Parameter Range:0 - 5

Parameter Configuration

0 Disabled

1n/a

2ADC

3DI

4DO low

5DO high

Default Parameter Value:0

Minimum Firmware Version Required: 1.x.A0

AT Command: ATD5

Parameter Range:0 - 5

Parameter Configuration

0 Disabled

1 Associated Indicator

2ADC

3DI

4DO low

5DO high

Default Parameter Value:1

Parameters 2-5 supported as of firmware

version 1.xA0

AT Command: ATD6

Parameter Range:0 - 5

Parameter Configuration

0 Disabled

1RTS Flow Control

2n/a

3DI

4DO low

5DO high

Default Parameter Value:0

Parameters 3-5 supported as of firmware

version 1.xA0

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 42

D7 (DIO7 Configuration) Command

<I/O Settings> The D7 command is used to

select/read the behavior of the DIO7 line (pin 12).

Options include:

• CTS flow control

• Analog-to-digital converter

• Digital input

•Digital output

• RS485 TX Enable (this output is 3V CMOS

level, and is useful in a 3V CMOS to RS485

conversion circuit)

D8 (DI8 Configuration) Command

<I/O Settings> The D8 command is used to

select/read the behavior of the DI8 line (pin 9).

This command enables configuring the pin to

function as a digital input. This line is also used

with Pin Sleep.

DA (Force Disassociation) Command

<(Special)> The DA command is used to immedi-

ately disassociate an End Device from a Coordi-

nator and reattempt to associate.

DB (Received Signal Strength) Command

<Diagnostics> DB parameter is used to read the

received signal strength (in dBm) of the last RF

packet received. Reported values are accurate

between -40 dBm and the RF module's receiver

sensitivity.

Absolute values are reported. For example: 0x58 = -88 dBm (decimal). If no packets have been

received (since last reset, power cycle or sleep event), “0” will be reported.

DH (Destination Address High) Command

<Networking {Addressing}> The DH command is

used to set and read the upper 32 bits of the RF

module's 64-bit destination address. When com-

bined with the DL (Destination Address Low)

parameter, it defines the destination address used

for transmission.

An module will only communicate with other

modules having the same channel (CH parame-

ter), PAN ID (ID parameter) and destination address

(DH + DL parameters).

AT Command: ATD7

Parameter Range:0 - 5

Parameter Configuration

0 Disabled

1CTS Flow Control

2n/a

3DI

4DO low

5DO high

6 RS485 TX Enable Low

7 RS485 TX Enable High

Default Parameter Value:1

Parameters 3-7 supported as of firmware

version 1.x.A0

AT Command: ATD8

Parameter Range:0 - 5 

(1, 2, 4 & 5 n/a)

Parameter Configuration

0 Disabled

3DI

Default Parameter Value:0

Minimum Firmware Version Required: 1.xA0

AT Command: ATDA

Minimum Firmware Version Required: v1.x80

AT Command: ATDB

Parameter Range [read-only]: 

0x17-0x5C (XBee), 0x24-0x64 (XBee-PRO)

AT Command: ATDH

Parameter Range: 0 - 0xFFFFFFFF

Default Parameter Value: 0

Related Commands: DL (Destination Address

Low), CH (Channel), ID (PAN VID), MY (Source

Address)

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 43

To transmit using a 16-bit address, set the DH parameter to zero and the DL parameter less than

0xFFFF. 0x000000000000FFFF (DL concatenated to DH) is the broadcast address for the PAN.

Refer to the XBee/XBee-PRO Addressing section for more information.

DL (Destination Address Low) Command

<Networking {Addressing}> The DL command is

used to set and read the lower 32 bits of the RF

module's 64-bit destination address. When com-

bined with the DH (Destination Address High)

parameter, it defines the destination address used

for transmission.

A module will only communicate with other mod-

ules having the same channel (CH parameter),

PAN ID (ID parameter) and destination address (DH + DL parameters).

To transmit using a 16-bit address, set the DH parameter to zero and the DL parameter less than

0xFFFF. 0x000000000000FFFF (DL concatenated to DH) is the broadcast address for the PAN.

Refer to the XBee/XBee-PRO Addressing section for more information.

DN (Destination Node) Command

<Networking {Identification}> The DN command

is used to resolve a NI (Node Identifier) string to

a physical address. The following events occur

upon successful command execution:

1. DL and DH are set to the address of the

module with the matching NI (Node Identifier).

2. ‘OK’ is returned.

3. RF module automatically exits AT Command Mode.

If there is no response from a modem within 200 msec or a parameter is not specified (left blank),

the command is terminated and an ‘ERROR’ message is returned.

DP (Disassociation Cyclic Sleep Period) Command

NonBeacon Firmware

End Device - The DP command is used to set and

read the time period of sleep for cyclic sleeping

remotes that are configured for Association but

are not associated to a Coordinator. (i.e. If a

device is configured to associate, configured as a

Cyclic Sleep remote, but does not find a Coordi-

nator; it will sleep for DP time before reattempt-

ing association.) Maximum sleep period is 268

seconds (0x68B0). DP should be > 0 for NonBeacon systems.

EA (ACK Failures) Command

<Diagnostics> The EA command is used to reset

and read the count of ACK (acknowledgement)

failures. This parameter value increments when

the module expires its transmission retries with-

out receiving an ACK on a packet transmission.

This count saturates at its maximum value.

Set the parameter to “0” to reset count.

AT Command: ATDL

Parameter Range: 0 - 0xFFFFFFFF

Default Parameter Value: 0

Related Commands: DH (Destination Address

High), CH (Channel), ID (PAN VID), MY (Source

Address)

AT Command: ATDN

Parameter Range: 20-character ASCII String

Minimum Firmware Version Required: v1.x80

AT Command: ATDP

Parameter Range: 1 - 0x68B0 

[x 10 milliseconds]

Default Parameter Value:0x3E8

(1000 decimal)

Related Commands: SM (Sleep Mode), SP

(Cyclic Sleep Period), ST (Time before Sleep)

Minimum Firmware Version Required: v1.x80

AT Command: ATEA

Parameter Range:0 - 0xFFFF

Minimum Firmware Version Required: v1.x80

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 44

EC (CCA Failures) Command

<Diagnostics> The EC command is used to read

and reset the count of CCA (Clear Channel

Assessment) failures. This parameter value incre-

ments when the RF module does not transmit a

packet due to the detection of energy that is

above the CCA threshold level (set with CA com-

mand). This count saturates at its maximum value.

Set the EC parameter to “0” to reset count.

ED (Energy Scan) Command

<Networking {Association}> The ED command is

used to send an “Energy Detect Scan”. This

parameter determines the length of scan on each

channel. The maximal energy on each channel is

returned and each value is followed by a carriage

return. An additional carriage return is sent at the

end of the command.

The values returned represent the detected energy level in units of -dBm. The actual scan time on

each channel is measured as Time = [(2 ^ ED PARAM) * 15.36] ms.

Note: Total scan time is this time multiplied by the number of channels to be scanned. Also refer to

the SD (Scan Duration) table. Use the SC (Scan Channel) command to choose which channels to scan.

EE (AES Encryption Enable) Command

<Networking {Security}> The EE command is

used to set/read the parameter that disables/

enables 128-bit AES encryption.

The XBee®/XBee-PRO® firmware uses the

802.15.4 Default Security protocol and uses AES

encryption with a 128-bit key. AES encryption dic-

tates that all modules in the network use the

same key and the maximum RF packet size is 95

Bytes.

When encryption is enabled, the module will

always use its 64-bit long address as the source

address for RF packets. This does not affect how the MY (Source Address), DH (Destination

Address High) and DL (Destination Address Low) parameters work

If MM (MAC Mode) > 0 and AP (API Enable) parameter > 0: 

With encryption enabled and a 16-bit short address set, receiving modules will only be able to

issue RX (Receive) 64-bit indicators. This is not an issue when MM = 0.

If a module with a non-matching key detects RF data, but has an incorrect key: When encryption is

enabled, non-encrypted RF packets received will be rejected and will not be sent out the UART.

Transparent Operation --> All RF packets are sent encrypted if the key is set.

API Operation --> Receive frames use an option bit to indicate that the packet was encrypted.

FP (Force Poll) Command

<Networking (Association)> The FP command is

used to request indirect messages being held by

a Coordinator.

AT Command: ATEC

Parameter Range:0 - 0xFFFF

Related Command: CA (CCA Threshold)

Minimum Firmware Version Required: v1.x80

AT Command: ATED

Parameter Range:0 - 6

Related Command: SD (Scan Duration), SC

(Scan Channel)

Minimum Firmware Version Required: v1.x80

AT Command: ATEE

Parameter Range:0 - 1

Parameter Configuration

0 Disabled

1Enabled

Default Parameter Value:0

Related Commands: KY (Encryption Key), AP

(API Enable), MM (MAC Mode)

Minimum Firmware Version Required: v1.xA0

AT Command: ATFP

Minimum Firmware Version Required: v1.x80

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 45

FR (Software Reset) Command

<Special> The FR command is used to force a

software reset on the RF module. The reset simu-

lates powering off and then on again the module.

GT (Guard Times) Command

<AT Command Mode Options> GT Command is

used to set the DI (data in from host) time-of-

silence that surrounds the AT command sequence

character (CC Command) of the AT Command

Mode sequence (GT + CC + GT).

The DI time-of-silence is used to prevent inadver-

tent entrance into AT Command Mode.

Refer to the Command Mode section for more

information regarding the AT Command Mode Sequence.

HV (Hardware Version) Command

<Diagnostics> The HV command is used to read

the hardware version of the RF module.

IA (I/O Input Address) Command

<I/O Settings {I/O Line Passing}> The IA com-

mand is used to bind a module output to a spe-

cific address. Outputs will only change if received

from this address. The IA command can be used

to set/read both 16 and 64-bit addresses.

Setting all bytes to 0xFF will not allow the recep-

tion of any I/O packet to change outputs. Setting

the IA address to 0xFFFF will cause the module to

accept all I/O packets.

IC (DIO Change Detect) Command

<I/O Settings> Set/Read bitfield values for

change detect monitoring. Each bit enables moni-

toring of DIO0 - DIO7 for changes.

If detected, data is transmitted with DIO data

only. Any samples queued waiting for transmis-

sion will be sent first.

Refer to the “ADC and Digital I/O Line Support” sections of the “RF Module Operations” chapter for

more information.

ID (Pan ID) Command

<Networking {Addressing}> The ID command is

used to set and read the PAN (Personal Area Net-

work) ID of the RF module. Only modules with

matching PAN IDs can communicate with each

other. Unique PAN IDs enable control of which RF

packets are received by a module.

Setting the ID parameter to 0xFFFF indicates a global transmission for all PANs. It does not indi-

cate a global receive.

AT Command: ATFR

Minimum Firmware Version Required: v1.x80

AT Command: ATGT

Parameter Range:2 - 0x0CE4

[x 1 millisecond]

Default Parameter Value:0x3E8 

(1000 decimal)

Related Command: CC (Command Sequence

Character)

AT Command: ATHV

Parameter Range:0 - 0xFFFF [Read-only]

Minimum Firmware Version Required: v1.x80

AT Command: ATIA

Parameter Range:0 - 0xFFFFFFFFFFFFFFFF

Default Parameter Value:0xFFFFFFFFFFFFFFFF

(will not allow any received I/O packet to

change outputs)

Minimum Firmware Version Required: v1.xA0

AT Command: ATIC

Parameter Range:0 - 0xFF [bitfield]

Default Parameter Value:0 (disabled)

Minimum Firmware Version Required: 1.xA0

AT Command: ATID

Parameter Range: 0 - 0xFFFF

Default Parameter Value:0x3332

(13106 decimal)

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 46

IO (Digital Output Level) Command

<I/O Settings> The IO command is used to set

digital output levels. This allows DIO lines setup

as outputs to be changed through Command

Mode.

IR (Sample Rate) Command

<I/O Settings> The IR command is used to set/

read the sample rate. When set, the module will

sample all enabled DIO/ADC lines at a specified

interval. This command allows periodic reads of

the ADC and DIO lines in a non-Sleep Mode

setup. A sample rate which requires transmis-

sions at a rate greater than once every 20ms is

not recommended.

Example: When IR = 0x14, the sample rate is 20 ms (or 50 Hz).

IS (Force Sample) Command

<I/O Settings> The IS command is used to force

a read of all enabled DIO/ADC lines. The data is

returned through the UART.

When operating in Transparent Mode (AP=0), the

data is retuned in the following format:

All bytes are converted to ASCII:

number of samples<CR>

channel mask<CR>

DIO data<CR> (If DIO lines are enabled<CR>

ADC channel Data<cr> <-This will repeat for every enabled ADC channel<CR>

<CR> (end of data noted by extra <CR>)

When operating in API mode (AP > 0), the command will immediately return an ‘OK’ response.

The data will follow in the normal API format for DIO data.

IT (Samples before TX) Command

<I/O Settings> The IT command is used to set/

read the number of DIO and ADC samples to col-

lect before transmitting data.

One ADC sample is considered complete when all

enabled ADC channels have been read. The mod-

ule can buffer up to 93 Bytes of sample data.

Since the module uses a 10-bit A/D converter, each sample uses two Bytes. This leads to a maxi-

mum buffer size of 46 samples or IT=0x2E.

When Sleep Modes are enabled and IR (Sample Rate) is set, the module will remain awake until IT

samples have been collected.

AT Command: ATIO

Parameter Range: 8-bit bitmap 

(where each bit represents the level of an I/O

line that is setup as an output.)

Minimum Firmware Version Required: v1.xA0

AT Command: ATIR

Parameter Range: 0 - 0xFFFF [x 1 msec]

(cannot guarantee 1 ms timing when IT=1)

Default Parameter Value:0

Related Command: IT (Samples before TX)

Minimum Firmware Version Required: v1.xA0

AT Command: ATIS

Minimum Firmware Version Required: v1.xA0

AT Command: ATIT

Parameter Range: 1 - 0xFF

Default Parameter Value:1

Minimum Firmware Version Required: v1.xA0

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 47

IU (I/O Output Enable) Command

<I/O Settings> The IU command is used to dis-

able/enable I/O UART output. When enabled (IU

= 1), received I/O line data packets are sent out

the UART. The data is sent using an API frame

regardless of the current AP parameter value.

KY (AES Encryption Key) Command

<Networking {Security}> The KY command is

used to set the 128-bit AES (Advanced Encryption

Standard) key for encrypting/decrypting data.

Once set, the key cannot be read out of the mod-

ule by any means.

The entire payload of the packet is encrypted

using the key and the CRC is computed across the

ciphertext. When encryption is enabled, each packet carries an additional 16 Bytes to convey the

random CBC Initialization Vector (IV) to the receiver(s). The KY value may be “0” or any 128-bit

value. Any other value, including entering KY by itself with no parameters, is invalid. All ATKY

entries (valid or not) are received with a returned 'OK'.

A module with the wrong key (or no key) will receive encrypted data, but the data driven out the

serial port will be meaningless. A module with a key and encryption enabled will receive data sent

from a module without a key and the correct unencrypted data output will be sent out the serial

port. Because CBC mode is utilized, repetitive data appears differently in different transmissions

due to the randomly-generated IV.

When queried, the system will return an ‘OK’ message and the value of the key will not be

returned.

M0 (PWM0 Output Level) Command

<I/O Settings> The M0 command is used to set

the output level of the PWM0 line (pin 6).

Before setting the line as an output:

1. Enable PWM0 output (P0 = 2) 

2. Apply settings (use CN or AC)

The PWM period is 64 µsec and there are 0x03FF

(1023 decimal) steps within this period. When M0

= 0 (0% PWM), 0x01FF (50% PWM), 0x03FF

(100% PWM), etc.

M1 (PWM1 Output Level) Command

<I/O Settings> The M1 command is used to set

the output level of the PWM1 line (pin 7).

Before setting the line as an output:

1. Enable PWM1 output (P1 = 2) 

2. Apply settings (use CN or AC)

AT Command: ATIU

Parameter Range:0 - 1

Parameter Configuration

Disabled -

Received I/O line data

packets will be NOT

sent out UART.

Enabled -

Received I/O line data

will be sent out UART

Default Parameter Value:1

Minimum Firmware Version Required: 1.xA0

AT Command: ATKY

Parameter Range:0 - (any 16-Byte value)

Default Parameter Value:0

Related Command: EE (Encryption Enable)

Minimum Firmware Version Required: v1.xA0

AT Command: ATM0

Parameter Range:0 - 0x03FF [steps]

Default Parameter Value:0

Related Commands: P0 (PWM0 Enable), AC

(Apply Changes), CN (Exit Command Mode)

Minimum Firmware Version Required: v1.xA0

AT Command: ATM1

Parameter Range:0 - 0x03FF

Default Parameter Value:0

Related Commands: P1 (PWM1 Enable), AC

(Apply Changes), CN (Exit Command Mode)

Minimum Firmware Version Required: v1.xA0

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 48

MM (MAC Mode) Command

<Networking {Addressing}> The MM command is

used to set and read the MAC Mode value. The

MM command disables/enables the use of a Digi

header contained in the 802.15.4 RF packet. By

default (MM = 0), Digi Mode is enabled and the

module adds an extra header to the data portion

of the 802.15.4 packet. This enables the following

features:

• ND and DN command support

• Duplicate packet detection when using ACKs

•"RR command

• "DIO/AIO sampling support

The MM command allows users to turn off the use

of the extra header. Modes 1 and 2 are strict

802.15.4 modes. If the Digi header is disabled, ND and DN parameters are also disabled.

Note: When MM=0 or 3, application and CCA failure retries are not supported.

MY (16-bit Source Address) Command

<Networking {Addressing}> The MY command is

used to set and read the 16-bit source address of

the RF module.

By setting MY to 0xFFFF, the reception of RF pack-

ets having a 16-bit address is disabled. The 64-bit

address is the module’s serial number and is

always enabled.

NB (Parity) Command

<Serial Interfacing> The NB command is used to

select/read the parity settings of the RF module

for UART communications.

Note: the module does not actually calculate and

check the parity; it only interfaces with devices at

the configured parity and stop bit settings.

AT Command: ATMM

Parameter Range:0 - 3

Parameter Configuration

0Digi Mode (802.15.4 +

Digi header)

1 802.15.4 (no ACKs)

2 802.15.4 (with ACKs)

3 Digi Mode (no ACKs)

Default Parameter Value:0

Related Commands: ND (Node Discover), DN

(Destination Node)

Minimum Firmware Version Required: v1.x80

AT Command: ATMY

Parameter Range: 0 - 0xFFFF

Default Parameter Value: 0

Related Commands: DH (Destination Address

High), DL (Destination Address Low), CH

(Channel), ID (PAN ID)

AT Command: ATNB

Parameter Range: 0 - 4

Parameter Configuration

08-bit no parity

18-bit even

28-bit odd

38-bit mark

48-bit space

Default Parameter Value: 0

Number of bytes returned: 1

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

©2011DigiInternatonal,Inc. 49

ND (Node Discover) Command

<Networking {Identification}> The ND command

is used to discover and report all modules on its

current operating channel (CH parameter) and

PAN ID (ID parameter). ND also accepts an NI

(Node Identifier) value as a parameter. In this

case, only a module matching the supplied identi-

fier will respond.

ND uses a 64-bit long address when sending and

responding to an ND request. The ND command causes a module to transmit a globally addressed

ND command packet. The amount of time allowed for responses is determined by the NT (Node

Discover Time) parameter.

In AT Command mode, command completion is designated by a carriage return (0x0D). Since two

carriage returns end a command response, the application will receive three carriage returns at

the end of the command. If no responses are received, the application should only receive one

carriage return. When in API mode, the application should receive a frame (with no data) and sta-

tus (set to ‘OK’) at the end of the command. When the ND command packet is received, the

remote sets up a random time delay (up to 2.2 sec) before replying as follows:

Node Discover Response (AT command mode format - Transparent operation):

MY (Source Address) value<CR>

SH (Serial Number High) value<CR>

SL (Serial Number Low) value<CR>

DB (Received Signal Strength) value<CR>

NI (Node Identifier) value<CR>

<CR> (This is part of the response and not the end of command indicator.)

Node Discover Response (API format - data is binary (except for NI)):

2 bytes for MY (Source Address) value

4 bytes for SH (Serial Number High) value

4 bytes for SL (Serial Number Low) value

1 byte for DB (Received Signal Strength) value

NULL-terminated string for NI (Node Identifier) value (max 20 bytes w/out NULL terminator)

NI (Node Identifier) Command

<Networking {Identification}> The NI command

is used to set and read a string for identifying a

particular node.

Rules:

• Register only accepts printable ASCII data.

• A string can not start with a space.

• A carriage return ends command

• Command will automatically end when maximum bytes for the string have been entered.

This string is returned as part of the ND (Node Discover) command. This identifier is also used

with the DN (Destination Node) command.

NO (Node Discover Options) Command

<Networking {Identification}> The NO command

is used to suppress/include a self-response to

Node Discover commands. When NO=1 a module

doing a Node Discover will include a response

entry for itself.

AT Command: ATND

Range: optional 20-character NI value

Related Commands: CH (Channel), ID (Pan ID),

MY (Source Address), SH (Serial Number High),

SL (Serial Number Low), NI (Node Identifier),

NT (Node Discover Time)

Minimum Firmware Version Required: v1.x80

AT Command: ATNI

Parameter Range: 20-character ASCII string

Related Commands: ND (Node Discover), DN

(Destination Node)

Minimum Firmware Version Required: v1.x80

AT Command: ATNO

Parameter Range: "0-1

Related Commands: ND (Node Discover), DN

(Destination Node)

Minimum Firmware Version Required: v1.xC5

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

NT (Node Discover Time) Command

<Networking {Identification}> The NT command

is used to set the amount of time a base node will

wait for responses from other nodes when using

the ND (Node Discover) command. The NT value

is transmitted with the ND command.

Remote nodes will set up a random hold-off time

based on this time. The remotes will adjust this

time down by 250 ms to give each node the abil-

ity to respond before the base ends the command. Once the ND command has ended, any

response received on the base will be discarded.

P0 (PWM0 Configuration) Command

<I/O Setting {I/O Line Passing}> The P0 com-

mand is used to select/read the function for

PWM0 (Pulse Width Modulation output 0). This

command enables the option of translating

incoming data to a PWM so that the output can be

translated back into analog form.

With the IA (I/O Input Address) parameter cor-

rectly set, AD0 values can automatically be

passed to PWM0.

P1 (PWM1 Configuration) Command

<I/O Setting {I/O Line Passing}> The P1 com-

mand is used to select/read the function for

PWM1 (Pulse Width Modulation output 1). This

command enables the option of translating

incoming data to a PWM so that the output can be

translated back into analog form.

With the IA (I/O Input Address) parameter cor-

rectly set, AD1 values can automatically be

passed to PWM1.

PL (Power Level) Command

<RF Interfacing> The PL com-

mand is used to select and read

the power level at which the RF

module transmits conducted

power.

When operating in Europe,

XBee-PRO 802.15.4 modules

must operate at or below a

transmit power output level of

10dBm. Customers have 2

choices for transmitting at or

below 10dBm:

• Order the standard XBee-

PRO module and change

the PL command to "0"

(10dBm),

• Order the Japan variant of the XBee-PRO module, which has a maximum transmit output

power of 10dBm.

AT Command: ATNT

Parameter Range: 0x01 - 0xFC

[x 100 msec]

Default: 0x19 (2.5 decimal seconds)

Related Commands: ND (Node Discover)

Minimum Firmware Version Required: 1.xA0

AT Command: ATP0

The second character in the command is the

number zero (“0”), not the letter “O”.

Parameter Range: 0 - 2

Parameter Configuration

0 Disabled

1 RSSI

2PWM0 Output

Default Parameter Value: 1

AT Command: ATP1

Parameter Range: 0 - 2

Parameter Configuration

0 Disabled

1 RSSI

2PWM1 Output

Default Parameter Value: 0

Minimum Firmware Version Required: v1.xA0

AT Command: ATPL

Parameter Range: 0 - 4

Parameter XBee XBee-PRO XBee-PRO

Japan variant

0 -10 dBm 10 dBm PL=4: 10 dBm

1 -6 dBm 12 dBm PL=3: 8 dBm

2 -4 dBm 14 dBm PL=2: 2 dBm

3 -2 dBm 16 dBm PL=1: -3 dBm

4 0 dBm 18 dBm PL=0: -3 dBm

Default Parameter Value: 4

AT Command: ATPR

Parameter Range: 0 - 0xFF

Default Parameter Value: 0xFF 

(all pull-up resistors are enabled)

Minimum Firmware Version Required: v1.x80

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

PR (Pull-up Resistor) Command

bit 0 - AD4/DIO4 (pin 11)

bit 1 - AD3/DIO3 (pin 17) 

bit 2 - AD2/DIO2 (pin 18)

bit 3 - AD1/DIO1 (pin 19)

bit 4 - AD0/DIO0 (pin 20)

bit 5 - AD6/DIO6 (pin 16)

bit 6 - DI8 (pin 9) 

bit 7 - DIN/CONFIG (pin 3)

For example: Sending the command “ATPR 6F” will turn bits 0, 1, 2, 3, 5 and 6 ON; and bits 4 & 7

will be turned OFF. (The binary equivalent of “0x6F” is “01101111”. Note that ‘bit 0’ is the last digit

in the bitfield.

PT (PWM Output Timeout) Command

<I/O Settings {I/O Line Passing}> The PT com-

mand is used to set/read the output timeout

value for both PWM outputs.

When PWM is set to a non-zero value: Due to I/O

line passing, a time is started which when expired

will set the PWM output to zero. The timer is reset

when a valid I/O packet is received.

RE (Restore Defaults) Command

<(Special)> The RE command is used to restore

all configurable parameters to their factory

default settings. The RE command does not write

restored values to non-volatile (persistent) memory. Issue the WR (Write) command subsequent

to issuing the RE command to save restored parameter values to non-volatile memory.

RN (Random Delay Slots) Command

<Networking & Security> The RN command is

used to set and read the minimum value of the

back-off exponent in the CSMA-CA algorithm. The

CSMA-CA algorithm was engineered for collision

avoidance (random delays are inserted to prevent

data loss caused by data collisions).

If RN = 0, collision avoidance is disabled during the first iteration of the algorithm (802.15.4 -

macMinBE).

CSMA-CA stands for "Carrier Sense Multiple Access - Collision Avoidance". Unlike CSMA-CD (reacts

to network transmissions after collisions have been detected), CSMA-CA acts to prevent data colli-

sions before they occur. As soon as a module receives a packet that is to be transmitted, it checks

if the channel is clear (no other module is transmitting). If the channel is clear, the packet is sent

over-the-air. If the channel is not clear, the module waits for a randomly selected period of time,

then checks again to see if the channel is clear. After a time, the process ends and the data is lost.

AT Command: ATPT

Parameter Range: 0 - 0xFF [x 100 msec]

Default Parameter Value: 0xFF

Minimum Firmware Version Required: 1.xA0

AT Command: ATRE

AT Command: ATRN

Parameter Range: 0 - 3 [exponent]

Default Parameter Value: 0

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

RO (Packetization Timeout) Command

<Serial Interfacing> RO command is used to set

and read the number of character times of inter-

character delay required before transmission.

RF transmission commences when data is

detected in the DI (data in from host) buffer and

RO character times of silence are detected on the

UART receive lines (after receiving at least 1 byte).

RF transmission will also commence after 100 Bytes (maximum packet size) are received in the DI

buffer.

Set the RO parameter to '0' to transmit characters as they arrive instead of buffering them into

one RF packet.

RP (RSSI PWM Timer) Command

<I/O Settings {I/O Line Passing}> The RP com-

mand is used to enable PWM (Pulse Width Modu-

lation) output on the RF module. The output is

calibrated to show the level a received RF signal is

above the sensitivity level of the module. The

PWM pulses vary from 24 to 100%. Zero percent

means PWM output is inactive. One to 24% percent means the received RF signal is at or below

the published sensitivity level of the module. The following table shows levels above sensitivity

and PWM values.

The total period of the PWM output is 64 µs. Because there are 445 steps in the PWM output, the

minimum step size is 144 ns.

A non-zero value defines the time that the PWM output will be active with the RSSI value of the

last received RF packet. After the set time when no RF packets are received, the PWM output will

be set low (0 percent PWM) until another RF packet is received. The PWM output will also be set

low at power-up until the first RF packet is received. A parameter value of 0xFF permanently

enables the PWM output and it will always reflect the value of the last received RF packet.

RR (XBee Retries) Command

<Networking {Addressing}> The RR command is

used to set/read the maximum number of retries

the module will execute in addition to the 3

retries provided by the 802.15.4 MAC. For each

XBee retry, the 802.15.4 MAC can execute up to 3

retries.

The following applies when the DL parameter is set to 0xFFFF: If RR is set to zero (RR = 0), only

one packet is broadcast. If RR is set to a value greater than zero (RR > 0), (RR + 2) packets are

sent on each broadcast. No acknowledgements are returned on a broadcast.

This value does not need to be set on all modules for retries to work. If retries are enabled, the

transmitting module will set a bit in the Digi RF Packet header which requests the receiving module

to send an ACK (acknowledgement). If the transmitting module does not receive an ACK within

200 msec, it will re-send the packet within a random period up to 48 msec. Each XBee retry can

potentially result in the MAC sending the packet 4 times (1 try plus 3 retries). Note that retries are

not attempted for packets that are purged when transmitting with a Cyclic Sleep Coordinator.

PWMPercentages

dB above Sensitivity PWM percentage

(high period / total period)

10 41%

20 58%

30 75%

AT Command: ATRO

Parameter Range:0 - 0xFF

[x character times]

Default Parameter Value: 3

AT Command: ATRP

Parameter Range:0 - 0xFF

[x 100 msec]

Default Parameter Value: 0x28 (40 decimal)

AT Command: ATRR

Parameter Range: 0 - 6

Default: 0

Minimum Firmware Version Required: 1.xA0

<Serial Interfacing> The PR command is used to

set and read the bit field that is used to configure

internal the pull-up resistor status for I/O lines. “1”

specifies the pull-up resistor is enabled. “0” speci-

fies no pull up.

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

SC (Scan Channels) Command

<Networking {Association}> The SC command is

used to set and read the list of channels to scan

for all Active and Energy Scans as a bit field.

This affects scans initiated in command mode [AS

(Active Scan) and ED (Energy Scan) commands]

and during End Device Association and Coordina-

tor startup.

bit 0 - 0x0B bit 4 - 0x0F bit 8 - 0x13 bit 12 - 0x17

bit 1 - 0x0C bit 5 - 0x10 bit 9 - 0x14 bit 13 - 0x18

bit 2 - 0x0D bit 6 - 0x11 bit 10 - 0x15 bit 14 - 0x19

bit 3 - 0x0E bit 7 - 0x12 bit 11 - 0x16 bit 15 - 0x1A

SD (Scan Duration) Command

<Networking {Association}> The SD command is

used to set and read the exponent value that

determines the duration (in time) of a scan.

End Device (Duration of Active Scan during

Association) - In a Beacon system, set SD = BE of

the Coordinator. SD must be set at least to the

highest BE parameter of any Beaconing Coordina-

tor with which an End Device or Coordinator wish

to discover.

Coordinator - If the ‘ReassignPANID’ option is set on the Coordinator [refer to A2 parameter], the

SD parameter determines the length of time the Coordinator will scan channels to locate existing

PANs. If the ‘ReassignChannel’ option is set, SD determines how long the Coordinator will perform

an Energy Scan to determine which channel it will operate on.

Scan Time is measured as ((# of Channels to Scan) * (2 ^ SD) * 15.36ms). The number of chan-

nels to scan is set by the SC command. The XBee RF Module can scan up to 16 channels (SC =

0xFFFF). The XBee PRO RF Module can scan up to 12 channels (SC = 0x1FFE).

SH (Serial Number High) Command

<Diagnostics> The SH command is used to read

the high 32 bits of the RF module's unique IEEE

64-bit address.

The module serial number is set at the factory

and is read-only.

SL (Serial Number Low) Command

<Diagnostics> The SL command is used to read

the low 32 bits of the RF module's unique IEEE

64-bit address.

The module serial number is set at the factory

and is read-only.

Examples:Val u e s belowshowresultsfora12‐channelscan

If SD = 0, time = 0.18 sec SD = 8, time = 47.19 sec

SD = 2, time = 0.74 sec SD = 10, time = 3.15 min

SD = 4, time = 2.95 sec SD = 12, time = 12.58 min

SD = 6, time = 11.80 sec SD = 14, time = 50.33 min

AT Command: ATSC

Parameter Range: 1-0xFFFF [Bitfield]

(bits 0, 14, 15 are not allowed when using the

XBee-PRO)

Default Parameter Value: 0x1FFE (all XBee-

PRO channels)

Related Commands: ED (Energy Scan), SD

(Scan Duration)

Minimum Firmware Version Required: v1.x80

AT Command: ATSD

Parameter Range: 0 - 0x0F

Default Parameter Value: 4

Related Commands: ED (Energy Scan), SC

(Scan Channel)

Minimum Firmware Version Required: v1.x80

AT Command: ATSH

Parameter Range: 0 - 0xFFFFFFFF [read-only]

Related Commands: SL (Serial Number Low),

MY (Source Address)

AT Command: ATSL

Parameter Range: 0 - 0xFFFFFFFF [read-only]

Related Commands: SH (Serial Number High),

MY (Source Address)

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

SM (Sleep Mode) Command

<Sleep Mode (Low Power)> The SM

command is used to set and read

Sleep Mode settings. By default,

Sleep Modes are disabled (SM = 0)

and the RF module remains in Idle/

Receive Mode. When in this state, the

module is constantly ready to respond

to either serial or RF activity.

* The Sleep Coordinator option

(SM=6) only exists for backwards

compatibility with firmware version

1.x06 only. In all other cases, use the

CE command to enable a Coordinator.

SO (Sleep Mode Command)

Sleep (Low Power) Sleep Options Set/Read the

sleep mode options.

Bit 0 - Poll wakeup disable

• 0 - Normal operations. A module configured

for cyclic sleep will poll for data on waking.

• 1 - Disable wakeup poll. A module configured

for cyclic sleep will not poll for data on wak-

ing.

Bit 1 - ADC/DIO wakeup sampling disable.

• 0 - Normal operations. A module configured

in a sleep mode with ADC/DIO sampling enabled will automatically perform a sampling on

wakeup.

• 1 - Suppress sample on wakeup. A module configured in a sleep mode with ADC/DIO sam-

pling enabled will not automatically sample on wakeup.

SP (Cyclic Sleep Period) Command

<Sleep Mode (Low Power)> The SP command is

used to set and read the duration of time in which

a remote RF module sleeps. After the cyclic sleep

period is over, the module wakes and checks for

data. If data is not present, the module goes back

to sleep. The maximum sleep period is 268 sec-

onds (SP = 0x68B0).

The SP parameter is only valid if the module is

configured to operate in Cyclic Sleep (SM = 4-6).

Coordinator and End Device SP values should

always be equal.

To send Direct Messages, set SP = 0.

NonBeacon Firmware

End Device - SP determines the sleep period for cyclic sleeping remotes. Maximum sleep period is

268 seconds (0x68B0).

Coordinator - If non-zero, SP determines the time to hold an indirect message before discarding it.

A Coordinator will discard indirect messages after a period of (2.5 * SP).

AT Command: ATSM

Parameter Range: 0 - 6

Parameter Configuration

0 Disabled

1Pin Hibernate

2Pin Doze

3 (reserved)

4 Cyclic Sleep Remote

5Cyclic Sleep Remote

(with Pin Wake-up)

6 Sleep Coordinator*

Default Parameter Value: 0

AT Command: ATSO

Parameter

Range: 0-4

Default Parameter Value:

Related Commands: SM (Sleep Mode), ST

(Time before Sleep), DP (Disassociation Cyclic

Sleep Period, BE (Beacon Order)

AT Command: ATSP

Parameter

Range:

NonBeacon Firmware:

0-0x68B0 [x 10 milliseconds]

Default Parameter Value:

Related Commands: SM (Sleep Mode), ST

(Time before Sleep), DP (Disassociation Cyclic

Sleep Period, BE (Beacon Order)

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

ST (Time before Sleep) Command

<Sleep Mode (Low Power)> The ST command is

used to set and read the period of inactivity (no

serial or RF data is sent or received) before acti-

vating Sleep Mode.

NonBeacon Firmware

Set/Read time period of inactivity (no serial or RF

data is sent or received) before activating Sleep

Mode. ST parameter is only valid with Cyclic Sleep

settings (SM = 4 - 5).

Coordinator and End Device ST values must be equal.

T0 - T7 ((D0-D7) Output Timeout) Command

<I/O Settings {I/O Line Passing}> The T0, T1,

T2, T3, T4, T5, T6 and T7 commands are used to

set/read output timeout values for the lines that

correspond with the D0 - D7 parameters. When

output is set (due to I/O line passing) to a non-

default level, a timer is started which when

expired, will set the output to its default level. The timer is reset when a valid I/O packet is

received. The Tn parameter defines the permissible amount of time to stay in a non-default

(active) state. If Tn = 0, Output Timeout is disabled (output levels are held indefinitely).

VL (Firmware Version - Verbose)

<Diagnostics> The VL command is used to read

detailed version information about the RF module.

The information includes: 

application build date; MAC, PHY and bootloader

versions; and build dates. This command was

removed from firmware 1xC9 and later versions.

VR (Firmware Version) Command

<Diagnostics> The VR command is used to read

which firmware version is stored in the module.

XBee version numbers will have four significant

digits. The reported number will show three or four numbers and is stated in hexadecimal nota-

tion. A version can be reported as "ABC" or "ABCD". Digits ABC are the main release number and

D is the revision number from the main release. "D" is not required and if it is not present, a zero

is assumed for D. "B" is a variant designator. The following variants exist:

• "0" = Non-Beacon Enabled 802.15.4 Code

• "1" = Beacon Enabled 802.15.4 Code

WR (Write) Command

<(Special)> The WR command is used to write

configurable parameters to the RF module's non-

volatile memory. Parameter values remain in the

module's memory until overwritten by subsequent use of the WR Command.

If changes are made without writing them to non-volatile memory, the module reverts back to pre-

viously saved parameters the next time the module is powered-on.

NOTE: Once the WR command is sent to the module, no additional characters should be sent until

after the “OK/r” response is received.

AT Command: ATST

Parameter

Range:

NonBeacon Firmware:

1 - 0xFFFF [x 1 millisecond]

Default Parameter Value:

Related Commands: SM (Sleep Mode), ST

(Time before Sleep)

AT Commands: ATT0 - ATT7

Parameter Range:0 - 0xFF [x 100 msec]

Default Parameter Value:0xFF

Minimum Firmware Version Required: v1.xA0

AT Command: ATVL

Parameter Range:0 - 0xFF

[x 100 milliseconds]

Default Parameter Value: 0x28 (40 decimal)

Minimum Firmware Version Required: v1.x80

- v1.xC8

AT Command: ATVR

Parameter Range: 0 - 0xFFFF [read only]

AT Command: ATWR

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

API Operation

By default, XBee®/XBee-PRO® RF Modules act as a serial line replacement (Transparent Opera-

tion) - all UART data received through the DI pin is queued up for RF transmission. When the mod-

ule receives an RF packet, the data is sent out the DO pin with no additional information.

Inherent to Transparent Operation are the following behaviors:

• If module parameter registers are to be set or queried, a special operation is required for

transitioning the module into Command Mode.

• In point-to-multipoint systems, the application must send extra information so that the

receiving module(s) can distinguish between data coming from different remotes.

As an alternative to the default Transparent Operation, API (Application Programming Interface)

Operations are available. API operation requires that communication with the module be done

through a structured interface (data is communicated in frames in a defined order). The API spec-

ifies how commands, command responses and module status messages are sent and received

from the module using a UART Data Frame.

API Frame Specifications

Two API modes are supported and both can be enabled using the AP (API Enable) command. Use

the following AP parameter values to configure the module to operate in a particular mode:

• AP = 0 (default): Transparent Operation (UART Serial line replacement)

API modes are disabled.

•AP = 1: API Operation

•AP = 2: API Operation (with escaped characters)

Any data received prior to the start delimiter is silently discarded. If the frame is not received cor-

rectly or if the checksum fails, the data is silently discarded.

API Operation (AP parameter = 1)

When this API mode is enabled (AP = 1), the UART data frame structure is defined as follows:

Figure3‐09. UARTDataFrameStructure:

MSB=MostSignificantByte,LSB=LeastSignificantByte

API Operation - with Escape Characters (AP parameter = 2)

When this API mode is enabled (AP = 2), the UART data frame structure is defined as follows:

Figure3‐10. UARTDataFrameStructure‐withescapecontrolcharacters:

MSB=MostSignificantByte,LSB=LeastSignificantByte

Escape characters. When sending or receiving a UART data frame, specific data values must be

escaped (flagged) so they do not interfere with the UART or UART data frame operation. To escape

an interfering data byte, insert 0x7D and follow it with the byte to be escaped XOR’d with 0x20.

Start Delimiter

(Byte 1) Length

(Bytes 2-3) Frame Data

(Bytes 4-n) Checksum

(Byte n + 1)

0x7E MSB LSB API-specific Structure 1 Byte

Start Delimiter

(Byte 1) Length

(Bytes 2-3) Frame Data

(Bytes 4-n) Checksum

(Byte n + 1)

0x7E MSB LSB API-specific Structure 1 Byte

Characters Escaped If Needed

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

Data bytes that need to be escaped:

• 0x7E – Frame Delimiter

•0x7D – Escape

• 0x11 – XON

• 0x13 – XOFF

Note: In the above example, the length of the raw data (excluding the checksum) is 0x0002 and

the checksum of the non-escaped data (excluding frame delimiter and length) is calculated as:

0xFF - (0x23 + 0x11) = (0xFF - 0x34) = 0xCB.

Checksum

To test data integrity, a checksum is calculated and verified on non-escaped data.

To calculate: Not including frame delimiters and length, add all bytes keeping only the lowest 8

bits of the result and subtract from 0xFF.

To verify: Add all bytes (include checksum, but not the delimiter and length). If the checksum is

correct, the sum will equal 0xFF.

API Types

Frame data of the UART data frame forms an API-specific structure as follows:

Figure3‐11. UARTDataFrame&API‐specificStructure:

The cmdID frame (API-identifier) indicates which API messages will be contained in the cmdData

frame (Identifier-specific data). Refer to the sections that follow for more information regarding

the supported API types. Note that multi-byte values are sent big endian.

Modem Status

API Identifier: 0x8A

RF module status messages are sent from the module in response to specific conditions.

Figure3‐12. ModemStatusFrames

Example - Raw UART Data Frame (before escaping interfering bytes): 

0x7E 0x00 0x02 0x23 0x11 0xCB

0x11 needs to be escaped which results in the following frame: 

0x7E 0x00 0x02 0x23 0x7D 0x31 0xCB

Length

(Bytes 2-3) Checksum

(Byte n + 1)

MSB LSB 1 Byte

Start Delimiter

(Byte 1)

0x7E

Frame Data

(Bytes 4-n)

API-specific Structure

Identifier-specific Data

cmdData

API Identifier

cmdID

cmdData0x8A

Length ChecksumStart Delimiter Frame Data

Identifier-specific DataAPI Identifier

MSB LSB0x7E 1 ByteAPI -specific Structure

Status (Byte 5)

0 = Hardware reset

1 = Watchdog timer reset

2 = Associated

3 = Disassociated

4 = Synchronization Lost

(Beacon-enabled only )

5 = Coordinator realignment

6 = Coordinator started

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

AT Command

API Identifier Value: 0x08

The “AT Command” API type allows for module parameters to be queried or set. When using this

command ID, new parameter values are applied immediately. This includes any register set with

the “AT Command - Queue Parameter Value” (0x09) API type.

Figure3‐13. ATCommandFrames

Figure3‐14. Example:APIframeswhenreadingtheDLparametervalueofthemodule.

Figure3‐15. Example:APIframeswhenmodifyingtheDLparametervalueofthemodule.

AT Command - Queue Parameter Value

API Identifier Value: 0x09

This API type allows module parameters to be queried or set. In contrast to the “AT Command” API

type, new parameter values are queued and not applied until either the “AT Command” (0x08) API

type or the AC (Apply Changes) command is issued. Register queries (reading parameter values)

are returned immediately.

cmdData0x08

Length ChecksumStart Delimiter Frame Data

Identifier-specific DataAPI Identifier

MSB LSB0x7E 1 ByteAPI-specific Structure

Frame ID (Byte 5)

Identifies the UART data frame for the host to

correlate with a subsequent ACK (acknowledgement).

If set to ‘0’, no response is sent.

AT Command (Bytes 6-7)

Command Name - Two

ASCII characters that

identify the AT Command.

Parameter Value (Byte(s) 8-n)

If present, indicates the requested parameter

value to set the given register.

If no characters present, register is queried.

*Length[Bytes]=APIIdentifier+FrameID+ATCommand

**“R”valuewasarbitrarilyselected.

Checksum

0x15

Byte 8

AT Command

Bytes 6-7

Frame ID**

0x52 (R)

Byte 5

0x44 (D) 0x4C (L)

API Identifier

0x08

Byte 4

Start Delimiter

Byte 1

0x7E

Length*

Bytes 2-3

0x00 0x04

*Length[Bytes]=APIIdentifier+FrameID+ATCommand+ParameterValue

**“M”valuewasarbitrarilyselected.

Checksum

0x0C

Byte 12

AT Command

Bytes 6-7

0x44 (D) 0x4C (L)

Parameter Value

0x00000FFF

Bytes 8-11

Frame ID**

0x4D (M)

Byte 5

Length*

Bytes 2-3

0x00 0x08

API Identifier

0x08

Byte 4

Start Delimiter

Byte 1

0x7E

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

AT Command Response

API Identifier Value: 0x88

Response to previous command.

In response to an AT Command message, the module will send an AT Command Response mes-

sage. Some commands will send back multiple frames (for example, the ND (Node Discover) and

AS (Active Scan) commands). These commands will end by sending a frame with a status of

ATCMD_OK and no cmdData.

Figure3‐16. ATCommandResponseFrames.

Figure3‐17. ATCommandResponseFrames.

Remote AT Command Request

API Identifier Value: 0x17

Allows for module parameter registers on a remote device to be queried or set

Figure3‐18. RemoteATCommandRequest

cmdData0x88

Length ChecksumStart Delimiter Frame Data

Identifier-specific DataAPI Identifier

MSB LSB0x7E 1 ByteAPI-specific Structure

Frame ID (Byte 5 )

Identifies the UART data frame being reported.

Note: If Frame ID = 0 in AT Command Mode,

no AT Command Response will be given.

AT Command (Bytes 6-7)

Command Name - Two

ASCII characters that

identify the AT Command.

Status (Byte 8)

0 = OK

1 = ERROR

2 = Invalid Command

3 = Invalid Parameter

The HEX (non-ASCII) value

of the requested register

Value (Byte(s) 9-n)

cmdData0x88

Length ChecksumStart Delimiter Frame Data

Identifier-specific DataAPI Identifier

MSB LSB0x7E 1 ByteAPI-specific Structure

Frame ID (Byte 5 )

Identifies the UART data frame being reported.

Note: If Frame ID = 0 in AT Command Mode,

no AT Command Response will be given.

AT Command (Bytes 6-7)

Command Name - Two

ASCII characters that

identify the AT Command.

Status (Byte 8)

0 = OK

1 = ERROR

2 = Invalid Command

3 = Invalid Parameter

The HEX (non-ASCII) value

of the requested register

Value (Byte(s) 9-n)

0x17 cmdData

Length ChecksumStart Delimiter Frame Data

Identifier-specific DataAPI Identifier

MSB LSB0x7E 1 ByteAPI-specific Structure

Frame ID (Byte 5)

Identifies the UART data frame for the host to

correlate with a subsequent ACK (acknowledgement).

If set to ‘0’, no AT Command Response will be given.

Command Name (bytes

17-18)

Name of the

command

Set to match the 64-bit address

of the destination, MSB first,

LSB last. Broadcast =

0x000000000000FFFF. This field is ignored if the 16-bit

network address field equals anything other than

0xFFFE.

64-bit Destination Address

(bytes 6-13)

0x02 - Apply changes on remote. (If

not set, AC command must be sent

before changes will take effect.)

All other bits must be set to 0.

Command Options (byte 16)

If present, indicates the requested

parameter value to set the given

the register is queried.

Command Data (byte 19-n)

16-bit Destination Network Address

(bytes 14-15)

Set to match the 16-bit network

address of the destination, MSB

first, LSB last. Set to 0xFFFE if 64-bit

addressing is being used.

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

Remote Command Response

API Identifier Value: 0x97

If a module receives a remote command response RF data frame in response to a Remote AT Com-

mand Request, the module will send a Remote AT Command Response message out the UART.

Some commands may send back multiple frames--for example, Node Discover (ND) command.

Figure3‐19. RemoteATCommandResponse.

TX (Transmit) Request: 64-bit address

API Identifier Value: 0x00

A TX Request message will cause the module to transmit data as an RF Packet.

Figure3‐20. TXPacket(64‐bitaddress)Frames

cmdData0x97

Length ChecksumStart Delimiter Frame Data

Identifier- specific DataAPI Identifier

MSB LSB0x7E 1 ByteAPI- specific Structure

16- bit Responder Network Address ( bytes

14-15)

Set to the 16- bit network

address of the remote.

Frame ID (Byte 5)

Status ( byte 18)

0 = OK

1 = Error

2 = Invalid Command

3 = Invalid Parameter

64- bit Responder

Address ( bytes 6-13)

Indicates the 64- bit address

of the remote module that is

responding to the Remote

AT Command request

Identifies the UART data frame being reported.

Matches the Frame ID of the Remote Command

Request the remote is responding to.

Command Name ( bytes

16-17)

Name of the command. Two

ASCII characters that

identify the AT command

Command Data ( byte 19-n)

The value of the requested

4 = No Response

cmdData0x00

Length ChecksumStart Delimiter Frame Data

Identifier-specific DataAPI Identifier

MSB LSB0x7E 1 ByteAPI-specific Structure

Frame ID (Byte 5)

Identifies the UART data frame for the host to

correlate with a subsequent ACK (acknowledgement).

Setting Frame ID to ‘0' will disable response frame.

Destination Address (Bytes 6-13)

MSB first, LSB last.

Broadcast =

0x000000000000FFFF

Options (Byte 14)

0x01 = Disable ACK

0x04 = Send packet with Broadcast Pan ID

All other bits must be set to 0.

RF Data (Byte(s) 15-n)

Up to 100 Bytes per packet

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

TX (Transmit) Request: 16-bit address

API Identifier Value: 0x01

A TX Request message will cause the module to transmit data as an RF Packet.

Figure3‐21. TXPacket(16‐bitaddress)Frames

TX (Transmit) Status

API Identifier Value: 0x89

When a TX Request is completed, the module sends a TX Status message. This message will indi-

cate if the packet was transmitted successfully or if there was a failure.

Figure3‐22. TXStatusFrames

NOTES:

• “STATUS = 1” occurs when all retries are expired and no ACK is received.

• If transmitter broadcasts (destination address = 0x000000000000FFFF), only 

“STATUS = 0 or 2” will be returned.

• “STATUS = 3” occurs when Coordinator times out of an indirect transmission. 

Timeout is defined as (2.5 x SP (Cyclic Sleep Period) parameter value).

RX (Receive) Packet: 64-bit Address

API Identifier Value: 0x80

When the module receives an RF packet, it is sent out the UART using this message type.

Figure3‐23. RXPacket(64‐bitaddress)Frames

cmdData0x01

Length ChecksumStart Delimiter Frame Data

Identifier-specific DataAPI Identifier

MSB LSB0x7E 1 ByteAPI-specific Structure

Frame ID (Byte 5)

Identifies the UART data frame for the host to

correlate with a subsequent ACK (acknowledgement).

Setting Frame ID to ‘0' will disable response frame.

Destination Address (Bytes 6-7)

MSB first, LSB last.

Broadcast = 0xFFFF

Options (Byte 8)

0x01 = Disable ACK

0x04 = Send packet with Broadcast Pan ID

All other bits must be set to 0.

RF Data (Byte(s) 9-n)

Up to 100 Bytes per packet

cmdData0x89

Length ChecksumStart Delimiter Frame Data

Identifier-specific DataAPI Identifier

MSB LSB0x7E 1 ByteAPI-specific Structure

Frame ID (Byte 5) Status (Byte 6)

0 = Success

1 = No ACK (Acknowledgement) received

2 = CCA failure

3 = Purged

Identifies UART data frame being reported.

Note: If Frame ID = 0 in the TX Request, no

AT Command Response will be given.

cmdData0x80

Length ChecksumStart Delimiter Frame Data

Identifier-specific DataAPI Identifier

MSB LSB0x7E 1 ByteAPI-specific Structure

bit 0 [reserved]

bit 1 = Address broadcast

bit 2 = PAN broadcast

bits 3-7 [reserved]

Up to 100 Bytes per packet

Received Signal Strength Indicator -

Hexadecimal equivalent of (-dBm) value.

(For example: If RX signal strength = -40

dBm, “0x28” (40 decimal) is returned)

Source Address (Bytes 5-12) Options (Byte 14) RF Data (Byte(s) 15-n)RSSI (Byte 13)

MSB (most significant byte) first,

LSB (least significant) last

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

RX (Receive) Packet: 16-bit Address

API Identifier Value: 0x81

When the module receives an RF packet, it is sent out the UART using this message type.

Figure3‐24. RXPacket(16‐bitaddress)Frames

cmdData0x81

Length ChecksumStart Delimiter Frame Data

Identifier-specific DataAPI Identifier

MSB LSB0x7E 1 ByteAPI-specific Structure

bit 0 [reserved]

bit 1 = Address broadcast

bit 2 = PAN broadcast

bits 3-7 [reserved]

Up to 100 Bytes per packet

Received Signal Strength Indicator -

Hexadecimal equivalent of (-dBm) value.

(For example: If RX signal strength = -40

dBm, “0x28” (40 decimal) is returned)

Source Address (Bytes 5-6) RSSI (Byte 7)

MSB (most significant byte) first,

LSB (least significant) last

Options (Byte 8) RF Data (Byte(s) 9-n)

AppendixA:AgencyCertifications

United States (FCC)

XBee®/XBee-PRO® RF Modules comply with Part 15 of the FCC rules and regulations. Compliance

with the labeling requirements, FCC notices and antenna usage guidelines is required.

To fulfill FCC Certification requirements, the OEM must comply with the following regulations:

OEM Labeling Requirements

WARNING: The Original Equipment Manufacturer (OEM) must ensure that FCC labeling

requirements are met. This includes a clearly visible label on the outside of the final

product enclosure that displays the contents shown in the figure below.

Figure4‐01. RequiredFCCLabelforOEMproductscontainingtheXBee®/XBee‐PRO®RFModule

*TheFCCIDfortheXBeeis“OUR‐XBEE”.TheFCCIDfortheXBee‐PROis“OUR‐XBEEPRO”.

FCC Notices

IMPORTANT: The XBee®/XBee-PRO® RF Module has been certified by the FCC for use with other

products without any further certification (as per FCC section 2.1091). Modifications not expressly

approved by Digi could void the user's authority to operate the equipment.

IMPORTANT: OEMs must test final product to comply with unintentional radiators (FCC section

15.107 & 15.109) before declaring compliance of their final product to Part 15 of the FCC Rules.

IMPORTANT: The RF module has been certified for remote and base radio applications. If the

module will be used for portable applications, the following applies:

- For XBee modules where the antenna gain is less than 13.8 dBi, no additional SAR testing is

required. The 20 cm separation distance is not required for antenna gain less than 13.8 dBi.

- For XBee modules where the antenna gain is greater than 13.8 dBi and for all XBee-PRO mod-

ules, the device must undergo SAR testing.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the inter-

ference by one or more of the following measures: Re-orient or relocate the receiving antenna,

Increase the separation between the equipment and receiver, Connect equipment and receiver to

outlets on different circuits, or Consult the dealer or an experienced radio/TV technician for help.

1. The system integrator must ensure that the text on the external label provided with this

device is placed on the outside of the final product [Figure A-01].

2. XBee®/XBee-PRO® RF Modules may only be used with antennas that have been tested and

approved for use with this module [refer to the antenna tables in this section].

Contains FCC ID: OUR-XBEE/OUR-XBEEPRO**

The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (i.) this device may not cause harmful interference and (ii.) this device must accept any inter-

ference received, including interference that may cause undesired operation.

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

FCC-Approved Antennas (2.4 GHz)

XBee/XBee-PRO RF Modules can be installed using antennas and cables constructed with standard connectors (Type-

N, SMA, TNC, etc.) if the installation is performed professionally and according to FCC guidelines. For installations

not performed by a professional, non-standard connectors (RPSMA, RPTNC, etc) must be used.

The modules are FCC-approved for fixed base station and mobile applications on channels 0x0B - 0x1A (XBee) and

0x0C - 0x17 (XBee-PRO). If the antenna is mounted at least 20cm (8 in.) from nearby persons, the application is

considered a mobile application. Antennas not listed in the table must be tested to comply with FCC Section 15.203

(Unique Antenna Connectors) and Section 15.247 (Emissions).

XBee RF Modules (1 mW): XBee Modules have been tested and approved for use with the antennas listed in the

first and second tables below (Cable loss is required as shown).

XBee-PRO RF Modules (60 mW): XBee-PRO Modules have been tested and approved for use with the antennas

listed in the first and third tables below (Cable loss is required as shown).

The antennas in the tables below have been approved for use with this module. Digi does not carry all of these

antenna variants. Contact Digi Sales for available antennas.

AntennasapprovedforusewiththeXBee®/XBee‐PRO®RFModules(Cablelossisnotrequired.)

AntennasapprovedforusewiththeXBeeRFModules(Cablelossisrequired)

Part Number Type (Description) Gain Application* Min. Separation

A24-HASM-450 Dipole (Half-wave articulated RPSMA - 4.5”) 2.1 dBi Fixed/Mobile 20 cm

A24-HABSM Dipole (Articulated RPSMA) 2.1 dBi Fixed 20 cm

A24-HABUF-P5I Dipole (Half-wave articulated bulkhead mount U.FL. w/ 5” pigtail) 2.1 dBi Fixed 20 cm

A24-HASM-525 Dipole (Half-wave articulated RPSMA - 5.25") 2.1 dBi Fixed/Mobile 20 cm

A24-QI Monopole (Integrated whip) 1.5 dBi Fixed 20 cm

A24-C1 Surface Mount -1.5 dBi Fixed/Mobile 20 cm

29000430 Integrated PCB Antenna -0.5dBi Fixed/Mobile 20 cm

Part Number Type (Description) Gain Application* Min. Separation Required Cable-loss

Yagi Class Antennas

A24-Y4NF Yagi (4-element) 6.0 dBi Fixed 2 m

A24-Y6NF Yagi (6-element) 8.8 dBi Fixed 2 m 1.7 dB

A24-Y7NF Yagi (7-element) 9.0 dBi Fixed 2 m 1.9 dB

A24-Y9NF Yagi (9-element) 10.0 dBi Fixed 2 m 2.9 dB

A24-Y10NF Yagi (10-element) 11.0 dBi Fixed 2 m 3.9 dB

A24-Y12NF Yagi (12-element) 12.0 dBi Fixed 2 m 4.9 dB

A24-Y13NF Yagi (13-element) 12.0 dBi Fixed 2 m 4.9 dB

A24-Y15NF Yagi (15-element) 12.5 dBi Fixed 2 m 5.4 dB

A24-Y16NF Yagi (16-element) 13.5 dBi Fixed 2 m 6.4 dB

A24-Y16RM Yagi (16-element, RPSMA connector) 13.5 dBi Fixed 2 m 6.4 dB

A24-Y18NF Yagi (18-element) 15.0 dBi Fixed 2 m 7.9 dB

Omni-Directional Class Antennas

A24-F2NF Omni-directional (Fiberglass base station) 2.1 dBi Fixed/Mobile 20 cm

A24-F3NF Omni-directional (Fiberglass base station) 3.0 dBi Fixed/Mobile 20 cm

A24-F5NF Omni-directional (Fiberglass base station) 5.0 dBi Fixed/Mobile 20 cm

A24-F8NF Omni-directional (Fiberglass base station) 8.0 dBi Fixed 2 m

A24-F9NF Omni-directional (Fiberglass base station) 9.5 dBi Fixed 2 m 0.2 dB

A24-F10NF Omni-directional (Fiberglass base station) 10.0 dBi Fixed 2 m 0.7 dB

A24-F12NF Omni-directional (Fiberglass base station) 12.0 dBi Fixed 2 m 2.7 dB

A24-F15NF Omni-directional (Fiberglass base station) 15.0 dBi Fixed 2 m 5.7 dB

A24-W7NF Omni-directional (Base station) 7.2 dBi Fixed 2 m

A24-M7NF Omni-directional (Mag-mount base station) 7.2 dBi Fixed 2 m

Panel Class Antennas

A24-P8SF Flat Panel 8.5 dBi Fixed 2 m 1.5 dB

A24-P8NF Flat Panel 8.5 dBi Fixed 2 m 1.5 dB

A24-P13NF Flat Panel 13.0 dBi Fixed 2 m 6 dB

A24-P14NF Flat Panel 14.0 dBi Fixed 2 m 7 dB

A24-P15NF Flat Panel 15.0 dBi Fixed 2 m 8 dB

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

AntennasapprovedforusewiththeXBee®/XBee‐PRO®RFModules(Cable‐lossisrequired))

*IfusingtheRFmoduleinaportableapplication(Forexample‐Ifthemoduleisusedinahandhelddeviceandtheantennaisless

than20cmfromthehumanbodywhenthedeviceisoperation):TheintegratorisresponsibleforpassingadditionalSAR(Specific

AbsorptionRate)testingbasedonFCCrules2.1091andFCCGuidelinesforHumanExposuretoRadioFrequencyElectromagnetic

Fields,OETBulletinandSupplementC.SeethenoteunderFCCnoticesformoreinformation.Thetestingresultswillbesubmittedto

theFCCforapprovalpriortosellingtheintegratedunit.TherequiredSARtestingmeasuresemissionsfromthemoduleandhow

theyaffecttheperson.

RF Exposure

WARNING: To satisfy FCC RF exposure requirements for mobile transmitting devices, a separation distance of

20 cm or more should be maintained between the antenna of this device and persons during device operation.

To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this

transmitter must not be co-located in conjunction with any other antenna or transmitter.

The preceding statement must be included as a CAUTION statement in OEM product manuals in order to alert users

of FCC RF Exposure compliance.

A24-P16NF Flat Panel 16.0 dBi Fixed 2 m 9 dB

Part Number Type (Description) Gain Application* Min. Separation Required Cable-loss

Yagi Class Antennas

A24-Y4NF Yagi (4-element) 6.0 dBi Fixed 2 m 8.1 dB

A24-Y6NF Yagi (6-element) 8.8 dBi Fixed 2 m 10.9 dB

A24-Y7NF Yagi (7-element) 9.0 dBi Fixed 2 m 11.1 dB

A24-Y9NF Yagi (9-element) 10.0 dBi Fixed 2 m 12.1 dB

A24-Y10NF Yagi (10-element) 11.0 dBi Fixed 2 m 13.1 dB

A24-Y12NF Yagi (12-element) 12.0 dBi Fixed 2 m 14.1 dB

A24-Y13NF Yagi (13-element) 12.0 dBi Fixed 2 m 14.1 dB

A24-Y15NF Yagi (15-element) 12.5 dBi Fixed 2 m 14.6 dB

A24-Y16NF Yagi (16-element) 13.5 dBi Fixed 2 m 15.6 dB

A24-Y16RM Yagi (16-element, RPSMA connector) 13.5 dBi Fixed 2 m 15.6 dB

A24-Y18NF Yagi (18-element) 15.0 dBi Fixed 2 m 17.1 dB

Omni-Directional Class Antennas

A24-F2NF Omni-directional (Fiberglass base station) 2.1 dBi Fixed/Mobile 20 cm 4.2 dB

A24-F3NF Omni-directional (Fiberglass base station) 3.0 dBi Fixed/Mobile 20 cm 5.1 dB

A24-F5NF Omni-directional (Fiberglass base station) 5.0 dBi Fixed/Mobile 20 cm 7.1 dB

A24-F8NF Omni-directional (Fiberglass base station) 8.0 dBi Fixed 2 m 10.1 dB

A24-F9NF Omni-directional (Fiberglass base station) 9.5 dBi Fixed 2 m 11.6 dB

A24-F10NF Omni-directional (Fiberglass base station) 10.0 dBi Fixed 2 m 12.1 dB

A24-F12NF Omni-directional (Fiberglass base station) 12.0 dBi Fixed 2 m 14.1 dB

A24-F15NF Omni-directional (Fiberglass base station) 15.0 dBi Fixed 2 m 17.1 dB

A24-W7NF Omni-directional (Base station) 7.2 dBi Fixed 2 m 9.3 dB

A24-M7NF Omni-directional (Mag-mount base station) 7.2 dBi Fixed 2 m 9.3 dB

Panel Class Antennas

A24-P8SF Flat Panel 8.5 dBi Fixed 2 m 8.6 dB

A24-P8NF Flat Panel 8.5 dBi Fixed 2 m 8.6 dB

A24-P13NF Flat Panel 13.0 dBi Fixed 2 m 13.1 dB

A24-P14NF Flat Panel 14.0 dBi Fixed 2 m 14.1 dB

A24-P15NF Flat Panel 15.0 dBi Fixed 2 m 15.1 dB

A24-P16NF Flat Panel 16.0 dBi Fixed 2 m 16.1 dB

A24-P19NF Flat Panel 19.0 dBi Fixed 2 m 19.1 dB

Waveguide Class Antennas

RSM Waveguide 7.1 dBi Fixed 2 m 1.5 dB

Part Number Type (Description) Gain Application* Min. Separation Required Cable-loss

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

Europe (ETSI)

The XBee RF Modules have been certified for use in several European countries. For a complete

list, refer to www.digi.com

If the XBee RF Modules are incorporated into a product, the manufacturer must ensure compliance

of the final product to the European harmonized EMC and low-voltage/safety standards. A

Declaration of Conformity must be issued for each of these standards and kept on file as described

in Annex II of the R&TTE Directive.

Furthermore, the manufacturer must maintain a copy of the XBee user manual documentation and

ensure the final product does not exceed the specified power ratings, antenna specifications, and/

or installation requirements as specified in the user manual. If any of these specifications are

exceeded in the final product, a submission must be made to a notified body for compliance

testing to all required standards.

OEM Labeling Requirements

The 'CE' marking must be affixed to a visible location on the OEM product.

CELabelingRequirements

The CE mark shall consist of the initials "CE" taking the following form:

• If the CE marking is reduced or enlarged, the proportions given in the above graduated draw-

ing must be respected.

• The CE marking must have a height of at least 5mm except where this is not possible on

account of the nature of the apparatus.

• The CE marking must be affixed visibly, legibly, and indelibly.

Restrictions

Power Output: When operating in Europe, XBee-PRO 802.15.4 modules must operate at or

below a transmit power output level of 10dBm. Customers have two choices for transmitting at or

below 10dBm:

a. Order the standard XBee-PRO module and change the PL command to 0 (10dBm)

b. Order the International variant of the XBee-PRO module, which has a maximum transmit

output power of 10dBm (@ PL=4).

Additionally, European regulations stipulate an EIRP power maximum of 12.86 dBm (19 mW) for

the XBee-PRO and 12.11 dBm for the XBee when integrating antennas.

France: Outdoor use limited to 10 mW EIRP within the band 2454-2483.5 MHz.

Norway: Norway prohibits operation near Ny-Alesund in Svalbard. More information can be found

at the Norway Posts and Telecommunications site (www.npt.no).

Declarations of Conformity

Digi has issued Declarations of Conformity for the XBee RF Modules concerning emissions, EMC

and safety. Files can be obtained by contacting Digi Support.

Important Note:

Digi does not list the entire set of standards that must be met for each country. Digi customers

assume full responsibility for learning and meeting the required guidelines for each country in their

distribution market. For more information relating to European compliance of an OEM product

incorporating the XBee RF Module, contact Digi, or refer to the following web sites:

CEPT ERC 70-03E - Technical Requirements, European restrictions and general requirements:

Available at www.ero.dk/.

R&TTE Directive - Equipment requirements, placement on market: Available at www.ero.dk/.

Approved Antennas

When integrating high-gain antennas, European regulations stipulate EIRP power maximums. Use

the following guidelines to determine which antennas to design into an application.

XBee®/XBee‐PRO®RFModules‐802.15.4‐v1.xEx[2011.07.27]

XBee-PRO RF Module

The following antenna types have been tested and approved for use with the XBee Module:

Antenna Type: Yagi

RF module was tested and approved with 15 dBi antenna gain with 1 dB cable-loss (EIRP Maxi-

mum of 14 dBm). Any Yagi type antenna with 14 dBi gain or less can be used with no cable-loss.

Antenna Type: Omni-directional

RF module was tested and approved with 15 dBi antenna gain with 1 dB cable-loss (EIRP Maxi-

mum of 14 dBm). Any Omni-directional type antenna with 14 dBi gain or less can be used with no

cable-loss.

Antenna Type: Flat Panel

RF module was tested and approved with 19 dBi antenna gain with 4.8 dB cable-loss (EIRP Maxi-

mum of 14.2 dBm). Any Flat Panel type antenna with 14.2 dBi gain or less can be used with no

cable-loss.

XBee-PRO RF Module (@ 10 dBm Transmit Power, PL parameter value must equal 0, or use Inter-

national variant)

The following antennas have been tested and approved for use with the embedded XBee-PRO RF

Module:

• Dipole (2.1 dBi, Omni-directional, Articulated RPSMA, Digi part number A24-HABSM)

• Chip Antenna (-1.5 dBi)

• Attached Monopole Whip (1.5 dBi)

• Integrated PCB Antenna (-0.5dBi)

The RF modem encasement was designed to accommodate the RPSMA antenna option.

Canada (IC)

Labeling Requirements

Labeling requirements for Industry Canada are similar to those of the FCC. A clearly visible label

on the outside of the final product enclosure must display the following text:

Contains Model XBee Radio, IC: 4214A-XBEE

Contains Model XBee-PRO Radio, IC: 4214A-XBEEPRO

The integrator is responsible for its product to comply with IC ICES-003 & FCC Part 15, Sub. B -

Unintentional Radiators. ICES-003 is the same as FCC Part 15 Sub. B and Industry Canada accepts

FCC test report or CISPR 22 test report for compliance with ICES-003.

Japan

In order to gain approval for use in Japan, the XBee RF module or the International variant of the

XBee-PRO RF module (which has 10 dBm transmit output power) must be used.

Labeling Requirements

A clearly visible label on the outside of the final product enclosure must display the following text:

ID: 005NYCA0378

AppendixB.AdditionalInformation

1-Year Warranty

XBee®/XBee-PRO® RF Modules from Digi International, Inc. (the "Product") are warranted

against defects in materials and workmanship under normal use, for a period of 1-year from the

date of purchase. In the event of a product failure due to materials or workmanship, Digi will

repair or replace the defective product. For warranty service, return the defective product to Digi,

shipping prepaid, for prompt repair or replacement.

The foregoing sets forth the full extent of Digi's warranties regarding the Product. Repair or

replacement at Digi's option is the exclusive remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL

OTHER WARRANTIES, EXPRESS OR IMPLIED, AND DIGI SPECIFICALLY DISCLAIMS ALL WARRAN-

TIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL DIGI,

ITS SUPPLIERS OR LICENSORS BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE

OF THE PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS,

LOST PROFITS OR SAVINGS, OR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES

ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT, TO THE FULL EXTENT SUCH MAY

BE DISCLAIMED BY LAW. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCI-

DENTAL OR CONSEQUENTIAL DAMAGES. THEREFORE, THE FOREGOING EXCLUSIONS MAY NOT

APPLY IN ALL CASES. This warranty provides specific legal rights. Other rights which vary from

state to state may also apply.

MaxStream XBEEPRO XBee-PRO OEM RF Module User Manual

MaxStream Inc. XBee-PRO OEM RF Module

Contents

User Manual

Navigation menu

Namespaces

Views

Navigation
