Users Manual

SD-171E / SD-174E

Data Radio

User Instruction Manual

WARNINGSTATEMENT



“Changesormodificationsnotexpresslyapprovedbythepartyresponsible

forcompliancecouldvoidtheuser'sauthoritytooperatetheequipment.”



“NOTE:Thisequipmenthasbeentestedandfoundtocomplywiththelimits

fora

ClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsare

designedtoprovidereasonableprotectionagainstharmfulinterferenceina

residentialinstallation.Thisequipmentgenerates,usesandcanradiate

radio

frequencyenergyand,ifnotinstalledandusedinaccordancewiththe

instructions,maycauseharmfulinterferencetoradiocommunications.

However,

thereisnoguaranteethatinterferencewillnotoccurinaparticular

installation.

Ifthisequipmentdoescauseharmfulinterferencetoradioortelevision

reception,

whichcanbedeterminedbyturningtheequipmentoffandon,theuseris

encouragedtotrytocorrecttheinterferencebyoneormoreofthe

following

measures:

‐‐Reorientorrelocatethereceivingantenna.

‐‐Increasetheseparationbetweentheequipmentandreceiver.

‐‐Connecttheequipmentintoanoutletonacircuitdifferent

fromthattowhichthereceiverisconnected.

‐‐Consultthedealeroranexperiencedradio/TVtechnicianfor

help.”

“CAUTION:TocomplywithFCCRFexposurecompliancerequirements,a

separationdistanceofatleast99.8Cmmustbemaintainedbetweenthe

antennaofthisdeviceandallpersons.Maximumantennagainof6dBishall

notbeexceeded.”

Theinstallationandoperatinginstructionsmustclearlyindicatethatthese

conditionsareforsatisfyingFCCRFexposurecompliance.Thewarning

statementshallmentionthemaximumantennagainandtheminimum

separationdistance.

About your SD-170E Series Data Radio

The SD-170E Series of RF Link Modules utilize the latest technology in their designs and manufacturing. SD-170E models

are Phase Lock Loop Synthesizer (PLL) / microprocessor controlled and offers 1/ 5 watt (Low / High) programmable output

power with 16-channel capability. Multiple functions including 1200 to 9600 baud rates, AC and/or DC audio coupling,

GMSK, FFSK and FSK modulation are standard in these fully programmable RF Link Module units. Programmable sub-

audio squelch system (CTCSS & DCS) and two-tone squelch system are added to the signal level detect squelch system

(RSSI). GPS Data handling is provided to interface and control an internal GPS receiver.

To assure satisfaction from the radio, we urge you to thoroughly read the operation and function information in this manual

before operating your SD-171E/SD-174E.

Applications of some of the functions described in this manual are determined by the system you use. Your dealer will

program your radio so that you have the greatest number of functions possible relative to your needs.

Should you have questions regarding the operation of the radio, please consult your Dealer.

Specifications

GENERAL

Equipment Type ……………………………………………………… Data radio

Performance Specifications…………………………………………TIA/EIA-603 / ETS 300.113

Band …………………………………………………………………… VHF(SD-171E) / UHF(SD-174E)

Channel Spacings …………………………………………………… 25 kHz, 12.5 kHz programmable

RF Output Power …………………………………………………… 1 watt, 5 watt programmable

Modulation Type …………………………………………………… F2D, F3E

Intermediate Frequency …………………………………………… 45.1 MHz & 455 kHz

Number of Channels ………………………………………………… 16

Frequency Source …………………………………………………… Synthesizer

Operation Rating …………………………………………………… Intermittent

90 : 5 : 5 (Standby: RX: TX)

Power Supply ………………………………………………………… Ext. Power Supply(12 VDC Nominal)

9V - 18.0V DC EXTREME

Temperature Range

Storage ………………………………………………………………… from - 40°C to + 80°C

Operating ……………………………………………………………… from - 30°C to + 60°C

Current Consumption

Standby (Muted) ……………………………………………………… < 65 mA

Transmit 5 Watt RF power ………………………………………… < 2.0 A

Transmit 1 Watt RF power ………………………………………… < 1.0 A

Frequency Bands: RX TX

VHF : V2 142.000 - 174.000 MHz 142.000 - 174.000 MHz

UHF : U2 450.000 - 490.000 MHz 450.000 - 490.000 MHz

Lock Time ……………………………………………………………… < 10 mS

TX to RX attack time ………………………………………………… < 20 mS (No Power Saving)

RX to TX attack time ………………………………………………… < 20 mS

Dimensions…………………………………………………………… (118mm)H x (63 mm)W x (35 mm)D

Weight ………………………………………………………………… 266.5 grams

TRANSMITTER Specification

Carrier Power: ………………………………………………………… Nom. Max. Min.

Hi ………………………………………………………………………5W < 6W > 4.5W

Low ……………………………………………………………………1W < 1.5W > 0.8W

Sustained Transmission …………………………………………… Nominal conditions

Time : 5 10 30 Sec.

Power: >90% >85% >80%

Frequency Error ……………………………………………………… < 0.75 kHz Nominal condition for UHF

±5.0 ppm Extreme condition for UHF

Frequency Deviation:

25 kHz Channel Spacing…………………………………………… Peak ±5.0, Min. ±3.8KHz

12.5 kHz Channel Spacing………………………………………… Peak ±2.5, Min. ±1.9KHz

Audio Frequency Response………………………………………… Within +1/-3dB of 6dB octave

@ 300 Hz to 2.55 kHz for 12.5 kHz C.S.

@ 300 Hz to 3.0 kHz for 25 kHz C.S.

Adjacent Channel Power

25 kHz ………………………………………………………………… < 70 dBc @ Nominal Condition

< 65 dBc @ Extreme Condition

12.5 kHz ……………………………………………………………… < 60 dBc @ Nominal Condition

< 55 dBc @ Extreme Condition

Conducted Spurious Emission …………………………………… < -36 dBm (< 1GHz), -30 dBm (> 1GHz)

Modulation Sensitivity ……………………………………………… 100mV RMS @ 60 % Peak Dev.

Hum & Noise:

25 kHz Channel Spacing …………………………………………… > 40 dB (with no PSOPH)

12.5 kHz Channel Spacing ………………………………………… > 40 dB (with PSOPH)

Modulation Symmetry ……………………………………………… < 10 % Peak Dev @ 1 kHz input

for nominal dev +20dB

Load Stability ………………………………………………………… No osc at ≥ 10:1 VSWR all phase angles and suitable

antenna

No destroy at ≥ 20:1 all phase angle

Peak Deviation Range Adjustment @ 1 kHz, Nom. Dev +20dB:

25 kHz Channel Spacing …………………………………………… Min. 3.5, Max. 6.0KHz

12.5 kHz Channel Spacing ………………………………………… Min. 1.5, Max. 4.0KHz

RECEIVER Specification

Sensitivity (12dB Sinad) …………………………………………… Standard B.W < -118 dBm, Narrow B.W <-117 dBm

@ Nom. Condition

Standard B.W < -115 dBm, Narrow B.W <-114 dBm

@ Extreme Condition

Amplitude Characteristic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < ±3 dB

Adjacent Channel Selectivity:

25 kHz Channel Spacing …………………………………………… > 70 dB @ Nom., > 60 dB @ Extreme Condition

12.5 kHz Channel Spacing ………………………………………… > 60 dB @ Nom., > 50 dB @ Extreme Condition

Spurious Response Rejection …………………………………… > 70 dB (100 kHz - 4 GHz)

Image Response ……………………………………………………… > 70 dB

IF Response…………………………………………………………… > 70 dB

Others. ………………………………………………………………… > 70 dB

Intermodulation Response Rejection:

±25 kHz/ 50 kHz ……………………………………………………… 70 dB

±50 kHz/ 100 kHz …………………………………………………… 70 dB

Conducted Spurious Emission @ Nominal Conditions:

9 kHz - 1 GHz ………………………………………………………… < -57 dBm

1 GHz - 4 GHz. ………………………………………………………… < -47 dBm

RX Spurious Emissions (Radiated) @ Nominal Conditions

9 kHz - 1 GHz ………………………………………………………… < -57 dBm

1 GHz - 12.75 GHz …………………………………………………… < -47 dBm

AF Distortion. ………………………………………………………… < 3% @ Nom., < 10 % @ Extreme condition

RX Hum & Noise:

25.0 kHz CP …………………………………………………………… < 40 dB No PSOPH

12.5 kHz CP …………………………………………………………… < 40 dB with PSOPH

Receiver Response Time …………………………………………… < 16 mS

Squelch Opening Range: …………………………………………… -113dBm ±2 @ Nom. Condition

Squelch Closing Range (Hysteresis): …………………………… -116dBm ±2 @ Nom. Condition

Squelch Attack Time:

RF Level at Threshold ……………………………………………… < 40 mS

RF Level at Threshold + 20 dB …………………………………… < 30 mS

Squelch Decay Time ………………………………………………… 5 mS Min., 20 mS Max.

Antenna Socket Input Match ……………………………………… > 10 dB Return Loss

L.O. Frequency Temperature Stability …………………………… 1st < 5 ppm, 2nd < 15 ppm from -30° to + 60° C

L.O. Frequency Aging Rate ………………………………………… ±2 ppm/ year

Safety Information

WARNING

¾ DO NOT hold the radio in such a manner that the antenna is next to, or touching, exposed parts

of the body while transmitting.

¾ DO NOT allow children to operate transmitter-equipped radio equipment.

CAUTION

¾ DO NOT operate the radio near unshielded electrical blasting caps or in an explosive

atmosphere unless it is a type especially designed and qualified for such use.

¾ NEVER use the radio in an aircraft.

¾ NEVER use the radio near to sensitive medical equipment or in areas where instructed not to do

so, e.g. Petrol filling stations.

¾ When used in a vehicle, do not mount the radio unit on or near the Airbag or Airbag activation

device.

¾ The use of an accessory not recommended or supplied by Maxon may cause damage to

equipment or injury to personnel, and will invalidate warranty.

¾ The outlet must not be obstructed and must be easily accessible at all times.

¾ Never attempt to disassemble, modify or repair the unit unless the work is carried out by a

Maxon approved Dealer.

Incorrect assembly, modification or repair may cause irreparable damage to your unit and will

invalidate warranty.

For service or repair always return your radio to an authorized Maxon Dealer.

Unpacking information

Remove and carefully inspect the contents of your package(s) for the following items:

Radio

User manual

If any items are missing, please contact the dealer from which you purchased the radios, or contact us at phone number

913-859-9515 or if call within the U.S. toll free at 800-993-9476.

SD-171 / SD-174 Features

• Synthesized Operation with 16 channel capability

• 1 / 5 Watt programmable output power

• Programmable 12.5 / 25KHz channel spacing

• Channel scan

• Busy channel lockout

• Tx Time-out timer

• Power Save

• Marked Idle

• Tx Delay

• Data transmission and reception through GMSK modem

• Data transmission and reception through FFSK modem

• Support transmission of global position data

Description of radio components

n Antenna connector

o DB-15 connector

p GPS Antenna connector (option)

q DIP-S/W

r Jumper selector

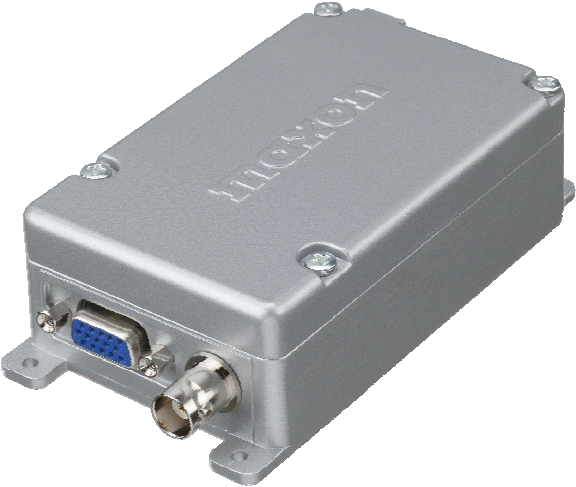

Exterior View

Digital Board

RV402

RV403

RV401 SW401

Antenna installation

Fasten the antenna to the radio by turning the antenna cable clockwise into the receptacle on left of radio when looking at

front of radio.

Powering the data radio

Your data radio accepts many sources of DC power to permit more versatile use. This radio operates from 9.0V to 18V DC

and standard voltage for test is 12V DC.

SD-170E Series Operation

Channel select / SCAN

Your radio’s channel can be selected by inner DIP-S/W or serial command inputted from external control system. To change

channel by inner DIP-S/W (q), you should open the upper cover and then look for the DIP-S/W(q) on the digital board of

the bottom cover. Once located, change the DIP-S/W to select wanted channel according to channel dip switch chart.

To use a serial command for channel selection, it should be inputted by external equipment or device (ex. Personal

computer) through Pin 8 of DB-15 connector. See the message format for serial command for full details.

If your radio has been programmed the channel scan, you must enter the scan mode by serial command.

Transmit

The transmission will be made by various inputs such as PTT signal (Pin 3 of DB-15 connector), TX serial command and

Serial data input (Pin 10 of DB-15 connector: This input is only available when a modem option board is installed). TTL level

is used as PTT signal and is active low. If you installed an option modem board, you can use RS-232 level as a PTT signal

instead of TTL level. To maintain transmission, continuous PTT signal input is required. If you use Tx serial command for

transmission, normally, it’s released by Rx serial command. If RF activity is present; it will not be illuminated if the radio

indicates a “clear” channel. When the channel is “clear”, input the PTT signal or Tx serial command and transmit data or

audio. Remove the PTT signal or input Rx serial command when you have finished transmission.

CAUTION : Operation of the transmitter without a proper antenna installed may

result in permanent damage to the radio.

Receive

When you have finished transmission, remove the PTT signal or input Rx serial command. You will receive data from

another radio or hear another person talking from the connected external speaker.

Scan modes

Scanning is a dealer programmable feature that allows you to monitor a number of channels. Your dealer will help you

define a scanning mode and your channel “scan list”

Channel scan

Once the scan list has been established, initiate scan by serial commands. If a conversation is detected on any of the

channels in the scan list, the radio will stop on that channel and you will be able to hear the conversation. At that time, busy

channel data is sent to external equipment or device through serial command. So, you can identify busy channel data as

decoding of received serial command from your radio in the external equipment or device.

Normally, if you try to transmit during scanning, the transmission will be made on the channel that the call was received

during the programmable scan delay time. (The scan delay time is the amount of time the radio will stay on that channel

once activity has ceased. Dealer programming of 4 ~ 7 seconds is typical). The radio will resume scanning once the scan

delay time has expired, and will continue to scan until the serial command for scan stop is inputted by external equipment.

After the scan resumes, if a transmission is made, the radio will transmit on the selected priority channel. This feature is

similar to priority scan TX except for selection of priority channel. You can assign a priority channel by inner dip switch only.

Scan channel delete

To temporarily delete a channel from the scan list, simply input the serial command for scan deletion to the radio while

scanning and stopped on the channel to be deleted. This will temporarily remove that channel from the scan list until the

scan is closed or the radio’s power is reset.

CTCSS / DCS Scanning

To help to block out unwanted calls to your radio, the SD-170E series can be programmed by your dealer to scan for tones.

Channel dip switch chart

1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4

234

5678

9101112

151413

SW401

CHANNEL SELECT SWITCH

CHANNEL NO.

SWITCH POSITION

Serial command

Serial RX/TX Data Format

(1) Asynchronous Serial Data Transfer

(2) Baud Rate : 4,800 bit/sec

(3) Data Bit : 8bit , Non Parity

(4) Stop Bit : 1bit

(5) MSB first transmission

Each serial command is consist of 3 bytes.

1st byte is command and 2nd is data required by command and 3rd is check sum to decide validity of total contents.

Byte0

ST 1st Byte (Command) SP

Byte1

ST 2nd Byte (Data) SP

Byte2

ST 3rd Byte (Check Sum) SP

Data Protocol

Protocol for input Serial command

Protocol of data transmission from external equipment or device (: PC) to radio :

Input serial command

Receive response

Response

External equipment or device Radio

Protocol for output data

Protocol of data transmission from radio to external equipment or device (: PC) :

Receive Data

Output Data

(with command)

External equipment or device Radio

Output Data

(with command)

Serial Commands

Transmit Command & data

Mode Transmit

Command

(BYTE0)

Transmit data( BYTE1 )

Check sum( BYTE2 )

: Transmit Command + data

1. Channel Change 0x64 0x?? :Current channel ( 0x64 + Channel )

2. RTX Mode Send. 0x61 R(0x72) : Rx mode

T(0x74) : TX mode ( 0x61+0x72 )

( 0x61+ 0x74 )

3. Scan

Mode From PC

To Radio

0x62 F(0x46) : Scan Stop

S(0x73) : Scan Start

O(0x4F) : Scan Delete

( 0x62+ 0x46 )

( 0x62+ 0x73 )

( 0x62+ 0x4F )

From Radio

To Pc

0x66 0x00 : 1 Channel

0x01 : 2 Channel

0x02 : 3 Channel

0x0f : 16 Channel

0x66 + 0x00

0x66 + 0x01

*Only for Unmute Channel,

Correct Call Channel

Error

Message

0x65 z It occurs when Scan Delete command comes except

for Busy/Correct Call

z It occurs when PTT key is pushed except for

Busy/Correct Call.

z It occurrs when channel change command exists

during Scanning.

GPS

mode

Control of

GPS Power 0x6a 0x00 : GPS Power Off

0x01 : GPS Power On ( 0x6a + 0x00 )

( 0x6a + 0x01 )

Control of

GPS Data

0x63 0x00 : GPS Data Disable

0x01 : Release GPS Data

to DB-15

0x02 : Release GPS Data

to Modem

( 0x63 + 0x00 )

( 0x63 + 0x01 )

( 0x63 + 0x02 )

5. Modem test mode 0x75 0x78 : Enable test data

0x79 : Disable test data ( 0x75 + 0x78 )

( 0x75 + 0x79 )

Modem

alignment

mode

GMSK 0x7a 0x00 : Disable

0x01 : Enable ( 0x7a + 0x00 )

( 0x7a + 0x01 )

FFSK

0x7c 0x00 : Disable

0x01 : Enable Mark data ( 0x7c + 0x00 )

( 0x7c + 0x01 )

0x7e 0x00 : Disable

0x01 : Enable Space data

( 0x7e + 0x00 )

( 0x7e + 0x01 )

SQLC Data

RSSI

Data

0x41 0x00 : None ( 0x41 + 0x00 )

Squelch

0x42 0x00: None ( 0x42 + 0x00 )

Squelch

Down

0x43 0x00: None ( 0x43 + 0x00 )

Receive Command & data

Mode Transmit

Command

(BYTE0)

Transmit data ( BYTE1 )

Check sum( BYTE2 )

: Transmit Command + data

1 Process Complete

Commands 0xaa ACK

0x55 NACK

Note)

This command is return signal for receiving command.

If Byte2 and sum of Byte0 and Byte1 among received data are same, Radio would send ACK data and execute

command. If not, Radio sends Nack data.

User would go into next step if receives ACK data. If user receives Nack data, user should send command again.

example) If user changes from 1st Channel to 2nd Channel,

User should send Channel Change Command ( 0x64,0x02 , ( 0x64 + 0x2 ) ) to Radio.

If Byte2 and sum of Byte0 and Byte1 among received data are same, Radio sends ACK data to user and

changes to 2nd channel. If not, Radio would send Nack data.

Audible alert tones

Your SD-170E series data radio has a sophisticated microprocessor control which provides a range of audible tone. If you

connect the Speaker filtered OUT (Pin 9 of DB-15 connector) to an external speaker, you can hear audible tones at the

following conditions:

• Attempt to transmit on a channel that is already in use when busy channel lockout has been programmed into the radio

• Transmission time has exceeded time-out timer programmed length

• When the other group or people finished transmission using repeater

See the status audible alert tones chart for full details.

STATUS DESCRIPTION AUDIBLE TONE

WARNING Busy Channel lockout Single Beep Tone ( 800Hz )

Before 5S T-O-T Single Beep Tone ( 800Hz )

Transmit Hang on time Single Beep Tone ( 800Hz )

ERROR PLL Unlock Error Single Beep Tone ( 640Hz )

DB 15 PIN descriptions with input/output level

D-Type

Pin No. Function Description Signal Type Input/

Output

1 Data modulation IN

(Tx Mod) Signal is directly injected to MOD through data

low pass filter without pre-emphasis. Analog signal

1KHz audio at 60%

peak system deviation

input level =

100 to 120mVrms

I/P

2 Data unfiltered OUT

(RX disc) Discriminator audio from the SD-170E. This is

the unprocessed AF signal prior to tone

filtering and de-emphasis.

Analog signal

1KHz audio at 60%

peak system deviation

produces

200 to 300mVrms

O/P

3 PTT In

(Tx Key) Signal from the ‘external device’ to key the

SD-170 transmitter.

This line has an internal pull up resistor to +5V.

Pulling the line to 0V turns on the transmitter.

Note : If you installed option modem board,

you can select RS-232 signal level by

Jumper (CON407, r) on the digital board.

TTL level

0V = Tx

o/c = Rx

RS-232 level (option)

+12V = Tx

-12V = Rx

I/P

4 Power B+ power connection. DC +12V nominal

5 Serial Data Out

(TXD) Serial data output for radio control or program.

It uses asynchronous data format. TTL level O/P

6 Busy

(CD) Logic level output from SD-170 to indicate

whether a carrier is present or not

Note : If you installed an option modem

board, you can select RS-232 signal level

by Jumper (CON407, r) on the digital

board.

TTL level

0V = carrier

5V = no carrier

RS-232 level (option)

+12V = carrier

-12V = no carrier

O/P

7 Microphone filtered

audio IN This signal is injected to the MOD at the point

through audio-amplification, pre-emphasis and

high pass filtering where sub-audio tone is

mixed with audio.

Audio

1KHz audio at 60%

peak system deviation

input level =

6 to 8Vrms

I/P

8 Serial data IN

(RXD) Serial command or data input for radio control

or program. It uses asynchronous data format.

TTL level I/P

9 Speaker filtered OUT Audio output from the audio amplifier.

It’s filtered by tone-filter, de-emphasis circuit. Audio

1KHz audio at 60%

peak system deviation

produces Nominal

1Vrms @ 8Ω

O/P

10 Serial data IN for

option modem The Serial data to be transmitted is input to

this pin. It’s only available when option modem

board is installed. Inputted data are modulated

by modem IC and then injected to MOD.

It uses asynchronous data format.

RS-232 level I/P

11 Serial data Out for

option modem The recovered asynchronous serial data

output from the receiver. It’s only available

when option modem board is installed. It uses

asynchronous data format.

RS-232 level O/P

12 Serial data busy for

option modem

(reserved)

To eliminate data loss according to buffer

overrun of slave MCU’s memory, it indicates

buffer status.

RS-232 level O/P

13 GPS data input Data input for initial setting of GPS module.

It follows NMEA 0183 format and uses

asynchronous data format.

TTL level I/P

14 DGPS data input Data input for DGPS Correction of GPS

module. It follows NMEA 0183 format and

uses asynchronous data format.

TTL level I/P

15 GPS data output Position data output from the GPS module. It

follows NMEA 0183 format and uses

asynchronous data format.

TTL level O/P

When building a cable to interface with the SD-170E, the ground connection is made by grounding the outer shell of the

DB-15 connector. Make sure the securing screws are tight on the connector when installing it to the unit

Modem option for data communication

DESCRIPTION

The ACC-513E and ACC-514E are internal option-modems, which are applied to the SD-170E series to increase capability

for data applications. The goal of an internal modem is to improve the efficiency for data transmission and provide

maximum flexibility for user applications. The most obvious method of increasing the data efficiency is to maximize the data

signaling speed in the limited channel bandwidth. But, FSK, called direct FM modulation, has a very wide transmission

bandwidth requirement. To solve this problem a GMSK (Gaussian Filtered Minimum Shift Keying) internal option-board can

be used. Generally data has a wider bandwidth than audio. So, direct application of data is not matched with an audio

system and its application. For instance, if sub-audio (Tone) SQ system applied to a data application, its frequency conflicts

with that of sub-audio. Moreover, the inputted data is filtered by the audio filter circuit resulting in broken data transmission.

To overcome these problems and provide maximum flexibility, an FFSK (Fast Frequency Shift Keying) internal option-board

can be used.

COMMUNICATION BETWEEN DTE AND OPTION-BOARD

Our internal modem options consist of Slave MCU, Modem IC, and extra circuitry. These option-boards directly

communicate with DTE (Data Terminal Equipment) to send and receive meaningful data through the DB-15 connector on

the digital board of the SD-170E. These modems are designed to accept RS232 serial data format and are also capable of

high speed wireless data-transmission between two or more devices. More detailed information for the modem option

boards is given in the technical manual for the ACC-513E/514E. Your dealer will help you define a TX On/Off delay time,

RX On delay time, Baud Rate, Modem Enabled, Modem Baud Rate, Data flow control, and Test Mode.

Table for modem speed

Channel Space DTE Baud Rate Modem Baud Rate

Narrow (12.5KHz) 1200 1200

2400 2400

Standard (25KHz) 1200 1200

2400 2400

4800 4800

Table 1. Available Baud rate for FFSK modem

Channel Space DTE Baud Rate Modem Baud Rate

Narrow (12.5KHz) 4800 4800

Standard (25KHz) 4800 4800

9600 9600

Table 2. Available Baud rate for GMSK modem

Transmission GPS Data through Modem

The SD-170E supports GPS data handling. That may help your implementation for a system related to GPS. If it is not

enough for your application, received position data from the GPS module placed in an SD-170E can be reprocessed by

your own application. The ACC-515E is a GPS module for the SD-170E, which releases 11 different output data according

to the NMEA-0183 format, which can be selected by you, the available data should be processed by your application.

Received data from the ACC-515E will be released via the DB-15 connector of the SD-170E and/or transmitted to another

system through an installed modem. More detailed information for the GPS option board is given in the technical manual for

the ACC-515E.

Option board pin-out chart

FFSK Modem Option board

Connector

No.

No. Function Description

Input/

Output

Connector 1

1 VCC 6V to 12V Power Input I/P

2 GND Ground

3 PTT Signal from the digital board to transmit data key the SD-

170 transmitter I/P

4 TXD_EN It ensures that the radio has stabilized in transmission

before the data is processed for modulation. I/P

5 TX_END To finish transmission, it indicates memory buffer of Master

MCU of digital board is empty. O/P

6 MUTE

(Busy)

Logic level input from digital board to indicate whether a

carrier is present or not I/P

7 MODEM_EN Modem Enable input I/P

8 POWER_SAVE Power save input for modem board. I/P

9 CMD_EN It indicates that command for Modem programming is

effective. I/P

10 CMD_IN/OUT Data Input and Output for Modem programming. I/P,

O/P

11 CMD_CLK Clock Input for Modem programming. I/P

12 MODEM_SEL It Indicates modem type to Master MCU for programming. O/P

13 RX_IN The FFSK/MSK signal input for the receiver of modem IC. I/P

14 TX_OUT The FFSK/MSK signal output when the transmitter is

enabled. O/P

Connector 2

1 Serial_IN The Serial data to be transmitted is input to this pin. I/P

2 Serial_OUT The recovered asynchronous serial data output from the

receiver. O/P

3 Busy To eliminate data loss according to buffer overrun of slave

MCU’s memory, it indicates buffer status. O/P

4 Carrier_Detect Handshake signal for RTS control mode. It indicates

whether Slave MCU of modem has decoded data or not. O/P

5 PTT_IN Handshake signal for RTS control mode. It requests data

transmission to Slave MCU of modem. I/P

6 PROGRAM It’s reserved input for firmware upgrade. I/P

GMSK Modem Option board

Connector

No.

No. Function Description

Input/

Output

Connector 1

1 VCC 6V to 12V Power Input I/P

2 GND Ground

3 PTT Signal from the digital board to enable transmitter circuit of

modem board. I/P

4 TXD_EN It ensures that the radio has stabilized in transmission

before the data is processed for modulation. I/P

5 TX_END To finish transmission, it indicates memory buffer of Master

MCU of digital board is empty. O/P

6 MUTE

(Busy)

Logic level input from digital board to indicate whether a

carrier is present or not I/P

7 MODEM_EN Modem Enable input I/P

8 POWER_SAVE Power save input for modem board. I/P

9 CMD_EN It indicates that command for Modem programming is

effective. I/P

10 CMD_IN/OUT Data Input and Output for Modem programming. I/P,

O/P

11 CMD_CLK Clock Input for Modem programming. I/P

12 MODEM_SEL It Indicates modem type to Master MCU for programming. O/P

13 RX_IN The GMSK signal input for the receiver of modem IC. I/P

14 TX_OUT The GMSK filtered Tx output signal. O/P

Connector 2

1 Serial_IN The Serial data to be transmitted is input to this pin. I/P

2 Serial_OUT The recovered asynchronous serial data output from the

receiver. O/P

3 Busy To eliminate data loss according to buffer overrun of slave

MCU’s memory, it indicates buffer status. O/P

4 Carrier_Detect Handshake signal for RTS control mode. It indicates

whether Slave MCU of modem has decoded data or not. O/P

5 PTT_IN Handshake signal for RTS control mode. It requests data

transmission to Slave MCU of modem. I/P

6 PROGRAM It’s reserved input for firmware upgrade. I/P

GPS Option board

No. Function Description

Input/

Output

1 VCC 6V to 12V Power Input I/P

2 VBAT Backup Power Input (3.3V) I/P

3 ENABLE GPS Data Out Enable I/P

4 PSAVE GPS Power Enable (& Power save input for GPS) I/P

5 GND Ground

6 GPS_OUT Position Data Output O/P

7 DGPS_IN DGPS Correction Data Input I/P

8 GPS_IN Initial Setting Data Input I/P

9 +5V 5V Power Input I/P

Compatible accessory list

ACC-513E 9600 baud GMSK modem

ACC-514E 4800 baud FFSK modem

ACC-515E GPS receiver

ACC-516E PCB Interface - used to separate digital and RF board for alignment

ACC-160E GPS antenna

ACC-916E Personality programming software

ACC-2016E Individual USB programming cable

SD170E Series

This product is marked with

in accordance with the Class II product requirement specified in the R&TTE Directive

1999/5/EC.

This equipment is intended for use in:-

Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,

Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania,

Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,

Spain, Sweden, Switzerland & United Kingdom

and requires authorization (individual license) for use.

We hereby declare that the above named product is in conformity to all the essential

requirements of Directive 1999/5/EC.

Con la presente si dichiara che il prodotto sopra menzionato è conforme ai requisiti

essenziali della Direttiva 1999/5/CE.

Declaramos que el producto mencionado más arriba cumple todos los requisitos esenciales

de la Directiva 1999/5/CE.

Wir möchten hiermit bekanntgeben, daß das oben genannte Produkt in Übereinstimmung mit

allen erforderlichen Bedürfnissen der 1999/5/EC Direktive seht

Nous déclarons que le produit référencé ci-dessus satisfait aux exigences

R&TTE 1999/5/EC qui lui sont applicables.

Nous déclarons que le produit référencé ci-dessus satisfait aux exigences

R&TTE 1999/5/EC qui lui sont applicables.

Maxon CIC SD-171E VHF LMR User Manual

Maxon CIC Corp. VHF LMR Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
