Maxon CIC SM2102 VHF LMR User Manual PM200V2
Maxon CIC Corp. VHF LMR PM200V2
User Manual
![](/img.php?id=1038186&img=bg1.png)
SM2102 User Manual
![](/img.php?id=1038186&img=bg2.png)
TABLE OF CONTENTS
Page Number
1. Safety- Warnings……………………………………………
2. Introduction…………………………………………………..
3. Preparing for use……………………………………………
4. Panel Description……………………………………………
5. Key Features…………………………………………………
6. Status Indicators and Alert Tones……………………….
7. Basic Operation……………………………………………..
8. Function Display…………………………………………….
9. Supplied Accessory and Optional Accessories...……..
10. DOC…………………………………………………………….
1
2 3
1
2
6 7
8
1
0
5
9
1
1
4
1
3
1. SAFTEY WARNINGS
1. WARNING! NEVER connect the transceiver to an AC outlet. This may pose a
fire hazard or result in an electric shock.
2. NEVER operate the radio transmitter suitable artificial load or a correctly
specified antenna is connected.
3. NEVER connect the transceiver to a power source of more than 16V DC such as
a 24V battery. This connection will damage the transceiver.
4. NEVER cut the DC power cable between the DC Plug and fuse holder. If an
incorrect connection Is made after cutting, the transceiver might be damaged.
5. NEVER place the transceiver where normal operation of the vehicle may be
hindered or where it could Cause bodily injury.
6. NEVER expose the transceiver to rain, snow or any liquids.
7. NEVER modify a radio or accessory except as instructed in the service manual,
engineering bulletins or formal communication as this may invalidate any
warranty, guarantee or type approval.
8. USE the supplied microphone only. Other Microphones have different pin
assignments and may damage the transceiver, (optional DTMF MIC)
9. DO NOT use or place the transceiver in areas with temperatures below -30º or
above +60 º,In areas subject to direct sunlight, such as the dashboard.
10. AVOID operating the transceiver without running The vehicle’s engine. The
vehicle’s battery will quickly run out if the transceiver transmits while the
vehicle’s engine OFF
11. AVOID placing the transceiver in excessively dusty environments.
12. AVOID placing the transceiver in confined locations. This will obstruct heat
dissipation.
13. AVOID the use of chemical agents such as benzin or alcohol when cleaning, as
they damage the transceiver surfaces.
14. BE CAREFUL! The transceiver will become hot when operating continuously for
long periods.
15. DO NOT operate this equipment in environments containing explosive materials
or vapour.
2. Introduction
Thank you for purchasing the Maxon PM Mobile range
The SM2102 mobile radios are packed full of sophisticated user and system features
which allow the radios to be tailored to meet the requirements of most radio networks
today.
All the features described are made available thanks to the latest reliable, but functionally
rich, software that controls each SM2102 mobile. This means that all features described
are available without the need to fit expensive and time consuming option boards.
Most of the features or options described are activated in the radio as programmable
parameters; please contact your dealer for full details on these options.
The SM2102 is a DTMF, SECALL and SMS mobile radio with 208-channel capability.
The radio is programmable for output power, channel spacing, and a range of features.
The three buttons located on the bottom left-hand side of the radio under the LCD, are
described as programmable. These three buttons (P1, P2, and P3) have a short and long
press and can be used for various pre- programmed features, Monitor, Power H/L, Scan,
DTMF, Key lock, Selcall, Scan, Public Address, Open Close, 1200/2400, SMS and Light.
The range does conform to R+TTE Directive. The unit has been designed to IP54 and
meets the R+TTE Directive ETS 300.086 2001.
3. Preparing for use
Unpacking and Inspection
Unpack the radio and check that you have received the following items:
SM2102 Mobile Radio
Mounting Kit
Standard Microphone
Inspect all items
If any of these items are missing, please contact your Dealer.

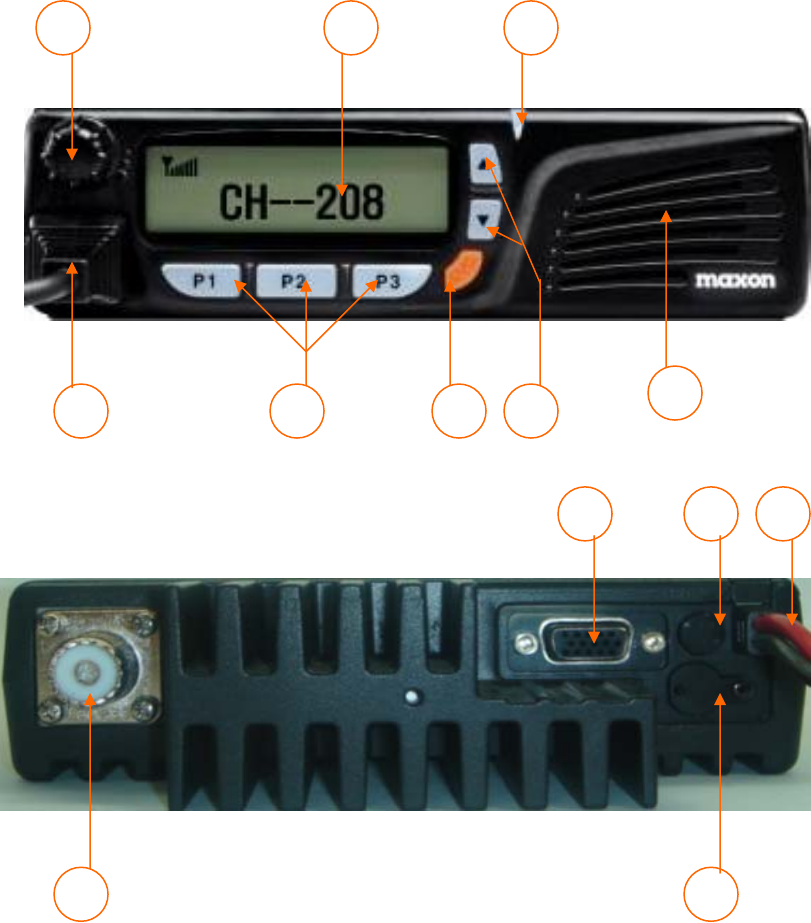

4. Front Panel description
Note: the numbers below refer to the illustration on the inside cover
1. MICROPHONE SOCKET
Connect the supplied microphone or optional DTMF/Heavy Duty microphone.
NEVER connect non-specified microphones the pin assignments may be different and
the transceiver may be damaged.
![](/img.php?id=1038186&img=bg5.png)
2. VOLUME CONTROL KNOB
To turn the radio ON and OFF, rotate the knob clockwise ON and anticlockwise to turn OFF.
Rotate the knob to adjust the audio output level up and down.
3. FUNCTION DISPLAY
Displays a variety of information,
such as an operating channel number, SECALL
Number, DTMF number and Volume level, etc.
NOTE: The above functions depend on programming.
4. DEALER-PROGRAMMABLE KEY (P1) to (P3)
Desired functions can be programmed independently by your dealer.
5. LED INDICATOR
Indicates radio condition from LED colour (see status and indicator and alert tones in section 6.)
6. EMERGENCY KEY
Transmits emergency call
7. UP/DOWN KEYS
Push to select the operating channel.
8. INTERNAL SPEAKER
9. BNC Antenna connector
Connects to an antenna. Contact your dealer about antenna selection and placement.
10. D-SUB 15Pin Connector
Connect DB-9 and DB-15 connector of ACC-20XX to the PC and radio.
11. External Speaker Jack
Connect a 8,16Ω external speaker, if desired
12. GPS antenna tube
13. DC Power receptacle
Connects to a 12V Dc battery
5. Key Features
■ Wideband frequency separation
■ 2W or 25W Programmable output power
■ 208 Programmable Channels
■ D-SUB 15Pin Data Connector and Modem
■ Programmable 12.5 /25 KHz Channel Spacing
■ Channel Scan
■ Priority Channel Scan
■ Look Back Channel
■ Scan List Edit
■ Priority Channel Edit
■ CTCSS/DCS/DTMF tone signaling
■ Busy Channel Lock out
■ Mark Idle
■ Time out timer
■ Public Address
■ SELCALL
■ Stun and Revive
■ Covert Mode
■ ANI
■ SELCALL Messaging
■ Acknowledge
■ Key Lock
■ Start up definable Logo
■ Auto Mute
■ Back Light Display
■ SMS
■ DTMF
■ HOOK
![](/img.php?id=1038186&img=bg7.png)
6. Status Indicators and Alert Tones
Status Indicators
LCD Message or COLOR
DESCRIPTION
SM2102 AUDIBLE TONE
Power On
Model and Software version
shall be displayed after LCD
All Display.
Five Beeps
Button Single Beep
Busy Yellow
Correct Call Green
Transmit Red
In Scan Mode Green Led Blinking
Scan Delete “delete” Single Beep
Scan All Delete “ All del” Single Beeps
Transmit Inhibit In
Scanning “ Inhibit” Two Beeps
Receive Only-No TX “ RX only” Two Beeps
Time-Out-Timer “ tot ” Two Beep
Penalty “ Penalty ” Two Beeps
Penalty End Single Beep
Busy Channel Lock
Out “ bLock out” Two Beeps
Error Messages
EPROM Error “ Eprom Err ” Two Beeps
Out of Lock Error “ unLock ” Two beeps
Programming Messages
Pc Program Read “Prog- r “ Red blinking
Pc Program Write “Prog-w “ Green Blinking
Volume level VOL XX
Clone Master “Master” Red blinking
Clone Slave “Slave” Green Blinking
Clone end “Turn OFF”
7. Basic Operation
Power on/Volume/Power off
Turn the radio on by rotating the off/on/volume control clockwise.
You will hear a click and (if enabled via dealer programming), the radio’s self-test alert
tones. Increase the radio volume by continuing the clockwise rotation.
To turn the radio off, rotate the control anti-clockwise until a click is heard.
Your SM2102 radio has a sophisticated microprocessor control, which provides a range
of audible alert tones. Upon each power-up, a quick melody indicates that the self-test of
the microprocessor functions has been completed. A sequence of audible tones may be
sounded with any of the following conditions:
• Attempt to transmit on a channel set for receive only
• Attempt to transmit on a channel that is already in use when busy channel lockout has
been programmed into the radio.
• Transmitting time has exceeded time-out timer programmed length.
• Selecting a channel with no programmed frequency.
• TX inhibit is in operation.
• Low battery condition
Channel Select
To change radio channels, simply press and release the buttons ▲ or ▼
… Until the desired channel is reached. Or, to scroll through your
programmed channels more quickly, press and hold the ▲ or ▼ buttons. The channel
numbers will appear in the radio’s LCD. (Located on the Front panel of unit).
If your radio has been programmed for channel group scan, you must enter the scan
mode by pressing the scan button. The current channel group will display in the radio’s
LCD. If you wish to change that selection, use the ▲ or ▼ buttons until the LCD displays
the channel group you wish to scan.
Transmit
Press the monitor button (and check the colour of the radios
front panel LED). It will glow orange if carrier is present; it
will not be illuminated if the radio indicates a “clear” channel.
When the channel is “clear”, hold the radio microphone
approximately 5 – 8cm from your mouth. Press and hold the PTT button on the
microphone, and begin speaking in a clear, normal tone. Release the PTT button when
you have finished speaking.
CAUTION: Operation of the transmitter without a proper antenna installed may
result in permanent damage to the radio.
NOTE: The radio’s LED will glow red continuously when you have the PTT button
pressed and the radio is transmitting
Receive
When you have finished transmitting, release the PTT button to receive. You are now in
receive mode. When another operator transmits on the correct frequency the speaker will
become active.
Scanning
This feature will support a number of different scanning modes. These are Dealer
programmable.
Normal Scan
Any number of channels shall be entered into the scan list. The LED shall flash green if
programmed to. The flashing green LED will stop when ‘CARRIER’, or ‘CARRIER AND
CORRECT TONE’ is detected. During scan delay, the LED shall remain clear. When
Scan Delay expires and Scan Speed resumes, the LED shall also resume flashing green.
Priority Scan
A priority channel can be programmed at the initial radio set-up stage. The priority
channel will be part of the list of channels that make up the scan list. The priority
channel when used with other scanned channels will operate as follows:
P1→S1→P1→S2→P1→S3→P1→S4→P1, etc.
Priority Look Back
One channel can be programmed by the dealer to be the Priority channel, which will
enable ‘Look-back’. Pressing the Scan button shall activate Priority Look-back. The
Priority Look-back causes the radio to periodically ‘Look-back’ to the priority channel for
the presence of a carrier regardless of the channel that the user may be on.
Scan Channel Delete
Pressing the ‘Monitor’ key, (when in scan mode and stopped on the channel) shall
temporarily delete the channel from the scan list. When power is restored or the scan list
channel position is selected again, the originally programmed scan list shall be activated.
![](/img.php?id=1038186&img=bga.png)

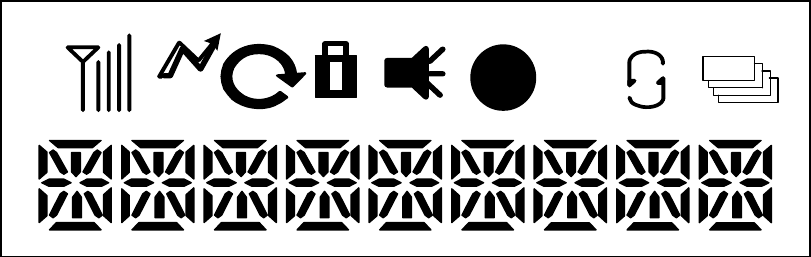

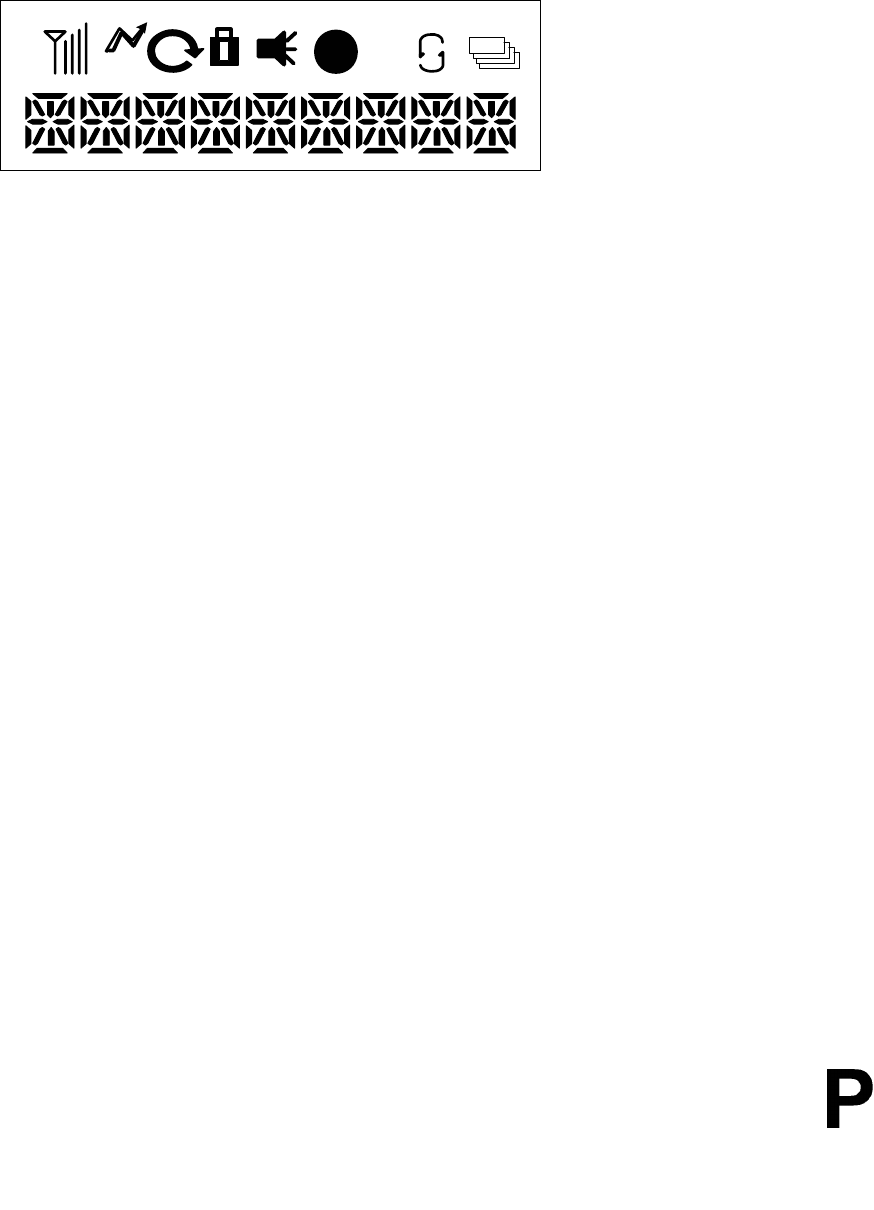

8. Function Display
PL
23
4
567890
1
1. Signal strength indicator: Indicates relative signal strength level (1bar poor 4 bar
good)
2. TX Indicator: Appears while transmitting
3. Scan Indicator: Appears at when scanning has been programmed.
4. P Scan Indicator: Appears at the Priority scan Channel when priority scanning has
been programmed
5. Key Lock Indicator: Appears when key lock function has been programmed.
6. Speaker Indicator: Appears when the monitor mode is enabled
7. Low Power Indicator: Appears when low output power is selected.
8. Selcall Detect Indicator: Appears when a correct selcall code is received.
9. Scrambler Indicator: Appears when the Scrambler function is activated
10. Compander Indicator: Appears when the Compander function is activated.
9. Supplied Accessory and Optional Accessories
1. Standard Microphone
2. Microphone hanger and screw set.
3. Microphone hanger cable.
4. DC power cable.
5. Mounting bracket Kit.
‘Other accessories not listed here, may be available on application to your
reseller
![](/img.php?id=1038186&img=bgb.png)
SM2102 SERIES
This product is marked with
in accordance with the Class II product requirement specified in the R&TTE Directive 1999/5/EC.
This equipment is intended for use in:-
Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece,
Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal,
Slovakia, Slovenia, Spain, Sweden, United Kingdom, Iceland, Liechtenstein, Norway, Switzerland,
Bulgaria, Romania & Turkey.
and requires authorisation (individual licence) for use.
We hereby declare that the above named product is in conformity to all the essential
requirements of Directive 1999/5/EC.
Con la presente si dichiara che il prodotto sopra menzionato è conforme ai requisiti essenziali
della Direttiva 1999/5/CE.
Declaramos que el producto mencionado más arriba cumple todos los requisitos esenciales de la
Directiva 1999/5/CE.
Wir möchten hiermit bekanntgeben, daß das oben genannte Produkt in Übereinstimmung mit
allen erforderlichen Bedürfnissen der 1999/5/EC Direktive seht
Nous déclarons que le produit référencé ci-dessus satisfait aux exigences
R&TTE 1999/5/EC qui lui sont applicables.
Nous déclarons que le produit référencé ci-dessus satisfait aux exigences
R&TTE 1999/5/EC qui lui sont applicables.
![](/img.php?id=1038186&img=bgc.png)
Maxon House, Cleveland Road,
Hemel Hempstead,
Hertfordshire, UK. HP2 7EY
Tel: +44 (0) 1442 267777
Fax: +44 (0) 1442 215515
www.maxoncic.co.uk
