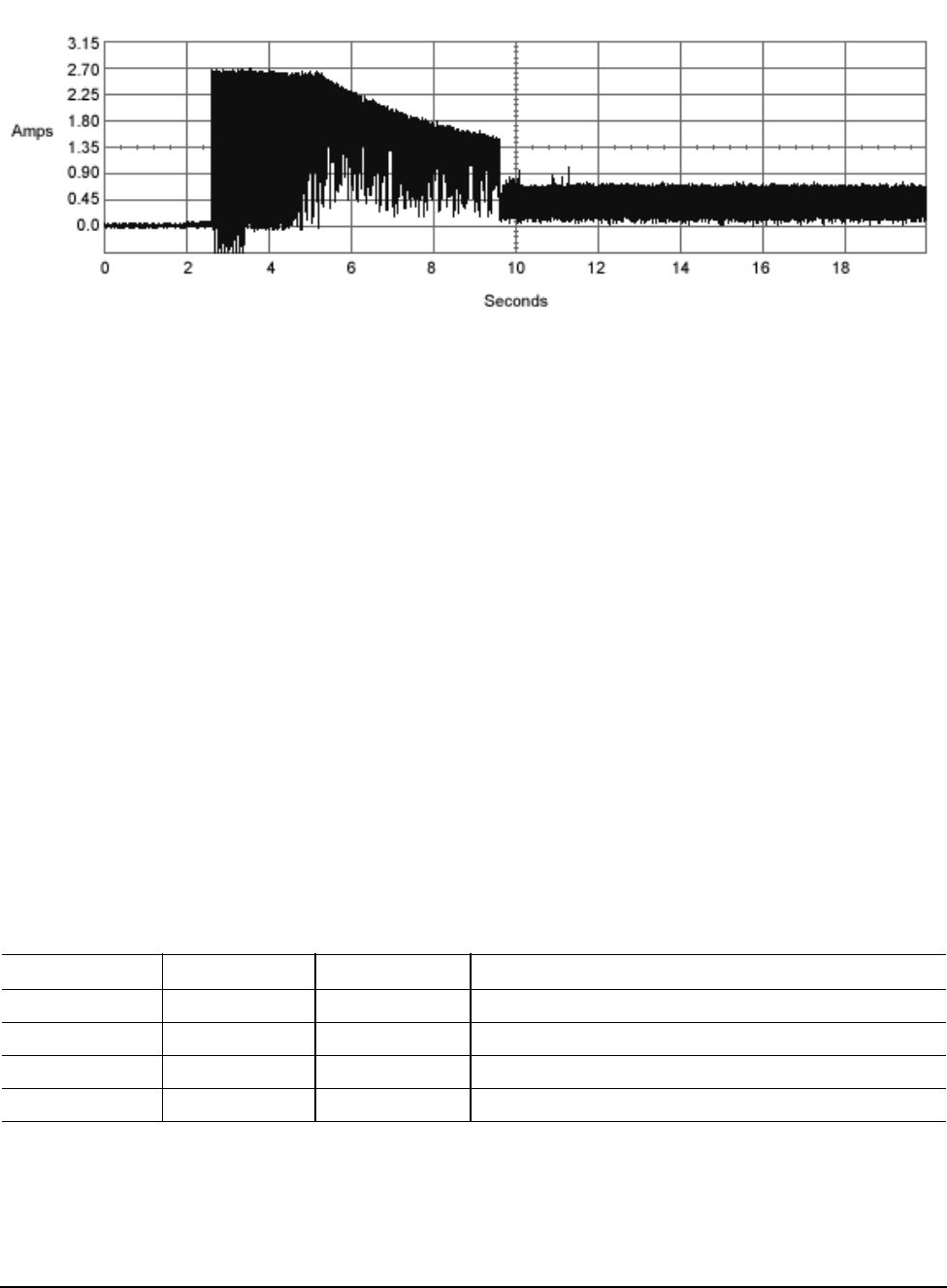

Figure 1. Typical 5V startup and operation current profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 2. Typical 12V startup and operation current profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Figure 3. Serial ATA connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Figure 4. Attaching SATA cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

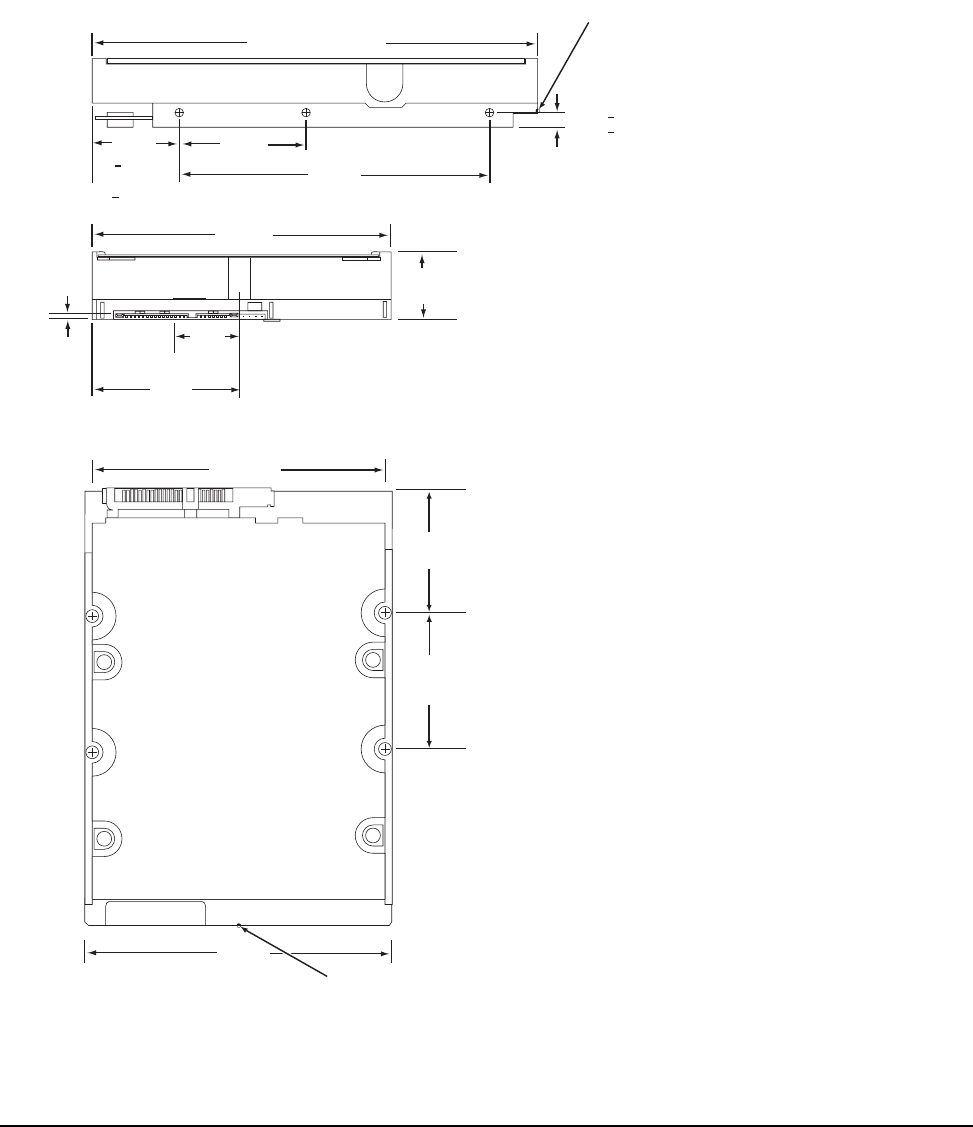

Figure 5. Drive dimensions for 200 -320 GB models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Figure 6. Drive dimensions for 40-160 GB models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
DiamondMax 21 Serial ATA Product Manual, Rev. A
1.0 Introduction
This manual describes the functional, mechanical and interface specifications for the following DiamondMax®
21 Serial ATA model drives:
These drives provide the following key features:
• 7,200 RPM spindle speed.
• High instantaneous (burst) data-transfer rates (up to 300 Mbytes per second).
• Perpendicular recording, Tunneling Giant Magnetoresistive (TGMR) recording heads and EPRML technol-
ogy, for increased areal density.
• State-of-the-art cache and on-the-fly error-correction algorithms.
• Native Command Queueing with command ordering to increase performance in demanding applications.
• Full-track multiple-sector transfer capability without local processor intervention.
• Quiet operation.
• SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
• Support for S.M.A.R.T. drive monitoring and reporting.
• Supports latching SATA cables and connectors.
STM3320620AS STM3160815AS
STM3320820AS STM3160215AS
STM3250824AS STM380815AS
STM3250820AS STM340215AS
DiamondMax 21 Serial ATA Product Manual, Rev. A
1.1 About the Serial ATA interface
The Serial ATA interface provides several advantages over the traditional (parallel) ATA interface. The primary
advantages include:
• Easy installation and configuration with true plug-and-play connectivity. It is not necessary to set any jump-
ers or other configuration options.
• Thinner and more flexible cabling for improved enclosure airflow and ease of installation.
• Scalability to higher performance levels.
In addition, Serial ATA makes the transition from parallel ATA easy by providing legacy software support. Serial
ATA was designed to allow you to install a Serial ATA host adapter and Serial ATA disc drive in your current
system and expect all of your existing applications to work as normal.
The Serial ATA interface connects each disc drive in a point-to-point configuration with the Serial ATA host
adapter. There is no master/slave relationship with Serial ATA devices like there is with parallel ATA. If two
drives are attached on one Serial ATA host adapter, the host operating system views the two devices as if they
were both “masters” on two separate ports. This essentially means both drives behave as if they are Device 0
(master) devices.
Note. The host adapter may, optionally, emulate a master/slave environment to host software where two
devices on separate Serial ATA ports are represented to host software as a Device 0 (master) and
Device 1 (slave) accessed at the same set of host bus addresses. A host adapter that emulates a
master/slave environment manages two sets of shadow registers. This is not a typical Serial ATA
environment.
The Serial ATA host adapter and drive share the function of emulating parallel ATA device behavior to provide
backward compatibility with existing host systems and software. The Command and Control Block registers,
PIO and DMA data transfers, resets, and interrupts are all emulated.
The Serial ATA host adapter contains a set of registers that shadow the contents of the traditional device regis-
ters, referred to as the Shadow Register Block. All Serial ATA devices behave like Device 0 devices. For addi-
tional information about how Serial ATA emulates parallel ATA, refer to the “Serial ATA: High Speed Serialized
AT Attachment” specification. The specification can be downloaded from www.serialata.org.
DiamondMax 21 Serial ATA Product Manual, Rev. A
2.0 Drive specifications
Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal
power. For convenience, the phrases the drive and this drive are used throughout this manual to indicate the
following drive models:
2.1 Specification summary tables
The specifications listed in the following tables are for quick reference. For details on specification measure-
ment or definition, see the appropriate section of this manual.
STM3320620AS STM3160815AS
STM3320820AS STM3160215AS
STM3250824AS STM380815AS
STM3250820AS STM340215AS
DiamondMax 21 Serial ATA Product Manual, Rev. A
Table 1: Drive specifications summary for 320 Gbyte models
Drive specification STM3320820AS STM3320620AS
Formatted capacity (512 bytes/sector)* 320 Gbytes
Guaranteed sectors 625,142,448
Heads 4
Discs 2
Bytes per sector 512
Default sectors per track 63
Default read/write heads 16
Default cylinders 16,383
Recording density 781 kbits/in max
Track density 145 ktracks/in avg
Areal density 114.4 Gbits/in2 avg
Spindle speed 7,200 RPM
Internal data transfer rate 1,030 Mbits/sec max
Sustained data transfer rate OD 72 Mbytes/sec max
I/O data-transfer rate 300 Mbytes/sec max
ATA data-transfer modes supported PIO modes 0–4
Multiword DMA modes 0–2
Ultra DMA modes 0–6
Cache buffer 16 Mbytes 8 Mbytes
Height (max) 26.1 mm (1.028 inches)
Width (max) 101.6 mm (4.000 inches) +/- 0.010 inches
Length (max) 146.99 mm (5.787 inches)
Weight (typical) 635 grams
Average latency 4.16 msec
Power-on to ready 15 sec max
Standby to ready 15 sec max
Track-to-track seek time <0.8 msec typical read; <1.0 typical write
Average seek, read <8.5 msec typical
Average seek, write <10.0 msec typical
Startup current (typical) 12V (peak) 2.8 amps
Voltage tolerance (including noise) 5V ± 5%
12V ± 10%
Ambient temperature 0° to 60°C (operating)
–40° to 70°C (nonoperating)
Temperature gradient 20°C per hour max (operating)
30°C per hour max (nonoperating)
Relative humidity 5% to 90% (operating)
5% to 95% (nonoperating)
Relative humidity gradient 30% per hour max
Wet bulb temperature 37.7°C max (operating)
37.7°C max (nonoperating)
Altitude, operating –60.96 m to 3,048 m
(–200 ft. to 10,000+ ft.)
Altitude, nonoperating
(below mean sea level, max) –60.96 m to 12,192 m
(–200 ft. to 40,000+ ft.)
Operational Shock 68 Gs max at 2 msec
Non-Operational Shock 350 Gs max at 2 msec
DiamondMax 21 Serial ATA Product Manual, Rev. A
*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment
and formatting.
**During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and
power to operational levels.
Vibration, operating 5–22 Hz: 0.25 Gs, Limited displacement
22–350 Hz: 0.50 Gs
350–500 Hz:: 0.25 Gs
Vibration, nonoperating 5–22 Hz: 0.25 Gs, Limited displacement
22–350 Hz: 5.0 Gs
350–500 Hz:: 1.0 Gs
Drive acoustics, sound power
Idle** 2.5 bels (typical)
2.9 bels (max)
Performance seek 3.0 bels (typical)
3.2 bels (max)
Nonrecoverable read errors 1 per 1014 bits read
Annualized Failure Rate (AFR) 0.34%
Warranty 3 years on distribution units.
Contact start-stop cycles 50,000 at 25°C, 50% rel. humidity
Supports Hotplug operation per the Serial ATA Revision 2.5 specification Yes
Drive specification STM3320820AS STM3320620AS
DiamondMax 21 Serial ATA Product Manual, Rev. A
Table 2: Drive specifications summary for 250 Gbyte models
Drive specification STM3250824AS STM3250820AS
Formatted capacity (512 bytes/sector)* 250 Gbytes
Guaranteed sectors 488,397,168
Heads 3
Discs 2
Bytes per sector 512
Default sectors per track 63
Default read/write heads 16
Default cylinders 16,383
Recording density 813 kbits/in max
Track density 145 ktracks/in avg
Areal density 114.4 Gbits/in2 avg
Spindle speed 7,200 RPM
Internal data transfer rate 1,030 Mbits/sec max
Sustained data transfer rate OD 72 Mbytes/sec max
I/O data-transfer rate 300 Mbytes/sec max
ATA data-transfer modes supported PIO modes 0–4
Multiword DMA modes 0–2
Ultra DMA modes 0–6
Cache buffer 8 Mbytes
Height (max) 26.1 mm (1.028 inches)
Width (max) 101.6 mm (4.000 inches) +/- 0.010 inches
Length (max) 146.99 mm (5.787 inches)
Weight (typical) 600 grams (1.32 lb.)
Average latency 4.16 msec
Power-on to ready 11 sec max
Standby to ready 15 sec max
Track-to-track seek time <0.8 msec typical read, <1.0 msec typical write
Average seek, read <8.5 msec typical
Average seek, write <10.0 msec typical
Startup current (typical) 12V (peak) 2.8 amps
Voltage tolerance (including noise) 5V ± 5%
12V ± 10%
Ambient temperature 0° to 60°C per hour max (operating)
–40° to 70°C per hour max (nonoperating)
Temperature gradient 20°C (operating)
30°C (nonoperating)
Relative humidity 5% to 90% (operating)
5% to 95% (nonoperating)
Relative humidity gradient 30% per hour max
Wet bulb temperature 37.7°C max (operating)
37.7°C max (nonoperating)
Altitude, operating –60.96 m to 3,048 m
(–200 ft. to 10,000+ ft.)
Altitude, nonoperating
(below mean sea level, max) –60.96 m to 12,192 m
(–200 ft. to 40,000+ ft.)
Operational Shock 68 Gs max at 2 msec
Non-Operational Shock 350 Gs max at 2 msec
DiamondMax 21 Serial ATA Product Manual, Rev. A
*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment
and formatting.
**During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and
power to operational levels.
Vibration, operating 5–22 Hz: 0.25 Gs, Limited displacement
22–350 Hz: 0.50 Gs
350–500 Hz:: 0.25 Gs
Vibration, nonoperating 5–22 Hz: 0.25 Gs, Limited displacement
22–350 Hz: 5.0 Gs
350–500 Hz:: 1.0 Gs
Drive acoustics, sound power
Idle** 2.5 bels (typical)
2.9 bels (max)
Performance seek 3.0 bels (typical)
3.2 bels (max)
Nonrecoverable read errors 1 per 1014 bits read
Annualized Failure Rate (AFR) 0.34%
Warranty 3 years on distribution units.
Contact start-stop cycles 50,000 at 25°C, 50% rel. humidity
Supports Hotplug operation per the Serial ATA Revision 2.5 specification Yes
Drive specification STM3250824AS STM3250820AS
DiamondMax 21 Serial ATA Product Manual, Rev. A
Table 3: Drive specifications summary for the 160 Gbyte models
Drive specification STM3160815AS STM3160215AS
Formatted capacity (512 bytes/sector)* 160 Gbytes
Guaranteed sectors 312,581,808
Heads 2
Discs 1
Bytes per sector 512
Default sectors per track 63
Default read/write heads 16
Default cylinders 16,383
Recording density 824 kbits/in max
Track density 137.259 ktracks/in avg
Areal density 101 Gbits/in2 avg
Spindle speed 7,200 RPM
Internal data transfer rate 930 Mbits/sec max
Sustained data transfer rate OD 78 Mbytes/sec max
I/O data-transfer rate 300 Mbytes/sec max
ATA data-transfer modes supported PIO modes 0–4
Multiword DMA modes 0–2
Ultra DMA modes 0–6
Cache buffer 8 Mbytes 2 Mbytes
Height (max) 19.99 mm (0.787 inches)
Width (max) 101.6 mm (4.000 inches) +/- 0.010 inches
Length (max) 146.99 mm (5.787 inches)
Weight (typical) 380 grams (0.838 lb.)
Average latency 4.16 msec
Power-on to ready 7.9 sec max
Standby to ready 7.9 sec max
Track-to-track seek time <1.0 msec typical read; <1.2 msec typical write
Average seek, read <11 msec typical
Average seek, write <12 msec typical
Startup current (typical) 12V (peak) 2.8 amps
Voltage tolerance (including noise) 5V ± 5%
12V ± 10%
Ambient temperature 0° to 60°C (operating)
–40° to 75°C (nonoperating)
Temperature gradient 20°C per hour max (operating)
30°C per hour max (nonoperating)
Relative humidity 5% to 90% (operating)
5% to 95% (nonoperating)
Relative humidity gradient 30% per hour max
Wet bulb temperature 37.7°C max (operating)
40°C max (nonoperating)
Altitude, operating –60.96 m to 3,048 m
(–200 ft. to 10,000+ ft.)
Altitude, nonoperating
(below mean sea level, max) –60.96 m to 12,192 m
(–200 ft. to 40,000+ ft.)
Operational Shock 63 Gs max at 2 msec
Non-Operational Shock 350 Gs max at 2 msec
DiamondMax 21 Serial ATA Product Manual, Rev. A
*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment
and formatting.
**During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and
power to operational levels.
Vibration, operating 5–22 Hz: 0.25 Gs, Limited displacement
22–350 Hz: 0.5 Gs
350–500 Hz:: 0.25 Gs
Vibration, nonoperating 5–22 Hz: 0.25 Gs, Limited displacement
22–350 Hz: 5.0 Gs
350–500 Hz:: 1.0 Gs
Drive acoustics, sound power
Idle** 2.8 bels (typical)
3.0 bels (max)
Quiet seek 3.0 bels (typical)
3.2 bels (max)
Nonrecoverable read errors 1 per 1014 bits read
Annualized Failure Rate (AFR) 0.34%
Warranty 3 years on distribution units.
Contact start-stop cycles 50,000 at 25°C, 50% rel. humidity
Supports Hotplug operation per the Serial ATA Revision 2.5 specification Yes
Drive specification STM3160815AS STM3160215AS
10
DiamondMax 21 Serial ATA Product Manual, Rev. A
Table 4: Drive specifications summary for the 80 Gbyte model
Drive specification ST380215AS
Formatted capacity (512 bytes/sector)* 80 Gbytes
Guaranteed sectors 156,301,488
Heads 1
Discs 1
Bytes per sector 512
Default sectors per track 63
Default read/write heads 16
Default cylinders 16,383
Recording density 824 kbits/in max
Track density 137.259 ktracks/in avg
Areal density 101 Gbits/in2 avg
Spindle speed 7,200 RPM
Internal data transfer rate 930 Mbits/sec max
Sustained data transfer rate OD 78 Mbytes/sec max
I/O data-transfer rate 300 Mbytes/sec max
ATA data-transfer modes supported PIO modes 0–4
Multiword DMA modes 0–2
Ultra DMA modes 0–6
Cache buffer 2 Mbytes
Height (max) 19.99 mm (0.787 inches)
Width (max) 101.6 mm (4.000 inches) +/- 0.010 inches
Length (max) 146.99 mm (5.787 inches)
Weight (typical) 365 grams (0.805 lb.)
Average latency 4.16 msec
Power-on to read 7.9 sec max
Standby to ready 7.9 sec max
Track-to-track seek time <1.0 msec typical read); <1.2 msec typical write
Average seek, read <11 msec typical
Average seek, write <12 msec typical
Startup current (typical) 12V (peak) 2.8 amps
Voltage tolerance (including noise) 5V ± 5%
12V ± 10%
Ambient temperature 0° to 60°C (operating)
–40° to 75°C (nonoperating)
Temperature gradient 20°C per hour max (operating)
30°C per hour max (nonoperating)
Relative humidity 5% to 90% (operating)
5% to 95% (nonoperating)
Relative humidity gradient 30% per hour max
Wet bulb temperature 37.7°C max (operating)
40°C max (nonoperating)
Altitude, operating –60.96 m to 3,048 m
(–200 ft. to 10,000+ ft.)
Altitude, nonoperating
(below mean sea level, max) –60.96 m to 12,192 m
(–200 ft. to 40,000+ ft.)
Operational Shock 63 Gs max at 2 msec
Non-Operational Shock 350 Gs max at 2 msec
DiamondMax 21 Serial ATA Product Manual, Rev. A
11
*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment
and formatting.
**During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and
power to operational levels.
Vibration, operating 5–22 Hz: 0.25 Gs, Limited displacement
22–350 Hz: 0.5 Gs
350–500 Hz:: 0.25 Gs
Vibration, nonoperating 5–22 Hz: 0.25 Gs, Limited displacement
22–350 Hz: 5.0 Gs
350–500 Hz:: 1.0 Gs
Drive acoustics, sound power
Idle** 2.8 bels (typical)
3.0 bels (max)
Quiet seek 3.0 bels (typical)
3.2 bels (max)
Nonrecoverable read errors 1 per 1014 bits read
Annualized Failure Rate (AFR) 0.34%
Warranty 3 years on distribution units.
Contact start-stop cycles 50,000 at 25°C, 50% rel. humidity
Supports Hotplug operation per the Serial ATA Revision 2.5 specification Yes
Drive specification ST380215AS
12
DiamondMax 21 Serial ATA Product Manual, Rev. A
Table 5: Drive specifications summary for the 40 Gbyte model
Drive specification STM340215AS
Formatted capacity (512 bytes/sector)* 40 Gbytes
Guaranteed sectors 78,165,360
Heads 1
Discs 1
Bytes per sector 512
Default sectors per track 63
Default read/write heads 16
Default cylinders 16,383
Recording density 824 kbits/in max
Track density 137.259 ktracks/in avg
Areal density 101 Gbits/in2 avg
Spindle speed 7,200 RPM
Internal data transfer rate 930 Mbits/sec max
Sustained data transfer rate OD 78 Mbytes/sec max
I/O data-transfer rate 300 Mbytes/sec max
ATA data-transfer modes supported PIO modes 0–4
Multiword DMA modes 0–2
Ultra DMA modes 0–6
Cache buffer 2 Mbytes
Height (max) 19.99 mm (0.787 inches)
Width (max) 101.6 mm (4.000 inches) +/- 0.010 inches
Length (max) 146.99 mm (5.787 inches)
Weight (typical) 365 grams (0.805 lb.)
Average latency 4.16 msec
Power-on to ready 7.9 sec max
Standby to ready 7.9 sec max
Track-to-track seek time <1.0 msec typical read; <1.2 msec typical write
Average seek, read <11 msec typical
Average seek, write <12 msec typical
Startup current (typical) 12V (peak) 2.8 amps
Voltage tolerance (including noise) 5V ± 5%
12V ± 10%
Ambient temperature 0° to 60°C (operating)
–40° to 75°C (nonoperating)
Temperature gradient 20°C per hour max (operating)
30°C per hour max (nonoperating)
Relative humidity 5% to 90% (operating)
5% to 95% (nonoperating)
Relative humidity gradient 30% per hour max
Wet bulb temperature 37.7°C max (operating)
40°C max (nonoperating)
Altitude, operating –60.96 m to 3,048 m
(–200 ft. to 10,000+ ft.)
Altitude, nonoperating
(below mean sea level, max) –60.96 m to 12,192 m
(–200 ft. to 40,000+ ft.)
Operational Shock 63 Gs max at 2 msec
Non-Operational Shock 350 Gs max at 2 msec
DiamondMax 21 Serial ATA Product Manual, Rev. A
13
*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment
and formatting.
**During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and
power to operational levels.
Vibration, operating 5–22 Hz: 0.25 Gs, Limited displacement
22–350 Hz: 0.5 Gs
350–500 Hz:: 0.25 Gs
Vibration, nonoperating 5–22 Hz: 0.25 Gs, Limited displacement
22–350 Hz: 5.0 Gs
350–500 Hz:: 1.0 Gs
Drive acoustics, sound power
Idle** 2.8 bels (typical)
3.0 bels (max)
Quiet seek 3.0 bels (typical)
3.2 bels (max)
Nonrecoverable read errors 1 per 1014 bits read
Annualized Failure Rate (AFR) 0.34%
Warranty 3 years on distribution units..
Contact start-stop cycles 50,000 at 25°C, 50% rel. humidity
Supports Hotplug operation per the Serial ATA Revision 2.5 specification Yes
Drive specification STM340215AS
14
DiamondMax 21 Serial ATA Product Manual, Rev. A
2.2 Formatted capacity
*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment
and formatting.
2.2.1 LBA mode
When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1,
where n is the number of guaranteed sectors as defined above.
See Section 4.3.1, "Identify Device command" (words 60-61 and 100-103) for additional information about 48-
bit addressing support of drives with capacities over 137 Gbytes.
2.3 Default logical geometry
LBA mode
When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1,
where n is the number of guaranteed sectors as defined above.
Model Formatted
capacity* Guaranteed
sectors
Bytes per sector
STM3320620AS 320 Gbytes 625,142,448 512
STM3320820AS 320 Gbytes 625,142,448 512
STM3250824AS 250 Gbytes 488,397,168 512
STM3250820AS 250 Gbytes 488,397,168 512
STM3160815AS 160 Gbytes 312,581,808 512
STM3160215AS 160 Gbytes 312,581,808 512
STM380815AS 80 Gbytes 156,301,488 512
STM340215AS 40 Gbytes 78,165,360 512
Cylinders Read/write heads Sectors per track
16,383 16 63
DiamondMax 21 Serial ATA Product Manual, Rev. A
15
2.4 Recording and interface technology
2.5 Physical characteristics
Model capacity
320 250 160 80 40
Interface Serial ATA (SATA)
Recording method Perpendicular
Recording density (kbits/inch max) 781 813 824
Track density (ktracks/inch avg) 145 137.259
Areal density (Gbits/inch2 avg) 114.4 101
Spindle speed (RPM) 7,200 ± 0.2%
Internal data transfer rate (Mbits/sec max) 1,030 930
Sustained data transfer rate (Mbytes/sec max) 72 78
I/O data-transfer rate (Mbytes/sec max) 300
Maximum height (200 - 320 GB models) 26.1 mm (1.028 inches)
Maximum height (40 - 160 GB models) 19.99 mm (0.787 inches)
Maximum width 101.6 mm (4.000 +/- 0.010 inches)
Maximum length 146.99 mm (5.787 inches)
Typical weight
STM3320620AS and STM3320820AS 635 grams (1.4 lbs)
STM3250824AS and STM3250820AS 600 grams (1.32 lbs)
STM3160815AS and STM3160215AS 380 grams (0.838 lbs)
STM380815AS and STM340215AS 365 grams (0.805 lbs)
Cache buffer
STM3320620AS 16 Mbytes (16,384 kbytes)
STM3320820AS, STM3250824AS, STM3250820AS, STM3160815AS
and STM380815AS 8 Mbytes (8,192 kbytes)
STM3160215AS and STM340215AS 2 Mbytes (2,048 kbytes)
16
DiamondMax 21 Serial ATA Product Manual, Rev. A
2.6 Seek time
Seek measurements are taken with nominal power at 25°C ambient temperature. All times are measured using
drive diagnostics. The specifications in the table below are defined as follows:
• Track-to-track seek time is an average of all possible single-track seeks in both directions.
• Average seek time is a true statistical random average of at least 5,000 measurements of seeks between
random tracks, less overhead.
*Measured in performance mode.
**Measured in quiet mode.
Note. These drives are designed to consistently meet the seek times represented in this manual. Physical
seeks, regardless of mode (such as track-to-track and average), are expected to meet the noted
values. However, due to the manner in which these drives are formatted, benchmark tests that
include command overhead or measure logical seeks may produce results that vary from these
specifications.
2.7 Start/stop times
2.8 Power specifications
The drive receives DC power (+5V or +12V) through a native SATA power connector. See Figure 4 on page 28.
2.8.1 Power consumption
Power requirements for the drives are listed in the table on page 9. Typical power measurements are based on
an average of drives tested, under nominal conditions, using 5.0V and 12.0V input voltage at 25°C ambient
temperature.
• Spinup power
Spinup power is measured from the time of power-on to the time that the drive spindle reaches operating
speed.
• Seek mode
During seek mode, the read/write actuator arm moves toward a specific position on the disc surface and
does not execute a read or write operation. Servo electronics are active. Seek mode power represents the
worst-case power consumption, using only random seeks with read or write latency time. This mode is not
typical and is provided for worst-case information.
• Read/write power and current
Read/write power is measured with the heads on track, based on a 16-sector write followed by a 32-msec
delay, then a 16-sector read followed by a 32-msec delay.
200 - 320 GB models* 40 - 80 GB models**
Typical seek times (msec) Read Write Read Write
Track-to-track <0.8 <1.0 <0.8 <1.0
Average <8.5 <10.0 <11.0 <12.0
Average latency: 4.16 4.16 4.16 4.16
Power-on to Ready (sec) 15 (max)
Standby to Ready (sec) 15 (max)
Ready to spindle stop (sec) 10 (max)
DiamondMax 21 Serial ATA Product Manual, Rev. A
17
• Operating power and current
Operating power is measured using 40 percent random seeks, 40 percent read/write mode (1 write for each
10 reads) and 20 percent drive idle mode.
• Idle mode power
Idle mode power is measured with the drive up to speed, with servo electronics active and with the heads in
a random track location.
• Standby mode
During Standby mode, the drive accepts commands, but the drive is not spinning, and the servo and read/
write electronics are in power-down mode.
Table 6: DC power requirements
*During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and
power to operational levels.
2.8.1.1 Typical current profiles

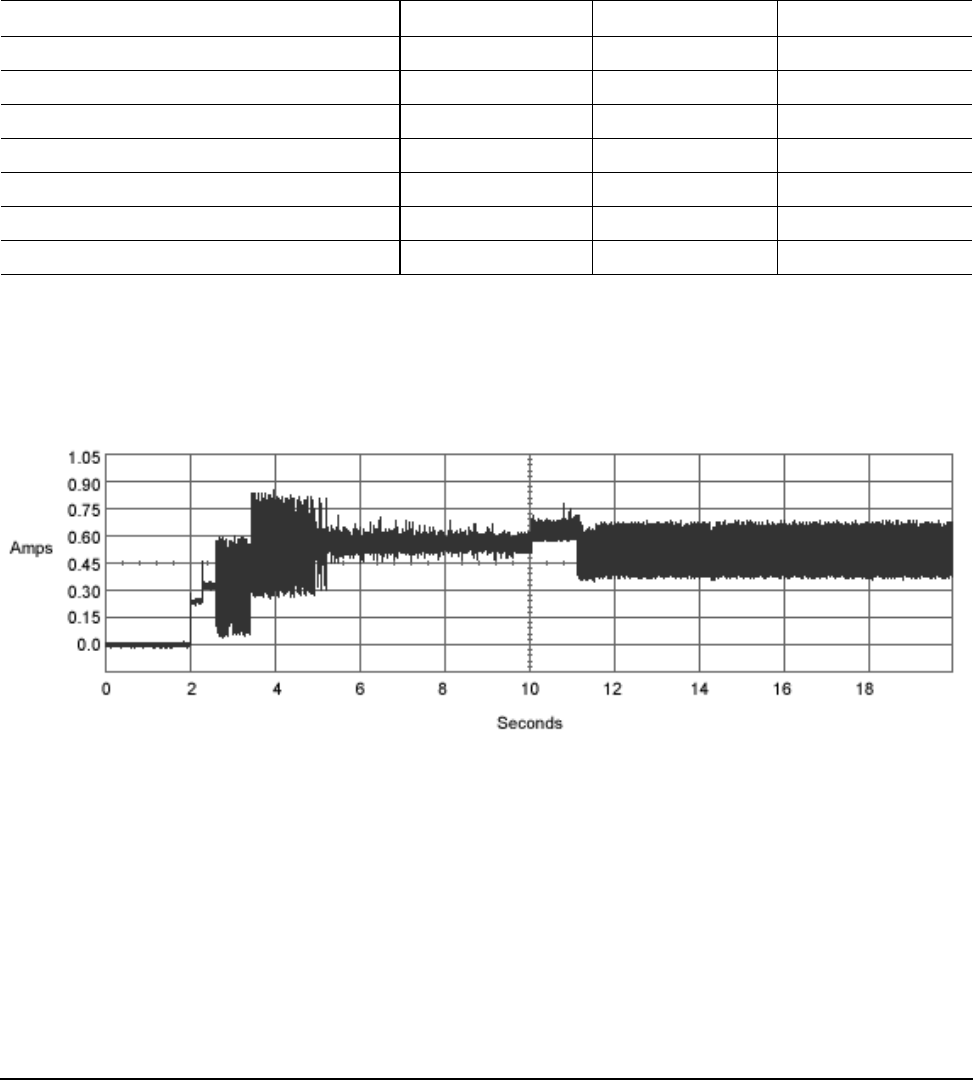

Figure 1. Typical 5V startup and operation current profile
Power dissipation Avg (watts 25° C) Avg 5V typ amps Avg 12V typ amps
Spinup — — 2.8 (peak)
Idle* 9.30 0.611 0.520
Idle* (with offline activity) 10.40 0.719 0.567
Operating (40% r/w, 40% seek, 20% inop.) 13.00 0.772 0.762
Seeking (random, 20% idle) 12.60 0.613 0.795
Standby 0.80 0.106 0.023
Sleep 0.80 0.106 0.023
18
DiamondMax 21 Serial ATA Product Manual, Rev. A
Figure 2. Typical 12V startup and operation current profile
2.8.2 Conducted noise
Input noise ripple is measured at the host system power supply across an equivalent 80-ohm resistive load on
the +12 volt line or an equivalent 15-ohm resistive load on the +5 volt line.
• Using 12-volt power, the drive is expected to operate with a maximum of 120 mV peak-to-peak square-wave
injected noise at up to 10 MHz.
• Using 5-volt power, the drive is expected to operate with a maximum of 100 mV peak-to-peak square-wave
injected noise at up to 10 MHz.
Note. Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write
current.
2.8.3 Voltage tolerance
Voltage tolerance (including noise):
5V ± 5%
12V ± 10%
2.8.4 Power-management modes
The drive provides programmable power management to provide greater energy efficiency. In most systems,
you can control power management through the system setup program. The drive features the following
power-management modes:
•Active mode
The drive is in Active mode during the read/write and seek operations.
Power modes Heads Spindle Buffer
Active Tracking Rotating Enabled
Idle Tracking Rotating Enabled
Standby Parked Stopped Enabled
Sleep Parked Stopped Disabled
DiamondMax 21 Serial ATA Product Manual, Rev. A
19
• Idle mode
The buffer remains enabled, and the drive accepts all commands and returns to Active mode any time disc
access is necessary.
•Standby mode
The drive enters Standby mode when the host sends a Standby Immediate command. If the host has set
the standby timer, the drive can also enter Standby mode automatically after the drive has been inactive for
a specifiable length of time. The standby timer delay is established using a Standby or Idle command. In
Standby mode, the drive buffer is enabled, the heads are parked and the spindle is at rest. The drive
accepts all commands and returns to Active mode any time disc access is necessary.
• Sleep mode
The drive enters Sleep mode after receiving a Sleep command from the host. In Sleep mode, the drive
buffer is disabled, the heads are parked and the spindle is at rest. The drive leaves Sleep mode after it
receives a Hard Reset or Soft Reset from the host. After receiving a reset, the drive exits Sleep mode and
enters Standby mode with all current translation parameters intact.
• Idle and Standby timers
Each time the drive performs an Active function (read, write or seek), the standby timer is reinitialized and
begins counting down from its specified delay times to zero. If the standby timer reaches zero before any
drive activity is required, the drive makes a transition to Standby mode. In both Idle and Standby mode, the
drive accepts all commands and returns to Active mode when disc access is necessary.
20
DiamondMax 21 Serial ATA Product Manual, Rev. A
2.9 Environmental specifications
2.9.1 Ambient temperature
Ambient temperature is defined as the temperature of the environment immediately surrounding the drive.
Actual drive case temperature should not exceed 69°C (156°F) within the operating ambient conditions.
Above 1,000 feet (305 meters), the maximum temperature is derated linearly to 112°F (44°C) at 10,000 feet
(3,048 meters).
2.9.2 Temperature gradient
2.9.3 Humidity
2.9.3.1 Relative humidity
2.9.3.2 Wet bulb temperature
2.9.4 Altitude
2.9.5 Shock
All shock specifications assume that the drive is mounted securely with the input shock applied at the drive
mounting screws. Shock may be applied in the X, Y or Z axis.
2.9.5.1 Operating shock
These drives comply with the performance levels specified in this document when subjected to a maximum
operating shock of 68 Gs based on half-sine shock pulses of 2 msec. Shocks should not be repeated more
than two times per second.
Operating: 0° to 60°C (32° to 140°F)
Nonoperating: –40° to 70°C (–40° to 158°F)
Operating: 20°C per hour (68°F per hour max), without condensation
Nonoperating: 30°C per hour (86°F per hour max)
Operating: 5% to 90% noncondensing (30% per hour max)
Nonoperating: 5% to 95% noncondensing (30% per hour max)
Operating: 37.7°C (99.9°F max)
Nonoperating: 200 - 750 GB models: 37.7°C (99.9°F max)
40 - 160 GB models: 40°C (104°F max)
Operating: –60.96 m to 3,048 m (–200 ft. to 10,000+ ft.)
Nonoperating: –60.96 m to 12,192 m (–200 ft. to 40,000+ ft.)
DiamondMax 21 Serial ATA Product Manual, Rev. A
21
2.9.5.2 Nonoperating shock
The nonoperating shock level that the drive can experience without incurring physical damage or degradation
in performance when subsequently put into operation is 350 Gs based on a nonrepetitive half-sine shock pulse
of 2 msec duration.
2.9.6 Vibration
All vibration specifications assume that the drive is mounted securely with the input vibration applied at the
drive mounting screws. Vibration may be applied in the X, Y or Z axis.
2.9.6.1 Operating vibration
The maximum vibration levels that the drive may experience while meeting the performance standards speci-
fied in this document are specified below.
2.9.6.2 Nonoperating vibration
The maximum nonoperating vibration levels that the drive may experience without incurring physical damage
or degradation in performance when subsequently put into operation are specified below.
2.10 Acoustics
Drive acoustics are measured as overall A-weighted acoustic sound power levels (no pure tones). All mea-
surements are consistent with ISO document 7779. Sound power measurements are taken under essentially
free-field conditions over a reflecting plane. For all tests, the drive is oriented with the cover facing upward.
Note. For seek mode tests, the drive is placed in seek mode only. The number of seeks per second is defined
by the following equation:
(Number of seeks per second = 0.4 / (average latency + average access time)
*During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and
power to operational levels.
**Measured in performance mode.
***Measured in quiet mode.
5–22 Hz 0.25 Gs (Limited displacement)
22–350 Hz 0.50 Gs
350–500 Hz 0.25 Gs
5–22 Hz 0.25 Gs (limited displacement)
22–350 Hz 5.0 Gs
350–500 Hz 1.0 Gs
Table 7: Fluid Dynamic Bearing (FDB) motor acoustics
Idle* Seek
STM3320620AS, STM3320820AS, STM3250824AS and
STM3250820AS 2.5 bels (typ)
2.9 bels (max) 3.0 bels (typ)**
3.2 bels (max)**
STM3160815AS, STM3160215AS, STM380815AS and
STM340215AS 2.8 bels (typ)
3.0 bels (max) 3.0 bels (typ)***
3.2 bels (max)***
22
DiamondMax 21 Serial ATA Product Manual, Rev. A
2.11 Electromagnetic immunity
When properly installed in a representative host system, the drive operates without errors or degradation in
performance when subjected to the radio frequency (RF) environments defined in the following table:
Table 8: Radio frequency environments
Test Description Performance level Reference standard
Electrostatic
discharge Contact, HCP, VCP: ± 4 kV; Air: ± 8 kV BEN 61000-4-2: 95
Radiated RF
immunity 80 to 1,000 MHz, 3 V/m,
80% AM with 1 kHz sine
900 MHz, 3 V/m, 50% pulse modulation @ 200 Hz
AEN 61000-4-3: 96
ENV 50204: 95
Electrical fast
transient ± 1 kV on AC mains, ± 0.5 kV on external I/O BEN 61000-4-4: 95
Surge immunity ± 1 kV differential, ± 2 kV common, AC mains BEN 61000-4-5: 95
Conducted RF
immunity 150 kHz to 80 MHz, 3 Vrms, 80% AM with 1 kHz sine AEN 61000-4-6: 97
Voltage dips,
interrupts 0% open, 5 seconds
0% short, 5 seconds
40%, 0.10 seconds
70%, 0.01 seconds
C
C
C
B
EN 61000-4-11: 94
DiamondMax 21 Serial ATA Product Manual, Rev. A
23
2.12 Reliability
2.12.1 Annualized Failure Rate (AFR) and Mean Time Between Failures (MTBF)
The product shall achieve an Annualized Failure Rate (AFR) of 0.34% (MTBF of 0.7 million hours) when oper-
ated in an environment of ambient air temperatures of 25°C. Operation at temperatures outside the specifica-
tions in Section 2.9 may increase the product AFR (decrease MTBF). AFR and MTBF are population statistics
that are not relevant to individual units.
AFR and MTBF specifications are based on the following assumptions for desktop personal computer environ-
ments:
• 2400 power-on-hours per year.
• 10,000 average motor start/stop cycles per year.
• Operations at nominal voltages.
• Temperatures outside the specifications in Section 2.9 may reduce the product reliability.
• Normal I/O duty cycle for desktop personal computers. Operation at excessive I/O duty cycle may degrade
product reliability.
The desktop personal computer environment of power-on-hours, temperature, and I/O duty cycle affect the
product AFR and MTBF. The AFR and MTBF will be degraded if used in a enterprise application.
2.13 Agency certification
2.13.1 Safety certification
The drives are recognized in accordance with UL 1950 and CSA C22.2 (950) and meet all applicable sections
of IEC950 and EN 60950.
2.13.2 Electromagnetic compatibility
Hard drives that display the CE mark comply with the European Union (EU) requirements specified in the Elec-
tromagnetic Compatibility Directive (89/336/EEC). Testing is performed to the levels specified by the product
standards for Information Technology Equipment (ITE). Emission levels are defined by EN 55022, Class B and
the immunity levels are defined by EN 55024.
Drives are tested in representative end-user systems. Although CE-marked drives comply with the directives
when used in the test systems, we cannot guarantee that all systems will comply with the directives. The drive
is designed for operation inside a properly designed enclosure, with properly shielded I/O cable (if necessary)
and terminators on all unused I/O ports. Computer manufacturers and system integrators should confirm EMC
compliance and provide CE marking for their products.
Nonrecoverable read errors 1 per 1014 bits read, max
Annualized Failure Rate (AFR) 0.34% (nominal power, 25°C ambient temperature)
Contact start-stop cycles 50,000 cycles
(at nominal voltage and temperature, with 60 cycles per hour and a 50% duty cycle)
Warranty 3 years on distribution units.
Preventive maintenance None required.
24
DiamondMax 21 Serial ATA Product Manual, Rev. A
Korean RRL
If these drives have the Korea Ministry of Information and Communication (MIC) logo, they comply with para-
graph 1 of Article 11 of the Electromagnetic Compatibility control Regulation and meet the Electromagnetic
Compatibility (EMC) Framework requirements of the Radio Research Laboratory (RRL) Ministry of Information
and Communication Republic of Korea.
These drives have been tested and comply with the Electromagnetic Interference/Electromagnetic Susceptibil-
ity (EMI/EMS) for Class B products. Drives are tested in a representative, end-user system by a Korean-recog-
nized lab.
• Family name: DiamondMax
• Certificate number: Pending
Australian C-Tick (N176)
If these models have the C-Tick marking, they comply with the Australia/New Zealand Standard AS/NZS3548
1995 and meet the Electromagnetic Compatibility (EMC) Framework requirements of the Australian Communi-
cation Authority (ACA).
2.13.3 FCC verification
These drives are intended to be contained solely within a personal computer or similar enclosure (not attached
as an external device). As such, each drive is considered to be a subassembly even when it is individually mar-
keted to the customer. As a subassembly, no Federal Communications Commission verification or certification
of the device is required.
Maxtor has tested this device in enclosures as described above to ensure that the total assembly (enclosure,
disc drive, motherboard, power supply, etc.) does comply with the limits for a Class B computing device, pursu-
ant to Subpart J, Part 15 of the FCC rules. Operation with noncertified assemblies is likely to result in interfer-
ence to radio and television reception.
Radio and television interference. This equipment generates and uses radio frequency energy and if not
installed and used in strict accordance with the manufacturer’s instructions, may cause interference to radio
and television reception.
This equipment is designed to provide reasonable protection against such interference in a residential installa-
tion. However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause interference to radio or television, which can be determined by turning the equipment on and off,
you are encouraged to try one or more of the following corrective measures:
• Reorient the receiving antenna.
• Move the device to one side or the other of the radio or TV.
• Move the device farther away from the radio or TV.
• Plug the computer into a different outlet so that the receiver and computer are on different branch outlets.
If necessary, you should consult your dealer or an experienced radio/television technician for additional sug-
gestions. You may find helpful the following booklet prepared by the Federal Communications Commission:
How to Identify and Resolve Radio-Television Interference Problems. This booklet is available from the Super-
intendent of Documents, U.S. Government Printing Office, Washington, DC 20402. Refer to publication num-
ber 004-000-00345-4.
DiamondMax 21 Serial ATA Product Manual, Rev. A
25
2.14 Environmental protection
Maxtor designs its products to meet environmental protection requirements worldwide, including regulations
restricting certain chemical substances.
2.14.1 European Union Restriction of Hazardous Substances (RoHS)
The European Union Restriction of Hazardous Substances (RoHS) Directive restricts the presence of chemical
substances, including Lead (Pb), in electronic products effective July 2006.
A number of parts and materials in Maxtor products are procured from external suppliers. We rely on the repre-
sentations of our suppliers regarding the presence of RoHS substances in these parts and materials. Our sup-
plier contracts require compliance with our chemical substance restrictions, and our suppliers document their
compliance with our requirements by providing material content declarations for all parts and materials for the
disc drives documented in this publication. Current supplier declarations include disclosure of the inclusion of
any RoHS-regulated substance in such parts or materials.
Maxtor also has internal systems in place to ensure ongoing compliance with the RoHS Directive and all laws
and regulations which restrict chemical content in electronic products. These systems include standard operat-
ing procedures that ensure that restricted substances are not utilized in our manufacturing operations, labora-
tory analytical validation testing, and an internal auditing process to ensure that all standard operating
procedures are complied with.
2.15 Corrosive environment
Maxtor electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to light
industrial environments containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM B845.
However, this accelerated testing cannot duplicate every potential application environment. Users should use
caution exposing any electronic components to uncontrolled chemical pollutants and corrosive chemicals as
electronic drive component reliability can be affected by the installation environment. The silver, copper, nickel
and gold films used in Maxtor products are especially sensitive to the presence of sulfide, chloride, and nitrate
contaminants. Sulfur is found to be the most damaging. In addition, electronic components should never be
exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an
ambient relative humidity greater than 95%. Materials used in cabinet fabrication, such as vulcanized rubber,
that can outgas corrosive compounds should be minimized or eliminated. The useful life of any electronic
equipment may be extended by replacing materials near circuitry with sulfide-free alternatives.
26
DiamondMax 21 Serial ATA Product Manual, Rev. A
DiamondMax 21 Serial ATA Product Manual, Rev. A
27
3.0 Configuring and mounting the drive
This section contains the specifications and instructions for configuring and mounting the drive.
3.1 Handling and static-discharge precautions
After unpacking, and before installation, the drive may be exposed to potential handling and electrostatic dis-
charge (ESD) hazards. Observe the following standard handling and static-discharge precautions:
Caution:
• Before handling the drive, put on a grounded wrist strap, or ground yourself frequently by touching the metal
chassis of a computer that is plugged into a grounded outlet. Wear a grounded wrist strap throughout the entire
installation procedure.
• Handle the drive by its edges or frame only.
• The drive is extremely fragile—handle it with care. Do not press down on the drive top cover.
• Always rest the drive on a padded, antistatic surface until you mount it in the computer.
• Do not touch the connector pins or the printed circuit board.
• Do not remove the factory-installed labels from the drive or cover them with additional labels. Removal voids
the warranty. Some factory-installed labels contain information needed to service the drive. Other labels are
used to seal out dirt and contamination.
28
DiamondMax 21 Serial ATA Product Manual, Rev. A
3.2 Configuring the drive
Each drive on the Serial ATA interface connects point-to-point with the Serial ATA host adapter. There is no
master/slave relationship because each drive is considered a master in a point-to-point relationship. If two
drives are attached on one Serial ATA host adapter, the host operating system views the two devices as if they
were both “masters” on two separate ports. Both drives behave as if they are Device 0 (master) devices.
Serial ATA drives are designed for easy installation. It is usually not necessary to set any jumpers on the drive
for proper operation; however, if you connect the drive and receive a “drive not detected” error, your SATA-
equipped motherboard or host adapter may use a chipset that does not support SATA speed autonegotiation. If
you have a motherboard or host adapter that does not support autonegotiation:
• Install a jumper as shown in Figure 3 below to limit the data transfer rate to 1.5 Gbits per second (and leave
the drive connected to the SATA-equipped motherboard or host adapter that doesn’t support autonegotiation)
or
• Install a SATA host adapter that supports autonegotiation, leave the drive jumper block set to “Normal
operation” (see Figure 3 below), and connect the drive to that adapter. This option has the benefit of not limiting
the drive to a 1.5 Gbits/sec transfer rate.

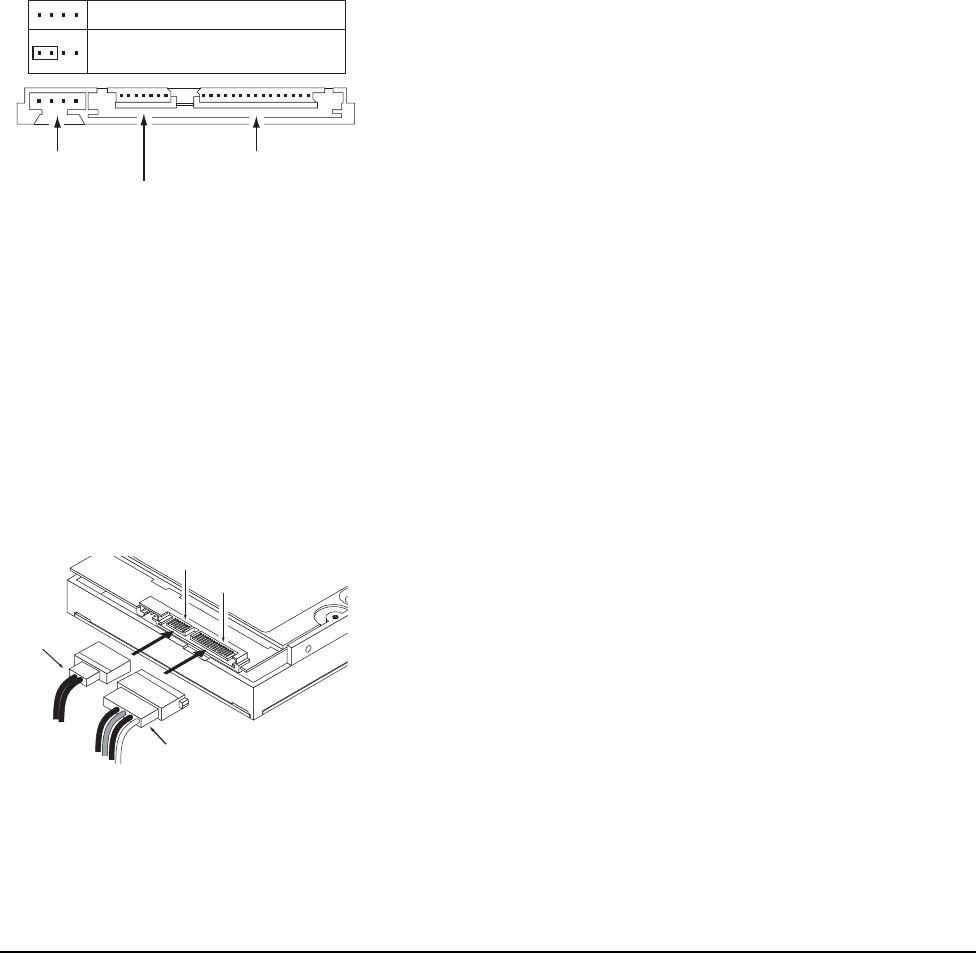

Figure 3. Serial ATA connectors
3.3 Serial ATA cables and connectors
The Serial ATA interface cable consists of four conductors in two differential pairs, plus three ground connec-
tions. The cable size may be 30 to 26 AWG with a maximum length of one meter (39.37 inches). See Table 9
for connector pin definitions. Either end of the SATA signal cable can be attached to the drive or host.
For direct backplane connection, the drive connectors are inserted directly into the host receptacle. The drive
and the host receptacle incorporate features that enable the direct connection to be hot pluggable and blind
mateable.
For installations which require cables, you can connect the drive as illustrated in Figure 4.
Figure 4. Attaching SATA cabling
Each cable is keyed to ensure correct orientation. DiamondMax 21 drives support latching SATA connectors.
Jumper block
SATA interface connector
SATA power connector
Limit data transfer rate to
1.5 Gbits per second
3.0 Gbits per second operation
Power cable
S
ignal cable
Signal connector
Power connector
DiamondMax 21 Serial ATA Product Manual, Rev. A
29
3.4 Drive mounting
You can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the
bottom-mounting holes. See Figure 5 for drive mounting dimensions. Follow these important mounting precau-
tions when mounting the drive:
• Allow a minimum clearance of 0.030 inches (0.76 mm) around the entire perimeter of the drive for cooling.
• Use only 6-32 UNC mounting screws.
• The screws should be inserted no more than 0.150 inch (3.81 mm) into the bottom or side mounting holes.
• Do not overtighten the mounting screws (maximum torque: 6 inch-lb).

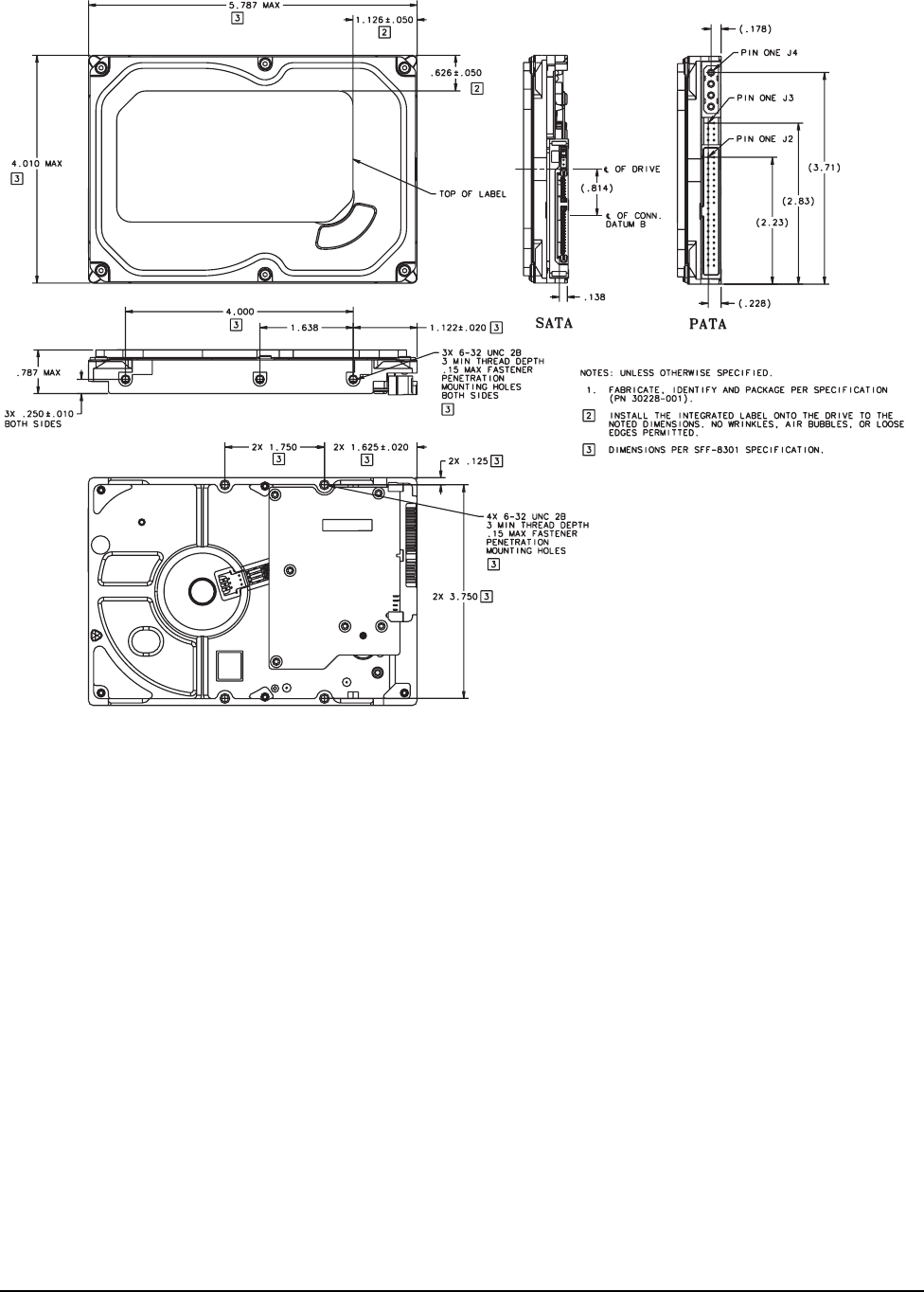

Figure 5. Drive dimensions for 200 -320 GB models
4.000
(101.6)
5.787 (146.9898) max.
1.028 max
(26.111 max)
2.00
(50.80)
1.638
(41.605) 4.000
(101.60)
2 x 1.750
(2 x 44.45)
2 x 3.750
(2 x 95.25)
C
Lof drive
[1]
Notes:
Dimensions are shown in inches (mm).
[1] Dimensions per SFF-8301 specification
[1]
[1]
[1]
1.122
+ .020
(28.499
+ .508)
[1]
[1]
[1]
[1]
C
Lof conn. Datum B
.814
(20.676)
.138
(
3.505)
.250 + .015
(6.35 + .381)
(3x both sides)
4.000
(101.6)
2 x 1.625
(2 x 41.28) [1]
Recommended
case temperature
measurement location
Recommended
case temperature
measurement locatio
n
30
DiamondMax 21 Serial ATA Product Manual, Rev. A
Figure 6. Drive dimensions for 40-160 GB models
DiamondMax 21 Serial ATA Product Manual, Rev. A
31
4.0 Serial ATA (SATA) interface
These drives use the industry-standard Serial ATA interface that supports FIS data transfers. It supports ATA
programmed input/output (PIO) modes 0–4; multiword DMA modes 0–2, and Ultra DMA modes 0–6.
For detailed information about the Serial ATA interface, refer to the “Serial ATA: High Speed Serialized AT
Attachment” specification.
4.1 Hot-Plug compatibility
DiamondMax 21 drives incorporate connectors which enable you to hot plug these drives in accordance with
the Serial ATA Revision 2.5 specification. This specification can be downloaded from www.serialata.org.
32
DiamondMax 21 Serial ATA Product Manual, Rev. A
4.2 Serial ATA device plug connector pin definitions
Table 9 summarizes the signals on the Serial ATA interface and power connectors..
Notes:
1. All pins are in a single row, with a 1.27 mm (0.050”) pitch.
2. The comments on the mating sequence apply to the case of backplane blindmate connector only. In this
case, the mating sequences are:
• the ground pins P4 and P12.
• the pre-charge power pins and the other ground pins.
• the signal pins and the rest of the power pins.
3. There are three power pins for each voltage. One pin from each voltage is used for pre-charge when
installed in a blind-mate backplane configuration.
4. All used voltage pins (Vx) must be terminated.
Table 9: Serial ATA connector pin definitions
Segment Pin Function Definition
Signal
S1 Ground 2nd mate
S2 A+ Differential signal pair A from Phy
S3 A-
S4 Ground 2nd mate
S5 B- Differential signal pair B from Phy
S6 B+
S7 Ground 2nd mate
Key and spacing separate signal and power segments
Power
P1 V33 3.3V power
P2 V33 3.3V power
P3 V33 3.3V power, pre-charge, 2nd mate
P4 Ground 1st mate
P5 Ground 2nd mate
P6 Ground 2nd mate
P7 V55V power, pre-charge, 2nd mate
P8 V55V power
P9 V55V power
P10 Ground 2nd mate
P11 Ground or LED signal If grounded, drive does not use deferred spin
P12 Ground 1st mate.
P13 V12 12V power, pre-charge, 2nd mate
P14 V12 12V power
P15 V12 12V power
DiamondMax 21 Serial ATA Product Manual, Rev. A
33
4.3 Supported ATA commands
The following table lists Serial ATA standard commands that the drive supports. For a detailed description of
the ATA commands, refer to the Serial ATA: High Speed Serialized AT Attachment specification. See
“S.M.A.R.T. commands” on page 40.for details and subcommands used in the S.M.A.R.T. implementation.
Table 10: Supported ATA commands
Command name Command code (in hex)
Check Power Mode 98H or E5H
Device Configuration Freeze Lock B1H / C1H
Device Configuration Identify B1H / C2H
Device Configuration Restore B1H / C0H
Device Configuration Set B1H / C3H
Device Reset 08H
Download Microcode 92H
Execute Device Diagnostics 90H
Flush Cache E7H
Flush Cache Extended EAH
Format Track 50H
Identify Device ECH
Idle 97H or E3H
Idle Immediate 95H or E1H
Initialize Device Parameters 91H
Read Buffer E4H
Read DMA C8H
Read DMA Extended 25H
Read DMA Without Retries C9H
Read Log Ext 2FH
Read Multiple C4H
Read Multiple Extended 29H
Read Native Max Address F8H
Read Native Max Address Extended 27H
Read Sectors 20H
Read Sectors Extended 24H
Read Sectors Without Retries 21H
Read Verify Sectors 40H
Read Verify Sectors Extended 42H
Read Verify Sectors Without Retries 41H
Recalibrate 10H
Security Disable Password F6H
Security Erase Prepare F3H
34
DiamondMax 21 Serial ATA Product Manual, Rev. A
Security Erase Unit F4H
Security Freeze F5H
Security Set Password F1H
Security Unlock F2H
Seek 70H
Set Features EFH
Set Max Address F9H
Note: Individual Set Max Address
commands are identified by the value
placed in the Set Max Features regis-
ter as defined to the right.
Address:
Password:
Lock:
Unlock:
Freeze Lock:
00H
01H
02H
03H
04H
Set Max Address Extended 37H
Set Multiple Mode C6H
Sleep 99H or E6H
S.M.A.R.T. Disable Operations B0H / D9H
S.M.A.R.T. Enable/Disable Autosave B0H / D2H
S.M.A.R.T. Enable Operations B0H / D8H
S.M.A.R.T. Execute Offline B0H / D4H
S.M.A.R.T. Read Attribute Thresholds B0H / D1H
S.M.A.R.T. Read Data B0H / D0H
S.M.A.R.T. Read Log Sector B0H / D5H
S.M.A.R.T. Return Status B0H / DAH
S.M.A.R.T. Save Attribute Values B0H / D3H
S.M.A.R.T. Write Log Sector B0H / D6H
Standby 96H or E2H
Standby Immediate 94H or E0H
Write Buffer E8H
Write DMA CAH
Write DMA Extended 35H
Write DMA FUA Extended CDH
Write DMA Without Retries CBH
Write Log Extended 3FH
Write Multiple C5H
Write Multiple Extended 39H
Write Multiple FUA Extended CEH
Write Sectors 30H
Write Sectors Without Retries 31H
Write Sectors Extended 34H
Command name Command code (in hex)
DiamondMax 21 Serial ATA Product Manual, Rev. A
35
4.3.1 Identify Device command
The Identify Device command (command code ECH) transfers information about the drive to the host following
power up. The data is organized as a single 512-byte block of data, whose contents are shown in Table 10 on
page 33. All reserved bits or words should be set to zero. Parameters listed with an “x” are drive-specific or
vary with the state of the drive. See Section 2.0 on page 3 for default parameter settings.
The following commands contain drive-specific features that may not be included in the Serial ATA specifica-
tion.
Word Description Value
0
Configuration information:
• Bit 15: 0 = ATA; 1 = ATAPI
• Bit 7: removable media
• Bit 6: removable controller
• Bit 0: reserved
0C5AH
1Number of logical cylinders 16,383
2ATA-reserved 0000H
3Number of logical heads 16
4Retired 0000H
5Retired 0000H
6Number of logical sectors per logical track: 63 003FH
7–9 Retired 0000H
10–19 Serial number: (20 ASCII characters, 0000H = none) ASCII
20 Retired 0000H
21 Retired 0400H
22 Obsolete 0000H
23–26 Firmware revision (8 ASCII character string, padded with blanks to end
of string) x.xx
27–46 Drive model number: (40 ASCII characters, padded with blanks to end
of string)
47 (Bits 7–0) Maximum sectors per interrupt on Read multiple and Write
multiple (16) 8010H
48 Reserved 0000H
49 Standard Standby timer, IORDY supported and may be disabled 2F00H
50 ATA-reserved 0000H
51 PIO data-transfer cycle timing mode 0200H
52 Retired 0200H
53 Words 54–58, 64–70 and 88 are valid 0007H
54 Number of current logical cylinders xxxxH
55 Number of current logical heads xxxxH
56 Number of current logical sectors per logical track xxxxH
57–58 Current capacity in sectors xxxxH
59 Number of sectors transferred during a Read Multiple or Write Multiple
command xxxxH
36
DiamondMax 21 Serial ATA Product Manual, Rev. A
60–61 Total number of user-addressable LBA sectors available
(see Section 2.2 for related information)
*Note: The maximum value allowed in this field is: 0FFFFFFFh
(268,435,455 sectors, 137 Gbytes). Drives with capacities over 137
Gbytes will have 0FFFFFFFh in this field and the actual number of
user-addressable LBAs specified in words 100-103. This is required
for drives that support the 48-bit addressing feature.
0FFFFFFFh*
62 Retired 0000H
63 Multiword DMA active and modes supported (see note following this
table) xx07H
64 Advanced PIO modes supported (modes 3 and 4 supported) 0003H
65 Minimum multiword DMA transfer cycle time per word (120 nsec) 0078H
66 Recommended multiword DMA transfer cycle time per word (120
nsec) 0078H
67 Minimum PIO cycle time without IORDY flow control (240 nsec) 00F0H
68 Minimum PIO cycle time with IORDY flow control (120 nsec) 0078H
69–74 ATA-reserved 0000H
75 Queue depth 0000H
76 Serial ATA capabilities xxxxH
77 Reserved for future Serial ATA definition xxxxH
78 Serial ATA features supported xxxxH
79 Serial ATA features enabled xxxxH
80 Major version number 003EH
81 Minor version number 0000H
82 Command sets supported 364BH
83 Command sets supported 7C03H
84 Command sets support extension 4003H
85 Command sets enabled 30xxH
86 Command sets enabled 0001H
87 Command sets enable extension 4000H
88 Ultra DMA support and current mode (see note following this table) xx3FH
89 Security erase time 0000H
90 Enhanced security erase time 0000H
92 Master password revision code FFFEH
93 Hardware reset value (see description following this table) xxxxH
95–99 ATA-reserved 0000H
100–
103 Total number of user-addressable LBA sectors available (see Section
2.2 for related information). These words are required for drives that
support the 48-bit addressing feature. Maximum value:
0000FFFFFFFFFFFFh.
STM3320620AS = 625,142,448
STM3320820AS = 625,142,448
STM3250824AS = 488,397,168
STM3250824AS = 488,397,168
STM3160815AS = 312,581,808
STM3160215AS = 312,581,808
STM380815AS = 156,301,488
STM340215AS = 78,165,360
Word Description Value
DiamondMax 21 Serial ATA Product Manual, Rev. A
37
Note. Advanced Power Management (APM) and Automatic Acoustic Management (AAM) features are not supported
104–
127 ATA-reserved 0000H
128 Security status 0001H
129–
159 Maxtor-reserved xxxxH
160–
254 ATA-reserved 0000H
255 Integrity word xxA5H
Word Description Value
38
DiamondMax 21 Serial ATA Product Manual, Rev. A
Note. See the bit descriptions below for words 63, 88, and 93 of the Identify Drive data.
Description (if bit is set to 1)
Bit Word 63
0Multiword DMA mode 0 is supported.
1Multiword DMA mode 1 is supported.
2Multiword DMA mode 2 is supported.
8Multiword DMA mode 0 is currently active.
9Multiword DMA mode 1 is currently active.
10 Multiword DMA mode 2 is currently active.
Bit Word 88
0Ultra DMA mode 0 is supported.
1Ultra DMA mode 1 is supported.
2Ultra DMA mode 2 is supported.
3Ultra DMA mode 3 is supported.
4Ultra DMA mode 4 is supported.
5Ultra DMA mode 5 is supported.
6Ultra DMA mode 6 is supported.
8Ultra DMA mode 0 is currently active.
9Ultra DMA mode 1 is currently active.
10 Ultra DMA mode 2 is currently active.
11 Ultra DMA mode 3 is currently active.
12 Ultra DMA mode 4 is currently active.
13 Ultra DMA mode 5 is currently active.
14 Ultra DMA mode 6 is currently active.
DiamondMax 21 Serial ATA Product Manual, Rev. A
39
4.3.2 Set Features command
This command controls the implementation of various features that the drive supports. When the drive receives
this command, it sets BSY, checks the contents of the Features register, clears BSY and generates an inter-
rupt. If the value in the register does not represent a feature that the drive supports, the command is aborted.
Power-on default has the read look-ahead and write caching features enabled. The acceptable values for the
Features register are defined as follows:
Note. At power-on, or after a hardware or software reset, the default values of the features are as indi-
cated above.
Table 11: Set Features command values
02HEnable write cache (default).
03HSet transfer mode (based on value in Sector Count register).
Sector Count register values:
00HSet PIO mode to default (PIO mode 2).
01HSet PIO mode to default and disable IORDY (PIO mode 2).
08HPIO mode 0
09HPIO mode 1
0AHPIO mode 2
0BHPIO mode 3
0CHPIO mode 4 (default)
20HMultiword DMA mode 0
21HMultiword DMA mode 1
22HMultiword DMA mode 2
40HUltra DMA mode 0
41HUltra DMA mode 1
42HUltra DMA mode 2
43HUltra DMA mode 3
44HUltra DMA mode 4
45HUltra DMA mode 5
46HUltra DMA mode 6
10HEnable use of SATA features
55HDisable read look-ahead (read cache) feature.
82HDisable write cache
90HDisable use of SATA features
AAHEnable read look-ahead (read cache) feature (default).
F1HReport full capacity available
40
DiamondMax 21 Serial ATA Product Manual, Rev. A
4.3.3 S.M.A.R.T. commands
S.M.A.R.T. provides near-term failure prediction for disc drives. When S.M.A.R.T. is enabled, the drive moni-
tors predetermined drive attributes that are susceptible to degradation over time. If self-monitoring determines
that a failure is likely, S.M.A.R.T. makes a status report available to the host. Not all failures are predictable.
S.M.A.R.T. predictability is limited to the attributes the drive can monitor. For more information on S.M.A.R.T.
commands and implementation, see the Draft ATA-5 Standard.
This drive is shipped with S.M.A.R.T. features disabled. You must have a recent BIOS or software package that
supports S.M.A.R.T. to enable this feature. The table below shows the S.M.A.R.T. command codes that the
drive uses.
Note. If an appropriate code is not written to the Features Register, the command is aborted and 0x 04
(abort) is written to the Error register.
Table 12: S.M.A.R.T. commands
Code in features register S.M.A.R.T. command
D0HS.M.A.R.T. Read Data
D2HS.M.A.R.T. Enable/Disable Attribute Autosave
D3HS.M.A.R.T. Save Attribute Values
D4HS.M.A.R.T. Execute Off-line Immediate (runs DST)
D5HS.M.A.R.T. Read Log Sector
D6HS.M.A.R.T. Write Log Sector
D8HS.M.A.R.T. Enable Operations
D9HS.M.A.R.T. Disable Operations
DAHS.M.A.R.T. Return Status
DiamondMax 21 Serial ATA Product Manual, Rev. A
41
5.0 Maxtor support services
Before contacting Maxtor Support, use the Hard Disk Information feature in MaxBlast to view the model num-
ber and serial number of your drive. These numbers can be used to get help from Maxtor Support, register
your drive, and look up information on the Maxtor website.
Please visit www.maxtor.com to obtain comprehensive support information, such as:
• Warranty services
Drive returns, warranty status, and limited warranty statement.
• Product support
Installation tutorials, specifications, jumper settings, installation guides, and product manuals.
• Software downloads
Installation software, utilities, and diagnostics.
• Knowledge Base
Troubleshooting information, FAQs, and resolved problem database.
• Product Index
Current and legacy Maxtor products listing.
Click on Worldwide Support to access the Knowledge Base, download software updates, register your drive,
and get assistance via e-mail
42
DiamondMax 21 Serial ATA Product Manual, Rev. A
DiamondMax 21 Serial ATA Product Manual, Rev. A
43
Index
A
ACA 24
acceleration 21
acoustics 21
Active 18
Active mode 18
actuator arm 16
AFR 23
Agency certification 23
altitude 20
Ambient temperature 20
ambient temperature 16
Annualized Failure Rate 23
Annualized Failure Rate (AFR) 23
areal density 1, 15
ATA commands 33
Australia/New Zealand Standard AS/NZS3548 1995
24
Australian Communication Authority (ACA) 24
Australian C-Tick 24
Average latency 16
Average seek time 16
B
buffer 15
C
cables and connectors 28
cache 15
capacity 14
case temperature 20
CE mark 23
certification 23
Check Power Mode 33
compatibility 23
Conducted noise 18
Conducted RF immunity 22
Configuring the drive 27
connectors 28
Corrosive environment 25
CSA C22.2 (950) 23
cycles 23
Cylinders 14
D
data-transfer rates 1
DC power 16
Default logical geometry 14
density 15
Device Configuration Freeze Lock 33
Device Configuration Identify 33
Device Configuration Restore 33
Device Configuration Set 33
Device Reset 33
dimensions 29, 30
disc surface 16
dissipation 17
Download Microcode 33
duty cycle 23
E
Electrical fast transient 22
Electromagnetic compatibility 23
Electromagnetic Compatibility (EMC) 24
Electromagnetic Compatibility control Regulation 24
Electromagnetic Compatibility Directive (89/336/EEC)
23
Electromagnetic immunity 22
Electrostatic discharge 22
electrostatic discharge (ESD) 27
EN 55022, Class B 23
EN 55024 23
EN 60950 23
enclosures 24
Environmental specifications 20
EPRML 1
error-correction algorithms 1
errors 23
ESD 27
EU 23
European Union (EU) requirements 23
Execute Device Diagnostics 33
F
FCC verification 24
features 1
Flush Cache 33
Flush Cache Extended 33
Format Track 33
Formatted capacity 14
G
geometry 14
Gs 21
guaranteed sectors 14
H
Handling precautions 27
heads 14
height 15
humidity 20
44
DiamondMax 21 Serial ATA Product Manual, Rev. A
I
I/O data-transfer rate 15
I/O duty cycle 23
Identify Device 33
Identify Device command 35
Idle 18, 33
Idle Immediate 33
Idle mode 17, 19
IEC950 23
Information Technology Equipment (ITE) 23
Initialize Device Parameters 33
Input noise ripple 18
input voltage 16
interface 15, 31
interference 24
internal data-transfer rate OD 15
is 16
ISO document 7779 21
ITE 23
K
Korea Ministry of Information and Communication
(MIC) 24
Korean RRL 24
L
latency 16
latency time 16
LBA mode 14
length 15
logical geometry 14
M
maintenance 23
master/slave 2
maximum temperature 20
Mean Time Between Failures 23
MIC 24
mounting 29
mounting screws 20
mounting the drive 27
MTBF 23
N
noise 18
nominal power 16
Nonoperating shock 21
Nonoperating vibration 21
Nonrecoverable read errors 23
O
operating 17
Operating power 17
Operating shock 20
Operating vibration 21
P
Physical characteristics 15
point-to-point 2, 28
Power consumption 16
power consumption 16
power dissipation 17
Power modes 18
Power specifications 16
Power-management modes 18
Power-on to Ready 16
power-on-hours 23
precautions 27
printed circuit board 27
programmable power management 18
Q
quick reference 3
R
Radiated RF immunity 22
radio and television interference 24
radio frequency (RF) 22
random seeks 16, 17
Read Buffer 33
Read DMA 33
Read DMA Extended 33
Read DMA without Retries 33
read errors 23
Read Log Ext 33
Read Multiple 33
Read Multiple Extended 33
Read Native Max Address 33
Read Native Max Address Extended 33
Read Sectors 33
Read Sectors Extended 33
Read Sectors Without Retries 33
Read Verify Sectors 33
Read Verify Sectors Extended 33
Read Verify Sectors Without Retries 33
read/write actuator arm 16
Read/write heads 14
Read/write power 16
Recalibrate 33
recording density 15
recording method 15
Recording technology 15
relative humidity 20
Reliability 23
RF 22
RMS read/write current 18
DiamondMax 21 Serial ATA Product Manual, Rev. A
45
RoHS 25
RRL 24
S
S.M.A.R.T. Disable Operations 34
S.M.A.R.T. Enable Operations 34
S.M.A.R.T. Enable/Disable Autosave 34
S.M.A.R.T. Execute Offline 34
S.M.A.R.T. implementation 33
S.M.A.R.T. Read Attribute Thresholds 34
S.M.A.R.T. Read Data 34
S.M.A.R.T. Read Log Sector 34
S.M.A.R.T. Return Status 34
S.M.A.R.T. Save Attribute Values 34
S.M.A.R.T. Write Log sector 34
Safety certification 23
SATA 31
screws 20
sectors 14
Sectors per track 14
Security Disable Password 33
Security Erase Prepare 33
Security Erase Unit 34
Security Freeze 34
Security Set Password 34
Security Unlock 34
Seek 34
seek mode 16
Seek mode power 16
Seek time 16
Seeking 17
Serial ATA (SATA) interface 31
serial ATA ports 2
Servo electronics 16
servo electronics 17
Set Features 34
Set Max Address 34
Set Max Address Extended 34
Set Multiple Mode 34
Shock 20
single-track seeks 16
Sleep 17, 18, 34
Sleep mode 19
sound 21
Specification summary table 3
spindle speed 15
Spinup 17
Spinup power 16
Standby 17, 18, 34
Standby Immediate 34
Standby mode 17, 19
standby timer 19
Standby to Ready 16
Start/stop times 16
start-stop cycles 23
static-discharge 27
subassembly 24
support services 41
Surge immunity 22
T
technical support services 41
temperature 16, 20
temperature gradient 20
timer 19
timers 19
track density 15
Track-to-track 16
Track-to-track seek time 16
tunneling magnetoresistive (TGMR) recording heads
1
U
UL 1950 23
V
Vibration 21
voltage 16
Voltage dips, interrupts 22
Voltage tolerance 18
W
Warranty 23
weight 15
wet bulb temperature 20
width 15
Write Buffer 34
Write DMA 34
Write DMA Extended 34
Write DMA FUA Extended 34
Write DMA Without Retries 34
Write Log Extended 34
Write Multiple 34
Write Multiple Extended 34
Write Multiple FUA Extended 34
Write Sectors 34
Write Sectors Extended 34
Write Sectors Without Retries 34
46
DiamondMax 21 Serial ATA Product Manual, Rev. A
Maxtor Corporation
920 Disc Drive, Scotts Valley, California 95066-4544, USA
Publication Number: 100451230, Rev. A, Printed in USA

Navigation menu
