W10837717A
INSTALLATION INSTRUCTIONS
(ORIgINAL INSTRUCTIONS)
CommerCial Washer
Models maT20CsaGW, maT20mNaGW, maT20PDaGW, and maT20PNaGW
INSTRUCTIONS D’INSTALLATION
(INSTRUCTIONS DORIgINe)
lave-liNGe CommerCial
Modèles maT20CsaGW, maT20mNaGW, maT20PDaGW et maT20PNaGW
INSTRUCCIONeS De INSTALACIÓN
(INSTRUCCIONeS ORIgINALeS)
lavaDora ComerCial
Modelos maT20CsaGW, maT20mNaGW, maT20PDaGW y maT20PNaGW
ISTRUZIONI D’INSTALLAZIONe
(ISTRUZIONI ORIgINALI)
lavaTriCe CommerCiale
Modellos maT20CsaGW, maT20mNaGW, maT20PDaGW e maT20PNaGW
www.maytagcommerciallaundry.com
4

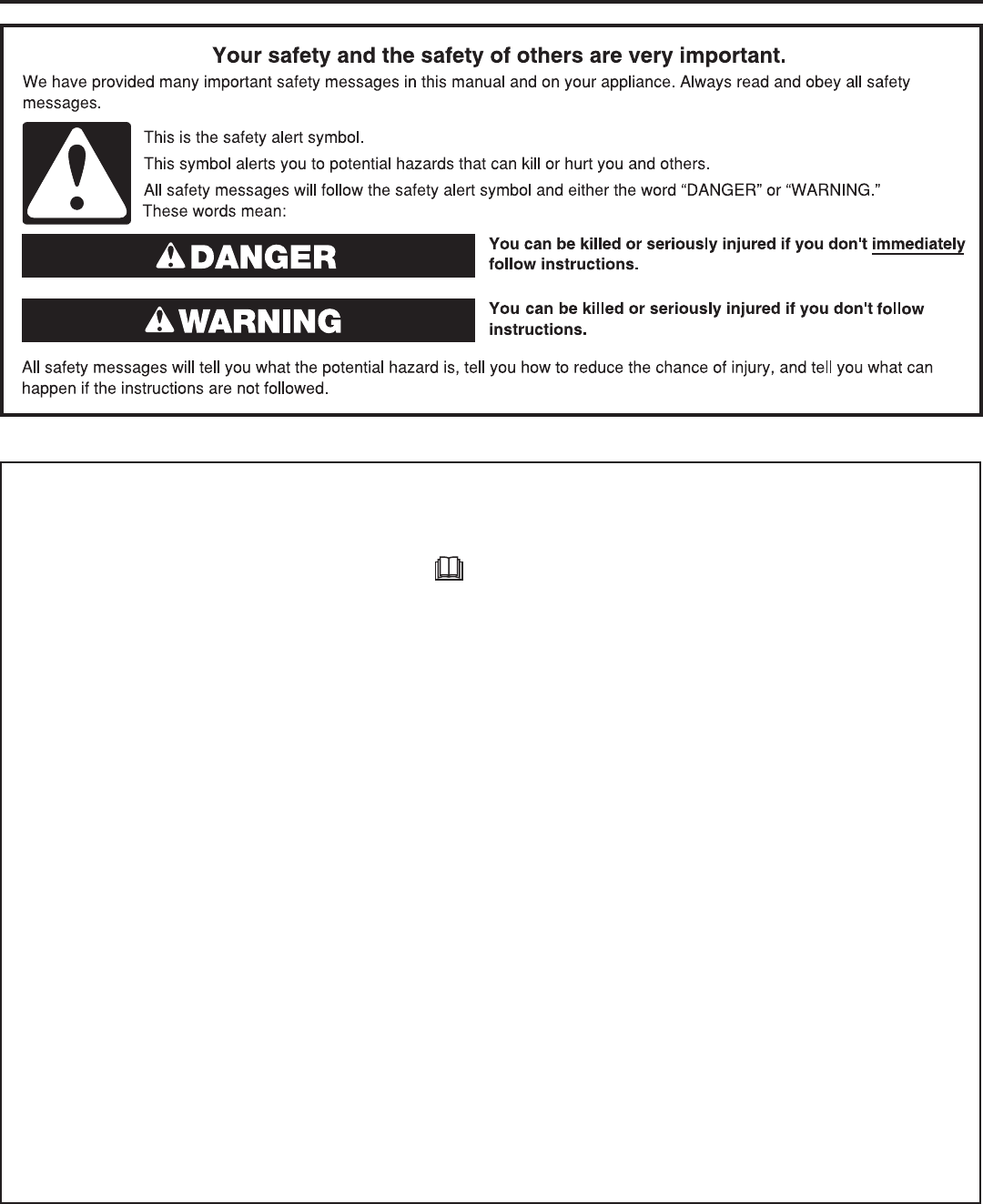

IMPORTANT SAFETY INSTRUCTIONS
precautions, including the following:
WARNING:
Read all instructions before using the dryer.
Keep a minimum clearance of 100 mm (4 in.) between the
rear of the dryer and any wall.
The operation of this appliance may affect the operation of
other types of appliances which take their air supply for safe
combustion from the same room. There has to be adequate
ventilation to replace exhausted air and thus avoid the
back-ow of gases into the room from appliances burning
other fuels, including open res, when operating the tumble
dryer. If in doubt, consult the appliance manufacturers.
Do not obstruct the air supply to the dryer (see Installation
Instructions for minimum clearances).
Do not place items exposed to cooking oils in your dryer.
Oil-affected items can ignite spontaneously, especially when
exposed to heat sources such as in a tumble dryer. The
items become warm causing an oxidation reaction in the oil.
Oxidation creates heat. If the heat cannot escape, the items
can become hot enough to catch re. Piling, stacking or
storing oil-affected items can prevent heat from escaping
and so create a re hazard.
If it is unavoidable to dry in the dryer items that have been
soiled with substances such as cooking oil, acetone, alcohol,
petrol, kerosene, spot removers, turpentine, waxes and wax
removers, or that have been contaminated by hair care
products, should be washed in hot water with an extra
amount of detergent before being dried in the dryer. These
items may give off vapours that could ignite or explode. Such
washing will reduce, but not eliminate, the hazard.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instructions concerning
use of the appliance by persons responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
The dryer should not be used if industrial chemicals have
been used for cleaning.
Before the dryer is removed from service or discarded,
remove the doors to the drying compartment.
Do not reach into the dryer if the drum is moving. A door
switch is tted for your safety.
Do not install or store the dryer where it will be exposed
to the weather.
Do not tamper with controls.
Do not continue to use this appliance if it appears to be
faulty.
Do not repair or replace any part of the dryer or attempt
any maintenance unless specically recommended in this
Use and Care Guide. Repairs and servicing should only
be carried out by competent service personnel.
Do not use fabric softeners or products to eliminate static
unless recommended by the manufacturer of the fabric
softener or product. Follow their instructions.
Clean dryer lint screen before or after each load. Do not
operate dryer without lint screen in place.
Keep area around the exhaust and inlet openings and
adjacent surrounding areas free from the accumulation of
lint, dust, and dirt.
The interior of the dryer and exhaust vent should be
cleaned periodically by qualied service personnel.
See Installation Instructions for earthing instructions.
Do not dry unwashed items in this dryer.
Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes or
pillows tted with foam rubber pads must only be dried
on a clothesline.
SAVE THESE INSTRUCTIONS
WARNING: Never stop a tumble dryer cycle before the
end of the drying cycle unless all items are quickly removed
and spread out so that the heat is dissipated.
To reduce the risk of re, electric shock, or injury to persons when using the dryer, follow basic
The nal part of a tumble dryer cycle occurs without heat
(cool down cycle) to ensure that the items are left at a
temperature that ensures the items will not be damaged.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualied
person in order to avoid a hazard.
2
TABLE OF CONTENTS
Page
Washer Safety .......................................................................... 3
FOR OWNER
General Use Instructions ........................................................ 4
Typical Full Load Sizes ............................................................ 4
Transporting Your Washer ...................................................... 5
If You Need Assistance or Service ......................................... 5
FOR MAYTAG AUTHORIZED SERVICE PERSON
Tools & Parts ............................................................................ 6
Alternate Parts & Accessories ............................................... 6
Dimensions .............................................................................. 7
Location Requirements ...........................................................8
Installation Instructions .......................................................... 9
Level Washer .......................................................................... 10
Connect Drain Hose .............................................................. 11
Drain System .......................................................................... 12
Connect Inlet Hoses .............................................................. 13
Electrical Requirements........................................................14
Complete Installation ............................................................ 15
Installing Coin Slide and Coin Box ....................................... 15
Electronic Controls Set-Up Instructions
(PD & PN Models) .................................................................. 16
Washer Disposal .................................................................... 20
Warranty ................................................................................. 21
TABLE DES MATIÈRES
Page
Sécurité du lave-linge ........................................................... 22
POUR LE PROPRIÉTAIRE
Instructions de l’utilisation général ..................................... 23
Taille typique des charges complètes ................................. 23
Transport du lave-linge ......................................................... 24
Si vous avez besoin d’assistance ou service ...................... 24
POUR LE PERSONNEL D’ENTRETIEN AUTORISÉ
PAR MAYTAG
Outillage et pièces ................................................................. 25
Pièces supplémentaires et accessoires .............................. 25
Dimensions ............................................................................ 26
Exigences d’emplacement ................................................... 27
Instructions d’installation ..................................................... 28
Établissement de l’aplomb du lave-linge ............................ 29
Raccordement du tuyau de vidange .................................... 30
Système de vidange .............................................................. 31
Raccordement des tuyaux d’arrivée d’eau ......................... 32
Spécications électriques .................................................... 33
Achever l’installation ............................................................. 34
Installation de la glissière et de la boîte à monnaie ........... 34
Instructions de paramétrage des commandes
électroniques (Modèles PD et PN) ....................................... 35
Élimination du lave-linge ...................................................... 40
Garantie .................................................................................. 41
ÍNDICE
Página
Seguridad de la lavadora .......................................................42
PARA EL PROPIETARIO
Instrucciones del uso general ............................................... 43
Tamaños de cargas típicas de volumen completo ..............43
Transporte de la lavadora ...................................................... 44
Si necesita asistencia o servicio ........................................... 44
PARA EL PERSONAL DE SERVICIO AUTORIZADO
DE MAYTAG
Herramientas y piezas ...........................................................45
Piezas y accesorios alternativos ..........................................45
Dimensiones ...........................................................................46
Requisitos de ubicación ........................................................47
Instrucciones de instalación .................................................48
Nivelación de la lavadora .......................................................49
Conexión de la manguera de desagüe ................................. 50
Sistema de desagüe ............................................................... 51
Conexión de las mangueras de entrada ..............................52
Requisitos eléctricos .............................................................53
Complete la instalación ........................................................54
Instalación del tragamonedas y la caja de monedas ..........54
Instrucciones para programar los controles
electrónicos (Modelos PD y PN) ...........................................55
Eliminación de la lavadora .....................................................60
Garantía ................................................................................... 61
SOMMARIO
Pagina
Sicurezza della lavatrice ....................................................... 62
PER IL PROPRIETARIO
Istruzioni del uso generale ................................................... 63
Dimensioni tipiche a carico completo ................................. 63
Transporto della lavatrice ..................................................... 64
Se avete bisogno dell’assistenza o servizio ....................... 64
PER IL PERSONALE DI ASSISTENZA
AUTORIZZATO MAYTAG
Attrezzi e componenti ........................................................... 65
Parti e accessori alternativi .................................................. 65
Dimensioni ............................................................................. 66
Requisiti di posizionamento ................................................. 67
Istruzioni d’installazione ....................................................... 68
Livellamento della lavatrice .................................................. 69
Connessione del tubo di scarico ......................................... 70
Sistema di scarico ................................................................. 71
Collegare i tubi d’ingresso .................................................... 72
Requisiti elettrici .................................................................... 73
Completamento dell’installazione ....................................... 74
Installazione dello scivolo monete e della gettoniera ........ 74
Istruzioni di congurazione dei comandi elettronici
(Modelli PD e PN) ................................................................... 75
L’eliminazione della lavatrice ...............................................79
Garanzia ................................................................................. 80
MODEL NOMENCLATURE:
MAT – Maytag
20 – Model Type Number
CS – Coin Slide
MN – Timer Non-Pay
PD – Coin Drop
PN – Electronic Non-Pay
NOMENCLATURE DES MODÈLES :
MAT – Maytag
20 – ## (p. ex. 25) Numéro
de type du modèle
CS – Glissière à pièces
MN – Minuterie non payant
PD – Chute de pièce
PN – Non payant électronique
NOMENCLATURA DEL MODELO:
MAT – Maytag
20 – Número de tipo de
modelo
CS – Tragamonedas
MN – Temporizador
operado sin monedas
PD – Depósito de monedas
PN – Operado sin monedas
electrónico
NOMENCLATURA DI MODELLO:
MAT – Maytag
20 – Numero di Tipo
di modello
CS – Scivolo gettoni
MN – Temporizzatore
non a gettoni
PD – Imbuto monete
PN – Non a gettoni
elettroniche
3
WASHER SAFETY
n This appliance is not intended for use by
children or by persons with reduced physical,
sensory, or mental capabilities, or lack of
experience and knowledge, unless they
have been given supervision or instructions
concerning safe use of the appliance by
persons responsible for their safety. Such
persons must also understand the possible
hazards involved during use.
n The appliance can be used by children age 8
years and above and persons with reduced
physical, sensory, or mental capabilities, or lack
of experience and knowledge if they have been
given supervision or instructions concerning
safe use of the washer, and if they understand
the hazards involved.
n Children of less than 3 years should be kept
away unless continuously supervised.
n This appliance is intended to be used in
household and similar applications such as staff
kitchen areas, shops, ofces, other working
environments, farm houses. It can also be used
by clients in hotels, motels, other residential
type environments, bed and breakfast type
environments, areas for communal use in
blocks of ats, or in launderettes.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of re, electric shock, or injury to persons when using the washer, follow
basic precautions, including the following:
SAVE THESE INSTRUCTIONS
n Read all instructions before using the
washer.
n Do not wash articles that have been previously
cleaned in, washed in, soaked in, or spotted
with petrol, dry-cleaning solvents, or other
ammable or explosive substances as they give
off vapours that could ignite or explode.
n Do not add petrol, dry-cleaning solvents, or
other ammable or explosive substances to the
wash water. These substances give off vapours
that could ignite or explode.
n Under certain conditions, hydrogen gas may
be produced in a hot water system that has not
been used for 2 weeks or more. HYDROGEN
GAS IS EXPLOSIVE. If the hot water system
has not been used for such a period, before
using the washer, turn on all hot water taps
and let the water ow from each for several
minutes. This will release any accumulated
hydrogen gas. As the gas is ammable, do not
smoke or use an open ame during this time.
n The appliance must be disconnected from
its power source during service and when
replacing parts. The power cord plug should be
visible at all times once disconnected to verify
that power remains removed.
4
IMPORTANT SAFETY INSTRUCTIONS
precautions, including the following:
WARNING:
Read all instructions before using the dryer.
Keep a minimum clearance of 100 mm (4 in.) between the
rear of the dryer and any wall.
The operation of this appliance may affect the operation of
other types of appliances which take their air supply for safe
combustion from the same room. There has to be adequate
ventilation to replace exhausted air and thus avoid the
back-ow of gases into the room from appliances burning
other fuels, including open res, when operating the tumble
dryer. If in doubt, consult the appliance manufacturers.
Do not obstruct the air supply to the dryer (see Installation
Instructions for minimum clearances).
Do not place items exposed to cooking oils in your dryer.
Oil-affected items can ignite spontaneously, especially when
exposed to heat sources such as in a tumble dryer. The
items become warm causing an oxidation reaction in the oil.
Oxidation creates heat. If the heat cannot escape, the items
can become hot enough to catch re. Piling, stacking or
storing oil-affected items can prevent heat from escaping
and so create a re hazard.
If it is unavoidable to dry in the dryer items that have been
soiled with substances such as cooking oil, acetone, alcohol,
petrol, kerosene, spot removers, turpentine, waxes and wax
removers, or that have been contaminated by hair care
products, should be washed in hot water with an extra
amount of detergent before being dried in the dryer. These
items may give off vapours that could ignite or explode. Such
washing will reduce, but not eliminate, the hazard.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instructions concerning
use of the appliance by persons responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
The dryer should not be used if industrial chemicals have
been used for cleaning.
Before the dryer is removed from service or discarded,
remove the doors to the drying compartment.
Do not reach into the dryer if the drum is moving. A door
switch is tted for your safety.
Do not install or store the dryer where it will be exposed
to the weather.
Do not tamper with controls.
Do not continue to use this appliance if it appears to be
faulty.
Do not repair or replace any part of the dryer or attempt
any maintenance unless specically recommended in this
Use and Care Guide. Repairs and servicing should only
be carried out by competent service personnel.
Do not use fabric softeners or products to eliminate static
unless recommended by the manufacturer of the fabric
softener or product. Follow their instructions.
Clean dryer lint screen before or after each load. Do not
operate dryer without lint screen in place.
Keep area around the exhaust and inlet openings and
adjacent surrounding areas free from the accumulation of
lint, dust, and dirt.
The interior of the dryer and exhaust vent should be
cleaned periodically by qualied service personnel.
See Installation Instructions for earthing instructions.
Do not dry unwashed items in this dryer.
Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes or
pillows tted with foam rubber pads must only be dried
on a clothesline.
SAVE THESE INSTRUCTIONS
WARNING: Never stop a tumble dryer cycle before the
end of the drying cycle unless all items are quickly removed
and spread out so that the heat is dissipated.
To reduce the risk of re, electric shock, or injury to persons when using the dryer, follow basic
The nal part of a tumble dryer cycle occurs without heat
(cool down cycle) to ensure that the items are left at a
temperature that ensures the items will not be damaged.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualied
person in order to avoid a hazard.
NOTE: Washer installation and service must be performed by a Whirlpool authorized service person.
4
n No washer can completey remove oil. Do not
dry anything that has ever had any type of oil
on it (including cooking oils). Doing so can result
in death, explosion, or re.
n It is recommended that berglass items not
be washed in coin-operated washers. If these
items are washed in the washer, run the washer
through a complete cycle to rinse away any
residue that might be left in the washer.
n Cleaning and user maintenance by children must
be supervised.
n Do not allow children to play on, in, or with
the washer. Close supervision of children is
necessary when the washer is used near children.
n Before the washer is removed from service or
discarded, remove the door or lid.
n Do not reach into the washer if the basket, tub,
or agitator is moving.
SAVE THESE INSTRUCTIONS
n Do not install or store the washer where it will be
exposed to the weather.
n Do not tamper with controls.
n After installation, access to mains plug or
mains supply via a double-pole switch must
be maintained at all times in order to ensure
immediate deactivation of the washer in case
of emergency.
n Do not repair or replace any part of the washer
or attempt any servicing unless specically
recommended in this manual. You must also
understand these instructions and have the
skills to carry them out.

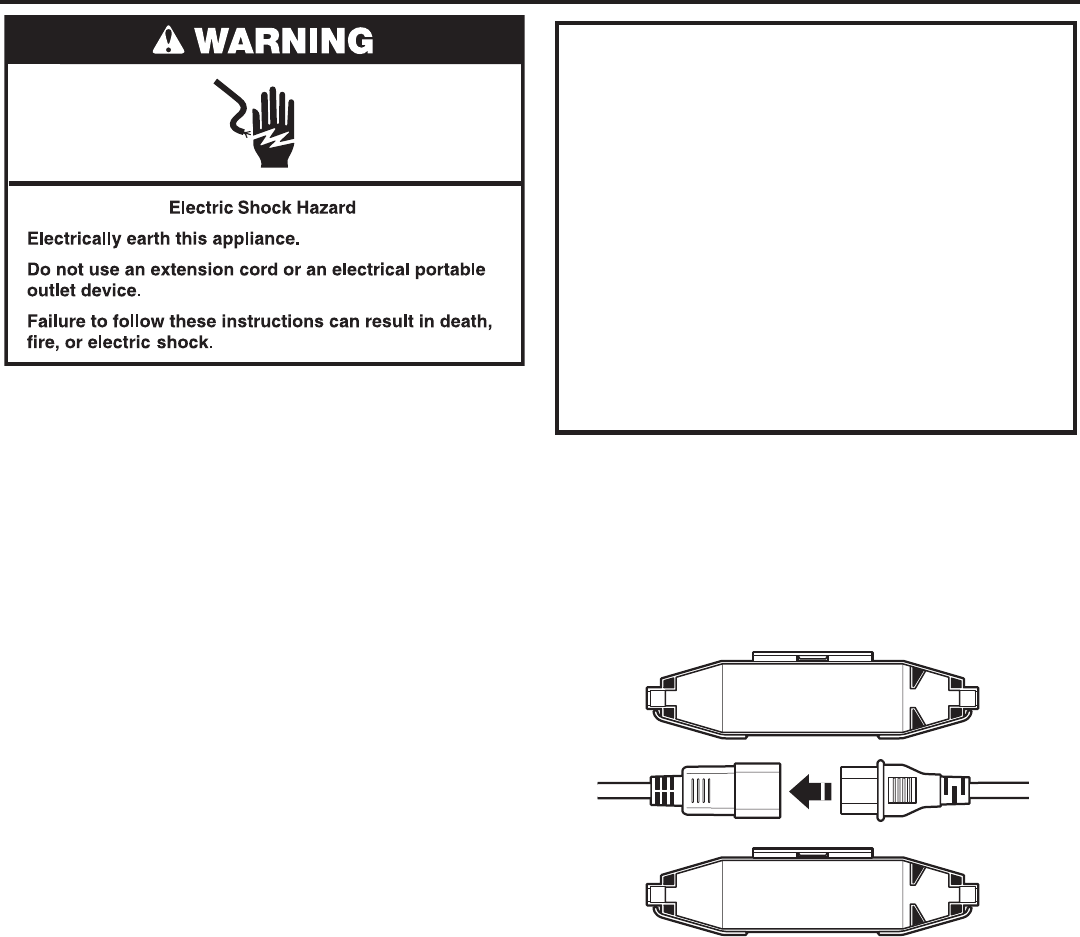

n See “Electrical Requirements” for grounding
instructions.
TYPICAL FULL LOAD SIZES
Load Type Loading Suggestion Load Type Loading Suggestion
Mixed Load 3 double sheets
4 pillowcases
6 pair shorts
8 T-shirts
2 shirts
2 blouses
8 handkerchiefs
Heavy Work Clothes 3 pair pants
3 shirts
1 coverall
4 pair jeans
1 overall
Permanent Press 2 double or 1 king size sheet
1 tablecloth
1 dress
1 blouse
2 slacks
3 shirts
2 pillowcases
Knits 3 blouses
4 slacks
6 shirts
4 tops
4 dresses
GENERAL USE INSTRUCTIONS
n Water pressure of 138–690 kPa (20–100 psi) is needed for
operation of the washer.
n Use new hoses supplied with the washer. Do not reuse old
hoses.
n If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent, or similarly qualied persons
in order to avoid a hazard.
5
MAYTAG® COMMERCIAL LAUNDRY
LIMITED WARRANTY
1. All other costs including labor, transportation, shipping, or custom duties for
covered parts.
2. Factory specified replacement parts if this commercial appliance is used for other
than normal, commercial use or when it is used in a manner that is inconsistent
to published user or operator instructions and/or installation instructions.
3. Service calls to correct the installation of your commercial appliance, to instruct
you on how to use your commercial appliance, to replace or repair house fuses,
or to correct external wiring or plumbing.
4. Service calls to repair or replace appliance light bulbs, air filters, or water filters.
Consumable parts are excluded from warranty coverage.
5. Damage resulting from improper handling of product during delivery, theft,
accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation,
installation not in accordance with local electrical or plumbing codes, or use of
products not approved by Maytag.
6. Pick up and delivery. This commercial appliance is designed to be repaired
on location.
7. Repairs to parts or systems resulting from unauthorized modifications made
to the commercial appliance.
8. The removal and reinstallation of your commercial appliance if it is installed
in an inaccessible location or is not installed in accordance with published
installation instructions.
9. Damage resulting from exposure to chemicals.
10. Changes to the building, room, or location needed in order to make the
commercial appliance operate correctly.
11. Factory specified replacement parts on commercial appliances with original
model/serial numbers that have been removed, altered, or cannot be easily
determined.
12. Discoloration, rust, or oxidation of stainless steel surfaces.
13. Factory specified replacement parts as a result of incorrect diagnosis or repair
by an “unauthorized” service company.
The cost of repair or replacement under these excluded circumstances shall
be borne by the customer.
FIVE YEAR LIMITED WARRANTY
(PARTS ONLY — LABOR NOT INCLUDED)
For the first five years from the original date of
purchase, when this commercial appliance is
installed, maintained, and operated according to the
instructions attached to or furnished with the product,
Maytag brand of Whirlpool Corporation (hereafter
“Maytag”) will pay for factory specified replacement
parts to correct defects in materials or workmanship
that existed when this commercial appliance was
purchased. This limited warranty does not include
labor.
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS
LIMITED WARRANTY SHALL BE PRODUCT REPAIR
AS PROVIDED HEREIN. Maytag recommends that
you use an “authorized” service provider to diagnose
and repair your Commercial Laundry product.
Maytag will not be responsible under this warranty
to provide additional replacement parts as a result
of incorrect diagnosis or repair by an “unauthorized”
service company. Except in the European Union, this
limited warranty is valid only when the commercial
appliance is used in the country in which it was
purchased. This limited warranty is effective from
the date of the original consumer purchase. Proof
of original purchase date is required to obtain service
under this limited warranty.
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO FIVE YEARS OR THE SHORTEST PERIOD ALLOWED BY LAW. Some locations may not allow
limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives
you specific legal rights, and you also may have other rights that vary.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN.
MAYTAG SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some locations do not allow the
exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty
gives you specific legal rights, and you also may have other rights that vary by location.
DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY
Maytag makes no representations about the quality, durability, or need for service or repair of this major appliance other than the
representations contained in this Warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes
with this major appliance, you should ask your retailer about buying an extended warranty. The benefits to you given by this warranty
are in addition to other rights and remedies available to you under a law in relation to the goods or service to which this warranty relates.
Please contact Maytag for further information on warranty terms.
01/17
IF YOU NEED SERVICE:
Contact your authorized Maytag® Commercial Laundry distributor. To locate your authorized Maytag® Commercial Laundry distributor,
visit www.MaytagCommercialLaundry.com.
For written correspondence:
Maytag® Commercial Laundry Service Department
2000 N M 63
Benton Harbor, Michigan 49022-2632 USA
FIVE YEAR LIMITED WARRANTY
WHAT IS COVERED WHAT IS NOT COVERED
Your installation may require additional parts. To order, please contact your authorised commercial laundry distributor from
whom you purchased your washer or an authorised service company.
You will need the washer model number and serial number. Both numbers can be found on the serial-rating plate located
on the washer.
IF YOU NEED ASSISTANCE OR SERVICE
TRANSPORTING YOUR WASHER
n Shut off both water faucets. Disconnect and drain water
inlet hoses.
n Disconnect drain from drain system and drain any remaining
water into a pan or bucket. Disconnect drain hose from back
of washer.
n Unplug power cord.
n Place inlet hoses and drain hose inside washer basket.
n Drape power cord over edge and into washer basket.
n Place packing tray from original shipping materials back inside
washer and reuse shipping base to support the motor and tub.
If you do not have original packaging, place heavy blankets
or towels above basket, between the washer top and the tub
ring. Close lid and place tape over lip and down the front of the
washer. Keep lid taped until washer is moved to new location.
6

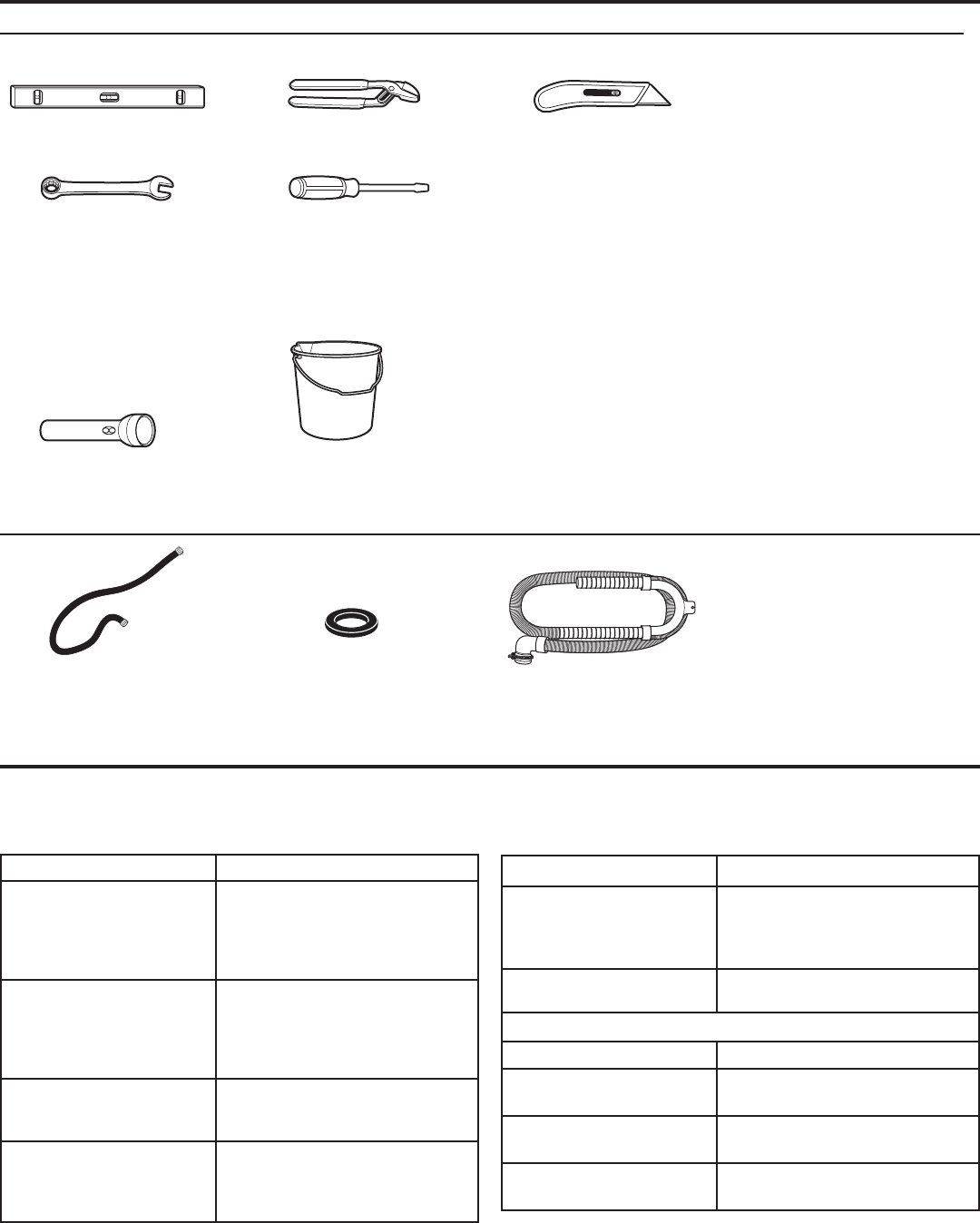

Parts Supplied:
Water Inlet Hoses (2) Inlet Hose Washers (4)
TOOLS & PARTS
Tools Needed:
Level Pliers Utility Knife
Flat-Blade Screwdriver
Drain Hose with Clamp,
U-Form, and Cable Tie
Optional tools:
Flashlight Bucket
14 mm (9/16")
Open-End Wrench
or Adjustable Wrench
ALTERNATE PARTS & ACCESSORIES
Your installation may require additional parts. To order, please
contact the dealer from whom you purchased your washer or
an authorised service company.
If You Have: You Will Need:
Overhead sewer Standard 76 L (20 gal.) 990 mm
(39") tall drain tub or utility sink,
sump pump, and connectors
(available from local plumbing
suppliers)
25 mm (1") standpipe 51 mm (2") diameter to
25 mm (1") diameter Standpipe
Adapter Part Number 3363920,
Connector Kit Part Number
285835
Lint clogged drain Drain Protector Part Number
367031, Connector Kit Part
Number 285835
Floor drain system Siphon Break Part Number
285320, Connector Kit (x2) Part
Number 285835, Extension Drain
Hose Part Number 285863
If You Have: You Will Need:
Water faucets beyond
reach of ll hoses 2 longer water ll hoses:
1.8 m (6 ft.) 90° bend hose
Part Number 76314, 3.0 m (10 ft.)
Part Number 350008
Inlet hoses are sold as a pair
in kit W10575888
Accessories
If You Have: You Will Need:
Washer Drip Trays
Part Number 8212526
Fabric Softener Dispenser Kit
Part Number 63594
Drain beyond the reach
of drain hose 1.2 m (4 ft.) Drain Hose Extension
Part Number DRNEXT4
7

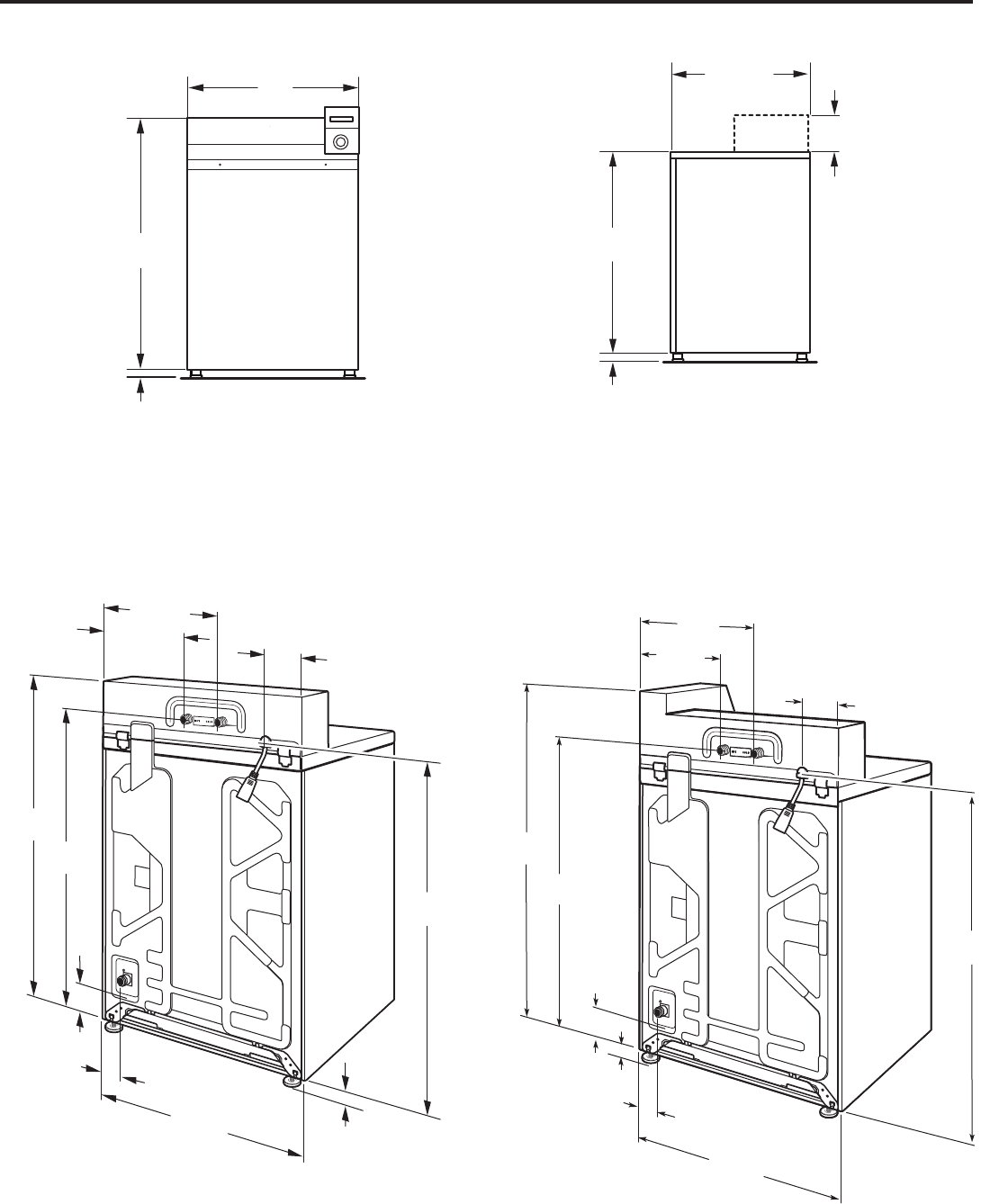

DIMENSIONS
Front View Side View
Back View
Non-coin-operated models Coin-operated models
25 mm
(1")
686 mm
(27")
1.080 m
(421/2")
921 mm
(361/4")
210 mm
(81/4")
25 mm
(1")
686 mm
(27")
1.130 m
(441/2")
686 mm
(27")
108 mm
(41/4")
171 mm
(63/4")
946 mm
(371/4")
933 mm
(363/4")
267 mm
(101/2")
406 mm
(16")
140 mm
(51/2")
25 mm
(1")
25 mm
(1")
686 mm
(27")
108 mm
(41/2")
946 mm
(371/4")
1.080 m
(421/2")
171 mm
(63/4")
933 mm
(363/4")
406 mm
(16")
267 mm
(101/2")
140 mm
(51/2")
Non-coin-operated
models:
159 mm (614")
Coin-operated
models:
210 mm (914")
8
Selecting the proper location for your washer improves
performance and minimizes noise and possible washer “walk.”
Your washer can be installed in a basement, laundry room,
or recessed area. See “Drain System.”
Companion appliance location requirements should also be
considered.
IMPORTANT: Do not install or store the washer where it will
be exposed to the weather. Do not store or operate the washer
in temperatures at or below 0°C (32°F). Some water can remain
in the washer and can cause damage in low temperatures.
Proper installation is your responsibility.
You will need:
n A water heater set to 49°C (120°F).
n An earthed electrical outlet located within 1.2 m (4 ft.) of
power cord on back of washer. See “Electrical Requirements.”
n Hot and cold water faucets located within 1.2 m (4 ft.) of hot
and cold water ll valves on washer, and water pressure
of 138–690 kPa (20–100 psi). A pressure reduction valve
should be used in the supply line where inlet pressure
entering the building exceeds 690 kPa (100 psi) to avoid
damage to the washer mixing valve.
n Single washer installations require 300 mm (12") minimum
risers to provide an air cushion and avoid noise and damage
to valves.
n A level oor with maximum slope of 25 mm (1") under entire
washer. Installing on carpet is not recommended.
nFloor must support washer’s total weight (with water and load)
of 143 kgs (315 lbs).
n A oor drain under the bulkhead. Prefabricated bulkheads
with electrical outlets, water inlet lines, and drain facilities
should be used only where local codes permit.
LOCATION REQUIREMENTS

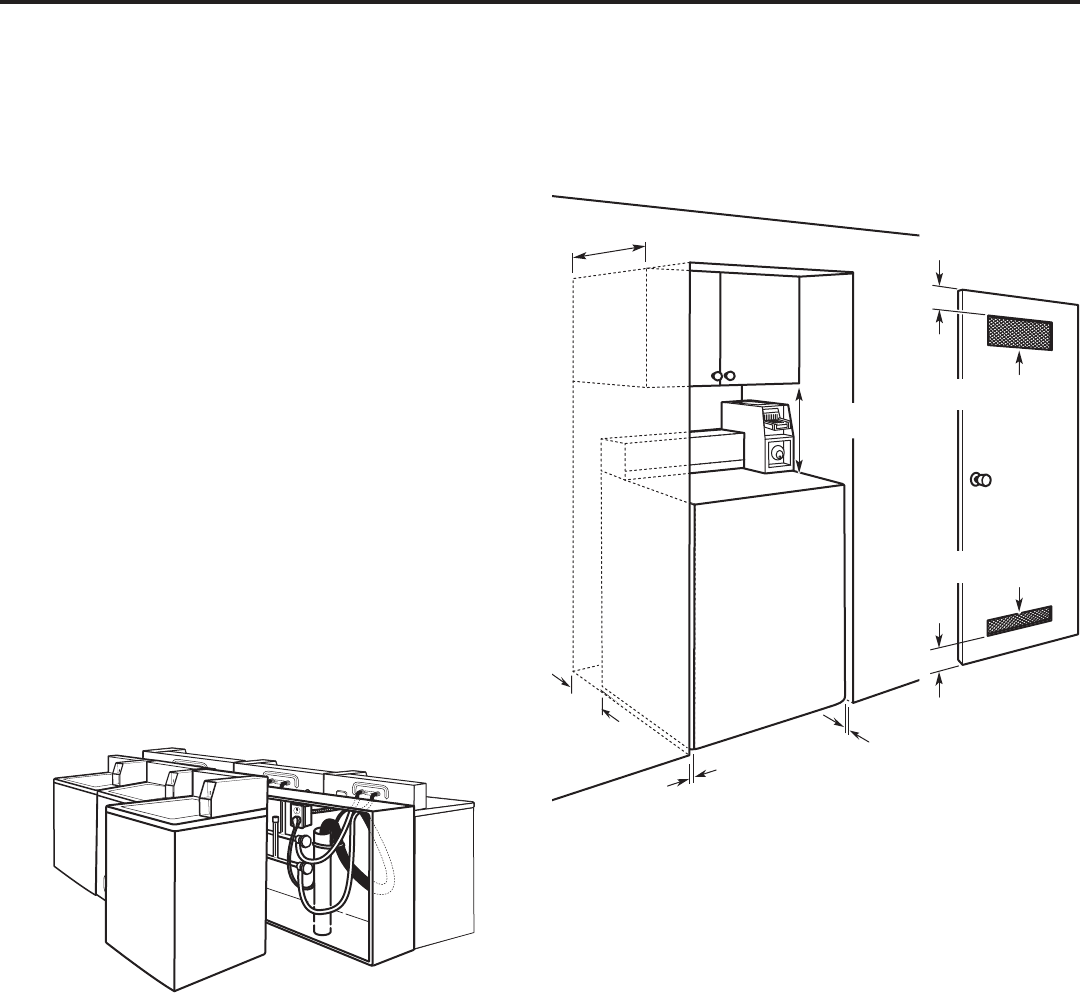

Recessed Area or Closet Installation
This washer may be installed in a recessed area or closet.
The installation dimensions shown are the minimum spaces
allowable. Additional spacing should be considered for ease of
installation and servicing. Companion appliance spacing should
be considered.
Minimum installation spacing
356 mm
(14" max.)
457 mm
(18")
406 mm
(16")
25 mm
(1")
25 mm
(1")
127 mm
(5")
356 mm
(14" max.)
127 mm
(5")
155 cm2
(24 inch2/24 inch2)
310 cm2
(48 inch2/48 inch2)
76 mm
(3"/3")
76 mm
(3"/3")
9

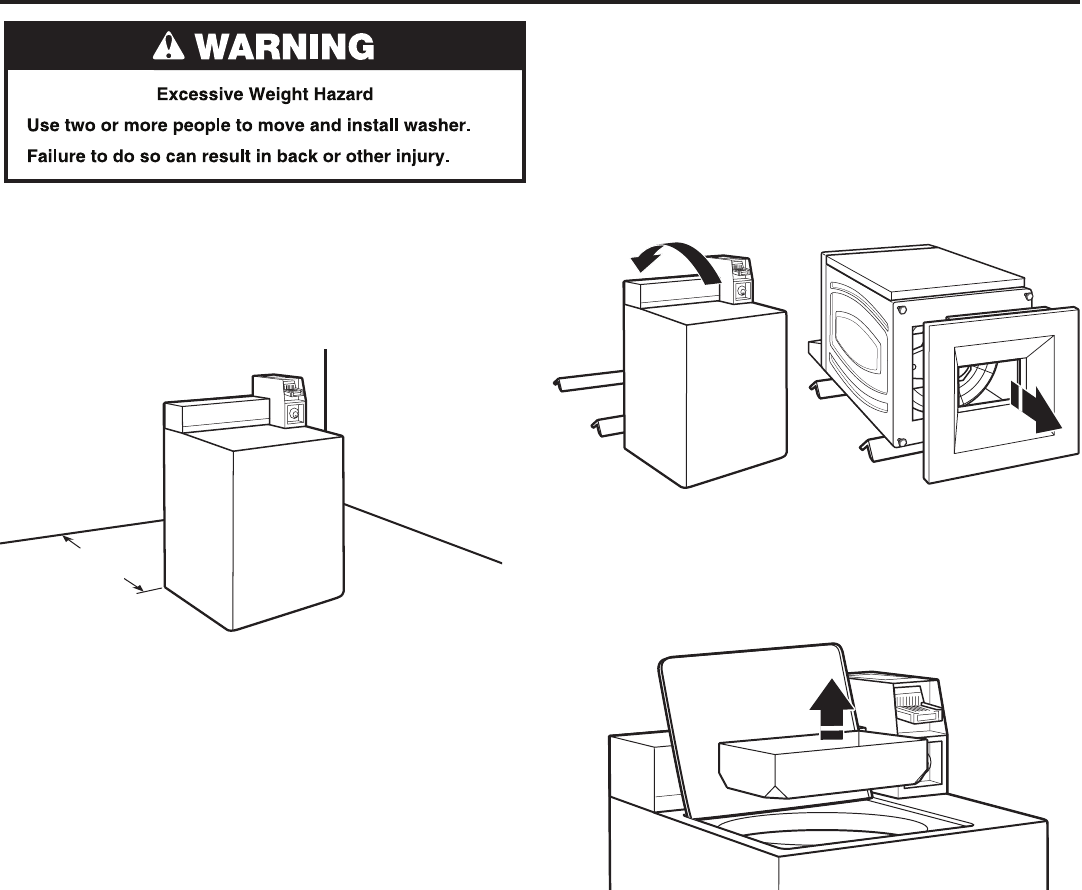

INSTALLATION INSTRUCTIONS
It is necessary to remove all shipping materials for proper
operation and to avoid excessive noise from washer.
1. Move washer to within 1.2 m (4 ft.) of its nal location; it must
be in a fully upright position.
NOTE: To avoid oor damage, set washer onto cardboard
before moving it and make sure lid is taped shut.
2. To avoid damaging oor, place cardboard supports from
shipping carton on oor behind washer. Tip washer back
and place on cardboard supports. Remove shipping base.
Set washer upright.
IMPORTANT: Removing shipping base is necessary for proper
operation. If your washer includes a sound shield, please refer
to the instructions included with the sound shield to install it
at this time.
NOTE: Keep shipping base in case you need to move washer
later.
3. Remove tape from washer lid, open lid, and remove cardboard
packing tray from tub. Be sure to remove all parts from tray.
NOTE: Tray must be removed prior to plugging the washer
into an outlet. Keep tray in case you need to move washer
later.
1,2 m
(48")
1.2 m
(48")
10

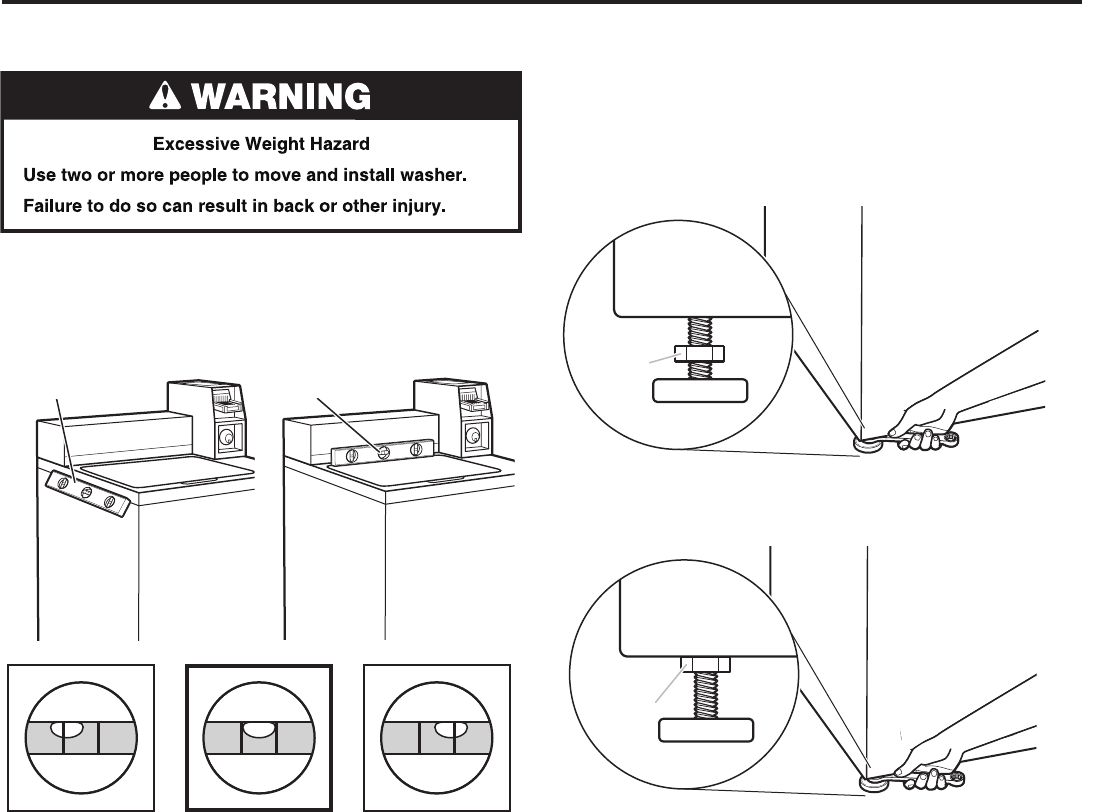

1. Move the washer to its nal location. Place a level on top
edges of washer. Use side seam as a guide to check levelness
of sides. Check levelness of front using lid, as shown. Rock
washer back and forth to make sure all 4 feet make solid
contact with oor.
LEVEL WASHER
IMPORTANT: Level washer properly to reduce excess noise
and vibration.
Not Level LEVEL Not Level
2. Use a 14 mm or 9/16" open-end or adjustable wrench to turn
jam nuts clockwise on feet until they are about 13 mm (1/2")
from the washer cabinet. Then turn the leveling foot clockwise
to lower the washer or counterclockwise to raise the washer.
Recheck levelness of washer and repeat as needed.
HELPFUL TIP: You may want to prop up front of washer about
102 mm (4") with a wood block or similar object that will support
weight of washer.
Place level here Place level here
3. When washer is level, use a 14 mm or 9/16" open-end
or adjustable wrench to turn jam nuts counterclockwise
on leveling feet tightly against washer cabinet.
Place level here Place level here
Jam nut
Jam nut
Jam nut
Jam nut
11

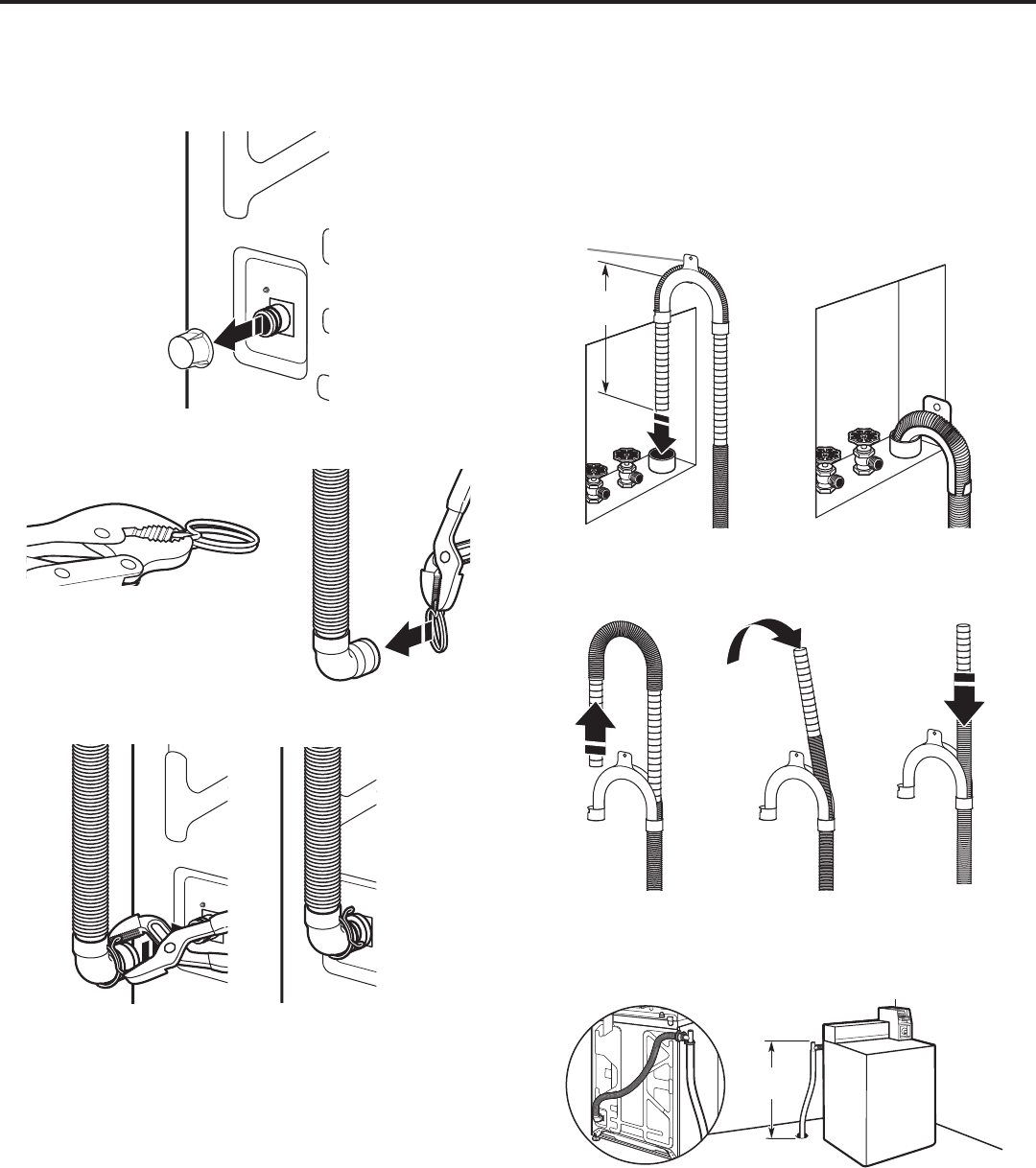

Proper routing of the drain hose avoids damage to your oor
due to water leakage.
Remove drain hose from the washer basket
1. Remove cap from the washer drain port on the back
of the washer.
2. If clamp is not already in place on elbow end of drain hose,
slide it over end as shown.
3. Squeeze clamp with pliers and slide elbow end of drain
hose onto washer drain port and secure with clamp.

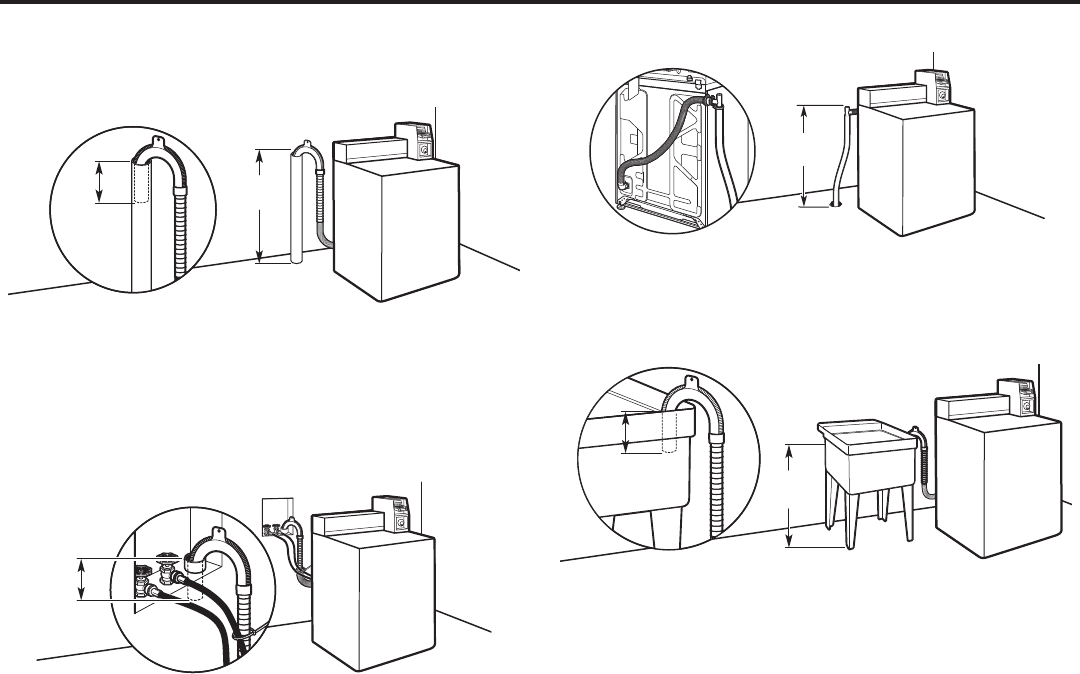

4. The washer drain system can be installed using a oor drain,
wall standpipe, oor standpipe, or laundry tub.
CONNECT DRAIN HOSE
710 mm
(28")
5. Place hose into standpipe (shown in picture) or over side
of laundry tub.
IMPORTANT:
nDrain hose is not to exceed 203 mm (8") into drain pipe;
do not force excess hose into standpipe or lay on bottom
of laundry tub. Drain hose form must be used.
nIt is the responsibility of the installer to install and secure
the drain hose into the provided plumbing/drain in a
manner that will avoid the drain hose coming out of,
or leaking from, the plumbing/drain.
6. For oor drain installations, you will need to remove the drain
hose form from the end of the drain hose. You may need
additional parts with separate directions. See “Tools and Parts.”
7. The oor drain system requires a siphon break that may be
purchased separately. The siphon break (Part Number 285320)
must be a minimum of 710 mm (28") from the bottom of the
washer. Additional hoses might be needed.
8"
(203 mm)
Drain
hose
form
203 mm
(8")
12
DRAIN SYSTEM
Drain system can be installed using a oor drain, wall standpipe,
oor standpipe, or laundry tub. Select method you need.
Floor standpipe drain system
Minimum diameter for a standpipe drain: 51 mm (2"). Minimum
carry-away capacity: 38 L (10 gal.) per minute. Top of standpipe
must be at least 990 mm (39") high; install no higher than
2.44 m (96") from bottom of washer.
Laundry tub drain system
203 mm
(8")
990 mm
(39")
203 mm
(8") 990 mm
(39")
Wall standpipe drain system
710 mm
(28")
See requirements for oor standpipe drain system.
Floor drain system
Floor drain system requires a Siphon Break Kit (Part Number
285320). Minimum siphon break: 710 mm (28") from bottom
of washer. Additional hoses may be needed.
203 mm
(8")
Minimum capacity: 76 L (20 gal.). The top of the laundry tub
must be at least 990 mm (39") above oor.
13
CONNECT INLET HOSES
Connect Inlet Hoses to Washer
1. Attach cold water hose to cold water inlet valve marked with
a blue ring. Screw coupling by hand until it is snug.
2. Attach hot water hose to hot water inlet valve marked with
a red ring. Screw coupling by hand until it is snug.
3. Use pliers to tighten couplings an additional two-thirds turn.
NOTE: Do not overtighten. Damage to the valve can result.
4. Turn on water faucets to check for leaks. A small amount
of water may enter washer. It will drain later.
NOTE: Replace inlet hoses after 5 years of use to reduce the
risk of hose failure. Record hose installation or replacement
dates on the hoses for future reference.
Periodically inspect and replace hoses if bulges, kinks, cuts,
wear, or leaks are found.
Insert new hose washers (supplied) into each end of the inlet
hoses. Firmly seat the washers in the couplings.
NOTE: Use new hoses supplied with the washer. Do not reuse
old hoses.
Connect Inlet Hoses to Water Faucets
1. Attach hose to hot water faucet. Screw on coupling until
it is seated on washer. Repeat process for cold water.
2. Use pliers to tighten the couplings an additional
two-thirds turn.
IMPORTANT: Do not overtighten or use tape or sealants on valve
when attaching to faucets or washer. Damage can result.
3. Secure drain hose to inlet hose with zip strap.
Clear Water Lines
n Run water through both faucets and inlet hoses,
into a laundry tub, drainpipe, or bucket to get
rid of particles in the water lines that might clog
the inlet valve screens.
n Check the temperature of the water to make
sure that the hot water hose is connected to
the hot water faucet and that the cold water
hose is connected to the cold water faucet.
CouplingWasher
14
EARTHING INSTRUCTIONS
This washer must be earthed. In the event of a malfunction
or breakdown, earthing will reduce the risk of electric
shock by providing a path of least resistance for electric
current. This washer is equipped with a cord having an
equipment-earthing conductor and an earthing plug. The
plug must be plugged into an appropriate outlet that is
properly installed and earthed in accordance with all local
codes and ordinances.
WARNING: Improper connection of the equipment-
earthing conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in
doubt as to whether the appliance is properly earthed.
Do not modify the plug provided with the appliance – if it will
not fit the outlet, have a proper outlet installed by a qualified
electrician.
ELECTRICAL REQUIREMENTS
nA 220–240 volt, 50 Hz., AC-only, 10-amp, fused electric
supply is required. A time-delay fuse or circuit breaker is
recommended. It is recommended that a separate circuit
serving only this appliance be provided.
nAfter installation, access to mains plug or disconnection from
mains supply via a double-pole switch must be ensured at all
times in order to ensure immediate deactivation of the washer
in case of emergency.
nThis washer is equipped with a power supply cord having an
earthing plug. The plug should be accessible for disconnection
from the supply.
nIf the supply cord is damaged, it must be replaced by the
manufacturer, its service agent, or similarly qualied persons
in order to avoid a hazard.
Using the universal cord included with this washer:
This washer is equipped with a universal cord with
interchangeable plugs.
1. To use the universal cord, select the plug end that ts
your electrical outlet, and plug it into the adapter on
the supply cord.
2. Secure the plug end in place on the cord by aligning the
2 cover halves over the cord adapter and clipping them
together.
15
q Check electrical requirements. Be sure that you have the
correct electrical supply and the recommended earthing
method.
COMPLETE INSTALLATION
q Check that all parts are now installed. If there is an extra part,
go back through steps to see what was skipped.
q Check that you have all of your tools.
q Check that shipping materials were completely removed
from washer.
q Dispose of/recycle all packaging materials.
q Check that the water faucets are on.
q Check for leaks around faucets and inlet hoses.
q Remove lm from console and any tape remaining on
washer.
q Plug into an earthed outlet or connect power.
q Check that circuit breaker is not tripped or fuse is not blown.
q Start washer using the payment system (if available) to
check that the wash cycle completes without an error code
or water leak.

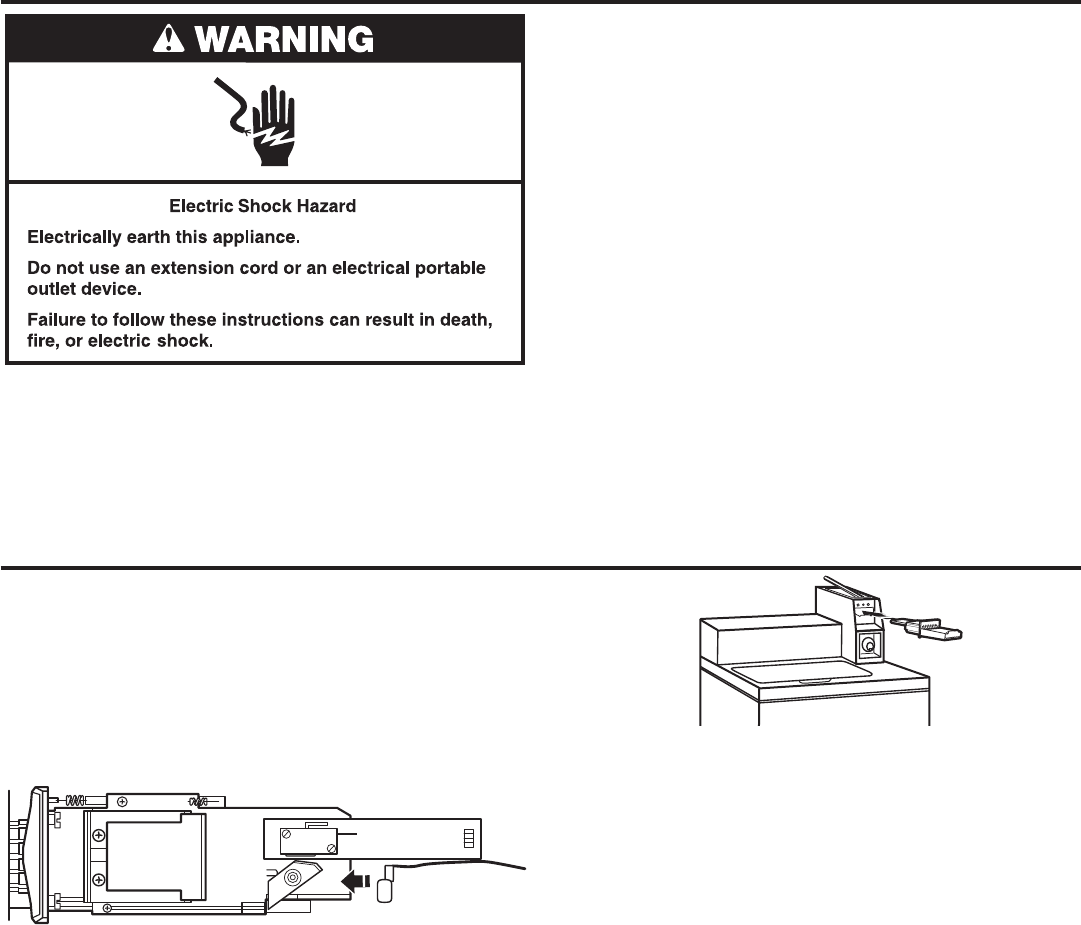

INSTALLING COIN SLIDE AND COIN BOX
The coin slide mechanism, service door lock and key, and coin
box lock and key are not included with some models but can
be obtained from the usual industry sources.
Remove the service door of the meter case by lifting it up
at the back. Install the money-accepting device. (Refer to
manufacturer’s instructions for proper installation.)
An earthing connection is needed for the coin slide, which
can be made by connecting the available harness (W10846503)
to the coin slide. Install a lock and cam on the meter case service door. Install
the coin vault with lock and key in the meter case opening.
For Free Vend, an OPL kit can be purchased from Whirlpool.
Whirlpool part number W10222023.
Earthing
connection
16
ELECTRONIC CONTROLS SET-UP INSTRUCTIONS (PD & PN MODELS)
Basic Operation of Commercial Washer
nFor additional information, see
www.MaytagCommercialLaundry.com.
IMPORTANT
Electrostatic Discharge (ESD)
Sensitive Electronics
ESD problems are present everywhere. ESD may damage
or weaken the electronic control assembly. The new control
assembly may appear to work well after repair is nished, but
failure may occur at a later date due to ESD stress.
nUse an anti-static wrist strap. Connect wrist strap to green
ground connection point or unpainted metal in the washer.
-OR-
Touch your nger repeatedly to a green earth connection point
or unpainted metal in the washer.
nBefore removing the part from its package, touch the
anti-static bag to a green earth connection point or
unpainted metal in the washer.
nAvoid touching electronic parts or terminal contacts; handle
electronic control assembly by edges only.
nWhen repackaging failed electronic control assembly in
anti-static bag, observe above instructions.
GENERAL INFORMATION
Blank Display
This condition indicates the washer is inoperative.
‘0 Minutes’ showing in display
This condition indicates the washer cannot be operated. Coins
dropped or debit inputs during this condition will be stored in
escrow but cannot be used until normal operation is restored by
opening and closing the door. If a door switch fails, it must be
replaced before normal operation can be restored.

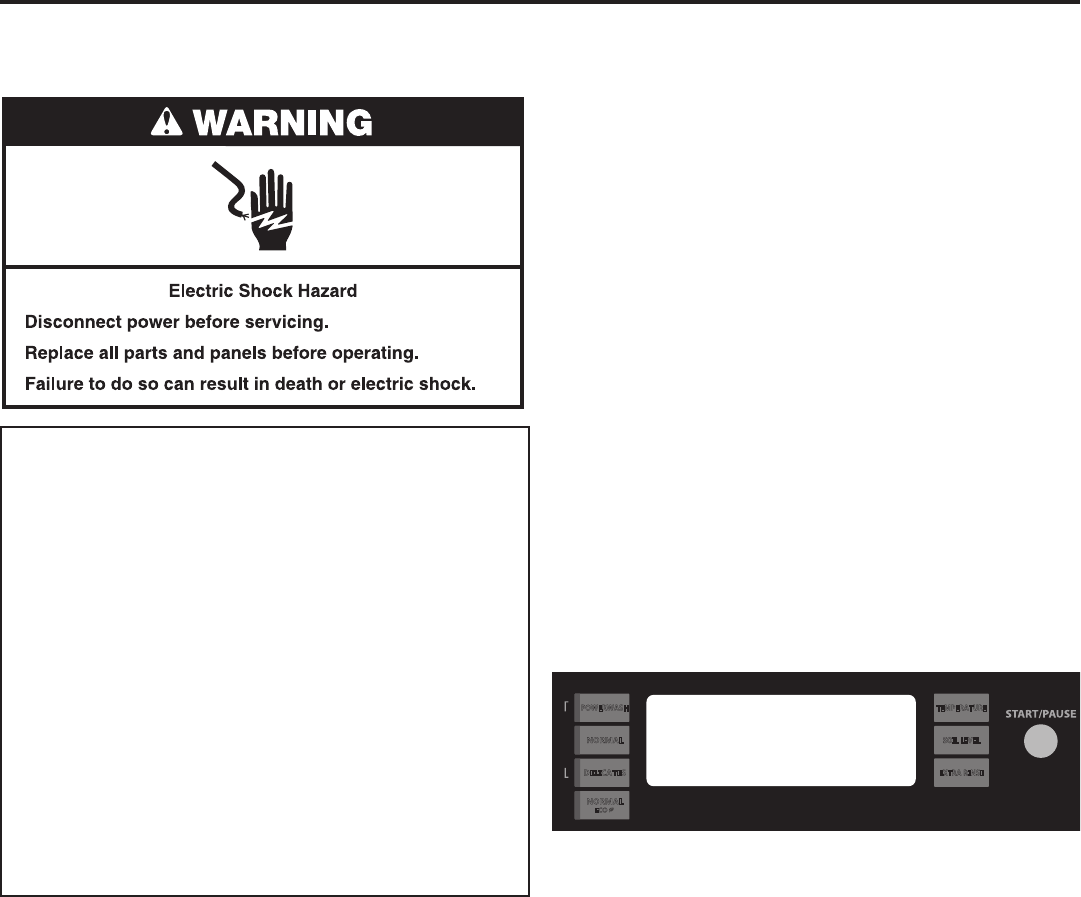

OPTIONSCYCLES
DEEP WATER
POWERWASH
TEMPERATURE
SOIL LEVEL
EXTRA RINSE
NORMAL
DELICATES
NORMAL
ECO
Cold Start (initial use)
Washer is programmed at the factory as follows:
nPOWERWASH = 12 min agitation
NORMAL = 9 min agitation
DELICATES = 6 min agitation
NORMAL ECO = 8 min agitation
nNORMAL = 1 rinse and 2 minutes of rinse agitation
POWERWASH = 1 deep rinse with spin-out
DELICATES = 1 deep rinse with spin-out
NORMAL ECO = 1 spray rinse
nNORMAL = $2.00
DELICATES = $1.75
POWERWASH = $2.50
NORMAL ECO = $1.75
Warm Start (after power failure)
After a delay of up to 8 seconds, the washer is restored to
the portion of the cycle that existed at time of the power failure.
To continue the cycle, press START/PAUSE.
Free Cycles
This is established by setting the cycle price to zero. When this
happens, ‘SELECT CYCLE’ will appear and cycle price will show
0.00.
Display
After the washer has been installed and plugged in, the display
will show ‘SYnC’ for a few seconds, then ‘0 MINUTES’. Once
the washer has been plugged in and the washer lid opened and
closed, the display will show the price. In washers set for free
cycles, the display will ash ‘SELECT CYCLE’, and will display
‘PRICE 0.00’.
17
ELECTRONIC CONTROLS SET-UP INSTRUCTIONS
Control Set-Up Procedures
IMPORTANT: Read all instructions before operating.
The top three key pads on the left side, the top key pad on the
right side, and the digital display are used to set up the controls.
The display can contain 4 numbers and/or letters and a decimal
point. These are used to indicate the set-up codes and related
code values available for use in programming the washer.
How to use the key pads to program the controls
1. The POWERWASH key pad is used to adjust the values
associated with set-up codes. Pressing the key pad will
increment the value.
Rapid adjustment is possible by holding the key pad down.
2. The NORMAL key pad will advance you through the
set-up codes. Pressing the key pad will advance you to
the next available set-up code. Holding the key pad down
will automatically advance through the set-up codes at a rate
of one (1) per second.
3. The DELICATES key pad is used to select or deselect options.
4. The TEMPERATURE key pad is used to decrease set-up code
value.
Start Operating Setup
nPD Models: Insert access door key, turn, and lift to remove
access door.
nPR models set for free vend: Refer to bottom of page 17
for entering operating setup.
IMPORTANT: The console must not be opened unless power
is rst removed from the washer. To access connector AA1:
g
Unplug washer or disconnect power.
g
Open console, disconnect plug on AA1, close console.
g
Plug in washer or reconnect power.
The washer is now in the set-up mode.
Before proceeding, it is worth noting that, despite all of the
options available, an owner can simply choose to uncrate a new
commercial washer, hook it up, plug it in, and have a unit that
operates.
Set-Up Codes
nThe NORMAL key pad will advance from code to code.
nThe POWERWASH key pad will increase the code value.
nThe DELICATES key pad will select or deselect options.
nThe TEMPERATURE key pad will decrease the code value.
The set-up code is indicated by the one or two left-hand
characters. The set-up code value is indicated by the two
or three right-hand characters.
CODE EXPLANATION
6.07
DELICATES
DELICATES Regular Cycle Vend Price - Increase or decrease
between 0 and 200 by pressing the POWERWASH or
TEMPERATURE key pad. Factory preset for 7 coins = $1.75.
6.07
NORMAL
ECO
NORMAL ECO Regular Cycle Vend Price - Increase or
decrease between 0 and 200 by pressing the POWERWASH
or TEMPERATURE key pad. Factory preset for 7 coins = $1.75.
6.07
POWERWASH
POWERWASH Regular Cycle Vend Price - Increase or
decrease between 0 and 200 by pressing the POWERWASH or
TEMPERATURE key pad. Factory preset for 7 coins = $1.75.
6.08
NORMAL NORMAL Regular Cycle Vend Price - Increase or decrease
between 0 and 200 by pressing the POWERWASH or
TEMPERATURE key pad. Factory preset for 8 coins = $2.00.
g Press the NORMAL key pad once to advance to next code.
7.00 ADDITIONAL WASH TIME
7.00 This is the number of minutes that can be added to a Wash Cycle.
Choose from 00-05 minutes by pressing the POWERWASH
key pad.
g Press the NORMAL key pad once to advance to next code.
8.00 ADDITIONAL RINSE TIME
8.00 This is the number of minutes that can be added to a RINSE
Cycle. Choose from 00-05 minutes by pressing the POWERWASH
key pad.
g Press the NORMAL key pad once to advance to next code.
9.00 CYCLE COUNTER OPTION
This option is either SELECTED ‘ON’ or NOT SELECTED ‘OFF’.
9.00 Not Selected ‘OFF’.
9.0C Selected ‘ON’ and not able to be deselected.
Press the DELICATES key pad 3 consecutive times to select ‘ON’.
Once selected ‘ON’ it cannot be deselected.
g Press the NORMAL key pad once to advance to next code.
1.00 MONEY COUNTER OPTION
This option is either SELECTED ‘ON’ or NOT SELECTED ‘OFF’.
1.00 Not Selected ‘OFF’.
1.0C Selected ‘ON’.
Press the DELICATES key pad 3 consecutive times to select ‘ON’
and 3 consecutive times to remove (Not Selected ‘OFF’.) Counter
resets by going from ‘OFF’ to ‘ON’.
1.C0 Selected ‘ON’ and not able to be deselected.
To select ‘ON’ and not able to be deselected, rst select ‘ON’,
then within 2 seconds press the DELICATES key pad twice,
the POWERWASH key pad once, and exit the set-up mode.
g Press the NORMAL key pad once to advance to next code.
2.00 SPECIAL PRICING OPTION
This option is either SELECTED ‘ON’ or NOT SELECTED ‘OFF’.
2.00 Not Selected ‘OFF’.
2.SP Selected ‘ON’. Press the DELICATES key pad once for this
selection.
If SPECIAL PRICING OPTION is selected, there is access to codes ‘3.’
through ‘9.’.
NOTE: An external battery needs to be added to keep the clock running during
periods of power outages.
g Press the NORMAL key pad once to advance to next code.
18
ELECTRONIC CONTROLS SET-UP INSTRUCTIONS
CODE EXPLANATION
OPTIONS TO USE IF SPECIAL PRICING IS SELECTED:
3.07
DELICATES
DELICATES Special Cycle Vend Price - Increase or decrease
between 0 and 200 by pressing the POWERWASH or
TEMPERATURE key pad. Factory preset for 7 coins = $1.75.
3.07
NORMAL ECO
NORMAL ECO Special Cycle Vend Price - Increase between 0
and 200 by pressing the POWERWASH or decrease by pressing
the TEMPERATURE key pad. Factory preset for 7 coins = $1.75.
3.07
POWERWASH
POWERWASH Special Cycle Vend Price - Increase or
decrease between 0 and 200 by pressing the POWERWASH or
TEMPERATURE key pad. Factory preset for 7 coins = $1.75.
3.08
NORMAL NORMAL Special Cycle Vend Price - Increase or decrease
between 0 and 200 by pressing the POWERWASH or
TEMPERATURE key pad. Factory preset for 8 coins = $2.00.
g Press the NORMAL key pad once to advance to next code.
5.00 TIME-OF-DAY CLOCK, MINUTES
5.00 This is the TIME-OF-DAY CLOCK, minute setting; select
between 0 and 59 minutes by pressing the POWERWASH or
TEMPERATURE key pad.
g Press the NORMAL key pad once to advance to next code.
6.00 TIME-OF-DAY CLOCK, HOURS
NOTE: Uses military time or 24 hr. clock.
6.00 This is the TIME-OF-DAY CLOCK, hour setting; select between
0 and 23 hours by pressing the POWERWASH or TEMPERATURE
key pad.
g Press the NORMAL key pad once to advance to next code.
7.00 SPECIAL PRICE START HOUR
NOTE: Uses military time or 24 hr. clock.
7.00 This is the start hour; select between 0 and 23 hours by pressing
the POWERWASH or TEMPERATURE key pad.
g Press the NORMAL key pad once to advance to next code.
8.00 SPECIAL PRICE STOP HOUR
NOTE: Uses military time or 24 hr. clock.
8.00 This is the stop hour; select between 0 and 23 hours by pressing
the POWERWASH or TEMPERATURE key pad.
g Press the NORMAL key pad once to advance to next code.
9.00 SPECIAL PRICE DAY
9.10 This represents the day of the week and whether special pricing
is selected for that day. A number followed by ‘0’ indicates no
selection that particular day (9.10). A number followed by an ‘S’
indicates selected for that day (9.1S).
Days of the week (1-7) can be chosen by pressing the
POWERWASH key pad. Press the POWERWASH key pad once
to select special pricing for each day chosen.
When exiting set-up code ‘9’, the display must show current day
of week:
DISPLAY DAY OF WEEK CODE (selected)
10 Day 1 = Sunday 1S
20 Day 2 = Monday 2S
30 Day 3 = Tuesday 3S
40 Day 4 = Wednesday 4S
50 Day 5 = Thursday 5S
60 Day 6 = Friday 6S
70 Day 7 = Saturday 7S
g Press the NORMAL key pad once to advance to next code.
CODE EXPLANATION
A.00 VAULT VIEWING OPTION
This option is either SELECTED ‘ON’ or NOT SELECTED ‘OFF’.
A.00 Not Selected ‘OFF’.
A.SC Selected ‘ON’. Press the DELICATES key pad once for this
selection. When selected, the money and/or cycle counts will be
viewable (depending on what is selected) when the coin box is
removed.
g Press the NORMAL key pad once to advance to next code.
b.05 VALUE OF COIN 1
b.05 This represents the value of coin 1 in number of 5% increments
of the larger coin value. 5 x 5% = 25%.
By pressing the POWERWASH or TEMPERATURE key pad,
there is the option of between 1 and 199 for the quantity of 5%
increments.
g Press the NORMAL key pad once to advance to next code.
C.20 VALUE OF COIN 2
C.20 This represents the value of coin 2 in number of 5% increments
of the larger coin value. 2 x 5% = 100%.
By pressing the POWERWASH or TEMPERATURE key pad,
there is the option of between 1 and 199 for the quantity of 5%
increments.
g Press the NORMAL key pad once to advance to next code.
d.00 COIN SLIDE OPTION
This option is either SELECTED ‘ON’ or NOT SELECTED ‘OFF’.
d.00 Not Selected ‘OFF’.
d.CS Selected ‘ON’. Press the DELICATES key pad 3 consecutive times
for this selection.
When coin slide mode is selected, set ‘b.’ equal to value of slide
in 5% increments. Set Step 6 (regular cycle price) and Step 3
(special cycle price) to number of slide operations. If the installer
sets up ‘CS’ on a coin drop model, it will not register coins.
g Press the NORMAL key pad once to advance to next code.
E.00 ADD COINS OPTION
This option is either SELECTED ‘ON’ or NOT SELECTED ‘OFF’.
This option causes the customer display to show the number
of coins (coin 1) to enter, rather than the monetary amount.
E.00 Not Selected ‘OFF’.
E.AC Selected ‘ON’. Press the DELICATES key pad 3 consecutive times
for this selection.
g Press the NORMAL key pad once to advance to next code.
H.00
COLD COLD Temperature Upgrade Price - Increase or decrease
between 0 and 200 by pressing the POWERWASH or
TEMPERATURE key pad. Factory preset for 0 coins = $0.00.
H.00
COOL COOL Temperature Upgrade Price - Increase or decrease
between 0 and 200 by pressing the POWERWASH or
TEMPERATURE key pad. Factory preset for 1 coins = $0.25.
H.00
WARM WARM Temperature Upgrade Price -
Increase or decrease
between
0 and 200 by pressing the POWERWASH or
TEMPERATURE key pad. Factory preset for 2 coins = $0.50.
H.00
HOT HOT Temperature Upgrade Price - Increase or decrease between
0 and 200 by pressing the POWERWASH or TEMPERATURE key
pad. Factory preset for 3 coins = $0.75.
H.00
HEAVY
HEAVY SOIL LEVEL Upgrade Price - Increase or decrease
between 0 and 200 by pressing the
POWERWASH
or
TEMPERATURE
key pad. Factory preset for 1 coins = $0.25.
19
ELECTRONIC CONTROLS SET-UP INSTRUCTIONS
CODE EXPLANATION
H.00
EXTRA
RINSE
EXTRA RINSE Upgrade Price - Increase or decrease between 0
and 200 by pressing the POWERWASH or TEMPERATURE key
pad. Factory preset for 1 coins = $0.25.
g Press the NORMAL key pad once to advance to next code.
J.Cd COIN/DEBIT OPTION
J.Cd Both coin & debit selected.
J.C_ Coins selected, debit disabled. Press the DELICATES key pad
3 times for this selection.
J._d Debit Card selected, coins disabled. Press the DELICATES key
pad 3 times for this selection.
J.Ed Enhanced Debit is self-selected when a Generation 2 card reader
is installed in the washer. The Ed option cannot be manually
selected or deselected.
g Press the NORMAL key pad once to advance to next code.
L.00 PRICE SUPPRESSION OPTION
This option causes the customer display to show ‘ADD’ or
‘AVAILABLE’ rather than the amount of money to add. (Used
mainly in debit installations.)
L.00 Not Selected ‘OFF’.
L.PS Selected ‘ON’. Press the DELICATES key pad once for this
selection.
g Press the NORMAL key pad once to advance to next code.
n. CE CLEAR ESCROW OPTION
When selected, money held in escrow for 30 minutes without
further escrow or cycle activity will be cleared.
n. CE Selected ‘ON’.
n. 00 Not selected ‘OFF’. Press the DELICATES key pad once to
deselect this selection.
g Press the NORMAL key pad once to advance to next code.
U.00 COIN (HUNDREDTH) INCREMENT OFFSET
U.00 For use with card reader applications only.
g Press the NORMAL key pad once to advance to next code.
A3.03 NORMAL Cycle Settings. Allows the owner to select the cycle
default options of Water Temperature, Soil Level, and Extra Rinse.
See Table 1 for specic settings. Normal is set to 03 from the
factory.
A4.01 DELICATES Cycle Settings. Allows the owner to select the cycle
default options of Water Temperature, Soil Level, and Extra Rinse.
See Table 1 for specic settings. Delicates is set to 01 from the
factory.
A5.1C POWERWASH Cycle Settings. Allows the owner to select the
cycle default options of Water Temperature, Soil Level, and Extra
Rinse.
See Table 1 for specic settings. Powerwash is set to 1C from the
factory.
A6.03 NORMAL ECO Cycle Settings. Allows the owner to select the
cycle default options of Water Temperature, Soil Level, and Extra
Rinse.
See Table 1 for specic settings. Normal Eco is set to 03 from the
factory.
If cycle counter (9.0C) is selected, the following is true:
1 xx Number of cycles in THOUSANDS. 1 02 = 2,000
2xxx Number of cycles in ONES. 2225 = 225
TOTAL CYCLES = 2,225
This is “VIEW ONLY” and cannot be cleared.
Press the NORMAL key pad once to advance
to next code.
If money counter (1.0C or 1.C0) is selected, the following is
true:
3 xx Number in THOUSANDS. 3 01 = $1,000.00
4xxx Number in ONES. 4600 = $ 600.00
5 xx Number of HUNDRETHS. 5 75 = $ 00.75
TOTAL = $1,600.75
END OF SET-UP PROCEDURES
EXIT FROM SET-UP MODE
nPD Models: Reinstall access door.
If preferred, just wait through 2 minutes of inactivity. All settings
will be saved and the display will revert to Select Cycle screen.
Table 1
Technician Service Access Code
This method is only available on PR washers set to free vend
(6 00).
To enter service mode:
Press the POWERWASH, EXTRA RINSE, TEMPERATURE, and
DELICATES key pads within 10 seconds.
To exit service mode:
Wait 2 minutes without touching any key pads (without diagnostic
modes running)
or
Power down the washer, then reapply power.
NOTE: If a service cycle is in progress upon exiting service mode,
the cycle will complete normally with cycle status information
displayed. The display will resume normal customer operation
mode when the cycle ends.
A3, A4,
A5, A6 Extra
Rinse Soil Level
(Heavy-On,
Normal-Off)
Water
Temp A3, A4,
A5, A6 Extra
Rinse Soil Level
(Heavy-On,
Normal-Off)
Water
Temp
00 Off Off Tap
Cold 10 On Off Tap
Cold
01 Off Off Cold 11 On Off Cold
02 Off Off Cool 12 On Off Cool
03 Off Off Warm 13 On Off Warm
04 Off Off Hot 14 On Off Hot
08 Off On Tap
Cold 18 On On Tap
Cold
09 Off On Cold 19 On On Cold
aOff On Cool 1A On On Cool
BOff On Warm 1B On On Warm
COff On Hot 1C On On Hot
20
WASHER DISPOSAL
This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment
(WEEE).
By ensuring this product is disposed of correctly, you will help avoid potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste handling of this product.
The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be
treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical
and electronic equipment.
Disposal must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please contact your local city ofce,
your household waste disposal service or the shop where you purchased the product.
21
MAYTAG® COMMERCIAL LAUNDRY
LIMITED WARRANTY
1. All other costs including labor, transportation, shipping, or custom duties for
covered parts.
2. Factory specified replacement parts if this commercial appliance is used for other
than normal, commercial use or when it is used in a manner that is inconsistent
to published user or operator instructions and/or installation instructions.
3. Service calls to correct the installation of your commercial appliance, to instruct
you on how to use your commercial appliance, to replace or repair house fuses,
or to correct external wiring or plumbing.
4. Service calls to repair or replace appliance light bulbs, air filters, or water filters.
Consumable parts are excluded from warranty coverage.
5. Damage resulting from improper handling of product during delivery, theft,
accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation,
installation not in accordance with local electrical or plumbing codes, or use of
products not approved by Maytag.
6. Pick up and delivery. This commercial appliance is designed to be repaired
on location.
7. Repairs to parts or systems resulting from unauthorized modifications made
to the commercial appliance.
8. The removal and reinstallation of your commercial appliance if it is installed
in an inaccessible location or is not installed in accordance with published
installation instructions.
9. Damage resulting from exposure to chemicals.
10. Changes to the building, room, or location needed in order to make the
commercial appliance operate correctly.
11. Factory specified replacement parts on commercial appliances with original
model/serial numbers that have been removed, altered, or cannot be easily
determined.
12. Discoloration, rust, or oxidation of stainless steel surfaces.
13. Factory specified replacement parts as a result of incorrect diagnosis or repair
by an “unauthorized” service company.
The cost of repair or replacement under these excluded circumstances shall
be borne by the customer.
FIVE YEAR LIMITED WARRANTY
(PARTS ONLY — LABOR NOT INCLUDED)
For the first five years from the original date of
purchase, when this commercial appliance is
installed, maintained, and operated according to the
instructions attached to or furnished with the product,
Maytag brand of Whirlpool Corporation (hereafter
“Maytag”) will pay for factory specified replacement
parts to correct defects in materials or workmanship
that existed when this commercial appliance was
purchased. This limited warranty does not include
labor.
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS
LIMITED WARRANTY SHALL BE PRODUCT REPAIR
AS PROVIDED HEREIN. Maytag recommends that
you use an “authorized” service provider to diagnose
and repair your Commercial Laundry product.
Maytag will not be responsible under this warranty
to provide additional replacement parts as a result
of incorrect diagnosis or repair by an “unauthorized”
service company. Except in the European Union, this
limited warranty is valid only when the commercial
appliance is used in the country in which it was
purchased. This limited warranty is effective from
the date of the original consumer purchase. Proof
of original purchase date is required to obtain service
under this limited warranty.
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO FIVE YEARS OR THE SHORTEST PERIOD ALLOWED BY LAW. Some locations may not allow
limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives
you specific legal rights, and you also may have other rights that vary.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN.
MAYTAG SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some locations do not allow the
exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty
gives you specific legal rights, and you also may have other rights that vary by location.
DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY
Maytag makes no representations about the quality, durability, or need for service or repair of this major appliance other than the
representations contained in this Warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes
with this major appliance, you should ask your retailer about buying an extended warranty. The benefits to you given by this warranty
are in addition to other rights and remedies available to you under a law in relation to the goods or service to which this warranty relates.
Please contact Maytag for further information on warranty terms.
01/17
IF YOU NEED SERVICE:
Contact your authorized Maytag® Commercial Laundry distributor. To locate your authorized Maytag® Commercial Laundry distributor,
visit www.MaytagCommercialLaundry.com.
For written correspondence:
Maytag® Commercial Laundry Service Department
2000 N M 63
Benton Harbor, Michigan 49022-2632 USA
FIVE YEAR LIMITED WARRANTY
WHAT IS COVERED WHAT IS NOT COVERED
3/2017
