*QOOOOIOOOeOOOOO

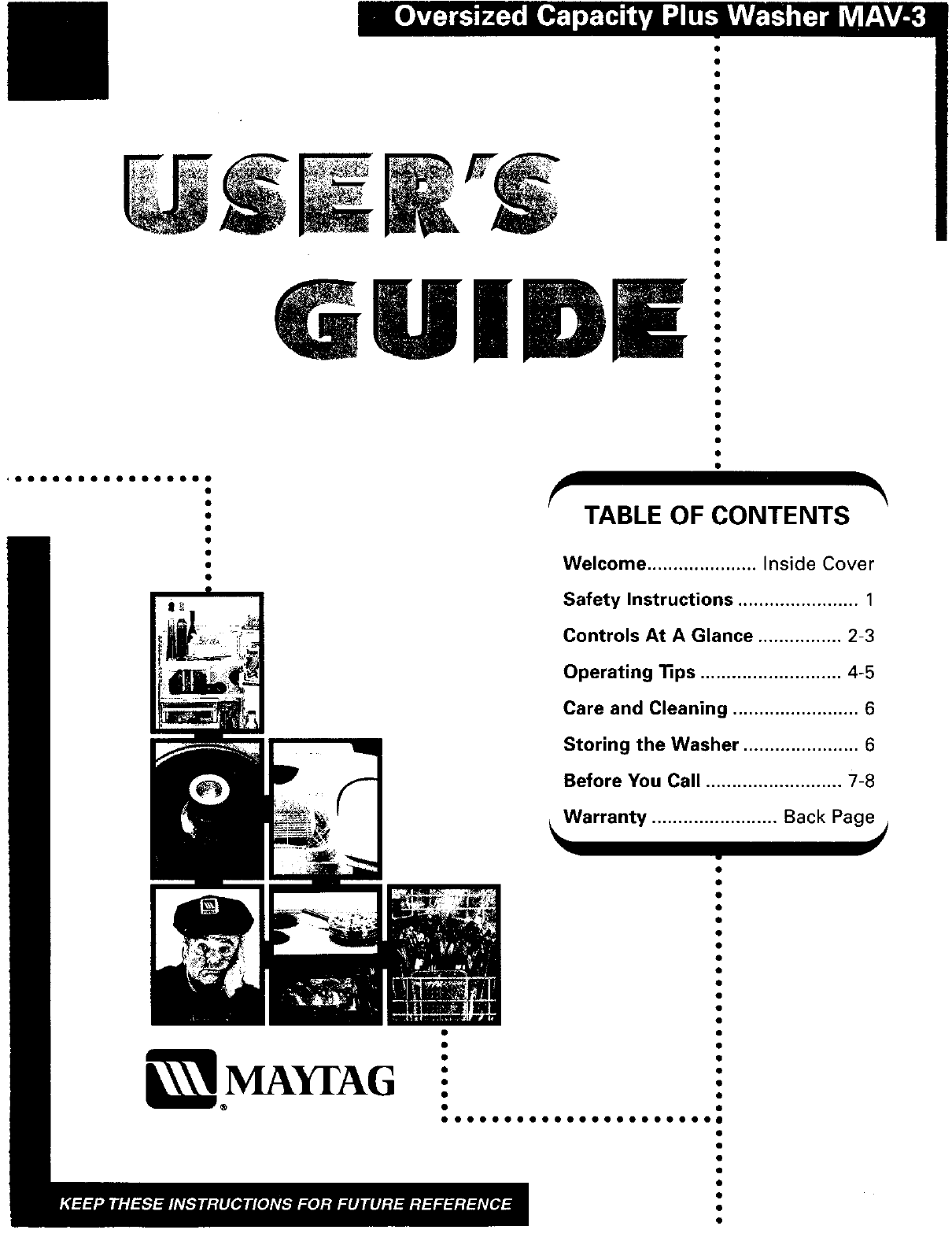

TABLE OF CONTENTS
Welcome ..................... Inside Cover
Safety Instructions ....................... 1
Controls At A Glance ................ 2-3
MAYFAG
Operating 13ps ........................... 4-5

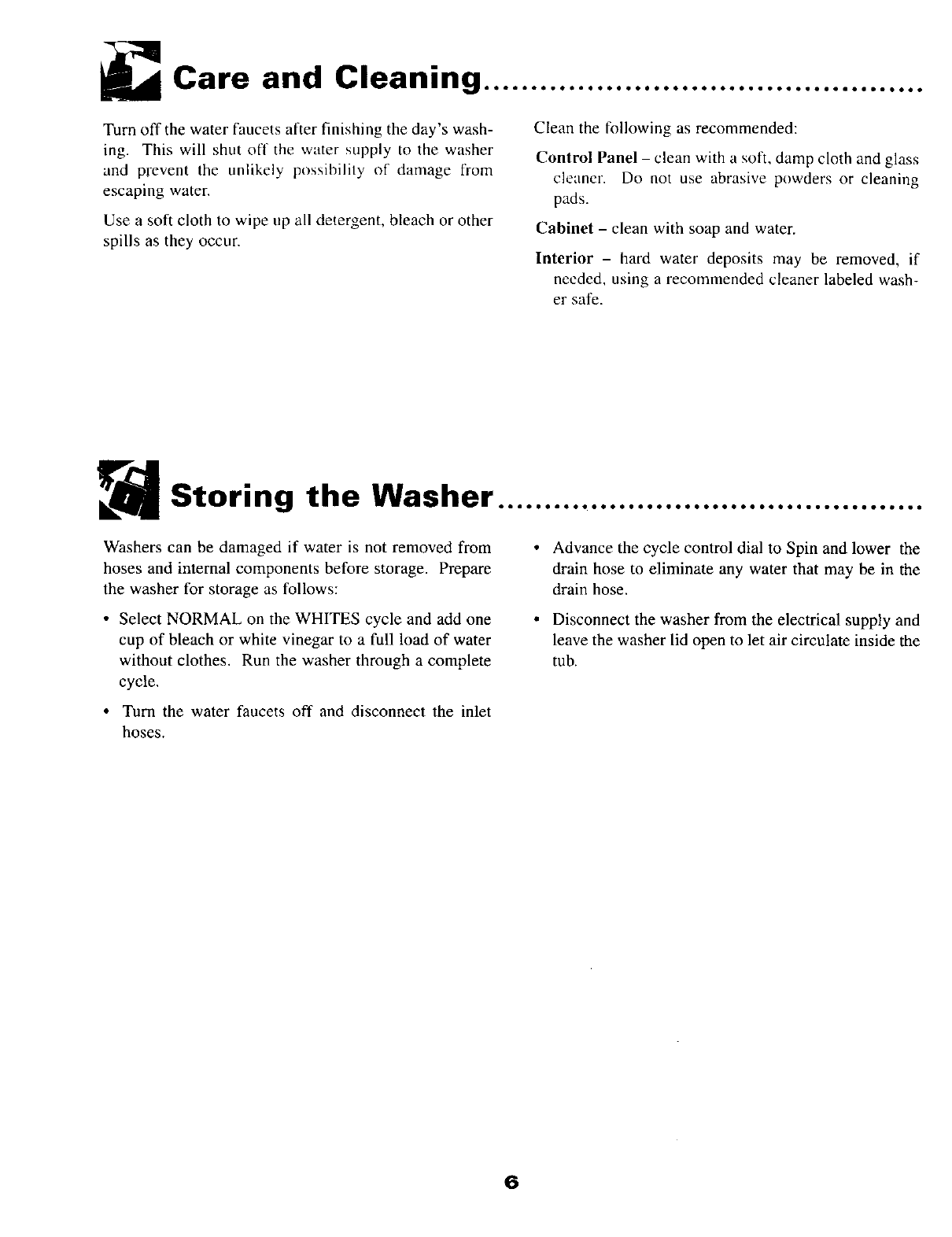

Care and Cleaning ........................ 6
Storing the Washer ...................... 6

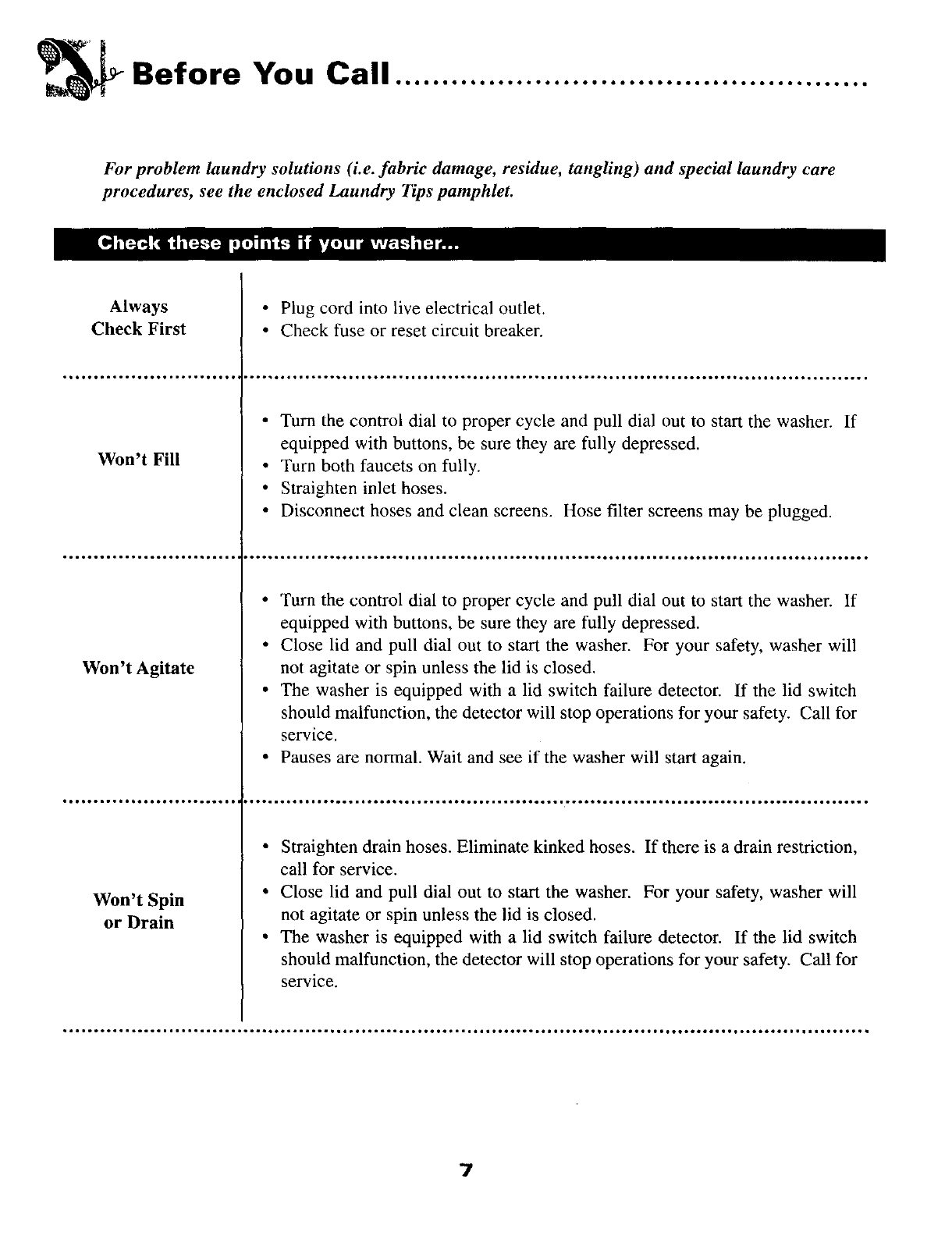

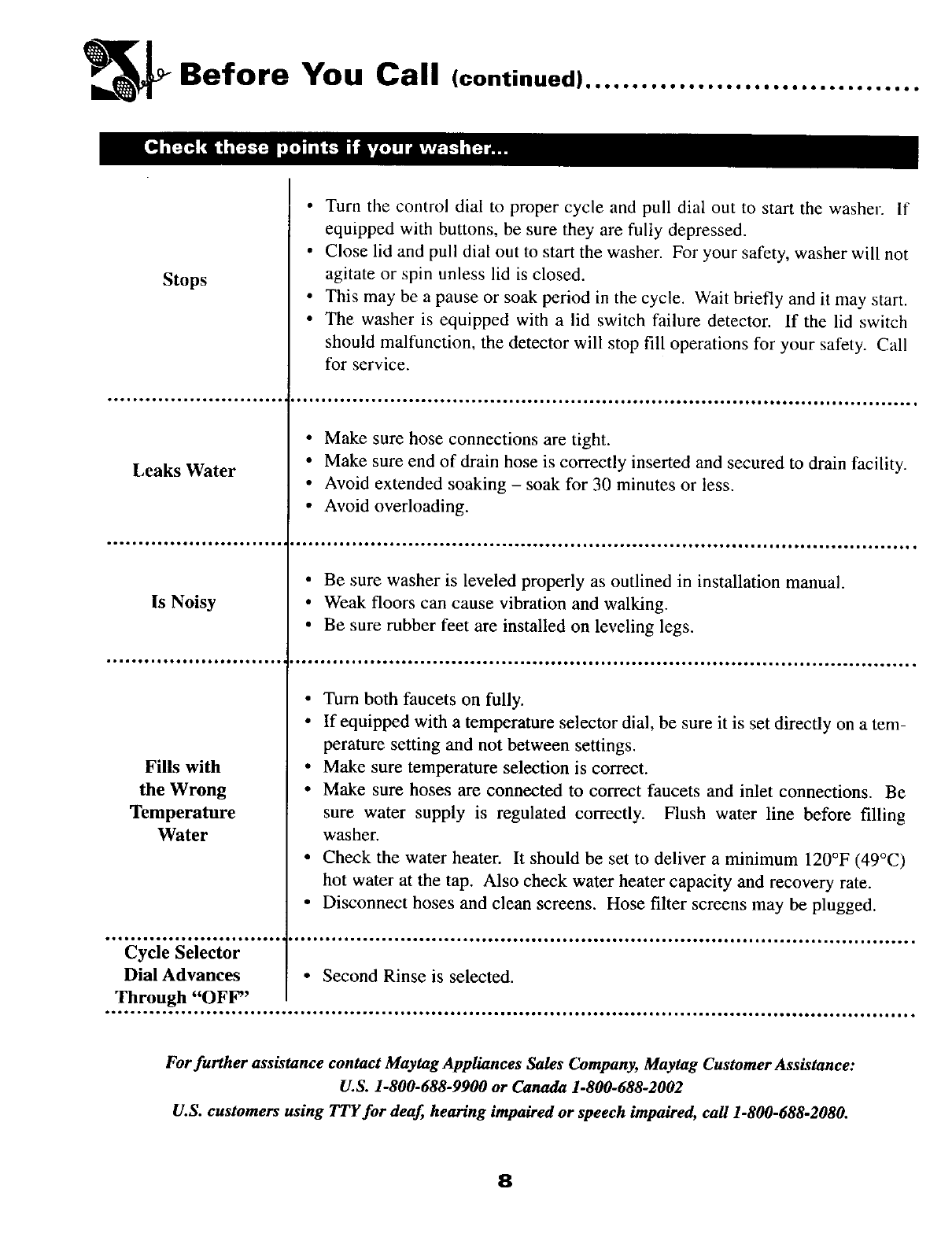

Before You Call .......................... 7-8
_Warranty ........................
• 00000000•0000•00000000
Back Pag_
Models: MAV5000 • MAV5057

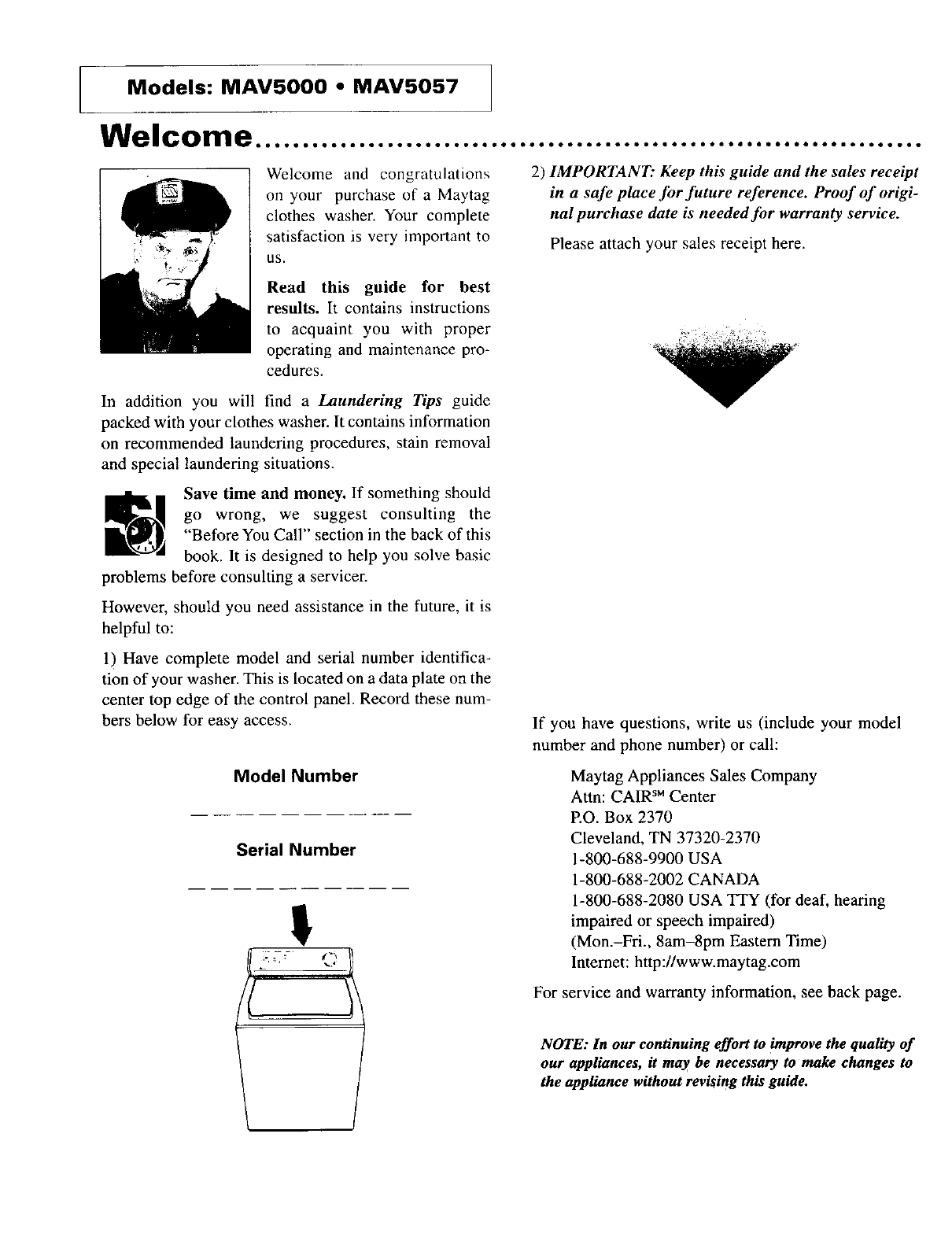

Welcome .......................................................................
Welcome and congratulations
on your purchase of a Maytag
clothes washer. Your complete
satisfaction is very important to
US.
2) IMPORTANT: Keep this guide and the sales receipt
in a safe place for future reference. Proof of origi-
nal purchase date is needed for warranty service.
Please attach your sales receipt here.
Read this guide for best
results. It contains instructions
to acquaint you with proper
operating and maintenance pro-
cedures.
In addition you will find a Laundering Tips guide
packed with your clothes washer. It contains information
on recommended laundering procedures, stain removal
and special laundering situations.
Save time and money. If something should
go wrong, we suggest consulting the
"Before You Call" section in the back of this
book. It is designed to help you solve basic
problems before consulting a servicer.
However, should you need assistance in the future, it is
helpful to:
1) Have complete model and serial number identifica-
tion of your washer. This is located on a data plate on the
center top edge of the control panel. Record these num-
bers below for easy access.
Model Number
Serial Number
|
If you have questions, write us (include your model
number and phone number) or call:
Maytag Appliances Sales Company
Attn: CAIR sMCenter
P.O. Box 2370
Cleveland, TN 37320-2370
1-800-688-9900 USA
1-800-688-2002 CANADA
1-800-688-2080 USA TTY (for deaf, hearing
impaired or speech impaired)
(Mon.-Fri., 8am-8pm Eastern Time)
lnternet: http://www.maytag.com
For service and warranty information, see back page.
NOTE: In our continuing effort to improve the quality of
our appliances, it may be necessary to make changes to
the appliance without revising this guide.

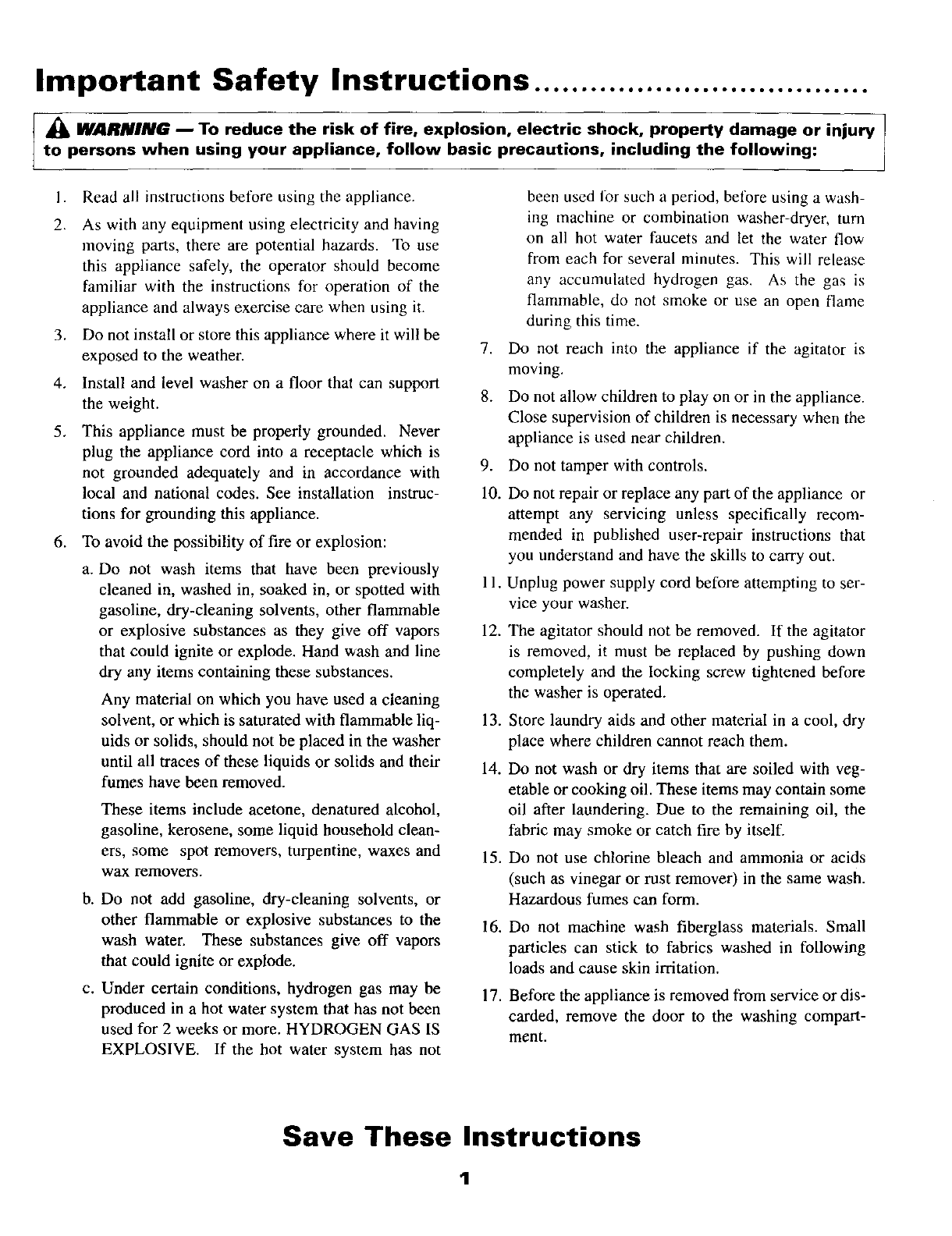

Important Safety Instructions ....................................
_k WARNING _To reduce the risk of fire, explosion, electric shock, property damage or injury
to persons when using your appliance, follow basic precautions, including the following:
I. Read all instructions before using the appliance.
2. As with any equipment using electricity and having
moving parts, there are potential hazards. To use
this appliance safely, the operator should become
familiar with the instructions for operation of the
appliance and always exercise care when using it.
3. Do not install or store this appliance where it will be
exposed to the weather.
4, Install and level washer on a floor that can support
the weight.
5. This appliance must be properly grounded. Never
plug the appliance cord into a receptacle which is
not grounded adequately and in accordance with
local and national codes. See installation instruc-
tions for grounding this appliance.
6. To avoid the possibility of fire or explosion:
a. Do not wash items that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, other flammable
or explosive substances as they give off vapors
that could ignite or explode. Hand wash and line
dry any items containing these substances.
Any material on which you have used a cleaning
solvent, or which is saturated with flammable liq-
uids or solids, should not be placed in the washer
until all traces of these liquids or solids and their
fumes have been removed.
These items include acetone, denatured alcohol,
gasoline, kerosene, some liquid household clean-
ers, some spot removers, turpentine, waxes and
wax removers.
b. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors
that could ignite or explode.
c. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for 2 weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has not
been used lot such a period, before using a wash-
ing machine or combination washer-dryer, turn
on all hot water faucets and let the water flow
from each for several minutes. This will release
any accumulated hydrogen gas. As the gas is
flammable, do not smoke or use an open flame
during this time.
7. Do not reach into the appliance if the agitator is
moving.
8. Do not allow children to play on or in the appliance.
Close supervision of children is necessary when the
appliance is used near children.
9. Do not tamper with controls.
10. Do not repair or replace any part of the appliance or
attempt any servicing unless specifically recom-
mended in published user-repair instructions that
you understand and have the skills to carry out.
11. Unplug power supply cord before attempting to ser-
vice your washer.
12. The agitator should not be removed. If the agitator
is removed, it must be replaced by pushing down
completely and the locking screw tightened before
the washer is operated.
13. Store laundry aids and other material in a cool, dry
place where children cannot reach them.
14. Do not wash or dry items that are soiled with veg-
etable or cooking oil. These items may contain some
oil after laundering. Due to the remaining oil, the
fabric may smoke or catch fire by itself.
15. Do not use chlorine bleach and ammonia or acids
(such as vinegar or rust remover) in the same wash.
Hazardous fumes can form.
16. Do not machine wash fiberglass materials. Small
particles can stick to fabrics washed in following
loads and cause skin irritation.
17. Before the appliance is removed from service or dis-
carded, remove the door to the washing compart-
ment.
Save These Instructions
1

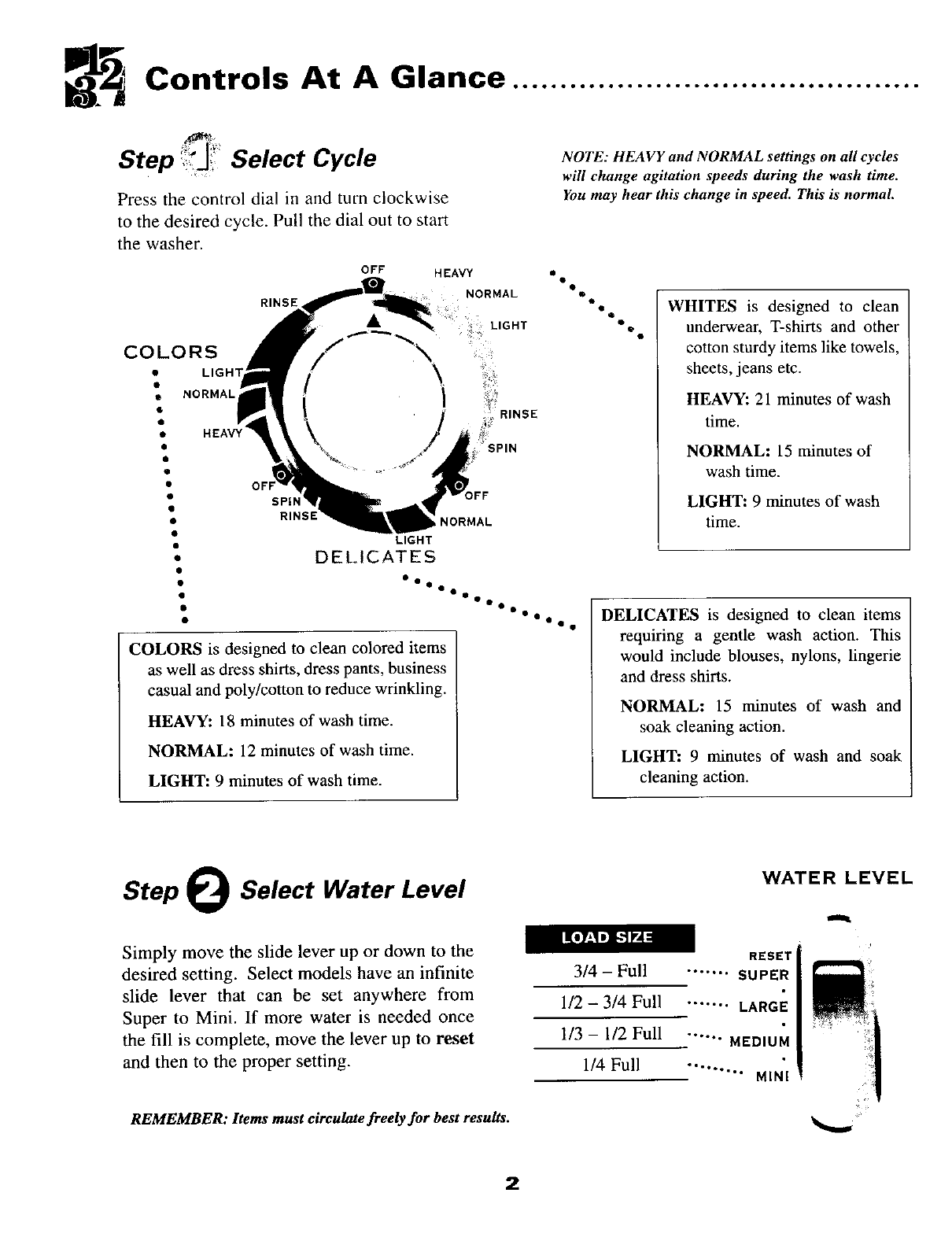

Controls At A Glance ...........................................
Step Select Cycle
Press the control dial in and turn clockwise
to the desired cycle. Pull the dial out to start
the washer.
NOTE: HEAVY and NORMAL settings on all cycles
will change agitation speeds during the wash time.
You may hear this change in speed. This is normal.
OFF
RINSE
COLORS
• LIGH'I
• NORMAL
•HEAVY
e
HEAVY
NORMAL
! LIGHT
IRINSE
SPil
•RINSI NORMAL
LIGHT
• DELICATES
COLORS is designed to clean colored items
as well as dress shirts, dress pants, business
casual and poly/cotton to reduce wrinkling.
PIN
HEAVY: 18 minutes of wash time.
NORMAL: 12 minutes of wash time.
LIGHT: 9 minutes of wash time.
Q
Q
0 0
WHITES is designed to clean
underwear, T-shirts and other
cotton sturdy items like towels,
sheets, jeans etc.
HEAVY: 21 minutes of wash
time.
NORMAL: 15 minutes of
wash time.
LIGHT: 9 minutes of wash
time.
DELICATES is designed to clean items
requiring a gentle wash action. This
would include blouses, nylons, lingerie
and dress shirts.
NORMAL: 15 minutes of wash and
soak cleaning action.
LIGHT: 9 minutes of wash and soak
cleaning action.
Step 0Select Water Level
Simply move the slide lever up or down to the
desired setting. Select models have an infinite
slide lever that can be set anywhere from
Super to Mini. If more water is needed once
the fill is complete, move the lever up to reset
and then to the proper setting.
REMEMBER: Items must circulate freely for best results.
3/4 - Full
112 -3/4 Full
1/3 - 1/2 Full
1/4 Full
WATER LEVEL
RESET
...... • SUPER
....... LARGE
...... MEDIUM
• "" " MINI
°- I.
2

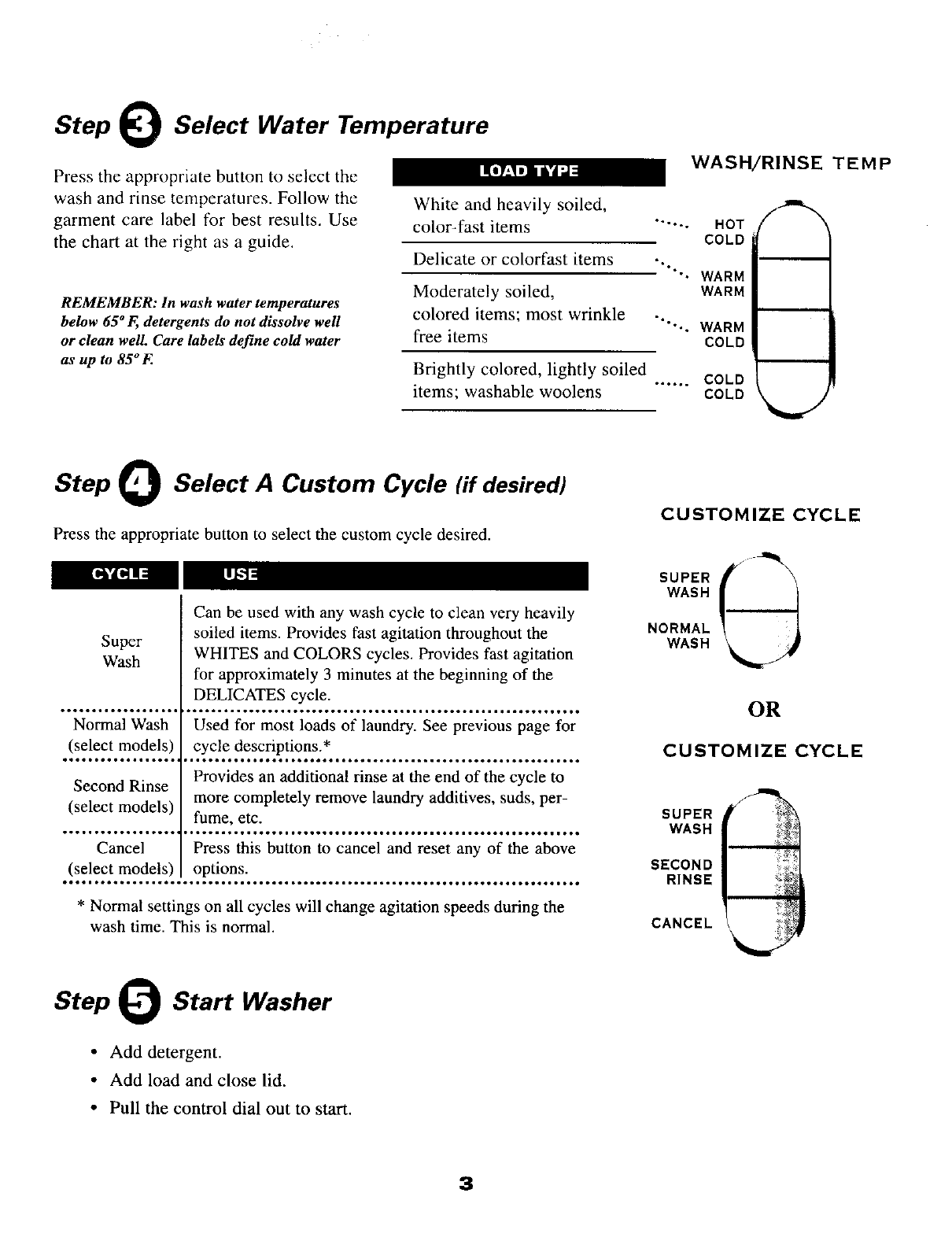

Step 0Select Water Temperature
Press the appropriate button to select the
wash and rinse temperatures. Follow the
garment care label for best results. Use
the chart at the right as a guide.
White and heavily soiled,
color-fast items
Delicate or colorfast items
Moderately soiled,
colored items; most wrinkle
free items
Brightly colored, lightly soiled
items; washable woolens
REMEMBER: In wash water temperatures
below 65°F, detergents do not dissolve well
or clean well. Care labels define cold water
as up to 85° E
WASH/RINSE TEMP
...... HOT
COLD
"'.WARM
WARM
"'".. WARM
COLD
...... COLD
COLD
A
Step USelect ACustom Cycle (if desired)
Press the appropriate button to select the custom cycle desired.
CUSTOMIZE CYCLE
Can be used with any wash cycle to clean very heavily
soiled items. Provides fast agitation throughout the
Super
Wash WHITES and COLORS cycles. Provides fast agitation
for approximately 3 minutes at the beginning of the
DELICATES cycle.
totQo,oeootoooeolll oo66o°1,, t *t t **, g oooooooeo*, e ellllltll, _oo6611,1,,*,l,*,***,*l*
Normal Wash Used for most loads of laundry. See previous page for
(select models) cycle descriptions.*
O*,_tOOOJ061,,*... ,,1 ......111.• **eOOOOel,_,ei_OtOttl_rOI, • **mm*t t**O J****_ eI**_
Provides an additional rinse at the end of the cycle to
Second Rinse
(select models more completely remove laundry additives, suds, per-
fume, etc.
Cancel Press this button to cancel and reset any of the above
(select models) options.
* Normal settings on all cycles will change agitation speeds during the
wash time. This is normal.
SUPER
WASH
NORMAL
WASH
OR
CUSTOMIZE CYCLE
SUPER
WASH
SECOND
RINSE
CANCEL
Step 0Start Washer
•Add detergent.
• Add load and close lid.
• Pull the control dial out to start.
3

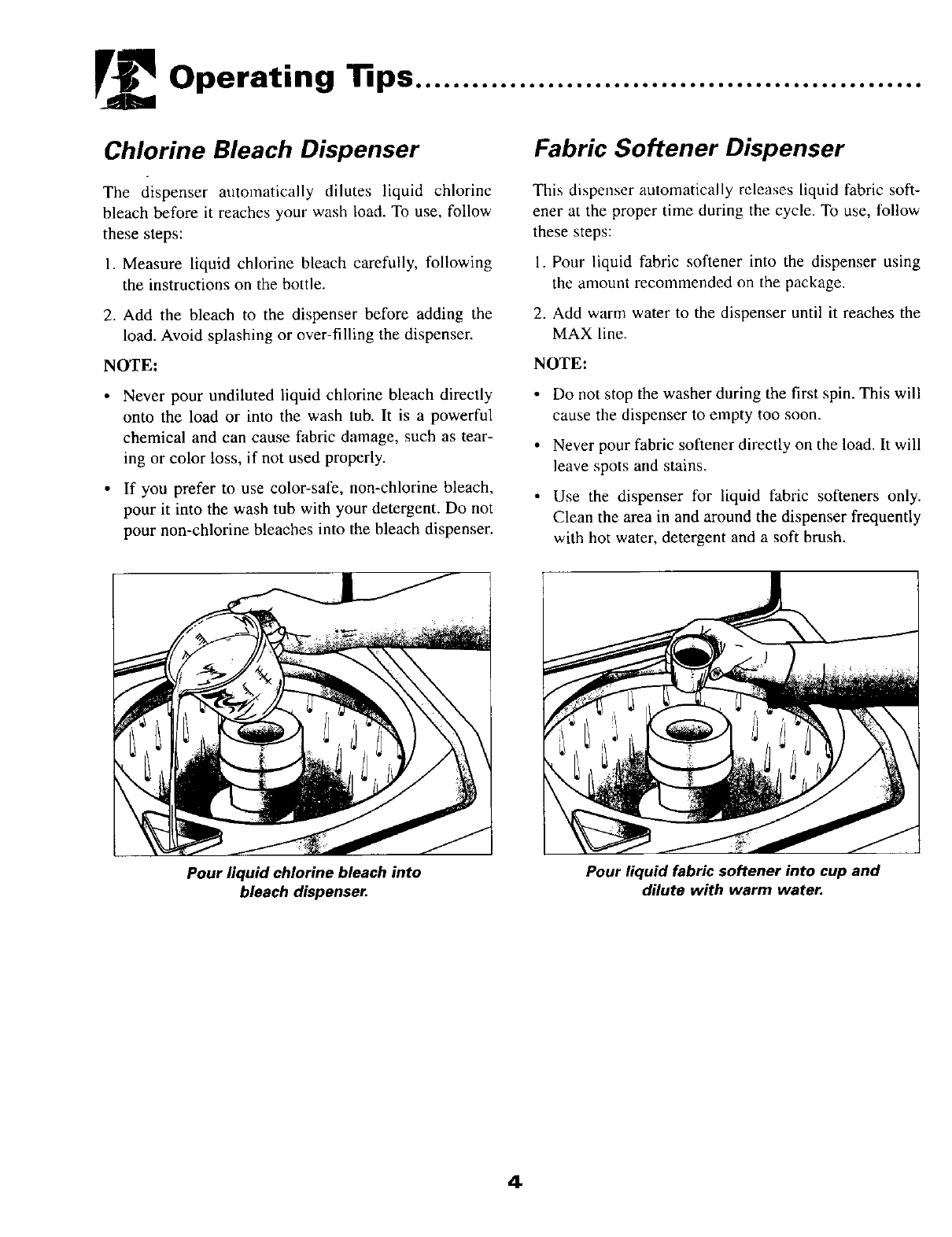

Operating lips ......................................................
Chlorine Bleach Dispenser
The dispenser automatically dilutes liquid chlorine
bleach before it reaches your wash load. To use, follow
these steps:
1. Measure liquid chlorine bleach carefully, following
the instructions on the bottle.
2. Add the bleach to the dispenser before adding the
load. Avoid splashing or over-filling the dispenser.
Fabric Softener Dispenser
This dispenser automatically releases liquid fabric soft-
ener at the proper time during the cycle. To use, follow
these steps:
1. Pour liquid fabric softener into the dispenser using
the amount recommended on the package.
2. Add warm water to the dispenser until it reaches the
MAX line.
NOTE: NOTE:
Never pour undiluted liquid chlorine bleach directly
onto the load or into the wash tub. It is a powerful
chemical and can cause fabric damage, such as tear-
ing or color loss, if not used properly.
•If you prefer to use color-safe, non-chlorine bleach,
pour it into the wash tub with your detergent. Do not
pour non-chlorine bleaches into the bleach dispenser.
Do not stop the washer during the first spin. This will
cause the dispenser to empty too soon.
Never pour fabric softener directly on the load. It will
leave spots and stains.
Use the dispenser for liquid fabric softeners only.
Clean the area in and around the dispenser frequently
with hot water, detergent and a soft brush.
Pour liquid chlorine bleach into
bleach dispenser.
Pour liquid fabric softener into cup and
dilute with warm water.
4

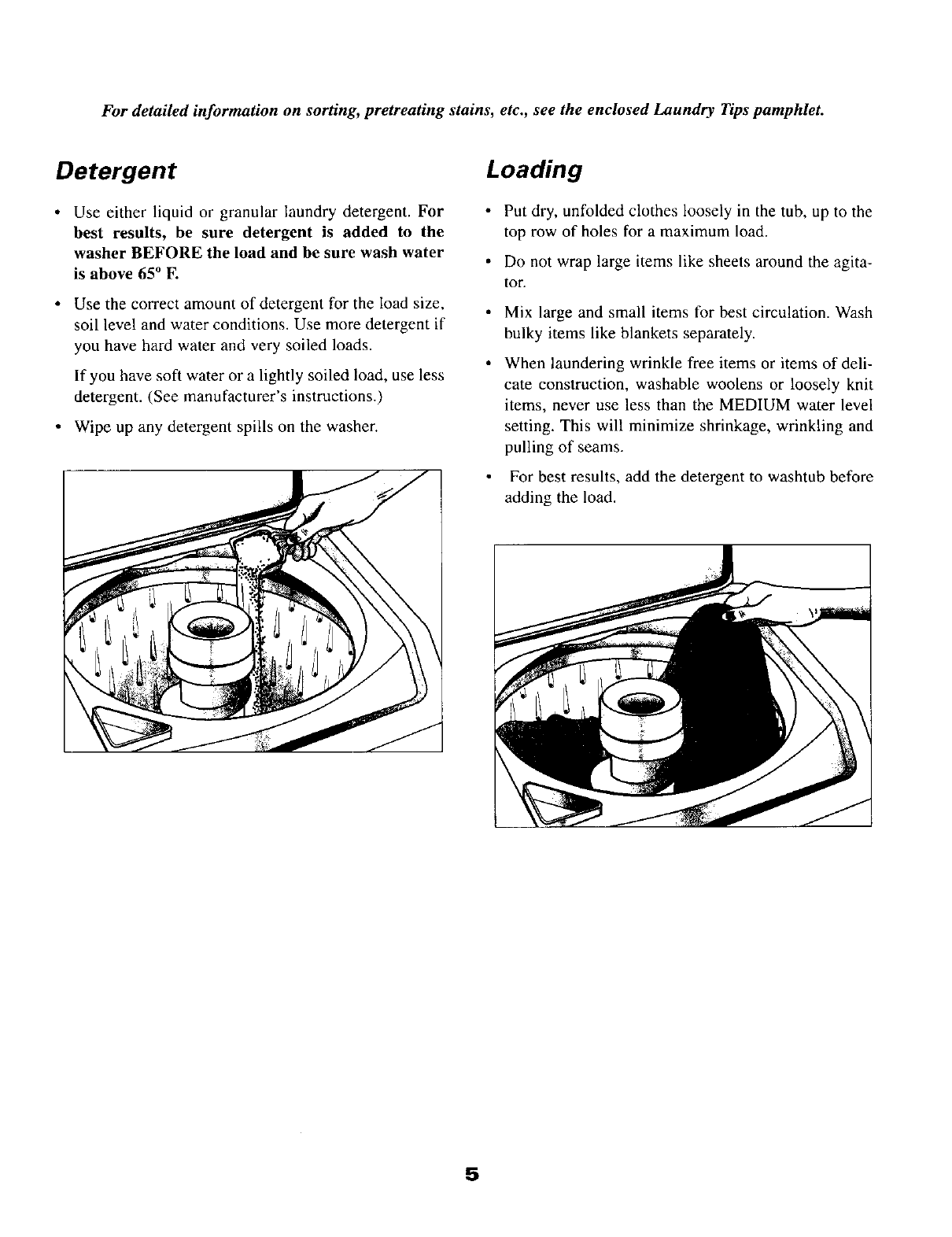

For detailed information on sorting, pretreating stains, etc., see the enclosed Laundry Tips pamphlet.
Detergent
•Use either liquid or granular laundry detergent. For •
best results, he sure detergent is added to the
washer BEFORE the load and be sure wash water
is above 65 ° E
•Use the correct amount of detergent for the load size,
soil level and water conditions. Use more detergent if
you have hard water and very soiled loads.
If you have soft water or a lightly soiled load, use less
detergent. (See manufacturer's instructions.)
• Wipe up any detergent spills on the washer.
Loading
Put dry, unfolded clothes loosely in the tub, up to the
top row of holes for a maximum load.
Do not wrap large items like sheets around the agita-
[or.
Mix large and small items for best circulation. Wash
bulky items like blankets separately.
When laundering wrinkle free items or items of deli-
cate construction, washable woolens or loosely knit
items, never use less than the MEDIUM water level
setting. This will minimize shrinkage, wrinkling and
pulling of seams.
For best results, add the detergent to washtub before
adding the load.
5
Care and Cleaning ...............................................
Turn off the water faucets after finishing the day's wash-
ing. This will shut off the water supply to the washer
and prevent the unlikely possibili!y of damage from
escaping water.
Use asoft cloth to wipe up all detergent, bleach or other
spills as they occur.
Clean the following as recommended:
Control Panel clean with a soft, damp cloth and glass
cleaner. Do not use abrasive powders or cleaning
pads.
Cabinet - clean with soap and water.
Interior - hard water deposits may be removed, if
needed, using a recommended cleaner labeled wash-
er safe.
Storing the Washer ..............................................
Washers can be damaged if water is not removed from
hoses and internal components before storage. Prepare
the washer for storage as follows:
• Select NORMAL on the WHITES cycle and add one
cup of bleach or white vinegar to a full load of water
without clothes. Run the washer through a complete
cycle.
•Turn the water faucets off and disconnect the inlet
hoses.
• Advance the cycle control dial to Spin and lower the
drain hose to eliminate any water that may be in the
drain hose.
• Disconnect the washer from the electrical supply and
leave the washer lid open to let air circulate inside the
tub.
6
Before You Call ...................................................
For problem laundry solutions (i.e. fabric damage, residue, tangling) and special laundry care
procedures, see the enclosed Laundry Tips pamphlet.
Always
Check First
Won't Fill
Won't Agitate
Won't Spin
or Drain
•Plug cord into live electrical outlet.
• Check fuse or reset circuit breaker.
• Turn the control dial to proper cycle and pull dial out to start the washer. If
equipped with buttons, be sure they are fully depressed.
• Turn both faucets on fully.
•Straighten inlet hoses.
• Disconnect hoses and clean screens. Hose filter screens may be plugged.
• Turn the control dial to proper cycle and pull dial out to start the washer. If
equipped with buttons, be sure they are fully depressed.
• Close lid and pull dial out to start the washer. For your safety, washer will
not agitate or spin unless the lid is closed.
• The washer is equipped with a lid switch failure detector. If the lid switch
should malfunction, the detector will stop operations for your safety. Call for
service.
• Pauses are normal. Wait and see if the washer will start again.
• Straighten drain hoses. Eliminate kinked hoses. If there is a drain restriction,
call for service.
• Close lid and pull dial out to start the washer. For your safety, washer will
not agitate or spin unless the lid is closed.
• The washer is equipped with a lid switch failure detector. If the lid switch
should malfunction, the detector will stop operations for your safety. Call for
service.
7
Before You Call (continued) ....................................
Stops
Leaks Water
Is Noisy
Fills with
the Wrong
Temperature
Water
Ii.m •°o.° ** • .J**t**o.oo,.o,,
Cycle Selector
Dial Advances
Through "OFF"
•Turn the control dial to proper cycle and pull dial out to start the washer. If
equipped with buttons, be sure they are fully depressed.
• Close lid and pull dial out to start the washer. For your safety, washer will not
agitate or spin unless lid is closed.
• This may be a pause or soak period in the cycle. Wait briefly and it may start.
• The washer is equipped with a lid switch failure detector. If the lid switch
should malfunction, the detector will stop fill operations for your safety. Call
for service.
• Make sure hose connections are tight.
• Make sure end of drain hose is correctly inserted and secured to drain facility.
• Avoid extended soaking - soak for 30 minutes or less.
• Avoid overloading.
•. • °°°°.. o• °•°o°°oo..o. •l. • °oo
• Be sure washer is leveled properly as outlined in installation manual.
• Weak floors can cause vibration and walking.
• Be sure rubber feet are installed on leveling legs.
•o • °°°°° .oo° o°°o°°..°.°° • ••• °°° ooo.o•
•Turn both faucets on fully.
• If equipped with a temperature selector dial, be sure it is set directly on a tem-
perature setting and not between settings.
• Make sure temperature selection is correct.
• Make sure hoses are connected to correct faucets and inlet connections. Be
sure water supply is regulated correctly. Flush water line before filling
washer.
• Check the water heater. It should be set to deliver a minimum 120°F (49°C)
hot water at the tap. Also check water heater capacity and recovery rate.
• Disconnect hoses and clean screens. Hose filter screens may be plugged.
o,*_ooJJ* • •o.°°° ****o**l** •Q*llo**o_,*,eoooo606ooooo,***o6o °°°°° *tt,*tto_e,** o. _oeel_ •****ee**** o°°
• Second Rinse is selected.
For further assistance contact Maytag Appliances Sales Company, Maytag Customer Assistance:
U.S. 1-800-688-9900 or Canada 1-800-688-2002
U.S. customers using TTY for deaf, hearing impaired or speech impaired, call 1-800-688-2080.
8
_ Notes ....................................................................
9
Maytag Washer Warranty ....................................
Full One Year Warranty
For one (1) year from lhe date of original retail purchase, any part which fails in normal home use will be repaired or replaced free
of charge.
Limited Warranty
After the first year from date of original retail purchase, through the time periods listed below, the parts designated below which fail
in normal home use will be repaired or replaced free of charge for the part itself, with the owner paying all other costs, including
labor, mileage and transportation.
Second Year - All parts.
Third through Fifth Year - The drive motor. All parts of the solid state controls (if so equipped).
Third through Tenth Year - All parts of the transmission assembly.
Third through Lifetime -The inner wash basket.
Additional Limited Warranty Against Rust-Through
Should an exterior cabinet, including the top, lid and baseframe, rust through during the one year period starting from the date of
retail purchase, repair or replacement will be made free of charge. After the first and through the tenth year, repair or replacement
will be made free of charge for the part itself, with the owner paying all other costs, including labor, mileage and transportation.
Please Note: This full warranty and the limited warranty apply when the washer is located in the United States or Canada. Washers
located elsewhere are covered by the limited warranty only, including parts which fail during the first two years.
Canadian Residents
This warranty covers only those appliances installed in Canada that have been listed with the Canadian Standards Association unless
the appliances are brought into Canada due to transfer of residence from the United States to Canada.
The specific warranties expressed above are the ONLY warranties provided by the manufacturer. This warranty gives you specific
legal rights, and you may also have other rights that vary from state to state.
To Receive Warranty Service
To locate an authorized service company in your area contact the Maytag dealer from whom your appliance was purchased; or call Maytag
Appliances S_.les Company, Maytag Customer Assistance at the number listed below. Should you not receive satisfactory warranty service,
please call or write:
Maytag Appliances Sales Company
Atm: CAIR s_' Center
EO. Box 2370
Cleveland, TN 37320-2370
U.S. 1-800-688-9900 Canada 1-800.688-2002
U.S. customers using TTY for deaf, hearing impaired or speech impaired, call 1-800-688-2080.
When contacting Maytag Appliances Sales Company, Maytag Customer Assistance about a service problem, please include the following:
(a) Your name, address and telephone number;
(b) Model number and serial number (found on the back center of the control panel) of your appliance;
(c) Name and address of your dealer and the date the appliance was purchased;
(d) A clear description of the problem you are having.
(e) Proof of purchase.
What is not covered by these warranties:
1. Conditions and damages resulting from any of the following:
a. Improper installation, delivery, or maintenance.
b. Any repair, modification, alteration or adjustment not autho-
rized by the manufacturer or an authorized servicer.
c. Misuse, abuse, accidents, or unreasonable use.
d. Incorrect electric current, voltage or supply.
e. Improper setting of any control.
2. Warranties are void if the original serial numbers have been
removed, altered, or cannot be readily determined.
3. Products purchased for commercial or industrial use.
4. The cost of service or service call to:
a. Correct installation errors.
b. Instruct the user on proper use of the product.
c. Transport the appliance to the servicer.
5. Consequential or incidental damages sustained by any person as
a result of any breach of these warranties.
Some states do not allow the exclusion or limitation of consequen-
tial or incidental damages, so the above exclusion may not apply.
User's Guides, service manuals and parts catalogs are available from
Maytag Appliances Sales Company, Maytag Customer Assistance.
MAYTAG •One Dependability Square •Newton, Iowa 50208
Form No.556CMA Part No. 6 2602420 ,, • http://www.maytag.com JN Litho U.S.A.
