_MAYrAI3

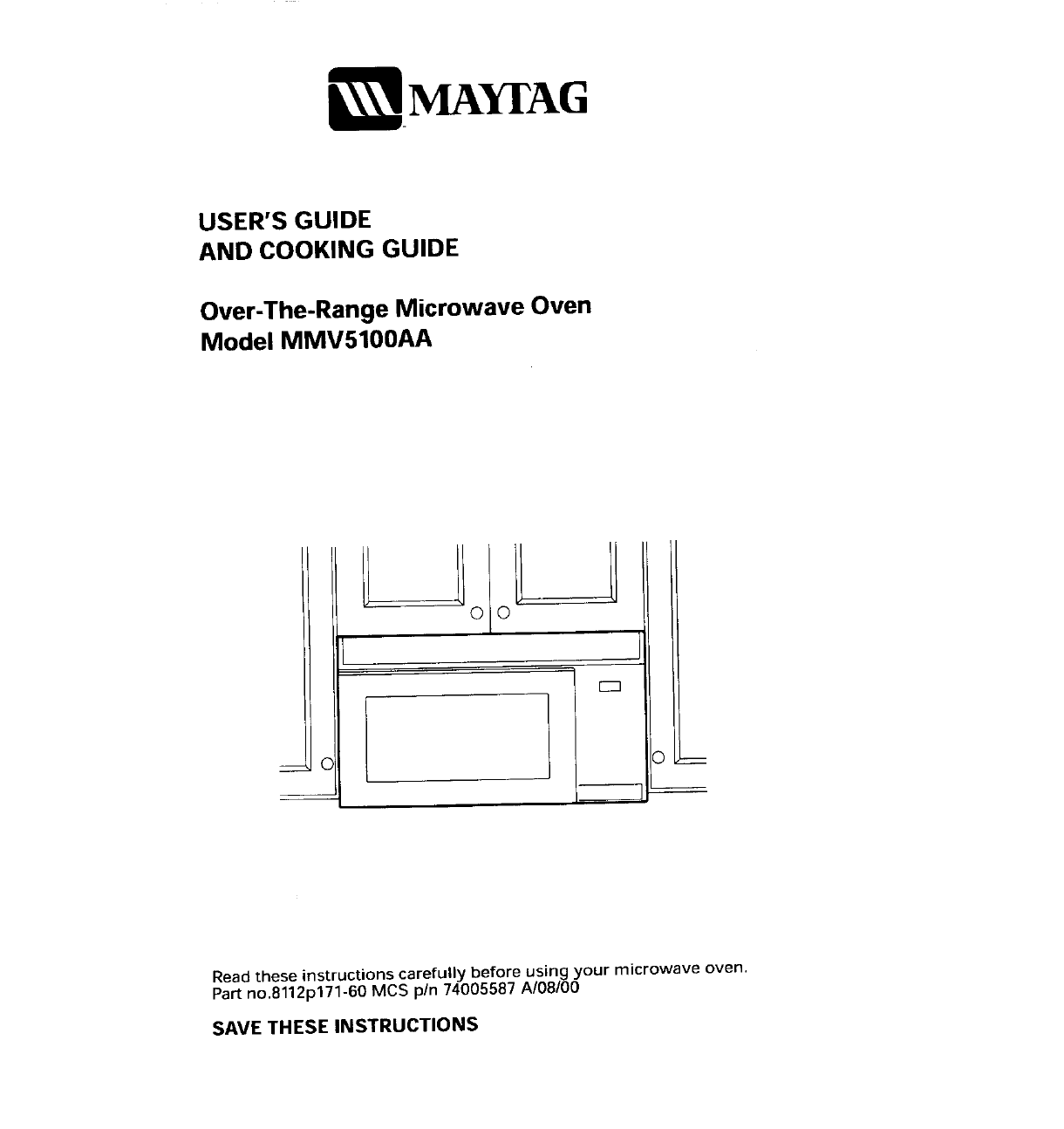

USER'S GUIDE

AND COOKING GUIDE

Over-The-Range Microwave Oven

Model MMV5100AA

Read these instructions carefully before using your microwave oven.

Part no.8112p171-60 MCS pin 74005587 A/08/00

SAVE THESE INSTRUCTIONS

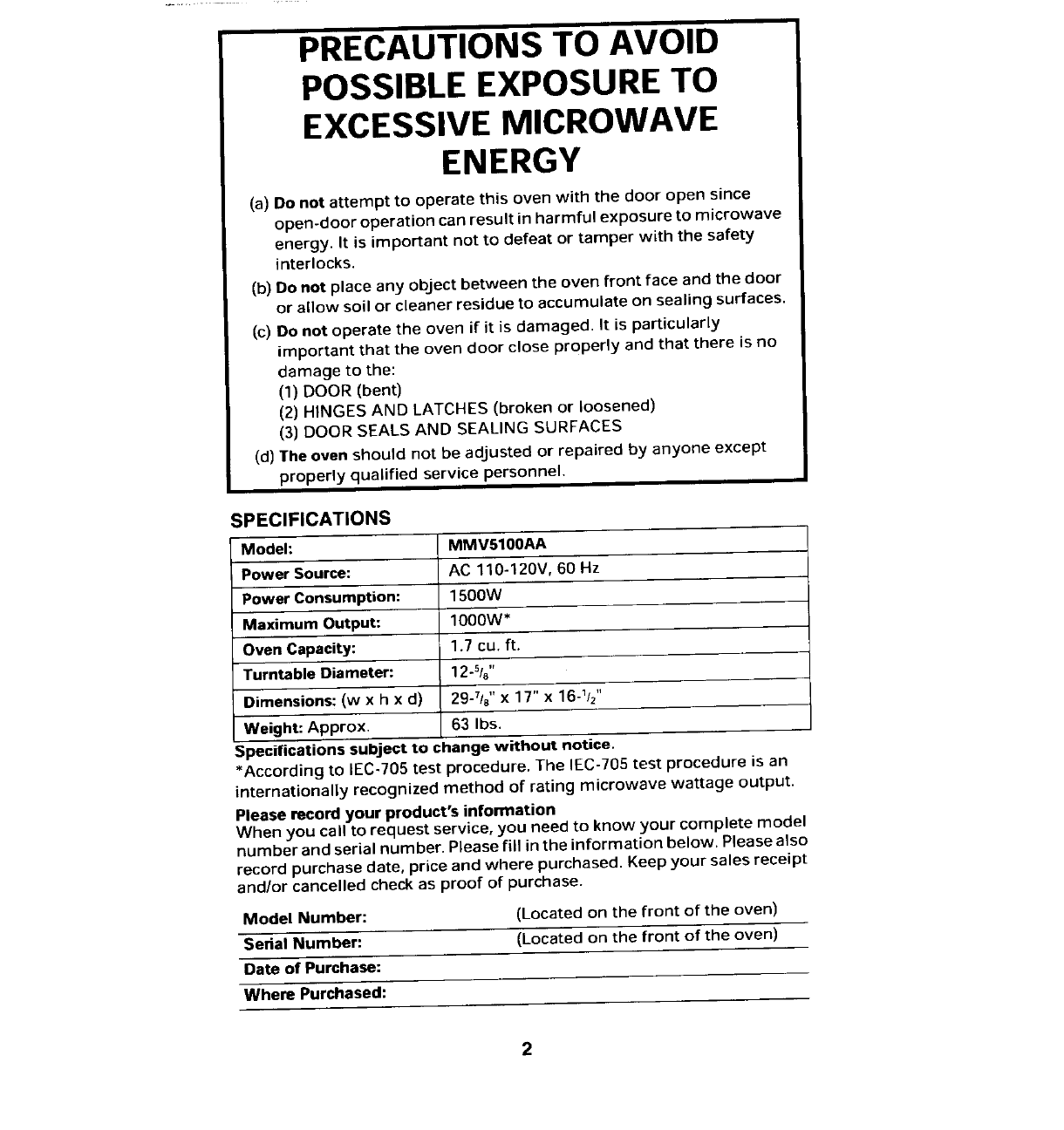

PRECAUTIONSTO AVOID

POSSIBLEEXPOSURETO

EXCESSIVEMICROWAVE

ENERGY

(a) Do not attempt to operate this oven with the dooropen since

open-door operation can result in harmful exposure to microwave

energy. It is important not to defeat or tamper with thesafety

interlocks.

(b) Do not place any object betweenthe oven front face and the door

or allow soil or cleaner residue to accumulate on sealing surfaces.

important that the oven door close properlyand that there is no

damage to the:

(1) DOOR (bent)

(2) HINGES AND LATCHES (brokenor loosened)

(3) DOORSEALS AND SEALING SURFACES

(d) Theoven should not be adjusted or repaired by anyone except

properlyqualified service personnel.

SPECIFICATIONS

Modal: MMV5100AA

Power Source: AC 110-120V,60 Hz

Power Consumption: 1500W

Maximum Output: 1000W*

Oven Capacity: 1.7 cu.ft.

Turntable Diameter: 12-s/8''

Dimensions:(w x h x d) 29-7/8'' x 17"x 16-1/2''

Weight: Approx. 63 Ibs.

Specifications subject to change without notice.

*According to iEC-705 test procedure,The IEC-705 test procedureis an

internationallyrecognized method of rating microwave wattage output.

Please record your product's information

When youcalltorequest service,youneed toknow your completemodel

number and serial number.Please fillin the information below. Please also

record purchase date, price and where purchased. Keep your sales receipt

and/or cancelled check as proof of purchase.

Model Number: (Locatedon thefrontof the oven)

Sedal Number: (Locatedon thefrontof theoven)

Dateof Purchase:

WherePurchased:

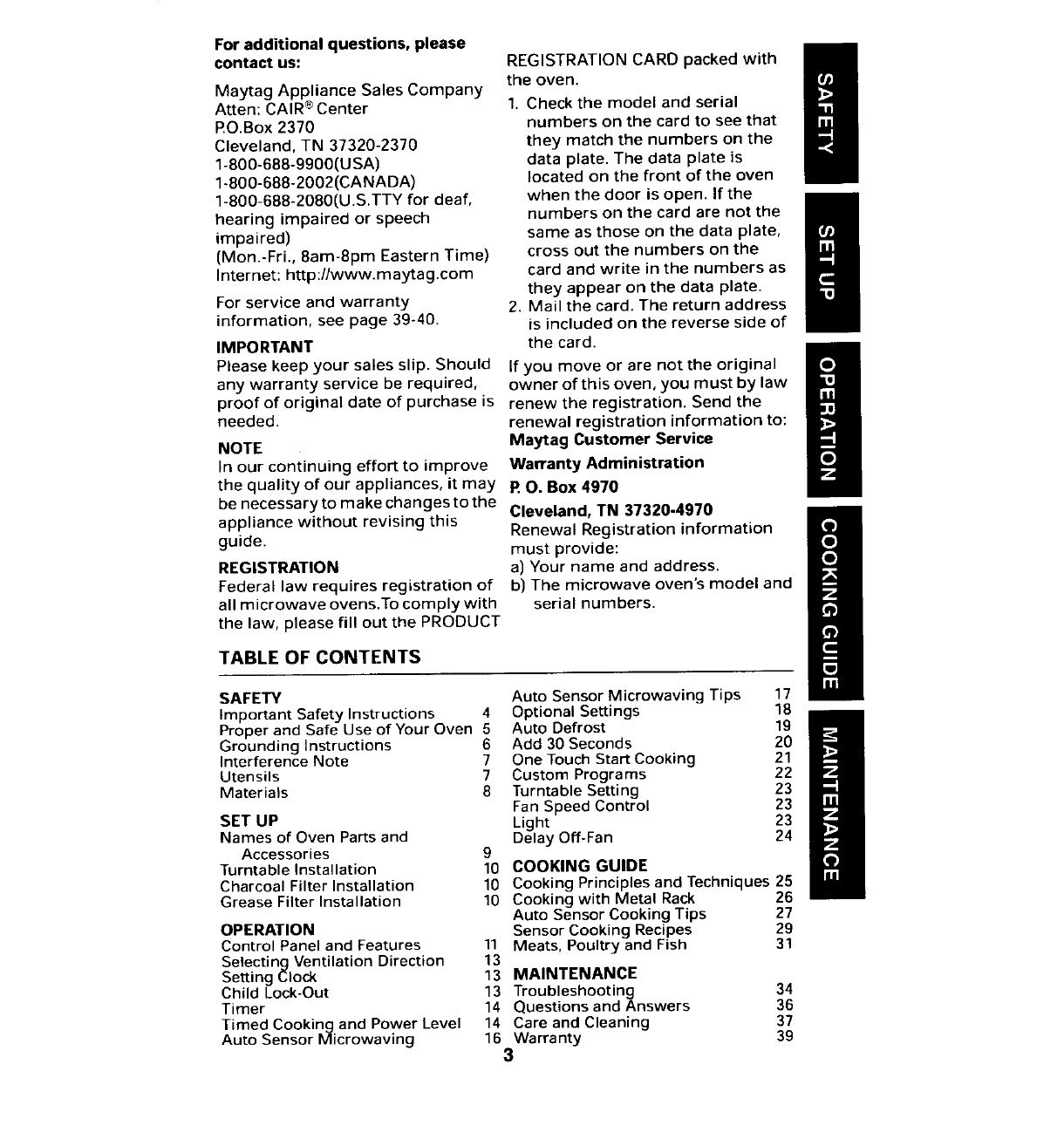

For additional questions, please

the oven.

Maytag Appliance Sales Company

Atten: CAIR ®Center 1. Check the model and serial

RO.Box 2370 numbers on the card to see that

Cleveland, TN 37320-2370 theymatch the numbers on the

1-800-688-9900(USA) data plate. The data plate is

1-800-688-2002(CANADA) located on the front of the oven

1-800-688-2080(U.S.TTY for deaf, when the door is open. If the

hearing impaired or speech numbers on the card are not the

impaired) same as those on the data plate,

(Mon.-Fri., 8am-8pm Eastern Time) cross out the numbers on the

Internet: http://www.maytag.com card and write in the numbers as

they appear on the data plate.

For service and warranty2. Mail the card.The return address

information, see page 39-40. isincluded on the reverse side of

IMPORTANTthe card.

Pleasekeepyour sales slip. Should If you move or arenot the original

anywarrantyserviceberequired, owner ofthisoven, you mustby law

proofof original dateof purchaseisrenew the registration. Send the

needed, renewal registration informationto:

NOTE Maytag Customer Service

In our continuing effort to improveWarranty Administration

the qualityofourappliances,it mayR O. Box 4970

benecessaryto makechangesto theCleveland,TN37320-4970

appliancewithout revisingthisRenewal Registration information

guide, must provide:

REGISTRATIONa) Your nameand address.

Federal law requiresregistration of b) Themicrowaveoven'smodel and

all microwaveovens.To complywith serial numbers.

thelaw,pleasefill out the PRODUCT

TABLE OF CONTENTS

SAFETYAuto Sensor Microwaving Tips 17

Important Safety Instructions 4 Optional Settings 18

Proper and Safe Use of Your Oven 5 Auto Defrost 19

Grounding Instructions 6 Add 30 Seconds 20

Interference Note 7 One Touch StartCooking 21

Utensils 7Custom Programs 22

Materials 8 Turntable Setting 23

Fan Speed Control 23

SET UP Light 23

Namesof Oven Parts and DelayOff-Fan 24

Accessories 9

Turntable Installation 10 COOKING GUIDE

Charcoal Filter Installation 10 Cooking Principles and Techniques 25

Grease Filter Installation 10 Cooking with Metal Rack 26

Auto Sensor Cooking Tips 27

OPERATION Sensor Cooking Recipes 29

Control Panel and Features11 Meats,PoultryandFish 31

Selecting Ventilation Direction13

Setting Clock13 MAINTENANCE

Child Lock-Out 13 Troubleshooting 34

Timer14 Questions and Answers 36

TimedCooking and Power Level 14 Careand Cleaning 37

AutoSensor Microwaving16 Warranty39

;AFETY

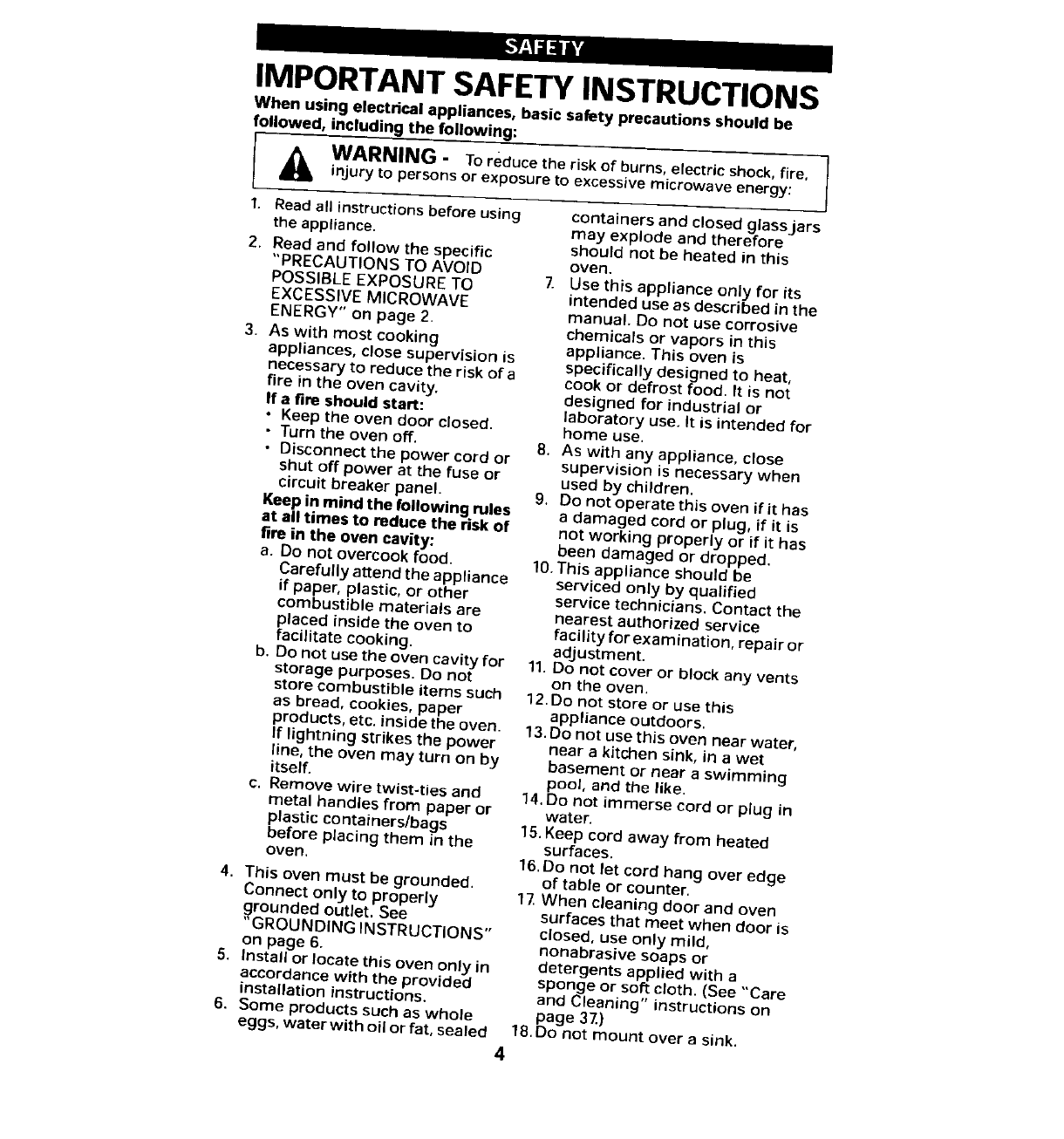

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be

followed, including the following:

JAWARNING" To reducethe riskofburns, electricshock,fire,

injury to personsor exposureto excessivemicrowaveenergy:

1. Readall instructions before usingcontainersand closed glassjars

the appliance, may explode and therefore

2.Readand follow thespecificshould not be heated in this

"PRECAUTIONS TO AVOID oven,

POSSIBLEEXPOSURE TO 7. Use this appliance only for its

EXCESSIVE MICROWAVE intended use as described in the

ENERGY" on page2. manual,Donot use corrosive

chemicals or vapors in this

3. As with most cooking appliance. This oven is

appliances, close supervision is specifically designed to heat,

necessaryto reducethe risk of a cook or defrost food.It is not

fire in theoven cavity, designed for industrial or

If a fireshould start: laboratory use.It is intended for

•Keepthe oven door closed,home use,

•Turn the oven off,8. Aswith any appliance,close

• Disconnectthe powercord or supervisionis necessary when

shut off powerat the fuse or used by children,

circuit breakerpanel, 9.Do not operate this oven if it has

Keepin mind the following rules a damaged cord or plug, ifit is

at all times to reduce the risk of not workingproperly or if it has

fire in the oven cavity: beendamaged or dropped,

a.Donotovercook food. 10.Thisappliance should be

Carefullyattendthe appliance servicedonly by qualified

if paper,plastic,or other servicetechnicians. Contact the

combustible materialsare nearest authorizedservice

placed inside the oven to facility for examination, repair or

facilitate cooking, adjustment.

b,Donot usetheoven cavity for 11.Do not cover or blockany vents

storagepurposes.Do notontheoven.

store combustible items such12. Do not store or use this

asbread, cookies, paper appliance outdoors.

products, etc.inside the oven. 13, Do not use this oven near water,

If lightning strikes the power near akitchen sink,ina wet

line, the ovenmay turn on by basement or near a swimming

itself,pool,and the like.

c.Remove wire twist-ties and 14. Do not immerse cord or plug in

metal handlesfrompaper or water.

plastic containers/bags 15. Keep cord away from heated

beforeplacingthem in the surfaces.

oven. 16. Do not let cord hangover edge

4. This ovenmust be grounded,of table or counter.

Connect only to properly 17.When cleaning door and oven

grounded outlet. See surfacesthat meet when door is

"GROUNDING INSTRUCTIONS" closed, use only mild,

on page6,nonabrasive soaps or

5.Install or locatethis ovenonly in detergents applied with a

accordance with the provided sponge or soft cloth, (See "Care

installation )nstructions.and Cleaning" instructions on

6. Some productssuch as whole page 37)

eggs,water with oil or fat,sealed 18.Do not mount over a sink.

19.This oven is suitable for use 22.When flaming foods under the

above both gasand electric hood, turn the fan on.

cookingequipment. 23.Use care when cleaning the vent-

20, This oven is intended to be used hood filter, Corrosive cleaning

above ranges with a maximum agents, such as lye-based oven

width of 30 inches,cleaners, may damage the filter.

21.Clean theunderside of the

microwave oven often. Donot

allow grease to build up on the

microwave oven or the fan

filters.

SAVE THESE INSTRUCTIONS

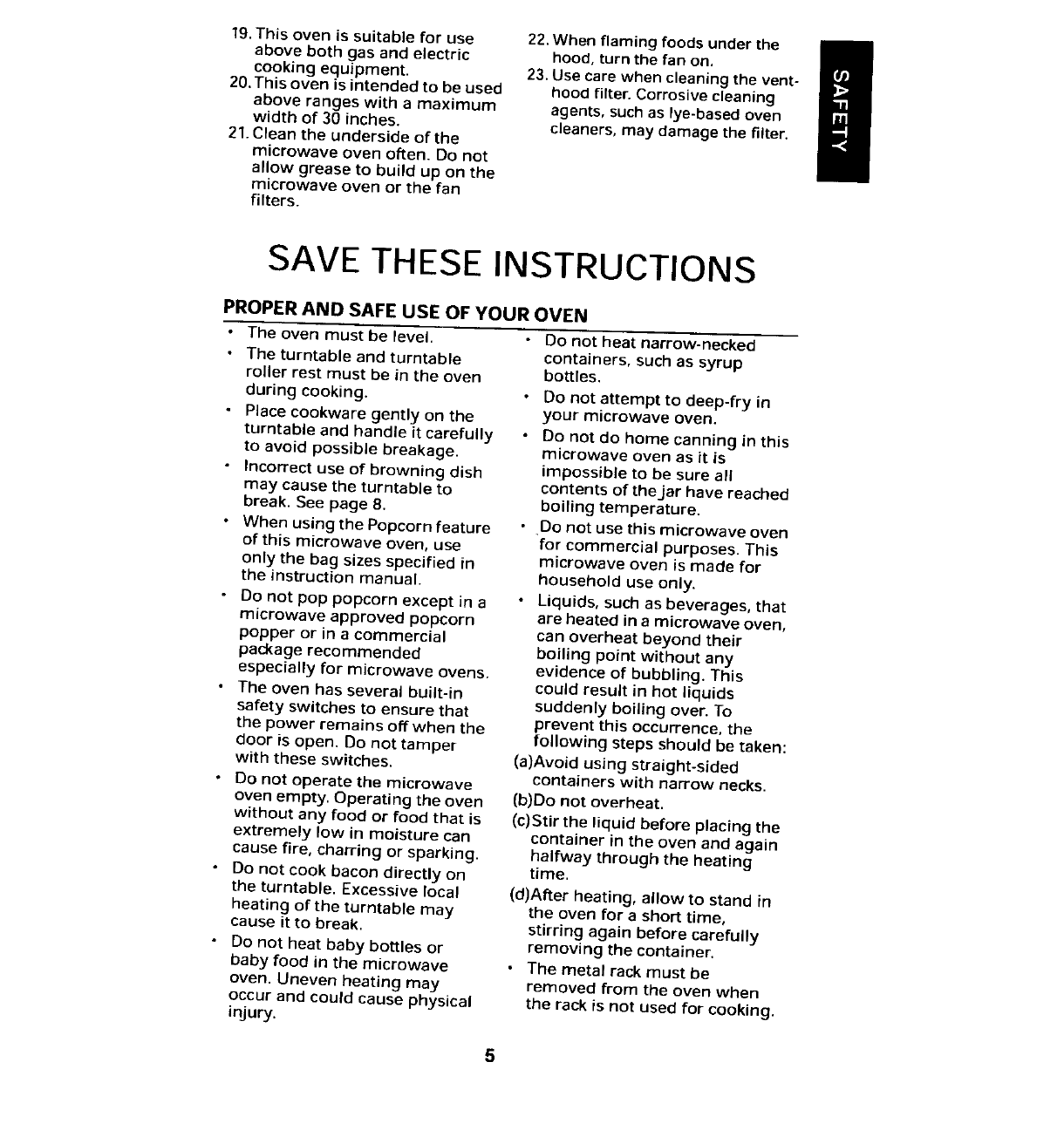

PROPERAND SAFE USE OF YOUR OVEN

• Theoven must be level. • Do not heat narrow-necked

• The turntable and turntable containers, such as syrup

roller rest must be in the oven bottles.

during cooking.•Do not attempt to deep-fry in

• Place cookware gently on the your microwave oven.

turntable and handle it carefully • Do not do home canning in this

to avoid possiblebreakage, microwaveoven as it is

• Incorrect use of browning dish impossible to be sure all

may cause theturntable to contents of thejar have reached

break. See page 8. boiling temperature.

• When using the Popcorn feature •.Do not use this microwave oven

of this microwave oven, use for commercial purposes, This

only thebag sizes specified in microwaveoven is made for

the instruction manual, household use only.

•Do not pop popcorn except in a •Liquids, such as beverages,that

microwave approved popcorn are heated in a microwave oven,

popper or in acommercial can overheat beyond their

package recommended boiling pointwithoutany

especially for microwave ovens, evidence of bubbling.This

• The oven has several built-incould result in hot liquids

safety switches to ensure that suddenly boiling over.To

the power remains off when the prevent this occurrence, the

door is open. Do not tamper following steps should be taken:

with these switches. (a)Avoid using straight-sided

• Do not operate the microwave containers with narrow necks.

oven empty. Operating the oven (b)Do not overheat.

without any food or food that is (c)Stir the liquid before placing the

extremely low in moisture can container in the oven and again

cause fire, charring or sparking, halfway through the heating

• Do not cook bacon directly on time,

the turntable. Excessive local (d)After heating, allow to stand in

heating of the turntable may the oven for ashorttime,

causeit to break,stirring again before carefully

• Do not heat baby bottles or removing thecontainer.

baby food in the microwave •The metal rack must be

oven. Uneven heating may removed from the oven when

occur and could causephysical the rack is not used for cooking.

injury.

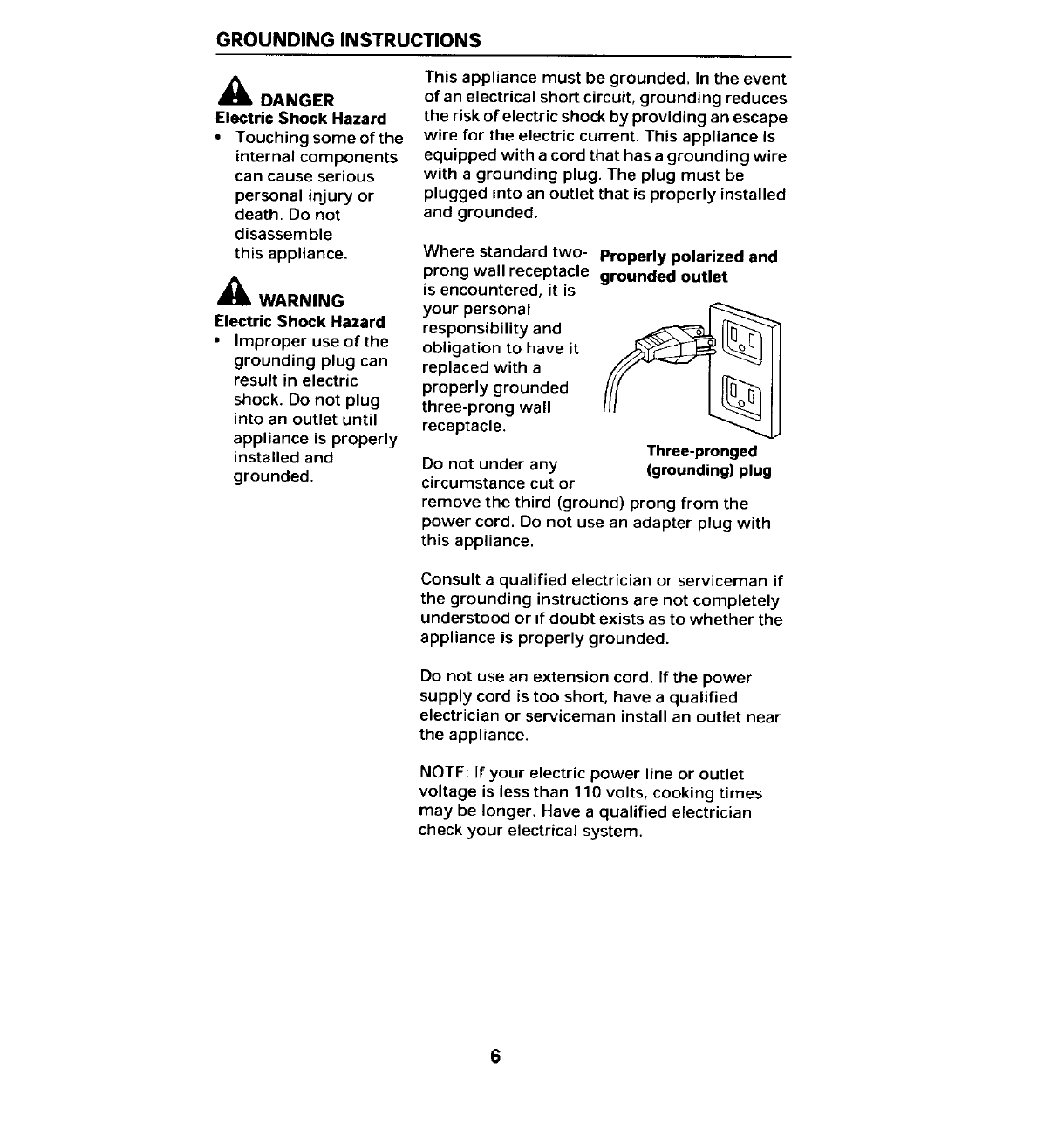

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event

_k DANGER of an electricalshort circuit, grounding reduces

Electric Shock Hazard the riskof electricshockbyprovidinganescape

•Touching some of the wire for theelectric current.This applianceis

internal componentsequippedwith acord that hasa grounding wire

can cause seriouswith a grounding plug. The plug must be

personal injury or plugged into an outlet that is properly installed

death. Do not and grounded.

disassemble

this appliance. Where standard two- Properly polarized and

prong wall receptaclegrounded outlet

_k is encountered,it is

WARNING your personal

Electric Shock Hazard responsibility and

• Improper use of the obligation to have it

grounding plug can replaced with a

result in electric properlygrounded

shock.Do not plug three-prong wall

into an outlet until receptacle.

appliance is properlyThree-pronged

installed and Do not under any (grounding)plug

grounded, circumstancecut or

remove the third (ground) prong from the

power cord. Do not use an adapter plug with

this appliance.

Consult a qualified electrician or serviceman if

the grounding instructions are not completely

understood or if doubt exists as to whether the

appliance is properly grounded.

Do not use an extension cord. If the power

supply cord is too short, have a qualified

electrician orserviceman install an outlet near

the appliance.

NOTE: If your electric power lineor outlet

voltage is less than 110 volts, cooking times

may be longer, Have a qualified electrician

check your electrical system.

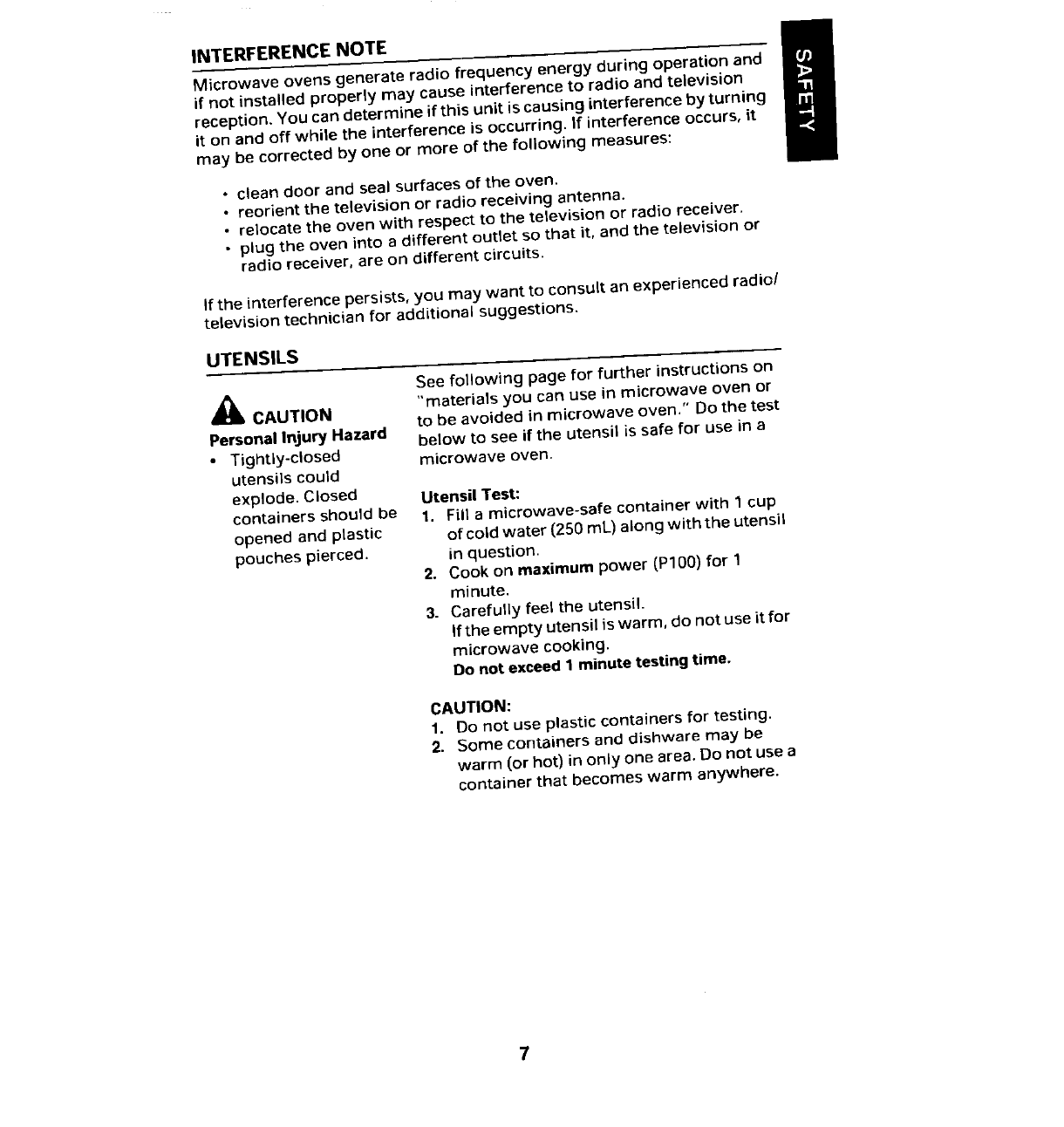

INTERFERENCE NOTE

Microwave ovens generate radio frequencyenergy during operation and

if not installed properly may cause interference to radio and television

reception. You can determineif this unit is causing interference by turning

it on and off while the interference is occurring. If interference occurs, it

may be corrected by one or moreof thefollowing measures:

• clean door and seal surfaces of theoven.

• reorient the television or radio receiving antenna,

• relocate the oven with respect to the television or radio receiver.

• plug the oven into a different outlet so that it, and the television or

radio receiver, are on different circuits.

If the interference persists,you may want to consult an experienced radio/

television technician for additional suggestions.

UTENSILS

See following pagefor further instructions on

ACAUTION "materials you can use inmicrowaveoven or

to be avoided in microwaveoven." Do thetest

Personal Injury Hazard below to see if the utensil is safe for use in a

•Tightly-closed microwave oven.

utensils could

explode. Closed Utensil Test:

containers should be 1. Fill a microwave-safe container with 1cup

opened and plastic of cold water (250mL) along with the utensil

pouches pierced, in question.

2.Cookon maximum power (PIO0) for 1

minute.

3. Carefully feel the utensil.

If the empty utensil is warm, do not use it for

microwave cooking.

Donot exceed1 minute testing time.

CAUTION:

1. Do not use plastic containers for testing.

2. Some containers and dishware maybe

warm (or hot) in only one area.Do not use a

containerthat becomes warm anywhere.

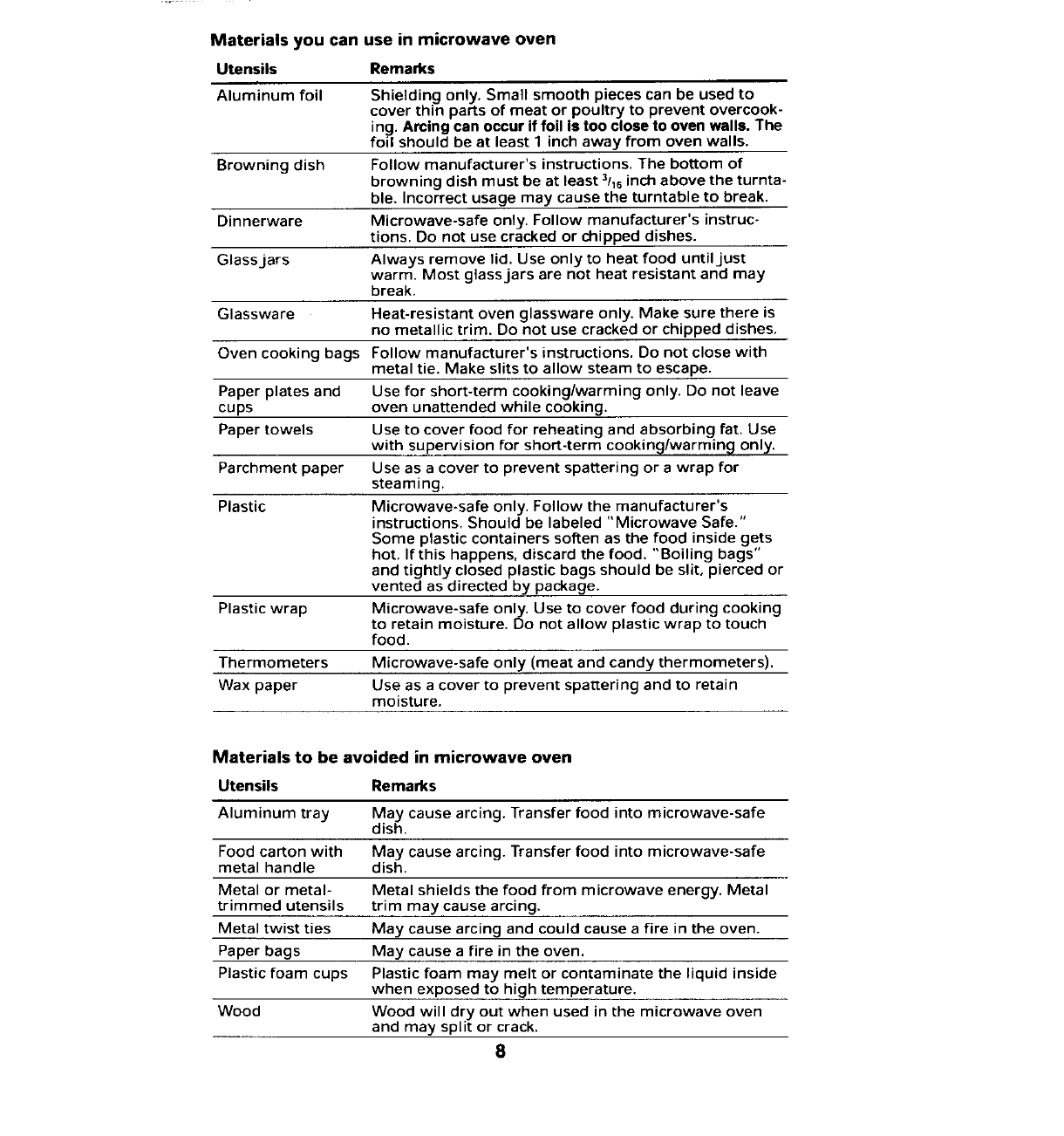

Materials you can use in microwave oven

Utensils Remarks

Aluminum foil Shielding only. Small smooth pieces can be used to

cover thin parts of meat or poultry to prevent overcook-

ing.Arcing can occur if foil Is too close to oven walls.The

foil shouldbe atleast 1 inch away from oven walls.

Browning dish Follow manufacturer's instructions. The bottomof

browningdish must beat least 3/lsinch above the turnta-

ble,Incorrectusage may cause the turntable to break.

Dinnerware Microwave-safeonly. Follow manufacturer's instruc-

tions.Do not use crackedor chippeddishes.

Glassjars Always removelid. Use only to heat food untiljust

warm. Most glass jars are not heat resistant and may

break.

Glassware Heat-resistant oven glassware only. Make sure there is

no metallic trim. Do not use cracked or chipped dishes.

Oven cooking bags Follow manufacturer's instructions.Do not close with

metal tie.Make slits to allow steam to escape.

Paper plates and Use for short-term cooking/warming only. Do not leave

cups oven unattended while cooking.

Paper towels Use to cover food for reheating and absorbing fat. Use

with supervision for short-term cooking/warming only.

Parchment paper Use as a cover to prevent spattering or a wrap for

steaming.

Plastic Microwave-safe only. Follow the manufacturer's

instructions.Should be labeled "Microwave Safe."

Some plastic containers soften as the food inside gets

hot. If this happens, discard thefood. "Boiling bags"

and tightly closed plastic bags should be slit, pierced or

vented as directed by package.

Plastic wrap Microwave-safe only. Use to cover food during cooking

to retain moisture. Do not allow plastic wrap to touch

food.

Thermometers Microwave-safe only (meat and candy thermometers).

Wax paper Use as acover to prevent spattering and to retain

moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray May cause arcing,Transfer food into microwave-safe

dish.

Food carton with May cause arcing.Transfer food into microwave-safe

metal handle dish.

Metal or metal- Metal shields the food from microwave energy. Metal

trimmed utensils trim may cause arcing.

Metal twist ties May cause arcing and could cause a fire in the oven.

Paper bags May cause a fire in the oven.

Plastic foam cups Plastic foam may melt or contaminate the liquid inside

when exposed to high temperature.

Wood Wood will dry out when used in the microwaveoven

and may split or crack.

SET UP

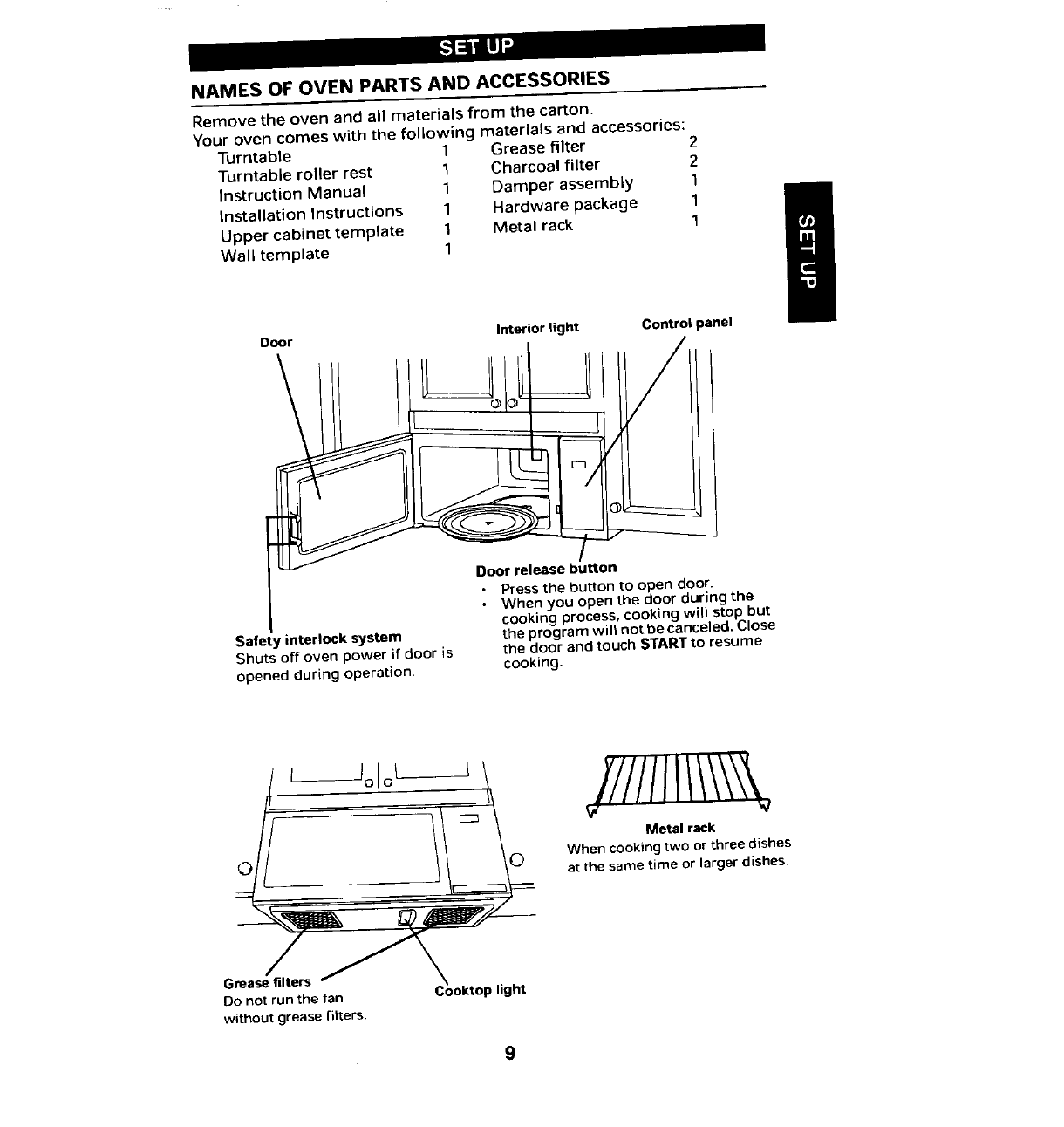

NAMES OFOVEN PARTSAND ACCESSORIES

Remove the ovenand all materials from the carton.

Your oven comes with the following materials and accessories:

Turntable 1 Grease filter 2

Turntableroller rest 1 Charcoal filter 2

instruction Manual 1 Damper assembly 1

Installation Instructions 1Hardware package1

Upper cabinet template 1 Metal rack 1

Wall template 1

DoorInterior light Control panel

Door release button

•Press the button to open door,

• When yOUopen the door during the

cooking process, cooking will stop but

Safet interlock system theprogram willnot becanceled. Close

Shutsoff oven power if door is the door and touch STARTto resume

opened during operation, cooking.

VMetal rack _/

When cooking two orthree dishes

at thesame time or larger dishes.

Do notrun the fan Cooktop light

without greasefilters.

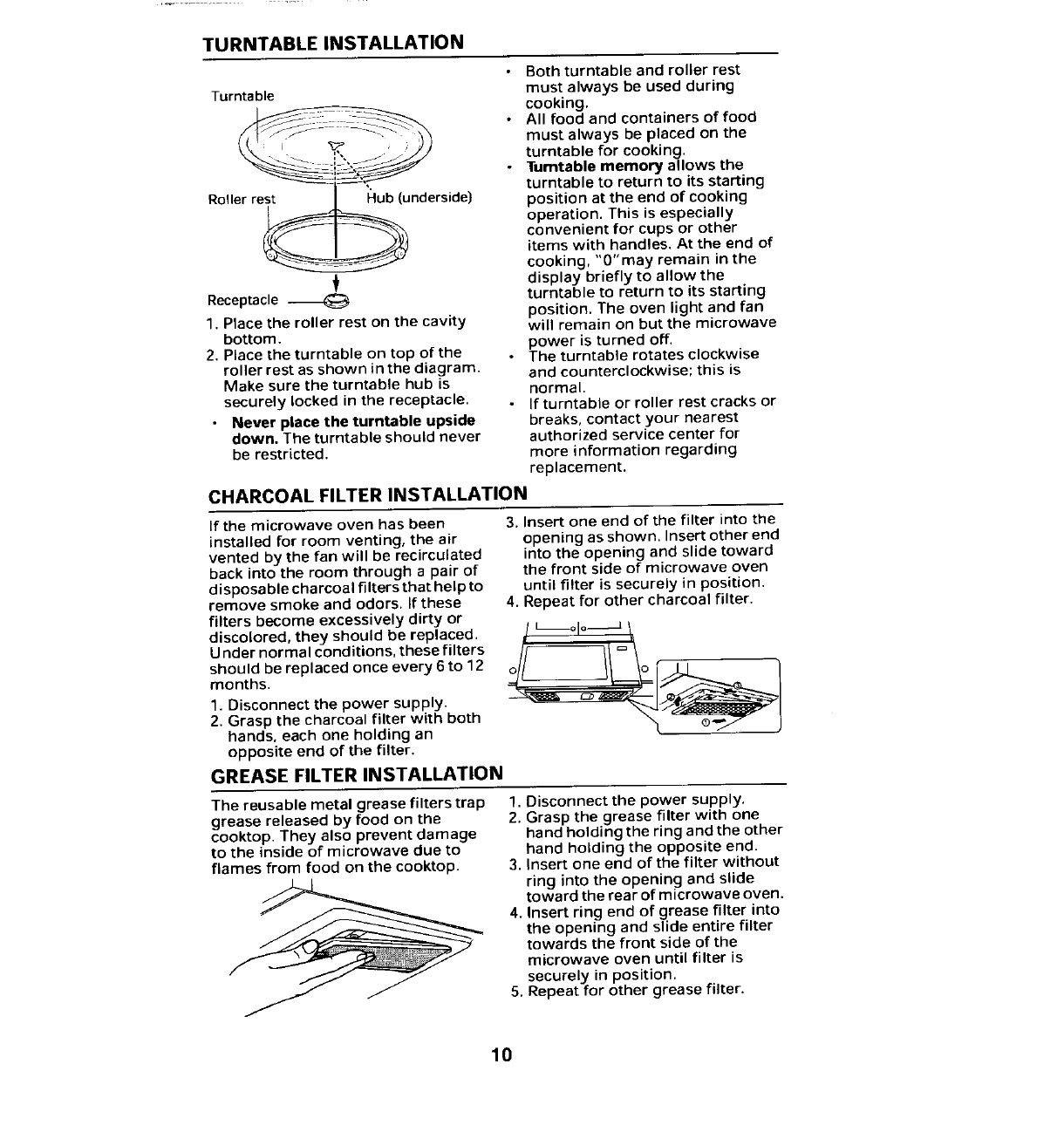

TURNTABLE INSTALLATION

•Both turntableand roller rest

Turntable must always be used during

_<_::__ _:_•All food andcontainers of food

_ _ ; must always be placed on the

\_ __ turntablefor cooking.

•Tumtable memory allowsthe

turntable to return to itsstarting

Roller rest I_lub(underside}positionatthe end of cooking

_ operation.This is especially

convenient for cupsorother

itemswith handles. At the end of

cooking, "0"may remain in the

display briefly to allow the

Receptacle ___ turntable to return to its starting

position. Theoven light and fan

1. Place the roller rest on the cavity will remain on but the microwave

bottom,power is turned off.

2.Place theturntableon top of the•The turntable rotates clockwise

roller rest as shown in the diagram, and counterclockwise; this is

Make sure the turntable hub is normal,

securely locked in the receptacle.•If turntable or roller rest cracks or

• Never place the turntable upside breaks, contact your nearest

down, The turntable should never authorized servicecenter for

be restricted, more information regarding

replacement.

CHARCOALFILTER INSTALLATION

If the microwaveoven hasbeen 3.Insert oneend of the filter into the

installed for roomventing, the air opening asshown. Insert other end

vented by the fan will be recirculated into the opening and slide toward

back into the room through a pair of the front side of microwave oven

disposablecharcoal filtersthat helpto until filter is securely in position.

remove smoke and odors. If these 4. Repeat for other charcoalfilter.

filters become excessively dirty or

discolored, they should be replaced./i olo i

Undern°rmal c°nditi°ns'these filters °J_/_--___}

should be replaced once every 6 to 12

months.

1.Disconnect the power supply.

2. Grasp the charcoal filter with both

hands,each one holding an

opposite endof thefilter.

GREASE FILTER INSTALLATION

Thereusable metal greasefilterstrap 1. Disconnect thepower supply.

grease released byfood on the2. Grasp the greasefilter with one

cooktop. Theyalso prevent damage hand holding the ring and the other

to the inside of microwave due to hand holdingtheopposite end.

flames from foodonthecooktop,3.Insert oneend ofthe filter without

ring into the opening and slide

towardthe rearof microwaveoven.

4.Insert ring end ofgreasefilter into

theopeningand slideentirefilter

towards thefront side ofthe

microwave oven until filter is

securelyinposition.

5. Repeat for othergreasefilter.

OPERATION

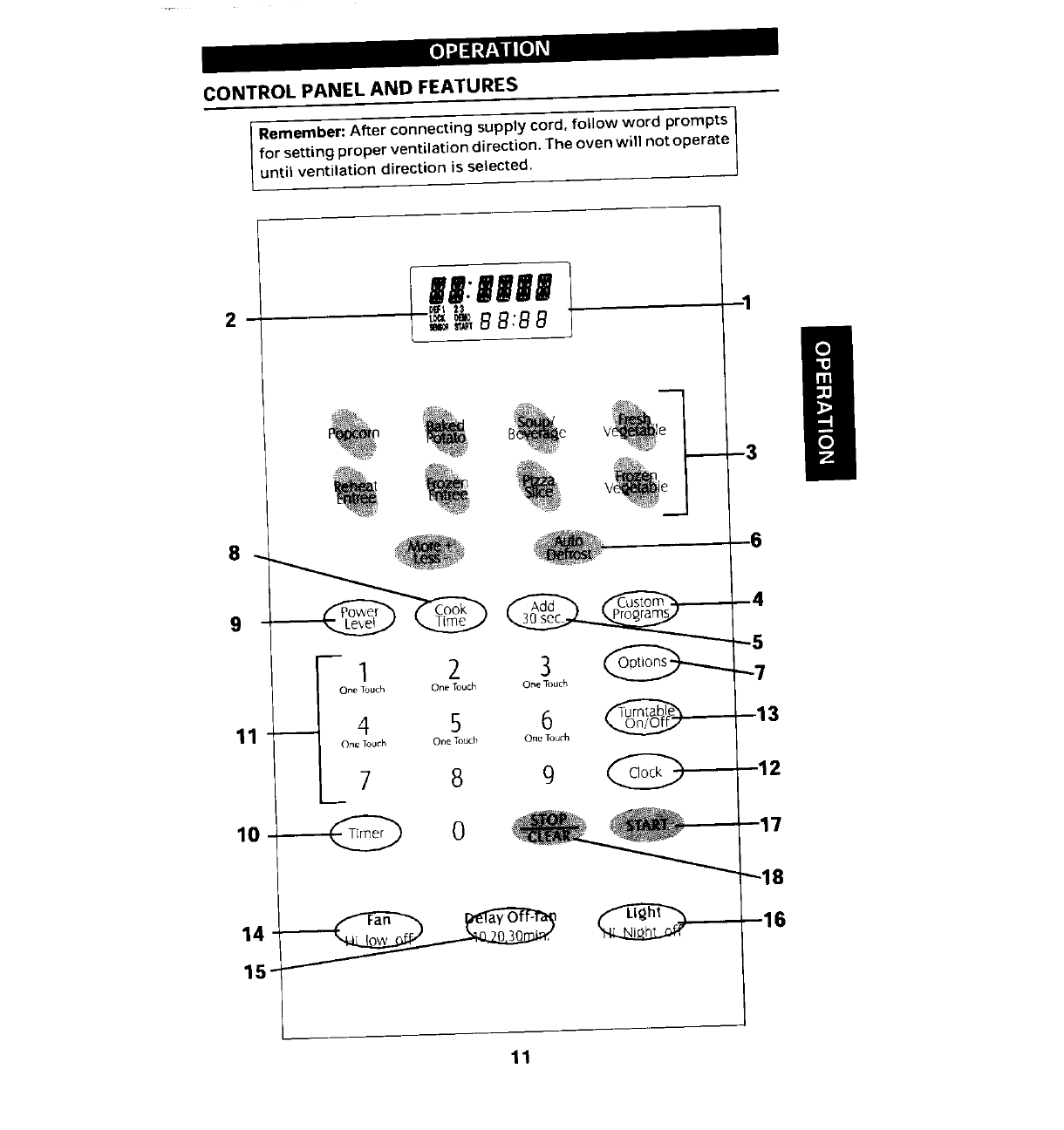

CONTROLPANELAND FEATURES

Remember: After connecting supply cord, follow word promptsI

for setting proper ventilation direction. The oven will not operate

untilventilat on direction is selected.

CONTROL PANEL AND FEATURES (CONT.)

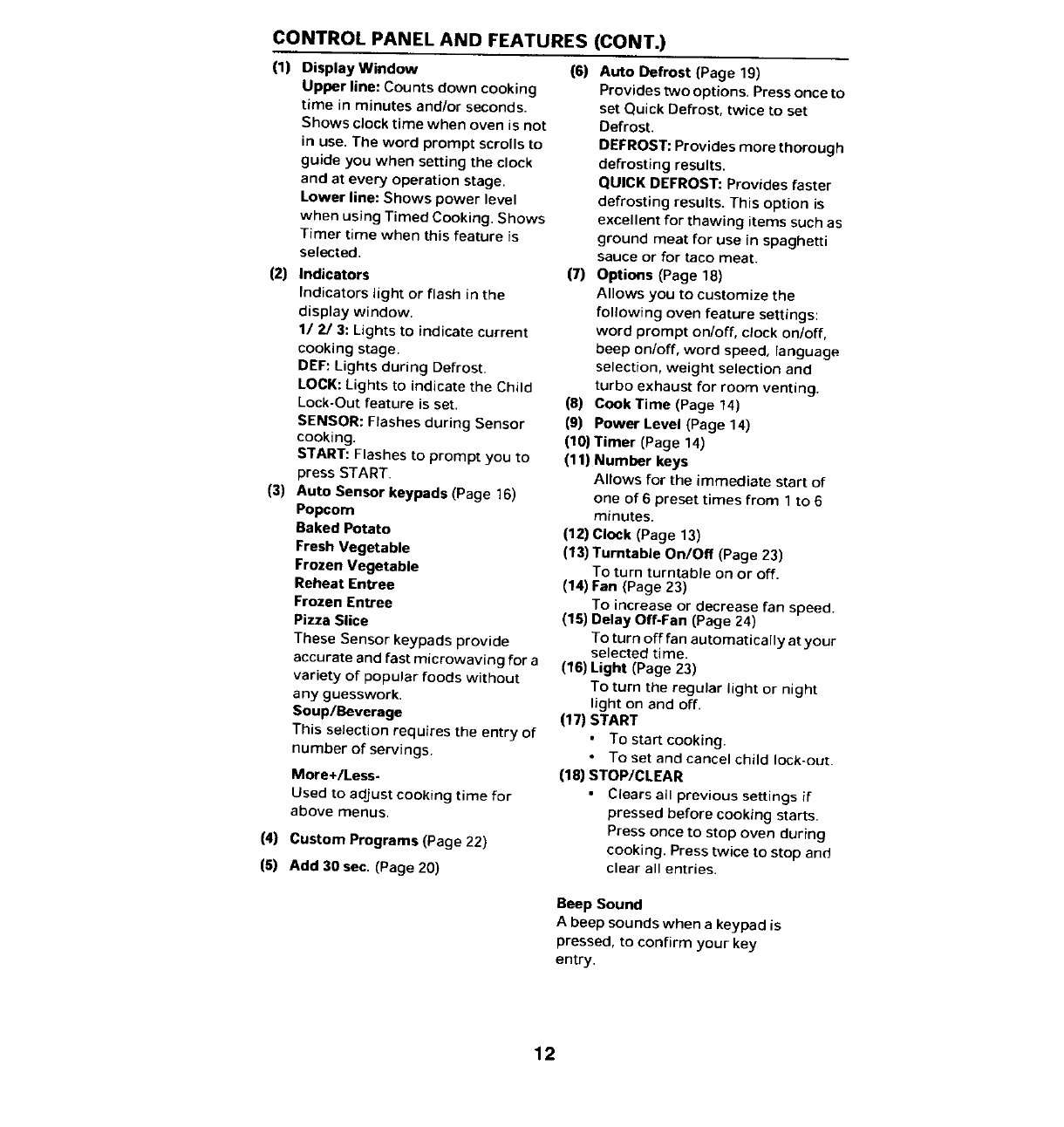

(1) Display Window (6) Auto Defrost (Page 19)

Upper line: Counts down cooking Provides two options.Press once to

time in minutes and/or seconds, set Quick Defrost,twice to set

Shows clock time when oven is not Defrost.

in use. The word prompt scrolls to DEFROST:Provides morethorough

guideyou when setting the clock defrosting results.

and at every operation stage. QUICK DEFROST:Provides faster

Lower line: Shows power level defrosting results. This option is

when using Timed Cooking. Shows excellent for thawing items such as

Timer time when this featureis ground meat for use in spaghetti

selected, sauce or for tacomeat.

(2) Indicators (7) Optio_ls(Page 18)

Indicators light or flash in theAllows youto customize the

displaywindow, following oven feature settings:

1/2/3: Lights to indicate current word prompt on/off, clock on/off,

cooking stage, beep on/off, word speed,language

DEF:Lights during Defrost. selection, weight selection and

LOCK:Lights to indicate the Child turbo exhaust for room venting.

Lock-Out feature is set. (8) Cook Time (Page 14)

SENSOR:Flashes during Sensor (9) Power Level (Page 14)

cooking.(10)Timer (Page 14)

START: Flashes to prompt you to (11) Number keys

press START. Allows for the immediate start of

(3) Auto Sensorkeypads(Page 16) one of 6 preset times from 1 to 6

Popcorn minutes.

Baked Potato (12) Clock(Page 13)

Fresh Vegetable(13) Turntable On/Off (Page 23)

FrozenVegetable To turn turntable on or off.

Reheat Entree (14) Fan (Page 23)

Frozen Entree To increase or decrease fan speed,

Pizza Slice(15) Delay Off-Fan (Page 24)

Toturn off fan automatically atyour

These Sensorkeypads provide selected time.

accurate and fast microwaving for a (16)Light (Page 23)

varietyof popular foods without To turn the regular light or night

any guesswork,light on and off.

Soup/Beverage (17) START

This selection requires the entryof • To start cooking.

number of servings. •To set and cancel child lock-out.

More+/Less-(18) STOP/CLEAR

Used to adjust cooking time for • Clears allprevioussettings if

above menus, pressed before cooking starts.

Press once to stop oven during

(4) Custom Programs (Page 22)cooking. Press twice to stop and

(5) Add 30 sec. (Page20) clear all entries.

Beep Sound

A beep sounds when a keypadis

pressed,to confirm yourkey

entry

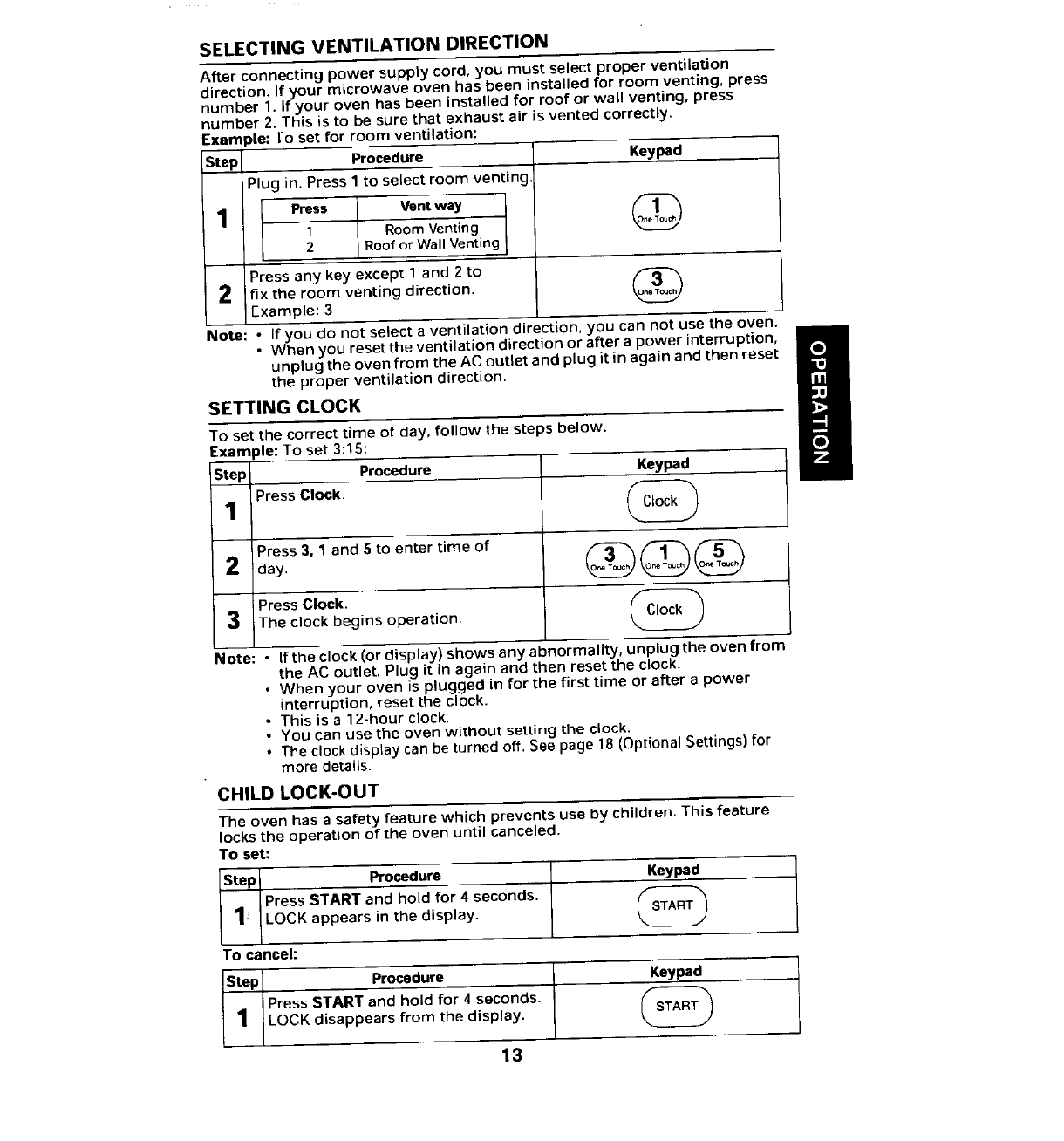

SELECTING VENTILATION DIRECTION

After connecting power supply cord,youmust select proper ventilation

direction.If your microwave ovenhas beeninstalledforroom venting,press

number 1.If your oven has been installed for roof or wall venting, press

number 2. This is to be sure that exhaust air is vented correctly.

Example:To set for room ventilation:

Step Procedure Keypad

Plug in. Press 1 to select room venting

1 Press Vent way

1Room Venting

2 Roof or Wall Venting

Press any keyexcept 1 and 2 to

2fix the room venting direction.

Example: 3

Note:oIf you do not select a ventilation direction, you can not usethe oven.

• When you reset the ventilation direction or after a power interruption,

unplug the oven from the AC outlet and plug it in again and then reset

the proper ventilation direction.

SETTING CLOCK

To set the correct time of day, follow the steps below.

Example: To set 3:15:

Step Procedure Keypad

Press Clock.

Press3,I and,toentertimeof ___

2day.

Press Clock. @

3The clockbegins operation.

Note: • If the clock (or display) shows anyabnormality, unplug the oven from

the AC outlet. Plug it in again and then reset the clock.

• When your oven is plugged in for the first time or after a power

interruption,reset the clock.

•This is a12-hour clock,

• You can use the oven without setting theclock•

• The clock display can be turned off. See page 18 (Optional Settings) for

moredetails.

•CHILD LOCK-OUT

The oven has asafety feature which prevents use by children. This feature

locks the operation of the oven until canceled.

Toset:

Step] Procedure Ke_/pad

Press STARTand hold for 4 seconds. _RT_

1' LOCKappears in thedisplay.

To cancel:

Step Procedure Keypad

Press START and hold for 4 seconds.

1LOCK disappears from the display,

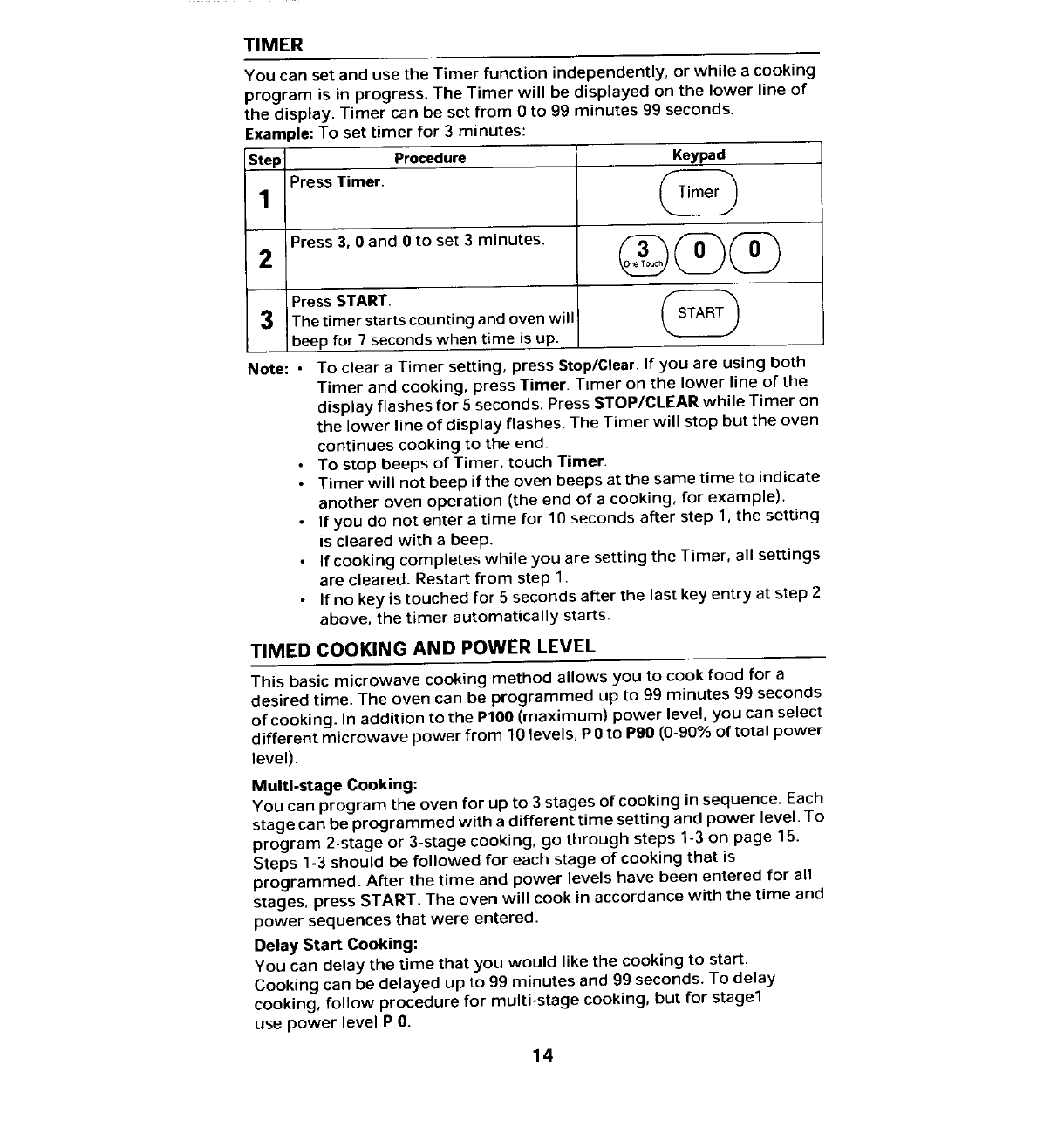

TIMER

Youcan setand usetheTimer function independently,or while acooking

program is inprogress. The Timer will be displayed on the lower line of

the display. Timer canbeset from 0 to 99 minutes 99 seconds.

Example: To set timer for 3 minutes:

Step Procedure Keypad

1PressTimer" (Timer)

2 Press 3, 0and 0toset 3 minutes.___

PressSTART. _S T_

3The timer starts counting and oven will TAR

beep for 7 seconds when time is up.

Note:•To clear a Timer setting, press Stop/Clear.If youare using both

Timer and cooking, press Timer. Timer on the lower line of the

displayflashes for 5 seconds. Press STOP/CLEAR while Timer on

the lower line of displayflashes. The Timer will stop but the oven

continues cooking to the end.

•To stop beeps of Timer, touch Timer,

•Timer will not beep if the oven beeps at the same time to indicate

another oven operation(the end of a cooking,for example).

•Ifyou do not enter a time for 10 seconds after step 1,the setting

is cleared with a beep.

• If cooking completes while you are setting the Timer, all settings

are cleared. Restart from step 1.

•If no key is touched for 5 seconds afterthe last key entry at step 2

above, the timer automatically starts.

TIMED COOKING AND POWER LEVEL

Thisbasicmicrowavecooking method allows you tocook foodfor a

desired time. The oven can be programmed upto 99 minutes 99 seconds

of cooking. In addition to the PIO0 (maximum) power level, you can select

different microwave power from 10levels,P0to P90 (0-90% of total power

level).

Multi-stage Cooking:

You can program the oven for up to 3 stages of cooking in sequence.Each

stage can be programmed with adifferent time setting and power level. To

program 2-stage or 3-stage cooking, go through steps 1-3 on page 15.

Steps 1-3 should be followed for each stage of cooking that is

programmed.After the time and power levels have been entered for all

stages,press START. The oven will cookin accordance with the time and

power sequences that were entered.

Delay Start Cooking:

You can delaythe time that you wouldlikethe cooking to start.

Cooking can be delayed up to 99 minutesand 99 seconds. To delay

cooking, follow procedure for multi-stage cooking, but for stage1

use power level P O.

Example: Tocook at power levelP80 for 40 seconds:

Step Procedure Keypad

Press Cook Time.

2 Enter 40 secOnds by pressing 4and 0' __

Press Power Level untilP80 appears in

the display.

Power level Press

Pl00 (100%) once

P90(90%) twice

P80(80%) 3 times (fPower_'_

3P70(70%)Medium High 4times

P60(60%) 5 times

P50(50%)Medium 6 times

P40(40%) 7 times

P30(30%)Med Low/Defrost 8 times

P20(20%) 9 times

P10(10%) 10times

P0 (0%) 11times

Press START.

Note: • If no power level isentered, the power level will always be PIO0

(100%).

•Foods with high moisture content should be cooked on PIO0

power.

• To check the power level while Timer is operating,press Power

Level.

• To change power level during cooking, Press PowerLevel. Power

level on the lower line of the display flashes for 3 seconds. During

this time, press Power Level repeatedly until your desired power

level appears.

POWER LEVEL SETI'ING GUIDE

P100 •Cookingpoultry, vegetables, P50 Medium

and most casseroles.• Cooking custards and pasta.

• Boiling water. •Cooking rump roast, ham, veal,

• Preheating a browning dish. lamb.

P90 • Reheating rice and pasta.P40• Cooking less tender cuts of meat

in liquid or slow-cooking dishes.

•Completing the cooking cycle of

less tender roasts.

P80 • Reheating precooked orP30 Med Low/Defrost

prepared food quickly. • Completing the cooking cycle of

•Cooking fish. casseroles,stews, sauces.

•Time defrosting.

P70 Medium High P20 • Softening chocolate.

•Cookingcheesedishes.•Clarifying butter.

•Heating breads, rolls, pancakes,

tacos,tortillas, French toast.

P60 • Cooking scrambledeggs. P10 • Softeningcreamcheese,butter.

•Bakin9 cakes. • Keepin9 casseroleswarm.

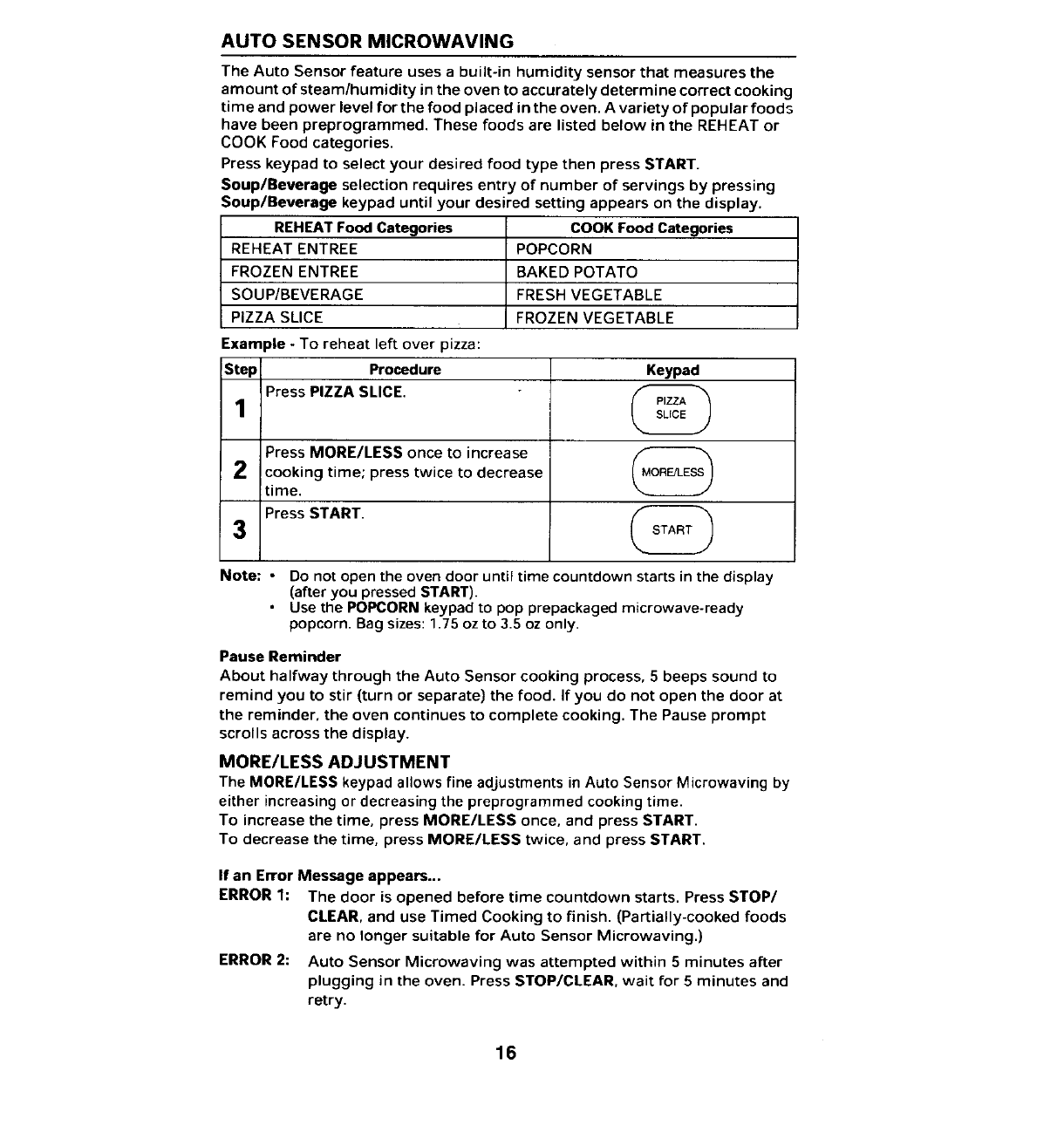

AUTO SENSOR MICROWAVING

The Auto Sensorfeature uses a buiR-in humiditysensor thatmeasuresthe

amountof steam/humidityin theoven toaccurately determine correct cooking

time and power level for thefood placed in the oven,Avarietyof popular foods

have been preprogrammed,Thesefoodsare listed below in the REHEAT or

COOK Food categories,

Press keypadto selectyour desired food type then press START.

Soup/Beverage selection requires entryofnumber of servings bypressing

Soup/Beverage keypad untilyour desired setting appears on the display.

REHEAT Food Categories COOK Food Categories

REHEAT ENTREE POPCORN

FROZEN ENTREE BAKED POTATO

SOUP/BEVERAGE FRESH VEGETABLE

PIZZA SLICE FROZEN VEGETABLE

Example - To reheatleft over pizza:

Step Procedure Keypad

Press PIZZA SLICE. _ _")

PIZZASUCE

Press MORE/LESS onceto increase _ ss_

2cooking time; press twice to decrease OR__E

time.

Press START. f

START J

Note: • Do notopen the oven door until time countdown starts in thedisplay

(after youpressed START).

•Use the POPCORN keypad to pop prepackagedmicrowave-ready

popcorn, Bagsizes: 1,75 oz to 3,5 oz only.

Pause Reminder

Abouthalfway throughtheAutoSensor cooking process,5 beeps sound to

remind youto stir (turn orseparate)the food. If you do not open the door at

thereminder, the oven continues tocomplete cooking, ThePauseprompt

scrolls across the display.

MORE/LESSADJUSTMENT

The MORE/LESS keypadallowsfine adjustments in Auto Sensor Micrewavingby

either increasingor decreasing the preprogrammed cooking time.

To increasethe time, press MORE/LESS once, and press START.

To decrease the time,press MORE/LESS twice, and press START.

If an Error Message appears...

ERROR 1: The door isopened before timecountdown starts, Press STOP/

CLEAR,and use TimedCooking to finish, (Partially-cooked foods

are no longer suitableforAutoSensor Microwaving,)

ERROR 2: AutoSensor Microwaving was attempted within5minutes after

pluggingin theoven. Press STOP/CLEAR,wait for 5 minutes and

retry.

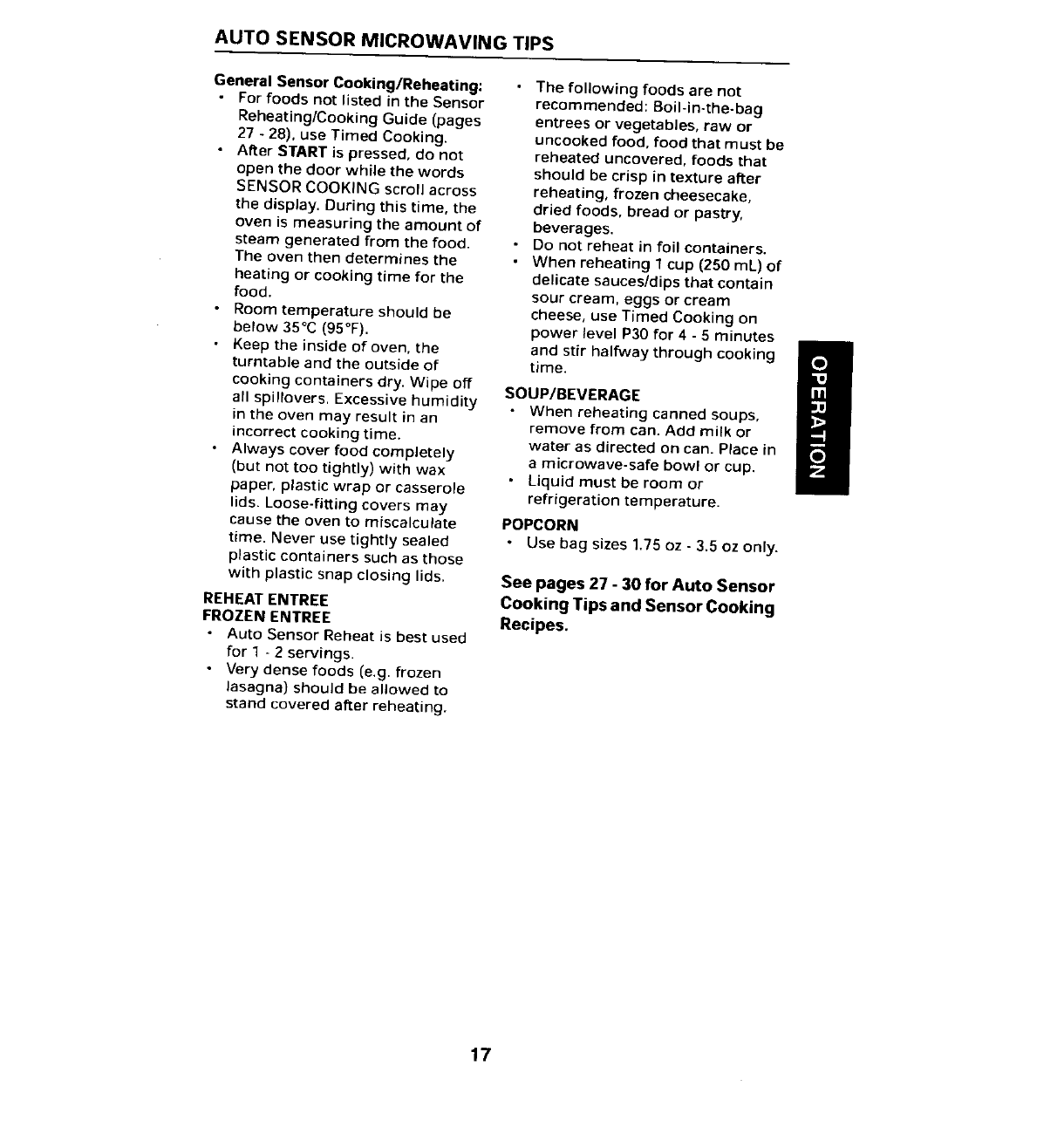

AUTO SENSOR MICROWAVING TIPS

General Sensor Cooking/Reheating: • The following foodsare not

•For foods not listed in theSensor recommended: Boil-in-the-bag

Reheating/Cooking Guide (pages entrees or vegetables, raw or

27 - 28), use Timed Cooking. uncooked food, food that must be

• AfterSTARTis pressed, donot reheated uncovered, foods that

open the door while the words should be crisp in texture after

SENSORCOOKING scroll across reheating,frozen cheesecake,

the display. During this time, thedried foods, bread or pastry,

oven is measuring theamount of beverages.

steam generated from thefood. • Do not reheat in foil containers,

The oven then determines the • When reheating 1 cup (250 mL) of

heating or cooking time for the delicate sauces/dips that contain

food. sour cream, eggsor cream

• Room temperature should be cheese, use Timed Cooking on

below 35°C (95°F). power level P30 for 4 - 5 minutes

• Keep the inside of oven, the and stir halfway through cooking

turntable and the outside of time.

cooking containers dry. Wipe off SOUP/BEVERAGE

all spillovers, Excessive humidity • When reheating canned soups,

in the oven may result in an remove from can. Add milk or

incorrect cooking time.water as directed on can. Place in

•Always cover food completelya microwave-safe bowl or cup.

(but not too tightly) with wax • Liquid must be room or

paper, plastic wrap or casserole refrigeration temperature.

lids. Loose-fitting covers may

cause the oven to miscalculate POPCORN

time. Never use tightly sealed • Use bag sizes 1.'/5 oz - 3,5 oz only.

plastic containers such as those

with plastic snap closing lids. See pages 27 -30 for Auto Sensor

REHEAT ENTREE Cooking Tips and Sensor Cooking

FROZEN ENTREE Recipes.

• Auto Sensor Reheat is best used

for 1 - 2servings.

• Very dense foods (e.g. frozen

lasagna) should be allowed to

stand covered after reheating.

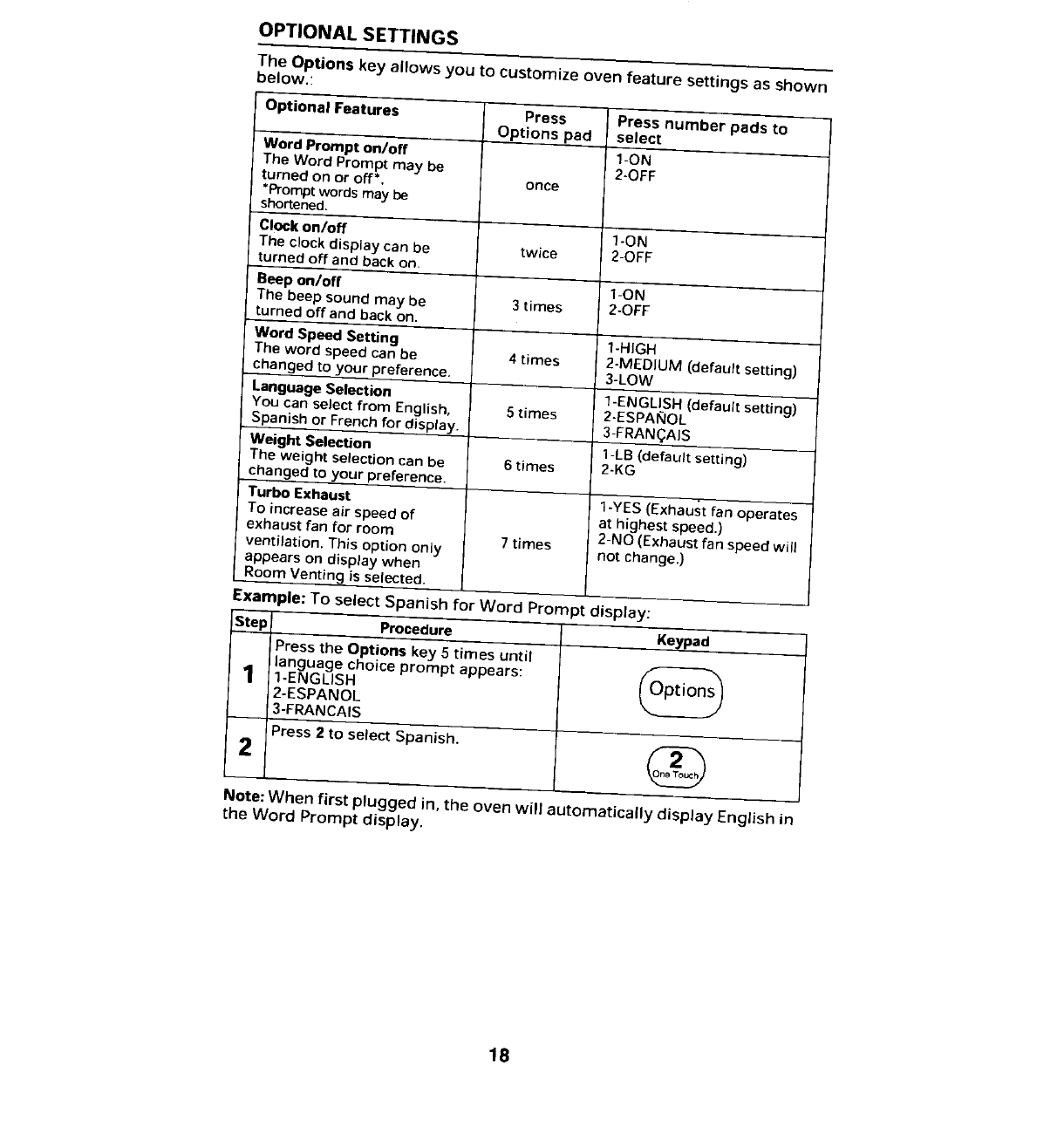

OPTIONAL SETTINGS

The Options key allows you to customizeoven featuresettingsas shown

below.:

Optional Features Press Press number pads to

Options pad select

Word Prompt on/off 1-ON

The Word Promptmaybe 2-OFF

turned on or off*. once

*Promptwords may be

shortened.

Clock on/off 1-ON

Theclockdisplay can be twice 2-OFF

turned off and back on.

Beep on/off 1-ON

The beep sound may be 3 times 2-OFF

turned off and back on.

Word Speed Setting 1-HIGH

Theword speedcan be4times 2-MEDIUM (default setting)

changed toyourpreference. 3-LOW

LanguageSelection 1-ENGLISH (default setting)

You can select from English, 5 times 2-ESPAI_OL

Spanish or French for display.3-FRAN(_AIS

Weight Selection 1-LB (default setting)

The weight selection can be 6 times 2-KG

changed to your preference.

Turbo Exhaust 1-YES (Exhaust fan operates

To increaseairspeed ofat highest speed.)

exhaustfan forroom 2-NO(Exhaust fan speed will

ventilation. This optiononly 7times not change.)

appears ondisplay when

Room Venting is selected.

Example: To select Spanish for Word Prompt display:

Step,Procedure Keypad

Press the Options key 5times until

language choicepromptappears: _O n_

11-ENGLISH ptio

2-ESPANOL

3-FRANCAIS

Press 2to select Spanish.

Note: Whenfirst plugged in, the oven will automatically display English in

the Word Prompt display.

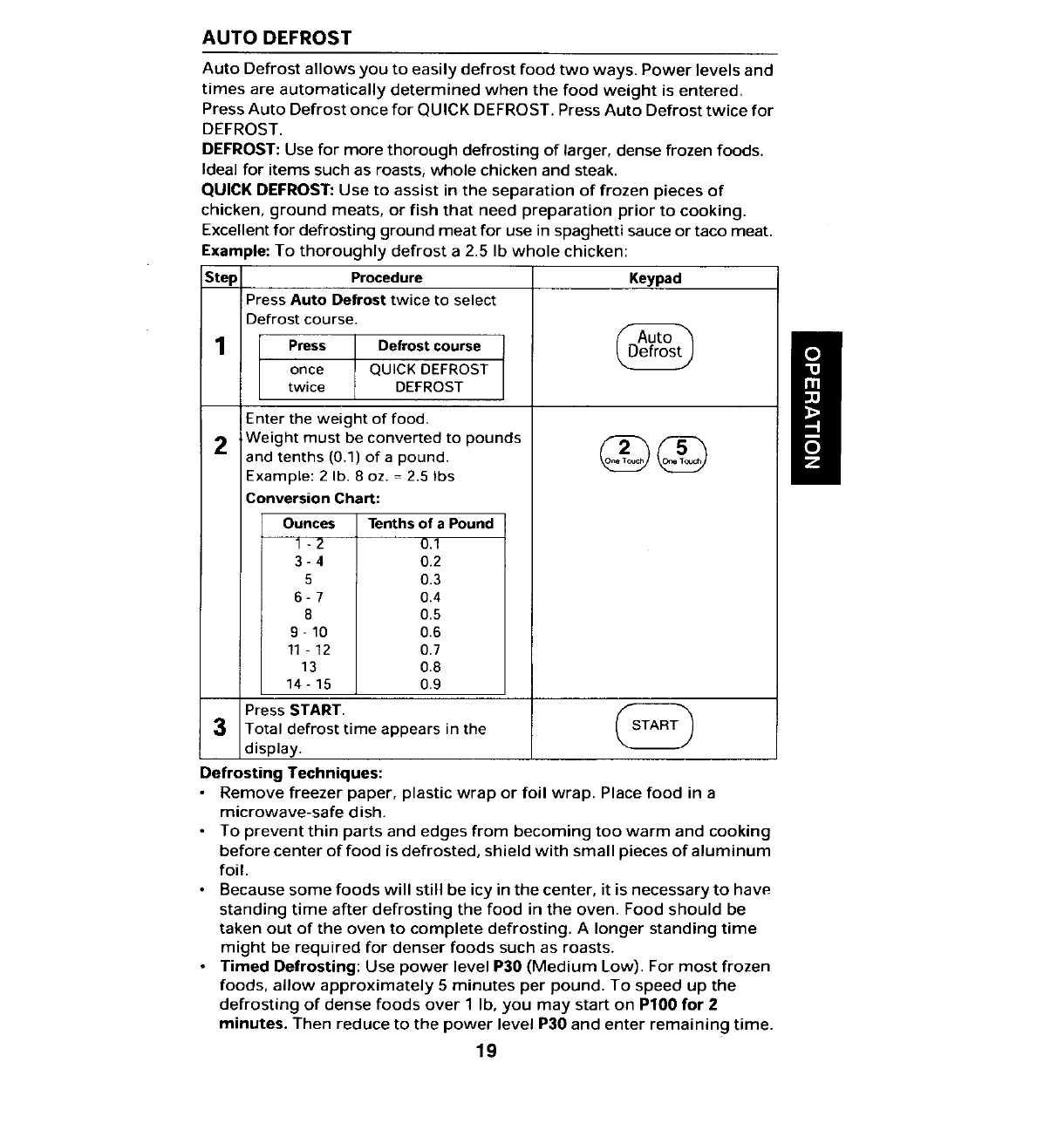

AUTO DEFROST

AutoDefrost allows you to easilydefrost food two ways. Power levels and

times are automatically determined when the food weight is entered.

Press Auto Defrost once for QUICK DEFROST. Press Auto Defrost twice for

DEFROST.

DEFROST: Use for more thorough defrosting of larger, dense frozen foods.

Ideal for items such as roasts,whole chicken and steak.

QUICK DEFROST:Use to assist in the separation of frozen pieces of

chicken, ground meats, or fish that need preparation prior to cooking.

Excellent for defrosting ground meat for use in spaghetti sauce or taco meat.

Example:To thoroughlydefrost a 2.5 Ib whole chicken:

Step Procedure Keypad

Press Auto Defrost twice to select

Defrost course.

1Press Defrost course _ /

once QUICK DEFROST

twice DEFROST

Enter theweight of food.

2Weightmustbec°nvertedt°p°unds __

and tenths (0.1) of a pound.

Example: 2 lb. 8 oz. =2.5 Ibs

Conversion Chart:

Ounces Tenths of a Pound

1 -2 0.1

3- 40.2

5 0.3

6- 7 0.4

8 0.5

9 - 10 0.6

11- 12 0.7

13 0.8

14 - 15 0.9

PressSTART._'S T_'_

3 Total defrost time appears in the TAR

display.

Defrosting Techniques:

•Remove freezer paper, plasticwrap or foil wrap.Placefood in a

microwave-safe dish.

•To prevent thin partsand edges from becomingtoo warmand cooking

before center of food is defrosted,shield with small pieces of aluminum

foil.

• Because some foods will still be icy in the center, it is necessary to have

standing time after defrosting the food in the oven. Food should be

taken out of the oven to complete defrosting.A longer standing time

might be required for denser foods such as roasts.

• TimedDefrosting: Use power level P30 (Medium Low). For most frozen

foods,allow approximately 5 minutes per pound. To speed up the

defrosting of dense foods over 1 Ib, you may start on P100 for2

minutes. Then reduce to the power level P30 and enter remaining time.

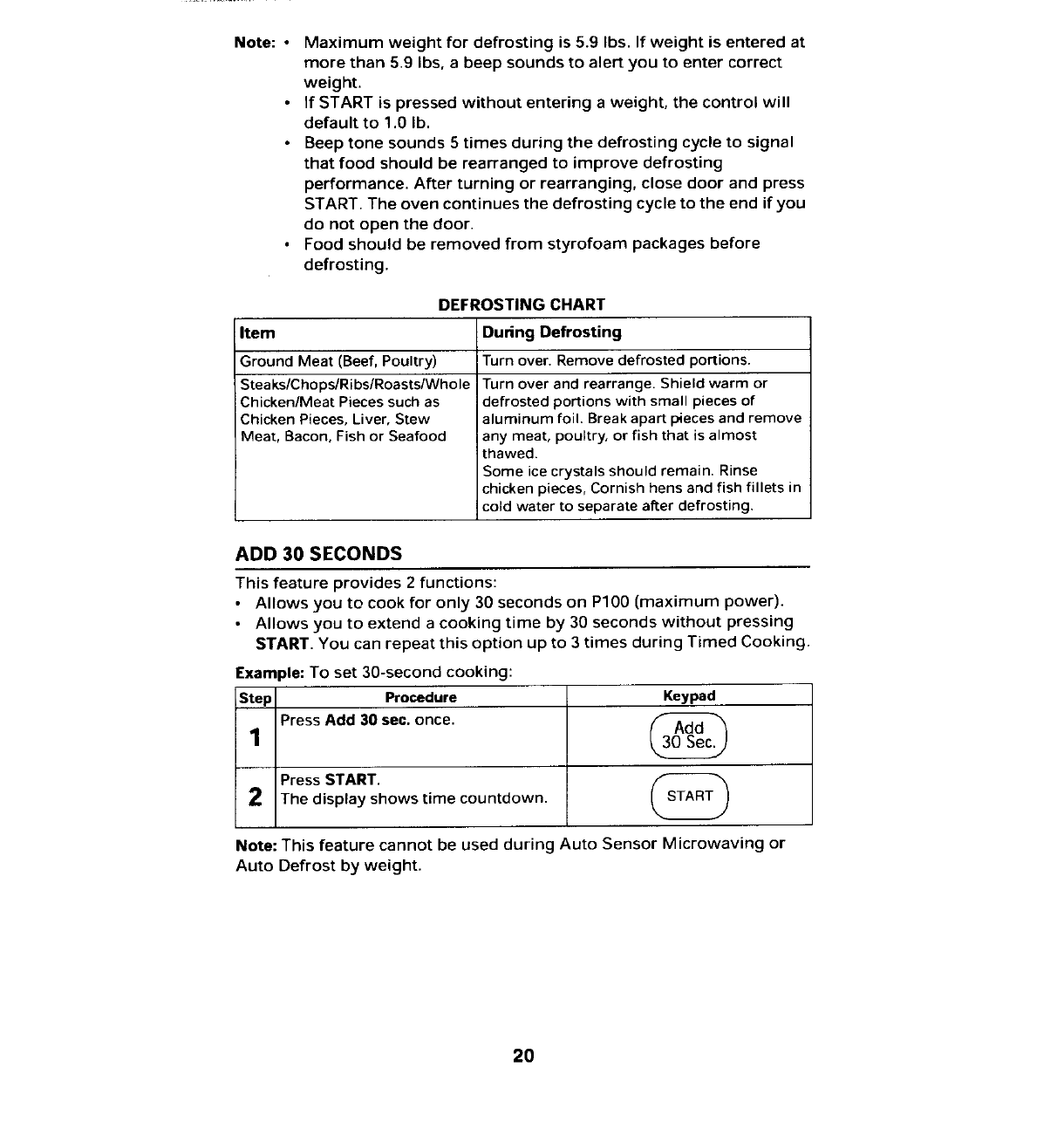

Note: • Maximum weight fordefrosting is 5.9 Ibs. If weight is entered at

more than 5.9 Ibs,abeep soundstoalert you to entercorrect

weight.

•IfSTART is pressed without entering a weight,the controlwill

default to1.0Ib.

•Beeptonesounds 5times during thedefrostingcycle to signal

that food should berearranged to improve defrosting

performance. Afterturningor rearranging,close door and press

START. The oven continuesthe defrosting cycle tothe end if you

donotopen thedoor.

•Food shouldberemoved from styrofoam packages before

defrosting.

DEFROSTING CHART

Item During Defrosting

Ground Meat (Beef,Poultry) Turn over.Remove defrosted portions.

SteakslChopslRibslRoastslWhole Turn over and rearrange. Shield warm or

Chicken/Meat Pieces such as defrosted portions with small pieces of

Chicken Pieces, Liver, Stew aluminum foil. Break apart pieces and remove

Meat, Bacon, Fish or Seafood any meat, poultry,or fish that is almost

thawed.

Some ice crystals should remain. Rinse

chicken pieces, Cornish hens and fish fillets in

cold water to separate after defrosting.

ADD 30 SECONDS

This feature provides 2 functions:

• Allows you to cook for only 30 seconds on PIO0 (maximum power).

• Allows you to extend a cooking time by 30 seconds without pressing

START. You can repeat this option up to 3 times during Timed Cooking.

Example: To set 30-second cooking:

Step Procedure Keypad

Press Add 30 sec. once.

Press START. _S T_

2 The display shows time countdown. TAR

Note: This feature cannot be usedduringAuto Sensor Microwaving or

Auto Defrost byweight,

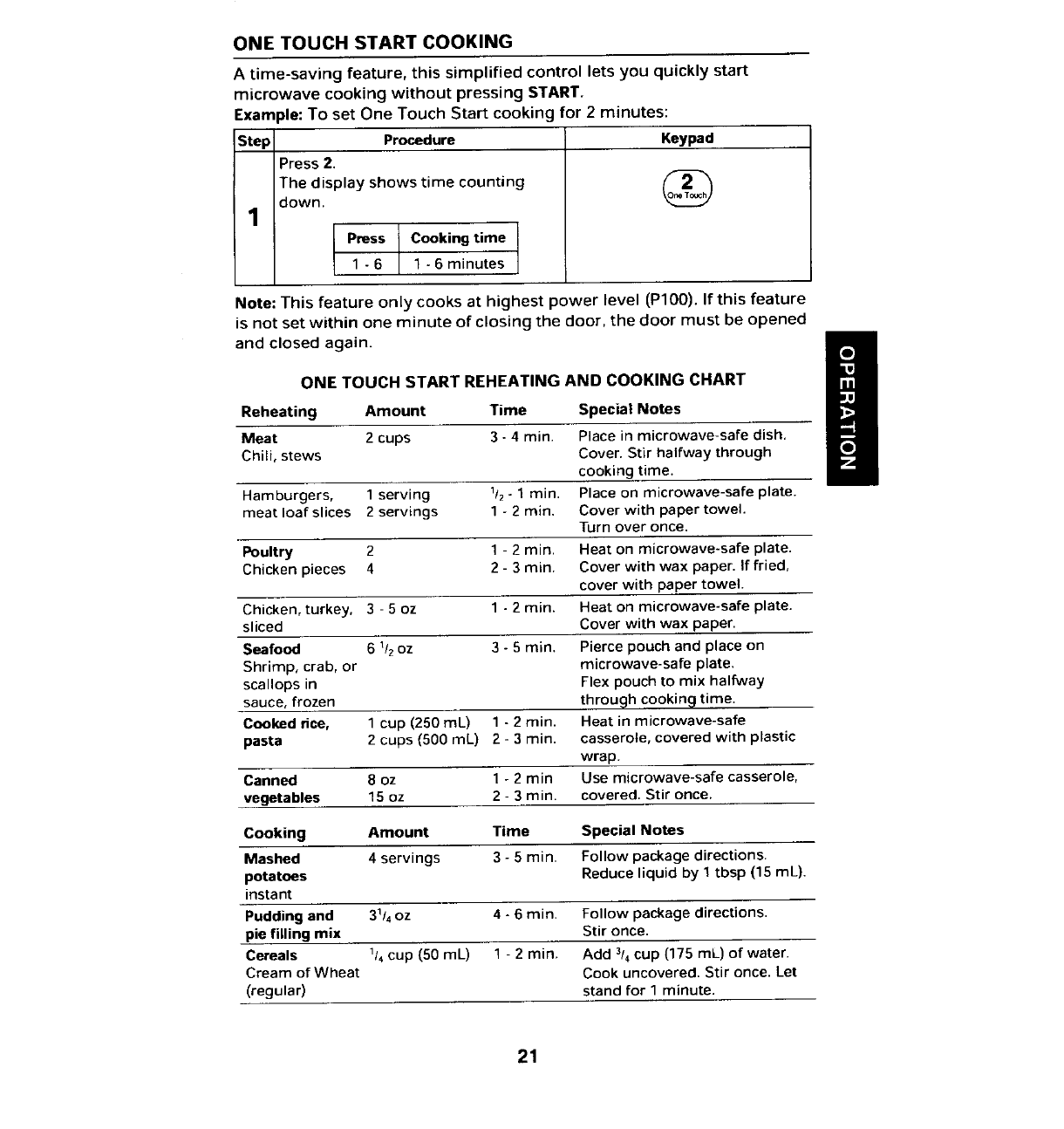

ONE TOUCH START COOKING

Atime-saving feature,this simplifiedcontrol lets you quickly start

microwavecookingwithout pressingSTART.

Example: To set OneTouch Start cooking for 2 minutes:

Step Procedure Keypad

Press 2.

The display shows time counting

down.

Press Cooking time !

1-6 1 - 6 minutes

Note: This feature onlycooks at highest power level (PIO0).If this feature

is not set within one minute of closing the door,the door must be opened

and closed again./

ONE TOUCH START REHEATING AND COOKING CHART

Reheating Amount Time Special Notes

Meat 2 cups 3 - 4 min.Place in microwave-safe dish.

Chili, stews Cover. Stir halfwaythrough

cooking time.

Hamburgers, 1 serving 1/2 - 1 min. Place on microwave-safe plate.

meat loaf slices 2 servings 1 - 2 min. Cover with paper towel.

Turn over once.

Poultry 2 1 - 2 min. Heat on microwave-safe plate.

Chicken pieces 4 2 - 3 min.Cover with wax paper. If fried,

cover with paper towel.

Chicken,turkey, 3 - 5 oz 1 - 2 min. Heat on microwave-safeplate.

sliced Cover with wax paper.

Seafood 6 1/20Z 3- 5 min.Pierce pouch and place on

Shrimp,crab, or microwave-safe plate.

scallops in Flex pouch to mix halfway

sauce,frozen through cooking time.

Cooked rice,1 cup (250mL) 1 - 2min. Heatin microwave-safe

pasta 2 cups (500 mL)2 - 3 min. casserole, covered with plastic

wrap.

Canned 8 oz1-2 minUse microwave-safe casserole,

vegetables 15oz 2-3min. covered.Stir once.

Cooking Amount Time Special Notes

Mashed 4 servings 3-5min. Follow package directions.

potatoes Reduceliquid byItbsp (15 mL).

instant

Pudding and 31/4oz 4-6min.Follow package directions.

pie filling mix Stir once.

Cereals 1/4cup (50 mL)1- 2 min, Add 3/4cup (175 mL) ofwater.

CreamofWheat Cook uncovered.Stir once. Let

(regular) stand for 1 minute.

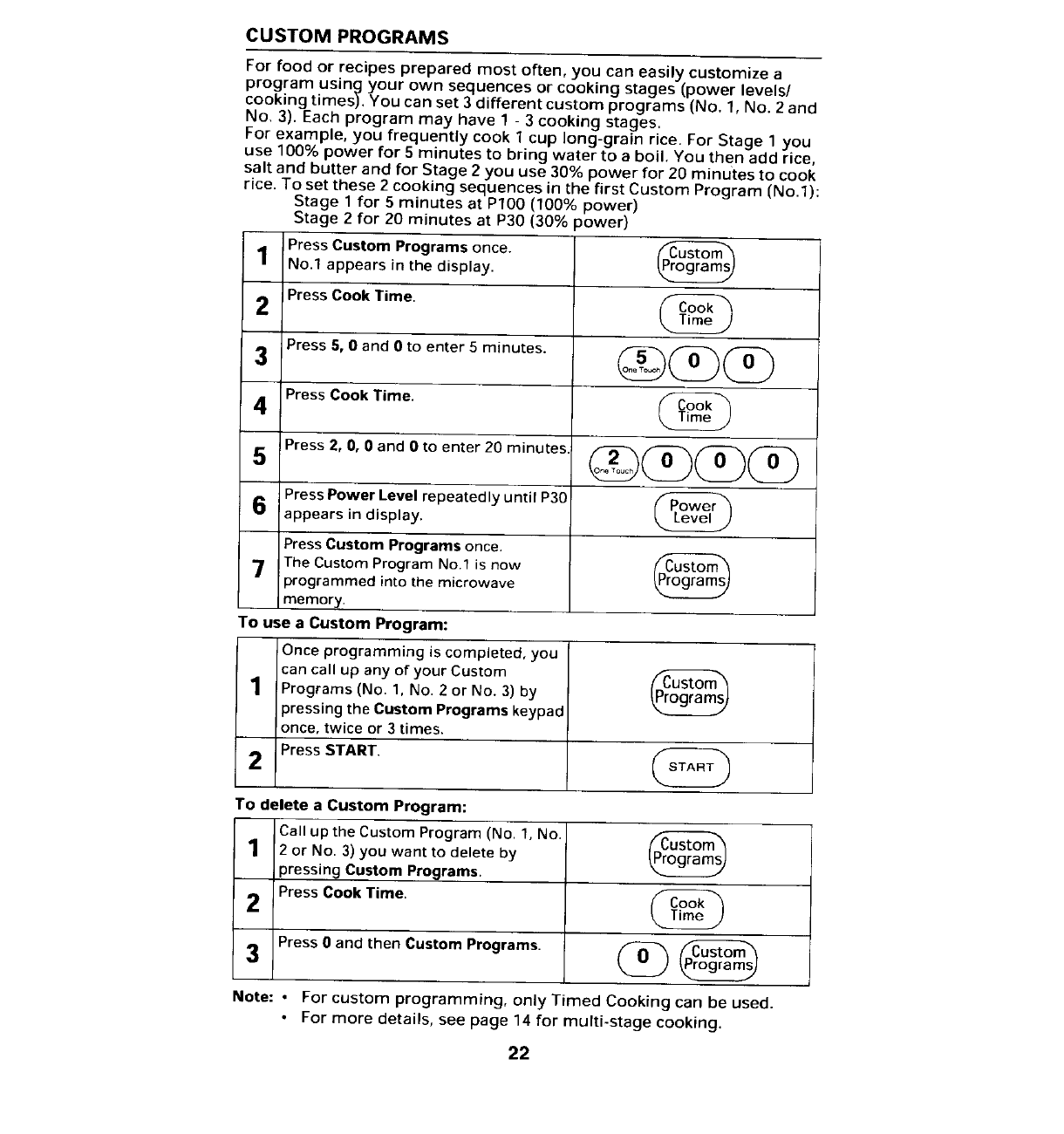

CUSTOM PROGRAMS

For food orrecipes prepared most often, you caneasilycustomize a

program using your own sequences or cooking stages (power levels/

cooking times). You can set 3 different custom programs (No. 1, No.2 and

No. 3).Each program may have 1 - 3 cooking stages.

For example,you frequently cook 1 cup long-grain rice. For Stage 1 you

use 100% power for 5 minutes to bring water to a boil.You then add rice,

salt and butter and for Stage 2 you use30% power for 20 minutes to cook

rice, To set these 2 cooking sequences in the first Custom Program (No.l):

Stage 1 for 5 minutes at P100 (100% power)

Stage 2 for 20 minutes at P30 (30% 3ower)

Press Custom Programs once.

1No.1 appears in the display.

2PressCook Time.

4Press Cook Time.

5Press2,0,0andOtoenter20minutes. ____

Press Power Level repeatedly untilP30

6appears in display.

Press Custom Programs once.

7The Custom Program No.1 is now ;eCOSstom_

programmedintothe microwave_,o,,_

memory.

To use a Custom Program:

Once programming is completed,you

can call upany ofyourCustom

1 Programs (No. 1, No. 2 or No.3) by

pressing the Custom Programs keypad

once, twice or 3 times.

2Press START_START_

To delete a Custom Program:

Call up the Custom Program (No. 1,No.

1 2 or No. 3) you want to delete by

pressing Custom Programs.

2Press Cook Time.

3press 0 and then custom Pr°grams" @ _

Note: • For custom programming, onlyTimed Cooking can beused.

• For moredetails,seepage14 formulti-stagecooking.

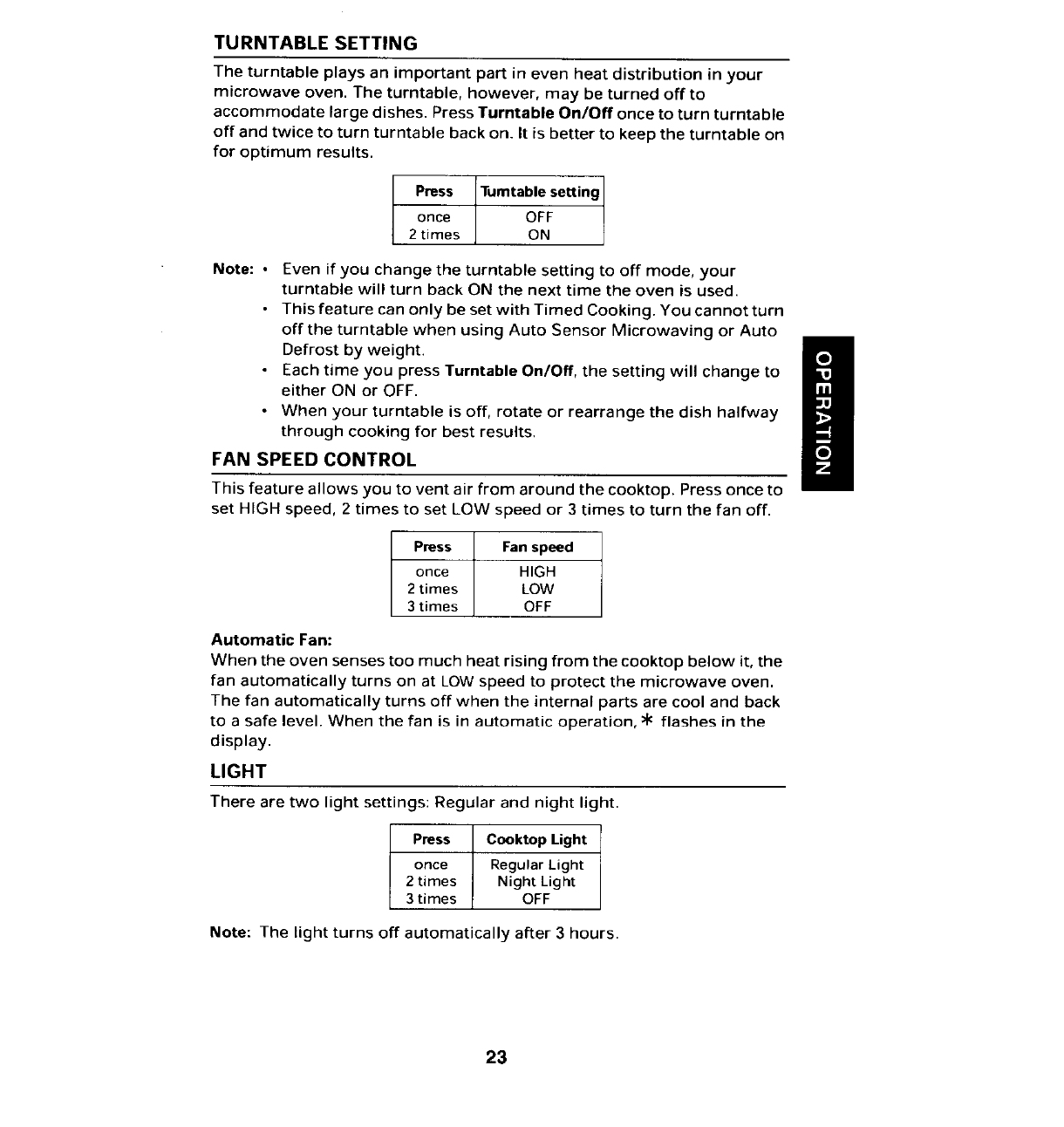

TURNTABLE SETTING

The turntable playsan important part in even heat distribution in your

microwave oven. The turntable, however, may be turned off to

accommodate large dishes. Press Turntable On/Off once to turn turntable

off and twice to turn turntable back on. It is better to keep the turntable on

for optimum results.

Press Tumtable setting

once OFF

2 times ON

Note: • Even if you change the turntable setting to off mode,your

turntable will turn back ON the next time the oven is used.

• This feature can only be set with Timed Cooking. You cannot turn

off the turntablewhen using Auto Sensor Microwaving or Auto

Defrost by weight.

• Each time you press Turntable On/Off, the setting will change to

either ON or OFF.

• When your turntable is off,rotate or rearrange the dish halfway

through cooking for best results,

FAN SPEED CONTROL

This feature allows you to vent air from around the cooktop. Press once to

set HIGH speed,2 times to set LOW speed or 3 times to turn the fan off.

Press Fan speed

once HIGH

2 times LOW

3 times OFF

Automatic Fan:

When the oven senses too much heat rising from the cooktop below it, the

fan automaticallyturns on at LOW speed to protect the microwave oven.

The fan automatically turns off when the internal parts are cool and back

to a safe level. When the fan is in automatic operation, _<flashes in the

display.

LIGHT

There are two light settings: Regular and night light.

Press Cooktop Light

onceRegular Light

2 times Night Light

3 times OFF

Note: The light turns off automatically after 3 hours.

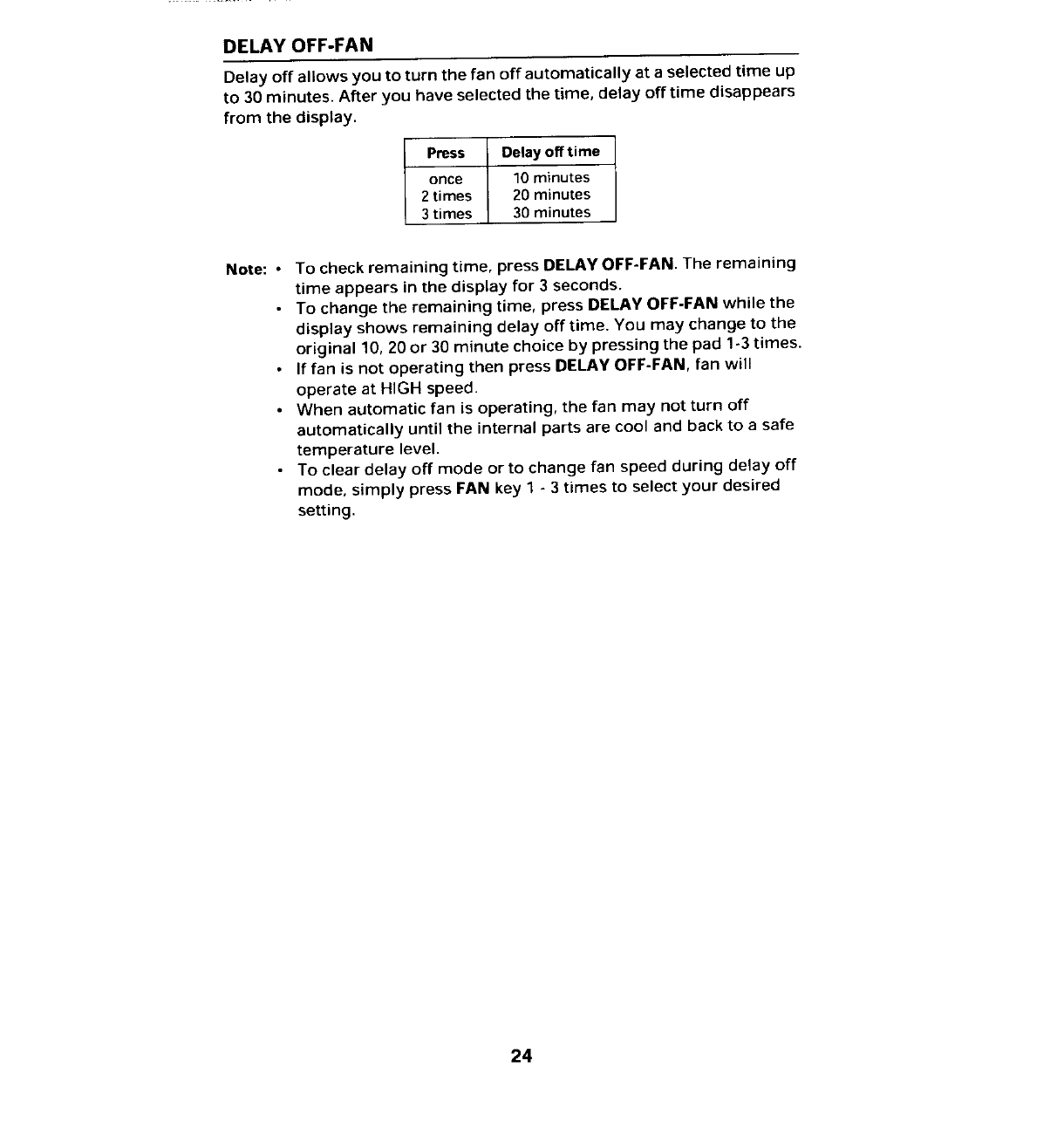

DELAY OFF-FAN

Delay off allows you to turn thefanoff automatically at a selected time up

to 30 minutes. After you have selected the time, delay off time disappears

from the display.

Press Delay off time

once 10 minutes

2 times 20 minutes

3 times 30 minutes

Note:•To check remaining time, press DELAY OFF-FAN The remaining

time appears in the display for 3 seconds.

• To change theremaining time, press DELAY OFF-FANwhile the

display showsremaining delayoff time. You maychange to the

original 10, 20 or 30 minute choice bypressing thepad 1-3 times.

•If fan isnotoperating then pressDELAY OFF-FAN,fan will

operateat HIGHspeed.

• When automatic fanisoperating, thefan may not turn off

automaticallyuntil the internal parts are cool and back to a safe

temperature level.

•To clear delayoff modeor to changefan speed during delayoff

mode, simply press FANkey1 - 3 timesto select your desired

setting.

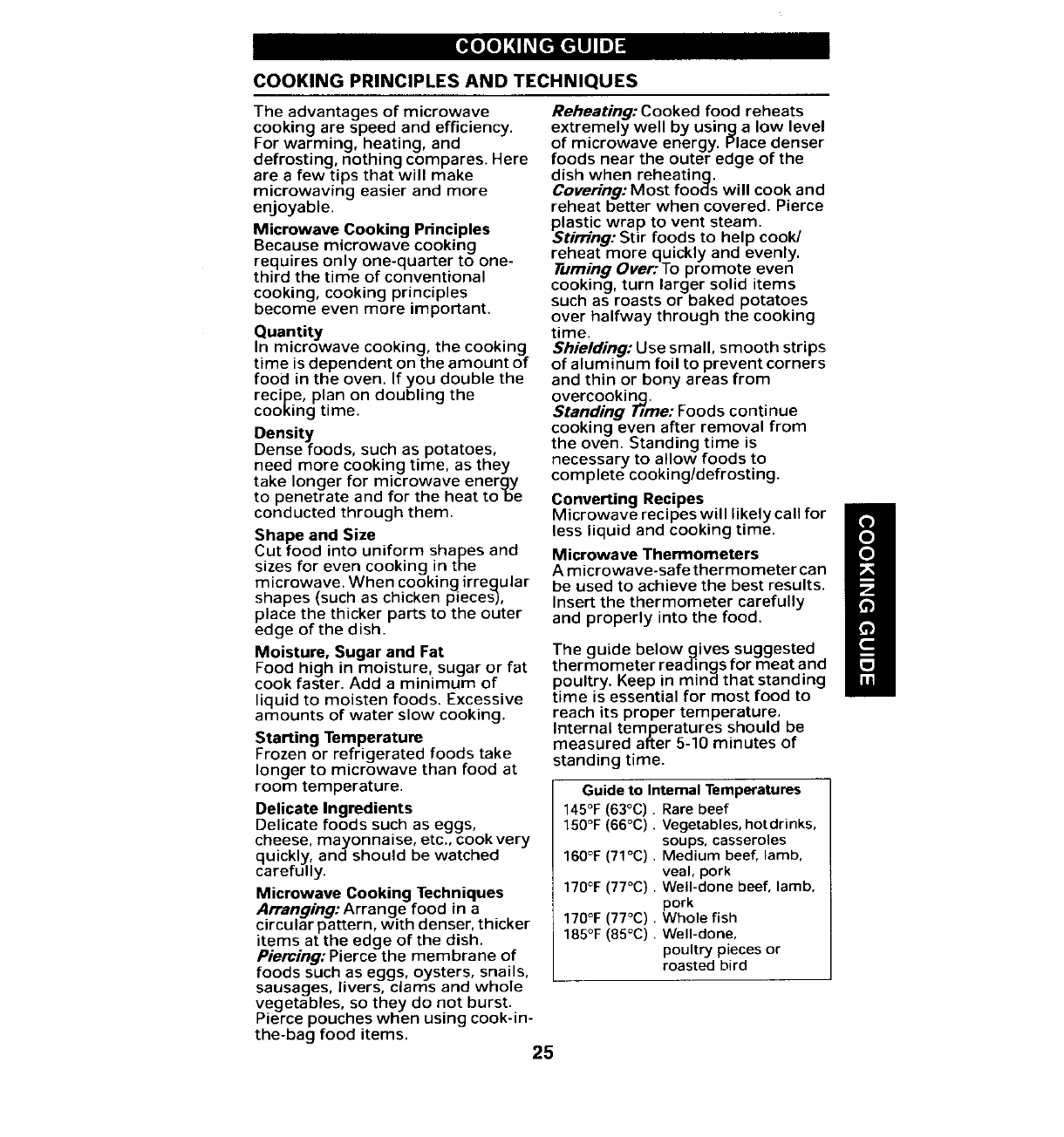

COOKING GUIDE

COOKINGPRINCIPLESAND TECHNIQUES

The advantages ofmicrowaveReheating: Cooked food reheats

cooking arespeedand efficiency, extremelywell byusing a low level

For warming, heating, andof microwave energy. Placedenser

defrosting,nothing compares. Herefoodsnear theouter edgeofthe

areafew tipsthat will makedish whenreheating.

microwaving easier and moreCove#rig: Mostfoodswill cook and

enjoyable, reheat betterwhen covered. Pierce

plastic wrap to vent steam.

Microwave Cooking Principles Stin_ng: Stir foodsto help cook/

Becausemicrowave cooking reheat more quicklyand evenly.

requires onlyone-quarter to one- Turning Over: To promoteeven

thirdthetimeofconventional cooking,turn larger solid items

cooking, cooking principles such as roasts or baked potatoes

become even more important, over halfwaythrough the cooking

Quantity time.

In microwavecooking, the cookingShielding: Usesmall, smooth strips

timeisdependentonthe amount ofofaluminum foil to prevent corners

foodin theoven.If you doubletheand thin or bonyareas from

recipe, plan on doubling theovercookinq.

cookingtime. Standing Time: Foods continue

Density cooking even after removal from

Densefoods,suchaspotatoes, theoven. Standing timeis

needmorecooking time, asthey necessary to allow foodsto

completecooking/defrosting.

takelongerfor microwave energy

topenetrateand fortheheat robe Converting Recipes

conducted through them. Microwave recipes will likelycall for

Shape and Size less liquid and cooking time.

Cut food into uniform shapesand Microwave Thermometers

sizes for even cooking in tl_eA microwave-safethermometercan

microwave. When cooking irregular be usedto achievethebest results.

shapes (such as chicken pieces_, Insert the thermometer carefully

place the thicker parts to the outer and properly into the food.

edge of the dish.

Moisture, Sugar and Fat The guide below gives suggested

Foodhighin moisture, sugar or fatthermometer readings for meat and

cook faster. Add a minimumofpoultry. Keepin mind that standing

liquidto moistenfoods. Excessivetimeisessential for mostfood to

amountsofwaterslow cooking,reachits proper temperature.

Internal temperatures should be

Starting Temperature measured after 5-10minutesof

Frozen or refrigerated foodstake standingtime.

longerto microwave than foodat

room temperature.Guideto InternalTemperatures

Delicate Ingredients 145°F(63°C). Rarebeef

Delicatefoods suchas eggs,150°F(66°C).Vegetables,hotdrinks,

cheese, mayonnaise, etc.,cook verysoups,casseroles

quickly,and should be watched 160°F(71°C). Medium beef, lamb,

carefully, veal,pork

Microwave Cooking Techniques 170°F(77°C). Well-donebeef, lamb,

pork

Arranging: Arrangefoodin a

circular pattern,withdenser, thicker 170°F(77°C).Wholefish

itemsat the edgeof thedish.185°F(85°C). Well-done,

Piercing: Piercethemembraneofpoultrypiecesor

foods such aseggs, oysters,snails,roastedbird

sausages,livers, clams andwhole

vegetables,so theydonot burst.

Pierce poucheswhen using cook-in-

the-bag fooditems.25

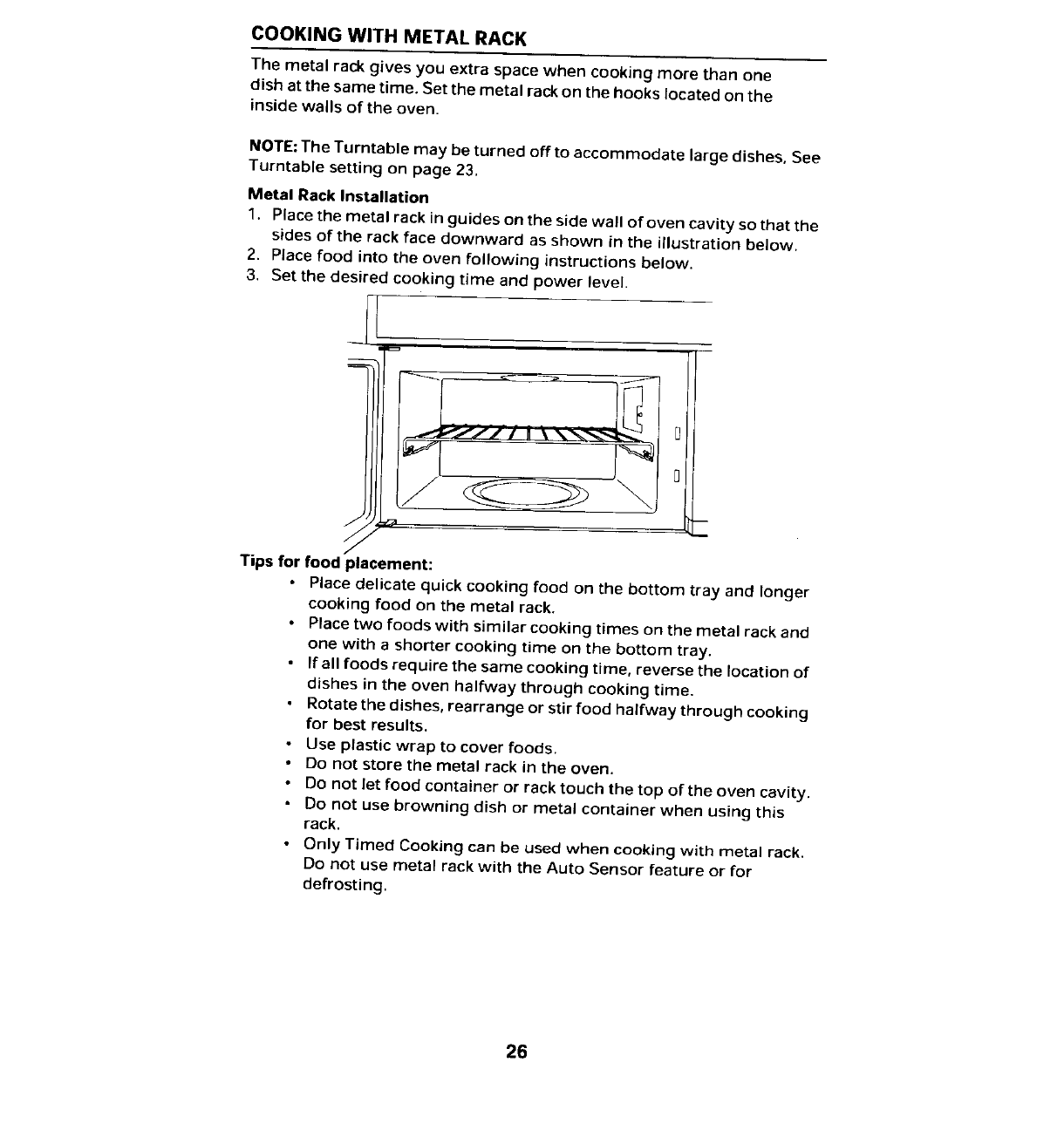

COOKING WITH METAL RACK

Themetalrack gives you extra space when cooking more thanone

dish at thesame time.Set the metal rack on the hooks located on the

inside walls of the oven.

NOTE:The Turntable may be turned off to accommodate large dishes,See

Turntable setting on page 23.

Metal Rack Installation

1.Placethe metal rack in guides on the sidewall of oven cavity so that the

sides of the rack face downward as shown in the illustration below.

2. Place food into the oven following instructions below.

3. Set the desired cooking timeand power level.

Tips for food placement:

•Placedelicate quickcooking food on the bottom tray and longer

cooking food on the metal rack.

•Place two foods with similar cooking times on the metal rack and

onewith a shorter cooking time on the bottom tray.

•Ifall foods require the same cooking time, reverse the location of

dishes in the oven halfwaythrough cooking time.

• Rotate the dishes, rearrange or stir food halfway through cooking

for best results.

•Useplastic wrap to cover foods.

• Do not store the metal rack in the oven.

• Do not let food container or rack touch the top of the oven cavity.

• Do not use browning dish or metal container when using this

rack.

• OnlyTimedCooking can be used when cooking with metal rack.

Donot use metal rack with the Auto Sensor feature or for

defrosting.

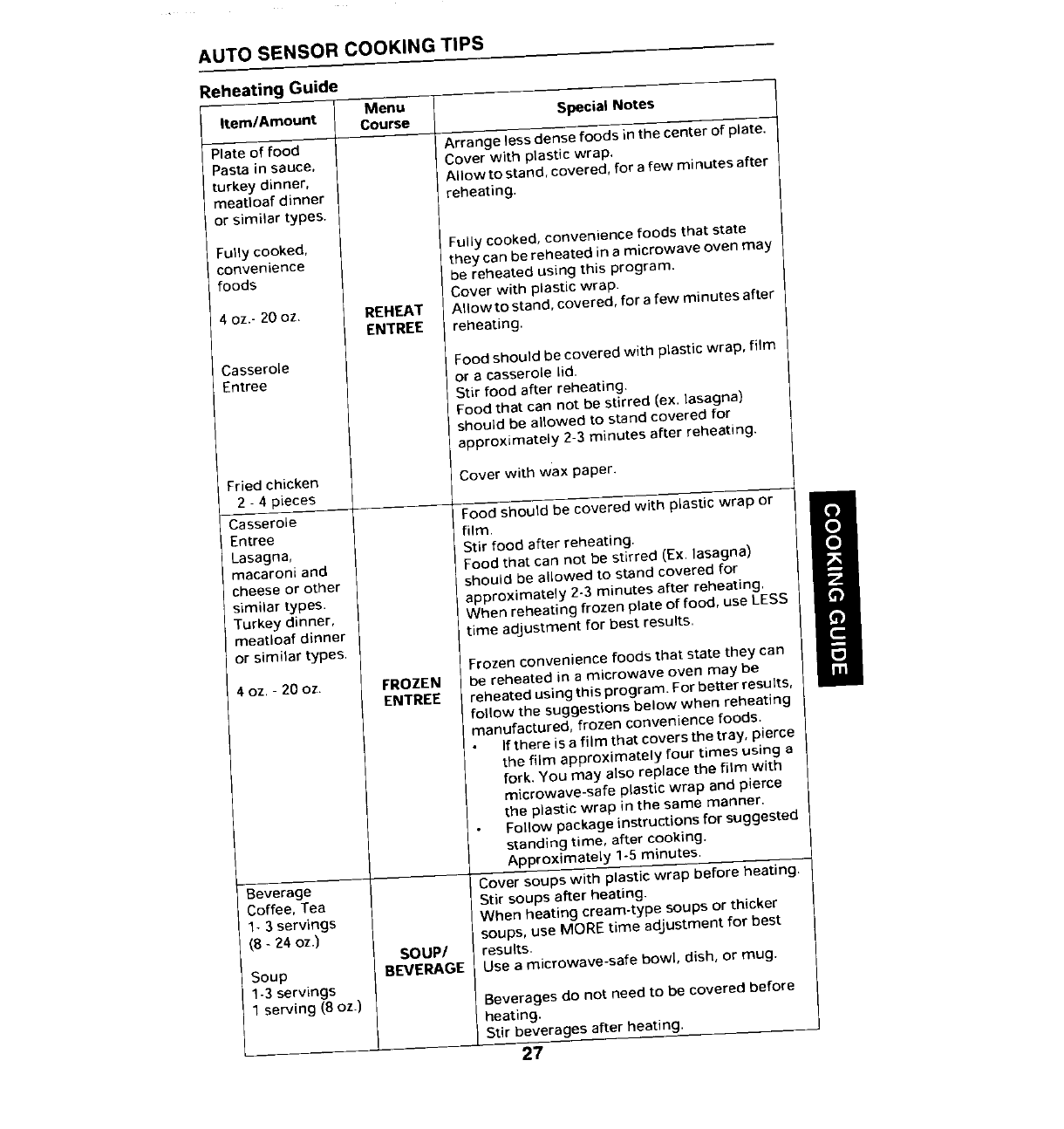

AUTO SENSOR COOKING TIPS

ReheatingGuide Menu

Item/Amount CourseSpecial Notes

Plate offood Arrange less dense foods in thecenter of plate.

Pastainsauce,Cover with plastic wrap.

turkey dinner, Allow tostand, covered, for a few minutes after

meatloaf dinner reheating.

or similar types.

Futly cooked, Fully cooked,convenience foods that state

convenience they can be reheated in amicrowaveoven may

foods be reheated using this program.

Coverwith plasticwrap.

4 oz.- 20 oz, REHEAT Allow to stand,covered, for a few minutes after

ENTREE reheating,

CasseroleFood should be covered with plastic wrap, film

Entreeor a casserole lid.

Stir food after reheating.

Food that can not be stirred {ex. lasagna)

should be allowed to stand covered for

approximately 2-3 minutes after reheating.

Fried chicken Cover with wax paper.

2- 4 pieces

Cassero}eFood should becovered with plasticwrap or

Entree film.

Lasagna, Stir food after reheating.

macaroni and Food that can not be stirred (Ex. lasagna)

cheese or othershould beallowed to stand covered for

similar types, approximately 2-3 minutes after reheating,

Turkey dinner, When reheating frozen plate of food, useLESS

meatloaf dinner time adjustment for best results,

orsimilar types.

Frozen convenience foods that state they can

4oz. - 20 oz. FROZEN bereheated in amicrowave oven may be

ENTREE reheated using thisprogram. For better resutts,

followthesuggestions below whenreheating

manufactured,frozen convenience foods.

If thereisafilm thatcovers thetray,pierce

the film approximately four times using a

fork. You mayalsoreplacethefilmwith

microwave-safe p(ast(c wrap and pierce

theplasticwrapinthesamemanner.

Follow package instructions for suggested

standing time, aftercooking.

Approximately 1-5 minutes.

BeverageCover soups with plastic wrapbefore heating.

Coffee,Tea Stir soups afterheating.

1- 3 servings When heatingcream-typesoups or thicker

(8 - 24 oz.) soups,use MORE time adjustment for best

SOUP/results.

Soup BEVERAGEUsea microwave-safe bowl,dish,or mug.

1-3 servings

1 serving (8 oz.) Beverages donot need to be covered before

heating•

Stir beverages after heating.

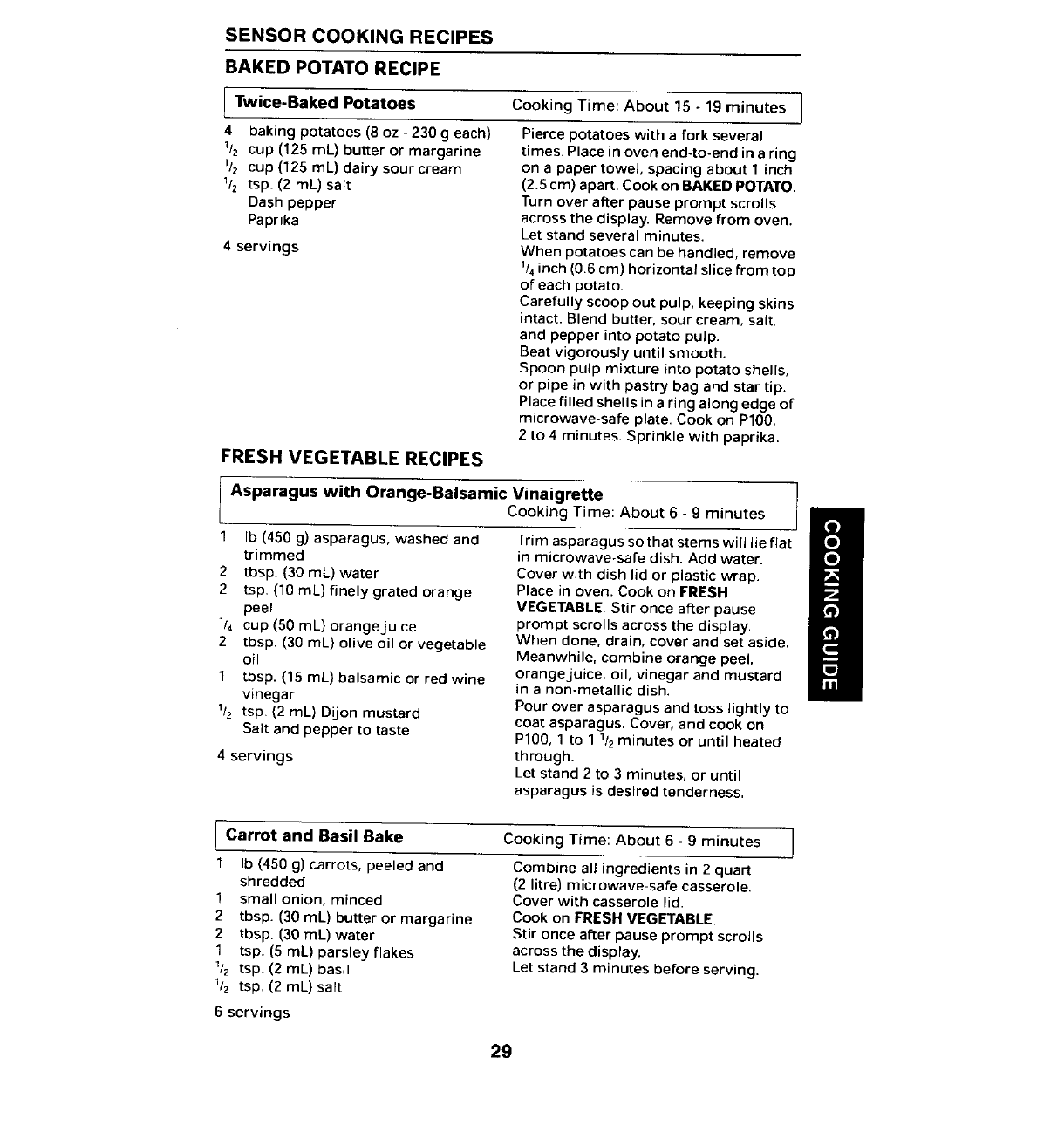

SENSOR COOKING RECIPES

BAKED POTATORECIPE

I Twice-Baked Potatoes Time: About 15 19 minutes ]

Cooking

4 baking potatoes (8 oz - 230 g each) Pierce potatoes with a fork several

1/2cup (125 mL) butter or margarine times. Place in ovenend-to-end in a ring

itzcup (125 mL) dairy sourcream on a paper towel, spacing about 1 inch

1/2 tsp. (2 mL) salt (2.5cm) apart. Cook on BAKEDPOTATO.

Dash pepper Turn over after pause prompt scrolls

Paprika across the display. Remove from oven.

Let standseveral minutes.

4 servings When potatoes can be handled, remove

1/4inch (0.6 cm) horizontal slice from top

of each potato.

Carefully scoop out pulp, keeping skins

intact. Blend butter, sour cream, salt,

and pepper into potato pulp.

Beat vigorousry until smooth.

Spoon pulp mixture into potato shells,

or pipe in with pastrybag and star tip.

Place filled shells in a ring along edge of

microwave-safe plate. Cook on PIO0,

2 to 4 minutes. Sprinklewith paprika.

FRESH VEGETABLE RECIPES

Asparaguswith Orange-BalsamicVinaigrette

Cooking Time: About 6 - 9 minutes

1 Ib (450 g) asparagus, washed and Trim asparagus so that stems will lie flat

trimmed in microwave-safe dish. Add water.

2 tbsp. (30 mL) water Cover with dish lid or plasticwrap.

2 tsp. (10 mL) finelygrated orange Place in oven. Cook on FRESH

peel VEGETABLE.Stir once after pause

_/4 cup (50 mL) orange juice prompt scrolls across the display.

2 tbsp.(30 mL) olive oil or vegetable When done, drain, cover and set aside.

oil Meanwhile, combine orange peel,

1 tbsp. (15 mL) balsamic or red wine orange juice,oil,vinegar and mustard

ina non-metallic dish.

vinegar Pour over asparagus and toss lightlyto

1/2 tsp. (2 mL) Dijon mustard coat asparagus,Cover, and cook on

Salt and pepper to taste P100,1 to 1 1/2minutes or until heated

4 servings through.

Let stand 2 to 3 minutes,or until

asparagusis desired tenderness.

ICarrota.dBasilBake CookingTime:About6-9m n tesI

1 Ib (450 g) carrots, peeled and Combine all ingredientsin 2 quart

shredded (2 litre) microwave-safecasserole.

1 small onion,minced Cover with casserole lid.

2 tbsp.(30 mL) butter or margarine Cook on FRESH VEGETABLE.

2 tbsp. (30 mL) water Stir once after pause prompt scrolls

1 tsp. (5 mL) parsley flakes acrossthedisplay.

1/2 tsp. (2 mL) basil Let stand 3 minutes before serving.

1/z tsp. (2 mL) sart

6 servings

SENSOR COOKING RECIPES

BAKED POTATORECIPE

I Twice-Baked Potatoes Time: About 15 19 minutes ]

Cooking

4 baking potatoes (8 oz - 230 g each) Pierce potatoes with a fork several

1/2cup (125 mL) butter or margarine times. Place in ovenend-to-end in a ring

itzcup (125 mL) dairy sourcream on a paper towel, spacing about 1 inch

1/2 tsp. (2 mL) salt (2.5cm) apart. Cook on BAKEDPOTATO.

Dash pepper Turn over after pause prompt scrolls

Paprika across the display. Remove from oven.

Let standseveral minutes.

4 servings When potatoes can be handled, remove

1/4inch (0.6 cm) horizontal slice from top

of each potato.

Carefully scoop out pulp, keeping skins

intact. Blend butter, sour cream, salt,

and pepper into potato pulp.

Beat vigorousry until smooth.

Spoon pulp mixture into potato shells,

or pipe in with pastrybag and star tip.

Place filled shells in a ring along edge of

microwave-safe plate. Cook on PIO0,

2 to 4 minutes. Sprinklewith paprika.

FRESH VEGETABLE RECIPES

Asparaguswith Orange-BalsamicVinaigrette

Cooking Time: About 6 - 9 minutes

1 Ib (450 g) asparagus, washed and Trim asparagus so that stems will lie flat

trimmed in microwave-safe dish. Add water.

2 tbsp. (30 mL) water Cover with dish lid or plasticwrap.

2 tsp. (10 mL) finelygrated orange Place in oven. Cook on FRESH

peel VEGETABLE.Stir once after pause

_/4 cup (50 mL) orange juice prompt scrolls across the display.

2 tbsp.(30 mL) olive oil or vegetable When done, drain, cover and set aside.

oil Meanwhile, combine orange peel,

1 tbsp. (15 mL) balsamic or red wine orange juice,oil,vinegar and mustard

ina non-metallic dish.

vinegar Pour over asparagus and toss lightlyto

1/2 tsp. (2 mL) Dijon mustard coat asparagus,Cover, and cook on

Salt and pepper to taste P100,1 to 1 1/2minutes or until heated

4 servings through.

Let stand 2 to 3 minutes,or until

asparagusis desired tenderness.

ICarrota.dBasilBake CookingTime:About6-9m n tesI

1 Ib (450 g) carrots, peeled and Combine all ingredientsin 2 quart

shredded (2 litre) microwave-safecasserole.

1 small onion,minced Cover with casserole lid.

2 tbsp.(30 mL) butter or margarine Cook on FRESH VEGETABLE.

2 tbsp. (30 mL) water Stir once after pause prompt scrolls

1 tsp. (5 mL) parsley flakes acrossthedisplay.

1/2 tsp. (2 mL) basil Let stand 3 minutes before serving.

1/z tsp. (2 mL) sart

6 servings

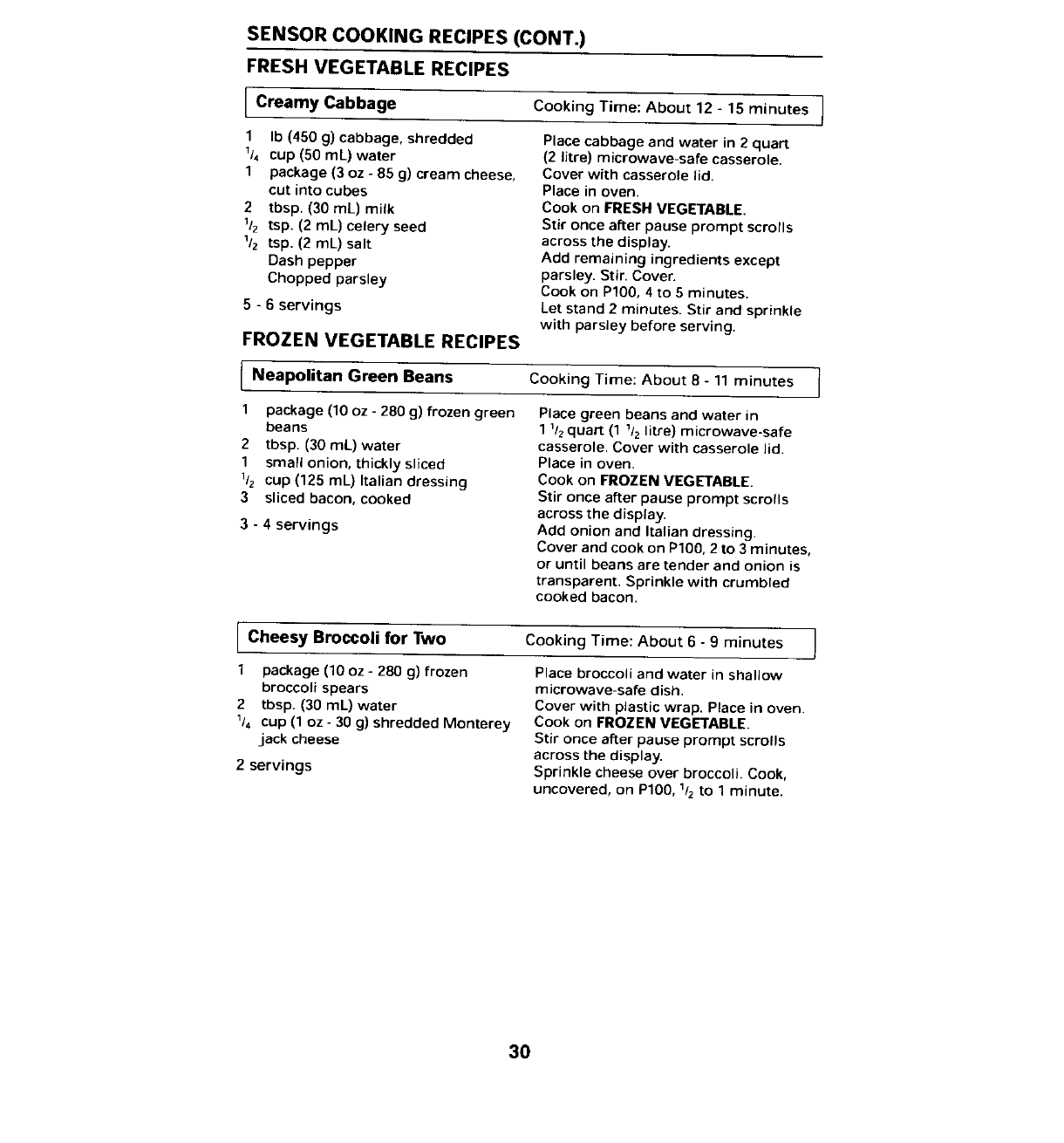

SENSOR COOKING RECIPES (CONT.)

FRESH VEGETABLE RECIPES

I Creamy Cabbage Cooking Time: About 12- 15 minutes I

1 Ib (450 g) cabbage, shredded Place cabbage and water in 2 quart

1/4cup (50 mL) water (2 litre) microwave-safe casserole.

1 package (3 oz - 85 g) cream cheese,Cover with casserole lid.

cut into cubes Place in oven.

2 tbsp. (30 mL)milk Cook on FRESHVEGETABLE.

1/2tsp. (2mL) celery seed Stir onceafter pause prompt scrolls

_/z tsp. (2 mL) salt across the display.

Add remaining ingredients except

Dash pepper

Chopped parsley parsley. Stir.Cover.

Cook on P100,4 to 5 minutes.

5 - 6 servings Let stand 2 minutes. Stir and sprinkle

with parsleybefore serving.

FROZENVEGETABLE RECIPES

I Neapolitan Green Beans Time: About 8- 11 minutes I

Cooking

1 package (10 oz - 280 g) frozen greenPlace green beans and water in

beans 1 _/2quart (1 _/2litre) microwave-safe

2 tbsp.(30 mL) water casserole. Cover with casserole lid.

1 small onion, thicklysliced Place in oven.

1/2 cup (125 mL) Italiandressing Cook on FROZEN VEGETABLE.

3 sliced bacon, cooked Stir once after pause prompt scrolls

across the display.

3 - 4 servings Add onion and Italian dressing.

Cover and cook on P100, 2 to 3 minutes,

oruntil beansare tender andonionis

transparent. Sprinkle with crumbled

cooked bacon.

LCheesy Broccoli for TWO Time: About 6- 9 minutes J

Cooking

1 package (10 oz - 280 g) frozen Place broccoli and water in shallow

broccoli spears microwave-safe dish.

2 tbsp.(30 mL) water Cover with plastic wrap. Place in oven.

_/4 cup (1 oz - 30 g) shredded Monterey Cook on FROZEN VEGETABLE.

jack cheeseStir onceafter pause prompt scrolls

across the display.

2 servings Sprinklecheese over broccoli. Cook,

uncovered,on P100,_/2to 1 minute.

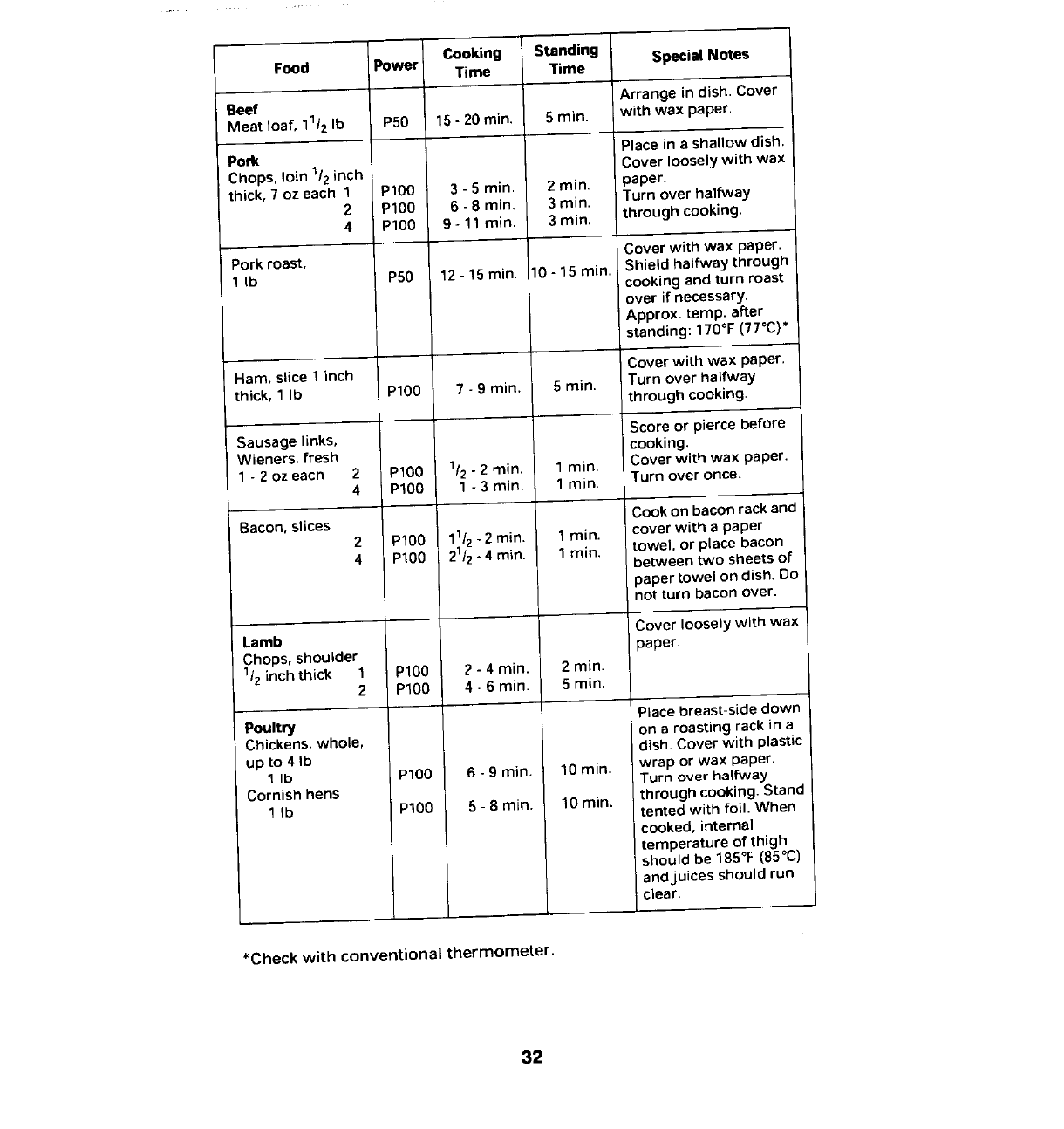

Cooking Standing Special Notes

Food 'Power Time Time

Beef Arrange in dish. Cover

Meat loaf,11/2Ib P50 15- 20 rain. 5 rain.with wax paper.

Pork Placein a shallow dish.

Chops, loin 112inch Cover loosely with wax

thick, 7 oz each 1 Pl00 3 - 5 rain. 2 min. paper.

2 P100 6 - 8 rain. 3 rain. Turnover halfway

4 P100 9 - 11 rain. 3 rain. through cooking.

Pork roast, Cover with wax paper.

1 Ib P50 12-15rain. 10-15min. Shield halfway through

cooking andturnroast

over if necessary.

Approx.temp, after

standing: 170°F (77°C)_

Ham, slice1 inch Cover with wax paper.

thick, 1Ib P100 7- 9 rain.5 rain. Turnover halfway

through cooking.

Sausage links,Score or pierce before

Wieners, fresh cooking.

1 - 2oz each 2 P100 1/2- 2 rain. 1 rain. Cover with wax paper.

4 P100 1 - 3 rain. 1 min. Turnover once.

Bacon,slices Cook on bacon rack and

2P100 11/2- 2 min. 1 min.cover with a paper

4P100 21/2- 4rain.1 rain. towel, or place bacon

betweentwo sheets of

paper towel on dish. Do

not turn bacon over.

Lamb Cover loosely withwax

Chops, shoulder paper.

1/2inch thick I PI00 2- 4 rain, 2 min.

2 PI00 4 -6rain, 5 rain.

Poultry Place breast-sidedown

Chickens, whole, ona roastingrackin a

upto 4Ib dish. Coverwithplastic

1Ib PIO0 6-9min. 10 rain. wrapor wax paper.

Cornish hens Turn over halfway

1Ib P1005 - 8rain, 10rain.through cooking. Stand

tented with foil. When

cooked,internal

temperatureof thigh

should be185°F (85 °C)

and juices should run

clear.

*Check with conventional thermometer,

_ / _

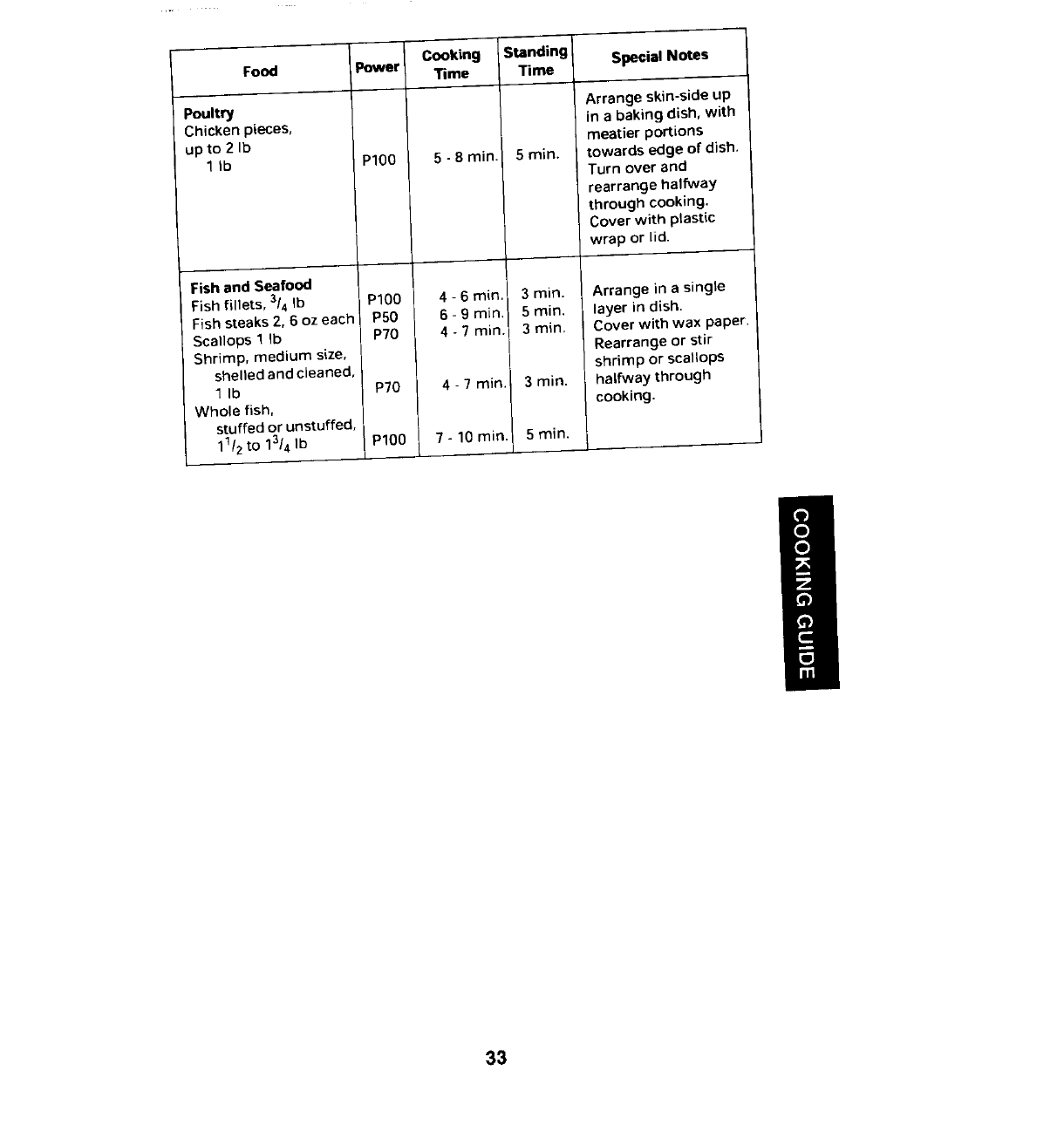

Cooking Standing Special Notes

Food ower'Time Time

Arrange skin-sideup

Poultry in a baking dish, with

Chicken pieces, meatier portions

up to 2Ib

1 Ib )1005 - 8 min 5 Tin. towards edge of dish.

Turn over and

rearrange halfway

through cooking.

Cover with plastic

wrap or lid.

Fish and Seafood

Fish fillets, 3/4Ib P1004 - 6Tin, 3 Tin.Arrange in a single

Fish steaks 2, 6 oz each P50 6 - 9 Tin, 5 Tin. layer in dish.

Scallops 1 Ib P70 4 - 7min. 3 Tin, Cover with wax paper.Rearrange or stir

Shrimp, medium size, shrimp or scallops

shelled and cleaned,

1 Ib PT0 4 - 7Tin 3 Tin. halfway through

cooking.

Whole fish,

stuffed or unstuffed,

11/2to 13/4Ib P100 7 - 10 Tin. 5 Tin.

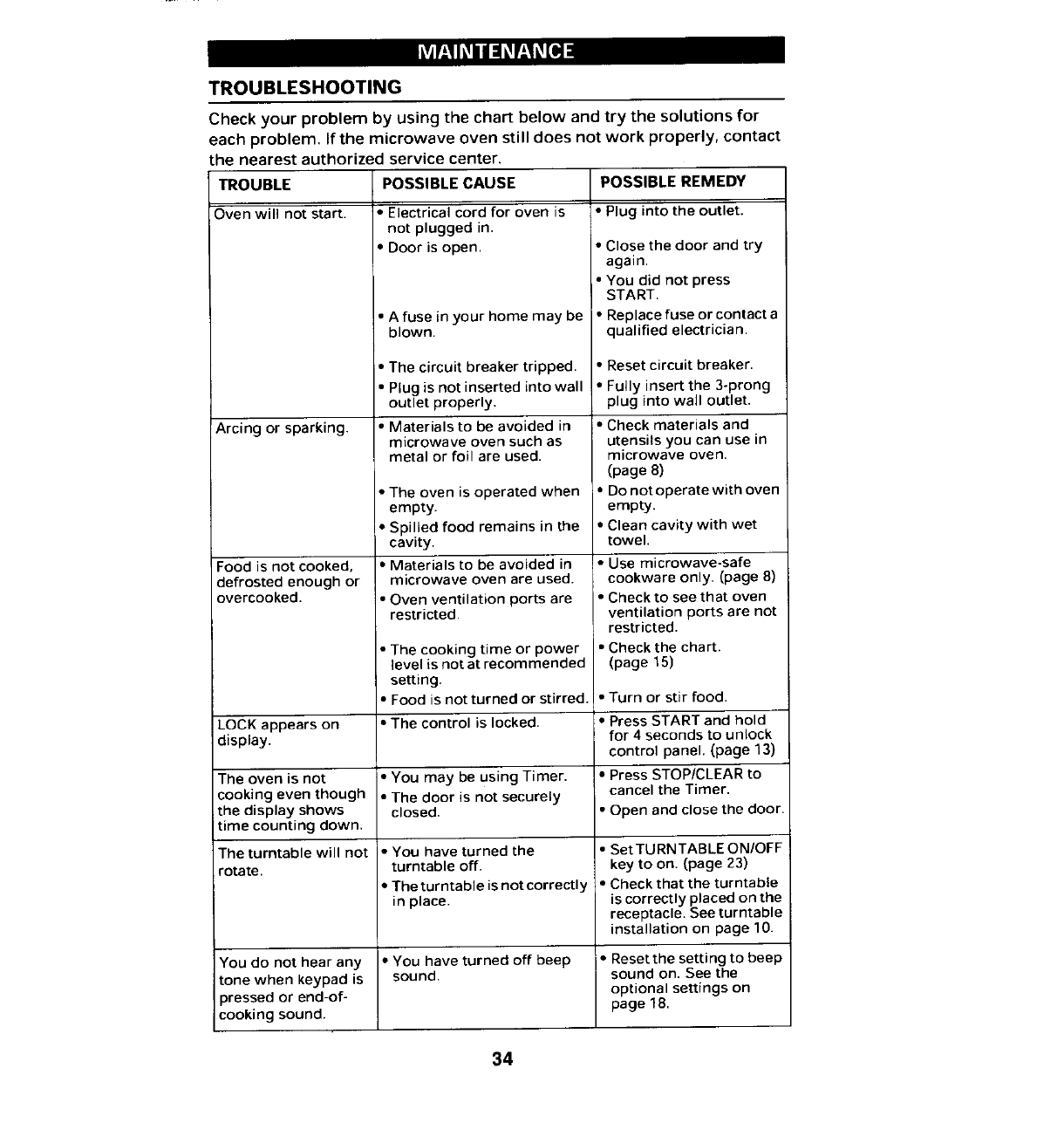

MAINTENANCE

TROUBLESHOOTING

Checkyour problem byusing the chart below and try the solutions for

each problem,if the microwaveoven still does not work properly, contact

the nearest authorize( service center.

TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY

Oven will not start. • Electricalcord for ovenis • Plug into the outlet.

not plugged in.

•Door is open. • Close the door end try

again.

• You did not press

START.

• A fuse in your home may be •Replace fuse or contact a

blown, qualified electrician.

• The circuit breaker tripped. • Reset circuit breaker.

•Plug is not inserted into wall • Fullyinsert the 3-prong

outlet properly, plug into wall outlet.

Arcing or sparking. • Materials to be avoided in • Check materials and

microwave oven suchasutensilsyou canusein

metal or foil are used. microwave oven.

(page 8)

•The oven is operated when • Do not operate with oven

empty,empty.

• Spilled food remains in the •Clean cavity with wet

cavity, towel.

Food is not cooked, • Materials to be avoided in • Use microwave-safe

defrosted enough or microwave oven are used. cookware only. (page 8)

overcooked. •Oven ventilation ports are •Check to see that oven

restricted, ventilation portsare not

restricted.

• The cooking time or power •Check the chart.

level is not at recommended(page15)

setting.

• Food is not turned or stirred. •Turn or stir food.

LOCKappears on • The control is locked.• Press STARTand hold

display,for 4 seconds to unlock

control panel.(page 13)

The oven is not *Youmay be usingTimer. *Press STOPCLEARto

cooking even though • The door is not securely cancel the Timer.

thedisplayshows closed, • Open and close the door,

time counting down.

The turntable will not • You have turned the = SetTURNTABLE ON/OFF

rotate, turntable off. keyto on, (page 23)

• TheturntableisnotcorrectlyeCheckthattheturntabSe

in place, is correctly placed on the

receptacle. See turntable

installation on page 10.

You do not hear any * You have turnedoff beep * Resetthe setting to beep

tone when keypad is sound, sound on. See the

)ressed orend-of- optional settings on

cooking sound, page 18,

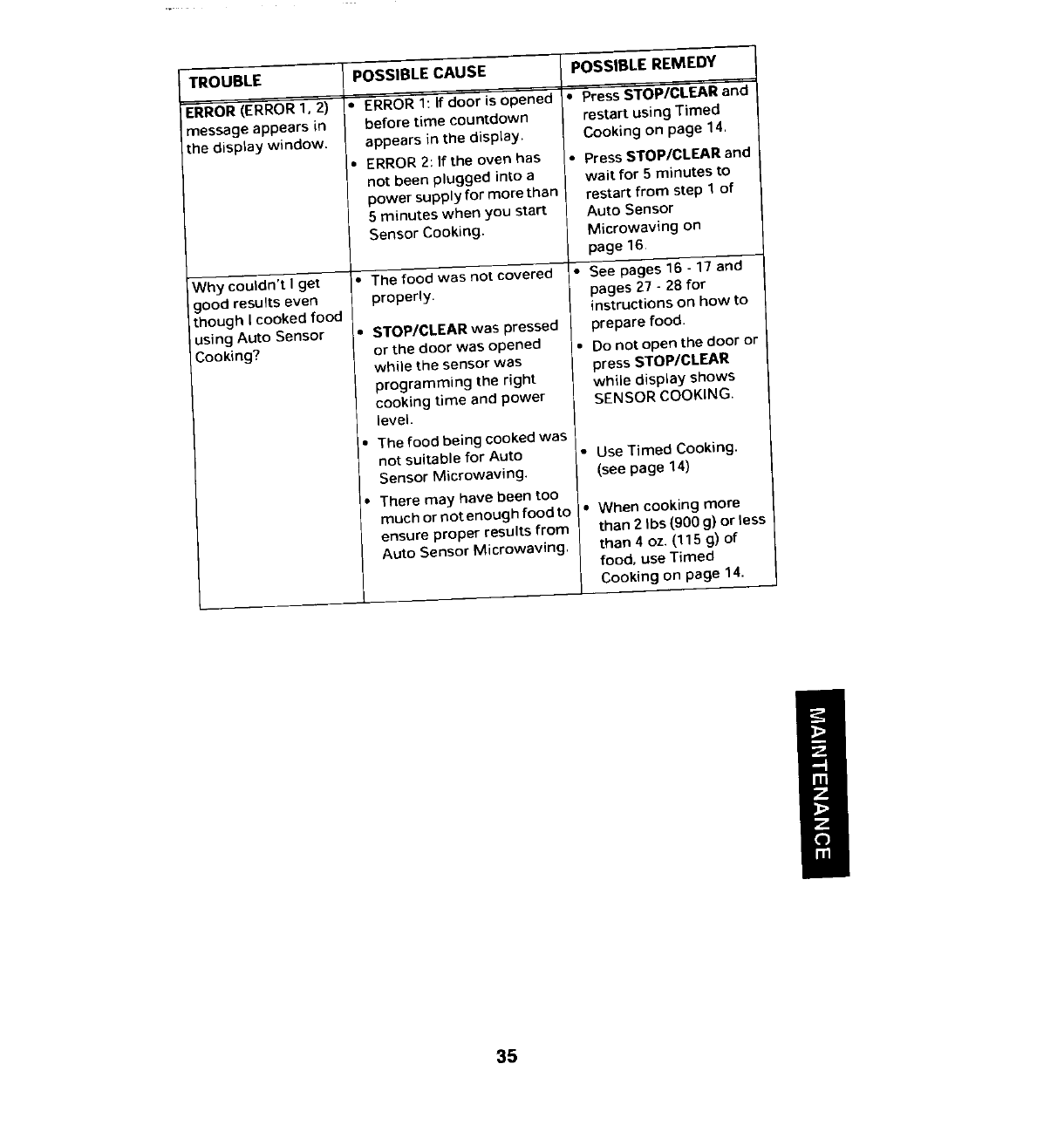

TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY ' i

ERROR (ERROR1, 2) • ERROR1: if door is opened • Press STOP/CLEAR and

messageappears in before timecountdown restart usingTimed

the display window, appears in the display. Cooking on page 14,

• ERROR2: If the oven has • Press STOP/CLEAR and

not been plugged into a waitfor 5 minutes to

power supplyfor more than restart from step 1 of

5 minutes when you start Auto Sensor

Sensor Cooking. Microwaving on

page 16.

Why couldn't ] get• Thefood was not covered • Seepages 16 - 17 and

good resultseven properly, pages 27 - 28 for

though Icooked food instructions on how to

using Auto Sensor • STOP/CLEAR was pressed prepare food.

Cooking? or thedoor was opened • Do not open the door or

while the sensor was press STOP/CLEAR

programming the right while display shows

cooking t)me and power SENSOR COOKING.

level.

• The food being cooked was

not suitable for Auto • Use Timed Cooking.

Sensor Microwaving. (see page 14)

• There mayhave been too

much or not enough food to " When cooking more

ensure proper results from than 2Ibs (900 g) or less

Auto Sensor Microwaving, than 4 oz. (115 g) of

food, use Timed

Cooking on page 14.

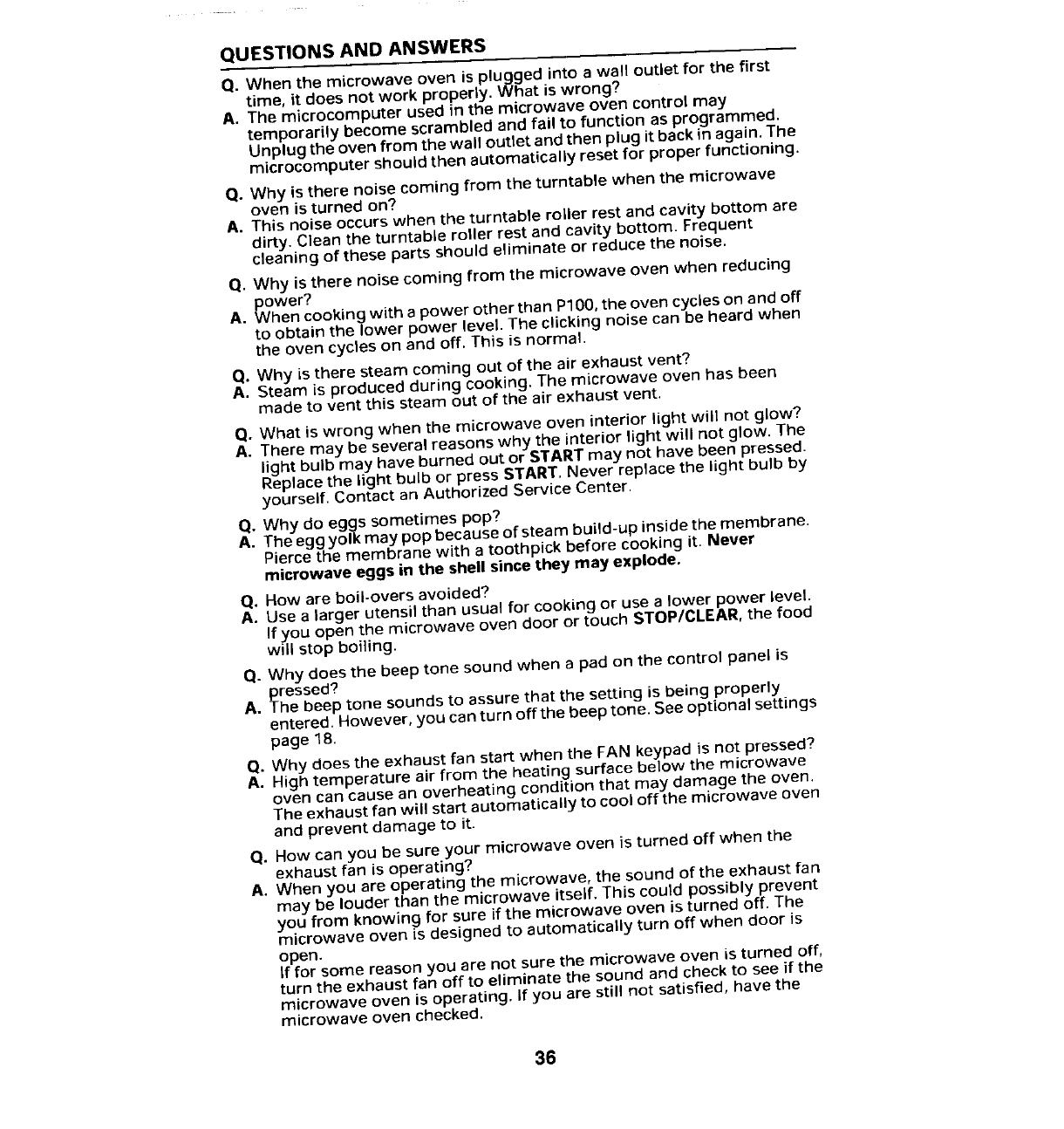

QUESTIONS AND ANSWERS

Q.When the microwave oven isplugged into a wall outlet for the first

time,it doesnot work properly. What is wrong?

A. The microcomputer used in themicrowaveoven control may

temporarilybecome scrambled and fail to function as programmed.

Unplugthe ovenfrom thewall outlet and then plug it back in again.The

microcomputer should then automatically reset for proper functioning.

Q. Why is there noise coming from the turntable when the microwave

oven isturned on?

A. This noiseoccurs when the turntable roller rest and cavity bottom are

dirty. Clean theturntableroller rest and cavity bottom. Frequent

cleaning of these parts should eliminate or reduce the noise.

Q. Why is there noise coming from the microwave ovenwhen reducing

power?

A. When cooking withapower other than P100, the oven cycles on and off

to obtain the lower power level. The clicking noise can beheard when

the oven cycles on and off,This isnormal,

Q.Why is there steam coming out of the air exhaust vent?

A,Steam is produced during cooking.The microwave oven hasbeen

made to vent this steam out of theair exhaust vent.

Q,What is wrong when the microwave oven interior light will not glow?

A. There may beseveral reasons why theinterior light will not glow. The

light bulb may have burned out or START may not have been pressed.

Replace the light bulb or press START. Never replace the light bulb by

yourself. Contact an Authorized Service Center.

Q. Why do eggs sometimes pop?

A. The eggyolk may pop because of steam build-up inside the membrane.

Pierce the membrane with a toothpick before cooking it.Never

microwave eggs in the shell since they may explode.

Q,How are boil-overs avoided?

A. Use alarger utensilthan usual for cooking or use a lower power level.

If you open the microwave oven door or touch STOP/CLEAR, the food

will stop boiling.

Q. Why does the beep tone sound when a pad on the controlpanel is

pressed?

A. The beep tone sounds to assure that the setting is being properly

entered.However, you can turn off the beep tone. See optionalsettings

page 18.

Q. Why does the exhaust fan start when the FAN keypad is not pressed?

A,High temperature air from the heating surface below the microwave

oven can cause an overheating condition that may damage the oven,

The exhaust fan will start automatically to cool off themicrowave oven

and prevent damage to it.

Q. How can you besureyour microwave oven is turnedoff when the

exhaust fan is operating?

A. When you are operating the microwave, the sound of the exhaust fan

may belouder than the microwave itself. This could possibly prevent

you from knowing for sure if the microwaveoven is turned off. The

microwave oven is designed to automatically turn off when door is

open.

If for somereason you are not sure the microwave oven is turned off,

turn theexhaust fan off to eliminate the sound and check to see if the

microwave oven is operating,If you are still not satisfied,have the

microwaveovenchecked.

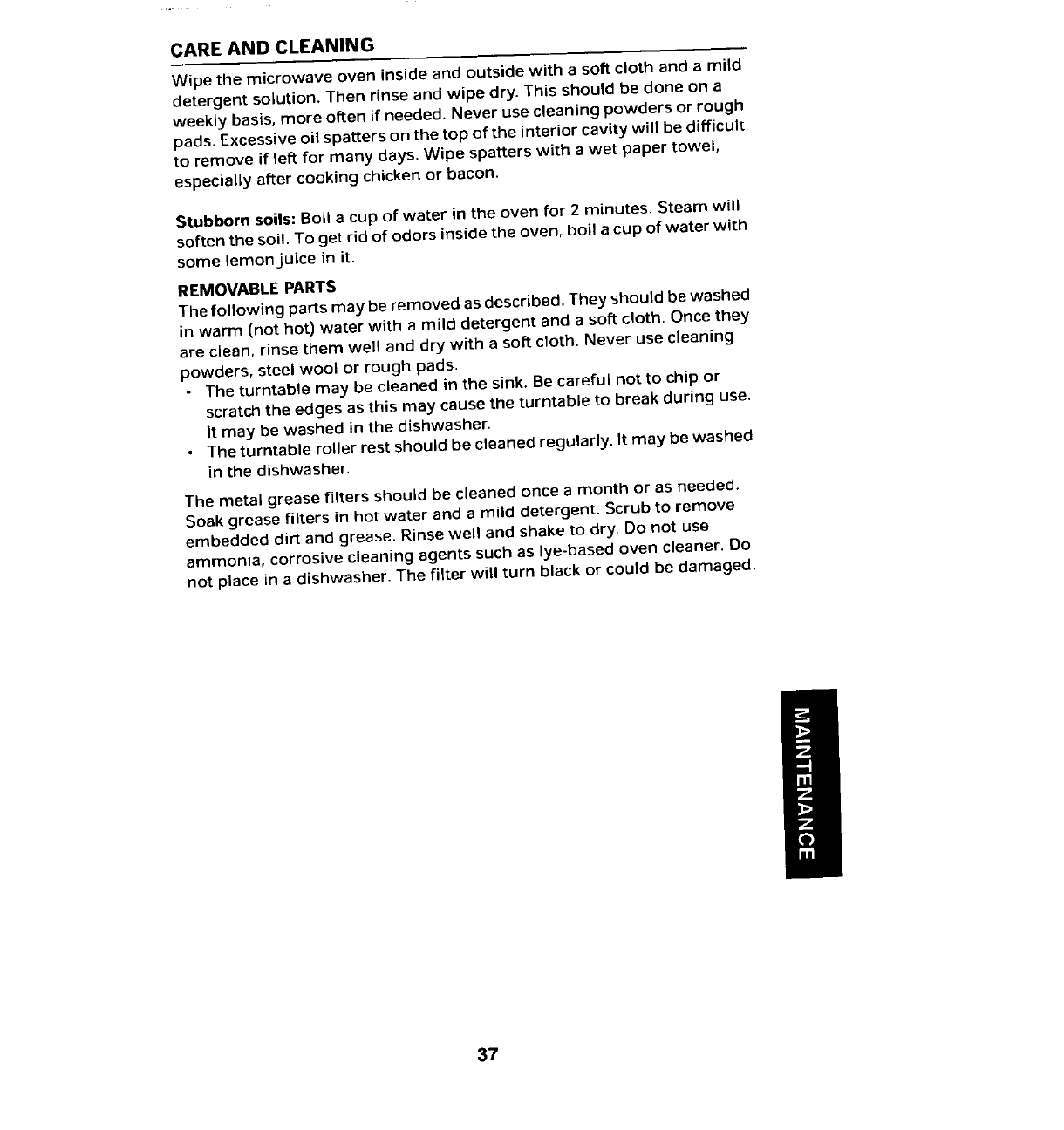

CARE AND CLEANING

Wipe the microwave oven inside and outside with a soft cloth andamild

detergentsolution, Then rinse and wipe dry. This should be done on a

weeklybasis,more often if needed.Never use cleaning powders or rough

pads. Excessiveoil spatters on the topof the interiorcavitywill bedifficult

to remove if left for many days. Wipe spatters with awet paper towel,

especiallyaftercooking chickenor bacon.

Stubborn soils: Boilacup of water in the oven for 2 minutes. Steam will

soften thesoil. To get rid of odors inside the oven, boil acup of water with

some lemon.juice init.

REMOVABLEPARTS

Thefollowing parts maybe removed as described. They should be washed

in warm (not hot) water with a mild detergent andasoft cloth. Once they

are clean, rinse them well and dry with a soft cloth. Never usecleaning

powders, steel wool or rough pads.

• The turntable may be cleaned inthe sink.Be careful not to chip or

scratch the edges as this may cause the turntable to break during use.

It may be washed in the dishwasher.

• The turntable roller rest should be cleaned regularly. It may be washed

in the dishwasher,

The metal grease filters should be cleaned once a monthor as needed.

Soak grease filters in hot water and a mild detergent. Scrub to remove

embedded dirt and grease. Rinse well and shake to dry. Do not use

ammonia, corrosive cleaning agents such as lye-based ovencleaner. Do

not place in a dishwasher. The filter will turn black or could be damaged.

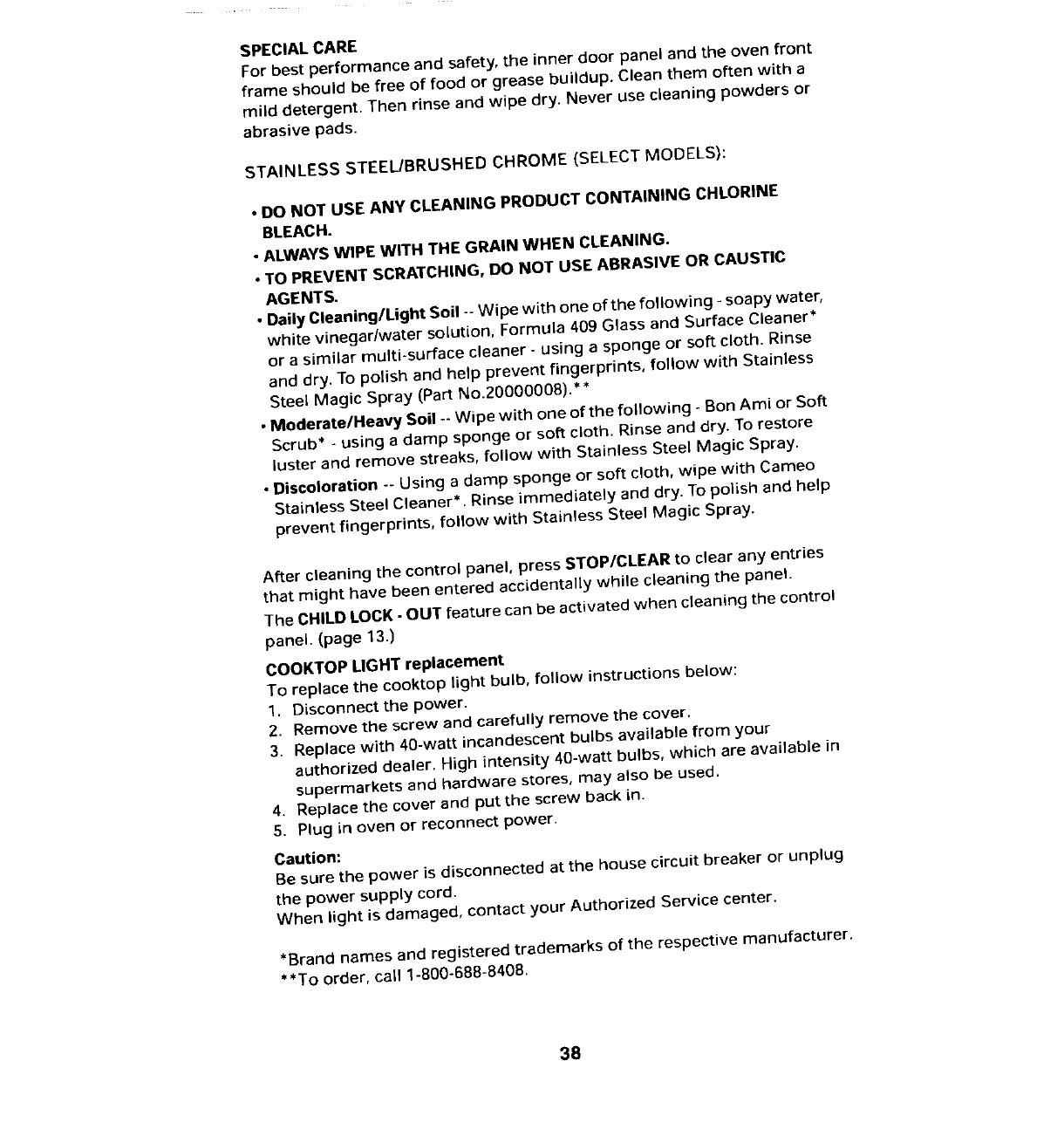

SPECIALCARE

For best performance and safety, the inner door panel and the oven front

frame should befree of food or greasebuildup. Clean them often with a

mild detergent. Then rinse and wipedry. Never use cleaning powders or

abrasive pads.

STAINLESS STEEL/BRUSHED CHROME (SELECT MODELS):

• DO NOT USE ANY CLEANING PRODUCT CONTAINING CHLORINE

BLEACH.

• ALWAYSWIPE WITH THE GRAIN WHEN CLEANING.

•TO PREVENT SCRATCHING,DO NOT USE ABRASIVE OR CAUSTIC

AGENTS.

•Dally Cleaning/Light Soil --Wipewith oneof thefollowing - soapywater,

white vinegar/water solution,Formula 409 Glass and Surface Cleaner*

or a similar multi-surface cleaner - using a sponge or soft cloth. Rinse

and dry. To polish and help prevent fingerprints,follow with Stainless

Steel Magic Spray(Part No.20000008).**

• Moderate/HeawjSoil -- Wipe with one of the following. Bon Amior Soft

Scrub* - using adamp spongeor soft cloth. Rinse and dry.To restore

luster and remove streaks,follow with Stainless Steel Magic Spray.

•Discoloration --Using a dampsponge or soft cloth, wipe with Cameo

Stainless Steel Cleaner*. Rinse immediately and dry.To polish and help

prevent fingerprints,follow with Stainless Steel Magic Spray.

After cleaning the control panel, press STOP/CLEAR to clear any entries

that might havebeen entered accidentallywhile cleaning the panel.

The CHILD LOCK- OUTfeature can be activated when cleaning the control

panel.(page 13.)

COOKTOP LIGHT replacement

To replace the cooktop light bulb, follow instructions below:

1. Disconnect thepower.

2. Remove thescrew and carefullyremove the cover.

3. Replacewith 40-watt incandescent bulbs availablefrom your

authorized dealer.High intensity40-watt bulbs,which are available in

supermarkets and hardware stores,mayalso be used.

4. Replace the cover and put the screw back in,

5. Plug in oven or reconnect power.

Caution:

Besurethepower is disconnected at thehouse circuit breaker or unplug

the power supply cord.

When light is damaged, contact your Authorized Service center.

*Brand names and registered trademarks of the respective manufacturer.

**To order, call 1-800-688-8408.

MICROWAVE OVEN WARRANTY

Full Two Year Warranty

For two (2) years from the date of original retailpurchase, any part

which fails in normal home use will be repaired or replacedfree of

charge.

Limited Parts Warranty

After the second year from the date of originalretail purchase through

the fifth year,the following parts which fail in normal home use will be

repaired or replaced free of charge for the part itself, with the owner

paying allother costs, including labor,when the appliance is located in

the UnitedStates or Canada: (1) Touch pad and microprocessor,(2)

Magnetron tube, (3) High voltage transformer, (4) High voltage capacitor

(5) High voltage rectifier.

Limited Parts WarrantyOutsidetheUnitedStates or Canada

For one (1) year from the date of original retailpurchase, any part which

fails in normal home use will be repaired or replaced free of charge for

the part itself, with the owner paying all other costs, including labor,

when the appliance is located outside theUnited States or Canada.

Canadian Residents

This warranty covers only those appliances installed in Canada that

have been listed with Canadian Standards Association unless the

appliances are brought into Canada due to transfer of residence from

the United States to Canada.

What isNot Covered byThese Warranties

1. Conditions and damages 4.Products purchased for

resulting from any of the commercial orindustrial use.

following: 5.The cost of service or service call

a. improper installation, delivery to:

or maintenance, a. Correct installation errors.

b. Any repair, modification, b.Instruct the user on the proper

alteration, or adjustment not use of the product.

authorized by themanufacturer c. Transport the appliance to the

or an authorized servicer, servicer.

c. Misuse, abuse,accidents or 6. Consequential or incidental

unreasonable use. damages sustained by any

d. Incorrectelectric current, person as a result of any breach

voltage or supply, of these warranties.

e. Improper setting of any control.

2. Warranties are void if the original Some states do not allow the

serial numbers have been exclusion or limitation of

removed, altered, or cannot be consequential or incidental

readily determined, damages,so the above exclusion

3. Light bulbs, may not apply.

MICROWAVE OVENWARRANTY(CONT.)

If You Need Service

• Call thedealer fromwhom your appliance waspurchased or call

Maytag Appliances SalesCompany, Maytag Customer Assistance at

1-800-688-9900,USA and 1-800-688-2002 Canada or 1-423-472-3333 to

locate an authorized servicer.

• Be sure to retain proofofpurchase to verifywarranty status. Refer to

WARRANTY (above)for further information on owner's

responsibilitiesforwarrantyservice.

• Ifthedealer or service companycannot resolve the problem,writeto

MaytagAppliances SalesCompany, Attn: CAIR®Center,P.O.Box

2370,Cleveland,TN 37320-2370, or call 1.800-688-9900 (USA) and 1-

800-68B-2002 (Canada) or 1-423-472.3333.U.S. customersusing TTY

for deaf, hearing impaired or speech impaired, call1-800-688-2080.

NOTE: When writing or calling aboutaserviceproblem,please

include thefollowing information:

a. Your name, address and telephonenumber;

b. Model number and serial number;

c.Name and address of yourdealeror servicer;

d. A clear description ofthe problemyou arehaving;

e. Proofofpurchase (salesreceipt).

•User's guides,service manuals andparts catalogsare availablefrom

Maytag Appliances SalesCompany,Maytag Customer Assistance.

Maytag MMV5100AA Use & Care User Manual To The 21b3f1c8 5f46 44ef B333 8288fc31023c

Navigation menu

Versions of this User Manual:

Views

Navigation
