m{zd{ CX-3

SMART START GUIDE

1880737_16a_Mazda_CX-3_061615.indd 2 6/16/15 2:26 PM

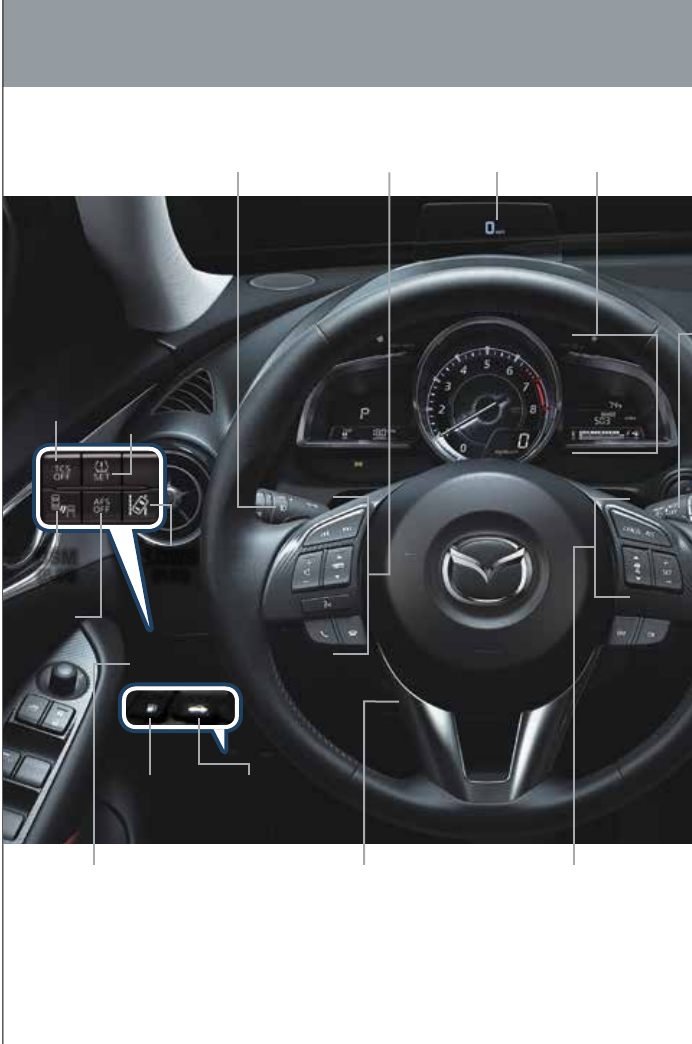

Driver’s View

LIGHTING/

TURN SIGNALS

(P. 2 5)

BLUETOOTH®

HANDS-FREE/

AUDIO

(PP. 11-12, 31-32 )

ACTIVE

DRIVING

DISPLAY1

(P. 15)

TILT/TELESCOPING

STEERING WHEEL

RELEASE LEVER3

AFS

(P. 2 7 )

MAZDA RADAR

CRUISE CONTROL

(PP. 17-18)

FUEL

FILLER LID

RELEASE

HOOD

RELEASE

INSTRUMENT

CLUSTER

(PP. 3 5- 3 8)

1 DO NOT try to adjust the angle or open/close the Active Driving Display by hand. Fingerprints on the display

will make it difcult to view and manual operation could cause damage. Always adjust the Active Driving

Display using the AD-Disp tab in Settings (pg. 15).

3 To provide a better view of the instrument cluster, adjust the steering wheel up or down/in or out.

LIFTGATE

RELEASE

BSM

(P. 2 3)

LDWS

(P. 21)

TPMS

SET

(P. 7 )

DSC

OFF

1880737_16a_Mazda_CX-3_061615.indd 1 6/16/15 2:26 PM

www.MazdaUSA.com

Driver’s View

CLOCK

(P. 16)

MAZDA CONNECT

INFOTAINMENT

SYSTEM

(PP. 9-10, 13-14, 16, 33)

CLIMATE CONTROL

(PP. 29-30)

TRANSMISSION

(PP. 39-40)

PL AYER

SEAT

WARMERS

PASSENGER AIRBAG

OFF INDICATOR2

HAZARD

WARNING

WIPER/

WASHER

(P. 2 6)

2 This indicator light turns on to remind you that the front passenger’s front/side

airbags and seat belt pretensioner will not deploy during a collision. The reason

for this is that the sensor has determined that an adult is not sitting in the front passenger seat.

NOTE: If a smaller adult sits on the front passenger seat, the sensors might detect the adult as

being a child depending on the person’s physique and may deactivate the front passenger’s front/side

airbags and seat belt pretensioner. Always wear your seat belt and secure children in the rear seats in

appropriate child restraints. See the Owner’s Manual for important information on this safety feature.

START/STOP

ENGINE BUTTON

(PP. 5 -6 )

1880737_16a_Mazda_CX-3_061615.indd 2 6/16/15 2:26 PM

KEYLESS ENTRY SYSTEM

• This system allows you to

lock and unlock the doors by

pushing the desired buttons.

Key

Unlock

• Push once to unlock

driver’s door or all the

doors (depending on

personalization setting*).

• Push twice (within three

seconds) to unlock all doors.

Panic Alarm

• Push for one second or more to activate alarm.

• Push Lock, Unlock, or Panic Alarm to turn alarm off.

Lock

• Push once to lock

all doors.

• Push twice

(within ve seconds)

for horn sound

verication that all

doors are locked.

*Refer to your Owner’s Manual for additional details about “Personalization Features”.

CAUTION:

• Make sure vehicle is OFF and take

the keyless entry system key with

you when leaving the vehicle.

• When locking doors using inside

door switches or inside door-lock

knobs, be careful not to leave the

key inside the vehicle.

Inside Door Lock Switch

Lock

Unlock

CAUTION: RED Key Indicator Light may illuminate if either advance

key or keyless entry key is placed in the cup holder. The key can sometimes

not be detected in the cup holder.

NOTE: For the hatchback, when the liftgate opener switch is pushed, the liftgate will

open slightly. If the liftgate is not opened within 1.5 seconds, the liftgate latch locks

(you will hear it lock) and the liftgate cannot be opened or closed from this slightly

raised position. To open/close the liftgate, push the liftgate opener switch, open the

liftgate within 1.5 seconds, then close it. The door/liftgate ajar warning light will be on if

the liftgate is not fully closed.

NOTE: With Advanced Keyless, there

is a recognizable beep sound to alert you

that the key is inside the vehicle.

1880737_16a_Mazda_CX-3_061615.indd 3 6/16/15 2:26 PM

www.MazdaUSA.com

ADVANCED KEYLESS ENTRY SYSTEM (if equipped)

• This system allows you to lock

and unlock the doors without

taking the key out.

While Carrying the

Advanced Key…

• Unlock the driver’s door

by pushing the driver’s door

request switch once.

• Unlock all doors by pushing

the driver’s door request switch

once or twice (depending on

personalization setting) OR by

pushing the passenger’s door

request switch once.

• Lock all doors by pushing

any request switch once.

• Open the liftgate

by pushing the opener

switch once (switch is

located a little to the right

of the Mazda emblem).

NOTE:

• Vehicles equipped with the Advanced Keyless Entry System and the Keyless

Entry System both use the same type of keyless entry transmitter. However,

only vehicles equipped with the Advanced Keyless Entry System allow you to

lock and unlock the doors with the door request switches (without taking the

key out of your purse or pocket).

• Vehicles equipped with the Keyless Entry System do not have request

switches on the doors/trunk. To lock and unlock the doors, the

corresponding transmitter button must be pushed.

Advanced Key

Door Request Switch

Electric Liftgate Opener

Liftgate Request Switch

1880737_16a_Mazda_CX-3_061615.indd 4 6/16/15 2:26 PM

STARTING THE ENGINE WITH

ACCELERATED WARM-UP SYSTEM (AWS)

The CX-3 is equipped with SKYACTIV combustion technology.

This technology includes AWS (Accelerated Warm-up System) for

optimal emission performance during cold starting conditions.

While Carrying the Key…

• Start the engine by pushing the START/STOP ENGINE button while

pushing the clutch pedal (M/T) or the brake pedal (A/T).

What you will notice? On start-up, the engine speed and sound are

higher (1500 RPM) for less than 1 minute to quickly bring the catalyst

to efcient operating temperature. The RPM will reduce to idle once

the temperature is achieved. This is normal engine operation under

cold start conditions.

What this does? This heats up the catalytic converter faster to reduce

emissions and allows Mazda to use an exhaust header on the engine

(to improve efciency and horsepower).

NOTE: You can drive the vehicle during AWS activation, no need to wait.

Key

• Shut the engine OFF by setting the parking brake/placing the

vehicle in Park (A/T), then push the START/STOP ENGINE button.

• Activate Accessories (ACC) by pushing the START/STOP

ENGINE button once without pushing the clutch or brake pedal.

• Turn the ignition to the ON position by pushing the START/STOP

ENGINE button twice without pushing the clutch or brake pedal.

The key indicator light in the instrument cluster will show GREEN

(engine ready to start) when the key is detected and the clutch pedal (M/T)

or the brake pedal (A/T) is pushed. If the KEY warning light illuminates

RED, or the START/STOP ENGINE button indicator light ashes AMBER,

this could indicate a problem with the engine starting system and the

inability to start the engine or switch the ignition to ACC or ON. Have your

vehicle inspected at an Authorized Mazda Dealer as soon as possible.

NOTE: RED Key Indicator Light may ash if the key is placed in the cup holder.

The key may not be detected in the cup holder.

1880737_16a_Mazda_CX-3_061615.indd 5 6/16/15 2:26 PM

www.MazdaUSA.com

BREAK-IN PERIOD

No special break-in is necessary, but a few

precautions in the rst 600 miles should

be observed.

• Do not race the engine.

• Do not maintain one constant speed, either

slow or fast, for a long period of time.

• Avoid full-throttle starts.

• Avoid unnecessary hard stops.

• Do not drive constantly at full-throttle or high

engine rpm for extended periods of time.

Emergency Engine Stop

Pushing and holding the START/STOP ENGINE

button or repeatedly pushing the button while

the engine is running will turn the engine OFF.

Use only in case of an emergency.

Emergency Vehicle Entry

If the key cannot be used due to a malfunction

or dead key battery, use the auxiliary key to

lock or unlock the doors.

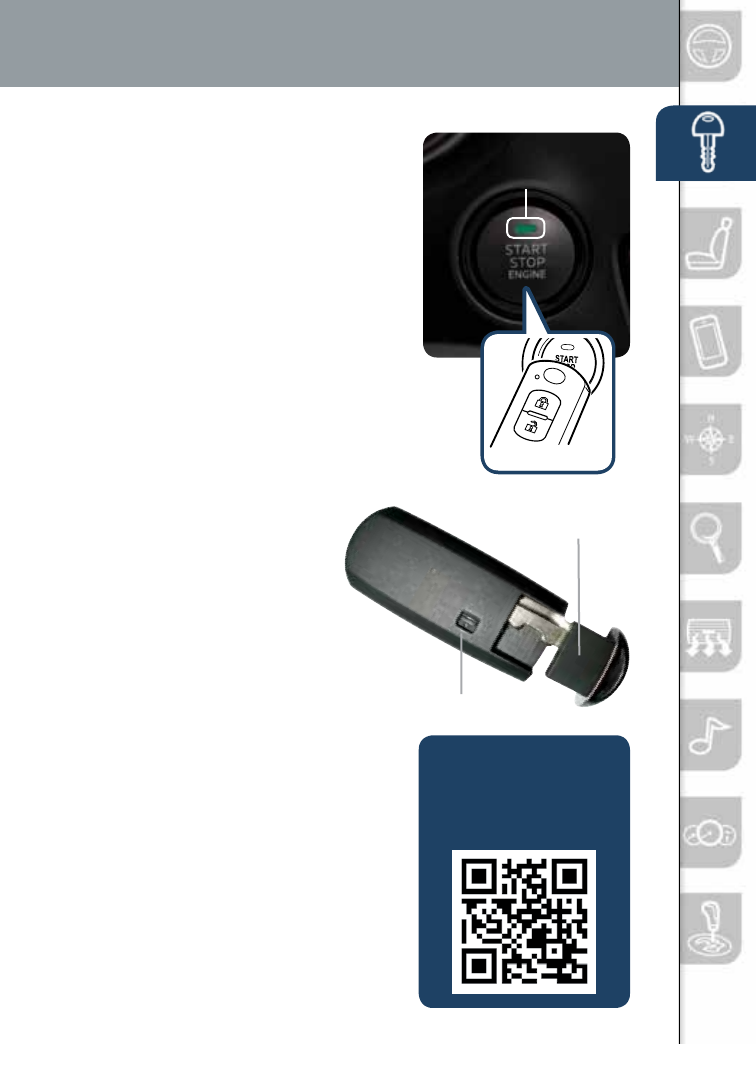

Emergency Engine Start

If the engine cannot be started due to a dead

key battery:

1 Push the brake pedal (A/T) or the clutch

pedal (M/T).

2 While the indicator light

ashes GREEN, touch the

START/STOP ENGINE button

using the back side of the

transmitter (as shown).

3 After the GREEN indicator

light illuminates constantly,

push the START/STOP

ENGINE button with your

nger to start the engine.

Auxiliary Key Release

Auxiliary Key

Key (Rear)

START/STOP ENGINE

Button Indicator Light

Transmitter

FUEL ECONOMY:

To achieve the

best fuel economy, visit

www.fueleconomy.gov

for more information.

1880737_16a_Mazda_CX-3_061615.indd 6 6/16/15 2:27 PM

Tires

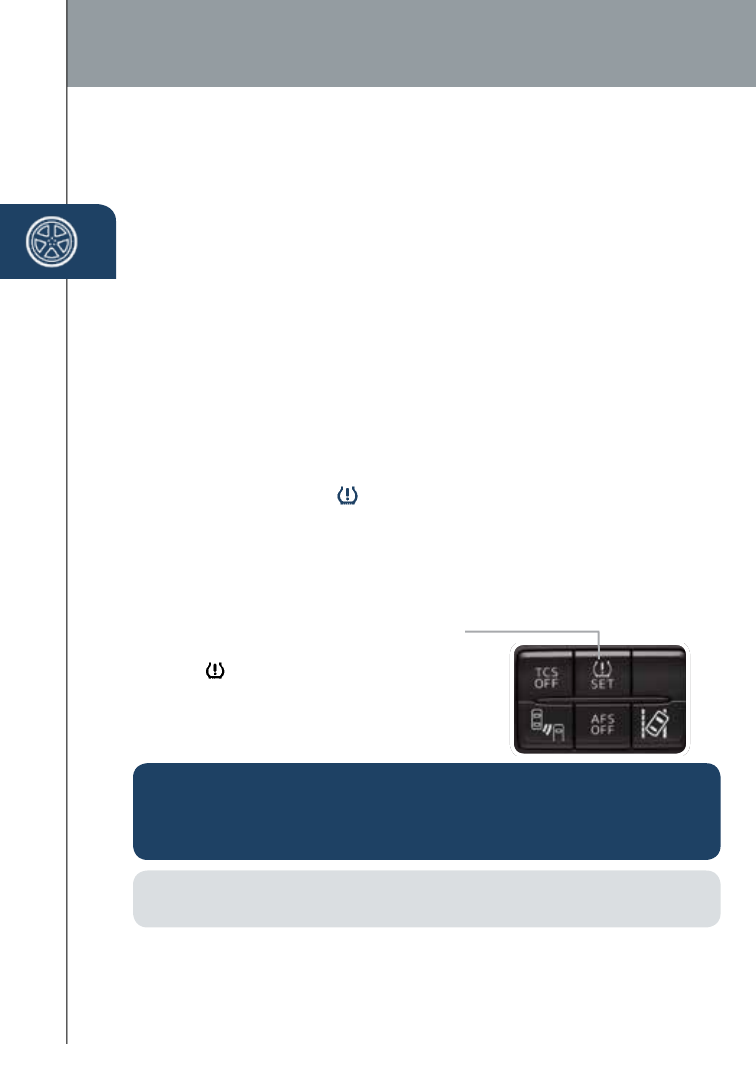

TIRE PRESSURE MONITORING SYSTEM (TPMS)

For your safety, the CX-3 is equipped with TPMS that detects low tire

pressure in one or more tires. If the tire pressure starts getting low in

one or more tires, the system alerts the driver by turning on a light in the

instrument cluster (pp. 35-38) and sounding an alarm.

What to do? Don’t ignore the TPMS warning light. Stop and check your

tire pressure (when tires are cold) and inate them to the proper pressure.

Properly inated tires are safer, last longer, and increase fuel economy.

In the following cases, the TPMS must be “initialized” so the system can

operate normally.

• The tire pressure is adjusted (up or down) in one or more tires.

• A tire rotation is performed.

• Any tire or wheel is replaced.

• The vehicle’s battery is disconnected, replaced or completely dead.

Initialization Process

(TPMS Warning Light is Illuminated)

1 Park the vehicle in a safe place and rmly apply the parking brake.

2 Let the tires cool, then adjust the tire pressure to the specied

pressure (See tire label located on the driver’s side door jam area) on

all four (4) tires.

3 Switch the ignition ON, but leave the vehicle parked.

4 Push and hold the TPMS “Set Switch”

(left side of dash) until the TPMS warning

light in the instrument cluster ashes

twice and a beep sound is heard once.

CAUTION: If the TPMS “Set Switch” is pushed without adjusting the tire

pressure, the system cannot detect the normal tire pressure. The TPMS

warning light may not turn on, even if the tire pressure is low, or it may turn on

if the tire pressure is normal.

NOTE: Drastic changes in temperature or altitude may cause the TPMS warning

light to turn on.

1880737_16a_Mazda_CX-3_061615.indd 7 6/16/15 2:27 PM

www.MazdaUSA.com

Returning rear seats to upright position:

1 Install the headrest (if removed).

2 Raise seatbacks until they lock

into position.

3 Pull on the top of the seatbacks to

make sure they are locked.

4 Check that all seat belts are routed

properly for passenger use.

Seats and Headrests

FRONT SEATS

Headrests

For your safety, the front seats are equipped with active headrests that

are not adjustable forward or backward, only up and down. An active

headrest is designed to move forward in the event of a collision to close

the gap between your head and the headrest (to prevent whiplash).

REAR SEATS

Push the button to fold down the seatback.

NOTE: For tall drivers and front passengers who

adjust the front seats all the way back, the headrests

on the rear seats need to be removed when folding

the rear seatbacks down. If not removed, the rear

headrest will push into the front seatback. In order

to remove the headrest from the rear seat, the

seatback needs to be tilted slightly forward.

NOTE: Left rear seat release is shown.

Unlocked

Locked

1880737_16a_Mazda_CX-3_061615.indd 8 6/16/15 2:27 PM

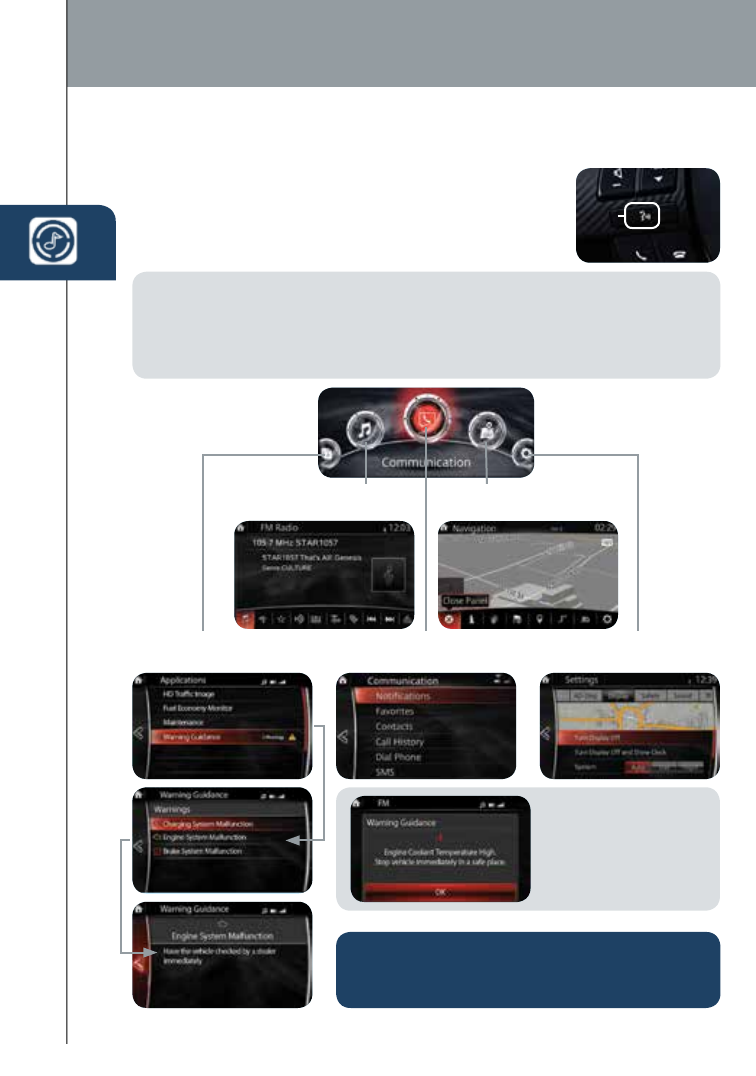

Mazda Connect Infotainment System

Talk

MAZDA CONNECT INFOTAINMENT SYSTEM (if equipped)

MAZDA CONNECT is designed to be operated by

using one of the following three interfaces:

1 The commander switch (p. 10).

2 The touchscreen (if the vehicle is not moving).

3 Voice control (p. 10).

NOTE:

• In the interest of safety and to avoid distracted driving, the touchscreen

is disabled at speeds over 5 mph. Use the commander switch

or voice control to operate the infotainment system.

• You can touch and tap, slide or swipe the touchscreen, but cannot pinch.

Push TALK button

and say “Applications.”

Push TALK button

and say “Settings.”

Push TALK button

and say “Entertainment.”

Push TALK button

and say “Navigation.”

Push TALK button and

say “Communication.”

NOTE: These types of

Warning screens appear

if there is a problem

with the vehicle.

For issues with MAZDA CONNECT, visit

http://infotainment.mazdahandsfree.com

or call 800-430-0153.

1880737_16a_Mazda_CX-3_061615.indd 9 6/16/15 2:27 PM

www.MazdaUSA.com

COMMANDER SWITCH (if equipped)

The commander is the primary means for operating Mazda Connect.

It allows you to keep your head up and eyes on the road.

The control places ve buttons naturally beneath the ve ngers and shows

ve matching icons on the home screen for touch-only operation. Select a

button around the commander knob to operate the desired system.

Commander/Voice Control

Select an item on the screen by:

1 Moving the knob up or down, left or right, and/or turn the dial to move the

cursor to the desired on-screen location (and get a description of the icon).

2 Pushing the knob down (ENTER) to select your choice on the screen.

SOME COMMON VOICE COMMANDS ARE:

• Help

• Cancel

• Go Back or Previous

• Next or Skip

• Tutorial

• Scroll/Page Down

• Scroll/Page Up

• Turn Display/Screen Off

• Select <line number>

(ex: “Select Four” or

“Select Line Four”

• Display Clock

Go to (and one of the following):

• Home

• Entertainment

• Navigation

• Communication

• Settings

• Messages

• Contacts

• Email

• Phone

• Call History

• Text

• AM/FM

• XM

• CD

• Bluetooth

• AUX

• USB

• Pandora

• Aha

• Stitcher

Play (and one of the following):

• AM/FM

• XM

• CD

• Bluetooth

• AUX

• USB

• Pandora

• Aha

• Stitcher

• Song

• Playlist

• Artist

• Album

• Genre

• Folder

VOICE CONTROL (if equipped)

Voice control is activated by pushing the TALK button on the steering wheel

and speaking a command. Voice commands usually contain a verb (action

word) followed by a noun. Common verbs are “Go to” and “Play”.

AUDIO

HOME

BACK

(to previous screen)

NAVIGATION MUTE (push down)/

VOLUME (turn dial)

FAVORITES - The following can be stored in Favorites:

• 50 stations total for

AM, FM, and XM.

• 50 contacts in the

system phonebook.

• 50 points of interest in

navigation. (To edit or

delete HOME, select

HOME and push and

hold the commander

knob until the Edit/

Delete HOME

screen appears.)

Push and hold the

Favorites (Star) button

to store your favorites.

1880737_16a_Mazda_CX-3_061615.indd 10 6/16/15 2:27 PM

PAIRING YOUR BLUETOOTH® PHONE OR AUDIO DEVICE

Bluetooth®

With Mazda Connect:

1 Manually turn Bluetooth on your phone or

audio device.

2 Select Communication from Home screen.

3 Select Settings.

4 Select Bluetooth.

5 Select Add New Device to display the message and switch to the device

operation. If this option is grayed out, make sure Bluetooth is turned on at

the top of the menu.

6 Using the device, perform a search for the Bluetooth® device

(Peripheral device).

7 Select “CX-3” from the device list searched by the device. (Device with

Bluetooth® version 2.0) Input the displayed 4-digit pairing code into the

device. (Device with Bluetooth® version 2.1 or higher.)

• Just Works is detected the pairing is performed automatically.

• Numeric Comparison is detected

8 Verify the displayed 6-digit code on the audio unit is also displayed on the

device, and touch the Yes on-screen button and then “YES” on the device

if needed.

Without Mazda Connect:

1 Manually turn Bluetooth on your phone or audio device.

2 Push and release the TALK button on the steering

wheel (wait for beep).

3 From main menu, say, “Setup,” then “Pairing Options.”

4 Say, “Pair.”

5 Say a four-digit code (i.e., “1, 2, 3, 4”).

6 Place phone in discovery mode; if necessary, consult

your phone’s manual or go to www.mazdausa.com/bluetooth.

Select model, Bluetooth, and follow screen prompts.

7 After phone is recognized, you will be prompted to name the paired phone.

Talk

Pick-up Hang up

NOTE:

• For safety reasons, you cannot pair a phone while driving.

• Before pairing your cell phone or audio device, you must manually turn on

the wdevice’s Bluetooth® function. Refer to the owner’s manual for your device.

• For customer service and device compatibility, visit

http://infotainment.mazdahandsfree.com or call 800-430-0153.

• IMPORTANT: Set the volume level on your cell phone or audio device to the highest

level before distortion starts, then adjust the volume on the vehicle’s audio system.

• When in range of another Wi-Fi device, the Bluetooth connection between your

phone and the system may disconnect for a short time if you have Wi-Fi enabled

Turn off Wi-Fi on your phone if needed.

1880737_16a_Mazda_CX-3_061615.indd 11 6/16/15 2:27 PM

www.MazdaUSA.com

PAIRING YOUR BLUETOOTH® PHONE OR AUDIO DEVICE

TO MAKE OR RECEIVE A HANDS-FREE CALL

button: To receive/swap a call.

button: To make a call (push and

say “Phone”) or to skip vehicle

voice guidance and allow user

to speak next voice command.

button: To end/reject a call.

Automatic Bluetooth

Reconnection:

On engine start, the last connected

device will automatically be

re-connected after several seconds.

To switch phones, go to Device

Settings and select Bluetooth.

NOTE: Some phone models do not support all features. If your phone or device

does not pair, please visit http://infotainment.mazdahandsfree.com or contact

(800) 430-0153 for further assistance or to report a phone/audio device concern.

NOTE: For connection issues, please conrm the Bluetooth connection status

by making sure there is a battery and signal strength icon in the top right corner

of the screen. Some phones will turn off the Bluetooth signal after connecting the

USB cable to the vehicle or after downloading an update.

• If not displayed, check your phone and make sure Bluetooth is turned on

(or discoverable) in the Settings menu. Detailed instructions for some

phones are available online.

• If there is still no connection, delete the pairing data on the system and

your phone and try again after conrming your cell phone is compatible at

http://infotainment.mazdahandsfree.com.

The following icons are displayed on the touchscreen during a call:

Displays the

Communication

screen.

Ends a call.

Transfers a call from

hands‐free to the

mobile phone.

Transfers a call from

the mobile phone

to hands‐free.

Mutes the call.

Calls another person

during a call and

creates a 3‐way

call. Select the

contact from one of

the following: Call

History, Contacts

(from phonebook),

or Dial (from

numerical keypad).

Joins the call on hold

to make a 3‐way call.

Switches the

call on hold.

Allows transmitting

DTMF (Dual Tone

Multi‐Frequency)

signal via the

numerical keypad

(generally to a

home telephone

answering machine

or an automated

guidance call center).

For phone’s compatible with SMS and MMS:

9 (Call History) Incoming/Outgoing history for the device is downloaded

automatically as well as your Phonebook.

10 (Devices compatible with Mazda SMS function) SMS (Short Message

Service) messages and MMS (Multimedia Message Service) messages

for the device are downloaded automatically. Permission may be required,

depending on the mobile device. Refer to your cell phone manufacturer for

assistance with the cell phone permissions.

1880737_16a_Mazda_CX-3_061615.indd 12 6/16/15 2:27 PM

To plan a route on your Navigation system, do the following:

1 Push the NAV button on the commander switch.

2 Select NEW DESTINATION.

3 Select Find Address.

NOTE: By default, the navigation system detects the country and city/town

you are in. If needed, you can change the country or state setting by selecting

Country or a new city/town by selecting City or Zipcode.

4 Enter the street name.

5 Enter the house number, then select the .

6 The system transitions to a screen where the input location can

be checked. To transition to the next screen, select

Select or to transition to the previous screen, select .

Navigation System

NAVIGATION SYSTEM (if equipped)

Planning A Route

ICON Voice Control Purpose

Hide/Show

Menu Bar To open and close the Menu bar.

Enter

Destination

To enter an address or favorite destination, or select

a place of interest or a location on the map.

Navigation

Information

To switch to the navigation information screen on

which items such as trafc information and GPS

reception conditions.

Cancel To cancel an existing way point/route.

Point of

Interest To nd places nearby.

Route Options

To display the route parameters and full length of

route. Perform route-related actions such as edit

or cancel, pick route alternatives, avoid parts, add

destination to Favorites.

View Mode To change the map mode

(2D north up / 2D heading up / 3D).

Settings To adjust the navigation settings.

IMPORTANT:

• In the interest of safety and to reduce distractions

while you are driving, you should always plan a

route before you start driving.

• To adjust the volume of the navigation system voice while driving, adjust the

volume by turning the VOL knob when voice guidance is being given. To prompt

voice guidance, push the NAVI button to repeat the last instruction.

• For issues with the navigation system, visit

http://infotainment.mazdahandsfree.com or call 800-430-0153.

1880737_16a_Mazda_CX-3_061615.indd 13 6/16/15 2:27 PM

www.MazdaUSA.com

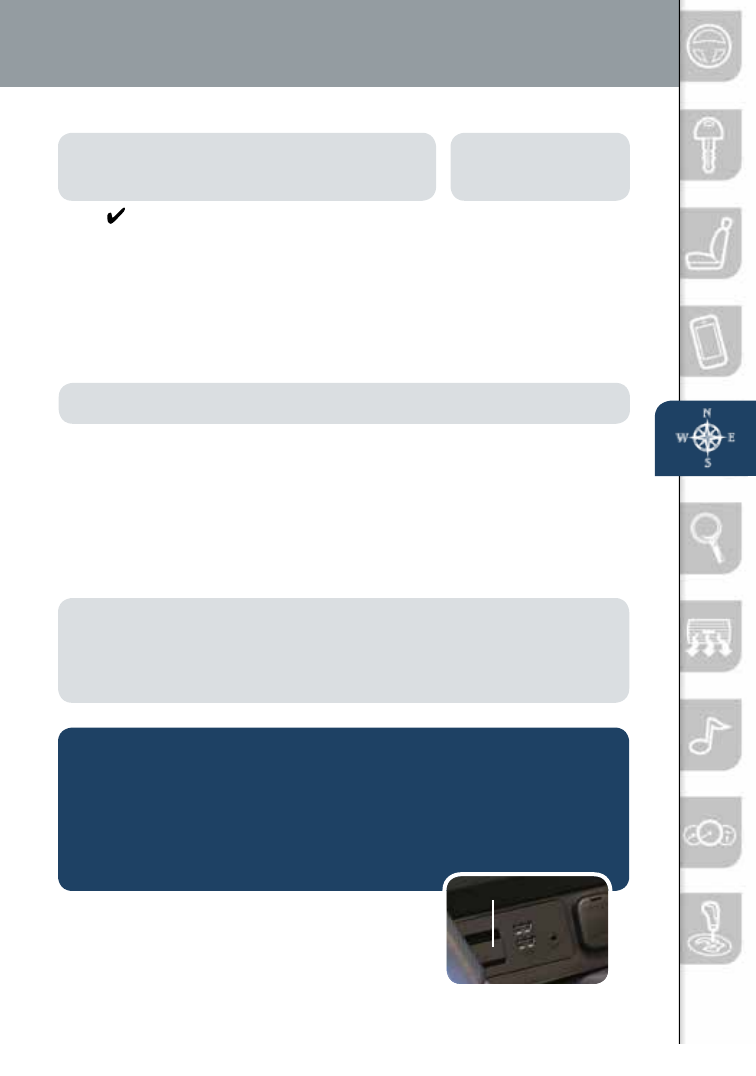

Navigation System

7 If Go is selected or if no operation is performed with 10 seconds, the

route guidance is started. The set route can be checked by selecting MAP.

Planning A Route Using Voice Commands

You can navigate to any of the following places using your voice:

• AN address, including home

• Favorites

• Cities and towns

• POI (Point of Interest) categories

• POIs for named brands of,

for example, restaurants, gas

stations, car rental and gyms.

• A recent destination

To plan a route to an address using your voice, do the following:

1 Push the TALK button on the steering wheel.

2 When you hear the tone, you can say, for example “Address”.

3 When on the enter an address screen say the full address (without zip code)

for your destination, for example “123 Main St., Los Angeles, California”.

The system does not recognize zip codes.

4 Say “Yes” if the address is correct. If shown a list of addresses, say the

list number for the correct address or say “none of these”.

NOTE: POI searches for points of interest near your present location.

NOTE:

• For best results, say the full address without pausing between words.

• Voice guidance can be skipped by pushing the talk button.

• When prompt voice guidance is muted you will need to go into navigations settings

to turn the volume back on for the NAVI button to repeat the last instructions.

NOTE: Select Places Nearby for POIs (points of

interest) around the selected location, or select Add to

Favorites to register the selected location to Favorites.

NOTE: The route can

be edited by selecting

other options.

1 Turn the vehicle ignition OFF.

2 Locate the SD card slot located below the

climate control system.

• Remove card: Open the cover and push

the card once, then pull it out.

• Insert card: Push the card in (label-side up), then close the cover.

To remove or insert the MAP SD card (to update the map database):

• Visit www.mazdausa.com/navigation and download the most recent map

available for your device for free for 3 years from vehicle delivery.

• For issues with the navigation system, visit

http://infotainment.mazdahandsfree.com or call 800-430-0153.

• Only use your MAP SD card for operating and updating your navigation

system. Do not insert the MAP SD card into another vehicle or into any

other device such as a camera.

• Do not put other SD cards in this slot.

SD Card

1880737_16a_Mazda_CX-3_061615.indd 14 6/16/15 2:27 PM

The Active Driving Display displays the following information:

• Vehicle Speed Setting

using cruise control

• Navigation Turn-by-Turn

(TBT) direction, distance

and lane guidance

• Lane Departure Warning

System (LDWS) operation

conditions and warnings

• Smart City Brake

Support (SCBS)

warnings

• Vehicle Speed Setting

using cruise control

(if equipped)

To change the settings/adjustments for the Active Driving Display:

1 Select the Settings icon on the

Home screen.

2 Select the AD-Disp tab.

3 Select the desired item to change.

• Height: Adjust the position of the

virtual image of the Active Driving

Display up or down.

• Brightness Control: Method

for adjusting screen brightness

(Automatically with instrument

cluster illumination or manually).

• Calibration: Brightness

initialization setting (when

selecting automatic adjustment).

• Brightness: Brightness

adjustment (when selecting

manual adjustment).

• Navigation: On/Off.

• Active Driving Display:

On/Off.

• Reset: Reset to

default settings.

50 mph

MPH

Active Driving Display

NOTE:

• If the display does not operate, switch the ignition off and then switch it back on. If it

still does not operate even with the ignition switched ON, have the vehicle inspected at

an Authorized Mazda Dealer.

• It may be difcult to view the display when wearing sunglasses. Take off your

sunglasses or adjust the luminosity.

• If the battery has been removed and re-installed or the battery voltage is low, the

adjusted position may deviate.

• The display may be difcult to view or temporarily affected by weather conditions such

as rain, snow, light, and temperature.

ACTIVE DRIVING DISPLAY (if equipped)

CAUTION: Always adjust the display

using the Settings screen (AD-Disp

tab). Do not try to adjust the angle

or open/close the display by hand.

Fingerprints on the display will

make it difcult to view and manual

operation could cause damage.

1880737_16a_Mazda_CX-3_061615.indd 15 6/16/15 2:27 PM

www.MazdaUSA.com

Active Driving Display

Mazda Connect Settings

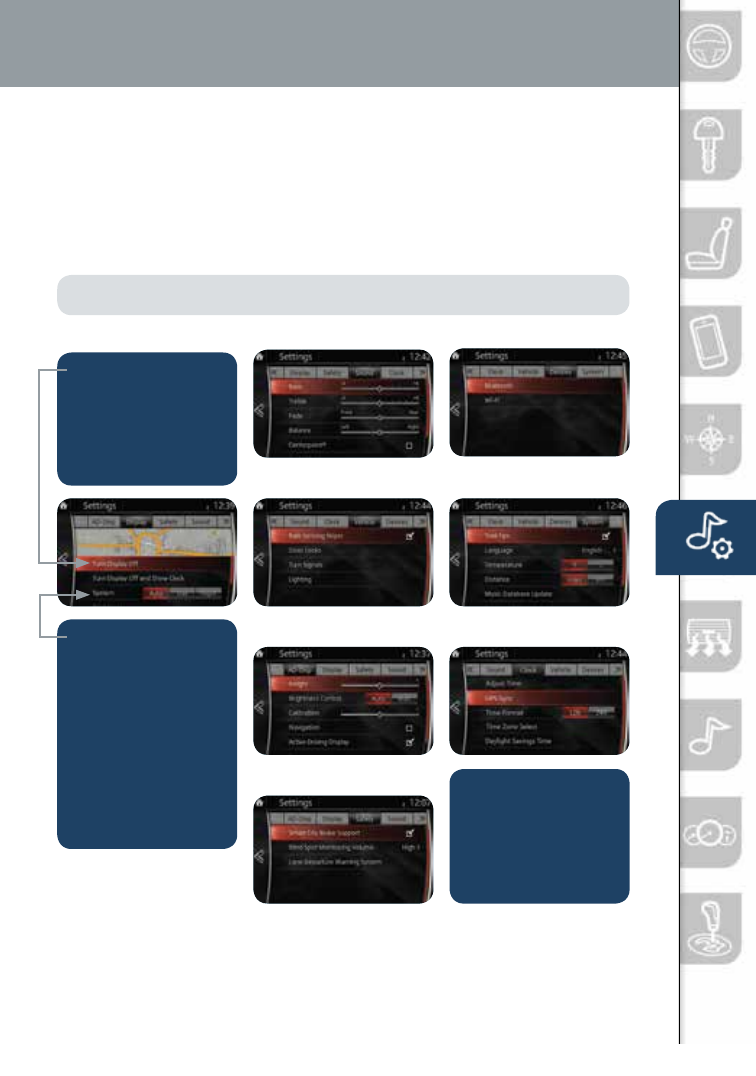

MAZDA CONNECT SETTINGS (if equipped)

To view the different setting screens:

1 Move the commander switch to the left or right to change tabs.

2 When the desired tab is highlighted, push the knob of the commander

switch down.

3 Turn the dial of the commander switch to scroll down the list.

NOTE: If there is a scroll bar on the right side, there are more items further down.

Use System

to change the

brightness of the

Display between Day

(bright), Night (dim),

and AUTO (switches

from Day to Night

when headlights are

turned ON).

See illumination dimmer

pp. 31-34.

The CLOCK tab can

be used to adjust

the time, sync the

clock with GPS, and

change between

12 and 24 hr clock.

Use this to turn off

the display. Touch

the screen or use

the commander

switch to turn

back on.

Safety Settings

Sound Settings

Vehicle Settings

Clock Settings

System Settings

Device SettingsDisplay Settings

Active Driving

Display Settings

1880737_16a_Mazda_CX-3_061615.indd 16 6/16/15 2:27 PM

Mazda Radar Cruise Control

MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM (if equipped)

The MRCC system maintains vehicle speed and following distance using

a radar sensor to detect a vehicle ahead. The driver simply presets the

vehicle speed between 19 mph (30 km/h) and 90 mph (145 km/h) and the

system will maintain a safe following distance without having to turn the

cruise control off.

Setting the MRCC

When the ON switch is pushed,

the vehicle speed and the distance

between vehicles while in headway

control can be set. The MRCC

indication is shown in the display of

the instrument cluster.

The system operates in two modes, Constant Speed and Headway Control modes:

Constant Speed Mode

When no vehicle is detected ahead,

the driver’s set speed is maintained.

Headway Control Mode

When a vehicle is detected ahead,

a distance between your vehicle and

the vehicle ahead is maintained.

NOTE: The radar for the MRCC is

located behind the Mazda emblem in

the grill. Keep this area clean to avoid

the system not working properly.

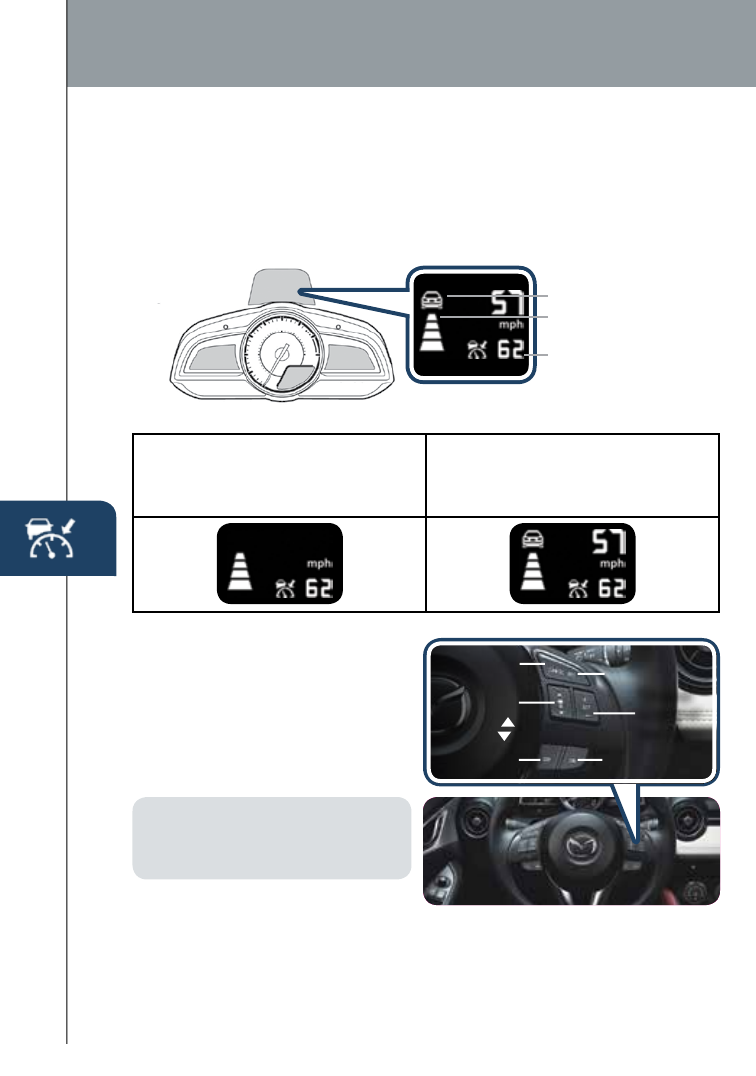

Vehicle ahead display

MRCC Distance

between vehicle display

MRCC Set vehicle speed

Reset

Cruise

Control

(Set+/Set-)

Cancel

Distance

Control

(Shorter

/Longer )

OFF

1880737_16a_Mazda_CX-3_061615.indd 17 6/16/15 2:27 PM

www.MazdaUSA.com

How to set the speed:

1 Adjust the vehicle to the desired speed using the accelerator pedal.

2 Push the SET + or SET – switch. The set speed and the inter-vehicle

distance display lled with white lines is displayed in the active driving

display and the MRCC indicator light (green) turns on simultaneously.

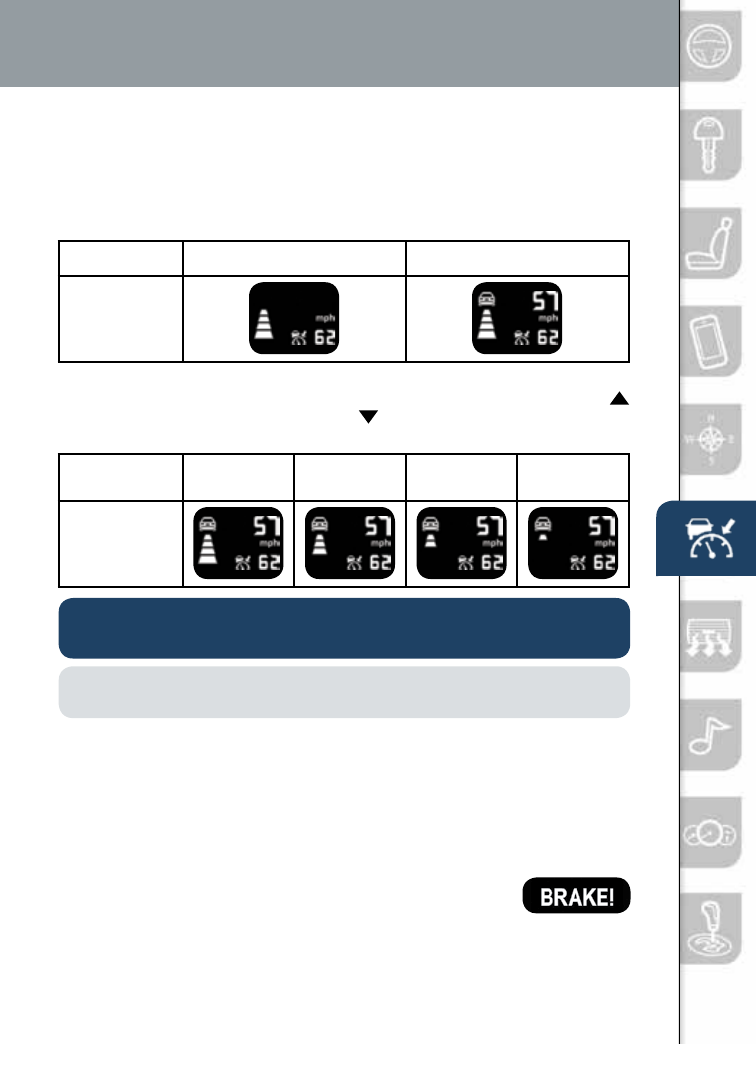

Travel Status During travel at

constant speed

During travel under

headway control

Display

How to set the distance between vehicles:

The distance between vehicles is set to a shorter distance by pushing the

switch a longer distance by pushing the switch. The distance-between-

vehicles can be set to 4 levels.

Distance between

vehicles guideline

(at 50mph (80km/h))

Long

(about 164ft (50m))

Medium

(about 131ft (40m))

Short

(about 98ft (30m))

Extremely Short

(about 82ft (25m))

Display

CAUTION: Do not rely completely on the MRCC system and always

drive carefully obeying the speed limit.

NOTE: The MRCC sometimes will brake your vehicle when passing a semi truck (tractor

trailer). This is normal. Simply push the accelerator pedal to override the system.

CLOSE PROXIMITY WARNING

While travelling in headway control, if your vehicle rapidly

closes in on a vehicle ahead because the other driver applied their brakes

suddenly, a warning sound activates and the BRAKE! warning is indicated

in the display. Always verify the safety of the surrounding area and depress

the brake pedal while keeping a safe distance from the vehicle ahead.

Additionally, always keep a safe distance from the vehicles behind you.

Switching to conventional cruise control function:

When the ON switch is pushed continuously for about 2 seconds while the

Mazda Radar Cruise Control (MRCC) system is turned on, the system is

switched to conventional cruise control function.

The Mazda Radar Cruise Control (MRCC) indicator light (green) in the

instrument cluster turns off and “Radar Cruise Control deactivated”

message is displayed in the multi information display at the same time.

1880737_16a_Mazda_CX-3_061615.indd 18 6/16/15 2:27 PM

Smart City Brake Support

WARNING: SCBS is only a supplementary system to reduce damage in the event

of a collision, however the SCBS has limitations. Do not rely solely on the SCBS.

Always keep your eyes on the road.

SCBS system can be turned off using Safety Settings

in MAZDA CONNECT. (see page 16)

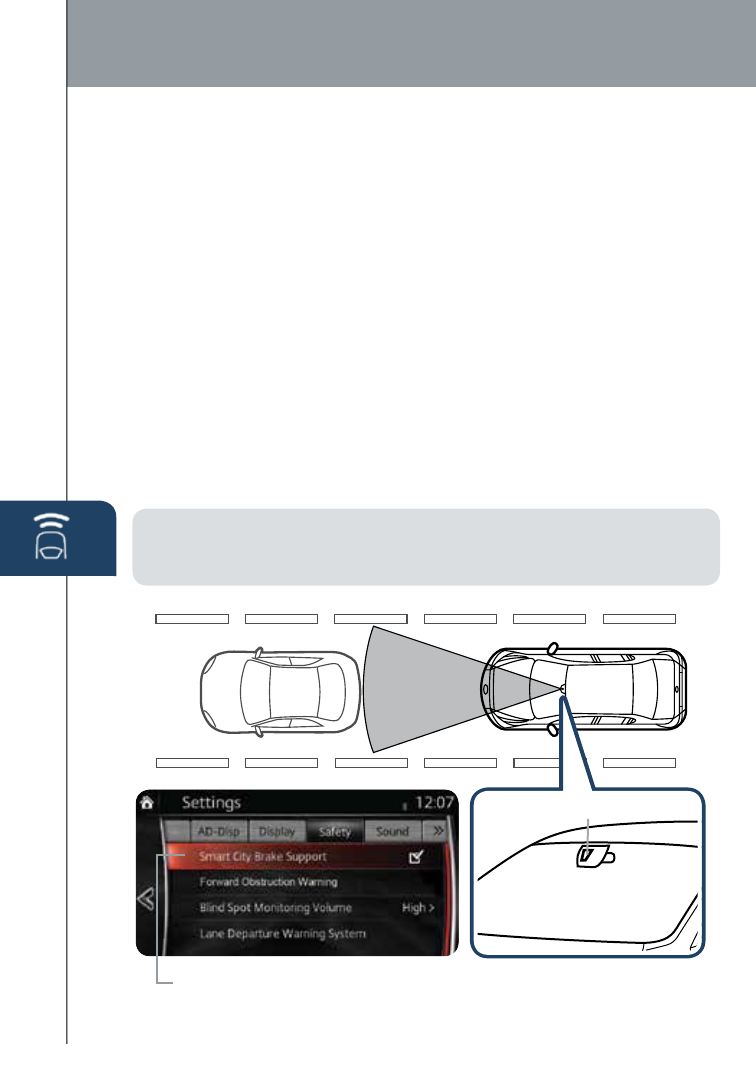

Laser Sensor

SMART CITY BRAKE SUPPORT (SCBS) SYSTEM (if equipped)

The Smart City Brake Support (SCBS) system is designed to reduce

damage in the event of a collision by automatically applying the vehicle’s

braking system when the system’s laser sensor detects an imminent

collision with the vehicle ahead:

• When your vehicle speed is 2 to 18 mph (4 to 30 km/h).

• The system determines that a collision with a vehicle ahead is unavoidable.

• It may be possible to avoid a collision if the relative speed between

your vehicle and the vehicle ahead is less than 12.5 mph (20 km/h).

• When the driver depresses the brake pedal while the system is in the

operation range at about 2 to 18 mph (4 to 30 km/h), the brakes are applied

rmly and quickly to assist. (SCBS Automatic Brake is displayed in the Multi-

information Display)

• SCBS automatic brake is released approximately 2 seconds after the

vehicle comes to a stop.

Refer to your Owner’s Manual for complete details.

1880737_16a_Mazda_CX-3_061615.indd 19 6/16/15 2:27 PM

www.MazdaUSA.com

Smart Brake Support

SMART BRAKE SUPPORT (SBS) (if equipped)

The Smart Brake Support (SBS) is a system which alerts the driver

of a possible collision using an indicator and warning sound in the

instrument cluster while the vehicle is being driven at about 10 mph

(15 km/h) or faster and the system’s radar sensor determines that

your vehicle may hit a vehicle ahead. Furthermore, if the radar sensor

determines that a collision is unavoidable, the automatic brake control

is performed to reduce damage in the event of a collision. In addition,

when the driver depresses the brake pedal, the brakes operate more

quickly to assist the driver.

Refer to your Owner’s Manual for complete details.

Radar sensor

Laser sensor

Collision Warning

If there is the possibility of a collision with a vehicle ahead,

the beep sounds continuously and a warning is indicated in

the multi-information display.

SBS system can be turned off using Safety Settings in MAZDA CONNECT.

(see page 16)

WARNING: SBS is only a supplementary system to reduce damage in the

event of a collision, however the SBS has limitations. Do not rely solely on the

SBS, Always keep your eyes on the road.

1880737_16a_Mazda_CX-3_061615.indd 20 6/16/15 2:27 PM

Lane Departure Warning System

LANE DEPARTURE WARNING SYSTEM (LDWS) (if equipped)

The LDWS recognizes painted lane lines on a road using the forward

sensing camera (FSC) installed to the windshield. If the vehicle deviates

from its lane at speeds above 44 mph, the system alerts the driver using

the following indicators.

Use the LDWS

switch to turn

system ON or OFF

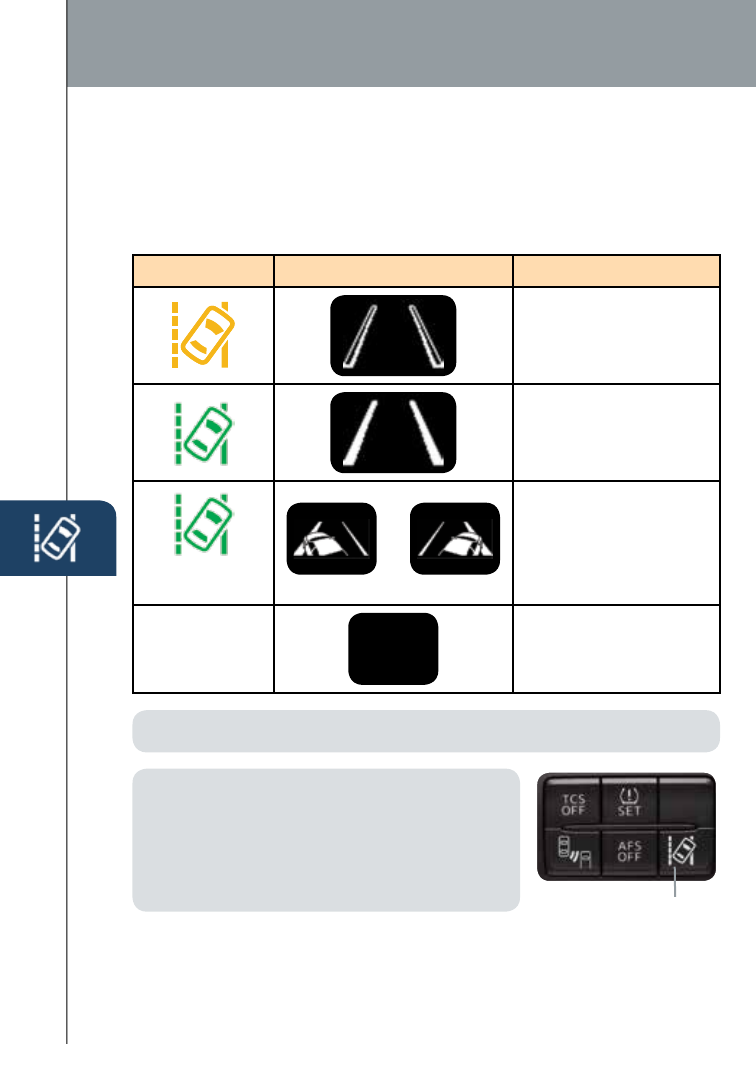

Indicator Light Active Driving Display Condition

The painted lane lines

on the road are not

recognized or the vehicle

speed is less than 44 mph

The painted lane

lines are recognized

at vehicle speeds of

44 mph or more

Flashes +

warning sound

Warning is triggered

when vehicle deviates

from its lane

No indicator light LDWS OFF

WARNING: LDWS is only a supplementary system to

warn the driver that the vehicle may be deviating from

its lane, however the LDWS has limitations. Do not

rely solely on the LDWS. Relying solely on the LDWS

may cause an unexpected accident resulting in death

or serious injury. Always pay attention to the direction

in which the vehicle is traveling and drive safely.

NOTE: Any driver input (e.g., turn signal, steering or acceleration) will cancel warning.

1880737_16a_Mazda_CX-3_061615.indd 21 6/16/15 2:27 PM

www.MazdaUSA.com

Distance Recognition Support System

DISTANCE RECOGNITION SUPPORT SYSTEM (DRSS)

(if equipped)

The Distance Recognition Support System (DRSS) measures the distance

between your vehicle and a vehicle ahead using a radar sensor (front) while the

vehicle speed is 19 mph (30 km/h) or faster, and indicates a recommended

distance to maintain between the vehicles. Furthermore, if your vehicle

approaches a vehicle ahead more closely than the appropriate distance to

maintain between the vehicles, the vehicle-ahead indication in the display is

ashed to advise the driver to keep a safe distance from the vehicle ahead.

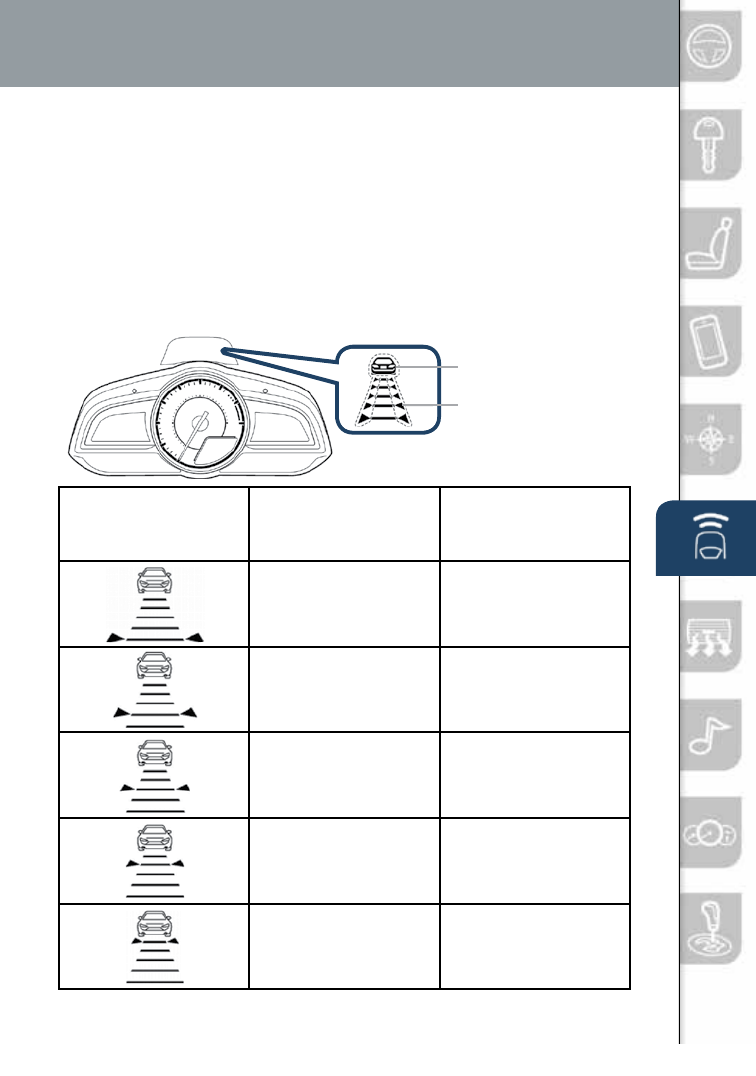

Indication on display

Distance between

vehicles guidelines

(During travel at about

25 mph (40 km/h))

Distance between

vehicles guidelines

(During travel at about

50 mph (80 km/h))

About 82 ft (25m) About 164 ft (50m)

About 66 ft (20m) About 131 ft (40m)

About 49 ft (15m) About 98 ft (30m)

About 32 ft (10m) About 65 ft (20m)

About 32 ft (10m)

or less

About 65 ft (20m)

or less

DRSS Distance between

vehicle display

Vehicle ahead display

1880737_16a_Mazda_CX-3_061615.indd 22 6/16/15 2:27 PM

Blind Spot Monitoring System

BLIND SPOT MONITORING (BSM) (if equipped)

The BSM system is designed to assist the driver by monitoring blind spots

on both sides of the vehicle to the rear in certain situations such as when

changing lanes on roads and freeways.

Turning BSM System Off

Turning the BSM system off will turn off both the light

and sound indicators. To manually turn the BSM

system off, push the BSM OFF switch on the dash.

The BSM OFF indicator in the instrument cluster will

turn on to indicate when the BSM system is off. The

BSM system will automatically turn on the next time the vehicle is started.

• If your vehicle speed is 7 mph (11 km/h) or more, the BSM will warn

you of vehicles in the detection area by illuminating the BSM warning

lights located on the left and right door mirrors.

• If you operate a turn signal in the direction of an illuminated BSM warning

light, the system will also warn you with a beep and warning light ash.

• BSM sensors are located under the left and right rear bumper areas.

The BSM system may not operate properly if the rear bumper gets dirty,

so keep the rear bumper area clean and free of bumper stickers.

Your Vehicle

Detection Areas

Refer to your

Owner’s Manual for

complete details.

NOTE:

• The BSM can assist the driver in conrming the safety of the surroundings,

but is not a complete substitute.

• The driver is responsible for ensuring safe lane changes and other maneuvers.

• Always pay attention to the direction in which the vehicle is traveling and the

vehicle’s surroundings.

• The BSM does not operate when the vehicle speed is lower than about

7 mph (11 km/h).

WARNING: BSM is only a supplementary system to help aid in monitoring blind

spots, however BSM has limitations. The system may not detect all vehicles,

especially a motorcycle. Do not rely solely on the BSM. Relying solely on the BSM

may cause an unexpected accident resulting in death or serious injury. Make sure to

look over your shoulder before changing lanes.

1880737_16a_Mazda_CX-3_061615.indd 23 6/16/15 2:28 PM

www.MazdaUSA.com

REAR CROSS TRAFFIC ALERT (RCTA) (if equipped)

The RCTA is designed to alert the driver of oncoming trafﬁc when

backing out of a parking spot. RCTA is active when your vehicle is in

reverse and your vehicle speed is 0 to 6 mph (10 km/h).

When BSM sensors detect an object moving 3 to 18 mph (5 to 30 km/h),

RCTA will notify the driver with indicators and sound:

• Rear View Monitor and outside mirror ashing indications.

• Beep sound (same as BSM).

Refer to your Owner’s Manual for complete details.

Object Detected Object Detected

WARNING: RCTA is only a supplementary system to help aid when backing up,

however RCTA has limitations. The system does not detect all vehicles, especially

a motorcycle. Do not rely solely on the RCTA. Relying solely on the RCTA may

cause an unexpected accident resulting in serious injury. Always back up slowly.

Rear View Monitor

Rear Cross Trafﬁc Alert

Settings

button for rear

view monitor.

Image is

for reference.

1880737_16a_Mazda_CX-3_061615.indd 24 6/16/15 2:28 PM

NOTE: The DRL (Daytime Running Lights) automatically turn on when the ignition

is switched ON. To disable/enable this feature see your Authorized Mazda Dealer.

NOTE:

• You can adjust the timing of the Auto Headlights OFF and the sensitivity of the

Auto Light Control.

Lights

LIGHTING CONTROL/TURN SIGNAL LEVER

: Turns tail,

parking, and

dashboard

lights on.

Pull

to Flash

High Beams

Push for

High Beams

AUTO: The light

sensor automatically

determines when to turn

the headlights on or off.

: Turns fog lights

on only when

headlights are on.

Three-Flash Turn Signal: To signal

a lane change, push the turn signal lever

up or down halfway and release. The turn

signal indicator will ash three times.

: Turns tail, parking, dashboard, and

headlights on.

1880737_16a_Mazda_CX-3_061615.indd 25 6/16/15 2:28 PM

www.MazdaUSA.com

Wipers

CAUTION: If the ignition is ON, turn the AUTO wipers OFF when going

through a car wash, or while cleaning or touching the windshield.

WINDSHIELD WIPER/WASHER CONTROL LEVER

AUTO: The rain sensor senses the amount of rainfall and turns the wipers

on or off. Rotate inner ring away from you (clockwise) for more ( ) sensitivity

(requires less rain to turn wipers on) and toward you (counterclockwise)

for less ( ) sensitivity (requires more rain to turn wipers on).

NOTE: Vehicles not equipped with AUTO wipers will have INT wipers. Set

the lever to INT and choose an interval timing by rotating the ring between

fast and slow.

Pull lever

to dispense

windshield

washer uid

AUTO

OFF

MIST

Rear Window

Wiper/Washer

(Hatchback)

INT: Intermittent

ON: Normal speed

: Washer/wiper

(hold as desired)

1880737_16a_Mazda_CX-3_061615.indd 26 6/16/15 2:28 PM

Adaptive Front Lighting System

Push AFS OFF to turn

system off or on. When

off, the AFS OFF indicator

in the instrument panel

will turn on.

Without AFS

NOTE:

• With AFS, it is normal to see the headlights move and hear the sound of the

headlight leveling motors at the front of the vehicle when the ignition is ON.

• The system will need to be reset if the vehicle battery has been disconnected

or the system fuse has been replaced. Please refer to your Owner’s Manual for

easy to follow resetting instructions.

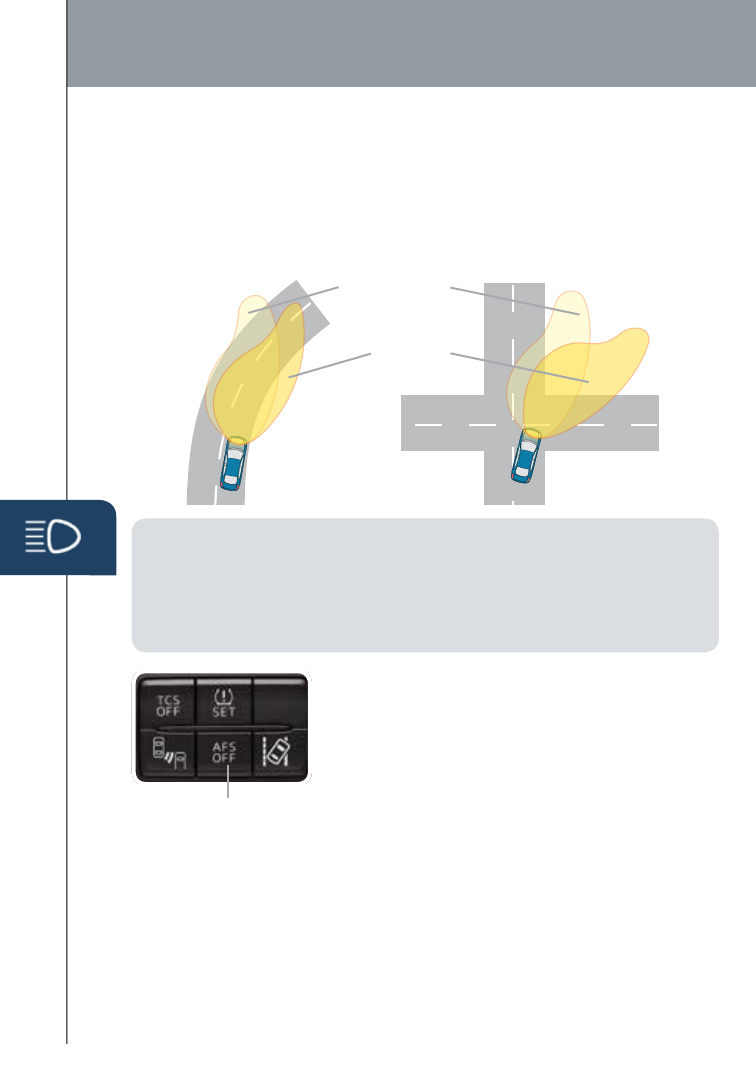

ADAPTIVE FRONT-LIGHTING SYSTEM (AFS) (if equipped)

The adaptive front-lighting system (AFS) automatically turns the

headlight beam to the right or left in conjunction with the direction of

the steering wheel.

The AFS improves the direction of headlight illumination while cornering, and

only works when the vehicle is moving.

With AFS

1880737_16a_Mazda_CX-3_061615.indd 27 6/16/15 2:28 PM

www.MazdaUSA.com

To turn HBC on:

1 Turn the headlight

switch to the

AUTO position.

2 Push the headlight

lever forward to the

High Beam position.

When the HBC system is

on, the HBC indicator light

in the instrument cluster

will illuminate (GREEN).

The High Beam indicator

light will turn on (BLUE)

when the HBC system

switches to high beam

and will turn off when the

HBC system switches

to low beam.

HIGH BEAM CONTROL (HBC) (if equipped)

With HBC, the headlights are switched to high beams at speeds

above 18 mph (30 km/h) when there are no vehicles in front of your

vehicle or approaching in the opposite direction.

The HBC system switches to low beam when:

• You are approaching a vehicle or a vehicle is approaching in

the opposite direction.

• Driving on roads lined with street lights or well-lit cities and towns.

• At speeds lower than 12 mph (20 km/h).

AUTO

FORWARD

High Beam Control

1880737_16a_Mazda_CX-3_061615.indd 28 6/16/15 2:28 PM

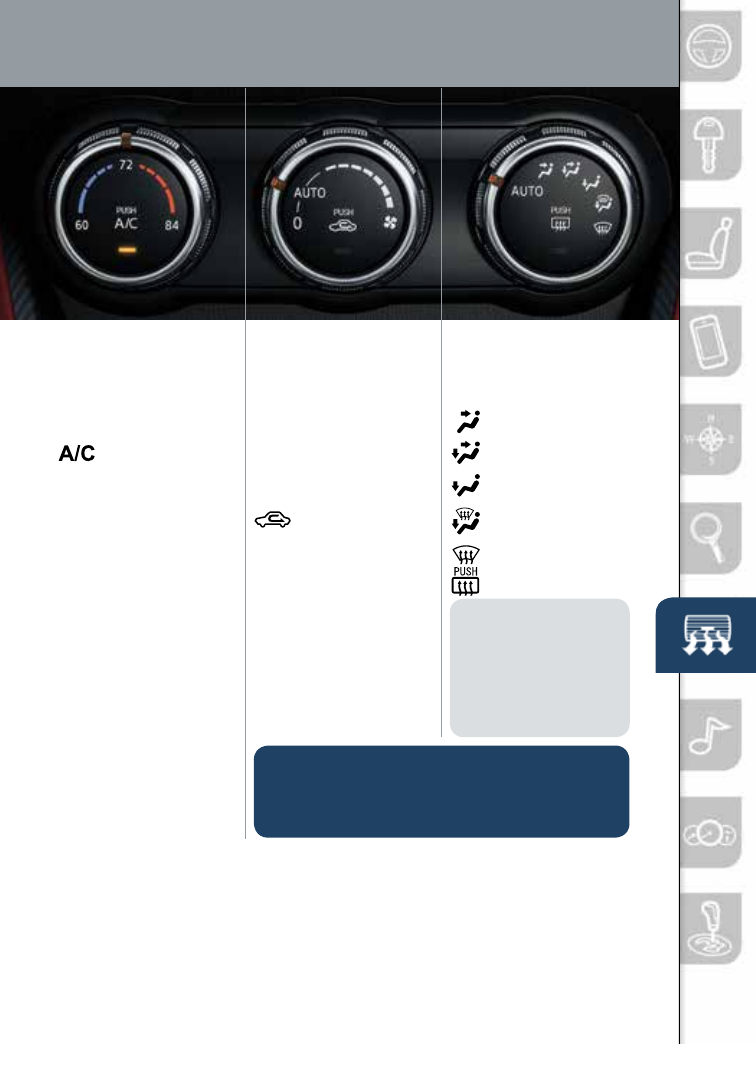

Manual Climate Control

TEMPERATURE

CONTROL DIAL

Rotate the dial for

temperature control.

NOTE: When set

to MAX A/C with

dashboard vents

or dashboard and

oor vents, the A/C

will turn on, and

recirculated air will

be selected for

maximum cooling.

MODE SELECTOR DIAL

Rotate the dial to

select airow mode.

Dashboard

vents

Dashboard

and oor vents

Floor vents

Defroster and

oor vents

Windshield

defroster

FAN CONTROL DIAL

Rotate the dial to set

desired fan speed.

Push to recirculate

cabin air to reduce

outside odors and

improve cooling.

Push for fresh

air circulation.

Push to manually

turn air conditioning

on or off.

Push to defrost the

rear window.

Best Cooling Settings

Indicator ON (automatically)

DEFROSTER NOTE:

• When selecting either defroster mode ( or ), the air conditioner and fresh

air mode are automatically turned on by the system. This helps defrost the

windows more efciently by dehumidifying the air. Manually set the fan control

and temperature control dials as desired.

• In either defroster mode ( or ), air will blow from the side dashboard vents.

To defrost the side windows faster, point the vents toward the side windows.

Best Heating Settings

1880737_16a_Mazda_CX-3_061615.indd 29 6/16/15 2:28 PM

www.MazdaUSA.com

Automatic Climate Control

FAN CONTROL DIAL

• Rotate the dial

to set desired

fan speed.

• Rotate dial

to OFF to turn

system off.

Push to recirculate

cabin air to reduce

outside odors and

improve cooling

(indicator on) or

receive fresh air

(indicator off).

MODE SELECTOR DIAL

Rotate the dial to select

airow mode.

Dashboard vents

Dashboard

and oor vents

Floor vents

Defroster

and oor vents

Defroster vents

Rear defroster

NOTE: Automatic

temperature control

is always on, even if

the AUTO indicator

light is turned off when

changing the fan speed

or air ow mode.

TEMPERATURE

CONTROL DIAL

Rotate the dial for

temperature control.

Push to

manually turn

air conditioning

on or off.

AUTO: Set the Fan Control and Mode Selector

Dials in the AUTO position. The airow mode

and amount will be automatically controlled in

accordance with the set temperature.

1880737_16a_Mazda_CX-3_061615.indd 30 6/16/15 2:29 PM

Audio Controls (with Mazda Connect)

AUDIO OPERATION

The following icons are displayed on the screen:

SOURCES: Displays Audio menu

to change audio source (FM / AM

/ XM / Aha / Pandora / Stitcher /

Bluetooth / USB / CD / AUX).

AUTO MEMORY: Displays a

list of 10 strongest radio stations.

Because station strength

changes as you drive, select

Update Station List icon to

re-scan for strong stations.

FAVORITES: Displays list of

your favorite AM, FM, and XM

radio stations.

HD RADIO: Switches HD Radio

On /Off.

SCAN: Scans radio stations or

songs (scanning stops at each one

for 5 seconds). Select again to stop.

TUNER: Displays manual radio tuner.

TAG: Saves artist and title

and sends them to your Apple

device (for Apple devices

with USB use only).

SEEK PREVIOUS/NEXT:

Selects previous or next

receivable radio station or song.

Press and hold to change radio

station continually.

SETTINGS: Adjusts the audio

quality level (bass, treble, etc.).

The following icons are displayed

on the CD screen only:

TRACK LIST: Displays the track

list of the CD.

REPEAT: Repeats the current

song. Select again to stop.

SHUFFLE: Plays the songs on

the CD in random order. Select

again to stop.

PL AY/PAUSE: Plays and Pauses

the CD.

Playing Bluetooth® (BT) Audio

1 Make sure BT audio device is paired to

your vehicle.

2 Turn on BT audio device.

3 Select Bluetooth from Sources.

See your Owner’s Manual for further information on:

· Pandora · Aha · Stitcher

BLUETOOTH® AUDIO

Bluetooth® enabled phones and audio players

provide an opportunity to play music through the

audio system with no wires attached.

Some phone models do not support all features.

Go to http://infotainment.mazdahandsfree.com

or contact (800) 430-0153 for further assistance or

to report a phone /MP3 device concern.

NOTE:

• New Mazda

vehicles equipped

with SiriusXM® Satellite Radio will

receive an introductory subscription

with a limited term trial offer to over 150

channels of SiriusXM Satellite Radio.

Enjoy commercial-free music, plus

sports, news, entertainment, and every

premium channel in your vehicle. Call

877-447-0011 to activate. See the

Owner’s Manual and/or dealer for details.

• In order to use Aha, Pandora and

Stitcher as audio sources, the App must

be installed on your phone. These Apps

stream music using your data plan and

listening to them counts towards your

monthly cellular data usage.

1880737_16a_Mazda_CX-3_061615.indd 31 6/16/15 2:29 PM

www.MazdaUSA.com

AUDIO OPERATION

USING VOICE

Audio operation and media selection

can be done using voice. Push the

“TALK” button on the steering wheel,

wait for a beep, then say a command in

a clear, natural voice (not too fast or too

slow). Some common commands are

listed below.

Play (and any of the following):

AM, FM, XM, CD, Bluetooth, Aha,

Pandora, Stitcher, USB, AUX

Play or Resume / Pause or

Stop / Next or Previous

Play (and any of the following):

Song, Playlist <playlist name>,

Artist <artist name>, Album

<album name>, Genre <genre

name>, Folder <folder name>

Tune to Station <frequency AM or FM>

Tune to Channel Number (XM)

HD RADIO

HD radio has a special

receiver which allows it to

receive digital broadcasts

(where available) in addition

to the analog broadcasts

it already receives. Digital

broadcasts have better

sound quality than analog

broadcasts as digital

broadcasts provide free,

crystal clear audio.

When the HD radio button

is ON (red), there could be

a noticeable difference in

sound quality and volume

when a change from digital

to analog signals occurs.

If the sound quality and

volume becomes noticeably

diminished or cuts off, select

the HD button to turn OFF

HD radio (not red).

Audio Controls (with Mazda Connect)

GRACENOTE

The Gracenote media database is used to improve

voice recognition of artist and album names with the

Mazda Hands Free system. To make best use of the

voice recognition, install the most recent database.

1 Load the Gracenote update on a memory stick

from www.MazdaUSA.com/USB. Insert the

memory stick into the USB port.

2 Go to System Settings in the infotainment system.

3 Select Music Database Update.

NOTE: To use BT audio, make sure the musical

icon is displayed by going to Bluetooth in Device

settings. Some Bluetooth® audio devices need a

certain amount of time before the icon is displayed.

NOTE: Push the TALK button and say “Help” at any time to hear a list of

available commands.

www.MazdaUSA.com

1880737_16a_Mazda_CX-3_061615.indd 32 6/16/15 2:29 PM

NOTE: You will need an audio cable with an 1/8 inch (3.5 mm)

mini stereo plug (available as a Genuine Mazda accessory) to

connect your portable audio player into the AUX jack.

IMPORTANT:

• Set the volume level on your portable audio player to the highest level before

distortion starts, then use the vehicle’s audio system to adjust the volume.

• Unplug any device from the USB port and accessory socket before turning off

the vehicle. Leaving devices plugged in can drain the battery and cause issues

during the Bluetooth pairing process at startup. Wait about 15 seconds after

starting the vehicle before plugging anything into the USB port.

1 Locate the USB port or AUX jack.

2 Connect the device plug into the portable audio player and into the

USB port or AUX jack.

3 Turn the vehicle audio system on.

4 • Audio Controls: Select AUX or USB from the Sources menu.

5 • USB Port: Use the vehicle’s audio system or steering wheel controls

to control the connected USB device.

• AUX Jack: Use the portable audio player controls to play music.

Refer to the Owner’s Manual for additional information.

PORTABLE AUDIO PLAYER

INTEGRATION USING THE

USB PORT OR AUX JACK

Your vehicle is equipped with a USB port

and auxiliary AUX jack, conveniently located

below the climate controls, that allows you

to play your iPod, USB device, or portable

audio player through the vehicle’s audio

system. Learn the system when parked and

do not let it distract you while driving.

12 VOLT ACCESSORY SOCKETS

The accessory socket below the climate controls is on with ignition in ACC or ON.

Audio USB and AUX Inputs

NOTE: When using a USB memory stick, the system plays the rst audio le when

restarting the vehicle. It does not start where it left off when turning off the engine.

NOTE: When using the accessory socket in the center console, make sure to

disconnect any device from it when turning off the ignition, otherwise the vehicle’s

battery could go dead.

USB AUX 12V

1880737_16a_Mazda_CX-3_061615.indd 33 6/16/15 2:29 PM

www.MazdaUSA.com

NOTE:

• If the vehicle is jump started, leave the jumper cables connected until the

warning message is no longer displayed.

• If the vehicle is driven while the warning screen is displayed, a warning sound

will be heard and power steering assist will be limited.

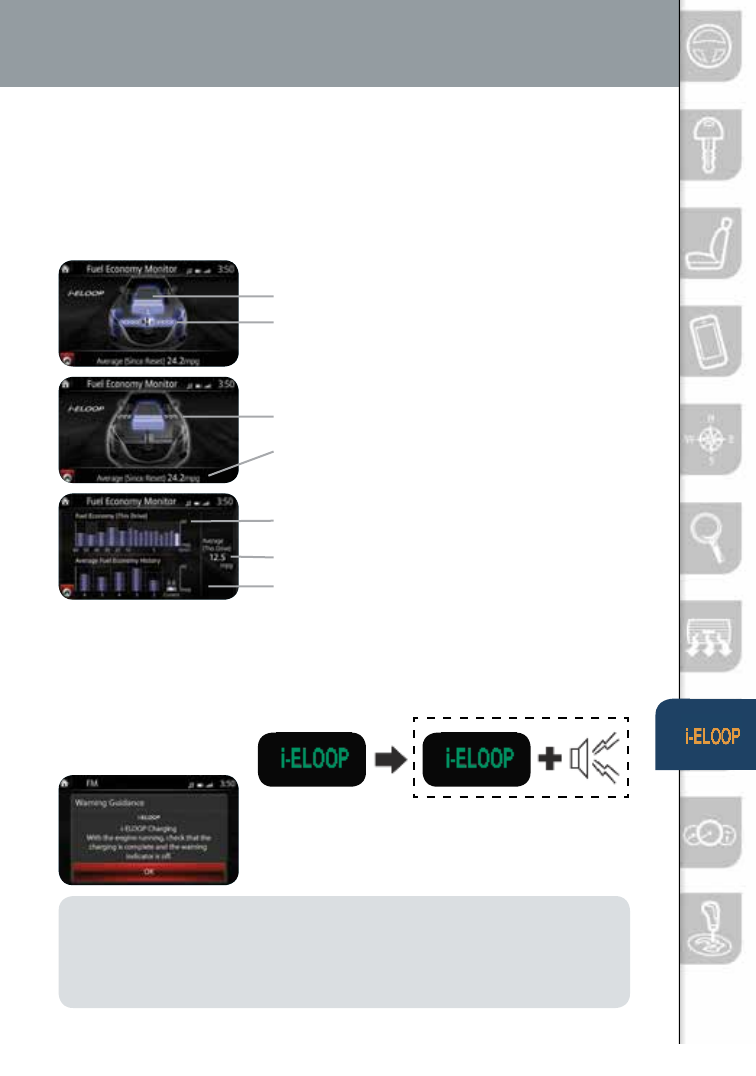

i-ELOOP

i-ELOOP (if equipped)

The Mazda-unique regenerative braking system (i-ELOOP) generates

and stores electrical energy in a capacitor during deceleration. Through

efﬁcient energy regeneration, storage, and usage, fuel economy is

improved. To view i-ELOOP information, select Applications from

the Home screen, then scroll down to Fuel Economy Monitor.

i-ELOOP Pre-Charge Mode

If the capacitor is discharged because of vehicle storage (the vehicle is

parked for long periods of time), the i-ELOOP indicator in the instrument

cluster will ash and a

warning screen appears

on the screen of the

infotainment system.

When this warning screen appears, do not drive the

vehicle. Allow the engine to idle until the warning

screen disappears. This time is needed for normal

generator operation.

In Pre-charge

mode

Driving in Pre-charge mode

Capacitor charge level

Regeneration level

Capacitor discharge

Average fuel consumption since reset

60-minute Fuel Economy

0-10 min.: Every 1 min.

10-60 min.: Every 10 min.

Average Current Fuel History:

Average since reset 2nd to 6th history

Average fuel consumption for this drive

1880737_16a_Mazda_CX-3_061615.indd 34 6/16/15 2:29 PM

Instrument Cluster (Type A)

SPEED UNIT

SELECTOR3

Lane Departure Warning

System On (AMBER)/

Lane Detected (GREEN) (p. 21)

AFS

OFF

Adaptive Front Lighting System

(AFS) OFF (p. 27)

Traction Control System (TCS)/

Dynamic Stability Control (DSC)

On: TCS/DSC malfunction

Flashing: TCS/DSC operating

BSM

OFF

BSM OFF (Blind Spot

Monitoring) (p. 23)

OFF

Dynamic Stability Control

(DSC) Off Indicator Light

SPORT Mode On (p. 39)

Lights On (Exterior)

High Beam Control On

Headlight High Beams On

Air Bag/Front Seat Belt

Pretensioner System

Malfunction

Check Engine Light

Seat Belt Unbuckled/

Malfunction

Turn Signals/Hazard

Warning Indicator Lights

Tire Pressure Monitoring System

(TPMS) Warning Light (p. 7)

On/Warning Beep: Low tire pressure in one

or more tires. Flashing: TPMS Malfunction

Cruise Main Indicator Light

On (AMBER)/Cruise Set

Indicator Light On (GREEN)

Mazda Radar Cruise Control

Warning Light On (AMBER)

Set Indicator (GREEN) (pp. 17-18)

ABS (Antilock Brake

System) Malfunction

Shift Position Indicator Light

Security Indicator Light

Forward Obstruction Warning

(FOW) and Smart City Brake

System (SCBS)

Flashing red: FOW and SCBS are operating.

Amber: FOW and/or SCBS malfunction.

FOW and SCBS are turned off.

TPMS NOTE: Low ambient temperature and/or high altitude may cause tire pressures to

change and turn the TPMS warning light on. If the warning light comes on, see p. 7.

OUTSIDE

TEMPERATURE DISPLAY

The outside temperature unit can

be switched between °C and

°F using System Settings in the

infotainment system.

IMPORTANT: When your Mazda

Connect display setting is set on

“AUTO”, the instrument cluster and

display may become dimmer when

the headlights are on. If the display

and instrument cluster become too

dim or too bright when the headlights

are on, simply rotate the dimmer

knob located on your instrument

cluster to adjust the brightness.

GLOSSARY OF WARNING AND INDICATOR LIGHTS

1880737_16a_Mazda_CX-3_061615.indd 35 6/16/15 2:29 PM

www.MazdaUSA.com

TRIP COMPUTER

The following information

can be selected by pushing

the or of the INFO

button on the steering wheel.

• Approximate distance you

can travel on the available

fuel (RANGE)

• Average fuel economy

• Current fuel economy

• Average vehicle speed

• To reset, push and hold

the INFO button for more

than 1.5 seconds.

1 • Rotate the knob to adjust the brightness of the

instrument cluster and other dashboard illuminations.

2 • Push to toggle between trip meter (A & B).

• When a trip meter is selected, push and hold to

reset to zero.

3 • Push the knob for 1.5 seconds or more to change

the speed units between km/h and mph.

Brake Warning Light

Parking brake on/low brake

uid/malfunction

Master Warning Light

Low Fuel Level

Low Engine Oil Pressure

Power Steering Malfunction

Automatic Transaxle

Warning Light

Charging System Malfunction

Door/Trunk/Tailgate Ajar

Low Washer Fluid Level

Warning Light

KEY Warning Light RED

KEY Indicator Light GREEN

Check Fuel Cap

Perform Maintenance

i-ELOOP Status (p. 34)

On: Power generation

Flashing: Pre-Charge Mode

www.MazdaUSA.com

ENGINE COOLANT TEMP LIGHTS

Since this vehicle does not use an engine

coolant temperature gauge, red and blue

engine coolant temperature lights are used to

indicate high and low coolant temperature.

Red Coolant Temp Light

Flashing: Engine is starting to run hot.

Drive slowly to reduce engine load.

On: Engine is overheating. Safely pull

over to the side of the road and turn

the engine off. Refer to the Owner’s

Manual for more information.

Blue Coolant Temp Light

On: Engine coolant is cold and no warm

air is available for heater/defroster.

Off: Engine coolant is warm and warm air

is available for heater/defroster. The light

may stay on for a few minutes after start-

up when the engine is cold, but the vehicle

can be driven with the light on or off.

NOTE: When your Mazda Connect display

setting is set on “auto”, the instrument

cluster and display may become dimmer

when the headlights are on. If the display

and instrument cluster become too dim or

too bright when the headlights are on, simply

rotate the dimmer knob located on your

instrument cluster to adjust the brightness.

DASHBOARD

ILLUMINATION/

DIMMER1/

TRIP METER2

NOTE: See Owner’s Manual for

more details and explanations.

1880737_16a_Mazda_CX-3_061615.indd 36 6/16/15 2:29 PM

Instrument Cluster (Type B)

TCS

OFF

Traction Control System (TCS)

Off Indicator Light

Traction Control System (TCS)/

Dynamic Stability Control (DSC)

On: TCS/DSC malfunction

Flashing: TCS/DSC operating

BSM

OFF

BSM OFF (Blind Spot

Monitoring) (p. 23)

SPORT Mode On (p. 39)

Lights On (Exterior)

High Beam Control On

Headlight High Beams On

Air Bag/Front Seat Belt

Pretensioner System

Malfunction

4WD

AWD Warning Indication

On:

Flashing: Stop vehicle/tow to

Mazda dealer.

Check Engine Light

Seat Belt Unbuckled/

Malfunction

Turn Signals/Hazard

Warning Indicator Lights

Tire Pressure Monitoring System

(TPMS) Warning Light (p. 7)

On/Warning Beep: Low tire pressure in one

or more tires. Flashing: TPMS Malfunction

Cruise Main Indicator Light

On (AMBER)/Cruise Set

Indicator Light On (GREEN)

ABS (Antilock Brake

System) Malfunction

Shift Position Indicator Light

Security Indicator Light

Brake Warning Light

Parking brake on/low brake

uid/malfunction

Smart City Brake Support

(SCBS) OFF Indicator

Smart Brake Support (SBS)

Warning Indication

Master Warning Light

Low Fuel Level

TPMS NOTE: Low ambient temperature and/or high altitude may cause tire pressures to

change and turn the TPMS warning light on. If the warning light comes on, see p. 7.

OUTSIDE

TEMPERATURE DISPLAY

The outside temperature unit can

be switched between °C and °F

using the following procedure:

Without Mazda Connect:

1 Push the INFO button with

the ignition OFF and continue

pushing the INFO button for

5 seconds or longer after

switching the ignition ON.

The outside temperature

display ashes.

2 Push the up or down part of

the INFO switch to change

the temperature unit.

3 Push and hold the INFO

button for 3 seconds or

longer until it stops ashing.

With Mazda Connect:

1 Go to System Settings.

IMPORTANT: When your Mazda Connect display

setting is set on “AUTO”, the instrument cluster and

display may become dimmer when the headlights

are on. If the display and instrument cluster

become too dim or too bright when the headlights

are on, simply rotate the dimmer knob located on

your instrument cluster to adjust the brightness.

SPEED UNIT

SELECTOR3

1880737_16a_Mazda_CX-3_061615.indd 37 6/16/15 2:29 PM

www.MazdaUSA.com

TRIP COMPUTER

The following information

can be selected by pushing

the or of the INFO

button on the steering wheel.

• Approximate distance you

can travel on the available

fuel (RANGE)

• Average fuel economy

• Current fuel economy

• Average vehicle speed

• To reset, push and hold

the INFO button for more

than 1.5 seconds.

1 • Rotate the knob to adjust the brightness of the

instrument cluster and other dashboard illuminations.

2 • Push to toggle between trip meter (A & B).

• When a trip meter is selected, push and hold to

reset to zero.

3 • Indicator is also displayed in Type A Cluster

Information Display.

Low Engine Oil Pressure

Power Steering Malfunction

Automatic Transaxle

Warning Light

Charging System Malfunction

Door/Trunk/Tailgate Ajar

Low Washer Fluid Level

Warning Light

KEY Warning Light RED

KEY Indicator Light GREEN

Mazda Radar Cruise Control

Warning ON (AMBER)

Set Indicator (GREEN)

LED Headlight Warning

Check Fuel Cap

Perform Maintenance

Lane Departure Warning

System (LDWS) ON (AMBER)

Lane Detected (GREEN)3 (p. 21)

Lane Departure Warning

System (LDWS) OFF (AMBER)3

NOTE: See Owner’s Manual for

more details and explanations.

ENGINE COOLANT TEMP LIGHTS

Since this vehicle does not use an engine

coolant temperature gauge, red and blue

engine coolant temperature lights are used to

indicate high and low coolant temperature.

Red Coolant Temp Light

Flashing: Engine is starting to run hot.

Drive slowly to reduce engine load.

On: Engine is overheating. Safely pull

over to the side of the road and turn

the engine off. Refer to the Owner’s

Manual for more information.

Blue Coolant Temp Light

On: Engine coolant is cold and no warm

air is available for heater/defroster.

Off: Engine coolant is warm and warm air

is available for heater/defroster. The light

may stay on for a few minutes after start-

up when the engine is cold, but the vehicle

can be driven with the light on or off.

NOTE: When your Mazda Connect display

setting is set on “auto”, the instrument

cluster and display may become dimmer

when the headlights are on. If the display

and instrument cluster become too dim or

too bright when the headlights are on, simply

rotate the dimmer knob located on your

instrument cluster to adjust the brightness.

DASHBOARD

ILLUMINATION/

DIMMER1/

TRIP METER2

TACHOMETER

1880737_16a_Mazda_CX-3_061615.indd 38 6/16/15 2:29 PM

DRIVE SELECTION (if equipped)

By selecting Sport mode, greater vehicle

response is achieved through automatic

adjustments in transmission shift control

and engine throttle control. This provides

additional quick acceleration which may be

needed to safely make maneuvers such as

lane changes, merging onto freeways, or

passing other vehicles.

Push the SPORT button to switch to SPORT

mode and the SPORT mode indicator light in the

instrument cluster turns on. Push again to turn off.

Transmission

MANUAL SHIFT MODE (if equipped)

Manual Shift Mode gives you the feel of driving a manual transmission by

allowing you to manually shift to control engine rpm and torque when more

control is desired.

To Use Manual Shift Mode:

• Shift the lever from D to M.

To Shift Up

To A Higher Gear:

• Pull the steering UP

switch (+) once or

tap the shift lever

back (+) once.

To Shift Down

To A Lower Gear:

• Pull the steering DOWN

switch (-) once or

tap the shift lever

forward (-) once.

(if equipped)

NOTE:

• If the SET button of the cruise control is pushed while in SPORT mode, SPORT

mode is switched off. SPORT mode cannot be turned on or off when cornering.

• When the ignition is switched off, SPORT mode is also switched off.

• Fuel consumption increases slightly when using SPORT mode.

NOTE: Steering Shift

Switches can be used in

“D” or “M”.

- DOWN

Shift Switch

+ UP Shift

Switch

1880737_16a_Mazda_CX-3_061615.indd 39 6/16/15 2:29 PM

www.MazdaUSA.com

ACTIVE ADAPTIVE SHIFT (AAS) CONTROL

AAS will automatically adjust how and when the transmission shifts gears

based on road conditions and your driving style. The transmission may stay

in a lower gear longer than usual when going up or down hills or driving

around corners. This feature gives you better control and a more connected

driving experience.

ACCELERATOR PEDAL KICKDOWN SWITCH*

The accelerator pedal is equipped with a kickdown

switch designed to allow optimal engine performance

while accelerating.

When you depress the accelerator 95% of the way, you

will feel an increase in resistance. Push harder, and you

will feel a click as you activate the kickdown switch.

The transmission will usually downshift (depending on

engine speed) and the engine will switch to maximum

power mode. This kickdown switch function is the

same in both Manual mode and in “D”.

*Available on vehicles with automatic transmission only.

IMPORTANT: The HLA system will hold the vehicle for a maximum of 2.0

seconds while the driver is changing from the brake pedal to the accelerator pedal.

HILL LAUNCH ASSIST (HLA)

HLA helps assist you when accelerating the vehicle from a stop while on a

hill or slope.

When the brake pedal is released and the accelerator pedal is pushed, HLA

prevents the vehicle from rolling forward or backward. It operates on a downward

slope when the shift lever is in the reverse (R) position, and on an upward slope

when the shift lever is in a position other than the reverse (R) position.

1880737_16a_Mazda_CX-3_061615.indd 40 6/16/15 2:29 PM

Notes

1880737_16a_Mazda_CX-3_061615.indd 41 6/16/15 2:29 PM

PERSONALIZE YOUR CX-3

WITH GENUINE

MAZDA ACCESSORIES

Go to www.MyMazda.com, then select

“Accessories” below the MyMazda

Home header for a complete listing of

available accessories for your CX-3.

www.MyMazda.com—The Official Site

for M{zd{ Owners

Owners. Once registered, you’ll be able to take advantage of benets

exclusively for Mazda Owners:

• Insider access to exclusive events and promotions

• Personalized maintenance schedules

• Zoom-Zoom Owner Magazine

• Warranty information and on-line Owner’s Manuals

• Wallpaper, videos and other fun stuff

• Accessories specically designed for your vehicle

• Car Care Discount Coupons available from your Authorized Mazda Dealer

Visit and register at www.MyMazda.com today!

MAZDA MOBILE

The following apps are available for iPhone® and Android smartphones:

• Mazda Assist app - Provides roadside assistance 24 hours a day,

365 days a year. Toll free number 1-800-866-1998 can also be used

for roadside assistance.

• MyMazda app - Keep track of your Mazda from the palm of your hand

with these features:

The apps can be downloaded, free of charge, from the App store for the iPhone®

and Google Play (Android Market) for Android powered devices. After downloading

app, customer name, email, smartphone number and VIN are required.

Maintenance schedule

Service coupons

Promotional alerts

Service history

Recall information

Parked car locator

Scan VIN barcode capability

when registering a vehicle

Mazda Dealer locator

Update owner prole

Link to Mazda Assist

Free MyMazda app

iPhone and Android

Free Mazda Assist app

iPhone and Android

www.MazdaUSA.com

1880737_16a_Mazda_CX-3_061615.indd 42 6/16/15 2:29 PM

SCHEDULED MAINTENANCE:

When replacing or topping off engine oil, use Mazda Genuine oil. For optimal engine performance,

use SAE 0W-20 engine oil. Please consult an Authorized Mazda Dealer for additional information.

Driver’s View ........................1

• Location of Switches and Control

Keyless Entry ........................3

Advanced Keyless Entry* ..........4

• Door Request Switch*

Starting the Engine .................5

• Accelerated Warm-Up System (AWS)

• Push Button Start System

• Emergency Vehicle Entry/

Engine Start/Stop

Break In Period .....................6

Fuel Economy .......................6

Tire Pressure Monitor System ....7

• Initialize TPMS before delivery

Seats and Headrests ...............8

Mazda Connect .....................9

Commander / Voice Control .....10

Bluetooth® ..........................11

• Pair Phone

• Make/Receive Call

• Toll-Free Customer

Service 800-430-0153

Navigation System* ...............13

• SD Card

• Planning a Route

*if equipped

Customer Delivery Checklist

SALES CONSULTANT DATE CUSTOMER DATE

All items in the Customer Delivery Checklist have been reviewed with the

customer and the ﬁrst maintenance appointment has been scheduled:

Signed copy must be placed in dealer jacket.

VEHICLE PRESENTATION:

Refer to the Smart Start Guide during presentation

ESSENTIAL INFORMATION

SAFETY & TECHNOLOGY INFOGENERAL INFO

Active Driving Display* ...........15

Mazda Connect Settings .........16

Mazda Radar Cruise Control* ...17

Smart City Brake Support* .......19

Smart Brake Support* ............20

Lane Departure

Warning System (LDWS)* ........21

Distance Recognition Support

System (DRSS) .....................22

Blind Spot Monitoring*. . . . . . . . . . . .23

Rear Cross Trafc Alert* .........24

Lights ...............................25

Wiper/Washer ......................26

Adaptive Front

Lighting System (AFS)* ...........27

High Beam Control* ...............28

Climate Control ....................29

Audio Controls .....................31

• Bluetooth Audio

Set Clock ............................16

Audio USB & AUX Inputs .........33

i-ELOOP* ...........................34

Instrument Cluster ................35

• Review of Warning and Indicator

Light Function and Location

Transmission .......................39

1880737_16a_Mazda_CX-3_061615.indd 43 6/16/15 2:29 PM

Customer Delivery Checklist

Smart Start Guide

• Remove this checklist from

Smart Start Guide

• Personalization Features

(refer to your Owner’s Manual)

Warranty Information

Warranty Start Date:

Customer Initial:

• Basic Vehicle –

36 months/36,000 miles

• Roadside assistance program

www.MyMazda.com

• Offer to register customer on

www.MyMazda.com

Owner’s Manual

PRESENTATION OF OWNER’S MATERIALS:

Review the following items with the customer

SERVICE DEPARTMENT

Introduce Service Manager;

provide business cards

Review Service and Parts

Department hours of operation

Explain free Full Circle

Service Inspection

Schedule rst maintenance service

DEALERSHIP DATE

SALES CONSULTANT CUSTOMER’S NAME

VIN E-MAIL

Maintenance Passport

Floor Mats

• Ensure oor mats are properly hooked

after cleaning

• Do not install two oor mats, one on

top of the other, on the driver side

• Accessory rubber oor mats should be

cleaned with mild soap and water only

Tire Pressure Monitoring System

• System overview

• Demonstrate how to initialize the

TPMS system

Push and hold the “SET switch” until

the TPMS warning light ashes twice

and one beep is heard

• Review the system Caution

1880737_16a_Mazda_CX-3_061615.indd 44 6/16/15 2:29 PM

Mazda 2016 Cx 3 Quick Start Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
