MAZDA 323/PROTEGE 1995-98

Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629. 299

madpl1_g02_

Page 299—April 22, 2004—15:28:19—Version Manufacturer

MAZDA 323/PROTEGE 1995-98

SPECIAL CAUTIONS

FOAM FILLER

Mazda advises that each pillar has a foam rubber filler inside to improve

quietness. Take care not to cut and join in these areas. If the foam rubber

becomes damaged, a urethane block should be inserted in place of the

damaged urethane.

SUPPLEMENTAL RESTRAINT SYSTEM

Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag

Special Cautions.

PAINT CODE LOCATION

Paint code located on left center pillar.

CLEAR COAT IDENTIFICATION

All metallic colors are clear coat.

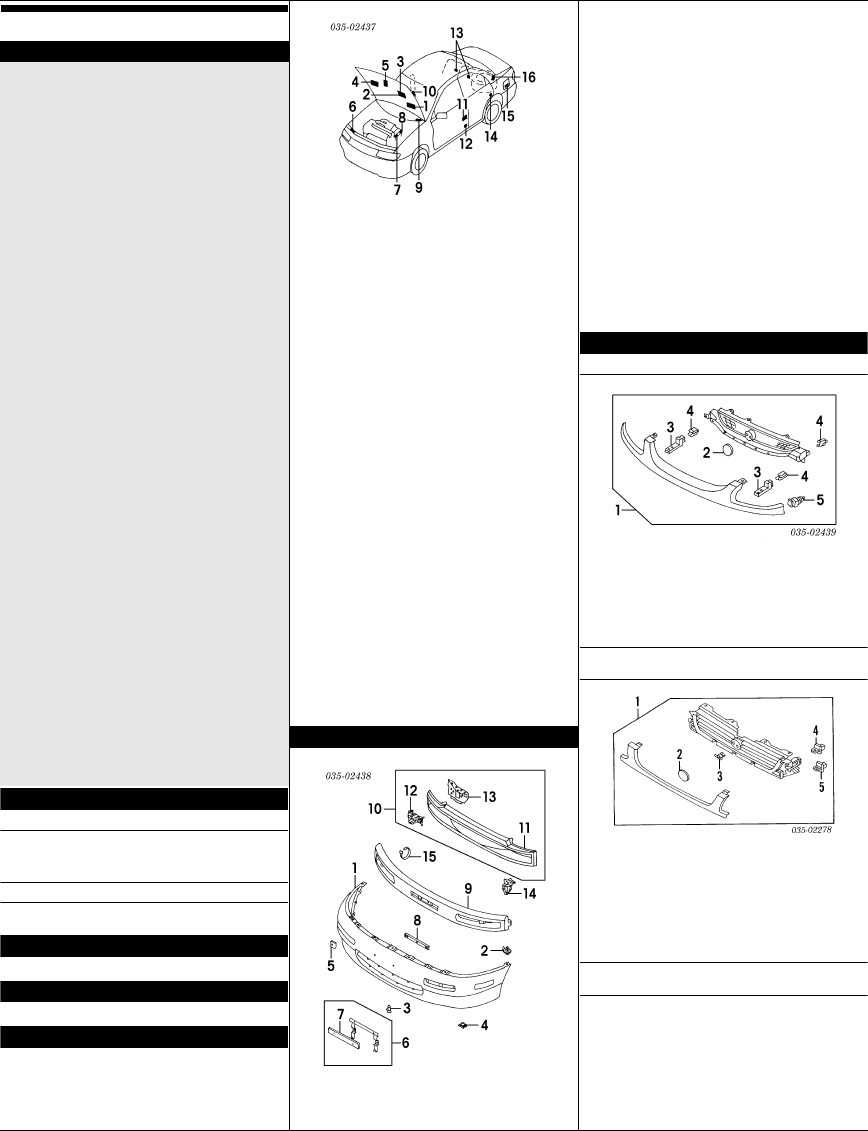

INFORMATION LABELS

Illustration Located in Next Column

Bolt Caution

1Hatchback N.A.

2 Sedan

1.5L Eng Z509-69-082

Emission¶

3Hatchback

1.5L Eng N.A.

1.8L Eng N.A.

4 Sedan

1995-96 BCY1-69-036

1997

1.5L Eng

w/Calif Emission BG1S-69-036

w/o Calif Emission BG1R-69-036

1.8L Eng

Man Trans BG1N-69-036

Auto Trans BG1P-69-036

1998

1.5L Eng

w/Calif Emission Z5A7-69-036

w/o Calif Emission Z5A8-69-036

1.8L Eng

Man Trans BP3F-69-036

Auto Trans BP3C-69-036

¶Order by Application

5

Caution

BC1M-61-439A

6

Fan Caution

B303-15-031A

7

Battery Caution

FA01-69-064B

8

Battery Info¶

FA03-69-C72A

¶Order by Application

9

Air Bag

NA01-69-068A

10

Vehicle Info

B001-69-D51

11

Safety Panel

Canada N.A.

12

Tire Info

Space Saver Spare

1.5L Eng 95-96 BC1D-69-014

97-98 BG1R-69-014

1.8L Eng BE5H-69-014

Full Size Spare

1.5L Eng 95-96 BC4C-69-014

97-98 BG1R-69-014

1.8L Eng BD0G-69-014

13

Cancel Lever (2)

95-96 GA8A-57-459

14

Child Proof

R GB1V-72-301

L GB1V-73-301

15

Unleaded Fuel

UB40-69-C61

Fuel Warning

Canada N.A.

16

Temporary Spare

English TA01-69-074B

French TA02-69-074

FRONT BUMPER

1

Cover, Front

Hatchback (P) N.A.

Sedan

Black BC4C-50-031

Painted (P) 95-96 BC1M-50-031A-8J

97-98 BG1N-50-031A-8J

(P) Paint to Match

2

Grommet, Cover

R/L BC1M-50-0Z5

3

Fastener, Cover

BF82-50-233

4

Nut, Clip

R/L B455-56-135

5

Clip, Cover

R/L B01J-50-B11

6

Bracket Assy, License Plate

BC1M-50-170

7

Holder, Plate¶

GJ21-50-183

¶Included w/License Plate Bracket Assy

8

Retainer, License Brkt

H005-50-060

9

Absorber, Impact

Hatchback N.A.

Sedan BC1M-50-111B

10

Bar Assy, Reinforcement

Hatchback N.A.

Sedan-Serviced by Components

11

Bar, Reinforcement

Hatchback¶-Serviced w/Reinf Bar Assy

Sedan BC1M-50-071

12

Stay, Bumper

Hatchback¶ R BC1M-50-080

L BC1M-50-090

Sedan R BC1M-50-080

L BC1M-50-090

13

Plate, Set

Hatchback¶ R/L N.A.

Sedan R BC1M-50-A80A

L BC1M-50-A90A

¶Included w/Hatchback Reinforcement Bar Assy

14

Plate, Seal

BC1M-50-C31

15

Strap, Tie

BC1M-50-EH1

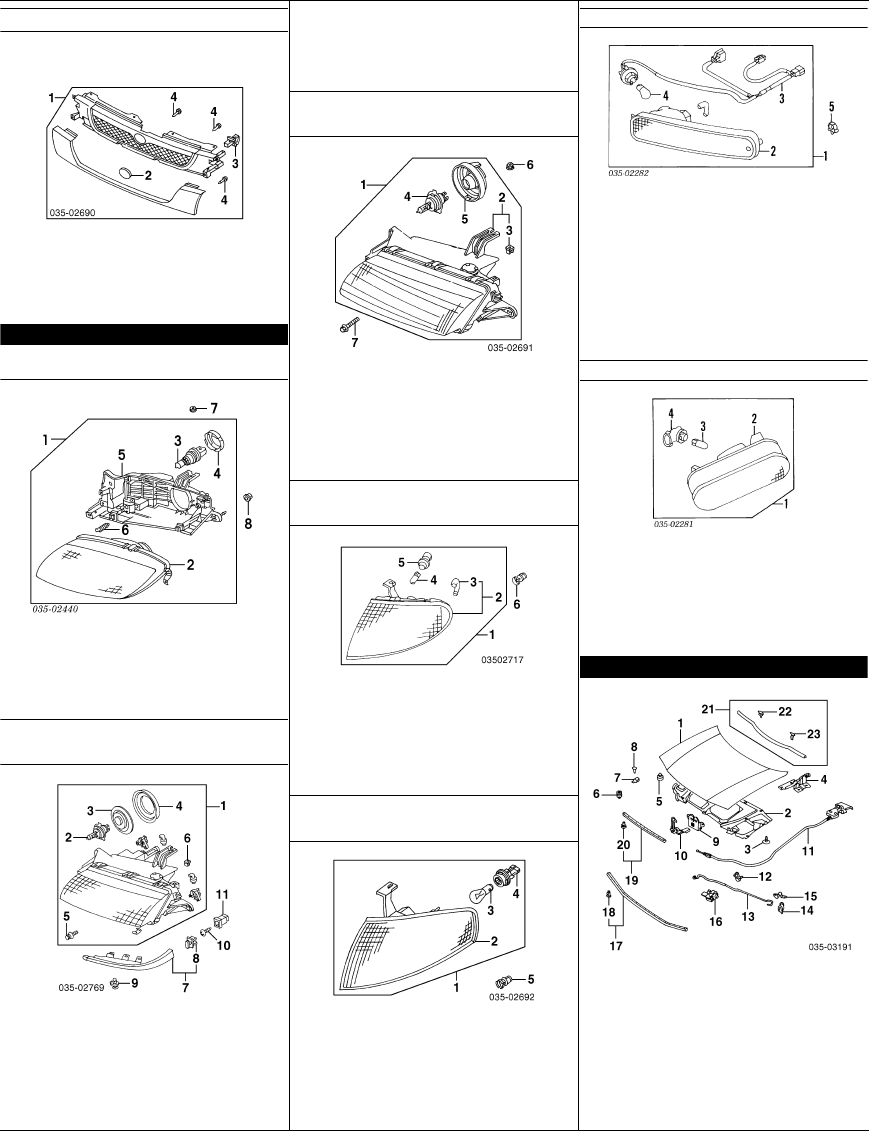

GRILLE

HATCHBACK

1

Grille Assy¶

N.A.

¶Classic Red listed, Order by Application

SU Classic Red; VQ Noble Green; 29 Sparkle Green;

61 Solemn Blue; 6Z Thunder Gray

2

Emblem, Grille (a)

N.A.

3

Clip, Grille Front (a)

R/L N.A.

4

Clip, Grille Rear (a) (4)

N.A.

5

Fastener, Grille (a)

R/L N.A.

(a) Included w/Grille Assy

SEDAN

1995-96

1

Grille Assy¶

BC1M-50-710D-PT

¶White listed, Order by Application

J4 Passion Rose; PT Chaste White; SU Classic Red;

VQ Noble Green; 29 Sparkle Green; 61 Solemn Blue;

4F Champagne Silver; 6Z Thunder Gray

2

Emblem, Grille (a)

B01B-51-731

3

Clip, Emblem (a) (2)

BB0S-50-717

Clip, Grille (a)

4 Upper (2) BC1M-50-714B

5 Lower (2) B05P-50-714B

(a) Included w/Grille Assy

SEDAN

1997-98

Illustration Located in Next Column

1

Grille Assy¶

97 B21H-50-710-PT

98 B21H-50-710B-PT

¶White listed, Order by Application

PT Chaste White; PZ Brilliant Black; 11N, 42 Noble

SECTION INDEX

A/C /HEATER .................................................................................... 301

A/C REFRIGERANT CAPACITIES ................................................... 301

ABS/BRAKES ................................................................................... 303

AIR BAG SYSTEM............................................................................ 302

AIR CLEANER .................................................................................. 306

BACK WINDOW................................................................................ 315

CENTER CONSOLE......................................................................... 309

CLEAR COAT IDENTIFICATION ...................................................... 299

COOLING.......................................................................................... 301

COWL & DASH ................................................................................. 308

CRUISE CONTROL SYSTEM .......................................................... 303

ELECTRICAL.................................................................................... 307

EMISSION SYSTEM......................................................................... 307

ENGINE/TRANS ............................................................................... 305

ENGINE/TRANS MOUNTS............................................................... 306

EXHAUST ......................................................................................... 307

FRONT BUMPER ............................................................................. 299

FRONT DOOR.................................................................................. 312

FRONT DRIVE AXLE........................................................................ 304

FRONT FENDER.............................................................................. 302

FRONT INNER STRUCTURE........................................................... 302

FRONT LAMPS................................................................................. 300

FRONT SEAT.................................................................................... 311

FRONT STEERING LINKAGE/GEAR............................................... 305

FRONT SUSPENSION ..................................................................... 303

FUEL TANK....................................................................................... 318

GRILLE ............................................................................................. 299

HOOD ............................................................................................... 300

INFORMATION LABELS................................................................... 299

INSTRUMENT PANEL ...................................................................... 308

LIFTGATE ......................................................................................... 317

LUGGAGE LID.................................................................................. 317

PAINT CODE LOCATION.................................................................. 299

QUARTER GLASS............................................................................ 317

QUARTER PANEL ............................................................................ 316

REAR BODY ..................................................................................... 319

REAR BUMPER................................................................................ 320

REAR DOOR .................................................................................... 313

REAR LAMPS................................................................................... 319

REAR SEAT ...................................................................................... 311

REAR SUSPENSION........................................................................ 318

ROCKER/PILLARS/FLOOR.............................................................. 310

ROOF................................................................................................ 315

SEAT BELTS ..................................................................................... 311

SPECIAL CAUTIONS........................................................................ 299

STEERING PUMP ............................................................................ 305

STEERING WHEEL/COLUMN ......................................................... 305

SUNROOF ........................................................................................ 315

UNDERHOOD DIMENSIONS........................................................... 302

WHEEL ............................................................................................. 303

WINDSHIELD.................................................................................... 308

MAZDA 323/PROTEGE 1995-98

Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.

300 madpl1_g02_

Page 300—April 22, 2004—15:28:21—Version Manufacturer

GRILLE Cont’d

SEDAN

1997-98 Cont’d

Green; 11R, 29 Sparkle Green; 12H, 14 Oriental Red;

12M, 25 Sandalwood; 12R Aquarius Blue; 3L Silverstone;

4F Champagne Silver; 45 Vivid Blue

2

Emblem, Grille (a)

97 B21H-51-731

98 GE4T-51-731

3

Clip, Grille (a) (4)

B21H-50-714

4

Screw, Grille (a) (7)

BC1M-50-713

(a) Included w/Grille Assy

FRONT LAMPS

HEADLAMP

HATCHBACK

1

Headlamp Assy

R/L N.A.

2

Lens & Body¶

R/L N.A.

3

Bulb¶

R/L N.A.

4

Holder, Bulb¶

R/L N.A.

5

Housing¶

R/L N.A.

6

Spring, Adjust¶

R/L N.A.

¶Included w/Headlamp Assy

7

Nut, Lamp

R/L N.A.

8

Fastener

R/L N.A.

HEADLAMP

SEDAN

1995-96

1

Headlamp Assy

R BC1M-51-030A

L BC1M-51-040A

2

Bulb, Headlamp¶

R/L 0000-11-9003

3

Cover, Bulb¶

R/L W323-51-0A1

4

Cap, Bulb Lock¶

R/L G00A-51-0AZ

5

Screw, Lamp Adjust¶

R/L 9GG6-00-616B

6

Clip, Retainer¶

R/L 9991-00-501

¶Included w/Headlamp Assy

7

Moulding Assy, Headlamp (a)

R BC1M-50-7J0-PT

LBC1M-50-7K0-PT

(a) White listed, Order by Application

J4 Passion Rose; PT Chaste White; SU Classic Red;

VQ Noble Green; 29 Sparkle Green; 69 Solemn Blue;

4F Champagne Silver; 6Z Thunder Gray

8

Fastener, Moulding (b)

R/L BC1M-50-715

(b) Included w/Headlamp Moulding Assy

9

Clip, Moulding (3/Side)

R/L B092-51-833

10

Screw

R/L 9YA7-20-401

11

Grommet, Screw

R/L BC1M-50-718

HEADLAMP

SEDAN

1997-98

1

Headlamp Assy

R BG1N-51-030D

L BG1N-51-040D

2

Lens & Body Assy¶

RBG1N-51-0K0D

L BG1N-51-0L0D

3

Grommet, Lamp¶ (a)

R/L 9991-00-501

(a) Included w/Lens & Body Assy

4

Bulb, Headlamp¶

R/L 0000-11-9003

5

Cover, Bulb¶

R/L B092-51-038

¶Included w/Headlamp Assy

6

Nut, Lamp

R/L 9YB1-60-602

7

Screw, Adjust (3/Side)

R/L 9GG6-00-620B

PARK LAMP

SEDAN

1995-96

1

Lamp Assy, Park

R BC1M-51-090

L BC1M-51-100

2

Lens Assy¶

R BC1M-51-09Y

L BC1M-51-10Y

3

Tube, Lamp¶ (a)

R/L B481-51-069

(a) Included w/Lens Assy

4

Bulb¶

R/L 0000-11-0194

5

Socket¶

R/L NA01-51-5E2

¶Included w/Park Lamp Assy

6

Holder, Pivot

95 R/L G219-51-081A

96 R/L G219-51-081A

PARK LAMP

SEDAN

1997-98

1

Lamp Assy, Park

R BG1N-51-060B

L BG1N-51-070B

2

Lens & Housing¶

R BG1N-51-06XB

L BG1N-51-07XB

3

Bulb¶

R/L 0000-11-1157

4

Socket¶

R/L BR70-51-064

¶Included w/Park Lamp Assy

5

Holder, Pivot

R/L G219-51-081A

SIGNAL LAMP

1

Lamp Assy, Signal

Hatchback R/L N.A.

Sedan R BC1M-51-350A

L BC1M-51-360A

2

Lens & Body¶

Hatchback R/L N.A.

Sedan R B01W-51-35XA

L B01W-51-36XA

3

Socket & Wire¶

Hatchback R/L N.A.

Sedan R BC1M-51-354

L BC1M-51-364

4

Bulb¶

Hatchback R/L N.A.

Sedan R/L 0000-11-1156

¶Included w/Signal Lamp Assy

5

Clip, Harness

R/L UB59-67-121

SIDE MARKER LAMP

1

Lamp Assy, Side Marker

Hatchback R/L N.A.

Sedan R BC1M-51-5E0A

LBC1M-51-5F0A

2

Lens & Body¶

Hatchback R/L N.A.

Sedan R BC1M-51-5E1

LBC1M-51-5F1

3

Bulb¶

R/L 0000-11-0194

4

Socket¶

R/L NA01-51-5E2

¶Included w/Side Marker Lamp Assy

HOOD

1

Panel, Hood

Hatchback N.A.

Sedan BC1M-52-310P

2

Insulator, Hood

1.8L Eng

Hatchback N.A.

Sedan BC1M-56-681E

3

Clip, Insulator (16)

GA2A-56-694

4

Hinge, Hood

R BC1D-52-410A

L BC1D-52-420A

5

Stopper, Rubber

Hatchback R/L N.A.

Sedan R D001-62-873B

L H043-56-786

6

Cushion, Front

R/L BC1M-56-786

MAZDA 323/PROTEGE 1995-98

Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629. 301

madpl1_g02_

Page 301—April 22, 2004—15:28:23—Version Manufacturer

7

Cushion Assy, Rear

R/L BC1M-56-78XA

8

Clip, Cushion¶

R/L UB39-56-741A

¶Included w/Rear Cushion Assy

9

Latch, Hood

BC1D-56-62X

10

Hook, Safety

Hatchback N.A.

Sedan BC1D-56-630

11

Cable, Hood Release

BC1M-56-720C

12

Clip, Release Cable

D001-56-731

13

Rod, Support

BC1M-56-650E

14

Grommet, Rod Pivot

95-96 T001-56-652

97-98 G030-52-518

15

Retainer, Grommet

B01A-56-641

16

Clip, Support Rod

BC1C-56-693A

17

Weatherstrip Assy, Hood Front

Hatchback N.A.

Sedan BC1M-56-770

18

Clip, W/Strip¶ (15)

B01A-56-741

¶Included w/Hood Front W/Strip Assy

19

Seal Assy, Hood

BC1M-56-750

20

Clip, Hood Seal¶ (13)

UB39-56-741A

¶Included w/Hood Seal Assy

21

Weatherstrip Assy, Hood Rear

BC1M-56-760

22

Fastener, W/Strip¶ (2)

G031-58-762

23

Clip, W/Strip¶ (9)

T001-56-742

¶Included w/Hood Rear Weatherstrip Assy

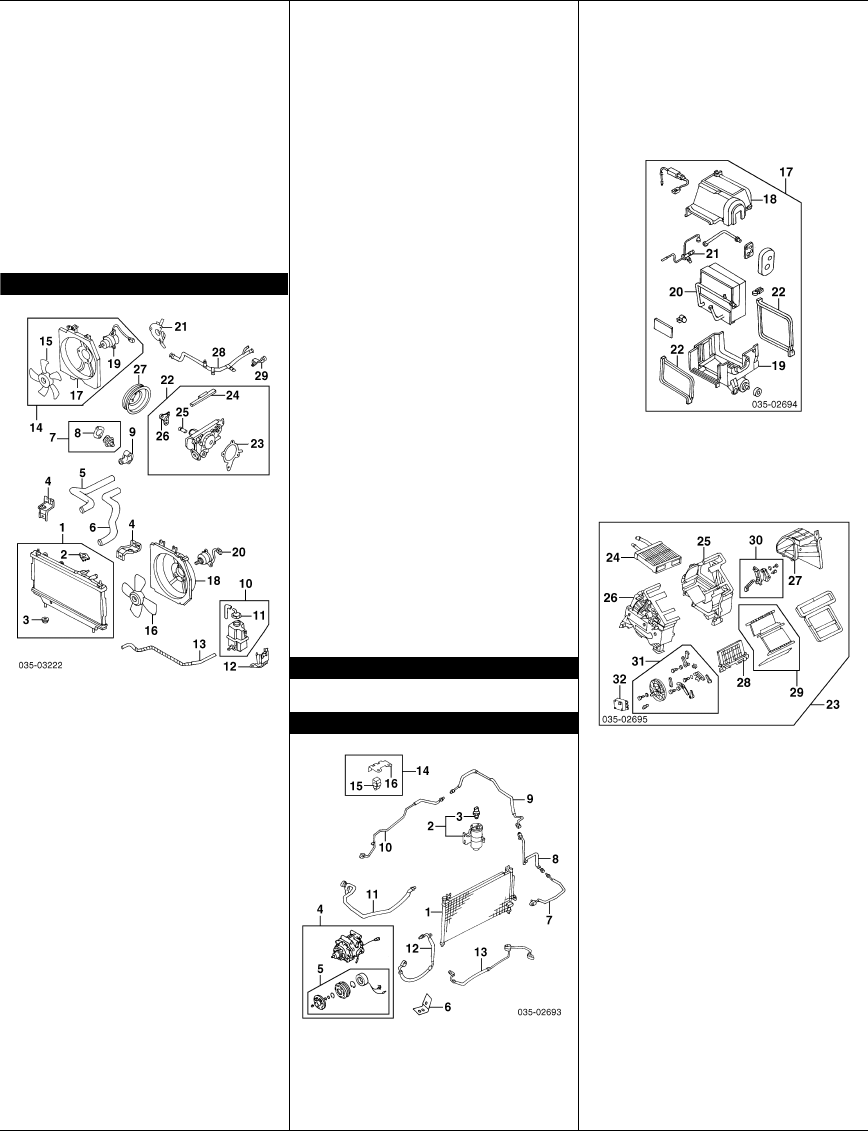

COOLING

1

Radiator Assy

1.5L Eng

Man Trans B6BF-15-200G

Auto Trans

1995-96

To 2-95 B6BG-15-200F

From 2-95 B6DA-15-200A

1997-98 B6BG-15-200F

1.8L Eng

Man Trans B6BF-15-200G

Auto Trans BPD4-15-200H

2

Cap, Radiator¶

Man Trans B3C7-15-205

Auto Trans D316-15-205

3

Mount, Rubber¶

Man Trans R/L B3P5-YV-SK1

Auto Trans

w/ A/C

1.5L Eng R/L B3P5-YV-SK1

1.8L Eng R/L B6DD-YV-SK1

w/o A/C R/L ZL01-15-202

¶Included w/Radiator Assy

4

Brkt, Radiator

R B6BF-15-240A

L B6BF-15-250A

5

Hose, Rad Upper

95 B6BF-15-186B

96-98 B6BF-15-186B

6

Hose, Rad Lower

1.5L Eng B6BF-15-185A

1.8L Eng BPD3-15-185A

7

Thermostat Assy

SOHC Eng 8AN1-15-171-91

DOHC Eng 95-96 8AB8-15-151

97-98 8ABE-15-171

8

Gasket, Thermostat¶

B621-15-173

¶Included w/Thermostat Assy

9

Cover, Thermostat

95-96 B366-15-172

97-98 B6BF-15-172

10

Tank Assy, Coolant

B6BF-15-350B

11

Cap, Coolant Tank¶

B6BF-15-355A

¶Included w/Coolant Tank Assy

12

Brkt, Coolant Tank

BPX2-15-370

13

Hose, Coolant Tank

B6BF-15-381B

14

Shroud & Fan Assy, Right

w/ A/C

1.5L Eng

USA Z501-15-035

Canada-Serviced by Components

1.8L Eng-Serviced by Components

Blade, Fan

15 Right

w/ A/C

1.5L Eng

USA-Serviced w/Right Fan & Shroud Assy

Canada N.A.

1.8L Eng B595-15-140

16 Left

1.5L Eng E358-15-140

1.8L Eng

Man Trans E358-15-140

Auto Trans FEH5-15-140

Shroud, Fan

17 Right

w/ A/C

1.5L Eng

USA-Serviced w/Right Shroud & Fan Assy

Canada N.A.

1.8L Eng B595-15-210A

18 Left

1.5L Eng B6BF-15-210A

1.8L Eng

Man Trans B6BF-15-210A

Auto Trans BPD3-15-210A

Motor, Fan

19 Right

w/ A/C

1.5L Eng

USA-Serviced w/Right Shroud & Fan Assy

Canada N.A.

1.8L Eng 95-96 B595-15-150A

97-98 B595-15-150A

20 Left

1.5L Eng B6DN-15-150

1.8L Eng

Man Trans 95-96 B6DN-15-150

97-98 B6DA-15-150

Auto Trans 95-96 BPD7-15-150

97-98 BPH7-15-150

21

Cover, Fan

Right

w/ A/C

1.5L Eng Z501-15-028

1.8L Eng BPD3-15-028

22

Pump Assy, Water

1.5L Eng 95 8ABB-15-010A

96-98 ZZM5-15-010

1.8L Eng 8ABB-15-010A

23

Gskt, Water Pump¶

B6BF-15-116

24

Seal, Water Pump¶

B660-10-543B

25

Pin, Set¶

F801-15-713

26

Boss, Pulley¶

E301-15-117

¶Included w/Water Pump Assy

27

Pulley, Water Pump

B3C7-15-131

28

Pipe, By-Pass

1.5L Eng Z509-15-290

1.8L Eng BPD7-15-290

29

Clip, By-Pass Pipe

B69F-15-286

Belt, Drive¶

B6BF-18-381-9U

¶Order by Application

A/C REFRIGERANT CAPACITIES

A/C R-134a Refrigerant Capacity

1995-98: 21.2 Ozs (1.33 Lbs)

A/C /HEATER

1

Condenser

BC1M-61-480

2

Receiver/Drier Assy

BC1M-61-500A

3

Switch, Pressure¶

GB6H-61-503

¶Included w/Receiver/Drier Assy

4

Compressor Assy

BC1M-61-450A

5

Clutch Set, Magnet¶

BC1M-61-L10

¶Included w/Compressor Assy

6

Brkt, Compressor

1.5L Eng B6BF-15-811

1.8L Eng BPD3-15-811

7

Pipe, Condenser

95-96 BC1M-61-465

97-98 BC1M-51-465B

8

Pipe, Receiver/Drier

BC1M-61-466

9

Pipe, Intermediate

BC1M-61-467A

10

Pipe, Evaporator

BC1M-61-468B

11

Pipe, Compressor

BC1M-61-469B

12

Hose, Low Pressure

BC1M-61-462A

13

Hose, High Pressure

BC1M-61-4G0

14

Relay Assy

BC4C-61-690A

15

Relay, Cooling Fan¶

H450-67-740

16

Bracket, Relay¶

BC4C-61-695

¶Included w/Relay Assy

17

Evaporator Assy

BC1M-61-520A

18

Case, Evap Upper¶

BC1M-61-J01

19

Case, Evap Lower¶

BC1M-61-J02

20

Core, Evaporator¶

BC1M-61-J10

21

Valve, Expansion¶

BC1M-61-J14

22

Seal, Evaporator¶

RBC1M-61-J04

LBC1M-61-J05

¶Included w/Evaporator Assy

23

Heater Assy

1995-96

Man Control 95 BC1M-61-130G

96 BC1M-61-130G

Elect Controls BC1N-61-130F

1997-98 BC1M-61-130G

24

Core, Heater¶

B01A-61-A10

Case, Heater¶

25 Passenger Side BC1M-61-A02A

26 Driver Side BC1M-61-A01A

27

Duct, Case¶

BC1M-61-A03

28

Damper, Air Mix¶

BC1M-61-A1Y

29

Damper, Heater Core¶

BC1M-61-A1XA

30

Link Kit, Temp¶

Man Control BC1M-61-A20

Elect Controls BC1N-61-A20

31

Link Kit, Mode¶

BC1M-61-A30A

32

Actuator, Mode¶

Elect Controls BC1N-61-A70

¶Included w/Heater Assy

Illustration Located in Next Column

33

Blower Assy

1995-96

Man Control BG1P-61-140B

Elect Controls BC1N-61-140E

1997-98 BG1P-61-140B

34

Motor/Fan, Blower¶

95-96 BCYM-61-14Z

97-98 BG1P-61-B10

35

Case, Heater Upper¶

1995-96

Man Control BC1M-61-B01B

MAZDA 323/PROTEGE 1995-98

Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.

302 madpl1_g02_

Page 302—April 22, 2004—15:28:24—Version Manufacturer

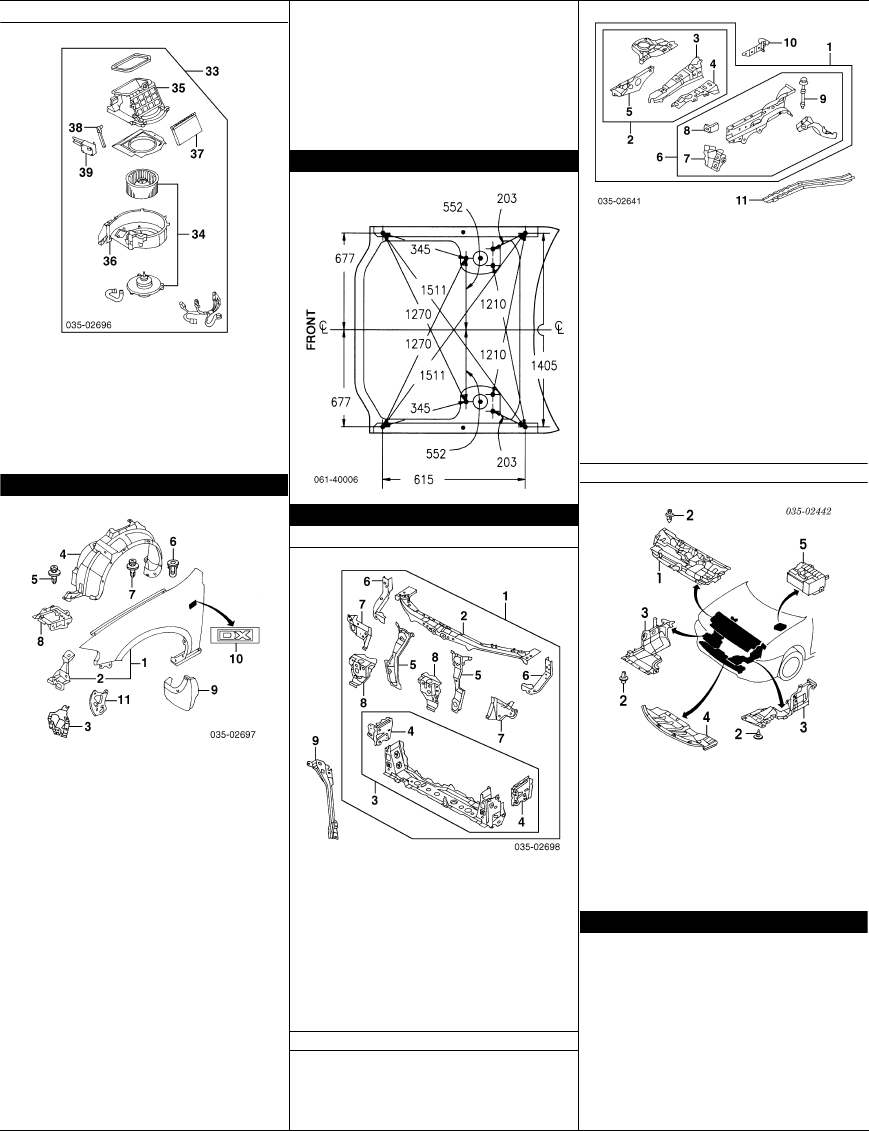

A/C /HEATER Cont’d

Elect Controls BC1N-61-B01

1997-98 BC1M-61-B01B

36

Case, Heater Lower¶

BC1M-61-B02

37

Door, Blower¶

B01A-61-B05

38

Link, Blower Door¶

1995-96

Man Control BC1M-61-B20

Elect Controls BC1N-61-B20

1997-98 BC1M-61-B20

39

Actuator, Link¶

Elect Controls BC1N-61-B60

¶Included w/Blower Assy

FRONT FENDER

1

Fender Assy

Hatchback R/L N.A.

Sedan 95-96 R BC1D-52-110B

L BC1D-52-210B

97-98 R BG1N-52-110B

L BG1N-52-210B

Bracket, Fender

2 1995-96¶

Hatchback R/L N.A.

Sedan R BC1D-53-12ZC

L BC1D-54-12ZC

3 1997-98 R B21H-53-12ZB

L B21H-54-12ZB

¶Included w/Fender Assy

4

Shield, Splash

R BC1D-56-131G

L BC1D-56-141J

Clip, Shield

5 Type 1 (7/Side) R/L BC1D-56-145

6 Type 2 R/L B455-56-145

7

Rivet, Shield

R/L B455-56-143

8

Stay, Fender

R BC1B-53-280A

L BC1B-54-290A

9

Mudguard

Sedan

USA (Set of 2) 0000-88-450F-F2

Canada R/L N.A.

10

Emblem, Side¶

Hatchback

"GS"

Gray Metallic R/L N.A.

Silver Metallic R/L N.A.

"RS"

Gray Metallic R/L N.A.

Silver Metallic R/L N.A.

"LS"

Gray Metallic R/L N.A.

Silver Metallic R/L N.A.

Sedan

"DX"

Gray Metallic R/L BC4C-51-761-80

Silver Metallic R/L BC4C-51-761-85

"LX"

Gray Metallic R/L BC5A-51-761-80

Silver Metallic R/L BC5A-51-761-85

"ES"

Gray Metallic R/L BD0G-51-761-80

Silver Metallic R/L BD0G-51-761-85

"SE"

Gray Metallic R/L N.A.

Silver Metallic R/L N.A.

11

Hook, Tow

R/L BC1D-53-364A-TT

UNDERHOOD DIMENSIONS

FRONT INNER STRUCTURE

FRONT

1

Support Assy, Radiator

BC1D-53-100D

2

Bar, Upper Tie¶

BC1D-53-150C

3

Bar Assy, Lower ie¶

BC1D-53-16XA

4

Plate, Frame¶ (a)

R BC1D-53-172

L BC1D-54-172

(a) Included w/Lower Tie Bar Assy

5

Support, Upper Tie Bar¶

R BC1D-53-130A

L BC1D-54-131

6

Panel, Side Support¶

R BCYD-53-12X

L BCYD-54-12X

7

Bracket, Bumper¶

R BCYD-53-120

L BCYD-54-120

8

Bracket, Lamp¶

R BC1D-53-12X

L BC1D-54-12X

¶Included w/Radiator Support Assy

9

Support, Hood Latch

BC1D-53-35Z

SIDE

Illustration Located in Next Column

1

Apron Assy

R BC1D-53-200

L BC1D-54-200

2

Wheelhouse Assy¶

R BC1D-53-210D

L BC1D-54-210

3

Reinf, Upper¶ (a)

R BC1D-53-260

L BC1D-54-260

4

Reinf, Lower¶ (a)

R BC1D-53-271

L BC1D-54-271

5

Panel, Apron Front¶ (a)

R BCYD-53-210

L BC1D-54-220

(a) Included w/Wheelhouse Assy

6

Rail Assy, Side¶

95-96 R BC1D-53-300A

L BC1D-54-300B

97-98 R B16A-53-300A

L BC1D-54-300B

7

Brkt, Lower Tie Bar¶ (b)

R BC1D-53-16Y

L BC1D-54-16Y

8

Brkt, Bumper/Frame¶ (b)

R BC1D-53-335

L BC1D-54-335

9

Bolt, Eng Member¶ (b)

R/L B456-53-319

¶Included w/Apron Assy

(b) Included w/Side Rail Assy

10

Bracket, ABS

L B603-54-39ZB

11

Unirail, Front

R BC1D-53-660

L BC1D-54-660

FRONT COMPONENTS

1

Cover, Rad Support

Hatchback N.A.

Sedan BC1D-56-381D

2

Clip, Shield

Hatchback (9) BC1D-56-145

Sedan (10) BC1D-56-145

3

Shield, Engine Side

R BC1D-56-111B

L BC1D-56-121

4

Shield, Lower Front

Hatchback N.A.

Sedan BG1N-56-1ZX

5

Block, Main Fuse

95 BC1F-66-760A

96 BE5M-66-760A

97-98 BG1N-66-760A

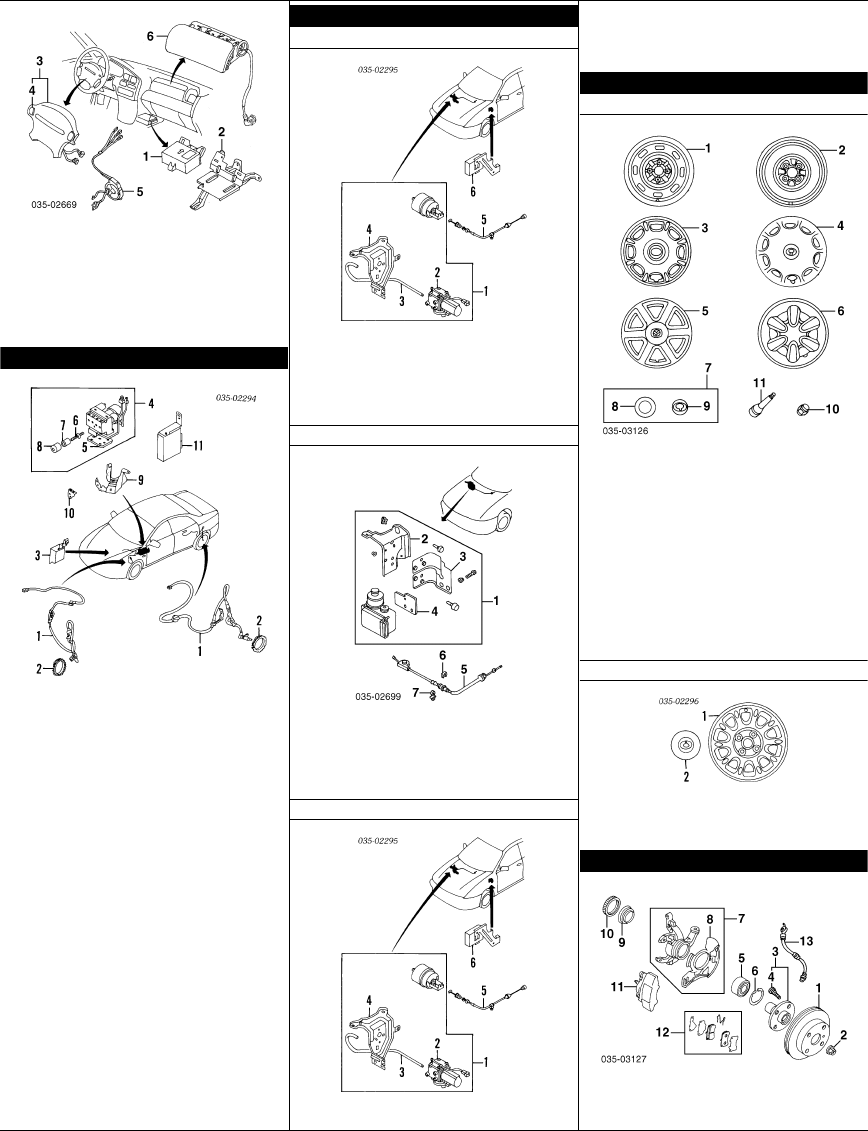

AIR BAG SYSTEM

Illustration Located in Next Column

1

Sensor Unit, Air Bag

95 BH2K-57-K30

96-98 B16A-57-K30A

2

Brkt, Sensor

95 BC1M-57-KX0C

96-98 B16A-57-KX0C

3

Module Assy, Driver Air Bag

1995-96 BC1M-57-K00C

1997 BG1N-57-K00A

1998 BG1P-57-K00B

4

Switch, Horn¶

BC1M-57-K0Z

¶Included w/Driver Air Bag Module Assy

5

Clockspring¶

MAZDA 323/PROTEGE 1995-98

Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629. 303

madpl1_g02_

Page 303—April 22, 2004—15:28:26—Version Manufacturer

w/Cruise Control BC5A-66-CS0

w/o Cruise Control BC5E-66-CS0

¶Included w/Combination Switch Assy-listed in Steering

Wheel/Column Section

6

Module, Passenger Air Bag

1995-96

Brown BC1M-57-K7X-90

Gray BC1M-57-K7X-09

1997-98

Brown B21M-57-K70H-90

Gray B21M-57-K70H-09

ABS/BRAKES

1

Sensor, ABS

Front 95 R BC1M-43-70XB

L BC1M-43-73XB

96-97 R BC4C-43-70XB

L BC4C-43-73XB

98 R BC4C-43-70XB

L BC4C-43-73XB

Rear 95 R BC1M-43-71YC

L BC1M-43-72YC

96 R BC4C-43-71YA

L BC4C-43-72YA

97-98 R B21J-43-71Y

L B21J-43-72Y

2

Rotor, ABS Sensor

Front-See Front Drive Axle Section

Rear-See Rear Suspension Section

3

Relay, ABS

1995-96 B02B-67-7K0C

1997-98

Front H430-67-730A

Rear H430-67-720

4

Actuator Assy, ABS

95-96 B01F-43-7A0

97-98 BC4C-43-7A0B

5

Cover, Actuator¶

1995-96 B603-43-7A4

1997-98-Serviced w/ABS Actuator Assy

6

Stud, Mount¶

95-96 GA2G-43-7A7A

97-98 G06T-43-7A7

7

Mount, Rubber¶

95-96 GA2G-43-7A6

97-98 G06T-43-7A6

8

Washer¶

1995-96 GA2G-43-7A8A

1997-98-Serviced w/ABS Actuator Assy

¶Included w/ABS Actuator Assy

9

Brkt, Actuator

95-96 B603-43-310F

97-98 B16C-43-310B

10

Brace, Actuator

E020-41-35X

11

Computer, ABS

95-96 BC1D-67-650C

97-98 BG1P-67-650A

CRUISE CONTROL SYSTEM

1995-96

1

Actuator Assy

BC1F-66-310A

2

Actuator¶

BC1F-66-314

3

Pipe, Vacuum¶

BC1F-66-361

4

Bracket, Actuator¶

BC1F-66-3A1A

¶Included w/Actuator Assy

5

Cable, Cruise

BC1F-66-31Y

6

Computer, Cruise

1.5L Eng BC1C-66-320D

1.8L Eng BC1F-66-320G

1997-98 1.5L ENG

1

Actuator Assy

BG1L-66-310C

2

Bracket, Actuator Side¶

BG1P-66-3A1B

3

Bracket, Actuator Rear¶

BG1L-66-3A1B

4

Grommet, Actuator¶

KB31-66-3A4

¶Included w/Actuator Assy

5

Cable, Cruise

BG1P-66-31YA

6

Clip, Cable Upper

BG1P-66-3A7A

7

Clip, Cable Lower

D061-61-479

1997-98 1.8L ENG

1

Actuator Assy

BC1F-66-310A

2

Actuator¶

BC1F-66-314

3

Pipe, Vacuum¶

BC1F-66-361

4

Bracket, Actuator¶

BC1F-66-3A1A

¶Included w/Actuator Assy

5

Cable, Cruise

BC1F-66-31Y

6

Computer, Cruise

BC1F-66-320G

WHEEL

STEEL WHEEL

1

Wheel

13x5J"

Black 9965-78-5030

Silver 9965-77-5030

14x5-1/2JJ" 9965-D8-5540

2

Wheel, Spare

9965-18-4040

Cover, Wheel

3 Type 1 95-97 BC1D-37-170B

98 B21H-37-170

4 Type 2 95-96 BC1F-37-170

97-98 B21M-37-170B

5 Type 3 98 B21J-37-170A

6 Type 4 98 BG1N-37-170

7

Cap Assy, Center

95-97 NA53-37-190

98 B21V-37-190

8

Cap, Center¶

B455-37-191

9

Emblem, Cap¶

95-97 GA7C-37-192

98 G14H-37-192

¶Included w/Center Cap Assy

10

Nut, Lug

0603-26-161A

11

Stem, Valve

9963-60-4130

ALUMINUM WHEEL

1

Wheel

9965-F6-5540

2

Cap, Center

95-97 B01C-37-191A

98 B21S-37-190

Nut, Lug

B002-37-160A

Stem, Valve

9963-60-4130

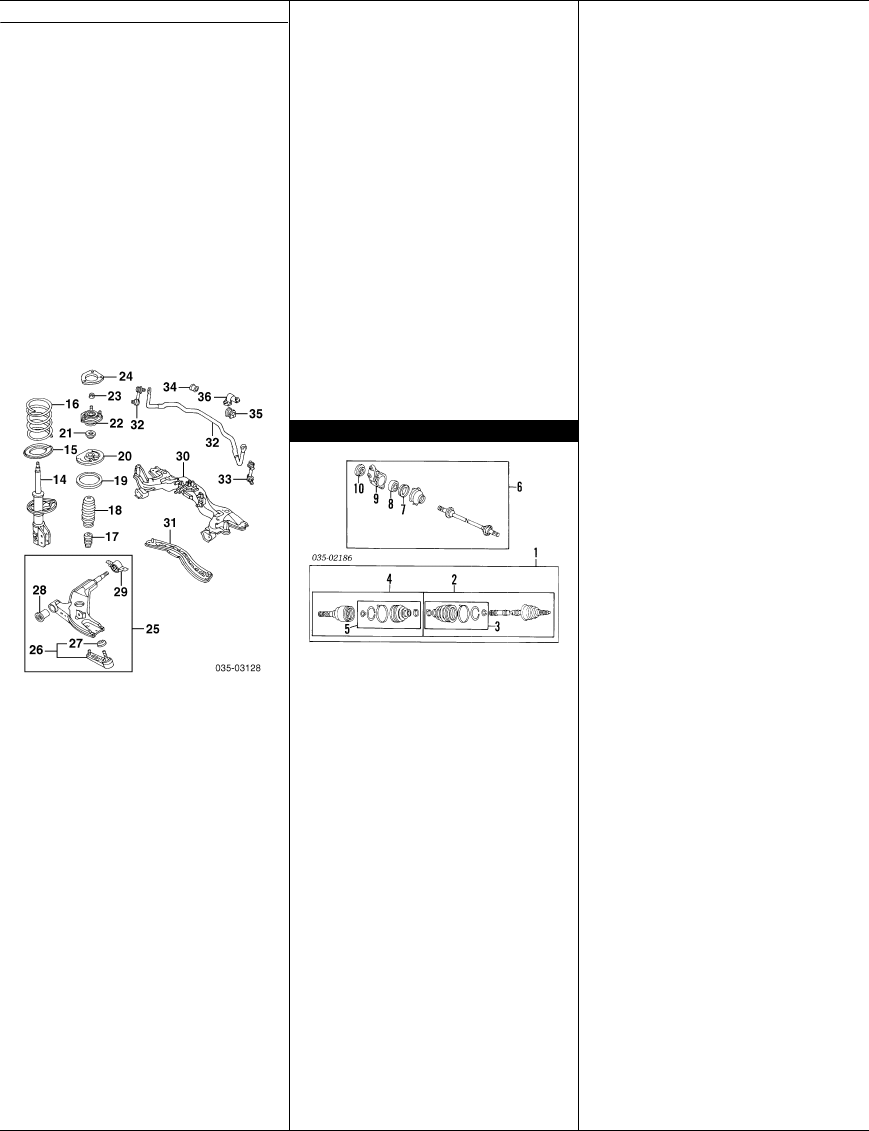

FRONT SUSPENSION

1

Rotor, Brake

1.5L Eng R/L B26Y-33-25XA

1.8L Eng R/L BB7E-33-25XD

2

Nut

R/L GJ21-33-042B

MAZDA 323/PROTEGE 1995-98

Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.

304 madpl1_g02_

Page 304—April 22, 2004—15:28:28—Version Manufacturer

FRONT SUSPENSION Cont’d

3

Hub Assy

R/L B01A-33-060A

4

Bolt, Hub¶

R/L B01Y-33-062

¶Included w/Hub Assy

5

Bearing

R/L B455-33-047D-MV

6

Ring, Retaining

R/L B21M-33-048

7

Knuckle Assy, Steering

1.5L Eng

w/ABS R B02H-33-020C

L B02H-33-030C

w/o ABS R B01L-33-020B

L B01L-33-030B

1.8L Eng

w/ABS R B01F-33-020C

L B01F-33-030C

w/o ABS R B01A-33-020B

L B01A-33-030B

8

Shield, Splash¶

R B01A-33-261B

L B01A-33-271B

¶Included w/Steering Knuckle Assy

9

Seal, Oil

R/L G304-33-065

10

Rotor, ABS Sensor-See Front Drive Axle Section

11

Caliper, Brake¶

1.5L Eng R B4Y2-33-98ZR

L B4Y2-33-99ZR

1.8L Eng R BRY4-33-98ZR

L BRY4-33-99ZR

¶Remanufactured Parts, Contact Dealer for Core Charge &

Exchange Information

12

Pad, Brake

1.5L Eng B0YW-33-26Z

1.8L Eng B4Y5-33-26Z

13

Hose, Brake

R/L B455-43-980B

14

Strut

1.5L Eng

1995

w/ABS R BC1D-34-700A

L BC1D-34-900A

w/o ABS R BH2M-34-700A

L BH2M-34-900A

1996 R BH2M-34-700A

L BH2M-34-900A

1997-98 R BC1E-34-700F

L BC1E-34-900F

1.8L Eng

1995

w/ABS R BC1F-34-700

L BC1F-34-900

w/o ABS R BH2L-34-700A

L BH2L-34-900A

1996 R BH2L-34-700A

L B17R-34-900

1997-98 R BC1E-34-700F

L BC1E-34-900F

15

Seat, Lower

R/L BC1D-34-0A3A

16

Spring, Coil

1.5L Eng

Man Trans R/L BC1D-34-011

Auto Trans R/L BC1E-34-011

1.8L Eng

Man Trans R/L B01A-34-011

Auto Trans

w/Sunroof R/L BC1G-34-011

w/o Sunroof R/L B01A-34-011

17

Bumper, Bound

R/L B01C-34-111

18

Boot, Dust

R/L BC1D-34-0A5A

19

Gskt, Rubber

R/L B455-34-012

20

Seat, Upper

R/L BC1D-34-340

21

Plate, Bearing

R/L M001-34-38XB

22

Mount, Strut

R/L B01C-34-380

23

Nut

R/L 9YB0-41-202

24

Plate, Adjust

R/L BC1D-34-013

25

Arm Assy, Lower Control

1.5L Eng

1995 R B01A-34-300E

L B01A-34-350E

1996 R B02B-34-300E

L B02B-34-350E

1997-98

13" Wheels R B02B-34-300E

L B02B-34-350E

14" Wheels R BE7B-34-300A

L BE7B-34-350A

1.8L Eng 95-96 R B01A-34-300E

L B01A-34-350E

97-98 R B01A-34-300E

L B01A-34-350E

26

Ball Joint Assy¶

R/L BTDA-34-550

27

Seal, Dust¶ (a)

R/L G030-34-565

(a) Included w/Ball Joint Assy

28

Bushing, Front¶

R/L BC1D-34-470

29

Bushing, Rear¶

1.5L Eng

1995-96 R BC1D-34-46X

L BC1D-34-46Y

1997-98

13" Wheels R BC1D-34-46X

L BC1D-34-46Y

14" Wheels R BC1F-34-46X

L BC1F-34-46Y

1.8L Eng R BC1F-34-46X

L BC1F-34-46Y

¶Included w/Lower Control Arm Assy

30

Crossmember, Suspension

1.5L Eng BC1D-34-800C

1.8L Eng BC6A-34-800B

31

Member, Transverse

1.8L Eng BC1D-34-H90

32

Bar, Stabilizer

Hatchback N.A.

Sedan BC1F-34-15XA

33

Link, Stabilizer

R GA2A-34-150A

L GA2A-34-170A

34

Bushing, Stabilizer

R/L T001-34-152

35

Bushing, Stabilizer Mount

Hatchback R/L N.A.

Sedan R/L BC1D-34-156

36

Brkt, Bushing

R/L BC1D-34-155B

FRONT DRIVE AXLE

1

Shaft Assy, Axle

1.5L Eng

w/ABS

1995

Man Trans R FA08-25-50XR-0C

L F069-25-60XR-0D

Auto Trans R FA08-25-50XR-0C

L F069-25-60XR-0D

1996 R FA08-25-50XR-0C

L F069-25-60XR-0D

1997-98

w/Calif Emission R FA08-25-50XR-0C

L F069-25-60XR-0D

w/o Calif Emission R FZ02-25-40XR-0B

L F069-25-60XR-0D

w/o ABS

1995

Man Trans R F063-25-500R-0E

L F069-25-600R-0D

Auto Trans R F063-25-500R-0E

L F069-25-600R-0D

1996 R F063-25-500R-0E

L F069-25-600R-0D

1997-98

w/Calif Emission R F063-25-500R-0E

L F069-25-600R-0D

w/o Calif Emission R FZ01-25-40XR-0B

L F069-25-600R-0D

1.8L Eng

w/ABS

1995

Man Trans R FA15-25-50XR-0C

L F066-25-60XB

Auto Trans R F066-25-50XR-0C

L F069-25-60XR-0D

1996 R F066-25-50XR-0C

L F069-25-60XR-0D

1997-98 R F066-25-50XR-0C

L F069-25-60XR-0D

w/o ABS

1995

Man Trans R FA14-25-50XR-0C

L F065-25-60XB

Auto Trans R F066-25-500R-0C

L F069-25-600R-0D

1996 R F066-25-500R-0C

L F069-25-600R-0D

1997-98 R F066-25-500R-0C

L F069-25-600R-0D

Rotor, ABS Sensor¶

1.5L Eng R/L BC4C-33-471

1.8L Eng 95 R/L B613-33-471B

96-98 R/L BC4C-33-471

2

Joint Assy, Outer¶

1.5L Eng

w/ABS

1995

Man Trans R FA08-22-510C

L F064-22-610D

Auto Trans R FA08-22-510C

L F071-22-610D

1996 R FA08-22-510C

L F069-22-610C

1997-98

w/Calif Emission R FA08-22-510C

L F079-22-610A

w/o Calif Emission R FA02-22-510E

L F079-22-610A

w/o ABS

1995

Man Trans R FA09-22-510C

L F069-22-610C

Auto Trans R F063-22-510C

L F069-22-610C

1996 R F063-22-510C

L F069-22-610C

1997-98

w/Calif Emission R F063-22-510D

L F069-22-610C

w/o Calif Emission R FA01-22-510E

L F069-22-610C

1.8L Eng

w/ABS

1995

Man Trans R FA14-22-510

L GA06-22-610

Auto Trans R F066-22-510

L FA03-22-610A

1996 R F066-22-510B

L F069-22-610C

1997-98 R F067-22-510A

L F079-22-610A

w/o ABS

1995

Man Trans R FA14-22-510

L GA06-22-610

Auto Trans R F066-22-510

L F069-22-610C

1996 R F067-22-510A

L F069-22-610C

1997-98 R F066-22-510B

L F069-22-610C

3

Boot, Outer¶ (a)

1995

1.5L Eng R/L BS10-V9-050-9U

1.8L Eng R/L BS40-V9-050-9U

1996 R/L BS10-V9-050-9U

1997-98

1.5L Eng

Right

w/Calif Emission

w/ABS BS10-V9-050-9U

w/o ABS FA01-22-530-9U

w/o Calif Emission BS10-V9-050-9U

Left BS10-V9-050-9U

1.8L Eng R/L BS10-V9-050-9U

(a) Included w/Outer Joint Assy

4

Joint Assy, Inner¶

1995

1.5L Eng R F061-22-520

L FZ02-22-520A

1.8L Eng

Man Trans R F065-22-520

L F065-22-620

Auto Trans R F065-22-520

L F068-22-620

1996 R F061-22-520

L FZ02-22-520A

1997-98

w/Calif Emission R F061-22-520

L FZ02-22-520A

w/o Calif Emission R FZ01-22-520

L FZ02-22-520A

5

Boot, Inner¶ (b)

1.5L Eng R/L F061-22-540-9U

1.8L Eng 95 R/L F037-22-540-9U

96-98 R/L F061-22-540-9U

¶Included w/Axle Shaft Assy

(b) Included w/Inner Joint Assy

Damper, Dynamic

1.5L Eng

Man Trans 95-96 R F037-25-411

97-98 R FA01-25-411

6

Shaft Assy, Intermediate

1.5L Eng

Man Trans F055-25-700B

Auto Trans F056-25-700C

1.8L Eng

Man Trans 95 F057-25-700

96-98 FA08-25-700D

Auto Trans F058-25-700C

7

Seal, Dust Inner (c)

95 G560-25-744

96-98 F011-25-744

8

Bearing (c)

95 9960-68-2063

96-98 9960-68-2064

9

Brkt, Shaft Support (c)

1.5L Eng

Man Trans F055-25-741A

Auto Trans F056-25-741A

MAZDA 323/PROTEGE 1995-98

Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629. 305

madpl1_g02_

Page 305—April 22, 2004—15:28:29—Version Manufacturer

1.8L Eng

1995-Serviced w/Intermediate Shaft Assy

1996-98

Man Trans FA08-25-741A

Auto Trans F047-25-741A

10

Seal, Dust Outer (c)

95 G560-25-742

96-98 F011-25-742

(c) Included w/Intermediate Shaft Assy

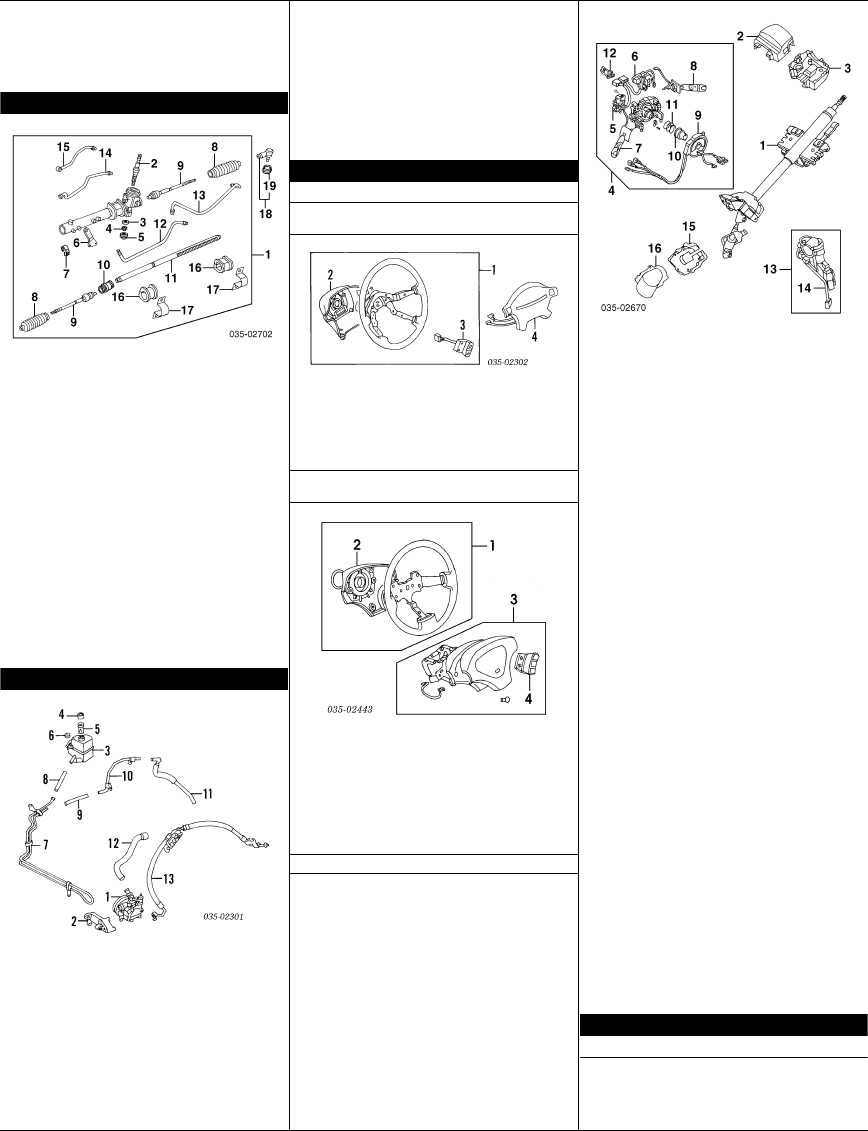

FRONT STEERING LINKAGE/GEAR

1

Gear Assy, Steering

95-96 BG1N-32-110R-0A

97-98 BG1N-32-110R-0A

2

Pinion¶

95-96 BC1D-32-380A

97-98 BC1D-32-380B

3

Bearing, Pinion¶

B456-32-147

4

Nut, Adjust¶

B456-32-152

5

Plug, Pinion¶

B456-32-151

6

Brace, Gear¶

BC1F-32-188

7

Bracket, Shaft

BH4C-32-175

8

Boot, Rack¶

R/L B456-32-125

9

Rod, Inner Tie¶

95-96 R E016-32-24X

L E016-32-25X

97-98 R B21H-32-24X

L B21H-32-25X

10

Holder, Strg Gear¶

B01A-32-154

11

Rack, Steering¶

95-96 BR71-32-119

97-98 BC1D-32-119

12

Pipe, Return¶

BC1D-32-6G0

13

Pipe, Pressure¶

95-96 BC1D-32-451

97-98 BC1D-32-451A

14

Pipe, Pressure¶

BC1D-32-450

15

Pipe, Return¶

95-96 BC1D-32-481

97-98 BC1D-32-481A

16

Bushing, Mount¶

R B456-32-124

L B595-32-123

17

Brkt, Mount¶

95-96 R/L B456-32-134-3

97-98 R/L B21H-32-134-3

¶Included w/Steering Gear Assy

18

End Assy, Tie Rod

R/L 8AB2-32-280

19

Seal, Dust¶

R/L B455-32-279

¶Included w/Tie Rod End Assy

STEERING PUMP

1

Pump, Steering

B21H-32-650R-0B

2

Brkt, Pump

B25D-32-680

3

Reservoir, Fluid

BC1D-32-690

4

Cap, Reservoir

B01C-32-691

5

Strainer, Fluid

BR71-32-503A

6

Grommet, Mount

GA2B-32-425

7

Pipe, Cooling

1.5L Eng

To 10-1-94 B02B-32-470A

From 10-1-94-Not Applicable

1.8L Eng BC1D-32-470

8

Hose, Cooling Pipe/Reservoir

1.5L Eng

To 10-1-94 BC1D-32-682

From 10-1-94 B02H-32-682

1.8L Eng BC1D-32-682

9

Hose, Return Pipe/Cooling Pipe

1.5L Eng

To 10-1-94 BC1D-32-683

From 10-1-94-Not Applicable

1.8L Eng BC1D-32-683

10

Pipe, Return

95-96 B01C-32-410C

97-98 B01B-32-410

11

Hose, Strg Gear/Return Pipe

BC1D-32-684F

12

Hose, Suction

1.5L Eng BC1D-32-688B

1.8L Eng BC1F-32-688B

13

Hose, Pressure

1.5L Eng 95-96 BG1R-32-490

97-98 BG1R-32-490

1.8L Eng 95-96 BG1N-32-490

97-98 BG1N-32-490

STEERING WHEEL/COLUMN

WHEEL & TRIM

W/AIR BAG

1

Wheel Assy, Steering

w/Cruise Control BC1E-32-980D

w/o Cruise Control BC1D-32-980G

2

Cover, Wheel Base¶

w/Cruise Control BC1E-32-049

w/o Cruise Control BC1D-32-049

3

Switch, Cruise Control¶

BC1E-66-3D1A

¶Included w/Steering Wheel Assy

4

Module, Driver Air Bag-See Air Bag System Section

WHEEL & TRIM

W/O AIR BAG

1

Wheel Assy, Steering

w/Cruise Control N.A.

w/o Cruise Control N.A.

2

Cover, Wheel Base¶

w/Cruise Control N.A.

w/o Cruise Control N.A.

¶Included w/Steering Wheel Assy

3

Cover Assy, Horn

w/Cruise Control N.A.

w/o Cruise Control N.A.

4

Switch, Cruise Control¶

N.A.

¶Included w/Horn Cover Assy

COLUMN

Illustration Located in Next Column

1

Column, Steering

USA 95-96 BC1E-32-100B

97-98 BG1N-32-100A

Canada

w/Air Bag N.A.

w/o Air Bag N.A.

Cover, Steering Column

2 Upper

USA BC1D-60-221A

Canada

w/Air Bag N.A.

w/o Air Bag N.A.

3Lower

USA BC1F-60-230B

Canada

w/Air Bag N.A.

w/o Air Bag N.A.

4

Switch Assy, Combination

w/Air Bag

w/Cruise Control 95-96 BC4A-66-120C

97-98 BG1N-66-120A

w/o Cruise Control 95-96 BC4E-66-120B

97-98 BG1P-66-120A

w/o Air Bag

w/Cruise Control N.A.

w/o Cruise Control N.A.

5

Switch, Light & Turn¶

w/Air Bag BC5E-66-136

w/o Air Bag

w/Cruise Control N.A.

w/o Cruise Control N.A.

6

Switch, Wiper¶

w/Air Bag BC4E-66-135

w/o Air Bag N.A.

7

Lever, Light & Turn Switch¶

w/Air Bag BC5E-66-122

w/o Air Bag N.A.

8

Lever, Wiper Switch¶

w/Air Bag BC5E-66-128

w/o Air Bag N.A.

9

Clockspring¶-See Air Bag System Section

10

Cam, Cancel¶

w/Air Bag GB6H-66-126

w/o Air Bag

w/Cruise Control N.A.

w/o Cruise Control N.A.

11

Spring, Cancel Cam¶

w/Air Bag H384-66-121

w/o Air Bag N.A.

12

Protector¶

w/Air Bag BC5E-66-128

¶Included w/Combination Switch Assy

13

Lock Assy, Ignition

USA

1995-96

Man Trans BG1S-76-290B

Auto Trans BG1R-76-290C

1997

Man Trans BG1S-76-290B

Auto Trans BG1R-76-290C

1998

Man Trans BG1S-76-290B

Auto Trans BG1R-76-290C

Canada

1995-96

w/Air Bag

Man Trans N.A.

Auto Trans N.A.

w/o Air Bag

Man Trans N.A.

Auto Trans N.A.

1997

w/Air Bag

Man Trans N.A.

Auto Trans N.A.

w/o Air Bag

Man Trans N.A.

Auto Trans N.A.

1998 N.A.

14

Switch, Ignition¶

BC1D-66-151B

¶Included w/Ignition Lock Assy

15

Plate, Column

w/Air Bag BC1D-32-21XB

w/o Air Bag-Serviced w/Steering Column

16

Cover, Hole

BC1D-32-211A

ENGINE/TRANS

1.5L ENG

Illustration Located in Next Column

MAZDA 323/PROTEGE 1995-98

Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.

306 madpl1_g02_

Page 306—April 22, 2004—15:28:30—Version Manufacturer

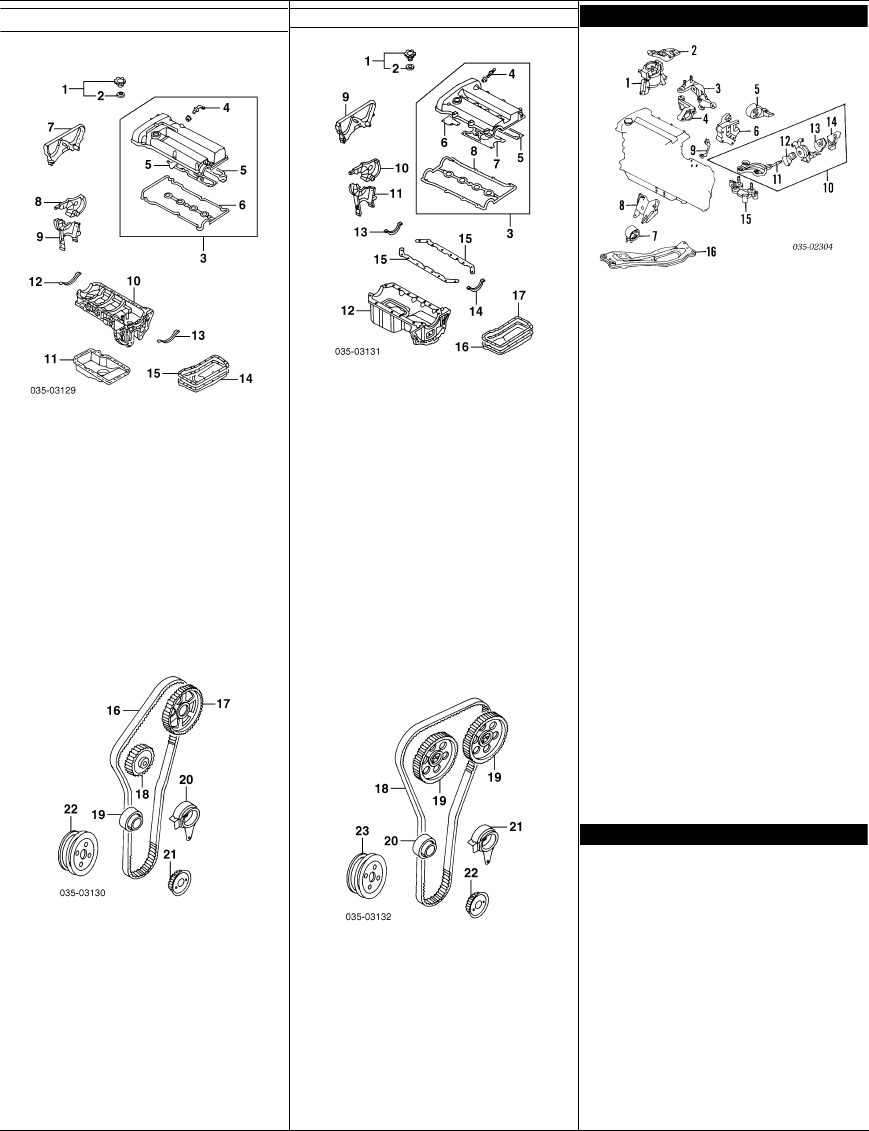

ENGINE/TRANS Cont’d

1.5L ENG Cont’d

1

Cap Assy, Oil Filler

0453-10-250A

2

Gasket, Filler Cap¶

8871-10-252

¶Included w/Oil Filler Cap Assy

3

Cover Assy, Valve

95 Z506-10-210

96-98 Z506-10-210

4

Valve, PCV¶

B541-13-890A

5

Plate, Baffle¶

R Z501-10-227

L Z501-10-22X

6

Gasket, Valve Cover¶

Z505-10-235A

¶Included w/Valve Cover Assy

Cover, Timing

7 Upper Z501-10-511

8 Center B6BF-10-521

9 Lower B660-10-501E

Sealant, Timing Cover

8527-77-739

Pan, Eng Oil

10 Upper B6Z7-10-380B

11 Lower 95 B6BF-10-400A

96-98 Z501-10-400

Gasket, Eng Oil Pan

12 Front B6F4-10-427

13 Rear B6F4-10-428

Sealant, Eng Oil Pan

8527-77-739

14

Pan, Trans Oil

FU60-21-511B

15

Gasket, Trans Oil Pan

FU60-21-512B

16

Belt, Timing

95-97 Z501-12-205-9U

98 Z502-12-205-9U

Sprocket, Camshaft

17 Right 95-97 B6S7-12-425A

98 Z502-12-425

18 Left 95-97 Z501-12-730

98 Z502-12-425

19

Pulley, Idler

B660-12-730C

20

Tension, Belt

B660-12-700F

21

Sprocket, Crankshaft

95-97 B3C7-11-321

98 Z502-11-321

22

Pulley, Crankshaft

95-97 B6BF-11-401A

98 B6BG-11-401

Belt, Drive-See Cooling Section

1.8L ENG

1

Cap Assy, Oil Filler¶

0453-10-250A

2

Gasket, Filler Cap¶

8871-10-252

¶Included w/Oil Filler Cap Assy

3

Cover Assy, Valve

BPD3-10-210C

4

Valve, PCV¶

BP05-13-890

Plate, Baffle¶

5 Right B6S7-10-225

Left

6 Front B6S7-10-22X

7 Rear B6S7-10-22Y

8

Gasket, Valve Cover¶

BP05-10-235C

¶Included w/Valve Cover Assy

Cover, Timing

9 Upper B6BF-10-511A

10 Center B6BF-10-521

11 Lower B660-10-501E

Sealant, Timing Cover

8527-77-739

12

Pan, Eng Oil

Man Trans

To 1-97 BP01-10-400K

From 1-97 BP02-10-400M

Auto Trans

To 1-97 BP02-10-400H

From 1-97 BP02-10-400K

Gasket, Eng Oil Pan

13 Front B541-10-427

14 Rear B541-10-428

15

Stiffener, Eng Oil Pan

R/L BP09-10-436

Sealant, Eng Oil Pan

8527-77-739

16

Pan, Trans Oil

FU60-21-511B

17

Gasket, Trans Oil Pan

FU60-21-512B

18

Belt, Timing

B6S7-12-205D-9U

19

Sprocket, Camshaft

R/L B6S7-12-425A

20

Pulley, Idler

B660-12-730C

21

Tensioner, Belt

B660-12-700F

22

Sprocket, Crankshaft

B3C7-11-321

23

Pulley, Crankshaft

Man Trans 95-97 BPD3-11-401A

98 BPD4-11-401

Auto Trans 95-97 B6BF-11-401A

98 B6BG-11-401

Belt, Drive-See Cooling Section

ENGINE/TRANS MOUNTS

1

Mount, Engine Front

BC1F-39-060C

Brkt, Front Engine Mount

2 Upper B02B-39-061

Lower

3 Right Side

1.5L Eng BC1D-39-030D

1.8L Eng BC1F-39-030C

4 Left Side

1.5L Eng BC1D-39-035A

1.8L Eng BC1F-39-035A

5

Mount, Eng Right Rear

Man Trans BC1D-39-040B

Auto Trans BC1E-39-040B

6

Bracket, Eng

Right Rear Mount BC1D-39-010

7

Mount, Eng Left Rear

Man Trans BC1D-39-050A

Auto Trans BC1G-39-050B

8

Brkt, Eng Left Rear Mount

1.5L Eng

Man Trans BC1D-39-020

Auto Trans BC1G-39-021

1.8L Eng

Man Trans 95 BC1F-39-020

96-98 BC1D-39-020

Auto Trans BC1G-39-021

9

Brace, Left Rear Mount

1.5L Eng F530-39-010

1.8L Eng GJ21-39-04XC

10

Mount Assy, Trans

Man Trans

1.5L Eng BC1D-39-100E

1.8L Eng 95 BC1E-39-100C

96-98 BC1D-39-100E

Auto Trans BC1E-39-100C

11

Brkt, Trans Mount¶

Man Trans

1.5L Eng BC1D-39-080

1.8L Eng 95 BC1E-39-081

96-98 BC1D-39-080

Auto Trans BC1E-39-081

Washer, Trans Mount¶

12 Front BC1D-39-087B

13 Rear BC1D-39-088

14

Damper, Dynamic¶

Man Trans B02C-39-08XC

¶Included w/Trans Mount Assy

Plate, Trans Mount

Man Trans

1.5L Eng BC1D-39-084

15

Support, Trans Mount

Man Trans

1.8L Eng BC1F-39-090

16

Member, Engine Mount

BC1D-39-800B

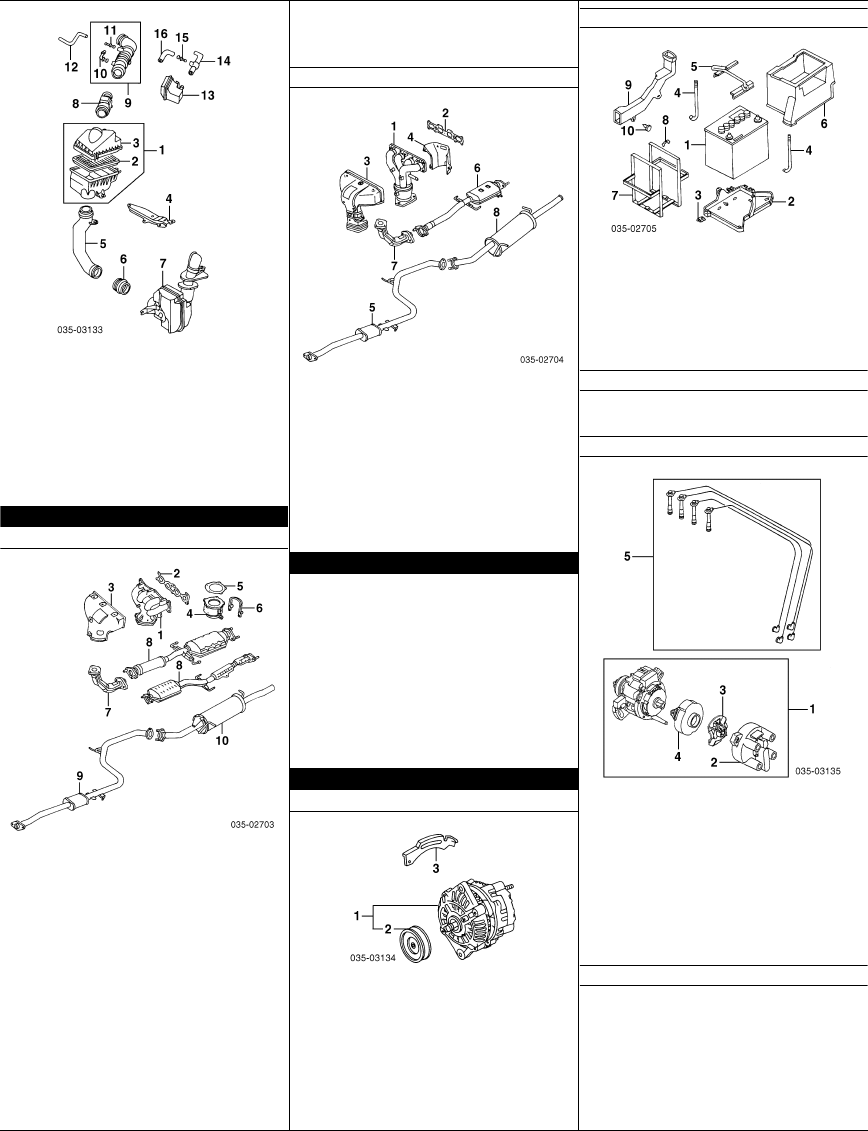

AIR CLEANER

Illustration Located in Next Column

1

Cleaner Assy, Air

1.5L Eng B595-13-320B

1.8L Eng B6BF-13-320B

2

Element, Cleaner¶

B595-13-Z40-9U

3

Lid, Air Cleaner¶

1.5L Eng B595-13-Z01A

1.8L Eng B6BF-13-Z01A

¶Included w/Air Cleaner Assy

4

Bracket, Air Cleaner Assy

B6BF-20-210

5

Tube, Fresh Air

B6BF-13-200

6

Hose, Fresh Air

B6BF-13-206B

7

Duct, Fresh Air

B6BF-13-201C

8

Meter, Air Flow

1.5L Eng B3H7-13-215R-00

1.8L Eng B6BF-13-215

9

Hose Assy, Air

1.5L Eng 95-96 B595-13-220A

97-98 B5C9-13-221

1.8L Eng 95-96 B6BF-13-220C

97-98 B6KP-13-221

MAZDA 323/PROTEGE 1995-98

Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629. 307

madpl1_g02_

Page 307—April 22, 2004—15:28:32—Version Manufacturer

10

Joint, Air Hose¶

1.5L Eng 95-96 B595-13-758

1.8L Eng 95-96 B587-13-758

11

Pipe, Air Intake¶

B6S7-13-174

¶Included w/Air Hose Assy

12

Hose, Ventilation

1.5L Eng Z501-13-742A

1.8L Eng BPD3-13-742

13

Chamber, Resonance

95-96 B595-13-195A

14

Hose, Air Surge

1995-96

1.5L Eng B595-13-766

1.8L Eng BPD5-13-766

15

Pipe, Ventilation

95-96 JE26-13-746

16

Hose, By-Pass

95-96 B595-13-765

EXHAUST

1.5L ENG

1

Manifold, Exhaust

Z509-13-451A

2

Gasket, Manifold

Z501-13-460

3

Insulator, Manifold

B6CK-13-390D

4

Pre-Converter, Catalyst

w/Calif Emission B6GD-20-500C

w/o Calif Emission Z502-20-500

5

Gasket, Pre-Converter

B6CK-20-520

6

Bracket, Preconverter

B6H8-40-082C

7

Pipe, Front Exhaust

1995 Z503-40-500D

1996-98

w/Calif Emission B6H8-40-500E

w/o Calif Emission Z503-40-500D

8

Converter, Catalytic

w/Calif Emission Z502-20-600B

w/o Calif Emission 95 Z503-20-600B

96 Z524-20-600A

97-98 Z5A6-20-600B

9

Pipe, Intermediate

Hatchback N.A.

Sedan

1995 Z535-40-300A

1996-97 Z553-40-300A

1998

w/Calif Emission Z553-40-300A

w/o Calif Emission Z550-40-300A

10

Muffler, Rear

Hatchback N.A.

Sedan

1995 Z544-40-100A

1996 Z544-40-100A

1997-98

w/Calif Emission Z544-40-100A

w/o Calif Emission Z550-40-100B

1.8L ENG

1

Manifold, Exhaust

BPD3-13-450E

2

Gasket, Manifold

BPD3-13-460

3

Insulator, Manifold

BPE1-13-390D

4

Insulator, Heat

BPE1-13-380A

5

Pipe, Front Exhaust

BP47-40-500E

6

Converter, Catalytic

Hatchback N.A.

Sedan 95-96 BPD3-20-600A

97-98 BP3C-20-600C

7

Pipe, Intermediate

Hatchback N.A.

Sedan BP47-40-300E

8

Muffler, Rear

Hatchback N.A.

Sedan 95 BP47-40-100B

96 BPC8-40-100A

97-98 BP47-40-100B

EMISSION SYSTEM

Valve, EGR

95-96 B6BF-20-300

97-98 BP3C-20-300A

Canister, Vapor

1995

w/Calif Emission BPD3-13-978

w/o Calif Emission BP01-13-970

1996-98 JE96-13-978

Brkt, Canister

B6DA-13-960

Sensor, MAP

95 Z501-18-211

96-98 Z502-18-211A

Sensor, Coolant Temp

95-96 B593-18-840A

97-98 KLK1-18-840

Module, Control¶ (a)

1.5L Eng Z5Y3-18-881

1.8L Eng BPY4-18-881R-00

¶Parts w/an "R" Suffix are Rebuilt, Contact Dealer for Core Charge &

Exchange Information

(a) Order by Application

ELECTRICAL

ALTERNATOR

1

Alternator Assy¶

1995-96

1.5L Eng Z505-18-300R-00

1.8L Eng BPD3-18-300R-00

1997-98 Z599-18-300R-00

¶Parts w/an "R" Suffix are Rebuilt, Contact Dealer for Core Charge &

Exchange Information

2

Pulley, Alternator (a)

B3C7-18-W10

(a) Included w/Alternator Assy

3

Brace, Alternator Adj

B6BF-18-361C

Belt, Drive-See Cooling Section

BATTERY

1

Battery

0000-80-026R-WB

Cable, Positive

N.A.

Cable, Negative

BC1D-67-EW1B

2

Tray, Battery

BC1D-56-040B

3

Nut, Clip

95-96 FA01-50-054

4

Bolt, Clamp

R/L B180-56-034A

5

Clamp, Battery

B01E-56-031

6

Box, Battery

B6BF-18-591

7

Band, Battery

N350-18-522

8

Clip, Battery

B612-20-468

9

Duct, Battery

BPD7-18-596A

10

Clip, Duct (2)

W201-56-052

HORN

Horn

95-97 B596-66-790A

98 BG2L-66-790

Brkt, Horn

95-97 BG1N-66-7BY

98 BG1N-66-7BY

IGNITION

1

Distributor Assy

1995 B6BF-18-200R-0A

1996

1.5L Eng

w/Calif Emission B6BF-18-200R-0A

w/o Calif Emission BP1A-18-200R-00

1.8L Eng BP1A-18-200R-00

1997-98 BP1A-18-200R-00

2

Cap, Distributor¶

B593-18-V00A-9U

3

Rotor, Distributor¶

B6BF-18-V05-9U

4

Cover, Distributor¶

BP1A-18-V48

¶Included w/Distributor Assy

5

Wire Set, Ignition

1.5L Eng 95-96 0000-18-137A

97-98 0000-18-137A

1.8L Eng 95 0000-18-136A

96-98 0000-18-136A

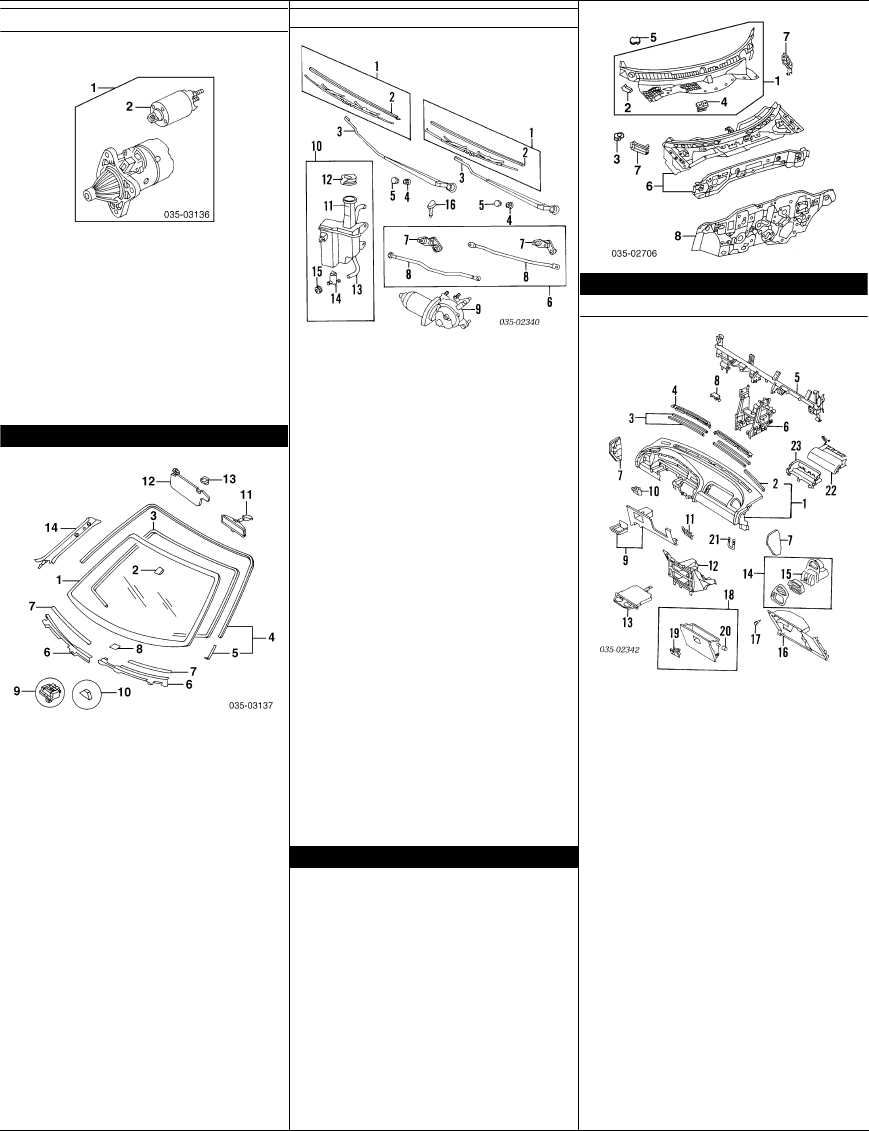

STARTER

Illustration Located in Next Column

1

Starter Assy¶

1.5L Eng

1995-96 B676-18-400R-00

1997-98

0.8 KW B676-18-400R-00

MAZDA 323/PROTEGE 1995-98

Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.

308 madpl1_g02_

Page 308—April 22, 2004—15:28:33—Version Manufacturer

ELECTRICAL Cont’d

STARTER Cont’d

0.85 KW B676-18-400R-00

1.8L Eng

Man Trans B593-18-400R-00

Auto Trans BPD4-18-400R-00

¶"R" Suffix Indicates Remanufactured Part. Contact Dealer for Core

Charge & Exchange Information

2

Switch, Magnetic (a)

1.5L Eng

1995-96 E356-18-X10

1997-98

0.8 KW B6BF-18-X10

0.85 KW E356-18-X10

1.8L Eng

1995-96

Man Trans FE1J-18-X10

Auto Trans BPD4-18-X10

1997-98 BPD4-18-X10

(a) Included w/Starter Assy

WINDSHIELD

1

Glass Assy, Windshield

Mazda (Tint) BE5M-63-900A

2

Base, Mirror¶

BC1C-69-240

¶Included w/Mazda Windshield Glass Assy

3

Dam, Windshield

B481-50-894

4

Moulding Assy, Windshield

BC1M-50-6AXB

5

Clip, Moulding¶

R/L B01W-50-6B8

¶Included w/Windshield Moulding Assy

6

Stopper, Windshield

RBC1M-50-G3XB

LBC1M-50-G3YD

Tape, Glass Stopper

7 Outer R BC1B-50-898

L BC1G-50-898

8 Center BC1C-50-898

Spacer, Glass

9Type A (2)

Black B455-50-891A

White EA01-50-891A

10 Type B

Hatchback (7) C001-50-897

Sedan (4) C001-50-897

11

Mirror, Rear View

95-96 HG82-69-220A

97-98 HG82-69-220A

12

Visor, Sun¶

w/Sunroof R BC1F-69-270A-08

L BC1C-69-320A-08

w/o Sunroof R BC1M-69-270A-08

L BC1D-69-320A-08

¶Order by Application

13

Holder, Visor

R/L B01A-69-261A

14

Mldg, W/S Garnish

Hatchback

Brown R/L N.A.

Gray R/L N.A.

Sedan

Brown R BC1D-68-160A-90

L BC1D-68-170A-90

Gray R BC1D-68-160A-09

L BC1D-68-170A-09

WIPER SYSTEM

1

Blade Assy, Wiper

95-96 R NC11-67-330-9U

L BJ0E-67-330-9U

97-98 R BE5J-67-330

L BE5H-67-330

2

Insert, Wiper¶

95-96 R D040-67-333-9U

L E016-67-333

97 R B16B-67-331

L B16A-67-331

98 R/L B16B-67-333

¶Included w/Wiper Blade Assy

3

Arm, Wiper

R BC1N-67-321B

L BC1M-67-321B

4

Nut, Arm

R/L 9994-00-801

5

Cover, Wiper Arm

R/L LA01-67-395C

6

Link Assy, Wiper

w/Cold Climate Spec BC1N-67-360C

w/o Cold Climate Spec BC1N-67-360C

7

Shaft, Drive¶

w/Cold Climate Spec R/L BC1N-67-363-4

w/o Cold Climate Spec R/L BC1M-67-363-4

8

Arm, Link¶

R BC1M-67-361B

L BC1M-67-362

¶Included w/Wiper Link Assy

9

Motor, Wiper

w/Cold Climate Spec 95 BC5D-67-340

96 BC5D-67-340

97-98 BG2L-67-340A

w/o Cold Climate Spec 95 BC5D-67-340

96 BC5D-67-340

97 BG1N-67-340

98 BG1N-67-340A

10

Tank Assy, Washer

USA BC1M-67-480A

Canada

w/Level Indicator N.A.

w/o Level Indicator N.A.

Switch, Level¶

Canada N.A.

11

Tank, Washer¶

USA B01C-67-481

Canada

w/Level Indicator N.A.

w/o Level Indicator N.A.

12

Cap, Washer Tank¶

B455-67-483

13

Hose, Tank¶

T003-67-501A

14

Pump, Washer¶

S084-76-672

15

Grommet, Pump¶

S084-76-677

¶Included w/Washer Tank Assy

16

Nozzle, Washer

R BC1M-67-510

L BC1N-67-510

COWL & DASH

Illustration Located in Next Column

1

Grille Assy, Cowl

BC1M-50-790D

2

Gasket, Grille¶

B01W-50-795

Grommet

3 Outer R/L FD02-50-798

4 Inner (5)¶ NA01-51-789

¶Included w/Cowl Grille Assy

5

Cap

R/L E016-50-796

6

Panel, Dash Upper

BC1D-53-500E

7

Gusset, Cowl Side

R BC1D-56-521

L BC1D-56-531

8

Panel, Dash Lower

95-96 BC1D-53-400A

97-98 BC1D-53-400A

INSTRUMENT PANEL

1995-96

1

Panel Assy, Instrument

Hatchback

Brown N.A.

Gray N.A.

Sedan

Brown BC1D-60-350D-90

Gray BC1D-60-350D-09

2

Garnish, Inst Pnl¶

R/L B01J-60-724

¶Included w/Instrument Panel Assy

3

Garnish, Inst Panel

R/L B01A-60-725

4

Grille, Defrost

Brown R BC1D-60-780-91

L BC1D-60-790-91

Gray R BC1D-60-780-09

L BC1D-60-790-09

5

Member, Inst Panel

USA BC1D-60-420E

Canada

w/Air Bag

Hatchback N.A.

Sedan N.A.

w/o Air Bag N.A.

6

Member, Ctr Panel

BC1D-60-450A

7

End, Instrument Panel

Brown R BC1D-64-950B-90

L BC1D-64-960B-90

Gray R BC1D-64-950B-09

L BC1D-64-960B-09

8

Cover, Hole

Brown BC1D-55-574-91

Gray BC1D-55-574A-09

9

Panel, Lower

Brown BC1D-64-280C-90

Gray BC1D-64-280C-09

10

Ext, Lower Panel

Brown BC5E-64-255-90

Gray BC5E-64-255-09

11

Cover, Lower

Brown BC5E-64-255-90

Gray BC5E-64-255-09

12

Panel, Center

Brown BC1D-64-270A-90

Gray BC1D-64-270A-09

13

Holder, Cup

BC1D-64-39XC

MAZDA 323/PROTEGE 1995-98

Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629. 309

madpl1_g02_

Page 309—April 22, 2004—15:28:35—Version Manufacturer

14

Ventilator Assy, Passenger

Brown BC1D-64-720-90

Gray BC1D-64-720-09

15

Louver, Ventilator (a)

BC1D-64-71XA

(a) Included w/Passenger Ventilator Assy

16

Panel Assy, Glove Box

w/Air Bag

Brown BC1D-64-260B-90

Gray BC1D-64-260B-09

w/o Air Bag

1995

Brown BC5E-64-260A-90

Gray BC5E-64-260B-09

1996

Brown BC5E-64-260B-09

Gray BC5E-64-260B-09

17

Cushion, Rubber (a) (2)

B092-64-046

(a) Included w/Glove Box Panel Assy

18

Glove Box Assy

w/Air Bag

Brown BC1D-64-030E-90

Gray BC1D-64-030E-09

w/o Air Bag

Brown

Gray B01A-64-030C-09

19

Lock, Glove Box¶

w/Air Bag

Brown BC5E-64-090E-90

Gray BC5E-64-090E-09

w/o Air Bag

Brown B01B-64-090C-91

Gray B01B-64-090C-09

20

Stopper, Rubber¶

BC1D-64-073

¶Included w/Glove Box Assy

21

Striker, Glove Box

w/Air Bag BC1D-64-101

w/o Air Bag B01B-64-101

22

Module, Pass Air Bag-See Air Bag System Section

23

Case, Air Bag

BC1D-60-A61B

24

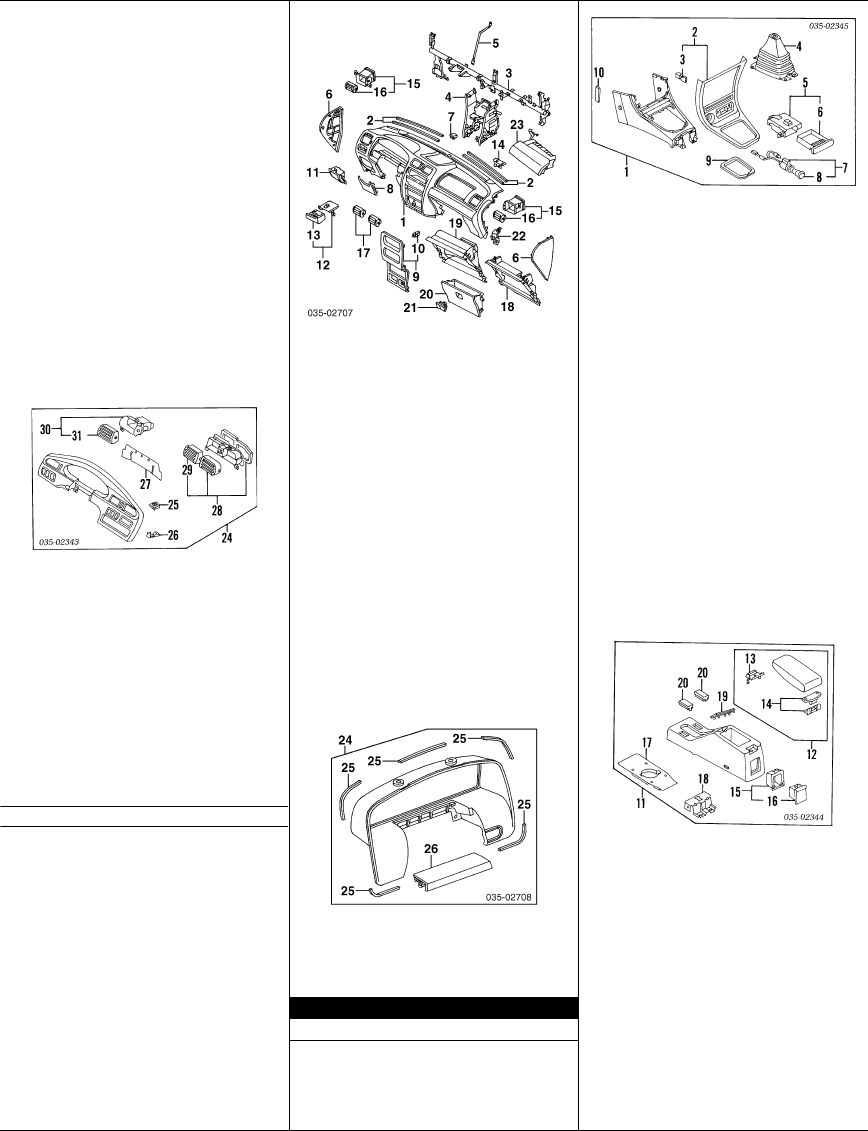

Panel Assy, Instrument Finish

Hatchback N.A.

Sedan 95 BC1D-55-420E

96 BE5M-55-420A

Clip, Finish Panel (c)

25 Upper (2) B092-55-257

26 Lower (9) BC1D-55-257

27

Plate, Cover (c)

Hatchback N.A.

Sedan BC1D-55-182

28

Ventilator Assy, Center (c)

BC1D-64-920A

29

Louver, Vent (c) (d)

R BC1D-64-91XA

L S09A-64-91X

(d) Included w/Center Ventilator Assy

30

Ventilator Assy, Driver (c)

Hatchback N.A.

Sedan BC1D-64-820

31

Louver, Vent (c) (e)

Hatchback N.A.

Sedan BC1D-64-81XA

(c) Included w/Instrument Finish Panel Assy

Included w/Driver Ventilator Assy

Radio¶

BC1B-79-020

¶Order by Application

1997-98

Illustration Located in Next Column

1

Panel, Instrument

w/Air Bag

Brown BG1N-60-401C-90

Gray BG1N-60-401C-09

w/o Air Bag

Brown BG1J-60-401A-90

Gray 5G1J-60-401A-09

2

Garnish, Inst Panel (2/Side)

R/L B01A-60-725

3

Member, Inst Panel

w/Air Bag BG1N-60-420D

w/o Air Bag N.A.

4

Member, Ctr Panel

BG1N-60-450A

5

Brkt, Inst Panel

BG1N-60-642

6

End, Inst Panel

Brown R B21H-64-950A-90

L B21H-64-960A-90

Gray R B21H-64-950A-09

L B21H-64-960A-09

7

Cover, Hole

Brown B21H-55-574-90

Gray B21H-55-574-09

8

Panel, Lower

Brown B21H-64-260-90

Gray B21H-64-260-09

9

Panel Assy, Center

BG1N-55-210B

10

Spring, Upper¶ (6)

J001-64-345

¶Included w/Center Panel Assy

11

Pocket, Inst Panel

BG1N-64-181A

12

Ashtray Assy

B21H-64-610A

13

Ashtray¶

B21H-64-630

¶Included w/Ashtray Assy

14

Bracket, Meter

B21H-60-641

15

Ventilator Assy, Side

Black R BG1N-64-720A-00

L BG1N-64-820A-00

Brown R BG1N-64-720A-90

L BG1N-64-820A-90

16

Louver, Ventilator¶

Black R/L BG1N-64-91X-00

Brown R/L BG1N-64-91X-90

¶Included w/Side Ventilator Assy

17

Louver, Center

Black R/L BG1N-64-91X-00

Brown R/L BG1N-64-91X-90

Panel, Glove Box

18 w/Air Bag

Brown BG1N-64-260D-90

Gray BG1N-64-260D-09

19 w/o Air Bag

Brown N.A.

Gray N.A.

20

Glove Box

Brown BG1N-64-030-90

Gray BG1N-64-030-09

21

Latch, Glove Box

Brown BC5E-64-090E-90

Gray BC5E-64-090E-09

22

Striker, Glove Box

BG1N-64-10XA

23

Module, Air Bag-See Air Bag System Section

24

Panel Assy, Instrument Finish

BG1N-55-420

25

Seal, Rubber¶ (5)

B21H-55-181

26

Cover, Panel¶

BG1N-55-423

¶Included w/Instrument Finish Panel Assy

Stereo

w/Cassette LB83-79-9C0

w/o Cassette GD7C-66-9R0

CENTER CONSOLE

1995-96

Illustration Located in Next Column

1

Console Assy, Front

Hatchback

Man Trans

Brown N.A.

Gray N.A.

Auto Trans

Brown N.A.

Gray N.A.

Sedan

Man Trans

1995

Brown BC4D-64-320G-90

Gray BC4D-64-320H-09

1996

Brown BE5R-64-320C-92

Gray BE5R-64-320C-09

Auto Trans

1995

Brown BC4C-64-320F-90

Gray BC4C-64-320E-09

1996

Brown BE5P-64-320C-92

Gray BE5P-64-320C-09

2

Panel Assy, Center¶

Hatchback

Brown N.A.

Gray N.A.

Sedan

Black BC1D-55-21XB-00

Gray BC1D-55-21XB-09

3

Clip, Ctr Panel¶ (a) (4)

BC1D-55-257

(a) Included w/Center Panel Assy

4

Boot, Shift¶

95 BC1D-64-330

96 BC1D-64-330C

5

Ashtray Assy¶

BC1D-64-610A

6

Ashtray¶ (b)

BC1D-64-630

(b) Included w/Ashtray Assy

7

Lighter Assy¶

95 BC1B-66-250

96 G13H-66-250

8

Element, Lighter¶ (c)

C001-66-252

(c) Included w/Lighter Assy

9

Filler, Shift Opening¶

B01A-64-349A

10

Filler, Front Console¶

B01B-64-349

¶Included w/Front Console Assy

11

Console Assy, Rear

DX, GS, LS Model

1995

Brown BC1D-64-420A-90

Gray BC1D-64-420A-09

1996

Brown B16A-64-420A-90

Gray B16A-64-420A-09

LX, ES Model

1995

Brown BC1G-64-420D-90

Gray BC1G-64-420D-09

1996

Brown B16M-64-420-90

Gray B16M-64-420-09

12

Lid, Rear Console¶

LX, ES Model

Brown BC1G-64-450B-90

Gray BC1G-64-450B-09

13

Lock, Lid¶ (a)

BC1G-64-45YA

14

Hinge, Lid¶ (a)

BC1G-64-45XB

(a) Included w/Rear Console Lid Assy

15

Ashtray Assy¶

BC1D-64-660

16

Ashtray¶ (b)

BC1D-64-680

(b) Included w/Ashtray Assy

Cover, Hole¶

Brown B16A-64-424-90

Gray B16A-64-424-09

MAZDA 323/PROTEGE 1995-98

Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.

310 madpl1_g02_

Page 310—April 22, 2004—15:28:36—Version Manufacturer

CENTER CONSOLE Cont’d

1995-96 Cont’d

17

Insulator, Floor¶

Man Trans B455-68-643B

18

Brkt, Rear Console¶

BC1D-64-416

19

Boot, Brake Lever¶

w/Rear Lid BC1G-64-432A

w/o Rear Lid BC1D-64-432

20

Cover, Hole¶

Brown R BC1F-55-225-90

L BC1E-55-225-90

Gray R BC1F-55-225-09

L BC1E-55-225-09

¶Included w/Rear Console Assy

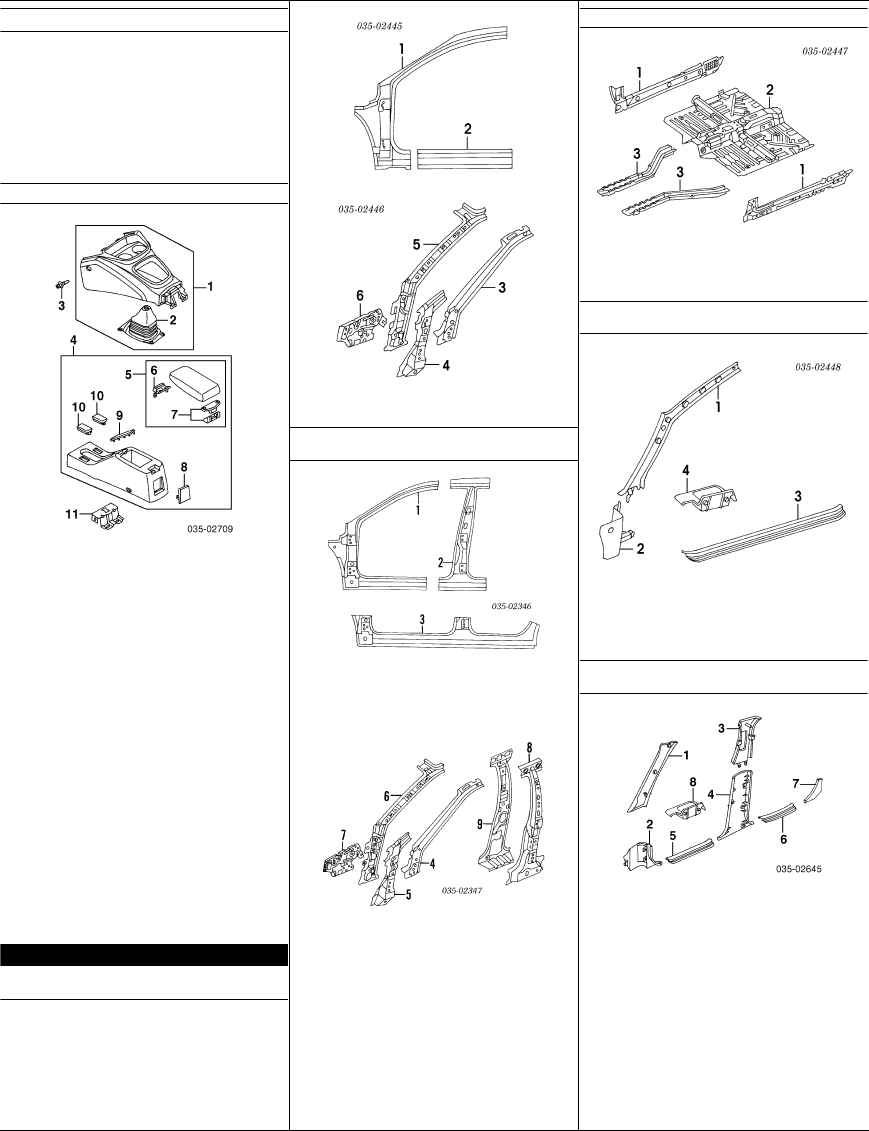

1997-98

1

Console Assy, Front

Man Trans

Brown B21J-64-320B-90

Gray B21J-64-320B-09

Auto Trans

Brown B21H-64-320B-90

Gray B21H-64-320B-09

2

Boot, Shift¶

Man Trans B21J-64-330

¶Included w/Front Console Assy

3

Fastener, Console

Beige R/L B467-68-AC3-43

Gray R/L B467-68-AC3-07

4

Console Assy, Rear

w/Rear Lid

Brown B16A-64-420A-90

Gray B16A-64-420A-09

w/o Rear Lid

Brown B16M-64-420-90

Gray B16M-64-420-09

5

Lid Assy, Rear¶

Brown BC1G-64-450B-90

Gray BC1G-64-450B-09

6

Lock, Lid¶ (a)

BC1G-64-45YA

7

Hinge, Lid¶ (a)

BC1G-64-45XB

(a) Included w/Rear Lid Assy

8

Cover, Rear Hole¶

Brown B16A-64-424-90

Gray B16A-64-424-09

9

Boot, Brake Lever¶

w/Rear Lid BC1G-64-432A

w/o Rear Lid BC1D-64-432

10

Cover, Front Hole¶

Brown R BC1F-55-225-90

L BC1E-55-225-90

Gray R BC1F-55-225-09

L BC1E-55-225-90

¶Included w/Rear Console Assy

11

Bracket, Rear Console

B02B-64-416

ROCKER/PILLARS/FLOOR

SHEET METAL

HATCHBACK

Illustration Located in Next Column

1

Pillar, Outer Hinge

R/L N.A.

Antenna, Radio

N.A.

2

Panel, Outer Rocker

R/L N.A.

3

Reinf, W/S Pillar

R/L N.A.

4

Reinf, Hinge Pillar

R/L N.A.

5

Pillar, Inner Hinge

R/L N.A.

6

Reinf, Cowl Side

R/L N.A.

SHEET METAL

SEDAN

1

Pillar, Outer Hinge

R B0YB-70-221

L BCYD-71-220

Antenna, Radio

BC1D-66-930C

2

Pillar, Outer Center

R B0YW-70-351

L B0YW-71-351

3

Panel, Outer Rocker

R B0YW-70-271

L B0YW-71-271

4

Reinf, W/S Pillar

95-96 R BC1D-70-242

L BC1D-71-242

97-98 R B01W-70-242

L B01W-71-242

5

Reinf, Hinge Pillar

R BC1D-70-030

L BC1D-71-030

6

Pillar, Inner Hinge

R BC1D-70-24X

L BC1D-71-24X

7

Reinf, Cowl Side

R BC1E-70-65Z

L BC1E-71-65Z

8

Reinf, Center Pillar

R BC1D-70-38XA

L BC1D-71-38XA

9

Pillar, Inner Center

95 R BC1D-70-080A

L BC1D-71-080A

96-98 R BC1D-70-080A

L BC1D-71-080A

FRONT FLOOR

1

Panel, Inner Rocker

Hatchback R/L N.A.

Sedan R BC1D-53-950E

L BC1D-54-950D

2

Pan, Front Floor

BCYD-53-600

3

Unirail, Front-See Front Inner Structure Section

INTERIOR TRIM

HATCHBACK

1

Mldg, W/S Garnish-See Windshield Section

2

Trim, Cowl Panel

Brown R/L N.A.

Gray R/L N.A.

3

Plate, Scuff

R/L N.A.

4

Trim, Seat Side

Black R/L N.A.

Brown R/L N.A.

INTERIOR TRIM

SEDAN

1

Mldg, W/S Garnish-See Windshield Section

2

Trim, Cowl Panel

Brown R BC1D-68-370B-90

L BC1D-68-390E-90

Gray R BC1D-68-370B-09

L BC1D-68-390E-09

3

Trim, Ctr Pillar Upper

Brown R BC1D-68-190-90

L BC1D-68-210-90

Gray R BC1D-68-190-06

L BC1D-68-210-06

4

Trim, Ctr Pillar Lower

1995-96

Brown R B21H-68-220-90

L B21H-68-230-90

Gray R B21H-68-220-09

L B21H-68-230-09

1997-98

Brown R B21H-68-220-90

L B21H-68-230-90

Gray R B21H-68-220-09

L B21H-68-230-09

5

Plate, Front Scuff

MAZDA 323/PROTEGE 1995-98

Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629. 311

madpl1_g02_

Page 311—April 22, 2004—15:28:38—Version Manufacturer

Brown R BC1D-68-710B-90

L BC1D-68-720B-90

Gray R BC1D-68-710B-09

L BC1D-68-720B-09

6

Plate, Rear Scuff

Brown R BC1D-68-730A-90

L BC1D-68-740A-90

Gray R BC1D-68-730A-09

L BC1D-68-740A-09

7

Trim, Seat Side

1995-96 R BC1D-68-760A

L BC1D-68-770

1997-98

DX Model R BC1D-68-760A

L BC1D-68-770

ES, LX Model

Brown R B21H-68-760B-90

L B21H-68-770B-90

Gray R B21H-68-760B-09

L B21H-68-770B-09

8

Box, Seat Side

ES, LX Model

Black R BC5B-68-7D1-00

L BC5B-68-7D6-00

Brown R BC5B-68-7D1-90

L BC5B-68-7D6-90

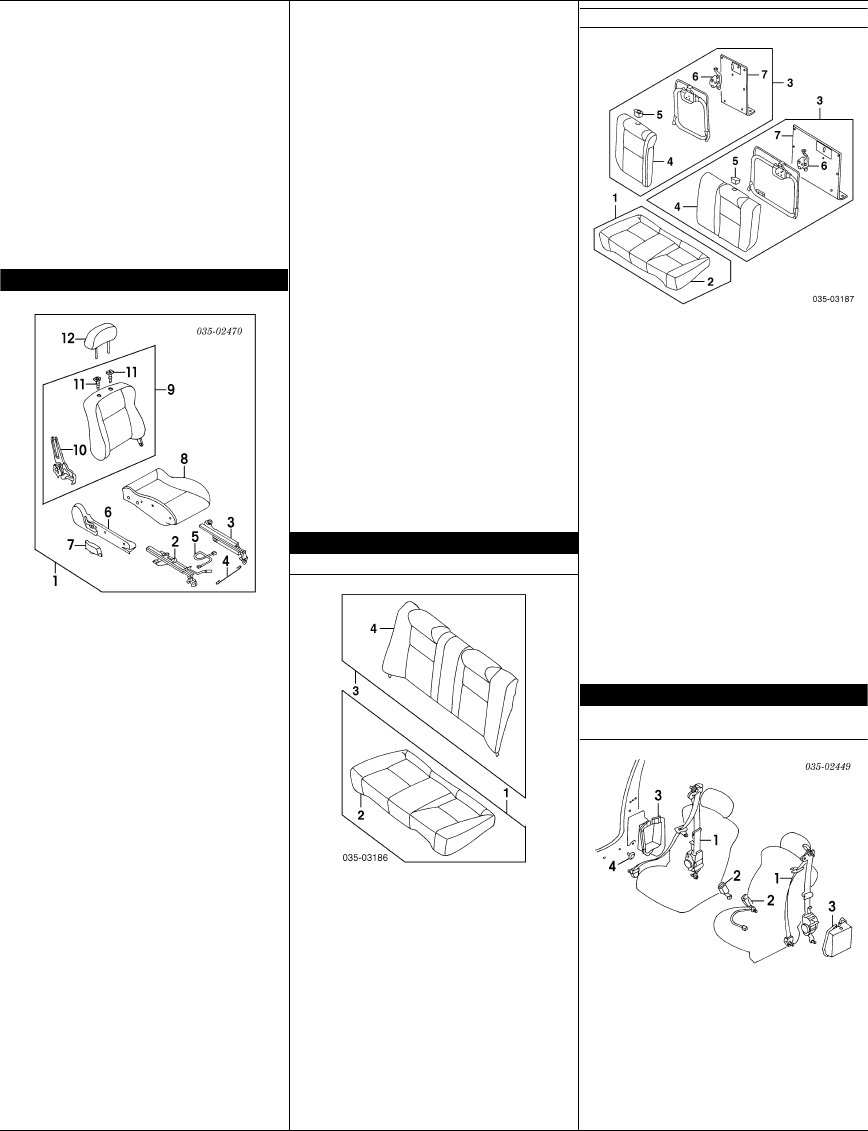

FRONT SEAT

1

Seat Assy, Front¶

Hatchback

GS Model R/L N.A.

LS Model R/L N.A.

Sedan

DX Model 95-96 R BC1F-57-100C-60

L BC1F-57-150C-60

97-98 R BG9V-57-100G-09

L BG9V-57-150G-09

LX Model 95-96 R BC1N-57-100C-60

L BC1N-57-150C-60

97-98 R BG1S-57-100G-09

L BG1S-57-150H-09

ES Model 95-96 R BC1P-57-100C-60

L BC1P-57-150D-60

97-98 R BG1P-57-100G-09

L BG1P-57-150L-09

¶Dark Gray listed, Order by Application

09, 60 Dark Gray; 90 Brown

Adjuster, Seat Track (a)

2 Outer

Passenger Side

Hatchback N.A.

Sedan BC1M-88-102E

Driver Side

Hatchback N.A.

Sedan BC1M-88-153E

3 Inner

Passenger Side

Hatchback N.A.

Sedan BC1M-88-103B

Driver Side

Hatchback N.A.

Sedan BC1M-88-152B

4

Wire, Release (a)

Hatchback R N.A.

L B02A-88-026

5

Cable (a)

Sedan R/L B01E-88-109A

6

Cover, Adjuster¶ (a)

R EA70-88-1G1A-09

L EA70-88-1H3A-09

7

Knob, Adjuster¶ (a)

R BC1M-88-1G5-09

L BC1M-88-1H5-09

8

Cushion, Front Seat¶ (a)

Hatchback

GS Model R/L N.A.

LS Model R/L N.A.

Sedan

DX Model 95-96 R BC1F-88-110-60

L BC1F-88-160B-60

97-98 R BG9V-88-110A-09

L BG9V-88-160A-09

LX Model 95-96 R BC1M-88-110-60

L BC1M-88-160B-60

97-98 R BG1S-88-110A-09

L BG1S-88-160A-09

ES Model 95-96 R BC1P-88-110-60

L BC1P-88-160B-60

97-98 R BG1P-88-110A-09

L BG1P-88-160D-09

9

Back Assy, Front Seat¶ (a)

Hatchback

GS Model R/L N.A.

LS Model R BC5R-88-130B-60

L BC5R-88-180A-60

Sedan

DX Model 95-96 R BC1F-88-130B-60

L BC1F-88-180B-60

97-98 R BG9V-88-130A-09

L BG9V-88-180A-09

LX Model 95-96 R BC1M-88-130A-60

L BC1M-88-180A-60

97-98 R BG1R-88-130A-09

L BG1R-88-180A-09

ES Model 95-96 R BC1P-88-130B-60

L BC1P-88-180B-60

97-98 R BG1N-88-130A-09

L BG1N-88-180A-09

¶Dark Gray listed, Order by Application

09, 60 Dark Gray; 90 Brown

10

Adjuster, Recline (a) (b)

Hatchback R/L N.A.

Sedan R BR70-88-101

L BR70-88-151

11

Guide, Pole (a) (b)

Passenger Side R B455-88-995-02

L B596-88-945-02

Driver Side R B596-88-945-02

L B455-88-995-02

(b) Included w/Front Seat Back Assy

12

Headrest¶ (a)

Hatchback

GS Model R/L N.A.

LS Model R/L N.A.

Sedan

DX Model 95-96 R/L B16A-88-140-60

97-98 R/L B22E-88-140A-09

LX Model 95-96 R/L B16C-88-140-60

97-98 R/L BG1R-88-140A-09

ES Model 95-96 R/L BC1P-88-140-60

97-98 R/L B21J-88-140A-09

¶Dark Gray listed, Order by Application

(a) Included w/Front Seat Assy

REAR SEAT

BENCH TYPE

1

Bottom Assy, Rear Seat¶

1995-96 B02A-57-200D-60

1997-98 B21K-57-200C-09

2

Cover, Seat Bottom¶ (a)

1995-96 B02A-88-201D-60

1997-98 B21K-88-201B-09

(a) Included w/Rear Seat Bottom Assy

3

Back Assy, Rear Seat¶

1995-96 B02A-57-350D-60

1997-98 B21K-57-350C-09

4

Cover, Rear Seat Back¶ (b)

1995-96 B02A-88-351C-60

1997-98 B21K-88-351B-09

¶Gray listed, Order by Application

(b) Included w/Rear Seat Back Assy

09, 60 Dark Gray; 90 Brown

SPLIT BENCH

1

Bottom Assy, Rear Seat¶

LX Model 95-96 BC4D-57-200A-60

97-98 BG1R-57-200C-09

ES Model 95-96 B16B-57-200-60

97-98 BG1N-57-200C-09

2

Cover, Seat Bottom¶ (a)

LX Model 95-96 BC4D-88-201-60

97-98 BG1R-88-201-09

ES Model 95-96 B16B-88-201-60

97-98 BG1N-88-201-09

(a) Included w/Rear Seat Bottom Assy

3

Back Assy, Rear Seat¶

LX Model 95-96 R BE5P-57-400-60

L BE5P-57-450-60

97-98 R BG1R-57-400F-09

L BG1R-57-450F-09

ES Model 95-96 R BE5N-57-400-60

L BE5N-57-450-60

97-98 R BG1N-57-400F-09

L BG1N-57-450F-09

4

Cover, Seat Back¶ (b)

LX Model 95-96 R BC1P-88-401B-60

L BC1P-88-451B-60

97-98 R BG1R-88-401B-09

L BG1R-88-451B-09

ES Model 95-96 R BE5N-88-401-60

L BE5N-88-451-60

97-98 R BG1N-88-401B-09

L BG1N-88-451B-09

¶Gray listed, Order by Application

09, 60 Dark Gray; 90 Brown

5

Knob, Seat Back (b)

R/L B21H-88-4L8

6

Catch, Seat Back (b)

R/L BE5M-88-420

7

Mat, Seat Back (b)

R B21H-88-404-04

L B21H-88-454-04

(b) Included w/Rear Seat Back Assy

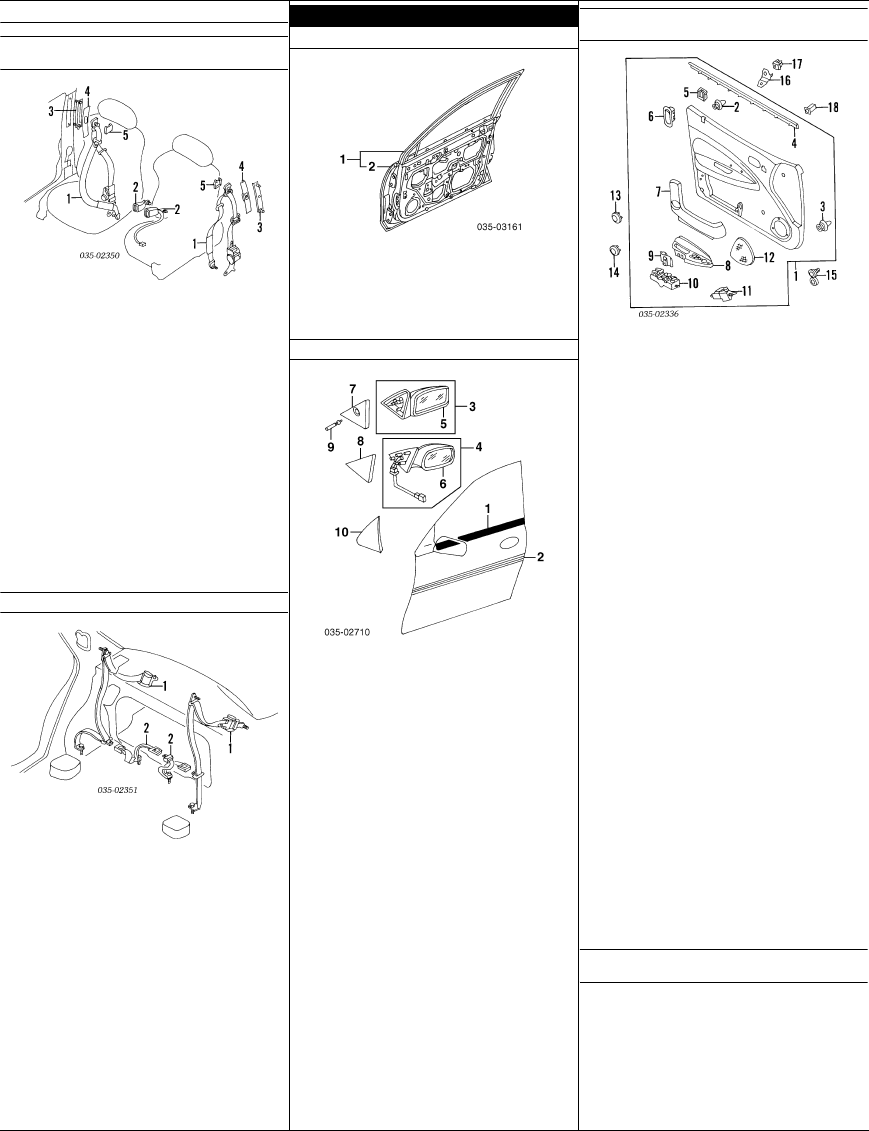

SEAT BELTS

FRONT

HATCHBACK

Belt, Seat¶

1 Retractor Side R/L N.A.

2 Buckle Side R/L N.A.

¶Black listed, Order by Application

02 Black; 90 Brown

3

Cover, Retractor

R/L N.A.

4

Cover, Hole

R/L N.A.

MAZDA 323/PROTEGE 1995-98

Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.

312 madpl1_g02_

Page 312—April 22, 2004—15:28:39—Version Manufacturer

SEAT BELTS Cont’d

FRONT

SEDAN

Belt, Seat¶

1 Retractor Side

1995-96

Black R BE5H-57-630-02

L BC1M-57-690C-02

Brown R BE5H-57-630-90

L BC1M-57-690B-90

1997-98

Black R BG1N-57-630A-02

L BG1N-57-690A-02

Brown R BG1N-57-630A-90

L BG1N-57-690A-90

2 Buckle Side

1995-96

Black R BC1M-57-620-02

L BC1M-57-680B-02

Brown R BC1M-57-620-90

L BC1M-57-680B-90

1997-98

Black R BG1N-57-620C-02

L BG1N-57-680D-02

Brown R BG1N-57-620C-90

L BG1N-57-680D-90

3

Adjuster

R/L BC1M-57-960A

4

Cover, Adjuster

Brown R/L BC1M-57-969A-90

Gray R/L BC1M-57-969A-06

5

Cover, Anchor

Black R/L BC1M-57-631-02

Brown R/L BC1M-57-631-90

REAR

1

Belt, Outer Seat

Hatchback

Black R/L N.A.

Brown R/L N.A.

Sedan

1995-96

Black R BC1M-57-730B-02

L BC1M-57-790A-02

Brown R BG1N-57-730-90

L BG1N-57-790-90

1997-98

Black R BG1N-57-730-02

L BG1N-57-790-02

Brown R BG1N-57-730-90

L BG1N-57-790-90

2

Belt, Center Seat

Black R BC1M-57-720B-02

L BC1M-57-780B-02

Brown R BC1M-57-720B-90

L BC1M-57-780B-90

FRONT DOOR

SHEET METAL

1

Shell Assy, Door

Hatchback R/L N.A.

Sedan R BG1N-58-020B

L BG1N-59-020B

2

Panel, Door Repair¶

Hatchback R/L N.A.

Sedan R BC1D-58-031A

L BC1D-59-031A

¶Included w/Door Shell Assy

EXTERIOR TRIM

1

Moulding, Belt

Hatchback R/L N.A.

Sedan R BC1M-50-640

L BC1M-50-650

2

Moulding, Side

Adhesive

Hatchback R/L N.A.

Sedan R/L BC5A-50-681A

Mirror Assy, Rear View

3 Manual R BC1M-69-120F

L BC1M-69-180G

4Power

Black 95 R BC1F-69-120A

L BC1F-69-180A

96 R BC1F-69-120C

L BC1F-69-180C

97-98 R BG1N-69-120B

L BG1N-69-180B

Body Color¶ 95 R BC1N-69-120B-6Z

L BC1N-69-180B-6Z

¶Thunder Gray listed, Order by Application

J4 Passion Rose; PT Chaste White; SU Classic Red;

VQ Noble Green; 29 Sparkle Green; 61 Solemn Blue;

4F Champagne Silver; 6Z Thunder Gray

Glass, Mirror (a)

5 Manual R BC1M-69-123

L BC1M-69-183

6 Power 95-96 R BC1N-69-1G1

L BC8E-69-1G7

97-98 R BG1N-69-1G1A

LBG1N-69-1G7A

(a) Included w/Rear View Mirror Assy

Garnish, Mirror Inner

7 Manual R BC1M-69-111D

L BC1M-69-171D

8 Power R BC1N-69-111

L BC1N-69-171

9

Knob, Door Mirror

R/L B01W-69-1B5

10

Garnish, Right Outer

BC1M-69-155A

INTERIOR TRIM

1995-96

1

Panel Assy, Trim¶

Hatchback

GS Model R/L N.A.

LS Model R/L N.A.

Sedan (b)

DX Model R B02H-68-420D-09

L B02H-68-45YB-09

LX Model 95 R BC1M-68-42YA-09

L BC1M-68-45YA-09

96 R B16D-68-42YD-09

L BE5N-68-45YD-09

ES Model 95 R BC1N-68-420C-09

L BC1N-68-45YD-09

96 R B16B-68-42YA-09

L BE5M-68-450A-09

¶Dark Gray listed, Order by Application

09 Dark Gray; 90 Brown

(b) Add'l Parts &/or Dealer Contact Required

2

Fastener, Trim Upper (a)

(4/Side) R/L G350-68-AB1

3

Fastener, Trim Lower (a)

(3/Side) R/L GA2A-68-AB1A

4

Weatherstrip, Inr (a)

R BC1D-58-821

L BC1D-59-821

5

Vessel, Inner Lock¶ (a)

R/L GJ21-68-421A-09

6

Switch, Pwr Lock¶ (a)

L BC1D-66-660-09

7

Pocket, Door Trim¶ (a)

Hatchback R/L N.A.

Sedan R BC1D-68-4C0-09

L BC1D-68-4N0-09

¶Dark Gray listed, Order by Application

09 Dark Gray; 90 Brown

8

Panel, Switch (a)

Man Windows R BC1D-68-4L1A

L BC1D-68-4L6A

Pwr Windows R BC1M-68-4L1B

L BC1M-68-4L6B

9

Knob, Switch (a)

R BC1D-68-DD2B

L BC1D-68-DD7B

10

Switch, Pwr Window (a)

R HG30-66-370

L BC1D-66-350A

11

Switch, Mirror¶ (a)

L BE5M-68-45YA-90

12

Grille, Speaker¶ (a)

R BC1D-68-4H1-09

L BC1D-68-4W1-09

¶Dark Gray listed, Order by Application

09 Dark Gray; 90 Brown

(a) Included w/Trim Panel Assy

Speaker, Radio

Hatchback R/L N.A.

Sedan R/L 0000-81-6696

Bracket, Speaker

R/L NA01-66-9B0A

13

Cap, Pocket¶

R/L BC1D-68-4C3-09

¶Dark Gray listed, Order by Application

09 Dark Gray; 90 Brown

14

Lens, Courtesy Lamp

R/L BC1M-68-4G1B

15

Cap, Screw¶

R/L B501-68-D11B-09

¶Dark Gray listed, Order by Application

09 Dark Gray; 90 Brown

16

Bracket, Pull Handle

R/L E016-68-425

17

Grommet, Front

R/L B316-69-361

18

Grommet, Rear

R/L B110-68-429

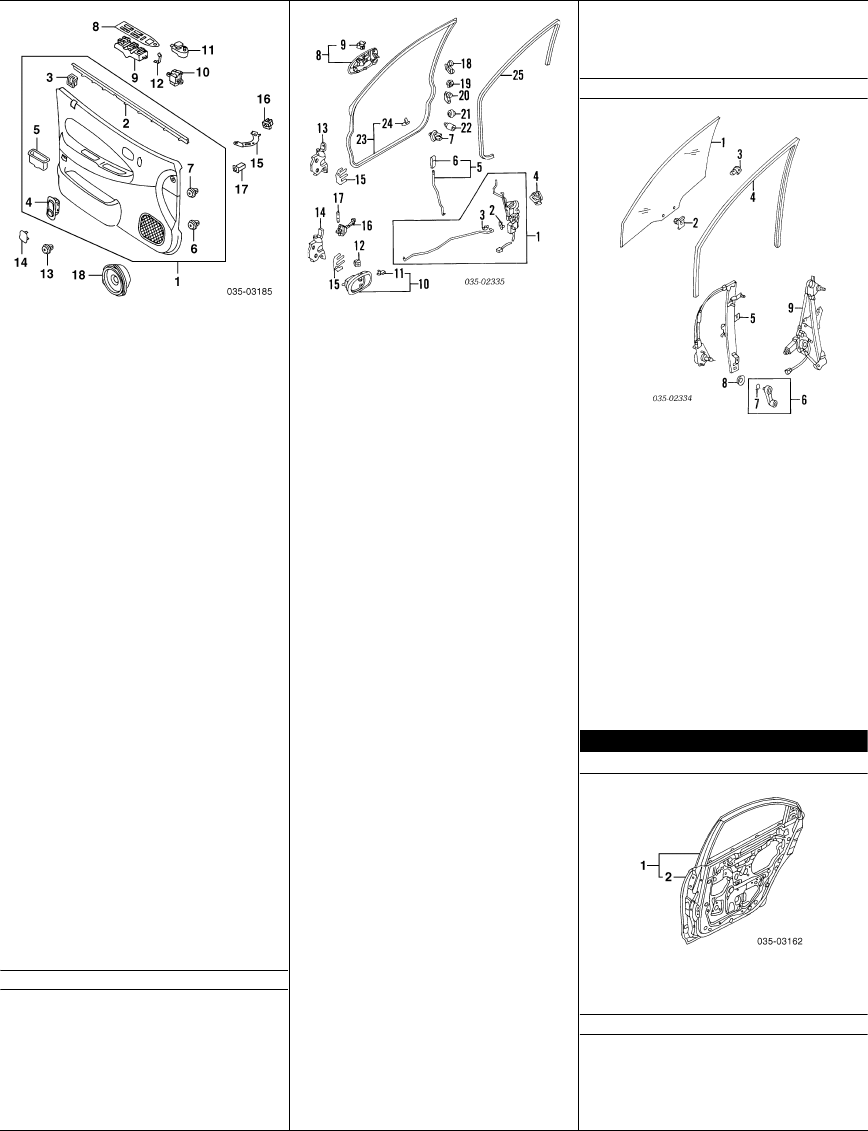

INTERIOR TRIM

1997-98

Illustration Located in Next Column

1

Panel Assy, Trim

DX Model

Brown

To 11-97 R BG1S-68-420E-90

L BG1S-68-450E-90

From 11-97 R BG1S-68-420E-90

MAZDA 323/PROTEGE 1995-98

Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629. 313

madpl1_g02_

Page 313—April 22, 2004—15:28:41—Version Manufacturer

L BG1S-68-450E-90

Gray

To 11-97 R BG1S-68-420E-09

L BG1S-68-450E-09

From 11-97 R BG1S-68-420E-09

L BG1S-68-450E-09

LX Model

Brown

To 11-97 R BG1P-68-420F-90

L BG1P-68-450F-90

From 11-97 R BG1P-68-420F-90

L BG1P-68-450F-90

Gray

To 11-97 R BG1P-68-420F-09

L BG1P-68-450F-09

From 11-97 R BG1P-68-420F-09

L BG1P-68-450F-09

ES Model

Brown

To 11-97 R BG1N-68-420F-90

L BG1N-68-450F-90

From 11-97 R BG1N-68-420F-90

L BG1N-68-450F-90

Gray

To 11-97 R BG1N-68-420F-09

L BG1N-68-450F-09

From 11-97 R BG1N-68-420F-09

L BG1N-68-450F-09

2

W/Strip, Inner¶

R BC1D-58-821

L BC1D-59-821

3

Vessel, Inner Lock¶

Brown R/L B21H-68-421-90

Gray R/L B21H-68-421-09

4

Switch, Power Lock¶

Brown L BC1D-66-660-90

Gray L BC1D-66-660-09

5

Handle, Pull¶

R/L B461-68-D71-09

Fastener, Trim Lower¶

6 Type A (2/Side) R/L GA2A-68-AB1A

7 Type B (5/Side) R/L G350-68-AB1

8

Panel, Switch¶

Man Windows

Black R/L B21H-68-4L1B-00

Brown R/L B21H-68-4L1B-90

Pwr Windows

Black R LB82-68-4L1-00

L LB82-68-4L6C-00

Brown R LB82-68-4L1-90

L LB82-68-4L6C-90

Switch, Pwr Window¶

9 Right HG30-66-370

10 Left BC1D-66-350A

11

Switch, Remote Mirror¶

L B01A-66-600

12

Bracket, Trim¶

Man Windows R/L BC1D-68-414

Pwr Windows-Serviced w/Switch Panel Assy

¶Included w/Trim Panel Assy

13

Fastener, Trim Upper

Beige R/L B21H-68-AB1

Gray R/L B21H-68-AB1-09

14

Cap, Door Trim

R/L B21H-68-406-09

15

Bracket, Pull Handle

R/L B21H-68-425C

Grommet

16 Type A R/L B316-69-361

17 Type B R/L B110-68-429

18

Speaker, Radio

R/L 0000-81-C01

HARDWARE

Illustration Located in Next Column

1

Latch Assy

Manual

Hatchback R/L N.A.

Sedan R BC1D-58-310D

L BC1D-59-310D

Power

Hatchback R/L N.A.

Sedan R BC1E-58-310F

L BC1E-59-310F

2

Clip, Latch¶

R G030-58-315

L G030-59-315

3

Clip, Rod¶

R/L 9927-80-307

¶Included w/Latch Assy

4

Striker

R/L BC1D-58-361B

5

Knob Assy, Door Lock

Brown R BC1D-58-390A-90

L BC1D-59-390A-90

Gray R BC1D-58-390A-09

L BC1D-59-390A-09

6

Knob, Door Lock¶

Brown R/L GA7B-58-316-90

Gray R/L GA7B-58-316-09

¶Included w/Door Lock Knob Assy

7

Holder, Rod (2/Side)

R/L B001-58-309A

Cylinder & Key

Man Lock 95 R B01A-76-210C

L B01A-76-220C

96 R B21H-76-210E

L B21H-76-220E

97 R B21H-76-210

L B21H-76-220

98 R B21H-76-210E

L B21H-76-220E

Pwr Locks 95 R BC1D-76-210B

L BC1D-76-220B

96 R BG9G-76-210D

L BG9G-76-220D

97 R BG9G-76-210

L BG9G-76-220

98 R BG9G-76-210D

L BG9G-76-220D

8

Handle Assy, Outside

Black R BC1D-58-410A

L BC1D-59-410

Body Color¶ R BC1E-58-410F-6Z

L BC1F-59-410F-6Z

¶Thunder Gray listed, Order by Application

J4 Passion Rose; PT Chaste White; SU Classic Red;

VQ Noble Green; 29 Sparkle Green; 61 Solemn Blue;

4F Champagne Silver; 6Z Thunder Gray

9

Joint (a)

R/L B455-58-411

(a) Included w/Outside Handle Assy

10

Handle Assy, Inside

Hatchback

Brown R/L N.A.

Gray R/L N.A.

Sedan

Brown R GA2K-58-330B-90

L GA2K-59-330B-90

Gray R GA2K-58-330B-09

L GA2K-59-330B-09

11

Clip, Inside Handle (a)

Hatchback R/L N.A.

Sedan R B001-59-335

L FB01-58-335

(a) Included w/Inside Handle Assy

Cover, Handle

Hatchback R EA01-58-303-09

L EA01-59-303-09

12

Grommet

R/L GA2K-58-333A

13

Hinge, Upper

R DX50-59-240

L DX50-58-240

14

Hinge, Lower

R BC1D-58-240

L BC1D-59-240

15

Shim, Hinge (2/Side)

R/L HG30-58-201

16

Check, Door

R/L BC1D-58-270A

17

Pin, Door Check

R/L BC1D-58-265

18

Clip, Door Lock

R/L B038-58-866

19

Grommet

R/L BF67-51-261

20

Clip, Rod

R/L B038-58-866

21

Cover, Hole

R/L B499-62-868

22

Cushion, Rubber

R/L G067-58-873

23

Weatherstrip Assy

Hatchback R/L N.A.

Sedan R BC1D-58-760E

L BC1D-59-760E

24

Fastener¶

Upper R/L BC1D-58-763

Lower (19/Side) R/L BC1D-58-763

¶Included w/Weatherstrip Assy

25

Welt, Seaming

Hatchback R/L N.A.

Sedan R/L BC1D-68-911-2

GLASS & PARTS

1

Glass, Front Door

Mazda

Hatchback R/L N.A.

Sedan 95-96 R BC1D-58-511

L B01W-59-511

97-98 R B16A-58-511A

L B16A-59-511A

2

Grommet (2/Side)

R/L S084-58-502

3

Adjuster, Glass

R/L BC1D-58-606

4

Channel, Glass

Hatchback R/L N.A.

Sedan R BC1D-58-60X

L BC1D-59-60X

5

Regulator, Manual

Hatchback R/L N.A.

Sedan R BC1D-58-560B

L BC1D-59-560B

6

Handle Assy, Regulator

Brown R/L S084-58-580A-90

Gray R/L S084-58-580A-09

7

Ring, Snap (a)

R/L B001-58-585

(a) Included w/Regulator Handle Assy

8

Escutcheon, Handle

Brown R/L B001-58-582A-90

Gray R/L B001-58-582A-09

9

Regulator, Power

Hatchback R/L N.A.

Sedan R D062-58-566

L BC1E-59-560B

Motor, Regulator-Serviced w/Power Regulator

REAR DOOR

SHEET METAL

1

Shell Assy, Door

R BC1D-72-020R

L BC1D-73-020R

2

Panel, Door Repair¶

R BC1D-72-031B

L BC1D-73-031B

¶Included w/Door Shell Assy

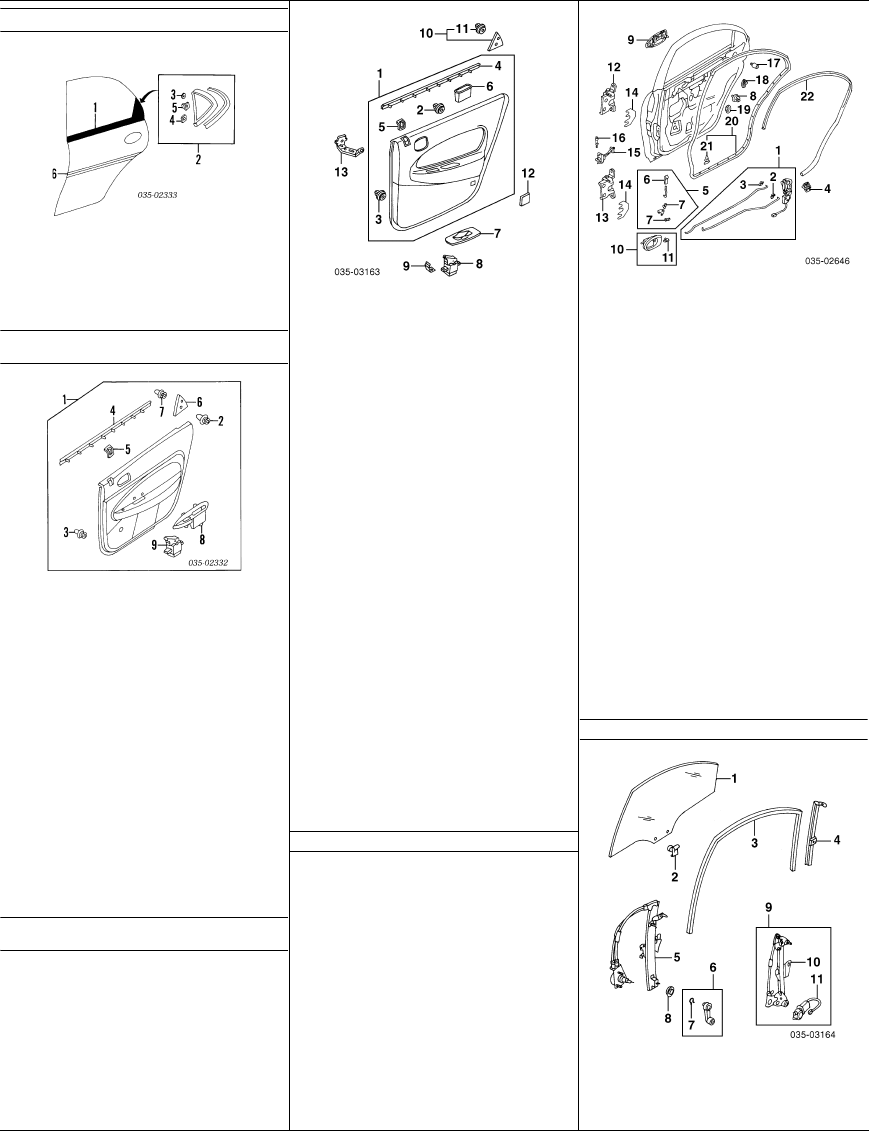

EXTERIOR TRIM

Illustration Located in Next Column

1

Moulding, Belt

R BC1M-50-660B

MAZDA 323/PROTEGE 1995-98

Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.

314 madpl1_g02_

Page 314—April 22, 2004—15:28:43—Version Manufacturer

REAR DOOR Cont’d

EXTERIOR TRIM Cont’d

L BC1M-50-670B

2

Garnish Assy, Rear Door

RBC1M-50-M30

LBC1M-50-M40

3

Gasket, Garnish Upr¶

R/L BC1M-50-M37

4

Gasket, Garnish Lwr¶

R/L BC1M-50-M38

5

Clip, Garnish¶

R/L BC1M-50-M38

¶Included w/Rear Door Garnish Assy

6

Moulding, Side

Adhesive R BC5A-50-682A

L BC5A-50-692A

INTERIOR TRIM

1995-96

1

Panel Assy, Trim¶

DX Model R B02H-68-52YA-09

L B02H-68-550D-09

LX Model 95 R BC1M-68-520D-09

L BC1M-68-550D-09

96 R BE5N-68-52YB-09

L BE5N-68-55YB-09

ES Model 95 R BC1N-68-52YB-09

L BC1N-68-550D-09

96 R BE5N-68-52YB-09

L BE5N-68-55YB-09

¶Dark Gray listed, Order by Application

09 Dark Gray; 90 Brown

2

Fastener, Trim Upper (b)

(3/Side) R/L G350-68-AB1

3

Fastener, Trim Lower (b)

(5/Side) R/L GA2A-68-AB1A

4

Weatherstrip, Inr (b)

R BC1D-72-821

L BC1D-73-821

5

Vessel, Inner Lock¶ (b)

R/L GJ21-68-421A-09

¶Dark Gray listed, Order by Application

09 Dark Gray; 90 Brown

6

Garnish, Corner (b)

R BC1D-68-51X

L BC1D-68-51Y

7

Fastener, Garnish (b)

(4/Side) R/L G350-68-AB1

8

Panel, Switch (b)

Man Windows R BC1D-68-5L1

L BC1D-68-5L6

Pwr Windows R BC1M-68-5L1A

L BC1M-68-5L6A

9

Switch, Pwr Window (b)

R/L HG30-66-370

(b) Included w/Trim Panel Assy

INTERIOR TRIM

1997-98

Illustration Located in Next Column

1

Panel Assy, Trim

DX Model

Brown

To 11-97 R BG1S-68-520H-90

L BG1S-68-550H-90

From 11-97 R BG1S-68-520H-90

L BG1S-68-550H-90

Gray

To 11-97 R BG1S-68-520H-09

L BG1S-68-550H-09

From 11-97 R BG1S-68-520H-09

L BG1S-68-550H-09

LX Model

Brown

To 11-97 R BG1P-68-520G-90

L BG1P-68-550G-90

From 11-97 R BG1P-68-520G-90

L BG1P-68-550G-90

Gray

To 11-97 R BG1P-68-520G-09

L BG1P-68-550G-09

From 11-97 R BG1P-68-520G-09

L BG1P-68-550G-09

ES Model

Brown

To 11-97 R BG1N-68-520G-90

L BG1N-68-550G-90

From 11-97 R BG1N-68-520G-90

L BG1N-68-550G-90

Gray

To 11-97 R BG1N-68-520G-09

L BG1N-68-550G-09

From 11-97 R BG1N-68-520G-09

L BG1N-68-550G-09

2

Fastener, Trim Upper¶

(5/Side) R/L G350-68-AB1

3

Fastener, Trim Lower¶

(3/Side) R/L GA2A-68-AB1A

4

Weatherstrip, Inr¶

R BC1D-72-821

L BC1D-73-821

5

Vessel, Inr Lock¶

Brown R/L B21H-68-421-90

Gray R/L B21H-68-421-09

6

Handle, Pull¶

Brown R/L B21H-68-D71H-90

Gray R/L B21H-68-D71A-09

7

Panel, Switch¶

LX, ES Model R/L B21J-68-5L1-00

8

Switch, Power Window¶

LX, ES Model R/L HG30-66-370

9

Bracket, Trim¶

LX, ES Model R/L BC1D-68-414

¶Included w/Trim Panel Assy

10

Garnish Assy, Corner

R BC1D-68-51X

L BC1D-68-51Y

11

Fastener, Garnish¶

(2/Side) R/L G350-68-AB1

¶Included w/Corner Garnish Assy

12

Cap, Door Trim

Brown R/L B21H-68-406-90

Gray R/L B21H-68-406-09

13

Brkt, Pull Handle

R B21H-68-425C

L B21H-68-455C

HARDWARE

Illustration Located in Next Column

1

Latch Assy

Manual R BC1D-72-310C

L BC1D-73-310C

Power R BC1E-72-310E

L BC1E-73-310E

2

Clip, Latch Rod¶

R/L 9927-80-307

3

Clip, Handle Rod¶

R G030-59-315

L G030-58-315

¶Included w/Latch Assy

4

Striker, Latch

R/L BC1D-58-361B

5

Knob Assy, Door Lock

Brown R BC1D-72-390-90

L BC1D-73-390-90

Gray R BC1D-72-390-09

L BC1D-73-390-09

6

Knob, Door Lock¶

Brown R/L GA7B-58-316-90

Gray R/L GA7B-58-316-09

7

Clip, Lock Knob¶

R G030-58-315

L G030-59-315

¶Included w/Door Lock Knob Assy

8

Holder, Rod (2/Side)

R/L B001-58-309A

9

Handle, Outside

1995

Black R BC1D-72-410

L BC1D-73-410

Body Color¶ R BC1E-72-410-4F

L BC1E-73-410-4F

1996-97 R BC1D-72-410

L BC1D-73-410

1998 R BC1D-72-410B

L BC1D-73-410B

¶Champagne Silver listed, Order by Application

J4 Passion Rose; PT Chaste White; SU Classic Red;

VQ Noble Green; 29 Sparkle Green; 61 Solemn Blue;

4F Champagne Silver; 6Z Thunder Gray

10

Handle Assy, Inside

Brown R GA2K-58-330B-90

L GA2K-59-330B-90

Gray R GA2K-58-330B-09

L GA2K-59-330B-09

11

Clip, Handle¶

R B001-59-335

L FB01-58-335

¶Included w/Inside Handle Assy

12

Hinge, Upper

R BC1D-72-210C

L BC1D-73-210C

13

Hinge, Lower

R BC1D-72-240C

L BC1D-73-240C

14

Shim, Hinge (2/Side)

R/L B455-72-231A

15

Check, Door

R/L BC1D-72-270B

16

Pin, Door Check

R/L BC1D-58-265

17

Cushion, Rubber

R/L G067-58-873

18

Clip, Door Lock

R/L B038-58-866

19

Cover, Hole

R/L B499-62-868

20

Weatherstrip Assy

R BC1D-72-760D

L BC1D-73-760E

21

Fastener¶

Upper R/L BC1D-58-763

Lower (20/Side) R/L BC1D-58-762

¶Included w/Weatherstrip Assy

22

Welt, Seaming

95-96 R/L BC1D-68-911-2

97-98 R/L B21H-68-913-4

GLASS & PARTS

1

Glass, Rear Door

Mazda 95-96 R BC1D-72-511

L B01W-73-511

97-98 R B16A-72-511A

L B16A-73-511A

2

Grommet (2/Side)

R/L S084-58-502

MAZDA 323/PROTEGE 1995-98

Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629. 315

madpl1_g02_

Page 315—April 22, 2004—15:28:44—Version Manufacturer

3

Run, Channel

R BC1D-72-605

L BC1D-73-605

4

Guide, Glass

R BC1D-72-603A

L BC1D-73-603A

5

Regulator, Manual

R BC1D-72-560A

L BC1D-73-560A

6

Handle Assy, Regulator

Brown R/L S084-58-580A-90

Gray R/L S084-58-580A-09

7

Ring, Snap¶

R/L B001-58-585

¶Included w/Regulator Handle Assy

8

Escutcheon, Handle

Brown R/L B001-58-582A-90

Gray R/L B001-58-582A-09

9

Regulator Assy, Power

R BC1E-72-560B

L BC1E-73-560B

10

Regulator, Power¶

w/o Motor R BC1E-72-590A

L BC1E-73-590A

11

Motor, Regulator¶

R BC1E-72-58XA

L BC1E-73-58XA

¶Included w/Power Regulator Assy

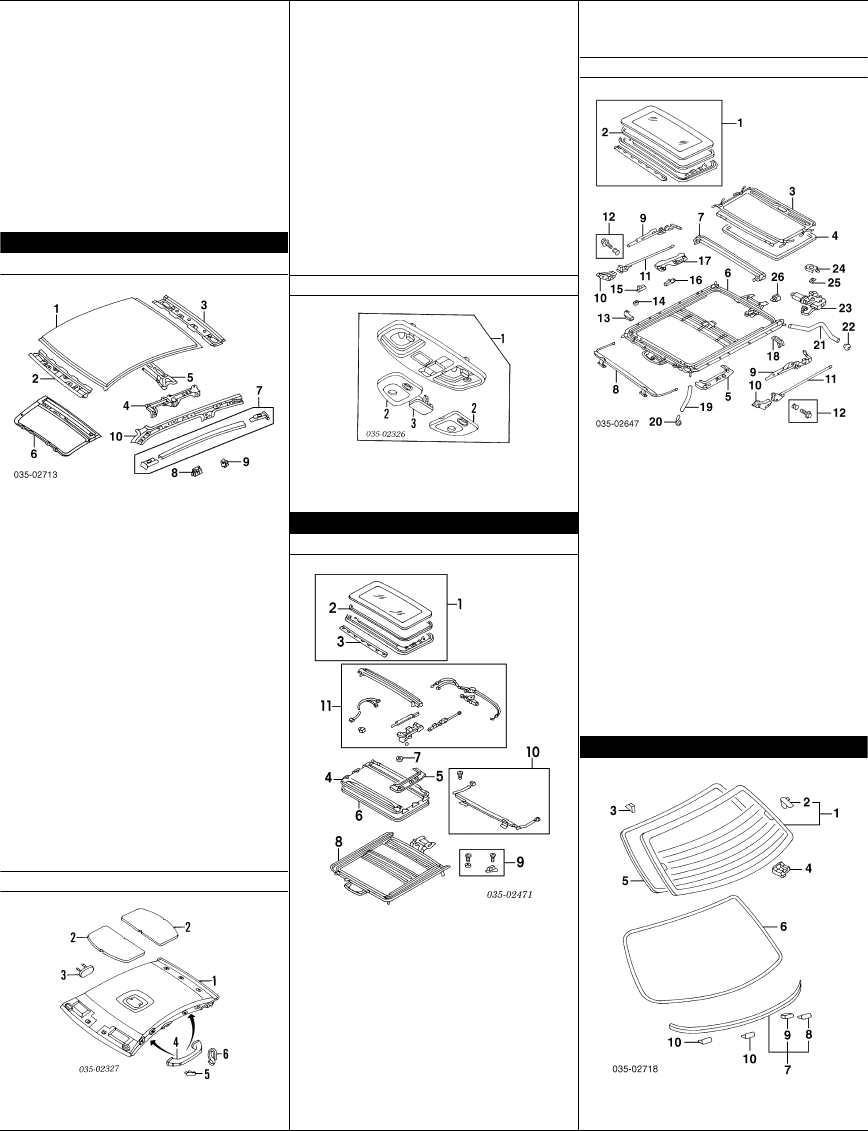

ROOF

SHEET METAL/EXTERIOR TRIM

1

Panel, Roof

Hatchback

w/Sunroof N.A.

w/o Sunroof N.A.

Sedan

w/Sunroof BCYS-70-600

w/o Sunroof BCYD-70-600

2

Panel, Front Header

Hatchback N.A.

Sedan BC1D-70-641

3

Panel, Rear Header

Hatchback N.A.

Sedan BC1D-70-700A

4

Bracket, Sunroof

Hatchback R/L N.A.

Sedan R BC1E-70-620

L BC1E-71-620

5

Reinforcement, Roof

w/o Sunroof

Hatchback N.A.

Sedan BC1D-70-661A

6

Plate, Sunroof Reinf

Hatchback N.A.

Sedan BC1S-70-630

7

Moulding, Roof

Hatchback R/L N.A.

Sedan 95 R BC1M-50-9H0C

L BC1M-50-9L0C

96 R BC1N-50-9H0C

L BC1N-50-9L0C

97-98 R BC1M-50-9H0C

L BC1M-50-9L0C

8

Clip, Moulding (4/Side)

R/L BCYM-50-629A

9

Protector, Mldg (3/Side)

R/L BC1M-50-9H7

10

Rail, Roof Inner

Hatchback R/L N.A.

Sedan R BC1D-70-050

L BC1D-71-050

INTERIOR TRIM

1

Headliner

w/Sunroof

Hatchback N.A.

Sedan 95 BC1S-68-030D-08

96-98 B02B-68-030E-08

w/o Sunroof

w/Spot Lamp 95 BC1M-68-030F-08

96-98 B02A-68-030D-08

w/o Spot Lamp 95 BC1D-68-030G-08

96-98 B01W-68-030J-08

Trim, Rear Header

Hatchback N.A.

2

Insulator (2)

w/o Sunroof BC1D-68-021A

3

Cap, Trim

R/L BC1D-68-097A-06

4

Handle, Assist

Hatchback

w/Sunroof R/L N.A.

w/o Sunroof (3) N.A.

Sedan (3) B500-69-471-06

5

Cap, Assist Handle (6)

Hatchback

w/Sunroof C001-69-472B-06

w/o Sunroof B500-69-472-06

Sedan B500-69-472-06

6

Hanger, Coat

Hatchback

w/Sunroof N.A.

w/o Sunroof N.A.

Sedan 8532-69-541

OVERHEAD CONSOLE

1

Console Assy, Overhead

BC1S-69-97XE-06

2

Lens¶

R BC1S-69-973

L BC1S-69-879

3

Cover, Console¶

BC1S-69-972-06

¶Included w/Overhead Console Assy

SUNROOF

1995

1

Panel Assy, Sunroof

Hatchback N.A.

Sedan BC1S-69-810E

2

Weatherstrip¶

BC1S-69-825B

3

Cover, Panel Lower¶

Hatchback N.A.

Sedan-Serviced w/Sunroof Panel

¶Included w/Sunroof Panel Assy

4

Shade, Sunroof

Hatchback N.A.

Sedan BC1S-69-890-08

5

Trim, Sunroof

Hatchback R/L N.A.

Sedan R BC1S-69-983A

L BC1S-69-984A

6

Welt, Seaming

BC1E-69-981A-08

7

Nut, Sunroof Panel (6)

G038-69-804

8

Frame, Sunroof

Hatchback N.A.

Sedan BC1S-69-840A

9

Guide, Rail

Hatchback N.A.

Sedan BC1S-69-850

10

Deflector

BC1S-69-880

11

Drive Unit

BC1S-69-860

1996-98

1

Panel Assy, Sunroof

BC1S-69-810E

2

Weatherstrip¶

BC1S-69-825B

¶Included w/Sunroof Panel Assy

3

Shade, Sunroof

BC1S-69-890-08

4

Welt, Seaming

BC1E-69-981A-08

5

Trim, Sunroof

R BC1S-69-983A

L BC1S-69-984A

6

Frame, Sunroof

BC1S-69-840A

7

Rail, Drip

BC1S-69-867

8

Deflector

BC1S-69-880

9

Plate, Position

R/L BC1S-69-858-9

10

Guide, Front

R/L BC1S-69-862-3

11

Guide, Rear

R/L BC1S-69-864-5

12

Bolt, Guide

R/L BC1S-69-9X2

13

Cover, Guide Rail

R BC1S-69-853

L BC1S-69-854

14

Protector

R/L BC1S-69-945

15

Connector, Link

R/L BC1S-69-884

16

Stopper

R/L BC1S-69-857

17

Bracket, Front

R/L BC1S-69-843-4

18

Bracket, Rear

R/L BC1S-69-842

19

Hose, Drain Front

R/L BC1S-69-920

20

Joint, Drain Hose

R/L F100-69-926A

21

Hose, Drain Rear

R/L BC1S-69-922A

22

Grommet, Drain Hose

R/L E002-69-928A

23

Motor, Sunroof

BC1S-69-871

24

Cover, Motor

BC1S-69-875

25

Guide, Cable

HG40-69-877

26

Relay, Sunroof Motor

BC1S-69-873

BACK WINDOW

1

Glass Assy, Back Window

Mazda 95 BC5E-63-930C

96 BC5E-63-930C

MAZDA 323/PROTEGE 1995-98

Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.

316 madpl1_g02_

Page 316—April 22, 2004—15:28:46—Version Manufacturer

BACK WINDOW Cont’d

97-98 B16A-63-930A

2

Clip, Glass¶

R/L FB01-63-959

¶Included w/Back Window Glass Assy

3

Spacer, Upper (3)

C001-50-897

4

Spacer, Lower

R/L BC1M-50-891

5

Dam, Back Window

NA01-50-894A

6

Mldg, Reveal

95 BC1M-50-6AXB

96-98 BC1N-50-611

7

Moulding Assy, Lower

95 BC1M-50-6K0B

8

Clip, Moulding Ctr¶

95 BC1M-50-6K9

9

Grommet¶ (5)

95 B223-50-765

¶Included w/Lower Moulding Assy

10

Clip, Mldg Otr (4)

95 BC1M-50-6K7

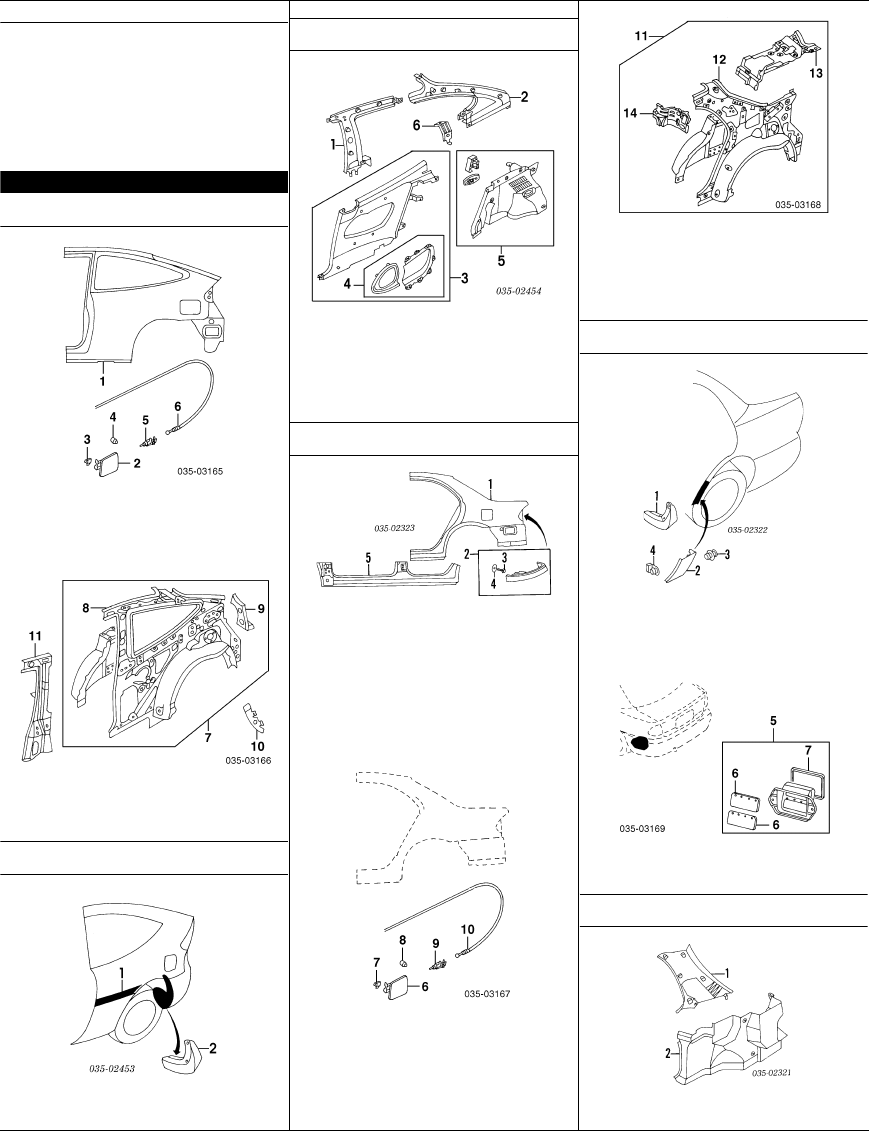

QUARTER PANEL

SHEET METAL

HATCHBACK

1

Panel, Outer Quarter

RN.A.

LN.A.

2

Door, Fuel

N.A.

3

Spring, Fuel Door

N.A.

4

Stopper, Fuel Door (2)

N.A.

5

Opener, Fuel Door

N.A.

6

Cable, Fuel Door

N.A.

7

Panel Assy, Inner Quarter

R/L N.A.

8

Panel, Inner¶

R/L N.A.

9

Pillar, Rear Inner¶

R/L N.A.

¶Included w/Inner Quarter Panel Assy

10

Reinf, Rear

RN.A.

11

Pillar, Lock

R/L N.A.

EXTERIOR TRIM

HATCHBACK

1

Moulding, Side

Adhesive R/L N.A.

2

Mudguard

R/L N.A.

INTERIOR TRIM

HATCHBACK

1

Panel, Upper Front Trim

R/L N.A.

2

Panel, Upper Rear Trim

R/L N.A.

3

Panel Assy, Lower Trim

GS Model R/L N.A.

LS Model R/L N.A.

4

Grille, Speaker¶

R/L N.A.

¶Included w/Lower Trim Panel Assy

Speaker, Radio

R/L N.A.

5

Trim Assy, Side-See Rear Body Section

6

Bracket, Cover

R/L N.A.

SHEET METAL

SEDAN

1

Panel, Outer Quarter

R B0YW-70-400

L B0YW-71-400

2

Panel Assy, Filler¶

R BC1M-51-2E0A-SU

L BC1M-51-2F0A-SU

¶Classic Red listed, Order by Application

J4 Passion Rose; PT Chaste White; SU Classic Red;

VQ Noble Green; 14 Oriental Red; 25 Sandalwood;

29 Sparkle Green; 42 Noble Green; 45 Vivid Blue;

61 Solemn Blue; 4F Champagne Silver; 6Z Thunder Gray;

PZ Brilliant Black; 3L Silver Stone; 12R Aquarius Blue

3

Bolt (a)

M001-51-3F4

4

Gasket (a)

R/L BC1M-51-2F3

(a) Included w/Filler Panel Assy

5

Panel, Otr Rocker-See Rocker/Pillars/Floor Section

6

Door, Fuel

BC1D-42-410A

7

Spring, Fuel Door

D061-42-451B

8

Stopper, Fuel Door (2)

GJ6A-42-459

9

Opener, Fuel Door

EA01-56-890D

10

Cable, Fuel Door

BC1D-56-880

11

Panel Assy, Inner Quarter

R BCYD-70-110

L BCYD-71-110

12

Panel, Inner¶

R BCYD-70-11X

L BCYD-71-11X

13

Ext, Package Tray¶

R BC1D-70-180D

L BC1D-71-180D

14

Gusset, Package Tray¶

R BC1D-70-182

L BC1D-71-182

¶Included w/Inner Quarter Panel Assy

EXTERIOR TRIM

SEDAN

1

Mudguard

USA (Set of 2) 0000-88-460R-F2

Canada R/L N.A.

2

Guard, Stone

R BC1M-50-481A

L BC1M-50-491A

3

Rivet

R/L B092-51-833

4

Grommet

R/L G030-51-852

5

Chamber Assy, Extractor

R/L E016-51-920G

6

Valve, Chamber¶ (2/Side)

R/L E016-51-923C

7

Gasket, Chamber¶

R/L E016-51-922

¶Included w/Extractor Chamber Assy

INTERIOR TRIM

SEDAN

1

Trim, Pillar

Brown R BC1D-68-250E-90

MAZDA 323/PROTEGE 1995-98

Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629. 317

madpl1_g02_

Page 317—April 22, 2004—15:28:48—Version Manufacturer

L BC1D-68-260E-90

Gray R BC1D-68-250E-06

L BC1D-68-260E-06

2

Trim, Side-See Rear Body Section

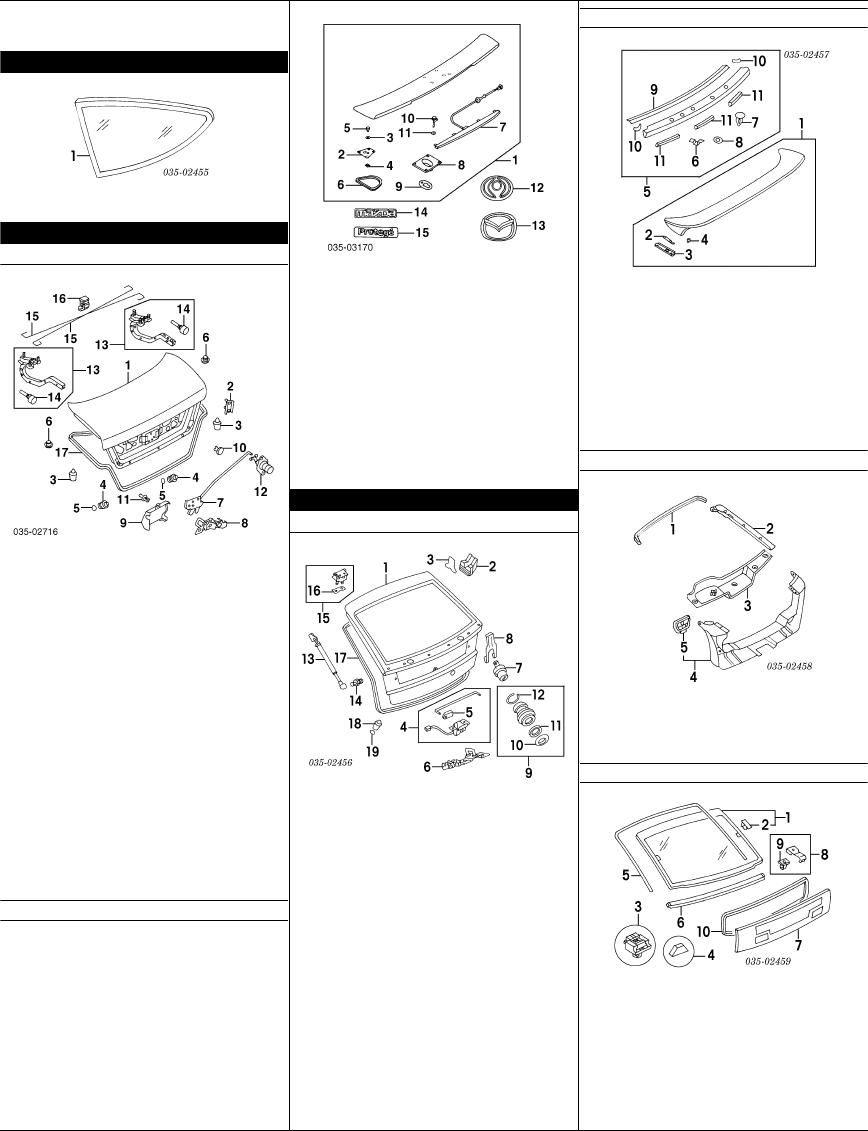

QUARTER GLASS

1

Glass, Quarter

Mazda R/L N.A.

LUGGAGE LID

SHEET METAL

1

Lid, Luggage

1995-96

w/Spoiler BC8R-52-610H

w/o Spoiler BC1M-52-610L

1997 BC1M-52-610L

1998 BC1M-52-610L

2

Protector

BC1M-52-63Y

Finisher Assy-See Rear Lamps Section

Panel, Interior Trim

B455-68-891B-09

3

Cushion, Upper Rubber

R/L 8545-56-801B

4

Cushion, Lower Rubber

R/L B01E-56-786B

5

Protector, Cushion

R/L G043-62-864A

6

Plug, Luggage Lid

R/L B092-56-052

7

Latch

w/Compartment Lamp BC1E-56-820B

w/o Compartment Lamp BC1D-56-820B

Cable, Latch Release

BC1D-56-870A

8

Striker, Latch

BC1D-56-840B

Protector, Latch

9 w/Compartment Lamp BC1M-56-823A

10 w/o Compartment Lamp BC1M-56-8A1A

11

Clip, Protector

9926-50-625

12

Cylinder & Key

95 BC1D-76-230B

96 B21H-76-230C

97-98 BG1N-76-250B

13

Hinge Assy, Lid

R/L BC1D-52-710C

14

Cushion, Hinge¶

R/L H272-56-802

¶Included w/Lid Hinge Assy

15

Bar, Torsion

w/Spoiler R B01K-52-791B

L B01K-52-792A

w/o Spoiler R BC1M-52-791B

L BC1M-52-792A

16

Clip, Torsion Bar

BC1M-56-894C

17

Weatherstrip, Lid

BC1M-56-951D

EXTERIOR TRIM

Illustration Located in Next Column

1

Spoiler Assy, Air¶

N.A.

¶Thunder Gray listed, Order by Application

J4 Passion Rose; PT Chaste White; SU Classic Red;

VQ Noble Green; 14 Oriental Red; 25 Sandal Wood;

29 Sparkle Green; 42 Noble Green; 45 Vivid Blue;

46 Purple; 57 Indigo Blue; 61 Solemn Blue;

4F Champagne Silver; 6Z Thunder Gray;

PZ Brilliant Black; 3L Silver Stone; 12R Aquarius Blue

2

Stay, Spoiler (a)

R/L B01W-51-962-3

3

Gasket, Spoiler Upper (a)

R/L B633-51-965

4

Gasket, Spoiler Lower (a)

R/L B01W-51-9G6

5

Clip, Spoiler Outer (a)

R/L B459-51-958

6

Protector, Spoiler (a)

R/L B631-51-967

7

Lamp Assy, Stop (a)-See Rear Lamps Section

8

Bracket, Spoiler¶ (a)

B01W-51-966-6Z

¶Thunder Gray listed, Order by Application

J4 Passion Rose; PT Chaste White; SU Classic Red;

VQ Noble Green; 14 Oriental Red; 25 Sandal Wood;

29 Sparkle Green; 42 Noble Green; 45 Vivid Blue;

46 Purple; 57 Indigo Blue; 61 Solemn Blue

4F Champagne Silver; 6Z Thunder Gray;

PZ Brilliant Black; 3L Silver Stone; 12R Aquarius Blue

9

Gasket, Bracket (a)

B01W-51-965

10

Bolt (a)

B01W-51-9K5

11

Gasket, Center (a)

B484-51-966

(a) Included w/Air Spoiler Assy

Emblem

12 1995-97 B01W-51-740

13 1998 B21M-51-730A

Nameplate

14 "Mazda" BC5A-51-710

15 "Protege" BD0G-51-721

LIFTGATE

SHEET METAL

1

Shell, Liftgate

w/Spoiler N.A.

w/o Spoiler N.A.

2

Wedge, Liftgate

R/L N.A.

3

Protector, Wedge

R/L N.A.

4

Latch Assy, Gate

w/Cargo Lamp N.A.

w/o Cargo Lamp N.A.

5

Clip, Latch¶

N.A.

¶Included w/Gate Latch Assy

6

Striker, Latch

N.A.

Cable, Liftgate

N.A.

7

Cylinder & Key

N.A.

8

Retainer, Cylinder

N.A.

9

Bezel Assy, Lock Cylinder

N.A.

10

Cap, Bezel¶

N.A.

11

Gasket, Cylinder¶

N.A.

12

Ring, Snap¶

N.A.

¶Included w/Lock Cylinder Bezel Assy

13

Stay, Liftgate

w/Spoiler R/L N.A.

w/o Spoiler R/L N.A.

14

Bolt, Stud

R/L N.A.

15

Hinge Assy, Liftgate

R/L N.A.

16

Gasket, Hinge¶

R/L N.A.

¶Included w/Liftgate Hinge Assy

17

Weatherstrip, Liftgate

N.A.

18

Rubber, Cushion

R/L N.A.

19

Protector, Cushion

R/L N.A.

EXTERIOR TRIM

1

Spoiler Assy, Rear¶

N.A.

¶Thunder Gray listed, Order by Application

SU Classic Red; VQ Noble Green; 29 Sparkle Green;

61 Solemn Blue; 6Z Thunder Gray

2

Bracket, Spoiler¶

R/L N.A.

3

Protector, Spoiler¶

R/L N.A.

4

Fastener, Spoiler¶

R/L N.A.

¶Included w/Rear Spoiler Assy

5

Garnish Assy, Rear

N.A.

6

Bracket, Garnish¶

R/L N.A.

7

Fastener, Garnish¶

R/L N.A.

8

Gasket, Garnish¶ (6)

N.A.

9

Seal, Front Center¶

N.A.

10

Seal, Front Side¶

R/L N.A.

11

Protector, Garnish¶ (3)

N.A.

¶Included w/Rear Garnish Assy

INTERIOR TRIM

1

Welt, Seaming

N.A.

2

Trim, Side

R/L N.A.

3

Trim, Upper

N.A.

4

Trim Assy, Lower

N.A.

5

Cover, Hole¶

R/L N.A.

¶Included w/Lower Trim Assy

GLASS & PARTS

1

Glass Assy, Liftgate

Mazda N.A.

2

Clip, Glass¶

R/L N.A.

¶Included w/Liftgate Glass Assy

Spacer Window

3 Type A (2) N.A.

4 Type B (7) N.A.

5

Mldg, Upper/Side

N.A.

6

Mldg, Lower

N.A.

7

Glass, Lower

Mazda N.A.

8

Bracket Assy, Glass

N.A.

9

Grommet¶

N.A.

MAZDA 323/PROTEGE 1995-98

Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.

318 madpl1_g02_

Page 318—April 22, 2004—15:28:49—Version Manufacturer

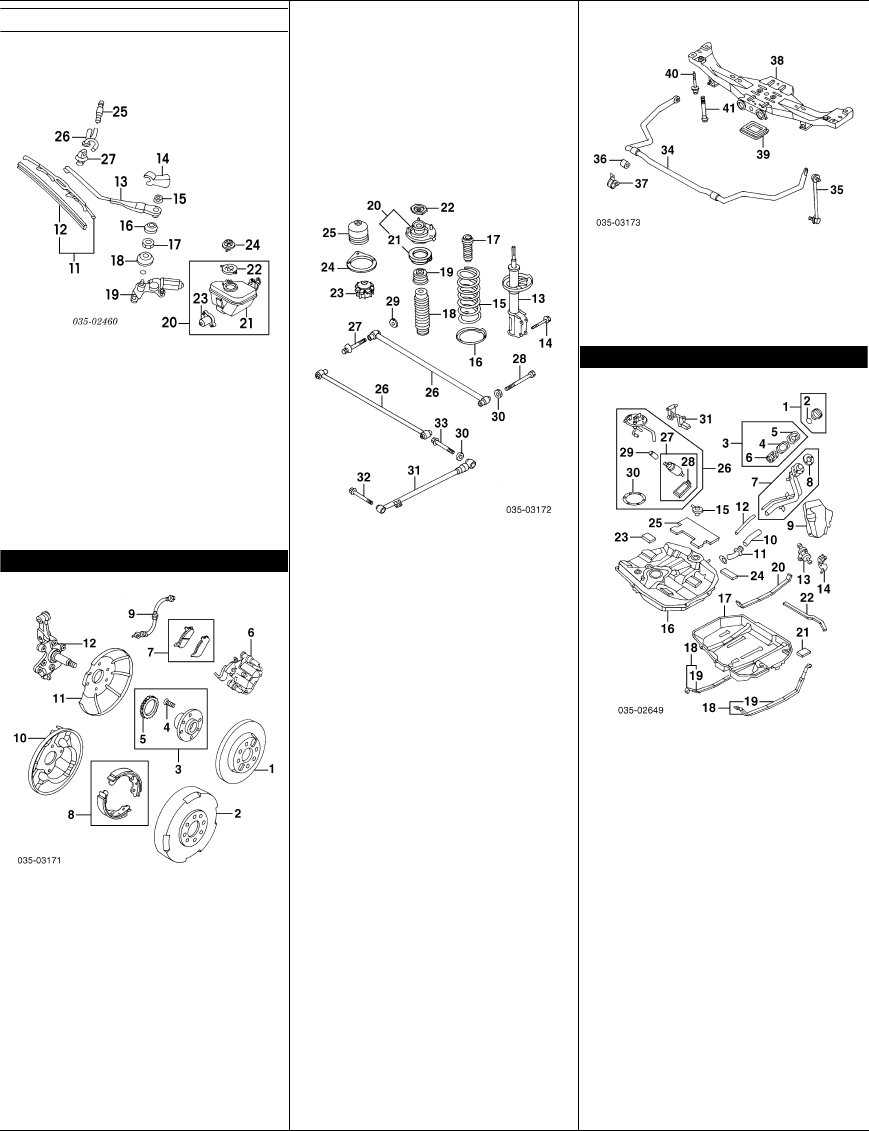

LIFTGATE Cont’d

GLASS & PARTS Cont’d

¶Included w/Glass Bracket Assy

10

Dam, Lower Glass

N.A.

11

Blade Assy, Wiper

N.A.

12

Insert, Blade¶

N.A.

¶Included w/Wiper Blade Assy

13

Arm, Wiper

N.A.

14

Cover, Wiper Arm

N.A.

15

Nut, Upper

N.A.

16

Cap, Seal

N.A.

17

Nut, Lower

N.A.

18

Bushing, Outer

N.A.

19

Motor, Wiper

N.A.

20

Tank Assy, Washer

N.A.

21

Tank, Washer¶

N.A.

22

Cap, Tank¶

N.A.

23

Pump, Washer¶

N.A.

¶Included w/Washer Tank Assy

24

Valve, Washer Tank

N.A.

25

Joint, Hose

N.A.

26

Protector, Pipe

N.A.

27

Nozzle, Spray

N.A.

REAR SUSPENSION

1

Rotor, Brake

95-96 R/L BB4C-26-251C

97-98 R/L BB4C-26-251C

2

Drum, Brake

95 R/L D102-26-251

96-98 R/L B596-26-251D

3

Bearing & Hub Assy

w/ABS R/L B603-26-15XC

w/o ABS R/L B455-26-15XA

4

Bolt, Hub¶ (4/Side)

95 R/L B01Y-33-062

96-98 R/L B455-33-062

5

Rotor, ABS Sensor¶

R/L B603-26-471A

¶Included w/Bearing & Hub Assy

Sensor, ABS-See ABS/Brakes Section

6

Caliper, Brake¶

95-96 R BCYF-26-98ZR

L BCYF-26-99ZR

97-98 R BCYF-26-98ZR

L BCYF-26-99ZR

¶"R" Suffix Indicates Remanufactured Part. Contact Dealer for Core

Charge & Exchange Information

7

Pad Set, Brake

BCYF-26-43ZB

8

Shoe Set, Brake

BCYD-26-38ZA

9

Hose, Brake

1.5L Eng R/L BC1D-43-810

1.8L Eng R/L BC1F-43-980

10

Plate, Backing

Drum Brakes

w/ABS R BC1M-26-280B

L BC1M-26-290B

w/o ABS R BC1D-26-280A

L BC1D-26-290A

11

Shield, Splash

Disc Brakes R/L B613-26-261A

12

Spindle, Hub

Drum Brakes

w/ABS R BC1E-26-111C

L BC1E-26-115C

w/o ABS R B455-26-111D

L B455-26-115D

Disc Brakes

w/ABS R B603-26-111B

L B603-26-115B

w/o ABS R B461-26-111B

L B461-26-115B

13

Strut

1.5L Eng

1995

w/ABS R BC1D-28-700C

L BC1D-28-900C

w/o ABS R BC1E-28-700C-9U

L BC1E-28-900C-9U

1996 R BC1E-28-700C-9U

L BC1E-28-900C-9U

1997-98 R BC1H-28-700B

L BC1H-28-900B

1.8L Eng

1995

w/ABS R BC1F-28-700B

L BC1F-28-900B

w/o ABS R BC1G-28-700B

L BC1G-28-900B

1996 R BC1G-28-700B

L BC1G-28-900B

1997-98 R/L BC1G-28-900D

14

Bolt, Strut (2/Side)

R/L 9YA0-21-231C

15

Spring, Coil¶

1.5L Eng R/L BC1C-28-011

1.8L Eng R/L BC1E-28-011

¶Order by Application

16

Seat, Rubber

R/L B455-28-0A3

17

Stopper, Bumper

95 R/L B01C-28-111A

96-98 R/L B25D-28-111

18

Boot, Dust

R/L B01C-28-0A5A

19

Seat, Spring

R/L B01C-28-340A

20

Insulator Assy, Mounting

R BC1D-28-380B

L BC1D-28-390B

21

Seat, Rubber¶

R/L B01C-28-012

¶Included w/Mounting Insulator Assy

22

Bushing

R/L BC1D-28-343A

23

Stopper, Damper

95 R/L BC1D-28-019D

96-98 R/L B455-28-019

24

Plate, Adjust

95-96 R/L BC1D-28-0A1A

97-98 R/L B21H-28-0A1

25

Cap, Mount

95-96 R/L BC1D-28-01YD

97-98 R/L B455-28-019

26

Link, Lateral

Front R/L B02A-28-620A

Rear R/L BC1D-28-600B

27

Bolt, Adjust

95-96 R/L BC1D-28-664

97-98 R/L BC1F-28-66Z

28

Bolt, Lateral Link

R/L GA2A-28-113A

29

Plate, Cam

95-96 R/L BCY9-28-6AZ

97-98 R/L BC1F-28-473A

30

Washer, Spindle

R/L 0193-34-662A

31

Link, Trailing

1.5L Eng 95-96 R BC1D-28-200

L BC1D-28-250

97-98 R/L BC5A-28-200A

1.8L Eng 95-96 R BC1F-28-200

L BC1F-28-250

97-98 R/L BC5B-28-200A

32

Bolt, Lateral Link Frt

R/L B455-28-114A

33

Bolt, Lateral Link Rear

1995 R/L 9YA0-21-207

1996-98 R/L B455-28-116

34

Bar, Stabilizer

1.8L Eng BC1D-28-151

35

Link, Stabilizer

R/L BC1D-28-170A

36

Bushing, Stabilizer

R/L G564-28-156A

37

Bracket, Stabilizer

R/L GA2A-28-155A

38

Crossmember, Susp

BC1D-28-800B

39

Cover, Crossmember (2)

GA2A-28-831A

40

Bolt, Crossmember Outer

(2/Side) R/L GA2A-28-89X

41

Bolt, Crossmember Inner

R/L 9YA0-21-009

FUEL TANK

1

Cap Assy, Filler

To 3-97 UE54-42-250

From 3-97 to 5-97 BJ0E-42-250B

From 5-97 BE5M-42-250

2

Gasket, Cap¶

BF67-42-252

¶Included w/Filler Cap Assy

3

Cover Assy, Dust

To 5-97 B01W-42-240A

From 5-97 BE5M-42-240

4

Gasket, Dust Cover Upr¶

BC1D-42-244

5

Cover, Lever¶

B455-42-242A

6

Gasket, Dust Cover Lwr¶

B01W-42-243

¶Included w/Dust Cover Assy

7

Pipe Assy, Filler

1995

w/Calif Emission BC1M-42-210C

w/o Calif Emission BC5A-42-210C

1996-98 BC4C-42-210B

8

Gasket, Filler Pipe¶

B455-42-366

¶Included w/Filler Pipe Assy

9

Protector, Filler Pipe

BC1M-42-298B

10

Hose, Joint

Hatchback N.A.

Sedan

1995

w/Calif Emission BC1M-42-231

w/o Calif Emission B01A-42-231

1996 BC1M-42-231

1997-98 BG1N-42-231B

11

Hose, Filler

BC1M-42-11X

12

Hose, Breather

BC1M-42-232

13

Valve, Check

1995

w/Calif Emission BC1M-42-950

w/o Calif Emission B01A-42-910

1996-98 BC4C-42-950A

14

Bracket, Check Valve

1995-96

w/Calif Emission-Serviced w/Check Valve

MAZDA 323/PROTEGE 1995-98

Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629. 319

madpl1_g02_

Page 319—April 22, 2004—15:28:51—Version Manufacturer

w/o Calif Emission BR70-42-920

1997-98-Serviced w/Check Valve

15

Valve, Vapor (2)

BC1M-42-980A

16

Tank, Fuel

1995-96

w/Calif Emission BC1M-42-110B

w/o Calif Emission BC1F-42-110B

1997-98 BC1M-42-110B

17

Insulator, Fuel Tank

BC1M-42-740C

18

Strap Assy, Fuel Tank

R B01W-42-710A

L BC1M-42-720

19

Pad, Tank Strap¶

R BC1M-42-715

L BC1M-42-725

¶Included w/Fuel Tank Strap Assy

20

Pad, Fuel Tank Center

R BC1M-42-766

L BC1M-42-768

21

Pad, Insulator Side (2)

B455-42-764

22

Pad, Insulator Side

BC1M-42-767

23

Pad, Fuel Tank (4)

T001-42-764

24

Pad, Fuel Tank Left

BC1M-42-763

25

Pad, Fuel Tank Center

BC1M-42-761B

26

Pump Assy, Fuel

Aisan Brand B6BG-13-35Z

Denso Brand

USA Built B6BG-13-35Z

Japan Built B6BG-13-35Z

27

Pump, Fuel¶

Aisan Brand B6DA-13-350

Denso Brand

USA Built B6DA-13-350

Japan Built B6DA-13-350

28

Filter¶

Aisan Brand B6BF-13-ZE1

Denso Brand

USA Built KL22-13-ZE1

Japan Built KL22-13-ZE1

29

Hose, Pump¶

KL19-13-ZE6

30

Gasket¶

B6BF-60-962

¶Included w/Fuel Pump Assy

31

Gauge, Fuel Tank

1995

w/Calif Emission BC1D-60-960

w/o Calif Emission B01W-60-960

1996-98 BE5M-60-960

REAR BODY

SHEET METAL

HATCHBACK

1

Panel, Rear End

N.A.

2

Plate, Corner

R/L N.A.

3

Rail, Rear Drip

R/L N.A.

SHEET METAL

SEDAN

1

Panel, Rear End

BC1D-70-750F

2

Plate, Corner

R BC1D-70-481

L BC1D-71-481

3

Rail, Rear Drip

R BC1D-70-441B

L BC1D-71-441B

4

Panel, Package Tray

95 BC1D-70-500A

96-98 BC1D-70-500F

FLOOR

Illustration Located in Next Column

1

Pan Assy, Luggage Compartment

Hatchback N.A.

Sedan BC5A-53-730

2

Bracket, Spare Wheel¶

GJ21-53-790C

¶Included w/Luggage Compartment Pan Assy

Panel Assy, Floor Side

3Hatchback R/LN.A.

4 Sedan R BC1D-53-740B

L BC1D-54-741C

5

Bracket, Jack¶

B455-53-750C

¶Included w/Sedan Right Floor Side Panel Assy

Crossmember, Rear Floor

6Hatchback N.A.

7 Sedan BC1D-53-920A

8

Pan Assy, Rear Floor

Hatchback N.A.

Sedan BCYD-53-720

9

Pan, Center Floor¶

Hatchback N.A.

Sedan 95-96 BC1D-53-71XA

97-98 BC1D-53-71XA

¶Included w/Rear Floor Pan Assy

10

Crossmember, Ctr Floor

BC1D-53-900D

11

Sidemember Assy, Rear

Hatchback R/L N.A.

Sedan 95-96 R BC1D-53-810A

L BC1D-54-810

97-98 R BC1D-53-810A

L BC1D-54-810

12

Extension, Sidemember¶

Hatchback

Right N.A.

Left-Serviced w/Left Sidemember Assy

Sedan R BC1D-53-89Z

L B01E-54-89XA

13

Bracket, Rear Bumper¶

R/L BC1D-53-896

¶Included w/Rear Sidemember Assy

INTERIOR TRIM

HATCHBACK

1

Panel Assy, Trim

Rear End N.A.

2

Bezel, Lock¶

N.A.

¶Included w/Rear End Trim Panel Assy

3

Trim Assy, Side

w/Cargo Lamp R/L N.A.

w/o Cargo Lamp R/L N.A.

4

Holder, Hinge Trim¶

R/L N.A.

5

Cover, Cargo Lamp¶

RN.A.

¶Included w/Side Trim Assy

6

Tray Assy, Rear Package

N.A.

7

Pin, Hinge¶

R/L N.A.

8

Strap¶

R/L N.A.

9

Rubber, Cushion¶

R/L N.A.

¶Included w/Rear Package Tray Assy

Lamp Assy, Cargo

N.A.

INTERIOR TRIM

SEDAN

1

Trim Assy, Rear End Panel

BC1D-68-89XC

2

Cover, End Trim¶

BC1D-68-893A

¶Included w/Rear End Panel Trim Assy

3

Trim Assy, Package Tray

1995

Brown BC1D-68-3A0G-90

Gray BC1D-68-3A0G-09

1996-98

Brown BE5M-68-3A0F-90

Gray BE5M-68-3A0F-09

4

Grille, Extractor (a)

Brown R BC1D-68-3A3B-90

L BC1D-68-3A4B-90

Gray R BC1D-68-3A3B-09

L BC1D-68-3A4B-09

5

Grille, Speaker (a)

Brown R/L D120-68-3S1-90

Gray R/L D120-68-3S1-09

(a) Included w/Package Tray Trim Assy

Speaker, Radio

95-96 R/L BC1E-66-960

97-98 R/L B21H-68-960

Cover, Speaker Hole

R/L B02A-66-962

6

Trim, Side

95-96 R BC1D-68-851B-09

L BC1D-68-871B-09

97-98 R B21H-68-850D-04

L B21H-68-870D-04

7

Trim, Front Upper

95 BC1D-68-302C-00

96-98 BC1D-68-302C-00

8

Trim, Front Side

95 R BC1D-68-306C

L BC1D-68-307C

96 R BC1D-68-306C

L BC1D-68-307C

97-98 R B21H-68-760B-09

L B21H-68-770B-09

9

Welt, Seaming

B02H-68-915A-09

REAR LAMPS

COMBINATION LAMP

HATCHBACK

1

Lamp Assy, Combination

R/L N.A.

2

Lens & Body¶

R/L N.A.

3

Socket & Wire¶

R/L N.A.

4

Bulb, Upper¶

R/L N.A.

5

Bulb, Lower¶

R/L N.A.

¶Included w/Combination Lamp Assy

6

Grommet, Upper

R/L N.A.

7

Grommet, Side (2/Side)

R/L N.A.

8

Fastener

R/L N.A.

MAZDA 323/PROTEGE 1995-98

Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.

Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.

320 madpl1_g02_

Page 320—April 22, 2004—15:28:53—Version Manufacturer

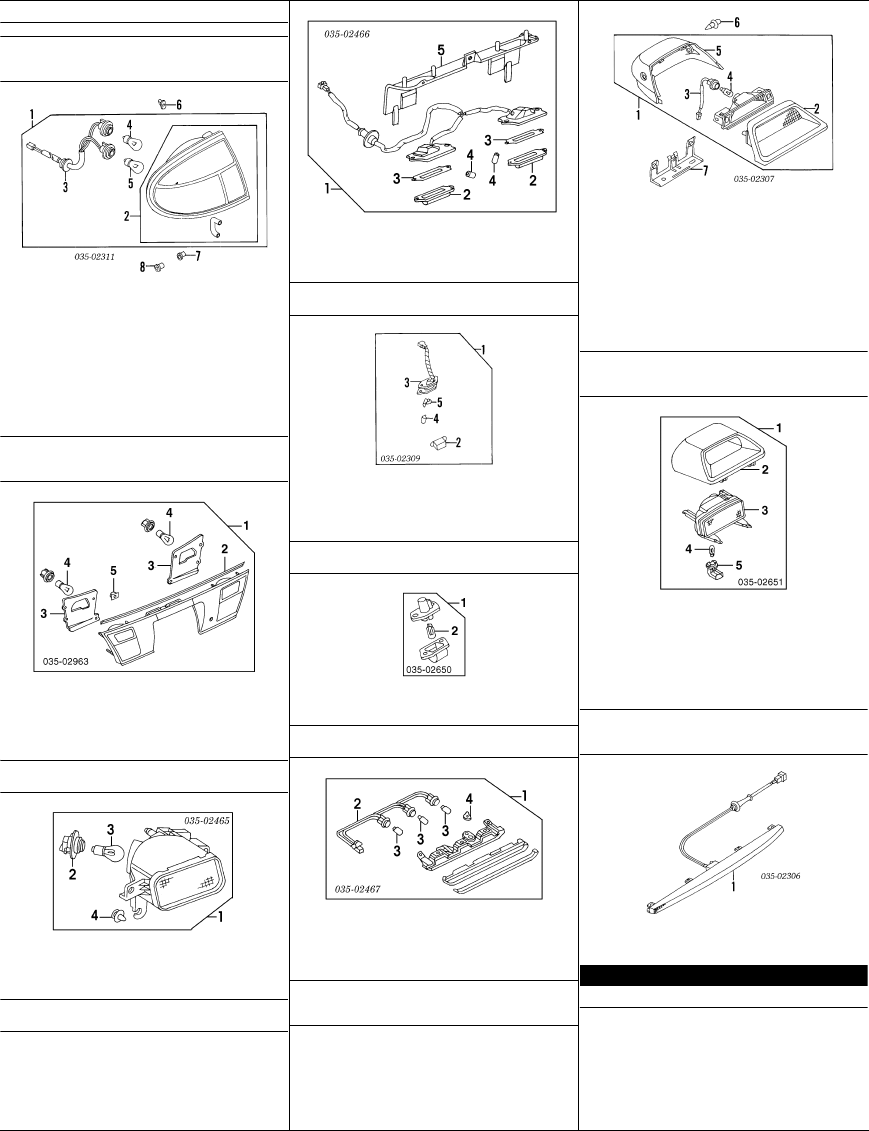

REAR LAMPS Cont’d

COMBINATION LAMP

ON QUARTER PANEL

SEDAN

1

Lamp Assy, Combination

1995 R BC1M-51-150B

L BC1M-51-160B

1996-98 R BC1M-51-150B

L BC1M-51-160B

2

Lens & Body¶

R BC1M-51-170A

L BC1M-51-180A

3

Socket & Wire¶

95 R/L BC1M-51-155A

96-98 R/L B16A-51-155

4

Bulb, Upper¶

R/L 0000-11-1156

5

Bulb, Lower¶

R/L 0000-11-1157

¶Included w/Combination Lamp Assy

6

Grommet, Upper (2/Side)

R/L B01W-51-142B

7

Grommet, Lower

R/L GA7B-51-146

8

Fastener

R/L B01A-51-146

COMBINATION LAMP

ON LUGGAGE LID

SEDAN

1

Finisher Assy

95-96 BC1M-50-850E

97-98 B21H-50-850B

2

Protector, Finisher¶

BC1M-50-853

3

Gasket¶

R/L BC1M-50-855A

4

Bulb¶

R/L 9970-13-210

5

Fastener¶ (3)

B173-50-852A

¶Included w/Finisher Assy

BACK-UP LAMP

HATCHBACK

1

Lamp Assy, Back-Up

R/L N.A.

2

Socket¶

R/L N.A.

3

Bulb¶

R/L N.A.

4

Clip, Lamp¶

R/L N.A.

¶Included w/Back-Up Lamp Assy

LICENSE LAMP

HATCHBACK

Illustration Located in Next Column

1

Lamp Assy, License

N.A.

2

Lens¶

R/L N.A.

3

Gasket, Lens¶

R/L N.A.

4

Bulb¶

R/L N.A.

5

Bracket, Lamp¶

N.A.

¶Included w/License Lamp Assy

LICENSE LAMP

SEDAN 1995

1

Lamp Assy, License

R/L BC1F-51-270B

2

Lens¶

R/L B216-51-274C

3

Gasket¶

R/L B01W-51-273

4

Bulb¶

R/L 0000-11-0194

5

Protector¶

R/L B216-51-277

¶Included w/License Lamp Assy

LICENSE LAMP

SEDAN 1996-98

1

Lamp Assy, License

R/L B16A-51-270B

2

Bulb¶

R/L 0000-11-0194

¶Included w/License Lamp Assy

HIGH MOUNT STOP LAMP

HATCHBACK

1

Lamp Assy, Stop¶

N.A.

¶Mounted on Liftgate

2

Socket & Wire (a)

N.A.

3

Bulb (a) (3)

N.A.

4

Clip, Lamp (a)

N.A.

(a) Included w/Stop Lamp Assy

HIGH MOUNT STOP LAMP

ON PACKAGE TRAY

SEDAN 1995

Illustration Located in Next Column

1

Lamp Assy, Stop

Brown BC1M-51-580-90

Gray BC1M-51-580-09

2

Lens & Body¶

Brown BC1M-51-593-90

Gray BC1M-51-593-09

3

Socket & Wire¶

BC1M-51-584

4

Bulb¶

0000-11-0921

5

Cover, Lamp¶

Brown BC1M-51-587-90

Gray BC1M-51-587-09

¶Included w/Stop Lamp Assy

6

Fastener, Lamp (2)

Brown HG30-51-599-90

Gray HG30-51-599-09

7

Bracket, Lamp

BC1M-51-598

HIGH MOUNT STOP LAMP

ON PACKAGE TRAY

SEDAN 1996-98

1

Lamp Assy, Stop

Brown B16A-51-580C-90

Gray B16A-51-580C-09

2

Cover, Lamp (a)

Brown B16A-51-587-90

Gray B16A-51-587-09

3

Lens & Housing (a)

B16A-51-593C

4

Bulb (a)

0000-11-0921

5

Socket (a)

BW0A-51-584

(a) Included w/Stop Lamp Assy

HIGH MOUNT STOP LAMP

ON SPOILER

SEDAN

1

Lamp, Stop¶

B01W-51-580A

¶Included w/Air Spoiler Assy-listed in Luggage Lid Exterior Trim

Section

REAR BUMPER

HATCHBACK

Illustration Located in Next Column

1

Cover, Rear (P)

N.A.

(P) Paint to Match

2

Grommet, Upper

R/L N.A.
