MAZDA MIATA 1990-97
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
220 madpl1_g01_
Page 220—April 22, 2004—13:33:39—Version Manufacturer
MAZDA MIATA 1990-97
SPECIAL CAUTIONS
AIR BAGS
Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag
Special Cautions.
SUSPENSION
Manufacturer advises that some new fasteners must be used whenever
old fasteners are loosened or removed.
PAINT CODE LOCATION
Paint code located on left lock pillar.
CLEAR COAT IDENTIFICATION
All metallic colors are clear coat.
INFORMATION LABELS
Illustration Located in Next Column
1
Label, Headlamp
NA04-51-S02
2
Label, Radiator Caution
0488-15-201
3
Label, Fan Caution
B660-15-031
4
Label, Model
90-93 8595-69-011B
94 NA01-69-068A
95-97 B001-69-D51
5
Label, Air Bag Caution
90-93 NA01-57-K92
94 KA78-57-K91
6
Label, VIN
NA01-69-068A
7
Label, Emission
1990-91
w/Calif Emission NA01-69-036D
w/o Calif Emission NA04-69-036C
1992
w/Calif Emission NA01-69-036E
w/o Calif Emission NA04-69-036D
1993
w/Calif Emission NA01-69-036G
w/o Calif Emission NA04-69-036E
1994
USA NA75-69-036
Canada
English N.A.
French N.A.
1995
USA NB11-69-036
Canada
English N.A.
French N.A.
1996-97
USA NB38-69-036
Canada
English N.A.
French N.A.
8
Label, Caution
90-93 NA01-57-K91
94 KA78-57-K91
9
Label, Vacuum Diaphragm
90-93
NA01-69-044
94-96 NA75-69-044
97 NB38-69-044
10
Label, A/C
NA75-61-439
11
Label, Tire
NA01-69-014A
12
Label, Safety Panel
Canada N.A.
13
Label, Spare Tire
English BF68-69-073B
French N.A.
14
Label, Fuel Warning
KA10-69-D61A
15
Label, Unleaded Fuel
UB40-69-C61
16
Label, Battery
FA03-69-C72A
17
Label, Battery
FA01-69-064B
FRONT BUMPER
1
Cover, Front (P)
NAY1-50-030A
(P) Paint to Match
2
Retainer, Center Cover
NA01-50-0K0B
3
Retainer, Outer
R NA01-50-0J1
L NA01-50-0J5
4
Seal, Lower
90-96 NA75-50-0K6A
97 N.A.
5
Seal, Upper
NA75-50-0K7A
6
Fastener, Lwr Seal (8)
90-96 UB39-50-795
97 N.A.
7
Fastener, Upper Seal (4)
NA01-56-145
8
Plate, Center Support
R NA01-50-2A0B
L NA01-50-1AYC
9
Plate, Outer Support
R NA01-50-1B0
L NA01-50-1C0
10
Seal, Cover
R/L NA01-50-0G9
11
Fastener, Cover
R/L BF82-50-233
12
Bracket, Upper
R/L NA01-50-1ZYB
13
Bracket, Upper
L NA01-50-160
14
Slide, Bumper
R/L B092-50-032
15
Bar Assy, Reinforcement
NA01-50-070
16
Spacer, Reinf Bar¶
NA01-50-114
¶Included w/Reinforcement Bar Assy
17
Pipe, Strg Return/Cooler-See Steering Pump Section
18
Guide, Air
w/ABS NA23-50-A20A
w/o ABS NA01-50-A20B
19
Cover, Air Guide (3)
NA01-50-101A
20
Fastener (2)
BF67-50-033
21
Cover, Under
NA01-56-111F
22
Frame, License
NA01-50-180A
23
Protector, License
FB01-50-144
24
Bracket, Frame
R/L NA01-50-18X
25
Emblem
1990-93
Light Gray NA04-51-711-14
Dark Gray NA04-51-711-18
1994-97 BB1H-51-731
FRONT LAMPS
HEADLAMP
1
Lamp Assy
R 8BN1-51-030A
L 8BN1-51-040A
2
Ring, Retaining¶
R/L NA01-51-033A
3
Ring, Mounting¶
R NA01-51-032
L NA01-51-034
4
Spring, Adjust¶
R/L NA01-51-046
5
Screw, Adjust¶ (2/Side)
R/L NA01-51-037
¶Included w/Lamp Assy
6
Sealed Beam
R/L 0000-11-6024-HL
7
Bezel, Headlamp
R NA01-50-741
L NA01-50-751
Screw, Headlamp (4/Side)
R/L B481-50-75X
8
Lid, Lamp
R NA01-51-SH1B
L NA01-51-SH2B
Screw, Lid (4/Side)
90-93 R/L 9074-00-512
94-97 R/L BS34-51-S25A
9
Hinge Assy
R NA01-51-SC0B
L NA01-51-SD0B
10
Housing, Hinge¶
R NA01-51-SC5B
L NA01-51-SD5B
11
Bracket, Hinge¶
R NA01-51-SC1A
L NA01-51-SD1A
12
Cap, Hinge¶
R/L KA01-51-SD6
¶Included w/Hinge Assy
13
Rod, Retractable
R/L NA01-51-SA5
14
Motor Assy
R NA01-51-SAX
L NA01-51-SBX
15
Boot, Motor¶
R/L NA01-51-669
16
Bolt, Motor¶
R/L FB01-51-665
¶Included w/Motor Assy
17
Protector, Lamp Front
R/L NA01-51-SJ2A
18
Protector, Lamp
L NA01-51-SK2
19
Protector, Lamp Rear
R NA01-51-SE1
L NA01-51-SE2

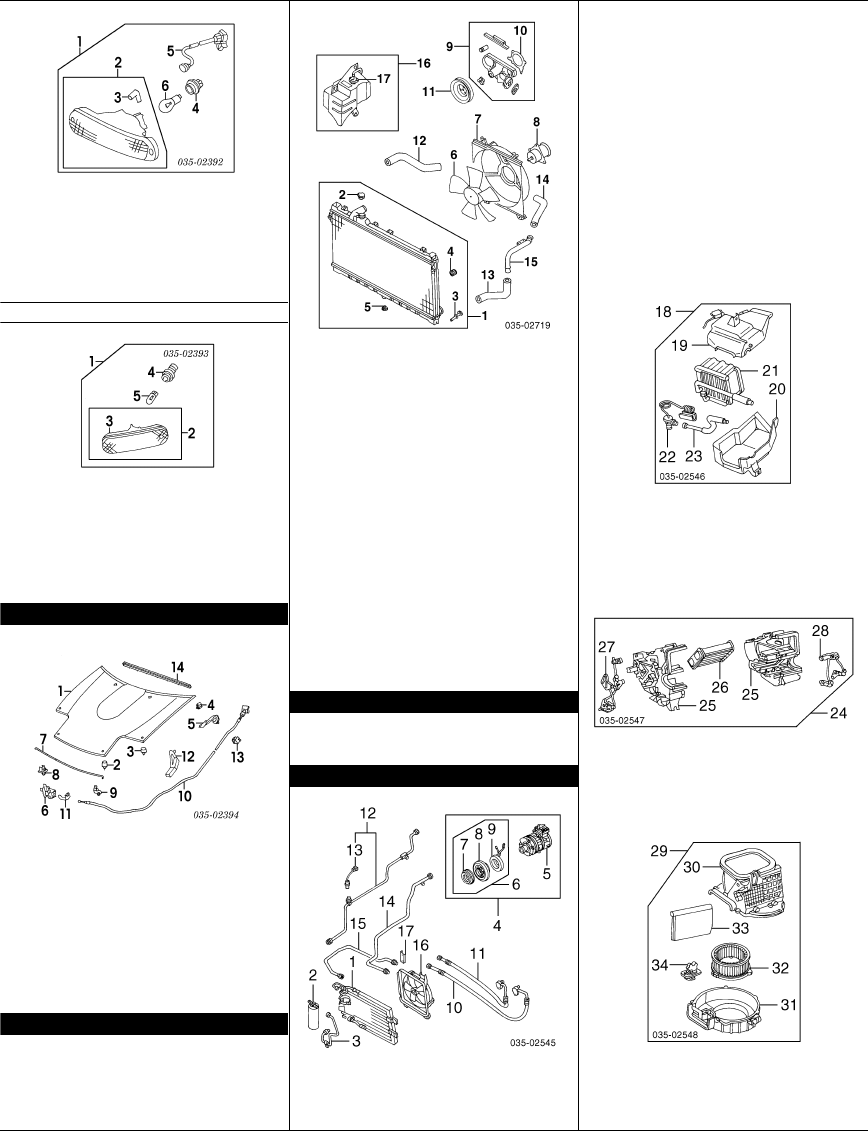

PARK/SIGNAL LAMP
Illustration Located in Next Column
1
Lamp Assy
R 8BN1-51-060
SECTION INDEX
A/C /HEATER .................................................................................... 221
A/C REFRIGERANT CAPACITIES ................................................... 221
ABS/BRAKES ................................................................................... 223
AIR BAG SYSTEM............................................................................ 222
AIR CLEANER .................................................................................. 225
BACK WINDOW................................................................................ 230
CENTER CONSOLE......................................................................... 227
CLEAR COAT IDENTIFICATION ...................................................... 220
CONVERTIBLE TOP......................................................................... 229
COOLING.......................................................................................... 221
COWL & DASH ................................................................................. 226
CRUISE CONTROL SYSTEM .......................................................... 222
ELECTRICAL.................................................................................... 226
EMISSION SYSTEM......................................................................... 226
ENGINE MOUNTS............................................................................ 225
ENGINE/TRANS ............................................................................... 225
EXHAUST ......................................................................................... 226
FRONT BUMPER ............................................................................. 220
FRONT DOOR.................................................................................. 228
FRONT FENDER.............................................................................. 222
FRONT INNER STRUCTURE........................................................... 222
FRONT LAMPS................................................................................. 220
FRONT STEERING LINKAGE/GEAR............................................... 224
FRONT SUSPENSION ..................................................................... 223
FUEL TANK....................................................................................... 231
HARDTOP......................................................................................... 230
HOOD ............................................................................................... 221
INFORMATION LABELS................................................................... 220
INSTRUMENT PANEL ...................................................................... 227
LUGGAGE LID.................................................................................. 231
PAINT CODE LOCATION.................................................................. 220
QUARTER PANEL ............................................................................ 230
REAR BODY ..................................................................................... 231
REAR BUMPER................................................................................ 232
REAR DRIVE AXLE.......................................................................... 231
REAR LAMPS................................................................................... 232
REAR SUSPENSION........................................................................ 231
ROCKER/PILLARS/FLOOR.............................................................. 227
SEAT ................................................................................................. 228
SEAT BELTS ..................................................................................... 228
SPECIAL CAUTIONS........................................................................ 220
STEERING PUMP ............................................................................ 224
STEERING WHEEL/COLUMN ......................................................... 224
UNDERHOOD DIMENSIONS........................................................... 222
WHEEL ............................................................................................. 223
WINDSHIELD.................................................................................... 226
MAZDA MIATA 1990-97
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629. 221
madpl1_g01_
Page 221—April 22, 2004—13:33:41—Version Manufacturer
L 8BN1-51-070
2
Lens & Housing Assy¶
R NA01-51-06XA
L NA01-51-07XA
3
Tube, Lamp¶ (a)
R/L NA01-51-069
(a) Included w/Lens & Housing Assy
4
Socket¶
R/L NA01-51-064
5
Wire¶
USA-Serviced w/Socket
Canada R/L N.A.
6
Bulb¶
R/L 0000-11-0194
¶Included w/Lamp Assy
SIDE MARKER LAMP
1
Lamp Assy
R 8BN1-51-120
L 8BN1-51-130
2
Lens & Body Assy¶
90 R NA01-51-5E1C
L NA01-51-5F1C
91-97 R NA01-51-5EXA
L NA01-51-5FXA
3
Gasket, Lens¶ (a)
R/L NA01-51-5D3A
(a) Included w/Lens & Body Assy
4
Socket¶
R/L NA01-51-5E2
5
Bulb¶
R/L 0000-11-1157-NA
¶Included w/Lamp Assy
HOOD
1
Panel, Hood
NAY1-52-310D
2
Cushion, Front Rubber
R/L FB01-56-787B
3
Cushion, Center Rubber
R/L FB01-56-786A
4
Cushion, Rear Rubber
R/L NA01-56-78X
5
Hinge
R NA01-52-410D
L NA01-52-420D
6
Latch
NA01-56-620C
7
Rod, Support
90-93 NA01-56-650
94-97 NA75-56-650A
8
Holder, Rod Front
G030-56-693A
9
Holder, Rod Rear
B092-52-518
10
Cable, Release
NA01-56-720D
11
Fastener, Cable
LA01-56-631
12
Holder, Cable
H115-45-916A
13
Clip, Cable
G030-67-519
14
Seal, Cowl
NA01-56-760
COOLING
Illustration Located in Next Column
1
Radiator Assy
Man Trans 90-93 BPE8-15-200
94-97 BPE8-15-200
Auto Trans 90-93 B64J-15-200C
94-97 BPE9-15-200
2
Cap, Radiator¶
D316-15-205
3
Cock, Drain¶
NF01-15-203
4
Mount, Rad Upper¶
R/L N326-15-202
5
Mount, Rad Lower¶
R/L B61P-15-202
¶Included w/Radiator Assy
6
Fan, Cooling
Man Trans 90-91 B61P-15-140
92-97 B61P-15-140A
Auto Trans 90-91 B6S8-15-140A
92-97 B64J-15-140
7
Shroud, Fan
B61P-15-210B
8
Motor, Fan
Man Trans BPE8-15-150
Auto Trans B64J-15-150A
9
Pump Set, Water
90-94 8AB8-15-010
95-97 8ABB-15-010A
10
Gasket, Pump¶
90-93 B6BF-15-116
94-97 B6BF-15-116
¶Included w/Water Pump Set
11
Pulley, Pump
90-93 B366-15-131A
94-97 B3C7-15-131
12
Hose, Rad Upper
90-93 B61P-15-186
94-97 BPE8-15-186
13
Hose, Frt Lower Rad
90-93 B61P-15-185
94-97 B61P-15-185
14
Hose, Rear Lower Rad
B61P-15-184
15
Pipe, Lower Rad
B61P-15-190
16
Tank Assy, Coolant
B61P-15-350D
17
Cap, Tank¶
B61P-15-355A
¶Included w/Coolant Tank Assy
A/C REFRIGERANT CAPACITIES
A/C R-12 Refrigerant Capacity
1990-93: 28 Ozs (1.75 Lbs)
A/C R-134 Refrigerant Capacity
1994-97: 21.2 Ozs (1.32 Lbs)
A/C /HEATER
1
Condenser
NA75-61-480
2
Receiver/Drier
90-93 NA01-61-500A
94-97 NA75-61-500
3
Pipe, Receiver/Drier
NA75-61-467
4
Compressor Assy
90-93 NA02-61-450A
94-97 NA75-61-450
5
Compressor¶
90-93 NA02-61-K00
94-97 NA75-61-K00
6
Clutch Assy, Magnet¶
90-93 NA02-61-L10
94-97 NA75-61-L10
7
Armature, Clutch¶ (a)
90-93 F065-61-611
94-97 NA75-61-L11
8
Pulley, Clutch¶ (a)
90-93 NA02-61-L12
94-97 NA75-61-L12
9
Coil, Magnet¶ (a)
90-93 FD15-61-L13
94-97 NA75-61-113
¶Included w/Compressor Assy
(a) Included w/Magnet Clutch Assy
10
Hose, Suction
90-93 NA01-61-461C
94-97 NA75-61-461
11
Hose, Pressure
90-93 NA01-61-462D
94-97 NA75-61-462
12
Tube Assy, Upper A/C
90-93 NA01-61-46X
94-97 NA75-61-46XA
13
Switch, Pressure¶
90-93 NA01-61-503
94-97 GB6H-61-503
¶Included w/Upper A/C Tube Assy
14
Tube, Lower A/C
90-93 NA01-61-468A
94-97 NA75-61-468
15
Pipe, Condenser Pressure
1990-93 NA02-61-466C
1994-97-Serviced w/Pressure Hose
16
Fan, Condenser
NA01-61-710
17
Bracket, Mounting
NA01-61-4H1
18
Evaporator Assy
90-93 NA75-61-520D
94-97 NA75-61-520D
19
Case, Evap Upper¶
90-93 NA01-61-J20
94-97 NA01-61-J01A
20
Case, Evap Lower¶
NC10-61-J02
21
Core, Evaporator¶
NA75-61-520D
22
Valve, Expansion¶
90-93 NA01-61-J14
94-97 NA75-61-J14
23
Pipe, Valve¶
NA01-61-J15
¶Included w/Evaporator Assy
24
Heater Assy
90-93 NA01-61-130A
94-97 NC10-61-130F
25
Case, Heater¶
R/L NA01-61-A01-2
26
Core, Heater¶
90-93 NA01-61-A10
94-97 NA75-61-A10
27
Linkage, Heater Air Flow¶
NA01-61-A30A
28
Linkage, Heater Temperature¶
NA01-61-A20
¶Included w/Heater Assy
29
Blower Assy
90-93 NA01-61-140A
94-97 NC11-61-140A
30
Case, Upper¶
90-93 NA01-61-B01
94-97 NA75-61-B01
31
Case, Lower¶
NA01-61-B02
32
Motor, Blower¶
NA01-61-B10
MAZDA MIATA 1990-97
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
222 madpl1_g01_
Page 222—April 22, 2004—13:33:43—Version Manufacturer
A/C /HEATER Cont’d
33
Flap, Vent¶-Serviced w/Blower Assy
34
Resistor¶
NA01-61-B15
¶Included w/Blower Assy

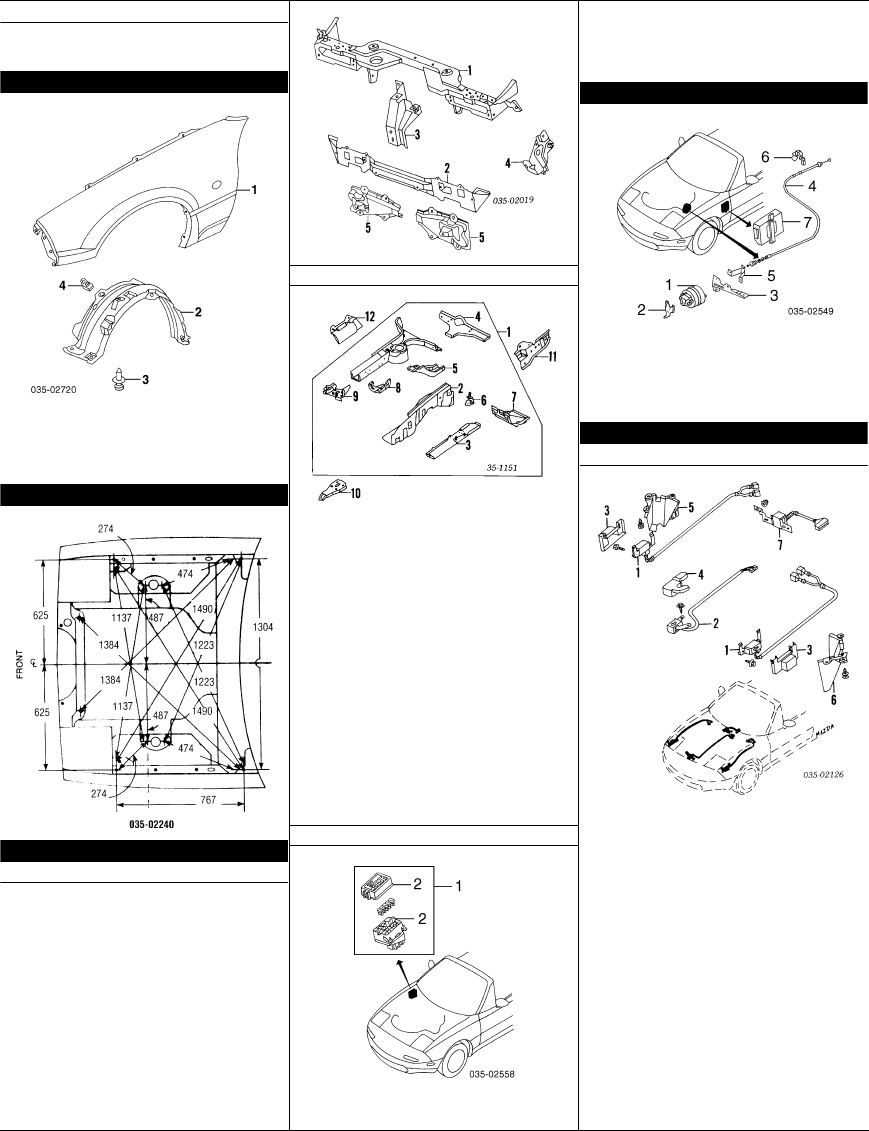

FRONT FENDER
1
Fender (HSLA)
R NAY1-52-110
L NAY1-52-210
2
Liner, Fender
R NA01-56-131A
L NA01-56-141C
3
Fastener, Liner (5/Side)
R/L NA01-56-145
4
Clip, Liner Screw
(5/Side) R/L LA01-56-135
UNDERHOOD DIMENSIONS
FRONT INNER STRUCTURE
FRONT
Illustration Located in Next Column
1
Bar, Upper Tie
90-93 NA01-53-100F
94-97 NA75-53-100
2
Bar, Lower Tie
NA01-53-16XC
3
Support, Latch
NA01-56-221B
4
Bracket, Radiator
R B61P-15-240A
L B61P-15-250A
5
Bracket, Stay
R/L NA01-54-180
SIDE
1
Apron Assy (a)
90-93 R NAY1-53-200D
L NAY1-54-200D
94-97 R NAY1-53-200D
L NAY2-54-200
2
Panel, Apron¶ (a)
R NA01-53-210F
L NA01-54-210G
(a) Use w/Part #B001-56-051
Cover¶ (b)
B001-56-051
(b) As Required
3
Rail, Upper Front¶
R NA01-53-37Y
L NA01-54-37Y
4
Rail, Upper Rear¶
90-96 R NA01-53-37ZB
L NA01-54-37ZA
97 R NA01-53-37ZB
L NA01-54-37ZD
5
Reinforcement¶
R NA01-53-380
L NA01-54-380B
6
Bracket, Air Cleaner¶
Left Side NA01-54-36X
7
Box, Torque¶
R NA01-53-391
L NA01-54-391
8
Bracket, Stabilizer¶
R N067-53-330
L N067-54-330
9
Reinf, Tie Down Hook¶
R NA01-53-32XB
L NA01-54-32XC
¶Included w/Apron Assy
10
Hook, Tie-Down
R NA01-56-34XD
L NA01-56-34YD
11
Reinf, Apron
R NA01-53-591
L NA01-54-590
12
Shield, Splash
NA01-56-112
ELECTRICAL COMPONENTS
1
Block Assy, Main Fuse
90 NA01-66-760B
91-93 NA23-66-760
94 NA80-66-760
95-97 NB11-66-760
2
Cover, Fuse Block¶
90 NA02-66-762B
91-93 NA23-66-762
94 NA80-66-762
95-97 NB11-66-762
¶Included w/Main Fuse Block Assy
CRUISE CONTROL SYSTEM
1
Actuator, Cruise Control
LA01-66-310A
2
Brkt, Actuator Front
NA01-66-3A3A
3
Brkt, Actuator Rear
NA01-66-3A2A
4
Wire, Cruise Control
NA01-66-311A
Clip, Cruise Control Wire
5 Front LA01-66-3A1
6 Rear UB39-61-479A
7
Control, Cruise
NA01-66-320

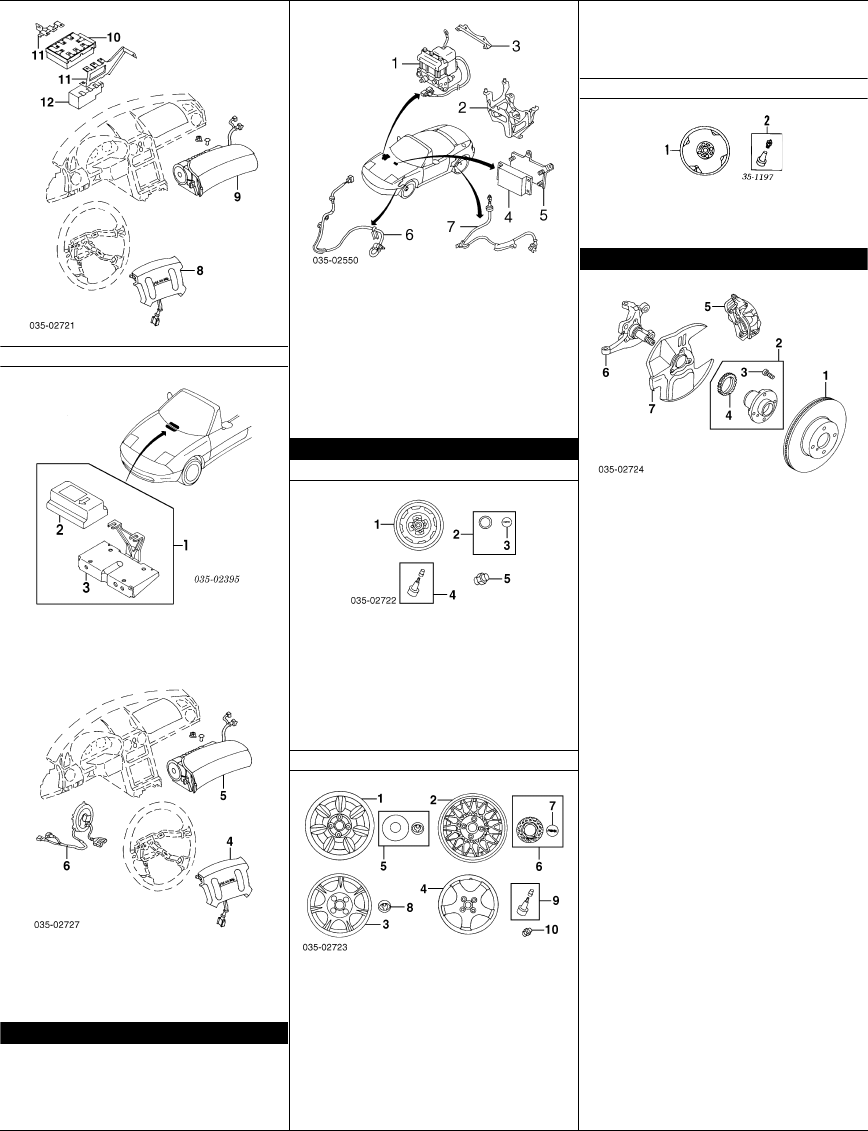

AIR BAG SYSTEM
1990-94
1
Sensor, Outer
R NA01-57-K2XK
L NA01-57-K2YK
2
Sensor, Center
90-93 NA01-57-K10H
94 NA75-57-K1XA
3
Cover, Outer Sensor
R NA01-57-K45B
L NA01-57-K46B
4
Cover, Center Sensor
NA01-57-K47C
Cover, Outer Sensor
5 Right NA01-56-191A
6 Left
w/o ABS NA01-56-181A
7
Sensor, Inner Air Bag
NA01-57-K40D
Illustration Located in Next Column
8
Module, Driver Air Bag
NA01-57-K00E-00
9
Module, Pass Air Bag
94 NAY5-57-K7X-00
10
Control Unit, Diagnosis
1990-93 NA01-67-7F0A
1994 GA2A-67-7F0A
11
Bracket, Control Unit
R NA05-67-9A1B
L NA06-67-9A1B
12
Power Unit, Back-Up
90-93 NA01-67-7G0A
Clockspring¶-See Steering Wheel/Column Section
¶Serviced w/Combination Switch
MAZDA MIATA 1990-97
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629. 223
madpl1_g01_
Page 223—April 22, 2004—13:33:45—Version Manufacturer
1995-97
1
Sensor Assy, Air Bag¶
N034-57-K30B
¶Add'l Parts &/or Dealer Contact Required
2
Sensor, Air Bag¶
N034-57-K30B
3
Bracket, Sensor¶
N034-57-KX0A
¶Included w/Air Bag Sensor Assy
4
Module, Driver Air Bag
NB11-57-K00-00
5
Module, Passenger Air Bag
NB29-57-K7X-00
6
Clockspring¶ (a)
1997 NB17-66-CS0A
¶1995-96-Serviced w/Combination Switch Assy-See Steering
Wheel/Column Section
(a) Included w/Combination Switch Assy
ABS/BRAKES
Illustration Located in Next Column
1
Hydraulic Unit, ABS
90-94 NA23-43-7A0C
95 NA13-43-7A0A
96-97 NA13-43-7A0B
2
Brkt, Hydraulic Unit
90-94 NA23-43-310B
95-97 NB13-43-310A
3
Bracket, Upper
95-97 NB13-43-321A
4
Control Unit, ABS¶
90-94 NA17-67-650A
95-97 N036-67-650
5
Bracket, ABS Control Unit
1990-94¶-Serviced w/ABS Control Unit
1995-97 NB13-67-B4X
¶Included w/ABS Control Unit
6
Sensor, ABS Front
R NA23-43-70XE
L NA23-43-73XE
7
Sensor, ABS Rear
R NA23-43-71YB
L NA23-43-72YB
WHEEL
STEEL WHEEL
1
Wheel
14x5-1/2JJ" 9965-B9-5540
2
Cap Assy, Center
90-93 B455-37-190
94-96 NA53-37-190
97 B455-37-191
3
Emblem¶
90-92 B001-37-192
93-96 GA7C-37-192
97 N.A.
¶Included w/Center Cap Assy
4
Stem, Valve
9963-60-4130
5
Nut, Lug
w/Chrome B002-37-160A
w/o Chrome 0603-26-161A
ALUMINUM WHEEL
Wheel
1 14x5-1/2" (7 Spoke) 90-91 8BN1-37-600
93 8BN5-37-600
2 14x6" BBS 92-93 8BN4-37-600
94 9965-09-6040
95-97 9965-C3-6050
3 14x6" 7 Spoke
Silver 94-97 9965-13-6040
Polished 94-97 9965-19-6040
4 15x6" 5 Spoke 95-97 9965-E8-6050
5
Cap, Center
14x5-1/2" (7 Spoke) 90-92 NA01-37-190A
93 NA52-37-190A
Cap, Center (BBS Wheel)
6 Cap Set M011-37-190
7 Emblem¶ M011-37-192
¶Included w/Cap Set
8
Cap, Center (Spoke Wheels)
EA02-37-192
9
Stem, Valve
9963-60-4130
10
Nut, Lug
w/Chrome B002-37-160A
w/o Chrome 0603-26-161A
SPARE WHEEL
1
Wheel
14x4T" 90-93 9965-15-4040
94-96 9965-18-4040
97 N.A.
2
Stem, Valve
9963-60-4130

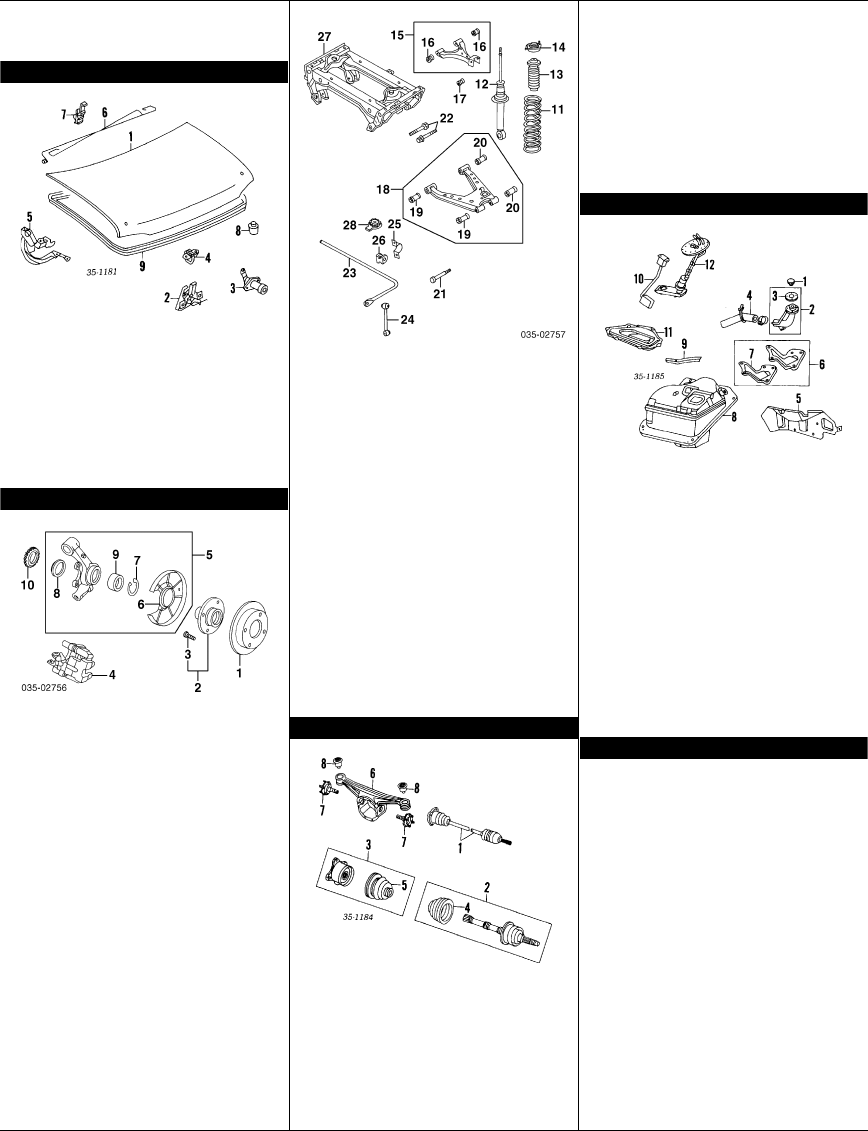

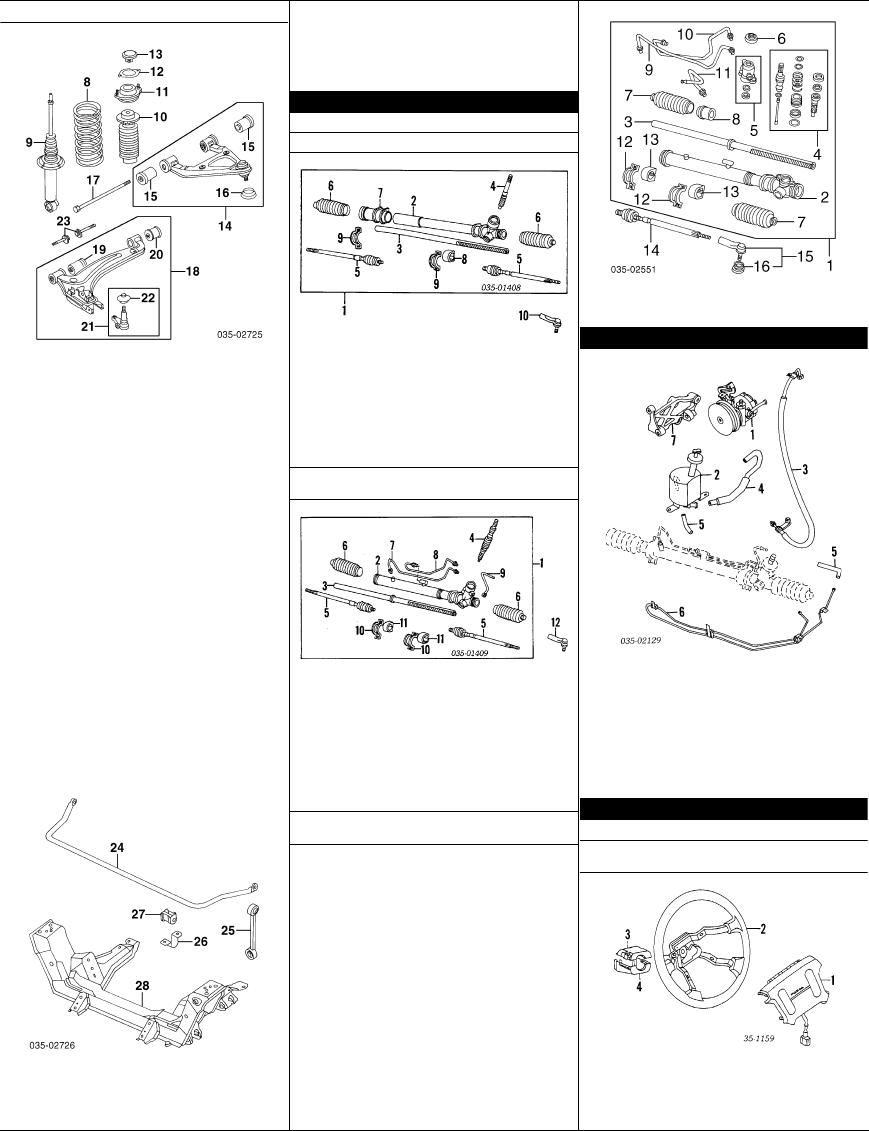

FRONT SUSPENSION
1
Rotor, Brake
90-93 R/L B25Y-33-25XB
94-97 R/L N026-33-25XC
2
Hub Assy
w/ABS 90-93 R/L NA23-33-04XA
94-97 R/L NA23-33-04XA
w/o ABS R/L NA01-33-04X
3
Bolt, Hub¶ (4/Side)
R/L B455-33-062
4
Ring, ABS Sensor¶
R/L NA23-33-471B
¶Included w/Hub Assy
Sensor, ABS-See Anti-Lock Brake System Section
5
Caliper, Brake
1990-93
w/ABS R NAY0-33-98ZR
L NAY0-33-99ZR
w/o ABS R N001-33-980
L NAY0-33-99ZR
1994-96 R NAY5-33-98ZR
L NAY5-33-99ZR
1997 R NAY5-33-98ZR
L NAY5-33-99ZR
Hose, Brake
90-93 R NA01-43-810B
L NA01-43-820B
94-97 R NA75-43-810A
L NA75-43-820A
6
Knuckle Assy
w/ABS 90-94 R NA23-33-021A
L NA23-33-031A
95-97 R NA23-33-021B
L NA23-33-031B
w/o ABS 90-94 R NA01-33-021A
L NA01-33-031A
95-97 R NA01-33-021B
L NA01-33-031B
7
Shield, Splash
1990-93¶
w/ABS R NA23-33-261
L NA23-33-271
w/o ABS R NA01-33-261
L NA01-33-271
1994-97 R NA75-33-261
L NA75-33-271
¶Included w/Knuckle Assy
Illustration Located in Next Column
8
Spring, Coil
Man Trans 90-93 R/L NA01-34-011A
94-97 R/L NA03-34-011
Auto Trans 90-93 R/L NA03-34-011
94-97 R/L NA81-34-011
9
Strut
1990-93
w/ABS R/L NA23-34-700B
w/o ABS R/L NA01-34-700
1994
w/ABS R/L NA53-34-700B
w/o ABS R/L N018-34-700B
1995-97
w/Sport Pkg R/L N023-34-700D
MAZDA MIATA 1990-97
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
224 madpl1_g01_
Page 224—April 22, 2004—13:33:46—Version Manufacturer
FRONT SUSPENSION Cont’d
w/o Sport Pkg
w/ABS R/L NA53-34-700B
w/o ABS R/L N018-34-700B
10
Stopper, Bumper
90-93 R/L NA01-28-111
94-97 R/L N021-34-111
11
Rubber, Mounting
R/L NA01-28-380B
12
Seat, Spring
R/L G030-28-013A
13
Cap, Strut
R/L NA01-34-019
14
Arm Assy, Upper Control
w/ABS R NA23-34-200A
L NA23-34-250A
w/o ABS R/L NA01-34-200A
15
Bushing, Upper Control Arm¶
Front/Rear (2/Side) R/L NA01-34-480A
16
Seal, Dust¶
R/L NA01-34-548
¶Included w/Upper Control Arm Assy
17
Bolt, Upper Arm
R/L NA01-34-112
18
Arm Assy, Lower Control
1990-94 R N066-34-310
L N066-34-360
1995-96
w/ABS
To 10-94 R N066-34-310
L N066-34-360
From 10-94 R N066-34-310
L N066-34-360
w/o ABS R N066-34-310
L N066-34-360
1997 R N066-34-310
L N066-34-360
Bushing, Lower Arm¶
19 Front R/L NA01-34-460A
20 Rear R/L NA01-34-490
21
Ball Joint Assy, Lower¶
R/L NA01-34-550B
22
Seal, Dust¶ (a)
R/L H266-28-448
¶Included w/Lower Control Arm Assy
(a) Included w/Lower Ball Joint Assy
23
Bolt, Adjust (2/Side)
1990-93 R/L NA80-28-66ZD
1994-96
To 11-94¶ R/L NAY9-28-6AZ
From 11-94 R/L NA75-34-4A04
1997 R/L NA80-28-66ZD
¶Add'l Parts &/or Dealer Contact Required
24
Bar, Stabilizer
1990-93 NA01-34-151A
1994 NA80-34-151
1995-97
w/Sport Pkg NA75-34-151
w/o Sport Pkg NA80-34-151
25
Link, Stab Bar
R/L NA01-34-170
26
Bracket, Stab Bar
R/L FB01-34-155
27
Bushing, Stab Bar
w/Sport Pkg R/L NA75-34-156
w/o Sport Pkg R/L NA01-34-156A
28
Crossmember, Susp
NA01-34-800E
FRONT STEERING LINKAGE/GEAR
MANUAL
1
Gear Assy
NA01-32-110
2
Housing, Gear¶
NA01-32-120
3
Rack, Gear¶
NA01-32-119
4
Pinion¶
NA01-32-122
5
Rod, Tie¶
R/L NA01-32-240
6
Boot, Outer¶
R/L NA01-32-12X
7
Mount, Rubber¶
NA01-32-123
8
Bushing, Mounting¶
NA01-32-124
9
Bracket, Mounting¶
R BC51-32-133
L NA01-32-134
¶Included w/Gear Assy
10
End, Tie Rod
R/L 8AN1-32-280
POWER
1990-95
1
Gear Assy
NA02-32-110R-00
2
Housing, Gear¶
NA02-32-120
3
Rack, Gear¶
NA02-32-119
4
Pinion¶
NA02-32-380
5
Rod, Tie¶
R/L NA02-32-240
6
Boot, Outer¶
R NA02-32-125
L NA02-32-135
7
Pipe, Upper Fluid¶
NA02-32-481
8
Pipe, Lower Fluid¶
NA02-32-482
9
Pipe, Fluid Return¶
NA02-32-452
10
Bracket, Mounting¶
R/L NA02-32-134-3
11
Bushing, Mount¶
R/L NA02-32-124-3
¶Included w/Gear Assy
12
End, Tie Rod
R/L 8AN1-32-280
POWER
1996-97
Illustration Located in Next Column
1
Gear Assy
96 NB38-32-110R-0B
97 NB38-32-110R-0B
2
Housing, Gear¶
NB38-32-120
3
Rack, Gear¶
NB38-32-119
4
Pinion¶
NB38-32-380
5
Seal, Shaft¶
NB38-32-126
6
Cover, Lever¶
NB38-32-112
7
Boot, Outer¶
R/L NB38-32-125
8
Holder, Strg Gear¶
NB38-32-154
9
Pipe, Upper Fluid¶
NB38-32-450
10
Pipe, Lower Fluid¶
NB39-32-450
11
Pipe, Fluid Return¶
96 NA02-32-452
97 NB38-32-480
12
Bracket, Mounting¶
96 R/L NA02-32-134-3
97 R NA02-32-134
L NB38-32-133
13
Bushing, Mount¶
R/L NA02-32-124-3
¶Included w/Gear Assy
14
Rod, Tie
R/L NA02-32-240
15
End Assy, Tie Rod
R/L 8AN1-32-280
16
Seal, Dust¶
R/L B455-32-279
¶Included w/Tie Rod End Assy
STEERING PUMP
1
Pump, Steering
N002-32-600R-0F
2
Reservoir, Fluid
90-96 NA02-32-690A
97 NB11-32-690
Belt, Drive
1990-93 BPE8-15-909A
1994-97
w/ A/C BPE8-15-909A
w/o A/C B61P-15-907A
3
Hose, Pressure
NA02-32-490C
4
Hose, Return
NA02-32-684B
5
Hose, Cooler Inlet/Outlet
NA02-32-682
6
Pipe, Strg Return/Cooler
NA02-32-410A
7
Bracket, Pump
NA02-32-680

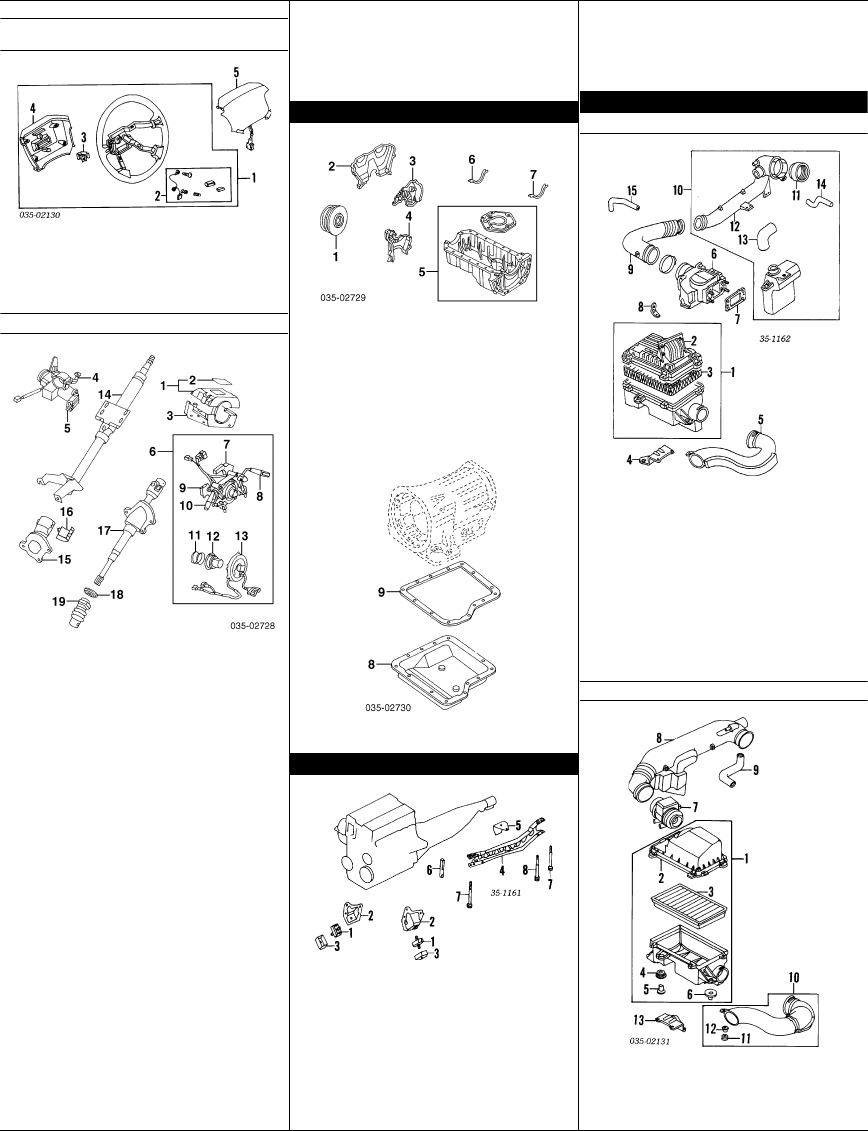

STEERING WHEEL/COLUMN
WHEEL & TRIM
1990-93
1
Module, Air Bag-See Air Bag System Section
Pad, Center
B461-32-800A
2
Wheel, Steering
Urethane NA01-32-980D
Leather NA02-32-980D
3
Cover, Column Upper
NA01-60-220-00
MAZDA MIATA 1990-97
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629. 225
madpl1_g01_
Page 225—April 22, 2004—13:33:48—Version Manufacturer
4
Cover, Column Lower
NA01-60-230A-00
WHEEL & TRIM
1994-97
1
Wheel Assy, Steering
Urethane Wrap Wheel NA01-32-980D
Leather Wrapped Wheel NA02-32-980D
2
Parts Kit, Wheel¶
NA01-32-750
3
Bracket, Coupler¶
NA01-32-019
4
Cover, Wheel Front¶
NA01-32-049
¶Included w/Steering Wheel Assy
5
Module, Air Bag-See Air Bag System Section
COLUMN
1
Cover Assy, Column Upper
NA01-60-220-00
2
Cap, Upper Cover¶
NA01-60-223-00
¶Included w/Column Upper Cover Assy
3
Cover, Column Lower
NA01-60-230A-00
4
Lock Assy, Ignition
Man Trans 90-94 NA01-76-290F
95 NA75-76-290C
96-97 NA75-76-290C
Auto Trans 90-94 N022-76-290C
95 NA81-76-290C
96-97 NA81-76-290C
5
Switch, Ignition¶
D001-66-151A
¶Included w/Ignition Lock Assy
6
Switch Assy, Combination
1990-96
w/Air Bag
w/Cruise Control NB18-66-120A
w/o Cruise Control NB17-66-120A
w/o Air Bag
Base Model NA08-66-120C
1997
w/Cruise Control NB18-66-120A
w/o Cruise Control NB17-66-120A
7
Switch, Wiper¶
97 NA02-66-135
8
Lever, Wiper¶
w/Cruise Control 97 NA02-66-128
w/o Cruise Control 97 NA01-66-128
9
Switch, Dimmer¶
97 NA02-66-136
10
Switch, Headlamp¶
97 NA02-66-122
11
Spring, Cancel Cam¶
97 H384-66-121
12
Cam, Cancel¶
97 NA02-66-126
13
Clockspring¶-See Air Bag System Section
¶Included w/Combination Switch Assy
14
Shaft
1990-93
w/Air Bag NA01-32-100B
w/o Air Bag NA07-32-100B
1994-96 NA75-32-100A
1997 NA75-32-100A
15
Cover, Joint
90-93 NA01-32-AZ1B
94-97 NA75-32-AZ1
16
Cover, Joint Lower
1990-96
USA-Serviced w/Joint Cover
Canada N.A.
1997 NA01-32-AZ1B
17
Shaft, Intermediate
1990-93
Man Strg NA01-32-090B
Pwr Strg NA02-32-090B
1994-97
Man Strg NA01-32-090D
Pwr Strg NA02-32-090D
18
Grommet
NA01-32-217
19
Joint, Steering
90-93 NA01-32-850
94-96 NA01-32-850B
97 NA01-32-850B
ENGINE/TRANS
1
Pulley, Crankshaft
1990-93
To Eng 209446 B6S7-11-401A
From Eng 209446 B6S8-11-401
1994-97 BPD3-11-401A
2
Cover, Upr Front Timing
B61P-10-510
3
Cover, Upr Ctr Timing
B660-10-521B
4
Cover, Lwr Ctr Timing
B660-10-501E
5
Pan, Eng Oil
90-93 B6Y0-10-400D
94-97 BPY0-10-400D
6
Seal, Front Eng Pan
B6F4-10-427
7
Seal, Rear Eng Pan
B6F4-10-428
Sealant, Eng Oil Pan
8527-77-739
8
Pan, Trans Oil
BV02-19-836
9
Gasket, Trans Oil Pan
BT28-19-835
ENGINE MOUNTS
1
Mount, Engine
R/L NA01-39-040A
2
Bracket, Mount
90-93 R NA01-39-020
L NA01-39-030
94-97 R NA75-39-021
L NA75-39-030
3
Casing, Stopper
90-96 R/L NA01-39-041B
97 R/L NA01-39-041B
4
Support, Trans
1990-93
Man Trans NC10-39-710B
Auto Trans NC13-39-710A
1994-97
To 10-94
Man Trans NC10-39-710B
Auto Trans NA81-39-710A
From 10-94
Man Trans NC10-39-710B
Auto Trans NC13-39-710A
5
Bracket, Support
Man Trans NA01-39-730A
6
Spacer, Bolt
NA01-39-723
7
Bolt, Outer Support (3)
NA01-39-721A
8
Bolt, Inner Support (1)
NA01-39-722
AIR CLEANER
1990-93
1
Cleaner Assy, Air
B61P-13-320A
2
Cover, Air Cleaner¶
B61P-13-Z01
3
Element, Cleaner¶
B6S7-13-Z40-9U
¶Included w/Air Cleaner Assy
4
Brkt, Air Cleaner Mtg
B61P-20-211
5
Duct, Air
B61P-13-200C
6
Meter, Air Flow
B6S7-13-210R-0A
7
Gasket, Meter
B6S7-13-211A
8
Brkt, Mtg Air Flow Meter
B61P-13-311B
9
Hose, Air Flow Meter
B61P-13-221B
10
Resonator Assy
Man Trans B61P-13-330E
Auto Trans B64J-13-330
11
Joint, Rubber¶
B61P-13-245
12
Pipe, Air Intake-Serviced w/Resonator Assy
13
Hose, Resonator¶
B61P-13-206A
14
Hose, Air Intake Pipe¶
B61R-13-765
¶Included w/Resonator Assy
15
Hose, Ventilation
B61P-13-742C
1994-97
1
Cleaner Assy, Air
BPE8-13-320
2
Cover, Air Cleaner¶
BPE8-13-Z01
3
Element, Cleaner¶
B6S7-13-Z40-9U
4
Bushing, Mounting¶ (3)
FE51-13-363
5
Spacer, Mounting¶ (3)
FE51-13-329
6
Mount, Rubber¶
B61P-13-Z66
MAZDA MIATA 1990-97
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
226 madpl1_g01_
Page 226—April 22, 2004—13:33:50—Version Manufacturer
AIR CLEANER Cont’d
1994-97 Cont’d
¶Included w/Air Cleaner Assy
7
Meter, Air Flow
B6BF-13-215
8
Pipe, Air Intake
BPE8-13-331B
9
Hose, Breather
BPE8-13-765A
10
Duct Assy, Fresh Air
BPE8-13-200
11
Bushing, Duct¶
S501-13-349
12
Spacer, Duct¶
SLA1-13-321
¶Included w/Fresh Air Duct Assy
13
Bracket, Cleaner
B61P-20-211

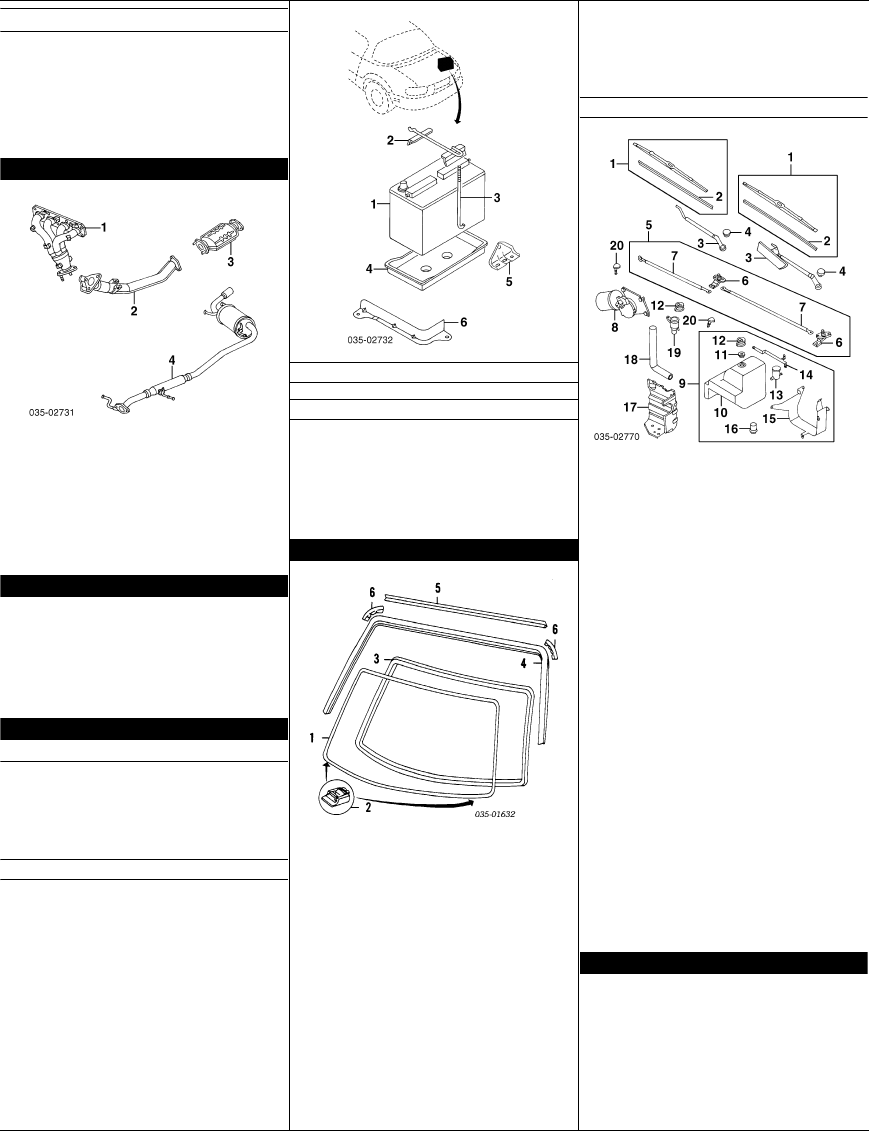

EXHAUST
1
Manifold, Exhaust
90-93 B61P-13-450B
94-97 BPE8-13-450
2
Pipe, Exhaust
90-93 B690-40-500B
94-97 BP56-40-500B
3
Converter, Catalytic
90-93 B6Y4-20-600A
94-95 BPE8-20-600
96-97 BPS1-20-600
4
Muffler
Man Trans 90-93 BP55-40-100D
94-95 BP55-40-100D
96-97 BPA5-40-100B
Auto Trans 90-93 B6B4-40-100F
94-95 BP59-40-100D
96-97 BPA6-40-100B
EMISSION SYSTEM
Valve, Three Way
90 FE65-18-741A
91-93 JE16-18-741
94-97 FS05-18-741
Canister, Vapor
90-93 F286-13-970A
94-97 JE16-13-970A
Brkt, Canister Mtg
B61P-13-960A
Valve, Air
1990-93
Man Trans B61P-13-190A
Auto Trans B64J-13-190
1994-97 B6BF-20-660
ELECTRICAL
ALTERNATOR
Alternator¶
Man Trans 90-93 B61P-18-300R-00
94-97 BPE8-18-300R-00
Auto Trans 90-93 B64J-18-300R-00
94-97 BPE9-18-300R-00
¶Remanufactured Part. Contact Dealer for Core Charge & Exchange
Information
Belt, Drive
90-93 B6S7-18-381B-9U
94-97 B6BF-18-381-9U
BATTERY
Illustration Located in Next Column
1
Battery
B6AC-18-520
2
Clamp, Battery
Std Duty NA01-56-03XA
Hvy Duty 8871-56-030A
3
Bolt, Battery Clamp
Std Duty 0259-54-292A
Hvy Duty W001-38-518A
4
Tray, Battery
Std Duty B095-56-032
Hvy Duty BG62-56-032A
5
Brkt, Battery Clamp
NA01-56-032B
6
Brkt, Battery Tray
NA01-56-033B
HORN
Horn
SA59-66-790A
IGNITION
Module, Main Computer
1990-93
Man Trans B61P-18-881R
Auto Trans B64J-18-881R
1994 ZPC2-18-881R
1995 ZPC1-18-881R
1996 BPS1-18-881R-0B
1997 BP3A-18-881R-0B
Coil & Igniter
90-93 B61P-18-10XC
94-95 BPE8-18-10XA
96-97 BPE8-18-10XC
WINDSHIELD
1
Glass Assy, Windshield
Mazda (Tint) 90-95 NC11-63-900A
96 NB38-63-900A
97 NC11-63-900A
2
Spacer, Glass
90-93 R/L GJ21-50-891
94-97 R/L EA01-50-891A
3
Dam, Windshield
1990-94 NA01-50-894A
1995-96
Type 1 NA01-50-894A
Type 2 GA7B-50-899
1997 NA01-50-894A
4
Moulding, Reveal
NA01-50-601A
5
Fastener, Moulding
NA01-50-6B1
6
Protector, Moulding
R/L NA01-50-6B2
Moulding, Inside Garnish
Upper NA01-68-090E
Side R NA01-68-160-00
L NA01-68-170-00
Mirror Assy, Rear View
90-95 NA01-69-220A
96-97 HG82-69-220A
Base, Mirror Mtg
1990-95¶ NA01-69-240
1996-97 (a) BC1C-69-240
¶Included w/Rear View Mirror Assy
(a) Included w/Windshield Glass Assy
Cover, Mirror Base
GJ21-69-225-00
Visor, Sun
w/Air Bag 90-93 R NA01-69-270B-02
L NA01-69-320D-02
94 R NA01-69-270B-02
L NA75-69-320-02
95-96 R NB12-69-270A-02
L NB11-69-320B-02
97 R NB12-69-270A-02
L NB11-69-320B-02
w/o Air Bag R NA01-69-270B-02
L NA75-69-320-02
WIPER SYSTEM
1
Blade Assy, Wiper
R NC11-67-330-9U
L BM95-67-330B
2
Insert, Blade¶
R/L D040-67-333-9U
¶Included w/Wiper Blade Assy
3
Arm, Wiper
R NA02-67-321
L NA01-67-321
4
Cap, Arm
R/L LA01-67-395C
5
Link Assy, Wiper
NA01-67-360B
6
Pivot, Wiper Shaft¶
R/L NA01-67-363-4
7
Link, Pivot Drive¶
R NA01-67-361A
L NA01-67-362
¶Included w/Wiper Link Assy
8
Motor, Wiper
Std Duty NA01-67-340E
Hvy Duty (Cold Climate Spec) NA95-67-340B
9
Tank Assy, Fluid
w/ABS NA17-67-4T0A
w/o ABS
2.2 Liter Capacity NA01-67-480B
4.5 Liter Capacity NA04-67-480B
10
Tank, Fluid¶
w/ABS NA17-67-4T1
w/o ABS
2.2 Liter Capacity NA01-67-481
4.5 Liter Capacity NA04-67-481
11
Grommet, Tank¶
B002-51-814
12
Cap, Tank
w/ABS GJ21-67-483
w/o ABS¶ UB39-51-815
13
Pump, Washer¶
w/ABS LA01-67-482
w/o ABS S084-76-672
14
Brkt, Tank Mtg Upr¶
w/ABS NA18-67-521
15
Brkt, Tank Mtg Lwr
w/ABS¶ NA17-67-521
w/o ABS
2.2 Liter Capacity¶ NA01-67-520
4.5 Liter Capacity NA04-67-520
16
Switch, Level¶
w/ABS NA17-67-488
¶Included w/Fluid Tank Assy
17
Cover, Tank
w/ABS NA20-56-181A
18
Tube, Filler
w/ABS NA17-67-4C1
19
Neck, Filler
w/ABS NA17-67-4C2
20
Nozzle, Washer
R/L DB02-67-510

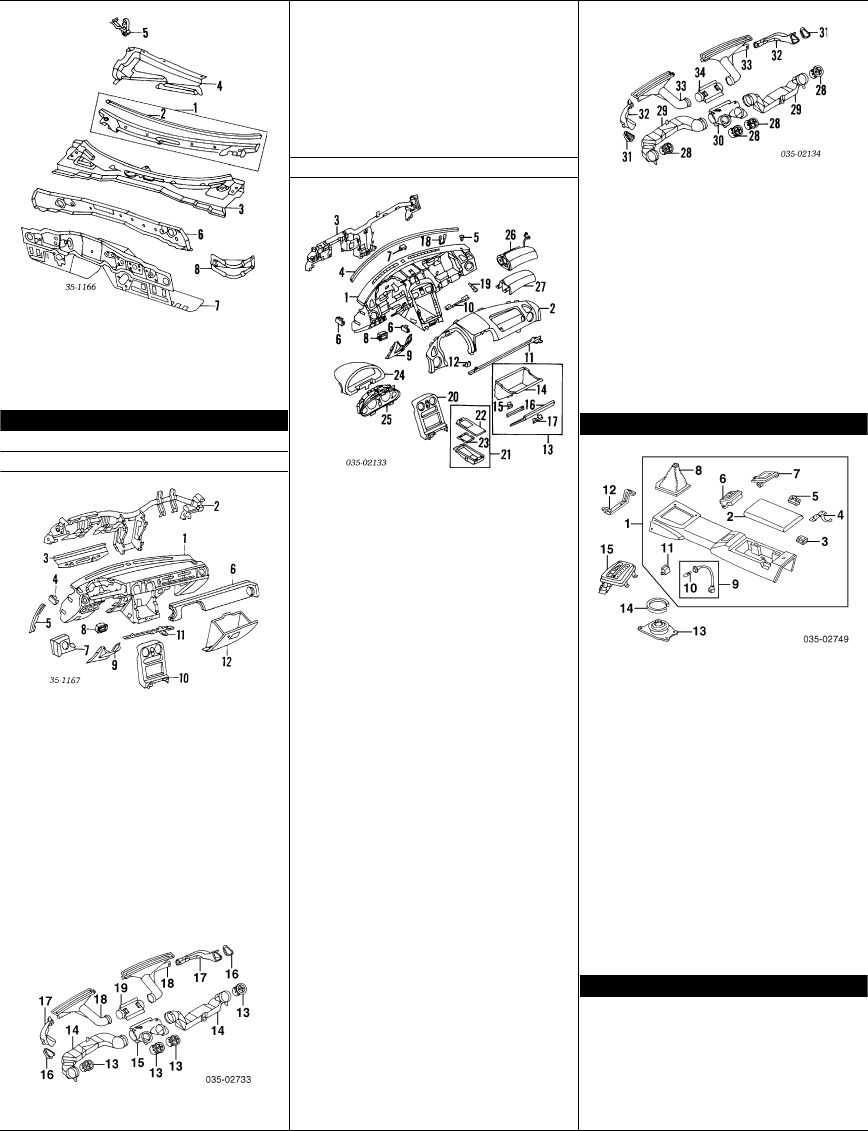

COWL & DASH
Illustration Located in Next Column
1
Grille Assy, Cowl Top
NA01-50-790E
2
Moulding, Grille¶
NA01-50-792A
¶Included w/Cowl Top Grille Assy
3
Panel, Cowl Top
90-93 NA01-53-510E
94-96 NA75-53-510
97 NA75-53-510C
4
Cover, Cowl Panel
NA01-56-35X
MAZDA MIATA 1990-97
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629. 227
madpl1_g01_
Page 227—April 22, 2004—13:33:51—Version Manufacturer
5
Clip, Hood Support
H260-56-724
6
Panel, Upper Dash
90 NA01-70-62YA
91-97 NA01-70-62YD
7
Panel, Lower Dash
NA01-54-400J
Insulator, Dash
90 NA01-68-631A
91-93 NA01-68-631C
94-97 NA01-68-631D
8
Joint, Dash Panel
R/L NA01-54-480B
INSTRUMENT PANEL
1990-93
1
Panel, Instrument
Black/Black NA01-60-401D-00
Black/Tan NA02-60-401-88
2
Frame
NA01-60-420E
3
Bracket, Instrument Panel
NA01-60-462A
4
Cover, Hole (6)
NA01-64-912A-00
5
Cover, Side-Not Serviced
6
Pad, Safety
Black NA01-60-350-00
Tan NA01-60-350-88
7
Extension, Safety Pad
Black NA01-60-35X-00
Tan NA01-60-35X-88
8
Box, Panel
NA01-55-241A-00
9
Cover, Strg Column
Black NA01-64-270E-00
Tan NA01-64-270E-88
10
Cover, Center
NA01-55-210B-00
11
Bracket, Center
NA01-60-430C
Brkt, Safety Pad
NA01-60-435
12
Glove Box
Black NA01-64-030E-00
Tan NA01-64-030E-88
13
Nozzle, Vent (4)
N001-64-81X-00
14
Duct, Front Outer
R NA01-64-741
L NA01-64-841
15
Duct, Front Center
NA01-61-161A
16
Grille, Side Defrost
90-91 R NA01-60-161-00
L NA01-60-171-00
92-93 R N002-60-161-00
L N002-60-171-00
17
Duct, Side Defrost
R NA01-60-183
L NA01-60-193
18
Nozzle, Defrost
R NA01-60-121A
L NA01-60-141
19
Connector, Defrost
NA01-61-253
Radio¶
AM-FM 0000-81-9445-HB
AM-FM-Cassette 0000-81-5092
¶Order by Application
1994-97
1
Panel, Instrument
Black 94-96 NA75-60-401G-00
97 NA75-60-401G-00
Black/Tan NA75-60-401G-88
2
Pad, Impact
NA75-60-350B-00
3
Support, Panel
94-96 NA75-60-420B
97 NB38-60-420A
4
Strip, Panel Front
NA75-60-353
5
Clip, Trim (4)
W201-68-AA5A-00
Plug, Bolt-Hole
6 Side (6)
Black NA01-64-912A-00
Tan NA01-64-912A-88
7 Center NA01-64-905A-00
8
Cover, Panel (3)
NA01-55-241A-00
9
Panel, Under-Column
Black NA75-64-270C-00
Tan 94-96 NA75-64-270C-88
97 NA75-64-270C-88
10
Bracket, Pad
NA01-60-463
11
Reinf, Pad
94 NA01-60-430E
95-97 NA01-60-430E
12
Bracket, Reinf Inner
NA01-60-435
13
Glove Box Assy
Black 94-96 NA75-64-030D-00
97 NA75-64-030D-00
Tan 94-96 NA75-64-030F-88
97 NA75-64-030F-88
14
Box, Glove¶
NA75-64-161C-00
15
Hinge, Box¶ (2)
NA75-64-03XA
16
Lid, Box Outer¶
Black 94-96 NA75-64-041C-00
97 NA75-64-041C-00
Tan 94-96 NA75-64-041C-88
97 NA75-64-041C-88
17
Lock, Glove Box¶
Black 94-96 BC1D-64-090C-02
97 BC5E-64-090E-00
Tan 94-96 BC1D-64-090-88
97 BC5E-64-090E-67
¶Included w/Glove Box Assy
18
Striker, Glove Box
BC1D-64-101
19
Bumper, Door (2)
B092-64-046
20
Panel, Center
w/CD Player NA75-55-210A-00
w/o CD Player NB38-55-210A-00
21
Ashtray Assy
94-96 NA01-64-617-00
97 NA01-64-610B-00
22
Holder, Ashtray¶
NA01-64-623-00
23
Lid, Ashtray¶
NA01-64-617-00
¶Included w/Ashtray Assy
24
Hood, Instrument
Black Panel NA75-55-420B-00
Tan Panel NA79-55-420B-00
25
Meter, Instrument
1994-96 NA75-55-430A
1997
USA
Type A NB13-55-430B
Type B NB39-55-430
Canada N.A.
26
Module, Passenger Air Bag
-See Air Bag System Section
27
Cover
w/o Air Bag (Canada) N.A.
28
Nozzle, Vent (4)
N001-64-81X-00
29
Duct, Front Outer
R NA75-64-741
L NA75-64-841
30
Duct, Front Center
NA75-61-161A
31
Grille, Side Defrost
Black Panel R NA75-60-160A-00
L NA75-60-170A-00
Tan Panel R NA79-60-160A-00
L NA79-60-170A-00
32
Duct, Side Defrost
R NA75-60-183
L NA75-60-193
33
Nozzle, Defrost
94-96 R NA75-60-121
L NA01-60-141
97 R NA75-60-121B
L NA01-60-141
34
Connector, Defrost
NA01-61-253
Radio Unit¶
AM-FM-Cassette (a) 94-96 0000-81-191A-M5
97 0000-81-6690
AM-FM-Cassette-CD 94-96 NA54-66-9W0
97 NB41-66-9C0
¶Order by Application
(a) Add'l Parts &/or Dealer Contact Required
CENTER CONSOLE
1
Console Assy (b)
Man Trans
Man Windows N007-64-410D-00
Pwr Windows N008-64-410D-00
Auto Trans
Man Windows NA03-64-410E-00
Pwr Windows NA06-64-410F-00
(b) Order by Application
2
Lid, Console¶
NA01-64-450B-00
3
Lock, Lid¶
FB01-64-430
4
Stopper, Lid¶
NA01-64-452-00
5
Hinge, Lid¶ (2)
NA01-64-45XA-00
6
Switch, Power Window¶ (a)
NA01-66-350A-00
(a) Order by Application
7
Box, Coin¶
NA01-64-437-00
8
Boot, Shift¶
Man Trans NA01-64-331-00
9
Bulb & Socket Assy¶
Man Trans NA01-55-280
Auto Trans NA06-55-280
10
Bulb¶ (a)
0000-11-0074
(a) Included w/Bulb/Socket Assy
11
Case, Lamp¶
NA01-64-414
¶Included w/Console Assy
12
Bracket, Mounting
NA01-64-416
13
Insulator, Shift Boot
Man Trans NA01-64-481B
14
Gasket, Boot
Man Trans H001-64-493
15
Indicator, Shift
Auto Trans NA81-64-350C

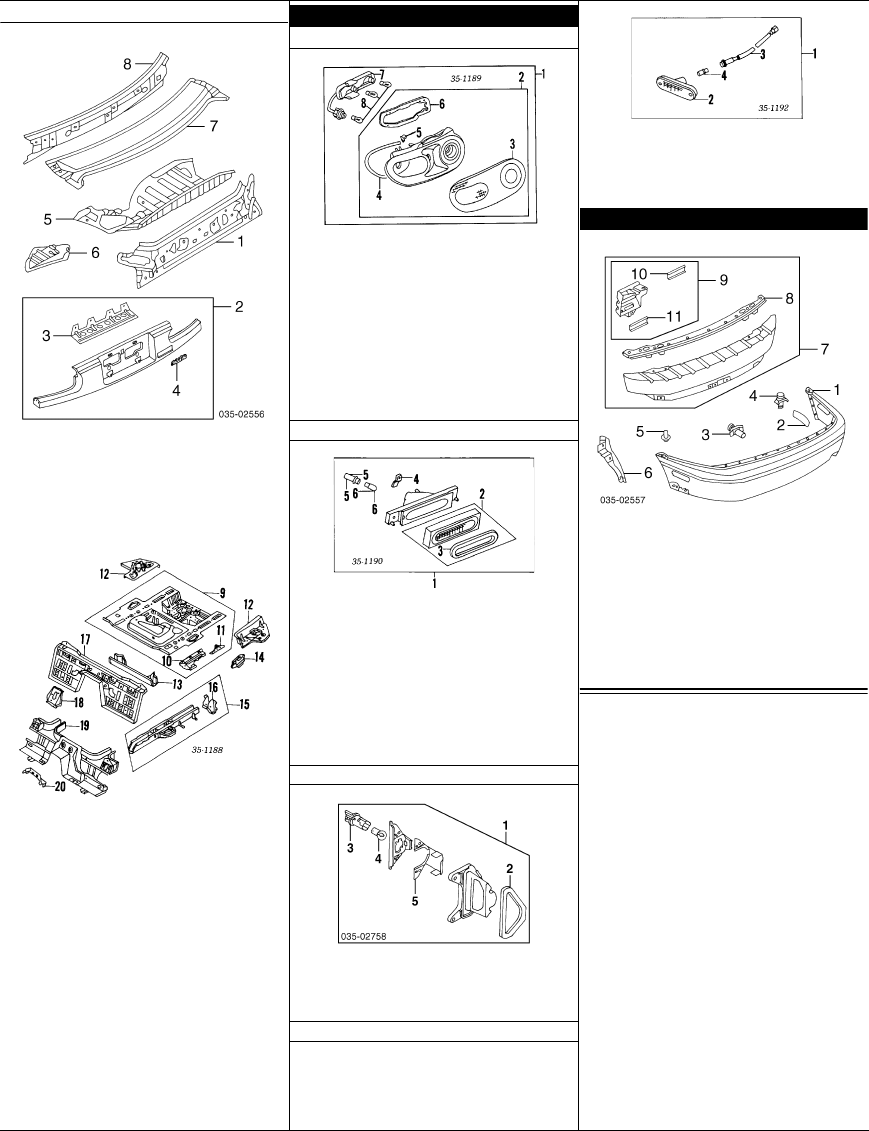

ROCKER/PILLARS/FLOOR
Illustration Located in Next Column
1
Panel, Cowl Side
Inner R NA01-70-020B
L NA01-71-020B
Panel, Cowl Trim
Black 90-93 R NA01-68-370-00
MAZDA MIATA 1990-97
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
228 madpl1_g01_
Page 228—April 22, 2004—13:33:53—Version Manufacturer
ROCKER/PILLARS/FLOOR Cont’d
L NA01-68-390-00
94-97 R NA75-68-370-00
L NA01-68-390-00
Tan 90-93 R NA01-68-370-88
L NA01-68-390-88
94-97 R NA75-68-370-88
L NA01-68-390-88
Pillar, Lower Hinge
2 Outer R NA01-70-280B
L NA01-71-280C
3 Inner R NA01-70-230C
L NA01-71-230C
Pillar, Upper Hinge
4 Outer R NA01-70-210
L NA01-71-210
5 Inner R NA01-70-240D
L NA01-71-240D
6
Header, Front Upper
NA01-70-650
7
Header, Front Lower
90-95 NA01-70-640
96-97 NB38-70-640A
8
Bracket, Inst Panel
R NA01-70-071A
L NA01-71-071A
9
Panel, Rocker Outer
R NA01-70-270B
L NA01-71-270B
10
Reinf, Rocker Panel
R NA01-70-275
L NA01-71-275
11
Gusset, Front Rocker
R NA01-70-274
L NA01-71-274
12
Panel, Front Rocker
Inner 90-93 R NA01-53-960D
L NA01-54-96XC
94-96 R NA75-53-960
L NA01-54-96XC
97 R NA01-53-960D
L NA01-54-96XC
Panel, Inner Rocker
13 Center 90-93 R/L N067-54-971A
94 R/L N067-54-971A
95-97 R/L N067-54-971A
14 Rear R NA01-53-980E
L N067-54-95ZA
Plate, Scuff
Plastic R NA01-68-711-00
L NA01-68-721-00
Stainless Steel 90-96 R NA02-68-710A
L NA02-68-720B
97 R NA02-68-710A
L NA02-68-720B
15
Pan Assy, Front Floor
90-95 NA01-53-600B
96-97 NB38-53-600A
16
Pan, Floor Side¶
90-96 R NA01-53-602B
L NA01-54-610C
97 R NA01-53-602B
L NA01-54-610C
17
Crossmember¶
90-96 R NA01-53-650
L NA01-54-650
97 R NA01-53-650A
L NA01-54-650A
18
Bracket, Seat¶
90-96 R NA01-53-670
L NA01-54-670A
97 R NA01-53-670A
L NA01-54-670A
¶Included w/Front Floor Pan Assy
19
Extension, Floor Side
R/L N053-53-660A
20
Brkt, Floor Front
R NA01-53-482
L NA01-54-482
21
Gusset, Floor Rear
R NA01-53-725A
L NA01-54-725A
SEAT
1
Adjuster, Seat Track Inr
90-96 R NA01-88-103A
L NA01-88-152A
97 R NA75-88-103
L NA01-88-152A
2
Adjuster, Seat Track Otr
R NA01-88-102A
L NA01-88-153A
3
Recliner, Seat
R NA01-88-101C
L NA01-88-151C
4
Knob, Recliner
Black R NA01-88-034-00
L NA01-88-084-00
Tan R NA01-88-034-88
L NA01-88-084-88
5
Cover, Upper Recliner
Black R NA01-88-036-00
L NA01-88-086-00
Tan R NA01-88-036-88
L NA01-88-086-88
6
Cover, Lower Recliner
Black R NA01-88-031A-00
L NA01-88-081A-00
Tan R NA01-88-031-88
L NA01-88-081A-00
7
Speaker, Radio (a) (b)
R/L 0000-81-024A-01
(a) Located in Headrest
(b) Order by Application
SEAT BELTS
1
Belt, Retractor Side Seat
w/Air Bag
Black 90-93 R NA82-57-630-00
L NA01-57-690C-00
94-95 R NA75-57-630D-00
L NA76-57-630E-00
96-97 R NA75-57-630G-00
L NB38-57-630A-00
Tan 90-93 R NA82-57-630E-88
L NA01-57-690B-88
94-95 R NA75-57-630D-88
L NA76-57-630E-88
96-97 R NA75-57-630G-88
L NB38-57-630A-88
w/o Air Bag
Black R NA82-57-630-00
L NA07-57-690A-00
Tan R NA82-57-630E-88
L NA07-57-690-88
2
Belt, Buckle Side Seat
90-93 R NA01-57-620B-00
L NA01-57-680B-00
94-97 R NA75-57-620-00
L NA75-57-680A-00
3
Cover, Anchor
R/L N026-57-631-00

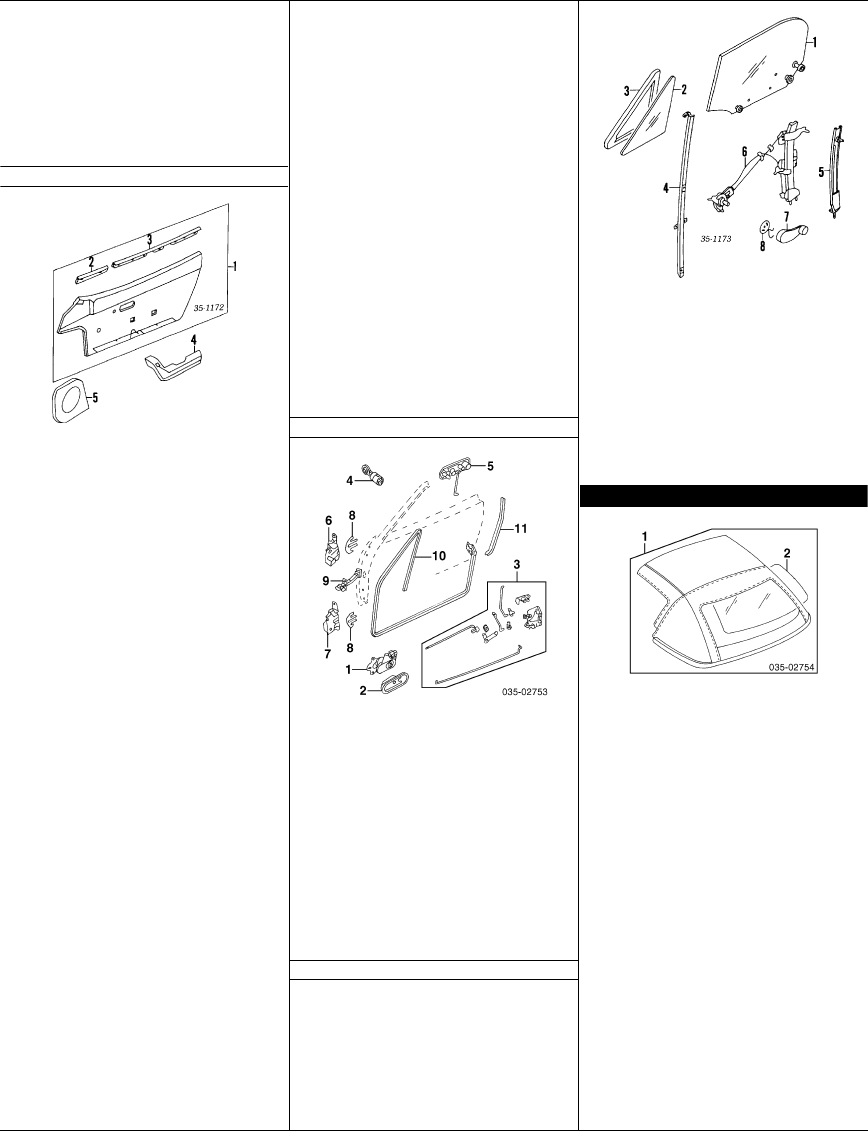

FRONT DOOR
SHEET METAL
1
Shell Assy, Door (HSLA)
R NAY4-58-02XB
L NAY4-59-02XB
2
Panel, Door Repair¶
90-93 R NA01-58-030C
L NA01-59-030C
94-97 R NA52-58-030A
L NA52-59-030A
¶Included w/Door Shell Assy
EXTERIOR TRIM
1
W/Strip, Belt Outer
R NA01-58-810E
L NA01-59-810E
2
Mirror, Rear View
1990-94
Black R NA05-69-120A-PZ
L NA05-69-180A-PZ
Blue R NA05-69-120-DU
L NA05-69-180A-DU
Green R NA05-69-120-HU
L NA05-69-180A-HU
Red R NA05-69-120A-SU
L NA05-69-180A-SU
Silver R NA05-69-120A-3L
L NA05-69-180-3L
White R NA05-69-120A-UC
L NA05-69-180A-UC
Yellow R NA05-69-120A-HZ
L NA05-69-180-HZ
1995-97
Manual
To 2-95
Brilliant Black R NA05-69-120A-PZ
L NA05-69-180A-PZ
Chaste White R NA05-69-120C-PT
L NA05-69-180C-PT
Classic Red R NA05-69-120C-SU
L NA05-69-180C-SU
Laguna Blue R NA05-69-120C-6W
L NA05-69-180C-6W
Neo Green R NA05-69-120B-HU
L NA05-69-180B-HU
From 2-95
Artvin Red R NA05-69-120C-18
L NA05-69-180C-18
Brilliant Black R NA05-69-120C-PZ
L NA05-69-180C-PZ
Chaste White R NA05-69-120C-PT
L NA05-69-180C-PT
Classic Red R NA05-69-120C-SU
L NA05-69-180C-SU
Laguna Blue R NA05-69-120C-6W
L NA05-69-180C-6W
Montego Blue R NA05-69-120C-M8
L NA05-69-180C-M8
Neo Green R NA05-69-120C-HU
L NA05-69-180C-HU
Satellite Blue R NA05-69-120C-A5
L NA05-69-180C-A5
Pwr Remote
MAZDA MIATA 1990-97
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629. 229
madpl1_g01_
Page 229—April 22, 2004—13:33:55—Version Manufacturer
Artvin Red R NA52-69-120C-18
L NA52-69-180C-18
Brilliant Black R NA52-69-120C-PZ
L NA52-69-180C-PZ
Chaste White R NA52-69-120C-PT
L NA52-69-180C-PT
Classic Red R NA52-69-120C-SU
L NA52-69-180C-SU
Laguna Blue R NA52-69-120C-6W
L NA52-69-180C-6W
Montego Blue R NA52-69-120C-M8
L NA52-69-180C-M8
Neo Green R NA52-69-120C-HU
L NA52-69-180C-HU
Satellite Blue R NA52-69-120C-A5
L NA52-69-180C-A5
INTERIOR TRIM
1
Panel Assy, Trim
1990-93
Man Windows
Black R NA01-68-420C-00
L NA01-68-450C-00
Black/Tan R NA01-68-420C-88
L NA01-68-450C-88
Pwr Windows
Black R N019-68-420A-00
L N019-68-450A-00
Black/Tan R N019-68-420A-88
L N019-68-450A-88
1994
Pwr Windows
w/Sensory Sound
Plastic Kickplate
Black R N031-68-420C-00
L N031-68-450B-00
Tan R N031-68-420B-88
L N031-68-450B-88
Stainless Steel Kickplate
Black R N021-68-420C-00
L N021-68-450C-00
Tan R N021-68-420C-00
L N021-68-450E-88
w/o Sensory Sound
Plastic Kickplate
Black R N030-68-420D-00
L N030-68-450D-00
Tan R N030-68-420C-88
L N030-68-450B-88
Stainless Steel Kickplate
Black R N026-68-420B-00
L N026-68-450C-00
Tan R N026-68-420B-88
L N026-68-450B-88
Man Windows
w/Sensory Sound
Black R N029-68-420B-00
L N029-68-450B-00
Tan R N029-68-420B-88
L N029-68-450B-88
w/o Sensory Sound
Black R N028-68-420C-00
L N028-68-450C-00
Tan R N028-68-420B-88
L N028-68-450B-88
1995-96¶
Man Windows
w/Sensory Sound R N036-68-420A-00
L N036-68-450A-00
w/o Sensory Sound R N028-68-420C-00
L N028-68-450C-00
Pwr Windows
w/Sensory Sound R N035-68-420A-00
L N035-68-450A-00
w/o Sensory Sound R N034-68-420-00
L N034-68-450-00
1997
Man Windows
w/CD Player R NB86-68-420-00
L NB86-68-450-00
w/o CD Player R NB84-68-420-00
L NB84-68-450-00
Pwr Windows
w/CD Player
Black R NB87-68-420-00
L NB87-68-450-00
Tan R NB87-68-420D-80
L NB87-68-450D-80
w/o CD Player
Black R NB85-68-420-00
L NB85-68-450D-00
Tan R NB85-68-420-80
L NB85-68-450-80
¶Order by Application
2
W/Strip, Front Inner Belt¶
R/L NA02-58-821
3
W/Strip, Rear Inner Belt¶
R/L NA01-58-821A
¶Included w/Trim Panel Assy
4
Armrest/Grip
1990-93
Black R BF70-69-370C-00
L BF70-69-390C-00
Tan R BF70-69-370C-88
L BF70-69-390C-88
1994-95 R N026-69-D70-00
L N026-69-D90-00
1996-97
Black R BF70-69-370C-00
L BF70-69-390C-00
Tan R BF70-69-370C-88
L BF70-69-390C-88
5
Grille, Speaker
1990-93
Black R NA01-68-4H0-00
L NA01-68-4W0-00
Tan R NA01-68-4H0-88
L NA01-68-4W0-88
1994-96¶ R N020-68-4E6
L N020-68-4V6
1997
Man Windows R/L A004-68-5H0-00
Pwr Windows
w/CD Player R/L BR72-68-3S0A-60
w/o CD Player R/L A004-68-5H0-00
¶Order by Application
Speaker, Radio
1990-93 R/L 0000-81-084A-01
1994-96 R/L 0000-81-7501
1997 R/L NB42-66-960
HARDWARE
1
Handle, Inside
90-96 R NA01-58-330A-00
L NA01-59-330C-00
97 R NA01-58-330C-00
L NA01-59-330C-00
2
Cover, Inside Handle
R/L NA01-58-303-00
3
Latch, Door
R NA01-58-310B
L NA01-59-310B
Striker, Door-See Quarter Panel Section
4
Cylinder Kit, Lock
90-94 R NA01-76-210E
L N001-76-220E
95 R N001-76-210E
L N001-76-220E
96-97 R N001-76-210E
L N001-76-220E
5
Handle, Outside
R NA01-58-410D
L NA01-59-410D
6
Hinge, Upper
R B156-59-240
L B156-58-240
7
Hinge, Lower
R B156-58-240
L B156-59-240
8
Shim, Hinge (2/Side)
R/L B092-58-201A
9
Check, Door
R/L NA01-58-270B
10
Weatherstrip, Door
R NA01-58-760J
L NA01-59-760J
11
Welt, Seam
R/L NA01-68-911-00
GLASS & PARTS
Illustration Located in Next Column
1
Glass, Front Door
Mazda (Tint) 90-96 R NA01-58-510
L NB39-59-510
97 R NB39-58-510
L NB39-59-510
2
Glass, Vent
Mazda (Tint) 90-96 R NB39-58-661A
L NA01-59-661
97 R NB39-58-661A
L NB39-59-661A
3
W/Strip, Vent Glass
R NA01-58-651B
L NA01-59-651B
4
Channel, Division
R NA01-58-604B
L NA01-59-604B
5
Guide, Glass
R NA01-58-603D
L NA01-59-603D
6
Regulator, Window
Manual R NA01-58-560J
L NA01-59-560J
Power R NA02-58-560L
L NA02-59-560L
Motor, Regulator-Serviced w/Pwr Window Regulator
7
Handle, Regulator
90-93 R/L B092-58-580-00
94-97 R/L S084-58-580A-00
8
Escutcheon, Handle
R/L B001-58-582A-00

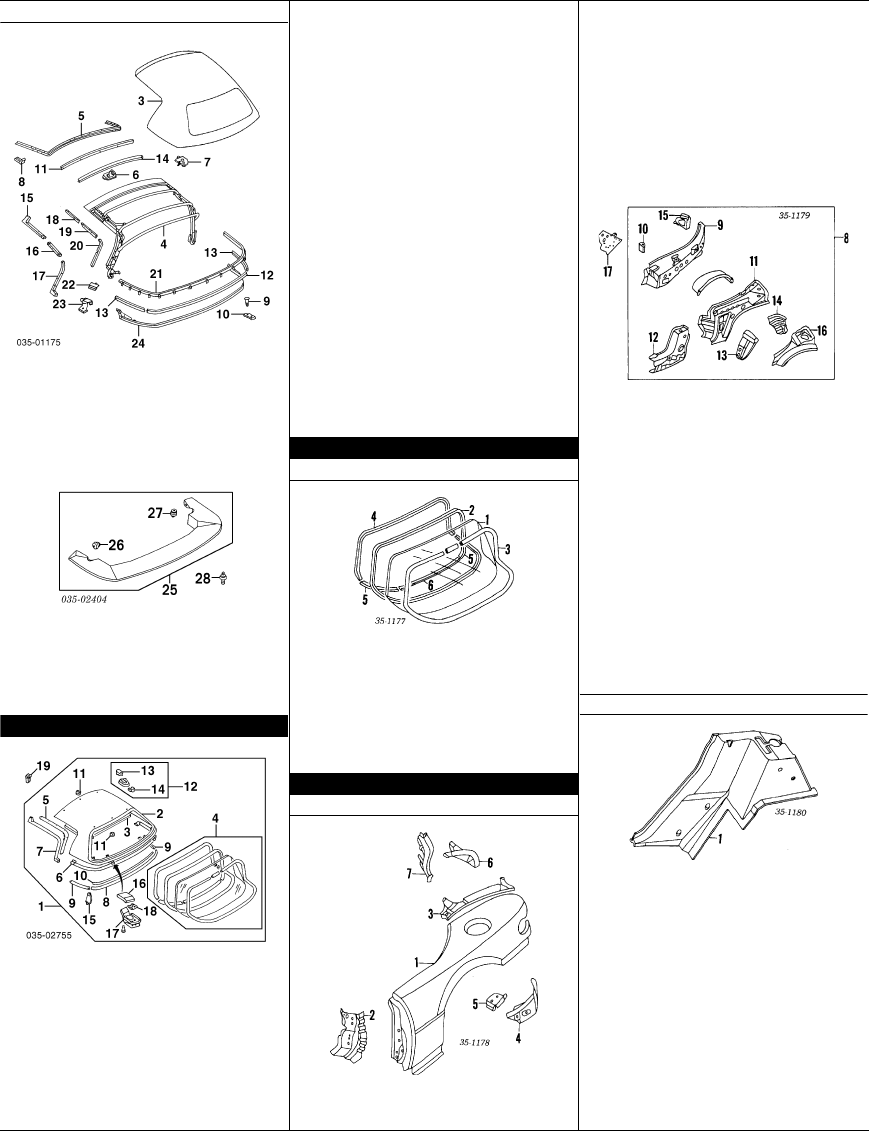

CONVERTIBLE TOP
1
Cover Assy, Top Outer
Black NA01-R1-210M
Blue N.A.
Tan NA02-R1-210F
2
Window, Back¶
Black NAY1-R1-240G
Blue N0Y5-R1-240A
Tan NAY2-R1-240D
¶Included w/Top Outer Cover Assy
Cloth, Repair Top
Black NAY1-R1-211
Blue N0Y5-R1-211
Tan NAY2-R1-211
Illustration Located in Next Column
3
Cover, Top Inner
NA01-R1-96XD
4
Frame, Cover
NA01-R1-100E
5
Weatherstrip, Header
NA01-R1-711B
6
Handle, Top
NA01-R1-331
7
Latch, Top
R NA01-R1-310L
L NA01-R1-320L
8
Striker, Latch
R NA01-R1-361H
L NA01-R1-371H
9
Hook, Upper Pin
R/L NA01-R1-38XB
10
Base, Pin Hook
R/L FB67-R1-91YC
11
Plate Set, Front
NA01-R1-291A
12
Plate Set, Rear Center
NA01-R1-581D
13
Plate Set, Rear Outer
R NA01-R1-582B
L NA01-R1-592B
14
Welt, Seam
NA01-R1-281
15
W/Strip, Frame Front
R NA01-R1-461
L NA01-R1-471
16
W/Strip, Frame Center
R NA01-R1-462
L NA01-R1-472
17
W/Strip, Frame Rear
R NA01-R1-463
L NA01-R1-473
Retainer, Weatherstrip
18 Front R NA01-R1-411C
MAZDA MIATA 1990-97
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
230 madpl1_g01_
Page 230—April 22, 2004—13:33:56—Version Manufacturer
CONVERTIBLE TOP Cont’d
L NA01-R1-421C
19 Center R NA01-R1-412C
L NA01-R1-422C
20 Rear R NA01-R1-413C
L NA01-R1-423C
21
Moulding, Belt
NA01-R1-750E
22
Protector, Moulding
R NA01-R1-741B
L NA01-R1-742C
23
Cover, Belt
R NC10-R1-780G
L NC10-R1-790G
24
Rail, Drip
NC20-R1-560
25
Boot Assy
Black NA01-R1-960H-66
Tan NA01-R1-960H-88
26
Hook, Corner¶ (2/Side)
R/L B235-R1-953
27
Hook, Top Boot¶ (7)
Black NA01-R1-96Z-00
Silver NA01-R1-96Z-75
¶Included w/Boot Assy
28
Hook, Inner
R/L FB67-R1-91YC
HARDTOP
1
Panel Assy, Top
1990-93
Body Color¶ NAY3-R1-81X-98
Primered (P)
Black Interior NAY3-R1-81X-95
Tan Interior NAY3-R1-81X-98
1994-95
USA (P) NAY3-R1-81X-95
Canada N.A.
1996-97¶ NB40-R1-810-PZ
A5 Satellite Blue; HU Neo Green; M8 Montego Blue;
PT Chaste White; PZ Brilliant Black; SU Classic Red;
18 Artvin Red; 3L Silver Stone; 6W Laguna Blue
(P) Paint to Match
2
Shell, Top Panel¶
1990
Primered (P) NA02-R1-82XA
Blue¶ NA06-R1-810-DU
White¶ NAY3-R1-81X-98
1991-97 (a) NA06-R1-82X-PZ
(P) Paint to Match
¶Add'l Parts &/or Dealer Contact Required
A5 Satellite Blue; HU Neo Green; M8 Montego Blue;
PT Chaste White; PZ Brilliant Black; SU Classic Red;
18 Artvin Red; 3L Silver Stone; 6W Laguna Blue
(a) Brilliant Black listed, Order by Application
3
Headliner¶
N007-68-031-00
4
Glass, Back Window¶
-See Back Window Section
5
Retainer, Side W/Strip¶
RNA01-R1-882
LNA01-R1-892
6
W/Strip, Top Rear¶
NA01-R1-89XB
7
W/Strip, Top Side¶
RNA01-R1-881B
LNA01-R1-891B
Moulding, Belt¶
8 Center 90-93 NA01-R1-935B
94-97 NA01-R1-935B
9 Side (a) 90-93 R NA01-R1-936A
LNA01-R1-946A
94-97 R NA01-R1-936A
LNA01-R1-946A
(a) Included w/Center Belt Moulding
10
Tape, Edge Protector¶
NAY1-R1-937
11
Cover, Hole¶ (6)
G030-55-225-00
12
Latch Assy, Top Front¶
RNA01-R1-310L
LNA01-R1-320L
13
Cap, Latch¶ (a)
R/L NA01-R1-311
14
Pad, Cap¶ (a)
R/L NA01-R1-313B
(a) Included w/Top Front Latch Assy
15
Latch, Top Rear¶
R/L NA02-R1-310G
16
Cover, Latch¶
RNA01-R1-861
LNA01-R1-871
17
Cushion, Latch¶
RNA01-R1-864
LNA01-R1-874
18
Plate, Latch¶
R/L NA01-R1-863
¶Included w/Top Panel Assy
19
Striker, Latch
RNA02-R1-361D
LNA02-R1-371D
BACK WINDOW
HARDTOP
1
Glass, Back Window¶
Mazda (Tint)
Heated N007-63-931
Non-Heated 90-95 NA01-63-931C
96-97 NB40-63-931
2
Dam, Glass¶
NA01-63-895
3
Moulding Assy, Reveal¶
NAY1-63-930
Cover, Joint¶ (a)
NA01-63-934
(a) Included w/Reveal Moulding Assy
4
Protector, Glass Upper¶ (2)
NA01-63-936A
5
Protector, Glass Side¶
R/L NA01-63-936A
6
Protector, Glass Lower¶
NA01-63-936A
¶Included w/Top Panel Assy-listed in Hardtop Section
QUARTER PANEL
SHEET METAL
1
Panel, Quarter
R NAY1-70-400B
L NAY1-71-400B
Door, Fuel
NA01-42-410B
Antenna Assy, Manual
1990-93 0000-81-1005
1994-95 0000-81-2005
1996-97 0000-81-856A
Mast, Man Antenna¶
90-95 0000-81-005A
96-97 0000-81-904C
¶Included w/Manual Antenna Assy
Antenna, Power
0000-81-9300
Striker, Door
R/L B001-58-361A
2
Reinf, Door Striker
R NA01-70-460
L NA01-71-460
3
Rail, Drip Rear
R NA01-70-440A
L NA01-71-440A
4
Panel, Lower Rear
L NA01-71-421
5
Brkt, Left Lower Panel
NA01-71-453
6
Gusset, Rear
R NA01-70-445
L NA01-71-445
7
Housing, Lamp
R NA01-70-J30
L NA01-71-J30
8
Panel Assy, Inner
90-93 R NA01-70-100L
L NA01-71-100G
94-97 R NA75-70-100
L NA75-71-100
9
Panel, Inner¶
R NA01-70-19XF
L NA01-71-19XF
10
Bracket, Inner Panel¶
R/L NA01-71-192
11
Reinf, Belt Line¶
R NA01-70-116D
L NA01-71-116F
12
Plate, Joint¶
Lower Front R NA01-70-12XA
L NA01-71-12XA
13
Plate, Seal¶
R NA01-70-11Z
L NA01-71-11Z
14
Protector, Rear¶
Splash Shield R NA01-70-15X
L NA01-71-15XA
15
Bracket, Battery¶
NA01-70-17XA
16
Panel, Strut¶
R NA01-70-111C
L NA01-71-11XB
¶Included w/Inner Panel Assy
Shield, Splash
R NA01-56-311D
L NA01-56-321D
17
Plate, Closing
90-93 R N067-70-670
L NA01-71-670
94-97 R N067-70-670
L NA01-71-670C
Panel Assy, Bulkhead
NA01-56-39YA
Insulator, Bulkhead¶
NA01-68-6N1
¶Included w/Bulkhead Panel Assy
INTERIOR TRIM
1
Panel, Quarter Trim
1990-93
Soft Top
Black R NA01-68-520A-00
L NA01-68-550A-00
Tan R NA01-68-520A-88
L NA01-68-550A-88
Hardtop
Black R NA02-68-520A-00
L NA02-68-550A-00
Tan R NA02-68-520A-88
L NA02-68-550A-88
1994-97
Soft Top
Black R NA75-68-520-00
L NA75-68-550-00
Tan R NA75-68-520A-88
L NA75-68-550-88
Hardtop
Black R NA76-68-520-00
L NA76-68-550-00
Tan R NA76-68-520-88
L NA76-68-550-88
Trim, Package Tray
1990-95
MAZDA MIATA 1990-97
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629. 231
madpl1_g01_
Page 231—April 22, 2004—13:33:58—Version Manufacturer
Black NA01-68-3F1F-00
Tan NA01-68-3F1F-88
1996-97
Black NB38-68-3F1C-02
Tan NB38-68-3F1C-88
LUGGAGE LID
1
Lid, Luggage
NAY1-52-610E
2
Latch
90-93 N007-56-820
94-95 N007-56-820
96-97 NB38-56-820
3
Cylinder & Key
90-95 NA14-76-230F
96-97 NA14-76-230F
4
Striker, Latch
NA01-56-840
5
Hinge
R NA01-52-710C
L NA01-52-720B
6
Bar, Torsion
R NA01-52-791B
L NA01-52-792B
7
Holder, Torsion Bar
NA01-56-805
8
Cushion, Rubber
90-93 R/L B092-62-877
94-97 R/L B481-56-786
9
Weatherstrip, Lid
NA01-56-951
Lamp, High Mount Stop-See Rear Lamps Section
REAR SUSPENSION
1
Rotor, Brake
90-93 R/L NA01-26-251D
94-97 R/L BB4C-26-251C
2
Hub Assy
R/L B01A-33-060A
3
Bolt, Lug¶ (4/Side)
R/L B01Y-33-062
¶Included w/Hub Assy
4
Caliper, Brake
90-93 R NAY1-26-98ZR
L NAY1-26-99ZR
94-96 R NAY5-26-98ZR
L NAY5-26-99ZR
97 R NAY5-26-98ZR
L NAY5-26-99ZR
5
Knuckle Assy
w/ABS 90-93 R NA23-26-130A
L NA23-26-140A
94-97 R NA80-26-130
L NA80-26-140
w/o ABS 90-93 R NA01-26-130B
L NA01-26-140B
94-97 R NA80-26-130
L NA80-26-140
6
Shield, Splash¶
90-93 R/L NA01-26-261A
94-97 R/L B530-26-261B
7
Ring, Retaining¶
R/L B21M-33-048
8
Seal, Grease¶
R/L G304-33-065
9
Bearing, Knuckle¶
R/L B455-33-047D-MV
¶Included w/Knuckle Assy
Sensor, ABS-See Anti-Lock Brake System Section
10
Ring, ABS Sensor
R/L B603-33-471
Hose, Brake
90-93 R NA01-43-980A
L NA01-43-990A
94-97 R NA75-43-980A
L NA75-43-990A
Illustration Located in Next Column
11
Spring, Coil
w/Sport Pkg R/L N021-28-011
w/o Sport Pkg
Man Trans R/L NA01-28-011C
Auto Trans R/L NA03-28-011A
12
Strut
1990-93 R/L NA01-28-700
1994 R/L N018-28-700B
1995-97
w/Sport Pkg R/L N023-28-700B
w/o Sport Pkg R/L N018-28-700B
13
Stopper, Bumper
w/Sport Pkg R/L N021-34-111
w/o Sport Pkg R/L NA01-28-111
14
Insulator, Mount
R/L NA01-28-380B
15
Arm Assy, Upper
R/L NC10-28-C10
16
Bushing, Rubber¶ (2/Side)
R/L NA01-28-8C0C
¶Included w/Upper Arm Assy
17
Bushing, Upper Arm
R/L NA01-28-8C0C
18
Arm Assy, Lower
R NC10-28-310
L NC10-28-360
19
Bushing, Arm Front¶
R NA01-28-460
L NA01-28-4D0
20
Bushing, Arm Rear¶
R NA01-28-460
L NA01-28-4B0
¶Included w/Lower Arm Assy
21
Bolt, Lower Arm Outer
R/L NA01-28-113
22
Bolt, Lower Arm
Inner-Adjust (2/Side) 90-96 R/L NA80-28-66ZD
97 R/L NA80-28-66ZD
23
Bar, Stabilizer
90-93 NA01-28-151A
94-97 N023-28-151A
24
Link, Stab Bar
R/L NA01-34-170
25
Bracket, Stab Bar
R/L FB01-28-155
26
Bushing, Bar
90-93 R/L FB01-28-156
94-97 R/L N023-28-156
27
Crossmember, Suspension
NA75-28-800C
28
Washer, Crossmember
R/L NA01-28-880C
REAR DRIVE AXLE
1
Shaft Assy, Axle
w/ABS
1990-93 R/L M091-25-500R-00
1994-97
To 2-95 R/L MD21-25-500
From 2-95 R/L MD21-25-500
w/o ABS
1990-93 R/L M090-25-500R-00
1994-97
To 2-95 R/L MD03-25-500
From 2-95 R/L MD21-25-500
2
Joint Assy, Outer¶
w/ABS 90-93 R/L M091-22-510
94-97 R/L MD03-22-510B
w/o ABS 90-93 R/L M090-22-510
94-97 R/L MD02-22-510A
3
Joint Assy, Inner¶
90-93 R/L M090-22-520
94-97 R/L MD02-22-520B
4
Boot Set, Outer¶ (a)
R/L M090-22-530-9U
(a) Included w/Outer Joint Assy
5
Boot Assy, Inner¶ (b)
R/L M090-22-540-9U
¶Included w/Axle Shaft Assy
(b) Included w/Inner Joint Assy
6
Case, Differential
90-93 T020-27-600G
94-97 MA02-27-600A
7
Shaft, Output
1990-93
Standard R/L TA01-27-270
LSD R T015-27-270A
L T015-27-280A
1994-95 R/L M055-27-270C
8
Insulator, Differential Case
R/L NA01-28-890
FUEL TANK
1
Cap, Filler
90-95 NA02-42-250
96-97 NB38-42-250
2
Pipe Assy, Fuel Fill
NA01-42-210A
3
Gasket, Filler Pipe¶
0866-42-366B
¶Included w/Fuel Fill Pipe Assy
4
Hose, Filler
90 NA01-42-241
91-97 NA01-42-241C
5
Protector, Filler Pipe¶
To 1-95 NB44-42-290
From 1-95 NB44-42-290
¶Located Inside Luggage Compartment
6
Cover Assy, Dust
90-93 NA01-42-230
94-97 NA75-42-240
7
Gasket, Dust Cover¶
NA01-42-233
¶Included w/Dust Cover Assy
8
Tank, Fuel
1990-93
Man Trans NA01-42-110C
Auto Trans NA03-42-110B
1994-97 NA75-42-110
9
Pad, Fuel Tank
NA01-42-762
10
Gauge, Fuel
90-93 NA01-60-960
94-97 NA75-60-960A
11
Cover, Fuel Gauge
90-93 NA01-56-260
12
Pump, Fuel Electric
90-93 B61P-13-350B
94 BPE8-13-350
95-97 BPE8-13-35Z
REAR BODY
Illustration Located in Next Column
1
Panel, Rear Body
Lower NA01-70-750G
2
Panel Assy, Finish
1990-93
Brilliant Black NA01-50-8P0A-PZ
Classic Red NA01-50-8P0A-6W
Crystal White NA01-50-8P0A-UC
Mariner Blue NA01-50-8P0A-DU
Neo Green NA01-50-8P0A-HU
Silver Stone NA01-50-8P0A-3L
Sunburst Yellow NA01-50-8P0A-3L
1994
Brilliant Black NA01-50-8P0A-PZ
Chaste White NA01-50-8P0A-PT
Classic Red NA01-50-8P0A-SU
Laguna Blue NA01-50-8P0A-6W
Montego Blue NA01-50-8P0A-M8
1995-97
Artvin Red NA01-50-8P0A-18
Brilliant Black NA01-50-8P0A-PZ
Chaste White NA01-50-8P0A-PT
Classic Red NA01-50-8P0A-SU
Excellent Green NA01-50-8P0-46
Laguna Blue NA01-50-8P0A-6W
Montego Blue NA01-50-8P0A-M8
Neo Green NA01-50-8P0A-HU
Satellite Blue NA01-50-8P0A-A5
Silver Stone NA01-50-8P0A-3L
Sunburst Yellow NA01-50-8P0-NZ
MAZDA MIATA 1990-97
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
232 madpl1_g01_
Page 232—April 22, 2004—13:33:59—Version Manufacturer
REAR BODY Cont’d
3
Reinf, Finish Panel
1990-93¶ NA01-50-852
1994-97-Serviced w/Finish Panel Assy
4
Nameplate
"MAZDA"¶ NA01-51-711
"Miata Mazda MX-5" NA01-51-721A
¶Included w/Finish Panel Assy
5
Panel, Bulkhead
NA01-70-51Y
6
Cover, Bulkhead Panel
NA01-56-971
7
Panel, Rear Upper Body
NA01-70-521B
8
Member, Rear Deck
NA01-70-530D
9
Pan Assy, Rear Floor
90 NA01-53-710B
91-97 NA01-53-710B
10
Plate, Side Front¶
R NA01-53-750
L NA01-54-750B
11
Plate, Side Rear¶
R/L NA01-53-760B
¶Included w/Rear Floor Pan Assy
12
Extension Assy, Rear Floor
R NA01-53-740C
L NA01-54-740A
Bracket, Jack¶
B455-53-750C
¶Included w/Left Rear Floor Extension Assy
13
Crossmember, Rear Floor
NA01-53-931
14
Hook, Tie-Down
R NA01-56-29XC
L NA01-56-290C
15
Rail Assy, Rear
R NA01-53-810J
L NA01-54-810J
16
Bracket, Bumper¶
R NA01-53-830C
L NA01-54-830C
¶Included w/Rear Rail Assy
17
Pan, Center Floor
90-93 NA01-53-720
94-97 NA75-53-720
18
Gusset, Center Floor
90-93 NA01-53-880
94-97 NA01-53-880A
19
Xmbr, Center Floor
90-93 NA01-53-900B
94-97 NA75-53-900A
20
Brkt, Brake Cable
NA01-53-819
REAR LAMPS
COMBINATION LAMP
1
Lamp Assy, Combination
R 8BN1-51-150
L 8BN1-51-160
2
Lens & Body Assy¶
R NA01-51-170B
L NA01-51-180B
3
Lens¶ (a)
R NA01-51-15XC
L NA01-51-16XC
4
Protector, Body¶ (a)
R NA01-51-159
L NA01-51-169
5
End, Protector¶ (a)
R NA01-51-173
L NA01-51-183
6
Gasket, Body¶ (a)
R/L NA01-51-158
(a) Included w/Lens & Body Assy
7
Socket & Wire¶
R N001-51-155A
L N001-51-165A
8
Bulb¶
Back-Up/Signal (2/Side) R/L 0000-11-1156
Stop/Tail R/L 0000-11-1157
¶Included w/Lamp Assy
HIGH MOUNT STOP LAMP
1
Lamp Assy¶
90-96 NA01-51-580B
97 NA12-51-580C
¶Located on Luggage Lid
2
Lens Assy
1990-96 (a) NA01-51-58XA
1997-Serviced w/Lamp Assy
3
Gasket, Lens (a) (b)
NA01-51-592B
(b) Included w/Lens Assy
4
Fastener
1990-96 (a) NA01-51-599
1997-Serviced w/Lamp Assy
5
Socket (a)
90-96 BJ38-51-584
97 NA12-51-584
6
Bulb (a)
90-96 0000-11-0921
97 9970-13-210
(a) Included w/Lamp Assy
LICENSE LAMP
1
Lamp Assy
R/L 8BF1-51-270
2
Gasket, Mtg¶
R/L FB67-51-273
3
Socket & Wire¶
R/L FB67-51-272
4
Bulb¶
R/L 0000-11-0089
5
Shade, Lamp¶
R/L FB67-51-276
¶Included w/Lamp Assy
SIDE MARKER LAMP
Illustration Located in Next Column
1
Lamp Assy
R 8BN1-51-550
L 8BN1-51-560
2
Lens & Body¶
R NA01-51-5H1C
L NA01-51-5J1C
3
Socket & Wire¶
R NA01-51-5H2A
L NA01-51-5J2A
4
Bulb¶
R/L 0000-11-0194
¶Included w/Lamp Assy
REAR BUMPER
1
Cover, Rear (P)
NAY1-50-220A-8J
(P) Paint to Match
2
Seal, Cover Side
R/L NA01-50-0G8
3
Retainer, Cover (5)
BF82-50-233
4
Fastener, Cover (11)
BF67-50-033
5
Slide, Bumper
R/L GJ21-50-032
6
Shield, Splash
R NA01-50-2S4
L NA01-50-2S5
7
Reinforcement Assy
NA01-50-260
8
Retainer, Reinf¶
NA01-50-2J0
9
Stay Assy, Support¶
R NA01-50-280A
L NA01-50-290A
10
Plate Set¶ (a)
R/L NA01-50-28YC
11
Plate Set¶ (a)
R/L NA01-50-28XC
¶Included w/Reinforcement Assy
(a) Included w/Support Stay Assy
