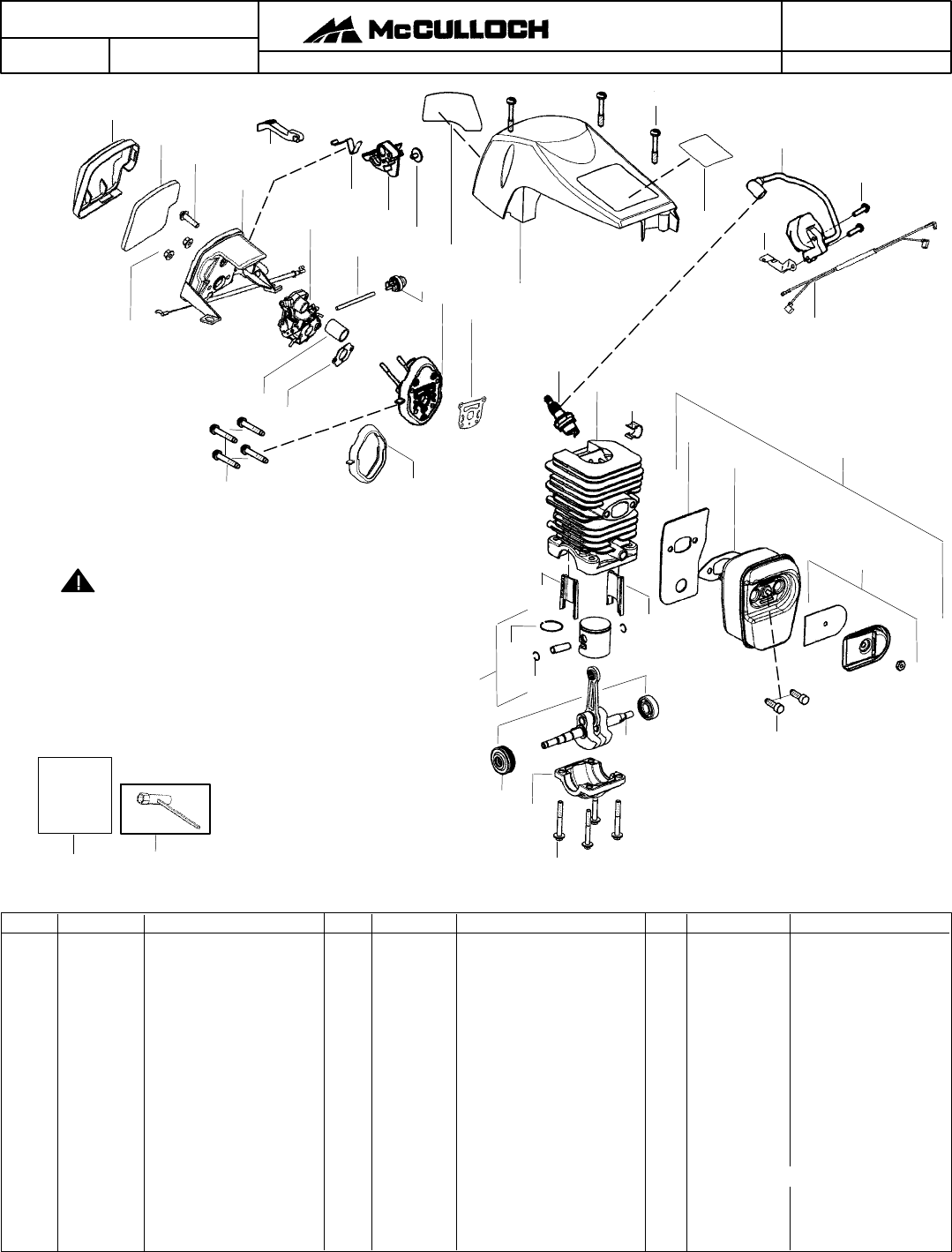

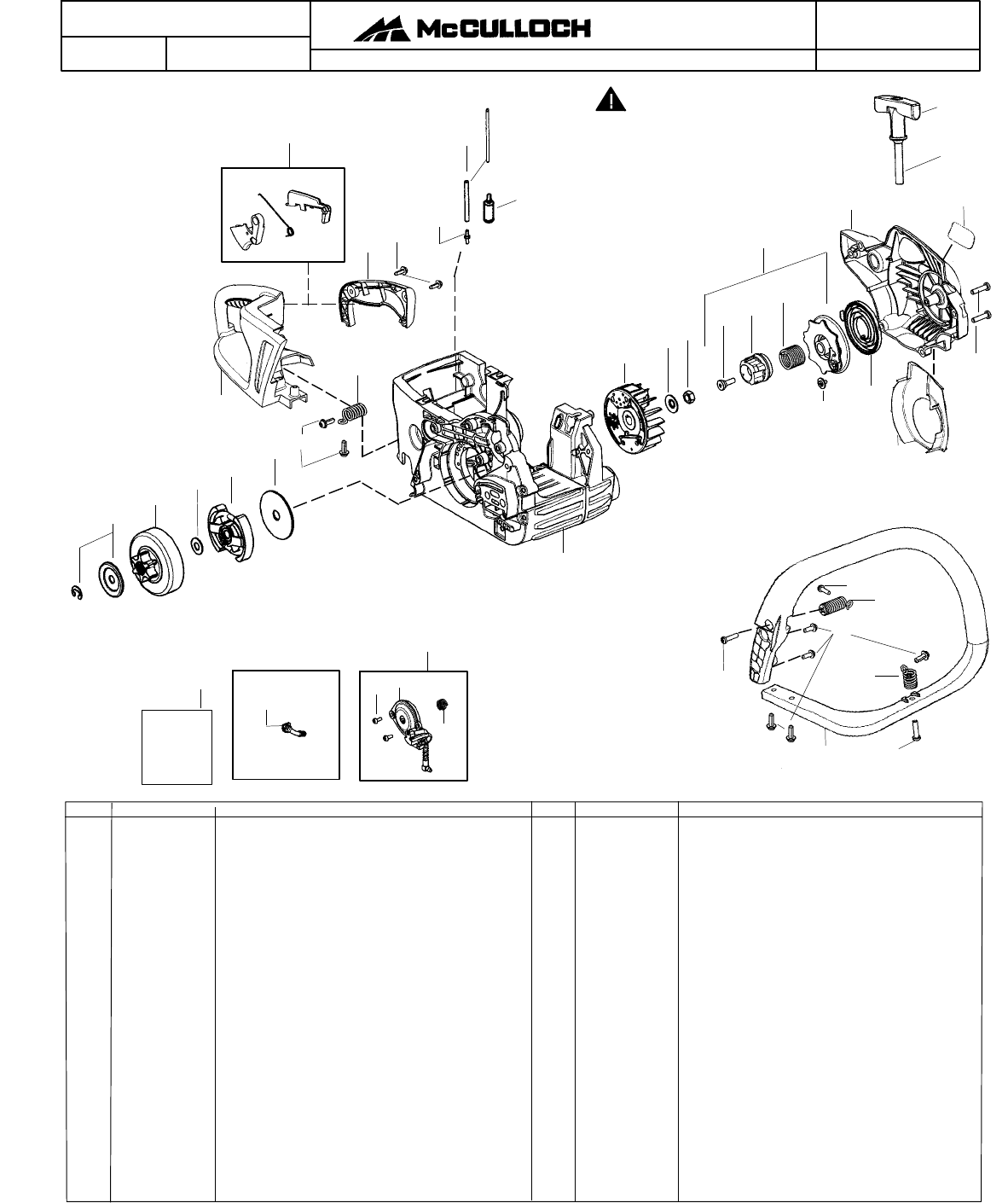

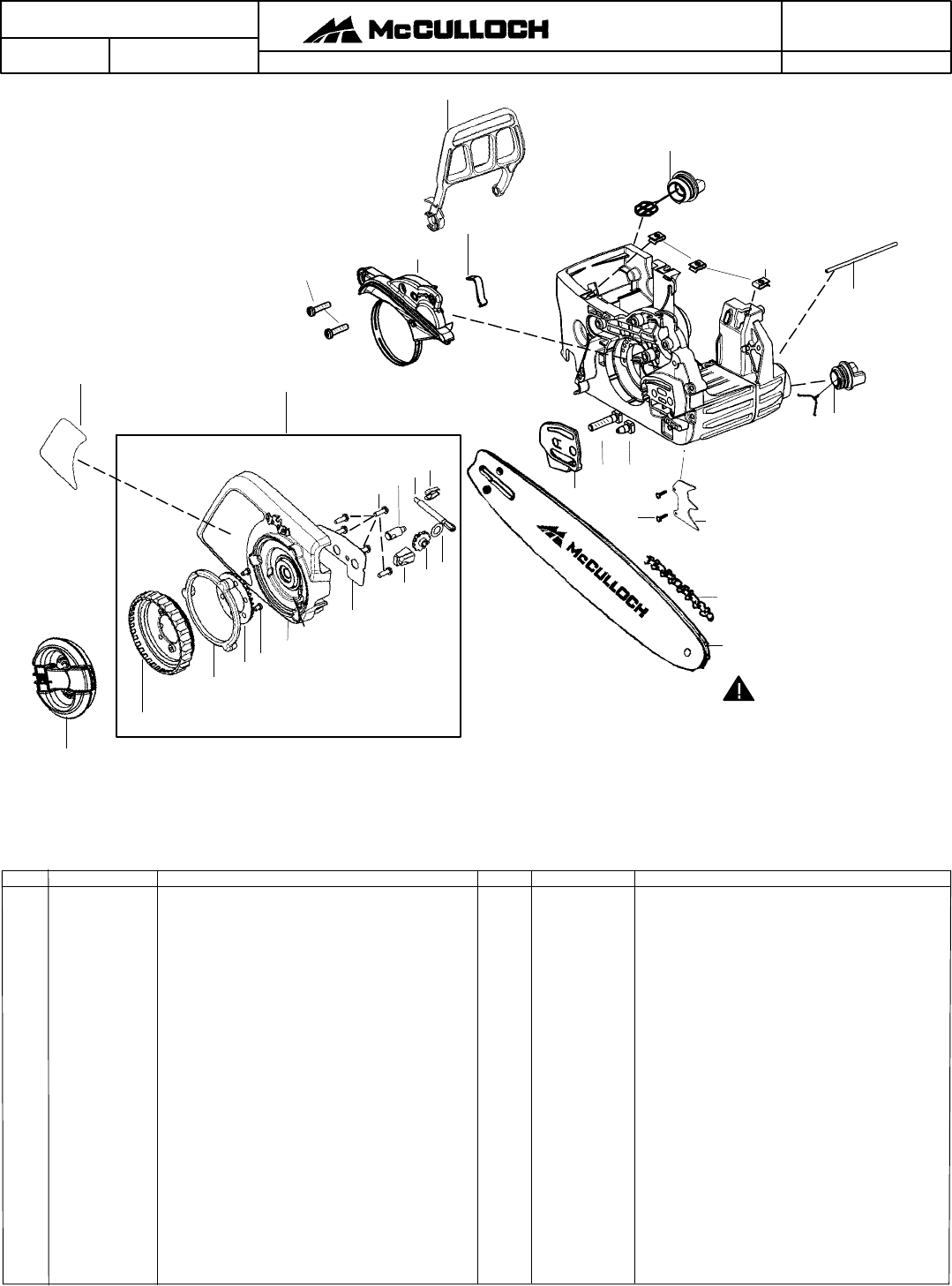

PARAMOUNT PARTS LIST
R
WEED EATER PARTS LIST
R
R
POULAN PARTS LIST
R
NEW
1
Note: Illustration may differ from actual model due to design changes
PARTS L IST NO.
PAGE NO.
CHAIN SAW MODEL(s)
580864601 CS 400T
DATE
7/02/12
PARTS LIST
All repairs, adjustments and maintenance
not described in the Operator’s Manual
must be performed by qualified service
personnel.
WARNING
Ref. Part No. Description Ref. Part No. Description
22
21
1. 530057880 Handguard
2. 530016416 Spring---Handguard
3. 530071893 Kit---Chainbrake
4. 530016432 Screw
5. 580864801 Decal---B/C 400T
6. 577315002 Assy. --- Clutch Cover (Incl.7,8,9,10,12,13
14,15,16,17,18,19,20)
7. 576617301 Clip---Spring
8. 525501001 Screw---Bar Adjust
9. 525500901 Pin---Bar Adjust
10. 574780301 Screw M3.63
11. 577314401 Assy.---Knob Lever
12. 525501803 Wheel--- Knob Tensioning
13. 579011601 Ring---Ret. Knob
14. 525501401 Gear--- Ring Cover
15. 573974201 Screw M3.5
16. 525501501 Cover ---Clutch
17. 573973701 Plate--- Gear Cover
18. 573973801 Stopper---Bar Adjust Screw
19. 525501301 Gear --- Screw Adjuster
20. 577149501 Washer---Spacer 8mm
21. 580784001 Bar 18”
22. 579580201 Chain 18” (91PX)
23. 530014381 Kit---Spike (incl. 24)
24. 530016439 Screw
25. 530057910 Plate--- Bar
26. 573974101 Bolt---Bar
27. 573974001 Bolt --- Tapered Bar
28. 530057236 Assy---Oil Cap w/ret.
29. 530058786 Assy---Oil Vent
30. 530015922 Nut--- ”U” type speed
31. 577858501 Cap --- Fuel with retainer
=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
30
25
26
28
29
3
2
24 23
4
1
31
7
8
9
10
11
12
13
14 15
16
17
18 19 20
6
27
5
PARAMOUNT PARTS LIST
R
WEED EATER PARTS LIST
R
R
POULAN PARTS LIST
R
NEW
2
Note: Illustration may differ from actual model due to design changes
PARTS L IST NO.
PAGE NO.
CHAIN SAW MODEL(s)
580864601 CS 400T
DATE
7/02/12
PARTS LIST
All repairs, adjustments and maintenance
not described in the Operator’s Manual
must be performed by qualified service
personnel.
WARNING
Ref. Part No. Description Ref. Part No. Description
1. 580864201 Kit---Trigger/Lockout
2. 545011901 Cover ---Handle
3. 530016433 Screw
4. 530023877 Fitting---Fuel line
5. 580727101 Kit---Fuel Line
6. 530095649 Assy--- Fuel Pick Up
7. 545012101 Handle--- Rear
8. 530059475 Spring---Rear Isolator
9 . --- --- --- W a s h e r ( R e f . # 1 5 )
10. 530057905 Assy---Clutch Drum 3/8”
1 1 . --- --- --- W a s h e r ( R e f . # 1 5 )
12. 530057907 Assy--- Clutch
13. 530016419 Washer---Large Clutch
14. 530015906 Screw
15. 530071945 Kit---Clutch Washer
(Incl. 9,11)
16. 530057924 Assy---Oil Pick Up
17. 530071891 Kit---Oil Pump
(Incl. 18,19,20)
18. 545227101 Screw
19. 530057931 Assy---Oil Pump
20. 530037820 Gear--- Worm
21. 579061601 Assy---Chassis (Incl.)
((Page 2) 4,5,8,14)
((Page 1) 2,26,27,28,29,30,31)
22. 545016308 Assy--- Flywheel
23. 530015127 Washer---Flywheel
24. 530016134 Nut---Flywheel
25. 530021179 Screw---Shoulder
26. 530059677 Starter Hub---EPS
27. 530021180 Spring---EPS
28. 530071966 Kit--- EPS Starter Pulley
(Incl. 25,26,27,36)
29. 545045901 Housing---Fan
30. 580835201 Handle--- Starter
31. 530069232 Kit---Rope
32. 580767001 Decal --- Fan Housing
33. 530016432 Screw
34. 580678501 Baffle--- Gold
35. 576657801 Spring---Starter
36. 530016080 Screw
37. 530016432 Screw
38. 530016443 Screw
39. 530059480 Assy---Rear Iso. Spring
40. 530015906 Screw
41. 530059479 Assy---Front Iso. Spring
42. 530057878 Handle--- Front
43. 530016432 Screw
=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
1
10
12
13
22
23 24
27
28
35
29
42
17
21
33
31
30
18 19
16
20
6
5
4
36
26
25
3
43
41
40
39
38
37
2
7
8
14
Clutch
Washer
Kit
15
9
11
34
32
PARAMOUNT PARTS LIST
R
WEED EATER PARTS LIST
R
R
POULAN PARTS LIST
R
NEW
3
Note: Illustration may differ from actual model due to design changes
PARTS L IST NO.
PAGE NO.
CHAIN SAW MODEL(s)
580864601 CS 400T
DATE
7/02/12
PARTS LIST
1. 530016153 Screw
2. 545115801 Module---Ignition
3. 530016432 Screw
4. 530058661 Strap--- Ground
5. 530057943 Assy--- Wire Harness
6. 577923702 Decal --- Warning
7. 545045801 Shield---Cylinder(Incl. 1)
8. 580783801 Decal--- Start Reminder
9. 530016080 Screw
10. 530057891 Lever---Ignition Switch
11. 530057908 Spring --- Ignition Switch
12. 530059399 Knob---Choke
13. 530059001 Cover---Air Filter
14. 530057869 Filter---Air
15. 530016425 Screw
16. 545046901 Housing --- Air Filter w/cable
17. 545070601 Carburetor Zama W26
18. 580727101 Kit--- Fuel Line
19. 530047721 Bulb --- Purge “snap --- in”
20. 530071889 Kit--- Carb. Adaptor
( Incl. # 21,39,42)
2 1 . --- --- --- --- G a s k e t ( R e f . # 2 0 , 4 4 )
22. 952030150 Accy---Spark Plug (RCJ --- 7Y)
23. 530071885 Kit--- Cylinder (Incl. 30,38)
24. 530058660 Clip--- High Tension Lead
25. 545081801 Kit---Muffler(Incl.26,27,28,29)
26. 530057942 Backplate---Muffler
2 7 . --- --- --- --- G a s k e t ( R e f . # 2 5 , 4 4 )
28. 545081701 Kit--- Spark Arrestor
29. 530016338 Bolt---Muffler
30. 545015301 Insert--- Left Cyl.(black)
31. 545112901 Assy--- Crankshaft/Rod
32. 530016417 Bolt
33. 530057941 Cap --- Crankcase
34. 530056363 Assy--- Bearing/Seal
35. 530071882 Kit--- Piston (Incl. 36,37)
36. 530015697 Retainer--- Piston Pin
37. 530038729 Ring---Piston
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
38. 545015401 Insert---Right Cyl.(gray)
3 9 . --- --- --- --- S e a l ( R e f . # 2 0 , 4 4 )
40. 530016426 Screw
4 1 . --- --- --- --- G a s k e t ( R e f . # 4 4 )
42. 530057926 Tube---Intake
43. 530016101 Nut---Carb.
44. 530071894 Kit---Gasket
(Incl . 21,27,39,41)
45. 530031135 Scrench
577032701 Scabbard Assy.
Engine
Gasket
Kit
=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)K
44
Not Shown
45
All repairs, adjustments and maintenance not
described in the Operator’s Manual must be
performed by qualified service personnel.
WARNING
13
14
15
16
17
18
19 20
21
22
23
24
26
27 25
7
1
2
3
5
4
42
41
40 39
30
36
37
31
33
29
35
28
11
10
9
12
43
34
32
38
6
8
