Transfer Device Solutions
www.mckinneyhinge.com
How ElectroLynx® Helps
To answer the demand for “smart” electronic access control
and locking solutions that require fast, easy, and cost-effective
installation, ASSA ABLOY Group brands use the ElectroLynx
standardized plug-in connectors and color-coded wiring system.
With ElectroLynx, doorway components come pre-wired for
easy hookup to the power source. Key to the system is the
transfer device hinge that carries power from the frame to the
locking hardware.
Overview:
• Makes it easy to bring power to the locking hardware
• Wires have connectors that snap together, like plugging a
telephone into a jack
• Developed by ASSA ABLOY and rapidly becoming the
industry standard
Key Benets of ElectroLynx Include:
• Fast, fool-proof, and future-proof installations
•Easy upgrades and retrofitting while maintaining fire rating
•Snap-together Molex® connectors ensure proper connections
• No need to match up wires, create connections or drill holes
in the door or frame
•Concealed wiring preserves aesthetics of the opening

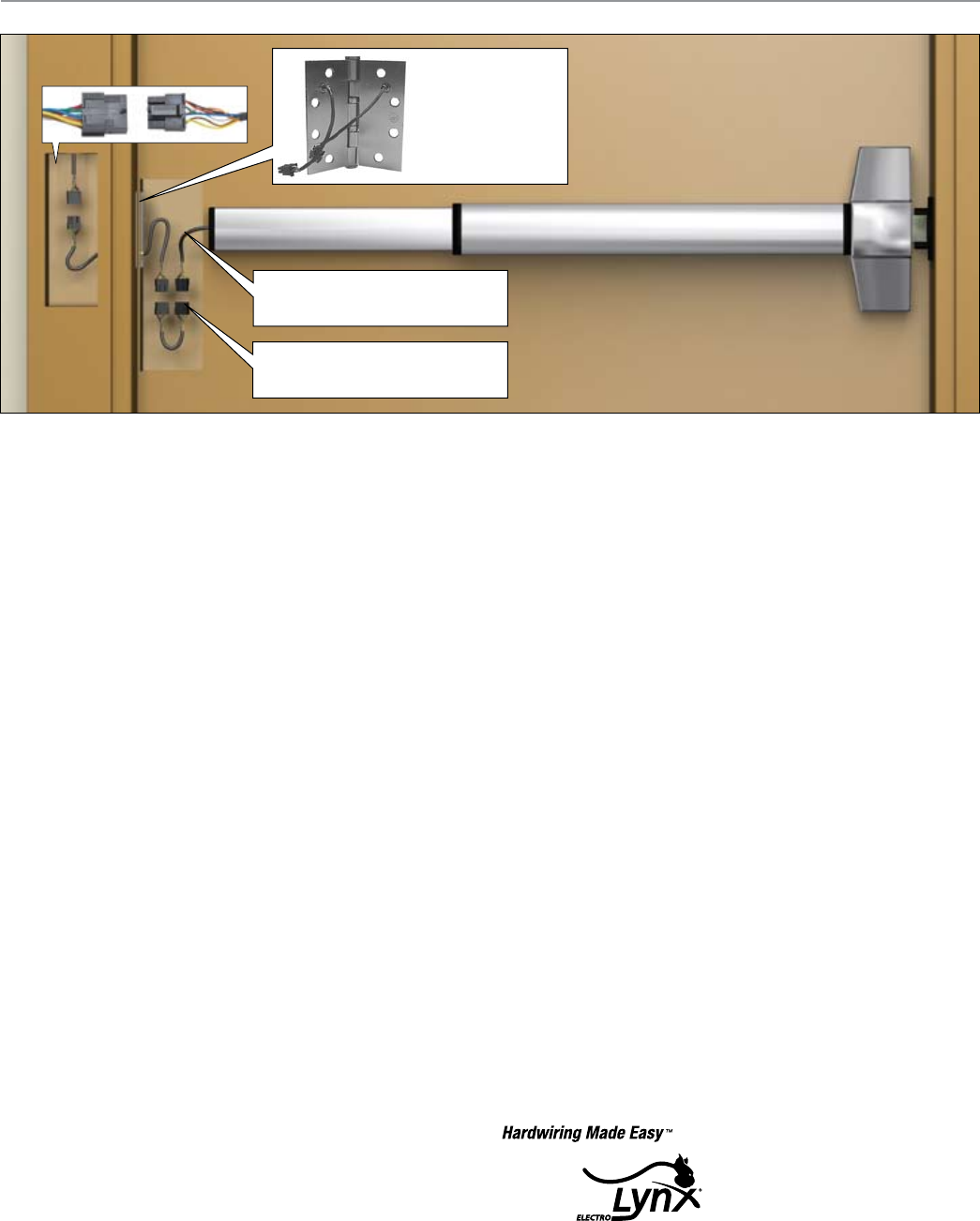

McKINNEY QC hinge
transfers power from
the power supply
to the exit device
Electromechanical exit device
with ElectroLynx
3" cable, minimum, needed between
electromechanical exit and QC hinge
Contents
About ElectroLynx .................................. 3
Transfer Device Decision Tree ......................... 4
Hinge Wiring Requirement
CORBIN RUSSWIN .......................... 7
YALE...................................... 7
SARGENT.................................. 7
ElectroLynx Cables
Special .................................... 4
Standard .................................. 4
McKINNEY Hinges, Concealed Circuit
QC Hinge .................................. 5
PoE Hinge ................................. 6

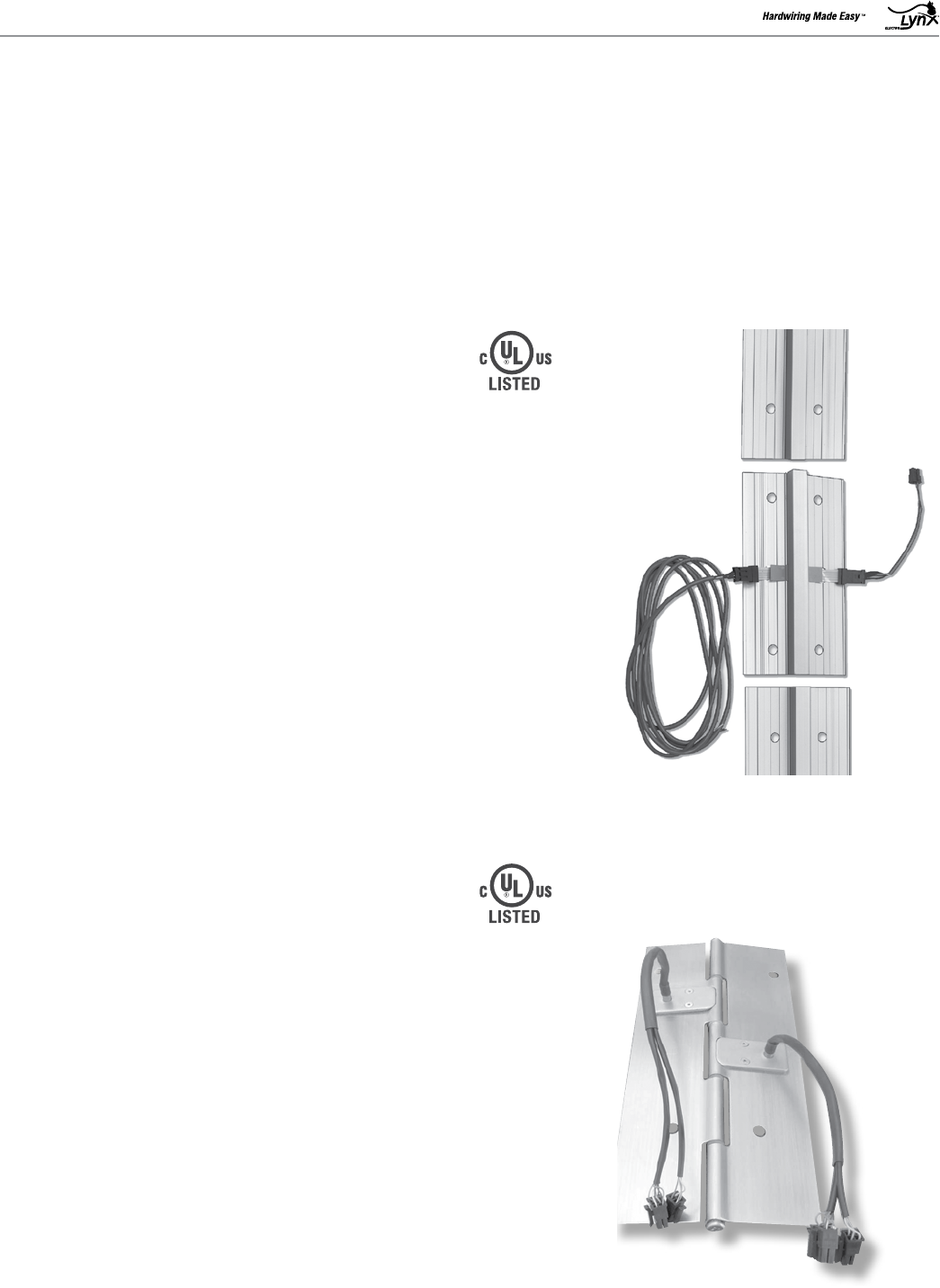

Aluminum Continuous ........................8
Stainless & Steel Continuous ................... 8
Door Cord and EPT ................................. 9

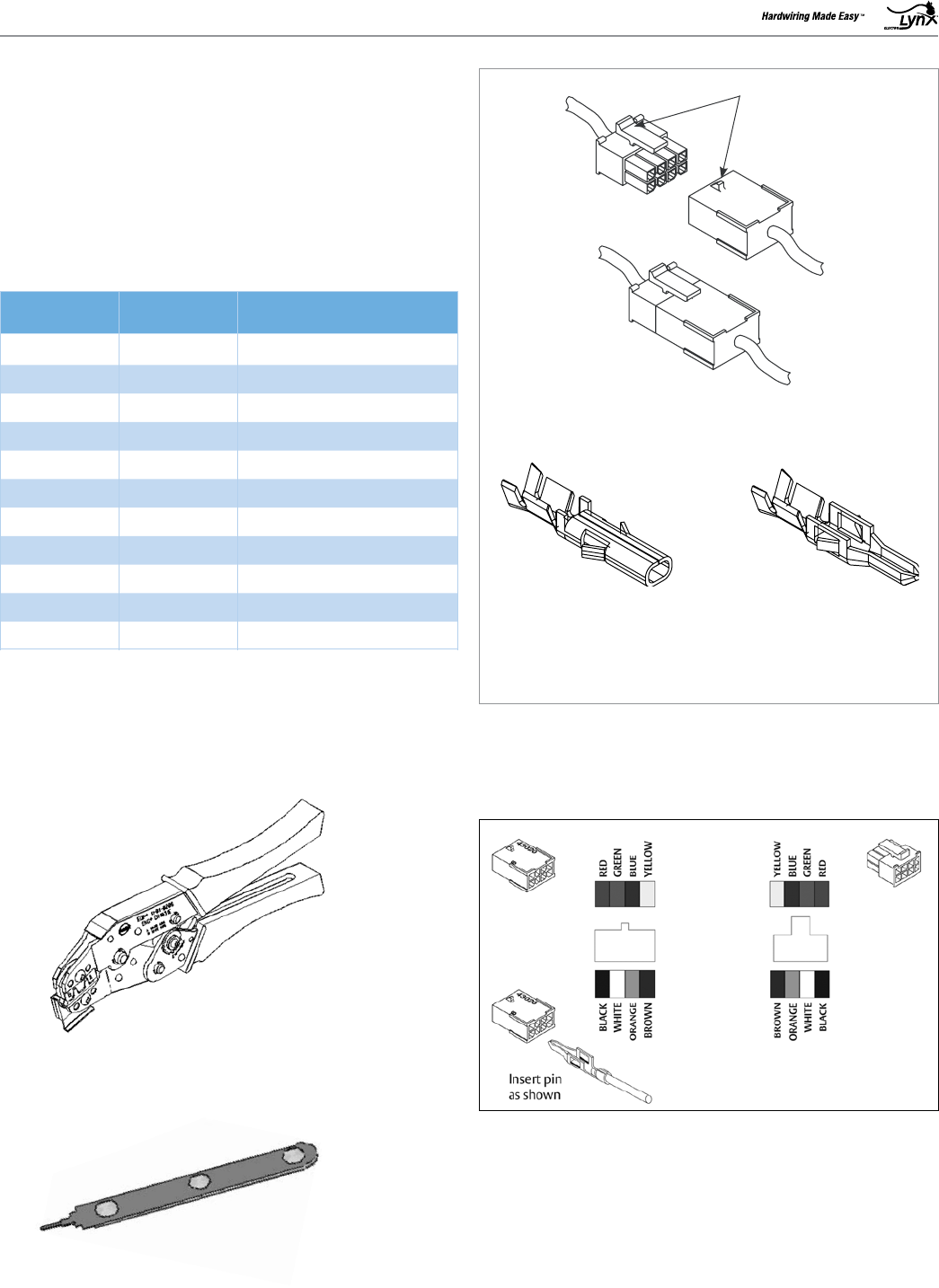

Service Kit and Tools ............................... 10

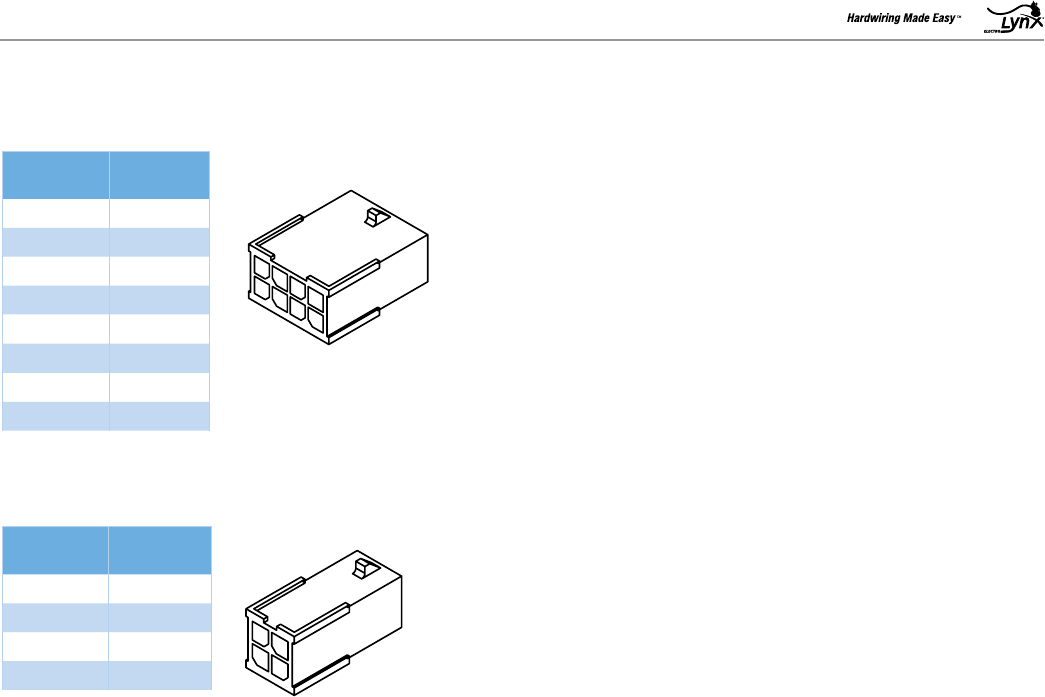

Standard Pinout Colors ............................. 11
Transfer Device Solutions
As part of their promise to provide innovative, fast and effective high
security solutions to their customers, certain ASSA ABLOY Group
brands offer ElectroLynx®, a universal quick-connect system that
ssimplifies the electrification of the door opening.
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
1-800-810-WIRE (9473)
www.mckinneyhinge.com
Transfer Device Solutions
1-800-810-WIRE (9473) 3
McKINNEY hinges and RIXSON pivots can have ElectroLynx®
connectors to transfer power from the incoming source through
to the electrified hardware. The only hardwiring is from the
building’s wiring system to the opening.
All ElectroLynx retrofit cables are 12 conductor, supplied with
an 8-pin connector and a 4-pin connector. If you are utilizing only
8-pin conductors or less, you can cut off the excess 4-pin
conductor connectors.
• Pre-wired doors from CECO DOOR, CURRIES, BARON
and GRAHAM have special harnesses built in to house the
wiring components.
• ElectroLynx is offered on the electried hardware products
of ADAMS RITE, CORBIN RUSSWIN, HES, RIXSON,
SARGENT, SECURITRON and YALE

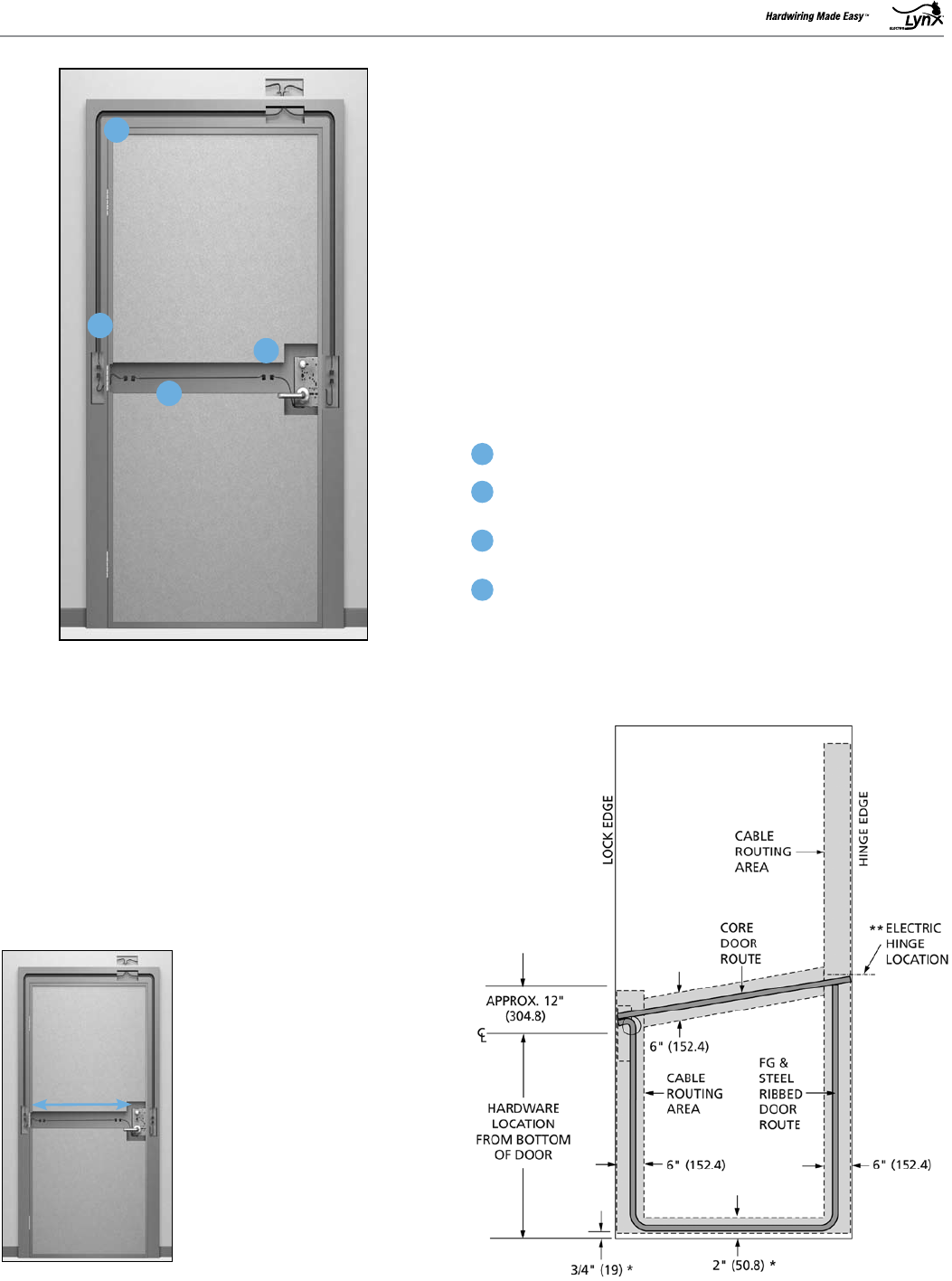

15'2" ElectroLynx cable from hinge location to ceiling
Electric hinge or pivot bridges the power from the frame to
the door
In-the-door wiring harness brings power to the locking
hardware or exit device
Locking hardware or exit device comes pre-wired with
connectors
2
3
4
1
2
3
4
1
Plug-and-Play
Pre-wired Doors
The ElectroLynx system inside a door and frame includes a
one-piece pre-fabricated wiring harness equipped with Molex
connectors. The wiring harness consists of 8-pin and 4-pin
ElectroLynx connectors with 22 gauge wire. It is an efcient
labor-saving alternative to using conduit inside a door, which
requires installation of wires at the job site.
In addition to standard doors, re rated doors from ASSA ABLOY
brands - BARON, CECO DOOR, CURRIES and GRAHAM - are
also available with ElectroLynx cabling.
Transfer Device Solutions
www.mckinneyhinge.com 1-800-810-WIRE (9473)
4
Standard ElectroLynx Retrot Cable Sizes
Actual Cable
Length
12 Conductor and
Molex both ends
12 Conductor and Molex
one end, pinned one end Typical Application
3" QC-C003 QC-C003P
Between hinge and the end of an exit device.
6" QC-C006 QC-C006P
12" QC-C012 QC-C012P
26" QC-C200 QC-C200P
Between hinge and through the door to the lockset
or exit device trim.
32" QC-C206 QC-C206P
38" QC-C300 QC-C300P
44" QC-C306 QC-C306P
50" QC-C400 QC-C400P
15' 2" QC-C1500 QC-C1500P From the hinge location, up the jamb to above the
ceiling, or up and around full lite or half lite metal door.
If you are not ordering ASSA ABLOY Door Group doors with the ElectroLynx® cable pre-installed in the door, you must order an
ElectroLynx retrofit cable to go between ANY hardware and the hinge. This includes 3" cables to go from the hinge to an exit
device and up to a 15’ cable to go up and around a full lite metal door. To ensure you order the correct ElectroLynx connecting
cables, follow these steps:

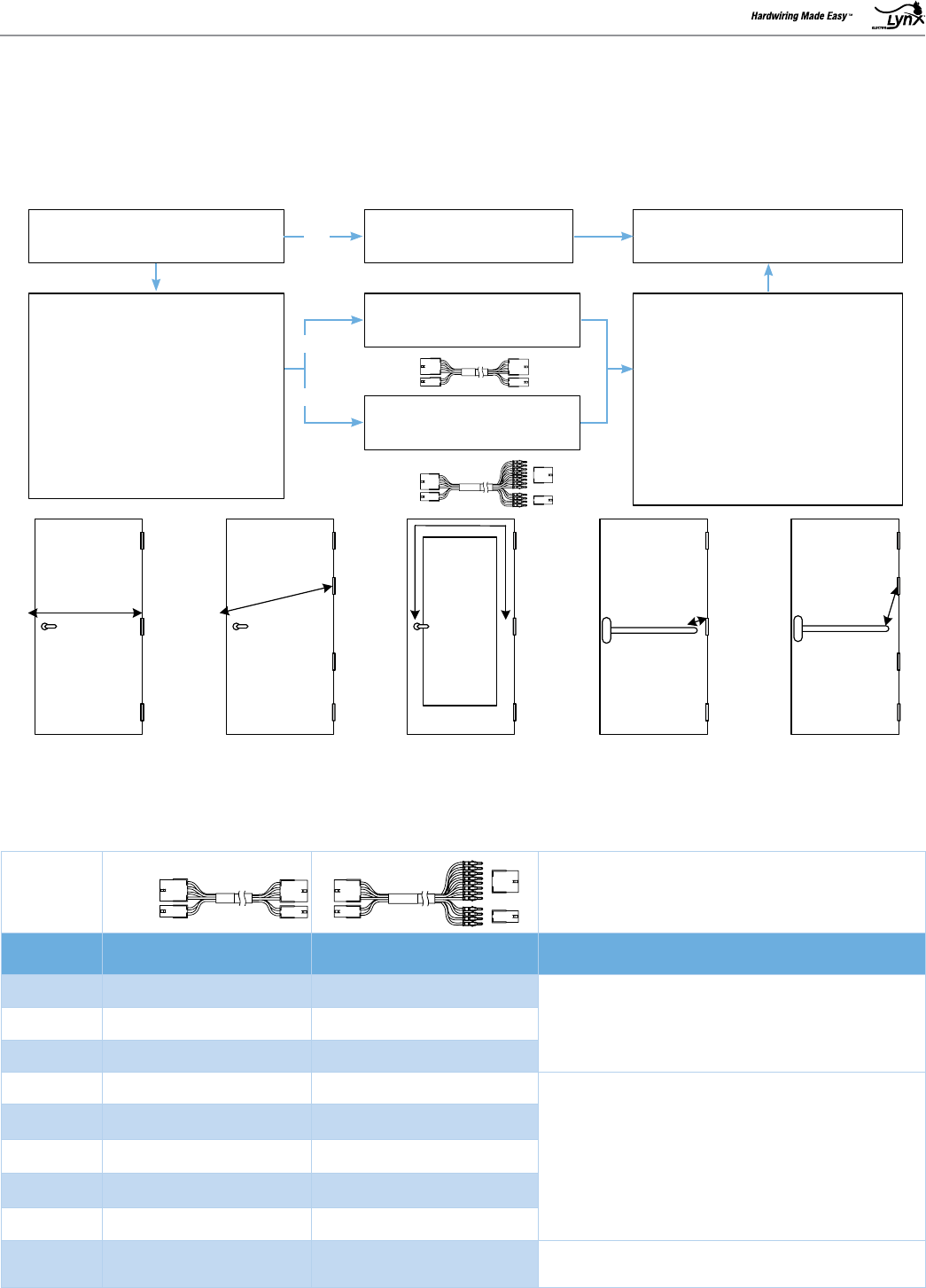

Are the doors preinstalled with
ElectroLynx cables?
Will the existing door accommodate a 5/8"
chase or raceway to allow cable with
Molex connectors be pulled through?
“Yes Example”:
- A hollow metal door with no obstructions
or a 5/8" conduit or raceway
“No Examples”:
- Wood doors with a 3/8" raceway
- Hollow metal doors with steel stiffeners
- Hollow metal door with full lite glass kits
You do not need to order a
“through-door cable”
Order cable with Molex connectors
on both ends, illustrated below
Order cable with one end with
Molex connectors, and one end
pinned, illustrated below
Also order a 15' cable to go from the
frame side hinge location, inside the wall
up to the ceiling for termination
What length of retrofit cable should
you order?
From the examples below, measure from
the hinge location to the hardware location.
* Add 2" to the length
Door with
3 hinges
Door with
4 hinges
Door with full lite
or steel-stiffened
hollow metal
Exit device with
3 hinges
Exit device with
4 hinges
YES
YES
NO
1 2 3
NO
www.mckinneyhinge.com
Transfer Device Solutions
1-800-810-WIRE (9473) 5

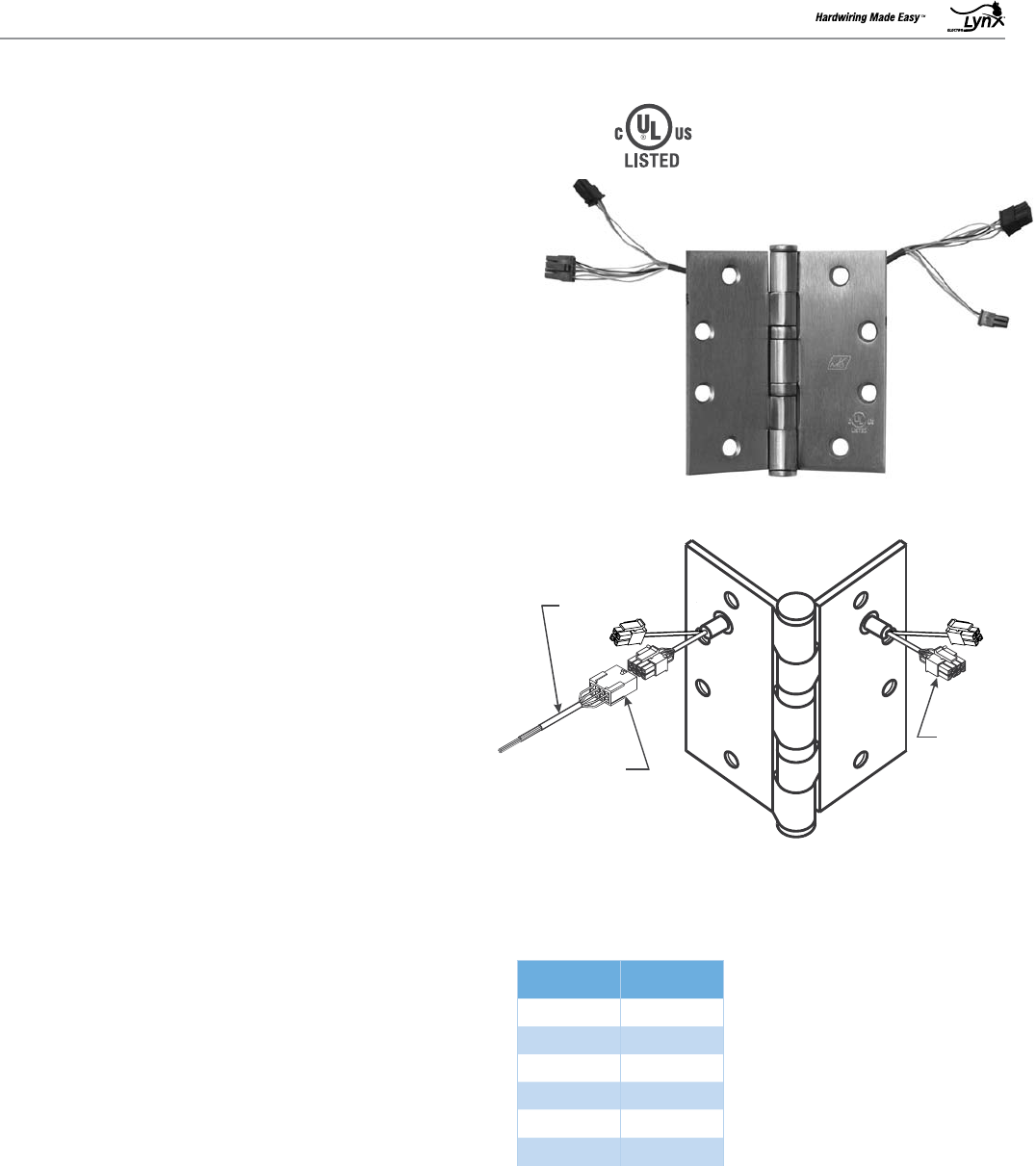

McKINNEY QC Concealed Circuit
Electric Hinges
The McKINNEY ElectroLynx® hinge is an intermediate connector
that passes a constant flow of current between the source of
power (jamb) and the actuated devices in the door (electric
locks, exit devices, etc.) regardless of door position. Each
hinge features concealed plug connectors that eliminate the need
for separate or exposed wiring. Brass eyelets add protection
and durability to the ElectroLynx hinge and common wire
colors and standard connectors make installation quick and
simple. Once installed, it will give no outward indication of its
function and will transmit power efficiently and reliably, as long
as the wire capacity is not exceeded.
All ElectroLynx hinges are factory tested and specially packaged
to minimize against damage during shipment. Installation
instructions are packed with each hinge. 28 Gauge multi-strand
wires are used. A 6" pigtail is provided for connection to the
source wiring, and additional 6" pigtails may be requested. The
wire colors are with the electromechanical hardware of other
ASSA ABLOY brands.
• An 8 position connector is used for QC2, QC4 QC6 and
QC8 wire hinges
• An 8 position and 4 position connector is used for QC12
wire hinges
• QC2, 4 or 6 hinges are available for special applications,
but are not used with the decision tree found on page 4
Please call 1-800-810-WIRE (9473) if you are in doubt regarding
hinge requirements.
QC12
Available up to 12 wires
• Rated 4 amp continuous @ 24 volts AC or DC, 16 amp pulse for
300 milliseconds (cycle time not less than 5 seconds), 10 amp
pulse for 250 milliseconds (cycle time not less than 5 seconds)
• Optional MG-16 mortar guard available
(mortar guard required on steel frames)
• Steel and Stainless Steel QC hinges are UL listed for use up
to and including 3 hour rated openings
• QC2 wire hinges provided with 8 position connector for new
construction, specify QC2
* Consult customer service for availability
3- Knuckle 5- Knuckle
TA314 TA2314
TA714 T4A3386
TA386 T4A3786
TA786 TA2895
T4A3395
T4A3795
Full Mortise QC hinges are available in most
BHMA and McKINNEY powder coat nishes
How to order string
4½X4½ TA2714 26D QC12
Pigtail
assembly
Male
connector
Female
connector
Back of 12 wire hinge shown
Transfer Device Solutions
www.mckinneyhinge.com 1-800-810-WIRE (9473)
A
B
C
Cable -CAT 5e,
26 AWG stranded,
shielded, 100ohm
Cable - CAT 5e, 24 AWG stranded,
shielded, 100ohm, with drain wire
Frame side
harness
assembly
(15ft length)

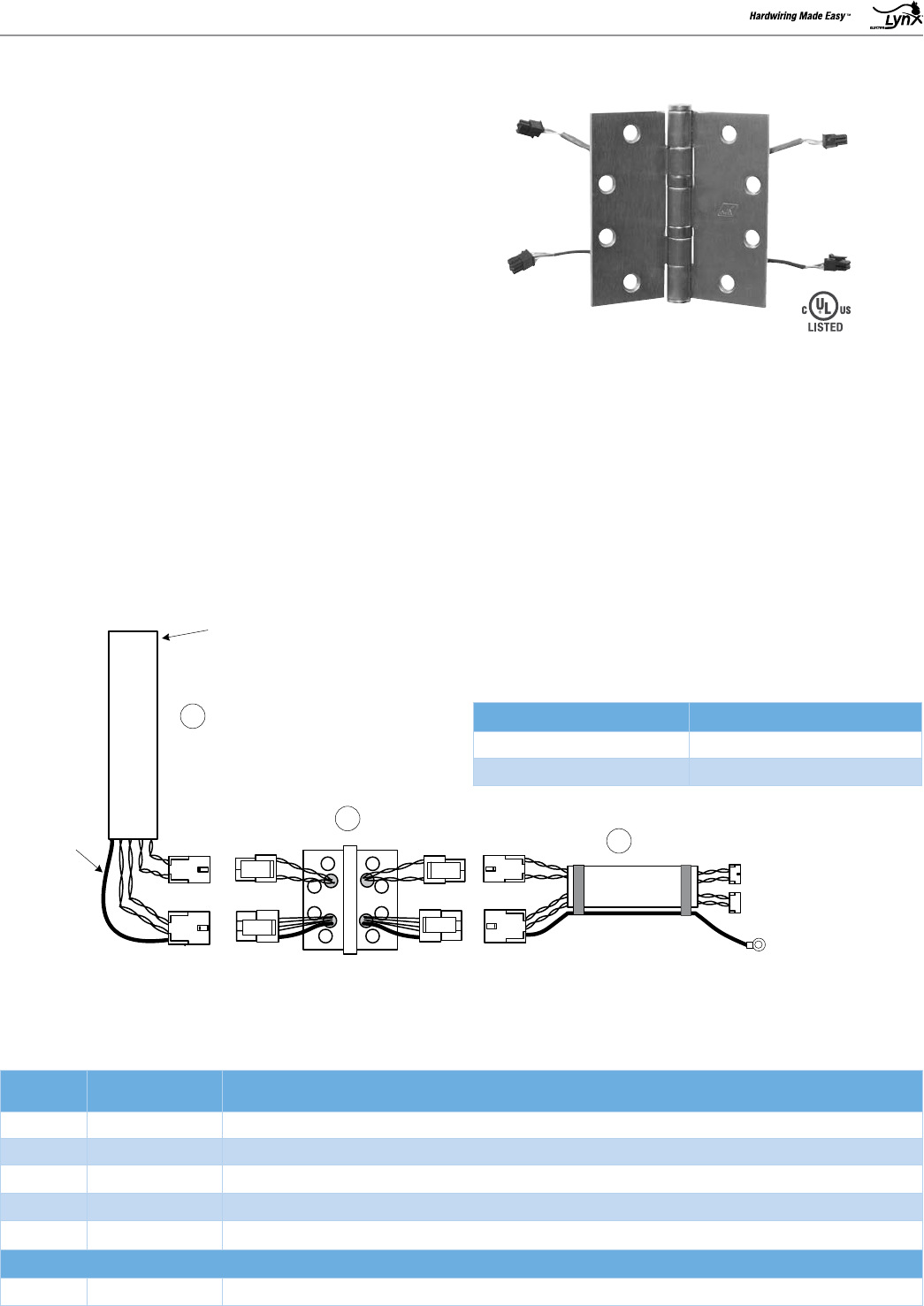

PoE Data Hinge
Ring terminal to be
secured inside lock
Cable drain wire
concealed in
shrink tubing
Frame side Harness Assembly
PoE Door Harness Assembly
Two 4-CKT lock
mating connectors
Cable wires to be terminated in
Lock mating connectors are small
enough to run through a 3/8" (min.)
stile to stile door raceway.
field per lock instructions
6
McKINNEY ElectroLynx® Power over Ethernet (PoE) Hinge
The McKINNEY ElectroLynx PoE, the next phase of Quick
Connect hinge products by McKINNEY, provides for the passing
of Ethernet data through the door opening. Installation is a
snap with the friendly “plug and play” connectors which allow
power to be linked from the incoming source through the door
to the electrified hardware. PoE data is bidirectional.
Brass eyelets add protection and durability to the PoE hinge
which features common wire colors coordinated to work with
intelligent Power over Ethernet electromechanical hardware
from SARGENT and CORBIN RUSSWIN.
The PoE hinge should be installed in the second from bottom
hinge position on the door. Once installed, it will give no outward
indication of its function and will transfer power and data efficiently
and reliably, as long as the wire capacity is not exceeded.
All PoE hinges are factory tested and specially packaged to
minimize damage during shipment. Installation instructions are
packed with each hinge. Along with the PoE hinge, mating PoE
door and frame side harnesses are required, to complete the
opening. The required PoE harnesses must be ordered separately
(see below for detail).
Specify suffix PoE. Consult factory for the availability of
additional finishes and hinge types.
U.S. Patent No. 7,824,200
Each hinge features two 6-position and two 4-position Molex
connectors, 9 multistrand wires; 2 twisted pairs (26 AWG),
4 straight conductors (28 gauge) and 1 straight conductor
(24 AWG) with concealed plug connectors that eliminate the
need for separate or exposed wiring. Rated 350 mA continuous
@ 48 volts DC nominal, the hinge is capable of two PoE wiring
configurations:
1. Power over Data (5 wire); Power and Data supplied
together over the 2 twisted (26 AWG) pairs and the 24
AWG conductor is used for the earth ground connection.
2. Data with Power over spares (9 wire); Data over 2
twisted (26 AWG) pairs with Power over spare pairs
(4 straight 28 AWG conductors) and the 24 Awg
conductor is used for the earth ground connection.
Power over Ethernet Hinge Features
Standard ElectroLynx Power over Ethernet (PoE) Harnesses
Harness
Length
McKINNEY
Catalog # Door Side Application
30" PoE-C206P 20" to 25" door width (doors with 3 butt hinges with PoE hinge in center to stile to stile raceway to lock prep).
36" PoE-C300P 26" to 31" door width (doors with 3 butt hinges with PoE hinge in center to stile to stile raceway to lock prep).
42" PoE-C306P 32" to 36" door width (doors with 3 butt hinges with PoE hinge in center to stile to stile raceway to lock prep).
48" PoE-C400P 37" to 42" door width (doors with 3 butt hinges with PoE hinge in center to stile to stile raceway to lock prep).
54" PoE-C406P 43" to 48" door width (doors with 3 butt hinges with PoE hinge in center to stile to stile raceway to lock prep).
Frame Side Application
180" PoE-C1500P From the hinge location, up the jamb to wall/ceiling
NOTES:
The PoE door & frame harnesses can accommodate a variety of new (with raceway) and retrofit applications.
Connectors are small enough to run through a 3/8" (min.) stile-to-stile door raceway.
Connects to intelligent Power over Ethernet electromechanical hardware from SARGENT and CORBIN RUSSWIN.
McKINNEY CATALOG # Description:
4.5 x 4.5 TA2714 26D PoE Standard Weight 5 Knuckle
4.5 x 4.5 T4A3786 26D PoE Heavy Weight 5 Knuckle
www.mckinneyhinge.com
Transfer Device Solutions
1-800-810-WIRE (9473)
CORBIN RUSSWIN Hinge
Access Control Products - All Device Types
Access 600 Series RNE1 QC12
Access 800 Series NE1 QC8
Access 800 Series AC2 (Hard Powered) QC8
Cylindrical Locksets CL3300 Series
All Functions QC8
Mortise Locksets ML20900 Series
All Functions / Options QC8
Electried Exit Devices ED5000 / ED4000
All Functions / Options (Exception M93, M61) QC8
M93 (Latch Bolt Monitor) Alone or in combination with any
other option QC12
M61 (Alarmed Exit with M35 Hardwired Option) QC12
Electried Exit Trim 9900 Series
All functions / Options QC8
Hinge Wiring Requirements
SARGENT Hinge
Access Control Products - All Device Types
Harmony Series QC12
Profile Series v.N1 QC8
Profile Series v.G1.5 (Hard Powered) QC8
Cylindrical Locksets 10 Line / 8 Line
All Functions / Options QC8
Mortise Locksets 8200 Series
All Functions / Options (Exception LX, DX) QC8
LX (Latchbolt Monitor) QC12
DX (Deadbolt Monitor) QC12
Electried Exit Devices 80 Series
All Functions / Options (Exception 56-, TL-, 59-, AL-) QC8
56- (Electronic Latch Retraction) Timer Function Only QC12
TL- (Electro-Luminescent) QC12
59- (Electroguard Delayed Egress) Remote Alarm, Latchbolt Mon. QC12
AL- (Alarmed Exit with 546 Harness - Hardwired Option) QC12
Electried Exit Trim 700 Series
All functions / Options QC8
Electried Exit Devices AND Electried Trim Combination
All Options with All Trim (Exception 56-, TL-, 59-, AL-, 54-) QC12
56- (Electronic Latch Retraction) Timer Function Unavailable QC12
TL- (Electro-Luminescent) Unavailable QC12
59- (Electroguard Delayed Egress) Remote Alarm, Latchbolt
Unavailable
QC12
AL- (Alarmed Exit) Remote Reset and Door Position inputs
Unavailable
QC12
54- (Trim Monitor Switch) Normally Closed Switch option
Unavailable
QC12
YALE Hinge
Access Control Products - All Device Types
Symphony Series QC12
eBoss Series (Hard Powered) QC8
Cylindrical Locksets 5400LN / 5300LN Series
All Functions / Options QC8
Mortise Locksets 8800 Series
All Functions / Options (Exception LBM, DBM) QC12
LBM (Latchbolt Monitor) QC12
DBM (Deadbolt Monitor) QC12
Electried Exit Devices 7000 Series
All Functions / Options (Exception O, A) QC8
O (Latch Bolt Monitor) Alone or in combination with any
other option
QC12
A (Alarmed Exit with HW Hardwired Option) QC12
Electried Exit Trim 600 Series
All functions / Options QC8
7
Updated Oct.19, 2016
Transfer Device Solutions
www.mckinneyhinge.com 1-800-810-WIRE (9473)
McKINNEY Aluminum Continuous Electried Hinges
The McKINNEY electried continuous hinge is furnished with
bonded, 4-conductor flat cable with connectors at each leaf.
Two options allow variable degrees of service to be performed
at the specific location of current carrying cables via either a
removable 8" or a pivoting 8" section of the hinge. Both of
these options, SER and ACC are available as 4, 8 or 12 wire
congurations on our Full Mortise Aluminum Continuous Hinges.
Serviceable/Removable (SER) - The hinge is furnished to be
installed in three sections, allowing the current carrying cables
to be serviced or replaced without removing the door from the
frame. Additionally the SER option allows the current carrying
cables to be safely stored or delivered to the electrician or
security contractor prior to the installation of the electrified
hardware, eliminating the necessity of the electrician or security
contractor being present when the doors are being hung.
Accessible (ACC) – The hinges are furnished to be installed in
a single section with each leaf modified to pivot at the location
of the current carrying cables and allow access to the cables
and connected wiring. Electrical modification is in the center of
the hinge.
Features:
• Performance tested 1,250,000 cycles with the 4-conductor
flat cable
• Each 4-conductor cable carries 4 amps @ 24volts with a
16 amp inrush current for 300 milliseconds
• Each hinge is provided with a 4 amp in-line fuse to protect
the cable from any overload or surge in power
• Flat cable conductor is warranted for 5 years Serviceable “SER”
option shown
McKINNEY Stainless Steel Pin & Barrel Continuous Electried Hinges
Features:
• The McKINNEY EL option is available on FM300, FM3500
and FM3700 edge mount hinges (not available on raised
barrel applications)
• 14 Gauge, type 304 stainless steel, features .25 diameter
stainless pin
• Symmetrically templated hole pattern
• FM300 & FM3700 Supports weight up to 600 lbs.; FM3500
supports up to 900 lbs. (maximum 4'0" door width)
• Hinges are handed
• Optional ETAP electrical transfer prep available
• Available in 4, 8 or 12 wire congurations
EL Concealed Current Transfer (Standard Prep Locations)
For McK-FM300, McK-FM3500, McK-FM3700
EL-4 Qty (4) 28 Gauge Wires
EL-8 Qty (8) 28 Gauge Wires
EL-12 Qty (12) 28 Gauge Wires
• Hinges are handed
• Available on full mortise aluminum continuous hinges
• Each electrical prep is supplied with a 48" and 96" wire harness
• ElectroLynx HC-6/4 or HC-6/8 pigtails are included in pack for
installation with other ASSA ABLOY ElectroLynx products
• Electrical modication meets new SDI location at center of
hinge
• Standardized prep locations on 83", 85", 95" and 120" hinges
8
www.mckinneyhinge.com
Transfer Device Solutions
1-800-810-WIRE (9473)

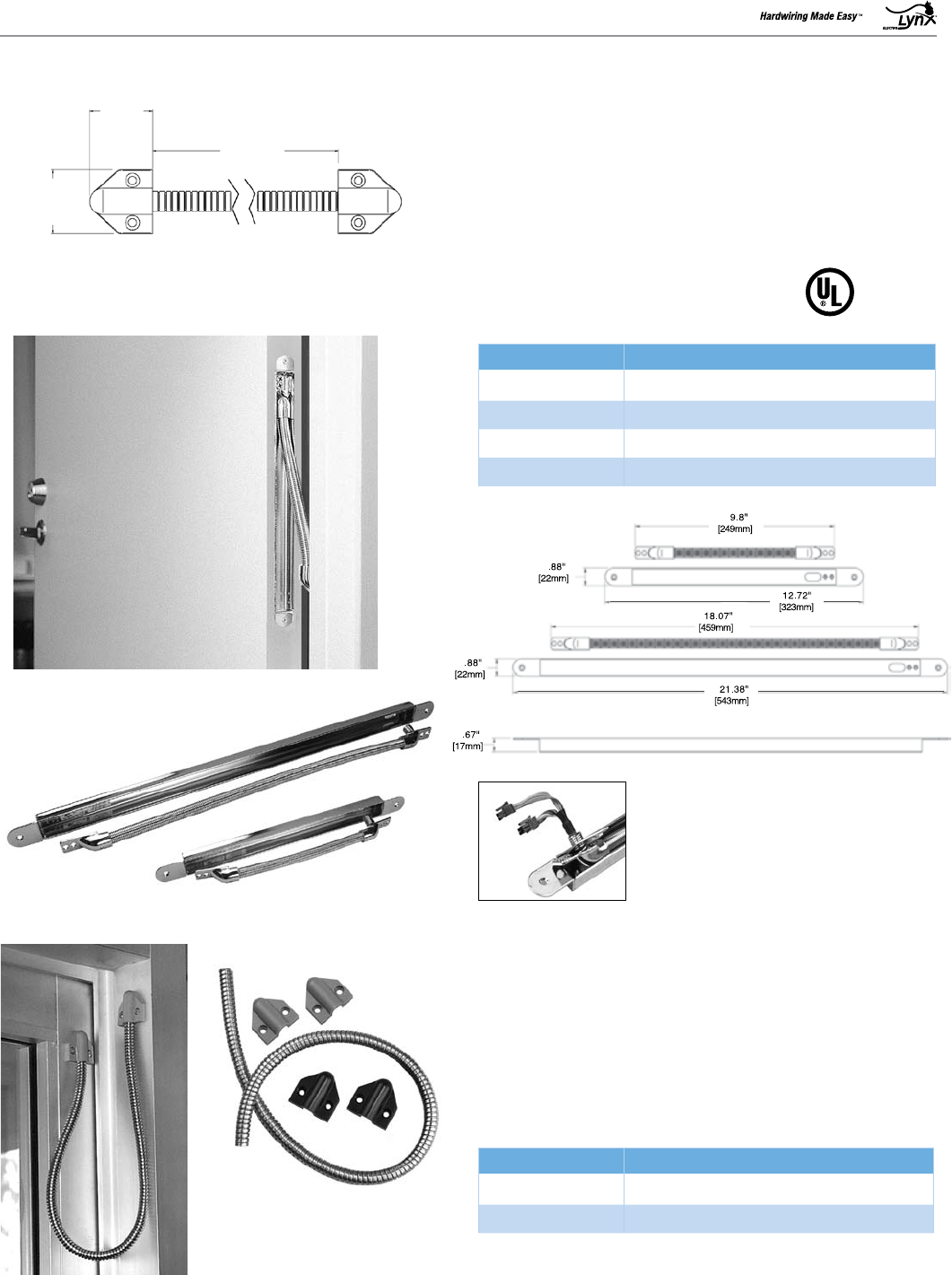

Door Cord and Electrical Transfer (EPT)
McK-TSB-C Door Cord
• Simplest and most economical solution for power transfer
• Consists of an 18" or 36" armored stainless steel cable and
plastic end pieces in light gray and black
• Cable has an interior diameter of .25"
• Supports interior wire cables up to .2"
Part Number Description
McK-TSB-C Door cord with gray/black caps 18" cord
McK-TSB-CXL Door cord with gray/black caps 36" cord
How to Order
McK-EPT Electrical Power Transfer
• Installs in the door and frame edges
• Accepts a thick cable and protects it within a exible
steel shield
• Device that will work on most doors hung using butt
hinges, continuous hinges or pivots
• Will not function on a center pivot door
Part Number Description
McK-EPT Electrical power transfer
McK-EPTL Electrical power transfer, long
McK-EL-EPT ElectroLynx® EPT -12 wire
McK-EL-EPTL ElectroLynx EPTL -12 wire
How to Order
EPT can be ordered with ElectroLynx by
specifying McK-EL-EPT or McK-EL-EPTL.
9
Transfer Device Solutions
www.mckinneyhinge.com 1-800-810-WIRE (9473)
Service Kit and Tools
Miscellaneous
Parts
Part Number Description
1 bag (100 pc) QC-RF2 Female receptacle (2ckt)
1 bag (100 pc) QC-RF4 Female receptacle (4ckt)
1 bag (100 pc) QC-RF8 Female receptacle (8ckt)
1 bag (100 pc) QC-RM2 Male plug (2ckt)
1 bag (100 pc) QC-RM4 Male plug (4ckt)
1 bag (100 pc) QC-RM8 Male plug (8ckt)
1 bag (100 pc) QC-FT2024 Female terminal (AWG 20-24)
1 bag (100 pc) QC-FT2630 Female terminal (AWG 26-30)
1 bag (100 pc) QC-MT2024 Male terminal (AWG 20-24)
1 bag (100 pc) QC-MT2630 Male terminal (AWG 26-30)
1 bag (10 pc) QC-DCC Pinning assembly guide
The plug and receptacle connectors are designed to
mate and lock together as shown in the figure. Plug the
connectors onto each other with the locking mechanism
aligned as indicated.
Locking mechanism
Male plug (8 circuit)
Female
receptacle
(8 circuit)
Female receptacle requires
female terminal
Male plug requires
male terminal
QC-R003 Molex Hand Crimp Tool
The crimp tool is required for adding Molex terminals (connector
pins) to wires used with ElectroLynx® products.
The tool is intended for low volume, or repair requirements only.
QC-R002 Extraction Tool
The extraction tool is a simple hand tool used to remove damaged
terminals from an ElectroLynx female receptacle or male plug.
QC-R001 Service Kit
The service kit includes a quantity of every different type of
connector and terminal required for repairing product connections/
terminations or pinning wires on certain retrofit harnesses.
Contains 10 each 2, 4, 8 molex receptacles and plugs as
well as corresponding terminals, extraction tool and pinning
assembly guide.
QC-DCC Pinning Assembly Guide
Included with every pinned conductor to aid in wire assembly.
10
www.mckinneyhinge.com
Transfer Device Solutions
1-800-810-WIRE (9473)
Connection
Pin
Color Wire
1 Black
2 Red
3 White
4 Green
5 Orange
6 Blue
7 Brown
8 Yellow
2 Thru 8 Wire
8
1
2
3
4
5
6
7
1
2
3
4
Connection
Pin
Color Wire
1- #9 Violet
2- #10 Gray
3- #11 Pink
4- #12 Tan
10 Thru 12 Wire
8
1
2
3
4
5
6
7
1
2
3
4
ASSA ABLOY Standard Pinout Colors
NOTE: Door and frame should be prepared per the proper
hinge template before installing the hinge.
Wire Specications:
28 Gauge. stranded w/PTFE insulation, NEMA HP-3. Each
conductor is colored differently for ease of identification.
Electrical Rating:
4 amp continuous @ 24 volts AC or DC, 16 amp pulse for
300 msec. (cycle time not less than 5 sec.), 10 amp pulse
for 250 msec. (cycle time not less than 5 sec.)
Location:
The QC Hinge should be located in the second from the
bottom hinge preparation on the door and frame.
NOTE: Hinges with up to 8 wires will have an 8 position
connector on them. If there are more than 8 and up to
12 wires there will be a 4 position connector in addition to
the 8 position connector.
11
McKINNEY Products Company • 225 Episcopal Road • Berlin • CT 06037 • Phone: 800.346.7707 • Fax: 800.541.1073
ASSA ABLOY Door Security Solutions Canada • 160 Four Valley Drive • Vaughan, Ontario • L4K 4T9 • Tel: 905.738.2466 • Fax: 905.738.2678 • www.assaabloy.ca
Founded in 1864, McKINNEY Products Company is a market leader in the manufacture of quality architectural
grade hinges including security hinges, and continuous hinges for the builders’ hardware industry.
Copyright © 2009-2011, McKinney Products Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of McKinney Products Company is prohibited.
ASSA ABLOY is the global leader in door opening solutions, dedicated to
satisfying end-user needs for security, safety and convenience. 51415 1/11
