INSTRUCTION MANUAL

IMPORTANT INFORMATION: Please read these instructions carefully and make

sure you understand them before using this unit. Retain these instructions for future

reference.

MANUEL D’INSTRUCTIONS

RENSEIGNEMENTS IMPORTANTS: Avant d’utiliser cet appareil, veuillez lire

atentivement les instructions et assurez--vous de les avoir comprises. Conservez

les instructions pour référence ultérieure.

BETRIEBSANWEISUNG

WICHTIGE INFORMATION: Lesen Sie diese Hinweise zur Handhabung des

Geräts aufmerksam durch. Verwenden Sie es erst, wenn Sie sicher sind, daß Sie

alle Anweisungen verstanden haben und gut aufbewahren.

MANUAL DE INSTRUCCIONES

INFORMACIÓN IMPORTANTE: Lea atentamente las instrucciones y

asegúrese de entenderlas antes de utilizar esta aparato. Conserve las instruc-

ciones para la referencia en el futuro.

TABLE OF CONTENTS

Identification (What is What?) 2

Identification of Symbols 3

Safety Rules 3

Assembly 5

Operation 9

Maintenance 12

Service & Adjustments 13

Storage 15

Troubleshooting Table 16

Declaration of Conformity 17

Technical Data 18

IDENTIFICATION (WHAT IS WHAT?)

1. Fuel tank

2. Handlebar

3. ON/STOP (I/0) switch

4. Throttle cable clip

5. Shoulder harness clamp

6. Shoulder harness

7. Trimmer head

8. Line limiter blade

9. Combination shield

10. Shaft

11. Blade

12. Throttle trigger

13. Throttle lock--out

14. Starter handle

15. Fuel cap

16. Primer bulb

17. Start lever

18. Muffler

19. Wrench

20. Hex wrench

21. Transport guard

22. Instruction manual

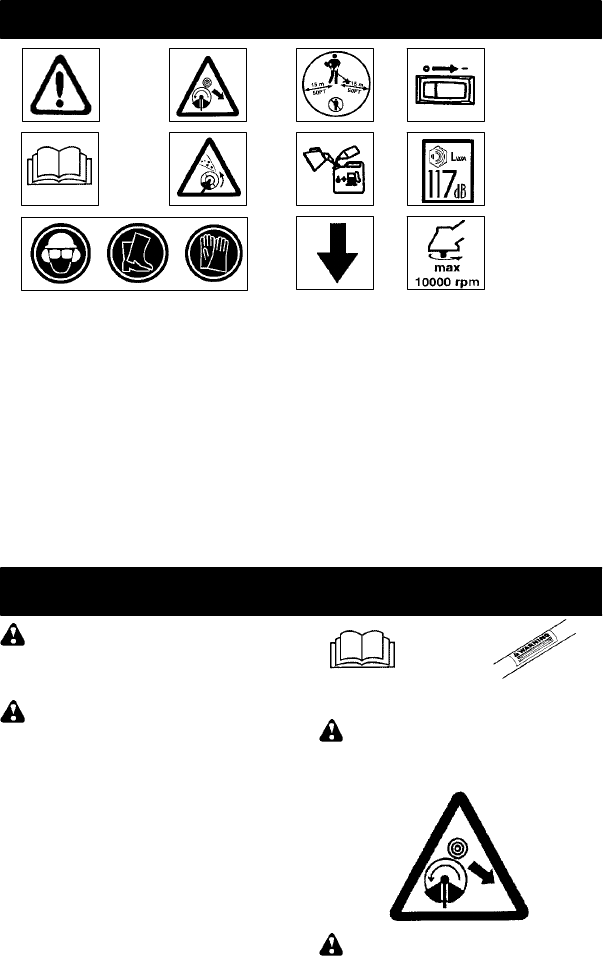

IDENTIFICATION OF SYMBOLS

A. WARNING! This brushcutter can be dangerous! Careless or improper use can

cause serious or even fatal injury.

B. Read and understand the instruction manual before using the brushcutter.

C. Always use:

Ear protection, eye protection, head protection, boots, and gloves.

D. DANGER! Blade can thrust violently away from material it does not cut. Blade thrust

can cause amputation of arms or legs. Keep people and animals 15 meters away.

E.WARNING! Blade/trimmer line can throw objects violently. You and others can be

blinded or injured. Always wear eye protection and leg protection.

F. The operator of the machine must insure that no one comes within a 15 meter radius

while working. When several operators are working within the same area a safety dis-

tance of at least 15 meters must be observed.

G. Use unleaded or quality leaded petrol and two--stroke oil mixed at a ratio of 2.5%.

H. Handlebar to be positioned only below the arrow.

I. Engine ON/STOP (I/0) Switch.

J. Guaranteed sound power level according to Directive 2000/14/EC

K. Maximum rotational frequency of the spindle, rpm

SAFETY RULES

WARNING: When using gardening

appliances, basic safety precautions should al-

ways be followed to reduce the risk of fire and

serious injury. Read and follow all instructions.

DANGER: This power tool can be dan-

gerous! This unit can cause serious injury in-

cluding amputation or blindness to the operator

and others. The warnings and safety instruc-

tions in this manual must be followed to provide

reasonable safety and efficiency in using the

unit. The operator is responsible for following the

warnings and instructions in this manual and on

the unit. Read the entire instruction manual be-

fore assembling and using the unit! Restrict the

use of this unit to persons who read, under-

stand, and follow the warnings and instructions

in this manual and on the unit. Never allow chil-

dren to operate this unit.

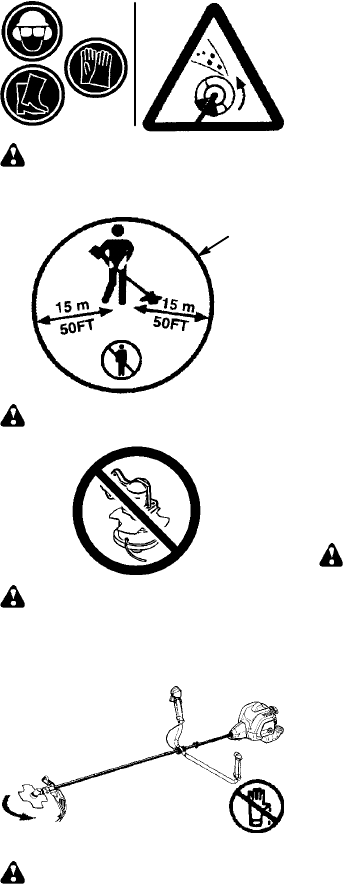

SAFETY INFORMATION

ON THE UNIT

INSTRUCTION

MANUAL

DANGER: Blade can thrust violently

away from material it does not cut. Blade

thrust can cause amputation of arms or legs.

Keep people and animals 15 meters away.

WARNING: Blade/trimmer line can

throw objects violently. You and others can be

blinded or injured. Wear safety glasses and

leg protection.

WARNING: Hazard zone for thrown

objects. Blade/Trimmer line can throw objects

violently. Others can be blinded or injured.

Keep people and animals 15 meters away.

Hazard Zone

WARNING: Do not use trimmer head

as a fastening device for the blade.

WARNING: The blade continues to

spin after the throttle is released or, engine is

turned off. The coasting blade can throw objects

or seriously cut if accidentally touched. Stop the

blade by contacting the right hand side of the

coasting blade with material already cut.

Stop coasting

blade by contact

with cut material.

OPERATOR SAFETY

WARNING: This machine produces

an electromagnetic field during operation. Under

some circumstances, this field may interfere

with active or passive medical implants. To re-

duce the risk of serious or fatal injury, we recom-

mend persons with medical implants to consult

their physician and the medical implant

manufacturer before operating this machine.

SDress properly. Always wear safety

glasses or similar eye protection when op-

erating, or performing maintenance, on

your unit (safety glasses are available).

Eye protection should be marked Z87.

SAlways wear a helmet if the trees to be

cleared are taller than 2 meters.

SAlways wear face or dust mask if operation

is dusty.

SAlways wear heavy, long pants, long

sleeves, boots, and gloves. Wearing safety

leg guards is recommended.

SAlways wear foot protection. Do not go

barefoot or wear sandals. Stay clear of

blade/spinning line.

SSecure hair above shoulder length. Secure

or remove loose clothing or clothing with

loosely hanging ties, straps, tassels, etc.

They can be caught in moving parts.

SBeing fully covered also helps protect you

from debris and pieces of toxic plants

thrown by spinning line.

SStay alert. Do not operate this unit when you

are tired, ill, upset or under the influence of al-

cohol, drugs, or medication. Watch what you

are doing; use common sense.

SWear hearing protection. Long or continu-

ous exposure to high noise levels may

cause permanent hearing impairment.

SNever start or run inside a closed room or

building. Breathing exhaust fumes can kill.

SKeep handles free of oil and fuel.

SAlways use the handlebar and a properly

adjusted shoulder harness with a blade

(see ASSEMBLY).

UNIT / MAINTENANCE SAFETY

WARNING: Stop unit and disconnect

the spark plug before performing mainte-

nance (except carburetor adjustments).

SThrow away blades that are bent, warped,

cracked, broken, or damaged in any other

way. Replace trimmer head parts that are

cracked, chipped, broken, or damaged in

any other way before using the unit.

SMaintain unit according to recommended

procedures. Keep blade sharp. Keep cut-

ting line at the proper length.

SUse only 2,4 mm diameter McCulloch

brand replacement line. Never use wire,

rope, string, etc.

SInstall required shield properly before using

the unit.

SUse only specified blade or trimmer head;

make sure it is properly installed and se-

curely fastened.

SNever start engine with clutch shroud re-

moved. The clutch can fly off and cause se-

rious injury.

SBe sure blade or trimmer head stops turning

when engine idles.

SMake carburetor adjustments with the low-

er end supported to prevent blade or trim-

mer line from contacting any object. Hold

unit by hand; do not use the shoulder har-

ness for support.

SKeep others away when making carbure-

tor adjustments.

SUse only recommended McCulloch accesso-

ries and replacement parts.

SHave all maintenance and service not ex-

plained in this manual performed by your au-

thorized service dealer.

FUEL SAFETY

SMix and pour fuel outdoors.

SKeep away from sparks or flames.

SUse a container approved for fuel.

SDo not smoke or allow smoking near fuel or

the unit.

SAvoid spilling fuel or oil. Wipe up all fuel spills.

SMove at least 3 meters away from fueling

site before starting engine.

SStop engine and allow to cool before re-

moving fuel cap.

SAlways store petrol in a container approved

for flammable liquids.

CUTTING SAFETY

WARNING: Inspect the area to be cut

before each use. Remove objects (rocks,

broken glass, nails, wire, string, etc.) which

can be thrown or become entangled in the

blade or trimmer head.

SKeep others including children, animals,

bystanders, and helpers at least 50 feet (15

meters) away. Stop engine immediately if

you are approached.

SAlways keep engine on the right--hand side

of your body.

SHold the unit firmly with both hands.

SKeep firm footing and balance. Do not

overreach.

SKeep blade or trimmer head below waist

level. Do not raise engine above your waist.

SKeep all parts of your body away from blade,

trimmer head, and muffler when engine is

running. A hot muffler can cause serious

burns.

SCut from your left to your right. Cutting on

right side of the shield will throw debris

away from the operator.

SUse only in daylight or good artificial light.

SUse only for jobs explained in this manual.

TRANSPORTING AND STORAGE

SAllow the engine to cool; secure unit before

storing or transporting in vehicle.

SEmpty fuel tank before storing or transporting

the unit. Use up fuel left in the carburetor by

starting engine and letting it run until it stops.

SStore unit and fuel in an area where fuel va-

pors cannot reach sparks or open flames

from water heaters, electric motors or

switches, furnaces, etc.

SStore unit so line limiter cannot accidentally

cause injury. Unit can be hung by the shaft.

SAlways install transport guard on blade be-

fore transporting or strorage.

SStore the unit out of the reach of children.

SSecure the machine during transport.

SPECIAL NOTICE: Exposure to vibrations

through prolonged use of petrol powered hand

tools could cause blood vessel or nerve dam-

age in the fingers, hands, and joints of people

prone to circulation disorders or abnormal swell-

ings. Prolonged use in cold weather has been

linked to blood vessel damage in otherwise

healthy people. If symptoms occur such as

numbness, pain, loss of strength, change in skin

color or texture, or loss of feeling in the fingers,

hands, or joints, discontinue the use of this tool

and seek medical attention. An anti-vibration

system does not guarantee the avoidance of

these problems. Users who operate power tools

on a continual and regular basis must monitor

closely their physical condition and the condition

of this tool.

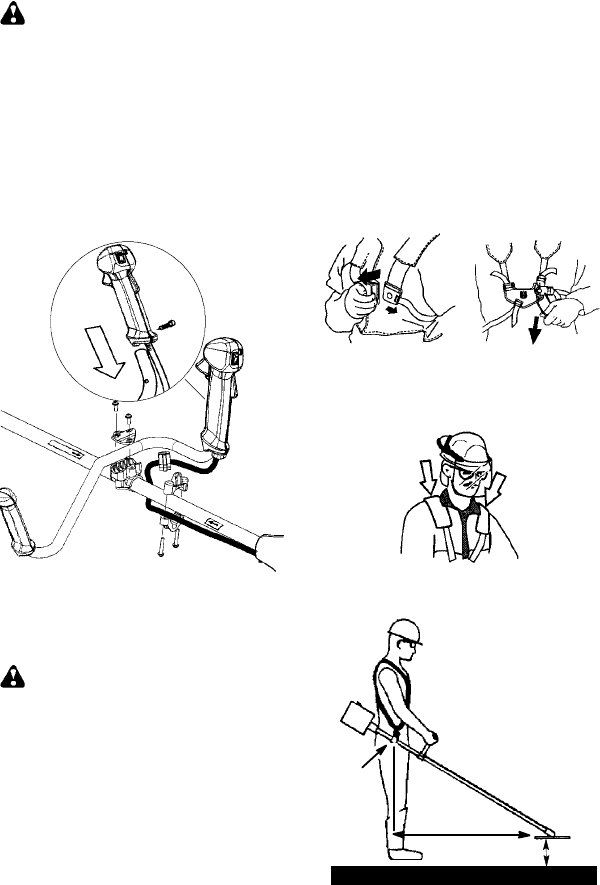

ASSEMBLY

CARTON CONTENTS

Check carton contents against the following list:

SBrushcutter

SBlade

SCupped washer

SLarge nut for installing blade

STrimmer head

SCombination shield

SBolt

SHandlebar

SHandlebar bracket cover

SHandlebar bracket cover screws (2)

SUpper shoulder harness clamp

SLower shoulder harness clamp

SShoulder harness clamp screws (2)

SShoulder harness

SHex wrench

SWrench

STransport guard

SThrottlecableclip

WARNING: Always stop unit and dis-

connect spark plug before performing any as-

sembly procedures.

WARNING: If received assembled,

repeat all steps to ensure your unit is properly

assembled and all fasteners are secure.

Examine parts for damage. Do not use dam-

aged parts.

It is normal for the fuel filter to rattle in the empty

fuel tank.

Finding fuel or oil residue on muffler is normal

due to carburetor adjustments and testing done

by the manufacturer.

TOOLS REQUIRED

SHex wrench (provided)

SAdjustable wrench

SPhillips screwdriver

ATTACHING THE HANDLEBAR

DANGER: To avoid serious injury, the

barrier portion of the handlebar must be installed

as shown to provide a barrier between operator

and the spinning blade.

1. Remove the screw at the rear of the

throttle handle.

2. Slide the throttle handle onto the right side

of the handlebar (see illustration).

3. Align the screw hole in the throttle handle

with the hole in the handlebar.

4. Refit the screw in the hole in the rear of the

throttle handle.

5. Screw the screw through the handle and

handlebar. Tighten the screw.

6. Fit the mounting components as shown.

7. The handlebar mounting must be fitted

between the arrows on the shaft.

8. Tighten the screws with a hex wrench.

ASSEMBLY OF SHOULDER

HARNESS

WARNING: When using a brushcut-

ter, it must always be hooked securely to the

shoulder harness. Otherwise, you will be un-

able to safely control the brushcutter. This

can result in injury to yourself or others.

Proper shoulder harness and handlebar adjust-

ments must be made with the engine complete-

ly stopped before using unit. A well--adjusted

shoulder harness and machine makes work

much easier.

ATTACHING SHOULDER HARNESS

CLAMP (if not already attached)

1. Place the upper shoulder harness clamp

over the shaft.

2. Position the lower shoulder harness

clamp under the shaft and align the upper

and lower clamp screw holes. Clamp

must be fittle above the arrow on the shaft

(see illustration above).

NOTE: Fit throttle wire in groove of lower

harness clamp before tightening screws.

3. Insert two screws into the screw holes.

4. Secure shoulder harness clamp by tight-

ening screws with a hex wrench.

SHOULDER HARNESS

ADJUSTMENT

At the front of the shoulder harness is an easily

accessible quick release. Use the quick release

in any emergency situation that requires you to

free yourself from the machine and harness.

1. Put on the harness. Adjust the harness for

the best working position.

2. Tension the side straps so that the weight

is evenly distributed across both shoul-

ders.

NOTE: It may be necessary to relocate the

shoulder harness clamp on the shaft for prop-

er balancing of unit.

76 cm

SHOULDER HARNESS

ADJUSTMENT

FOR BALANCE

10 -- 30 cm

above

ground

15 cm

below

waist

76 cm

ATTACHING THE SHIELD

WARNING: The shield must be prop-

erly installed. The shield provides partial

protection to the operator and others from the

risk of thrown objects, and is equipped with a

line limiter blade which cuts excess line to the

proper length. The line limiter blade (on un-

derside of shield) is sharp and can cut you.

1. Insert bracket into slot on shield.

2. Pivot shield to align holes in shield and

bracket.

Slot Shield

Bracket

3. Secure shield to bracket with bolt.

Bolt

CONFIGURING YOUR UNIT

You can configure your unit using a cutting head

for grass and light weeds, or a weed blade for

cutting grass, weeds, and brush up to 1 cm in

diameter. To assemble your unit, go to the sec-

tion for the desired configuration and follow the

instructions.

ASSEMBLY INFORMATION --

TRIMMER HEAD

TRIMMER

HEAD

NOTE: Remove the blade before attaching the

trimmer head. To remove blade, align hole in

the dust cup with the hole in the side of the

gearbox by rotating the blade. Insert a small

screwdriver into aligned holes. This will keep

the shaft from turning while loosening the blade

nut. Remove blade nut by turning clockwise.

Remove the screwdriver. Remove both wash-

ers and blade. See INSTALLATION OF THE

METAL BLADE for illustrations. Be sure to store

all parts and instructions for future use.

INSTALLATION OF THE TRIMMER

HEAD

NOTE: If your unit has a plastic cover over

the threads on the threaded shaft, remove the

covering to expose the threads. Beforeinstal-

ling the trimmer head, make sure the dust cup

and retaining washer are positioned on the

gearbox.

Retaining washer

Dust cup

Gearbox

Aligned holes

Shield

NOTE: Make sure all parts are properly

installed as shown in the illustration before

installing the trimmer head.

1. Align hole in the dust cup with the hole in the

side of the gearbox by rotating the dust cup.

2. Insert a small screwdriver into aligned

holes. This will keep the shaft from turning

while tightening trimmer head.

3. While holding the screwdriver in position,

thread trimmer head onto the shaft in the

direction shown on the decal (counter-

clockwise). Tighten until secure.

NOTE: The retaining washer must be posi-

tioned with the raised section facing toward the

gearbox.

ASSEMBLY INFORMATION -- WEED

BLADE

WEED

BLADE

NOTE: Remove the trimmer head before

installing the weed blade. To remove the trimmer

head, align hole in the dust cup with the hole in

the side of the gearbox by rotating the dust cup.

Insert a small screwdriver into aligned holes.

This will keep the shaft from turning while loos-

ening the trimmer head. Remove the trimmer

head by turning clockwise. Remove the screw-

driver. See INSTALLATION OF THE CUTTING

HEAD for illustrations. Be sure to store all parts

and instructions for future use. Never use the

trimmer head with the metal blade installed.

INSTALLATION OF THE METAL

BLADE

WARNING: Wear protective gloves

when handling or performing maintenance on

the blade to avoid injury. The blade is sharp and

can cut you even when it is not moving.

WARNING: Do not use any blades, or

fastening hardware other than the washers and

nuts shown in the following illustrations. These

parts must be provided by McCulloch and

installed as shown below. Failure to use proper

parts can cause the blade to fly off and seriously

hurt you or others.

NOTE: The dust cup is located on the gearbox

shaft and not in the parts bag. All other fasten-

ers mentioned in the following assembly steps

are in the parts bag.

1. Install the blade and the retaining washer

over the threaded shaft.

2. Make sure the raised part of the retaining

washer is facing the gearbox and the raised

area fits into the hole in the center of the

blade.

3. Slide the blade and retaining washer onto

the shaft of the gearbox.

4. Place the cupped washer onto the shaft.

Make sure the cupped side of the washer

is toward the blade.

5. Install the blade nut by threading onto the

shaft counterclockwise.

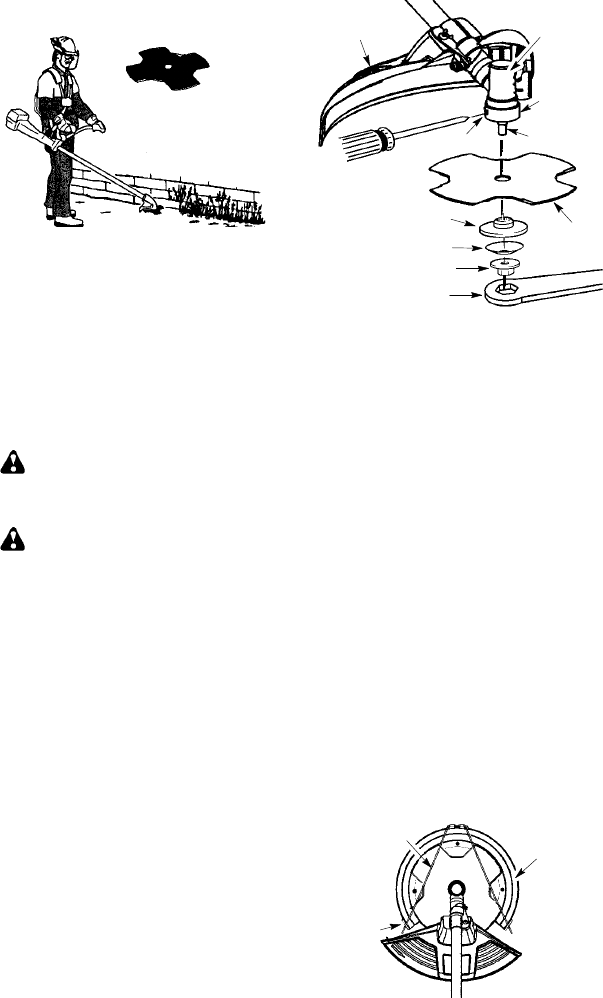

Shield

Blade

Retaining washer

Aligned holes

Cupped washer

Nut

Threaded

shaft

Wrench

Dust cup

Gearbox

NOTE: Make sure all parts are in place as il-

lustrated, and the blade is sandwiched between

the dust cup and the retaining washer. There

should be no space between the blade and the

dust cup or the retaining washer.

6. Align hole in dust cup with hole in side of

gearbox by rotating the blade.

7. Insert a small screwdriver into aligned

holes. This will keep the shaft from turning

while tightening the blade nut.

8. Tighten blade nut firmly with a wrench (pro-

vided) while holding screwdriver in position.

9. Remove the screwdriver.

10. Turn blade by hand. If the blade binds

against the shield, or appears to be un-

even, the blade is not centered, and you

must reinstall.

NOTE: To remove blade, insert screwdriver

into aligned holes. Unthread the nut and remove

parts. Be sure to store parts and instructions for

future use.

ATTACHING THE TRANSPORT

GUARD

NOTE: The transport guard must always be

attached to the blade when the machine is be-

ing transported or in storage.

1. Remove ends of wire retainer from the

clips on the transport guard.

2. Lift wire retainer and position blade in

transport guard.

3. Place wire retainer over blade and insert

both ends of wire retainer back into clips.

Wire retainer Transport

guard

Clip

OPERATION

WARNING: Be sure to read the fuel

information in the safety rules before you be-

gin. If you do not understand the safety rules,

do not attempt to fuel your unit. Contact an au-

thorized service dealer.

FUELING ENGINE

WARNING: Remove fuel cap slowly

when refueling.

This engine is certified to operate on unleaded

petrol. Before operation, petrol must be mixed

with a good quality 2-cycle air-cooled engine

oil. We recommend McCulloch brand oil

mixed at a ratio of 40:1 (2.5%). A 40:1 ratio is

obtained by mixing 5 liters of unleaded petrol

with 0,125 liter of oil. DO NOT USE automo-

tive oil or boat oil. These oils will cause engine

damage. When mixing fuel, follow instruc-

tions printed on oil container. Once oil is add-

ed to petrol, shake container momentarily to

assure that the fuel is thoroughly mixed. Al-

ways read and follow the safety rules relating

to fuel before fueling your unit.

IMPORTANT

Experience indicates that alcohol blended fuels

(called gasohol or using ethanol or methanol)

can attract moisture which leads to separation

and formation of acids during storage. Acidic

gas can damage the fuel system of an engine

while in storage. To avoid engine problems,

empty the fuel system before storage for 30

days or longer. Drain the gas tank, start the en-

gine and let it run until the fuel lines and carbure-

tor are empty. Use fresh fuel next season. Nev-

er use engine or carburetor cleaner products in

the fuel tank or permanent damage may occur.

HOW TO STOP YOUR UNIT

STo stop the engine, move the ON/STOP

(I/0) switch to the STOP (0) position.

ON/STOP (I/0)

switch

Throttle lock--out

HOW TO START YOUR UNIT

WARNING: Avoid any contact with the

muffler. A hot muffler can cause serious burns.

STARTING A COLD ENGINE (or a

warm engine after running out of fuel)

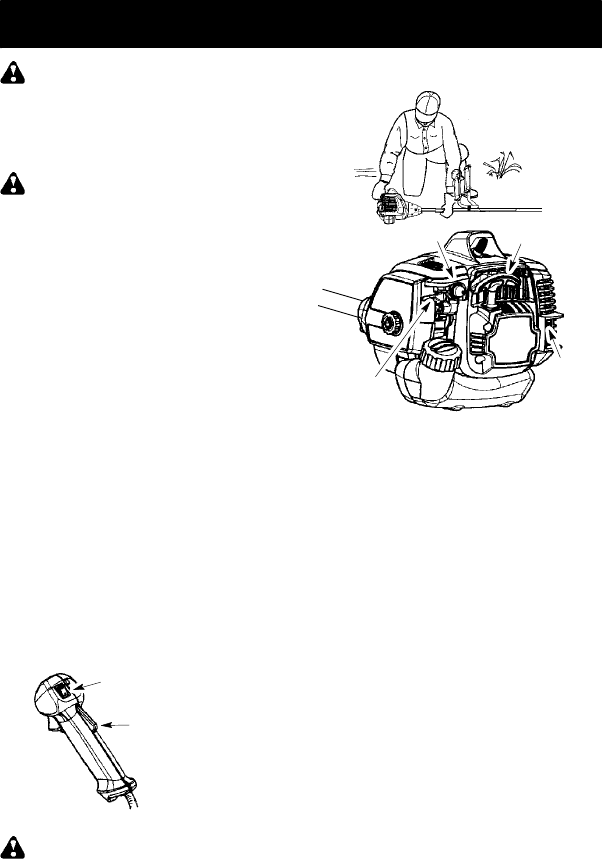

Starting position

Muffler

Start

Lever

Starter Handle

Primer Bulb

NOTE: The throttle lock--out is designed to

prevent unintentional use of the throttle trig-

ger. The lock--out must be pressed with the

palm of your hand as you grip the throttle han-

dle before the trigger can be used. DO NOT

squeeze the throttle trigger until the engine

has started and runs.

1. Set unit on a flat surface.

2. Move ON/STOP (I/0) switch to the ON (I)

position.

3. Slowly press the primer bulb 6 times.

4. Move the start lever to the START position.

5. Pull starter rope handle sharply until en-

gine starts and runs.

6. Allow unit to run for 10--15 seconds, then

fully squeeze the throttle trigger to disen-

gage the starting system.

STARTING A WARM ENGINE

1. Move ON/STOP (I/0) switch to the ON (I)

position.

2. Pull starter rope sharply until engine

starts and runs.

NOTE: Normally, the warm starting procedure

can be used within 5 -- 10 minutes after the unit

is turned off. If the unit sits for more than 10 min-

utes without being run, it will be necessary to

start the unit by following the steps under

STARTINGACOLDENGINEorfollowingthe

starting instruction steps shown on the unit.

STARTING A FLOODED ENGINE

Move the start lever to the RUN position and

fully squeeze throttle trigger. Pull the starter

handle repeatedly while squeezing throttle

trigger until engine starts and runs. This could

require pulling the starter handle many times,

depending on how badly the unit is flooded.If

the unit still doesn’t start, refer to TROUBLE-

SHOOTING TABLE.

OPERATING POSITION

Boots

Heavy,

long pants

Eye protection

ALWAYS WEAR:

Cut from your left to your right.

Hearing

protection

Safety helmet

When operating unit, clip shoulder harness

onto clamp, stand as shown and check for the

following:

SWear eye protection and heavy clothing.

SExtend your left arm and hold handlebar

grip with your left hand.

SHold throttle grip with your right hand with

finger on throttle trigger.

SKeep unit below waist level.

SMaintain full weight of tool on both shoulders.

SWithout bending over, keep the blade or

trimmer head near and parallel to the ground

and not crowded into material being cut.

OPERATING INSTRUCTIONS FOR

USE WITH TRIMMER HEAD

WARNING: Always wear eye protec-

tion. Never lean over the trimmer head. Rocks

or debris can ricochet or be thrown into eyes

and face and cause blindness or other serious

injury.

Before trimming, bring engine to a speed suffi-

cient to cut material to be trimmed.

Do not run the engine at a higher speed than

necessary. The cutting line will cut efficiently

when the engine is run at less than full throttle.

At lower speeds, there is less engine noise and

vibration. The cutting line will last longer and will

be less likely to “weld” onto the spool.

Always release the throttle trigger and allow

the engine to return to idle speed when not

cutting.

To stop engine:

SRelease the throttle trigger.

SMove ON/STOP (I/0) switch to the STOP (0)

position.

TRIMMER LINE ADVANCE

Advance line by tapping the bottom of the cut-

ting head lightly on the ground while engine is

running at full speed. The metal line limiter

blade attached to the guard will cut the line to

the proper length.

WARNING: Use only 2,4 mm diameter

line. Other sizes of line will not advance properly

and can cause serious injury. Do not use other

materials such as wire, string, rope, etc. Wire

can break off during cutting and become a dan-

gerous missile that can cause serious injury.

CUTTING METHODS

WARNING: Use minimum speed and

do not crowd the line when cutting around

hard objects (rock, gravel, fence posts, etc.),

which can damage the trimmer head, become

entangled in the line, or be thrown causing a

serious hazard.

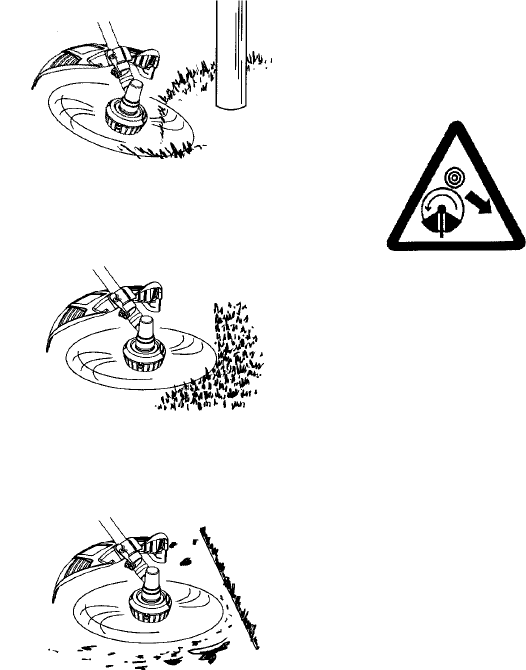

SThe tip of the line does the cutting. You will

achieve the best performance and minimum

line wear by not crowding the line into the

cutting area. The right and wrong ways are

shown below.

Right Wrong

Tip o

line does

the cutting.

ine crowded into

work area.

SThe line will easily remove grass and weeds

from around walls, fences, trees and flower

beds, but it also can cut the tender bark of

trees or shrubs and scar fences.

SFor trimming or scalping, use less than full

throttle to increase line life and decrease head

wear, especially:

SDuring light duty cutting.

SNear objects around which the line can

wrap such as small posts, trees or fence

wire.

SFor mowing or sweeping, use full throttle for a

good clean job.

TRIMMING -- Hold the bottom of the trimmer

head about 8 cm above the ground and at an

angle. Allow only the tip of the line to make

contact. Do not force trimmer line into work

area.

Trimming

8 cm above

ground

SCALPING -- The scalping technique re-

moves unwanted vegetation down to the

ground. Hold the bottom of the trimmer head

about 8 cm above the ground and at an angle.

Allow the tip of the line to strike the ground

around trees, posts, monuments, etc. This

technique increases line wear.

Scalping

MOWING -- Your trimmer is ideal for mowing

in places conventional lawn mowers cannot

reach. In the mowing position, keep the line

parallel to the ground. Avoid pressing the

head into the ground as this can scalp the

ground and damage the tool.

Mowing

SWEEPING -- The fanning action of the rotat-

ing line can be used to blow away loose debris

from an area. Keep the line parallel to and

above the area surface and swing the tool

from side to side.

Sweeping

OPERATING INSTRUCTIONS FOR

USE WITH WEED BLADE

SBlade Thrust is a reaction that only occurs

when using a bladed unit. This reaction can

cause serious injury such as amputation.

Carefully study this section. It is important that

you understand what causes blade thrust,

how you can reduce the chance of its

occurring, and how you can remain in control

of unit if blade thrust occurs.

SWHAT CAUSES BLADE THRUST -- Blade

Thrust can occur when the spinning blade

contacts an object that it does not cut. This

contact causes the blade to stop for an instant

and then suddenly move or “thrust” away

from the object that was hit. The “thrusting”

reaction can be violent enough to cause the

operator to be propelled in any direction and

lose control of the unit. The uncontrolled unit

can cause serious injury if the blade contacts

the operator or others.

SWHEN BLADE THRUST OCCURS --

Blade Thrust can occur without warning if

the blade snags, stalls, or binds. This is

more likely to occur in areas where it is

difficult to see the material being cut. By

using the unit properly, the occurrence of

blade thrust will be reduced and the

operator will be less likely to lose control.

SCut only grass, weeds, and woody brush up

to 1 cm in diameter with the weed blade. Do

not let the blade contact material it cannot cut

such as stumps, rocks, fences, metal, etc., or

clusters of hard, woody brush having a

diameter greater than 1 cm.

SKeep the blade sharp. A dull blade is more

likely to snag and thrust.

SCut only at full throttle. The blade will have

maximum cutting power and is less likely to

bind or stall.

S“Feed” the blade deliberately and not too

rapidly. The blade can thrust away if it is fed

too rapidly.

SCut only from your left to your right. Cutting on

right side of the shield will throw debris away

from the operator.

SUse the shoulder harness and keep a firm

grip on the unit with both hands. A properly

adjusted shoulder harness will support the

weight of the unit, freeing your arms and

hands to control and guide the cutting motion.

SKeep feet comfortably spread apart and

braced for a possible sudden, rapid thrust of

unit. Do not overreach. Keep firm footing and

balance.

SKeep blade below waist level; it will be

easier to maintain control of unit.

SDo not raise the engine above your waist as

the blade can come dangerously close to

your body.

SDo not swing unit with such force that you

are in danger of losing your balance.

Bring the engine to cutting speed before enter-

ing the material to be cut. If the blade does not

turn when you squeeze the throttle trigger, make

sure shaft is fully inserted into the engine.

Always release the throttle trigger and allow

engine to return to idle speed when not cut-

ting. The blade should not turn while the en-

gine is running at idle. If the blade turns at idle,

do not use your unit. Refer to the CARBURE-

TOR ADJUSTMENT section or contact your

authorized service dealer.

SMaintain good firm footing while using the

unit. Do this by planting feet firmly in a

comfortable apart position.

SCut while swinging the upper part of your

body from left to right.

SAs you move forward to the next area to cut,

be sure to maintain your balance and footing.

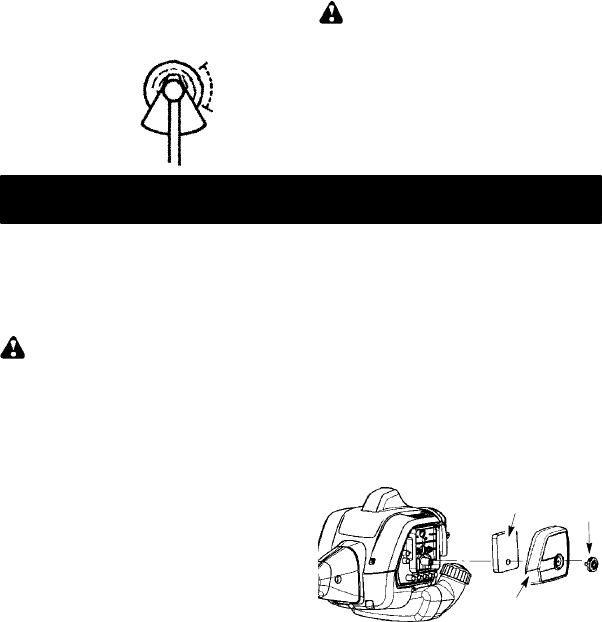

Cut using the 2

o’clock to 4 o’clock

position of the

blade

2 o’clock

4 o’clock

RECOMMENDED CUTTING POSITION

WARNING: The operator or others

must not try to clear away cut material with the

engine running or the blade turning to avoid

serious injury. Stop engine and blade before

removing materials wrapped around blade or

shaft.

MAINTENANCE

The life span of the machine can be reduced

and the risk of accidents can increase if ma-

chine maintenance is not carried out correctly

and if service and/or repairs are not carried

out professionally. If you need further infor-

mation, please contact your nearest autho-

rised service dealer.

WARNING: Disconnect the spark

plug before performing maintenance except

for carburetor adjustments.

CHECK FOR LOOSE

FASTENERS AND PARTS

SSpark Plug Boot

SAir Filter

SHousing Screws

SHandlebar Screws

SCombination Shield

CHECK FOR DAMAGED OR

WORN PARTS

Contact an authorized service dealer for re-

placement of damaged or worn parts.

SON/STOP (I/0) Switch -- Ensure ON/STOP

(I/0) switch functions properly by moving

the switch to the STOP (0) position. Make

sure engine stops; then restart engine and

continue.

SFuel Tank -- Discontinue use of unit if fuel

tank shows signs of damage or leaks.

SCombination Shield -- Discontinue use of

unit if shield is damaged.

INSPECT AND CLEAN UNIT AND

LABELS

SAfter each use, inspect complete unit for

loose or damaged parts. Clean the unit and

labels using a damp cloth with a mild deter-

gent.

SWipe off unit with a clean dry cloth.

CLEAN AIR FILTER

A dirty air filter decreases engine perform-

ance and increases fuel consumption and

harmful emissions. Always clean after every

5 hours of operation.

1. Clean the cover and the area around it to

keep dirt from falling into the carburetor

chamber when the cover is removed.

2. Remove parts as illustrated.

NOTE: Do not clean filter in petrol or other

flammable solvent to avoid creating a fire haz-

ard or producing harmful evaporative emis-

sions.

3. Wash the filter in soap and water.

4. Allow filter to dry.

5. Replace parts.

Air Filter

Air Filter Cover

Knob

REPLACE SPARK PLUG

Replace the spark plug each year to ensure

the engine starts easier and runs better. Set

spark plug gap at 0,6 mm. Ignition timing is

fixed and nonadjustable.

1. Twist, then pull off spark plug boot.

2. Remove spark plug from cylinder and dis-

card.

3. Replace with Champion RCJ-6Y spark

plug and tighten securely with a 19 mm

socket wrench.

4. Reinstall the spark plug boot.

SERVICE AND ADJUSTMENTS

REPLACING THE LINE

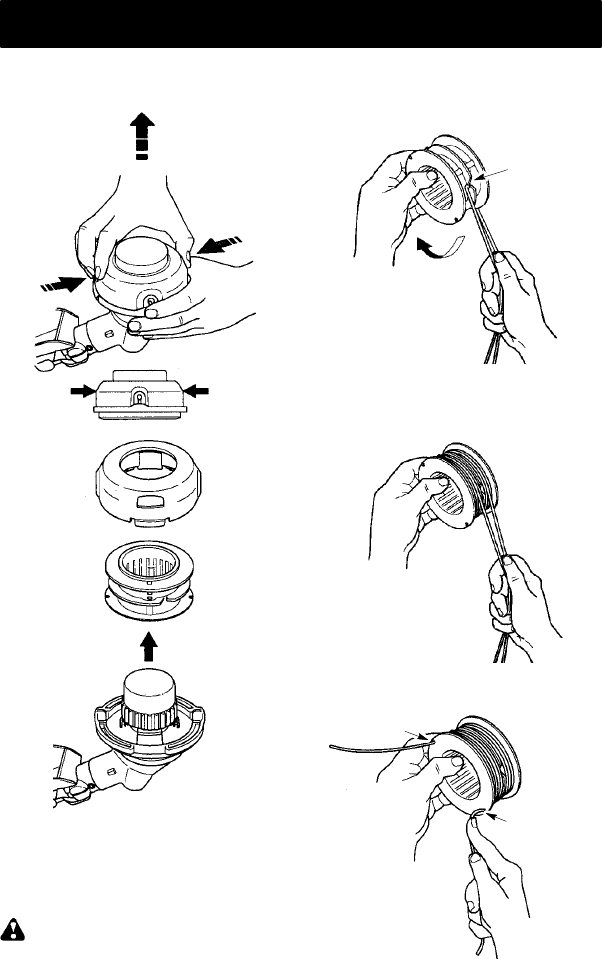

1. Press the tabs on the side of the trimmer

head and remove cover and spool.

Tab

Cover

Spool

2. Remove any remaining line.

3. Clean dirt and debris from all parts. Re-

place spool if it is worn or damaged.

4. Replace with a pre-wound spool, or re-

place line using a 4,5 meters length of 2,4

mm diameter McCulloch brand line.

WARNING: Never use wire, rope,

string, etc., which can break off and becomea

dangerous missile.

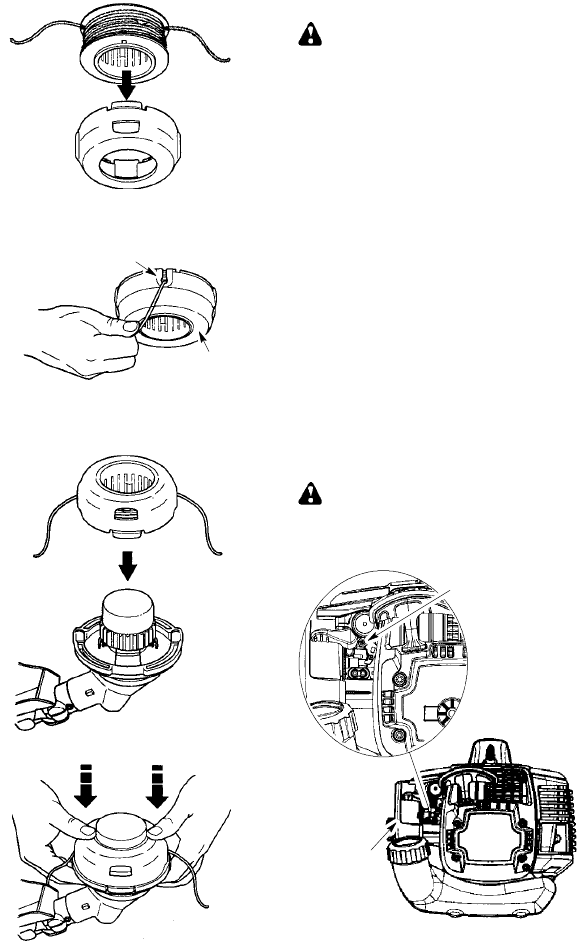

5. When installing new line on an existing

spool, hold the spool as shown.

6. Bend the line at the midpoint and insert

the bend into the slot in the center rim of

the spool. Ensure line snaps into position

in the slot.

Slot

7. With your finger between the lines, wrap

the lines evenly and firmly around the

spool in a clockwise direction.

8. Position the lines in the guide slots.

Guide slot

9. Place the spool in the cover as shown

below.

10. Insert the ends of the lines through exit

holes in the sides of the cover.

Line exit hole

Cover

11. Reinstall the spool and cover onto the

trimmer head. Push until cover snaps into

place.

BLADE REPLACEMENT

Refer to the ASSEMBLY section for blade re-

placement instructions and illustrations.

CARBURETOR ADJUSTMENT

WARNING: Keep others away when

making idle speed adjustments. The trimmer

head will be spinning during most of this pro-

cedure. Wear your protective equipment and

observe all safety precautions. After making

adjustments, the trimmer head must not

move/spin at idle speed.

The carburetor has been carefully set at the

factory. Adjustments may benecessary if you

notice any of the following conditions:

SEngine will not idle when the throttle is re-

leased.

SThe trimmer head moves/spins at idle speed.

Make adjustments with the unit supported so

the cutting attachment is off the ground and

will not make contact with any object. Hold

the unit by hand while running and making ad-

justments. Keep all parts of your body away

from the cutting attachment and muffler.

Idle Speed Adjustment

Allow engine to idle. Adjust speed until engine

runs without trimmer head moving or spinning

(idle speed too fast) or engine stalling (idle

speed too slow).

STurn idle speed screw clockwise to in-

crease engine speed if engine stalls or dies.

STurn idle speed screw counterclockwise to

decrease engine speed if trimmer head

moves or spins at idle speed.

WARNING: Recheck the idle speed

after each adjustment. The trimmer head

must not move or spin at idle speed to avoid

serious injury to the operator or others.

Air filter

cover

Idle speed screw

If you require further assistance or are unsure

about performing this procedure, contact an

authorized service dealer.

STORAGE

WARNING: Perform the following

steps after each use:

SAllow engine to cool before storing or trans-

porting.

SStore unit and fuel in a well ventilated area

where fuel vapors cannot reach sparks or

open flames from water heaters, electric

motors or switches, furnaces, etc.

SEmpty fuel tank before storing or transport-

ing the unit.

SStore unit and fuel well out of the reach of

children.

SStore unit with all guards in place. Position

unit so that any sharp object cannot acci-

dentally cause injury.

SEASONAL STORAGE

Prepare unit for storage at end of season or if

it will not be used for 30 days or more.

If your unit is to be stored for a period of time:

SClean the entire unit before lengthy storage.

SStore in a clean dry area.

SLightly oil external metal surfaces.

ENGINE

SRemove spark plug and pour 1 teaspoon of

40:1, 2-cycle engine oil (air cooled) through

the spark plug opening. Slowly pull the

starter rope 8 to 10 times to distribute oil.

SReplace spark plug with new one of recom-

mended type and heat range.

SClean air filter.

SCheck entire unit for loose screws, nuts,

and bolts. Replace any damaged, broken,

or worn parts.

SAt the beginning of the next season, use

only fresh fuel having the proper petrol to oil

ratio.

OTHER

SDo not store petrol from one season to

another.

SReplace your petrol can if it starts to rust.

TROUBLE CAUSE REMEDY

Engine will not

start. 1. ON/STOP (I/0) switch in

STOP position.

2. Engine flooded.

3. Fuel tank empty.

4. Spark plug not firing.

5. Fuel not reaching

carburetor.

6. Carburetor requires

adjustment.

1. Move ON/STOP (I/0) switch to ON (I)

position.

2. See “Starting a Flooded Engine” in

Operation Section.

3. Fill tank with correct fuel mixture.

4. Install new spark plug.

5. Check for dirty fuel filter; replace.

Check for kinked or split fuel line;

repair or replace.

6. Contact an authorized service dealer.

Engine will

not idle

properly.

1. Carburetor requires

adjustment.

2. Crankshaft seals worn.

3. Compression low.

1. See “Carburetor Adjustment” in

Service and Adjustments Section.

2. Contact an authorized service dealer.

3. Contact an authorized service dealer.

1. Air filter dirty.

2. Spark plug fouled.

3. Carburetor requires

adjustment.

4. Carbon build-up on

muffler outlet screen.

5. Compression low.

Engine will not

accelerate,

lacks power,

or dies under

a load.

1. Clean or replace air filter.

2. Clean or replace plug

and regap.

3. Contact an authorized service dealer.

4. Contact an authorized service dealer.

5. Contact an authorized service dealer.

Engine

smokes

excessively.

1. Choke partially on.

2. Fuel mixture incorrect.

3. Air filter dirty.

4. Carburetor requires

adjustment.

1. Adjust choke.

2. Empty fuel tank and refill with

correct fuel mixture.

3. Clean or replace air filter.

4. Contact an authorized service dealer.

Engine runs

hot. 1. Fuel mixture incorrect.

2. Spark plug incorrect.

3. Carburetor requires

adjustment.

4. Carbon build-up on

muffler outlet screen.

1. Empty fuel tank and refill with

correct fuel mixture.

2. Replace with correct spark plug.

3. Contact an authorized service dealer.

4. Contact an authorized service dealer.

WARNING: Always stop unit and disconnect spark plug before performing all of the

recommended remedies below except remedies that require operation of the unit.

TROUBLESHOOTING TABLE

DECLARATION OF CONFORMITY

EC Declaration of Conformity (Only applies to Europe)

We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: +46--36--146500, as authorised

representative in the Community, declare that the brushcutter model McCulloch Cabrio

433B with serial numbers dating from 2009 and onwards (the year is clearly stated on the

rating plate, followed by the serial number), comply with the requirements of the COUNCIL’S

DIRECTIVES:

of 17 May 2006 “relating to machinery” 2006/42/EC;

of 15 December 2004 “relating to electromagnetic compatibility” 2004/108/EC, and applicable

supplements; and

of 8 May 2000 “relating to the noise emissions in the environment” in accordance with Annex

Vof2000/14/EC. For information relating to noise emissions, see Technical data section.

The following standards have been applied:EN12100--1:2003, EN 12100--2:2003, EN ISO

11806:1997 and CISPR 12:2005.

SMP, The Swedish Machinery Testing Institute, Fyrisborgsgatan 3 S--754 50 Uppsala,

Sweden, has performed voluntary type examination on behalf of Husqvarna AB. The

certificate(s) are numbered: SEC/09/2034.

0 9 -- 11 -- 0 1

Ronnie E. Goldman, Director of Engineering

Authorized representative for Husqvarna AB and

responsible for technical documentation

TECHNICAL DATA SHEET

MODEL: Cabrio 433B

ENGINE

Cylinder displacement, cm333

At maximum engine power, rpm 7000

Maximum rotational frequency of the spindle 10000

Engine speed at recommended maximum spindle

rotational frequency 7400

Recommended speed idling, rpm 2900

Maximum engine power, measured in

accordance with ISO 8893, kW 0,9

IGNITION SYSTEM

Spark plug Champion RCJ--6Y

Electrode gap, mm 0,6

FUEL AND LUBRICATION SYSTEM

Fuel tank capacity, cm3480

WEIGHT

Weight without fuel, cutting attachment and guard, kg 6,8

NOISE EMISSIONS

(see Note 1)

Sound power level, measured dB(A) 112,3

Sound power level, guaranteed LWA dB(A) 117,0

NOISE LEVELS

(see Note 2)

Equivalent sound pressure level at the operators’ ear,

measured according to EN/ISO 11806 and ISO 22868, dB(A)

Equipped with grass blade (original) 102,0

Equipped with trimmer head (original) 99,8

VIBRATION LEVELS

(see Note 3)

Equivalent vibration levels (ahv,eq) at handles, measured

according to EN ISO 11806 and ISO 22867, m/s2

Equipped with grass blade (original), left/right 6,7/5,1

Equipped with trimmer head (original), left/right 4,0/3,6

Note 1: Noise emissions in the environment measured as sound power (LWA) in conformity

with EC directive 2000/14/EC. Reported sound power level for the machine has been

measured with the original cutting attachment that gives the highest level. The difference

between guaranteed and measured sound power is that the guaranteed sound power also

includes dispersion in the measurement result and the variations between different machines

of the same model according to Directive 2000/14/EC.

Note 2: Reported data for equivalent sound pressure level for the machine has a typical

statistical dispersion (standard deviation) of 1 dB(A).

Note 3: Reported data for equivalent vibration level has a typical statistical dispersion

(standard deviation) of 1 m/s2.

Model Cabrio 433B (3/8 LH arbor shaft thread)

Centre hole in blades/cutters, ∅25,4 mm

Approved accessories Type Cutting attachment /guard, part. no.

Grass blade/grass cutter Grass 255--4 1 inch 530 05 58 92 / 575 35 27 01

(∅250 4--teeth)

Trimmer head TNG 7 (∅2,4 mm line) 537 41 92--02 / 575 35 27 01

Mcculloch Cabrio 115154526 Instruction Manual OM, McCulloch, 433 B, 952715746, 2010 02, Brush Cutter, EN

433B to the manual 8fbb0489-424b-4efe-9e52-9080c5d0356f

Navigation menu

Versions of this User Manual:

Views

Navigation
