ELECTRAMAC 414

ELECTRAMAC 416

A

B

B1 B2 B3

B4 B5 B6 B7

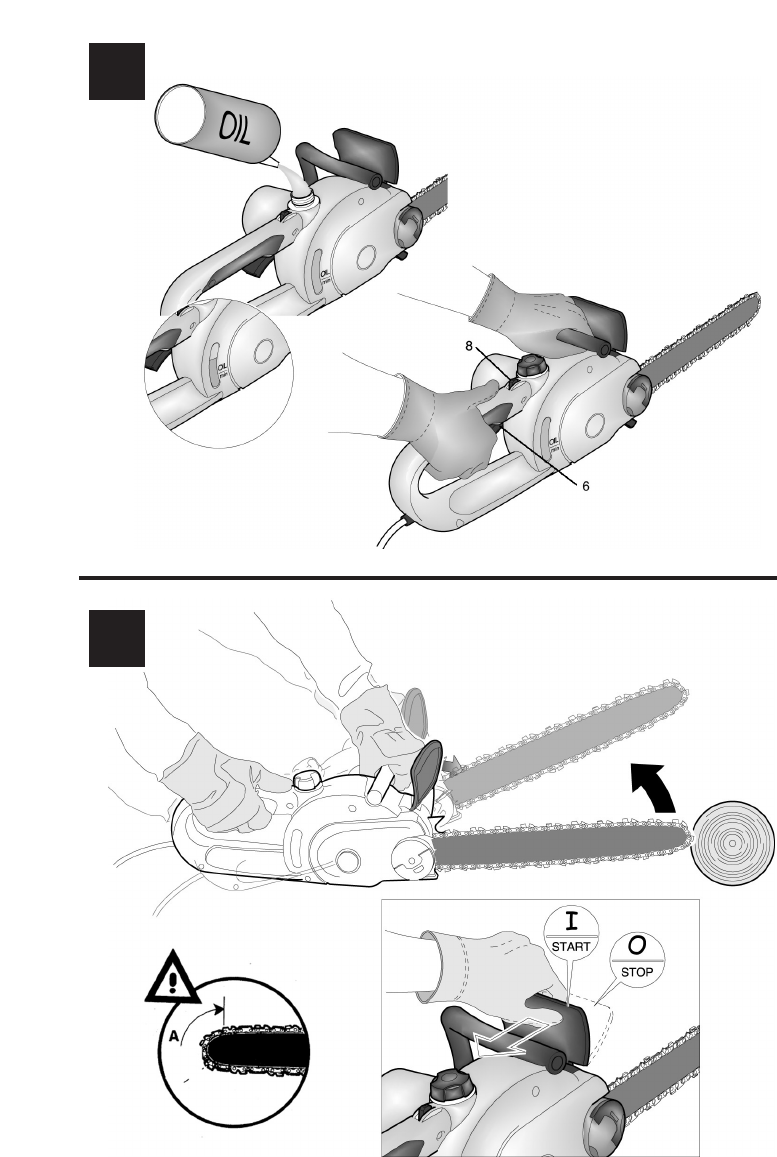

C

D

D2

D1

D3

214235B

50T 202631B 3/8”

214215B

214236B

55T 202729B 3/8”

214215B

14” / 35 cm 16” / 40 cm

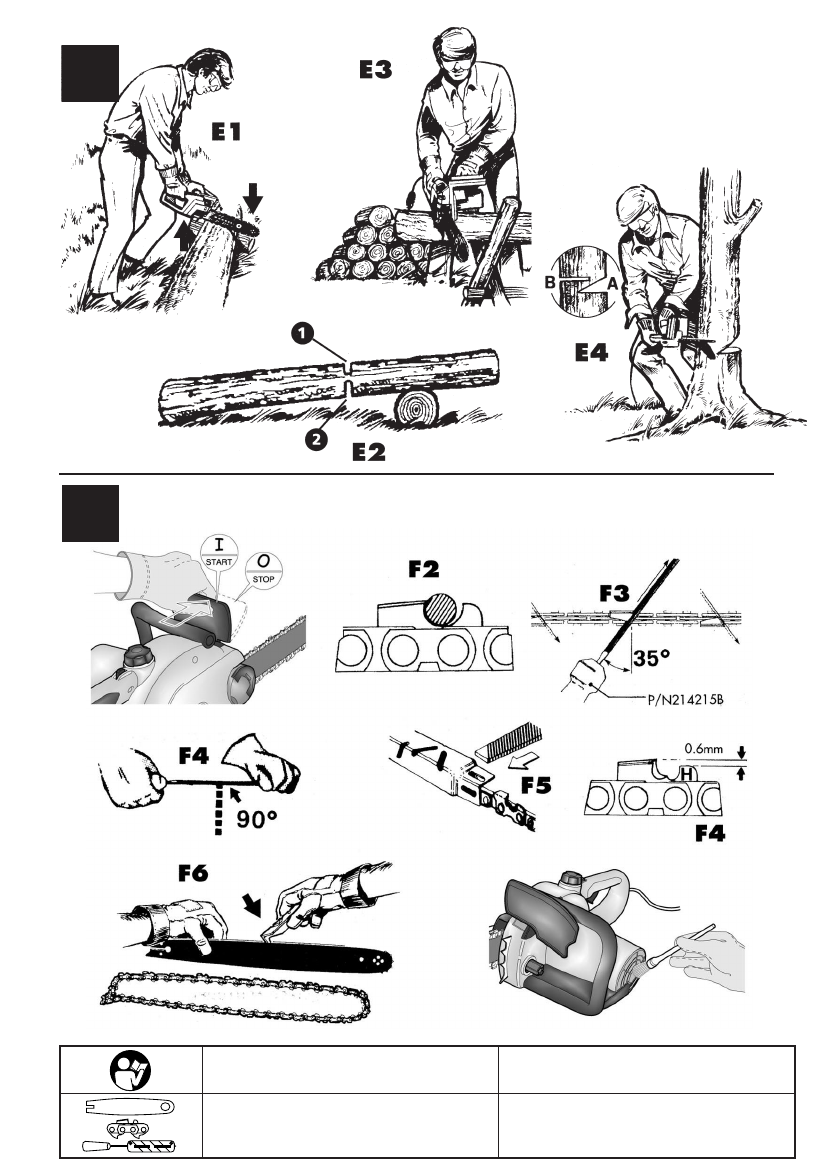

E

F

F7

Due to a constant product improvement programme, the factory reserves the right to modify tech-

nical details mentioned in this manual without prior notice.

Im Sinne des Fortschritts behält sich der Hersteller das Recht vor, technische Änderungen ohne

vorherigen Hinweis durchzuführen.

La Maison se réserve la possibilité de changer des caractéristiques et des données de ce manuel

à n’importe quel moment et sans préavis.

Door konstante produkt ontwikkeling behoud de fabrikant zich het recht voor om rechnische specifi-

caties zoals vermeld in deze handleiding te veranderen zonder biervan vooraf bericht te geven.

Produsenten forbeholder seg all rett og mulighet til å forandre tekniske detaljer

i denne manualen uten forhåndsvarsel.

Jatkuvan tuotteen parannusohjelman tähden valmistaja pidättää oikeuden vaihtaa ilman ennakko-

varoitusta tässä ohjekirjasessa mainittuja teknisiä yksityiskohtia.

Tilverkaren reserverar sig rätten att ändra fakta och uppgifter ur handboken

utan förvarning.

Producenten forbeholder sig ret til ændringer, hvad angår karakteristika

og data i nærværende instruktion, når som helst og uden varsel.

La firma productora se reserva la posibilidad de cambiar las características

y datos del presente manual en cualquier momento y sin previo aviso.

A casa productora se reserva a possibilidade de variar características e dados do presente

manual em qualquer momento e sen aviso prévio.

La casa produttrice si riserva la possibilità di variare caratteristiche e dati del presente manuale in

qualunque momento e senza preavviso.

Folyamatos gyártmány felùjítási müsorunk következtében, a gyártó cég fenntartja a jogát ebben a

Használati leirt müszaki adatok elözetes értesítés nélküli változtatására.

Λγω προγράµµατος συνεχούς βελτίωσης προϊντων, το εργοστάσιο επιφυλάσσεται του

δικαιώµατος να τροποποιεί τις τεχνικές λεπτοµέρειες που αναφέρονται στο εγχειρίδιο

αυτ χωρίς προηγούµενη ειδοποίηση.

W związku z programem ulepszania swoich wyrobów producent zastrzega sobie prawo zmian technicznych

bez uprzedniego zawiadomienia.

SUMMARY CHART TO IDENTIFY THE CORRECT COMBINATION OF BAR/CHAIN -

FILE/FILE HOLDER.

TABELLE FÜR DIE KORREKTE KOMBINATION VON SCHIENE/KETTE -

FEILE/FEILENFÜHRUNG.

TABLEAU RECAPITULATIF POUR LE CORRECT ACCOUPLEMENT CHAINE/GUIDE -

CHAINELIME/PORTE LIME.

OVERZICHTSTABEL VOOR EEN CORRECTE STANG/KETTING - VIJL/VIJLLEIDER VER-

BINDING.

SAMMENFATTENDE TABELL FOR KORREKT SAMMENKOBLING AV STANG/KJETTING

- FIL/FILSKINNE.

OIKEAN YHDISTELMÄN TAULIKKO PUTKI/KETJU - HÖYLÄ/HÖYLÄTÄSO.

SAMMANFATTANDE TABELL FÖR RÄTT KOMBINATION STÅNGE/KEDJA FIL/FILFÖRARE.

GENOPTAGENTE LISTE TIL KORREKT SAMMENFÖJNING/KÆDE - FIL/FÖLGERFIL.

TABLA PARA EL CORRECTO ACOPLAMIENTO DE LA CADENA/BARRA DE GUÍA -

LIMA/GUÍA DE AFILADO.

TABELA RESUMIDA PARA O CORRETO EMPARELHAMENTO BARRA/CORRENTE -

LIMA/GUIA-LIMA.

TABELLA RIASSUNTIVA PER IL CORRETTO ABBINAMENTO BARRA/CATENA -

LIMA/GUIDALIMA.

TÁBLÁZAT A VÁZ/LÁNCÉS RESZELÖ/RESZELÖVEZETÖ KORREKT KOMBINÁCIÓIHOZ.

ΠΙNAKAΣ ΠEPIEXOMENΩN ΠA TO ΣΩΣTO ΣYNAIAΣMO METAΞY

PAB∆OY/AΛYΣI∆AΣ - ΛIMAΣ/O∆HΓOY ΛIMAΣ.

ZBIORCZA KARTA DLA IDENTYFIKACJI PRAWIDL

/

OWEJ KOMBINACJI PROWAD-

NICY/L

/

A´

NCUCHA - PILNIKA/UCHWYTU PILNIKA.

GB

FR

DE

IT

NL

ES

PT

SE

GR

PL

HU

DK

NO

FI

GB

FR

DE

IT

NL

ES

PT

SE

GR

PL

HU

DK

NO

FI

1850W, 230-240V ~ CA, 50Hz, class II, double insulation

Dry weight (no bar and chain) 3,5 Kg

Oil tank capacity 150 cm3

Bar lengths 35/40 cm

The vibration levels recorder att the operators hand position was:

No load Front handle 2.28 m/s2

Rear handle 4.22 m/s2

Rated input Front handle 1.96 m/s2

Rear handle 7.30 m/s2

Measured sound power level 103 (dBA)

Guaranteed sound power level 104 (dBA)

Sound pressure level (at the operator’s ear) 94 (dBA)

SPECIFICATIONS

1850W, 230-240V ~ CA, 50Hz, classe II, double isolation

Poids à vide (sans barre ni chaîne) 3,5 Kg

Capacité du réservoir huile 150 cm3

Longueur de guide 35/40 cm

Niveau de vibrations enregistré à la main de l’opérateur à:

Vide Poignée avant 2.28 m/s2

Poignée arrière 4.22 m/s2

Puissance maximum Poignée avant 1.96 m/s2

Poignée arrière 7.30 m/s2

Niveau de puissance sonore mesuré 103 (dBA)

Niveau de puissance sonore garanti 104 (dBA)

Pression sonore à l’oreille de l’operateur 94 (dBA)

CARACTERISTIQUES TECHNIQUES

1850W, 230-240V ~ CA, 50Hz, Klasse II, zweifache Isolierung

Gewicht motor (ohne Schwert und Kette) 3,5 Kg

Öltank-Inhalt 150 cm3

Schwertlänge 35/40 cm

Die gemessenen Vibrationswerte an der Hand

des Bedienenden betragen bei:

Leerlauf Vorderer Griff 2.28 m/s2

Hinterer Griff 4.22 m/s2

Nennlast Vorderer Griff 1.96 m/s2

Hinterer Griff 7.30 m/s2

Schalleistungsstufe Gemessen 103 (dBA)

Schalleistungsstufe Gewährleistet 104 (dBA)

Dauerschallpegel 94 (dBA)

TECHNISCHE DATEN

1850W, 230-240V ~ wisselstroom, 50Hz, klasse II, dubbel geïsoleerd

Ledig gewicht (zonder zwaard en ketting) 3,5 Kg

Inhoud olietank 150 cm3

Zwaardlengtes 35/40 cm

Het trillingsniveau geregistreerd op de bedieningshandel is:

In rust Voorste handgreep 2.28 m/s2

Achterste handgreep 4.22 m/s2

Belast Voorste handgreep 1.96 m/s2

Achterste handgreep 7.30 m/s2

Gemeten geluidsvermogensniveau 103 (dBA)

Gewaarborgd geluidsvermogensniveau 104 (dBA)

Geluidsdruk aan het oor van de gebruiker 94 (dBA)

TECHNISCHE GEGEVENS

1850W, 230-240V-växelström, 50 Hz, klass II, dubbel isolering

Torrvikt (excl kedja och svärd) 3,5 Kg

Oljebehållarens kapacitet 150 cm3

Svårdlångd 35/40 cm

Vibrationsnivåer registreade vid användarens handposition var vid:

Tomgång Framhandtag 2.28 m/s2

Bakhandtag 4.22 m/s2

Märkeffekt Framhandtag 1.96 m/s2

Bakhandtag 7.30 m/s2

Uppmätt ljudeffektsnivå 103 (dBA)

Garanterad ljudeffektsnivå 104 (dBA)

Ljudnivå (vid örat) 94 (dBA)

SPECIFIKATIONER

1850W, 230-240V vekselstrøm, 50 Hz, klasse II, dobbelt isolering

Netto vægt (uden sværd og kæde) 3,5 Kg

Olietankens kapacitet 150 cm3

Sværdlængde 35/40 cm

Vibrationsniveauet målt ved brugerens hånd var:

Nubelastning Forhåndtag 2.28 m/s2

Baghåndtag 4.22 m/s2

Mærkeeffekt Forhåndtag 1.96 m/s2

Baghåndtag 7.30 m/s2

Målt lydeffektniveau 103 (dBA)

Konstateret lydeffektniveau 104 (dBA)

Lydstyrke niveau (vedd brugerens øre) 94 (dBA)

SPECIFIKATIONER

1850W, 230-240V ~ vekselstrøm, 50 Hz, klasse II, dobbel isolasjon

Netto vekt (uten sverd og kjede) 3,5 Kg

Oljetankkapasitet 150 cm3

Sverdlengde 35/40 cm

Vibrasjoner registrert ved hånden til brukeren:

Ingen last Forreste håndtak 2.28 m/s2

Bakre håndtak 4.22 m/s2

StrømForbruk som Forreste håndtak 1.96 m/s2

angitt på typeskilt Bakre håndtak 7.30 m/s2

Målt lydstyrkenivå 103 (dBA)

Garantert lydstyrkenivå 104 (dBA)

Hørselsrykk på grunn av lyden 94 (dBA)

SPESIFIKASJONER

1850W, 230-240V, vaihtovirta, 50Hz, luokka II, kaksoiseristys

Moottorin paino (ilman terälevyä ja ketjua) 3,5 Kg

Öljysäiliön tilavuus 150 cm3

Terälevyn pituus 35/40 cm

Värinätasot käyttäjän käden asennolla olivat:

Kun Käyttäjä Etukädensijä 2.28 m/s2

Takakädensijä 4.22 m/s2

Kun Koneen Etukädensijä 1.96 m/s2

Takakädensijä 7.30 m/s2

Äänenvoimakkuustaso mitattu 103 (dBA)

Änenvoimakkuustaso taattu 104 (dBA)

Käyttäjän korvalle tuleva äänenpaine 94 (dBA)

TEKNISET TIEDOT

GB

FR

DE

NL

SE

DK

NO

FI

1850W, 230-240V c.a., 50Hz, II classe, doppio isolamento

Peso a secco (senza barra e catena) 3,5 Kg

Capacità serbatoio olio 150 cm3

Lunghezza barra 35/40 cm

Livello di vibrazioni rilevate alle posizioni delle mani dell’operatore a:

Vuoto Impugnatura anteriore 2.28 m/s2

Impugnatura posteriore 4.22 m/s2

Potenza nominale Impugnatura anteriore 1.96 m/s2

Impugnatura posteriore 7.30 m/s2

Livello potenza sonora misurata 103 (dBA)

Livello potenza sonora garantita 104 (dBA)

Pressione sonora all’orecchio dell’operatore 94 (dBA)

DATI TECNICI

1850W, 230-240V CA, 50 Hz, clase II, doble aislamiento

Peso en vacio (sin barra ny cadena) 3,5 Kg

Capacidad del depósito de aceite 150 cm3

Medida de la barra 35/40 cm

Los niveles de vibración registrados (ISO 7505)

en la posición manual de operario fueron:

Sin carga Mango delantero 2.28 m/s2

Mango trasero 4.22 m/s2

Entrada nominal Mango delantero 1.96 m/s2

Mango trasero 7.30 m/s2

Nivel de potencia sonora medida 103 (dBA)

Nivel de potencia sonora garantizada 104 (dBA)

Presion sonora al oido del usuario 94 (dBA)

DATOS TÉCNICOS

1850W, 230-240V AC, 50Hz, categoria II, isolamento duplo

Peso em seco (sin barra e corrente) 3,5 Kg

Capacidade depósito óleo 150 cm3

Comprimento barra 35/40 cm

Os níveis de vibração registrados na posição de

colocação de mão do operador foram os seguintes:

Sem carga Pega dianteira 2.28 m/s2

Pega traseira 4.22 m/s2

Entrada nominal Pega dianteira 1.96 m/s2

Pega traseira 7.30 m/s2

Nível potência sonora medida 103 (dBA)

Nível potência sonora garantida 104 (dBA)

Pressão sonora ao ouvido do operador 94 (dBA)

ESPECIFICAÇÕES

1850W, 230240 V AC, 50Hz, κατηγορία II, διπλή µνωση

KΑΘAPO BAPOΣ (XΩPIΣ ΛAM-AΛYΣ) 3,5 Kg

XΩPHTIKOTHΣ PEZEPB.ΛA∆IOY 150 cm3

MHKOΣ ΛAMAΣ 35/40 cm

Tα επιπεδα δvησης που καταγράφτηκv

στη θέoη της λαβής του χειριοτή ήταv:

Xωρις Φορτίο 2.28 m/s2

4.22 m/s2

∆ιαα βαθµισµέvη Eίσοδος 1.96 m/s2

7.30 m/s2

Mετρηθείσα στάθµη ακoυστικής ισχύoς 103 (dBA)

Eγγυηµέvη στάθµη ακoυστικής ισχύoς 104 (dBA)

ΣTAθMH θOPYBOY ΣTO AYTI XEIP 94 (dBA)

ΤΕΧΝΙΚΕΣ ΠΡΟ∆ΙΑΓΡΑΦΕΣ

1850W, 230-240 V, 50 Hz váltó, II. osztály, kettős szigetelés

Motor súlya (lánc

és vezetőlap nélkül)

3,5 Kg

Olajtankűrtartalom 150 cm3

Vezetőlap méret

35/40 cm

Vibrációk el

ülső foganty

ú2.28 m/s2

4.22 m/s2

Háts

ó foganty

ú1.96 m/s2

7.30 m/s2

Mért hangteljesítményszint 103 (dBA)

Garantált hangteljesítményszint 104 (dBA)

Állandó hangszint lpaav 94 (dBA)

MŰSZAKI ADATOK

IT

ES

PT GR

1850W, 230-240 V c.a., 50Hz, A podwojna izolacja

Waga bez oleju 3,5 Kg

Pojemnosc zbiornika oleju 150 cm3

Długość prowadnicy 35/40 cm

Przyspieszenie drgán zarejestrowane w położeniu

ręki operatora były następujące:

Bez obciążenia Przedni uchwyt 2.28 m/s2

Tylni uchwyt 4.22 m/s2

Znamionowe obciążenie Przedni uchwyt 1.96 m/s2

Tylni uchwyt 7.30 m/s2

Poziom hangteljesítményszint 103 (dBA)

Poziom mocy dźwięku 104 (dBA)

Poziom halasu (przy uchu operatore) 94 (dBA)

DANE TECHNICZNE

PL

HU

1) GUIDE BAR

2) CHAIN

3) FRONT HANDLE

4) SAFETY CHAINBRAKE / FRONT HAND GUARD

5) OIL FILLER CAP

6) SAFETY LOCK-OFF BUTTON

7) OIL LEVEL INDICATOR

8) TRIGGER

9) CHAIN TENSION SCREW

10) BAR CLAMP NUTS

11) MOTOR AND AIR SLOTS

12) ELECTRIC POWER LEAD

13) CHAIN CATCHER

14) REAR HAND GUARD

15) SPIKES

16) OWNERS MANUAL

17) BLADE SHEATHS

18) LOCKING NUT

ENGLISH - 1

A. General description

Use the Electramac 414-416 electric saw in the most appropriate way so as to

avoid accidents. Follow the instructions and recommendations for proper, safe,

effective use of the product. The user is responsible for following the

instructions and recommendations in this manual supplied with the product.

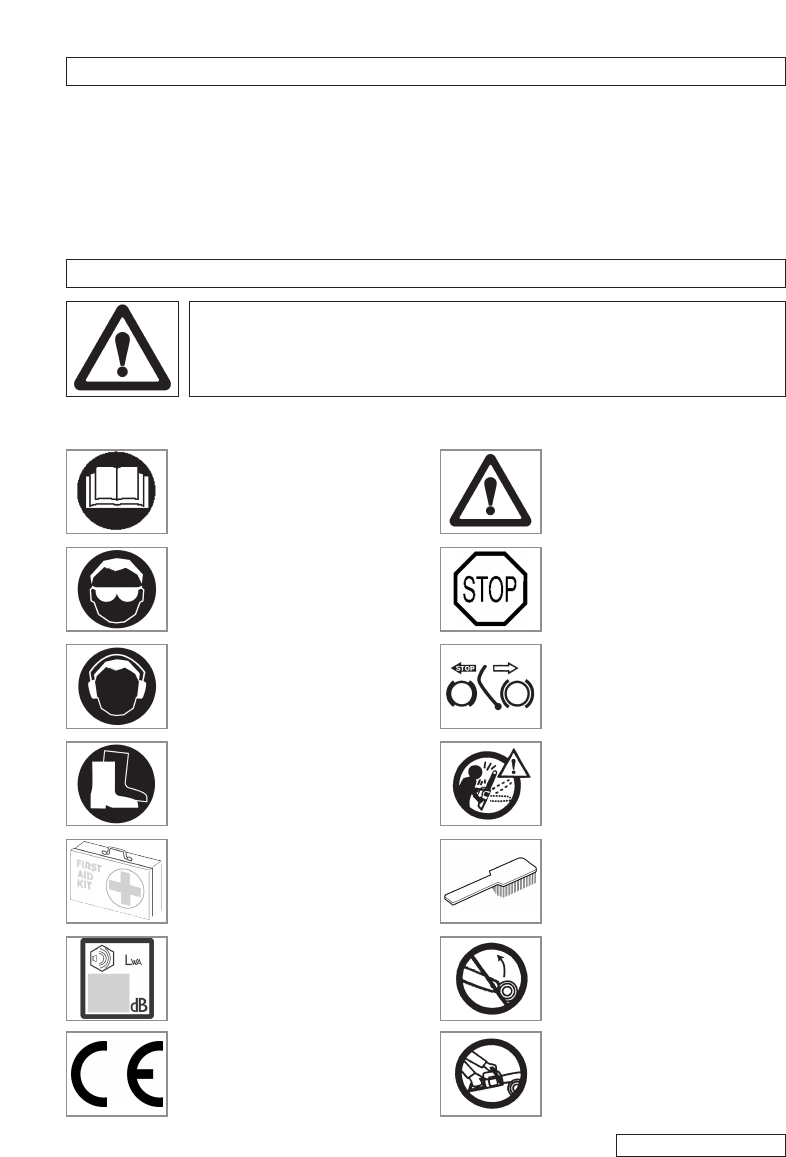

Safety precautions

Explanation of Symbols

Read the instructions carefully

and make sure you fully under-

stand how all the controls work

Protective goggles or approved

facemask

Approved earplugs or mufflers

Approved safety footwear

Always keep a first aid kit on

hand

Emission of noise into the

environment according to the

applicable EEC directive

This product complies with the

EEC directives in effect

Warning/Important

Operations of inspection and

maintenance should always be

carried out with the motor off and

the stop button in the stop position

Brake on /off

Beware of kickback

Clean regularly

Do not cut with the end of the

bar as this increases the risk

of kickback

Always hold the machine with

both hands

ENGLISH - 2

All repairs should be made

by specialized personnel

Do not use the chainsaw

in the rain or leave it exposed

to the elements

Disconnect from supply

immediately if supply cable

is damaged

Safety precautions

General information

Never allow children, or persons unfamiliar with

these instructions, to use the chainsaw. Some local

regulations may set limits on the age of the

operator, always comply with the regulations in

effect.

The chainsaw is suitable for cutting wood only. Do

not use it to cut plastic materials or metal. Follow

the cutting instructions in paragraph E.

Never hold the chainsaw near your body or your

clothing when starting or using it. Before starting

the chainsaw make sure nothing is touching the

chain and do not start the tool when it is upside

down.

Ensure you have a firm, secure footing when using

the chainsaw and do not perform cutting operations

while standing on the tree or on a ladder.

Before felling a tree, consider all conditions

carefully, including the intended direction of fall, the

natural lean of the tree, surrounding trees and

obstacles, wind direction and speed.

Electric parts

Use only heavily insulated extension cords that

comply with the regulations in effect.

Before starting the chainsaw make sure the cable

is not in the cutting zone.

Always make sure that the mains cable and the

extension cable do not show any sign of wear or

damage, and replace any damage cables promptly.

Keep the cable away from sources of heat, oil and

sharp objects.

Use only original accessories and replacements as

they have been designed to ensure the maximum

safety and durability of the machine.

The name of your nearest authorized service

dealer is printed in the service stations list enclosed

in the package. We recommend that you have your

unit checked periodically and serviced if necessary

only by authorized personnel. Repairs and

alterations on the chainsaw made by unauthorized

personnel will invalidate the warranty.

Wear closely fitting clothing of the approved type.

Always wear adequate eye protection such as

safety goggles or an approved facemask.

Wear an approved safety hard hat to protect your

head along with approved ear protection (ear plugs

or mufflers), as chainsaw noise can damage your

hearing in the long run. Local regulations may

require other safety precautions when using

chainsaws: always comply with the legislation in

effect.

Prolonged use of chainsaws or other tool that

expose the operator to vibrations, may cause

“White-finger disease” (Raynaud syndrome). This

may reduce the sensitivity of the hand to

temperature as well as producing general

numbness. Continual or regular users should

therefore monitor the condition of their hands and

fingers closely. If any of the symptoms appear,

seek immediate medical advice.

Do not use the chainsaw in a potentially explosive

environment; it is also a good idea for the operator

always to carry an adequate first aid kit.

Never use the chainsaw, or any other power tool, if

you are tired, ill or under the effect of medicine,

alcohol or drugs.

Always keep the chainsaw out of the reach of

children. Animals and bystanders should be kept at

a safe distance.

Use the chainsaw in daylight and with good

visibility.

When carrying the chainsaw, hold it by its front

handle with the bar facing behind you.

Never drag the chainsaw by its cable or move it

from one place to another while plugged in or with

your fingers on the trigger.

Check every time you use the chainsaw that the

chain stops immediately when the chain brake is

engaged.

Never use the chainsaw when the brake is not

working correctly, and contact your authorized

service center at once.

When sawing, do not use the chainsaw above

shoulder height. Make sure the chain does not

touch any foreign objects such as rocks, nails,

wires and other objects that could strike persons or

animals, causing injury and even death. The

operator is responsible for any accidents to third

parties.

IMPORTANT ! make sure the chainsaw is not plugged

in before performing assembly or maintenance.

Assembly of bar and chain.

Remove the bar fastening knob (B1 in the

drawing), remove the pinion cover (10).

Install the chain on the bar as shown in the figure

B3, making sure the cutting edges are facing in the

direction of rotation (clockwise) see drwg. B2.

Install the bar in its housing and fasten the chain

on the pinion (B4 in the manual) taking care to fit

the adjustment tooth in the hole on the par (see

illustration B4 in the manual).

(B5) replace and partially tighten the bar fastening

knob without tightening it all the way.

B6-B7: adjust the tightener knob and increase the

tension so that when the chain is raised only the

guide tooth is visible (B6).

Make sure the chain glides smoothly in the bar

groove.

Tighten the bar fastener knob all the way (B1-B5).

NOTE to tighten the chain, turn clockwise; to

loosen it, turn counter-clockwise.

Important: excessive tightening of the chain will

shorten its life and that of the bar and motor.

B8: make sure the bar groove is free and clean.

Check the chain tension frequently during the

break-in period.

ENGLISH - 3

B. Instructions for assembly

Fill the tank with high quality chain lubricating oil.

Clean the tool to remove any oil that overflows. Do

not use solvents or liquid detergent.

Important: check the oil level regularly and top up

whenever it falls to less than a quarter. Do not use

waste oil or lubricants with characteristics that differ

from those indicated in this manual as this could

damage the tool NEVER USE THE CHAINSAW

WITHOUT OIL.

Your chainsaw is designed to function only when its

two handles are firmly gripped. To start the motor

press the trigger (8) and safety button (6)

simultaneously.

C. Instructions for use

Action of the chain brake

Further protection is provided by the safety chain

brake, that is operated with the left hand in case of

recoil. Contact with the brake lever causes

immediate stoppage of the chain.

See illustration D1 showing the high recoil risk zone

Chain brake lever system:

I= Machine on O= Machine off

D3 How to reset the chain brake after use:

Unplug the chainsaw and if the bar and chain are

blocked in the wood, release them before resetting

the brake.

To reset the brake pull the lever all the way back

keeping the trigger (8) released as shown in Fig. D3

Important! Check the chain tension before starting

the chainsaw again

D. Safety chain brake

Crosscutting logs

Fig. E1

Start the motor before the chain touches the log.

Hold the spike against the log and rotate the chain

slowly around the log.

Fig. E2

To crosscut a log resting on its ends: start cutting

from above to about 1/3 of the diameter, finish from

below using the top edge of the bar.

This will prevent the bar from being caught in the cut.

Caution: do not let the chain touch the ground.

Fig. E3

To crosscut a log on a sawhorse with at least one

free end, cut from above.

Fig. E4

FELLING TREES

Important: a great deal of experience is needed to

fell a tree – operators lacking experience should

not fell trees

Important: we do not advise inexperienced loggers

to fell trees when the length of the bar is less than

the diameter of the tree

FELLING

Trees are felled with 3 cuts, first to direct the fall, by

cutting a notch consisting of a downward diagonal

cut, made first, followed by an upward diagonal cut

that should end exactly where the first cut ends

(see illustration alongside). The depth of the notch

should be equal to about 1/4 of the diameter of the

E. Cutting

ENGLISH - 4

tree and the angle of the upper and lower cuts

should be at least 45°.

Main cut

The main cut is made on the opposite side from the

directional cut and must be perfectly horizontal, and

at a height about 3 cm above the base of the

directional cut (see illustration)

Finish the cut at least 1/10 of the tree diameter from

the directional notch. This is called the breakage line

and serves to control the direction of fall of the tree

because the tree will now start to fall. This can be

facilitated using a crowbar on the main cut.

Caution! If the breakage line is too small or is cut

diagonally it will no longer be possible to control the

direction of fall of the tree.

• Important: unplug the chainsaw before performing

any cleaning and maintenance of the tool.

• Always wear approved work gloves

• Fig. B6 make sure the chain is tight enough to

prevent it from moving during sharpening

• Fig. F1 pull the brake lever forward to block the

chain on the bar

• The correct diameter of the file is 1/10 or more

than the height of the cutting tooth.

• FIG. F2 Round file for sharpening 4 mm chain

• FIG. F3 File at a horizontal angle of 35° to the bar

from the inside of the tooth toward the outside.

First file all the teeth on one side then turn the

chainsaw and file the teeth on the other side

• File in such a way that all the teeth are the same

length.

• When only 3 mm (1/8”) of the length of the cutting

teeth remains, replace the chain.

• FIG F4 file perpendicular to the bar plane (90°)

• FIG F5 About every 5 sharpenings, check the

cutting height against the cutting depth limiter (H).

To reduce the height of the limiter use a caliber.

• FIG F6 Every 3 hours of work remove the bar and

clean the groove, make sure the oil outlet hole is

not obstructed by chips and remove all sawdust

deposits from the tool.

Important: reverse the direction of installation of

the bar every time you clean it so as to obtain

uniform wear

• FIG F7 Check frequently that the ventilation slots

on the motor are free and the grating is clean.

F. Sharpening the bar and chain, and maintenance of the bar

Electric safety

Voltage

Make sure the voltage rating of your mains

complies with the rating of the chainsaw as shown

on the plate on the motor casing.

Current

Your tool works only with AC power.

Plugs and extension cables

Use only approved insulated outlets, cables and

plugs in PVC, comply strictly with the safety

regulations in effect in your country. The tool has to

be plugged into a power socket and not a light

socket.

Disposal of obsolete products

When you decide to replace the product, or no

longer need it, think of the environment. Your local

distributor will take your old product back and

dispose of it in a way that is safe for the

environment.

Motor does Motor turns Chainsaw Motor turns

not start with difficulty starts but does improperly and/or

or loses power not cut properly at reduced speed

Make sure the mains are powered ·

Make sure the machine is

properly plugged into the wall socket ·

Make sure neither the power cable

nor the extension are damaged

(see chapter on electric parts ) ·

Make sure the safety chain

brake is not engaged

(see chapter on safety chain brake) ·

Carry out the procedures for

correct installation of the chain ·

Make sure the chain is sharpened,

if not, contact your dealer ·

Contact an authorized

service center ··

ENGLISH - 5

Troubleshooting table

If the chainsaw continues to malfunction, contact your dealer

FOR TECHNICAL INFORMATION PHONE THE TOLL-FREE NUMBER 800-017829

PN. 249066 REV. 01 (10/02)

EC Declaration of Conformity

The undersigned, authorised by E.O.P.I., declares that the following

product:

ES 18,

manufactured by E.O.P.I., 23868 Valmadrera (LC),

Via Como 72, Italy, is in accordance with the European Directives

98/37/CEE (Machinery Directive),

73/23/EEC (Low Voltage

Directive),

93/68/CEE (CE Marking Directive) & 89/336/CEE

(Directive on electromagnetic compatibility). Directive 2000/14/ECC

(Annex V).

GB

CE Konformitätserklärung

Der Unterzeichnete, bevollmächtigt durch E.O.P.I., erklärt, daß fol-

gendes Gerät:

ES 18,

hergestellt durch E.O.P.I., 23868 Valmadrera

(LC), Via Como 72, Italy, den Europäischen Richtlinien 98/37/CEE

(Maschinenrichtlinie),

73/23/EEC (Niederspannungsdirektive),

93/68/CEE (CE Kennzeichnungsrichtlinie) & 89/336/CEE (EMV

Richtlinie) entspricht. Richtlinie 2000/14/ECC (Anhang V).

DE

Déclaration de conformité Européenne

Le soussigné, dûment mandaté par E.O.P.I., déclare que le produit

suivant:

ES 18,

fabriqué par E.O.P.I., 23868 Valmadrera (LC),

Via Como 72, Italy, est conforme aux Directives Européennes

98/37/CEE (Directive Sécurité Machine),

73/23/EEC (Directive

Basse Tension),

93/68/CEE (Directive Marquage CE)

& 89/336/CEE (Directive EMC). Directive 2000/14/ECC

(Annexe V).

FR

EG Conformiteitsverklaring

Ondergetekende, gemachtigd door E.O.P.I., verklaart dat het vol-

gende produkt:

ES 18,

geproduceerd door E.O.P.I., 23868

Valmadrera (LC), Via Como 72, Italy voldoet aan de Europese

Richtlijnen 98/37/CEE (Machinerie Richtlijn),

73/23/EEC

(Matala jännite-direktiivi),

93/68/CEE (EG Markering Richtlijn)

& 89/336/CEE (Richtlijn aangaande elektromagnetische compati-

biliteit). Richtlijn 2000/14/ECC (Annex V).

NL

EF Erklæring om Overensstemmelse

Undertegnede, autorisert av E.O.P.I., erklærer at følgende produkt:

ES 18,

produsert av E.O.P.I., 23868 Valmadrera (LC), Via Como 72,

Italy, er i overensstemmelse med følgende europeiske direktiver:

98/37/CEE (Maskindirektiv),

73/23/EEC (Direktiv for lavspenning),

93/68/CEE (CE-merkingsdirektiv) & 89/336/CEE (Direktiv om elek-

tromagnetisk kompatibilitet). Direktiv 2000/14/ECC (Annex V).

NO

EU Overensstemmelse-erklæring

Undertegnede, bemyndiget af E.O.P.I., erklærer herved, at føl-

gende produkt:

ES 18,

E.O.P.I., 23868 Valmadrera (LC),

Via Como 72, Italy, er i overensstemmelse med de eurpæiske direk-

tiver 98/37/CEE (Maskineri direktiv),

73/23/EEC (Direktiv for

lavspænding),

93/68/CEE (CE mærkningsdirektiv) & 89/336/CEE

(EMC-direktiv). Direktiv 2000/14/ECC (Annex V).

DK

Declaracion de cumplimiento de la directriz de la UE

El abajo firmante, autorizado por E.O.P.I., afirma que el siguiente pro-

ducto:

ES 18,

fabricado por E.O.P.I., 23868 Valmadrera (LC),

Via Como 72, Italy, cumple con las directivas Europeas 98/37/CEE

(Directiva sobre Maquinaria),

73/23/EEC (Directiva sobre Bajo Voltaje),

93/68/CEE (Directiva sobre Marcas de la CE) & 89/336/CEE (Directiva

sobre ‘Compatibilidad Electro Magnetica’).

Directiva 2000/14/ECC

(Anexo V).

ES

Declaração de Conformidade CE

O abaixo assinado, autorizado por E.O.P.I., declara que o seguinte

produto:

ES 18,

fabricada por E.O.P.I., 23868 Valmadrera (LC),

Via Como 72, Italy, estão de acordo com as Directivas Europeias

98/37/CEE Directiva de Maquinaria),

73/23/EEC (Directiva sobre

Baixas Tensões),

93/68/CEE (Directiva de Marcação CE)

e 89/336/CEE (Directiva de Compatibilidade Electromagnética).

Directiva 2000/14/ECC (Apêndice V).

PT

Dichiarazione di Conformità CE

Il sottoscritto, autorizzato dalla E.O.P.I., dichiara che il seguente

prodotto:

ES 18,

costruito dalla E.O.P.I., 23868 Valmadrera (LC),

Via Como 72, Italia, è conforme alle Direttive Europee: 98/37/CEE

(Direttiva Macchine),

73/23/EEC (Direttiva Bassa Tensione),

93/68/CEE (Direttiva Marcatura CEE) & 89/336/CEE (Direttiva

Compatibilità Elettromagnetica). Direttiva 2000/14/ECC (Allegato V).

IT

∆ήλωση Συµµ$ρφωσης προς τις Eντολές της EE

O υπογεγραµµένος, µε eξουσιοδτηση της E.O.P.I., δηλώνει τι

τα εξής προϊντα:

ES 18,

κατασκευασθέντα απ την E.O.P.I.,

23868 Valmadrera (LC), Via Como 72, Italy, ανταποκρίνονται προς

τις Eυρωπαϊκές Eντολές,

73/23/

CEE

Oδηγία χµηλής Tάσης

(ασφάλεια),

98/37/CEE (η περί Mηχανηµάτων Eντολή),

93/68/CEE (η περί του Σήµατος CE Eντολή) & 89/336/CEE (η

περί Hλεκτροµαγνητικής Συµβαττητας Eντολή). Kαvοvιδµς

2000/14/ECC (V).

GR

EU Julistus Vastaavuudesta

Allekirjoittanut, E.O.P.I. in valtuttaamana, vakuuttaa että seuraava

tuote:

ES 18,

ja jotka on valmistanut E.O.P.I., 23868 Valmadrera

(LC), Via Como 72, Italy, on Euroopan direktiivien 98/37/CEE

(Koneisto-direktiivi),

73/23/EEC (Matala jännite-direktiivi),

93/68/CEE (CE Merkintä-direktiivi) & 89/336/CEE

(Elektromagneettinen Yhteensopivuus-direktiivi) mukainen. Direktiivi

2000/14/ECC (Liite V).

FI

EC Declaration of Conformity

Undertecknad, auktoriserad av E.O.P.I., försäkrar att följande pro-

dukt:

ES 18,

tillverkade av E.O.P.I., 23868 Valmadrera (LC),

Via Como 72, Italy, är i överensstämmelse med följande europeiska

direktiv 98/37/CEE (Maskindirektiv),

73/23/EEC

(Lågspänningsdirektiv),

93/68/CEE (CE-märknings-direktiv)

& 89/336/CEE (Elektromagnetisk kompatibilitet). Direktiv

2000/14/ECC (Annex V).

SE

Deklaracja zgodnoîci z przepisami Unii Europejskiej

Producent E.O.P.I. deklaruje, że następująde produkty: Wykaszarki

spalinowe ES 18, są zgodne z europejskimi normani

98/37/CCE(Zalecenie odnośnie Maszyn Unii Europejskiej)

93/68/CEE (Zalecenie odnośnie markowania)&

89/336/CCE(Zalecenieodnośnie elektromagnetycznej kompatybil-

ności), 73/23/CEE (Low Voltage Directive) (Zalecenie odnośnie

niskiego napięcia). Dyrektywa 2000/14/CEE (Aneks V)

PL

EC nyilatkozat

Alulírott, a E.O.P.I. által meghatalmazott ezennel kijelenti, hogy a

következő termékek:

ES 18,

amelyet a E.O.P.I., 23868 Valmadrera

(LC), Via Como 72, Italy gyárt, megfelelnek a 98/37/CEE európai

irányelvnek (gépi berendezések irányelv), a 73/23/ EEC, a

93/68/CEE európai irányelvnek (CE-irányelv) és a 89/336/CEE

(az elektromágneses kompatibilitásra vonatkozó irányelv).

Direktíva 2000/14/ECC (Melléklet V).

HU

Valmadrera, 15.12.01

Pino Todero (Direttore Tecnico)

E.O.P.I.

Electrolux Outdoor Products

Via Como 72

23868 Valmadrera (Lecco)

ITALIA

Phone + 39 0341 203111 - Fax +39 0341 581671

Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice.

Electrolux Outdoor Products manufacture products for a number of well known brands under various registered patents, designs and

trademarks in several countries.

© Electrolux Outdoor Products

The Electrolux Group. The world’s No.1 choice.

The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million

Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are

sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
