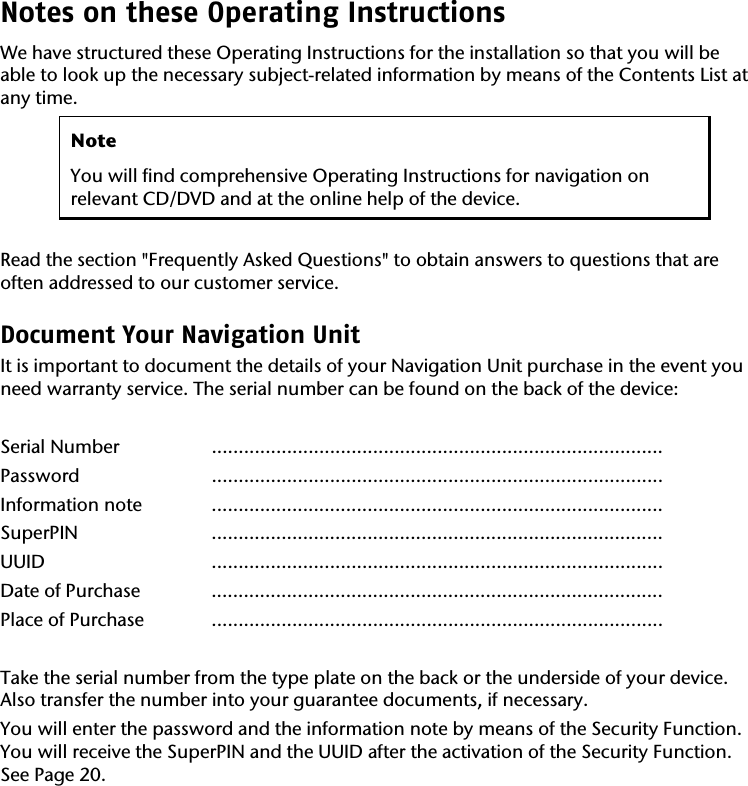

Notes on these Operating Instructions We have structured these Operating Instructions for the installation so that you will be able to look up the necessary subject-related information by means of the Contents List at any time. Note You will find comprehensive Operating Instructions for navigation on relevant CD/DVD and at the online help of the device. Read the section "Frequently Asked Questions" to obtain answers to questions that are often addressed to our customer service. Document Your Navigation Unit It is important to document the details of your Navigation Unit purchase in the event you need warranty service. The serial number can be found on the back of the device: Serial Number .................................................................................... Password .................................................................................... Information note .................................................................................... SuperPIN .................................................................................... UUID .................................................................................... Date of Purchase .................................................................................... Place of Purchase .................................................................................... Take the serial number from the type plate on the back or the underside of your device. Also transfer the number into your guarantee documents, if necessary. You will enter the password and the information note by means of the Security Function. You will receive the SuperPIN and the UUID after the activation of the Security Function. See Page 20.

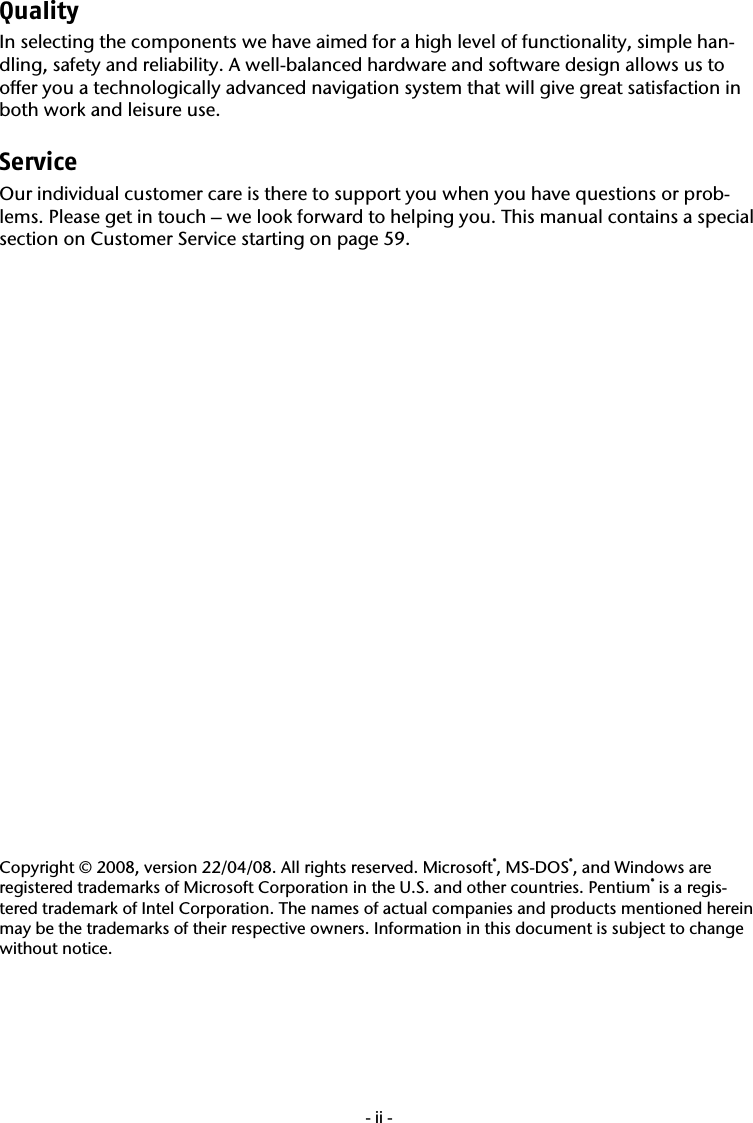

-ii-Quality In selecting the components we have aimed for a high level of functionality, simple han-dling, safety and reliability. A well-balanced hardware and software design allows us to offer you a technologically advanced navigation system that will give great satisfaction in both work and leisure use. Service Our individual customer care is there to support you when you have questions or prob-lems. Please get in touch – we look forward to helping you. This manual contains a special section on Customer Service starting on page 59. Copyright © 2008, version 22/04/08. All rights reserved. Microsoft®, MS-DOS®, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries. Pentium® is a regis-tered trademark of Intel Corporation. The names of actual companies and products mentioned herein may be the trademarks of their respective owners. Information in this document is subject to change without notice.

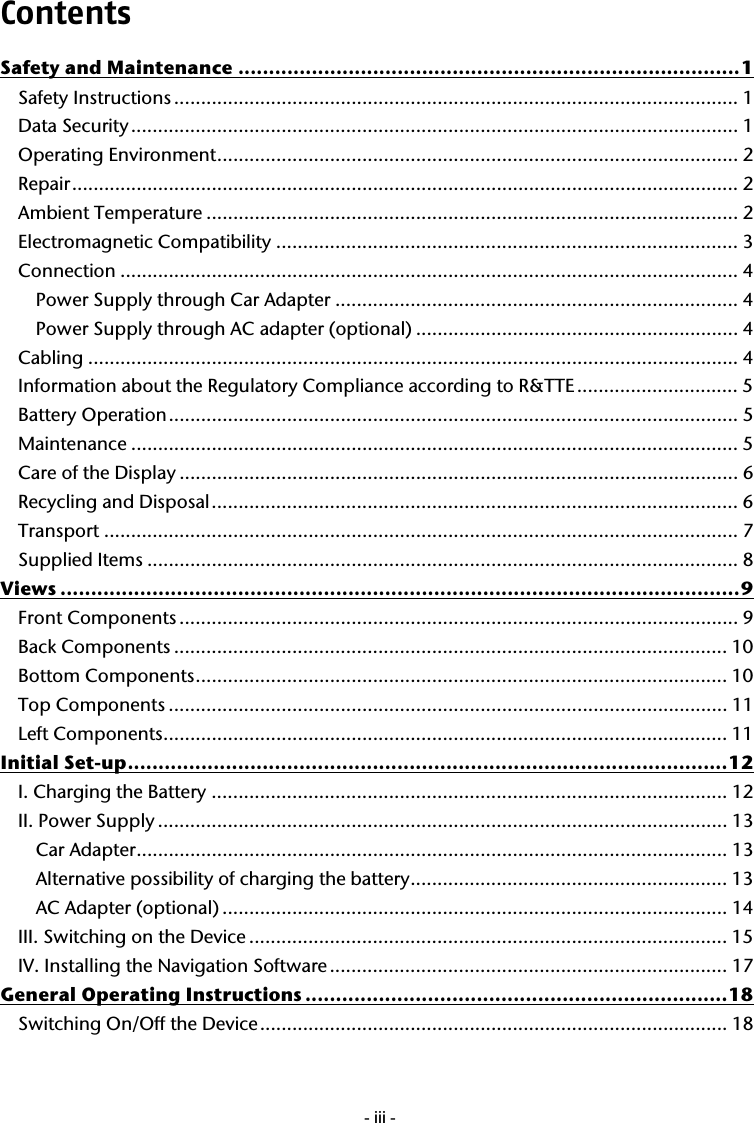

- iii -Contents Safety and Maintenance ..................................................................................1 Safety Instructions ......................................................................................................... 1 Data Security................................................................................................................. 1 Operating Environment................................................................................................. 2 Repair............................................................................................................................ 2 Ambient Temperature ................................................................................................... 2 Electromagnetic Compatibility ...................................................................................... 3 Connection ................................................................................................................... 4 Power Supply through Car Adapter ........................................................................... 4 Power Supply through AC adapter (optional) ............................................................ 4 Cabling .........................................................................................................................4 Information about the Regulatory Compliance according to R&TTE .............................. 5 Battery Operation.......................................................................................................... 5 Maintenance ................................................................................................................. 5 Care of the Display ........................................................................................................ 6 Recycling and Disposal.................................................................................................. 6 Transport ...................................................................................................................... 7 Supplied Items .............................................................................................................. 8 Views ...............................................................................................................9 Front Components ........................................................................................................ 9 Back Components ....................................................................................................... 10 Bottom Components................................................................................................... 10 Top Components ........................................................................................................ 11 Left Components......................................................................................................... 11 Initial Set-up..................................................................................................12 I. Charging the Battery ................................................................................................ 12 II. Power Supply .......................................................................................................... 13 Car Adapter.............................................................................................................. 13 Alternative possibility of charging the battery........................................................... 13 AC Adapter (optional) .............................................................................................. 14 III. Switching on the Device ......................................................................................... 15 IV. Installing the Navigation Software.......................................................................... 17 General Operating Instructions .....................................................................18 Switching On/Off the Device....................................................................................... 18
-iv-Security .........................................................................................................20 Storing the password and the information note .......................................................... 20 Making settings........................................................................................................... 21 SuperPIN and UUID ..................................................................................................... 22 Saves changes in the security function ........................................................................ 22 Making subsequent settings........................................................................................ 23 Password interrogation ............................................................................................... 24 Resetting the Navigation System ...................................................................25 Reset ...........................................................................................................................25 Switching the Device off Completely / Hard Reset ....................................................... 25 Navigation .....................................................................................................26 Safety Instructions for Navigation ................................................................................ 26 General Instructions................................................................................................. 26 Notes for Use in a Vehicle ......................................................................................... 27 Additional Notes for Use on a Bicycle or a Motorcycle .............................................. 27 I. Mounting the Car Holder ......................................................................................... 28 II. Attaching the Navigation System ............................................................................. 29 III. Connecting the Car Adapter ................................................................................... 30 IV. Starting the Navigation Software ............................................................................ 31 Warning function for traffic monitoring points ............................................................ 32 Handsfree Facility by means of Bluetooth (optional)........................................35 Starting the Bluetooth Application............................................................................... 35 Main Screen Overview ............................................................................................. 36 Pairing the Navigation Device and the Mobile Phone ............................................... 37 Accepting incoming calls ......................................................................................... 38 Making Calls ............................................................................................................ 38 MP3 Player (optional) ...................................................................................39 Main Screen Overview................................................................................................. 39 Select a Title and Move it into the List of Favourites.................................................. 41 List of Favourites ...................................................................................................... 42 List of the established bookmarks ................................................................................ 42 Picture Viewer (optional)..............................................................................43 Operating the Picture Viewer....................................................................................... 43 Main Screen ................................................................................................................ 43 Full Image View........................................................................................................ 44

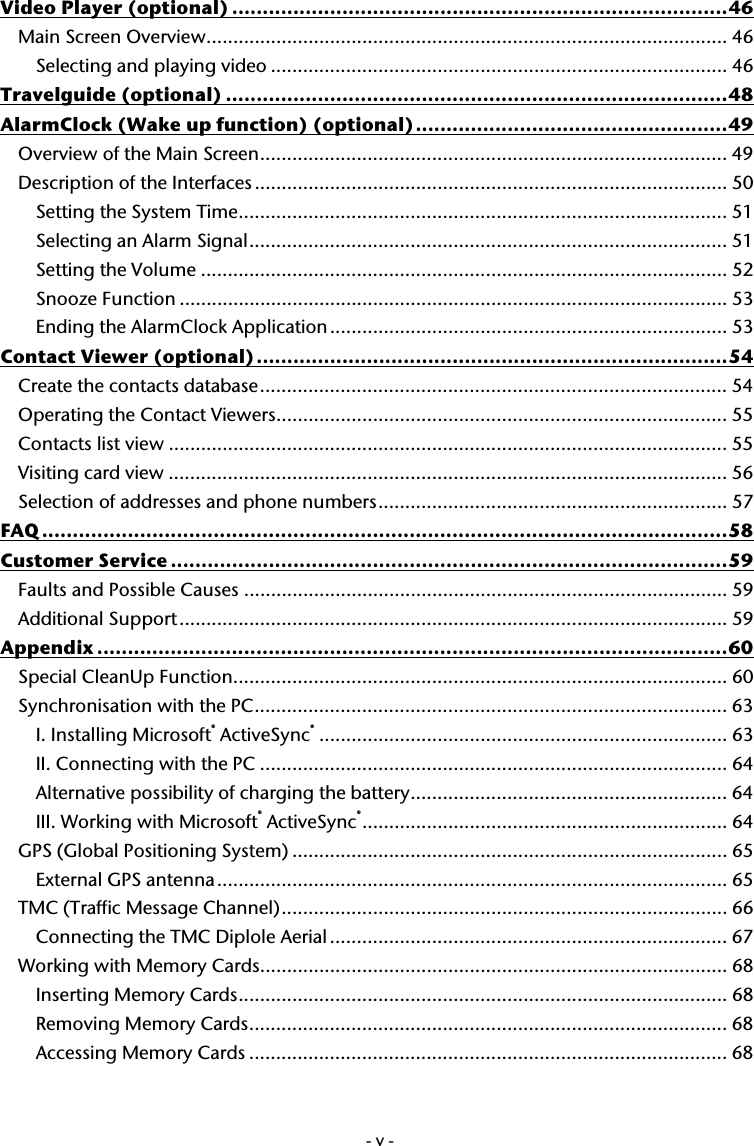

-v-Video Player (optional) .................................................................................46 Main Screen Overview................................................................................................. 46 Selecting and playing video ..................................................................................... 46 Travelguide (optional) ..................................................................................48 AlarmClock (Wake up function) (optional)...................................................49 Overview of the Main Screen....................................................................................... 49 Description of the Interfaces........................................................................................ 50 Setting the System Time........................................................................................... 51 Selecting an Alarm Signal......................................................................................... 51 Setting the Volume .................................................................................................. 52 Snooze Function ...................................................................................................... 53 Ending the AlarmClock Application.......................................................................... 53 Contact Viewer (optional).............................................................................54 Create the contacts database....................................................................................... 54 Operating the Contact Viewers.................................................................................... 55 Contacts list view ........................................................................................................ 55 Visiting card view ........................................................................................................ 56 Selection of addresses and phone numbers................................................................. 57 FAQ ................................................................................................................58 Customer Service ...........................................................................................59 Faults and Possible Causes .......................................................................................... 59 Additional Support...................................................................................................... 59 Appendix .......................................................................................................60 Special CleanUp Function............................................................................................ 60 Synchronisation with the PC........................................................................................ 63 I. Installing Microsoft® ActiveSync®............................................................................ 63 II. Connecting with the PC ....................................................................................... 64 Alternative possibility of charging the battery........................................................... 64 III. Working with Microsoft® ActiveSync®.................................................................... 64 GPS (Global Positioning System) ................................................................................. 65 External GPS antenna............................................................................................... 65 TMC (Traffic Message Channel)................................................................................... 66 Connecting the TMC Diplole Aerial .......................................................................... 67 Working with Memory Cards....................................................................................... 68 Inserting Memory Cards........................................................................................... 68 Removing Memory Cards......................................................................................... 68 Accessing Memory Cards ......................................................................................... 68
-vi-Data Exchange via Card Reader ................................................................................ 69 Additional Card Material.............................................................................................. 69 Transfer of card material to a memory card .............................................................. 69 Alternative Installation of the Navigation Software from a Memory Card.................. 70 Transferring Installation Files and Map Material to the Internal Memory .................. 70 Specifications ................................................................................................71 Index .............................................................................................................72

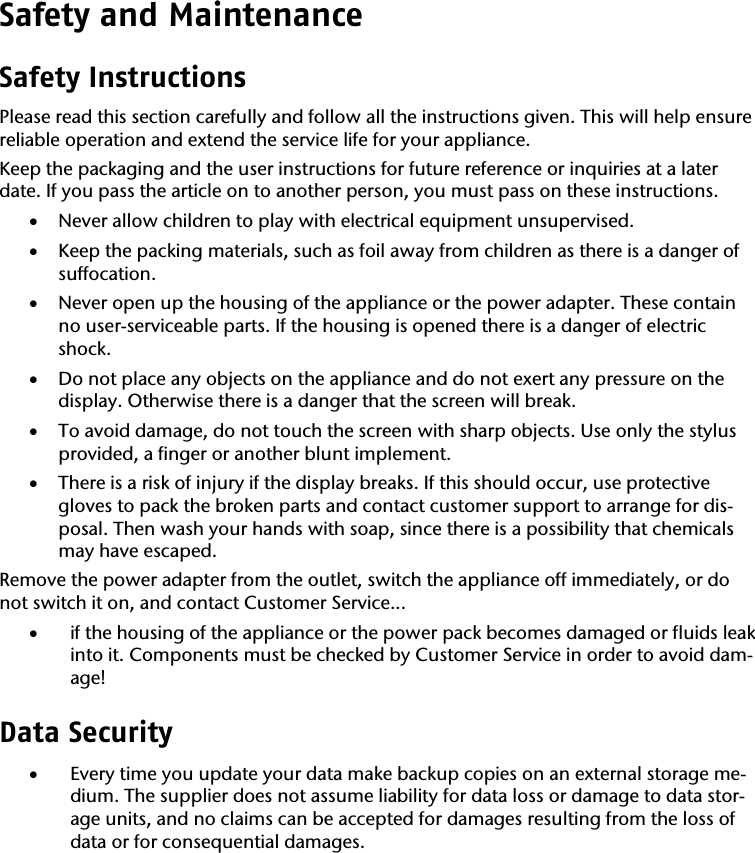

Safety and Maintenance Safety Instructions Please read this section carefully and follow all the instructions given. This will help ensure reliable operation and extend the service life for your appliance. Keep the packaging and the user instructions for future reference or inquiries at a later date. If you pass the article on to another person, you must pass on these instructions. • Never allow children to play with electrical equipment unsupervised. • Keep the packing materials, such as foil away from children as there is a danger of suffocation. • Never open up the housing of the appliance or the power adapter. These contain no user-serviceable parts. If the housing is opened there is a danger of electric shock. • Do not place any objects on the appliance and do not exert any pressure on the display. Otherwise there is a danger that the screen will break. • To avoid damage, do not touch the screen with sharp objects. Use only the stylus provided, a finger or another blunt implement. • There is a risk of injury if the display breaks. If this should occur, use protective gloves to pack the broken parts and contact customer support to arrange for dis-posal. Then wash your hands with soap, since there is a possibility that chemicals may have escaped. Remove the power adapter from the outlet, switch the appliance off immediately, or do not switch it on, and contact Customer Service... • if the housing of the appliance or the power pack becomes damaged or fluids leak into it. Components must be checked by Customer Service in order to avoid dam-age! Data Security • Every time you update your data make backup copies on an external storage me-dium. The supplier does not assume liability for data loss or damage to data stor-age units, and no claims can be accepted for damages resulting from the loss of data or for consequential damages.

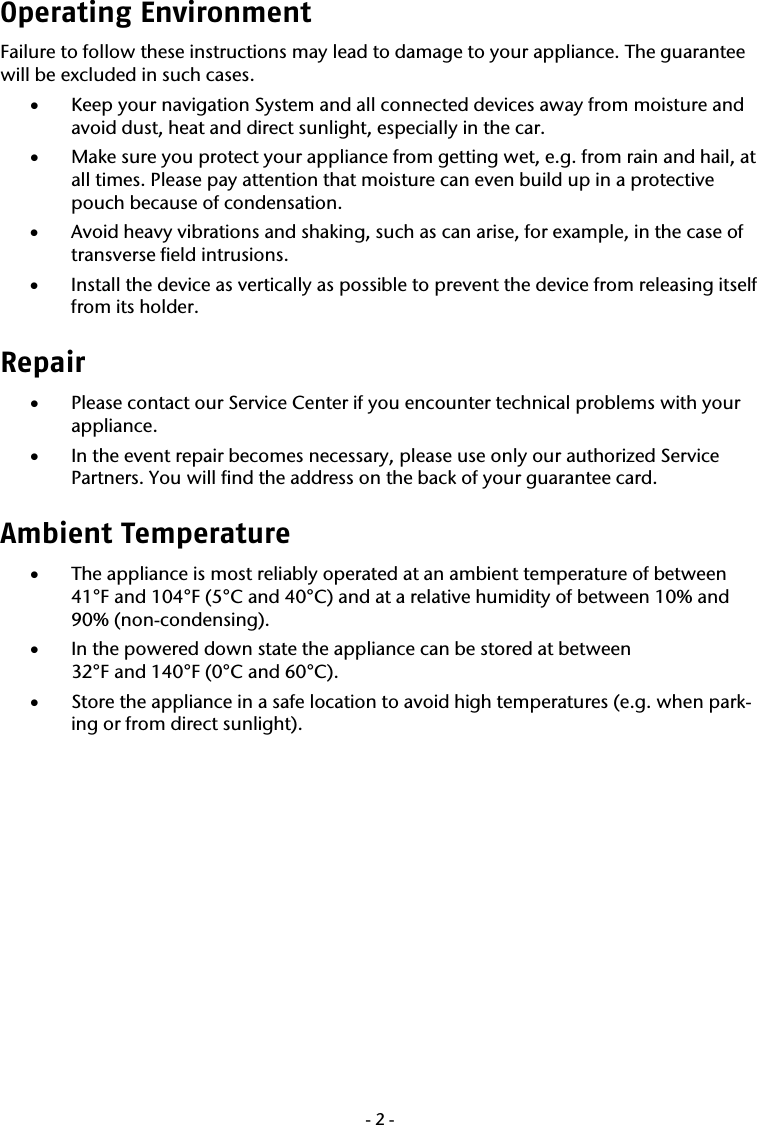

-2-Operating Environment Failure to follow these instructions may lead to damage to your appliance. The guarantee will be excluded in such cases. • Keep your navigation System and all connected devices away from moisture and avoid dust, heat and direct sunlight, especially in the car. • Make sure you protect your appliance from getting wet, e.g. from rain and hail, at all times. Please pay attention that moisture can even build up in a protective pouch because of condensation. • Avoid heavy vibrations and shaking, such as can arise, for example, in the case of transverse field intrusions. • Install the device as vertically as possible to prevent the device from releasing itself from its holder. Repair • Please contact our Service Center if you encounter technical problems with your appliance. • In the event repair becomes necessary, please use only our authorized Service Partners. You will find the address on the back of your guarantee card. Ambient Temperature • The appliance is most reliably operated at an ambient temperature of between 41°F and 104°F (5°C and 40°C) and at a relative humidity of between 10% and 90% (non-condensing). • In the powered down state the appliance can be stored at between 32°F and 140°F (0°C and 60°C). • Store the appliance in a safe location to avoid high temperatures (e.g. when park-ing or from direct sunlight).

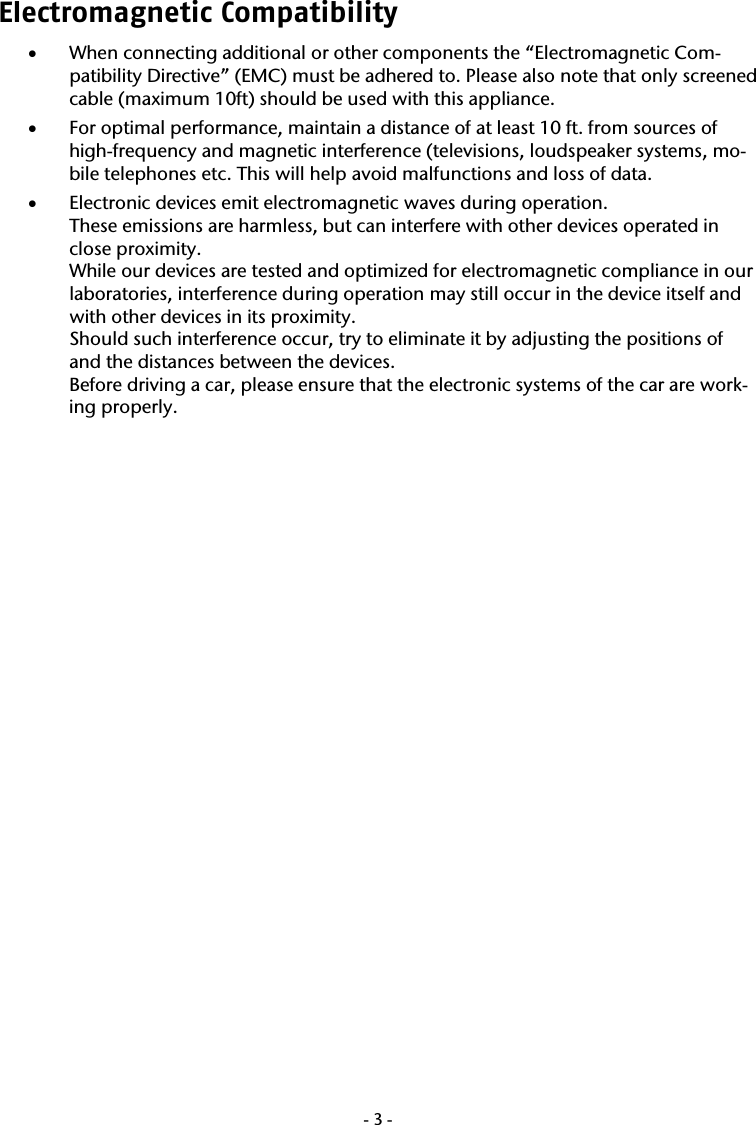

-3-Electromagnetic Compatibility • When connecting additional or other components the “Electromagnetic Com-patibility Directive” (EMC) must be adhered to. Please also note that only screened cable (maximum 10ft) should be used with this appliance. • For optimal performance, maintain a distance of at least 10 ft. from sources of high-frequency and magnetic interference (televisions, loudspeaker systems, mo-bile telephones etc. This will help avoid malfunctions and loss of data. • Electronic devices emit electromagnetic waves during operation. These emissions are harmless, but can interfere with other devices operated in close proximity. While our devices are tested and optimized for electromagnetic compliance in our laboratories, interference during operation may still occur in the device itself and with other devices in its proximity. Should such interference occur, try to eliminate it by adjusting the positions of and the distances between the devices. Before driving a car, please ensure that the electronic systems of the car are work-ing properly.

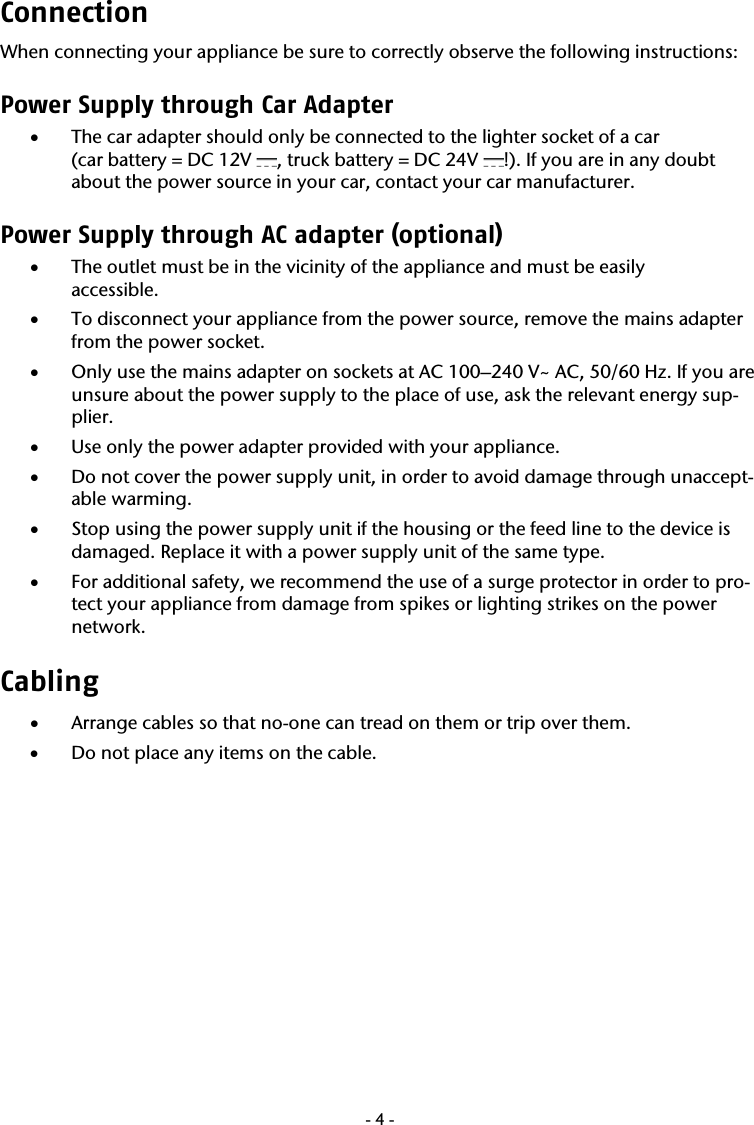

-4-Connection When connecting your appliance be sure to correctly observe the following instructions: Power Supply through Car Adapter • The car adapter should only be connected to the lighter socket of a car (car battery = DC 12V , truck battery = DC 24V !). If you are in any doubt about the power source in your car, contact your car manufacturer. Power Supply through AC adapter (optional) • The outlet must be in the vicinity of the appliance and must be easily accessible. • To disconnect your appliance from the power source, remove the mains adapter from the power socket. • Only use the mains adapter on sockets at AC 100–240 V~ AC, 50/60 Hz. If you are unsure about the power supply to the place of use, ask the relevant energy sup-plier. • Use only the power adapter provided with your appliance. • Do not cover the power supply unit, in order to avoid damage through unaccept-able warming. • Stop using the power supply unit if the housing or the feed line to the device is damaged. Replace it with a power supply unit of the same type. • For additional safety, we recommend the use of a surge protector in order to pro-tect your appliance from damage from spikes or lighting strikes on the power network. Cabling • Arrange cables so that no-one can tread on them or trip over them. • Do not place any items on the cable.

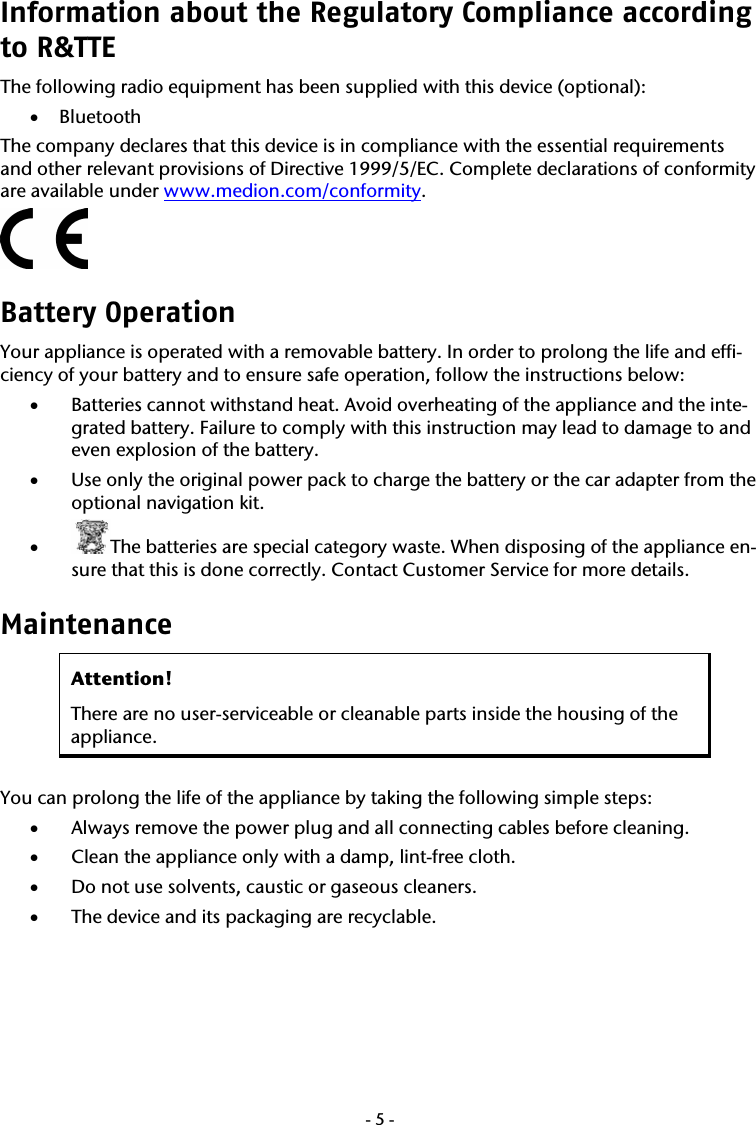

-5-Information about the Regulatory Compliance according to R&TTE The following radio equipment has been supplied with this device (optional): • Bluetooth The company declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Complete declarations of conformity are available under www.medion.com/conformity. Battery Operation Your appliance is operated with a removable battery. In order to prolong the life and effi-ciency of your battery and to ensure safe operation, follow the instructions below: • Batteries cannot withstand heat. Avoid overheating of the appliance and the inte-grated battery. Failure to comply with this instruction may lead to damage to and even explosion of the battery. • Use only the original power pack to charge the battery or the car adapter from the optional navigation kit. • The batteries are special category waste. When disposing of the appliance en-sure that this is done correctly. Contact Customer Service for more details. Maintenance Attention! There are no user-serviceable or cleanable parts inside the housing of the appliance. You can prolong the life of the appliance by taking the following simple steps: • Always remove the power plug and all connecting cables before cleaning. • Clean the appliance only with a damp, lint-free cloth. • Do not use solvents, caustic or gaseous cleaners. • The device and its packaging are recyclable.

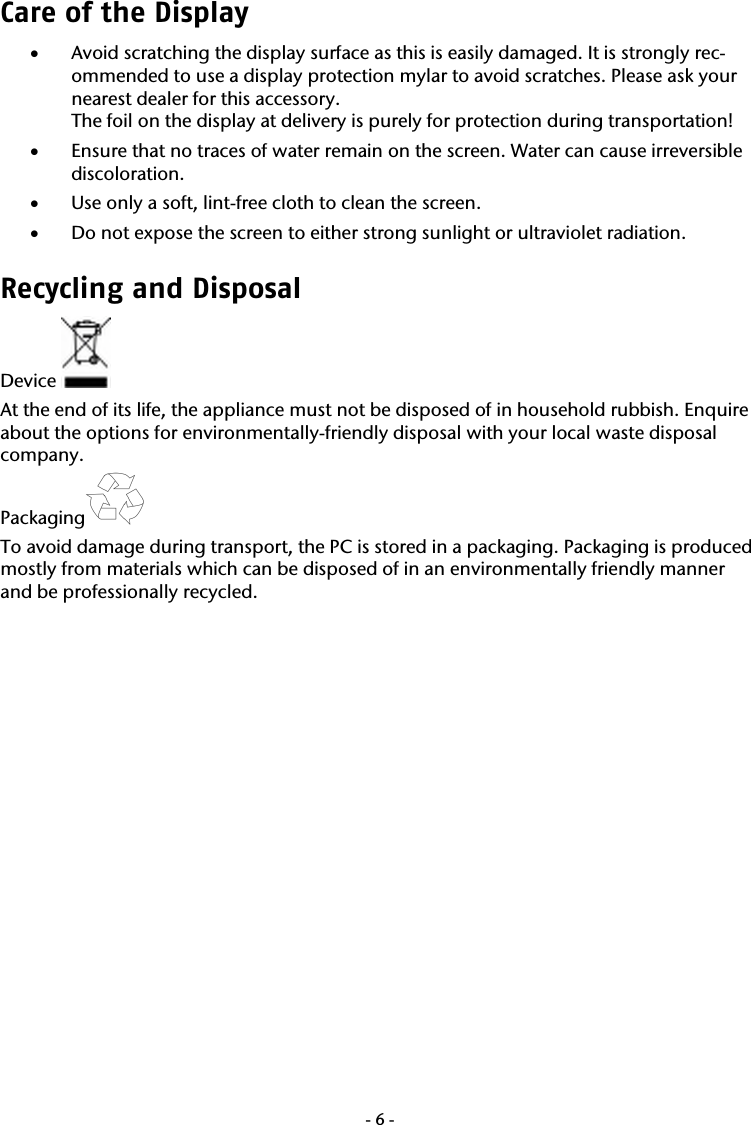

-6-Care of the Display • Avoid scratching the display surface as this is easily damaged. It is strongly rec-ommended to use a display protection mylar to avoid scratches. Please ask your nearest dealer for this accessory. The foil on the display at delivery is purely for protection during transportation! • Ensure that no traces of water remain on the screen. Water can cause irreversible discoloration. • Use only a soft, lint-free cloth to clean the screen. • Do not expose the screen to either strong sunlight or ultraviolet radiation. Recycling and Disposal Device At the end of its life, the appliance must not be disposed of in household rubbish. Enquire about the options for environmentally-friendly disposal with your local waste disposal company. Packaging To avoid damage during transport, the PC is stored in a packaging. Packaging is produced mostly from materials which can be disposed of in an environmentally friendly manner and be professionally recycled.

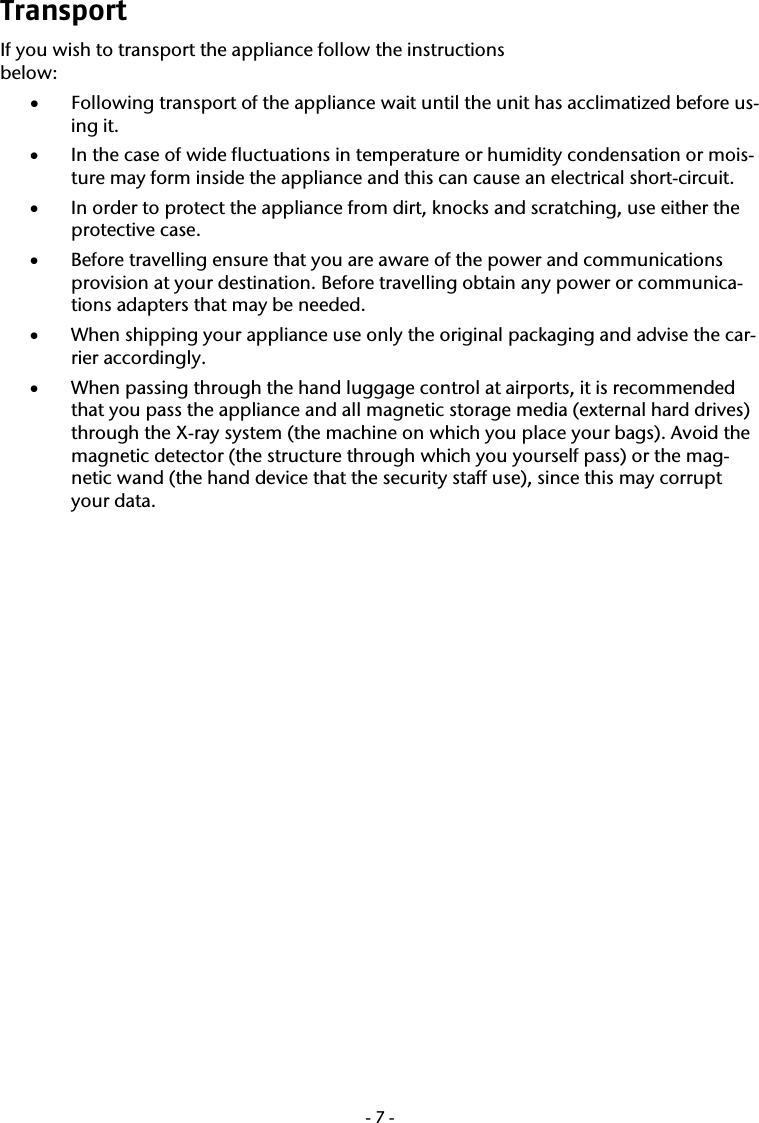

-7-Transport If you wish to transport the appliance follow the instructions below: • Following transport of the appliance wait until the unit has acclimatized before us-ing it. • In the case of wide fluctuations in temperature or humidity condensation or mois-ture may form inside the appliance and this can cause an electrical short-circuit. • In order to protect the appliance from dirt, knocks and scratching, use either the protective case. • Before travelling ensure that you are aware of the power and communications provision at your destination. Before travelling obtain any power or communica-tions adapters that may be needed. • When shipping your appliance use only the original packaging and advise the car-rier accordingly. • When passing through the hand luggage control at airports, it is recommended that you pass the appliance and all magnetic storage media (external hard drives) through the X-ray system (the machine on which you place your bags). Avoid the magnetic detector (the structure through which you yourself pass) or the mag-netic wand (the hand device that the security staff use), since this may corrupt your data.

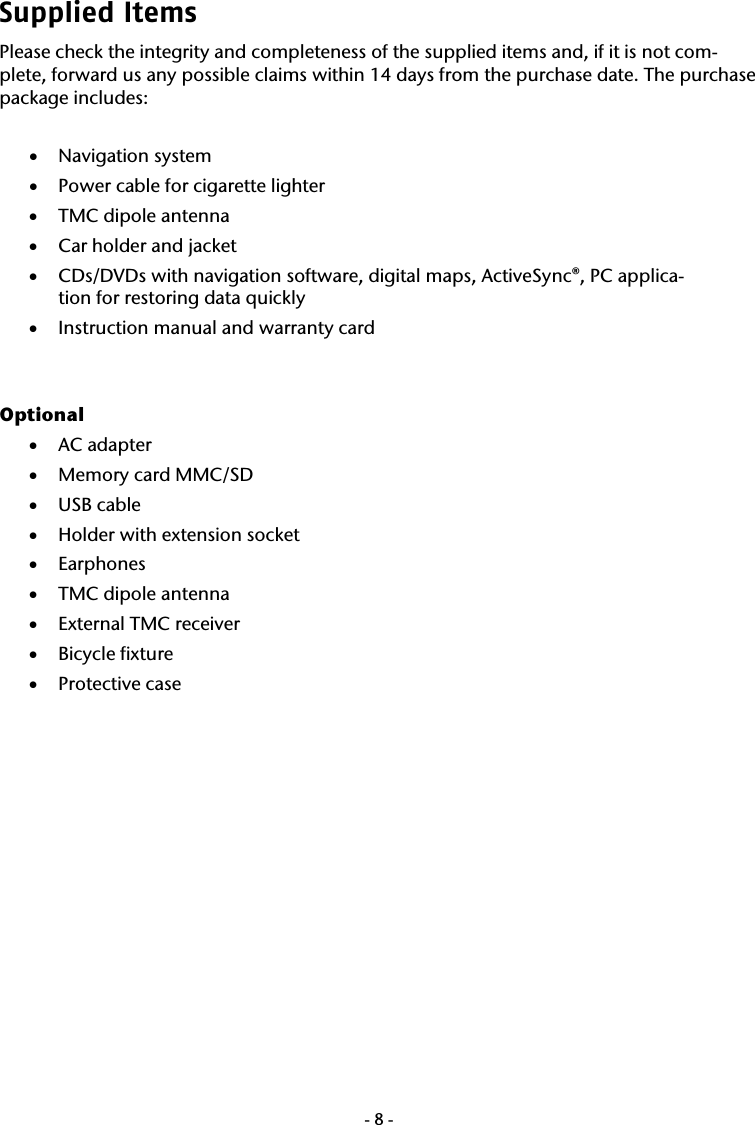

-8-Supplied Items Please check the integrity and completeness of the supplied items and, if it is not com-plete, forward us any possible claims within 14 days from the purchase date. The purchase package includes: • Navigation system • Power cable for cigarette lighter • TMC dipole antenna • Car holder and jacket • CDs/DVDs with navigation software, digital maps, ActiveSync®, PC applica-tion for restoring data quickly • Instruction manual and warranty card Optional • AC adapter • Memory card MMC/SD • USB cable • Holder with extension socket • Earphones • TMC dipole antenna • External TMC receiver • Bicycle fixture • Protective case

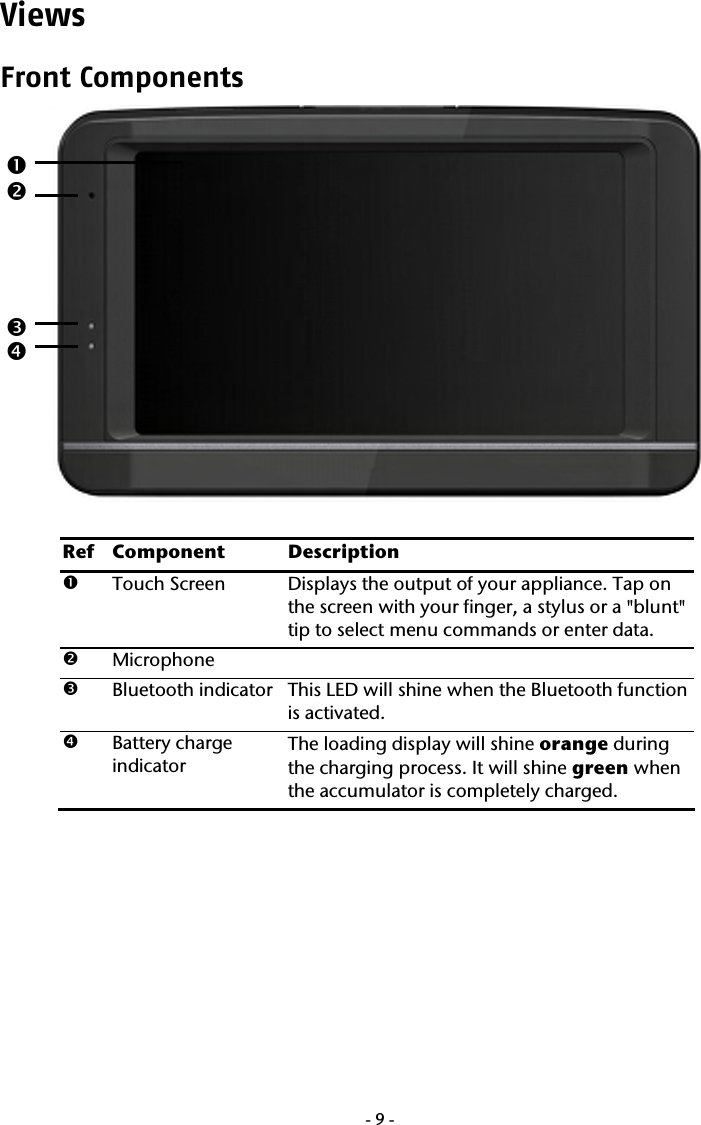

-9-Views Front Components Ref Component Description n Touch Screen Displays the output of your appliance. Tap on the screen with your finger, a stylus or a "blunt" tip to select menu commands or enter data. o Microphone p Bluetooth indicator This LED will shine when the Bluetooth function is activated. q Battery charge indicator The loading display will shine orange during the charging process. It will shine green when the accumulator is completely charged. n o p q

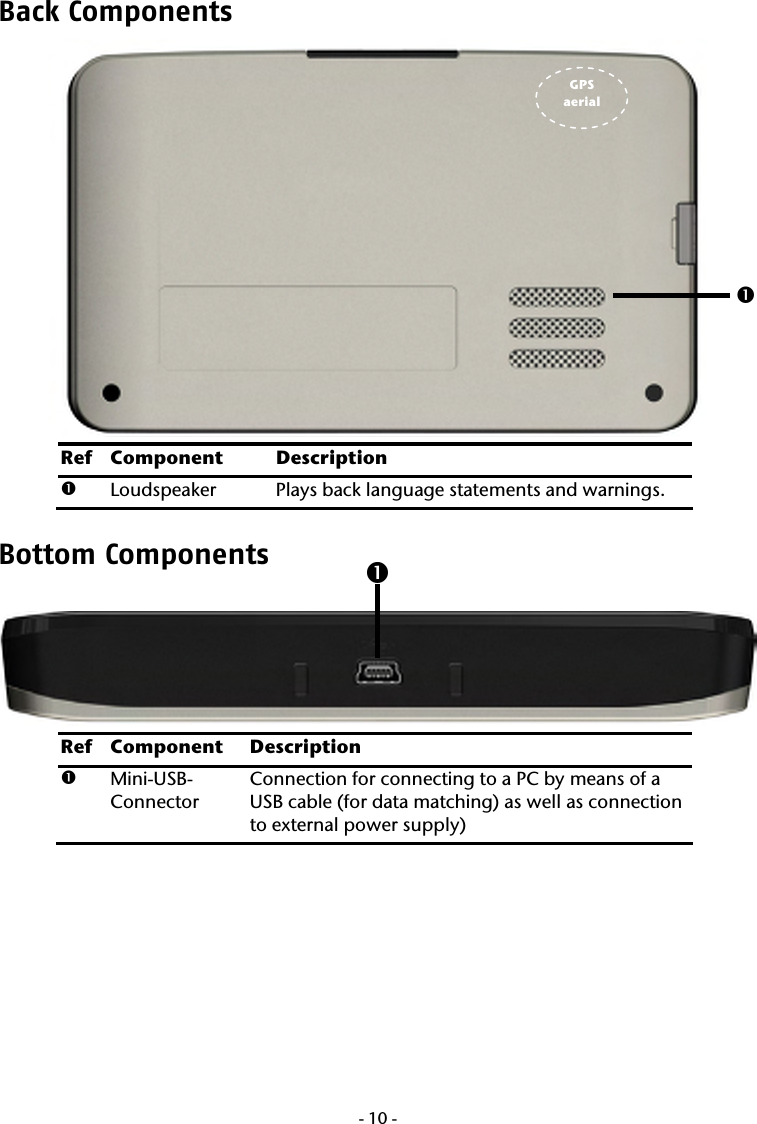

-10-Back Components Ref Component Description n Loudspeaker Plays back language statements and warnings. Bottom Components Ref Component Description n Mini-USB-Connector Connection for connecting to a PC by means of a USB cable (for data matching) as well as connection to external power supply) n GPS aerial n

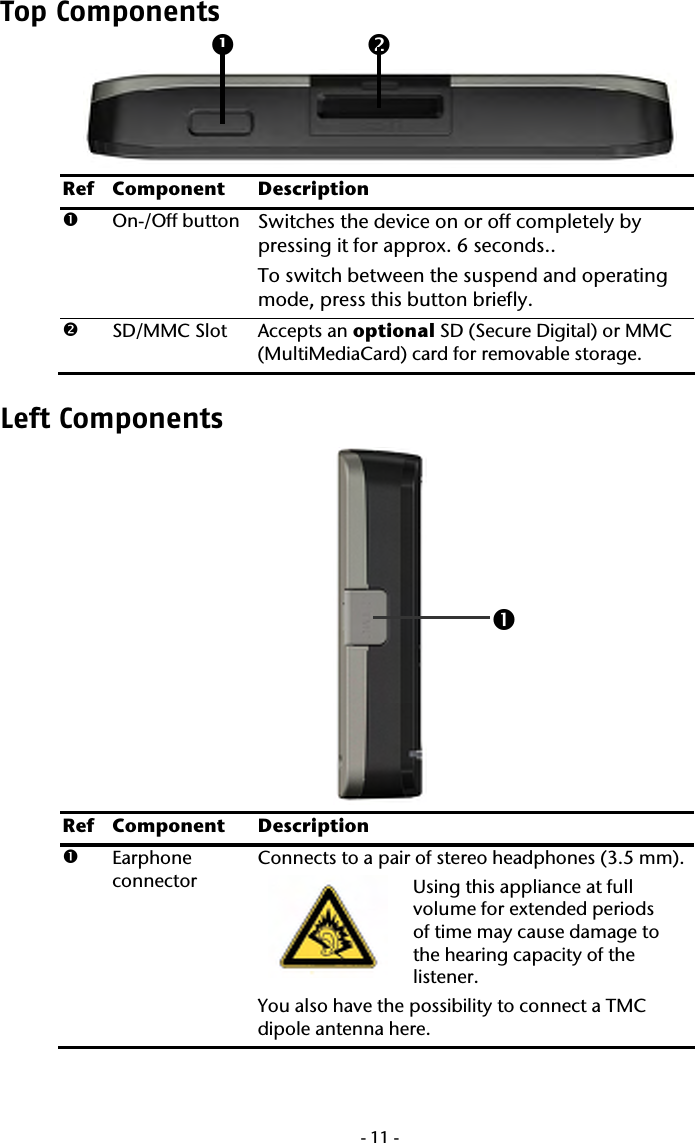

-11-Top Components Ref Component Description n On-/Off button Switches the device on or off completely by pressing it for approx. 6 seconds.. To switch between the suspend and operating mode, press this button briefly. o SD/MMC Slot Accepts an optional SD (Secure Digital) or MMC (MultiMediaCard) card for removable storage. Left Components Ref Component Description n Earphone connector Connects to a pair of stereo headphones (3.5 mm). Using this appliance at full volume for extended periods of time may cause damage to the hearing capacity of the listener. You also have the possibility to connect a TMC dipole antenna here. onn

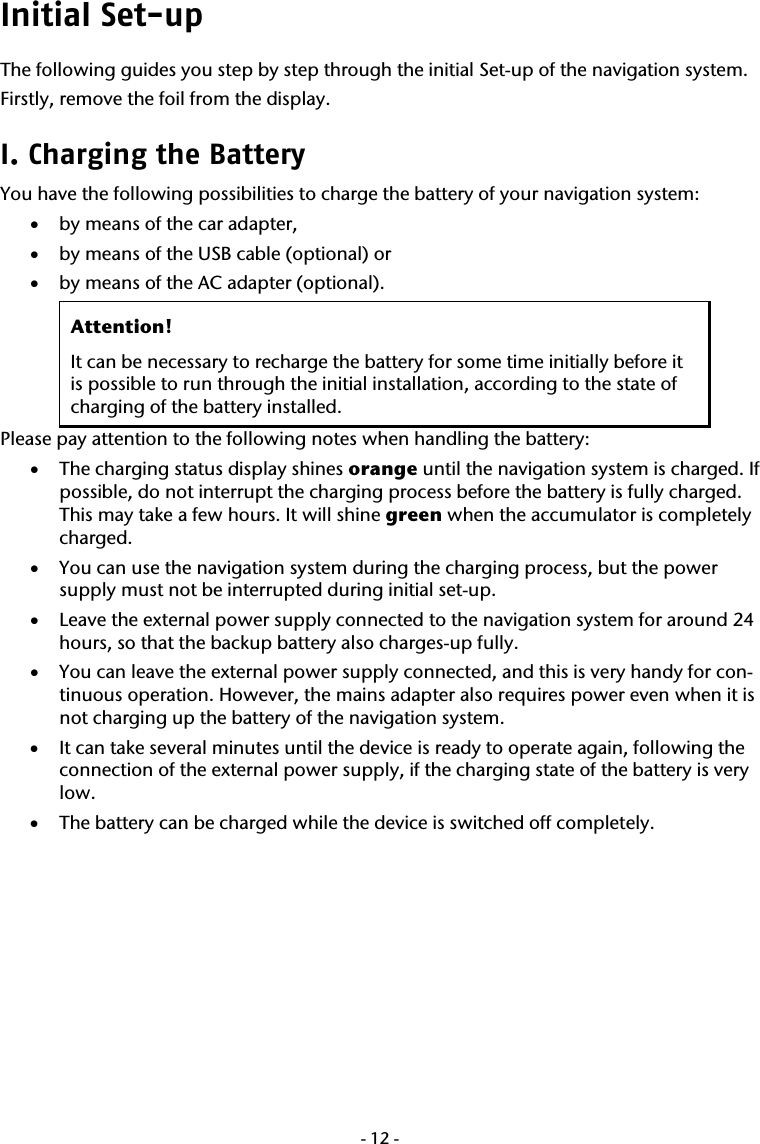

-12-Initial Set-up The following guides you step by step through the initial Set-up of the navigation system. Firstly, remove the foil from the display. I. Charging the Battery You have the following possibilities to charge the battery of your navigation system: • by means of the car adapter, • by means of the USB cable (optional) or • by means of the AC adapter (optional). Attention! It can be necessary to recharge the battery for some time initially before it is possible to run through the initial installation, according to the state of charging of the battery installed. Please pay attention to the following notes when handling the battery: • The charging status display shines orange until the navigation system is charged. If possible, do not interrupt the charging process before the battery is fully charged. This may take a few hours. It will shine green when the accumulator is completely charged. • You can use the navigation system during the charging process, but the power supply must not be interrupted during initial set-up. • Leave the external power supply connected to the navigation system for around 24 hours, so that the backup battery also charges-up fully. • You can leave the external power supply connected, and this is very handy for con-tinuous operation. However, the mains adapter also requires power even when it is not charging up the battery of the navigation system. • It can take several minutes until the device is ready to operate again, following the connection of the external power supply, if the charging state of the battery is very low. • The battery can be charged while the device is switched off completely.

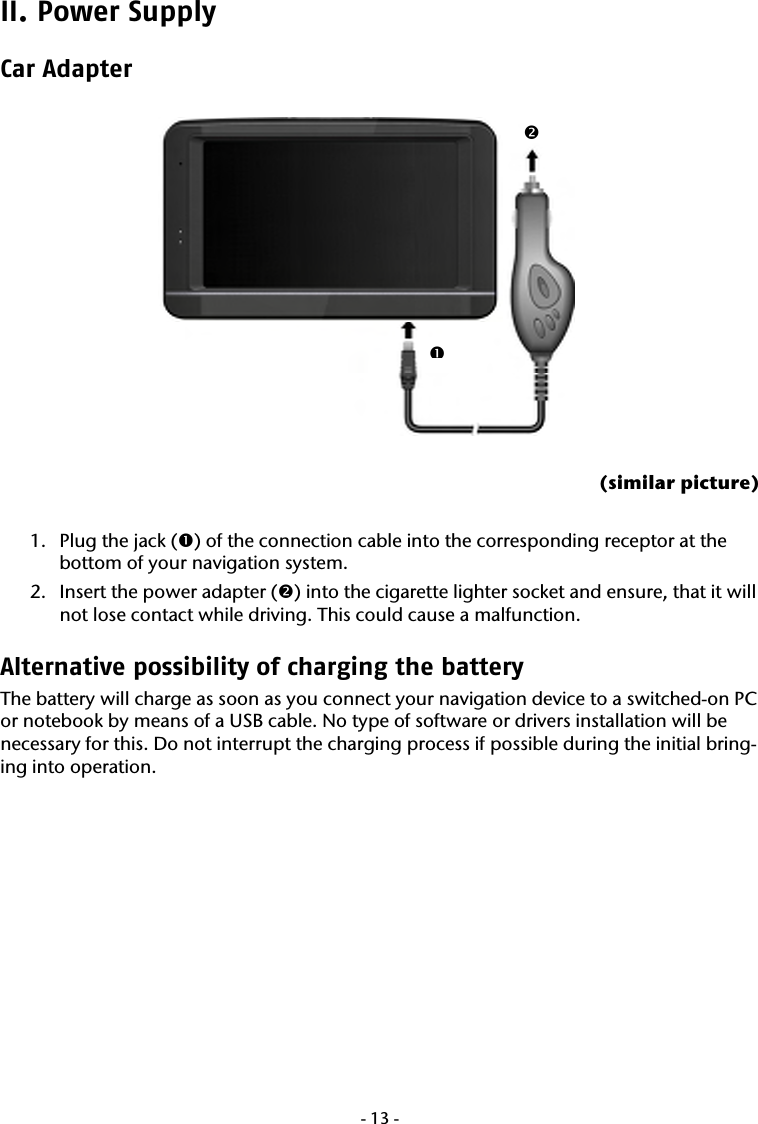

-13-II. Power Supply Car Adapter (similar picture) 1. Plug the jack (n) of the connection cable into the corresponding receptor at the bottom of your navigation system. 2. Insert the power adapter (o) into the cigarette lighter socket and ensure, that it will not lose contact while driving. This could cause a malfunction. Alternative possibility of charging the battery The battery will charge as soon as you connect your navigation device to a switched-on PC or notebook by means of a USB cable. No type of software or drivers installation will be necessary for this. Do not interrupt the charging process if possible during the initial bring-ing into operation. no

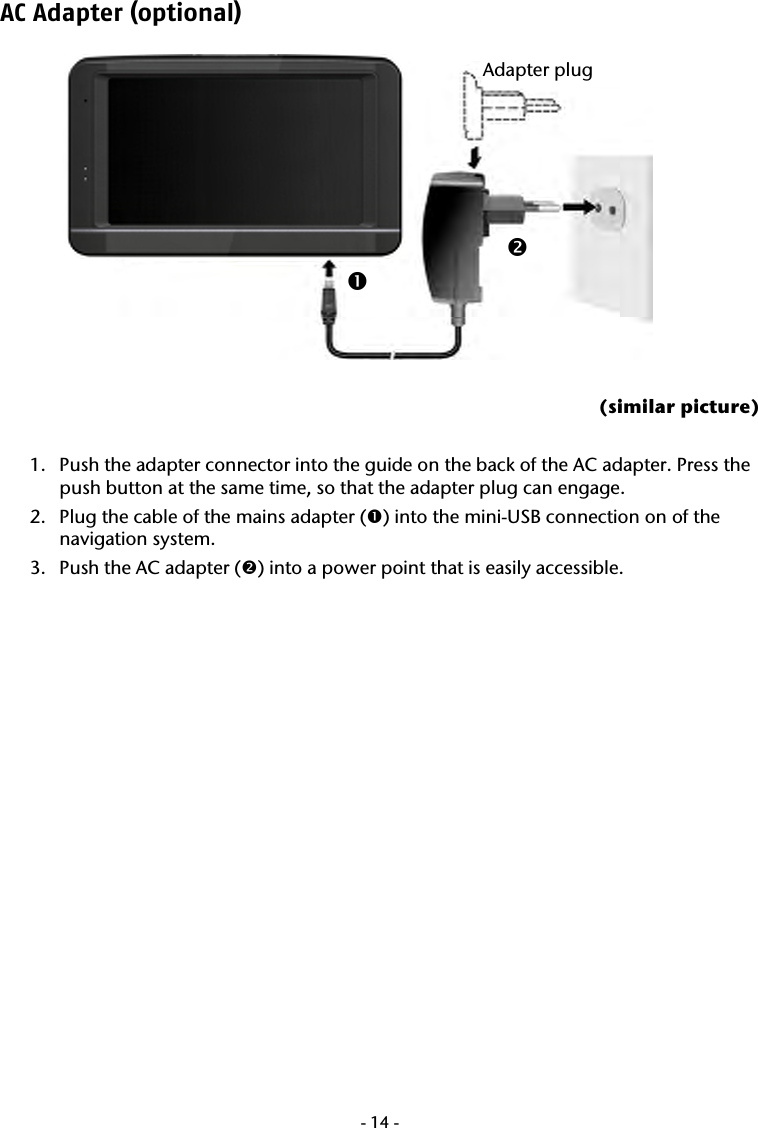

-14-AC Adapter (optional) (similar picture) 1. Push the adapter connector into the guide on the back of the AC adapter. Press the push button at the same time, so that the adapter plug can engage. 2. Plug the cable of the mains adapter (n) into the mini-USB connection on of the navigation system. 3. Push the AC adapter (o) into a power point that is easily accessible. o nAdapter plug

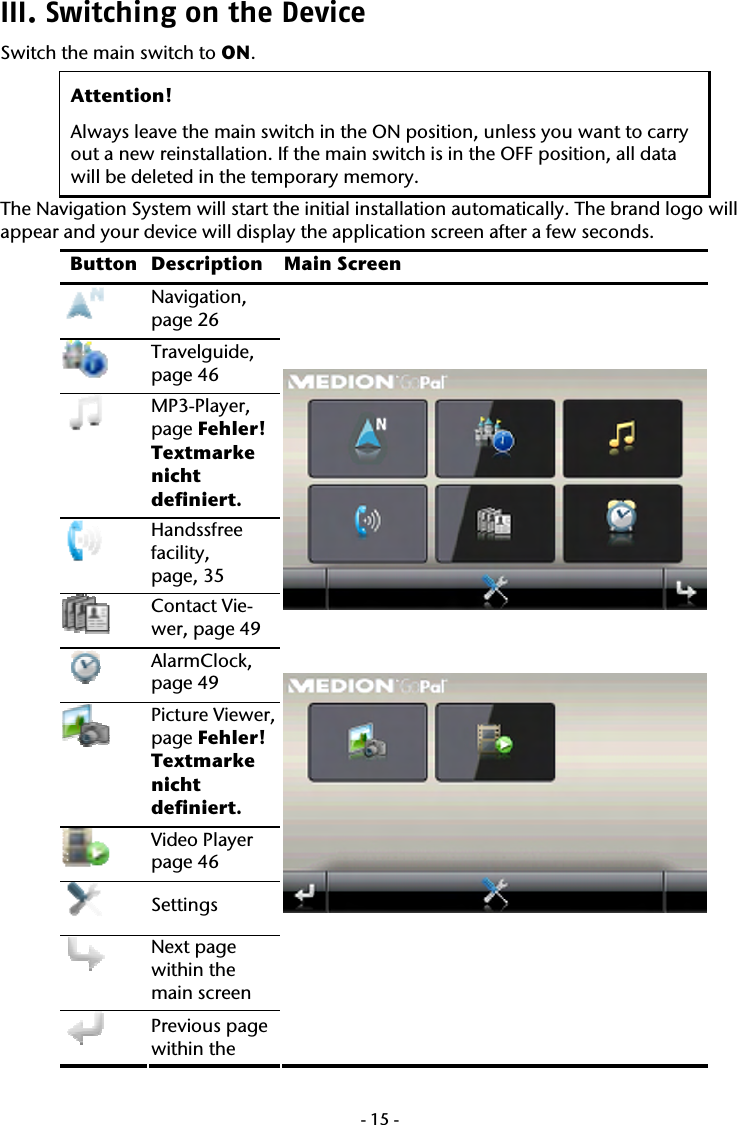

-15-III. Switching on the Device Switch the main switch to ON. Attention! Always leave the main switch in the ON position, unless you want to carry out a new reinstallation. If the main switch is in the OFF position, all data will be deleted in the temporary memory. The Navigation System will start the initial installation automatically. The brand logo will appear and your device will display the application screen after a few seconds. Button Description Main Screen Navigation, page 26 Travelguide, page 46 MP3-Player, page Fehler! Textmarke nicht definiert. Handssfree facility, page, 35 Contact Vie-wer, page 49 AlarmClock, page 49 Picture Viewer, page Fehler! Textmarke nicht definiert. Video Player page 46 Settings Next page within the main screen Previous page within the
-16-main screen

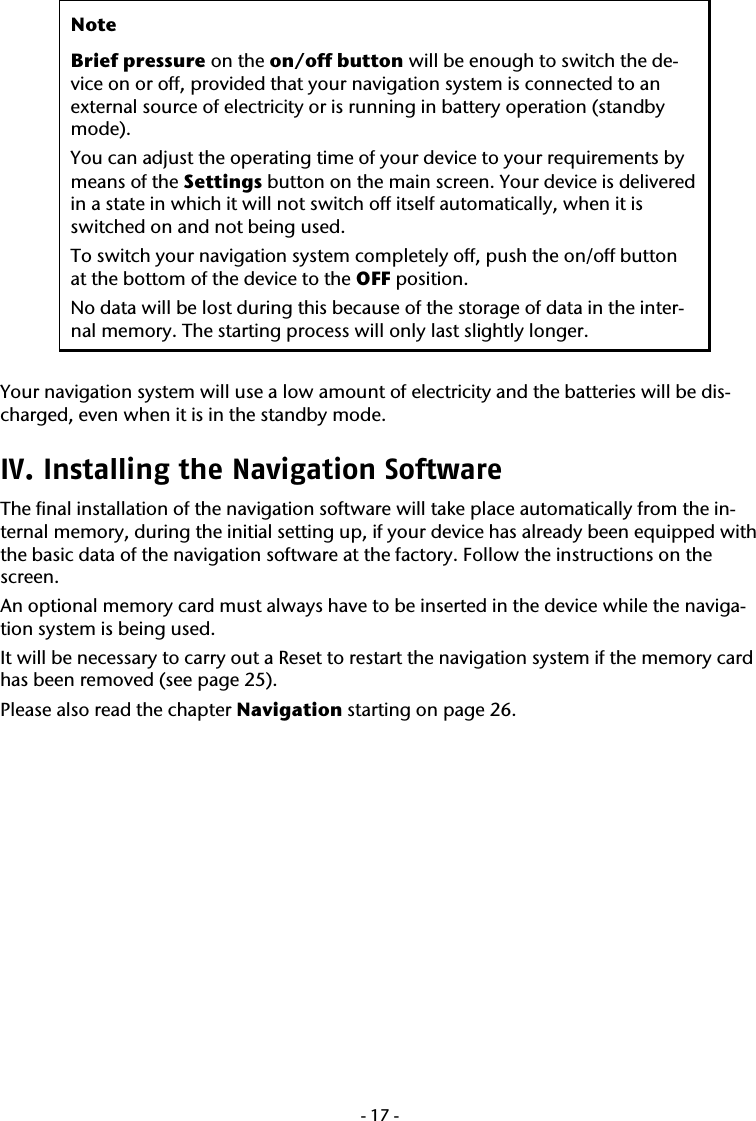

-17- Note Brief pressure on the on/off button will be enough to switch the de-vice on or off, provided that your navigation system is connected to an external source of electricity or is running in battery operation (standby mode). You can adjust the operating time of your device to your requirements by means of the Settings button on the main screen. Your device is delivered in a state in which it will not switch off itself automatically, when it is switched on and not being used. To switch your navigation system completely off, push the on/off button at the bottom of the device to the OFF position. No data will be lost during this because of the storage of data in the inter-nal memory. The starting process will only last slightly longer. Your navigation system will use a low amount of electricity and the batteries will be dis-charged, even when it is in the standby mode. IV. Installing the Navigation Software The final installation of the navigation software will take place automatically from the in-ternal memory, during the initial setting up, if your device has already been equipped with the basic data of the navigation software at the factory. Follow the instructions on the screen. An optional memory card must always have to be inserted in the device while the naviga-tion system is being used. It will be necessary to carry out a Reset to restart the navigation system if the memory card has been removed (see page 25). Please also read the chapter Navigation starting on page 26.

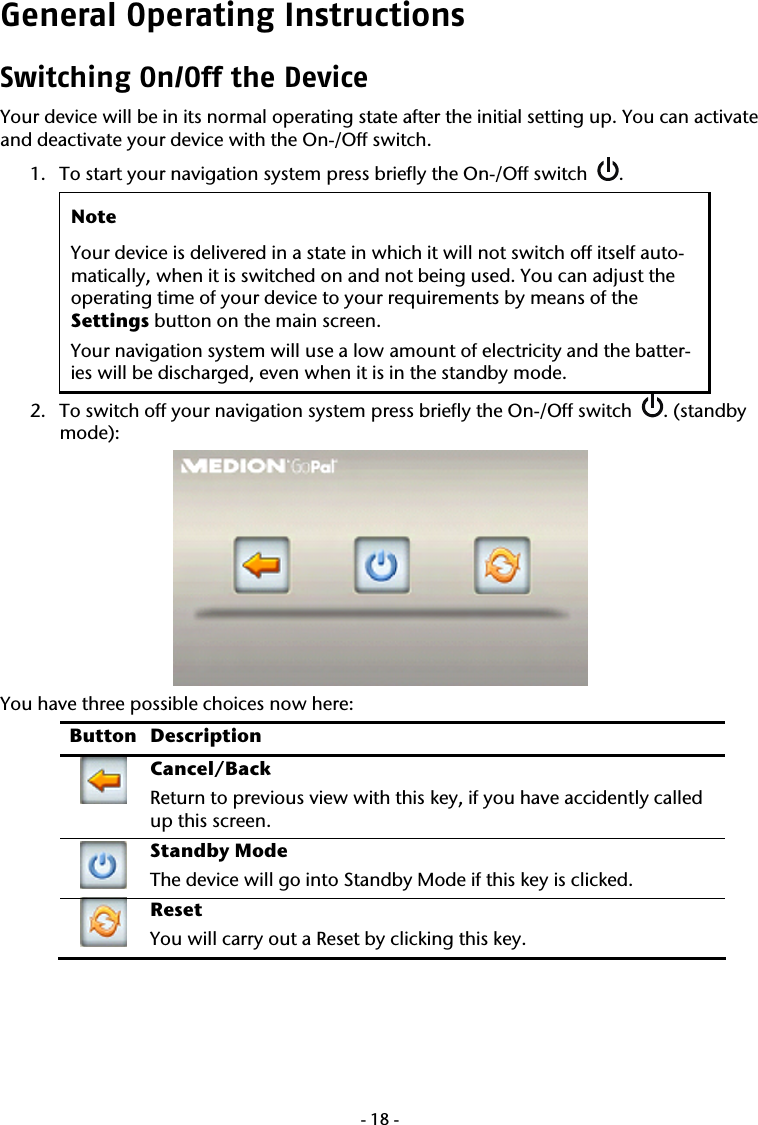

-18-General Operating Instructions Switching On/Off the Device Your device will be in its normal operating state after the initial setting up. You can activate and deactivate your device with the On-/Off switch. 1. To start your navigation system press briefly the On-/Off switch . Note Your device is delivered in a state in which it will not switch off itself auto-matically, when it is switched on and not being used. You can adjust the operating time of your device to your requirements by means of the Settings button on the main screen. Your navigation system will use a low amount of electricity and the batter-ies will be discharged, even when it is in the standby mode. 2. To switch off your navigation system press briefly the On-/Off switch . (standby mode): You have three possible choices now here: Button Description Cancel/Back Return to previous view with this key, if you have accidently called up this screen. Standby Mode The device will go into Standby Mode if this key is clicked. Reset You will carry out a Reset by clicking this key.

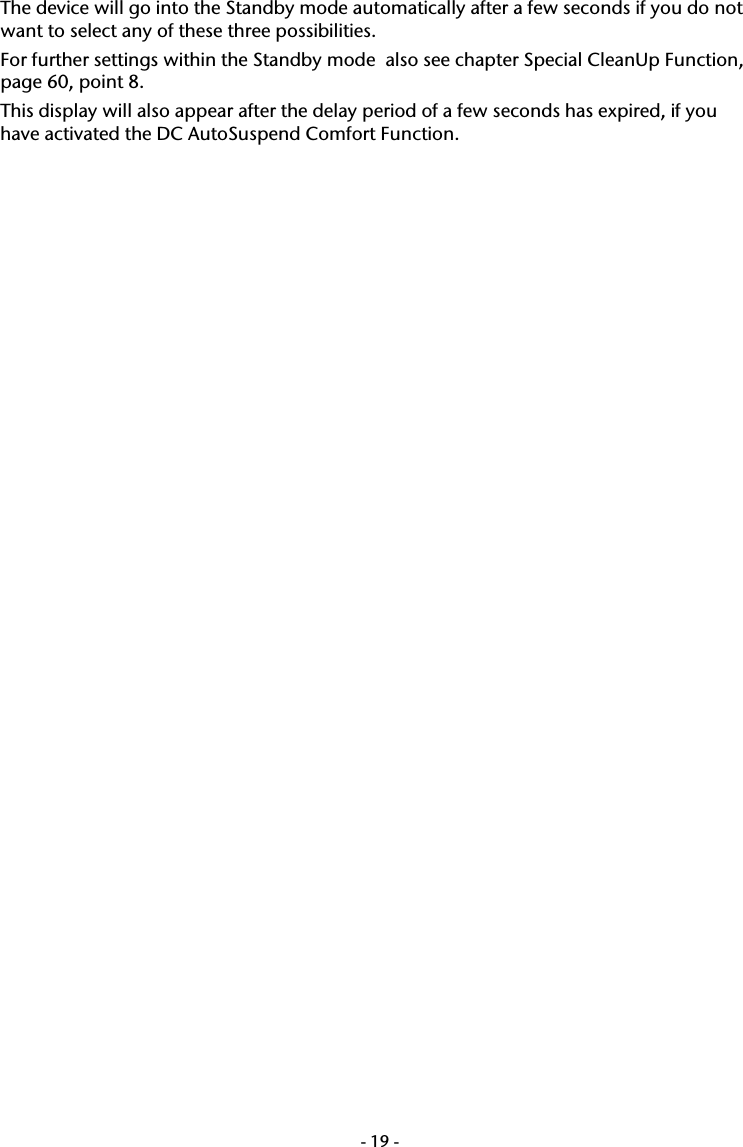

-19-The device will go into the Standby mode automatically after a few seconds if you do not want to select any of these three possibilities. For further settings within the Standby mode also see chapter Special CleanUp Function, page 60, point 8. This display will also appear after the delay period of a few seconds has expired, if you have activated the DC AutoSuspend Comfort Function.

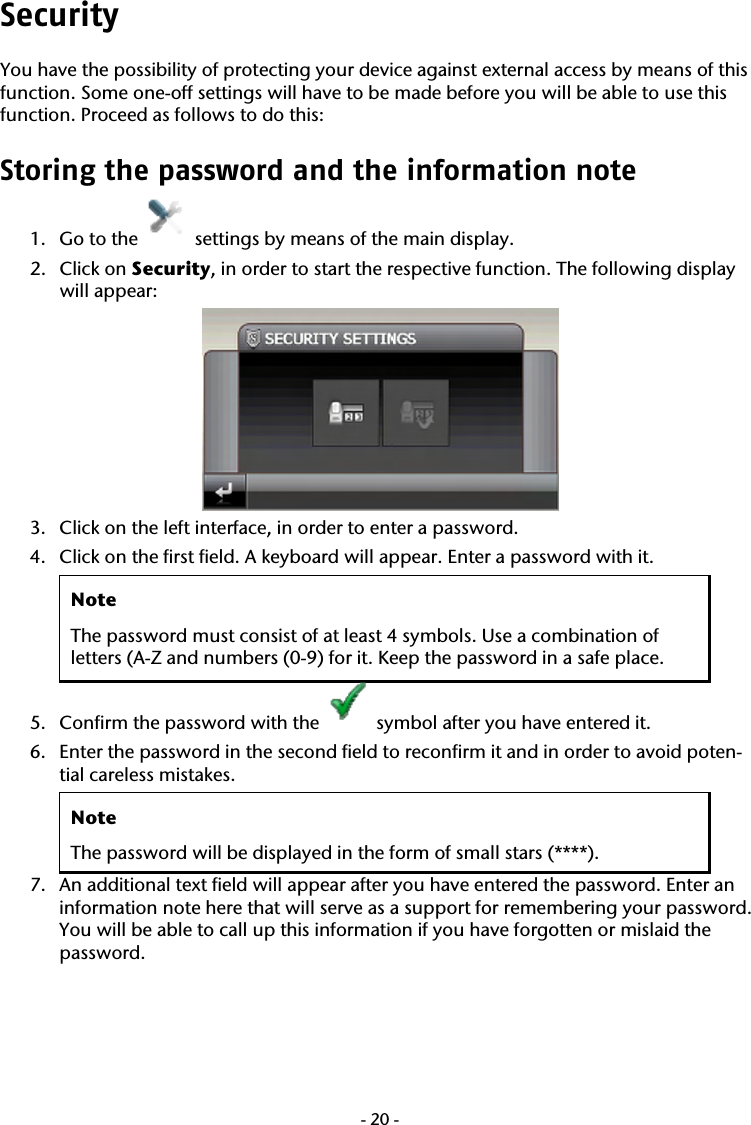

-20-Security You have the possibility of protecting your device against external access by means of this function. Some one-off settings will have to be made before you will be able to use this function. Proceed as follows to do this: Storing the password and the information note 1. Go to the settings by means of the main display. 2. Click on Security, in order to start the respective function. The following display will appear: 3. Click on the left interface, in order to enter a password. 4. Click on the first field. A keyboard will appear. Enter a password with it. Note The password must consist of at least 4 symbols. Use a combination of letters (A-Z and numbers (0-9) for it. Keep the password in a safe place. 5. Confirm the password with the symbol after you have entered it. 6. Enter the password in the second field to reconfirm it and in order to avoid poten-tial careless mistakes. Note The password will be displayed in the form of small stars (****). 7. An additional text field will appear after you have entered the password. Enter an information note here that will serve as a support for remembering your password. You will be able to call up this information if you have forgotten or mislaid the password.

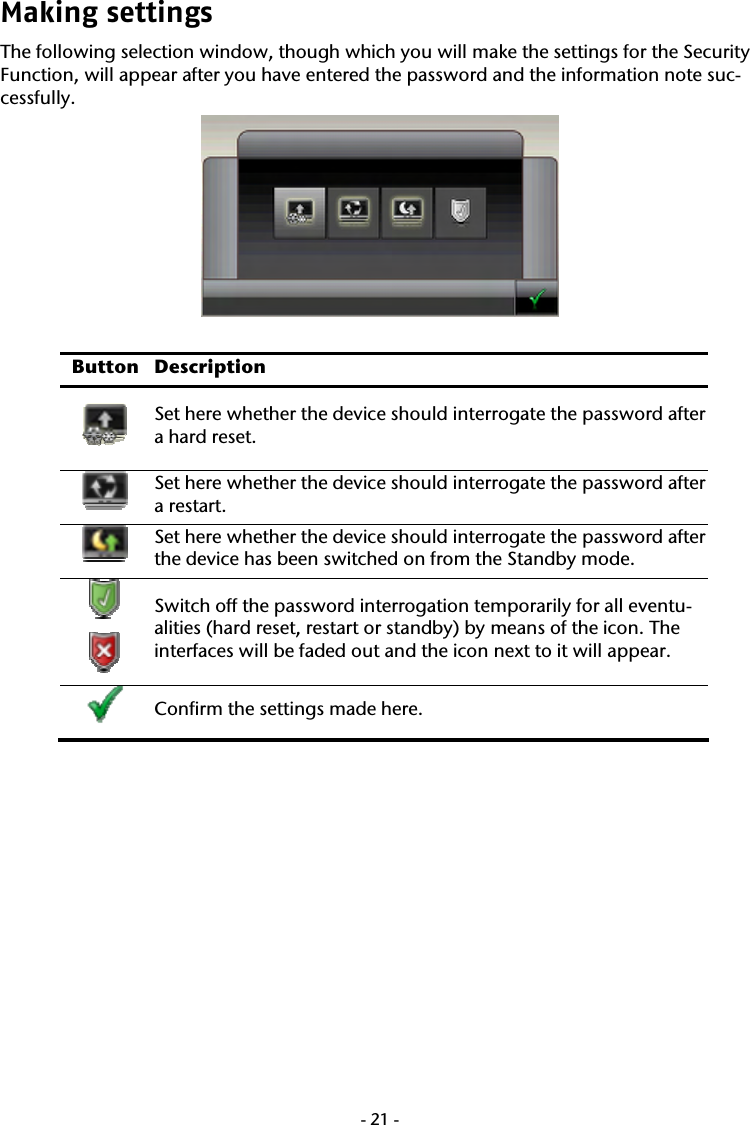

-21-Making settings The following selection window, though which you will make the settings for the Security Function, will appear after you have entered the password and the information note suc-cessfully. Button Description Set here whether the device should interrogate the password after a hard reset. Set here whether the device should interrogate the password after a restart. Set here whether the device should interrogate the password after the device has been switched on from the Standby mode. Switch off the password interrogation temporarily for all eventu-alities (hard reset, restart or standby) by means of the icon. The interfaces will be faded out and the icon next to it will appear. Confirm the settings made here.

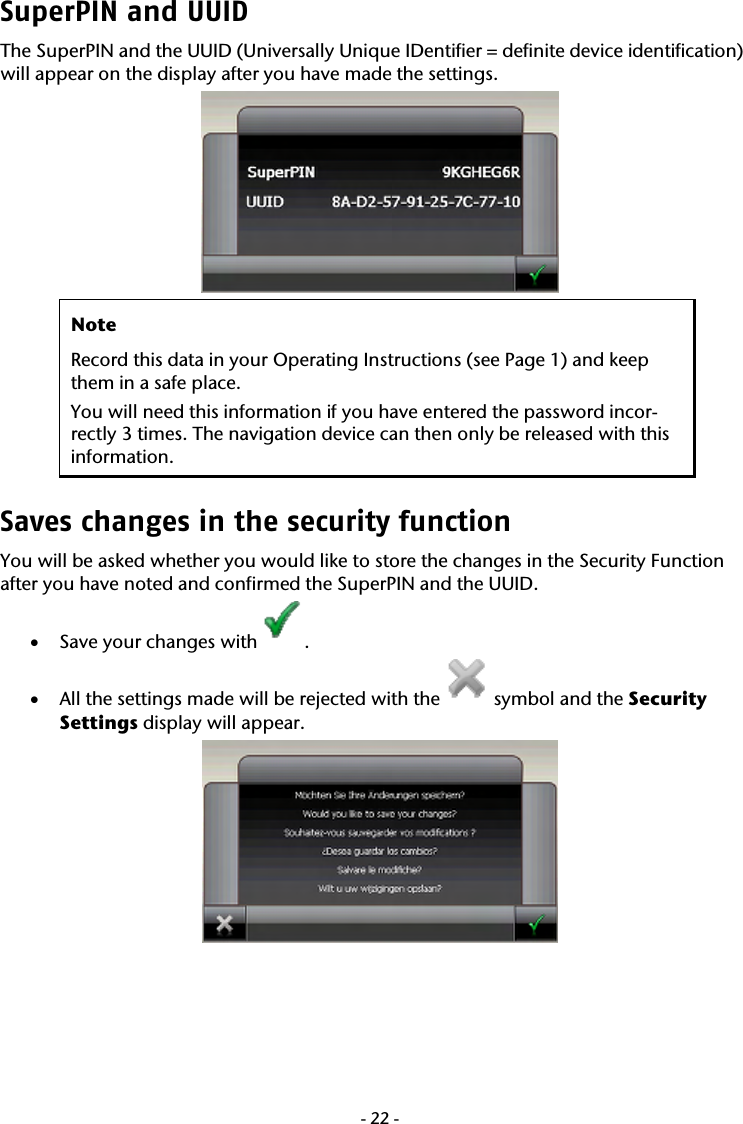

-22-SuperPIN and UUID The SuperPIN and the UUID (Universally Unique IDentifier = definite device identification) will appear on the display after you have made the settings. Note Record this data in your Operating Instructions (see Page 1) and keep them in a safe place. You will need this information if you have entered the password incor-rectly 3 times. The navigation device can then only be released with this information. Saves changes in the security function You will be asked whether you would like to store the changes in the Security Function after you have noted and confirmed the SuperPIN and the UUID. • Save your changes with . • All the settings made will be rejected with the symbol and the Security Settings display will appear.

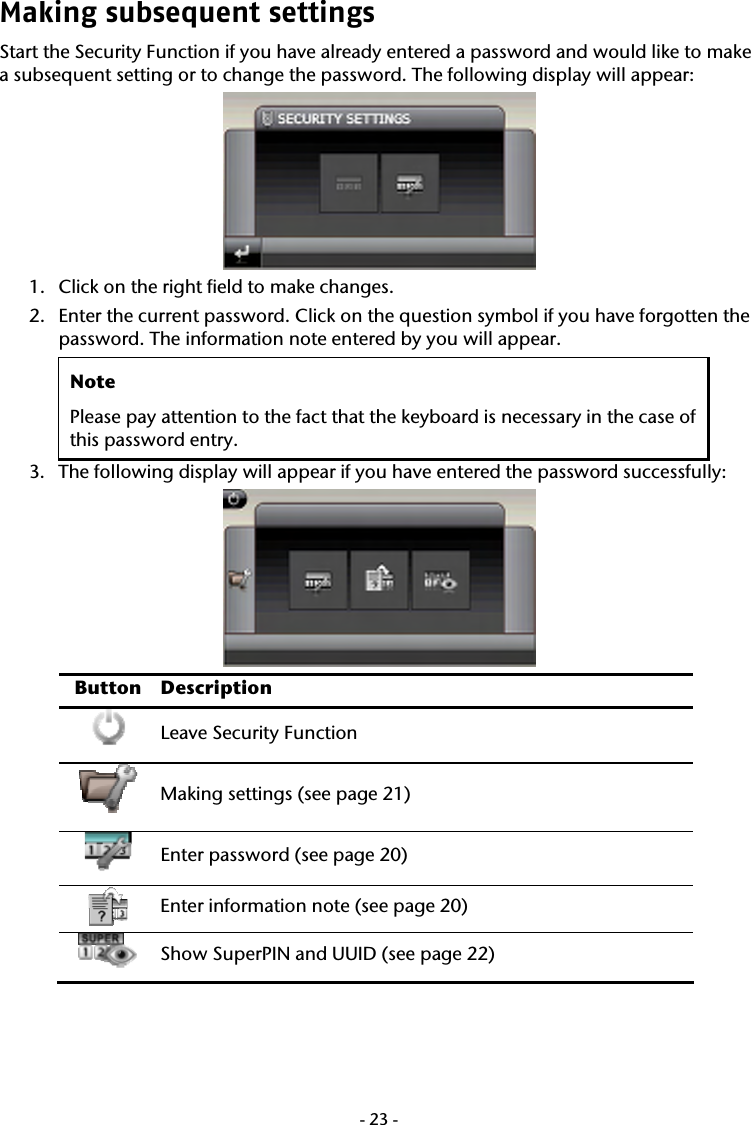

-23-Making subsequent settings Start the Security Function if you have already entered a password and would like to make a subsequent setting or to change the password. The following display will appear: 1. Click on the right field to make changes. 2. Enter the current password. Click on the question symbol if you have forgotten the password. The information note entered by you will appear. Note Please pay attention to the fact that the keyboard is necessary in the case of this password entry. 3. The following display will appear if you have entered the password successfully: Button Description Leave Security Function Making settings (see page 21) Enter password (see page 20) Enter information note (see page 20) Show SuperPIN and UUID (see page 22)

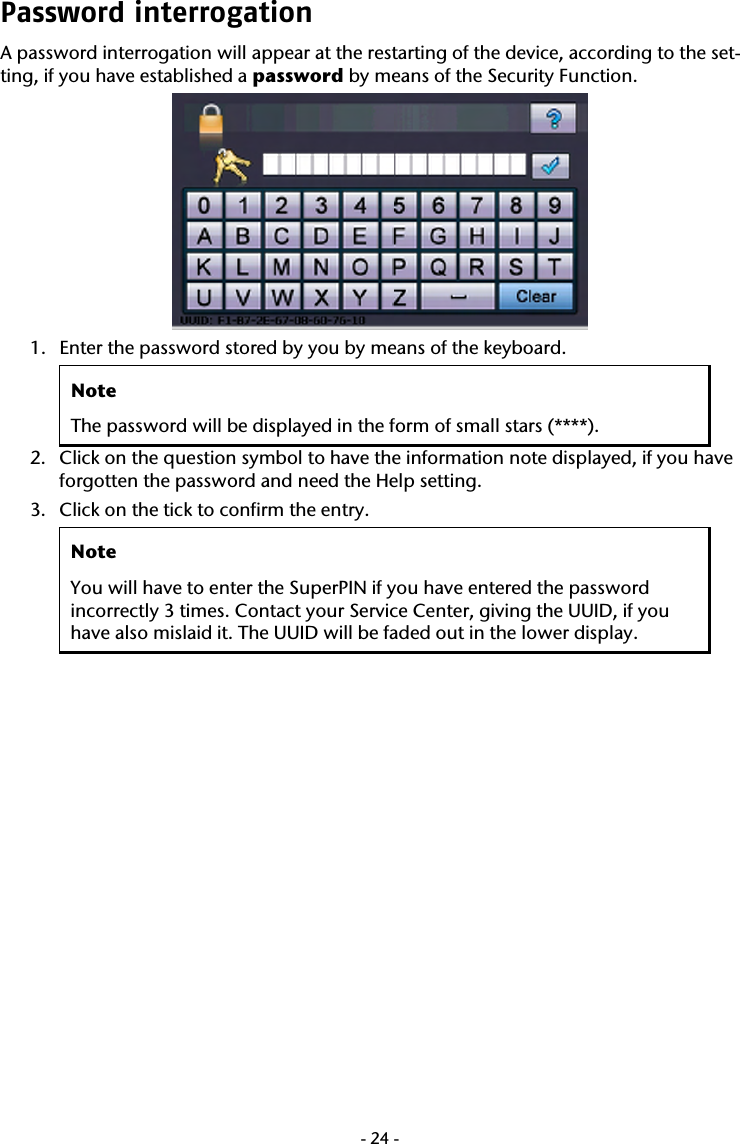

-24-Password interrogation A password interrogation will appear at the restarting of the device, according to the set-ting, if you have established a password by means of the Security Function. 1. Enter the password stored by you by means of the keyboard. Note The password will be displayed in the form of small stars (****). 2. Click on the question symbol to have the information note displayed, if you have forgotten the password and need the Help setting. 3. Click on the tick to confirm the entry. Note You will have to enter the SuperPIN if you have entered the password incorrectly 3 times. Contact your Service Center, giving the UUID, if you have also mislaid it. The UUID will be faded out in the lower display.

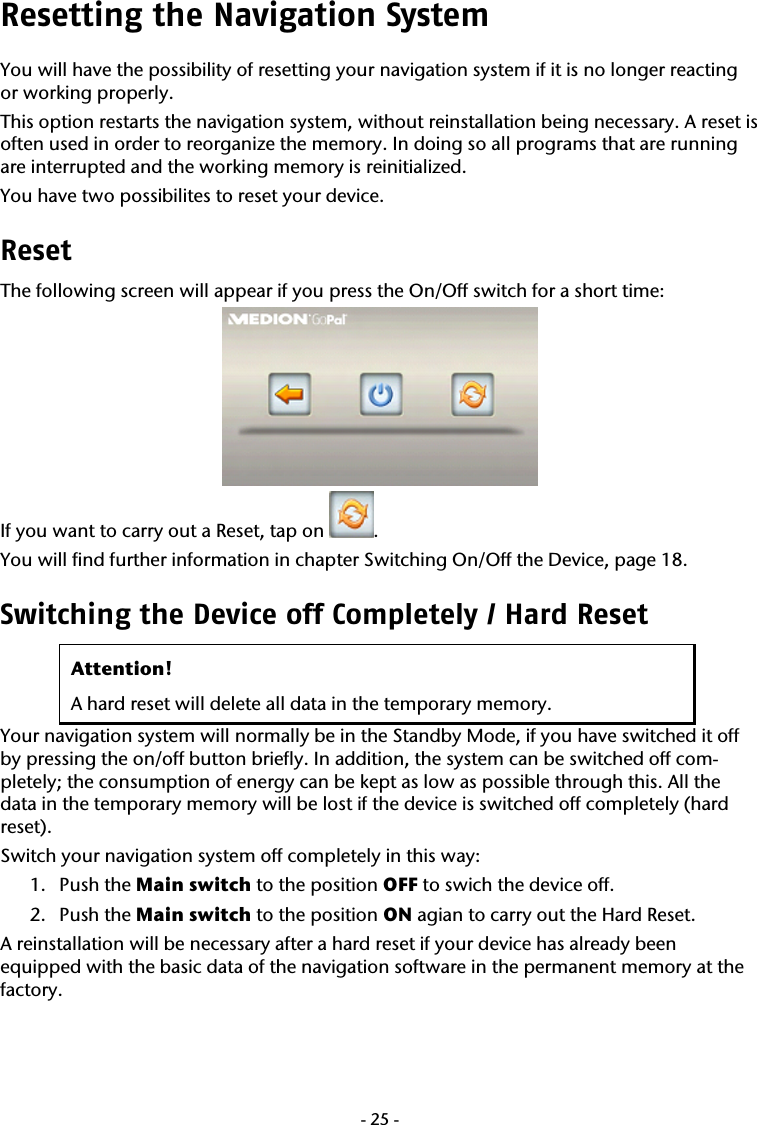

-25-Resetting the Navigation System You will have the possibility of resetting your navigation system if it is no longer reacting or working properly. This option restarts the navigation system, without reinstallation being necessary. A reset is often used in order to reorganize the memory. In doing so all programs that are running are interrupted and the working memory is reinitialized. You have two possibilites to reset your device. Reset The following screen will appear if you press the On/Off switch for a short time: If you want to carry out a Reset, tap on . You will find further information in chapter Switching On/Off the Device, page 18. Switching the Device off Completely / Hard Reset Attention! A hard reset will delete all data in the temporary memory. Your navigation system will normally be in the Standby Mode, if you have switched it off by pressing the on/off button briefly. In addition, the system can be switched off com-pletely; the consumption of energy can be kept as low as possible through this. All the data in the temporary memory will be lost if the device is switched off completely (hard reset). Switch your navigation system off completely in this way: 1. Push the Main switch to the position OFF to swich the device off. 2. Push the Main switch to the position ON agian to carry out the Hard Reset. A reinstallation will be necessary after a hard reset if your device has already been equipped with the basic data of the navigation software in the permanent memory at the factory.

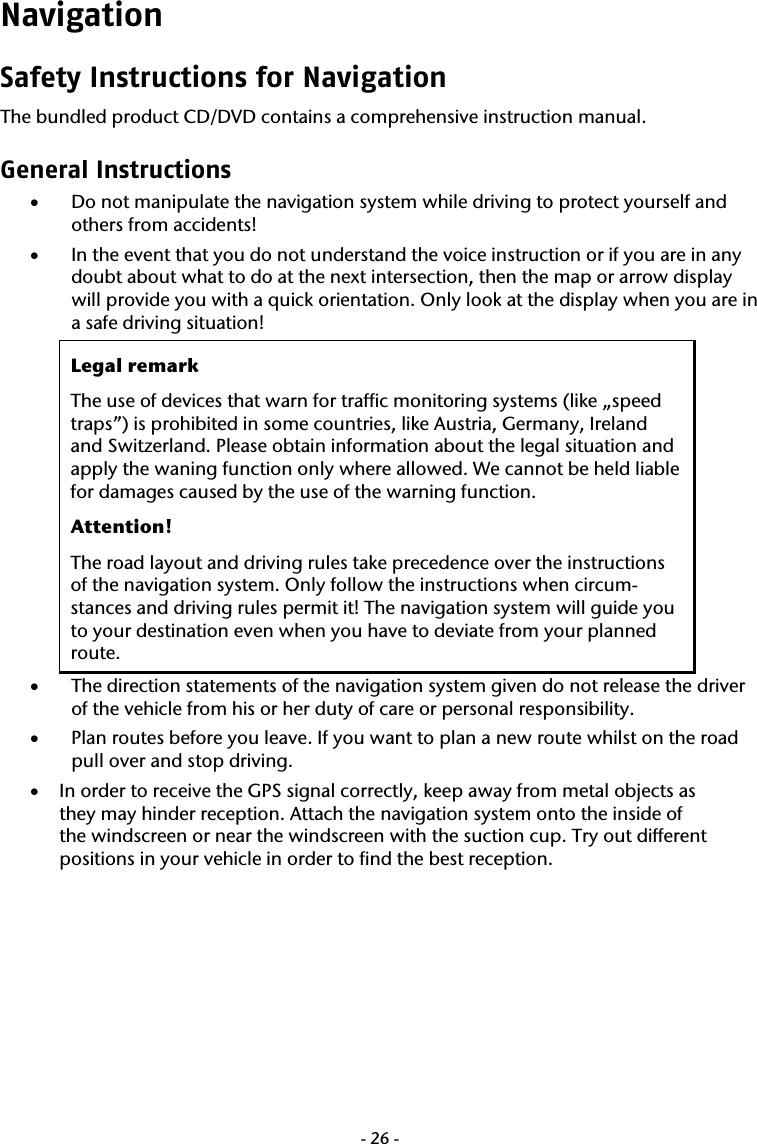

-26-Navigation Safety Instructions for Navigation The bundled product CD/DVD contains a comprehensive instruction manual. General Instructions • Do not manipulate the navigation system while driving to protect yourself and others from accidents! • In the event that you do not understand the voice instruction or if you are in any doubt about what to do at the next intersection, then the map or arrow display will provide you with a quick orientation. Only look at the display when you are in a safe driving situation! Legal remark The use of devices that warn for traffic monitoring systems (like „speed traps”) is prohibited in some countries, like Austria, Germany, Ireland and Switzerland. Please obtain information about the legal situation and apply the waning function only where allowed. We cannot be held liable for damages caused by the use of the warning function. Attention! The road layout and driving rules take precedence over the instructions of the navigation system. Only follow the instructions when circum-stances and driving rules permit it! The navigation system will guide you to your destination even when you have to deviate from your planned route. • The direction statements of the navigation system given do not release the driver of the vehicle from his or her duty of care or personal responsibility. • Plan routes before you leave. If you want to plan a new route whilst on the road pull over and stop driving. • In order to receive the GPS signal correctly, keep away from metal objects as they may hinder reception. Attach the navigation system onto the inside of the windscreen or near the windscreen with the suction cup. Try out different positions in your vehicle in order to find the best reception.

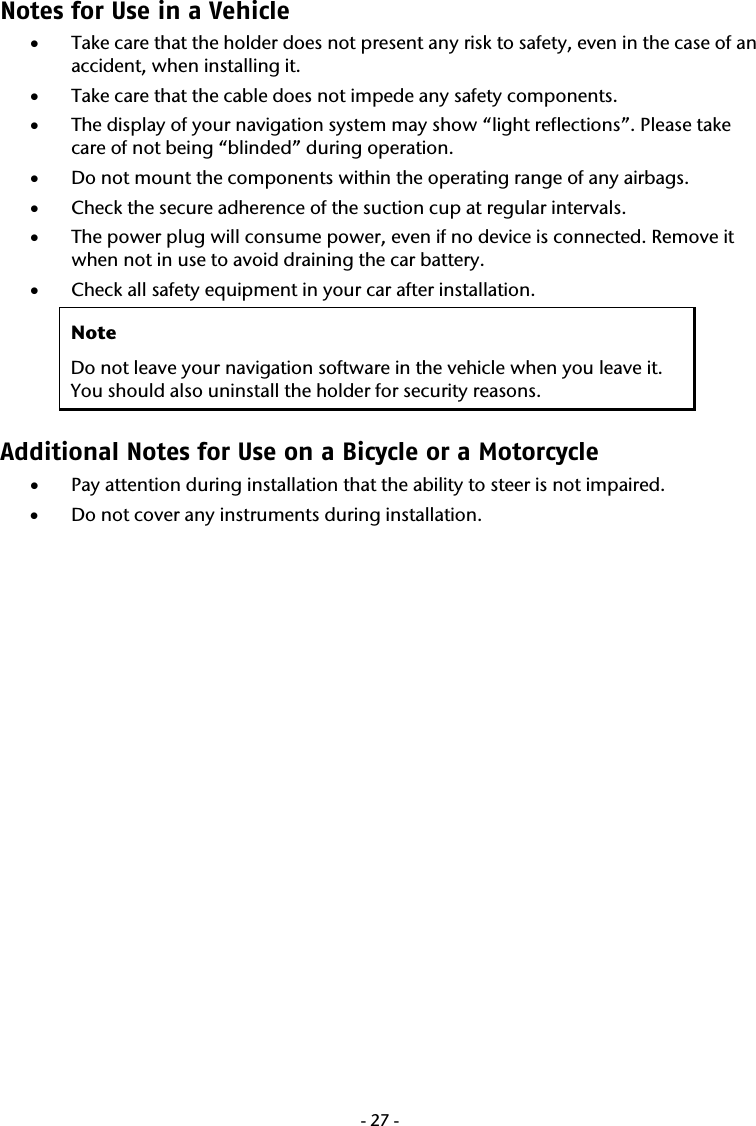

-27-Notes for Use in a Vehicle • Take care that the holder does not present any risk to safety, even in the case of an accident, when installing it. • Take care that the cable does not impede any safety components. • The display of your navigation system may show “light reflections”. Please take care of not being “blinded” during operation. • Do not mount the components within the operating range of any airbags. • Check the secure adherence of the suction cup at regular intervals. • The power plug will consume power, even if no device is connected. Remove it when not in use to avoid draining the car battery. • Check all safety equipment in your car after installation. Note Do not leave your navigation software in the vehicle when you leave it. You should also uninstall the holder for security reasons. Additional Notes for Use on a Bicycle or a Motorcycle • Pay attention during installation that the ability to steer is not impaired. • Do not cover any instruments during installation.

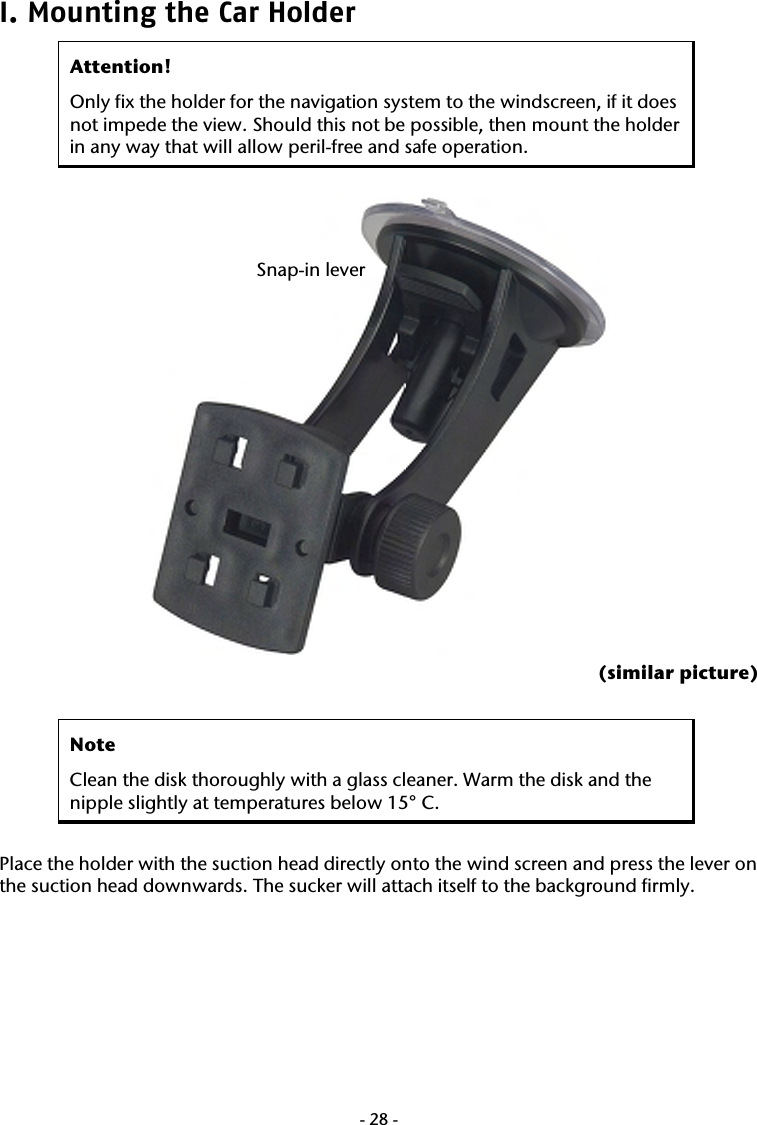

-28-I. Mounting the Car Holder Attention! Only fix the holder for the navigation system to the windscreen, if it does not impede the view. Should this not be possible, then mount the holder in any way that will allow peril-free and safe operation. (similar picture) Note Clean the disk thoroughly with a glass cleaner. Warm the disk and the nipple slightly at temperatures below 15° C. Place the holder with the suction head directly onto the wind screen and press the lever on the suction head downwards. The sucker will attach itself to the background firmly. Snap-in lever
-29-II. Attaching the Navigation System 1. Connect the car adapter (see page 13) and, if necessary, the external TMC aerial, to your navigation system and insert the memory card. 2. Place the device below in the centre of the holder and press it gently backwards (n) until it engages audibly (o). (similar pictures) 3. Place the holder on the fixing catches of the car holder. 4. Now, push the unit downwards until it engages audibly. 5. Now you will be able to place the complete unit on the cleaned windscreen or the suction plate.

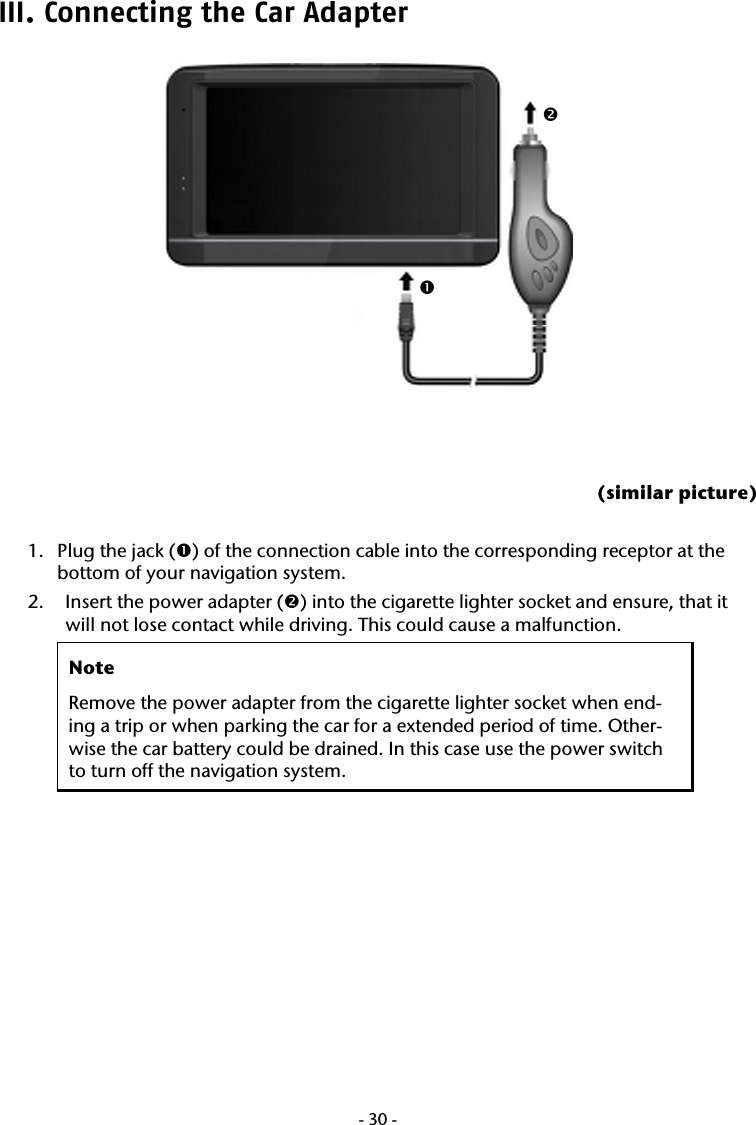

-30-III. Connecting the Car Adapter (similar picture) 1. Plug the jack (n) of the connection cable into the corresponding receptor at the bottom of your navigation system. 2. Insert the power adapter (o) into the cigarette lighter socket and ensure, that it will not lose contact while driving. This could cause a malfunction. Note Remove the power adapter from the cigarette lighter socket when end-ing a trip or when parking the car for a extended period of time. Other-wise the car battery could be drained. In this case use the power switch to turn off the navigation system. no

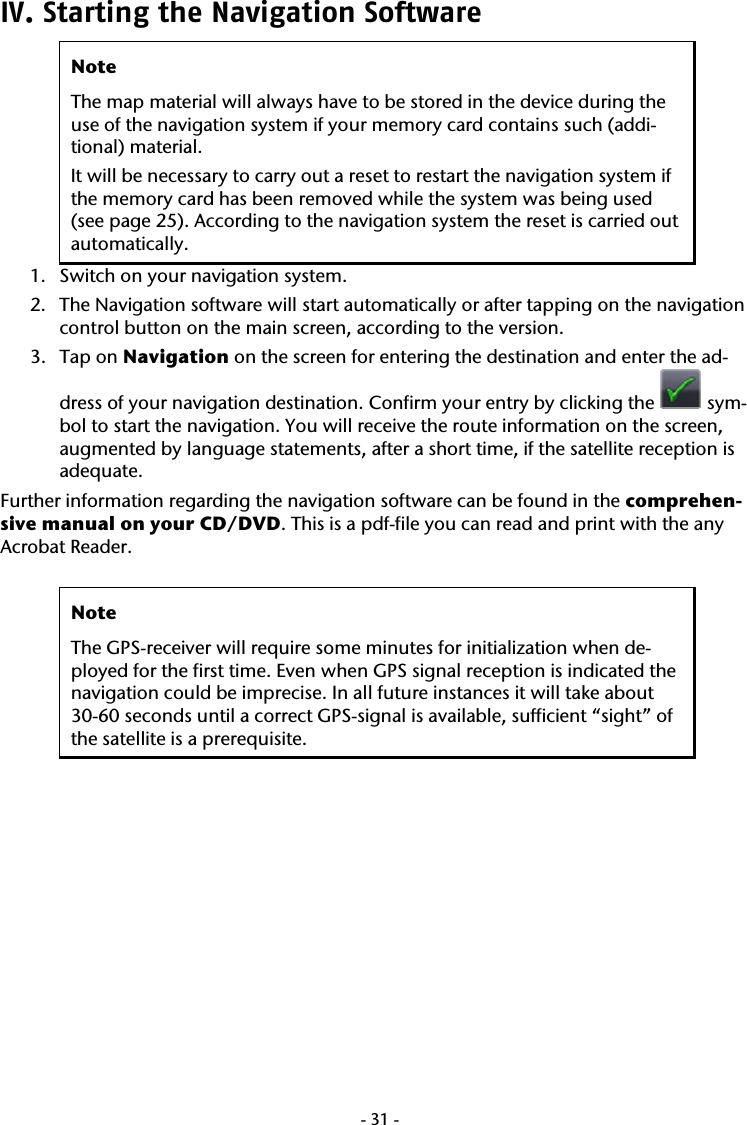

-31-IV. Starting the Navigation Software Note The map material will always have to be stored in the device during the use of the navigation system if your memory card contains such (addi-tional) material. It will be necessary to carry out a reset to restart the navigation system if the memory card has been removed while the system was being used (see page 25). According to the navigation system the reset is carried out automatically. 1. Switch on your navigation system. 2. The Navigation software will start automatically or after tapping on the navigation control button on the main screen, according to the version. 3. Tap on Navigation on the screen for entering the destination and enter the ad-dress of your navigation destination. Confirm your entry by clicking the sym-bol to start the navigation. You will receive the route information on the screen, augmented by language statements, after a short time, if the satellite reception is adequate. Further information regarding the navigation software can be found in the comprehen-sive manual on your CD/DVD. This is a pdf-file you can read and print with the any Acrobat Reader. Note The GPS-receiver will require some minutes for initialization when de-ployed for the first time. Even when GPS signal reception is indicated the navigation could be imprecise. In all future instances it will take about 30-60 seconds until a correct GPS-signal is available, sufficient “sight” of the satellite is a prerequisite.

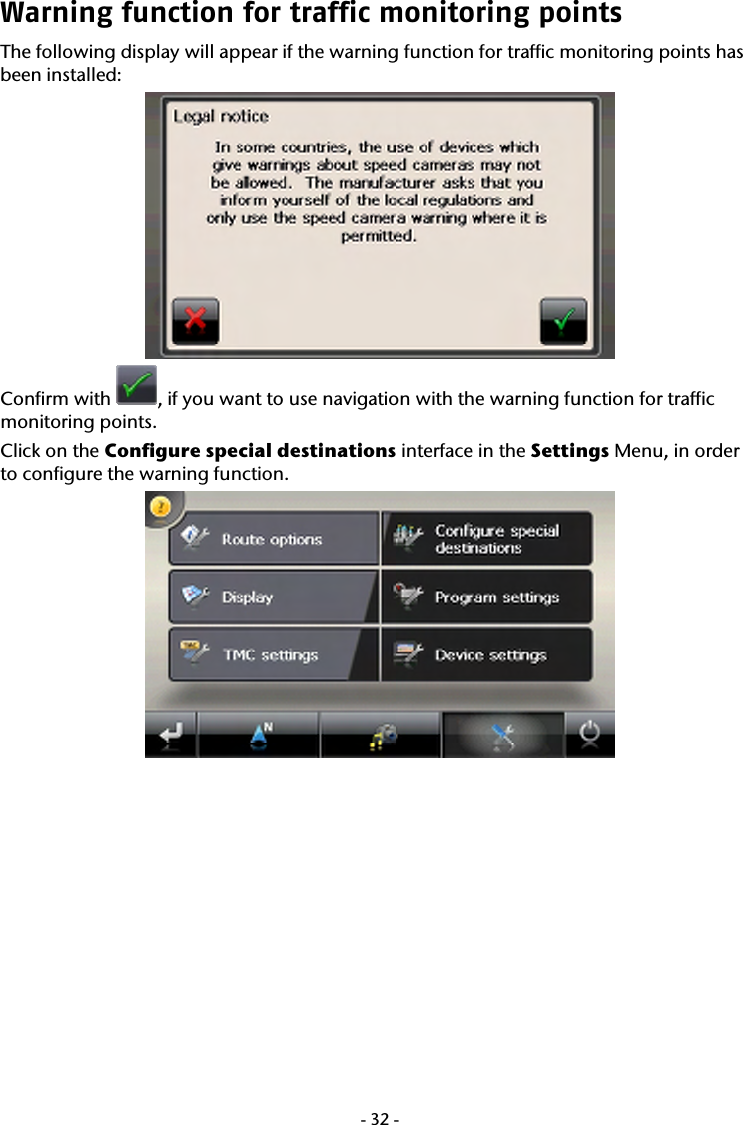

-32-Warning function for traffic monitoring points The following display will appear if the warning function for traffic monitoring points has been installed: Confirm with , if you want to use navigation with the warning function for traffic monitoring points. Click on the Configure special destinations interface in the Settings Menu, in order to configure the warning function.

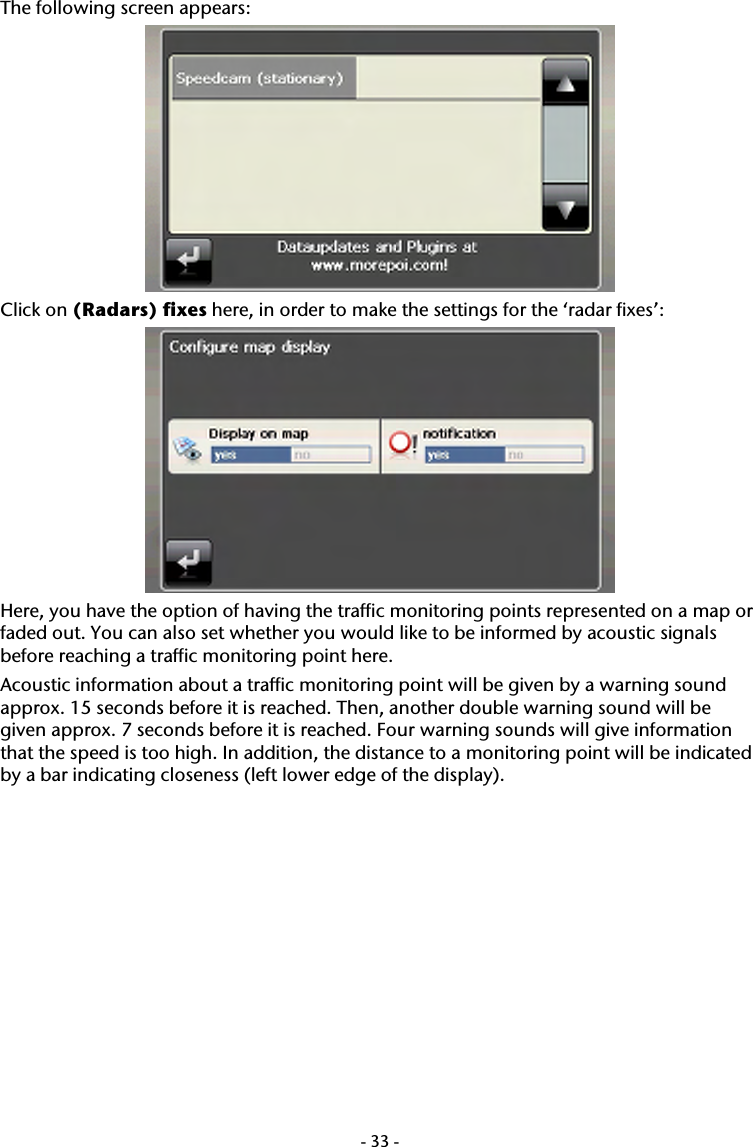

-33-The following screen appears: Click on (Radars) fixes here, in order to make the settings for the ‘radar fixes’: Here, you have the option of having the traffic monitoring points represented on a map or faded out. You can also set whether you would like to be informed by acoustic signals before reaching a traffic monitoring point here. Acoustic information about a traffic monitoring point will be given by a warning sound approx. 15 seconds before it is reached. Then, another double warning sound will be given approx. 7 seconds before it is reached. Four warning sounds will give information that the speed is too high. In addition, the distance to a monitoring point will be indicated by a bar indicating closeness (left lower edge of the display).

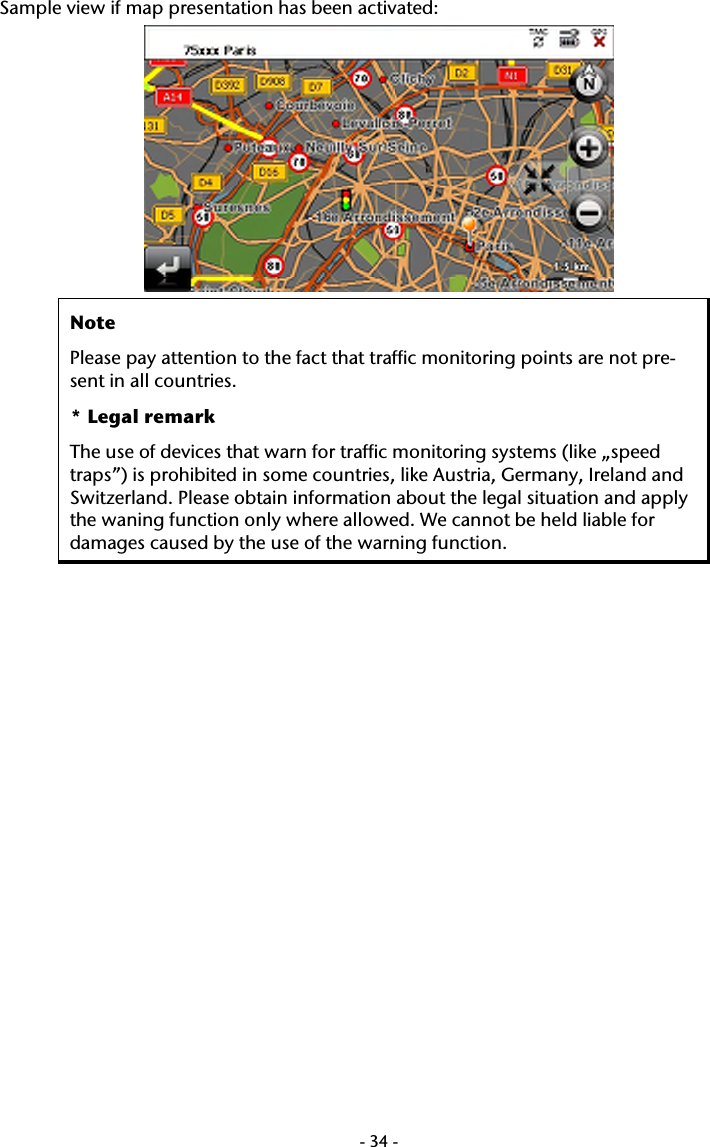

-34-Sample view if map presentation has been activated: Note Please pay attention to the fact that traffic monitoring points are not pre-sent in all countries. * Legal remark The use of devices that warn for traffic monitoring systems (like „speed traps”) is prohibited in some countries, like Austria, Germany, Ireland and Switzerland. Please obtain information about the legal situation and apply the waning function only where allowed. We cannot be held liable for damages caused by the use of the warning function.

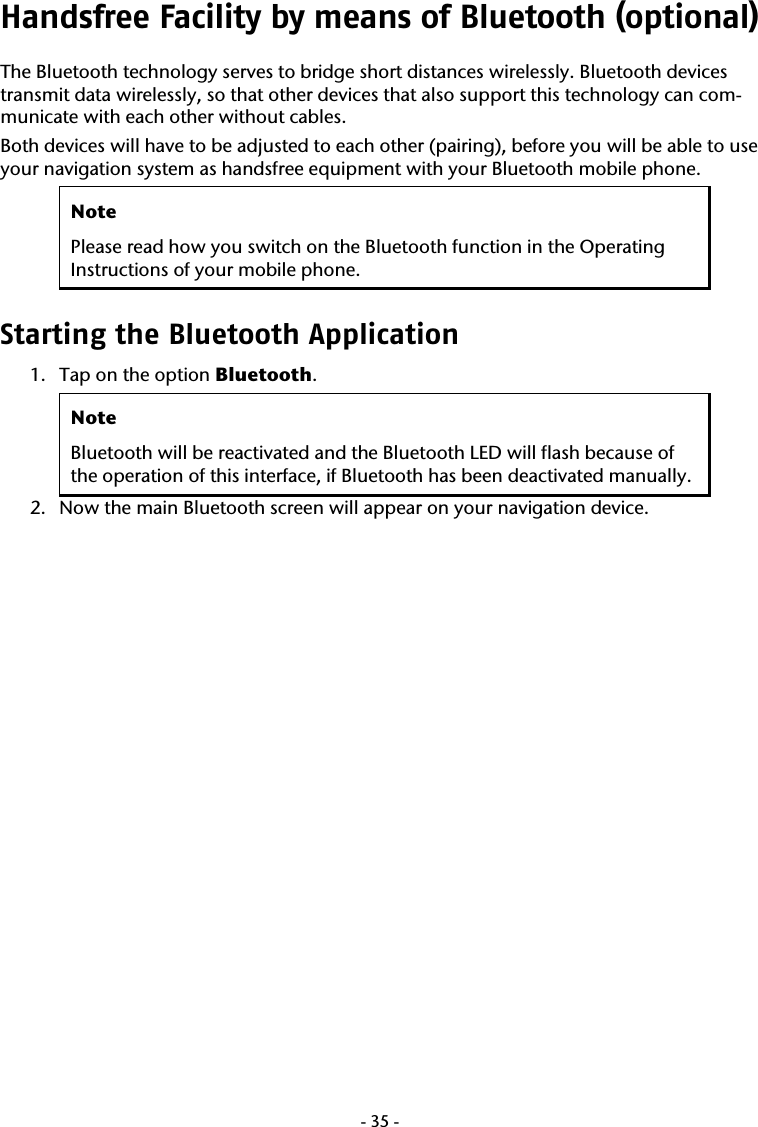

-35-Handsfree Facility by means of Bluetooth (optional) The Bluetooth technology serves to bridge short distances wirelessly. Bluetooth devices transmit data wirelessly, so that other devices that also support this technology can com-municate with each other without cables. Both devices will have to be adjusted to each other (pairing), before you will be able to use your navigation system as handsfree equipment with your Bluetooth mobile phone. Note Please read how you switch on the Bluetooth function in the Operating Instructions of your mobile phone. Starting the Bluetooth Application 1. Tap on the option Bluetooth. Note Bluetooth will be reactivated and the Bluetooth LED will flash because of the operation of this interface, if Bluetooth has been deactivated manually. 2. Now the main Bluetooth screen will appear on your navigation device.

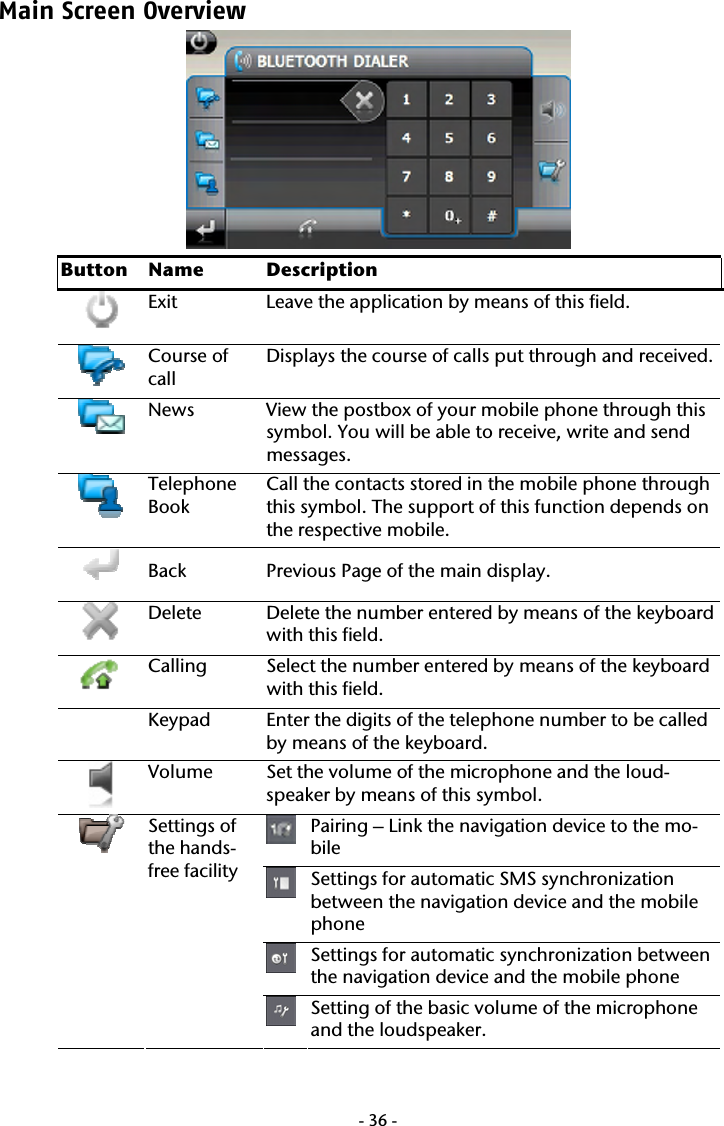

-36-Main Screen Overview Button Name Description Exit Leave the application by means of this field. Course of call Displays the course of calls put through and received. News View the postbox of your mobile phone through this symbol. You will be able to receive, write and send messages. Telephone Book Call the contacts stored in the mobile phone through this symbol. The support of this function depends on the respective mobile. Back Previous Page of the main display. Delete Delete the number entered by means of the keyboard with this field. Calling Select the number entered by means of the keyboard with this field. Keypad Enter the digits of the telephone number to be called by means of the keyboard. Volume Set the volume of the microphone and the loud-speaker by means of this symbol. Pairing – Link the navigation device to the mo-bile Settings for automatic SMS synchronization between the navigation device and the mobile phone Settings for automatic synchronization between the navigation device and the mobile phone Settings of the hands-free facility Setting of the basic volume of the microphone and the loudspeaker.

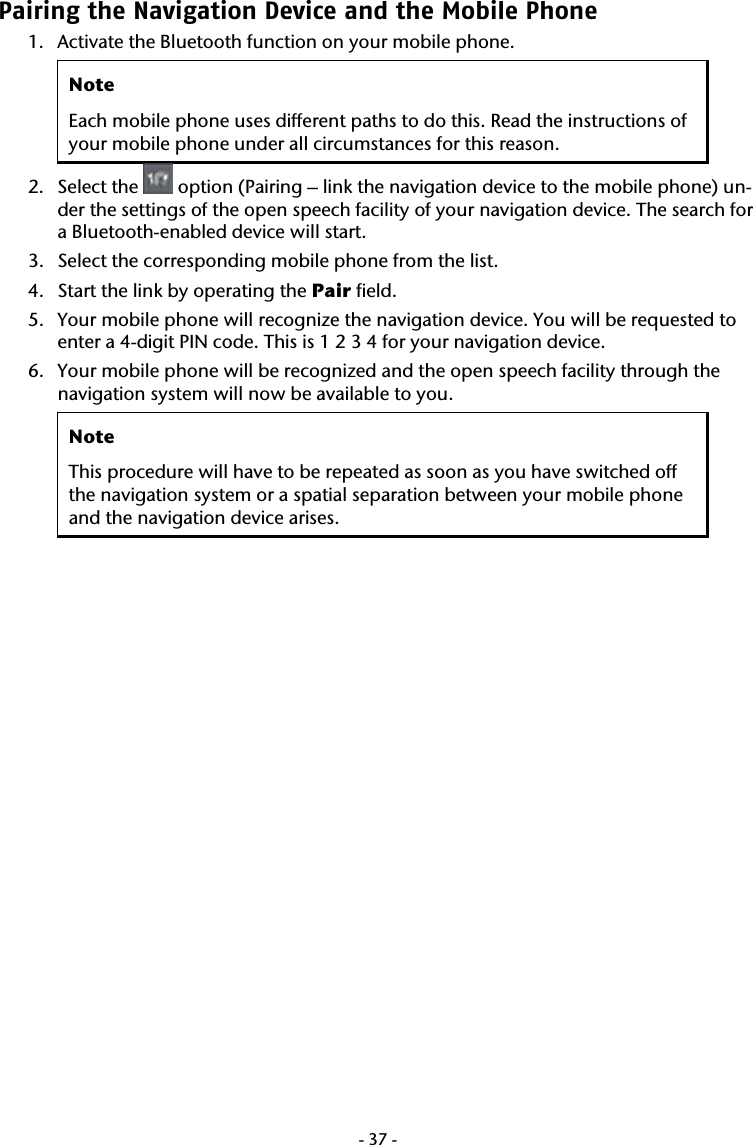

-37-Pairing the Navigation Device and the Mobile Phone 1. Activate the Bluetooth function on your mobile phone. Note Each mobile phone uses different paths to do this. Read the instructions of your mobile phone under all circumstances for this reason. 2. Select the option (Pairing – link the navigation device to the mobile phone) un-der the settings of the open speech facility of your navigation device. The search for a Bluetooth-enabled device will start. 3. Select the corresponding mobile phone from the list. 4. Start the link by operating the Pair field. 5. Your mobile phone will recognize the navigation device. You will be requested to enter a 4-digit PIN code. This is 1 2 3 4 for your navigation device. 6. Your mobile phone will be recognized and the open speech facility through the navigation system will now be available to you. Note This procedure will have to be repeated as soon as you have switched off the navigation system or a spatial separation between your mobile phone and the navigation device arises.

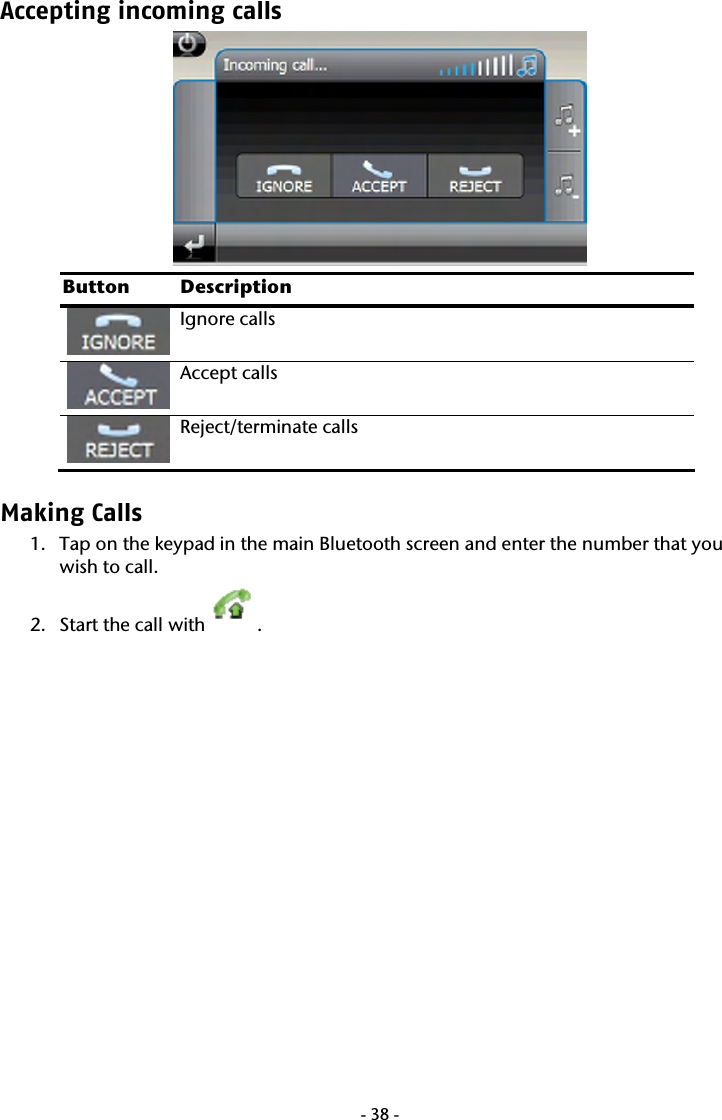

-38-Accepting incoming calls Button Description Ignore calls Accept calls Reject/terminate calls Making Calls 1. Tap on the keypad in the main Bluetooth screen and enter the number that you wish to call. 2. Start the call with .

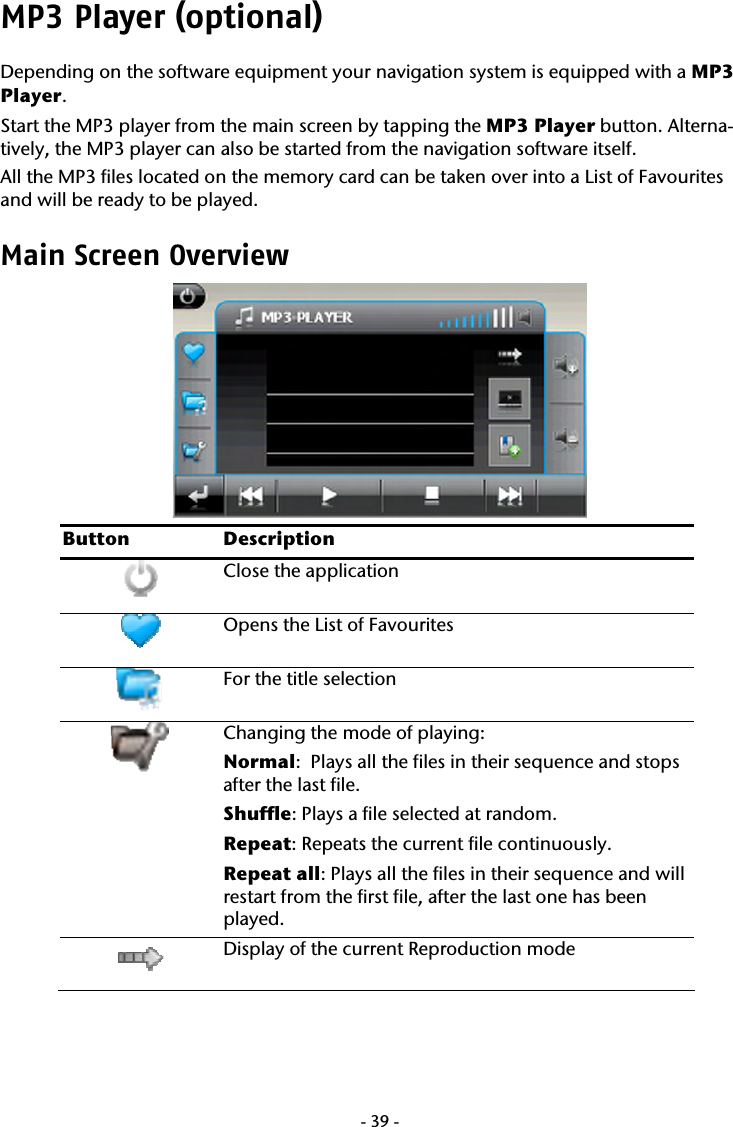

-39-MP3 Player (optional) Depending on the software equipment your navigation system is equipped with a MP3 Player. Start the MP3 player from the main screen by tapping the MP3 Player button. Alterna-tively, the MP3 player can also be started from the navigation software itself. All the MP3 files located on the memory card can be taken over into a List of Favourites and will be ready to be played. Main Screen Overview Button Description Close the application Opens the List of Favourites For the title selection Changing the mode of playing: Normal: Plays all the files in their sequence and stops after the last file. Shuffle: Plays a file selected at random. Repeat: Repeats the current file continuously. Repeat all: Plays all the files in their sequence and will restart from the first file, after the last one has been played. Display of the current Reproduction mode

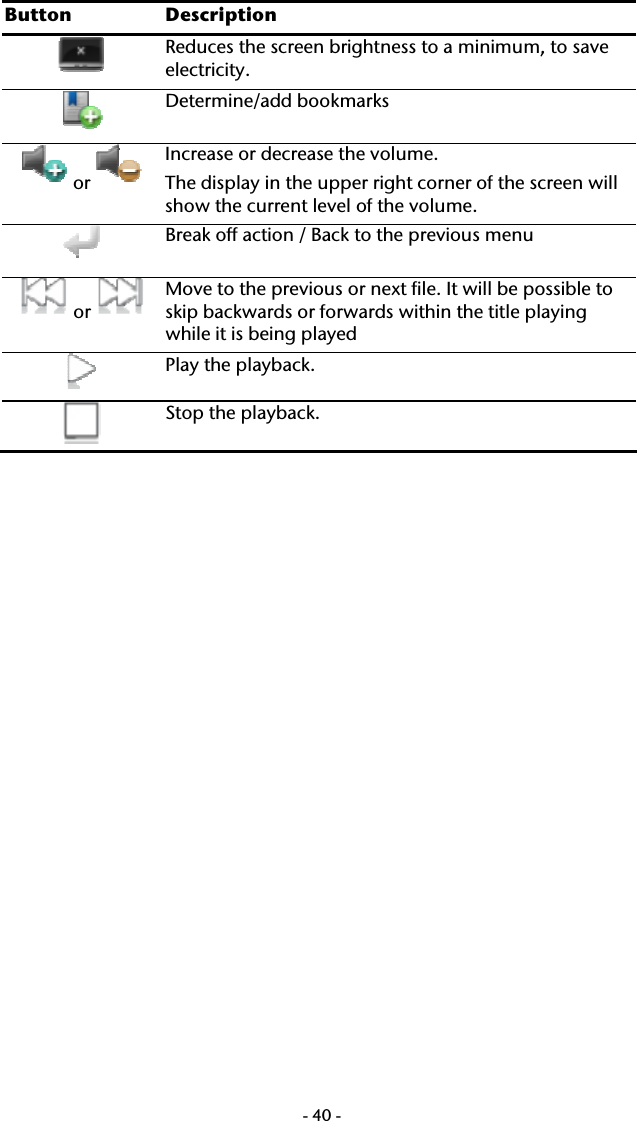

-40- Button Description Reduces the screen brightness to a minimum, to save electricity. Determine/add bookmarks or Increase or decrease the volume. The display in the upper right corner of the screen will show the current level of the volume. Break off action / Back to the previous menu or Move to the previous or next file. It will be possible to skip backwards or forwards within the title playing while it is being played Play the playback. Stop the playback.

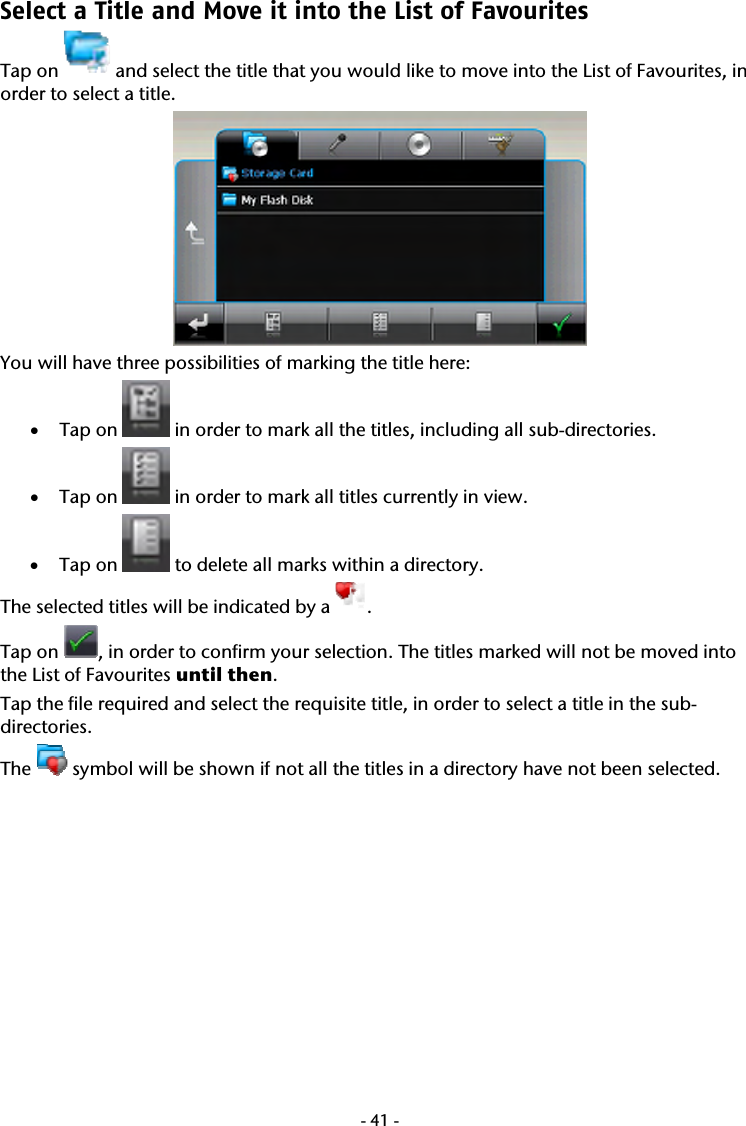

-41-Select a Title and Move it into the List of Favourites Tap on and select the title that you would like to move into the List of Favourites, in order to select a title. You will have three possibilities of marking the title here: • Tap on in order to mark all the titles, including all sub-directories. • Tap on in order to mark all titles currently in view. • Tap on to delete all marks within a directory. The selected titles will be indicated by a . Tap on , in order to confirm your selection. The titles marked will not be moved into the List of Favourites until then. Tap the file required and select the requisite title, in order to select a title in the sub-directories. The symbol will be shown if not all the titles in a directory have not been selected.

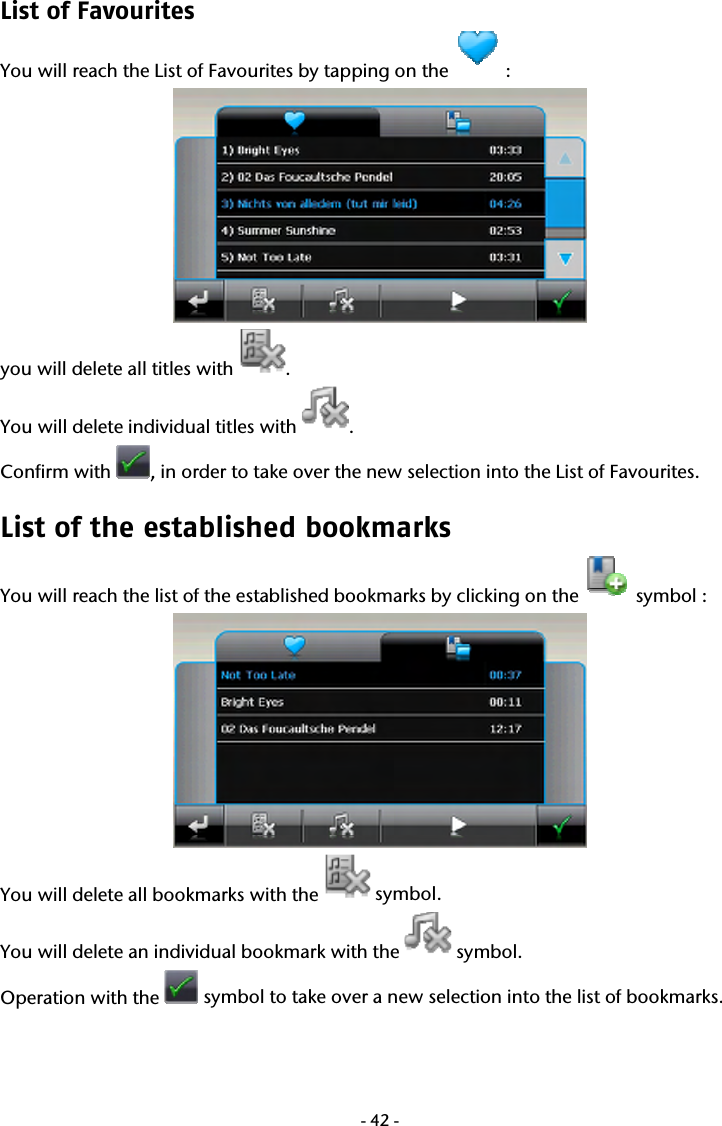

-42-List of Favourites You will reach the List of Favourites by tapping on the : you will delete all titles with . You will delete individual titles with . Confirm with , in order to take over the new selection into the List of Favourites. List of the established bookmarks You will reach the list of the established bookmarks by clicking on the symbol : You will delete all bookmarks with the symbol. You will delete an individual bookmark with the symbol. Operation with the symbol to take over a new selection into the list of bookmarks.

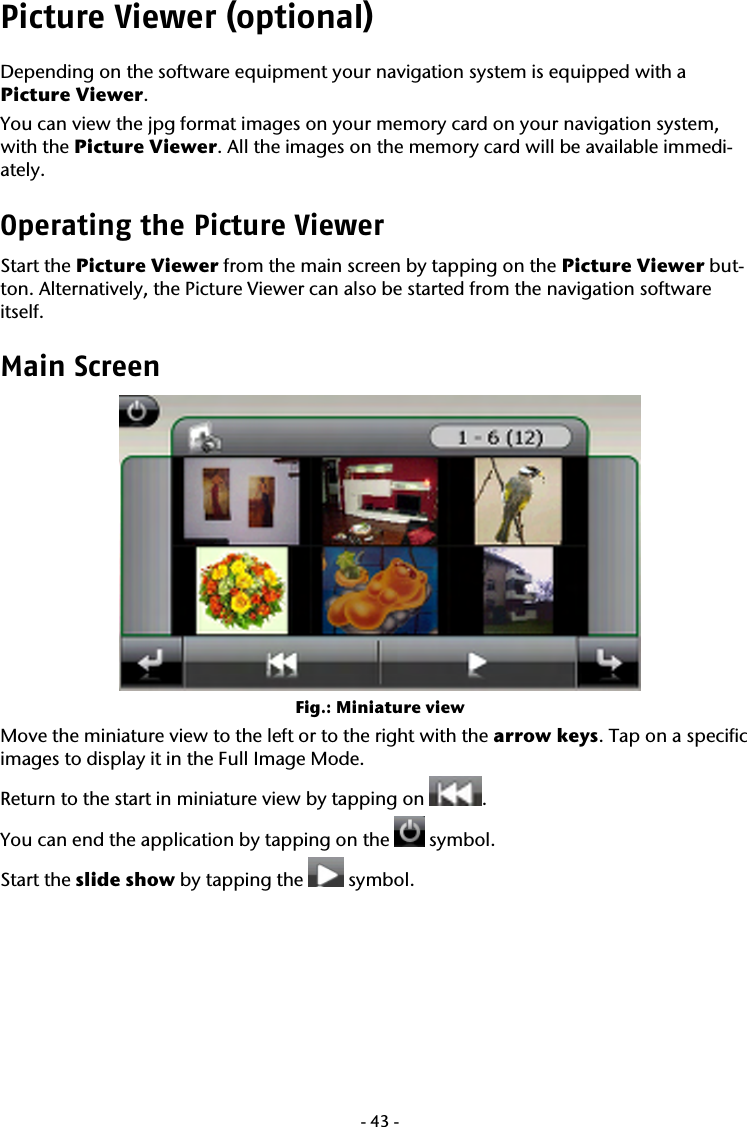

-43-Picture Viewer (optional) Depending on the software equipment your navigation system is equipped with a Picture Viewer. You can view the jpg format images on your memory card on your navigation system, with the Picture Viewer. All the images on the memory card will be available immedi-ately. Operating the Picture Viewer Start the Picture Viewer from the main screen by tapping on the Picture Viewer but-ton. Alternatively, the Picture Viewer can also be started from the navigation software itself. Main Screen Fig.: Miniature view Move the miniature view to the left or to the right with the arrow keys. Tap on a specific images to display it in the Full Image Mode. Return to the start in miniature view by tapping on . You can end the application by tapping on the symbol. Start the slide show by tapping the symbol.

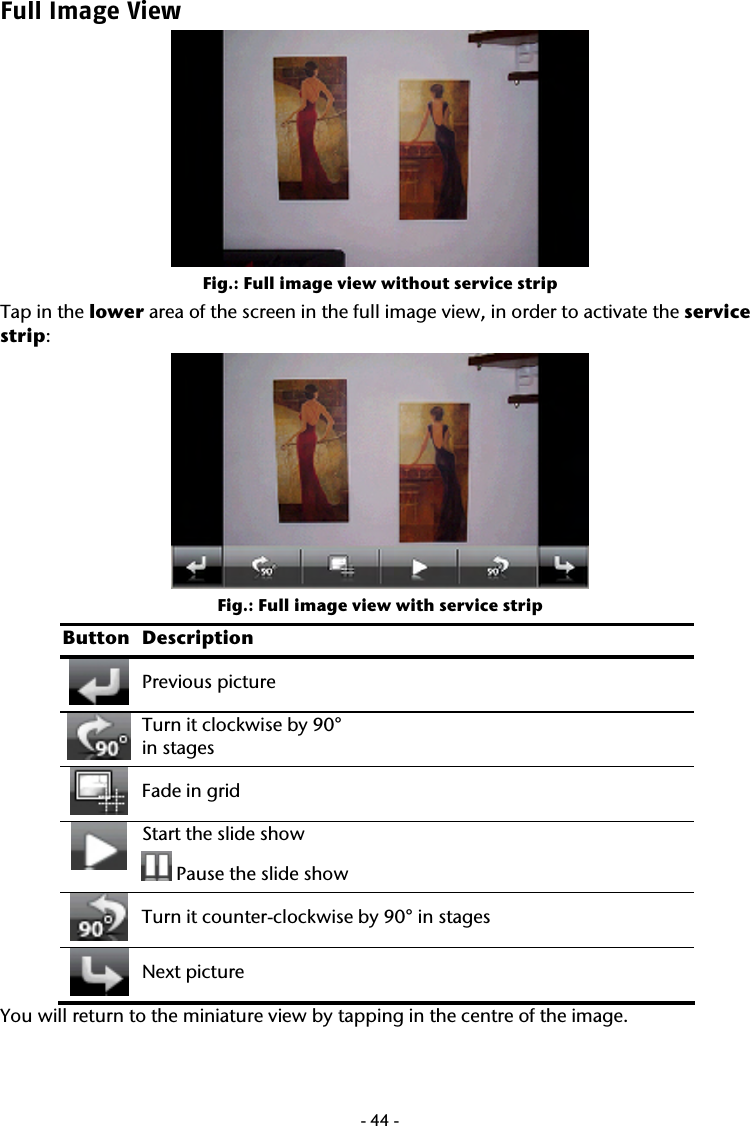

-44-Full Image View Fig.: Full image view without service strip Tap in the lower area of the screen in the full image view, in order to activate the service strip: Fig.: Full image view with service strip Button Description Previous picture Turn it clockwise by 90° in stages Fade in grid Start the slide show Pause the slide show Turn it counter-clockwise by 90° in stages Next picture You will return to the miniature view by tapping in the centre of the image.

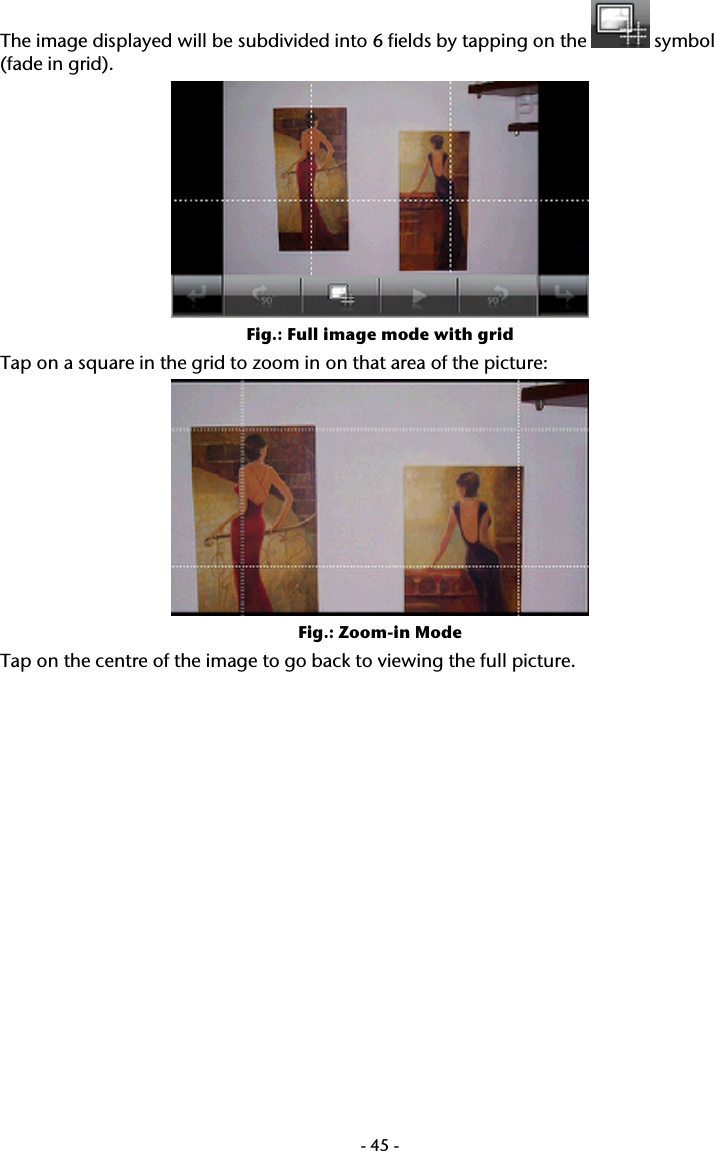

-45-The image displayed will be subdivided into 6 fields by tapping on the symbol (fade in grid). Fig.: Full image mode with grid Tap on a square in the grid to zoom in on that area of the picture: Fig.: Zoom-in Mode Tap on the centre of the image to go back to viewing the full picture.

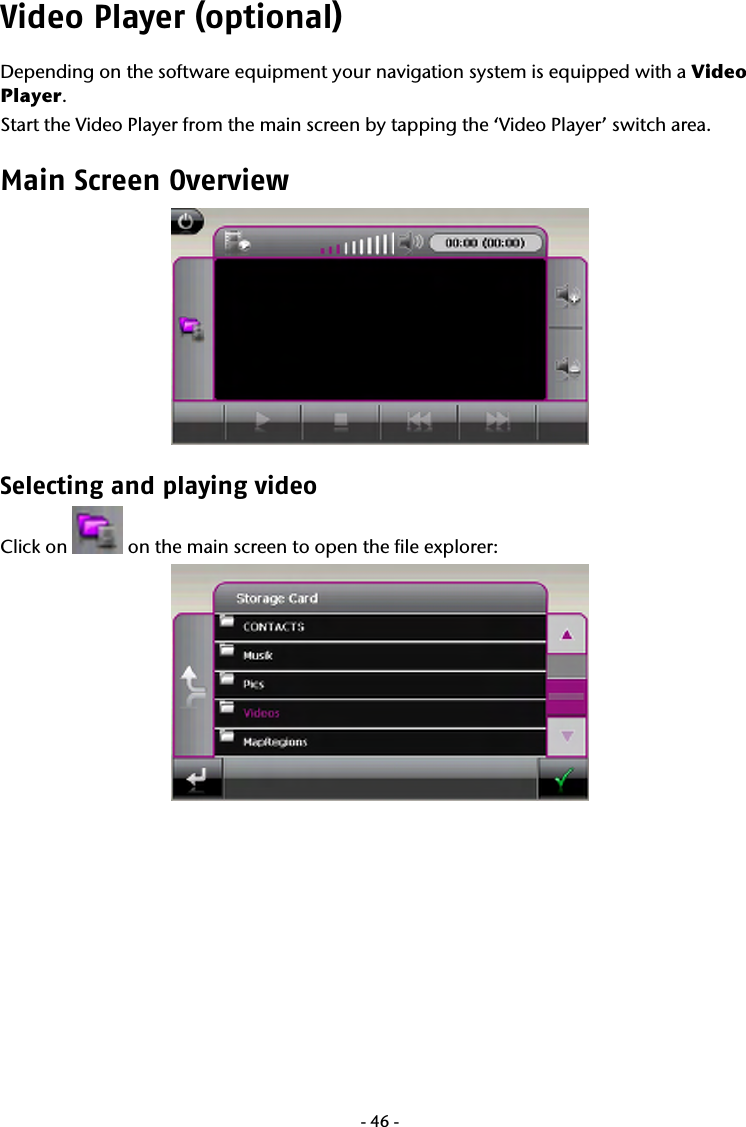

-46-Video Player (optional) Depending on the software equipment your navigation system is equipped with a Video Player. Start the Video Player from the main screen by tapping the ‘Video Player’ switch area. Main Screen Overview Selecting and playing video Click on on the main screen to open the file explorer:

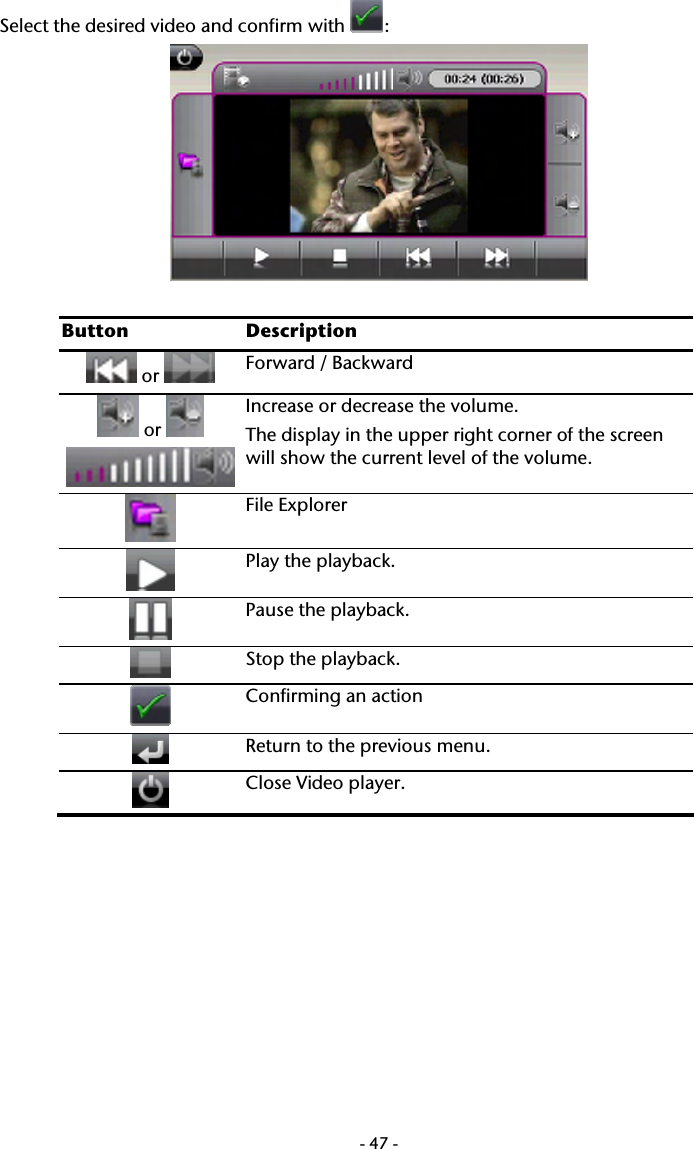

-47-Select the desired video and confirm with : Button Description or Forward / Backward or Increase or decrease the volume. The display in the upper right corner of the screen will show the current level of the volume. File Explorer Play the playback. Pause the playback. Stop the playback. Confirming an action Return to the previous menu. Close Video player.

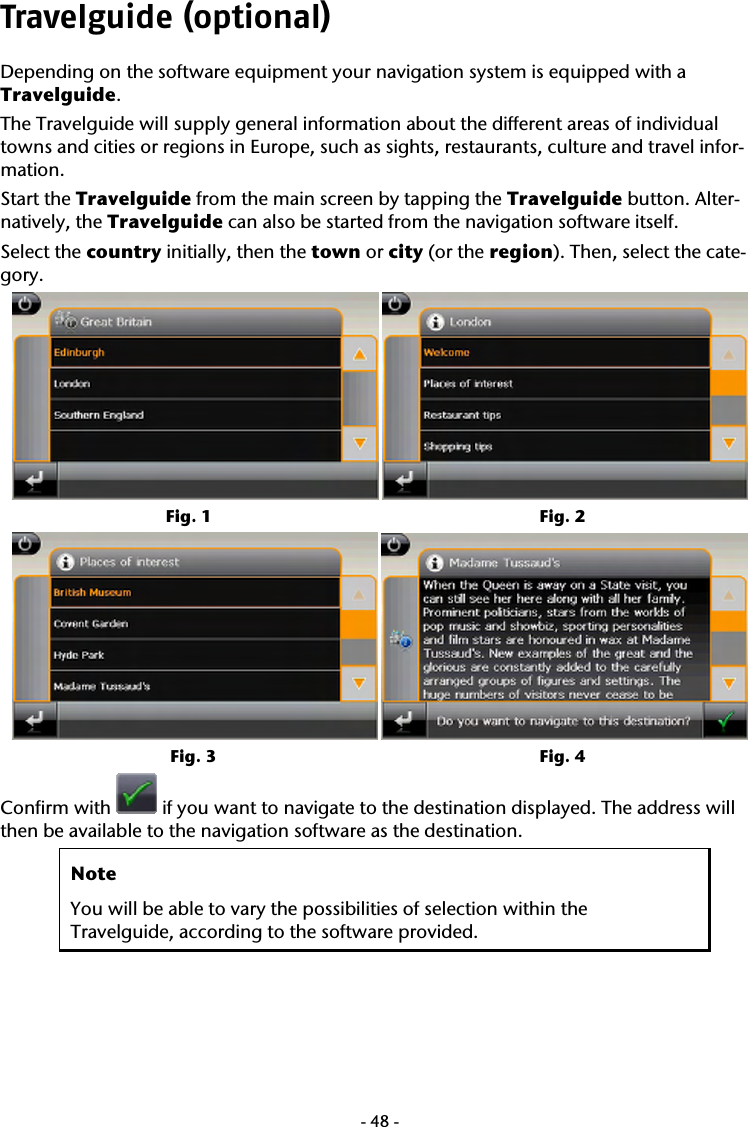

-48-Travelguide (optional) Depending on the software equipment your navigation system is equipped with a Travelguide. The Travelguide will supply general information about the different areas of individual towns and cities or regions in Europe, such as sights, restaurants, culture and travel infor-mation. Start the Travelguide from the main screen by tapping the Travelguide button. Alter-natively, the Travelguide can also be started from the navigation software itself. Select the country initially, then the town or city (or the region). Then, select the cate-gory. Fig. 1 Fig. 2 Fig. 3 Fig. 4 Confirm with if you want to navigate to the destination displayed. The address will then be available to the navigation software as the destination. Note You will be able to vary the possibilities of selection within the Travelguide, according to the software provided.

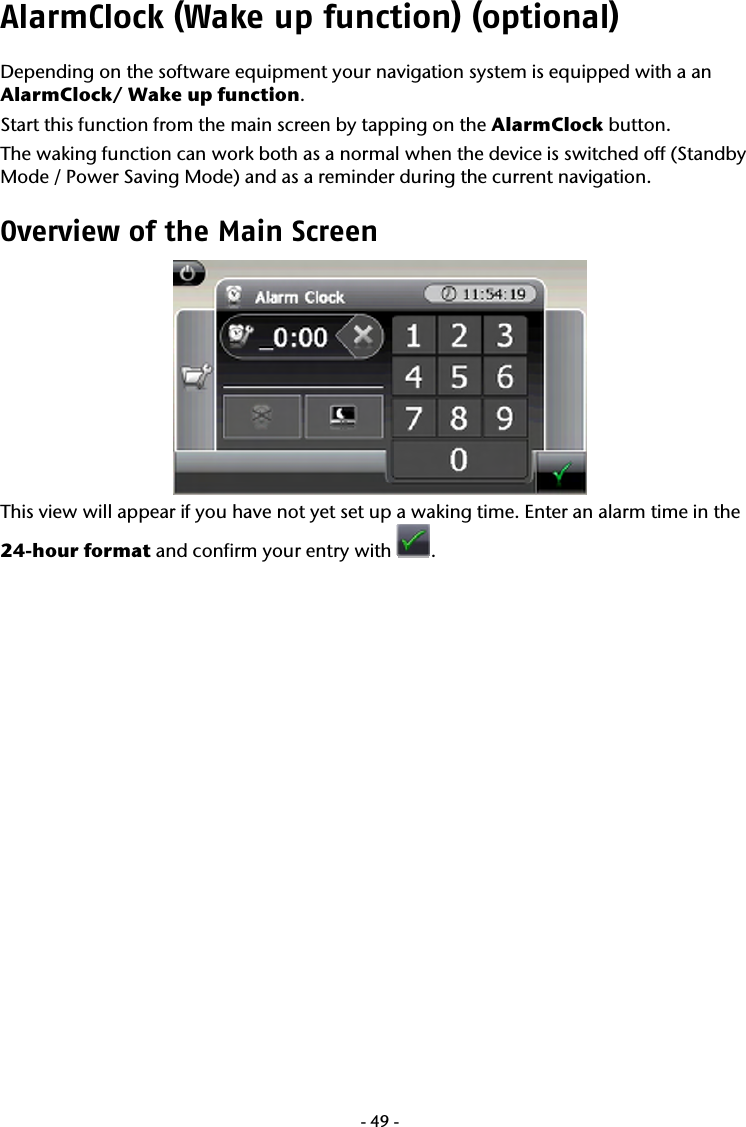

-49-AlarmClock (Wake up function) (optional) Depending on the software equipment your navigation system is equipped with a an AlarmClock/ Wake up function. Start this function from the main screen by tapping on the AlarmClock button. The waking function can work both as a normal when the device is switched off (Standby Mode / Power Saving Mode) and as a reminder during the current navigation. Overview of the Main Screen This view will appear if you have not yet set up a waking time. Enter an alarm time in the 24-hour format and confirm your entry with .

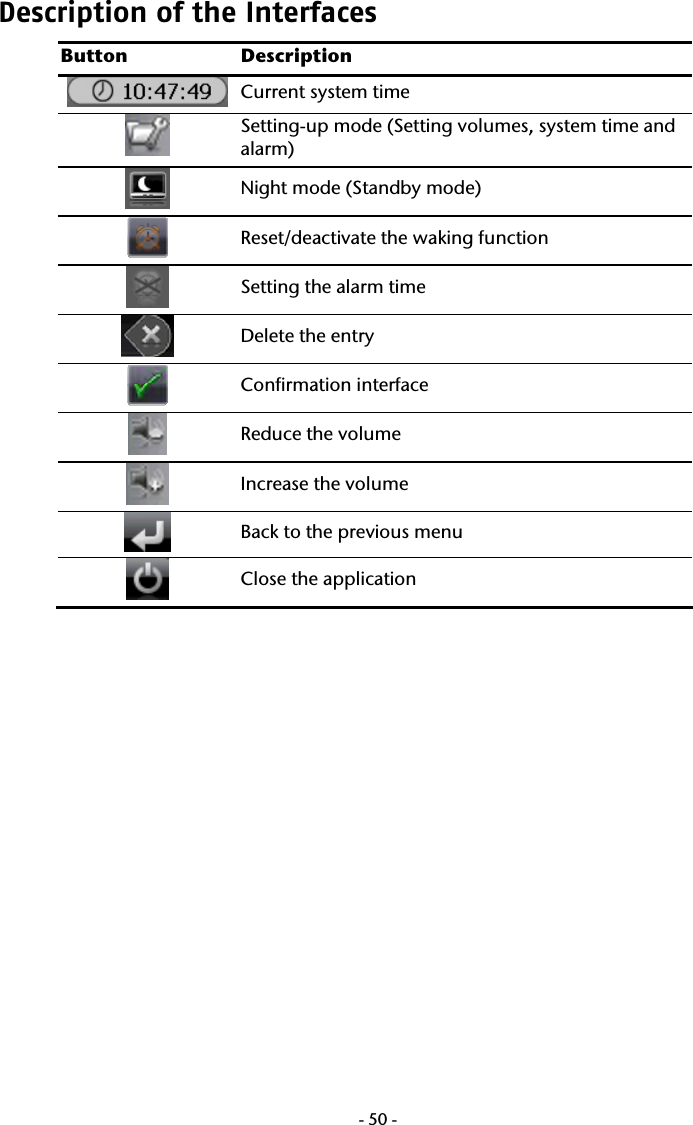

-50-Description of the Interfaces Button Description Current system time Setting-up mode (Setting volumes, system time and alarm) Night mode (Standby mode) Reset/deactivate the waking function Setting the alarm time Delete the entry Confirmation interface Reduce the volume Increase the volume Back to the previous menu Close the application

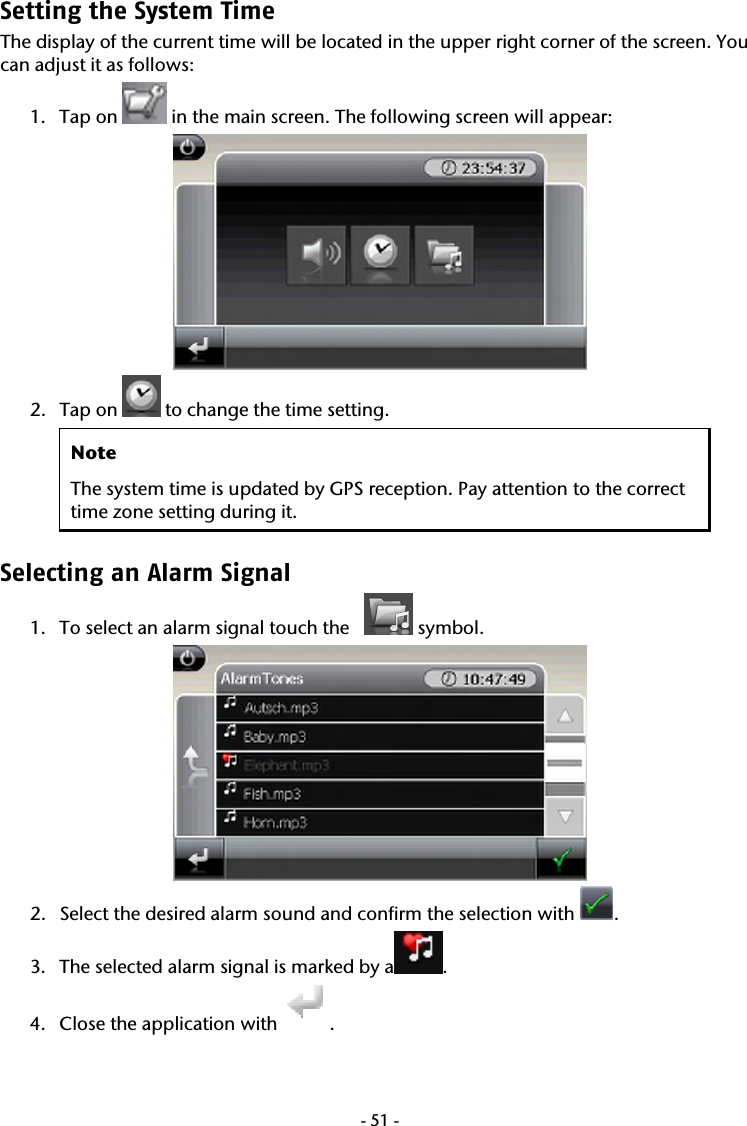

-51-Setting the System Time The display of the current time will be located in the upper right corner of the screen. You can adjust it as follows: 1. Tap on in the main screen. The following screen will appear: 2. Tap on to change the time setting. Note The system time is updated by GPS reception. Pay attention to the correct time zone setting during it. Selecting an Alarm Signal 1. To select an alarm signal touch the symbol. 2. Select the desired alarm sound and confirm the selection with . 3. The selected alarm signal is marked by a . 4. Close the application with .

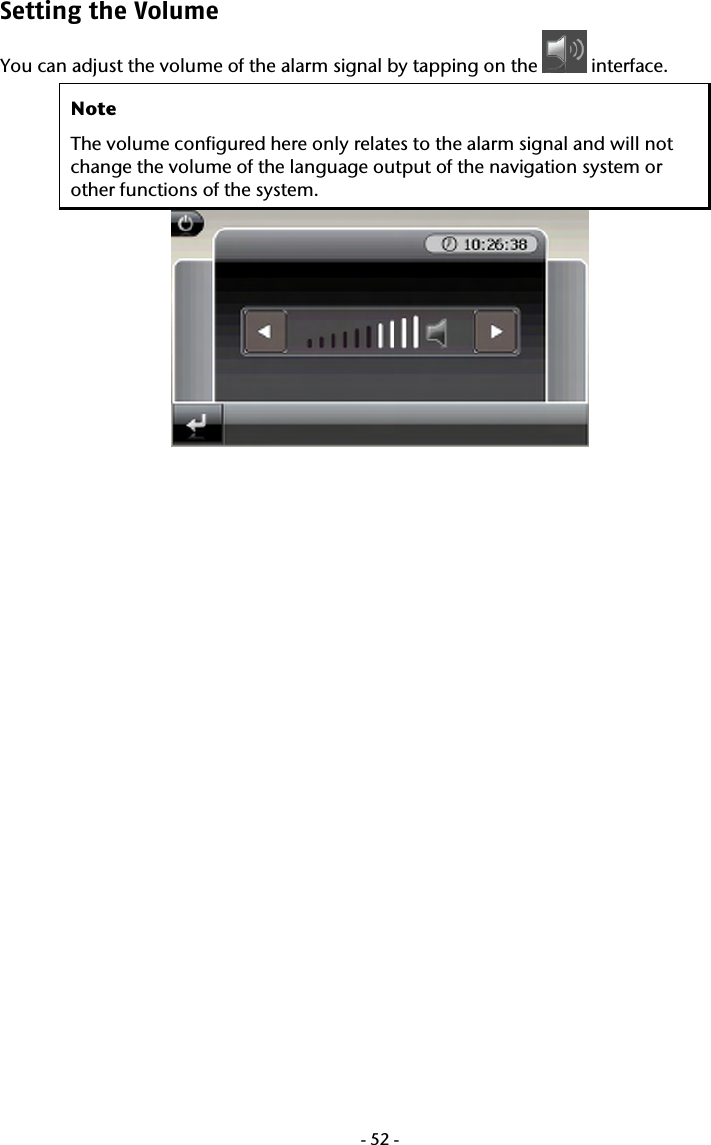

-52-Setting the Volume You can adjust the volume of the alarm signal by tapping on the interface. Note The volume configured here only relates to the alarm signal and will not change the volume of the language output of the navigation system or other functions of the system.

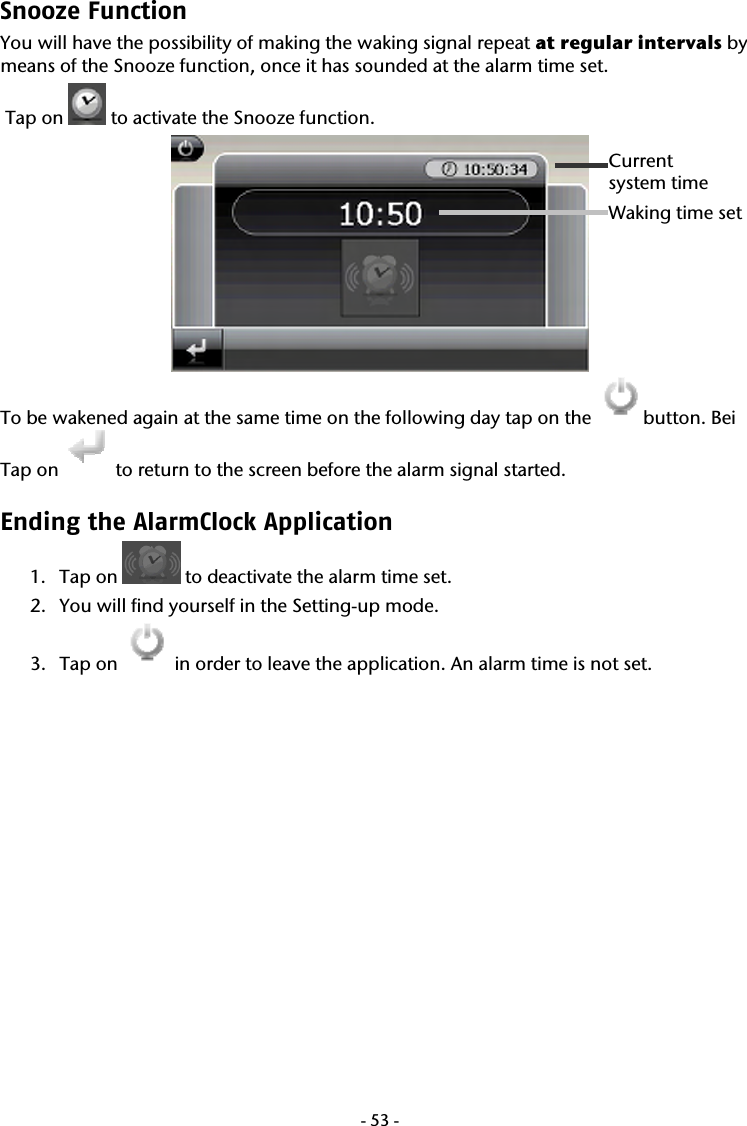

-53-Snooze Function You will have the possibility of making the waking signal repeat at regular intervals by means of the Snooze function, once it has sounded at the alarm time set. Tap on to activate the Snooze function. To be wakened again at the same time on the following day tap on the button. Bei Tap on to return to the screen before the alarm signal started. Ending the AlarmClock Application 1. Tap on to deactivate the alarm time set. 2. You will find yourself in the Setting-up mode. 3. Tap on in order to leave the application. An alarm time is not set. Current system time Waking time set
-54-Contact Viewer (optional) Depending on the software equipment your navigation system is equipped with a Con-tact Viewer. You will be able to create the contacts database (from Outlook 2003 or Outlook XP) and administrate your contacts with the Contact Viewer. Create the contacts database The Contact Viewer will search for the contacts database on your storage card and in ‘My Flash Disk’, in order to deposit contacts. The ‘contacts.db’ file must be present in the contacts sub-directory for this purpose: • \Storage Card\contacts\contacts.db or • \My Flash Disk\contacts\contacts.db Note The memory card must not be write-protected. The more recent contacts database will be used if one is found both on the Storage Card and in My Flash Disk. The internal date (date of creation) will be decisive to the selection of the database. You will be able to the export contacts from Microsoft Outlook with the Medion GoPal Assistant. Proceed as follows to do this: 1. Connect your navigation system to the computer or insert a storage card into your card reader. 2. Select the destination for the synchronization (memory card or internal memory of the device) in Gopal Assistant. 3. Select Synchronize. 4. Activate the Export Outlook Contacts Option. 5. Confirm with Synchronize. 6. The contacts database will be transferred to your navigation system.

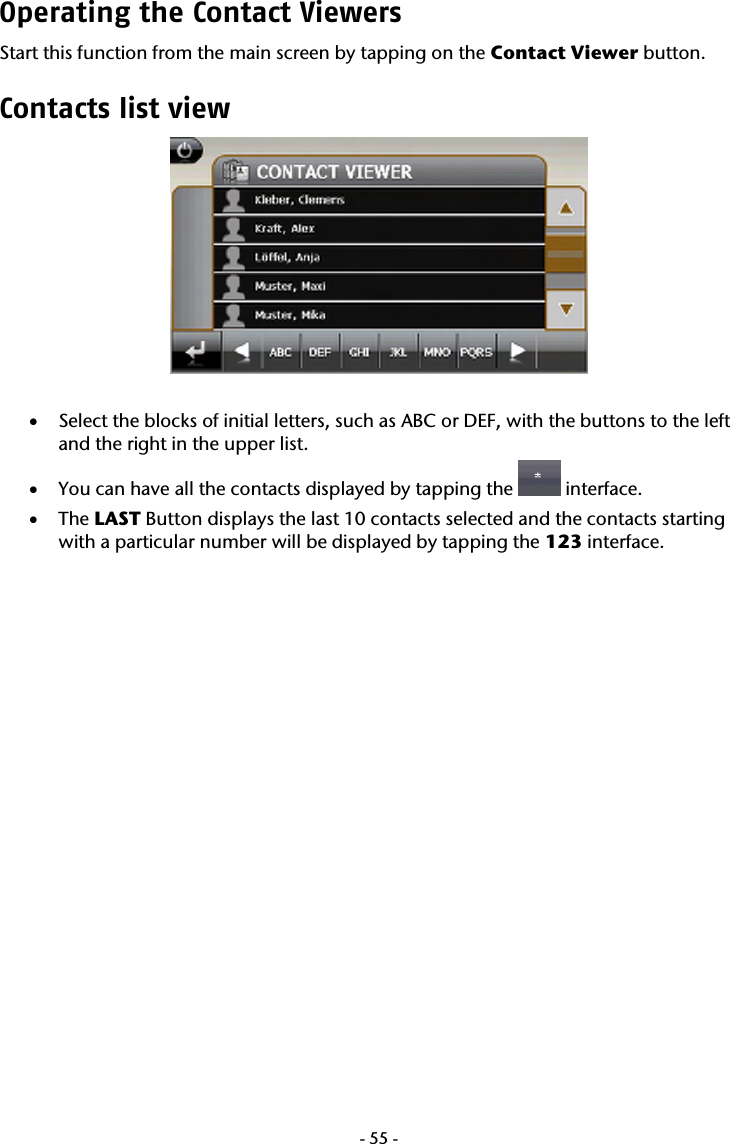

-55-Operating the Contact Viewers Start this function from the main screen by tapping on the Contact Viewer button. Contacts list view • Select the blocks of initial letters, such as ABC or DEF, with the buttons to the left and the right in the upper list. • You can have all the contacts displayed by tapping the interface. • The LAST Button displays the last 10 contacts selected and the contacts starting with a particular number will be displayed by tapping the 123 interface.

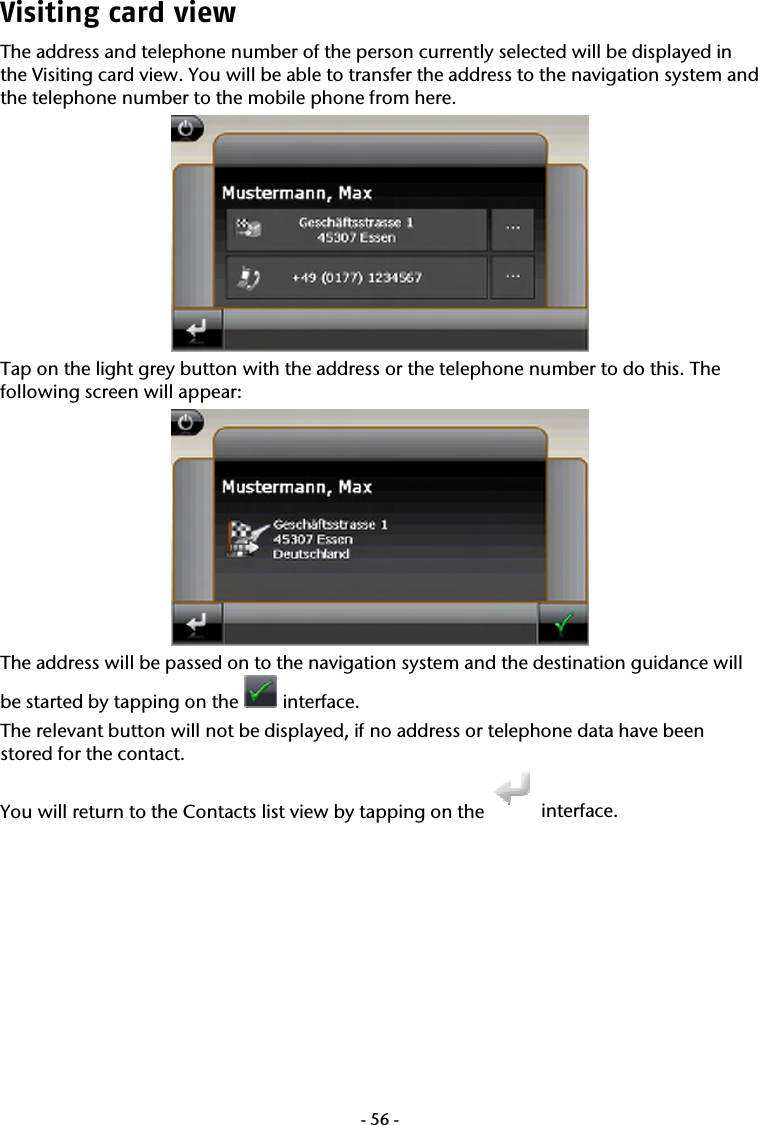

-56-Visiting card view The address and telephone number of the person currently selected will be displayed in the Visiting card view. You will be able to transfer the address to the navigation system and the telephone number to the mobile phone from here. Tap on the light grey button with the address or the telephone number to do this. The following screen will appear: The address will be passed on to the navigation system and the destination guidance will be started by tapping on the interface. The relevant button will not be displayed, if no address or telephone data have been stored for the contact. You will return to the Contacts list view by tapping on the interface.

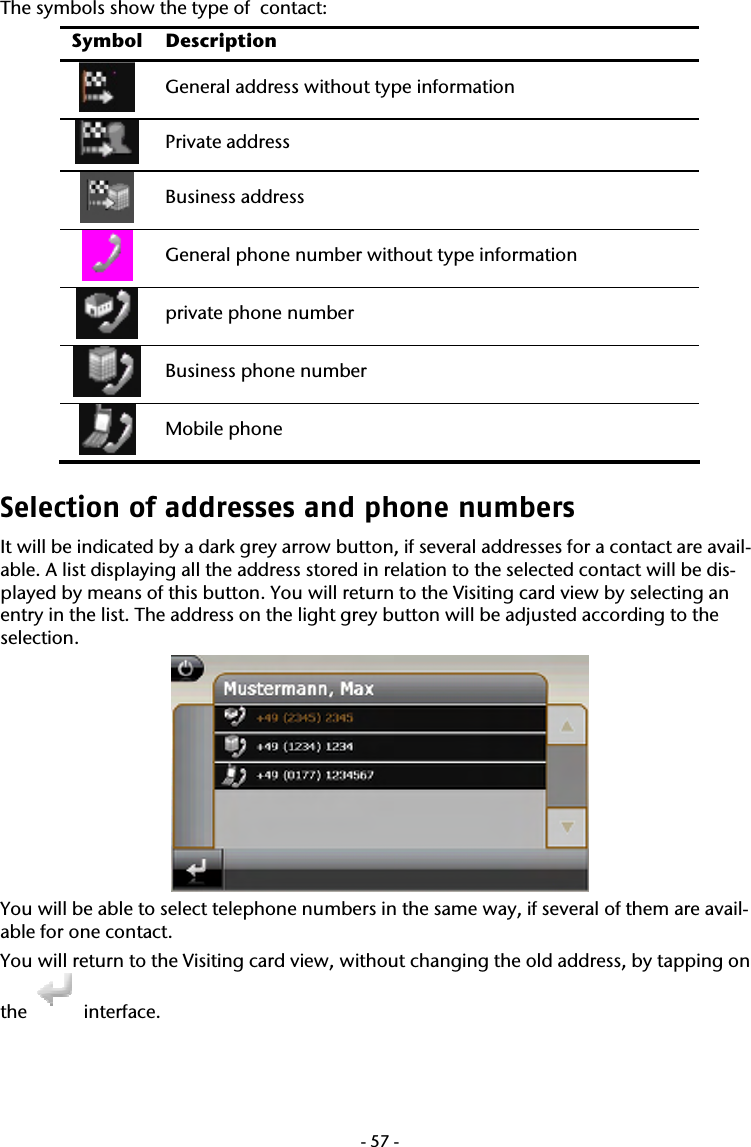

-57-The symbols show the type of contact: Symbol Description General address without type information Private address Business address General phone number without type information private phone number Business phone number Mobile phone Selection of addresses and phone numbers It will be indicated by a dark grey arrow button, if several addresses for a contact are avail-able. A list displaying all the address stored in relation to the selected contact will be dis-played by means of this button. You will return to the Visiting card view by selecting an entry in the list. The address on the light grey button will be adjusted according to the selection. You will be able to select telephone numbers in the same way, if several of them are avail-able for one contact. You will return to the Visiting card view, without changing the old address, by tapping on the interface.

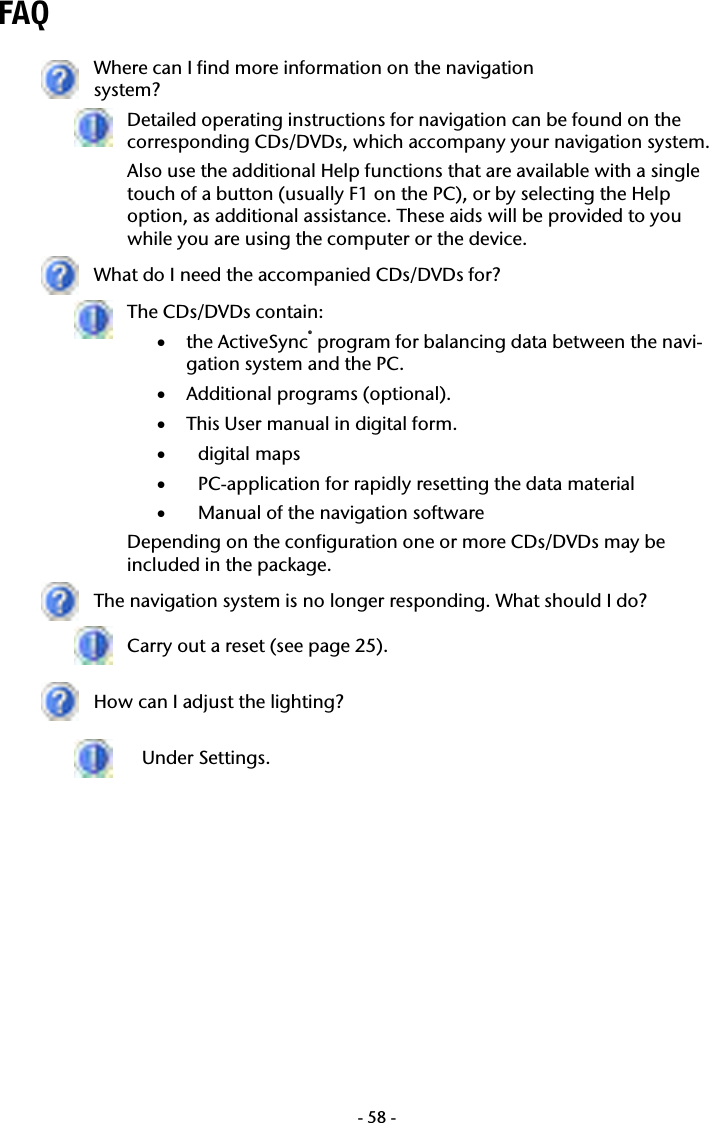

-58-FAQ Where can I find more information on the navigation system? Detailed operating instructions for navigation can be found on the corresponding CDs/DVDs, which accompany your navigation system. Also use the additional Help functions that are available with a single touch of a button (usually F1 on the PC), or by selecting the Help option, as additional assistance. These aids will be provided to you while you are using the computer or the device. What do I need the accompanied CDs/DVDs for? The CDs/DVDs contain: • the ActiveSync® program for balancing data between the navi-gation system and the PC. • Additional programs (optional). • This User manual in digital form. • digital maps • PC-application for rapidly resetting the data material • Manual of the navigation software Depending on the configuration one or more CDs/DVDs may be included in the package. The navigation system is no longer responding. What should I do? Carry out a reset (see page 25). How can I adjust the lighting? Under Settings.

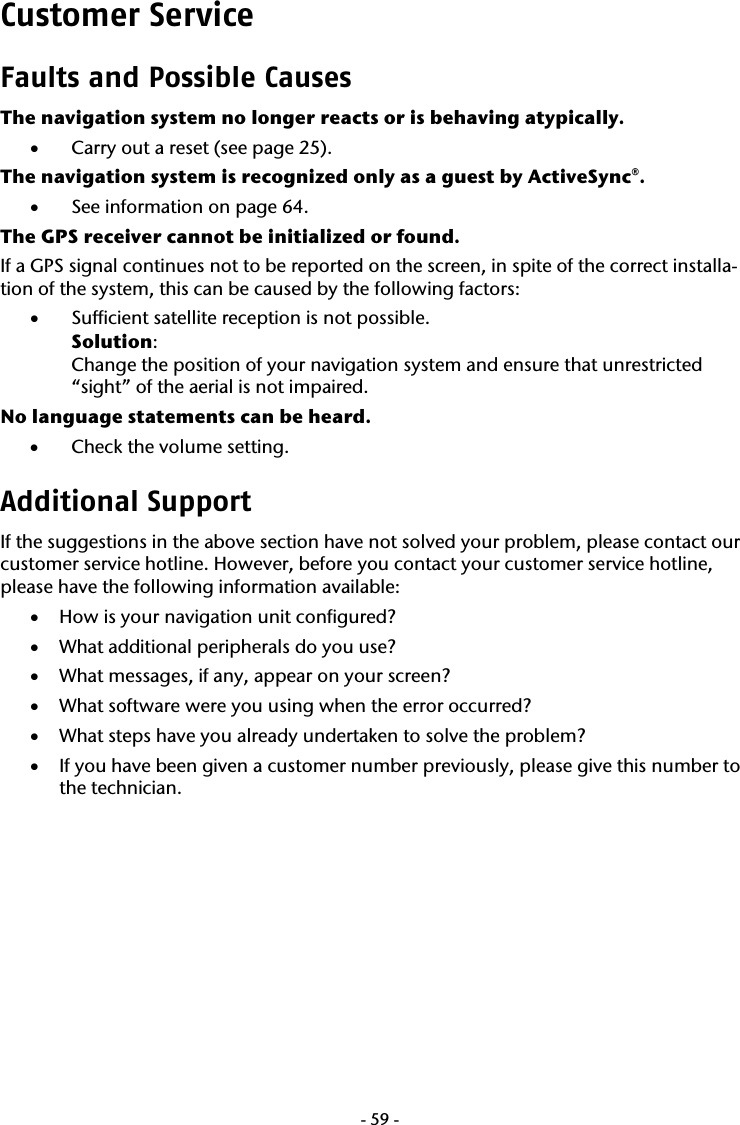

-59-Customer Service Faults and Possible Causes The navigation system no longer reacts or is behaving atypically. • Carry out a reset (see page 25). The navigation system is recognized only as a guest by ActiveSync®. • See information on page 64. The GPS receiver cannot be initialized or found. If a GPS signal continues not to be reported on the screen, in spite of the correct installa-tion of the system, this can be caused by the following factors: • Sufficient satellite reception is not possible. Solution: Change the position of your navigation system and ensure that unrestricted “sight” of the aerial is not impaired. No language statements can be heard. • Check the volume setting. Additional Support If the suggestions in the above section have not solved your problem, please contact our customer service hotline. However, before you contact your customer service hotline, please have the following information available: • How is your navigation unit configured? • What additional peripherals do you use? • What messages, if any, appear on your screen? • What software were you using when the error occurred? • What steps have you already undertaken to solve the problem? • If you have been given a customer number previously, please give this number to the technician.

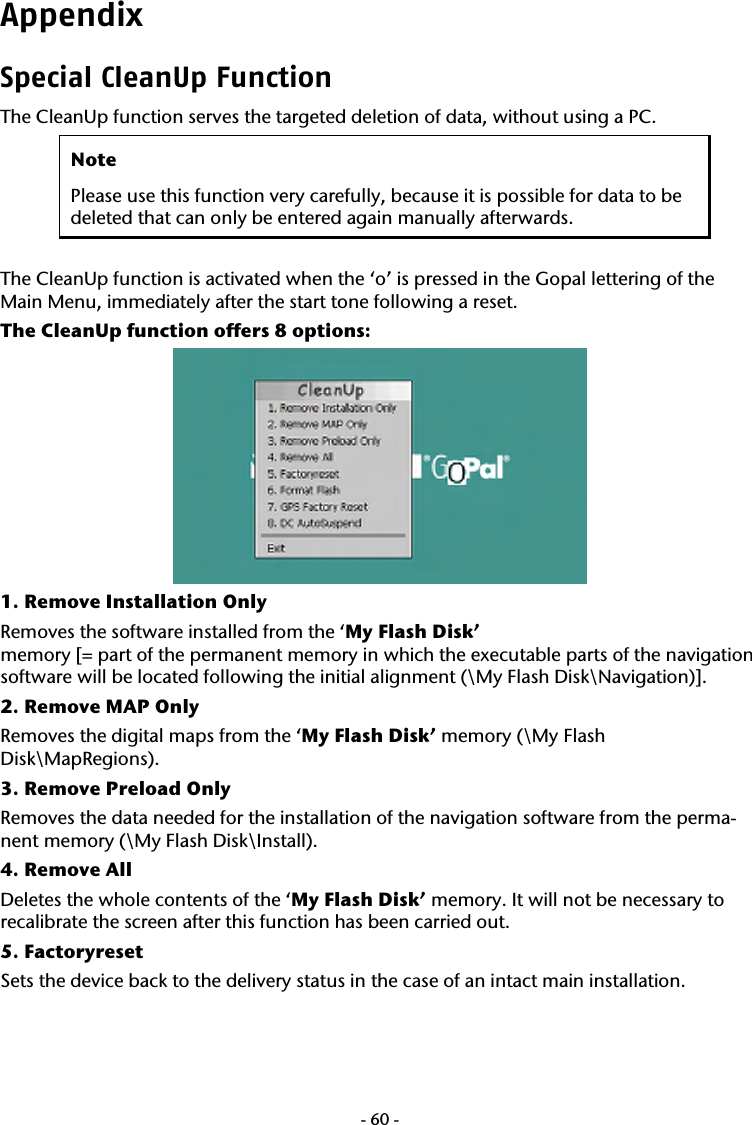

-60-Appendix Special CleanUp Function The CleanUp function serves the targeted deletion of data, without using a PC. Note Please use this function very carefully, because it is possible for data to be deleted that can only be entered again manually afterwards. The CleanUp function is activated when the ‘o’ is pressed in the Gopal lettering of the Main Menu, immediately after the start tone following a reset. The CleanUp function offers 8 options: 1. Remove Installation Only Removes the software installed from the ‘My Flash Disk’ memory [= part of the permanent memory in which the executable parts of the navigation software will be located following the initial alignment (\My Flash Disk\Navigation)]. 2. Remove MAP Only Removes the digital maps from the ‘My Flash Disk’ memory (\My Flash Disk\MapRegions). 3. Remove Preload Only Removes the data needed for the installation of the navigation software from the perma-nent memory (\My Flash Disk\Install). 4. Remove All Deletes the whole contents of the ‘My Flash Disk’ memory. It will not be necessary to recalibrate the screen after this function has been carried out. 5. Factoryreset Sets the device back to the delivery status in the case of an intact main installation.

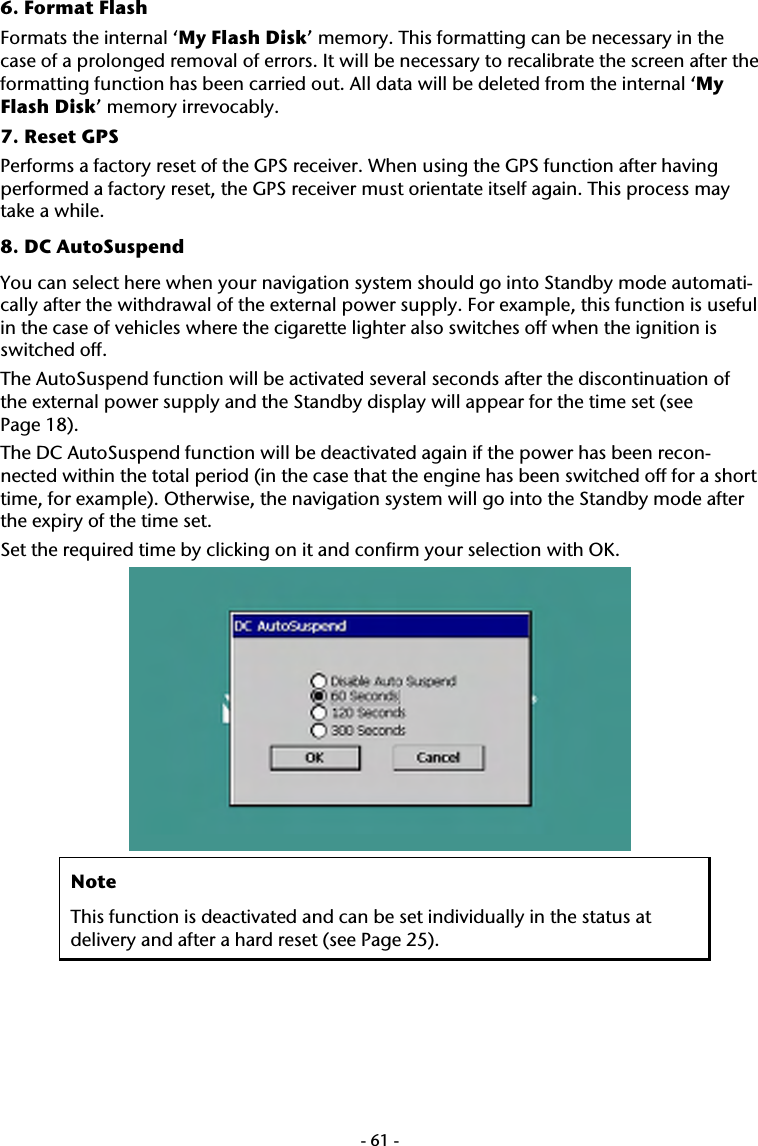

-61-6. Format Flash Formats the internal ‘My Flash Disk’ memory. This formatting can be necessary in the case of a prolonged removal of errors. It will be necessary to recalibrate the screen after the formatting function has been carried out. All data will be deleted from the internal ‘My Flash Disk’ memory irrevocably. 7. Reset GPS Performs a factory reset of the GPS receiver. When using the GPS function after having performed a factory reset, the GPS receiver must orientate itself again. This process may take a while. 8. DC AutoSuspend You can select here when your navigation system should go into Standby mode automati-cally after the withdrawal of the external power supply. For example, this function is useful in the case of vehicles where the cigarette lighter also switches off when the ignition is switched off. The AutoSuspend function will be activated several seconds after the discontinuation of the external power supply and the Standby display will appear for the time set (see Page 18). The DC AutoSuspend function will be deactivated again if the power has been recon-nected within the total period (in the case that the engine has been switched off for a short time, for example). Otherwise, the navigation system will go into the Standby mode after the expiry of the time set. Set the required time by clicking on it and confirm your selection with OK. Note This function is deactivated and can be set individually in the status at delivery and after a hard reset (see Page 25).

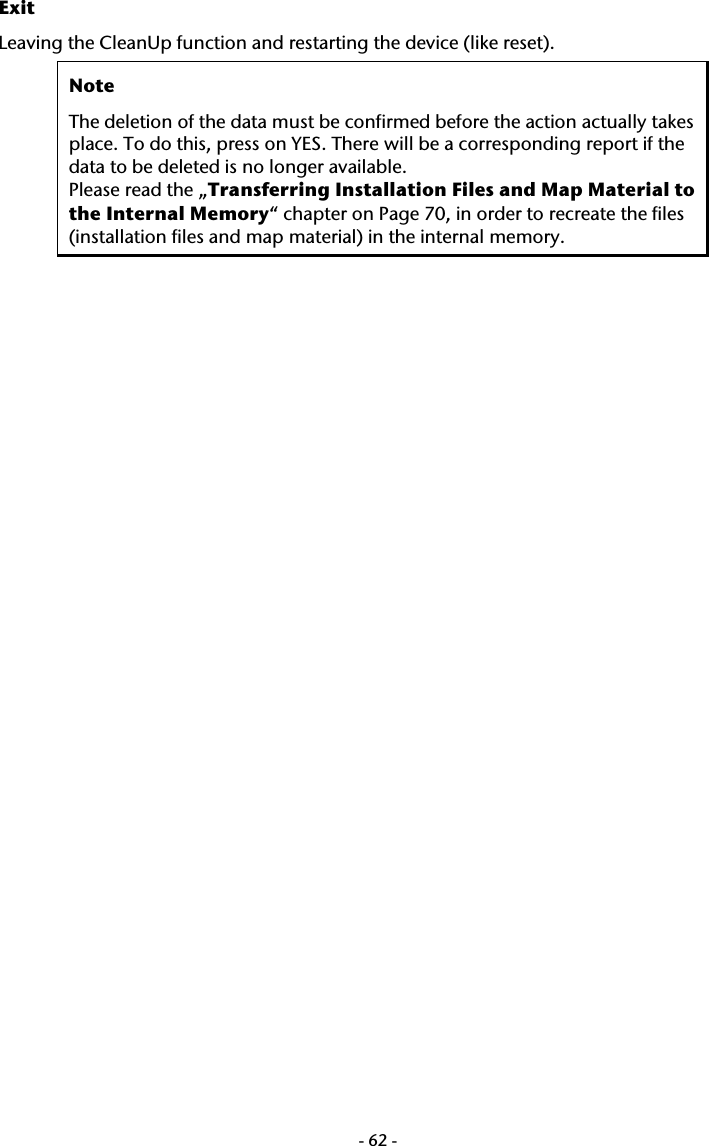

-62-Exit Leaving the CleanUp function and restarting the device (like reset). Note The deletion of the data must be confirmed before the action actually takes place. To do this, press on YES. There will be a corresponding report if the data to be deleted is no longer available. Please read the „Transferring Installation Files and Map Material to the Internal Memory“ chapter on Page 70, in order to recreate the files (installation files and map material) in the internal memory.

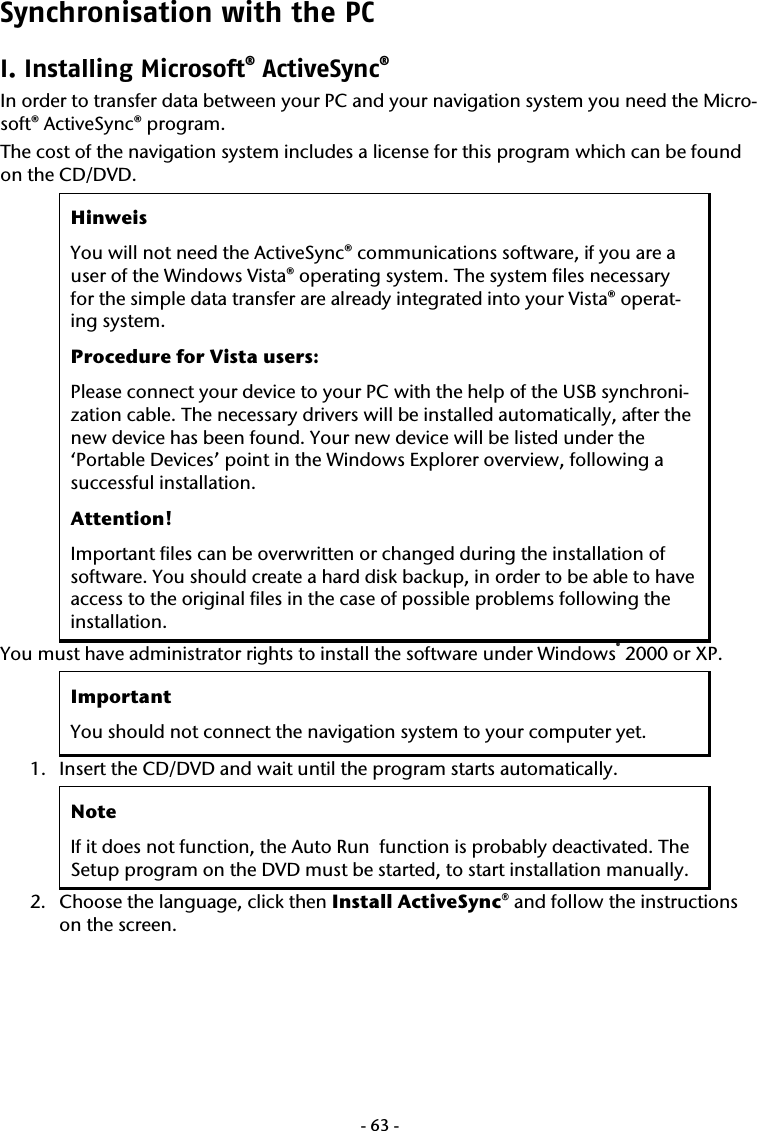

-63-Synchronisation with the PC I. Installing Microsoft® ActiveSync® In order to transfer data between your PC and your navigation system you need the Micro-soft® ActiveSync® program. The cost of the navigation system includes a license for this program which can be found on the CD/DVD. Hinweis You will not need the ActiveSync® communications software, if you are a user of the Windows Vista® operating system. The system files necessary for the simple data transfer are already integrated into your Vista® operat-ing system. Procedure for Vista users: Please connect your device to your PC with the help of the USB synchroni-zation cable. The necessary drivers will be installed automatically, after the new device has been found. Your new device will be listed under the ‘Portable Devices’ point in the Windows Explorer overview, following a successful installation. Attention! Important files can be overwritten or changed during the installation of software. You should create a hard disk backup, in order to be able to have access to the original files in the case of possible problems following the installation. You must have administrator rights to install the software under Windows® 2000 or XP. Important You should not connect the navigation system to your computer yet. 1. Insert the CD/DVD and wait until the program starts automatically. Note If it does not function, the Auto Run function is probably deactivated. The Setup program on the DVD must be started, to start installation manually. 2. Choose the language, click then Install ActiveSync® and follow the instructions on the screen.

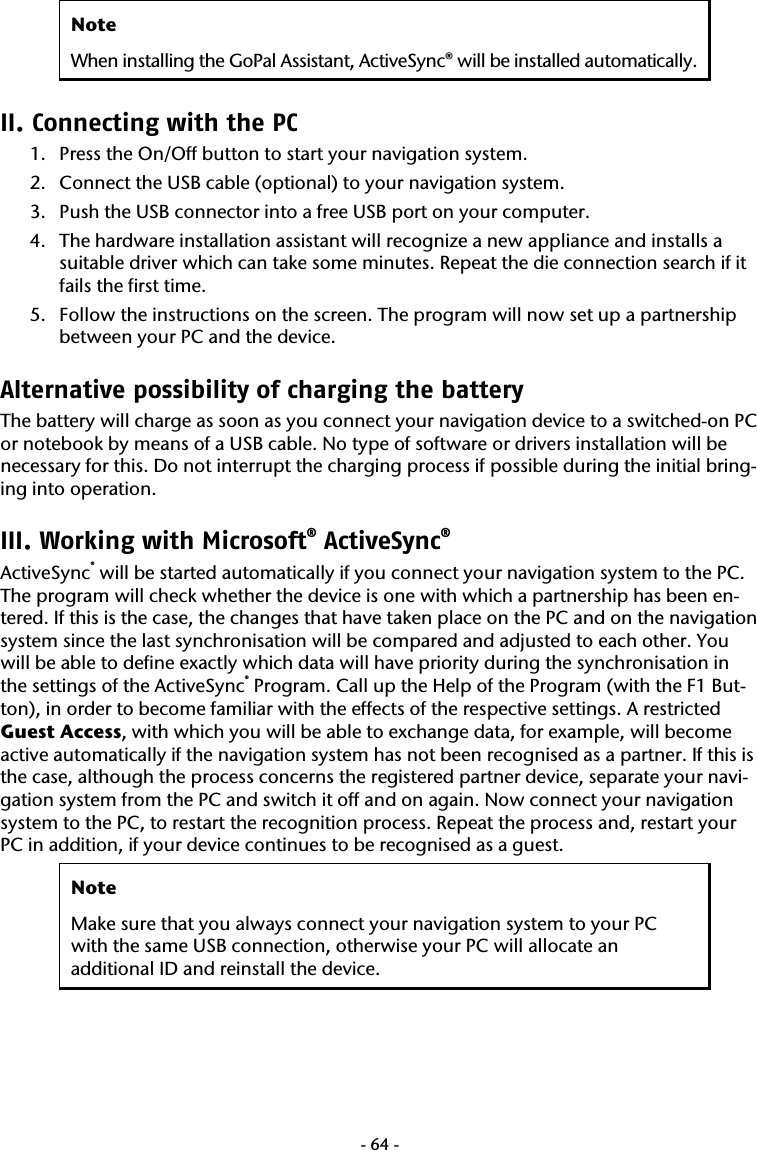

-64-Note When installing the GoPal Assistant, ActiveSync® will be installed automatically. II. Connecting with the PC 1. Press the On/Off button to start your navigation system. 2. Connect the USB cable (optional) to your navigation system. 3. Push the USB connector into a free USB port on your computer. 4. The hardware installation assistant will recognize a new appliance and installs a suitable driver which can take some minutes. Repeat the die connection search if it fails the first time. 5. Follow the instructions on the screen. The program will now set up a partnership between your PC and the device. Alternative possibility of charging the battery The battery will charge as soon as you connect your navigation device to a switched-on PC or notebook by means of a USB cable. No type of software or drivers installation will be necessary for this. Do not interrupt the charging process if possible during the initial bring-ing into operation. III. Working with Microsoft® ActiveSync® ActiveSync® will be started automatically if you connect your navigation system to the PC. The program will check whether the device is one with which a partnership has been en-tered. If this is the case, the changes that have taken place on the PC and on the navigation system since the last synchronisation will be compared and adjusted to each other. You will be able to define exactly which data will have priority during the synchronisation in the settings of the ActiveSync® Program. Call up the Help of the Program (with the F1 But-ton), in order to become familiar with the effects of the respective settings. A restricted Guest Access, with which you will be able to exchange data, for example, will become active automatically if the navigation system has not been recognised as a partner. If this is the case, although the process concerns the registered partner device, separate your navi-gation system from the PC and switch it off and on again. Now connect your navigation system to the PC, to restart the recognition process. Repeat the process and, restart your PC in addition, if your device continues to be recognised as a guest. Note Make sure that you always connect your navigation system to your PC with the same USB connection, otherwise your PC will allocate an additional ID and reinstall the device.

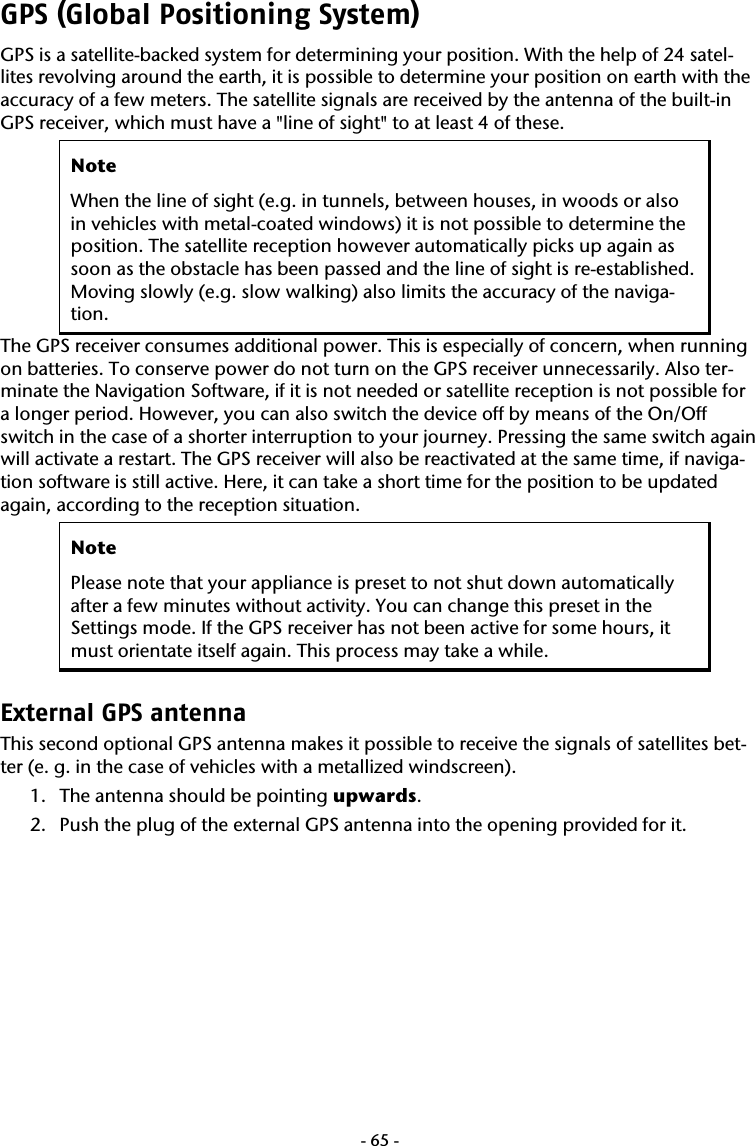

-65-GPS (Global Positioning System) GPS is a satellite-backed system for determining your position. With the help of 24 satel-lites revolving around the earth, it is possible to determine your position on earth with the accuracy of a few meters. The satellite signals are received by the antenna of the built-in GPS receiver, which must have a "line of sight" to at least 4 of these. Note When the line of sight (e.g. in tunnels, between houses, in woods or also in vehicles with metal-coated windows) it is not possible to determine the position. The satellite reception however automatically picks up again as soon as the obstacle has been passed and the line of sight is re-established. Moving slowly (e.g. slow walking) also limits the accuracy of the naviga-tion. The GPS receiver consumes additional power. This is especially of concern, when running on batteries. To conserve power do not turn on the GPS receiver unnecessarily. Also ter-minate the Navigation Software, if it is not needed or satellite reception is not possible for a longer period. However, you can also switch the device off by means of the On/Off switch in the case of a shorter interruption to your journey. Pressing the same switch again will activate a restart. The GPS receiver will also be reactivated at the same time, if naviga-tion software is still active. Here, it can take a short time for the position to be updated again, according to the reception situation. Note Please note that your appliance is preset to not shut down automatically after a few minutes without activity. You can change this preset in the Settings mode. If the GPS receiver has not been active for some hours, it must orientate itself again. This process may take a while. External GPS antenna This second optional GPS antenna makes it possible to receive the signals of satellites bet-ter (e. g. in the case of vehicles with a metallized windscreen). 1. The antenna should be pointing upwards. 2. Push the plug of the external GPS antenna into the opening provided for it.

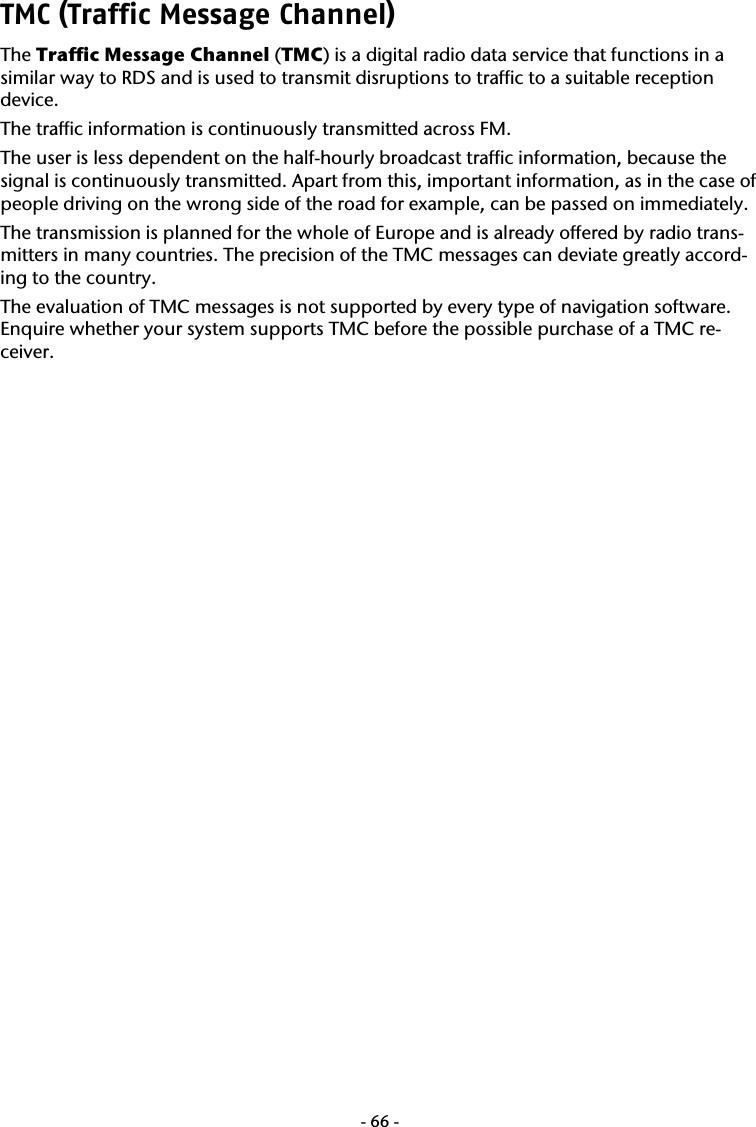

-66-TMC (Traffic Message Channel) The Traffic Message Channel (TMC) is a digital radio data service that functions in a similar way to RDS and is used to transmit disruptions to traffic to a suitable reception device. The traffic information is continuously transmitted across FM. The user is less dependent on the half-hourly broadcast traffic information, because the signal is continuously transmitted. Apart from this, important information, as in the case of people driving on the wrong side of the road for example, can be passed on immediately. The transmission is planned for the whole of Europe and is already offered by radio trans-mitters in many countries. The precision of the TMC messages can deviate greatly accord-ing to the country. The evaluation of TMC messages is not supported by every type of navigation software. Enquire whether your system supports TMC before the possible purchase of a TMC re-ceiver.

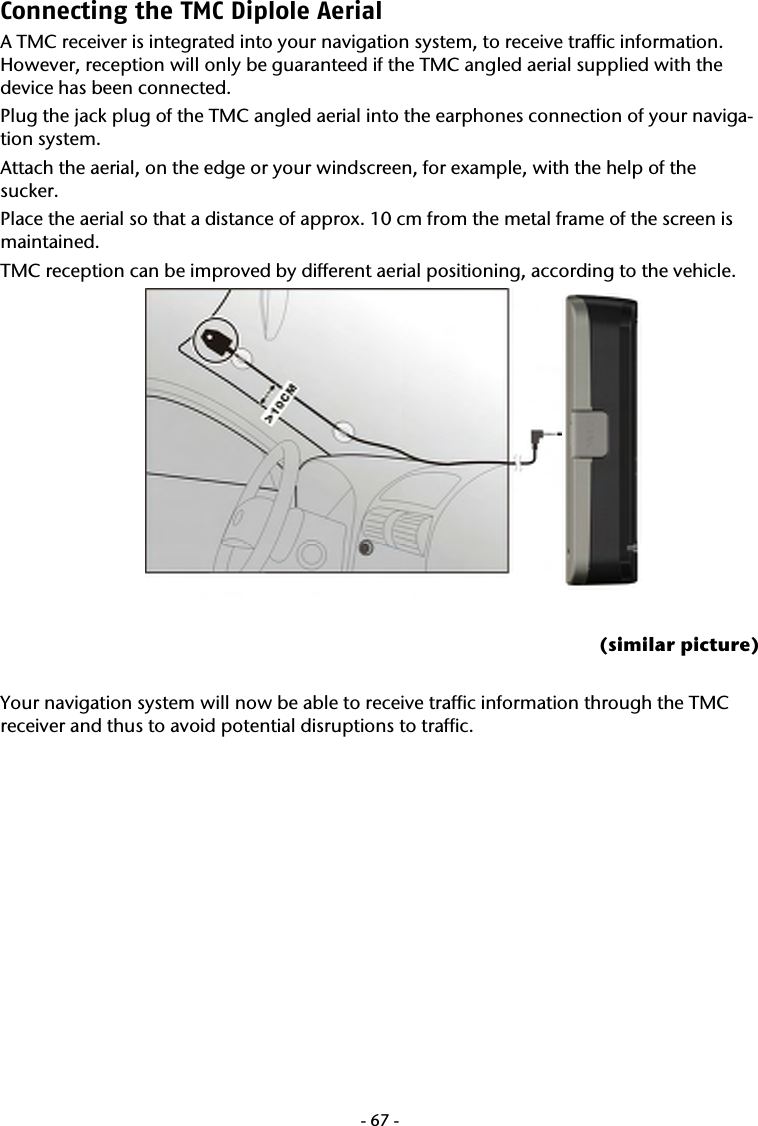

-67-Connecting the TMC Diplole Aerial A TMC receiver is integrated into your navigation system, to receive traffic information. However, reception will only be guaranteed if the TMC angled aerial supplied with the device has been connected. Plug the jack plug of the TMC angled aerial into the earphones connection of your naviga-tion system. Attach the aerial, on the edge or your windscreen, for example, with the help of the sucker. Place the aerial so that a distance of approx. 10 cm from the metal frame of the screen is maintained. TMC reception can be improved by different aerial positioning, according to the vehicle. (similar picture) Your navigation system will now be able to receive traffic information through the TMC receiver and thus to avoid potential disruptions to traffic.

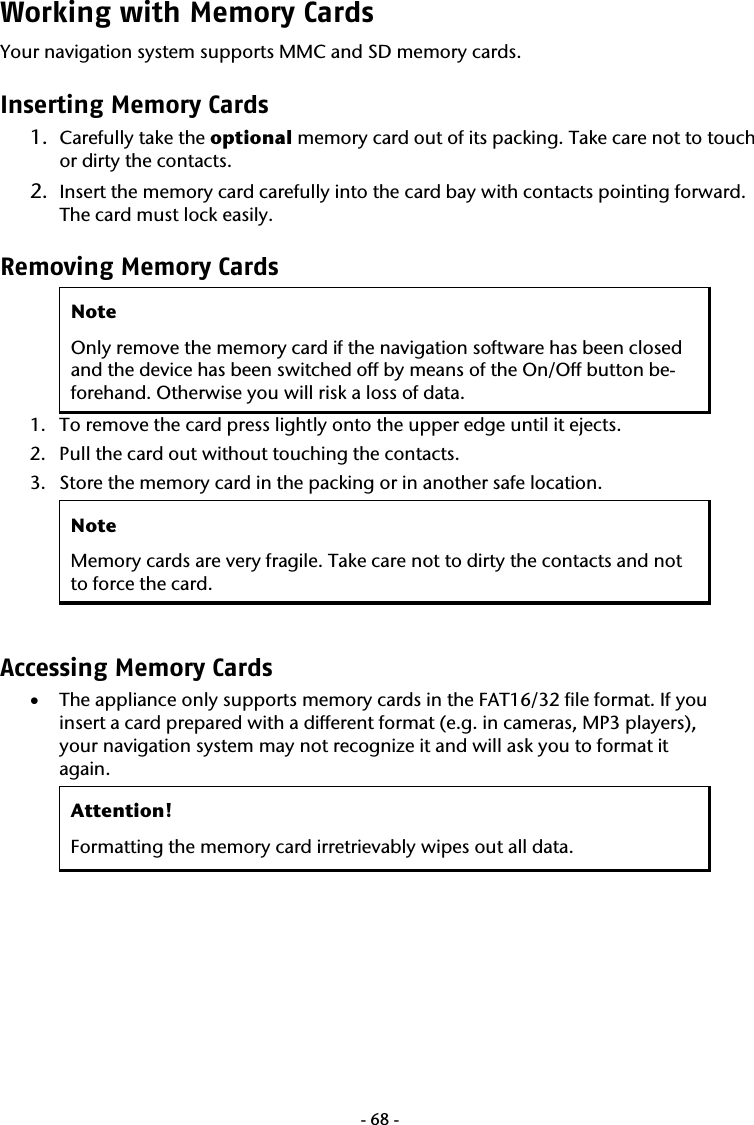

-68-Working with Memory Cards Your navigation system supports MMC and SD memory cards. Inserting Memory Cards 1. Carefully take the optional memory card out of its packing. Take care not to touch or dirty the contacts. 2. Insert the memory card carefully into the card bay with contacts pointing forward. The card must lock easily. Removing Memory Cards Note Only remove the memory card if the navigation software has been closed and the device has been switched off by means of the On/Off button be-forehand. Otherwise you will risk a loss of data. 1. To remove the card press lightly onto the upper edge until it ejects. 2. Pull the card out without touching the contacts. 3. Store the memory card in the packing or in another safe location. Note Memory cards are very fragile. Take care not to dirty the contacts and not to force the card. Accessing Memory Cards • The appliance only supports memory cards in the FAT16/32 file format. If you insert a card prepared with a different format (e.g. in cameras, MP3 players), your navigation system may not recognize it and will ask you to format it again. Attention! Formatting the memory card irretrievably wipes out all data.
-69-Data Exchange via Card Reader If you wish to copy large quantities of data (MP3 files, navigation maps) to the memory card, these can also be stored directly to the memory card. Many computers already have memory card devices. Insert the card in this and copy the data directly to the card. Because of the direct access you can achieve a much higher transfer rate compared to using ActiveSync®. Additional Card Material Your navigation system is already equipped with digitalized map material in the internal memory and/or memory card at the factory. Depending on the configuration, additional maps may be included on your CD/DVD. You will be able to transfer these cards to a memory card immediately. Here, it is recommended to use an external card reader (see also page 69). The GoPal Assistant supplied with the device enables a simple and individ-ual compilation of the map material to be transferred. Depending on the amount of map data on the CD/DVD, memory cards with capacities of 256 MB, 512 MB, 1.024 MB or more may be required. You can obtain additional memory cards (MMC or SD cards) in specialist stores. Transfer of card material to a memory card The transfer of additional card material to a memory card can take place through the Ex-plorer of your PCs. Proceed as follows: 1. Insert the CD/DVD with the card material required. 2. Start your workstation and select your CD/DVD Drive. 3. Copy the file with the .psf ending out of the Directory of the region that you re-quire to the MapRegions Directory on your memory card, from the CD/DVD. You can transfer several files with map material to your memory card, depending on the capacity of the memory card. If you have copied digitized maps of several countries or country groups onto your mem-ory card, you will be required to select the desired map in the navigation application of your device.

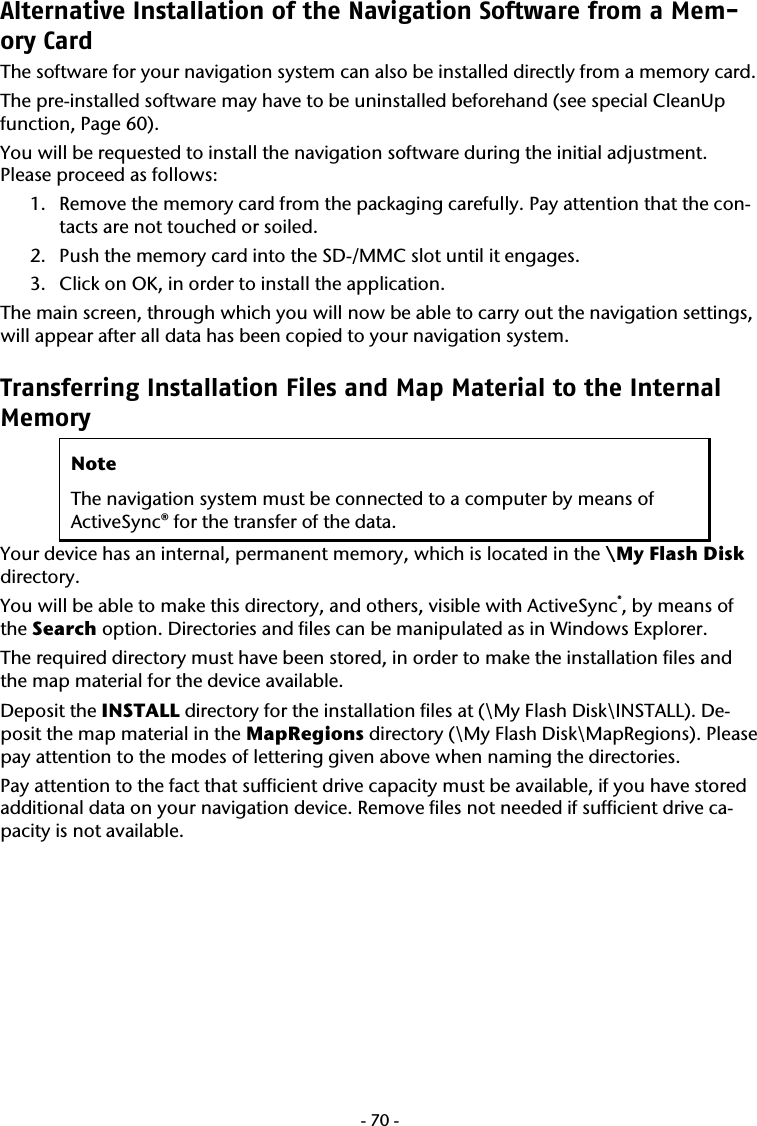

-70-Alternative Installation of the Navigation Software from a Mem-ory Card The software for your navigation system can also be installed directly from a memory card. The pre-installed software may have to be uninstalled beforehand (see special CleanUp function, Page 60). You will be requested to install the navigation software during the initial adjustment. Please proceed as follows: 1. Remove the memory card from the packaging carefully. Pay attention that the con-tacts are not touched or soiled. 2. Push the memory card into the SD-/MMC slot until it engages. 3. Click on OK, in order to install the application. The main screen, through which you will now be able to carry out the navigation settings, will appear after all data has been copied to your navigation system. Transferring Installation Files and Map Material to the Internal Memory Note The navigation system must be connected to a computer by means of ActiveSync® for the transfer of the data. Your device has an internal, permanent memory, which is located in the \My Flash Disk directory. You will be able to make this directory, and others, visible with ActiveSync®, by means of the Search option. Directories and files can be manipulated as in Windows Explorer. The required directory must have been stored, in order to make the installation files and the map material for the device available. Deposit the INSTALL directory for the installation files at (\My Flash Disk\INSTALL). De-posit the map material in the MapRegions directory (\My Flash Disk\MapRegions). Please pay attention to the modes of lettering given above when naming the directories. Pay attention to the fact that sufficient drive capacity must be available, if you have stored additional data on your navigation device. Remove files not needed if sufficient drive ca-pacity is not available.

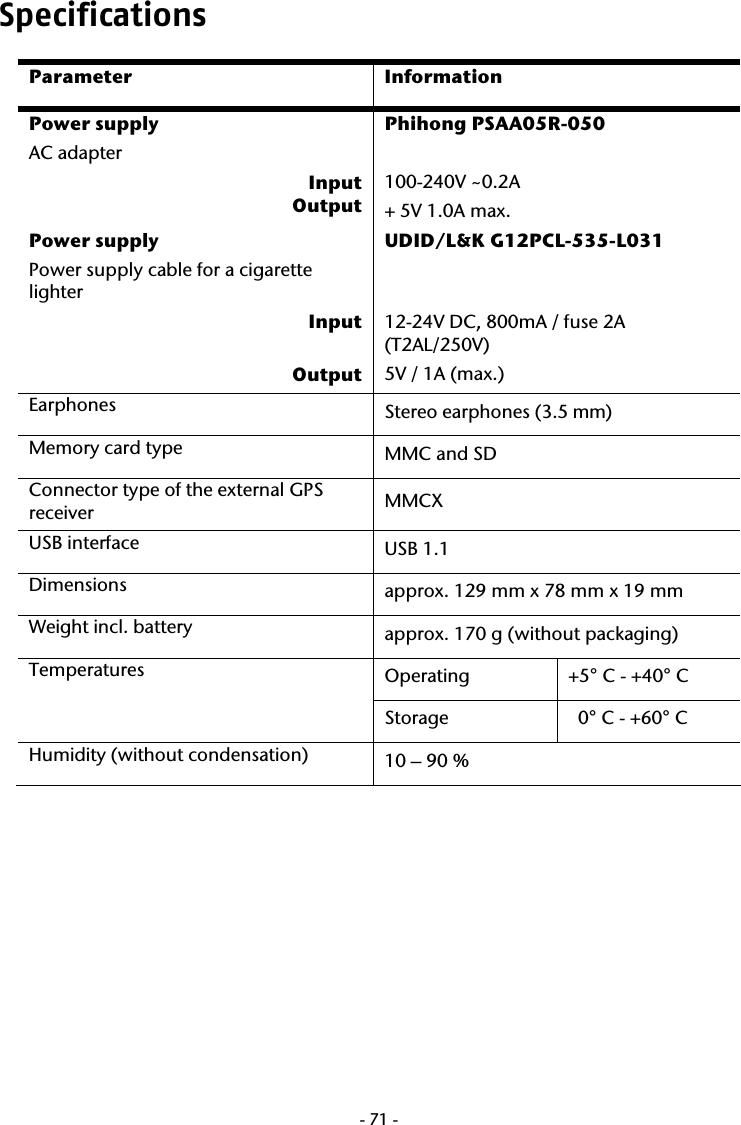

-71-Specifications Parameter Information Power supply AC adapter InputOutput Phihong PSAA05R-050 100-240V ~0.2A + 5V 1.0A max. Power supply Power supply cable for a cigarette lighter InputOutput UDID/L&K G12PCL-535-L031 12-24V DC, 800mA / fuse 2A (T2AL/250V) 5V / 1A (max.) Earphones Stereo earphones (3.5 mm) Memory card type MMC and SD Connector type of the external GPS receiver MMCX USB interface USB 1.1 Dimensions approx. 129 mm x 78 mm x 19 mm Weight incl. battery approx. 170 g (without packaging) Operating +5° C - +40° C Temperatures Storage 0° C - +60° C Humidity (without condensation) 10 – 90 %

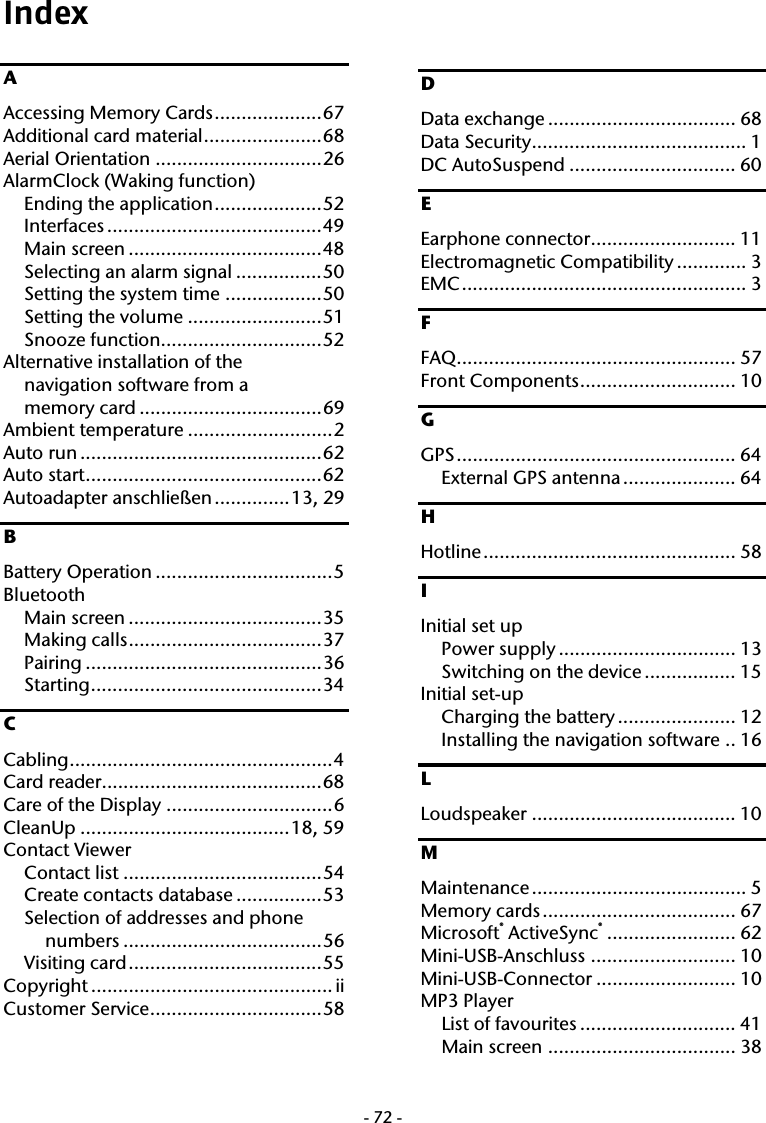

-72-Index A Accessing Memory Cards....................67 Additional card material......................68 Aerial Orientation ...............................26 AlarmClock (Waking function) Ending the application....................52 Interfaces ........................................49 Main screen ....................................48 Selecting an alarm signal ................50 Setting the system time ..................50 Setting the volume .........................51 Snooze function..............................52 Alternative installation of the navigation software from a memory card ..................................69 Ambient temperature ...........................2 Auto run .............................................62 Auto start............................................62 Autoadapter anschließen..............13, 29 B Battery Operation .................................5 Bluetooth Main screen ....................................35 Making calls....................................37 Pairing ............................................36 Starting...........................................34 C Cabling.................................................4 Card reader.........................................68 Care of the Display ...............................6 CleanUp .......................................18, 59 Contact Viewer Contact list .....................................54 Create contacts database ................53 Selection of addresses and phone numbers .....................................56 Visiting card....................................55 Copyright ............................................. ii Customer Service................................58 D Data exchange ................................... 68 Data Security........................................ 1 DC AutoSuspend ............................... 60 E Earphone connector........................... 11 Electromagnetic Compatibility ............. 3 EMC..................................................... 3 F FAQ.................................................... 57 Front Components............................. 10 G GPS.................................................... 64 External GPS antenna ..................... 64 H Hotline............................................... 58 I Initial set up Power supply ................................. 13 Switching on the device ................. 15 Initial set-up Charging the battery ...................... 12 Installing the navigation software .. 16 L Loudspeaker ...................................... 10 M Maintenance ........................................ 5 Memory cards.................................... 67 Microsoft® ActiveSync®........................ 62 Mini-USB-Anschluss ........................... 10 Mini-USB-Connector .......................... 10 MP3 Player List of favourites ............................. 41 Main screen ................................... 38
-73-Select title.......................................40 Bookmarks......................................41 N Navigation Mounting the car holder.................27 Navigationssystem befestigen.........29 Safety instructions ..........................25 Starting the navigation software .....30 Note ......................................................i O Operating Switching on/off the device ............17 Operating Environment ........................2 P Password ................................... i, 19, 22 Picture Viewer Main screen ....................................42 Operation .......................................42 Q Quality ................................................. ii R R&TTE ..................................................5 Recycling and Disposal .........................6 Repair ...................................................2 Reset...................................................24 Resetting the navigation system Hard Reset ......................................24 Soft Reset........................................24 S Safety and Maintenance .......................1 Safety instructions Navigation ......................................25 Connection.......................................4 Ambient Temperature.......................2 Data security.....................................1 Operating environment ....................2 Repair............................................... 2 Power supply ................................... 4 Cabling ............................................ 4 Battery operation ............................. 5 Maintenance .................................... 5 Care of the display ........................... 6 Transport ......................................... 7 SD/MMC Slot..................................... 11 Security......................................i, 19, 22 Serial Number ....................................... i Service ..................................................ii Faults and possible causes.............. 58 Hotline ........................................... 58 Specifications ..................................... 70 Standards R&TTE.............................................. 5 Starting the navigation software ........ 30 SuperPIN....................................i, 21, 22 Supplied Items..................................... 8 Synchronisation with the PC .............. 62 T TMC................................................... 65 Touch Screen ....................................... 9 Transfer of card material to a memory card................................................ 68 Transferring Installation Files and Map Material to the Internal Memory..... 69 Transport ............................................. 7 Travelguide........................................ 47 U UUID..........................................i, 21, 22 V Views Bottom components ...................... 10 Front components ......................... 10 W Warning function for traffic monitoring points .......................... 31
