Purpose of the device
The Medtronic Model 97725 Wireless External Neurostimulator (ENS) is used to evaluate a
Medtronic Neurostimulation System during lead placement or test stimulation.
Description
The Medtronic Model 97725 Wireless External Neurostimulator is a disposable, sterile, single-
use device equipped with Bluetooth wireless technology, and is part of a neurostimulation
system.
Package contents
▪
Wireless external neurostimulator with batteries inserted
▪
Spare AAA alkaline batteries (2)
▪
Product literature
▪
! USA
Warranty card
Accessories
▪
Wireless external neurostimulator boot (packaged separately)
Device specifications
The Model 97725 Wireless External Neurostimulator (Figure 1 and Figure 2) is a multi-
programmable device that delivers stimulation through 1 or more leads. The stimulation
settings are stored in programs to target pain areas. A program is a specific combination of
pulse width, rate, and intensity settings acting on a specific electrode combination (up to 16
electrodes per program). Up to 4 pain areas can be targeted by programs. When stimulating
more than one pain area, the pulses are delivered sequentially—first a pulse from one
program, then a pulse from the next program.
Pulse width, intensity, cycling, and electrode polarity for each program within a group can have
different values. Rate, rate limits, pulse width limits, and intensity limits for each program within
a group have the same values.
2013-04 English 5
2013-04
Filename Date Time
UC200xxxxxx EN
4.625 x 6 inches (117 mm x 152 mm)
Medtronic Confidential
ImplantManual.xsl - IPGTemplate.fm
Template version: 05-31-2012
M946491A001 Rev X
Lead doors
ENS button
Lead housing
compartment,
black (electrodes 8-15) Lift tabs
Lead housing
compartment,
white (electrodes 0-7)

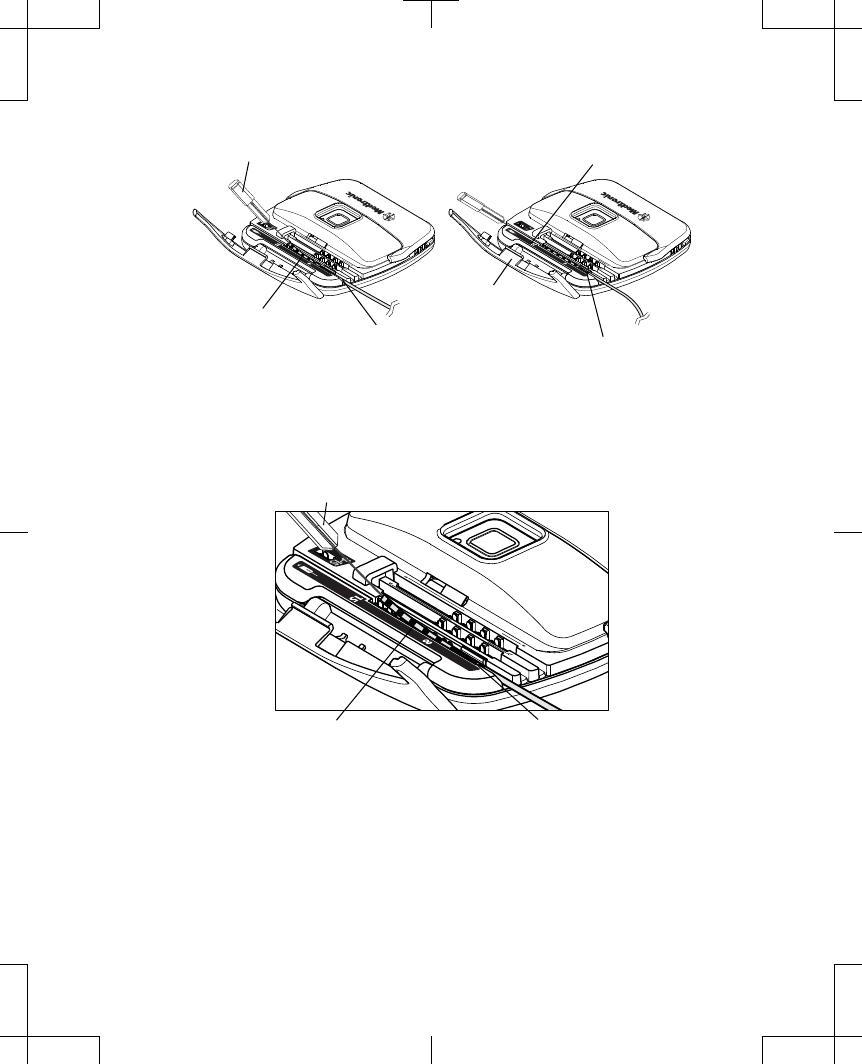

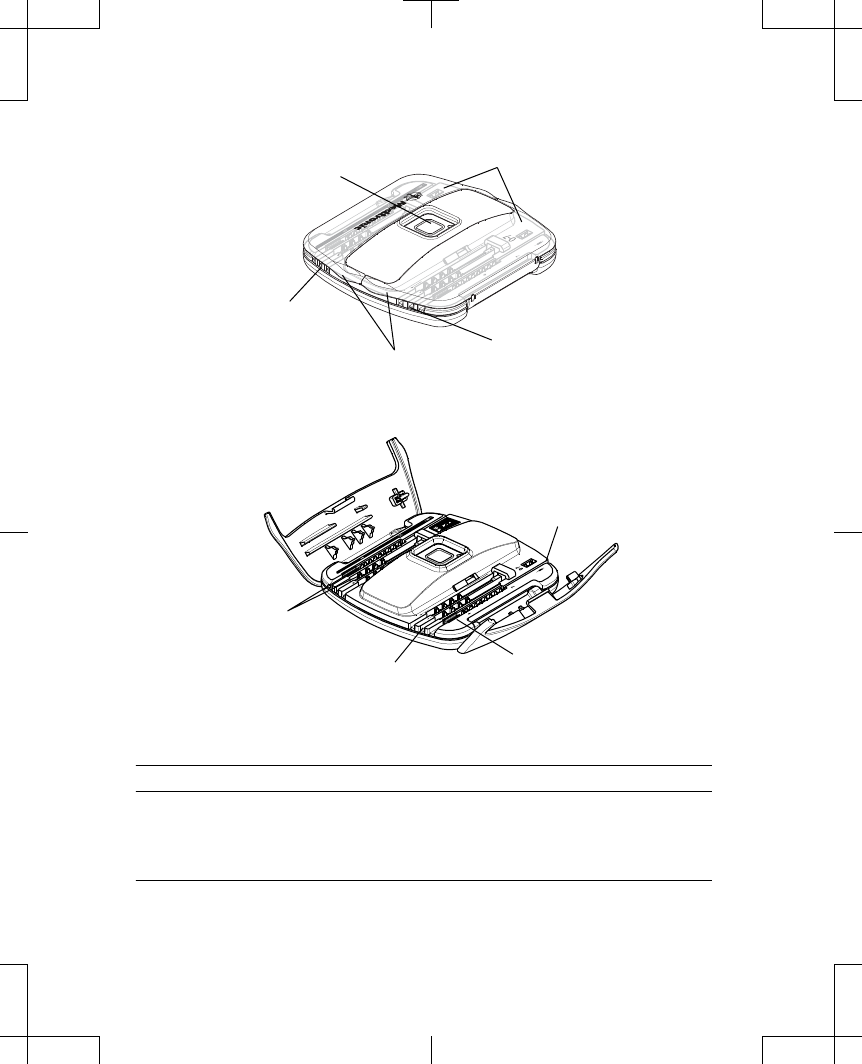

Figure 1. Model 97725 Wireless External Neurostimulator (doors closed).
8 - contact
lead groove
Retainer clip
4 - contact
lead groove
Electrical
contacts
Figure 2. Model 97725 Wireless Exernal Neurostimulator (doors open).
Table 1. Operating values for the Model 97725 Wireless External Neurostimulator
Programmable parameter Operating values and ranges
a
Number of defined groups 1-3 (optional)
Number of programs per pain
area
1-3
Number of programs 12
6 English 2013-04
2013-04
Filename Date Time
UC200xxxxxx EN
4.625 x 6 inches (117 mm x 152 mm)
Medtronic Confidential
ImplantManual.xsl - IPGTemplate.fm
Template version: 05-31-2012
M946491A001 Rev X
Table 1. Operating values for the Model 97725 Wireless External Neurostimulator
(continued)
Programmable parameter Operating values and ranges
a
Number of pain areas 1-4
Electrode configuration 2 to 16 electrodes as anode, cathode, or off
Maximum intensity per
electrode
0-25.5 mA (0.1-mA increment)
Program intensity 0-100 mA
Intensity – limits Enabled or disabled at maximum 25.5 mA per electrode
Pulse width 60 to 1000 µs (10-µs increment)
Pulse width – limits Enabled or disabled at maximum 1000 µs
Rate 10 to 1200 Hz
b
(1-Hz increment between 10 and 30 Hz; 5-Hz
increment between 30 and 250 Hz; 10-Hz increment between
250 and 500 Hz; 20-Hz increment between 500 and 1000 Hz;
50-Hz increment between 1000 and 1200 Hz.)
Rate ratio A fraction of the master rate (1/1, 1/2, 1/3, 1/4, 1/5)
Rate - limits Enabled or disabled at maximum 1200 Hz
SoftStart/Stop Off, on: 1, 2, 4, or 8 second ramp duration
Cycling Off: 0.1 s to 30 min; on: 5 s-30 min (increment: 0.1 s from 0.1-1
s, 1 s from 1 s-1 min, 1 min from 1-30 min)
aInterlocks and out-of-regulation detection will prevent the use of some parameter combinations.
bThe maximum rate available for the external neurostimulator is limited to 600 Hz when two pain areas are
simultaneously active, 400 Hz when three pain areas are simultaneously active, and to 300 Hz when four
pain areas are simultaneously active.
Table 2. Physical characteristics of the Model 97725 Wireless External
Neurostimulator
a
Description Value
Capacity
Leads 4 quadripolar; 2 octapolar
Electrodes 32 electrodes, supporting 16 active
Length 79 mm (3.1 in)
Height 79 mm (3.1 in)
2013-04 English 7
2013-04
Filename Date Time
UC200xxxxxx EN
4.625 x 6 inches (117 mm x 152 mm)
Medtronic Confidential
ImplantManual.xsl - IPGTemplate.fm
Template version: 05-31-2012
M946491A001 Rev X
Table 2. Physical characteristics of the Model 97725 Wireless External
Neurostimulator
a
(continued)
Description Value
Width 74 mm (2.9 in)
Thickness 20 mm (0.8 in)
Weight (with batteries) 71 g (2.5 oz)
Battery life 7 days minimum for alkaline batteries
b
Power source AAA alkaline batteries (2)
Operating type Continuous
Degree of protection against
electrical shock
Type BF
Automatic shut off
c
Lead door(s) open
Temperature limitation
d
-20 °C to 54 °C (-4 °F to 130 °F)
Identification code NLJ
aAll measurements are approximate.
bBattery life is based on a 7-day trial using two active programs, 20-90 second controller Bluetooth sessions,
and a 180-minute clinician Bluetooth session. For program 1: impedance = 620 Ω, Amp = 10.6 mA, PW =
330 µs, Rate = 60 Hz. For program 2: impedance = 560 Ω, Amp = 10.5 mA, PW = 330 µs, Rate = 60 Hz.
cUse the clinician programmer or controller to turn on the external neurostimulator once the condition is
resolved.
dStore the external neurostimulator at room temperature.
Table 3. Material of components in the Model 97725 Wireless External Neurostimulator
and boot accessory packages
Component Material Material contacts
human tissue
Housing
Base Polycarbonate Yes
Lead doors Polycarbonate Yes
Hinge pin Stainless steel No
Contacts Gold- and nickel-plated beryllium copper No
Retainer clip Thermoplastic elastomer (TPE) Yes
8 English 2013-04
2013-04
Filename Date Time
UC200xxxxxx EN
4.625 x 6 inches (117 mm x 152 mm)
Medtronic Confidential
ImplantManual.xsl - IPGTemplate.fm
Template version: 05-31-2012
M946491A001 Rev X
Table 3. Material of components in the Model 97725 Wireless External Neurostimulator
and boot accessory packages (continued)
Component Material Material contacts
human tissue
External neurostimulator
boot
Boot Silicone Yes
Adhesive Medical acrylic microporous-coated
adhesive
Yes
Declaration of Conformity
Medtronic declares that this product is in conformity with the essential requirements of
Directive 1999/5/EC on Radio and Telecommunications Terminal Equipment and Directive
93/42/EEC on Medical Devices.
For additional information, contact the appropriate Medtronic representative listed on the
inside back cover of this manual.
2013-04 English 9
2013-04
Filename Date Time
UC200xxxxxx EN
4.625 x 6 inches (117 mm x 152 mm)
Medtronic Confidential
ImplantManual.xsl - IPGTemplate.fm
Template version: 05-31-2012
M946491A001 Rev X
Instructions for use
The wireless external neurostimulator is used to evaluate lead placement and stimulation
settings.
w
Warning: This device was designed for single patient use only. Do not reuse, reprocess,
or resterilize this product. Reuse, reprocessing, or resterilization may compromise the
structural integrity of the device and/or create a risk of contamination of the device, which
could result in patient injury, illness, or death.
#
Caution: The device is not certified for use in the presence of a flammable anesthetic
mixture with air or with oxygen or nitrous oxide. The consequences of using the device
near flammable atmospheres are unknown.
#
Caution: Do not modify this equipment. Modification of this equipment can result in
damage to the device, causing the device to malfunction or become unusable.
#
Caution: Do not use the device in the proximity of equipment that generates
electromagnetic interference (EMI). EMI may cause a disruption in device function.
Examples of common medical sources of EMI are magnetic resonance imaging (MRI)
and lithotripsy. Powerful computer monitors, cell phones, x-ray equipment, and other
monitoring equipment may also generate EMI.
Notes:
▪
Before placing the external neurostimulator into operation, ensure the external
neurostimulator has had time to equalize to the current temperature and environment.
▪
For more information on EMI and x-ray use with the external neurostimulator, refer to the
Information for Prescribers Booklet.
▪
Turn off and dispose of the external neurostimulator after defibrillation. For more
information on the effects of defibrillation on the neurostimulator, refer to the Information
for Prescribers Booklet.
Pairing the wireless external neurostimulator to a programmer or
controller
For instructions on pairing the external neurostimulator to the clinician programmer, refer to
the appropriate programming guide. For instructions on pairing the external neurostimulator
to the controller, refer to the appropriate controller patient guide.
Using the wireless external neurostimulator during test stimulation
When programming during test stimulation, keep the clinician programmer within 3 meters (10
feet) of the external neurostimulator. The external neurostimulator does not attach to the
programmer.
Using the ENS button
The ENS button is used to place the external neurostimulator into discovery mode to establish
communication with a clinician programmer or controller. It can also be used when you need
to immediately turn off the external neurostimulator. The ENS button is not an on/off control.
10 English 2013-04
2013-04
Filename Date Time
UC200xxxxxx EN
4.625 x 6 inches (117 mm x 152 mm)
Medtronic Confidential
ImplantManual.xsl - IPGTemplate.fm
Template version: 05-31-2012
M946491A001 Rev X
You must use either the clinician programmer or controller to turn on the external
neurostimulator.
▪
Press and hold the ENS button for at least 3 seconds to turn off the external
neurostimulator.
Understanding the LED light on the wireless external neurostimulator
When the external neurostimulator is turned on for the first time, the light-emitting diode (LED)
shines continuously for a few seconds. When the LED begins to blink, the external
neurostimulator has completed initiation, has entered discovery mode, and can be paired to
a clinician programmer or controller.
Notes:
▪
The external neurostimulator will remain in discovery mode for 90 seconds, or until it
successfully pairs with a programmer or controller, at which point the LED will stop
blinking and turn off.
▪
The LED blinks whenever the external neurostimulator is in discovery mode, or when it
receives data from a clinician programmer or controller.
▪
Refer to the appropriate programming guide or controller patient manual for more
information.
Replacing the wireless external neurostimulator batteries
The external neurostimulator includes batteries inserted in the device, which should last the
length of test stimulation (see Table 2 for more information on battery longevity). Replace the
external neurostimulator batteries when the batteries are low or depleted. The battery level is
shown on the clinician programmer and controller screens. For instructions on checking the
external neurostimulator batteries, refer to the appropriate programming guide or the controller
patient manual.
#
Cautions:
▪
When replacing batteries during test stimulation, save the programming settings
before removing the batteries. If programming settings are not saved, stimulation
history may no longer be available, and the stimulation settings may not reflect
recent programming settings.
▪
Do not leave depleted batteries in the external neurostimulator. The batteries may
corrode and cause damage to the electronic components.
Notes:
▪
Before inserting batteries, check for signs of battery leakage. If any residue is present,
do not use.
▪
When replacing batteries outside the sterile field, use the spare alkaline batteries
provided in the external neurostimulator package. The spare batteries are not sterile.
Changing the batteries during test stimulation
1. If the external neurostimulator is on, use the clinician programmer or controller to turn
the external neurostimulator off.
2013-04 English 11
2013-04
Filename Date Time
UC200xxxxxx EN
4.625 x 6 inches (117 mm x 152 mm)
Medtronic Confidential
ImplantManual.xsl - IPGTemplate.fm
Template version: 05-31-2012
M946491A001 Rev X
2. Remove the tape or external neurostimulator boot from the external neurostimulator,
keeping lead assembly and lead exit site secure. For instructions on removing the
external neurostimulator boot from the external neurostimulator, refer to the boot's
instructions for use.
3. Remove the leads from the external neurostimulator.
a. Lift the lift tabs to open the lead doors.
b. Gently lift each lead from the electrical contacts in the lead groove.
4. Proceed to step 2 in "Changing the batteries before test stimulation".
Changing the batteries before test stimulation
1. If the external neurostimulator is on, use the clinician programmer or controller to turn
the external neurostimulator off.
2. Press back lightly on the latch of battery compartment cover, swing the cover open, then
remove the cover (Figure 3).

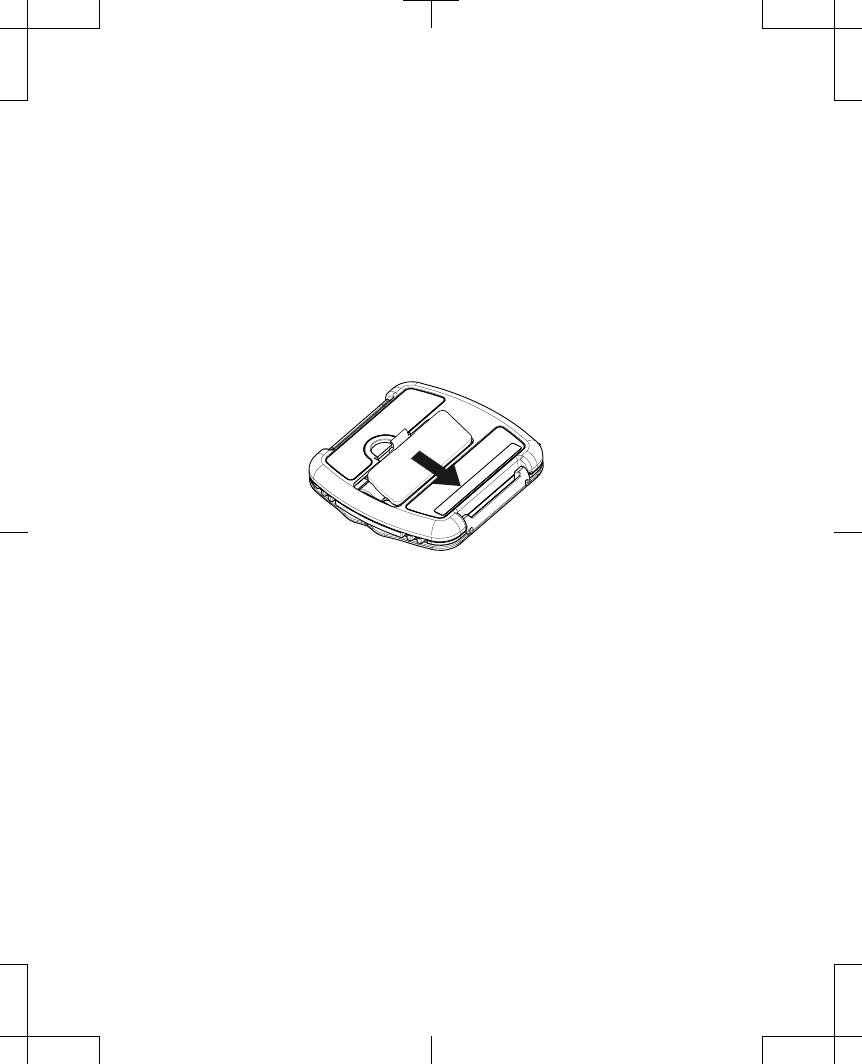

Figure 3. Removing battery cover.
3. Remove the depleted batteries, and insert new, Medtronic-supplied AAA alkaline
batteries. Correct battery polarity is indicated inside the battery compartment
(Figure 4).
12 English 2013-04
2013-04
Filename Date Time
UC200xxxxxx EN
4.625 x 6 inches (117 mm x 152 mm)
Medtronic Confidential
ImplantManual.xsl - IPGTemplate.fm
Template version: 05-31-2012
M946491A001 Rev X
Note: For optimal performance, use the same AAA alkaline batteries as those supplied
by Medtronic.

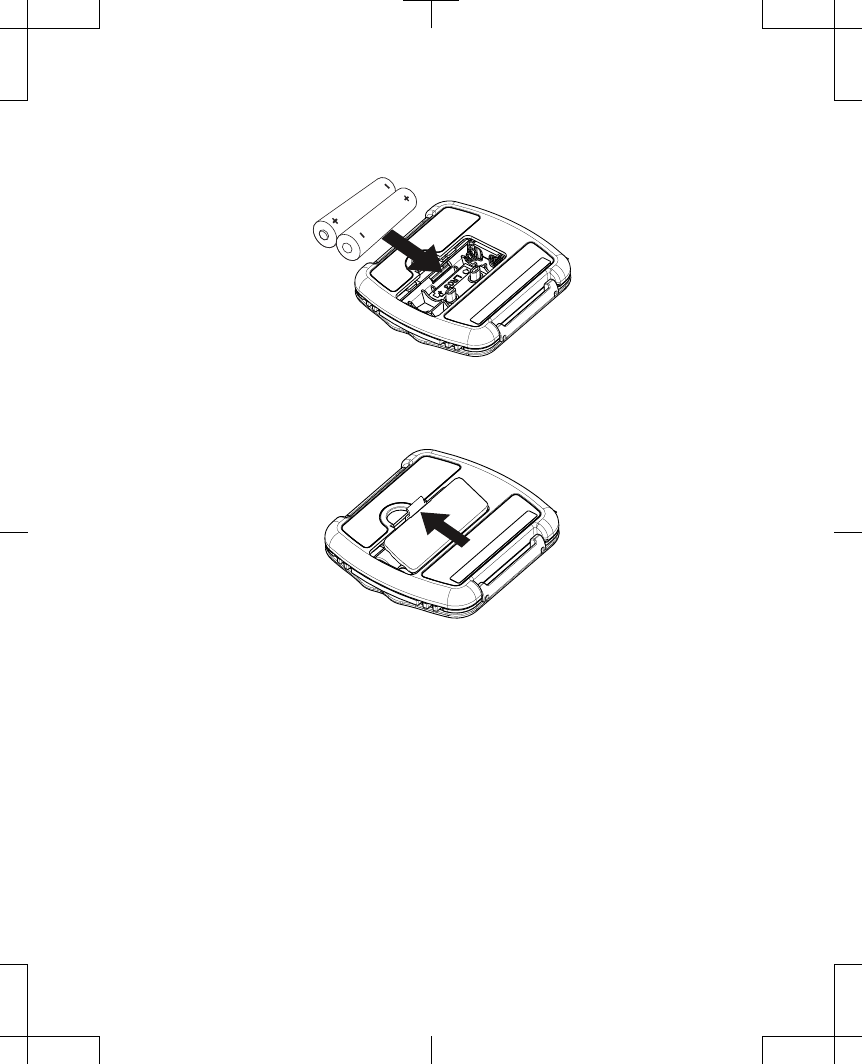

Figure 4. Inserting new batteries.
4. Replace the battery compartment cover, then press the cover until it snaps into place
(Figure 5).
Figure 5. Replace battery cover.
Notes:
▪
After the batteries are installed and the battery compartment cover is closed, the
external neurostimulator may take up to 6 seconds for device initiation. Stimulation
is not available until device initiation is complete.
▪
Dispose of depleted batteries according to local requirements.
5. Place the leads in the external neurostimulator. Refer to "Connecting the wireless
external neurostimulator to the 4-contact lead(s)" on page 14 or "Connecting the
wireless external neurostimulator to the 8-contact lead(s)" on page 16 for instructions
in placing the leads in the external neurostimulator.
2013-04 English 13
2013-04
Filename Date Time
UC200xxxxxx EN
4.625 x 6 inches (117 mm x 152 mm)
Medtronic Confidential
ImplantManual.xsl - IPGTemplate.fm
Template version: 05-31-2012
M946491A001 Rev X
Note: If replacing batteries during test stimulation, ensure identical seating of the leads
inside the lead grooves.
6. Use the programmer to turn stimulation on.
7. Test lead insertion to confirm that the leads have been fully inserted into the lead grooves.
For instructions on testing lead insertion, refer to the appropriate programming guide.
8. Secure the external neurostimulator to the patient. Refer to "Preparing the wireless
external neurostimulator for test stimulation" on page 18 for instructions on securing
the external neurostimulator to the patient.
Connecting the wireless external neurostimulator to the leads
The external neurostimulator has two lead housing compartments that each fit two 4-contact
leads and one 8-contact lead. The leads are placed in lead grooves, which are numbered 0-7
on the white side and 8-15 on the black side (Figure 1). Leads are placed in both of the lead
housing compartments.
▪
If using four 4-contact leads, two are placed in each housing compartment.
▪
If using two 8-contact leads, one is placed in each housing compartment.
▪
If using two 4-contact leads and one 8-contact lead, the 4-contact leads are placed in
one housing compartment and the 8-contact lead must be placed in the other.
Notes:
▪
The 4-contact leads and the 8-contact leads enter the external neurostimulator in the
same direction.
▪
The procedure for connecting the external neurostimulator is the same for leads and
extensions.
Connecting the wireless external neurostimulator to the 4-contact
lead(s)
Check battery status before connecting the external neurostimulator to the leads. Refer to the
appropriate programming guide for information on checking battery status.
#
Caution: Before connecting components, wipe off any body fluids and dry all
connections. Fluids in the connection may result in intermittent stimulation or loss of
stimulation.
1. Wipe the lead contacts with dry sterile gauze.
2. Lift the lift tab on the appropriate lead housing compartment to open the clear lead door
(Figure 6a).
3. Disconnect the long stylet handle from the 4-contact lead and withdraw the long stylet
from the 4-contact lead.
4. Insert the short stylet into the 4-contact lead and connect the short stylet handle to the
4-contact lead.
5. Make sure the lead contacts and the electrical contacts inside the lead grooves are dry
and clean.
14 English 2013-04
2013-04
Filename Date Time
UC200xxxxxx EN
4.625 x 6 inches (117 mm x 152 mm)
Medtronic Confidential
ImplantManual.xsl - IPGTemplate.fm
Template version: 05-31-2012
M946491A001 Rev X
6. Align the short stylet and proximal end of the lead against the inside end of a 4-contact
lead groove of the connector (Figure 6a).

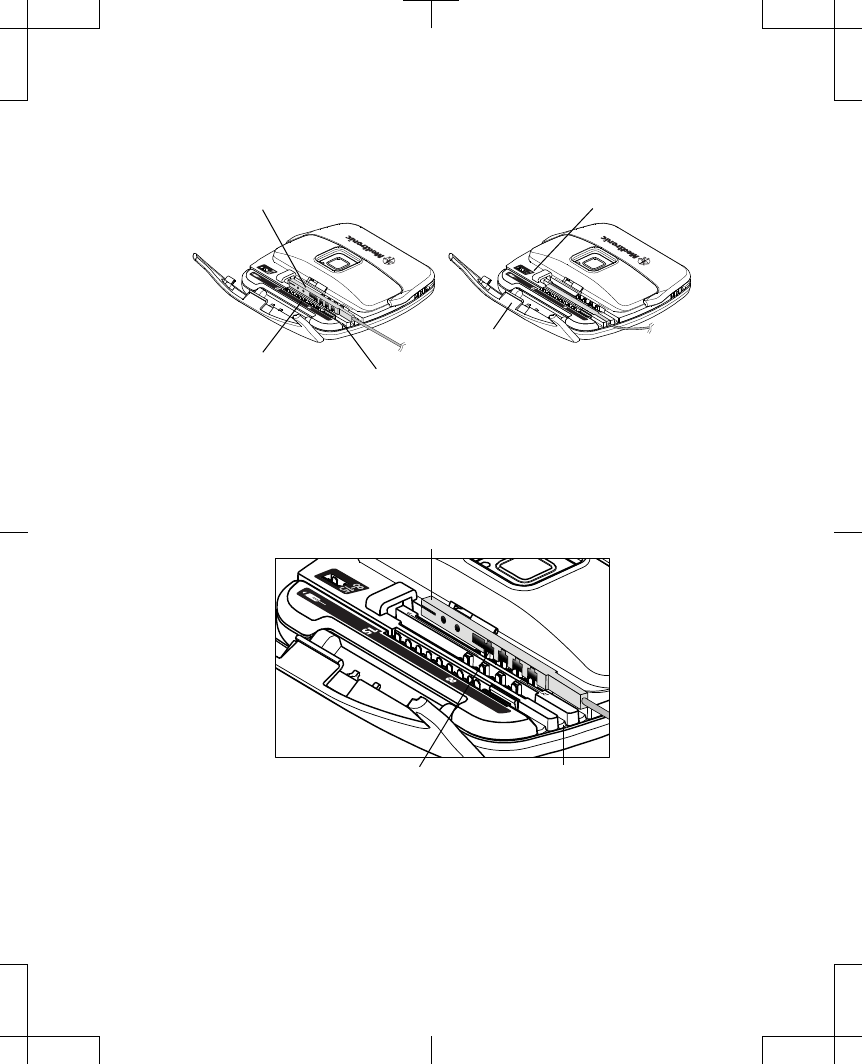

Lead groove
Electrical contacts
Door latch
Lead groove numbering
Short stylet handle ab
Figure 6. External neurostimulator with a 4-contact lead.
7.
Check that the lead contacts align with the electrical contacts inside the lead groove and
that the short stylet handle aligns with the stylet-shaped portion of the lead groove
(Figure 7).
Short stylet handle
Lead grooveElectrical contacts
Figure 7. Align the lead contacts with the electrical contacts in the lead groove.
2013-04 English 15
2013-04
Filename Date Time
UC200xxxxxx EN
4.625 x 6 inches (117 mm x 152 mm)
Medtronic Confidential
ImplantManual.xsl - IPGTemplate.fm
Template version: 05-31-2012
M946491A001 Rev X
Note: The lead and short stylet fit only one way into the external neurostimulator lead
housing.
8. Press the lead and short stylet gently into the lead groove (Figure 6b). If an additional 4-
contact lead is used, repeat step 1 and steps 3 to 8.
9. Push the door(s) closed until the latch snaps firmly into place.
Note: Do not force the doors closed; they should close easily. If they do not, disassemble
the components and repeat steps 2 to 9.
10. Confirm correct seating by viewing the leads through the closed doors.
11. Refer to the appropriate programming guide and lead manual to reestablish
communication with the external neurostimulator and the clinician programmer, verify
proper connection, and identify optimal stimulation parameters.
Connecting the wireless external neurostimulator to the 8-contact
lead(s)
Check battery status before connecting the external neurostimulator to the leads. Refer to the
appropriate programming guide for information on checking battery status.
#
Caution: Before connecting components, wipe off any body fluids and dry all
connections. Fluids in the connection may result in intermittent stimulation or loss of
stimulation.
1. Wipe the lead contacts with dry sterile gauze.
2. Lift the lift tab on the appropriate lead housing compartment to open the clear lead door
(Figure 8a).
3. Make sure the lead contacts and the electrical contacts inside the lead grooves are dry
and clean.
4. While holding the 8-contact lead, disconnect the stylet handle from the lead (proximal
end), and partially withdraw the stylet.
Note: If connecting an extension or a lead without a stylet, proceed to step 5.
5. Align the proximal end of the lead against the inside end of an 8-contact lead groove of
the connector (Figure 8a).
16 English 2013-04
2013-04
Filename Date Time
UC200xxxxxx EN
4.625 x 6 inches (117 mm x 152 mm)
Medtronic Confidential
ImplantManual.xsl - IPGTemplate.fm
Template version: 05-31-2012
M946491A001 Rev X
Lead groove
Electrical contacts
Retainer clips
Door latch
Lead groove numbering
Stylet handle ab
Figure 8. External neurostimulator with an 8-contact lead with the stylet partially
withdrawn.
6. Check that the lead contacts align with the electrical contacts inside the lead groove
(Figure 9).
Lead grooveElectrical contacts
Stylet handle
Figure 9. Align the lead contacts with the electrical contacts in the lead groove.
Note:
The lead fits only one way into the external neurostimulator lead housing.
7.
Press the lead gently into the lead groove and the retainer clip (Figure 8b). If an
additional 8-contact lead is used, repeat step 1 and steps 3 to 7.
8.
Push door(s) closed until the latch snaps firmly into place.
2013-04 English 17
2013-04
Filename Date Time
UC200xxxxxx EN
4.625 x 6 inches (117 mm x 152 mm)
Medtronic Confidential
ImplantManual.xsl - IPGTemplate.fm
Template version: 05-31-2012
M946491A001 Rev X
Note: Do not force the doors closed; they should close easily. If they do not, disassemble
the components and repeat steps 2 to 8.
9. Confirm correct seating by viewing the leads through the closed doors.
10. Refer to the appropriate programming guide and lead manual to reestablish
communication with the external neurostimulator and the clinician programmer, verify
proper connection, and identify optimal stimulation parameters.
Preparing the wireless external neurostimulator for test stimulation
Check battery status and test lead insertion before attaching the external neurostimulator to
the patient. Refer to the appropriate programming guide for information on checking battery
status and testing lead insertion.
1. Place a gauze bandage on the skin where the lead and external neurostimulator will be
placed on the patient.
Note: If using the wireless external neurostimulator boot, refer to the boot's instructions
for use.
2. Tape the lead and external neurostimulator separately to the skin.
3. Tape the entire assembly to the skin, allowing for strain relief.
Notes:
▪
Ensure that the ENS button faces away from the patient.
▪
Avoid placing bandaging over the ENS button in a way that obstructs it from use.
4. Proceed with the trial evaluation.
Removing the wireless external neurostimulator after test
stimulation
1. Verify that the external neurostimulator is off.
2. Remove all tape from the lead and external neurostimulator.
3. Lift the lift tabs to open the lead doors.
4. Gently lift each lead from the electrical contacts in the lead groove.
5. Dispose of the external neurostimulator according to environmental regulations.
Device care and storage
▪
Keep new AAA alkaline batteries available. For optimal performance, use the same
batteries as those supplied by Medtronic.
▪
Use the clinician programmer or the controller to check the external neurostimulator
battery level daily. For instructions on checking the external neurostimulator batteries,
refer to the appropriate programming guide or the controller patient manual.
▪
Replace low or depleted batteries.
▪
Handle the device and system components with care. Do not drop, strike or step on the
device or system components.
▪
Do not dismantle or tamper with the device.
18 English 2013-04
2013-04
Filename Date Time
UC200xxxxxx EN
4.625 x 6 inches (117 mm x 152 mm)
Medtronic Confidential
ImplantManual.xsl - IPGTemplate.fm
Template version: 05-31-2012
M946491A001 Rev X
▪
Clean the outside of the device with a damp cloth when necessary. Mild household
cleaners will not damage the device or labels.
▪
Store the external neurostimulator at room temperature. Avoid extreme hot or cold
temperatures and direct sunlight.
▪
The device and system components are not waterproof. Do not allow moisture to get
inside the device or system components.
▪
Dispose of depleted batteries and devices according to local requirements.
Safety and technical checks
Periodic safety and technical checks or periodic maintenance of the external neurostimulator
are not required.
The external neurostimulator contains no serviceable components. If the external
neurostimulator requires repair or is nonfunctional, send it to the appropriate address.
USA
Medtronic, Inc.
Neurological Division
MS N600
PO Box 1250
Minneapolis, MN 55440-9087
Europe, Africa, Middle East, and Asia-Pacific countries
Medtronic EOC
Medical Equipment Service Europe
Earl Bakkenstraat 10
6422 PJ Heerlen
The Netherlands
Tel. 31-455664880
Fax 31-455668028
2013-04 English 19
2013-04
Filename Date Time
UC200xxxxxx EN
4.625 x 6 inches (117 mm x 152 mm)
Medtronic Confidential
ImplantManual.xsl - IPGTemplate.fm
Template version: 05-31-2012
M946491A001 Rev X
Contacts:
Asia:
Medtronic International Ltd.
Tel. 02919-1362
Fax 02907-3998
Medtronic Asia Ltd.
Tel. (02)-548-1148
Fax (02)-518-4786
Australia:
Medtronic Australasia Pty. Ltd.
97 Waterloo Road
North Ryde, NSW 2113
Australia
Tel. +61-2-9857-9000
Fax +61-2-9878-5100
Toll free 1-800-668-6700
Austria:
Medtronic Österreich GmbH
Tel. 01-240440
Fax 01-24044-100
Belgium:
Medtronic Belgium S.A.
Tel. 02-456-0900
Fax 02-460-2667
Canada:
Medtronic of Canada Ltd.
Tel. (1-905)-460-3800
Fax (1905)-826-6620
Czech Republic:
Medtronic Czechia s.r.o.
Tel. 2-965-795-80
Fax 2-965-795-89
Denmark:
Medtronic Danmark A/S
Tel. 45-32-48-18-00
Fax 45-32-48-18-01
Finland:
Medtronic Finland Oy/LTD
Tel. (09)-755-2500
Fax (09)-755-25018
France:
Medtronic France S.A.S.
Tel. 01-5538-1700
Fax 01-5538-1800
Germany:
Medtronic GmbH
Tel. (02159)-81490
Fax (02159)-8149100
Greece:
Medtronic Hellas S.A.
Tel. 210-67-79-099
Fax 210-67-79-399
Hungary:
Medtronic Hungária Kft.
Tel. 1-889-06-00
Fax 1-889-06-99
Ireland:
Medtronic Ireland Ltd.
Tel. (01)-890-6522
Fax (01)-890-7220
Italy:
Medtronic Italia SpA
Tel. 02-241371
Fax 02-241381
Tel. 06-328141
Fax 06-3215812
Japan:
Medtronic Japan
Tel. 03-6430-2016
Fax 03-6430-7110
Latin America:
Medtronic, Inc.
Tel. (1305)-500-9328
Fax (1786)-709-4244
Norway:
Medtronic Norge AS
Tel. 067-10-32-00
Fax 067-10-32-10
Poland:
Medtronic Poland Sp. z.o.o.
Tel. (022)-465-69-00
Fax (022)-465-69-17
Portugal:
Medtronic Portugal, Lda.
Tel. 21-724-5100
Fax 21-724-5199
Russia:
Medtronic Russia
Tel. (8495) 580-7377
Fax (8495) 580-7378
Slovakia
Medtronic Slovakia, o.z.
Tel. 0268 206 911
Fax 0268 206 999
Spain:
Medtronic Ibérica, S.A.
Tel. 91-625-0400
Fax 91-650-7410
Sweden:
Medtronic AB
Tel. 08-568-585-00
Fax 08-568-585-01
Filename Date Time
UC200xxxxxx EN
4.625 x 6 inches (117 mm x 152 mm)
Medtronic Confidential
ImplantManual.xsl - IPGTemplate.fm
Template version: 05-31-2012
2013-04
M946491A001 Rev X
Switzerland:
Medtronic (Schweiz) AG
Tel. 031-868-0100
Fax 031-868-0199
The Netherlands:
Medtronic B.V.
Tel. (045)-566-8000
Fax (045)-566-8668
U.K.:
Medtronic U.K. Ltd.
Tel. 01923-212213
Fax 01923-241004
USA:
Medtronic, Inc.
Tel. (1763)-505-5000
Fax (1763)-505-1000
Toll-free: (1-800)-328-0810
Filename Date Time
UC200xxxxxx EN
4.625 x 6 inches (117 mm x 152 mm)
Medtronic Confidential
ImplantManual.xsl - IPGTemplate.fm
Template version: 05-31-2012
M946491A001 Rev X
2013-04
Manufacturer
Medtronic, Inc.
710 Medtronic Parkway
Minneapolis, MN 55432-5604
USA
www.medtronic.com
Tel. 1-763-505-5000
Fax 1-763-505-1000
Authorized Representative
EC REP
in the European Community
Medtronic B.V.
Earl Bakkenstraat 10
6422 PJ Heerlen
The Netherlands
Tel. 31-45-566-8000
Fax 31-45-566-8668
Europe/Africa/Middle East
Headquarters
Medtronic International Trading Sàrl
Route du Molliau 31
Case Postale 84
CH-1131 Tolochenaz
Switzerland
www.medtronic.eu
Tel. 41-21-802-7000
Fax 41-21-802-7900
Asia-Pacific
Medtronic International Ltd.
Suite 1106-11, 11/F, Tower 1, The Gateway
25 Canton Road, Tsimshatsui
Kowloon
Hong Kong
Tel. 852-2891-4068
Fax 852-2591-0313
Contacts for specific countries are listed inside this cover.
*M946491A001*
© Medtronic, Inc. 2013
All Rights Reserved
M946491A001
Filename Date Time
UC200xxxxxx EN
4.625 x 6 inches (117 mm x 152 mm)
Medtronic Confidential
ImplantManual.xsl - IPGTemplate.fm
Template version: 05-31-2012
2013-04
M946491A001 Rev X
