MeiDong Acoustics E6 Bluetooth headphone User Manual E 2
Shenzhen MeiDong Acoustics Co., LTD Bluetooth headphone E 2
User Manual
User’s Guide
FCC ID: 2AB5T-E6
Please read the following safety warnings and precaution before using your device.
2
3
4
5
6
6
7
8
8
9
9
11. Product care
10
12. User Manual
Contents
-1-
1. Introduction
2. Battery Precaution
3. Getting Started
4. Installation Operation
5. Cable Connection
6. Bluetooth Connection

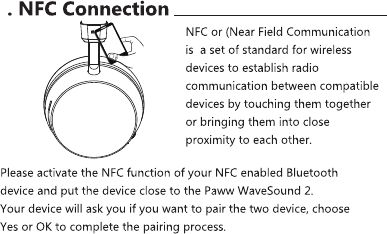

7. NFC Connection
8. Function Guidance
9. LED Display Status
10. Battery Charging
-2-
E6
Thank you for purchasing our Bluetooth headphone: E6. This device can be
easily connected with Smartphone, tablet PC and other devices via Bluetooth
during your traveling and daily usage. It will bring you an easy lifestyle.
Load impedance: 32Ω
S/N: ≥75dB
Frequency range: 20Hz-20KHz
Power supply: Lithium battery or USB cable
Audio source: iPhone, iPad, Smartphone, PC, Laptop etc.
Size: 156x73x97mm
1. Introduction
Specification
-3-
The device is powered by a built-in rechargeable lithium battery. If the
device is not used for a long period, the battery may be out of power. Please
charge the battery before using.
Rechargeable batteries are only to be charged under adult supervision.
Use only the supplied cable to charge the battery. Improper charging may
damage the battery and the device.
Do not attempt to open the rechargeable battery or battery pack. There
are no serviceable parts inside.
Should a battery leak, the device may become damaged. Clean the battery
compartment immediately, avoiding touching your skin.
Keep the battery out of reach from children. If swallowed, consult a
physician immediately.
Don't dispose battery in fire as it may explode. Battery may also explode if
damaged. Please dispose it according to local regulation, don't dispose it
as household waste.
2. Battery Precaution
General controls
MIC
LED
ON/OFF
Volume Up/Next
Volume Down/Previous
Micro USB
AUX IN
-4-
3. Getting Started
Step . 1
Step . 2
It can be adjusted To be fit by
twisting the left and right ear muffs.
put on this headphone
Adjustable angle
-5-
4. Installation Operation
-6-
Aux in
After completing the steps above, a message on your Smart device will
appear confirming that your device is now paired/ connected.
In case of unsuccessful pairing, turn off it and restart it, then do as steps
above. If you turn off the device, but the Bluetooth on your tablet remains
open, when you restart the device, the Bluetooth will be connected
automatically.
USB cable for power
2. Turn on your device, navigate to the Bluetooth function (refer to the device
owner’s manual to locate Bluetooth function).
3. Select “Set Up” Bluetooth or turn “ON” Bluetooth.
4. Select “Search” or “Discover” devices.
5. Select “Bluetooth”.
6. If requested, type the password or PIN 0000
7. Press the Enter key.
6. Bluetooth Connection
Pairing headphone to your Smart device (Smart device should be within 10
meters of your headphone).
1. Activate pairing mode on headphone by long pressing” ON/OFF” button.
The LED will flash in blue.

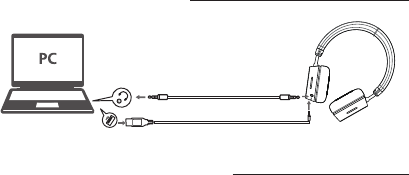

5. Cable Connection
-7-
7
Short press ‘’ “ two times, you could make the last record call.
Answer/End a call: Press “ “ to answer or end a call.
8. Function Guidance
Button Operation Function
Long Press Volume up
Short Press Next song
Long Press Volume down
Short Press Previous song
Short Press Play/Pause, Answer/End a call
Long Press Power on/off
Play music from your phone
LED Display
Flash quickly
Flash quickly
Stay solid
Stay solid
OFF
Light indication
Power on
Paired
Low power
Charging in process
Fully charged
Blue Light
Red Light
9. LED Display Status
-8-
-9-
11. Product care
Your device is designed to be light, compact and durable. As an electronic
device it must be treated carefully. Putting unnecessary pressure on it or
striking the device against other objects may cause damage. To avoid damage
to your device, please
Do not drop, crush, bend or apply excessive force to the device.
Do not expose your device to moisture, extreme or prolonged heat, cold,
humidity, or other adverse conditions. Avoid storing it in damp, humid or
wet places, as it is not waterproof.
Clean the unit with a soft cloth or damp chamois leather. Never use
solvents.
This device contains magnets. Keep magnetic field sensitive products such
as credit cards and video screen away from this device to avoid damage or
malfunction.
10. Battery Charging
The device has a built-in rechargeable battery. This can be charged by USB
cable connected with your computer. When it’s charging, the light will turn
After charging, the device can be used without the power connection. Charge
the device again when you hear the headphone make successive beep sound.
The unit can only be opened by qualified personnel.
to red.
-10-
12. User Manual
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment. This
device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
