MeiDong Acoustics HX-P740 Bluetooth Speaker User Manual

Shenzhen MeiDong Acoustics Co., LTD Bluetooth Speaker

User Manual

USER GUIDE AND WARRANTY INFORMATION
HX- P740
FCC ID:2AB5T-HX-P740
VOICE PROMPTS
The voice prompts will walk you through your speaker’s
status, telling you when it is: Powering on, ready to pair,
paired, at maximum volume, incoming call, ignoring a call,
ending a call, charging and powering off.
If you’d rather hear tones,
simply use the included
Language Selector Pin to
toggle to the tone option.
Please visit
www.jamaudio.com
to explore translations
in your language.
JAM STORM LANGUAGE SELECTOR PIN
Below you will find a Language Selector Pin (LSP), which you can
use to toggle through featured languages on your Jam Storm.
1. Once the speaker is on, turn it over.
2. Place the LSP in the language pin hole and toggle through
until you reach your desired language or tone.
Note: The languages are loaded in the following order: English,
Spanish, French, Portuguese, Tone, and back to English.
HEY. HAVE WE SEEN YOU HERE BEFORE?
Register your speaker at www.jamaudio.com.
Information about where you bought it and how you’re using
it is like gold for the people who make these speakers. Do
them a solid, will ya?
Por manual de instrucciones e información de garantía
en español visítenos en www.jamaudio.com
There are lots of cool Jam speakers.
Check them all out at www.jamaudio.com
PACKAGE CONTENTS
Speaker
User
Manual Adaptor
Cord
Adaptor
Protective
Cap
Language
Selector Pin

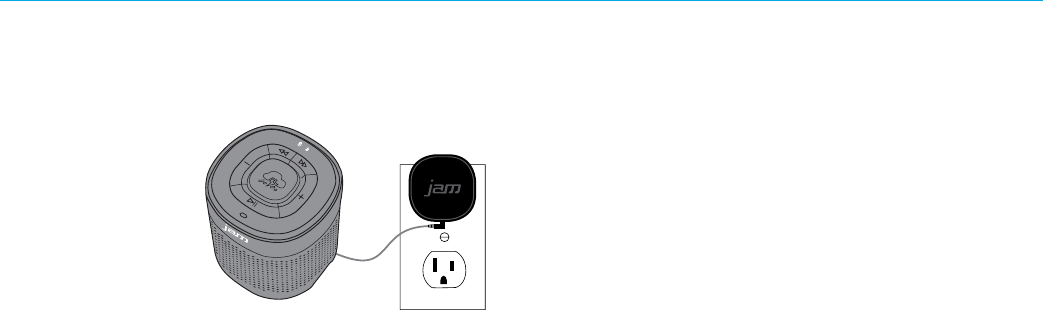

JUST CHARGE IT
Charging the speaker is so easy
you’ve probably figured it out by now,
but just in case, use the wall outlet.
1. The cord that came with the speaker— just plug it into the
adaptor.
Plug it in and your speaker will be ready for an epic night in no
time. You should go get ready too! It needs about 5 hours for
12 hours of party time.
CONTROL YOUR DESTINY…OR AT LEAST
YOUR SPEAKER
1. This is the power button, press and hold for 5
seconds to power on.
2. It speaks too. Toggle between languages here.
3. The power cord goes here.
4. Push it to play, push it again to pause.
5. Turn the music up or down (Wait, why do you
need to turn it down?)
6. Storm button.
7. Skip back a track or jam on to the next song.
8. Check out how much juice is in the battery.
9. This light lets you know when Bluetooth is
paired with your speaker.
10. Language Selector Pin.
11. Protective cap.
FEATURES:
1
2 3
4
5
5
6
78
9
10
11
ALLOW US TO SHED SOME LIGHT
Flashing WHITE
What It Looks Like
CHARGE
What It Means
Low Battery
WHITE (when plugged in) Charging
OFF (when plugged in) Ready to Party
Quickly Flashing WHITE Pairing Mode
Slowly Flashing WHITE Connected
BLUETOOTH® CONNECTION: IT’S A SETUP
Like any amazing couple, this one starts with a connection—
one between your device and the speaker’s Bluetooth.
1. We know you’re probably going to think, “derp” with this
one, but we have to say it: Make sure the smartphone,
tablet or computer you want to hook up to the speaker
has Bluetooth. (There. We got that out of the way.)
2. Turn on the speaker and look for the little blinking light.
3. Do whatever your device needs you to do on its end.
(We don’t know what you’re using. We’re not spies.)
4. Look for Jam Storm in your device’s Bluetooth list or
click YES—whatever pops up on your device—and BAM!
you’re connected.
5. Now hit PLAY on your speaker and crank it up—or down
if you’re lame.
You’re probably only going to have to do this once, unless your
device goes through a major I-just-dropped-it-in-the-pool kind of
reboot. The device and Bluetooth will find each other every time
just as long as the speaker is set to Bluetooth and your device’s
Bluetooth is, you know—on.
If you’re connecting to a computer, you may have some extra
steps on that end. You’ll have to get that information from the
computer company.
Depending on your device you may be prompted to enter a
pairing code. If prompted enter “0000” as the code.
Press and hold the PLAY/PAUSE button for 5 seconds to activate
pairing mode.
Note: If you turn on your Storm but haven’t started the party, it
will automatically power off after 2 minutes of unpaired inactivity.
BRING THE STORM, BRING THE THUNDER
Have a playlist that needs a little—scratch that—a lot of extra
bass? Hit the Storm button for a sound so deep you feel the
boom in your body.

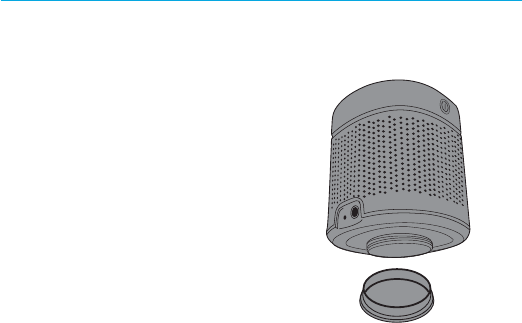

Note: To keep Storm base tacky and
dirt-free, gently wipe with a damp towel.
When not in use, place the included
protective cap back on the Storm base.
HELLO? SPEAKERPHONE? YES!
When friends call asking to join the party—and you know they
will—answer the phone without disconnecting from your JAM
Storm. Yes, that’s right. Your speaker is a speakerphone too.
How amazing is that?
1. Make sure your phone and speaker are connected through
Bluetooth.
2. Answering and ending a call works the same way: simply click
the PLAY/PAUSE button on your Storm.
3. If you’d rather not talk, hold down the PLAY/PAUSE button on
your Storm for three seconds to ignore the call.
THE COOLEST PART: The Storm knows when a call is coming
in and pauses the music before ringing. When you hang up, the
music starts where it left off—and so does the party. If it’s you
making the call, just start dialing from your phone, and the Storm
automatically does its hands-free thing. Isn’t it refreshing to know
your speaker totally gets you?
THE VOICE FROM WITHIN
When your Jam Storm isn’t rocking out, it can tell you all sorts
of things it’s doing: when it’s powering on, ready to pair, paired,
at maximum volume, incoming call, ignoring a call, ending a call,
charging and powering off.
Just like the global gadget it is, your speaker toggles between
several languages or no language at all. Your speaker can parlay
with you in English, Spanish, French, or Portugese. But, making
the change is as simple as poking the included Language
Selector Pin into the small hole on the bottom. Toggle through
until the speaker starts speaking your language.
COMING CLEAN
A soft, dry towel is all you need to clean off your speaker. Using
water, harsh cleaners or anything else only starts messing with
the mechanics inside. So, yeah, don’t do it.
STUFF THE GOVERNMENT MAKES US SAY
FCC DISCLAIMER:
Note: This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that
may cause undesired operation.
Note:
ONE YEAR LIMITED WARRANTY
For detailed Warranty Instructions and Information visit:
http://www.jamaudio.com/customer-support/warranty-1yr
To obtain warranty service on your Jam product, contact a
Consumer Relations Representative at 1-888-802-0040 or email
cservice@jamaudio.com for assistance. Please have the model
number of the product available. Representatives are available
8:30am - 7:00pm EST Monday-Friday.
Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user’s authority to
operate the equipment.
STUFF OUR LAWYERS MAKE US SAY
IMPORTANT SAFEGUARDS:
When using an electrical product, basic precautions should
always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING
• WARNING: Do not place speakers too close to ears. May
cause damage to ear drums, especially in young children.
• Use this product only for its intended use as described in this
manual. Do not use attachments not recommended by HMDX.
• HMDX is not liable for any damage caused to Smartphones,
iPod/MP3 player or any other device.
• Do not place or store this product where it can fall or be
dropped into a tub or sink.
• Do not place or drop into water or any other liquid.
• Not for use by children. THIS IS NOT A TOY.
• Never operate this product if it has a damaged cord, plug,
cable or housing.
• Keep away from heated surfaces.
• Only set on dry surfaces. Do not place on surface wet from
water or cleaning solvents.
A MESSAGE FROM THE ENVIRONMENT
WARNING:
This product has an internal, non-replaceable lithium battery.
Please dispose in accordance with your local state, province and
country guidelines.
This product contains small parts that may present a choking
hazard for young children.
CAUTION:
All servicing of this product must be performed by authorized
Jam Audio Service Personnel only
Por manual de instrucciones e Información de garantía en
español visítenos en www.jamaudio.com
© 2014 HMDX. All Rights Reserved. IB-HXP740
Where There’s A Jam, There’s A Party!™
