CL
Operator’s Manual
CL 500
CL 55 AMG
CL 600
Our company and staff congratulate you on the purchase of your new Mercedes-Benz.
Your selection of our product is a demonstration of your trust in our company name. Further, it exemplifies your desire
to own an automobile that will be as easy as possible to operate and provide years of service.
Your Mercedes-Benz represents the efforts of many skilled engineers and craftsmen. To ensure your pleasure of
ownership, and for your safety and that of your passengers, we ask you to make a small investment of your time:
•Please read this manual carefully before putting it aside. Then return it to your vehicle where it will be handy for
your reference.
•Please abide by the recommendations contained in this manual. They are designed to acquaint you with the
operation of your Mercedes-Benz.
•Please abide by the warnings and cautions contained in this manual. They are designed to help improve the safety
of the vehicle operator and occupants.
We extend our best wishes for many miles of safe, pleasurable driving.
DaimlerChrysler AG
1Contents
Introduction
Product information .......................... 7
Operator’s manual ............................. 8
Where to find it ................................ 13
Reporting Safety Defects ................ 15

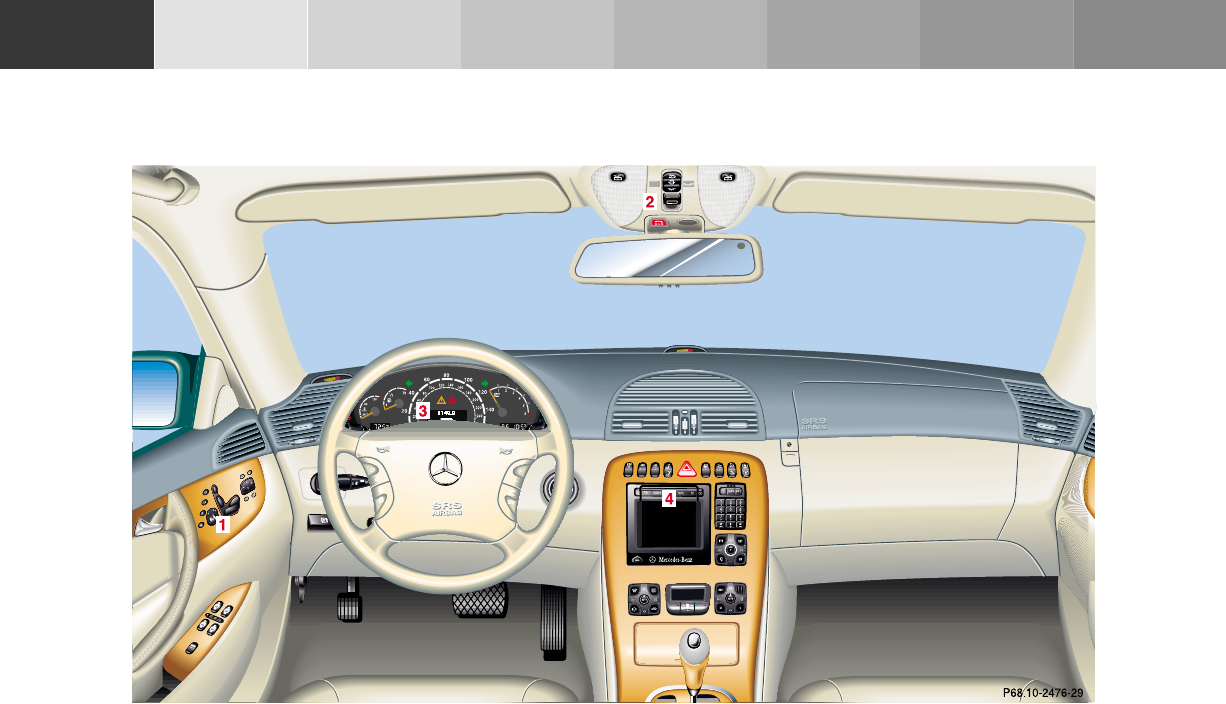

Instruments and controls
Instruments and controls ............... 18
Door control panel .......................20
Overhead control panel ...............21
Dashboard .....................................22

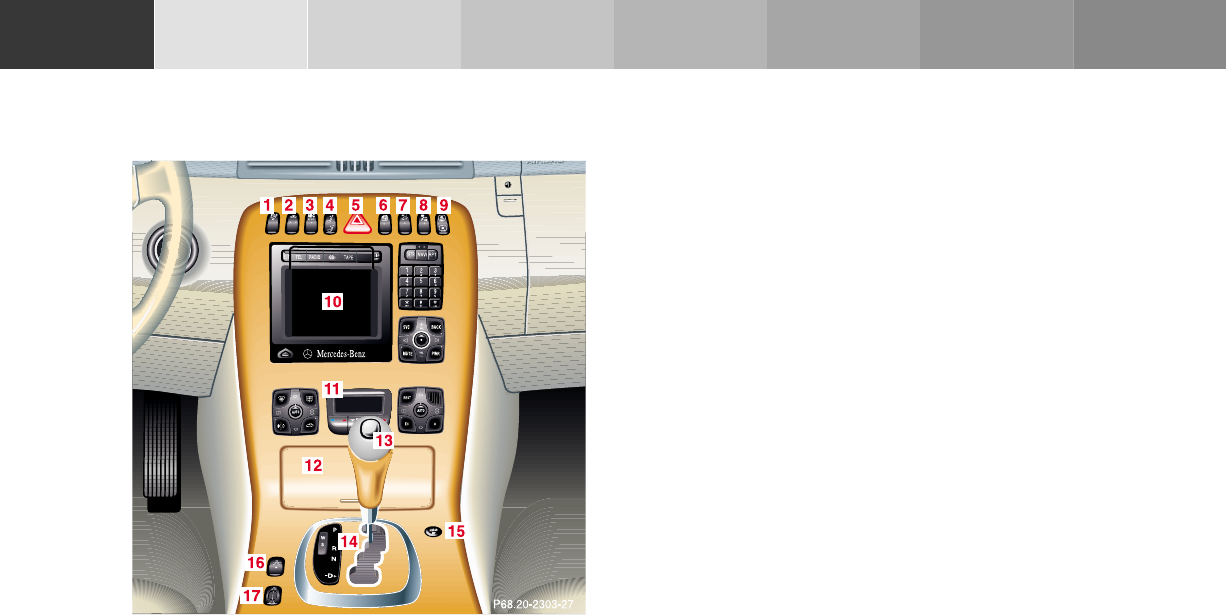

Center console ..............................24
Operation

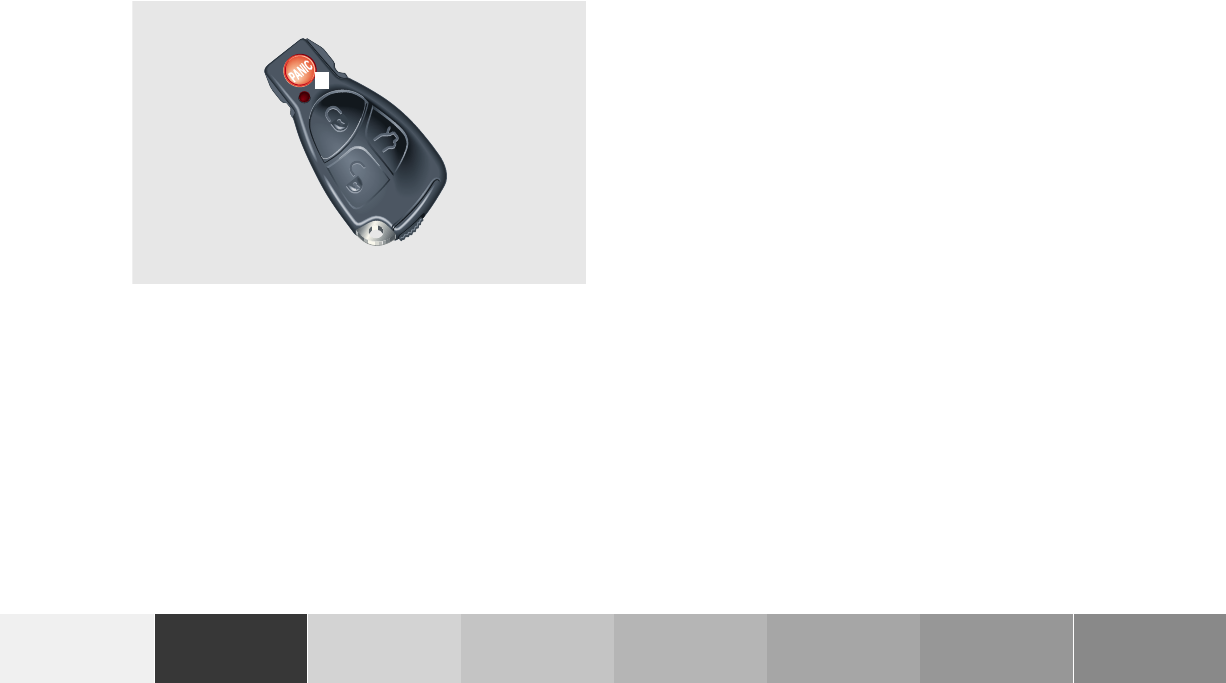

Vehicle keys ......................................28
Start lock-out ....................................32
General notes on the
central locking system ...............33
Central locking system ................... 34
Radio frequency and
infrared remote control .............. 34

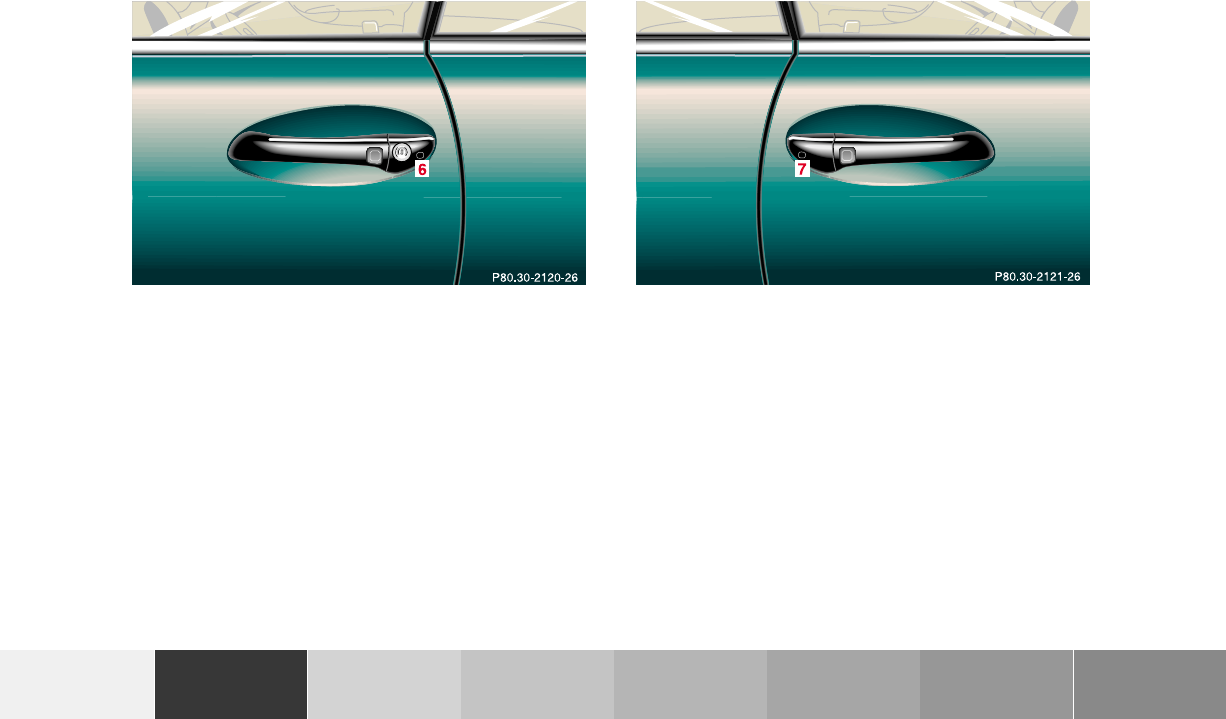

KEYLESS-GO ................................ 38
Opening and closing
windows and
sliding/pop-up roof
from outside ................................. 45
Panic button ................................. 47
Mechanical keys .......................... 47
Doors ................................................. 48
Power closing assist for
doors and trunk lid .................... 50
Central locking switch .................... 50
Automatic central locking .............. 52
Emergency unlocking
in case of accident ...................... 52
Trunk ................................................. 53

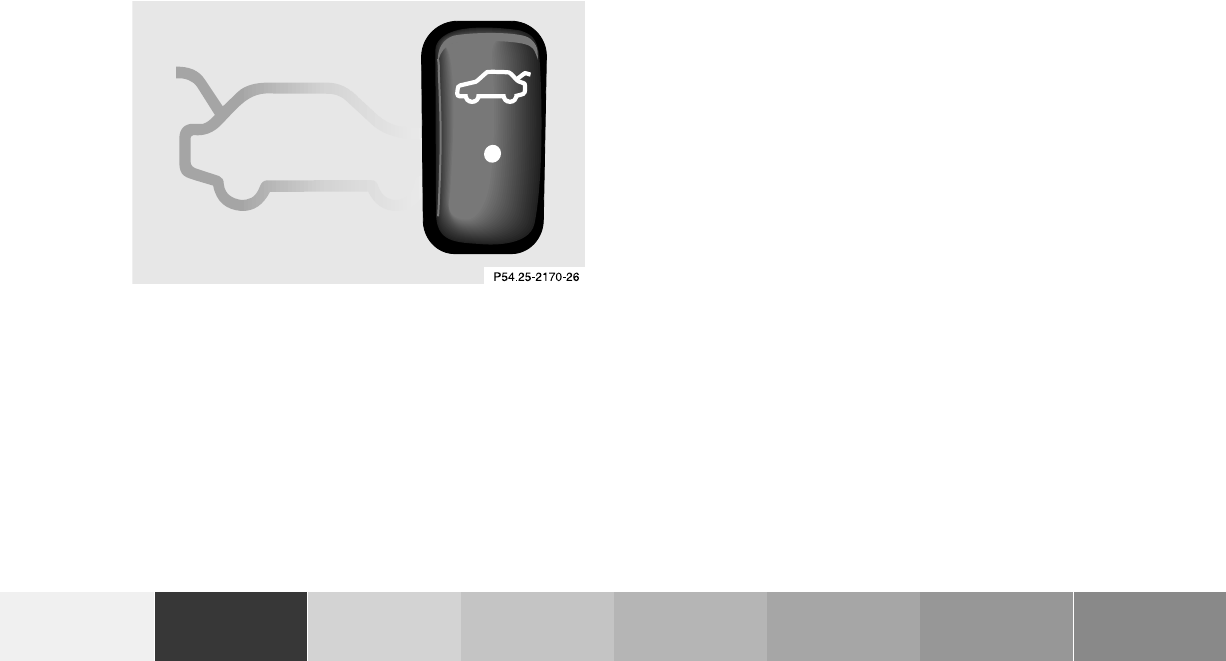

Trunk lid release switch ................ 57
Trunk lid release/close switch ...... 58
Trunk lid emergency release .........61
Antitheft alarm system ................... 62
Tow-away alarm ............................... 64
Easy-entry/exit feature .................. 66
Front seat adjustment .....................67
Removal and installation
of front seat head restraints ...... 71
Backrest .............................................72
Lumbar support ............................... 74
Multicontour backrest ..................... 74

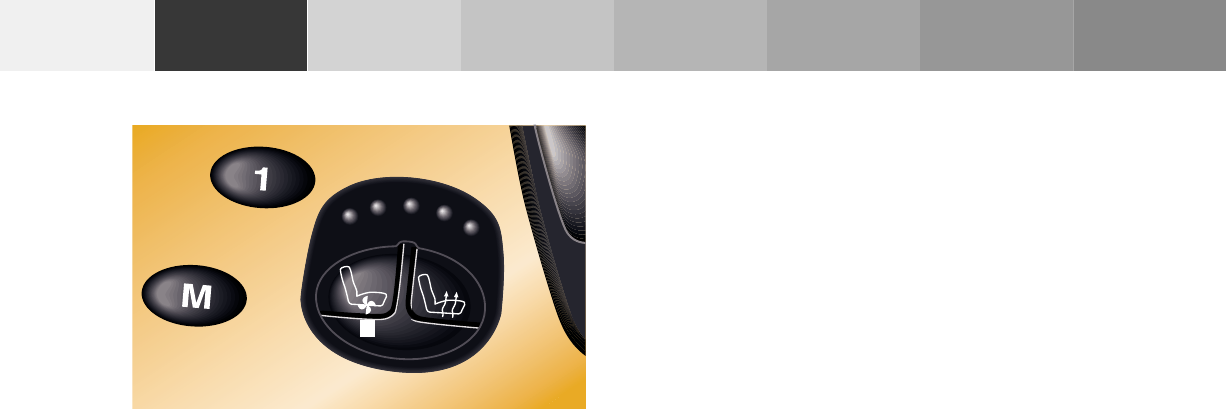

Seat heater ........................................ 76
Seat ventilation system ...................79

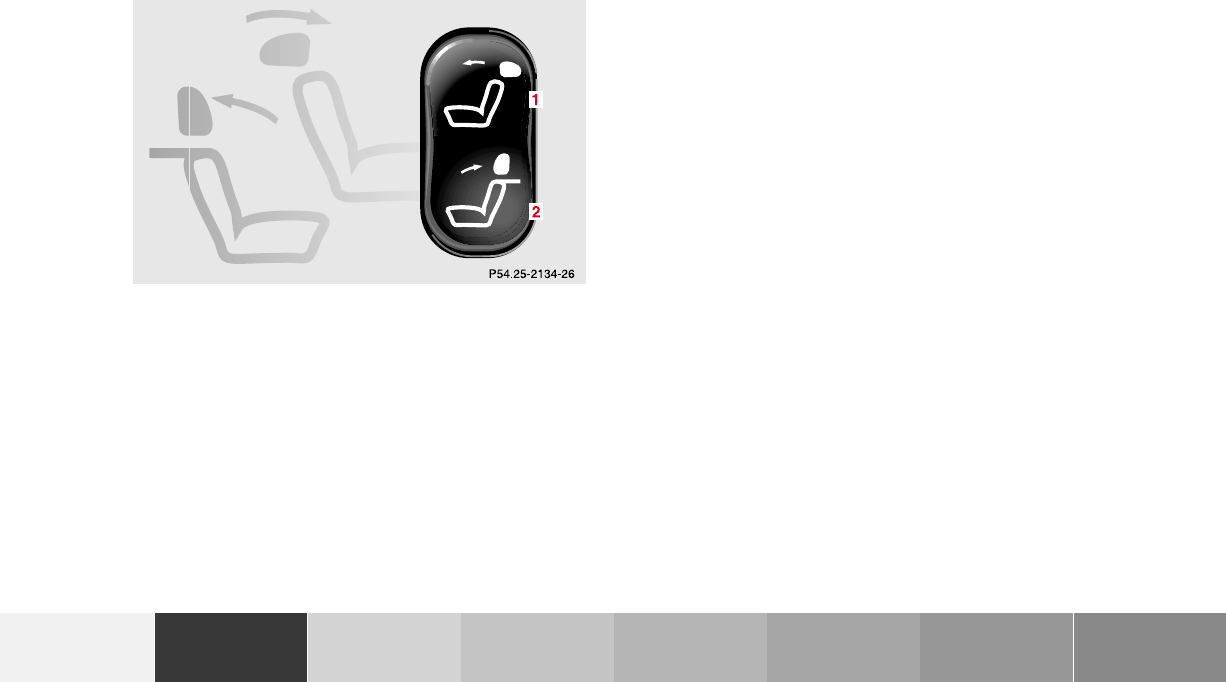

Power head restraints, rear ............ 81
Seat belts and
integrated restraint system .......82
Seat belts ...........................................82
Seat belt nonusage
warning system ............................83
BabySmartTM airbag
deactivation system ....................88
Self-test BabySmartTM
without special child
seat installed .................................89
Supplemental restraint
system (SRS) ................................90
Emergency tensioning
retractor (ETR) ............................. 91
Airbags ..............................................92
2Contents
Safety guidelines for the
seat belt, emergency
tensioning retractor
and airbag ..................................100
Infant and child
restraint systems .......................102
Steering wheel adjustment ..........105
Rear view mirrors ..........................106
Rear view mirror,
automatic antiglare ................... 106
Memory function ............................111

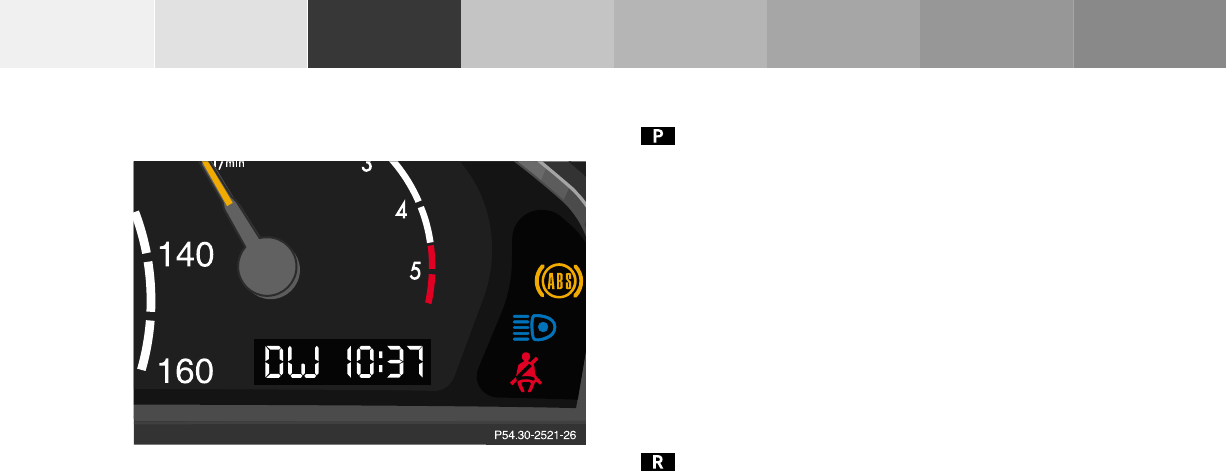

Instrument cluster ..........................114
Multifunction steering wheel,
multifunction display ...............120

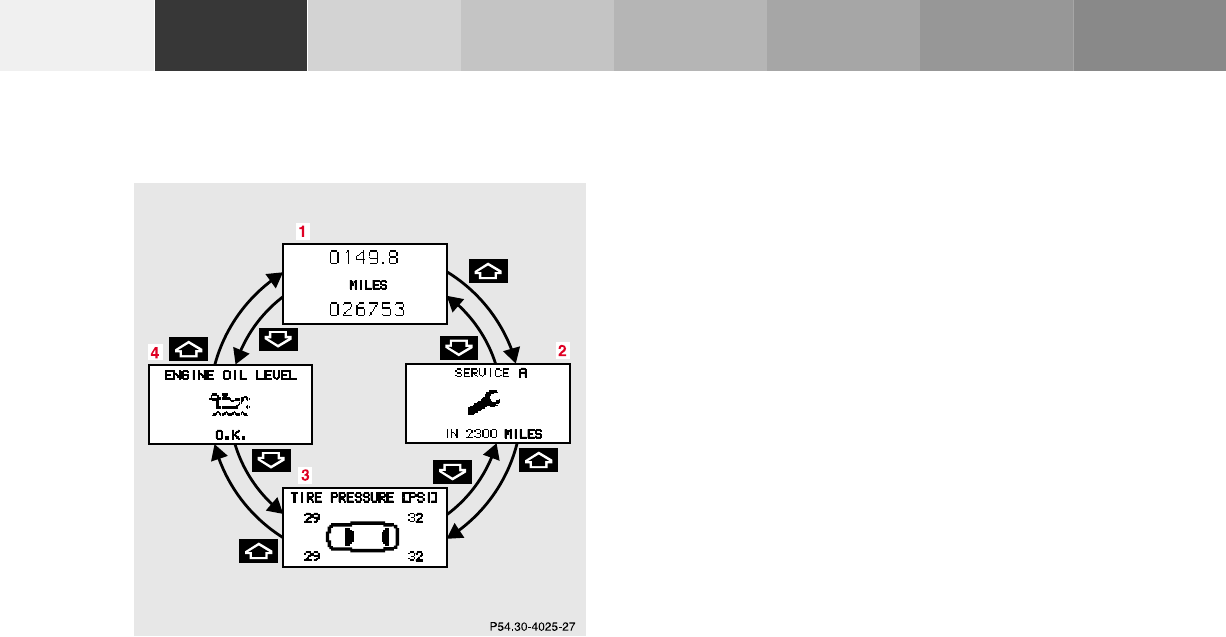

Trip and main odometer,
FSS, tire inflation pressure
monitor and
engine oil level indicator .........124
Audio systems ................................125

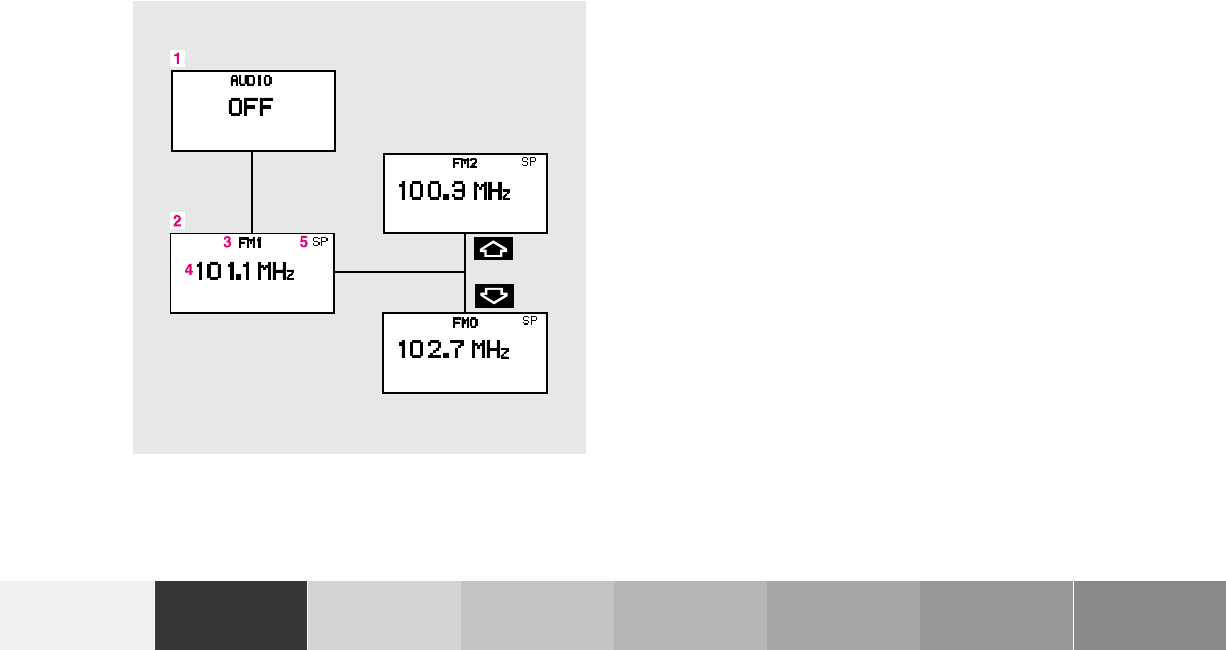

Radio ............................................125
CD player .....................................126

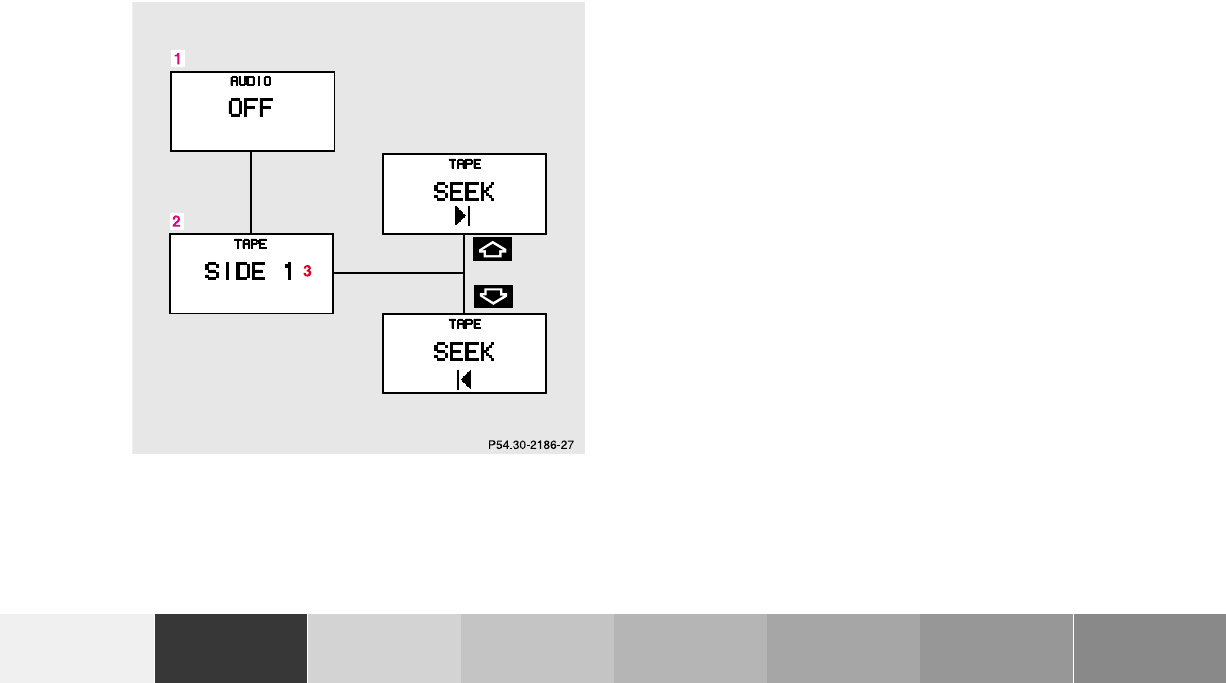

Cassette player ...........................127

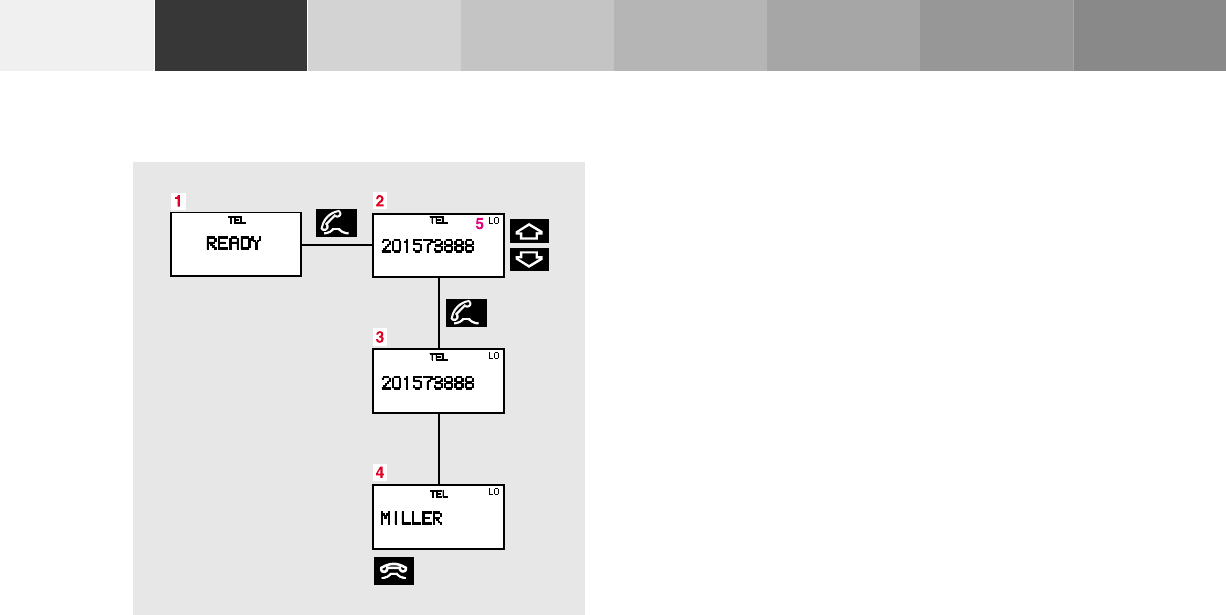

Telephone ........................................128
Telephone book .......................... 128
Redialing .....................................130

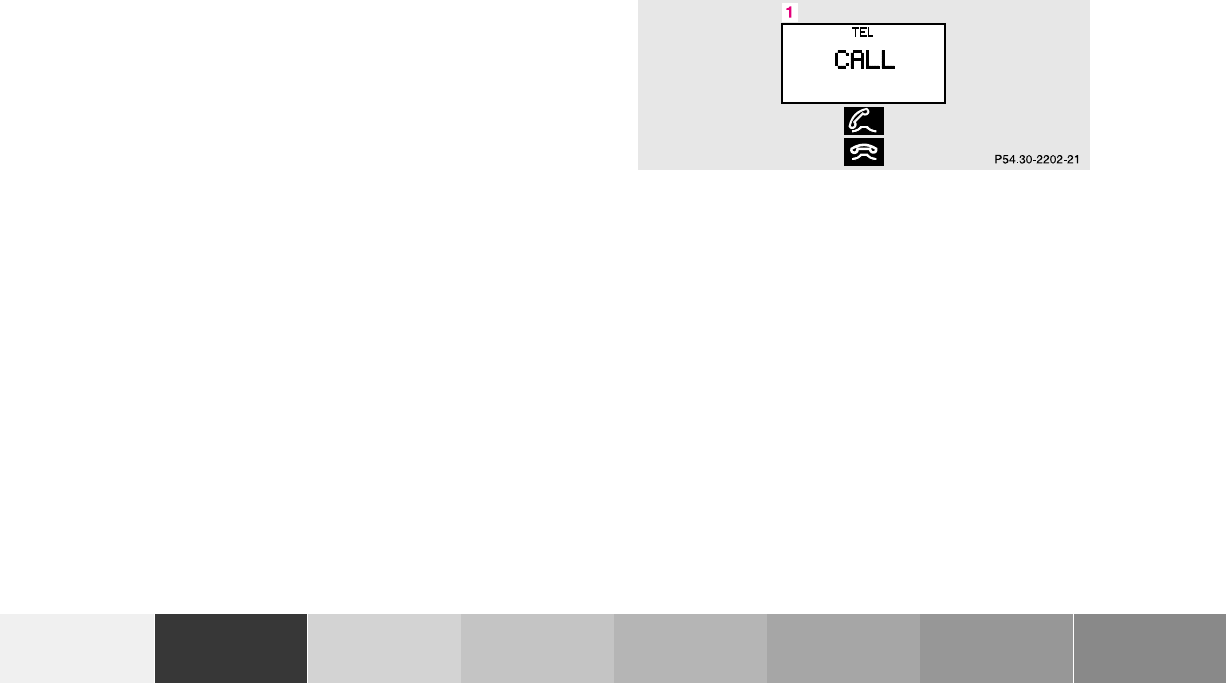

Incoming call ...............................131

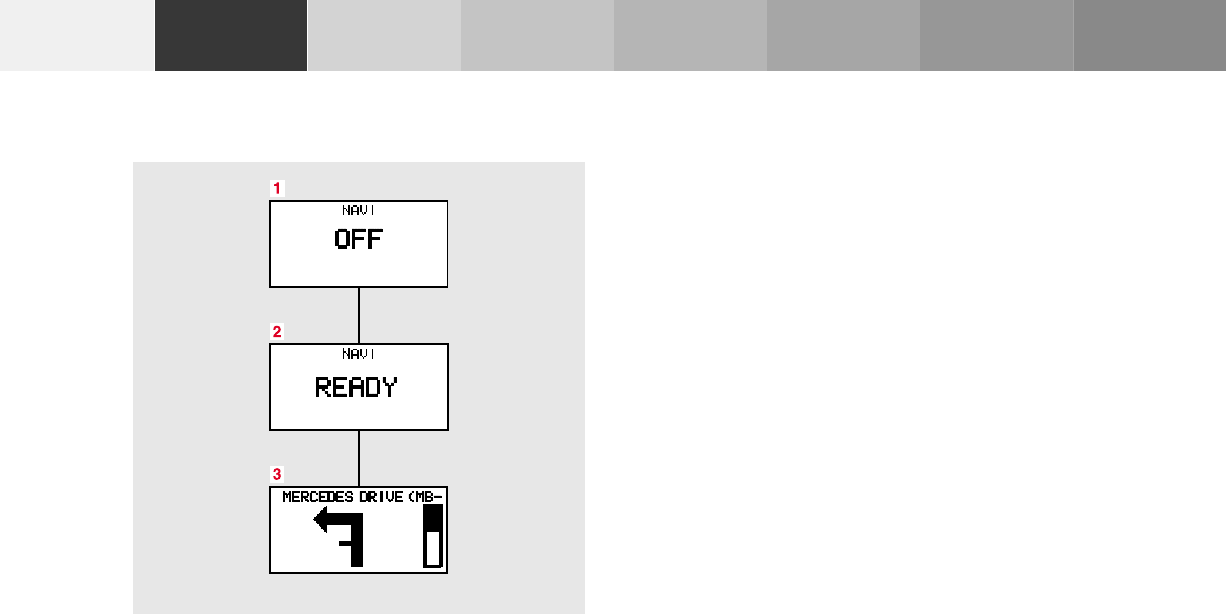

Navigation system ..........................132
Distronic (DTR) ...............................133

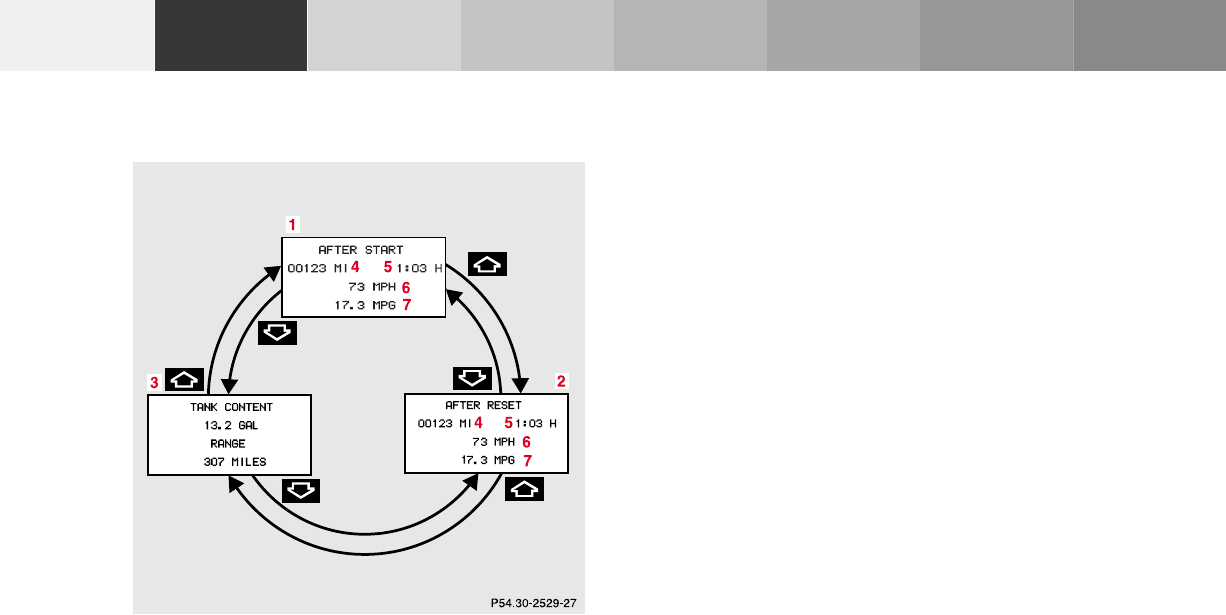

Trip computer .................................134

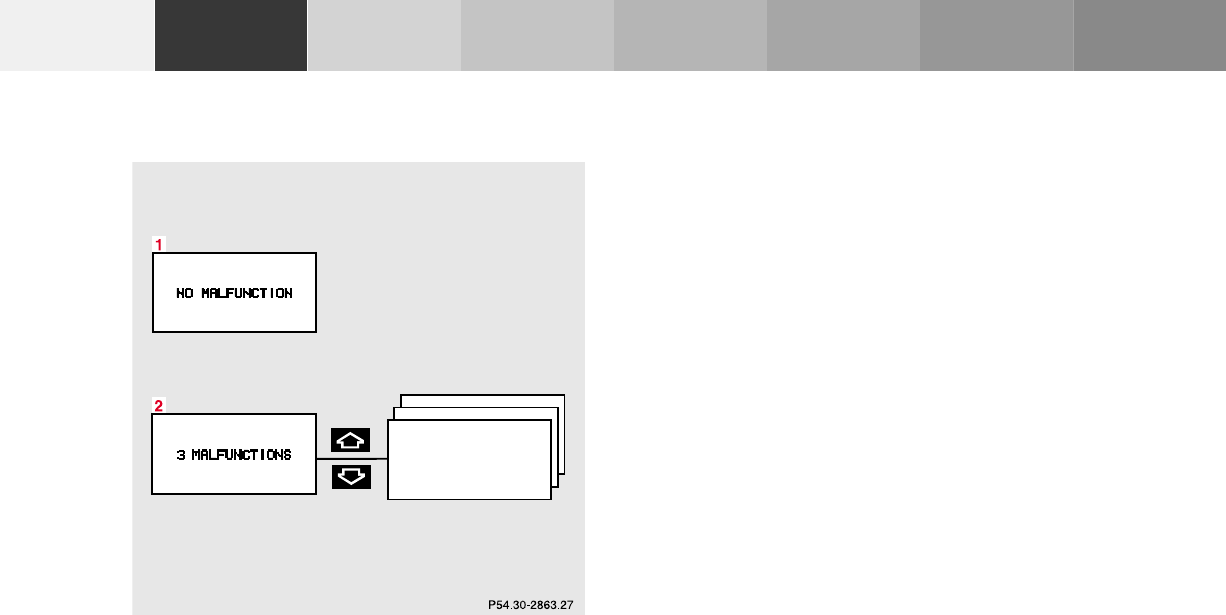

Malfunction/warning
message memory ......................136

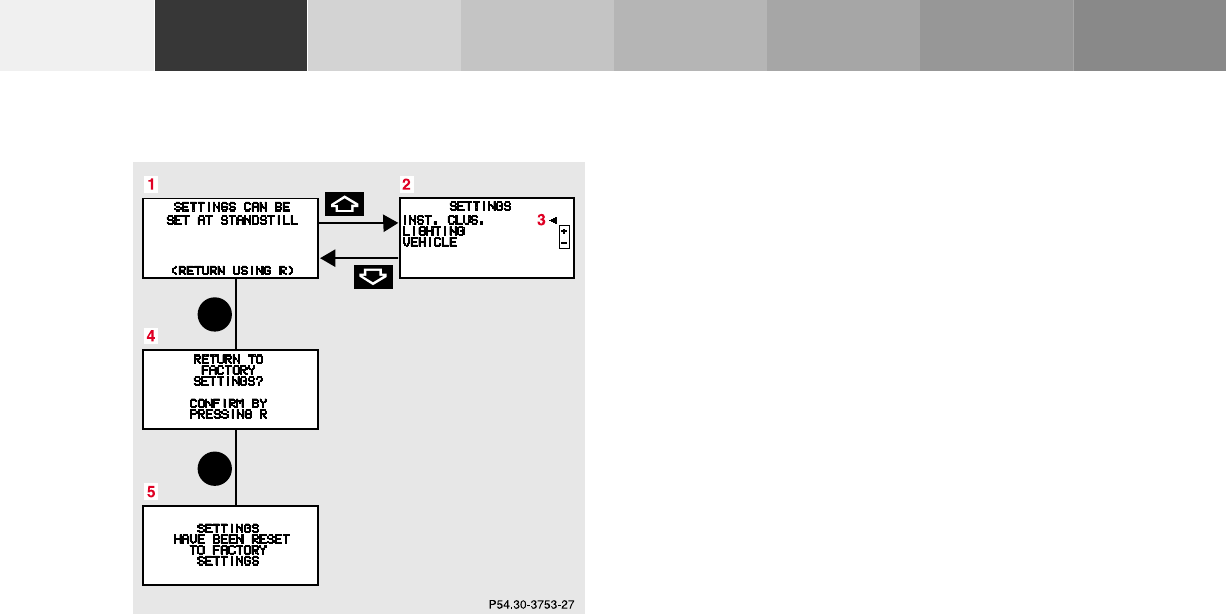

Individual settings .........................138
Setting the audio volume ............. 146

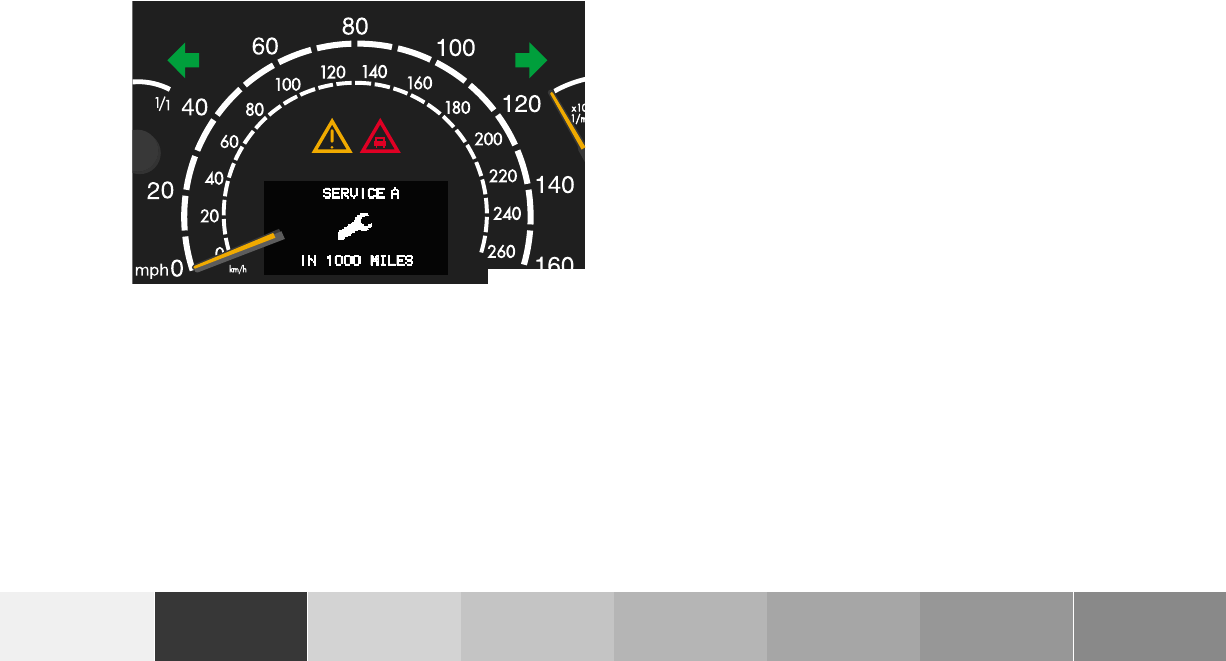

Flexible service system
(FSS) ........................................... 147

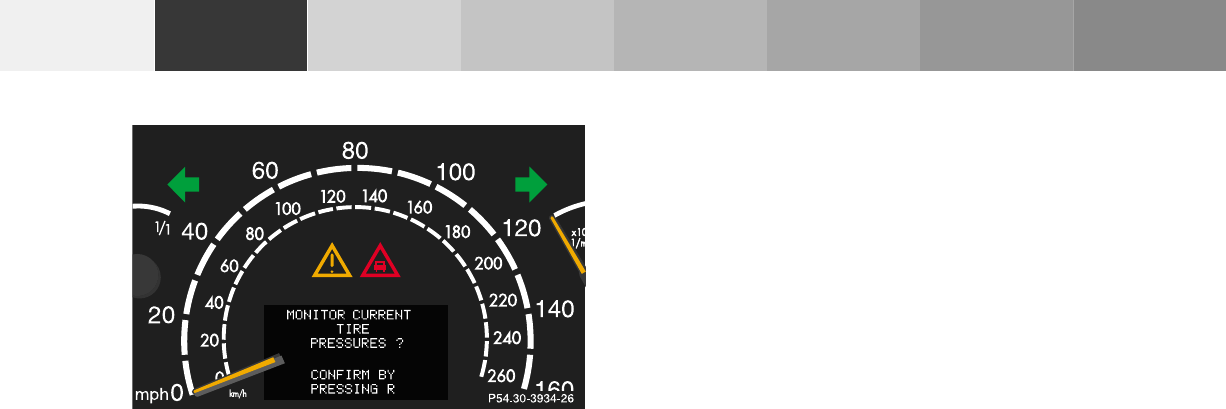

Tire inflation
pressure monitor .......................150
Engine oil level indicator ..............154
Engine oil consumption ................155
Exterior lamp switch ......................156
Headlamp mode ..............................157
Night security illumination ..........158
Headlamp cleaning system ...........159
Combination switch .......................160

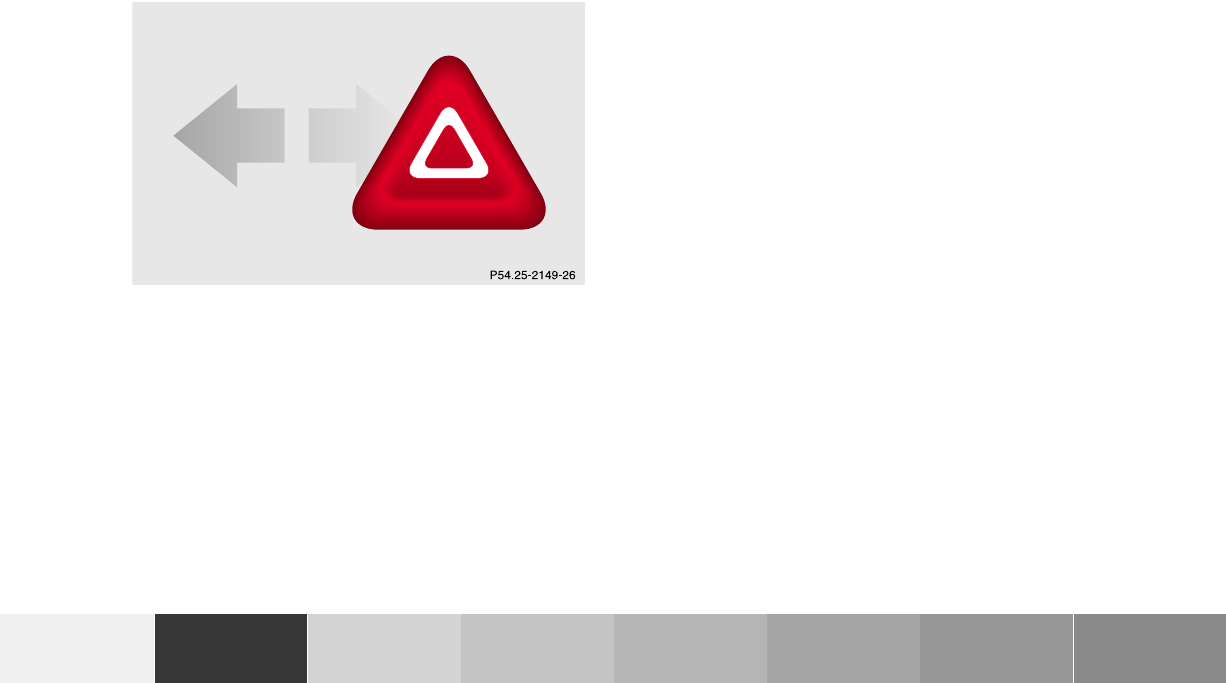

Hazard warning flasher
switch ..........................................163
Automatic climate control .............164

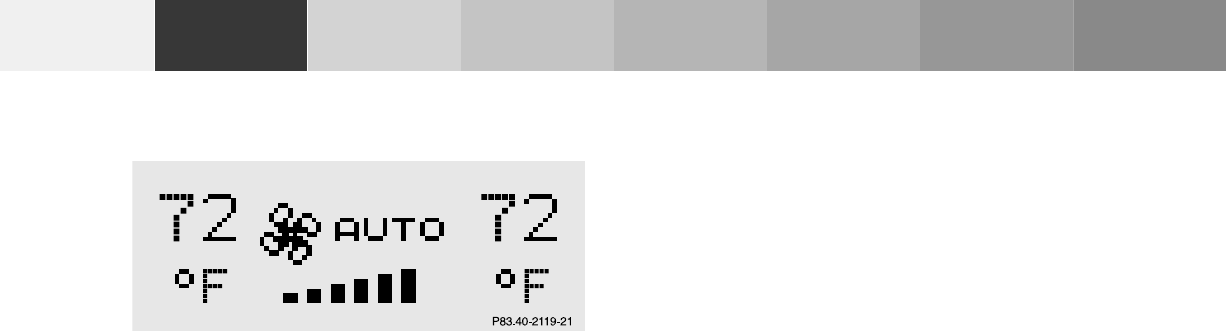

Display and controls ..................166
Dust filter .....................................167
Basic setting ...............................168
Special settings ..........................169
Air recirculation ......................... 171
Activated charcoal filter ............172
Economy mode ........................... 173

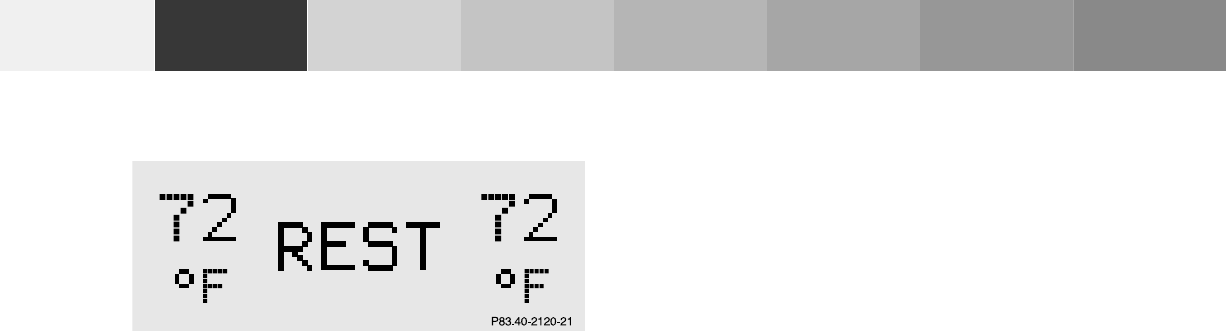

Residual engine heat
utilization .................................... 174
Switching the automatic
climate control on and off .........175
Front center console storage
compartment ventilation .......... 175
Rear window defroster .................. 176
Rear passenger compartment
adjustable air outlets ................177
Power windows ...............................178

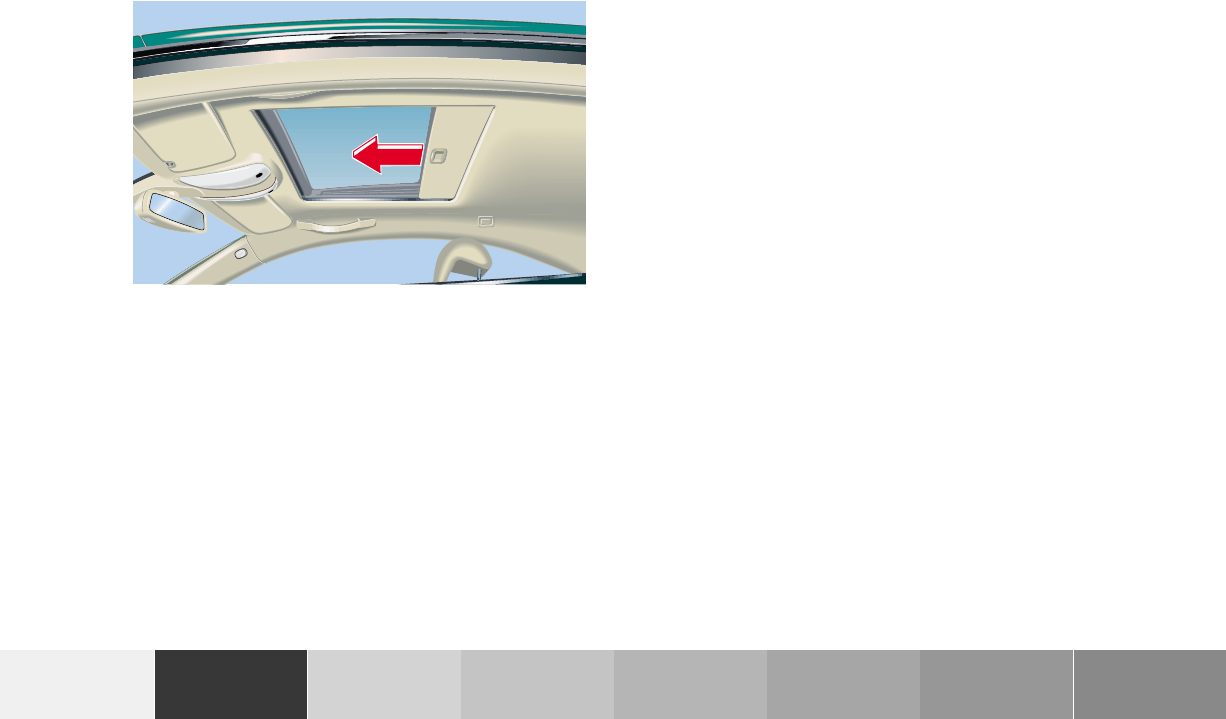

Sliding/pop-up roof ....................... 181
Interior lighting ............................. 184

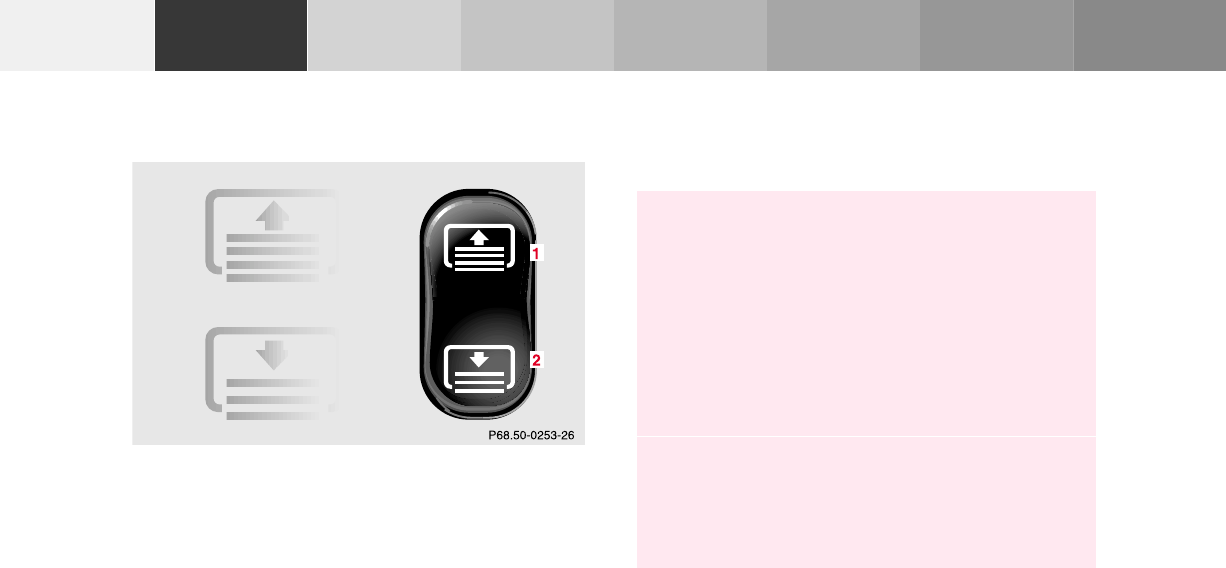

Rear window sunshade ................. 186
Sun visors .......................................187
Vanity mirrors ................................ 187
Interior ............................................188
Storage compartments
and armrests ..............................188

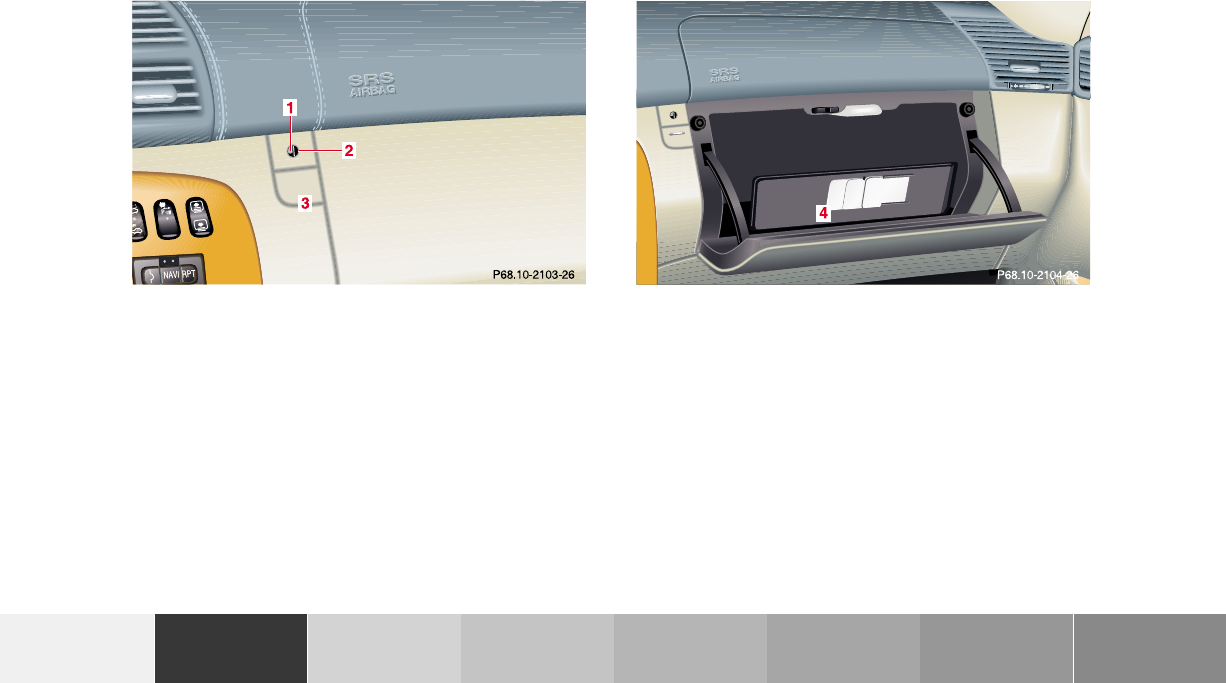

Glove box .....................................189
3Contents
Coat hooks ...................................... 192

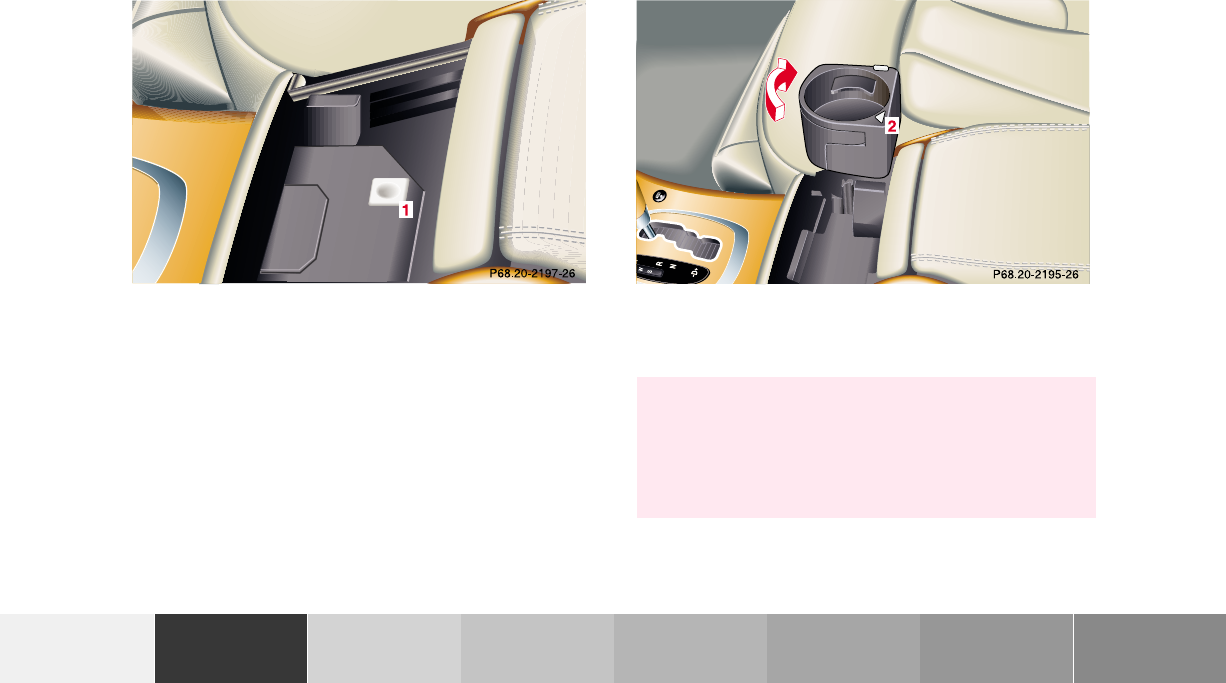

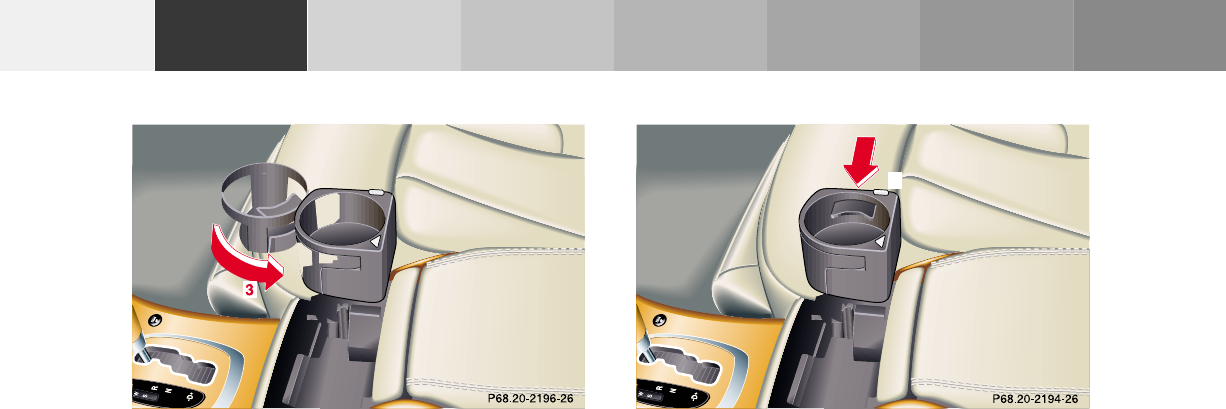

Cup holder ...................................... 193

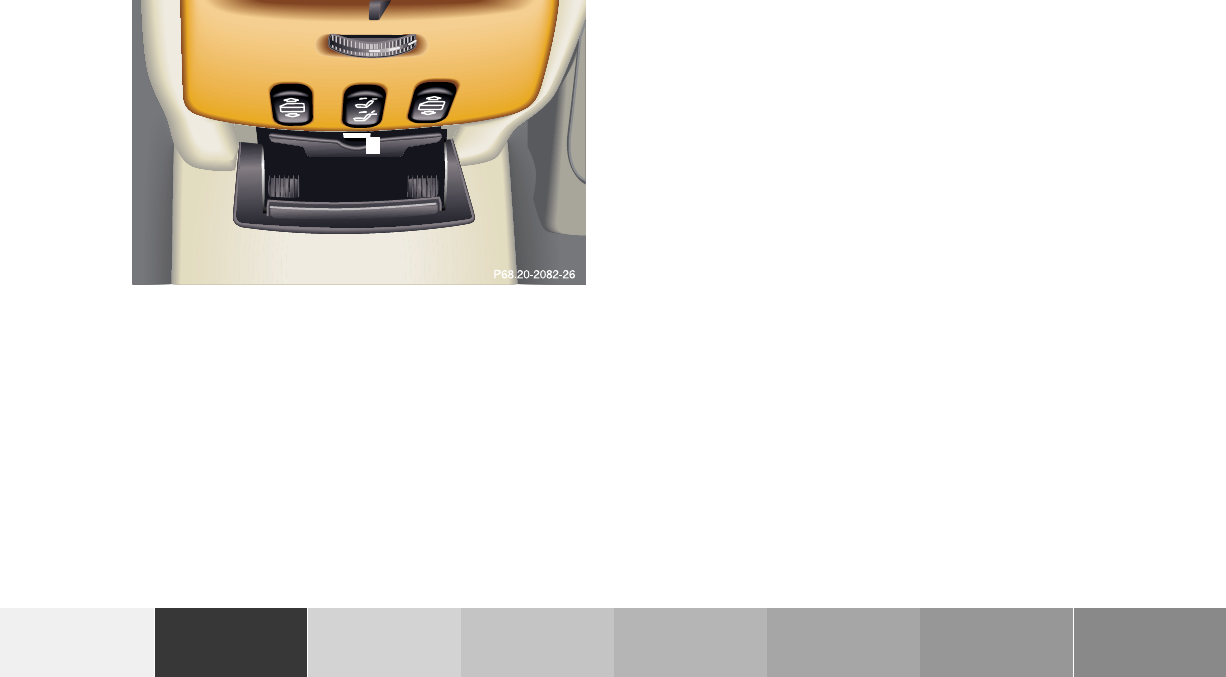

Ashtrays ..........................................196
Lighter ............................................. 198

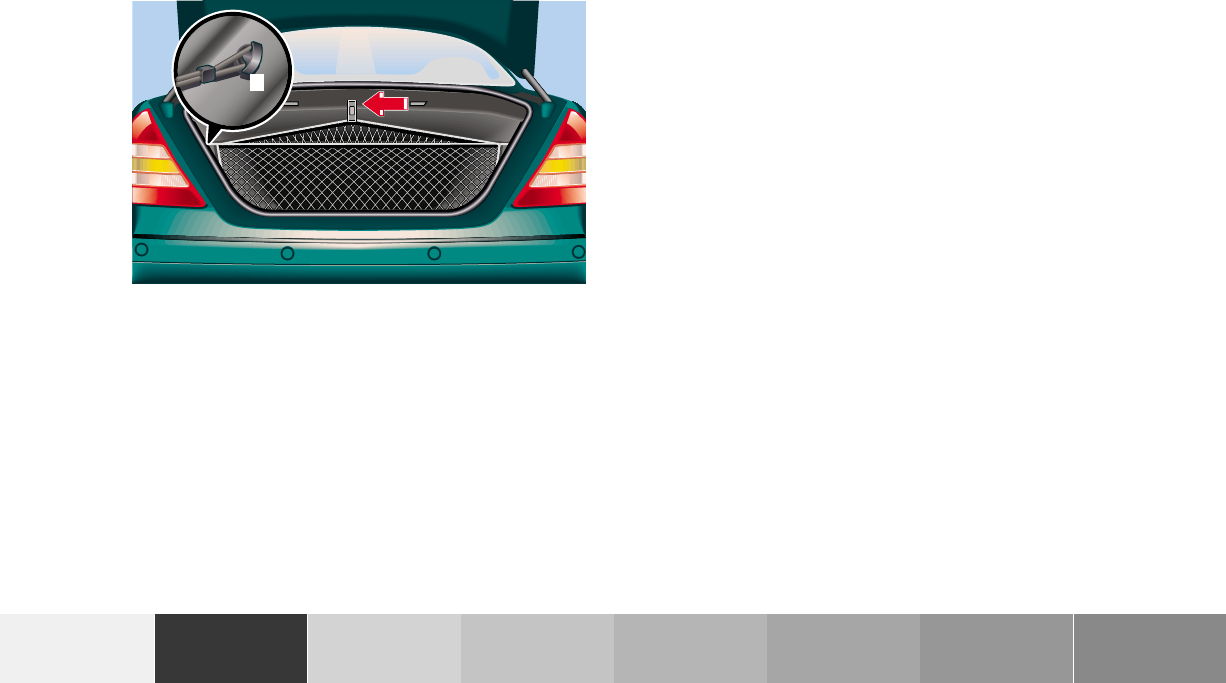

Parcel net in trunk ........................ 199
Cargo tie-down hooks ....................200
Parcel net in front
passenger footwell ....................200
Telephone, general ........................201
Garage door opener .......................202
Infrared reflecting windshield ....206
Driving
Control and operation of radio
transmitters ...............................208
The first 1 000 miles
(1 500 km) .................................209
Maintenance ...................................209
Tele Aid ........................................... 210
Catalytic converter ........................220
Emission control ............................221
Starter switch .................................222
Starter switch – KEYLESS-GO ......224
Starting and turning off
the engine ..................................227

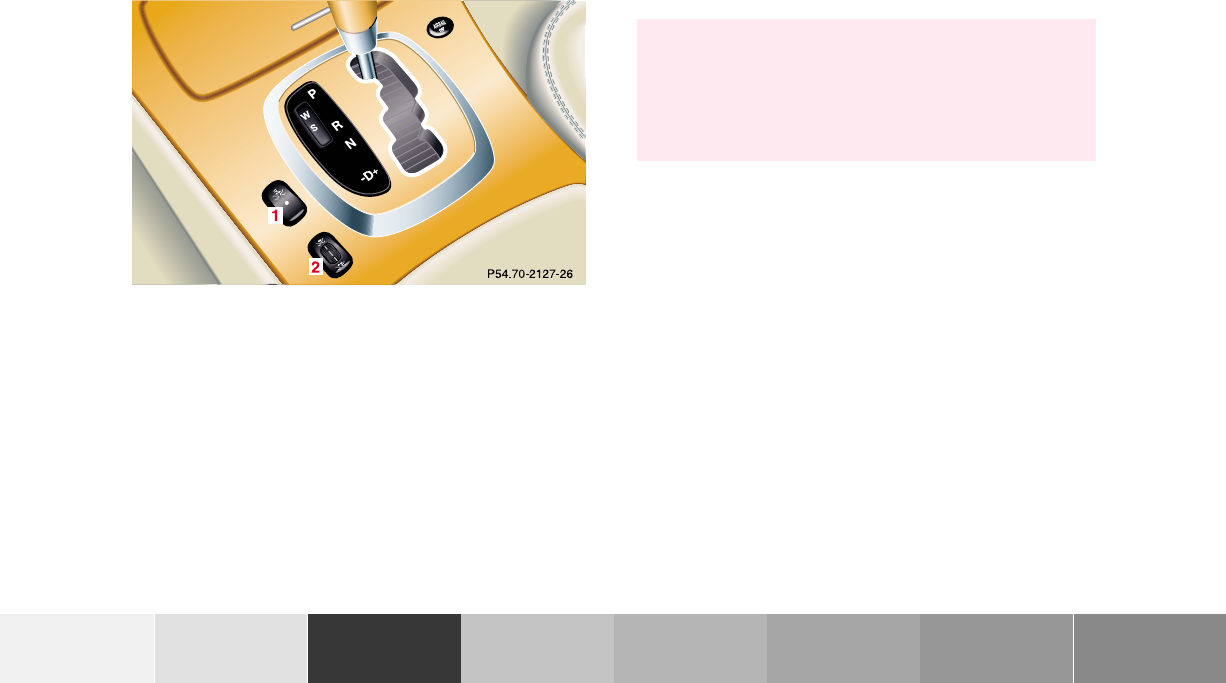

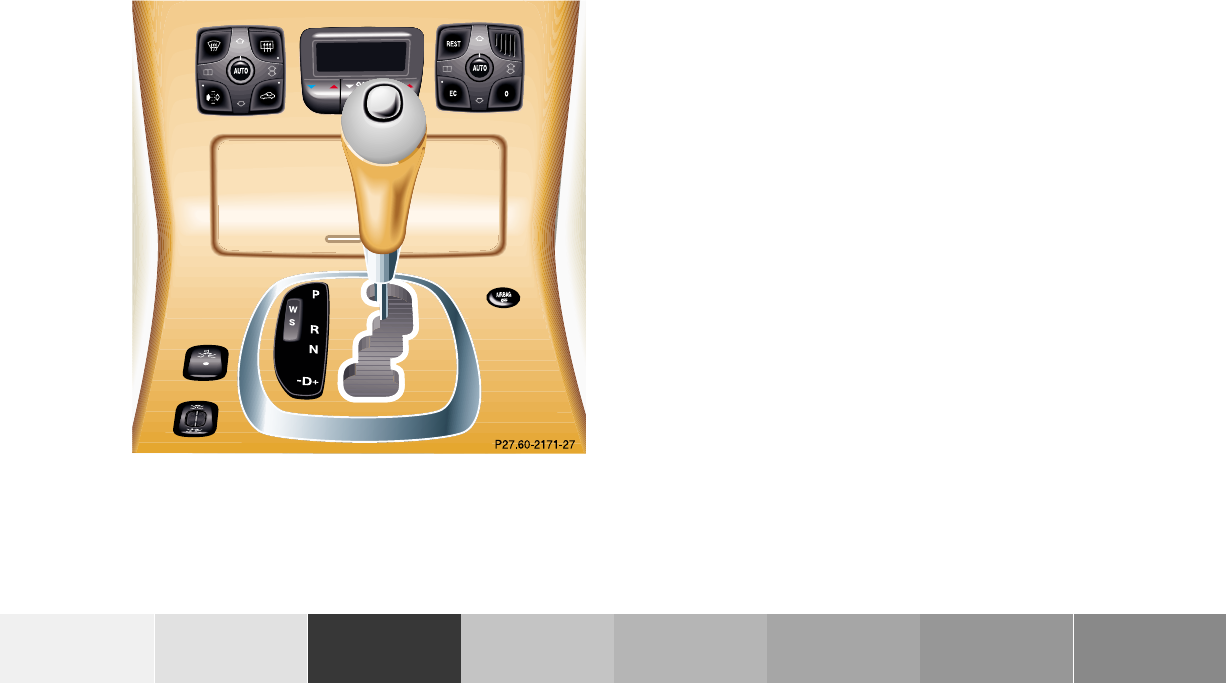

Automatic transmission ............... 229
Parking brake ................................ 238
Driving instructions ......................239
Drive sensibly – save fuel ........ 239
Drinking and driving ................ 239
Pedals ..........................................240
Power assistance ........................ 240
Brakes .......................................... 240
Driving off ................................... 241
Parking ........................................ 242
Tires ............................................. 243
Snow chains ............................... 245
Winter driving instructions ..... 246
Deep water ..................................248
Passenger compartment ........... 248
Traveling abroad ........................ 249
Cruise control ................................250

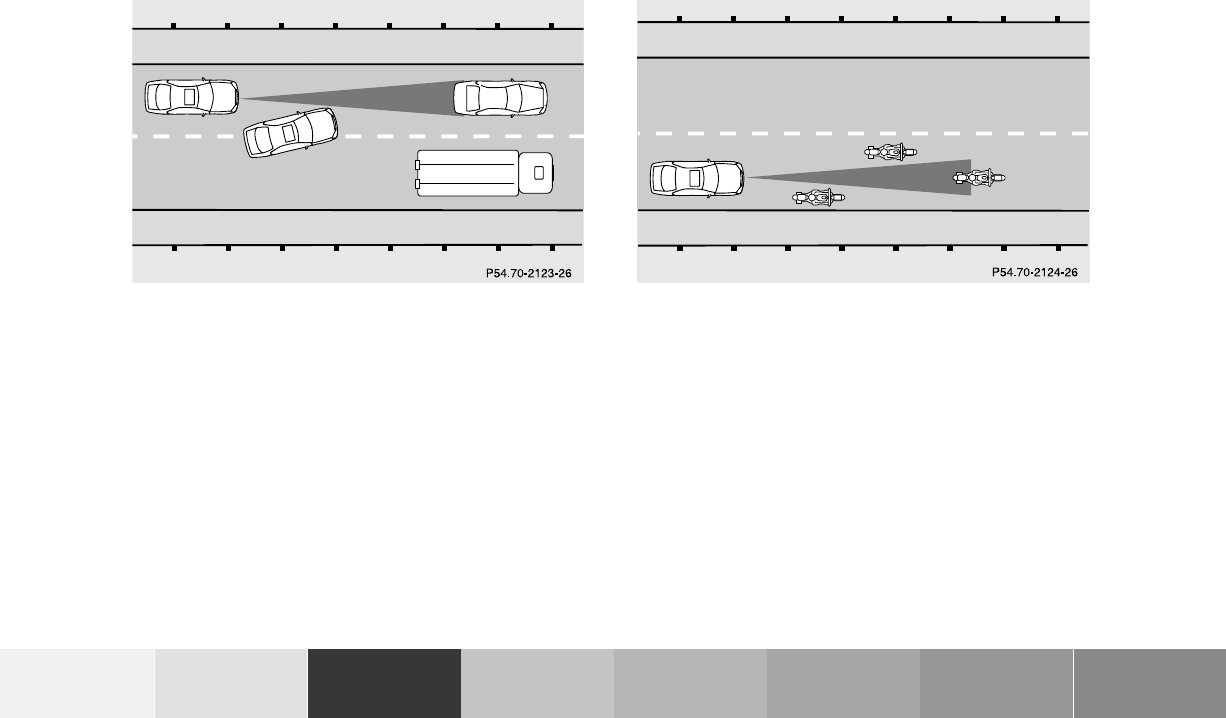

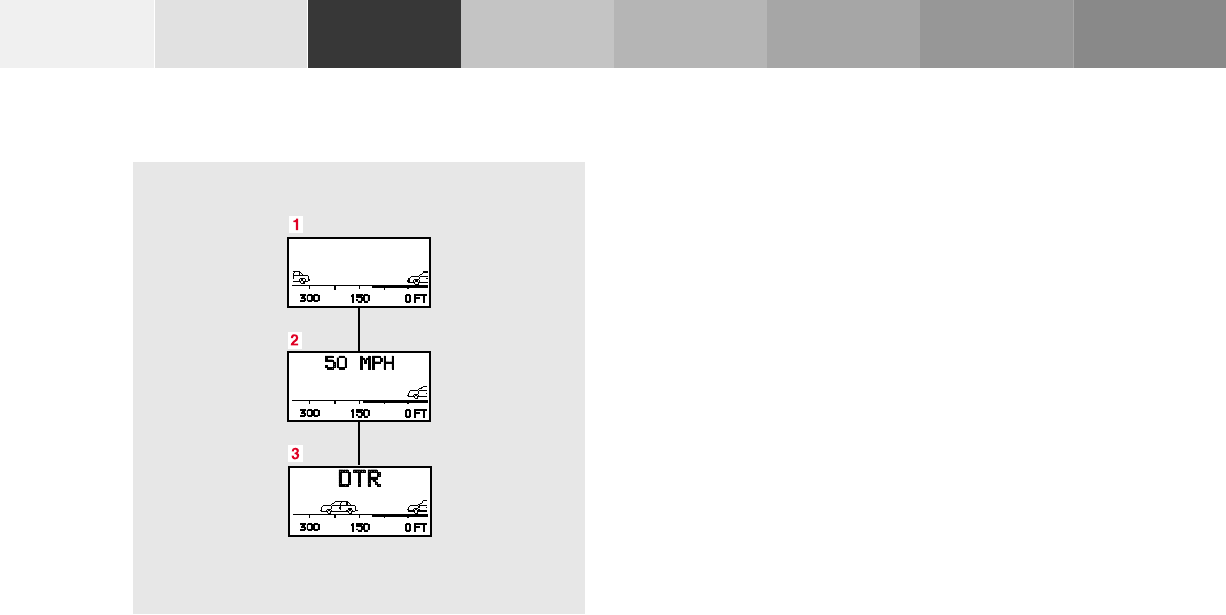

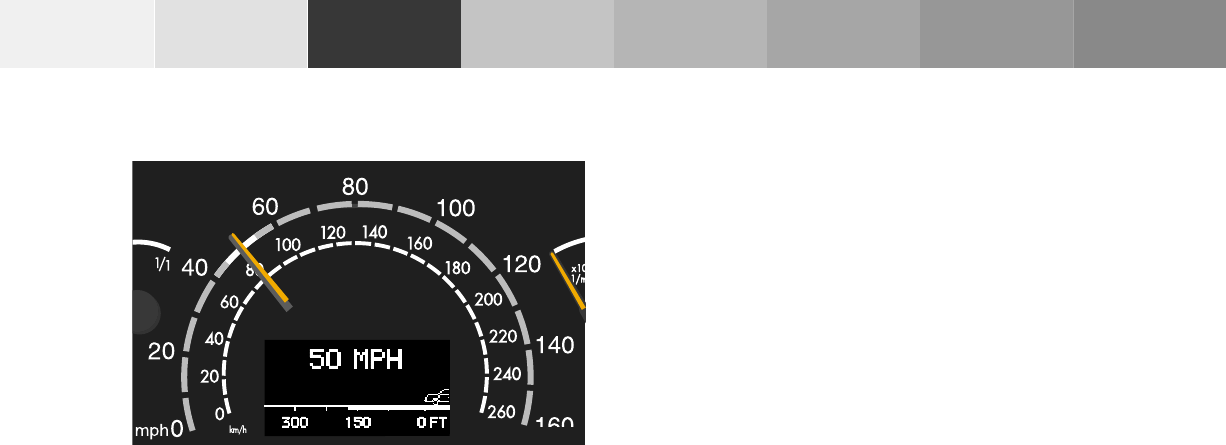

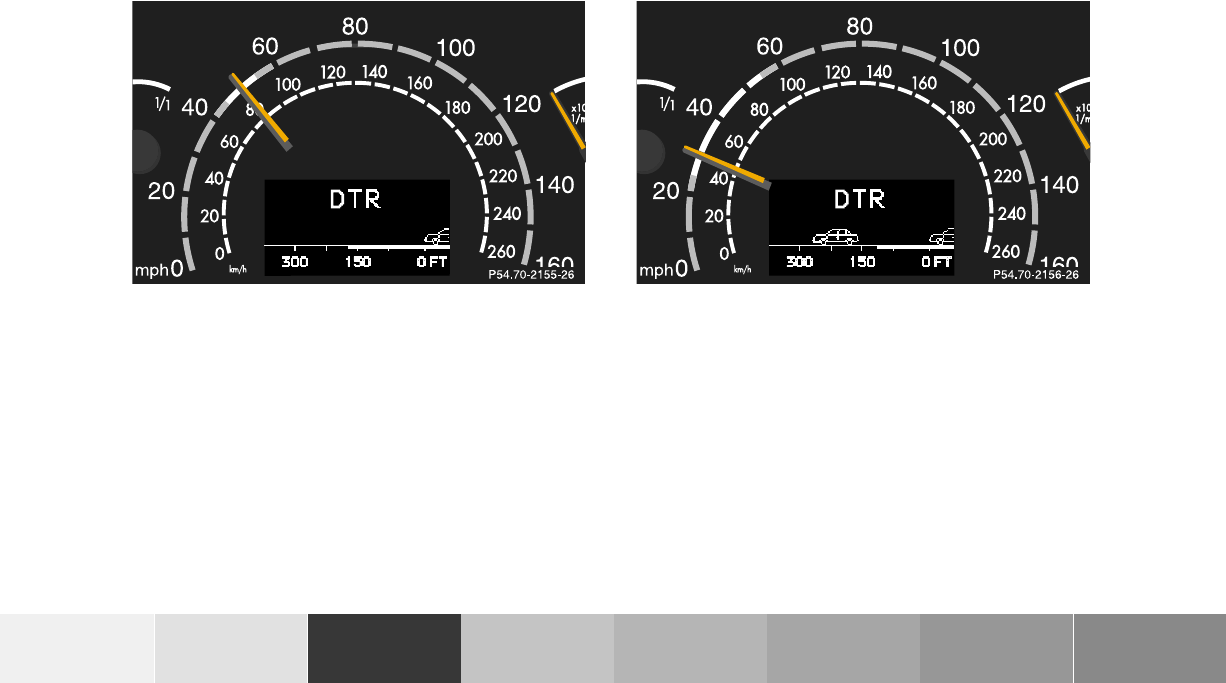

Distronic (DTR) .............................. 253
Brake assist system
(BAS) .......................................... 268
Antilock brake system
(ABS) .......................................... 269
Electronic stability program
(ESP) ...........................................271

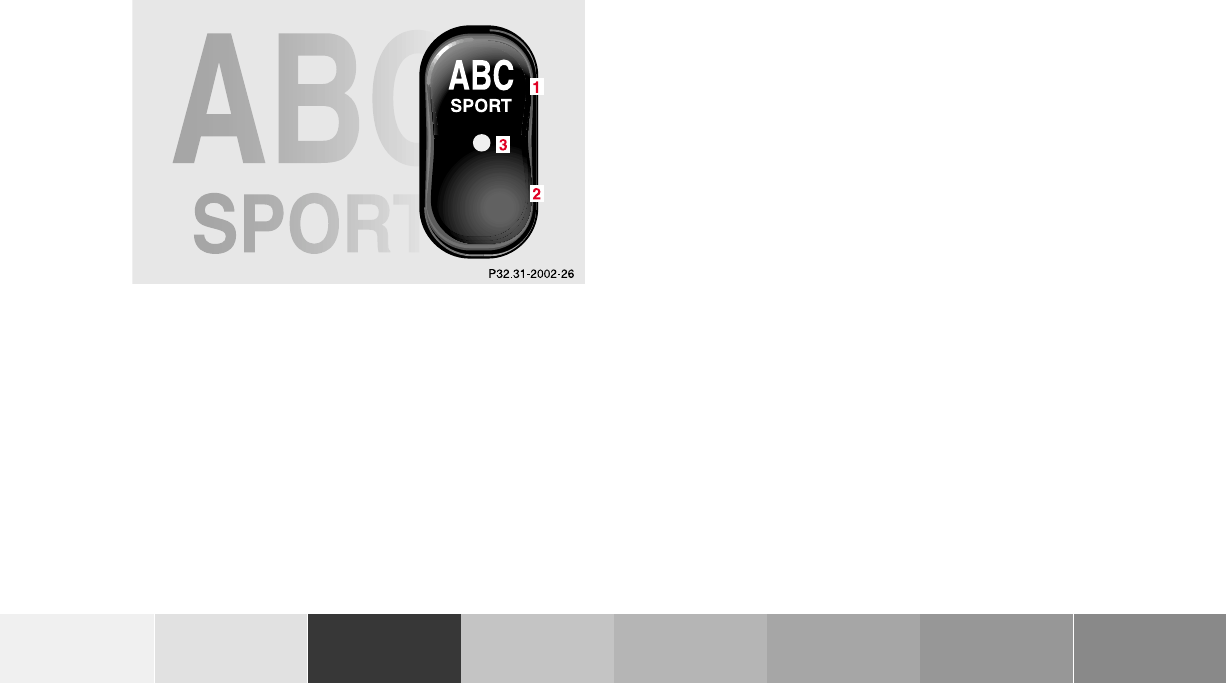

Active body control (ABC) ............275
Level control system ...................... 276

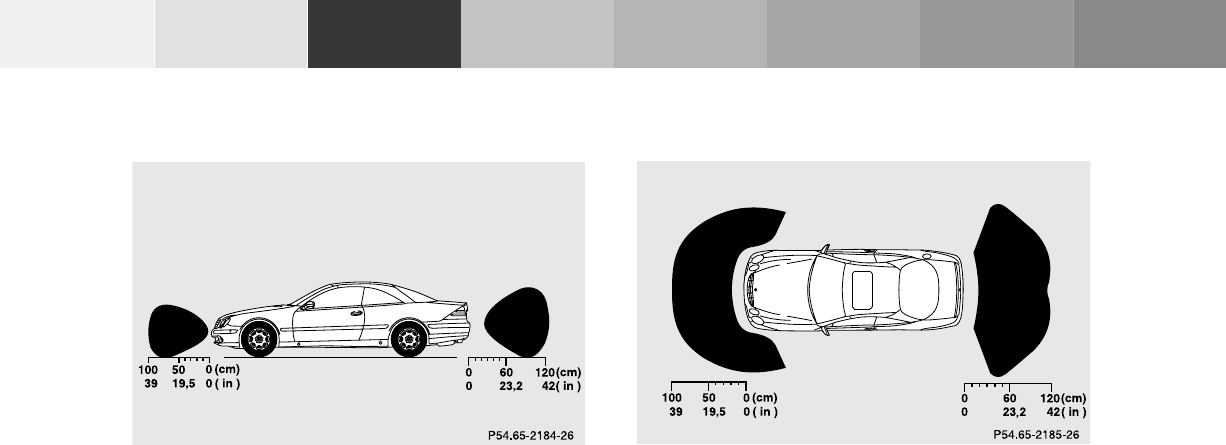

Parking assist (Parktronic) ..........279
What you should know
at the gas station .......................284
Check regularly
and before a long trip ...............287
Instrument cluster display
Malfunction and indicator
lamps in the
instrument cluster ....................290
On-board diagnostic system .....290
Check engine malfunction
indicator lamp .............................290
Brake warning lamp ..................292
Supplemental restraint
system (SRS)
indicator lamp .............................293
Fuel reserve warning .................293
ABS malfunction
indicator lamp .............................294
4Contents
Electronic stability program
(ESP) — warning lamp ...............295
Distronic (DTR) —
warning lamp ..............................295
Seat belt nonusage
warning lamp ..............................296
Malfunction and indicator
lamp in the center console ......296
AIRBAG OFF indicator lamp .....296
Malfunction and
warning messages in the
multifunction display ...............297
DISPLAY DEFECTIVE
(engine control unit) ..................298
DISPLAY DEFECTIVE
(several systems) ........................298
BATTERY /ALTERNATOR ..........299
ENTRANCE POSITION ..............300
BRAKE ASSIST ...........................300
BRAKE LINING WEAR ..............301
BRAKE FLUID .............................301
PARKING BRAKE .......................302
TRUNK OPEN .............................302
ELEC. STABIL. PROG.
(Electronic stability
program) .....................................303
COOLANT (coolant level) ......... 304
COOLANT
(coolant temperature) ............... 305
LIGHTING SYSTEM ................... 306
LIGHT SENSOR .......................... 308
SEAT BELT SYSTEM ..................308
TELEPHONE – FUNCTION ....... 309
CRUISE CONTROL ..................... 309
ACTIVE BODY CONTROL
(ABC) ............................................310
TIRE PRESSURE .........................312
ENGINE OIL LEVEL ....................314
SEAT BACKREST .........................315
KEY ...............................................316
DOOR ............................................316
HOOD ............................................317
TELE AID ......................................317
ENGINE OIL LEVEL ....................318
WASHER FLUID ..........................319
LIGHT SENSOR .......................... 320
DISTRONIC (DTR) ...................... 321
Practical hints
First aid kit .....................................324
Fuses ................................................325
Shelf below rear window ..............327

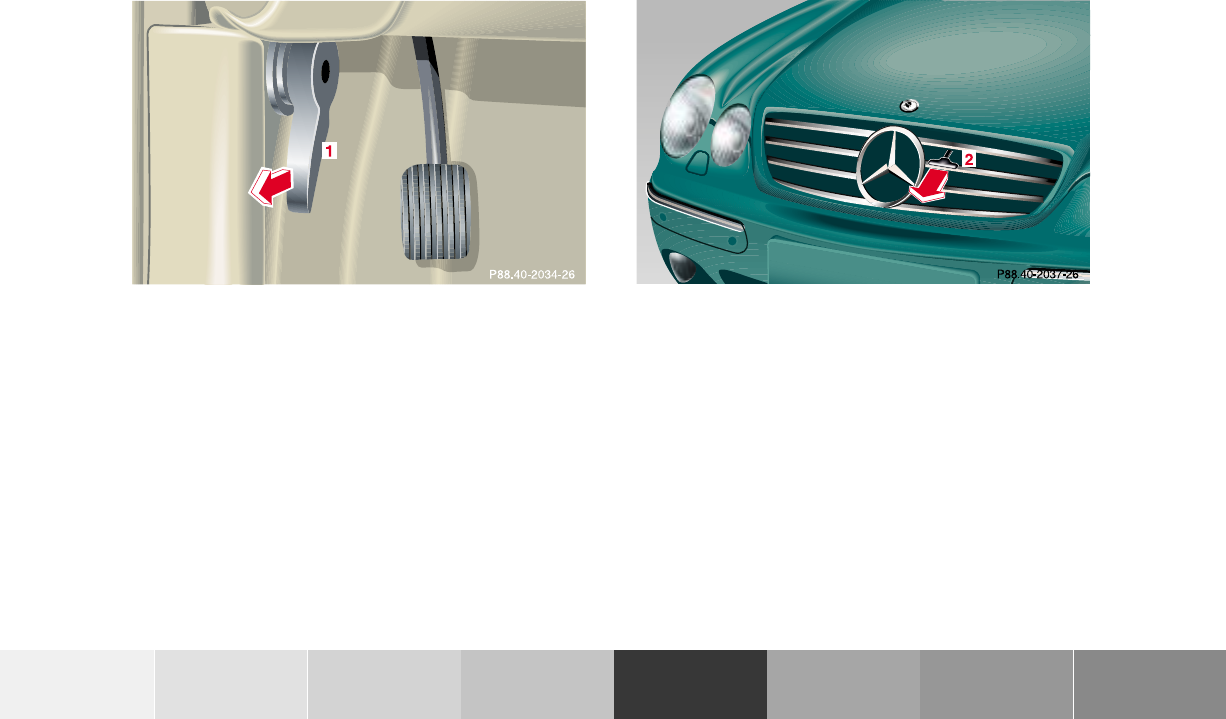

Hood .................................................328

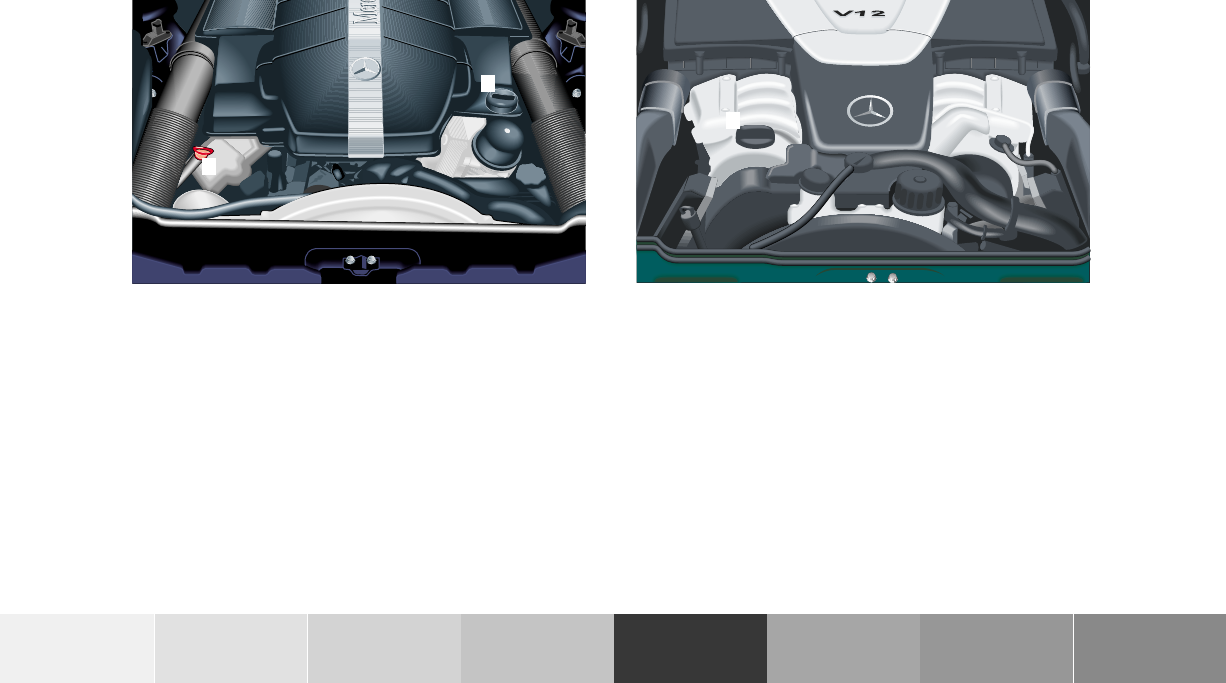

Checking engine oil level .............331
Automatic transmission
fluid level ...................................332
Active body control
(ABC) fluid level ........................332
Coolant level ...................................333
Adding coolant ...........................333
Windshield and headlamp
washer system ...........................334
Windshield and headlamp
washer fluid mixing ratio .........334
Spare wheel, vehicle tools,
storage compartment ................335
Jack ...................................................336
Wheels .............................................337
Tire Replacement .......................337
Rotating wheels ..........................338
Spare wheel ....................................338
5Contents
Changing wheels ...........................340
Tire inflation pressure ..................345
Battery .............................................346
Jump starting ..................................349

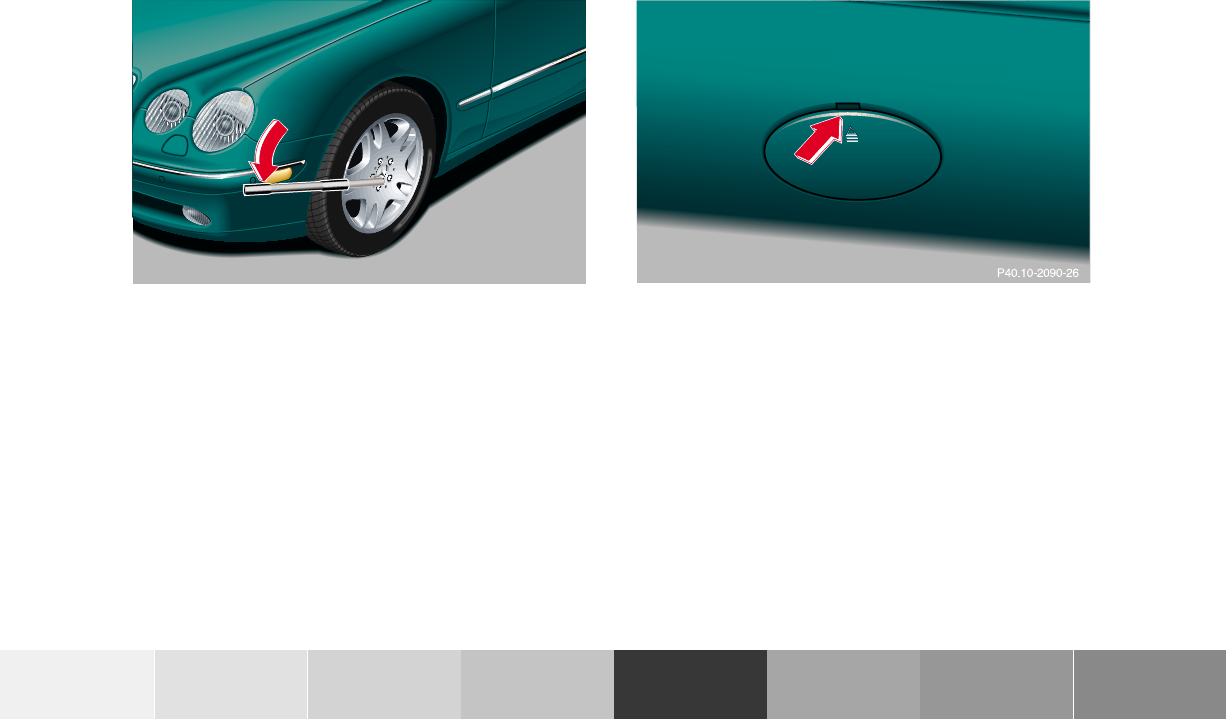

Towing the vehicle .........................351
Exterior lamps ................................354
Headlamp assembly ...................355
Taillamp assemblies ..................358
Standby bulb function ...................361
Changing batteries
in the electronic main key .......363
Synchronizing
remote control ............................365

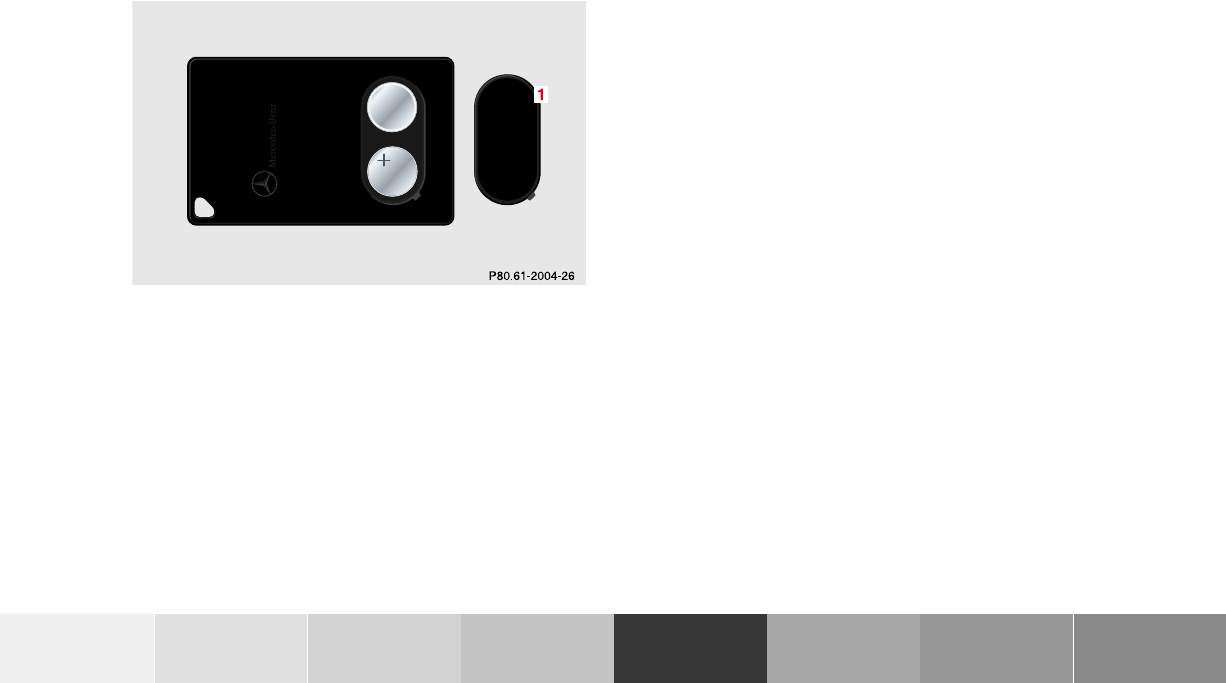

Changing batteries
in the KEYLESS-GO-card .........366
Emergency engine
shut-down ...................................368
Fuel filler flap,
manual release ..........................368
Emergency operation of
sliding/pop-up roof ..................369

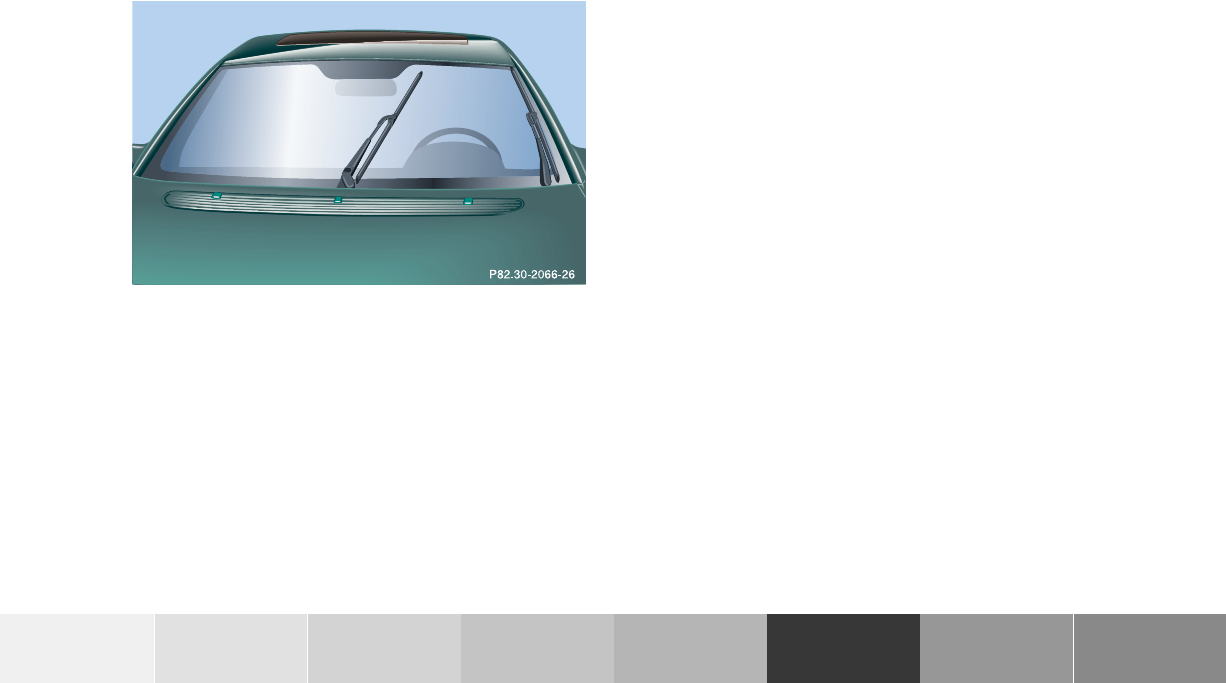

Replacing wiper blades ................ 370
Trunk lamp ......................................371
Roof rack ......................................... 372
Vehicle care
Cleaning and care
of the vehicle ..............................374
Power washer ............................. 375
Tar stains .....................................376
Paintwork, painted body
components .................................376
Engine cleaning ..........................376
Vehicle washing ..........................376
Ornamental moldings ............... 377
Headlamps, taillamps,
turn signal lenses ...................... 377
Cleaning the Distronic
system sensor .............................378
Cleaning the parktronic
system sensors ...........................378
Wiper blades ...............................379
Light alloy wheels ......................380
Instrument cluster .....................381
Steering wheel and
gear selector lever ......................381
Cup holder ...................................381
Seat belts .....................................382
Headliner and shelf
below rear window .....................382
Leather upholstery .....................382
Hard plastic trim items .............382
Plastic and rubber parts ............382
6Contents
Technical data
Spare parts service ........................384
Warranty coverage .........................384

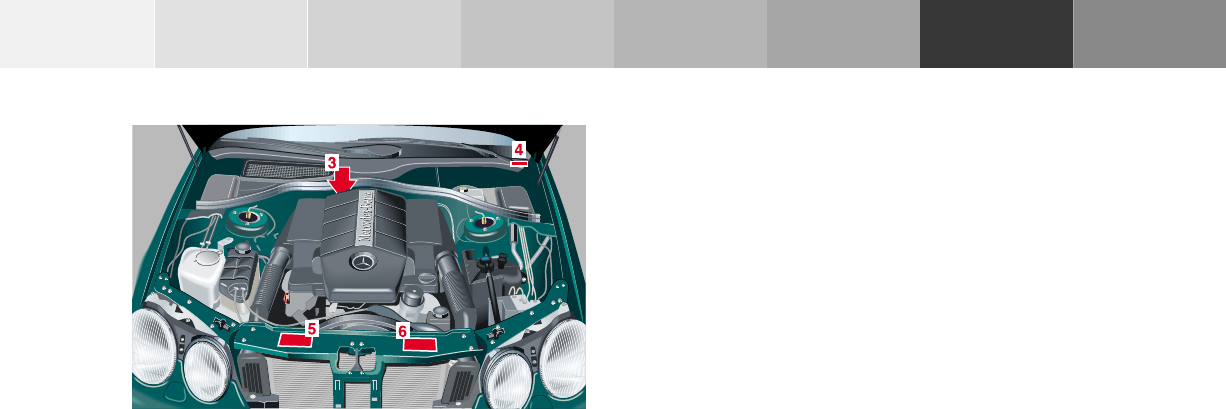

Identification labels .......................385
Layout of poly-V-belt drive ............387
Technical data ................................388
Fuels, coolants,
lubricants etc. - capacities .......393
Engine oils ......................................395
Engine oil additives .......................395
Air conditioner refrigerant ...........395
Brake fluid ......................................395
Premium unleaded gasoline ........396
Fuel requirements .........................396
Gasoline additives .........................397
Coolants ...........................................397
Consumer information ..................399
Index
Index ............................................... 401
7Introduction
Product information
Kindly observe the following in your own best interest:
We recommend using Mercedes-Benz original parts as well as conversion parts and accessories
explicitly approved by us for your vehicle model.
We have tested these parts to determine their reliability, safety and their special
suitability for Mercedes-Benz vehicles.
We are unable to make an assessment for other products and therefore cannot be held responsible
for them, even if in individual cases an official approval or authorization by governmental or other
agencies should exist. Use of such parts and accessories could adversely affect the safety, performance
or reliability of your vehicle. Please do not use them.
Mercedes-Benz original parts as well as conversion parts and accessories approved by us are available
at your authorized Mercedes-Benz Center where you will receive comprehensive information, also on
permissible technical modifications, and where proper installation will be performed.
8Introduction
Operator’s manual
This Operator’s Manual contains a great deal of useful information. We urge you to read it carefully and familiarize
yourself with the vehicle before driving.
For your own safety and longer service life of the vehicle, we urge you to follow the instructions and warnings
contained in this manual. Ignoring them could result in damage to the vehicle or personal injury to you or others.
Vehicle damage caused by failure to follow instructions is not covered by the Mercedes-Benz Limited Warranty.
Your vehicle may have some or all of the equipment described in this manual. Therefore, you may find explanations
for optional equipment not installed in your vehicle. If you have any questions about the operation of any equipment,
your authorized Mercedes-Benz Center will be glad to demonstrate the proper procedures.
Service and warranty information
The Service and Warranty Information Booklet contains detailed information about the warranties covering your
Mercedes-Benz, including:
•New Car Limited Warranty,
•Emission System Warranty,
•Emission Performance Warranty,
•California, Massachusetts, and Vermont Emission Control System Warranty
(California, Massachusetts, and Vermont only),
•State Warranty Enforcement Laws (Lemon Laws).
9Introduction
Important notice for California retail buyers of Mercedes-Benz automobiles
Under California law you may be entitled to a replacement of your vehicle or a refund of the purchase price, if
Mercedes-Benz USA, LLC or its authorized Mercedes-Benz Center fails to conform the vehicle to its express warranties
after a reasonable number of repair attempts during the period of one year or 12 000 miles from original delivery of
the vehicle. A reasonable number of repair attempts is presumed for a retail buyer (1) if the vehicle is out of service by
reason of repair of substantial nonconformities for a cumulative total of more than 30 calendar days or (2) the same
substantial non-conformity has been subject to repair four or more times and you have at least once directly
notified us in writing of the need to repair the non-conformity and have given us an opportunity to perform the
repair ourselves. Notifications should be sent to the nearest Mercedes-Benz Regional Office listed in the
Service and Warranty Information Booklet.
Maintenance
The Service Booklet describes all the necessary maintenance work which should be performed at regular intervals.
Always have the Service Booklet with you when you take the vehicle to your authorized Mercedes-Benz Center for
service. The service advisor will record each service in the booklet for you.
10Introduction
Roadside assistance
The Mercedes-Benz Roadside Assistance Program provides factory trained technical help in the event of a breakdown.
Calls to the toll-free Roadside Assistance number:
1-800-FOR-MERCedes (in the USA)
1-800-387-0100 (in Canada)
will be answered by Mercedes-Benz Client Assistance Representatives 24 hours a day, 365 days a year.
For additional information refer to the Mercedes-Benz Roadside Assistance Program brochure in your glove box.
Change of address or ownership
If you change your address, be sure to send in the “Change of Address Notice” found in the Service and Warranty
Information Booklet, or simply call the Mercedes-Benz Client Assistance Center (in the USA) at
1-800-FOR-MERCedes, or Customer Service (in Canada) at 1-800-387-0100. It is in your own interest that we can
contact you should the need arise.
If you sell your Mercedes, please leave all literature with the vehicle to make it available to the next operator.
If you bought this vehicle used, be sure to send in the “Notice of Purchase of Used Car” found in the Service and
Warranty Information Booklet, or call the Mercedes-Benz Client Assistance Center (in the USA) at
1-800-FOR-MERCedes, or Customer Service (in Canada) at 1-800-387-0100.
11Introduction
Operating your vehicle outside the USA or Canada
If you plan to operate your vehicle in foreign countries, please be aware that:
•Service facilities or replacement parts may not be readily available,
•unleaded gasoline for vehicles with catalytic converters may not be available; the use of leaded fuels will damage
the catalysts,
•gasoline may have a considerably lower octane rating, and improper fuel can cause engine damage.
Certain Mercedes-Benz models are available for delivery in Europe under our European Delivery Program. For details,
consult your authorized Mercedes-Benz Center or write to:
In the USA: In Canada:
Mercedes-Benz USA, LLC
European Delivery Department
One Mercedes Drive
Montvale, NJ 07645-0350
Mercedes-Benz Canada, Inc.
European Delivery Department
849 Eglinton Avenue East
Toronto, Ontario M4G 2L5
12Introduction
We continuously strive to improve our product, and ask for your understanding that we reserve the right to make
changes in design and equipment. Therefore, information, illustrations and descriptions in this Operator’s Manual
might differ from your vehicle.
Optional equipment is also described in this manual, including operating instructions wherever necessary. Since they
are special-order items, the descriptions and illustrations herein may vary slightly from the actual equipment of your
vehicle.
If there are any equipment details that are not shown or described in this Operator’s Manual, your authorized
Mercedes-Benz Center will be glad to inform you of correct care and operating procedures.
The Operator’s Manual and Service Booklet are important documents and should be kept with the vehicle.
13Introduction
Where to find it
The Operator’s Manual is divided into eight sections:
• Instruments and controls: An overview of all the controls that can be operated from the driver’s seat.
•Operation: Information on the vehicle’s equipment and its operation.
•Driving: Important information on driving.
• Instrument cluster display: Displays and indicator lamps on the instrument cluster with brief instructions.
• Practical hints: Assistance and instructions in the event of an emergency.
• Car care: Instructions on caring for your vehicle.
• Technical data: All the important technical data for your vehicle as well as consumer information such as fuels,
coolants, lubricants etc. is contained here.
•Index: Key terms to help you find a topic quickly.
Other documents may also be supplied, depending on your vehicle’s equipment.
Explanation of color used:
Warning notices for the protection of yourself and
others appear on red background.
14Introduction
Problems with your vehicle
If you should experience a problem with your vehicle, particularly one that you believe may affect
its safe operation, we urge you to immediately contact your authorized Mercedes-Benz Center to
have the problem diagnosed and corrected if required. If the matter is not handled to your
satisfaction, please discuss the problem with the Mercedes-Benz Center management, or if
necessary contact us at the following addresses:
In the USA: Client Assistance Center
Mercedes-Benz USA, LLC
One Mercedes Drive
Montvale, NJ 07645-0350
In Canada: Customer Relations Department
Mercedes-Benz Canada, Inc.
849 Eglinton Avenue East
Toronto, Ontario, M4G 2L5
15Introduction
For the USA only:
The following text is published as required of manufacturers under Title 49, Code of U.S. Federal Regulations,
Part 575 pursuant to the “National Traffic and Motor Vehicle Safety Act of 1966”.
Reporting Safety Defects
If you believe that your vehicle has a defect which could cause a crash or could cause injury or
death, you should immediately inform the National Highway Traffic Safety Administration
(NHTSA) in addition to notifying Mercedes-Benz USA, LLC.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA
cannot become involved in individual problems between you, your retailer, or Mercedes-Benz USA,
LLC.
To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-800-424-9393
(or 366-0123 in Washington, D.C. area) or write to: NHTSA, U.S. Department of Transportation,
Washington, D.C. 20590. You can also obtain other information about motor vehicle safety from
the Hotline.
17Contents - Instruments and control
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Instruments and controls
Instruments and controls ............... 18
Door control panel .......................20
Overhead control panel ...............21
Dashboard .....................................22
Center console ..............................24
18Instruments and controls
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Instruments and controls
3
19Instruments and controls
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
1Door control panel, see page 20
2Overhead control panel, see page 21
3Dashboard, see page 22
4Center console, see page 24
20Instruments and controls
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index

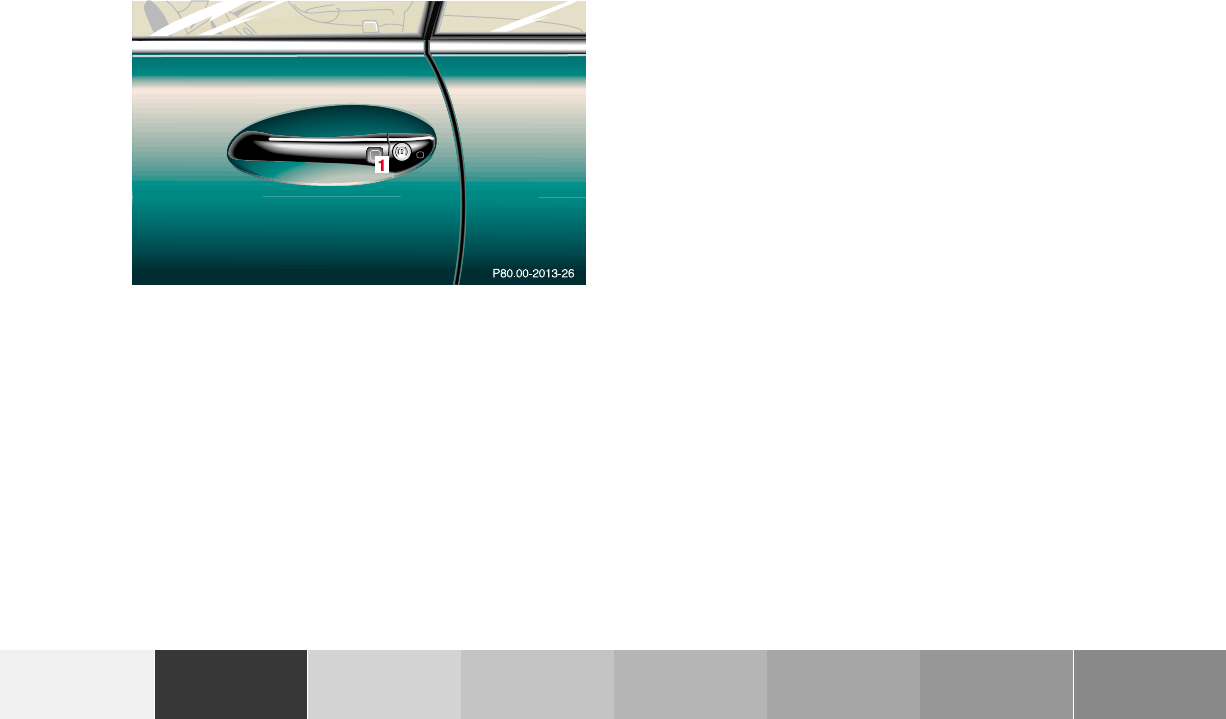

Door control panel 1Door handle, pull to open, see page 48

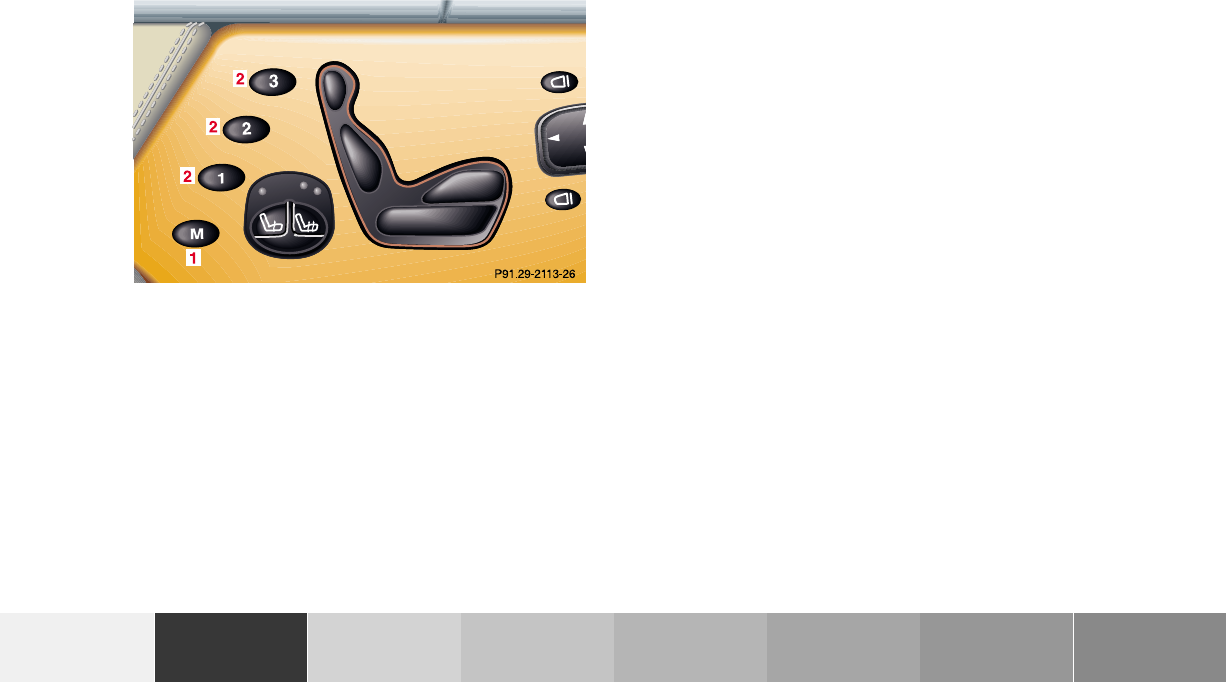

2Memory function (for storing seat, steering wheel,
rear view mirror and exterior mirror settings),
seepage111
3Seat heater, see page 76
Seat ventilation, see page 79
4Front seat adjustment, see page 67
5Exterior mirror adjustment, see page 107
Exterior mirrors, electrically folding, see page 109
6Power windows, see page 178
7Switch for rear door window override, see pages 178
and 180
8Trunk lid release switch, see page 57
Trunk lid opening/closing system switch, see
page 58
P72.10-2072-27
1
4
2
5
3
8
7
6
6
21Instruments and controls
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Overhead control panel 1Interior lighting, see page 184
2Sliding/pop-up roof, see page 181
3Tele Aid (emergency call system), see page 210
4Hands-free microphone for Tele Aid, telephone and
voice recognition system
5Rear view mirror, seepage106
6Garage door opener, see page 202
P82.00-2030-27
1
2
34
5
6
22Instruments and controls
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Dashboard
3
87
6
4
2
3
1
9
13
12
11
10
15
17
18
17
18
19 2120
16
14
22
23
5
P68.10-2434-29
23Instruments and controls
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
1Left front parktronic warning indicator,
see page 281
2Side air outlet, adjustable
3Air volume control for side air outlet
4Exterior lamp switch, see page 156
5Headlamp washer button, see page 159
6Parking brake release, see page 238
7Hood lock release, see page 328
8Parking brake pedal, see page 238
9Easy-entry/exit feature, see page 66
Steering wheel adjustment, see page 105
10 Combination switch, see page 160
11 Cruise control switch, see page 250, or
Distronic (DTR) switch, see page 253
12 Multifunction steering wheel, see page 120
Driver airbag, see page 92,
Horn (with electronic key in starter switch
position 1 or 2)
13 Instrument cluster, see page 114
14 Voice recognition system switch, see separate
operating instructions
15 Starter switch, see page 222
16 Right front parktronic warning indicator,
seepage281
17 Fixed air outlets
18 Center air outlets, adjustable
19 Air volume control for left center air outlet
20 Air temperature control for center air outlets
21 Air volume control for right center air outlet
22 Glove box lock, see page 189
23 Glove box lid release, see page 189
24Instruments and controls
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Center console 1ESP (electronic stability program) control switch,
seepage273
2Level control, see page 276
3ABC (active body control), see page 275
4Rear seat head restraints, automatic, see page 81
5Hazard warning flasher switch, see page 163
6Central locking switch, see page 50
7Antitheft alarm system, see page 62
Switch for tow-away alarm, see page 64
8Parking assist (parktronic system) deactivation,
seepage279
9Rear window sunshade, see page 186
10 COMAND system, see separate operating
instructions
11 Automatic climate control, see page 164
Rear window defroster, see page 176
25Instruments and controls
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
12 Ashtray, see page 196
Lighter, see page 198
13 Start-/Stop button
Starter switch for KEYLESS-GO only, see page 224
14 Automatic transmission, see page 229
15 AIRBAG OFF indicator lamp, see page 296
16 Distronic (DTR) – switch for distance notification
function, see page 265
17 Distronic (DTR) – thumbwheel for setting distance,
seepage265
26Contents - Operation
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Operation
Vehicle keys ......................................28
Start lock-out ....................................32
General notes on the
central locking system ...............33
Central locking system ...................34
Radio frequency and infrared
remote control ..............................34
KEYLESS-GO .................................38
Opening and closing
windows and
sliding/pop-up roof
from outside ..................................45
Panic button ..................................47
Mechanical keys ...........................47
Doors ..................................................48
Power closing assist for
doors and trunk lid .....................50
Central locking switch ....................50
Automatic central locking ..............52
Emergency unlocking
in case of accident ......................52
Trunk .................................................53
Trunk lid release switch .................57
Trunk lid release/close switch ...... 58
Trunk lid emergency release .........61
Antitheft alarm system ................... 62
Tow-away alarm ............................... 64
Easy-entry/exit feature .................. 66
Front seat adjustment ..................... 67
Removal and installation
of front seat head restraints ......71
Backrest ............................................ 72
Lumbar support ................................74
Multicontour backrest .....................74
Seat heater .........................................76
Seat ventilation system .................. 79
Power head restraints, rear ............81
Seat belts and
integrated restraint system ....... 82
Seat belts .......................................... 82
Seat belt nonusage
warning system ............................ 83
BabySmartTM airbag
deactivation system ................... 88
Self-test BabySmartTM
without special child
seat installed ................................ 89
Supplemental restraint
system (SRS) ................................90
Emergency tensioning
retractor (ETR) ............................. 91
Airbags ..............................................92
Safety guidelines for the
seat belt, emergency
tensioning retractor
and airbag .................................. 100
Infant and child
restraint systems .......................102
Steering wheel adjustment .......... 105
Rear view mirrors ..........................106
Rear view mirror,
automatic antiglare ..................106
Memory function ............................111
Instrument cluster ..........................114
Multifunction steering wheel,
multifunction display ...............120
Trip and main odometer,
FSS, tire inflation pressure
monitor and
engine oil level indicator .........124
Audio systems ................................125
Radio ............................................125
27Contents - Operation
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
CD player .....................................126
Cassette player ...........................127
Telephone ........................................128
Telephone book .......................... 128
Redialing .....................................130
Incoming call .............................. 131
Navigation system .......................... 132
Distronic (DTR) ...............................133
Trip computer .................................134
Malfunction/warning
message memory ......................136
Individual settings .........................138
Setting the audio volume ..............146
Flexible service system
(FSS) ............................................147
Tire inflation
pressure monitor ......................150
Engine oil level indicator ..............154
Engine oil consumption ................155
Exterior lamp switch ..................... 156
Headlamp mode ............................. 157
Night security illumination ..........158
Headlamp cleaning system ...........159
Combination switch .......................160
Hazard warning flasher
switch ..........................................163
Automatic climate control .............164
Display and controls ..................166
Dust filter .....................................167
Basic setting ................................168
Special settings ...........................169
Air recirculation .........................171
Activated charcoal filter ........... 172
Economy mode ........................... 173
Residual engine heat
utilization .....................................174
Switching the automatic
climate control on and off ........ 175
Front center console storage
compartment ventilation .......... 175
Rear window defroster ..................176
Rear passenger compartment
adjustable air outlets ............... 177
Power windows ...............................178
Sliding/pop-up roof ....................... 181
Interior lighting ............................. 184
Rear window sunshade ................. 186
Sun visors .......................................187
Vanity mirrors ................................ 187
Interior ............................................188
Storage compartments
and armrests ..............................188
Glove box .....................................189
Coat hooks ......................................192
Cup holder ...................................... 193
Ashtrays ..........................................196
Lighter ............................................. 198
Parcel net in trunk ........................ 199
Cargo tie-down hooks ....................200
Parcel net in front
passenger footwell ....................200
Telephone, general ........................201
Garage door opener .......................202
Infrared reflecting windshield ....206
28Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Vehicle keys and KEYLESS-GO-cards (optional)
Included with your vehicle are:
•2 electronic main keys with integrated radio
frequency and infrared remote controls plus
removable mechanical key.
The locking tabs for the mechanical key portion of
the two electronic main keys are a different color to
help distinguish each individual key.
•1 electronic reserve key without remote control
functions, plus removable mechanical key.
•Veh icles w it h KEYLESS - GO :
2 KEYLESS-GO-cards without removable mechanical
key.
Vehicles with KEYLE SS- GO:
See page 44 on how to use the electronic key together
with the KEYLESS-GO-card.
Important!
In the case of the loss of a KEYLESS-GO-card, electronic
keys or mechanical keys, please, contact an authorized
Mercedes-Benz Center or call 1-800-FOR-MERCedes (in
the USA), or 1-800-387-0100 (in Canada) as soon as
possible to have the keys or KEYLESS-GO-card
deactivated.
Warning!
When leaving the vehicle always remove the
electronic key from the starter switch and take the
KEYLESS-GO-card (if so equipped) with you, and
lock your vehicle. Do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equipment
may cause serious personal injury.
29Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Electronic main key
The electronic main key has an integrated radio
frequency and infrared remote control, plus removable
mechanical key.
The remote control (1) operates all locks on the vehicle.
The mechanical key (2) works only in the driver’s door,
trunk, and storage compartment locks.
When using the mechanical key (2) for lock operations,
it can be removed by sliding it out of the remote control.
To do so, move locking tab (3) to the right and slide the
mechanical key (2) in direction of arrow (4).
The remote control transmitter is located in the
electronic main key.
The infrared receivers are located in the door handles.
Note:
Remove the mechanical key from the electronic main
key when using valet parking service. To prevent access
to trunk or storage compartments lock them separately
and retain the mechanical key.
See page 53 for separate locking of trunk and page 189
for locking of glove box.
P80.35-2031-26
1
3
4
2
30Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Electronic reserve key
The electronic reserve key is without remote control
functions, plus removable mechanical key.
The electronic reserve key (1) works only in the starter
switch. There are no batteries inside the electronic
reserve key.
The mechanical key (2) works only in the driver’s door,
trunk, and storage compartment locks.
To use the mechanical key (2), remove it from its
electronic reserve key (1).
Note:
We recommend that you carry the electronic reserve
key plus mechanical key with you and keep it in a safe
place (e.g. your wallet) so that it is always handy. Never
leave the electronic reserve key in the vehicle.
P80.35-2036-26
1
31Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
KEYLESS-GO-card
The KEYLESS-GO-card (1) does not have a removable
mechanical key.
The functions of the KEYLESS-GO-card (1) are identical
to those of the electronic main key. Carrying the card
with you permits the use of the vehicle.
The validity of the KEYLESS-GO-card is checked every
time when grasping a door handle or pushing the trunk
lid release. Once the KEYLESS-GO-card is recognized
outside the vehicle, the doors, trunk lid and fuel filler
flap are unlocked, depending on the selected mode
(global or selective unlocking mode, see page 43).
Starter switch KEYLESS-GO, see page 224.
Starting and turning off the engine with KEYLESS-GO,
see page 227 and page 228.
Note:
In the case of a malfunction in the KEYLESS-GO-system,
we recommend that you carry the electronic key plus
mechanical key with you and keep them in a safe place
so that they are always handy. Never leave the electronic
key or a KEYLESS-GO-card in the vehicle.
Obtaining replacement keys
Your vehicle is equipped with a theft deterrent locking
system requiring a special key manufacturing process.
For security reasons, replacement keys or the KEYLESS-
GO-card can only be obtained from your authorized
Mercedes-Benz Center.
P80.30-2029-26
1
32Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Start lock-out
Important!
Operating with electronic key:
Removing the electronic key from the starter switch
activates the start lock-out. The engine cannot be
started.
Inserting the electronic key in the starter switch
deactivates the start lock-out.
Operating with KEYLESS-GO:
Turning off the engine with the start-/stop button on the
gear selector lever activates the start lock-out. For
turning off the engine with KEYLESS-GO, see page 228.
Starting the engine with the start-/stop button
deactivates the start lock-out, if a valid KEYLESS-GO-
card is recognized inside the vehicle. For starting the
engine with KEYLESS-GO, see page 227. The engine
cannot be started with a KEYLESS-GO-card outside the
vehicle.
Note:
In case the engine cannot be started (vehicle’s battery is
in order), the system is not operational. Contact an
authorized Mercedes-Benz Center or call 1-800-FOR-
MERCedes (in the USA), or 1-800-387-0100 (in Canada).
33Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
General notes on the central locking system
If the electronic key is inserted in the starter switch, the
vehicle cannot be locked or unlocked with the remote
control.
If the vehicle cannot be locked or unlocked:
•Aim transmitter eye at a receiver on either door
handle. Check the batteries of the electronic main
key, see page 363, or synchronize the remote
control, see page 365.
•Vehicles with KEYLESS-GO only:
A KEYLESS-GO-card must be recognized by the
system as being outside the vehicle to enable the
vehicle to be locked or unlocked (maximum distance
between card and doors or trunk is approx. 3 ft. (1
m). Check the location of the KEYLESS-GO-card, see
page 38. Check the batteries of the KEYLESS-GO-
card, see page 366. The trunk lid will open
automatically if a KEYLESS-GO card is detected in
the trunk, see page 38.
Note:
If neither the remote control nor KEYLESS-GO system
functions, use the mechanical key to unlock or lock the
vehicle. To start engine, insert the electronic key in the
starter switch. There could be a slight delay until the
electronic key can be turned in the starter switch.
Important!
When unlocking the driver’s door with the mechanical
key, the exterior lamps will flash and the alarm will
sound.
To cancel the alarm, insert the electronic key in the
starter switch, or press button Œ or ‹ on the
electronic main key; or with the optional KEYLESS-GO-
system, when carrying a KEYLESS-GO-card, by grasping
a door handle or pressing the start-/stop button on the
gear selector lever.
34Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Central locking system
Radio frequency and infrared remote control
The electronic main key has an integrated radio
frequency and infrared remote control.
Due to the extended operational range of the remote
control, it could be possible to unintentionally lock or
unlock the vehicle by pressing the transmit button. If
one of the transmit buttons is pressed, the battery check
lamp lights up briefly – indicating that the batteries are
in order. See page 363 for checking batteries.
The vehicle doors, trunk and fuel filler flap can be
centrally locked and unlocked via remote control.
Opening and closing the windows and sliding/pop-up
roof and switching on the driver’s seat ventilation can
only be done with the infrared portion of the remote
control. Aim transmitter eye at a receiver (6 or 7), press
and hold transmit button Œ or ‹, see page 45.
With vehicle centrally locked, the trunk can also be
opened by using the remote control.
If the electronic key is inserted in starter switch, the
vehicle cannot be locked or unlocked, and the trunk lid
cannot be opened with the remote control.
1Transmit button
‹Locking
ŒUnlocking
ŠOpening trunk (if not separately locked)
2Lamp for battery check (see page 363 for changing
batteries if it does not light up briefly)
3PANIC button
4Transmitter eye
5Locking tab for mechanical key
P80.35-2032-26
2
4
3
5
1
35Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
6 Infrared receiver in driver’s door handle 7 Infrared receiver in passenger door handle
36Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Locking and unlocking with remote control
Unlocking:
Press transmit button Œ. All turn signal lamps blink
once to indicate that the vehicle is unlocked.
The remote control can be programmed for two kinds of
unlocking modes (see below):
Selective unlocking mode –
Press transmit button Œ once to unlock driver’s door
and fuel filler flap.
Press transmit button Πtwice to unlock both doors,
fuel filler flap, and trunk.
Global unlocking mode –
Press transmit button Πonce to unlock both doors,
fuel filler flap, and trunk.
Notes:
If the trunk was previously locked separately, it will
remain locked, see page 53.
The presently active unlocking mode (selective or
global) can only be determined by unlocking the vehicle
with the remote control (see below for changing mode).
If within 40 seconds of unlocking with the remote
control, neither door nor trunk is opened, the electronic
key is not inserted in the starter switch, or the central
locking switch is not activated, the vehicle will
automatically lock.
Locking:
Press transmit button ‹ once. All turn signal lamps
blink three times to indicate that the vehicle is locked. If
they do not blink three times, a door or trunk is not
properly closed.
Note:
If the vehicle cannot be locked or unlocked by pressing
the transmit button, then it may be necessary to change
the batteries in the electronic main key (if ok, battery
check lamp in electronic main key will light briefly
when pressing transmit button) or to synchronize the
remote control, see pages 363 and 365.
37Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Choosing global or selective mode on remote control
Press and hold transmit buttons ‹ and Œ
simultaneously for approx. 6 seconds to reprogram the
remote control. Battery check lamp will blink two times
indicating the completed mode change.
Opening the trunk
The trunk lid will swing open automatically. You should
always make sure there is sufficient clearance.
A minimum height clearance of 6 ft. (1.85 m) is
required to open the trunk lid.
Press transmit button Š until trunk lid is open.
Important!
Do not place remote control in trunk since trunk is
locked when the lid is closed if the vehicle is centrally
locked.
Notes:
If the trunk was previously locked separately, it will
remain locked, see page 53.
Vehicles with optional trunk lid
opening/closing system (see page 58):
The switch operated opening/closing procedure can be
immediately halted by pressing button Š on the
electronic main key.
38Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
KEYLESS-GO
Important!
For the KEYLESS-GO-system to function properly, the
operator should observe the following:
•The driver should carry the KEYLESS-GO-card with
him/her.
•To avoid radio transmission interference, never store
the KEYLESS-GO-card together with other electronic
items (e.g. cellular telephones, other KEYLESS-GO-
cards) or metallic objects (e.g. coins, metal foil).
•To lock or unlock the vehicle, the card must be
recognized by the system as being located outside
the vehicle. The card must be in close proximity to a
door or the trunk lid (approx. 3 ft. [1 m]). To activate
the start/stop button function, the KEYLESS-GO-
card must be recognized by the system as being
located inside the vehicle.
•If the KEYLESS-GO-card is positioned farther away
from the vehicle (e.g. inside clothing or a briefcase)
and can no longer be recognized by the system, the
vehicle cannot be locked or the engine started via
the KEYLESS-GO-system.
•If the KEYLESS-GO-card is removed from the vehicle
while the engine is running, or by placing the card
in front of the center armrest (see page 190), the
message “CHIP-CARD – NOT RECOGNIZED!” will
appear repeatedly in the multifunction display,
seepage318.
Find the card or change its present location (e.g.
place it on the front passenger seat or insert it in
shirt pocket).
•If the message “CHIP-CARD – NOT RECOGNIZED”
is ignored for an extended period of time (approx.15
minutes), the engine could stop by itself during a
vehicle stop (e.g. traffic light). The vehicle can then
no longer be centrally locked or the engine
restarted. You must first find the card or change its
present location (e.g. place it on the front passenger
seat or insert it in shirt pocket). Start the engine
again. See page 224.
•Do not forget, the engine can be started by anyone
with a KEYLESS-GO-card that is left inside the
vehicle. Leaving the chip-card behind when exiting
and locking the vehicle, the message “CHIP-CARD –
STILL IN VEHICLE” appears in the multifunction
display, see page 318.
39Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
•Opening the driver’s door with the engine shut off
and no electronic key in the starter switch, the
message “CHIP-CARD – DO NOT FORGET” appears
as a reminder, see page 318.
Important
In the case of a malfunction in the KEYLESS-GO-system,
we recommend that you carry the electronic key plus
mechanical key with you and keep them in a safe place
so that they are always handy. Never leave the electronic
key in the vehicle.
Notes:
The KEYLESS-GO-function also permits closing of
windows and sliding/pop-up roof (convenience feature),
see page 46.
With the KEYLESS-GO-card in close proximity (approx.
3 ft. [1 m]) of the vehicle, aiming a jet of water at a door
handle (e.g. when washing the vehicle) or cleaning
snow from a door, could lock or unlock the vehicle
inadvertently.
To prevent a possible inadvertent lockout, the trunk lid
will open automatically if a KEYLESS-GO-card is
recognized in the area of the rear shelf or inside the
trunk.
40Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Locking and unlocking with KEYLESS-GO-card
Unlocking:
Grasp either door handle. All turn signal lamps blink
once to indicate that the vehicle is unlocked.
The KEYLESS-GO-card can be programmed for two
kinds of unlocking modes (see below):
Selective unlocking mode –
Grasp driver’s door handle to unlock driver’s door and
fuel filler flap.
Grasping the passenger door, centrally unlocks the
vehicle.
Global unlocking mode –
Grasp either door handle to unlock both doors, fuel filler
flap, and trunk.
For choosing global or selective mode on KEYLESS-GO-
card, see page 43.
Notes:
The door which was unlocked, can be opened
immediately after the audible click. The other door can
be opened after its lock button rises up.
If the trunk was previously locked separately, it will
remain locked, see page 53.
The presently active unlocking mode (selective or
global) can be determined by pressing the button on the
KEYLESS-GO-card (see page 43 for changing mode).
If within 40 seconds of unlocking with the
KEYLESS-GO-card, neither door nor trunk is opened,
the electronic key is not inserted in the starter switch,
or the central locking switch is not activated, the vehicle
will automatically lock.
41Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Locking:
Press lock button (1) at either door. All turn signal
lamps blink three times to indicate that the vehicle is
locked. If they do not blink three times, a door or trunk
is not properly closed, or the KEYLESS-GO-card is still in
the vehicle. Check the multifunction display, see
page 318.
Note:
Locking the vehicle with the door lock button (1) is only
possible if a KEYLESS-GO-card is outside the vehicle.
42Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Unlocking:
Press trunk lid lock (2) to open trunk only.
Locking:
Press the trunk lid lock button (3). All turn signal lamps
blink three times to indicate that the vehicle is locked. If
they do not blink three times, a door or trunk is not
properly closed or a KEYLESS-GO-card is still in the
vehicle. Check the multifunction display, see page 318.
Notes:
If the trunk was previously locked separately, it will
remain locked, see page 53.
The vehicle cannot be centrally unlocked via the trunk
lid lock (2).
To prevent a possible inadvertent lockout, the trunk lid
will open automatically if a KEYLESS-GO-card is
recognized in the area of the rear shelf or inside the
trunk.
43Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Choosing global or selective mode
on KEYLESS-GO-card
To choose between the selective or global opening mode
press and hold button (1) until the indicator lamp at the
requested symbol (2) or (3) comes on.
Checking last KEYLESS-GO-card locking mode
Briefly press button (1). The indicator lamp (2) or (3)
lights up in red (vehicle locked) or in green (vehicle
unlocked).
1
2 3
44Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Simultaneous use of electronic key and
KEYLESS-GO-card
When using the electronic key and the KEYLESS-GO-
card at the same time, the electronic key overrules the
KEYLESS-GO-card.
If the engine is started with the start-/stop button on the
gear selector lever, and afterwards the electronic key is
inserted in the starter switch, the engine continues to
run with the gear selector lever in positions “R”, “N”,
“D” plus ranges “4”, “3”, “2”, “1” until it is stopped by
using the start-/stop button on the gear selector lever.
If the electronic key is inserted in the starter switch
while the gear selector lever is in position “P”, the
electronic key takes over. The vehicle operates
according to the electronic key position in the starter
switch (see page 222), eventually even stopping the
engine.
Warning!
When leaving the vehicle always remove the
electronic key from the starter switch, take the
KEYLESS-GO-card with you, and lock your vehicle.
Unsupervised use of vehicle equipment may cause
serious personal injury.
45Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Opening and closing windows and
sliding/pop-up roof from outside
(summer opening/convenience feature)
Aim transmitter eye of remote control at a door receiver.
Summer opening:
(Operation with electronic main key)
The sliding/pop-up roof and all side windows can be
opened and the driver’s seat ventilation automatically
switches on. See page 79 for seat ventilation.
Continue to press transmit button Πafter unlocking
the vehicle.
The windows and sliding/pop-up roof begin to open
after approx. 1 second. The driver’s seat ventilation
automatically switches on. See page 79 for seat
ventilation.
To interrupt opening procedure, release transmit
button.
Convenience feature:
(Operation with electronic main key)
The sliding/pop-up roof and the side windows can be
closed.
Continue to press transmit button ‹ after locking
the vehicle.
The windows and sliding/pop-up roof begin to close
after approx. 1 second.
To interrupt closing procedure, release transmit button.
Ensure that all side windows and the sliding/pop-up
roof are properly closed before leaving the vehicle.
Warning!
Never operate the windows or sliding/pop-up roof if
there is the possibility of anyone being harmed by
the opening or closing procedure.
In case the procedure causes potential danger, the
procedure can be immediately halted by releasing
the remote control button. To reverse direction of
movement press Œ for opening or ‹ for
closing.
46Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Note:
If the windows and sliding/pop-up roof cannot be
operated automatically by pressing the transmit button
of the remote control then it may be necessary to change
the batteries in the electronic main key (if ok, battery
check lamp in electronic main key will light briefly
when transmitting), or to synchronize the remote
control, see page 363 and 365.
Convenience feature
(Operation with KEYLESS-GO)
Continue to press lock button on door handle after
locking the vehicle.
The windows and sliding/pop-up roof begin to close
after approx. 1 second.
To interrupt closing procedure, release lock button. To
reverse direction (within 2 seconds after closing), pull
and hold door handle. Opening of windows starts and
continues for as long as the door handle is held but the
door not opened.
Ensure that all side windows and the sliding/pop-up
roof are properly closed before leaving the vehicle.
Warning!
Never operate the windows or sliding/pop-up roof if
there is the possibility of anyone being harmed by
the closing procedure.
In case the procedure causes potential danger, the
procedure can be immediately halted by releasing
the lock button. To reverse direction of movement
pull and hold outside door handle.
47Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Panic button
To activate press and hold button (1) for at least one
second. An audible alarm and blinking exterior lamps
will operate for approximately 21/2minutes.
To deactivate press button (1) again, or insert electronic
key in starter switch.
Note:
For operation in the USA only: This device complies
with Part 15, Subpart C, Section 209 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
WARNING: Changes or modification not expressly
approved by party responsible for compliance could void
the user’s authority to operate the equipment.
Mechanical keys
The mechanical keys work only in driver’s door, trunk,
and storage compartment locks.
Notes:
The mechanical key does not operate the central locking
system or antitheft alarm system.
The fuel filler flap cannot be locked or unlocked with
the mechanical key.
If the fuel filler flap cannot be opened, see page 368.
P80.35-2035-26
1
48Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Doors
1Opening – pull handle
2Unlocking driver’s door
3Locking driver’s door
Important!
The mechanical key does not operate the central locking
system or antitheft alarm system.
4 Individual door from inside:
Push lock button down to lock.
5Individual door from inside:
Pull handle to unlock.
When you lock the driver’s door with the mechanical
key, the door lock button should move down.
The passenger door must be locked with the door lock
button – the driver’s door can only be locked when it is
closed.
2
1
3
P80.30-2131-26
49Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
If the vehicle has previously been locked from the
outside, opening a door from the inside will trigger the
alarm. When opening a door while the central locking
system is in the:
•selective unlocking mode, only that individual door
is unlocked. The remaining door, the trunk and fuel
filler flap remain locked.
•global unlocking mode, both doors, the trunk and
fuel filler flap are unlocked.
Notes:
When opening a door, the door window and rear side
window lower slightly. After closing the door, the
windows close again.
In case of a malfunction in the central locking system
the doors can be locked and unlocked individually.
To lock, push down lock button or turn mechanical key
in driver’s door lock to position 3. In addition lock the
trunk.
To unlock, pull inside door handles or turn mechanical
key in driver’s door lock to position 2.
When unlocking the driver’s door with the mechanical
key, the exterior lamps will flash and the alarm will
sound.
To cancel the alarm, insert the electronic key in the
starter switch or press button Œ or ‹ on the
electronic main key.
50Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Power closing assist for doors and trunk lid
The doors and the trunk lid close automatically if:
•the doors are positioned against the lock,
•the trunk lid is lowered against the lock.
It is not necessary to slam the door or trunk lid closed, a
pneumatic power-assisted mechanism draws doors and
trunk lid closed quietly and automatically once the lid
or door has been latched. When the pneumatic power-
assisted mechanism has stopped, doors and/or trunk
can be reopened.
Central locking switch
1Locking
2Unlocking
The central locking switch is located in the center
console.
The doors and trunk can only be locked with the central
locking switch, if both doors are closed.
If the vehicle was previously locked with the central
locking switch, while in the selective remote control
mode, only the door opened from the inside is unlocked.
Warning!
To prevent possible personal injury, always keep
hands and fingers away from the door or trunk
opening when closing a door or the trunk lid. Be
especially careful when small children are around.
The pneumatic power closing assist mechanism
cannot be interrupted once it has been engaged.
To prevent personal injury, never actuate the
closing assist mechanism by tampering with the
door or trunk lid latch.
51Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
If the vehicle was previously locked with the central
locking switch, while in the global remote control mode,
the complete vehicle is unlocked when a door is opened
from the inside.
Notes:
If the vehicle was previously locked with the remote
control or the lock button at any door handle (vehicles
with KEYLESS-GO) the doors and trunk cannot be
unlocked with the central locking switch.
The fuel filler flap cannot be locked or unlocked with
the central locking switch.
If the vehicle has previously been locked from the
outside, opening a door from the inside will trigger the
alarm. To cancel the alarm, insert the electronic key in
the starter switch or press button Œ or ‹ on the
electronic main key; or (vehicles with KEYLESS-GO)
when carrying the KEYLESS-GO-card, grasp the door
handle or press the start-/stop button on the gear
selector lever.
Warning!
When leaving the vehicle always remove the
electronic key from the starter switch, take the
KEYLESS-GO-card (if so equipped) with you, and
lock your vehicle. Do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equipment
may cause serious personal injury.
52Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Automatic central locking
With the automatic central locking system activated, the
doors and trunk are locked at vehicle speeds of approx.
9 mph (15 km/h) or more. The fuel filler flap remains
unlocked.
The automatic central locking function can be switched
on or off. See page 138 for “Individual settings”.
Notes:
If doors are unlocked with the central locking switch
after activating the automatic central locking, and
neither door is opened, then the doors remain unlocked
even at vehicle speeds of approx. 9 mph (15 km/h) or
more.
If a door is opened from the inside at speeds of approx.
9 mph (15 km/h) or less with the automatic central
locking activated, the door will again be automatically
locked at speeds of approx. 9 mph (15 km/h) or more.
Important!
When towing the vehicle, or with the vehicle on a
dynamometer test stand, please, note the following:
With the automatic central locking activated and the
electronic key in starter switch position 2 (vehicles with
KEYLESS-GO: operation position, see page 224), the
vehicle doors will lock if the left front wheel as well as
the right rear wheel spin at vehicle speeds of approx.
9 mph (15 km/h) or more.
To prevent the vehicle door locks from locking,
deactivate the automatic central locking. See page 138
for “Individual settings”.
Emergency unlocking in case of accident
The doors unlock automatically a short time after an
accident in which an airbag or emergency tensioning
retractor deploys (this is intended to aid rescue and
exit).
53Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Trunk
0Neutral position – push to open (arrow)
1Unlocking
2Separate locking of trunk – remove mechanical key
in this position.
The lock is located in the license plate recess.
When the trunk is separately locked, it remains locked
when centrally unlocking the vehicle.
To deny any unauthorized person access to the trunk,
lock it separately with the mechanical key. Leave only
the electronic key less its mechanical key with the
vehicle.
Notes:
In case of a malfunction in the central locking system
the trunk can be unlocked individually.
To unlock and open the trunk lid, turn mechanical key
to position 1 (see next page), hold and push to open.
The mechanical key does not operate the central locking
system or antitheft alarm system.
When unlocking the trunk with the mechanical key, the
exterior lamps will flash and the alarm will sound.
54Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
To cancel the alarm, insert the electronic key in the
starter switch or press button Œ or ‹ on the
electronic main key; or (vehicles with KEYLESS-GO)
when carrying the KEYLESS-GO-card, grasp the door
handle or press the start-/stop button on the gear
selector lever.
If the fuel filler flap cannot be opened, see page 368.
Important!
Do not place mechanical key inside trunk, since trunk is
locked again when closing the lid if the vehicle has been
previously centrally locked.
55Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Vehicles without trunk lid opening/closing system:
Lower trunk lid using handle (1) and close it with hands
placed flat on trunk lid. Please remember to keep your
fingers out of the space between the lid and the vehicle.
Vehicles with trunk lid opening/closing system:
Press trunk lid button (2) briefly. The trunk lid closes
automatically.
The trunk lid can also be closed with the trunk lid
opening/closing switch located on the driver’s door, see
page 58.
P88.50-2127-26 P54.25-2392-26
2
56Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Notes:
The automatic closing process is interrupted if the
trunk lid is pushed against an object. The trunk lid will
reverse slightly and stop. In its final closing stage the
hydraulic power closing assist mechanism releases the
trunk lid which then drops into the lock by its own
weight. Now the trunk lid will stop but not reverse
slightly.
Investigate and correct the cause of interruption.
Now press trunk lid close button (2) again to close the
trunk lid.
In case of a malfunction the trunk lid can be opened and
closed manually.
To open, unlock trunk lid with the mechanical key and
open lid by hand, see page 53.
To close, lower trunk lid with hands placed flat on trunk
lid. Please remember to keep your fingers out of the
space between the lid and the vehicle.
Vehicles with KEYLESS-GO:
To prevent a possible inadvertent lockout, the trunk lid
will open automatically if a KEYLESS-GO-card is
recognized in the area of the rear shelf or inside the
trunk.
Warning!
To prevent possible personal injury, always keep
hands and fingers away from the trunk opening
when closing the trunk lid. Be especially careful
when small children are around.
Always be sure persons who might get injured are
away from the trunk area when you operate the
trunk lid closing button located on the vehicle door.
To interrupt the hydraulic power closing assist
mechanism press trunk lid close button (2) inside
the trunk lid, push in trunk lid lock, or press
button Š on the electronic main key.
57Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Trunk lid release switch
(Vehicles without trunk lid opening/closing system)
The switch is located on the driver’s door.
The trunk lid will swing open automatically. You should
always make sure there is sufficient clearance.
A minimum height clearance of 6 ft. (1.85 m) is
required to open the trunk lid.
To open the trunk, the vehicle must be at standstill. Pull
up on switch until trunk lid is open.
The indicator lamp in the switch remains on with trunk
lid open.
Notes:
The trunk can also be opened by using the remote
control. Press Š button.
The trunk lid cannot be opened by the switch or the
remote control when previously locked separately with
the mechanical key. To open, see page 53.
The trunk lid cannot be opened with the trunk lid
release switch when the vehicle was previously locked
with the remote control. To unlock vehicle with the
remote control, see page 34.
58Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Trunk lid opening/closing system (optional)
The switch is located on the driver’s door.
The trunk lid will open and close automatically. You
should always make sure that there is sufficient
clearance.
A minimum height clearance of 6 ft. (1.85 m) is
required to open the trunk lid.
To open and close the trunk, the vehicle must be parked
and unlocked.
To open trunk lid:
Pull up on switch until trunk lid begins to open. The
switch can now be released, the trunk lid opens
automatically.
To interrupt the opening process, either pull up on
switch, or push in trunk lid lock, or press button Š
on the remote control.
The indicator lamp in the switch remains on with trunk
lid open.
To close trunk lid:
Press upper half of switch until trunk lid is closed and
the indicator lamp in the switch goes out.
Warning!
When closing the trunk lid, be sure that there is no
danger of anyone being harmed by the closing
procedure. Be especially careful when small
children are around. Maintain sight of trunk area
while operating the door mounted switch.
To interrupt the hydraulic power closing assist
mechanism release trunk lid release/close switch
and pull up to open.
59Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Notes:
The automatic closing process is interrupted, if the
trunk lid is pushed against an object. The trunk lid will
reverse slightly and stop. In its final closing stage the
hydraulic power closing assist mechanism releases the
trunk lid which then drops into the lock by its own
weight. Now the trunk lid will stop but not reverse
slightly.
Investigate and correct the cause of interruption.
Now press trunk lid opening/closing switch again to
close the trunk lid.
In case of a malfunction the trunk lid can be opened and
closed manually.
To open, unlock trunk lid with the mechanical key and
open lid by hand, see page 53.
To close, lower trunk lid with hands placed flat on trunk
lid. Please remember to keep your fingers out of the
space between the lid and the vehicle.
The trunk can also be opened by using the remote
control. Press Š button.
The trunk lid cannot be opened by the switch or the
remote control when previously locked separately with
the mechanical key. To open, see page 53.
The trunk lid cannot be opened with the trunk lid
opening/closing switch when the vehicle was
previously locked with the central locking switch. To
unlock vehicle with the central locking switch, see
page 50.
Vehicles with KEYLESS-GO:
To prevent a possible inadvertent lockout, the trunk lid
will open automatically if a KEYLESS-GO-card is
recognized in the area of rear shelf or inside the trunk.
60Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Opening height restriction of trunk lid
The trunk lid opening height can be restricted when
transporting goods on a roof rack (e.g. presence of an
MB sport luggage container). When activated, the trunk
lid opens to below the roof line of the vehicle.
To activate:
Press upper half of trunk lid opening/closing switch for
a minimum of 5 seconds.
To deactivate:
Press upper half of trunk lid opening/closing switch for
a minimum of 5 seconds.
Note:
To fully open the trunk lid while opening height
restriction activated, deactivate it.
61Central locking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Trunk lid emergency release
The emergency release button (1) is located in the trunk
lid.
Briefly press emergency release button (1).
All doors, the fuel filler flap, and the trunk unlock; and
the trunk lid opens.
Note:
The emergency release button (1) only unlocks and
opens the trunk while the vehicle is standing.
Important!
The emergency trunk lid release button (1) does not
open the trunk lid, if:
•the vehicle battery is discharged or disconnected,
•the trunk lid was previously locked separately with
the mechanical key, see page 53.
Illumination of the emergency release button (1):
The button will blink for 30 minutes after opening the
trunk.
The button will blink for 60 minutes after closing the
trunk.
62Antitheft alarm system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Antitheft alarm system
1Indicator lamp in switch located in center console
The antitheft alarm is automatically armed or disarmed
with the remote control or the KEYLESS-GO-function, by
locking or unlocking the vehicle.
The antitheft alarm is armed within approx. 10 seconds
after locking the vehicle with the remote control or the
lock button at each door handle (vehicles with
KEYLESS-GO).
A blinking lamp (1) indicates that the alarm is armed.
Operation:
Once the alarm system has been armed, the exterior
vehicle lamps will flash and an alarm will sound when
someone:
•opens a door,
•opens the trunk,
•opens the hood,
•attempts to raise the vehicle.
The alarm will last approximately 21/2minutes in form
of flashing exterior lamps. At the same time an alarm
will sound for 30 seconds. The alarm will stay on even if
the activating element (a door for example) is
immediately closed. If the alarm stays on for more than
20 seconds, an emergency call is initiated automatically.
See Tele Aid on page 210.
63Antitheft alarm system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Notes:
We recommend that you carry the electronic reserve
key plus mechanical key with you and keep it in a safe
place (e.g. your wallet) so that it is always handy. Never
leave the electronic reserve key in the vehicle.
When you unlock the driver’s door with the mechanical
key, the exterior lamps will flash and the alarm will
sound.
To cancel the alarm, insert the electronic key in the
starter switch or press button Œ or ‹ on the
electronic main key; or (vehicles with KEYLESS-GO)
when carrying the KEYLESS-GO-card, grasp the door
handle or press the start-/stop button on the gear
selector lever.
64Tow-away alarm
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Tow-away alarm
The switch is located in the center console.
1Press to switch off
2Indicator lamp
Once the alarm system has been armed, the exterior
vehicle lamps will flash and an alarm will sound when
someone attempts to raise the vehicle.
The alarm will last approximately 21/2minutes in form
of flashing exterior lamps. At the same time an alarm
will sound for 30 seconds. The alarm will stay on even if
the vehicle is immediately lowered. To cancel the alarm,
insert the electronic key in the starter switch or press
button Œ or ‹ on the electronic main key; or
(vehicles with KEYLESS-GO) when carrying the
KEYLESS-GO-card, grasp the door handle or press the
start-/stop button on the gear selector lever.
If the alarm stays on for more than 20 seconds, an
emergency call is initiated automatically. See Tele Aid
on page 210.
65Tow-away alarm
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
To prevent triggering the tow-away alarm feature, switch
off the tow-away alarm before towing the vehicle, or
when parking on a surface subject to movement, such
as a ferry or auto train.
To do so, turn electronic key in starter switch to
position 1 or 0, or remove electronic key from starter
switch. Press tow-away alarm switch (1). The indicator
lamp (2) illuminates briefly.
Exit vehicle, and lock vehicle with the electronic main
key or (vehicles with KEYLESS-GO) the lock button at
each door handle.
The tow-away alarm remains switched off until the
vehicle is locked again with the electronic main key or
the lock button at each door handle (vehicles with
KEYLESS-GO) at which time it is automatically
reactivated.
66Easy-entry/exit feature
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Easy-entry/exit feature
The switch is located on the steering column adjustment
lever.
Turn the switch in direction:
1to switch on
2to switch off
With the easy-entry/exit feature activated, the steering
wheel tilts upwards to allow easier entry into and exit
from the vehicle when the driver’s door is opened.
However, the engine must be turned off.
When the electronic key is inserted in the starter switch
or, with a valid KEYLESS-GO-card, when pressing the
start-/stop button on the gear selector lever, and if the
driver’s door is closed, the steering wheel returns to the
last position set for it.
Warning!
You must ensure that no one can become trapped
or injured by the moving steering wheel with the
easy-entry/exit feature activated and you open the
driver’s door or remove the electronic key from the
starter switch. Do not leave children unattended in
the vehicle, or with access to an unlocked vehicle.
Unsupervised use of vehicle equipment may cause
serious personal injury.
67Seats
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Front seat adjustment
To operate the front power seat adjustment switches,
turn the electronic key in starter switch to position 1
or 2 (with a front door open, the power seats can also be
operated with the electronic key removed or in starter
switch position 0).
Warning!
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause the
driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat back
reclined. Sitting in an excessively reclined position
can be dangerous. You could slide under the seat
belt in a collision. If you slide under it, the belt
would apply force at the abdomen or neck. That
could cause serious or fatal injuries. The seat back
and seat belts provide the best restraint when the
wearer is in an upright position and belts are
properly positioned on the body.
Never place hands under seat or near any moving
parts while a seat is being adjusted.
When leaving the vehicle always remove the
electronic key from the starter switch, take the
KEYLESS-GO-card (if so equipped) with you, and
lock your vehicle.
The power seats can also be operated with the
driver’s or front passenger door open. Do not leave
children unattended in the vehicle, or with access
to an unlocked vehicle. Unsupervised use of vehicle
equipment may cause serious personal injury.
68Seats
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
The switches are located in both doors.
We recommend to adjust the power seat in the following
order:
1Seat adjustment, fore/aft
Press the switch (fore/aft direction) until a
comfortable seating position is reached that still
allows you to reach the accelerator/brake pedal
safely. The position should be as far rearward as
possible, consistent with ability to properly operate
controls.
Note:
Do not move the front passenger seat completely
forward if objects are stored in the parcel net in the
front passenger side footwell. Items in the net may be
damaged.
2Seat, up/down
Press the switch (up/down direction) until
comfortable seating position with still sufficient
headroom is reached.
3Seat cushion tilt
Press the switch in the direction of the arrow until
your legs are slightly supported.
4Backrest tilt
Press the switch in the direction of the arrow until
your arms are slightly angled when holding the
steering wheel.
5Seat cushion depth
Press the switch fore or aft until your legs are
supported comfortably.
42
2
3
5
1
3
1
4
69Seats
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
6Head restraint
The height of the head restraint is adjusted
automatically with the seat so that the back of the
head is supported approximately at ear level. Adjust
the head restraint using the switch if the preset
position does not support the back of your head
approximately at ear level.
Only minor personal adjustments, as described
below, should then be required.
For steering wheel adjustment, see page 105;
inside rear view mirror, see page 106;
exterior rear view mirrors, see page 107.
Adjust the head restraint angle (7) by hand. Push or pull
the head restraint in direction of arrow.
Storing seat positions
The head restraint, steering wheel and rear view mirror
positions are stored together with the seat position.
See page 111 for notes on the memory function. For
recalling a stored seat/head restraint/steering wheel/
and rear view mirror position see page 112.
6
7
70Seats
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Important!
Prior to operating the vehicle, the driver should adjust
the seat height for proper vision as well as fore/aft
placement and backrest angle to insure adequate
control, reach, operation, and comfort. The head
restraint should also be adjusted for proper height. See
also airbag section on page 92 for proper seat
positioning.
In addition, also adjust the steering wheel to ensure
adequate control, reach, operation, and comfort.
Both the inside and outside rear view mirrors should be
adjusted for adequate rearward vision.
Fasten seat belts. Infants and small children should be
seated in a properly secured restraint system that
complies with U.S. Federal Motor Vehicle Safety
Standard 213 and Canadian Motor Vehicle Safety
Standard 213.
All seat, head restraint, steering wheel, and rear view
mirror adjustments as well as fastening of seat belts
should be done before the vehicle is put into motion.
Warning!
Children 12 years old and under must never ride in
the front seat, except in a Mercedes-Benz
authorized BabySmartTM compatible child seat,
which operates with the BabySmartTM system
installed in the vehicle to deactivate the passenger
side front airbag when it is properly installed.
Otherwise they will be struck by the airbag when it
inflates in a crash. If this happens, serious or fatal
injury will result.
According to accident statistics, children are safer
when properly restrained in the rear seating
positions than in the front seating positions.
Infants and small children must ride in back seats
and be seated in an appropriate infant or child
restraint system, which is properly secured with
the vehicle’s seat belt, fully in accordance with the
child seat manufacturer’s instructions.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints are
not properly secured in the vehicle and the child is
not properly secured in the child restraint.
71Seats
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Removal and installation of front seat head
restraints
Caution!
Do not remove head restraints except when mounting
seat covers. Whenever restraints have been removed be
sure to reinstall them before driving.
Note:
Tilt the backrest rearward for easier removal and
installation of the head restraints.
To remove:
Press switch (1) downwards and hold until the head
restraint is fully retracted. Pull head restraint out with
one strong jerking movement.
To install:
Press switch (1) downwards and hold for about
5seconds.
Press the head restraint down until it engages.
Adjust head restraint to the desired position.
P91.16-2030-26
1
Warning!
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint to support the back of the
head approximately at ear level.
Do not drive the vehicle without the seat head
restraints. Head restraints are intended to help
reduce injuries during an accident.
72Seats
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Backrest
Folding forward:
Lift release lever and fold backrest forward. The seat
will automatically slide forward and the head restraint
will move down.
Folding back:
Lift release lever and fold backrest back. The seat and
head restraint return to their previous positions.
To interrupt the procedure, activate the power seat
switch located in the front door.
Warning!
The seat belts provide protection only with the
backrest locked in place and, therefore, must be
locked in place with the vehicle in motion. Do not
drive the vehicle when the backrest is not locked in
place. If the warning message “SEAT BACKREST
LEFT – LOCK!” or “SEAT BACKREST RIGHT –
LOCK!” is displayed in the multifunction display,
then the respective backrest is not engaged in its
lock. Carefully slow down, and drive with caution
to an area which is in a safe distance from the
roadway. Always provide sufficient room behind
the backrest and fold the backrest all the way back
until it locks in place.
The warning message is no longer displayed as
soon as the backrest is locked in place. If both
backrests are locked in place and the warning
message is still displayed, have the system checked
at your authorized Mercedes-Benz Center
immediately.
73Seats
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Notes:
The automatic seat slide is provided with a safety
feature.
The automatic process is interrupted, if the backrest of
the sliding seat is pushed against an occupant or object.
The seat will slide forward and stop.
Investigate and correct the cause of interruption.
Now use memory button (page 112) or power seat switch
(page 68) to bring seat into desired position.
When folding the backrest forward from a reclined
position, and then folding it back, the backrest stops in a
more upright position for the safety of any rear-seat
passenger. Adjust the backrest until your arms are
slightly angled when holding the steering wheel, see
page 68.
When leaving the vehicle always remove the
electronic key from the starter switch, take the
KEYLESS-GO-card (if so equipped) with you, and
lock your vehicle.
The power seats can also be operated with the
driver’s or passenger door open. Do not leave
children unattended in the vehicle or with access
to an unlocked vehicle. Unsupervised use of vehicle
equipment may cause serious personal injury.
Never place hands under seat or near any moving
parts during a seat adjustment procedure.
74Seats
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Lumbar support (optional)
The thumbwheels are located on the sides of the front
seats.
The seats have an inflatable air cushion built into the
backrest to provide additional lumbar support.
Turn the electronic key in starter switch to position 2.
The inflation pressure of the air cushion can be
continuously varied between position “0” (no pressure)
and position “5” (maximum pressure) by changing the
pressure regulator (1) setting.
Multicontour backrest (optional)
The switch clusters are located on the sides of the front
seats.
1Lumbar region
2Center section
3Backrest side cushions
4Massage function (PULSE)
P91.10-2089-26
1
4
13
2
75Seats
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Some models may be equipped with multicontour seats.
These seats have inflatable air cushions built into the
backrests to provide additional lumbar and side support.
Turn the electronic key in starter switch to position 2 to
operate.
We recommend that you make the basic settings in the
following order:
1Lumbar region
Press j or k to select a lumbar region.
Press and hold æ or ç to inflate or deflate the
selected lumbar support.
2Center section
Press æ or ç side of switch and hold; the air
cushion will be inflated or deflated. Release the
switch in the desired position.
3Backrest side cushions
The lateral support increases or decreases as you
press the button to the right or left. Adjust the side
cushions to provide good lateral support.
4Massage function (PULSE)
The multicontour backrest is equipped with a
massage function to help prevent fatigue during
longer journeys.
The PULSE function inflates and deflates the air
cushions in the lumbar region rhythmically.
An indicator lamp on the switch lights up when the
PULSE function is switched on. The PULSE function
switches off automatically after approximately
8minutes.
76Seats
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Seat heater
The seat heaters can be switched on with the electronic
key in starter switch positions 1 or 2.
The buttons are located on each door.
Notes:
When in operation, the seat heater consumes a large
amount of electrical power. It is not advisable to use the
seat heater longer than necessary.
The seat heaters may automatically switch off if too
many power consumers are switched on at the same
time or if the battery charge is low. In this case, one or
both indicator lamps will blink.
The seat heaters switch back on again automatically as
soon as sufficient voltage is available.
If the blinking of the indicator lamps is distracting to
you, the seat heaters can be switched off.
77Seats
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Vehicles without seat ventilation function:
Normal heating mode:
Press button (1).
One indicator lamp in the switch lights up.
The seat heater will be automatically switched off after
approximately 30 minutes.
Rapid heating mode:
Press button (2).
Both indicator lamps in the switch light up.
The system switches over to normal heating mode
automatically after approximately 5 minutes.
Turning off the heater:
Press button (1) or (2) again.
The indicator lamps go out. The seat heater is switched
off.
12
P54.25-2131-26
78Seats
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Vehicles with seat ventilation function:
Rapid heating mode:
Press button (3) once.
Both red indicator lamps above the button light up.
The system switches over to normal heating mode
automatically after approximately 5 minutes.
Normal heating mode:
Press button (3) twice.
One red indicator lamp above the button lights up.
The seat heater will be automatically switched off after
approximately 30 minutes.
Turning off the heater:
Press the button (3) again.
The indicator lamps go out. The seat heater is switched
off.
3
P54.25-2132-26
79Seats
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Seat ventilation system
The buttons are located on each door.
Seat ventilation can be activated manually with the
electronic key in starter switch positions 1 or 2, or by
the summer opening function, see page 45.
Notes:
When in operation, the seat ventilation system
consumes a large amount of electrical power. It is not
advisable to use the seat ventilator longer than
necessary.
The seat ventilators may automatically switch off if too
many power consumers are switched on at the same
time or if the battery charge is low. In this case, one or
more indicator lamps will blink.
The seat ventilation switch back on again automatically
as soon as sufficient voltage is available.
If the blinking of the indicator lamps is distracting to
you, the seat ventilators can be switched off.
The maximum ventilation level (level 3) is automatically
selected if the driver’s seat ventilation is activated by
the summer opening function, see page 45.
80Seats
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Manual activation:
Turn the electronic key in starter switch to position 1
or 2.
Level 3 ventilation setting (maximum):
Press button (1).
Three blue indicator lamps above the button light up.
The level of ventilation is decreased one step
approximately every 10 minutes.
Level 2 ventilation setting (middle):
Press button (1) again.
Two blue indicator lamps above the button light up.
Level 1 ventilation setting (minimum):
Press button (1) again.
One blue indicator lamp above the button lights up.
Turning off the seat ventilation:
Press button (1) again.
The indicator lamps go out. The seat ventilation is
switched off.
1
P54.25-2133-26
81Seats
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Power head restraints, rear
The switches are located on the front and rear center
console.
Turn electronic key in starter switch to position 1 or 2.
Activate switch:
1Place head restraints upright.
2Fold head restraints backward.
Important!
For safety reasons, always drive with the rear head
restraints in the upright position when the rear seats
are occupied.
Keep the area around head restraints clear of articles
(e.g. clothing) to not obstruct the folding operation of
the head restraints.
Notes:
Both head restraints fold up or back together.
The head restraints will position themselves
automatically when the seats are occupied (seat belt
buckled).
82Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Seat belts and integrated restraint system
Your vehicle is equipped with seat belts for all seats,
emergency tensioning retractors, dual front airbags,
side impact airbags for driver, front and rear
passengers, and head protective window curtain
airbags. Their protective functions are designed to
complement one another.
Seat belts
Important!
Laws in most states and all Canadian provinces require
seat belt use.
All states and provinces require use of child restraints
that comply with U.S. Federal Motor Vehicle Safety
Standard 213 and Canadian Motor Vehicle Safety
Standard 213.
All child restraints systems are designed to be secured
in vehicle seats by lap belts or the lap belt portion of a
lap-shoulder belt.
For your safety and that of your passengers we strongly
recommend their use.
Warning!
Children 12 years old and under must never ride in
the front seat, except in a Mercedes-Benz
authorized BabySmartTM compatible child seat,
which operates with the BabySmartTM system
installed in the vehicle to deactivate the passenger
side front airbag when it is properly installed.
Otherwise they will be struck by the airbag when it
inflates in a crash. If this happens, serious or fatal
injury will result.
According to accident statistics, children are safer
when properly restrained in the rear seating
positions than in the front seating positions.
Infants and small children must ride in back seats
and be seated in an appropriate infant or child
restraint system, which is properly secured with
the vehicle’s seat belt, fully in accordance with the
child seat manufacturer’s instructions.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints are
not properly secured in the vehicle and the child is
not properly secured in the child restraint.
83Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Seat belt nonusage warning system
With the electronic key in starter switch position 2, a
warning sounds for a short time if the driver’s seat belt
is not fastened.
Automatic comfort-fit seat belt:
An automatic comfort-fit feature for driver and front
passenger seat belt is activated when the electronic key
in the starter switch is turned to position 1 or 2.
The retraction force of the inertia reel is reduced,
increasing the level of seat belt comfort.
Note:
For cleaning and care of the seat belts see page 382.
Warning!
The seat belts provide protection only with the
backrest locked in place. Do not drive the vehicle
when the backrest is not locked in place. If the
warning message “SEAT BACKREST LEFT – LOCK!”
or “SEAT BACKREST RIGHT – LOCK!” is displayed
in the multifunction display, then the respective
backrest is not engaged in its lock. For backrest see
page 72.
Never ride in a moving vehicle with the backrest
reclined. Sitting in an excessively reclined position
can be dangerous. You could slide under the seat
belt in a collision. If you slide under it, the belt
would apply force at the abdomen or neck. That
could cause serious or even fatal injuries. The
backrest and seat belt provide the best restraint
when the wearer is in an upright position and the
belt is properly positioned on the body.
84Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Warning!
Failure to wear and properly fasten and position
your seat belt greatly increases your risk of
injuries and their likely severity in an accident.
You and your passengers should always wear seat
belts.
If you are ever in an accident, your injuries can be
considerably more severe without your seat belt
properly buckled. Without your seat belt buckled,
you are much more likely to hit the interior of the
vehicle or be ejected from it. You can be seriously
injured or killed.
In the same crash, the possibility of injury or death
is lessened if you are wearing your seat belt.
Warning!
Never let more people ride in the vehicle than there
are seat belts available. Be sure everyone riding in
the vehicle is correctly restrained with a separate
seat belt.
85Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Fastening seat belts 1Latch plate
2Buckle
3Release button
Push the latch plate (1) into the buckle (2) until it clicks.
Do not twist the belt. A twisted seat belt may cause
injury.
To help avoid severe or fatal injuries, the lap belt should
be positioned as low as possible on your hips and not
across the abdomen.
Tighten the lap portion to a snug fit by pulling shoulder
portion up.
P91.40-2001-27P91.40-2063-27
12
3
Warning!
Always fasten your seat belt before driving off.
Always make sure your passengers are properly
restrained – even those sitting in the rear.
86Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Operation of seat belts
The inertia reel stops the belt from unwinding during
sudden stops or when quickly pulling on the belt.
The locking function of the reel may be checked by
quickly pulling out the belt.
Caution!
For safety reasons, avoid adjusting the seat or seat back
into positions which could affect the correct seat belt
positioning.
Unfastening of seat belts
Press release button (3) in the belt buckle (2).
Allow the retractor to completely rewind the seat belt by
guiding the latch plate (1).
Warning!
USE SEAT BELTS PROPERLY.
• Seat belts can only work when used properly.
Never wear seat belts in any other way than as
described in this section, as that could result
in serious injuries in case of an accident.
• Each occupant should wear their seat belt at all
times, because seat belts help reduce the
likelihood of and potential severity of injuries
in accidents, including rollovers. The
integrated restraint system includes “SRS”
(driver airbag, front passenger airbag, side
impact airbags, head protection window
curtain airbags for side windows), “ETR” (seat
belt emergency tensioning retractors), and
front seat knee bolsters. The system is
designed to enhance the protection offered to
properly belted occupants in certain frontal
(front airbags) and side (side impact and
window curtain airbags) impacts which exceed
preset deployment thresholds.
87Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
• Never wear the shoulder belt under your arm,
against your neck or off your shoulder. In a
crash, your body would move too far forward.
That would increase the chance of head and
neck injuries. The belt would also apply too
much force to the ribs or abdomen, which
could severely injure internal organs such as
your liver or spleen.
• Never wear belts over rigid or breakable
objects in or on your clothing, such as
eyeglasses, pens, keys etc., as these might
cause injuries.
• Position the lap belt as low as possible on your
hips and not across the abdomen. If the belt is
positioned across your abdomen, it could cause
serious injuries in a crash.
• Each seat belt should never be used for more
than one person at a time. Do not fasten a seat
belt around a person and another person or
other objects.
• Belts should not be worn twisted. In a crash,
you wouldn’t have the full width of the belt to
manage impact forces. The twisted belt against
your body could cause injuries.
• Pregnant women should also use a lap-
shoulder belt. The lap belt portion should be
positioned as low as possible on the hips to
avoid any possible pressure on the abdomen.
• Never place your feet on the instrument panel
or on the seat. Always keep both feet on the
floor in front of the seat.
88Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
BabySmartTM airbag deactivation system
Special BabySmartTM compatible child seats, designed
for use with the Mercedes-Benz system and available at
any authorized Mercedes-Benz Center are required for
use with the BabySmartTM airbag deactivation system.
With the special child seat properly installed, the
passenger front airbag will not deploy.
The 7 indicator lamp located on the center console
will be illuminated, except with electronic key removed
or in starter switch position 0. The system does not
deactivate the door mounted side impact airbag.
BabySmartTM is a trademark of Siemens Automotive Corp.
Warning!
USE CHILD RESTRAINTS PROPERLY.
Children 12 years old and under must never ride in
the front seat, except in a Mercedes-Benz
authorized BabySmartTM compatible child seat,
which operates with the BabySmartTM system
installed in the vehicle to deactivate the passenger
front airbag when it is properly installed.
Otherwise they will be struck by the airbag when it
inflates in a crash. If this happens, serious or fatal
injury will result.
According to accident statistics, children are safer
when properly restrained in the rear seating
positions than in the front seating positions.
Infants and small children must ride in the back
seats and be seated in an appropriate infant or
child restraint system, which is properly secured
with the vehicle’s seat belt, fully in accordance
with the child seat manufacturer’s instructions.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints are
not properly secured in the vehicle and the child is
not properly secured in the child restraint.
Children too big for child restraint systems must
ride in back seats using regular seat belts. Position
shoulder belt across chest and shoulder, not face or
neck. A booster seat may be necessary to achieve
proper belt positioning.
89Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Self-test BabySmartTM without special child seat
installed
After turning electronic key in starter switch to
position 1 or 2, the 7 indicator lamp located on the
center console comes on for approx. 6 seconds and then
extinguishes.
If the indicator lamp should not come on or is
continuously lit, the system is not functioning. You must
see an authorized Mercedes-Benz Center before seating
any child on the front passenger seat. See page 296 for
notes on the 7 indicator lamp.
BabySmartTM is a trademark of Siemens Automotive Corp.
Warning!
The BabySmartTM airbag deactivation system will
ONLY work with a special child seat designed to
operate with it. It will not work with child seats
which are not BabySmartTM compatible.
Never place anything between seat cushion and
child seat (e.g. pillow), since it reduces the
effectiveness of the deactivation system.
Follow the manufacturer’s instructions for
installation of special child seats.
The passenger front airbag will not deploy only if
the 7 indicator lamp remains illuminated.
Please be sure to check the indicator every time
you use the special system child seat. Should the
light go out while the restraint is installed, please
check installation. If the light remains out, do not
use the BabySmartTM restraint to transport children
on the front passenger seat until the system has
been repaired.
90Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Supplemental restraint system (SRS)
Airbags are intended as a supplement to seat belts.
Airbags alone cannot protect as well as airbags plus
seat belts in impacts for which the airbags were
designed to operate, and do not afford any protection
whatsoever in crashes for which the airbags are not
designed to deploy.
The SRS uses two crash severity levels (thresholds) to
activate either the emergency tensioning retractor (ETR)
or front airbag or both. Activation depends on the
direction and severity of the impact exceeding the
preset thresholds and whether the seat belt is fastened.
Seat belt fastened
•first threshold exceeded: ETR activates
•second threshold exceeded: airbag also activates
Seat belt not fastened
Front seats:
•first threshold exceeded: airbag activates, not ETR
Rear seats:
•first threshold exceeded: ETR activates
Driver and front passenger and rear seat systems
operate independently of each other.
91Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Emergency tensioning retractor (ETR)
The seat belts for the front and rear seats are equipped
with emergency tensioning retractors. These tensioning
retractors are located in each belt’s inertia reel and
become operationally ready with the electronic key in
starter switch position 1 or 2.
The emergency tensioning retractors are designed to
activate only when the seat belts are fastened during
frontal impacts exceeding the first threshold of the SRS
and in rear impacts exceeding a preset severity level.
They remove slack from the belts in such a way that the
seat belts fit more snugly against the body restricting its
forward movement as much as possible.
In cases of other frontal impacts, angled impacts, roll-
overs, certain side impacts, or other accidents without
sufficient frontal or rear impact forces, the emergency
tensioning retractors will not be activated. The driver
and passengers will then be protected by the fastened
seat belts and inertia reel in the usual manner.
92Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Airbags
Front airbags
1Driver airbag
2Front passenger airbag
The most effective occupant restraint system yet
developed for use in production vehicles is the seat belt.
In some cases, however, the protective effect of a seat
belt can be further enhanced by an airbag.
In conjunction with wearing the seat belts, the driver
and front passenger airbags can provide increased
protection for the driver and front passenger in certain
frontal impacts exceeding preset thresholds.
Side impact and head protection window curtain airbags
can provide increased protection to belted occupants on
the impacted side of the vehicle in side impacts
exceeding its preset threshold.
The operational readiness of the airbag system is
verified by the indicator lamp “SRS” in the instrument
cluster when turning the electronic key in starter switch
to position 1 or 2. If no fault is detected, the lamp will go
out after approximately 4 seconds; after the lamp goes
out, the system continues to monitor the components
and circuitry of the airbag system and will indicate a
malfunction by coming on again. If the lamp does not
2
1
93Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
come on at all or if it fails to extinguish after
approximately 4 seconds or if it comes on thereafter, a
malfunction in the system has been detected.
The following system components are monitored or
undergo a self-check: crash-sensor(s), airbag ignition
circuits, front seat belt buckles, emergency tensioning
retractors, seat sensor.
Initially, when the electronic key is turned from starter
switch position 0 to position 1 or 2, malfunctions in the
crash sensor are detected and indicated (the “SRS”
indicator lamp stays on longer than 4 seconds or does
not come on).
Have the system checked at your authorized
Mercedes-Benz Center immediately.
In the operational mode, after the indicator lamp has
gone out following the initial check, interruptions or
short circuits in the airbag ignition circuit and in the
driver and front passenger seat belt buckle harnesses,
and low voltage in the entire system are detected and
indicated.
Note:
See page 293 for information on the supplemental
restraint system (SRS) indicator lamp.
Warning!
In the event a malfunction of the “SRS” is indicated
as outlined above, the “SRS” may not be
operational. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to have the
system checked; otherwise the “SRS” may not be
activated when needed in an accident, which could
result in serious or fatal injury, or it might deploy
unexpectedly and unnecessarily which could also
result in injury.
94Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
The driver and passenger front airbags are designed to
activate only in certain frontal impacts exceeding a
preset threshold. The front passenger airbag deploys
only if the front passenger seat is occupied and the
7indicator lamp on the center console is not
illuminated.
Note:
Heavy objects on the front passenger seat can appear to
the “SRS” to indicate the presence of an occupant in
that seat which causes the passenger front airbag to
deploy in a crash exceeding the appropriate threshold.
95Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Side impact airbags, window curtain airbags
3 Side impact airbags
4Window curtain airbags
Side impact airbags
The side impact airbags are designed to activate only in
certain side impacts exceeding a preset threshold. Only
the side impact airbags on the impacted side of the
vehicle deploy.
The side impact airbag for the front passenger deploys
only if the front passenger seat is occupied.
The side impact airbag for the right rear passenger
deploys only if a preset threshold is exceeded. The side
impact airbag for the left rear passenger deploys
together with the side impact airbag for the driver.
Side impact airbags operate best in conjunction with a
properly positioned and fastened seat belt.
Note:
Heavy objects on front passenger seat can cause the
front passenger side impact airbag to deploy in a crash.
3 3
4
96Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Window curtain airbags
The head protection window curtain airbags afford
greater protection against injuries to the head and
upper body. They fill up in the area between the A and
C pillars (see arrows) between the side windows and an
occupant’s head.
The window curtain airbags are designed to activate
only in certain side impacts exceeding a preset
threshold. Only the head protection window curtain
airbag on the impacted side of the vehicle deploys.
Important!
Airbags are designed to activate only in certain
frontal (front airbags) impacts, or side (side impact
and head protection window curtain airbags)
impacts which exceed preset thresholds.
Only during these types of impacts, if of sufficient
severity to meet the deployment thresholds, will
they provide their supplemental protection.
The driver and passenger should always wear their
seat belts, otherwise it is not possible for the airbags
to provide their supplemental protection.
In cases of other frontal impacts, angled impacts,
roll-overs, other side impacts, rear collisions, or
other accidents, the airbags will not be activated.
The driver and passengers will then be protected by
the fastened seat belts.
We caution you not to rely on the presence of the
airbags in order to avoid wearing your seat belt.
Warning!
Airbags are designed to reduce the potential of
injury in certain frontal (front airbags) impacts, or
side (side impact and head protection window
curtain airbags) impacts which may cause
significant injuries, however, no system available
today can totally eliminate injuries and fatalities.
The activation of the “SRS” temporarily releases a
small amount of dust from the airbags. This dust,
however, is neither injurious to your health, nor
does it indicate a fire in the vehicle. The dust might
cause some temporary breathing difficulty for
people with asthma or other breathing trouble. To
avoid this, you may wish to get out of the vehicle as
soon as it is safe to do so. If you have any breathing
difficulty but cannot get out of the vehicle after the
airbag inflates, then get fresh air by opening a
window or door.
97Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Your vehicle was originally equipped with airbags
which are designed to activate in certain impacts
exceeding a preset threshold to reduce the potential
and severity of injury. It is important to your safety
and that of your passenger that you replace deployed
airbags and repair any malfunctioning airbags to
ensure the vehicle will continue to provide crash
protection for occupants.
Warning!
To reduce the risk of injury when the front airbags
inflate, it is very important for the driver and front
passenger to always be in a properly seated
position and to wear your seat belt.
For maximum protection in the event of a collision
always be in normal seated position with your back
against the backrest. Fasten your seat belt and
ensure that it is properly positioned on your body.
Since the airbag inflates with considerable speed
and force, a proper seating and hands on steering
wheel position will help to keep you at a safe
distance from the airbag. Occupants who are
unbelted, out of position or too close to the airbag
can be seriously injured by an airbag as it inflates
with great force in the blink of an eye:
• Sit properly belted in an upright position with
your back against the backrest.
• Adjust the driver seat as far as possible
rearward, still permitting proper operation of
vehicle controls. The distance from the center
of the driver’s breastbone to the center of the
airbag cover on the steering wheel must be at
least ten inches (25 cm) or more. You should be
able to accomplish this by a combination of
adjustments to the seat and steering wheel. If
you have any problems, please see your
authorized Mercedes-Benz Center.
• Do not lean with your head or chest close to the
steering wheel or dashboard.
• Keep hands on the outside of steering wheel
rim. Placing hands and arms inside the rim
can increase the risk and potential severity of
hand/arm injury when driver front airbag
inflates.
• Adjust the front passenger seat as far as
possible rearward from the dashboard when
the seat is occupied.
98Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
• Occupants, especially children, should never
lean their heads in the area of the door or rear
quarter interior trim panel where the side
airbag inflates. This could result in serious
injuries or death should the airbag be
triggered. Always sit upright, properly use the
seat belts and appropriate size infant or child
restraint system.
• Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmartTM
compatible child seat, which operates with the
BabySmartTM system installed in the vehicle to
deactivate the passenger side front airbag
when it is properly installed. Otherwise they
will be struck by the airbag when it inflates in
a crash. If this happens, serious or fatal injury
can result.
Failure to follow these instructions can result in
severe injuries to you or other occupants.
Warning!
Accident research shows that the safest place for
children in an automobile is in the rear seat.
Should you choose to place a child 12 years old or
under in the front passenger seat of your vehicle,
you must properly use a BabySmartTM child
restraint which will turn off the passenger side
airbag. BabySmartTM will not, however, turn off any
side impact airbag.
It should be noted that with respect to both front
and rear side impact airbags there is a possibility
for a side airbag related injury if occupants,
especially children, are not properly seated or
restrained when next to a side airbag which needs
to deploy rapidly in a side impact in order to do its
job.
99Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
To help avoid the possibility of injury, please follow
these guidelines: (1) occupants, especially
children, should never place their bodies or lean
their heads in the area of the front door or rear
quarter trim panels where the side airbag inflates.
This could result in serious injuries or death
should the side airbag be activated; (2) always sit
upright, properly use the seat belts and use an
appropriately sized infant or child restraint system
for all children 12 years old or under; and (3)
always wear seat belts properly.
If you believe that, even with the use of these
guidelines, it would be safer for your rear seat
occupants to have both rear quarter trim panel
mounted side airbags deactivated, then
deactivation can be accomplished upon your
written election to do so at your authorized
Mercedes-Benz Center at an additional cost. Please
contact your local authorized Mercedes-Benz
Center or call our Client Assistance Center at
1-800-FOR-MERCedes (1-800-367-6372) for details.
100Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Safety guidelines for the seat belt, emergency
tensioning retractor and airbag
Warning!
• Damaged seat belts or belts that were highly
stressed in an accident must be replaced and
their anchoring points must also be checked.
Use only belts installed or supplied by an
authorized Mercedes-Benz Center.
• Airbags and “ETR’s” are designed to function
on a one-time-only basis. An airbag or
emergency tensioning retractor (ETR) that was
activated must be replaced.
• No modifications of any kind may be made to
any components or wiring of the “SRS”. This
includes changing or removing any component
or part of the “SRS”, the installation of
additional trim material, badges etc. over the
steering wheel hub, front passenger airbag
cover, door trim panels, or door frame trims,
and installation of additional electrical/
electronic equipment on or near “SRS”
components and wiring. Keep area between
airbags and occupants free from objects (e.g.
packages, purses, umbrellas, etc.).
• Do not pass belts over sharp edges.
• Do not make any modification that could
change the effectiveness of the belts.
• Do not use handles or coat hooks above doors
and rear windows for placing such items as
coat hangers etc..
• An airbag system component within the
steering wheel gets hot after the airbag has
inflated. Do not touch.
• Improper work on the system, including
incorrect installation and removal, can lead to
possible injury through an unintended
activation of the “SRS”.
• In addition, through improper work there is a
risk of rendering the “SRS” inoperative or
causing unintended airbag deployment. Work
on the “SRS” must therefore only be performed
by an authorized Mercedes-Benz Center.
101Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
When you sell your vehicle we strongly urge you to give
notice to the subsequent owner that it is equipped with
an “SRS” by alerting them to the applicable section in
the Operator’s Manual.
• For your protection and the protection of
others, when scrapping the airbag unit or
emergency tensioning retractor, our safety
instructions must be followed. These
instructions are available from your
authorized Mercedes-Benz Center.
• Given the considerable deployment speed and
the textile structure of the airbags, there is the
possibility of abrasions or other injuries
resulting from airbag deployment.
102Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Infant and child restraint systems
We recommend all infants and children be properly
restrained at all times while the vehicle is in motion.
All lap-shoulder belts except the driver seat belt have
special seat belt retractors for secure fastening of child
restraints.
To activate, pull shoulder belt out completely and let it
retract. During the seat belt retraction a ratcheting
sound can be heard to indicate that the special seat belt
retractor is activated. The belt is now locked.
To deactivate, release seat belt buckle and let seat belt
retract completely. The seat belt can again be used in
the usual manner.
Note:
For child seats with mounting fittings for tether
anchorages refer to page 104 (installation of infant and
child restraint systems).
Important!
The use of infant or child restraints is required by law in
all 50 states and all Canadian provinces.
Infants and small children should be seated in an
appropriate infant or child restraint system properly
secured by a lap-shoulder belt, and that complies with
U.S. Federal Motor Vehicle Safety Standard 213 and
Canadian Motor Vehicle Safety Standard 213.
A statement by the child restraint manufacturer of
compliance with this standard can be found on the
instruction label on the restraint and in the instruction
manual provided with the restraint.
When using any infant or child restraint system, be sure
to carefully read and follow all manufacturer’s
instructions for installation and use.
Please read and observe warning labels affixed to inside
of vehicle and to infant or child restraints.
Warning!
Never release the seat belt buckle while vehicle is
in motion, since the special seat belt retractor will
be deactivated.
103Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Warning!
Children 12 years old and under must never ride in
the front seat, except in a Mercedes-Benz
authorized BabySmartTM compatible child seat,
which operates with the BabySmartTM system
installed in the vehicle to deactivate the passenger
front airbag when it is properly installed.
Otherwise they will be struck by the airbag when it
inflates in a crash. If this happens, serious or fatal
injury can result.
According to accident statistics, children are safer
when properly restrained in the rear seating
positions than in the front seating positions.
Infants and small children must ride in back seats
and be seated in an appropriate infant or child
restraint system, which is properly secured with
the vehicle’s seat belt, fully in accordance with the
child seat manufacturer’s instructions.
Infants and small children should never share a
seat belt with another occupant. During an
accident, they could be crushed between the
occupant and seat belt.
Children too big for child restraint systems must
ride in back seats using regular seat belts. Position
shoulder belt across chest and shoulder, not face or
neck. A booster seat may be necessary to achieve
proper belt positioning for children from 41 lbs. to
the point where a lap/shoulder belt fits properly
without one.
When the child restraint is not in use, remove it
from the vehicle or secure it with the seat belt to
prevent the child restraint from becoming a
projectile in the event of an accident.
104Restraint systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Installation of infant and child restraint systems
This vehicle is provided with tether anchorages for a top
tether strap at each of the rear seating positions.
Prior to installing a tether strap, remove cover (1) from
anchorage ring (2) and store in a convenient place (e.g.
glove box).
To secure a tether strap to the anchorage, securely
fasten the hook (3), which is part of the tether strap, to
the anchorage ring (2). For safety, please make sure that
the hook has attached to the ring beyond the safety
catch, as illustrated.
After removing the tether strap, reinstall the cover (1).
1
P91.40-2205-26
105Steering wheel adjustment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Steering wheel adjustment
To adjust the steering wheel position, turn the electronic
key in starter switch to position 1 or 2. With the driver’s
door open, the steering wheel can also be operated with
the electronic key removed or in starter switch
position 0. However any adjustment will be cancelled
and the steering wheel will return to it’s position stored
in memory if the driver’s door is closed or the electronic
key is inserted in the starter switch.
The stalk is located on the steering column.
1Steering column, lengthen or shorten column
Move the stalk to the front or rear.
2Steering column, height
Move the stalk up or down.
Note:
The steering wheel adjustment can be stored together
with the seat and mirror adjustment.
See page 111 for notes on the memory function.
Warning!
Do not adjust the steering wheel while driving.
Adjusting the steering wheel while driving could
cause the driver to lose the control of the vehicle.
When leaving the vehicle always remove the
electronic key from the starter switch, and take the
KEYLESS-GO-card (if so equipped) with you.
The steering wheel adjustment feature can also be
operated with the driver’s door open. Do not leave
children unattended in the vehicle, or with access
to an unlocked vehicle. Unsupervised use of vehicle
equipment may cause serious personal injury.
P68.00-2011-26
1
1
2
2
106Rear view mirrors
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Rear view mirrors
Inside rear view mirror
Manually adjust the mirror.
Storing inside rear view mirror positions
The seat, exterior rear view mirror and steering wheel
positions are stored together with the interior rear view
mirror position. See page 111 for notes on the memory
function.
Rear view mirror, automatic antiglare
Antiglare mode:
With the electronic key in starter switch position 2, the
mirror reflection brightness responds to changes in
light sensitivity.
With the gear selector lever in position “R”, or with the
interior light switched on, the mirror brightness does
not respond to changes in light sensitivity.
Note:
The automatic antiglare function does not react, if
incoming light is not aimed directly at sensors in the
mirror.
Warning!
In the case of an accident liquid electrolyte may
escape the mirror housing when the mirror glass
breaks.
Electrolyte has an irritating effect. Do not allow the
liquid come into contact with eyes, skin, clothing,
or respiratory system. In cases it does, immediately
flush affected area with water, and seek medical
help if necessary.
107Rear view mirrors
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Exterior rear view mirrors
The buttons are located on the driver’s door.
Exterior mirror adjustment
Turn the electronic key in starter switch to position 2.
Push button to select mirror to be adjusted:
Driver’s side – Push button (1).
Passenger side – Push button (2).
Push the adjustment button (3) up, down, left or right
according to the setting desired.
Note:
The exterior rear view mirrors have electrically heated
glass. The heater switches on automatically, depending
on outside temperature.
Storing mirror positions in memory
The exterior rear view mirror positions are stored in
memory with the seat/steering column/interior rear
view mirror position and can be recalled when
necessary. See page 111 for notes on the memory
function.
Warning!
Exercise care when using the passenger side
exterior mirror. The mirror surface is convex
(outwardly curved surface for a wider field of
view). Objects in mirror are closer than they
appear. Check your inside rear view mirror or
glance over your shoulder before changing lanes.
P88.70-2023-26
2
1
3
4
108Rear view mirrors
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Parking position
The passenger side exterior mirror can be adjusted and
programmed to assist the driver during parking
maneuvers (e.g. to observe the curb or other objects
close to the vehicle).
With the electronic key in starter switch position 2, and
the exterior rear view mirror switch in the passenger
side position, the passenger side mirror will be turned
downward when placing the gear selector lever in “R”
reverse.
The mirror position can now be adjusted as desired.
At speeds above approx. 6 mph (10 km/h), upon shifting
gear selector lever from “R” Reverse, or upon pressing
the driver’s side mirror button (1), the passenger side
mirror will return to its previous position.
To store passenger mirror parking position:
1. Turn electronic key to starter switch position 1 or 2.
The vehicle must be stationary.
2. Select passenger side mirror & and adjust the
mirror to view the curb.
3. Push the memory button “M” (4).
4. Within 3 seconds push bottom of adjustment
button (3).
The mirror should not move.
Repeat the memory procedure if the mirror moves.
5. Select driver side mirror. The passenger side mirror
will return to its previous position.
Note:
One stored parking position is available for each of the
two electronic main keys or each of the KEYLESS-GO-
cards (vehicles with KEYLESS-GO).
109Rear view mirrors
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Exterior mirrors, electrically folding
The buttons are located on the driver’s door.
Turn the electronic key in starter switch to position 1
or 2.
1Push button to fold both mirrors out.
2Push button to fold both mirrors in.
Important!
If an exterior mirror housing is forcibly pushed forward
(hit from the rear), it must be repositioned manually by
applying firm pressure until it snaps back into place.
If an exterior mirror is forcibly pushed rearward (hit
from the front), press button (2) to fold mirrors in, then
press button (1) to fold mirrors out. Do not force mirror
by hand.
Before running the vehicle through an automatic car
wash, fold mirrors in, otherwise they might get
damaged.
Note:
The mirrors can vibrate if they are not completely folded
out.
P88.70-2024-26
2
1
110Rear view mirrors
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Driver’s side exterior mirror, antiglare mode
Antiglare mode:
With the electronic key in starter switch position 2, the
mirror reflection brightness responds to changes in
light sensitivity.
With the gear selector lever in position “R”, or with the
interior light switched on, the mirror brightness does
not respond to changes in light sensitivity.
Note:
The automatic antiglare function does not react, if
incoming light is not aimed directly at sensors in the
mirror.
Important!
Electrolyte drops coming into contact with the vehicle
paint finish can only be completely removed while in
their liquid state, by applying plenty of water.
Warning!
In the case of an accident liquid electrolyte may
escape the mirror housing when the mirror glass
breaks.
Electrolyte has an irritating effect. Do not allow the
liquid come into contact with eyes, skin, clothing,
or respiratory system. In cases it does, immediately
flush affected area with water, and seek medical
help if necessary.
111Memory function
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Memory function
The memory and stored position buttons are located on
the doors.
1Memory button, used to store selected positions
which can be retrieved by pressing the buttons (2)
2Stored position buttons
Three sets of seat/head restraint/steering wheel/and
rear view mirror positions may be stored into memory.
Together with the driver’s seat position you can store
the positions for steering wheel, exterior mirrors and
rear-view mirror.
For the front passenger you can store the seat position.
Three stored positions are available for each of the two
electronic main keys or each of the KEYLESS-GO-cards.
112Memory function
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Storing positions into memory
Driver’s seat: with the electronic key in starter switch
position 1 or 2 or with the driver’s door open and the
electronic key inserted in the starter switch.
Front passenger seat: with electronic key in starter
switch position 1 or 2 or the passenger door open.
Adjust the seat and multicontour backrest to the desired
position. You can also adjust the steering wheel, the
exterior mirrors electrically and the interior rear-view
mirror by hand for the driver’s seat. See page 67 for
front seat adjustment, page 107 for exterior mirror
adjustment and page 105 for steering wheel adjustment.
Push memory button “M”, release and push a stored
position button “1”,“ 2” or “3” within 3 seconds.
Recalling positions from memory
To recall a seat/head restraint/steering wheel/inside
rear view mirror and exterior rear view mirror position,
push and hold button “1”, “2” or “3” until seat/head
restraint/steering wheel and exterior rear view mirror
movement has stopped.
The seat/head restraint/steering wheel/inside rear view
mirror and exterior rear view mirror movement stops
when the button is released.
Caution!
Do not operate the power seats using the memory
button if the backrest is in an excessively reclined
position. Doing so could cause damage to front or rear
seats.
First move backrest to an upright position.
113Memory function
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Important!
Prior to operating the vehicle, the driver should check
and adjust if necessary the seat height, seat position
fore and aft, and backrest angle to insure adequate
control, reach and comfort. The head restraint should
also be adjusted for proper height. See also airbag
section for proper seat positioning.
In addition, also adjust the steering wheel to ensure
adequate control, reach, operation and comfort. Both the
inside and outside rear view mirrors should be adjusted
for adequate rearward vision.
Fasten seat belts. Infants and small children should be
seated in a properly secured restraint system that
complies with U.S. Federal Motor Vehicle Safety
Standard 213 and Canadian Motor Vehicle Safety
Standard 213.
All seat, head restraint, steering wheel, and rear view
mirror adjustments as well as fastening of seat belts
should be done before the vehicle is put into motion.
Warning!
Children 12 years old and under must never ride in
the front seat, except in a Mercedes-Benz
authorized BabySmartTM compatible child seat,
which operates with the BabySmartTM system
installed in the vehicle to deactivate the passenger
front airbag when it is properly installed.
Otherwise they will be struck by the airbag when it
inflates in a crash. If this happens, serious or fatal
injury can result.
According to accident statistics, children are safer
when properly restrained in the rear seating
positions than in the front seating positions.
Infants and small children must ride in back seats
and be seated in an appropriate infant or child
restraint system, which is properly secured with
the vehicle’s seat belt, fully in accordance with the
child seat manufacturer’s instructions.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints are
not properly secured in the vehicle and the child is
not properly secured in the child restraint.
114Instrument cluster
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Instrument cluster
P54.30-3528-29
115Instrument cluster
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
1Knob for instrument cluster illumination,
s e e p a g e 116
2Engine malfunction indicator lamp, see page 290
3Brake fluid low or parking brake engaged,
see page 301
4Supplemental restraint system (SRS) malfunction
indicator lamp, see page 293
5Coolant temperature gauge, see page 117
6Outside temperature indicator, see page 117
7Fuel gauge with reserve warning lamp, see page 293
8Left turn signal indicator lamp, see combination
switch on page 160
9Speedometer, see page 118
10 Electronic stability program (ESP) warning lamp,
system is adjusting to road conditions, see page 295
11 Distance warning lamp – vehicles with Distronic
(DTR), distance to the vehicle ahead is insufficient,
see page 264 and page 295.
12 Multifunction display, see page 120
Instrument cluster display, see page 297
13 Trip odometer, see page 119 and 124
14 Main odometer, see page 124
15 Right turn signal indicator lamp, see combination
switch on page 160
16 Tachometer, see page 119
17 Gear range indicator display, see selector lever
positions on page 232
18 Digital clock
To set the time, see COMAND operator’s manual
19 Antilock brake system (ABS) malfunction indicator
lamp, see page 294
20 High beam headlamp indicator,
see exterior lamp switch, page 156, and
combination switch, page 160
21 Fasten seat belts, see page 296
22 Reset button J, se e p a g es 116, 119
Activating the instrument cluster display
The instrument cluster is activated by:
•Opening the door1.
•Pressing button Jon the instrument cluster1.
116Instrument cluster
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
•Turning the electronic key in starter switch to
position 1 or 2.
•Switching on the exterior lamps.
1 The instrument cluster is activated for approx. 30 seconds.
Instrument cluster illumination
The instrument cluster illumination is dimmed or
brightened automatically to suit daylight lighting
conditions.
The instrument cluster illumination will also be
adjusted when the vehicle’s exterior lamps are
switched on.
Display illumination, changing basic settings for driving
at dusk or in darkness:
Press adjusting knob (1) – the knob will pop out.
Rotate adjusting knob (1) clockwise – instrument lamp
intensity increases.
Rotate adjusting knob (1) counterclockwise –
instrument lamp intensity decreases.
Push knob back into panel.
Note:
It is not possible to select a basic brightness setting in
daylight – the intensity is adjusted automatically.
117Instrument cluster
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Coolant temperature gauge (5)
During severe operating conditions and stop-and-go city
traffic, the coolant temperature may rise close to the red
marking.
The engine should not be operated with the coolant
temperature in the red zone. Doing so may cause
serious engine damage which is not covered by the
Mercedes-Benz Limited Warranty.
Outside temperature indicator (6)
The temperature sensor is located in the front bumper
area. Due to its location, the sensor can be affected by
road or engine heat during idling or slow driving. This
means that the accuracy of the displayed temperature
can only be verified by comparison to a thermometer
placed next to the sensor, not by comparison to external
displays (e.g. bank signs etc.).
Adaption to ambient temperature takes place in steps
and depends on the prevailing driving conditions (stop-
and-go or moderate, constant driving) and amount of
temperature change.
Note:
The temperature indicator display can be set to read out
in either Fahrenheit or Celsius. See page 140.
Warning!
• Driving when your engine is badly overheated
can cause some fluids which may have leaked
into the engine compartment to catch fire. You
could be seriously burned.
• Steam from an overheated engine can cause
serious burns and can occur just by opening
the engine hood. Stay away from the engine if
you see or hear steam coming from it. Turn off
the engine, get out of the vehicle and do not
stand near the vehicle until it cools down.
Warning!
The outside temperature indicator is not designed
to serve as an Ice-Warning Device and is therefore
unsuitable for that purpose. Indicated
temperatures just above the freezing point do not
guarantee that the road surface is free of ice.
118Instrument cluster
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Speedometer (9)
When the cruise control is activated, the segments on
the speedometer scale between the set speed to the top
of the scale are illuminated. Cruise control, see
page 250.
When the Distronic (DTR) is activated, one or two
segments around the speed stored in memory light up
in the speedometer dial. Distronic (DTR), see page 253.
Note:
The speed display is set to read out for
•USA in mph
•Canada in km/h.
119Instrument cluster
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Trip odometer (13)
To reset to “0” miles/km:
Activate the instrument cluster if it is not already
activated by pressing the Jbutton on the instrument
cluster.
Press button è or ÿ on the multifunction
steering wheel repeatedly until the trip odometer
appears if it is not displayed. See page 124.
Press button Jon the instrument cluster.
Tachometer (16)
The red marking on the tachometer denotes excessive
engine speed.
Avoid this engine speed, as it may result in serious
engine damage that is not covered by the
Mercedes-Benz Limited Warranty.
To help protect the engine, the fuel supply is interrupted
if the engine is operated within the red marking.
120Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Multifunction steering wheel, multifunction display
121Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Depending on your vehicle’s equipment, you may use
the buttons on the multifunction steering wheel to call
up, control and set the following systems in the
multifunction display:
1Trip odometer and main odometer, see page 119 and
page 124
Flexible service system (FSS), see page 147
Tire inflation pressure monitor, see page 150
Engine oil level indicator, see page 154
2Audio systems, see page 125
Radio, see page 125
CD player, see page 126
Cassette player, see page 127
3Telephone, see page 128
4Navigation system, see page 132
5Distronic (DTR), see page 253
6Trip computer, see page 134
After start
After reset
Fuel tank content
7Malfunction message memory, see page 136
8Individual settings, see page 138
Press the è or ÿ button repeatedly until the
required system is displayed.
The display advances by one system each time the
button is pressed.
You may call up additional displays within some of these
categories by pressing the j or kbutton.
122Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Note:
The displays in the multifunction display can be set to
German, English, French, Italian or Spanish language.
See the “TEXT” individual setting on page 140 for
instructions on changing the language setting.
The displays for the audio systems (radio, CD player,
cassette player) will appear in English, regardless of the
language selected.
Warning!
A driver’s attention to the road must always be his/
her primary focus when driving.
For your safety and the safety of others, selecting
features through the multifunction steering wheel
should only be done by the driver when traffic and
road conditions permit it to be done safely.
Programming individual settings in the system can
only be made while the vehicle is at standstill.
123Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
1Multifunction steering wheel
2Multifunction display
3Horn pad
Turn the electronic key in starter switch to position 1
or 2.
Press button:
4j for next display in system
5k for previous display in system
6è for next system
7ÿ for previous system
8æ to increase the volume, see page 146
9ç to decrease the volume, see page 146
10 í to dial a telephone number, see page 128
11 ì to end a call
See page 128 for telephone and page 131 for
instructions on answering an incoming call.
Press the è or ÿbutton repeatedly until the
required system is displayed.
The display advances by one system each time the
button is pressed.
You may call up additional displays in some systems by
pressing the j or kbutton.
3
1
2
45
67
8
9
10
11
3
P46.10-2100-27
124Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Trip and main odometer, FSS, tire inflation pressure
monitor and engine oil level indicator
1Trip odometer and main odometer
See page 119 for instructions on resetting the trip
odometer.
2FSS (Flexible service system), see page 147
3Tire inflation pressure monitor, see page 150
4Engine oil level indicator, see page 154
Press è or ÿbutton repeatedly until the trip
odometer and main odometer display (1) appears.
Press the j or kbutton repeatedly until the
required display (2, 3, 4, 1) appears.
Pressing the è or ÿbutton displays the next or
previous system.
125Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Audio systems
Radio
1Audio system is switched off.
2The radio is switched on.
3Wave band setting and memory location number,
where appropriate.
4Station name setting or station frequency.
5This only appears when “MEMORY” rather than
“FREQUENCY” has been selected in the Individual
settings “VEHICLE”. See page 144.
Switch on the radio, see COMAND operator’s manual.
Press the è or ÿbutton repeatedly until
display (2) appears.
Press button j or k repeatedly until the required
station or frequency is displayed.
Use the j of kbutton to select a stored station or
station frequency. This depends on the selection made
in the “STATION SEARCH USING” setting menu.
See individual settings, page 138.
Pressing the è or ÿbutton displays the next or
previous system.
P54.30-2936-27
126Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
CD player 1Audio system is switched off.
2The CD player is switched on.
3The number of the CD currently playing is displayed
if you are using a CD changer.
4Track number.
Switch on the CD player, see COMAND operator’s
manual.
Press the è or ÿbutton repeatedly until
display (2) appears.
Press the j or kbutton repeatedly until the
required track number (4) is displayed.
Pressing the è or ÿbutton displays the next or
previous system.
Note:
To select a CD from the magazine, press a number on
the COMAND system key pad located in the center
dashboard.
127Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Cassette player 1Audio system is switched off.
2The cassette player is switched on.
3Side being played.
Switch on the cassette player, see COMAND operator’s
manual.
Press the è or ÿbutton repeatedly until
display (2) appears.
Pressing the jbutton fast forwards on to the next
track.
Pressing the kbutton rewinds the cassette to the
beginning of the current track.
Pressing the è or ÿbutton displays the next or
previous system.
Notes:
To select the reverse side of the tape, enter request on
the COMAND system located in the center dashboard.
To eject the inserted tape, press “EJT” on the COMAND
system located in the center dashboard.
128Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Telephone
Telephone book
1The telephone is switched off.
2The vehicle is currently outside the transmitter or
receiver range.
3The telephone is ready for use.
4Name selected from the telephone book.
5Number for the name selected. Dialing commences.
6Dialing is completed. The name is displayed. The
display remains for the duration of the call.
7Memory location number.
129Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
The telephone must be switched on.
Press the è or ÿbutton repeatedly until the
display (3) appears. See the separate telephone
instructions manual.
If display (2) appears, no service is available.
Pressing j or k “browses” alphabetically
forwards or backwards through the telephone book,
providing it was previously downloaded. See telephone
operator’s manual for details concerning downloading.
Pressing button j or k for longer than a second
“browses” rapidly through the telephone book. The
name selected appears in the display.
Note:
Press the ìbutton if you do not wish to make a call.
The procedure is cancelled and display (3) appears.
Press the íbutton when the name you require
appears in the display (4). The telephone number (5) is
dialed.
The name will be displayed when dialing is completed.
Display (6) remains for the duration of the call.
Pressing the ìbutton hangs up and display (3)
appears.
Pressing the è or ÿbutton displays the next or
previous system.
130Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Redialing 1The telephone is ready for use.
2Number or name stored in the redial memory.
3Number in the redial memory — redialing has
commenced.
4Dialing is completed and the name stored in the
telephone book is displayed or the number dialed
will remain displayed if no name has been stored.
The display remains for the duration of the call.
5Memory location numbers — the 10 most recently
dialed numbers are stored.
L0, most recently dialed number,
L1 to L9, previously dialed numbers.
P54.30-2899-27
131Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
The telephone must be switched on.
Press the è or ÿbutton repeatedly until the
display (1) appears.
Pressing the íbutton activates the redial memory
and the most recently dialed number is displayed.
Pressing the j or kbutton “browses” forward or
backwards through the redial memory. The number
selected appears in the display.
Note:
Press the ìbutton if you do not wish to make a call.
The procedure is cancelled and display (1) appears.
Press the íbutton when the required number or
name appears in the display (2).
The telephone number (3) is dialed.
Once dialing is completed the name (4) is displayed if
the name is stored in the telephone book; failing that
the number dialed will remain displayed. The display
remains for the duration of the call.
Pressing the ìbutton hangs up and display (1)
appears.
Pressing the è or ÿbutton displays the next or
previous system.
Incoming call
The telephone must be switched on.
1“CALL” — you are being called.
Press the íbutton to answer the call.
Press the ìbutton to hang up or if you do not wish
to answer the incoming call.
132Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Navigation system 1 The navigation system is switched off.
2The navigation system is switched on but no
destination has been specified.
3The navigation system is switched on and
destination guidance is active.
Press the è or ÿbutton repeatedly until the
required system is displayed.
See the separate COMAND (Cockpit Management and
Data System) instruction manual for notes on the
navigation system.
Pressing the è or ÿbutton displays the next or
previous system.
P54.30-2985-27
133Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Distronic (DTR) 1 Distronic (DTR) is deactivated. The actual
distance (4) and the should-be distance (5) to the
vehicle in front (3) are displayed.
2Distronic (DTR) is activated.
The message “DTR OFF” appears for five seconds
when Distronic is being deactivated.
3Vehicle ahead. Only appears if a vehicle is detected
ahead.
4Actual distance to vehicle ahead.
5Should-be distance to vehicle ahead.
6Own vehicle.
Press the è or ÿbutton repeatedly until the
required system is displayed.
Distronic (DTR), see page 253.
Pressing the è or ÿbutton displays the next or
previous system.
134Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Trip computer 1 “AFTER START” — short distance memory
2“AFTER RESET” — long distance memory
3Fuel tank contents and estimated range remaining
4Distance covered “AFTER START” or
“AFTER RESET”
5Elapsed time “AFTER START” or “AFTER RESET”
6Average speed “AFTER START” or “AFTER RESET”
7Average fuel consumption “AFTER START” or
“AFTER RESET”
Press the button è or ÿ repeatedly until the
display (1, 2 or 3) appears.
Press the j or k button until the “AFTER START”
short distance memory (1), the “AFTER RESET” long
distance memory (2) or fuel tank contents and
estimated range remaining indicator (3) appears.
Pressing the è or ÿ button displays the next or
previous system.
Note:
The most recently selected display (1, 2 or 3) always
appears the next time the trip computer is called up.
135Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Transferring values from the previous journey to the
“AFTER START” short distance memory (1):
The “AFTER START” display will f lash until a distance of
approximately 1 mile (1.6 km) has been covered or two
minutes have elapsed since the engine was restarted.
During this period you can incorporate the values for
the previous journey by pressing button Jin the
instrument cluster.
To reset the short “AFTER START” (1) or long
“AFTER RESET” distance memory (2):
Call up the relevant display (1 or 2) using the j or
kbutton and press the Jbutton in the
instrument cluster until the values are reset to “0”.
136Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Malfunction/warning message memory
1There are no messages stored in the system.
2Number of messages stored in the system.
Press the è or ÿbutton repeatedly until the
message memory (1 or 2) is displayed.
Press the j or kbutton if display (2) appears.
The stored messages will now be displayed in order.
See page 297 for malfunction and warning messages.
Display (2) will reappear after you have scanned all the
malfunction and warning messages.
Should any malfunction or warning messages be stored
while driving, they will reappear in the display (2) when
the electronic key is in starter switch position 0 or
removed from the starter switch.
The malfunction or warning messages will now be
displayed for approximately 5 seconds each. Pressing
the Jbutton in the instrument cluster displays the
next malfunction and warning message immediately.
137Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
The message memory will be cleared when the
electronic key is turned in the starter switch to
position 1 or 2. Should any subsequent faults occur,
they will be displayed in the message memory.
Pressing the è or ÿbutton displays the next or
previous system.
Important!
Malfunction and warning messages are only indicated
for certain systems and displayed to a low level of detail.
The malfunction and warning messages are simply a
reminder with respect to the operation of certain
systems and do not replace the driver’s responsibility to
maintain the vehicle’s operating safety by having all
required maintenance and safety checks performed on
the vehicle and by bringing the vehicle to an authorized
Mercedes-Benz Center to address the malfunction and
warning messages. See page 297.
138Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Individual settings 1 Preliminary display of the individual settings.
2“SETTINGS” – the requested menu can be called up
in this options menu:
“INSTRUMENT CLUSTER”, see page 140.
“LIGHTING”, see page 142.
“VEHICLE”, see page 144.
These three menus contain additional submenus.
Individual settings can be selected in these
submenus.
3Selection marker
Pressing button æ or ç on the multifunction
steering wheel controls the selection marker.
4See below for instructions on returning the setting
menus to the factory settings.
5Acknowledgment
R
R
139Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Press the è or ÿbutton repeatedly until the
individual setting preliminary display (1) appears.
Press the j or kbutton until the setting menu
“SETTINGS” (2) is displayed.
Pressing the æ or çbutton controls the selection
marker (3) in setting menu (2).
“INSTRUMENT CLUSTER”, see page 140.
“HEADLAMP MODE”, see page 142.
“VEHICLE”, see page 144.
Pressing the è or ÿbutton displays the next or
previous system.
Notes:
These settings may only be performed with the vehicle
at standstill and with the electronic key in starter switch
position 1 or 2.
The individual setting preliminary display (1) will
appear if you speed up.
The setting menu previously called up will reappear
when the vehicle stops, providing no other system has
been called up in the meantime.
To return menu “SETTINGS” (2) to its factory
setting:
•Call up the individual setting preliminary
display (1).
•Press the Jbutton in the instrument cluster for
approximately 3 seconds. Display (4) will appear.
•Press the JButton once more. The menu
“SETTINGS” is reset to factory settings,
acknowledged by display (5).
The individual setting preliminary display (1) will
appear if you do not press the Jbutton within
about 5 seconds. The setting menus will not be
reset.
140Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
“INSTRUMENT CLUSTER”
R
3
141Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
1Preliminary display of the individual settings
2“SETTINGS” – the menu “INSTRUMENT CLUSTER”
can be called up in this option menu.
3Selection marker
Pressing button æ or ç on the multifunction
steering wheel controls the selection marker.
4“TEMP. INDICATOR” – the unit set is displayed in
the outside temperature display, in the instrument
cluster and in the automatic air conditioner display.
5“SPEEDOMETER” – the unit set is displayed in the
multifunction display
For setting clock, see separate COMAND
operator’s manual.
6“TEXT” – sets the language used in the
multifunction display
7Returning the setting menu “INSTRUMENT
CLUSTER” to the factory setting.
8Acknowledgment
Press the è or ÿbutton repeatedly until the
individual setting preliminary display (1) appears.
Press the j or kbutton until the setting menu
“SETTINGS” (2) is displayed.
Press button æ or ç until the menu
“INSTRUMENT CLUSTER” is selected by the selection
marker (3).
Press the j or kbutton until the required
display (4 to 6) is displayed. Pressing the æ or ç
button controls the selection marker. The settings made
are stored and applied immediately.
The individual setting preliminary display (1) will
appear again after you have run through all the setting
menus. Pressing the è or ÿbutton displays the
next or previous system.
To return menu “INSTRUMENT CLUSTER” (4 to 6) to
its factory setting:
•Call up menu (4 to 6).
•Press the Jbutton in the instrument cluster for
approximately 3 seconds. Display (7) will appear.
•Press the Jbutton once more. The menu
“INSTR. CLUSTER” is reset to factory settings,
acknowledged by display (8).
The individual setting display “SETTINGS” (2) will
appear if you do not press the Jbutton within
about 5 seconds. The setting menus will not be
reset.
142Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
“LIGHTING”
R
7
143Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
1Preliminary display of the individual settings
2“SETTINGS” – the menu “LIGHTING” can be called
up in this option menu.
3Selection marker
Pressing button æ or ç on the multifunction
steering wheel controls the selection marker.
4“LIGHT CIRCUIT HEADLAMP MODE”1, see
page 157.
5“LOCATOR LIGHTING”, see page 159.
6“HEADLAMPS DELAYED SWITCH-OFF”, see “Night
security illumination” on page 158.
7“INT. ILLUMINATION DELAYED SWITCH-OFF”, see
“Interior lighting” on page 184.
8Returning the setting menu “LIGHTING” to the
factory setting.
9Acknowledgment
1Except Canada
Press the è or ÿbutton repeatedly until the
individual setting preliminary display (1) appears.
Press the j or kbutton until the setting menu
“SETTINGS” (2) is displayed.
Press button æ or ç until the menu “LIGHTING”
is selected by the selection marker (3).
Press the j or kbutton until the required
display (4 to 7) is displayed. Pressing the æ or ç
button controls the selection marker. The settings made
are stored and applied immediately.
The individual setting preliminary display (1) will
appear again after you have run through all the setting
menus. Pressing the è or ÿbutton displays the
next or previous system.
To return menu “LIGHTING” (4 to 7) to its factory
setting:
•Call up menu (4 to 7).
•Press the Jbutton in the instrument cluster for
approximately 3 seconds. Display (8) will appear.
•Press the Jbutton once more. The menu
“LIGHTING” is reset to factory settings,
acknowledged by display (9).
The individual setting display “SETTINGS” (2) will
appear if you do not press the Jbutton within
about 5 seconds. The setting menus will not be
reset.
144Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
“VEHICLE” (audio and central locking system)
R
5
145Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
1Preliminary display of the individual settings
2“SETTINGS” – the menu “VEHICLE” can be called
up in this option menu.
3Selection marker
Pressing button æ or ç on the multifunction
steering wheel controls the selection marker.
4“STATION SEARCH USING”
– radio adjustment “FREQUENCY”: use the j
or k button to select a frequency.
– radio adjustment “MEMORY”: use the j
or k button to select a stored station (preset
memory).
5“AUTOMATIC DOOR LOCK”, see automatic central
locking on page 52.
6Returning the setting menu “VEHICLE” to the
factory setting.
7Acknowledgment
Press the è or ÿbutton repeatedly until the
individual setting preliminary display (1) appears.
Press the j or kbutton until the setting menu
“SETTINGS” (2) is displayed.
Press button æ or ç until the menu “VEHICLE” is
selected by the selection marker (3).
Press the j or kbutton until the required
display (4 or 5) is displayed. Pressing the æ or ç
button controls the selection marker. The settings made
are stored and applied immediately.
The individual setting preliminary display (1) will
appear again after you have run through all the setting
menus. Pressing the è or ÿbutton displays the
next or previous system.
To return menu “VEHICLE” (4 and 5) to its factory
setting:
•Call up menu (4 or 5).
•Press the Jbutton in the instrument cluster for
approximately 3 seconds. Display (6) will appear.
•Press the Jbutton once more. The menu
“VEHICLE” is reset to factory settings,
acknowledged by display (7).
The individual setting display “SETTINGS” (2) will
appear if you do not press the Jbutton within
about 5 seconds. The setting menus will not be
reset.
146Multifunction steering wheel, multifunction display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Setting the audio volume
You can only adjust the volume of the system currently
in use. The volume setting for each system (audio,
telephone, navigation and voice recognition system) is
stored separately.
Setting button:
æincreases the volume.
çreduces the volume.
147Flexible service system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Flexible service system (FSS)
(service indicator)
The FSS permits a flexible service schedule that is
directly related to the operating conditions of the
vehicle.
The symbol 9 or ½ appears together with a
message in the multifunction indicator prior to the next
suggested service. Depending on operating conditions
throughout the year, the next service is calculated and
displayed in days or distance remaining.
The message is displayed for approx. 10 seconds when
turning the electronic key in starter switch to position 2,
or while driving when reaching the service warning
threshold.
The symbols and messages indicate the type of service
to be performed:
9Service A
½Service B
One of the following messages will appear in the display
(e.g. Service A):
“SERVICE A – IN xx DAYS”
“SERVICE A – IN xx MILES” (Canada: KM)
“SERVICE A – EXCEEDED BY xx DAYS”
“SERVICE A – EXCEEDED BY xx MILES” (Canada: KM)
“SERVICE A – PERFORM SERVICE”
The next service due date is displayed either in days or
in miles, depending on your driving style.
Once the suggested service term has passed, the symbol
and message appear for approx. 30 seconds and a signal
sounds every time when turning the electronic key in
starter switch to position 2.
P54.30-2768-26
148Flexible service system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
The service indicator disappears automatically after
30 seconds or if button Jon the instrument cluster
is pressed.
Calling up service indicator manually:
Turn the electronic key in starter switch to position 1.
Call up the trip odometer and main odometer by
pressing button è or ÿ on the multifunction
steering wheel until the display appears. See page 124.
Press button j or k until the FSS indicator
appears.
The next or previous system is displayed by pressing
button è or ÿ.
Important!
The FSS indicator is not an engine oil level indicator.
See page 154 for engine oil level indicator.
Note:
When disconnecting vehicle battery for one or more
days at a time, such days will not be counted. Any such
days not counted by the FSS can be added by your
Mercedes-Benz Center.
The interval between services is determined by the type
of driving for which the vehicle is used. For example,
driving at extreme speeds, and cold starts combined
with short distance driving in which the engine does not
reach operating normal temperature, reduce the interval
between services.
149Flexible service system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Following a completed A or B service the Mercedes-Benz
Center sets the counter mileage to 10 000 miles
(Canada: 15 000 km) and 365 days.
The counter can also be set by any individual. To do so:
Turn the electronic key in starter switch to position 1.
To call up the trip odometer and main odometer, press
button è or ÿ on the multifunction steering
wheel until the display appears. See page 124.
Press button j or k until the FSS indicator
appears.
Press button Jon the instrument cluster for
approximately 2 seconds.
The multifunction display will show the question:
“DO YOU WANT TO RESET SERVICE INTERVAL? –
CONFIRM BY PRESSING R”
Press button Jon the instrument cluster again to
reset the service indicator.
The new service indicator is displayed with the reset
distance of 10 000 miles (Canada 15 000 km).
If the FSS counter was inadvertently reset, have a
Mercedes-Benz Center correct it.
However you choose to set your reference numbers, the
scheduled services as posted in the Service Booklet
must be followed to properly care for your vehicle.
150Tire inflation pressure monitor
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Tire inflation pressure monitor
The tire inflation pressure, as selected by the driver, is
monitored in all four wheels on the ground. A warning
is issued to the driver in the case of a decrease in the
inflation pressure in one or more of the tires.
Inquiry of present tire inflation pressure
Turn electronic key in starter switch to position 1 or 2.
Press è or ÿbutton on the multifunction
steering wheel until the display for trip and main
odometer appears, see page 124.
Press the j or kbutton repeatedly until the tire
inflation pressure monitor is displayed.
The present tire inflation pressure for each wheel is
displayed in multifunction display.
Warning!
The tire inflation pressure monitor does not
indicate a warning for wrongly selected inflation
pressures. Always adjust tire inflation pressure
according to the label affixed on the fuel filler flap.
See page 345 for tire inflation pressure.
The tire inflation pressure monitor is not able to
issue a warning due to a sudden loss of pressure
(e.g. tire puncture caused by a foreign object). In
this case bring vehicle to a halt by carefully
applying the service brakes and avoiding abrupt
steering maneuvers.
151Tire inflation pressure monitor
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Notes:
Following a tire inflation pressure reactivation process
the real tire inflation pressures are displayed only after
a few minutes travel time.
Possible differences between readings of a tire pressure
gauge of an air hose, e.g. gas station equipment, and the
vehicle’s multifunction display can occur. The vehicle’s
multifunction display of the tire inflation pressure
monitor is a more precise reading.
Activation of tire inflation pressure monitor
Activation of tire inflation pressure monitor is
necessary if tire inflation pressure is being changed,
wheels or tires are replaced, or new wheels are installed
on the vehicle.
Tire inflation pressure should be checked and corrected
according to the label affixed inside the fuel filler flap.
For a detailed description, refer to page 345.
Turn electronic key in starter switch to position 2 (the
engine must not be running).
Notes:
When checking the tire inflation pressure of the road
wheels, also check the spare tire.
The tire inflation pressure of the spare wheel, mounted
or not mounted, is not monitored by the tire inflation
pressure monitor.
See page 335 for location of the spare wheel, and
page 345 for tire inflation pressure.
152Tire inflation pressure monitor
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Press è or ÿbutton on the multifunction
steering wheel until the display for trip and main
odometer appears, see page 124.
Press the j or kbutton repeatedly until the tire
inflation pressure monitor appears.
Press and hold button Jon the instrument cluster
until the message “MONITOR CURRENT TIRE
PRESSURES?” appears. Release button J.
Press and hold button Jon the instrument cluster
again until the message “TIRE PRESS. CONTROL –
ACTIVATED!” appears.
The tire inflation pressure monitor is now activated and
monitors the presently selected tire pressure for all four
wheels on the ground.
Repeat above steps if the multifunction display shows
the message “TIRE PRESS. CONTROL – REACTIVATE!”.
A multifunction display showing the message
“TIREPRESSURE–CHECKTIRES!” indicates a much
too low tire inflation pressure. Check and correct tire
inflation pressure again on all wheels, and repeat the
tire inflation pressure monitor activation steps listed
above.
153Tire inflation pressure monitor
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Notes:
To ensure proper functioning of the tire inflation
pressure monitor, the tire inflation pressure should be
checked and corrected according to the label affixed
inside the fuel filler flap. For a detailed description,
refer to page 345.
The message “TIRE PRESS. CONTROL – REACTIVATE”
appears if the tire inflation pressure shows an increase
of 4.4 psi (0.3 bar) or more. Reactivate the tire inflation
pressure monitor.
The tire inflation pressure monitor only functions on
wheels equipped with the proper electronic sensors.
Inquire at your authorized Mercedes-Benz Center about
retrofitting other than original Mercedes-Benz wheels
with electronic sensors.
Transporting a deflated road wheel in the vehicle, e.g.
after having a flat, the tire inflation pressure monitor
should only be activated once the flat tire and rim are
removed from the vehicle. Otherwise the monitor
displays the message “TIRE PRESS. CONTROL –
CURRENTLY INACTIVE”.
To prevent possible damage to the electronic sensors,
have tire changes only performed at an authorized
Mercedes-Benz Center.
For malfunction and warning messages, see page 312.
154Engine oil level indicator
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Engine oil level indicator
To check the engine oil level, park vehicle on level
ground, with engine at normal operational temperature.
Check oil level approximately 5 minutes after stopping
the engine, allowing for the oil to return to the oil pan.
The message “PERF. SERV. ON TIME” (perform service
[engine oil level check] on time) will be displayed if the
required waiting period has not been observed after
stopping the engine:
•with engine at operational temperature approx.
5minutes.
•with engine not at operational temperature up to
approx. 30 minutes.
The engine oil level check can be repeated after a short
time.
Turn the electronic key in starter switch to position 2.
To call up the trip odometer and main odometer, press
button è or ÿ on the multifunction steering
wheel until the display appears. See page 124.
Press button j or k on the multifunction
steering wheel repeatedly until the “WHEN
MEASURING – CAR MUST BE LEVEL” engine oil level
indicator appears. This indicator is only a reminder.
Measurement can be cancelled by pressing button j
or k if the vehicle is not parked on level ground. An
incorrect reading will be recorded if you do not cancel
the measurement. Move the vehicle to level ground and
measure again.
The electronic key in starter switch is not in position 2 if
the “ENGINE OIL LEVEL – SWITCH ON IGNITION”
message appears.
The “ENGINE OIL LEVEL – MEASURING NOW”
message is displayed after approximately 3 seconds.
155Engine oil level indicator
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
One of the following messages will subsequently appear
on the indicator:
“ENGINE OIL LEVEL – O.K.”
No oil needs to be added.
“ENGINE OIL LEVEL – ADD 1.0 QUART”
(Canada: 1.0 L)
“ENGINE OIL LEVEL – ADD 1.5 QUART”
(Canada: 1.5 L)
“ENGINE OIL LEVEL – ADD 2.0 QUART”
(Canada: 2.0 L)
See “Checking engine oil level”, on page 331 for
instructions on adding engine oil.
“ENGINE OIL LEVEL – REDUCE OIL LEVEL”
Do not overfill the engine.
Excessive oil must be siphoned or drained off. It could
cause damage to the engine and catalytic converter not
covered by the Mercedes-Benz Limited Warranty.
The “MEASURING NOT POSSIBLE” message will be
displayed if a proper oil level check cannot be
performed. The engine oil level check can be repeated
after a short while.
CL 500 and CL 55 AMG only:
Perform the engine oil level check with the dipstick, if it
cannot be completed via the multifunction display.
See “Checking engine oil level”, page 331.
In this case we recommend that you have the system
checked at a Mercedes-Benz Center.
Notes:
See malfunction and warning messages on page 297
and page 314 if an engine oil level indicator appears on
the multifunction display when the engine is running.
The engine oil level cannot be checked while the engine
is running. The “ENGINE OIL LEVEL – NOT WHEN
ENGINE ON” message will appear.
Engine oil consumption
Engine oil consumption checks should only be made
after the break-in period. During the break-in period,
higher oil consumption may be noticed and is normal.
Frequent driving at high engine speeds results in
increased consumption.
156Exterior lamp switch
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Exterior lamp switch
MOff
UAutomatic headlamp mode, see below.
CParking lamps (also side marker lamps, taillamps,
licence plate lamps, instrument panel lamps)
Canada only: When the engine is running, the low
beam is additionally switched on.
BParking lamps plus low beam or high beam
headlamps (combination switch pushed forward).
ˆStanding lamps, right (turn left one stop)
‚Standing lamps, left (turn left two stops)
‡Front fog lamps (pull out one stop) with parking
lamps and/or low beam headlamps on. Green
indicator in lamp switch comes on.
†Rear fog lamp (pull out to second detent) in
addition to the front fog lamps. Yellow indicator in
lamp switch comes on.
Note:
With the electronic key removed and the driver’s door
open, a warning sounds if the vehicle’s exterior lamps
(except standing lamps) are not switched off.
Fog lamps will operate with the parking lamps and/or
the low beam headlamps on. Fog lamps should only be
used in conjunction with low beam headlamps. Consult
your State or Province Motor Vehicle Regulations
regarding allowable lamp operation.
Fog lamps are automatically switched off when the
exterior lamp switch is turned to position M or U.
P54.25-2390-26
157Exterior lamp switch
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Headlamp mode (HEADLAMPS)
(USA only)
The headlamps can be switched on and off manually or
automatically, or switched to daytime running lamp
mode.
Manual operation:
The low beam headlamps, parking lamps and license
plate lamps can be switched on and off with the exterior
lamp switch. For exterior lamp switch, see above.
Automatic operation:
With electronic key in starter switch in position 1 turn
exterior lamp switch to position U.
The parking lamps switch on and off automatically
depending on the brightness of the ambient light.
With the engine running and exterior lamp switch in
position U:
The low beam headlamps, parking lamps and license
plate lamps are switched on and off automatically
depending on the brightness of the ambient light.
The low beam headlamps, parking lamps and license
plate lamps can still be switched on and off manually
using the exterior lamp switch.
Note:
The headlamps will not be automatically switched on
under foggy conditions.
Warning!
The driver is responsible for the operation of the
vehicle’s lights at all times. The automatic
headlamp feature is only an aid to the driver.
Switch on the vehicle lights by hand when driving
or traffic conditions require you to do so.
158Exterior lamp switch
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Daytime running lamp mode
Turn exterior lamp switch to position M.
When the engine is running, the low beam headlamps
(includes parking lamps and license plate lamps) are
automatically switched on.
Canada only:
When shifting from a driving position to position “N”
or “P”, the low beam switches off (3 minutes delay).
For nighttime driving the exterior lamp switch should
be turned to position B to permit activation of the
high beam headlamps.
USA only:
The high beam headlamps can also be activated when
driving with the daytime running lamp mode activated
and exterior lamp switch in position M.
See page 156 for notes on the exterior lamp switch.
To activate the daytime running lamp mode, see
“Individual settings” – “LIGHTING” on page 142.
Night security illumination
When turning off the engine, the exterior lamps switch
on for added illumination, if they were previously
switched on (except in daytime running mode). After
the last door has been closed the lamp-on time period
commences.
The lamp-on time period for night security illumination
can be set at several different timed levels from 0 (off) to
60 seconds.
Notes:
Within 10 minutes after closing the last door the night
security illumination can be reactivated by opening a
door.
See “Individual settings” – “LIGHTING” on page 142 for
instructions on how to activate the function.
Deactivating night security illumination temporarily:
Turn the electronic key in starter switch to position 0
then to position 2 and back to position 0 again before
getting out of the vehicle. The night security
illumination will not be activated when the door is
opened.
159Exterior lamp switch
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Locator lighting
After unlocking the vehicle with the electronic main key
during darkness, the fog lamps, parking lamps,
taillamps and license plate lamps switch on for a
approx. 40 seconds.
The exterior lamps will be switched off when opening
the driver’s door.
See “Individual settings” – “LIGHTING” on page 142 for
instructions on how to activate the function.
Headlamp cleaning system
Turn the electronic key in starter switch to position 1
or 2.
The headlamps will be cleaned with a high-pressure
water jet when you press the headlamp washer
button (1).
See page 334 for instructions on filling up the
windshield/headlamp washer reservoir.
P54.25-2391-26
1
160Combination switch
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Combination switch
1Low beam
(exterior lamp switch position B)
2High beam
(exterior lamp switch position B)
3High beam flasher (high beam available
independent of exterior lamp switch position)
4Turn signals, right
5Turn signals, left
To signal minor directional changes, such as changing
lanes on a highway, move combination switch briefly to
the point of resistance only and release. The turn
signals blink three times.
To operate the turn signals continuously, move the
combination switch past the point of resistance (up or
down). The switch is automatically canceled when the
steering wheel is turned to a large enough degree.
Turn signal failure
If one of the turn signals fails, the turn signal indicator
system flashes and sounds at a faster than normal rate.
P54.25-2388-26
5
21
4
3
4
5
161Combination switch
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
6Press switch briefly:
Single wipe without washer fluid
(select only if windshield is wet).
Push switch past resistance point:
Windshield washer system, windshield wipers.
See page 334 for instructions on filling the
windshield/headlamp washer reservoir.
7Windshield wipers
0Off
I Intermittent wiping
One initial wipe, pauses between wipes are
automatically controlled by a rain sensor
monitoring the wetness of the windshield. This
will not occur with a front door open.
Notes:
With switch in this position, one wipe occurs
when turning the electronic key in starter switch
from position 0. This will not occur with a front
door open.
Do not leave in intermittent setting when vehicle
is taken to an automatic car wash or during
windshield cleaning. Wipers will operate in
presence of water spray at windshield, and
wipers may be damaged as a result.
II Normal wiper speed
III Fast wiper speed
P54.25-2389-26
6
7
162Combination switch
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Blocked windshield wipers
If the windshield wipers become blocked (for example,
due to snow), switch off the wipers.
For safety reasons before removing ice or snow, remove
electronic key from starter switch. Remove blockage.
Activate combination switch again (electronic key in
starter switch position 1).
Emergency operation of windshield wipers
In case of windshield wiper malfunction in switch
positions I or III, turn combination switch to wiper
setting II. Have the system checked at your authorized
Mercedes-Benz Center as soon as possible.
Windshield wipers smear
If the windshield wipers smear the windshield, even
during rain, activate the washer system as often as
necessary. The fluid in the washer reservoir should be
mixed in the correct ratio.
See page 334 for instructions on filling up the
windshield/headlamp washer reservoir.
Windshield and headlamp washer fluid mixing ratio
For temperatures above freezing:
MB windshield washer concentrate “S” and water.
1 part “S” to 100 parts water
(40 ml “S” to 1 gallon water).
For temperature below freezing:
MB windshield washer concentrate “S” and
commercially available premixed windshield washer
solvent/antifreeze.
1 part “S” to 100 parts solvent
(40 ml “S” to 1 gallon solvent).
163Hazard warning flasher
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Hazard warning flasher switch
The hazard warning flasher can be activated either
manually via the switch located in the dashboard, or it
is activated automatically at the time an airbag is
deployed.
To activate hazard warning flasher, press switch once.
To deactivate, press switch again.
If hazard warning flasher was activated automatically,
press switch twice to deactivate.
Note:
With the hazard warning flasher activated, the
combination switch in position for either left or right
turn, and the electronic key in starter switch position 1
or 2, only the respective left or right side turn signals
will operate.
164Automatic climate control
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Automatic climate control
3
P83.40-2266-29
2
13456
78
911
10
12
165Automatic climate control
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
1Center air outlet, left, adjustable
2Fixed air outlet, left
3Air volume control for left center air outlet
To open: Turn the thumbwheel upward.
■: The left center air outlet is fully open.
■■: The left center and fixed air outlets are
opened.
4Air temperature control for center air outlets
To lower temperature: Turn thumbwheel towards
the blue marking.
Automatic mode: Turn thumbwheel to position A.
The indicator lamp above the thumbwheel will
illuminate. The airflow and temperature for the
center air outlets are regulated automatically.
5Air volume control for right center air outlet.
To open: Turn the thumbwheel upward
■: The right center air outlet is fully open.
■■: The right center and fixed air outlets are
opened.
6Center air outlet, right, adjustable
7Fixed air outlet, right
8Side defroster outlet, left and right, fixed
9Side air outlet, left and right, adjustable
10 Air volume control for side air outlets
To open: Turn thumbwheel outwards
■: The side air outlet is fully opened.
■■: The side and door air outlets are opened.
11 Door air outlet, left and right
12 Display and controls
Note:
We recommend that the sliders for the air
outlets (1, 6, 9) be clicked to the automatic position to
provide practically draft free ventilation.
166Automatic climate control
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Display and controls
1Defrosting
2Rear window defroster, see page 176
3Residual engine heat utilization, see page 174
4Automatic climate control on/off
5Air distribution, right (automatic, manual operation)
6Economy mode, see page 173
7Temperature control, right
8Air volume (automatic, manual)
9Display
Depending on the ambient light conditions, the
figures on the display will be shown as dark figures
on a bright background (in daylight), or as bright
figures on a dark background (at night).
10 Temperature control, left
11 Air recirculation, see page 171
12 Air distribution, left (automatic, manual operation)
13 Activated charcoal filter
Important!
This vehicle is equipped with an air conditioning
system that uses R-134a (HFC: hydrofluorocarbon) as a
refrigerant. Repairs should always be performed by a
qualified technician, and refrigerant should be collected
in a recovery system for recycling.
1 2 3
5
467101113
12
8
9
P83.40-2116-26
167Automatic climate control
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Automatic climate control
The system is always at operational readiness, except
when manually switched off.
The automatic climate control only operates with the
engine running.
The temperature selector should be left at the desired
temperature setting. The temperature selected is
reached as quickly as possible.
The system will not heat or cool any quicker by setting a
higher or lower temperature.
The desired interior temperature and air distribution
can be selected separately for the left and right side of
the passenger compartment.
The automatic climate control removes considerable
moisture from the air during operation in the cooling
mode. It is normal for water to drip on the ground
through ducts in the underbody.
The air conditioning will not engage (no cooling) if the
economy mode S is selected, see page 173.
Notes:
Do not obstruct the air flow by placing objects on the air
flow-through exhaust slots below the rear window.
Also keep the air intake grill in front of the windshield
free of snow and debris.
The storage compartment between the front seats can be
ventilated. See page 175 for notes on ventilating the
storage space under the armrest in the center console.
The air conditioner switches itself off for its own
protection if refrigerant is lost. No cooling will then take
place. Economy mode S cannot be switched off. Have
the air conditioner checked by a Mercedes-Benz Center
should this happen.
Dust filter
Nearly all dust particles and pollen are filtered out
before outside air enters the passenger compartment
through the air distribution system.
168Automatic climate control
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Basic setting – automatic mode
There are three basic settings for the automatic mode:
•Automatic air volume control
•Automatic air outlet control, left and right
•Automatic air outlet control, center, see page 165
We recommend these settings to be used all year round.
Air volume and distribution are controlled
automatically.
Set the temperature switches on the left and right to
72°F (22°C). This provides for comfortable conditions in
the vehicle.
Automatic airflow regulation:
Press the A on the air volume switch. The display
shows “AUTO”.
Automatic air distribution:
Press on both Uknobs until they click in. The h,
jand ksymbols will no longer be visible.
The economy mode and air recirculation functions will
be switched off. The automatic blower will be activated
at the same time.
169Automatic climate control
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Special settings
(use only for short duration)
Air distribution, manual:
Press Ubutton. The button pops out, the h, j
and k symbols are visible. Turn the button to select
the air distribution desired.
hAir from the center, side and door air outlets.
jAir from the center, side, door and windshield air
outlets.
kAir from the center, side, door and footwell air
outlets.
To return to automatic mode:
Press the Ubutton until it clicks in. The h, j
and ksymbols will no longer be visible.
Air volume, manual
Press the air volume switch up or down. Seven blower
speeds can be selected.
P83.40-2257-21
170Automatic climate control
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Defrosting
Press the Pbutton. The display shows P.
The fan is set to a higher speed and the warm air is
directed to the defroster and windshield air outlets.
Pressing the switch again returns the system to the
previous setting.
Windows fogged on the inside
Switch off the economy mode, if selected: Press
button S. The indicator lamp in the button will go
out.
Switch off air recirculation, if selected: Press
button O. The indicator lamp in the button will go
out.
Adjust left and right air outlets upwards.
Set blower to the maximum blower speed.
Increase temperature setting.
Open the side air outlets and direct them onto the side
windows.
P83.40-2009-21
171Automatic climate control
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Windshield fogged on the outside
Switch on the windshield wiper.
Press on both U buttons until they click in.
The h, jand ksymbols will no longer be
visible.
Air recirculation
Select air recirculation:
The indicator lamp in the Obutton is off.
Press button O briefly. The indicator lamp in the
button illuminates.
To switch off the air recirculation:
The indicator lamp in the Obutton is on.
Press button O briefly. The indicator lamp in the
button will go out.
The system automatically switches from air
recirculation to fresh air:
•after 30 minutes if the outside temperature is above
about 40°F(5°C),
•after 5 minutes if the outside temperature is below
about 40°F(5°C),
•after 5 minutes if economy mode S is selected.
The system switches automatically to air recirculation at
high outside temperatures. A quantity of outside air is
added after about 30 minutes.
Important!
If the windows should fog up from the inside, switch
from recirculated air back to fresh air.
172Automatic climate control
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Activated charcoal filter
An activated charcoal filter markedly reduces bad odors
and removes pollutants from air entering the passenger
compartment.
To select, press ebutton. The indicator lamp in the
button illuminates.
To cancel, press ebutton. The indicator lamp in the
button goes out.
The system switches automatically to the air
recirculation mode, if the carbon monoxide (CO) or
nitrogen oxides (NOX) concentration of the outside air
increases beyond a predetermined level.
The automatic air recirculation mode does not function
if economy mode S is selected or if the outside
temperature has fallen below 40°F(5°C).
The activated charcoal filter should be switched off
when windows fog up on the inside, or if the passenger
compartment needs to be quickly heated or cooled
down.
173Automatic climate control
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Economy mode
The function of this setting corresponds to the
automatic mode. However, because the air conditioning
compressor will not engage (fuel savings), it is not
possible to air condition in this setting.
Press Sbutton to activate. The indicator lamp in the
button illuminates.
Press Sbutton once again to return to the previous
setting.
Important!
In the Smode the windows could fog up on the
inside. Switch off Smode.
174Automatic climate control
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Residual engine heat utilization
With the engine switched off, it is possible to continue
to heat or ventilate the interior for a short while. Air
volume and distribution are controlled automatically.
To select:
Turn the electronic key in starter switch to position 1
or 0 or remove it altogether.
Press button T. The display shows “REST”.
This function selection will not activate if the battery
level is insufficient.
The function switches off automatically:
•if the electronic key in starter switch is turned to
position 2,
•after approximately 30 minutes,
•if the battery voltage drops.
Note:
The battery symbol # will appear in the automatic
climate control display some time before the residual
engine heat utilization is switched off if the battery
voltage drops.
175Automatic climate control
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Switching the automatic climate control on and off
To switch off:
Press button 0. The display shows “0”.
The fresh air supply to the vehicle interior is shut off.
While driving, use this setting only temporarily,
otherwise the windshield could fog up.
To switch on:
Press button 0 or P or at least one of the U
buttons so that it pops out and then click it back in.
Front center console storage compartment
ventilation
The front center console compartment has its own air
outlet.
To open: Slide the lever up.
To close: Slide the lever down.
The air volume is dependent on the setting of:
•air distribution control,
•air volume control,
•air outlets in the dashboard.
The air temperature is about the same as that of the
dashboard air outlets. It cannot be regulated separately.
Notes:
The compartment can get very warm due to its confined
space. When storing heat sensitive objects in the
compartment, close the air outlet while heating the
passenger compartment.
Do not allow articles to obstruct the air outlet in the
storage compartment.
176Automatic climate control
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Rear window defroster
Turn the electronic key in starter switch to position 2.
To select:
Press the Fbutton in the control panel of the
automatic air conditioner. The indicator lamp in the
button illuminates.
To cancel:
Press the Fbutton in the control panel of the
automatic air conditioner. The indicator lamp in the
button goes out.
Notes:
Heavy accumulation of snow and ice should be removed
before activating the defroster.
The rear window defroster uses a large amount of power.
To keep the battery drain to a minimum, turn off the
defroster as soon as the rear window is clear.
The defroster is automatically turned off after
approximately 6–17 minutes of operation depending on
the outside temperature and vehicle speed.
If several power consumers are turned on
simultaneously, or the battery is only partially charged,
it is possible that the defroster will automatically turn
itself off. When this happens, the indicator lamp inside
the switch starts blinking.
As soon as the battery has sufficient voltage, the
defroster automatically turns itself back on.
177Automatic climate control
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Rear passenger compartment adjustable air outlets 1 Center air outlet, left
2Center air outlet, right
3Air volume control for center air outlets
To open: Turn the wheel to the left.
P83.00-2014-26
1 2
3
178Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Power windows
The control panel is located on the driver’s door.
Switches for:
1left, front
2right, front
3left, rear
4right, rear
5Switch for rear door window override
Control panel on rear center console.
Turn electronic key in starter switch to position 1 or 2.
Opening the side windows:
Press k on the switch to resistance point.
Closing the side windows:
Press j on the switch to resistance point.
Release switch when window is in desired position.
33
33
179Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Express opening and closing of windows
Press k or j on the switch past resistance point
and release – window opens or closes completely.
To interrupt procedure, briefly press j or k.
If the upward movement of the window is blocked
during the closing procedure, the window will stop
during the last few inches before closure and open
slightly.
When pressing and holding the switch j to close the
window, and upward movement of the window is
blocked during the last few inches before closure, it will
stop but not open slightly.
Notes:
The power windows can also be opened and closed
using the summer opening/convenience feature, see
page 45.
When opening a door window, the rear side window
opens slightly. The rear side window will close again
when the closing procedure of the door window is
completed.
Warning!
When closing the windows, be sure that there is no
danger of anyone being harmed by the closing
procedure.
In case of obstruction, the automatic reversal will
not operate if a door window is being closed by
pressing the switch to its resistance point and
holding it there, or when using the electronic main
key.
The closing procedure of door windows can be
immediately reversed by either pressing the switch
or pressing button Πon the electronic main key
and holding it, or (vehicle with KEYLESS-GO) when
carrying the KEYLESS-GO-card, pull and hold a
door handle.
When leaving the vehicle, always remove the
electronic key from starter switch, take the
KEYLESS-GO-card (if so equipped) with you, and
lock your vehicle. Do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equipment
can cause serious personal injury.
180Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Blocking of rear side window operation
If no operation of the rear side windows by switch (for
instance by children) is desired, slide override
switch (5) to the right; the Nsymbol becomes
visible.
Operation of the rear side windows with the switches
located in the driver’s door is still possible.
Synchronizing power windows
If the power supply was interrupted, (battery
disconnected or low), the windows cannot be opened or
closed by the express feature.
To resynchronize the express feature, press j side of
power window switch until the window is completely
closed and hold down for approximately 1 second.
Repeat procedure for each window.
The automatic full opening and closing procedure of the
windows should now be restored.
181Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Sliding/pop-up roof
1to slide roof open
2to slide roof closed
3to raise roof at rear
4to lower roof at rear
Turn the electronic key in starter switch to position 1
or 2.
To open, close, raise or lower the sliding/pop-up roof:
Move the switch to resistance point in the required
direction.
Release the switch when the roof has reached the
required position.
P77.00-2024-26
3
4
1
2
Warning!
When closing the sliding/pop-up roof, be sure that
there is no danger of anyone being harmed by the
closing procedure.
When leaving the vehicle, always remove the
electronic key from starter switch, take the
KEYLESS-GO-card (if so equipped) with you, and
lock your vehicle. Do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equipment
can cause serious personal injury.
182Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Express opening and closing of sliding/pop-up roof
To select a sunroof opening position, press the switch to
resistance point and release it when the sunroof has
reached the required position.
The sliding/pop-up roof now opens to the position set if
the switch is pressed past resistance point in the “open”
direction.
If you wish to change the opening position of the
sunroof, move the switch to resistance point in the
direction you require.
Stopping the sliding/pop-up roof:
Move the switch in any direction.
If the movement of the sliding/pop-up roof is blocked
during the closing procedure, the sunroof will stop and
reopen slightly.
Note:
Opening the sliding/pop-up roof automatically almost
fully (less approximately 1 inch [3 cm]), the sunroof
must have been opened first by pressing the switch to
resistance point and releasing it when the sunroof has
reached an almost fully open position.
Warning!
When closing the sliding/pop-up roof, be sure that
there is no danger of anyone being harmed by the
closing procedure.
In case of obstruction, the automatic reversal will
not operate if the sliding/pop-up roof is being
closed by moving the switch to its resistance point
and holding it there, or when using the electronic
main key or the lock button at each door handle
(vehicles with KEYLESS-GO).
The closing procedure of the sliding/pop-up roof
can be immediately reversed by either moving the
switch in any direction, or pressing button Πon
the electronic main key and holding it; or (vehicles
with KEYLESS-GO) when carrying the KEYLESS-
GO-card, pull and hold a door handle.
When leaving the vehicle, always remove the
electronic key from starter switch and take the
KEYLESS-GO-card (if so equipped) with you, and
lock your vehicle. Do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equipment
can cause serious personal injury.
183Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
With the roof closed or tilted open, a screen can be slid
into the roof opening to guard against sun rays. When
sliding the roof open, the screen will also retract.
Notes:
The sliding/pop-up roof can also be opened and closed
using the summer opening/convenience feature, see
page 45.
To avoid damaging the seals, do not transport any
objects with sharp edges which can stick out of the
sliding/pop-up roof.
The sliding/pop-up roof can be opened or closed
manually should an electrical malfunction occur, see
page 369.
Synchronizing the sliding/pop-up roof
The sliding/pop-up roof must be resynchronized if the
power supply has been interrupted (battery
disconnected or low), the sliding/pop-up roof has been
closed manually or the sliding/pop-up roof does not
open smoothly or malfunctions.
•Move the switch in the “raise” (3) direction, wait
until the sliding/pop-up roof is fully raised at rear
and hold the switch for approximately 1 second.
P77.00-2048-26
184Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Interior lighting
1Left front reading lamp
Press the button to switch the left reading lamp (7)
on or off. The left reading lamp in the interior rear
view mirror will be switched on or off.
2Rear interior lights
Press the button to switch the rear passenger
compartment lights on/off.
3Right front reading lamp
Press the button to switch the right reading lamp (8)
on or off. The right reading lamp in the rear view
mirror will be switched on or off.
4Door contact switch:
Press the rocker switch.
The interior lighting remains switched off, even
when centrally unlocking or opening a door or the
electronic key is removed from the starter switch.
5To select automatic function:
Press the rocker switch to the center position.
Interior lamps are switched on, and off (soft fade)
delayed, when unlocking or locking the vehicle, or
when opening or closing a door. However, there will
be no (soft fade) delay when the electronic key is in
starter switch position 2.
Note:
The time delay for the interior light to switch off after
the electronic key is removed from the starter switch
can be adjusted in “Individual settings” – “LIGHTING”,
seepage142.
P68.00-2151-26
1 3
2
4
56
78
185Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
To prevent the vehicle battery from being discharged
with doors open, all interior lamps switch off after
approximately 5 minutes.
6 Interior lamps, front:
Press rocker switch in to switch front interior and
reading lamps on. The front interior lighting stays
on while the rocker switch is pressed in.
Switching off the front interior lighting:
Press rocker switch to position (4) or (5).
Courtesy lighting
The interior of your vehicle is equipped with various
different lighting installations to help you to orient
yourself better in the dark.
Entrance lamps, exit lamps
With exterior lamps on or electronic key in starter
switch position 1, the lamps in the door trays illuminate.
The lights will remain on for approximately 5 minutes if
the electronic key is in starter switch position 0 and
exterior lamps are switched off.
Footwell lighting
With exterior lamps on, the driver and front passenger
footwell is illuminated.
Center console lighting
Turn the electronic key in the starter switch to
position 1. The center console is illuminated from the
rear-view mirror.
Door entry lamps
The appropriate entry lamp switches on if a door is
opened in darkness and if the interior lighting is
switched to automatic function.
The entry lamp switches off automatically when the
door is closed.
186Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Rear window sunshade (optional)
The switch is located in the center console.
Turn the electronic key in starter switch to position 1
or 2.
Press the switch briefly:
1to raise
2to lower
Always raise the sunshade fully for its support against
the window frame.
Warning!
When operating the rear window sunshade, be sure
that there is no danger of anyone being harmed by
the raising or lowering procedure.
The raising or lowering procedure can be
immediately halted by briefly pressing the upper or
lower half of the switch.
Briefly press upper or lower half of the switch
again to raise or lower the rear window sunshade
completely.
When leaving the vehicle, always remove the
electronic key from starter switch, and lock your
vehicle. Do not leave children unattended in the
vehicle, or with access to an unlocked vehicle.
Unsupervised use of vehicle equipment can cause
serious personal injury.
187Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Sun visors
Swing sun visors (2) down to protect against sun glare.
If sunlight enters through a side window, disengage sun
visor from the inner mounting (1) and pivot to the side,
and slide it to the desired position.
Vanity mirrors
1Illuminated vanity mirror
With the visor engaged in its inner mounting (2),
the lamp (4) can be switched on by opening the
cover (3). Slide the mirror to the left or right for a
normal or magnified image.
Fold the cover (3) down to close the vanity mirror.
P68.60-2009-26
2
1
Warning!
Do not use the vanity mirror while driving.
P68.00-2150-26
4
3
1
2
188Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Interior Storage compartments and armrests
Warning!
To help avoid personal injury during a collision or
sudden maneuver, exercise care when stowing
things. Put luggage or cargo in the trunk if
possible. Do not pile luggage or cargo higher than
the seat backs. Do not place anything on the shelf
below the rear window.
Luggage nets cannot secure hard or heavy objects.
Warning!
Keep compartment lids closed. This will help to
prevent stored objects from being thrown about
and injuring vehicle occupants during an accident.
189Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Glove box
1Unlocked position
2Locked position
3Press to open
The glove box can be locked and unlocked with the
mechanical key. See page 29 for instructions on how to
remove the mechanical key from the electronic main
key (e.g. for valet parking service).
4 The glove box lid is equipped with a container (4)
for coins and small accessories.
To open, press the marking on the cover.
190Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Storage compartment in front of armrest
5 Storage compartment in front of armrest
To open:
Touch the top of the cover lightly.
To close:
Lightly push the cover up until it engages in lock.
Storage compartment below the front armrest
A coin holder is also located in the storage compartment
below the armrest.
Storage tray in the armrest
To open: Press button (6) and raise the armrest.
To close: Lower the armrest until it engages in lock.
191Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Storage space below the armrest
To open: Press button (7) and raise the armrest.
To close: Lower the armrest until it engages in lock.
Notes:
The storage compartment can be heated or cooled, see
page 175.
The compartment can get very warm due to its confined
space. When storing heat sensitive objects in the
compartment, close the air outlet while heating the
passenger compartment.
Do not obstruct the air outlet in the storage
compartment.
The storage space below the armrest is illuminated with
the exterior lamps switched on.
Storage compartment under the front seats
8 Storage compartment under the front seats
Maximum permissible weight of contents:
3.3 lbs. (1.5 kg)
To open:
Press buttons (9) together and fold the lid down.
To close:
Close lid until both buttons (9) of lock engage.
192Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Storage compartments in the
rear passenger compartment
Opening the storage space:
Slide the cover (10) back to open, forward to close.
Coat hooks
Coat hooks (1) are located on the headliner above the
rear windows.
To open:
Briefly press indentation on coat hook – the coat hook
folds down.
To close:
Push coat hook into headliner.
P68.70-2002-26
1
193Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Cup holder
1Cup holder in front seat armrest
Open the storage compartment in front of the armrest,
see page 190.
To open:
Briefly press button (1). The cup holder opens
automatically.
Press button (2) to open the second cup holder. The cup
holder opens automatically.
Warning!
Keep the cup holder closed while traveling. Place
only containers that fit into the cup holder to
prevent spills. Do not fill containers to a height
where the contents could spill during vehicle
maneuvers, especially hot liquids.
194Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
To close:
Fold second cup holder in direction of arrow (3) until it
engages.
Press button (4) to unlock cup holder and fold into the
storage compartment until it engages.
Close the storage compartment.
4
195Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
5 Cup holder in rear seat armrest
To open:
Push front of sliding compartment – the cup holder
slides out.
To close:
Push the sliding compartment back until it engages.
P91.27-2014-26
5
Warning!
Keep the cup holder closed while traveling. Place
only containers that fit into the cup holder to
prevent spills. Do not fill containers to a height
where the contents could spill during vehicle
maneuvers, especially hot liquids.
196Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Ashtrays
Center console
To open:
Briefly touch the mark on the cover, the ashtray opens
automatically.
To remove ashtray insert from center console:
Prior to removing the ashtray insert, move the gear
selector lever to position “N”.
Press sliding knob (1) toward the right to eject the
insert.
To replace insert:
Install insert into ashtray frame and push down to
engage into place.
Warning!
Remove front ashtray only with vehicle standing
still. With the gear selector lever in position “N”,
turn off the engine and set the parking brake.
Otherwise the vehicle might move as a result of
unintended contact with the gear selector lever.
P68.20-2070-26
1
197Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Rear seats To open:
Briefly touch the top of the cover, the ashtray opens
automatically.
To remove the insert:
Push down on catch (2) and pull out the ashtray insert.
To install the insert:
Position the insert and close the cover.
2
198Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Lighter
1Center console lighter
Turn the electronic key in starter switch to position 1
or 2.
Push in lighter (1); it will pop out automatically when
hot.
Note:
The lighter socket can be used to accommodate
electrical accessories up to a maximum 100 W.
P68.20-2069-26
1
Warning!
Never touch the heating element or sides of the
lighter, they are extremely hot, hold at knob only.
When leaving the vehicle always remove the
electronic key from the starter switch. Do not leave
children unattended in the vehicle, or with access
to an unlocked vehicle. Unsupervised use of vehicle
equipment may cause serious personal injury.
199Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Parcel net in trunk There are hooks (1) on the left and right inside the
trunk from which the parcel net is suspended.
The tab (arrow) must point down into the trunk.
The parcel net and hooks are only designed to take light
loads in normal driving conditions. They are unable to
secure a load in the event of an accident. Observe the
weight limit on the tab (arrow).
P68.00-2147-26
1
200Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Cargo tie-down hooks
Inside the trunk are six cargo tie-down hooks. Secure
cargo by applying even load on the hooks using a cargo
net.
Parcel net in front passenger footwell
A small convenience parcel net is located in the front
passenger footwell. It is for small and light items, such
as road maps, mail, etc..
Note:
With large objects stored in the parcel net do not slide
the seat fully forward, it could damage them.
P68.00-2416-26
Warning!
Do not place heavy or fragile objects, or objects
having sharp edges, in the parcel net.
In an accident, during hard braking or sudden
maneuvers, they could be thrown around inside
the vehicle, and cause injury to vehicle occupants.
201Interior equipment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Telephone, general
See separate instruction manual for instructions on how
to operate the telephone.
Warning!
A driver’s attention to the road must always be his/
her primary focus when driving. For your safety
and the safety of others, we recommend that you
pull over to a safe location and stop before placing
or taking a telephone call. If you choose to use the
telephone while driving, please use the hands-free
device and only use the telephone when road and
traffic conditions permit.
Some jurisdictions prohibit the driver from using a
cellular telephone while driving a vehicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is covering
a distance of approximately 50 feet (approximately
14 m) every second.
Never operate radio transmitters equipped with a
built-in or attached antenna (i.e. without being
connected to an external antenna) from inside the
vehicle while the engine is running. Doing so could
lead to a malfunction of the vehicle’s electronic
system, possibly resulting in an accident and
personal injury.
202Garage door opener
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Garage door opener
1Signal transmitter keys
2Indicator lamp
3Portable remote control transmitter
The built-in remote control is capable of operating up to
three separately controlled objects.
Note:
Certain types of garage door openers are incompatible
with the integrated opener. If you should experience
difficulties with programming the transmitter, contact
your authorized Mercedes-Benz Center, or call
Mercedes-Benz Client Assistance Center (in the USA
only) at 1-800-FOR-MERCedes, or Customer Service (in
Canada) at 1-800-387-0100.
3
Warning!
When programming a garage door opener, the door
moves up or down.
When programming or operating the remote
control make sure there is no possibility of anyone
being harmed by the moving door.
203Garage door opener
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
For operation in the USA only: This device complies
with Part 15, Subpart C, Section 209 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
WARNING: Changes or modification not expressly
approved by party responsible for compliance could void
the user’s authority to operate the equipment.
Programming or reprogramming the integrated
remote control:
1. Turn electronic key in starter switch to position 1
or 2.
2. Hold the end of the hand-held transmitter of the
device you wish to train approximately 2 to 5 inches
(5 cm to 12 cm) away from the surface of the
integrated remote control located on the inside rear
view mirror, keeping the indicator lamp in view.
3. Using both hands, simultaneously push the hand-
held transmitter button and the desired integrated
remote control button. Do not release the buttons
until completing step 4.
4. The indicator lamp on the integrated remote control
will flash, first slowly and then rapidly. When the
indicator lamp flashes rapidly, both buttons may be
released (the rapid flashing lamp indicates
successful programming of the new frequency
signal). To program the remaining two buttons,
follow steps 1 through 4.
Note:
If, after repeated attempts, you do not successfully
program the integrated remote control device to learn
the signal of the hand-held transmitter, the garage door
opener could be equipped with the “rolling code
feature”.
204Garage door opener
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Rolling code programming:
To train a garage door opener (or other rolling code
devices) with the rolling code feature, follow these
instructions after completing the “Programming”
portion of this text. (A second person may make the
following training procedures quicker and easier.)
1. Locate training button on the garage door opener
motor head unit. Exact location and color of the
button may vary by garage door opener brand. If
there is difficulty locating the transmitting button,
reference to garage door opener operator’s manual.
2. Press “training” button on the garage door opener
motor head unit (which activated the “training
light”).
Note:
Following step 2, there are 30 seconds to initiate
step 3.
3. Firmly press and release the programmed
integrated remote control transmit button. Press
and release same button a second time to complete
the training process. (Some garage door openers
may require you to do this procedure a third time to
complete the training.)
4. Confirm the garage door operation by pressing the
programmed button on the integrated remote
control transmitter.
Canadian programming:
During programming, your hand-held transmitter may
automatically stop transmitting. Continue to press and
hold the integrated remote control transmitter button
(note steps 2 through 4 in the “Programming” portion)
while you press and re-press (“cycle”) your hand-held
transmitter every two seconds until the frequency
signal has been learned. The indicator lamp will flash
slowly and then rapidly after several seconds upon
successful training.
205Garage door opener
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Operation of remote control:
1. Turn electronic key in starter switch to position 1
or 2.
2. Select and press the appropriate button to activate
the remote controlled device. The integrated remote
control transmitter continues to send the signal as
long as the button is pressed – up to 20 seconds.
Erasing the remote control memory:
1. Turn electronic key in starter switch to position 1
or 2.
2. Simultaneously holding down the left and right side
buttons for approximately 20 seconds, or until the
control lamp blinks rapidly, will erase the codes of
all three channels.
206Infrared reflecting windshield
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Infrared reflecting windshield
1Mounting location for electronic toll collection
devices (infrared transparent)
2Infrared transparent area (pass-through for
electronic signals)
331.5 in (80 cm)
419.0 in (48 cm)
51.75 in (4.5 cm)
Your vehicle is equipped with infrared reflecting glass
which reduces the amount of radiated heat entering the
interior through the windows.
The infrared reflecting glass also prevents the
transmission of signals through the glass by in-vehicle
electronic devices (e.g. electronic toll collection
devices).
To allow the use of these devices in the vehicle, two
infrared transparent areas (1 and 2) are placed in the
windshield.
3
1
3 4
1
2
5
207Infrared reflecting windshield
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
208Infrared reflecting windshield
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
207Contents - Driving
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Driving
Control and operation of radio
transmitters ...............................208
The first 1 000 miles
(1 500 km) .................................209
Maintenance ...................................209
Tele Aid ........................................... 210
Catalytic converter ........................220
Emission control ............................221
Starter switch .................................222
Starter switch – KEYLESS-GO ......224
Starting and turning off
the engine ..................................227
Automatic transmission ...............229
Parking brake .................................238
Driving instructions ......................239
Drive sensibly – save fuel ........ 239
Drinking and driving ................ 239
Pedals ..........................................240
Power assistance ........................ 240
Brakes .......................................... 240
Driving off ................................... 241
Parking ........................................ 242
Tires ............................................. 243
Snow chains ............................... 245
Winter driving instructions ..... 246
Deep water ..................................248
Passenger compartment ........... 248
Traveling abroad ........................ 249
Cruise control ................................250
Distronic (DTR) ..............................253
Brake assist system
(BAS) ...........................................268
Antilock brake system
(ABS) ...........................................269
Electronic stability program
(ESP) ...........................................271
Active body control (ABC) ............275
Level control system ...................... 276
Parking assist (Parktronic) ..........279
What you should know
at the gas station .......................284
Check regularly
and before a long trip ...............287
208Control and operation of radio transmitters
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Control and operation of radio transmitters
COMAND, radio and telephone
1 Observe all legal requirements.
Telephones and two-way radio
Radio transmitters, such as a portable telephone or a
citizens band unit should only be used inside the
vehicle if they are connected to an antenna that is
installed on the outside of the vehicle.
Refer to the radio transmitter operation instructions
regarding use of an external antenna.
Warning!
Please do not forget that your primary
responsibility is to drive the vehicle. Only operate
the COMAND (Cockpit Management and Data
System), radio or telephone1 if road and traffic
conditions permit.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is covering
a distance of approximately 50 feet (approximately
14 m) every second.
Warning!
Never operate radio transmitters equipped with a
built-in or attached antenna (i.e. without being
connected to an external antenna) from inside the
vehicle while the engine is running. Doing so could
lead to a malfunction of the vehicle’s electronic
system, possibly resulting in an accident and
personal injury.
209The first 1 000 miles
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
The first 1 000 miles (1 500 km)
The more cautiously you treat your vehicle during the
break-in period, the more satisfied you will be with its
performance later on. Therefore, drive your vehicle
during the first 1 000 miles (1 500 km) at moderate
vehicle and engine speeds.
During this period, avoid heavy loads (full throttle
driving) and excessive engine speeds.
Avoid accelerating by kickdown. It is not recommended
to brake the vehicle by manually shifting to a lower gear.
We recommend that you select positions “3”, “2” or “1”
only at moderate speeds (for hill driving).
After 1 000 miles (1 500 km) speeds may be gradually
increased to the permissible maximum.
Maintenance
Approximately 30 days or 2000 miles (2000 km) prior
to the next recommended service, the remaining
distance or days are displayed in the multifunction
indicator. See Flexible service system (FSS) on page 147.
We strongly recommend that you have your vehicle
serviced by your authorized Mercedes-Benz Center, in
accordance with the Service Booklet at the times called
for by the FSS.
Failure to have the vehicle maintained in accordance
with the Service Booklet at the designated times/
mileage may result in vehicle damage not covered by
the Mercedes-Benz Limited Warranty.
210Tele Aid
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Tele Aid
Important!
The initial activation of the Tele Aid system may only be
performed by completing the subscriber agreement and
placing an acquaintance call using the “SOS” button.
Failure to complete either of these steps will result in a
system that is not activated. If the system is not
activated the indicator lamp in the “SOS” button stays
on after turning electronic key in starter switch to
position 2 (vehicles with KEYLESS-GO:
operating position, see page 224) and the message
“TELE AID – NOT ACTIVATED” will be shown in the
multifunction display for approx. 10 seconds.
If you have any questions regarding activation, please
call the Response Center at 1-800-756-9018 (in the USA)
or 1-888-923-8367 (in Canada).
(Telematic Alarm Identification on Demand)
The Tele Aid system consists of three types of response;
automatic and manual emergency, roadside assistance
and information.
The Tele Aid system is operational providing that the
vehicle’s battery is charged, properly connected, not
damaged and cellular and GPS coverage is available.
The speaker volume of a Tele Aid call can be adjusted
when using the volume control on the multifunction
steering wheel, for raising press button æ and for
lowering press button ç.
To activate, press the “SOS” button, the Roadside
Assistance button • or the Information button ¡,
depending on the type of response required.
Shortly after the completion of your Acquaintance Call,
you will receive a user ID and password via first call
mail. By visiting www.mbusa.com and selecting
“Tele Aid” (USA only), you will have access to account
information, remote door unlock, Info Services* profile
and more.
* Optional
System self-check
Initially, after turning the electronic key in starter
switch to position 2, malfunctions are detected and
indicated (the indicator lamps in the “SOS” button, the
Roadside Assistance button • and the Information
button ¡ stay on longer than 10 seconds or do not
come on). The message “TELE AID – VISIT
WORKSHOP” appears for approx. 10 seconds in the
multifunction display.
211Tele Aid
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Important!
Always make sure that the indicator lamps in the
“SOS” button, in the “Roadside Assistance” button and
in the “Information” button do not remain illuminated
constantly in red and the message “TELE AID – VISIT
WORKSHOP” is not displayed in the multifunction
display after the system self check.
If a malfunction is indicated as outlined above, have the
system checked at the nearest Mercedes-Benz Center as
soon as possible.
Emergency calls
An emergency call is initiated automatically:
•following an accident in which the Emergency
Tensioning Retractors (ETR’s) or airbags deploy,
•if the antitheft alarm or the tow away alarm stays on
for more than 20 seconds, see pages 62 and 64.
An emergency call can also be initiated manually by
opening the cover next to the inside rear view mirror
labeled “SOS”, then pressing the button (for longer than
2 seconds) located under the cover. See below for
instructions on initiating an emergency call manually.
Once the emergency call is in progress, the indicator
lamp in the “SOS” button will begin to flash. The
message “EMERGENCY CALL – CONNECTING CALL”
appears in the multifunction display. When the
connection is established, the message “EMERGENCY
CALL – CALL CONNECTED” appears in the
multifunction display. All information relevant to the
emergency, such as the location of the vehicle
(determined by the GPS satellite location system),
vehicle model, identification number and color are
generated.
A voice connection between the Response Center and
the occupants of the vehicle will be established
automatically soon after the emergency call has been
initiated. When a voice connection is established the
audio system mutes and the message “TELE AID –
EMERGENCY CALL ACTIVE” appears in the
multifunction display. The Response Center will attempt
to determine more precisely the nature of the accident
provided they can speak to an occupant of the vehicle.
212Tele Aid
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
The Tele Aid system is available if:
•it has been activated and is operational. Activation
requires a subscription for monitoring services and
cellular air time
•the relevant cellular phone network and GPS signals
are available and pass the information on to the
response center.
Note:
Location of the vehicle on a map is possible if the
vehicle is able to receive signals from the GPS satellite
network and pass the information on to the response
center.
Warning!
If the indicator lamp in the “SOS” button is
illuminated continuously and there was no voice
connection to the Response Center established,
then the Tele Aid system could not initiate an
emergency call (e.g. the relevant cellular phone
network is not available). The message
“EMERGENCY CALL – CALL FAILED” appears in
the multifunction display for approx. 10 seconds.
Should this occur, assistance must be summoned
by other means.
213Tele Aid
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Initiating an emergency call manually
Briefly press on cover (1) – the cover will open. Press the SOS button (2) briefly (for longer than
2 seconds). The indicator lamp in the SOS button (2)
will flash until the emergency call is concluded. Wait for
a voice connection to the Response Center.
Close the cover (1) after the emergency call is
concluded.
1
P82.95-2186-26 P82.95-2187-26
2
214Tele Aid
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Roadside Assistance button •
Located below the center armrest cover is the Roadside
Assistance button •. Pressing and holding the
button (for longer than 2 seconds) will initiate a call to a
Mercedes-Benz Roadside Assistance dispatcher. The
button will flash while the call is in progress. The
message “ROADSIDE ASSISTANCE – CONNECTING
CALL” will appear in the multifunction display. When
the connection is established, the message “ROADSIDE
ASSISTANCE – CALL CONNECTED” appears in the
multifunction display. The Tele Aid system will transmit
data generating the vehicle identification number,
model, color and location (subject to availability of
cellular and GPS signals).
A voice connection between the Roadside Assistance
dispatcher and the occupants of the vehicle will be
established. When a voice connection is established the
audio system mutes and the message “TELE AID -
ROADSIDE ASSISTANCE CALL ACTIVE” appears in the
multifunction display. The nature of the need for
assistance can then be described. The Mercedes-Benz
Roadside assistance dispatcher will either dispatch a
qualified Mercedes-Benz technician or arrange to tow
your vehicle to the nearest Mercedes-Benz Center. For
services such as labor and/or towing charges may apply.
Refer to the Roadside Assistance manual for more
information.
These programs are only available in the USA:
•Sign and Drive services: Services such as jump start,
a few gallons of fuel or the replacement of a flat tire
with the vehicle spare tire are obtainable,
•Remote Vehicle Diagnostics: This function permits
the Mercedes-Benz Roadside Assistance dispatcher
to download malfunction codes and actual vehicle
data.
Warning!
If you feel at any way in jeopardy when in the
vehicle (e.g. smoke or fire in the vehicle, vehicle in
a dangerous road location), please do not wait for
voice contact after you have pressed the emergency
button. Carefully leave the vehicle and move to a
safe location. The Response Center will
automatically contact local emergency officials
with the vehicle’s approximate location if they
receive an automatic “SOS” signal and cannot make
voice contact with the vehicle occupants.
215Tele Aid
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Notes:
The indicator lamp in the Roadside Assistance
button • remains illuminated in red for approx.
10 seconds during the system self-check after turning
electronic key in starter switch to position 2 (together
with the “SOS” button and the Information
button ¡).
See system self-check on page 210 when the indicator
lamp does not light up in red or stays on longer than
approximately 10 seconds.
If the indicator lamp in the Roadside Assistance
button • is illuminated continuously and there was
no voice connection to the Response Center established,
then the Tele Aid system could not initiate an Roadside
Assistance call (e.g. the relevant cellular phone network
is not available). The message “ROADSIDE
ASSISTANCE – CALL FAILED” appears in the
multifunction display.
Roadside Assistance calls can be terminated using the
ìbutton on the multifunction steering wheel.
Information button ¡
Located below the center armrest cover is the
Information button ¡. Pressing and holding the
button (for longer than 2 seconds) will initiate a call to
the Client Assistance Center. The button will flash while
the call is in progress. The message “INFO –
CONNECTING CALL” will appear in the multifunction
display. When the connection is established, the
message “INFO – CALL CONNECTED” appears in the
multifunction display. The Tele Aid system will transmit
data generating the vehicle identification number,
model, color and location (subject to availability of
cellular and GPS signals).
A voice connection between the Client Assistance
Center representative and the occupants of the vehicle
will be established. When a voice connection is
established the audio system mutes and the message
“TELE AID – INFO CALL ACTIVE” appears in the
multifunction display. Information regarding the
operation of your vehicle, the nearest Mercedes-Benz
Center or Mercedes-Benz USA products and services is
available to you.
For more details concerning Tele Aid, please visit
www.mbusa.com and use your ID and password, sent to
you separately, to learn more (USA only).
216Tele Aid
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Notes:
The indicator lamp in the Information button ¡
remains illuminated in red for approx. 10 seconds
during the system self-check after turning electronic
key in starter switch to position 2 (together with the
“SOS” button and the Roadside Assistance button •).
See system self-check on page 210 when the indicator
lamp does not light up in red or stays on longer than
approximately 10 seconds.
If the indicator lamp in the Information button ¡ is
illuminated continuously and there was no voice
connection to the Response Center established, then the
Tele Aid system could not initiate an Information call
(e.g. the relevant cellular phone network is not
available). The message “info – CALL FAILED” appears
in the multifunction display.
Information calls can be terminated using the
ìbutton on the multifunction steering wheel.
Important!
If the indicator lamps do not start flashing after
pressing one of the buttons or remain illuminated (in
red) at any time, the Tele Aid system has detected a fault
or the service is not currently active, and may not
initiate a call. Visit your Mercedes-Benz Center and
have the system checked or contact the Response Center
at 1-800-756-9018 (in the USA) or 1-888-923-8367 (in
Canada) as soon as possible.
Upgrade Signals
Tele Aid system processes calls using the following
priority.
•Automatic emergency – First priority
•Manual emergency – Second priority
•Roadside assistance – Third priority
•Information – Fourth priority
Should a higher priority call be initiated while you are
connected, an upgrade (alternating) tone will be heard,
and the appropriate indicator lamp will flash. If certain
information such as vehicle identification number or
client information is not available, the operator may
need to retransmit.
217Tele Aid
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
During this time you will hear a chirp and voice contact
will be interrupted. Voice contact will resume once the
retransmission is completed. Once a call is concluded, a
chirp will be heard and the appropriate indicator lamp
will stop flashing. The COMAND system operation will
resume.
Important!
If the indicator lamp continues to flash or the system
does not reset, contact the Response Center at
1-800-756-9018 (in the USA) or 1-888-923-8367 (in
Canada), or Mercedes-Benz Client Assistance at
1-800-FOR-MERCedes (1-800-367-6372) in the USA or
Customer Service at 1-800-387-0100 in Canada.
Notes:
The indicator lamp in the respective button flashes until
the call is concluded. Calls can only be terminated by a
Response Center or Client Assistance Center
representative except Roadside Assistance and
Information calls, which can also be terminated by
pressing ìbutton on the multifunction steering
wheel.
When a Tele Aid call has been initiated, the COMAND
system audio is muted and the selected mode (radio,
tape or CD) pauses. The optional cellular phone (if
installed) switches off. If you must use this phone, the
vehicle must be parked. Disconnect the coiled cord and
place the call. The navigation system (if engaged) will
continue to run. The display in the instrument cluster is
available for use and spoken commands are only
available by pressing the RPT button on the COMAND
unit. A pop-up window will appear in the COMAND
display to indicate that a Tele Aid call is in progress.
218Tele Aid
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Remote door unlock
In the case you have your vehicle locked unintentionally
(e.g. key inside vehicle), and the reserve key is not
handy, contact the Mercedes-Benz Response Center at
1-800-756-9018 (in the USA) or 1-888-923-8367 (in
Canada). You will be asked to provide your password
which you provided when you completed the subscriber
agreement.
Then return to your vehicle and press trunk lock for
minimum of 20 seconds until the “SOS” button is
flashing. The message “EMERGENCY CALL – CALL
CONNECTED” appears in the multifunction display.
As an alternative, you may unlock the vehicle via
Internet using the ID and password sent to you shortly
after the completion of your Acquaintance Call.
The Response Center will then unlock your vehicle with
the remote door unlocking feature.
Notes:
The remote door unlock feature is available if the
relevant cellular phone network is available.
The “SOS” button will flash and the message
“EMERGENCY CALL – CALL CONNECTED” will appear
in the multifunction display to indicate receipt of the
door unlock command.
Once the vehicle is unlocked, a Response Center
specialist will attempt to establish voice contact with the
vehicle occupants.
If the trunk button was pressed for more than
20 seconds before door unlock authorization was
received by the Response Center, you must wait
15 minutes before pressing the trunk button again.
219Tele Aid
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Stolen vehicle tracking services
In the event your vehicle was stolen, report the incident
to the police who will issue a numbered incident report.
Pass this number on to the Mercedes-Benz Response
Center.
The Response Center will then attempt to covertly
contact the vehicle’s Tele Aid system. Once the vehicle
is located, the Response Center will contact the local
Law Enforcement and you. The vehicle’s location will
only be provided to Law Enforcement.
Info Services (optional, except Canada)
Info Services categories include news, sports, stocks,
weather and calendar reminders. Choices can be
selected via www.mbusa.com or by calling 1-800-FOR-
MERcedes.
To request Info Services, press the SVC button on the
COMAND system, then select “SEND NEW REQUEST
FOR INFO SERVICE”. “NEW INFO SERVICE REQUEST
TRANSMITTED” will appear in the COMAND display
and call status messages will appear in the
multifunction display.
Once information is available, the message “NEW INFO
RECEIVED – READ LATER WHEN STOPPED?” will
appear. Select “Yes”. With the vehicle stopped in a safe
location press SVC, then select “View Info Service of
mm.dd.yyyy hh.mm”. Messages will be retained for
30 minutes once the ignition is switched off.
Important!
Tele Aid utilizes the cellular network for
communication and the GPS (Global Positioning
System) satellites for vehicle location. If either of these
signals are unavailable, the Tele Aid system may not
function and if this occurs, assistance must be
summoned by other means.
Warning!
If the indicator lamp in the “SOS” button does not
illuminate during or remains illuminated after the
system self-check or if the message “TELE AID –
VISIT WORKSHOP” appears in the multifunction
display, have the system checked at the nearest
Mercedes-Benz Center as soon as possible.
220Catalytic converter
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Catalytic converter
Your Mercedes-Benz is equipped with monolithic type
catalytic converters, an important element in
conjunction with the oxygen sensors to achieve
substantial control of the pollutants in the exhaust
emissions. Keep your vehicle in proper operating
condition by following our recommended maintenance
instructions as outlined in your Service Booklet.
Caution!
To prevent damage to the catalytic converters, use only
premium unleaded gasoline in this vehicle.
Any noticeable irregularities in engine operation should
be repaired promptly. Otherwise, excessive unburned
fuel may reach the catalytic converter causing it to
overheat, which could start a fire.
Warning!
As with any vehicle, do not idle, park or operate
this vehicle in areas where combustible materials
such as grass, hay or leaves can come into contact
with the hot exhaust system, as these materials
could be ignited and cause a vehicle fire.
221Emission control
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Emission control
Certain systems of the engine serve to keep the toxic
components of the exhaust gases within permissible
limits required by law.
These systems, of course, will function properly only
when maintained strictly according to factory
specifications. Any adjustments on the engine should,
therefore, be carried out only by qualified Mercedes-
Benz Center authorized technicians. Engine
adjustments should not be altered in any way. Moreover,
the specified service jobs must be carried out regularly
according to Mercedes-Benz servicing requirements.
For details refer to the Service Booklet.
Warning!
Inhalation of exhaust gas is hazardous to your
health. All exhaust gas contains carbon monoxide,
and inhaling it can cause unconsciousness and
lead to death.
Do not run the engine in confined areas (such as a
garage) which are not properly ventilated. If you
think that exhaust gas fumes are entering the
vehicle while driving, have the cause determined
and corrected immediately. If you must drive under
these conditions, drive only with at least one
window fully open.
222Starter switch
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Starter switch
0The electronic key can be withdrawn in this position
only. The electronic key can be removed only with
the selector lever in position “P”. After removing the
electronic key or with the electronic key in starter
switch position 0 or 1 the selector lever is locked in
position “P”.
1Most electrical consumers can be operated. For
detailed information see respective subjects.
2Driving position.
Gear selector lever is unlocked.
3Starting position.
See page 227 for instructions on starting and turning off
the engine.
See page 44 for instructions on the simultaneous use of
the electronic key and the KEYLESS-GO-function.
Warning!
When leaving the vehicle always remove the
electronic key from the starter switch, take the
KEYLESS-GO-card (if so equipped) with you and
lock the vehicle. Do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equipment
may cause serious personal injury.
223Starter switch
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Important!
If the electronic key is left in the starter switch
position 0 for an extended period of time, it can no
longer be turned in the lock. In this case, remove
electronic key from starter switch and reinsert.
Caution!
To prevent accelerated battery discharge and a possible
dead battery, always remove the electronic key from the
starter switch. Do not leave the electronic key in starter
switch position 0.
Notes:
A warning sounds when the driver’s door is opened
with the electronic key in starter switch position 1 or 0.
With the engine at idle speed, the charging rate of the
alternator (output) is limited.
It is therefore recommended that you turn off
unnecessary electrical consumers while driving in stop-
and-go traffic. This precaution helps to avoid draining of
the battery.
Unnecessary strain on the battery and charging system
may be minimized by turning off the following power
consumers, for example:
Heated seats, rear window defroster. In addition, the
automatic climate air volume control should be set to
the lowest position.
224Starter switch — KEYLESS-GO
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Start-/Stop button (vehicles with KEYLESS-GO)
See page 227 for instructions on starting and turning off
the engine.
See page 44 for instructions on the simultaneous use of
the electronic key and the KEYLESS-GO-function.
Pressing the start-/stop button (1) on the gear selector
lever without depressing the brake pedal will
sequentially activate the starter switch positions 1 (on)
and 2 (operation) and 0 (off).
The engine can be started with the starter switch in any
position (on, operation or off), as long as the gear
selector lever is in position “P” or “N” and the brake
pedal depressed.
Warning!
When leaving the vehicle always take the electronic
key and the KEYLESS-GO-card with you, and lock
the vehicle. Do not leave children unattended in the
vehicle, or with access to an unlocked vehicle.
Unsupervised use of vehicle equipment may cause
serious personal injury.
225Starter switch — KEYLESS-GO
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
“On” position (starter switch position 1, see page 222).
Most electrical consumers can be operated. For detailed
information see respective subjects.
Operation/driving position (starter switch position 2,
see page 222).
All electrical consumers can be operated. Gear selector
is unlocked.
“Off” position (electronic key removable from starter
switch).
Most electrical consumers cannot be operated.
The selector lever is locked in position “P”.
Notes:
For improved recognition of the KEYLESS-GO-card the
doors should be closed when pressing the start-/stop
button.
The gear selector lever can only be moved with the
vehicle battery charged and connected, and the starter
switch in the Operation position. With the gear selector
lever in position “P”, the brake pedal must also be
depressed.
Important!
For the KEYLESS-GO-system to function properly, the
operator should observe the following:
•If the KEYLESS-GO-card is positioned farther away
from the vehicle (e.g. inside clothing or a briefcase),
the vehicle cannot be locked (see page 40) or started
with the start-/stop button (see page 227).
•If the KEYLESS-GO-card is removed from the vehicle
while the engine is running, or by placing the card
in front of the center armrest (see page 190), the
message “CHIP-CARD – NOT RECOGNIZED!” will
appear repeatedly while driving in the
multifunction display, see page 38.
226Starter switch — KEYLESS-GO
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
•Do not forget, the engine can be started by anyone if
a KEYLESS-GO-card is left inside the vehicle.
•To be able to operate the vehicle in the case of a
malfunction in the KEYLESS-GO-system (e.g. strong
radio frequency disturbance), we recommend that
you carry the electronic key plus mechanical key
with you and keep them in a safe place so that they
are always handy. Never leave the electronic key in
the vehicle.
•To avoid radio transmission interference, never store
the KEYLESS-GO-card together with other electronic
items (e.g. cellular telephones, other KEYLESS-GO-
cards) or metallic objects (e.g. coins, metal foil).
Notes:
With the engine at idle speed, the charging rate of the
alternator (output) is limited.
It is therefore recommended that you turn off
unnecessary electrical consumers while driving in stop-
and-go traffic. This precaution helps to avoid draining of
the battery.
Unnecessary strain on the battery and charging system
may be minimized by turning off the following power
consumers, for example:
Heated seats, rear window defroster. In addition, the
automatic climate air volume control should be set to
the lowest position.
227Starting and turning off the engine
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Starting and turning off the engine
Before starting
Ensure that parking brake is engaged and that selector
lever is in position “P” or “N”.
Starting
Important!
In areas where temperatures frequently drop below -4°F
(-20°C) we recommend that an engine block heater be
installed. Your authorized Mercedes-Benz Center will
advise you on this subject.
Starting the engine with electronic key:
Do not depress accelerator.
Turn electronic key in starter switch to position 2.
Briefly turn electronic key in starter switch clockwise to
the stop and release. The starter will engage until the
engine is running.
If engine will not run, and the starting procedure stops,
turn electronic key completely to the left and repeat
starting the engine.
After several unsuccessful attempts, have the system
checked at the nearest authorized Mercedes-Benz
Center.
Important!
Due to the installed starter non-repeat feature, the
electronic key must be turned completely to the left
before attempting to start the engine again.
Starting the engine with KEYLESS-GO:
Note:
For improved recognition of the chip card the doors
should be closed when pressing the start-/stop button.
Depress brake pedal during the starting procedure.
Briefly press start-/stop button on gear selector lever.
The starter will engage until the engine is running.
If engine will not run, and the starting procedure stops,
press start-/stop button on gear selector lever and repeat
starting the engine.
After several unsuccessful attempts, have the system
checked at the nearest authorized Mercedes-Benz
Center.
228Starting and turning off the engine
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Turning off
Turning off the engine with electronic key:
Put the selector lever in position “P” and turn the
electronic key in the starter switch to position 0 to stop
the engine.
The electronic key can only be removed with the
selector lever in position “P”.
Turning off the engine with KEYLESS-GO:
Stop the vehicle and put the selector lever in
position “P”.
Press start-/stop button on the selector lever until the
engine stops. With the driver’s door closed the starter
switch is set to the “On” position (starter switch
position 1). With the driver’s door opened the starter
switch is set to the “Off” position (starter switch
position 0, same as electronic key removed from starter
switch).
Note:
The engine can only be turned off with selector lever in
position “P”. If attempting to turn off the engine while
the selector lever is in any other position than “P” a
signal sounds and the message “SELECTOR LEVER
TO P” appears in the multifunction display as a
reminder to move the selector to position “P”.
229Automatic transmission
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Automatic transmission The automatic transmission selects individual gears
automatically, dependent upon
•Selector lever position, see page 232
•Program mode selector, see page 236
•Accelerator position
•Vehicle speed
The gear shifting process is continuously adapted,
dependent on the driving style, the driving situation
and the road characteristics.
Important!
When parking the vehicle or before working on the
vehicle with the engine running, firmly depress the
parking brake pedal and shift the selector lever into “P”.
230Automatic transmission
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Driving
The selector lever is automatically locked while in
position “P”. To move the selector lever out of
position “P”, the service brake pedal must be firmly
depressed before the shift lock will release.
Shift selector lever to the desired position only when the
engine is idling normally and the service brake is
applied. Do not release the brake until ready to drive.
The vehicle may otherwise start creeping when the
selector lever is in drive or reverse position.
Important!
After selecting any driving position from “N” or “P”,
wait a moment to allow the gear to fully engage before
accelerating, especially when the engine is cold.
Accelerator position
Partial throttle = early upshifting = normal acceleration
Full throttle = later upshifting = rapid acceleration
Kickdown (depressing the accelerator beyond full
throttle) = downshifting to a lower gear = maximum
acceleration. Once the desired speed is attained, ease up
on the accelerator — the transmission shifts up again.
Warning!
It is dangerous to shift the selector lever out of “P”
or “N” if the engine speed is higher than idle speed.
If your foot is not firmly on the brake pedal, the
vehicle could accelerate quickly forward on in
reverse. You could lose control of the vehicle and
hit someone or something. Only shift into gear
when the engine is idling normally and when your
right foot is firmly on the brake pedal.
231Automatic transmission
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Stopping
For brief stops, e.g. at traffic lights, leave the
transmission in gear and hold vehicle with the service
brake.
For longer stops with the engine idling, shift into “N”
or “P” and hold the vehicle with the service brake.
When stopping the vehicle on an uphill gradient, do not
hold it with the accelerator, use the brake. This avoids
unnecessary transmission heat build up.
Maneuvering
To maneuver in tight areas, e.g. when pulling into a
parking space, control the vehicle speed by gradually
releasing the brakes. Accelerate gently and never
abruptly step on the accelerator.
To rock a vehicle out of soft ground (mud or snow),
alternately shift from forward to reverse, while applying
slight partial throttle.
Rocking a vehicle free in this manner may cause the
ABS or traction system malfunction indicator lamp to
come on. Turn off and restart the engine to clear the
malfunction indication.
Warning!
Getting out of your vehicle with the selector lever
not fully engaged in position “P” is dangerous.
Also, when parked on an incline, position “P” alone
may not prevent your vehicle from moving,
possibly hitting people or objects.
Always set the parking brake in addition to shifting
to position “P”, see page 238 for parking brake.
When parked on an incline, also turn front wheel
against curb.
Warning!
When leaving the vehicle always remove the
electronic key from the starter switch, take the
KEYLESS-GO-card (if so equipped) with you and
lock the vehicle. Do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Children could move the gear selector lever
from position “P”, which could result in an
accident or serious injury.
232Automatic transmission
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Selector lever position
The current selector lever position is indicated in the
gear range indicator display. The automatic gear
shifting process can be adapted to specific operating
conditions using the selector lever.
Park position
The park position is to be used when parking the
vehicle. Engage only with the vehicle stopped.
The park position is not intended to serve as a
brake when the vehicle is parked. Rather, the
driver should always use the parking brake in
addition to placing the selector lever in park to
secure the vehicle.
Note:
The electronic key can only be removed from the
starter switch with the selector lever in
position “P”. With the electronic key removed, the
selector lever is locked in position “P”.
Reverse gear
Shift to reverse gear only with the vehicle
stopped.
Dependent on the program mode selector switch
position “S” or “W” the maximum speed in the
reverse gear is different. However, it is not
possible to change the program mode while in
reverse.
233Automatic transmission
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Neutral
No power is transmitted from the engine to the
drive axle. When the brakes are released, the
vehicle can be moved freely (pushed or towed). Do
not engage “N” while driving except to coast
when the vehicle is in danger of skidding (e.g. on
icy roads, see page 246 for winter driving
instructions).
Important!
Coasting the vehicle, or driving for any other
reason with selector lever in “N” can result in
transmission damage that is not covered by the
Mercedes-Benz Limited Warranty.
The transmission automatically upshifts through
5th gear. Position “D” provides optimum driving
characteristics under all normal operating
conditions.
Gear selection for special circumstances
The transmission gear ranges for special circumstances
can be selected by pressing the selector lever to the
right or the left with the selector lever in position “D”.
The gear range currently selected is indicated in the
instrument cluster display.
Briefly press selector lever in the ç direction:
The transmission downshifts, one gear at a time, in the
order “4”, “3”, “2”, “1”.
Press and hold selector lever in the ç direction:
The selector lever position display will switch to the
gear range currently selected by the automatic
transmission.
The transmission will only shift down one gear if the
gear range currently selected has already shifted to its
highest possible gear.
Briefly press selector lever in the æ direction:
The transmission will shift from the current gear range
to the next higher gear range. If the transmission is
already in gear range “D”, an additional upshift of one
gear is possible.
234Automatic transmission
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Press and hold selector lever in the æ direction:
The transmission will shift from the current gear
directly to gear range “D”.
Important!
With transmission in gear range “D”, “4” or “3”,
upshifting from 1st to 2nd to 3rd gear is delayed
depending on vehicle speed and engine temperature.
This allows the catalytic converter to heat up more
quickly to operating temperatures.
During the brief warm-up period this delayed upshift
and increased engine noise might be perceived as a
malfunction. However, neither the engine nor
transmission are negatively affected by this mode of
operation.
The delayed upshift is effective with vehicle speeds
below 31 mph (50 km/h) at partial throttle and engine
temperatures below 95°F (35°C).
To avoid overrevving the engine when the selector lever
is moved to a lower gear range, the transmission will not
shift to a lower gear, if the engine’s revolutions per
minute limit would be exceeded. In this case there will
be no downshift, even when the vehicle speed reaches
the engine’s rpm limit of that gear, e.g. by applying the
service brakes.
To prevent the engine from laboring at low RPM when
driving uphill gradients or with your vehicle heavily
loaded, the automatic transmission will downshift when
necessary to maintain engine RPM within the best
torque range.
Warning!
On slippery road surfaces, never downshift in order
to obtain braking action. This could result in drive
wheel slip and reduced vehicle control. Your
vehicle’s ABS will not prevent this type of loss of
control.
235Automatic transmission
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Gear ranges:
Upshift through 4th gear only. Suitable for
performance driving.
Upshift through 3rd gear only. Suitable for
moderately steep hills. Since the transmission
does not shift higher than 3rd gear, this gear
selection will allow use of the engine’s braking
power downhill.
Upshift through 2nd gear only. For driving in
mountainous regions or under extreme operating
conditions. This gear selection will allow use of
the engine’s braking power when descending
steep grades.
Use this position, which makes maximum use of
the engine’s braking effect, while descending
very steep or lengthy downgrades and only at
speeds below 40 mph (60 km/h).
236Automatic transmission
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Program mode selector switch
The transmission is provided with a selector switch (1)
for Standard “S” and Winter/Wet (snow and ice) “W”
program modes.
The program mode currently selected is indicated in the
gear range indicator display.
SStandard mode
Press switch on symbol “S”. Use this mode for all
regular driving.
The vehicle starts out in 1st gear.
Accelerator Operation:
Fast on = depressing the accelerator pedal quickly
(not into kickdown position) while driving
continuously, rather than depressing the
accelerator pedal in the usual manner, will cause
the automatic transmission to shift down into a
lower gear. This gear shifting process is
dependent on the current vehicle speed.
Fast off = there will be no upshift when releasing
the accelerator pedal quickly, e.g. using the
engine’s braking power during performance
driving.
237Automatic transmission
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
WWinter/Wet (snow and ice) mode
Press switch on symbol “W”. The vehicle starts
out in 2nd gear, except with selector lever in 1st
gear, or with accelerator pedal in kick-down
position.
The “W” mode helps to improve traction and
driving stability of the vehicle.
The gear shifting process occurs at lower vehicle
and engine speeds than in the “S” program mode.
Caution!
Never change the program mode when the selector lever
is out of position “P”. It could result in a change of
driving characteristics for which you may not be
prepared.
Important!
Always be certain of the program mode selected since
the vehicle driving characteristics change with the
selection of the program mode.
Dependent on the program mode selector switch
position “S” or “W” and the gear selector lever in
position “R”, the ratio of power transmission changes.
Emergency operation
(Limp home mode)
If vehicle acceleration worsens or the transmission no
longer shifts, the transmission is most likely operating
in Limp Home Mode which engages when there is a
malfunction of the transmission. This condition may be
accompanied by the “CHECK ENGINE” malfunction
indicator lamp in the instrument cluster coming on.
In this mode only the 2nd gear or reverse gear can be
activated.
To engage 2nd gear or reverse:
1. Stop the vehicle.
2. Move selector lever to position “P”.
3. Turn off the engine.
4. Wait approx. 10 seconds.
5. Restart the engine.
6. Move selector lever to position “D” (for 2nd gear), or
move selector lever to position “R” (for reverse gear).
Have the transmission checked at your authorized
Mercedes-Benz Center as soon as possible.
238Parking brake
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Parking brake To engage, firmly depress parking brake pedal. When
the electronic key is in starter switch position 2, the
brake warning lamp in the instrument cluster should
come on brightly.
To release the parking brake, pull handle on instrument
panel. The brake warning lamp in the instrument
cluster should go out.
A warning sounds and the parking brake warning
message (see page 302) appears in the multifunction
display, if you start to drive without having released the
parking brake.
Also see brake warning lamp on page 292.
Warning!
When leaving the vehicle always remove the
electronic key from the starter switch, take the
KEYLESS-GO-card (if so equipped) with you and
lock the vehicle. Do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Children could release the parking brake,
which could result in an accident or serious injury.
239Driving instructions
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Driving instructions
Drive sensibly – save fuel
Fuel consumption, to a great extent, depends on driving
habits and operating conditions.
To save fuel you should:
•keep tires at the recommended inflation pressures.
•remove unnecessary loads,
•remove roof rack when not in use,
•allow engine to warm up under low load use,
•avoid frequent acceleration and deceleration,
•have all maintenance work performed at regular
intervals by an authorized Mercedes-Benz Center.
Fuel consumption is also increased by driving in cold
weather, in stop-and-go traffic, on short trips and in hilly
country.
Drinking and driving
Warning!
Drinking or taking drugs and driving can be a very
dangerous combination. Even a small amount of
alcohol or drugs can affect your reflexes,
perceptions and judgement.
The possibility of a serious or even fatal accident is
sharply increased when you drink or take drugs
and drive.
Please don’t drink or take drugs and drive or allow
anyone to drive after drinking or taking drugs.
240Driving instructions
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Pedals
Power assistance
Brakes
The condition of the parking brake system is checked
each time the vehicle is in the shop for the required
maintenance service.
If the parking brake is released and the brake warning
lamp in the instrument cluster stays on, the brake fluid
level in the reservoir is too low.
Brake pad wear or a leak in the system may be the
reason for low brake fluid in the reservoir.
Warning!
Keep driver’s foot area clear at all times. Objects
stored in this area may impair pedal movement.
Warning!
When the engine is not running, the brake and
steering systems are without power assistance.
Under these circumstances, a much greater effort is
necessary to stop or steer the vehicle.
Warning!
After driving in heavy rain for some time without
applying the brakes or through water deep enough
to wet brake components, the first braking action
may be somewhat reduced and increased pedal
pressure may be necessary to obtain expected
braking effect. Be sure to maintain a safe distance
from vehicles in front.
Resting your foot on the brake pedal will cause
excessive and premature wear of the brake pads.
It can also result in the brakes overheating thereby
significantly reducing their effectiveness. It may
not be possible to stop the vehicle in sufficient time
to avoid an accident.
241Driving instructions
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Have the brake system inspected at an authorized
Mercedes-Benz Center immediately.
All checks and service work on the brake system should
be carried out by an authorized Mercedes-Benz Center.
Install only brake pads and brake fluid recommended by
Mercedes-Benz.
Caution!
When driving down long and steep grades, relieve the
load on the brakes by shifting into a lower gear to use
the engine’s braking power. This helps prevent
overheating of the brakes and reduces brake pad wear.
After hard braking, it is advisable to drive on for some
time, rather than immediately parking, so the air stream
will cool down the brakes faster.
Driving off
Apply the service brakes to test them briefly after
driving off. Perform this procedure only when the road
is clear of other traffic.
Warm up the engine smoothly. Do not place full load on
the engine until the operating temperature has been
reached.
When starting off on a slippery surface, do not allow one
drive wheel to spin for an extended period with the ESP
switched off. Doing so may cause serious damage to the
drive train which is not covered by the Mercedes-Benz
Limited Warranty.
Warning!
If other than recommended brake pads are
installed, or other than recommended brake fluid
is used, the braking properties of the vehicle can be
degraded to an extent that safe braking is
substantially impaired. This could result in an
accident.
242Driving instructions
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Parking Important!
It is advisable to set the parking brake whenever
parking or leaving the vehicle. In addition, move
selector lever to position “P”.
When parking on hills, always set the parking brake.
Warning!
To reduce the risk of personal injury as a result of
vehicle movement, before turning off the engine
and leaving the vehicle always:
1. Keep right foot on service brake pedal.
2. Firmly depress parking brake pedal.
3. Move the selector lever to position “P”.
4. Slowly release service brake pedal.
5. Turn front wheels towards the road curb.
6. Turn the electronic key to starter switch
position 0 and remove, or press start-/stop
button (vehicles with KEYLESS-GO).
7. Take the electronic key and the KEYLESS-GO-
card (vehicles with KEYLESS-GO) and lock
vehicle when leaving.
243Driving instructions
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Tires
Tread wear indicators (TWI) are required by law. These
indicators are located in six places on the tread
circumference and become visible at a tread depth of
approximately 1/16 in (1.5 mm), at which point the tire is
considered worn and should be replaced.
The tread wear indicator appears as a solid band across
the tread.
Specified tire pressures must be maintained. This
applies particularly if the tires are subjected to high
loads (e.g. high speeds, heavy loads, high ambient
temperatures).
Warning!
If you feel a sudden significant vibration or ride
disturbance, or you suspect that possible damage to
your vehicle has occurred, you should turn on the
hazard warning flashers, carefully slow down, and
drive with caution to an area which is a safe
distance from the roadway.
Inspect the tires and under the vehicle for possible
damage. If the vehicle or tires appear unsafe, have
it towed to the nearest Mercedes-Benz Center or
tire dealer for repairs.
Warning!
Do not allow your tires to wear down too far. As
tread depth approaches 1/16 in (1.5 mm), the
adhesion properties on a wet road are sharply
reduced.
Depending upon the weather and/or road surface
(conditions), the tire traction varies widely.
Warning!
Do not drive with a flat tire. A flat tire affects the
ability to steer or brake the vehicle. You may lose
control of the vehicle. Continued driving with a flat
tire or driving at high speed with a flat tire will
cause excessive heat build-up and possibly a fire.
244Driving instructions
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Aquaplaning
Depending on the depth of the water layer on the road,
aquaplaning may occur, even at low speeds and with
new tires. Reduce vehicle speed, avoid track grooves in
the road and apply brakes cautiously in the rain.
Tire traction
The safe speed on a wet, snow covered or icy road is
always lower than on a dry road.
You should pay particular attention to the condition of
the road whenever the outside temperatures are close to
the freezing point.
We recommend M+S rated radial-ply tires for the winter
season for all four wheels to insure normal balanced
handling characteristics. On packed snow, they can
reduce your stopping distance as compared with
summer tires. Stopping distance, however, is still
considerably greater than when the road is not snow or
ice covered.
Warning!
If ice has formed on the road, tire traction will be
substantially reduced. Under such weather
conditions, drive, steer and brake with extreme
caution.
245Driving instructions
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Tire speed rating
CL 500 and CL 600:
Your vehicle is factory equipped with “H”-rated tires,
which have a speed rating of 130 mph (210 km/h).
Vehicles with Sport Package:
Your vehicle is factory equipped with “Y”-rated tires,
which have a speed rating of 188 mph (300 km/h).
An electronic speed limiter prevents your vehicle from
exceeding a speed of 130 mph (210 km/h).
CL 55 AMG:
Your vehicle is factory equipped with “Y”-rated tires,
which have a speed rating of 188 mph (300 km/h).
An electronic speed limiter prevents your vehicle from
exceeding a speed of 155 mph (250 km/h).
Despite the tire rating, local speed limits should be
obeyed. Use prudent driving speeds appropriate to
prevailing conditions.
Snow chains
Use only snow chains that are tested and recommended
by Mercedes-Benz. Your authorized Mercedes-Benz
Center will be glad to advise you on this subject.
Chains should only be used on the rear wheels. Follow
the manufacturer’s mounting instructions.
Always select option I or II of the level control system
when driving with snow chains, see page 276.
Snow chains should only be driven on snow covered
roads at speeds not to exceed 30 mph (50 km/h).
Remove chains as soon as possible when driving on
roads without snow.
When driving with snow chains, press the ESP control
switch to OFF, refer to page 273.
Important!
Use of snow chains is not permissible with tire sizes
245/45 R18 or 275/40 R18.
Warning!
Even when permitted by law, never operate a
vehicle at speeds greater than the maximum speed
rating of the tires.
Exceeding the maximum speed for which tires are
rated can lead to sudden tire failure causing loss of
vehicle control and resulting in personal injury
and possible death.
246Driving instructions
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Winter driving instructions
The most important rule for slippery or icy roads is to
drive sensibly and to avoid abrupt acceleration, braking
and steering maneuvers. Do not use the cruise control
system under such conditions.
When the vehicle is in danger of skidding, move
selector lever to position “N”. Try to keep the vehicle
under control by corrective steering action.
Road salts and chemicals can adversely affect braking
efficiency. Increased pedal force may become necessary
to produce the normal brake effect. We therefore
recommend depressing the brake pedal periodically
when traveling at length on salt-strewn roads. This can
bring road salt impaired braking efficiency back to
normal. A prerequisite is, however, that this be done
without endangering other drivers on the road.
If the vehicle is parked after being driven on salt treated
roads, the braking efficiency should be tested as soon as
possible after driving is resumed while observing the
safety rules in the previous paragraph.
Warning!
If the vehicle becomes stuck in snow, make sure
that snow is kept clear of the exhaust pipe and
from around the vehicle with engine running.
Otherwise, deadly carbon monoxide (CO) gases may
enter vehicle interior resulting in unconsciousness
and death.
To assure sufficient fresh air ventilation, open a
window slightly on the side of the vehicle not
facing the wind.
247Driving instructions
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Winter driving
Have your vehicle winterized at your authorized
Mercedes-Benz Center before the onset of winter.
•Change the engine oil if the engine contains an oil
which is not approved for winter operation. For
viscosity (SAE/CCMC class) and filling quantity,
see page 395.
•Check engine coolant anticorrosion/antifreeze
concentration.
•Additive for the windshield washer and headlamp
cleaning system: Add MB Concentrate “S” to a
premixed windshield washer solvent/antifreeze
which is formulated for below freezing
temperatures, see page 334.
•Test battery: Battery capacity drops with decreasing
ambient temperature. A well charged battery helps
to ensure that the engine can be started, even at low
ambient temperatures.
•Tires: We recommend M+S rated radial-ply tires on
all four wheels for the winter season. Observe
permissible maximum speed for M+S rated
radial-ply tires and the legal speed limit.
In winter operation, the maximum effectiveness of the
ABS and ESP can only be achieved with M+S rated
radial-ply tires and/or snow chains recommended by
Mercedes-Benz. Snow chains maximize performance.
248Driving instructions
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Deep water
Caution!
Do not drive through flooded areas or water of unknown
depth.
If you must drive through deep water, drive slowly to
prevent water from entering the engine compartment or
passenger compartment, being ingested by the air
intake, possibly causing damage to electrical
components or wiring, to engine or transmission that is
not covered by the Mercedes-Benz Limited Warranty.
Passenger compartment
Warning!
Always fasten items being carried as securely as
possible.
In an accident, during hard braking or sudden
maneuvers, loose items will be thrown around
inside the vehicle, and cause injury to vehicle
occupants unless the items are securely fastened in
the vehicle.
The trunk is the preferred place to carry objects.
249Driving instructions
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Block heater (Canada only)
The engine is equipped with a block heater.
The electrical cable may be installed at your authorized
Mercedes-Benz Center.
Traveling abroad
Abroad, there is a widely-spread Mercedes-Benz service
network at your disposal. If you plan to travel into areas
which are not listed in the index of your Mercedes-Benz
Center directory, you should request pertinent
information from your authorized Mercedes-Benz
Center.
Driving in countries with left-hand traffic requires the
headlamps to be switched over accordingly, see
page 362.
250Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Cruise control
The cruise control allows you to drive in a more relaxed
manner, for example over long distances, as it
automatically maintains the set speed by actively
regulating the throttle setting.
Any given speed above approximately 25 mph
(40 km/h) can be maintained with the cruise control by
operating the lever.
1Accelerate and set:
Lift lever briefly to set speed. Hold lever up to
accelerate.
2Decelerate and set:
Depress lever briefly to set speed.
Hold lever down to decelerate.
Normally the vehicle is accelerated to the desired
speed with the accelerator.
Speed is set by briefly pushing the lever to
position 1 or 2. The accelerator can then be
released.
The selected speed is shown for approx. 5 seconds
in the multifunction display, and the corresponding
speedometer segments from the selected speed to
the vehicle maximum speed are illuminated.
The speed can be increased (e.g. for passing) by
using the accelerator. After the accelerator is
released, the previously set speed will be resumed
automatically.
If a set speed is to be increased or decreased
slightly, e.g. to adapt to the traffic flow, hold lever in
position 1 or 2 until the desired speed is reached, or
briefly tip the lever in the appropriate direction for
increases or decreases in 0.6 mph (1 km/h)
increments. When the lever is released, the newly
set speed remains.
1
3
4
2
251Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
3Canceling
To cancel the cruise control, briefly push lever to
position 3.
When you step on the brake pedal or the vehicle
speed drops below approx. 25 mph (40 km/h), for
example when driving upgrade, the cruise control
will be canceled.
If the illuminated speedometer segments begin to
blink (e.g. when aquaplaning or when moving the
gear selector lever to position “N” while driving), the
cruise control is automatically switched off.
If the cruise control cancels by itself and remains
inoperative until the engine is restarted, have the
system checked at your authorized Mercedes-Benz
Center as soon as possible.
4Resume
If the lever is briefly pushed to position 4 when
driving at a speed exceeding approx. 25 mph
(40 km/h), the vehicle resumes the speed which
was set prior to the cancellation of the cruise
control.
The selected speed is shown for approx. 5 seconds
in the multifunction display, and the corresponding
speedometer segments from the selected speed to
the vehicle maximum speed are illuminated.
The last memorized speed is canceled when the
electronic key in the starter switch is turned to
position 1 or 0.
Important!
Moving gear selector lever to position “N” switches the
cruise control off.
252Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Notes:
If the engine does not brake the vehicle sufficiently
while driving on a downgrade, the speed you set on the
cruise control may be exceeded. In this case the
automatic transmission shifts down (max. to 3rd gear)
to maintain the set cruise control speed by using the
engine’s braking power.
As soon as the grade eases, the automatic transmission
shifts up again dependent on the selector lever position.
Nevertheless, in some cases you may have to step on the
brake pedal to slow down. In this case the cruise control
is switched off.
Use the lever to resume the previously set speed.
The “CRUISE CONTROL - - -” message is displayed on
the multifunction display when any attempt is made to
store speeds below 25 mph (40 km/h) or when an
attempt is made to recall a speed when no speed has
been stored – the cruise control remains switched off.
See malfunction and warning messages on page 297 if
the cruise control has a malfunction.
Warning!
Only use the cruise control if the traffic and
weather conditions make it advisable to travel at a
steady speed.
• The use of cruise control can be dangerous on
winding roads or in heavy traffic because
conditions do not allow safe driving at a steady
speed.
• The use of cruise control can be dangerous on
slippery roads. Rapid changes in tire adhesion
can result in wheel spin and loss of control.
The “Resume” function should only be operated if
the driver is fully aware of the previously set speed
and wishes to resume this particular preset speed.
253Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Distronic (DTR)
(optional)
When activated the Distronic system increases driving
convenience, for example over long distances, as it
automatically maintains a speed set by the driver by
actively regulating the throttle setting. It also maintains
within certain limitations a preset distance to a vehicle
ahead.
With Distronic switched off, the multifunction display
continues to show the distance to the vehicle ahead, if
so selected, see page 266.
The distance notification function can be activated
separately, see page 264.
In Distronic mode, if the distance sensor detects a
slower moving vehicle directly ahead, your vehicle
speed will be reduced to the extent permitted by
reduced throttle and up to 20% of vehicle braking power,
so that you follow that vehicle at a preset distance, see
page 265.
Maximum range of detection is approximately 500 ft.
(150 m).
Any given speed between 25 mph (Canada: 30 km/h)
and 110 mph (Canada: 180 km/h) can be maintained
with the Distronic by operating the control lever on the
steering column.
Warning!
Distronic is a convenience system, its speed
adjustment reduction capability is intended to
make cruise control more effective and usable
when traffic speeds vary. It is not, however,
intended to nor does it replace the need for extreme
care. The responsibility for the vehicle speed and
the distance to the vehicle ahead, including most
importantly brake operation to assure safe stopping
distance, rests always with the driver.
Warning!
Distronic requires familiarity with its operational
characteristics. We strongly recommend that you
review the following information carefully before
operating the system.
254Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Note:
For operation in the USA only: This device complies
with Part 15, Subpart C, Section 209 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Any unauthorized modification to this device could void
the user’s authority to operate the equipment
.
Warning!
Only use Distronic if the traffic and weather
conditions make it advisable to travel at a steady
speed.
Use of Distronic can be dangerous on winding
roads or in heavy traffic because conditions do not
allow safe driving at a steady speed.
Use of Distronic can be dangerous on slippery
roads. Rapid changes in tire adhesion can result in
wheel spin and loss of control.
Distronic does not act upon adverse sight distance
conditions. Do not use Distronic during conditions
of fog and heavy rain, snow or sleet.
The “Resume” function should only be operated if
the driver is fully aware of the previously set speed
and wishes to resume this particular preset speed.
Distronic does not recognize accordingly and will
not react to stationary objects. It is designed and
intended only to maintain a set speed and keep a
set distance from moving objects in front of it.
255Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
The speed stored in memory is displayed in the
multifunction display, and one or two segments around
the stored speed light up in the speedometer dial, see
page 267.
1Accelerate and set:
To increase the speed by 5 mph (Canada: 10 km/h) –
briefly lift lever up.
2Decelerate and set:
To reduce the speed by 5 mph (Canada: 10 km/h) –
briefly depress lever.
3Canceling
To cancel Distronic, briefly push lever to position 3.
The last set speed remains stored in memory.
4Resume
•If the lever is briefly pulled to position 4 when
driving at a speed above approx. 25 mph
(Canada: 30 km/h), the vehicle resumes the
speed which was selected prior to the
cancellation of Distronic.
•For minor increases of speeds in increments of
1 mph (Canada: 1 km/h) – briefly pull lever to
position 4.
The last memorized speed is canceled when the
electronic key in the starter switch is turned to
position 1 or 0.
1
3
4
2
256Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Activation of Distronic
Any given speed above approximately 25 mph
(Canada: 30 km/h) can be maintained:
•Normally the vehicle is accelerated to the desired
speed with the accelerator.
•Speed is set by briefly moving the control lever to
position 1 or 2.
The stored speed is displayed in the multifunction
display for approx. 5 seconds (see also page 266),
and one or two segments around the stored speed
light up on the speedometer dial (see also
page 267).
•Remove foot from the accelerator.
•When briefly lifting the control lever to position 1,
the vehicle speed will increase in increments of
5mph (Canada:10km/h).
The stored speed is displayed in the multifunction
display for approx. 5 seconds (see also page 266),
and one or two segments around the stored speed
light up on the speedometer dial (see also
page 267).
•When briefly lowering the control lever to
position 2, the vehicle speed will decrease in
increments of 5 mph (Canada: 10 km/h).
The stored speed is displayed in the multifunction
display for approx. 5 seconds (see also page 266),
and one or two segments around the stored speed
light up on the speedometer dial (see also
page 267).
P54.70-2154-26
257Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
•For a more precise setting the speed can be
increased in increments of 1 mph (Canada: 1 km/h)
by briefly pulling the control lever in direction (4).
Caution!
If the driver’s foot is not fully removed from the
accelerator pedal, the Distronic control system will be
overridden and it will not regulate the preset vehicle
speed and following distance. The vehicle speed and
following distance will be determined only by the
accelerator pedal position.
Invalid attempts to activate
The multifunction display will show “–––” during
invalid attempts to activate Distronic:
•below a speed of approx. 25 mph
(Canada: 30 km/h),
•while the electronic stability program (ESP) is
switched off – ESP warning lamp v in
speedometer dial is illuminated, see page 114,
•by moving the distronic control lever in “RESUME”
direction (4) when no speed is stored in memory,
•during the initialization and self-test phase after the
engine is started – this can take up to 2 minutes,
•while depressing the service brake pedal,
•while the parking brake is set – check ;warning
lamp (Canada: !) in instrument cluster, see
page 114,
•with the gear selector lever in position “P”, “R”
or “N” – check gear range indicator display in
instrument cluster, see page 114.
Warning!
Distronic brakes (up to 20% of vehicle braking
power) the vehicle to restore the preset distance or
to maintain the speed. The brake pedal is
automatically retracted as this happens.
Keep driver’s foot area clear at all times, including
the area under the brake pedal. Objects stored in
this area may impair pedal movement which could
interfere with the braking ability of the Distronic
system.
Do not place your foot under the brake pedal – your
foot could become caught.
258Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Deactivation of Distronic
Briefly move the distronic control lever in “OFF”
direction (3) – the stored speed remains in the memory
until the electronic key in the starter switch is turned to
position 1 or 0.
Distronic is also deactivated if:
•the service brake pedal is depressed,
•the parking brake is activated,
•the vehicle decelerates to less than approximately
25 mph (Canada: 30 km/h), e.g. while maintaining
the distance to the vehicle ahead.
•the gear selector lever is moved to position “N”,
•the electronic stability program (ESP) is active,
•the electronic stability program (ESP) is switched off
manually,
•Model CL 55 AMG only:
the vehicle speed exceeds approximately 160 mph
(260 km/h).
Note:
A signal sounds and the message “DTR OFF” appears
for 5 seconds in the multifunction display everytime
Distronic is deactivated.
Warning!
The Distronic switches off and releases the brakes
when the vehicle decelerates below the minimum
speed of 25 mph (Canada: 30 km/h) by operation of
the system. At that time, the driver must apply the
brakes in order to reduce vehicle speed further or
bring it to a stop.
259Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Driving with Distronic activated
With the electronic key in starter switch position 2, the
distance warning lamp l in the speedometer dial comes
on and goes out with the engine running.
If the distance sensor detects a slower vehicle moving in
front, your vehicle speed will be reduced by
deceleration and braking of up to 20% of the vehicle
braking capacity, so that you follow the vehicle ahead at
the preset distance, see page 265. Segments in the
speedometer illuminate to indicate the speed range
from the speed of the vehicle in front up to your
vehicle’s selected speed. See also page 266 for notes on
the multifunction displays.
Warning!
Distronic brakes (up to 20% of vehicle braking
power) the vehicle to restore the preset distance or
to maintain the speed. The brake pedal is
automatically retracted as this happens.
Keep driver’s foot area clear at all times, including
the area under the brake pedal. Objects stored in
this area may impair pedal movement which could
interfere with the braking ability of the Distronic
system.
Do not place your foot under the brake pedal – your
foot could become caught.
260Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
The distance warning sound continues until the driver
activates the brake pedal, or the preset distance is
obtained. As soon as the preset distance is obtained, the
distance warning lamp goes out.
Caution!
If the driver’s foot is not fully removed from the
accelerator pedal, the Distronic control system will be
overridden and it will not regulate the preset vehicle
speed and following distance. The vehicle speed and
following distance is determined only by the accelerator
pedal position.
Distronic works on steep uphill and downhill gradients
by downshifting gears and applying the brakes to
maintain the speed selected by the driver. The
transmission will upshift again once the gradient evens
out.
The speed can be increased (e.g. for passing) by using
the accelerator. After the accelerator is released, the
previously set speed will be resumed automatically.
Distronic is deactivated if a vehicle in front causes your
vehicle to slow down to less than approx. 25 mph
(Canada: 30 km/h). A signal sounds and the message
“DTR OFF” appears for 5 seconds in the multifunction
display.
Warning!
A continuous warning sounds and the distance
warning lamp in the speedometer dial is
illuminated if the Distronic system calculates that
the distance to the vehicle ahead and your vehicle’s
current speed indicate that Distronic will not be
capable of slowing the vehicle sufficiently to
maintain the preset following distance, which
creates a danger of a collision.
Immediately brake the vehicle to increase the
distance to the vehicle in front of you. The warning
sound is intended as a final caution that you have
not interceded with your own braking inputs to
avoid a potentially dangerous situation. Do not wait
for the operation of the warning signal to intercede
with your own braking as that will result in
potentially dangerous emergency braking which
will not always result an impact being avoided.
Tailgating increases the risk of an accident.
261Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Additional driving hints
Important!
When starting the engine, Distronic goes through an
initialization and self-test phase.
The most likely cause for a malfunctioning system is
caused by a dirty sensor (located behind the hood
grille), especially at times of snow and ice or heavy rain.
In such a case, Distronic will switch off, and the
message “DISTRONIC – CLEAN SENSOR!” appears in
the multifunction display.
For cleaning and care of the Distronic sensor see
page 378.
The following are some sample situations which may
influence the functions of Distronic.
Warning!
Distronic works to maintain the speed selected by
the driver unless a moving obstacle proceeding
directly ahead of it in the same travel direction is
detected (e.g. following another vehicle ahead at a
distance set by Distronic). This means that:
• your vehicle can pass another vehicle after you
change lanes,
• while in a sharp turn or if the vehicle in front
is in a sharp turn, Distronic could lose sight of
a vehicle traveling in front of it, then your
vehicle could accelerate to the previously
selected speed.
Distronic regulates only the distance between your
vehicle and those directly ahead, but does not
register stationary objects in the roadway, e.g.:
• a stopped vehicle in a traffic jam.
•a disabled vehicle.
• an oncoming vehicle.
The driver must always be on the alert and observe
all traffic and intercede with steering and braking
inputs as necessary.
Warning!
Distronic should not be used in snowy or icy road
conditions.
262Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Traveling through turns or bends in the roadway may
result in Distronic detecting a moving vehicle traveling
in front but not in your lane of travel, causing your
vehicle to brake late or unexpectedly. You must be
prepared to intercede with accelerator or brake
application as necessary.
The Distronic system’s detection zone is relatively
narrow at the start and becomes broader as it senses
further from the vehicle. Thus, Distronic may not
recognize another vehicle coming into your path close
to the front of your vehicle. You must be prepared to
intercede with braking or steering as necessary.
A vehicle not traveling directly in front of you could
cause detection problems, the actual distance to that
vehicle really being much shorter.
263Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
A vehicle changing lanes at close range is only
recognized when entering the area scanned by
Distronic. You must apply the service brakes to gain
sufficient distance to the vehicle ahead.
A narrow vehicle (e.g. a motorcycle) is only recognized
when entering the area scanned by Distronic. You must
apply the service brakes to gain sufficient distance to
the vehicle ahead.
264Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Distance notification function
Even if Distronic is deactivated, the distance to the
vehicle ahead continues to be measured, see page 266
for multifunction display.
The Distronic lamp in the speedometer dial illuminates
to advise the driver of a situation which under normal
braking conditions and dry surfaces should have been
addressed by the driver.
The distance notification function can be activated
separately, see page 265. It operates when driving at
speeds above approx. 25 mph (Canada: 30 km/h).
When recognizing a stationary obstacle or a slower
vehicle moving in the vehicle’s path and the danger of a
collision exists, the distance warning lamp in the
speedometer dial lights up and simultaneously a
continuous warning sounds.
Note:
Model CL 55 AMG only:
Distance notification function is deactivated if the
vehicle speed exceeds approximately 160 mph
(260 km/h).
Important!
With the Distronic switched off, only the distance
notification function operates, meaning the vehicle does
not slow down.
Important!
Complex driving situations are not always fully
recognized by Distronic, which could result in wrong or
missing distance warnings.
See page 261 for additional driving hints.
Warning!
If the distance warning lamp in the speedometer
dial lights up while driving and a continuous
warning sounds, immediate attention on the part of
the driver is required.
As required by the traffic situation, apply the
service brakes and navigate around a possible
obstacle. However, do not drive by relying on the
distance notification function as that will result in
an emergency braking application which,
especially depending on road surface conditions
and driver reaction, will not always be able to avoid
a collision.
265Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Distronic settings
1Switch – for distance notification function
2Thumbwheel – for setting distance
Distronic provides a safe following distance range to the
vehicle in front. The medium setting is noticeable by a
detent in the center position of the thumbwheel (2).
If you want to:
•Increase distance – turn thumbwheel (2)
towards ¯.
•Decrease distance – turn thumbwheel (2)
towards ®.
To switch the distance notification function on or off:
To switch on – press upper half of switch (1).
The indicator lamp in the switch lights up.
To switch off – press lower half of the switch (1).
The indicator lamp in the switch goes out.
For distance notification function see page 264.
Notes:
With the distance notification function activated, you
will still be advised by a continuous audible warning if a
potential emergency braking circumstance has been
detected, even if Distronic has been deactivated.
The last selected notification function mode (on/off) will
be stored in memory, even when removing the
electronic key from the starter switch.
Warning!
It is up to the driver to exercise discretion to select
the appropriate setting given road conditions,
traffic, driver’s preferred driving style and
applicable laws and driving recommendations for
safe following distance.
266Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Multifunction displays 1Distronic is deactivated. The actual distance (5) and
the should-be distance (6) to the vehicle ahead (4)
are displayed.
2Distronic is activated. The display shows the
selected speed for approx. 5 seconds.
3Distronic is activated. The message “DTR OFF”
appears for approx. 5 seconds when Distronic is
being deactivated.
4Vehicle ahead.
Only appears if a vehicle is detected ahead.
5Actual distance to vehicle ahead.
6Should-be distance to vehicle ahead (as calculated
by Distronic).
7Own vehicle.
To call up Distronic display:
Press button è or ÿ on the multifunction
steering wheel repeatedly until the display (1 or 3)
appears.
456
7
P54.30-3759-27
267Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Displays in the speedometer dial
When Distronic system is activated, one or two
segments around the speed stored in memory light up
in the speedometer dial.
If a vehicle is detected ahead, those segments in the
speedometer dial light up that indicate the speed range
from the speed of the vehicle in front up to the Distronic
stored speed.
When the vehicle in front can no longer be detected,
only the segments around the stored speed light up. The
vehicle is accelerated to the stored speed.
268Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Brake assist system (BAS)
The BAS is designed to maximize the vehicle’s braking
capability during emergency braking maneuvers by
having maximum power boost applied to the brakes
more quickly in emergency braking conditions than
might otherwise be afforded solely by the driver’s
braking style. This can help reduce braking distances
over what ordinary driving and braking style might do.
The BAS complements the antilock brake system (ABS).
Applying the brakes very quickly results in maximum
BAS assistance.
To receive the benefit of the system you must apply
continuous full braking power during the stopping
sequence. Do not reduce brake pedal pressure.
Once the brake pedal is released, the BAS is deactivated.
If the BAS warning message is displayed, a malfunction
has been detected in the system. The brake system
functions in the usual manner, but without BAS.
With the ABS malfunctioning, the BAS is also switched
off.
If a BAS warning message is displayed, have the BAS
checked at your authorized Mercedes-Benz Center as
soon as possible.
Warning!
BAS cannot prevent the natural laws of physics
from acting on the vehicle, nor can it increase
braking efficiency beyond that afforded by the
condition of the vehicle brakes and tires or the
traction afforded. The BAS cannot prevent
accidents, including those resulting from excessive
speed in turns, following another vehicle too
closely, or aquaplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The
capabilities of a BAS equipped vehicle must never
be exploited in a reckless or dangerous manner
which could jeopardize the user’s safety or the
safety of others.
269Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Antilock brake system (ABS)
Important!
The ABS improves steering control of the vehicle during
hard braking maneuvers.
The ABS prevents the wheels from locking up above a
vehicle speed of approximately 5 mph (8 km/h)
independent of road surface conditions.
At the instant one of the wheels is about to lock up, a
slight pulsation can be felt in the brake pedal,
indicating that the ABS is in the regulating mode. Keep
firm and steady pressure on the brake pedal while
experiencing the pulsation.
Continuous steady brake pedal pressure results in
applying the advantages of the ABS, namely braking
power and ability to steer the vehicle.
In the case of an emergency brake maneuver keep
continuous full pressure on the brake pedal. In this
manner only can the ABS be most effective.
On slippery road surfaces, the ABS will respond even
with light brake pedal pressure because of the
increased likelihood of locking wheels. The pulsating
brake pedal can be an indication of hazardous road
conditions and functions as a reminder to take extra
care while driving.
Warning!
Do not pump the brake pedal, rather use firm,
steady brake pedal pressure. Pumping the brake
pedal defeats the purpose for ABS and significantly
reduces braking effectiveness.
270Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
ABS control
The ABS malfunction indicator lamp - in the
instrument cluster comes on with the electronic key in
starter switch position 2 and should go out with the
engine running.
When the ABS malfunction indicator lamp in the
instrument cluster comes on while the engine is
running, it indicates that the ABS has detected a
malfunction and has switched off. In this case, the brake
system functions in the usual manner, but without
antilock assistance.
For ABS malfunction indicator lamp, see page 294.
With the ABS malfunctioning, the BAS and ESP are also
switched off. Both malfunction indicator lamps come on
with the engine running.
If the charging voltage falls below 10 volts, the
malfunction indicator lamp comes on and the ABS is
switched off. When the voltage is above this value again,
the malfunction indicator lamp should go out and the
ABS is operational.
If the ABS malfunction indicator lamp stays illuminated,
have the system checked at your authorized
Mercedes-Benz Center as soon as possible.
Note:
To alert following vehicles to slippery road conditions
you discover, operate your hazard warning flashers as
appropriate.
Warning!
ABS cannot prevent the natural laws of physics
from acting on the vehicle, nor can it increase
braking or steering efficiency beyond that afforded
by the condition of the vehicle brakes and tires or
the traction afforded. The ABS cannot prevent
accidents, including those resulting from excessive
speed in turns, following another vehicle too
closely, or aquaplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The
capabilities of a ABS equipped vehicle must never
be exploited in a reckless or dangerous manner
which could jeopardize the user’s safety or the
safety of others.
271Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Electronic stability program (ESP)
The ESP enhances directional control and reduces
driving wheel spin of the vehicle under various driving
conditions.
Over/understeering of the vehicle is counteracted by
applying brakes to the appropriate wheel to create a
countervailing vehicle movement. Engine torque is also
limited. The ESP warning lamp, located in the
speedometer dial, starts to flash when ESP is in
operation.
Important!
If the ESP warning lamp v flashes:
•During take-off apply as little throttle as possible.
•While driving ease up on the accelerator.
•Adapt your speed and driving to the prevailing road
conditions.
•Do not switch off the ESP.
Caution!
If the vehicle is towed with the front axle raised (see
page 351, towing the vehicle), the engine must be shut
off (electronic key in starter switch position 0 or 1).
Otherwise, the ESP will immediately be engaged and
will apply the rear wheel brakes.
Warning!
ESP cannot prevent the natural laws of physics
from acting on the vehicle, nor can it increase the
traction afforded. The ESP cannot prevent
accidents, including those resulting from excessive
speed in turns, or aquaplaning. Only a safe,
attentive, and skillful driver can prevent accidents.
The capabilities of an ESP equipped vehicle must
never be exploited in a reckless or dangerous
manner which could jeopardize the user’s safety or
the safety of others.
272Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Notes:
The yellow ESP warning lamp v in the speedometer
dial comes on with the electronic key in starter switch
position 2. It should go out with the engine running.
If the ESP warning message is displayed, a malfunction
has been detected in the system. Only partial engine
output will be available.
Have the ESP checked at your authorized
Mercedes-Benz Center as soon as possible.
For ESP warning message, see page 303.
With the ABS malfunctioning, the ESP is also switched
off.
Driving the vehicle with varied size tires will cause the
wheels to rotate at different speeds, therefore the ESP
may activate (yellow ESP warning lamp in speedometer
dial comes on). For this reason, all wheels, including the
spare wheel, must have the same tire size.
When testing the parking brake on a brake test
dynamometer, the engine must be shut off. Otherwise,
the ESP will immediately be engaged and will apply the
rear wheel brakes.
In winter operation, the maximum effectiveness of the
ESP is only achieved with Mercedes-Benz recommended
M+S rated radial-ply tires and/or snow chains.
Synchronizing ESP
If the power supply was interrupted (battery
disconnected or empty), the ESP warning message may
be displayed with the engine running.
Turn steering wheel completely to the left and then to
the right. The ESP warning message should go out.
273Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
ESP control switch
ESP control switch located on center console.
1Press to switch ESP off
ESP warning lamp v, located in speedometer
dial, comes on.
2Press to switch ESP on
ESP warning lamp v, located in speedometer
dial, goes out.
To improve the vehicle’s traction when driving with
snow chains, or starting off in deep snow, sand or gravel,
switch off ESP by pressing the upper half (1) of the ESP
switch. The ESP warning lamp v, located in the
speedometer dial, is continuously illuminated.
With the ESP system switched off, the engine torque
reduction feature is cancelled. Therefore, the enhanced
vehicle stability offered by ESP is unavailable.
Adapt your speed and driving to the prevailing road
conditions.
A portion of the ESP system remains active, even with
the switch in the OFF position.
If one drive wheel loses traction and begins to spin, the
brake is applied until the wheel regains sufficient
traction. The traction control engages at vehicle speeds
up to approximately 24 mph (40 km/h), and switches off
at 50 mph (80 km/h).
Warning!
When the ESP warning lamp is illuminated
continuously, the ESP is switched off.
Adapt your speed and driving to the prevailing road
conditions.
274Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Notes:
Avoid spinning of one drive wheel. This may cause
serious damage to the drive train which is not covered
by the Mercedes-Benz Limited Warranty.
The ESP warning lamp, located in the speedometer dial,
starts to flash at any vehicle speed as soon as the tires
lose traction and the wheels begin to spin.
To return to the enhanced vehicle stability offered by
ESP: press lower half (2) of the switch (the ESP warning
lamp in the speedometer dial goes out).
Vehicles with Distronic (DTR):
With the ESP switched off, the Distronic could not be
switched on. See page 253 for activation of Distronic.
Important!
If the ESP warning lamp flashes:
•during take-off, apply as little throttle as possible,
•while driving, ease up on the accelerator.
Warning!
ESP should not be switched off during normal
driving other than in circumstances described
above. Disabling of the system will reduce vehicle
stability in standard driving maneuvers.
275Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Active body control (ABC)
The switch is located on the center console
Press the switch when the engine is running:
1Suspension for sporty driving style
2Suspension for regular driving style
3Indicator lamp for sporty driving style
The maximum suspension range is selected
automatically according to the selected ABC
mode (1 or 2), road condition, and driving style.
The selected suspension style is stored in memory, even
with the electronic key removed from the starter switch.
Suspension for regular driving style
This is the setting for general driving.
The system is set to regular driving mode when the
indicator lamp (3) is not illuminated.
Press lower half of switch (2) to change from suspension
style for sporty driving to regular driving style.
Suspension for sporty driving style
This is the setting for sporty driving.
Press upper half of switch (1) to select suspension style
for sporty driving. The indicator lamp (3) comes on.
Note:
See “ACTIVE BODY CONTROL” on page 310 for
malfunction and warning messages.
276Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Level control system
The switch is located on the center console.
Press the switch when the engine is running:
1Raise vehicle chassis
2Lower vehicle chassis
3Indicator lamp
4Indicator lamp
The vehicle chassis ride height is raised or lowered
automatically according to the selected setting and to
the vehicle speed. This helps to increase vehicle
handling safety and lowers fuel consumption.
The selected setting is stored in memory, even with the
electronic key removed from the starter switch.
Note:
See “ACTIVE BODY CONTROL” on page 310 for
malfunction and warning messages.
Warning!
To help avoid personal injury, keep hands and feet
away from wheel housing area, and stay away from
under the vehicle when lowering the vehicle
chassis.
277Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Level control switch positions
Normal level – indicator lamps (3, 4) are not
illuminated. To change from raised level options I or II,
press lower half of switch (2) once respectively twice.
Raise level, option I – indicator lamp (3) is illuminated.
To change from normal level, press upper half (1) of
switch.
To change from raised level, option II, press lower
half (2) of switch.
Raised level, option 2 – indicator lamps (3, 4) are
illuminated.
To change from normal level or raised level, option I,
press upper half (1) of switch once respectively twice.
Normal level
Used for normal operation of the vehicle.
Speed dependent lowering of vehicle chassis
(approximate values):
•between 0 mph (0 km/h) and 35 mph (60 km/h)
– none
•between 35 mph (60 km/h) and 85 mph (140 km/h)
– lowered progressively by approx. 7/16 inch (11 mm)
278Driving systems
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Raised level, option I
This setting should be used when road surface
conditions are rough and must be used when driving
with snow chains mounted.
Important!
Driving with snow chains requires increased space
between tire and wheel housing. Refer to page 245 for
driving with snow chains.
Speed dependent lowering of vehicle chassis
(approximate values):
•at standstill – raised by approx. one half inch
(14 mm)
•between 35 mph (60 km/h) and 100 mph
(160 km/h) – lowered progressively by approx.
one half inch (14 mm)
Raised level, option II
This setting should be used when road surface
conditions are very rough for increased ground
clearance.
Speed dependent lowering of vehicle chassis
(approximate values):
•at standstill - raised by approx. one inch (24 mm)
•between 0 mph (0 km/h) and 35 mph (6o km/h) -
lowered progressively by approx. 3/8inch (10 mm)
•between 35 mph (60 km/h) and 100 mph
(160 km/h) – lowered progressively by additional
approx. one half inch (14 mm)
279Parking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Parking assist (Parktronic)
The Parktronic system assists the driver during parking
maneuvers. It visually and audibly indicates the relative
distance between the vehicle and an obstacle.
The front area of the vehicle is monitored when driving
forward. When reversing or with the gear selector lever
in position “N”, the front as well as the rear areas are
monitored.
With the electronic key in starter switch position 2,
Parktronic engages automatically at speeds up to
approximately 10 mph (15 km/h) and deactivates during
higher speeds.
Parktronic can be switched off by a control switch
located in the center console. It engages automatically
again when starting the engine.
See page 283 for parktronic switch.
Warning!
Parktronic is a supplemental system. It is not
intended to nor does it replace the need for extreme
care. The responsibility during parking and other
critical maneuvers rests always with the driver.
Special attention must be paid to objects having
smooth surfaces or low silhouettes (e.g. trailer
couplings, painted posts, or street curbs). Such
objects may not be detected by the system and can
damage the vehicle.
The operational function of the Parktronic can be
affected by dirty sensors, especially at times of
snow and ice. See page 378 for notes on cleaning
the parktronic system sensors.
Interference caused by other ultrasonic signals
(e.g. working jackhammers or the air brakes of
trucks) can cause the system to send erratic
indications, and should be taken into
consideration.
280Parking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Sensors
1Sensors located in bumpers
(front bumper shown)
A total of 10 sensors (1) monitor the vehicle’s front and
rear areas. Six sensors are located in the front bumper,
four sensors in the rear bumper.
For proper operation of the Parktronic always keep the
sensors clean, especially at times of snow and ice.
See page 378 for instructions on cleaning the sensors in
the bumpers.
1
11
281Parking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Warning indicators
1Frame
2Segments
Visual and audible signals indicate to the driver the
relative distance between the vehicle and an obstacle.
Warning indicators for the front area are located above
the left and center air outlets in the dashboard.
Warning indicators for the rear area are integrated in
the rear headliner.
The frames (1) are illuminated when the Parktronic is
engaged.
Each warning indicator has 6 yellow and 2 red
segments.
As soon as the sensors detect an obstacle, one or more
segments light up, depending on the distance. An
intermittent acoustic warning will also sound as the
seventh segment lights up and a constant acoustic
warning lasting a maximum of 3 seconds will sound for
the eighth segment.
2
1
P54.65-2043-26
282Parking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Monitoring reach of sensors
Front bumper:
Rear bumper:
The first yellow segment lights up at these distances.
Additional segments light up as the vehicle comes
closer to the obstacle.
Minimum distance between vehicle and obstacle at
which the system stops indicating:
Center approx. 40 in (100 cm)
Corner approx. 24 in (60 cm)
Center approx. 48 in (120 cm)
Corner approx. 32 in (80 cm)
Front corners approx. 6 in (15 cm)
Front center and rear approx. 8 in (20 cm)
283Parking system
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
The obstacle may not be recognized if outside the
shaded sensor field, and no longer be indicated when
approaching it any closer (warning indicators go out).
Parktronic malfunction
All red segments of the warning indicators light up, and
a warning sounds for 3 seconds, if Parktronic does not
function properly. The indicator lamp in the switch
lights up and the system switches off automatically!
A dirty sensor could be the reason. See page 378 for
instructions on cleaning the sensors in the bumpers.
After cleaning the sensors, turn electronic key in starter
switch to position 2. If the defect continues to be
displayed, have the system checked at your authorized
Mercedes-Benz Center.
Parktronic switch
The switch is located on the center console.
1Parktronic switched off
2Parktronic switched on
3Indicator lamp – comes on when Parktronic is
switched off
The parktronic system is switched on again when
turning the electronic key in starter switch position 2.
3
284What you should know at the gas station
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
What you should know at the gas station
Fuel supply
Open flap by briefly pushing near rear (arrow) and
folding up. Turn fuel cap to the left and hold on to it
until possible pressure in tank has been released, then
remove cap. Failure to remove slowly could result in
personal injury.
To close the fuel filler flap, fold flap down and press past
the point of resistance.
See page 368 for manual release of fuel filler flap.
Fuel
To prevent fuel vapors from escaping into open air, fully
insert filler nozzle unit.
Only fill fuel tank until the filler nozzle unit cuts out
— do not top up or overfill.
Warning!
Gasoline is highly flammable and poisonous. It
burns violently and can cause serious injury.
Whenever you are around gasoline, avoid inhaling
fumes and skin contact, extinguish all smoking
materials. Never allow sparks, flame or smoking
materials near gasoline!
P88.00-2027-26
Warning!
Overfilling of fuel tank may result in creating
pressure in the system which could cause a gas
discharge such as the gas spraying back out upon
removing the filler nozzle which could cause
personal injury.
285What you should know at the gas station
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Leaving the engine running and the fuel cap open can
cause the “CHECK ENGINE” lamp to illuminate, see
page 290 for notes on the “CHECK ENGINE” lamp.
Fuel tank capacity approx. 23.2 US gal (88.0 l).
This includes approx. 2.9 US gal (11.0 l) reserve.
Use premium unleaded gasoline:
CL 500, CL 55 AMG:
Posted Octane Index 91 (Average of 96 RON/86 MON).
CL 600:
Posted Octane Index 93 (Average of 98 RON/88 MON).
Engine oil
Checking oil level, see instructions on pages 154
and 331.
CL 500 and CL 55 AMG only:
Fill quantity between upper and lower dipstick marking
level: 2.1 US qt (2.0 l).
Recommended engine oils, see Approved Service
Products sheet.
Coolant
For normal replenishing, use water (potable water
quality). For further information refer to page 333.
286What you should know at the gas station
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Tire pressure
For tire pressure, refer to tire pressure label inside the
fuel filler flap. See page 345 for further details.
Air conditioner
R-134a refrigerant and special PAG lubricant, refer to
“Technical Data”.
Spark plugs
Approved spark plugs, refer to page 391.
Windshield cleaning
To prevent damage to the engine hood, the windshield
wipers must not be folded forward in parked position.
See page 380 for cleaning the windshield.
Bulbs
Low beam: Xenon,
high beam: H7 (55 W)
fog lamps: H1 (55 W),
turn signal lamps, front: 1156 NA bulb,
parking and standing lamps, front: H 6W
side marker lamps, front: W 5 W/4 cp,
turn signal lamps, rear: 1156 NA bulb,
tail and parking lamp: 67/4 cp,
tail, parking and rear fog lamp, driver’s side: P 21/4 W,
tail, parking, standing and
side marker lamp: 67/4 cp,
backup lamps: 1160/32 cp,
license plate lamps: C 5 W/4 cp
287Check regularly and before a long trip
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Check regularly and before a long trip 1 Windshield washer and
headlamp cleaning system
For refilling reservoir see page 334.
2Coolant level,
see “Coolant level” on page 333
3Engine oil level,
see “Engine oil level, checking” on page 154 and 331
4Brake fluid,
see “Brake fluid” on page 395
Opening hood, see page 328.
Veh i cl e li gh tin g: Check function and cleanliness. For
replacement of light bulbs, see “Exterior lamps” on
page 354.
Exterior lamp switch, see page 156.
P20.00-2057-26
289Check regularly and before a long trip
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
289Contents - Instrument cluster display
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Instrument cluster display
Malfunction and indicator
lamps in the
instrument cluster ....................290
On-board diagnostic system .....290
Check engine malfunction
indicator lamp .............................290
Brake warning lamp ..................292
Supplemental restraint
system (SRS)
indicator lamp .............................293
Fuel reserve warning .................293
ABS malfunction
indicator lamp .............................294
Electronic stability program
(ESP) — warning lamp ...............295
Distronic (DTR) —
warning lamp ..............................295
Seat belt nonusage
warning lamp ..............................296
Malfunction and indicator
lamp in the center console ...... 296
AIRBAG OFF indicator lamp .... 296
Malfunction and
warning messages in the
multifunction display .............. 297
DISPLAY DEFECTIVE
(engine control unit) ................. 298
DISPLAY DEFECTIVE
(several systems) .......................298
BATTERY /ALTERNATOR ......... 299
ENTRANCE POSITION .............. 300
BRAKE ASSIST ........................... 300
BRAKE LINING WEAR .............. 301
BRAKE FLUID ............................ 301
PARKING BRAKE ....................... 302
TRUNK OPEN ............................. 302
ELEC. STABIL. PROG.
(Electronic stability
program) .....................................303
COOLANT (coolant level) ......... 304
COOLANT
(coolant temperature) ................305
LIGHTING SYSTEM ....................306
LIGHT SENSOR ...........................308
SEAT BELT SYSTEM ...................308
TELEPHONE – FUNCTION .......309
CRUISE CONTROL .....................309
ACTIVE BODY CONTROL
(ABC) ............................................ 310
TIRE PRESSURE ......................... 312
ENGINE OIL LEVEL ................... 314
SEAT BACKREST ........................ 315
KEY ............................................... 316
DOOR ........................................... 316
HOOD ........................................... 317
TELE AID ..................................... 317
ENGINE OIL LEVEL ................... 318
WASHER FLUID ......................... 319
LIGHT SENSOR ...........................320
DISTRONIC (DTR) ......................321
290Malfunction and indicator lamps
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Malfunction and indicator lamps
in the instrument cluster
General information:
If a bulb in the instrument cluster fails to light up
during the bulb self-check when turning the electronic
key in starter switch to position 2, have it checked and
replaced if necessary.
Emission control
Certain systems of the engine serve to keep the toxic
components of the exhaust gases within permissible
limits required by law.
These systems, of course, will function properly only
when maintained strictly according to factory
specifications. Any adjustments on the engine should,
therefore, be carried out only by authorized Mercedes-
Benz Center qualified technicians. Engine adjustments
should not be altered in any way. Moreover, the
specified service jobs must be carried out regularly
according to Mercedes-Benz servicing requirements.
For details refer to the Service Booklet.
On-board diagnostic system
Check engine malfunction indicator lamp
Engine malfunction indicator lamp. If the
“CHECK ENGINE” malfunction indicator
lamp comes on when the engine is running,
it indicates a malfunction of the fuel management
system, emission control system, systems which impact
emissions, or the fuel cap is not closed tight (check the
fuel cap). If the “CHECK ENGINE” lamp is illuminated
continuously and the vehicle is driving normally, you
Warning!
Inhalation of exhaust gas is hazardous to your
health. All exhaust gas contains carbon monoxide,
and inhaling it can cause unconsciousness and
lead to death.
Do not run the engine in confined areas (such as a
garage) which are not properly ventilated. If you
think that exhaust gas fumes are entering the
vehicle while driving, have the cause determined
and corrected immediately. If you must drive under
these conditions, drive only with at least one
window fully open.
291Malfunction and indicator lamps
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
may still drive the vehicle, however, in all cases, we
recommend that you have the system checked at your
authorized Mercedes-Benz Center as soon as possible.
If the “CHECK ENGINE” lamp comes on continuously
and/or the vehicle is not driving normally (e.g.
malfunction of the fuel management system or running
out of fuel), serious damage can occur to the emission
system. Please contact your authorized Mercedes-Benz
Center immediately.
The Sequential Multiport Fuel Injection (SFI) control
module monitors emission control components that
either provide input signals to or receive output signals
from the control module. Malfunctions resulting from
interruptions or failure of any of these components are
indicated by the “CHECK ENGINE” malfunction
indicator lamp in the instrument cluster and are
simultaneously stored in the SFI control module.
If the “CHECK ENGINE” malfunction indicator lamp
comes on, have the system checked at your authorized
Mercedes-Benz Center as soon as possible.
With some exceptions, the control module switches off
the “CHECK ENGINE” malfunction indicator lamp if the
condition, causing the lamp to come on, no longer exists
during three consecutive cycles.
An on-board diagnostic connector is located in the
passenger compartment near to the parking brake
pedal, allowing the accurate identification of system
malfunctions through the readout of diagnostic trouble
codes.
Notes:
When running out of fuel, the “CHECK ENGINE”
malfunction indicator lamp comes on and the engine
possibly switches to its limp-home (emergency
operation) mode.
To cancel the limp-home mode, the engine may have to
be started three or four times after refueling. The
malfunction indicator lamp remains illuminated. Have
the system checked at your authorized Mercedes-Benz
Center immediately.
292Malfunction and indicator lamps
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Brake warning lamp
Except Canada
Canada only
When the brake warning lamp and message appear
while the engine is running, this means:
•there is insufficient brake fluid in the reservoir
(engine running and parking brake released), or
•the parking brake is set (engine running).
Note:
If you find that the minimum mark on the brake fluid
reservoir is reached, have the brake system checked for
brake pad thickness and leaks.
Warning!
Driving with the brake warning lamp illuminated
can result in an accident. Have your brake system
checked immediately if the brake warning lamp
stays on. Don’t add brake fluid before checking the
brake system. Overfilling the brake fluid reservoir
can result in spilling brake fluid on hot engine
parts and the brake fluid catching fire. You can be
seriously burned.
293Malfunction and indicator lamps
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Supplemental restraint system (SRS) indicator lamp
The operational readiness of the airbag
system is verified by the indicator lamp
“SRS” in the instrument cluster when
turning the electronic key in starter switch to position 1
or 2. If no fault is detected, the lamp will go out after
approximately 4 seconds; after the lamp goes out, the
system continues to monitor the components and
circuitry of the airbag system and will indicate a
malfunction by coming on again.
See page 92 for notes on airbags, see page 91 for belt
tensioners and page 102 for infant and child seat
restraint.
Fuel reserve warning
1Fuel reserve indicator
When the warning lamp (1) comes on after starting the
engine, or if it comes on while driving, it indicates that
the fuel level is down to the reserve quantity of
approximately 2.9 gal (11 liters).
See page 284 for notes on refueling the vehicle.
Warning!
In the event a malfunction of the “SRS” is indicated
as outlined above, the “SRS” may not be
operational. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to have the
system checked; otherwise the “SRS” may not be
activated when needed in an accident, which could
result in serious or fatal injury, or it might deploy
unexpectedly and unnecessarily which could also
result in injury.
294Malfunction and indicator lamps
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
ABS malfunction indicator lamp
The ABS malfunction indicator lamp in the
instrument cluster comes on with the
electronic key in starter switch position 2
and should go out with the engine running.
When the ABS malfunction indicator lamp symbol and
warning in the instrument cluster remains illuminated
while the engine is running, it indicates that the ABS
has detected a malfunction and has switched off. In this
case, the brake system functions in the usual manner,
but without antilock assistance.
A malfunctioning ABS control unit can possibly affect
the operation of other systems (e.g. Parktronic,
Navigation, Automatic transmission). Be guided
accordingly with respect to the use of those systems and
have the system checked at your authorized
Mercedes-Benz Center as soon as possible.
With the ABS malfunctioning, the BAS and ESP are also
switched off. The malfunction indicator lamps and
malfunction messages in the multifunction display
come on with the engine running.
If the charging voltage falls below 10 volts, the
malfunction indicator lamp comes on and the ABS is
switched off. When the voltage is above this value again,
the malfunction indicator lamp should go out and the
ABS is operational.
Have the system checked at your authorized
Mercedes-Benz Center as soon as possible.
See page 269 for notes on antilock brake system (ABS).
ABS
295Malfunction and indicator lamps
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Electronic stability program (ESP) — warning lamp
The yellow ESP warning lamp in the
speedometer dial comes on with the
electronic key in starter switch position 2. It
should go out with engine running.
If the ESP malfunction indicator lamp remains
illuminated with the engine running, a malfunction has
been detected in the system. Pressing the accelerator
pedal will require greater effort. Only partial engine
output will be available.
See electronic stability program (ESP) on page 271 if the
warning lamp lights up or flashes when the vehicle is
moving.
Distronic (DTR) – warning lamp
With the electronic key in starter switch
position 2, the distance warning lamp in the
speedometer dial comes on and goes out
with the engine running.
See Distronic (DTR) system on page 321 for possible
malfunction messages.
Note:
The distance warning lamp is without a warning
function on vehicles without distronic (DTR).
296Malfunction and indicator lamps
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Seat belt nonusage warning lamp
With the electronic key in starter switch
position 2, the seat belt nonusage warning
lamp comes on, and a warning sounds for a
short time if the driver’s seat belt is not fastened.
After starting the engine, the seat belt nonusage
warning lamp blinks for a brief period to remind the
driver and passengers to fasten seat belts.
Malfunction and indicator lamp in the center
console
AIRBAG OFF indicator lamp
The 7 indicator lamp will light up for approximately
6 seconds when you turn the electronic key in starter
switch to position 1 or 2.
It does not light up if there is a fault in the system.
The 7 indicator lamp stays lit as long as a
BabySmartTM child seat is properly installed on the front
passenger seat. It indicates that the front passenger
airbag is switched off.
See page 88 for BabySmartTM airbag and its deactivation
system.
Baby SmartTM is a trademark of Siemens Automotive Corp.
297Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Malfunction and warning messages in the
multifunction display
Malfunction and warning messages for the following
systems will be displayed immediately in the
multifunction display.
They are divided into three categories.
Category C1:
Messages of most immediate priority.
These cannot be cleared from the instrument cluster
using the Jbutton.
Categories C2 and C3:
Messages of less immediate priority.
These can be cleared from the instrument cluster using
the Jbutton and are then stored in the malfunction
message memory, see page 136
Note:
Certain malfunction and warning messages are
accompanied by an audible signal.
Malfunction and warning messages in red are always
accompanied by an audible signal.
Temporary messages such as “TRUNK OPEN!” will not
be stored in the malfunction message memory.
Warning!
All categories of messages contain important
information which should be taken note of and,
where malfunction indicated, addressed as soon as
possible at an authorized Mercedes-Benz Center.
Failure to repair condition noted may cause
damage not covered by the Mercedes-Benz Limited
Warranty, or result in property damage or personal
injury.
298Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
DISPLAY DEFECTIVE (engine control unit)
* C = Category, see page 297
This message is displayed to indicate that the
information being relayed by the engine control unit is
no longer complete. The display for coolant temperature
gauge, tachometer, or the cruise control may have failed.
DISPLAY DEFECTIVE (several systems)
* C = Category, see page 297
The displays for several systems have failed. Some
systems themselves may also have failed.
Line 1 Line 2 C*
DISPLAY DEFECTIVE VISIT WORKSHOP! 2
Line 1 Line 2 C*
DISPLAY DEFECTIVE VISIT WORKSHOP! 2
299Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
BATTERY /ALTERNATOR
* C = Category, see page 297
This message indicates a malfunction which must be
repaired immediately.
It may indicate that the poly-V-belt has broken. Should
this condition occur, the poly-V-belt must be replaced
before continuing to operate the vehicle. Otherwise, the
engine will overheat due to an inoperative water pump
which may result in damage to the engine.
Do not continue to drive the vehicle with this message
displayed.
Doing so could result in serious engine damage that is
not covered by the Mercedes-Benz Limited Warranty.
Line 1 Line 2 C*
BATTERY/ALTERNATOR VISIT WORKSHOP! 2
300Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
ENTRANCE POSITION
* C = Category, see page 297
Wait until the seat and steering wheel have moved to
their driving positions. The display will clear when they
have done so.
See also page 66 for easy-entry/exit feature.
BRAKE ASSIST
* C = Category, see page 297
A malfunction has been detected in the system. The
brake system functions in the usual manner, but
without brake assist system (BAS).
See page 268 for notes on the brake assist system (BAS).
Line 1 Line 2 C*
ENTRANCE POSITION DO NOT DRIVE! 1
Line 1 Line 2 C*
BRAKE ASSIST VISIT WORKSHOP! 2
301Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
BRAKE LINING WEAR
* C = Category, see page 297
When this message appears during braking, it indicates
that the brake pads are worn down.
Have the brake system checked at your authorized
Mercedes-Benz Center as soon as possible.
BRAKE FLUID
* C = Category, see page 297
Line 1 Line 2 C*
BRAKE LINING WEAR VISIT WORKSHOP! 2
Line 1 Line 2 C*
BRAKE FLUID VISIT WORKSHOP! 2
Warning!
Driving with this message displayed can result in
an accident. Have your brake system checked
immediately. Don’t add brake fluid before checking
the brake system. Overfilling the brake fluid
reservoir can result in spilling brake fluid on hot
engine parts and the brake fluid catching fire. You
can be seriously burned.
302Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
PAR KI NG BR AK E
* C = Category, see page 297
TRUNK OPEN
* C = Category, see page 297
Line 1 Line 2 C*
PARKING BRAKE RELEASE BRAKE! 1
Line 1 Line 2 C*
TRUNK OPEN! 2
303Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
ELEC. STABIL. PROG.
(Electronic stability program)
* C = Category, see page 297
1 The display or the system is malfunctioning.
2 A malfunction has been detected in the system. Pressing the
accelerator pedal will require greater effort. Only partial engine
output will be available.
3 The enhanced vehicle stability offered by ESP and the torque
reduction feature are unavailable.
4 This message may be displayed if the power supply was
interrupted (battery disconnected or empty). Synchronize ESP, see
page 272.
Line 1 Line 2 C*
DISPLAY DEFECTIVE VISIT WORKSHOP!12
ELEC. STABIL. PROG. VISIT WORKSHOP!2, 3, 4 2
304Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
COOLANT (coolant level)
* C = Category, see page 297
When this message appears while driving, the coolant
level has dropped below the required level. If no leaks
are noticeable and the engine temperature does not
increase, continue to drive to the nearest service station
and have coolant added to the coolant system.
The low engine coolant level warning should not be
ignored. Extended driving with the symbol displayed
may cause serious engine damage not covered by the
Mercedes-Benz Limited Warranty.
In cases of major or frequent minor coolant loss, have
the cooling system checked at your authorized
Mercedes-Benz Center as soon as possible.
Note:
Do not drive without coolant in the cooling system. The
engine will overheat causing major engine damage.
Monitor the coolant temperature gauge while driving,
see page 117.
See page 333 for instructions on topping up the coolant.
Line 1 Line 2 C*
COOLANT CHECK LEVEL! 2
Warning!
Do not spill antifreeze on hot engine parts.
Antifreeze contains ethylene glycol which may
burn if it comes into contact with hot engine parts.
You can be seriously burned.
305Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
COOLANT (coolant temperature)
* C = Category, see page 297
1 This may indicate that the poly-V-belt has broken. Should this
condition occur, the poly-V-belt must be replaced before continuing
to operate the vehicle. Otherwise, the engine will overheat due to
an inoperative water pump which may result in damage to the
engine. Do not continue to drive the vehicle with this message
displayed. Doing so could result in serious engine damage that is
not covered by the Mercedes-Benz Limited Warranty.
2 The cooling fan for the coolant is faulty. Observe the coolant
temperature gauge. See page 117
During severe operating conditions and stop-and-go city
traffic, the coolant temperature may rise close to the red
marking.
The engine should not be operated with the coolant
temperature in the red zone. Doing so may cause
serious engine damage which is not covered by the
Mercedes-Benz Limited Warranty.
Line 1 Line 2 C*
COOLANT STOP, ENGINE OFF!11
COOLANT VISIT WORKSHOP!22
Warning!
Driving when your engine is badly overheated can
cause some fluids which may have leaked into the
engine compartment to catch fire. You could be
seriously burned.
Steam from an overheated engine can cause serious
burns and can occur just by opening the engine
hood. Stay away from the engine if you see or hear
steam coming from it.
Turn off the engine, get out of the vehicle and do
not stand near the vehicle until it cools down.
306Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
LIGHTING SYSTEM
* C = Category, see page 297
Line 1 Line 2 C*
LOW BEAM,L CHECK LAMP! 2
LOW BEAM,R CHECK LAMP! 2
DISPLAY DEFECTIVE VISIT WORKSHOP!12
TURN SIGNAL, L CHECK LAMP! 2
TURN SIGNAL, R CHECK LAMP! 2
Line 1 Line 2 C*
L. TURN SIG. RFLECTR CHECK LAMP! 2
R. TURN SIG. RFLECTR CHECK LAMP! 2
TURN SIGNAL F, L CHECK LAMP! 2
TURN SIGNAL F, R CHECK LAMP! 2
BRAKE LIGHT2VISIT WORKSHOP! 2
BRAKE LIGHT, L3CHECK LAMP! 2
BRAKE LIGHT, R3CHECK LAMP! 2
3RD BRAKE LIGHT3CHECK LAMP! 2
HIGH BEAM, L CHECK LAMP! 2
HIGH BEAM, R CHECK LAMP! 2
LICENSE PLATE L, L CHECK LAMP! 2
LICENSE PLATE L, R CHECK LAMP! 2
SWITCH OFF LIGHTS! 1
FRONT FOGLAMP, L CHECK LAMP! 2
307Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
In the case of bulb failures in certain lamps, other lamps
will substitute. See page 354 for instructions on
replacing bulbs.
* C = Category, see page 297
1 The display or the system is malfunctioning.
2 The brake lamps are switching on after a delay or are permanently
on – visit workshop immediately.
3 The brake lamps comprise several light emitting diodes. The
warning message will only appear if all light emitting diodes have
stopped working.
4 Other bulbs will be brought into use as replacements when certain
lamps blow.
FRONT FOGLAMP, R CHECK LAMP! 2
REAR FOGLAMP CHECK LAMP! 2
REVERSE LIGHT, L CHECK LAMP! 2
REVERSE LIGHT, R CHECK LAMP! 2
TAIL LIGHT, L CHECK LAMP!
SUBSTITUTE LAMP ON!42
TAIL LIGHT, R CHECK LAMP!
SUBSTITUTE LAMP ON!42
SIDELIGHT, L CHECK LAMP!
SUBSTITUTE LAMP ON!42
SIDELIGHT, R CHECK LAMP!
SUBSTITUTE LAMP ON!42
Line 1 Line 2 C*
308Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
LIGHT SENSOR
* C = Category, see page 297
The headlamps will be switched on automatically if the
light sensor malfunctions.
The “LIGHT CIRCUIT HEADLAMP MODE” setting menu
can be set to “MANUAL” in the individual settings, see
page 142. It will then be possible to switch the
headlamps on and off using the exterior lamp switch.
See page 156 for notes on the exterior lamp switch.
SEAT BELT SYSTEM
* C = Category, see page 297
Line 1 Line 2 C*
LIGHT SENSOR VISIT WORKSHOP! 2
Line 1 Line 2 C*
SEAT BELT SYSTEM VISIT WORKSHOP! 2
309Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
TELEPHONE – FUNCTION
* C = Category, see page 297
The display appears if button í or ì on the
multifunction steering wheel is pressed and the vehicle
is not equipped with a telephone.
CRUISE CONTROL
* C = Category, see page 297.
1 Cruise control is malfunctioning.
Line 1 Line 2 C*
FUNCTION NOT AVAILABLE! 3
Line 1 Line 2 C*
CRUISE CONTROL VISIT WORKSHOP!12
310Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
ACTIVE BODY CONTROL (ABC)
* C = Category, see page 297
1 The display or the system is malfunctioning.
2 The capability of the system is restricted.
Important!
When the message “ACTIVE BODY CONTROL – DRIVE
CAREFULLY!” appears, do not exceed a speed of 50 mph
(80 km/h). The vehicle driving characteristics are
changed due to a noticeably softer suspension.
In this case visit your Mercedes-Benz Center as soon as
possible.
Do not continue to drive if loss of hydraulic fluid or
leaks are noticed. Doing so could result in subsequent
damage that is not covered by the Mercedes-Benz
Limited Warranty.
Line 1 Line 2 C*
DISPLAY DEFECTIVE VISIT WORKSHOP!12
ACTIVE BODY CONTROL DRIVE CAREFULLY!21
ACTIVE BODY CONTROL STOP, CAR TOO LOW!31
ACTIVE BODY CONTROL VISIT WORKSHOP!42
311Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
3 The ABC is defective. Stop the vehicle.
Press upper half of level control switch, see page 276
- system selects raised level mode.
The vehicle chassis is raised depending on the kind of defect.
Important!
The wheels may not have sufficient clearance when the
steering wheel is turned beyond a certain angle if the
“ACTIVE BODY CONTROL – CAR TOO LOW!” message
appears. The front fenders will be damaged if the
steering wheel is turned too far. Watch and listen for
scraping noises.
Do not exceed a speed of 50 mph (80 km/h).
Visit your Mercedes-Benz Center as soon as possible.
4 The capability of the system is restricted.
Important!
When the message “ACTIVE BODY CONTROL – VISIT
WORKSHOP!” appears, do not exceed a speed of 50 mph
(80 km/h). Visit your Mercedes-Benz Center as soon as
possible.
312Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
TIRE PRESSURE
Line 1 Line 2 C*
TIRE PRESSURE CAUTION TIRE DEFECT!11
TIRE PRESSURE CHECK TIRES!2, 3 1
TIRE PRESSURE CHECK TIRES!42
TIRE PRESS. CONTROL ACTIVATED!32
TIRE PRESS. CONTROL ACTIVATION – NOT WHEN
ENGINE ON52
TIRE PRESS. CONTROL REACTIVATE!3, 6 3
TIRE PRESS. CONTROL CURRENTLY INACTIVE!72
TIRE PRESS. CONTROL VISIT WORKSHOP!82
TIRE PRESSURE, FL CAUTION TIRE DEFECT!11
TIRE PRESSURE, FR CAUTION TIRE DEFECT!11
TIRE PRESSURE, RL CAUTION TIRE DEFECT!11
TIRE PRESSURE, RR CAUTION TIRE DEFECT!11
TIRE PRESSURE, FL CHECK TIRES!21
TIRE PRESSURE, FL CHECK TIRES!42
TIRE PRESSURE, FR CHECK TIRES!21
TIRE PRESSURE, FR CHECK TIRES!42
TIRE PRESSURE, RL CHECK TIRES!21
TIRE PRESSURE, RL CHECK TIRES!42
TIRE PRESSURE, RR CHECK TIRES!21
TIRE PRESSURE, RR CHECK TIRES!42
313Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
* C = Category, see page 297.
RL: rear left; FL: front left;
RR: rear right; FR: front right;
1 One or more tires deflate rapidly or tire pressure is already below
minimum value. Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers. For reference on changing
wheels, see page 337.
2 The tire pressure on one or more tires is already below minimum
value. Carefully bring the vehicle to a halt, avoiding abrupt
steering and braking maneuvers. For reference on changing
wheels, see page 337.
3 For tire inflation pressure monitor, see page 150.
4 Tire pressure in one or more tires is low. Check and correct tire
pressure, see page 345.
5 The tire pressure monitor cannot be activated with the engine
running. Turn off the engine and repeat activation, see page 151.
6 When the message appears after starting the engine, the tire
inflation pressure on all road wheels should be checked and
corrected according to the label affixed inside the fuel filler flap.
For tire inflation pressure, see page 345.
The tire inflation pressure monitor must be activated again after
the tire inflation pressure has been corrected, see page 151.
7 The tire inflation pressure monitor system is unable to monitor the
tire pressure due to the presence of several wheel electronics in
the vehicle (e.g. a deflated road wheel in the trunk), or nearby
radio interference source, or excessive wheel sensor temperatures,
or unrecognized wheel sensors mounted.
8 The tire inflation pressure monitor is defective or a wheel without
proper sensor was installed. Visit your authorized Mercedes-Benz
Center.
Warning!
Do not drive with a flat tire. A flat tire affects the
ability to steer or brake the vehicle. You may lose
control of the vehicle. Continued driving with a flat
tire will cause excessive heat build-up and possibly
a fire.
314Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
ENGINE OIL LEVEL
* C = Category, see page 297.
1 The engine oil level must be checked immediately. See Engine oil
level indicator on page 154.
2 There is no oil in the engine. There is a danger of engine damage.
3 There is a risk of damaging the engine or catalytic converter. The
engine oil level must be checked immediately. See Engine oil level
indicator on page 154.
4 The engine oil level has dropped to a critical level.
Check the engine oil level immediately. See Engine oil level
indicator on page 154 and check the engine for visible leakage
(loss of oil).
It may be that there is water in the engine oil. Have the engine oil
checked.
5 The measuring system is malfunctioning.
When the “ENGINE OIL LEVEL – CHECK LEVEL”
message appears while the engine is running and at
operating temperature, the engine oil level has dropped
to approximately the minimum mark on the dipstick.
When this occurs, the warning will first come on
intermittently and then stay on if the oil level drops
further.
If no oil leaks are noted, continue to drive to the nearest
service station where the engine oil should be topped to
the “full” mark on the dipstick with an approved oil.
The engine oil level warnings should not be ignored.
Extended driving with the symbol displayed could
result in serious engine damage that is not covered by
the Mercedes-Benz Limited Warranty.
Line 1 Line 2 C*
ENGINE OIL LEVEL CHECK LEVEL!12
ENGINE OIL LEVEL STOP, ENGINE OFF!21
ENGINE OIL LEVEL REDUCE OIL LEVEL32
ENGINE OIL VISIT WORKSHOP!42
ENGINE OIL LEVEL VISIT WORKSHOP!52
315Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
SEAT BACKREST
* C = Category, see page 297.
Line 1 Line 2 C*
SEAT BEACKREST, LEFT LOCK! 1
SEAT BEACKREST, RIGHT LOCK! 1
Warning!
The seat belts provide protection only with the
backrest locked in place and, therefore, must be
locked in place with the vehicle in motion. Do not
drive the vehicle when the backrest is not locked in
place. If the warning message “SEAT BACKREST,
LEFT – LOCK!” or “SEAT BACKREST, RIGHT –
LOCK!” is displayed in the multifunction display,
then the respective backrest is not engaged in its
lock. Carefully slow down, and drive with caution
to an area which is in a safe distance from the
roadway. Always provide sufficient room behind
the backrest and fold the backrest all the way back
until it locks in place.
The warning message is no longer displayed as
soon as the backrest is locked in place. If both
backrests are locked in place and the warning
message is still displayed, have the system checked
at your authorized Mercedes-Benz Center
immediately.
316Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
KEY
* C = Category, see page 297.
1 Key needs possibly to be replaced.
DOOR
* C = Category, see page 297.
Line 1 Line 2 C*
REPLACE KEY1VISIT WORKSHOP! 2
AUTOM. LIGHT ON REMOVE KEY! 1
P54.30-2245-21
Line 1 Line 2 C*
DOOR OPEN! 2
317Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
HOOD
* C = Category, see page 297.
See page 328 for hood.
TELE AID
1 The Tele Aid system consists of three types of response; automatic
and manual emergency, roadside assistance and information. With
this message displayed, one or more functions may not be
available.
See page 210 for notes on the Tele Aid.
If a malfunction is indicated as outlined above, have the
system checked at the nearest Mercedes-Benz Center as
soon as possible.
Line 1 Line 2 C*
ENGINE HOOD OPEN! 2
P54.30-2560-21
Line 1 Line 2 C*
TELE AID VISIT WORKSHOP!11
318Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
CHIP-CARD (KEYLESS-GO)
* C = Category, see page 297.
1 Check battery of KEYLESS-GO-card, see page 366.
2 The KEYLESS-GO-card cannot be recognized by the running
engine (e.g. strong radio-frequency interference) or the card is not
in the vehicle.
Stop immediately and search for the KEYLESS-GO-card or continue
to operate the vehicle with the electronic key, otherwise the vehicle
cannot be centrally locked or the engine started again after the
engine stops automatically. See page 38.
3 The KEYLESS-GO-card was momentarily not recognized. If
message repeats, place card in a different position or continue to
operate the vehicle with the electronic key, see page 38.
4 A KEYLESS-GO-card left inside the vehicle has been recognized
while locking the vehicle from the outside, see page 38.
5 The message appears for a maximum 60 seconds each time the
driver’s door is opened, as long as no electronic key is in the
starter switch. The message appears regardless of the past
operation method (electronic key or KEYLESS-GO-card), see
page 38.
Line 1 Line 2 C*
CHIP-CARD CHECK BATTERY!12
CHIP-CARD NOT RECOGNIZED!21
CHIP-CARD NOT RECOGNIZED!32
CHIP-CARD STILL IN VEHICLE!41
CHIP-CARD DO NOT FORGET!51
319Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
SELECTOR LEVER
(Vehicles with KEYLESS-GO only)
Place selector lever in position “P”.
The message appears when attempting to turn off the
engine while the selector lever is in any other position
than “P”, see page 228.
320Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
WA S H E R F L U ID
* C = Category, see page 297.
When this message appears while the engine is
running, the level of the reservoir has dropped to
approx. 1/3 of the total volume. The reservoir should be
refilled with the prescribed mixture of MB Windshield
washer concentrate and water or the concentrate and
commercially available premixed windshield washer
solvent/antifreeze, depending on ambient temperature,
at the next opportunity. The reservoir for the windshield
and headlamp washer systems is located in the engine
compartment.
See windshield and headlamp washer system on
page 334 for instructions on topping up the washer
fluid.
Line 1 Line 2 C*
WASHER FLUID CHECK LEVEL! 3
321Malfunction and warning messages
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
DISTRONIC (DTR)
* C = Category, see page 297.
1 The display or the system is malfunctioning.
2 Due to the presence of electro-magnetic radiation, the system is
presently unavailable.
3 Distronic is automatically switched off.
Distronic sensor in hood grille needs cleaning, see page 378.
4 Distronic is defective.
Line 1 Line 2 C*
DISPLAY DEFECTIVE VISIT WORKSHOP!12
DISTRONIC EXTERNAL MALFUNCTION!22
DISTRONIC MALFUNCTION CLEAN SENSOR!32
DISTRONIC VISIT WORKSHOP!42
323Contents - Practical hints
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Practical hints
First aid kit .....................................324
Fuses ................................................325
Shelf below rear window ..............327
Hood .................................................328
Checking engine oil level .............331
Automatic transmission
fluid level ...................................332
Active body control
(ABC) fluid level ........................332
Coolant level ...................................333
Adding coolant ...........................333
Windshield and headlamp
washer system ...........................334
Windshield and headlamp
washer fluid mixing ratio ........ 334
Spare wheel, vehicle tools,
storage compartment ............... 335
Jack .................................................. 336
Wheels ............................................337
Tire Replacement ....................... 337
Rotating wheels ......................... 338
Spare wheel .................................... 338
Changing wheels ...........................340
Tire inflation pressure ................. 345
Battery ............................................. 346
Jump starting ................................. 349
Towing the vehicle ........................ 351
Exterior lamps ................................354
Headlamp assembly ...................355
Taillamp assemblies ..................358
Standby bulb function ...................361
Changing batteries
in the electronic main key ......363
Synchronizing
remote control ............................365
Changing batteries
in the KEYLESS-GO-card .........366
Emergency engine
shut-down ..................................368
Fuel filler flap,
manual release ..........................368
Emergency operation of
sliding/pop-up roof ...................369
Replacing wiper blades .................370
Trunk lamp .....................................371
Roof rack .........................................372
324First aid kit
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
First aid kit
The first aid kit is located in the rear seat armrest (1). To open:
Press handle (2) upwards and fold the lid (3) up.
Remove the first aid kit.
To close:
Fold the lid (3) down until it engages.
1
325Fuses
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Fuses
Most of your vehicle’s electrical components are fused
with safety fuses. With the exception of the brake lights,
all individual lighting system components are
electronically fused. Before replacing a blown safety
fuse, determine the cause of the short circuit. Always
observe amperage and color of fuse.
The circuit for components is protected by a cycled
circuit breaker interrupted if too much current is being
drawn. The circuit closes automatically after a short
time; the circuit is broken again if the malfunction
reoccurs.
Always use a new fuse for replacement. Never attempt to
repair or bridge a blown fuse.
A fuse chart, spare fuses and a fuse extractor are located
in the vehicle tool kit in the luggage bowl under the
trunk floor. See page 335 for notes on the vehicle tool
kit.
Fuse boxes in the engine compartment
1Fuse box in engine compartment, left-hand side
3Tabs
3
31
P54.15-2064-26
326Fuses
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
2 Fuse box in engine compartment, right-hand side
3Tabs
To gain access to fuse box:
Slide both tabs (3) on fuse box forward to the Œ
symbol and remove the cover.
To close the fuse box:
Ensure that the sealing rubber is properly positioned
when you replace the cover. Press the cover down by
hand. Slide both tabs (3) back to the ‹ symbol on the
fuse box.
Note:
The fuse box cover must be properly positioned and
both tabs pushed forward to prevent moisture entering
the fuse box.
2
3
3
P54.15-2065-26
327Fuses
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Auxiliary fuse box below rear seat
4 Auxiliary fuse box below right rear seat.
To open:
Remove the cover.
To close:
Press the cover on.
Shelf below rear window
4
Warning!
The shelf below the rear window should not be
used to carry objects. This will avoid such objects
from being thrown about and injuring vehicle
occupants during an accident or sudden maneuver.
The trunk is the preferred place to carry objects.
328Engine compartment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Hood
Warning!
To help prevent personal injury, stay clear of
moving parts when the hood is open and the engine
is running. Be sure the hood is properly closed
before driving. When closing hood, use extreme
caution not to catch hands or fingers.
The radiator fan may continue to run for
approximately 30 seconds or even restart after the
engine has been turned off. Stay clear from fan
blades.
If you see flames or smoke coming from the engine
compartment, or if the coolant temperature gauge
indicates that the engine is overheated, do not open
the hood. Move away from vehicle and do not open
the hood until the engine has cooled. If necessary,
call a fire department.
The engine is equipped with a transistorized
ignition system. Because of the high voltage it is
dangerous to touch any components (ignition coils,
spark plug sockets, diagnostic socket) of the
ignition system
• with the engine running,
• while starting the engine,
• if ignition is “on“ and the engine is turned
manually.
329Engine compartment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
To open:
To unlock the hood, pull release lever (1) under the
driver’s side of the instrument panel. At the same time a
handle will extend out of the radiator grill.
Pull handle (2) to its stop out of radiator grill and open
hood (do not pull up on the handle).
Note:
To avoid damage to the windshield wipers or hood, open
the hood only with the wipers in the parked position.
330Engine compartment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
To close:
Lower the hood and let it drop into lock from a height of
approx. 1 ft. (30 cm), assisting with hands placed flat on
edges of hood (3).
To avoid hood damage, please make sure that hood is
fully closed. If not, repeat closing procedure. Do not
push down on hood to attempt to fully close it.
3
3
331Engine compartment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Checking engine oil level
CL 500
1Dipstick
Model CL 600:
The dipstick is omitted. Engine oil level can be
checked via the engine oil level indicator, see
page 154.
2Oil filler cap
CL 600
Model CL 500 and CL 55 AMG
To check the engine oil level, park vehicle on level
ground, with engine at normal operational temperature.
Check engine oil level approximately 5 minutes after
stopping the engine, allowing for the oil to return to the
oil pan.
1
P18.40-0287-26
2
P18.40-2067-26
2
332Engine compartment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
The engine oil level can be checked by either the oil
dipstick or via the multifunction display in the
instrument cluster, see page 154.
Wipe the oil dipstick clean prior to checking the engine
oil level. Fully insert dipstick in tube, and remove after
three seconds to obtain accurate reading.
The oil level must be between the lower
mark (min) and the upper mark (max)
on the oil dipstick.
Unscrew the oil filler cap and add oil carefully if you
need to top up the oil.
CL 500 and CL 55 AMG:
Fill quantity between upper and lower dipstick marking
level is approximately 2.1 US qt (2.0 l).
CL 600:
Follow the message appearing on the engine oil level
indicator display (page 154) as to quantity to be added.
Re-install oil filler cap.
Do not overfill the engine. Excessive oil must be drained
or siphoned. It could cause damage to engine and
catalytic converter not covered by the Mercedes-Benz
Limited Warranty.
See malfunction and warning messages on page 297 if
an engine oil level display appears on the multifunction
display when the engine is running.
Note:
See page 154 for engine oil level indicator.
Automatic transmission fluid level
The transmission has a permanent fill of automatic
transmission fluid.
Regular automatic transmission fluid level checks and
changes are not required. For this reason the dipstick is
omitted.
If you notice fluid leaks or gear shifting malfunctions,
have your authorized Mercedes-Benz Center check the
transmission fluid level.
Active body control (ABC) fluid level
Regular fluid level check is not required.
If you notice fluid leaks or malfunctions, have your
authorized Mercedes-Benz Center check the
ABC-system.
333Engine compartment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Coolant level
1Coolant expansion tank
To check the coolant level, the vehicle must be parked
on level ground and the engine stopped.
Check coolant level only when coolant is cold.
The coolant level should reach the black top part of the
reservoir.
See page 397 for antifreeze/anticorrosion mixture.
Adding coolant
If coolant has to be added, a 50/50 mixture of water and
MB anticorrosion/antifreeze should be added.
1
Warning!
• In order to avoid possibly serious burns:
Use extreme caution when opening the hood if
there are any signs of steam or coolant leaking
from the cooling system, or if the coolant
temperature gauge indicates that the coolant is
overheated.
• Do not remove pressure cap on coolant
reservoir if engine temperature is above 194°F
(90°C). Allow engine to cool down before
removing cap. The coolant reservoir contains
hot fluid and is under pressure.
• Using a rag, slowly open cap approximately 1/2
turn to relieve excess pressure. If opened
immediately, scalding hot fluid and steam will
be blown out under pressure.
• Do not spill antifreeze on hot engine parts.
Antifreeze contains ethylene glycol which may
burn if it comes into contact with hot engine
parts.
334Engine compartment
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Windshield and headlamp washer system
1Windshield and headlamp washer fluid reservoir
The reservoir should be refilled with MB Windshield
Washer Concentrate and water (or concentrate
commercially available premixed windshield washer
solvent/ antifreeze, depending on ambient
temperatures).
Capacity approx. 7.1 US qt (6.7 l).
Windshield and headlamp washer fluid mixing ratio
For temperatures above freezing:
MB Windshield Washer Concentrate “S” and water.
1 part “S” to 100 parts water
(40 ml “S” to 1 gallon water).
For temperatures below freezing:
MB Windshield Washer Concentrate “S” and
commercially available premixed windshield washer
solvent/antifreeze.
1 part “S” to 100 parts solvent
(40 ml “S” to 1 gallon solvent).
1
Warning!
Washer solvent/antifreeze is highly flammable. Do
not spill washer solvent/antifreeze on hot engine
parts, because it may burn. You can be seriously
burned.
335Spare wheel
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Spare wheel, vehicle tools, storage compartment
1Jack
2Luggage bowl with vehicle tool kit, towing eye bolt,
fuses, fuse extractor and fuse chart
3Storage tray
4Spare wheel
Lift trunk floor and engage handle in upper edge of
trunk.
Always lower trunk floor before closing trunk lid.
To remove the spare wheel:
Take out the vehicle tool kit tray.
Turn the luggage bowl counterclockwise and remove the
spare wheel.
To store spare wheel:
Place spare wheel in wheel well and secure it with
luggage bowl. Turn luggage bowl clockwise to its stop.
Place vehicle tool kit tray in luggage bowl.
P40.10-0523-26
1
4
3
2
336Jack
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Jack
To prepare the jack for use:
Remove the jack from the spare wheel well under the
trunk floor, push the crank handle up and turn
clockwise until it engages (operational position).
Storing the jack in the trunk:
Retract the jack arm to the base of the jack, push the
crank handle up and turn counterclockwise to the end
of the stop (storage position).
P58.10-2001-26
Warning!
The jack is designed exclusively for jacking up the
vehicle at the jack tubes built into either side of the
vehicle. To help avoid personal injury, use the jack
only to lift the vehicle during a wheel change.
Never get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from the area
under the lifted vehicle. Always firmly set parking
brake and block wheels before raising vehicle with
jack.
Do not disengage parking brake while the vehicle is
raised. Be certain that the jack is always vertical
when in use, especially on hills. Always try to use
the jack on level surface. Be sure that the jack arm
is fully inserted in the jack tube. Always lower the
vehicle onto sufficient capacity jackstands before
working under the vehicle.
337Tires, Wheels
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Wheels
Replace rims or tires with the same designation,
manufacturer and type as shown on the original part.
See your authorized Mercedes-Benz Center for further
information.
See your authorized Mercedes-Benz Center for
information on tested and recommended rims and tires
for summer and winter operation. They can also offer
advice concerning tire service and purchase.
Tire replacement
Front and rear tires should be replaced in sets. Rims
and tires must be of the correct size and type. For
dimensions, see “Technical Data”.
We recommend that you break in new tires for approx.
60 miles (100 km) at moderate speed.
It is imperative that the wheel mounting bolts be
fastened to a tightening torque of 110 ft.lb. (150 Nm)
whenever wheels are mounted.
For rim and tire specifications, refer to “Technical Data”.
Warning!
Worn, old tires can cause accidents. If the tire tread
is badly worn, or if the tires have sustained
damage, replace them.
When replacing rims, use only genuine
Mercedes-Benz wheel bolts specified for the
particular rim type. Failure to do so can result in
the bolts loosening and possibly an accident.
338Tires, Wheels
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Rotating wheels
The wheels can be rotated according to the degree of
tire wear while retaining the same direction of travel.
Rotating, however, should be carried out as
recommended by the tire manufacturer, before the
characteristic tire wear pattern (shoulder wear on front
wheels and tread center wear on rear wheels) becomes
visible, as otherwise the driving properties deteriorate.
Notes:
Thoroughly clean the inner side of the wheels any time
you rotate the wheels or wash the vehicle underside.
The use of retread tires is not recommended. Retread
tires may adversely affect the handling characteristics
and safety of the vehicle.
Dented or bent rims can cause tire pressure loss and
damage to the tire beads. For this reason, check rims for
damage at regular intervals. The rim flanges must be
checked for wear before a tire is mounted. Remove
burrs, if any.
Check and ensure proper tire inflation pressure after
rotating the wheels. For tire inflation pressure see
inside of fuel filler flap and also page 345.
Spare wheel
Spare wheel CL 500 and CL 600
(except Sport Package)
Important!
The spare wheel rim is mounted with a full size tire of
the same type as on the vehicle, and is fully functional.
However, that spare wheel rim is weight optimized and
has a limited service life of 12 000 miles (20 000 km)
use before a standard wheel rim must replace it.
In the case of a flat tire, you may temporarily use the
spare wheel.
Do not operate vehicle with more than one spare wheel
mounted.
Warning!
The spare wheel rim is for temporary use only. Use
for over a total of 12 000 miles (20 000 km)
(aggregate of all uses) may cause wheel rim failure
leading to an accident and possible injuries.
339Tires, Wheels
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Spare wheel CL 55 AMG and Sport Package
Important!
The spare wheel rim size is 71/2J x 17 H 2 with tire size
225/55 R17 97H.
The spare wheel rim is weight optimized and has a
limited service life of 12 000 miles (20 000 km) use
before a standard wheel rim must replace it.
In the case of a flat tire, you may temporarily use the
spare wheel, when observing the following restrictions:
•Do not exceed vehicle speed of 50 mph (80 km/h)
•Drive to the nearest tire repair facility to have the
flat tire repaired or replaced as appropriate.
•Do not operate vehicle with more than one spare
wheel mounted.
If the arrow on tire side wall does not point in direction
of vehicle forward movement when using the spare
wheel, observe the following restriction:
Unidirectional tires must always be mounted with arrow
on tire sidewall pointing in direction of vehicle forward
movement.
For rim and tire specifications, refer to “Technical Data”.
Warning!
The spare wheel rim is for temporary use only. Use
for over a total of 12 000 miles (20 000 km)
(aggregate of all uses) may cause wheel rim failure
leading to an accident and possible injuries.
The dimensions of the spare wheel are different
from those of the road wheels. As a result, the
vehicle handling characteristics change when
driving with a mounted spare wheel.
The spare wheel should only be used temporarily,
and replaced with a regular road wheel as quick as
possible.
340Tires, Wheels
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Changing wheels Move vehicle to a level area which is a safe distance
from the roadway.
1. Set parking brake and turn on hazard warning
flasher.
2. Move selector lever to position “P” and turn off
engine.
3. Prevent vehicle from rolling away by blocking
wheels with wheel chocks (not supplied with
vehicle) or sizable wood block or stone. When
changing a wheel on a hill, place chocks on the
downhill side blocking both wheels of the other
axle. On an level road, place one chock in front of
and one behind the wheel that is diagonally
opposite to the wheel being changed.
Warning!
The jack is designed exclusively for jacking up the
vehicle at the jack tubes built into either side of the
vehicle. To help avoid personal injury, use the jack
only to lift the vehicle during a wheel change.
Never get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from the area
under the lifted vehicle. Always firmly set parking
brake and block wheels before raising vehicle with
jack.
Do not disengage parking brake while the vehicle is
raised. Be certain that the jack is always vertical
when in use, especially on hills. Always try to use
the jack on level surface. Be sure that the jack arm
is fully inserted in the jack tube. Always lower the
vehicle onto sufficient capacity jackstands before
working under the vehicle.
341Tires, Wheels
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
4. Remove the two-piece wheel wrench from the
vehicle tool kit and assemble. Using the wrench,
loosen but do not yet remove the wheel bolts.
5. Remove the protective cover from the jack support
tube opening by inserting the screwdriver (supplied
in the tool kit) in the opening and prying it out.
The tube openings are located directly behind the
front wheel housings and in front of the rear wheel
housings.
P40.10-2177-26
342Tires, Wheels
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
6. Insert jack arm fully into the tube hole up to the
stop. Place jack on firm ground. Position the jack so
that it is always vertical (plumb-line) as seen from
the side (see arrow), even if the vehicle is parked on
an incline.
7. Jack up the vehicle until the wheel is clear of the
ground. Never start engine while vehicle is raised.
8. Unscrew upper-most wheel bolt and install
alignment bolt (1) supplied in the tool kit. Remove
the remaining bolts. Keep bolt threads protected
from dirt and sand.
9. Remove wheel. Grip wheel from the sides. Keep
hands from beneath the wheels.
P40.10-2178-26
P40.10-2179-26
343Tires, Wheels
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
10. Clean contact surfaces of wheel and wheel hub.
Install spare wheel on wheel hub. Insert wheel bolts
and tighten them slightly.
To avoid paint damage, place wheel flat against hub
and hold it there while installing first wheel bolt.
Unscrew the alignment bolt to install the last wheel
bolt.
11. Lower vehicle. Remove jack and insert jack tube
cover.
P40.10-2264-26 P40.10-2263-26
344Tires, Wheels
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
12. Using the wrench, tighten the five bolts evenly,
following the sequence illustrated, until all bolts are
tight.
Observe a tightening torque of 110 ft.lb. (150 Nm).
13. Ensure proper tire pressure.
Notes:
Before storing the jack, the jack arm must be lowered
almost to the base of the jack.
For proper storage of vehicle jack see page 335.
P40.10-2265-26
Warning!
Always replace wheel bolts that are damaged or
rusted.
Never apply oil or grease to wheel bolts.
Damaged wheel hub threads should be repaired
immediately.
Incorrect mounting bolts or improperly tightened
mounting bolts can cause the wheel to come off.
This could cause an accident. Be sure to use the
correct mounting bolts.
Warning!
The spare wheel rim is for temporary use only. Use
for over a total of 12 000 miles (20 000 km)
(aggregate of all uses) may cause wheel rim failure
leading to an accident and possible injuries.
The spare wheel should only be used temporarily,
and replaced with a regular road wheel as quick as
possible.
CL 55 AMG and Sport Package:
The dimensions of the spare wheel are different
from those of the road wheels. As a result, the
vehicle handling characteristics change when
driving with a mounted spare wheel.
345Tires, Wheels
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Tire inflation pressure
A table (see fuel filler flap) lists the tire inflation
pressures specified for Mercedes-Benz recommended
tires as well as for the varying operating conditions.
Important!
Tire pressure changes by approx. 1.5 psi (0.1 bar) per
18°F (10°C) of air temperature change. Keep this in
mind when checking tire pressure inside a garage –
especially in the winter.
Example:
If garage temperature = approx. +68°F (+20°C) and
ambient temperature = approx. +32°F (0°C) then the
adjusted air pressure = specified air pressure +3 psi
(+0.2 bar).
Tire pressures listed for light loads are minimum values
offering high driving comfort. Increased inflation
pressures for heavy loads produce favorable handling
characteristics with lighter loads and are perfectly
permissible. The ride of the vehicle, however, will
become somewhat harder.
Tire temperature and pressure increase with the vehicle
speed. Tire pressure should therefore only be checked
and corrected on cold tires. Correct tire pressure in
warm tires only if pressure has dropped below the
pressure listed in the table and the respective operating
conditions are taken into consideration.
An underinflated tire due to a slow leak (e.g. due to a
nail in the tire) may cause damage such as tread
separation, bulging etc.. Regular tire pressure checks
(including the spare tire) at intervals of no more than
14 days are therefore essential.
If a tire constantly loses air, it should be inspected for
damage.
346Tires, Wheels
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
The spare tire should be checked periodically for
condition and inflation. Spare tire will age and become
worn over time even if never used, and thus should be
inspected and replaced when necessary.
Battery
Warning!
Do not overinflate tires. Overinflating tires can
result in sudden deflation (blowout) because they
are more likely to become punctured or damaged
by road debris, potholes etc.. Follow recommended
inflation pressures.
Do not overload the tires by exceeding the specified
vehicle capacity weight (as indicated by the label
on the driver’s door latch post). Overloading the
tires can overheat them, possibly causing a
blowout.
Warning!
Failure to follow these instructions can result in
severe injury or death.
Never lean over batteries while connecting, you
might get injured.
Battery fluid contains sulfuric acid. Do not allow
this fluid to come in contact with eyes, skin or
clothing. In case it does, immediately flush affected
area with water and seek medical help if necessary.
A battery will also produce hydrogen gas, which is
flammable and explosive. Keep flames or sparks
away from battery, avoid improper connection of
jumper cables, smoking etc..
347Battery
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
The maintenance-free battery is located in the trunk
under the right-hand wheel well cover panel.
For battery removal or installation, or jump starting the
vehicle, first lift the trunk floor, then turn lock (1)
counterclockwise and remove cover.
Important!
Battery replacement information:
The service life of the battery is dependent on its
condition of charge. The battery should always be kept
sufficiently charged, in order to last an optimum length
of time.
Therefore, we strongly recommend that you have the
battery charge checked frequently, and corrected if
necessary, especially if you use the vehicle less than
approximately 200 miles (300 km) per month,
mostly for short distance trips, or if it is not used for
long periods of time.
Only charge a battery with a battery charger after the
battery has been disconnected from the vehicle’s
electrical circuit.
Always disconnect the battery negative lead first and
connect last.
When removing and connecting the battery, always
make sure that all electrical consumers are off and the
electronic key is in starter switch position 0. The
battery, its filler caps, the vent tube and the opposite
plug must always be securely installed when the vehicle
is in operation.
348Battery
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
While the engine is running the battery terminal clamps
must not be loosened or detached, otherwise the
generator and other electronic components would be
damaged.
Note:
After reconnecting the battery also set the clock (see
COMAND operator’s manual) resynchronize the express
feature of the power windows (see page 180), the
sliding/pop-up roof (see page 183), and the electronic
stability program (see page 272).
Battery recycling
Batteries contain materials that can harm the
environment with improper disposal.
Large 12 Volt storage batteries contain lead.
Recycling of batteries is the preferred method of
disposal.
Many states require sellers of batteries to accept old
batteries for recycling.
349Jump starting
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Jump starting Important!
A discharged battery can freeze at approx. +14°F
(–10°C). In that case, it must be thawed out before
jumper cables are used. Attempting to jump start a
frozen battery can result in it exploding, causing
personal injury.
Jumper cable specifications:
•Minimum cable cross-section of 25 mm2 or
approx. 2 AWG
•Maximum length of 11.5 ft. (3.5 m).
If the battery is discharged, the engine should be started
with jumper cables and the (12 V) battery of another
vehicle.
Only use 12 V battery to jump start your vehicle. Jump
starting with more powerful battery could damage the
vehicle’s electrical systems, which will not be covered
by the Mercedes-Benz Limited Warranty.
The battery is located in the trunk under the right-hand
wheel well cover panel.
Warning!
Failure to follow these directions will cause
damage to the electronic components, and can lead
to a battery explosion and severe injury or death.
Never lean over batteries while connecting or jump
starting, you might get injured.
Battery fluid contains sulfuric acid. Do not allow
this fluid to come in contact with eyes, skin or
clothing. In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
A battery will also produce hydrogen gas, which is
flammable and very explosive. Keep flames or
sparks away from battery, avoid improper
connection of jumper cables, smoking etc..
Read all instructions before proceeding.
350Jump starting
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Proceed as follows:
1. Position the vehicle with the charged battery so that
the jumper cables will reach, but never let the
vehicles touch. Make sure the jumper cables do not
have loose or missing insulation.
2. On both vehicles:
•Turn off engine and all lights and accessories,
except hazard warning flashers or work lights.
•Apply parking brake and shift selector lever to
position “P”.
Important!
3. Clamp one end of the first jumper cable to the
positive (+) terminal of the discharged battery and
the other end to the positive (+) terminal of the
charged battery. Make sure the cable clamps do not
touch any other metal parts.
4. Clamp one end of the second jumper cable to the
grounded negative (–) terminal of the charged
battery and the final connection to the negative (–)
under hood terminal of the disabled vehicle.
Important!
5. Start engine of the vehicle with the charged battery
and run at high idle. Make sure the cables are not
on or near pulleys, fans, or other parts that move
when the engine is started. Allow the discharged
battery to charge for a few minutes. Start engine of
the disabled vehicle in the usual manner.
6. After the engine has started, remove jumper cables
by exactly reversing the above installation
sequence, starting with the last connection made
first. When removing each clamp, make sure that it
does not touch any other metal while the other end
is still attached.
Notes:
If engine does not run after several unsuccessful
starting attempts, have it checked at the nearest
authorized Mercedes-Benz Center.
Excessive unburned fuel may damage the catalytic
converter.
351Towing the vehicle
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Towing the vehicle Important!
When towing the vehicle, please, note the following:
With the automatic central locking activated and the
electronic key in starter switch position 2 (vehicles with
KEYLESS-GO: in “On” position, see page 224), the
vehicle doors lock if the left front wheel as well as the
right rear wheel are turning at vehicle speeds of approx.
9 mph (15 km/h) or more.
To prevent the vehicle door locks from locking,
deactivate the automatic central locking. See
“VEHICLE” under “Individual settings” on page 144.
Towing of the vehicle should only be done using the
properly installed towing eye bolt. Never attach tow
cable, tow rope or tow rod to vehicle chassis, frame
or suspension parts.
Note:
The selector lever will remain locked in position “P” and
the electronic key could not be turned in the starter
switch if the battery is disconnected or discharged. See
battery on page 346 or jump starting on page 349.
Warning!
Prior to towing the vehicle with all wheels on the
ground, make certain that the electronic key is in
starter switch position 2.
If the electronic key is left in the starter switch
position 0 for an extended period of time, it can no
longer be turned in the switch. In this case, the
steering is locked. To unlock, remove electronic key
from starter switch and reinsert.
352Towing the vehicle
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
1Cover on right side of front bumper
To remove cover:
Press mark on cover in direction of arrow and lift cover
off to reveal threaded hole for towing eye bolt. The
towing eye bolt is supplied with the tool kit (located in
trunk in spare wheel). Screw towing eye bolt in to its
stop and tighten with lug wrench.
To reinstall cover:
Fit cover and snap into place.
2 Cover right side of rear bumper
To remove cover:
Press mark on cover in direction of arrow and lift cover
off to reveal threaded hole for towing eye bolt. The
towing eye bolt is supplied with the tool kit (located in
trunk in spare wheel). Screw towing eye bolt in to its
stop and tighten with lug wrench.
To reinstall cover:
Fit cover and snap into place.
2
353Towing the vehicle
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
We recommend that the vehicle be transported using
flat bed equipment. This method is preferable to other
types of towing.
Important!
To prevent damage during transport, do not tie down
vehicle by its chassis or suspension parts.
The vehicle may be towed with all wheels on the ground
and the selector lever in position “N” for distances up to
30 miles (50 km) and at a speed not to exceed 30 mph
(50 km/h). The electronic key must be in starter switch
position 2.
To be certain to avoid a possibility of damage to the
transmission, however, we recommend the drive shaft
be disconnected at the rear axle drive flange for any
towing beyond a short tow to a nearby garage.
Do not tow with sling-type equipment. Towing with
sling-type equipment over bumpy roads will damage
radiator and supports.
Use wheel lift, dolly, or flat bed equipment, with
electronic key in starter switch turned to position 0.
Note:
To signal turns while being towed with hazard warning
flasher in use, turn electronic key in starter switch to
position 2 and activate combination switch for left or
right turn signal in usual manner – only the selected
turn signal will operate.
Upon canceling the turn signal, the hazard warning
flasher will operate again.
Caution!
If the vehicle is towed with the front axle raised, the
engine must be shut off (electronic key in starter switch
position 0 or 1). Otherwise, the ESP will immediately be
engaged and will apply the rear wheel brakes.
Switch off the tow-away alarm (see “VEHICLE” under
“Individual settings” on page 144) as well as the ESP
(see page 273).
Warning!
With the engine not running, there is no power
assistance for the braking and steering systems. In
this case, it is important to keep in mind that a
considerably higher degree of effort is necessary to
brake and steer the vehicle.
354Exterior lamps
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Exterior lamps
Headlamp adjustment
Correct headlamp adjustment is extremely important.
Check and readjust headlamps at regular intervals and
when a bulb has been replaced.
Replacing bulbs
Notes:
To prevent a possible electrical short circuit, switch off
lamp prior to replacing a bulb.
When replacing bulbs, install only 12 volt bulbs with
the specified watt rating.
When replacing halogen bulbs do not touch glass
portion of bulb with bare hands. Use plain paper or a
clean cloth.
If the newly installed bulb does not light up, switch the
lamp off and on again. If the bulb still does not light up,
have the system checked at an authorized
Mercedes-Benz Center.
Warning!
Bulbs and bulb holders can be very hot. Allow the
lamp to cool down before changing a bulb.
Halogen lamps contain pressurized gas. A bulb can
explode if you:
• touch or move it when hot,
•drop the bulb,
• scratch the bulb.
Wear eye and hand protection.
Warning!
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the lamp
and its components. We recommend that you have
such work done by a qualified technician.
355Exterior lamps
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Headlamp assembly
1Headlamp cover for high beam headlamp, parking
and standing lamp
2 Electrical connector for high beam headlamp bulb
3Bulb socket for parking and standing lamp
4Bulb holder for turn signal lamp
5Cover for Xenon type headlamp bulb
Warning!
Do not remove cover (5) for Xenon headlamp.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the lamp
and its components. We recommend that you have
such work done by a qualified technician.
1
P82.10-2197-26 P82.10-2198-26
2
3
4
5
356Exterior lamps
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Bulbs for high beam
H7 (55 W)
Open hood.
Press the clip together (arrow) and remove headlamp
cover (1).
Pull electrical connector off.
Unclip the retainer spring and take out the bulb.
Insert the new bulb so that the base locates in the
recess on the holder.
Clip in retainer springs and plug the connector onto the
bulb.
Align headlamp cover (1) and click into place.
Xenon
Bulb for low/ high beam
Warning!
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the lamp
and its components. We recommend that you have
such work done by a qualified technician.
357Exterior lamps
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Turn signal lamp
(1156 NA [26.9/5 W/32/4cp])
Open hood.
Twist bulb holder (4) counterclockwise and pull out.
Push bulb into socket, turn counterclockwise and
remove.
Insert new bulb in socket, push in and twist clockwise.
Reinstall bulb socket.
Align bulb holder (4) and turn clockwise to lock.
Parking and standing lamp
H 6W
Open hood.
Press the clip together (arrow) and remove headlamp
cover (1).
Remove the bulb socket (3). Push bulb into socket, turn
counterclockwise and remove.
Insert new bulb in socket, push in and twist clockwise.
Reinstall bulb socket.
Align headlamp cover (1) and click into place.
358Exterior lamps
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Taillamp assemblies Open trunk lid.
Turn lock (6) counterclockwise and fold trim to the side.
Twist bulb socket counterclockwise and pull out. Push
bulb into socket, turn counterclockwise and remove.
Insert new bulb in socket, push in and twist clockwise.
Reinstall bulb socket.
Reinstall trim and secure with lock (6).
P82.10-2635-26
6
359Exterior lamps
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
7Black socket:
Backup lamp (1156 [32 cp] bulb)
8Red socket
Driver’s side:
Taillamp/parking lamp/rear fog lamp
(P 21/4W bulb)
Passenger side:
Taillamp/parking lamp (P 21/4W bulb)
9Grey socket:
Taillamp/parking lamp/standing lamp/side marker
(67 [4 cp] bulb)
10 White socket:
Turn signal lamp (1156 NA bulb [yellow])
8
710
9
360Exterior lamps
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
License plate lamp
Loosen both securing screws (1), remove lamp and
replace tubular lamp (C 5 W/4 cp).
Side marker lamp, front (5 W/4 cp bulb)
Carefully slide lamp towards rear (arrow 1), and remove
front end first (arrow 2).
Twist bulb socket counterclockwise and pull out.
Remove bulb from socket.
Insert new bulb in socket. Reinstall bulb socket, push in
and twist clockwise.
To reinstall lamp, set rear end of lamp in bumper and let
front end snap into place.
P82.10-2634-26
2
1
361Exterior lamps
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Stop lamp,
High mounted stop lamp,
Additional turn signals on the exterior mirror
The stop lamps, the high mounted stop lamp (3rd brake
lamp), and the additional turn signals on the exterior
mirrors are equipped with LEDs.
Have the system checked at an authorized
Mercedes-Benz Center if a malfunction occurs.
Standby bulb function
The rear fog lamp, dimmed, will act as a replacement
lamp, if the bulb in the inner left-hand taillamp stops
working.
The inner taillamp acts as a replacement for the right or
left-hand bulb of the outer taillamp, if it stops working
as a parking lamp.
Notes:
The multifunction display will indicate that a bulb has
failed. See malfunction and warning messages on
page 297.
362Exterior lamps
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Low beam, switchable for left- or right-hand drive Driving in countries with left-hand traffic requires the
headlamps to be switched over accordingly.
1Asymmetric low beam (right-hand traffic)
2Symmetric low beam (left-hand traffic)
Turn lever to the respective position until it locks in
place.
363Electronic main key
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Changing batteries in the electronic main key
1Transmit buttons
2Lamp for battery check and function control
Checking batteries
If one of the transmit buttons (1) is pressed, the battery
check lamp (2) lights up briefly – indicating that the
batteries are in order.
Change batteries if the battery check lamp (2) does not
light up briefly.
Changing batteries
Move locking tab (3) in direction of right arrow and
remove mechanical key (4, left arrow).
P80.20-2201-26
1
2
P80.35-2029-26
4
3
364Electronic main key
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Insert mechanical key (4) in side opening (5) to open
latch. Press briefly (do not use mechanical key as lever)
to release battery compartment.
Remove mechanical key from side opening.
Carefully remove battery compartment in direction of
arrow (6).
Change batteries (7), inserting new ones under contact
spring (8) with plus (+) side facing up.
Return battery compartment into housing until locked
in place and slide mechanical key back into electronic
main key.
P80.35-2025-26
5
4
6
P80.35-2027-26
7
8
365Electronic main key
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Important!
Batteries contain materials that can harm the
environment if disposed of improperly. Recycling of
batteries is the preferred method of disposal. For
disposal, please follow manufacturer’s recommendation
on battery package.
Replacement Battery:
Lithium, type CR 2025 or equivalent.
Synchronizing remote control
The remote control may have to be resynchronized, if
the vehicle cannot be locked or unlocked.
To synchronize insert electronic key in starter switch.
The remote control should once again be operational.
366KEYLESS-GO-card
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Changing batteries in the KEYLESS-GO-card Checking batteries
Briefly press button (1). The indicator lamp “Unlock
driver’s door” (2) or “Global Unlock” (3) should come on
red or green.
Change batteries if indicator lamps do not illuminate,
see page 367.
P80.30-2027-26
1
2 3
367KEYLESS-GO-card
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Changing batteries
Pry open cover (1) (e.g. by using a narrow blade screw
driver) and remove batteries.
Install new batteries as indicated by the “+” and “-”
markings in the KEYLESS-GO-card.
Important!
Batteries contain materials that can harm the
environment if disposed of improperly. Recycling of
batteries is the preferred method of disposal. For
disposal, please follow manufacturer’s recommendation
on battery package.
Replacement batteries:
Lithium, type CR 2025 or equivalent.
368Emergency engine shut-down
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Emergency engine shut-down
If the engine can no longer be stopped using the
electronic key or the start-/stop button (vehicles with
KEYLESS-GO), the engine can be turned off by
withdrawing two fuses.
For easy removal of fuses use the fuse extractor
(supplied with vehicle tool kit) to pull out the fuses
marked on the fuse chart as “ENGINE EMERGENCY
OFF”.
The fuse chart is also located in the vehicle tool kit,
see page 335.
For fuses see page 325.
Fuel filler flap, manual release
Remove the battery cover (see page 346) and the trim
inside the trunk on the right-hand side. Pull the release
knob (arrow) and open the fuel filler flap.
369Emergency operation of sliding/pop-up roof
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Emergency operation of sliding/pop-up roof
The sliding/pop-up roof can be opened or closed
manually should an electrical malfunction occur.
The sliding/pop-up roof drive is located behind the lens
of the left interior overhead light.
Pry off the interior light lens (1) using a screwdriver.
Turn electronic key in starter switch to position 1 or 2.
Obtain crank (2) (supplied with vehicle) and insert
through hole.
To slide roof closed or to raise the roof at the rear:
turn crank clockwise.
To slide the roof open or to lower the roof at the rear:
turn crank counterclockwise.
See page 183 for instructions on synchronizing the
sliding/pop-up roof after closing manually.
P77.00-2022-26
1
P77.00-2023-26
2
370Replacing wiper blades
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Replacing wiper blades
To prevent damage to the hood or the wipers, the wiper
arms should only be folded forward while in the position
shown above.
•Turn electronic key in starter switch to position 1.
•Turn combination switch to position I, see page 160.
•With wiper arms in position shown above, turn
electronic key in starter switch to position 0.
For safety reasons, remove electronic key from
starter switch before replacing a wiper blade,
otherwise the motor can suddenly turn on and cause
injury.
Notes:
Do not open engine hood with wiper arm folded forward.
Do not allow the wiper arm to contact the windshield
glass without a wiper blade inserted. The glass may be
scratched or broken.
Make certain that the wiper blades are properly
installed. An improperly installed wiper blade may
cause windshield damage.
371Replacing wiper blades
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Removal:
Fold the wiper arm (1) forward and turn the wiper
blade (2) at a right-angle to wiper arm.
Remove wiper blade from wiper arm.
Installation:
Install wiper blade onto the wiper arm by inserting
pin (4) into take-up (3).
Rotate wiper blade into position parallel to wiper arm.
Trunk lamp
The trunk lamp will switch off after approximately
10 minutes if the trunk lid is left open.
P82.30-2089-26
4
1
2
3
372Roof rack
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Roof rack Use only those roof racks approved by Mercedes-Benz to
avoid damage to the vehicle. Follow manufacturer’s
installation instructions.
Only mount roof racks on the retrofitted mounting
points (see arrows).
Mounting a roof rack requires a one-time installation of
take-up points.
373Contents - Vehicle care
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Vehicle care
Cleaning and care
of the vehicle ............................. 374
Power washer ..............................375
Tar stains .....................................376
Paintwork, painted body
components ................................. 376
Engine cleaning .......................... 376
Vehicle washing ......................... 376
Ornamental moldings ............... 377
Headlamps, taillamps,
turn signal lenses ...................... 377
Cleaning the Distronic
system sensor ............................. 378
Cleaning the parktronic
system sensors ...........................378
Wiper blades ..............................379
Light alloy wheels ..................... 380
Instrument cluster ..................... 381
Steering wheel and
gear selector lever ......................381
Cup holder ...................................381
Seat belts .....................................382
Headliner and shelf
below rear window .....................382
Leather upholstery .....................382
Hard plastic trim items .............382
Plastic and rubber parts ............382
374Cleaning and care of the vehicle
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Cleaning and care of the vehicle
In operation, your vehicle is subjected to varying
external influences which, if gone unchecked, can
attack the paintwork as well as the underbody and
cause lasting damage.
Such damage is caused not only by extreme and varying
climatic conditions, but also by air polution, road salt,
tar, gravel and stone chipping. Grease and oil, fuel,
coolant, brake fluid, bird droppings, insects, tree resins
etc. should be removed immediately to avoid paint
damage. Frequent washing reduces and/or eliminates
the aggressiveness and potency of the above adverse
influences.
More frequent washings are necessary to deal with
unfavorable conditions; for example, near the ocean, in
industrial areas (smoke, exhaust emissions), or during
winter operation.
You should check your vehicle from time to time for
stone chipping or other damage. Any damage should be
repaired as soon as possible to prevent the start of
corrosion.
In doing so, do not neglect the underside of the vehicle.
A prerequisite for a thorough check is a washing of the
underbody followed by a thorough inspection. Damaged
areas need to be reundercoated.
Your vehicle has been treated at the factory with a wax-
base rustproofing in the body cavities which will last for
the lifetime of the vehicle. Post-production treatment is
neither necessary nor recommended by Mercedes-Benz
because of the possibility of incompatibility between
materials used in the production process and others
applied later.
We have selected car-care products and compiled
recommendations which are specially matched to our
vehicles and which always reflect the latest technology.
You can obtain Mercedes-Benz approved car-care
products at your authorized Mercedes-Benz Center.
Warning!
Many cleaning products can be hazardous. Some
are poisonous, others are flammable. Always follow
the instructions on the particular container.
Always open your vehicle’s doors or windows when
cleaning the inside.
Never use fluids or solvents that are not designed
for cleaning your vehicle.
375Cleaning and care of the vehicle
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Scratches, corrosive deposits, corrosion or damage due
to negligent or incorrect care cannot always be removed
or repaired with the car-care products recommended
here. In such cases it is best to seek aid at your
authorized Mercedes-Benz Center.
The following topics deal with the cleaning and care of
your vehicle and give important “how-to” information as
well as references to Mercedes-Benz approved car-care
products.
Additional information can be found in the booklet titled
“Vehicle Care Guide”.
Power washer
When using a power washer for cleaning the vehicle
always observe manufacturer’s operating instructions.
Note:
Vehicles with KEY LESS - GO :
If a door handle is hit by a strong jet of water, and a
KEYLESS-GO-card is in close proximity, approx. 3 ft.
(approx. 1m), the vehicle could be inadvertently locked
or unlocked.
Caution!
Never use a round nozzle to power wash tires. The
intense jet of water can result in damage to the tire.
Always replace a damaged tire.
Always keep the jet of water moving across the surface.
Do not aim directly at electrical parts, electrical
connectors, seals, or other rubber parts.
376Cleaning and care of the vehicle
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Tar stains
Quickly remove tar stains before they dry and become
more difficult to remove. A tar remover is
recommended.
Paintwork, painted body components
Mercedes-Benz approved Paint Care should be applied
when water drops on the paint surface do not “bead up”,
normally in 3 to 5 months, depending on climate and
washing detergent used.
Mercedes-Benz approved Paint Cleaner should be
applied if paint surface shows signs of dirt embedding
(i.e. loss of gloss).
Do not apply any of these products or wax if your
vehicle is parked in the sun or if the hood is still hot.
Use the appropriate MB-Touch-Up Stick for quick and
provisional repairs of minor paint damage (i.e. chips
from stones, vehicle doors etc.).
Engine cleaning
Prior to cleaning the engine compartment make sure to
protect electrical components and connectors from the
intrusion of water and cleaning agents.
Corrosion protection, such as MB Anticorrosion Wax
should be applied to the engine compartment after
every engine cleaning. Before applying, all control
linkage bushings and joints should be lubricated. The
poly-V-belt and all pulleys should be protected from any
wax.
Veh i cl e was hi n g
Do not use hot water or wash your vehicle in direct
sunlight. Use only a mild car wash detergent, such as
Mercedes-Benz approved Car Shampoo.
Thoroughly spray the vehicle with a diffused jet of
water. Direct only a very weak spray towards the
ventilation intake. Use plenty of water and rinse the
sponge and chamois frequently.
Rinse with clear water and thoroughly wipe dry with a
chamois. Do not allow cleaning agents to dry on the
finish.
377Cleaning and care of the vehicle
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Due to the width of the vehicle, prior to running the
vehicle through an automatic car wash, fold back the
outside mirrors to prevent them from getting damaged.
In the winter, thoroughly remove all traces of road salt
as soon as possible.
When washing the underbody, do not forget to clean the
inner sides of the wheels.
Note:
Veh icles w it h KEY LESS -G O:
If a door handle is hit by a strong jet of water, and a
KEYLESS-GO-card is in close proximity, approx 3 ft.
(approx.1m), the vehicle could be inadvertently locked
or unlocked.
Ornamental moldings
For regular cleaning and care of very dirty chrome-
plated parts, use a chrome cleaner.
Headlamps, taillamps, turn signal lenses
Use a mild car wash detergent, such as Mercedes-Benz
approved Car Shampoo, with plenty of water.
To prevent scratches, never apply strong force and use
only a soft, non-scratchy cloth when cleaning the lenses.
Do not attempt to wipe dirty lenses with a dry cloth or
sponge.
378Cleaning and care of the vehicle
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Cleaning the Distronic system sensor
Use a mild car wash detergent, such as Mercedes-Benz
approved Car Shampoo, with plenty of water to clean
the sensor (1).
To prevent scratches, never apply strong force and use
only a soft, non-scratchy cloth when cleaning the
sensor. Do not attempt to wipe dirty sensors with a dry
cloth or sponge.
Note:
Restart the engine after cleaning the sensor (1).
Cleaning the parktronic system sensors
Use a mild car wash detergent, such as Mercedes-Benz
approved Car Shampoo, with plenty of water.
When using a steam cleaner or power washer, aim
nozzle only briefly from a minimum distance of 4 in.
(10 cm) at sensors (1).
To prevent scratches, never apply strong force and use
only a soft, non-scratchy cloth when cleaning the
sensors. Do not attempt to wipe dirty sensors with a dry
cloth or sponge.
1
11
379Cleaning and care of the vehicle
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Wiper blades To prevent damage to the hood or the wipers, the wiper
arms should only be folded forward in the position
shown above.
•Turn electronic key in starter switch to position 1.
•Turn combination switch to position I, see page 160.
•Once the wiper arms are in the position shown
above, turn key in starter switch to position 0.
Note:
For safety reasons, remove electronic key from
starter switch before cleaning the wiper blades,
otherwise the wiper motor can suddenly turn on and
cause injury.
•Turn combination switch to position 0, see page 160.
Clean the wiper blade rubber with a clean cloth and
detergent solution.
380Cleaning and care of the vehicle
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Window cleaning
Use a window cleaning solution on all glass surfaces. An
automotive glass cleaner is recommended.
Note:
For safety reasons, switch off wipers and remove
electronic key from starter switch before cleaning the
windshield, otherwise the wiper motor can suddenly
turn on and cause injury.
Light alloy wheels
Mercedes-Benz approved Wheel Care should be used for
regular cleaning of the light alloy wheels.
If possible, clean wheels once a week with Mercedes-
Benz approved Wheel Care, using a soft bristle brush
and a strong spray of water.
Follow instructions on container.
Note:
Use only acid-free cleaning materials. The acid could
lead to corrosion.
381Cleaning and care of the vehicle
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Instrument cluster
Use a gentle dishwashing detergent or mild detergent
for delicate fabrics as a washing solution. Wipe with a
cloth moistened in lukewarm solution. Do not use
scouring agents.
Steering wheel and gear selector lever
Wipe with a damp cloth and dry thoroughly or clean
with Mercedes-Benz approved Leather Care.
Cup holder
Use a gentle dishwashing detergent or mild detergent
for delicate fabrics as a washing solution. Wipe with a
cloth moistened in lukewarm solution. Do not use
scouring agents.
Note:
For ease of cleaning, the cup holder between the front
seats can be removed by pulling it up when in its closed
position.
382Cleaning and care of the vehicle
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Seat belts
The webbing must not be treated with chemical
cleaning agents. Use only clear, lukewarm water and
soap. Do not dry the webbing at temperatures above
176°F (80°C) or in direct sunlight.
Headliner and shelf below rear window
Clean with soft bristle brush, or use a dry-shampoo
cleaner in case of excessive dirt.
Leather upholstery
Using aftermarket seat covers or wearing clothing that
have the tendency to give off coloring (e.g. when wet
etc.) may cause the upholstery to become permanently
discolored. By lining the seats with a proper
intermediate cover, contact-discoloration will be
prevented.
Wipe leather upholstery with a damp cloth and dry
thoroughly or clean with Mercedes-Benz approved
Leather Care. Exercise particular care when cleaning
perforated leather as its underside should not become
wet.
Hard plastic trim items
Pour Mercedes-Benz approved Interior Care onto soft
lint-free cloth and apply with light pressure.
Plastic and rubber parts
Do not use oil or wax on these parts.
Warning!
Do not bleach or dye seat belts as this may severely
weaken them. In a crash they may not be able to
provide adequate protection.
383Contents - Technical data
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Technical data
Spare parts service ........................384
Warranty coverage .........................384
Identification labels .......................385
Layout of poly-V-belt drive ............387
Technical data ................................388
Fuels, coolants,
lubricants etc. - capacities .......393
Engine oils ......................................395
Engine oil additives ...................... 395
Air conditioner
refrigerant ................................. 395
Brake fluid ...................................... 395
Premium unleaded
gasoline ...................................... 396
Fuel requirements ........................ 396
Gasoline additives ......................... 397
Coolants .......................................... 397
Consumer information ................. 399
384Technical data
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Spare parts service
All authorized Mercedes-Benz Centers maintain a stock
of original spare parts required for maintenance and
repair work. In addition, strategically located parts
distribution centers provide quick and reliable parts
service.
More than 300 000 different spare parts, for
Mercedes-Benz models, are available.
Mercedes-Benz original spare parts are subjected to
stringent quality inspections. Each part has been
specifically developed, manufactured or selected for and
adapted to Mercedes-Benz vehicles.
Therefore, Mercedes-Benz original spare parts should
be installed.
Important!
The use of non-genuine parts and accessories not
authorized by Mercedes-Benz could damage the vehicle
which damage is not covered by the Mercedes-Benz
Limited Warranty or compromise its durability or safety.
Warranty coverage
Your vehicle is covered under the terms of the
“warranties” printed in the Service and Warranty
Information booklet and your authorized
Mercedes-Benz Center will exchange or repair any
defective parts originally installed on the vehicle in
accordance with the terms of the following warranties:
1. New vehicle limited warranty
2. Emission system warranty
3. Emission performance warranty
4. California, Massachusetts, and Vermont emission
control systems warranty
Replacement parts and accessories are covered by the
Mercedes-Benz Spare Parts and Accessories warranties,
copies of which are available at any Mercedes-Benz
Center.
Loss of Service and Warranty Information Booklet
Should you lose your Service and Warranty Information
booklet, have your authorized Mercedes-Benz Center
arrange for a replacement. It will be mailed to you.
385Technical data
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Identification labels
1Certification label
(below driver’s door lock latch)
2Vehicle Identification Number (VIN)
(below right rear passenger seat)
386Technical data
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
3Engine number
4VIN, visible (lower edge of windshield)
5Emission control label
6Information label, California version
Vacuum line routing for emission control system
When ordering spare parts, please specify vehicle
identification and engine numbers.
P61.20-2014-26
387Technical data
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Layout of poly-V-belt drive
CL 500, CL 55 AMG
1Automatic belt tensioner
2Crankshaft
3Air conditioner compressor
4Coolant pump
CL 600
5Generator (alternator)
6Idler pulley
7Power steering pump
8Idler pulley (CL 600 only)
8
5
1
23
67
4
388Technical data
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Technical data
Model CL 500 (215.3751)CL 55 AMG (215.3731)CL 600 (215.3781)
Engine 113 113 137
Mode of operation 4-stroke engine,
gasoline injection
4-stroke engine,
gasoline injection
4-stroke engine,
gasoline injection
No. of cylinders8812
Bore 3.82 in (97.00 mm) 3.82 in (97.00 mm) 3.31 in (84.00 mm)
Stroke 3.31 in (84.00 mm) 3.60 in (92.00 mm) 3.43 in (87.00 mm)
Total piston displacement 303.5 cu.in. (4966 cm3) 332.0 cu.in. (5439 cm3) 353.6 cu.in. (5786 cm3)
Compression ratio 10:1 10.5:1 10:1
Output acc.
to SAE J 1349
302 hp/5600 rpm
(225 kW/5600 rpm)
355 hp/5500 rpm
(265 kW/5500 rpm)
362 hp/5500 rpm
(270 kW/5500 rpm)
Maximum torque acc.
to SAE J 1349
339 ft-lb/2700 rpm
(460 Nm/2700 rpm)
390 ft.lb/3150 rpm
(530 Nm/3150 rpm)
391 ft-lb/4100 rpm
(530 Nm/4100 rpm)
Maximum engine speed 6000 rpm 6000 rpm 6000 rpm
Firing order 1-5-4-2-6-3-7-8 1-5-4-2-6-3-7-8 1-12-5-8-3-10-6-7-2-11-4-9
Poly-V-belt 2390 mm 2390 mm 2345 mm
1 The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the
corresponding data of all special bodies and special equipment.
389Technical data
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Rims – Tires
1 Also permissible 245/45 ZR18
2 Also permissible 275/40 ZR183
3 Must not be used with snow chains.
Model CL 500, CL 600
(except Sport Package)
Rims (light alloy)
Wheel offset:
71/2Jx17H2
1.81 in (46 mm)
All season tires:
Radial-ply tires 225/55 R17 97H
Winter tires:
Radial-ply tires 225/55 R17 97H M+S
Spare wheel
Rim (light alloy)
Wheel offset:
71/2Jx17H2
2.0 in (51 mm)
All season tire:
Radial-ply tire 225/55 R17 97H
Model CL 500, CL 600
(Sport Package)
Rims front axle
AMG light alloy rims
Wheel offset:
81/2Jx18H2
1.73 in (44 mm)
Rims rear axle
AMG light alloy rims
Wheel offset:
91/2Jx18H2
1.81 in (46 mm)
Radial-ply tires
front axle
rear axle
245/45 R18 96Y1
275/40 R18 99Y M02, 3
Spare wheel
Rim (light alloy)
Wheel offset:
71/2Jx17H2
1.81 in (46 mm)
All season tire:
Radial-ply tire 225/55 R17 97H
390Technical data
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
1 Also permissible 245/45 ZR18
2 Also permissible 275/40 ZR183
3 Must not be used with snow chains.
Rims – Winter tires
Model CL 55 AMG
Rims front axle
AMG light alloy rims
Wheel offset:
81/2Jx18H2
1.73 in (44 mm)
Rims rear axle
AMG light alloy rims
Wheel offset:
91/2Jx18H2
1.81 in (46 mm)
Radial-ply tires
front axle
rear axle
245/45 R18 96Y1
275/40 R18 99Y M02, 3
Spare wheel
Rim (light alloy)
Wheel offset:
71/2Jx17H2
1.81 in (46 mm)
All season tire:
Radial-ply tire 225/55 R17 97H
Model CL 55 AMG
Rim (light alloy)
Wheel offset
71/2 J x 17 H 2
1.81 in (46 mm)
Winter tires:
Radial-ply tires 225/55 R17 97H M+S
391Technical data
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Electrical system
Model CL 500 CL 55 AMG CL 600
Generator (alternator) 14 V/150 A 14 V/150 A 14 V/150 A
Starter motor 12V/1.7 kW 12V/1.7 kW 12V/2.2 kW
Battery 12V/100 Ah 12V/100 Ah 12V/100 Ah
Spark plugs
Electrode gap
Tightening torque
Bosch F 8 DPER
Beru 14 FGH 8 DPUR X 2
NGK PFR 5 R-11
0.039 in (1.0 mm)
15 – 22 ft.lb (20 – 30 Nm)
Bosch F 8 DPER
0.039 in (1.0 mm)
15 – 22 ft.lb (20 – 30 Nm)
Beru 14 F 7-DPUR X 2
0.041 in (1.05 mm)
15 – 22 ft.lb (20 – 30 Nm)
392Technical data
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Main Dimensions
Weights
Model CL 500 CL 55 AMG CL 600
Overall vehicle length 196.6 in (4993 mm) 196.6 in (4993 mm) 196.6 in (4993 mm)
Overall vehicle width 73.1 in (1857 mm) 73.1 in (1857 mm) 73.1 in (1857 mm)
Overall vehicle height 54.9 in (1394 mm) 54.9 in (1394 mm) 54.9 in (1394 mm)
Wheel base 113.6 in (2885 mm) 113.6 in (2885 mm) 113.6 in (2885 mm)
Track, front 62.1 in (1577 mm) 62.1 in (1577 mm) 62.1 in (1577 mm)
Track, rear 62.1 in (1578 mm) 62.1 in (1578 mm) 62.1 in (1578 mm)
Roof load max. 220 lb (100 kg)
Trunk load max. 220 lb (100 kg)
393Fuels, coolants, lubricants etc. - capacities
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Fuels, coolants, lubricants etc. - capacities
Vehicle components and their respective lubricants must match. Therefore use only brands tested and recommended
by us. Please refer to the Factory Approved Service Products pamphlet, or inquire at your Mercedes-Benz Center.
Model Capacity Fuels, coolants, lubricants etc.
Engine with oil filter CL 500
CL 55 AMG
CL 600
8.5 US qt (8.0 l)
8.0 US qt (7.5 l)
10.0 US qt (9.5 l)
Recommended engine oils
Automatic transmission 9.6 US qt (9.1 l) Automatic transmission fluid
Rear axle 1.7 US qt (1.6 l) Hypoid gear oil SAE 85 W 90
Hydraulic system for
active body control (ABC)
approx. 5.3 US qt (5.0 l) MB Hydraulic fluid
Power steering approx. 1.1 US qt (1.0 l) MB Power steering fluid
Front wheel hubs approx. 2.1 oz (60 g) each High temperature roller bearing grease
Brake system 0.7 US qt (0.7 l) MB Brake fluid (DOT 4+)
Cooling system CL 500
CL 55 AMG
CL 600
approx. 12.1 US qt (11.5 l)
approx. 12.1 US qt (11.5 l)
approx. 12.7 US qt (12.0 l)
MB Anticorrosion/antifreeze
394Fuels, coolants, lubricants etc. - capacities
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Fuel tank
including a reserve of
23.2 US gal (88.0 l)
2.9 US gal (11.0 l)
Premium unleaded gasoline:
Posted Octane 91 (Avg. of 96 RON/86 MON)
Air conditioner system R-134a refrigerant and special PAG lubricant
(Never R-12)
Windshield washer and
headlamp cleaning system
7.1 US qt (6.7 l) MB Windshield washer concentrate1
1 Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and
commercially available premixed windshield washer solvent/antifreeze for temperatures below freezing. Follow suggested mixing ratios, see
page 334.
Model Capacity Fuels, coolants, lubricants etc.
395Fuels, coolants, lubricants etc. - capacities
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Engine oils
Engine oils are specifically tested for their suitability in
our engines. Therefore, use only engine oils
recommended by Mercedes-Benz. Information on
recommended brands is available at your authorized
Mercedes-Benz Center.
Please follow Service Booklet recommendations for
scheduled oil changes. Failure to do so could result in
engine damage not covered by the Mercedes-Benz
Limited Warranty.
Engine oil additives
Do not blend oil additives with engine oil. They may be
harmful to the engine operation.
Damage or malfunctions resulting from blending oil
additives are not covered by the Mercedes-Benz Limited
Warranty.
Air conditioner refrigerant
R-134a (HFC) refrigerant and special PAG lubricating oil
is used in the air conditioner system.
Never use R-12 (CFC) or mineral-based lubricating oil,
otherwise damage to the system will occur.
Brake fluid
During vehicle operation, the boiling point of the brake
fluid is continuously reduced through the absorption of
moisture from the atmosphere. Under extremely hard
operating conditions, this moisture content can lead to
the formation of bubbles in the system thus reducing
the system’s efficiency.
The brake fluid must therefore be replaced every two
years, preferably in the spring.
It is recommended to use only brake fluid approved by
Mercedes-Benz. Your authorized Mercedes-Benz Center
will provide you with additional information.
396Fuels, coolants, lubricants etc. - capacities
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Premium unleaded gasoline
Caution!
To maintain the engine’s durability and performance,
premium unleaded gasoline must be used. If premium
unleaded is not available and low octane fuel is used,
follow these precautions:
•have the fuel tank filled only partially with unleaded
regular and fill up with premium unleaded as soon
as possible,
•avoid full throttle driving and abrupt acceleration,
•do not exceed an engine speed of 3000 rpm, if the
vehicle is loaded with a light load such as two
persons and no luggage,
•do not exceed 2/3 of maximum accelerator pedal
position, if the vehicle is fully loaded or operating in
mountainous terrain.
Fuel requirements
Use only Premium unleaded meeting ASTM
standard D 439:
The octane number (posted at the pump) must be
91 min. It is an average of both the Research (R) octane
number and the Motor (M) octane number: (R+M)/2).
This is also known as ANTI-KNOCK INDEX.
Unleaded gasoline containing oxygenates such as
Ethanol, IPA, IBA and TBA can be used provided the
ratio of any one of these oxygenates to gasoline does not
exceed 10%, MTBE not to exceed 15%.
The ratio of Methanol to gasoline must not exceed 3%
plus additional cosolvents.
Using mixtures of Ethanol and Methanol is not allowed.
Gasohol, which contains 10% Ethanol and 90% unleaded
gasoline, can be used.
These blends must also meet all other fuel requirements
such as resistance to spark knock, boiling range, vapor
pressure etc..
397Fuels, coolants, lubricants etc. - capacities
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Gasoline additives
A major concern among engine manufacturers is carbon
build up caused by gasoline. Mercedes-Benz
recommends the use of only quality gasoline containing
additives that prevent the build up of carbon deposits.
After an extended period of using fuels without such
additives, carbon deposits can build up especially on the
intake valves and in the combustion area, leading to
engine performance problems such as:
•warm-up hesitation,
•unstable idle,
•knocking/pinging,
•misfire,
•power loss.
Do not blend other specific fuel additives with fuel.
They only result in unnecessary cost, and may be
harmful to the engine operation.
Damage or malfunctions resulting from poor fuel
quality or from blending specific fuel additives are not
covered by the Mercedes-Benz Limited Warranty.
Coolants
The engine coolant is a mixture of water and
anticorrosion/antifreeze, which provides:
•corrosion protection,
•freeze protection,
•boiling protection (by increasing the boiling point).
The cooling system was filled at the factory with a
coolant providing freeze protection to approximately
-22°F (-30°C) and corrosion protection.
If the antifreeze mixture is effective to -22°F (-30°C), the
boiling point of the coolant in the pressurized cooling
system is reached at approximately 266°F (130°C).
The coolant solution must be used year round to provide
the necessary corrosion protection and increase in the
boil-over protection. You should have it replaced every
3years.
To provide the important corrosion protection, the
solution must be at least 45% anticorrosion/antifreeze
(equals a freeze protection to approx. - 22°F [-30°C]). If
you use a solution that is more than 55% anticorrosion/
antifreeze (freeze protection to approx. - 49°F [-45°C]),
398Fuels, coolants, lubricants etc. - capacities
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
the engine temperature will increase due to the lower
heat transfer capability of the solution. Therefore, do not
use more than this amount of anticorrosion/antifreeze.
If the coolant level is low, water and MB anticorrosion/
antifreeze should be used to bring it up to the proper
level (have cooling system checked for signs of leakage).
The water in the cooling system must meet minimum
requirements, which are usually satisfied by normal
drinking water. If you are not sure about the water
quality, consult your authorized Mercedes-Benz Center.
Anticorrosion/antifreeze
Your vehicle contains a number of aluminium parts. The
use of aluminium components in motor vehicle engines
necessitates that anticorrosion/antifreeze coolant used
in such engines be specifically formulated to protect the
aluminium parts. (Failure to use such anticorrosion/
antifreeze coolant will result in a significantly
shortened service life.)
Therefore the following product is strongly
recommended for use in your vehicle: Mercedes-Benz
anticorrosion/antifreeze agent.
Before the start of the winter season (or once a year in
the hot southern regions), you should have the
anticorrosion/antifreeze concentration checked. The
coolant is also regularly checked each time you bring
your vehicle to your authorized Mercedes-Benz Center
for service.
Anticorrosion/antifreeze quantity
Model Approx. freeze protection
– 35°F
(– 37°C)
– 49°F
(– 45°C)
CL 500,
CL 55 AMG
6.1 US qt
(5.75 l)
6.7 US qt
(6.3 l)
CL 600 6.3 US qt
(6.0 l)
7.0 US qt
(6.6 l)
399Consumer information
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Consumer information
This has been prepared as required of all manufactures
of passenger cars under Title 49, Code of U.S. Federal
Regulations, Part 575 pursuant to the “National Traffic
and Motor Vehicle Safety Act of 1966”.
Uniform tire quality grading
Quality grades can be found where applicable on the
tire sidewall between tread shoulder and maximum
section width. For example:
All passenger car tires must conform to federal safety
requirements in addition to these grades.
Treadwear
The treadwear grade is a comparative rating based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half
(1 1/2) times as well on the government course as a tire
graded 100. The relative performance of tires depends
upon the actual conditions of their use, however, and
may depart significantly from the norm due to
variations in driving habits, service practices and
differences in road characteristics and climate.
Traction
The traction grades, from highest to lowest are AA, A, B,
and C. Those grades represent the tire’s ability to stop
on wet pavement as measured under controlled
conditions on specified government test surfaces of
asphalt and concrete. A tire marked C may have poor
traction performance.
Tread wear 200 Traction AA Temperature A Warning!
The traction grade assigned to this tire is based on
straightahead braking traction tests, and does not
include acceleration, cornering, hydroplaning, or
peak traction characteristics.
400Consumer information
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Temperature
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of
heat and its ability to dissipate heat when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life,
and excessive temperature can lead to sudden tire
failure. The grade C corresponds to a level of
performance which all passenger car tires must meet
under the Federal Motor Vehicle Safety Standard
No. 109. Grades B and A represent higher levels of
performance on the laboratory test wheel than the
minimum required by law.
Warning!
The temperature grade for this tire is established
for a tire that is properly inflated and not
overloaded. Excessive speed, underinflation, or
excessive loading, either separately or in
combination, can cause excessive heat build up
and possible tire failure.
401Index
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Index
A
ABS (Antilock brake system) .......................................269
Malfunction indicator lamp .....................................294
ACTIVE BODY CONTROL -
malfunction and warning messages ...................... 310
Active body control (ABC) ............................................275
Active body control (ABC) fluid level .........................332
Air conditioner refrigerant ...........................................395
Air distribution, manual ...............................................169
Air volume, manual ....................................................... 169
Airbag deactivation system ............................................88
Airbag OFF indicator lamp ...........................................296
Airbags ..............................................................................92
Front airbags ...............................................................92
Side impact airbags ....................................................95
Window curtain airbags .............................................95
Alarm system ............................................................. 62, 64
Anticorrosion/antifreeze ................... 247, 333, 393, 398
Antiglare night position ...............................................106
Antilock brake system (ABS) .......................................269
Malfunction indicator lamp .....................................294
Antitheft alarm system ...................................................62
Aquaplaning .................................................................. 244
Armrest, rear bench .......................................................195
Ashtrays ...........................................................................196
Center console, front ................................................196
Rear seats ...................................................................197
Audio systems .................................................................125
Cassette player ..........................................................127
CD player ....................................................................126
Radio ...........................................................................125
Automatic central locking ..............................................52
Automatic climate control ............................................164
Activated charcoal filter ...........................................172
Adjustable air outlets,
rear passenger compartment .............................177
Air distribution, manual ..........................................169
Air recirculation ........................................................ 171
Air volume, manual ..................................................169
Basic setting ...............................................................168
Defogging windows ...........................................170, 171
Defrosting ...................................................................170
Display and controls .................................................166
Dust filter ...................................................................167
Economy mode ..........................................................173
Front center console
storage compartment ventilation .......................175
Rear window defroster ............................................. 176
402Index
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Residual engine heat utilization ............................ 174
Special settings ......................................................... 169
Switching on and off ................................................175
Windows fogged on the inside ................................ 170
Windows fogged on the outside .............................. 171
Automatic transmission ...............................................229
Emergency operation ...............................................237
Fluid level ...................................................................332
Program mode selector switch ...............................236
Selector lever position ..............................................232
B
BabySmartTM airbag deactivation system .....................88
Self-test .........................................................................89
Backrest .............................................................................72
BAS (Brake assist system) ............................................268
Battery .............................................................................346
Battery recycling .......................................................348
BATTERY/ALTERNATOR -
malfunction and warning messages ......................299
Block heater ....................................................................249
BRAKE ASSIST - malfunction
and warning messages ............................................300
Brake assist system (BAS) ............................................268
Brake fluid ...........................................240, 292, 393, 395
BRAKE FLUID -
malfunction and warning messages ......................301
BRAKE LINING WEAR -
malfunction and warning messages ......................301
Brake pad wear ...............................................................301
Brake warning lamp ..................................................... 292
Brake fluid low ......................................................... 292
Brakes ...................................................238, 240, 268, 272
C
Capacities
Fuels, coolants, lubricants etc. .............................. 393
Card, KEYLESS-GO ..........................................................28
Cargo tie-down hooks ................................................... 200
Catalytic converter ........................................................ 220
Center console ..................................................................24
Center console lighting .................................................185
Central locking switch ....................................................50
Central locking system ....................................................34
Automatic central locking .........................................52
Central locking switch ...............................................50
Choosing global or selective mode .....................37, 43
Electronic main key ....................................................29
403Index
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
KEYLESS-GO-card ....................................................... 31
Locking and unlocking ..............................................36
Locking and unlocking
with KEYLESS-GO-card .........................................40
Mechanical keys .......................................................... 47
Remote control ............................................................28
Simultaneous use of electronic main key
and KEYLESS-GO-card ..........................................44
Summer opening/convenience feature ...................45
Changing batteries in the KEYLESS-GO-card ...........366
Changing wheels ...........................................................340
CHECK ENGINE
malfunction indicator lamp .....................................290
Check regularly and before a long trip ......................287
Checking engine oil level
Via engine oil level indicator ..................................154
Via oil dipstick ...........................................................331
Child restraint ............................................ 70, 82, 88, 102
Cleaning and care of the vehicle ................................. 374
Coat hooks ...................................................................... 192
COMAND, radio and telephone ...................................208
Combination switch ......................................................160
Consumer information ..................................................399
Control and operation of radio transmitters .............208
COOLANT (coolant level) -
malfunction and warning messages ......................304
COOLANT (coolant temperature) -
malfunction and warning messages ..................... 305
Coolant level
Adding ........................................................................ 333
Checking .................................................................... 333
Coolant temperature gauge .......................................... 117
Coolants .......................................................................... 397
Anticorrosion/antifreeze quantity ........................ 398
Courtesy lighting ........................................................... 185
Cruise control ................................................................ 250
CRUISE CONTROL -
malfunction and warning messages ..................... 309
Cup holder
Center console, front ................................................193
Rear bench armrest ...................................................195
D
Dashboard .........................................................................22
Daytime running lamps ................................................158
Deep water
Driving instructions ................................................ 248
DISPLAY DEFECTIVE (engine control unit) -
malfunction and warning messages ..................... 298
DISPLAY DEFECTIVE (several systems) -
malfunction and warning messages ..................... 298
404Index
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Display illumination .......................................................116
Distronic (DTR) ...................................................... 133, 253
Activation of Distronic .............................................256
Additional driving hints ..........................................261
Cleaning sensor ........................................................378
Deactivation of Distronic .........................................258
Displays in the speedometer dial ...........................267
Distance warning function ......................................264
Distronic settings ......................................................265
Driving with Distronic activated ............................259
Invalid attempts to activate .....................................257
Multifunction display ...............................................266
Warning lamp ............................................................295
DISTRONIC (DTR) -
malfunction and warning messages ......................321
DOOR -
malfunction and warning messages ...................... 316
Door control panel ...........................................................20
Door entry lamps ...........................................................185
Doors ..................................................................................48
Power closing assist ...................................................50
Drinking and driving ....................................................239
Drive sensibly - save fuel ..............................................239
Driving instructions ......................................................239
Driving off .......................................................................241
E
Easy-entry/exit feature ...................................................66
ELEC. STABIL. PROGR. -
malfunction and warning messages ..................... 303
Electronic main key .........................................................29
Changing batteries .................................................. 363
Synchronizing remote control ............................... 365
Electronic stability program (ESP) ..............................271
Warning lamp ........................................................... 295
Emergency call
See Tele Aid ...............................................................210
Emergency engine shut-down ..................................... 368
Emergency operation of sliding/pop-up roof ............ 369
Emergency tensioning retractor (ETR) ......................... 91
Emergency trunk lid release button ............................. 61
Emergency unlocking in case of accident ...................52
Emission control ............................................................221
Emission control label .................................................. 386
Engine compartment .................................................... 328
Engine malfunction
CHECK ENGINE
malfunction indicator lamp ............................... 290
Engine oil additives ...................................................... 395
Engine oil consumption ................................................155
405Index
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Engine oil level
Checking ....................................................................331
Warning .............................................................. 314, 318
ENGINE OIL LEVEL -
malfunction and warning messages .............. 314, 318
ENGINE OIL LEVEL - NOT WHEN ENGINE ON
(measuring) - multifunction indicator ...................154
Engine oil level indicator .............................................. 154
Engine oils ......................................................................395
Entrance lamps, exit lamps ..........................................185
ENTRANCE POSITION -
malfunction and warning messages ......................300
ESP (Electronic stability program) .............245, 271, 353
Control switch ...........................................................273
Malfunction and warning messages ......................303
Synchronizing ...........................................................272
Exterior lamp
malfunction and warning messages ......................306
Exterior lamp switch .....................................................156
Daytime running lamp mode .................................. 158
Headlamp cleaning system ..................................... 159
Exterior lamps ................................................................354
License plate lamps ..................................................360
Low and high beam ..................................................355
Parking lamps ...........................................................357
Replacing bulbs .........................................................354
Side marker lamp, front .......................................... 360
Standing lamps ......................................................... 357
Taillamp assemblies ................................................ 358
Turn signal lamp ...................................................... 357
Exterior mirror adjustment ..........................................107
Exterior mirror, front passenger side,
parking position ........................................................108
Exterior rear view mirrors ............................................107
Electrically folding ....................................................109
Parking position ........................................................108
F
Fastening seat belts .........................................................85
First aid kit ..................................................................... 324
Flexible service system (FSS) ......................................147
Footwell lighting ............................................................185
Front airbags ....................................................................92
Front center console
storage compartment ventilation ............................175
Front seat adjustment .....................................................67
Fuel
Gasoline additives .................................................... 397
Premium unleaded gasoline ..................285, 394, 396
Fuel cap placement warning
406Index
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
See CHECK ENGINE
malfunction indicator lamp ................................290
Fuel filler flap, manual release ...................................368
Fuel requirements .........................................................396
Fuel reserve warning ....................................................293
Fuels, coolants, lubricants etc. - capacities ...............393
Fuses, electrical .............................................................325
G
Garage door opener .......................................................202
Gasoline
Additives ....................................................................397
Fuel requirements ....................................................396
Premium unleaded ...................................................396
General notes on the central locking system ..............33
Glove box .........................................................................189
H
Hazard warning flasher switch ...................................163
Head restraints
Power head restraints, rear ....................................... 81
Head restraints, front seats
Removal and installation ........................................... 71
Headlamp adjustment .................................................. 354
Headlamp cleaning system ...........................................159
Headlamp mode (HEADLAMPS) ..................................157
Headlights .......................................................................156
Heated seats ...................................................................... 76
Hood ................................................................................ 328
HOOD -
malfunction and warning messages ......................317
I
Identification labels ...................................................... 385
Illuminated vanity mirrors ...........................................187
Indicator lamps in the instrument cluster ........ 114, 290
Individual settings .........................................................138
"INSTRUMENT CLUSTER" .......................................140
"LIGHTING" ................................................................142
"VEHICLE" .................................................................144
Infant and child restraint systems ..............................102
Installation .................................................................104
Information call
See Tele Aid ...............................................................210
Infrared reflecting windshield .................................... 206
Inside rear view mirror .................................................106
INSTRUMENT CLUSTER
407Index
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
See individual settings ............................................ 140
Instrument cluster ..........................................................114
Activating ....................................................................116
Instrument cluster illumination ...................................116
Instrument lamps ...........................................................116
Instruments and controls ............................................... 18
Interior
General notes .............................................................188
Interior lighting ............................................................. 184
J
Jack ...................................................................................336
Jump starting ..................................................................349
K
KEYLESS-GO .....................................................................38
Changing batteries in the card ...............................366
Checking last KEYLESS-GO-card locking mode .....43
Choosing global or selective mode ...........................43
Easy-entry/exit feature ..............................................66
Starting the engine ...................................................227
Turning off the engine .............................................228
KEYLESS-GO-card ......................................................28, 31
Convenience feature ...................................................45
Keys, vehicle .....................................................................28
L
Lamps, exterior .............................................................. 354
Headlamps ................................................156, 306, 377
License plate lamp ................................................... 360
Low and high beam .................................................. 355
Parking lamps ........................................................... 357
Replacing bulbs ........................................................ 354
Side marker lamp, front .......................................... 360
Standing lamps ......................................................... 357
Taillamp assemblies ................................................ 358
Turn signal lamp ...................................................... 357
Layout of poly-V-belt drive ........................................... 387
Level control system ......................................................276
LIGHT SENSOR - malfunction
and warning messages ....................................308, 320
Lighter .............................................................................198
LIGHTING
See individual settings .............................................142
LIGHTING SYSTEM - malfunction
and warning messages ............................................ 306
Limp home mode (Automatic transmission) ............ 237
408Index
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Locking and unlocking ............................................ 36, 40
Low engine coolant level warning ..............................304
Lumbar support ............................................................... 74
M
Maintenance ...................................................................209
Malfunction and indicator lamps
in the instrument cluster .........................................290
Malfunction and warning messages ...........................297
ACTIVE BODY CONTROL ......................................... 310
BATTERY/ALTERNATOR ..........................................299
BRAKE ASSIST ..........................................................300
BRAKE FLUID ............................................................301
BRAKE LINING WEAR .............................................301
COOLANT (coolant level) .........................................304
COOLANT (coolant temperature) ...........................305
CRUISE CONTROL ....................................................309
DISPLAY DEFECTIVE (engine control unit) .........298
DISPLAY DEFECTIVE (several systems) ...............298
DISTRONIC (DTR) .....................................................321
DOOR .......................................................................... 316
ELEC. STABIL. PROG. ...............................................303
ENGINE OIL LEVEL .......................................... 314, 318
ENTRANCE POSITION .............................................300
HOOD .......................................................................... 317
KEY .............................................................................. 316
LIGHT SENSOR .................................................308, 320
LIGHTING SYSTEM .................................................. 306
PARKING BRAKE ..................................................... 302
SEAT BACKREST ....................................................... 315
SEAT BELT SYSTEM ................................................. 308
TELE AID .................................................................... 317
TELEPHONE - FUNCTION ....................................... 309
TIRE PRESSURE ........................................................312
TRUNK OPEN ........................................................... 302
WASHER FLUID ......................................................... 319
Malfunction/warning message memory ....................136
Manual operation of sliding/pop-up roof .................. 369
Mechanical keys ...............................................................47
Memory function ............................................................111
Mirror, exterior
Parking position ........................................................108
Mirror, exterior, adjusting ............................................107
Mirror, exterior, parking position,
front passenger side .................................................108
Mirror, exterior, rear view ............................................107
Mirror, inside, rear view ...............................................106
Multicontour backrest ..................................................... 74
Multifunction display ....................................................120
Audio systems ............................................................125
409Index
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Cassette player ..........................................................127
CD Player ....................................................................126
Distronic (DTR) .......................................................... 133
Engine oil level indicator .........................................124
FSS ..............................................................................124
Individual settings .................................................... 138
Malfunction/warning message memory ............... 136
Radio ...........................................................................125
Telephone ...................................................................128
Telephone — Incoming call ...................................... 131
Telephone — Redialing .............................................130
Telephone book .........................................................128
Tire inflation pressure monitor ..............................124
Trip and main odometer ..........................................124
Trip computer ............................................................ 134
Multifunction steering wheel ......................................120
N
Navigation system .......................................................... 132
Night security illumination .........................................158
O
On-board diagnostic system ........................................ 290
Operator’s Manual .............................................................8
Outside temperature indicator ..................................... 117
Overhead control panel ...................................................21
P
Panic button ......................................................................47
Parcel net in front passenger footwell ....................... 200
Parcel net in trunk .........................................................199
Parking ........................................................................... 242
Parking assist (Parktronic) .......................................... 279
Parking brake .....................196, 227, 238, 242, 292, 340
PAR KI NG B RA KE - m a lf un ct io n
and warning messages ............................................ 302
Power assistance ........................................................... 240
Power closing assist
Doors and trunk lid ....................................................50
Power head restraints, rear ............................................81
Power seats, front
Backrest ........................................................................72
Seat ventilation system ..............................................79
Power windows ...............................................................178
Blocking of rear side window operation ................ 180
410Index
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Express opening and closing ..................................179
Opening and closing ..................................................45
Synchronizing ...........................................................180
Problems with your vehicle ........................................... 14
Product information .......................................................... 7
R
Radio transmitters .........................................................208
Rain sensor
See intermittent wiping ........................................... 161
Rear passenger compartment
adjustable air outlets ................................................177
Rear view mirror
Inside, automatic antiglare ..................................... 106
Rear view mirrors .......................................................... 106
Exterior .......................................................................107
Interior ........................................................................106
Storing mirror positions .......................................... 106
Rear window defroster ...................................................176
Rear window sunshade ................................................. 186
Remote control .................................................................28
Battery replacement .................................................363
Removal and installation of
front seat head restraints .......................................... 71
Replacement keys
Obtaining ......................................................................31
Replacing bulbs ............................................................. 354
Replacing wiper blades ................................................ 370
Reporting Safety Defects ................................................. 15
Reserve key .......................................................................30
Reserve warning lamp
Fuel reserve warning ............................................... 293
Residual engine heat utilization (REST) .................... 174
Roadside assistance .........................................................10
Roadside assistance call
See Tele Aid ...............................................................210
Roof rack ......................................................................... 372
S
SEAT BACKREST -
malfunction and warning messages ......................315
SEAT BELT SYSTEM -
malfunction and warning messages ..................... 308
Seat belts ...........................................................................82
Fastening ......................................................................85
Operation ......................................................................86
Seat belt nonusage warning system .........................83
Unfastening ..................................................................86
411Index
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Warning lamp ............................................................296
Seat belts and integrated restraint system ..................82
Seat heater ........................................................................ 76
Seat ventilation system ...................................................79
Seats
Front seat adjustment ................................................67
Service indicator
See Flexible service system (FSS) ..........................147
Setting the audio volume .............................................. 146
Shelf below rear window ..............................................327
Side impact airbags .........................................................95
Side marker lamp ..........................................................360
Simultaneous use of electronic main key
and KEYLESS-GO-card ...............................................44
Sliding/pop-up roof ....................................................... 181
Emergency operation ...............................................369
Opening and closing ..................................................45
Synchronizing ...........................................................183
Snow chains ....................................................................245
SOS-call
See Tele Aid ............................................................... 210
Spare wheel ....................................................................338
Spare wheel, vehicle tools,
storage compartment ................................................335
Special settings (Automatic climate control) ............ 169
SRS indicator lamp ........................................................293
SRS malfunction ...............................................................92
Standby bulb function ...................................................361
Start lock-out .....................................................................32
Electronic main key ....................................................32
KEYLESS-GO-card .......................................................32
Starter switch .........................................................222, 224
Starting and turning off the engine ........................... 227
Starting the engine
Electronic main key ................................................. 227
KEYLESS-GO ............................................................. 227
Steering lock
See Starter switch ............................................222, 224
Steering wheel
Easy-entry/exit feature ..............................................66
Storage compartment
Trunk floor ................................................................ 335
Storage compartment in the
rear passenger compartment ..................................192
Storage compartments and armrests ..........................188
Center console ...........................................................190
Glove box ....................................................................189
Storing mirror positions ...............................................107
Sun visors ........................................................................187
Supplemental restraint system (SRS) ...........................90
Synchronizing remote control .................................... 365
412Index
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
T
Tachometer ......................................................................119
Technical data ................................................................388
Electrical system .......................................................391
Main dimensions ......................................................392
Rims and tires ...........................................................389
Weights .......................................................................392
Tele Aid ........................................................................... 210
Emergency calls ........................................................ 211
Information ................................................................ 215
Initiating an emergency call manually ................. 213
Roadside Assistance ................................................. 214
TELE AID - malfunction
and warning messages ............................................ 317
Telephone ........................................................................128
General notes .............................................................201
Incoming call ............................................................. 131
Redialing .................................................................... 130
Telephone book .........................................................128
TELEPHONE - FUNCTION -
malfunction and warning messages ......................309
Telephones and two-way radios ...................................208
The first 1 000 miles (1 500 km) ................................209
Tire inflation pressure ..................................................345
Tire inflation pressure monitor ...................................150
Inquiry of present tire inflation pressure .............150
TIRE PRESSURE -
malfunction and warning messages ......................312
Tire traction ................................................................... 244
Tires ................................................................................ 399
Driving instructions ................................................ 243
Rims and tires .......................................................... 389
Rotating wheels ........................................................ 338
Tire inflation pressure ............................................ 345
Tire replacement ...................................................... 337
Winter driving instructions .................................... 247
Tow-away alarm ................................................................64
Towing the vehicle .........................................................351
Transmission ................................................................. 229
Traveling abroad ........................................................... 249
Trip computer .................................................................134
Trip odometer ................................................................. 119
Trunk .................................................................................53
Opening ........................................................................37
Power closing assist ....................................................50
Release switch .............................................................57
Release/close system ..................................................58
Trunk lid closing feature ...........................................55
Trunk lamp .....................................................................371
413Index
Technical
data
Instruments
and controls Operation Driving Instrument
cluster display Practical hints Car care Index
Trunk lid
Emergency release ..................................................... 61
Trunk lid release switch .................................................57
TRUNK OPEN -
malfunction and warning messages ......................302
Turn signal failure ......................................................... 160
Turn signals .................................................................... 160
Turning off the engine
Electronic main key ..................................................228
KEYLESS-GO ..............................................................228
U
Unlocking the vehicle with remote control .................36
Unlocking with KEYLESS-GO-card ...............................40
V
Vanity mirrors ................................................................187
VEHICLE
See individual settings ............................................ 144
Vehicle jack .....................................................................336
Vehicle keys ......................................................................28
Vehicle tools ....................................................................335
Ventilated seats ................................................................79
W
Warranty coverage ........................................................ 384
WA S H E R F L U I D -
malfunction and warning messages ...................... 319
Washing the vehicle ...................................................... 376
What you should know at the gas station ................. 284
Wheels ............................................................................ 337
Where to find it ................................................................ 13
Window curtain airbags ..................................................96
Windshield washer system .......................................... 334
Winter driving ............................................................... 247
Winter driving instructions ......................................... 246
Wiper blades, replacing ............................................... 370
Service and Literature
Your authorized Mercedes-Benz Center has trained technicians and original Mercedes-Benz parts to service your
vehicle properly. For expert advice and quality service, see your authorized Mercedes-Benz Center.
If you are interested in obtaining service literature for your vehicle, please contact your authorized Mercedes-Benz
Center. We consider this the best way for you to obtain accurate information for your vehicle.
For further information you can find us on the Mercedes-Benz site www.mbusa.com.
We reserve the right to modify the technical details of the vehicle as given in the data and illustrations of this
Operator’s Manual. Reprinting, translation and copying, even of excerpts, is not permitted without our prior
authorization in writing.
Title illustration no. P00.00-2835-26
Press time 10/31/00
MBUSA/TI
Printed in the U.S.A.
Warning!
To help avoid personal injury, be extremely careful when performing any service work or repairs. Improper
or incomplete service or the use of incorrect or inappropriate parts or materials may damage the vehicle or its
equipment, which may in turn result in personal injury.
If you have any question about carrying out some service, turn to the advice of an authorized Mercedes-Benz
Center.
Order No. 65152136 13 Part No. 215 5842282 USA Edition B 2001
