Introductory Information
Safety Restraints
Starting Your Cougar
Warning Lights and Gauges
Instrument Panel Controls
Steering Column Controls
Features

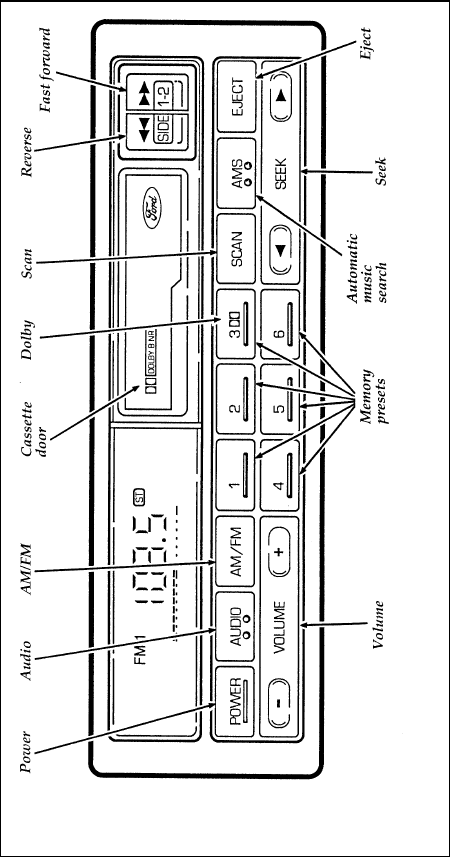

Electronic Sound Systems
Driving Your Cougar
Roadside Emergencies
Customer Assistance

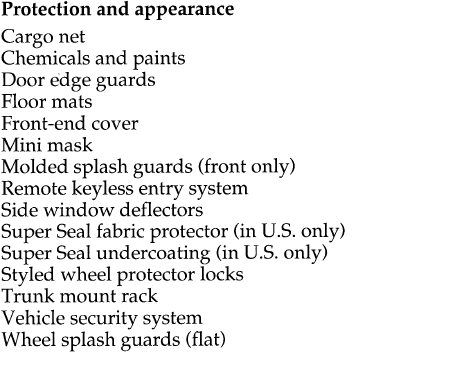

Accessories
Servicing Your Cougar

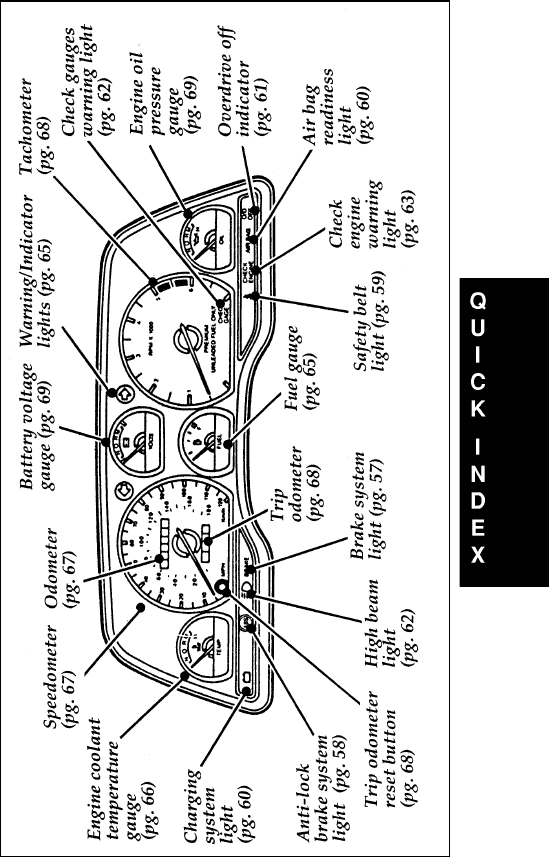

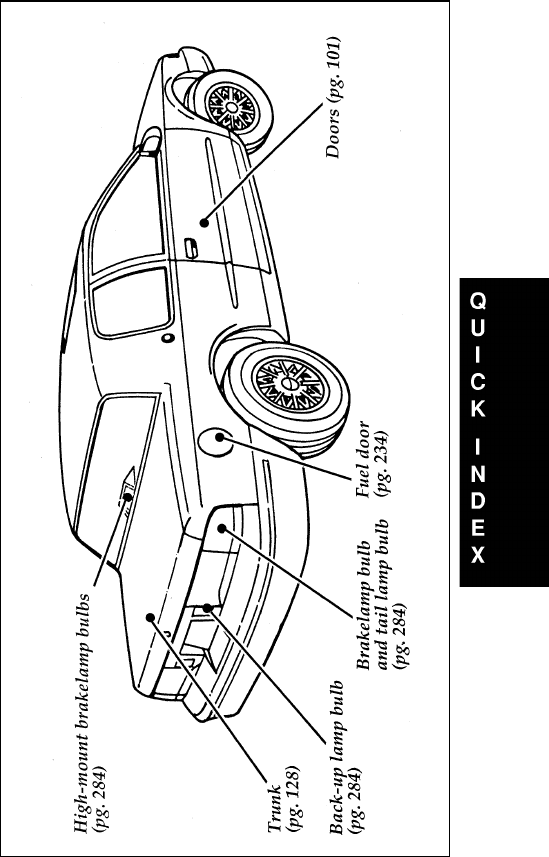

Quick Index
Index
Service Station Information

Introductory Information

*[IN00300( ALL)04/95] Ford’s Commitment to You

*[IN00500( ALL)04/95] Our Guiding Principles

*[IN00600( ALL)04/95] ❑Quality comes first. For your satisfaction, the

quality of our products and services must be

our number one priority.

*[IN00700( ALL)04/95] ❑You are the focus of everything we do. Our

work must be done with you in mind,

providing better products and services than

our competition.

*[IN00750( ALL)04/95] ❑Continuous improvement is essential to our

success. We must strive for excellence in

everything we do: in our products — in their

safety and value — and in our services, our

human relations, our competitiveness, and

our profitability.

*[IN00800( ALL)04/95] ❑Employee involvement is our way of life.

We are a team. We must treat one another

with trust and respect.

*[IN00900( ALL)04/95] ❑Dealers and suppliers are our partners. We

must maintain mutually beneficial

relationships with dealers, suppliers, and our

other business associates.

*[IN01000( ALL)04/95] ❑Integrity is never compromised. Our conduct

worldwide must be pursued in a manner that

is socially responsible and commands respect

for its integrity and for its positive

contributions to society.

File:rcinc.ex

Update:Mon Jun 12 16:51:59 1995

*[IN01100( ALL)04/95] Things to Know About Using

This Guide

*[IN01200( ALL)04/95] Congratulations on the purchase of your new

vehicle. This guide has information about the

equipment and the options for your new vehicle.

You may not have bought all of the options

available to you. If you do not know which

information applies to your vehicle, talk to your

dealer.

*[IN01300( ALL)04/95] This guide describes equipment and gives

specifications for equipment that was in effect

when this guide was approved for printing. Ford

may discontinue models or change specifications

or design without any notice and without

incurring obligation.

*[IN01400( ALL)05/95] NOTES and WARNINGS

*[IN01420( ALL)05/95] NOTES give you additional information about

the subject matter you are referencing.

*[IN01440( ALL)05/95] WARNINGS remind you to be especially careful

in those areas where carelessness can cause

damage to your vehicle or personal injury to

yourself, your passengers or other people. Please

read all WARNINGS carefully.

*[IN01460( ALL)05/95] RWARNING

*[IN01500( ALL)04/95] Finding Information in This Guide

*[IN01600( ALL)04/95] After you have read this guide once, you will

probably return to it when you have a specific

question or need additional information. To help

you find specific information quickly, you can

use the Quick Index or the Index.

File:rcinc.ex

Update:Mon Jun 12 16:51:59 1995

*[IN01700( ALL)05/95] The Quick Index at the end of the book

provides a page number following each item

which indicates where detailed information can

be found.

*[IN01900( ALL)04/95] To use the Index, turn to the back of the book

and search in the alphabetical listing for the

word that best describes the information you

need. If the word you chose is not listed, think

of other related words and look them up. We

have designed the Index so that you can find

information under a technical term.

%*[IN02000( ALL)04/95] Canadian Owners — French Version

*[IN02100( ALL)04/95] French Owner Guides can be obtained from your

dealer or by writing to Ford Motor Company of

Canada, Limited, Service Publications, P.O. Box

1580, Station B, Mississauga, Ontario L4Y 4G3.

*[IN02400( ALL)04/95] Your Maintenance Schedule and

Record Booklet

*[IN02500( ALL)03/95] The Maintenance Schedule and Record booklet lists

the services that are most important for keeping

your vehicle in good condition. A record log is

also provided to help you keep track of all

services performed.

%*[IN02600( ALL)01/95] About the Warranties

[IN02700( ALL)12/94] Your vehicle is covered by three types of

warranties: Basic Vehicle Warranty, Extended

Warranties on certain parts, and Emissions

Warranties.

%*[IN03100( ALL)03/95] Read your Warranty Information Booklet carefully

to find out about your vehicle’s warranties and

your basic rights and responsibilities.

File:rcinc.ex

Update:Mon Jun 12 16:51:59 1995

*[IN03250( ALL)03/95] If you lose your Warranty Information Booklet, you

can get a new one free of charge. Contact any

Ford or Lincoln-Mercury dealer, or refer to the

addresses and phone numbers on the first page

of this owner guide.

%*[IN04000( ALL)01/95] Buying a Ford Extended Service Plan

*[IN04100( ALL)01/94] If you bought your vehicle in the U.S., you can

buy a Ford Extended Service Plan for your

vehicle. This optional contract provides service

protection for a longer period of time than the

basic warranty that comes with your vehicle.

*[IN04200( ALL)01/95] You do not have to buy this option when you

buy your vehicle. However, your option to

purchase the Ford Extended Service Plan runs

out after 18 months or 18,000 miles. See your

dealer for more details about the Ford Extended

Service Plan.

*[IN04250( ALL)01/95] If you purchased a Canadian vehicle and did not

take advantage of the Ford Extended Service

Plan at the time of purchase, you may still be

eligible. See your dealer for the details.

%*[IN06000( ALL)01/95] Breaking Your Vehicle In

*[IN06100( ALL)03/95] Your new vehicle goes through an adjustment or

break-in period during the first 1,000 miles

(1,600 km) that you drive it. During the break-in

period, you need to pay careful attention to how

you drive your vehicle.

%*[IN06300( ALL)01/95] ❑Avoid sudden stops. Because your vehicle

has new brake linings, you should take these

steps:

*[IN06400( ALL)01/95] —Watch traffic carefully so that you can

anticipate when to stop.

*[IN06500( ALL)01/95] —Begin braking well in advance.

*[IN06600( ALL)01/95] —Apply the brakes gradually.

File:rcinc.ex

Update:Mon Jun 12 16:51:59 1995

*[IN06700( ALL)01/95] The break-in period for new brake linings

lasts for 100 miles (160 km) of city driving or

1,000 miles (1,600 km) of highway driving.

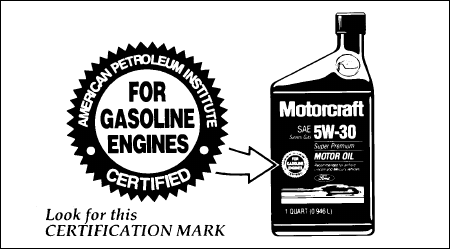

%*[IN06800( ALL)01/95] ❑Use only the type of engine oil that Ford

recommends. See Engine oil recommendations

in the Index. Do not use special “break-in”

oils.

*[IN07000( ALL)04/95] Your vehicle is equipped with an Electronic

Powertrain Control Module that limits engine

and/or vehicle speeds with a cut-out mode to

promote durability.

%*[IN07100( ALL)04/95] Cleaning the Outside of Your

Vehicle

*[IN07130( ALL)05/95] Pollen, bird droppings and tree sap can damage

the paint, especially in hot weather. Wash your

vehicle as often as necessary to keep it clean.

*[IN07160( ALL)05/95] Take similar precautions if your vehicle is

exposed to chemical industrial fallout.

*[IN07190( MVBCG )05/95] Paint damage resulting from fallout is not

related to a defect in paint materials or

workmanship and therefore is not covered by

warranty. Ford, however, believes that continual

improvement in customer satisfaction is a high

priority. For this reason, Ford has authorized its

dealers to repair, at no charge to the owner, the

surfaces of new vehicles damaged by

environmental fallout within 12 months or 12,000

miles (20,000 km) of purchase, whichever comes

first. Customers may be required to bring their

vehicle in for inspection by a Ford

representative.

File:rcinc.ex

Update:Mon Jun 12 16:51:59 1995

%*[IN07200( ALL)04/95] Washing and Polishing Your Vehicle

*[IN07300( ALL)04/95] Wash the outside of your vehicle, including the

underside, with a mild detergent.

*[IN07400( ALL)04/95] DO NOT:

*[IN07500( ALL)04/95] ❑Wash your vehicle with hot water

*[IN07600( ALL)04/95] ❑Wash your vehicle while it sits in direct

sunlight

*[IN07700( ALL)04/95] ❑Wash your vehicle while the body is hot

*[IN08100( ALL)04/95] Polish your vehicle to remove harmful deposits

and protect the finish.

%*[IN08200( ALL)04/95] Cleaning Chrome and Aluminum Parts

*[IN08300( ALL)04/95] Wash chrome and aluminum parts with a mild

detergent. Do not use steel wool, abrasive

cleaners, fuel, or strong detergents.

%*[IN08400( ALL)04/95] Cleaning Plastic Parts

*[IN08500( ALL)04/95] Some of your vehicle’s exterior trim parts are

plastic. Clean with a tar and road oil remover if

necessary. Use a vinyl cleaner for routine

cleaning.

*[IN08600( ALL)04/95] Do not clean plastic parts with thinners, solvents

or petroleum-based cleaners.

%*[IN08700( ALL)04/95] If you have your vehicle rustproofed, remove

oversprayed rustproofing with a tar and road oil

remover. If rustproofing is not removed from

plastic and rubber parts, it can cause

deterioration.

File:rcinc.ex

Update:Mon Jun 12 16:51:59 1995

Safety Restraints

%*[SR00500( ALL)04/95] Important Safety Belt Information

*[SR00600( ALL)03/95] The use of safety belts helps to restrain you and

your passengers in case of a collision. In most

states and in Canada the law requires their use.

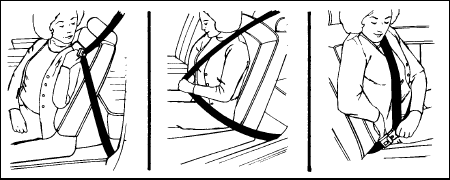

*[SR00800( ALL)01/95] Safety belts provide best restraint when:

*[SR00900( ALL)01/95] ❑the seatback is upright

*[SR01000( ALL)01/95] ❑the occupant is sitting upright (not slouched)

*[SR01100( ALL)01/95] ❑the lap belt is snug and low on the hips

*[SR01200( ALL)01/95] ❑the shoulder belt is snug against the chest

*[SR01300( ALL)01/95] ❑the knees are straight forward

*[SR02100( ALL)05/95] To help you remember to fasten your safety belt,

a warning light may come on and a chime may

sound. See Safety Belt Warning Light and Chime in

the Warning Lights and Gauges chapter.

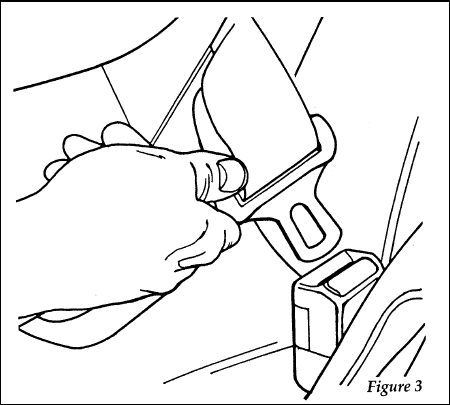

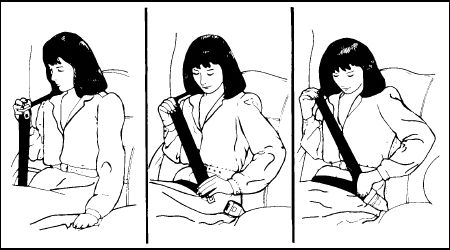

*[SR02500( ALL)01/95] See the following sections in this chapter for

directions on how to properly use these safety

belts. Also see Safety Restraints for Children in this

chapter for special instructions about using

safety belts for children.

%*[SR02600( ALL)05/95] RWARNING

Make sure that you and your passengers

wear safety belts. Always drive and ride

with your seatback upright and the lap

belt snug and low across the hips.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

*[SR02700( ALL)03/95] RWARNING

Never wear the shoulder belt under the

arm. Never swing it around the neck over

the inside shoulder. Never use a single

belt for more than one person or across

more than one seating position. Each

seating position in your vehicle has a

specific safety belt assembly which is

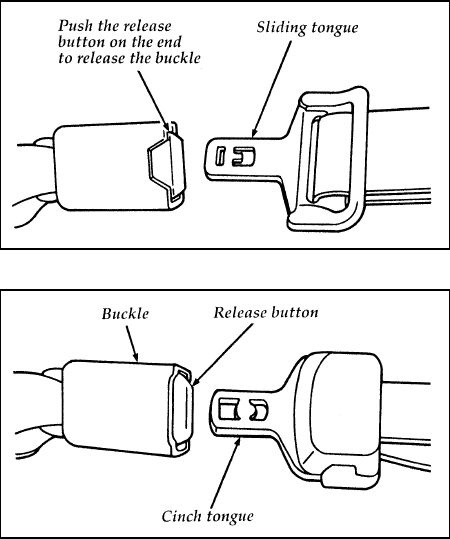

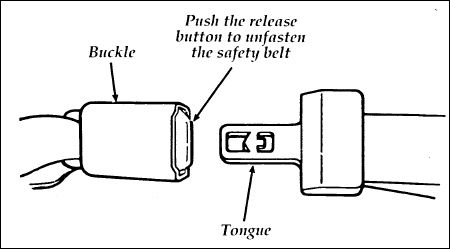

made up of one buckle and one tongue

that are designed to be used as a pair.

Failure to follow these precautions could

increase the risk and/or severity of injury

in a collision.

*[SR02801( ALL)05/95] RWARNING

Ford recommends that all safety belt

assemblies and attaching hardware should

be inspected by a qualified technician

after any collision. Safety belt assemblies

not in use during a collision should also

be inspected and replaced if either

damage or improper operation is noted.

*[SR02901( ALL)05/95] RWARNING

To reduce the risk of serious injury in a

collision, children should always ride with

the seatback upright.

*[SR03001( ALL)05/95] RWARNING

Never let a passenger hold a child on his

or her lap while the vehicle is moving.

The passenger cannot protect the child

from injury in a collision.

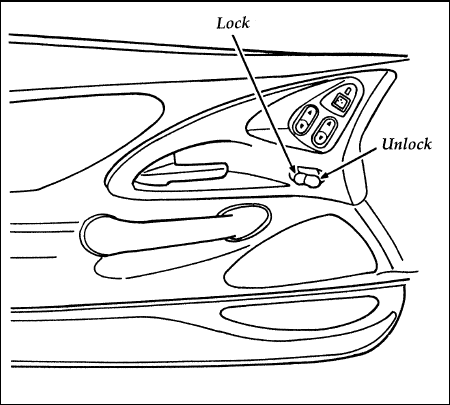

*[SR03200( ALL)05/95] Lock the doors of your vehicle before driving to

lessen the risk of the door coming open in a

collision.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

[SR03700( ALL)05/95] Combination Lap and Shoulder

Belts

*[SR03800( ALL)01/95] While your vehicle is in motion, the combination

lap and shoulder belt adjusts to your movement.

However, if you brake hard, corner hard or if

your vehicle receives an impact of 5 mph

(8 km/h) or more, the lap and shoulder belt

locks and helps reduce your forward movement.

*[SR04100( ALL)05/95] After you get into your vehicle, close the door

and lock it. Then adjust the seat to the position

that suits you best.

[SR04400( ALL)06/93] To fasten the belt, pull the lap/shoulder belt

from the retractor so that the shoulder portion of

the belt crosses your shoulder and chest. Be sure

the belt is not twisted. If it is, remove the twist.

Insert the belt tongue into the proper buckle

until you hear a snap and feel it latch. Make

sure the tongue is securely fastened in the

buckle.

*[SR04550( BCGV)01/95]

quarter page art:0010018-B

Fastening the front seat combination lap and shoulder belt

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

[SR04600( BCGV)03/95]

one third page art:0010502-A

Fastening the rear seat combination lap and shoulder belt

*[SR04675( ALL)05/95] NOTE: Be sure to read and understand

Important Safety Belt Information at

the beginning of this chapter.

% [SR04677( BC )05/95] Safety Belts for the Front Passenger

Outboard Seating Positions

[SR04680( BC )03/95] Your vehicle is equipped with a dual locking

mode retractor on the shoulder belt portion of

the combination lap/shoulder safety belt for

front seat passengers and a locking “cinch

tongue” for rear outboard passengers.

*[SR04682( ALL)05/95] Dual locking mode retractors operate in two

ways:

*[SR04683( ALL)03/95]

Vehicle sensitive (emergency) locking mode

[SR04684( ALL)03/95] In this operating mode, the shoulder belt

retractor will allow the occupant freedom of

movement, locking tight only on hard braking,

hard cornering or impacts of approximately

5 mph (8 km/h) or more. The retractor can also

be made to lock by pulling/jerking on the belt.

%*[SR04685( ALL)04/95]

Automatic locking mode

[SR04686( ALL)03/95] In this operating mode, the shoulder belt

retractor will be automatically locked and remain

locked when the combination lap/shoulder

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

safety belt is buckled, and does not allow the

occupant freedom of movement. This mode

provides the following:

[SR04687( ALL)03/95] ❑A tight lap/shoulder belt fit on the occupant.

[SR04688( ALL)03/95] ❑Child seat or infant carrier installation

restraint.

*[SR04689( ALL)05/95] RWARNING

Never install a rear-facing child seat or

infant carrier in the right front passenger

seat.

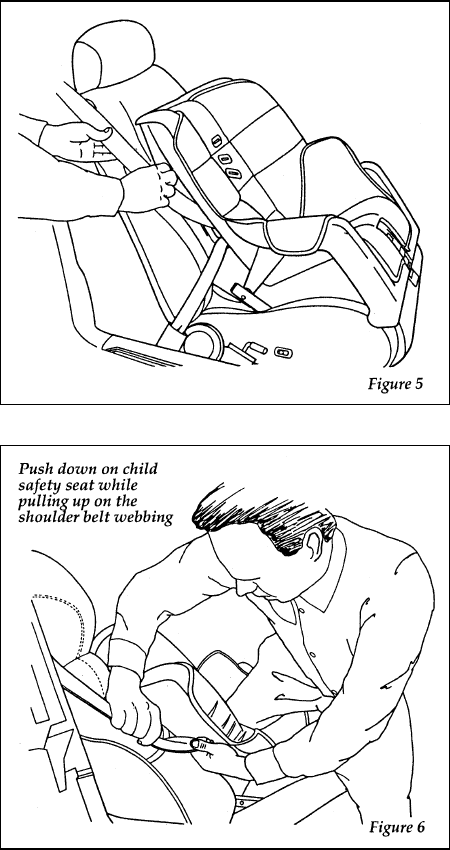

*[SR04690( ALL)03/95] This mode must be used when installing a child

safety seat on the front passenger seat and rear

outboard seats where dual locking retractors are

provided.

*[SR04691( ALL)04/95] To switch the retractor from the emergency

locking mode to the automatic locking mode,

perform the following steps:

*[SR04692( ALL)03/95] 1. Buckle the lap/shoulder combination belt.

*[SR04693( ALL)03/95] 2. Grasp the shoulder portion of the belt and

pull downward until all of the belt is

extracted, and when allowed to retract, a

clicking sound will be heard. At this time,

the belt retractor is in the automatic locking

mode (child restraint mode).

*[SR04694( ALL)05/95] 3. A clicking sound will contnue to be heard as

the belt is allowed to retract.

[SR04695( ALL)03/95] NOTE: When the combination lap/shoulder

belt is unbuckled and allowed to

retract completely, the retractor will

switch back to the vehicle sensitive

(emergency) locking mode. See the

detailed instructions under Safety Seats

for Children in this chapter.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

% [SR05305( BC )03/95] Safety Belts with Locking Cinch Tongue

for Rear Outboard Seating Positions

[SR05307( BC )04/95] Your vehicle is equipped with safety seat belts

containing a cinch tongue at the rear outboard

seating positions.

*[SR05310( BC )03/95] The locking cinch tongue will slide up and

down the belt webbing when the belt is in the

stowed position or while putting seat belts on.

When the locking cinch tongue of the

lap/shoulder combination seat belt is latched

into the buckle, the cinch tongue will allow the

lap portion to become shorter, but locks the

webbing in place to restrict it from becoming

longer.

*[SR05320( BC )03/95] Before you can reach and latch a combination

lap and shoulder belt having a cinch tongue into

the buckle, you may have to lengthen the lap

belt portion of it. To lengthen the lap belt, pull

some webbing out of the shoulder belt retractor.

While holding the webbing below the tongue,

grasp the tip (metal portion) of the tongue so

that it is parallel to the webbing and slide the

tongue upward. Provide enough lap belt length

so that the tongue can reach the buckle.

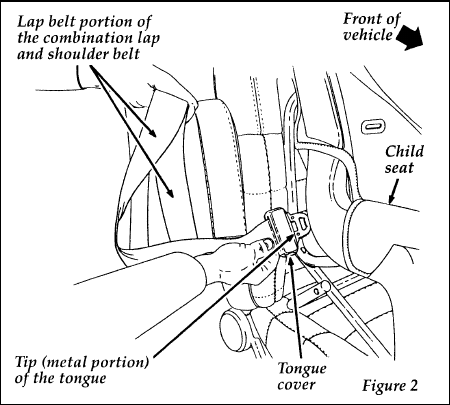

*[SR05325( BC )03/95] NOTE: If you grasp the tongue by the tongue

cover to lengthen the belt, the tongue

cover will grab the webbing, making it

difficult to slide.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

[SR05330( BC )05/95]

half page art:0011373-A

Adjusting the cinch tongue rear combination lap and

shoulder belt

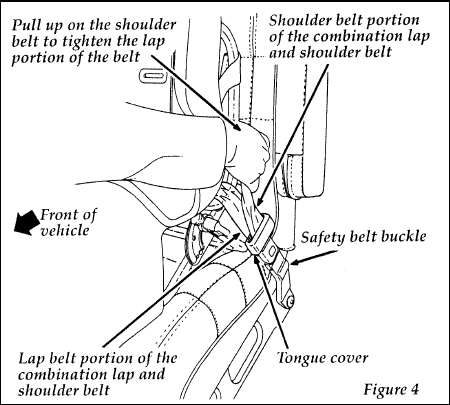

*[SR05335( BC )05/95] To fasten a cinch tongue, pull the combination

lap and shoulder belt from the retractor so that

the shoulder belt portion of the safety belt

crosses your shoulder and chest. Be sure the belt

is not twisted. If the belt is twisted remove the

twist. Insert the belt tongue into the proper

buckle for your seating position until you hear a

snap and feel it latch. Make sure the tongue is

securely fastened to the buckle by pulling on the

tongue.

*[SR05400( ALL)05/95] RWARNING

The lap belts should fit snugly and as low

as possible around the hips, not around

the waist.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

*[SR05500( BCGV)03/95] RWARNING

All front and rear seat outboard

occupants (including pregnant women)

should wear lap and shoulder belts, for

optimum protection in a collision.

*[SR05600( ALL)05/95] RWARNING

Failure to follow these precautions could

increase the risk and/or severity of injury

in a collision. 1) Use the shoulder belt on

the outside shoulder only. Never wear the

shoulder belt under the arm. 2) Never

swing it around your neck over the inside

shoulder. 3) Never use a single belt for

more than one person.

*[SR05630( BC )03/95] Due to folding rear seats, sometimes the buckles

and tongues toward the center of the vehicle

may be hidden by the rear edge of the seat

cushion. Pull them out so they will be accessible.

*[SR05635( BC )03/95] While you are fastened in the seat belt, the

combination lap/shoulder belt with a cinch

tongue adjusts to your movement. However, if

you brake hard, turn hard, or if your vehicle

receives an impact of 5 mph (8 km/h) or more,

the safety belt will become locked and help

reduce your forward movement.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

[SR05800( ALL)05/95] To unfasten all the belts:

[SR05900(MBC )06/93] 1. Push the release button on the end of the

buckle. This allows the tongue to unlatch

from the buckle.

[SR06200( BC )03/95]

one third page art:0011336-A

Unfastening the front outboard lap/shoulder belts

[SR06250( BC )05/95]

one third page art:0011370-A

Unfastening the rear outboard lap/shoulder belts

*[SR06600( ALL)03/95] 2. While the belt retracts, guide the tongue to

its stowed position. If you do not guide the

tongue, it may strike you or part of the

vehicle.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

% [SR09300( BC )05/95] Lap Belts — Rear Center Seating

Positions

*[SR09600( BC )05/95] The lap belt in the center of the rear seat does

not adjust automatically. You must adjust it to

fit snugly and as low as possible around your

hips. Do not wear it around your waist.

*[SR09701( BCGV)05/95] Pull the belt across your hips and insert the

tongue into the correct buckle on your seat

until you hear a snap and feel it lock. Make sure

the buckle is securely fastened.

%*[SR09801( BCGV)05/95] If you need to lengthen the belt, unfasten it and

tip the belt tongue at a right angle to the belt.

Pull the belt tongue over your lap until it

reaches the buckle.

*[SR09901( BCGV)05/95] If you need to shorten the belt, pull on the loose

end of the webbing until the belt fits snugly.

*[SR10300( BCGV)05/95] To unfasten the belt, push the release button on

the buckle. This allows the tongue to unlatch

from the buckle.

[SR10400( BC )11/92] Because the center lap belt does not have a

retractor, it should be shortened and fastened

when not in use.

[SR10620( BC )05/94]

one third page art:0000029-E

Unfastening center rear seat lap belt

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

%*[SR17500( ALL)05/95] Safety Belt Extension Assembly

*[SR17600( ALL)05/95] For some people, the safety belt may be too

short even when it is fully extended. You can

add about eight inches (20 cm) to the belt length

with a safety belt extension assembly (part

number 611C22). Safety belt extensions are

available at no cost from your dealer.

*[SR17700( ALL)05/95] RWARNING

Failure to follow these instructions will

affect the performance of the safety belts

and increase the risk of personal injury.

*[SR17705( ALL)05/95] Use only extensions manufactured by the same

supplier as the safety belt. Manufacturer

identification is located at the end of the

webbing on the label. Also, use the safety belt

extension only if the safety belt is too short for

you when fully extended. Do not use extension

to change the fit of the shoulder belt across the

torso.

[SR17710( ALL)05/95] Safety Belt Maintenance

*[SR17720(MBCG )05/95] Check the safety belt systems periodically to

make sure that they work properly and are not

damaged.

%*[SR17730( ALL)05/95] All safety belt assemblies, including retractors,

buckles, front seat belt buckle support assemblies

(slide bar) (if equipped), child safety seat tether

bracket assemblies (if equipped), and attaching

hardware, should be inspected after any

collision. Ford recommends that all safety belt

assemblies used in vehicles involved in a

collision be replaced. However, if the collision

was minor and a qualified technician finds that

the belts do not show damage and continue to

operate properly, they do not need to be

replaced. Safety belt assemblies not in use

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

during a collision should also be inspected and

replaced if either damage or improper operation

is noted.

%*[SR17740( ALL)05/95] Cleaning the Safety Belts

*[SR17780( ALL)05/95] Clean the safety belts with any mild soap

solution that is recommended for cleaning

upholstery or carpets. Do not bleach or dye the

belt webbing because this may weaken it.

*[SR17800( ALL)04/95] Air Bag Supplemental Restraint

System (SRS)

*[SR18200( ALL)04/95] The driver and right front passenger air bags are

Supplemental Restraint Systems (SRS), provided

at these seating positions in addition to the

lap/shoulder belt, and are designed to

supplement the protection provided to properly

belted occupants in moderate to severe frontal

collisions. The supplemental air bag system does

not provide restraint to the lower body.

*[SR18400( ALL)02/95] The Importance of Wearing Safety Belts

*[SR18425( ALL)11/93] RWARNING

Safety belts must be worn by all vehicle

occupants to be properly restrained and

help reduce the risk of injury in a

collision.

*[SR18450( ALL)05/95] RWARNING

All occupants of the vehicle, including the

driver, should always wear their safety

belts, even when an air bag Supplemental

Restraint System is provided.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

*[SR18500( ALL)01/95] There are four very important reasons to use

safety belts even with an air bag system. Use

your safety belts to:

*[SR18600( ALL)01/95] ❑help keep you in the proper position (away

from the air bag) when it inflates

*[SR18700( ALL)01/95] ❑reduce the risk of harm in rollover, side or

rear impact collisions, because an air bag is

not designed to inflate in such situations

*[SR18800( ALL)01/95] ❑reduce the risk of harm in frontal collisions

that are not severe enough to activate the

supplemental air bag

*[SR18900( ALL)01/95] ❑reduce the risk of being thrown from your

vehicle

%*[SR19100( ALL)01/95] The Importance of Being Properly Seated

*[SR19200( ALL)05/95] In a collision, the air bag must inflate extremely

fast to help provide additional protection for

you. In order to do this, the air bag must inflate

with considerable force. If you are not seated in

a normal riding position with your back against

the seatback, the air bag may not protect you

properly and could possibly hurt you as it

inflates.

*[SR19230( ALL)05/95] RWARNING

If a passenger is not properly seated and

restrained, an inflating air bag could cause

serious injury.

*[SR19235( ALL)05/95] RWARNING

Rear-facing infant seats should never be

placed in the front seat.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

[SR19240( ALL)06/09] In rear-facing infant seats, the infant’s head is

closer to the air bag. The force of the rapidly

inflating air bag could push the top of the

rear-facing seat against the vehicle seatback,

center console (if so equipped), or center

armrests (if so equipped). REAR-FACING

INFANT SEATS MUST ALWAYS BE SECURED

IN THE REAR SEAT, and other child safety

seats and infant seats should be secured in the

rear seat whenever possible.

*[SR19260( ALL)05/95] Your vehicle is equipped with a right front

passenger air bag. Air bags deploy with great

force, faster than the blink of an eye. Front

passengers, especially children and small adults,

must never sit on the front edge of the seat,

stand near the glove compartment of the

instrument panel, or lean over near the air bag

cover when the vehicle is moving. All occupants

should sit with their backs against the seatback,

move the seat to the most rearward position if

possible and use the safety belts. Children

weighing less than 40 lbs. (18 kg) always should

use child or infant seats.

%*[SR19300( ALL)05/95] RWARNING

When using forward-facing child seats

move the passenger seat as far back from

the instrument panel as possible. NEVER

SECURE REAR-FACING INFANT SEATS

IN THE FRONT SEAT.

[SR19350(MBC )05/95] THE FORCE OF THE RAPIDLY INFLATING

PASSENGER AIR BAG COULD PUSH THE TOP

OF THE REAR-FACING SEAT AGAINST THE

VEHICLE SEATBACK OR CENTER

CONSOLE/ARMRESTS. REAR-FACING

INFANT SEATS MUST ALWAYS BE PLACED

IN THE REAR SEAT.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

*[SR19400( ALL)05/95] RWARNING

Do not place objects or mount equipment

on or near the air bag cover on the

steering wheel or in front seat areas that

may come in contact with a deploying air

bag. Failure to follow this instruction may

increase the risk of personal injury in the

event of a collision.

*[SR19405( ALL)05/95] For additional important safety information on

the proper use of seat belts, child seats, and

infant seats, please read the other sections of this

part of the Owner Guide, especially sections

entitled Safety Belts for Children and Safety Seats

for Children.

*[SR19410( ALL)05/95] For further information about the proper

mounting of equipment in the front seat of this

vehicle, please refer to Ford’s brochure entitled

Some Important Information About Air Bag

Supplemental Restraint System which can be

obtained by calling Helm Inc. at 1-800-782-4356.

Ask for brochure FPS-8602.

%*[SR19500( ALL)01/95] How the Air Bag Supplemental Restraint

System Operates

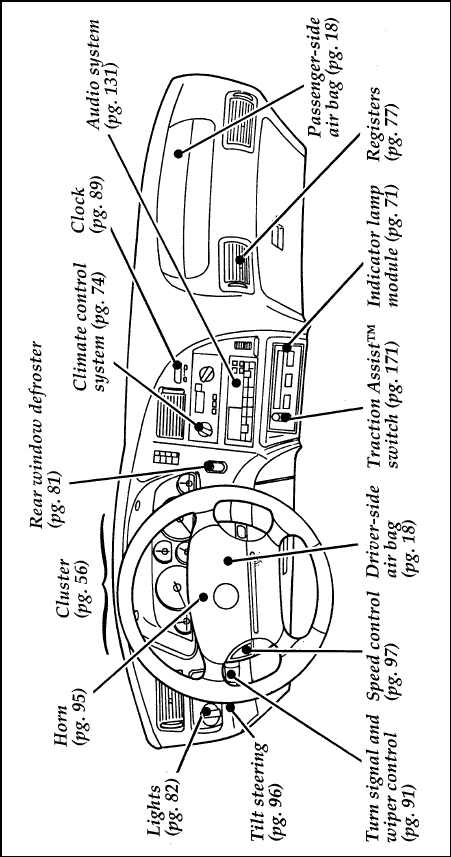

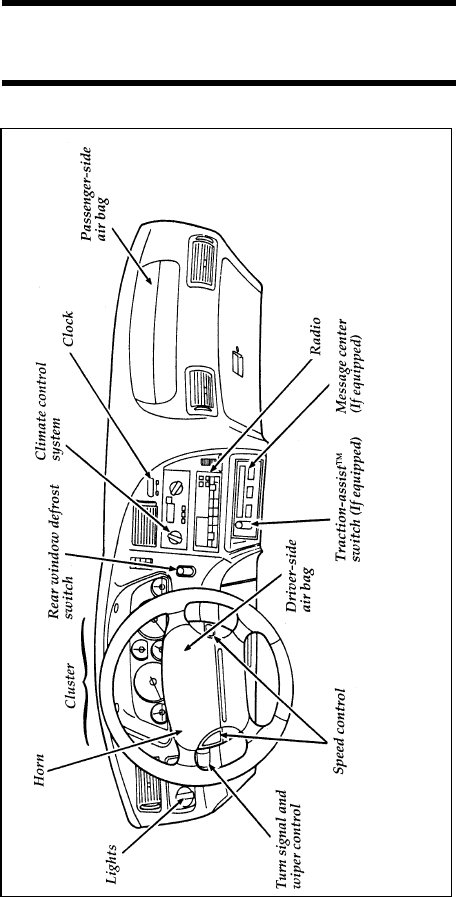

[SR19650( ALL)05/95] The driver air bag is in the center of the steering

wheel. The right front passenger seat air bag is

in the upper right hand section of the

instrument panel ledge above the glove

compartment. Both air bags are designed to stay

out of sight until they are activated.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

[SR20001( BC )05/95]

half page art:0011353-A

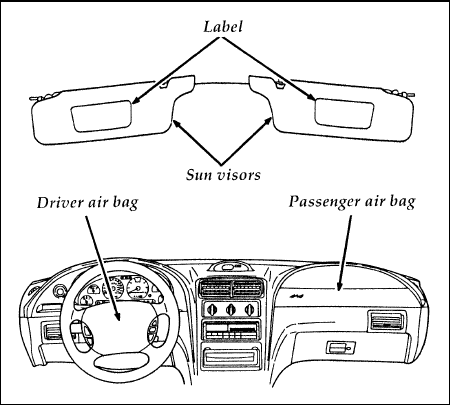

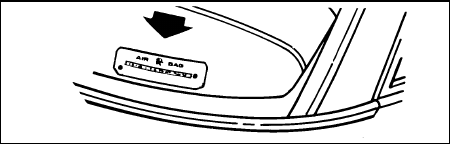

The location of the air bag and warning labels

*[SR20800( ALL)05/95] If a collision occurs, the sensors sense the

severity of the impact and activates the air bags

if necessary. The air bag system is designed to

deploy in frontal and front-angled collisions

more severe than hitting a parked vehicle (of

similar size and weight) head-on at about

28 mph (45 km/h). Because the system senses

the crash severity rather than vehicle speed,

some frontal collisions at speeds above 28 mph

(45 km/h) will not inflate the air bag.

*[SR20930( ALL)05/95] The whole inflation and deflation process takes

place in a matter of seconds.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

*[SR20960( ALL)05/95] RWARNING

Air bag system components get hot after

inflation. Do not touch them after

inflation.

*[SR21110( ALL)03/93]

half page art:0011063-A

Inflated driver side air bag

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

[SR21130( ALL)10/94]

half page art:0011064-A

Inflated right front passenger side air bag

*[SR22200( ALL)05/95] RWARNING

If the air bag is inflated, THE AIR BAG

WILL NOT FUNCTION AGAIN AND

MUST BE REPLACED IMMEDIATELY. If

the air bag is not replaced, the unrepaired

area will increase the risk of injury in a

collision.

*[SR22210( ALL)05/95] The air bag system uses a readiness light and a

tone to indicate the condition of the system. The

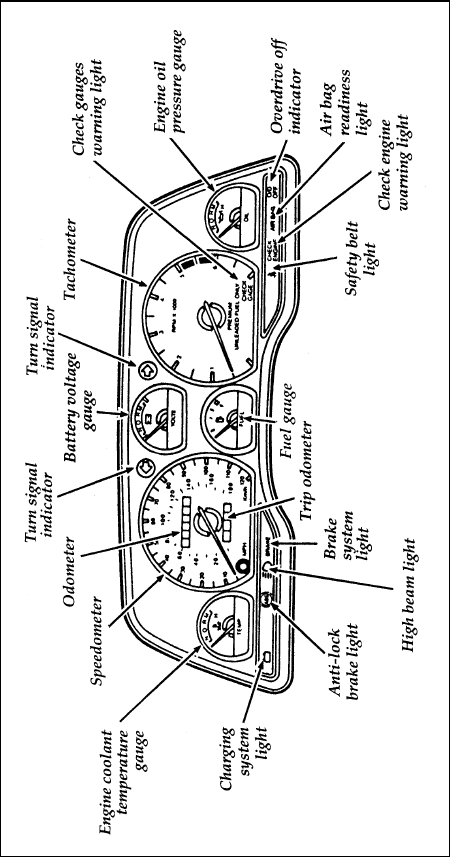

readiness light is in the instrument cluster. When

you turn the ignition to the ON position, this

light will illuminate for approximately six (6)

seconds and then turn off. This indicates that the

system is operating normally. NOTE:

Maintenance of the air bag system is not

required.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

%*[SR22220( ALL)05/95] A problem with the system is indicated by one

or more of the following:

[SR22225( ALL)05/95] ❑the readiness light will either flash or stay lit,

[SR22230( ALL)05/95] ❑it will not light immediately after the ignition

is turned on, or

[SR22240( ALL)05/95] ❑a group of five beeps will be heard.

*[SR22250( ALL)05/95] If any of these things happen, have the air bag

system serviced at your Ford or Lincoln-Mercury

dealer immediately. Unless serviced, the air bag

supplemental restraint system may not function

properly in the event of a collision.

*[SR22260( ALL)05/95] RWARNING

Do not attempt to service, repair, or

modify the Air Bag Supplemental

Restraint System or its fuses. See your

Ford or Lincoln-Mercury dealer.

%*[SR22300( ALL)05/95]

Disposal of air bags or air bag equipped

vehicles

*[SR22400( ALL)05/95] For disposal of air bags or air bag equipped

vehicles, see your local Ford or Lincoln-Mercury

dealer. Air bags MUST be disposed of by

qualified personnel.

%*[SR23500( ALL)05/95] Safety Restraints for Children

*[SR23600( ALL)02/95] In the U.S. and Canada, you are required by law

to use safety restraints for children. If small

children ride in your vehicle — this generally

includes children who are four years old or

younger and who weigh 40 pounds (18 kg) or

less — you must put them in safety seats that

are made specially for children. Safety belts

alone do not provide maximum protection for

these children. Check your local and state laws

for specific requirements.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

*[SR23700( ALL)05/95] RWARNING

Never let a passenger hold a child on his

or her lap while the vehicle is moving.

The passenger cannot protect the child

from injury in a collision.

*[SR23800( ALL)05/95] RWARNING

Passengers should not be allowed to ride

in the cargo area. Persons not riding in a

seat with a fastened seat belt are much

more likely to suffer serious injury in a

collision. Cargo should always be secured

to prevent it from shifting and causing

damage to the vehicle or harm to

passengers.

*[SR23900( ALL)05/95] When possible, put children in the rear seat of

your vehicle. Accident statistics suggest that

children are safer when properly restrained in

the rear seating positions than in the front

seating positions.

*[SR24000( ALL)05/95] RWARNING

Carefully follow all of the manufacturer’s

instructions included with the safety seat

you put in your vehicle. If you do not

install and use the safety seat properly,

the child may be injured in a sudden stop

or collision.

*[SR24100( ALL)05/95] RWARNING

Safety belts and seats can become hot in a

vehicle that has been closed up in sunny

weather; they could burn a small child.

Check seat covers and buckles before you

place a child anywhere near them.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

*[SR24200( ALL)05/95] RWARNING

Never leave a child unattended in your

vehicle.

%*[SR24250( ALL)05/95] RWARNING

When using forward-facing child seats

move the passenger seat as far back from

the instrument panel as possible. NEVER

SECURE REAR-FACING INFANT SEATS

IN THE FRONT SEAT.

%*[SR25100( ALL)01/95] Safety Seats for Children

*[SR25200( ALL)05/95] Use a safety seat that is recommended for the

size and weight of the child. Always follow the

safety seat manufacturer’s instructions when

installing and using the safety seat.

% [SR25225( ALL)04/95] Ford recommends the use of a child safety seat

having a top tether strap. Install the child safety

seat in a seating position which is capable of

providing a tether anchorage. For more

information on top tether straps see your Ford

or Lincoln-Mercury dealer.

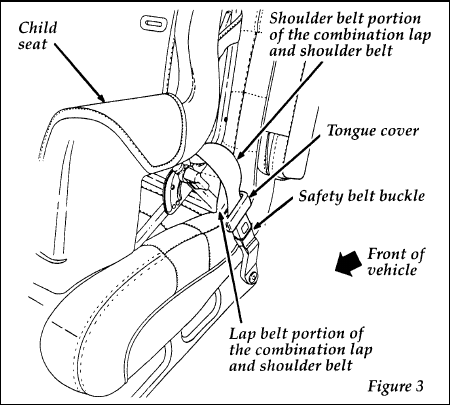

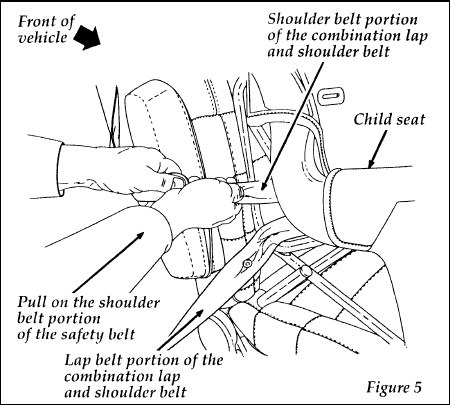

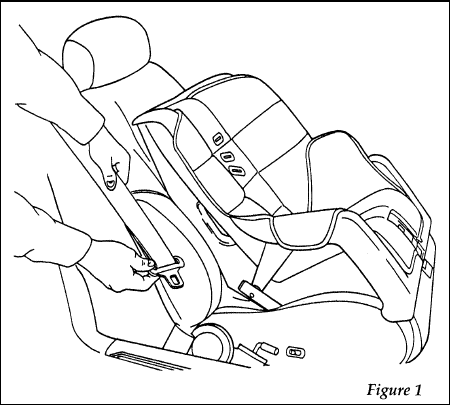

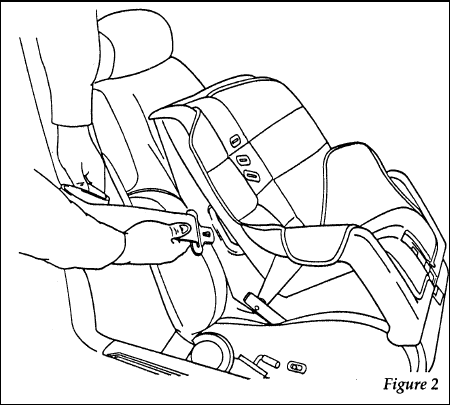

*[SR25250( ALL)02/95] When installing a child safety seat, be sure to

use the correct safety belt buckle for that seating

position, and make sure the tongue is securely

fastened in the buckle.

*[SR25275( ALL)05/95] Children weighing less than 40 lbs. (18 kg)

should use child or infant seats. Forward facing

child seats must have the passenger seat moved

as far back from the instrument panel as

possible.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

%*[SR25300( ALL)05/95] RWARNING

REAR-FACING INFANT SEATS SHOULD

NEVER BE USED IN THE FRONT SEAT.

REAR-FACING INFANT SEATS MUST

ALWAYS BE PLACED IN THE REAR

SEAT. Failure to follow these instructions

could result in serious injury.

*[SR25350( ALL)05/95] All child restraint systems are designed to be

secured in vehicle seats by lap belts or by the

lap portion of a lap-shoulder belt.

*[SR25400( ALL)05/95] RWARNING

If you do not properly secure the safety

seat, the child occupying the seat may be

injured during a collision or sudden stop.

An unsecured safety seat could also injure

other passengers.

*[SR25500( ALL)05/95] RWARNING

Carefully follow all of the manufacturer’s

instructions included with the safety seat

you put in your vehicle. If you do not

install and use the safety seat properly,

the child may be injured in a sudden stop

or collision.

*[SR25520(MBC )05/95] RWARNING

Always keep the buckle release button

pointing upward and away from the child

seat, with the tongue between the child

seat and the release button as shown in

the following illustration.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

% [SR31859( BC )05/95] Installing Safety Seats in the Front

Outboard Passenger Seating Position

[SR31861( ALL)03/95] For seating positions equipped with a dual

locking mode retractor, use the following

procedure.

[SR31865( ALL)03/95] If you choose to install a child safety seat or

infant carrier in the front seating positions, move

vehicle seat as far back as possible.

*[SR31870( ALL)04/95] 1. Position the child seat in the center of the

passenger seat.

*[SR31875( ALL)04/95] 2. Pull down on shoulder belt, then grasp

shoulder belt and lap belt together. Figure 1.

*[SR31880( ALL)04/95]

half page art:0011238-B

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

*[SR31885( ALL)04/95] 3. While holding the shoulder and lap belt

portions together, route the tongue through

the child seat according to the child seat

manufacturer’s instructions. See Figure 2. Be

sure that the belt webbing is not twisted.

*[SR31890( ALL)04/95]

half page art:0011239-B

Routing the lap/shoulder belt

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

*[SR31893( ALL)04/95] 4. Insert the belt tongue into the buckle for that

seating position until you hear and feel the

latch engage. Figure 3. Make sure tongue is

latched securely to buckle by pulling on

tongue.

*[SR31895( ALL)04/95]

half page art:0011240-B

Buckling the belt

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

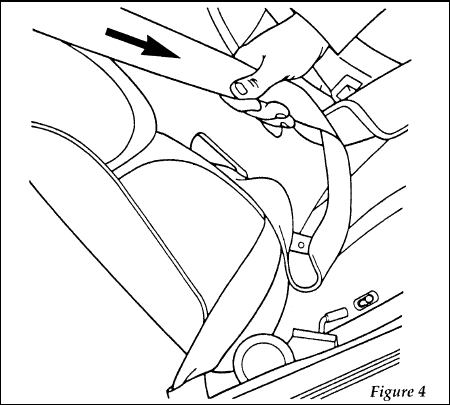

*[SR31900( ALL)04/95] 5. Grasp the shoulder portion of the belt and

pull downward until all of the belt is

extracted and a click is heard. At this time,

the retractor is in the automatic locking

mode (child seat restraint mode). Figure 4.

*[SR31902( ALL)04/95] NOTE: The dual-locking mode retractor must

be in the automatic locking mode to

properly restrain a child.

*[SR31905( ALL)04/95]

half page art:0011241-A

Setting the retractor to automatic locking mode

*[SR31910( ALL)04/95] 6. Allow the belt to retract. Pull up on the

shoulder webbing. A clicking sound will be

heard as the belt retracts. This indicates the

retractor is in the automatic locking mode.

Push down on the child seat while you pull

up on the belt to remove any slack in the

belt. Figures 5 and 6.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

*[SR31915( ALL)04/95]

half page art:0011242-A

*[SR31920( ALL)04/95]

half page art:0011243-A

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

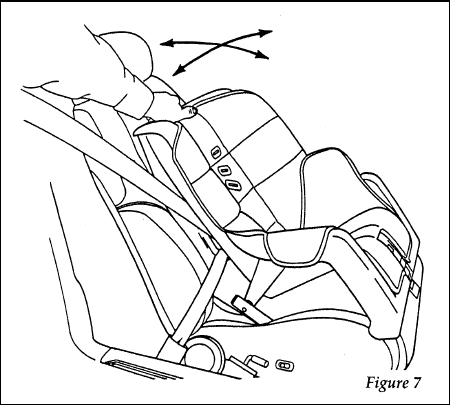

*[SR31925( ALL)04/95] 7. Before placing the child in the child seat,

forcibly tilt the seat from side to side, and

tug it forward to make sure that the seat is

securely held in place, Figure 7.

*[SR31930( ALL)04/95]

half page art:0011244-A

Checking that the seat is secure

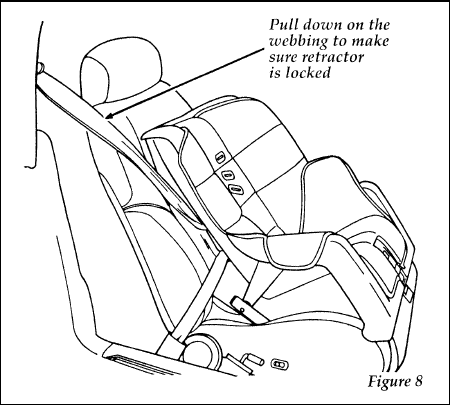

*[SR31935( ALL)04/95] 8. Double check that the retractor is in the

automatic locking mode. Try to pull more

belt out of the retractor. If you cannot, the

belt is in the automatic locking mode,

Figure 8.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

*[SR31940( ALL)04/95]

half page art:0011245-B

Checking the retractor

*[SR31945( ALL)04/95] 9. Check to make sure that the child seat is

properly secured prior to each use. If the

retractor is not locked, repeat steps 4

through 7.

% [SR31960( BC )03/95] Installing Child Safety Seats in the Rear

Outboard Seating Positions

[SR31970( BC )03/95] Your rear outboard seating positions are

equipped with a cinch tongue on the safety

belts. Use the following procedure for installing

a child safety seat in these locations.

*[SR31980( BC )04/95] 1. Grasp the belt webbing below the tongue

and pull as much of the belt out of the

retractor as possible. Hold the belt out. See

Figure 1.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

[SR31990( BC )05/95]

half page art:0011363-A

*[SR32000( BC )04/95] NOTE: The belt webbing below the tongue is

the lap belt portion of the combination

lap/shoulder belt, and the belt webbing

above the tongue is the shoulder belt

portion of the combination

lap/shoulder belt.

*[SR32010( BC )04/95] 2. With your other hand, grasp the tip (metal

portion) of the tongue (not the cover) and

slide the tongue up the webbing as far as it

will go. See Figure 1. Release the tongue, but

do not let go of the lap portion of the belt

webbing.

*[SR32020( BC )04/95] 3. While still holding the belt webbing below

the tongue in one hand, use your other hand

to grasp the tip (metal portion) of the tongue

and belt webbing together, and again pull

out as much of the belt as possible. Then, let

go of the lap portion of the belt webbing.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

*[SR32030( BC )04/95] 4. While holding the shoulder and lap belt

portions together, route the tongue and

webbing through the child seat according to

the child seat manufacturer’s instructions.

See Figure 2. Be sure that the belt webbing

is not twisted.

*[SR32040( BC )05/95]

half page art:0011364-A

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

*[SR32050( BC )04/95] 5. Insert the belt tongue into the proper buckle

for that seating position until you hear a

snap and feel it latch. Make sure the tongue

is securely latched to the buckle by pulling

on the tongue. See Figure 3.

*[SR32060( BC )05/95]

half page art:0011365-A

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

*[SR32070( BC )04/95] 6. Push down on the child seat and pull up on

the shoulder belt portion to tighten the lap

belt portion of the combination lap and

shoulder belt. See Figure 4.

*[SR32080( BC )05/95]

half page art:0011366-A

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

*[SR32090( BC )04/95] 7. Grasp belt close to child seat and pull on the

shoulder belt portion of the combination

lap/shoulder belt, then allow the belt to

retract and remove all slack to securely

tighten the child safety seat in the vehicle.

See Figure 5.

*[SR32100( BC )05/95]

half page art:0011367-A

*[SR32110( BC )04/95] 8. Before placing the child into the child seat,

forcibly tilt the child seat from side-to-side

and in forward directions to make sure that

the seat is held securely in place. See Figures

6 and 7. If the child seat moves excessively,

repeat steps 6 through 8, or properly install

the child seat in a different seating position.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

[SR32120( BC )05/95]

half page art:0011368-A

*[SR32130( BC )05/95]

half page art:0011369-A

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

*[SR32140( BC )04/95] 9. Check from time to time to be sure that

there is no slack in the lap/shoulder belt.

The shoulder belt must be snug to keep the

lap belt tight during a collision.

% [SR32150( BCGV)03/95] Installing a Child Safety Seat at the Rear

Center Seating Position with Adjustable

Lap Belt

[SR32160( BCGV)03/95] 1. Lengthen the lap belt. To lengthen the belt,

hold the tongue so that its bottom is

perpendicular to the direction of webbing

while sliding the tongue up the webbing.

[SR32170( BCGV)03/95] 2. Place the child safety seat in the center

seating position.

[SR32180( BCGV)03/95] 3. Route the tongue and webbing through the

child seat according to the child seat

manufacturer’s instructions.

[SR32190( BCGV)03/95] 4. Insert the belt tongue into the proper buckle

for the center seating position until you hear

a snap and feel it latch. Make sure the

tongue is securely fastened to the buckle by

pulling on tongue.

[SR32200( BCGV)03/95] 5. Push down on the child seat while pulling

on the loose end of the lap belt webbing to

tighten the belt.

[SR32210( BCGV)03/95] 6. Before placing the child into child seat,

forcibly tilt the child seat from side-to-side

and in forward direction to ensure that the

seat is held securely in place. If the child

seat moves excessively, repeat steps 5

through 6, or properly install the child seat

in a different position.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

%*[SR38300( ALL)05/95] Safety Belts for Children

*[SR38400( ALL)05/95] Children who are too large for child safety seats

should always wear safety belts. (See instructions

with your child seat, or contact its manufacturer,

to determine maximum size of child that will

safely fit in the seat.)

*[SR38500( ALL)05/95] RWARNING

If safety belts are not properly worn and

adjusted as described, the risk of serious

injury to the child in a collision will be

much greater.

*[SR38600(MBCG )05/95] If the shoulder belt portion of one of the lap and

shoulder belts can be positioned so that it does

not cross or rest in front of the child’s face or

neck, the child should wear the lap and shoulder

belt. Moving the child closer to the center of the

vehicle may help provide a good shoulder belt

fit.

*[SR38700( BC )03/95] RWARNING

If the shoulder belt cannot be properly

positioned, the child should sit in the

center rear seat and use the lap belt.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

*[SR38830( ALL)04/95] To improve the fit of lap and shoulder belts on

children who have outgrown child safety seats,

Ford recommends use of a belt-positioning

booster seat that is labelled as conforming to all

Federal motor vehicle safety standards.

Belt-positioning booster seats raise the child and

provide a shorter, firmer seating cushion that

encourages safer seating posture and better fit of

lap and shoulder belts on the child. A

belt-positioning booster should be used if the

shoulder belt rests in front of the child’s face or

neck, or if the lap belt does not fit snugly on

both thighs, or if the thighs are too short to let

the child sit all the way back on the seat cushion

when the lower legs hang over the edge of the

seat cushion. You may wish to discuss the

specific needs of your child with your

pediatrician.

*[SR38860( ALL)04/95] RWARNING

Do not use a belt-positioning booster with

a lap-only belt.

*[SR38900( ALL)05/95] Lap belts and the lap belt portion of lap and

shoulder belts should always be worn snugly

and below the hips, touching the child’s thighs.

*[SR39000( ALL)05/95] RWARNING

To reduce the risk of serious injury in a

collision, children should always ride with

the seatback upright.

File:rcsrc.ex

Update:Mon Jun 12 16:51:53 1995

Starting Your Cougar

*[ST03400( ALL)03/95] Ignition

%*[ST03500( ALL)01/95] Understanding the Positions of the Ignition

[ST03750( ALL)12/94]

quarter page art:0010035-B

The positions of the key in the ignition

%*[ST03901( BCGV)03/95] ACCESSORY allows some of your vehicle’s

electrical accessories such as the radio and the

windshield wipers to operate while the engine is

not running.

% [ST04001( ALL)12/94] LOCK locks the steering wheel. It also locks the

automatic transmission gearshift lever.

*[ST04101( ALL)01/95] LOCK is the only position that allows you to

remove the key. The LOCK feature helps to

protect your vehicle from theft.

*[ST04200( ALL)03/95] OFF allows you to shut off the engine and all

accessories without locking the steering wheel or

the automatic transmission gearshift lever.

*[ST04300( ALL)03/95] ON allows you to test your vehicle’s warning

lights (except the brake system warning light) to

make sure they work before you start the

engine. The key returns to the ON position once

the engine is started and remains in this position

while the engine runs.

File:rcstc.ex

Update:Mon Jun 12 16:50:31 1995

*[ST04400( ALL)03/95] START cranks the engine. Release the key once

the engine starts so that you do not damage the

starter. The key should return to ON when you

release it. The START position also allows you

to test the brake warning light.

%*[ST04900( ALL)02/95] Removing the Key From the Ignition

*[ST05600( BCGV)03/95] 1. Put the gearshift in P (Park).

*[ST05800( ALL)01/95] 2. Set the parking brake fully.

*[ST05900( BCGV)03/95] 3. Turn the ignition key to LOCK.

*[ST06050( BCGV)03/95] 4. Remove the key.

[ST06660( BCGV)03/95] NOTE: The automatic transmission gearshift

must be in P (Park) to move the key to

the lock position.

%*[ST06675( ALL)05/95] If the key is stuck in the LOCK position, move

the steering wheel left or right until the key

turns freely.

%*[ST06700( ALL)03/95] If the driver’s door is open while the key is still

in the ignition, a warning chime sounds.

*[ST06825( BCGV)05/95] RWARNING

Always set the parking brake fully and

make sure that the gearshift is securely

latched in P (Park).

*[ST06875( ALL)01/93] RWARNING

Do not leave children, unreliable adults,

or pets alone in your vehicle. They could

accidentally injure themselves or others

through inadvertent operation of the

vehicle. Further, on hot, sunny days,

temperatures in a closed vehicle could

quickly become high enough to cause

severe and possibly fatal injuries to

people as well as animals.

File:rcstc.ex

Update:Mon Jun 12 16:50:31 1995

%*[ST07000( ALL)03/95] Fuel-Injected Engines

*[ST07100( ALL)03/95] When starting a fuel-injected engine, the most

important thing to remember is to avoid

pressing down on the accelerator before or

during starting. Only use the accelerator when

you have problems getting your vehicle started.

See Starting Your Engine in this chapter for

details about when to use the accelerator while

you start your vehicle.

*[ST07300( ALL)03/95] Starting Your Vehicle

%*[ST07400( ALL)05/94] Preparing to Start Your Vehicle

*[ST07500( ALL)05/95] RWARNING

Do not start your vehicle in a closed

garage or other enclosed area. Never sit in

a stopped vehicle for more than a short

period of time with the engine running.

Exhaust fumes are toxic. See Guarding

Against Exhaust Fumes in this chapter for

more instructions.

*[ST07600( ALL)01/95] Before you start your vehicle, do the following:

*[ST07700( ALL)01/95] 1. Make sure you and all your passengers

buckle your safety belts. See Safety Restraints

in the Index for more details.

*[ST07800( ALL)03/95] 2. Make sure the headlamps and other

accessories are turned off when starting.

*[ST08100( BCGV)03/95] 3. Make sure that the gearshift is in P (Park)

and the parking brake is set before you turn

the key.

*[ST08400( ALL)03/95] Before you start your vehicle, you should test

the warning lights on the instrument panel to

make sure that they work. Refer to the Warning

Lights and Gauges chapter.

File:rcstc.ex

Update:Mon Jun 12 16:50:31 1995

%*[ST10300( ALL)02/95] Starting Your Engine

*[ST10325( ALL)02/95] To start your engine:

*[ST10350( ALL)05/95] 1. Follow the steps under Preparing to Start

Your Vehicle at the beginning of this section.

*[ST10353( ALL)03/95] 2. Turn the ignition key to the ON position.

*[ST10357( ALL)03/95] 3. DO NOT depress the accelerator pedal when

starting your engine. DO NOT use the

accelerator while the vehicle is parked.

*[ST10360( ALL)02/95] 4. Turn the key to the START position

(cranking) until the engine starts. Allow the

key to return to the ON position after the

engine has started.

*[ST10370( ALL)02/95] If you have difficulty in turning the key,

rotate the steering wheel slightly because it

may be binding.

%*[ST10430( ALL)04/95] For a cold engine:

*[ST10440( ALL)04/95] ❑At temperatures 10˚F (-12˚C) and below: If

the engine does not start in fifteen (15)

seconds on the first try, turn the key to OFF,

wait approximately ten (10) seconds so you

do not flood the engine, then try again.

*[ST10450( ALL)04/95] ❑At temperatures above 10˚F (-12˚C): If the

engine does not start in five (5) seconds on

the first try, turn the key to OFF, wait

approximately ten (10) seconds so you do not

flood the engine, then try again.

%*[ST10460( ALL)04/95] For a warm engine:

*[ST10470( ALL)04/95] ❑Do not hold the key in the START position

for more than five (5) seconds at a time. If

the engine does not start within five (5)

seconds on the first try, turn the key to the

OFF position. Wait a few seconds after the

starter stops, then try again.

File:rcstc.ex

Update:Mon Jun 12 16:50:31 1995

*[ST10473( ALL)04/95] Whenever you start your vehicle, release the key

as soon as the engine starts. Excessive cranking

could damage the starter or flood the engine.

*[ST10476( ALL)04/95] After you start the engine, let it idle for a few

seconds. Keep your foot on the brake pedal and

put the gearshift lever in gear. Release the

parking brake. Slowly release the brake pedal

and drive away in the normal manner.

[ST10478( ALL)12/94] NOTE: Your vehicle has an interlock that

prevents you from shifting out of

P (Park) unless your foot is on the

brake pedal.

%*[ST10480( ALL)04/95] If the engine does not start after two attempts:

*[ST10492( ALL)04/95] 1. Turn the ignition key to the OFF position.

*[ST10494( ALL)04/95] 2. Press the accelerator all the way to the floor

and hold it.

*[ST10496( ALL)04/95] 3. Turn the ignition key to the START position.

*[ST10497( ALL)04/95] 4. Release the ignition key when the engine

starts.

*[ST10498( ALL)04/95] 5. Release the accelerator gradually as the

engine speeds up. Then drive away in the

normal manner.

*[ST10500( ALL)04/95] If the engine still does not start, the fuel pump

shut-off switch may have been triggered. For

directions on how to reset the switch see Fuel

Pump Shut-Off Switch later in this chapter.

%*[ST11100( ALL)04/95] A computer system controls the engine’s idle

speed. When you start your vehicle, the engine’s

idle speed normally runs higher than when it’s

warmed up. These faster engine speeds will

make your vehicle move slightly faster than its

normal idle speed. It should, however, slow

down after a short time. If it does not, have the

idle speed checked.

File:rcstc.ex

Update:Mon Jun 12 16:50:31 1995

*[ST11210( ALL)05/95] If the engine idle speed does not slow down

automatically, do not allow your vehicle to idle

for more than 10 minutes. Have the vehicle

checked.

*[ST11225( ALL)05/95] RWARNING

Extended idling at high engine speeds can

produce very high temperatures in the

engine and exhaust system, creating the

risk of fire or other damage.

*[ST11250( ALL)05/95] RWARNING

Do not park, idle, or drive your vehicle in

dry grass or other dry ground cover. The

emission system heats up the engine

compartment and exhaust system, which

can start a fire.

*[ST11300( ALL)03/95] If you consistently start your vehicle in subzero

temperatures, use an engine block heater

(if your vehicle has this option).

%*[ST11400( ALL)03/95] Engine Block Heater (If equipped)

*[ST11500( ALL)03/95] Engine block heaters are strongly recommended

if you live in a region where temperatures reach

-10˚F (-23˚C) or below. An engine block heater

warms the engine coolant, which improves

starting, warms up the engine faster, and allows

the heater-defrost system to respond quickly.

*[ST11700( ALL)02/95] To turn the heater on, simply plug it into a

grounded 110-volt outlet. Ford recommends that

you use a 110-volt circuit that is protected by a

ground fault circuit interrupter.

File:rcstc.ex

Update:Mon Jun 12 16:50:31 1995

*[ST11800( ALL)05/95] RWARNING

To prevent electrical shock, do not use

your heater with ungrounded electrical

systems or two-pronged (cheater) adapters.

*[ST11900( ALL)03/95] For best results, plug the heater in at least three

hours before you start your vehicle. Using the

heater for longer than three hours will not

damage the engine, so you can plug it in at

night to start your vehicle the following

morning.

*[ST12000( ALL)12/91] NOTE: Be sure to disconnect the engine block

heater before driving your vehicle.

%*[ST13100( ALL)02/95] Guarding Against Exhaust Fumes

*[ST13200( ALL)02/95] Carbon monoxide, although colorless and

odorless, is present in exhaust fumes. Take

precautions to avoid its dangerous effects.

*[ST13300( ALL)05/95] RWARNING

Do not start your vehicle in a closed

garage or other enclosed area. Never sit in

a stopped vehicle for more than a short

period of time with the engine running.

Exhaust fumes are toxic. See Guarding

Against Exhaust Fumes in this chapter for

more instructions.

*[ST13400( ALL)05/95] RWARNING

If you smell exhaust fumes inside your

vehicle, have your dealer inspect your

vehicle immediately. Do not drive if you

smell exhaust fumes.

File:rcstc.ex

Update:Mon Jun 12 16:50:31 1995

*[ST13500( ALL)01/95] Have the exhaust and body ventilation systems

checked whenever:

*[ST13600( ALL)02/95] ❑your vehicle is raised for service

*[ST13700( ALL)02/95] ❑the sound of the exhaust system changes

*[ST13800( ALL)01/95] ❑your vehicle has been damaged in a collision

*[ST13900( ALL)01/95] Improve your ventilation by keeping all air inlet

vents clear of snow, leaves, and other debris.

[ST14000( ALL)12/94] If the engine is idling while you are stopped in

an open area for long periods of time, open the

windows at least one inch (2.5 cm). Also, the

heating or air conditioning system should be set

to any function except MAX A/C or AUTO.

[ST14125( BCGV)05/94] ❑If you use the heater, set the fan speed on

MEDIUM or HIGH with the function control

on any position except OFF and the

temperature control at any desired position.

[ST14250( BCGV)12/88] ❑If you use the air conditioner, set the fan

speed on MEDIUM or HIGH with the

function control on any position except OFF

or MAX and the temperature control at any

desired position.

File:rcstc.ex

Update:Mon Jun 12 16:50:31 1995

%*[ST17100( ALL)03/95] If the Engine Cranks but Does

Not Start or Does Not Start After

a Collision

%*[ST17110( ALL)04/95] Fuel Pump Shut-off Switch

*[ST17200( ALL)03/95] If the engine cranks but does not start or does

not start after a collision, the fuel pump shut-off

switch may have been triggered. The shut-off

switch is a device intended to stop the fuel

pump when your vehicle has been involved in a

substantial jolt.

*[ST17400( BCGV)01/95] Once the shut-off switch is triggered, you must

reset the switch by hand before you can start

your vehicle. The switch is on the left side of the

trunk.

[ST17700( BC )05/94]

one third page art:0010013-E

The fuel pump shut-off switch

*[ST18700( ALL)05/95] RWARNING

If you see or smell fuel, do not reset the

switch or try to start your vehicle. Have

all the passengers get out of the vehicle

and call the local fire department or a

towing service.

File:rcstc.ex

Update:Mon Jun 12 16:50:31 1995

*[ST18800( ALL)03/95] If your engine cranks but does not start after a

collision or substantial jolt:

*[ST18900( ALL)04/95] 1. Turn the ignition key to the OFF position.

*[ST19000( ALL)03/95] 2. Check under the vehicle for leaking fuel.

*[ST19100( ALL)03/95] 3. If you do not see or smell fuel, push the red

reset button down. If the button is already

set, you may have a different mechanical

problem.

*[ST19200( ALL)03/95] 4. Turn the ignition key to the ON position for

a few seconds, then turn it to the OFF

position.

*[ST19300( ALL)03/95] 5. Check under the vehicle again for leaking

fuel. If you see or smell fuel, do not start

your vehicle again. If you do not see or

smell fuel, you can try to start your vehicle

again.

*[ST19350( ALL)03/95] 6. Check all vehicle warning lights before

driving the vehicle.

*[ST19400( ALL)01/95] Pushing

[ST19600( BCGV)03/95] Vehicles with automatic transmissions cannot be

started by pushing. Follow the directions under

If Your Vehicle Needs a Jump-Start.

File:rcstc.ex

Update:Mon Jun 12 16:50:31 1995

Warning Lights and

Gauges

*[LG00400( ALL)01/95] The instrument panel (dashboard) on your

vehicle is divided into several different sections.

The illustrations on the following pages show

the major parts of the instrument panel that are

described in this chapter. Some items shown

may not be on all vehicles.

[LG00500( BCGV)05/94] In your vehicle, the warning lights and gauges

are grouped together in the instrument cluster

and the indicator lamp module.

File:rclgc.ex

Update:Mon Jun 12 16:50:19 1995

% [LG02200( BC )05/95]

full page art:0010109-P

Mechanical cluster

File:rclgc.ex

Update:Mon Jun 12 16:50:19 1995

*[LG02700( BCGV)06/94] The Mechanical Cluster

*[LG02800( BCGV)06/93] The following warning lights and gauges are on

the mechanical cluster. All of the warning lights

and gauges alert you to possible problems with

your vehicle. Some of the lights listed are

optional. The following sections detail what each

of these indicators means.

%*[LG02900( ALL)03/95] Brake System Warning Light

*[LG03000( ALL)03/95] The warning light for the brakes can show two

things — that the parking brake is not fully

released, or that the brake fluid level is low in

the master cylinder reservoir. If the fluid level is

low, the brake system should be checked by a

qualified service technician.

[LG03025( BC )07/93]

one inch art:0010116-D

[LG03100( ALL)01/95] This light comes on when the parking brake is

set, or if it is not set, it comes on briefly when

you turn the ignition key to START. It normally

goes off shortly after the engine starts and you

release the parking brake. If the light stays on

after you have fully released the parking brake,

have the hydraulic brake system serviced.

*[LG03200( ALL)05/95] RWARNING

The BRAKE light indicates that the brakes

may not be working properly. Have the

brakes checked immediately.

File:rclgc.ex

Update:Mon Jun 12 16:50:19 1995

% [LG03475( ALL)05/94] Anti-Lock Brake System Light

(If equipped)

[LG03500( ALL)05/94] This warning light will go on each time you

start your vehicle. If it remains on for longer

than five seconds, you should shut off your

engine and restart. If the anti-lock brake light

stays on, this indicates that the anti-lock feature

is disabled and should receive immediate

attention by a qualified service technician.

Normal braking is not affected unless the brake

warning light is also lit.

*[LG03505( BCGV)01/95] The Anti-Lock Brake System has self-check

capabilities. As previously described, the system

turns on the anti-lock light each time you start

your engine. After the engine is started and the

anti-lock light is out, the system performs

another test the first time the vehicle reaches

14 mph (22 km/h). The system turns on the

Anti-Lock Brake System (ABS) pump motor for

approximately 1/2 second. At this time a

mechanical noise may be heard. This is a normal

part of the self-check feature. If a malfunction is

found during this check the anti-lock light will

come on.

[LG03680( ALL)05/95]

one inch art:0011194-B

File:rclgc.ex

Update:Mon Jun 12 16:50:19 1995

*[LG03700( ALL)05/95] RWARNING

If the anti-lock brake system warning

light remains on or comes on while

driving, have the braking system checked

by a qualified service technician as soon

as possible.

[LG03800( ALL)05/95] NOTE: If a fault occurs in the anti-lock

system, and the brake warning light is

not lit, the anti-lock system is disabled

but normal brake function remains

operational.

%*[LG04300( ALL)04/95] Safety Belt Warning Light and Chime

*[LG04305( ALL)03/95] This warning light and chime remind you to

fasten your safety belt. The following conditions

will take place:

[LG04317( BC )03/95] ❑If the safety belt is not buckled when the key

is turned to the ON position, the light will

come on for 1 to 2 minutes and the chime

will sound for 4 to 8 seconds.

*[LG04320(MBC )03/95] ❑If the safety belt is buckled while the light is

on and the chime is sounding, both the light

and chime will turn off.

[LG04340( BC )03/95] ❑If the safety belt is buckled before the key is

turned to the ON position, the light will

come on for 1 to 2 minutes.

[LG04600( ALL)05/92]

one inch art:0010118-A

File:rclgc.ex

Update:Mon Jun 12 16:50:19 1995

%*[LG04610( ALL)01/95] Air Bag Readiness Light

[LG04620( ALL)05/94] The air bag system uses a readiness light to

indicate the condition of the system. If the

system is functioning properly, the light will

stay on for 6 seconds when the ignition switch is

turned to the ON position.

[LG04630( ALL)05/94] If there is a problem with the system, two things

may happen: the readiness light will either flash

or stay lit up, or you will hear a beeping sound.

If either of these things happen, have the air bag

system serviced at your Ford or Lincoln-Mercury

dealer immediately.

[LG04645( BC )05/95]

one inch art:0011355-A

%*[LG04700( ALL)01/95] Charging System Light

*[LG04800( ALL)03/95] This light indicates that your battery is not being

charged and that you need to have the electrical

system checked.

[LG04900( ALL)05/92]

one inch art:0010119-A

*[LG05100( ALL)02/95] This light comes on every time you turn the

ignition to the ON or START position (engine

off). The light should go off when the engine

starts and the alternator begins to charge.

File:rclgc.ex

Update:Mon Jun 12 16:50:19 1995

*[LG05200( ALL)01/95] If the light stays on or comes on when the

engine is running, have the electrical system

checked as soon as possible.

%*[LG05205( BCGV)05/95] Overdrive Off Indicator

[LG05210( ALL)06/93]

one inch art:0010730-A

*[LG05220( BCGV)01/95] This light tells you that the Transmission Control

Switch (TCS) on the gearshift lever has been

pushed. When the light is on, the transmission

will not shift into overdrive. Depressing the

button on the shifter will return the vehicle to

“overdrive on” mode. The transmission will be

in the “overdrive on” mode when the vehicle is

started even if the O/D OFF mode was selected

when the vehicle was last shut off.

*[LG05230( ALL)04/95] NOTE: If the light does not come on when the

TCS is depressed or if the light flashes

when you are driving, have your

vehicle serviced at the first

opportunity. If this condition persists,

damage could occur to the

transmission.

File:rclgc.ex

Update:Mon Jun 12 16:50:19 1995

%*[LG07200( ALL)01/95] High Beam Light

*[LG07300( ALL)03/95] This light comes on when the headlamps are

turned to high beam or when you flash the

lights.

[LG07400( ALL)05/92]

one inch art:0010125-A

% [LG08300( BC )07/93] Check Gauges Warning Light (if equipped)

[LG08310( BC )03/93]

one inch art:0010128-D

*[LG08400( BC )06/94] This light will come on when the key is in the

ON position and the:

[LG08500( BC )04/89] ❑engine coolant temperature gauge is high, or

[LG08600( BC )04/89] ❑engine oil pressure gauge is low, or

[LG08700( BC )05/95] ❑when the fuel tank has reached empty

reserve.

[LG08825( BC )03/90] This light serves as a reminder for you to check

the engine coolant temperature gauge, the

engine oil pressure gauge or the fuel gauge. It

will come on if there is a condition that needs

your attention.

[LG08850( BC )07/93] See Engine Coolant Temperature Gauge, Engine Oil

Pressure Gauge,orFuel Gauge in this chapter for

more information.

File:rclgc.ex

Update:Mon Jun 12 16:50:19 1995

%*[LG11005( ALL)03/95] Check Engine Warning Light

*[LG11015( ALL)03/95] The Powertrain On-Board Diagnostic II (OBD II)

system consists of the hardware and software

necessary to monitor the operation of the

powertrain. The OBD II system is designed to

check the function of the vehicle’s powertrain

control system during normal operation. If an

emission problem is detected, the Check Engine

Warning Light (in the cluster) is turned on.

*[LG11020( ALL)03/95] Modification or additions to the vehicle may

cause incorrect operation of the OBD II system.

Additions such as burglar alarms, cellular

phones, and CB radios must be carefully

installed. Do not install these devices by tapping

into or running wires close to powertrain control

system wires or components.

*[LG11050( ALL)03/95] The light comes on briefly when you turn the

ignition key to ON, but it should turn off when

the engine starts. If the light does not come on

when you turn the ignition to ON or if it comes

on and stays on when you are driving, have

your vehicle serviced as soon as possible. This

indicates a possible problem with one of the

vehicle’s emission control systems. You do not

need to have your vehicle towed in.

*[LG11055( ALL)04/95] If the light turns on and off at one (1) second

intervals while you are driving the vehicle, it

means that the engine is misfiring. If this

condition persists, damage could occur to the

engine or catalytic convertor. Have your vehicle

serviced at the first opportunity. You do not

need to have your vehicle towed in.

File:rclgc.ex

Update:Mon Jun 12 16:50:19 1995

*[LG11060( ALL)03/95] If the light turns on and off on rare occasions

while you are driving, it means that a

malfunction occurred and the condition corrected

itself.

*[LG11065( ALL)03/95] An example of a condition which corrects itself

occurs when an engine running out of fuel

begins to misfire. In this case, the Check Engine

Warning Light may turn on and will then set a

Diagnostic Trouble Code indicating that the

engine was misfiring while the last of the fuel

was being consumed. After refueling, the Check

Engine Warning Light will turn off after the

vehicle has completed three consecutive warm

up cycles without a misfire condition occurring.

A warm up cycle consists of engine start from a

cold condition (engine at ambient temperature)

and running until the engine reaches normal

operating temperature.

*[LG11075( ALL)03/95] On the fourth engine start up, the Check Engine

Warning Light will turn off as soon as the

engine begins to crank. It is not necessary to

have the engine serviced.

*[LG11100( BCGV)05/95] Under certain conditions, the Check Engine

Warning Light may come on if the fuel cap is

not properly installed. If the Check Engine

Warning Light comes on and you suspect that

the fuel cap is not properly installed, pull off the

road as soon as it is safely possible and turn off

the engine. Remove and replace the fuel cap,

making sure it is properly seated.

*[LG11200( ALL)05/95] After completing the three consecutive warm up

cycles and on the fourth engine start up, the

Check Engine Warning Light should turn off. If

the light does not go off after the fourth engine

restart, have your vehicle serviced by your

dealer or a qualified technician.

File:rclgc.ex

Update:Mon Jun 12 16:50:19 1995

%*[LG12910( ALL)04/95] Turn Signal Indicator Lights

*[LG12920( ALL)08/93] The turn signal arrow will flash to indicate the

direction in which you are going to be turning.

[LG12950( ALL)06/93]

one inch art:0010525-A

%*[LG13000( ALL)01/95] Fuel Gauge

[LG13025( BC )05/95]

one third page art:0011340-A

The fuel gauge

[LG13100( ALL)08/93] The fuel gauge displays approximately how

much fuel is in the fuel tank only when the

ignition switch is ON. For proper fuel gauge

indication after adding fuel, turn the ignition

switch OFF while refueling the vehicle.

[LG13150( ALL)08/93] The fuel gauge indicator may vary slightly when

the vehicle is in motion. The most accurate

reading is obtained with the vehicle on level

ground.

*[LG13200( ALL)08/93] With ignition switch OFF, the fuel gauge

indicator may drift from the ignition switch ON

position.

File:rclgc.ex

Update:Mon Jun 12 16:50:19 1995

%*[LG13400( ALL)01/95] Engine Coolant Temperature Gauge

*[LG13550( ALL)03/95] This gauge indicates the temperature of the

engine coolant, not the coolant level. If the

coolant is not at its proper level or mixture, the

gauge indication will not be accurate.

[LG13600( ALL)03/94] The pointer moves from the C (cold) mark into

the NORMAL band as your engine coolant

warms up. Under normal driving conditions, the

pointer should stay in the NORMAL band. It is

acceptable for the pointer to fluctuate within the

NORMAL band under normal driving

conditions, and under certain driving conditions

such as, heavy stop and go traffic, or driving up

hills in hot weather, for the pointer to indicate at

the top of the NORMAL band.

[LG13650( ALL)05/94] If, under any circumstances, the pointer moves

above the NORMAL band, the engine is

overheating and continued operation may cause

engine damage.

% [LG13730( BC )05/95]

one third page art:0011144-C

The engine coolant temperature gauge

File:rclgc.ex

Update:Mon Jun 12 16:50:19 1995

*[LG14100( ALL)01/95] If your engine coolant overheats:

*[LG14200( ALL)03/95] 1. Pull off the road as soon as safely possible.

*[LG14300( ALL)01/95] 2. Turn off the engine.

*[LG14400( ALL)05/95] 3. Let the engine cool. DO NOT REMOVE

COOLANT SYSTEM FILL CAP UNTIL

THE ENGINE IS COOL.

*[LG14500( ALL)04/95] 4. Check the coolant level following the

instructions on checking and adding coolant

to your engine, see Engine Coolant in the

Index. If you do not follow these

instructions, you or others could be injured.

*[LG14600( ALL)01/95] If the coolant continues to overheat, have the

coolant system serviced.

%*[LG14800( ALL)01/95] Speedometer

[LG14825( BC )05/95]

one third page art:0011341-A

The speedometer

*[LG14900( ALL)01/95] The speedometer tells you how many miles

(kilometers) per hour your vehicle is moving.

%*[LG15000( ALL)01/95] Odometer

*[LG15100( ALL)01/95] The odometer tells you the total number of miles

(kilometers) your vehicle has been driven.

File:rclgc.ex

Update:Mon Jun 12 16:50:19 1995

%*[LG15200( ALL)11/94] Trip Odometer

*[LG15300( ALL)03/93] If you want to track your mileage up to 999.9

miles (kilometers), use the trip odometer. Simply

set the trip odometer to zero by pressing the

reset button firmly when beginning the distance

you wish to measure.

*[LG15350( ALL)01/95] Since the trip odometer displays distance

independent of the odometer it will not always

advance to the next mile (kilometer) at the same

time as the odometer.

%*[LG15450(MBC )02/95] Tachometer

[LG15470( BC )05/95]

one third page art:0011342-A

The tachometer

*[LG15600(MBC )01/95] The tachometer displays the approximate engine

revolutions per minute (rpm), or how fast the

engine is running.

*[LG15900( BC )01/95] You can drive your vehicle at most rpm points

on the tachometer but you must stay out of the

red zone.

[LG16000( BC )03/90] Regardless of the type of transmission in your

vehicle, if you drive with the tachometer pointer

in the red zone, you may damage the engine.

File:rclgc.ex

Update:Mon Jun 12 16:50:19 1995

% [LG16220( ALL)05/94] Battery Voltage Gauge (If Equipped)

*[LG16225( ALL)05/94] This gauge shows you the battery voltage when

the ignition key is in the ON position.

*[LG16230( ALL)05/94] If the battery is operating under cold weather

conditions, the pointer may indicate in the upper

range of the NORMAL band while the battery is

charging. If you are running electrical accessories

(when the engine is off, or idling at a low

speed), the pointer may move toward the lower

end of the NORMAL band.

*[LG16260( ALL)05/94] If it stays outside the NORMAL band, have your

vehicle’s electrical system checked as soon as it

is safely possible.

[LG16285( BC )05/95]

one third page art:0010655-D

Battery voltage gauge

%*[LG16300( ALL)05/94] Engine Oil Pressure Gauge

[LG16500( ALL)05/94] This gauge indicates the engine oil pressure, not

the oil level. However, if your engine’s oil level

is low, it could affect the oil pressure. With the

engine running, the pointer should move into

the NORMAL band. If the pointer drops below

the NORMAL band while the engine is running,

you have lost oil pressure and continued

operation will cause severe engine damage.

File:rclgc.ex

Update:Mon Jun 12 16:50:19 1995

[LG16550( BC )05/95]

one third page art:0011146-B

Engine oil pressure gauge

*[LG16600( ALL)03/95] If you lose engine oil pressure:

*[LG16700( ALL)01/95] 1. Pull off the road as soon as safely possible.

*[LG16800( ALL)04/95] 2. Shut off the engine immediately or severe

engine damage could result.

[LG16900( ALL)05/94] 3. Check the engine’s oil level, following the

instructions on checking and adding engine

oil, see the Engine Oil in the Index. If you do

not follow these instructions, you or others

could be injured. To assure an accurate

reading, your car should be on level ground.

[LG17000( ALL)05/94] 4. If the level is low, add oil as necessary

before you start the engine again. Do not

overfill. Do not operate the engine if the

pointer is below the NORMAL band,

regardless of the oil level. Contact your

nearest dealer for further service actions.

[LG17200( ALL)05/94] For more information about adding oil, see

Engine Oil Recommendations in the Index.

File:rclgc.ex

Update:Mon Jun 12 16:50:19 1995

% [LG17205( BC )03/95] Indicator Lamp Module

(If equipped)

[LG17208( BC )05/94] The following warning lights are on the

indicator lamp module. All of the warning lights

alert you to possible problems. Some of the

lights listed are optional. The following section

details what each of these indicators mean.

[LG17210( BC )03/95]

one third page art:0011215-A

The indicator lamp module

% [LG17215( BC )04/95] Door Ajar Light (If equipped)

[LG17220( BC )06/92] This light tells you when any door is not

completely shut. It glows when the key is in the

ON position.

[LG17225( BC )03/94]

one inch art:0010126-B

The door ajar light

File:rclgc.ex

Update:Mon Jun 12 16:50:19 1995

% [LG17230( BC )07/93] Low Coolant Light

[LG17235( BC )07/93] This light indicates that the level of the engine

coolant is low inside the coolant recovery bottle

and that you should add more coolant. See

Engine Coolant in the Index.

[LG17240( BC )07/93]

one inch art:0011209-A

The low coolant light

%*[LG17250( BC )07/93] Low Fuel Light

[LG17255( BC )05/95] This light comes on when your fuel gauge

indicates approximately 1/16 of a tank. Your car

must be turned to ON for this light to come on.

This light will either flicker or glow steadily.

[LG17260( BC )07/93]

one inch art:0011210-A

The low fuel light

% [LG17265( BC )07/93] Washer Fluid Low Light

*[LG17270( BC )02/95] This light comes on if the reservoir is less than a

quarter full when you turn on the windshield

washers.

[LG17275( BC )07/93]

one inch art:0011211-A

The low washer fluid light

File:rclgc.ex

Update:Mon Jun 12 16:50:19 1995

Instrument Panel Controls

[IP00270( BC )05/94]

full page art:0010101-K

The instrument panel

File:rcipc.ex

Update:Mon Jun 12 16:49:31 1995

[IP00400( ALL)05/95] The main controls for the climate control system,

clock, and radio are on the instrument panel.

%*[IP00500( ALL)05/95] NOTE: Any cleaner or polish that increases the

gloss (shine) of the upper part of the

instrument panel should be avoided.

The dull finish in this area is to help

protect the driver from undesirable

windshield reflection.

%*[IP00600( ALL)01/95] The Climate Control Systems

[IP00700( ALL)03/91] Your vehicle has one of two different climate

control systems. The two systems are:

[IP01200( BCGV)06/93] ❑a manual heating and air conditioning system

[IP01250( BC )03/95] ❑a semi-automatic temperature control

system (if equipped)

*[IP01400( ALL)09/89] If you are not sure which system your vehicle

has, see the diagrams on the following pages.

% [IP10700( BCGV)08/93] The Manual Heating and Air Conditioning

System

[IP10800( BCGV)08/93] You can heat the inside of your vehicle, defrost

the windshield, and turn on the air conditioning

with the three knobs in the center of the

instrument panel:

[IP10900( BCGV)08/93] ❑FAN

[IP11000( BCGV)08/93] ❑TEMP

[IP11100( BCGV)08/93] ❑SELECT

File:rcipc.ex

Update:Mon Jun 12 16:49:31 1995

[IP11300( BC )05/95]

one third page art:0011216-B

The knobs that control the manual heating and air

conditioning system

[IP11501( BC )05/95] To heat the interior of your vehicle, turn the

SELECT knob to FLOOR, turn the TEMP knob

to the end of the red range (full right) and turn

the FAN knob to HI. Temperature and fan speed

can be adjusted as desired.

% [IP11700( BC )05/95] To defrost the windshield and side windows,

turn the SELECT knob to defrost V, turn the

TEMP knob to the end of the red range

(full right) and turn the FAN knob to HI.

Temperature and fan speed can be adjusted as

desired.

[IP11901( BC )05/95] To heat the interior and defrost the windshield

and side windows, at the same time, turn the

SELECT knob to FLOOR & DEF, turn the TEMP

knob to the end of the red range (full right) and

turn the FAN knob to HI.

[IP12100( BC )03/94] To direct either heated or cooled air to the panel

registers and the floor at the same time, turn the

SELECT knob to PANEL & FLOOR, turn the

TEMP knob for the temperature desired and set

the fan speed as desired.

File:rcipc.ex

Update:Mon Jun 12 16:49:31 1995

[IP12300( BC )05/95] To cool your vehicle using outside air, turn the

SELECT knob to A/C, turn the TEMP knob all

the way to the end of the blue range (full left)

and turn the FAN knob to the desired speed

between LO and HI. A/C provides quieter

system operation than MAX A/C, but it is not

as efficient as MAX A/C which uses recirculated

air.

% [IP12500( BC )05/95] To ventilate your car with outside air, during

mild weather, turn the SELECT knob to PANEL,

turn the TEMP knob for the temperature desired

and set the FAN knob to the speed desired.

[IP12700( BC )08/93] Under normal conditions, the SELECT knob

should be left in any position other than MAX

A/C or OFF when the vehicle is parked. This

allows the vehicle to “breathe” through the

outside air inlet duct.

[IP12900( BC )05/95] To cool your vehicle quickly in warm weather,

turn the SELECT knob to MAX A/C, turn the

TEMP knob all the way to the end of the blue

range (full left) and turn the FAN knob to HI.

MAX A/C uses recirculated air and is the most

fuel efficient way to cool your vehicle and can

also be used in heavy traffic to prevent exhaust

fumes from entering the vehicle. MAX A/C can

also be used in high humidity areas for more

efficient operation.

[IP13100( BC )08/93] If the interior of your vehicle is very warm,

drive for the first few minutes with the windows

open. This forces most of the hot, stale air out of

the vehicle and allows the air conditioning to

work faster.

File:rcipc.ex

Update:Mon Jun 12 16:49:31 1995

% [IP13300( BCGV)01/89]

Adjusting the panel register airflow

[IP13400( BCGV)03/92] The instrument panel registers may be adjusted

to your comfort needs. The thumbwheel controls

the volume of air and the knob in the center of

the register controls direction up or down or

side to side.

[IP13500( BC )05/95]

one third page art:0010183-D

Controlling the airflow from panel registers

% [IP13600( BC )03/95] The Semi Automatic Temperature Control

System (If equipped)

[IP13700( BC )03/95]

System Characteristics

[IP13800( BC )03/95] The Semi Automatic Temperature Control

System (SATC) is designed to provide comfort

consistent with the temperature setting you

select. The discharge air temperature and fan

speed will be automatically controlled to bring

the vehicle to the desired set temperature, as fast

as possible, and then gradually be changed to

maintain that temperature. The system also gives

you the capability of manually adjusting the

location of the discharge air and fan speed for

desired comfort or specific operating

requirements.

File:rcipc.ex

Update:Mon Jun 12 16:49:31 1995

[IP13900( BC )05/95]

one third page art:0010662-D

The controls for the Semi-Automatic Temperature Control

system

[IP14000( BC )03/95]

System Controls

[IP14100( BC )03/95] Digital display

[IP14200( BC )07/93] The temperature you select for your driving

comfort is displayed here. You can change the

temperature by pressing either the COOL or the

WARM button. You may also display outside

temperature for four seconds by depressing the

OUTSIDE TEMP button.

[IP14300( BC )03/95] Cool button

[IP14400( BC )07/93] This button is used to LOWER the temperature

setting. Press the button once to lower the

displayed temperature one degree. Holding the

button in will continuously reduce the

temperature setting in one degree increments

until you either release it or 65˚F (18˚C) is

reached.

[IP14500( BC )05/94] If the button is pressed after 65˚F (18˚C) is

reached, only 60˚F (16˚C) will be displayed and

the system will provide continuous maximum

cooling.

File:rcipc.ex

Update:Mon Jun 12 16:49:31 1995

[IP14600( BC )03/95] Warm button

[IP14700( BC )07/93] This button is used to RAISE the temperature

setting. Press the button once to raise the

displayed temperature one degree. Holding the

button in will continuously increase the

temperature setting in one degree increments

until you either release it or 85˚F (29˚C) is

reached.

[IP14800( BC )03/94] If the button is pressed after 85˚F (29˚C) is

reached, only 90˚F (32˚C) will be displayed and

the system will provide continuous maximum

heating.

[IP14900( BC )03/95]

System Operation

[IP15000( BC )05/95] To heat the inside of your vehicle, turn the

SELECT knob to FLOOR and turn the FAN

knob to AUTO. The fan will remain off until the

engine reaches operating temperature or until

3-1/2 minutes have elapsed. As the interior of

your vehicle warms up, the discharge air

temperature and the fan speed will be

automatically and gradually changed to maintain

the set temperature. If you prefer a fixed fan

speed, turn the fan speed switch to the desired

setting.

% [IP15100( BC )05/95] To defrost the windshield and side windows,

turn the SELECT knob to Defrost V, turn the

FAN knob to HI and set the temperature as

necessary to clear the windshield.

[IP15200( BC )07/93] To direct either cooled or heated air to the panel

registers and the floor at the same time, turn the

SELECT knob to PANEL & FLOOR, push the

COOL or WARM button for the desired

temperature and set the FAN speed as desired.

File:rcipc.ex

Update:Mon Jun 12 16:49:31 1995

[IP15300( BC )05/95] To cool your car quickly in warm weather, turn

the SELECT knob to MAX A/C and turn the

FAN knob to AUTO. As the vehicle interior

cools down, the discharge air temperature and

fan speed will automatically and gradually be

changed to maintain the set temperature with

airflow from the instrument panel registers.

[IP15400( BC )07/93] If the interior of your vehicle is very warm,

drive for the first few minutes with the windows

open. This will force the hot, stale air out and

allow the air conditioning to work faster.

% [IP15500( BC )05/95] To cool your vehicle with outside air, turn the

SELECT knob to A/C and turn the FAN knob to

AUTO or to a fixed speed setting as you desire.

Cooling your vehicle in this manner provides a

quieter system operation, but it will not cool as

efficiently and is not as fuel efficient as MAX

A/C which uses recirculated air.

[IP15600( BC )05/95] To ventilate your vehicle with outside air, turn

the SELECT knob to PANEL and the FAN knob

to AUTO. The fan will remain off until the

engine is warm enough to provide heat.

However, if the interior temperature is above the

set temperature, the fan will turn on

immediately. Temperature may be set as desired

and FAN speed can be selected.

[IP15700( BC )07/93]

A/C compressor override

[IP15800( BC )03/94] The A/C compressor can be disengaged for

more economical driving. This can be done by

turning the SELECT knob to PANEL. The A/C

compressor is automatically engaged by the

control in MAX A/C, NORM A/C, FLOOR &

DEF, and DEFROST positions if the outside

temperature is above 45˚F (7˚C).

File:rcipc.ex

Update:Mon Jun 12 16:49:31 1995

% [IP31700(MBC )05/95] Rear Window Defroster

(If equipped)

(Standard in Canada)

*[IP32000( ALL)12/91] The defroster for the rear window clears frost,

fog, or thin ice from both the inside and outside

of the rear window.

[IP32600( BC )01/89] The button for the rear window defroster is

located on the lower right side of the instrument

panel, just left of the climate control panel.

[IP32700( BC )06/93]

one third page art:0010190-B

The button that controls the rear window defroster

[IP33000( ALL)12/94] Clear away any snow that is on the rear

window before using the defroster. With the

engine running, push the defrost button.

[IP33100( ALL)12/94] After approximately 10 minutes, the defroster

will turn off. If the window is still not clear,

turn the defroster on again.

[IP33200( ALL)12/94] The defroster will turn off when the ignition key

is turned to the OFF position.

*[IP33300( ALL)02/95] The heating elements are bonded to the inside of

the rear window. Do not use sharp objects to

scrape the inside of the rear window or use

abrasive cleaners to clean it. Doing so could

damage the heating elements.

File:rcipc.ex

Update:Mon Jun 12 16:49:31 1995

%*[IP34200( ALL)01/95] The Interior and Exterior Lights

%*[IP34310( ALL)01/95] Daytime Running Light System

*[IP34312( ALL)03/95]

(Canadian vehicles only)

*[IP34320( ALL)03/95] The Daytime Running Light (DRL) system turns

the high beam headlamps on, with a reduced

light output, when:

*[IP34325( ALL)03/95] ❑The headlamp system is in the OFF position,

and

*[IP34330( ALL)03/95] ❑The vehicle is running, and

*[IP34340( ALL)01/95] ❑The vehicle has a fully released parking

brake.

*[IP34360( BCGV)01/95] NOTE: If you have a vehicle with an

automatic lighting system, the DRL

system is active until the automatic

system turns on the headlamps.

*[IP34363( ALL)10/94] NOTE: The high beam indicator will not turn

on in the flash-to-pass mode during

nighttime driving.

*[IP34365( ALL)01/95] NOTE: You may notice that the lights flicker

when the vehicle is turned on or off.

This is a normal condition.

*[IP34367( ALL)05/95] RWARNING

The Daytime Running Light (DRL) system

will not illuminate the tail lamps and

parking lamps. Turn on your headlamps

at dusk. Failure to do so may result in a

collision.

File:rcipc.ex

Update:Mon Jun 12 16:49:31 1995

%*[IP34370( ALL)01/95] Turning On the Exterior Lights

*[IP34550( BCGV)05/95] To turn on the headlamps, parking lamps, side

markers, and tail lamps, use the rotary knob that

is to the left of the steering wheel.

[IP35000( BC )05/95]

half page art:0010195-D

The knob that controls the headlamps and parking lamps

(shown with autolamp feature — other models similar)

[IP35200( ALL)12/91] When you turn on the headlamps, the parking

lamps, tail lamps, and side markers

automatically turn on. But you can turn on the

parking lamps, tail lamps, and side markers

without turning on the headlamps.

*[IP36100( ALL)01/95] For more information about how the high beams

work, refer to the Steering Column Controls

chapter.

File:rcipc.ex

Update:Mon Jun 12 16:49:31 1995

[IP36130( BCGV)05/95]

Chime for headlamps on

*[IP36160( BCGV)05/95] This chime sounds if the driver or any passenger

door is open when the parking lamps or

headlamps are on. The chime sounds until you

close the door, turn off the lamps or turn the

ignition to the ON position.

%*[IP36200( ALL)05/95] Cleaning the Exterior Lamps

*[IP36300( ALL)05/95] Do not use dry paper towel, chemical solvents

or abrasive cleaners to clean the lamps, as these

may cause scratches or crack the lamps.

%*[IP36900( BC )02/95] Setting the Autolamp Delay System

(If equipped)

*[IP37100( BCGV)02/95] The autolamp sets the headlamps to turn on and

off automatically. You can use the autolamp to:

*[IP37300( BCGV)01/95] ❑turn on the lamps automatically at night

*[IP37400( BCGV)01/95] ❑turn off the lamps automatically during

daylight

*[IP37500( BCGV)01/95] ❑keep the lamps on for up to three minutes

after you turn the key to OFF.

[IP37900( BC )05/95]

one third page art:0010199-D

The controls for the autolamp

File:rcipc.ex

Update:Mon Jun 12 16:49:31 1995

*[IP38200( BC )01/95] To set the autolamp:

*[IP38300( BC )05/95] 1. Make sure the headlamp knob is in the OFF

position. If the knob for the headlamps is

ON, you cancel the autolamp.

*[IP38400( BC )01/95] 2. Turn the ignition key to ON or start your

vehicle.

[IP38500( BC )06/93] 3. Find the autolamp thumbwheel to the right

of the panel dim thumbwheel.

[IP38900( BC )11/92] 4. Turn the thumbwheel up to the beginning of

the MAX position (within the DELAY range).

*[IP39200( BC )01/95] 5. The autolamp automatically turns the lamps

on and off for you.

*[IP39275( BCGV)01/95] Do not put any articles on top of the photocell

that is located in the top left corner of the

instrument panel. This photocell controls the

autolamp. If you cover it, the photocell reacts as

if it is nighttime, and the lamps turn on.

*[IP39300( BC )01/95] To turn the autolamp off, move the thumbwheel

back to OFF.

*[IP39500( BCGV)12/92] You can set the autolamp so the lamps stay on

for up to three minutes after you turn your

vehicle off.

[IP39600( BC )12/94] To keep the lamps on after you leave your

vehicle, turn the thumbwheel as far into the

MAX range as you want.

[IP40000( BC )12/94] If you move the thumbwheel only slightly into

the DELAY area, your lamps will stay on for

only a moment after you turn your vehicle off.

The further you move the thumbwheel into the

DELAY area (toward the MAX position), the

longer the lamps will stay on after you turn

your vehicle off.

File:rcipc.ex

Update:Mon Jun 12 16:49:31 1995

%*[IP44500( ALL)01/95] Lighting Up the Interior and Instrument

Panel

[IP44700( BC )01/89]

Manual operation

*[IP44810( BC )05/95] With the light knob in the parking lamps or the

headlamps position, you can brighten or dim the

lights in the instrument panel. To do this, use

the thumbwheel to the left of the steering wheel.

This wheel also turns on the interior lights with

the light knob on or off.

[IP45100( BC )06/93]

half page art:0010206-C

The thumbwheel controls the light on the instrument panel

and the interior light

File:rcipc.ex

Update:Mon Jun 12 16:49:31 1995

[IP45450( BCGV)07/93] Using the Automatic Illuminated Entry

System (If equipped)

[IP45600( BCGV)03/91] The interior lights turn on when you lift the

outside door handle on either front door, when

any button of the keyless entry system is pushed

or when you press UNLOCK, TRUNK, or

PANIC on a programmed remote entry

transmitter if your vehicle is equipped with

remote entry.

[IP45900( BCGV)01/89] These lights automatically turn off after 25

seconds or when you turn the ignition key to

ON or ACC. The inside lights will not turn off if

your have turned them on manually or if a door

is open.

[IP46000( BCGV)01/89]

Tips on the illuminated entry system:

[IP46100( BCGV)01/89] ❑The illuminated entry timer will not turn off

the courtesy lamp if that lamp has been

turned on manually or by the door switch.

[IP46200( BCGV)01/89] ❑Occasionally, you will need to clean the lens

of the door lock assembly. Use Ford

Multi-Purpose Cleaner Concentrate, a mild

soap, or household ammonia and water

solution. Apply with a soft cloth or cotton

swab, followed by a clear water rinse.

File:rcipc.ex

Update:Mon Jun 12 16:49:31 1995

%*[IP46300( ALL)01/95] Turning on the Map and Reading Lamps

*[IP46425( ALL)01/95] Your vehicle has two map lamps for the

passenger and the driver. To turn on the map

lamps, push the switch next to each lamp.

[IP46750( BC )07/93]

one third page art:0011214-A

Map lamp (with optional moon roof)

[IP46760( BC )07/93]

one third page art:0010651-C

Front seat map and dome lamps (without optional moon

roof)

*[IP47010( ALL)01/95] The dual beam map lamps are located on each

side of the dome lamp. Each map lamp can be

turned on by the switches on the lamp.

File:rcipc.ex

Update:Mon Jun 12 16:49:31 1995

% [IP47220( BC )11/92] Rear Seat Courtesy Lamps

[IP47250( BC )03/91] Your vehicle has rear seat courtesy lamps which

are activated when the interior lights are turned

on. These lamps are located on the quarter trim

panels.

%*[IP47270( ALL)04/95] Cleaning the Interior Lamps

*[IP47290( ALL)04/95] Your interior dome lamps and map lamps are

plastic and should be cleaned with a mild

detergent diluted in water. Rinse them with clear

water.

%*[IP47300( ALL)03/95] Clock

[IP47460( BC )05/95]

quarter page art:0011164-B

The digital clock

[IP47500( ALL)05/95] 1. To set the hour, press and hold the H

button. When the desired hour appears,

release the button.

[IP47600( ALL)05/95] 2. To set the minutes, press and hold the M

button. When the desired minute appears,

release the button.

File:rcipc.ex

Update:Mon Jun 12 16:49:31 1995

%*[IP49100( BC )04/95] Cellular Phone (If equipped)

[IP49200( BC )03/95] For information about the cellular phone in your

vehicle, refer to the Cellular Phone User’s Manual

provided with your phone. For further questions

about your Ford or Lincoln-Mercury cellular

phone, contact the Ford Cellular System at

1-800-367-3013. In Canada contact your Ford

Dealer.

[IP49300( BC )03/95] NOTE: It is recommended that you remove

your cellular phone antenna before

entering a car wash. Unscrew the

antenna from its base, located on the

rear window.

%*[IP49400( ALL)04/95] Cleaning the Instrument Panel Lens

*[IP49500( ALL)04/95] Clean the instrument panel lens with a soft cloth

and a glass cleaner, such as Ford Ultra-Clear

Spray Glass Cleaner, or equivalent. Do not use

paper towel or any abrasive cleaner to clean the

lens as these may cause scratches.

File:rcipc.ex

Update:Mon Jun 12 16:49:31 1995

Steering Column Controls

*[SC00200( ALL)01/95] The controls on the steering column and wheel

are designed to give you easy access to the

controls while you are driving.

%*[SC00300( ALL)01/95] The Turn Signal Lever

*[SC00400( ALL)01/95] You can use the turn signal lever on the left side

of the steering column to:

[SC00500( ALL)03/95] ❑operate the turn signals

*[SC00600( ALL)01/95] ❑turn the high beams on/off

*[SC00700( ALL)01/95] ❑flash the lights

*[SC00800( ALL)01/95] ❑turn the windshield wipers and washer

on/off

[SC01900( ALL)02/95]

one third page art:0011292-A

The turn signal lever

%*[SC02100( ALL)01/95] Turn Signals

*[SC02201( ALL)03/95] Move the lever up to signal a right turn. Move

it down to signal a left turn. The corresponding

indicator light in the instrument cluster will

flash.

File:rcscc.ex

Update:Mon Jun 12 16:48:54 1995

*[SC02301( ALL)03/95] If the turn signal stays on after you turn, move

the lever back to the center (off) position.

*[SC02401( ALL)03/95] For lane changes, move the lever far enough to

signal but not to latch. The lever will return to

the off position when you release it.

%*[SC02700( ALL)03/95] High Beams

*[SC02800( ALL)05/95] To turn on the high beams, turn the headlamp

control knob to the headlamp ON position and

push the turn signal lever away from you until

it latches. When the high beams are ON, the

high beam indicator light on the instrument

panel comes on.

*[SC02900( ALL)03/95] To turn off the high beams, pull the lever

toward you until it latches. The high beam

indicator light turns off.

%*[SC03200( ALL)05/95] Flashing the Lights

*[SC03300( ALL)05/95] To flash the headlamps, pull the lever toward

you for a moment and then release it. The

headlamps will flash whether the headlamp

knob is in the on or off position.

%*[SC03500( ALL)03/95] Windshield Wipers and Washer

*[SC03600( ALL)03/95] To turn on the windshield wipers, the ignition

key must be turned to the ON or ACC position.

[SC03750( ALL)01/95] Rotate the end of the lever away from you to

activate the wipers. The first seven detents are

interval wipe positions, the eighth detent is the

LO position and the ninth detent is the HI

position.

*[SC03800( ALL)01/95] To turn the wipers off, turn the knob toward

you to the OFF position.

File:rcscc.ex

Update:Mon Jun 12 16:48:54 1995

%*[SC04100( ALL)03/95] Variable Interval Wipers

*[SC04205( ALL)01/95] In addition to two speed wipers, your vehicle

has wipers that you can set to operate at

varying intervals. For example, you can set the

interval so they wipe less often when it drizzles

or more often in heavier rain.

[SC04700( ALL)02/95]

one third page art:0011293-A

The variable interval wiper on the turn signal lever

*[SC04900( ALL)03/94] To set the interval wipers, turn the knob at the

end of the turn signal lever toward or away

from you until the wipers are going at the

desired interval.

*[SC05300( ALL)04/95] Windshield Washer

*[SC05401( ALL)01/95] To clean the windshield, push in the end of the

wiper knob. For a constant spray, keep the knob

pushed in. After you release the knob, the

wipers operate for two to three cycles before

turning off (if the wipers were OFF) or

returning to HI, LO, or the interval setting

selected.

*[SC05500( ALL)03/95] If the washer does not work, check the washer

fluid level and fill it if it is low. See the Servicing

Your Cougar chapter. If there is enough fluid,

consult your nearest Ford or Lincoln-Mercury

dealer.

File:rcscc.ex

Update:Mon Jun 12 16:48:54 1995

*[SC05600( ALL)01/95] Do not try to clean the windshield when the

washer fluid container is empty or activate the

washers at any time for more than 15 seconds

continuously. This could damage the washer

pump system.

*[SC05700( ALL)01/93] RWARNING

In freezing weather, the washer solution

may freeze on the windshield and obscure

your vision. Always warm up the

windshield with the defroster before you

use the washer fluid. If you cannot see

through the windshield clearly, it can

increase the risk of being involved in a

collision.

*[SC05800( ALL)04/95] For information about refilling the washer fluid

or replacing your windshield wiper blades, see

Windshield washer fluid and Wipers in the Index.

%*[SC05810( ALL)03/95] Hazard Flasher

[SC05820( ALL)05/95] To alert other drivers to hazardous situations,

push in the hazard flasher on the top of the

steering column. The same switch turns the

flashers off.

*[SC05830( ALL)03/95] The flashers work whether your vehicle is

running or not. The flashers work for up to two

hours when the battery is fully charged and in

good condition without draining the battery

excessively. If the flashers run for longer than

two hours or if the battery is not fully charged,

the battery can be drained.

File:rcscc.ex

Update:Mon Jun 12 16:48:54 1995

[SC05860( BCGV)08/93]

one third page art:0010216-B

The control switch for the hazard flashers

%*[SC05900( ALL)01/95] Horn

*[SC06000( ALL)04/95] To sound the horn, push the center pad area of

the steering wheel.

[SC06100( BC )06/93]

half page art:0001012-B

The horn on the steering wheel

File:rcscc.ex

Update:Mon Jun 12 16:48:54 1995

%*[SC07300( ALL)01/95] Tilt Steering

*[SC07400( ALL)05/95] RWARNING

Never adjust the steering wheel when the

vehicle is moving.

[SC07700(MBC )03/93]

half page art:0010088-B

The lever to tilt the steering wheel

*[SC08000( ALL)04/95] To change the position of the steering wheel,

pull the release lever on the column toward you.

Tip the steering wheel to the desired position.

Release the lever to lock the steering wheel in

place.

File:rcscc.ex

Update:Mon Jun 12 16:48:54 1995

%*[SC08600( ALL)03/91] Speed Control (If equipped)

*[SC08800( ALL)03/95] If your vehicle has speed control, you can

automatically maintain a constant speed at or

above 30 mph (50 km/h).

*[SC08900( ALL)05/95] Use of radio transmitting equipment that is not

Federal Communications Commission (FCC) or

in Canada the Canadian Radio and

Telecommunications Commission (CRTC)

approved may cause the speed control to

malfunction. Therefore, use only properly

installed FCC (CRTC in Canada) approved radio

transmitting equipment in your vehicle.

[SC09150( BCGV)12/94] NOTE: When driving in hilly terrain, at high

elevations, or when pulling a trailer, it

may be desirable to drive with the

transmission in the Overdrive off

mode. This can be done by depressing

the Transmission Control Switch on

the transmission gear selection lever.

Driving in this mode prevents the

transmission from shifting excessively

when ascending grades, and helps

maintain speed when going down

steep hills.

*[SC09200( ALL)03/95] NOTE: Do not shift to N (Neutral) when using

the speed control. This will cause the

engine to overspeed.

[SC09250( ALL)12/94] When driving uphill, especially with a heavy

load, significant speed drops may occur. If the

speed drops more than 10 mph (16 km/h) the

automatic speed control will, by design, be

suspended. Some vehicles may require

temporary resumption of manual speed control

while ascending steep grades in order to

maintain the selected speed.

File:rcscc.ex

Update:Mon Jun 12 16:48:54 1995

[SC09300(MBC )08/93]

half page art:0001014-B

The speed control switches on the steering wheel

*[SC10100( ALL)03/95] To set the speed control:

*[SC10300( ALL)03/95] 1. Press and release the ON switch.

*[SC10400( ALL)04/95] 2. Accelerate to the desired speed above

30 mph (50 km/h) using the accelerator

pedal.

*[SC10800( ALL)03/95] 3. Press the SET ACCEL switch and release it

immediately to set your speed. If you keep

this switch pressed, your speed will continue

to increase.

*[SC10900( ALL)03/95] 4. Take your foot off the accelerator pedal.

Your vehicle will maintain the speed you set.

*[SC11000( ALL)01/95] If you drive up or down a steep hill, your

vehicle may momentarily slow down or speed

up, even though the speed control is on. This is

normal.

File:rcscc.ex

Update:Mon Jun 12 16:48:54 1995

*[SC11030( ALL)03/95] NOTE: If your speed increases above your set

speed while driving in D (Drive) on a

downhill grade, you may want to

depress the Transmission Control

Switch located on the shift lever to

turn off overdrive to reduce vehicle

speed. Speed control cannot reduce the

vehicle speed if it goes above your set

speed on a downhill grade.

*[SC11100( ALL)05/95] RWARNING

Do not use the speed control in heavy

traffic or on roads that are winding,

slippery, or unpaved.

%*[SC11200( ALL)03/95] Accelerating With the Speed Control

Operating

*[SC11300( ALL)03/95] You can use the accelerator pedal to speed up

momentarily. When you take your foot off the

accelerator, the vehicle will return to the set

speed.

%*[SC11400( ALL)01/95] Resetting the Speed Control

*[SC11450( ALL)03/95] To reset the speed control to a lower speed, use

one of the following procedures:

[SC11500( ALL)05/94] ❑COAST — Press and hold the COAST switch.

Release the switch when the vehicle slows

down to the desired speed.

[SC11550( ALL)05/94] ❑Lightly tap the brake pedal. When the vehicle

attains the desired speed, press the SET

ACCEL switch and release it immediately.

*[SC11650( ALL)04/95] If vehicle speed is reduced below 30 mph

(50 km/h) by any of the above methods, then

you must manually accelerate to a speed over

30 mph (50 km/h) and reset the system.

File:rcscc.ex

Update:Mon Jun 12 16:48:54 1995

100

*[SC11700( ALL)03/95] To reset the speed control to a higher speed,

follow one of these procedures:

[SC11750( ALL)05/94] ❑ACCEL — Press and hold the SET ACCEL

switch. Release the switch when the vehicle

has accelerated to the desired speed.

[SC11800( ALL)05/94] ❑Depress the accelerator pedal. When the

vehicle attains the desired speed, press the

SET ACCEL switch and release it

immediately.

%*[SC12800( ALL)03/95] Cancelling and Resuming a Set Speed

[SC13000( BCGV)03/95] If you press the brake pedal, speed control is

suspended. You can return to the set speed by

pressing the RESUME switch, as long as you did

not press the OFF switch. You must be driving

at least 30 mph (48 km/h).

*[SC13400( ALL)03/95] Your vehicle will gradually return to the

previously set speed and then maintain it.

%*[SC13501( ALL)01/95] To Turn Speed Control Off

*[SC13601( ALL)04/95] Press the OFF switch.

*[SC13701( ALL)01/95] Speed control is also turned OFF each time the

vehicle ignition is shut off.

File:rcscc.ex

Update:Mon Jun 12 16:48:54 1995

101

Features

*[FV00300( ALL)02/95] Your vehicle has a variety of features designed

for your comfort, convenience and safety. Read

this chapter to find out about standard and

optional features.

%*[FV00400( ALL)01/95] Doors

%*[FV01200(MBC )03/95] Anti-theft front door lock knobs

*[FV01300(MBC )01/95] Anti-theft lock knobs are designed to prevent

unlocking the door by pulling up on the lock

knob. To unlock and open the front door from

inside the vehicle, pull on the inside door

handle.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

102

%*[FV01400( ALL)04/95] Power Door Locks (If equipped)

[FV01600( ALL)03/95] If your vehicle has power door locks, the

controls to lock the doors are on the trim panel

of the front door. When you close the doors

after you set the door locks, the doors remain

locked. If the power mechanism fails, the manual

door locks will override the power controls.

Pulling on a front inside door handle will

automatically override and release the front door

lock.

[FV01750( BC )02/95] Power door locks on vehicles equipped with

keyless entry will activate when the interior

courtesy/dome lamps are turned on or off using

the instrument panel dimmer or thumbwheel

control.

[FV02000( BC )05/95]

half page art:0010223-D

The power locks on the driver’s door

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

103

%*[FV02600( BCGV)01/95] Using the Illuminated Entry System

(If equipped)

[FV03150( BC)05/95] The interior lights turn on when you lift the

outside door handle on either front door when

you press UNLOCK, TRUNK, or PANIC on a

programmed remote entry transmitter if your

vehicle is equipped with remote entry.

[FV03200( BCGV)02/95] These lights automatically turn off after 25

seconds or when you turn the ignition key to

ON or ACC. The inside lights will not turn off if

you have turned them on manually or if a door

is open.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

104

[FV03210( MBC)01/95] Anti-Theft Alarm System

(If equipped)

[FV03220(MBC )05/95] When armed, this system helps protect your

vehicle against break-ins or theft.

%*[FV03230(MBC )05/95] When an unauthorized entry occurs, the system

triggers and will:

*[FV03240(MBC )05/95] ❑flash the headlamps, parking lamps, and

alarm indicator lamp

[FV03250(MBC )05/95] ❑honk the horn

*[FV03260(MBC )05/95] ❑disable the starting circuit to prevent the

vehicle from being started

[FV03270(MBC )05/95] NOTE: The factory installed Remote Entry

System has a PANIC feature that also

chirps the vehicle horn and flashes the

interior/exterior lamps when the

PANIC button on the remote entry

transmitter is pushed. The PANIC

alarm and the Anti-Theft alarm are two

separate features. Both the anti-theft

alarm and the PANIC feature can be

active at the same time.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

105

[FV03280(MBC )05/95] To tell the difference between a PANIC alarm

and a triggered Anti-theft alarm:

[FV03290(MBC )05/95] ❑only the Anti-Theft alarm will cause the

alarm indicator lamp (located in the center of

the instrument panel) to flash on and off.

[FV03301(MBC )05/95] ❑only the Anti-Theft alarm will disable the

start circuit so that the vehicle can not be

started.

[FV03310(MBC )05/95] ❑the Anti-Theft alarm will not stop by pushing

the PANIC button on the Remote Entry

transmitter.

*[FV03320(MBC )05/95] For more information on the PANIC alarm, see

Remote Entry System in the Index.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

106

%*[FV03330(MBC )05/95]

Arming the system

[FV03340(MBC )05/95] To arm the system, do the following steps in

sequence:

*[FV03350(MBC )05/95] 1. Remove the key from the ignition.

[FV03355(MBC )05/95] At this point, the anti-theft system automatically

monitors the ignition keylock cylinder. If the

lock cylinder is forcibly removed, the anti-theft

alarm system will trigger. To arm the remaining

portion of the system, follow steps 2-4.

*[FV03360(MBC )05/95] 2. Open any door. The alarm indicator light

will start flashing to remind you to arm the

system.

[FV03370(MBC )05/95] 3. Lock the doors by using the power door

lock switch or by pressing the remote entry

transmitter LOCK button.

[FV03380(MBC )05/95] The alarm indicator will now glow steadily.

[FV03390(MBC )05/95] 4. Close all doors. The alarm indicator light

will then remain on steadily for

approximately 30 seconds and then go out.

When the light goes out, the system is

armed.

[FV03400(MBC )05/95] NOTE: Be sure to close all doors completely. If

not, the alarm indicator light will

remain on. Remember, your anti-theft

system is armed only after the alarm

indicator light remains on steadily for

approximately 30 seconds after the last

door is closed, and then goes out.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

107

[FV03410(MBC )05/95] You can also arm the anti-theft system by

following this sequence:

*[FV03420(MBC )05/95] 1. Remove key from ignition.

*[FV03430(MBC )05/95] 2. Close all of the doors.

[FV03445( BC )05/95] 3. Press the remote entry transmitter LOCK

button to lock the doors. The alarm indicator

will come on for 30 seconds to show that the

alarm is arming and then turn off to show

that the alarm has been armed.

*[FV03450(MBC )05/95] The anti-theft system is designed to work with

the factory installed remote entry system. It may

not work with other remote entry systems.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

108

%*[FV03460(MBC )05/95]

Disarming an untriggered anti-theft system

*[FV03470(MBC )05/95] You can disarm the system by:

[FV03480(MBC )05/95] ❑unlocking a door with the key (turn the key

all the way to the end of travel or the system

may not disarm.

*[FV03490(MBC )05/95] ❑using the UNLOCK button of the remote

entry transmitter

[FV03495( BC )05/95] ❑using the keyless entry unlock code on the

keypad

[FV03500(MBC )05/95] ❑if remaining in the vehicle, turn the ignition

switch to ON or ACC

*[FV03510(MBC )05/95]

Triggering the alarm system

*[FV03520(MBC )05/95] The armed system will be triggered if:

[FV03530(MBC )05/95] ❑any door is opened without disarming the

system first (see previous paragraphs)

*[FV03540(MBC )05/95] ❑the trunk lock cylinder is removed, or

*[FV03543(MBC )05/95] NOTE: You can open the trunk with your key

without setting off the alarm.

[FV03547( BC )05/95] ❑the ignition key lock cylinder is forcibly

removed from the steering column.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

109

%*[FV03550(MBC )05/95]

Disarming a triggered system

*[FV03560(MBC )05/95] The alarm can be disarmed by:

*[FV03570(MBC )05/95] ❑unlocking a front door with the key

*[FV03580(MBC )05/95] ❑using the UNLOCK button of the remote

entry transmitter

[FV03581( BC )05/95] ❑using the keyless entry unlock code

*[FV03582(MBC )05/95] NOTE: The flashing lights and honking horn

will shut off automatically within 2

minutes 45 seconds after the system is

triggered. It will trigger again if

another intrusion occurs. However, the

starter circuit remains disabled until

the system is disarmed.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

110

%*[FV08030( ALL)02/95] Remote Entry System

(If equipped)

*[FV08036( ALL)03/94] If your vehicle has the remote entry system, you

can lock and unlock the vehicle doors and open

the trunk without using a key. The remote also

has a personal alarm feature. The buttons for the

system are located on the hand held

transmitter(s) that came with your vehicle.

*[FV08040( ALL)02/95] The system will work with up to four

transmitters. Your vehicle came with two

transmitters. Additional transmitters can be

ordered from your dealer.

*[FV08045(MBC )02/95] The remote entry features only operate with the

ignition in the OFF position.

[FV08050(MBC )02/95]

one third page art:0001000-A

Remote entry transmitter

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

111

%*[FV08055( ALL)02/95]

Unlocking the doors and opening the trunk

*[FV08060( ALL)02/95] To unlock the driver’s door, press the UNLOCK

button.

*[FV08065( ALL)02/95] To unlock the other doors, press the UNLOCK

button a second time within five seconds of

unlocking the driver’s door.

[FV08070(MBC )05/95] To open the trunk, press the TRUNK button.

*[FV08080( ALL)02/95]

Locking the doors

*[FV08085( ALL)02/95] To lock all the doors, press the LOCK button.

*[FV08090(MBC )01/95] If you would like a signal that the doors are

being locked, press the LOCK button again

within five seconds. The doors will lock again,

the horn will beep and the low beam headlamps

and tail lamps will flash.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

112

*[FV08114( ALL)02/95]

Activating the remote personal alarm

*[FV08120( ALL)02/95] If you wish to activate the remote personal

alarm, press the PANIC button. This will honk

the horn and flash the low beam headlamps and

tail lamps for approximately two minutes and

forty-five seconds. You can turn it OFF by

pressing the PANIC button again or by turning

the ignition key to the RUN position.

[FV08125( ALL)05/94] When you use the remote entry UNLOCK,

TRUNK or PANIC buttons, the illuminated entry

system turns on the interior lights for 25

seconds. You can turn these lights off with the

LOCK button or by turning the ignition to the

RUN position. The interior lights will not turn

off if you have turned them on manually or if a

door is open.

%*[FV08725( ALL)02/95]

Replacing the batteries

*[FV08750(MBC )02/95] The remote entry transmitter is powered by two

coin type three-volt lithium 2016

batteries (included) that should last for several

years of normal use. If you notice a significant

decrease in operating range, the batteries should

be replaced. Replacement batteries can be

purchased at most pharmacies, watch stores or

at your Ford or Lincoln-Mercury dealer.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

113

*[FV08775( ALL)02/95] NOTE: The operating range of the remote

entry system can also be affected by

weather conditions (such as very cold

temperatures) or structures around the

vehicle (buildings, other vehicles, radio

and TV towers, etc.). Typical operating

range will allow you to be up to 33

feet (10 meters) away from your

vehicle.

*[FV08800(MBC )02/95]

quarter page art:0020790-A

Replacing the batteries

*[FV08825(MBC )02/95] The transmitter can be snapped apart to replace

the batteries by twisting a thin coin between the

two halves of the transmitter. DO NOT TAKE

THE FRONT PART OF THE TRANSMITTER

APART. When installing the new batteries, be

sure to place the positive (+) side down as

marked. Snap the two halves back together.

%*[FV08850( ALL)02/95]

Replacement/additional transmitters

*[FV08875(MBC )02/95] In the event a transmitter is lost, return the

remaining transmitters to your dealer for

reprogramming of your remote entry system.

This is necessary to prevent further unauthorized

use of the lost transmitter.

*[FV08900(MBC )02/95] Additional transmitters may be purchased from

your dealer (remote entry system will work with

up to four transmitters). Return your existing

transmitters to your dealer so the remote entry

system can be reprogrammed with your new

and existing transmitters.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

114

*[FV08925( ALL)02/95] THIS DEVICE COMPLIES WITH PART 15 OF

THE FCC RULES. OPERATION IS SUBJECT

TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE

HARMFUL INTERFERENCE, AND (2) THIS

DEVICE MUST ACCEPT ANY

INTERFERENCE RECEIVED, INCLUDING

INTERFERENCE THAT MAY CAUSE

UNDESIRED OPERATION.

%*[FV08950( ALL)02/95] Windows

%*[FV08980( BCGV)02/95] Using the Power Windows

[FV08990(MBC )03/03] Each door has a power control that opens and

closes the window on that door. The driver’s

door has a master control panel that operates the

windows.

*[FV09050( ALL)01/95] Power windows can only be opened or closed

when the ignition switch is in the ON or ACC

position.

*[FV09075(MBCG )05/95] RWARNING

Do not let children play with the power

windows. They may seriously hurt

themselves. Make sure occupants are clear

of the window(s) before closing.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

115

[FV09200( BC )05/95]

half page art:0010233-G

The master controls on the driver’s door

%*[FV13100( BC )02/95] Moon Roof (If equipped)

[FV13200( BC )05/95] You can move the moon roof back to open the

glass panel, or you can tilt it up to ventilate the

vehicle. There is also an intermediate position

between closed and open which can reduce wind

noise at speeds between 30 and 45 miles per

hour (50 and 70 km/h).

*[FV13300( BC )01/95] The rocker type switch is used to open and close

the moon roof. You must press and hold the

switch until the desired position is reached. At

fully open, closed and intermediate positions, the

motor will automatically turn off. Release the

switch at this time to avoid motor damage.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

116

[FV13400( BC )05/92]

two third page art:0010248-C

The switch for the moon roof

[FV13600( BC )07/93] To open the moon roof, press and hold the rear

portion of the switch. The glass panel will move

to the intermediate position and stop. If the rear

of the switch is pressed again the glass panel

will move to the full open position and stop.

[FV13700( BC )07/93] To close the moon roof, press and hold the front

portion of the switch. The glass panel will move

to the intermediate position and stop. Press and

hold the front of the switch again and the panel

will move to the fully closed position and stop.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

117

*[FV13800( BC )01/95] To tilt the moon roof into vent position when

the glass panel is closed, press the front portion

of the switch.

*[FV13900( BC )04/95] To close from vent position, press and hold the

rear portion of the switch.

*[FV14100( BC )01/95] Occasionally wiping the outside guide rail covers

of the moon roof with a clean cloth will help

keep the moon roof working properly.

[FV14200( BC )05/89]

one third page art:0010250-B

The moon roof

*[FV14300( BC )01/95] RWARNING

Do not let children play with the moon

roof. They may seriously hurt themselves.

*[FV14400( BC )01/95] Sliding Shade

*[FV14500( BC )01/95] The moon roof has a sliding shade that you can

manually open or close to block the sun when

the glass panel is shut.

*[FV14600( BC )01/95] To close the sliding shade, pull the shade toward

the front of the vehicle. The shade automatically

opens and locks when the moon roof is opened.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

118

%*[FV15700( ALL)01/95] Seats

%*[FV15710( ALL)04/95] Head Restraints

*[FV15720( ALL)04/95] If you use them properly, head restraints will

help protect your head and neck in a collision.

*[FV15730( ALL)05/95] A head restraint helps protect you best if you

position it behind your head and not behind

your neck.

*[FV15740( ALL)02/95]

Standard head restraints

*[FV15750( ALL)01/95] You can adjust the head restraints for your

comfort and protection.

[FV15770( ALL)05/92]

one third page art:0010048-C

Adjusting the head restraint

% [FV15800(MBC )06/93] Adjusting Manual Seats

*[FV16000( ALL)02/89] In the front seats, you can move the whole seat

forward or backward or tilt the back of the seat

forward or backward.

[FV16100(MBC )05/92] To move the seats forward or backward:

[FV16200( BCGV)04/95] 1. Find the adjustment bar underneath the front

part of the seat.

[FV16400( BCGV)04/95] 2. Lift the bar to unlatch the seat.

*[FV16600( ALL)04/95] 3. Move the seat to the desired position.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

119

[FV16700( BCGV)04/95] 4. Release the bar to latch the seat in its new

position. Make sure the seat locks securely in

place.

[FV16900( BC )07/89]

quarter page art:0010252-A

The front seat adjustment bar

*[FV17100(MBC )02/95] To recline the front manual seats:

*[FV17200( ALL)01/95] 1. On the side of the seat, find the handle for

the recliner.

*[FV17300( ALL)04/95] 2. Lift the handle up and hold it in place.

*[FV17400( ALL)01/95] 3. Lean against the back of the seat and adjust

it to the position you want. You can tilt the

seat back or bring it forward.

*[FV17500( ALL)04/95] 4. Release the handle to lock the seat in its new

position.

*[FV17600( ALL)05/95] RWARNING

Never adjust the driver’s seat or seatback

when the vehicle is moving.

*[FV17700( ALL)05/95] RWARNING

To reduce the risk of serious injury in a

collision, always drive and ride with your

seatback upright and the lap belt snug

and low across the hips.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

120

%*[FV17900(MBC )01/95] Seatback Recline

[FV18100( BC )03/90]

one third page art:0010256-A

Front seatback release levers

*[FV18300( BC )01/95] It is not necessary to use the emergency seatback

release lever for rear seat entry or exit. The

seatback remains unlocked with normal usage

and locks only during emergency stopping, upon

impact, or on steep downhill grades. The inertia

seatback latch will allow the seatback to rotate

approximately 5˚ forward before it locks. The

release is provided only to unlock the seatback

when parked on steep downhill grades or after a

collision.

*[FV18400( BC )05/95] RWARNING

A seatback which is folded forward even

a small degree may not lock properly in

the event of a sudden stop or collision.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

121

%*[FV18500( BCGV)05/95] Using the Power Seats (If equipped)

[FV18600( BC )08/93] If your vehicle has power seats, you can adjust

them in several directions. The controls are on

the side of the seats.

[FV18800( BC )05/95]

half page art:0010258-F

The power controls on the driver’s seat

*[FV18850( ALL)05/95] RWARNING

Do not pile cargo higher than the

seatbacks to avoid injuring people in a

collision or sudden stop.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

122

% [FV19700( BC )03/95] Sport Seat

[FV19920( BC )03/95]

two third page art:0010489-D

Sport seat controls

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

123

%*[FV19950(MBC )03/95] Rear Seat Entry

[FV20000( BC )06/93]

one third page art:0010264-A

Entering the rear seat

[FV20100(MBC )03/95] The rotating boot on the lap belt is designed to

allow rear seat entry/exit. To enter the rear seat:

*[FV20200( BC )01/95] 1. Rotate the safety belt boot rearward.

*[FV20300( BC )01/95] 2. Enter the rear seat in front of the safety belt.

*[FV20400( BC )01/95] 3. Rotate the safety belt boot forward to allow

use by the front seat passengers.

%*[FV20500( ALL)04/95] Cleaning the Seats

*[FV20600( ALL)05/95]

Leather and vinyl

*[FV20650( ALL)05/95] For routine cleaning, wipe the surface with a

soft, damp cloth. For more thorough cleaning,

wipe the surface with a leather and vinyl cleaner

or a mild soap.

%*[FV20700( ALL)04/95]

Fabric

*[FV20750( ALL)04/95] Remove dust and loose dirt with a whisk broom

or a vacuum cleaner. Remove fresh spots

immediately. Follow the directions that come

with the cleaner.

*[FV20775( ALL)04/95] NOTE: Before using any cleaner, test it on a

small, hidden area of fabric. If the

fabric’s color or texture is adversely

affected by a particular cleaner, do not

use it.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

124

%*[FV20800( ALL)01/95] Mirrors

[FV20850(ALL)03/95] You can adjust your rearview mirror in any

direction. The special swivel bracket lets you

move the mirror up or down and from side to

side.

[FV21000(ALL )03/95] RWARNING

Make sure you can see clearly through the

rearview mirror at all times. Do not block

your vision. If you cannot see through the

mirror, it could result in a collision,

injuring yourself and others.

% [FV24100( BCGV)07/93] Adjusting the Dual Electric Remote

Control Mirrors

[FV24200(M C )06/93] The switch for controlling the dual electric

remote control mirrors is located on the driver’s

door.

%*[FV24400( ALL)01/95] Do not clean the housing or glass of any mirror

with harsh abrasives, fuel or other

petroleum-based cleaning products.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

125

[FV24500( BC )03/93]

half page art:0010269-D

The mirror controls on the driver’s door

*[FV24700( ALL)04/95] To adjust the side mirrors:

*[FV24800( ALL)01/95] 1. Find the control switch in the driver’s door

panel.

*[FV24900( ALL)02/95] 2. Select the right or left mirror by moving the

selector switch to R or L.

[FV25000( ALL)06/93] 3. Move the knob in the direction of the arrows

for the direction you want to move the

mirror.

*[FV25100( ALL)01/95] 4. Return the selector switch to the middle

position to keep the mirror in place.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

126

[FV28700( ALL)01/89] The Right Side Convex Mirror

[FV28800( ALL)03/90] The side view mirror on the right is a convex

mirror. This mirror gives you a wider view of

the lanes on your right and behind you.

*[FV28900( ALL)05/95] RWARNING

The side view mirror on the right makes

objects appear smaller and farther away

than they actually are.

%*[FV28950( ALL)01/95] Sun Visors

%*[FV29100( ALL)05/94] Turning on the Mirror Light on the Sun

Visors (If equipped)

[FV29300( ALL)06/93] To turn on the visor mirror light, lift the mirror

cover.

[FV29800( BC )05/92]

one third page art:0010277-B

The mirror on the sun visor

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

127

%*[FV30200(MBC )01/95] Console

[FV30350(MBC )06/93] Your vehicle has a full console. The full console

has the features shown in the illustration below.

[FV30500( BC )03/95]

half page art:0010282-E

The features on the full console

%*[FV32875( ALL)01/95] Storage Compartments

[FV32905( BC )07/93] In addition to the console, your vehicle may

have several small storage compartments:

[FV33000( BCGV)11/94] ❑a glove compartment that locks. Use the

round key to lock and unlock it.

*[FV33100( BCGV)01/95] ❑two map pockets on the panels of the front

doors.

*[FV33300( ALL)05/95] RWARNING

Do not put objects on the ledge between

the back seat and the rear window, as

they can become dangerous projectiles and

injure someone.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

128

%*[FV33400( ALL)01/95] Trunk

*[FV33500( ALL)01/95] Opening the Trunk Manually

[FV34000( BC )05/94] The trunk in your vehicle gives you plenty of

room for storage — 15.1 cubic feet (.42 cubic

meters).

%*[FV34600( ALL)03/95] To open and close the trunk from the outside:

[FV34950( BCGV)03/95] 1. Insert the key into the lock on the trunk.

[FV35100( ALL)11/90] 2. Turn the key to the right until the trunk

opens.

[FV35300( ALL)11/90] 3. Remove the key before you close and lock

the lid.

[FV35450( ALL)06/93] 4. Shut the trunk lid completely.

% [FV36200( ALL)03/95] Using the Remote Control for the

Trunk (If equipped)

[FV36500( BC )07/93] With the ignition switch in the ON or ACC

position, you can use the remote control under

your console armrest to unlock and open the

trunk.

[FV36700( BC )05/95]

quarter page art:0010359-C

The trunk release button located under the armrest

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

129

% [FV47500( ALL)08/93] Positive Location Floor Mat

[FV47600(MBC )08/93] When installing or removing the driver’s side

floor mat you must attach/detach the positive

location grommet from the hook on the floor.

The hook is just forward of the left hand track

of the driver’s seat.

[FV47800(MBC )08/93]

half page art:0010758-A

The positive location floor mat hook

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

130

[FV48000( C )03/95] Decklid Luggage Rack

(If equipped)

[FV48100( C )03/95] NOTE: The factory-installed luggage rack has a

load carrying capacity of 50 lbs.

(23 kg.). Do not exceed this load limit

or cause the vehicle to exceed the gross

vehicle weight rating (GVWR), which

is shown on the Safety Compliance

Certification Label.

File:rcfvc.ex

Update:Wed Jun 28 16:53:30 1995

131

Electronic Sound Systems

% [AS01100(MBC )05/94]

full page art:0060658-A

Compact Disc Radio

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

132

%*[AS01105(MBC )04/95] Compact Disc Radio

*[AS01175(MBC )05/95] The Compact Disc Radio combines the Electronic

Stereo Radio with the Ford Compact Disc Player.

[AS01200(MBC )12/94] Using the Controls on Your New Compact

Disc Radio

*[AS01300(MBC )04/95] Most of the features of this unit work for both

radio and CD operation. Also, some of the knobs

and buttons control several different functions,

so be sure to read all of the operating

instructions carefully.

*[AS01400(MBC )04/95]

How to turn the radio on and off

*[AS01500(MBC )04/95] Press the “POWER” button to turn the radio on.

Press it again to turn it off.

*[AS01600(MBC )04/95]

How to adjust the volume

*[AS01700(MBC )04/95] Press the (+/s) side of the “VOL” button to

increase/decrease the volume. Bars illuminate in

the display to show the relative volume level.

*[AS01800(MBC )04/95] NOTE: If the volume level is set above a

certain listening level when the

ignition switch is turned off, when the

ignition switch is turned back on, the

volume will come back to a “nominal”

listening level. However, if the radio

power is turned off (with the

“POWER” button), the volume will

remain in the position it was set at

when radio power is switched back on.

*[AS01900(MBC )04/95]

Selecting the AM or FM frequency band

*[AS02000(MBC )04/95] Push the “AM/FM” button to select the desired

frequency band. When in the radio mode,

pushing the button more than once will alternate

between AM, FM1 and FM2. These functions are

used with the station memory buttons described

under How to tune radio stations.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

133

%*[AS02100(MBC )05/95]

How to tune radio stations

*[AS02200(MBC )04/95] There are four ways for you to tune in a

particular station. You can manually locate the

station using the “SCAN/TUNE” button,

“SEEK” the station, “SCAN” to the station or

select the station by using the memory buttons,

which you can set to any desired frequency.

These four methods are described below.

*[AS02300(MBC )04/95] ❑Using the “SCAN/TUNE” button to manually

tune

*[AS02400(MBC )04/95] You can change the frequency up or down

one increment at a time (FM changes in

increments of 200kHz; AM changes in

increments of 10kHz) by first pressing the

“SCAN/TUNE” button twice (display shows

“TUNE”), then — within approximately five

seconds —pressing and releasing either the

top aor bottom bhalf of the “SEEK”

button. To change frequencies quickly, press

and hold down either the top or bottom half

of the “SEEK” button. While you are

manually tuning, the display will show a

blinking “M”.

*[AS02500(MBC )04/95] Manual tuning adjusts your radio to any

allowable broadcast frequency, whether or

not a station is present on that frequency.

(See All About Radio Frequencies in this

section.)

*[AS02600(MBC )04/95] ❑Using the “SEEK” function

*[AS02700(MBC )04/95] This feature on your radio allows you to

automatically select listenable stations up or

down the frequency band. Press the top a

half of the “SEEK” button to select the next

listenable station up the frequency band.

Press the bottom bhalf of the button to

select the next listenable station down the

frequency band. By pressing and holding the

button, listenable stations can be passed over

to reach the desired station.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

134

*[AS02800(MBC )04/95] ❑Using the “SCAN/TUNE” button to scan

radio stations

*[AS02900(MBC )04/95] Pressing the “SCAN/TUNE” button once

enters the scan mode (display will indicate

“SCN”). Pushing the top ahalf of the

“SEEK” button will begin the scan mode up

the frequency band, stopping on each

listenable station for approximately five

seconds. Pushing the bottom bhalf of the

“SEEK” button will begin the scan mode

down the frequency band, again stopping on

each listenable station for approximately five

seconds.

*[AS03000(MBC )04/95] To stop the scan mode on the presently

sampled station press the “SCAN/TUNE”

button again.

*[AS03200(MBC )04/95] ❑Setting the Station Memory Preset buttons

*[AS03300(MBC )02/95] Your radio is equipped with 6 station

memory buttons. These buttons can be used

to select up to 6 preset AM stations and 12

FM stations (6 in FM1 and 6 in FM2).

[AS03350(MBC )05/95] Follow the easy steps below to set these buttons

to the desired frequencies:

*[AS03400(MBC )04/95] 1. Select a band, then select a frequency.

*[AS03600(MBC )04/95] 2. Press one of the memory buttons and hold

the button until the sound returns. That

station is now held in memory on that

button.

*[AS03700(MBC )04/95] 3. Follow the two steps above for each station

memory preset button you want to set.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

135

*[AS03950(MBC )04/95] ❑Using the Automatic Memory Load feature

*[AS04050(MBC )03/95] If no stations are in memory preset, you can

activate the Auto Memory Load feature by

pressing and holding the “AUTO PRESET”

button for approximately three seconds.

Auto Memory Load sets all memory buttons

in AM, FM1 and FM2 sequentially by seeking

out the first six strong stations for the

respective band and storing them in memory

buttons 1-5. (FM2 will store the second set of

strong stations from the FM band.)

*[AS04150(MBC )04/95] With Auto Memory Store, you can

continually set strong stations into your

memory buttons without losing your existing

memory presets, which is especially handy

while traveling. Your radio will automatically

set your memory buttons to the strong local

stations so you don’t have to continually

manually tune to existing stations.

*[AS04250(MBC )02/95] Activate Auto Memory Store by pushing the

“AUTO PRESET” button once. Your radio

will set the first five strong stations of the

band you are in (AM, FM1 or FM2) into the

memory buttons. The display will show

“AUTO”, then run through the frequencies,

stopping momentarily on the stations being

set into the memory buttons. The radio is

now in the “AUTO” mode and this display

will show “AUTO” each time a preset is

activated.

*[AS04350(MBC )04/95] NOTE: If there are fewer than five strong

stations in the frequency band, the

remaining unfilled buttons will store

the last strong station detected on the

band.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

136

*[AS04450(MBC )04/95] After all stations have been filled, the radio

will begin playing the station stored on

memory button 1.

*[AS04550(MBC )04/95] To deactivate the Auto Memory Store mode

and return to the manually-set memory

button stations (or those stations set using

Auto Memory Load), simply push the

“AUTO PRESET” button. Display will show

“AUTO” then “OFF”. The next time Auto

Memory Store is activated on that band, the

radio will store the next set of five strong

stations.

*[AS04600(MBC )02/95]

Adjusting the tone balance and speaker

output of your radio

*[AS04700(MBC )04/95] ❑Increasing or decreasing bass response

[AS04750(MBC )05/94] Push the “AUDIO” button repeatedly until

the display reads “BASS”. Push the top (+)

side of the “VOLUME” button to increase

bass (more “lows”), and push the bottom (–)

side to decrease bass (less “lows”).

*[AS04800(MBC )04/95] ❑Increasing or decreasing treble response

[AS04900(MBC )05/94] Push the “AUDIO” button repeatedly until

the display reads “TREB”. Push the top (+)

side of the “VOLUME” button to increase

treble (more “highs”), and push the bottom

(–) side to decrease treble (less “highs”).

*[AS04950(MBC )04/95] ❑Adjusting speaker balance

[AS05000(MBC )05/94] Balance control allows you to adjust the

sound distribution between the right and left

speakers. Push the “AUDIO” button

repeatedly until the display reads “BAL”.

Push the top (+) side of the “VOLUME”

button to shift the sound to the right

speakers, and push the bottom (–) side to

shift the sound to the left speakers.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

137

*[AS05100(MBC )04/95] ❑Adjusting speaker fader

[AS05200(MBC )05/94] Fade control allows you to adjust the sound

distribution between the front and rear

speakers. Push the “AUDIO” button

repeatedly until the display reads “FADE”.

Push the top (+) side of the “VOLUME”

button to shift the sound to the front

speakers, and push the bottom (–) side to

shift the sound to the rear speakers.

*[AS05300(MBC )04/95] NOTE: Illuminated bars in the display show

relative levels of bass and treble, and

positions of speaker balance and fader

functions (left to right, front to rear).

*[AS06800(MBC )04/95] Using the Controls on Your New Compact

Disc Player

*[AS07000(MBC )04/95] Your new Ford Compact Disc Player is capable

of playing 12 cm or 8 cm discs, without an

adapter! The Player operates when the power is

on and a disc is inserted (label side up). Handle

the disc by its edge only. (Be sure to read and

follow all of the care and cleaning instructions

under How To Take Care of and Clean Your CD

Player and Discs.

*[AS07100(MBC )04/95] NOTE: If after you insert a disc, the disc is

ejected and “ERROR” begins scrolling

in the display, remove the disc and

reinsert it right side up (label side up).

[AS07200(MBC )03/95] The digital display on your CD player will

either show the track (selection) number or the

elapsed time. (The display mode can be selected

by pressing the memory preset button #6.)

Indicators for play b, stop Xand compression

on (“C”) are also in the display. (These features

are described later.)

*[AS07300(MBC )04/95] Once a disc is inserted, operation of the CD

player will override that of the radio.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

138

*[AS07400(MBC )04/95] NOTE: The volume, bass, treble, balance and

fader controls on the radio are also

used with the CD player. Refer to

earlier operating instructions on these

controls.

*[AS07500(MBC )04/95]

How to insert a disc and begin play

*[AS07550(MBC )04/95] Insert one disc, label side up into the disc

opening. When inserted, the disc automatically

loads into the unit and play starts at the

beginning of the first track (selection).

*[AS07600(MBC )04/95] When the disc reaches the end, the disc player

automatically returns to the beginning of the

disc and resumes playing.

*[AS07610(MBC )02/95]

How to change the track being played

[AS07620(MBC )03/95] Press the top aside of the “SEEK” button to

seek forward to the next track of the disc. If the

button is held and the last track is reached, the

disc player will automatically begin playing the

last track of the disc.

[AS07630(MBC )03/95] Press the bottom bside of the “SEEK” button

to seek the previous track on the disc.

*[AS07650(MBC )04/95] NOTE: Once a disc is inserted, the disc

opening is secured to prevent the

accidental insertion of a second disc.

*[AS07700(MBC )04/95] NOTE: The CD player has heat protection

circuitry to protect the laser diode. If

the temperature of the player reaches

167˚F (75˚C), the heat detection circuit

will shut off the player and “TOO

HOT” will scroll in the display for

approximately five seconds (radio will

resume playing). When the temperature

returns to normal operating range, the

CD player will again be operational.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

139

*[AS07750(MBC )04/95]

How to stop and restart the CD player

*[AS07800(MBC )04/95] When a disc is loaded, the unit automatically

enters the play mode and the play indicator a

illuminates. To stop temporarily, press the

“PLAY/STOP” button or the “AM/FM” button.

The stop indicator Xin the display illuminates

and operation returns to the radio mode. To

resume CD play, press the “PLAY/STOP”

button once again.

*[AS07850(MBC )04/95] NOTE: If the ignition key is turned OFF

during play and then is set to the ON

or ACCESSORY position, the CD

player will resume playing in the mode

it was in when ignition was turned off.

*[AS07900(MBC )05/95]

How to fast forward or reverse your CD

player

*[AS07950(MBC )05/95] To quickly search for a particular point in a

selection, press the “FF” button (to fast forward)

or the “REV” button (to reverse). While either

button is pressed, the disc goes forward or

backward at two different speeds depending on

how long the button is held down. (Pressing

either button for more than approximately three

seconds will speed up the process.) Release the

button at the desired point (found by watching

the elapsed playing time in the display or by

listening to the sound during fast forward or

reverse). When you have reached the beginning

of track 1, the CD player will begin playing.

*[AS08000(MBC )04/95] When you have reached the end of the disc by

keeping the fast forward button pressed, the

display will show “END” and the player will go

into pause mode. Push the “PLAY/STOP”

button to begin playing the first track of the

disc, press the “REV” button to back up from

the end of the disc, or use the “SEEK” function

to locate a desired track.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

140

*[AS08020(MBC )04/95]

Using the “SCAN” function

[AS08030(MBC )03/95] Press the “SCAN/TUNE” button to enter the

scan mode. Once in the scan mode, press the top

aor bottom bhalf of the “SEEK” button to

scan forward or reverse, respectively. The CD

player will begin scanning the disc, stopping on

each listenable track for approximately eight

seconds. This continues until you press the

“SCAN/TUNE” button a second time. While in

the scan mode, the display shows the current

sampled track number.

*[AS08040(MBC )04/95]

Special features of your CD player

*[AS08050(MBC )04/95] ❑Compression

*[AS08060(MBC )04/95] The compression feature will bring soft and

loud passages closer together for a more

consistent listening level.

*[AS08070(MBC )04/95] To turn the compression on, press the

“COMP” button. When on, the compression

indicator (“C”) will appear in the display.

Press the button again to turn off.

*[AS08080(MBC )04/95] ❑Automatic Disc Storage

*[AS08090(MBC )04/95] If the disc is ejected from the CD player but

is not removed from the disc opening within

approximately 10 seconds, the player will

automatically reload the disc for storage,

unless the disc is automatically ejected due to

a “focus error” (disc inserted upside down).

In this case, the disc will not be automatically

reloaded.

*[AS08095(MBC )04/95]

How to eject the disc

*[AS08096(MBC )04/95] Push the “EJECT” button to stop play, eject the

disc and resume radio operation of your audio

system.

*[AS08097(MBC )04/95] NOTE: You can eject the disc while the radio

power and/or ignition is on or off.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

141

% [AS21350(MBC )02/95]

full page art:0060641-B

Electronic Stereo Radio with Cassette

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

142

%*[AS21370(MBC )05/95] Electronic Stereo Cassette Radio

*[AS21400(MBC )02/95] Using the Controls on Your New Radio

*[AS21500(MBC )02/95]

How to turn the radio on and adjust the

volume

*[AS22050(MBC )04/95] Press the “POWER” button to turn the radio on.

Press it again to turn it off.

[AS22060(MBC )04/94] Press the right (+) side of the “VOLUME”

button to increase the volume. Press the left (–)

side of the button to decrease the volume.

Illuminated bars in the display show the relative

volume level.

*[AS22070(MBC )04/95] NOTE: If the volume level is set above a

certain listening level when the

ignition switch is turned off, when the

ignition switch is turned back on, the

volume will come back to a “nominal”

listening level. However, if the radio

power is turned off (with the

“POWER” button), the volume will

remain in the position it was set at

when radio power is switched back on.

*[AS22100(MBC )04/95]

Selecting the AM or FM frequency band

*[AS22250(MBC )02/95] Push the “AM/FM” button to select the desired

frequency band or to stop/store cassette tape

(when in cassette mode). Pushing the button

more than once will alternate between AM, FM1

and FM2. These functions are used with the

station memory buttons described under How to

tune radio stations.

[AS22300(MBC )05/95]

How to tune radio stations

*[AS22425(MBC )07/92] There are four ways for you to tune in to a

particular station. You can manually locate the

station by using the Automatic Music Search

(“AMS”) button, “SEEK” the station, “SCAN” to

the station or select the station by using the

memory buttons, which you can set to any

desired frequency.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

143

[AS22450(MBC )05/95] ❑Using the “AMS” function to manually tune

your radio

[AS22650(MBC )03/95] You can change the frequency up or down

one increment at a time by first pressing the

“AMS” button, (display shows “TUNE”) then

pressing and releasing either the right aor

left bside of the “SEEK” button. To change

frequencies quickly, press and hold down

either the right or left side of the “SEEK”

button.

*[AS22700(MBC )02/95] Manual tuning adjusts your radio to any

allowable broadcast frequency, whether or

not a station is present on that frequency.

(See All About Radio Frequencies in this

section.)

*[AS22800(MBC )04/95] ❑Using the “SEEK” function

*[AS22900(MBC )04/95] This feature on your radio allows you to

automatically select listenable stations up or

down the frequency band. Press the right

(a) side of the “SEEK” button to select the

next listenable station up the frequency band.

Press the left (b) side of the button to select

the next listenable station down the

frequency band. By holding the button down,

listenable stations can be passed over to reach

the desired station.

[AS23150(MBC )05/95] ❑Using the “SCAN” function

*[AS23175(MBC )07/94] Press the “SCAN” button to enter the scan

mode. The radio will begin scanning up the

frequency band, stopping on each listenable

station for approximately a five-second

sampling. This continues until you press the

“SCAN” button a second time. The display

flashes “AM” or “FM.”

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

144

*[AS23200(MBC )04/95] ❑Setting the Station Memory Preset buttons

*[AS23300(MBC )02/95] Your radio is equipped with 6 station

memory buttons. These buttons can be used

to select up to 6 preset AM stations and 12

FM stations (6 in FM1 and 6 in FM2).

*[AS23400(MBC )02/95] Follow the easy steps below to set these buttons

to the desired frequencies:

*[AS23500(MBC )04/95] 1. Select a band, then select a frequency.

*[AS23700(MBC )04/95] 2. Press one of the memory buttons and hold

the button until the sound returns. That

station is now held in memory on that

button.

*[AS23800(MBC )04/95] 3. Follow the two steps above for each station

memory preset button you want to set.

[AS23900(MBC )02/95] NOTE: If the vehicle’s battery is disconnected,

the station memory preset buttons will

need to be reset.

*[AS24000(MBC )02/95]

Adjusting the tone balance and speaker

output of your radio

*[AS24100(MBC )04/95] ❑Increasing or decreasing bass response

*[AS24250(MBC )02/95] Push the “AUDIO” button repeatedly until

the display reads “BASS.” Push the right (+)

side of the “VOLUME” button to increase

bass (more “lows”), and push the left (s)

side to decrease bass (less “lows”).

*[AS24300(MBC )04/95] ❑Increasing or decreasing treble response

*[AS24450(MBC )02/95] Push the “AUDIO” button repeatedly until

the display reads “TREB.” Push the right (+)

side of the “VOLUME” button to increase

treble (more “highs”), and push the left (s)

side to decrease treble (less “highs”).

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

145

*[AS24500(MBC )08/89]

Speaker features and operation

*[AS24600(MBC )04/95] ❑Adjusting speaker balance

*[AS24750(MBC )02/95] Balance control allows you to adjust the

sound distribution between the right and left

speakers. Push the “AUDIO” button

repeatedly until the display reads “BAL.”

Push the right (+) side of the “VOLUME”

button to shift the sound to the right

speakers, and push the left (s) side to shift

the sound to the left speakers.

*[AS24800(MBC )04/95] ❑Adjusting speaker fader

*[AS24950(MBC )02/95] Fade control allows you to adjust the sound

distribution between the front and rear

speakers. Push the “AUDIO” button

repeatedly until the display reads “FADE.”

Push the right (+) side of the “VOLUME”

button to shift the sound to the front

speakers, and push the left (s) side to shift

the sound to the rear speakers.

*[AS24960(MBC )04/95] NOTE: Illuminated bars in the display show

relative levels of bass and treble, and

positions of speaker balance and fader

functions (left to right, front to rear).

*[AS25000(MBC )02/95] Using the Controls of Your Cassette Tape

Player

*[AS25500(MBC )02/95]

How to insert a tape

*[AS25600(MBC )02/95] Insert a cassette (with the open edge to the

right) firmly into the tape door opening, making

sure the cassette is completely in and “seated.”

*[AS25700(MBC )02/95]

How to locate a desired track on the tape

*[AS25800(MBC )02/95] NOTE: The tape track number indicated in the

display does not necessarily correspond

to the tape track or side number on the

cassette label. It is used only to

indicate when the tape mechanism

reverses tracks.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

146

[AS25810( BC )03/95] NOTE: Depending on your vehicle, the display

of your radio may show arrows (g

or h) or numerals (“1” or “2”) to

indicate the direction of tape travel. In

either case, at the end of the tape, the

direction automatically reverses and

plays the other side of the tape.

[AS25825( BC )05/94] ❑Using the Automatic Music Search (“AMS”)(If

your display shows numerals)

*[AS25850(MBC )03/95] Press and hold the “AMS” button (“AMS”

will appear in the display). Then, push the

left (h) button to rewind to the beginning

of the current selection or press the right

(g) button to fast forward to the beginning

of the next selection.

[AS25900( BC )05/94] ❑Fast forwarding the tape (if your display

shows numerals)

*[AS26000(MBC )03/95] Push the right (g) button to fast forward

the tape.

[AS26100( BC )05/94] ❑Rewinding the tape (if your diplay shows

numerals)

*[AS26200(MBC )03/95] Push the left (h) button to rewind the

tape.

[AS26300( BC )07/92] ❑Using the Automatic Music Search (“AMS”)

(if your display shows arrows)

[AS26400( BC )03/95] Press and hold the “AMS” button. Then,

push the appropriate fast-wind button,

depending upon the direction of the tape

travel arrow in the display. For example, if

the tape travel arrow is pointing to the left,

push the left (h) button to rewind to the

beginning of the current selection. If the tape

travel arrow is pointing to the right, press

the right (g) button to fast forward to the

beginning of the next selection.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

147

[AS26500( BC )07/90] ❑Fast forwarding the tape (if your display

shows arrows)

*[AS26600( BC )03/95] To fast forward the tape, press the fast-wind

button with the arrows pointing in the same

direction as indicated in the display. For

example, if the tape travel arrow in the

display is pointing to the left, press the left

(h) button to fast forward the tape. To

return to the play mode, press the opposite

fast-wind button momentarily, until fast

forward stops.

*[AS26700( BC )07/90] ❑Rewinding the tape (if your display shows

arrows)

*[AS26800( BC )03/95] To rewind the tape, press the fast-wind

button with the arrows pointing in the

opposite direction as indicated in the display.

For example, if the tape travel arrow in the

display is pointing to the left, press the right

(g) button to rewind the tape. To return to

the play mode, press the opposite fast-wind

button momentarily, until rewind stops.

*[AS26900(MBC )02/95] ❑How to change the side of the tape being

played

*[AS27000(MBC )03/95] The alternate track (other side) of the tape

can be selected at any time by pushing both

fast-wind buttons (hand g) at the

same time.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

148

*[AS27100(MBC )02/95]

How to eject the tape

*[AS27250(MBC )02/95] To stop the tape and eject the cassette, press the

“EJECT” button. The radio will resume playing.

*[AS27300(MBC )02/95]

Using the DolbyHB noise reduction feature

*[AS27400(MBC )02/95] NOTE: Noise reduction system manufactured

under license from Dolby Labs

Licensing Corporation. “Dolby” and

double-D symbol are trademarks of

Dolby Laboratories Licensing

Corporation.

*[AS27500(MBC )05/95] Push the kbutton to activate. Push again to

deactivate.

*[AS27600(MBC )02/95] Tips on Caring for the Cassette Player and

Tapes

*[AS27700(MBC )02/95] In order to keep your cassette tape player

performing the way it was meant to, read and

follow these simple precautions:

*[AS27750(MBC )02/95] ❑Using a Ford Cassette Cleaning Cartridge to

clean the tape player head after 10-12 hours

of play will help maintain the best playback

sound and proper tape operation.

*[AS27800(MBC )02/95] ❑Only cassettes that are 90 minutes long or

less should be used. Tapes longer than 90

minutes are thinner and subject to breakage

or may jam the tape player mechanism.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

149

*[AS27900(MBC )02/95] ❑Protect cassettes from exposure to direct

sunlight, high humidity and extreme heat or

cold. If they are exposed to extreme

conditions, allow them to reach a moderate

temperature before playing.

*[AS28001(MBC )02/95] ❑If a tape is loose inside the cassette, tighten it

before playing by putting your finger or a

pencil into one of the holes and turning the

hub until the tape is tight.

*[AS28101(MBC )02/95] ❑Loose labels on cassette tapes can become

lodged in the mechanism. Remove any loose

label material before inserting a cassette.

*[AS28200(MBC )03/95] ❑Do not leave a tape in the cassette tape

player when not in use. High heat in the

vehicle can cause the cassette to warp.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

150

% [AS43455( BC )02/95]

full page art:0060575-C

High-Level Audio System

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

151

*[AS43458( BC )03/95] High-Level Audio System

*[AS43460(MBC )02/95] Using the Controls on Your New Radio

*[AS43470(MBC )04/95]

How to turn the radio on and off

*[AS43480(MBC )04/95] Press the “POWER” button to turn the radio on.

Press it again to turn it off.

*[AS43500(MBC )04/95]

How to adjust the volume

*[AS43510(MBC )04/95] Press the +/– side of the “VOLUME” button to

increase/decrease volume. Bars illuminate in the

display to show the relative volume level.

*[AS43520(MBC )04/95] NOTE: If the volume level is set above a

certain listening level when the

ignition switch is turned off, when the

ignition switch is turned back on, the

volume will come back to a “nominal”

listening level. However, if the radio

power is turned off (with the

“POWER” button), the volume will

remain in the position it was set at

when radio power is switched back on.

*[AS43530(MBC )04/95]

Selecting the AM or FM frequency band

*[AS43540(MBC )02/95] Push the “AM/FM” button to select the desired

frequency band or to stop/store cassette tape

(when in cassette mode). Pushing the button

more than once will alternate between AM, FM1

and FM2. These functions are used with the

station memory buttons described under How to

tune radio stations.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

152

%*[AS43550(MBC )05/95]

How to tune radio stations

*[AS43560(MBC )04/95] There are four ways for you to tune in a

particular station. You can manually locate the

station using the “SCAN/TUNE” button,

“SEEK” the station, “SCAN” to the station or

select the station by using the memory buttons,

which you can set to any desired frequency.

These four methods are described below.

*[AS43570(MBC )05/95] ❑Using the “TUNE” function

*[AS43580(MBC )03/95] You can change the frequency up or down

one increment at a time (FM changes in

increments of 200 kHz; AM changes in

increments of 10 kHz) by first pressing the

“SCAN/TUNE” button twice (display shows

“TUNE”), then — within approximately five

seconds — pressing and releasing either the

right (a) or left (b) side of the “SEEK”

button. To change frequencies quickly, press

and hold down either the right or left side of

the “SEEK” button.

*[AS43590(MBC )04/95] Manual tuning adjusts your radio to any

allowable broadcast frequency, whether or

not a station is present on that frequency.

(See All About Radio Frequencies in this

section.)

*[AS43600(MBC )04/95] ❑Using the “SEEK” function

*[AS43610(MBC )04/95] This feature on your radio allows you to

automatically select listenable stations up or

down the frequency band. Press the right

(a) side of the “SEEK” button to select the

next listenable station up the frequency band.

Press the left (b) side of the button to select

the next listenable station down the

frequency band. By holding the button down,

listenable stations can be passed over to reach

the desired station.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

153

*[AS43630(MBC )01/95] ❑Using the “SCAN” function

*[AS43640(MBC )03/95] Pressing the “SCAN/TUNE” button once

enters the scan mode (display will indicate

“SCN”). Pushing the right (a) side of the

“SEEK” button will begin the scan mode up

the frequency band, stopping on each

listenable station for approximately a

five-second sampling. Pushing the left (b)

side of the “SEEK” button will begin the scan

mode down the frequency band, again

stopping on each listenable station for

approximately a five-second sampling.

*[AS43650(MBC )04/95] To stop the scan mode on the presently

sampled station press the “SCAN/TUNE”

button again.

*[AS43670(MBC )04/95] ❑Setting the Station Memory Preset buttons

*[AS43680(MBC )02/95] Your radio is equipped with 6 station

memory buttons. These buttons can be used

to select up to 6 preset AM stations and 12

FM stations (6 in FM1 and 6 in FM2).

*[AS43690(MBC )02/95] Follow the easy steps below to set these buttons

to the desired frequencies:

*[AS43700(MBC )04/95] 1. Select a band, then select a frequency.

*[AS43720(MBC )04/95] 2. Press one of the memory buttons and hold

the button until the sound returns. That

station is now held in memory on that

button.

*[AS43730(MBC )04/95] 3. Follow the two steps above for each station

memory preset button you want to set.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

154

*[AS43750(MBC )04/95] ❑Using the Automatic Memory Load feature

*[AS43760(MBC )03/95] If no stations are in memory preset, you can

activate the Auto Memory Load feature by

pressing and holding the “AUTO PRESET”

button for approximately three seconds.

Auto Memory Load sets all memory buttons

in AM, FM1 and FM2 sequentially by seeking

out the first six strong stations for the

respective band and storing them in memory

buttons 1-5. (FM2 will store the second set of

strong stations from the FM band.)

*[AS43770(MBC )04/95] With Auto Memory Store, you can

continually set strong stations into your

memory buttons without losing your existing

memory presets, which is especially handy

while traveling. Your radio will automatically

set your memory buttons to the strong local

stations so you don’t have to continually

manually tune to existing stations.

*[AS43780(MBC )02/95] Activate Auto Memory Store by pushing the

“AUTO PRESET” button once. Your radio

will set the first five strong stations of the

band you are in (AM, FM1 or FM2) into the

memory buttons. The display will show

“AUTO”, then run through the frequencies,

stopping momentarily on the stations being

set into the memory buttons. The radio is

now in the “AUTO” mode and this display

will show “AUTO” each time a preset is

activated.

*[AS43790(MBC )04/95] NOTE: If there are less than five strong

stations in the frequency band, the

remaining unfilled buttons will store

the last strong station detected on the

band.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

155

*[AS43800(MBC )04/95] After all stations have been filled, the radio

will begin playing the station stored on

memory button 1.

*[AS43810(MBC )04/95] To deactivate the Auto Memory Store mode

and return to the manually-set memory

button stations (or those stations set using

Auto Memory Load), simply push the

“AUTO PRESET” button. Display will show

“AUTO” then “OFF”. The next time Auto

Memory Store is activated on that band, the

radio will store the next set of five strong

stations.

*[AS43830(MBC )02/95]

Adjusting the tone balance and speaker

output of your radio

*[AS43850(MBC )04/95] ❑Increasing or decreasing bass response

*[AS43860(MBC )02/95] Push the “AUDIO” button repeatedly until

the display reads “BASS.” Push the right (+)

side of the “VOLUME” button to increase

bass (more “lows”), and push the left (s)

side to decrease bass (less “lows”).

*[AS43870(MBC )04/95] ❑Increasing or decreasing treble response

*[AS43880(MBC )02/95] Push the “AUDIO” button repeatedly until

the display reads “TREB.” Push the right (+)

side of the “VOLUME” button to increase

treble (more “highs”), and push the left (s)

side to decrease treble (less “highs”).

*[AS43890(MBC )04/95] ❑Adjusting speaker balance

*[AS43900(MBC )02/95] Balance control allows you to adjust the

sound distribution between the right and left

speakers. Push the “AUDIO” button

repeatedly until the display reads “BAL.”

Push the right (+) side of the “VOLUME”

button to shift the sound to the right

speakers, and push the left (s) side to shift

the sound to the left speakers.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

156

*[AS44010(MBC )04/95] ❑Adjusting speaker fader

*[AS44020(MBC )02/95] Fade control allows you to adjust the sound

distribution between the front and rear

speakers. Push the “AUDIO” button

repeatedly until the display reads “FADE.”

Push the right (+) side of the “VOLUME”

button to shift the sound to the front

speakers, and push the left (s) side to shift

the sound to the rear speakers.

*[AS44030(MBC )04/95] NOTE: Illuminated bars in the display show

relative levels of bass and treble, and

positions of speaker balance and fader

functions (left to right, front to rear).

*[AS44040(MBC )02/95] Using the Controls of Your Cassette Tape

Player

*[AS44050(MBC )04/95] NOTE: Radio power must be on to use the

cassette tape player or eject a tape.

[AS44060(MBC )04/95] NOTE: Adjust the volume, treble, bass, balance

and fader controls in the same manner

as for radio stations.

*[AS44070(MBC )02/95]

How to insert a tape

*[AS44080(MBC )02/95] Your cassette tape player is equipped with

power loading. Once you insert a tape and push

slightly (with the open edge to the right), the

loading mechanism draws the tape the rest of

the way in and play will begin after a

momentary tape tightening process. Display

indicates “M” (for metal/CrO

) while tape is

playing.

*[AS44090(MBC )02/95] NOTE: A cassette tape can be loaded and

stored with the ignition and radio

power off.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

157

*[AS44100(MBC )02/95]

How to locate a desired track on the tape

*[AS44110(MBC )02/95] There are four ways to quickly locate a desired

selection on the tape. You can use the fast

forward, rewind, “SEEK” or “SCAN” function.

Following are brief descriptions of each.

*[AS44120(MBC )02/95] ❑Fast forwarding the tape

[AS44140(MBC )02/95] To fast forward the tape, press the “FF”

button. The radio will automatically begin

playing until fast forward is manually

stopped (by pushing the “PLAY PROG”

button) or the end of the tape is reached.

*[AS44160(MBC )01/95] At the end of the tape, the direction

automatically reverses and plays the other

side of the tape.

[AS44170(MBC )02/95] ❑Fast rewinding the tape

[AS44180(MBC )02/95] To rewind the tape, press the “REW” button.

The radio will automatically begin playing

when rewind is manually stopped (by

pushing the “PLAY PROG” button) or the

beginning of the tape is reached.

*[AS44190(MBC )01/95] ❑Using the “SEEK” function with your cassette

tape player

[AS44200(MBC )03/95] While in the tape mode, push the right (a)

side of the “SEEK” button to seek forward to

the next selection on the tape. Push the left

(b) side to seek the beginning of the current

tape selection.

*[AS44210(MBC )03/95] NOTE: If you want to restart a currently

playing tape selection, press the left

(b) side of the “SEEK” button after

approximately three seconds into the

current selection.

*[AS44220(MBC )03/95] Whirling sprockets in the display (l)

indicate the direction of tape travel.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

158

*[AS44230(MBC )01/95] ❑Using the “SCAN” function with your

cassette tape player

*[AS44240(MBC )03/95] Press the “SCAN/TUNE” button to enter the

scan mode (display indicates “SCN”).

Pushing the right (a) side of the “SEEK”

button will begin the forward scan mode on

the tape currently playing, stopping on each

tape selection for approximately an

eight-second sampling.

*[AS44250(MBC )03/95] Pushing the left (b) side of the “SEEK”

button will begin the reverse scan mode,

stopping on each previous tape selection for

approximately an eight-second sampling.

While scanning, the display indicates whirling

sprockets plus an “S” (m).

*[AS44260(MBC )02/95] To stop the scan mode on the presently

sampled tape selection press the

“SCAN/TUNE” button again.

*[AS44270(MBC )02/95] ❑How to change the side of the tape being

played

[AS44280(MBC )02/95] The alternate side of the tape can be selected

at any time by pressing the “PLAY/PROG”

button.

*[AS44300(MBC )02/95]

How to eject the tape

*[AS44310(MBC )04/95] To stop the tape and eject the cassette, press the

“EJCT” button. The radio will resume playing if

the radio power is on. The tape cartridge can be

ejected with radio power (and/or ignition) on or

off.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

159

*[AS44320(MBC )01/95]

How to store the tape

*[AS44330(MBC )03/95] Press the “AM/FM” button to stop the tape

player and resume radio play. The cassette will

be stored in the tape player and the Xsymbol

in the display will be lit until you push the

“PLAY PROG” button to resume tape play. Fast

forward and fast rewind can be used while the

tape is in storage mode without interrupting

radio play.

*[AS44340(MBC )02/95]

Using the DolbyHB noise reduction feature

*[AS44350(MBC )02/95] NOTE: Noise reduction system manufactured

under license from Dolby Labs

Licensing Corporation. “Dolby” and

double-D symbol are trademarks of

Dolby Laboratories Licensing

Corporation.

*[AS44360(MBC )04/95] Push the kbutton to activate Dolby B Noise

Reduction. Push again to deactivate.

*[AS44490(MBC )01/95]

Tape error messages

*[AS44500(MBC )01/95] Your cassette tape player is equipped to

diagnose certain problems you may experience.

Error codes are as follows:

*[AS44510(MBC )02/95] Error 0 — Communication error between the

radio controller and the tape controller. The

cassette player will eject the tape. Insert the tape

again. If the same error code appears, turn the

ignition off, then back on again and insert the

tape.

*[AS44520(MBC )02/95] Error 1 — Possible problem cartridge. The

cassette tape player will eject the tape. Insert the

tape again. If the same error code appears in the

display, try a different cartridge.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

160

*[AS44530(MBC )02/95] Error 2 — Tape eject or load failure. Your

cassette tape player will go into the pause mode.

Push “EJCT” to eject the tape. If the tape doesn’t

eject, refer the problem to qualified personnel for

service.

*[AS44540(MBC )02/95] Tips on Caring for the Cassette Player and

Tapes

*[AS44550(MBC )02/95] In order to keep your cassette tape player

performing the way it was meant to, read and

follow these simple precautions:

*[AS44560(MBC )02/95] ❑Using a Ford Cassette Cleaning Cartridge to

clean the tape player head after 10-12 hours

of play will help maintain the best playback

sound and proper tape operation.

*[AS44570(MBC )02/95] ❑Only cassettes that are 90 minutes long or

less should be used. Tapes longer than 90

minutes are thinner and subject to breakage

or may jam the tape player mechanism.

*[AS44580(MBC )02/95] ❑Protect cassettes from exposure to direct

sunlight, high humidity and extreme heat or

cold. If they are exposed to extreme

conditions, allow them to reach a moderate

temperature before playing.

*[AS44590(MBC )01/95] ❑Loose labels on cassette tapes can become

lodged in the mechanism. Remove any loose

label material before inserting cassette.

*[AS44600(MBC )01/95] ❑Do not leave a tape in the cassette tape

player. High heat in the vehicle can cause the

cassette to warp.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

161

%*[AS60900( ALL)02/95] Common Radio Reception Conditions

*[AS61000( ALL)02/95] Several conditions prevent FM reception from

being completely clear and noise-free, such as

the following:

*[AS61100( ALL)04/95] 1. Distance/Strength

*[AS61200( ALL)02/95] The strength of the FM signal is directly related

to the distance the signal must travel. The

listenable range of an average FM signal is

approximately 25 miles (40 kilometers). Beyond

this distance, the radio is operating in a fringe

area and the signal becomes weaker.

*[AS61300( ALL)06/90] NOTE: Always make sure your antenna

(whether you have a power antenna or

a manually adjustable antenna) is fully

extended to the maximum length for

proper reception. If your antenna is not

fully extended, you may experience

signal loss while traveling in fringe

reception areas.

*[AS61400( ALL)04/95] 2. Terrain

*[AS61500( ALL)02/95] The terrain (hilly, mountainous, tall buildings) of

the area over which the signal travels may

prevent the FM signal from being noise-free.

*[AS61700( ALL)01/95] If there is a building or large structure between

the antenna and station, some of the signal

“bends” around the building, but certain spots

receive almost no signal. Moving out of the

“shadow” of the structure will allow the station

to return to normal.

*[AS61800( ALL)01/95] When the radio waves are reflected off objects or

structures, the reflected signal cancels the normal

signal, causing the antenna to pick up noise and

distortion. Cancellation effects are most

prominent in metropolitan areas, but also can

become quite severe in hilly terrain and

depressed roadways.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

162

*[AS61900( ALL)01/95] To minimize these conditions, a stereo/mono

blend circuit has been incorporated into this

system. This feature automatically switches a

weak stereo signal to a clearer monaural signal,

which improves the quality of reception.

*[AS62000( ALL)01/95] Several sources of static are normal conditions

on AM frequencies. These can be caused by

power lines, electric fences, traffic lights and

thunderstorms.

*[AS62100( ALL)01/95] Another reception phenomenon is Strong Signal

Capture and Overload. This can occur when

listening to a weak station and when passing

another broadcast tower. The close station may

capture the more distant station, although the

displayed frequency does not change. While

passing the tower, the station may switch back

and forth a few times before returning to the

original station.

*[AS62200( ALL)01/95] When several broadcast towers are present

(common in metropolitan areas) several stations

may overload the receiver, resulting in

considerable station changing, mixing and

distortion.

*[AS62300( ALL)01/95] Automatic gain control circuitry for both AM

and FM bands has been incorporated into this

system to reduce strong signal capture and

overload.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

163

%*[AS62400( ALL)08/89] All About Radio Frequencies

*[AS62500( ALL)01/95] The Federal Communications Commission (FCC)

establishes the frequencies that AM and FM

radio stations may use for their broadcasts. The

allowable frequencies are, AM: 530, 540...1600,

1610 kHz in 10 kHz steps; FM: 87.9, 88.1...107.7,

107.9 MHz in 0.2 MHz steps.

*[AS62600( ALL)01/95] Not all frequencies will be assigned to a given

area. This radio will tune to each of these

frequencies using MANUAL TUNE and no fine

tuning is necessary as radio stations may not use

other frequencies.

*[AS62700( ALL)02/95] Some FM radio stations advertise a

“rounded-off” frequency which is not the

frequency they actually broadcast on. For

example, a radio station that is assigned a

frequency of 98.7 MHz may call itself “Radio 99”

even though 99.0 MHz is not an allowable FM

broadcast frequency.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

164

%*[AS62800( ALL)01/95] Important Warranty and Service

Information

*[AS62900( ALL)07/90] ❑Warranty

*[AS63000( ALL)03/95] Your sound system is warranted for three years

or 36,000 miles (60,000 kilometers), whichever

comes first. Consult your vehicle warranty

booklet for further information. Ask your dealer

for a copy of this limited warranty.

*[AS63200( ALL)07/90] ❑Service

*[AS63300( ALL)01/95] At Ford Electronics, we stand behind our audio

systems with a comprehensive service and repair

program. If anything should go wrong with

your Ford audio system, return to your dealer

for service. There is a nationwide network of

qualified Ford authorized repair centers to assist

you.

File:rcasc.ex

Update:Mon Jun 12 16:47:32 1995

165

Driving Your Cougar

%*[DR00500( ALL)03/93] Driving with an Automatic

Overdrive Transmission

[DR00510(MBC )05/94] The gearshift lever is floor mounted.

*[DR00700( BCGV)01/95] The automatic overdrive transmission operates

very much like a regular automatic transmission,

except it offers the extra overdrive feature.

%*[DR00800( ALL)01/95] Putting Your Vehicle in Gear

*[DR00950( ALL)01/93] RWARNING

Hold the brake pedal down while you

move the gearshift lever from position to

position. If you do not hold the brake

pedal down, your vehicle may move

unexpectedly and injure someone.

[DR00965(MBC )03/95] To move the shifter out of P (Park), the ignition

key must be turned to either the OFF or the ON

position and the thumb button must be pushed

in. This vehicle is also equipped with the brake

shift interlock safety feature which prevents

shifting the transmission out of the P (Park)

position without the brake pedal being

depressed if the key is in the ON position.

*[DR00975( ALL)03/95] To operate:

*[DR00980( ALL)01/95] 1. Start the engine.

*[DR00985( ALL)01/95] 2. Depress and hold the brake pedal.

*[DR00990( ALL)01/95] 3. Move the gearshift lever out of P (Park).

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

166

%*[DR00995( ALL)04/95] Your vehicle is equipped with a Brake Shift

Interlock safety feature. This feature prevents the

gearshift from being moved from the P (Park)

position until the brake pedal is depressed. This

feature is active when the ignition is in the ON

position. If the gearshift lever CANNOT be

moved from P (Park) with the brake pedal

depressed:

*[DR01000( ALL)01/95] 1. Turn the engine off and remove the ignition

key.

*[DR01005( ALL)01/95] 2. Apply parking brake.

*[DR01010( ALL)01/95] 3. Reinsert the ignition key and turn clockwise

to the first position (OFF).

*[DR01020( ALL)01/95] 4. Depress the brake pedal, move the gearshift

lever to N (Neutral) and start the engine.

*[DR01025( ALL)05/95] RWARNING

DO NOT DRIVE YOUR VEHICLE UNTIL

YOU VERIFY THAT THE BRAKELAMPS

ARE WORKING.

[DR01027( ALL)05/95] If you need to shift out of P (Park) by using the

alternate procedure described above, it is

possible that a fuse has blown and that your

brakelamps may also not be functional. Please

refer to the chapter titled Servicing Your Cougar

in this Owner Guide for instructions on checking

and replacing fuses.

[DR01030(MBC )05/94] The console-mounted gearshift will lock in

P (Park) when you turn the key to the LOCK

position. When the gearshift is in any position

except P (Park), the ignition key cannot be

turned to LOCK or removed from the steering

column. TO REMOVE THE KEY, the gearshift

lever must be in P (Park).

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

167

% [DR01300( BC )03/93]

half page art:0010307-F

The positions of the console-mounted gearshift

*[DR01500( ALL)11/94] Once the gearshift is secure in the desired

position, release the brake pedal and use the

accelerator as necessary.

%*[DR01700( ALL)01/95] R (Reverse)

*[DR01800( ALL)02/95] With the gearshift in the R (Reverse) position,

the vehicle will move backward. You should

always come to a complete stop before shifting

into or out of R (Reverse).

*[DR01830( ALL)01/95] N (Neutral)

[DR01860( ALL)05/94] In N (Neutral), the wheels of the transmission

are not locked. Your vehicle will roll freely, even

on the slightest incline, unless the parking brake

or brakes are on.

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

168

%*[DR01900( ALL)01/95] Driving

[DR01940( BC )07/93] Your vehicle’s gearshift is console-mounted on the

floor. The Transmission Control Switch (TCS) is

located on the gearshift handle. The Transmission

Control Indicator Light (O/D OFF) is located on

the instrument panel. You can put the gearshift

lever in any of the several positions.

[DR01951(MBC )03/95] The OVERDRIVE OFF light is off (not

illuminated) during normal vehicle operation.

This allows the transmission to upshift and

downshift from 1st through 4th gears. When the

TCS is pressed, the Transmission Control

Indicator Light will illuminate (O/D OFF) on the

instrument panel. When this O/D OFF is

illuminated the transmission will upshift and

downshift from 1st through 3rd gears.

[DR01957( ALL)11/94] If the O/D OFF light does not come “on” when

the TCS is depressed or if the light “FLASHES”

when you are driving, have your vehicle

serviced at the first opportunity. If this condition

persists, damage could occur to the transmission.

*[DR01961( BCGV)01/95] To return the transmission to normal operation

(1st through 4th gear) depress the TCS again.

This switch may be used to cancel overdrive any

time the vehicle is being driven. Each time your

vehicle is started, the overdrive system will

automatically be in the normal overdrive mode

and the light will not be illuminated.

%*[DR02010(MBC )01/95]

When to use D (Overdrive)

*[DR02100( ALL)01/95] Overdrive is the usual driving position for an

automatic overdrive transmission. It works the

same way Drive works, automatically upshifting

or downshifting as the vehicle speeds or slows.

*[DR02200( ALL)01/95] However, Overdrive also shifts into a fourth

gear —an overdrive gear — when your vehicle

cruises at an appropriate consistent speed for

any length of time. This fourth gear will increase

your fuel economy when you travel at cruising

speeds.

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

169

[DR02500(MBC )05/95]

When to use D (Overdrive) — with

transmission control switch activated (O/D

OFF light illuminated)

*[DR02600(MBC )01/95] Overdrive may not be appropriate for certain

terrain. If the transmission shifts back and forth

between Third and Fourth gears while you are

driving on hilly roads or if your vehicle does

not have adequate power for climbing hills,

depress the TCS.

*[DR02605( BCGV)01/95] You can depress the TCS at any speed.

*[DR02610( ALL)01/95]

When to use 2 (Second)

*[DR02620( ALL)01/95] Use 2 (Second) for start-up on slippery roads or

to give you more engine braking to slow your

vehicle on downgrades.

*[DR02700( ALL)01/95]

When to use 1 (Low)

*[DR02800( ALL)03/95] Use 1 (Low) when driving down steep grades. It

gives more engine braking to slow your vehicle

than 2 (Second) on the downgrades. You can

upshift from 1 (Low) to 2 (Second) or from

1 (Low) to Overdrive at any speed.

*[DR03000( ALL)01/95] P (Park)

*[DR03100( ALL)01/95] Always come to a complete stop before you shift

into P (Park). Make sure that the gearshift is

securely latched in P (Park). This locks the

transmission and prevents the rear wheels from

rotating.

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

170

*[DR03200( ALL)05/95] RWARNING

Always set the parking brake fully and

make sure that the gearshift is securely

latched in P (Park).

*[DR03225( ALL)05/95] RWARNING

Never leave your vehicle unattended

while it is running.

*[DR03400(MBC )01/95] You can tell a console-mounted gearshift is

securely latched in P (Park) if the lever is

adjacent to the P (Park) and you cannot move it

without pushing in the thumb button.

% [DR09720( ALL)03/95] Traction-Lok Axle (If equipped)

[DR09730( ALL)12/91] This axle provides added traction on slippery

surfaces, particularly when one wheel is on a

poor traction surface. Under normal conditions

the Traction-Lok axle functions as a standard

rear axle.

*[DR09740( ALL)03/93] Extended use of other than matching size tires

on a Traction-Lok rear axle could result in a

permanent reduction in effectiveness. This loss of

effectiveness does not affect normal driving and

should not be noticeable to the driver.

*[DR09750( ALL)05/95] RWARNING

To avoid injury, never run the engine

with one wheel off the ground, such as

when changing a tire.

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

171

%*[DR09760( BCGV)03/95] Traction Assist

(If equipped)

*[DR09770( BCGV)01/95] Your vehicle may be equipped with the optional

Traction Assist

system. This system helps

prevent wheel spin in order to improve tire

traction and is an especially useful feature when

you drive in hilly areas or on slippery, icy or

snowy roads.

*[DR09780( BCGV)03/95] Traction Assist

works automatically by rapidly

applying and releasing the brakes to prevent one

or both of the rear drive wheels from spinning

during acceleration.

*[DR09782( BC )01/95] The Traction Assist

system can be manually

turned off, to allow wheelspin if you want, by

pushing the TRACTION ASSIST. switch (located

on the console) when the vehicle is not in the

Traction Assist

mode. The word “OFF” in the

switch will light up to indicate the system is off.

The Traction Assist

system will automatically

be on each time the engine is started. During

ordinary driving, it is recommended to leave the

system turned on. The Traction Assist

system

will then always be ready to operate when

needed.

[DR09783( BC )03/94]

one third page art:0011288-A

The Traction Assist

switch

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

172

[DR09785( BCGV)03/95] During the Traction Assist

function, which

most often occurs during low speed acceleration

on slippery surfaces, a noise may be heard

coming from the engine compartment. This noise

is created by the ABS pump and is normal and

may last for a few seconds during the

acceleration of the vehicle.

*[DR09790( BCGV)03/95] In general, this system improves your vehicle’s

stability and acceleration performance when road

conditions warrant. Traction Assist

is fully

effective up to approximately 25 mph

(40 km/h). At 25 mph (40 km/h) the function

begins to taper off until it no longer operates

above 34 mph (55 km/h).

[DR09793( BCGV)01/95] If the Traction Assist

system is cycled

excessively, the system will shut down to

prevent the rear brakes from overheating.

During this shutdown period, the word OFF in

the traction assist switch will be illuminated

showing that the traction assist system is

inoperative. A cooling down period is required

to prevent damage to the rear brakes. This time

period varies and depends on brake usage

during the cooling down period. Anti-Lock

braking is not affected and will function

normally during the cool down period.

[DR09795( BCGV)05/95] NOTE: Traction-Lok axles are not an available

option on vehicles equipped with

traction assist.

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

173

*[DR09800( ALL)01/95] Steering Your Vehicle

%*[DR09900( ALL)01/95] Your vehicle comes with power steering. Power

steering uses energy from the engine to help

steer your vehicle.

%*[DR09950( ALL)04/95] If the amount of effort needed to steer your

vehicle changes at a constant vehicle speed, have

the power steering system checked. If the power

steering system breaks down (or if the engine is

turned off), you can steer the vehicle manually

but it takes more effort.

*[DR10000( ALL)01/95] Never hold the steering wheel to the extreme

right or left for more than five seconds if the

engine is running. This can damage the power

steering pump.

[DR10200( BCGV)12/94] Speed Sensitive Power Steering

(If equipped)

[DR10401( BC )06/94] The steering system in 4.6L engine vehicles is

speed sensitive. This means that the steering

effort is light for parking and heavier for

highway driving. However, if you have to

swerve around an object or another vehicle, your

steering will have full power assist.

%*[DR10500( ALL)03/95] Brakes

%*[DR10600( ALL)01/95] Applying the Brakes

[DR10650( ALL)01/95] Braking non ABS models

[DR10900( C )03/93] Your vehicle has power front disc brakes and

rear drum brakes. Anti-lock disc brakes on all

four wheels are optional. They adjust

automatically as the brake pads or linings wear

down.

*[DR11100( ALL)04/95] Apply the brake pedal gradually. Use the

“squeeze” technique — push on the brake pedal

with a steadily increasing force. This allows the

wheels to continue to roll while you are slowing

down, which lets you steer properly.

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

174

[DR11300( ALL)03/95] On vehicles without anti-lock brakes, extreme

braking can make the wheels lock and slide,

possibly decreasing your control of the steering.

If you lock the wheels, release the brake pedal

and repeat the “squeeze” technique.

[DR11310( ALL)05/95]

Braking with ABS brakes

[DR11400( ALL)03/95] On vehicles with anti-lock brakes, the wheels

will not lock and slide when you press down

hard on the brake pedal. The anti-lock brakes

automatically start releasing and reapplying the

front brakes independently and the rear brakes

together whenever your wheels start to lock. Do

not “pump” the brake pedal on vehicles

equipped with anti-lock brakes. When this

happens, you will feel the brake pedal pulse.

This “pulse” may be an unfamiliar feeling but it

is normal and indicates the ABS is working as

designed.

*[DR11650( ALL)05/95] Do not drive with your foot resting on the brake

pedal; you will wear out the linings and increase

your vehicle’s stopping distance. Brake rotor

damage may also eventually occur.

*[DR11700( ALL)03/95] NOTE: If you are driving down a long or

steep hill, shift to a lower gear and do

not apply your brakes continuously. If

you apply your brakes continuously,

they may overheat and become less

effective.

%*[DR11800( ALL)03/95] Occasional brake squeal during light to moderate

stops does not affect the function of the brake

system and is normal. However, if the squeal

becomes louder or more frequent, have your

brakes inspected by your dealer or a qualified

service technician.

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

175

[DR11900( ALL)05/94] Ford Motor Company has not found any

detrimental effects of popular mobile radio

transmitting equipment installed on vehicles

with the anti-lock brake system, if the equipment

is installed according to the manufacturer’s

instructions. However, if mobile radio

transmitting equipment is installed in your

vehicle and, if either the anti-lock brake system

cycles or the check anti-lock light comes on at

any time other than right after you turn the key

to ON or during a sudden stop, have your

mobile radio dealer inspect the installation.

%*[DR12000( ALL)03/95] Parking Brake

*[DR12050( ALL)01/95] The parking brake should be used whenever

you park your vehicle.

[DR12500( BCGV)03/95] The parking brake pedal is suspended just below

the bottom of the instrument panel to the left of

the brake pedal.

[DR12900( BC )03/95] To set the parking brake while parking your

vehicle, apply the brake pedal with your right

foot and hold it while you push the parking

brake down firmly with your left foot. The brake

system warning light will glow.

[DR13500( BC )03/95]

one third page art:0010315-A

The parking brake

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

176

*[DR13800( BCGV)05/95] RWARNING

Always set the parking brake fully and

make sure that the gearshift is securely

latched in P (Park).

[DR14050( BC )03/95] To release the parking brake, press down on the

pedal until you hear a click. Lift your foot off

the pedal. The brake is now released and will

reset to lock the next time you press the pedal,

located below the lower left corner of the

instrument panel. The Brake System Warning

Light will glow if the parking brake is not fully

released when the engine is running.

*[DR14200( ALL)03/95] Always check the Brake Warning Light each

time you start your engine. Driving with the

parking brake on will cause the brakes to wear

out quickly and will reduce the fuel economy.

*[DR14300( ALL)01/93] RWARNING

If the parking brake is fully released, but

the Brake System light remains on, have

the brakes checked immediately. They

may not be working properly.

[DR14400( ALL)07/93] The parking brake system is designed for static

parking only and is not designed to stop a

moving vehicle, but you can use the parking

brake to stop your vehicle in an emergency if

the normal brakes fail. However, since the

parking brake applies only the rear brakes, the

stopping distance will increase greatly and the

handling of your vehicle will be adversely

affected.

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

177

*[DR14500( ALL)01/95] Driving Under Special Conditions

%*[DR14600( ALL)01/95] Tips for Safe Driving

*[DR14700( ALL)03/95] As with any new vehicle, yours may drive and

handle differently from your previous vehicle.

Use care until you become accustomed to its

various features and driving characteristics.

*[DR14800( ALL)03/95] Operate your vehicle within reasonable limits.

Sudden acceleration, deceleration, turning, or

combinations of these maneuvers can cause a

vehicle to behave differently than anticipated.

%*[DR15200( ALL)01/95] Driving in Bad Weather

%*[DR15300( ALL)01/95]

Slippery roads

*[DR15400( ALL)03/95] Drive cautiously on wet or snowy roads:

*[DR15500( ALL)03/95] ❑Do not quickly move the steering wheel

unless necessary.

*[DR15600( ALL)01/95] ❑Drive slower than you normally would.

[DR15700( ALL)03/95] ❑Do not use speed control.

*[DR15800( ALL)01/95] ❑Give your vehicle more distance to stop.

*[DR15900( ALL)03/92] ❑Pump the brake pedal steadily and evenly to

avoid locking your wheels. (Does not apply

to vehicles with anti-lock brakes.)

*[DR16000( ALL)02/93] ❑Consider using one of the lower gears.

*[DR16200( BCGV)01/93] RWARNING

To avoid skidding and losing control on

slippery roads, do not downshift into First

(1) when you are moving faster than

20 mph (32 km/h).

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

178

*[DR16225( ALL)03/95] RWARNING

If your vehicle has speed control, do not

use it on slippery roads. You could lose

control of your vehicle and could injure

someone.

[DR16300(MBC )03/92] If your vehicle gets stuck (for example, in mud

or snow), you may try to “rock” it out of the

spot. Shift, in a steady rhythm, between forward

and reverse gears. At the same time, press

lightly on the accelerator.

*[DR16400( ALL)05/95] RWARNING

Do not spin the wheels at over 35 mph

(55 km/h). The tires may fail and injure a

passenger or bystander.

[DR16500( ALL)12/94] By moving the vehicle backward and forward,

you may gain enough momentum to move out

of the spot. Do not rock the vehicle for more

than a few minutes. This may overheat the

engine, damage the transmission, or damage the

tires. If you are still stuck after a minute or two

of rocking, call for a tow truck.

%*[DR16700( ALL)01/95]

High water

*[DR16800( ALL)01/95] Do not drive through flooded areas unless you

are sure that the water is below the bottom of

the wheel rims.

*[DR16900( ALL)04/94] If you must drive through high water, drive

slowly. You may have limited traction or wet

brakes, so allow extra stopping distance because

your vehicle will not stop as quickly as usual.

*[DR17000( ALL)01/95] After you drive through the standing water,

apply your brakes gently several times as your

vehicle moves slowly. This helps to dry the

brakes.

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

179

%*[DR17100( ALL)03/95] Driving With a Heavy Load

*[DR17200( ALL)01/95] There are limits to the amount of weight your

vehicle can carry or tow. The total weight of

your vehicle, plus the weight of the passengers

and cargo, should never be more than the Gross

Vehicle Weight Rating (GVWR). Also, the weight

that your vehicle carries over the front axle and

rear axle should never be more than the Gross

Axle Weight Rating (GAWR) for the respective

axle.

% [DR17300( ALL)05/94] You can find your vehicle’s GVWR and GAWR

on the Safety Compliance Certification Label on

the left front door lock facing or the door latch

post pillar.

*[DR17400( ALL)01/95] The weight limits of your vehicle’s tires affect

the GVWR or GAWR limitations. Usage of

replacement tires with higher weight limit than

originals does not increase GVWR or GAWR.

Usage of lower capacity replacement tires may

lower GVWR and GAWR limitations.

*[DR17500( ALL)02/95] RWARNING

If the GVWR or the GAWR specified on

the Safety Compliance Certification Label

is exceeded, your vehicle may be damaged

or you may lose control and injure

someone.

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

180

%*[DR17503( ALL)01/95] Limiting Your Vehicle’s Load

*[DR17506( ALL)01/95] The load that you add to your vehicle must not

exceed the maximum load stated on the Safety

Compliance Certification Decal attached to the

left front door pillar.

*[DR17509( ALL)01/95] To figure the weight of your vehicle’s load, add

the weights of:

*[DR17512( ALL)01/95] ❑the driver and passengers

*[DR17515( ALL)01/95] ❑luggage and any other items that you put in

your vehicle

*[DR17518( ALL)01/95] ❑the tongue load of the loaded trailer

*[DR17521( ALL)01/95] ❑the weight of any equipment that has been

added to your vehicle since it was delivered

to your dealer

*[DR17524( ALL)01/95] If you do not know the actual weights of these

items, use the following procedure to figure the

weight of a load:

*[DR17527( ALL)01/95] 1. Weigh your vehicle without the driver,

passengers and luggage. You might take

your vehicle to a shipping company or an

inspection station for trucks.

*[DR17530( ALL)01/95] 2. Then weigh your vehicle with the driver,

passengers and luggage.

*[DR17533( ALL)01/95] 3. Subtract the first reading from the second to

figure the total weight of the load.

*[DR17536( ALL)01/95] After determining this load, you must also make

sure that the total weight of your vehicle, plus

the load it carries, is less than its GVWR. Also,

make sure that the weight your vehicle carries

over each axle is less than the GAWR for the

respective axle.

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

181

*[DR17539( ALL)01/95] If your vehicle exceeds the GVWR, remove cargo

from your vehicle accordingly. If your vehicle

exceeds the GAWR for either axle, shift the load

or remove cargo accordingly.

*[DR17542( ALL)05/95] RWARNING

Improper distribution of your vehicle’s

load or carrying weight in excess of the

amount shown on the tire decal can cause

rapid tire wear or loss of vehicle control.

%*[DR17550(MBC )04/95] Trailer Towing

*[DR17650( ALL)01/95] Your vehicle does not come from the factory

fully equipped to tow. No towing packages are

available through Ford or Lincoln/Mercury

dealers.

*[DR17700( ALL)01/95] Because towing a trailer puts extra strain on

your vehicle, you must follow certain

precautions for your safety and the good of your

vehicle:

*[DR17800( ALL)01/95] ❑Stay within the load limits for towing your

vehicle. (See Trailer towing specifications in this

chapter.)

*[DR17900( ALL)01/95] ❑Carefully and thoroughly prepare your

vehicle for towing, making sure to use the

right equipment and to attach it properly.

(See Preparing to Tow in this chapter.)

*[DR18000( ALL)01/95] ❑Use extra caution when driving your vehicle

while you tow. (See Driving while you tow in

this chapter.)

*[DR18100( ALL)01/95] ❑Service your vehicle more frequently if you

tow a trailer. (See Servicing your vehicle if you

tow in this chapter.)

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

182

*[DR18175( ALL)01/95] Ten to 15% of the loaded trailer’s weight should

be on the tongue. However, the tongue load

should never exceed 10% of the maximum

weight that your vehicle can safely tow.

*[DR18250( ALL)05/95] RWARNING

Do not tow a trailer when the temporary

spare tire is being used.

[DR18300( ALL)12/94] Your vehicle is classified as a light duty towing

vehicle. The amount of weight that you can

safely tow depends on the optional equipment

on your vehicle. See the following chart.

% [DR18400( ALL)03/90]

Trailer towing specifications

[DR18600( BC )03/95]

six pica chart:0010654-D

*[DR20900( ALL)01/95] Preparing to Tow

*[DR21000( ALL)01/95] For your safety and for the good of your

vehicle, use the right equipment for the type of

trailer you tow. Also, make sure that all towing

equipment is properly attached to your vehicle.

If you are not certain that you are using the

right equipment in the proper manner, see your

Ford or Lincoln-Mercury dealer.

*[DR21100( ALL)01/95] Do not use hitches that clamp onto your

vehicle’s bumper. The bumper is not designed to

bear the load.

*[DR21125( ALL)01/95] Always check the pressure in all your vehicle’s

tires when preparing to tow (see inflation

recommendation on the tire label).

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

183

%*[DR21150( ALL)01/95]

Using the hitch

*[DR21200(MBC )01/95] Your vehicle uses a load carrying hitch. Because

this type of hitch places the tongue load of a

trailer on the rear wheels of your vehicle, you

must distribute the load in your trailer so that

only 10 to 15% of the total weight of the trailer

is on the tongue.

*[DR21600( ALL)01/95] Tie down the load so that it does not shift and

change the weight on the hitch. This will

prevent damage to your vehicle and make your

vehicle easier to handle.

%*[DR21650( ALL)01/95]

Connecting the safety chains

*[DR21700( ALL)01/95] Always attach the trailer’s safety chains to your

vehicle. They help protect your trailer if the

hitch breaks.

*[DR21800( ALL)01/95] To connect the trailer’s safety chains:

*[DR21900( ALL)01/95] 1. Cross the chains under the trailer tongue

and attach them to your vehicle’s frame or

hook retainers. Never attach the safety

chains to your vehicle’s bumper. The bumper

is not designed to bear the weight of a

trailer.

*[DR22000( ALL)01/95] 2. Make sure that you leave enough slack in

the chains to allow you to turn corners.

*[DR22100( ALL)01/95] If you use a rental trailer, follow the instructions

that the rental agency gives you.

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

184

%*[DR22150( ALL)01/95]

Connecting the trailer’s brakes

*[DR22200( ALL)01/95] Electric brakes and manual, automatic, or

surge-type hydraulic brakes are safe if you

install them properly and adjust them according

to the manufacturer’s instructions. Be sure that

your trailer’s brakes meet local and federal

regulations.

[DR22250( ALL)03/95] If your vehicle is equipped with the optional

trailer tow package, provisions have been made

under the instrument panel for installation of an

electronic brake controller.

*[DR22300( ALL)05/95] RWARNING

Do not connect a trailer’s hydraulic brake

system directly to your vehicle’s brake

system. Your vehicle may not have

enough braking power and your chances

of having a collision greatly increase.

%*[DR22350( ALL)01/95]

Connecting the trailer’s lights

*[DR22400( ALL)01/95] Do not connect a trailer’s lighting system

wiring directly to your vehicle’s lighting system

wiring. To get the proper equipment for

hooking up your trailer’s lights, see your local

trailer dealer and your Ford dealer. Be sure to

follow their instructions carefully.

[DR22450( ALL)03/95] If your vehicle is equipped with the optional

trailer tow package, the proper lamp wiring and

equipment has been installed at the factory. The

trailer feed wire (supplied in a box in the

luggage compartment) needs a connector

compatible with your trailer prior to installation.

*[DR22500( ALL)01/95] If you do not install trailer lights correctly, you

may cause damage to the vehicle’s lighting

system.

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

185

%*[DR22600( ALL)01/95] Driving While You Tow

*[DR22650( ALL)01/95] Be especially careful when driving while you

tow a trailer. Never drive faster than 45 mph

(70 km/h) when you tow in hilly country on

hot days. Also, anticipate stops so that you can

brake gradually.

[DR22950(MBC )09/93] If you tow in Overdrive while riding through

hilly country, your vehicle may frequently shift

between Overdrive and Third gears. To prevent

your vehicle from shifting too much, depress the

Transmission Control Switch (TCS). This will

also give the engine more power going up hills

and better engine braking going down hills.

%*[DR23000( ALL)01/95] If you use the speed control while you are

towing on very long, steep grades, the speed

control may shut off.

*[DR23100( ALL)01/95]

Servicing your vehicle if you tow

*[DR23200( ALL)08/93] If you tow a trailer for a long distance, your

vehicle will need to be serviced more frequently

than usual. Refer to the Maintenance Schedule and

Record booklet for additional information.

File:rcdrc.ex

Update:Mon Jun 12 16:47:03 1995

187

Roadside Emergencies

%*[RE00400( ALL)03/95] Jump-Starting Your Vehicle

*[RE00450( ALL)01/95] Your vehicle’s battery may die if you leave the

lights on or any electrical equipment on after

you turn the engine off. If this happens, you

may be able to jump-start from a booster battery

to start your vehicle.

*[RE00500( ALL)02/95] RWARNING

The gases around the battery can explode

if exposed to flames, sparks, or lit

cigarettes. An explosion could result in

injury or vehicle damage.

*[RE00600( ALL)02/95] RWARNING

To protect yourself when charging a

battery, always shield your face and eyes.

Make sure that you can breathe fresh air.

%*[RE00700( ALL)05/95] RWARNING

Applying too much pressure on the ends

when lifting a battery could cause acid to

spill. Lift the battery with a carrier or

with your hands on the opposite corners.

%*[RE00800( ALL)05/95] RWARNING

Batteries contain sulfuric acid which burns

skin, eyes, and clothing.

File:rcrec.ex

Update:Mon Jun 12 16:46:41 1995

188

*[RE00900( ALL)05/95] If the acid touches someone’s skin, eyes, or

clothing, immediately flush the area with water

for at least 15 minutes. If someone swallows the

acid, have him or her drink lots of milk or water

first, then Milk of Magnesia, a beaten egg, or

vegetable oil. Call a doctor immediately.

*[RE01000( ALL)03/95] To avoid damaging your vehicle or your battery,

and to avoid injury to yourself, follow these

directions for preparing your vehicle to jump-start

and connecting the jumper cables in the order they

are given. If in doubt, call for road service.

*[RE01100( ALL)03/95] Preparing Your Vehicle

[RE01150( ALL)11/90] NOTE: also see label on battery.

*[RE01200( ALL)03/95] 1. Your vehicle has a 12-volt starting system, so

you need to use a 12-volt jumper system.

You will damage your starting motor,

ignition system, and other electrical parts if

you connect them to a 24-volt power supply

(either two 12-volt batteries in series or a

24-volt generator set).

*[RE01300( ALL)03/95] 2. Do not disconnect the battery of the disabled

vehicle. You could damage the vehicle’s

electrical system.

*[RE01400( ALL)04/95] 3. Park the booster vehicle close to the hood of

the disabled vehicle. Make sure the vehicles

do not touch each other. Set the parking

brake on both vehicles and stay clear of the

engine cooling fan and other moving parts.

*[RE01500( ALL)03/95] 4. Check all battery terminals and remove any

excessive corrosion before you attach the

jumper cables.

*[RE01600( ALL)02/95] 5. Turn on the heater fan in both vehicles.

Turning on the fan helps protect the

electrical system from voltage surges. Turn

off all other switches and lights in both

vehicles to prevent possible damage to either

vehicle’s electrical systems.

File:rcrec.ex

Update:Mon Jun 12 16:46:41 1995

189

%*[RE01700( ALL)05/95]

Connecting the jumper cables

*[RE01800( ALL)03/95] 1. Connect one end of the first jumper cable to

the positive (+) terminal of the discharged

battery. (You can connect either jumper cable

to the positive (+) terminal, as long as you

use the same cable for both positive

terminals.) Most jumper cables have a red

cable and a black cable. The red cable is

generally used for the positive terminals and

the black for the negative ones.

*[RE01900( ALL)04/95] 2. Connect the other end of the first cable to

the positive (+) terminal of the booster

battery.

*[RE02000( ALL)03/95] 3. Connect one end of the second cable to the

negative (s) terminal of the booster battery

— NOT to the discharged battery.

[RE02100( ALL)01/95] 4. Connect the other end of that cable to a

good metallic surface on the engine or frame

of the disabled vehicle making sure it is

clear of any rotating engine components. The

following illustrations show where you can

find a metallic surface.

*[RE02200( ALL)05/95] RWARNING

Do not connect the end of the second

cable to the negative (s) terminal of the

battery to be jumped. A spark may cause

an explosion of the gases that surround

the battery.

File:rcrec.ex

Update:Mon Jun 12 16:46:41 1995

190

[RE02500( BC )05/95]

full page art:0010334-D

The 3.8L SFI engine

File:rcrec.ex

Update:Mon Jun 12 16:46:41 1995

191

[RE02650(MBC )05/95]

full page art:0010666-G

The 4.6L SFI Engine

File:rcrec.ex

Update:Mon Jun 12 16:46:41 1995

192

*[RE02900( ALL)03/95] Jump-Starting

*[RE03000( ALL)03/95] 1. Make sure that the jumper cables are not in

the way of moving engine parts, then start

the booster vehicle. Run the engine at a

moderate speed.

*[RE03100( ALL)03/95] 2. Let the discharged battery charge for a few

minutes and then start the disabled vehicle.

It may take a couple of tries before the

vehicle starts. If the vehicle does not start

after several attempts, there may be a

different problem.

*[RE03200( ALL)03/95] 3. When both vehicles are running, let them

idle for a few minutes to charge the

discharged battery.

%*[RE03300( ALL)03/95]

Removing jumper cables

*[RE03400( ALL)03/95] 1. Always remove the jumper cables in the

reverse order. Remove the negative (s) end

of the jumper cable from the metallic surface

on the engine or frame of the disabled

vehicle.

*[RE03500( ALL)03/95] 2. Remove the negative (s) cable from the

booster battery.

*[RE03600( ALL)03/95] 3. Remove the positive (+) cable from the

booster battery.

*[RE03700( ALL)05/95] 4. Remove the other end of the positive (+)

cable from the discharged battery.

*[RE03800( ALL)04/95] After the vehicle is started, let it idle for a while

to let the engine “relearn” its idle conditions.

Drive it around for a while with all electrical

accessories turned off to let the battery recharge.

You may need to use a battery charger to fully

recharge the battery.

File:rcrec.ex

Update:Mon Jun 12 16:46:41 1995

193

[RE03820( BC )05/94] NOTE: If your vehicle is equipped with a 4.6L

engine you will need to perform

additional steps after your vehicle has

been jump started. See Readiness for

Inspection/Maintenance Testing in

Servicing Your Vehicle chapter.

%*[RE03900( ALL)03/95] Changing a Tire

*[RE04000( ALL)01/95] If you get a flat tire while you are driving, do

not apply the brake heavily. Instead, gradually

decrease the speed. Hold the steering wheel

firmly and slowly move to a safe place on the

side of the road. Park on a level spot, turn off

the ignition, set the parking brake, and turn on

the hazard flashers.

%*[RE04100( ALL)03/95] The Temporary Spare Tire

[RE04225(MBC )03/94] You have a high pressure temporary spare tire.

This spare tire is smaller than a regular tire and

is designed for emergency use only. Use it only

when you get a flat tire and replace it as soon

as you can. This spare tire is marked with the

words “TEMPORARY USE ONLY” so that you

can easily identify it.

*[RE04250( ALL)01/95] NOTE: Extended use of other than

conventional spare tires on a

Traction-Lok rear axle could result in a

permanent reduction in effectiveness.

This loss of effectiveness does not

affect normal driving and should not

be noticeable to the driver.

*[RE04300( ALL)01/93] RWARNING

If you use the temporary spare tire

continuously or do not follow these

precautions, the tire could fail, causing

you to lose control of the vehicle, possibly

injuring yourself or others.

File:rcrec.ex

Update:Mon Jun 12 16:46:41 1995

194

*[RE04400( ALL)01/95] When you drive with the temporary spare tire,

DO NOT:

*[RE04500( ALL)01/95] ❑exceed 50 mph (80 km/h) under any

circumstances.

*[RE04600( ALL)01/95] ❑load your vehicle so that it is heavier than

the maximum vehicle load rating listed on

the tire decal.

*[RE04700( ALL)01/95] ❑tow a trailer.

*[RE04800( ALL)01/95] ❑use tire chains on this tire.

*[RE04900( ALL)01/95] ❑try to repair the temporary spare tire or

remove it from its wheel.

*[RE05000( ALL)01/95] ❑use the wheel for any other type of vehicle.

*[RE05100( ALL)01/95] ❑drive through an automatic car wash with

this tire. Because the temporary spare tire is

smaller than a conventional tire, it reduces

the ground clearance. Your vehicle may get

caught in the rails and it could be damaged.

File:rcrec.ex

Update:Mon Jun 12 16:46:41 1995

195

%*[RE05500( ALL)03/95] Spare Tire Location

[RE05600( ALL)11/90] The spare is stored in the trunk.

[RE05900( BC )11/93]

two third page art:0010339-F

The spare tire location

%*[RE06500( ALL)02/95] To remove the spare tire:

*[RE06600( BC )01/95] 1. Remove the spare tire cover.

*[RE06700( BC )01/95] 2. Unscrew the wing-nut holding down the

spare tire.

*[RE06750( BC )01/95] NOTE: Wing-nut is not removable.

[RE06800( BC )12/91] 3. Lift out the spare tire, jack, and lug wrench.

File:rcrec.ex

Update:Mon Jun 12 16:46:41 1995

196

%*[RE07300( ALL)03/95] Preparing to Change the Tire

*[RE07525( BCGV)03/95] 1. Make sure that your vehicle will not move

or roll. Put the gearshift in P (Park). Set the

parking brake and block the wheel that is

diagonally opposite the tire that you are

changing.

[RE07550( BCGV)05/95] When one of the back wheels is off the ground,

the transmission alone will not prevent the

vehicle from moving or slipping off the jack,

even if the vehicle is in P (Park). To prevent the

vehicle from moving when you change a tire, be

sure the parking brake is set, then block the

wheel (both directions) that is diagonally

opposite (other side and end of the vehicle) to

the tire being changed.

*[RE07560( ALL)05/95] RWARNING

If the vehicle slips off the jack, you or

someone else could be seriously injured.

*[RE07875( ALL)05/95] RWARNING

To avoid injury, never run the engine

with one wheel off the ground, such as

when changing a tire.

*[RE07900( ALL)05/95] 2. Get out the spare tire and jack.

[RE08000( BC )11/92] 3. Remove any optional wheel covers or

hubcaps with the tapered end of a wheel nut

wrench. Insert the handle of the wrench and

twist it against the inner wheel cover flange.

For more about removing wheel covers, see

the information later in this chapter.

File:rcrec.ex

Update:Mon Jun 12 16:46:41 1995

197

*[RE08100( ALL)01/95] 4. Loosen each wheel lug nut one-half turn

counterclockwise, but do not remove them

until the tire is raised off the ground. You

should pull up on the handle rather than

push to develop maximum force to loosen

wheel lug nuts. See Anti-Theft Wheel Lug

Nuts later in this chapter for information on

removing anti-theft lug nuts.

%*[RE08150( ALL)05/95] Removing and Replacing the Tire

[RE08250( BC )12/94] 1. Find the underbody notches closest to the

wheel to be removed. Center the jack

between (2) underbody notches and turn the

handle of the jack clockwise until the wheel

is completely off the ground.

*[RE08400( ALL)05/95] RWARNING

To lessen the risk of personal injury, do

not put any part of your body under the

vehicle while changing a tire. Do not start

the engine when your vehicle is on the

jack. The jack is only meant for changing

the tire.

File:rcrec.ex

Update:Mon Jun 12 16:46:41 1995

198

[RE08550( ALL)10/92]

half page art:0010759-A

The improper lift point

[RE08570( ALL)05/92] NOTE: Never use the differential housing as a

lift point.

File:rcrec.ex

Update:Mon Jun 12 16:46:41 1995

199

% [RE08600( BC )02/92]

half page art:0010346-C

The notches for the jack

*[RE08900( ALL)01/95] 2. Turn the jack handle clockwise until the

wheel clears the ground. Remove the wheel

lug nuts.

*[RE08920( ALL)01/95] 3. Replace the flat tire with the spare tire,

making sure that the air valve stem is facing

outward.

*[RE08940( ALL)03/95] 4. Reinstall the lug nuts, tightening until the

wheel is snug against the hub. The beveled

edges on the lug nuts face inward. Do not

fully tighten the lug nuts until you lower the

vehicle. If you do, you could force the

vehicle off the jack.

*[RE08960( ALL)02/95] 5. Lower the vehicle by turning the jack handle

counterclockwise.

File:rcrec.ex

Update:Mon Jun 12 16:46:41 1995

200

*[RE08980( ALL)01/95] 6. Remove the jack and fully tighten the lug

nuts in the order shown in the following

illustration. As soon as possible, have your

dealer or a qualified service technician check

the lug nuts for proper torque specifications.

% [RE09100( ALL)03/93]

quarter page art:0010350-A

The lug nuts on the wheel

[RE09400( ALL)01/95] 7. Place any wheel covers and ornaments in the

trunk.

*[RE09500( ALL)03/95] 8. Put the tire, jack, and wrench away. Make

sure the jack is securely fastened so it does

not rattle when you drive.

*[RE09600( ALL)03/95] 9. Unblock the wheels.

% [RE10600(MBC )12/94] Aluminum Road Wheel Ornaments

(If equipped)

[RE10700(MBC )03/93] To remove the ornament, stick the tapered end

of the jack handle between the ornament and

wheel and pry off the ornament.

[RE10800(MBC )03/93] To replace the ornament, stick one side of the

ornament into the center of the wheel and strike

the other side with the palm of your hand.

File:rcrec.ex

Update:Mon Jun 12 16:46:41 1995

201

%*[RE10900( BC )02/95] Center Wheel Cover

[RE11000(BC )02/95] To remove the wheel cover:

[RE11100( BC )03/91] 1. Pry the center ornament from the wheel

cover using the tapered end of the jack

handle. Do not use a screwdriver or any

other tool. If you do, you may damage the

cover. The wheel, with the wheel cover still

attached, may now be removed from the

vehicle by removing the five lug nuts.

[RE11300( BC )03/91] 2. If the tire needs to be removed from the

wheel, remove the five screws, using a

Phillips head screwdriver. Then pull the

wheel cover off the wheel.

[RE11400( BC )05/92]

half page art:0010353-B

The center attachment wheel cover

[RE11500(BC )02/95] To replace the wheel cover:

[RE11600( BC )03/91] 1. Place the tire valve stem hole in the wheel

cover over the tire valve stem. Align the

holes in the wheel cover mounting pad with

the center holes in the metal inserts. Install

and tighten the five screws.

File:rcrec.ex

Update:Mon Jun 12 16:46:41 1995

202

[RE11700( BC )03/91] 2. Align the legs of the ornament with the slots

on the wheel cover. Strike the ornament with

the palm of your hand.

%*[RE12700(MBC )03/95] Anti-Theft Wheel Lug Nuts (If equipped)

*[RE12800( BC )01/95] If your vehicle has this option, one of the lug

nuts on each wheel locks and must be unlocked

with a special key. The key and registration card

are attached to the lug wrench and stored with

the spare tire. If you lose the key, send the

registration card to the manufacturer (not the

dealer) to get a replacement key.

*[RE12850(MBC )03/95] NOTE: If entire lug wrench/lug nut key

assembly is lost, see your nearest Ford

or Lincoln-Mercury dealer who has

access to a master set of keys.

*[RE12875(MBC )03/95] DO NOT USE A POWER IMPACT WRENCH

ON THE LUG NUT KEY.

[RE13000(MBC )03/95]

quarter page art:0010357-B

The anti-theft lug nut and key

*[RE13100(MBC )03/95]

Removing the anti-theft lug nut

*[RE13300(MBC )03/95] Insert the key over the locking lug nut. Make

sure that you hold the key square to the lug nut.

If you hold the key on an angle, you may

damage the key and the lug nut.

*[RE13400(MBC )03/95] Place the lug nut wrench over the lug nut key

and apply pressure on the key with the wrench.

Turn the wrench in a counterclockwise direction

to remove the lug nut.

File:rcrec.ex

Update:Mon Jun 12 16:46:41 1995

203

*[RE13500(MBC )03/95]

Replacing the anti-theft lug nut

*[RE13600(MBC )03/95] Insert the key over the locking lug nut. Place the

lug nut wrench over the lug nut key and, while

applying pressure on the key, install the lug nut.

*[RE13800( ALL)02/95] If the Engine Cranks But Does

Not Start or Does Not Start After

a Collision

*[RE13810( ALL)04/95] The Fuel Pump Shut-off Switch

*[RE13900( ALL)03/95] If the engine cranks but does not start or if you

have had a collision, the fuel pump shut-off

switch may have been triggered. The shut-off

switch is a device that stops the fuel pump

when your vehicle has been involved in a

substantial jolt.

*[RE14000( ALL)01/95] For information on how to check and reset the

fuel pump shut-off switch, see Fuel pump shut-off

switch in the Index.

%*[RE14100( ALL)05/95] Towing Your Vehicle

*[RE14201( ALL)05/95] If you need to have your vehicle towed, contact

a professional towing service or, if you are a

member, your roadside assistance center.

Recommended towing options include wheel lift

towing or flat bed towing.

File:rcrec.ex

Update:Mon Jun 12 16:46:41 1995

204

*[RE14300( ALL)05/95]

three fourths page art:0001463-A

*[RE14400( ALL)05/95] When calling for a tow truck, tell the operator

what kind of vehicle you have. A towing

manual is available from Ford Motor Company

for all authorized tow truck operators. Have

your tow truck driver refer to this manual for

the proper hook-up and towing procedures for

your vehicle.

File:rcrec.ex

Update:Mon Jun 12 16:46:41 1995

205

Customer Assistance

%*[HS00205( ALL)06/94] Roadside Assistance

*[HS00210( ALL)04/95] Ford Motor Company has set up a 24-hour,

seven-day-a-week hotline with trained operators

that put you in touch with the help you need if

you experience a problem with your vehicle.

This complimentary service is provided to you

throughout your warranty period of 3

years/36,000 miles (3 years/60,000 km),

whichever comes first. To purchase Roadside

Assistance coverages beyond this period,

through Ford Auto Club, contact your Ford or

Lincoln-Mercury dealer (not available in

Canada).

*[HS00215( ALL)06/94] Roadside Assistance will cover the following:

*[HS00220( ALL)06/94] ❑Mount your spare if you have a flat tire.

*[HS00225( ALL)06/94] ❑Jump-start your battery if it is dead.

*[HS00230( ALL)06/94] ❑Unlock your vehicle if you are locked out.

*[HS00235( ALL)06/94] ❑Bring you fuel if you run out.

*[HS00240( ALL)06/94] ❑Tow your vehicle if you are stranded. Even

non-warranty related tows, like accidents or

getting stuck in mud or snow, are covered

(some exclusions apply, such as impound

towing and repossession).

File:rchsc.ex

Update:Mon Jun 12 16:46:04 1995

206

*[HS00245( ALL)06/94] How to use Roadside Assistance

*[HS00250( ALL)06/94] Your Roadside Assistance identification card can

be found in the Owner Guide portfolio in your

glove compartment. Complete the card and place

it in your wallet for quick reference.

*[HS00255( ALL)04/95] To receive roadside assistance in the United

States call 1-800-241-FORD (in Canada call

1-800-665-2006).

*[HS00260( ALL)04/95] Should you need to arrange for roadside

assistance yourself, Ford Motor Company will

reimburse the reasonable cost. To obtain

information about reimbursement call

1-800-241-FORD (in Canada call 1-800-665-2006).

*[HS00300( ALL)01/95] If You Have a Service Problem

*[HS00400( ALL)01/95] Ford Motor Company has authorized Ford and

Lincoln-Mercury dealerships that can service

your vehicle for you. This chapter tells you how

to get service or maintenance for your vehicle.

File:rchsc.ex

Update:Mon Jun 12 16:46:04 1995

207

%*[HS00500( ALL)03/95] Service/Maintenance Concerns

(U.S. or Canada)

*[HS00600( ALL)04/95] Ford recommends taking your vehicle to your

selling dealer who wants to ensure your

continued satisfaction. You may, however, take

your vehicle to any authorized Ford or

Lincoln-Mercury dealer. In most cases, your

dealer will be able to resolve your concern.

*[HS00700( ALL)04/95] If you are not satisfied with the service you

received from your dealership’s service

department, talk to the service manager at the

dealership, or if you still are not satisfied, talk to

the owner or general manager of the dealership.

In most cases, you will have your concern

resolved at this level.

*[HS01000( ALL)03/95] If you are away from home when your vehicle

needs to be serviced, or if you need more help

than the dealer gave you, contact the Ford

Customer Assistance Center to find an

authorized dealership that may be able to help.

File:rchsc.ex

Update:Mon Jun 12 16:46:04 1995

208

*[HS01025( ALL)04/95] In the U.S., contact:

%*[HS01050( ALL)03/95]

one inch art:0060100-E

*[HS01100( ALL)03/95] If you live in Canada and have any questions or

concerns that the dealership cannot answer,

contact the Customer Assistance Centre.

%*[HS01150( ALL)04/95]

one inch art:0060101-C

*[HS01200( ALL)04/95] Please have the following information available

when contacting Ford Customer Assistance:

*[HS01300( ALL)04/95] ❑your telephone number (both business and

home)

*[HS01400( ALL)04/95] ❑the name of the dealer and the city where the

dealership is located

*[HS01500( ALL)04/95] ❑the year and make of your vehicle

*[HS01550( ALL)04/95] ❑the date purchased

*[HS01600( ALL)03/95] ❑the current mileage on your vehicle

%*[HS01700( ALL)03/95] ❑your Vehicle Identification Number (VIN)

listed on your owner card and/or your

vehicle ownership license

File:rchsc.ex

Update:Mon Jun 12 16:46:04 1995

209

[HS01800( ALL)05/95]

one inch art:0010630-A

Vehicle Identification Number (VIN/Serial Number)

*[HS02200( ALL)03/95] If you still have a service or product complaint,

you may wish to contact the Dispute Settlement

Board (U.S. only) or the Canadian Motor Vehicle

Arbitration Plan (CAMVAP) in Canada.

%*[HS02300( ALL)02/95] The Dispute Settlement Board

(U.S. Only)

*[HS02400( ALL)03/95] The Dispute Settlement Board is a voluntary,

independent dispute-settlement program

available free to owners or lessees of qualifying

Ford Motor Company vehicles.

*[HS02500( ALL)01/95] The Dispute Settlement Board may not be

available in all states. Ford Motor Company

reserves the right to change eligibility

limitations, modify procedures and/or to

discontinue this process at any time without

notice and without incurring obligations.

*[HS02600( ALL)01/95] What Kind of Cases Does the Board

Review?

*[HS02700( ALL)03/95] The Board reviews all product performance and

service complaints on Ford, Mercury and Lincoln

Cars and Ford and Mercury Light Trucks under

warranty that have not been resolved by a

dealer or Ford Motor Company.

*[HS02750( ALL)03/95] The Board does not review issues involving:

*[HS02800( ALL)01/95] ❑A non-Ford product

*[HS02900( ALL)01/95] ❑A non-Ford dealership

File:rchsc.ex

Update:Mon Jun 12 16:46:04 1995

210

*[HS03100( ALL)01/95] ❑A vehicle sales transaction

*[HS03200( ALL)01/95] ❑A request for reimbursement of consequential

expenses unless incidental to a service or

product complaint being reviewed

*[HS03300( ALL)01/95] ❑Items not covered by your warranty

*[HS03400( ALL)01/95] ❑Alleged liability claims

*[HS03450( ALL)01/95] ❑Property damage where such damage is

significant when compared to the economic

loss alleged under the warranty dispute

*[HS03500( ALL)01/95] ❑Cases currently in litigation

*[HS03600( ALL)01/95] ❑Vehicles not used primarily for personal,

family, or household purposes

*[HS03650( ALL)01/95] NOTE: Complaints involving vehicles on

which applicable express written new

vehicle warranties have expired at

receipt of your application are not

eligible. Eligibility may differ

according to state law. For example, see

the unique brochure for California

purchasers/lessees.

*[HS03700( ALL)04/95] How Does the Board Work?

*[HS03800( ALL)04/95] The Board has four members:

*[HS03900( ALL)04/95] ❑three consumer representatives

*[HS04000( ALL)04/95] ❑a Ford or Lincoln-Mercury dealer

*[HS04200( ALL)04/95] Consumer candidates for Board membership are

recruited and trained by an independent

consulting firm. Dealers are chosen because of

their business leadership qualities.

File:rchsc.ex

Update:Mon Jun 12 16:46:04 1995

211

*[HS04300( ALL)04/95] If the involved vehicle is within 36 months and

36,000 miles of the date of delivery (warranty

start date), you have a right to make an oral

presentation before the Board by indicating your

choice on the application. Also, oral

presentations may be requested by the Board. A

decision is made by the Board by simple

majority vote.

[HS04320( ALL)06/93] Board members review all the materials related

to each complaint and, based on the available

information, arrive at a fair and impartial

decision. Decisions are based on the written

statements and any oral presentations made by

each of the involved parties.

*[HS04400( ALL)04/95] Because the Board usually meets only once a

month, some cases will take longer than 30 days

to be reviewed. The Board will make every

effort to resolve each case within 40 days after it

receives the customer application form.

*[HS04500( ALL)04/95] After your case has been reviewed, the Board

will mail you its decision in writing. It will also

provide you with a form to indicate your

acceptance or rejection of an award decision. The

decisions of the Board are binding on the dealer

and Ford, but customers may have other options

available to them under state or federal law.

*[HS04600( ALL)04/95] The decisions of the Board, however, may be

introduced into evidence by any party in

subsequent legal proceedings that may be

initiated.

*[HS04700( ALL)01/95] How Do You Contact the Board?

*[HS04800( ALL)04/95] Write to the Board at the following address to

request a brochure/application. You will be sent

a brochure and a one-page customer application

form. The form should be completed and mailed

to the same address.

File:rchsc.ex

Update:Mon Jun 12 16:46:04 1995

212

*[HS04900( ALL)02/93]

one inch art:0060102-B

*[HS05100( ALL)04/95] What is the Review Process?

*[HS05200( ALL)04/95] Your application will be reviewed and if it is

determined to be eligible, you will receive an

acknowledgment indicating the file number

assigned to your application and the local Board

address. At the same time, your dealer and Ford

Motor Company representative are asked to

submit statements.

*[HS05300( ALL)04/95] To review your case properly, the Board needs

the following information:

*[HS05400( ALL)04/95] ❑legible copies of all documents and

maintenance or repair orders that relate to

the case

*[HS05500( ALL)04/95] ❑the year, make, model, and vehicle

identification number

*[HS05600( ALL)04/95] ❑the date you bought your vehicle

*[HS05700( ALL)04/95] ❑the date of repair and the mileage at the time

of repair

*[HS05800( ALL)04/95] ❑the current mileage

*[HS05900( ALL)04/95] ❑the name of the dealer who sold you the

vehicle or who serviced your vehicle

*[HS06000( ALL)04/95] ❑a brief description of your unresolved

complaint

File:rchsc.ex

Update:Mon Jun 12 16:46:04 1995

213

*[HS06100( ALL)05/95] ❑a brief summary of actions that were taken

with the dealer and Ford Motor Company

*[HS06200( ALL)05/95] ❑the names (if known) of all people you

contacted at the dealership

*[HS06300( ALL)04/95] ❑a description of the action you want done to

resolve your concern.

*[HS06305( ALL)04/95] Should your application NOT qualify for review,

an explanation will be mailed to you.

%*[HS07400( ALL)04/95] Reporting Safety Defects

(U.S. Only)

*[HS07500( ALL)01/95] If you believe that your vehicle has a defect

which could cause a crash or could cause injury

or death, you should immediately inform the

National Highway Traffic Safety Administration

(NHTSA) in addition to notifying Ford Motor

Company.

*[HS07600( ALL)01/95] If NHTSA receives similar complaints, it may

open an investigation, and if it finds that a

safety defect exists in a group of vehicles, it may

order a recall and remedy campaign. However,

NHTSA cannot become involved in individual

problems between you, your dealer, or Ford

Motor Company.

*[HS07700( ALL)01/95] To contact NHTSA, you may either call the Auto

Safety Hotline toll-free at 1-800-424-9393 (or

366-0123 in the Washington, D.C. area) or write

to: NHTSA, U.S. Department of Transportation,

400 Seventh Street, Washington D.C. 20590. You

can also obtain other information about motor

vehicle safety from the Hotline.

File:rchsc.ex

Update:Mon Jun 12 16:46:04 1995

214

%*[HS08700( ALL)05/95] Ford of Canada Customer

Assistance

*[HS08800( ALL)03/95] Ford Motor Company of Canada, Limited

*[HS08900( ALL)03/95] If you live in Canada and have any questions or

concerns that the dealership cannot answer,

contact the Customer Assistance Centre.

*[HS09000( ALL)03/95]

one inch art:0060101-C

%*[HS09100( ALL)03/95] Canadian Motor Vehicle Arbitration Plan

(CAMVAP)

*[HS09200( ALL)03/95] If a specific item of concern arises, where a

solution cannot be reached between a vehicle

owner, Ford of Canada, and/or one of its

dealers (that all parties can agree upon), the

owner may wish to use the services offered by

the Canadian Motor Vehicle Arbitration Plan

(CAMVAP).

[HS09300( ALL)05/95] CAMVAP uses the services of Provincial

Administrators to assist consumers in scheduling

and preparing for their arbitration hearings.

However, before you can proceed with

CAMVAP you must follow your manufacturer’s

dispute resolution process as outlined under

“Service/Maintenance Concerns (U.S. or

Canada)” earlier in this chapter.

File:rchsc.ex

Update:Mon Jun 12 16:46:04 1995

215

*[HS09400( ALL)05/95] Consumers wishing to obtain further information

about the program can obtain an information

booklet from your dealer or contact the

Provincial Administrator, Canadian Motor

Vehicle Arbitration Plan, at the address or

telephone number shown below.

*[HS09500( ALL)05/95] O & P Services

595 Bay Street — Suite 300

Toronto, Ontario

M5G 2C2

Telephone 1 (800) 207-0685

[HS09600( ALL)05/95] This plan is not available in the province of

Quebec.

%*[HS09700( ALL)05/95] Getting Help Outside the U.S.

and Canada

*[HS09800( ALL)05/95] Before you export your vehicle to a foreign

country, contact the appropriate foreign embassy

or consulate to make sure local regulations do

not prevent you from registering your vehicle.

Officials at the embassy can also help you decide

whether you should import your vehicle to that

country.

*[HS09900( ALL)05/95] Officials at the embassy or consulate can tell you

where to get unleaded fuel. If you cannot get

unleaded fuel or can get only fuel with an

anti-knock index that is lower than your vehicle

needs, contact a district or owner relations office

before you leave the U.S. or Canada.

*[HS10000( ALL)05/95] Use of leaded fuel in your vehicle without a

proper conversion may damage the effectiveness

of your emissions control system and may cause

engine knocking or serious engine damage. Ford

Motor Company is not responsible for any

damage that is caused by use of improper fuel.

*[HS10100( ALL)05/95] You may also have difficulty importing your

vehicle back into the U.S. if you use leaded fuel.

File:rchsc.ex

Update:Mon Jun 12 16:46:04 1995

216

*[HS10200( ALL)05/95] If your vehicle must be serviced while you are

traveling or living in Central or South America,

the Caribbean, or the Middle East, contact the

nearest Ford dealership. If the dealership cannot

help you, write to:

*[HS10300( ALL)05/95]

one inch art:0060103-H

*[HS10400( ALL)05/95] If you are in other foreign countries, contact the

nearest Ford dealership. If the dealership cannot

help you, they can direct you to the appropriate

Ford affiliate office.

*[HS10500( ALL)05/95] If you buy your vehicle in North America and

then relocate outside of the U.S. or Canada,

new address with Ford Motor Company Export

Operations.

File:rchsc.ex

Update:Mon Jun 12 16:46:04 1995

217

Accessories

*[AC00200( ALL)03/95] Ford Accessories for Your Vehicle

*[AC00240( ALL)04/95] Ford has many fine products available from

your dealer to clean your vehicle and protect its

finishes. For best results, use the following, or

products of equivalent quality:

*[AC00280( ALL)04/95]

fourteen pica chart:0001204-B

File:rcacc.ex

Update:Mon Jun 12 16:45:48 1995

218

*[AC00300( ALL)04/95] A wide selection of accessories is available

through your local authorized dealer. These fine

accessories have been engineered specifically to

fulfill your automotive needs. They are custom

designed to complement the style and

aerodynamic appearance of your Ford-built

vehicle. In addition, each accessory is made from

high quality materials and meets or exceeds

Ford’s rigid engineering and safety specifications.

That is why Ford brand accessories are

warranted for up to 3 years or 36,000 miles

(60,000 km), whichever comes first. See your

dealer for complete warranty information and

accessory availability.

*[AC00350( ALL)03/95] Safety, Comfort, and Convenience

[AC00430( BC )03/94]

fourteen pica chart:0010542-K

File:rcacc.ex

Update:Mon Jun 12 16:45:48 1995

219

[AC00550( C )03/95]

sixteen pica chart:0011338-A

*[AC01400( ALL)01/95] NOTE: When adding accessories, equipment,

passengers, and luggage to your

vehicle, do not exceed the total weight

capacity of the vehicle or of the front

or rear axle (GVWR, GAWR as shown

on the Safety Compliance Certification

Label). Consult your dealer for specific

weight information.

[AC01500( ALL)05/95] NOTE: The Federal Communications

Commission (FCC) or in Canada the

Canadian Radio Telecommunications

Commission (CRTC) regulates the use

of mobile communications systems —

such as two-way radios, telephones,

and theft alarms — that are equipped

with radio transmitters. Any such

equipment installed in your vehicle

should comply with FCC regulation

and should be installed only by a

qualified technician.

File:rcacc.ex

Update:Mon Jun 12 16:45:48 1995

220

*[AC01600( ALL)01/95] NOTE: Mobile communications systems may

harm the operation of your vehicle,

particularly if they are not properly

designed for automotive use or are not

properly installed. For example, when

operated, such systems may cause the

engine to stumble or stall. In addition,

such systems may themselves be

damaged or their operation affected by

operating your vehicle. (Citizens band

[CB] transceivers, garage door openers,

and other transmitters whose power

output is 5 watts or less will not

ordinarily affect your vehicle’s

operation.)

*[AC01700( ALL)05/95] NOTE: Because we have no control over the

installation, design, or manufacture of

such systems, Ford cannot assume

responsibility for any adverse effects or

damage that may result if you use this

equipment.

File:rcacc.ex

Update:Mon Jun 12 16:45:48 1995

222

% [AC02400( C )12/94]

thirty-six pica chart:0011326-A

File:rcacc.ex

Update:Mon Jun 12 16:45:48 1995

223

[AC02500( C )12/94]

thirty-six pica chart:0011327-A

File:rcacc.ex

Update:Mon Jun 12 16:45:48 1995

224

[AC02600( C )12/94]

thirty-six pica chart:0011328-A

File:rcacc.ex

Update:Mon Jun 12 16:45:48 1995

225

[AC03300( CG )12/94]

thirty-six pica chart:0011335-A

File:rcacc.ex

Update:Mon Jun 12 16:45:48 1995

227

Servicing Your Cougar

%*[SV00300( ALL)03/95] Service Made Easy

*[SV00400( ALL)01/95] Ford has two goals for servicing your vehicle.

*[SV00550( ALL)01/95] 1. When we can, we design parts that do not

need to be serviced.

*[SV00600( ALL)01/95] 2. We want to make servicing your vehicle as

easy as possible. To help you:

*[SV00700( ALL)01/95] ❑We highlight do-it-yourself items in yellow in

the engine compartment so that you can find

them easily.

*[SV00800( ALL)01/95] ❑When possible, we design parts — such as

the headlamp bulbs — that can be replaced

without tools.

*[SV00900( ALL)05/94] ❑We give you a Maintenance Schedule that

makes tracking routine service for your

vehicle easy. The maintenance schedule is

located in the Maintenance Schedule and Record

booklet.

*[SV01000( ALL)01/95] This chapter tells you about the basic parts that

you need to check and service regularly.

*[SV01100( ALL)02/95] If your vehicle needs professional servicing, your

dealership can provide the parts and service

required. Check your Warranty Information Booklet

to find out which parts and services are covered.

Also see the Customer Assistance chapter of this

Owner Guide.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

228

*[SV01250( ALL)03/95] Ford Motor Company recommends that the

Owner Maintenance Checks listed in the

Maintenance Schedule and Record booklet be

performed for the proper operation of your

vehicle. In addition to the conditions listed in

the Owner Maintenance Checklist, be alert for any

unusual noise, vibration, or other indication that

your vehicle may need service. If you do notice

something unusual, see that your vehicle is

serviced promptly.

*[SV01275( ALL)03/95] Use only recommended fuels, lubricants, fluids,

and service parts conforming to Ford

specifications. Motorcraft parts are designed and

built to provide the best performance in your

vehicle. Using these parts for replacement is

your assurance that Ford-built quality stays in

your vehicle.

%*[SV01400( ALL)04/95] NOTE: Always dispose of used automotive

fluids in a responsible manner. Follow

your community’s standards for

disposing of these types of fluids. Call

your local recycling center to find out

about recycling automotive fluids.

%*[SV01600( ALL)03/95] Precautions When Servicing Your

Vehicle

*[SV01700( ALL)01/95] Be especially careful when inspecting or

servicing your vehicle. Here are some general

precautions for your safety:

%*[SV01800(MBC )03/95] ❑Do not work on a hot engine. The engine

cooling fan may come on unexpectedly.

Always turn the engine off and let it cool.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

229

*[SV01850(MBC )05/95] RWARNING

The cooling fan is automatic and may

come on at any time. Always disconnect

the negative terminal of the battery before

working near the fan.

*[SV01900( ALL)03/95] ❑If you must work with the engine running,

avoid wearing loose clothing or jewelry that

could get caught in moving parts. Take

appropriate precautions with long hair.

*[SV02000( ALL)01/95] ❑Do not work on a vehicle in an enclosed

space with the engine running, unless you are

sure you have enough ventilation.

*[SV02100( ALL)01/95] ❑Never get under a vehicle while it is

supported by a jack only. If you must work

under a vehicle, use safety stands.

*[SV02200( ALL)01/95] ❑Keep all lit cigarettes and other smoking

materials away from the battery and all

fuel-related parts.

*[SV02600(MBC )03/95] If you disconnect the battery, the engine must

“relearn” its idle conditions before your vehicle

will drive properly. To find out how the engine

does this, see Battery in this chapter.

*[SV02800( ALL)03/95]

Working with the engine off:

*[SV03000( BCGV)03/95] 1. Set the parking brake fully and make sure

that the gearshift is securely latched in

P (Park).

*[SV03100( ALL)03/95] 2. Remove the key from the ignition after you

turn the engine off.

*[SV03150( ALL)03/95] 3. Block the wheels. This will prevent your

vehicle from moving unexpectedly.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

230

*[SV03200( ALL)03/95]

Working with the engine on:

*[SV03400( BCGV)03/95] 1. Set the parking brake fully and make sure

that the gearshift is securely latched in

P (Park).

*[SV03501( ALL)03/95] 2. Block the wheels. This will prevent your

vehicle from moving unexpectedly.

*[SV03600( ALL)02/95] RWARNING

Do not start your engine with the air

cleaner removed and do not remove it

while the engine is running.

%*[SV03650( ALL)03/95] Opening the Hood

[SV03800( ALL)03/95] 1. Inside the vehicle, pull the hood release

located under the lower left corner of the

instrument panel.

[SV04000( ALL)03/95] 2. Go around to the front of the vehicle, and

release the auxiliary catch that is located

under the front edge of the hood at the

center of the vehicle.

[SV04070( BC )05/95]

one third page art:0010537-A

The auxiliary catch under the front edge of the hood

*[SV04200( BCGV)01/95] 3. Lift the hood until the counterbalanced

hinges hold it open.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

231

*[SV04400( BCGV)01/95] Whenever you close the hood, latch it securely.

*[SV04450( ALL)01/95] NOTE: Apply lubricant to the hood latch at

six-month intervals to maintain smooth

and trouble-free operation.

%*[SV04600( ALL)05/95] Engine Compartment

*[SV04700(MBC )09/93] Your vehicle has one of these types of engines:

[SV05075(MBC )03/95] ❑a 4.6 liter SFI engine

[SV05100(MBC )03/93] ❑a 3.8 liter SFI engine

*[SV05300(MBC )11/94] The following pages show diagrams of each

engine type and where to find items that you

should regularly service.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

232

[SV05600( BC )03/93]

full page art:0010327-C

A 3.8 liter SFI engine

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

233

[SV05750( BC )05/95]

full page art:0010665-G

A 4.6 liter SFI engine

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

234

%*[SV05850( ALL)04/95] Cleaning the Engine

*[SV06000( ALL)04/95] A clean engine is more efficient because a

buildup of grease and dirt acts as an insulator,

keeping the engine warmer than usual.

*[SV06020( ALL)05/95] ❑Extreme care must be used if a power washer

is used to clean the engine. The high pressure

fluid could penetrate sealed parts and

assemblies causing damage or malfunctions.

*[SV06040( ALL)04/95] ❑In order to avoid possible cracking of the

engine block or fuel injection pump, do not

spray a hot engine or injection pump with

cold water.

*[SV06060( ALL)04/95] ❑The alternator, distributor and air intake must

be covered. Covering these components will

help prevent water damage.

*[SV06080( ALL)04/95] ❑Never wash or rinse the engine while it is

running. Water getting into the engine may

cause internal damage.

%*[SV06100( ALL)03/95] Filling the Fuel Tank

*[SV06240(MBC )05/95] The fuel door is outside the car on the passenger

side near the back. To fill the fuel tank:

[SV06550( ALL)05/95] 1. After opening the fuel filler door, remove

the cap carefully and slowly by turning it

counterclockwise 1/2 to 3/4 turn.

[SV06650( ALL)05/95] RWARNING

The fuel system may be under pressure. If

the fuel cap is venting vapor or if you

hear a hissing sound while disengaging

the fuel cap, wait until it stops before

completely removing the cap. Otherwise,

fuel may spray out and injure you or

others.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

235

[SV06700( ALL)05/95] 2. Put the nozzle all the way inside the fuel

filler pipe before pumping the fuel.

[SV06800( ALL)05/95] NOTE: If you spill any fuel on the body of

your vehicle, clean it off immediately.

The fuel may dull or soften the paint

if you do not wash it off.

[SV06850( ALL)05/95] 3. Replace the fuel cap completely when you

are finished. Turn it clockwise 1/4 turn until

it is tight. It will click when it is fully

tightened.

[SV06875( ALL)05/95] 4. Push the fuel door closed.

[SV06900( ALL)05/95] RWARNING

If you lose the fuel cap, replace it with a

Motorcraft or equivalent fuel cap. If you

do not use the proper fuel cap, the

pressure in the fuel tank can damage the

fuel system or cause it to work improperly

in a collision, endangering you and your

passengers.

[SV06950( ALL)05/95] NOTE: If you replace your fuel cap with an

aftermarket fuel filler cap, the customer

warranty may be void for any damage

to the fuel tank and/or fuel system.

[SV07500( ALL)05/95] Choosing the Right Fuel

[SV07600( ALL)05/95] Use only UNLEADED FUEL in your vehicle.

Using leaded fuel is prohibited by federal law.

Your warranty may not apply if your vehicle is

damaged because you used the wrong fuel.

[SV07701( ALL)05/95] Using a high-quality fuel makes your vehicle

more responsive and maintain its good fuel

economy and emissions. It should not be

necessary to add any aftermarket products to

your fuel tank if you continue to use a

high-quality fuel.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

236

[SV08750( ALL)05/95]

Octane recommendations

[SV08800( ALL)05/95] Your engine is designed to use fuel with an

octane rating of 87. In most cases it is not

necessary to use a fuel with an octane rating

higher than 87. At service stations, the octane

rating is displayed in a label on the pumps.

[SV08900( ALL)05/95]

one inch art:0060001-C

[SV09100( ALL)05/95] Using a fuel with a lower octane rating can

cause persistent and heavy knocking, which can

damage the engine.

[SV09200( ALL)05/95] Do not be concerned if your vehicle sometimes

knocks lightly when you drive up a hill or when

you accelerate. However, see your dealer or a

qualified service technician if persistent heavy

knocking occurs because this can damage the

engine.

[SV09350( ALL)05/95] If your vehicle has problems with starting, rough

idle or hesitation problems when the engine is

cold, it may be caused by fuel with low

volatility. Try a different brand of fuel. If the

condition persists, see your dealer or a qualified

service technician.

[SV09800( ALL)05/95]

Gasolines for clean air

[SV09900( ALL)05/95] Fuels in certain areas of the country are required

to contain oxygenates to improve air quality.

Common oxygenates are ethanol or grain alcohol

(blended at no more than 10%), methanol or

wood alcohol (blended at no more than 5% with

cosolvents and additives), and MTBE or methyl

tertiary butyl ether (blended at no more than

15%).

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

237

[SV09950( ALL)05/95] Reformulated gasoline is also required in certain

areas of the U.S. These fuels are designed to

further reduce emissions from your vehicle.

[SV10000( ALL)05/95] Generally, you should not experience difficulties

operating your vehicle on fuels containing

oxygenates. We encourage you to use these

fuels.

[SV10185( ALL)05/95] Safety Information Relating to Automotive

Fuels

[SV10195( ALL)05/95] RWARNING

Automotive fuels can cause serious injury

or death if misused or mishandled. To

minimize the risk that you will be

injured, please read the following

information carefully and observe the

recommended precautions.

[SV10197( ALL)05/95] ❑Turn vehicle off when refueling

[SV10199( ALL)05/95] ❑Do not smoke when refueling. Fuels are

extremely flammable.

[SV10201( ALL)05/95] ❑Do not siphon any fuel by mouth.

[SV10205( ALL)05/95] RWARNING

Gasoline or gasoline blended with

methanol can cause blindness and

possible death when swallowed. If any

fuel is swallowed, call a physician or

poison control center immediately.

[SV10209( ALL)05/95] ❑Avoid breathing vapors while refueling.

[SV10211( ALL)05/95] ❑If fuel is splashed on the skin, wash with

soap and water.

[SV10225( ALL)05/95] ❑If fuel is splashed in the eyes, remove contact

lenses (if worn), flush with water for 15

minutes, and seek medical attention.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

238

[SV10227( ALL)05/95] Gasoline and gasoline blends may contain small

amounts of carcinogens, such as benzene.

Long-term exposure to unleaded gasoline vapors

has caused cancer in laboratory animals.

[SV10230( ALL)05/95] If you are taking the medication “Antabuse” or

other forms of disulfiram for the treatment of

alcoholism, vapor or skin contact with a

gasoline-methanol blend may cause the same

kind of adverse reaction as drinking an alcoholic

beverage. In sensitive individuals, serious

personal injury or sickness could result. Consult

a physician promptly if you experience an

adverse reaction.

[SV11300( ALL)05/95] Running Out of Fuel

[SV11350( ALL)05/95] NOTE: Avoid running out of fuel because this

situation may have an adverse effect on

modern powertrain components.

[SV11500( ALL)05/95] You may need to crank the engine several times

before the fuel system starts to pump fuel from

the tank to the engine.

[SV11600( ALL)05/95] Calculating Fuel Economy

[SV11700( ALL)05/95] Fuel economy is an estimate of the efficiency of

your vehicle, and can be calculated as Miles Per

Gallon (MPG) or Liters Per 100 Kilometers

(L/100K).

[SV11750( ALL)05/95] Do not calculate fuel economy during your

vehicle’s break-in period. This would not be an

accurate estimate of how much fuel your vehicle

will normally use.

[SV11800( ALL)05/95] To calculate fuel economy:

[SV11900( ALL)05/95] 1. Fill the fuel tank completely and record the

initial odometer reading.

[SV12000( ALL)05/95] 2. Every time you buy fuel, record the

amount (in gallons or liters) purchased.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

239

[SV12100( ALL)05/95] 3. After at least 3-5 tankfuls, fill the fuel tank

and record the final odometer reading.

[SV12200( ALL)05/95] 4. Use these equations to calculate your fuel

economy:

[SV12250( ALL)05/95] ❑English: MPG = (Total miles driven) V

(gallons used)

[SV12275( ALL)05/95] ❑Metric: L/100k = (liters used) V(100

kilometers)

[SV12300( ALL)05/95] Comparisons With EPA Estimates

[SV12400( ALL)05/95] EPA fuel economy figures are obtained from

laboratory tests under simulated road conditions

and may not reflect the actual conditions you

experience or your style of driving. The EPA

fuel economy estimate is not a guarantee that

you will achieve the fuel economy shown.

[SV12650( ALL)05/95] The following decrease fuel economy:

[SV12700( ALL)05/95] ❑Lack of regular, scheduled maintenance

[SV12800( ALL)05/95] ❑Rapid acceleration and excessive speed

[SV12850( ALL)05/95] ❑Driving with your foot on the brake

[SV12900( ALL)05/95] ❑Sudden stops

[SV12950( ALL)05/95] ❑Extended engine idling

[SV13000( ALL)05/95] ❑Using speed control in hilly terrain

[SV13100( ALL)05/95] ❑Extended use of the A/C, defroster, rear

window defroster and other accessories

[SV13200( ALL)05/95] ❑Underinflated tires

[SV13300( ALL)05/95] ❑Heavy loads

[SV13400( ALL)05/95] ❑Aftermarket add-ons such as bike, ski or

luggage racks, bug deflectors, etc.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

240

*[SV13510( ALL)02/95] Self-Service Pointers

*[SV13520( ALL)01/95] If you choose to do your own fueling, you

should also perform a few simple maintenance

routines. This extra effort will save you

additional money and contribute to the driving

efficiency of your vehicle.

*[SV13530( ALL)01/95] The following procedures require only a tire

gauge, a rag, an oil can spout and windshield

washer fluid.

*[SV13540( ALL)01/95] ❑Check the engine oil at every refueling stop

*[SV13550( ALL)01/95] ❑Clean the windshield, outside mirrors and

headlights

*[SV13560( ALL)01/95] ❑Check windshield washer fluid

*[SV13570( ALL)02/95] ❑Check tires for excessive wear or worn edges

*[SV13580( ALL)01/95] ❑Check the tire pressure at least monthly

%*[SV13600( ALL)03/95] Engine Oil Recommendations

*[SV13610( ALL)04/95] We recommend using Motorcraft oil or an

equivalent oil meeting Ford Specification

ESE-M2C153-E and displaying the American

Petroleum Institute CERTIFICATION MARK on

the front of the container.

*[SV13650( ALL)03/95]

one third page art:0060021-E

The API Certification Mark

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

241

*[SV13670( ALL)01/95] Never use:

*[SV13680( ALL)01/95] ❑“Non-Detergent” oils

*[SV13690( ALL)04/95] ❑Oils labeled API SA, SB, SC, SD, SE, SF or SG

%*[SV13700( ALL)01/95] ❑Additional engine oil additives, oil treatments

or engine treatments

%*[SV13702( ALL)03/95] Engine oils with an SAE 5W-30 viscosity are

PREFERRED for your vehicle. They provide the

best engine performance, fuel economy and

engine protection for all climates down to -15˚F

(-25˚C).

%*[SV13703( ALL)03/95] Synthetic engine oils which are CERTIFIED and

of the preferred viscosity may be used in your

engine. The engine oil and oil filter must still be

changed according to the maintenance schedule.

%*[SV13775( ALL)01/95] Checking and Adding Engine Oil

*[SV13800( ALL)03/95] Since the proper amount of engine oil is

important for safe engine operation, check the oil

using the dipstick each time you put fuel in

your vehicle. Remember the engine must be off,

the oil must be warm and the vehicle must be

parked on level ground.

%*[SV13900( ALL)04/95] Checking the engine oil level:

*[SV14000( ALL)02/95] 1. Turn the engine off after it has warmed up

and allow a few minutes for the engine oil

to drain back into the oil pan.

*[SV14025( BCGV)03/95] 2. Set the parking brake, making sure the

gearshift is securely latched in P (Park).

*[SV14100( ALL)02/95] 3. Open the hood. Protect yourself from engine

heat.

*[SV14200( ALL)03/95] 4. Locate the engine oil dipstick (highlighted in

yellow) and carefully pull it out of the

engine.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

242

*[SV14300( ALL)01/95] 5. Wipe the dipstick clean and put it back into

position, making sure it is fully seated.

[SV14350(MBC )03/95]

one inch art:0011218-A

Engine oil dipstick — 4.6 liter engines

[SV14450(MBC )03/95]

one inch art:0000970-A

Engine oil dipstick — 3.8 liter engines

*[SV14500( ALL)03/95] 6. Carefully, pull the dipstick out again. If the

oil level is below the “ADD 1 QT” line, add

engine oil as necessary. If the oil level is

beyond the letter “F” in Full, engine damage

or high oil consumption may occur and

some oil must be removed from the engine.

*[SV14600( ALL)01/95] 7. Put the dipstick back in and make sure it is

fully seated.

*[SV14800( ALL)01/95] It may be necessary to add some oil between oil

changes. Make sure you use a CERTIFIED

engine oil of the preferred viscosity. Your

vehicle’s warranty coverage may not apply if

engine damage is caused by the use of improper

engine oil.

*[SV15000( ALL)03/95] Add engine oil through the oil filler cap

highlighted in yellow. To add oil, remove the

filler cap and use a funnel to pour oil into the

opening. Be careful not to overfill the engine.

Recheck the oil level after you finish adding oil.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

243

%*[SV16300( ALL)01/95] Changing the Engine Oil and the Oil Filter

*[SV16400( ALL)04/95] Change the engine oil and oil filter per the

following, whichever occurs first.

*[SV16500( ALL)04/95]

one third page art:0060618-C

*[SV16800( ALL)04/95] Refer to the Maintenance Schedule and Record

booklet for additional information.

%*[SV16900( ALL)04/95] NOTE: Always dispose of used automotive

fluids in a responsible manner. Follow

your community’s standards for

disposing of these types of fluids. Call

your local recycling center to find out

about recycling automotive fluids.

*[SV17275( ALL)05/95] RWARNING

Continuous contact with USED motor oil

has caused cancer in laboratory mice.

*[SV17285( ALL)05/95] Protect your skin by washing with soap and

water.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

244

%*[SV17300( ALL)03/95] Engine Coolant

%*[SV17400( ALL)03/95] Checking the Engine Coolant

*[SV17500( ALL)01/95] NOTE: Be sure to read and understand

Precautions When Servicing Your

Vehicle at the beginning of this chapter.

*[SV17600( BCGV)05/95] RWARNING

The cooling fan is automatic and may

come on at any time. Always disconnect

the negative terminal of the battery before

working near the fan.

%*[SV17800( ALL)05/94] Your vehicle’s coolant protects your engine from

overheating in the summer and from freezing in

the winter. Check the level of the coolant at least

once a month. Simply look at the engine coolant

reservoir located in the engine compartment. To

locate the reservoir, see the diagram of your

vehicle’s engine under Engine Type, in this

chapter.

*[SV17850( ALL)05/95] The coolant additives also protect the entire

cooling system from internal passageway

corrosion and these additives lubricate the water

pump. The coolant should be serviced as noted

in the Maintenance Schedule and Record booklet.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

245

[SV18000( BCGV)05/94]

half page art:0010761-C

The engine coolant recovery reservoir

%*[SV18600( ALL)11/94]

Checking hoses

*[SV18700( ALL)11/94] Inspect all engine and heater system hoses and

hose connections for deterioration, leaks, and

loose hose clamps as specified in the Maintenance

Schedule and Record booklet. Repair or replace

with Motorcraft hoses or equivalent as necessary.

*[SV18800( ALL)01/95]

Adding engine coolant

*[SV18900( ALL)05/95] RWARNING

Do not put engine coolant in the container

for the windshield washer fluid.

*[SV18950( ALL)05/95] If sprayed to clean the glass, engine coolant or

antifreeze could make it difficult to see through

the windshield.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

246

[SV19000(MBC )05/95] RWARNING

Never remove the radiator cap or vent

plug while the engine is running or hot.

[SV19030( ALL)05/95] Follow these steps to avoid personal injury that

can be caused by escaping steam or engine

coolant.

[SV19040(MBC )03/95] 1. Before you remove the cap, turn the engine

off and let it cool. Even when the engine is

cool, be careful when you remove the

radiator cap or vent plug.

[SV19145( ALL)03/95] 2. When the engine is cool, wrap a thick towel

around the cap and turn it slowly

counterclockwise to unscrew.

*[SV19150( ALL)03/95] 3. Step back while the pressure releases.

[SV19160( ALL)12/94] 4. When you are sure that all the pressure has

been released, use the cloth to press the cap

down, turn it, and remove it.

*[SV19170(MBC )03/95] 5. Stand away from the radiator opening. Hot

steam may blow out or hot engine coolant

may even splash out.

*[SV19190( ALL)03/95] To find out how much engine coolant mixture

your vehicle’s coolant system can hold, see Refill

capacities for fluids in the Index.

% [SV19200( ALL)12/94] Add engine coolant only to the recovery

reservoir. If the coolant level is low, add a 50/50

or appropriate mixture of water and the type of

engine coolant that Ford specifies. You may add

water by itself only in an emergency, but you

should replace it with a 50/50 or appropriate

mixture as soon as possible.

*[SV19300( ALL)01/95] Have your dealer check the engine cooling

system for leaks if you have to add more than a

quart (liter) of engine coolant more than once a

month.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

247

*[SV19350( ALL)02/95] Ford Premium Cooling System Fluid is an

optimized formula that will protect all metals

and rubber elastomers used in Ford engines for

four years or 50,000 miles (80,000 km). It is not

necessary and not recommended to use

supplemental coolant additives in your gasoline

powered vehicle. These additives may harm

your engine cooling system. Follow the

recommended service interval for changing your

engine coolant.

*[SV19450( ALL)04/94] NOTE: When you change or add engine

coolant, it is important to maintain

your engine coolant concentration

between 40% (-11˚F [-24˚C]) and 60%

(-62˚F [-52˚C]), depending on your local

climate conditions. Below 40% you will

lose freeze protection and above 60%

your engine may overheat on a warm

day.

[SV19460( ALL)12/94] NOTE: The use of an improper coolant may

void your warranty for the engine

cooling system. Use only a premium

nationally recognized brand name

engine coolant. Do not use alcohol,

methanol antifreeze or engine coolant

mixed with alcohol or methanol

antifreeze. If you do not use the proper

coolant, the aluminum radiator on your

vehicle will corrode.

*[SV19470( ALL)05/95] Ford Motor Company expressly authorizes the

Ford Rotunda engine coolant recycling process

and chemicals. Use only Ford Rotunda recycled

engine coolant or an equivalent recycled engine

coolant that is certified by the supplier to meet

Ford specification ESE-M97B44-A.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

248

%*[SV19480( ALL)04/95] NOTE: Always dispose of used automotive

fluids in a responsible manner. Follow

your community’s standards for

disposing of these types of fluids. Call

your local recycling center to find out

about recycling automotive fluids.

*[SV19500( ALL)03/95] Use Ford Premium Cooling System Fluid

E2FZ-19549-AA (in Canada, Motorcraft CXC-8-B)

or an equivalent engine coolant that meets Ford

Specification ESE-M97B44-A.

*[SV19550( ALL)01/95] Leave the engine coolant in all year. Make sure

that the coolant will not freeze at the

temperature level in which you drive during

winter months. Keep a mixture of engine coolant

in your engine that has a protection rating of at

least -34˚F (-37˚C), or whatever protection rating

is appropriate for the climate in which you live.

%*[SV20100( ALL)04/95]

Engine coolant drain and flush

*[SV20200( ALL)11/94] Proper procedures for a complete coolant drain

and flush of the cooling system can be found in

the Car Service Manual. Following these

recommended procedures will ensure that the

specified coolant level and a 50/50 or

appropriate mixture of coolant and water is

maintained.

%*[SV20300( ALL)02/95]

Engine coolant refill procedure

*[SV20400( ALL)01/95] When the entire cooling system is drained and

refilled, the following procedure should be used

to ensure a complete fill:

*[SV20450( ALL)05/95] NOTE: It is imperative the following

procedure be adhered to. Failure to do

so could result in damage to your

engine.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

249

[SV20500(MBC )03/95] 3.8L engine only

[SV20601(MBC )03/94] ❑Open the vent plug.

[SV20700(MBC )03/93] ❑Remove coolant recovery reservoir cap.

[SV20801(MBC )03/93] ❑Remove radiator pressure cap.

[SV20900(MBC )05/94] ❑With the engine off and cool, add a 50/50

mixture of recommended cooling system fluid

and water to the radiator until full, then add

to the reservoir until the reservoir is at the

FULL-HOT level.

[SV21000(MBC )12/91] ❑Close the vent plug.

[SV21100(MBC )03/93] ❑Reinstall the coolant recovery reservoir cap

by installing the cap to the fully installed

position.

[SV21110(MBC )03/93] ❑Reinstall the pressure cap to the pressure

relief position by installing the cap to the

fully installed position, and then backing off

to the first stop.

[SV21200(MBC )03/93] ❑Start and idle engine until the radiator upper

hose is warm (this indicates the thermostat is

open and coolant is flowing through the

entire system).

[SV21300(MBC )03/93] ❑Immediately shut off engine. Cover cap

completely with a thick cloth and cautiously

remove radiator pressure cap and add a

50/50 mixture of recommended coolant and

water until system is full.

[SV21400(MBC )03/91] ❑Reinstall the radiator cap securely.

[SV21500(MBC )05/94] ❑Remove the cap from the engine coolant

recovery reservoir and add a 50/50 mixture

of recommended cooling system fluid and

water to the FULL-HOT mark on the engine

coolant recovery reservoir. Check that

reservoir hose is not kinked.

[SV21800(MBC )03/93] ❑Reinstall the reservoir cap.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

250

*[SV21900(MBC )05/95] ❑Check for leaks at the draincock, block plug

and vent plug.

*[SV22000(MBC )03/95] ❑Recheck the engine coolant level, using the

recommended procedure, after one or two

occasions of vehicle use.

[SV22010( BC )05/95] 4.6L engine only

*[SV22014( ALL)03/95] ❑With the engine OFF and cool, remove the

pressure cap, located on the coolant reservoir.

Remove the heater hose and clamp, located

on the rear of the intake manifold.

*[SV22021( ALL)03/95] ❑Add a 50/50 mixture of specified coolant and

water to the coolant reservoir. Refer to Refill

Capacities later in this chapter for the correct

amount. Add coolant to the reservoir until

the coolant continuously flows out of the tube

in the rear of engine. Reattach hose and

secure clamp.

[SV22026( ALL)03/95] ❑Continue to fill the reservoir until the coolant

is at the FULL COLD level.

*[SV22031( ALL)05/95] ❑Reinstall the pressure cap to the fully

installed position.

*[SV22036( ALL)05/95] ❑Start and idle the engine until the radiator

upper hose is warm (this indicates the

thermostat is open and coolant is flowing

through the entire system).

*[SV22041( ALL)03/95] ❑Immediately shut off the engine and let cool.

Cautiously remove the pressure relief cap and

add a 50/50 mixture of specified coolant and

water until the coolant is at the COLD FILL

level in the coolant reservoir.

*[SV22046( ALL)03/95] ❑Reinstall the pressure cap securely.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

251

*[SV22050( ALL)03/95] ❑Check for leaks at the draincock.

*[SV22055( ALL)03/95] ❑Recheck the engine coolant level, using the

recommended procedure, after one or two

occasions of vehicle use.

%*[SV22090( ALL)03/95] Battery

*[SV22100( ALL)02/95] Your vehicle may have a Motorcraft

maintenance-free battery. When the original

equipment battery is replaced under warranty, it

may be replaced by a Motorcraft

Low-Maintenance Battery.

*[SV22130( ALL)02/95] The Low-Maintenance Battery has removable

vent caps for checking the electrolyte level and

for adding water, if necessary. The electrolyte

level should be checked at least every 24 months

or 24,000 miles (40 000 km) in temperatures up

to 90˚F (32˚C) and more often in temperatures

above 90˚F (32˚C). Keep the electrolyte level in

each cell up to the level indicator. Do not

overfill.

*[SV22145( ALL)02/95] If the level gets low, you can add tap water to

the battery, provided the water isn’t hard or

doesn’t have a high mineral or alkali content.

However, if possible you should refill the battery

with distilled water. If the battery needs water

quite often, have the charging system checked

for a possible malfunction.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

252

%*[SV22160( ALL)03/95] Help Us Protect Our Environment

*[SV22175( ALL)04/95] Ford Motor Company strongly recommends that

used lead-acid batteries be returned to an

authorized recycling facility for disposal.

*[SV22190( ALL)03/95]

one inch art:0000983-A

Battery recycling symbol

%*[SV22194( BCGV)03/95] Because your vehicle’s engine is electronically

controlled by a computer, some control

conditions are maintained by power from the

battery. If you ever disconnect the battery or

install a new battery, you must allow the

computer to “relearn” its idle conditions before

your vehicle will drive properly. To let the

engine do this, put the gearshift in P (Park), turn

off all the accessories, and start the vehicle. Let

the engine idle for at least one minute. (Engine

must be warm in order to “learn.”) Also, allow

approximately 10 miles (16 km) of stop and go

traffic for your vehicle’s engine to completely

“relearn” its idle.

[SV22197( BC )12/94] NOTE: If your vehicle is equipped with a 4.6L

engine you will need to perform

additional steps after the battery has

been disconnected, jump started or

replaced. See Readiness for

Inspection/Maintenance Testing in

Servicing Your Vehicle chapter.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

253

%*[SV22200( ALL)03/95] Windshield Washer Fluid and

Wipers

%*[SV22250( ALL)03/95] Washer Fluid

[SV22300( ALL)12/94] Check the level of the windshield washer fluid

periodically, or when the optional lamp indicates

low fluid. The reservoir for washer fluid is

located on the driver’s side of the engine

compartment. Visual inspection can determine if

the washer fluid is adequate. Do not operate the

washer when the reservoir is empty.

[SV23000( BC )12/91]

one third page art:0010375-B

The reservoir for the windshield washer fluid

*[SV23400( ALL)05/95] RWARNING

Do not put windshield washer fluid in the

container for the engine coolant.

%*[SV23500( ALL)01/95] Use specially formulated windshield washer

fluid rather than plain water, because specially

formulated washer fluids contain additives that

dissolve road grime. For safety reasons, washer

fluids containing an appropriate antifreeze such

as methanol should be used in freezing weather

(temperatures below 32˚F [0˚C]). State or local

regulations on Volatile Organic Compounds

(VOC’s) may restrict use of the most common

antifreeze, methanol. Washer fluids containing

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

254

non-methanol antifreeze agents should be used

only if they provide cold weather protection

without damaging the vehicle’s paint finish,

wiper blades, and windshield washer system.

%*[SV23600( ALL)03/95] Wiper Blades

*[SV23700( ALL)03/95] Check the windshield wiper blades at least twice

a year. Also check them whenever they seem

less effective than usual. Substances such as tree

sap and some hot wax treatments used by

commercial car washes reduce the effectiveness

of wiper blades.

*[SV23800( ALL)03/95] If the blades do not wipe properly, clean both

the windshield and the wiper blades. Use

undiluted windshield washer solution or a mild

detergent. Rinse thoroughly with clear water. Do

not use fuel, kerosene, paint thinner, or other

solvents to clean your wiper blades. These will

damage your blades.

*[SV23900( ALL)03/95] To make reaching the wiper blades easy, simply

turn the ignition to the ACC position and turn

your wipers on. Wait for them to reach a

vertical position and turn the ignition to the OFF

position. Do not move the wipers manually.

Manually moving the wipers across the

windshield may damage them.

*[SV24000( ALL)03/01]

Wiper blade replacement

*[SV24100( ALL)03/95] If the wiper blades still do not work properly

after you clean them, you may need to replace

the wiper blade assembly or the blade element.

When replacing the wiper blade assembly, blade

refill, or wiper arm always use a Motorcraft part

or equivalent. To replace the blades, follow the

instructions that come with them.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

255

%*[SV24200( ALL)03/95] Tires

*[SV24300( ALL)03/95] Look at your tires each time you fill your fuel

tank. If one tire looks lower than the others,

check the pressure in all of them. Always follow

these precautions:

*[SV24500( ALL)03/95] ❑Keep your tires inflated to the recommended

pressures.

*[SV24600( ALL)02/95] ❑Stay within the recommended load limits (see

Load limits in the Index).

*[SV24700( ALL)02/95] ❑Make sure the weight of your load is evenly

distributed.

*[SV24800( ALL)10/89] ❑Drive at safe speeds.

*[SV24900( ALL)01/95] If you do not take these precautions, your tires

may fail or go flat.

*[SV24950( ALL)05/95] Ford Motor Company recommends obeying

posted speed limits.

*[SV25000( ALL)05/95] RWARNING

Driving too fast for conditions creates the

possibility of loss of vehicle control.

Driving at very high speeds for extended

periods of time may result in damage to

vehicle components.

%*[SV25200( ALL)05/95] At least once a month, check the pressure in all

your vehicle’s tires, including the spare. Use an

accurate tire pressure gauge. Check the tire

pressure when tires are cold, after the vehicle

has been parked for at least one hour or has

been driven less than 3 miles (5 km). You can

find proper cold pressure and load limits of

recommended size tires on the Safety

Compliance Certification Label.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

256

*[SV25400( ALL)05/95] RWARNING

Improperly inflated tires can affect vehicle

handling and can fail suddenly, possibly

resulting in loss of vehicle control.

%*[SV25500( ALL)02/95] Tire Rotation

*[SV25600( ALL)04/95] Because your vehicle’s front and rear tires

perform different jobs, they often wear

differently. To make sure your tires wear evenly

and last longer, rotate them as indicated in the

following diagram.

*[SV25700( ALL)01/95] For tire rotation intervals, see the Maintenance

Schedule. If you notice that the tires wear

unevenly, have them checked.

[SV26050( C )03/93]

half page art:0011087-B

Rotating the tires

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

257

%*[SV26500( ALL)04/95] Replacing the Tires

*[SV26600( ALL)01/95] Replace any tires that show wear bands. When

your tire shows a wear band, it has only

1/16 inch (2 mm) of tread left.

% [SV26700( ALL)05/94]

one inch art:0001318-A

A worn-out tire

*[SV26800( ALL)01/95] Because your vehicle’s tires may wear unevenly,

you may need to replace them before a wear

band appears across the entire tread. Some spots

wear more heavily than others.

*[SV26850( ALL)01/95] RWARNING

When replacing full size tires, never mix

radial, bias-belted, or bias-type tires. Use

only the tire sizes that are listed on the

tire pressure decal. Make sure that all tires

are the same size, speed rating, and

load-carrying capacity. Use only the tire

combinations recommended on the decal.

If you do not follow these precautions,

your vehicle may not drive properly and

safely.

*[SV27100( ALL)01/95] Tires that are larger or smaller than your

vehicle’s original tires may also affect the

accuracy of your speedometer.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

258

%*[SV28100( ALL)02/95] Information About Tire Quality Grades

*[SV28200( ALL)01/95] New vehicles are fitted with tires that have their

Tire Quality Grade (described below) molded

into the tire’s sidewall. These Tire Quality

Grades are determined by standards that the

United States Department of Transportation has

set.

*[SV28250( ALL)01/95] Tire Quality Grades apply to new pneumatic

tires for use on passenger cars. They do not

apply to deep tread, winter-type snow tires,

space-saver or temporary use spare tires, tires

with nominal rim diameters of 10 to 12 inches or

limited production tires as defined in Title 49

Code of Federal Regulations Part 575.104(c)(2).

*[SV28300( ALL)01/95] U.S. Department of Transportation — Tire

quality grades: The U.S. Department of

Transportation requires Ford to give you the

following information about tire grades exactly

as the government has written it.

%*[SV28399( ALL)01/95] Treadwear

*[SV28400( ALL)01/95] The treadwear grade is a comparative rating

based on the wear rate of the tire when tested

under controlled conditions on a specified

government test course. For example, a tire

graded 150 would wear one and one-half (1 1/2)

times as well on the government course as a tire

graded 100. The relative performance of tires

depends upon the actual conditions of their use,

however, and may depart significantly from the

norm due to variations in driving habits, service

practices and differences in road characteristics

and climate.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

259

*[SV28499( ALL)01/95] Traction A B C

*[SV28500( ALL)01/95] The traction grades, from highest to lowest, are

A, B, and C, and they represent the tire’s ability

to stop on wet pavement as measured under

controlled conditions on specified government

test surfaces of asphalt and concrete. A tire

marked C may have poor traction performance.

Warning: The traction grade assigned to this tire

is based on braking (straightahead) traction tests

and does not include cornering (turning)

traction.

*[SV28599( ALL)01/95] Temperature A B C

*[SV28600( ALL)01/95] The temperature grades are A (the highest), B,

and C, representing the tire’s resistance to the

generation of heat and its ability to dissipate

heat when tested under controlled conditions on

a specified indoor laboratory test wheel.

Sustained high temperature can cause the

material of the tire to degenerate and reduce tire

life, and excessive temperature can lead to

sudden tire failure. The grade C corresponds to

a level of performance which all passenger car

tires must meet under the Federal Motor Vehicle

Safety Standard No. 109. Grades B and A

represent higher levels of performance on the

laboratory test wheel than the minimum

required by law. Warning: The temperature

grade for this tire is established for a tire that is

properly inflated and not overloaded. Excessive

speed, underinflation, or excessive loading, either

separately or in combination, can cause heat

buildup and possible tire failure.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

260

%*[SV28700( ALL)04/95] Snow Tires and Chains

*[SV28800( BCGV)01/95] The tires on your vehicle have all-weather treads

that provide traction in rain or snow. However,

during the winter months in some climates, you

may need to use snow tires and occasionally

chains for your tires.

*[SV28900( ALL)05/95] RWARNING

Snow tires must be the same size and

grade as the tires you currently have on

your vehicle.

*[SV29000( ALL)02/95] Use chains on the tires only in an emergency or

if the law requires them where you live. If you

choose to use chains on your vehicle’s tires, be

aware of the following:

*[SV29100( ALL)01/95] ❑Make sure the chains are the right size for

your tires. Use only SAE Class “S” chains.

Other types may damage your vehicle.

*[SV29200( ALL)01/95] ❑Put the chains on tightly with the ends held

down securely. Verify that no chain touches

any wiring, brake lines, or fuel lines. Follow

the chain manufacturer’s instructions.

*[SV29300( ALL)01/95] ❑Drive slowly. If you can hear the chains rub

or bang against your vehicle, stop the vehicle

and tighten the chains. If you continue to

hear the chains rub or bang against your

vehicle, remove the chains to prevent damage

to your vehicle.

*[SV29400( ALL)10/94] ❑Avoid fully loading your vehicle if possible.

*[SV29500( ALL)05/94] ❑Remove tire chains at the first opportunity

after using them on snow and ice. Do not use

the chains on dry roads.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

261

%*[SV29600( ALL)04/95] Cleaning the Wheels

*[SV29700( ALL)05/95] Wash the wheels with the same detergent you

use to wash your vehicle’s body. Do not use

acid-based wheel cleaners, steel wool, abrasives,

fuel, or strong detergents. These substances will

damage protective coatings. Use tar and road oil

remover to remove grease and tar.

*[SV29800( ALL)04/95] NOTE: Before going to a car wash, find out if

the brushes are abrasive.

%*[SV30450( ALL)01/95] Automatic Transmission Fluid

*[SV30475( ALL)01/95] Under normal circumstances, you do not need to

check the fluid level of the transmission, since

your vehicle does not use up transmission fluid.

Refer to the Maintenance Schedule and Record

booklet for replacement intervals. However, if

the transmission is not working properly — for

instance, the transmission may slip or shift

slowly, or you may notice some sign of fluid

leakage — the fluid level should be checked.

%*[SV30550( ALL)02/95] Checking the Automatic Transmission

Fluid

*[SV30560( ALL)02/95] It is preferable to check the transmission fluid

level at normal operating temperature

150˚F-170˚F (66˚C-77˚C), after approximately

20 miles (30 km) of driving. However, if

necessary, you can check the fluid level without

having to drive 20 miles (30 km) to obtain a

normal operating temperature if outside

temperatures are above 50˚F (10˚C).

[SV30575( ALL)03/94] With the vehicle on a level surface, start the

engine and, while fully applying the brake

pedal, move the transmission shift selector

through all of the gear ranges allowing sufficient

time for each position to engage. Securely latch

the transmission shift selector in the P (Park)

position, fully set the parking brake and leave

the engine running.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

262

[SV30625(MBC )03/93] NOTE: Your vehicle should not be driven if

the fluid level is below the low cold

reading on the dipstick.

*[SV30650( ALL)02/95] Wipe off the dipstick cap, pull the dipstick out

and wipe the indicator end clean. Put the

dipstick back into the filler tube and make sure

it is fully seated. Pull the dipstick out and read

the fluid level.

[SV30675(MBC )03/93] When checking fluid at normal operating

temperature 150˚F-170˚F (66˚C-77˚C), the fluid

level should be within the hot notched area on

the dipstick. When the vehicle has not been

driven, and outside temperatures are above 68˚F

(20˚C), the fluid levels should be between the

hot notch and the tip of the dipstick.

*[SV30715( ALL)01/95] NOTE: If the vehicle has been operated for an

extended period at high speeds or in

city traffic during hot weather, or

pulling a trailer, the vehicle should be

turned off for about 30 minutes to

allow the fluid to cool before checking.

%*[SV30725(M CGV)05/95] Adding Automatic Transmission Fluid

[SV30750( ALL)03/94] Before adding any fluid, be sure that the correct

type will be used. Use only MERCONHfluid.

*[SV30775( ALL)03/95] Add fluid in 1/2 pint (.25L) increments through

the filler tube to bring the level to the correct

area on the dipstick. DO NOT OVERFILL. If the

level is above the top hole on the dipstick,

excess fluid should be removed by a qualified

technician.

%*[SV30801( ALL)04/95] NOTE: Always dispose of used automotive

fluids in a responsible manner. Follow

your community’s standards for

disposing of these types of fluids. Call

your local recycling center to find out

about recycling automotive fluids.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

263

[SV30825(MBC )03/93]

one third page art:0011152-A

Detail of the automatic transmission dipstick

%*[SV31900( ALL)03/95] Brake Fluid

*[SV32000( ALL)04/95] Under normal circumstances, your vehicle

should not use up brake fluid rapidly. However,

expect the level of the brake fluid to slowly fall

as you put more mileage on your vehicle and

the brake lining wears.

[SV32200( BCGV)03/95] Check the brake fluid at each scheduled engine

oil change or at least once a year. You can do

this by looking at the fluid level in the plastic

reservoir on the master cylinder. Also, see label

on reservoir cap. (To locate the master cylinder,

see The Engine Types in the Index.) The fluid

level should be between the MIN and MAX

marks.

*[SV32350( ALL)05/95] RWARNING

Brake fluid is toxic.

*[SV32375( ALL)05/95] If brake fluid contacts eyes, flush eyes with

running water for 15 minutes. Get medical

attention if irritation persists. If taken internally,

drink water and induce vomiting. Get medical

attention immediately.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

264

*[SV32400( ALL)03/95] If the fluid is low, carefully clean and remove

the cap from the reservoir. Fill the reservoir to

the MAX line with Ford High Performance

DOT 3 Brake Fluid C6AZ-19542-AA,

C6AZ-19542-BA, or equivalent DOT 3 fluid

meeting Ford specification ESA-M6C25-A.

*[SV33100( ALL)01/95] RWARNING

If you use a brake fluid that is not

DOT 3, you will cause permanent damage

to your brakes.

*[SV33200( ALL)01/95] Do not fill the reservoir above the MAX line.

[SV33500( BC )03/93]

one third page art:0010387-A

The brake system fluid reservoir

*[SV33700( ALL)01/95] If you find that the fluid level is excessively low

— below the seam or ridge on the outside of the

plastic reservoir — have the brake system

inspected.

*[SV33750( ALL)01/95] RWARNING

Do not let the reservoir for the master

cylinder run dry. This may cause the

brakes to fail.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

265

[SV34725( BC )12/91]

half page art:0010487-B

The anti-lock brake system fluid reservoir

%*[SV34800( ALL)03/95] Power Steering Fluid

*[SV34900( ALL)01/95] Check the level of the power steering fluid at

least twice a year (i.e., every Spring and Fall).

%*[SV35000( ALL)03/95] Checking and Adding Power Steering

Fluid

[SV35050(MBC )03/95]

3.8L SFI engine

*[SV35100( ALL)02/95] 1. Start the engine and let it run until the

power steering fluid reaches normal

operating temperature. The power steering

fluid will be at the right temperature when

the engine coolant temperature gauge in the

instrument cluster is near the center of the

NORMAL operating temperature range.

*[SV35200( ALL)01/95] 2. While the engine idles, turn the steering

wheel back and forth several times. Make

sure that the cap assembly is installed at this

time.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

266

*[SV35300( ALL)05/95] 3. Turn the engine off.

%*[SV35400(MBC )03/94] 4. Check the fluid level on the dipstick (which

is highlighted in yellow in your vehicle). The

fluid level should be between the arrows in

the FULL HOT range, which is marked on

the side of the dipstick, opposite the side

marked FULL COLD. Do not add fluid if the

level is within the FULL HOT range.

*[SV35500(MBC )07/94] 5. If the power steering fluid is low, add fluid

in small amounts, continuously checking the

level, until you reach the FULL HOT range.

Do not overfill.

*[SV35600(MBC )03/95] 6. When you are finished, put the dipstick back

in and make sure that it fits snugly.

[SV35700(MBC )12/94]

half page art:0010485-C

The dipstick for power steering fluid

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

267

[SV35850( BC )05/95] Use only power steering fluid that meets Ford

Specification ESW-M2C33-F, such as Ford

Premium Power Steering Fluid, E6AZ-19582-AA

or is an equivalent Type F Automatic

Transmission Fluid with a Ford registration

number (an 8-digit number beginning with “2P”

printed on the fluid container).

*[SV35900( ALL)01/95] If the power steering fluid is low, do not drive

your vehicle for a long period of time before

adding fluid. This can damage the power

steering pump.

*[SV36100(MBC )02/95] If you check the power steering fluid when it is

cold, make sure that the fluid reaches the FULL

COLD range on the dipstick. The reading will

only be accurate if the fluid temperature is

approximately 50 to 85˚F (10 to 30˚C).

[SV36155(MBC )03/95]

4.6L SFI engine

[SV36170(MBC )03/95] 1. Check the fluid level when the system is

COLD (allow at least one half hour after

driving for the power steering fluid to cool).

[SV36176(MBC )03/95] 2. Locate the power steering reservoir mounted

to the front upper left-hand corner of the

engine.

[SV36178(MBC )03/95] 3. Visually verify that the fluid level is above

the MIN line adjacent to the reservoir “sight

window.”

[SV36182(MBC )03/95] 4. If the power steering fluid is below the MIN

line, remove the cap and add fluid in small

amounts until the level is between the MIN

and MAX lines.

[SV36185(MBC )03/95] 5. Reinstall the reservoir cap.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

268

[SV36190(MBC )03/95]

half page art:0011153-A

Fluid level for power steering

[SV36200( BC )05/95] Use only power steering fluid that meets Ford’s

Specification ESW-M2C33-F, such as Ford

Premium Power Steering Fluid, E6AZ-19582-AA

or an equivalent Type F Automatic Transmission

Fluid with a Ford registration number (an 8-digit

number beginning with “2P” printed on the

fluid container).

*[SV36250(MBC )03/95] NOTE: If the power steering fluid is low, do

not drive your vehicle for a long

period of time before adding fluid.

This can damage the power steering

pump.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

269

% [SV36300(MBC )12/94] Fuses, High Current Fuses and

Circuit Breakers

*[SV36400( ALL)03/95] Fuses (conventional and high current) and circuit

breakers protect your vehicle’s wiring system

from overloading. If electrical parts in your

vehicle are not working, the system may have

been overloaded and blown a fuse or tripped a

circuit breaker. Before you replace or repair any

electrical parts, check the appropriate fuses

(conventional and high current) or circuit

breakers.

*[SV36600( ALL)03/95] The following charts tell you which fuses or

circuit breakers protect the wiring for each

electrical part of your vehicle. If a fuse blows or

a circuit breaker opens a circuit, all the parts of

your vehicle that use that circuit will not work.

*[SV36610( ALL)01/95] Once you have determined which fuses or circuit

breakers to check, follow the procedures under

Checking and replacing fuses or Checking and

replacing circuit breakers in this chapter.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

270

[SV36800( BC )07/93]

half page art:0010412-B

The instrument panel fuse panel location

[SV37300( BC )11/93]

half page art:0010413-C

The instrument panel fuse panel

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

271

%*[SV37500( ALL)02/95] The Instrument Panel Fuses, Circuit

Breakers and Relays

[SV37900( BC )09/94]

thirty-four pica chart:0010392-I

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

272

[SV38000( BC )01/94]

twelve pica chart:0010493-E

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

273

[SV38100(BC)05/95]

twenty-eightpicachart:0010391

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

274

%*[SV39000( ALL)01/95] High Current Fuses

*[SV39200( ALL)01/95] High current fuses are circuit protectors that are

part of the wiring harness for some electrical

equipment. These, like fuses, open when the

circuit load exceeds their amperage rating. High

current fuses may be purchased from your Ford

or Lincoln-Mercury dealer.

*[SV39300(MBC )01/95] The high current fuse panel is located in the

engine compartment on the left-hand fender

apron.

*[SV39600( ALL)05/95] RWARNING

Always disconnect the battery before

servicing high current fuses.

*[SV39700( ALL)05/95] Ford recommends that high current fuses be

replaced by a qualified technician.

[SV39900( BC )03/93]

half page art:0011157-A

The high current fuse panel location

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

275

% [SV40100( ALL)06/93]

The high current fuse panel

[SV40400( BC )07/93]

full page art:0010428-E

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

276

[SV40600(ALL)06/93]

Thehighcurrentfusesandrelays

[SV41000(BC)05/95]

twenty-eightpicachart:0010429

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

277

%*[SV41210( ALL)03/95] Checking and Replacing Fuses

*[SV41215( ALL)02/95] If you need to check a fuse, follow these steps:

[SV41225( BC )03/93] 1. Find the fuse panel underneath the

instrument panel, to the left of the steering

column.

[SV41245( BCGV)03/93] 2. Check the fuse to see if it is blown. Look

through the clear side of the fuse to see if

the metal wire inside is separated. If it is,

the fuse should be replaced.

[SV41550( ALL)05/92]

quarter page art:0010416-A

The side view of a fuse

[SV41700( BC )04/89] 3. Replace the fuse with one that has the right

amperage rating. (See the following chart.)

To remove the fuse use the pulling tool

attached to the inside cover of the fuse

panel. There are also four spare fuses

attached to the cover.

[SV41900( ALL)05/95]

eight pica chart:0001092-B

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

278

[SV41920( BC )09/93]

eight pica chart:0011219-A

*[SV42500( ALL)05/95] RWARNING

Always replace a fuse with one that has

the specified amperage rating. Using a

fuse with a higher amperage rating can

cause severe wire damage and could start

a fire.

[SV42600( BC )11/89] 4. Close the cover.

*[SV42800( ALL)01/95] Even after you replace a fuse, it will continue to

blow if you do not find what caused the

overload. If the fuse continues to blow, have

your electrical system checked.

%*[SV42900( ALL)03/95] Circuit Breakers

*[SV43000( ALL)01/95] If you need to check a circuit breaker that is on

the fuse panel, see Checking and replacing fuses in

this chapter to find out how to locate the fuse

panel.

[SV43200( ALL)12/94] Circuit breakers will reset themselves and allow

the electrical parts to work again once the

overload on the circuit is removed. If the circuit

breakers continue to cut off electricity, have your

vehicle’s electrical system checked.

*[SV43250( ALL)02/95] Diagnostic equipment is needed to check circuit

breakers. Refer to the manufacturer’s

instructions.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

279

*[SV43300( ALL)02/95] If you replace a circuit breaker, use one with the

same amperage rating. To remove a circuit

breaker mounted in the fuse panel, grip it with

your finger and thumb and pull it straight out

of its socket.

%*[SV44400( ALL)03/95] Lights and Bulb Replacement

*[SV44500( ALL)01/95] It is a good idea to check the operation of the

following lights frequently:

*[SV44600( ALL)01/95] ❑headlamps

*[SV44700( ALL)01/95] ❑tail lamps

*[SV44800( ALL)01/95] ❑brakelamps

*[SV44900( ALL)01/95] ❑hazard flasher

*[SV44950( ALL)02/95] ❑high-mount brakelamp

*[SV45000( ALL)01/95] ❑turn signals

*[SV45200( ALL)01/95] ❑license plate lamp

%*[SV45600( ALL)01/95] The alignment of your headlamps should be

checked if:

*[SV45700( ALL)01/95] ❑oncoming motorists frequently signal you to

turn off your vehicle’s high beams when you

do not have the high beams on

*[SV45800( ALL)01/95] ❑the headlamps do not seem to give you

enough light to see clearly at night

*[SV45900( ALL)01/95] ❑the headlamp beams are pointed substantially

away from a position slightly down and to

the right

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

280

%*[SV46000( ALL)03/95] Headlamp Bulb

*[SV46100( ALL)01/95] The headlamps on your vehicle use replaceable

bulbs. When the lamp burns out, simply replace

the bulb, rather than the whole lamp.

*[SV46200( ALL)05/95] RWARNING

Handle a halogen headlamp bulb carefully

and keep out of children’s reach. Grasp

the bulb only by its plastic base and do

not touch the glass. The oil from your

hand could cause the bulb to break the

next time the headlamps are operated.

*[SV46300( ALL)01/95] Do not remove the burned-out bulb unless you

can immediately replace it with a new one. If a

bulb is removed for an extended period of time,

contaminants may enter the headlamp housing

and affect its performance.

[SV46400( BC )07/93]

half page art:0010431-A

Parts of a headlamp

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

281

*[SV46600( ALL)03/95]

Removing the headlamp bulb

*[SV46700( ALL)01/95] 1. Make sure that the headlamp switch is in

the OFF position.

*[SV46800( BC )02/95] 2. Lift the hood and find the bulb in the

headlamp socket.

*[SV46900( BC )01/95] 3. Remove the electrical connector from the

bulb by grasping the wire with a quick pull

rearward.

*[SV47100( BC )01/95] 4. Remove the retaining ring by turning it 1/8

of a turn to free it from the socket. Then

slide the ring off the plastic base. Keep the

ring. You must use it again to hold the new

bulb in place.

*[SV47400( ALL)03/95]

Installing the headlamp bulb

*[SV47600(MBC )02/95] 1. With the flat side of the bulb’s plastic base

facing upward, insert the glass end of the

bulb into the socket. You may need to turn

the bulb left or right to line up the grooves

in the plastic base with the tabs in the

socket. When the grooves are aligned, push

the bulb into the socket until the plastic base

contacts the rear of the socket.

*[SV47800(MBC )02/95] 2. Slip the bulb retaining ring over the plastic

base until it contacts the rear of the socket.

Lock the ring into the socket by rotating it

clockwise until you feel a “stop”.

*[SV47900( ALL)02/95] 3. Push the electrical connector into the rear of

the plastic base until it snaps, locking it into

position.

*[SV48000(MBC )02/95] 4. Turn the headlamps on and make sure that

they work properly. If the headlamp was

correctly aligned before you changed the

bulb, you should not need to align it again.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

282

%*[SV48370( BCGV)02/95] High-Mount Brakelamp Bulbs

[SV48380( BCGV)06/94] Your vehicle has a brakelamp mounted in the

rear window, called a high-mount brakelamp.

You may need to remove this lamp at times to

replace the brakelamp bulb or to clean the rear

window.

[SV48600( C )03/92]

half page art:0010435-A

Parts of the high-mount brakelamp

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

283

% [SV48900( BCGV)06/94] To remove the high-mount brakelamp:

[SV49200( BC )01/89] 1. Slide the trim cover toward the front of the

vehicle to disengage the retaining clips.

[SV49500( BC )01/89] 2. Twist the socket counterclockwise and

remove from lamp.

[SV50015( BC )03/91] 3. Pull bulb out of socket.

[SV50100( BC )01/89] 4. Remove the retaining screw.

[SV50200( BC )01/89] 5. Lift the lamp above the carpet and slide

away from the rear window.

[SV50260( BC )05/94] 6. Replace the burned out bulbs.

*[SV50300( BCGV)02/95] To install the high-mount brakelamp:

[SV50400( BC )01/89] 1. Slide the lamp into slots, toward the rear

window.

[SV50700( BC )01/89] 2. Install the screw.

[SV51000( BC )01/89] 3. Push bulb into the socket.

[SV51300( BC )01/89] 4. Install the bulb and socket into the lamp and

twist socket clockwise until it locks.

[SV51500( BC )01/89] 5. Slide the trim cover toward rear of vehicle

to engage the retaining clips.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

284

%*[SV51600( ALL)10/92] Using the Right Bulbs

[SV51900( BC )03/95]

thirty-four pica chart:0010440-H

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

285

%*[SV52400( ALL)03/95] Emission Control System

*[SV52500( ALL)05/95] Your vehicle is equipped with a catalytic

converter which enables your vehicle to comply

with applicable exhaust emission requirements.

*[SV52550( ALL)05/95] RWARNING

Exhaust leaks may result in the entry of

harmful and potentially lethal fumes into

the passenger compartment. Under

extreme conditions excessive exhaust

temperatures could damage the fuel

system, the interior floor covering, or

other vehicle components, possibly

causing a fire.

*[SV52600( ALL)05/95] To make sure that the catalytic converter and the

other emission control parts continue to work

properly:

*[SV52700( ALL)01/95] ❑Use only unleaded fuel.

*[SV52800( ALL)01/95] ❑Avoid running out of fuel.

*[SV52900( ALL)01/95] ❑Do not turn off the ignition while your

vehicle is moving, especially at high speeds.

*[SV52950( ALL)01/95] ❑Do not push start your vehicle.

*[SV53000( ALL)03/95] ❑Have the services listed in the Maintenance

Schedule and Record booklet performed

according to the specified schedule. The

scheduled maintenance services are required

because they are considered essential to the

life and performance of your vehicle and to

its emissions system.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

286

*[SV53075( ALL)03/95] In general, maintenance, replacement, or service

of the emissions control devices or systems in

your new Ford Motor Company vehicle or

engine may be performed at your expense by

any automotive repair establishment or

individual using automotive parts equivalent to

those which your vehicle or engine was

originally equipped.

*[SV53150( ALL)05/95] Ford strongly recommends the use of genuine

Ford replacement parts. If other than Ford or

Motorcraft parts or Ford authorized

remanufactured parts are used for maintenance

replacements or for the service of components

affecting emissions control, such non-Ford parts

should be equivalent to genuine Ford Motor

Company parts in performance and durability. It

is the owner’s responsibility to determine the

equivalency of such parts. Please consult your

warranty booklet for complete warranty

information.

*[SV53175( ALL)05/95] RWARNING

Do not park, idle, or drive your vehicle in

dry grass or other dry ground cover. The

emission system heats up the engine

compartment and exhaust system, which

can start a fire.

*[SV53200( ALL)05/95] Watch for fluid leaks, strange odors, smoke, loss

of oil pressure, the charge warning light, the

check engine light, or the temperature warning

light. These sometimes indicate that the emission

system is not working properly.

*[SV53300( ALL)01/95] Do not make any unauthorized changes to your

vehicle or engine. Changes that cause more

unburned fuel to reach the exhaust system can

increase the temperature of the engine or

exhaust system.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

287

*[SV53400( ALL)01/95] By law, anyone who manufactures, repairs,

services, sells, leases, trades vehicles, or

supervises a fleet of vehicles is not permitted to

intentionally remove an emission control device

or prevent it from working. In some of the

United States and in Canada, vehicle owners

may be liable if their emission control device is

removed or is prevented from working.

*[SV53500( ALL)02/92] Never use a metal exhaust collector when you

service your vehicle. If the metal collector

contacts any of your vehicle’s plastic trim or

bumper parts they could melt or deform.

*[SV53600( ALL)01/95] Do not drive your vehicle if it does not operate

properly. See your dealer if the engine runs on

for more than five seconds after you shut it off

or if it misfires, surges, stalls, or backfires.

%*[SV53700( ALL)02/95] Information about your vehicle’s emission

control system is on the Vehicle Emission

Control Information decal located on or near the

engine. This decal identifies engine displacement

and gives some tune-up specifications.

%*[SV53702( ALL)05/95] Readiness for Inspection/Maintenance

Testing

*[SV53715( ALL)05/95] In some localities it may become a legal

requirement to pass an

Inspection/Maintenance (I/M) test of the

On-Board Diagnostic (OBD) II system. If the

vehicle’s powertrain system or its battery has

just been serviced, the OBD II system is reset to

a not ready for I/M testing condition. To

prepare for I/M testing, the law specifies a

“need for additional mixed city and highway

driving to complete the check” of the OBD II

system. As soon as all of the OBD II system

checks are successfully completed, the OBD II

system is set to the ready condition. The amount

of driving required to reach the ready condition

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

288

varies with individual driving patterns. To

complete this requirement in the minimum

amount of time, refer to the OBD II Drive Cycle

defined below. If the vehicle owner cannot or

does not want to do the additional driving

required by law, a service center can perform

this drive cycle as it would any other type of

repair work.

*[SV53717( ALL)05/95] OBD II Drive Cycle

[SV53730( ALL)03/95] The following steps must be run in the order

shown. If steps 2 thru 9 are interrupted, repeat

the preceding step. Any safe driving mode is

acceptable between steps.

*[SV53735( ALL)03/95] Always drive vehicle in safe manner according

to traffic conditions and obey all traffic laws.

*[SV53740( ALL)05/95] The engine must be warmed up and at

operating temperature before proceeding with

the drive modes of the following OBD II Drive

Cycle.

*[SV53745( ALL)05/95] 1. Start the engine. Drive or idle (in neutral)

the vehicle for 4 minutes.

*[SV53747( BCGV)05/95] 2. Idle the vehicle in drive for 40 seconds.

*[SV53752( BCGV)05/95] 3. Accelerate the vehicle to 45 mph (72 km/h)

at 1/4 to 1/2 throttle for 10 seconds.

*[SV53757( BCGV)05/95] 4. Drive the vehicle with a steady throttle at

45 mph (72 km/h) for 30 seconds.

*[SV53763( BCGV)05/95] 5. Idle the vehicle in drive for 40 seconds.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

289

*[SV53768( BCGV)05/95] 6. Continue to drive the vehicle in city traffic at

speeds between 25 and 40 mph

(40-64 km/h) for 15 minutes. During the 15

minute drive cycle the following modes must

be achieved:

*[SV53772( ALL)05/95] a. at least 5 stop and idle modes at 10

seconds each

*[SV53775( ALL)05/95] b. acceleration from idles at 1/4 to 1/2

throttle position, and

*[SV53777( ALL)05/95] c. choose 3 different speeds to do 1.5

minute steady state throttle drives.

*[SV53780( BCGV)05/95] 7. Accelerate the vehicle up to between 45 and

60 mph (72-97 km/h). This should take

approximately 5 minutes.

*[SV53784( BCGV)05/95] 8. Drive vehicle and hold the throttle steady at

the selected speed between 45 and 60 mph

(72-97 km/h) for approximately 5 minutes.

*[SV53788( BCGV)05/95] 9. Drive the vehicle for 5 minutes at varying

speeds between 45 and 60 mph

(72-97 km/h).

*[SV53792( BCGV)05/95] 10. Bring the vehicle back to idle. Idle in drive

for 40 seconds.

*[SV53796( ALL)05/95] 11. OBD II drive cycle has been completed.

Vehicle can be turned off when convenient.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

290

*[SV53800( ALL)03/95] Refill Capacities, Motorcraft Parts,

and Lubricant Specifications

%*[SV53900( ALL)03/95] Refill Capacities

[SV54200( BC )05/95]

twenty-two pica chart:0010447-M

*[SV54550( ALL)03/95] NOTE: Rear axle lube quantities must be

replaced every 100,000 miles

(160,000 km) or if the axle has been

submerged in water. Otherwise, the

lube should not be checked or changed

unless a leak is suspected or repair

required.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

291

*[SV54600( ALL)01/95] Motorcraft Parts

[SV54850( BC )03/95]

fourteen pica chart:0010452-M

[SV55000( ALL)09/94] If a spark plug is removed for examination, it

must be reinstalled in the same cylinder.

[SV55025(MBC )05/94]

For 3.8L engines:

[SV55050(MBC )03/95] Cylinders #1, #2, #3 have an EG suffix.

[SV55075(MBC )03/95] Cylinders #4, #5, #6 have an E suffix.

[SV55100( ALL)05/95]

For 4.6L (2V) engines:

[SV55125( ALL)05/95] Cylinders #1, #2, #3, #4 have a PG suffix.

[SV55150( ALL)05/95] Cylinders #5, #6, #7, #8 have a P suffix.

[SV55200( ALL)03/95] If a spark plug needs to be replaced, use only

spark plugs with the service number suffix letter

as shown on the engine decal.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

292

%*[SV55300(ALL)03/95] LubricantSpecifications

[SV55800(BC)03/95]

twenty-eightpicachart:0010584

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

293

[SV55900( BC )03/95]

fourteen pica chart:0010585-K

*[SV56400( ALL)03/95] NOTE: Rear axle lube quantities must be

replaced every 100,000 miles

(160,000 km) or if the axle has been

submerged in water. Otherwise, the

lube should not be checked or changed

unless a leak is suspected or repair

required.

%*[SV57000( ALL)01/95] Vehicle Storage

*[SV57100( ALL)01/95] Maintenance Tips

*[SV57150( ALL)01/95] If you plan on storing your vehicle for an

extended period of time (60 days or more), refer

to the following maintenance recommendations

to ensure your vehicle stays in good operating

condition.

*[SV57200( ALL)01/95]

General

*[SV57300( ALL)01/95] ❑Store all vehicles in a dry, ventilated place.

*[SV57400( ALL)01/95] ❑Protect from sunlight, if possible.

*[SV57500( ALL)01/95] ❑If vehicles are stored outside, they require

regular maintenance to protect against rust

and damage.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

294

*[SV57600( ALL)01/95]

Body

*[SV57700( ALL)01/95] ❑Wash vehicle thoroughly to remove dirt,

grease, oil, tar or mud from exterior surfaces,

rear wheel housing and underside of front

fenders.

*[SV57800( ALL)01/95] ❑Periodically wash vehicles stored in exposed

locations.

*[SV57900( ALL)01/95] ❑Touch-up raw or primed metal to prevent

rust.

*[SV58000( ALL)01/95] ❑Cover chrome and stainless steel parts with a

thick coat of auto wax to prevent

discoloration. Re-wax as necessary when the

vehicle is washed.

*[SV58100( ALL)04/95] ❑Lubricate all hood, door and trunk lid hinges

and latches with a light grade oil.

*[SV58200( ALL)01/95] ❑Cover interior soft trim to prevent fading.

*[SV58300( ALL)01/95] ❑Keep all rubber parts free from oil and

solvents.

%*[SV58350( ALL)01/95]

Engine

*[SV58400( ALL)01/95] ❑Start engine every 15 days. Run at fast idle

until it reaches normal operating temperature.

*[SV58500( ALL)01/95] ❑With your foot on the brake, shift through all

the gears while the engine is running.

%*[SV58600( ALL)01/95]

Fuel system

*[SV58700( ALL)07/94] ❑Fill fuel tank with high-quality unleaded fuel

until the first automatic shutoff of the fuel

pump nozzle.

*[SV58900( ALL)03/95] NOTE: During extended periods of vehicle

storage (60 days or more), fuel may

deteriorate due to oxidation. This can

damage rubber and other polymers in

the fuel system and may also clog

small orifices.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

295

*[SV59000( ALL)01/95] Ford Gas Stabilizer should be added whenever

actual or expected storage periods exceed 60

days. Follow the instructions on the label. The

vehicle should then be operated at idle speed to

circulate the additive throughout the fuel system.

%*[SV59200( ALL)01/95]

Cooling system

*[SV59300( ALL)01/95] ❑Protect against freezing temperatures.

%*[SV59400( ALL)01/95]

Battery

*[SV59500( ALL)01/95] ❑Check and recharge as necessary.

*[SV59600( ALL)01/95] ❑Keep connections clean and covered with a

light coat of grease.

*[SV59650( ALL)03/95] ❑If storing your vehicle for more than 30 days

without recharging the battery, it may be

advisable to disconnect the battery cables to

ensure battery charge is maintained for quick

starting.

[SV59675( ALL)05/94] NOTE: If battery cables are disconnected, it

will be necessary to reset memory

features.

%*[SV59700( ALL)01/95]

Brakes

*[SV59800( ALL)01/95] ❑Make sure brakes and parking brake are fully

released.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

296

%*[SV59900( ALL)01/95]

Tires

*[SV60000( ALL)05/95] ❑Maintain recommended air pressure.

*[SV60100( ALL)01/95]

Miscellaneous

*[SV60200( ALL)01/95] ❑Make sure all linkages, cables, levers and

clevis pins under vehicle are covered with

grease to prevent rust.

*[SV60300( ALL)03/95] ❑Move vehicles at least 25 feet (8 m) every 15

days to lubricate working parts and prevent

corrosion.

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

297

File:rcsvc.ex

Update:Mon Jun 12 16:45:15 1995

303

[QI01350( BC )06/93]

full page art:0011379-A

Label Locations

File:rcqic.ex

Update:Tue May 21 08:06:38 1996

304

[QI01500( C )05/95]

full page art:0011109-C

Front Exterior View

File:rcqic.ex

Update:Tue May 21 08:06:38 1996

305

[QI01700( C )05/95]

full page art:0011111-C

Rear Exterior View

File:rcqic.ex

Update:Tue May 21 08:06:38 1996

306

[QI01900( C )03/95]

full page art:0011113-C

Entrance View

File:rcqic.ex

Update:Tue May 21 08:06:38 1996

307

[QI02100( C )05/95]

full page art:0011115-C

Driver’s Door

File:rcqic.ex

Update:Tue May 21 08:06:38 1996

308

[QI02300( C )05/95]

full page art:0011117-C

Instrument Panel

File:rcqic.ex

Update:Tue May 21 08:06:38 1996

309

[QI02600( C )05/95]

full page art:0011120-C

Instrument Cluster

File:rcqic.ex

Update:Tue May 21 08:06:38 1996

310

[QI02800( C )05/95]

full page art:0011122-D

Trunk

File:rcqic.ex

Update:Tue May 21 08:06:38 1996

311

[QI02905( C )05/95]

full page art:0011213-C

3.8L Engine Compartment

File:rcqic.ex

Update:Tue May 21 08:06:38 1996

312

[QI03100( C )05/95]

full page art:0011347-A

4.6L Engine Compartment

File:rcqic.ex

Update:Tue May 21 08:06:38 1996

Index 313

Index

ABS warning light

(see Anti-lock brake system) ....... 58

Accessory position on the ignition ..... 45

Additives, engine oil .......... 241

Air bag supplemental restraint system

description ............... 18

disposal ................ 25

driver air bag ............. 18

indicator light ............. 60

operation ............... 21

proper seating ............. 19

tone generator ............. 25

wearing safety belts........... 18

Air cleaner filter, location ........ 231

Air conditioning

manual heating and air

conditioning system ......... 74

semi-automatic temperature

control system ............ 77

Alarm, activating remote personal .... 112

Antifreeze (see Engine coolant) ...... 244

Anti-lock brake system (ABS)

description .............. 174

Mercury 1996 Cougar Owners Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
