IMPORTANT INFORMATION
READ BEFORE USE
PLEASE SAVE THESE INSTRUCTIONS
Installation and operating instructions
Mealstream 402 Issue 1
Users are cautioned that maintenance and repairs should be performed by a Garland authorized service agent using
genuine Garland replacement parts. Garland will have no obligation with respect to any product that has been
improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation
instructions provided with the product, or any product that has its serial number defaced, obliterated or removed, or
which has been modified or repaired using unauthorized parts or by unauthorized service agents. For a list of authorized
service agents, please refer to the Garland Group Web site at www.garland-group.com. The information contained herein
( including design and parts specifications ) may be superseded and is subject to change without notice.
DRAFT VERSION
2
1 Introduction........................................................ 2
2 Safety instructions............................................. 3
3 Installation instructions ...................................... 6
4 Main features ....................................................9
5 Operating instructions: Manual mode ............. 11
6 Operating instructions: Program mode ......12-14
7 Operating instructions: MENUKEY® ................. 15
8 Daily cleaning .................................................. 16
9 Problem solving .............................................. 17
10 Technical specification ..................................... 18
a) Do not attempt to operate this oven with the
door open since open-door operation can result
in harmful exposure to microwave energy. It is
important not to defeat or tamper with the
safety interlocks.
b) Do not place any object between the oven front
face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
c) Do not operate the oven if it is damaged.
It is particularly important that the oven
door close properly and that there is no
damage to the (1) door ( bent )
(2) hinges and latches ( broken or
loosened ) (3) door seals and sealing
surfaces.
d) The oven should not be adjusted or
repaired by anyone except properly
qualified service personnel
PLEASE READ THE FOLLOWING
SAFETY INSTRUCTIONS CAREFULLY
CONTENTS
3
When using electrical appliances basic safety precau-
tions should be followed, including the following:
WARNING To reduce the risk of burns, electric shock,
fire, injury to persons, or exposure to excessive
microwave energy:
1. Read all instructions before using the appliance.
2. Read and follow the specific “PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” FOUND ON PAGE 2.
3. This appliance must be grounded. Connect only to a
properly grounded outlet.
See “GROUNDING INSTRUCTIONS” found on page 4.
4. Install or locate this appliance only in accordance
with the provided installation instructions
5. Some products such as whole eggs and sealed
containers — for example, closed jars — may ex-
plode and should not be heated in this oven.
6. Use this appliance only for its intended use as
described in the manual. Do not use corrosive
chemicals or vapors in this appliance. This type of
oven is specifically designed to heat, cook or dry
food. It is not designed for industrial or laboratory use.
7. This appliance should not be used by children.
8. Do not operate this appliance if it has a damaged
cord or plug, if it is not working properly, or if it has
been damaged or dropped.
9. This appliance should be serviced only by qualified
service personnel. Contact the nearest authorized
service facility for examination, repair or adjustment.
10 Do not cover or block any openings on the appli-
ance including air vents/filters and steam outlet.
11 Do not store this appliance outdoors. Do not use
this product near water —– for example, near a
kitchen sink, in a wet basement, or near a swimming
pool, and the like.
12. Do not immerse the cord or plug in water.
13. Keep the cord away from heated surfaces.
14. Do not let cord hang over edge of table or coun-
ter.
15. Either:
i)When cleaning surfaces of door and oven that
come together on closing the door, use only mild
non-abrasive soaps, or detergents applied with a
sponge or soft cloth.
or
ii)When separate cleaning instructions are
provided, see door surface cleaning instructions
on page 15.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
iii) If materials inside the oven should ignite, keep
oven door closed, turn oven off, and disconnect
the power cord , or shut off power at the fuse or
circuit breaker panel.
iv) Do not use the cavity for storage purposes. Do
not leave paper products, cooking utensils or
food in the cavity when not in use.
17. DO NOT operate using microwave only or
combination function without food or liquid inside the
oven as this may result in overheating and may cause
damage.
18. NEVER remove the exterior of the oven.
19. NEVER remove any fixed internal parts of the
oven.
20. NEVER tamper with the control panel, door, seals,
or any other part oven.
21. DO NOT obstruct air vents/filters or steam outlet.
22. NEVER hang dish towels or cloths on any part of
the oven.
23. If the door seals are damaged, the oven must be
repaired by an approved Service Agent.
24. If the power cable is damaged in any way it MUST
be replaced by an approved Service Agent.
25. When handling hot liquids, foods, and containers,
care should be taken to avoid scalds and burns.
26. When heating liquids using microwave only or
combination function, the contents should be stirred
prior to heating to avoid eruptive boiling.
27. Feeding bottles and baby food jars should be
opened when heating, the contents stirred or shaken
and the temperature checked prior to consumption to
avoid burns.
28. Never use the oven to heat alcohol, e.g. brandy,
rum, etc. Also, food containing alcohol can more easily
catch fire if overheated.
29. Never attempt to deep fry in the oven.
16. To reduce risk of fire in the cavity:
i) Do not overcook food. Carefully attend
appliance if paper, plastic or other
combustible materials are placed inside the
oven to facilitate cooking.
ii) Remove wire twist-ties from paper or plastic
bags before placing bag in oven.
IMPORTANT
Metal sheet pans may be used in the oven when placed
on the special vitreous enamel racks ONLY, either in
‘Convection only’ mode or ‘Microwave/Convection’ mode.
Place only microwave safe containers on bottom of oven
DO NOT place metal trays or containers on the BOTTOM
of the oven as arcing may occur.
4
For all cord connected appliances:
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord
having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly
installed and grounded.
WARNING — Improper use of the grounding can result in the risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if
doubt exists as to whether the appliance is properly grounded.
Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or
serviceman install an outlet near the appliance.
For a permanently connected appliance:
GROUNDING INSTRUCTIONS
This appliance must be connected to a grounded, metallic, permanent wiring system, or an equipment
grounding conductor should be run with the circuit conductors and connected to the equipment grounding
terminal or lead on the appliance.
ELECTRICAL INSTALLATION
In case of Radio or Television Interference
This equipment generates and uses radio frequency energy and if not
installed and operated correctly, in strict accordance with the manufacturer’s
instructions, may cause harmful interference to authorized radio
communication services.
It has been type tested and found to comply with the limits for Part 18.307
conducted emissions for non-consumer equipment and Part 18.309 radiated
emissions, which are designed to provide reasonable protection against
such interference. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
1) Re-orientate the receiving antenna.
2) Relocate the microwave with respect to the receiver.
3) Plug the microwave into a different outlet so that the receiver and
microwave are on different branch circuits.
If necessary the user should consult the dealer or an experienced radio/
television technician for additional suggestions.
Note: Modifications should only be carried out by the manufacturer or
authorized representative to ensure continuing conformance.
5
1. Read this manual before using your oven.
2. As with all electrical appliances, it is wise to have the electrical connections
inspected periodically.
3. The oven interior and door seals should be cleaned frequently, following the
instructions described in the CLEANING section.
4. There is no need to switch off your oven after each function but remember to switch
off at the end of the day or period of operation.
5. Microwave energy should not be used to dry linen or warm plates.
6. As with any cooking appliance, care should be taken to avoid combustion of the
items within the oven.
PRECAUTIONS TO BE OBSERVED
7. Ensure food is placed in the centre of the oven cavity for best results.
8. When using the microwave only function, cover the food to prevent splashing the
walls of the cavity.
9. Food in combustible plastic or paper containers should only be used in microwave
only function and checked frequently to avoid the possibility of ignition.
10. Items should be unwrapped when using convection and combination functions.
11. Eggs and whole hard-boiled eggs should not be heated using the microwave or
combination function as they may explode.
12. Food with a skin, e.g. potatoes, apples, sausages, etc. should be pierced before
heating.
13. Food should not be heated in a completely sealed container as the build-up of
steam may cause it to explode.
14. Excess fat should be removed during ‘roasting’ and before lifting heavy containers
from the oven.
15. In the event of glass breaking or shattering within the oven, ensure that food is
totally free of glass particles. If in doubt, dispose of any food that was in the oven at
the time of the breakage.
If smoke is observed:
Switch off
Isolate from the electrical supply
Keep door the closed to stifle any flames
6
Remove packing material and protective film from the oven.
LOCATION AND POSITIONING
Check for obvious signs of transit damage.
If necessary, inform the freight company IMMEDIATELY.
Choose a site away from major heat sources.
DO NOT position so that hot air is drawn in from fryers, grills, griddles,
etc.
A heat barrier to the height of the oven must be installed if sited next
to a burner, stove or range.
Place the oven on a flat surface that is LEVEL, STRONG and
STABLE.

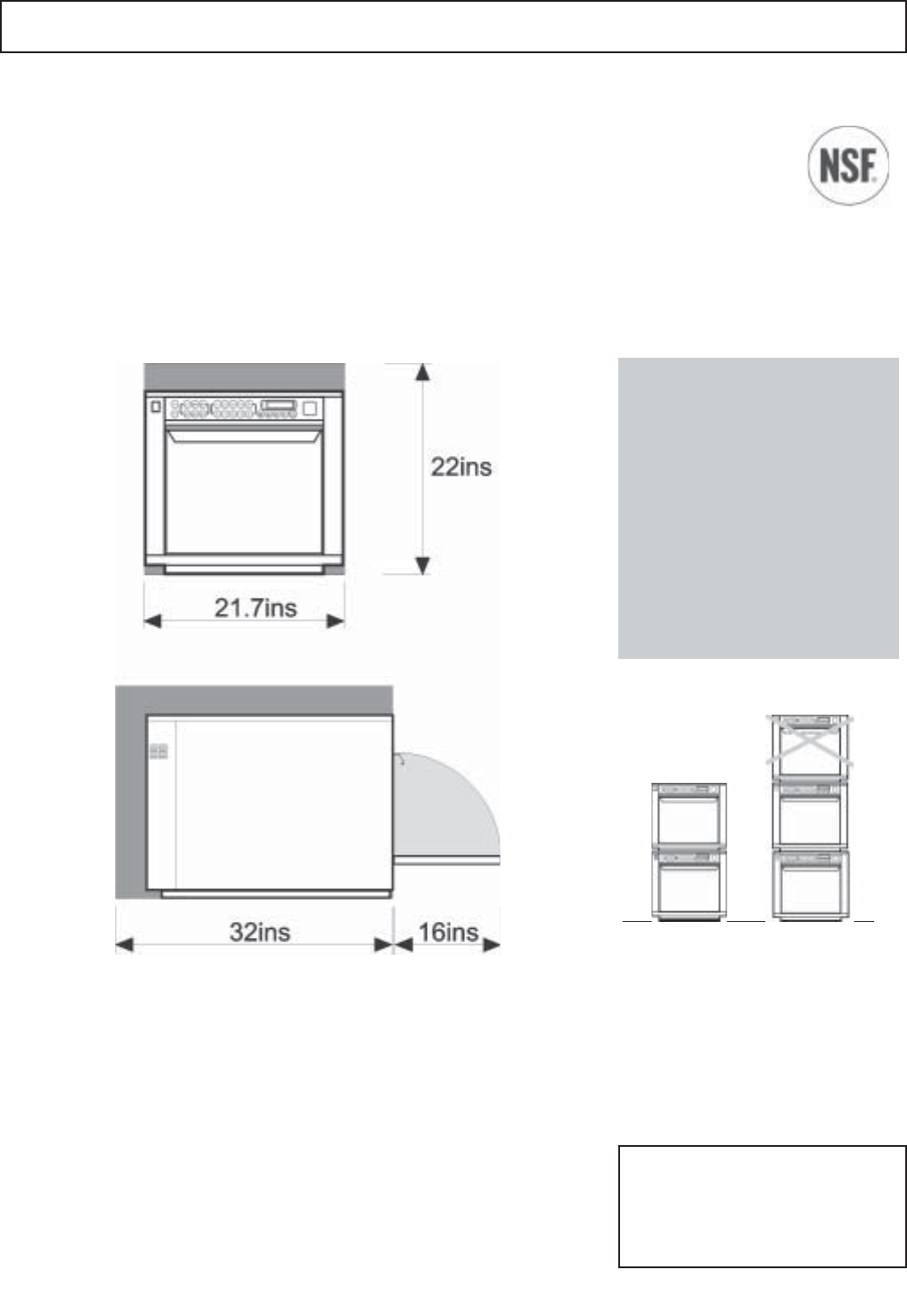

Allow a minimum clearance of 2 inches (50mm) to the rear, top and
each side to allow air to circulate freely.

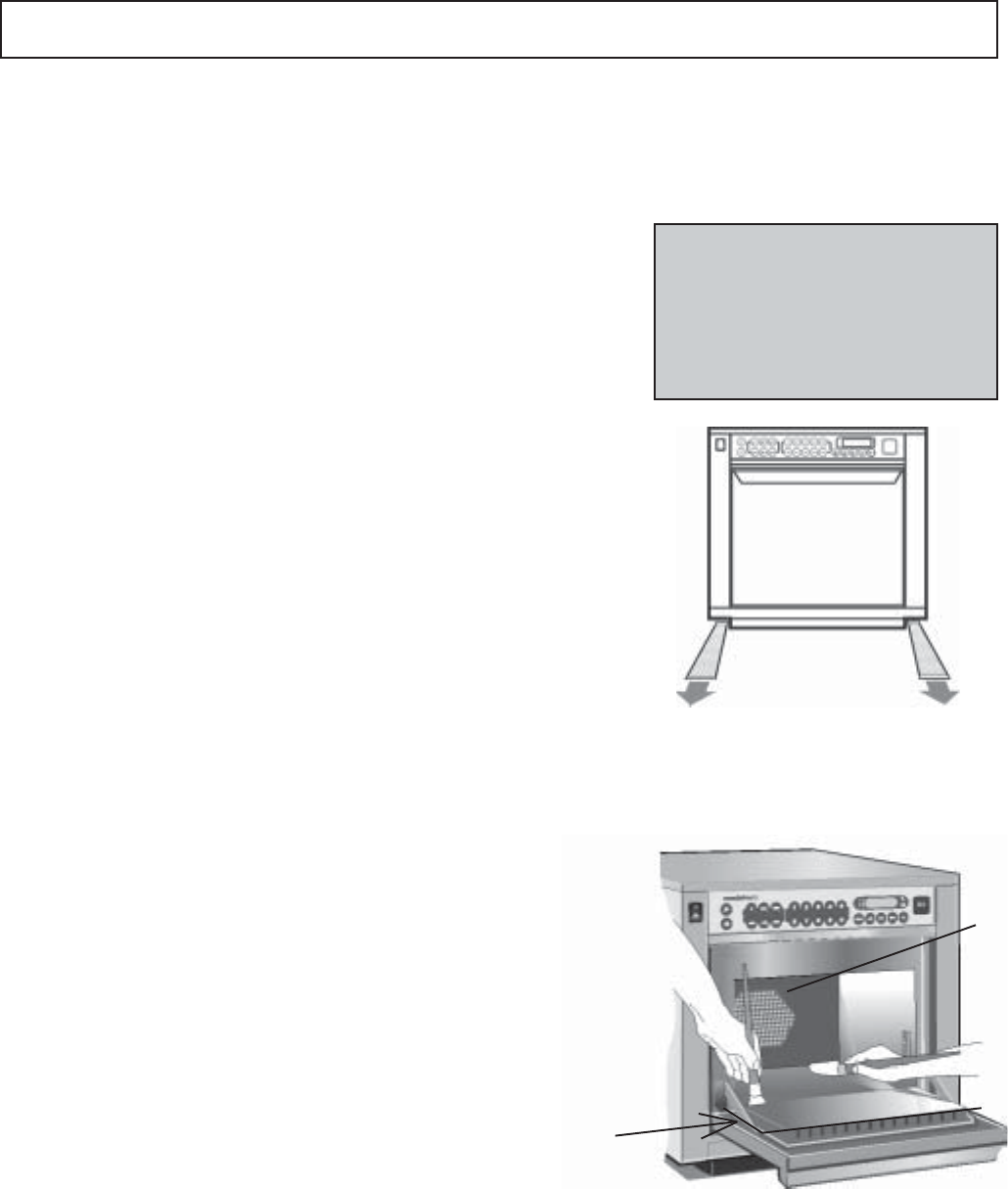

The air intake is located under each side of the oven, even with the
clearance specified above, it is important that airflow is as cool as
possible and not pre-heated by other appliances such as fryers, grills
or griddles.
Allow a minimum of 2 inches (50mm) clearance above the oven for
hot air to escape.
Allow sufficient clearance, 16 inches (400mm) in front of the oven for
the door to open fully
Do not affix labels/stickers to oven other than those applied by the
manufacturer
WARNING:
Check that the
AIR FILTERS are in place
prior to operation
( see Main Features )
Mealstream 402 can be
stacked one on top of
another.
Do not stack more than one
unit on top of another.
INSTALLATION
To meet NSF
requirements the oven
needs to be sealed to the
worktop to prevent
ingress under the oven
Note:
The air intake is located
under each side of the oven,
even with the clearance
specified below it is
important that airflow is as
cool as possible and not pre-
heated by other appliances
such as fryers, grills and
griddles as this will
deteriorate the life and
performance of the oven.
7
Manufacturer’s instructions should be checked to determine the suitability of individual
containers or utensils using each of the cooking functions.
The following chart provides general guidelines:

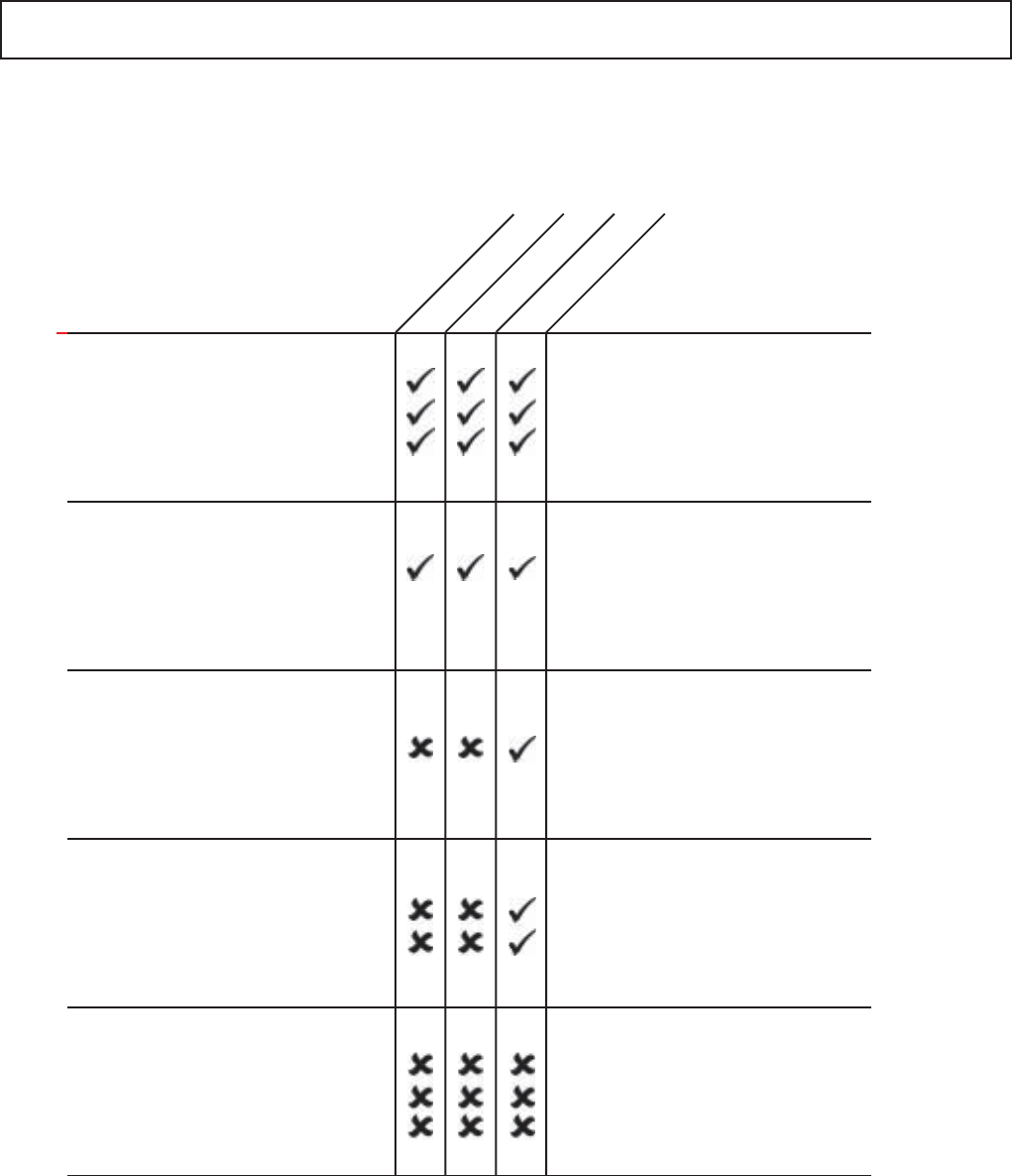

SUITABLE COOKING UTENSILS
Heat resistant containers
Metallic Trays
Plastic containers
Disposables
Other utensils
Do not use items with metallic
decoration.
Metallic trays may only be used
when placed on the vitrous racks in
the oven cavity ( See note )
Dual-ovenable plastic containers
(up to certain temperatures) are now
available.
Check manufacturer’s instructions
before use
Cling film should not come into
contact with food.
No kitchen utensil should be left in
food while it is cooking
Toughened glass
Vitreous ceramics
Earthenware
(porcelain, crockery, china etc.)
Metallic trays (on oven racks)
DO NOT USE ANY OTHER
METAL CONTAINERS
Rigid, boilable, plastic
containers
Combustibles (paper, card, etc)
Microwave-suitable cling film
Tie tags
Cutlery
Temperature probes
combination
convection only
microwave only
IMPORTANT
Metal sheet pans may be used when placed on the special vitreous enamel racks ONLY,
either in ‘Convection only’ mode or ’Microwave/Convection’ mode.
Place only microwave safe containers on bottom of oven DO NOT place metal trays or
containers on the BOTTOM of the oven as arcing may occur.
8
The Mealstream 402 oven offers operators the flexibility of three heating functions; microwave
only, convection only, and combination cooking.
Combination cooking enables high quality results to be achieved in a fraction of the time
taken by conventional cooking, particularly when baking, browning, roasting, broiling or
producing gratinee dishes.
Once established, precise instructions for combination or convection cooking of selected
items may be programmed into the ovens memory so that they can be repeated easily
and accurately.
Multi-Stage Programming
The Mealstream 402 offers even greater flexibility by allowing multi-stage programming. This
enables the exact conditions required for quality results to be set according to the food type.
Note:
Remember convection temperature takes time to change. Do not
expect an instant response when a different temperature is activated.

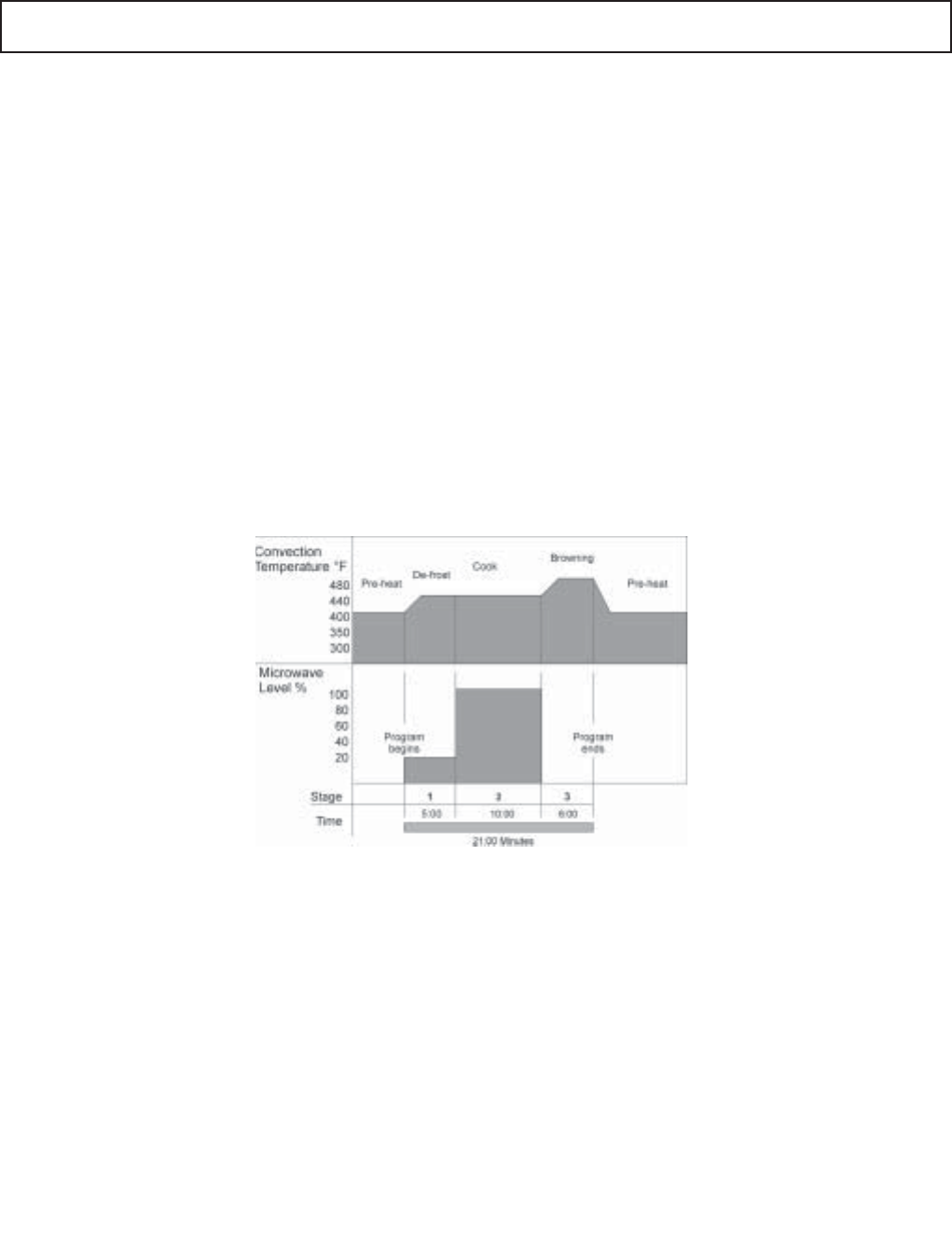

A typical 3-stage program is shown. The Oven is pre-heated at 350°F. Stage 1 begins by
applying a gentle microwave power of 25% (ideal for defrosting) while the convection
temperature rises to 440°F. In Stage 2 the microwave power increases to maximum
(100%) . In the final, browning stage the convection temperature is increased to 480°F
with no microwave energy applied.
This is only one example of an infinite number of possible multi-stage programs that can
be created and stored. Programs can have one, two, or three stages.
The instructions outlined in this guide are intended to
ensure the safety and long life of your Garland oven.
INTRODUCTION
9

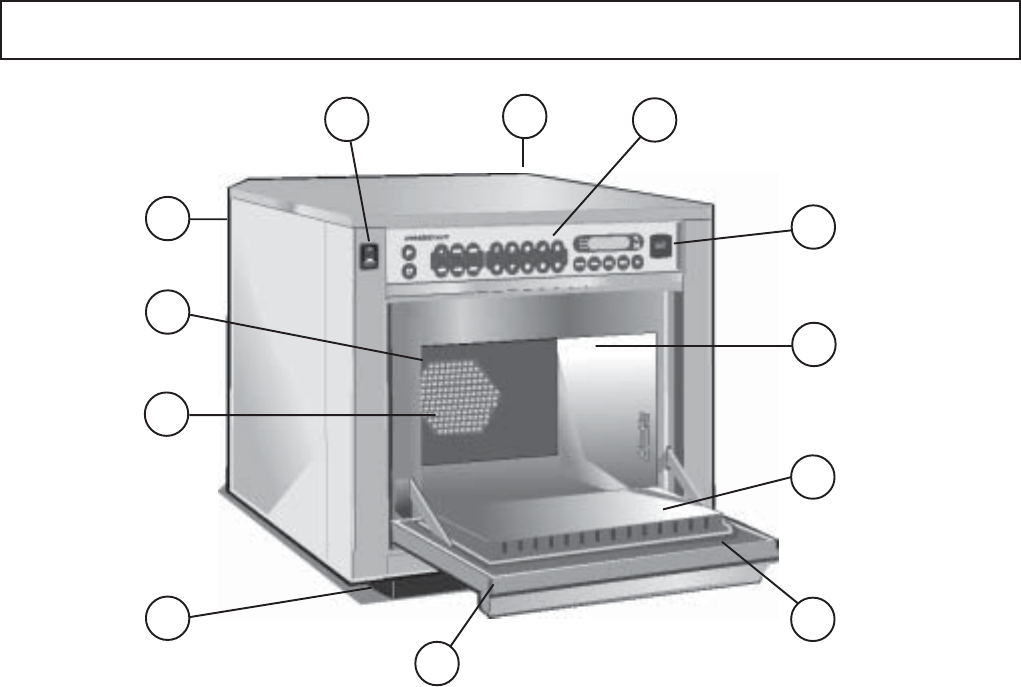

AIR OUTLETS
These vents on the side and rear panels enable air
which has been used to cool internal components to
escape. They will not allow microwave energy to
escape into the environment. They must be kept
free from obstruction.
OVEN CAVITY
The cavity is constructed mainly from stainless steel
and vitreous enamelled panel on the door. It must
be kept clean (see CLEANING).
CONVECTION FAN
The fan draws air over the heating elements and
into the cavity over the edges of the rear baffle plate,
producing perfect heat distribution for combination
cooking. The metal grille covering the fan must be
kept clean and free of debris (See CLEANING)
AIR INLET FILTERS (LEFT & RIGHT)
Situated at the left and right hand side of the base at
the front. These are part of the ventilation system
and must be kept free of obstruction and cleaned on
a daily basis.
DOOR HANDLE
This is a rigid bar which is pulled downwards and
towards you to open.
CONTROL PANEL
See page 10.
ON/OFF SWITCH
When switched ON, the control panel will illuminate.
The fan and ventilation system will also operate.
RATING PLATE
Found on the rear panel, this states the serial
number, model type, electrical specifications and
Garland’s address and telephone number.
DOOR
This is a precision-made energy barrier with three
microwave safety interlocks. It must be kept clean
(see CLEANING section ). The door should NOT be
used to support heavy dishes.
DOOR SEALS
These ensure a tight seal around the door. They
should be kept clean and checked regularly for signs
of damage. At the first sign of wear they should be
replaced by a Garland approved Service Agent.
TEMPERATURE SENSOR
This monitors the temperature inside the oven. Care
should be taken when cleaning to prevent damage.

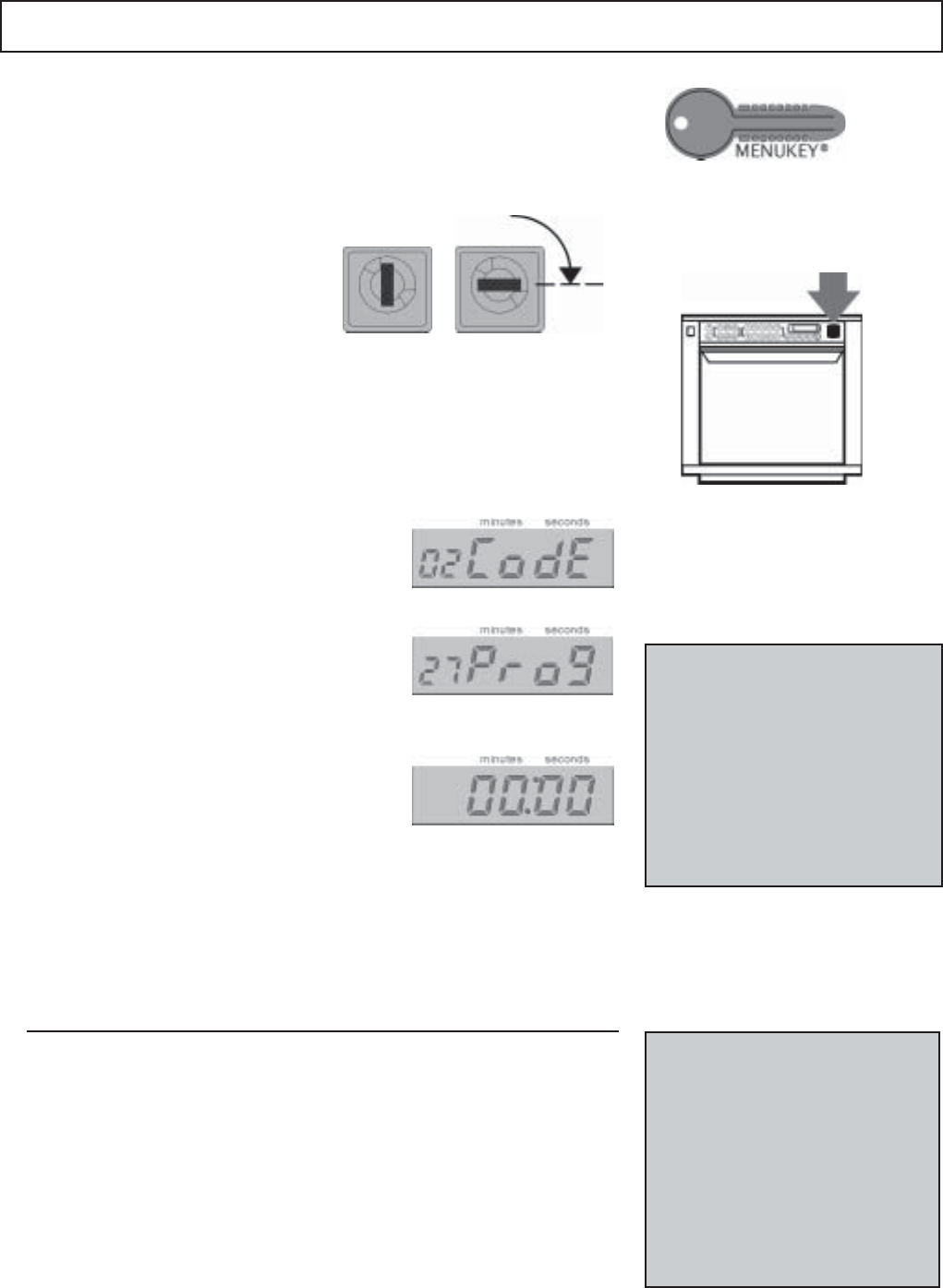

MENUKEY
Changes the programs on the oven
3
4
6
5
2
112
8
9
11
1
2
3
4
5
7
8
9
10
11
MAIN FEATURES
10
6
7
12
10
POWER PADS
There are 4 Microwave Power Pads to select from:
25%, 50%, 75%, and 100%. A light will indicate the one
in use.
CONVECTION PAD
This is used when foods only require browning
( no microwave )
Note: when cooking, the MICROWAVE and
CONVECTION pads start the cycle and timer. You may
alter power levels during a manual cooking cycle.
When cooking is interrupted, a light will flash as a
reminder that the time is being held (see PAUSE).
TIME/PROGRAM SELECT PADS
These pads are used for setting the cooking time in 1
second steps to a maximum of 30 minutes. They are
also used for programs from 01-10
TEMPERATURE SETTING PADS
These pads are used to set the convection
temperature. A light will indicate the temperature set.
Selecting the ‘0’ key will switch convection off. If a
temperature key is pressed and held the current oven
temperature will be displayed in the time display
window.
CANCEL/ CALLBACK ‘C’ PAD
Cancels all timed cooking cycles, pre-programmed
operations and stops the microwave energy. It does not
alter the oven temperature . If the oven is hot, food will
continue to cook and should be removed from the oven
immediately. This pad will also cancel any incorrect
operations. It will not erase programs. It can also be used
to view the details of stored programs.
(see CALL BACK)
PROGRAM ‘P’ PAD
Activate or set program
TIME AND PROGRAM DISPLAY
Shows the time set in minutes and seconds and counts
down in 1 second steps during a cooking
cycle.

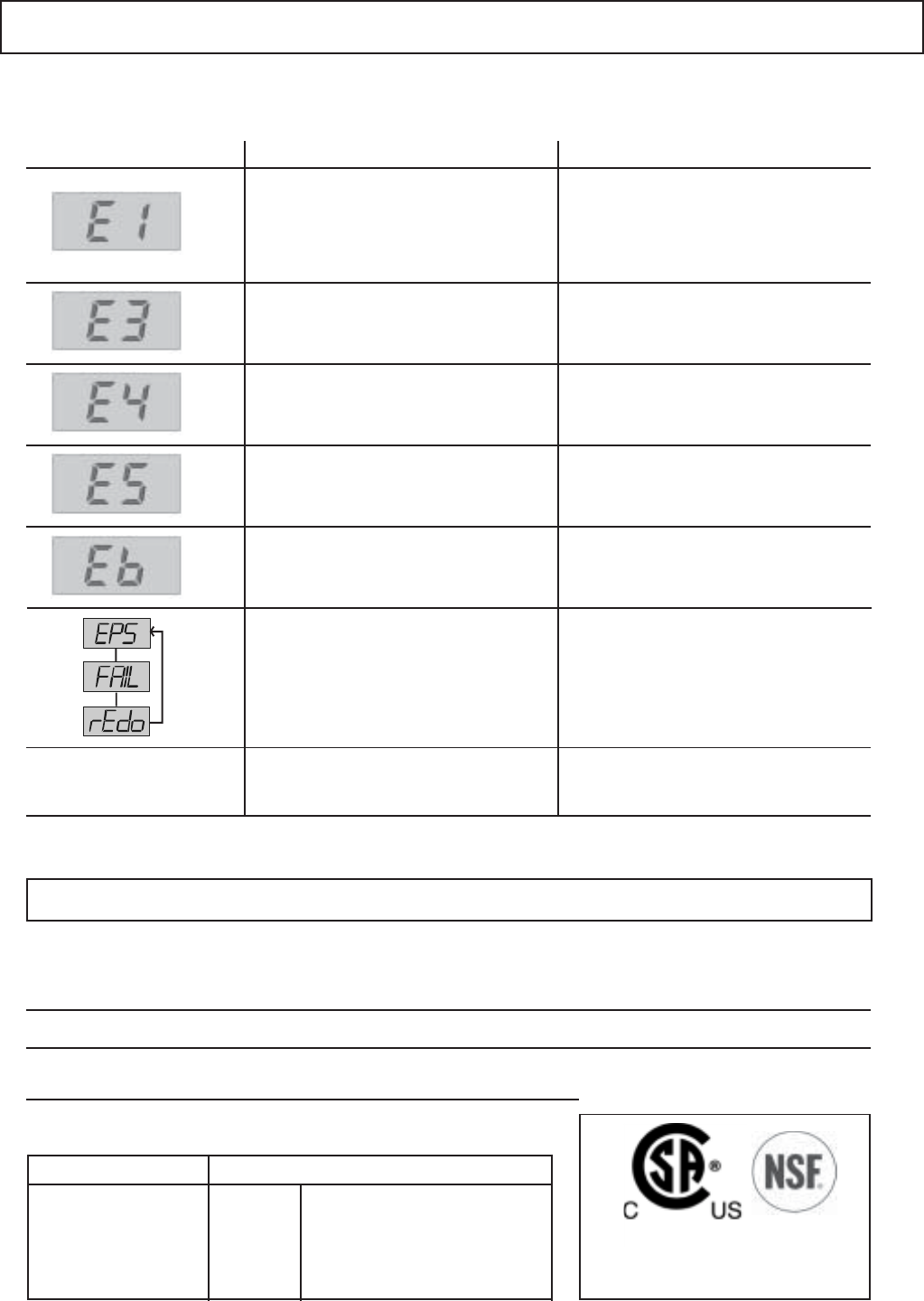

Also displays error messages and oven temperature.
(PROBLEM SOLVING section 8)
The program display indicates the program number
selected. ‘PP’ indicates programming
MULTI-STAGE INDICATOR
Indicates stage in multi-stage cooking
COLON
When programming the colon will flash to indicate the
time may now be entered.
ERROR DISPLAY
See PROBLEM SOLVING Section 8.

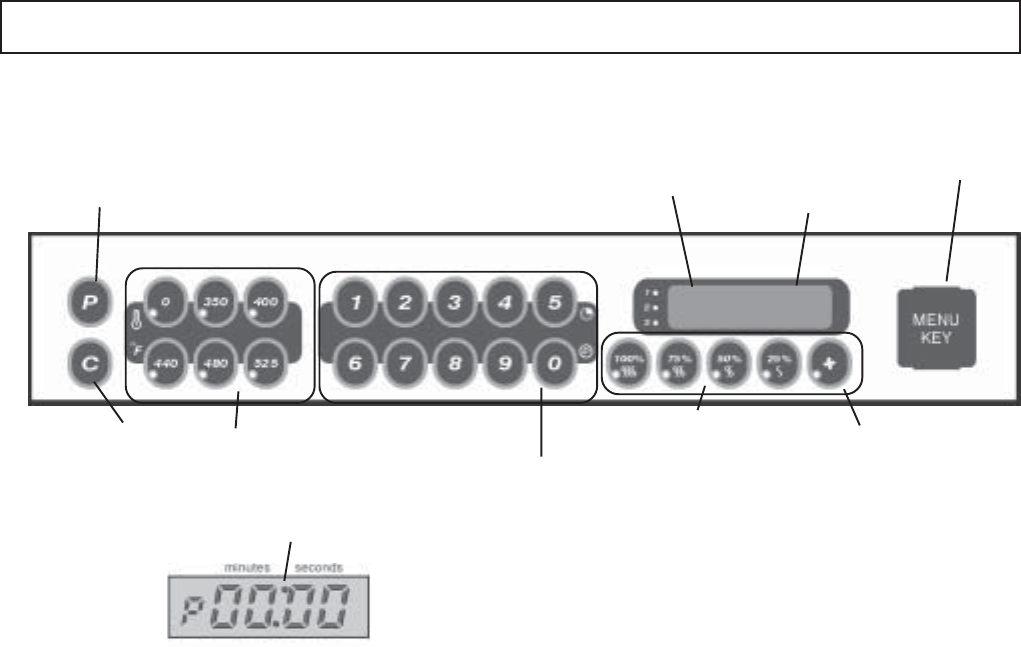

CONTROL PANEL
COLON
TIME/ERROR DISPLAY
POWER PADS CONVECTION PAD
TIME/PROGRAM SELECT PADS
PROGRAM PAD
CANCEL PAD TEMPERATURE SETTING PADS
TIME/ERROR DISPLAY
MULTI-STAGE INDICATOR MENUKEY
11

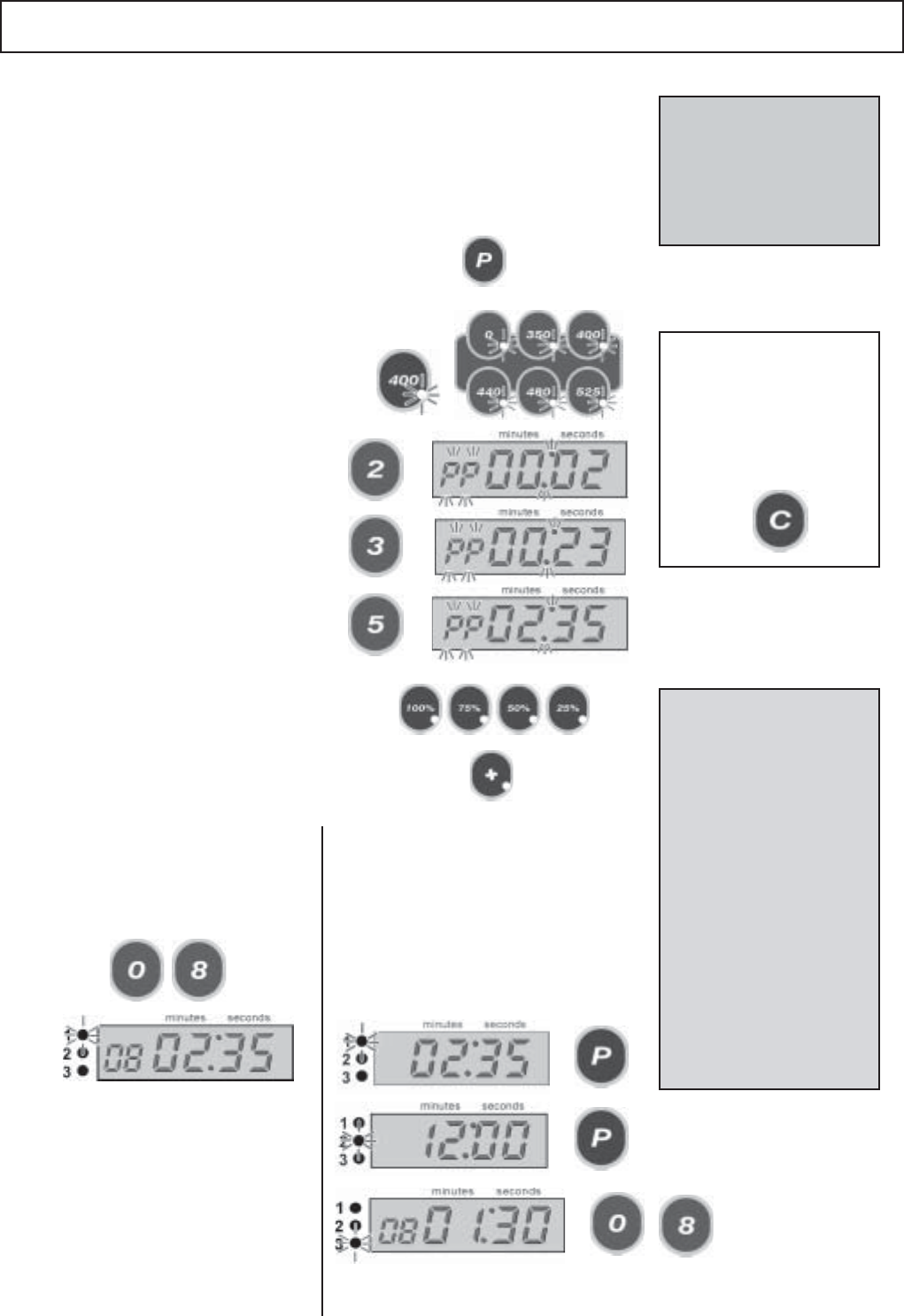

OPERATING INSTRUCTIONS: MANUAL MODE
The oven can be operated in manual
or programmed mode. It is important
to understand manual mode prior to
attempting program operation.
Set the required oven temperature by pressing one of the
TEMPERATURE SETTING PADS 300º, 350º, 400º, 440º, 480ºF.
The light in the pad will flash to indicate it has been selected.
Note: The temperature within the
oven cavity will now begin to
rise. It may take up to 15
minutes to reach the value if
the oven is cold when you
start.
The cavity temperature can
be checked at any time by
pressing the selected
temperature button.
The cavity temperature in
ºF will be displayed.
1
2
WARNING:
DO NOT APPLY MICROWAVE ENERGY WHEN OVEN IS EMPTY
DO NOT USE THE OVEN WITHOUT
CLEAN AIR FILTERS IN POSITION
To familiarize yourself with the controls place a bowl
containing approximately 2.5 pints of water in the oven.
When the oven temperature is within 50ºF of the
set level the light will no longer flash.
WAIT UNTIL THIS TEMPERATURE IS REACHED
before using the oven.
3
Set required cooking time by
pressing the numeric TIME
SELECT PADS
4
Only valid times of Minutes and Seconds will be
accepted.
e.g. 1minute 1 second not 61 secs
Example: 2 Minutes 35 seconds
Taking all the necessary precautions to
ensure you do not burn yourself, place the
food into the cavity and close the door.
Always keep the period that the door is open
to a minimum.
5
6
The timer will now count down.
When the remaining time reaches
zero an audible signal will be given.
Remove the food from the cavity.
7
To cook the food using a combination
of convected heat and microwave press
one of the POWER PADS either 100%,
75%, 50% or 25%.
To cook using convection only press the
button marked with the fan symbol.
TO STOP THE COOK CYCLE
The cycle may be stopped at
any time by pressing the
CANCEL PAD
PAUSE
The cycle may interrupted by
opening the oven door.
On opening the door the timer
will be held at this point and the
light on the relevant POWER
PAD (microwave or convection)
will flash to indicate an
interrupted cycle.
TO CONTINUE the cycle close
the door, an audible warning
sounds as a reminder to press
any power pad to restart the
timer.
Note:
when the cycle is
interrupted or stopped the
oven will remain at the
temperature set and the
food inside the oven will
continue to cook
Switch the oven on
12
PAUSE FACILITY
A cooking cycle may be interrupted by opening the door.
This facility is useful when stirring, repositioning or if temperature
readings are required during a heating cycle
On opening the door the timer will be held at this point and the
light on the relevant power pad (microwave or convection) will
flash to indicate an interrupted cycle.
TO CONTINUE
To continue the cycle or program close the door
an audible warning sounds as a reminder to
press any POWER PAD to restart the timer.

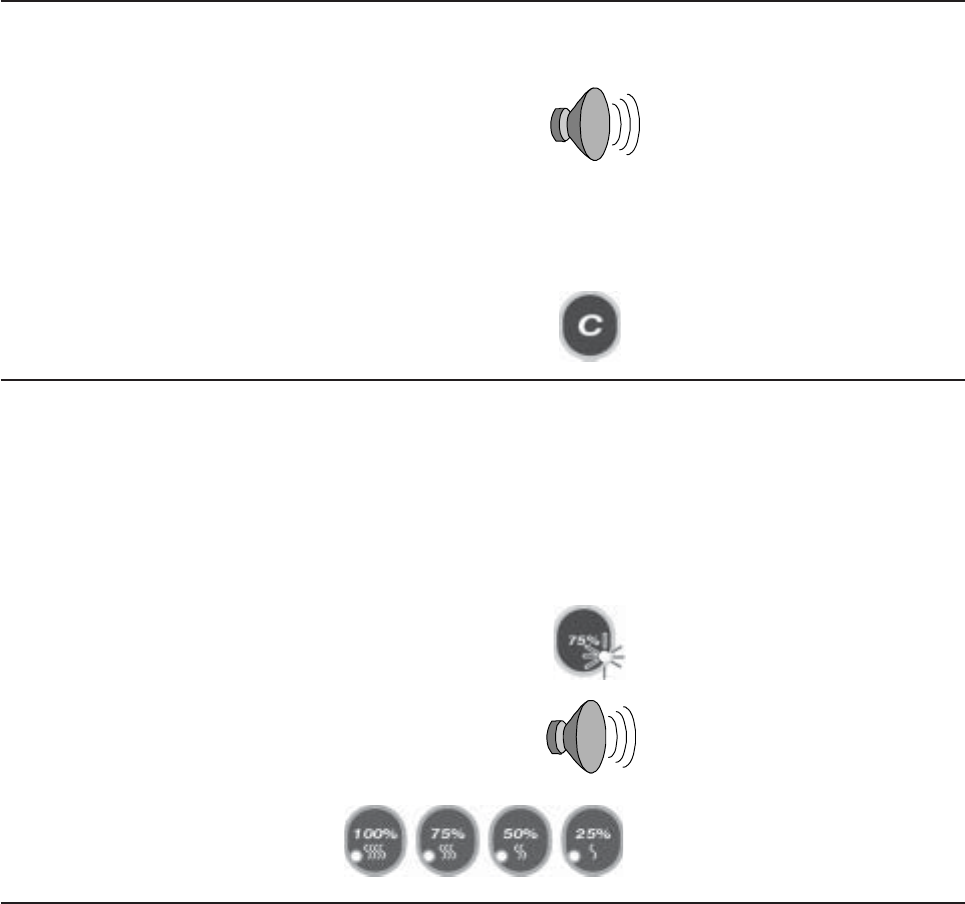

AUDIBLE WARNING
At the end of every timed cycle an audible warning will
sound.
The audible warning stops when the door is opened.
On closing the door after interrupting the cycle the audible
warning sounds as a reminder to start the timer
(see PAUSE FACILITY).
Hints and Tips for improved operation
•Care should be taken when defrosting in a hot oven.
For best results, defrost first thing in the morning when the oven
is still cold.
•Combination and convection only cooking may be carried out on
a rising temperature but extra attention must be given to timings.
•Convection only cooking can be carried out without setting a time.
•Microwave heating may be introduced part-way through a
manually set convection only cycle.
However, we strongly recommend that only the most experienced
microwave operator uses this facility as the microwave energy
will then be on a time set for convection cooking.
Cooking may be interrupted by opening the door. Close the door and
touch a power button to continue.
The audible warning can be stopped by touching the
cancel pad but it is important to remember that food in the
oven will continue to brown until removed.
13
Each program can comprise up to three stages, allowing at each, independent
control of Convection temperature, Stage time and Microwave power level.
However, programs must be used with caution, since if the food to cook varies
in weight or density, adequately cooked food may not be achieved. Therefore,
it is vital that all food prepared for service should be checked to ensure that
core temperatures have been achieved.
Press and hold PROGRAM PAD until a flashing ‘P’
appears in the PROGRAM DISPLAY
Lights on the TEMPERATURE SETTING
PADS flash to indicate that a temperature
must be selected.
Press the pad for the required temperature,
the light on the selected pad will continue
to flash, the others will go out.

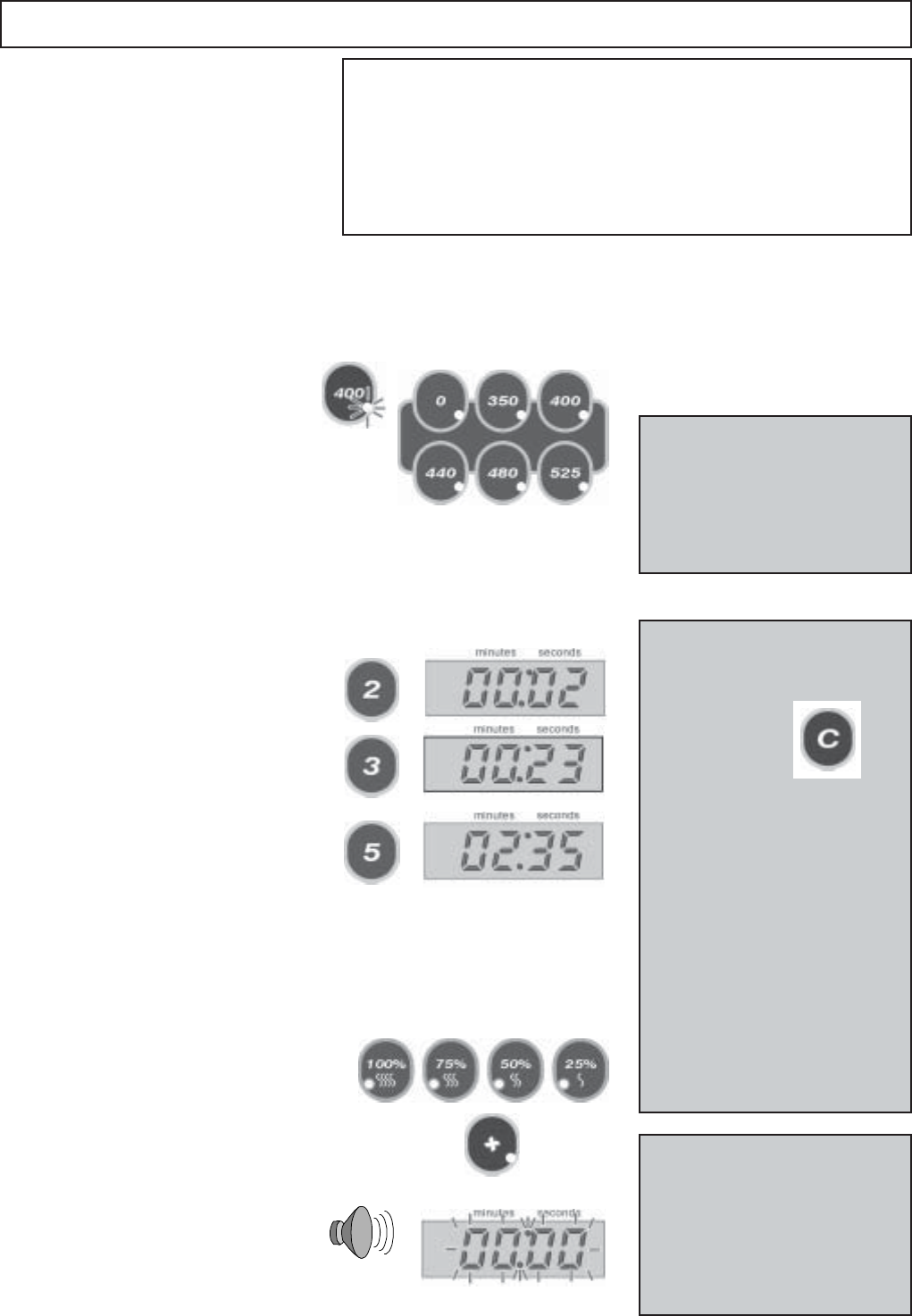

Enter required cooking time by pressing
the TIME SET PADS
(The display colons flash to indicate a
time is required).
1
2
3
Only valid times of Minutes and
Seconds will be accepted.
e.g. 1 minute 1 second not 61 secs
To cook the food using a combination of
convected heat and microwave press
one of the POWER PADS
100%,75%,50% or 25%.
To cook using convection only press the
button marked with the fan symbol.
Check program details
on the flashing display.
Settings can be changed
by stepping back through
the program using the
CANCEL BUTTON.
To save as a single stage program
The program details are
displayed momentarily as the
program is saved.
4
Press the required number pad
To enter up to 3 stages to the
program and save it.
Follow steps 1– 4 for each stage of
cooking and on completing press
the PROGRAM PAD to advance to
the next stage of the program.
Press the required number pad to save.
•Enter a valid time up
to 30 minutes e.g.
1 minute 1 second
not 61 seconds.
•Information may be
programmed into the
memory whether the
oven is hot or cold.
•To review a program
use CALLBACK see
page 14.
We recommend you
keep a note of program
instructions for future
reference.
Some experimentation
will be required to
determine the correct
program for a particular
product.
Pre-programming allows repetitive cooking procedures to be stored for ease
of use.
example: stage 1 saved
as Program 08
example: stage 1, stage 2, stage 3 saved
as Program 8
To save as a multi-stage program
PROGRAMMING NUMBER PADS ( 0-9 )
14

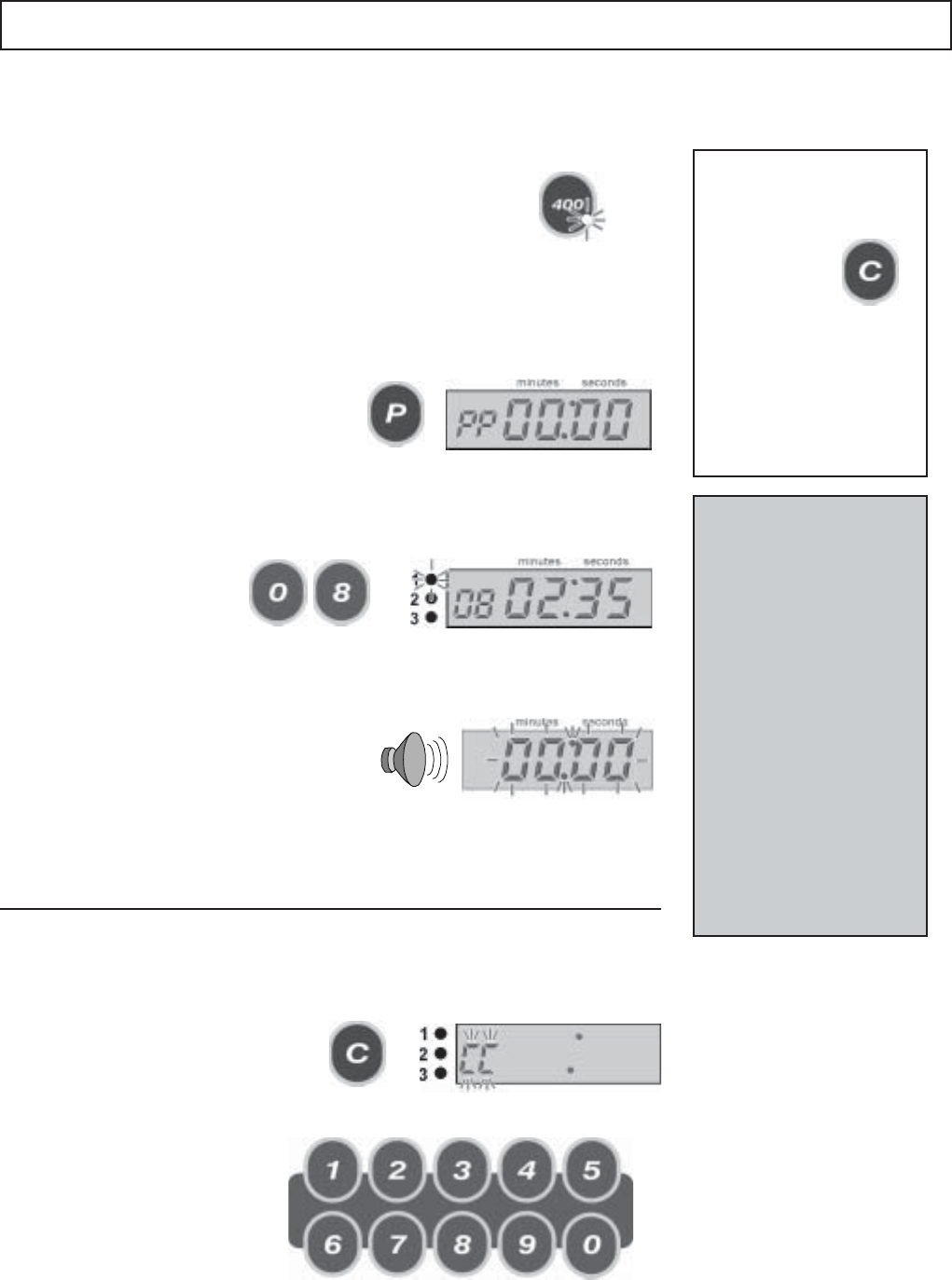

RUNNING A PROGRAM
Using number pad keys to run a program
Programs 0 to 9 can be recalled using the number pad keys.
The following procedure should be used to activate these programs.
Pre-heat the oven to the required starting temperature by
pressing a TEMPERATURE SETTING PAD. Wait until the
selected temperature light stops flashing.
You can check the oven temperature by
pressing the Temperature pad again
Press the PROGRAM PAD the ‘P’ will
appear in the PROGRAM DISPLAY.
Avoiding contact with hot surfaces. Place the
food item to be cooked in to the oven and
close the door.
Press the number pad key you wish to activate (0-9)
The program number and total cooking time appear on
the display and the first stage indicator will light.
The program will now operate with the
total remaining time displayed counting
down on the display
(all stage time added together).
When the time reaches “0:00” an
audible signal will be given.
Remove the food from the oven and close the door.
Programs can be halted
and cancelled at any time
by pressing the CANCEL
key.
To continue the program
press any
TEMPERATURE
SETTING pad.
CALL BACK
CALL BACK to review a program allows the program to be reviewed stage
by stage.
Press and hold the CANCEL PAD.
After a few seconds the TIME
DISPLAY will blank.
Now press one of the program numbers
on the NUMBER PAD (0-9).
Note:
If the required starting
temperature has not
been reached, an error
code is displayed (E:6).
If this happens remove
food from the oven
IMMEDIATELY and
wait until the required
temperature light stops
flashing. Begin again
from Step 2.
At the end of the
programmed cycle,
the oven temperature
will revert to that set
before the cycle began
example: 400°F
example: Program 08
The display will show the contents of that program. This will be shown with
temperature, time and power level illuminated one stage at a time for a few
seconds.
To review a program
use callback
1
2
3
4
15
MENUKEY® : CHANGING OVEN MENU PROGRAMS
1
2
3
Lift the Menukey cover in the
front panel of the oven.and put
the key in the keyhole
Turn the key clockwise to the
stop ( ¼ turn ).
Do not remove the key at this
stage.
The Menukey System automatically changes all the cooking programs
with the turn of a key.
To change the menus on the oven:
Ensure the power switch is off.
Switch the power switch on.
The oven will now go through the
program download sequence by
displaying the following:
The Key Code
The number of programs and
each program number on the
key.
The programs then count down
to 0.
When the display shows 0:00,
the cavity lights up and the fans
start.
Remove the key and close the
cover. The oven is now ready to
use with the new programs.
To confirm the download is successful
Switch off the oven.
Switch on and the display briefly will show the following:
1. The model number.
2. The new key code
3. 0:00 (oven ready to use)
If the download is not successful the key number will not be displayed and
a an E9 error will appear in the display if the oven is operated.
‘STAND BY’ FACILITY
To conserve energy and extend
the life of components, the oven
will go into ‘standby’ status if not
in use for approximately 5
minutes. The interior light will go
out, the fans will stop and the
displays will dim.
Simply touch any pad to restart
the oven
example:
Key C01
example:
27 programs EPS - FAIL - REDO
External Program System
ERROR.
If the key is removed before the
download is complete or the
process is interupted the display
shows “EPS” then “FAIL” then
“REDO”.Switch oven off and
begin the MENUKEY download
again.
16
For the oven to operate at peak efficiency, the cavity, door and air filters must be kept clean.
A daily cleaning routine will ensure that you comply with the required hygiene standards and will
help to maintain and prolong the efficiency of your oven.
Follow the SAFETY INSTRUCTIONS at the beginning of this manual.
•ALWAYS switch off at the electrical supply and allow oven
to cool for at least 20 minutes before cleaning
•As required wipe out spillages with disposable paper wipes
•NEVER use steel wool, knives or harsh abrasives on any
part of the oven
As with all electrical appliances, it is wise to have the
electrical connections inspected periodically.
Faults arising from neglect or
misuse including use without clean
filters in place are not covered by
the guarantee. Service visits as a
result of such faults will be
chargeable.
1. Remove the air filters from each side of the oven by
sliding the filter out from the front.
2. Wash in clean, warm soapy water, rinse and pat dry.
Slide back into position through slots.
Cleaning the oven cavity and door
1 Remove food particles from the gap between the rear baffle
plate and the floor of the oven with a clean, dry brush.
( Location A )
Remove food particles from between the inside edge of the
door and the front of the oven floor using a clean, dry brush.
( Location B )
2. Apply non-caustic oven cleaner to interior surfaces
except door seals. Leave for the recommended time.
Wash off using a clean cloth and plenty of clean,
warm water. Dry using a fresh, clean cloth.
(Note: the small perforated cylinder is the
temperature sensor)
3. Wipe hinges with a clean, damp cloth.
DO NOT apply lubricating oil.
4. Wipe door seals carefully with a clean damp cloth.
Examine for signs of wear or damage.
Cleaning the control panel and exterior surfaces
1. Switch on oven with microwave power only (without heat).
2. Place a container of water ( 2.5 pints, 1.5 litres) into the
centre of the oven cavity.
3. Set microwave power to 100%.
4. Set timer to 30 minutes and press start button.
At end of steam cycle, wipe out cavity with a clean cloth.
DO NOT USE THE OVEN WITHOUT
CLEAN AIR FILTERS IN POSITION
Hints and Tips for stubborn stains in the oven cavity
Wipe down regularly with a damp cloth. If the door seals are damaged, the oven must
be repaired by an approved Servicer.
A
B
Door
seal
Baffle
plate
CLEANING
17
Please remember - No servicing or repairs should be carried out
other than by an approved Service Agent
Technical Specifications
Mealstream 402
Height
( inches ) Width
( inches ) Depth
( inches )
21.720.0 26.8
Microwave
Power output
( watts )
Convection
Power output
( kw )
1425 3.0
Wt.
( lb.s)
198
***
***
Pt No. 32Z**** Issue 01
Manufacturers recommended
clearances 22.022.0 29.0
Power supply ( See Product Rating Label )
2P & G 240V ac 60Hz 40Amp
208V ac 60Hz 40amp
***
***
Service RequiredModel No.
External Dimensions
Error code display
The Mealstream will identify some of the most common problems by flashing an error
message code in the time display window.
Error code display Fault Recommended action
Oven not heating up to
temperature
Possible component failure
Door not fully shut.
Possible electrical fault
Oven has overheated
No time has been set.
Invalid time has been set. e.g. 61secs
Close door fully.
Call Service Agency.
Clean air filter and vents
Leave oven switched on but not cooking
for 4-5 minutes.
Switch off and do not use
ISOLATE FROM ELECTRICAL-SUPPLY
Call Service Agency.
Remove food.
Wait until correct temperature light stops
flashing and stays illuminated
Check the fuse/circuit breakers and
electrical supply ( this should be carried
out by a qualified electrician ).
PROBLEM SOLVING
Set a time
Set time in correct format 1:01
Oven cavity is overheating
Possible component failure
Oven is not at correct temperature
The oven is switched on but the control
panel does not illuminate and fans do
not operate
Switch off and do not use
ISOLATE FROM ELECTRICAL-SUPPLY
Call Service Agency.
MENUKEY - External Program System
Error.
If the key is removed before the
download is complete or the
process is interupted the display
shows “EPS” then “FAIL” then
“REDO”. Switch oven off and begin
the MENUKEY download again.
