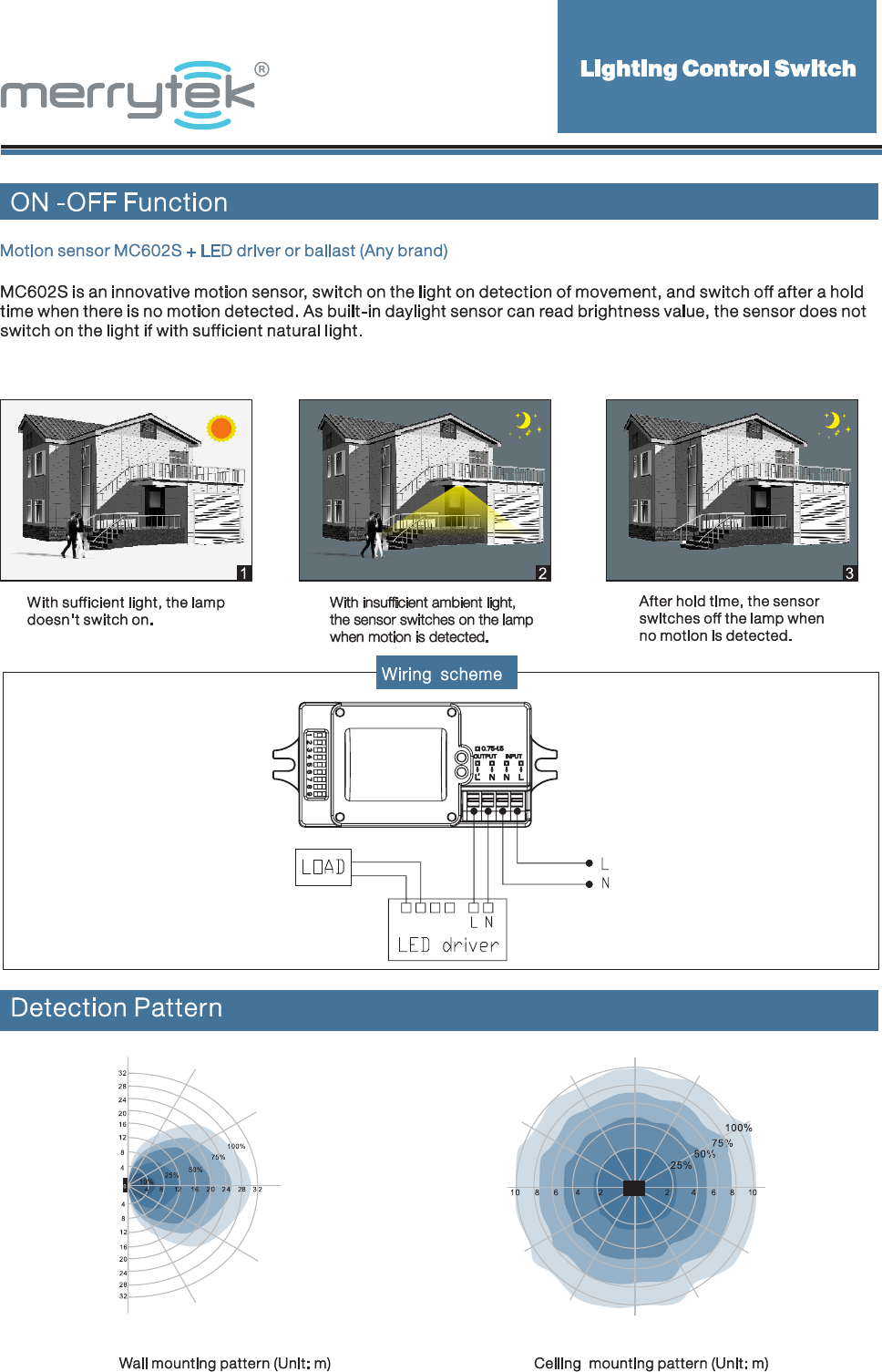

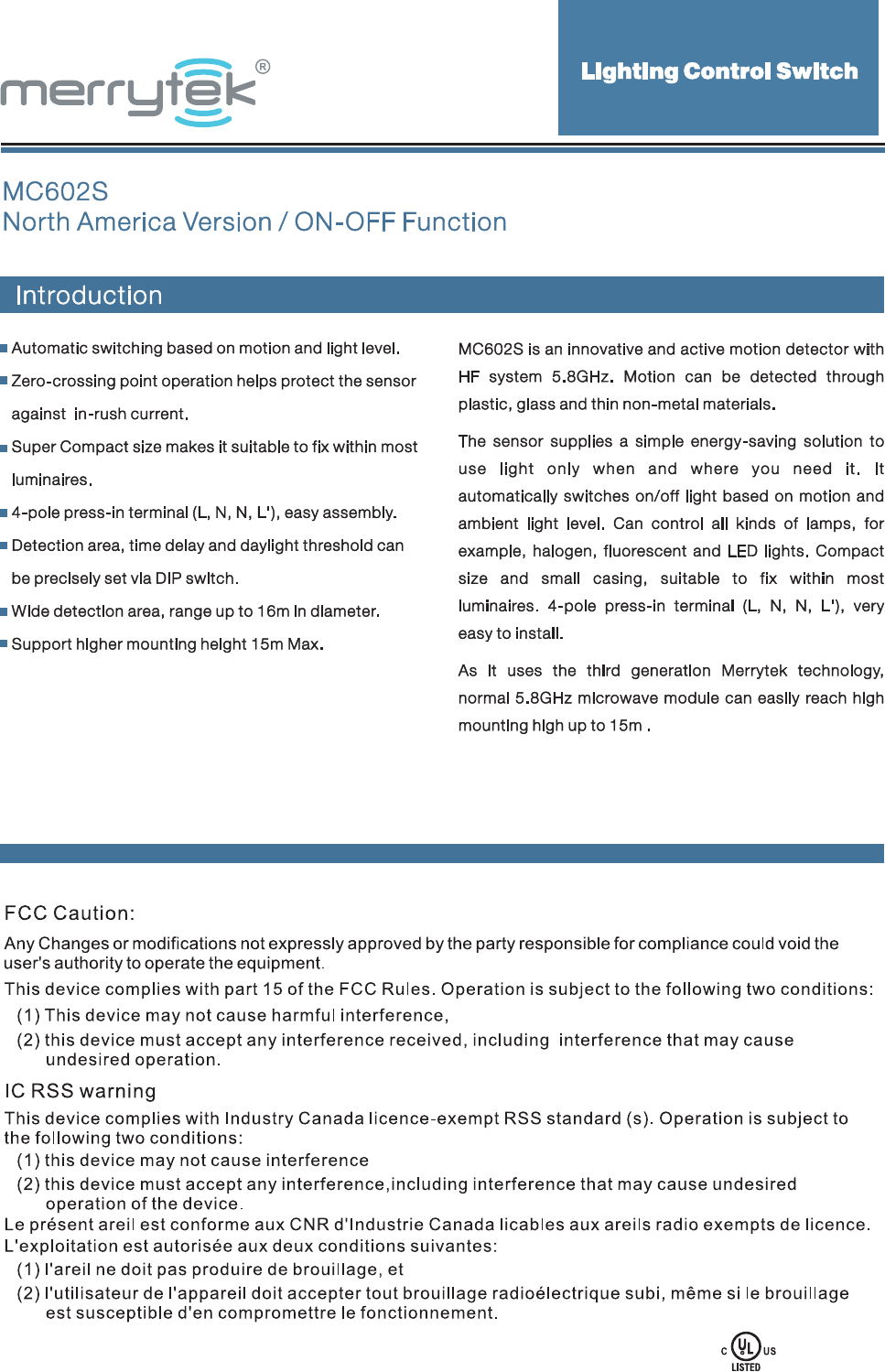

Merrytek Technology MC602S Lighting Control Switch User Manual MC602S

Users Manual

Input 120/277Vac 50/60Hz

Max. load 200W@120Vac 400W@277Vac-Ballast

400W@120Vac 800W@277Vac-Resistive

Transmitting power <0.5mW

Power consumption ≤0.5W(standby)

Detection zone Max.(D x H): 16m x 15m

Detection sensitivity 25% / 50% / 75% / 100%

Hold time 5s / 30s / 90s / 3min / 20min / 30min

Daylight sensor 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable

Mounting height 15m Max.

Motion detection 0.5~3m/s

Detection angle 150°(wall installation)

360°(ceiling installation)

Operating temperature -20℃~60℃

IP rating IP20
