Meru Networks AP1014 Single Radio Access Point AP1014 User Manual AP110
Meru Networks Inc. Single Radio Access Point AP1014 AP110
User Manual
![](/img.php?id=1708095&img=bg1.png)
Meru AP1014i
Installation Guide
Copyright © Meru Networks, Inc., 2003–2012. All rights reserved.
Other names and brands may be claimed as the property of others.
March 2012
Document Number: 882-70015 Rev A Ver 4 AP1014i Installation Guide
![](/img.php?id=1708095&img=bg2.png)
iii
MERU NETWORKS, INC.
Limited Product Warranty
This Limited Product Warranty applies to the original end-user customer of the Meru
product which you purchased for your own use, and not for resale (“Product”), from
Meru Networks, Inc. (“Meru”) or its authorized reseller (“Reseller”).
Limited Warranties
—One-year limited hardware warranty: Meru warrants to you that Meru
hardware (other than Third Party Products as described below) will be
free from defects in materials and workmanship for a one-year period
after the date of delivery of the applicable product to you from Meru or
its Reseller (the “Hardware Warranty Period”). If Meru receives written
notice from you of such defects during the Hardware Warranty Period,
Meru will, at its option, either repair or replace Meru hardware that
Meru determines to be defective. Replacement products may be
remanufactured units, and will be warranted for the remainder of the
original Hardware Warranty Period, or if greater, for thirty days from
delivery of such replacement. Should Meru be unable to repair or
replace the Meru hardware, Meru (or its Reseller, as applicable) will
refund to you the purchase price of the Product.
—90-Day Limited Software Warranty: Meru warrants to you that, for a 90-
day period after the date of delivery of the applicable product to you
from Meru or its Reseller (the “Software Warranty Period”), when
properly installed and used, (a) the media on which the Meru software
is provided will be free from defects in materials or workmanship; and
(b) the Meru software will substantially conform to the functional
specifications in the applicable documentation. If Meru receives
written notice from you of a breach of this warranty during the Software
Warranty Period and is able to reproduce the defect, Meru will, at its
option, either repair or replace the defective Meru software. Should
Meru be unable to repair or replace the Meru software, Meru (or its
Reseller, as applicable) will refund to you the purchase price of the
Product.
Exclusions
The warranty on the Product shall not apply to defects resulting from the following:
iv Meru Access Point Installation Guide
—Alteration or modification of the Product in any way, including without
limitation configuration with software or components other than those
supplied by Meru or integration with parts other than those supplied by
Meru.
—Abuse, damage or otherwise being subjected to problems caused by
negligence or misapplication (including without limitation improper or
inadequate maintenance or calibration), relocation of the products
(including without limitation damage caused by use of other than Meru
shipping containers), or use of the products other than as specified in
the applicable Meru product documentation (including without
limitation incompatible operating environments and systems), or
improper site preparation or maintenance.
—Damage as a result of accidents, extreme power surge, extreme
electromagnetic field, acts of nature or other causes beyond the control
of Meru.
—Use of the Product with software, interfacing, parts or supplies not
supplied by Meru.
The warranty on the Product does not apply if the Product is sold, or in the case of
software, licensed, for free for evaluation or demonstration purposes.
Meru expressly disclaims any warranty or obligation to support the Product for all
operating environments – for example, as illustration and not limitation, Meru does
not warrant or ensure interoperability of the Product with future telecommunica-
tion systems or other future software or hardware.
You understand and acknowledge that the Products may generate, use or radiate
radio frequency energy and may interfere with radio communications and/or radio
and television receptions if is not used and/or installed in accordance with the
documentation for such products. WHILE MERU USES COMMERCIALLY REASONABLE
EFFORTS TO ENSURE COMPLIANCE OF THE PRODUCTS WITH APPLICABLE UNITED
STATES FEDERAL COMMUNICATIONS COMMISSION AND PROTECT AGAINST HARMFUL
INTERFERENCES, YOU ACKNOWLEDGE AND AGREE THAT INTERFERENCES WITH
RADIO COMMUNICATIONS AND/OR RADIO AND TELEVISION RECEPTIONS MAY OCCUR
AND THAT MERU WILL NOT BE LIABLE FOR ANY DAMAGES OR INCONVENIENCE BASED
ON SUCH INTERFERENCES.
Third Party Products - The above Limited Warranties are exclusive of products
manufactured by third parties (“Third Party Products”). If such third party manu-
facturer provides a separate warranty with respect to the Third Party Product, Meru
will include such warranty in the packaging of the Meru Product.
Return procedures
To obtain warranty service you must: (a) obtain a return materials authorization
number (“RMA#”) from Meru by contacting rmaadmin@merunetworks.com, and (b)
deliver the Product, in accordance with the instructions provided by Meru, along
with proof of purchase in the form of a copy of the bill of sale including the
Product’s serial number, contact information, RMA# and detailed description of the
defect, in either its original package or packaging providing the Product with a
v
degree of protection equivalent to that of the original packaging, to Meru at the
address below. You agree to obtain adequate insurance to cover loss or damage to
the Product during shipment.
If you obtain an RMA# and return the defective Product as described above, Meru
will pay the cost of returning the Product to Meru. Otherwise, you agree to bear
such cost, and prior to receipt by Meru, you assume risk of any loss or damage to
the Product. Meru is responsible for the cost of return shipment to you if the Meru
Product is defective.
Returned products which are found by Meru to be not defective, returned out-of-
warranty or otherwise ineligible for warranty service will be repaired or replaced
at Meru’s standard charges and shipped back to you at your expense.
At Meru’s sole option, Meru may perform repair service on the Product at your
facility, and you agree to provide Meru with all reasonable access to such facility
and the Product, as required by Meru. On-site repair service may be available and
is governed by the specific terms of your purchase.
All replaced parts, whether under warranty or not, are the property of Meru.
Warranty limitations
THE WARRANTIES SET FORTH ABOVE ARE EXCLUSIVE AND NO OTHER WARRANTY,
WHETHER WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED BY MERU, TO THE MAXIMUM
EXTENT PERMITTED BY LAW. THERE ARE NO OTHER WARRANTIES RESPECTING THE
PRODUCT AND DOCUMENTATION AND SERVICES PROVIDED UNDER THIS AGREEMENT,
INCLUDING WITHOUT LIMITATION ANY WARRANTY OF DESIGN, MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE (EVEN IF MERU HAS BEEN INFORMED OF SUCH
PURPOSE), TITLE OR AGAINST INFRINGEMENT OF THIRD PARTY RIGHTS. IF ANY
IMPLIED WARRANTY CANNOT BE DISCLAIMED UNDER APPLICABLE LAW, THEN SUCH
IMPLIED WARRANTY SHALL BE LIMITED IN DURATION TO THE HARDWARE AND SOFT-
WARE WARRANTY PERIODS DESCRIBED ABOVE.
NO AGENT OF MERU IS AUTHORIZED TO ALTER OR EXCEED THE WARRANTY OBLIGA-
TIONS OF MERU.
MERU SPECIFICALLY DOES NOT WARRANT THAT THE MERU SOFTWARE WILL BE ERROR
FREE OR OPERATE WITHOUT INTERRUPTION.
THE REMEDIES IN THIS LIMITED PRODUCT WARRANTY ARE YOUR SOLE AND EXCLUSIVE
REMEDIES, AND MERU’S SOLE AND EXCLUSIVE LIABILITY, FOR BREACH OF THE HARD-
WARE OR SOFTWARE WARRANTY SET FORTH ABOVE.
Limitations of Liability
You acknowledge and agree that the consideration which you paid to Meru does not
include any consideration by Meru of the risk of consequential, indirect or inci-
dental damages which may arise in connection with your use of, or inability to use,
the Product. THUS, MERU AND ITS RESELLER WILL NOT BE LIABLE FOR ANY INDI-
RECT, INCIDENTAL, SPECIAL, PUNITIVE OR CONSEQUENTIAL DAMAGES, INCLUDING
WITHOUT LIMITATION LOST PROFITS, LOST BUSINESS, LOST DATA, LOSS OF USE, OR
vi Meru Access Point Installation Guide
COST OF COVER INCURRED BY YOU ARISING OUT OF OR RELATED TO YOUR PURCHASE
OR USE OF, OR INABILITY TO USE, THIS PRODUCT OR THE SERVICES, UNDER ANY
THEORY OF LIABILITY, WHETHER IN AN ACTION IN CONTRACT, STRICT LIABILITY,
TORT (INCLUDING NEGLIGENCE) OR OTHER LEGAL OR EQUITABLE THEORY, EVEN IF
MERU OR ITS RESELLER KNEW OR SHOULD HAVE KNOWN OF THE POSSIBILITY OF
SUCH DAMAGES. IN ANY EVENT, THE CUMULATIVE LIABILITY OF MERU OR ITS
RESELLER FOR ALL CLAIMS WHATSOEVER RELATED TO THE PRODUCT OR THE SERVICE
WILL NOT EXCEED THE PRICE YOU PAID FOR THE PRODUCT OR SERVICES GIVING RISE
TO SUCH CLAIMS.
THE LIMITATIONS SET FORTH HEREIN ARE INTENDED TO LIMIT THE LIABILITY OF MERU
AND ITS RESELLERS AND SHALL APPLY NOTWITHSTANDING ANY FAILURE OF ESSEN-
TIAL PURPOSE OF ANY LIMITED REMEDY.
The jurisdiction applicable to you may not allow the limitations of liability or
damages set forth above, in which case such limitation shall only apply to you to
the extent permitted in such jurisdiction.
Additional Information
This Limited Product Warranty shall be governed by and construed in accordance
with the laws of the State of California, U.S.A., exclusive of its conflict of laws prin-
ciples. The U.N. Convention on Contracts for the International Sale of Goods shall
not apply.
This Limited Product Warranty is the entire and exclusive agreement between you
and Meru with respect to its subject matter, and any modification or waiver of any
provision of this statement is not effective unless expressly set forth in writing by
an authorized representative of Meru.
All inquiries or claims made under this Limited Product Warranty must be sent to
Meru at the following address:
Meru Networks Inc.,
894 Ross Drive, CA 94087, USA
Tel: 408-215-5300
Fax: 408-215-5301
Email: support@merunetworks.com
© 2012 Meru Networks, Inc. Contents vii
Contents
About This Guide . . . . . . . . . . . . . . . . . . . . . . .ix
Audience . . . . . . . . . . . . . . . . . . . . . . . . . ix
Other Sources of Information . . . . . . . . . . . . . . . . . . ix
Meru Publications . . . . . . . . . . . . . . . . . . . . . ix
Website Resources . . . . . . . . . . . . . . . . . . . . ix
External References . . . . . . . . . . . . . . . . . . . . x
Typographic Conventions . . . . . . . . . . . . . . . . . . . x
Contacting Meru . . . . . . . . . . . . . . . . . . . . . . x
Customer Services and Support . . . . . . . . . . . . . . . . x
Chapter 1
Installing AP1014i . . . . . . . . . . . . . . . . . . . . . . 1
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . 1
Package Contents . . . . . . . . . . . . . . . . . . . . . . 1
AP1014i Overview . . . . . . . . . . . . . . . . . . . . . . 2
Configuring the AP1014i . . . . . . . . . . . . . . . . . . . . 3
Installing the AP1014i. . . . . . . . . . . . . . . . . . . . . 3
Connect and Activate the AP . . . . . . . . . . . . . . . . . 3
Using the LAN Ports . . . . . . . . . . . . . . . . . . . . . 4
AP1014i LED Codes. . . . . . . . . . . . . . . . . . . . . . 5
Cautions and Warnings . . . . . . . . . . . . . . . . . . . . 7
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . 7
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . 9
Regulatory Information . . . . . . . . . . . . . . . . . . . 13
USA . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Underwriters Laboratories . . . . . . . . . . . . . . . . . . 13
FCC Radiation Exposure Statement . . . . . . . . . . . . . . . 13
Radio Frequency Interference Requirements . . . . . . . . . . . 14
Canada. Industry Canada (IC) . . . . . . . . . . . . . . . . . . 14
Europe—EU Declaration of Conformity and Restrictions . . . . . . . . . 16
IEEE 802.11b/g Restrictions . . . . . . . . . . . . . . . . . 18
Japan . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Singapore. . . . . . . . . . . . . . . . . . . . . . . . 19
Manufacturing Information . . . . . . . . . . . . . . . . . . . 19
![](/img.php?id=1708095&img=bg7.png)
© 2012 Meru Networks, Inc. About This Guide ix
About This Guide
This guide provides installation instructions for the Meru AP110 model.
Audience
This guide is intended for anyone installing Meru Wireless LAN System Access Points
(APs).
Other Sources of Information
Additional information is available in the following Meru publications, Web site, and
external references.
Meru Publications
Meru Syst em Dir ect or Release Not es
Meru Syst em Direct or Get t ing St art ed Guide
Meru Cont rol ler Inst al l at ion Guide
Meru Syst em Direct or Command Ref erence
Meru Syst em Direct or Conf igurat ion Guide
Website Resources
For the first 90 days after you buy a Meru controller, you have access to online
support. If you have a support contract, you have access for the length of the
contract. See this web site for information such as:
Meru Syst em Dir ect or Release Not es
Knowledge Base (Q&A)
Downloads
Open a ticket or check an existing one
![](/img.php?id=1708095&img=bg8.png)
© 2012 Meru Networks, Inc. About This Guide x
Customer Discussion Forum
The URL is: http://support.merunetworks.com
External References
Stevens, W. R. 1994. TCP/ IP Il l ust rat ed, Vol ume 1, The Prot ocols. Addison-Wesley,
Reading, Mass.
Gast, M.S. 2002. 802.11 Wir eless Net works, The Def init ive Guide. O’Reilly and
Associates, Sebastopol, Calif.
Typographic C onventions
This document uses the following typographic conventions to help you locate and
identify information:
Contacting Meru
You can visit Meru Networks, Inc. on the Internet at this URL:
http://www.merunetworks.com
Customer Services and Support
For assistance, contact Meru Customer Services and Support 24 hours a day at
+1-888-637-8952 (+1-888-Meru-WLA(N)) or +1-408-215-5305. Email can be sent to
support@merunetworks.com.
Note:
Provides extra information, tips, and hints regarding the topic.
Caution!
Identifies important information about actions that could result in
damage to or loss of data, or could cause the application to behave in
unexpected ways.
Warning!
Identifies critical information about actions that could result in
equipment failure or bodily harm.
© 2012 Meru Networks, Inc. About This Guide xi
Meru Networks, Inc. Customer Services and Support provide end users and channel
partners with the following:
Telephone technical support
Software update support
Spare parts and repair service
RMA Procedures
Contact Meru Customer Services and Support for a Return Material Authorization
(RMA) for any Meru equipment.
Please have the following available when making a call:
Company and contact information
Equipment model and serial numbers
Meru software release and revision numbers (for example, 3.0.0-35)
A description of the symptoms the problem is manifesting
Network configuration
![](/img.php?id=1708095&img=bga.png)
Safety Precautions
© 2012 Meru Networks, Inc. Installing AP1014i 1
Chapter 1
Installing AP1014i
AP1014i is supported by System Director versions 5.3 and greater. This chapter describes how to install
and configure an AP1014i. It contains the following sections:
Safety Precautions
Package Contents
AP1014i Overview
Configuring the AP1014i
Installing the AP1014i
Using the LAN Ports
AP1014i LED Codes
Safety Precautions
IMPORTANT—Read and follow the regulatory instructions in Appendix B before installing and operating
this product.
This document briefly describes the package contents and installation procedure for the Meru AP1014i.
Note that the AP must be configured by IT personnel prior to deployment to communicate properly
with the corporate network.
Package Contents
AP1014i
Ethernet Cable
Note:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
![](/img.php?id=1708095&img=bgb.png)
2Meru Access Point Installation Guide © 2012 Meru Networks, Inc.
AP1014i Overview
AP1014i Overview
The AP1014i is designed for use with small-scale wireless environments and telecommuter applica-
tions. When VPN access is configured in the corporate System Director interface, users can deploy the
AP1014i remotely and have a quick and secure wireless connection to the corporate network.
Deployments that expect high-user-density or are intended to support voice or video streaming are not
recommended for the AP1014i. The AP supports a maximum of 10 simultaneous wireless clients.
See Figure 5 for an overview of the AP1014i’s access ports.
Figure 5: AP1014i Ports
The AP1014i utilizes a single 2x2 802.11b/g/n wireless radio with an internal antenna.
Note:
Although the AP1014i was designed for remote VPN use, it can be connected
directly to the corporate network and configured in the same manner as any other
AP if remote use is not required.
Note:
The WPS button on the AP1014i is not currently supported.
Warning!
The Reset button on the AP1014i will erase all configured settings on the
device, including VPN communication configuration.
![](/img.php?id=1708095&img=bgc.png)
Configuring the AP1014i
© 2012 Meru Networks, Inc. Installing AP1014i 3
Configuring the AP1014i
As mentioned above, prior to deploying the AP1014i remotely for VPN access, it must be configured to
securely connect to the corporate controller. Instructions for configuring VPN access can be found in
the "Configuring VPN Connections" section in the "Configuring Security" chapter of the Syst em Direct or
Conf igurat ion Guide.
Installing the AP1014i
The AP1014i is designed to be mounted on either a horizontal flat surface (such as a desktop or table)
or a vertical surface (such as a wall). Note that if you are wall-mounting the AP, you will need to
purchase two screws separately. Simply screw them into the wall placed slightly more than three inches
apart (use the mounting template provided on the Quick Install document in the box) and slide the AP
into place on them. The mounting diagram is shown in Figure 6.

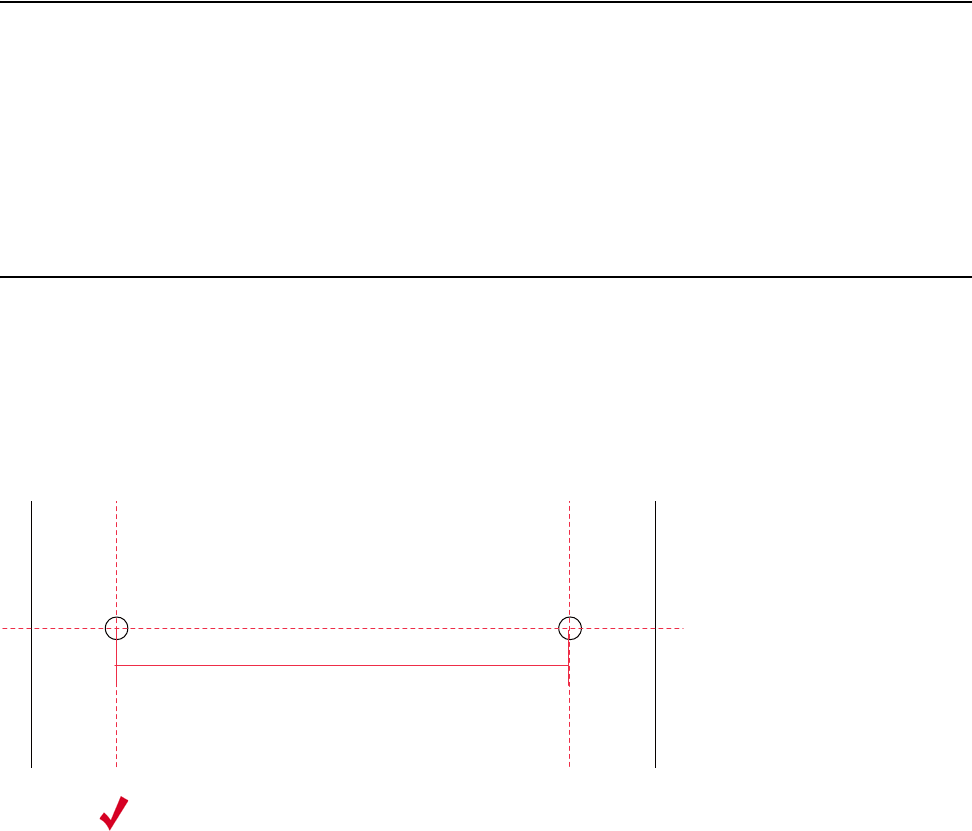

Figure 6: AP1014i Mounting Holes
For horizontal surface deployments, simply place the AP on the desired surface and follow the instruc-
tions below.
Connect and Activate the AP
Follow the instructions below when deploying the AP for remote access. Note that prior to doing so,
the AP should be configured locally (when using it for VPN access) by the system administrator.
Refer to Figure 5 as a guide for connections.
Note:
Be sure to mount the AP in such a manner that the Meru Net wor ks logo on
the top of it is right-side up in order to ensure that the AP is properly
secured. In this configuration, the ethernet ports will be facing upwards.
80mm (3.15 inches)
![](/img.php?id=1708095&img=bgd.png)
4Meru Access Point Installation Guide © 2012 Meru Networks, Inc.
Using the LAN Ports
1. Connect the ethernet cable to the port labeled F1 and a PoE device (either a PoE-capable switch
or a PoE injector). The device will power on automatically. The connection indicator lights at the
top of each network port should turn on when the AP is activated.
2. If desired, connect another corporate device (such as a VoIP phone) to the port labeled F2 (LAN
Port in Figure 5). Note that this port can be used for any devices that need to be connected to the
corporate network; it acts just as a network port at the office would. (The port should be colored
yellow to distinguish it from the WAN Port.)
3. Connect your wireless station to the wireless network (the SSID is the same as the corporate SSID
configured at your office).
Using the LAN Ports
As noted in the previous section, the AP1014i implements several Ethernet (LAN) ports that can operate
in the same manner as ports connected directly to the corporate network (when VPN is configured).
These ports can be used to connect corporate devices (such as a VoIP phone, desktop computer, etc.)
or you can connect a hub or switch to it and connect several devices at once to the corporate network.
The LAN ports on the AP1014i will show up in the System Director WebUI under the Ethernet link
(Configuration > Wired > Ethernet). These ports can also be managed via user-configured Port
Profiles, as detailed in the "Configuring Network Interfaces" chapter of the Meru Syst em Direct or
Conf igurat ion Guide (under "Configuring Port Profiles").
The following features are not currently supported on secondary Ethernet ports:
Bridge mode with VLAN
Dynamic VLAN in tunneled mode
MAC Transparency
AP1014i LED Codes
The AP1014i has a single LED that indicates its status. If you want to change the appearance of the
LED, follow these steps:
Note:
A maximum of 128 devices can be supported by a single LAN port on the
AP1014i.
Note:
Do not connect all Ethernet ports on the AP to a single switch; this can create
a traffic loop between the various interfaces. This is not a supported configuration
on the AP1014i.
![](/img.php?id=1708095&img=bge.png)
AP1014i LED Codes
© 2012 Meru Networks, Inc. Installing AP1014i 5
1. From the controller, click Configuration > Devices > AP, and then select the AP.
2. Select one of these settings for the LED Mode setting:
—Normal: LED is as described above
—Blink: Sets the LED flashing; this is useful to locate an AP
—Dark: Turns off the LED
3. Click OK.
The following table describes the colors that can be displayed by the AP1014i Status LED and the details
corresponding to each color sequence.
Color State:
off
AP is off - either there is no power or the LEDs are set to Off on the
controller. Check the LED setting on the controller by clicking
Configuration > Devices > AP, selecting the AP and then checking the
setting for LED Mode.
cyan AP is booting stage 1.
green blinking AP is booting stage 2.
green/white alternating AP is discovering the controller.
green/blue alternating AP is downloading a configuration from the controller.
slow blue blinking AP is online and enabled.
rapid blue blinking AP is online and enabled and there is activity on one or both radios.
red/yellow alternating Some AP failure occurred; check the controller for more details about
the alarm by clicking Monitor > Alarms > Pending Alarms.
blue/yellow alternating AP is online and enabled and one or both radios are either scanning or
an admin has taken the radio(s) down.
![](/img.php?id=1708095&img=bgf.png)
Cautions
© 2012 Meru Networks, Inc. Cautions and Warnings 7
Appendix A
Cautions and Warnings
The cautions and warnings that appear in this manual are listed below in English,
German, French, and Spanish.
Cautions
A Caution calls your attention to a possible hazard that can damage equipment.
"Vorsicht” weist auf die Gefahr einer möglichen Beschädigung des Gerätes in.
Une mise en garde attire votre attention sur un risque possible d'endommagement de
l'équipement. Ci-dessous, vous trouverez les mises en garde utilisées dans ce manuel.
Un mensaje de precaución le advierte sobre un posible peligro que pueda dañar el
equipo. Las siguientes son precauciones utilizadas en este manual.
![](/img.php?id=1708095&img=bg10.png)
8Meru Access Point Installation Guide © 2012 Meru Networks, Inc.
Cautions
Caution!
The radiated output power of the access points is well below the FCC radio
frequency exposure limits. However, the Meru Access Point should be used in such a
manner that the potential for human contact during normal operation is minimized. To
avoid the possibility of exceeding the FCC radio frequency exposure limits, you should keep
a distance of at least 20 cm between you (or any other person in the vicinity) and the
Access Point antennas.
Vorsicht!
Die abgestrahlte Ausgangsleistung von Geräten von Meru Networks, Inc. liegt
weit unter den Hochfrequenz-Expositionsgrenzwerten der FCC. Die Meru Access Point
Zugangspunkte von Meru Networks, Inc. sollten jedoch so verwendet werden, dass das
Potenzial für Kontakt mit Menschen während des normalen Betriebs auf ein Mindestmaß
beschränkt wird. Um die Möglichkeit einer Überschreitung der FCC-Hochfrequenz-
Expositionsgrenzwerte zu vermeiden, ist ein Abstand von mindestens 20 cm zwischen Ihnen
(bzw. einer anderen Person in der Nähe) und den Zugangspunkt-Antennen zu wahren.
Mise en garde
La puissance de rayonnement émise par les équipements Meru Networks,
Inc. est très inférieure aux limites d'exposition aux fréquences radio définies par la FCC.
Toutefois, les points d'accès de la série Meru Access Point de Meru Networks, Inc. doivent
être utilisés de façon à éliminer tout risque de contact humain en fonctionnement normal.
Pour éviter de dépasser les limites d'exposition aux fréquences radio définies par la FCC,
il est impératif de préserver en permanence une distance supérieure ou égale à 20 cm
entre l'utilisateur (ou toute personne se trouvant à proximité) et les antennes du point
d'accès.
Precaución!
La potencia de radiación de los dispositivos de Meru Networks, Inc. está
muy por debajo de los límites de exposición a radiofrecuencia estipulados por la FCC. No
obstante, los puntos de acceso de la serie Meru Access Point de Meru Networks, Inc. deben
usarse de tal manera que se minimice la posibilidad de contacto para el usuario durante la
operación normal. Para evitar la posibilidad de exceder los límites de exposición a
radiofrecuencia establecidos por la FCC, el usuario (o cualquier otra persona en torno)
debe mantenerse a una distancia de al menos 20 cm respecto a las antenas del punto de
acceso.
![](/img.php?id=1708095&img=bg11.png)
Warnings
© 2012 Meru Networks, Inc. Cautions and Warnings 9
Warnings
A warning calls your attention to a possible hazard that can cause injury or death.
The following are the warnings used in this manual.
"Achtung" weist auf eine mögliche Gefährdung hin, die zu Verletzungen oder Tod
führen können. Sie finden die folgenden Warnhinweise in diesem Handbuch:
Un avertissement attire votre attention sur un risque possible de blessure ou de
décès. Ci-dessous, vous trouverez les avertissements utilisés dans ce manuel.
Una advertencia le llama la atención sobre cualquier posible peligro que pueda
ocasionar daños personales o la muerte. A continuación se dan las advertencias
utilizadas en este manual.
Caution!
Exposure to Radio Frequency Radiation.
The installer of this radio equipment must ensure that the antenna is located or pointed
such that it does not emit an RF field in excess of Health Canada limits for the general
population; consult Safety Code 6, obtainable from Health Canada’s website
http://www.hc-sc.gc.ca/rpb.
Vorsicht!
Exposure to Radio Frequency Radiation.
The installer of this radio equipment must ensure that the antenna is located or pointed
such that it does not emit an RF field in excess of Health Canada limits for the general
population; consult Safety Code 6, obtainable from Health Canada's website
http://www.hc-sc.gc.ca/rpb.
Mise en garde
Exposition aux rayonnements à fréquence radioélectrique
L'installateur de cet équipement radio doit veiller à positionner et orienter l'antenne
de telle sorte qu'elle n'émette pas un champ radioélectrique supérieur aux limites
définies par Santé Canada pour la population générale. Consulter le Code de sécurité
n° 6, disponible sur le site Web de Santé Canada à l'adresse http://www.hc-
sc.gc.ca/rpb.
Precaución!
Exposición a la radiación de radiofrecuencia.
El instalador de este equipo de radio debe cerciorarse de que la antena está local-
izada u orientada de tal manera que no emita un campo de radiofrecuencia superior
a los límites estipulados por Health Canada para la población; consulte el Código de
Seguridad 6 que podrá encontrar en el página web de Health Canada, http://www.hc-
sc.gc.ca/rpb.
![](/img.php?id=1708095&img=bg12.png)
10 Meru Access Point Installation Guide © 2012 Meru Networks, Inc.
Warnings
Warning!
Inside antennas must be positioned to observe minimum separation of 20
cm. (~ 8 in.) from all users and bystanders. For the protection of personnel working
in the vicinity of inside (downlink) antennas, the following guidelines for minimum
distances between the human body and the antenna must be observed.
The installation of the indoor antenna must be such that, under normal conditions,
all personnel cannot come within 20 cm. (~ 8.0 in.) from any inside antenna.
Exceeding this minimum separation will ensure that the employee or bystander does
not receive RF-exposure beyond the Maximum Permissible Exposure according to FCC
CFR 47, section 1.1310 i.e. limits for General Population/Uncontrolled Exposure.
Achtung!
Innenantennen müssen so positioniert werden, dass ein Mindestabstand von
20 cm (ca. 8 Zoll) zu allen Benutzern und anderen Personen gewahrt wird. Zum Schutz
von Personal, das in der Nähe von Innenantennen (Downlink) arbeitet, sind die
folgenden Richtlinien für Mindestabstand zwischen dem menschlichen Körper und der
Antenne zu beachten.
Die Innenantenne muss so installiert werden, dass sich unter normalen Bedingungen
kein Personal bis auf weniger als 20 cm (ca. 8 Zoll) an eine Innenantenne annähern
kann. Durch Überschreitung dieses Mindestabstands wird sichergestellt, dass Mitar-
beiter oder andere Personen keiner RF-Exposition über die maximal zulässige Expo-
sition (MPE; Maximum Permissible Exposure) gemäß FCC CFR 47, Abschnitt 1.1310
(Grenzwerte für die allgemeine Bevölkerung/unkontrollierte Exposition) ausgesetzt
werden.
Avertissement
Les antennes intérieures doivent être positionnées de façon à
respecter une distance minimum de 20 cm par rapport aux utilisateurs et aux tiers.
Pour la protection du personnel travaillant à proximité des antennes intérieures
(liaison descendante), respecter les directives suivantes pour assurer des distances
minimales entre les êtres humains et les antennes.
Toute antenne intérieure doit être installée de telle sorte que, dans des conditions
normales, le personnel ne puisse s'en approcher à moins de 20 cm. Cette distance
minimale est destinée à garantir qu'un employé ou un tiers ne sera pas exposé à un
rayonnement radioélectrique supérieur à la valeur maximale autorisée, telle qu'elle
est définie dans les limites d'exposition non contrôlées pour la population par la
réglementation de la FCC CFR 47, section 1.1310.
Advertencia
Las antenas interiores deben colocarse de manera que se observe una
separación mínima de 20 cm. (~ 8 pulg.) respecto a todos los usuarios y circunstantes.
Para la protección del personal que trabaje en las inmediaciones de las antenas
interiores (receptoras), deben observarse las siguientes directrices relativas a la
distancia mínima entre el cuerpo humano y la antena.
La instalación de la antena interior debe efectuarse de tal modo que, en condiciones
normales, ningún miembro del personal pueda acercarse a menos de 20 cm. (~ 8,0
pulg.) de cualquier antena interior. El cumplimiento de este mínimo de separación
asegura que el empleado o circunstante no recibirá exposición a radiofrecuencia por
encima de la Exposición Máxima Permisible conforme a la normativa FCC CFR 47,
sección 1.1310, es decir, los límites asignados a la Exposición Incontrolada/Población
Civil.
![](/img.php?id=1708095&img=bg13.png)
USA
© 2012 Meru Networks, Inc. Regulatory Information 13
Appendix B
Regulatory Information
The Meru Access Point (APs) must be installed and used in strict accordance with the
manufacturer’s instructions as described in the user documentation that comes with
the product. For country-specific approvals, see below. Meru Networks, Inc. is not
responsible for any radio or television interference caused by unauthorized modifi-
cation of APs, or the substitution or attachment of connecting cables and equipment
other than that specified by Meru Networks, Inc. The correction of interference
caused by such unauthorized modification, substitution or attachment is the respon-
sibility of the user. Meru Networks, Inc. and its authorized resellers or distributors
are not liable for any damage or violation of government regulations that may arise
from the user failing to comply with these guidelines.
USA
Underwriters Laboratories
Use only with Listed I.T.E. equipment.
FCC Radiation Exposure Statement
Caution!
The radiated output power of the Meru Networks devices is well below the FCC
radio frequency exposure limits. However, the Access Point should be used in
such a manner that the potential for human contact during normal operation is
minimized. When installing and operating these devices, keep a minimum
distance of 20 cm (8 inches) between the antennas and any persons/users in the
vicinity.
![](/img.php?id=1708095&img=bg14.png)
14 Meru Access Point Installation Guide © 2012 Meru Networks, Inc.
Canada. Industry Canada (IC)
Radio Frequency Interference Requirements
Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses, and can radiate radio frequency energy. If the
equipment is not installed and used in accordance with the instructions, the equip-
ment may cause harmful interference to radio communications. There is no guar-
antee, however, that such interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception
(which can be determined by turning the equipment off and on), the user is encour-
aged to try to correct the interference by taking one or more of the following
measures:
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device must not be co-located or operating in conjunction with any other
antenna or transmitter.
For products available in the USA and Canadian markets, only channels 1 through 11
can be operated. Selection of other channels is not authorized.
d
The Class B digital portion of this apparatus complies with Canadian standard ICES-
003.
These devices comply with RSS210 of Industry Canada.
Note:
The Meru Access Point must be installed and used in strict accordance with the
manufacturer’s instructions as described in the user documentation that comes
with the product. Any other installation or use may violate FCC Part 15
regulations. Modifications not expressly approved by Meru Networks, Inc. could
void your authority to operate the equipment.
You are cautioned that changes or modifications not expressly approved by the
party responsible for compliance could void your authority to operate the equipment.
![](/img.php?id=1708095&img=bg15.png)
Canada. Industry Canada (IC)
© 2011 Meru Networks, Inc. Regulatory Information 13
Canada. Industry Canada (IC)
The Class B digital portion of this apparatus complies with Canadian standard ICES-
003.
These devices comply with RSS210 of Industry Canada.
Per RSS 210 A9.5 point 7:
for harmful interference to co-channel mobile satellite systems;
(ii) the maximum antenna gain permitted (for devices in the bands 5250-5350 MHz
and 5470-5725 MHz) to comply with the e.i.r.p. limit; and
(iii) the maximum antenna gain permitted (for devices in the band 5725-5825 MHz)
to comply with the e.i.r.p. limits specified for point-to-point and non point-to-point
operation as appropriate, as stated in section A9.2(3).
In addition, users should also be cautioned to take note that high-power radars are
allocated as primary users (meaning they have priority) of the bands 5250-5350 MHz
and 5650-5850 MHz and these radars could cause interference and/or damage to LE-
LAN devices.
(iv) These devices are not permitted to operate in the 5600 - 5650 MHz band.
For products available in the USA and Canadian markets, only channels 1 through 11
can be operated. Selection of other channels is not authorized.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of this device.
This device and its listed antenna(s) must not be co-located or operated in conjunc-
tion with any other antenna or transmitter
L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il
ne doit pas produire de brouillage et (2) l’utilisateur du dispositif doit étre prêt à
accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible
de compromettre le fonctionnement du dispositif.
The term "IC" before the equipment certification number only signifies that the
Industry Canada technical specifications were met.
To reduce the potential radio interference to other users, the antenna type and gain
should be chosen so that the equivalent isotropically radiated power (EIRP) is not
more than that required for successful communication.
To prevent radio interference to the licensed service, this device is intended to be
operated indoors and away from windows to provide maximum shielding. Equipment
(or its transmit antenna) that is installed outdoors is subject to licensing.
Pour empecher que cet appareil cause du brouillage au service faisant l’objet d’une
licence, il doit etre utilze a l’interieur et devrait etre place lin des fenetres afin de
Fournier un ecram de blindage maximal. Si le matriel (ou son antenne d’emission) est
installe a l’exterieur, il doit faire l’objet d’une licence.
RF exposure related statements
RF exposure warning: The equipment complies with RF exposure limits set forth for an uncontrolled environment.
Déclarations d'exposition aux RF liées
Avertissement d'exposition RF: L'équipement est conforme aux limites d'exposition aux RF établies pour un
environnement non contrôlé.
This device complies with Industry Candada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation of the device.
Ce dispositif est conforme à la norme de l'industrie Candada exempts de licence RSS (s).
L'opération est soumise aux deux conditions suivantes:
(1) Cet appareil ne peut causer d'interférences nuisibles, et
(2) cet appareil doit accepter toute interférence reçue, y compris les interférences qui peuvent causer un mauvais
fonctionnement de l'appareil.
This equipment complies with Candada radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
Cet équipement est conforme aux limites Candada exposition aux radiations établies pour un
incontrôlés environnement. Cet équipement doit être installé et utilisé avec une distance minimale
de 20 centimètres entre le radiateur et votre corps.
![](/img.php?id=1708095&img=bg16.png)
16 Meru Access Point Installation Guide © 2012 Meru Networks, Inc.
Europe—EU Declaration of Conformity and Restrictions
Europe—EU Declaration of Conformity and
Restrictions
EN 300 328. Electromagnetic compatibility and Radio spectrum Matters (ERM); Wide-
band transmission systems; Data transmission equipment operating in the 2,4 GHz ISM
band and using wide band modulation techniques; Harmonized EN covering essential
requirements under article 3.2 of the R&TTE Directive
EN 301 489-17. Electromagnetic Compatibility and Radio Spectrum Matters (ERM).
Electromagnetic Compatibility (EMC) Standard for Radio Equipment and Services,
Part 17 Specific Conditions for Wideband Data and HIPERLAN Equipment.
EN 55022 Statement.This is to certify that the above models are shielded against
the generation of radio interference in accordance with the application of Council
Directive 2004/108/EC, Annex I, 1a. Conformity is declared by the application of EN
55 022 Class B (CISPR 22). Compliance is dependent upon the use of Cat 5e shielded
data cables.
EN 60950-1. Safety of Information Technology Equipment.
EN 50385. Product standard to demonstrate the compliances of radio base stations
and fixed terminal stations for wireless telecommunication systems with the basic
restrictions or the reference levels related to human exposure to radio frequency
electromagnetic fields.
This equipment is marked with either the CE Mark, the alert symbol, and the notified
body's number and can be used throughout the European Community. This mark indi-
cates compliance with the R&TTE Directive 1999/5/EC and the relevant parts of the
following technical specifications.
This equipment is marked with either the CE Mark, the alert symbol, and the notified
body's number and can be used throughout the European Community. This mark indi-
cates compliance with the R&TTE Directive 1999/5/EC and the relevant parts of the
following technical specifications.
Marking by the alert symbol indicates that usage restrictions apply.
Marking by the alert symbol indicates that usage restrictions apply.
Europe—EU Declaration of Conformity and Restrictions
© 2012 Meru Networks, Inc. Regulatory Information 17
Meru Networks, Inc. declares that their Access Points comply with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Meru Networks, Inc. vakuuttaa täten että Access Points tyyppinen laite on direktiivin
1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
Hierbij verklaart Meru Networks, Inc. dat het toestel Access Points in overeenstem-
ming is met de essentiële eisen en de andere relevante bepalingen van richtlijn
1999/5/EG.
Bij deze verklaart Meru Networks, Inc. dat deze Access Points voldoet aan de essen-
tiële eisen en aan de overige relevante bepalingen van Richtlijn 1999/5/EC.
Par la présente, Meru Networks, Inc. déclare que l’appareil Access Points est
conforme aux exigences essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE.
Par la présente, Meru Networks, Inc. déclare que ce Access Points est conforme aux
exigences essentielles et aux autres dispositions de la directive 1999/5/CE qui lui
sont applicables.
Härmed intygar Meru Networks, Inc. att denna Access Points står I överensstämmelse
med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av
direktiv 1999/5/EG.
Undertegnede Meru Networks, Inc. erklærer herved, at følgende udstyr Access Points
overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Hiermit erklärt Meru Networks, Inc. dass sich dieser/diese/dieses Access Points in
Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten
Vorschriften der Richtlinie 1999/5/EG befindet.
Hiermit erklärt Meru Networks, Inc. die Übereinstimmung des Gerätes Access Points
mit den grundlegenden Anforderungen und den anderen relevanten Festlegungen der
Richtlinie 1999/5/EG.
Con la presente Meru Networks, Inc. dichiara che questo Access Points è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva
1999/5/CE.
Por medio de la presente Meru Networks, Inc. declara que el Access Points cumple
con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles
de la Directiva 1999/5/CE.
Meru Networks, Inc. declara que este Access Points está conforme com os requisitos
essenciais e outras disposições da Directiva 1999/5/CE.
![](/img.php?id=1708095&img=bg18.png)
18 Meru Access Point Installation Guide © 2012 Meru Networks, Inc.
Japan
Hawnhekk, Meru Networks, Inc. jiddikjara li dan Access Points jikkonforma mal-htigi-
jiet essenzjali u ma provvedimenti ohrajn relevanti li hemm fid-Dirrettiva
1999/5/EC.
Käesolevaga kinnitab Meru Networks, Inc. seadme Access Points vastavust direktiivi
1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjako-
hastele sätetele.
Alulírott, Meru Networks, Inc. nyilatkozom, hogy a Access Points megfelel a vonat-
kozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Meru Networks, Inc. týmto vyhlasuje, e Access Points splna základné poiadavky a
všetky príslušné ustanovenia Smernice 1999/5/ES.
Meru Networks, Inc. tímto prohlašuje, e tento Access Points je ve shode se základními
poadavky a dalšími príslušnými ustanoveními smernice 1999/5/ES.
Šiuo Meru Networks, Inc. deklaruoja, kad šis Access Points atitinka esminius reikala-
vimus ir kitas 1999/5/EB Direktyvos nuostatas.
Ar šo Meru Networks, Inc. deklare, ka Access Points atbilst Direktivas 1999/5/EK
butiskajam prasibam un citiem ar to saistitajiem noteikumiem.
Niniejszym, Meru Networks, Inc., deklaruje, ze Access Points spelnia wymagania
zasadnicze oraz stosowne postanowienia zawarte Dyrektywie 1999/5/EC.
These products are intended to be used in all countries of the European Economic
Area with the following restrictions:
IEEE 802.11b/g Restrictions
France—In all Metropolitan départements, wireless LAN frequencies can be used
under the following conditions, either for public or private use:
Indoor use: maximum power (EIRP) of 100 mW for the entire 2400–2483.5 MHz
frequency band.
Japan
EN 55022 Statement (applicable to AP201 Rev 2, AP208 Rev 2 only).This is to certify
that the above models are shielded against the generation of radio interference in
accordance with the application of Council Directive 2004/108/EC, Annex I, 1a.
Conformity is declared by the application of EN 55022 Class B (CISPR 22). Compliance
is dependent upon the use of shielded data cables.
![](/img.php?id=1708095&img=bg19.png)
Manufacturing Information
© 2012 Meru Networks, Inc. Regulatory Information 19
Singapore
Manufacturing Information
The AP1014i is built in China. Factory information is provided under NDA and upon
request.
DB102245
IDA Standards
Complies with
![](/img.php?id=1708095&img=bg1a.png)
Meru Networks, Inc.
894 Ross Drive
Sunnyvale, CA 94087
408-215-5300
www.merunetworks.com
