TerraWave Solutions® 802.11n Dual Band 2.4/5 GHz 6 dBi Outdoor
MIMO Omnidirectional Antenna with RPSMA Plug Connectors
TerraWave’s 6 dBi outdoor multiple-input and multiple-output (MIMO) omnidirectional
antenna is designed to operate enterprise class 802.11n MIMO access points. This antenna
features three integrated 2.4 GHz omni antennas and three integrated 5 GHz omni antennas in one
fiberglass enclosure, making it an ideal and aesthetically pleasing antenna to support demanding
outdoor applications in next generation IEEE 802.11n wireless communication systems. The
ruggedized enclosure makes this antenna perfectly suited for use in a warehouse or manufacturing
environment where it must withstand exposure to moisture and dust. Includes an L-Bracket for mast
mounting and a convenient beam clamp. Every TerraWave antenna is covered by the Company’s
two-year TerraNet warranty program. Visit www.terrawave.com for additional information.
Specifications
Model M6060060MO13620O
Frequency Range 2400~2500 / 5150~5850 MHz
Bandwidth 100 / 700 MHz
Gain 6 dBi
Vertical Beamwidth 40°
Horizontal Beamwidth 360°
VSWR ≤ 1.5 / ≤ 2.0
Nominal Impedance 50 Ohms
Polarization Vertical
Isolation ≥ 25 dB
Electrical Downtilt ≤ 5°
Max Power 20 Watts
Connector RPSMA Plug with 36” Pigtail
Dimensions Ø6.0” x 7.1”
Weight 3.74 lbs
Mast Mount Diameter Ø1.57” ~ Ø1.97”
Operating Temperature Range -22°F ~ +158°F
E-Plane Pattern H-Plane Pattern
2.4 GHz
E-Plane Pattern H-Plane Pattern
5 GHz
www.terrawave.com Email: sales@terrawave.com Phone: 210-375-8482 or 800-851-4965 10521 Gulfdale, San Antonio, TX 78216
TerraWave Solutions® 802.11n 2.4/5 GHz 6 dBi Outdoor
MIMO Omnidirectional Antenna with RPSMA Plug Connectors

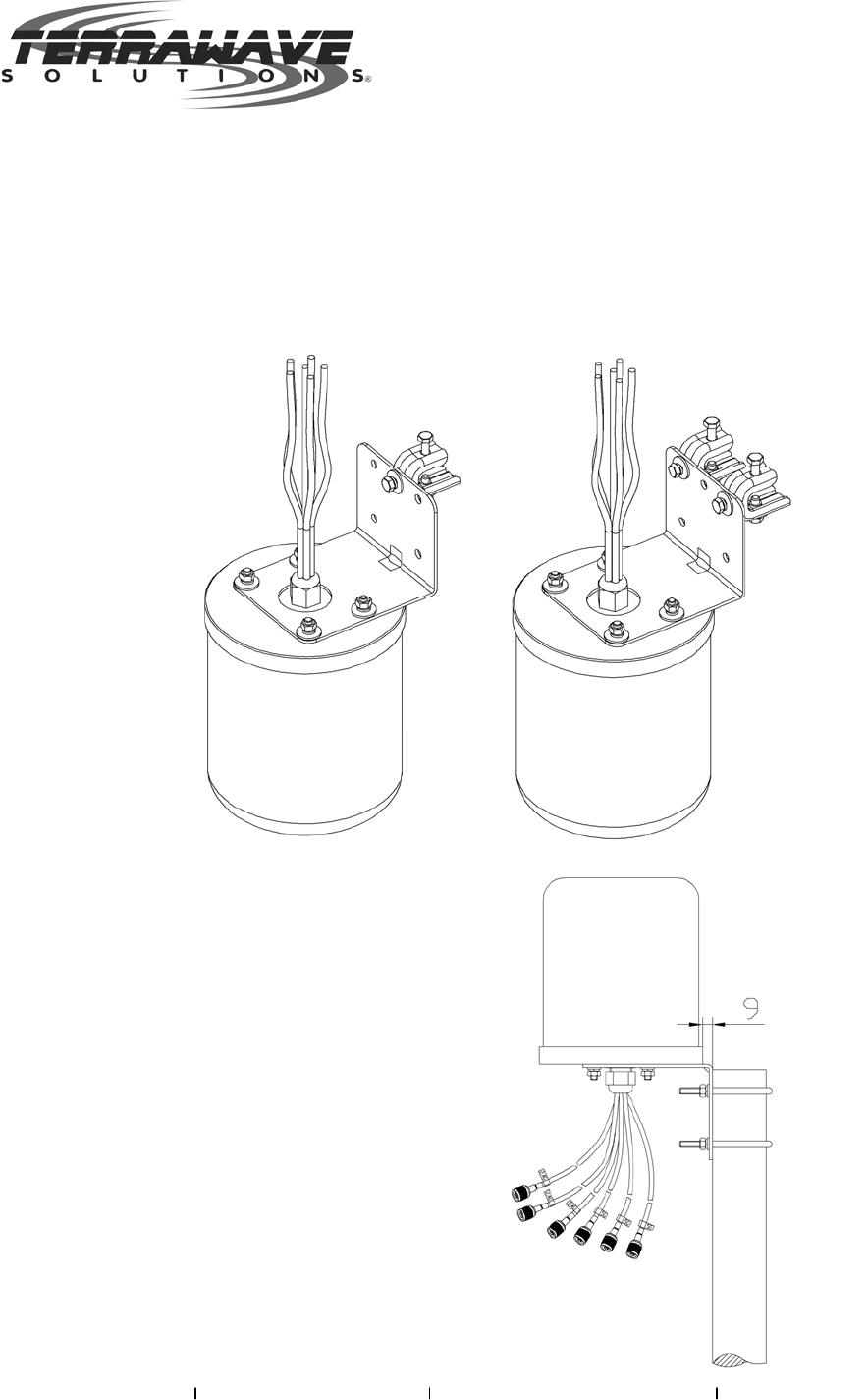

Mounting Information for M6060060MO13620O
Single Beam Clamp Double Beam Clamp
Antenna Mounted to Pole
