Chapter 2
Installing AP832e
This chapter describes how to install and configure an AP832e. It contains the following sections:
Safety Precautions
Unpack the AP832e
Installation Requirements
Install the AP832e
Check AP832e LED Activity
Where to Go From Here
Safety Precautions
IMPORTANT—Read and follow the regulatory instructions in Appendix B before installing and operating
this product.
If an optional power supply is used, it must be one supplied by Meru Networks.
The AP832e is intended only for installation in Environment A as defined in IEEE 802.3af. All intercon-
nected equipment must be contained within the same building, including the interconnected equip-
ment's associated LAN connection.
Unpack the AP832e
Confirm that the AP832e shipping package contains these items:
Warning!
This product is intended to be supplied by a UL Listed power supply
marked Class 2 or LPS and rated minimum 12Vdc, 2A. For Power over
Ethernet, an 802.3af or 802.3at connection must be used.
![](/img.php?id=1947354&img=bg4.png)
iv Meru Access Point Installation Guide © 2013 Meru Networks, Inc.
Installation Requirements
AP832e
Wall mount bracket
Two ceiling mount brackets (for varying sized ceiling structures)
Six antennas
Screws for the mounting bracket
Installation Requirements
An array of holes on the mounting bracket allows the AP832e to be mounted on the wall and over junc-
tion boxes or molly bolts. There are holes for passing the PoE Ethernet or external power supply cable
through the bracket if the bracket is mounted on a junction box.
The AP832e has a security cable slot so you can lock the AP832e with a standard security cable, such
as those used to secure laptop computers.
The AP832e ships with included ceiling and wall mounting brackets to be used for varying types of
lcations, such as on T-bars or over junction boxes. For mounting above ceiling tiles, purchase optional
mounting kits:
Above Suspended Ceiling Mounting Kit (T-Bar Hanger): MNT-ASCMKIT
Above hanging ceiling tiles. Suitable for use in environmental air space in accordance with the
Section 832e-22(c) of the National Electric Code and Sections 2- 128.12 - 010 (3) and 12 - 100 of the
Canadian Electrical Code. Part 1. C22. 1. Note that in order to comply with these standards, the
plastic cover on the AP must be removed.
Additional Equipment
A power source is needed to power the AP832e. The AP832e requires an 802.3af or 802.3at power
source when operating with PoE. If this is not available, 12V DC power (2A rated) must be supplied.
Antenna Mappings
See Table 1 to determine which radio is associated with each antenna.
![](/img.php?id=1947354&img=bg5.png)
Install the AP832e
© 2013 Meru Networks, Inc. Installing AP832e v
Table 1: Antenna Mappings
Install the AP832e
Select a Location
Attach the Provided Antennas
Install the Access Point
Select a Location
All AP832e interconnected equipment, including the associated LAN connection, must be contained
within the same building. In addition, the AP832e location should meet the following conditions:
Relatively unobstructed access to the stations the AP serves. Select a location with minimal physical
obstructions between the AP and the wireless stations. In an office with cubicles, mounting the APs
below a hanging ceiling (plenum is supported) or the wall near the ceiling provides the least
obstructed communications path. On a wall, orient the AP832e horizontally so that you can read
the Meru logo without tilting your head at 90 degrees - this orientation provides optimum MIMO
performance.
Access to wall outlet or a to a Power over Ethernet (PoE) connection to the network switch servicing
the controller.
We recommend planning for about 256 clients per radio (or per interference region) if you plan to
use Virtual Port and plan to have phones as clients. Refer to the Meru Deployment Guides on the
support site for more information.
AP832e is designed to provide 360 degree omni-directional coverage as illustrated below. Plan place-
ment with this pattern in mind.
Antenna Radio/Channel
1Radio 1
2Radio 1
3Radio 1
4Radio 2
5Radio 2
6Radio 2
![](/img.php?id=1947354&img=bg6.png)
vi Meru Access Point Installation Guide © 2013 Meru Networks, Inc.
Install the AP832e

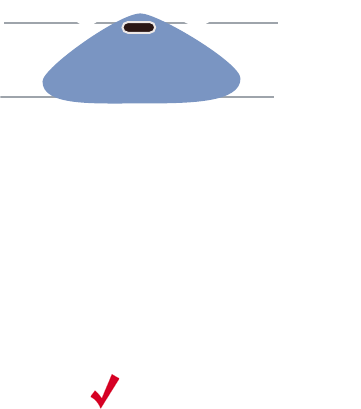

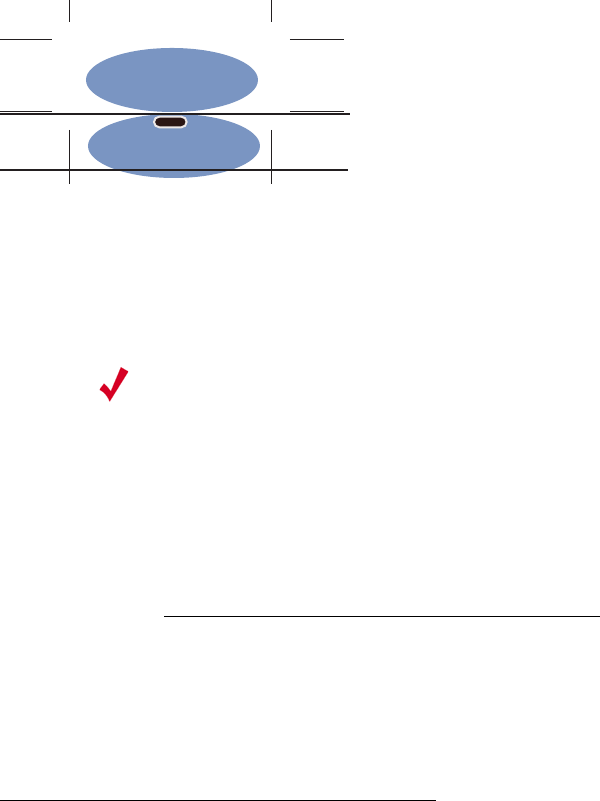

Figure 1: Coverage Pattern for AP832e When Ceiling Mounted
Most installations receive the best coverage using the following guidelines:
Install APs toward the center of the building.
Place APs about 80 feet apart.
Do not install APs near metal objects, such as heating ducts, metal doors, or electric service panels.
Attach the Provided Antennas
All AP832es have six external antenna ports, labeled 1 - 6. These units operate with six antennas
attached, even though some configurations don’t use all six. Instead of attaching an antenna, you can
cap unused antenna connectors with 50 ohm Reverse Polarity SMA terminators. (For a list of approved
terminators, see http://www.merunetworks.com/merusupport.) To achieve the best performance
from your AP832e, position antennas at a 90 degree angle relative to each other. The antennas do not
have to be oriented exactly as shown in the figure, but it is important to maintain the relative angles.
If for some reason you are unable to maintain those angles, the network still operates, but you may
experience up to 20% drop in throughput depending on the antenna orientation.
Do not leave any antenna connectors unterminated. All connectors on the AP must be terminated with
antennas or with 50 ohm Reverse Polarity SMA terminators. (For a list of approved terminators, see
http://www.merunetworks.com/merusupport.
The attached antennas must be the same model; if you replace one antenna, replace them all.
Install the Access Point
AP832e ships several different mounting bracket components to allow for a variety of mounting
options. You can mount an AP832e in the following ways:
Mount AP832e Horizontally on a Shelf
Mount AP832e Vertically on a Wall
Mount AP832e Below a Suspended Ceiling
Mount AP832e on a Dropped Ceiling Bevel Tile
Mount AP832e on an Interlude T-Bar
Note:
When planning to operating multiple radios on the same band (i.e., 2 radios
on the 2.4GHz band), it is important that the user reduce the transmit power for each
radio by 3dBm from its default setting.
ceiling
floor
![](/img.php?id=1947354&img=bg7.png)
Install the AP832e
© 2013 Meru Networks, Inc. Installing AP832e vii
Mount AP832e Above a Suspended Ceiling
Mount AP832e Horizontally on a Shelf
When mounting an AP832e horizontally, simply place it on the desired surface and connect power and
network cables.
Mount AP832e Vertically on a Wall
The AP832 ships with a metal bracket that can be used to mount it on a wall. This bracket is used in
conjunction with the plastic 650-00232 15/16" T-Bar Adapter/Wall Mount bracket to easily lock the
AP into place.
To mount an AP832e on a wall:
1. Place the metal bracket against the wall. It should be oriented such that the indicator text for wall-
mounting is pointing upwards (see Figure 2).

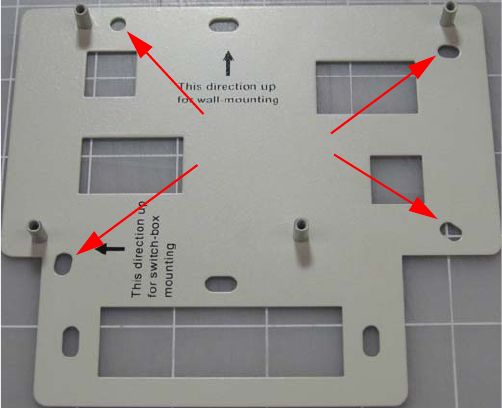

Figure 2: AP832 Wall Bracket
2. Attach the bracket to the wall using screws at the appropriate screw locations as indicated in
Figure 2. Recommend #6, #8 (M3, M3.5).
3. Locate the 650-00232 15/16" T-Bar Adapter/Wall Mount component and attach it to the raised
screw locations on the Wall Mount plate. See Figure 3.
Wall-mount screws
![](/img.php?id=1947354&img=bg8.png)
viii Meru Access Point Installation Guide © 2013 Meru Networks, Inc.
Install the AP832e

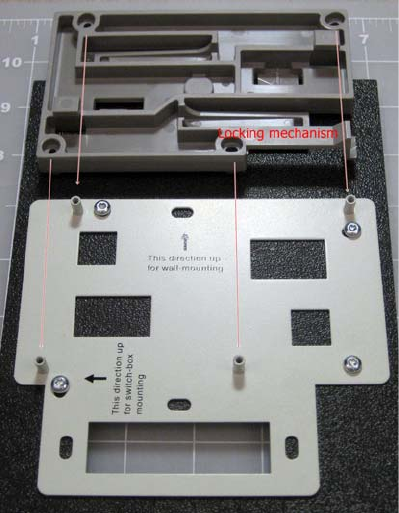

Figure 3: Attaching the AP Mount to the Wall Mount
4. Screw the plastic component into place on the metal bracket.
5. Run the Ethernet and power cable (if using one) through the rectangular opening at the bottom of
the Wall Mount bracket and connect them to their corresponding ports on the underside of the AP.

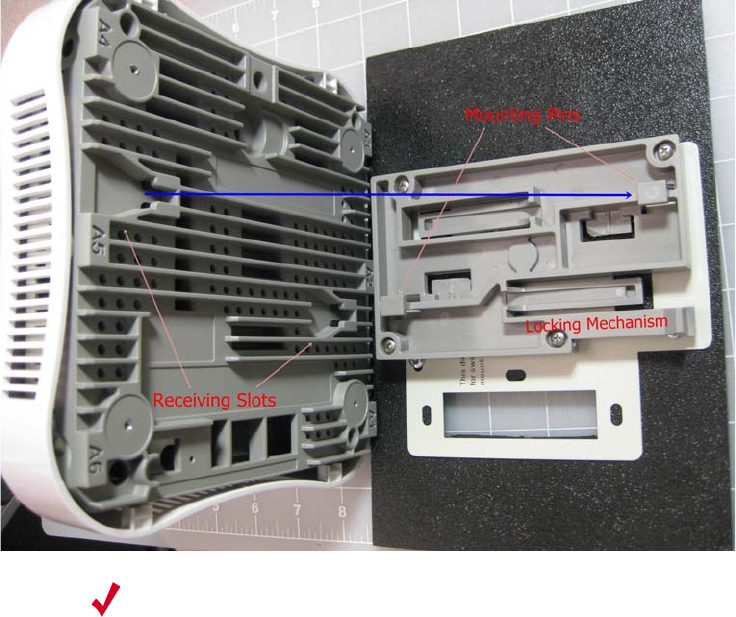

6. Press the Receiving Slots on the underside of the AP (indicated below) to the corresponding tabs
("Mounting Pins") on the plastic bracket. See Figure 4.
![](/img.php?id=1947354&img=bg9.png)
Install the AP832e
© 2013 Meru Networks, Inc. Installing AP832e ix

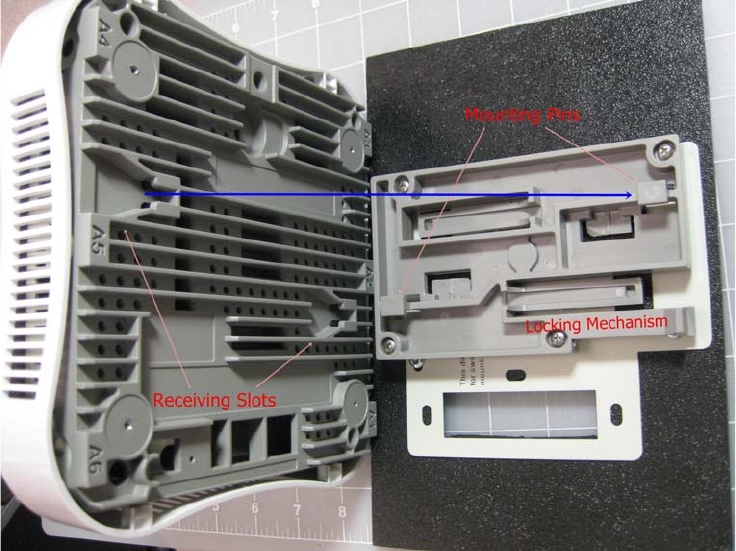

Figure 4: Attaching the AP to the Wall Mount
7. Slide the AP horizontally to lock the tabs into place.
8. If not already connected, you may now connect the Ethernet cable and DC power (if used) and
verify that the AP comes online.
Mount AP832e Below a Suspended Ceiling
The provided ceiling mounting brackets allow the AP832e to attach to suspended ceiling T-rails. The
AP ships with two different ceiling mounting bracket options to accomodate varying sizes of ceiling T-
rails. Be sure to attach the correctly-sized bracket to your AP prior to attempting to deploy it. Note
that each plastic bracket contains descriptive text to indicate the ceiling T-rail size for which it is
designed.
To mount an AP832e below a suspended ceiling:
1. Determine the location on the ceiling rail where the AP will be mounted and remove the ceiling
tiles.
2. Attach the AP to the mounting bracket by pressing the bracket’s Mounting Pins (shown in Figure 4)
to the AP’s Receiving Slots and sliding the bracket until it locks in place.
3. Press the AP and bracket against the rail and twist to lock it into place.
Note:
Figure 4 shows an AP832i model being attached to the bracket, but the
process is identical for either AP.
![](/img.php?id=1947354&img=bga.png)
xMeru Access Point Installation Guide © 2013 Meru Networks, Inc.
Install the AP832e
4. Connect one end of the CAT5 (or greater) Ethernet cable with PoE to the 100/1000 Ethernet
connector on the underside of the AP.
5. Verify that the AP comes online and then replace the ceiling tiles removed in Step 1.
Mount AP832e on a Dropped Ceiling Bevel Tile
The mounting procedure for a ceiling that has recessed supports and lowered tiles is similar to that of
mounting on a suspended ceiling. However, this procedure requires a specialized mounting bracket
(MNT-SCRMKIT-03), as shown in Figure 5.

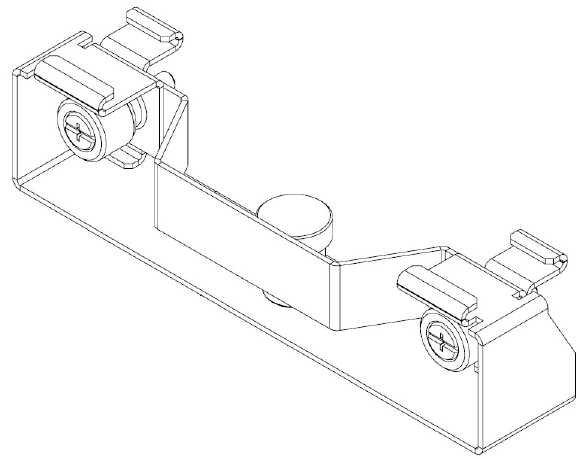

Figure 5: Dropped Bevel Tile Mounting Bracket
1. Remove the ceiling tile alongside which the AP will be mounted.
2. Locate the 650-00232 15/16" T-Bar Adapter/Wall Mount and attach the AP to the mounting
bracket by pressing the bracket’s Mounting Pins (shown in Figure 4) to the AP’s Receiving Slots and
sliding the bracket until it locks in place.
3. Push down on the thumbscrews provided on the mounting bracket and clip it to the ceiling bar that
will support the AP.
4. Tighten the screws to ensure that the mechanism stays locked in place.
5. Gently press the underside of the AP (with bracket attached) against the Dropped Bevel Tile
Mounting bracket indicated above and twist to lock them together.
6. Connect one end of the CAT5 (or greater) Ethernet cable with PoE to the 100/1000 Ethernet
connector on the underside of the AP.
7. Verify that the AP comes online and then replace the ceiling tiles removed in Step 1.
![](/img.php?id=1947354&img=bgb.png)
Install the AP832e
© 2013 Meru Networks, Inc. Installing AP832e xi
Mount AP832e on an Interlude T-Bar
The mounting procedure for a ceiling that has interlude T-Bar supports is similar to that of mounting
on a suspended ceiling. However, this procedure requires a specialized mounting bracket (MNT-
SCRMKIT-04), as depicted in Figure 6.

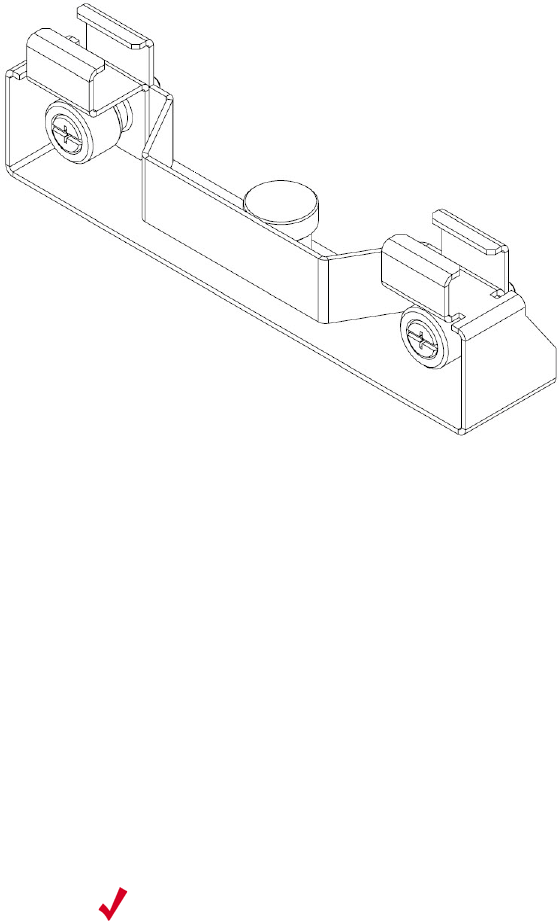

Figure 6: T-Bar Mounting Bracket
1. Remove the ceiling tile alongside which the AP will be mounted.
2. Locate the 650-00232 15/16" T-Bar Adapter/Wall Mount and attach the AP to the mounting
bracket by pressing the bracket’s Mounting Pins (shown in Figure 4) to the AP’s Receiving Slots and
sliding the bracket until it locks in place.
3. Push down on the thumbscrews provided on the mounting bracket and clip it to the ceiling bar that
will support the AP.
4. Tighten the screws to ensure that the mechanism stays locked in place.
5. Gently press the underside of the AP (with bracket attached) against the T-Bar Mounting bracket
indicated above and twist to lock them together.
6. Connect one end of the CAT5 (or greater) Ethernet cable with PoE to the 100/1000 Ethernet
connector on the underside of the AP.
7. Verify that the AP comes online and then replace the ceiling tiles removed in Step 1.
Mount AP832e Above a Suspended Ceiling
Note:
AP832e is not plenum-rated and should only be mounted above ceilings in
non-plenum air space, such as a return airflow for air conditioning.
![](/img.php?id=1947354&img=bgc.png)
xii Meru Access Point Installation Guide © 2013 Meru Networks, Inc.
Install the AP832e

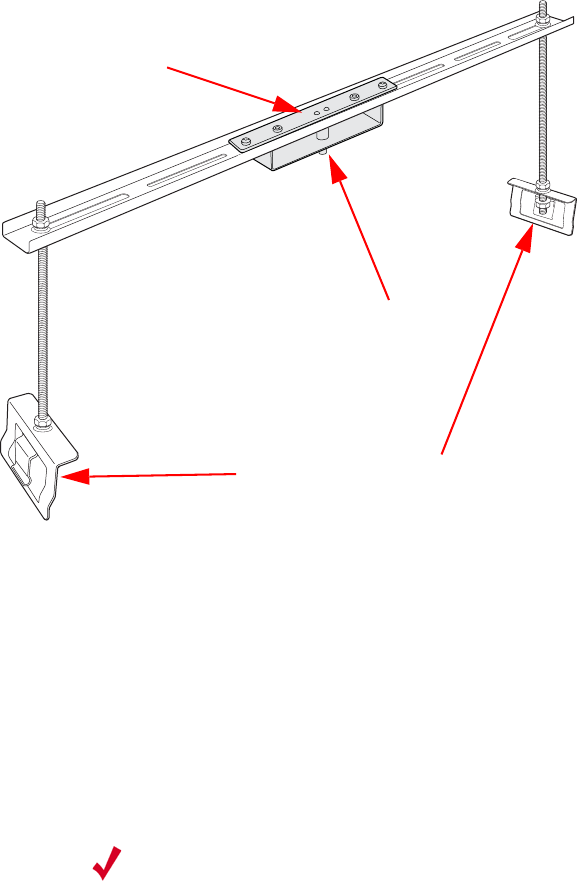

Use the optional T-bar box hanger mounting kit to mount AP832e above suspended ceiling T-rails. The
installation attaches the T-bar box hanger to the ceiling rails and then the AP832e attaches to the T-
bar box hanger. Note that AP832e mounted above the ceiling has about 2-3 dBm less RF coverage than
AP832e mounted under the ceiling.
You may need to modify thicker tiles to support this installation.
To mount an AP832e above the ceiling with the optional T-bar kit, follow these steps:
1. Determine the location on the ceiling rails where the AP will be mounted and remove the ceiling
tile.
2. Unpack the T-bar hanger kit.
3. Attach the mounting bar (depicted in Figure 7) to the mounting brace (which looks like a small
handle) with the crossbar of the mounting kit sandwiched between them. See Figure 8.

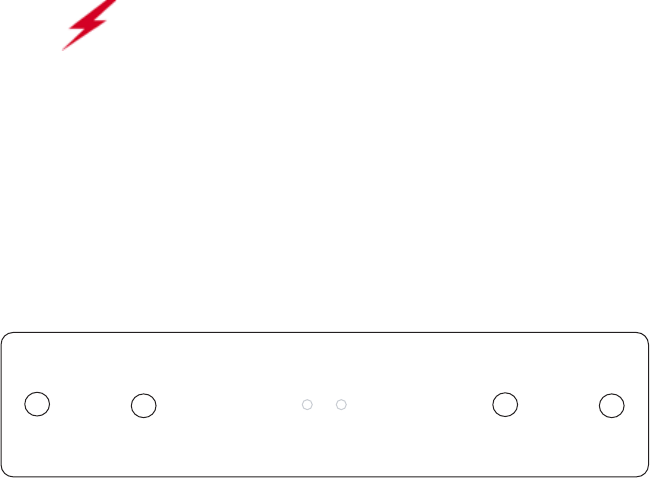

Figure 7: Mounting Bar
Warning!
When installed in air-handling spaces, such as above a suspended ceiling,
power the AP832e only with a PoE, not a power supply.
![](/img.php?id=1947354&img=bgd.png)
Install the AP832e
© 2013 Meru Networks, Inc. Installing AP832e xiii
Figure 8: Assembled Mounting Bracket
4. Locate the 650-00232 15/16" T-Bar Adapter/Wall Mount and attach the AP to the mounting
bracket by pressing the bracket’s Mounting Pins (shown in Figure 4) to the AP’s Receiving Slots and
sliding the bracket until it locks in place.
5. Gently press the underside of the AP against the mounting brace and rotate it into place until the
locking mechanism clicks.
6. Attach the legs for the mounting kit to the T-Bars in the ceiling by sliding the clips down onto each
respective bar.
7. Remove the top nut from each leg.
8. Lower the crossbar (with the AP attached) onto the legs and screw the nuts back on top of the bar.
9. Connect one end of the PoE Ethernet cable to the Ethernet connector on the AP.
Check that the AP832e is operating correctly before replacing the ceiling tile to the ceiling. Verify
correct operation using the LEDs, as shown in Check AP832e LED Activity.
Note:
Use a shielded Cat 5e (or greater) Ethernet cable in order to comply with
international electromagnetic emissions limits.
00624
Mounting Brace
Mounting Bar
Clips attach to T-bar
![](/img.php?id=1947354&img=bge.png)
xiv Meru Access Point Installation Guide © 2013 Meru Networks, Inc.
Check AP832e LED Activity
Check AP832e LED Activity
When AP832e first connects to the controller (and any time the access point is rebooted), the AP
initializes and then is programmed by the controller. When the AP first powers up, the LED is green.
Thereafter, its color indicates its operating status.
Figure 9: AP832e Status LED
After the AP832e is connected, check the status of the LED. Its indicator state is described below.
00249
LEDs
Status
![](/img.php?id=1947354&img=bgf.png)
Check AP832e LED Activity
© 2013 Meru Networks, Inc. Installing AP832e xv
AP832e LED Description
Change LED Appearance
If you want to change the appearance of the LEDS, follow these steps:
1. From the controller, click Configuration > Devices > AP, and then select the AP.
2. Select one of these settings for the LED Mode setting:
—Normal: LEDs are as described above
—Blink: Sets all LEDs flashing; this is useful to locate an AP
—Dark: Turns off all LEDs
3. Click OK.
LED Color State:
Status
off
AP is off - either there is no power or the LEDs are
set to Off on the controller. Check the LED setting
on the controller by clicking Configuration >
Devices > AP, selecting the AP and then checking
the setting for LED Mode.
cyan AP is booting stage 1.
green blinking AP is booting stage 2.
green/white alternating AP is discovering the controller.
green/blue alternating AP is downloading a configuration from the
controller.
slow blue blinking AP is online and enabled.
rapid blue blinking AP is online and enabled and there is activity on
one or both radios.
red/yellow alternating Some AP failure occurred; check the controller for
more details about the alarm by clicking Monitor
> Alarms > Pending Alarms.
blue/yellow alternating AP is online and enabled and one or both radios
are either scanning or an admin has taken the
radio(s) down.
![](/img.php?id=1947354&img=bg10.png)
xvi Meru Access Point Installation Guide © 2013 Meru Networks, Inc.
Where to Go From Here
Where to Go From Here
Now that the AP832e is installed, go to the Meru System Director Getting Started Guide for instructions
on initializing the hardware. Return to this chapter to check the status of the LEDs once the WLAN is
operational.
![](/img.php?id=1947354&img=bg11.png)
Safety Precautions
© 2013 Meru Networks, Inc. Installing AP832i xvii
Chapter 3
Installing AP832i
AP832i is supported by System Director versions 5.3 and greater. This chapter describes how to install
and configure an AP832i. It contains the following sections:
Safety Precautions
Unpack the AP832i
Installing AP832i
Check AP832i LED Activity
Where to Go From Here
Safety Precautions
IMPORTANT—Read and follow the regulatory instructions in Appendix B before installing and operating
this product.
If an optional power supply is used, it must be one supplied by Meru Networks.
The AP832i is only intended for installation in Environment A as defined in IEEE 802.3af. All intercon-
nected equipment must be contained within the same building, including the interconnected equip-
ment's associated LAN connection.
Warning!
This product is intended to be supplied by a UL Listed power supply
marked Class 2 or LPS and rated minimum 12Vdc, 2A. For Power over
Ethernet, an 802.3af or 802.3at connection must be used.
![](/img.php?id=1947354&img=bg12.png)
xviii Meru Access Point Installation Guide © 2013 Meru Networks, Inc.
Unpack the AP832i
Unpack the AP832i
Confirm that the shipping box contains the following:
AP832i
Wall mount bracket
Two ceiling mount brackets (for varying sized ceiling structures)
Screws for the mounting bracket
12V power adapter
Additional Equipment
A power source is needed to power the AP832i. The AP832i requires an 802.3af or 802.3at power source
when operating with PoE. If this is not available, 12V DC power (2A rated) must be supplied.
Installing AP832i
Select a Location
All AP832i interconnected equipment must be contained within the same building, including the inter-
connected equipment's associated LAN connection. Ceiling mounting is recommended but wall
mounting is also supported. In addition, the AP832i should be mounted in a location that meets the
following conditions:
Relatively unobstructed access to the stations the AP serves. Select a location with minimal physical
obstructions between the AP and the wireless stations. In an office with cubicles, mounting the APs
below a hanging ceiling (plenum is supported) or the wall near the ceiling provides the least
obstructed communications path. On a wall, orient the AP832i horizontally so that you can read the
Meru logo without tilting your head at 90 degrees - this orientation provides optimum MIMO
performance.
We recommend planning for about 50 clients per radio (or per interference region) if you plan to
use Virtual Port and plan to have phones as clients. For a data-only installation, plan up to 128
clients per radio, meaning 256 for AP832i. Refer to the Meru Deployment Guides on the support site
for more information.
Access to wall outlet or a to a Power over Ethernet (PoE) connection to the network switch servicing
the controller.
AP832i is designed to provide 180 degree omni-directional coverage as illustrated below. Plan place-
ment with this pattern in mind.
![](/img.php?id=1947354&img=bg13.png)
Installing AP832i
© 2013 Meru Networks, Inc. Installing AP832i xix
Figure 10: Coverage Pattern for AP832i When Ceiling Mounted
Most installations receive the best coverage using the following guidelines:
Install APs toward the center of the building.
Place APs about 80 feet apart.
Do not install APs near metal objects, such as heating ducts, metal doors, or electric service panels.
If you install AP832i on a pole, keep in mind that coverage will be 180 degrees. Do not mount two
AP832is back to back on a pole to achieve 360 degree coverage, however, because the two units
could interfere with each other.
Install the Access Point
AP832i ships several different mounting bracket components to allow for a variety of mounting options.
You can mount an AP832i in the following ways:
Mount AP832i Horizontally on a Shelf
Mount AP832i Vertically on a Wall
Mount AP832i Below a Suspended Ceiling
Mount AP832i on a Dropped Ceiling Bevel Tile
Mount AP832i on an Interlude T-Bar
Mount AP832i Above a Suspended Ceiling
Mount AP832i Horizontally on a Shelf
When mounting an AP832i horizontally, simply place it on the desired surface and connect power and
network cables.
Mount AP832i Vertically on a Wall
The AP832 ships with a metal bracket that can be used to mount it on a wall. This bracket is used in
conjunction with the plastic 650-00232 15/16" T-Bar Adapter/Wall Mount bracket to easily lock the
AP into place.
To mount an AP832i on a wall:
1. Place the metal bracket against the wall. It should be oriented such that the indicator text for wall-
mounting is pointing upwards (see Figure 11).
Note:
When planning to operating multiple radios on the same band (i.e., 2 radios
on the 2.4GHz band), it is important that the user reduce the transmit power for each
radio by 3dBm from its default setting.
ceiling
floor
![](/img.php?id=1947354&img=bg14.png)
xx Meru Access Point Installation Guide © 2013 Meru Networks, Inc.
Installing AP832i
Figure 11: AP832 Wall Bracket
2. Attach the bracket to the wall using screws at the appropriate screw locations as indicated in
Figure 11. Recommend #6, #8 (M3, M3.5).
3. Locate the 650-00232 15/16" T-Bar Adapter/Wall Mount component and attach it to the raised
screw locations on the Wall Mount plate. See Figure 12.
Figure 12: Attaching the AP Mount to the Wall Mount
4. Screw the plastic component into place on the metal bracket.
Wall-mount screws
![](/img.php?id=1947354&img=bg15.png)
Installing AP832i
© 2013 Meru Networks, Inc. Installing AP832i xxi
5. Run the Ethernet and power cable (if using one) through the rectangular opening at the bottom of
the Wall Mount bracket and connect them to their corresponding ports on the underside of the AP.
6. Press the Receiving Slots on the underside of the AP (indicated below) to the corresponding tabs
("Mounting Pins") on the plastic bracket. See Figure 13.
Figure 13: Attaching the AP to the Wall Mount
7. Slide the AP horizontally to lock the tabs into place.
8. If not already connected, you may now connect the Ethernet cable and DC power (if used) and
verify that the AP comes online.
Mount AP832i Below a Suspended Ceiling
The provided ceiling mounting brackets allow the AP832i to attach to suspended ceiling T-rails. The AP
ships with two different ceiling mounting bracket options to accomodate varying sizes of ceiling T-rails.
Be sure to attach the correctly-sized bracket to your AP prior to attempting to deploy it. Note that
each plastic bracket contains descriptive text to indicate the ceiling T-rail size for which it is designed.
To mount an AP832i below a suspended ceiling:
1. Determine the location on the ceiling rail where the AP will be mounted and remove the ceiling
tiles.
2. Attach the AP to the mounting bracket by pressing the bracket’s Mounting Pins (shown in Figure 13)
to the AP’s Receiving Slots and sliding the bracket until it locks in place.
3. Press the AP and bracket against the rail and twist to lock it into place.
![](/img.php?id=1947354&img=bg16.png)
xxii Meru Access Point Installation Guide © 2013 Meru Networks, Inc.
Installing AP832i
4. Connect one end of the CAT5 (or greater) Ethernet cable with PoE to the 100/1000 Ethernet
connector on the underside of the AP.
5. Verify that the AP comes online and then replace the ceiling tiles removed in Step 1.
Mount AP832i on a Dropped Ceiling Bevel Tile
The mounting procedure for a ceiling that has recessed supports and lowered tiles is similar to that of
mounting on a suspended ceiling. However, this procedure requires a specialized mounting bracket
(MNT-SCRMKIT-03), as shown in Figure 14.
Figure 14: Dropped Bevel Tile Mounting Bracket
1. Remove the ceiling tile alongside which the AP will be mounted.
2. Locate the 650-00232 15/16" T-Bar Adapter/Wall Mount and attach the AP to the mounting
bracket by pressing the bracket’s Mounting Pins (shown in Figure 13) to the AP’s Receiving Slots and
sliding the bracket until it locks in place.
3. Push down on the thumbscrews provided on the mounting bracket and clip it to the ceiling bar that
will support the AP.
4. Tighten the screws to ensure that the mechanism stays locked in place.
5. Gently press the underside of the AP (with bracket attached) against the Dropped Bevel Tile
Mounting bracket indicated above and twist to lock them together.
6. Connect one end of the CAT5 (or greater) Ethernet cable with PoE to the 100/1000 Ethernet
connector on the underside of the AP.
7. Verify that the AP comes online and then replace the ceiling tiles removed in Step 1.
![](/img.php?id=1947354&img=bg17.png)
Installing AP832i
© 2013 Meru Networks, Inc. Installing AP832i xxiii
Mount AP832i on an Interlude T-Bar
The mounting procedure for a ceiling that has interlude T-Bar supports is similar to that of mounting
on a suspended ceiling. However, this procedure requires a specialized mounting bracket (MNT-
SCRMKIT-04), as depicted in Figure 15.
Figure 15: T-Bar Mounting Bracket
1. Remove the ceiling tile alongside which the AP will be mounted.
2. Locate the 650-00232 15/16" T-Bar Adapter/Wall Mount and attach the AP to the mounting
bracket by pressing the bracket’s Mounting Pins (shown in Figure 13) to the AP’s Receiving Slots and
sliding the bracket until it locks in place.
3. Push down on the thumbscrews provided on the mounting bracket and clip it to the ceiling bar that
will support the AP.
4. Tighten the screws to ensure that the mechanism stays locked in place.
5. Gently press the underside of the AP (with bracket attached) against the T-Bar Mounting bracket
indicated above and twist to lock them together.
6. Connect one end of the CAT5 (or greater) Ethernet cable with PoE to the 100/1000 Ethernet
connector on the underside of the AP.
7. Verify that the AP comes online and then replace the ceiling tiles removed in Step 1.
Mount AP832i Above a Suspended Ceiling
Note:
AP832i is not plenum-rated and should only be mounted above ceilings in
non-plenum air space, such as a return airflow for air conditioning.
![](/img.php?id=1947354&img=bg18.png)
xxiv Meru Access Point Installation Guide © 2013 Meru Networks, Inc.
Installing AP832i
Use the optional T-bar box hanger mounting kit to mount AP832i above suspended ceiling T-rails. The
installation attaches the T-bar box hanger to the ceiling rails and then the AP832i attaches to the T-
bar box hanger. Note that AP832i mounted above the ceiling has about 2-3 dBm less RF coverage than
AP832i mounted under the ceiling.
You may need to modify thicker tiles to support this installation.
To mount an AP832i above the ceiling with the optional T-bar kit, follow these steps:
1. Determine the location on the ceiling rails where the AP will be mounted and remove the ceiling
tile.
2. Unpack the T-bar hanger kit.
3. Attach the mounting bar (depicted in Figure 16) to the mounting brace (which looks like a small
handle) with the crossbar of the mounting kit sandwiched between them. See Figure 17.
Figure 16: Mounting Bar
Warning!
When installed in air-handling spaces, such as above a suspended ceiling,
power the AP832i only with a PoE, not a power supply.
![](/img.php?id=1947354&img=bg19.png)
Installing AP832i
© 2013 Meru Networks, Inc. Installing AP832i xxv
Figure 17: Assembled Mounting Bracket
4. Locate the 650-00232 15/16" T-Bar Adapter/Wall Mount and attach the AP to the mounting
bracket by pressing the bracket’s Mounting Pins (shown in Figure 13) to the AP’s Receiving Slots and
sliding the bracket until it locks in place.
5. Gently press the underside of the AP against the mounting brace and rotate it into place until the
locking mechanism clicks.
6. Attach the legs for the mounting kit to the T-Bars in the ceiling by sliding the clips down onto each
respective bar.
7. Remove the top nut from each leg.
8. Lower the crossbar (with the AP attached) onto the legs and screw the nuts back on top of the bar.
9. Connect one end of the PoE Ethernet cable to the Ethernet connector on the AP.
Check that the AP832i is operating correctly before replacing the ceiling tile to the ceiling. Verify
correct operation using the LEDs, as shown in Check AP832i LED Activity.
Note:
Use a shielded Cat 5e (or greater) Ethernet cable in order to comply with
international electromagnetic emissions limits.
00624
Mounting Brace
Mounting Bar
Clips attach to T-bar
![](/img.php?id=1947354&img=bg1a.png)
xxvi Meru Access Point Installation Guide © 2013 Meru Networks, Inc.
Check AP832i LED Activity
Check AP832i LED Activity
When AP832i first connects to the controller (and any time the access point is rebooted), the AP initial-
izes and then is programmed by the controller. When the AP first powers up, the LED is green. There-
after, its color indicates its operating status.
Figure 18: AP832i Status LED
After the AP832i is connected, check the status of the LED. Its indicator state is described below.
00249
LEDs
Status
![](/img.php?id=1947354&img=bg1b.png)
Check AP832i LED Activity
© 2013 Meru Networks, Inc. Installing AP832i xxvii
AP832i LED Description
Change LED Appearance
If you want to change the appearance of the LEDS, follow these steps:
1. From the controller, click Configuration > Devices > AP, and then select the AP.
2. Select one of these settings for the LED Mode setting:
—Normal: LEDs are as described above
—Blink: Sets all LEDs flashing; this is useful to locate an AP
—Dark: Turns off all LEDs
3. Click OK.
LED Color State:
Status
off
AP is off - either there is no power or the LEDs are
set to Off on the controller. Check the LED setting
on the controller by clicking Configuration >
Devices > AP, selecting the AP and then checking
the setting for LED Mode.
cyan AP is booting stage 1.
green blinking AP is booting stage 2.
green/white alternating AP is discovering the controller.
green/blue alternating AP is downloading a configuration from the
controller.
slow blue blinking AP is online and enabled.
rapid blue blinking AP is online and enabled and there is activity on
one or both radios.
red/yellow alternating Some AP failure occurred; check the controller for
more details about the alarm by clicking Monitor
> Alarms > Pending Alarms.
blue/yellow alternating AP is online and enabled and one or both radios
are either scanning or an admin has taken the
radio(s) down.
![](/img.php?id=1947354&img=bg1c.png)
xxviiiMeru Access Point Installation Guide © 2013 Meru Networks, Inc.
Where to Go From Here
Where to Go From Here
Now that the AP832i is installed, go to the Meru System Director Getting Started Guide for instructions
on initializing the hardware. Return to this chapter to check the status of the LEDs once the WLAN is
operational.
![](/img.php?id=1947354&img=bg1d.png)
Cautions
© 2013 Meru Networks, Inc. Cautions and Warnings xxix
Appendix A
Cautions and Warnings
The cautions and warnings that appear in this manual are listed below in English,
German, French, and Spanish. Changes or modifications not expressly approved by
the party responsible for compliance could void the user’s authority to operate the
equipment.
Cautions
A Caution calls your attention to a possible hazard that can damage equipment.
"Vorsicht” weist auf die Gefahr einer möglichen Beschädigung des Gerätes in.
Une mise en garde attire votre attention sur un risque possible d'endommagement de
l'équipement. Ci-dessous, vous trouverez les mises en garde utilisées dans ce manuel.
Un mensaje de precaución le advierte sobre un posible peligro que pueda dañar el
equipo. Las siguientes son precauciones utilizadas en este manual.
Caution!
When changing the orientation of the antennas, be sure to slightly loosen the
knurled ring before moving the antenna. Retighten the ring afterward. Otherwise, you
might damage the internal cabling in the AP.
Vorsicht!
Bei einer Neuausrichtung der Antennen muss vor Bewegung der Antenne der
Rändelring leicht gelockert werden. Anschließend den Ring wieder festziehen.
Anderenfalls können die internen Kabel im AP beschädigt werden.
Mise en garde
En cas de modification d’orientation des antennes, veiller à desserrer
légèrement la bague moletée avant de réorienter l’antenne. Resserrer ensuite la bague,
faute de quoi le câblage interne du point d’accès pourrait être endommagé.
Precaución!
Al cambiar la orientación de las antenas, asegúrese de aflojar ligeramente
el anillo estriado antes de mover la antena. Luego vuelva a apretar el anillo. De otro modo,
podría dañar el cableado interno del punto de acceso.
![](/img.php?id=1947354&img=bg1e.png)
xxx Meru Access Point Installation Guide © 2013 Meru Networks, Inc.
Cautions
Caution!
Be sure to connect the Ethernet cable to the Ethernet port; the cable can
mistakenly be plugged into the Console port.
Vorsicht!
Darauf achten, dass das Ethernetkabel am Ethernetanschluss und nicht
versehentlich am Konsolenanschluss angeschlossen wird.
Mise en garde
Veiller à bien connecter le câble Ethernet au port Ethernet et non pas au
port Console.
Precaución!
Asegúrese de conectar el cable Ethernet al puerto Ethernet, porque por
error se puede enchufar en el puerto de la consola.
Caution!
The radiated output power of the access points is well below the FCC radio
frequency exposure limits. However, the Meru Access Point should be used in such a
manner that the potential for human contact during normal operation is minimized. To
avoid the possibility of exceeding the FCC radio frequency exposure limits, you should keep
a distance of at least 20 cm between you (or any other person in the vicinity) and the
Access Point antennas.
Vorsicht!
Die abgestrahlte Ausgangsleistung von Geräten von Meru Networks, Inc. liegt
weit unter den Hochfrequenz-Expositionsgrenzwerten der FCC. Die Meru Access Point
Zugangspunkte von Meru Networks, Inc. sollten jedoch so verwendet werden, dass das
Potenzial für Kontakt mit Menschen während des normalen Betriebs auf ein Mindestmaß
beschränkt wird. Um die Möglichkeit einer Überschreitung der FCC-Hochfrequenz-
Expositionsgrenzwerte zu vermeiden, ist ein Abstand von mindestens 20 cm zwischen Ihnen
(bzw. einer anderen Person in der Nähe) und den Zugangspunkt-Antennen zu wahren.
Mise en garde
La puissance de rayonnement émise par les équipements Meru Networks,
Inc. est très inférieure aux limites d'exposition aux fréquences radio définies par la FCC.
Toutefois, les points d'accès de la série Meru Access Point de Meru Networks, Inc. doivent
être utilisés de façon à éliminer tout risque de contact humain en fonctionnement normal.
Pour éviter de dépasser les limites d'exposition aux fréquences radio définies par la FCC,
il est impératif de préserver en permanence une distance supérieure ou égale à 20 cm
entre l'utilisateur (ou toute personne se trouvant à proximité) et les antennes du point
d'accès.
Precaución!
La potencia de radiación de los dispositivos de Meru Networks, Inc. está
muy por debajo de los límites de exposición a radiofrecuencia estipulados por la FCC. No
obstante, los puntos de acceso de la serie Meru Access Point de Meru Networks, Inc. deben
usarse de tal manera que se minimice la posibilidad de contacto para el usuario durante la
operación normal. Para evitar la posibilidad de exceder los límites de exposición a
radiofrecuencia establecidos por la FCC, el usuario (o cualquier otra persona en torno)
debe mantenerse a una distancia de al menos 20 cm respecto a las antenas del punto de
acceso.
![](/img.php?id=1947354&img=bg1f.png)
Warnings
© 2013 Meru Networks, Inc. Cautions and Warnings xxxi
Warnings
A warning calls your attention to a possible hazard that can cause injury or death.
The following are the warnings used in this manual.
"Achtung" weist auf eine mögliche Gefährdung hin, die zu Verletzungen oder Tod
führen können. Sie finden die folgenden Warnhinweise in diesem Handbuch:
Un avertissement attire votre attention sur un risque possible de blessure ou de
décès. Ci-dessous, vous trouverez les avertissements utilisés dans ce manuel.
Una advertencia le llama la atención sobre cualquier posible peligro que pueda
ocasionar daños personales o la muerte. A continuación se dan las advertencias
utilizadas en este manual.
Caution!
Exposure to Radio Frequency Radiation.
The installer of this radio equipment must ensure that the antenna is located or pointed
such that it does not emit an RF field in excess of Health Canada limits for the general
population; consult Safety Code 6, obtainable from Health Canada’s website
http://www.hc-sc.gc.ca/rpb.
Vorsicht!
Exposure to Radio Frequency Radiation.
The installer of this radio equipment must ensure that the antenna is located or pointed
such that it does not emit an RF field in excess of Health Canada limits for the general
population; consult Safety Code 6, obtainable from Health Canada's website
http://www.hc-sc.gc.ca/rpb.
Mise en garde
Exposition aux rayonnements à fréquence radioélectrique
L'installateur de cet équipement radio doit veiller à positionner et orienter l'antenne
de telle sorte qu'elle n'émette pas un champ radioélectrique supérieur aux limites
définies par Santé Canada pour la population générale. Consulter le Code de sécurité
n° 6, disponible sur le site Web de Santé Canada à l'adresse http://www.hc-
sc.gc.ca/rpb.
Precaución!
Exposición a la radiación de radiofrecuencia.
El instalador de este equipo de radio debe cerciorarse de que la antena está local-
izada u orientada de tal manera que no emita un campo de radiofrecuencia superior
a los límites estipulados por Health Canada para la población; consulte el Código de
Seguridad 6 que podrá encontrar en el página web de Health Canada, http://www.hc-
sc.gc.ca/rpb.
![](/img.php?id=1947354&img=bg20.png)
xxxiiMeru Access Point Installation Guide © 2013 Meru Networks, Inc.
Warnings
Warning!
With plastic covers removed, this product is suitable for use in
environmental air space in accordance with the Section 300-22(c) of the National
Electric Code and Sections 2- 128.12 - 010 (3) and 12 - 100 of the Canadian Electrical
Code. Part 1. C22. 1. For other countries, consult local authorities for regulations.
Achtung!
Bei abgenommener Kunststoffabdeckung ist dieses Produkt zur Verwendung
in einem Umgebungsluftraum gemäß Abschnitt 300-22(c) des National Electric Code
und Abschnitt 2- 128.12 - 010 (3) und 12 - 100 des Canadian Electrical Code Teil 1.
C22.1 geeignet. Die Vorschriften für andere Länder sind bei den örtlichen Behörden
erhältlich.
Avertissement
Sous réserve que ses couvercles de plastique soient déposés, cet
appareil est adapté à une utilisation dans les vides de construction des bâtiments
selon la section 300-22(c) du code NEC (National Electric Code) et les sections 2-
128.12 - 010 (3) et 12 - 100 du Code électrique du Canada, partie 1. C22. 1. Pour tous
les autres pays, consulter les organismes de réglementation locaux.
Advertencia
Una vez desprendidas las cubiertas de plástico, este producto es
adecuado para su uso en el espacio aéreo circundante en conformidad con la sección
300-22(c) del National Electric Code (Código Eléctrico Nacional de EE.UU.) y las
secciones 2- 128.12 - 010 (3) y 12 - 100 del Código Eléctrico de Canadá. Parte 1. C22.
1. En otros países, consulte a las autoridades locales competentes para informarse
acerca de las normativas vigentes.
Warning!
Any Fast Ethernet (FE) cables installed in air-handling spaces should be
suitable under NEC Article 800.50 and marked accordingly for use in plenums and air-
handling spaces with regard to smoke propagation, such as CL2-P, CL3-P, MPP (Multi
Purpose Plenum), or CMP (Communications Plenum).
Achtung!
Alle Fast-Ethernet (FE)-Kabel, die in Lüftungsräumen installiert werden,
sollten gemäß NEC Artikel 800.50 geeignet sein und entsprechend zur Verwendung in
Hohlräumen (Plenum) und Lüftungsräumen im Hinblick auf Rauchausbreitung
gekennzeichnet sein, z.B. CL2-P, CL3-P, MPP (Multi Purpose Plenum) oder CMP
(Communications Plenum).
Avertissement
Les câbles Fast Ethernet (FE) installés dans un vide d’air doivent
correspondre aux critères de l’article 800.50 du code NEC et identifiés en
conséquence comme adaptés à une utilisation dans les vides de construction des
bâtiments en matière de propagation de la fumée (marquages CL2-P, CL3-P, MPP
(Multi Purpose Plenum) ou CMP (Communications Plenum)).
Advertencia
Todos los cables Fast Ethernet (FE) instalados en espacios aéreos
deben cumplir con el artículo 800.50 del NEC y estar marcados adecuadamente para
su uso en espacios aéreos y plenums en lo concerniente a la propagación de humo,
tales como CL2-P, CL3-P, MPP (Plenum multifuncional), o CMP (Plenum de
comunicaciones).
![](/img.php?id=1947354&img=bg21.png)
Warnings
© 2013 Meru Networks, Inc. Cautions and Warnings xxxiii
Warning!
Inside antennas must be positioned to observe minimum separation of 20
cm. (~ 8 in.) from all users and bystanders. For the protection of personnel working
in the vicinity of inside (downlink) antennas, the following guidelines for minimum
distances between the human body and the antenna must be observed.
The installation of the indoor antenna must be such that, under normal conditions,
all personnel cannot come within 20 cm. (~ 8.0 in.) from any inside antenna.
Exceeding this minimum separation will ensure that the employee or bystander does
not receive RF-exposure beyond the Maximum Permissible Exposure according to FCC
CFR 47, section 1.1310 i.e. limits for General Population/Uncontrolled Exposure.
Achtung!
Innenantennen müssen so positioniert werden, dass ein Mindestabstand von
20 cm (ca. 8 Zoll) zu allen Benutzern und anderen Personen gewahrt wird. Zum Schutz
von Personal, das in der Nähe von Innenantennen (Downlink) arbeitet, sind die
folgenden Richtlinien für Mindestabstand zwischen dem menschlichen Körper und der
Antenne zu beachten.
Die Innenantenne muss so installiert werden, dass sich unter normalen Bedingungen
kein Personal bis auf weniger als 20 cm (ca. 8 Zoll) an eine Innenantenne annähern
kann. Durch Überschreitung dieses Mindestabstands wird sichergestellt, dass Mitar-
beiter oder andere Personen keiner RF-Exposition über die maximal zulässige Expo-
sition (MPE; Maximum Permissible Exposure) gemäß FCC CFR 47, Abschnitt 1.1310
(Grenzwerte für die allgemeine Bevölkerung/unkontrollierte Exposition) ausgesetzt
werden.
Avertissement
Les antennes intérieures doivent être positionnées de façon à
respecter une distance minimum de 20 cm par rapport aux utilisateurs et aux tiers.
Pour la protection du personnel travaillant à proximité des antennes intérieures
(liaison descendante), respecter les directives suivantes pour assurer des distances
minimales entre les êtres humains et les antennes.
Toute antenne intérieure doit être installée de telle sorte que, dans des conditions
normales, le personnel ne puisse s'en approcher à moins de 20 cm. Cette distance
minimale est destinée à garantir qu'un employé ou un tiers ne sera pas exposé à un
rayonnement radioélectrique supérieur à la valeur maximale autorisée, telle qu'elle
est définie dans les limites d'exposition non contrôlées pour la population par la
réglementation de la FCC CFR 47, section 1.1310.
Advertencia
Las antenas interiores deben colocarse de manera que se observe una
separación mínima de 20 cm. (~ 8 pulg.) respecto a todos los usuarios y circunstantes.
Para la protección del personal que trabaje en las inmediaciones de las antenas
interiores (receptoras), deben observarse las siguientes directrices relativas a la
distancia mínima entre el cuerpo humano y la antena.
La instalación de la antena interior debe efectuarse de tal modo que, en condiciones
normales, ningún miembro del personal pueda acercarse a menos de 20 cm. (~ 8,0
pulg.) de cualquier antena interior. El cumplimiento de este mínimo de separación
asegura que el empleado o circunstante no recibirá exposición a radiofrecuencia por
encima de la Exposición Máxima Permisible conforme a la normativa FCC CFR 47,
sección 1.1310, es decir, los límites asignados a la Exposición Incontrolada/Población
Civil.
xxxivMeru Access Point Installation Guide © 2013 Meru Networks, Inc.
Warnings
![](/img.php?id=1947354&img=bg23.png)
Approved Antennas
© 2013 Meru Networks, Inc. Regulatory Information xxxv
Appendix B
Regulatory Information
The Meru Access Point (APs) must be installed and used in strict accordance with the
manufacturer’s instructions as described in the user documentation that comes with
the product. For country-specific approvals, see below. Meru Networks, Inc. is not
responsible for any radio or television interference caused by unauthorized modifi-
cation of APs, or the substitution or attachment of connecting cables and equipment
other than that specified by Meru Networks, Inc. The correction of interference
caused by such unauthorized modification, substitution or attachment is the respon-
sibility of the user. Meru Networks, Inc. and its authorized resellers or distributors
are not liable for any damage or violation of government regulations that may arise
from the user failing to comply with these guidelines.
Approved Antennas
Only approved antennas may be used in conjunction with AP832 access points. The following
antennas are approved for use with the AP832 series.
Part Numbers Manufacturer Gain Description
Meru Manufacturer
MERU-PI623 Internal PIFA dual-band
antenna
ANT-ABGN23O-W SOCAA 2/3 Dual-band
omnidirectional dipole
ANT-ABGN23O-W S24493TS Laird Technologies 3/4 Dual-band ceiling mount
omnidirectional 3-lead
ANT-6ABGN-24 M6025040MO1D3620P Terrawave 2.5/4 dBi Dual-band ceiling mount
omnidirectional 6-lead
ANT-ABGN47O ANT-DB1-RAF-RPS Linx Technologies 4.7/4.7 dBi Dual-band high gain dipole
omnidirectional
ANT-O6ABGN-0606-O M6060060MO1D3620O Terrawave 6/6 dBi Dual band omnidirectional
6-lead
![](/img.php?id=1947354&img=bg24.png)
xxxviMeru Access Point Installation Guide © 2013 Meru Networks, Inc.
Regulatory Specifications
Regulatory Specifications
Radio
FCC Part 15
Canada RSS210
EN 300 328 V1.6.1 (11/2004)
EN 301 893 V1.3.1 (08/2005)
Japan Technical Regulations
EMC
FCC Part 15
EN 301 489-17 V1.2.1 (08/2002)
Japan VCCI
Safety
Prolonged exposure to RF radiation can be hazardous. Switch off unit power before
service or installation procedures.
ANT-I2ABGN-0304-O M6030040O1D3620DP Terrawave 3/4 dBi Dual-band ceiling mount
omnidirectional 2-lead
ANT-I3ABGN-0304-O M6030040O1D1820MP Terrawave 3/4 dBi Dual-band ceiling mount
omnidirectional 3-lead
ANT-O4ABGN-0607-PT M6060070P23620 Terrawave 6/7 dBi Dual-band wall-mount
patch 4-lead
ANT-O6ABGN-0607-PT M6060070MP13620 Terrawave 6/7 dBi Dual-band wall-mount
patch 6-lead
Part Numbers Manufacturer Gain Description
![](/img.php?id=1947354&img=bg25.png)
Regulatory Specifications
© 2013 Meru Networks, Inc. Regulatory Information xxxvii
Limits for Occupational/Controlled Exposure
Limits for General Population/Uncontrolled Exposure
Frequencies Blocked for Regulatory Compliance
802.11a frequencies 5.25-5.35 GHz and 5.47-5.725 GHz have been blocked for DFS
compliance.
This device uses 802.11a/b/g/n/ac standard with CCK and OFDM modulations. The
device shall automatically discontinue transmission in case of absence of information
to transmit or operation failure due the CCK and OFDM modulation and by turning off
the transmitter.
Frequency
Range (MHz)
Electric Field
Strength (E)
(V/m)
Magnetic
Field Strength
(H) (A/m)
Power Density
(S) (mW/cm2)
Averaging
Time |E|2,
|H|2 or S
(minutes)
1500-100,000 5 6
Frequency
Range (MHz)
Electric Field
Strength (E)
(V/m)
Magnetic
Field Strength
(H) (A/m)
Power Density
(S) (mW/cm2)
Averaging
Time |E|2,
|H|2 or S
(minutes)
1500-100,000 1.0 30
Note:
Occupational/controlled limits apply in situations in which persons are exposed as a
consequence of their employment provided those persons are fully aware of the potential
for exposure and can exercise control over their exposure. Limits for
occupational/controlled exposure also apply in situations when an individual is transient
through a location where occupational/controlled limits apply provided he or she is made
aware of the potential for exposure.
Note:
General population/uncontrolled exposures apply in situations in which the general
public may be exposed, or in which persons that are exposed as a consequence of their
employment may not be fully aware of the potential for exposure or can not exercise
control over their exposure.
![](/img.php?id=1947354&img=bg26.png)
xxxviiiMeru Access Point Installation Guide © 2013 Meru Networks, Inc.
AP832e/i
AP832e/i
USA
Underwriters Laboratories
Use only with Listed I.T.E. equipment.
Notices
The unit is intended for installation in Environment A as defined in IEEE 802.3.af. All
interconnected equipment must be contained within the same building, including the
interconnected equipment's associated LAN connection.
Suitable for use in environmental air space in accordance with Section 300-22(c) of
the National Electrical Code, and Sections 2-128, 12-010(3) and 12-100 of the Cana-
dian Electrical Code, Part 1, C22.1.
FCC Radiation Exposure Statement
Caution!
The radiated output power of the Meru Networks devices is well below the FCC
radio frequency exposure limits. However, the Access Point should be used in
such a manner that the potential for human contact during normal operation is
minimized. When installing and operating these devices, keep a minimum
distance of 20 cm (8 inches) between the antennas and any persons/users in the
vicinity.
![](/img.php?id=1947354&img=bg27.png)
USA
© 2013 Meru Networks, Inc. Regulatory Information xxxix
Radio Frequency Interference Requirements
Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses, and can radiate radio frequency energy. If the
equipment is not installed and used in accordance with the instructions, the equip-
ment may cause harmful interference to radio communications. There is no guar-
antee, however, that such interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception
(which can be determined by turning the equipment off and on), the user is encour-
aged to try to correct the interference by taking one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device must not be co-located or operating in conjunction with any other
antenna or transmitter.
For products available in the USA and Canadian markets, only channels 1 through 11
can be operated. Selection of other channels is not authorized.
Note:
Meru Access Points
All devices except the OAP180 are indoor devices. The FCC requires indoor use for
the frequency range 5.15 GHz to 5.25 GHz to reduce the potential for harmful
interference to co-channel Mobile Satellite systems.
High-power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65
to 5.85 GHz bands. These radar stations can cause interference with or damage to
these devices, or both.
Note:
The Meru Access Point must be installed and used in strict accordance with the
manufacturer’s instructions as described in the user documentation that comes
with the product. Any other installation or use may violate FCC Part 15
regulations. Modifications not expressly approved by Meru Networks, Inc. could
void your authority to operate the equipment.
![](/img.php?id=1947354&img=bg28.png)
xl Meru Access Point Installation Guide © 2013 Meru Networks, Inc.
Canada. Industry Canada (IC)
Canada. Industry Canada (IC)
The Class B digital portion of this apparatus complies with Canadian standard ICES-003.
These devices comply with RSS210 of Industry Canada.
Per RSS 210 A9.5 point 7:
(i) the device for the band 5150-5250 MHz is only for indoor usage to reduce potential for
harmful interference to co-channel mobile satellite systems;
(ii) the maximum antenna gain permitted (for devices in the bands 5250-5350 MHz and 5470-
5725 MHz) to comply with the e.i.r.p. limit; and
(iii) the maximum antenna gain permitted (for devices in the band 5725-5825 MHz) to comply
with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appro-
priate, as stated in section A9.2(3).
In addition, users should also be cautioned to take note that high-power radars are allocated as
primary users (meaning they have priority) of the bands 5250-5350 MHz and 5650-5850 MHz
and these radars could cause interference and/or damage to LE-LAN devices.
(iv) These devices are not permitted to operate in the 5600 - 5650 MHz band.
For products available in the USA and Canadian markets, only channels 1 through 11 can be
operated. Selection of other channels is not authorized.
Operation is subject to the following two conditions: (1) this device may not cause interfer-
ence, and (2) this device must accept any interference, including interference that may cause
undesired operation of this device.
This device and its listed antenna(s) must not be co-located or operated in conjunction with any
other antenna or transmitter
L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il ne doit pas
produire de brouillage et (2) l’utilisateur du dispositif doit étre prêt à accepter tout brouillage
radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement
du dispositif.
The term "IC" before the equipment certification number only signifies that the Industry
Canada technical specifications were met.
To reduce the potential radio interference to other users, the antenna type and gain should be
chosen so that the equivalent isotropically radiated power (EIRP) is not more than that required
for successful communication.
To prevent radio interference to the licensed service, this device is intended to be operated
indoors and away from windows to provide maximum shielding. Equipment (or its transmit
antenna) that is installed outdoors is subject to licensing.
Pour empecher que cet appareil cause du brouillage au service faisant l’objet d’une licence, il
doit etre utilze a l’interieur et devrait etre place lin des fenetres afin de Fournier un ecram de
blindage maximal. Si le matriel (ou son antenne d’emission) est installe a l’exterieur, il doit
faire l’objet d’une licence.
![](/img.php?id=1947354&img=bg29.png)
Canada. Industry Canada (IC)
© 2013 Meru Networks, Inc. Regulatory Information xli
Access Points have been designed to operate with the antennas listed below.
Antennas not included in this list are strictly prohibited for use with these devices.
The required antenna impedance is 50 ohms.
AP Antennas with Gain
To reduce potential radio interference to other users, the antenna type and its gain
should be chosen so that the equivalent isotropically radiated power (e.i.r.p.) is not
more than that permitted for successful communication.
Caution!
Exposure to Radio Frequency Radiation.
The installer of this radio equipment must ensure that the antenna is located or
pointed such that it does not emit an RF field in excess of Health Canada limits
for the general population; consult Safety Code 6, obtainable from Health
Canada’s website http://www.hc-sc.gc.ca/rpb.
This equipment complies with IC RSS-102 radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and operated
with a minimum distance of 20cm between the antennas and any persons/users
in the vicinity.
Note:
Meru Access Points
These devices are restricted to indoor use because they operate in the 5.15 to
5.25 GHz frequency range. Industry Canada requires such products to be used
indoors for the frequency range 5.15 GHz to 5.25 GHz to reduce the potential
for harmful interference to co-channel Mobile Satellite systems.
AP Model Antenna Type Gain (2.4 GHz) Gain (5 GHz)
AP300 Dual-Band Omni-Directional
MN-ANTabg-W 2 dBi 3 dBi
AP300 Dual-Band Omni-Directional
ANT-ABGN-23 2 dBi 3 dBi
AP300 High-Gain Dipole Omni-Directional
ANT-ABGN47O 4.7dBi 4.7dBi
![](/img.php?id=1947354&img=bg2a.png)
xlii Meru Access Point Installation Guide © 2013 Meru Networks, Inc.
Europe—EU Declaration of Conformity and Restrictions
Europe—EU Declaration of Conformity and
Restrictions
EN 300 328. Electromagnetic Compatibility and Radio Spectrum Matters (ERM).
Wideband transmission systems, data transmission equipment operating in the 2.4
GHz ISM (Industrial, Scientific, and Medical frequency bands in the range of 902–928
MHz, 2.4–2.485 GHz, and 5.15–5.25 GHz) band and using spread spectrum modulation
techniques, harmonized EN standards covering essential requirements under article
3.2 of the R&TTE directive.
EN 301 893. Broadband Radio Access Networks (BRAN). 5 GHz high-performance
RLAN, harmonized EN standards covering essential requirements of article 3.2 of the
R&TTE directive.
EN 301 489-17. Electromagnetic Compatibility and Radio Spectrum Matters (ERM).
Electromagnetic Compatibility (EMC) Standard for Radio Equipment and Services,
Part 17 Specific Conditions for Wideband Data and HIPERLAN Equipment.
EN 55022 Statement (applicable to AP201 Rev 2, AP208 Rev 2 only).This is to certify
that the above models are shielded against the generation of radio interference in
accordance with the application of Council Directive 2004/108/EC, Annex I, 1a.
Conformity is declared by the application of EN 55 022 Class B (CISPR 22). Compliance
is dependent upon the use of Cat 5e shielded data cables.
EN 60950-1. Safety of Information Technology Equipment.
EN 50385. Product standard to demonstrate the compliances of radio base stations and fixed
terminal stations for wireless telecommunication systems with the basic restrictions or the
reference levels related to human exposure to radio frequency electromagnetic fields.
This equipment is marked with either the CE Mark, the alert symbol, and the notified body's
number and can be used throughout the European Community. This mark indicates compliance
with the R&TTE Directive 1999/5/EC and the relevant parts of the following technical speci-
fications.
This equipment is marked with either the CE Mark, the alert symbol, and the notified body's
number and can be used throughout the European Community. This mark indicates compliance
with the R&TTE Directive 1999/5/EC and the relevant parts of the following technical speci-
fications.
Marking by the alert symbol indicates that usage restrictions apply.
![](/img.php?id=1947354&img=bg2b.png)
Europe—EU Declaration of Conformity and Restrictions
© 2013 Meru Networks, Inc. Regulatory Information xliii
Meru Networks, Inc. declares that their Access Points comply with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Meru Networks, Inc. vakuuttaa täten että Access Points tyyppinen laite on direktiivin
1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
Hierbij verklaart Meru Networks, Inc. dat het toestel Access Points in overeenstem-
ming is met de essentiële eisen en de andere relevante bepalingen van richtlijn
1999/5/EG.
Bij deze verklaart Meru Networks, Inc. dat deze Access Points voldoet aan de essen-
tiële eisen en aan de overige relevante bepalingen van Richtlijn 1999/5/EC.
Par la présente, Meru Networks, Inc. déclare que l’appareil Access Points est
conforme aux exigences essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE.
Par la présente, Meru Networks, Inc. déclare que ce Access Points est conforme aux
exigences essentielles et aux autres dispositions de la directive 1999/5/CE qui lui
sont applicables.
Härmed intygar Meru Networks, Inc. att denna Access Points står I överensstämmelse
med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av
direktiv 1999/5/EG.
Undertegnede Meru Networks, Inc. erklærer herved, at følgende udstyr Access Points
overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Hiermit erklärt Meru Networks, Inc. dass sich dieser/diese/dieses Access Points in
Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten
Vorschriften der Richtlinie 1999/5/EG befindet.
Hiermit erklärt Meru Networks, Inc. die Übereinstimmung des Gerätes Access Points
mit den grundlegenden Anforderungen und den anderen relevanten Festlegungen der
Richtlinie 1999/5/EG.
Con la presente Meru Networks, Inc. dichiara che questo Access Points è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva
1999/5/CE.
Por medio de la presente Meru Networks, Inc. declara que el Access Points cumple
con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles
de la Directiva 1999/5/CE.
Marking by the alert symbol indicates that usage restrictions apply.
xliv Meru Access Point Installation Guide © 2013 Meru Networks, Inc.
Europe—EU Declaration of Conformity and Restrictions
Meru Networks, Inc. declara que este Access Points está conforme com os requisitos
essenciais e outras disposições da Directiva 1999/5/CE.
Hawnhekk, Meru Networks, Inc. jiddikjara li dan Access Points jikkonforma mal-htigi-
jiet essenzjali u ma provvedimenti ohrajn relevanti li hemm fid-Dirrettiva
1999/5/EC.
Käesolevaga kinnitab Meru Networks, Inc. seadme Access Points vastavust direktiivi
1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjako-
hastele sätetele.
Alulírott, Meru Networks, Inc. nyilatkozom, hogy a Access Points megfelel a vonat-
kozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Meru Networks, Inc. týmto vyhlasuje, e Access Points splna základné poiadavky a
všetky príslušné ustanovenia Smernice 1999/5/ES.
Meru Networks, Inc. tímto prohlašuje, e tento Access Points je ve shode se základními
poadavky a dalšími príslušnými ustanoveními smernice 1999/5/ES.
Šiuo Meru Networks, Inc. deklaruoja, kad šis Access Points atitinka esminius reikala-
vimus ir kitas 1999/5/EB Direktyvos nuostatas.
Ar šo Meru Networks, Inc. deklare, ka Access Points atbilst Direktivas 1999/5/EK
butiskajam prasibam un citiem ar to saistitajiem noteikumiem.
Niniejszym, Meru Networks, Inc., deklaruje, ze Access Points spelnia wymagania
zasadnicze oraz stosowne postanowienia zawarte Dyrektywie 1999/5/EC.
These products are intended to be used in all countries of the European Economic
Area with the following restrictions:
IEEE 802.11a Restrictions
These products are for indoor use only (5150–5250 MHz).
To ensure compliance with local regulations, be sure to set your Access Point to
the country in which you are using the Access Point.
The Meru Access Point products can be used only indoors in the following countries:
Austria, Belgium, Bulgaria, Czech Republic, Germany, Cyprus, Denmark, Estonia,
Finland, France, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, The Netherlands, Norway, Portugal, Poland, Romania, Spain,
Slovak Republic, Slovenia, Sweden, Switzerland, Turkey, and United Kingdom.
EEE 802.11b/g Restrictions
France—In all Metropolitan départements, wireless LAN frequencies can be used
under the following conditions, either for public or private use:
Indoor use: maximum power (EIRP) of 100 mW for the entire 2400–2483.5 MHz
frequency band.
![](/img.php?id=1947354&img=bg2d.png)
Japan
© 2013 Meru Networks, Inc. Regulatory Information xlv
Japan
EN 55022 Statement (applicable to AP201 Rev 2, AP208 Rev 2 only).This is to certify
that the above models are shielded against the generation of radio interference in
accordance with the application of Council Directive 2004/108/EC, Annex I, 1a.
Conformity is declared by the application of EN 55022 Class B (CISPR 22). Compliance
is dependent upon the use of shielded data cables.
Model AP300
Model AP150
Singapore
For the AP201 Rev 2, AP208 Rev 2, and OAP180, the following approval information applies:
For the AP300 series, the following approval information applies:
Manufacturing Information
The AP1000 and AP300 are built in Taiwan. Factory information is provided under NDA and
upon request.
Model AP300 module rev 1
003WWA080094 003GZA080095 003XWA080096
003NY06122 0000 003GZ06030 0000 003WY06046 0000
DA103798
IDA Standards
Complies with
DB102245
IDA Standards
Complies with
![](/img.php?id=1947354&img=bg2e.png)
xlvi Meru Access Point Installation Guide © 2013 Meru Networks, Inc.
AP Plenum Requirements
AP Plenum Requirements
When installing APs in an air-handling space, as described in Article 300.22(C) of the
NEC (2005), the unit should only be powered by the Ethernet port (PoE), not by the
AC-powered power supply.
When the product is installed in air-handling spaces, the cables employed should be
suitable under NEC Articles 300.22 and 725 and marked accordingly, for use in
plenums and air-handling spaces with regard to smoke propagation, such as CL2-P,
CL3-P, MPP or CMP.
The products should be installed in accordance with all applicable, local regulations
and practices.
Manufacturers Federal Communication Commission Declaration of
Conformity Statement
Manufacturer:
Meru Networks, Inc
894 Ross drive,
Sunnyvale, CA 94089
USA
This device complies with Part 15 rules. Operation is subject to the following two
conditions:
4. This device may not cause harmful interference, and
5. This device must accept any interference received, including interference that
may cause undesired operation.
Access Point Models Certification Number
AP832e
AP832i
![](/img.php?id=1947354&img=bg2f.png)
AP Plenum Requirements
© 2013 Meru Networks, Inc. Regulatory Information xlvii
This device operates in the 5150-5250MHz and 5470-5725MHz bands and is therefore
restricted to indoor operation only per FCC guidance.
This equipment has been tested and found to comply with the limits of a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a residential environment. This equipment generates, uses, and radiates
radio frequency energy, and if not installed and used in accordance with the instruc-
tions, may cause harmful interference. However, there is no guarantee that interfer-
ence will not occur. If this equipment does cause interference to radio or television
reception, which can be determined by turning the equipment off and on, the user
is encouraged to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician.
Caution!
The Part 15 radio device operates on a non-interference basis with other
devices operating at this frequency when using the integrated antennas.
Any changes or modification to the product not expressly approved by
Meru could void the user's authority to operate this device.
Caution!
Within the 5.15 to 5.25 GHz and 5.47-5.725 GHz bands, this device is
restricted to indoor operations to reduce any potential for harmful
interference to co-channel Mobile Satellite System (MSS) operations.
![](/img.php?id=1947354&img=bg30.png)
xlviiiMeru Access Point Installation Guide © 2013 Meru Networks, Inc.
AP Plenum Requirements
VCCI Statement for Japan
Guidelines for Operating Meru AP832e and AP832i Access point
This section provides guidelines for avoiding interference when operating Meru
access points in Japan. These guidelines are provided in both Japanese and English.
This equipment operates in the same frequency bandwidth as industrial, scientific,
and medical devices such as microwave ovens and mobile object identification (RF-
ID) systems (licensed premises radio stations and unlicensed specified low-power
radio stations) used in factory production lines.
1. Before using this equipment, make sure that no premises radio stations or
specified low-power radio stations of RF-ID are used in the vicinity.
2. If this equipment causes RF interference to a premises radio station of RF-ID,
promptly change the frequency or stop using the device; contact the number
below and ask for recommendations on avoiding radio interference, such as
setting partitions.
3. If this equipment causes RF interference to a specified low-power radio station
of RF-ID

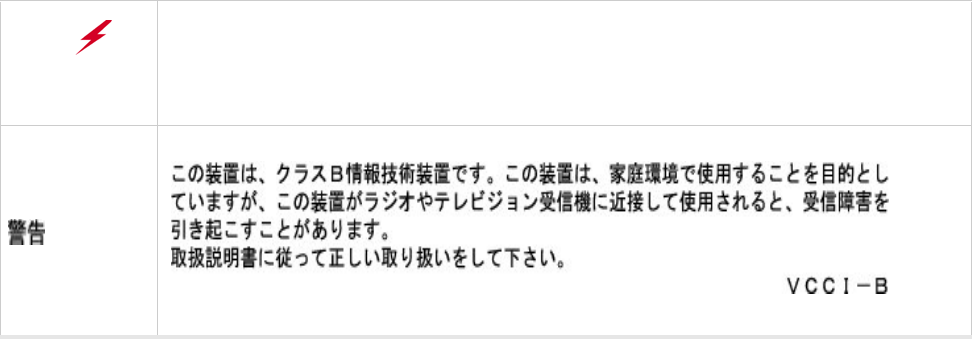

Warning!
This is a Class B product based on the standard of the Voluntary Control Council for Interference
from Information Technology Equipment (VCCI). If this is used near a radio or television receiver
in a domestic environment, it may cause radio interference. Install and use the equipment
according to the instruction manual.
![](/img.php?id=1947354&img=bg31.png)
AP Plenum Requirements
© 2013 Meru Networks, Inc. Regulatory Information xlix
Industry Canada
Canadian Compliance Statement
This Class B Digital apparatus meets all the requirements of the Canadian Interfer-
ence-Causing Equipment Regulations.
Cet appareil numerique de la classe B respecte les exigences du Reglement sur le
material broilleur du Canada.
This device complies with Class B Limits of Industry Canada. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that
may cause undesired operation.
Meru Access Points are certified to the requirements of RSS-210. The use of this
device in a system operating either partially or completely outdoors may require the
user to obtain a license for the system according to the Canadian regulations. For
further information, contact your local Industry Canada office.
This device has been designed to operate with antennas having a maximum gain of 7
dBi. Antennas having a gain greater than 7 dBi are strictly prohibited for use with this
device. The required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (EIRP) is not
more than that permitted for successful communication.
EU Regulatory Conformance
Access Point Models:
AP832e
AP832i
This product is CE marked according to the provisions of the R & TTE Directive (99/5/EC)
- CE 2280(!){! In circle}. Meru Networks Inc., hereby declares that this AP832e and AP832i
models are in compliance with the essential requirements and other relevant provisions
of Directive 1999/5/EC. CE 2280(!)
Access Point Models Certification Number
AP832e
AP832i
![](/img.php?id=1947354&img=bg32.png)
lMeru Access Point Installation Guide © 2013 Meru Networks, Inc.
AP Plenum Requirements
Declaration of Conformity with regard to the R&TTE Directive
1999/5/EC
This equipment is in compliance with the essential requirements of other relevant provi-
sions of Directive 199/5/EC
The following standards were applied:
EMC-EN 301.489-1 v1.8.1; EN 301.489-17 v2.1.1
Health & Safety-EN60950-1: 2005; EN 50385: 2002
Radio-EN 300 328 v 1.7.1; EN 301.893 v 1.5.1
The conformity assessment procedure referred to in Article 10.4 and Annex III of
Directive 1999/5/EC has been followed.
Declaration of Conformity for RF Exposure
This section contains information on compliance with guidelines related to RF expo-
sure.
This Device Meets International Guidelines for Exposure to
Radio Waves
The AP832e and AP832i device includes radio transmitters and receivers. It is
designed not to exceed the limits for exposure to radio waves (radio frequency elec-
tromagnetic fields) recommended by international guidelines. The guidelines were
developed by an independent scientific organization (ICNIRP) and include a substan-
tial safety margin designed to ensure the safety of all persons, regardless of age and
health.
Note:
This equipment is intended to be used in all EU and EFTA countries. Outdoor
use may be restricted to certain frequencies and/or may require a license for
operation.
![](/img.php?id=1947354&img=bg33.png)
AP Plenum Requirements
© 2013 Meru Networks, Inc. Regulatory Information li
As such the systems are designed to be operated as to avoid contact with the
antennas by the end user. It is recommended to set the system in a location where
the antennas can remain at least a minimum distance as specified from the user in
accordance to the regulatory guidelines which are designed to reduce the overall
exposure of the user or operator.
The World Health Organization has stated that present scientific information does
not indicate the need for any special precautions for the use of wireless devices.
They recommend that if you are interested in further reducing your exposure then
you can easily do so by reorienting antennas away from the user or placing he
antennas at a greater separation distance then recommended.
This Device Meets FCC Guidelines for Exposure to Radio Waves
The AP832e and AP832i include radio transmitters and receivers. It is designed not
to exceed the limits for exposure to radio waves (radio frequency electromagnetic
fields) as referenced in FCC Part 1.1310. The guidelines are based on IEEE ANSI C 95.1
(92) and include a substantial safety margin designed to ensure the safety of all
persons, regardless of age and health.
As such the systems are designed to be operated as to avoid contact with the
antennas by the end user. It is recommended to set the system in a location where
the antennas can remain at least a minimum distance as specified from the user in
accordance to the regulatory guidelines which are designed to reduce the overall
exposure of the user or operator.
The device has been tested and found compliant with the applicable regulations as
part of the radio certification process.
The FCC recommends that if you are interested in further reducing your exposure
then you can easily do so by reorienting antennas away from the user or placing the
antennas at a greater separation distance then recommended or lowering the trans-
mitter power output.
Separation Distance
MPE Distance Limit
0.63 mW/cm2 20 cm (7.87 inches) 1.00 mW/cm2
Separation Distance
MPE Distance Limit
0.63 mW/cm2 20 cm (7.87 inches) 1.00 mW/cm2

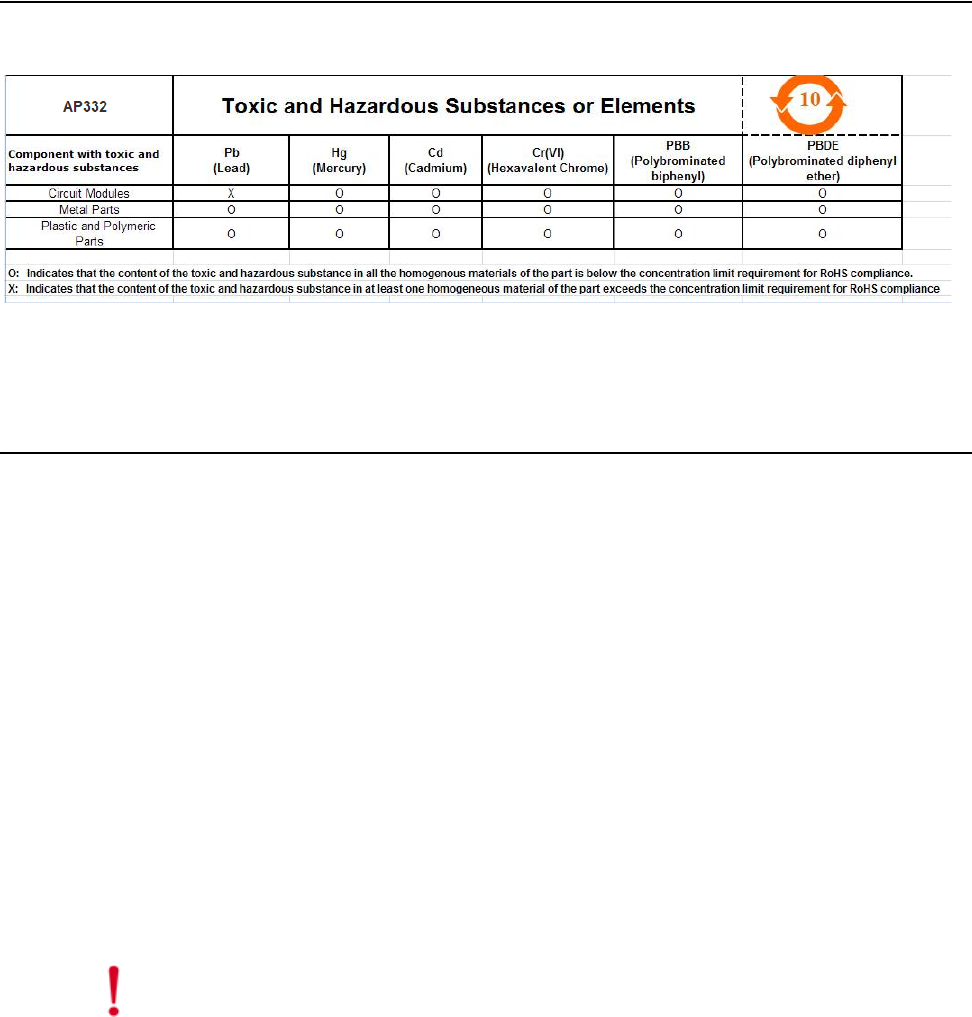

![](/img.php?id=1947354&img=bg34.png)
lii Meru Access Point Installation Guide © 2013 Meru Networks, Inc.
AP Plenum Requirements
This Device Meets the Industry Canada Guidelines for Exposure to
Radio Waves
The AP832e and AP832i include radio transmitters and receivers. It is designed not
to exceed the limits for exposure to radio waves (radio frequency electromagnetic
fields) as referenced in Health Canada Safety Code 6. The guidelines include a
substantial safety margin designed into the limit to ensure the safety of all persons,
regardless of age and health.
As such the systems are designed to be operated as to avoid contact with the
antennas by the end user. It is recommended to set the system in a location where
the antennas can remain at least a minimum distance as specified from the user in
accordance to the regulatory guidelines which are designed to reduce the overall
exposure of the user or operator.
Health Canada states that present scientific information does not indicate the need
for any special precautions for the use of wireless devices. They recommend that if
you are interested in further reducing your exposure you can easily do so by reori-
enting antennas away from the user, placing the antennas at a greater separation
distance than recommended, or lowering the transmitter power output.
Maximum EIRP
The transmit EIRP is the sum of the transmit power and the antenna gain. By default,
the EIRP is set lower than the regulator limit with the default rubber duct antenna.
For any higher gain antennas, transmit power is reduced via the CLI to keep the EIRP
below the regulatory limit.
Dual Concurrent Same Band Operation
When both AP radios are operating on the same band simultaneously, their transmit
power is reduced by 3 dBm.
Separation Distance
MPE Distance Limit
0.63 mW/cm2 20 cm (7.87 inches) 1.00 mW/cm2
