278 |

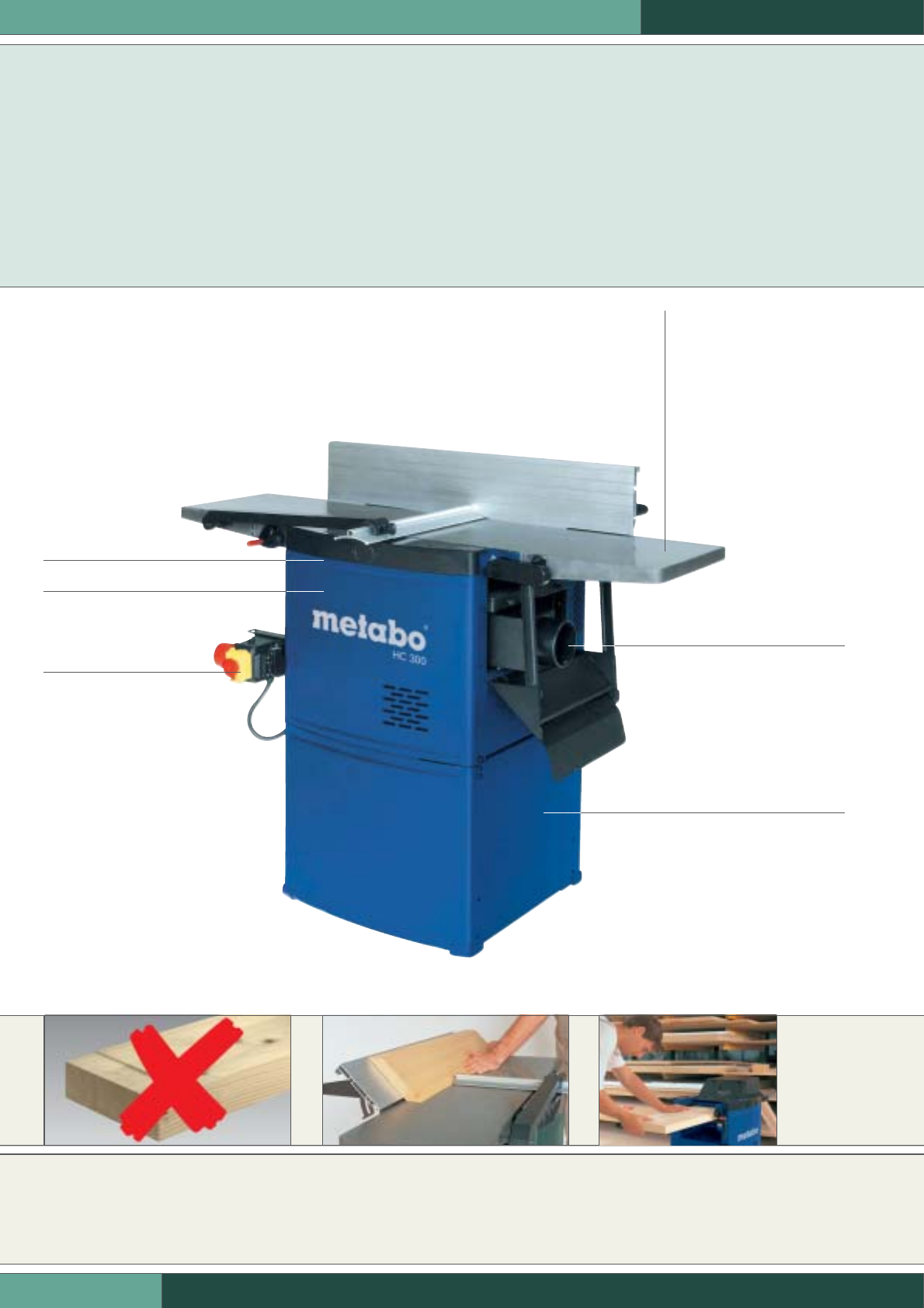

Anti-planer cut (snipe) patent
for ideal planing results. Minimal planer
cut on the workpiece by patented special
suspension of the rollers.
Precise thickness planing
by bench thicknesser table on
8 bearings. Automatic, even
workpiece feed.
Suction hood
for dust-free trimming
and thickness planing.
e.g. HC 300 Coated, solid aluminium die cast
dressing plate with 1200 mm length
Therefore even long timbers
can be guided well.
Built-in socket
for connecting
a suction unit.
Automatic, even
workpiece feed
during thickness
planing due to high
quality steel rollers.
Simple conversion
from planer to bench
thicknesser without tools.
Planing of inclined surfaces
The stop can be inclined by up to 45°.
Sturdy substructure
for safe working at ideal
operating height.
Precise thickness planing
by bench thicknesser table
on 8 bearings.
PLANING MACHINES
WORK MADE PLANE EASY.
Whether you are a professional or an ambitious do-
it-yourself enthusiast, Metabo provides you with the
right planer for your requirements. You can use Metabo
planers for low-dust dressing and planing without
harmful vibrations. Even thick boards cause no pro-
blems due to the anti planer cut patent. There is even
more great technology such as the safety switch, the
automatic workpiece feed and the conversion from
surface planing to thickness planing without tools.
| 279
DH 330
Comparative device characteristics
Dimensions L x W x H 579 x 857 x 574 mm
Chip removal
- Thickness planing 0 - 3 mm
Material
- Thickness table Cast aluminium /
special steel aluminium
Thickness table L x W 840 x 330 mm
Passage height/width 152 mm/330 mm
Feed rate 7 m/min
Diameter of blade shaft 47 mm
Number of blades 2
Blade shaft speed 9.800 /min
Rated input power 1,8 kW
Weight 35 kg
Standard equipment 2 integrated HSS reversible
planer blades, push stick,
extraction nozzle
Type DH 330
Order no. 0200033000
EQUIPMENT FEATURES
Ideal for mobile use due to low weight
Lateral depth stop adjustment
Large table length
Powerful universal motor for powerful lugging drive
and even planing result
Precise thickness adjustment for quick and exact planing
Large supply and delivery tables support the
conveyance of long materials; for ideal planing results
Planing locking mechanism prevents unintentional
adjustment of the chip removal setting and guarantees
precise work results
For single phase alternating current
Bench Thicknesser
DH 330
BENCH THICKNESSER
SAWS
SPECIAL-PURPOSE
MACHINES
SYSTEMATIC
ORGANISATIONGARDEN
WOOD-PROCESSING
TECHNOLOGY
WATER-/PUMP
TECHNOLOGY
WELDING
TECHNOLOGY
COMPRESSED
AIR SYSTEMS
0200033038 GB
0200033039 GB
230 V
110 V

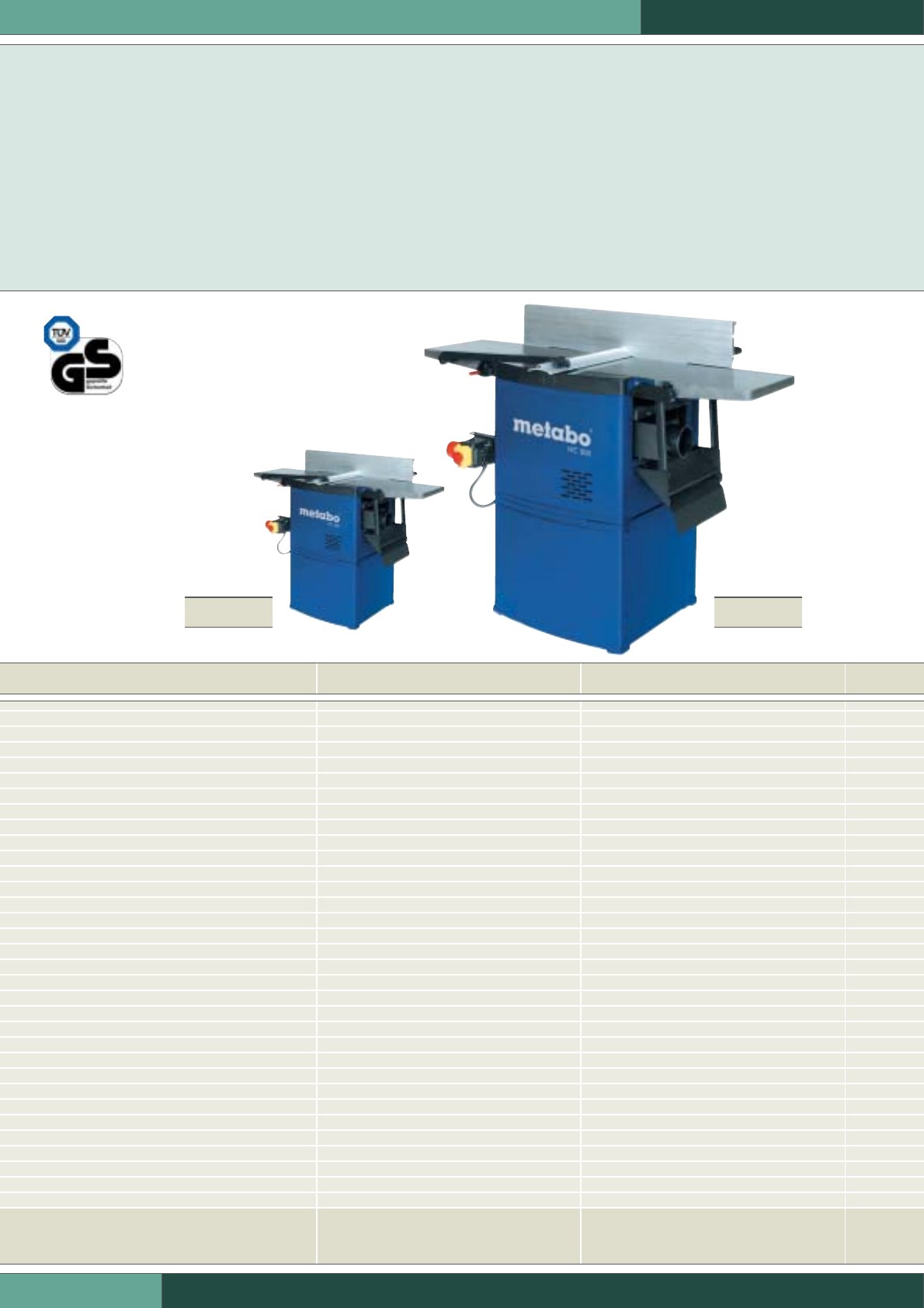

280 |
HC 260 C -
2,2 WNB
HC 260 C -
2,8 DNB
Special advantages
Dustproof according to TRGS 553 by FPH
For single phase alternating current
For three phase current
Comparative device characteristics
Dimensions L x W x H 1.110 x 620 x 960 mm 1.110 x 620 x 960 mm
Dressing plates L x W 1.040 x 260 mm 1.090 x 260 mm
Chip removal
- Planing 0 - 3 mm 0 - 3 mm
- Thickness planing 0 - 3 mm 0 - 3 mm
Material
- Dressing plates Cast aluminium Cast aluminium
- Thickness table Grey cast iron Grey cast iron
Thickness table L x W 400 x 260 mm 400 x 260 mm
Passage height/width 160 mm/260 mm 160 mm/260 mm
Feed rate 5 m/min 5 m/min
Diameter of blade shaft 63 mm 63 mm
Number of blades 2 2
Blade shaft speed 6.500 /min 6.500 /min
Rated input power 2,2 kW 2,8 kW
Output power 1,6 kW 2 kW
Weight 71 kg 71 kg
Standard equipment Integrated disposable reversible planer
blades, short, swivelling jointing fence, chip
ejection hood, push stick, extraction nozzle
Integrated disposable reversible planer
blades, short, swivelling jointing fence, chip
ejection hood, push stick, extraction nozzle
Type HC 260 C - 2,2 WNB HC 260 C - 2,8 DNB
Order no. 0114026000 0114026100
COMMON FEATURES
For precise angular trimming of raw wood
Sturdy feedgear mechanism
Thickness table made of solid, non-abrasive grey cast iron
Convenient height adjustment with crank handle
Dressing plate made of cast aluminium
Planer blade with double edge
Trimming fence, swivelling 90°-45°
Extensive range of accessories
Planing Machine
HC 260 C -
2,2 WNB
Planing Machine
HC 260 C -
2,8 DNB
PLANING MACHINES
0114026038 GB 230 V

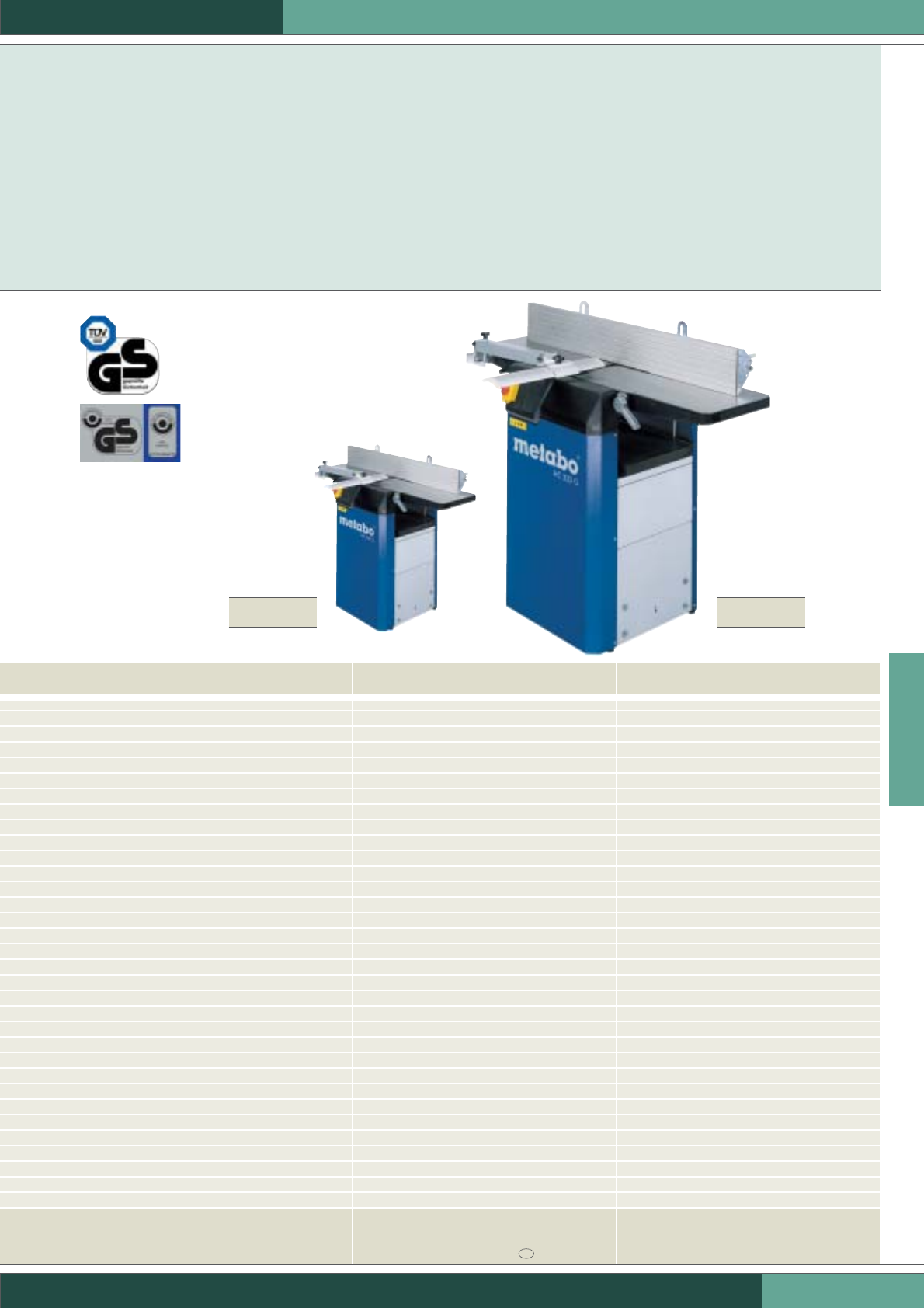

| 281

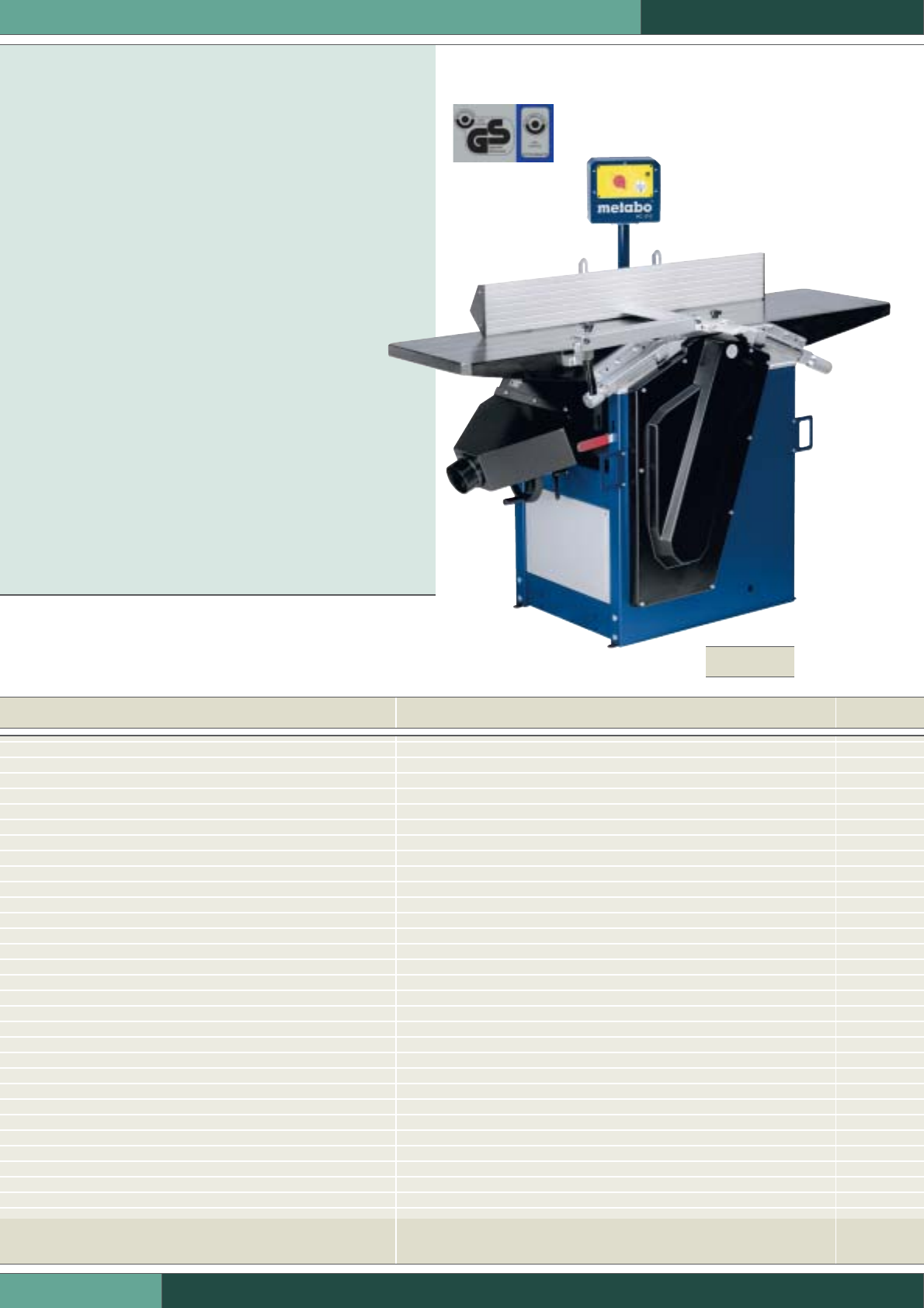

HC 260 K -
4,2 DNB
HC 260 K -
3,1 WNB
PLANING MACHINES
COMMON FEATURES
High stability due to the powder-coated, closed machine stand
Slot boring machine can be attached to the side (accessory)
For precise angular trimming of raw wood
Sturdy feedgear mechanism
Thickness table with special steel support
Convenient height adjustment with crank handle
Dressing plate made of cast aluminium
Trimming fence, swivelling 90°-45°
Dustproof according to TRGS 553 by FPH
Extensive range of accessories
Special advantages
For single phase alternating current
For three phase current
Comparative device characteristics
Dimensions L x W x H 1.090 x 540 x 410 mm 1.090 x 540 x 410 mm
Dressing plates L x W 1.090 x 260 mm 1.090 x 260 mm
Chip removal
- Planing 0 - 3 mm 0 - 3 mm
- Thickness planing 0 - 4 mm 0 - 4 mm
Material
- Dressing plates Cast aluminium, hardened Cast aluminium, hardened
- Thickness table Cast aluminium / special steel aluminium Cast aluminium / special steel aluminium
Thickness table L x W 400 x 260 mm 400 x 260 mm
Passage height/width 160 mm/260 mm 160 mm/260 mm
Feed rate 5 m/min 5 m/min
Diameter of blade shaft 63 mm 63 mm
Number of blades 2 2
Blade shaft speed 6.500 /min 6.500 /min
Rated input power 3,1 kW 4,2 kW
Output power 2 kW 2 kW
Weight 72 kg 72 kg
Standard equipment 2 integrated HSS reversible planer blades,
short, swivelling jointing fence, chip ejection
hood, push stick, extraction nozzle
2 integrated HSS reversible planer blades,
short, swivelling jointing fence, chip ejection
hood, push stick, extraction nozzle
Planing Machine
HC 260 K -
3,1 WNB
Planing Machine
HC 260 K -
4,2 DNB
Type HC 260 K - 3,1 WNB HC 260 K - 4,2 DNB
Order no. 0112026053 0112026061
SAWS
SPECIAL-PURPOSE
MACHINES
SYSTEMATIC
ORGANISATIONGARDEN
WOOD-PROCESSING
TECHNOLOGY
WATER-/PUMP
TECHNOLOGY
WELDING
TECHNOLOGY
COMPRESSED
AIR SYSTEMS
0112026096 (mounted)

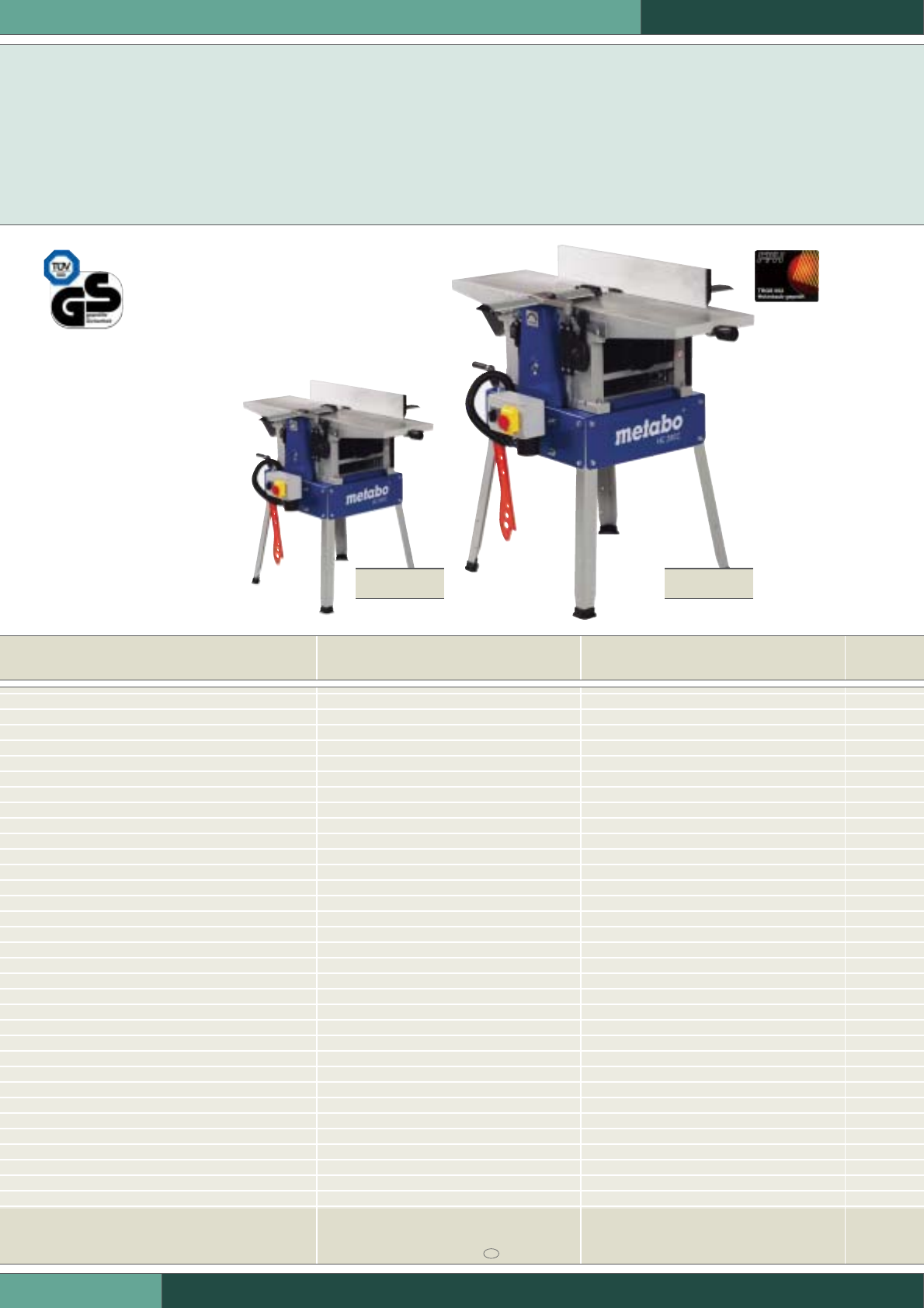

282 |
HC 300 W -
1,85 W
HC 300 D -
2,8 D
Anti-planer cut patent for ideal planing results
(minimum feed and extraction levels on the workpiece)
Robust machine housing for high stability and extensive
vibration-free work
Simple conversion from surface planer to bench thicknesser
without tools
Automatic, even workpiece feed
Thickness table on four ball bearings
Dressing plate made of coated, solid aluminium
die cast for good guidance of long wood
With lockable switch
Sturdy support for safe work at ideal operating height
For precise angular trimming of raw wood
Thickness table made of solid, non-abrasive grey cast iron
Convenient height adjustment with crank handle
Planer blade with double edge
Trimming fence, swivelling 90°-45°
Dustproof according to TRGS 553 by FPH
Extensive range of accessories
Special advantages
For single phase alternating current
For three phase current
Comparative device characteristics
Dimensions L x W x H 1.200 x 580 x 1.010 mm 1.200 x 580 x 1.010 mm
Working height 850 mm 850 mm
Dressing plates L x W 1.200 x 300 mm 1.200 x 300 mm
Chip removal
- Planing 0 - 3 mm 0 - 3 mm
- Thickness planing 0 - 3 mm 0 - 3 mm
Material
- Dressing plates Cast aluminium Cast aluminium
- Thickness table Grey cast iron Grey cast iron
Thickness table L x W 500 x 300 mm 500 x 300 mm
Passage height/width 165 mm/300 mm 165 mm/300 mm
Feed rate 5 m/min 5 m/min
Diameter of blade shaft 60 mm 60 mm
Number of blades 2 2
Blade shaft speed 6.000 /min 6.000 /min
Rated input power 1,85 kW 2,8 kW
Output power 1,3 kW 2,2 kW
Weight 85 kg 85 kg
Standard equipment 2 integrated HSS planer blades, gauge for
setting the planer blades, large, swivelling
jointing fence, chip ejection hood, push stick,
extraction nozzle
2 integrated HSS planer blades, gauge for
setting the planer blades, large, swivelling
jointing fence, chip ejection hood, push stick,
extraction nozzle
Type HC 300 W - 1,85 W HC 300 D - 2,8 D
Order no. 0113030000 0113030100
Planing Machine
HC 300 W - 1,85 W
Planing Machine
HC 300 D - 2,8 D
PLANING MACHINES
COMMON FEATURES

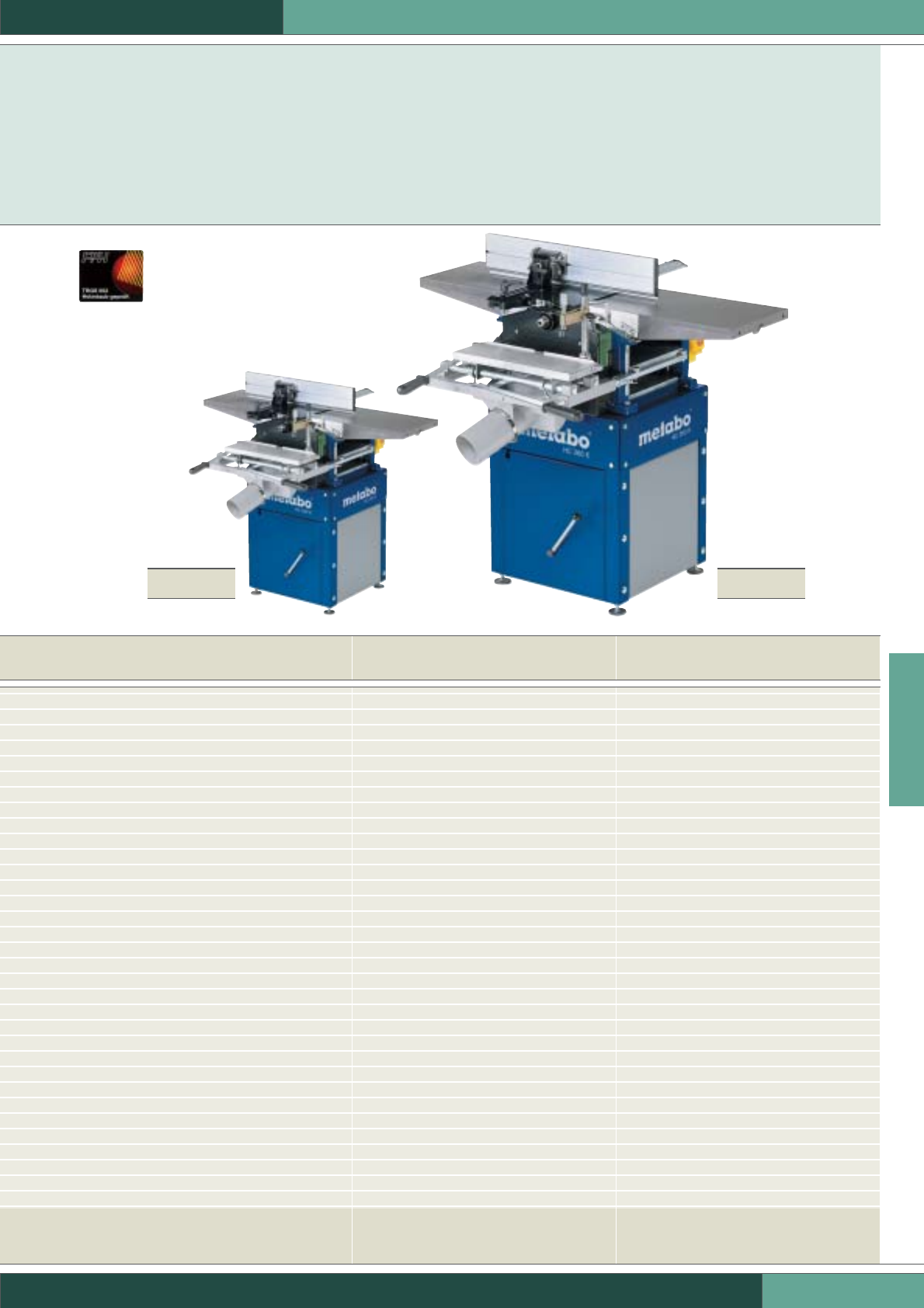

| 283
HC 333 G -
2,5 WNB
HC 333 G -
2,8 DNB
Special advantages
For single phase alternating current
For three phase current
Comparative device characteristics
Dimensions L x W x H 1.240 x 560 x 1.010 mm 1.240 x 560 x 1.010 mm
Working height 850 mm 850 mm
Dressing plates L x W 1.240 x 340 mm 1.240 x 340 mm
Chip removal
- Planing 0 - 3 mm 0 - 3 mm
- Thickness planing 0 - 3 mm 0 - 3 mm
Material
- Dressing plates Grey cast iron Grey cast iron
- Thickness table Grey cast iron Grey cast iron
Thickness table L x W 550 x 310 mm 550 x 310 mm
Passage height/width 180 mm/307 mm 180 mm/307 mm
Feed rate 5 m/min 5 m/min
Diameter of blade shaft 64,5 mm 64,5 mm
Number of blades 2 2
Blade shaft speed 6.300 /min 6.300 /min
Rated input power 2,5 kW 2,8 kW
Output power 1,9 kW 2,2 kW
Weight 140 kg 140 kg
Standard equipment 2 integrated HSS reversible planer blades,
large, swivelling jointing fence, gauge for
setting the planer blades, chip ejection hood,
push stick, extraction nozzle
2 integrated HSS reversible planer blades,
large, swivelling jointing fence, gauge for
setting the planer blades, chip ejection hood,
push stick, extraction nozzle
Type HC 333 G - 2,5 WNB HC 333 G - 2,8 DNB
Order no. 0113033355 0113033380
Optimum draw-in rollers, rubber-coated extraction rollers
for best contact pressure
Four chrome-plated self-cleaning transport columns,
on 8 ball bearings
High own weight for excellent stability
Dressing plate made of solid, non-abrasive grey cast iron
Robust machine housing for high stability and extensive
vibration-free work
Simple conversion from surface planer to bench thicknesser
without tools
Automatic, even workpiece feed
Thickness table on four ball bearings
Sturdy support for safe work at ideal operating height
Slot boring machine can be attached to the side (accessory)
For precise angular trimming of raw wood
Thickness table made of solid, non-abrasive grey cast iron
Convenient height adjustment with crank handle
Planer blade with double edge
Trimming fence, swivelling 90°-45°
Dustproof according to TRGS 553 by FPH
Extensive range of accessories
Planing Machine
HC 333 G - 2,5 WNB
Planing Machine
HC 333 G - 2,8 DNB
PLANING MACHINES
COMMON FEATURES
SAWS
SPECIAL-PURPOSE
MACHINES
SYSTEMATIC
ORGANISATIONGARDEN
WOOD-PROCESSING
TECHNOLOGY
WATER-/PUMP
TECHNOLOGY
WELDING
TECHNOLOGY
COMPRESSED
AIR SYSTEMS
0113033363 GB 230 V
284 |
HC 410 G -
5,5 DNB
Type HC 410 G - 5,5 DNB
Bestell-Nr. 0113041013
Powder-coated, sturdy and torsion-free welded construction
Sturdy feedgear mechanism that can be shut off
Swivelling switch terminal
Guide shafts, drive shafts and screwed joints are protected
against corrosion permanently by galvanised coating
Thickness table made of grey cast iron; guided by central
spindle
Optimum draw-in rollers, rubber-coated extraction rollers
for best contact pressure
High own weight for excellent stability
Dressing plate made of solid, non-abrasive grey cast iron
Robust machine housing for high stability and extensive
vibration-free work
Simple conversion from surface planer to bench
thicknesser without tools
With lockable switch
Sturdy support for safe work at ideal operating height
Slot boring machine can be attached to the
side (accessory)
For precise angular trimming of raw wood
Convenient height adjustment with crank handle
Planer blade with double edge
Trimming fence, swivelling 90°-45°
Dustproof according to TRGS 553 by FPH
Extensive range of accessories
For three phase current
Comparative device characteristics
Dimensions L x W x H 1.700 x 820 x 1.070 mm
Working height 850 mm
Dressing plates L x W 1.700 x 410 mm
Chip removal
- Planing 0 - 5 mm
- Thickness planing 0 - 5 mm
Material
- Dressing plates Grey cast iron
- Thickness table Grey cast iron
Thickness table L x W 670 x 405 mm
Passage height/width 230 mm/405 mm
Feed rate 7 m/min
Diameter of blade shaft 82 mm
Number of blades 3
Blade shaft speed 5.500 /min
Rated input power 5,5 kW
Output power 3,2 kW
Weight 250 kg
Standard equipment 3 integrated planer blades, gauge for setting the planer blades,
phase inverter, large, swivelling jointing fence,
chip ejection hood, push stick, extraction nozzle
PLANING MACHINES
EQUIPMENT FEATURES
Planing Machine
HC 410 G - 5,5 DNB
| 285
PLANING MACHINES
Planer blades
Dimensions
mm
Reversib-
le planer
blades
Suitable for
Packing
unit
Order no.
HSS planer blade
For all soft woods and hard woods
Regrindable
18% tungsten = increased tool life
332 x 12 x 1,5 DH 330, DH 316 0911063549
334 x 16 x 2 DH 330 2 0911062119
260 x 20 x 3
HC 260 C 2),
HC 260 M 2), HC 260 K 1)
2 0911030721
304 x 25 x 3 HC 300 2
09110601671)
310 x 20 x 3 HC 333 G 2
09110531791)
410 x 25 x 3 HC 410 G 3
09110503901)
410 x 14 x 2,55 HC 410 G 3 0911051150
Disposable reversible planer blades
For all soft woods
260 x 18,6 x 1
HC 260 C 1),
HC 260 M 1), HC 260 K
2 0911030713
Carbide planer blade
For all hard woods, especially exotic woods, laminated
wood, hard paper, fabric reinforced laminates
Panel materials and plastics
Regrindable, long tool life
260 x 20 x 3
HC 260 C 2),
HC 260 M 2), HC 260 K 1)
2 0911030730
304 x 25 x 3 HC 300 2 0911060175
310 x 20 x 3 HC 333 G 2 0911053160
410 x 25 x 3 HC 410 G 3 0911050366
Planer blade and retaining strip conversion set
260 HC 260 C, HC 260 M 2 0911030845
Planer blade adjusting devices
Order no.
Planer blade adjusting device
Suitable for all blade shafts
Simple handling and exact cutter
projection
In wooden case
Scope of delivery: 2 magnet
planer blade adjusting devices,
3 setting plates for blade
excess length
Not suitable for: HC 310
0911016397
ACCESSORIES FOR DH 330
Order no.
Universal machine stand
For ideal working height
and secure base
Can also be used
on uneven surfaces
Collapsible, with height
compensation
0910057529
ACCESSORIES FOR HC 260 C, HC 260 K, HC 260 M
Order no.
Wheel set
For easy transportation

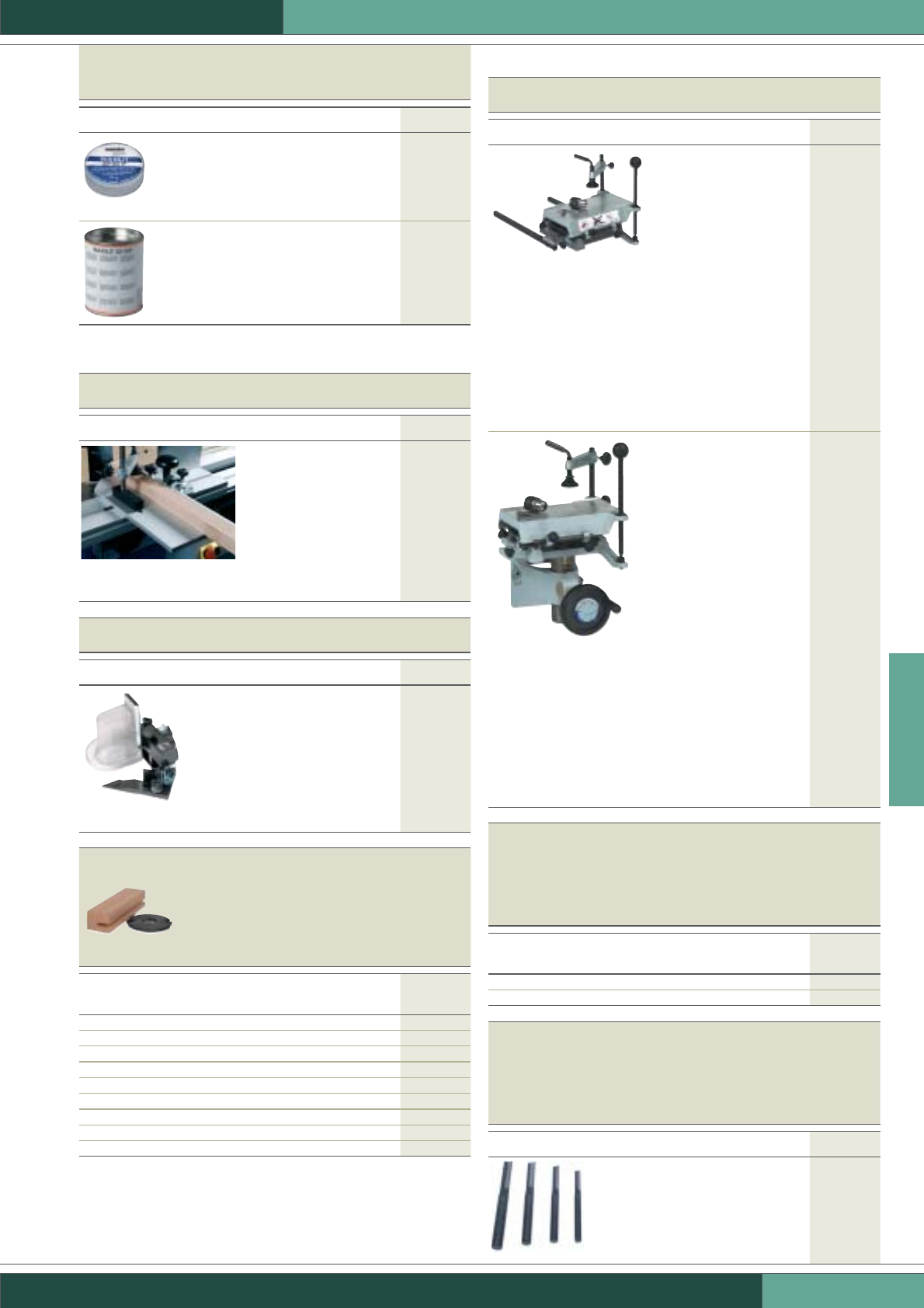

Suitable for: HC 260 C,
HC 260 M
0911003783
Wheel set
For easy transportation
Suitable for: HC 260 K
0911007100
Order no.
Slot boring machine
For the moulding/routing of
peg holes and oblong holes
For oblong holes up to 60 mm
deep and 125 mm long
With 2 hand lever operation
for longitudinal and
transverse motion
Including geared chuck,
extraction nozzle and
1 clamping device
Clamping table: 400 x 130 mm
Working height: 800 mm
Length adjustment: 125 mm
Drilling depth: 60 mm
Height adjustment: 130 mm
Chuck capacity: 1 - 10 mm
Extraction nozzle Ø: 100 mm
Suitable for: HC 260 M,
HC 260 K
0911003791
Eccentric clamping device
without stand
For clamping the
workpiece
0910009680
Clamping stand for slot boring
machine
Required for mounting the
eccentric clamping device
Ø 20x200mm thread M
20x1.5mm
Suitable for: HC 260 M,
HC 260 K
0911009811
Mortising bit set
All mortising bits can be
clamped in the geared chuck
With two straight cutters and
chip breaker grooves
Right-hand cutting
Ø 6, 8, 10 and 12 mm
Packing unit: 4
Suitable for: HC 260 M,
HC 260 K
0911030497
ACCESSORY FOR HC 300
Order no.
Wheel set
For easy transportation
0911060205
ACCESSORIES FOR HC 333 G
Order no.
Wheel set
For easy transportation
0911053195
Table length extension
For the secure
supporting of long
workpieces
With height adjustable
support leg and
auxiliary fence rail
Eccentric clamp - easy to
mount and dismount
Front/rear mounting
on the base support
system
HC 333: Mounting
possible on both sides
of the dressing plates
Length: 1.000 mm
Width: 200 mm
0910018469
Auxiliary fence/stop
For precise guiding with
narrow workpieces
Collapsible
0911053594
1) Standard equipment of the planing machines
2) Also requires planer blade and retaining strip conversion set 0911030845
SAWS
SPECIAL-PURPOSE
MACHINES
SYSTEMATIC
ORGANISATIONGARDEN
WOOD-PROCESSING
TECHNOLOGY
WATER-/PUMP
TECHNOLOGY
WELDING
TECHNOLOGY
COMPRESSED
AIR SYSTEMS
286 |
PLANING MACHINES
Order no.
Slot boring machine
For the moulding/routing
of peg holes and oblong
holes
With 1 hand lever
operation for longitudinal
and transverse motion
Rapid mounting and
dismounting via two
eccentric levers
Separate height
adjustment
Including geared chuck,
clamping device and
mounting set
Clamping table:
300 x 150 mm
Working height: 810 mm
Length adjustment: 110 mm
Drilling depth: 110 mm
Height adjustment: 110 mm
Chuck capacity: 1 - 14 mm
Extraction nozzle Ø: 100 mm
Suitable for: HC 333 G
0911053187
Mortising bit set
All mortising bits
can be clamped in
the geared chuck
With two straight cutters
and chip breaker grooves
Right-hand cutting
Ø 6, 8, 10 and 12 mm
Packing unit: 4
0911030497

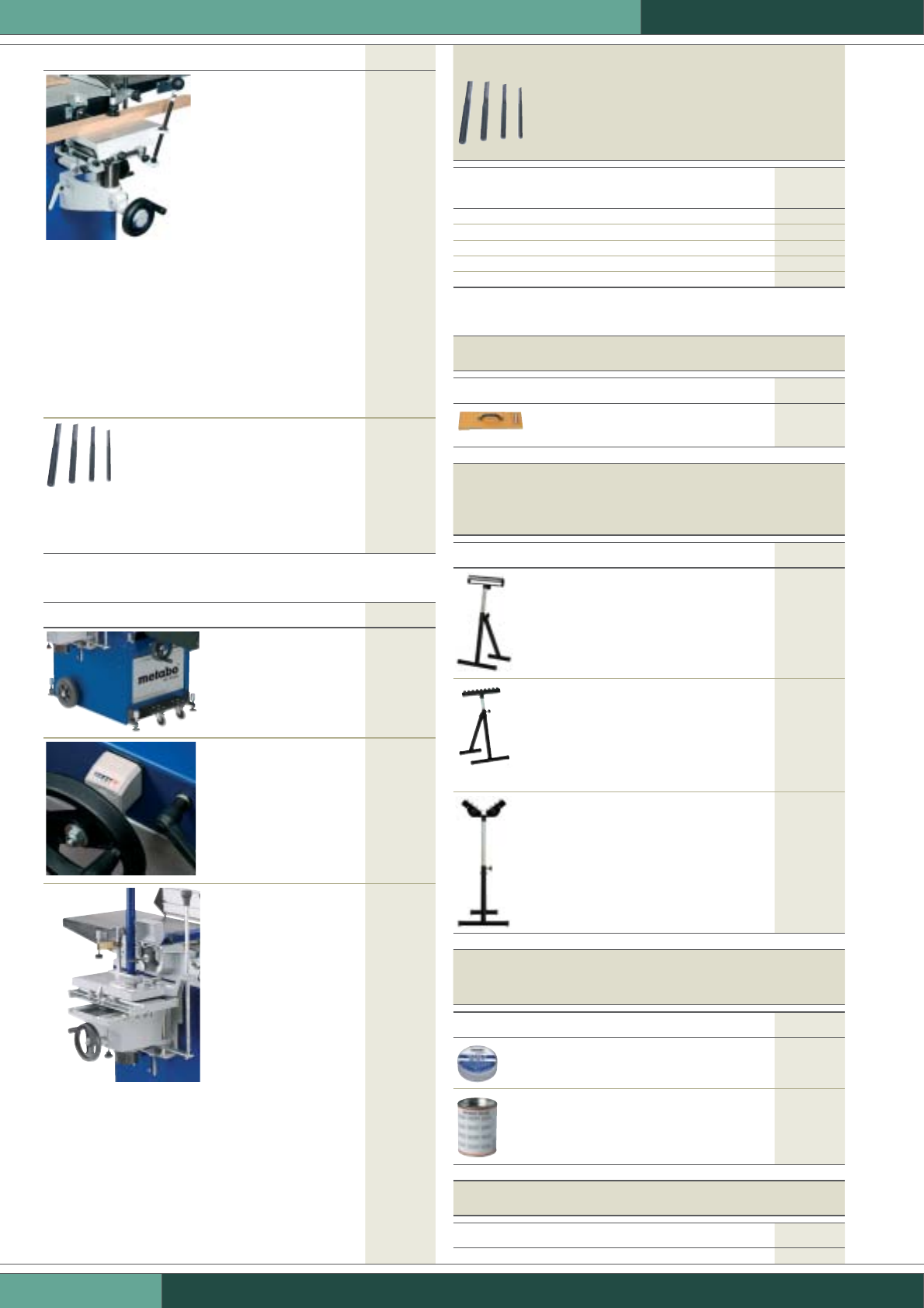

ACCESSORIES FOR HC 410 G
Order no.
wheel set
For easy transportation
With 2 steering rollers
and 2 support rollers
0911014203
Digital display
The display clock enables
you to set and read the
height with a precision
up to a tenth of a
millimetre when
thickness planing
Suitable for: HC 320 up to
model year 99, HC 410 G
0911013983
Slot boring machine
For the moulding
/routing of peg holes
and oblong holes
For oblong holes
up to 120 mm deep
and 200 mm long
With 1 hand lever
operation for longitudinal
and transverse motion
Separate height
adjustment
Including geared chuck,
clamping device and
mounting set
Clamping table:
400 x 190 mm
Working height: 870 mm
Length adjustment: 200 mm
Drilling depth: 120 mm
Height adjustment: 120 mm
Chuck capacity: 2,5 - 16 mm
Extraction nozzle Ø: 100 mm
Suitable for: HC 314 up to
model year 99, HC 320 up to
model year 99, HC 410 G
0911014211
Mortising bits
All mortising bits can be clamped
in the geared chuck
With two straight cutters and chip
breaker grooves
Right-hand cutting
Length
mm
Diameter
mm
Order no.
130 8 0911014394
140 10 0911014408
150 12 0911014416
150 14 0911014424
170 16 0911014432
OTHER ACCESSORIES FOR THE PLANING MACHINES
Push block
Order no.
Push block
For the safe feed of short
workpieces while planing
0911060213
Roller stands
For supporting long workpieces when sawing,
moulding/routing, planing and drilling
Sturdy, height-adjustable and foldable
Order no.
RS 420
With smooth-rolling special steel
rollers with a high load capacity
Width: 400 mm
Base weight: 100 kg
Height: 640 - 1.015 mm
0910053353
RS 420 G
With smooth-rolling chromium-plated
ball bearings
Also permits lateral movements
Ideal for panel material
Width: 520 mm
Base weight: 100 kg
Height: 640 - 1.015 mm
0910053345
RS 420 W
With smooth-rolling chromium-plated
ball bearings
Adjustable ball bearing gib
Also permits lateral movements
Ideal for panel material, round or
square workpieces
Width: 420 mm
Base weight: 100 kg
Height: 640 - 1.015 mm
0910053361
Anti seize paste
To help the wood slide well on the dressing plate
and the thickness table
Order no.
Waxilit 70 g
Weight: 70 g
0911001071
Waxilit 1,000 g
Weight: 1 kg
4313062258
Spray for maintenance and care
Order no.
Spray for maintenance and care 0911018691
| 287
COMBO-MACHINES
SAWS
SPECIAL-PURPOSE
MACHINES
SYSTEMATIC
ORGANISATIONGARDEN
WOOD-PROCESSING
TECHNOLOGY
WATER-/PUMP
TECHNOLOGY
WELDING
TECHNOLOGY
COMPRESSED
AIR SYSTEMS

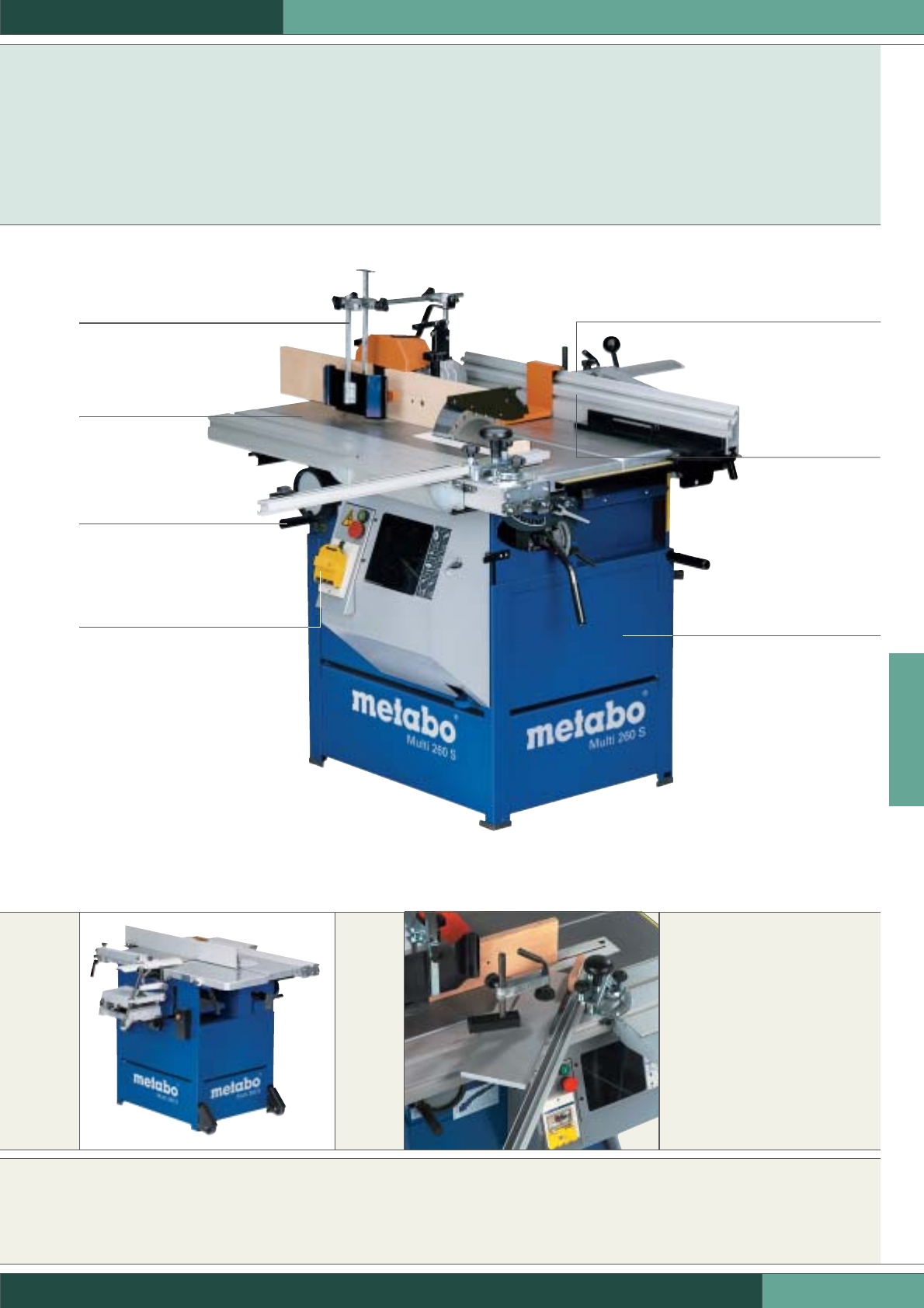

ALL IN ONE.
Metabo combo-machines can do just everything. You
can use them as table saw, surface planer, bench
thicknesser, spindle moulder or for mortising. But
best of all: con version from one function to the next is
possible quickly without any tools. Is there anything else
you need?
Multi 260 S as surface planing and
thickness planing device or as
spindle moulder with mortising
device.
The fence with clamp for firm grip.
e.g. Multi 260 S
Large spindle moulder
fence
fence with aluminium
die cast pressing fixture.
Multi 260 S as table saw with
standard carbide-tipped saw blade
and trimming slide.
Trimming slide
on ball bearings;
ideal for cutting
head boards.
Infinitely variable height
adjustment during
thickness planing.
Lockable main switch. Welded machine stand
for maximum precision
and stability.
Sturdy table-top
made of sheet steel.
Large rip or
planer fence
with aluminium
die cast pressing
fixture.
288 |

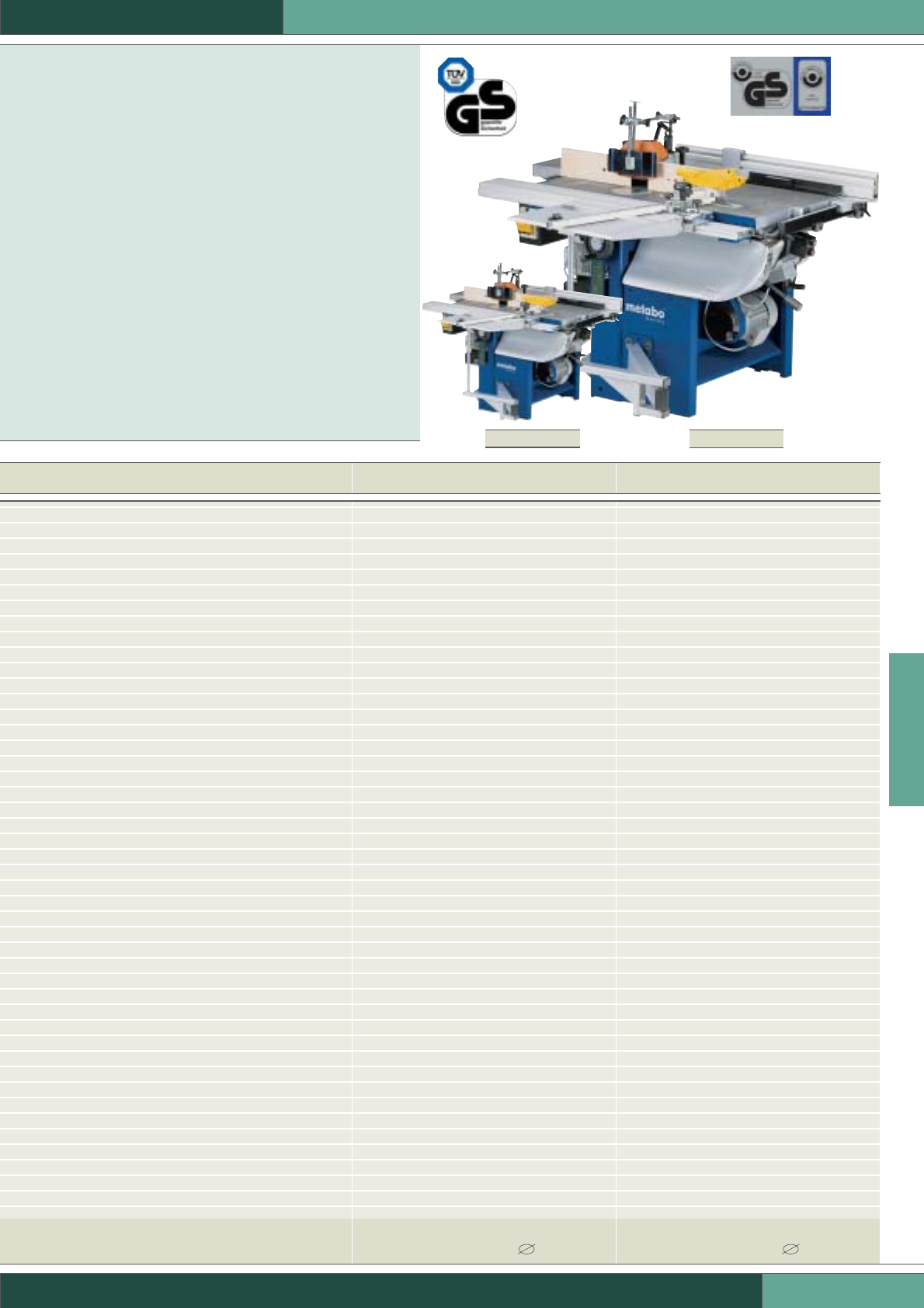

MULTI 260 S - DMULTI 260 S - D
COMBO-MACHINES
Special advantages
For single phase alternating current
For three phase current
Comparative device characteristics
As table saw
Table size 1.040 x 400 mm 1.040 x 400 mm
Cutting height 90/45° 90 mm/58 mm 90 mm/58 mm
Saw blade swivel range 0 - 45 ° 0 - 45 °
Maximum cutting width 420 mm 420 mm
Speed 4.600 /min 4.600 /min
Cutting speed 60 m/s 60 m/s
Sliding table 1.080 x 140 mm 1.080 x 140 mm
- Cross-cut guide, length 800 mm 800 mm
- Swivel range, cross-cut guide (right/left) 45 °/45 ° 45 °/45 °
- Cutting width in front of/behind saw blade 720/1.250 mm 720/1.250 mm
As surface planer
Table length 1.040 mm 1.040 mm
Planing width 260 mm 260 mm
Max. chip removal 4 mm 4 mm
Shaft diameter 62 mm 62 mm
Shaft speed 6.300 /min 6.300 /min
As bench thicknesser
Thickness table L x W 590 x 260 mm 590 x 260 mm
Passage height/width 150 mm/260 mm 150 mm/260 mm
Max. chip removal 4 mm 4 mm
Feed rate 7 m/min 7 m/min
As spindle moulder
Spindle speed 4.300/8.500 /min 4.300/8.500 /min
Diameter of spindle 30 mm 30 mm
Spindle height adjustment (maximum) 125 mm 125 mm
Dimensions L x W x H 1.080 x 880 x 850 mm 1.080 x 880 x 850 mm
Rated input power 2,2 kW 2,2 kW
Output power 1,5 kW 1,5 kW
Weight 166 kg 166 kg
Standard equipment HSS planer blade (regrindable), carbide saw
blade Ø 250 mm, trimming slide on ball
bearing, extraction nozzle Ø 100 mm,
wheel set
HSS planer blade (regrindable), carbide saw
blade Ø 250 mm, trimming slide on ball
bearing, extraction nozzle Ø 100 mm,
wheel set
Type MULTI 260 S - W MULTI 260 S - D
Order no. 0290026008 0290026016
COMMON FEATURES
Five-in-one combo-machines: can be used as table
saw, surface planer, bench thicknesser, as bench
milling cutter and for mortising (with accessory)
Easy conversion of various units without special tool
Infinitely variable height adjustment while thickness
planing, steel-corrugated extraction roller
Lockable main switch
Large adjustable fence with pressure appliance made
of sturdy aluminium die cast.
Sturdy sheet steel table-top, grey cast iron thickness
table
Max. tool diameter in the adjustable fence 180 mm,
in the table 150 mm
Trimming slide on ball bearing - ideal for moulding/
routing head boards
Slot boring machine can be attached to the
side (accessory)
With extensive range of accessories for versatile use
Combo-Machine
MULTI 260 S - W
Combo-Machine
MULTI 260 S - D
GB GB
| 289

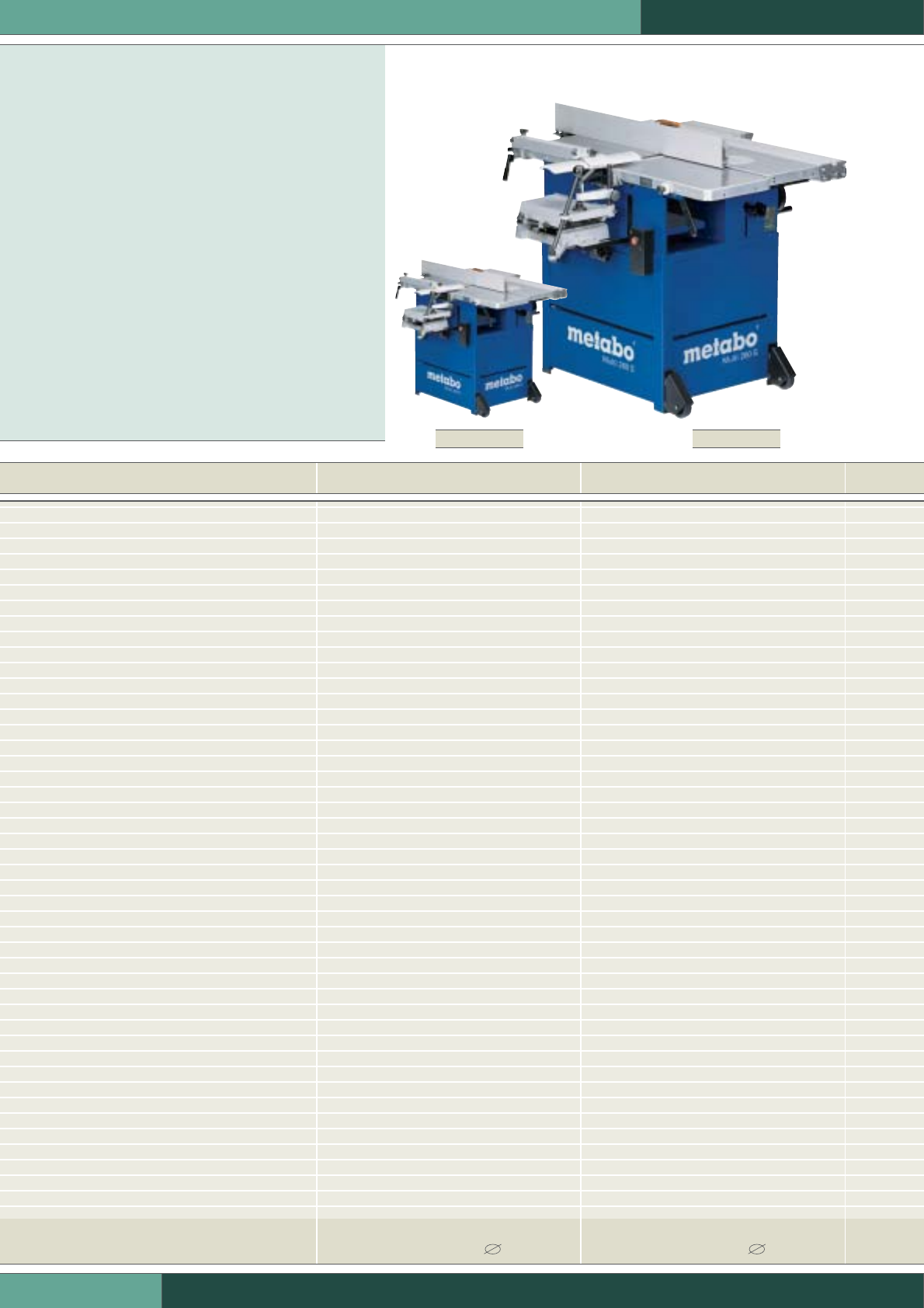

MULTI 310 G - DMULTI 310 G - W
COMBO-MACHINES
Special advantages
For single phase alternating current
For three phase current
Comparative device characteristics
As table saw
Table size 1.080 x 435 mm 1.080 x 435 mm
Cutting height 90/45° 82 mm/56 mm 82 mm/56 mm
Saw blade swivel range 0 - 45 ° 0 - 45 °
Maximum cutting width 450 mm 450 mm
Speed 4.200 /min 4.200 /min
Cutting speed 54 m/s 54 m/s
Sliding table 1.080 x 140 mm 1.080 x 140 mm
- Cross-cut guide, length 800 mm 800 mm
- Swivel range, cross-cut guide (right/left) 45 °/45 ° 45 °/45 °
- Cutting width in front of/behind saw blade 680/1.250 mm 680/1.250 mm
As surface planer
Table length 1.400 mm 1.400 mm
Planing width 310 mm 310 mm
Max. chip removal 4 mm 4 mm
Shaft diameter 62 mm 62 mm
Shaft speed 6.200 /min 6.200 /min
As bench thicknesser
Thickness table L x W 550 x 310 mm 550 x 310 mm
Passage height/width 200 mm/310 mm 200 mm/310 mm
Max. chip removal 5 mm 5 mm
Feed rate 7,5 m/min 7,5 m/min
As spindle moulder
Spindle speed 4.300/6.750/8.500 /min 4.300/6.750/8.500 /min
Diameter of spindle 30 mm 30 mm
Spindle height adjustment (maximum) 130 mm 130 mm
Dimensions L x W x H 1.400 x 890 x 890 mm 1.400 x 890 x 890 mm
Rated input power 2,6 kW 2,8 kW
Output power 1,8 kW 2,2 kW
Weight 355 kg 355 kg
Standard equipment HSS planer blade (regrindable), carbide saw
blade Ø 250 mm, trimming slide on ball
bearing, extraction nozzle Ø 100 mm
HSS planer blade (regrindable), carbide saw
blade Ø 250 mm, trimming slide on ball
bearing, extraction nozzle Ø 100 mm
Type MULTI 310 G - W MULTI 310 G - D
Order no. 0290031001 0290031010
COMMON FEATURES
Five-in-one combo-machines: can be used as table
saw, surface planer, bench thicknesser, as bench
milling cutter and for mortising (with accessory)
Easy conversion of various units without special tool
Infinitely variable height adjustment while thickness
planing, steel-corrugated extraction roller
Three motors with powerful lugging capacity
Lockable selector switch for all three motors
Maximum work safety by additional safety end switch
Heavy die cast iron table-tops
Max. tool diameter in the adjustable fence 180 mm,
in the table 150 mm
Trimming slide on ball bearing - ideal for moulding/
routing head boards
Trimming slides with sturdy swivel arm base
Slot boring machine can be attached to the
side (accessory)
With extensive range of accessories for versatile use
Combo-Machine
MULTI 310 G - W
Combo-Machine
MULTI 310 G - D
SAWS
SPECIAL-PURPOSE
MACHINES
SYSTEMATIC
ORGANISATIONGARDEN
WOOD-PROCESSING
TECHNOLOGY
WATER-/PUMP
TECHNOLOGY
WELDING
TECHNOLOGY
COMPRESSED
AIR SYSTEMS
GB GB
290 |
COMBO-MACHINES

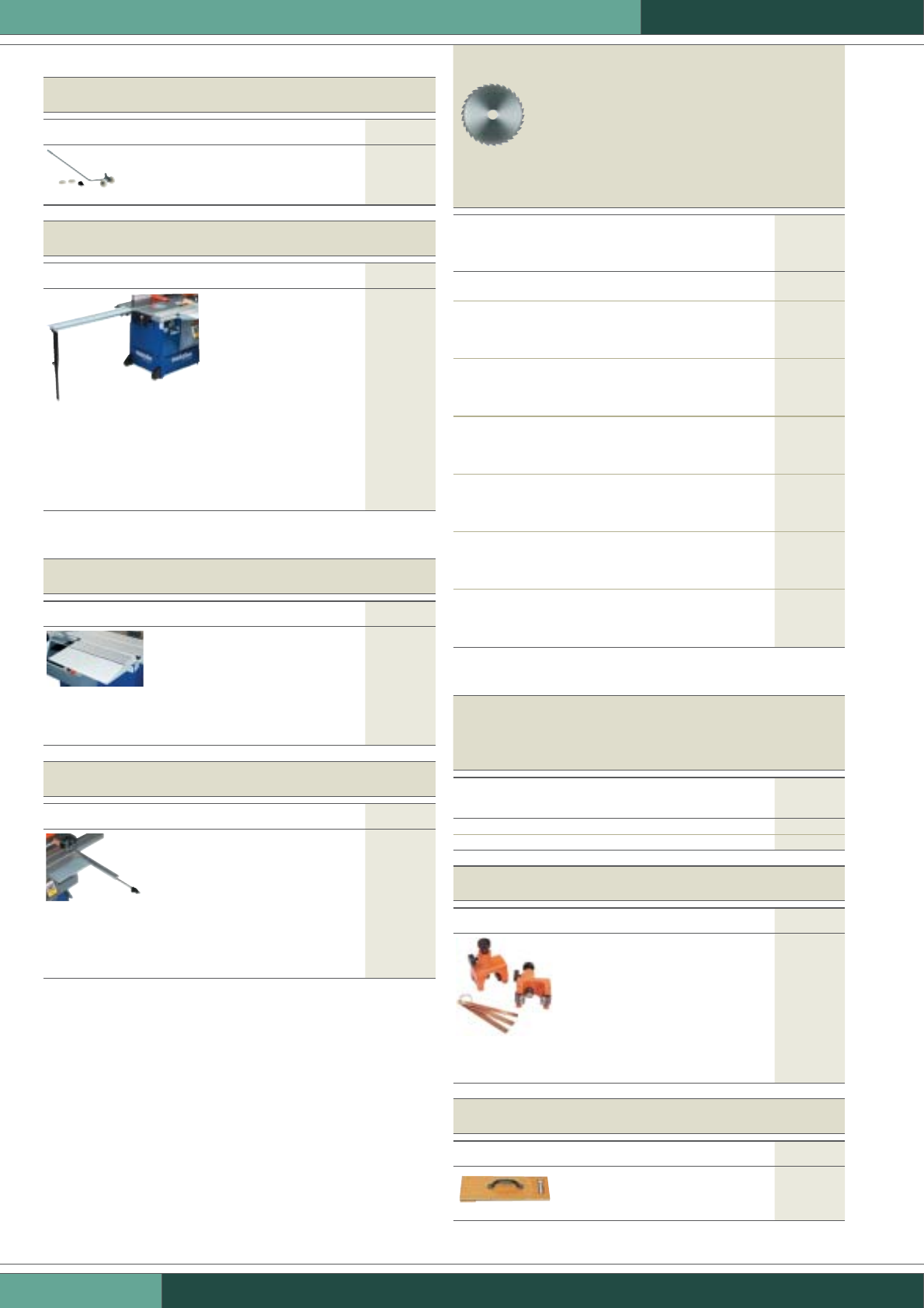

ACCESSORIES FOR THE COMBO-MACHINES
Wheel sets
Order no.
Wheel set
For easy transportation
Suitable for: Multi 310
0920054102
Table length extensions
Order no.
Table length extension
For the secure
supporting of
long workpieces
With height-adjustable
support leg
Eccentric clamp:
easy to mount
and dismount
Can be mounted
at the front or
the rear
Suitable for: Multi 260
Length: 1.000 mm
Width: 150 mm
0920053947
FOR SAWING
Sliding table width extensions
Order no.
Sliding table width extension
For enlarging the
supporting surface
Mounted and dismounted
without tools
Length: 350 mm
Width: 262 mm
0920054072
Length guides
Order no.
Length guide
For use with the
cross-cut guide of
the sliding table
Enables the cutting
to length of workpieces
of up to 1,700 mm
Extractable
Length 1,100 mm
0920054110
Circular saw blades
Top cutting results thanks to teeth
ground on all sides and high accuracy
of flatness and concentric running
Tungsten carbide blades: long tool
life thanks to use of unmixed carbide
Can be reground repeatedly
Made in Germany
Material Dimensions
mm
Tooth
pitch
Version Order no.
Tungsten
carbide
250 x 2,8 x 30 24 Alternately bevel-
ground tips
6.28012
Tungsten
carbide
250 x 2,8 x 30 34 Alternately bevel-
ground tips,
Combo secondary
hole holder
6.28045
Tungsten
carbide
250 x 2,8 x 30 42 Alternately bevel-
ground tips,
Combo secondary
hole holder
6.28046
Tungsten
carbide
250 x 2,8 x 30 60 Alternately bevel-
ground tips,
Combo secondary
hole holder
6.28049
Tungsten
carbide
250 x 3,2 x 30 60 Alternately bevel-
ground tips,
Combo secondary
hole holder
6.28050
Tungsten
carbide
250 x 2,8 x 30 80 Alternately bevel-
ground tips,
Combo secondary
hole holder
6.28087
Tungsten
carbide
250 x 2,8 x 30 80 Flat tooth/
trapezoidal
tooth,
5° negative
6.28088
FOR PLANING
HSS planer blade
For all soft woods and hard woods
Regrindable
18% tungsten = increased tool life
Dimensions
mm
Suitable for Packing unit Order no.
260 x 20 x 2,5 Multi 260 2 0920054030
310 x 20 x 2,5 Multi 310 2 0920054048
Planer blade adjusting devices
Order no.
Planer blade adjusting device
Suitable for all blade shafts
Simple handling and
exact cutter projection
In wooden case
Scope of delivery:
2 magnet planer blade
adjusting devices,
3 setting plates for
blade excess length
0911016397
Push block
Order no.
Push block
For the safe feed of short
workpieces while planing
0911060213
| 291
COMBO-MACHINES
Anti seize paste
To help the wood slide well on the dressing plate
and the thickness table
Order no.
Waxilit - anti seize paste
To help the wood slide
well on the dressing plate
and the thickness table
Weight: 70 g
0911001071
Waxilit - anti seize paste
To help the wood slide
well on the dressing plate
and the thickness table
Weight: 1 kg
4313062258
FOR MOULDING/ROUTING
Tenon benches
Order no.
Tenon bench
Prevents the workpiece
from being pulled from
the router bit into the
housing
Particularly when
moulding/routing
short chocks
Support surface:
440 x 150 mm
0920054080
Arc milling fences
Order no.
Arc moulding guide
Enables the moulding/
routing of curved
and similarly shaped
workpieces
Suction connection
Ø 100 mm
Including arc
milling fence
0920054099
Carbide straight bit
For grooving all kinds of wood
and panel materials
Carbide-tipped straight bit
Groove depth max. 25 mm
PA-wood tested
Groove width
mm
Diameter
mm
Bore
mm
Order no.
4 100 30 0914031095
6 100 30 0914031117
8 100 30 0914031125
10 100 30 0914031133
12 100 30 0914031141
14 100 30 0914031150
16 100 30 0914031168
18 100 30 0914031176
20 100 30 0914031184
FOR MORTISING
Slot boring machines
Order no.
Slot boring machine
For the moulding/
routing of peg holes
and oblong holes
With one-hand
lever operation for
longitudinal and
transverse motion
Including geared chuck
and clamping device
Clamping table:
300 x 150 mm
Working height: 830 mm
Length adjustment:
110 mm
Drilling depth: 110 mm
Height adjustment: 80 mm
Chuck capacity: 2 - 14 mm
Extraction nozzle Ø: 100 mm
Suitable for: Multi 260
0920054056
Slot boring machine
For the moulding/
routing of peg holes
and oblong holes
With one-hand
lever operation for
longitudinal and
transverse motion
Rapid attachment
and removal via two
eccentric levers
Separate height
adjustment
Including geared chuck,
clamping device and
mounting set
Clamping table:
300 x 150 mm
Working height: 810 mm
Length adjustment:
110 mm
Drilling depth: 110 mm
Height adjustment: 110 mm
Chuck capacity: 2 - 14 mm
Extraction nozzle Ø: 100 mm
Suitable for: Multi 310
0920054064
Mortising bits
All mortising bits can be clamped
in the geared chuck
With two straight cutters and
chip breaker grooves
Left-hand cutting
Length
mm
Diameter
mm
Packing unit Order no.
150 14 1 0911055830
160 16 1 0911055848
Mortising bit sets
All mortising bits can be clamped
in the geared chuck
With two straight cutters and
chip breaker grooves
Left-hand cutting
Order no.
Mortising bit set
Consisting of mortising
bits Ø 6, 8, 10 and
12 mm (1 each)
0911055821
SAWS
SPECIAL-PURPOSE
MACHINES
SYSTEMATIC
ORGANISATIONGARDEN
WOOD-PROCESSING
TECHNOLOGY
WATER-/PUMP
TECHNOLOGY
WELDING
TECHNOLOGY
COMPRESSED
AIR SYSTEMS
292 |
e.g. BAS 317 Precision
"Sawdust-tested"
in compliance with
TRGS 553 by FPH

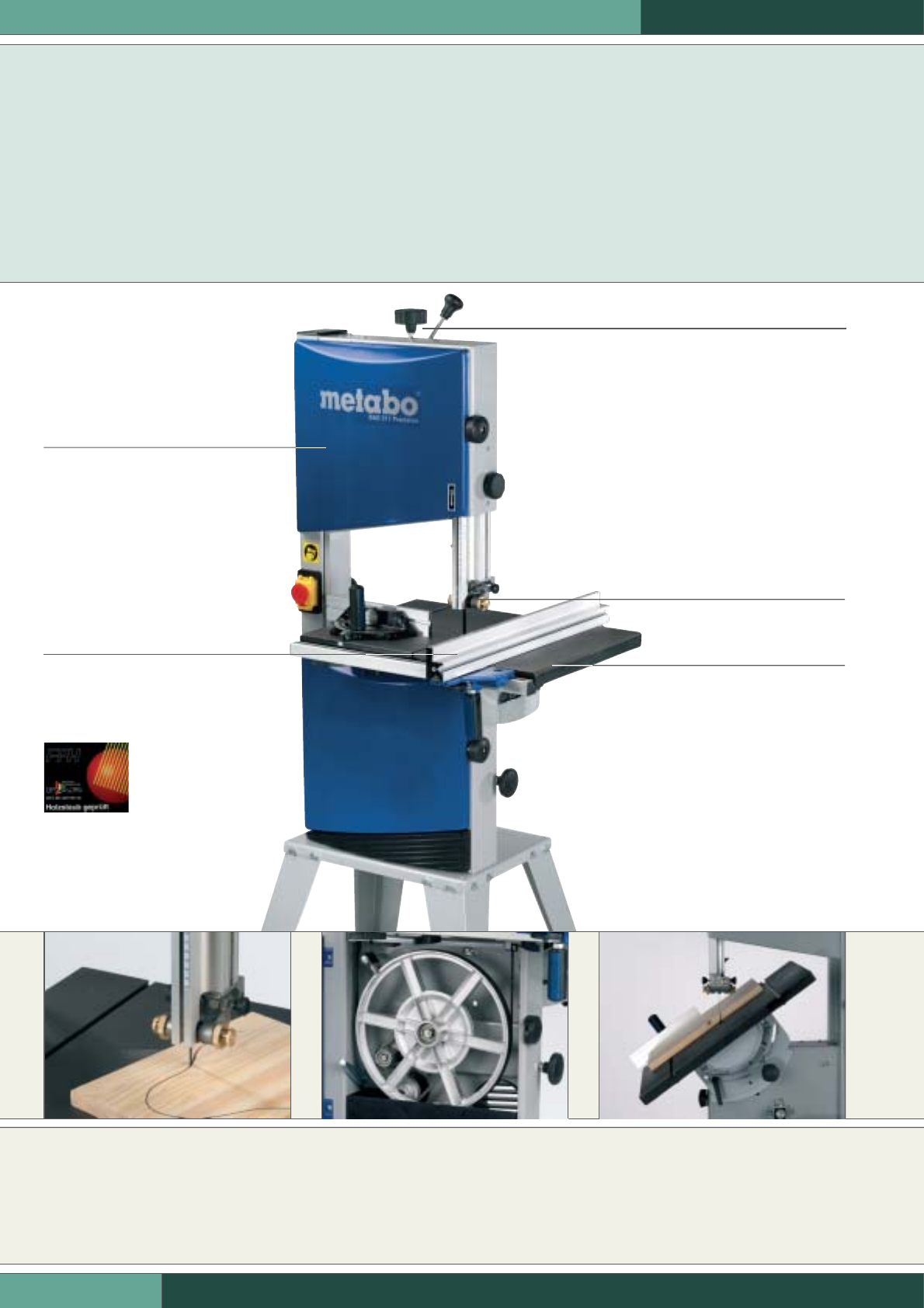

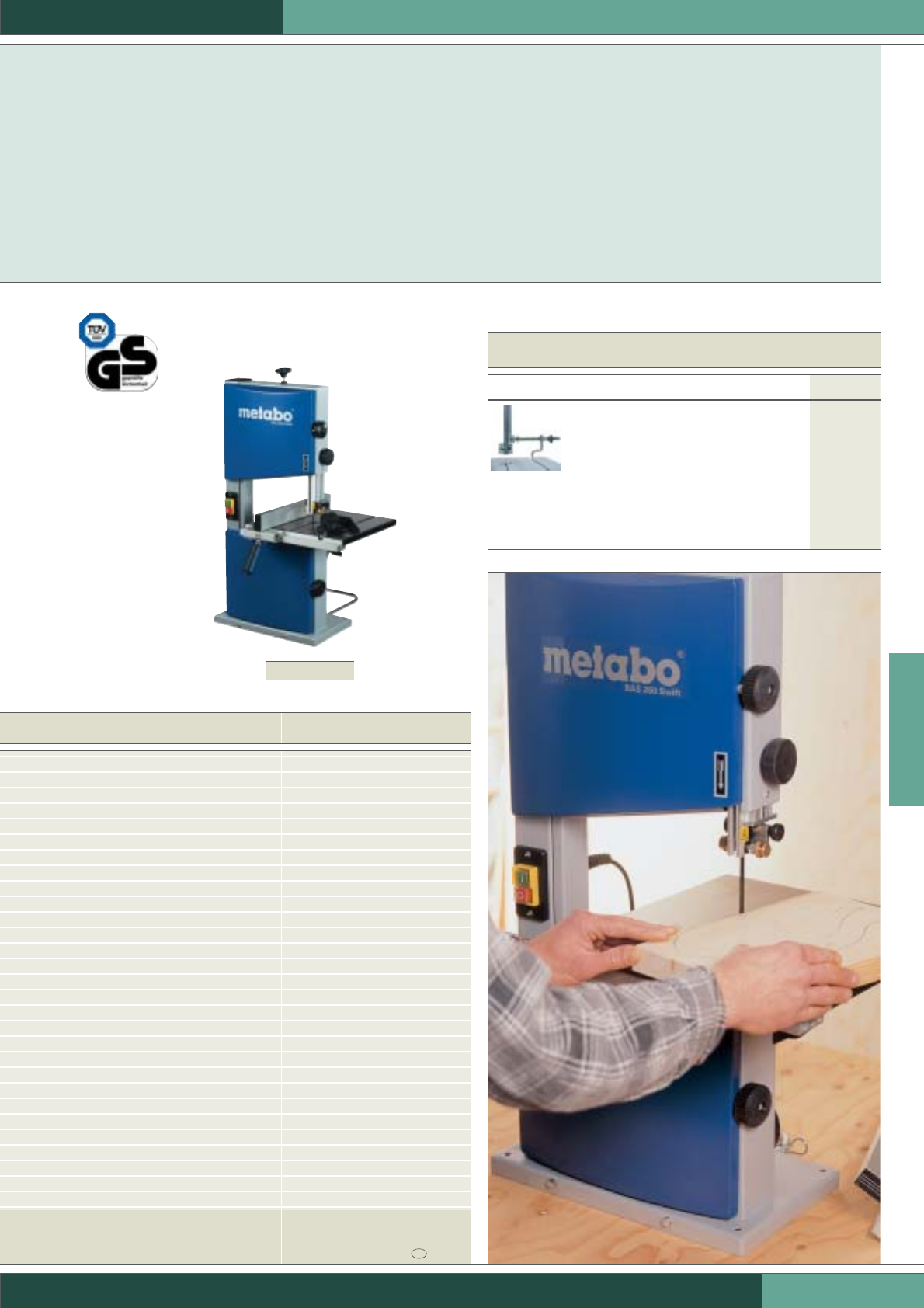

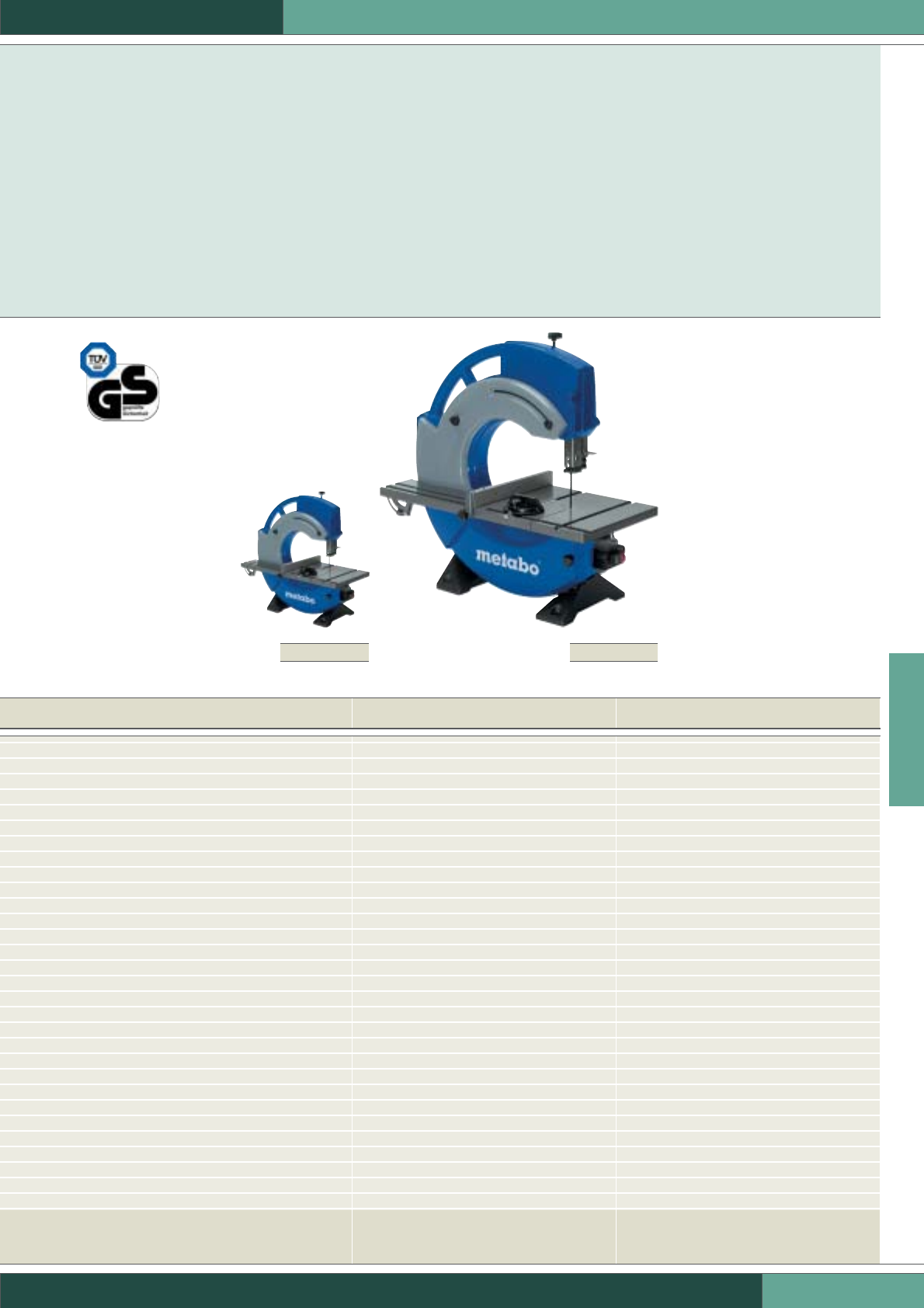

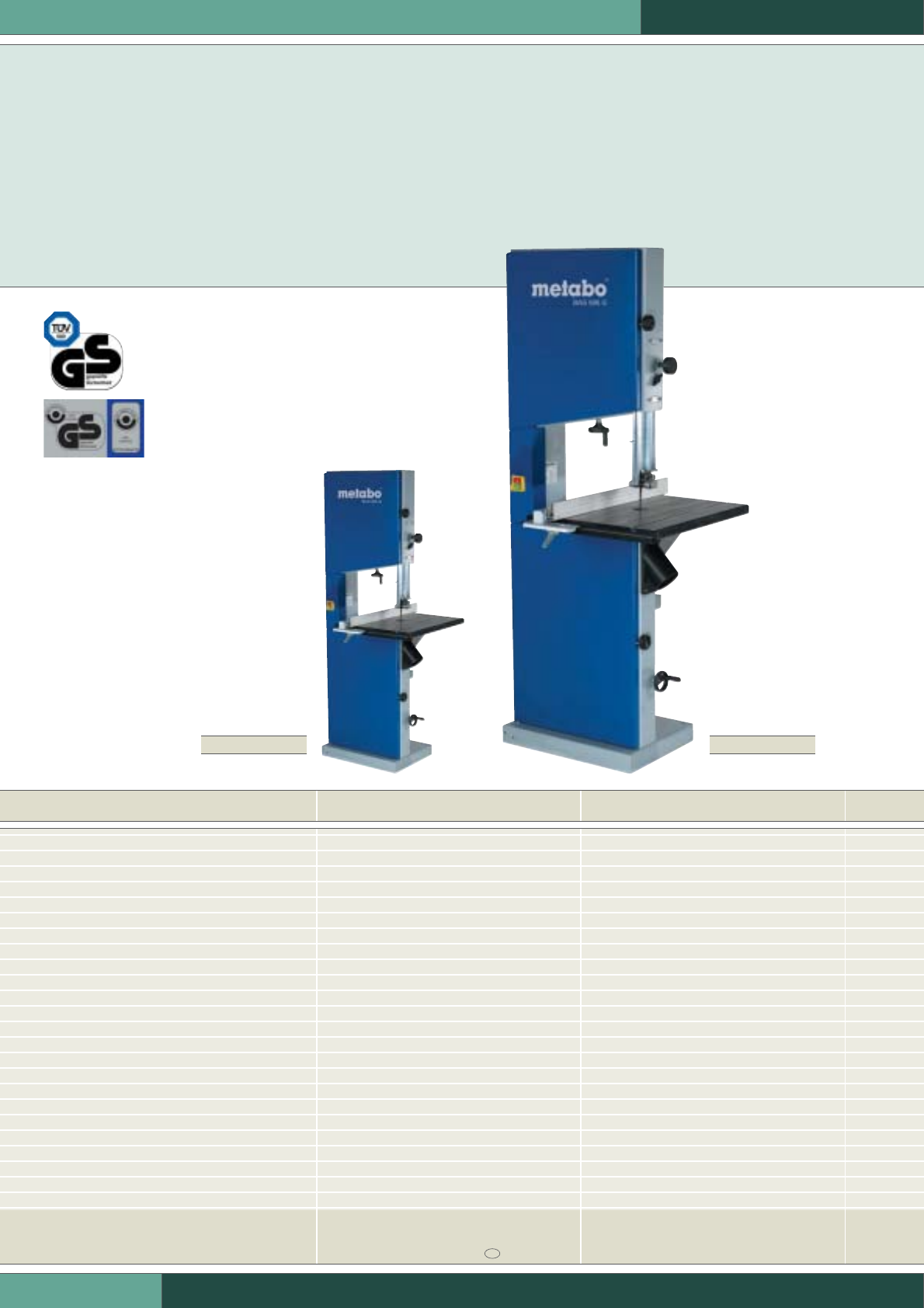

BAND SAWS
CUTTING EDGE PRECISION.
A Metabo band saw provides you with top features that
nobody else can offer. Whether you make models, small
pieces of furniture or whether you are interested in pro-
fessional applications, a Metabo band saw is always the
right choice. All of our band saws are equipped with pre-
cision three-pulley guides, have sturdy, low-vibration
grey cast iron tables and high quality length stops that
enable clean and precise working, whatever you are
doing. Safety limit switches, blade clamp indicators and
quick-release levers offer more safety but also more
comfortable working.
Safety cut out switch
Immediate shut down
when a door is opened.
Professional parallel stop
With eccentric clamping and
exact scale with built-in magnify-
ing glass. Can be used on both
sides of the saw blade.
Precision three-
pulley guide
For optimum guidance
and long service life of
the band saw blade.
Torsion-resistant grey
cast iron saw table
For more precision and at the
same time less vibrations.
Convenient angle adjustment
from –2° to 45° by soft handle
and patented toothed ring guide.
Quick-action lever
Simple adjustment of the
blade tension by hand wheel.
Indicator for the fast reading
of the blade tension.
High precision operation
with maximum operating comfort.
Best cutting results are no coincidence.
Metabo. Work. Don’t play.
High stability
The combination of torsion-resistant
grey cast iron table and professional
belt guide is the basis for ideal cutting
results in wood, plastic or nonferrous
metal for the professional.
By shifting the V-belts
to the lower roller box, four different speeds
can be preset for ideal adjustment to the
material to be cut.
| 293
BAS 260 Swift

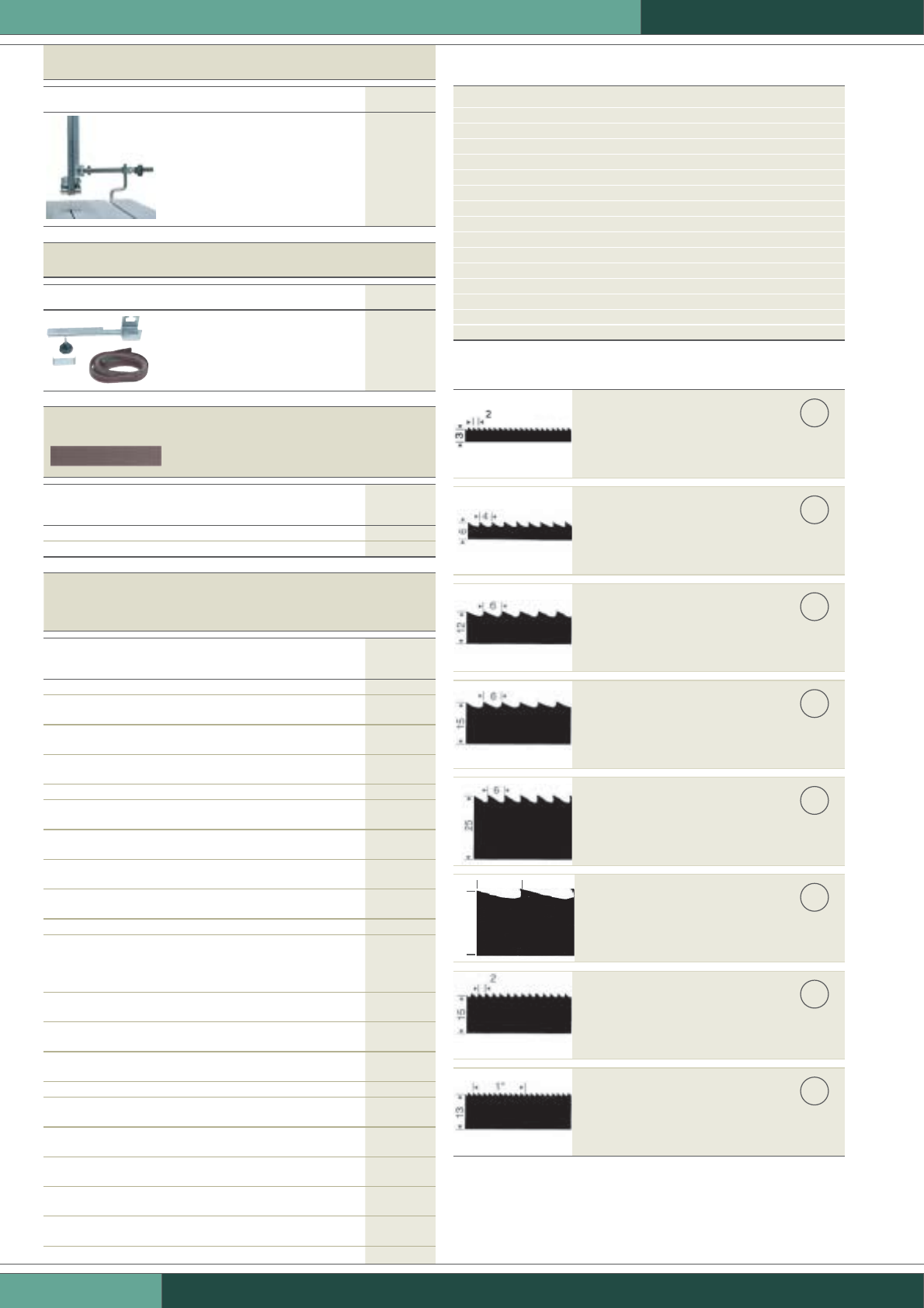

ACCESSORIES FOR BAS 260 SWIFT
Circle cutting attachments
Order no.
Circle cutting attachment
For circular cuts
or tapered cuts
(with inclined table)
Diameter from 120 to 280 mm
Band saw blade 6 mm
required for curve sawing
0909031249
Comparative device characteristics
Dimensions L x W x H 525 x 425 x 840 mm
Support surface 340 x 335 mm
Working height without stand 374 mm
Working height with stand
Saw tabel swivel range 0 - 45 °
Cutting height 100 mm
Passage width 245 mm
Cutting speed 690 m/min
Saw belt length 1.712 mm
Saw belt width 6,4 - 12,7 mm
Rated input power 0,35 kW
Output power 0,26 kW
Weight 32,5 kg
Standard equipment A6 universal band saw blade,
support base, parallel guide/
ripping fence, mitre guide,
precision three-pulley guide,
suction adapter (suitable for
Ø 44, 58, 100 mm)
Type BAS 260 Swift
Order no. 0090025100
EQUIPMENT FEATURES
Band Saw
BAS 260 Swift
Door opening without tools; protection by safety end switches
Light saw blade guard stop via hand wheel
Precision three-pulley guide with HPHSS rollers and
brass counter nuts; adjustable without tools
Parallel guide/ripping fence with long profile, clamped at
the front. Can be used on both sides, with built-in magnifier
Mitre guide with soft handle and improved T-slot guide,
for optimum grip while working
Radius cutting with circle sawing attachment (accessory)
Large cutting height with height indicator
Sturdy design due to steel sheet construction
Large swivelling grey cast iron saw table
Simple and easy-to-use table fixing via large thumb screw
Suction adapter for all conventional Metabo suction
hose diameters
Support base for optimum stability
Large range of accessories
For single phase alternating current
BAND SAWS
SAWS
SPECIAL-PURPOSE
MACHINES
SYSTEMATIC
ORGANISATIONGARDEN
WOOD-PROCESSING
TECHNOLOGY
WATER-/PUMP
TECHNOLOGY
WELDING
TECHNOLOGY
COMPRESSED
AIR SYSTEMS
0090025138 GB 230 V
294 |

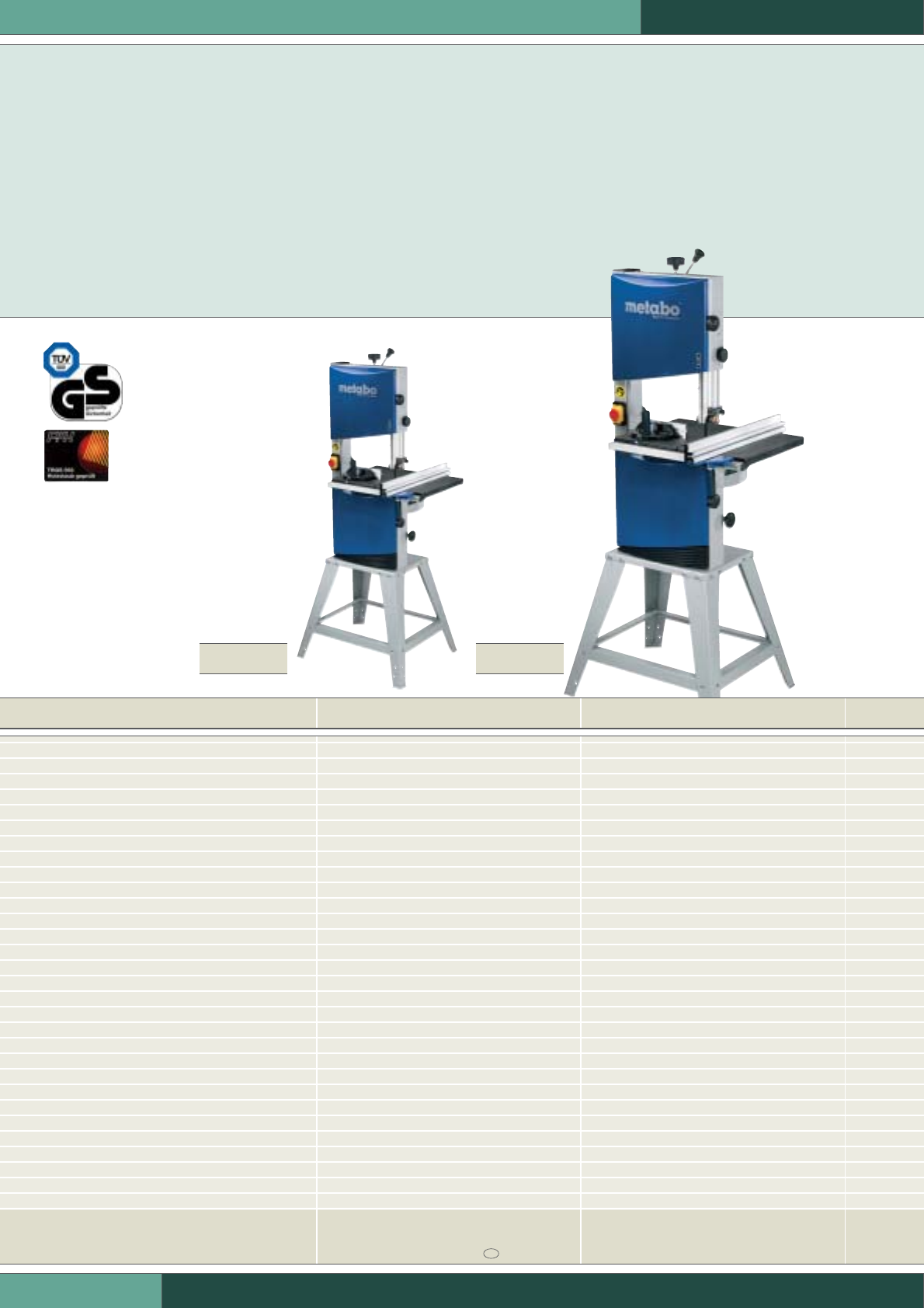

BAS 317
Precision WNB
BAS 317
Precision DNB
BAND SAWS
COMMON FEATURES
High precision and cutting output
Two cutting speeds for various applications and materials
Quick-release lever for quick saw blade change and easy
conversion to belt grinder
Door opening without tools; protection by safety end switches
Light saw blade guard stop via hand wheel
Blade clamp indicator with scale for easy reading of actual blade
tension
Precision three-pulley guide with HPHSS rollers and brass counter
nuts; adjustable without tools
Parallel guide/ripping fence with long profile, clamped at the back
and front. Can be used on both sides, with built-in magnifier
Mitre guide with soft handle and improved T-slot guide, for
optimum grip while working
Radius cutting with circle sawing attachment (accessory)
GS dustproof
Large cutting height with height indicator
Sturdy design due to steel sheet construction
Comfortable and precise angle adjustment of saw table from
-2° to 45° due to soft handle and patented toothed ring guide
Suction adapter for all conventional Metabo suction hose
diameters
Large range of accessories
Special advantages
For single phase alternating current
For three phase current
Comparative device characteristics
Dimensions L x W x H 665 x 795 x 1.600 mm 665 x 795 x 1.600 mm
Support surface 548 x 400 mm 548 x 400 mm
Working height
Working height without stand 510 mm 510 mm
Working height with stand 985 mm 985 mm
Saw tabel swivel range -2 - 45 ° -2 - 45 °
Cutting height 165 mm 165 mm
Passage width 305 mm 305 mm
Cutting speed 370/800 m/min 370/800 m/min
Saw belt length 2.240 mm 2.240 mm
Saw belt width 6 - 20 mm 6 - 20 mm
Rated input power 0,9 kW 0,9 kW
Output power 0,57 kW 0,64 kW
Weight 70,5 kg 72 kg
Standard equipment A6 universal band saw blade, stand,
parallel guide/ripping fence, mitre guide,
precision three-pulley guide, suction adapter
(suitable for Ø 44, 58, 100 mm)
A6 universal band saw blade, stand,
parallel guide/ripping fence, mitre guide,
precision three-pulley guide, suction adapter
(suitable for Ø 44, 58, 100 mm)
Type BAS 317 Precision WNB BAS 317 Precision DNB
Order no. 0090317000 0090317100
Band Saw
BAS 317 Precision WNB
Band Saw
BAS 317 Precision DNB
0090317038 GB 230 V
| 295
BAS 380 W BAS 380 D
BAND SAWS
Band Saw
BAS 380 W
Band Saw
BAS 380 D
Special advantages
For single phase alternating current
For three phase current
Comparative device characteristics
Dimensions L x W x H 510 x 900 x 920 mm 510 x 900 x 920 mm
Support surface 600 x 400 mm 600 x 400 mm
Working height
Working height without stand 360 mm 360 mm
Working height with stand 988 mm 988 mm
Saw tabel swivel range -2 - 45 ° -2 - 45 °
Cutting height 160 mm 160 mm
Passage width 380 mm 380 mm
Cutting speed 910 m/min 910 m/min
Saw belt length 2.225 mm 2.225 mm
Saw belt width 3 - 13 mm 3 - 13 mm
Speed of grinding plate 1.450 /min 1.450 /min
Dimensions of the grinding table-top 168 x 413 mm 168 x 413 mm
Grinding plate Ø 200 mm 200 mm
Grinding table swivel range -2 - 45 ° -2 - 45 °
Rated input power 0,74 kW 0,74 kW
Output power 0,5 kW 0,5 kW
Weight 45 kg 45 kg
Standard equipment A6 universal band saw blade,
parallel guide/ripping fence, mitre guide,
extraction nozzle (Ø 100 mm)
A6 universal band saw blade,
parallel guide/ripping fence, mitre guide,
extraction nozzle (Ø 100 mm)
Type BAS 380 W BAS 380 D
Order no. 0090380000 0090380100
COMMON FEATURES
High precision and cutting output
Asynchronous motor - sturdy, durable and low-noise
Integrated disc sanding function; ideal for regrinding
Sanding disc bench can be inclined up to 45°
Quick sandpaper change due to Velcro-faced surface
Sturdy parallel guide/ripping fence
Radius cutting with circle sawing attachment (accessory)
GS dustproof
Large capacity for wide workpieces but still with
compact machine dimensions
Grey cast iron base for high stability and quiet running,
with levelling option and assembly bores for stand
Sturdy construction due to heavily ribbed aluminium
die cast housing
Sturdy saw table made of die cast aluminium, swivelling
Large range of accessories
SAWS
SPECIAL-PURPOSE
MACHINES
SYSTEMATIC
ORGANISATIONGARDEN
WOOD-PROCESSING
TECHNOLOGY
WATER-/PUMP
TECHNOLOGY
WELDING
TECHNOLOGY
COMPRESSED
AIR SYSTEMS
296 |
BAS 505 G DNBBAS 505 G WNB
Band Saw
BAS 505 G WNB
Band Saw
BAS 505 G DNB
Special advantages
For single phase alternating current
For three phase current
Comparative device characteristics
Dimensions L x W x H 834 x 639 x 1.860 mm 834 x 639 x 1.860 mm
Support surface 536 x 640 mm 536 x 640 mm
Working height without stand 925 mm 925 mm
Saw tabel swivel range 0 - 20 ° 0 - 20 °
Cutting height 280 mm 280 mm
Passage width 440 mm 440 mm
Cutting speed 68/176/375/967 m/min 68/176/375/967 m/min
Saw belt length 3.380 mm 3.380 mm
Saw belt width 6 - 25 mm 6 - 25 mm
Rated input power 1,5 kW 1,9 kW
Output power 1,1 kW 1,5 kW
Weight 146 kg 146 kg
Standard equipment A6 universal band saw blade, parallel guide/
ripping fence, precision three-pulley guide,
extraction nozzle (Ø 100 mm)
A6 universal band saw blade, parallel guide/
ripping fence, precision three-pulley guide,
extraction nozzle (Ø 100 mm)
Type BAS 505 G WNB BAS 505 G DNB
Order no. 0090505000 0090505100
COMMON FEATURES
High precision and stability for professional applications
High precision and cutting output
Four cutting speeds for various applications and materials
Door opening without tools; protection by safety end switches
Light saw blade guard stop via hand wheel
Blade clamp indicator with scale for easy reading of actual
blade tension
Precision three-pulley guide with HPHSS rollers and brass
counter nuts; adjustable without tools
Large counterbalanced band saw rollers, rubber coated
Sturdy parallel guide/ripping fence
Radius cutting with circle sawing attachment (accessory)
GS dustproof
Large cutting height with height indicator
Sturdy design due to steel sheet construction
Grey cast iron saw table according to DIN EN 1807, infinitely
swivellable by up to 20°
Large swivelling grey cast iron saw table
Large range of accessories
BAND SAWS
0090505038 GB 230 V
| 297

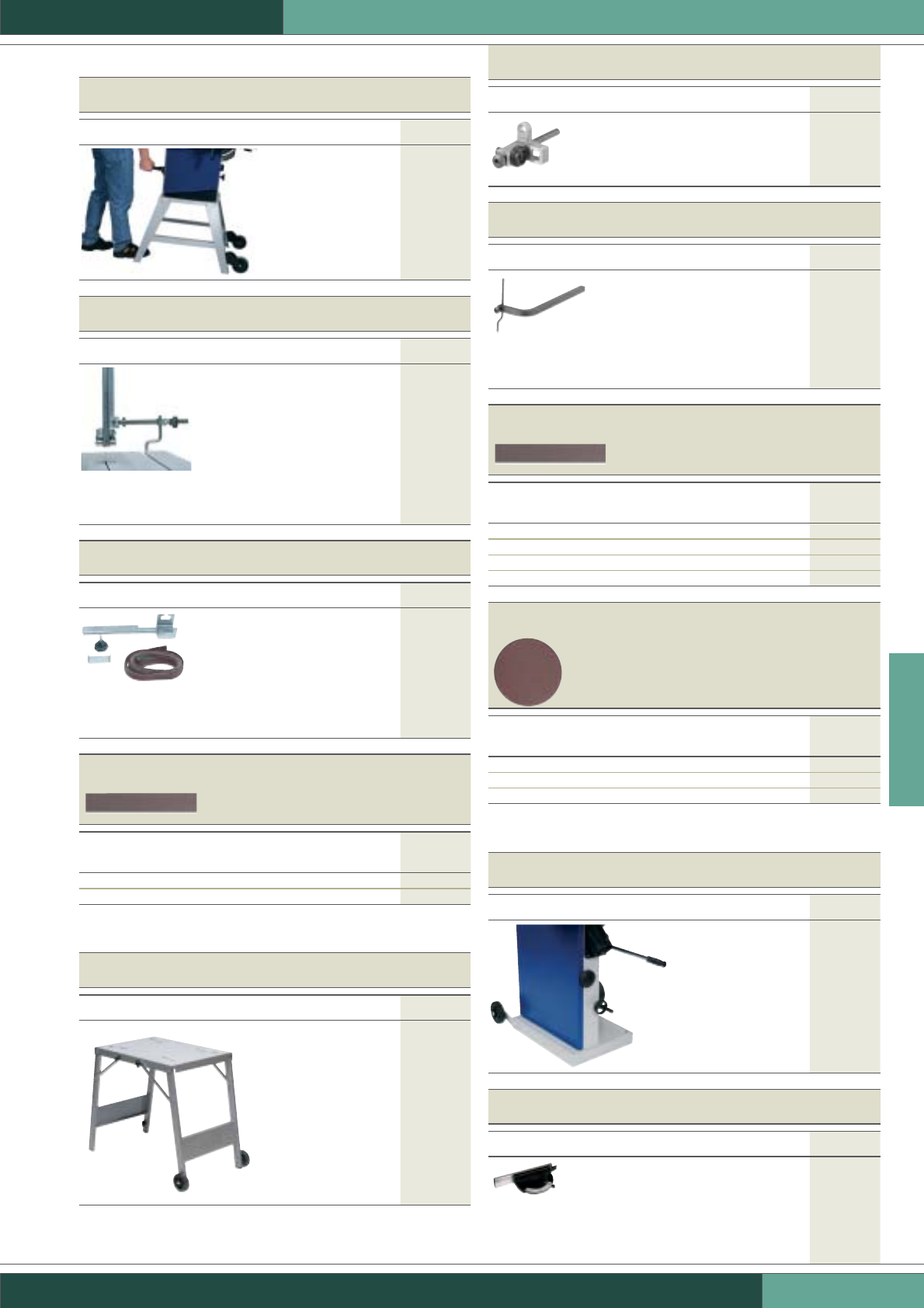

ACCESSORIES FOR BAS 317 PRECISION
Wheel Sets
Order no.
Wheel set
For easy
transportation
Suitable for:
BAS 317 Precision
0910063570
Circle cutting attachments
Order no.
Circle cutting
attachment
For circular cuts
or tapered cuts
(with inclined table)
Diameter from
120 to 280 mm
Band saw blade
6 mm required for
curve sawing
0909031249
Belt sanding attachment
Order no.
Belt sanding attachment
For regrinding surfaces
and curved sawing cuts
Comes with two sanding
belts
0909031230
Cloth sanding belts
Grit Dimensions
mm
Packing unit Order no.
P 80 20 x 2.240 3 0909030528
P 120 20 x 2.240 3 0909030536
ACCESSORIES FOR BAS 380
Stands
Order no.
Stand
For ideal working
height and secure
base
With rollers and
level compensation
Working height:
988 mm
0909060222
Fine sawing attachments
Order no.
Fine sawing attachment
For the sawing of small radii
3 mm band saw blade required
(order no. 0909060257)
0909060230
Circle cutting attachments
Order no.
Circle saw attachment
For circular cuts or tapered cuts
(with inclined table)
Diameter from 80 to 240 mm
Band saw blade required for
curve sawing
0909060249
Cloth sanding belts
Grit Dimensions
mm
Packing unit Order no.
P 60 20 x 2.205 3 0909060290
P 80 20 x 2.205 3 0909060303
P 100 20 x 2.205 3 0909060311
P 150 20 x 2.205 3 0909060320
Cling-fit sanding sheets
Grit Diameter
mm
Packing unit Order no.
P 60 200 5 0909060338
P 80 200 5 0909060346
P 100 200 5 0909060354
ACCESSORIES FOR BAS 505 G
Wheel Sets
Order no.
Wheel set
For easy
transportation
Consisting of:
2 wheels, fastening
elements and
handle bar
0909000505
Mitre guides
Order no.
Mitre guide
For precise cross cuts and
angular cuts
With workpiece bearing
made of aluminium
Infinitely variable, both sides
adjustable, 90°-45°
0910008048
BAND SAWS
SAWS
SPECIAL-PURPOSE
MACHINES
SYSTEMATIC
ORGANISATIONGARDEN
WOOD-PROCESSING
TECHNOLOGY
WATER-/PUMP
TECHNOLOGY
WELDING
TECHNOLOGY
COMPRESSED
AIR SYSTEMS
298 |
A 2
A 4
A 6
A 6
A 6
A 18
A 2
14/1"
25
▼
▼
▼
▼
18
BAND SAWS
Circle cutting attachments
Order no.
Circle cutting attachment
For circular cuts or tapered cuts
(with inclined table)
Diameter from 120 to 280 mm
Band saw blade 6 mm
required for curve sawing
0909031249
Belt sanding attachment
Order no.
Belt sanding attachment
For regrinding surfaces and
curved sawing cuts
Comes with two sanding belts
0909031087
Cloth sanding belts
Grit Dimensions
mm
Packing unit Order no.
P 80 25 x 3.380 3 0909030544
P 120 25 x 3.380 3 0909030552
Band saw blades
Carbon steel with inductively hardened teeth points
Very economical due to its long useful life
Dimensions
mm
Tooth pitch Material suitability Order no.
For BAS 260 Swift
1.712 x 6 x 0,36 A4 helical tooth Wood, plastic –
curve cuts
0909057175
1.712 x 12 x 0,36 A6 peg tooth Wood, plastic –
universal cuts
0909057183
1.712 x 12 x 0,36 A2 rake tooth Non-ferrous metal,
foamed materials
0909057191
For BAS 317 Precision
2.240 x 6 x 0,5 A4 helical tooth Wood, plastic –
curve cuts
0909029252
2.240 x 12 x 0,5 A6 peg tooth Wood, plastic –
universal cuts
0909029244
2.240 x 15 x 0,5 A6 peg tooth Wood, plastic –
straight cuts
0909029260
2.240 x 15 x 0,5 A2 rake tooth Metal, foamed
materials
0909029279
For BAS 380
2.225 x 3 x 0,5 A2 helical tooth Wood, plastic – small
radii, For circular cuts
using the fine sawing
attachment
0909060257
2.225 x 6 x 0,36 A4 helical tooth Wood, plastic –
curve cuts
0909060265
2.225 x 9 x 0,36 A6 peg tooth Wood, plastic –
universal cuts
0909060273
2.225 x 13 x 0,36 A6 peg tooth Wood, plastic –
straight cuts
0909060281
For BAS 505 G
3.380 x 6 x 0,5 A4 helical tooth Wood, plastic –
curve cuts
0909029180
3.380 x 13 x 0,65 A2 rake tooth Non-ferrous metal,
steel frames
0909029228
3.380 x 15 x 0,5 A2 rake tooth Wood, nailproof,
foamed materials
0909029210
3.380 x 15 x 0,5 A6 peg tooth Wood, plastic
– universal cuts
0909029171
3.380 x 25 x 0,5 A6 peg tooth Wood, plastic
– straight cuts
0909000416
3.380 x 25 x 0,5 A18 peg tooth Wood, firewood 0909000424
DESIGNATION OF THE BAND SAW BLADES
Example:
T. tip ind. hard. 2240 x 6 x 0,5/A – 4 (14/1")
T. tip ind. hard. = Tooth tip induction hardened
Carbon steel with inductively hardened tooth tips;
very economical due to its long service life
2240 = band length mm
6 = band width mm
0,5 = band thickness mm
A – 4 = clearance of tooth tips mm
14/1" = A2 = number of teeth per inch unit
1,3/1" = A18 = number of teeth per inch unit
Rake tooth for universal cuts
Aluminium, copper, brass, steel
Rake tooth for universal cuts
Aluminium, copper, brass, foams
Peg tooth for straight cuts
Firewood
Peg tooth for straight cuts
Wood, plastic
Peg tooth for straight cuts
Wood, plastic
Peg tooth for universal cuts
Wood, plastic
Helical tooth for curved cuts
Wood, plastic
DESIGNATION OF BAND SAW BLADES
Helical tooth for small radius
Wood, plastic,
fine sawing attachment
required

Navigation menu
