MS2400 Stratos

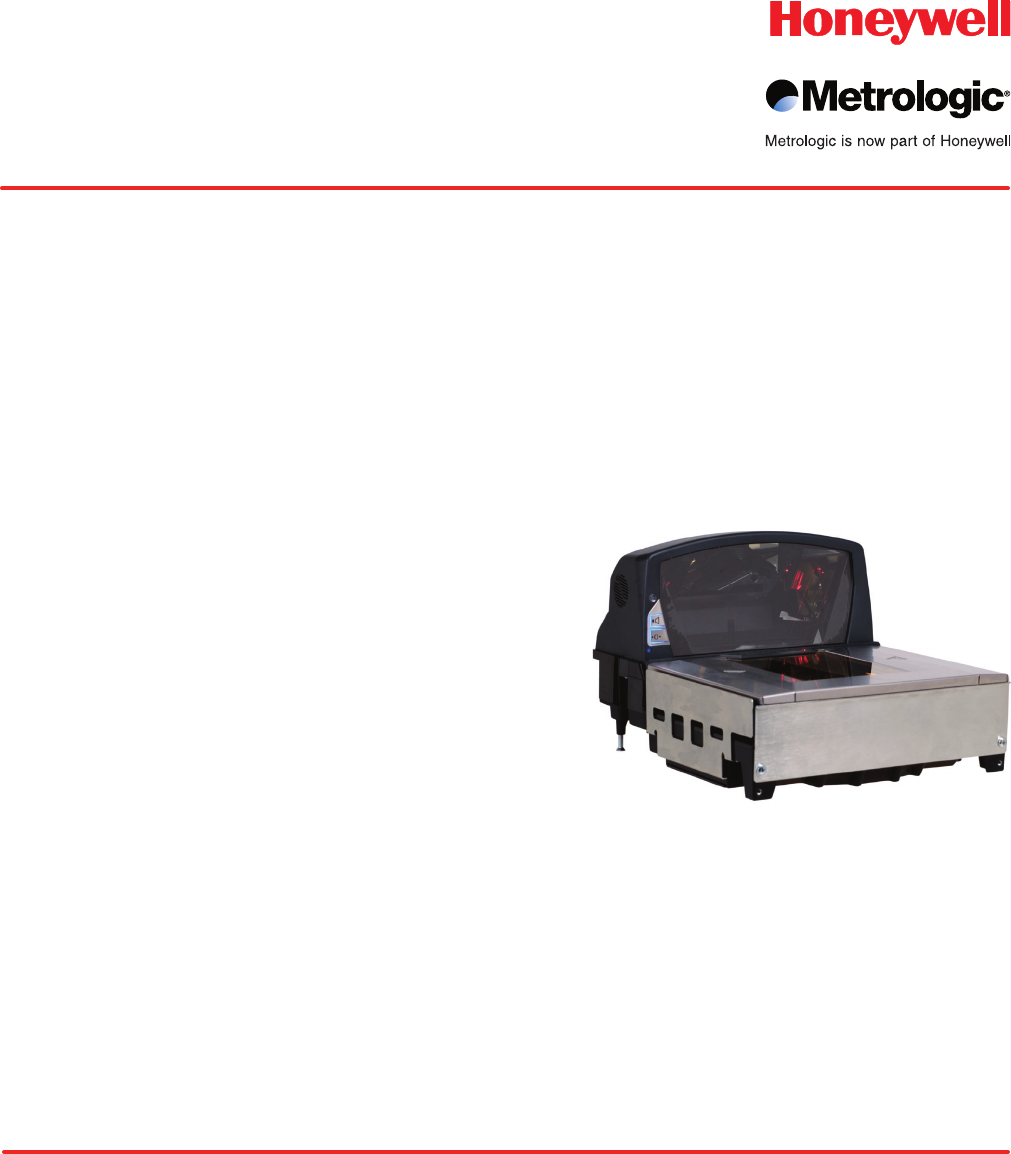

Honeywell’s MS2400 Stratos

®

premium five-sided, bioptic scanner/scale

increases productivity in demanding, high-volume seated and small

checkout environments. Patented independent scanning planes and

modular design promote easy set up, lower maintenance costs and

ensure continuous operation.

The MS2400 Stratos is

the newest member of the company’s premier

line of 360°-bioptic scanners.

The MS2400 Stratos features a faster microprocessor, enhanced signal

processing, enriched decoding software and an optimized vertical

scan pattern.

To help retailers boost checkout productivity, Honeywell redesigned

the StratosSPHERE

TM scanning architecture. StratosSPHERE

powers

the scanner’s

high first-pass read rate and gives operators

using a rapid

scanning motion the ability to process a product in a single pass

regardless of bar code type or orientation.

Unlike other bioptic devices, MS2400 is the only one to offer pre-aligned

optical scanning modules, and independent scanning planes which

enable the scanner to maximize uptime and maintain productivity.

The MS2400 Stratos maximizes return on investment with two analytical

tools for tracking, managing and improving checkout productivity and

efficiency. StratosSTATS

TM provides real-time visibility into key data

points directly impacting checkout productivity. StratosSCHOOLTM

captures information necessary to improve operator scanning

techniques and safety.

For more information on the MS2400 Stratos bioptic scanner/scale,

please visit www.honeywell.com/aidc

Bioptic Scanner/Scale

Stratos• SPHERE Advanced Scanning Architecture:

Increases rapid pass-through scanning productivity with

high first-pass read rate

Stratos• SYNCTM Independent Scanning Planes:

Maintains

productivity and uptime via independent

scanning planes

Stratos• SWAPTM Pre-Aligned Optical Scanning

Modules: Minimizes downtime and lowers the cost of

service via modular optical scan engines

Stratos• STATS Productivity Analytical Software:

Provides data critical to maintaining checkout

productivity

Stratos• SCHOOL Operator Training Software: Improves

productivity and promotes safer scanning techniques

Features

© 2008 Honeywell International Inc.

Security & Data Collection

Honeywell Scanning & Mobility

Honeywell

90 Coles Road

Blackwood, NJ 08012

856.228.8100

www.honeywell.com

For more information:

www.honeywell.com/aidc

RoHS

2002/95/EC

MS2400 Stratos Technical Specifications

Operational

Light Source Visible Laser Diode 650 nm ± 10 nm

Audible Indicators 7 tones or no beep; 3 volume settings

Visual Indicators

Steady Blue = power on; Flashing Blue = good read; Amber = scale at zero; 7 - segment display = diagnostic indicator

Host System Interfaces USB, RS232, IBM46xx (RS485)

Auxiliary Ports RS232

Laser Power (Horizontal/Vertical) 1 mW / 1 mW

Mechanical

Length MS2420 (compact scanner with scale) 399 mm (15.7˝); MS2421 (compact scanner only) 399 mm (15.7˝);

MS2422 (sub compact scanner only) 353 mm (13.9˝)

Width 292 mm (11.5˝)

Depth (Below Counter) 100 mm (4˝)

Height (Above Counter) 130 mm (5.1˝)

Weight MS2420 (compact scanner with scale) 9.97 kg (22 lbs); MS2421 (compact scanner only) 7.20 kg (16 lbs)

MS2422 (sub compact scanner only) 6.80 kg (15 lbs)

Electrical

Input Voltage 5.2 VDC ± 0.25 VDC; 12 VDC ± 0.5 VDC

Operating Power 11 W (1670 mA @ 5.2 V; 190 mA @ 12 V) - typical

Standby Power 5.5 W (610 mA @ 5.2 V; 190 mA @ 12 V) - typical

Operating Current 1.7 A @ 5.2 V; 250 mA @ 12 V

DC Transformers Class 1: 5.2 V @ 2.5 A; 12 V @ 0.8 A

Laser Class Class 1: IEC60825-1; EN60825-1

EMC FCC Part 15, IECS-003, EN55022 Class B

Environmental

Operating Temperature 0°C to 40°C (32°F to 104°F)

Storage Temperature -40°C to 60°C (-40°F to 140°F)

Humidity 5% to 95% relative humidity, non-condensing

Environmental Sealing Sealed to resist airborne particulate contaminants

Light Levels 4842 Lux (450 foot-candles)

Scan Performance

Depth of Scan Field (Horiz/Vert) H: 0 mm - 100 mm (0˝-4˝) for 0.33 mm (13 mil) bar code; V: 0 mm - 216 mm (0˝-8.5˝) for 0.33 mm (13 mil) bar code

Scan Speed 5400 scan lines per second

Sides Read/Scan Zone 5 / 360°

Number of Scan Lines 54 (Horizontal: 38; Vertical: 16)

Resolution 5 mil (0.127 mm)

Print Contrast 35% minimum reflectance difference

Tilt, Pitch, Skew 360°, 60°, 60°

Decode Capability Code 39, Code 93, Code 128, UPC/EAN/JAN, Code 2 of 5, Code 11, Codabar, MSI Plessey, GS1 DataBar

Scale Specifications

Capacity 15 kg (30 lb)

Minimum Legal Weight 0.005 kg (0.01 lb)

Maximum Static Weight 68 kg (150 lb)

Adjustments Required Field calibration if necessary

Applications Weight-only and price computing

Scale Partners Avery Berkel®, Bizerba®, Dibal®, Digi®, and Mettler Toledo®
