TV. VIDEO. AUDIO. MECABLITZ

Elba 63 TD 61 – 100 MT

Hawaii 70 TD 64 – 100 MT

Linea–SF 72 TD 66 – 100 MT

Linea de luxe–SF 72 TD 67 – 100 MT

Gemini–SF 82 TE 93 – 100 MT

Morea–S 70 TE 65 – 100 MT

Operating Instructions

Contents

Hints for use of the Operating Instructions

Remote control handset RB 11 . . . . . . . . . . . . . . . . .3

1. Setting up and connecting . . . . . . . . . . . . . . . . . . . .4

1.1 Turning the TV on and off . . . . . . . . . . . . . . . . . . . . . . .5

2. Language selection in the TV menu . . . . . . . . . . . . .6

2.1 TV menu and operator help . . . . . . . . . . . . . . . . . . . . .6

2.2 Programme selection . . . . . . . . . . . . . . . . . . . . . . . .6, 7

3. Presetting TV stations . . . . . . . . . . . . . . . . . . . . . . . .8

Direct channel entry/station search . . . . . . . . . . . . . . .8

Autostore function . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

3.1 Sorting stations . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Move, exchange, copy, delete . . . . . . . . . . . . . . . . . .10

3.2 Fine tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

3.3 Allocating a station logo . . . . . . . . . . . . . . . . . . . . . . .12

4. Changing individual picture settings . . . . . . . . . . .13

4.1 Changing individual sound settings . . . . . . . . . . . . . .13

4.2 Adjusting the video and audio standard values . . . . . .14

5. Equipment configuration . . . . . . . . . . . . . . . . . . . . .15

Assigning the function keys . . . . . . . . . . . . . . . . . . . .15

Setting for programme change . . . . . . . . . . . . . . . . . .17

Setting the RGB priority . . . . . . . . . . . . . . . . . . . . . . .18

Volume adaptation . . . . . . . . . . . . . . . . . . . . . . . . . . .18

6. Volume adjustment and forced mono . . . . . . . . . . .19

6.1 Correcting picture deviations . . . . . . . . . . . . . . . . . . .20

Noise reduction and CTI function . . . . . . . . . . . . . . . .20

Picture format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

7. AV recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Camcorder ➜video recorder . . . . . . . . . . . . . . . . . . .22

Video recorder ➜video recorder . . . . . . . . . . . . . . . .23

8. Time settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Switch-on/off and reminder time . . . . . . . . . . . . . . . .24

8.1 Childlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Permitted programmes . . . . . . . . . . . . . . . . . . . . . . .26

Personal code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Beginning and end of viewing period . . . . . . . . . . . . .27

Switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Do not be put off by the size of the Operating Instructions. Initial-

ly, it is sufficient to read the instructions in Sections 1.1, 2 and 4.

In order to familiarise yourself with the TV set and its many func-

tions, we recommend that you read the Operating Instructions

step by step, carrying out the described actions on your TV set as

you do so.

This method, often called "learning by doing", is the easiest way

of learning how to execute the various functions.

Do not be afraid to change the settings in the various menus (the

TV menu, the TV station table, programming of the function keys,

etc.). If you make any changes to these settings, the TV set reac-

ts immediately, but the changes are not yet stored. After each

change in a menu, a red box is displayed at the bottom right of

the screen, asking if you want to save the changes.

• If you want to save the changes, press the OK key to do so.

• If you are not sure, or if you do not want to save a changed set-

ting, press the MENU key and then the TV key to exit from the

menu without saving the new settings.

We have made every effort to provide a detailed table of contents

and a comprehensive index to help you to find the information

you need. The Section "Glossary" contains explanations of

various technical terms used in the manual.

In the descriptions of the various functions, the left-hand column

shows which keys you must press in order to see the screen dis-

play given in the centre column. Do not press the keys too quick-

ly. It may occur that the TV set will not recognise the next key you

press and may therefore not display the menu shown in the cen-

tre column but something completely different. The right-hand

column of the function description provides additional informati-

on which may be useful but is not absolutely necessary for exe-

cution of the function.

If you comply with these hints, you should have no problems in

the operation of your TV set.

Your Metz-Werke

8.2 Recording with the timer . . . . . . . . . . . . . . . . . . . . . .28

9. Connecting headphones . . . . . . . . . . . . . . . . . . . . .29

Adjusting the headphones volume . . . . . . . . . . . . . . .29

10. Megatext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Basic functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Multiple pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Direct page selection . . . . . . . . . . . . . . . . . . . . . . . . .33

Return to last index page . . . . . . . . . . . . . . . . . . . . . .34

Doubling the font size . . . . . . . . . . . . . . . . . . . . . . . . .35

Setting marks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Mark-by-mark advance . . . . . . . . . . . . . . . . . . . . . . .38

Erasing marks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Subtitles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Riddle solutions key . . . . . . . . . . . . . . . . . . . . . . . . . .40

11. Special picture effects . . . . . . . . . . . . . . . . . . . . . . .41

Variable Zoom (not for Gemini) . . . . . . . . . . . . . . . . . .41

Frame freeze / Picture format . . . . . . . . . . . . . . . . . . .42

Format 4:3 / 16:9 function (only Gemini) . . . . . . . . . .43

Zoom (only Gemini) . . . . . . . . . . . . . . . . . . . . . . . . . .43

Grey value of side bars (only Gemini) . . . . . . . . . . . . .44

12. Operation without remote control . . . . . . . . . . . . . .44

13. Connecting peripheral equipment . . . . . . . . . . . . . .45

Connecting a video recorder / camcorder . . . . . . . . . .45

Connecting external devices . . . . . . . . . . . . . . . . . . . .46

Connecting a video recorder . . . . . . . . . . . . . . . . . . . .47

Video recorders/video signal . . . . . . . . . . . . . . . . . . .48

Video recorders . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Pay TV decoder (e.g. Premiere) . . . . . . . . . . . . . .50, 51

14. Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

14.1 Upgrade kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

14.2 Maintenance and care . . . . . . . . . . . . . . . . . . . . . . . .52

15. Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

16. Remote control handset for video recorders . . . . .54

17. Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Remote control handset RB 11

RB11

123

456

789

ȄAV

INFO

PRG.

VTR

ııľľ

REC

TIMER

ľľ ıı

100 Hz

-/--

• ON - Set switches to last viewed pro-

gramme

• OFF (standby setting)

• Preselect with entry of two digits

• Cursor page selection in Megatext mode

•

Function keys, depending upon

programming

•

Logo display (display of time, program-

me, and sound mode

• Megatext - set or delete mark

Batteries:

Insert the enclosed batteries in the remote

control, observing the symbols on the

cover of the battery compartment.

Remove exhausted batteries from the

remote control and return them to your

dealer or to an authorised battery collection

point.

•

AV recording

•Megatext - skip to next mark

•

Select sound function

•Megatext - select chapter

•

Call station table

• Megatext - next page

•

Select picture function

• Megatext - select subject

• Changing the setting

• Basic picture and sound settings

• Call TV menu

• Call Megatext

• Return from menu and

Megatext to TV picture

• Numeric keys

• Mute

• Next programme

• Partial page selection with multiple

pages in Megatext

• Operator Help

• IInfotext (select marks)

• Return to last programme

• Changeover from spoken to

music broadcasts

• Change of format (variable zoom)

• Still picture

The remote control sends commands to the TV set with the aid of infrared light. For this reason, you should always point the remote control at

the TV set for reliable operation. Use of the remote control may interfere with the operation of other devices or systems controlled which use

infrared light (such as infrared headphones).

If the TV set is exposed to direct sunlight, it may sometimes not function correctly because it cannot recognise the commands transmitted by

remote control.

The television must be switched on or in standby mode (ON/OFF key depressed) when it is to be operated by remote control. Always point the

remote control in the direction of the TV for operation. A pilot lamp starts to flash as soon as a key on the remote control handset is pressed.

Nota:

For explanation of the video level for

the remote control of video recorders,

please refer to Section 16, page 54.

Do not point the remote con-

trol unit into your eyes and

press a key on it !

Do not use rechargeable bat-

teries in the remote control

unit.

Connecting the aerial

Standard SAT and terrestrial station aerial sockets are fitted at

the rear of the TV.

Thunderstorms represent a danger for all electrical appliances! If

lightning strikes the power line or the aerial, the TV may be

damaged even if it is switched off. Therefore, always unplug the

mains lead AND aerial during thunderstorms. If the TV is not

going to be used for an extended period of time, for instance

when on holiday, then disconnect the set both from the mains

and the aerial.

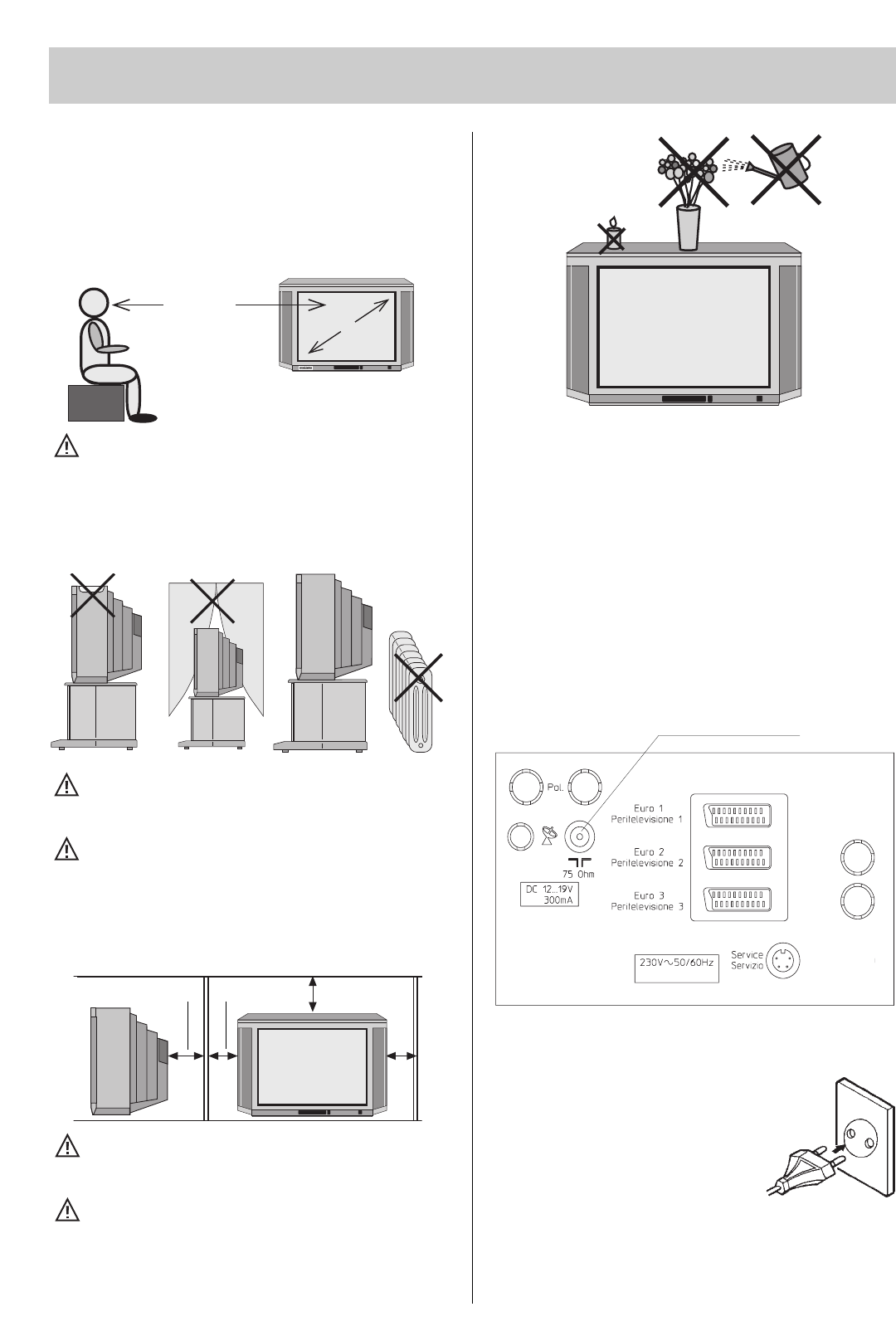

1. Setting up and connecting

Setting up

When selecting a suitable place for the TV, be sure that no bright

light or sunlight falls on the screen. Light may cause reflections

and impair the brilliance of the image.

The best viewing distance is five times the picture tube diagonal,

e.g. about 3.5 m for TV sets with a 70 cm screen.

TV sets require adequate ventilation. The ventilation

slots at the rear of the set should therefore never be

covered by curtains, doilies, newspapers or similar

objects. Likewise, all slots at the bottom of the set

must be freely accessible so that the intake of air is

not impaired in any way

Do not set up the TV near a radiator as this would

impair adequate cooling.

Do not place

burning candles or

- flower vases filled with water

on top of the TV set.

Hot wax and liquids destroy the electrical components

and jeopardize the electrical safety of the set

Mains voltage

Plug the mains lead into a wall

outlet. The TV set is equipped for

230 V ac.

5x cm

20 cm

10 cm

5 cm

Aerial connection

If you place the set in a wall unit, leave sufficient space

on all sides so that the air can circulate freely.

Your TV set is intended for use in dry rooms. If you wish

to use it occasionally outdoors, be sure to protect it

against any kind of moisture (rain, splashes, dew, etc.).

698-3EURO

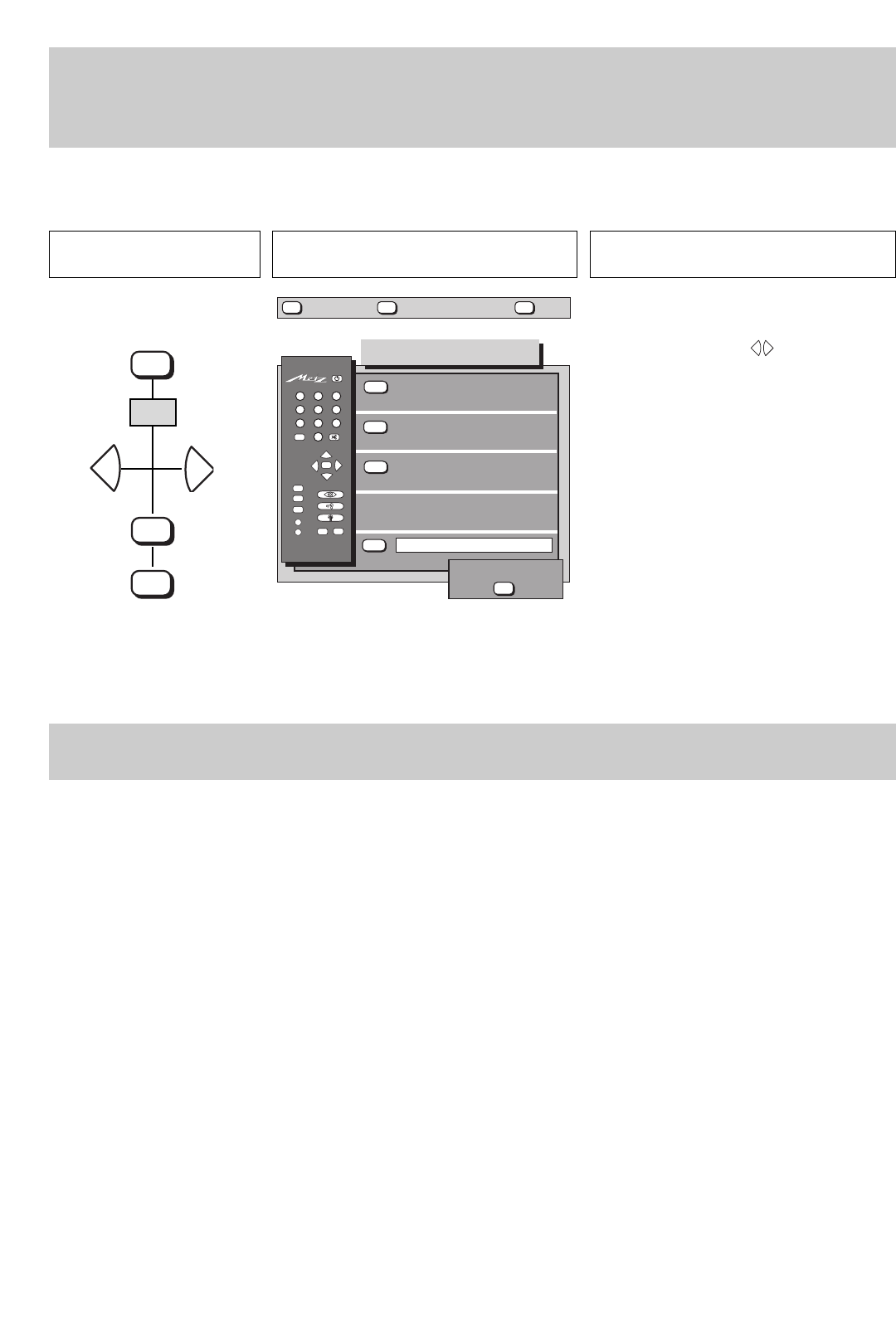

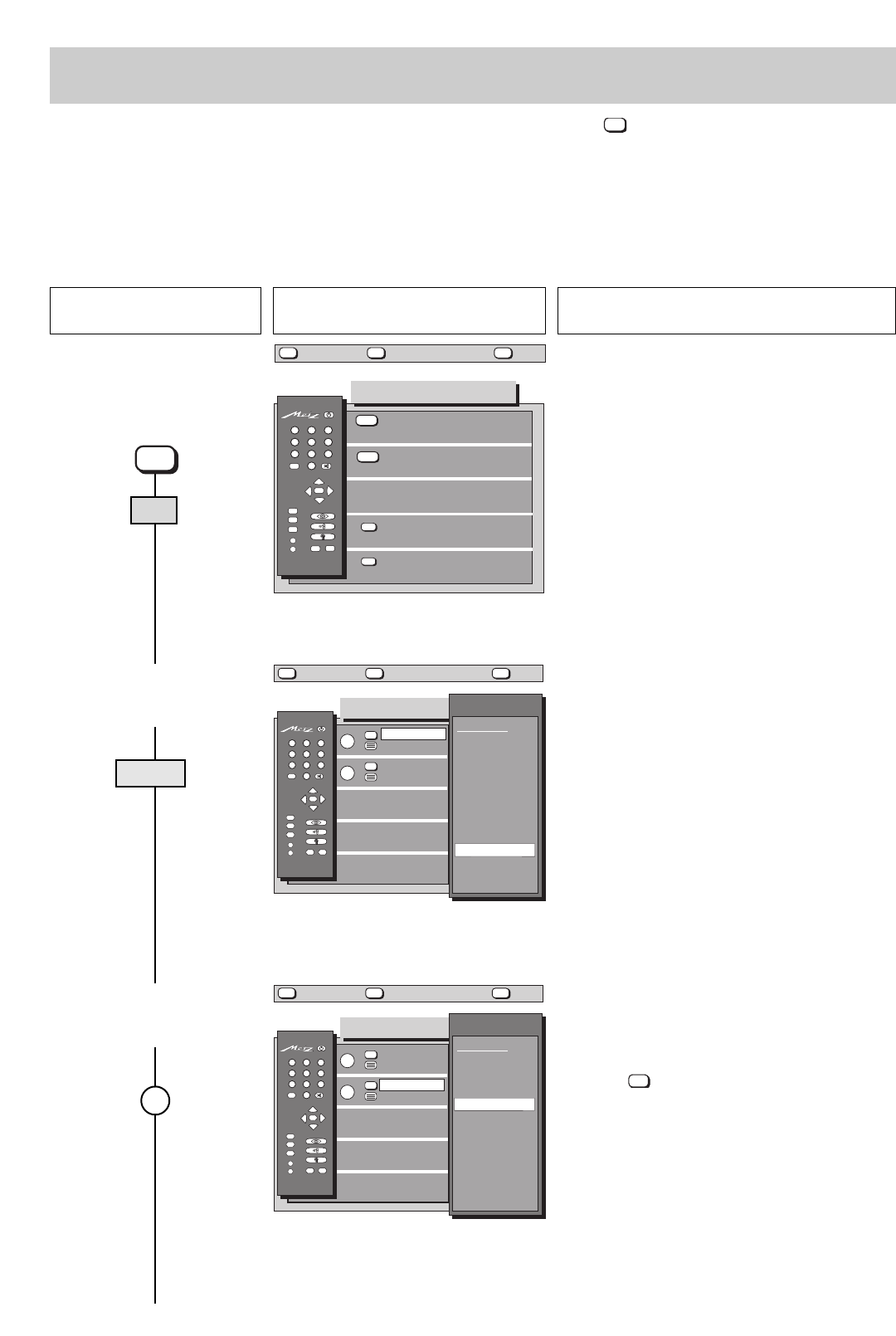

1.1 Turning the TV on and off

Press this key on the remote

control.... The screen displays Explanation

1. Call the Equipm.

Configuration menu

--/-

123

456

789

Equipm. configuration

698-06N-GB

red

green

blue

yellow

white

REC

Function keys

Device connection

SAT settings

Language:

further

English

store?

return Help

TV picture

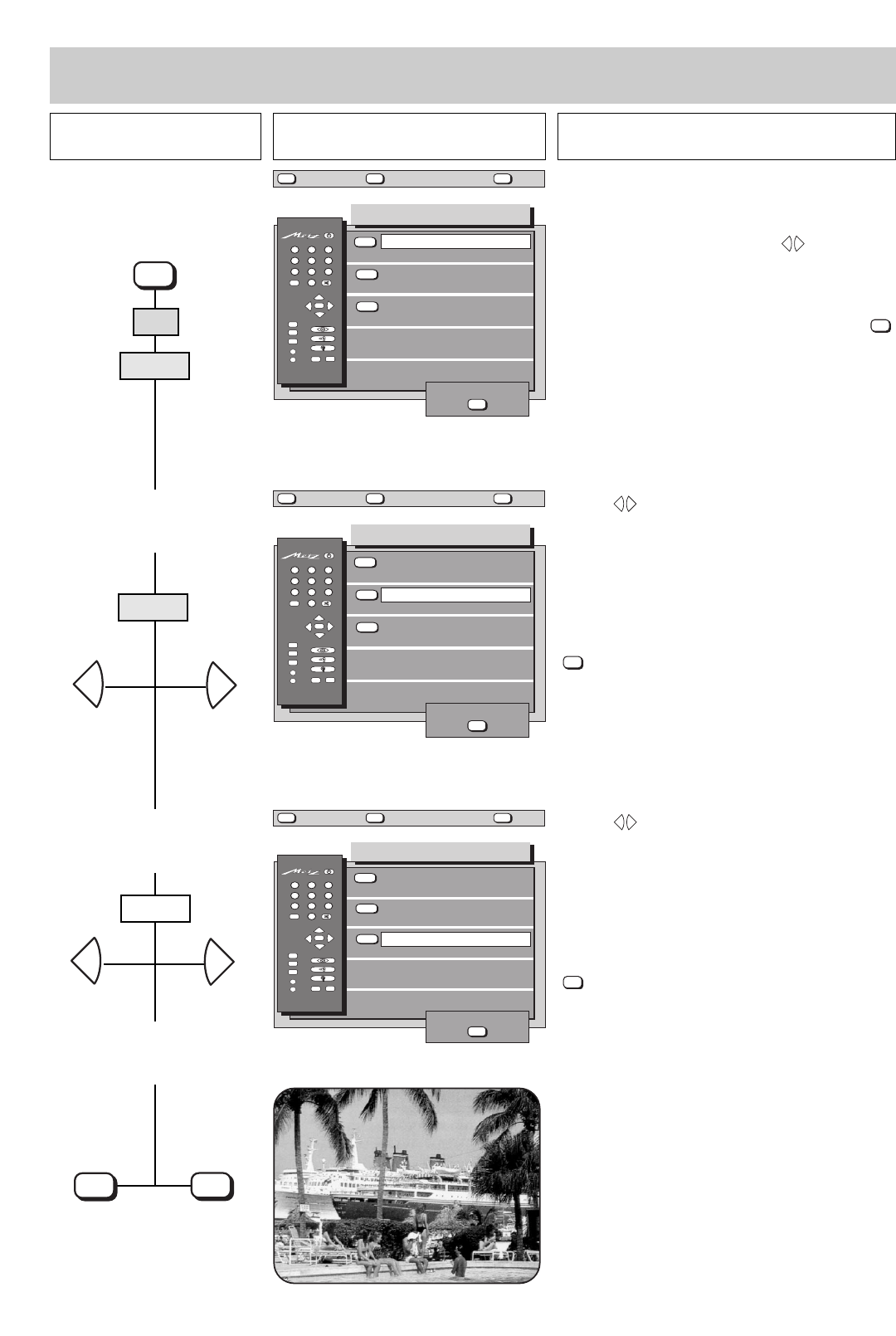

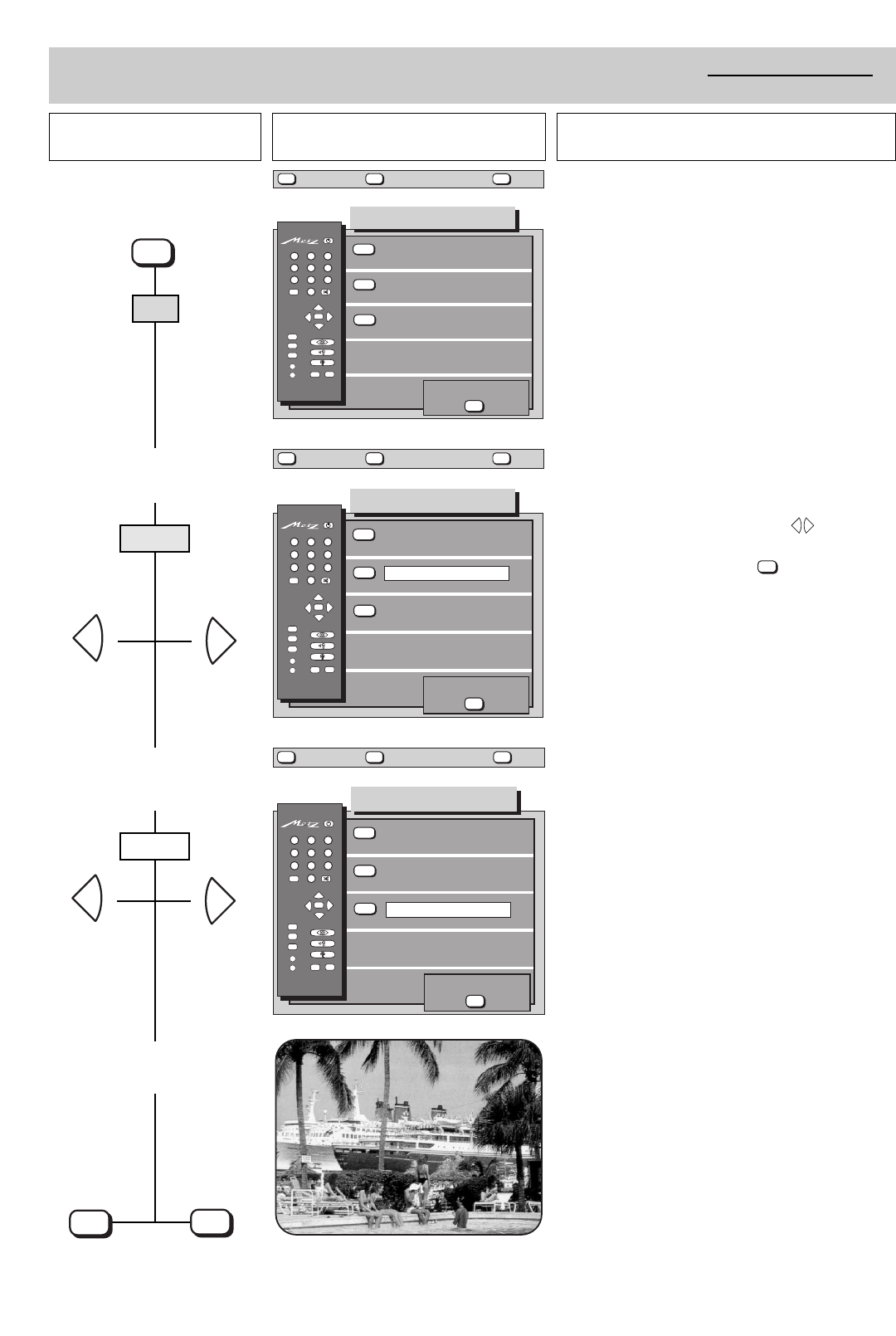

2. Language selection in the TV menu

The desired language for the entire TV menu is adju-

sted in the „Equipm.Configuration“ menu.

Select the desired language with the keys when

the submenu for the language is displayed on a green

background.

Press the key to confirm and store the selection

made. The complete text in the TV menu is then dis-

played in the selected language.

4. Return to TV picture

2. Adjust the language

3. Store the selected langua

TV picture

red

green

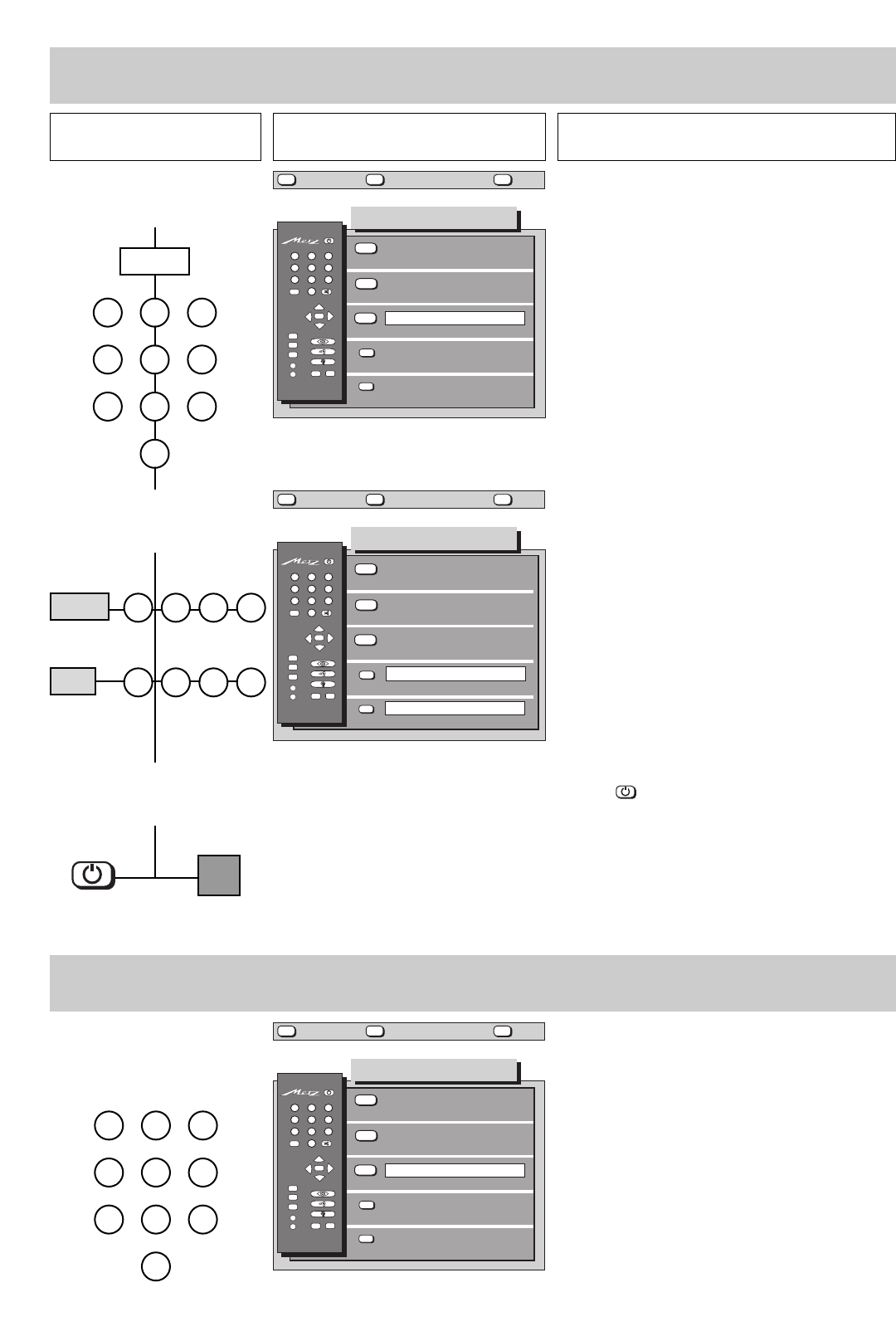

Turning on with the ON/OFF key

Before turning on a cold TV in a warm room, first

allow any condensation mist that may have formed

on the screen to evaporate.

Press the ON/OFF key.

Programme position 1 is then selected. Depending on the assign

ments made, the following information will appear in the screen

box:

Turning off with the ON/OFF key

Press the ON/OFF key. The television is now disconnected from

the mains.

You are advised to turn off the TV with the ON/OFF key after station

closedown and when it is not going to be used for an extended

period of time.

Turning on with the remote control

The programmes can be directly selected with the 0-9 keys

when the television is in standby mode.

Select single-digit programme numbers by pressing the corre-

sponding numeric key.

Two-digit programme numbers are entered with the presel-

ect key:

• The television is switched to the last watched programme.

• The preselect box is displayed on the screen.

• The 2-digit programme number can now be entered with the

numeric keys.

The last programme watched before the television was switched

off can be set with the key.

The television is automatically set to standby mode ten minutes

after station closedown. However, this is not the case if the station

starts to transmit a test card within these ten minutes.

Turning off with the remote control

Press the key to switch the TV to standby mode.

The standby status is indicated by the red lamp.

-/--

ARD

Pr 1 MONO

Pr - -

ARD

PS 1 MONO

18:15:33

Terrestrial

programme position

SAT programme position

(only with built-in

SAT upgrade module)

2.1 TV menu and operator help

Menu control of the TV, and the versatility of the system, ensure that supposed complicated settings and entries are made easily and

clearly comprehensible for everyone. Operator Help can be called with the key when in TV mode. Operator Help indicates the

functions of the individual keys.

All settings are entered by way of different submenus. Simply call Operator Help with the key should you encounter difficulties in

entering the different equipment configurations or if problems arise in operating the TV. Operator Help is specifically matched to the

corresponding menu and functions as a reminder when settings are entered or programmed.

Press this key on the remote

control.... The screen displays Explanation

Operator Help: Call/exit

TV menu: Call/exit

Operator Help in TV menu:

Call/exit

return

--/-

123

456

789

Operator help

Switch set on/off

Prog select (2 dig.)

Next programme

Basic video/audio settings

Sound interrupt

Change vol./adj. function

Sel.video/audio funct.

Station table

AV recording

Program/time of day

Teletext/TV picture

TV-menu

MUTING - 12DB

Zoom 2:1

Infotext

last program.

Var. format

PRG

Spch/mus.

Still

-/--

698-HELP1-GB

ɳ1

PRG

I I

REC

Video standard values

Audio standard values

Station settings

Timer/childlock

Equipm. configuration

--/-

123

456

789

TV-menu

698-01-GB

MENU return Help

TV picture

REC

red

green

white

yellow

blue

--/-

123

456

789

TV-menu

Change/store lumi-

nance, contrast, etc.

Operator help

Change/store volume

treble, etc.

Define program

assignments

Timer settings/

childlock

TV/SAT-configuration,

settings function

keys, menu language

698-HELP2-GB

return return


REC Ȅ

Operator Help shows the functions of the individual

keys when in TV mode.

The A and Bfunction keys can be programmed by the

user. Consequently their functions can differ to those

shown in the adjoining picture.

The individual menu lines are selected with the colou-

red keys of the remote control, to open the correspon-

ding submenu. Keys not enhanced in white or colour

on the displayed menu have no function in the current

operating state.

Operator Help can be called for each menu displayed

on the screen (Example: Operator Help with displayed

TV menu).

Settings in the submenus can be changed

with the keys.

Press the key to confirm and store the

new setting.

Press the key to move back by one

step within the TV menu.

Press this key on the remote

control.... The screen displays Explanation

2.2 Programme selection

1. Select the programme

position (e.g. Prog

number 10)

2. Next programme

With this key, you can switch back and forth between

the last two programme positions you selected.

Example:

You are watching a programme on ITN; during the

commercials, you switch to BBC with the aid of the

numeric keys  . .

You can now switch back and forth between ITN and

BBC by pressing the key.

PRG.

1 0

-/--

RTL 18:15:33

Pr 13 MONO

ZDF

BR3

RTL

SAT1

RTL2

PRO7

EUSPO

NTV

NORD3

MDR3

SWF3

Pr - -

3. Last programme

PRG.

Press the key when the TV is in standby mode.

The TV then switches to the programme viewed before

the receiver was turned off to standby.

Now enter the programme number with the numeric

keys. The TV is changed over to the selected programme

position as soon as the last digit has been entered.

With single-digit programme numbers it is only neces-

sary to press the corresponding key, e.g. key 4 for pro-

gramme position 4.

After the programme position has been selected an

information box appears indicating the programme

position number, the time, and the currently valid

sound mode, e.g. stereo.

-/--

Press the keys to run through the program-

mes. Keeping the or key depressed for more

than 2 seconds will cause a programme box to be dis-

played on the screen for selection of the programme

position. Release the or key as soon as the

desired logo is highlighted in white. The corresponding

programme position will then be selected.

Press this key on the remote

control.... The screen displays Explanation

4. Store the setting and return

to TV picture

TV picture

Prog Logo Channel Signal

▲▼

>> weitere Einstellungen

Std., Pict., Sound

698-03A-GB

VTR1

ARD

ZDF

SAT 1

Video Rec.1

Aerial

Station table

Std channel 06 ARD

Spec. channel

SAT-TV

SAT-RADIO

Fine tuning

MENU return Help

TV picture

red

yellow

blue

Prog Logo Channel Signal

▲▼

>> weitere Einstellungen

Std., Pict., Sound

698-03A-GB

VTR1

ARD

ZDF

SAT 1

Video Rec.1

Aerial

Station table

Std channel 06 ARD

Spec. channel

SAT-TV

SAT-RADIO

Fine tuning

MENU return Help


red

yellow

blue

Prog Logo Channel Signal

▲▼

>> weitere Einstellungen

Std., Pict., Sound

698-03A-ST-GB

VTR1

ARD

ZDF

SAT 1

Video Rec.1

Aerial

Station table

Std channel 06 ARD

Spec. channel

SAT-TV

SAT-RADIO

Fine tuning

MENU return Help

TV picture

red

yellow

blue

store?

OK TV

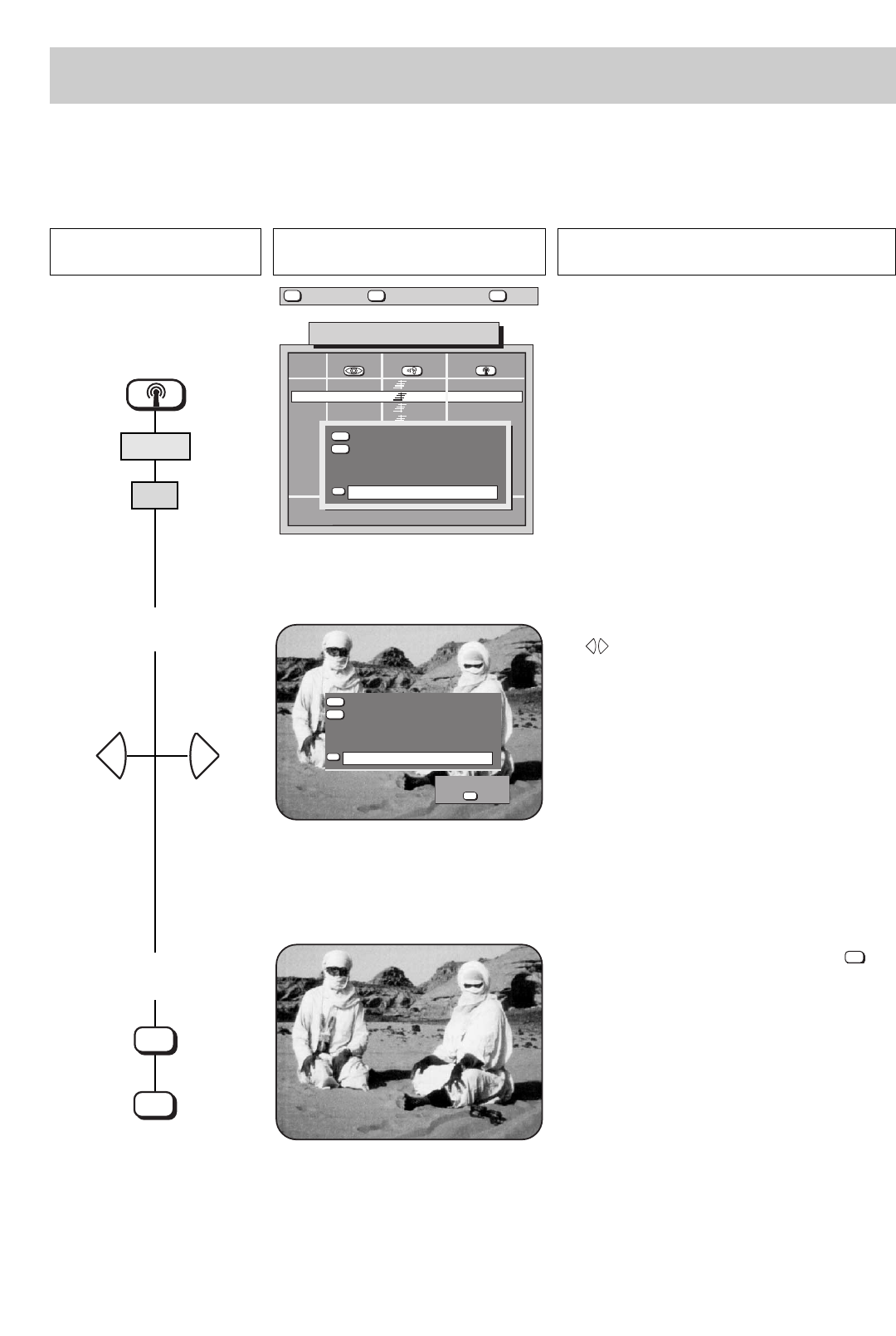

3. Presetting TV stations Direct channel entry/

station search

The TV is supplied with factory preprogrammed TV stations. However, if you can receive TV stations in your area that are not listed in the

station table, then these transmitters can be entered and programmed at any time.

You can choose one of the following three programming possibilities:

a) Direct channel entry b) Station search c) Autostore function

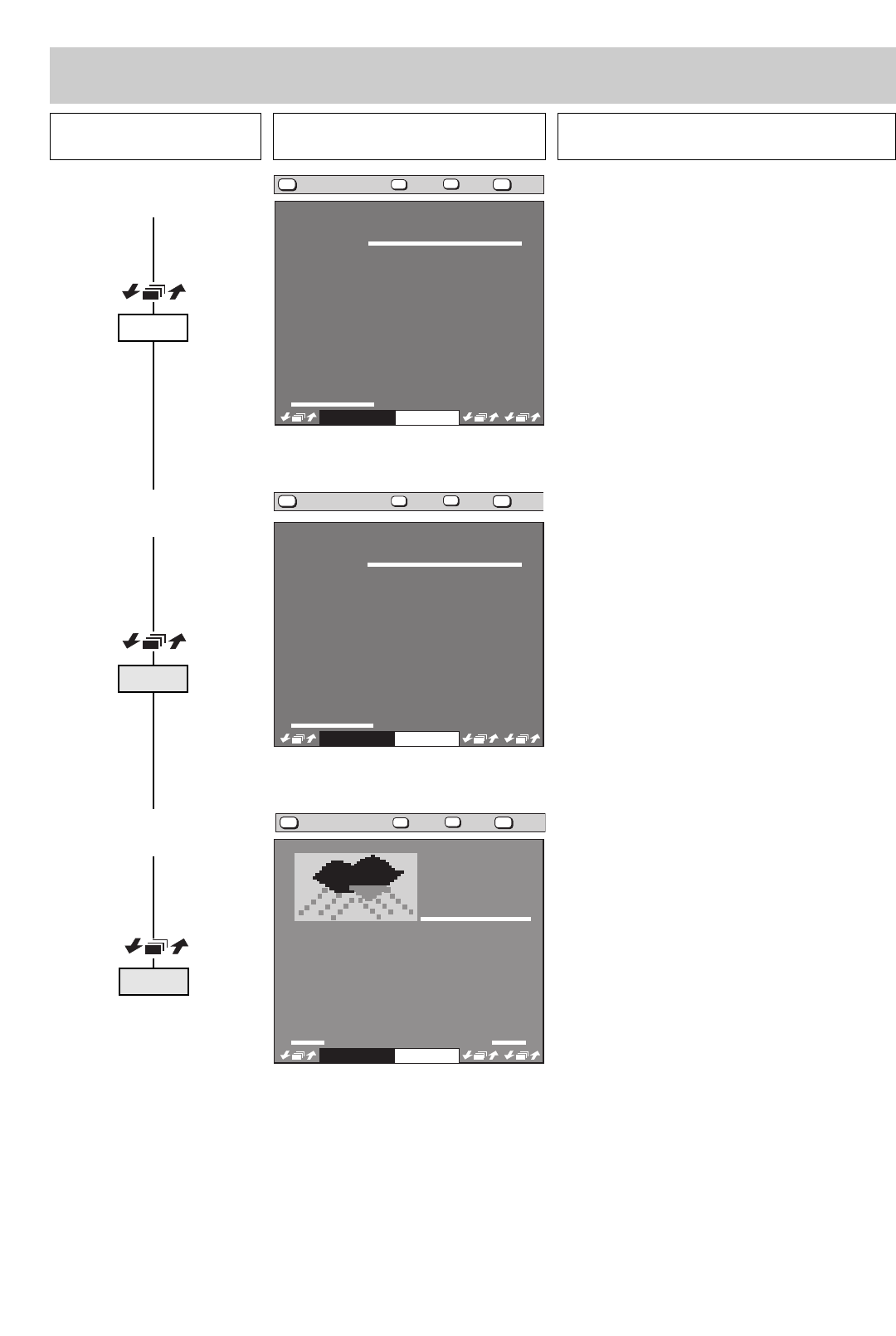

1. Call the station table and

channel type survey

2. Select the type of channel

(e.g. standard channel)

3. Enter the channel number

(Example: Standard channel

06) or start station search

With direct channel entry it is necessary to know the

type of channel and the channel number.

If type and number of channel are not known, you can

scan through the entire reception range with the

search function to locate stations.

The station table lists all the preset stations.

These stations can be changed at any time.

The cursor always highlights the type of channel cur-

rently preset in the given programme position.

For the search function it is advisable to switch to a

vacant programme position.

The yellow framed field offers four types of channels.

Select the channel type with the assigned coloured

key.

After the channel type has been selected, a channel

number is displayed in the bar when a station is stored

in this programme position. Two lines are shown if this

position is still vacant.

„SAT channel“ and „SAT radio channel“ can only be

selected if a SAT upgrade module has been installed in

the TV receiver.

yellow

blue

With direct channel entry, the station table is briefly

faded out when the channel number is entered, and

the selected station is displayed.

The station search proceeds from the displayed

channel number in a forward sequence with the

key, and in a reverse sequence with the key.

Search proceeds from the lower channel area

upwards or downwards when two lines are displayed.

The search stops when a station has been found.

Proceed as described in step 4 if the located station is

to be stored.

Press the or key if the located station is not to be

stored so that the search can be continued.

Complete fine tuning if station reception is not clear

(see Section 3.2).

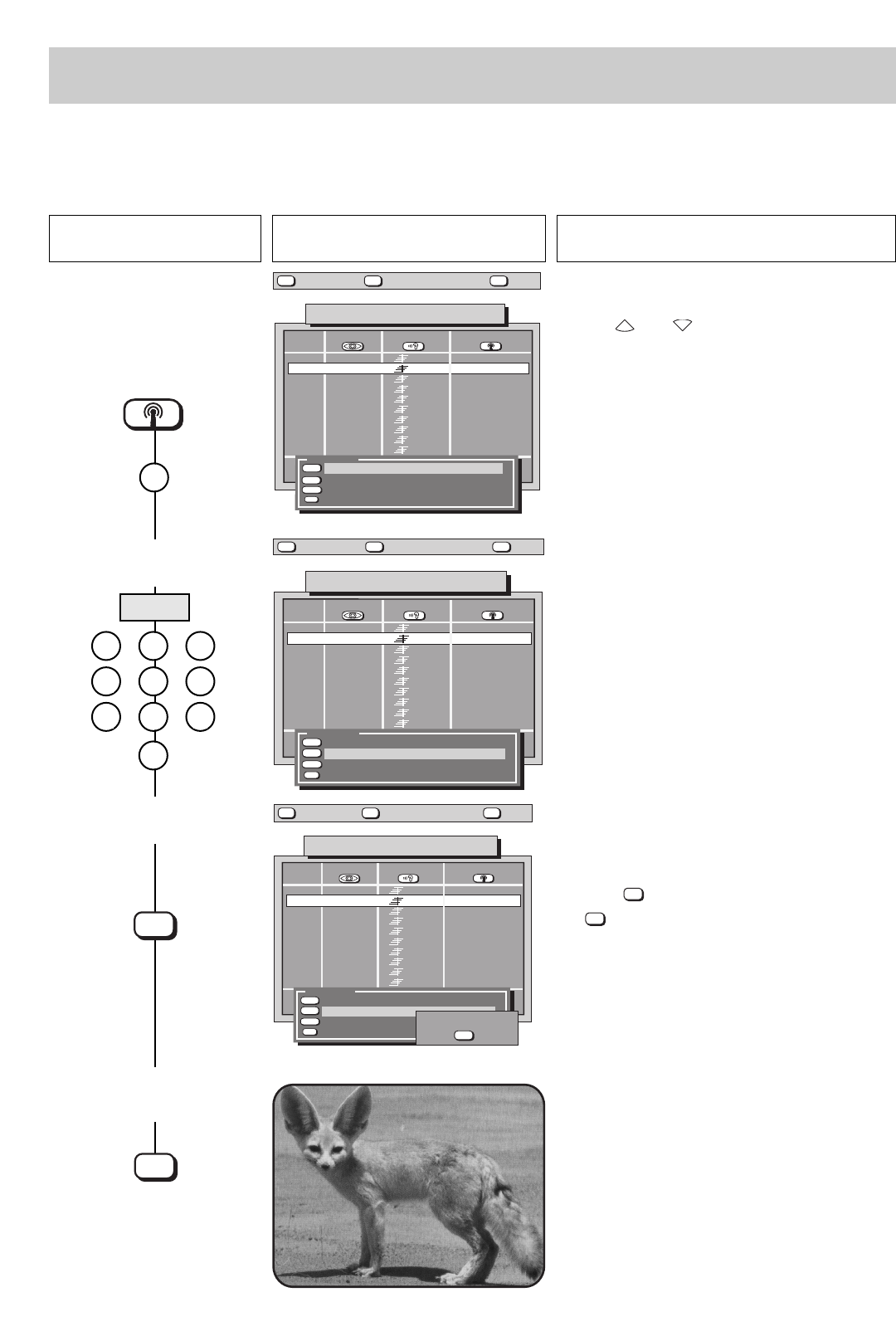

3. Presetting TV stations Autostore function,

sorted to countries

The autostore function automatically scans through the entire reception range to locate stations. The located stations are presented in the

station table and can then be stored by way of the key.

If you do not like the order in which the stations appear in the station table, you can sort the stations to match your own requirements as

described on the next page.

Press this key on the remote

control.... The screen displays Explanation

1. Call the menu

„Station settings“

2. Call the autostore function

and enter a programme

number (e.g. 01)

3. Start the autostore function

return Help


Station table

Autostore

SAT programming

--/-

123

456

789

Station settings

698-03B-GB

REC

yellow

blue

MENU return


Prog Logo Channel Signal

698-03D-GB

ARD 06 Aerial

Autostore

Searching for stations Ch06

Press the yellow key to call the autostore function. Use

the numeric keys to enter the two-digit programme

number (e.g. 01) at which the station is to be stored.

After entry of this number, a red box with the text

„Start ?“ is displayed.

1 2 3

4 5 6

7 8 9

The TV now scans through the entire reception range.

The first „standard-channel“ station to be found is

shown on the screen after all stations have been loca-

ted. The channel number and an automatic logo are

displayed. The auto logo only appears for stations

which transmit a VPS signal.

Now proceed as described in Section 3.1 Sorting

stations.

Prog Logo Channel Signal

698-03C-SP-GB

Autostore

sort for

Germany

Austria

Switzerland

others

from nr. of progr. 01

start ?

return Help


green

white

yellow

blue

yellow

3.1 Sorting stations

IIn the „Sort“ submenu you can move, exchange, copy, or delete the stationss stored in the programme positions. The „Sort“ submenu is

displayed automatically after the autostore function has found all available stations.

This menu can also be called at any time from the station table display for subsequent modification of the station programming.

Press this key on the remote

control.... The screen displays Explanation

1. Call the „Sort“ submenu

and move the station

2. Exchanging two programme

positions

3. Store the settings

4. Return to TV picture

Prog Logo Channel Signal

▲▼

698-03E-GB

VTR2

ARD

ZDF

SAT 1

RTL

BR 3

N 3

MDR 3

SWF 3

MDR 3

S23

S05

Video Rec.2

Aerial

Station table

sort

return Help

TV picture

move

change

copy Pr 1 ➔

Pr - -

Pr 1 delete

white

yellow

blue

green

Prog Logo Channel Signal

▲▼

698-03F-GB

VTR2

ARD

ZDF

SAT 1

RTL

BR 3

N 3

MDR 3

SWF 3

MDR 3

S23

S05

Video Rec.2

Aerial

Station table

sort

return Help


move Pr1 ➔ Pr - -

exchange Pr1 ➔ Pr - -

copy Pr 1 ➔

Pr - -

Pr 1 delete

green

white

yellow

blue

Prog Logo Channel Signal

▲▼

698-03F-SP-GB

VTR2

ARD

ZDF

SAT 1

RTL

BR 3

N 3

MDR 3

SWF 3

MDR 3

S23

S05

Video Rec.2

Aerial

Station table

sort

MENU return Help


move Pr1 ➔ Pr - -

exchange Pr1 ➔ Pr - -

copy Pr 1 ➔

Pr - -

Pr 1 delete

green

white

yellow

blue

store?

When moving, exchanging or copying a programme

position, the new programme position must be selected

by entering two digits on the numeric keys.

The blinking hyphen on the right of the sub-menu now

prompts you for input of a programme position number.

The selected function is executed as soon as you

enter the new number.

either automatically after autostore

1 2 3

4 5 6

7 8 9

yellow

When the „Sort“ submenu is displayed, the function

„Move“ is preset.

Use the and keys to select the programme

position to be modified.

Select one of the functions „move“, „exchange“,

„copy“ or „delete“ with the related coloured key.

If you inadvertently delete a programme position, you

can restore it by pressing the Bkey.

After the contents of a programme position have been

moved, exchanged, copied or deleted, a red store box is

displayed to ask if you want to store the new settings.

Press the key to store the new settings or press

the key to abort the operation.

Press this key on the remote

control.... The screen displays Explanation

3.2 Fine tuning

The individual channels are automatically tuned to channel centre for station tuning. As a rule, this automatic tuning will be sufficient.

Apply manual fine tuning if automatic tuning does not produce satisfactory results.

Select the programme number at which fine tuning is to be completed.

1. Select the fine tuning

function

2. Adjust the fine tuning

3. Store the fine tuning and

return to TV picture

Prog Logo Channel Signal

▲▼

>> weitere Einstellungen

Std, Pict., Sound

698-03G-GB

VTR1

ARD

ZDF

SAT 1

Video Rec.1

Aerial

Station table

Std channel 06 ARD

Spec. channel

SAT-TV

SAT-RADIO

Fine tuning

return Help

TV picture

red

yellow

blue

>> weitere Einstell ngen

Std channel 06 ARD

Spec. channel

SAT-TV

SAT-RADIO

Fine tuning

red

yellow

blue

yellow

red

store?

The „Fine tuning“ function is only activated when the

red bar is displayed.

Adjust fine tuning within the range of -99 to +99 with

the keys.

The station table is blanked out for better picture

assessment.

Once the station is correctly tuned, press the key

to store the new setting.

Press this key on the remote

control.... The screen displays Explanation

TV picture

3.3 Allocating a station logo

A logical logo consisting of up to 5 characters can be allocated to each station. The station RTL 2, for example, can be allocated the logo

RTL 2.

Manual logo allocation is not necessary with most stations. The corresponding station logo appears a few seconds after the picture when

a station is selected by direct channel entry. However, an automatic logo only appears for stations which transmit a VPS signal.

1. Call the logo menu

2. Select the first character

3. Move the cursor to the

second position and select

the second character

Prog Logo Signal

▲▼

698+03H-GB

E1 FBAS

Antenne

Logo:

ABCDEFGHIJKLMNOPQRSTUVW

XYZ 0123456789 !+-

select

next number

TV station table

Channel

return Help

TV picture

Prog Logo Signal

▲▼

698+03I-GB

E1 FBAS

Antenne

Logo:

ABCDEFGHIJKLMNOPQRSTUVW

XYZ 0123456789 !+-

select

next number

TV station table

Channel

return Help

TV picture

store?

Prog Logo Signal

▲▼

698+03J-GB

E1 FBAS

Antenne

Logo:

ABCDEFGHIJKLMNOPQRSTUVW

XYZ 0123456789 !+-

select

next number

TV station table

Channel

return Help

TV picture

The logo is automatically displayed if the selected pro-

gramme position already has a logo. The field remains

blank if a logo has not yet been allocated.

Any existing logo will be overwritten.

4. Store the setting and return

to TV picture

blue

white

Select the desired character (in our example the letter

R) with the keys , , .

This will overwrite any existing logo.

The cursor is moved within the logo field with the blue

key.

Select the desired character (in our example the letter

T) with the keys , , .

Repeat this procedure to enter the entire logo.

After input of the desired logo, press the key to

store it.

The programmed logo automatically appears in the

station table.

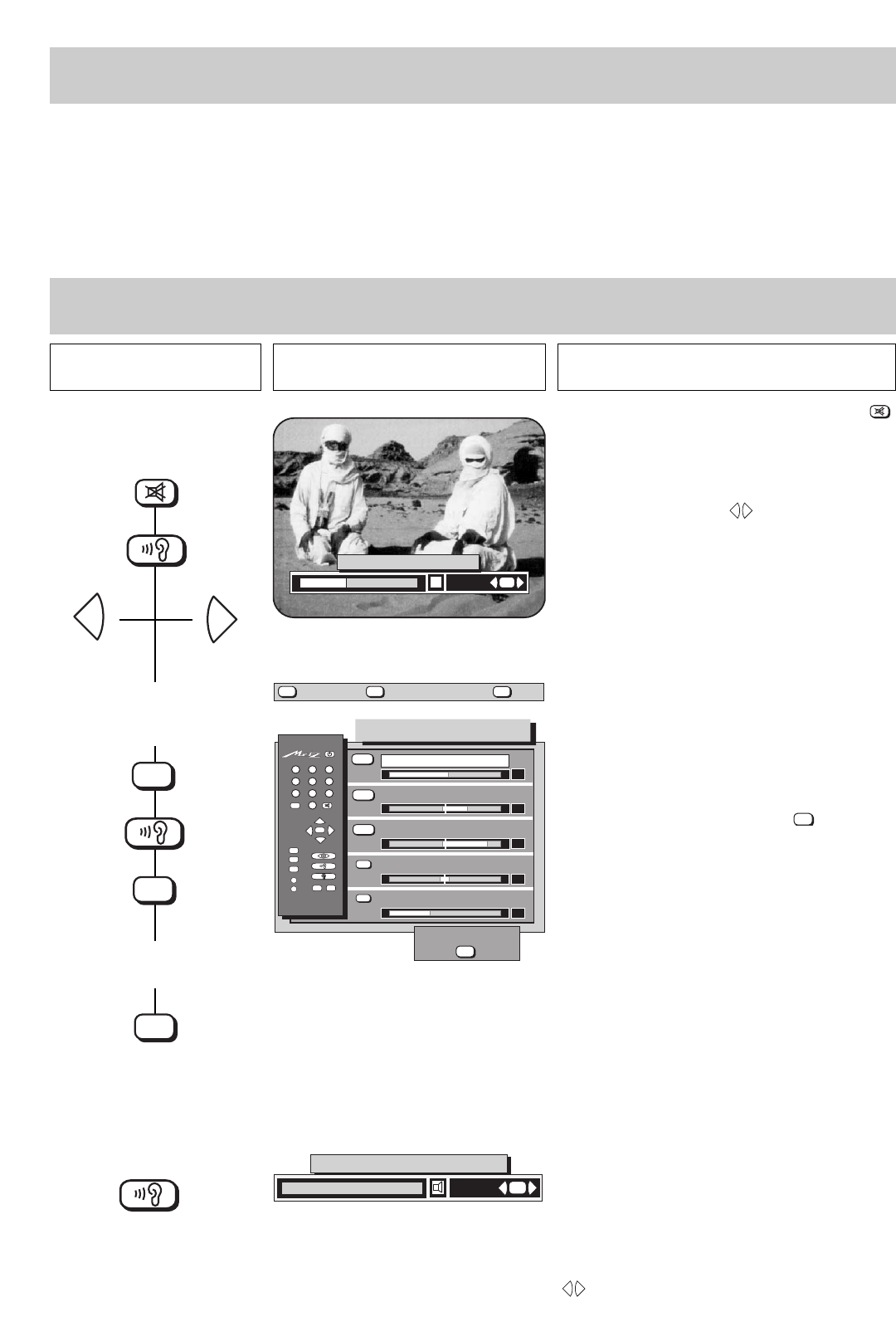

4. Changing individual picture settings

Press this key on the remote

control.... The screen displays Explanation

1. Adjusting the luminance

2. Adjusting the contrast

40 change:

Luminance

40 change

Contrast

40 change

Chrominance

02 change

Sharpness

694-00E-GB

Note: All settings modified in this menu can be stored by calling the „Video standard values“ or „Audio standard values“ menu respec-

tively and pressing the key. The stored values can be recalled at any time with the key.

OKOK

4.1 Changing individual sound settings

Press this key on the remote

control.... The screen displays Explanation

1. Adjusting the volume

2. Adjusting the treble setting

30 change:

Volume

25 change

Treble

25 change

Bass

00 change

Balance

change

Sound effects

Spatial sound On/Off

change

Sound-mode speaker

Mono/Stereo/Chann.1/Chann.2

695-D-GB

3. Sound mute

695-DX-GB

change

Volume

Press the key to display the last adjusted func-

tion.

Continue pressing the key until the picture set-

ting value to be changed is displayed.

Adjust the required value with the keys.

Press the key a number of times until the con-

trast field is displayed on the screen.

Adjust the required value with the keys.

Chrominance and sharpness are adjusted in the

same manner.

Press the key to display the last adjusted func-

tion.

Continue pressing the key until the volume field

is displayed on the screen.

Adjust the required value with the keys.

Press the key a number of times until the treble

field is displayed on the screen.

Adjust the required value with the keys.

Bass, balance, sound effects and speaker sound-

mode settings are adjusted in the same manner.

Press the key to mute the sound.

Renewed depression of the key resets the sound

to the previously adjusted volume.

Press this key on the remote

control.... The screen displays Explanation

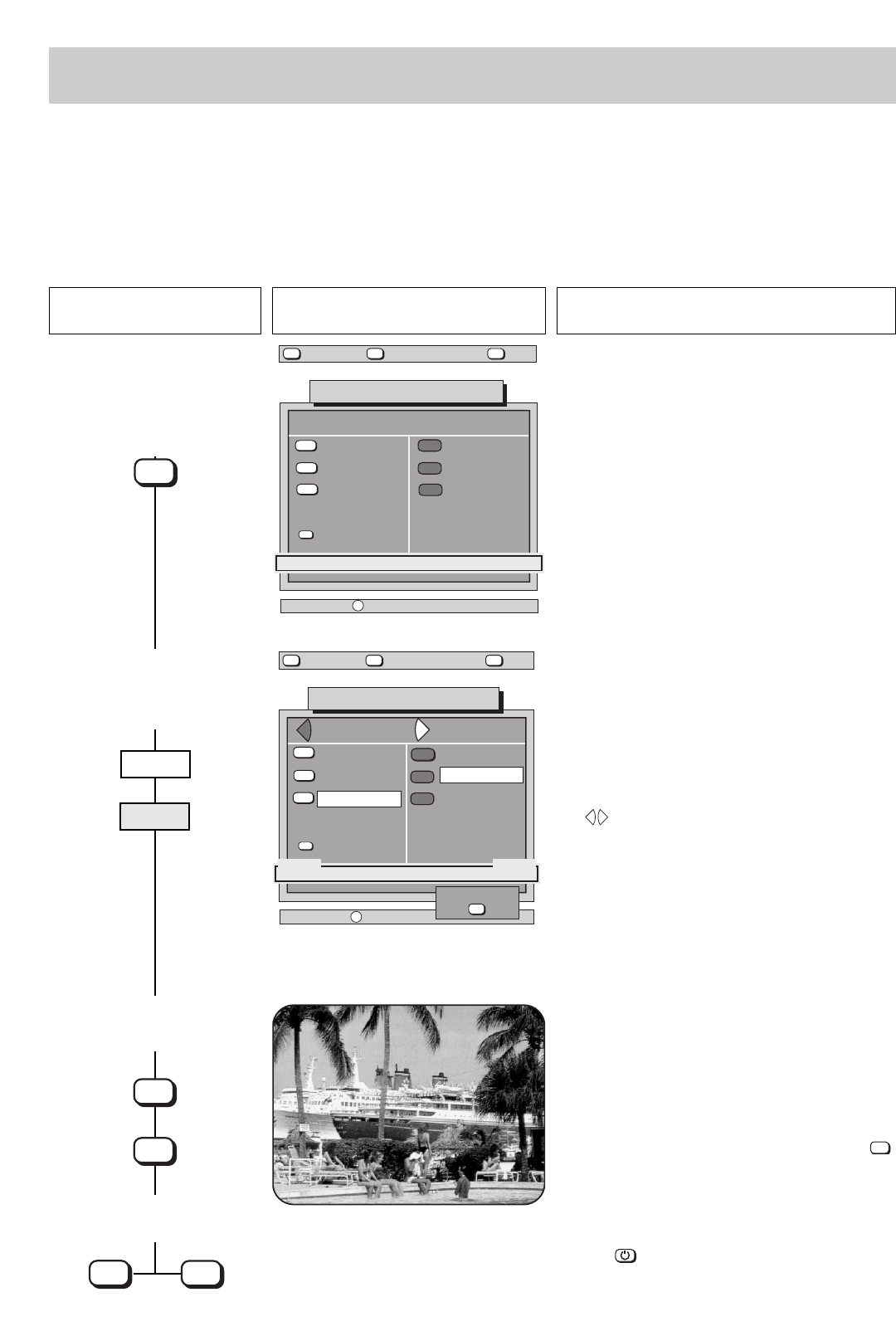

4.2 Adjusting the video and audio standard values

1. Call the TV menu

2. Example 1: Call the „Video

standard values“ sub-

menu. Adjust and store

the luminance.

3. Example 2: Call the „Audio

standard values“ sub-

menu. Adjust and store

the volume.

4. Return to TV picture

Video standard values

Audio standard values

Station settings

Timer/childlock

Equipm. configuration

--/-

123

456

789

TV-menu

698-01-GB

MENU return Help


REC

red

green

white

yellow

blue

--/-

123

456

789

Video standard values

Luminance

Contrast

Tint

Chrominance

698-04A-GB

return Help


white

yellow

REC Ȅ

blue

store?

Sharpnes

red

--/-

123

456

789

Audio standard values

Volume

Treble

Balance

Bass

Volume headphones

698-04B-GB

MENU return Help


store ?

REC

red

green

white

yellow

blue

Press any coloured key to step through the submenus.

Pressing the blue key selects the „Video standard

values“ submenu, pressing the yellow key selects the

„Audio standard values“ submenu

Luminance, contrast, chrominance and tint*can be

adjusted in the „Video standard values“ submenu.

Select the menu line with the value to be changed by

pressing the assigned colour keys.

*(only if a multi-standard upgrademodule has been

installed)

The volume, treble, bass and balance settings, as well

as the headphones volume, can be adjusted in a simi-

lar manner in the „Audio standard values“ submenu.

Adjust the desired value with the keys.

If no other video standard values or audio standard

values are to be changed, then press the key to

store the new setting.

The red store box disappears when the key is

pressed.

Press this key on the remote

control.... The screen displays Explanation

5. Equipment configuration Assigning the

function keys

The remote control handset has two factory programmed function keys A and B. Press the key in normal television mode to reveal the

factory programming. The displayed Operator Help text describes the current programming in the last-but-one paragraph. This programming

can be changed according to your requirements in conformity with the displayed selection. This choice is described in the „Glossary“ chapter.

Example of programming function key B:

In TV mode, the Bkey is to activate the „subtitles“ function; in Megatext mode, you can use it for the „page stop“ function.

1. Call the „Equipment

configuration“ menu

2. Call the „Function keys“

3. Press the function key to be

programmed (in this exam-

ple: B key)

--/-

123

456

789

Equipm. configuration

698-05A-GB

return Help


Function keys

Device connection

SAT settings

Language:

further

English

red

green

yellow

blue

REC

Pict. format

Large letters

--/-

123

456

789

Function keys Functions

▲

▼

Muting -12dB

Reveal text

698-05M-GB

return Help

TV picture

Television

no function

Subtitles

Large subt.

Pict. format

Comb filter

Zoom 2:1

Sound-effects

Stereo/ch. 1-2

Muting -12dB

REC

--/-

123

456

789

Function keys Functions

▲

▼

Muting -12dB

Reveal text

698-05N-GB

return Help

TV picture

Television

no function

Subtitles

Large subt.

Pict. format

Comb filter

Zoom 2:1

Sound-effects

Stereo/ch. 1-2

Muting -12dB

VTR operation

REC

Pict. format

Large letters

The left-hand side of this menu shows the currently

valid programming of the function keys.

The window on the right-hand side indicates the

selection that can be programmed.

The individual functions are explained in detail in

the „Glossary“ on page 53.

Two functions can be programmed for function key B.

The upper line indicates the function programmed for

TV mode, the lower line the function programmed for

Megatext mode.

Press the key to switch between the two lines.

Press the Bkey to display the currently programmed

function.

red

blue

Press this key on the remote

control.... The screen displays Explanation

5. Equipment configuration Assigning the

function keys

4. Select the function for TV

mode (in this example

„Subtitles“)

5. Switch to Megatext mode

and program the function

keys

6. Store the assignments and

return to the „Equipment

Configuration“ menu

--/-

123

456

789

Function keys Functions

▲

▼

Muting -12dB

Reveal text

696-05O-GB

return Help

TV picture

Television

no function

Subtitles

Large subt.

Logo

Pict. format

Zoom 2:1

Sound-effects

Stereo/ch. 1-2

Muting -12dB

Subtitles

Large letters

store ?

REC Ȅ

--/-

123

456

789

Function keys

Functions

▲

▼

Muting -12dB

Reveal text

698-05P-GB

return Help


Videotext

no function

Reveal text

Large letters

Stop page

Subtit.

Stop page

store ?

REC

--/-

123

456

789

Equipm. configuration

698-05A-GB

return Help

TV picture

Function keys

Device connection

SAT settings

Language:

further

English

red

green

yellow

blue

REC

The cursor (a white bar) is now located in the second

line, on the currently programmed function.

The desired Megatext functions can now be programmed

in the sequence described in steps 3 and 4, above.

7. Return to TV picture

Select the function in the right-hand field with the

or key. The text on the left-hand side changes as

soon as the cursor (a white bar) is moved.

If the function „Subtitles“ has been programmed for

key B, the subtitles will be displayed when the TV set

is switched, if subtitles are actually transmitted with

the programme.

Press this key on the remote

control.... The screen displays Explanation

5. Equipment configuration Settings for

programme change

1. Call the settings for

programme change

2. Set spatial sound when

changing programmes

3. Select stereo wide when

changing program

4. Store the settings and

return to TV picture

--/-

123

456

789

Prog. change settings

698-05C-GB

No sound on PC :

Spat. sound on PC :

Stereo wide on PC :

Yes

Off

MENU return Help


store ?

REC

white

yellow

blue

--/-

123

456

789

Prog. change settings

698-05D-GB

No sound on PC :

Spat. sound on PC :

Stereo wide on PC :

Yes

Off

return Help


store ?

REC

white

yellow

blue

--/-

123

456

789

Prog. change settings

698-05E-GB

No sound on PC :

Spat. sound on PC :

Stereo wide on PC :

Yes

Off

return Help


store ?

REC Ȅ

white

yellow

blue

Use the keys in this menu line to select whether

stereo wide is to be switched on or off when the pro-

gramme is changed to a stereo station.

When in stereo mode you can change over to stereo

wide by pressing a self-defined function key (sound

effects).

If no other values are to be changed, then press the

key to store the new setting.

The term „stereo wide“ is explained in the Section

„Glossary“ on page 53.

OK TV

yellow

red

white

blue

In this menu you can define the sound functions for a

programme change.

In the first line of the menu, use the keys to select

whether the mute function is to be retained („Yes“) or

to be cancelled („No“) when you change programmes.

The new settings can be stored by pressing the

key.

Use the keys in this menu line to define whether

the spatial sound is to be switched on or off when the

programme is changed to a monaural station.

When in mono mode, you can change over to spatial

sound by pressing a self-defined function key (sound

effects).

If no other values are to be changed, then press the

key to store the new setting.

The term „spatial sound“ is explained in the section

„Glossary“ on page 53.

Press this key on the remote

control.... The screen displays Explanation

5. Equipment configuration RGB priority

Volume adaptation

2. Set the RGB priority

3. Activate and deactivate the

volume adaptation

4. Store the settings and

return to TV picture

--/-

123

456

789

Equipm. configuration

698-05F-GB

return Help


store ?

white

yellow

blue

REC

Prog. change settings

RGB priority: Yes

Sound settings: Yes

--/-

123

456

789

Equipm. configuration

698-05G-GB

return Help


store ?

white

yellow

blue

REC

Prog. change settings

RGB priority: Yes

Sound settings: Yes

Some stations transmit commercials at a higher volu-

me than the normal programme. You can activate an

automatic volume adaptation function so that you do

not have to adjust the volume with the remote control

each time.

When this function is active, differences in the volume

are automatically equalised.

The setting you select here applies to all programme

positions.

1. Call the „Equipment

configuration“ menu

--/-

123

456

789

Equipm. configuration

698-05B-GB

return Help


store ?

Prog. change settings

RGB priority: Yes

Sound settings: Yes

white

yellow

blue

REC

yellow

red

white

The RGB priority must be set to Yes if a Pay-TV deco-

der (Premiere) is to be connected to the TV.

Select the setting Yes or No with the keys.

Store the new settings with the key

Press this key on the remote

control.... The screen displays Explanation

Programme Std Pict.

▲▼

<< weitere Einstellungen

Logo, Channel, Signal

VTR1

ARD

ZDF

SAT 1

Auto.

Station table

—

Sound

—

Volume adjustment

Forced mono

+00

Off

store ?

return Help

TV picture

698-06A-GB

yellow

blue

Programme Std Pict.

▲▼

<< weitere Einstellungen

Logo, Channel, Signal

VTR1

ARD

ZDF

SAT 1

Auto.

Station table

—

Sound

—

Volume adjustment

Forced mono

+00

Off

store ?

return Help


698-06B-GB

yellow

blue

6. Volume adjustment and forced mono

It is possible for TV stations to be received at different volume levels although the volume level settings on the individual programme

positions are identical. To overcome this problem, you can set a volume correction factor for each programme position.

Example:

Programme 1 is soft: volume value 40. Programme 3 is loud: volume value 40. Programme 1 is to be adjusted to the same volume as

Programme 3. Switch over to programme position 1.

1. Call the sound submenu

and adjust the volume

2. Set forced mono

3. Store the setting and return

to TV picture

All changed settings are stored.

yellow

red

white

In this submenu, you can assign a volume correction

factor to a programme position and, if necessary,

activate forced mono sound mode.

A volume correction factor can be set with the keys

when the text is displayed on a blue background.

Press the key to enter a positive correction factor

which is added to the standard volume value (increa-

sing the volume). Press the key to enter a negative

correction factor which is subtracted from the

standard volume value (decreasing the volume).

In our example:

Press the key and increase the volume until it is the

same as the volume on Programme 3. The resulting

correction factor could , for example, be displayed as 05.

It may happen that the TV set inadvertently switches

from mono to stereo during a transmission,

although no stereo programme is being received.

This usually depends upon the prevailing reception

conditions.

Use the keys to select forced mono.

If this setting is stored, all transmissions received in

this programme position will always be reproduced in

mono.

Press this key on the remote

control.... The screen displays Explanation

Programme Std Pict.

▲▼

<< weitere Einstellungen

Logo, Channel, Signal

698-06C-GB

VTR1

ARD

ZDF

SAT 1

Auto.

Station table

—

Sound

—

Sharpness

Noise reduction

CTI

Comb filter

further

return Help


store ?

red

green

white

yellow

blue

Programme Std Pict.

▲▼

<< weitere Einstellungen

Logo, Channel, Signal

698-06D-GB

VTR1

ARD

ZDF

SAT 1

Auto.

Station table

—

Sound

—

Sharpness

Noise reduction

CTI

Comb filter

further

return Help


store ?

red

green

white

yellow

blue

Programme Std Pict.

▲▼

<< weitere Einstellungen

Logo, Channel, Signal

698-06E-GB

VTR1

ARD

ZDF

SAT 1

Auto.

Station table

—

Sound

—

Sharpness

Noise reduction

CTI

Comb filter

further

return Help


store ?

red

green

white

yellow

blue

Programme Std Pict.

▲▼

<< weitere Einstellungen

Logo, Channel, Signal

698-06F-GB

VTR1

ARD

ZDF

SAT 1

Auto.

Station table

—

Sound

—

Sharpness

Noise reduction

CTI

Comb filter

further

return Help


store ?

red

green

white

yellow

blue

6.1 Correcting picture deviations

It is possible for stations to be received with differing levels of chrominance, picture sharpness and contrast, even though the settings on

the individual programme positions are identical. For this reason, your TV set enables you to correct the value for each programme

position and/or to select a picture correction function (CTI, noise reduction).

1. Call the first picture menu in

the station table and correct

the picture sharpness

2. Switch on the noise

reduction

3. Switch on the CTI function

4. Switch on the comb filter

The picture menu contains all settings which can

change the picture.

If the pictures received from a station are unsharp, this

function permits you to correct the picture sharpness

for an individual programme position and to store this

adjustment.

The picture sharpness can be changed with the

This noise reduction function can be switched on if the

picture contains snow or noise.

The noise reduction function can be switched OFF or

A1, A2, or A3.

CTI stands for Colour Transient Improvement and

improves the transitions between different coloured

areas of the picture, making the picture appear much

sharper. The CTI function is effective for both transmis-

sions received by way of the aerial input and for signals

received via the AV sockets. CTI also provides a visible

improvement when playing back from a video recorder.

However, in certain applications (such as playing back

from an S-VHS video recorder), the CTI function may

just have the opposite effect.

When playing back from such recorders, CTI can result

in a lower-quality picture. For this reason, this menu

permits you to switch off the CTI function for specific

programme positions.

The comb filter removes so-called „cross-interference“

which appears as coloured moiré fringes on striped or

checked patterns in the picture.

The comb filter can be switched on or off for each pro-

gramme position in the station table.

You can also programme the comb filter on one of the

functions keys in the „Function keys“ menu. You can

then switch the comb filter on and off as desired with

this key.

Use of this function for AV programme positions is not

advisable.

yellow

red

white

green

Press this key on the remote

control.... The screen displays Explanation

The picture format of each TV programme position

must be set to 4:3.

If a video recorder with 16:9 format detection is

connected, the picture format of the related programme

position must be set to 16:9.

If a 16:9 input signal is applied to the phono sockets or

the mini-DIN (YC) socket, the picture format must be

changed manually.

An external switching voltage of 4-7 V at the EURO

socket automatically switches the TV to 16:9 format,

provided that the signal type was stored under the

heading „...controls AV operation“ in the menu

„Equipm. configuration, device connection“.

Programme Std Pict.

▲▼

<< weitere Einstellungen

Logo, Channel, Signal

698-06G-GB

VTR1

ARD

ZDF

SAT 1

Auto.

Station table

—

Sound

—

Chrom. adjustm.

Col. offset adj.

Contrast adj.

Picture format

VCR

4:3

Off

store ?

return Help


red

green

white

yellow

blue

Programme Std Pict.

▲▼

<< weitere Einstellungen

Logo, Channel, Signal

698-06H-GB

VTR1

ARD

ZDF

SAT 1

Auto.

Station table

—

Sound

—

store ?

return Help

TV picture

red

green

white

yellow

blue

Chrom. adjustm.

Col. offset adj.

Contrast adj.

Picture format

VCR

4:3

Off

Programme Std Pict.

▲▼

<< weitere Einstellungen

Logo, Channel, Signal

698-06I-GB

VTR1

ARD

ZDF

SAT 1

Auto.

Station table

—

Sound

—

store ?

return Help


red

green

white

yellow

blue

Chrom. adjustm.

Col. offset adj.

Contrast adj.

Picture format

VCR

4:3

Off

6.1 Correcting picture deviations

5. Call the second picture

menu and adjust

the chrominance

6. Adjust the colour offset

or contrast

7. Chage the picture format

8. Store all settings and return

to TV picture

OK TV

yellow

red

green

white

In this second picture menu, the chrominance, colour

offset and contrast can be corrected individually for

each programme position.

In our example, the chrominance of Programme 1 is to

be diminished. Hold down the key until the colour

intensity is the same as in programme position 3.

The chrominance adjustment range is -15 to +15.

If no other values are to be changed, then press the

key to store the new setting.

Normally, it is not necessary to adjust the colour offset.

However, if external units are connected it is possible

that colour and black-and-white pictures are not accu-

rately superimposed. A similar effect is sometimes

encountered in journals when the black-and-white

and colour impressions do not register, with the result

that the contours are blurred.

The colour offset range is between -3 and +3.

The contrast adjustment range is -15 to +15.

If no other values are to be changed, then press the

key to store the new settings.

Press this key on the remote

control.... The screen displays Explanation

Output

Video Rec.2

Video Rec.1

Camcorder

698-07A-GB

AV-recording

no recording

ADevice connection

Input

Video Rec.2

Video Rec.1

Camcorder

Pr. 1: ARD

return Help


red

white

yellow

blue

698-07B-GB

AV-recording

Camcorder ➜ Video Rec.1

ADevice connection

Input

Video Rec.2

Video Rec.1

Camcorder

Pr. 1: ARD

EURO3:

Video

Output

Video Rec.2

Video Rec.1

Camcorder

EURO2:

Video

record ?

return Help


red

white

yellow

blue

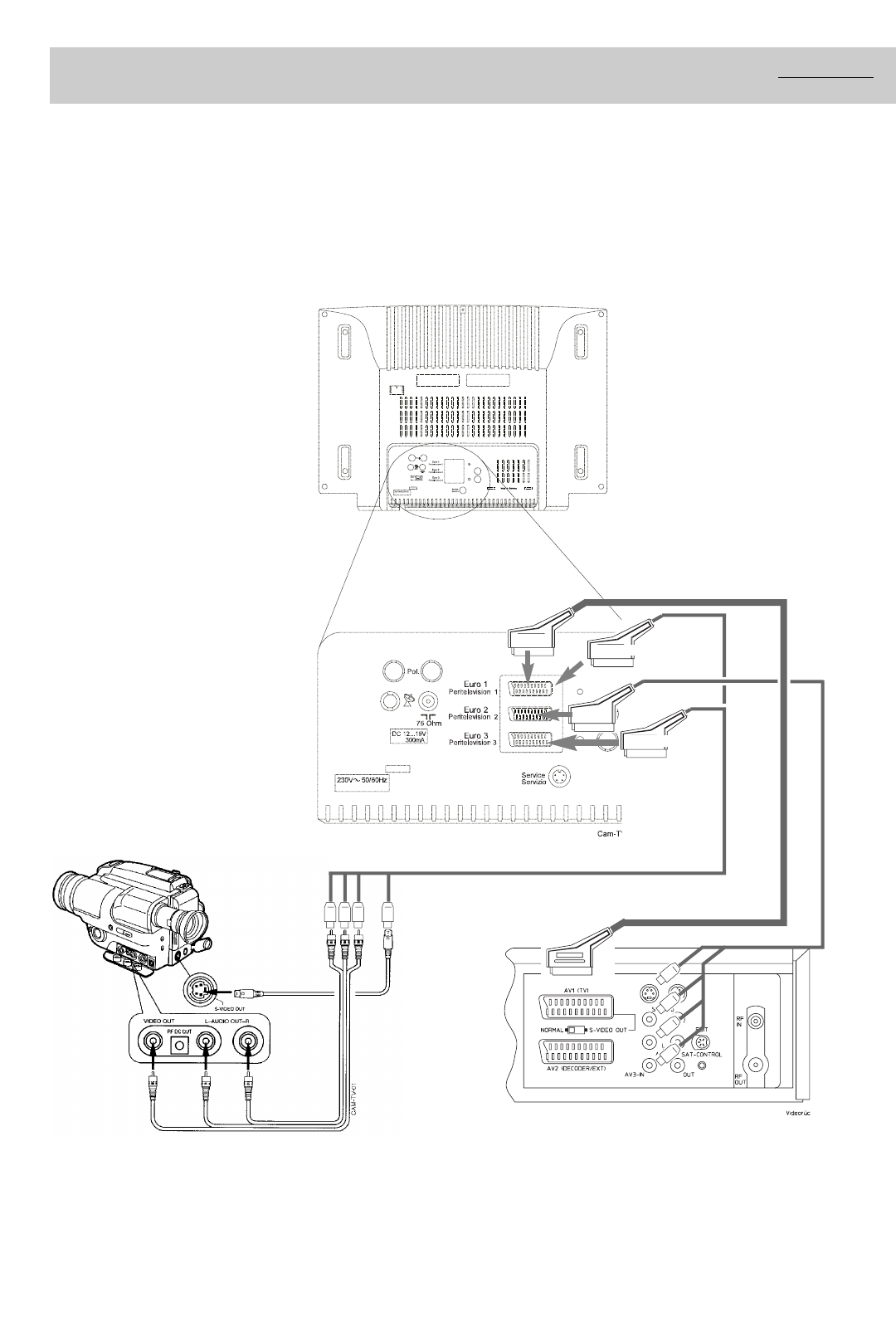

7. AV recording

In the „AV recording“ menu, you can define which of the connected peripheral AV devices are to be used for copying a recording.

AV device is a generic term for all external video units, such as video recorders, camcorders,video disk players, photo CD players, etc

which can be connected to a TV.

Example: You wish to copy a film recorded with an S-VHS/Hi8 camcorder to an S-VHS/Hi8 video recorder which is also connected to the

TV set.

1. Call the AV menu

2. Select the desired AV devi-

ces (in this example: Cam-

corder and Video Rec. 1)

3. Store the settings and clear

the menu

In the „AV recording“ menu , you can select how the

AV devices connected to your TV set (see Section 13,

„Equipment configuration/Connecting external devices“)

are to be used for copying a recording.

The left side of the menu (Input) shows the devices

which supply picture and sound for the copy operation.

Selection of an input for a programme is meaningful

only for SAT or decorder operation.

The right side of the menu (Output) shows the devices

capable of recording the picture and sound.

4. Terminate or abort the

copy operation

Camcorder ➜ video recorder

yellow

white

The copy operation with the selected devices is now

active.

If any subsequent switching operations could interfere

with copying, a warning box with the text „AV recor-

ding“ will be displayed and the requested switching

operation will not be executed.

To check the progress of the operation, press the

key to display the picture from the input device on the

screen.

If you wish to execute the copy operation in standby

mode, you can switch the TV set to this mode by pres-

sing the key.

After calling this menu, you must first select the input

device, i.e. the device which is to supply the picture.

Once you have done this, the cursor moves to the out-

put side of the menu and the keys are displayed in

colour. If there is more than one AV device shown on

the output side, you must select the desired device

manually. If you make a mistake, you can switch

between the input and output sides of the menu with

the keys.

Back to the example:

You want to copy the film from the camcorder to video

recorder 1.

Press the white key to display the signal from the

camcorder on the screen. Then press the yellow key to

select the output device.

Press this key on the remote

control.... The screen displays Explanation

7. AV recording Video recorder ➜ video recorder

Example: You wish to copy a film from video recorder 1 to video recorder 2.

1. Call the AV menu

2. Select the desired AV device

(in this example:

video rec. 1)

3. Store the settings and

clear the menu

Output

Video Rec.2

Video Rec.1

Camcorder

698-07A-GB

AV-recording

no recording

ADevice connection

Input

Video Rec.2

Video Rec.1

Camcorder

Pr. 1: ARD

return Help


red

white

yellow

blue

698-07C-GB

AV-recording

Video Rec.1 ➜ Video Rec.2

ADevice connection

Input

Video Rec.2

Video Rec.1

Camcorder

Pr. 6: RTL2

EURO2:

Video

Output

Video Rec.2

Video Rec.1

Camcorder

EURO1:

Video

record ?

MENU return Help


red

white

yellow

blue

4. Terminate or abort the

copy operation

TV picture

AV OK

After calling the menu, you must first select the input

device which is to supply the picture. In our example,

you select video rec. 1 by pressing the yellow key.

Once you have done this, the cursor moves to the out-

put side of the menu and video rec. 2 is selected auto-

matically, since there is no other choice.

If, however, there were a further video recorder

connected to the EURO 3 socket, you would have to

select the desired device with the related key.

yellow

The copy operation with the selected devices is now

active.

If any subsequent switching operation could interfere

with copying, a warning box with the text „AV recor-

ding“ will be displayed and the requested switching

operation will not be executed.

To check the progress of the operation, press the

key to display the picture from the input device on the

screen.

If you wish to execute the copy operation in standby

mode, you can switch the TV set to this mode by pres-

sing the key.

Press this key on the remote

control.... The screen displays Explanation

Switch-on time:

Switch-off time:

Reminder time

Time of day:

--/-

123

456

789

Time settings

698-08A-GB

Off

-- : --

08 : 22

return Help

TV picture

green

white

yellow

REC

blue

--/-

123

456

789

Time settings

698-08B-GB

return Help


Switch-on time:

Switch-off time:

Reminder time

Time of day:

20:00

Off

-- : --

08 : 22

green

white

yellow

blue

REC Ȅ

--/-

123

456

789

Time settings

698-08C-GB

return Help


Switch-on time:

Switch-off time:

Reminder time

Time of day:

20:00

23:30

-- : --

08 : 22

green

white

yellow

blue

REC

8. Time settings Switch-on/off and

reminder time

In the „Time settings“ menu, you can enter settings which will instruct the TV to switch itself on or off, and to display a reminder at a given time.

Switching from summer time to winter time and vice versa is carried out automatically by the teletext clock.

The switch-on time function will automatically turn on the TV at the preset time if the television is in standby mode. The switch-off time

function will automatically switch it off as desired. The reminder service is intended to help you remember things which you have to do

later on, for instance a telephone call. All three settings can be jointly programmed.

Example: The TV is to switch itself on at 20:00 hr, remind you of something at 21:45 hr, and switch itself off at 23.30 hr.

1. Call the „Time settings“

2. Enter the switch-on time

(Example: 20.00 hr)

3. Enter the switch-off time

(Example: 23.30 hr)

The adjoining picture shows the appearance of the

„Time settings“ menu when no times have been pro-

grammed.

2 0 0 0

When the set has switched itself on automatically,

you must press any key you choose on the remote

control, otherwise the set will return to standby

mode after about 10 min. This is a safety precaution

to ensure that the television does not stay on if

you are not at home.

yellow

green

blue

If you press the blue key, the text in the first line is dis-

played on a blue background.

Now press the or the key to switch on the function.

Enter the desired switch-on time with the numeric

keys. The function is activated after input of the last

digit. Henceforth the TV set will switch itself on every

day at the preprogrammed time.

If you press the yellow key, the text in the second line

is displayed on a yellow background.

Now press the or the key to switch on the function.

Enter the desired switch-off time with the numeric

keys. The function is activated after input of the last

digit.

The switch-on/switch-off times can be deleted with

the keys (function OFF).

TV picture

Press this key on the remote

control.... The screen displays Explanation

4. Enter the reminder time

(Example: 21.45 hr)

5. Enter the time manually

(Example: 14.24 hr)

--/-

123

456

789

Time settings

698-08D-GB

MENU return Help


Switch-on time:

Switch-off time:

Reminder time

Time of day:

20:00

23:30

21:45

08 : 22

green

white

yellow

blue

REC

--/-

123

456

789

Time settings

698-08E-GB

return Help


Switch-on time:

Switch-off time:

Reminder time

Time of day:

Off

--:--

green

white

yellow

blue

REC

If you switch to a programme position in which teletext

has been stored, the current time automatically

appears in this menu and the green key is not displayed

In such a case the time setting cannot be changed.

If, for the reason stated above, the clock is to be set

manually, simply enter the time with four digits.

6. Switch to standby mode

8. Time settings Switch-on/off and

reminder time

2 1 4 5

From the standby mode, the TV set will switch itself on

at 20.00 hr, remind you of the telephone call you wish

to make at 21.45 hr, and switch back to standby mode

at 23.30 hours.

1 4 4

Hallo

green

white

If you press the white key, the text in the third line is

displayed on a white background.

nter the desired reminder time with the numeric keys.

The function is activated after input of the last digit.

The reminder time can be deleted with the key.

-/--

At the programmed time, a box with the text „Hallo“ is

displayed on the screen if the TV set is switched on.

This box disappears if you press the or key or

switch to a different programme position.

Press this key on the remote

control.... The screen displays Explanation

Time settings

Childlock

Timer recording

Basic setting of MVS

--/-

123

456

789

Timer/childlock

698-08F-GB

return Help


white

yellow

blue

REC

8.1 Childlock Switching on

Your TV set can be protected against unauthorized use. It is possible to prevent any use of the television at all or to permit viewing of up to

five specific programmes. Consequently, the childlock can be set to prevent a child from seeing violent films, yet still provide access to

children’s programmess on selected channels. Access to such permitted programmes can be provided in general or within a specified

period of time.

Example: The children shall only be allowed to watch programmes on the programme positions 01, 02 and 05 from 14.00 to 18.00 hr.

Access to all other programme positions shall be excluded.

1. Call the „Timer/childlock“

2. Call the „Childlock“

submenu and switch on

the childlock

3. Select and store permitted

programmes

--/-

123

456

789

Childlock

698-08G-GB

-- -- -- -- --

----

Childlock. . . . .

Permitted programmes:

Enter code . . . . :

Begin viewing . :

End viewing . . . :

Off

return Help

TV picture

red

green

white

yellow

blue

REC Ȅ

--/-

123

456

789

Childlock

698-08H-GB

01 02 05 -- --

----

Childlock. . . . .

Permitted programmes:

Enter code . . . . :

Begin viewing . :

End viewing . . . :

Off

MENU return Help

TV picture

red

green

white

yellow

blue

REC

store?

1 2 3

4 5 6

7 8 9

yellow

green

blue

The childlock can be switched on and off with the

keys. If you set the childlock to „ON“, you must also ent-

er a 4-digit personal code number.

If the childlock has been set previously, this setting

will be used and the television switches to standby

mode.

The TV set can now still be switched on, but programmes

will not be shown on the screen. Instead the „Childlock“

menu will be displayed with the cursor on the „Enter

code“ line.

The childlock can be turned off again by entering the

4-digit personal code number. The TV is automatically

switched to standby mode after approx. 10 minutes if it

has not been switched off manually in the meantime.

A maximum of 5 programme positions can be entered

to which access is permitted.

These programme positions are entered with the

numeric keys; all entries can be erased with the

key.

Back to the example:

Enter two digits for each programme position that may

be watched. In our example the child has access to the

programme positions 01, 02 and 05.

Before continuing with the next programming steps,

the permitted programme positions entered above

must be stored; otherwise the entries will be lost.

-/--

Press this key on the remote

control.... The screen displays Explanation

4. Enter your personal code

5. Enter the beginning and

end of the viewing period

Call the TV menu and enter

your personal code

--/-

123

456

789

Childlock

698-08I-GB

01 02 05 -- --

----

Childlock. . . . .

Permitted programmes:

Enter code :

Begin viewing . :

End viewing . . . :

Off

return Help


red

green

white

yellow

blue

REC

--/-

123

456

789

Childlock

698-08J-GB

01 02 05 -- --

----

Off

return Help

TV picture

red

green

white

yellow

blue

REC

Childlock. . . . .

Permitted programmes:

Enter code :

Begin viewing . :

End viewing . . . :

18:00

14:00

--/-

123

456

789

Childlock

698-08I-GB

01 02 05 -- --

----

Childlock. . . . .

Permitted programmes:

Enter code :

Begin viewing . :

End viewing . . . :

Off

return Help


red

green

white

yellow

blue

REC

Enter your personal 4-digit code at this point.

The digits are entered with the numeric keys. The

entered code number is NOT displayed!

Ask your local dealer for help if you have forgotten

your personal code number.

Here you can enter the times between which viewing

of the permitted programmes is allowed.

The TV is not automatically switched on at the begin-

ning of this period; it is, however, automatically swit-

ched off at the end of it.

If no permitted programmes have been entered all TV

transmissions within this period can be viewed.

Entry of the personal code number switches off the

childlock and the selected programme is displayed on

the screen.

Ask your local dealer for help if you have forgotten

your personal code number.

6. Activate the childlock

8.1 Childlock Switching off

The childlock is activated when the set is switched off

with the key or with the ON/OFF key.

123

456

789

400

0 08

123

456

789

8.1 Childlock Switching on

red

green

white

Press this key on the remote

control.... The screen displays Explanation

Prog. Date VPS

enter date 19.03. 14:20

698-08K-GB

—

- -

Timer recording

Time of day

—

return Help


Prog. Date VPS

enter date 19.03. 14:20

698-08L-GB

PREMI

—

20:15

22:10

Timer recording

09.03

Time of day

—

return Help


Prog. Date VPS

698-08M-GB

PREMI

—

20:15

22:10

-- 09.03

Time of day

—

return Help


Timer recording

enter date 19.03. 14:20

8.2 Recording with the timer

The menu „Timer recording“ is intended primarily for recording Pay-TV programmes (e.g. Premiere) in cases where the decoder is

connected to a EURO socket of the TV set.

8 timers can be programmed up to 2 months in advance.

Example: A VHS video recorder which has only one EURO socket is connected to the EURO 1 socket of the TV, while a Pay-TV decoder is

connected to the EURO 3 socket. You now wish to record a film running on the Pay TV channel.

1. Call the „Timer recording“

2. Enter the date and time of

the film to be recorded

(see example)

3. Store the programmed data

and return to the TV picture

or standby mode

If no timers have been programmed before, the table

in the menu is empty. If you have previously program-

med timer recordings, these will be displayed in the

table.

The current time of day and the current date are nee-

ded for programming in the timer menu. The time is

normally obtained from the Megatext function and the

date from the VPS signal. Note that some stations do

not transmit VPS signals and/or Megatext.

If the time and/or date are not detected automati-

cally, you must enter them manually.

At the moment, PAY TV stations do not transmit a VPS

signal.

1 2 3

4 5 6

7 8 9

Timer recordings are not possible if the childlock

is switched on.

The same data must must also be entered on the

AV programme position of the video recorder or

on a programme position where the video recorder

does not receive a station.

green

white

The month, the day, the hours and the minutes must

each be entered in the form of two digits, e.g. 01.09

for September 1 and 09:00 for 9 AM.

If you make a mistake when entering the date and

time, you can delete the entry in the current column or

the entire line by pressing the key. The entire line

can be deleted only if the key symbols at the top of the

menu are displayed in colour.

-/--

The recording can be aborted at any time by pres-

sing the keys , and sequentially, in

this order, or by pressing the key with the

timer menu displayed.

-/--

9. Connecting headphones

Headphones can be connected to the TV by way of the connecting socket underneath the fascia cover at the front. The socket will only

accept headphones with a 3,5 mm jack plug ( Elba 6,35 mm ).

We recommend the use of headphones with an impedance of at least 32 Ohms. Headphones of a lower impedance (down to approx.

8 Ohms) will impair the sound quality.

The headphones volume can be stored as a standard value. The headphones and the TV speakers can be used together.

In the event of 2-channel sound transmissions it is possible to listen to either channel 1 or 2 on the headphones, irrespective of the

channel set for the TV speakers.

Press this key on the remote

control.... The screen displays Explanation

1. Switch off the TV speakers

and adjust the headphones

volume

2. Store the headphones volu-

me as a standard value

Sound mode selection for

headphones

--/-

123

456

789

Audio standard values

Volume

Treble

Balance

Bass

Volume headphones

698-09A-GB

return Help


store ?

REC Ȅ

red

green

white

yellow

blue

9. Headphones Volume

3. Return to TV picture

TV picture

2 x

695-DXX-GB

change

Volume headphones

698-B15-GB

change

Sound-mode headphones

Stereo / Chann.1 / Chann.2

It is advisable to switch off the TV speakers with the

key when adjusting the volume for the headphones.

Press the yellow key to display the bar for the head-

phones volume.

Adjust the volume with the keys.

The standard value for the headphones volume can

only be stored by way of the TV menu.

All standard values can be stored in the „Audio stan-

dard values“ submenu.

The volume has already been adjusted (see step 1).

It is now only necessary to press the key to store

the headphones volume.

With 2-channel sound transmissions it is possible to

select either channel 1 or channel 2.

If headphones are connected, it is possible to listen,

for example, to the English sound track on the spea-

kers (channel 1) and to the other language on the

headphones (channel 2).

This setting can also be called by pressing repeatedly

the yellow key.

The desired channel can then be selected with the

keys..

The Megatext file displays all the subjects available on

a specific programme position and the chapters belonging

to the currently selected subject.

The range of subjects and chapters depend on the

transmitting station and can therefore be completely

different in each programme position.

For some stations, for example, only numbers, rather

than the header lines, appear in the Megatext file.

Each time the blue key is pressed, the next subject is

selected and the corresponding file card is raised. Pro-

longed depression of the blue key raises all of the sub-

jects sequentially.

Press the right side of the key to step backwards

through the subjects, or the left side of the key to step

forwards.

The displayed choice of chapters is adapted to the

currently selected subject.

Each time the yellow key is pressed, the next chapter

is selected and the corresponding file card is raised.

Press the right side of the key to step backwards, or

the left side of the key to step forwards.

Prolonged depression of the yellow key raises all the

chapters sequentially.

10. Megatext

Press this key on the remote

control.... The screen displays Explanation

1. Call Megatext

2. Select a subject

3. Select a chapter

TOP

Übersicht

Aktuelles

Sport

Fußball

ARD-Programm

Wetter

Börse

Football

Bundesligen

Inhalt

Index

VT-Zentrale

VT-Redaktion

Hinweise

Chapter

on subject

Subj.

MENU TV-picture Help

View page

TOP

MEGATEXT

Übersicht

Aktuelles

Sport

Fußball

ARD-Programm

Wetter

Börse

Football

Bundesligen

Inhalt

heute

morgen

jetzt im TV

übermorgen

Chapter

on subject

Subj.

MENU TV-picture Help

View page

TOP

Übersicht

Aktuelles

Sport

Fußball

ARD-Programm

Wetter

Börse

Football

Bundesligen

Inhalt

heute

morgen

jetzt im TV

übermorgen

Chapter

on subject

Subj.

695-MT 1-3-GB

MENU TV-picture Help

View page

MEGATEXT

Basic functions

The first page of the selected subject and chapter is

displayed.

File symbols with arrows in the bottom line indicate

that the corresponding coloured keys will activate sub-

ject-by-subject, chapter-by-chapter or page-by-page

leafing.

The blue text window shows the name of the currently

selected subject, while the yellow shows the name of

the currently selected chapter.

4. Open the first page

of the chapter

heute

ARD-Programm

ARD

JETZT IM

PROGRAMM . . .

WOCHEN-

ÜBERSICHT . . .

EINS PLUS . . .

PROGRAMM-

BEGLEITUNG . .

UT-VORSCHAU .

333

360

370

390

398

HEUTE

vormittag

nachmittag

abend

MORGEN

vormittag

nachmittag

abend

ÜBERMORGEN

vormittag

nachmittag

abend

301

302

303/304

321

322

323/324

341

342

343/344

300 ARD/ZDF Mi. 29.09.93 13:49:00

MENU Card index Help

Mark: next new

AV Ȅ

yellow

blue

This function enables you to run through the individual

pages. Just as in a book, you can leaf forwards or

backwards from the displayed page.

Press the right side of the key to step backwards, and

the left side of the key to step forwards.

This function enables you to run through the individual

chapters.

Each time you press the yellow key, the first page of

the next or previous chapter is opened.

Press the right side of the key to step backwards, and

the left side of the key to step forwards.

10. Megatext

Press this key on the remote

control.... The screen displays Explanation

5. Page-by-page leafing

6. Chapter-by-chapter leafing

ARD

301 ARD/ZDF Mi. 5.10.93 10:52:00

Dienstag,

5. Oktober 1993

05.55

06.00

09.00

09.03

09.45

10.00

10.03

10.45

11.00

11.03

12.35

12.55

13.00

13.05

Käpt'n Blaubär

ARD-Morgenmagazin

Tagesschau

Dallas

Tele-Gym

Tagesschau

auslandsjournal

ZDF-Info Gesundheit

Tagesschau

Cappuccino Melange

Fernsehfilm, 1993 . . . . . . .

Umschau

Presseschau

Tagesschau

ARD-Mittagsmagazin . . . .

bis 13.45 Uhr

307

313

Nachmittagsprogramm auf 302

heute

ARD-Programm

ARD

321 ARD/ZDF Di. 12.10.93 10:54:00

Mittwoch,

13. Oktober 1993

05.55

06.00

09.00

09.03

09.45

10.00

10.03

10.35

11.00

11.03

12.30

12.55

JOYrobic

ZDF-Morgenmagazin

heute

Dallas

Tele-Gym

heute

Gott und die Welt

ZDF-Info

Arbeit und Beruf

heute

Männer im gefährlichen

Alter

Spielfilm, D 1953

Umschau

Presseschau

bis 13.00 Uhr

Nachmittagsprogramm auf 322

morgenARD-Programm

326

327

. . . . . . . .

. . . . . . .

Basic functions

Each time you press the blue key, the first page of the

next or previous subject is opened. In most cases, this

will be an index page.

Press the right side of the key to step backwards, and

press the left side of the key to step forwards.

7. Subject-by-subject leafing

400 ARD/ZDF Di. 12.10.93 10:52:00

Deutschland

Wettervorhersage

Früh- bzw. Mittagstemperaturen

Aussichten für die nächsten Tage

Europäisches Reisewetter

Nord- und Nordwesteuropa

Mittel- und Südosteuropa

Süd- und Südwesteuropa

Wassertemperaturen

Temperaturen international

Quelle: METEO CONSULT / DWD

Inhalt

Wetter

WETTER

ÜBERSICHT

. . . . . . . . . . . .

. . . . .

. . . . . . . .

. . . . . . . . .

. . . . . . . . . . .

401

402

403

404

405

406

407

408

MENU Card index Help

Mark: next new

MENU Card index Help

Mark: next new

MENU Card index Help

Mark: next new

yellow

white

blue

10. Megatext

Press this key on the remote

control.... The screen displays Explanation

1. Recognizing multiple pages

2. Selecting subpages

422 ARD/ZDF Di. 12.10.93 13:08:00

AEG

AMB

AGIV

Allianz

Altana

Asko

BSAF

Bayer

Bay. Hypo

BHF-Bank

BMW

Bay. Verbank

ohne Gewähr

Kurse Ffm.Börse

Fortlaufende Notierungen 1/4

12.10.93

164,8

1270,0

532,0

2709,0

578,0

891,0

263,0

312,0

470,0

493,0

589,0

518,0

164,8

1270,0

529,0

2710,0

578,0

894,0

263,8

312,7

470,5

491,0

591,0

518,0

165,0

1270,0

528,0

2730,0

578,0

875,0

267,0

316,5

472,0

496,5

596,0

524,0

Kassa Vortag

/10

/11

/12

/13

/14

/15

börse frankfurt

422 ARD/ZDF Di. 12.10.93 13:08:00

Fortlaufende Notierungen 2/4

12.10.93

Commerzbank

Continental

Daimler

Degussa

Dt. Babcock

Dt. Bank

Douglas

Dresdn. Bk.

FAG

Henkel Vz.

Hochtief

Hoechst

Holzmann

ohne Gewähr

Kurse Ffm.Börse

325,0

225,6

741,5

384,5

206,5

808,4

579,0

430,5

123,5

580,0

1125,0

285,5

935,0

326,5

232,0

741,0

383,0

206,5

809,0

580,0

435,0

125,0

588,0

1140,0

291,5

962,0

324,7

227,5

740,5

384,0

206,0

808,0

576,0

431,5

125,0

580,0

1122,0

286,5

930,0

Kassa Vortag

/10

/11

/12

/13

/14

/15

börse frankfurt

Multiple pages

10. Megatext Page selection by cursor

-/--

heute

ARD-Programm

ARD

JETZT IM

PROGRAMM . . .

WOCHEN-

ÜBERSICHT . . .

EINS PLUS . . .

PROGRAMM-

BEGLEITUNG . .

UT-VORSCHAU .

HEUTE

vormittag

nachmittag

abend

MORGEN

vormittag

nachmittag

abend

ÜBERMORGEN

vormittag

nachmittag

abend

300 ARD/ZDF Mi. 29.09.93 13:49:00

333

360

370

390

398

301

302

303/304

321

322

323/324

341

342

343/344

694-00G-D

MENU Card index Help

Mark: next new

MENU Card index Help

Mark: next new

MENU Card index Help

Mark: next new

AV Ȅ

Multiple pages are indicated by a dark bar with the

subpage numbers on the left-hand side of the display-

ed page.

The bright numbers indicate the number of subpages

contained in this multiple page. The number of sub-

pages is transmitted by the stations at intervals of 20

seconds. Consequently, it may take some time until all

subpage numbers are displayed.

If there are more than 15 subpages, the cursor (white

bar) can be moved downwards with the key to

dis-

play the next group of subpage numbers (for example

/16 to /30).

Some stations do not provide multiple page identifica-

tion; in this case, the subpages are displayed sequen-

tially. To stop a page for reading, one of the A or B fun-

ction keys must be programmed with the „Stop page“

function in Megatext mode. Renewed depression of

the „Stop page“ function key advances to another

subpage (the one the station is currently transmitting).

Use the keys to move the cursor (white bar)

up or down. The subpage selected with the cursor is

displayed on the screen.

The numbers in the top right corner of the displayed

page (in this example 2/4) indicate the currently dis-

played subpage and the total number of subpages (in

the example: subpage 2 of a total of 4 pages).

Use the key to move the cursor (coloured bar)

downwards through the page numbers. The page

number highlighted by the cursor can be directly called

with the key.

-/--

Select a file card for any desired subject.

Continue pressing the blue key to run through the file-

card box.

The displayed choice of chapters is adapted to the

selected subject.

Select a file card for any desired chapter.

Continue pressing the yellow key to run through the

file-card box.

The first page of the selected subject and chapter is

displayed.

10. Megatext

Press this key on the remote

control.... The screen displays Explanation

1. Select the subject

2. Select the chapter

3. Open the first page

of the chapter

TOP

MEGATEXT

Übersicht

Aktuelles

Sport

Fußball

ARD-Programm

Wetter

Börse

Football

Bundesligen

Inhalt

heute

morgen

jetzt im TV

übermorgen

Chapter

on subject

Subj.

695-MT3-GB

MENU TV-picture Help

View page

695-MT2-GB

TOP

MEGATEXT

Übersicht

Aktuelles

Sport

Fußball

ARD-Programm

Wetter

Börse

Football

Bundesligen

Inhalt

heute

morgen

jetzt im TV

übermorgen

Chapter

on subject

Subj.

MENU TV-picture Help

View page

ARD

301 ARD/ZDF Mi. 5.10.93 10:52:00

Dienstag,

5. Oktober 1993

05.55

06.00

09.00

09.03

09.45

10.00

10.03

10.45

11.00

11.03

12.35

12.55

13.00

13.05

Käpt'n Blaubär

ARD-Morgenmagazin

Tagesschau

Dallas

Tele-Gym

Tagesschau

auslandsjournal

ZDF-Info Gesundheit

Tagesschau

Cappuccino Melange

Fernsehfilm, 1993 . . . . . . .

Umschau

Presseschau

Tagesschau

ARD-Mittagsmagazin . . . .

bis 13.45 Uhr

307

313

Nachmittagsprogramm auf 302

heute

ARD-Programm

Direct page selection

MENU Card index Help

Mark: next new

Card index Help

Mark: next new

After depression of the first numeric key, the num-

ber of this key, followed by two hyphens, appears at

the top left of the screen. Enter the complete 3-digit

number. A green line with the text „Wait for page ...“

is displayed at the top of the screen after the last

digit has been entered. A red line with the message

„Page is not transmitted“ is displayed if the entered

page number does not exist. Otherwise the TV searches

for the specified page and displays it as soon as it is

located.

4. Enter the page number

e.g. page 422

422 ARD/ZDF Di. 12.10.93 13:08:00

AEG

AMB

AGIV

Allianz

Altana

Asko

BSAF

Bayer

Bay. Hypo

BHF-Bank

BMW

Bay. Verbank

ohne Gewähr

Kurse Ffm.Börse

Fortlaufende Notierungen 1/4

12.10.93

164,8

1270,0

532,0

2709,0

578,0

891,0

263,0

312,0

470,0

493,0

589,0

518,0

164,8

1270,0

529,0

2710,0

578,0

894,0

263,8

312,7

470,5

491,0

591,0

518,0

165,0

1270,0

528,0

2730,0

578,0

875,0

267,0

316,5

472,0

496,5

596,0

524,0

Kassa Vortag

/10

/11

/12

/13

/14

/15

börse frankfurt

24 2

yellow

blue

Press the 0key to return to the previous numerically

called page or, if not numerically called, to the index

page of the displayed choice.

The adjoining picture shows the index page of the ARD

channel as an example.

10. Megatext

Press this key on the remote

control.... The screen displays Explanation

Return to last index page

5. Return to TV picture

Direct page selection

10. Megatext Return to last index page

heute

ARD-Programm

ARD

JETZT IM

PROGRAMM . . .

WOCHEN-

ÜBERSICHT . . .

EINS PLUS . . .

PROGRAMM-

BEGLEITUNG . .

UT-VORSCHAU .

333

360

370

390

398

HEUTE

vormittag

nachmittag

abend

MORGEN

vormittag

nachmittag

abend

ÜBERMORGEN

vormittag

nachmittag

abend

301

302

303/304

321

322

323/324

341

342

343/344

300 ARD/ZDF Mi. 29.09.93 13:49:00

MENU Card index Help

Mark: next new

AV Ȅ

When the B* key is pressed for the first time, the upper

part of the selected page is displayed with the font size

doubled.

You can scroll slowly through the page by holding

down the key.

* The B key was programmed in the factory for this

function, but this programming can be changed (see

Section „Equipment configuration - Assigning the

function keys“).

When the B* key is pressed for the second time, the

displayed page is scrolled upwards.

10. Megatext

Press this key on the remote

control.... The screen displays Explanation

1. Select double font size,

e.g. press the B* key

2. Scroll the page upwards,

e.g. press the B* key

ARD

JETZT IM

PROGRAMM . . .

WOCHEN-

ÜBERSICHT

333

360

HEUTE

vormittag

nachmittag

abend

MORGEN

301

302

303/304

300 ARD/ZDF Mi. 29.09.93 13:49:00

JETZT IM

PROGRAMM . . .

WOCHEN-

ÜBERSICHT . . .

EINS PLUS . . .

PROGRAMM-

BEGLEITUNG . .

333

360

370

390

HEUTE

vormittag

nachmittag

abend

MORGEN

vormittag

nachmittag

abend

ÜBERMORGEN

vormittag

301

302

303/304

321

322

323/324

341

Doubling the font size

* Depending on the assignment of the

function keys. The factory setting is B.

When the B* key is pressed for the third time, the dis-

played page is scrolled further, and so on.

Press the B* key for a fifth time to return to normal font

size.

3. Scroll the page further,

e.g. press the B* key

4. Return to normal font size

JETZT IM

PROGRAMM . . .

WOCHEN-

ÜBERSICHT . . .

EINS PLUS . . .

PROGRAMM-

BEGLEITUNG . .

333

360

370

390

HEUTE

vormittag

nachmittag

abend

MORGEN

vormittag

nachmittag

abend

ÜBERMORGEN

vormittag

301

302

303/304

321

322

323/324

341

heute

ARD-Programm

ARD

JETZT IM

PROGRAMM . . .

WOCHEN-

ÜBERSICHT . . .

EINS PLUS . . .

PROGRAMM-

BEGLEITUNG . .

UT-VORSCHAU .

333

360

370

390

398

HEUTE

vormittag

nachmittag

abend

MORGEN

vormittag

nachmittag

abend

ÜBERMORGEN

vormittag

nachmittag

abend

301

302

303/304

321

322

323/324

341

342

343/344

300 ARD/ZDF Mi. 29.09.93 13:49:00

There will be certain Megatext pages, e.g. stock market, news, weather forecast, etc., that you will want to read repeatedly. We have pro-

grammed a way of making it easier to read such pages.

10 marks per position can be set on each of the first ten programme positions. These marks can be set on any desired text page of your

choice, and they can be erased at any time. After marks have been assigned to a programme position it will be possible to step sequentially

through the marked pages with the key. Marks can also be set on all programme positions above Pr 10, but these marks are

erased when you switch to another programme position.

INFO

If marks have not yet been set in this programme

position, then press the red key to set the 1st mark.

„MARK 1“ is displayed in green lettering in the top left-

hand corner of the screen.

In the ARD channel, for example, page 422 is a multiple

page.

With multiple pages, marks can be set on any subpage

10. Megatext

Press this key on the remote

control.... The screen displays Explanation

1. Call the desired page

e.g. page 400

2. Set the first mark

3. Select the next page

e.g. 422

400 ARD/ZDF Di. 12.10.93 10:52:00

Deutschland

Wettervorhersage

Früh- bzw. Mittagstemperaturen

Aussichten für die nächsten Tage

Europäisches Reisewetter

Nord- und Nordwesteuropa

Mittel- und Südosteuropa

Süd- und Südwesteuropa

Wassertemperaturen

Temperaturen international

Quelle: METEO CONSULT / DWD

Inhalt

Wetter

WETTER

ÜBERSICHT

. . . . . . . . . . . .

. . . . .

. . . . . . . .

. . . . . . . . .

. . . . . . . . . . .

401

402

403

404

405

406

407

408

MARKE 1 400 ARD/ZDF Di. 12.10.93 10:52:00

Deutschland

Wettervorhersage

Früh- bzw. Mittagstemperaturen

Aussichten für die nächsten Tage

Europäisches Reisewetter

Nord- und Nordwesteuropa

Mittel- und Südosteuropa

Süd- und Südwesteuropa

Wassertemperaturen

Temperaturen international

Quelle: METEO CONSULT / DWD

Inhalt

Wetter

WETTER

ÜBERSICHT

. . . . . . . . . . . .

. . . . .

. . . . . . . .

. . . . . . . . .

. . . . . . . . . . .

401

402

403

404

405

406

407

408

422 ARD/ZDF Di. 12.10.93 13:08:00

Fortlaufende Notierungen 2/4

12.10.93

Commerzbank

Continental

Daimler

Degussa

Dt. Babcock

Dt. Bank

Douglas

Dresdn. Bk.

FAG

Henkel Vz.

Hochtief

Hoechst

Holzmann

ohne Gewähr

Kurse Ffm.Börse

325,0

225,6

741,5

384,5

206,5

808,4

579,0

430,5

123,5

580,0

1125,0

285,5

935,0

326,5

232,0

741,0

383,0

206,5

809,0

580,0

435,0

125,0

588,0

1140,0

291,5

962,0

324,7

227,5

740,5

384,0

206,0

808,0

576,0

431,5

125,0

580,0

1122,0

286,5

930,0

Kassa Vortag

/10

/11

/12

/13

/14

/15

börse frankfurt

Infotext - Setting marks

40 0

MENU Card index Help

Mark: next new

AV Ȅ

MENU Card index Help

Mark: next new

AV Ȅ

MENU Card index Help

Mark: next new

AV Ȅ

red

white

When the required page is displayed (in our example

subpage 422/2), press the red key again.

„MARK 2“ is now displayed in green lettering in the

top left-hand corner of the screen.

10 marks can be set as described in steps 1 - 4 in

each of the first 10 programme positions.

10. Megatext

Press this key on the remote

control.... The screen displays Explanation

4. Set the second mark

5. Set further marks

e.g. page 110

6. Return to TV picture

MARKE 2 422 ARD/ZDF Di. 12.10.93 13:08:00

/10

/11

/12

/13

/14

/15

Fortlaufende Notierungen 2/4

12.10.93

börse frankfurt

Commerzbank

Continental

Daimler

Degussa

Dt. Babcock

Dt. Bank

Douglas

Dresdn. Bk.

FAG

Henkel Vz.

Hochtief

Hoechst

Holzmann

ohne Gewähr

Kurse Ffm.Börse

325,0

225,6

741,5

384,5

206,5

808,4

579,0

430,5

123,5

580,0

1125,0

285,5

935,0

326,5

232,0

741,0

383,0

206,5

809,0

580,0

435,0

125,0

588,0

1140,0

291,5

962,0

324,7

227,5

740,5

384,0

206,0

808,0

576,0

431,5

125,0

580,0

1122,0

286,5

930,0

Kassa Vortag

MARKE 3 110 ARD/ZDF Do. 14.10.93 08:11:00

InhaltAktuelles

AKTUELLES

Letzte Meldung

Nachrichten

Politik, Wirtschaft, Kultur

Umwelt, Ratgeber, Aus aller Welt

Wetter

Börsenkurse

Kirche

Am Wochenende (Freitag - Sonntag):

Reise

Gesundheit

111

112-115

400

420

155/156

560

580

. . . . . . . . . .

. . . . . . . . . . . . .

. . . . . . . . . . . . . . .

. . . . . . . . . . . .

. . . . . . . . . . .

. . . . . . . . . .

*** ***

Sport

. . . . . . . . . .

200

Infotext - Setting marks

MENU Card index Help

Mark: next new

AV Ȅ

1 1 0

MENU Card index Help

Mark: next new

AV Ȅ

red

10. Megatext

Press this key on the remote

control.... The screen displays Explanation

1. From TV picture to

the first mark

2. Step forward to the

next mark

3. Return to TV picture

MARKE 1 400 ARD/ZDF Di. 12.10.93 10:52:00

Deutschland

Wettervorhersage

Früh- bzw. Mittagstemperaturen

Aussichten für die nächsten Tage

Europäisches Reisewetter

Nord- und Nordwesteuropa

Mittel- und Südosteuropa

Süd- und Südwesteuropa

Wassertemperaturen

Temperaturen international

Quelle: METEO CONSULT / DWD

Inhalt

Wetter

WETTER

ÜBERSICHT

. . . . . . . . . . . .

. . . . .

. . . . . . . .

. . . . . . . . .

. . . . . . . . . . .

401

402

403

404

405

406

407

408

MARKE 2 422 ARD/ZDF Di. 12.10.93 13:08:00

/10

/11

/12

/13

/14

/15

Fortlaufende Notierungen 2/4

12.10.93

börse frankfurt

Commerzbank

Continental

Daimler

Degussa

Dt. Babcock

Dt. Bank

Douglas

Dresdn. Bk.

FAG

Henkel Vz.

Hochtief

Hoechst

Holzmann

ohne Gewähr

Kurse Ffm.Börse

325,0

225,6

741,5

384,5

206,5

808,4

579,0

430,5

123,5

580,0

1125,0

285,5

935,0

326,5

232,0

741,0

383,0

206,5

809,0

580,0

435,0

125,0

588,0

1140,0

291,5

962,0

324,7

227,5

740,5

384,0

206,0

808,0

576,0

431,5

125,0

580,0

1122,0

286,5

930,0

Kassa Vortag

Infotext - Mark-by-mark advance

MENU Card index Help

Mark: next new

AV Ȅ

MENU Card index Help

Mark: next new

AV Ȅ

INFO

green

After the key has been pressed, a panel with

„Mark 1“ will be displayed.

On programme positions without a mark, a white field

will be displayed with the text „No mark“.

INFO

Each time the key is pressed, you advance to

the next mark. In this manner you can run through all

pages on which marks are set.

INFO

The key will return you to the TV picture after

having run through all marks.

Press the key to return directly to the TV picture

without having to run through all the marks.

INFO

Erasure of the mark on the current text page changes

the sequence of the remaining marks.

Example:

3 marks have been set in the current programme position:

- Mark 1 on text page 400

- Mark 2 on text page 422/2

- Mark 3 on text page 503

You now erase the mark 2 on text page 422/2.

The sequence of the remaining marks is immediately

re-arranged and is now::

- Mark 1 on text page 400

- Mark 2 on text page 503

10. Megatext

Press this key on the remote

control.... The screen displays Explanation

1. Call the desired page

e.g. page 422/2

2. Erase the mark

3. Return to TV picture

MARKE 2 422 ARD/ZDF Di. 12.10.93 13:08:00

/10

/11

/12

/13

/14

/15

Fortlaufende Notierungen 2/4

12.10.93

börse frankfurt

Commerzbank

Continental

Daimler

Degussa

Dt. Babcock

Dt. Bank

Douglas

Dresdn. Bk.

FAG

Henkel Vz.

Hochtief

Hoechst

Holzmann

ohne Gewähr

Kurse Ffm.Börse

325,0

225,6

741,5

384,5

206,5

808,4

579,0

430,5

123,5

580,0

1125,0

285,5

935,0

326,5

232,0

741,0

383,0

206,5

809,0

580,0

435,0

125,0

588,0

1140,0

291,5

962,0

324,7

227,5

740,5

384,0

206,0

808,0

576,0

431,5

125,0

580,0

1122,0

286,5

930,0

Kassa Vortag

422 ARD/ZDF Di. 12.10.93 13:08:00

Fortlaufende Notierungen 2/4

12.10.93

Commerzbank

Continental

Daimler

Degussa

Dt. Babcock

Dt. Bank

Douglas

Dresdn. Bk.

FAG

Henkel Vz.

Hochtief

Hoechst

Holzmann

ohne Gewähr

Kurse Ffm.Börse

325,0

225,6

741,5

384,5

206,5

808,4

579,0

430,5

123,5

580,0

1125,0

285,5

935,0

326,5

232,0

741,0

383,0

206,5

809,0

580,0

435,0

125,0

588,0

1140,0

291,5

962,0

324,7

227,5

740,5

384,0

206,0

808,0

576,0

431,5

125,0

580,0

1122,0

286,5

930,0

Kassa Vortag

/10

/11

/12

/13

/14

/15

börse frankfurt

Infotext - Erasing marks

MENU Card index Help

Mark: next new

AV Ȅ

MENU Card index Help

Mark: next new

AV Ȅ

INFO

green

red

Press the key to call the page where the mark

is to be erased.

INFO

The teletext transmitted by the station is superimpo-

sed on the picture at the bottom of the screen.

The subtitle function can be activated or deactivated

with the A or Bfunction key.

This TV enables you to display programme subtitles automatically.

For this purpose one of the two A or B function keys must be programmed on the remote control handset. Please refer to Section „Equipment

configuration - Assigning the function keys“ for programming. The subtitles will only be displayed automatically after a function key

has been programmed accordingly.

Example: You wish to watch the news with its subtitles. Program a function key with the „Subtitle“ function.

The subtitle function can be switched off and on again

with the correspondingly programmed function key.

Note: If the subtitle function is programmed for

one of the function keys, it will automati-

cally be activated when the TV set is

switched on.

Megatext contains riddles with hidden answers.

The solutions to these riddles can be displayed with

the A* or Bfunction key.

10. Megatext

Press this key on the remote

control.... The screen displays Explanation

1. Display of subtitles in the

current programme

2. Blank out the subtitles*

Access to riddle solutions

Subtitles

Riddle solutions key

* Depending on the assignment of the function keys

* Depending on the assignment of the function

keys. The factory setting is A.

In Ballungsgebieten sind solche Bilder selten

automatically

11. Special picture effects

(not for Gemini)

1. Switch on the zoom function

and enlarge the picture

2. Call the zoom function for the

current programme position

Variable Zoom

All programmes that are not transmitted in the traditional 4:3 screen format, such as cinema films in Cinemascope or Super-Cinemascope

16:9 format, have black bars at the top and bottom of the screen.

With the zoom function, you can increase the size of the picture and make the black bars disappear. Although this also causes part of the

picture to move off the screen at each side, the resulting loss of information is slight and less disturbing than the black bars.

3. Switch off the zoom function

Zoom

Press the button until the black bars at the top

and bottom of the screen have disappeared. The

entire picture is enlarged uniformly.

The selected enlargement factor is automatically

stored for this programme position as long as the

TV set is not switched off. Switching to another

station will restore the picture to its normal size.

If you return to the station for which you activa-

ted the zoom function, the picture will be auto-

matically enlarged if the same programme is still

running.

If you wish to use the selected enlargement also

for other programmes, press the key again

after setting the zoom factor with the key.

This returns the picture to its normal size, but

stores the current enlargement factor for subse-

quent use.

If the TV set has been switched off with the

remote control or the main switch, the stored

enlargement factor can be recalled by pressing

the key twice.

Press this key on the remote

control.... The screen displays Explanation

When you press this key, the current frame is

„frozen“ on the screen. The TV programme (or

the video film) continues to run in the backgro-

und.

Pressing the key again switches back to the cur-

rent programme (or video film).

11. Special picture effects

1. Activating frame freeze

2. Deactivating frame freeze

Frame freeze

Press this key on the remote

control.... The screen displays Explanation

11. Special picture effects

Press this key on the remote

control ... The screen displays Explanation

1. Call the „picture format“

function

Picture format

The „picture format“ function is used primarily for displaying the picture format of external devices (such as a 16:9 video recorder) in the

correct proportions.

It can, however, also be used to make the picture of a 4:3 programme wider. This function can be stored on one of the function keys.

Press the function key you have programmed for

this function.

The width of the picture is increased proportio-

nally to fill the entire width of the screen.

R T L

A B

*) depending on the function key

assignments

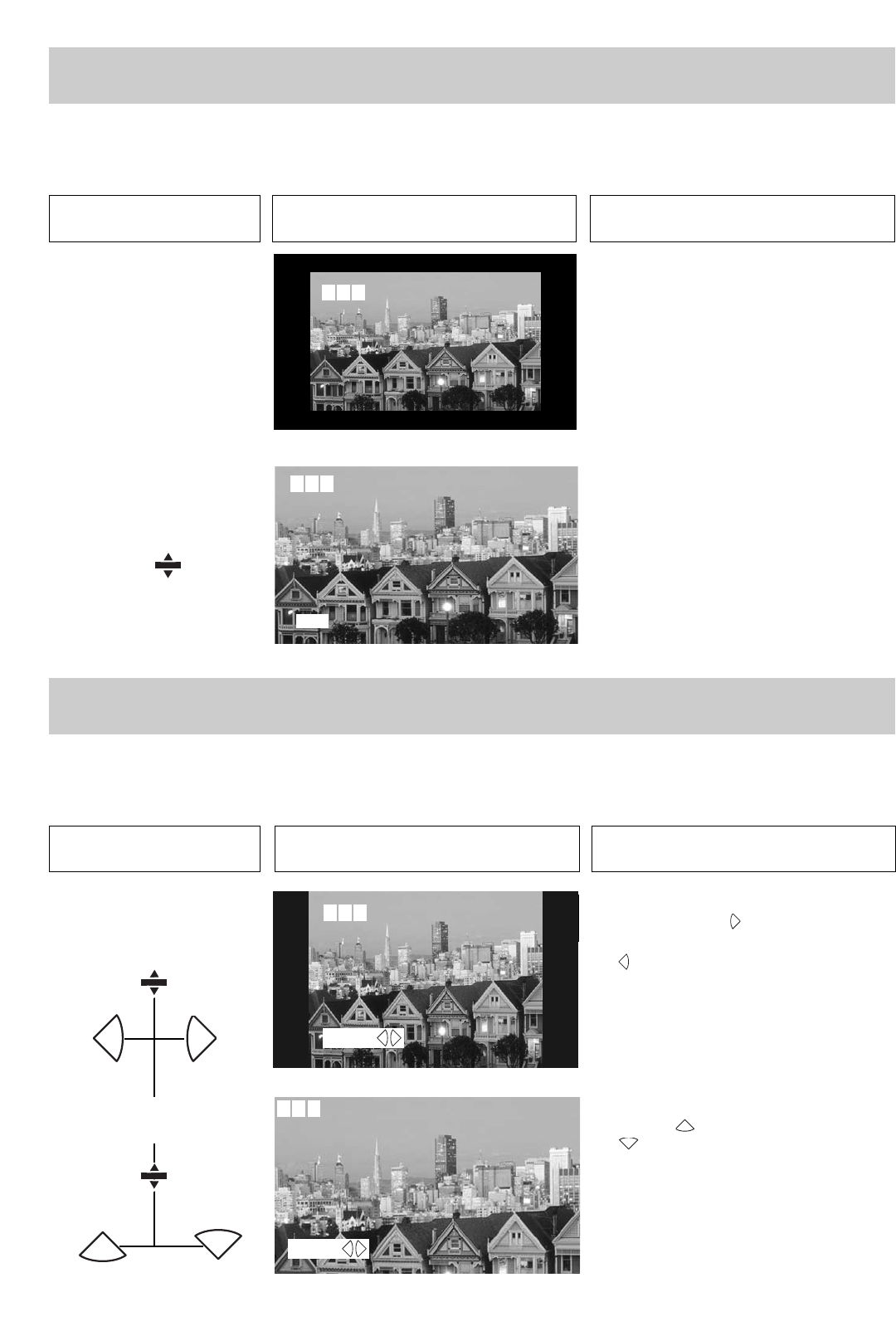

11. Special picture effects

(only Gemini)

Zoom

Press this key on the remote

control.... The screen displays Explanation

11. Special picture effects

(only Gemini)

1. Call the 16:9 function

All programmes that are not transmitted in the traditional 4:3 format, such as cinema films in Cinemascope or Super-Cinemascope or 16:9

format, have black bars at the top and bottom of the screen.

With the 4:3 / 16:9 function, you can increase the size of the picture and make the black bars disappear.

4:3 / 16:9

16:9

R T L

2 x

R T L

Press this key on the remote

control.... The screen displays Explanation

3 x

. . . und am Bildschirm erscheint

Zoom

R T L

1. Call the zoom function and

magnify the picture

2. Move the zoomed picture up

and down

All programmes transmitted in 4:3 format are displayed on the screen with black stripes on the left and right. Cinemascope, 16:9 films

and other wide-screen formats are displayed with black stripes at the top and bottom.

The zoom function permits you to increase the picture size, thus moving the black stripes off the visible part of the screen.

You can magnify the picture uniformly in five

steps by pressing the . The size of the magni-

fied picture can be reduced again by pressing

the key.

You can move the magnified picture upwards by

pressing the key or downwards by pressing

the key.

These modified picture settings are automatical-

ly stored for this programme position as long as

the TV set is not switched off.

If you return to the station for which you activa-

ted the zoom function, the picture will be auto-

matically enlarged if the same programme is still

running.

12. Operation without remote control

Programme selection:

Press the - P + keys.

Volume:

Hold down the preselect key until the bar display for the volume

appears on the screen. Now press the - P + keys to adjust the

volume.

Contrast:

Hold down the preselect key until the bar display for contrast

appears on the screen. Then press the - P + keys to adjust the

contrast.

This mode is only intended for an emergency when the battery in

the remote control handset is flat, or if the remote control is not

available.

The TV controls are underneath a cover at the front of the set.

You can control the following functions on the TV without the

remote control handset. The preselection of the function is valid

for 10 seconds, only 5 of which are shown in the permanent dis-

play.

1. Ajustar el valor gris del

margen

--/-

123

456

789

Equipm. configuration

698-05S-GB

MENU return Help

TV picture

store ?

white

yellow

blue

REC Ȅred

Prog. change settings

RGB priority:

Sound settings:

Side bar value:

yes

11. Supplement to Equipment Configuration

(only Gemini)

Grey value of side bars

red

3 x

Grey value of side bars:

When "normal" 4:3 format programmes are being received, grey bars appear at the left and right sides of the

screen. The tonal value of these side bars can be adjusted in steps from 0 to 6, where 0 is black and 6 is light grey.

Press this key on the remote

control.... The screen displays Explanation

The grey value of the side bars on the screen

(during reception of a programme in 4:3 format)

can be adjusted with the keys.

This setting applies to all programme positions.

13. Connecting peripheral equipment

Video recorders can be connected to the TV set via the antenna socket or a EURO socket.

We recommend connection via a EURO (Scart) socket, since only such sockets have separate inputs and outputs for the picture

and sound signals.

Camcorders can be connected to the TV set with special cables (available from your dealer).

The following connection diagram applies in principle to all of our products, although the various sockets may be located in different positions

on different units.

Camcorder (video camera)

TV set (rear view)

Video recorder (rear view)

AV 1

Camcorders

Videorecorders

Metz-cable 087928010

only for copying S-VHS/Hi-8 films from EURO 2 to AV 3

In (phono input)

Metz-cable 087928010

Euro or Scart cable

Phono-Scart cable for VHS-Scart or S-VHS-Scart connection

e.g. hama Item No. 42387 or hama Item No. 42394

Euro 1

Euro 2

Euro 3 for VHS

Euro 1 for S-VHS

13. Equipment configuration Connecting external

devices

In the menu „Device connection“, you can define which AV devices are connected to the various sockets on the TV set. The box „Devices“

contains a list of common AV devices. Only certain devices can be connected to the FRONT sockets.

Wherever possible, the AV devices should be connected to specific EURO sockets, namely:

EURO 1: VHS or S-VHS video recorder + Pay-TV decoder, video recorder with data transfer to/from TV set, PC, games console ( e.g.

Nintendo), laser disk, photo CD, SAT receiver, Pay-TV decoder, SAT/Set Top unit, S-VHS playback unit.

EURO 2:

S-VHS/Hi8 video recorder, S-VHS/Hi8 video recorder + Pay-TV decoder, VHS video recorder, SAT receiver.

EURO 3:

VHS video recorder, VHS video recorder + Pay-TV decoder, games console (e.g. Nintendo), laser disk, photo CD, SAT receiver, Pay-TV decoder.

The connections are pre-programmed in the factory as shown in the picture for step 2.

Press this key on the remote

control.... The screen displays Explanation

1. Call the „Device

connection“ menu

2. Change the device

connections

3. Change the signal type

4. Store the settings and

return to TV picture

--/-

123

456

789

Device connection

Devices

▲

▼

EURO1: Video

Video Rec. 2

no device

Video Rec. 1

Video Rec. 2

Video Rec. 3

VTR+DEC(1)

VTR+DEC(2)

VTR+DEC(3)

Camcorder

Mixer

Decoder A

Decoder B

Laser Disk

Photo CD

SAT/SetTop

Games

698-05Q-GB

EURO2: Video

Video Rec. 1

EURO3: Video

Camcorder

Signal type

selection

MENU return Help

TV picture

red

white

yellow

REC Ȅ

blue

--/-

123

456

789

Device connection

Devices

▲

▼

EURO1: Video

Video Rec. 2

no device

Video Rec. 1

Video Rec. 2

Video Rec. 3

VTR+DEC(1)

VTR+DEC(2)

VTR+DEC(3)

Camcorder

Mixer

Decoder A

Decoder B

Laser Disk

Photo CD

SAT/SetTop

Games

698-05Q-GB

EURO2: Video

Video Rec. 1

EURO3: Video

Camcorder

Signal type

selection

MENU return Help

TV picture

red

white

yellow

REC Ȅ

blue

--/-

123

456

789

Device connection

Sign. type ▲

▼

698-05R-GB

EURO2: Video

Video Rec. 1

EURO3: Video

Camcorder

Signal type

selection

return Help


EURO1: Video

Video Rec. 2

controls AV

operation

Video

RGB

YC in

continuous

AV operation

Video

RGB

YC in

red

white

yellow

REC

blue

In the „Device connection“ menu, you can assign one

of the defined AV devices to each of the EURO sockets.

The abbreviations in the box on the right have the

following meanings:

Video rec. = video recorder (up to 3 may be connected).

Video rec. 1 is the video recorder which is always

connected; Video rec. 2 and 3 are used for copying

from one recorder to another.

VTR+Dec. = video recorder and Pay-TV decoder (e.g.

Premiere), where the decoder is connected only to the

video recorder.

Camcorder = video camera

Decoder = Pay-TV decoder (e-g- Premiere)

SAT = external satellite receiver

Game = games console

The default settings can be modified to meet your own

requirements. You should, however, note the following

input and output signal allocations when doing this.

TV picture

S-VHS / Hi8

(= Y/C =S-Video)

Input

EURO 1

EURO 2

EURO 3

Output

VHS

(= Video)

Input Output

RGB

Input

Yes No Yes Yes Yes

Yes Yes Yes Yes No

No No Yes Yes Yes

red

yellow

red

yellow

blue

white

To change the settings, select the appropriate EURO

socket with the coloured keys and then select the

device to be connected with the and keys.

When the devices are selected, the signal type is

always set to „video“. Pressing the red key displays a

box for selection of the signal type.

Differences between the signal types:

• continuous AV operation: the screen displays the

picture provided by the AV device. The channel setting

of the TV set has no effect.

• . . . controls AV operation: if the AV device is set to

„play“, the screen displays the picture provided by the

AV device; if the AV device is set to „stop“, the screen

displays the picture of the selected TV programme

position.

13. Connecting peripheral equipment Video recorder

Fully assigned SCART or EURO cable, for S-VHS/Hi8 playback only

Euro 1/2/3

S-VHS/i8 Video recorder

VHS Video recorder

Connections on the rear of the TV set

Metz cable 087928010

only for copying S-VHS/Hi-8 films from

EURO 2 to AV 3 In (phono input)

Video Rec. 1

Video Rec.2

Video Rec. 1

A video recorder can be connected to the TV set via the aerial socket or via one of the EURO sockets.

We recommend connecting the video recorder via a EURO (Scart) socket, since only these sockets have separate inputs and out-

puts for the video and audio signals.

A VHS video recorder can be connected to any of the three EURO sockets. An S-VHS/Hi8 video recorder must be connected to the EURO

socket 2 if you wish to take advantage of the full picture quality provided by such a recorder (see the table on page 44). A second

S-VHS/Hi8 video recorder can be connected to EURO socket 1 to play back films recorded on the S-VHS/Hi8 video recorder connected to

the EURO socket 2.

13. Connecting peripheral equipment Video recorders

Video signal

In the following example, video recorder 2 is to be connected to the EURO 1 socket.

☞

Video recorder 1 is programmed in the factory on programme position 0. For this reason, connect the video recorder via a EURO cable to

the EURO 2 socket, insert a recorded cassette, press the ıkey and select programme position 0 on the TV set.

Example: Connect Video recorder 2 to the EURO 1 socket, as shown on page 43.

Press this key on the remote

control.... The screen displays Explanation

1.Select any desired program-

me position and call the

station table

2. Call the submenu

„Video signal“

3. Select the video signal

EURO 1: „LogicVTR+D“

4. Store the setting and return

to the TV picture

TV picture

Prog. Logo

▲▼

>> further settings

Std., Pict., Sound

698-11A-GB

PRO7

RTL2

VOX

DSF

EUSPO

PREMI

DISCO

MTV

MDR

CNN

Channel Signal

Aerial

Station table

MENU return Help


red

Prog. Logo Channel Signal

▲▼

>> weitere Einstellungen

Std., Pict., Sound

698-11B-GB

PRO7

RTL2

VOX

DSF

EUSPO

PREMI

DISCO

MTV

MDR

CNN

Aerial

Antenne

Station table

Aerial PREMI

EURO1: Video Rec. 2

EURO2: Video Rec. 1

EURO3: Decoder A

return Help


green

white

yellow

blue

Prog. Logo Channel Signal

▲▼

>> weitere Einstellungen

Std., Pict., Sound

698-11C-GB

PRO7

RTL2

VOX

DSF

EUSPO

PREMI

DISCO

MTV

MDR

CNN

Aerial

Antenne

Station table

Aerial direct

EURO1: Video Rec. 2

EURO2: Video Rec. 1

EURO3: Decoder A

return Help


green

white

yellow

blue

Select any desired programme position (in this

example: position 25).

The video signal is normally supplied directly by the

aerial.

In order to display the picture from the video cassette

on the screen, the video signal must be set to

„EURO1“.

OK TV

123

456

789

yellow

white

The picture quality of a video film can be impro-

ved in a terrestrial programme position with a

standard channel.

The video signal for this programme position

must be set to „Aerial“.

To ensure optimum picture quality the „VCR“

function must be switched on.

Set the „VCR“ function to „On“ with the

keys and press the key to store the setting in

the programme position.

Press the key to return to the TV picture.

1. Select the station table and

call the picture submenu

2. Call the second picture sub-

menu and adjust VCR

Programme Std Pict.

▲▼

<< weitere Einstellungen

Logo, Channel, Signal

698-11D-GB

EURO1

ARD

ZDF

SAT 1

Auto.

Station table

—

Sound

—

Sharpness

Noise reduction

CTI

Comb filter

further

return Help


store ?

red

green

white

yellow

blue

Programme Std Pict.

▲▼

<< weitere Einstellungen

Logo, Channel, Signal

698-11E-GB

EURO1

ARD

ZDF

SAT 1

Auto.

Station table

—

Sound

—

store ?

return Help


red

green

white

yellow

blue

Chrom. adjustm.

Col. offset adj.

Contrast adj.

Picture format

VCR

4:3

13. Connecting peripheral equipment

Video recorders

Connecting a video recorder via the aerial socket

• Connect the aerial output (RF-out) of the video recorder to the aerial socket of your TV by means of the aerial cable.

• Load a recorded video cassette in the video recorder.

• Start playback or switch on the test pattern of the video recorder. The test pattern of most video recorders is located within the standard

channels Ch 30 to Ch 40 (see operating instructions of the video recorder).

• Execute a station search, beginning with standard channel 25. See Section 3. Presetting TV stations, station search.

• If the playback picture or the test pattern of the video recorder is displayed on the screen, then this channel can be stored. See Section

3. Presetting TV stations.

• In order to ensure optimum picture quality at all times, select the option „VCR On“. To do so, proceed as described below.

Press this key on the remote

control.... The screen displays Explanation

yellow

red

green

EURO EURO

13. Connecting peripheral equipment Pay-TV decoder

This Pay-TV decoder decodes the scrambled signals of a Pay-TV station (e.g. Premiere) so that they can be displayed on the screen of the

TV set. For connection of a Pay-TV decoder, you need a EURO (=Scart) cable in which all 21 pins are assigned.

If you want to record Pay-TV programmes with a video recorder, we recommend that you connect the Pay-TV decoder directly to the video

recorder. If this is not possible, the Pay-TV decoder can be connected to the EURO 1 or EURO 3 socket (see also „Connecting external

devices“ on page 44).

The following diagram shows the connection of a Premiere decoder Typ G2.

Decoder (e.g. Premiere)

Connections on the rear of the TV set

Euro 2 Euro 1/2/3

Euro 1/2/3

Euro 1/3

VHS Video recorder

S-VHS/HI8 Video recorder

Metz cable 087928010

only for copying S-VHS/Hi-8 films from

EURO 2 to AV 3 In (phono input).

13. Connecting peripheral equipment Pay-TV decoder

Press this key on the remote

control.... The screen displays Explanation

1. Select the Pay-TV program-

me position and call the

station table

2. Call the submenu „Signal“

3. Select video signal „via

decoder“

4. Store the setting and return

to TV picture

Prog. Logo

▲▼

>> further settings

Std., Pict., Sound

698-11A-GB

PRO7

RTL2

VOX

DSF

EUSPO

PREMI

DISCO

MTV

MDR

CNN

Channel Signal

Aerial

Station table

return Help

TV picture

red

Prog. Logo Channel Signal

▲▼

>> weitere Einstellungen

Std., Pict., Sound

698-11B-GB

PRO7

RTL2

VOX

DSF

EUSPO

PREMI

DISCO

MTV

MDR

CNN

Aerial

Antenne

Station table

Aerial PREMI

EURO1: Video Rec. 2

EURO2: Video Rec. 1

EURO3: Decoder A

return Help


green

white

yellow

blue

Prog. Logo Channel Signal

▲▼

>> weitere Einstellungen

Std., Pict., Sound

698-11F-GB

PRO7

RTL2

VOX

DSF

EUSPO

PREMI

DISCO

MTV

MDR

CNN

Aerial

Antenne

Station table

Aerial via Decoder A

EURO1: Video Rec. 2

EURO2: Video Rec. 1

EURO3: Decoder A

MENU return Help


green

white

yellow

blue

store?

The video signal is normally supplied directly from the

aerial.

A Pay-TV signal must always be unscrambled in a

decoder before it can be displayed on the screen.

You can switch between „Aerial direct“ and „Aerial via

decoder“ with the aid of the keys.

Note:

You can call the Premiere Info-Service only if the

RBG priority is set to „Yes“ in the menu „Equip-

ment configuration“. See Section 5. Equipment

configuration, RGB priority.

For the following explanation it is assumed that the Pay-TV decoder A (Premiere) is connected to the EURO 3 socket.

The following settings must be made on the TV set:

OK TV

white

Mains voltage: 230 V ac, 50/60 Hz

Power consumption:

14. Technical data

14.2 Maintenance and care

14.1 Upgrade kits

• Multi-standard upgrade kit 031 NB 1038

For reception of „Standard M“ and „Standard L“ stations.

• NICAM upgrade kit 041 NB 1048

• SAT upgrade kit 081 NB 1010

For satellite reception without an additional receiver.

• SAT upgrade kit 082 NB 1014

SAT receiver to replace the terrestrial receiver.

• SAT upgrade kit 083 NB 1018

A SAT receiver. Can also receive uncoded ADR (Astra Digital

Radio) transmissions.

• MVS - Video recorder control 013 ZC 1048

For transfer of programmed TV timer data to video recorder.

Contact your dealer for further upgrade kits.

Guarantee

When you purchase the television, ensure that your dealer inclu-

des the completed TV „passport“. It must specify the date, the

dealer’s stamp and signature. Keep this document in a safe place,

together with the invoice. Any claims under the warranty will only

be accepted if these documents are submitted. Keep your TV

clean and handle it with care.

Cleaning the set

Always switch off the TV with the ON/OFF key before

you clean it!

Use a soft, dry or slightly moist cloth to clean the cabinet. Do not

use any strong detergents as they may damage the finish and

labels. Use a damp chamois leather to clean the screen.

Repairs

The TV should only be opened and repaired by quali-

fied service personnel!

CAUTION! DANGER!

Consult your dealer when repairs are necessary.

Any unauthorized attempts to open or repair the TV may result in

the guarantee becoming null and void.

Adequate shielding is provided against X-ray radiation (see

approval certificate on the rear panel of the TV).

Changing the high voltage or fitting a different type of picture tube

may cause an increased amount of X-ray radiation. Televisions

modified in such a manner are no longer in keeping with this

approval certificate and must not be used!

Power consumption

(to CENELEC/TC 59 X):

Hawaii ca. 106 W 2 x 12 W

(2 x 8 W)

Linea ca. 125 W 2 x 12 W

(2 x 8 W)

Elba ca. 105 W 2 x 12 W

(2 x 8 W)

Gemini ca. 130 W 2 x 12 W (2 x 8 W)

1 x 24 W

Morea ca. 106 W 2 x 12 W

(2 x 8 W)

Music power output to DIN 45324

at 4 Ohms and 1 kHz

(sine output)

Consumption of energy per hour:

Elba 105 Wh

Hawai 106 Wh

Linea 125 Wh

Gemini 130 Wh

Morea 106 Wh

Standby (all sets): ca. 2.8 W

Aerial input: 75 Ohms, asymmetric DIN 45325

Channel coverage: Standard channels 2...12, 21...69

Special channels S1...S20, S21...S41

S42...S46 (Belgian OIR channels)

2-channel sound transmission:

Separate reproduction of 2 sound channels, e.g. 2 different lan-

guages.

Audio

Latin for „I hear“ - The sound frequency range audible to the

human ear is between 60 to 20,000 Hz approx.

Camcorder

A video camera with integrated video recorder.

Cinch (phono)

Single-pole plug connector for separate audio and/or video

copying.

Decoder

An electronic circuit that decodes TV signals; required to receive

coded TV transmissions, such as Premiere.

Dual-Band LNC

An LNC that can simultaneously process two transponder fre-

quency ranges (11 GHz and 12 Ghz)

EURO socket assignments:

FBAS = CVBS

C= composite, V= video, B= blanking, S= signal

Function keys - Television:

• No function

No function has been assigned to this key.

•Subtitles

Displays the subtitle with corresponding transmissions.

•Large subtitles

50% enlarged subtitles are displayed with corresponding pro-

grammes.

•Logo

The display of the station logo is meaningful only if a PIP upg-

rade kit has been installed.

• Picture format (variable zoom)

Changes from 4:3 to 16:9 in the presence of a switching voltage.

•Zoom 2:1

The picture can be zoomed to double its size and then back

again to 1:1

15. Glossary

• Sound effects

Spatial sound or stereo wide can be activated or deactivated.

• Muting - 12 dB

The sound can be muted by 12 dB.

Function keys - Teletext

•No function

No function has been assigned to this key.

• Riddle solutions

Display of the hidden answers to riddles

• Large font

Doubles the font size in teletext.

• Stop page

Running through multiple pages consisting of more than 15

subpages is automatic. This can be stopped at any page with

the „Stop page“ key so that „leafing“ can be continued

manually.

Noise reduction

Can be switched on to enhance the picture quality.

OSD (On Screen Display)

Convenient display of all functions to adjust the television. They

are superimposed on the current programme.

Phono (cinch)

Single-pole plug connector for separate audio and/or video

copying.

RGB control

R= red, G= green, B= blue. Indicates separate colour signal

processing.

Spatial sound

Mono transmissions can be reproduced with an artificial stereo effect.

Standard channels

02-12 and 21-69 can be received by way of the aerial and cable

system.

Standby mode

The TV has been switched off with the remote control, or it has

switched itself off.

Stereo wide

For stereo broadcasts, the distance between the speakers can

be increased artifically to achieve a wider stereo effect.

Timer

Used to program automatic recording, or to switch a video recor-

der or TV automatically on and off at a preset time.

S-VHS / Hi8

(= Y/C =S-Video)

Input

EURO 1

EURO 2

EURO 3

Output

VHS

(= Video)

Input Output

RGB

Input

Yes No Yes Yes Yes

Yes Yes Yes Yes No

No No Yes Yes Yes

16. Remote control handset for video recorders

RB11

123

456

789

ȄAV

INFO

PRG.

VTR

ııľľ

REC

TIMER

ľľ ıı

100 Hz

-/--

• Video recorder On/OFF

• Programme position selection

• Next programme

• Video recorder timer ON/OFF

•

REC - Start recording

• Still - Pause

•

Index - Video index search forward

•

Switch to AV mode AV 1, AV 2, ...

•

AV link: switches the TV set between

TV and video rec. modes

•

Play - Start playback

• Stop

• Next programme

•

FF (fast forward)

From STOP: fast forward

From PLAY: picture search forward

•

REW (rewind)

From STOP: fast rewind

From PLAY: picture search reverse

•

Slow-motion playback

•

Operator help for video rec. operation

• I

ndex - Video index search reverse

•

Terminates playback or recording

•

To switch the remote control to video

recorder mode:

Press and hold this key and press

the desired function key.

In order to permit control of a video

recorder, function key B for the TV level

must be programmed to „VTR operation“

in the menu „Equipment configu-

ration/Assigning the function keys“

on the TV set.

The remote controls RB11 are capable of controlling the basic functions of the current series of Metz video recorders. Remember to point

the remote control at the video recorder !

n order to permit control of a video recorder, function key B for the TV level must be programmed to „VTR operation“

the menu „Equipment configuration/Assigning the function keys“ on the TV set.

Whenever a key is pressed, an indicator on the remote control unit blinks.

17. Index

Access to riddle solution . . . . . . . . . . . . . . . . . . .40

Aerial connection . . . . . . . . . . . . . . . . . . . . . . . . . .4

Allocating a station logo . . . . . . . . . . . . . . . . . . . .12

Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Audio standard values . . . . . . . . . . . . . . . . . . . . .14

Autostore function . . . . . . . . . . . . . . . . . . . . . . . . .9

AV equipment, connecting . . . . . . . . . . . . . . . . . 45

AV recording . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13, 14

Bass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13, 14

Brightness, luminance . . . . . . . . . . . . . . . . . .13, 14

Channel entry . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Childlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Chrominance, colour intensity . . . . . . . . . . . .13, 14

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Connecting peripheral equipment . . . . . . . . .44, 45

Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13, 14

Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Copying (programme positions) . . . . . . . . . . . . . .10

CTI function . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

CVBS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Direct page selection . . . . . . . . . . . . . . . . . . . . . .33

Double font size . . . . . . . . . . . . . . . . . . . . . . . . . .35

Entering the time manually . . . . . . . . . . . . . . . . .24

Equipment configuration . . . . . . . . . . . . . . . . . . .15

Erasing marks . . . . . . . . . . . . . . . . . . . . . . . . . . .39

FBAS (CVBS) . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Fine tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Forced mono . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Frame freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Function keys . . . . . . . . . . . . . . . . . . . . . . . . .15, 53

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Headphones . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Infotext . . . . . . . . . . . . . . . . . . . . . . . . . . . .3, 36-39

Language selection . . . . . . . . . . . . . . . . . . . . . . . .5

Logo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Mains connection . . . . . . . . . . . . . . . . . . . . . . . . . .4

Mark-by-mark advance . . . . . . . . . . . . . . . . . . . .38

Megatext (Teletext) . . . . . . . . . . . . . . . . . . . . . . .30

Moving stations . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Multiple pages . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Noise reduction . . . . . . . . . . . . . . . . . . . . . . .20, 53

Operator help . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Page selection by cursor . . . . . . . . . . . . . . . . . . .33

Peripheral equipment . . . . . . . . . . . . . . . . . . .44, 45

Picture format . . . . . . . . . . . . . . . . . . . . . . . . .21, 53

Picture settings . . . . . . . . . . . . . . . . . . . . . . . .13, 22

Picture sharpness . . . . . . . . . . . . . . . . . . . . .13, 20

Premiere decoder . . . . . . . . . . . . . . . . . . . . . .49, 50

Presetting stations . . . . . . . . . . . . . . . . . . . . . . . . .8

Programme selection . . . . . . . . . . . . . . . . . . . . . . .7

Reminder time . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

RGB priority . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Riddle solutions key . . . . . . . . . . . . . . . . . . . . . . .40

Setting marks . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Sorting stations . . . . . . . . . . . . . . . . . . . . . . . . . .10

Sound channels1/2 . . . . . . . . . . . . . . . . . . . . . . .29

Sound effects . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Sound mute . . . . . . . . . . . . . . . . . . . . . . . . . . .3, 13

Spatial sound . . . . . . . . . . . . . . . . . . . . . . . . .17, 53

Standby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Station closedown . . . . . . . . . . . . . . . . . . . . . . . . .5

Station search . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Stereo wide . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Stop page . . . . . . . . . . . . . . . . . . . . . . . . . . . .32, 53

Subtitles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Switch ON/OFF time . . . . . . . . . . . . . . . . . . . . . .25

Thunderstorms . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Time settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Treble . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

TV menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5, 6

Variable zoom . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Video recorder, connecting . . . . . . . . . . . . . . .44-48

Video signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Video standard values . . . . . . . . . . . . . . . . . . . . .13

Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13, 14

Volume adjustment . . . . . . . . . . . . . . . . . . . . . . .18

Subject to technical changes. Errors and omissions excepted.

Televisions sets

Video recorders

DVD players

Quality – A matter of principle.

With the trend-setting Metz technology you will allways

make the correct choice. See your Metz dealer.

He will be happy to demonstrate the current Metz range.

mecablitz electronic

flashguns

Always first class!

Metz-Werke GmbH & Co KG

Postfach 1267, D-90506 Zirndorf

Internet: http://www.metz.de

E-Mail: info@metz.de

Tel.: (0911) 9706-0

Fax:: (0911) 9706-340

Availability and technical

details subject to change

without notice

Printed in Germany

ķ698 47 2018.A3

Metz 63 Td 61 70 64 72 66 67 82 Te 93 65 Users Manual Elba, Hawaii, Linea, Gemini, Bed. Anl.

Elba 63 TD 61 - 100 MT, Hawaii 70 TD 64 - 100 MT, Linea-SF 72 TD 66 - 100 MT, Linea deluxe-SF 72 TD 67 - 100 MT, Gemini-SF 82 TE to the manual 622b7b4a-8987-4e2f-a430-f24fff5a66d6

Navigation menu

Versions of this User Manual:

Views

Navigation
