Users Manual
The MS-5519 is a wireless music adaptor that can connect to an audio source and
broadcast that audio signal to any radio or stereo within 3~10 meters. For example,
connect it to your MP3 Player and car stereo system, and the passengers in your car can
all hear the songs stored in the MP3 Player through the car stereo.

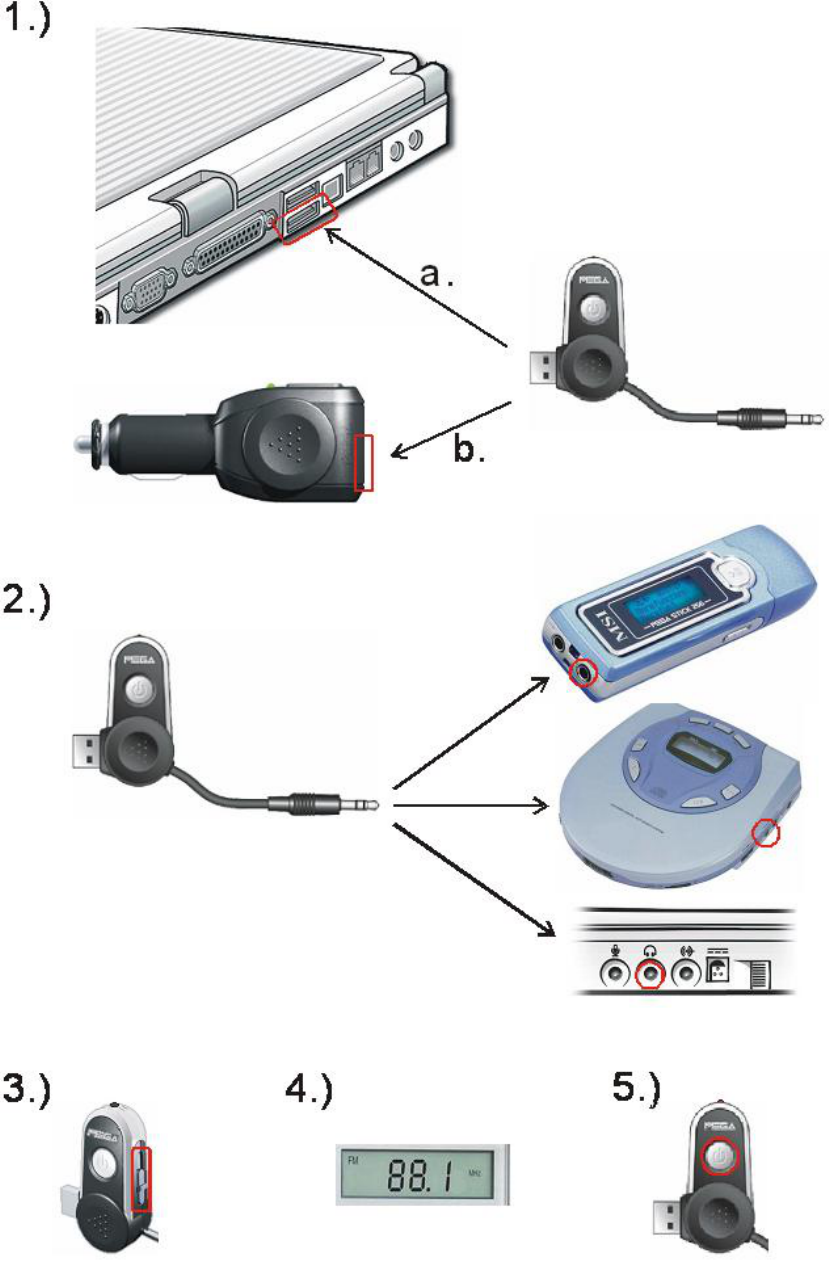

Instructions:
1. Provide a powering method:
a. Plug the MS-5519 USB Connector to an USB Port of a laptop or a desktop.
b. Plug the MS-5519 USB Connector to the USB Port 1 at the end of the MEGA
Adaptor, and plug the adaptor head into the car cigarette lighter jack. Then the
adapter head into the car cigarette lighter jack.
2. Plug the 3.5mm Stereo Cable Head to the Earphone Jack or the Line-out Jack of an
audio source. (An MP3 Player, a CD Player, a Tape Player, a Notebook, a PC, or
any device with a Earphone Jack or a Line-out Jack can be the audio source.)
3. Select and adjust one of the four frequencies (88.1, 88.3, 88.5 or 88.7 MHz) with the
Frequency Selector to broadcast.
4. Tune your stereo to the same frequency as you selected on MS-5519.
5. Press the Power button on the top of MS-5519 to turn it on. Then the LED will light
up in green.
6. Now you can hear the audio wherever you want, without any wires.
Product Specification:
I/O Port: 3.5ψ mm Audio Cable
Type A Male USB connector
Frequency Modulation : 88.1 ~ 88.9 MHz
Channels: 88.1, 88.3, 88.5 & 88.7 MHz
Operating Range : 3(Min) ~ 10(Max) meters
Safety: FCC, CE & BSMI
Audio Frequency Range: 50Hz to 15Khz
SNR: > 80 dB
*. While using the MEGA Adaptor as the Powering method, you can use the USB Port 2
to recharge your USB device.
![](/img.php?id=455883&img=bg2.png)
5. Stereo Cable and Head
1. USB Connector
3. Power LED
2. Power button
9. USB Port 1
8. USB Port 2
6. Adaptor Head
7. Charging LED
4. Frequency selector
![](/img.php?id=455883&img=bg3.png)
FEDERAL COMMUNICATIONS COMMISSION
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user‘s authority to operate the equipment.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiated radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter.
