System Requirements
Before installing the PC54G (MS-6825), your PC should
meet the following:
- Desktop PC with standard PCI slot.
- Windows®
98SE/ME/2000/XP operating system.
- Minimum 5MB free disk space for installing the driver
and utilities.
- CD-ROM drive, double speed or higher.
>>> 1.4
>>> 1.5 Package Contents
Unpack the package and check all the items carefully. If
any item contained is damaged or missing, please
contact your local dealer as soon as possible. Also, keep
the box and packing materials in case you need to ship
the unit in the future. The package should contain the
following items:
- One Wireless 11g PCI Card.
- One external antenna.
- One Quick Installation Guide.
- One CD title including drivers, utilities, user’s manual
and quick guide.
7

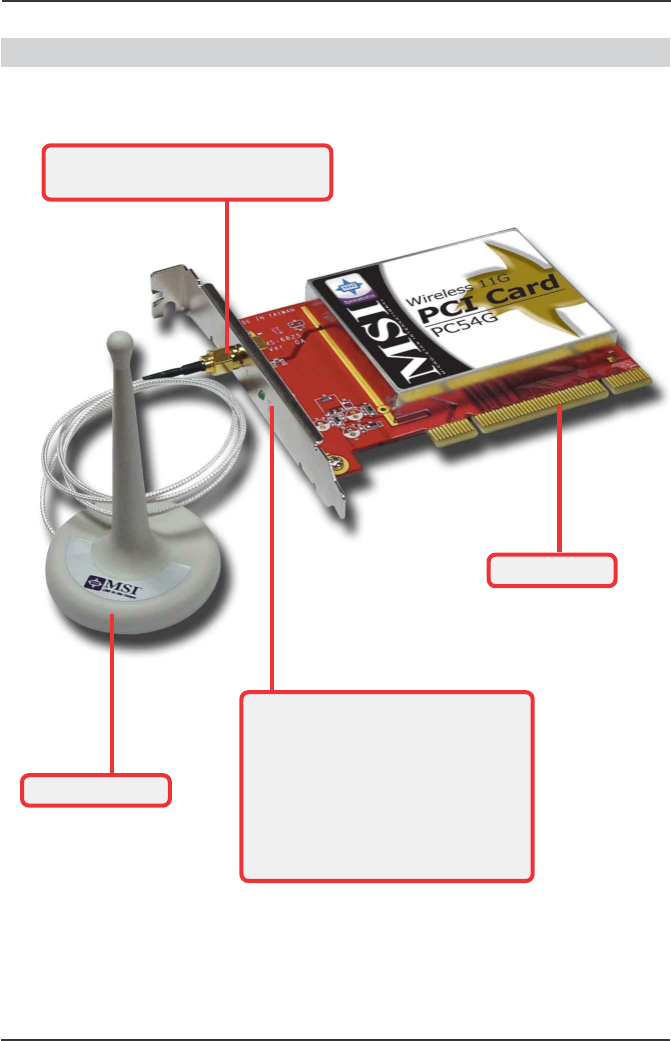

Product View>>> 1.6
Antenna Connector - connecting the
external antenna.
ACT LED - GREEN, indicating the
networking status by:
ON - The PC54G (MS-6825) is
connected.
Flash - The PC54G (MS-6825) is
searching for available
Access Point or receiving/
transmitting data over the
wireless network.
Golden Finger
External Antenna
8
The following diagrams provide you a basic installation
for your PC54G (MS-6825), which is suitable for most
desktop PCs. For more information about the PCI slot,
please refer to the user’s manual of your mainboard.

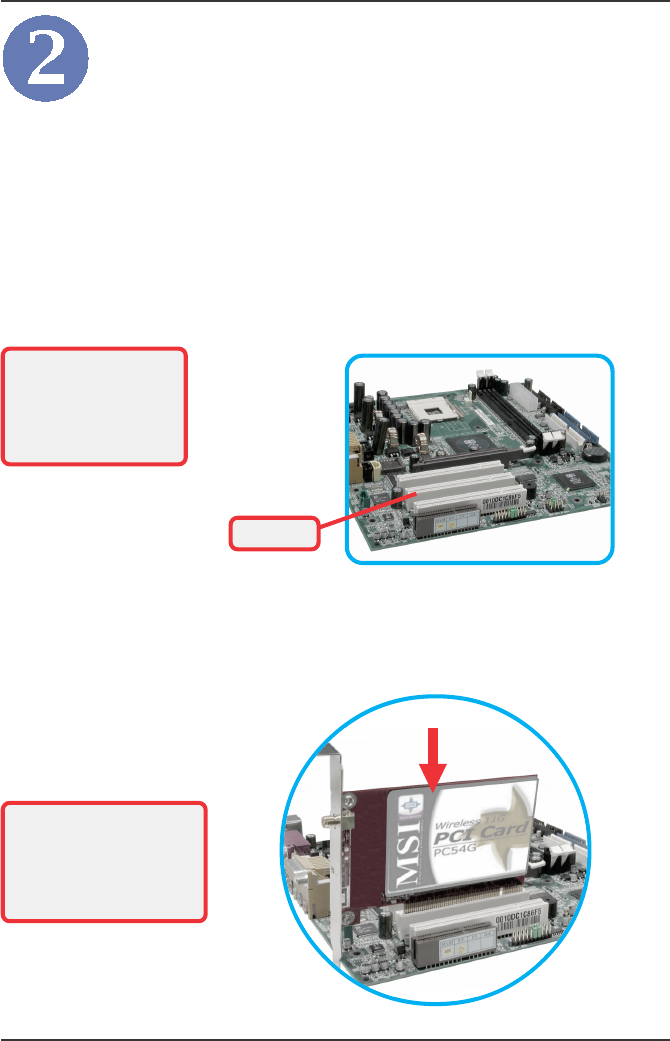

Remove the computer cover. Locate the available PCI
slot on your mainboard.
Step 1.
NOTE: Turn off your
system and disconnect
the power cable before
installing the PC54G
(MS-6825).
PCI slot
Put the PC54G (MS-6825) directly over the PCI slot and
press it into the slot firmly.
Step 2.
Do not hold the PC54G
(MS-6825) on the golden
finger while installing;
doing this may cause
interference or damage.
Hardware Installation
9
Replace the computer cover after securing the PC54G
(MS-6825) with a bracket screw.

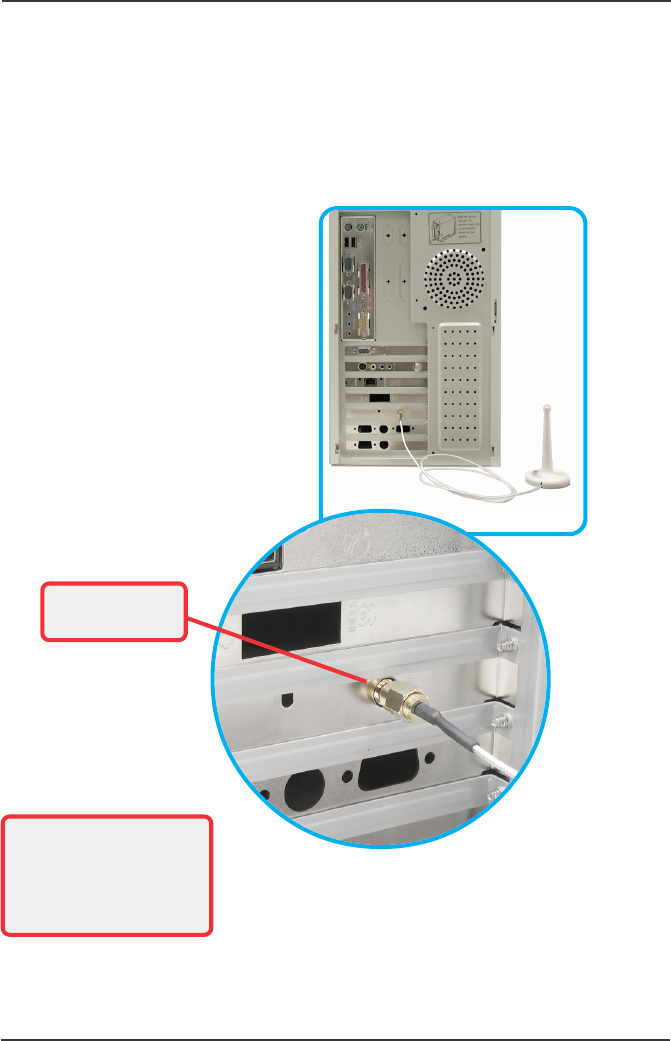

Connect the external antenna to the connector on the
PC54G’s (MS-6825) bracket.
Step 3.
Step 4.
If your are not skilled at
installing the PCI adapter,
please ask the vendor or
an experienced technician
for help.
Connecting the
external antenna
