Micro Star MS6829 WIRELESS 11B CARDBUS CARD User Manual 6819

Micro Star International Co Ltd WIRELESS 11B CARDBUS CARD 6819

Contents

USERS MANUAL 2

4
Specifications
Form Factor CardBus
Operation voltage 3.3 V
Standard IEEE802.11b
Frequency Range 2.4GHz to 2.4835GHz
Data Rate and IEEE 802.11b(Auto-Fallback):
Modulation Types - CCK @ 5.5 and 11 Mbps
- DQPSK @ 2Mbps
- DBPSK @ 1 Mbps
Operating Channels - 11
Media Access Protocol CSMA/CA
Security / Encryption 64-/128-bit WEP
Range Open Space:
- 170m @ 11 Mbps
Indoor:
- 120m @ 11 Mbps
Antenna Internal diversity
Operating system Microsoft®
Windows®
98SE/
ME/2000/XP
>>> 1.3
5
Environmental Operating Temperature:
0 ~ 55OC
Operating Humidity:
0 ~ 95%, non-condensing
EMI Compliance FCC, CE, BSMI, DGT
Dimensions (WxDxH) 115 X 54 X 7mm
Weight 38.5g
6
System Requirements
Before installing the CB11B2 (MS-6829), your PC should
meet the following:
Notebook PC with PC Card slot, or desktop PC with PC
Card slot module.
Windows®
98SE/ME/2000/XP operating system.
Minimum 5MB free disk space for installing the driver and
utilities.
CD-ROM drive, double speed or higher.
>>> 1.4
>>> 1.5 Package Contents
Unpack the package and check all the items carefully. If
any item contained is damaged or missing, please
contact your local dealer as soon as possible. Also, keep
the box and packing materials in case you need to ship
the unit in the future. The package should contain the
following items:
One Wireless 11b CardBus Card.
One Quick Installation Guide.
One CD title including drivers, utilities, user’s manual and
quick guide.
7
Product View>>> 1.6
Golden Finger
Power LED - Solid BLUE, indicating
that the CB11B2 (MS-6829) is power
on.
Link LED - BLUE, indicating the
networking status by:
ON - CB11B2 (MS-6829) is
connected.
Flash - CB11B2 (MS-6829) is
searching for available
Access Point or receiving/
transmitting data over the
wireless network.
8
DO NOT hold the CB11B2 (MS-
6829) on the golden finger when
installing it; otherwise, it may cause
interference or damage.
>>> 2.1
The following diagrams provide you a basic installation
for the CB11B2 (MS-6829), including how to install and
remove the CardBus adapter.

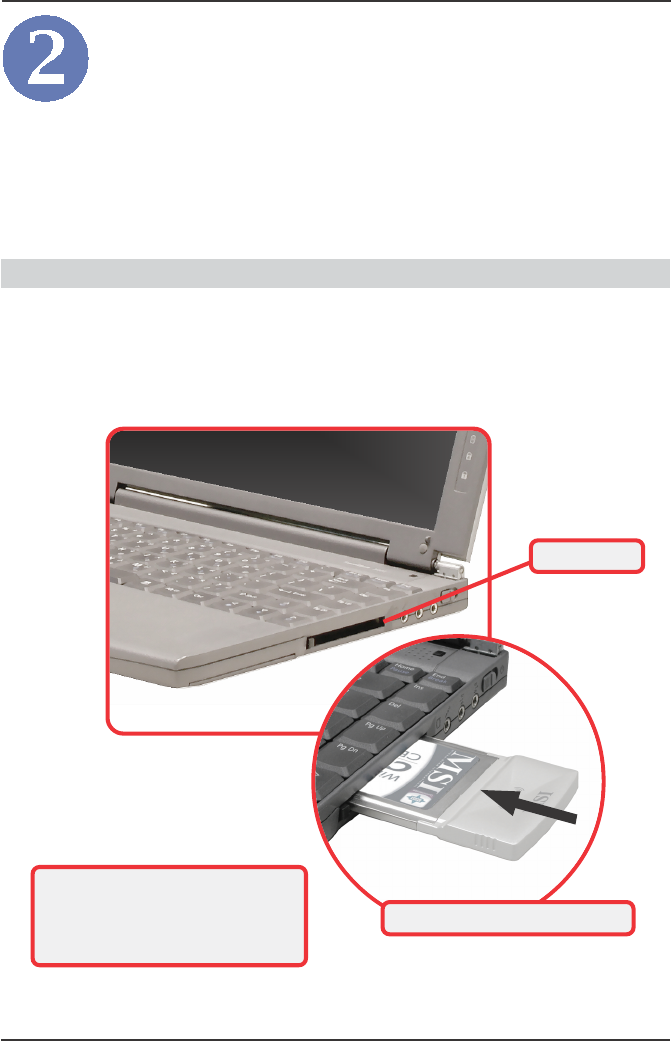

Connecting the CB11B2 (MS-6829)
Locate the PC card slot on your notebook computer. If
there is the dummy card in the slot, remove it first; then,
insert the CB11B2 (MS-6829) into the slot (usually with its
label facing up) and push it until it is firmly seated.
PC card slot
Hardware Installation
Connect the CB11B2 (MS-6829)
9

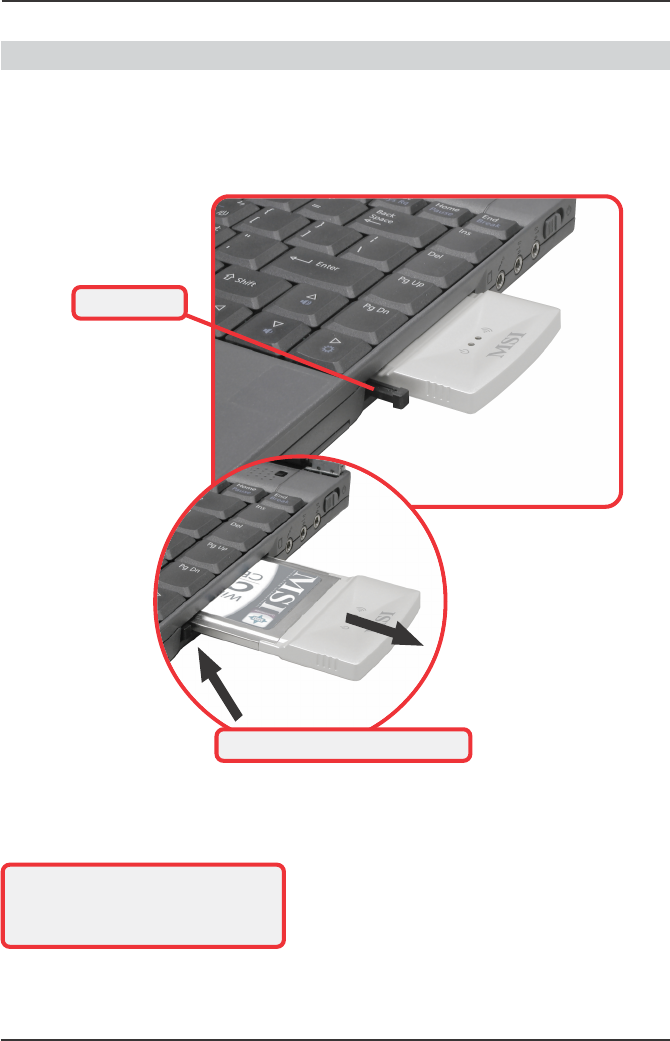

>>> 2.2 Removing the CB11B2
Press the Eject Button to make it stretch out. Push the
Eject Button and the CB11B2 (MS-6829) will slide out
slightly. Then, pull it out of the slot.
Eject Button
Before removing the CB11B2 (MS-
6829), you should stop the device in
Windows operating system.
Remove the CB11B2 (MS-6829)
