Contents

USERS MANUAL 2

Page 1
Confidential
MS-6874 User Manual
Page 2
Confidential
Equipment
•Access Point (AP) ＊1
•PC*1 With Win XP OS / Vista
•Bluetooth device(cellphone)＊1
•The software you have to install in PC as below
– Ralink Wireless LAN driver
– IVT Bluesoleil / Toshiba Bluetooth software
–VFD driver
Page 3
Confidential
• PC connect to MS-6874
• Setup Access Point on the area which
MS-6874 RF reachable, and turn on
the DHCP function without
encryption.
• Turn the Bluetooth device function on,
and execute the Bluetooth software.
• Pair the 2 Bluetooth devices.
Page 4
Confidential

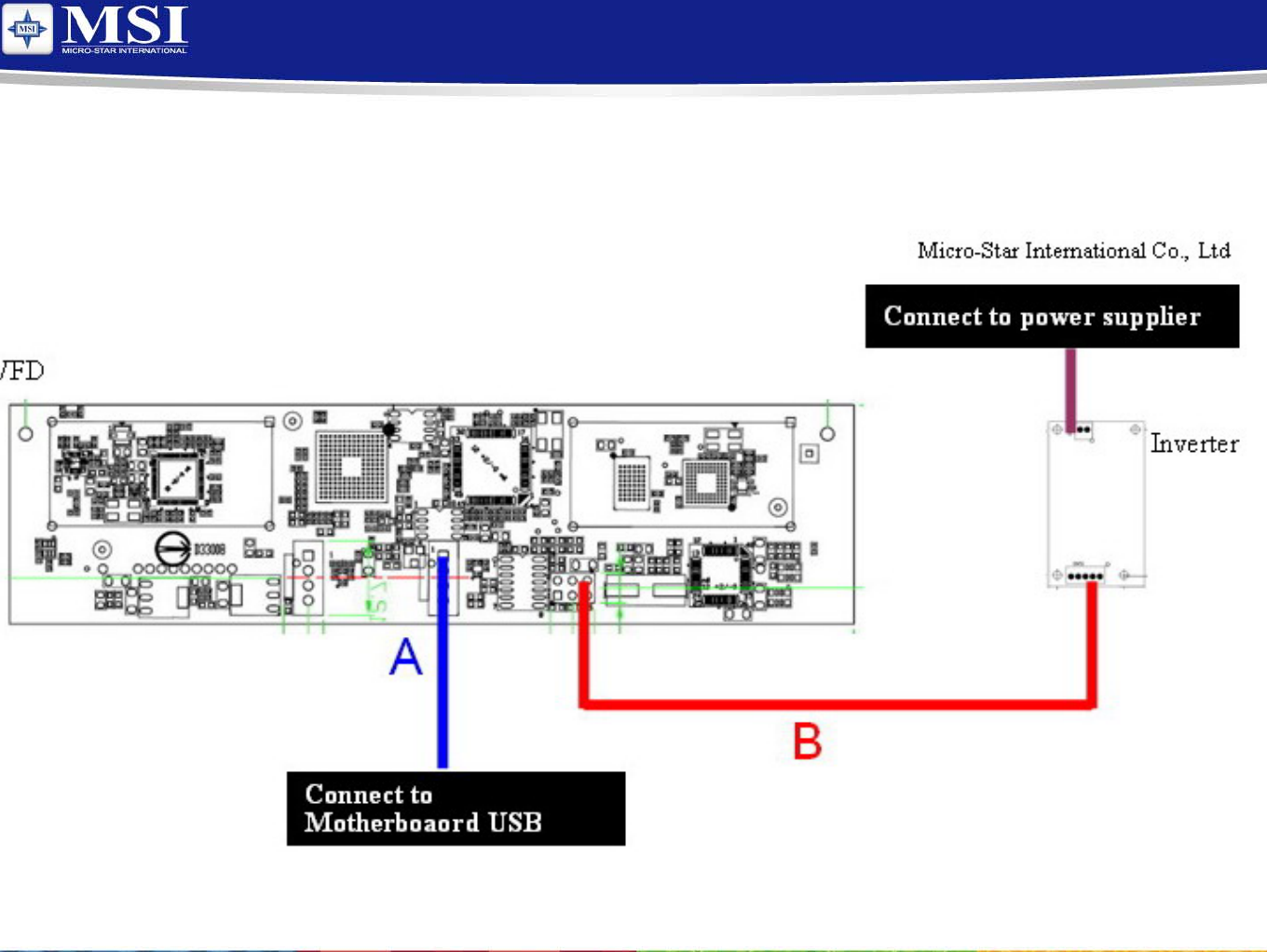

MS-6874 cable
Height: 143.8 mm
Width: 36.6 mm
Depth: 12mm
Weight (include cables and inverter): 102.5 g
Page 5
Confidential

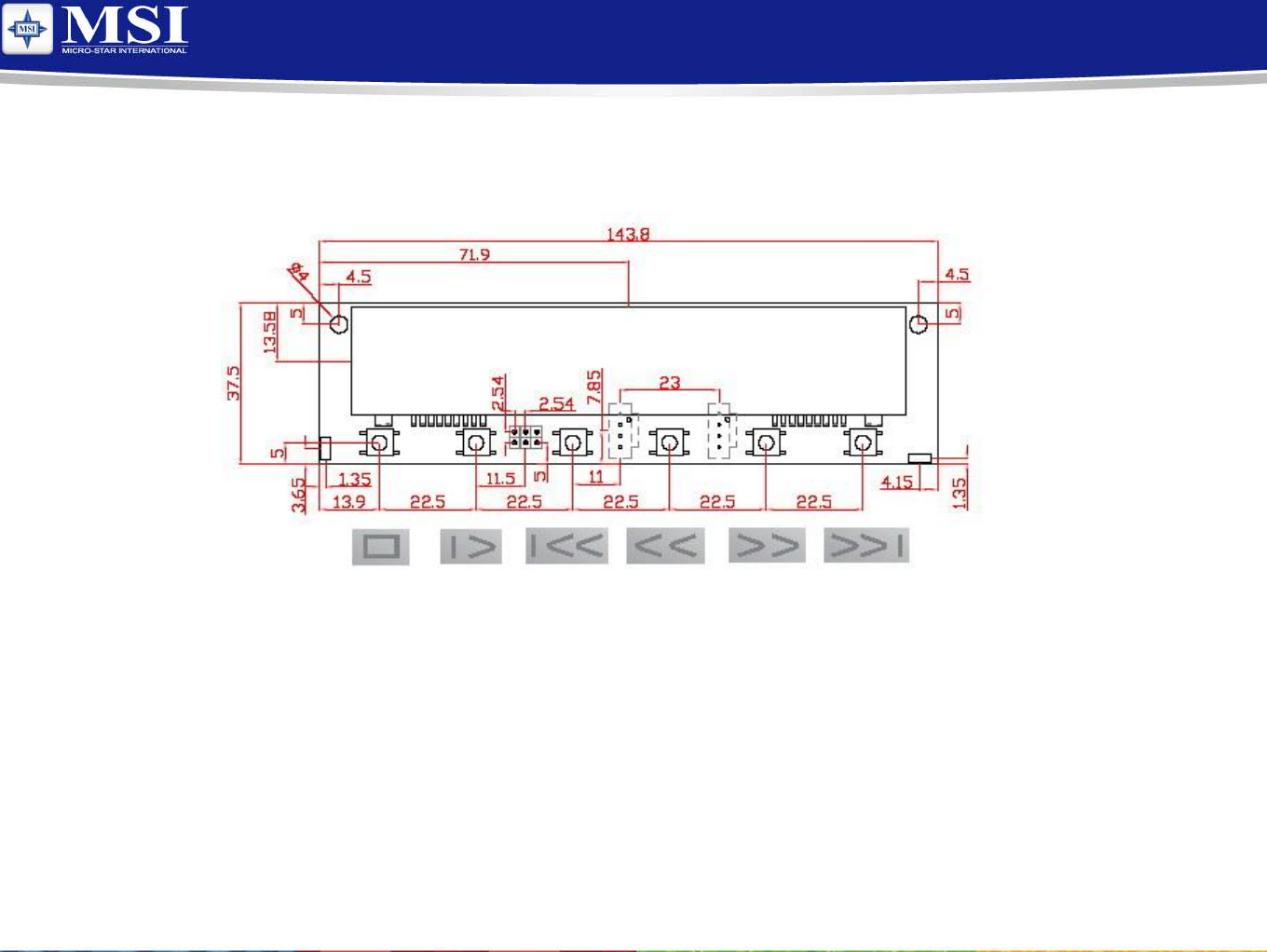

VFD Panel button def.
Page 6
Confidential

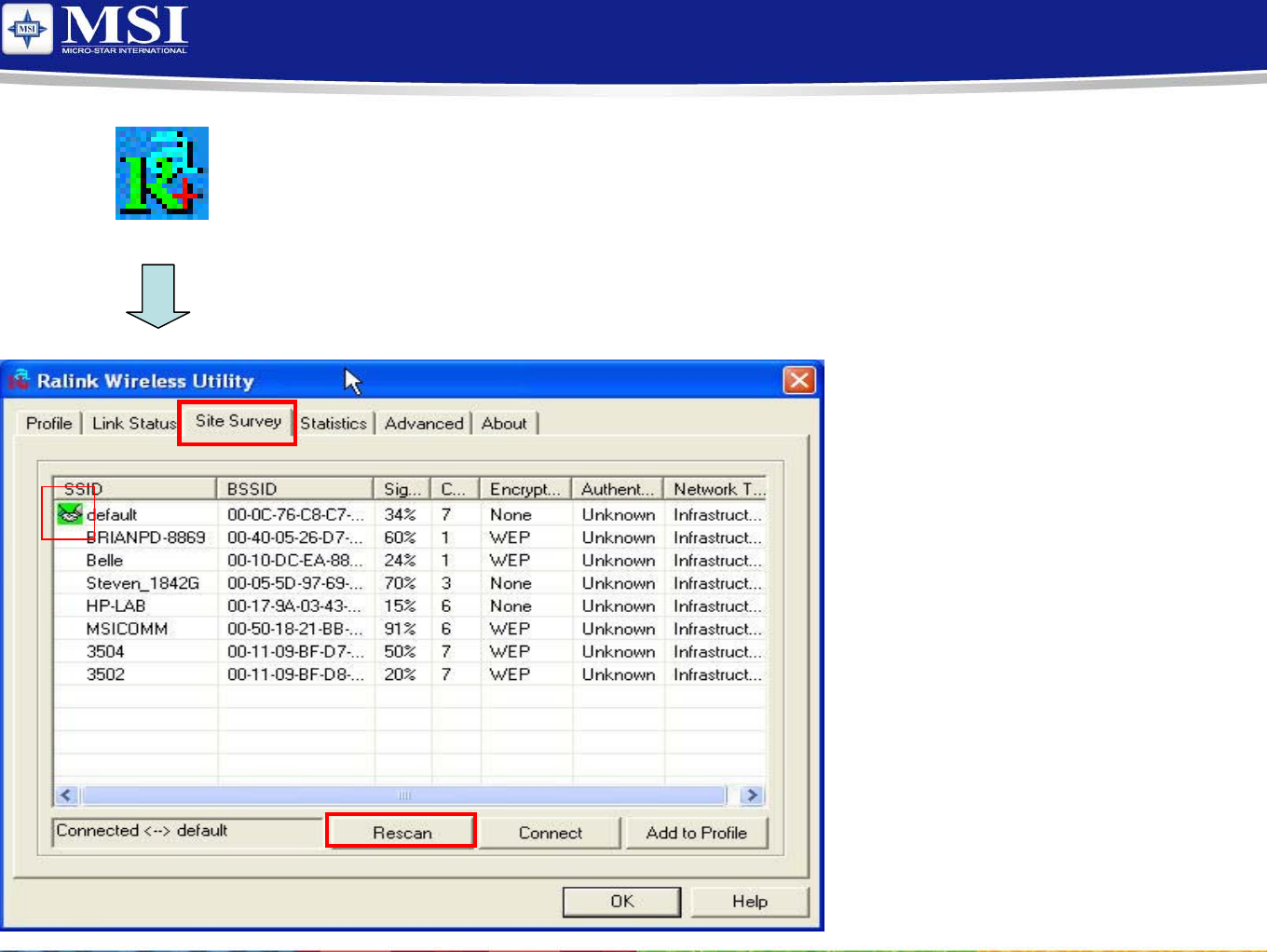

For WLAN Connection
Click the button in the tray
1.Seach the AP in Site
Survey page.
2.Click the AP you
want to connect to,
and click Connect
button.
3.It will appear shack
hand icon after you
connect success.
Page 7
Confidential

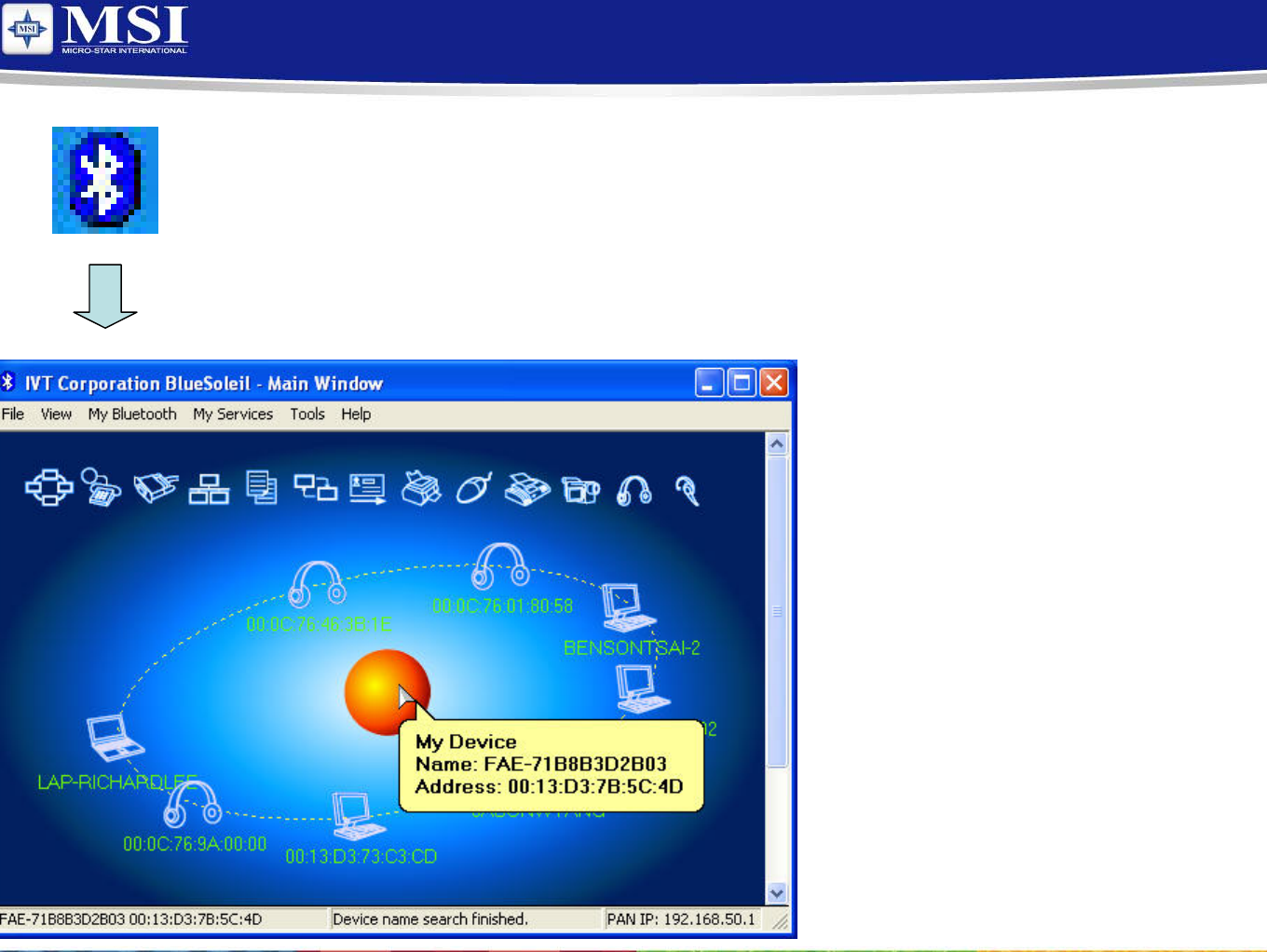

For Bluetooth connection
Click the button in the tray
Click the centre ball on
the windows. It will
search all Bluetooth
devices in the
reachable area.
Double click the device
you want to connect to.
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or
operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation
instructions and transmitter operating conditions for satisfying RF exposure compliance.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment must not
be co-located or operating in conjunction with any other antenna or transmitter.
