Micro Star MSND11 Tablet PC User Manual A1 ND11 v1 0 English Preface
Micro Star International Co Ltd Tablet PC A1 ND11 v1 0 English Preface
(MS-ND11) UserMan
![](/img.php?id=2324220&img=bg1.png)
Preface
1
Tablet PC
User’s Manual
![](/img.php?id=2324220&img=bg2.png)
Preface
1-2
Contents
Chapter 1: Preface
Content ............................................................................ 1-2
Regulations and Statements ......................................... 1-3
FCC-B Radio Frequency Interference Statement ....... 1-3
FCC Conditions ........................................................... 1-3
FCC ............................................................................. 1-4
CE Conformity ............................................................. 1-4
Battery Regulations ..................................................... 1-4
WEEE Statement ........................................................ 1-5
Safety Instructions ......................................................... 1-5
Trademarks ..................................................................... 1-7
Reversion History........................................................... 1-7
Chapter 2: Introductions
Manual Map ..................................................................... 2-2
Unpacking ....................................................................... 2-2
Product Overview ........................................................... 2-3
Top-Open View ............................................................ 2-3
Specification ................................................................... 2-6
Chapter 3: Getting Started
Power Management ....................................................... 3-2
AC Power .................................................................... 3-2
Connecting the AC Power ........................................... 3-2
Battery Power .............................................................. 3-3
Powering ON ............................................................... 3-4
Power Management in Windows OS .......................... 3-5
Basic Operations ............................................................ 3-8
Knowing the Display Features..................................... 3-8
Wireless Activation .................................................... 3-10
![](/img.php?id=2324220&img=bg3.png)
1-3
Connecting the External Devices ............................... 3-11
Keyboard ................................................................... 3-11
Wireless / Bluetooth / Camera Functions .................. 3-12
![](/img.php?id=2324220&img=bg4.png)
Preface
1-4
Regulations and Statements
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and
radiates radio frequency energy, and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio TV technician for help.
NOTE
The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Shield interface cables and AC power cord, if any, must be used in order to comply
with the emission limits.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause
undesired operation.
![](/img.php?id=2324220&img=bg5.png)
1-5
FCC
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device was tested for typical lap held operations with the device contacted
directly to the human body to the back side of the notebook computer. To maintain compliance
with FCC RF exposure compliance requirements, avoid direct contact to the transmitting
antenna during transmitting SAR information 1.56 W/kg@1g (body).
CE Conformity
This device is in compliance with the essential safety requirements and other
relevant provisions set out in the European Directive.
Battery Regulations
European Union:
Batteries, battery packs, and accumulators should not be disposed of
as unsorted household waste. Please use the public collection system
to return, recycle, or treat them in compliance with the local
regulations.
Taiwan:
For better environmental protection, waste batteries should be
collected separately for recycling or special disposal.
California, USA: The button cell battery may contain perchlorate material and requires special
handling when recycled or disposed of in California.
For further information please visit: http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
Safety Guideline for Using Lithium Battery
Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the equipment manufacturer. Discard used batteries
according to manufacturer’s instructions.
1.30
![](/img.php?id=2324220&img=bg6.png)
Preface
1-6
WEEE Statement
Under the European Union ("EU") Directive on Waste Electrical and Electronic
Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005,
products of "electrical and electronic equipment" cannot be discarded as
municipal waste anymore and manufacturers of covered electronic equipment
will be obligated to take back such products at the end of their useful life.
Safety Instructions
Read the safety instructions carefully and thoroughly. All cautions and
warnings on the equipment or user’s manual should be noted.
Keep this equipment away from humidity and high temperature.
Lay this equipment on a stable surface before setting it up.
The openings on the enclosure are used for air convection and to
prevent the equipment from overheating. Do not cover the openings.
Do not leave the equipment in an unconditioned environment with a
storage temperature above 60OC (140OF) or below 0OC (32OF),
which may damage the equipment.
This unit should be operated under maximum ambient temperature
of 40OC (120OF).
Make sure the power voltage is within safety range and has been
adjusted properly to the value of 100~240V before connecting the
equipment to the power outlet.
Always unplug the AC power cord before installing any add-on card
or module to the equipment.
Always disconnect the AC power cord or uninstall the battery pack
or switch off the wall socket if the equipment would be left unused
for a certain time to achieve zero energy consumption.
![](/img.php?id=2324220&img=bg7.png)
1-7
Never pour liquid into the opening that could damage the equipment or
cause an electrical shock.
Place the power cord in a way that people are unlikely to step on it. Do
not place anything on top of the power cord.
Always keep the strong magnetic or electrical objects away from the
equipment.
When installing the coaxial cable to the TV Tuner, it is necessary to
ensure that the metal shield is reliable connected to protective earthing
system of the building.
Cable distribution system should be grounded (earthed) in accordance
with ANSI/NFPA 70, the National Electrical Code (NEC), in particular
Section 820.93, Grounding of Outer Conductive Shield of a Coaxial
Cable.
If any of the following situations arises, get the equipment checked by a
service personnel:
The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment has not worked well or you can not get it work
according to User’s Manual.
The equipment was dropped and damaged.
The equipment has obvious signs of breakage.
Green Product Features
Reduced energy consumption during use and stand-by
Limited use of substances harmful to the environment and health
Easily dismantled and recycled
Reduced use of natural resources by encouraging recycling
Extended product lifetime through easy upgrades
Reduced solid waste production through take-back policy
Environmental Policy
The product has been designed to enable proper reuse of parts and
recycling and should not be thrown away
![](/img.php?id=2324220&img=bg8.png)
Preface
1-8
Users should contact the local authorized point of collection for
recycling and disposing of their end-of-life products.
Trademarks
All trademarks are the properties of their respective owners.
Revision History
Version Revision History Date
1.0 First Released 06, 2014
![](/img.php?id=2324220&img=bg9.png)
Introductions
2
![](/img.php?id=2324220&img=bga.png)
Introductions
2-2
Congratulations on becoming an user of this product, the finely designed Tablet PC. This
brand-new exquisite Tablet PC will give you a delightful and professional experience in using it.
We are proud to tell our users that this product is thoroughly tested and certified by our
reputation for unsurpassed dependability and customer satisfaction.
Manual Map
This User’s Manual provides instructions and illustrations on how to operate this Tablet PC. It
is recommended to read this manual carefully before using this Tablet PC.
Chapter 1, Preface: Provide users the basic safety information and caution that is relevant
when using this Tablet PC. It is recommended to read these information or caution when using
this Tablet PC for the first time.
Chapter 2, Introductions: Include the descriptions of all the accessories of this Tablet PC. It
is recommended to check out that if you have all the accessories included when you open the
packing box. If any of these accessories is damaged or missing, please contact the vendor
where you purchased this product. Also, this chapter provides the specification of this Tablet
PC , and introduces the function buttons, connectors, LED of this product.
Chapter 3, Getting Started: Provide the basic operation instructions when using this Tablet PC.
Unpacking
First, unpack the shipping carton and check all items carefully. If any item contained is
damaged or missing, please contact your local dealer immediately. Also, keep the box and
packing materials in case you need to ship the unit in the future. The package should contain
the following items:
y Tablet PC
y Quick Start Manual
y AC/DC adapter / Interchangeable Plug
y USB Charging Cable
y External Keyboard (optional)
![](/img.php?id=2324220&img=bgb.png)
2-3
Product Overview
This section provides the description of basic aspects of the Tablet PC. It will help you to know
more about the appearance of this device before using it. Please be aware that the Tablet PC
shown in this section may vary from the actual one that users purchased.

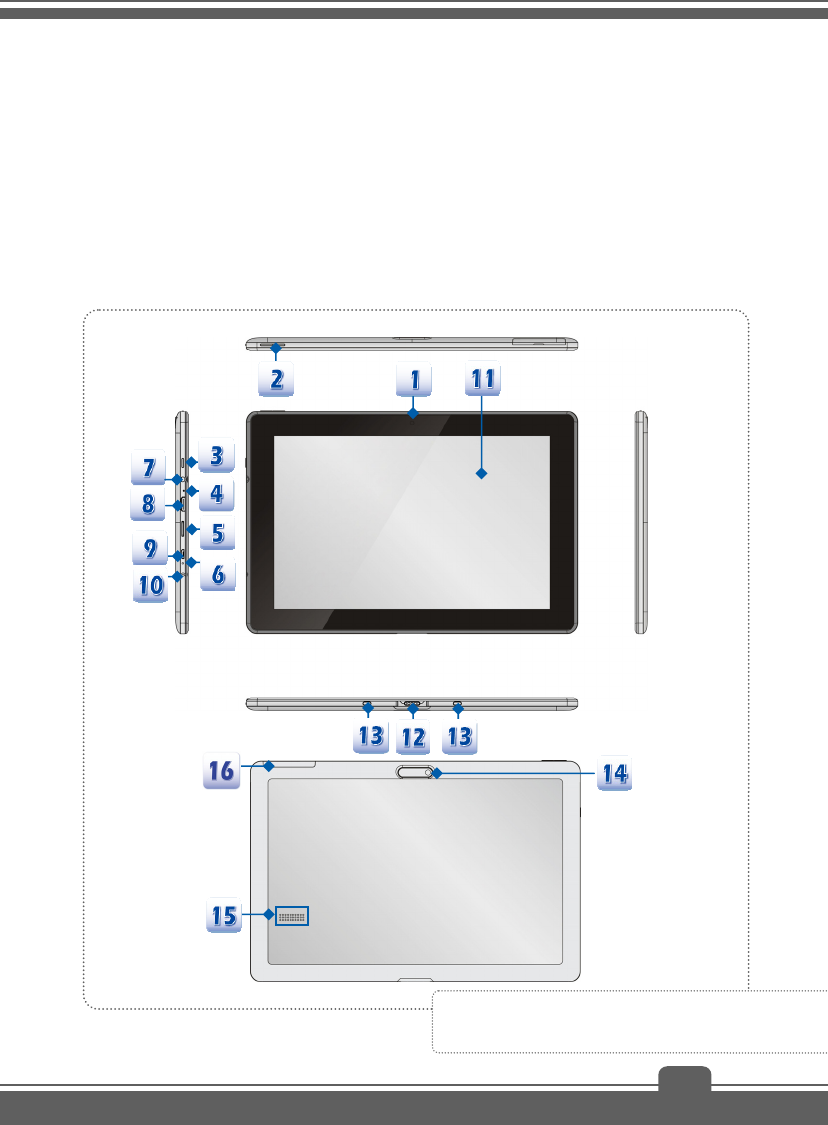

Top-open View

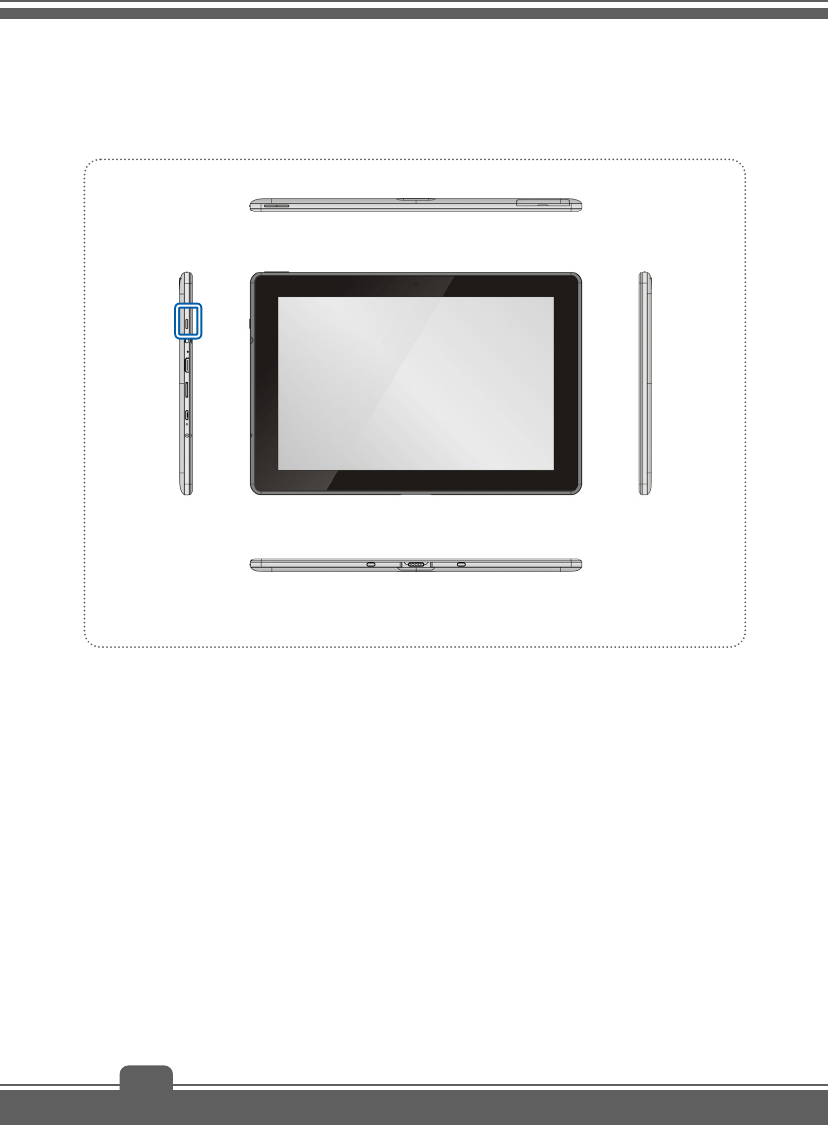

The figure of top-open view and description shown below will lead you to browse the main
operating area of this Tablet PC.
The figures shown here are for reference only.
![](/img.php?id=2324220&img=bgc.png)
Introductions
2-4
1. Front Camera
This built-in front camera can be used for picture taking, video recording or conferencing,
and any other interactive applications.
2. Volume Up / Volume Down Button
Press the Volume Up or Volume Down button to adjust the sound volume.
3. Power Button
Press this button to turn this product ON and OFF.
i. Before powering on the Tablet PC for the very first time, you must connect it with
AC power.
ii. Press and hold the power button for 4 seconds can shut down the Tablet PC.
4. Reset Hole
If the Tablet PC cannot be turned off normally or no respond by pressing the power button
for 4 seconds, insert a straightened paperclip to the hole.
Please note that in this case, AC power must be connected before restarting the
Tablet PC.
5. Micro-SD Card Slot
Used for inserting or replacing micro-SD card to increase the storage capacity of the Tablet
PC.
6. Internal Microphone
This is the built-in microphone and its function is the same with microphone.
7. Headphone Jack
Used for connecting the speakers or headphones.
8. Mini-HDMI Port
HDMI (High Definition Multimedia Interface) is a new interface standard for PCs, displays
and consumer electronics devices that supports standard, enhanced and high-definition
video, plus multi-channel digital audio on a single cable. Through the mini-HDMI to HDMI
cable makes the mini-HDMI port connect with HDMI devices.
9. Micro-USB Port
Connecting the Tablet PC to a PC
You can use the micro-USB cable to connect the tablet PC to a PC and this process allows
you to access the personal data from or to a PC easily. The tablet PC will become a
removable disk and a USB storage device in this time.
Connecting the USB device to the Tablet PC
Through the micro-USB OTG cable, this tablet PC is able to connect various USB devices,
such as mouse, keyboard, external storage device, etc. To correctly connect and utilize
these devices, you might need to install their respective applications provided by the device
vendors.
![](/img.php?id=2324220&img=bgd.png)
2-5
10. DC-in Jack
It is an electrical connector for supplying direct current (DC) power.
11. Touch Screen
Whenever the display is rotated, the touch screen will be rotated and expanded to fit the
display automatically.
This function will be changed depends on the user’s settings.
12. Keyboard Docking Station
A keyboard docking station is an expansion unit used to attach a keyboard simultaneously.
13. Boss Hole
Used for locking the boss hole of the keyboard.
14. Rear Camera
This built-in rear camera can be used for picture taking, video recording or conferencing,
and any other interactive applications.
15. Speaker
Support high quality sound.
16. UltraStick Slot (optional)
Used for inserting or replacing UltraStick.
![](/img.php?id=2324220&img=bge.png)
Introductions
2-6
Specification
The specification may change without notice. The actual products sold are different from areas.
Please check the detailed specification with your local dealers.
Physical Characteristic
Dimension 262.17(W) x 173.6 (D) x 9.8 (H) mm
Weight <575 kg
CPU
Processor Type Intel® Atom™ Processor
Supported Processor Intel® Quad Core processor
Memory
Technology DDR3L 1333 MHz
Memory 2GB on board
Power
AC/DC Adapter
18W, 12V
Input: 100~240V, 50~60Hz
Output: 12V 1.5A
The supported AC/DC adapter may vary without notice.
Storage (items listed here may very without notice)
EMMC 64GB
I/O Port
Headphone Jack x 1
DC-in Jack x 1
Internal Microphone x 1
Mini-HDMI Port x 1
Micro-USB Port x 1
Keyboard Docking Station x 1
UltraStick Slot x 1 (optional)
![](/img.php?id=2324220&img=bgf.png)
2-7
Communication Port
Wireless LAN Supported
Bluetooth Supported
Display
LCD Type 10.1" IPS display
Resolution 1280 x 800
Multi Touch 10-Point Touch Supported
Brightness Brightness controlled by setting
Video
Graphics UMA
Audio
Internal Speaker 1 speaker
Sound Volume Adjust by volume button & SW
WebCam
Front Camera 2.0MP
Rear Camera 2.0MP
Others
G-Sensor Supported
The actual function preinstalled in this product depends on the model you
purchased, and may vary without notice.
![](/img.php?id=2324220&img=bg10.png)
Introductions
2-8
![](/img.php?id=2324220&img=bg11.png)
Getting Started
3
![](/img.php?id=2324220&img=bg12.png)
Getting Started
3-2
Power Management
AC Power
It is strongly recommended to connect the AC/DC adapter to the Tablet PC and use the AC
power while using this Tablet PC for the first time since some models may require the AC/DC
adapter to be connected in order to power on the Tablet PC safely and properly. When the AC
power is connected, recharging the battery will start immediately.
Note that the AC/DC adapter included in the package is approved for your Tablet PC; using
other adapter model may damage either the Tablet PC or other devices attached to it.
Do not cover the AC/DC adapter since it may generate a certain heat while in use. Always be
aware of heat coming from the AC/DC adapter in use.
Connecting the AC Power
1. Take up the interchangeable plug and look for the groove on the interchangeable plug
which can be used for locking on the AC/DC adapter. Then align the groove of the
interchangeable plug on the tenon of the AC/DC adapter with correct orientation. Next,
rotate the interchangeable plug 90 degrees clockwise until it is fixed on the AC/DC adapter.
2. Plug the DC end of the AC/DC adapter into the DC-in jack of the Tablet PC.
3. Then plug the AC/DC adapter into the power outlet.
4. When remove, please follow the steps 3Æ2Æ1.
Note: The interchangeable plug may vary depending on countries or regions.
![](/img.php?id=2324220&img=bg13.png)
3-3
Battery Power
This Tablet PC is equipped with a built-in high-capacity Lithium-ion Polymer battery pack. The
rechargeable Lithium-ion Polymer battery pack is an internal power source of the Tablet PC.
Be aware that this battery pack may be damaged if users try to disassemble the battery pack on
their own. Also, please note that the limited warranty of the battery pack will be voided if the
battery pack is disassembled by non-authorized technicians.
Please follow your local laws and regulations to recycle the Tablet PC and the built-in battery
pack.
Conserving Battery Power
Efficient battery power is critical to maintain a normal operation. If the battery power is not
managed well, the saved data and customized settings may be lost.
To optimize battery life and avoid a sudden power loss, read the tips below:
Suspend system operation if the system will be idle for a while or shorten the suspend
time period.
Turn off the system if you won’t be using it for a period of time.
Disable unnecessary settings or remove idle peripherals.
Connect an AC/DC adapter to the system whenever possible.
Charging the Battery Pack
The built-in battery pack can be recharged when the Tablet PC is connected to the AC power.
Please pay attention to the following tips before recharging the battery:
You can use the system, suspend system operation or shut down and turn off the
system without interrupting the charging process.
The built-in battery pack uses Lithium-ion Polymer battery cells that have no “memory
effect.” It is unnecessary to discharge the battery before recharging. However, to
optimize the life of battery, we suggest that consuming the battery power completely
once a month is necessary.
The actual charging time will be determined by the applications in use.
![](/img.php?id=2324220&img=bg14.png)
Getting Started
3-4
Power On
Long press the Power Button to power on the Tablet PC.
![](/img.php?id=2324220&img=bg15.png)
3-5
Power Management in Windows OS
Power management of personal computers (PCs) and monitors has the potential to save
significant amounts of electricity as well as deliver environmental benefits. To be energy efficient,
turn off your display or set your PC to standby/hibernate mode after a period of user inactivity.
Follow the instructions below to adjust the power management settings in Windows OS:
“Power Options” in Windows OS allows you to control the power management features of your
display, hard drive, and battery.
In Windows 8 Metro APPs screen, please select “Desktop” to return back to the desktop.
Slide your finger from the right edge of the desktop leftward will bring a list of functional
icons. Find the [Settings] icon on the desktop.
![](/img.php?id=2324220&img=bg16.png)
Getting Started
3-6
Tap [Settings] icon will get the following selection menu. Select Control
Panel in the menu.
Tap System and Security.
Tap Power Options.
![](/img.php?id=2324220&img=bg17.png)
3-7
Then select a power plan that meets your personal needs.
The Power icon will present various and relative options as following:
You can wake up your computer from power saving mode by pressing the power
button
![](/img.php?id=2324220&img=bg18.png)
Getting Started
3-8
Basic Operations
Knowing the Display Features
Ten-point-touch IPS Display
This Tablet PC is equipped with a ten-point-touch IPS display which delivers consistent and
accurate color from all viewing angles, and makes viewing more pleasure with vivid and clear
picture on the screens. Users are allowed to use finger gestures to interact with multi-media
content, play games, read e-books, access documents, create special effects, manipulate art
and photographs, and even surf on the internet, in a truly unique and compelling way.
Display Lock
With a built-in G-sensor module, this IPS display gives users a more flexible way in viewing web
pages, documents, pictures, videos, etc. Whenever the display is rotated, the screen will be
rotated and expanded to fit the display automatically.
1. Find the [Settings] icon on the desktop and tap it.
2. Enter the [PC Settings] main page by tapping [Change PC Settings].
3. Select this Screen icon to enable this function.
4. Tap this icon again will lock the screen .
![](/img.php?id=2324220&img=bg19.png)
3-9
![](/img.php?id=2324220&img=bg1a.png)
Getting Started
3-10
Wireless Activation
1. Find the Settings icon on the desktop and click on it.
2. Enter the PC settings main page by clicking on Change PC settings.
3. Unfold the Airplane mode selections under Network.
4. Make sure Airplane mode is set to OFF here.
5. Turn the Wi-Fi or Bluetooth function on/ off by sliding the function switch bar.
Refer to the Status LED to check the device status.
1. When Airplane mode is set to ON, the Wi-Fi and
Bluetooth function will be disabled at once.
2. The information provided here is for reference only,
and may vary without notice.
![](/img.php?id=2324220&img=bg1b.png)
3-11
Connecting the External Devices
Keyboard
The keyboard docking station on the Tablet PC allows you to connect the external keyboard.
Lock the boss hole of the Tablet PC and the boss hole of the keyboard docking station together
and you can use keyboard function.
![](/img.php?id=2324220&img=bg1c.png)
Getting Started
3-12
Wireless / Bluetooth/ Camera Functions
1. Tap the [SCM] icon on the desktop to bring SCM (System Control Manager)
screen.
2. Find Wireless, Bluetooth and Camera in SCM screen, tapping the corresponding icon to
enable/ disable the device.
3. After enabling wireless or camera function, tap the windows key can switch the present
display to Windows8 main screen. Then you can use the Internet Explorer or camera for
your own desire.
![](/img.php?id=2324220&img=bg1d.png)
3-13
