Microair Avionics T2000UAV-VL UAV AIRCRAFT TRANSPONDER User Manual
Microair Avionics PTY LTD UAV AIRCRAFT TRANSPONDER Users Manual
Users Manual
Microair Avionics Pty Ltd
Airport Drive
Bundaberg
Queensland 4670
Australia
Tel: +61 7 41 553048
Fax: +61 7 41 553049
e-mail: sales@microair.com.au
Microair Avionics T2000UAV-VL Install and User Manual
T2000UAV-VL Installation and User Manual 01R1.doc Page 2 of 21 1st December 2010
About This Document
This supplement describes the installation option, and software
controls for the T2000UAV-VL transponder, operating with
software revision T2000UAV_01R6.5.
Microair reserves the right to amend this supplement as required,
to reflect any enhancements or upgrades to the T2000
transponder series.
© Microair Avionics Pty Ltd
REVISION STATUS
Revision Date Change
01R1 01/12/10 Initial release
Microair Avionics T2000UAV-VL Install and User Manual
T2000UAV-VL Installation and User Manual 01R1.doc Page 3 of 21 1st December 2010
TABLE OF CONTENTS
1.0 INTRODUCTION 4
2.0 T2000UAV-VL DESCRIPTION 5
2.1 T2000UAV-VL ANTENNA OPTIONS 5
3.0 SOFTWARE CONTROL 6
3.1 MICROAIR UAV TERMINAL SOFTWARE 6
3.2 THE UAV COMMAND STRUCTURE 7
3.3 DATA SPEED 7
3.4 SERIAL DATA COMMAND SET 8
3.4.1 Standby (s=t) 9
3.4.2 Mode 3A (s=a) 9
3.4.3 Mode C (s=c) 9
3.4.4 Ident (i=s) 9
3.4.5 Altitude (a=?) 9
3.4.6 Altitude Source (d=?) 9
3.4.7 Encoder Power (e=?) 10
3.4.8 Voltage (v=?) 10
3.4.9 Reply Annunciator (r=y) 10
3.4.10 Ping Function (p=?) 10

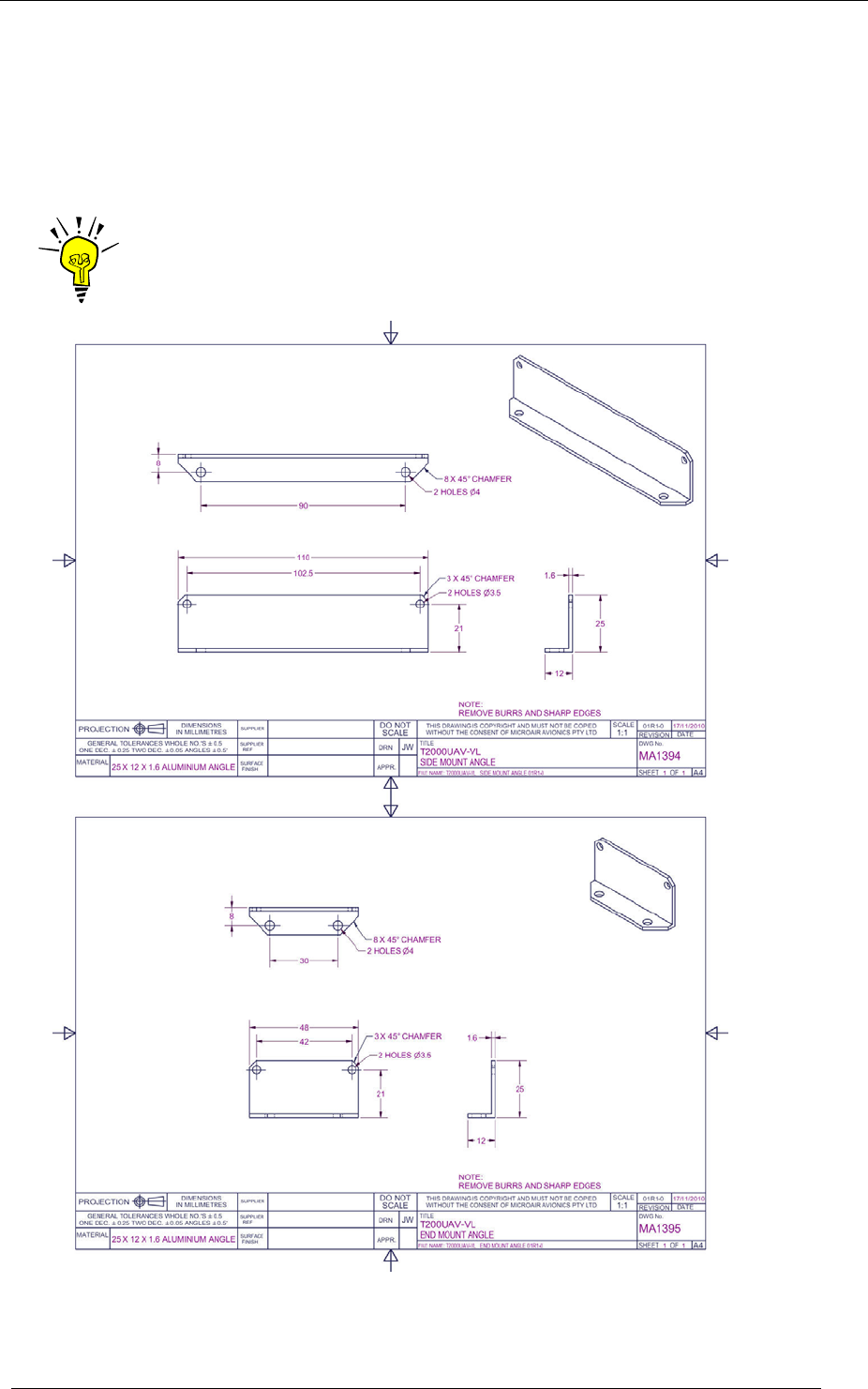

4.0 T2000UAV-VL MOUNTING BRACKETS 11
5.0 MODE C ENCODER 12
6.0 ANTENNA 12

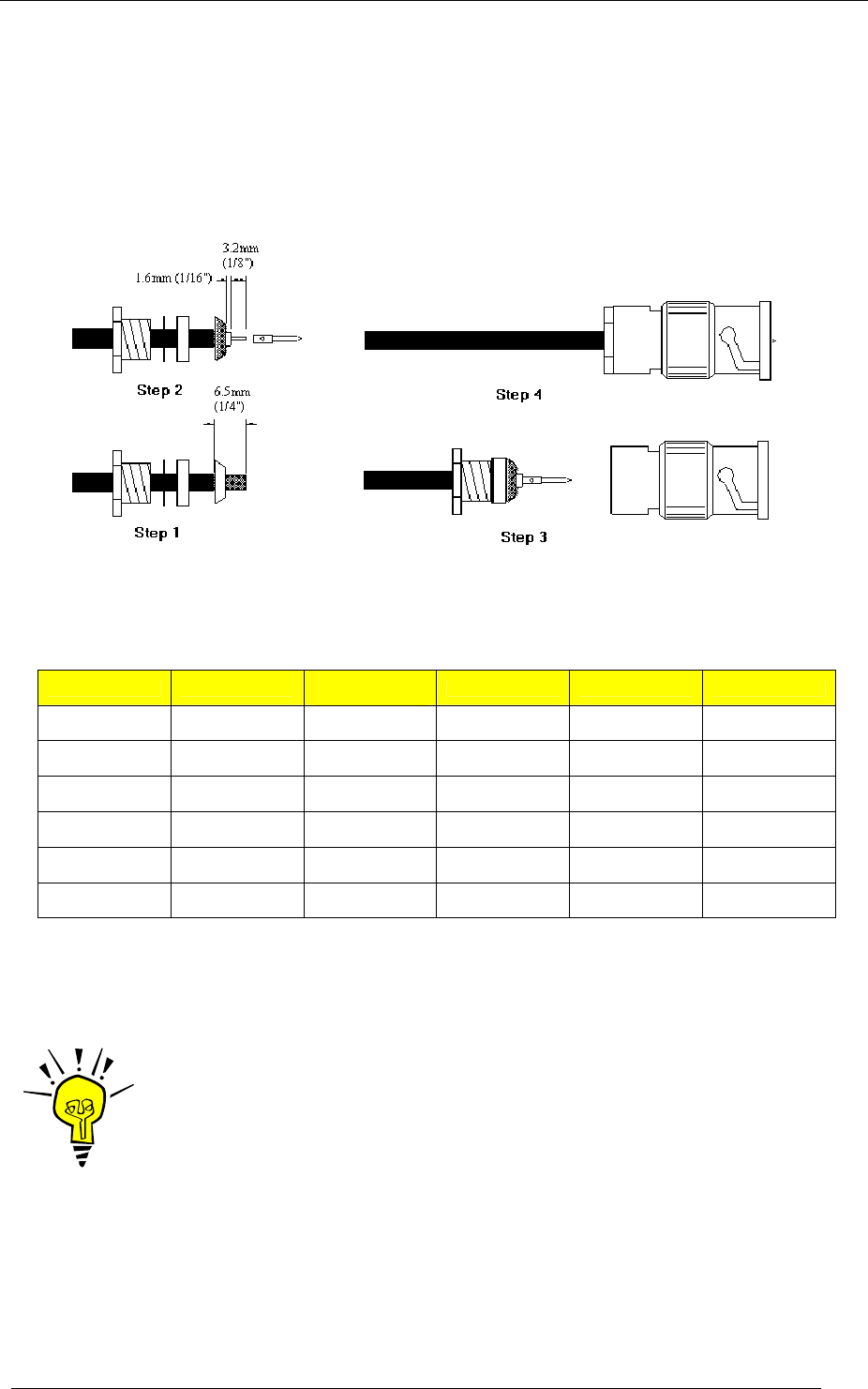

7.0 COAXIAL CABLE 13
8.0 WIRING 14
8.1 CABLING 14
8.2 POWER ON/OFF 15
8.3 SUPPRESSION IN / OUT 15
9.0 TECHNICAL DRAWINGS 16

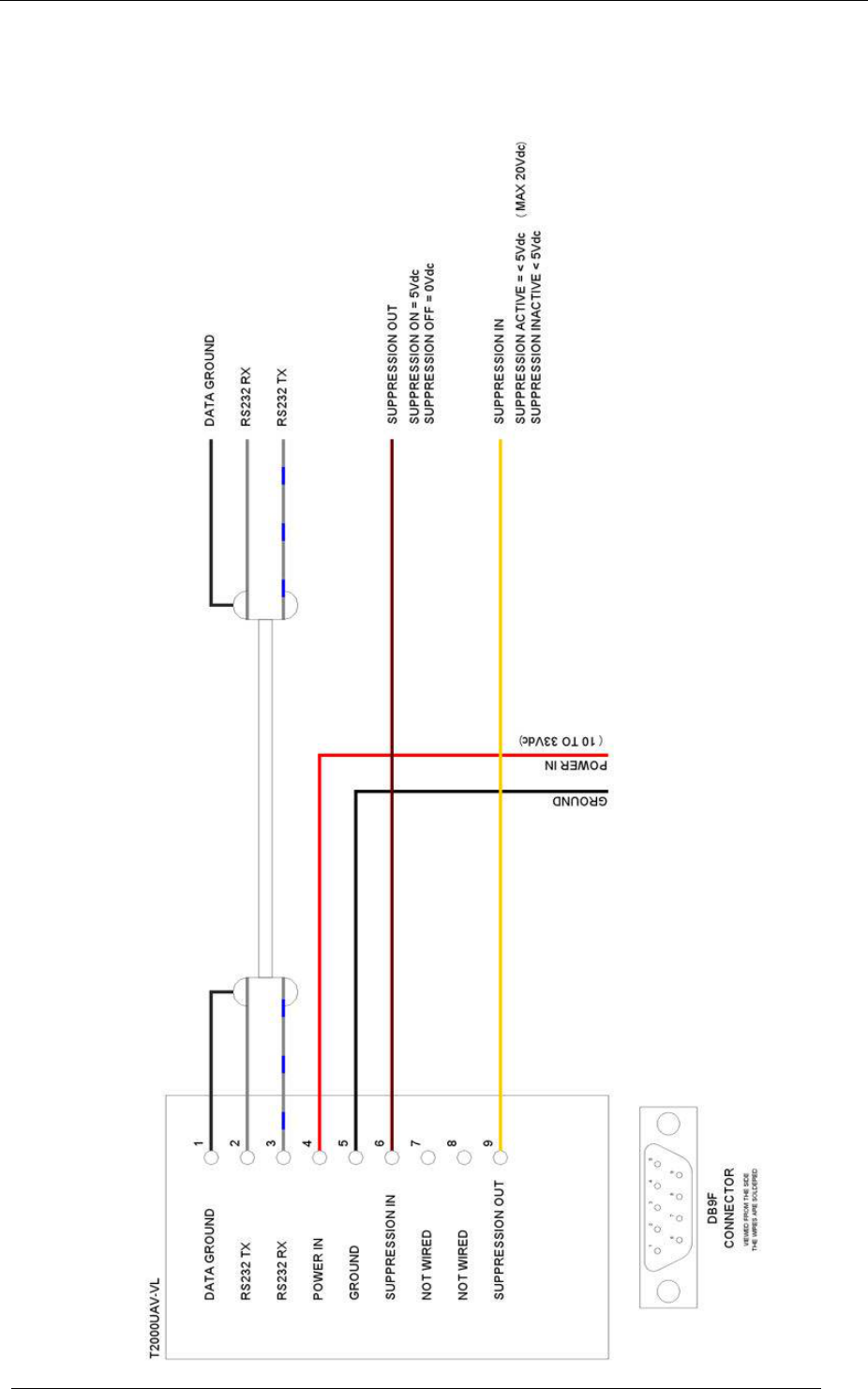

10.0 WIRING DIAGRAMS 18
11.0 PIN ASSIGNMENTS 19
12.0 SPECIFICATIONS 20

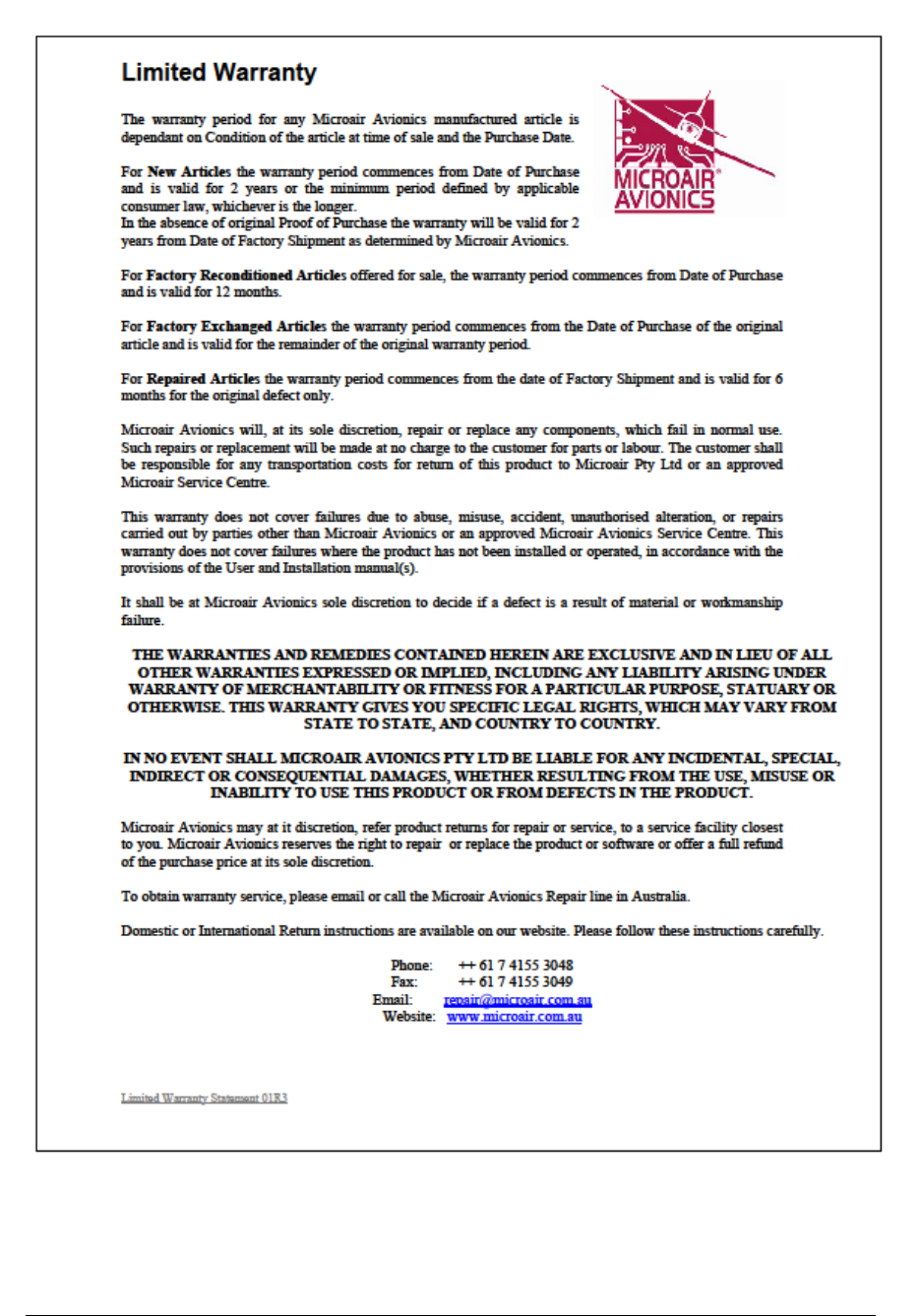

13.0 LIMITED WARRANTY 21
Microair Avionics T2000UAV-VL Install and User Manual
T2000UAV-VL Installation and User Manual 01R1.doc Page 4 of 21 1st December 2010
1.0 INTRODUCTION
The T2000UAV-VL is a special version of the T2000 Transponder, designed for operation in unmanned aircraft.
This product is partially compliant to TSO C74d due to the absence of a human interface. All control and
exchange of data is made via a serial data interface (RS232).
The T2000UAV-VL is based upon the certified T2000SFL transponder, and is compliant with the following:
TSO: C74d (INCOMP)
Environmental: RTCA/DO-160F
Hardware: RTCA/DO-254
Software: RTCA/DO-178B
Transponder Function: RTCA/DO-144A
FCC: Part 2, Part 87
Microair Avionics T2000UAV-VL Install and User Manual
T2000UAV-VL Installation and User Manual 01R1.doc Page 5 of 21 1st December 2010

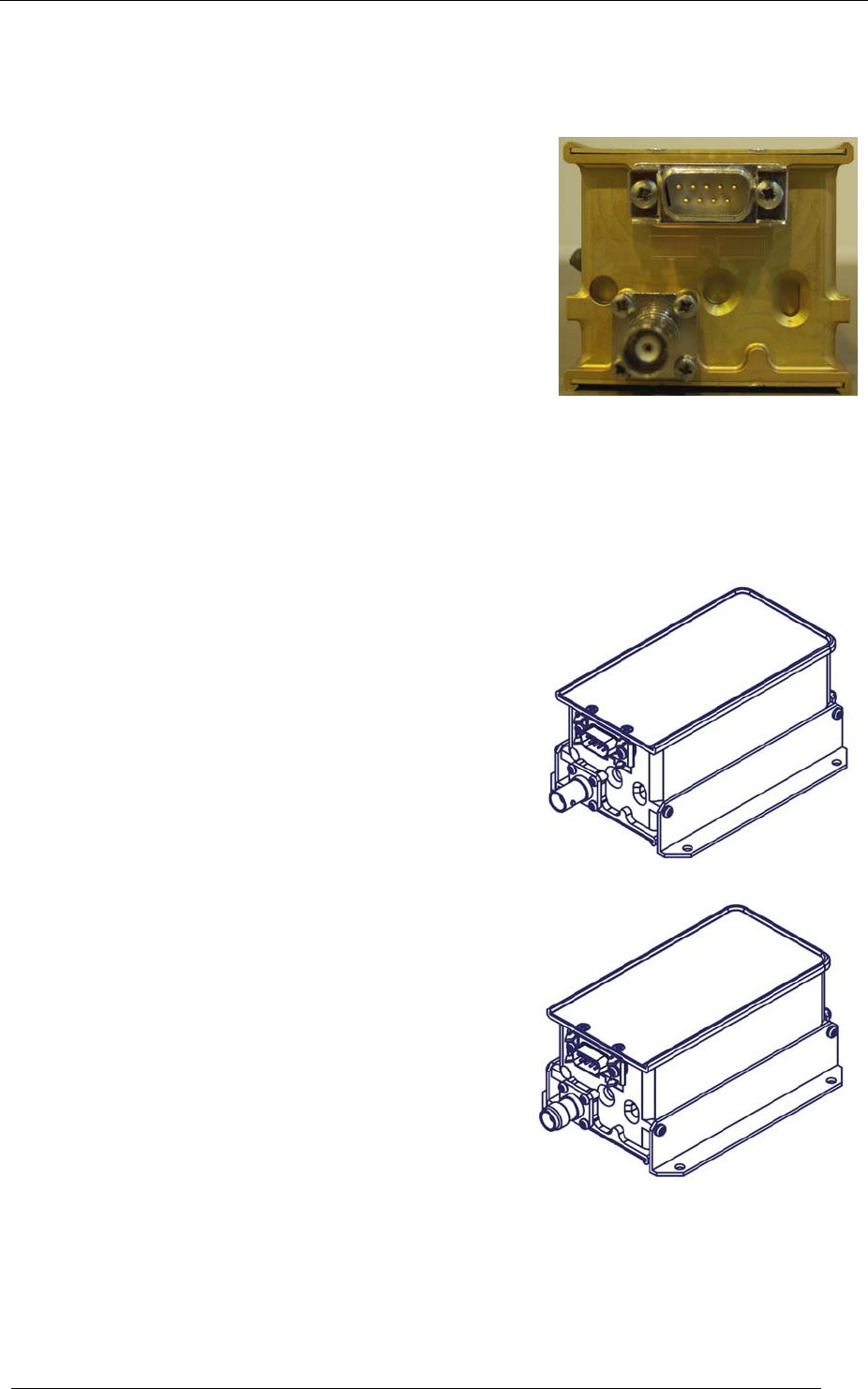

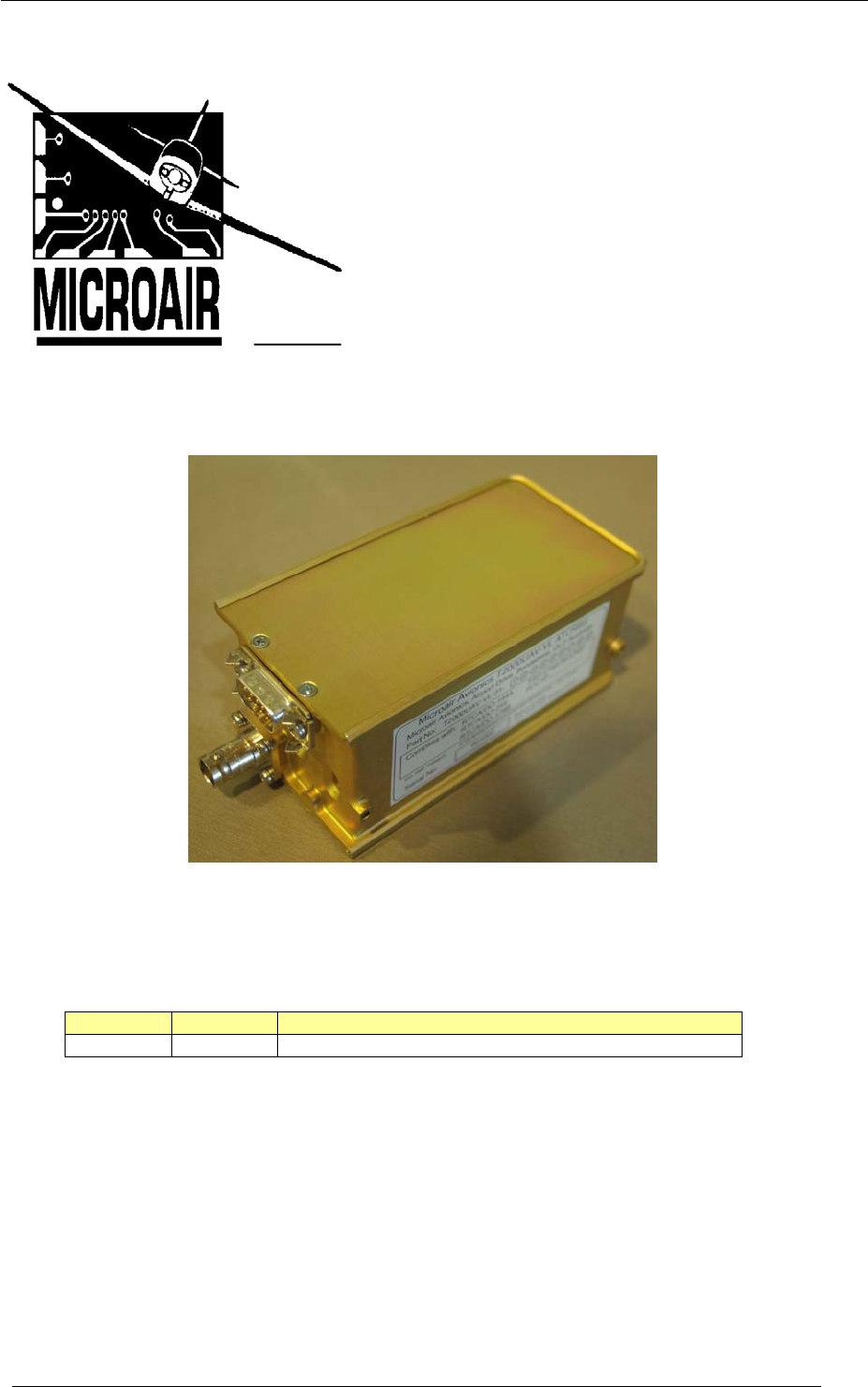

2.0 T2000UAV-VL DESCRIPTION
The UAV-L version of the T2000SFL has no display. The
chassis has been truncated by having the display housing
milled off. The front face is plated off and sealed.
A command set allows the UAV’s flight management
system to have full functional control over the transponder.
The RS-232 interface is accessed from the DB-25
connector on the rear face of the chassis.
The T2000UAV-VL receives all identity code and altitude
data over the RS-232 interface from the UAV’s flight
management system.
The T2000UAV-VL features external lines for suppression in and suppression out functions.
2.1 T2000UAV-VL ANTENNA OPTIONS

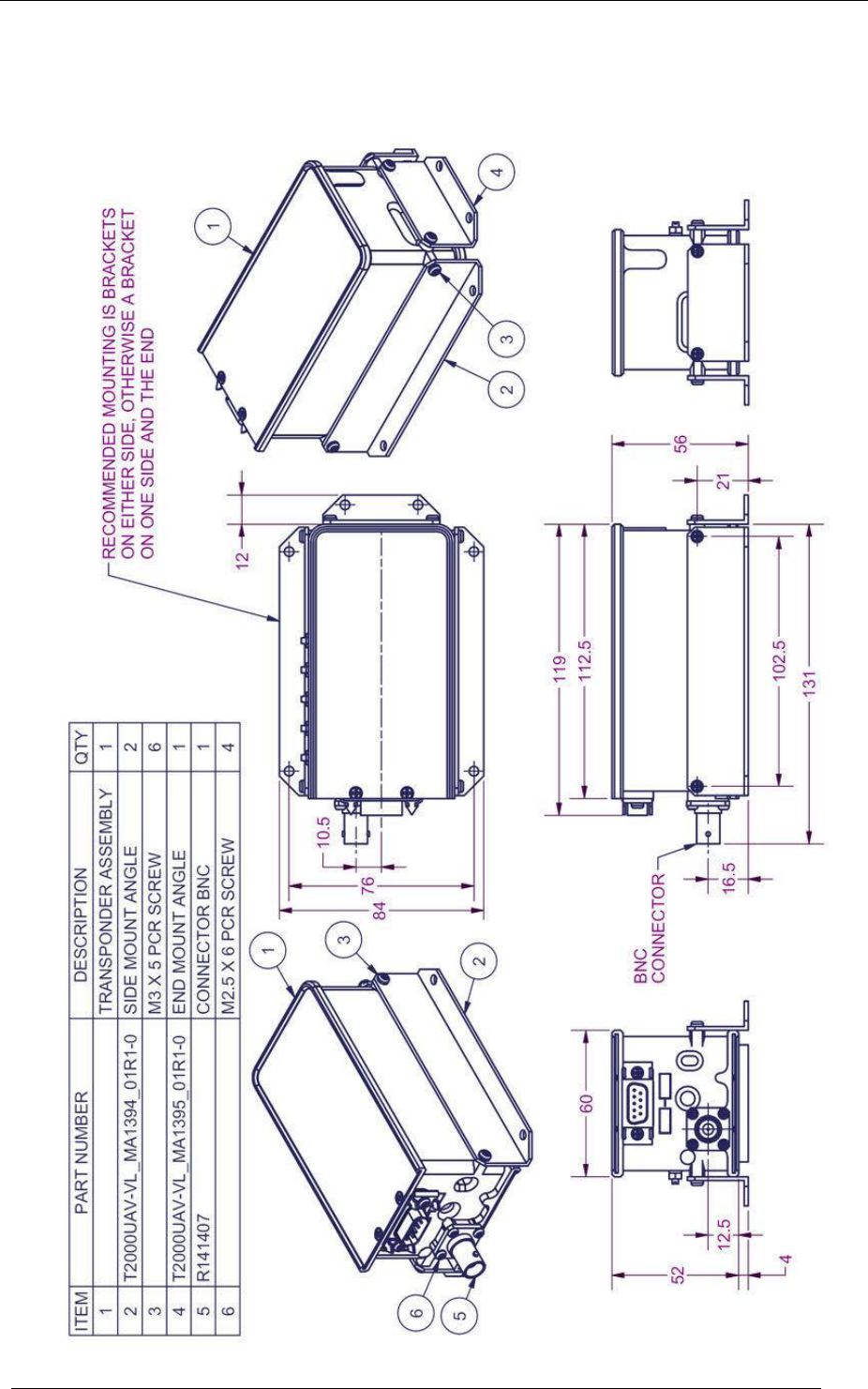

The T2000UAV-VL can be supplied with a standard BNC
connector located on the rear face of the chassis, adjacent to the
DB-25.
Part Number: T2000UAV-VL_01R1
Order Number: T2000UAV-VL_MA1358_01R1-0

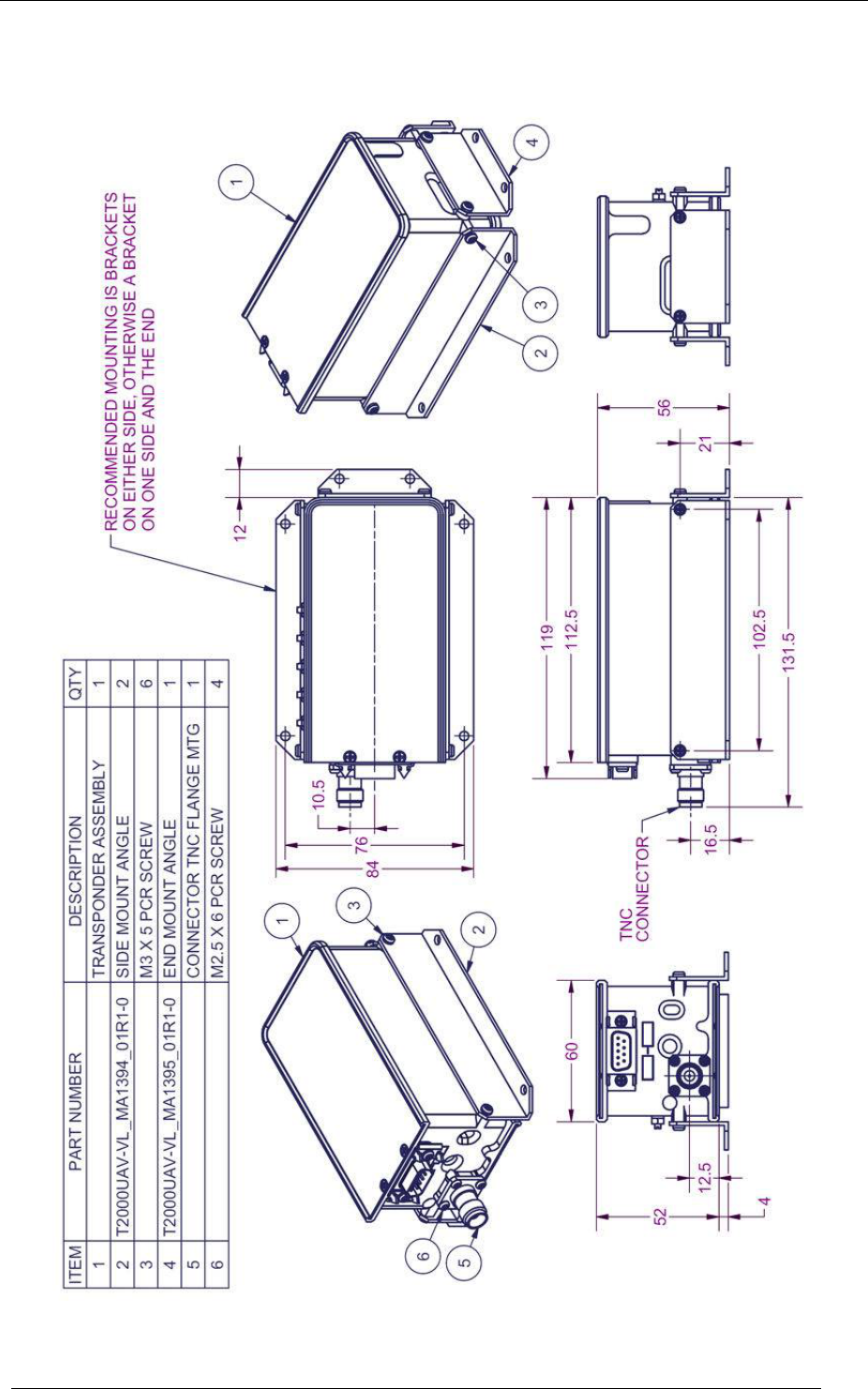

The T2000UAV-VL can be supplied with a standard TNC
connector located on the rear face of the chassis, adjacent to the
DB-25.
Part Number: T2000UAV-VL_01R1
Order Number: T2000UAV-VL_MA1359_01R1-0
Microair Avionics T2000UAV-VL Install and User Manual
T2000UAV-VL Installation and User Manual 01R1.doc Page 6 of 21 1st December 2010
3.0 SOFTWARE CONTROL
The T2000UAV-VL can be controlled by issuing of commands in the form of ASCII characters, sent and
received over an RS232 interface.
The command set can be used to either poll the transponder of the status of a parameter, or to command a
function to a particular setting.

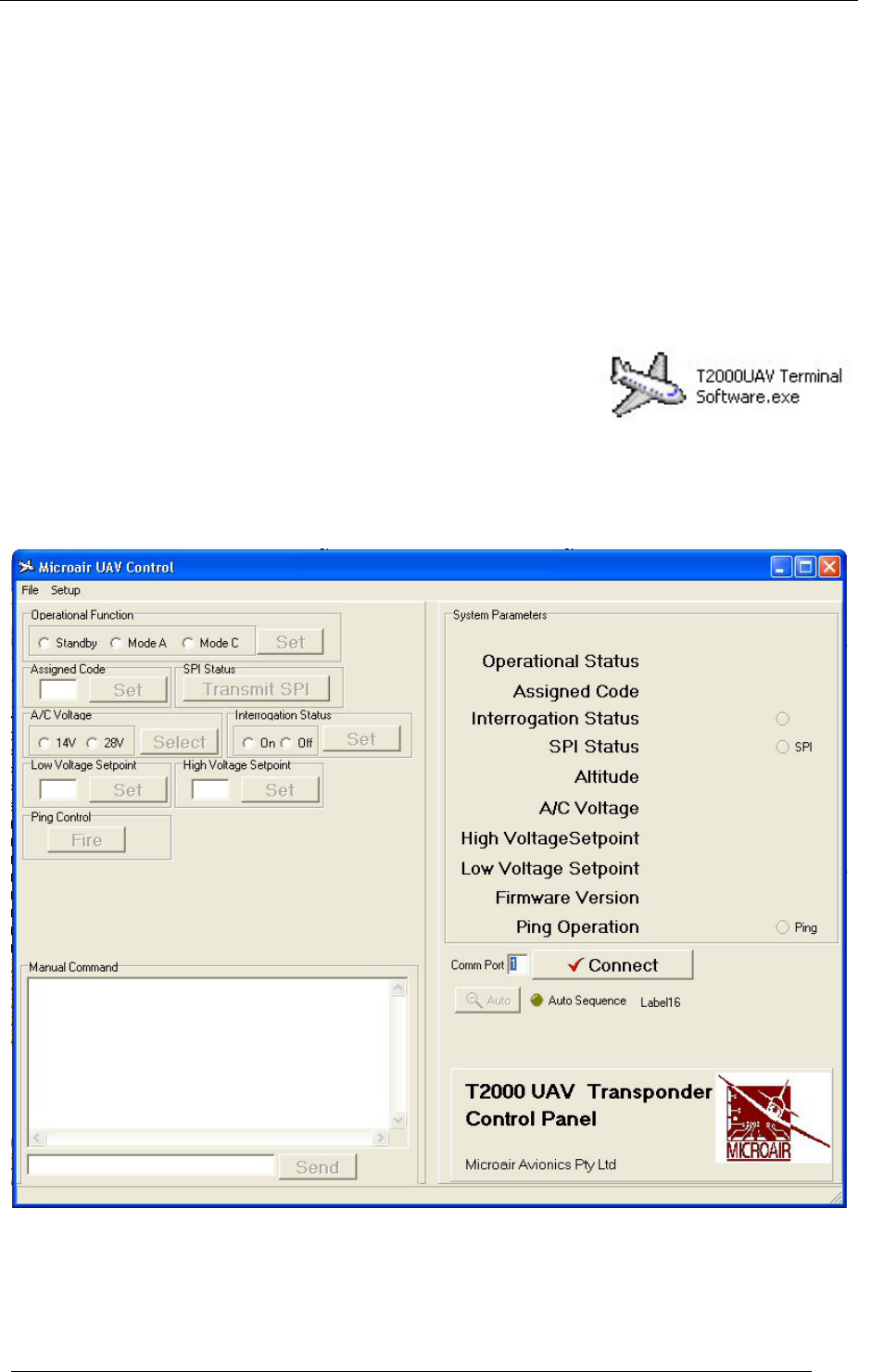

3.1 MICROAIR UAV TERMINAL SOFTWARE
The T2000UAV-VL is supplied with UAV Control software to which it is
capable of issuing all commands, and polling for all parameters. The terminal
software is a simple EXE file, and is compatible with windows 98 through to
windows XP operating systems.
The terminal software is capable of issuing all of the commands, to either poll for any of the parameters, or to set
any of the parameters to discrete values.
Microair Avionics T2000UAV-VL Install and User Manual
T2000UAV-VL Installation and User Manual 01R1.doc Page 7 of 21 1st December 2010
3.2 THE UAV COMMAND STRUCTURE
The T2000UAV-VL is controlled by a series of simple commands. The T2000UAV-VL can be commanded to
set a code, and to operate in a particular mode. Once the code is set, and the operating mode decided, the
T2000UAV-VL will operate until another command is received.
The status the T2000UAV-VL’s various operating parameters can be queried. A query command returns a value
for that particular parameter.
The operator can address the T2000UAV with a command from the command set, via an RS232 interface. The
command requires the correct syntax, to be valid.
The command string will consist of STXx=<command>ETX
Where STX is the non-printable ASCII character (02)
ETX is the non-printable ASCII character (03)
x is a valid command
<command> may be either ? or a string of ASCII characters, if the <command> is a ?, this will
evoke a response with the current status for that command
3.3 DATA SPEED
The RS232 interface for the T2000UAV-VL has a data rate of:
9600,N,8,1,P where 9600 = baud rate of 9600
8 = 8 data bits
1 = 1 stop bit
P = with XON / XOFF
Refer to section 10.0 for wiring details and pin assignments.
Microair Avionics T2000UAV-VL Install and User Manual
T2000UAV-VL Installation and User Manual 01R1.doc Page 8 of 21 1st December 2010
3.4 SERIAL DATA COMMAND SET
CMD Action Write String Response
a
Altitude
(Read/Write)
a=?
a=xxxxx where xxxxx=altitude in feet
a=#$*& where #$*&=altitude in feet
a=<current altitude data> eg 1234F
a=xxxxx (writes altitude data in feet to T2000UAV)
a=? (invalid altitude data)
c
Assigned Code
(Read/Write)
c=2212 (set code to 2212)
c=? (ask for assigned code)
c=2212 (code write successful)
c=<current assigned code>
d
Assign altitude source
(Read/Write)
d=g (set altitude source = Gillham)
d=s (set altitude source = Serial)
d=?
d=g (altitude source = Gillham)
d=s (altitude source = Serial)
d=<current altitude source setting>
e
Encoder power control
(Read/Write)
e=o (set encoder power always ON)
e=c (set encoder power mode C only)
e=?
e=o (Encoder power on in both mode A and C)
e=c (Encoder power on in mode C only)
e=<current encoder power state>
i
Ident
(Read/Write)
i=s (Squawk Ident)
i=? (ask for current ident status)
i=1 (1 = Ident active, 0 = Ident inactive)
i=<current Ident state>
p
Ping Function
p=?
p=y (yes – ping cycle was successful)
p=n (no – ping was not successful)
r
Reply Annunciator
r=y
r=n
r=?
* is sent if a reply was made in the last 3.6 seconds
no annunciation character is sent
r=<current reply annunciation state>
s Operational Status
(Read/Write)
s=t (command standby mode)
s=a (command Mode A operation)
s=c (command Mode C operation)
s=? (ask for current operational mode)
s=t (command successful, mode = standby)
s=a (command successful, mode = Mode 3A)
s=c (command successful, mode = Mode C)
s=<current operational mode>
v
Bus Voltage
(Read/Write)
v=1 (set bus voltage to 14V)
v=2 (set bus voltage to 28V)
v=13.6 (write successful, current voltage returned)
v=24.8 (write successful, current voltage returned)
z
Software Revision
z=?
z=<current software revision> eg T2000U xx-x.x.x
Microair Avionics T2000UAV-VL Install and User Manual
T2000UAV-VL Installation and User Manual 01R1.doc Page 9 of 21 1st December 2010
3.4.1 STANDBY (S=T)
To bring the T2000UAV-VL to the standby condition, the “s” parameter is set to value “t”. Then the transponder
can then be powered down. When the T2000UAV-VL is restarted, it will return in standby
The transponder should be commanded to the standby condition, when the vehicle is on the ground. The
transponder is typically set to mode 3A or mode 3A/C operation once airborne.
3.4.2 MODE 3A (S=A)
The T2000UAV-VL transponder will respond to all mode A interrogations with the identity code set by the “c”
parameter. The transponder will also reply to all mode C interrogations with just the framing pulse (no altitude
data). This ensures visibility to TCAS operators, while the transponder is operating in mode A.
3.4.3 MODE C (S=C)
The T2000UAV-VL will respond to all mode A interrogations with the identity code set by the “c” parameter,
and all mode C interrogations with the encoder’s altitude data, as defined by the “a” parameter. The transponder
will reply to both SSR and TCAS interrogations.
3.4.4 IDENT (I=S)
The ident function is performed at the request of ATC to “squawk ident”. To initiate the ident function the “i”
parameter is set to s. The T2000UAV-VL will switch to ident mode, which will add an additional data bit to the
outgoing replies. The additional data bit makes the transponder return on the ATC display flash to assist the
controller with identification. The transponder will remain in ident mode for 18 seconds, and then return to the
previous mode of operation.
3.4.5 ALTITUDE (A=?)
The T2000UAV-VL will reply with the current mode C value.
If the T2000UAV-VL is configured to operate with an altitude encoder the T2000UAV-VL will reply with the
current barometric altitude from the encoder.
If the T2000UAV-VL is configured to operate with a serial altitude data source, the T2000UAV-VL will reply
with the last received altitude data value.
3.4.6 ALTITUDE SOURCE (D=?)
The T2000UAV-VL can accept altitude data for the mode C response either from a Gillham (d=g for 10 line
parallel) source or from a serial (d=s for RS232) source.
When d=g is selected the T2000UAV-VL will look to the 10 line Gillham input for data from an altitude
encoder.
When d=s is selected the T2000UAV-VL will look for altitude data to be passed via the “a” command on the
RS232 serial data link. The altitude data source shall send the a=<altitude value> where the altitude value is
between -1000 and 62000 feet, in increments of 100 feet. The altitude data source should issue this data report to
the T2000UAV-VL no slower than 1Hz.
Where the altitude data cannot be detected from the assigned source or the data cannot be encoded, no altitude
data will be outputted. The mode C response will be framing pulses only. The T2000UAV-VL will question the
altitude data with a=?, via the RS232 serial interface.
Microair Avionics T2000UAV-VL Install and User Manual
T2000UAV-VL Installation and User Manual 01R1.doc Page 10 of 21 1st December 2010
3.4.7 ENCODER POWER (E=?)
When using an altitude encoder, it may be desirable to only have it powered up when the transponder is
operating in mode C. This may save power, as most encoders will typically draw 125 to 150mA when operating.
The operator should allow up to 7 minutes for the encoder to “warm up” before valid altitude data is outputted
from the encoder.
3.4.8 VOLTAGE (V=?)
The T2000UAV-VL will report the current vehicle bus voltage by polling the “v” parameter. To use this
function operator must first set the reference bus voltage by setting v=1 for 14V operation, or v=2 for 28V
operation.
3.4.9 REPLY ANNUNCIATOR (R=Y)
A conventional transponder normally has an annunciator of some type (typically a flashing LED) to indicate the
rate of reply to SSR interrogations. This indication represents whether the transponder has made a reply to a
“sweep”. The rotational speed of the radar is 100 deg/sec, hence the Annunciator should flash every 3.6 seconds.
The equivalent function for the T2000UAV-VL is the “r” command which activates the reply annunciator. When
activated (r=y), the T2000UAV-VL will send a single * character, if there was a reply made in the preceding 3.6
seconds. When not activated (r=n), no character is sent.
The operator can query the status of the reply annunciator function (r=?), and the T2000UAV-VL will reply with
the current function state.
3.4.10 PING FUNCTION (P=?)
The ping function is a self test of the RF sections of the transponder, without the need for a transponder test set.
The T2000UAV-VL will respond to the “ping” command (p=?) by emitting a narrow (invalid) pulse from the
transmitter, and detecting the same pulse back through the receiver.
If the T2000UAV-VL is able to complete the transmission cycle, p=y is returned to the operator.
If the T2000UAV-VL is not able to complete the transmission cycle, p=n is returned to the operator.
The ping function will only operate if the transponder is in mode a or c.
The ping function will not operate while the transponder is in standby
mode.
Microair Avionics T2000UAV-VL Install and User Manual
T2000UAV-VL Installation and User Manual 01R1.doc Page 11 of 21 1st December 2010
4.0 T2000UAV-VL MOUNTING BRACKETS
Microair recommends simple mounting brackets to secure the T2000UAV-VL transponder. The chassis features
several M3 threaded holes to facilitate mounting.
Never use the chassis lid screws as part of the mounting system for the
transponder. Always locate the strap over the chassis at a point which
remains clear of the filter lock nuts.
Part Numbers: T2000UAV-VL_MA1394_01R1-0
T2000UAV-VL_MA1395_01R1-0
Microair Avionics T2000UAV-VL Install and User Manual
T2000UAV-VL Installation and User Manual 01R1.doc Page 12 of 21 1st December 2010
5.0 MODE C ENCODER
Use of a mode C altitude encoder is only possible where the output of the encoder (either Gillham or serial data)
is directed through the UAV’s flight management system, and included in the control/data serial data interface
from the UAV to the T2000UAV-VL.
6.0 ANTENNA
Mount the transponder antenna as per the manufacturer’s installation instructions. Try and keep the cable runs as
short as possible. In a composite airframe a suitable ground plane will be required. Avoid mounting the antenna
inside a fuselage that is all metal or carbon fibre.
For fiberglass fuselages the antenna may be mounted internally, but must still point downwards and have an
adequate ground plane. Alternatively an approved dipole strip antenna may be used. The dipole strip must be
installed in accordance with the manufacturer’s instructions.
To avoid possible interference the antenna must be mounted a minimum of 200mm (8 inches) from the
T2000UAV-VL main unit. The transponder antenna should be mounted 2metres (78 inches) from the DME
antenna, 1.5 metres (58 inches) from the ADF sense antenna, and 1metre (39 inches) from TCAS antennas.
Microair Avionics T2000UAV-VL Install and User Manual
T2000UAV-VL Installation and User Manual 01R1.doc Page 13 of 21 1st December 2010
7.0 COAXIAL CABLE
The T2000UAV-VL allows for 1.5dB cable loss from the unit to the antenna. The installer should consider
carefully what type of coaxial cable is to be used, so that this loss limit is not exceeded. The cable should be
terminated with silver plated BNC connectors where possible.
Microair recommends the following:
Cable Bending Radius Loss @ 1Ghz
dB/m Max Length TX Power RX Sensitivity
RG58/C/U
(Mil Spec) 50mm
(2”) 0.76dB/m
0.21dB/ft 2.0m
7ft 142W -70dBm
RG213/A/U
(Mil Spec) 125mm
(5”) 0.26dB/m
0.08dB/ft 5.75m
19ft 142W -70dBm
RG223/U
(Mil Spec) 100mm
(4”) 0.47dB/m
0.14dB/ft 3.2m
10ft 142W -70dBm
RG400
(Mil Spec) 50mm
(2”) 0.60dB/m
0.18dB/ft 2.5m
8ft 142W -70dBm
Belden 8262 50mm
(2”) 0.68dB/m
0.21dB/ft 2.2m
7ft 142W -70dBm
URM-43 50mm
(2”) 0.47dB/m
0.14dB/ft 3.2m
10ft 142W -70dBm
The loss figures in this table are a guideline only. When installed the power output at the antenna shall be
greater than 125W and receiver sensitivity shall be better than -69dBm, to be compliant with RTCA/DO-144A.
IMPORTANT NOTE
Do not exceed the minimum bending radius. Tight bends will introduce
losses in the cable, which may affect the performance of the transponder.
When fixing the coax cable in the airframe, do not “strangle” the cable
with tight cable ties. This can distort or damage the coax screen.
Microair Avionics T2000UAV-VL Install and User Manual
T2000UAV-VL Installation and User Manual 01R1.doc Page 14 of 21 1st December 2010
8.0 WIRING
The T2000UAV-VL Transponder receives primary power (14V or 28V dc) from the aircraft’s power source.
Power connections, voltage, and circuit breaker requirements are shown on the wiring diagram. The length of
the power supply wires to parallel pins should be approximately the same length, so that the best distribution of
current can be effected.
It is very important to secure all D series plugs before operation. Aircraft vibration may disconnect a D series
plug if it not secured.
Where possible, the antenna coaxial cable should be run separately to all other wiring on the aircraft from the
transponder.
8.1 CABLING
Microair recommends that wiring for all of the T2000UAV-VL’s functions and connections be run at the time of
installation, even though they may not be required at this stage. Adding additional wiring to the loom at a later
stage may be very difficult.
All wiring should be installed in accordance with FAA AC43.13-1A Chapter 11 or equivalent.
Microair recommends the following cable types for connection of the T2000UAV-VL:
Power Input 18 AWG TEFZEL 22759/16-16 Red and Black Wire
External Connections 22 AWG TEFZEL 22759/16-22 Wire or
22 AWG TEFZEL 27500-22TG1T14 Single core shielded
When terminating the DB plugs for connection to the T2000UAV-VL, ensure that the wires are securely
soldered to the pins, and that each wire is separately insulated with heatshrink tubing.
The DB-9 plug is secured to the T2000UAV-VL with a slide latch backshell kit supplied with the transponder.
Microair Avionics T2000UAV-VL Install and User Manual
T2000UAV-VL Installation and User Manual 01R1.doc Page 15 of 21 1st December 2010
8.2 POWER ON/OFF
The T2000UAV-VL has no ON/OFF control function. The unit is on from the moment power is applied to the
unit. There is no software OFF command. When power is removed from the T2000UAV-VL, it will not respond
to any software command.
When the T2000UAV-VL is turned on, it is always in standby mode. The mode A code will default to the last
mode A code used.
IMPORTANT NOTE
Always bring the T2000UAV-VL to standby before turning off the power.
If the transponder is powered off while it is in the process of transmitting,
damage may occur to the internal power supply and/or the transmitter.
Damage of this type is not covered by the warranty.
No mode C code will be outputted until the T2000UAV-VL is supplied with altitude data (either serial or
Gillham) which can be encoded by the transponder.
The T2000UAV-VL shares the same software with the T2000UAV-L transponder, which is able to receive
altitude data from an altitude encoder’s Gillham interface. For the T2000UAV-VL it is important to set the
altitude data source command to d=s for serial altitude input. The default value is always d=g (Gillham).
8.3 SUPPRESSION IN / OUT
The suppression IN line is wired to other avionics such as DME, to “suppress” the transponder’s transmissions,
at times critical to the other equipment’s operation. The T2000UAV-VL will go into suppression (no
transmissions) when the suppression line is above 5Vdc. The maximum voltage for the suppression IN line is
20Vdc. The T2000UAV-VL will NOT be in suppression (normal operation) while the suppression IN line is
below 5Vdc.
The suppression OUT line does the reverse of the IN line. It is wired to other avionic equipment to allow the
T2000UAV-VL to “suppress” their transmissions at times critical to the T2000UAV-VL’s operation. When the
T2000UAV-VL is transmitting, the suppression OUT line is raised to 5Vdc. When the T2000UAV-VL is NOT
transmitting the suppression OUT line is held at 0Vdc.
Microair Avionics T2000UAV-VL Install and User Manual
T2000UAV-VL Installation and User Manual 01R1.doc Page 16 of 21 1st December 2010
9.0 TECHNICAL DRAWINGS
Microair Avionics T2000UAV-VL Install and User Manual
T2000UAV-VL Installation and User Manual 01R1.doc Page 17 of 21 1st December 2010
Microair Avionics T2000UAV-VL Install and User Manual
T2000UAV-VL Installation and User Manual 01R1.doc Page 18 of 21 1st December 2010
10.0 WIRING DIAGRAMS
Microair Avionics T2000UAV-VL Install and User Manual
T2000UAV-VL Installation and User Manual 01R1.doc Page 19 of 21 1st December 2010

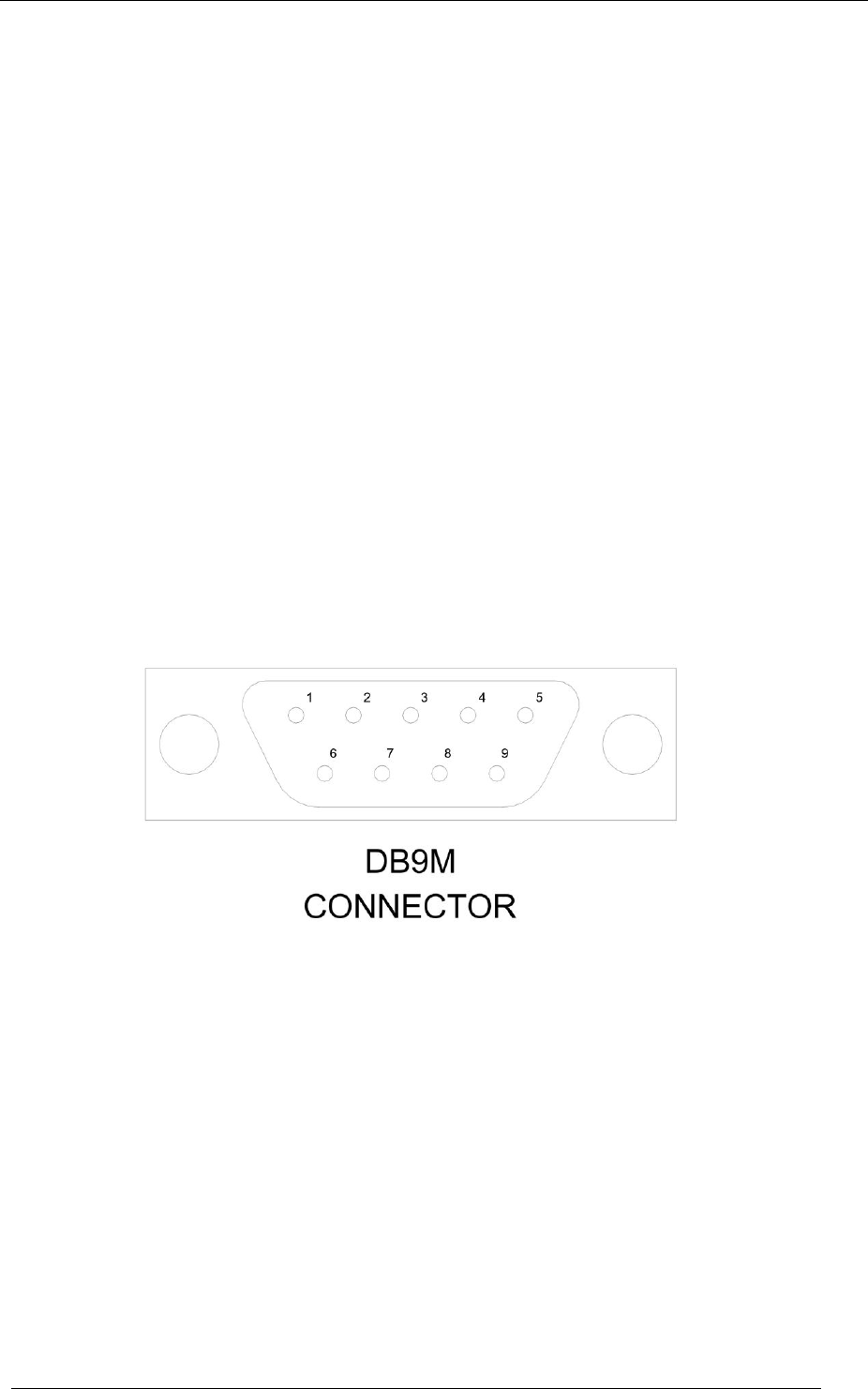

11.0 PIN ASSIGNMENTS
PIN 1 DATA GROUND
PIN 2 RS232 TX
PIN 3 RS232 RX
PIN 4 POWER IN (10-33Vdc)
PIN 5 GROUND
PIN 6 SUPPRESSION IN
PIN 7 NOT WIRED
PIN 8 NOT WIRED
PIN 9 SUPPRESSION OUT
Microair Avionics T2000UAV-VL Install and User Manual
T2000UAV-VL Installation and User Manual 01R1.doc Page 20 of 21 1st December 2010
12.0 SPECIFICATIONS
RTCA Compliance DO-144A
DO-160F
DO-178B Level C
DO-254 Level C
Transmitter 1090MHz +/-0.2MHz
200W Pulse Output
80nS Rise Time
120nS Fall Time
Receiver -15 to –71dBm Dynamic Range
1030MHz Centre Frequency
+/-5MHz Pass band @ -3dB
Input Power 10-33Vdc
100-150mA @ 28V
150-200mA @ 14V
Operational Modes Standby
Mode 3A (4096 codes)
Mode 3A/C
Temperature -20° C to +55°C
Dimensions Width 61mm
Height 56mm
Length 131mm
Weight 320 g (10 oz)
Specifications are subject to change without notice.
T2000UAV-VL Installation and User Manual 01R1.doc Page 21 of 21 24th April, 2009
13.0 LIMITED WARRANTY
