42079C-MCU-05/2013USER GUIDEAtmel ATMEGA256RFR2 Xplained ProPrefaceThe Atmel® ATMEGA256RFR2 Xplained Pro evaluation kit is hardware platformto evaluate the ATmega256RFR2 microcontroller.Supported by the Atmel Studio integrated development platform, the kit provideseasy access to the features of the Atmel ATmega256RFR2 and explains how tointegrate the device in a customer design.The Xplained Pro MCU series evaluation kits include an on-board EmbeddedDebugger, and no external tools are necessary to program or debug theATmega256RFR2.The Xplained Pro extension series evaluation kits offers additional peripherals toextend the features of the board and ease the development of customer designs.
Atmel ATMEGA256RFR2 Xplained Pro [USER GUIDE]42079C-MCU-05/20132Table of ContentsPreface .......................................................................................... 11. Introduction .............................................................................. 31.1. Features .............................................................................. 31.2. Kit overview ......................................................................... 32. Getting started ......................................................................... 52.1. Quick-start ........................................................................... 52.2. Connecting the kit ................................................................. 52.3. Design documentation and related links ..................................... 53. Xplained Pro ............................................................................ 63.1. Embedded Debugger ............................................................. 63.2. Hardware identification system ................................................. 63.3. Power supply ....................................................................... 73.3.1. Measuring ATmega256RFR2 power consumption ............ 73.4. Standard headers and connectors ............................................ 73.4.1. Xplained Pro extension header .................................... 73.4.2. Power header ........................................................... 84. Hardware user guide .............................................................. 94.1. Connectors .......................................................................... 94.1.1. I/O extension headers ................................................ 94.1.2. Other headers ........................................................ 124.2. Peripherals ......................................................................... 134.2.1. Crystals ................................................................. 134.2.2. Mechanical buttons .................................................. 134.2.3. LED ...................................................................... 134.2.4. RF ........................................................................ 134.2.5. Temperature sensor ................................................. 144.3. Embedded Debugger implementation ...................................... 144.3.1. JTAG ..................................................................... 144.3.2. Virtual COM port ..................................................... 154.3.3. Atmel Data Gateway Interface ................................... 155. Agency Certification .............................................................. 165.1. UNITED STATES (FCC) ....................................................... 165.2. European Union (ETSI) ........................................................ 165.3. List of Antennae tested with this product: ................................. 176. Hardware revision history and known issues ........................ 186.1. Identifying product ID and revision .......................................... 186.2. Revision 3 .......................................................................... 187. Document revision history ..................................................... 198. Evaluation board/kit important notice .................................... 20
Atmel ATMEGA256RFR2 Xplained Pro [USER GUIDE]42079C-MCU-05/201331. Introduction1.1 Features●Atmel® ATmega256RFR2 microcontroller●Embedded Debugger (EDBG)●USB interface●Programming and debugging (target) through JTAG●Virtual COM-port interface to target via UART●Atmel Data Gateway Interface (DGI) to target via SPI or TWI●Four GPIOs connected to target for code instrumentation●Digital I/O●Two mechanical buttons (user and reset button)●One user LED●Five extension headers●Antenna●One ceramic chip antenna (2450BM15A0015E)●One SMA connector for external antenna●Temperature sensor and EEPROM (AT30TSE758)●Two possible power sources●External power●Embedded debugger USB●16MHz crystal●32kHz crystal1.2 Kit overviewThe Atmel ATMEGA256RFR2 Xplained Pro evaluation kit is a hardware platform to evaluate the AtmelATmega256RFR2.The kit offers a set of features that enables the ATmega256RFR2 user to get started using theATmega256RFR2 peripherals right away and to get an understanding of how to integrate the device in theirown design.

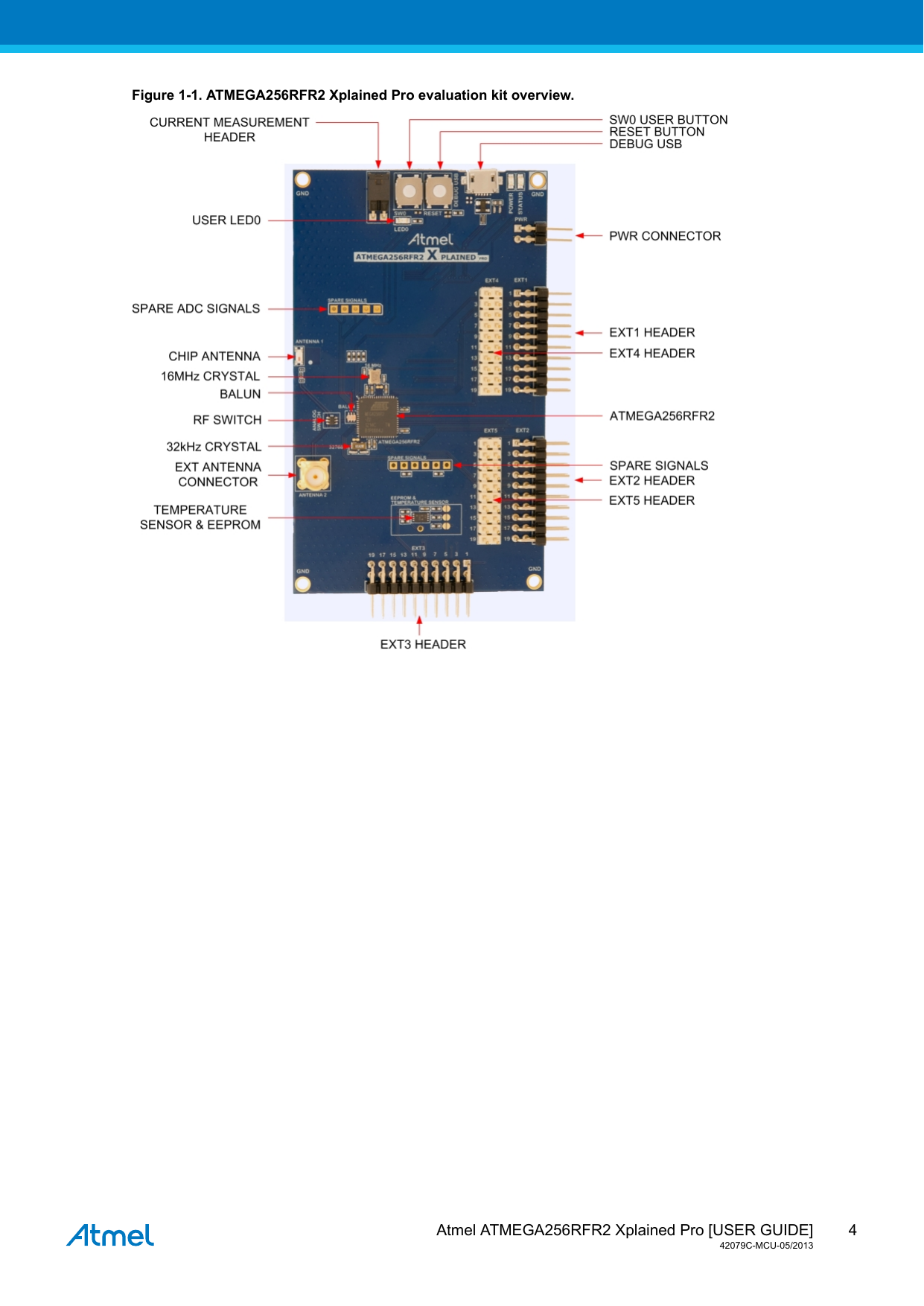

Atmel ATMEGA256RFR2 Xplained Pro [USER GUIDE]42079C-MCU-05/20134Figure 1-1. ATMEGA256RFR2 Xplained Pro evaluation kit overview.

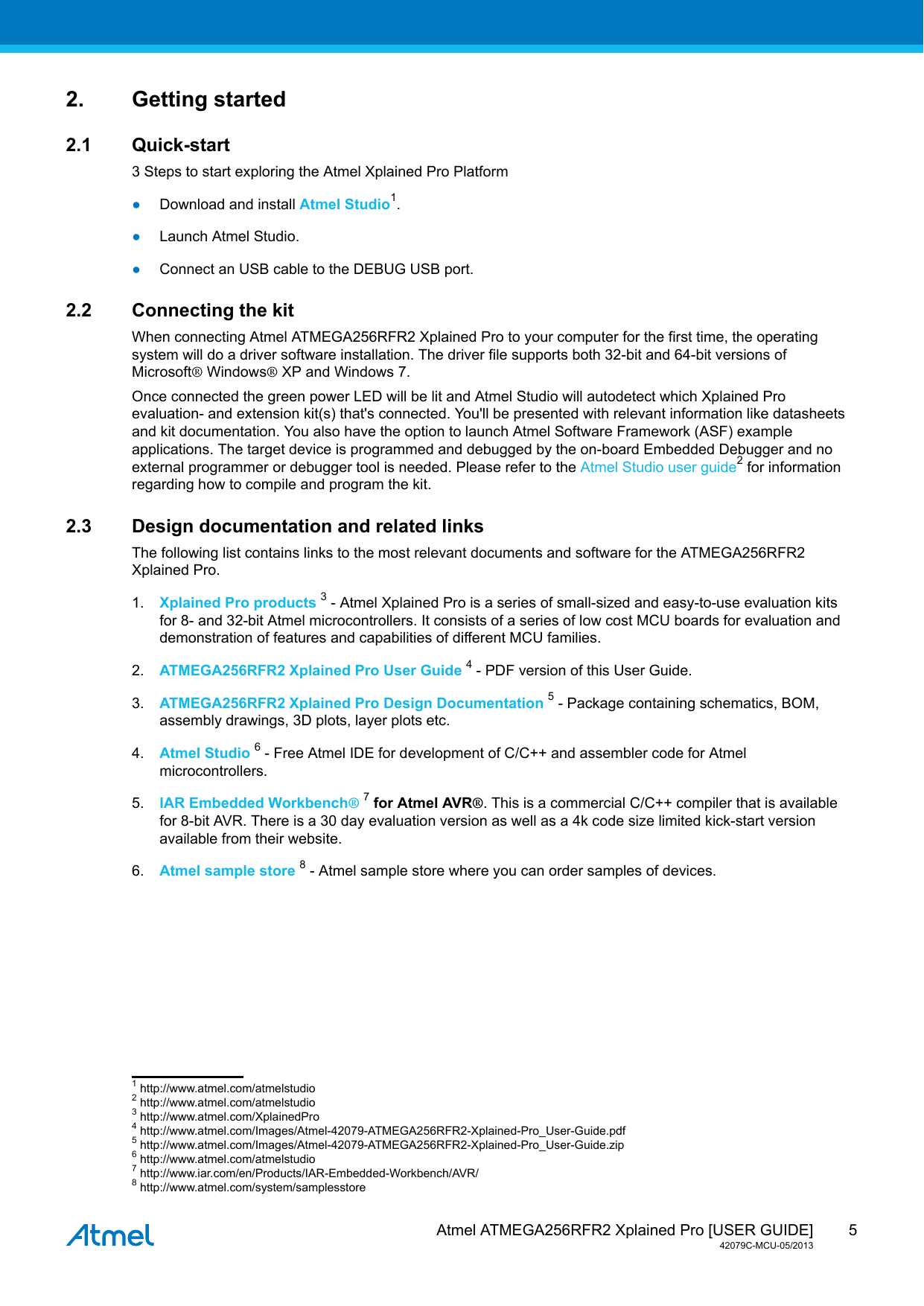

Atmel ATMEGA256RFR2 Xplained Pro [USER GUIDE]42079C-MCU-05/201352. Getting started2.1 Quick-start3 Steps to start exploring the Atmel Xplained Pro Platform●Download and install Atmel Studio1.●Launch Atmel Studio.●Connect an USB cable to the DEBUG USB port.2.2 Connecting the kitWhen connecting Atmel ATMEGA256RFR2 Xplained Pro to your computer for the first time, the operatingsystem will do a driver software installation. The driver file supports both 32-bit and 64-bit versions ofMicrosoft® Windows® XP and Windows 7.Once connected the green power LED will be lit and Atmel Studio will autodetect which Xplained Proevaluation- and extension kit(s) that's connected. You'll be presented with relevant information like datasheetsand kit documentation. You also have the option to launch Atmel Software Framework (ASF) exampleapplications. The target device is programmed and debugged by the on-board Embedded Debugger and noexternal programmer or debugger tool is needed. Please refer to the Atmel Studio user guide2 for informationregarding how to compile and program the kit.2.3 Design documentation and related linksThe following list contains links to the most relevant documents and software for the ATMEGA256RFR2Xplained Pro.1. Xplained Pro products 3 - Atmel Xplained Pro is a series of small-sized and easy-to-use evaluation kitsfor 8- and 32-bit Atmel microcontrollers. It consists of a series of low cost MCU boards for evaluation anddemonstration of features and capabilities of different MCU families.2. ATMEGA256RFR2 Xplained Pro User Guide 4 - PDF version of this User Guide.3. ATMEGA256RFR2 Xplained Pro Design Documentation 5 - Package containing schematics, BOM,assembly drawings, 3D plots, layer plots etc.4. Atmel Studio 6 - Free Atmel IDE for development of C/C++ and assembler code for Atmelmicrocontrollers.5. IAR Embedded Workbench® 7 for Atmel AVR®. This is a commercial C/C++ compiler that is availablefor 8-bit AVR. There is a 30 day evaluation version as well as a 4k code size limited kick-start versionavailable from their website.6. Atmel sample store 8 - Atmel sample store where you can order samples of devices.1 http://www.atmel.com/atmelstudio2 http://www.atmel.com/atmelstudio3 http://www.atmel.com/XplainedPro4 http://www.atmel.com/Images/Atmel-42079-ATMEGA256RFR2-Xplained-Pro_User-Guide.pdf5 http://www.atmel.com/Images/Atmel-42079-ATMEGA256RFR2-Xplained-Pro_User-Guide.zip6 http://www.atmel.com/atmelstudio7 http://www.iar.com/en/Products/IAR-Embedded-Workbench/AVR/8 http://www.atmel.com/system/samplesstore
Atmel ATMEGA256RFR2 Xplained Pro [USER GUIDE]42079C-MCU-05/201363. Xplained ProXplained Pro is an evaluation platform that provides the full Atmel microcontroller experience. The platformconsists of a series of Microcontroller (MCU) boards and extension boards that are integrated with AtmelStudio, have Atmel Software Framework (ASF) drivers and demo code, support data streaming and more.Xplained Pro MCU boards support a wide range of Xplained Pro extension boards that are connected througha set of standardized headers and connectors. Each extension board has an identification (ID) chip to uniquelyidentify which boards are mounted on a Xplained Pro MCU board. This information is used to present relevantuser guides, application notes, datasheets and example code through Atmel Studio. Available Xplained ProMCU and extension boards can be purchased in the Atmel Web Store1.3.1 Embedded DebuggerThe ATMEGA256RFR2 Xplained Pro contains the Atmel® Embedded Debugger (EDBG) for on-boarddebugging. The EDBG is a composite USB device of 3 interfaces; a debugger, Virtual COM Port and DataGateway Interface (DGI).In conjunction with Atmel Studio, the EDBG debugger interface can program and debug the ATmega256RFR2.On the ATMEGA256RFR2 Xplained Pro, the JTAG interface is connected between the EDBG and theATmega256RFR2.The Virtual COM Port is connected to a UART port on the ATmega256RFR2 (see section “EmbeddedDebugger implementation” on page 14 for pinout), and provides an easy way to communicate with the targetapplication through a simple terminal software. It offers variable baud rate, parity and stop bit settings. Notethat the settings on the target device UART must match the settings given in the terminal software.The DGI consists of several physical data interfaces for communication with the host computer. Please,see section “Embedded Debugger implementation” on page 14 for available interfaces and pinout.Communication over the interfaces are bidirectional. It can be used to send events and values from theATmega256RFR2, or as a generic printf-style data channel. Traffic over the interfaces can be timestampedon the EDBG for more accurate tracing of events. Note that timestamping imposes an overhead that reducesmaximal throughput. The DGI uses a proprietary protocol, and is thus only compatible with Atmel Studio.The EDBG controls two LEDs on ATMEGA256RFR2 Xplained Pro, a power LED and a status LED. Table 3-1,“EDBG LED control” shows how the LEDs are controlled in different operation modes.Table 3-1. EDBG LED controlOperation mode Power LED Status LEDNormal operation Power LED is lit when power isapplied to the board.Activity indicator, LED flashesevery time something happens onthe EDBG.Bootloader mode (idle) The power LED and the status LED blinks simultaneously.Bootloader mode (firmwareupgrade)The power LED and the status LED blinks in an alternating pattern.For further documentation on the EDBG, see the EDBG User Guide.3.2 Hardware identification systemAll Xplained Pro compatible extension boards have an Atmel ATSHA204 crypto authentication chip mounted.This chip contains information that identifies the extension with its name and some extra data. When anXplained Pro extension board is connected to an Xplained Pro MCU board the information is read and sentto Atmel Studio. The Atmel Kits extension, installed with Atmel Studio, will give relevant information, codeexamples and links to relevant documents. Table 3-2, “Xplained Pro ID chip content” shows the data fieldsstored in the ID chip with example content.Table 3-2. Xplained Pro ID chip contentData Field Data Type Example ContentManufacturer ASCII string Atmel’\0’Product Name ASCII string Segment LCD1 Xplained Pro’\0’Product Revision ASCII string 02’\0’1 http://store.atmel.com/

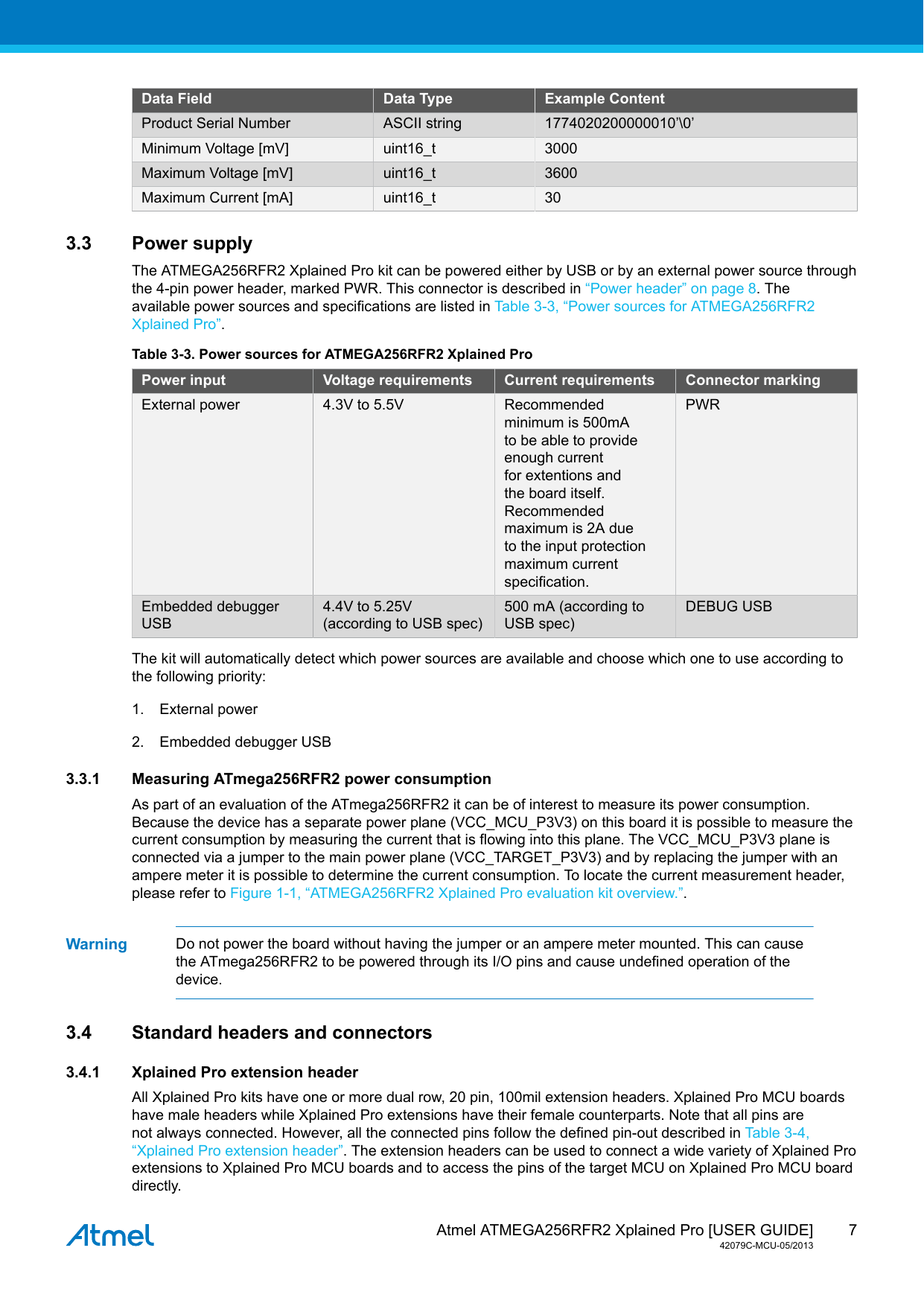

Atmel ATMEGA256RFR2 Xplained Pro [USER GUIDE]42079C-MCU-05/20137Data Field Data Type Example ContentProduct Serial Number ASCII string 1774020200000010’\0’Minimum Voltage [mV] uint16_t 3000Maximum Voltage [mV] uint16_t 3600Maximum Current [mA] uint16_t 303.3 Power supplyThe ATMEGA256RFR2 Xplained Pro kit can be powered either by USB or by an external power source throughthe 4-pin power header, marked PWR. This connector is described in “Power header” on page 8. Theavailable power sources and specifications are listed in Table 3-3, “Power sources for ATMEGA256RFR2Xplained Pro”.Table 3-3. Power sources for ATMEGA256RFR2 Xplained ProPower input Voltage requirements Current requirements Connector markingExternal power 4.3V to 5.5V Recommendedminimum is 500mAto be able to provideenough currentfor extentions andthe board itself.Recommendedmaximum is 2A dueto the input protectionmaximum currentspecification.PWREmbedded debuggerUSB4.4V to 5.25V(according to USB spec)500 mA (according toUSB spec)DEBUG USBThe kit will automatically detect which power sources are available and choose which one to use according tothe following priority:1. External power2. Embedded debugger USB3.3.1 Measuring ATmega256RFR2 power consumptionAs part of an evaluation of the ATmega256RFR2 it can be of interest to measure its power consumption.Because the device has a separate power plane (VCC_MCU_P3V3) on this board it is possible to measure thecurrent consumption by measuring the current that is flowing into this plane. The VCC_MCU_P3V3 plane isconnected via a jumper to the main power plane (VCC_TARGET_P3V3) and by replacing the jumper with anampere meter it is possible to determine the current consumption. To locate the current measurement header,please refer to Figure 1-1, “ATMEGA256RFR2 Xplained Pro evaluation kit overview.”.Warning Do not power the board without having the jumper or an ampere meter mounted. This can causethe ATmega256RFR2 to be powered through its I/O pins and cause undefined operation of thedevice.3.4 Standard headers and connectors3.4.1 Xplained Pro extension headerAll Xplained Pro kits have one or more dual row, 20 pin, 100mil extension headers. Xplained Pro MCU boardshave male headers while Xplained Pro extensions have their female counterparts. Note that all pins arenot always connected. However, all the connected pins follow the defined pin-out described in Table 3-4,“Xplained Pro extension header”. The extension headers can be used to connect a wide variety of Xplained Proextensions to Xplained Pro MCU boards and to access the pins of the target MCU on Xplained Pro MCU boarddirectly.
Atmel ATMEGA256RFR2 Xplained Pro [USER GUIDE]42079C-MCU-05/20138Table 3-4. Xplained Pro extension headerPin number Name Description1 ID Communication line to the ID chip on extension board.2 GND Ground3 ADC(+) Analog to digital converter , alternatively positive part of differentialADC4 ADC(-) Analog to digital converter , alternatively negative part ofdifferential ADC5 GPIO1 General purpose IO6 GPIO2 General purpose IO7 PWM(+) Pulse width modulation , alternatively positive part of differentialPWM8 PWM(-) Pulse width modulation , alternatively positive part of differentialPWM9 IRQ/GPIO Interrupt request line and/or general purpose IO.10 SPI_SS_B/GPIO Slave select for SPI and/or general purpose IO.11 TWI_SDA Data line for two wire interface. Always implemented, bus type.12 TWI_SCL Clock line for two wire interface. Always implemented, bus type.13 USART_RX Receiver line of Universal Synchronous and Asynchronous serialReceiver and Transmitter14 USART_TX Transmitter line of Universal Synchronous and Asynchronousserial Receiver and Transmitter15 SPI_SS_A Slave select for SPI. Should be unique if possible.16 SPI_MOSI Master out slave in line of Serial peripheral interface. Alwaysimplemented, bus type17 SPI_MISO Master in slave out line of Serial peripheral interface. Alwaysimplemented, bus type18 SPI_SCK Clock for Serial peripheral interface. Always implemented, bustype19 GND Ground20 VCC Power for extension board3.4.2 Power headerThe power header can be used to connect external power to the ATMEGA256RFR2 Xplained Pro kit. Thekit will automatically detect and switch to the external power if supplied. The power header can also be usedas supply for external peripherals or extension boards. Care must be taken not to exceed the total currentlimitation of the on-board regulator for the 3.3V regulated output. To locate the current measurement header,please refer to Figure 1-1, “ATMEGA256RFR2 Xplained Pro evaluation kit overview.”Table 3-5. Power header PWRPin number PWR header Pin name Description1 VEXT_P5V0 External 5V input2 GND Ground3 VCC_P5V0 Unregulated 5V (output, derivedfrom one of the input sources)4 VCC_P3V3 Regulated 3.3V (output, used asmain power for the kit)Note If the board is powered from a battery source it is recommended to use the PWR header. If thereis a power source connected to EDBG USB, the EDBG is activated and it will consume morepower.
Atmel ATMEGA256RFR2 Xplained Pro [USER GUIDE]42079C-MCU-05/201394. Hardware user guide4.1 ConnectorsThis chapter describes the implementation of the relevant connectors and headers on ATMEGA256RFR2Xplained Pro and their connection to the ATmega256RFR2. The tables of connections in this chapter alsodescribes which signals are shared between the headers and on-board functionality.4.1.1 I/O extension headersThe ATMEGA256RFR2 Xplained Pro headers EXT1, EXT2, EXT3, EXT4 and EXT5 offers access to the I/Oof the microcontroller in order to expand the board e.g. by connecting extension modules to the board. Theseheaders all comply with the standard extension header specified in Xplained Pro Standard Extension Header.All headers have a pitch of 2.54 mm.Table 4-1. Extension header EXT1Pin on EXT1 ATmega256RFR2 pin Function Shared functionality1 Communication line toID chip on extensionboard. 2 GND 3 PF0 ADC0 4 PF1 ADC1 5 PE2 GPIO 6 PE3 GPIO 7 PB5 OC1A EXT4 header.8 PB6 OC1B 9 PE5 GPIO / INT5 EXT4 header.10 PD5 GPIO / SPI chip select B EXT4 header.11 PD1 TWI SDA All EXT headers.12 PD0 TWI SCL All EXT headers.13 PE0 UART0 RXD All EXT headers.EXT2, EXT3 and EXT5connected through cut-strap.14 PE1 UART0 TXD All EXT headers.EXT2, EXT3 and EXT5connected through cut-strap.15 PG0 GPIO / SPI chip select A EXT4 header.16 PB2 SPI MOSI All EXT headers.17 PB3 SPI MISO All EXT headers.18 PB1 SPI SCK All EXT headers.19 GND 20 VCC Table 4-2. Extension header EXT2Pin on EXT2 ATmega256RFR2 pin Function Shared functionality1 Communication line toID chip on extensionboard. 2 GND

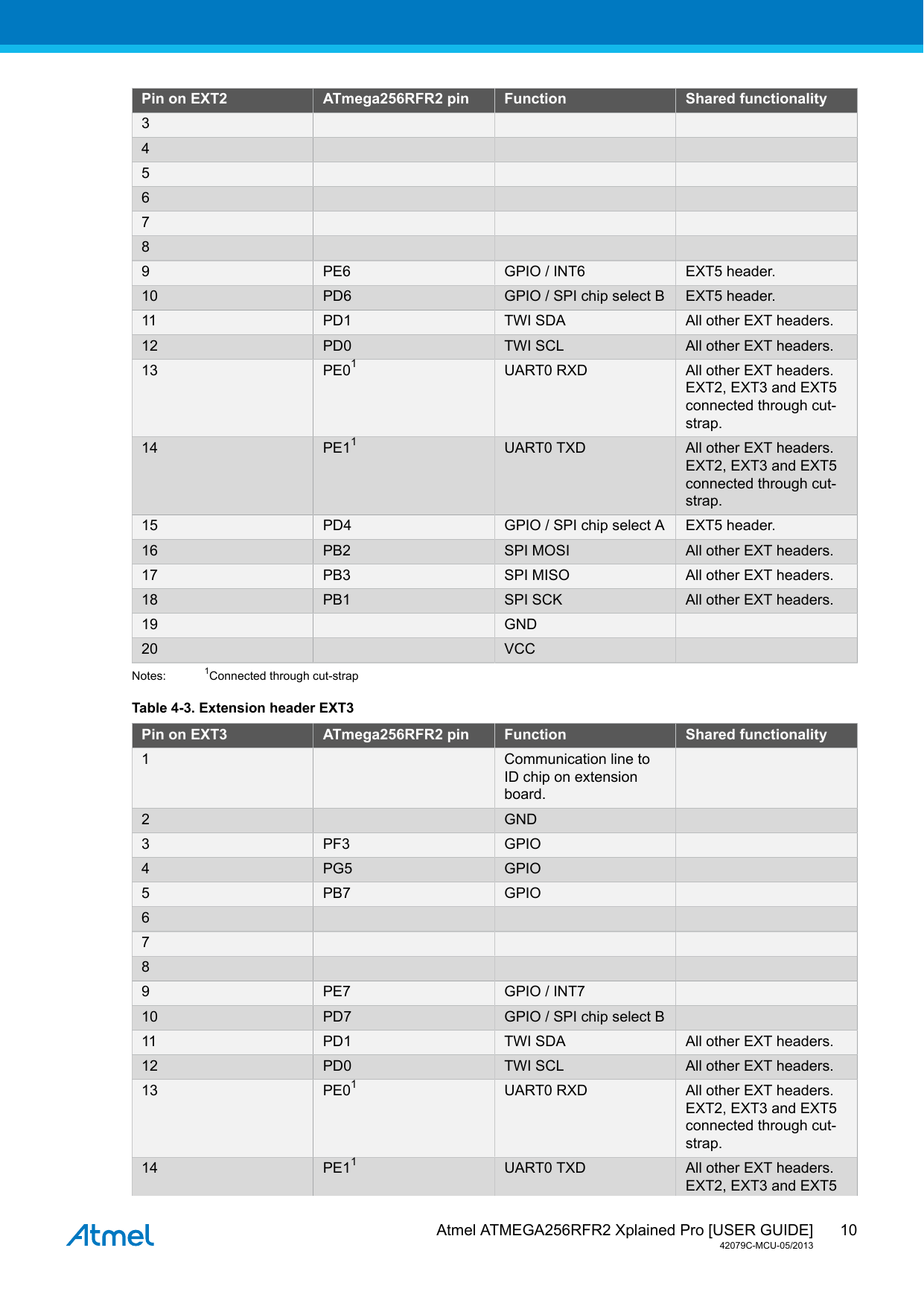

Atmel ATMEGA256RFR2 Xplained Pro [USER GUIDE]42079C-MCU-05/201310Pin on EXT2 ATmega256RFR2 pin Function Shared functionality3 4 5 6 7 8 9 PE6 GPIO / INT6 EXT5 header.10 PD6 GPIO / SPI chip select B EXT5 header.11 PD1 TWI SDA All other EXT headers.12 PD0 TWI SCL All other EXT headers.13 PE01UART0 RXD All other EXT headers.EXT2, EXT3 and EXT5connected through cut-strap.14 PE11UART0 TXD All other EXT headers.EXT2, EXT3 and EXT5connected through cut-strap.15 PD4 GPIO / SPI chip select A EXT5 header.16 PB2 SPI MOSI All other EXT headers.17 PB3 SPI MISO All other EXT headers.18 PB1 SPI SCK All other EXT headers.19 GND 20 VCC Notes: 1Connected through cut-strapTable 4-3. Extension header EXT3Pin on EXT3 ATmega256RFR2 pin Function Shared functionality1 Communication line toID chip on extensionboard. 2 GND 3 PF3 GPIO 4 PG5 GPIO 5 PB7 GPIO 6 7 8 9 PE7 GPIO / INT7 10 PD7 GPIO / SPI chip select B 11 PD1 TWI SDA All other EXT headers.12 PD0 TWI SCL All other EXT headers.13 PE01UART0 RXD All other EXT headers.EXT2, EXT3 and EXT5connected through cut-strap.14 PE11UART0 TXD All other EXT headers.EXT2, EXT3 and EXT5

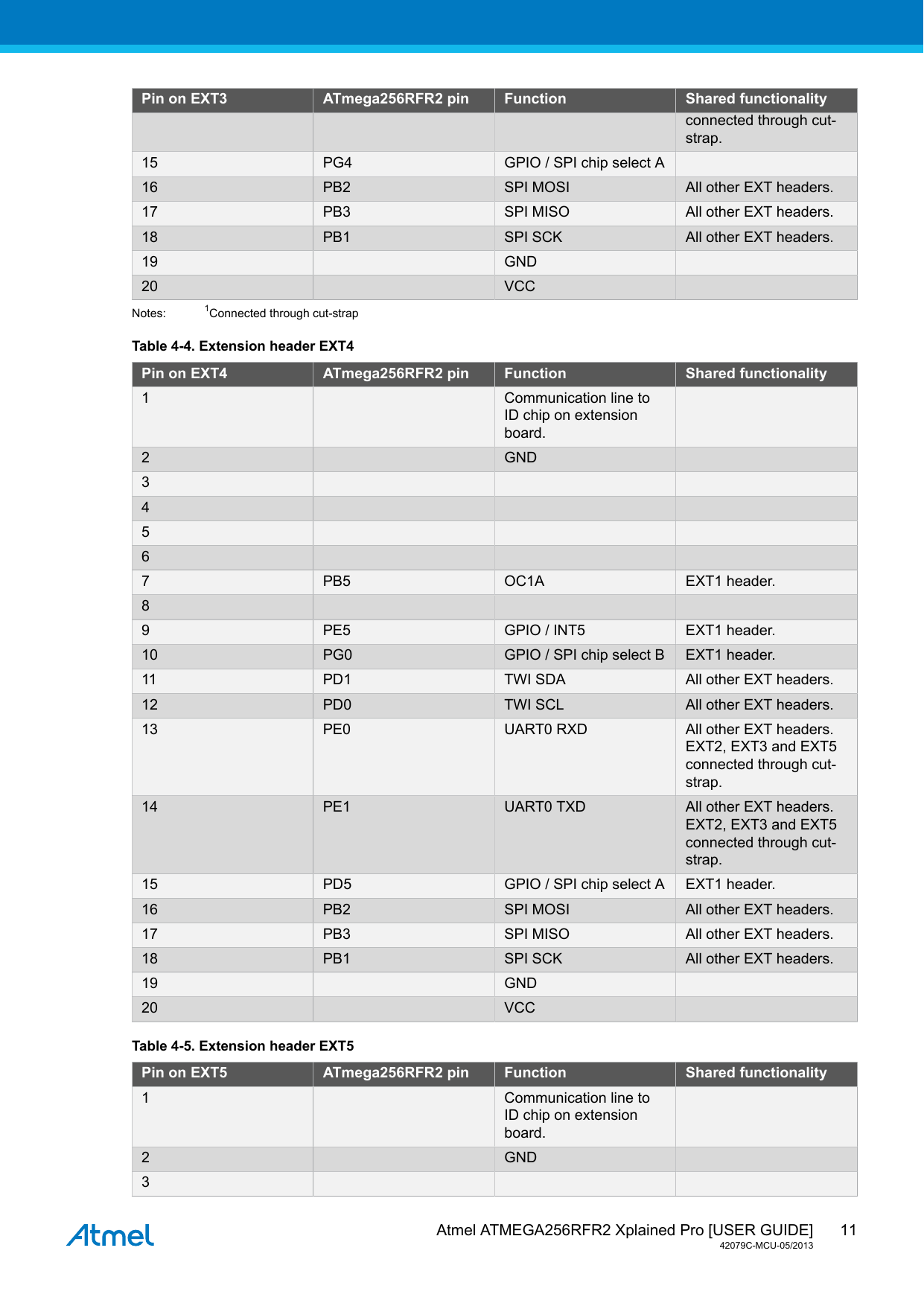

Atmel ATMEGA256RFR2 Xplained Pro [USER GUIDE]42079C-MCU-05/201311Pin on EXT3 ATmega256RFR2 pin Function Shared functionalityconnected through cut-strap.15 PG4 GPIO / SPI chip select A 16 PB2 SPI MOSI All other EXT headers.17 PB3 SPI MISO All other EXT headers.18 PB1 SPI SCK All other EXT headers.19 GND 20 VCC Notes: 1Connected through cut-strapTable 4-4. Extension header EXT4Pin on EXT4 ATmega256RFR2 pin Function Shared functionality1 Communication line toID chip on extensionboard. 2 GND 3 4 5 6 7 PB5 OC1A EXT1 header.8 9 PE5 GPIO / INT5 EXT1 header.10 PG0 GPIO / SPI chip select B EXT1 header.11 PD1 TWI SDA All other EXT headers.12 PD0 TWI SCL All other EXT headers.13 PE0 UART0 RXD All other EXT headers.EXT2, EXT3 and EXT5connected through cut-strap.14 PE1 UART0 TXD All other EXT headers.EXT2, EXT3 and EXT5connected through cut-strap.15 PD5 GPIO / SPI chip select A EXT1 header.16 PB2 SPI MOSI All other EXT headers.17 PB3 SPI MISO All other EXT headers.18 PB1 SPI SCK All other EXT headers.19 GND 20 VCC Table 4-5. Extension header EXT5Pin on EXT5 ATmega256RFR2 pin Function Shared functionality1 Communication line toID chip on extensionboard. 2 GND 3

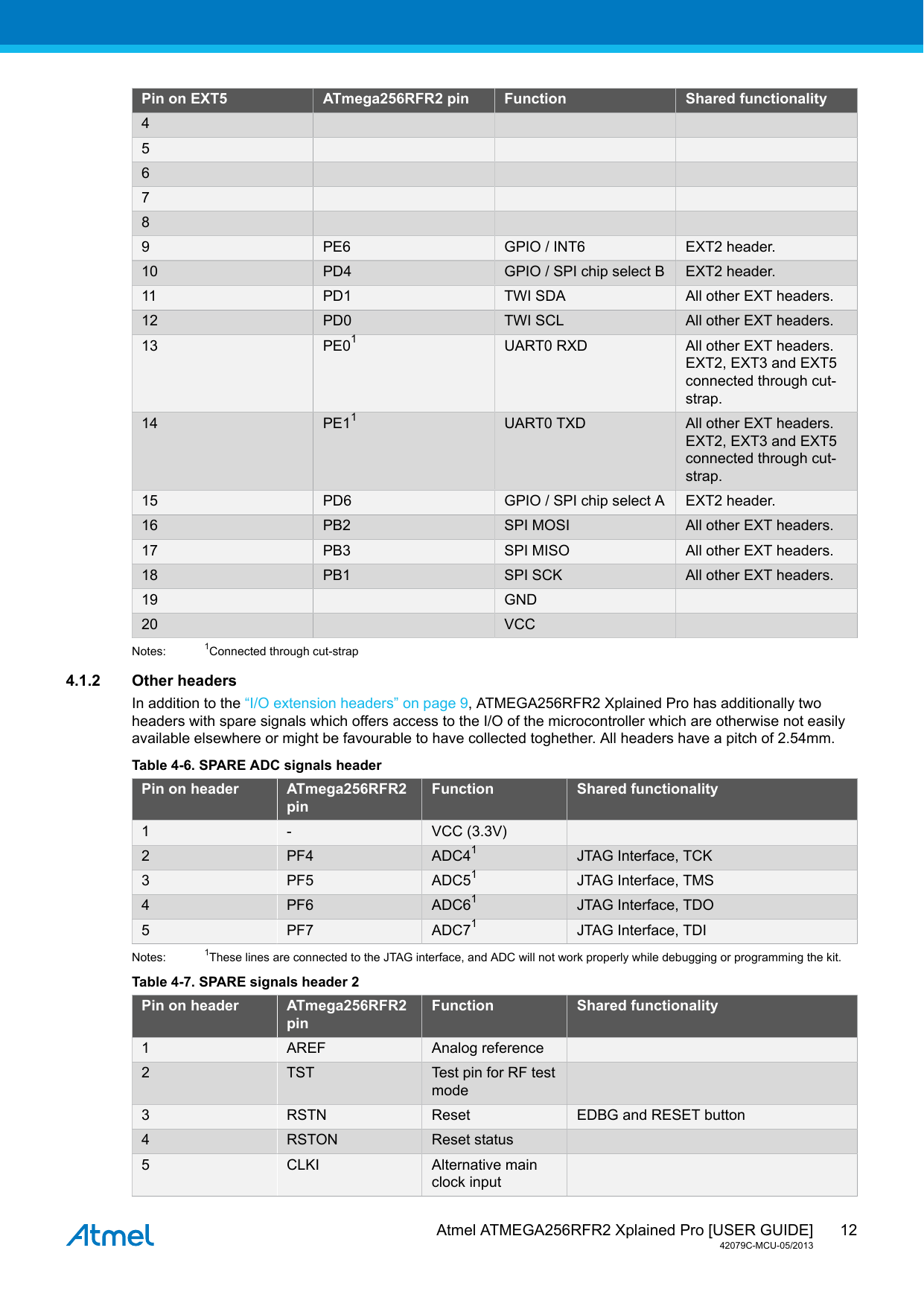

Atmel ATMEGA256RFR2 Xplained Pro [USER GUIDE]42079C-MCU-05/201312Pin on EXT5 ATmega256RFR2 pin Function Shared functionality4 5 6 7 8 9 PE6 GPIO / INT6 EXT2 header.10 PD4 GPIO / SPI chip select B EXT2 header.11 PD1 TWI SDA All other EXT headers.12 PD0 TWI SCL All other EXT headers.13 PE01UART0 RXD All other EXT headers.EXT2, EXT3 and EXT5connected through cut-strap.14 PE11UART0 TXD All other EXT headers.EXT2, EXT3 and EXT5connected through cut-strap.15 PD6 GPIO / SPI chip select A EXT2 header.16 PB2 SPI MOSI All other EXT headers.17 PB3 SPI MISO All other EXT headers.18 PB1 SPI SCK All other EXT headers.19 GND 20 VCC Notes: 1Connected through cut-strap4.1.2 Other headersIn addition to the “I/O extension headers” on page 9, ATMEGA256RFR2 Xplained Pro has additionally twoheaders with spare signals which offers access to the I/O of the microcontroller which are otherwise not easilyavailable elsewhere or might be favourable to have collected toghether. All headers have a pitch of 2.54mm.Table 4-6. SPARE ADC signals headerPin on header ATmega256RFR2pinFunction Shared functionality1 - VCC (3.3V) 2 PF4 ADC41JTAG Interface, TCK3 PF5 ADC51JTAG Interface, TMS4 PF6 ADC61JTAG Interface, TDO5 PF7 ADC71JTAG Interface, TDINotes: 1These lines are connected to the JTAG interface, and ADC will not work properly while debugging or programming the kit.Table 4-7. SPARE signals header 2Pin on header ATmega256RFR2pinFunction Shared functionality1 AREF Analog reference 2 TST Test pin for RF testmode 3 RSTN Reset EDBG and RESET button4 RSTON Reset status 5 CLKI Alternative mainclock input
Atmel ATMEGA256RFR2 Xplained Pro [USER GUIDE]42079C-MCU-05/201313Pin on header ATmega256RFR2pinFunction Shared functionality6 GND 4.2 Peripherals4.2.1 CrystalsThe ATMEGA256RFR2 Xplained Pro kit contains two crystals that can be used as clock sources for theATmega256RFR2 device. Each crystal has a cut-strap next to it that can be used to measure the oscillatorallowance. This is done by cutting the strap and adding a resistor across the strap. More information aboutoscillator allowance and safety factor can be found in appnote AVR41001Table 4-8. External 32.768kHz crystalsPin on ATmega256RFR2 FunctionPG3 TOSC2, crystal outputPG4 TOSC1, crystal inputTable 4-9. External 16MHz crystalsPin on ATmega256RFR2 FunctionXTAL1 Crystal inputXTAL2 Crystal output4.2.2 Mechanical buttonsATMEGA256RFR2 Xplained Pro contains two mechanical buttons. One button is the RESET button connectedto the ATmega256RFR2 reset line and the other is a generic user configurable button. When a button ispressed it will drive the I/O line to GND.Table 4-10. Mechanical buttonsPin on ATmega256RFR2 Silkscreen textRSTN RESETPE4 SW04.2.3 LEDThere is one yellow LED available on the ATMEGA256RFR2 Xplained Pro board that can be turned on and off.The LED can be activated by driving the connected I/O line to GND.Table 4-11. LED connectionsPin on ATmega256RFR2 LEDPB4 Yellow LED4.2.4 RFThe main feature of ATMEGA256RFR2 Xplained Pro is to show the RF capability of the ATmega256RFR2device. This device has bidirectional differential antenna pins, which are fed through a balun (JohansonTechnology, 2450BM15A00152) to create a single unbalanced output/input. This kit has a passive analog RFswitch (Skyworks Solutions Inc, AS222-92LF3) connected to the unbalanced output of the balun. The switchis driven by the DIG1 and DIG2 pins of the ATmega256RFR2 which feature Antenna Diversity to enable thedevice to automatically select the best signal from two antennas (can also be selected manually). The outputof the switch is connected to a ceramic chip antenna (Johanson Technology, 2540AT18D01004) and a SMAconnector for external antennas.1 http://www.atmel.com/images/doc8333.pdf2 http://www.johansontechnology.com/datasheets/balun-filter/2450BM15A0015.pdf3 http://www.skyworksinc.com/uploads/documents/200252C.pdf4 http://www.johansontechnology.com/images/stories/ip/rf-antennas/Antenna_2450AT18D0100_v3.pdf
Atmel ATMEGA256RFR2 Xplained Pro [USER GUIDE]42079C-MCU-05/201314Table 4-12. RF connectionsPin on ATmega256RFR2 RFP RF balanced output (Positive)RFN RF balanced output (Negative)4.2.5 Temperature sensorATMEGA256RFR2 Xplained Pro features an Atmel AT30TSE758 temperature sensor chip with an 8kbitserial EEPROM inside. The sensor includes programmable high and low temperature alarms, user-selectabletemperature resolution up to 12 bits, and an I2C/SMBus™ compatible serial interface.Table 4-13. Temperature sensor connections.AT30TSE758temperaturesensor pinPin name Pin onATmega256RFR2Comment1 SDA PD1 Data line of serial interface2 SCL PD0 Clock line of serial interface3 ALERT NC1Temperature alarm signalling pin4 GND GND 5 A2 - Addres line for serial interface, by default pulled low6 A1 - Addres line for serial interface, by default pulled high7 A0 - Addres line for serial interface, by default pulled high8 VCC VCC Notes: 1Alert pin is available on a testpoint hole close to the sensor.The temperature sensor has two TWI addresses, one for the temperature sensor and one for the EEPROM.The addresses are "0b1001 A2 A1 A0" for the temperature sensor and "0b1010 A2 A1 A0" for the EEPROM.The address selection lines (A2, A1 and A0) of the temperature sensor chip is by default pulled high for A0 andA1 and low for A2, through 100kΩ resistors, which makes the default addresses 0b1001011 and 0b1010011.Soldering the the straps on the front of the ATMEGA256RFR2 Xplained Pro board for An will alter that bit inthe address to low or high. Each strap is marked in silkscreen with A0, A1 and A2 as shown in Figure 4-1,“Temperature sensor TWI address.”. When communicating with the EEPROM, part of the TWI address is usedas a page address, for more details see the device datasheet5.Figure 4-1. Temperature sensor TWI address.4.3 Embedded Debugger implementationThe ATMEGA256RFR2 Xplained Pro contains an Embedded Debugger (EDBG) that can be used toprogram and debug the ATmega256RFR2 using JTAG. The Embedded Debugger also include a Virtual Comport interface over UART, an Atmel Data Gateway Interface over SPI and TWI and it monitors four of theATmega256RFR2 GPIOs. Atmel Studio can be used as a front end for the Embedded Debugger.4.3.1 JTAGThe JTAG use five pins to communicate with the target. For further information on how to use the programmingand debugging capabilities of the EDBG, see “Embedded Debugger” on page 6.5 http://www.atmel.com/Images/doc8751.pdf
Atmel ATMEGA256RFR2 Xplained Pro [USER GUIDE]42079C-MCU-05/201315Table 4-14. JTAG connections.Pin on ATmega256RFR2 FunctionPF4 JTAG TCKPF5 JTAG TMSPF6 JTAG TDOPF7 JTAG TDIRSTN RESET4.3.2 Virtual COM portThe Embedded Debugger act as a Virtual Com Port gateway by using one of the ATmega256RFR2 UARTs.For further information on how to use the Virtual COM port see “Embedded Debugger” on page 6.Table 4-15. Virtual COM port connections.Pin on ATmega256RFR2 FunctionPD2 UART RXD (ATmega256RFR2 RX line)PD3 UART TXD (ATmega256RFR2 TX line)4.3.3 Atmel Data Gateway InterfaceThe Embedded Debugger features an Atmel Data Gateway Interface (DGI) by using either a SPI or TWIport. The DGI can be used to send a variety of data from the ATmega256RFR2 to the host PC. For furtherinformation on how to use the DGI interface see “Embedded Debugger” on page 6.Table 4-16. DGI interface connections when using SPI.Pin on ATmega256RFR2 FunctionPB0 Slave select (ATmega256RFR2 is Master)PB1 SPI SCK (Clock Out)PB2 SPI MOSI (Master Out, Slave in)PB3 SPI MISO (Master In, Slave Out)Table 4-17. DGI interface connections when using TWI.Pin on ATmega256RFR2 FunctionPD0 SCL (Clock line)PD1 SDA (Data line)Four GPIO lines are connected to the Embedded Debugger. The EDBG can monitor these lines and timestamp pin value changes. This makes it possible to accurately time stamp events in the ATmega256RFR2application code. For further information on how to configure and use the GPIO monitoring features see“Embedded Debugger” on page 6.Table 4-18. GPIO lines connected to the EDBG.Pin on ATmega256RFR2 FunctionPE2 GPIO0PE3 GPIO1PE5 GPIO2PE6 GPIO3

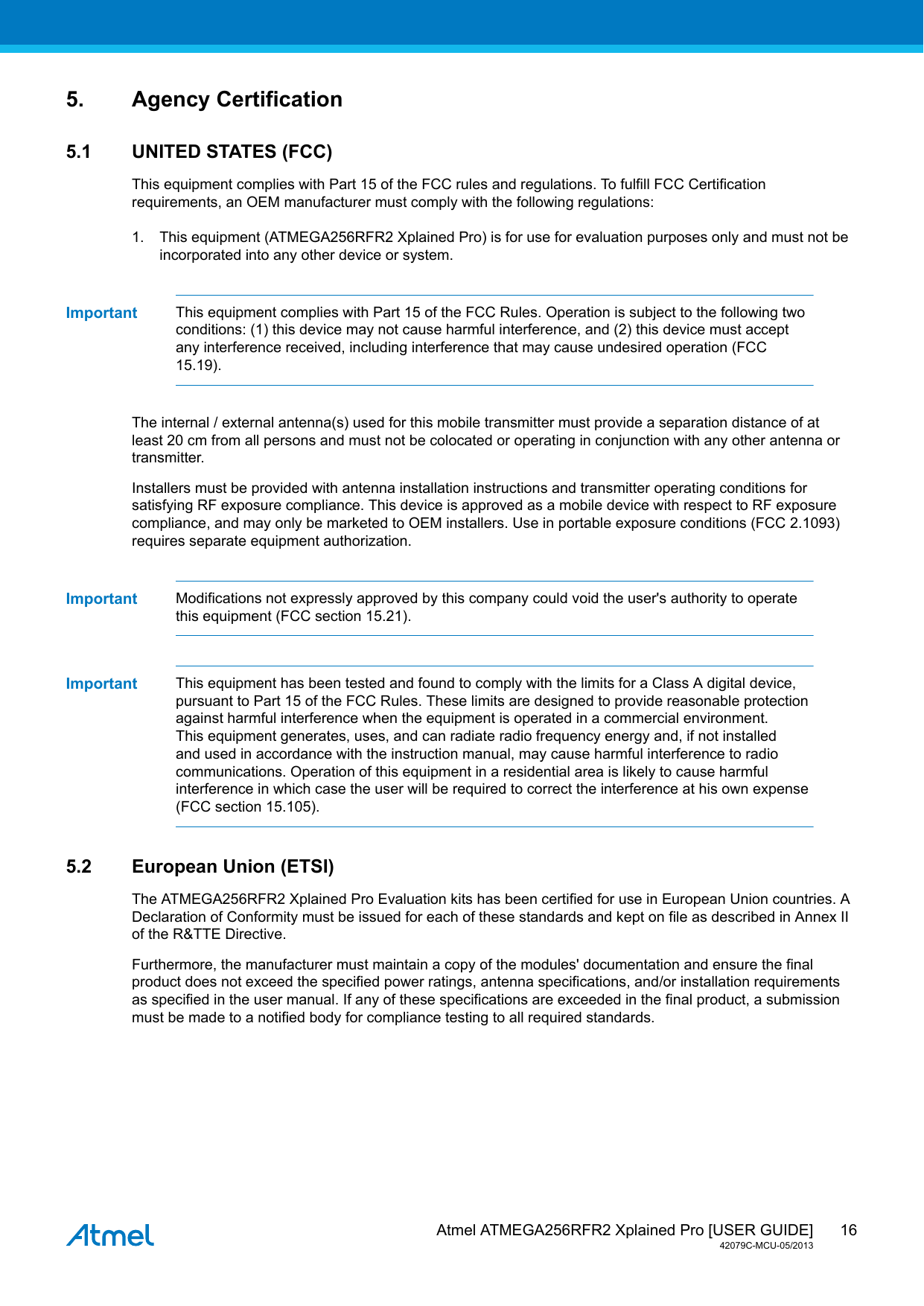

Atmel ATMEGA256RFR2 Xplained Pro [USER GUIDE]42079C-MCU-05/2013165. Agency Certification5.1 UNITED STATES (FCC)This equipment complies with Part 15 of the FCC rules and regulations. To fulfill FCC Certificationrequirements, an OEM manufacturer must comply with the following regulations:1. This equipment (ATMEGA256RFR2 Xplained Pro) is for use for evaluation purposes only and must not beincorporated into any other device or system.Important This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) this device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation (FCC15.19).The internal / external antenna(s) used for this mobile transmitter must provide a separation distance of atleast 20 cm from all persons and must not be colocated or operating in conjunction with any other antenna ortransmitter.Installers must be provided with antenna installation instructions and transmitter operating conditions forsatisfying RF exposure compliance. This device is approved as a mobile device with respect to RF exposurecompliance, and may only be marketed to OEM installers. Use in portable exposure conditions (FCC 2.1093)requires separate equipment authorization.Important Modifications not expressly approved by this company could void the user's authority to operatethis equipment (FCC section 15.21).Important This equipment has been tested and found to comply with the limits for a Class A digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference when the equipment is operated in a commercial environment.This equipment generates, uses, and can radiate radio frequency energy and, if not installedand used in accordance with the instruction manual, may cause harmful interference to radiocommunications. Operation of this equipment in a residential area is likely to cause harmfulinterference in which case the user will be required to correct the interference at his own expense(FCC section 15.105).5.2 European Union (ETSI)The ATMEGA256RFR2 Xplained Pro Evaluation kits has been certified for use in European Union countries. ADeclaration of Conformity must be issued for each of these standards and kept on file as described in Annex IIof the R&TTE Directive.Furthermore, the manufacturer must maintain a copy of the modules' documentation and ensure the finalproduct does not exceed the specified power ratings, antenna specifications, and/or installation requirementsas specified in the user manual. If any of these specifications are exceeded in the final product, a submissionmust be made to a notified body for compliance testing to all required standards.
Atmel ATMEGA256RFR2 Xplained Pro [USER GUIDE]42079C-MCU-05/201317Important The 'CE' marking must be affixed to a visible location on the OEM product. The CE mark shallconsist of the initials "CE" taking the following form:●The CE marking must have a height of at least 5mm except where this is not possible onaccount of the nature of the apparatus.●The CE marking must be affixed visibly, legibly, and indelibly.More detailed information about CE marking requirements you can find at "DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL" on 9 March 1999 at section 12.5.3 List of Antennae tested with this product:Table 5-1. List of tested AntennaeAntenna Number Make Model/Part # Antenna Gain(dBi)Type of AntennaAntenna 1 JohansonTechnology2450AT18D0100 1.5dBi Ceramic AntennaAntenna 2 Techfun Co., Ltd M01-SS2 0dBi External Antenna
Atmel ATMEGA256RFR2 Xplained Pro [USER GUIDE]42079C-MCU-05/2013186. Hardware revision history and known issues6.1 Identifying product ID and revisionThe revision and product identifier of Xplained Pro boards can be found in two ways, through Atmel Studio orby looking at the sticker on the bottom side of the PCB.By connecting a Xplained Pro MCU board to a computer with Atmel Studio running, an information window willpop up. The first 6 digits of the serial number, which is listed under kit details, contain the product identifier andrevision. Information about connected Xplained Pro extension boards will also appear in the Atmel Kits window.The same information can be found on the sticker on the bottom side of the PCB. Most kits will print theidentifier and revision in plain text as A09-nnnn\rr where nnnn is the identifier and rr is the revision. Boards withlimited space have a sticker with only a QR-code which contains a serial number string.The serial number string has the following format: "nnnnrrssssssssss" n = product identifier r = revision s = serial number The kit identifier for ATMEGA256RFR2 Xplained Pro is 1784.6.2 Revision 3Revision 3 of ATMEGA256RFR2 Xplained Pro is the initial released version.Known issues●The low and high byte of the 16-bit CRC value of the information in the user page might be swapped onserial numbers prior to 1885.Workaround: If it is neccssary to use the CRC value to verify the data in the user page, compare thecalculated value with both the swapped and non-swapped version of the CRC value present in the userpage.
Atmel ATMEGA256RFR2 Xplained Pro [USER GUIDE]42079C-MCU-05/2013197. Document revision historyDoc. Rev. Date CommentC 21.05.2013 Added chapter 5.3: "Antennae tested with this product"B 24.04.2013 Added Agency Certification chapterA 25.02.2013 First release
Atmel ATMEGA256RFR2 Xplained Pro [USER GUIDE]42079C-MCU-05/2013208. Evaluation board/kit important noticeThis evaluation board/kit is intended for use for FURTHER ENGINEERING, DEVELOPMENT,DEMONSTRATION, OR EVALUATION PURPOSES ONLY. It is not a finished product and may not (yet)comply with some or any technical or legal requirements that are applicable to finished products, including,without limitation, directives regarding electromagnetic compatibility, recycling (WEEE), FCC, CE or UL(except as may be otherwise noted on the board/kit). Atmel supplied this board/kit "AS IS," without anywarranties, with all faults, at the buyer's and further users' sole risk. The user assumes all responsibilityand liability for proper and safe handling of the goods. Further, the user indemnifies Atmel from all claimsarising from the handling or use of the goods. Due to the open construction of the product, it is the user'sresponsibility to take any and all appropriate precautions with regard to electrostatic discharge and any othertechnical or legal concerns.EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH ABOVE, NEITHER USER NORATMEL SHALL BE LIABLE TO EACH OTHER FOR ANY INDIRECT, SPECIAL, INCIDENTAL, ORCONSEQUENTIAL DAMAGES.No license is granted under any patent right or other intellectual property right of Atmel covering or relatingto any machine, process, or combination in which such Atmel products or services might be or are used.Mailing Address: Atmel Corporation1600 Technology DriveSan Jose, CA 95110USA
Atmel Corporation 1600 Technology Drive, San Jose, CA 95110 USA T: (+1)(408) 441.0311 F: (+1)(408) 436.4200 | www.atmel.com© 2013 Atmel Corporation. All rights reserved. / Rev.: 42079C-MCU-05/2013Atmel®, Atmel logo and combinations thereof, Enabling Unlimited Possibilities®, AVR, and others are registered trademarks or trademarks of AtmelCorporation or its subsidiaries. Windows is a registered trademark of Microsoft Corporation in U.S. and or other countries. Other terms and productnames may be trademarks of others.Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is grantedby this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL TERMS AND CONDITIONS OF SALES LOCATED ON THE ATMEL WEBSITE,ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOTLIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FORANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS AND PROFITS, BUSINESSINTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OFSUCH DAMAGES. Atmel makes no representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes tospecifications and products descriptions at any time without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically provided otherwise,Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel products are not intended, authorized, or warranted for use as components in applications intendedto support or sustain life.
