Revision 0.3 5/2016

60001372

age

BM64 Regulatory Compliance Information

BM64 Class 2 Regulatory Compliance Information

Revision 0.3

May’ 2016

BM64 Regulatory Compliance Information

rel

mina

Revision 0.3 5/2016

60001372

age

This document covers the Regulatory Compliance information which is part of the

BM64 Module datasheet and related documents shared with customers.

rel

mina

Revision 0.3 5/2016

60001372

age

BM64 Regulatory Compliance Information

1.0 ANTENNA

1.1 Antenna Characteristics

1.1.1 PCB ANTENNA

The BM64 module contains an integral PCB antenna.

The Figure 1-1 illustrates the antenna performance of the module.

FIGURE 1-1: BM64 ANTENNA RADIATION PATTERN

BM64 Regulatory Compliance Information

rel

mina

Revision 0.3 5/2016

60001372

age

APPENDIX A: CERTIFICATION

NOTICES

BM64 module regulatory approval status:

• BT SIG/QDID: in Progress

• United States/FCC ID: A8TBM64S2 (in Progress)

• Canada/IC ID: 12246A-BM64S2 (in Progress)

HVIN: BM64SPKS1MC2

• Europe/CE: in Progress

• Japan/MIC: in Progress

• Korea/KCC: in Progress

• Taiwan/NCC No: in Progress

• China/SRRC: in Progress

A.1

REGULATORY APPROVAL

This section outlines the regulatory information for the

BM64 module for the following countries:

• United States

• Canada

• Europe

• Japan

• Korea

• Taiwan

• China

A.1.1

UNITED STATES

The BM64 module has received Federal

Communications Commission (FCC) CFR47 Telecom-

munications, Part 15 Subpart C "Intentional Radiators"

modular approval in accordance with Part 15.212 Mod-

ular Transmitter approval. Modular approval allows the

end user to integrate the BM64 module into a finished

product without obtaining subsequent and separate

FCC approvals for intentional radiation, provided no

changes or modifications are made to the module cir-

cuitry. Changes or modifications could void the user's

authority to operate the equipment. The end user must

comply with all of the instructions provided by the

Grantee, which indicate installation and/or operating

conditions necessary for compliance.

The finished product is required to comply with all appli-

cable FCC equipment authorizations regulations,

requirements and equipment functions not associated

with the transmitter module portion. For example, com-

pliance must be demonstrated to regulations for other

transmitter components within the host product; to

requirements for unintentional radiators (Part 15 Sub-

part B "Unintentional Radiators"), such as digital

devices, computer peripherals, radio receivers, etc.;

and to additional authorization requirements for the

non-transmitter functions on the transmitter module

(i.e., Verification, or Declaration of Conformity) (e.g.,

transmitter modules may also contain digital logic func-

tions) as appropriate.

A.1.2

LABELING AND USER

INFORMATION REQUIREMENTS

The BM64 module has been labeled with its own FCC

ID number, and if the FCC ID is not visible when the

module is installed inside another device, then the out-

side of the finished product into which the module is

installed must also display a label referring to the

enclosed module. This exterior label can use wording

as follows:

Contains Transmitter Module FCC ID:

A8TBM64S2

Contains FCC ID: A8TBM64S2

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference,

and (2) this device must accept any interference

received, including interference that may cause

undesired operation

A user's manual for the finished product should include

the following statement:

Additional information on labeling and user information

requirements for Part 15 devices can be found in KDB

Publication 784748 available at the FCC Office of Engi-

Note: This device has no been au orized as

required by the rules of the ederal Com-

munications Commission This device is

no and may not be, offered or sale or

leas or sold or leased, until au orization

is obtained

is equipment has been tested and found o comply

wi he limi for a Class B digi l device pursuan o

pa 15 of the FCC Rule These limi s are designed

provide reasonable protection agains ha ul

in erence in a residential ins allation. his equip-

ment generate uses and can radiate radio fre-

quency energy and if no ins alled and used in

accordance wi h he in ru ions may cause harmful

in erence to radio communic ions However

ere is no guaran ee hat in nce will not occur

in a par icular in lla ion his equipmen does

cause harmful in nce to radio or television

recep io which can be determined by urning the

equipment of and on, the user is encouraged to ry to

corre the in erence by one or more o the follow-

ing measures

• Reorien or reloca e he receiving an enn

• ncrease the separation between he equipment

and receiver

• Connec he equipmen in an outlet on a circui

di eren from hat which the receiver is con-

ne ed.

• Consult he dealer or an experienced radio

chnician for help.

rel

mina

Revision 0.3 5/2016

60001372

age

BM64 Regulatory Compliance Information

neering and Technology (OET) Laboratory Division

Knowledge Database (KDB)

http://apps.fcc.gov/oetcf/kdb/index.cfm.

A.1.3

RF EXPOSURE

All transmitters regulated by FCC must comply with RF

exposure requirements. KDB 447498 General RF

Exposure Guidance provides guidance in determining

whether proposed or existing transmitting facilities,

operations or devices comply with limits for human

exposure to Radio Frequency (RF) fields adopted by

the Federal Communications Commission (FCC).

From the FCC Grant: Output power listed is conducted.

This grant is valid only when the module is sold to OEM

integrators and must be installed by the OEM or OEM

integrators. This transmitter is restricted for use with

the specific antenna(s) tested in this application for

Certification and must not be co-located or operating in

conjunction with any other antenna or transmitters

within a host device, except in accordance with FCC

multi-transmitter product procedures.

A.1.4

HELPFUL WEB SITES

Federal Communications Commission (FCC):

http://www.fcc.gov

FCC Office of Engineering and Technology (OET) Lab-

oratory Division Knowledge Database (KDB):

http://apps.fcc.gov/oetcf/kdb/index.cfm

A.2

Canada

The BM64 module has been certified for use in

Canada under Industry Canada (IC) Radio Standards

Procedure (RSP) RSP-100, Radio Standards

Specification (RSS) RSS-Gen and RSS-247. Modular

approval permits the installation of a module in a host

device without the need to recertify the device.

A.2.1

LABELING AND USER

INFORMATION REQUIREMENTS

Labeling Requirements for the Host Device (from Sec-

tion 3.1, RSS-Gen, Issue 4, November 2014): The host

device shall be properly labeled to identify the module

within the host device.

The Industry Canada certification label of a module

shall be clearly visible at all times when installed in the

host device, otherwise the host device must be labeled

to display the Industry Canada certification number of

the module, preceded by the words "Contains transmit-

ter module", or the word "Contains", or similar wording

expressing the same meaning, as follows:

User Manual Notice for License-Exempt Radio Appara-

tus (from Section 8.4, RSS-Gen, Issue 4, November

2014): User manuals for license-exempt radio appara-

tus shall contain the following or equivalent notice in a

conspicuous location in the user manual or alterna-

tively on the device or both:

Transmitter Antenna (from Section 8.3, RSS-Gen,

Issue 4, November 2014): User manuals for transmit-

ters shall display the following notice in a conspicuous

location:

Under Industry Canada regulations, this radio trans-

mitter may only operate using an antenna of a type

and maximum (or lesser) gain approved for the trans-

mitter by Industry Canada. To reduce potential radio

interference to other users, the antenna type and its

gain should be so chosen that the equivalent isotrop-

ically radiated power (e.i.r.p.) is not more than that

necessary for successful communication.

Conformément à la réglementation d'Industrie Can-

ada, le présent émetteur radio peut fonctionner avec

une antenne d'un type et d'un gain maximal (ou

inférieur) approuvé pour l'émetteur par Industrie Can-

ada. Dans le but de réduire les risques de brouillage

radioélectrique à l'intention des autres utilisateurs, il

faut choisir le type d'antenne et son gain de sorte que

la puissance isotrope rayonnée équivalente (p.i.r.e.)

ne dépasse pas l'intensité nécessaire à l'établisse-

ment d'une communication satisfaisante.

The above notice may be affixed to the device instead

of displayed in the user manual.

Co ains transmitter module

is device complies wi ndu Canada

license-exem R andard(s) pera ion is sub-

je to the ollowing two condi ions (1) this device

may not cause interferenc and (2) this device mu

accept any interference including in nce h

ay cause undesired operation o the device

Le présen appareil es con orme aux CNR d dus-

trie Canada applicables aux appareils radio exemp s

de licence L'exploi ation es autorisée aux deux con-

ditions suivant (1) l appareil ne doit pas produire

de brouillage, (2) l'utilisateur de l appareil doit

accepter out brouillage radioélec rique subi même

si le brouillage es susceptible d'en comprome re le

nctionneme

BM64 Regulatory Compliance Information

rel

mina

Revision 0.3 5/2016

60001372

age

A.2.2

RF EXPOSURE

All transmitters regulated by IC must comply with RF

exposure requirements listed in RSS-102 - Radio Fre-

quency (RF) Exposure Compliance of Radio communi-

cation Apparatus (All Frequency Bands).

A.2.3

HELPFUL WEB SITES

Industry Canada: http://www.ic.gc.ca/

A.3

Europe

The BM64 module is in progress to be an R&TTE

Directive assessed radio module that is CE marked

and has been manufactured and tested with the inten-

tion of being integrated into a final product.

The BM64 module has been tested to R&TTE Directive

1999/5/EC Essential Requirements for Health and

Safety (Article (3.1(a)), Electromagnetic Compatibility

(EMC) (Article 3.1(b)), and Radio (Article 3.2) and are

summarized in Table A-1. A Notified Body Opinion

has also been issued.

The R&TTE Compliance Association provides guid-

ance on modular devices in “Technical Guidance Note

01” document available for download from the following

location: http://www.rtteca.com/html/down-

load_area.htm.

A.3.1

LABELING AND USER

INFORMATION REQUIREMENTS

The label on the final product which contains the BM64

module must follow CE marking requirements. The

R&TTE Compliance Association Technical Guidance

Note 01 provides guidance on final product CE mark-

ing.

A.3.2

ANTENNA REQUIREMENTS

From R&TTE Compliance Association document Tech-

nical Guidance Note 01.

Provided the integrator installing an assessed

radio module with an integral or specific antenna

and installed in conformance with the radio mod-

ule manufacturer's installation instructions

requires no further evaluation.Under Article 3.2

of the R&TTE Directive and does not require fur-

ther involvement of an R&TTE Directive Notified

Body for the final product. [Section 2.2.4]

The European Compliance Testing listed in Table A-1

was performed using the integral ceramic chip

antenna.

Note: o main ain conformance to the testing

li ed in Table A-1 European Compliance

es ing the module shall be ins alled in

accordance wi the in allation in

ons in this data sheet and shall no be

modified

When integra ing a radio module into a

comple ed produc he in grator

becomes the manuf urer of the final

produ and is therefore responsible for

demons ng compliance of the final

produ wi h the essen ial requirements of

the R&TTE Direc ive

rel

mina

Revision 0.3 5/2016

60001372

age

BM64 Regulatory Compliance Information

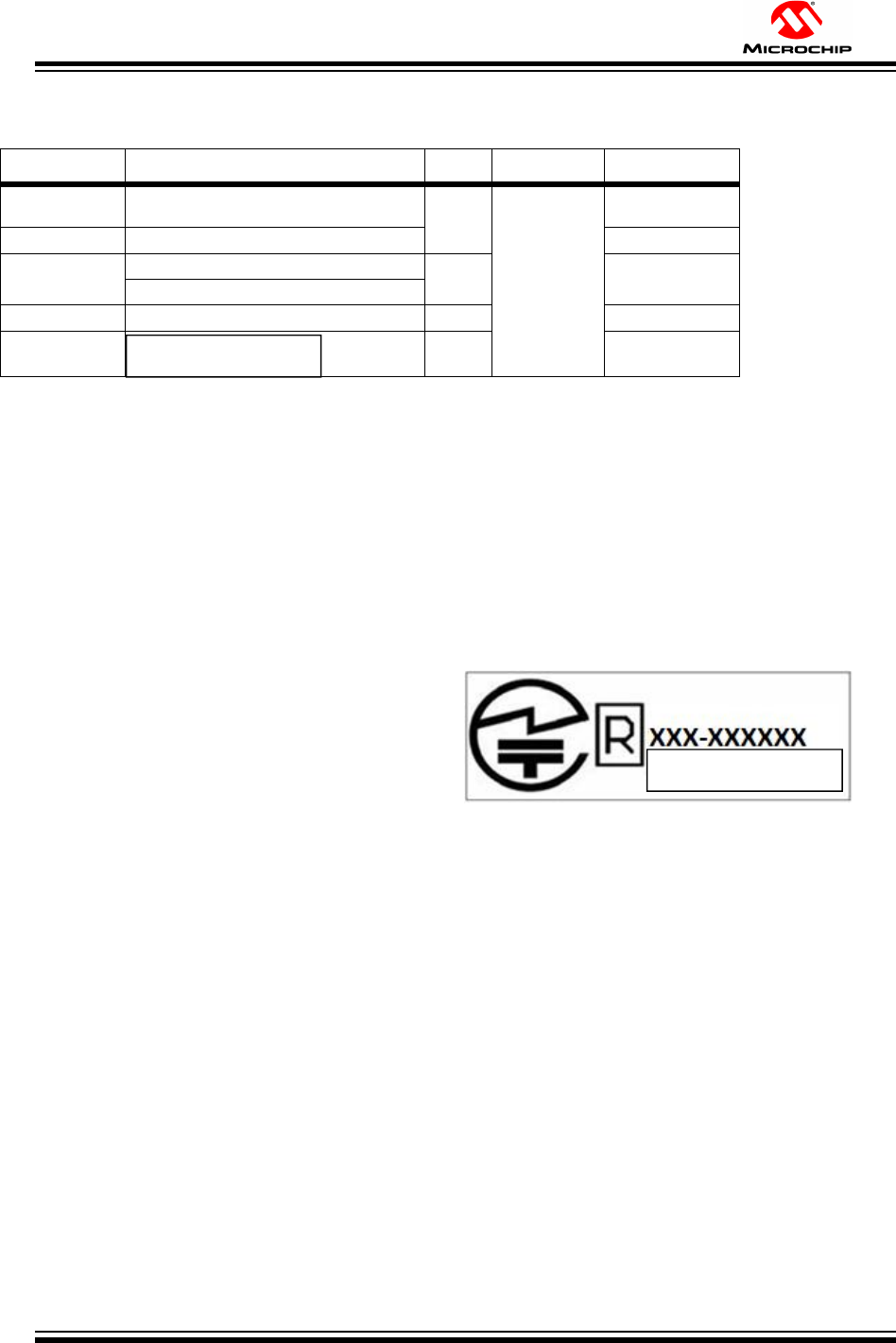

TABLE A-1: EUROPEAN COMPLIANCE TESTING

Certification

Standards Article

Laboratory

Report Number

Safety

EN60950-1:2006/A11:2010/A1:2010/

A12:2011/A2:2013

3(1)(a)

TUV

Rheinland

xxxxxxxx xxx

Health

479:2010

xxxxxxxx xxx

EMC

EN301489

V1.9.2

3(1)(b)

xxxxxxxx xxx

EN301489

V2.2.1

Radio

EN300328

V1.9.1

3(2)

xxxxxxxx xxx

Notified

Body

A.3.3

HELPFUL WEB SITES

A document that can be used as a starting point in

understanding the use of Short Range Devices (SRD)

in Europe is the European Radio Communications

Committee (ERC) Recommendation 70-03 E, which

can be downloaded from the European Radio Commu-

nications Office (ERO) at: http://www.ero.dk/. Addi-

tional helpful web sites are:

• Radio and Telecommunications Terminal Equip-

ment (R&TTE):

http://ec.europa.eu/enterprise/rtte/index_en.htm

• European Conference of Postal and Telecommu-

nications Administrations (CEPT):

http://www.cept.org

• European Telecommunications Standards Insti-

tute (ETSI):

http://www.etsi.org

• European Radio Communications Office (ERO):

http://www.ero.dk

• The Radio and Telecommunications Terminal

Equipment Compliance Association (R&TTE CA):

http://www.rtteca.com

A.4

Japan

The BM64 module has received type certification and

is labeled with its own technical conformity mark and

certification number as required to conform to the tech-

nical standards regulated by the Ministry of Internal

Affairs and Communications (MIC) of Japan pursuant

to the Radio Act of Japan.

Integration of this module into a final product does not

require additional radio certification provided installa-

tion instructions are followed and no modifications of

the module are allowed. Additional testing may be

required:

• If the host product is subject to electrical appli-

ance safety (for example, powered from an AC

mains), the host product may require Product

Safety Electrical Appliance and Material (PSE)

testing. The integrator should contact their confor-

mance laboratory to determine if this testing is

required.

• There is an voluntary Electromagnetic Compatibil-

ity (EMC) test for the host product administered

by VCCI: http://www.vcci.jp/vcci_e/index.html

A.4.1

LABELING AND USER

INFORMATION REQUIREMENTS

The label on the final product which contains the BM64

module must follow Japan marking requirements. The

integrator of the module should refer to the labeling

requirements for Japan available at the Ministry of

Internal Affairs and Communications (MIC) website.

The BM64 module is labeled with its own technical con-

formity mark and certification number.

A.4.2

HELPFUL WEB SITES

Ministry of Internal Affairs and Communications (MIC):

http://www.tele.soumu.go.jp/e/index.htm

Association of Radio Industries and Businesses

(ARIB): http://www.arib.or.jp/english/

A.5

Korea

The BM64 module has received certification of confor-

mity in accordance with the Radio Waves Act. Integra-

tion of this module into a final product does not require

additional radio certification provided installation

instructions are followed and no modifications of the

module are allowed.

‘Pending’

BM64 Regulatory Compliance Information

rel

mina

Revision 0.3 5/2016

60001372

age

A.5.1

LABELING AND USER

INFORMATION REQUIREMENTS

The label on the final product which contains the BM64

module must follow KC marking requirements. The

integrator of the module should refer to the labeling

requirements for Korea available on the Korea Com-

munications Commission (KCC) website.

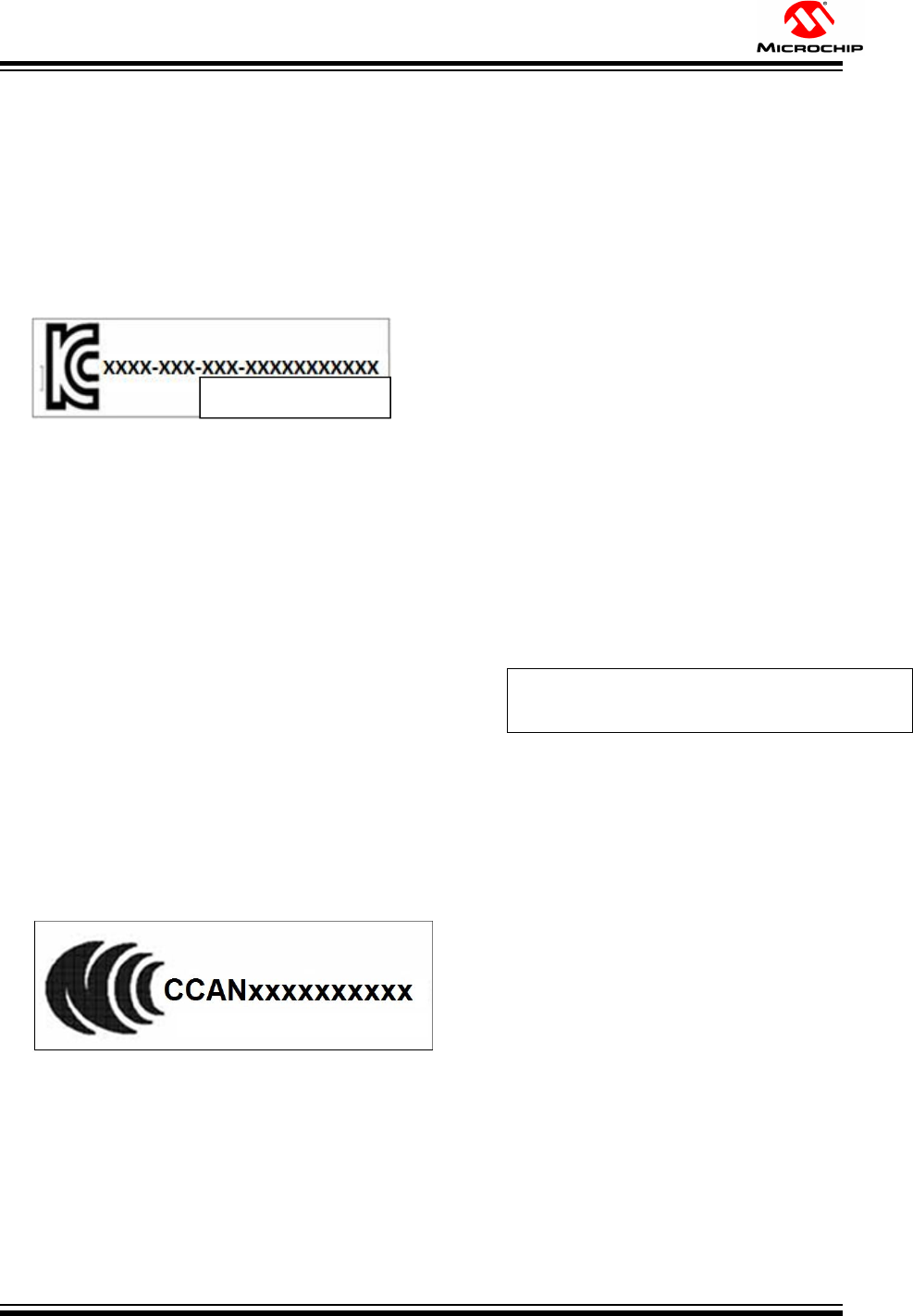

The BM64 module is labeled with its own KC mark. The

final product requires the KC mark and certificate num-

ber of the module:

A.5.2

HELPFUL WEB SITES

Korea Communications Commission (KCC):

http://www.kcc.go.kr

National Radio Research Agency (RRA):

http://rra.go.kr

A.6

Taiwan

The BM64 module has received compliance approval

in accordance with the Telecommunications Act..

Customers seeking to use the compliance approval in

their product should contact Microchip Technology

sales or distribution partners to obtain a Letter of

Authority.

Integration of this module into a final product does not

require additional radio certification provided installa-

tion instructions are followed and no modifications of

the module are allowed.

A.6.1

LABELING AND USER

INFORMATION REQUIREMENTS

The BM64 module is labeled with its own NCC mark

and certificate number as below:

The user's manual should contain below warning (for

RF device) in traditional Chinese:

注意 !

依據低功率電波輻射性電機管理辦法

第十二條經型式認證合格之低功率射頻電機，非經許

可，

公司、商號或使用者均不得擅自變更頻率、加大功率或

變更原設計

之特性及功能。

第十四條低功率射頻電機之使用不得影響飛航安全及

干擾合法通信；

經發現有干擾現象時，應立即停用，並改善至無干擾時

方得繼續使用。

前項合法通信，指依電信規定作業之無線電信。

低功率射頻電機須忍受合法通信或工業、科學及醫療用

電波輻射性

電機設備之干擾。

A.6.2

HELPFUL WEB SITES

National Communications Commission (NCC):

http://www.ncc.gov.tw

A.7 China

The BM64 module has received certification of conformity

in accordance with the China MIIT Notice 2014-01 of

State Radio Regulation Committee (SRRC) certification

scheme. Integration of this module into a final product

does not require additional radio certification, provided

installation instructions are followed and no modifications

of the module are allowed.

A.7.1 LABELING AND USER INFORMATION

REQUIREMENTS

The BM64 module is labeled with its own CMIIT ID as

follows:

When Host system is using an approved Full Modular

Approval (FMA) radio: The host should bear a label

containing the statement “This device contains SRRC

approved Radio module CMIIT ID XXXXYYZZZZ”.

A.8 A.8 Other Regulatory Jurisdictions

Should other regulatory jurisdiction certification be

required by the customer, or the customer need to

recertify the module for other reasons, contact

Microchip for the required utilities and documentation.

CMIIT ID:

XXXXYYZZZZ

‘Pending’
